Samsung PMSMA, P4SMA User Manual

Cassette Type Series

Slim 1 Way cassette
2 Way cassette
4 Way/ mini 4 Way cassette

Air Conditioner

user manual

IFSE P

Ne

imagine the possibilities

Thank you for purchasing this Samsung product.
To receive more complete service, please
register your product at

www.samsung.com/register

RGD

HuPo

DB98-29823A(13)

features of your new
air conditioner

• Cool Summer Offer

On those hot sweltering summer days and long restless nights, there is no better escape
from the heat than the cool comforts of home. Your new air conditioner brings an end to
exhausting hot summer days and lets you rest. This summer, beat the heat with your own
air conditioner.

• Cost Efficient System

Your new air conditioner not only provides maximum cooling power in the summer, but can
also be an efficient heating method in the winter with the advanced “Heat pump” system.
This technology is up to 300% more efficient than electrical heating, so you can further
reduce its running cost. Now, meet year-round needs with one air conditioner.

• A Look for Everywhere

The elegant and harmonious design gives priority to the esthetics of your space and
complements any of your existing interior décor. With its soft color and rounded-edge shape,
the new air conditioner adds class to any room. Enjoy what your air conditioner offers both
functionally and esthetically.

• Compact and easy-to-use Cassette type

Designed to be installed into most types of suspended ceiling, the cassette type air
conditioner is ideal for business and commercial accommodations. Fresh cool/warm air
can be provided through the controllable 1, 2 or 4 sides of the unit. All functions of the air
conditioner will be controlled easily via a remote control.

For easy future reference write the model and serial number
down. You will find your model number on the right side of
the air conditioner.

Model #
Serial #

02_ features

safety information

To prevent electric shock, disconnect the power before servicing, cleaning, and installing the unit.

SAFETY INFORMATION

Before using your new air conditioner, please read this manual thoroughly to ensure that you know how to
safely and efficiently operate the extensive features and functions of your new appliance.

Because the following operating instructions cover various models, the characteristics of your air
conditioner may differ slightly from those described in this manual. If you have questions, call your nearest
contact center or find help and information online at www.samsung.com.

What the icons and signs in this user manual mean:

ENGLISH

WARNING

Risk of death or serious personal injury.

CAUTION

Potential risk of personal injury or material damage.

To reduce the risk of fire, explosion, electric shock, or personal injury when

CAUTION

These warning signs are here to prevent injury to you and others.
Please follow them carefully.
After reading this section, keep it in a safe place for future reference.

using your air conditioner, follow these basic safety instructions:

Do NOT attempt.

Do NOT disassemble.

Do NOT touch.

Follow directions carefully.

Unplug the power plug from the wall socket.

Make sure the machine is grounded to prevent electric shock.

Call the contact center for help.

Recommended instructions or useful information for use.

SEVERE WARNING SIGNS

WARNING

Do not place the air conditioner near hazardous substances or equipment that
releases free flames to avoid fire, explosions or injuries.

• Potential risk of fire hazard or explosion.

Do not block or place items in front of the air conditioner. Do not step, hang onto, or
place heavy items on the air conditioner.

• Potential risk of personal injury.

Do not install the outdoor unit at an unstable place or elevated surface where there is
potential risk of falling.

• If the outdoor unit falls, it may cause personal injury or loss or property.

Any changes or modifications performed not following by the installation manual,
failure or damage may occur on the condition. In this case, user will be responsible for
all the repair expenses.

safety information _03

safety information

SEVERE WARNING SIGNS

WARNING

If any gas or impurities other than R410A refrigerant come into the refrigerant pipe,
serious problem may occur and it may cause injury.

Do not spray flammable gases such as insecticide near the air conditioner.

• Potential risk of electric shock, fire or unit malfunction.

Do not insert anything such as fingers or branches into the air conditioner vents.

• Keep children away from the air conditioner. Potential risk of personal injury.

Do not cut the power plug and connect to a different power cable.

Never attempt to lengthen the power cable.

• Potential risk of fire or electric shock.

Do not yank the power cable and touch the power plug with hands.

• Potential risk of fire or electric shock.

Never use a damaged power plug, power cable, or loosened power receptacle.

• Potential risk of fire or electric shock.

The electric work must be done by qualified service technician in accordance with the
national wiring regulations with rated cables.

• If the capacity of the power cable is insufficient or electric work have not done properly, electric
shock or fire may occur.

You should connect the power cable into the power cable terminal and fasten it with a
clamp.

Do not connect the air conditioner with heating apparatus or attempt to disassemble,
remodel or repair it by yourself.

• Potential risk of malfunction, electric shock or fire. If repairs are needed, consult the contact center.

Consult the place of purchase or a contact center to disassemble or reinstall the air
conditioner.

• Potential risk of unit malfunction, water leakage, electric shock, or fire.

Consult the place of purchase or contact center to install the air conditioner.

• Improper installation carries a risk of unit malfunction, water leakage, electric shock or fire.

• If installing in specialty areas, such as a factory complex or saline coastal area, consult the place of

purchase or contact center for specific installation details.

Install the air conditioner with the support bracket securely fastened to use for an
extended period of time.

• If the air conditioner falls, it may cause personal injury or loss of property.

If the indoor unit gets wet, turn the power off immediately and call your nearest
contact center.

• Potential risk of fire or electric shock.

Install an exclusive circuit breaker and short-circuit breaker for the air conditioner.

• Potential risk of electric shock or fire.

If the power cable is damaged, the manufacturer or a qualified service technician
must replace it.

Always make sure that the power supply is compliant with current safety standards.
Always install the air conditioner in compliance with current local safety standards.

Verify that the voltage and frequency of the power supply comply with the
specifications and that the installed power is sufficient to ensure the operation of any
other domestic appliance connected to the same electric lines.

04_ safety information

The air conditioner must be installed in accordance with national wiring regulations
and safety regulations wherever applicable.

Install the supplied cables firmly. Fix them securely so that external force is not
exerted to the terminal block.

• If the connection is loose, heat may generate and cause electric shock or fire.

Use a rated circuit breaker only.

• Never use steel wires or copper wires as a circuit breaker. It may cause fire or unit malfunction.

Use an exclusive power source for the air conditioner.

• Potential risk of electric shock or fire.

Do not put undue stress or place heavy object on the power cable.

Do not bend the power cable excessively.

• Potential risk of fire or electric shock.

Always verify that electric connections (cable entry, section of leads, protections...)
are compliant with the electric specifications and with the instructions provided in the
wiring scheme.
Always verify that all connections comply with the standards applicable to the
installation of air conditioners.

Use a receptacle that has a ground terminal. The receptacle must be used exclusively
for the air conditioner.

• Improper electrical grounding may cause electric shock or fire.

Be sure to ground the unit. Do not connect the ground wire to gas or water pipes,
lighting rods, or telephone grounding lines.

• If the unit is not properly grounded, electric shock may result.

Always verify that a suitable grounding connection is available.

ENGLISH

Disconnect the air conditioner from power supply before it is repaired or
disassembled.

CAUTION SIGNS

CAUTION

Connect the refrigerant tubes first then the electrical lines, when installing the unit.

Always disassemble the electric lines before the refrigerant tubes.

Verify that the air conditioner is connected to the power supply in accordance with the
instructions provided in the wiring diagram included in the manual.

The manufacturer shall not be responsible for damage originating from unauthorized
changes or the improper connection of electric and hydraulic lines.
Failure to comply with these instructions or to comply with the requirements set
forth in the “Operating limits” table, included in the manual, and shall immediately
invalidate the warranty.

Ensure no water gets into the air conditioner.

• Potential risk or electric shock.

Turn off the air conditioner using the provided remote control or control accessory
(if provided). Do not unplug to turn off the unit (unless there is an immediate danger).

Do not open the front grille during operation.

• Potential risk of electric shock or unit malfunction.

Cool air should not flow directly towards people, pets, and plants.

• It is harmful to your health, pets, and plants.

Do not run the air conditioner for an extended period of time in a room with the door
closed or with babies, elderly or disabled people.

• Open the door or windows to ventilate your room at least once an hour to prevent oxygen shortage.

Do not drink drain water coming out of the air conditioner.

• Potential risk of health hazard.

safety information _05

safety information

CAUTION SIGNS

CAUTION

Do not expose the dust filter to direct sunlight while drying.

• Strong direct sunlight may deform the dust filter.

Do not allow children to climb on the air conditioner.

Use only rated accessories and install the air conditioner with rated equipments.

• If you do not use the rated accessories, the air conditioner may drop from its place, water may leak
or electric shock or fire may occur.

Do not use the air conditioner as a cooling precision instrument for food, pets, plants,
cosmetics or machinery.

Do not give excessive shock to the air conditioner.

• Potential risk of fire or unit malfunction.

Do not spray water directly on the air conditioner or use benzene, thinner or alcohol to
clean the surface of the unit.

• Potential risk of electric shock or fire.

• Potential risk of damage to the air conditioner.

Do not place any objects, especially containers with liquid.

Do not touch the pipe connected to the air conditioner.

This appliance should be installed according to the provided installation manual.

Install the shortest possible length of pipe.

• If the length of pipe gets unnecessarily long, the life of air conditioner can be shorten and become
inefficient.

Install the power cable and communication cable of the indoor and outdoor unit at
least 1m away from the electric appliance.

Install the indoor unit away from lighting apparatus using the ballast.

• If you use the wireless remote control, reception error may occur due to the ballast of the lighting
apparatus.

For maximum safety, installers should always carefully read the following warnings.

Do not install the air conditioner in following places.

• Place where there is mineral oil or arsenic acid.

• Resin parts flame and the accessories may drop or water may leak. The capacity of the heat

exchanger may reduce or the air conditioner may be out of order.

• The place where corrosive gas such as sulfurous acid gas generates from the vent pipe or air outlet.

• The copper pipe or connection pipe may corrode and refrigerant may leak.

• The place where there is a machine that generates electromagnetic waves.

The air conditioner may not operate normally due to control system.

• The place where there is a danger of existing combustible gas, carbon fiber of flammable dust.

• The place where thinner or gasoline is handled Gas may leak and it may cause fire.

If the air conditioner is installed in a small room, measures must be taken to prevent
the refrigerant concentration in the room from exceeding the safety limit in the event
of refrigerant leakage.
Consult a dealer regarding the appropriate measures to prevent the allowable
concentration from being exceeded.

• If the refrigerant leaks, and cause the concentration limit to be exceeded, hazards due to lack of
oxygen in the room may result.

Install the air conditioner away from direct exposure to sunlight, heating apparatus,
and humid places.

• Hang curtains on windows to boost cooling efficiency and to avoid the risk of electric shock.

The air conditioner is composed of moving parts. Keep children away from the unit to
avoid physical injury.

06_ safety information

Check for damage on delivery. If damaged, do not install the air conditioner and call
the place of purchase immediately.

Insert the dust filter before operating the air conditioner.

• If there is no dust filter inside the air conditioner, accumulated dust may shorten the life of the air

conditioner and cause electricity waste.

Keep indoor temperatures stable and not extremely cold, especially where there are
children, elderly or disabled people.

Clean the dust filter every 2 weeks. Clean the filter more frequently if the air
conditioner is operated in dusty areas.

The packaging material and used batteries of the remote controller (optional) must be
disposed of in accordance with the national standards.

The refrigerant used in the air conditioner must be treated as chemical waste. Dispose
the refrigerant following national standards.

Have a qualified service technician install the air conditioner and perform a trial
operation.

Firmly connect the drain hose to the air conditioner for proper water drainage.

Install the outdoor unit where operating noise and vibration will not disturb your
neighbor and in a well-ventilated area with no obstacle.

• Potential risk of malfunction.

• Operating noise may disturb your neighbor.

Make sure that children take precautions against access to the air conditioner and
they do not play with the unit.

When using a wireless remote control, the distance should not be more than 7 meters
from the air conditioner.

If the remote control is not used for a long period of time, remove the batteries to
prevent leakage of electrolyte.

When cleaning the outdoor unit, touch the heat exchanger radiator fins with extreme
care.

• Wearing thick gloves can protect your hands.

Make sure that the condensed water dripping from the drain hose runs out properly
and safely.

Store the operation and installation manual in a safe location and remember to hand it
over to the new owner if the air conditioner is sold or transferred.

All the materials used for the manufacture and packaging of the air conditioner are
recyclable.

After completing the installation, always carry out a functional test and provide the
instructions on how to operate the air conditioner to the user.

The appliance is not intended for use by young children or infirm persons without
supervision: Young children should be supervised to ensure that they do not play with
the appliance.

Clean the air conditioner after the inner fan stops operating.

• Potential risk of injury or electric shock.

Inspect the condition, electric connections, pipes and external case of the air
conditioner regularly by a qualified service technician.

Do not open doors and windows in the room being cooled during operation unless
necessary.

Do not block the air conditioner vents. If objects block the air flow, it may cause unit
malfunction or poor performance.

Make sure there are no obstacles under the indoor unit.

• Potential risk of fire or loss of property.

Make sure that there are no obstacles or covers that block the air conditioner.
Allow sufficient space for air circulation.

• Insufficient ventilation may result in poor performance.

ENGLISH

safety information _07

safety information

CAUTION SIGNS

CAUTION

Make sure the voltage and frequency of the electric system are compatible with the
air conditioner.

If a power outage occurs while the air conditioner is working, turn off the power
source immediately.

Max current is measured according to IEC standard for safety and current is
measured according to ISO standard for energy efficiency.

The unit must be plugged into an independent circuit if applicable or connect the
power cable to the auxiliary circuit breaker. An all pole disconnection from the power
supply must be incorporated in the fixed wiring with a contact opening of >3mm.

After connecting the power cable between the indoor/outdoor unit, attach the cover
of component box securely and make sure it is not loose.

For the power cable, use the grade of H07RN-F or H05RN-F materials.
The unbalanced power must be maintained within 10% of supply rating among whole

indoor units.
If the power is unbalanced greatly, it may shorten the life of the condenser.

If the unbalanced power is exceeded over 10% of supply rating, the indoor unit is
protected, stopped and the error mode indicates.

To protect the product from water and possible shock, you should keep the power
cable and the connection cord of the indoor and outdoor units in the protection tube.

Connect the power cable to the auxiliary circuit breaker.
You must keep the cable in a protection tube.
Keep distances of 50mm or more between power cable and communication cable.
Maximum length of power cable is decided within 10% of power drop. If it exceeds,

you must consider another power supplying method.
The circuit breaker (MCCB, ELB) should be considered more capacity, if many indoor

units are connected from one breaker.
Use solderless ring terminal to connect the power cable to the power terminal block.
Use an appropriate screwdriver for tightening the terminal screws.
Over-tightening the terminal screws may break them.
The air conditioner should be used only for the applications for which it has been

designed: the indoor unit is not suitable to be installed in areas used for laundry.
Our units must be installed in compliance with the spaces indicated in the installation

manual to ensure either accessibility from both sides or ability to perform routine
maintenance and repairs. The units’ components must be accessible and that can
be disassembled in conditions of complete safety either for people or things. For this
reason, where it is not observed as indicated into the Installation Manual, the cost
necessary to reach and repair the unit (in safety, as required by current regulations
in force) with slings, trucks, scaffolding or any other means of elevation won’t be
considered in-warranty and charged to end user.

Ensure the off-on and protection switches are properly installed.
Do not use the air conditioner if damaged. If problems occur, immediately stop
operation and disconnect the plug from the power supply.

If the air conditioner will not be used for an extended period of time (for example, over
several months), unplug the power from the wall.

Call the place of purchase or a contact center if repairs are needed.

• Potential risk of fire or electric shock if disassembly or repairs are attempted by a non-qualified
service technician.

If you smell burning plastic, hear strange sounds, or see smoke coming from the unit,
unplug the air conditioner immediately and call a contact center.

• Potential risk of fire or electric shock.

08_ safety information

contents

VIEWING YOUR AIR CONDITIONER

10

USING YOUR AIR CONDITIONER

12

CLEANING AND MAINTAINING

THE AIR CONDITIONER

13

APPENDIX

10 Slim 1 way cassette
10 2 way cassette
11 4 way & mini 4 way cassette

ENGLISH

12 Tips on using your air conditioner

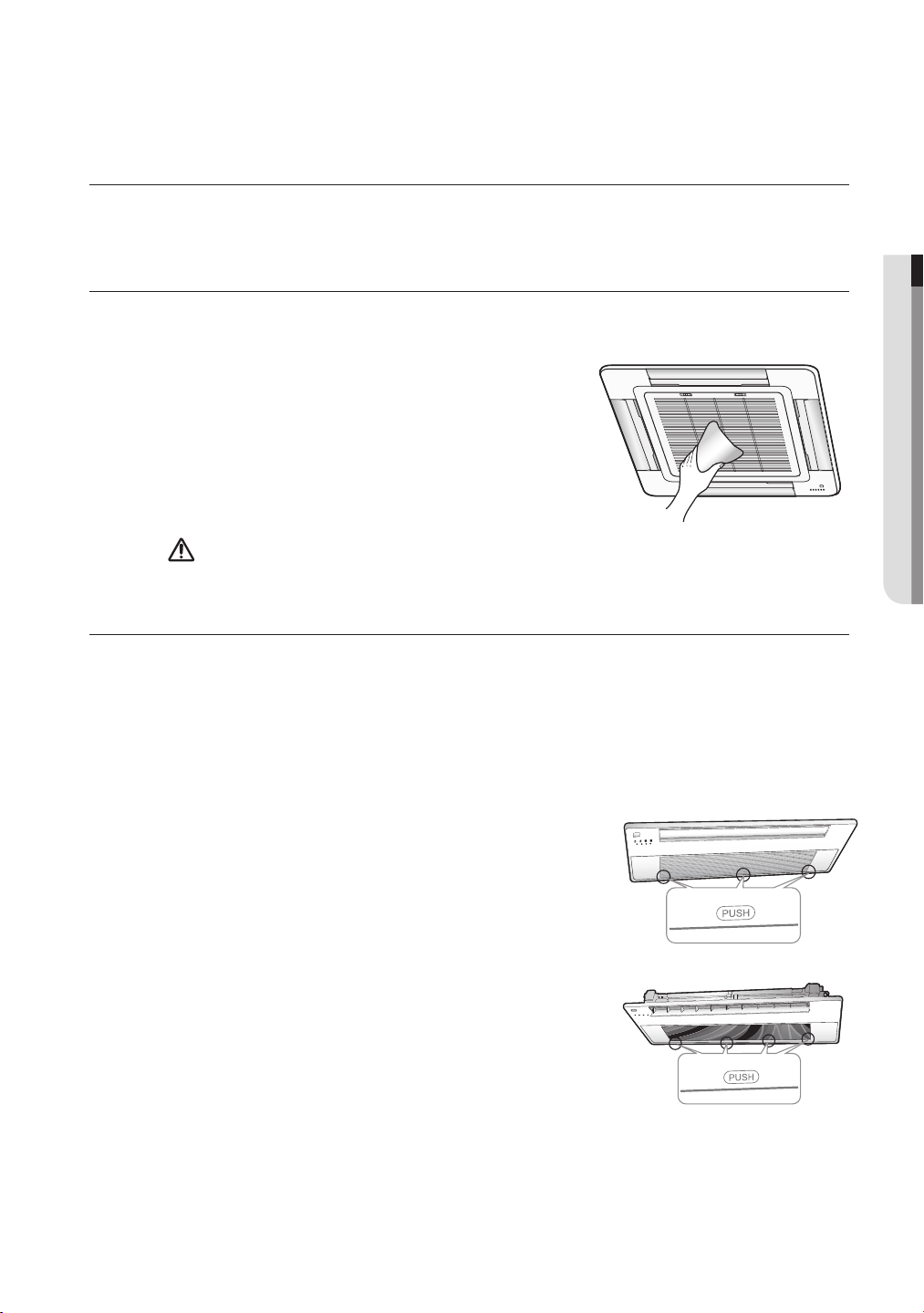

13 Cleaning the exterior
13 Cleaning the grille

13 Slim 1 way cassette
15 2 way cassette
16 4 way & mini 4 way cassette

17 Cleaning the filter

17 Slim 1 way cassette
18 2 way cassette
19 4 way & mini 4 way cassette

20 Maintaining your air conditioner

20 Periodical checks
21 Internal protections via the unit control

system

22 Troubleshooting
23 Operation ranges

22

INSTALLING YOUR
AIR CONDITIONER

24 Installation part

24

This product has been determined to be in compliance with the Low Voltage Directive (2006/95/EC), and the
Electromagnetic Compatibility Directive (2004/108/EEC) of the European Union.

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes
at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste
disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of
material resources.

Household users should contact either the retailer where they purchased this product, or their local government office,
for details of where and how they can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract.
This product should not be mixed with other commercial wastes for disposal.

contents _09

viewing your air conditioner

Congratulations on the purchase of the air conditioner. We hope you enjoy the features of your air
conditioner and stay cool or warm with optimal efficiency.

Please read the user manual to get started and to make the best use of the air conditioner.

SLIM 1 WAY CASSETTE

Main parts

 PSSMA (Type A) /  PC1BUSEA (Type B)

Air flow blade

Panel

Air intake

Display

Heating and cooling

model

Operation(Blue) / Defrost(Yellow)

Cooling only model

Operation indicator

When operating an indoor unit (including Fan mode), SPi will not operate automatically.
So, press the [Super Fan] button on the wireless remote controller to operate SPi.

2 WAY CASSETTE

Main parts

Display

Remote control sensor
Timer indicator

PSSMA(Type A)

- Model that is not equipped with S-Plasma ion: Fan
indicator

- Model that is equipped with S-Plasma ion: Super
Fan indicator

PC1BUSEA(Type B): Super Fan indicator

Filter reset indicator

Air flow blade

Air intake
Air filter (under the grille)

Display

Filter reset indicator

Fan indicator

Timer indicator

Power indicator

Power button

Remote control sensor

Your air conditioner and display may look slightly different from the illustration shown above
depending on your model.

10_ viewing your air conditioner

4 WAY & MINI 4 WAY CASSETTE

Main parts

Air flow blade

Air intake

Display

 Type A

 Type B

Air filter (under the grille)

Display

Remote control sensor
Timer indicator

Power button
Power indicator
Fan indicator
Removing frost indicator
Filter reset indicator

Filter reset indicator

Fan indicator

Timer indicator

Removing frost indicator
Power indicator

ENGLISH

Remote control sensor

Power button

 Type C

Filter reset indicator

Fan indicator

Timer indicator

Removing frost indicator
Power indicator

Remote control sensor

Power button

Your air conditioner and display may look slightly different from the illustration shown above
depending on your model.

viewing your air conditioner _11

using your air conditioner

TIPS ON USING AIR CONDITIONER

Here are some tips that you would follow when using your air conditioner.

TOPIC RECOMMENDATION

Cooling • If current outside temperatures are much higher than the selected indoor

Heating • Since the air conditioner heats the room by taking heat energy

Frost & De-ice • When the air conditioner runs in Heat mode, due to temperature difference

Fan • Fan may not operate for about 3~5 minutes at the beginning to prevent

temperature, it may take time to bring the inner temperature to the desired
coolness.

• Avoid drastically turning down the temperature. Energy is wasted and the
room does not cool faster.

from outdoor air, the heating capacity may decrease when outdoor
temperatures are extremely low. If you feel the air conditioner insufficiently
heats, using an additional heating appliance in combination with the air
conditioner is recommended.

between the unit and the outside air, frost will form.

If this happens:

- The air conditioner stops heating.

- The air conditioner will operate automatically in De-ice mode for

10 minutes.

- The steam produced on the outdoor unit in De-ice mode is safe.

No intervention is required; after about 10 minutes, the air conditioner

operates again normally.

The unit will not operate when it starts to de-ice.

any cold blasts while the air conditioner is warming up.

High indoor/outdoor
temperatures

Power failure • If a power failure occurs during the operation of the air conditioner, the

Protection mechanism • If the air conditioner has just been turned on after operation stops or being

• If both indoor and outdoor temperatures are high and the air conditioner is
running in Heat mode, the outdoor unit’s fan and compressor may stop at
times. This is normal; wait until the air conditioner turns on again.

operating immediately stops and unit will be off. When power returns, the
air conditioner will run automatically.

plugged in, cool/warm air does not come out for 3 minutes to protect the
compressor of the outdoor unit.

12_ using your air conditioner

cleaning and maintaining the
air conditioner

For the best performance from your air conditioner, clean it periodically. When cleaning, make sure to
unplug from the unit for user’s safety.

CLEANING THE EXTERIOR

When cleaning the exterior, make sure to unplug the power from the unit. No special tools are needed to
clean it.

1. Wipe the surface of the unit with a slightly wet or dry
cloth when needed. Wipe off dirt of odd-shaped area by
using a soft brush.

Example : 4 way cassette

Do not use Benzene or Thinner.

CAUTION

They may damage the surface of the air conditioner and can create a risk of fire.

CLEANING THE GRILLE

When cleaning the grille, make sure to unplug the power from the unit. No special tools are needed to clean it.

ENGLISH

Slim 1 way cassette

1. Open the grille.

Press the [Push] signs (A type: Located in 3 places,

B type: Located in 4 places) and open the grille.

 Type A

 Type B

cleaning and maintaining _13

cleaning and maintaining the
air conditioner

CLEANING THE GRILLE

2. Unhook the safety clips by holding the front grille.

3. Detach the front grille.

Hold the front grille at a 45° angle, lift it up slightly and then pull the grille forward.

Hold the grille to prevent dropping outside from the opening of the front grille. If not, it may

CAUTION

cause a potential risk of personal injury.

Cleaning the grille is also available while being attached to the panel.

4. Pull out the Air filter.

Grab the Air filter and lift it upwards while pushing slightly, and then pull the Air filter forward.

5. Clean the grille with a vacuum cleaner or soft brush. If dust is too heavy, then rinse it with

running water and dry it in a ventilated area.

6. Insert the Air filter back in its original position.

7. Reattach the front grille.

Place the hook on the unit to the right place then push the front grille upward. Mount the

safety clips to its original position.

The illustration shown above may differ from yours depending on your model.

14_ cleaning and maintaining

2 way cassette

1. Open the front grille.

Push the [] tabs located in 3 places to unlock the groove on the front grille.

The grille automatically drops. Two safety clips are mounted to the inside front grille to
prevent dropping downward.

2. Unhook the safety clips by holding the front grille.

3. Detach the front grille.

Hold the front grille at a 45° angle, lift it up slightly and then pull the grille forward.

ENGLISH

Hold the grille to prevent dropping outside from the opening of the front grille. If not, it may

CAUTION

cause a potential risk of personal injury.

Cleaning the grille is also available while being attached to the panel.

4. Pull out the Air filter.

Grab the Air filter and lift it upwards while pushing slightly, and then pull the Air filter forward.

5. Clean the grille with a vacuum cleaner or soft brush. If dust is too heavy, then rinse it with

running water and dry it in a ventilated area.

6. Insert the Air filter back in its original position.

7. Reattach the front grille.

Place the hook on the unit to the right place then push the front grille upward. Mount the

safety clips to its original position.

cleaning and maintaining _15

cleaning and maintaining the
air conditioner

CLEANING THE GRILLE

4 way & mini 4 way cassette

1. Open the front grille.

Push both of the tabs outwards to unlock the hook

on the front grille. The grille automatically drops. Two
safety clips are mounted to the inside front grille to
prevent dropping downward.

2. Unhook the safety clips by holding the front grille.

3. Detach the front grille.

Hold the front grille at a 45° angle, lift it up slightly and then pull the grille forward.

Hold the grille to prevent dropping outside from the opening of the front grille. If not, it may

CAUTION

cause a potential risk of personal injury.

Cleaning the grille is also available while being attached to the panel.

4. Pull out the Air filter.

Grab the Air filter and lift it upwards while pushing slightly, and then pull the Air filter forward.

5. Clean the grille with a vacuum cleaner or soft brush. If dust is too heavy, then rinse it with

running water and dry it in a ventilated area.

6. Insert the Air filter back in its original position.

You will hear a click sound when the Air filter is properly placed.

7. Reattach the front grille.

Place the hook on the unit to the right place then push the front grille upward. Mount the

safety clips to its original position.

The illustration shown above may differ from yours depending on your model.

16_ cleaning and maintaining

CLEANING THE FILTER

When cleaning the filter, make sure to unplug the power from the unit. Washable foam based Air filter
captures large particles from the air. The filter is cleaned with a vacuum or by hand washing.

Slim 1 way cassette

1. Open the front grille.

Press the [Push] signs (A type: Located in 3 places,

B type: Located in 4 places) and open the grille.

2. Pull out the Air filter.

Grab the Air filter and lift it upwards while pushing

slightly, and then pull the Air filter forward.

 Type A

 Type B

ENGLISH

When cleaning the filter you do not need to detach
the grille at all times. If you want to detach the front
grille, see step 2 and 3 on page 14 for instructions.

3. Clean the Air filter with a vacuum cleaner or soft brush. If dust is too heavy, then rinse it with
running water and dry it in a ventilated area.

• For best conditions, repeat every two weeks.

• If the Air filter dries in a confined (or humid) area, odors may generate. If it occurs,
re-clean and dry it in a well-ventilated area.

4. Insert the Air filter back in its original position.

You will hear a click sound when the Air filter is properly placed.

5. Close the front grille by pushing it upward.

• The illustration shown above may differ from yours depending on your model.

• After cleaning the filter, press the Filter Reset button on the remote control for 2 seconds
to reset the filler schedule. Filter sign indicator will be on for cleaning time.

cleaning and maintaining _17

cleaning and maintaining the
air conditioner

CLEANING THE FILTER

When cleaning the filter, make sure to unplug the power from the unit. Washable foam based Air filter
captures large particles from the air. The filter is cleaned with a vacuum or by hand washing.

2 way cassette

1. Open the front grille.

Push the [] tabs located in 3 places to unlock the hook on the front grille.

The grille automatically drops. Two safety clips are mounted to the inside front grille to

prevent dropping downward.

2. Pull out the Air filter.

Grab the Air filter and lift it upwards while pushing slightly, and then pull the Air filter forward.

When cleaning the filter you do not need to detach the grille at all times. If you want to
detach the front grille, see step 2 and 3 on page 15 for instructions.

3. Clean the Air filter with a vacuum cleaner or soft brush. If dust is too heavy, then rinse it with
running water and dry it in a ventilated area.

• For best conditions, repeat every two weeks.

• If the Air filter dries in a confined (or humid) area, odors may generate. If it occurs,
re-clean and dry it in a well-ventilated area.

4. Insert the Air filter back in its original position.

You will hear a click sound when the Air filter is properly placed.

5. Close the front grille by pushing it upward.

After cleaning the filter, press the Filter Reset button on the remote control for 2 seconds
to reset the filler schedule. Filter sign indicator will be on for cleaning time.

18_ cleaning and maintaining

4 way & mini 4 way cassette

1. Push both of the tabs outwards to unlock the hook on the front grille.

The grille automatically drops. Two safety clips are mounted to the inside front grille to

prevent dropping downward.

2. Pull out the Air filter.

Grab the Air filter and lift it upwards while pushing slightly, and then pull the Air filter forward.

ENGLISH

When cleaning the filter you do not need to detach the grille at all times. If you want to
detach the front grille, see step 2 and 3 on page 16 for instructions.

3. Clean the Air filter with a vacuum cleaner or soft brush. If dust is too heavy, then rinse it with
running water and dry it in a ventilated area.

• For best conditions, repeat every two weeks.

• If the Air filter dries in a confined (or humid) area, odors may generate. If it occurs,
re-clean and dry it in a well-ventilated area.

4. Insert the Air filter back in its original position.

You will hear a click sound when the Air filter is properly placed.

5. Close the front grille by pushing it upward.

• The illustration shown above may differ from yours depending on your model.

• After cleaning the filter, press the Filter Reset button on the remote control for 2 seconds
to reset the filler schedule. Filter sign indicator will be on for cleaning time.

cleaning and maintaining _19

cleaning and maintaining the
air conditioner

MAINTAINING YOUR AIR CONDITIONER

If the air conditioner will not be used for an extended period of time, dry the air conditioner to maintain it in
best condition.

1. Dry the air conditioner thoroughly by operating in Fan mode for 3 to 4 hours and disconnect
the power plug. There may be internal damage if moisture is left in components.

2. Before using the air conditioner again, dry the inner components of the air conditioner again
by running in Fan mode for 3 to 4 hours. This helps remove odors which may have generated
from dampness.

Periodical checks

Refer to the following chart to maintain the air conditioner properly.

Type Description Monthly

Clean the air filter (1)

Clean the condensate drain pan (2)

Indoor unit

Outdoor unit

Thoroughly clean the heat exchanger (2)

Clean the condensate drain pipe (2)

Replace the remote control batteries (1)

Clean the heat exchanger on the outside of
the unit (2)

Clean the heat exchanger on the inside of
the unit (2)

Clean the electric components with jets of
air (2)

Verify that all the electric components are
firmly tightened (2)

Clean the fan (2)

Verify that all the fan assembly is firmly
tightened (2)

Clean the condensate drain pan (2)



Every 4
months





Once a

year



















The checks and maintenance operations described are essential to guarantee the
efficiency of the air conditioner. The frequency of these operations varies according to the
characteristics of the area, the amount of dust, etc.

(1) The described operations should be performed more frequently if the area of installation

is very dusty.

(2) These operations must always be performed by qualified personnel. For more detailed

information, see the Installation Manual.

20_ cleaning and maintaining

Internal protections via the unit control system

This internal protection operates if an internal fault occurs in the air conditioner.

Type Description

Against cold air

De-ice cycle

Anti-protection of

internal battery

Protect compressor

If the heat pump is operating in Heat mode, De-ice cycle is actuated to remove frost from
an outdoor unit that may have deposited at low temperatures.

The internal fan is switched off automatically and restarted only after the de-ice cycle is
completed.

The internal fan will be off to against cold air when the heat pump is
heating.

The internal fan will be off to against cold air when the heat pump is
heating.

The compressor will be off to protect internal battery when the air
conditioner operates in Cool mode.

The air conditioner does not start operating immediately to protect the
compressor of the outdoor unit after it has been started.

ENGLISH

cleaning and maintaining _21

appendix

TROUBLESHOOTING

Refer to the following chart if the air conditioner operates abnormally. This may save time and unnecessary
expenses.

PROBLEM SOLUTION

The air conditioner does not
operate immediately after it
has been restarted.

The air conditioner does not
work at all.

The temperature does not
change.

The cool (warm) air does
not come out of the air
conditioner.

The fan speed does not
change.

• Because of the protective mechanism, the appliance does not start operating
immediately to keep the unit from overloading.
The air conditioner will start in 3 minutes.

• Check that the power plug is properly connected. Insert the power plug into the
wall socket correctly.

• Check if the circuit breaker is switched off.

• Check if there is a power failure.

• Check your fuse. Make sure it is not blown out.

• Check if you selected Fan mode.
Press the Mode button on the remote control to select another mode.

• Check if the set temperature is higher (lower) than the current temperature. Press

the Temperature button on the remote control to change the set temperature.
Press the Temperature button to decrease or increase the temperature.

• Check if the air filter is blocked by dirt. Clean the air filter every two weeks.

• Check if the air conditioner has just been turned on. If so, wait 3 minutes. Cool air

does not come out to protect the compressor of the outdoor unit.

• Check if the air conditioner is installed in a place with a direct exposure to sunlight.
Hang curtains on windows to boost cooling efficiency.

• Check if the cover or any obstacle is not near the outdoor unit.

• Check if the refrigerant pipe is too long.

• Check if the air conditioner is only available in Cool mode.

• Check if the remote control is only available for cooling model.

• Check if you selected Auto or Dry mode.

The air conditioner automatically adjusts the fan speed to Auto in Auto/Dry mode.

Timer function does not set. • Check if you press the Power button on the remote control after you have set the time.

Odors permeate in the room
during operation.

The air conditioner makes a
bubbling sound.

Water is dripping from the
air flow blades.

Remote control is not
working.

The air conditioner does not
turn on or off with the wired
remote control.

The wired remote control
does not operate.

The indicators of the digital
display flashes.

• Check if the appliance is running in a smoky area or if there is a smell entering from
outside. Operate the air conditioner in Fan mode or open the windows to air out the
room.

• A bubbling sound may be heard when the refrigerant is circulating through the
compressor. Let the air conditioner operate in a selected mode.

• When you press the Power button on the remote control, noise may be heard from
the drain pump inside the air conditioner.

• Check if the air conditioner has been cooling for an extended period of time with
the air flow blades pointed downwards. Condensation may generate due to the
difference in temperature.

• Check if your batteries are depleted.

• Make sure batteries are correctly installed.

• Make sure nothing is blocking your remote control sensor.

• Check that there are strong lighting apparatus near the air conditioner. Strong light

which comes from fluorescent bulbs or neon signs may interrupt the electric waves.

• Check if you set the wired remote control for group control.

• Check if TEST indicator is displayed on the wired remote control. If so, turn off the

unit and switch off the circuit breaker. Call your nearest contact center.

• Press the Power button on the remote control to turn the unit off and switch the
circuit breaker off. Then, switch it on again.

22_ appendix

OPERATION RANGES

The table below indicates the temperature and humidity ranges the air conditioner can be operated within.
Refer to the table for efficient use.

MODE

COOLING

HEATING

DRYING

OUTDOOR

TEMPERATURE

-5°C/23°F to 43°C/109°F

-5°C/23°F to 43°C/109°F

-10°C/14°F to 43°C/109°F

-15°C/5°F to 43°C/109°F

-5°C/23°F to 43°C/109°F

-5°C/23°F to 48°C/118°F

-20°C/-4°F to 24°C/75°F

-5°C/23°F to 24°C/75°F

-15°C/5°F to 24°C/75°F

-10°C/14°F to 24°C/75°F

-20°C/-4°F to 24°C/75°F

-20°C/-4°F to 26°C/79°F

-5°C/23°F to 43°C/109°F

-5°C/23°F to 43°C/109°F

-10°C/14°F to 43°C/109°F

-15°C/5°F to 43°C/109°F

INDOOR

TEMPERATURE

18°C/64°F to 32°C/90°F
21°C/70°F to 32°C/90°F
18°C/64°F to 32°C/90°F
18°C/64°F to 32°C/90°F
18°C/64°F to 32°C/90°F
18°C/64°F to 32°C/90°F

27°C/81°F or less

15°C/59°F to 27°C/81°F

27°C/81°F or less
27°C/81°F or less
27°C/81°F or less
27°C/81°F or less

18°C/64°F to 32°C/90°F
21°C/70°F to 32°C/90°F
18°C/64°F to 32°C/90°F
18°C/64°F to 32°C/90°F

INDOOR

HUMIDITY

80% or less

-

-

REMARKS

DVM, DVM PLUS II/III/IV, BAC Inverter
BAC, Free Joint Multi
BAC Inverter(UH026/035EAV1, RC026/035DHXEN)
BAC Inverter(UH052/060/070EAV1, RC052/060/070DHXEN)I
DVM MINI(RVXMHF040/050EA, RVXMHF050/060GA)
DVM MINI(RD040/050/060MHXGA, RD040/050/060MHXEA)

DVM PLUS II/III/IV, BAC Inverter(UH052/060/070EAV1, RC052/060/070DHXEN)
BAC

Free Joint Multi, DVM, BAC Inverter(UH026/035EAV1, RC026/035DHXEN)
BAC Inverter
DVM MINI(RVXMHF040/050EA, RVXMHF050/060GA)
DVM MINI(RD040/050/060MHXGA, RD040/050/060MHXEA)

DVM, DVM PLUS II/III/IV, Free Joint Multi, BAC Inverter
BAC
BAC Inverter(UH026/035EAV1, RC026/035DHXEN)
BAC Inverter(UH052/060/070EAV1, RC052/060/070DHXEN)

The standardized temperature for heating is 7˚C/45˚F. If the outdoor temperature drops to 0˚C/32˚F or
below, the heating capacity can be reduced depending on the temperature condition.
If the cooling operation is used at over 32˚C/90˚F (indoor temperature), it does not cool at its full

capacity.

Type

Model

DVM

DVM PLUS II/

III/IV

BAC

BAC Inverter

Free Joint Multi

Slim 1 Way

cassette

AVXCS

ND1

- GH(C)EAM

SHEAV

NS1HXEN

MHFS
NJ1HX

2 Way cassette 4 Way cassette

AVMGH(C)

AVXC2

-

- -

AVMCH(C)

AVMC4

AVXC4

ND4

CH(C)EAM
CH(C)EZM

CHEAV

CHEAS

mini 4 Way

cassette

AVXCM

NDM

THEAV

NSMHXEN

MHFM

NJMHX

ENGLISH

-

-

appendix _23

Installation Part

Screw eight nuts to the suspension bolts making space for

4.

hanging the indoor unit.

You must install the suspension bolts more than
four when installing the indoor unit.

CAUTION

Nut

Washer

Indoor Unit Installation

It is recommended to install the Y- joint before installing the
indoor unit.

Place the pattern sheet on the ceiling at the spot where you

1.

want to install the indoor unit.

Note

Insert bolt anchors, use existing ceiling supports or

2.

construct a suitable support as shown in figure.

Install the suspension bolts depending on the ceiling type.

3.





Since the diagram is made of paper, it may shrink

or stretch slightly due to temperature or humidity.
For this reason, before drilling the holes maintain
the correct dimensions between the markings.

Concrete

Hole in anchor
Hole in plug

Suspension bolt(3/8" or M10)



CAUTION

Ensure that the ceiling is strong enough to
support the weight of the indoor unit.
Before hanging the unit, test the strength
of each attached suspension bolt.

If the length of suspension bolt is more than 1.5m,
it is required to prevent vibration.

If this is not possible, create an opening on the
false ceiling in order to be able to use it to perform
the required operations on the indoor unit.

Ceiling support

Insert

Rubber

Fasten the nut

Check the level of the indoor unit by using a leveler.

5.

 A tilt of the indoor unit may cause malfunction of a

built-in float switch and water leaks.

Level

Adjust the height of the indoor unit by using the gauge of

6.

dimensions.

 You should adjust the gauge of dimensions and the

pattern sheet to fit the cutting dimensions of ceiling.

 Make sure that the indoor unit is installed at a level if the

indoor unit slants too much, there can be water leaks.

AVXCS/ND1

Side view

15mm

Air inlet Air outlet

Gauge of Dimensions

Ceiling

AVXC4/ND4

Indoor Unit

35mm

Gauge of
Dimensions

Tighten the upper part nuts.

7.

Remove the gauge of dimensions after installing the indoor unit.

8.

20mm

Ceiling

AVXC2

15mm

45mm 45mm

AVXCM/NDM

Indoor Unit

17mm

Gauge of
Dimensions

20mm

CeilingCeiling

Ceiling

24_ installing your air conditioner

Performing Leak Test & Insulation

Leak test

LEAK TEST WITH NITROGEN(before opening valves)

In order to detect basic refrigerant leaks, before recreating the
vacuum and recirculating the R410A, it’s responsible of installer
to pressurize the whole system with nitrogen(using a pressure
regulator) at a pressure above 4.1MPa(gauge).

LEAK TEST WITH R410A(after opening valves)

Before opening valves, discharge all the nitrogen into the
system and create vacuum. After opening valves check leaks
using a leak detector for refrigerant R410A.

g The designs and shape are subject

Leak check

Discharge all the nitrogen to create a vacuum and
charge the system.

Insulation

Once you have checked that there are no leaks in the system,
you can insulate the piping and hose.

To avoid condensation problems, place T13.0 or thicker

1.

Acrylonitrile Butadien Rubber separately around each

refrigerant pipe.

Note

Always make the seam of pipes face upwards.

to change according to the model.

No gap

Select the insulation of the refrigerant pipe.

5.

 Insulate the gas side and liquid side pipe referring to the

thickness according to the pipe size.

 The thickness according to the pipe size is a standard of

the indoor temperature of 27°C and humidity of 80%.
If installing in an unfavorable conditions, use thicker one.

 Insulator’s heat-resistance temperature should be more

than 120°C.

Minimum thickness

Pipe size

(mm)

Ø6.35 ~Ø15.88 13 10

of insulation (mm)

PE foam

- 25 19

EPDM

foam

Remarks

If you install the pipe

underground, at the seaside,

a spa or on the lake, use 1 grade

thicker one according to the

pipe size.

 Install the insulation not to get wider and use the

adhesives on the connection part of it to prevent
moisture from entering.

 Wind the refrigerant pipe with insulation tape

if it is exposed to outside sunlight.

 Install the refrigerant pipe respecting that the

insulation does not get thinner on the bent part or
hanger of pipe.

 Add the additional insulation if the insulation plate

gets thinner.

a× 3

Hanger

Refrigerant pipe insulation

a

Additional insulation

ENGLISH

NBR(T13.0 or thicker)

Wind insulating tape around the pipes and drain hose

2.

avoiding to compress the insulation too much.

Insulation cover pipe

Insulation pipe

Indoor unit

Must fit tightly against
body without any gap.

Be sure to overlap
the insulation

Finish wrapping insulating tape around the rest of the

3.

pipes leading to the outdoor unit.

The pipes and electrical cables connecting the indoor unit

4.

with the outdoor unit must be fixed to the wall with
suitable ducts.

All refrigerant connection must be accessible, in order
to permit either unit maintenance or removing it
completely.

Drain pipe and Drain Hose Installation

Install the drain pipe as shortly as possible.

1.

 Give a slightly slant to the drainpipe for proper drainage

of condensate water.

 There must be no gap on the connected part so that the

drainpipe is not separated from the flexible hose.

Insulate the drainpipe, and then fix it as indicated.

2.

 Whole drainpipe should be insulated by 5t(or more)

insulation to prevent water condensation.

Insulation cover band

Insulation drainpipe

Insulation cover drain

Indoor
Unit

Drain
hose port

Flexible

hose

installing your air conditioner _25

Band

Band(Not supplied)

Adhesives

Drainpipe

Band

g Flexible hose Installation

Be horizontal

Indoor

Unit

Flexible hose

 Install horizontally

Indoor

Unit

Max. 30˚

 Max. allowable bending

angle

Indoor

Unit

Max. 20mm

 Max. allowable axis gap

Insulation

Connect to
indoor unit

Insulation

Flexible hose

(Apply adhesive on
the outside)

 Handle with using adhesive not to

block the inside of flexible hose

Connect
to PVC
drain pipe

PVC
drain pipe

(Apply
adhesive on
the inside)

Drainpipe Connection

The drain pipe should be installed within 100mm from the

1.

flexible hose, lift up from 100mm to 550mm and lift down
20mm or more.

Install horizontal drainpipe with a slope of 1/100 or more

2.

and fix it by hanger space of 1~1.5m.

Install the air vent in the horizontal drainpipe to prevent

3.

water flow back to the indoor unit.

Note

The flexible hose should not be installed upward position,

4.

it may cause water flow back to the indoor unit.

You may not need to install it if there were proper
slope in the horizontal drainpipe.

Wiring Work

Power and communication cable connection

Before wiring work, you must turn off all power source.

1.

Indoor unit power should be supplied through the

2.

breaker(MCCB, ELB) separated by the outdoor power.

The power cable should be used only copper wires.

3.

Connect the power cable{1(L), 2(N)} among the units within

4.

maximum length and communication cable(F1, F2) each.

Connect V1, V2(for DC12V) and F3, F4(for communication)

5.

when installing the wired remote Control.

Outdoor

Unit

220-240V~

Indoor Unit 1

ELB : Essential Installation

h

Indoor Unit 2 Indoor Unit 3

Selecting compressed ring terminal

Wired Remote

Control

Silver solder

Indoor Unit 4 Indoor Unit 5 Indoor Unit 6

Ceiling, wall-mounted indoor unit.

h

N L

EEV kit

N L N L N L

Install U-trap at the end of the drainpipe to prevent a nasty

5.

smell to reach the indoor unit.

Air vent

300mm or less

Flexible hose

100mm
or more

100~550mm
or more

1~1.5m

Hanger

Horizontal drainpipe
more than 1/100 slope

Ceiling

Centralized Drainage

Install main air vent at the front of the farthest indoor unit from

1.

the main drain when installed indoor units are more than 3.

You may need to install individual air vent to prevent water

2.

flow back at the top of each indoor unit drainpipe.

Hanger

Main drainpipe

Individual

air vent

26_ installing your air conditioner

1~1.5m

Centralized horizontal drainpipe
(more than 1/100 slope)

Main air vent

550mm or less

Norminal

Norminal

dimensions

dimensions

for cable

for screw

2

(mm

(mm)

)

1.5

2.5

4 4 9.5 ±0.2 5.6

B D d1 E F L d2 t

Allowance

(mm)

±0.2 3.4

±0.2 4.2

Standard

dimension

(mm)

Standard

dimension

4 6.6
4 8
4 6.6
4 8.5

(mm)

Standard

Allowance

(mm)

+0.3

-0.2

+0.3

-0.2
+0.3

-0.2

Allowance

dimension

(mm)

(mm)

1.7 ±0.2 4.1 6 16 4.3

2.3 ±0.2 6 6 17.5 4.3

3.4 ±0.2 6 5 20 4.3

Min. Min. Max.

Standard

dimension

(mm)

Allowance

Specification of electronic wire

Power supply MCCB ELB

Max : 242V
Min : 198V

X A

X A, 30mmA

0.1 sec

Power

2.5mm

 Decide the capacity of ELB and MCCB by below formula.

The capacity of ELB, MCCB X [A] = 1.25 X 1.1 X ∑ Ai

 X

: The capacity of ELB, MCCB

 ∑Ai : Sum of Rating currents of each indoor unit.


Refer to each installation manual about the rating current of indoor unit.

 Decide the power cable specification and maximum length

within 10% power drop among indoor units.

n

k=1

∑ (

Coef×35.6×L

1000×A

k×ik

k

 Coef: 1.55

k: Distance among each indoor unit[m],

 L

A

k: Power cable specification[mm

2

], ik : Running current of each unit[A]

Earth

cable

cable

2

2.5mm20.75~1.5mm

10% of input

) <

voltage[V]

Communication

cable

(mm)

+0.2

+0.2

+0.2

Min.

0.7

0

0.8

0

0.9

0

2

Indoor Unit Setting

Before installing the indoor unit, assign an address to the

1.

indoor unit according to the air conditioning system plan.

The address of the indoor unit is assigned by adjusting

2.

MAIN(SW01, SW02) and RMC(SW03, SW04) rotary switches.

Additional Functions

K1 K2K3 K4

SW01 SW02 SW03 SW04

K1K2 K3 K4

g The designs and shape are subject to change according

to the model.

K5K6 K7 K8 K9K10K11K12

Setting MAIN Address

 The MAIN address is for communication between the

indoor unit and the outdoor unit. Therefore, you must
set it to operate the air conditioner properly.

 You can set the MAIN address from ‘00’ to ‘99’ by mixing

SW01 and SW02.
The MAIN address from ‘00’ to ‘99’ should differ from
each other.

 Check the indoor unit address on the plan that you are

to install and set the address according to the plan.

Note

You may not need to set MAIN address if you
selected Auto Address Setting from the outdoor
unit: see details on the outdoor unit installation
manual.

For Example

When MAIN address is set as “12”.

No. Function ON OFF

K1 External room sensor Not use Use

K2 Centralized controller Not use Use

SW05

K3 RPM up

K4 Option drain pump N/A N/A

h N/A : Not Available
h K1 OFF

Heating mode : Setting temperature compensation value = 0°C

K5 K6K7 K8

No. Function ON OFF

Heating

K5

thermo-off

SW06

K6 Filter signal display

K7 Hot water coil N/A N/A

K8 Electrical heater N/A N/A

h N/A : Not Available

Slim 1way/2way/mini 4way N/A N/A

4way Normal Up

Thermo OFF  Fan OFF

Slim 1way/2way

mini 4way/4way +5°C +2°C

+2°C +5°C

1000

hours

hours

ENGLISH

2000

Setting RMC Address

 You must set the SW03, SW04 and K2 switch when using

the centralized controller.

For Example

When RMC address is set as “12”.

SW03 SW04

K9K10K11K12

No. Function ON OFF

K9 Min. EEV step at heating Fix 80 step 0 or 80 step

Priority of indoor unit

K10

SW07

h N/A : Not Available

display on wired remote

controller

K11 External control Not Use Use

K12 Operation output Thermo ON Operation ON

Slave Master

installing your air conditioner _27

QUESTIONS OR COMMENTS?

COUNTRY CALL

ALBANIA 42 27 5755 RUMANIA

AUSTRIA

BELGIUM 02-201-24-18

BOSNIA 05 133 1999 SPAIN
