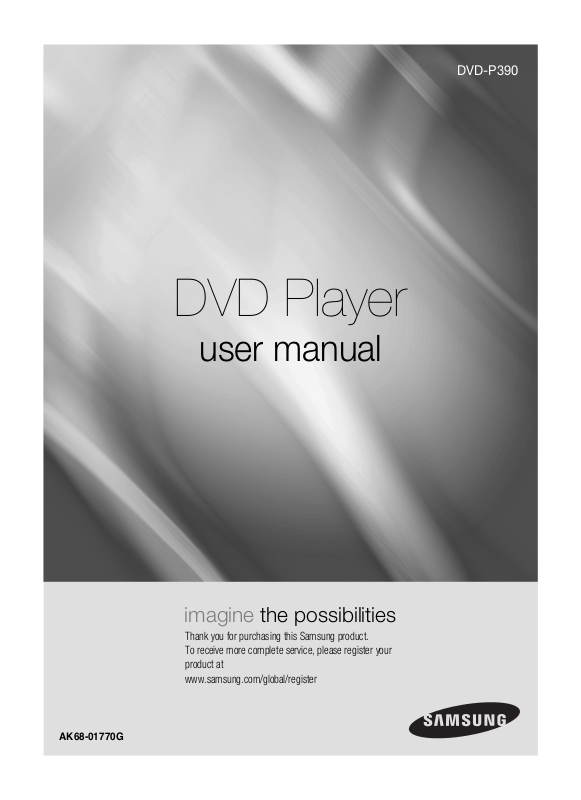

Samsung AK68-01770G, P390 User Manual

DVD Player

user manual

DVD-P390

AK68-01770G

imagine the possibilities

Thank you for purchasing this Samsung product. To receive more complete service, please register your product at

www.samsung.com/global/register

getting started

Important Safety Instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings, Install in accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers,stoves, or other apparatus (including

amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding- type plug. A polarized plug has two blades

with one wider than the other. A grounding type plug has two blades and a third grounding prong.

The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your

outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles,

and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with cart, stand, tripod, bracket, or table specified by the

manufacturer, or sold with the apparatus. When a cart is used, use caution when

moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long peroids of

time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been

damaged in any way, such as the power-supply cord or plug is damaged, liquid has been spilled or objects

have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate

normally, or has been dropped.

2_ getting started

Precautions

RISK OF ELECTRIC SHOCK

DO NOT OPEN

● GETTING STARTED

This symbol indicates that dangerous voltage consisting a risk of electric shock is present within this unit.

Do not install this equipment in a confined space such as a bookcase or similar unit.

WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

APPARATUS TO RAIN OR MOISTURE.

Note to CATV system installer : This reminder is provided to call CATV system installer’s attention to Article 820-40 of the National Electrical Code (Section 54 of Canadian Electrical Code, Part I) that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as practical. Caution : FCC regulations state that any unauthorized changes or modifications to this equipment may void the user’s authority to operate it.

• Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

• If this power supply is used at 240V ac, a suitable plug adapter should be used.

FCC NOTE (for U.S.A):

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on. The user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect this equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help. This class B digital apparatus meets all requirements of the Canadian Interference --

Causing Equipment Regulations.

This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit.

CALIFORNIA USA ONLY :

This Perchlorate warning applies only to primary CR (Maganese Dioxide) Lithium coin cells in the product sold or distributed ONLY in California USA “Perchlorate Material - special handling may apply , See www.dtsc. ca.gov/hazardouswaste/perchlorate.

CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT PRODUCTO LÁSER CLASE 1

English _3

getting started

CAUTION

THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVER AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

Note:

• This unit can be used only where the power supply is AC 120V, 60Hz. It cannot be used elsewhere.

• This DVD player is designed and manufactured to respond to the Region Management Information. If the Region number of a DVD disc does not correspond to the Region number of this DVD player, the DVD player cannot play the disc.

• The product unit accompanying this user manual is licensed under certain intellectual property rights of certain third parties. In particular, this product is licensed under the following US patents: 5,060,220 5,457,669 5,561,649 5,705,762 5,987,417 6,043,912 6,222,983 6,272,096 6,377,524 6,377,531 6,385,587 6,389,570 6,408,408 6,466,532 6,473,736 6,477,501 6,480,829 6,556,520 6,556,521 6,556,522 6,578,163 6,594,208 6,631,110 6,658,588 6,674,697 6,674,957 6,687,455 6,697,307 6,707,985 6,721,243 6,721,493 6,728,474 6,741,535 6,744,713 6,744,972 6,765,853 6,765,853 6,771,890 6,771,891 6 775,465 6,778,755 6,788,629 6,788,630 6,795,637 6,810,201 6,862,256 6,868,054 6,894,963 6,937,552.

This license is limited to private non-commercial use by end-user consumers for licensed contents. No rights are granted for commercial use. The license does not cover any product unit other than this product unit and the license does not extend to any unlicensed product unit or process conforming to ISO/IEC 11172-3 or ISO/IEC 13818-3 used or sold in combination with this product unit. The license only covers the use of this product unit to encode and/or decode audio files conforming to the ISO/IEC 11172-3 or ISO/IEC 13818-3. No rights are granted under this license for product features or functions that do not conform to the ISO/IEC 11172-3 or ISO/IEC 13818-3.

Handling Cautions

• Before connecting other components to this player, be sure to turn them all off.

• Do not move the player while a disc is being played, or the disc may be scratched or broken, and the player’s internal parts may be damaged.

• Do not put a flower vase filled with water or any small metal objects on the player.

• Be careful not to put your hand into the disc tray.

• Do not place anything other than the disc in the disc tray.

• Exterior interference such as lightning and static electricity can affect normal operation of this player. If this occurs, turn the player off and on again with the POWER button, or disconnect and then reconnect the AC power cord to the AC power outlet. The player will operate normally.

• Be sure to remove the disc and turn off the player after use.

• Disconnect the AC power cord from the AC outlet when you don’t intend to use the player for long periods of time.

• Clean the disc by wiping in a straight line from the inside to the outside of the disc.

• The Main plug is used as a disconnect device and shall stay readily operable at any time.

Disc Storage

Be careful not to harm the disc because the data on these discs is highly vulnerable to the environment.

• Do not keep under direct sunlight.

• Keep in a cool ventilated area.

• Store vertically.

• Keep in a clean protection jacket.

Maintenance of Cabinet

For safety reasons, be sure to disconnect the AC power cord from the AC outlet.

• Do not use benzene, thinner, or other solvents for cleaning.

• Wipe the cabinet with a soft cloth.

4_ getting started

Before you start

Accessories

Remote Control

(AK59-00103F)

Install Batteries in the Remote control

Batteries for Remote

Control (AAA Size)

(AC43-12002H)

Open the battery cover on the back of the remote control.

User’s Manual

(AK68-01770G)

● GETTING STARTED

Video/Audio

Cable

(AC39-22017Z/AC-

39-42001U)

Insert two AAA batteries. Make sure that the polarities (+ and -) are aligned correctly.

Replace the battery cover.

If the remote control doesn’t operate properly:

- Check the polarity + - of the batteries.

- Check if the batteries are drained.

- Check if the remote control sensor is blocked by obstacles.

- Check if there is any fluorescent lighting nearby.

English _5

getting started

GETTING STARTED

CONNECTIONS

BASIC FUNCTIONS

ADVANCED FUNCTIONS

3 Precaution 4 Caution 5 Before You Start 7 General Feature 8 Disc Type and Characteristic 9 Descriptions 10 Rear Panel 11 Tour Of Remote Control

12 Choosing Connections 12 Connecting to a TV (Progressive) 13 Connecting to a TV (Interlace) 14 Connecting to a TV (Video) 15 Connecting to an Audio System (2 Channel

Ampliﬁ er) 16 Connecting to an Audio System (Dolby Digital, MPEG2 or DTS Ampliﬁ er)

Playing a Disc 19

Using the Search and Skip Functions 20 Using the Display Functions 21

Using the Disc and Title Menu 22

Repeat Play 23

Slow Play

Adjusting the Aspect Ratio (EZ View)

Selecting the Audio Language

Selecting the Subtitle Language

Changing the Camera Angle

Using the Bookmark Function

Using the Zoom Function

Clips Menu for MP3/WMA/JPEG/MPEG4/ CD Audio 32

Folder Selection 33

MP3/WMA/CD Audio Playback 35

MPEG4 Playback 37

Playing Media Files using the USB HOST feature. 39

CD Ripping 40

Picture CD Playback

NAVIGATING THE SETUP MENU

6_ getting started

REFERENCE

Using the Setup Menu

Setting Up the Language Features

Setting Up the Audio Options

Setting Up the Display Options

Setting Up the Parental Control

Firmware Upgrade

Troubleshooting

Specifications

General Features

Excellent Sound

Dolby Digital, a technology developed by Dolby Laboratories, provides crystal clear sound reproduction.

Screen

Both regular and widescreen(16:9) pictures can be viewed.

Slow Motion

An important scene can be viewed in slow motion.

Parental Control (DVD)

The parental control allows users to set the level necessary to prohibit children from viewing harmful movies such as those with violence, adult subject matter, etc.

Various On-Screen Menu Functions

You can select various languages (Audio/Subtitle) and screen angles while enjoying movies.

Note

- Discs which cannot be played with this player.

• DVD-ROM • DVD-RAM

• CD-ROM • CDV

• CDI • CVD

• CDGs play audio only, not graphics.

VCD can't be played on this player.

- Ability to play back may depend on recording conditions.

• DVD-R, +R

• CD-RW

• DVD+RW, -RW (V mode)

- The unit may not play certain CD-R, CD-RW and DVD-R due to the disc type or recording conditions.

● GETTING STARTED

Progressive Scan

Progressive scanning creates an improved picture with double the scan lines of a conventional interlaced picture.

EZ VIEW (DVD)

Easy View enables picture adjustment to match your TV's screen size (16:9 or 4:3).

Digital Photo Viewer (JPEG)

You can view Digital Photos on your TV.

Repeat

You can repeat a song or movie simply by pressing the REPEAT button.

MP3/WMA

This unit can play discs created from MP3/WMA files.

MPEG4

This unit can play MPEG4 formats within an avi file.

CD Ripping

This feature lets you to copy audio files from Audio CDs to a USB device in the MP3 format.(only Audio CD (CD DA))

COPY PROTECTION

Many DVD discs are encoded with copy protection. Because of this, you should only connect your DVD player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected DVD discs. This product incorporates copyright protection technology that is protected by methods claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

PROGRESSIVE SCAN OUTPUTS (480p)

“CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAYCAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE, IF PROGRESSIVE SCAN PICTURE PROBLEMS OCCUR, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE ‘STANDARD DEFINITION’(VIDEO) OUTPUT. IF THERE ARE QUESTIONS REGARDING YOUR TV SET COMPATIBILITYWITH THIS DVDPLAYER, PLEASE CONTACT SAMSUNG'S CUSTOMER SERVICE CENTER.”

English _7

getting started

Disc Type and Characteristics

This DVD player is capable of playing the following types of discs with the corresponding logos:

Disc Types (Logos) Recording Types Disc Size Max. Playing Time Characteristics

DVD

AUDIO-CD

Disc Markings

NTSC

STEREO

DIGITAL

SOUND

NTSC broadcast system in U.S.A, Canada, Korea, Japan, etc.

Audio

Video

Audio

Play Region Number

Dolby Digital disc

Stereo disc

Digital Audio disc

DTS disc

12 Cm

8 Cm

12 Cm 74 min.

8 Cm 20 min.

Single-sided 240 min.

Double -sided 480 min.

Single-sided 80 min.

Double -sided 160 min.

Region Number

Both the DVD player and the discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play.

The Region Number for this player is described on the rear panel of the player.

DivX Certification

- DVD contains excellent sound and video due to Dolby Digital and MPEG-2 system.

Various screen and audio functions

can be easily selected through the

on screen menu.

- CD is recorded as a Digital Signal

with better audio quality, less distortion and less deterioration of audio quality over time

MP3 disc

You must only insert one DVD disc at a time. Inserting two or more discs will not allow playback and may cause damage to the DVD player.

8_ getting started

DivX, DivX Certified,

and associated logos are

trademarks of DivXNetworks, Inc and

are used under license

Description

Front Panel Controls

1. STANDBY/ON ( )

Turn on/off and the player is turned on/off.

2. DISC TRAY

Place the disc here.

3. USB Host Connect digital still camera, MP3 player, memory

stick, Card reader, or other removable storage devices.

4. DISPLAY

Operation indicators are displayed here.

5. OPEN/CLOSE ( ) / STOP (■)

Press to open and close the disc tray. And stops

disc play.

6. PLAY/PAUSE ( )

Begin or pause disc play.

● GETTING STARTED

Front Panel Display

Displays the Total playing time and various messages concerning operations such as PLAY, STOP, LOAD ...

nodISC: No disc loaded. OPEn: The disc tray is open. LOAd: Player is loading disc information.

English _9

getting started

Rear Panel

2 3

1. AUDIO OUT JACKS

Use audio cables to connect to the Audio input

jacks of your television or audio/video receiver

2. VIDEO OUT JACK

- Use a video cable to connect to the Video input jack on your television.

3. COMPONENT VIDEO OUT JACKS

- Use these jacks if you have a TV with Component Video in jacks. These jacks provide P

Note

- Consult your TV User’s Manual to find out if your TV supports Progressive Scan (P-SCAN).

If Progressive Scan is supported, follow the TV User’s Manual regarding Progressive Scan settings in the TV’s menu system.

- See pages 50 ~ 51 to get more information on how to use the setup menu.

, PB and Y video.

- If P-SCAN (480p) is set to “ON” in Video Output of the Setup Menu, progressive scan mode will work.

- If I-SCAN (480i) is set to “ON” in Video Output of the Setup Menu, interlaced scan mode will work.

4. DIGITAL AUDIO OUT JACKS

Use a coaxial digital cable to connect to an A/V Amplifier that contains a Dolby Digital,

MPEG2 or DTS decoder.

10_ getting started

Tour of the Remote Control

1 2

3 4

5 6

1. DVD POWER Button

Turns the power on or off.

2. REPEAT Button

Allows you to repeat play a title, chapter, track, or

12 13

14 15

17 18

disc

3. DISC MENU Button

Brings up the Disc menu.

4. BOOKMARK

Quickly find bookmark sections of a DVD.

5. SEARCH Buttons (

Allow you to search forward/backward through a disc.

6. STOP Button ( )

7. SKIP Buttons (

Use to skip the title, chapter or track

8. MENU Button

Brings up the DVD player’s menu.

9. ENTER /π/†,√/® Buttons

This button functions as a toggle switch.

10. AUDIO (√) Button

Use this button to access various audio functions

on a disc.

11. INFO Button

Displays the current disc mode.

12. OPEN/CLOSE ( ) Buttons

To open and close the disc tray.

13. REPEAT A-B Button

Allows you to repeat A-B disc.

14. USB Button

15. VIDEO SEL. Button

Selects video output formats.

16. PLAY/PAUSE Button ( )

Begin/Pause disc play.

17. SUBTITLE (π) Button

18. RETURN Button

Returns to a previous menu.

19. TITLE MENU (®) Button

Brings up the Title menu.

20. CANCEL Button

Use to remove menus or status displays from the

screen.

)

● GETTING STARTED

English _11

connections

Choosing a Connection

The following shows examples of connections commonly used to connect the DVD player with a TV and other components.

Before Connecting the DVD Player

- Always turn off the DVD player, TV, and other devices before you connect or disconnect any cables.

- Refer to the user’s manual of the additional devices (such as a TV) you are connecting formore information on those particular devices.

Connecting to a TV (Progressive)

- Connecting to your TV using Component video cables.

- You will enjoy high quality and accurate color reproduction images. Component video separates the picture element into black and white(Y), blue (PB), red (PR) signals to present clear and clean images. (Audio signals are delivered through the audio output).

Using Component video cables, connect the COMPONENT VIDEO OUT jacks on the rear of the DVD player to the COMPONENT IN jacks of your TV.

Using the audio cables, connect the AUDIO (red and white) OUT jacks on the rear of the DVD player to the AUDIO (red and white) IN jacks of your TV.

Turn on the DVD player and TV.

WHITE

RED

BLUE

GREEN

RED

Press the input selector button on your TV remote control until the Component signal from the DVD player appears on the TV screen.

Audio Cable

BLUE

RED

WHITE

RED

Component cable

GREEN

Set the Video Output to P-SCAN (480p) in the display Setup menu (See pages 50-51)

To see the progressive video output,

- Consult your TV User’s Manual to find out if your TV supports Progressive Scan. If Progressive Scan is

supported, follow the TV User’s Manual regarding Progressive Scan settings in the TV’s menu system.

- Depending on your TV, the connection method may differ from the illustration above.

12_ connections

Connecting to a TV (Interlace)

- Connecting to your TV using Component video cables.

- You will enjoy excelllent quality and accurate color reproduction images. Component video separates the picture element into black and white(Y), blue(P

), red(PR) signals to present clear

and clean images. (Audio signals are delivered through the audio output.)

Using Component video cables, connect the COMPONENT VIDEO OUT jacks on the rear of the DVD player to the COMPONENT IN jacks of your TV.

● CONNECTIONS

WHITE

Using the audio cables, connect the AUDIO (red and white) OUT jacks on the rear of the DVD player to the AUDIO (red and white) IN jacks of your TV.

Turn on your DVD player and TV.

Set the Video Output to I-SCAN (480i) in the Display Setup menu. (See pages 50 to 51)

RED

Audio Cable

RED

WHITE

RED

BLUE

GREEN

RED

Component cable

GREEN

BLUE

Press the input selector on your TV remote control until the Component signal from the DVD player appears on the TV screen.

Note

- If you want to connect to an Amplifier, please refer to the Amplifier connection page. (See pages 15 to 16)

- The component jack of your TV may be marked “R-Y, B-Y, Y” or “Cr, Cb, Y” instead of “PR, PB, Y” depending on

the manufacturer. The number and position of the jacks may vary depending on the TV set. Please refer to the user's manual of your TV.

English _13

connections

Connecting to a TV (Video)

Using Video/Audio cables, connect the VIDEO (yellow)/ AUDIO (red and white) OUT jacks on the rear of the DVD player to the VIDEO (yellow)/AUDIO (red and white) IN jacks of your TV.

Turn on your DVD player and TV.

Press the input selector button on your TV remote control until the Video signal from the DVD player appears on the TV screen.

RED

WHITE

RED

WHITE

Audio Cable

YELLOW

Video Cable

YELLOW

Note

- Noise may be generated if the audio cable placed too close to the power cable.

- If you want to connect to an Amplifier, please refer to the Amplifier connection page. (See pages 15 to 16)

- The number and position of the jacks may vary depending on your TV set. Please refer to the user's manual of your TV.

- If there is one audio input terminal on the TV, connect it to the [AUDIO OUT][left] (white) jack of the DVD player.

14_ connections

Connecting to an Audio System (2 Channel Amplifier)

Using the audio cables, connect the AUDIO (red and white) OUT jacks on the rear of the DVD player to the AUDIO (red and white) IN jacks of the Amplifier.

Using the video signal cable(s), connect the VIDEO , COMPONENT jacks on the rear of the DVD player to the VIDEO, COMPONENT jacks of your TV as described on

pages 12 to 14.

WHITE

RED

Turn on your DVD player, TV, and Amplifier.

Audio Cable

RED

WHITE

Press the input select button of the Amplifier to select the audio input your DVD player is connected to in order to hear sound. Refer to your Amplifier's user manual to set the Amplifier's audio input.

Note

- Please turn the volume down when you turn on the Amplifier. Sudden loud sound may cause damage to the speakers and your ears.

- Please set the audio in the menu screen according to the Amplifier.(See pages 48 to 49)

- The position of jacks may vary depending on the Amplifier. Please refer to the user's manual of the Amplifier.

● CONNECTIONS

English _15

connections

Connecting to an Audio System (Dolby Digital, MPEG2 or DTS Amplifier)

If using a Coaxial cable, connect the DIGITAL AUDIO OUT (COAXIAL) jack on the rear of the DVD player to the DIGITAL AUDIO IN (COAXIAL) jack of the Amplifier.

Using the video signal cable(s), connect the VIDEO, COMPONENT jacks on the rear of the DVD player to the VIDEO, COMPONENT jacks of your TV as described on

pages 12 to 14.

Turn on your DVD player, TV, and Amplifier.

Coaxial Cable

Note

- Please turn the volume down when you turn on the Amplifier. Sudden loud sound may cause damage to the speakers and your ears.

- Please set the audio in the menu screen according to the Amplifier you have connected. (See pages 48 to

49)

- The position of jacks may vary depending on the Amplifier. Please refer to the user's manual of the Amplifier.

16_ connections

basic functions

Playing a Disc

Before Play

- Turn on your TV and set it to the Video Input your DVD player is connected to with your TV’s remote control.

- If you connected the DVD player to an external Audio System, turn on your Audio System and set it to the correct Audio Input.

After plugging in the player, the first time you press the DVD POWER button, the screen to the right appears: If you want to select a language, press a ENTER. (This screen will only appear when you plug in the player for the first time.) If the language for the startup screen is not set, the settings may change whenever you turn the power on or off. Therefore, make sure that you select the language you want to use. Once you select a menu language, you can change it by pressing the button on the front panel of the unit for more than 5 seconds with no disc in the unit. Then the SELECT MENU LANGUAGE window appears again where you can reset your preferred language.

Playback

Press the OPEN/CLOSE ( ) button,and the tray

opens.

π/†

button, and then press

English Français Deutsch Español

Italiano

Nederlands

● BASIC FUNCTIONS

Place a disc gently into the tray with the disc’s label facing up.

Press the PLAY/PAUSE ( ) button or OPEN/ CLOSE ( ) button to

close the disc tray.

▼

RESUME function

When you stop disc play, the player

remembers where you stopped, so when you press the PLAY/PAUSE ( will pick up where you left off.

) button again, it

English _17

basic functions

Stopping Play

Press the STOP ( ) button during play.

Removing the Disc Press the OPEN/CLOSE ( ) button.

Pausing Play Press the PLAY/PAUSE ( ) on the remote control

during play.

Step Motion Play (Except CD)

Press the SKIP ( ) button on the remote control during PAUSE mode.

Note

- If the player is left in the stop mode for more than one minute without pressing any buttons, a screen saver will be activated. Press the PLAY/PAUSE ( play.

- If the player is left in the stop mode for more than 30 minutes, the power will automatically turn off.

▼

Screen stops, no sound.

To resume, press the PLAY/PAUSE (

button once again.

Note

If the player is left for about 5 minutes in pause mode, it will stop.

▼

Each time the button is pressed, a new frame

will appear. No sound is heard during STEP mode. Press the PLAY/PAUSE (

normal play. You can only perform step motion play in the

forward direction.

) button to resume normal

)

) button to resume

Slow Motion Play Press the SEARCH (

) button to choose the

play speed between 1/2, 1/4 and 1/8 of normal speed during PAUSE mode.

18_ basic functions

▼

No sound is heard during slow mode.

Press the PLAY/PAUSE (

normal play.

Note

- The (

- This player does not play HD DVDs or Blu-Ray discs.

) icon indicates an invalid button press.

) button to resume

Using the Search and Skip Functions

During play, you can search quickly through a chapter or track, and use the skip function to jump to the next selection.

Searching through a Chapter or Track

▼

If you want to search at a faster speed on the

During play, press the SEARCH ( or ) button on the remote control for more than 1 second.

Skipping Tracks

During play, press the SKIP ( or ) button.

DVD or CD, press and hold the button.

DVDCD2X, 4X, 64X, 128X

2X, 4X, 8X

Note

The speed marked in this function may be different from the actual playback speed.

- No sound is heard during search mode (Except CD).

● BASIC FUNCTIONS

- When playing a DVD, if you press the SKIP ( ) button, it moves to the next chapter. If you press the SKIP ( chapter. Pressing the Skip button twice makes the DVD move to the beginning of the previous chapter.

- When playing a CD, if you press the SKIP ( button, it moves to the next track. If you press the SKIP ( track. Pressing the Skip button twice makes the DVD move to the beginning of the previous track.

) button, it moves to the beginning of the

)

) button, it moves to the beginning of the

English _19

basic functions

Using the Display Function

When Playing a DVD/MPEG4

During play, press the INFO button on the remote control.

▼

You can select Info in the function menu by

pressing the INFO button.

Press the π/† buttons to select the desired item.

Press the √/® buttons to make the desired setup and then press the ENTER button.

DVD

Shortcut

MPEG4

Shortcut

Bookmark

Enter

To make the screen disappear, press the CANCEL button.

20_ basic functions

Note

To access the desired title when there is more than one in the disc.

Title

For example, if there is more than one movie on a DVD, each movie will be identified.

Chapter

Most DVD discs are recorded in chapters so that you can quickly find a specific passage (similar to tracks on an audio CD).

Allows playback of the film from a desired time. You must enter the starting time as a reference.

Time

The time search function does not operate on some discs.

Refers to the film's soundtrack language. In the example, the soundtrack is played in English 5.1CH.

Audio

A DVD disc can have up to eight different soundtracks.

Refers to the subtitle languages available in the disc.

Subtitle

You will be able to choose the subtitle languages or, if you prefer, turn them off from the screen. A DVD disc can have up to 32 different subtitles.

To access the desired Bookmark, Angle, EZ View or Zoom function. Some DVD discs are have more than one recorded angle. The Bookmark function lets you quickly and easily to find a track or chapter on a DVD. The EZ V

iew function is used to change the aspect ratio on a DVD.

The Zoom function is used to enlarge DVD picture.

Using the Disc and Title Menu

Using the Disc Menu

● BASIC FUNCTIONS

During the STOP mode, press the MENU button on the remote control.

Press the π/† buttons to select Disc Menu, then press the ® or ENTER button.

Press ENTER key for Disc Menu

Note

- Depending on a disc, the Disc Menu may not work.

- You can also select the Disc Menu, using the DISC MENU button on the remote control.

English _21

basic functions

Using the Title Menu

During the STOP mode, press the MENU button on the remote control.

Press the π/† buttons to select Title Menu, then press the ® or ENTER button.

Repeat Play

Repeat the current track, chapter, title, a chosen section (A-B), or all of the disc.

When playing a DVD

Press ENTER key for Title Menu

Note

- Depending on a disc, the Title Menu may not work.

- Title Menu will only be displayed if there are at least two titles in the disc.

Press the REPEAT button on the remote control. Repeat screen appears.

▼

Press the REPEAT buttons to select Off, Chapter or Title, then press the ENTER button.

DVD

Repeat:Off

Chapter

A DVD repeats play by chapter or title. Chapter : repeats the chapter that is playing. Title : repeats the title that is playing.

22_ basic functions

Title

Using the A-B Repeat function

1. Press the REPEAT A-B button at the point where you want repeat play to start (A).

2. Press the REPEAT A-B button at the point where you want the repeat play to stop (B).

- To return to normal play, press the CANCEL button.

Note

A-B REPEAT does not allow you to set point (B) until at least 5 seconds of playback time has elapsed after point (A) has been set.

● BASIC FUNCTIONS

To return to normal play, press the REPEAT A-B button again

DVD

Repeat:Off

Note

- Depending on the disc, the Repeat function may not work.

Slow Play

This feature allows you slowly to repeat scenes containing sports, dancing, musical instruments being played etc., so you can study them more closely.

When playing a DVD

During play, press the PLAY/PAUSE ( ) button.

Press the SEARCH ( / ) button to choose the

play speed between 1/2, 1/4 and 1/8 of normal speed during PAUSE mode.

English _23

advanced functions

Adjusting the Aspect Ratio (EZ View)

The Aspect ratio is the relation between the width and height of a picture. The two most common are 4:3 (Standard) and 16:9 (Widescreen). Follow the instructions below for the best aspect ratio setting for your TV.

Changing the aspect ratio (DVD)

During play, press the INFO button on the remote control.

Press the π/† buttons to select Shortcut.

▼

Press the √/® buttons to select EZ View , then press the ENTER button.

WIDE SCREEN

EZ VIEW

- The screen size changes when the button is pressed repeatedly.

- The screen zoom mode operates differently depending on the screen setting in the Display Setup menu.

▼

To make the aspect ratio bar disappear, press the CANCEL button.

If you are using a 16:9 TV

For 16:9 aspect ratio discs

- WIDE SCREEN Displays the content of the DVD title in 16:9 aspect ratio.

- SCREEN FIT

The top and bottom portions of the screen are cut off.

When playing a 2.35:1 aspect ratio disc, the black bars at the top and bottom of the screen will disappear. The picture will look vertically stretched. (Depending on a type of disc, the black bars may not disappear completely.)

- ZOOM FIT

The top, bottom, left and right of the screen are cut off

and the central portion of the screen is enlarged.

24_ advanced functions

For 4:3 aspect ratio discs

- Normal Wide

Displays the content of the DVD title in 16:9 aspect ratio.

The picture will look horizontally stretched.

- SCREEN FIT

The top and bottom portions of the screen are cut off and

the full screen appears.

The picture will look vertically stretched.

- ZOOM FIT

The top, bottom, left and right portions of the screen are

cut off and the central portion of the screen is enlarged.

- Vertical Fit

When a 4:3 DVD is viewed on a 16:9 TV, black bars

will appear at the left and right of the screen in order to prevent the picture from looking horizontally stretched.

If you are using a 4:3 TV

For 16:9 aspect ratio discs

- 4:3 Letter Box

Displays the content of the DVD title in 16:9 aspect ratio.

The black bars will appear at the top and bottom of the screen.

- 4:3 Pan&Scan

The left and right portions of the screen are cut off and

the central portion of the 16:9 screen is displayed.

- SCREEN FIT

The top and bottom portions of the screen are cut off and

a full screen appears.

The picture will look vertically stretched.

- ZOOM FIT

The top, bottom, left and right of the screen are cut off

and the central portion of the screen is enlarged.

For 4:3 aspect ratio discs

- Normal Screen

Displays the content of the DVD title in 4:3 aspect ratio.

- SCREEN FIT

The top and bottom portions of the screen are cut off and

the full screen appears.

The picture will look vertically stretched.

- ZOOM FIT

The top, bottom, left and right portions of the screen are

cut off and the central portion of the screen is enlarged.

Note

This function may behave differently depending on the type of disc.

● ADVANCED FUNCTIONS

English _25

advanced functions

Selecting the Audio Language

You can select a desired audio language available on a disc quickly and easily with the AUDIO button.

Using the AUDIO button (DVD/MPEG4)

Press the AUDIO (√) button.The Audio changes when the button is pressed repeatedly.

- The audio languages are represented by abbreviations.

Press the AUDIO (√) button on the remote control repeatedly to select the desired Audio (MP3, PCM, WMA, AC3 and MPEG) on MPEG4 discs then press the ENTER button .

DVD

MPEG4

ENG

Dolby Digital 5.1CH

MP3 1/1

AUDIO

▼

AUDIO

MPEG4 is a compressed video format designed to deliver DVD quality video at lower data rates and smaller file sizes.

Types of MPEG4 files are DivX or XviD.

These files have an .avi extension.

To remove the AUDIO icon, press the CANCEL or RETURN button.

26_ advanced functions

Note

- This function depends on audio languages that are encoded on the disc. This function may not work with all DVDs.

- A DVD disc can contain up to 8 audio languages.

- To have the same audio language come up whenever you play a DVD; Refer to “Using the Audio Language” on page 45.

Selecting the Subtitle Language

You can select a desired subtitle quickly and easily with the SUBTITLE button.

Using the SUBTITLE button (DVD/MPEG4)

Press the SUBTITLE (π) button. The subtitle changes when the button is pressed repeatedly. The subtitle languages are represented by abbreviations.

An External subtitle option will appear, depending on the DivX Disc.

DVD

SUBTITLE

Off

MPEG4

Subtitle Selection

External Subtitle Off

readme.TXT

Non-standard fonts are not supported

● ADVANCED FUNCTIONS

Press the Subtitle button on the remote control repeatedly to select the desired subtitle language on an MPEG4 disc.

To remove the SUBTITLE icon, press the CANCEL or RETURN button.

MPEG4

ReturnEnter

SUBTITLE

Off

Note

- Depending on the DVD, you may have to select the desired subtitle in the DVD’s Disc Menu. Press the DISC MENU button.

- This function depends on what subtitles are encoded on the disc. This function may not work with all DVDs.

- A DVD disc can contain up to 32 subtitle languages.

- To have the same subtitle language come up whenever you play a DVD; Refer to “Using the Subtitle Language” on page 46.

English _27

advanced functions

Changing the Camera Angle

When a DVD contains multiple angles of a particular scene, you can use the ANGLE function.

Using the ANGLE function (DVD)

If the disc contains multiple angles, the ANGLE mark appears on the screen.

During play, press the INFO button on the remote control.

Press the π/† buttons to select Shortcut.

Press the √/® buttons to select Angle , then press the ENTER button.

Press the √/® buttons on the remote control to select the desired angle.

4/6

Note

- If the disc has only one angle, this feature won’t work. Currently, very few discs have this feature.

28_ advanced functions

Using the Bookmark Function

This feature lets you bookmark sections of a DVD, so you can quickly find them at a later time.

Using the Bookmark Function (DVD)

During play, press the INFO button on the remote control.

Press the π/† buttons to select Shortcut.

● ADVANCED FUNCTIONS

Press the √/® buttons to select Bookmark then press the ENTER button.

When you reach the scene you want to mark, press the ENTER button. Up to three scenes may be marked at a time.

Shortcut

Bookmark

CANCEL

Enter

Note

- Depending on the disc, the Bookmark function may not work.

English _29

advanced functions

Recalling a Marked Scene

1~3

The first 1~3 steps are the same as those for “Using the Bookmark Function” on page 29.

Press the √/® buttons to select a marked scene.

Press the PLAY/ PAUSE ( ) button

to skip to the marked scene.

Clearing a Bookmark

1~3

The first 1~3 steps are the same as those for “Using the Bookmark Function” on page 29.

CANCEL

Press the √/® buttons to select the bookmark number you want to delete.

Press the CANCEL button to delete a bookmark number.

30_ advanced functions

CANCEL

+ 90 hidden pages
