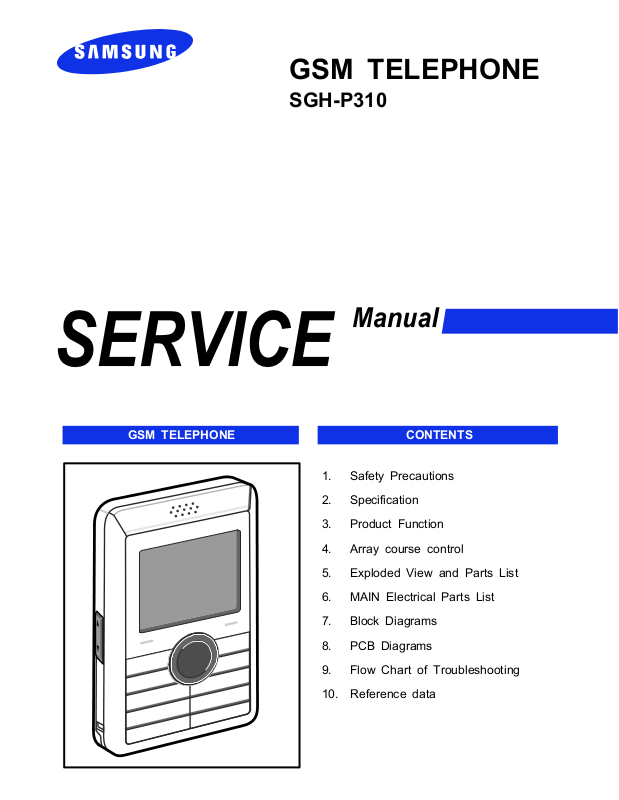

Samsung P310 Service Manual

GSM TELEPHONE

SGH-P310

GSM TELEPHONE

CONTENTS

1. Safety Precautions

2. Specification

3. Product Function

4. Array course control

5. Exploded View and Parts List

6. MAIN Electrical Parts List

7. Block Diagrams

8. PCB Diagrams

9. Flow Chart of Troubleshooting

10. Reference data

Contents

1. Safety Precautions

1-1. Repair Precaution ......................................................................................................1-1

1-2. ESD(Electrostatically Sensitive Devices) Precaution ...............................................1-2

2. Specification

2-1. GSM General Specification .......................................................................................2-1

2-2. GSM Tx Power Class ...............................................................................................2-2

3. Product Function

3-1. Main Function ............................................................................................................3-1

4. Array course control

Software Downloading

4-1. Downloading Binary Files ..........................................................................................4-2

4-2. Pre-requsite for Downloading ....................................................................................4-2

4-3. S/W Downloader Program .........................................................................................4-3

5. Exploded View and Parts List

5-1. Cellular phone Exploded View ..................................................................................5-1

5-2. Cellular phone Part list .............................................................................................5-2

5-3. Disassembly ...............................................................................................................5-4

5-4. Assembly ....................................................................................................................5-6

5-5. LCD KIT Disassembly ...............................................................................................5-8

5-6. LCD KIT Assembly ....................................................................................................5-9

6. MAIN Electrical Parts List

7. Block Diagrams

8. PCB Diagrams

Contents

9. Flow Chart of Troubleshooting

9-1. Baseband

9-1-1. Power ON .............................................................................................................9-1

9-1-2. Initial ......................................................................................................................9-4

9-1-3. Sim Part ................................................................................................................9-6

9-1-4. Charging Part ........................................................................................................9-8

9-1-5. Microphone Part ....................................................................................................9-9

9-1-6. Speaker Part .......................................................................................................9-11

9-1-7. LCD ......................................................................................................................9-13

9-1-8. Camera ................................................................................................................9-16

9-2. RF

9-2-1. GSM Receiver.......................................................................................................9-18

9-2-2. DCS Receiver.......................................................................................................9-19

9-2-3. PCS Receiver.......................................................................................................9-20

9-2-4. GSM Transmitter...................................................................................................9-23

9-2-5. DCS Transmitter...................................................................................................9-24

9-2-6. PCS Transmitter...................................................................................................9-25

9-2-7. Bluetooth Part .....................................................................................................9-27

10. Reference data

1. Safety Precautions

1-1. Repair Precaution

●

Repair in Shield Box, during detailed tuning.

Take specially care of tuning or test,

because specipicty of cellular phone is sensitive for surrounding interference(RF noise).

●

Be careful to use a kind of magnetic object or tool,

because performance of parts is damaged by the influence of manetic force.

●

Surely use a standard screwdriver when you disassemble this product,

otherwise screw will be worn away.

●

Use a thicken twisted wire when you measure level.

A thicken twisted wire has low resistance, therefore error of measurement is few.

●

Repair after separate Test Pack and Set because for short danger (for example an

overcurrent and furious flames of parts etc) when you repair board in condition of

connecting Test Pack and tuning on.

●

Take specially care of soldering, because Land of PCB is small and weak in heat.

●

Surely tune on/off while using AC power plug, because a repair of battery charger is

dangerous when tuning ON/OFF PBA and Connector after disassembing charger.

●

Don't use as you pleases after change other material than replacement registered on SEC

System. Otherwise engineer in charge isn't charged with problem that you don't keep this

rules.

1-1

SAMSUNG Proprietary-Contents may change without notice

This Document can not be used without Samsung's authorization

Safety Precautions

1-2. ESD(Electrostatically Sensitive Devices) Precaution

Several semiconductor may be damaged easilly by static electricity. Such parts are called by

ESD(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.

You can prevent from ESD damage by static electricity.

●

Remove static electricity remained your body before you touch semiconductor or parts with

semiconductor. There are ways that you touch an earthed place or wear static electricity

prevention string on wrist.

●

Use earthed soldering steel when you connect or disconnect ESD.

●

Use soldering removing tool to break static electricity. , otherwise ESD will be damaged by

static electricity.

●

Don't unpack until you set up ESD on product. Because most of ESD are packed by box

and aluminum plate to have conductive power,they are prevented from static electricity.

●

You must maintain electric contact between ESD and place due to be set up until ESD is

connected completely to the proper place or a circuit board.

1-2

SAMSUNG Proprietary-Contents may change without notice

This Document can not be used without Samsung's authorization

2. Specification

2-1. GSM General Specification

GSM900 Phase 1

Freq. Band[MHz]

Uplink/Downlink

ARFCN range 1~124 0~124 & 975~1023 512~885 512~810

Tx/Rx spacing 45 MHz 45 MHz 95 MHz 80 MHz

Mod. Bit rate/

Bit Period

Time Slot

Period/Frame Period

Modulation 0.3 GMSK 0.3 GMSK 0.3 GMSK 0.3 GMSK

MS Power 33 dBm~13 dBm 33 dBm~5 dBm 30 dBm~0 dBm 30 dBm~0 dBm

890~915 935~960

270.833 kbps

3.692 us

576.9 us

4.615 ms

EGSM 900

Phase 2

880~915 925~960

270.833 kbps

3.692 us

576.9 us

4.615 ms

DCS1800

Phase 1

1710~1785 1805~1880

270.833 kbps

3.692 us

576.9 us

4.615 ms

PCS1900

1850~1910 1930~1990

270.833 kbps

3.692 us

576.9 us

4.615 ms

PowerClass 5pcl~15pcl 5pcl~19pcl 0pcl~15pcl 0pcl~15pcl

Sensitivity -102 dBm -102 dBm -100 dBm -100 dBm

TDMA Mux 8 8 8 8

Cell Radius 35 Km 35 Km 2 Km -

2-1

Speclflcation

2-2. GSM Tx Power Class

TX Power

control level

5 33±2 dBm

6 31±2 dBm

7 29±2 dBm

8 27±2 dBm

9 25±2 dBm

10 23±2 dBm

11 21±2 dBm

12 19±2 dBm

13 17±2 dBm

14 15±2 dBm

15 13±2 dBm

16 11±3 dBm

17 9±3 dBm

18 7±3 dBm

19 5±3 dBm

GSM900

TX Power

control level

0 30±3 dBm

1 28±3 dBm

2 26±3 dBm

3 24±3 dBm

4 22±3 dBm

5 20±3 dBm

6 18±3 dBm

7 16±3 dBm

8 14±3 dBm

9 12±4 dBm

10 10±4 dBm

11 8±4 dBm

12 6±4 dBm

13 4±4 dBm

14 2±5 dBm

DCS1800

TX Power

control level

0 30±3 dBm

1 28±3 dBm

2 26±3 dBm

3 24±3 dBm

4 22±3 dBm

5 20±3 dBm

6 18±3 dBm

7 16±3 dBm

8 14±3 dBm

9 12±4 dBm

10 10±4 dBm

11 8±4 dBm

12 6±4 dBm

13 4±4 dBm

14 2±5 dBm

PCS1900

15 0±5 dBm

2-2

15 0±5 dBm

3. Product Function

Main Function

- Camera and camcorder

- Image editor

- Music player

- Photo printing

- Phone to TV

- File viewer

-Bluetooth

- Web browser

- Offline mode

-E-mail

- Multimedia Message Service

-Java

- Voice recorder

3-1

SAMSUNG Proprietary-Contents may change without notice

This Document can not be used without Samsung's authorization

4. Array course control

Test Jig (GH80-03307A)

Test Cable (GH39-00478A)

RF Test Cable (GH39-00182A)

4-1

SAMSUNG Proprietary-Contents may change without notice

This Document can not be used without Samsung's authorization

Array course control

Software Downloading

4-1. Downloading Binary Files

• Three binary files for downloading SGh-P310.

– P310XXFF3.s3 : Main source code binary.

4-2. Pre-requsite for Downloading

• Downloader Program(OptiFlash.exe)

• SGH-P310 Mobile Phone

• Data Cable

• Binary files

4-2

SAMSUNG Proprietary-Contents may change without notice

This Document can not be used without Samsung's authorization

Array course control

4-3. S/W Downloader Program

1. Load the binary download programby executing the “OptiFlash.exe”

2. Select the “Options” -> “Settings” -> “Generic” -> “Specify hardware platform”. Choose hardware platform for the downloader file setting. Set the everything else as the default values which are shown below

4-3

SAMSUNG Proprietary-Contents may change without notice

This Document can not be used without Samsung's authorization

Array course control

3. Select the COM port when the download cable is connected

Up to twelve ports are supported. Additionally you can select the maximum transfer speed OptiFlash will use to communicate with the phone. However, OptiFlash will use a slower speed if either the PC’s or the phone’s serial hardware is incapable of handling the selected speed

4-4

SAMSUNG Proprietary-Contents may change without notice

This Document can not be used without Samsung's authorization

Array course control

4. Select the“Flash&Verify” - > “Browse” Set the directory path and choose the latest s/w binary, for example “X820XXYY.s3”,for the downloader binary setting.

Make sure that not to change the reserved memory regions.

In case of X820 the reserved regions are :

-0x20000010 – 0x2000ffff

-0x21ff0000– 0x21ff1fff

-0x29000000 – 0x30000000

4-5

SAMSUNG Proprietary-Contents may change without notice

This Document can not be used without Samsung's authorization

Array course control

5. Click “OK” button then press “Flash”. (Before pressing ‘Flash’ button, push the button ‘*’and ‘END’ at the same time. Then press ‘Flash’.)

Downloader will upload the binary file as below for the downloading.

6. When downloading is finished successfully, there is a “All is well” message. 



7. After finishing downloading, Certain memory resets should be done to guarantee the normal performance.

8. Confirm the downloaded version name and etc. :

*#1234#

Full Reset : 

*2767*3855#

4-6

SAMSUNG Proprietary-Contents may change without notice

This Document can not be used without Samsung's authorization



5. Exploded View and Parts List

5-1. Cellular phone Exploded View

QMW04

QVO06

QFR01

QME03

QLC01

QLB01

QSP01

QAN02

QCR08

QMP01

QVK01

QCR08

QCA01

QKP01

QME01

QMI03

QVO07

QMO01

QCA02

QCR04

QRE01

QRF01

QVO01

QBA02

QCR10

QBA00

QRF03

QCK01

QBA01

5-1

SAMSUNG Proprietary-Contents may change without notice

This Document can not be used without Samsung's authorization

Main Electrical Parts List

5-2. Cellular phone Parts list

Design LOC Discription SEC CODE

QAN02

QBA00

QBA01

QBA02

QCA01

QCA02

QCR04

QCR08

QCR10

QFR01

QKP01

QLB01

QLC01

QME01

QME03

QMI03

INTENNA-SGHP310 GH42-00921A

ASSY COVER-BATTERY GH98-01619A

BATTERY-1040MAH,BLK,ENG,MAIN GH43-02564A

BATTERY-750MAH,BLK,ENG,MAIN GH43-02565A

UNIT-2M CAMERA GH59-03429A

UNIT-CAMERA KEY GH59-03402A

SCREW-MACHINE 6001-001479

SCREW-MACHINE 6001-001456

SCREW-MACHINE 6001-001633

ASSY CASE-FRONT GH98-01542A

ASSY KEYPAD-(XEF/XKA) GH98-01620A

ASSY BRACKET-LCD GH98-01610A

LCD-LCD MODULE,SGHP310 GH07-00954A

UNIT-KEY FPCB GH59-03401A

UNIT-TOUCH KEY GH59-03398A

RMO-RUBBER HOLDER MIC GH73-07572A

QMO01

QMP01

QMW04

QRF01

QSP01

QVK01

QVO01

QVO06

QVO07

QRE01

MOTOR DC GH31-00088A

PBA MAIN-SGH P310 GH92-02774A

ASSY COVER-MAIN WINDOW GH98-01611A

PMO-COVER RF GH72-32601A

SPEAKER 3001-002027

UNIT-VOLUME KEY GH59-03396A

PMO-VOLUME KEY GH72-32600A

NDC-DECO KEY GH71-06837A

IPR-DECO KEY STOPPER GH70-01641A

ASSY CASE-REAR GH98-01618A

QRF03 PMO-COVER EAR SLIDE GH72-32598A

QCK01 PMO-CAMERA KEY GH72-32599A

5-2

SAMSUNG Proprietary-Contents may change without notice

This Document can not be used without Samsung's authorization

Main Electrical Parts List

Discription SEC CODE

BAG PE 6902-000297

CBF INTERFACE-DATA LINK CABLE GH39-00444A

ADAPTOR-SGHD800 TA(EU) GH44-01060A

S/W CD-SAMSUNG PC STUDIO 3.0 GH46-00307A

UNIT-EARPHONE(BLK) GH59-02499A

LABEL(P)-WATER SOAK GH68-02026A

LABEL(P)-OPEN MP3 GH68-11246A

LABEL(R)-MAIN(FRANCE) GH68-12149B

MANUAL USERS-EU FRENCH GH68-12467A

BOX(P)-UNIT MAIN(EU) GH69-04386A

CUSHION-CASE TA2 MA4 GH69-04395A

RMO-RUBBER BT GH73-08468A

MPR-TAPE JY VOL KEY GH74-26344A

MPR-TAPE JY CAM KEY GH74-26345A

MPR-TAPE FRONT GH74-26347A

MPR-INSU TAPE KEY CONN GH74-26619A

MPR-GASK TAPE GOLD IF CONN GH74-26620A

MPR-ELEC TAPE CAM BT GH74-26904A

MPR-INSU TAPE TOUCH KEY GH74-28135A

MPR-SPONGE IF CONN GH74-28137A

MPR-INSU TAPE GH74-28345A

5-3

SAMSUNG Proprietary-Contents may change without notice

This Document can not be used without Samsung's authorization

5-3. Disassembly

Main Electrical Parts List

1.4*5

The location of

the hook

1) Unscrew 4points rear bolts the back of a set.

2) First take the left side hook apart, next rig

ht side and then remove the whole Rear

like upper picture.

※

caution

1) When you take a Rear apart, be careful a out the damage of the hook.

Bolt A:1.4*3

1) Detach a EMI tape of IF connector and divide camera FPCB from the connector.

2) Detach a camera key FPCB, a volume key FPCB, and a motor stick to the Front then unscrew a and b.

※

caution

1) Be careful, the motor wire isn’t down.

2) Be careful with the damages of FPCBS.

Bolt B:1.4*4

Isolation Tape

1) Insert tweezer into the upper side of Intenna like a picture, then detach PBA Ass’y from Front Ass’y with care.

2) Detach a tape of connectors.

※

caution

1) Please be careful when you detach PBA Ass’y, because there is Double-stick on the below.

3 connectors

1) After take 3 FPCBs out connector, detach PBA Ass’y from Front Ass’y.

※

caution

1) Be careful with the damages of connectors.

5-4

SAMSUNG Proprietary-Contents may change without notice

This Document can not be used without Samsung's authorization

Main Electrical Parts List

1.4*3

1) Remove a rubber with tweezers which attached left-upper side of a LCD Braket.

2) Unscrew and take apart the LCD Braket.

※

caution

1) Be careful with the damage of FPCB when removing.

1) Band a Front Ass’y and make a space. Squeeze a tweezers into the space and detach the LCD from a Window carefully.

※

caution

1) Detach very carefully because there is Double-stick between the LCD and the Window.

5-5

SAMSUNG Proprietary-Contents may change without notice

This Document can not be used without Samsung's authorization

5-4. Assembly

Main Electrical Parts List

3 connectors

1) As seen above, insert an each FPCB in the front set to the connectors in PBA,

※

caution

1) Each connector should be certainly clicked along the marked line

2) Be careful of the possible damage on FPCB

Insulation Tape

1) Stick the insulation tape on the connectors.

2) Fold up the PBA and put it on the front set.

※

caution

1) Edge of PBA should be well-fit to the hook

in LCD bracket.

Bolt A(1.4*3)

1) Place the MIC as the picture below

※

caution

1) Check the MIC FPCB is OK

Bolt B(1.4*4)

1) Put the MIC COVER and CREW

2) Attach KEYPAD

3) Press the KEYPAD not to be detached

※

caution

1) Check the KEY PAD is OK

5-6

SAMSUNG Proprietary-Contents may change without notice

This Document can not be used without Samsung's authorization

Main Electrical Parts List

VOLUME

KEY

contact

MIC

1) Combine the fron set and the rear cover.

※

Fit the left side of the cover first.

2) Insert "volume key" to the right side of

the cover.

※

caution

1) Be cautious not to have a damage on MIC and the contact terminals for external battery.

terminals for

ext.battery

bolt(1.4*5)

1)Screwthe4bolts,asseenabove.

- Check the side keys to be clicked well

※

caution

1) Be careful of "scratch", when screw the

bolts.

5-7

SAMSUNG Proprietary-Contents may change without notice

This Document can not be used without Samsung's authorization

+ 48 hidden pages
