Samsung NK30R5000WS, NK30R5000WG Specifications

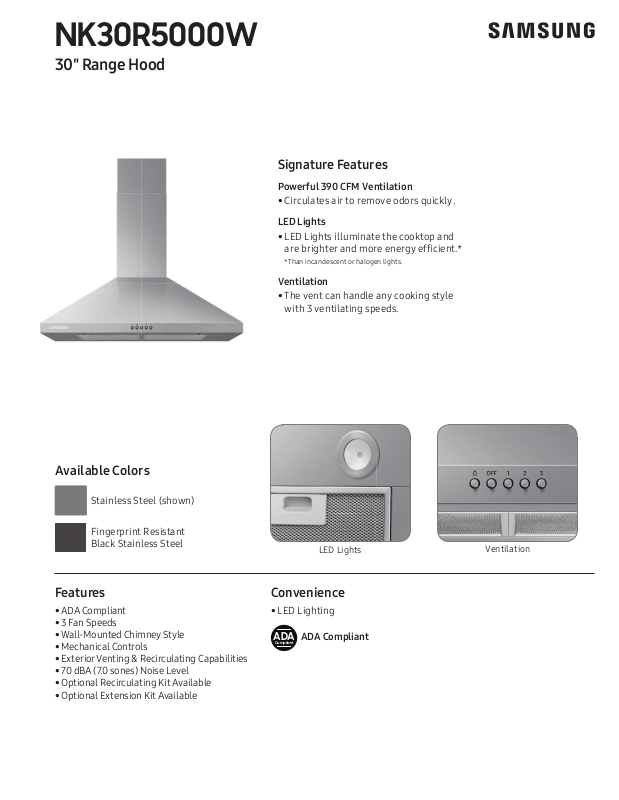

NK30R5000W
30" Range Hood
Signature Features
Powerful 390 CFM Ventilation
• Circulates air to remove odors quickly.
LED Lights
• LED Lights illuminate the cooktop and are brighter and more energy efficient.*
*Than incandescent or halogen lights.
Ventilation
• The vent can handle any cooking style with 3 ventilating speeds.
Available Colors
Stainless Steel (shown)
Fingerprint Resistant Black Stainless Steel
Features
• ADA Compliant
• 3 Fan Speeds
• Wall-Mounted Chimney Style
• Mechanical Controls
• Exterior Venting & Recirculating Capabilities
• Optional Recirculating Kit Available
• Optional Extension Kit Available
LED Lights
Convenience
• LED Lighting
ADA
ADA Compliant
Compliant
Ventilation
NK30R5000W
Installation Requirements
30" Range Hood
Venting Methods
Roof Venting Wall Venting Recirculating
A
B
A. Roof cap B. 6" (15.2 cm) round vent
B
A. Wall cap B. 6" (15.2 cm) round vent
A
Dimensions and Clearance
*For Vented Installation **For Non-Vented Recirculating Installation
73/16"
83/16"
6"
A
B
A. Deflector B. 6" (15.2 cm) round vent
"
– 383/
"
– 421/
*
"
16
**
"
8
28
3
8
/
3
8
28
/
Total Power
280W
Power Source
120V / 60 Hz / 15A
Range Hood
• 30" Stainless Steel Chimney Hood
• Vent Fan: 390 CFM
• Front-Centered, Mechanical Controls
• 3 Fan Speeds
• 70 dBA (7.0 sones) Noise Level
• Removable Filters
• LED Lighting
Warranty
One (1) Year All Parts and Labor
Product Dimensions & Weight (WxHxD)
Outside (Max) Hood Dimensions: 30" x 283/8" x 1911/16" Weight: 25.4 lbs
Shipping Dimensions & Weight (WxHxD)
Dimensions: 341/4" x 263/16" x 145/8" Weight: 36.8 lbs
Color Model # UPC Code
Stainless Steel NK30R5000WS/AA 887276302027 Fingerprint Resistant
Black Stainless Steel NK30R5000WG/AA 887276302010
Hood Extension Kit (Optional)
NK-AE505PWS NK-AE505PWG
Recirculation Kit (Optional)
NK-AF020FNB
Charcoal Filter
NK-AR040FNB
30"
1911/16"
Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.
©2019 Samsung Electronics America, Inc. 85 Challenger Road, Ridgeeld Park, NJ 07660. Tel: 800-SAMSUNG. samsung.com. Samsung is a registered trademark of Samsung Electronics Co. Ltd.
