Wired remote controller
MWR-WE10N
Air Conditioner
user manual
This manual is made with 100% recycled paper.
imagine the possibilities
Thank you for purchasing this Samsung product.
EN ES FR IT PT DE EL NL PL HU RU AR DB68-03732A-05
uhzh ~ Gy Gj t~yT~lXWu lu pi WZ^ZYhTW\U GGGZZ |
YWX\TW[TXWGGG GZaY[aW^ |
Contents |
|
Preparation |
|
Safety Precautions ............................................................................................................................................................................................................................... |
4 |
Part Names ............................................................................................................................................................................................................................................ |
6 |
Air Conditioner |
|

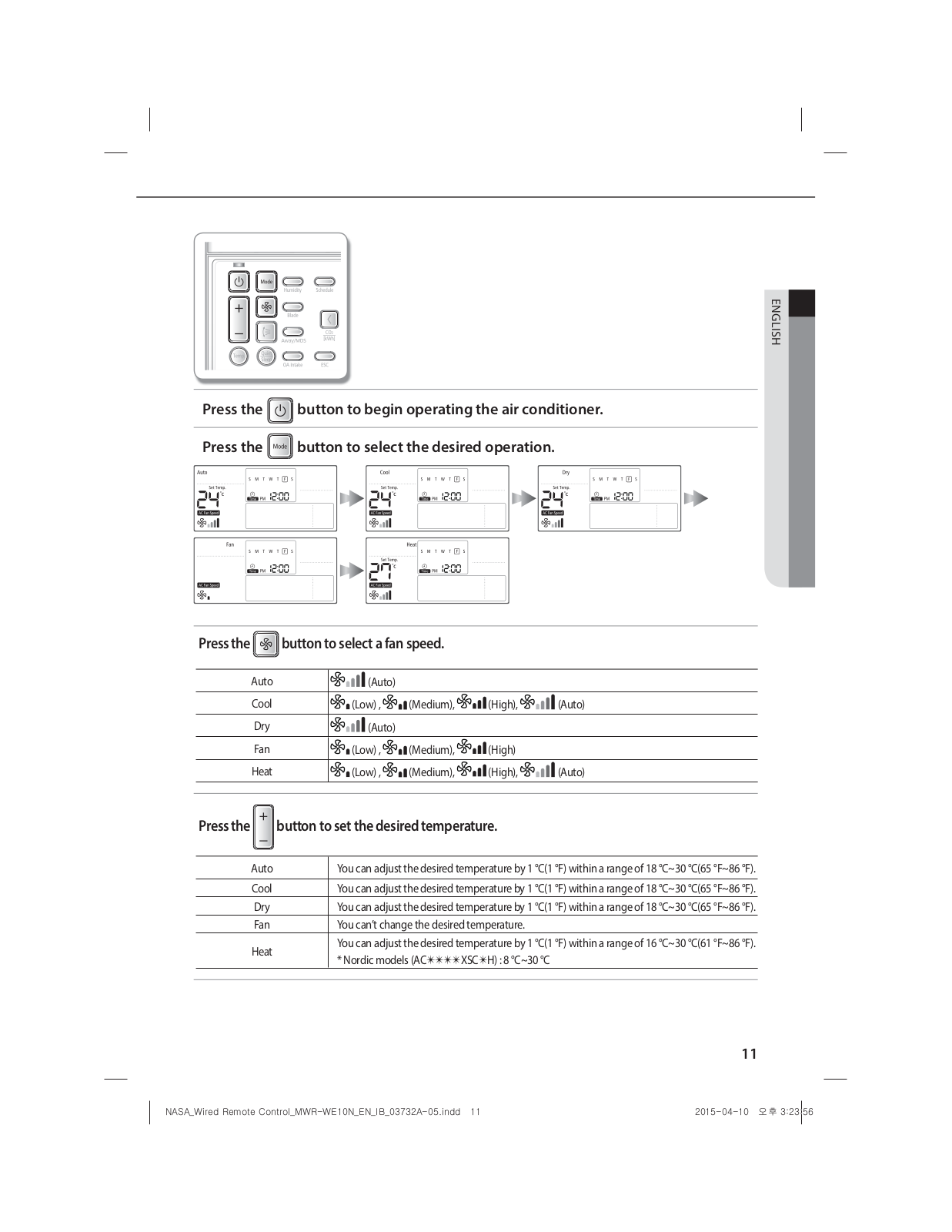

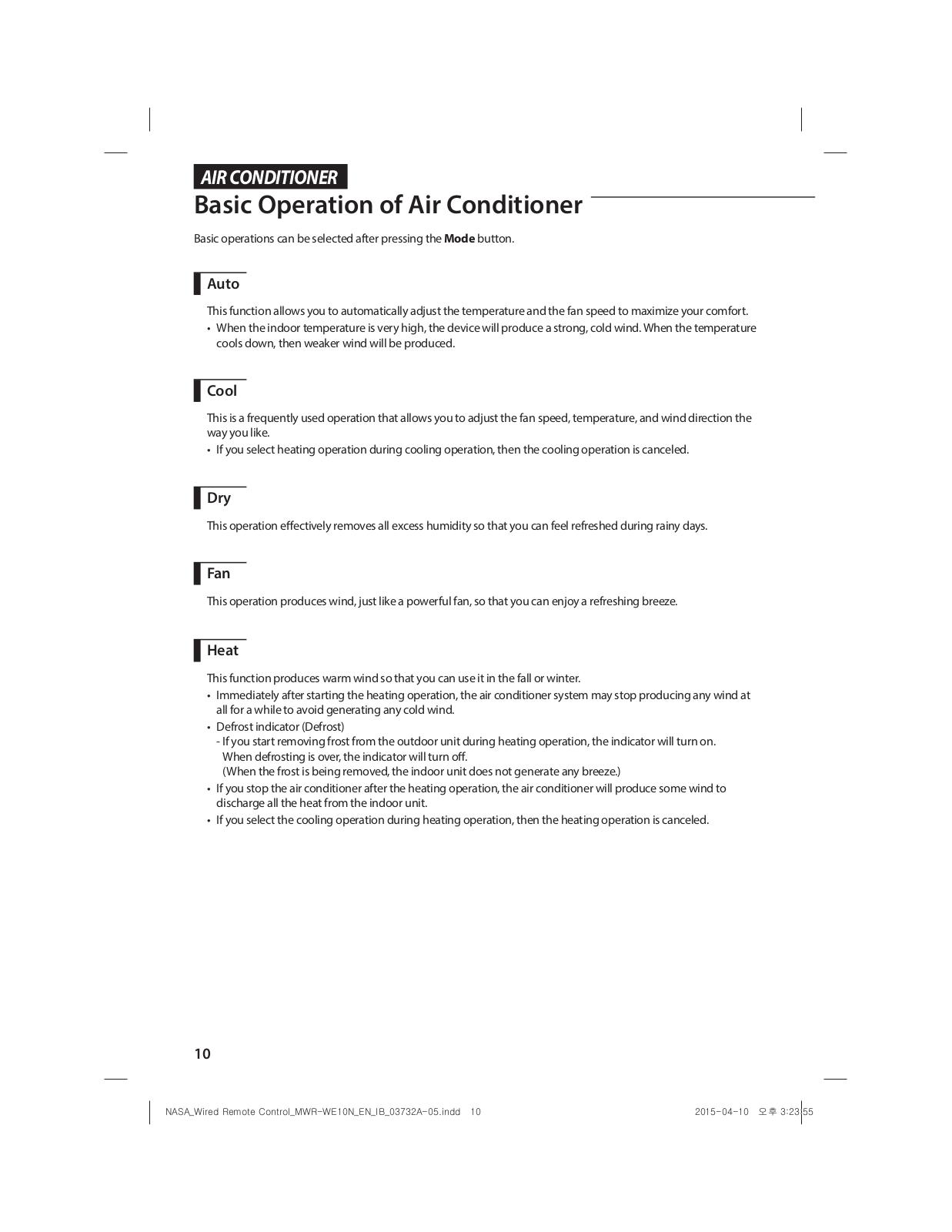

Basic Operation of Air Conditioner ........................................................................................................................................................................................... |
10 |

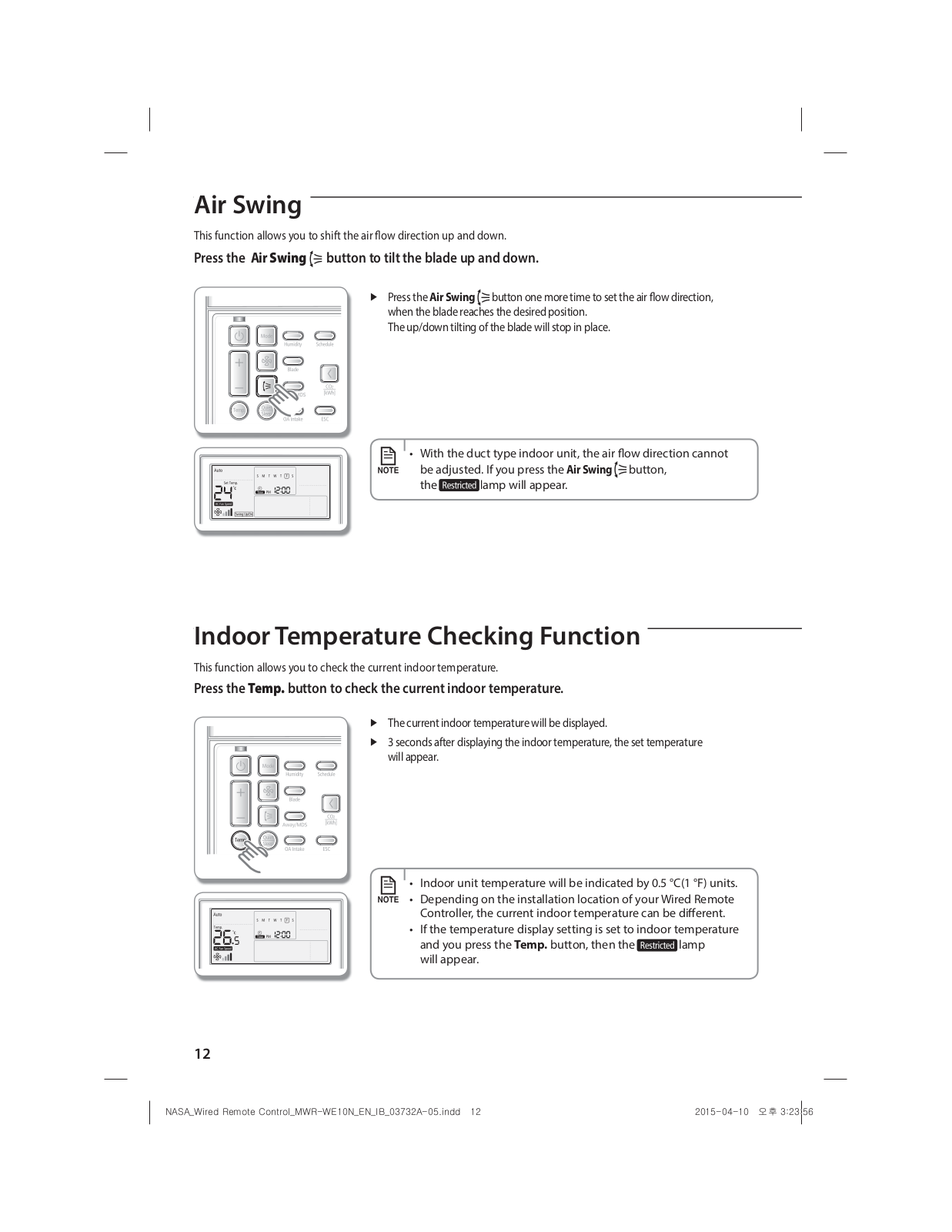

Air Swing ............................................................................................................................................................................................................................................... |
12 |
Indoor Temperature Checking Function ................................................................................................................................................................................ |
12 |
Quiet/Sleep Operation .................................................................................................................................................................................................................... |
13 |

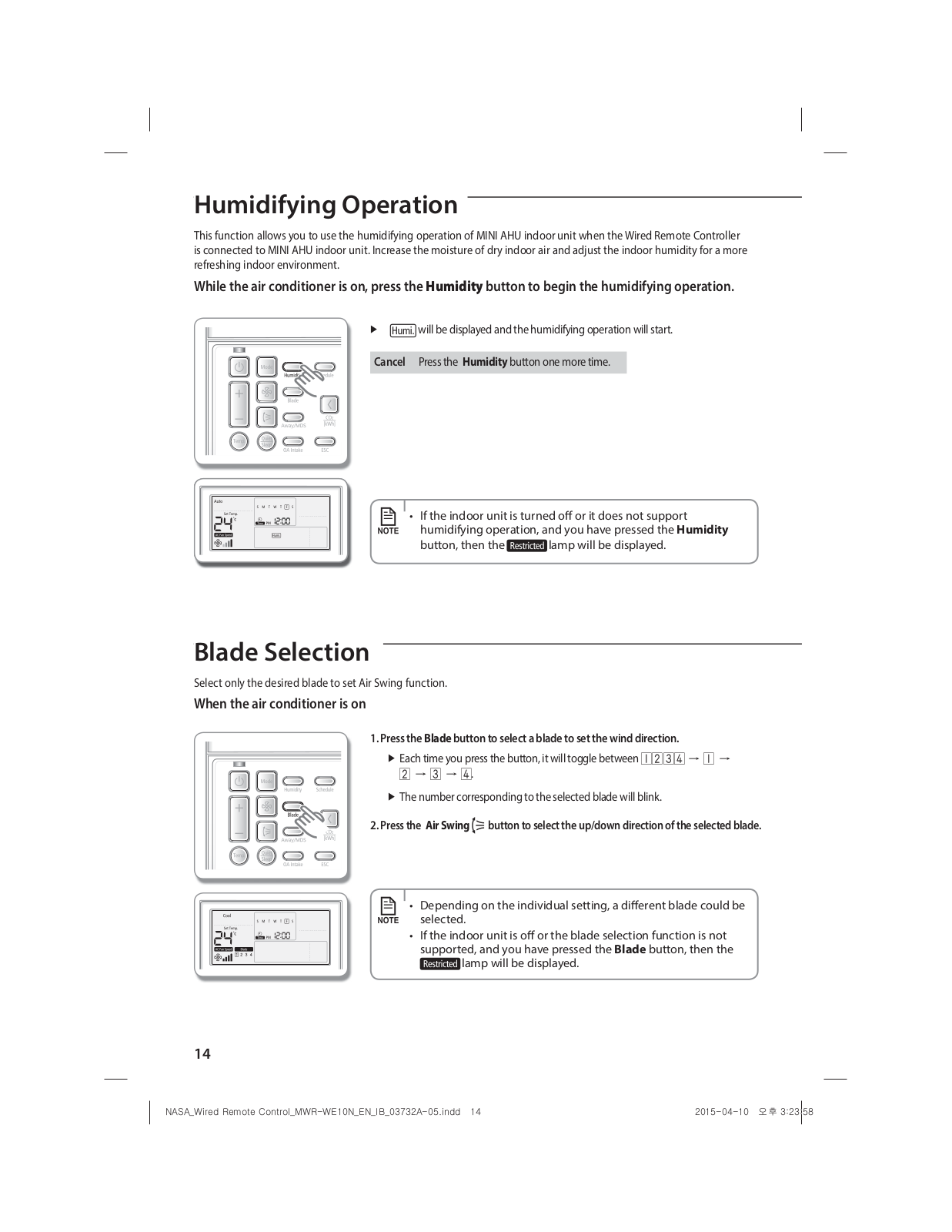

Humidifying Operation ................................................................................................................................................................................................................... |
14 |
Blade Selection.................................................................................................................................................................................................................................... |
14 |

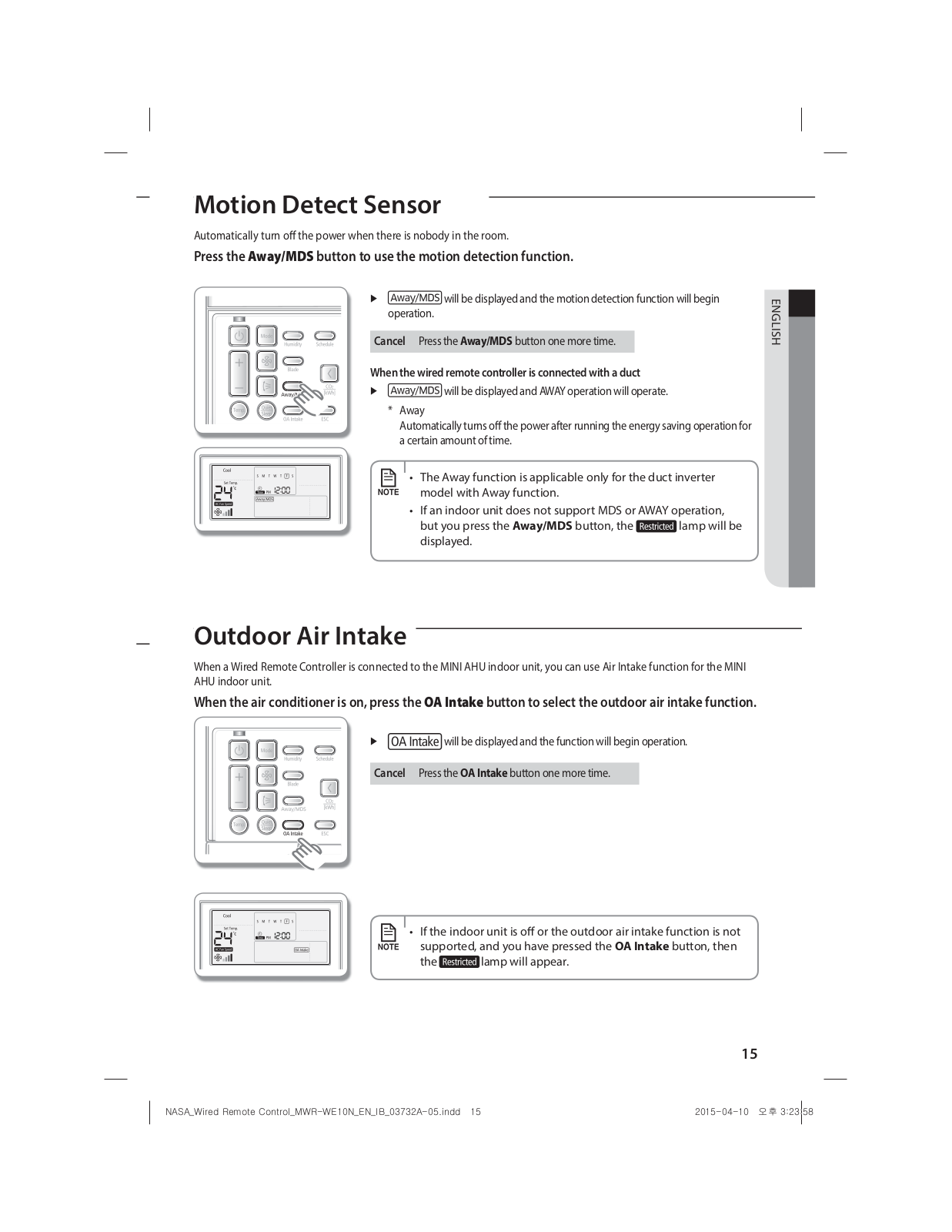

Motion Detect Sensor...................................................................................................................................................................................................................... |
15 |
Outdoor Air Intake............................................................................................................................................................................................................................. |
15 |

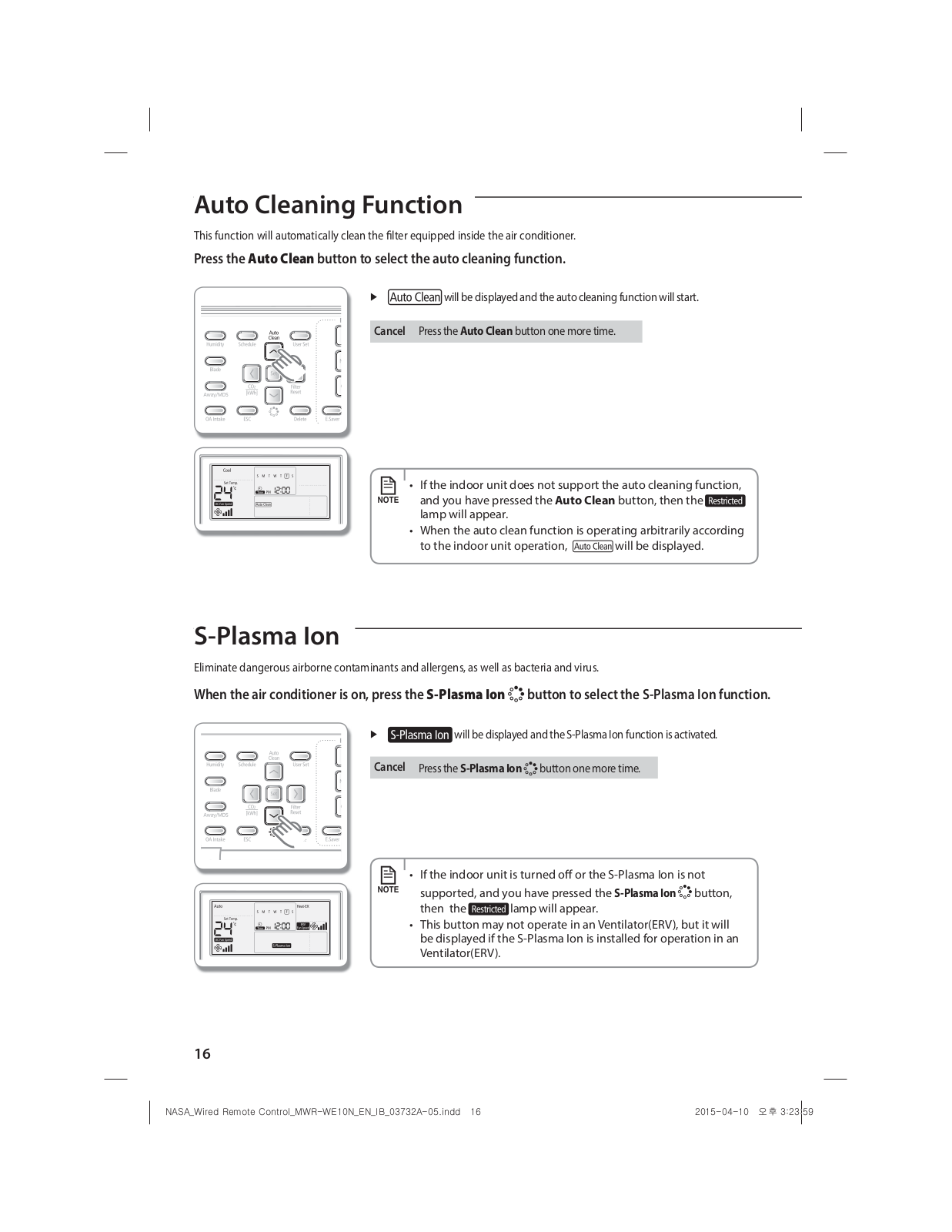

Auto Cleaning Function.................................................................................................................................................................................................................. |
16 |
S-Plasma Ion ......................................................................................................................................................................................................................................... |
16 |

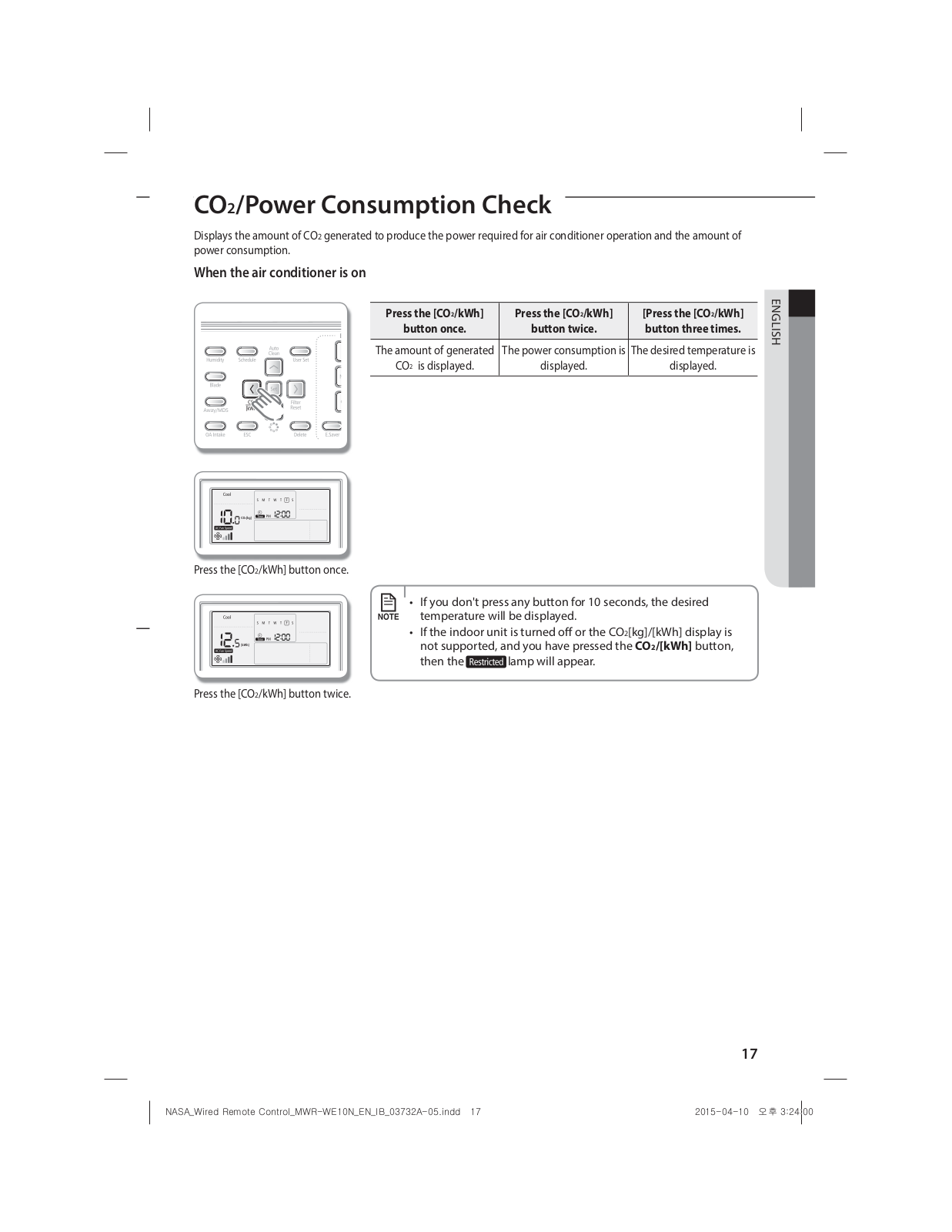

CO2/Power Consumption Check ................................................................................................................................................................................................ |
17 |
2
uhzh ~ Gy Gj t~yT~lXWu lu pi WZ^ZYhTW\U GGGY |
YWX\TW[TXWGGG GZaYZa\Y |
Ventilator(ERV) |
|

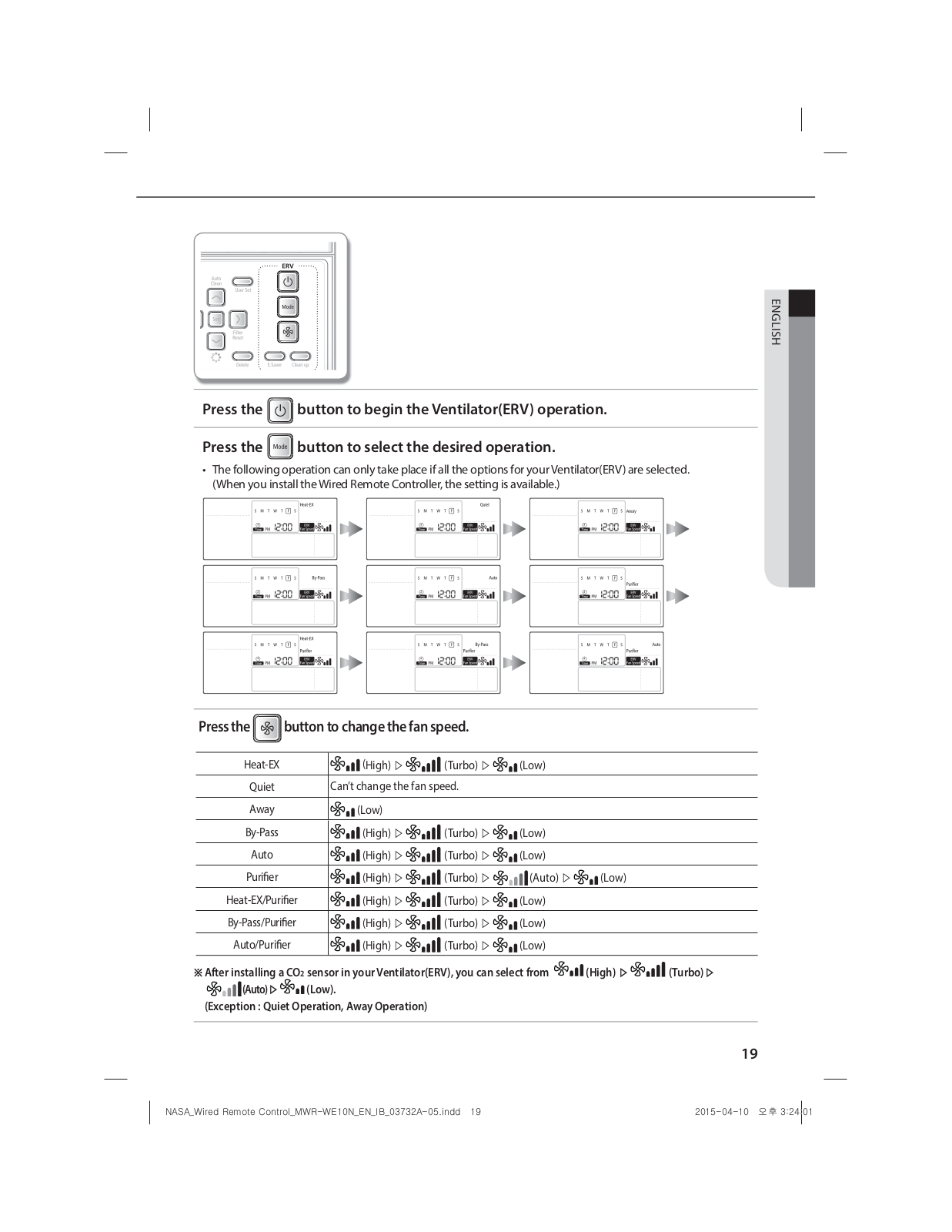

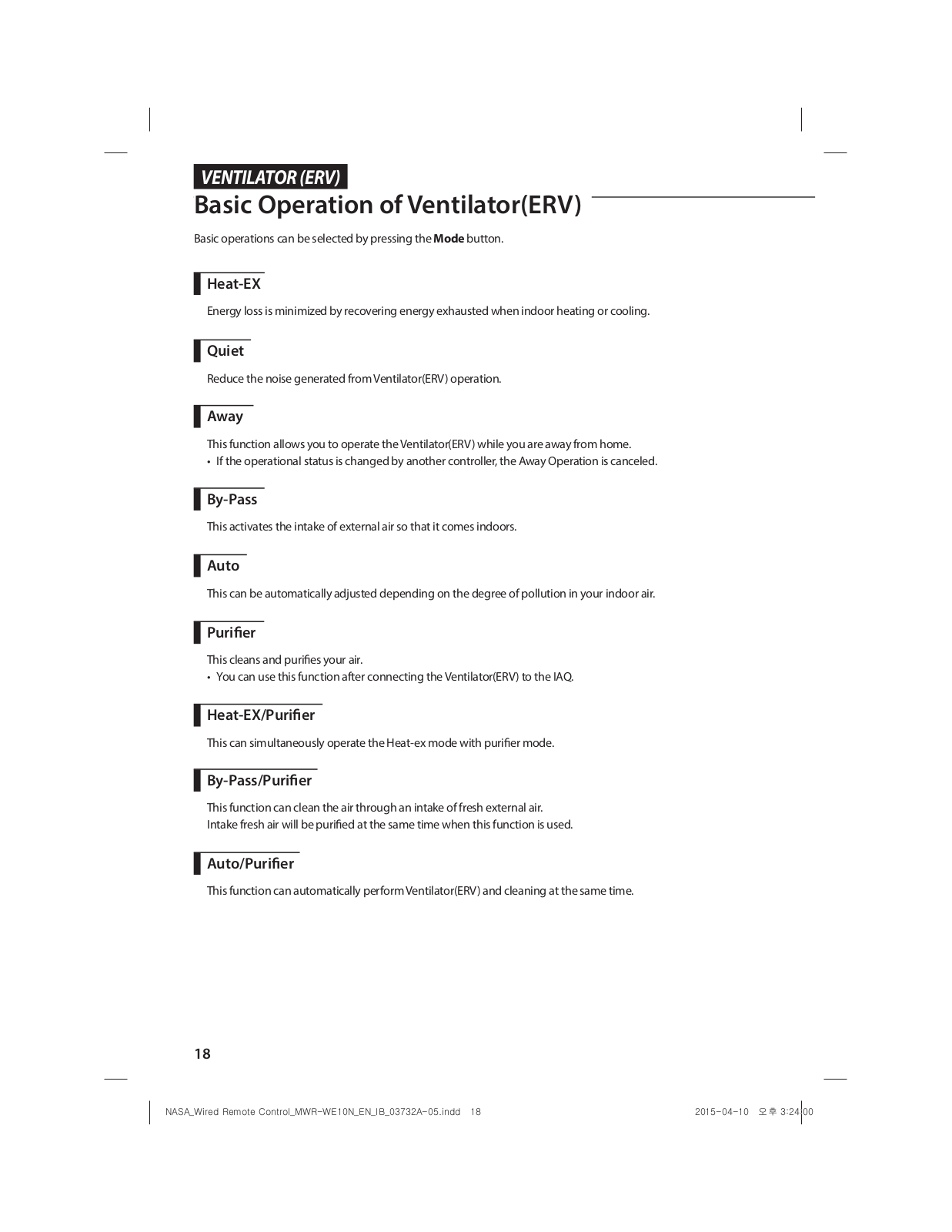

Basic Operation of Ventilator(ERV) ............................................................................................................................................................................................ |
18 |
Energy Saving Operation ............................................................................................................................................................................................................... |
20 |
Clean Up ................................................................................................................................................................................................................................................ |
20 |
S-Plasma Ion ........................................................................................................................................................................................................................................ |
21 |
External Interconnection Control .............................................................................................................................................................................................. |
21 |
Range Hood Interconnection Control ..................................................................................................................................................................................... |
21 |
Advanced Instruction |
|

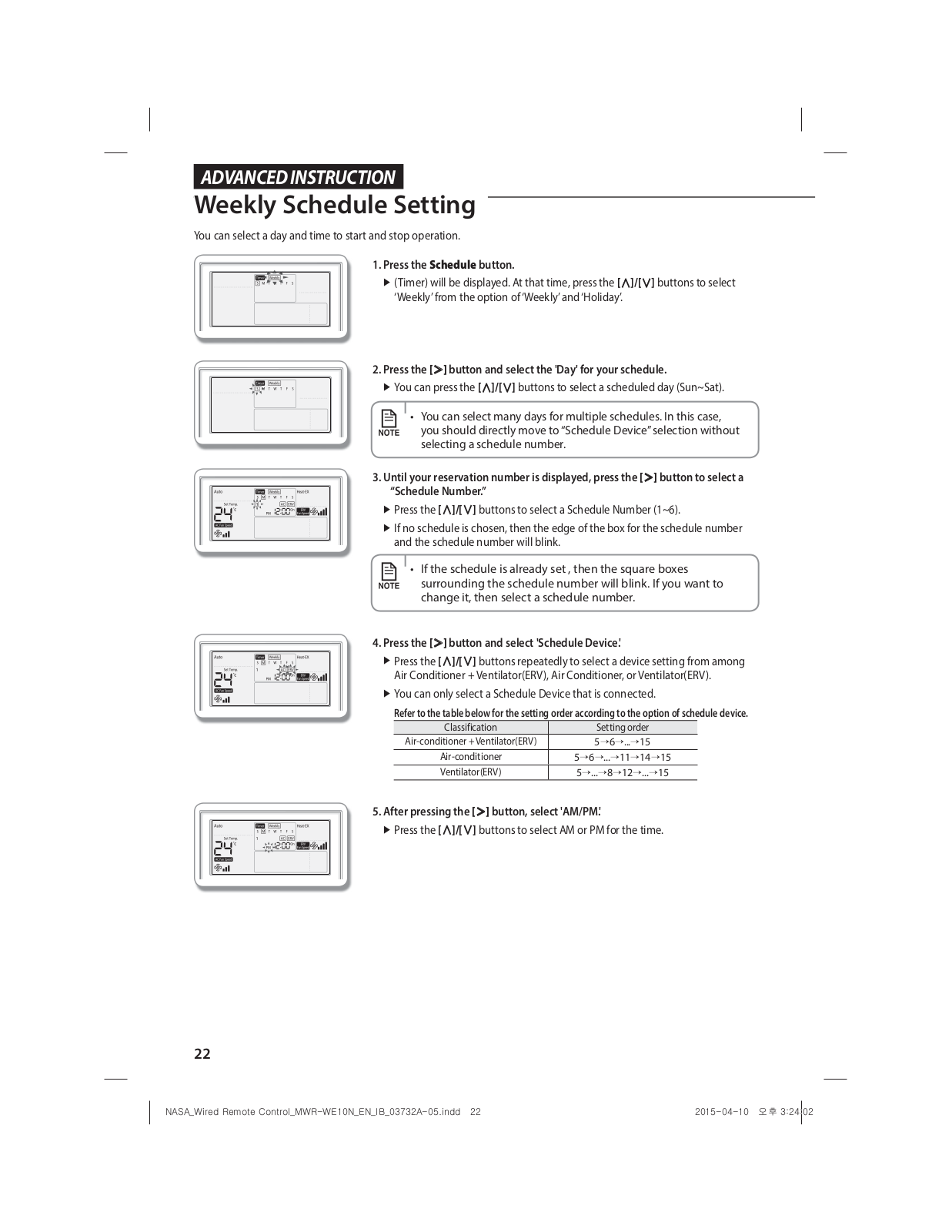

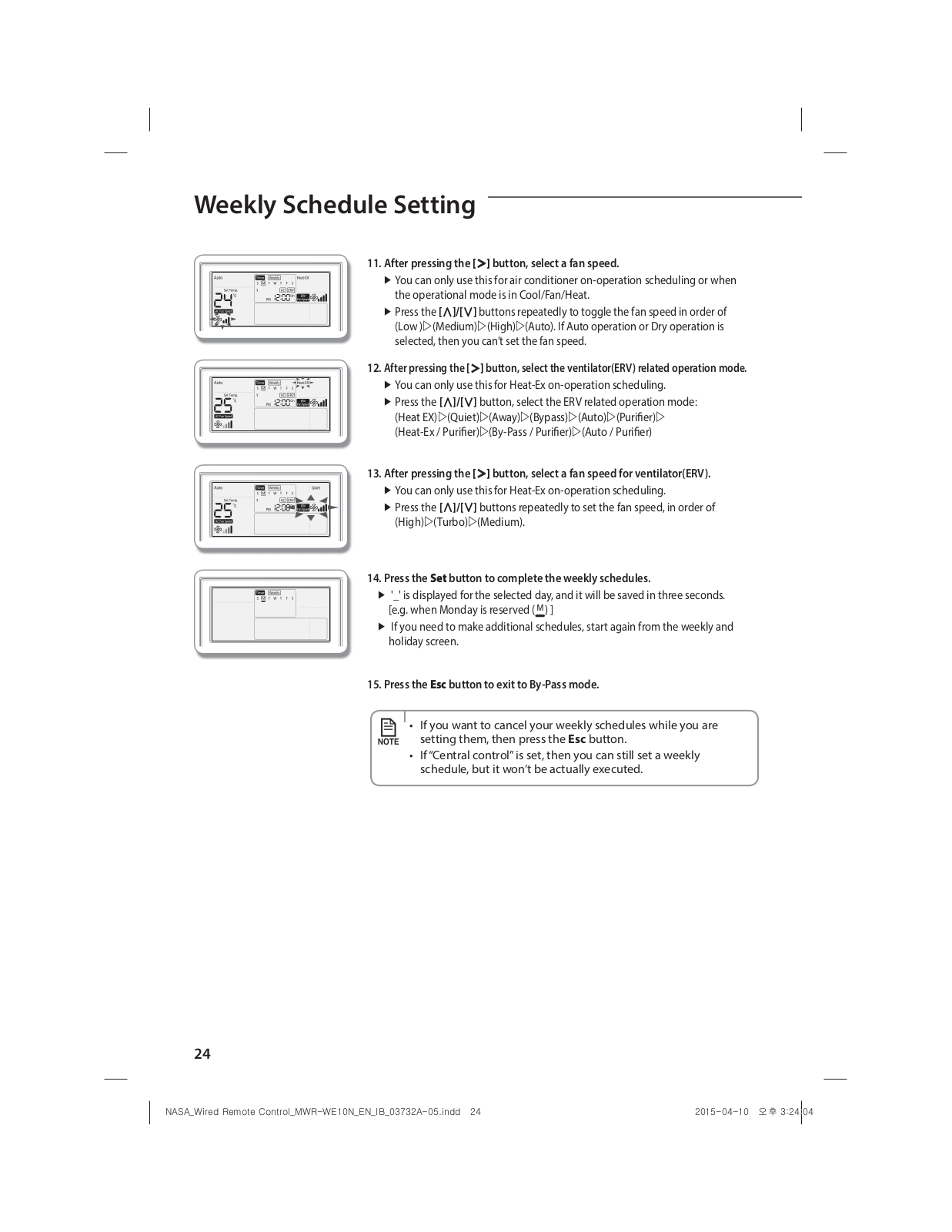

Weekly Schedule Setting ............................................................................................................................................................................................................... |
22 |

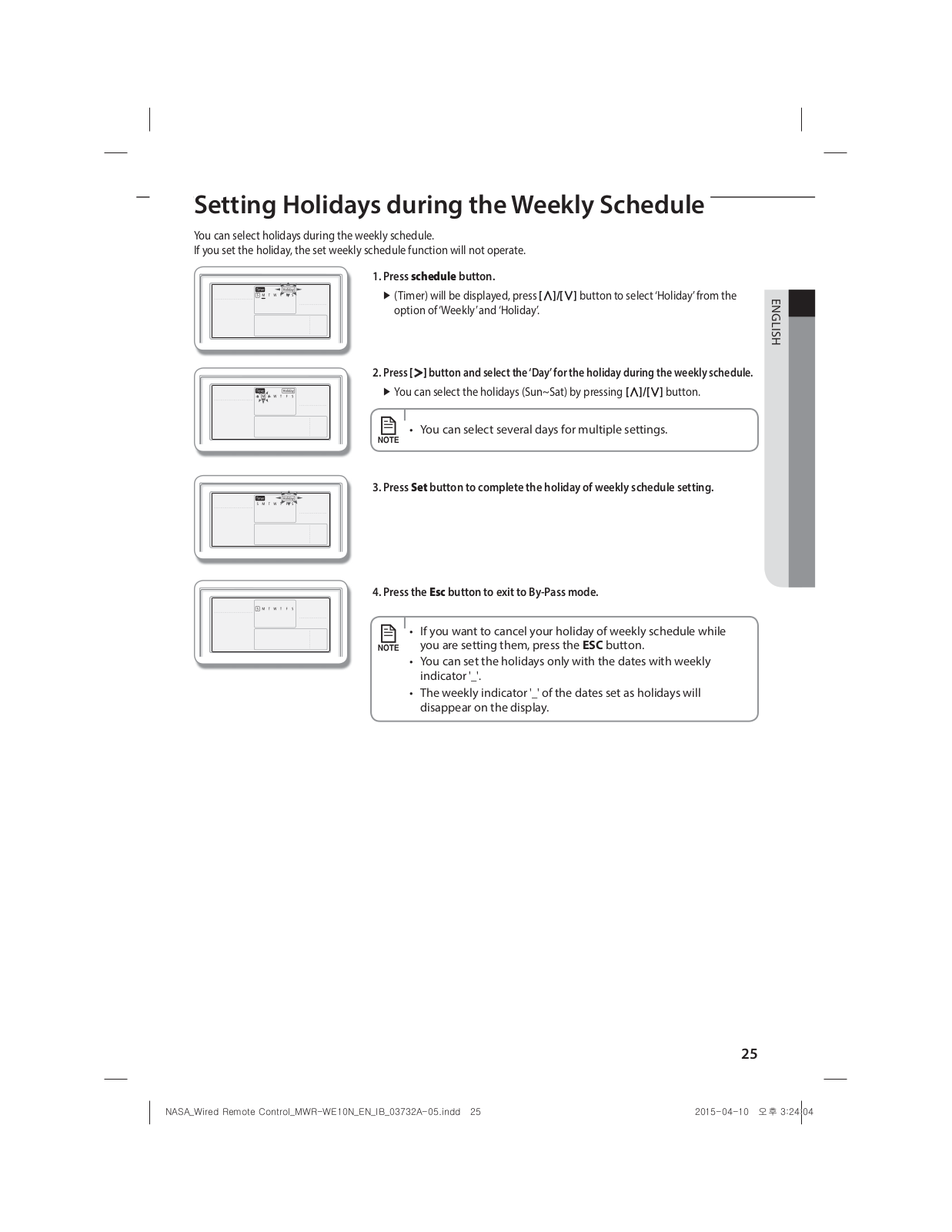

Setting Holidays during the Weekly Schedule .................................................................................................................................................................... |
25 |
Canceling a Weekly Schedule ...................................................................................................................................................................................................... |
26 |
Initializing a Weekly Schedule ..................................................................................................................................................................................................... |
27 |
Setting Additional User Functions |
|

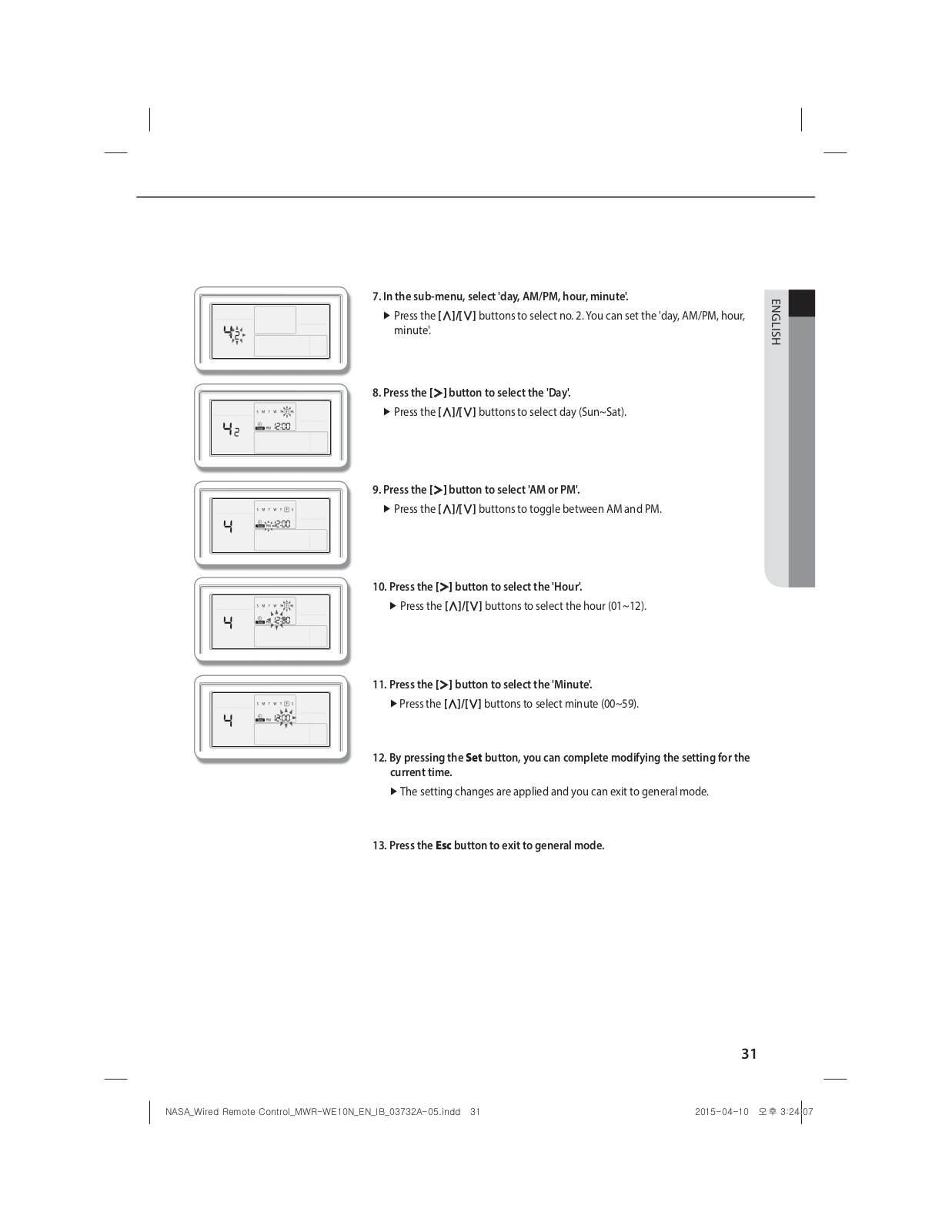

How to Set the Additional User Functions ............................................................................................................................................................................ |
28 |
3
<![endif]>ENGLISH
uhzh ~ Gy Gj t~yT~lXWu lu pi WZ^ZYhTW\U GGGZ |
YWX\TW[TXWGGG GZaYZa\Y |
PREPARATION
Safety Precautions
This content is intended to protect the user’s safety and prevent property damage. Please read it carefully for correct use of the product.
WARNING Hazards or unsafe practices that may result in severe personal injury or death.
CAUTION Hazards or unsafe practices that may result in minor personal injury or property damage.
Follow directions. |
|
Unplug the power plug from |
|
the wall socket. |
|
|
|
|
Do NOT attempt. |
|
Do NOT disassemble. |
|
|
|
Make sure the machine is grounded to prevent electric shock.
FOR INSTALLATION WARNING
The installation of this appliance must be performed by a qualified technician or service company.
X Failing to do so may result in electric shock, fire, explosion, problems with the product, or injury.
You must connect the product with rated power upon installation.
X Failing to do so may result in problems with the product, electric shock, or fire.
Do not install this appliance near a heater, inflammable material. Do not install this appliance in a humid, oily or dusty location, in a location exposed to direct sunlight and water (rain drops). Do not install this appliance in a location where gas may leak.
X This may result in electric shock or fire.
FOR INSTALLATION CAUTION
Install the product on a hard and even place that can support its weight.
X If the place cannot support its weight, the product may fall down and it may cause product damage.
FOR POWER SUPPLY WARNING
Do not bend or pull the power cord excessively.
Do not twist or tie up the power cord.
X This may result in electric shock or fire.
4
uhzh ~ Gy Gj t~yT~lXWu lu pi WZ^ZYhTW\U GGG[ |
YWX\TW[TXWGGG GZaYZa\Y |
FOR OPERATION |
WARNING |
If the appliance generates a strange noise, a burning smell or smoke, stop the operation immediately and contact your nearest service center.
X Failing to do so may result in electric shock or fire.
To reinstall the air conditioner, please contact your nearest service center.
XFailing to do so may result in problems with the product, water leakage, electric shock, or fire.
XA delivery service for the product is not provided. If you reinstall the product in another location, additional construction expenses and an installation fee will be charged.
If the malfunction diagnosis indicator appears or malfunctions, then stop operation immediately.
XIf you detect any burning smells from the product or it malfunctions, then immediately turn o the air conditioner/ Ventilator(ERV) and power, and then contact the service center. Continuing to use the device in this state can cause electrical shock, fire, or damage to the product.
XIf the E836 indicator appears, then it means that it is time to contact the service center for periodic inspection. Neglecting these periodic inspections can result in malfunctions (only applicable to GHP model).
Do not attempt to repair, disassemble, or modify the appliance yourself.
X This may result in electric shock, fire, problems with the product, or injury.
<![endif]>ENGLISH
FOR OPERATION |
CAUTION |
Do not allow water to enter the product.
X This may result in fire or electric shock.
Do not operate the appliance with wet hands.
X This may result in electric shock.
Do not spray volatile material such as insecticide onto the surface of the appliance.
XAs well as being harmful to humans, it may also result in electric shock, fire or problems with the product.
Do not apply a strong impact to the remote controller and do not disassemble the remote controller. Do not use this product for other purposes.
XThis product is designed to only be used as a system air conditioner.
Do not press the buttons with any sharp objects.
X This may result in electrical shock or part damage.
FOR CLEANING |
WARNING |
Do not clean the appliance by spraying water directly onto it. Do not use benzene, thinner, alcohol or acetone to clean the appliance.
X This may result in discoloration, deformation, damage, electric shock or fire.
5
uhzh ~ Gy Gj t~yT~lXWu lu pi WZ^ZYhTW\U GGG\ |
YWX\TW[TXWGGG GZaYZa\Y |
Part Names
Display
|
[ |
[ [ |
LED Indicator
(Green : Normal / Red : Need to be checked)
Operation On/Off button
Temperature Setting Button
• Without opening the cover of your Wired Remote Controller, you can turn the air-conditioner power On/Off or set the desired temperature.
6
uhzh ~ Gy Gj t~yT~lXWu lu pi WZ^ZYhTW\U GGG] |
YWX\TW[TXWGGG GZaYZa\Y |
Classification |
|
Indication |
|
Function |
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Displays Air conditioner operation |
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Displays Quiet/Sleep operation |
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Displays Indoor temperature/Set temperature |
|
Air |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Displays discharge temperature control |
||
Conditioner |
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
Related |
|
|
|
|
|
|
|
|
|
Displays CO2 /power consumption |
|
Information |
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Displays AC fan speed |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Displays Blade selection |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Displays Air swing(Up/Dn) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Weekly schedule/Holiday setting displays |
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
Schedule |
|
|
|
|
|
|
|
|
|
Displays Current day( ) or scheduled day(_) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Displays Schedule number |
||
related |
|
|
|
|
|
|
|
|
|||
information |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Displays Scheduled device selection |
||
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Displays Current time/summer time/scheduled time |
|
|
|
|
|
|
|
|
|
|
|
|
|
Ventilator |
|
|
|
|
|
|
|
|
|
Displays Ventilator(ERV) operation |
|
(ERV) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Displays Clean up |
||
related |
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
||||
information |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Displays Ventilator(ERV) fan speed |
||
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Displays Invalid operation /Filter cleaning (filter cleaning period) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Displays Dust box cleaning alert/check/partial locking/full locking |
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Displays Away/Motion detect sensor/Range hood/External interconnection |
|
|
|
|
|
|
|
|
|
|
|
control/Auto clean/ Humidifying/Energy saving/Outdoor air supply intake/ |
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|||
Common |
|
|
|
|
|
|
|
|
|
Central control |
|
function |
|
|
|
|
|
|
|
|
|
Displays S-Plasma Ion |
|
related |
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
information |
[ |
|
|
|
|
|
|
|
|
Displays Indoor CO2 density |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
[ |
|
|
|
|
|
|
|
|
Displays Indoor humidity |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Displays remaining time of the auto stop time/ERV delay time |
|
|
[ |
|
|
|
|
|
|
|
|
- Solid : Hour unit, Blinking : Minute unit |
|
|
|
|
|
|
|
|
|
|
Displays Demand Response Mode during a Demand Response Event : |
||
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
, , |
(It is applicable to some models for Australia only.) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
7 |
<![endif]>ENGLISH
uhzh ~ Gy Gj t~yT~lXWu lu pi WZ^ZYhTW\U GGG^ |
YWX\TW[TXWGGG GZaYZa\Z |
Part Names
Buttons
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
[ |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
[ |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
[ |
|
|
|
|
|
|
|
|
[ |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
[ |
[ |
|
|
Classification |
Button |
|
|
Function |
|
|
|
|
|
|
|
Operation On/Off |
Turns the air conditioner power On/Off |
|
|
||
|
|
button |
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
Mode button |
Selects the desired air conditioner operation |
|
|||
|
|
|
Temperature setting |
Sets the desired temperature |
|
|
|
|
Air |
|
|
button |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Conditioner |
|
|
Fan speed button |
Changes the air conditioner’s fan speed |
|
|||
Related |
|
|
|
|
|
|
|
|
Information |
|
|
Air Swing button |
Changes the air flow direction to move upward or downward |
|
|||
|
|
|
Temp. button |
Checks the indoor temperature |
|
|
||
|
|
|
Quiet/Sleep button |
Selects Quiet or Sleep operation for the air conditioner |
|
|||
|
|
|
Humidity button |
Turns the MINI AHU indoor unit humidifying function On/Off |
|
|||
8 |
|
|
|
|
|
|
|
|
uhzh ~ Gy Gj t~yT~lXWu lu pi WZ^ZYhTW\U GGG_ |
|
|
YWX\TW[TXWGGG |
GZaYZa\[ |
Classification |
Button |
|
Function |
|
|
|||||||
|
|
Air |
|
|
|
|
|
Blade button |
Selects a blade for individual control |
|
|
|
Conditioner |
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
Away / Motion detect |
Selects when no one is detected in an indoor area, when the air conditioner |
||||||
Related |
|
|
|
|
|
sensor button |
needs to be turned off automatically, when the AWAY operation is set; |
|
||||
Information |
|
|
|
|
|
Outdoor air intake |
Select the MINI AHU indoor unit Outdoor intake function |
|||||
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Schedule Button |
Select the schedule setting function |
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
User Set Button |
Select the detailed setting function |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Navigational buttons |
Move between items or change the item value |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Set button |
Save your new settings |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ESC button |
Return to general mode from schedule and detailed setting screens |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Special |
|
|
|
|
|
Delete button |
Cancel the schedule setting |
|
|
||
|
|
|
|
|
|
|||||||
Function |
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|||||
Displays |
|
|
|
|
Auto Clean button |
Use the auto cleaning function for your air conditioner |
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
CO2/[kWh] button |
Display the amount of CO2 and the power consumption |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Filter Reset button |
Turn off the filter cleaning displays (filter using time reset) |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
[ |
|
|
|
|
S-Plasma Ion button |
Choose the S-Plasma Ion function |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
[ |
|
|
|
|
Operation On/Off |
Turn the Ventilator(ERV) On/Off |
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
button |
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
Ventilator |
[ |
|
|
|
|
Mode button |
Select the desired operation for the Ventilator(ERV) |
|||||
|
(ERV) |
|
|
|
|
|
|
|
|
|
||
[ |
|
|
|
|
Fan speed button |
Change the fan speed for your Ventilator(ERV) |
||||||
Related |
|
|
|
|
||||||||
Buttons |
|
|
|
|
|
|
|
|
|
|||
[ |
|
|
|
|
E.Saver button |
Begin Energy Saving Operation |
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
[ |
|
|
|
|
Clean up button |
Select air purification through the in/out load controls |
||
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
• After cleaning the filter, please press the Filter Reset button. The |
lamp will turn off, and it |
||||||||
|
|
|
||||||||||
|
|
|
||||||||||
|
|
|
||||||||||
|
|
|
will be turned on again upon the next cleaning period. |
|
|
•If you press a functional button not supported by the indoor unit, then the lamp will turn on.
•If the temperature display setting is set to indoor temperature and you press the Temp. button,
the lamp display will appear. (When you install the Wired Remote Controller, the setting is available.)
•If you press the On/Offbutton when your Ventilator(ERV) is connected to a Wired Remote Controller, then the air conditioner and the Ventilator(ERV) might operate or stop at the same time or only the air conditioner might operate or stop. The factory setting is set to simultaneous operation/stop. (When you install the Wired Remote Controller, the setting is available.)
•Although the air conditioner and the Ventilator(ERV) are set to simultaneous operation/stop,
you can individually control the air conditioner and the Ventilator(ERV) by using another controller (e.g. wireless remote controller, central controller, S-net mini) except for a Wired Remote Controller.
9
<![endif]>ENGLISH
uhzh ~ Gy Gj t~yT~lXWu lu pi WZ^ZYhTW\U GGG` |
YWX\TW[TXWGGG GZaYZa\\ |
