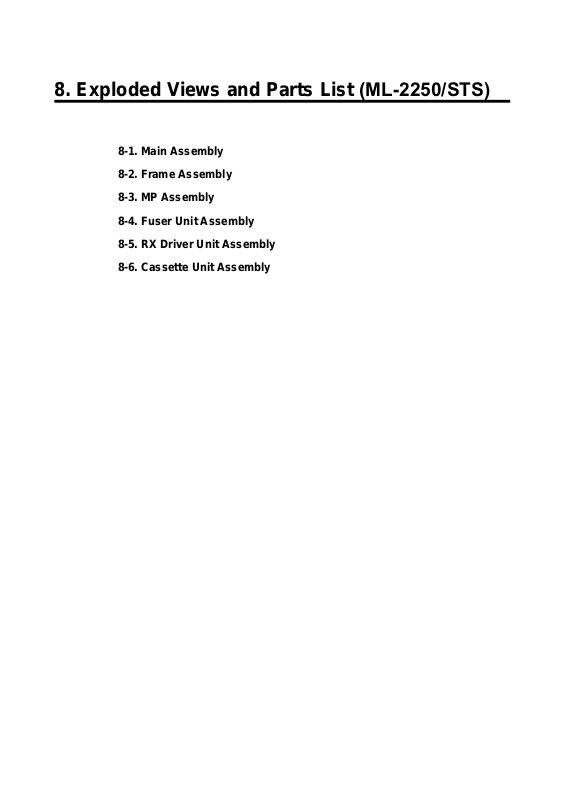

8. Exploded Views and Parts List (ML-2250/STS)

8-1. Main Assembly 8-2. Frame Assembly 8-3. MP Assembly 8-4. Fuser Unit Assembly 8-5. RX Driver Unit Assembly 8-6. Cassette Unit Assembly

8.1 Main Assembly

5-3

5-1

5-2

14-2

14-1

14-5

14(ML-2252W only)

14-3

14-4

14-6

2-1

2-6

2-3

2-4

2-5

14-2

14(ML-2251N only)

14-1

2-2

7-3

7-2

SCF(Optopm Cassette Unit)

Toner Cartridge

7-1

6-3

6-11

6-2

6-1

6-10

6-4

6-5

6-7

6-6

6-10

6-8

6-9

8.2 Frame Unit Assembly

65-3

65-1

63-2

63-1

65-2

65-4

19-2

19-1

21-2

21-1

21-3

27-3

Transfer Roller

45-3

45-1

45-2

47-1

47-2

47-3

47-4

47-5

27-1

27-2

46-1

46-2

8.3 MP Assembly

5-1

5-2

5-3

8.4 Fuser Unit Assembly

25 28

8.5 RX Driver Unit Assembly

8.6 Cassette Unit Assembly

6-2

6-1

6-4

6-3

΁ΒΣΥΤͽΚΤΥ

Parts List(Model code : ML-2250/STS)

SA : Service Available, SNA : Service not Available

Draw# Part Code Description Location SNA

8-1. Main Assembly

8.1-1 JC96-03129A ELA HOU-FRAME_220V_KR;ML-2250,SEC,-,FRAM F2090 SA

8.1-2 JC97-01953A MEA UNIT-COVER TOP H2;ML-2250/XIL,CHINA, T4062 SA

8.1-2-1 JC63-00437A COVER-M_TOP H2; Z2168 SA

8.1-2-2 JC72-01325B PMO-STACKER RX H2;ML-2250,ABS ,WHITE,-,- Z5090 SA

8.1-2-3 JC64-00039A KEY-M-ON LINE;ML-1400,PMMA,-,-,TRP,-,- K0045 SA

8.1-2-4 6107-001169 SPRING-CS SA

8.1-2-5 JC67-00026A LENS LED-M-LED;ML-1400,PMMA,CLEAR,-,-,-, K3432 SA

8.1-2-6 JC61-00902A BUSH-M-F/DOWN R2;SCX-4920,POM,-,-,-,BLK, K2878 SA

8.1-3 JC63-00432A COVER-M-SIDE L_H2;ML-2250,HIPS,2.5,348.2 Z2231 SA

8.1-4 JC63-00430A COVER-M-SIDE R_H2;ML-2250,HIPS,2.5,348.2 Z2233 SA

8.1-5 JC97-01954A MEA UNIT-COV REAR H2;ML-2250,SEC,-,COVER Z2373 SA

8.1-5-1 JC63-00438A COVER-M-REAR H2;ML-2250,ABS,2.5,318.5,26 Z2335 SA

8.1-5-2 JC63-00439A COVER-M-FACE UP H2;ML-2250,ABS,2.5,279.2 Z2185 SA

8.1-5-3 JC63-00431A COVER-M-REAR OPEN;ML-2250,HIPS,2.5,323,1 Z2268 SA

8.1-6 JC97-01950A MEA UNIT-COVER FRONT;ML-2250,SEC,-,COVER Z2262 SA

8.1-6-1 JC63-00433A COVER-M-FRONT H2;ML-2250,ABS,2.5,357,181 D0014 SA

8.1-6-2 JC64-00148A KNOB-M-LOCKER;ML-2250,HIPS,-,96,68,HB,-, SNA

8.1-6-3 JC61-00936A HOLDER-M-LOCKER;ML-2250,ABS,-,89.6,30.8, SNA

8.1-6-4 JC63-00447A TRAY-M-EXIT_MP T4113 SA

8.1-6-5 JC70-00478A ADJUST-M-MP L;ML-2250,ABS,-,133,67,-,- K2018 SA

8.1-6-6 JC70-00479A ADJUST-M-MP R;ML-2250,ABS,-,133,67,-,- K2019 SA

8.1-6-7 JC63-00446A TRAY-M-COVER_MP T4133 SA

8.1-6-8 JG66-40003A GEAR-PINION;SF4000,POM,WHT,M1,Z1 SA

8.1-6-9 JC63-00445A TRAY-M-CASE_MP T4107 SA

8.1-6-10 JC63-00444A TRAY-M-LINK_MP;ML-2250,PC,2,74.6,9.3,-,- T4137 SA

8.1-6-11 JG61-70549A SPRING ETC-CIS(C2);SF4400,SUS304WPB,D11. C5029 SA

8.1-7 JC97-01952A MEA UNIT-COVER MID H2;ML-2250,SEC,-,COVE P8003 SA

8.1-7-1 JC63-00436A COVER-M-MIDDLE H2;ML-2250,HIPS,2.5,335.7 Z2199 SA

8.1-7-2 JC72-01339A PMO-M-SUB ACTUATOR;ML-2250,POM,-,55.3*31 A0004 SNA

8.1-7-3 JC67-00068A CAP-M-SUB ACTUATOR;ML-2250,HIPS,-,20,60, SNA

8.1-8 JC63-00434A COVER-M-SMPS REAR;ML-2250,HIPS,2.5,287.2 S7039 SA

8.1-9 JC92-01439A PBA MAIN-PANEL;ML-1400,SEC,PANEL B`D,-,- M0239 SA

8.1-10 JC92-01595E PBA MAIN-CONTROLLER;ML-2250,CHINA,220V,- SA

8.1-11 JC44-00069B SMPS-V2 (CHINA);ML-2250,-,AC/DC,45.7W,22 SA

8.1-12 JC97-01966A MEA UNIT-SHIELD;ML-2250,SEC,-,SHIELD ASS E2098 SA

8.1-13 JC61-00601A BRACKET-P-INLET;ML-1400,SECC,1,128,23,-, B4027 SA

8.1-15 JC97-01917A MEA ETC-TR;SCX-4920N,DELL,-,TR ASS'Y,-,- Z6247 SA

8.1-16 JC59-00018B UNIT-LSU HUMMINGBIRD2;SCX-4920,-,-,600DP L7044 SA

8.1-17 JC96-03078A ELA UNIT-RX DRIVE;SCX-4920N,DELL,-,DRIVE D4033 SA

8.1-18 JC39-00396A CBF HARNESS-LSU L7002 SA

8.1-19 JC39-00240B CBF HARNESS-ENGINE H1070 SA

8.1-20 JC97-01955A MEA UNIT-CASSETTE HB2;ML-2250,SEC,-,CASS K3548 SA

8.1-21 JC61-00603A PLATE-P-KNOCK_UP;ML-1400,SECC,1,282,162, P5151 SNA

8.1-22 JC39-00355A CBF HARNESS-MOTOR M2053 SA



΁ΒΣΥΤͽΚΤΥ

SA : Service Available, SNA : Service not Available

Draw# Part Code Description Location SNA

8-2. Frame Assembly

8.2-0 JC96-03129A ELA HOU-FRAME_220V HB2;ML-2250,SEC,-,FRA SA

8.2-1 JC61-00906A FRAME-M-BASE R2;SCX-4920,ABS,-,V0,BLK,-, B0081 SA

8.2-2 JC61-00607A GUIDE-P-TR ;ML-1400,SECC,0.5,241,95,-,- G2089 SA

8.2-3 JC61-00604B PLATE-E_SAW;SF-755P,SUS304-CSP,0.15,16,2 P5152 SA

8.2-4 JC61-00594A GUIDE-M-TR RIB;ML-1400,PC+ABS,-,-,-,BLK, G2079 SA

8.2-5 JC72-00143A PMO-GEAR_EXIT_DRV16;SF-5100,POM, SNA

8.2-6 JC61-00835A FOOT-BACK;ML-1750,NBR,D13.6,-,10.5,-,- F1010 SA

8.2-7 JC61-00836A FOOT-FRONT;ML-1750,NBR,D7,-,12,-,- F1011 SA

8.2-8 JC63-00397A GROUND-P-GUDIE TR R2;SCX-4920,SUS304,0.2 SNA

8.2-9 JC75-00049A MEC-TERMINAL;SF-5100,SAMSUNG,IVR K3739 SA

8.2-10 JC61-00903A PLATE-P-TERMINAL CON R2;SCX-4920,SUS304, K3385 SNA

8.2-11 JC61-00904A PLATE-P-TERMINAL CR R2;SCX-4920,SUS304,0 P8153 SNA

8.2-12 JC61-00911A HOUSING-M-TERMINAL R2;SCX-4920,ABS,-,58. H6040 SA

8.2-13 JC72-00983A PMO-LOCKER CST;ML-1400,POM,BLK,-,-,-,-,- L6030 SA

8.2-14 JC72-00974A PMO-ACTUATOR CVR OPEN;ML-1400,ABS,BLK,-, O1073 SA

8.2-15 JC72-00985A PMO-PLATE GUIDE DEVE_R;ML-1400,POM(M90-4 G2286 SA

8.2-16 JC61-70932A SPRING ETC-GUIDE DEVE;ML-5000A,-,D4.5,-, Z4188 SA

8.2-17 JC63-00401A GROUND-P-PUSH BUSHING;SCX-4920,SUS304,0. K3234 SNA

8.2-18 JC72-00984A PMO-PLATE GUIDE DEVE_L;ML-1400,POM(M90-4 G2285 SA

8.2-19 JC97-01927A MEA UNIT-ACT FEED;SCX-4920N,DELL,-,ACT F SA

8.2-19-1 JC72-01323A PMO-ACT FEED R2;SCX-4920,ABS,BLK,60*12*1 F6156 SNA

8.2-19-2 6107-001164 SPRING-TS SA

8.2-20 JC72-00975A PMO-ACTUATOR EMPTY;ML-1400,ABS,BLK,-,-,H K3816 SA

8.2-21 JC97-01928A MEA UNIT-ACT MANUAL;SCX-4920N,DELL,-,ACT SA

8.2-21-1 JC72-01324A PMO-ACT MANUAL R2;SCX-4920,ABS,BLK,50*20 K4129 SA

8.2-21-2 6107-001165 SPRING-TS SNA

8.2-21-3 6107-001165 SPRING-TS SNA

8.2-22 JC63-00395A GROUND-P-EARTH TR R2;SCX-4920,SUS304,0.2 K3232 SNA

8.2-23 JC63-00403A GROUND-P-TERMINAL TR;SCX-4920,SUS301,0.4 G2130 SA

8.2-24 JC66-00526A ROLLER-FEED ROLLER 1;ML-1510,SUM24L+EPDM F6201 SA

8.2-25 JC72-00382B PMO-BUSHING FEED;ML-1710,DELRIN8903,WHIT F6161 SA

8.2-26 JC66-00398A SHAFT-FEED;ML-1400,POM+GF20%,-,-,-,-,- F6210 SA

8.2-27 JC97-01926A MEA UNIT-PICK UP;SCX-4920N,DELL,-,PICK U P2092 SA

8.2-27-1 JC61-00909A HOUSING-M-PICK UP_R2;SCX-4920,PC,-,20,30 M2077 SA

8.2-27-2 JC61-00910A HOUSING-M-PICK UP2_R2;SCX-4920,PC,-,53,2 M2078 SA

8.2-27-3 JC72-01231A SPONGE-ROLLER PICK_UP;ML-1510,URETHAN FO P2164 SA

8.2-28 JC70-00307A IPR-P-EARTH TRANSFER;ML-1400,SECC,-,1.0T K3367 SA

8.2-29 JC61-00907A HOLDER-M-PTL R2;SCX-4920,PC,2,15.8,15.3, H4041 SA

8.2-30 JC67-00027A LENS-PTL;ML-1400,PC,NTR,-,-,-,- K3433 SA

8.2-31 JC72-00102A PMO-BUSHING_TR(L);SF-5100,POM ,B K3856 SA

8.2-32 JC61-00047A SPRING ETC-TR L HAWK;ML-6060A,SUS 304 WP Z4277 SA

8.2-33 JC66-00598A ROLLER-FEED ;ML-1710,SUM24L+EPDN,3/14.5, F6200 SA

8.2-34 JC61-00588A BUSH-M-TR L;ML-1400,POM(M90-44),-,-,-,BL K2886 SA

8.2-35 JC63-00396A GROUND-P-FUSER R2;SCX-4920,SUS304,0.2,98 SNA

8.2-36 JC66-00527A SHAFT-FEED IDLE;ML-1510,SUM24L,225,8,-,- F6209 SA

8.2-37 JC61-00585A BUSH-M-FEED IDLE;ML-1400,POM(M90-44),-,- F6043 SA

8.2-38 JC61-70958A SPRING ETC-TR Z4041 SNA

8.2-39 JC63-00398A GROUND-P-DRIVE2 R2;SCX-4920,SUS304,0.2,5 SNA

8.2-40 6107-001170 SPRING-TS SA

8.2-41 JC66-00377A CAM-M-PICK_UP;ML-1400,POM(M90-44),-,-,NT P2042 SA



΁ΒΣΥΤͽΚΤΥ

SA : Service Available, SNA : Service not Available

Draw# Part Code Description Location SNA

8.2-42 JC63-00394A GROUND-P-DRIVE R2;SCX-4920,SUS304,0.2,48 SNA

8.2-43 JC33-00014A SOLENOID-FEED ROCKY2;-,SCX-4920,DC24V,-, P2162 SA

8.2-44 JC33-00010A SOLENOID-HB (MANUAL);-,ML-1510,DC24V,-,- S8015 SA

8.2-45 JC97-01929A MEA UNIT-GEAR PICK UP;SCX-4920N,DELL,-,G P2009 SA

8.2-45-1 JC66-00705A GEAR-PICK UP B_R2;SCX-4920,PPS,0.8,33,-, SA

8.2-45-2 JC66-00704A GEAR-PICK UP A_R2;SCX-4920,PPS,0.8,33,-, SA

8.2-45-3 6107-001167 SPRING-CS D4089 SA

8.2-46 JC97-01925A MEA UNIT-BRACKET FEED;SCX-4920N,DELL,-,B F6040 SA

8.2-46-1 JC61-00913A BRACKET-P-FEED R2;SCX-4920,SECC,1.0,80,5 F6041 SA

8.2-46-2 JC66-00690A GEAR-35 IDLE;SF-755P,POM,0.8,35,-,IVORY, G0147 SNA

8.2-47 JC97-01788A MEA UNIT-CLUTCH;ML-1710,SAMSUNG,-,-,-,-, C9040 SA

8.2-47-1 JC66-00393A GEAR-FEED 1;ML-1400,POM(M90-44),-,-,-,NT F6071 SA

8.2-47-2 JC72-00978A PMO-COLLAR_SPRING;ML-1400,POM(M90-44),NT Z4125 SA

8.2-47-3 6107-001171 SPRING-TS SA

8.2-47-4 JC72-00981A PMO-HUB CLUTCH;ML-1400,POM(M90-44),NTR,- SNA

8.2-47-5 JC66-00398A SHAFT-FEED;ML-1400,POM+GF20%,-,-,-,-,- F6210 SA

8.2-48 JC96-03304A ELA HOU-FUSER F4006 SA

8.2-49 JC61-00914A PLATE-P-PUSH BUSHING;SCX-4920,SUS304,0.8 K3234 SNA

8.2-50 JC66-00394A GEAR-FEED 2;ML-1400,POM(M90-44),-,-,-,NT F6072 SA

8.2-51 JC66-00396A GEAR-IDLE 23;ML-1400,POM(M90-44),0.8,23, G0256 SA

8.2-52 6107-001164 SPRING-TS SA

8.2-53 JC61-00586A BUSH-M-PICK_UP L P2039 SA

8.2-55 JC66-00399A SHAFT-P-PICK_UP;ML-1400,SECC,-,-,-,-,0.8 P2160 SA

8.2-56 JC92-01621A PBA SUB-PTL M0411 SA

8.2-57 JC61-00915A STOPPER-M-PICK UP_R2;SCX-4920,POM(M90-44 K3752 SNA

8.2-58 JC61-00908A HOLDER-M-TERMINAL R2;SCX-4920,ABS,-,60,4 H4037 SA

8.2-59 JC72-00982A PMO-IDLE PICK_UP;ML-1400,POM(M90-44),NTR P2131 SNA

8.2-60 JC61-00587A BUSH-M-PICK_UP R;ML-1400,POM(M90-44),-,- P2067 SA

8.2-61 JC61-00829A HOLDER-BEARING EXIT F/DOWN;SCX-4216F,POM H4009 SA

8.2-62 JC66-00038A GEAR-EXIT F/DOWN;ML-4500,POM,WHT E4039 SA

8.2-63 JC66-00378A ROLLER-EXIT F/DOWN;ML-1400,PC(NH-1023),1 E4159 SA

8.2-64 JC73-40915A RMO-RUBBER EXIT E4155 SA

8.2-65 JC97-01034A MEA RACK-EXIT ROLLER;ML-1605,SUMSUNG,KOR E4060 SA

8.2-65-1 JC72-41006A PMO-HOLDER EXIT ROLL;ML-165,PC,BLK,HB,- E4126 SA

8.2-65-2 JC72-41007A PMO-ROLLER FD F;ML-165,POM,BLK,HB,- K4063 SA

8.2-65-3 JC72-41008A PMO-ROLLER FD R;ML-165,POM,BLK,HB,- K4064 SA

8.2-65-4 JC61-70911A SPRING ETC-EXIT ROLL FD;ML-165,SUS304 WP Z4137 SA

8.2-66 JC61-00917A GUIDE-M-SUB FRONT;SCX-4920,HIPS,-,20,40, SNA

8.2-70 JC92-01604A PBA SUB-EXIT SENSOR M0330 SA

8.2-72 JC68-00317A LABEL(R)-HOT CAUTION,KME;ML-7050,TETRON, SNA

8.2-73 JC31-00025A FAN-DC;AD0624MSA70GL(R1)DOL,MLC-500,PBT+ F5016 SA

8-3. MP Assembly

8.3-0 JC96-03132A ELA UNIT-MP;ML-2250,SEC,-,MP,-,-,- K3155 SA

8.3-1 JC61-00923A FRAME-M-MP;ML-2250,ABS,-,-,-,2.5,79.5,31 F2243 SA

8.3-2 JC33-00015A SOLENOID-MP;-,ML-2250,DC24V,-,-,-,-,300M S8014 SA

8.3-3 JC39-00365A CBF HARNESS-MPF SEN H1168 SA

8.3-4 JC61-00587A BUSH-M-PICK_UP R;ML-1400,POM(M90-44),-,- P2067 SA

8.3-5 JC97-01926A MEA UNIT-PICK UP;SCX-4920N,DELL,-,PICK U P2092 SA

8.3-6 JC61-00915A STOPPER-M-PICK UP_R2;SCX-4920,POM(M90-44 K3752 SNA

8.3-7 JC61-00924A HOLDER-M-PAD_MP;ML-2250,PC+ABS,-,47,34,- H4029 SA

8.3-9 JC61-00926A HOLDER-M-SENSOR_MP;ML-2250,ABS,-,25,32.4 H4108 SA



΁ΒΣΥΤͽΚΤΥ

SA : Service Available, SNA : Service not Available

Draw# Part Code Description Location SNA

8.3-10 JC61-00927A PLATE-P-KNOCK UP_MP;ML-2250,SECC,1.0,252 SNA

8.3-11 JC61-00932A BRACKET-P-PICKUP_MP;ML-2250,SECC,1.0,70, P2122 SA

8.3-12 JC66-00396A GEAR-IDLE 23;ML-1400,POM(M90-44),0.8,23, G0256 SA

8.3-13 JC66-00399A SHAFT-P-PICK_UP;ML-1400,SECC,-,-,-,-,0.8 P2160 SA

8.3-14 JC66-00529A ROLLER-M-IDLE FEED;ML-1510,POM,13,13,-,- F6203 SA

8.3-15 JC66-00710A GEAR-M-PICK UP_MP;ML-2250,POM,0.8,33,-,- P2110 SA

8.3-16 JC66-00709A GEAR-M-HOLDER_MP;ML-2250,POM,0.8,33,-,-, H4073 SA

8.3-17 JC66-00711A CAM-M-PICK UP MP;ML-2250,POM,-,28*24*17, P2041 SA

8.3-18 JC72-00761A PMO-ROLLER CAM.MP;SCX-5100,-,POM,WHT,-,- K4061 SA

8.3-19 JC72-00982A PMO-IDLE PICK_UP;ML-1400,POM(M90-44),NTR P2131 SNA

8.3-20 JC72-01338A PMO-M-ACT EMPTY MP;ML-2250,ABS,BLK,55.3* K3119 SA

8.3-21 JC73-00140A RPR-FRICTION PAD;ML-1510,NBB,1T 10*45,60 P0034 SA

8.3-23 JC61-70911A SPRING ETC-EXIT ROLL FD;ML-165,SUS304 WP Z4137 SA

8.3-24 JC73-00141A RPR-PAD CASSETTE;ML-1510,NBB,1T 10*45,52 SNA

8.3-25 6107-001237 SPRING-ES SNA

8.3-26 JC63-00545A SHEET-GUIDE PAPER H2;ML-2250,PC,0.125T,2 SNA

8.3-27 JC66-00720A SHAFT-P-CORE;ML-1750,SECC 1.6T,220,-,-,- P2158 SNA

8.3-28 JC63-00448A SHEET-GUIDE MP;ML-2250,PET,0.125,200,30, SNA

8.3-29 6107-001167 SPRING-CS D4089 SA

8.3-30 6107-001047 SPRING-ES;PI0.45,D2.75,L24.2,-,SUS304 SA

8.3-31 0604-001095 PHOTO-INTERRUPTER;TR,90%,150mW,DIP-4,BK W3026 SA

8-4. Fuser Unit Assembly

8.4-0 JC96-03304A ELA HOU-FUSER F4006 SA

8.4-1 JC63-00363A COVER-M-FUSER R2;SCX-4920,PET+GF30%,68,5 Z2194 SA

8.4-2 JC61-00886A HOLDER-M-PLATE CLAW R2;SCX-4920,PPS+GF40 H4031 SA

8.4-3 JC61-00064A SPRING-CLAW;ML-5200A,SUS 304 WPB B2031 SNA

8.4-4 JC72-40361A PMO-ROLLER_EXIT;SCF(XR),POM,NTR,-,- R0015 SNA

8.4-5 JC61-70976A SPRING ETC-FUSER EXIT;-,SUS304WPB,D2.8,- S0021 SNA

8.4-6 JC47-00005A THERMOSTAT-150;ML-1510,-,125/250V,15/7.5 K4279 SA

8.4-7 JC72-00143A PMO-GEAR_EXIT_DRV16;SF-5100,POM, SNA

8.4-8 JC66-00396A GEAR-IDLE 23;ML-1400,POM(M90-44),0.8,23, G0256 SA

8.4-9 6044-000125 RING-E;ID4,OD9,T0.6,PASS,STSC T2001 SA

8.4-10 JC66-00397A GEAR-RDCN 25/15;ML-1400,POM(M90-44),-,25 G0386 SA

8.4-11 JC66-00729B ROLLER-HEAT_210;SCX-4520,AL + 210PFA COA H2010 SA

8.4-12 JC70-00473A ELECTRODE-P-LFET R2;SCX-4920,-,-,-,-,- SNA

8.4-13 1404-001298 HERMISTOR-NTC;7KOHM,-,3370K,0.3MW/C,-,- W3071 SA

8.4-14 JC70-00472A ELECTRODE-P-RIGHT R2;SCX-4920,-,-,-,-,- SNA

8.4-15 JC39-00354A CBF HARNESS-FUSER 220V H1085 SA

8.4-16 JC61-00887A BUSH-M-HR R_R2;SCX-4920,PPS(RBA313N),35, K2880 SA

8.4-17 JC68-30928D LABEL(P)-CAUTION, HOT_FUSER L0035 SNA

8.4-18 JC73-00017A RMO-RUBBER_EXIT;SF-5100,EPDM,11. E4155 SA

8.4-19 JC66-00380A ROLLER-M-EXIT F/UP;ML-1400,PC(NH-1023),1 E0041 SA

8.4-20 JC66-00600B ROLLER-PRESSURE_CHINA P6016 SA

8.4-21 JC66-10901A BEARING-PRESSURE/R;ML-165,PPS,5,-,14.8 P6004 SA

8.4-22 6107-001168 SPRING-CS D4085 SNA

8.4-23 JC72-00382A PMO-BUSHING TX;ML-6060A,POM,BLK,-,- SNA

8.4-24 JC61-00581A HOLDER-ACTUATOR;ML-1400,PC(NH-1023),-,-, SNA

8.4-25 JC72-01319A PMO-ACTUATOR EXIT R2;SCX-4920,PC+GF20%,B E4093 SA

8.4-26 JC61-00890A FRAME-P-FUSER R2;SCX-4920,SECC,-,-,-,1.2 F2122 SA

8.4-27 JC61-00889A GUIDE-M-INPUT R2;SCX-4920,PET+GF30%,16,1 SNA

8.4-28 6107-001165 SPRING-TS SNA



΁ΒΣΥΤͽΚΤΥ

SA : Service Available, SNA : Service not Available

Draw# Part Code Description Location SNA

8.4-29 6021-000222 NUT-HEXAGON;2C,M3,ZPC(YEL),SM20C,- M0006 SNA

8.4-30 JC61-00888A BUSH-M-HR L_R2;SCX-4920,PPS(RBA313N),35, K2879 SA

8.4-31 JC61-00605A PLATE-P-CLAW;ML-1400,SUS304-CSP,0.1,-,-, H4032 SNA

8.4-32 JC66-00695A GEAR-FUSER R2;SCX-4920,PPS(OFL4036),0.8, D4037 SA

8.4-33 4713-001183 LAMP-HALOGEN K2297 SA

8.4-34 JC68-00407A LABEL(R)-HV FUSER;ML-6060,PVC,-,220V,- L0018 SNA

8.4-35 6003-000196 SCREW-TAPTITE;PWH,+,B,M3,L10,NI SA

8.4-36 6006-001193 SCREW-ASSY MACH;WSP,PH,+,M3,10,ZPC(YEL), SNA

8.4-37 6003-000269 SCREW-TAPTITE;BH,+,S,M3,L6,ZPC(Y SA

8.4-38 JC75-00095A MEC-BRUSH ANTISTATIC;ML-6060A,SEC,NTR B5010 SA

8-5. RX Driver Unit Assembly

8.5-0 JC96-03078A ELA UNIT-RX DRIVE;SCX-4920N,DELL,-,DRIVE D4033 SA

8.5-1 JC61-00891A BRACKET-P-GEAR MAIN;SCX-4920,SECC,1.6,19 B4055 SA

8.5-2 JC66-00388A GEAR-RDCN 53/26;ML-1400,POM(M90-44),-,53 G0393 SA

8.5-3 JC66-00706A GEAR-RDCN 113/33;SCX-4920,POM,0.4/0.6,11 G0381 SA

8.5-4 JC66-00389A GEAR-RDCN 57/18;ML-1400,POM(M90-44),-,57 G0394 SA

8.5-5 6031-000023 WASHER-PLAIN;-,ID5.9,OD10.0,T0.5 SNA

8.3-5-1 JC61-00909A HOUSING-M-PICK UP_R2;SCX-4920,PC,-,20,30 M2077 SA

8.3-5-2 JC61-00910A HOUSING-M-PICK UP2_R2;SCX-4920,PC,-,53,2 M2078 SA

8.3-5-3 JC72-01231A SPONGE-ROLLER PICK_UP;ML-1510,URETHAN FO P2164 SA

8.5-6 JC61-00916A BRACKET-P-MOTOR MAIN R2;SCX-4920,SECC,1. M2048 SA

8.5-7 JC66-00390A GEAR-RDCN 103/41;ML-1400,POM(NW-02),-,10 G0396 SA

8.5-8 JC66-00392A GEAR-RDCN 90/31;ML-1400,POM(M90-44),-,90 G0380 SA

8.5-9 JC31-00037A MOTOR STEP-MAIN;M55SP-2NK,SCX-4920N,1.2A M2159 SA

8-6. Cassette Unit Assembly

8.6-0 JC97-01955A MEA UNIT-CASSETTE HB2;ML-2250,SEC,-,CASS K3548 SA

8.6-1 JC61-00876A FRAME-M_CASSETTE;SF-755P,HIPS,HR-1360,HB SNA

8.6-2 JC61-00918B GUIDE-M-EXTENSION L2;ML-2250,HIPS,-,150, E5013 SNA

8.6-3 JC72-00971A PMO-EXTENSION SMALL;ML-1400,HIPS(HR-1360 E5014 SA

8.6-4 JC61-00603A PLATE-P-KNOCK_UP;ML-1400,SECC,1,282,162, SNA

8.6-5 6107-001166 SPRING-CS SA

8.6-6 JC97-01931A MEA UNIT-HOLDER PAD;SCX-4920N,DELL,-,HOL P0014 SA

8.6-6-1 JC61-00580A HOLDER-M-PAD;ML-1400,PC(NH-1023),-,-,-,- P0034 SA

8.6-6-2 JC63-00407A SHEET-HOLDER PAD R2;SCX-4920,PC,0.178T,5 SNA

8.6-6-3 JC73-00140A RPR-FRICTION PAD;ML-1510,NBB,1T 10*45,60 P0034 SA

8.6-6-4 JC70-00314A IPR-PLATE PAD;ML-1400,SUS304-CSP,-,0.1,- P0009 SA

8.6-7 JC61-70911A SPRING ETC-EXIT ROLL FD;ML-165,SUS304 WP Z4137 SA

8.6-8 JC63-00441A COVER-M-SUB CASSETTE H2;ML-2250,HIPS,2.5 SA

8.6-9 JC64-00143A INDICATOR-M-CST PAPER;ML-2250,HIPS(HR-13 S4102 SNA

8.6-10 JC72-00972A PMO-PLATE_LOCKER;ML-1400,POM(M90-44),WHT L6051 SA

8.6-11 JG61-70531A SPRING ETC-LOCKER,PLATE Z4215 SA

8.6-12 JC70-00300A ADJUST-M-CASSETTE_L;ML-1400,ABS,-,-,-,BL K2014 SA

8.6-13 JC70-00301A ADJUST-M-CASSETTE_R;ML-1400,ABS,-,-,-,BL K2015 SA

8.6-14 JG66-40003A GEAR-PINION;SF4000,POM,WHT,M1,Z1 SA

8.6-15 JC73-00141A RPR-PAD CASSETTE;ML-1510,NBB,1T 10*45,52 SNA

8.6-16 JC66-00719A CAM-M-KNOCK UP;ML-1750,POM(M90-44),-,-,N SNA



SAMSUNG ML-2250STS Exploded Views

Specifications and Main Features

Frequently Asked Questions

User Manual
