Samsung MAX-ZL65, MAX-ZL65GBR User Manual

Download
Page 1
THREE-CD CHANGER MINI-COMPACT SYSTEM
MP3-CD/CD-R/RW PLAYBACK
MAX-ZL65
Instruction Manual
Page 2

Safety Warnings

CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT PRODUCTO LASER CLASE 1
Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
CAUTION-INVISIBLE LASER RADIATION WHEN OPEN
AND INTERLOCKS DEFEATED, AVOID EXPO­SURE TO BEAM.
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE REAR COVER. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CLASS 1 LASER PRODUCT
This Compact Disc player is classified as a CLASS 1 LASER product.
WARNING: To reduce the risk of fire or electric shock, do not
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH
This symbol indicates that dangerous voltage which can cause electric shock is present inside this unit.
This symbol alerts you to important operating and maintenance instructions accompanying the unit.
WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
Wiring the Main Power Supply Plug(UK Only)
expose this appliance to rain or moisture.
IMPORTANT NOTICE
The main lead on this equipment is supplied with a moulded plug incorporating a fuse. The value of the fuse is indicated on the pin face of the plug and if it requires replacing, a fuse approved to BS1362 of the same rating must be used.
Never use the plug with the fuse cover removed. If the cover is detachable and a replacement is required, it must be of the same colour as the fuse fitted in the plug. Replacement covers are available from your dealer.
If the fitted plug is not suitable for the power points in your house or the cable is not long enough to reach a power point, you should obtain a suitable safety approved extension lead or consult your dealer for assistance.
However, if there is no alternative to cutting off the plug, remove the fuse and then safely dispose of the plug. Do not connect the plug to a main socket as there is a risk of shock hazard from the bared flexible cord.
Never attempt to insert bare wires directly into a main socket. Aplug and fuse must be used at all times.
IMPORTANT
The wires in the main lead are coloured in accordance with the following code:–
BLUE = NEUTRAL BROWN = LIVE
As these colours may not correspond to the coloured markings identifying the terminals in your plug, proceed as fol­lows:– The wire coloured BLUE must be connected to the terminal marked with the letter N or coloured BLUE or BLACK. The wire coloured BROWN must be connected to the terminal marked with the letter L or coloured BROWN or RED.
WARNING: DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH
THE LETTER E OR BY THE EARTH SYMBOL , OR COLOURED GREEN OR GREEN AND YELLOW.
2
Page 3

Contents

S
AFETYWARNINGS
NSTALLINGYOURMINI-COMPACTSYSTEM
I
Front Panel View ...................................................................................................................................................................................... 4
Remote Control........................................................................................................................................................................................ 5
Rear Panel View ...................................................................................................................................................................................... 6
Where to Install Your Mini-Compact System ............................................................................................................................................ 7
Connecting your System to the Power Supply ........................................................................................................................................ 7
Inserting Remote Control Batteries.......................................................................................................................................................... 7
Connecting to an External Source .......................................................................................................................................................... 8
CD Digital Out Jack .................................................................................................................................................................................. 8
Connecting the Loudspeakers ................................................................................................................................................................ 8
Connecting the AM (MW)/LW Aerial ........................................................................................................................................................ 9
Connecting the FM Aerial ........................................................................................................................................................................ 9
Viewing the Various Functions on Your System ...................................................................................................................................... 10
Setting the Clock...................................................................................................................................................................................... 10
CD-P
LAYER
Loading and Changing Compact Discs.................................................................................................................................................... 11
To replay the CD/MP3-CD ........................................................................................................................................................................ 11
Selecting a CD in the Disc changer ............................................................................................. ........................................................... 12
Selecting a Track...................................................................................................................................................................................... 12
To select the MP3-CD title and track ...................................................................................................................................................... 12
Searching for a Specific Music Passage on a CD ................................................................................. ................................................. 13
Function to skip through 10 tracks at a time................................................................................... ......................................................... 13
Last Memory Function.............................................................................................................................................................................. 13
Shuffle Play Function .............................................................................................................................................................................. 14
Repeating One or All Tracks on the Compact Discs ............................................................................... ................................................. 14

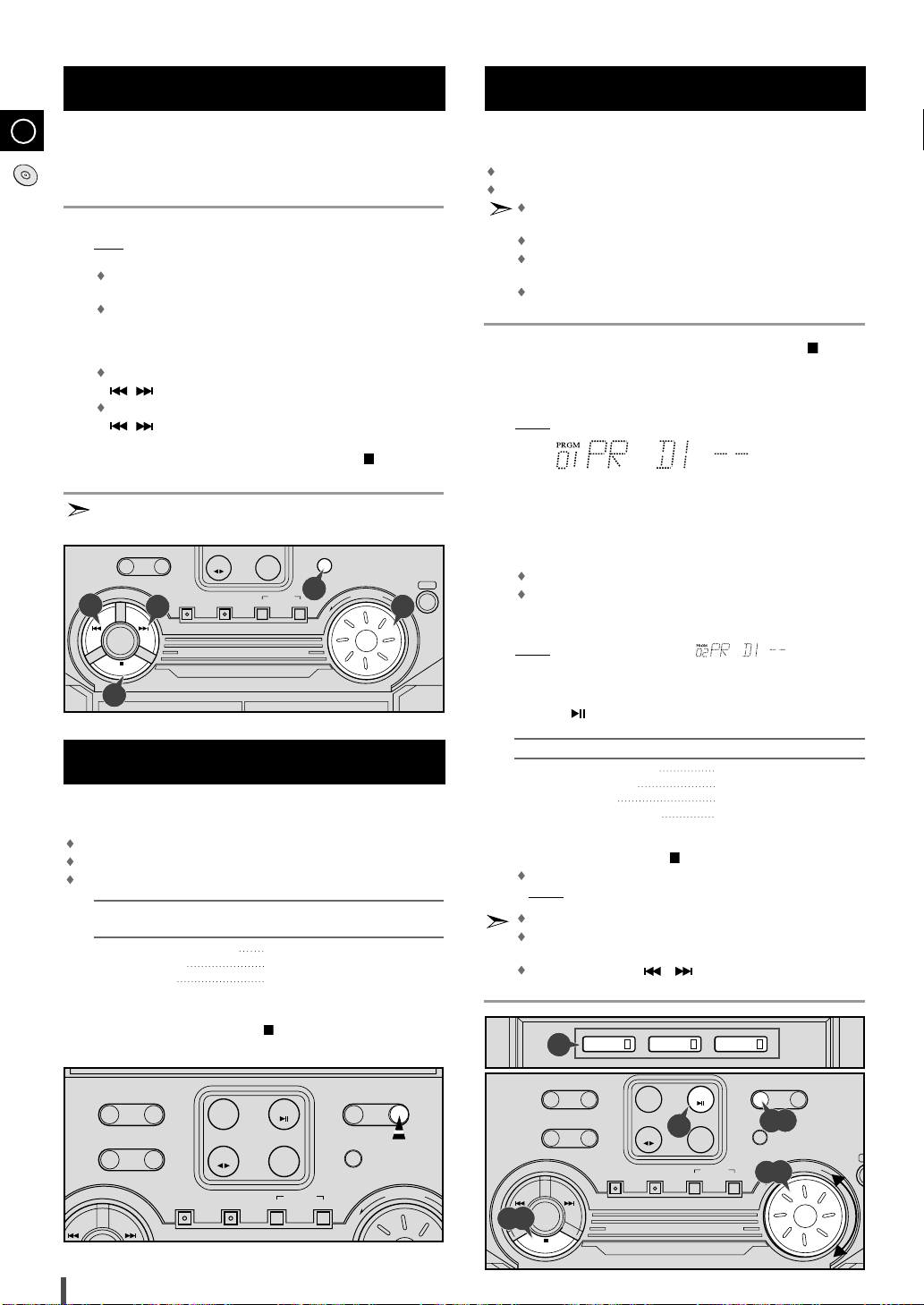

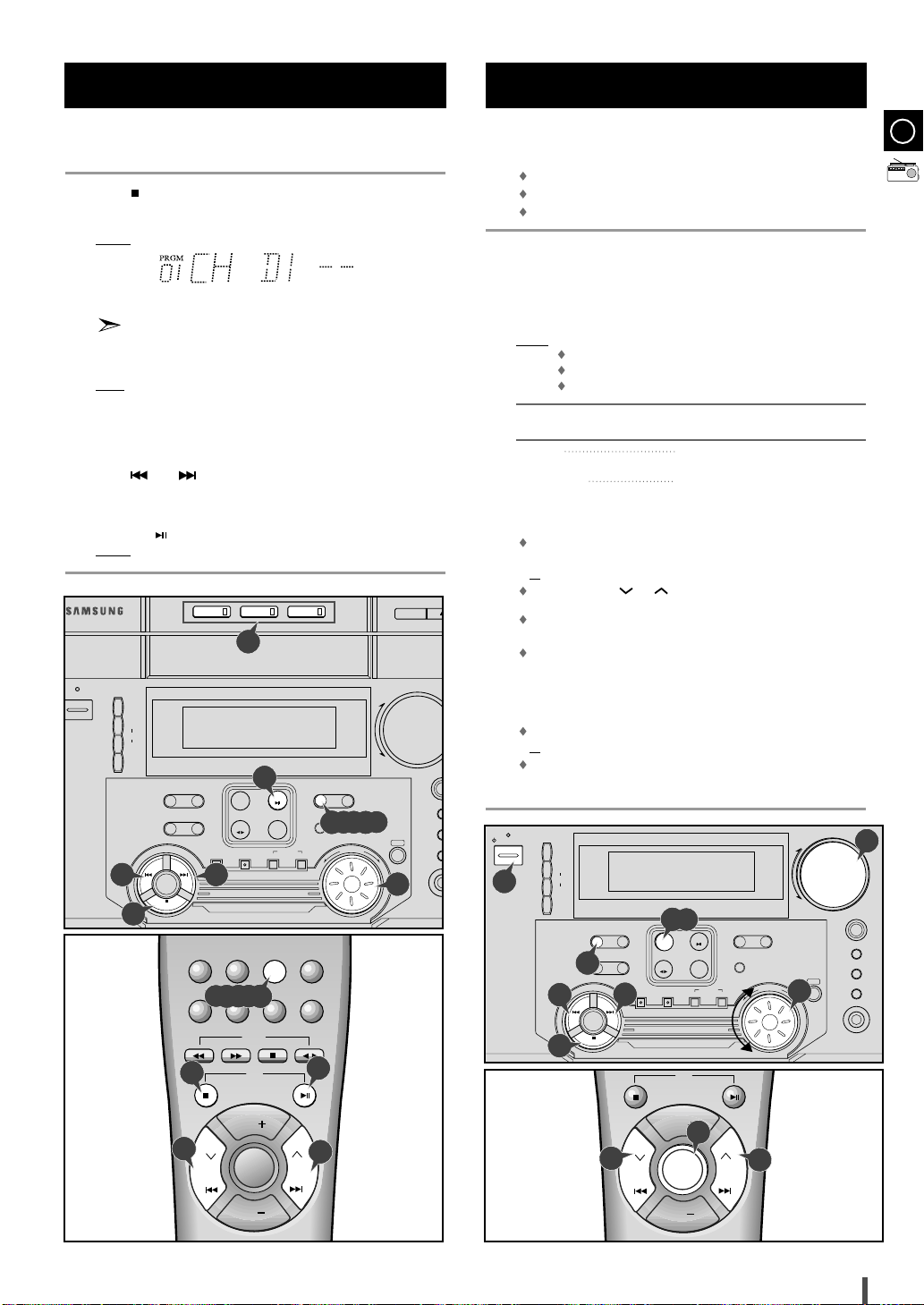

Programming the Order of Playback........................................................................................................................................................ 14
Checking or Changing Programmed Tracks ............................................................................................................................................ 15
T
UNER

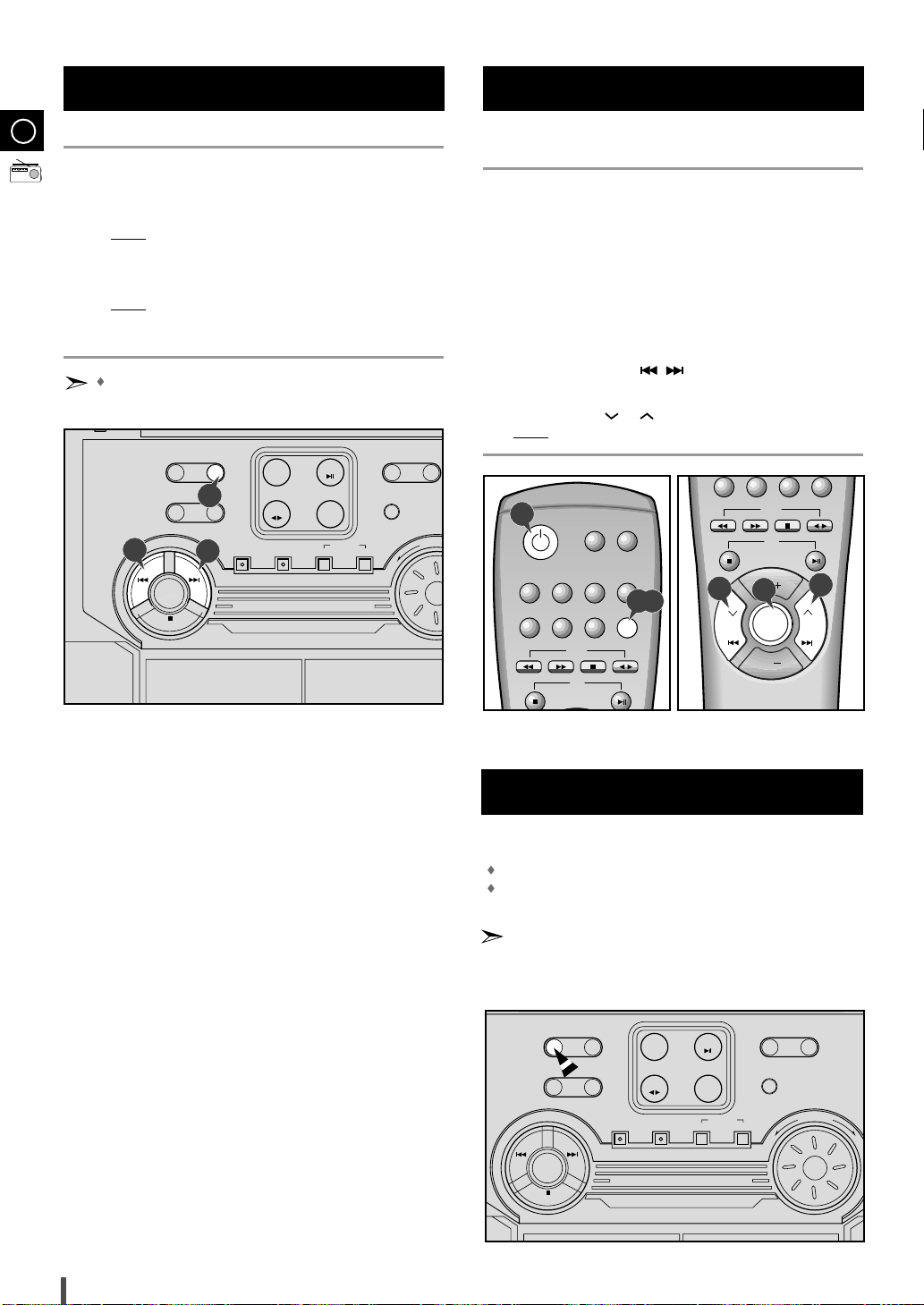

Searching for and Storing the Radio Stations ........................................................................................................................................ 15
Selecting a Stored Station........................................................................................................................................................................ 16
Improving Radio Reception ...................................................................................................................................................................... 16
About RDS broadcasting.......................................................................................................................................................................... 17
About RDS DISPLAY function.................................................................................................................................................................. 17
PTY (Program Type) indication and PTY-SEARCH function .................................................................................................................. 18
T
APEDECK
Listening to a Cassette ............................................................................................................................................................................ 19
CD Synchro Record Feature.................................................................................................................................................................... 19
Recording a Compact Disc ...................................................................................................................................................................... 19
Recording a Radio Program .................................................................................................................................................................... 20
Copying a Cassette (Dubbing) ................................................................................................................................................................ 20
Selecting the Cassette Playback Mode (Deck 2 Only)............................................................................................................................ 20
O
THERFUNCTIONS

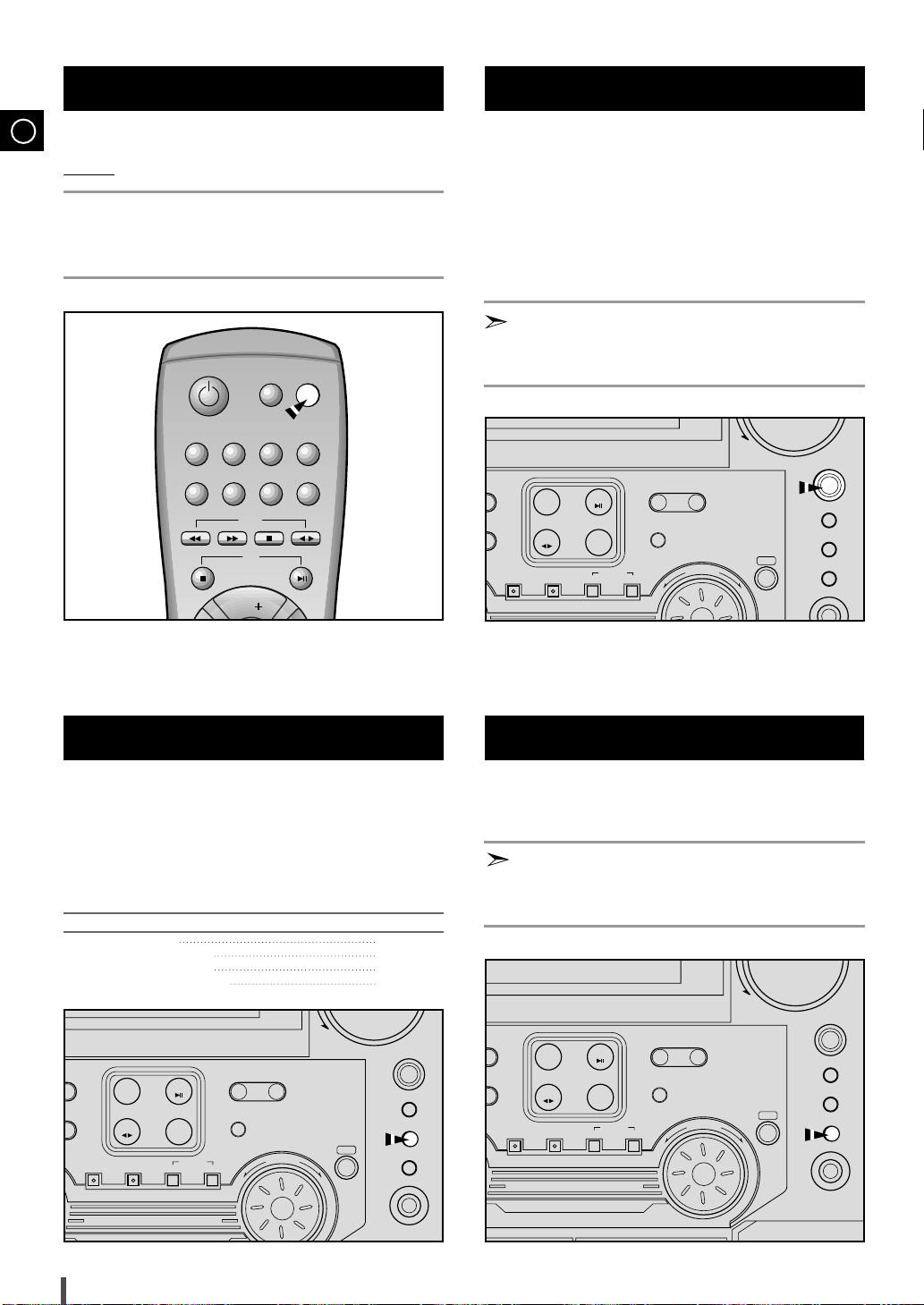

Timer Function ........................................................................................................................................................................................ 21
Cancelling the Timer................................................................................................................................................................................ 21
Mute Function .......................................................................................................................................................................................... 22
Selecting an Equalizer Preset .................................................................................................. ................................................................ 22
Power Sound/Surround Function ............................................................................................................................................................ 22
D.S.P Function ........................................................................................................................................................................................ 22
Setting the System to Switch off Automatically........................................................................................................................................ 23
Super Bass Sound .................................................................................................................................................................................. 23
Connecting Headphones.......................................................................................................................................................................... 23
R
ECOMMENDATIONS FORUSE
Safety Precautions .................................................................................................................................................................................. 24

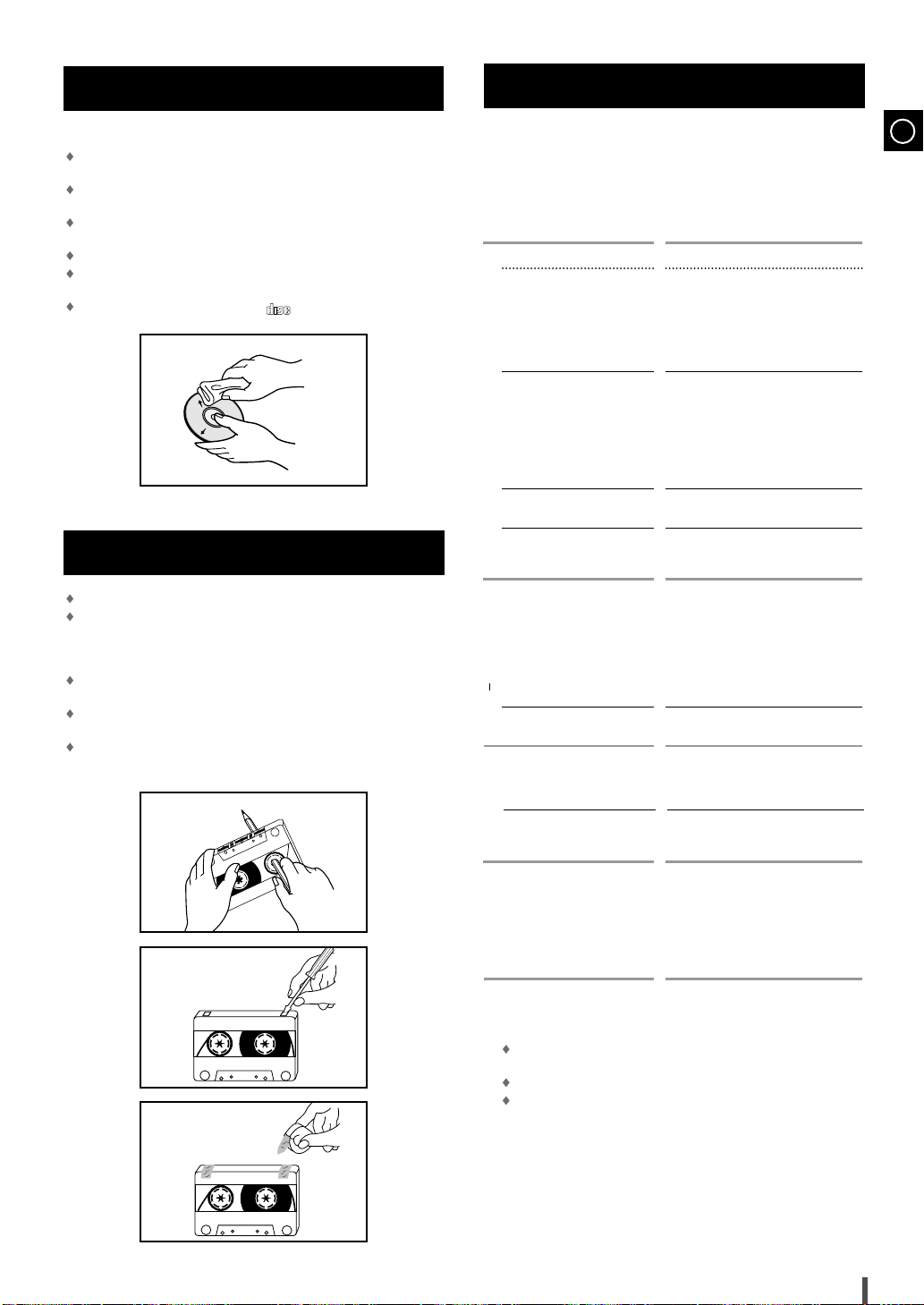

Cleaning Your Mini-Compact System ...................................................................................................................................................... 24
Precautions When Using Compact Discs................................................................................................................................................ 25
Precautions When Using Audio Cassettes.............................................................................................................................................. 25
Before Contacting the After-Sales Service .............................................................................................................................................. 25
Technical Specifications .......................................................................................................................................................................... 26
.................................................................................................................................................................................. 2
Thank you for buying this SAMSUNG mini-compact system.
Please take time to read these instructions. They will allow you to operate your system with ease and take full advantage of its features.
Symbols
Press Push Important Note
3
Page 4
-- Disc Selection / Direct Play --
Volume
+
_
On/Standby
M
u
l
t
i
F
u
n
c
t
i
o
n
M
u
l
t
i
J
o
g
Disc 1 Disc 2 Disc 3
Disc Change
Demo
PTY RDS
Display
Timer /Clock
Mono/ST
REC/Pause
Down
Normal
Dubbing
HI - Speed
CD
Synchro
Program
Shuffle
Enter
Power
Surround
S.BASS
E Q
D.S.P
Phones
CD
Repeat
Preset/
Memory
Deck 1/2 REV.Mode
CD
AUX
TAPE
TUNER
Band
D / P / S
DIRECT PLAY & SELECTION
CD–R/RW PLAYBACK
Up
Tuning Mode

Front Panel View

3
4 5
6 7
8 9
10 11
12
13
14
15
131322
30 29
28
27 26
25 24
23
22 21
20 19
16
1. Disc Selection buttons
2. Compact Disc Compartment
3. Demo
4. On/Standby
5. PTY (RDS)
6. Display (RDS)
7. Timer/Clock
8. Preset/Memory
9. Mono/ST
10. Deck 1/2
11. REV.Mode
12. Search Function buttons
13. Tuning Mode or Stop button
14. REC/Pause
15. CD Synchro Recording
16. Cassette Deck 1
17
17. Function Selection buttons
18. Cassette Deck 2
19. TAPE Normal / Hi-Speed Dubbing
18
20. Shuffle
21. Multi Jog
22. Enter
23. Headphone Jack Connector
24. D.S.P
25. EQ
26. S.BASS
27. Power Surround
28. Volume
29. CD Repeat
30. Program
31. Open/Close
32. Disc Change
4
Page 5

Remote Control

On/Standby
EQ
Deck 1/2 AI Off
VOL.
CD
Tune/CD
Mode
VOL.
CD
+10 Key Tuner
BandSleep
Program
/Set
AUX
Disc Skip
Timer
On/Off
Mute
TAPE
CD
21
10
1 2 3
4 5
6 7
8
9
20 19
18 17
16 15
14
13 12
11
1. On/Standby
2. Disc Number Skip
3. EQ
4. AI off/Sleep
5. Deck 1/2
6. TAPE Fast-Forward
7. TAPE Rewind
8. CD Stop
9. CD Track or Radio Station Search
10. Volume Decrease
11. Tune/CD Mode
12. Volume Increase
13. CD Play/Pause
14. TAPE Play
15. TAPE Stop
16. Tuner Band
17. +10 Key
18. AUX
19. Program/Set
20. Mute
21. Timer On/Off
5
Page 6
DIGITAL OUT (OPTICAL)
FM (75Ω)
AM ANT.
RL
AUX
IN
R
L
SPEAKER
(6Ω)

Rear Panel View

1
2 3
4
1. CD Digital out Jack
2. FM Aerial Connector Terminal
3. AM Aerial Connector Terminal
4. Loudspeaker Connector Terminals
5. AUX-Input
5
6
Page 7

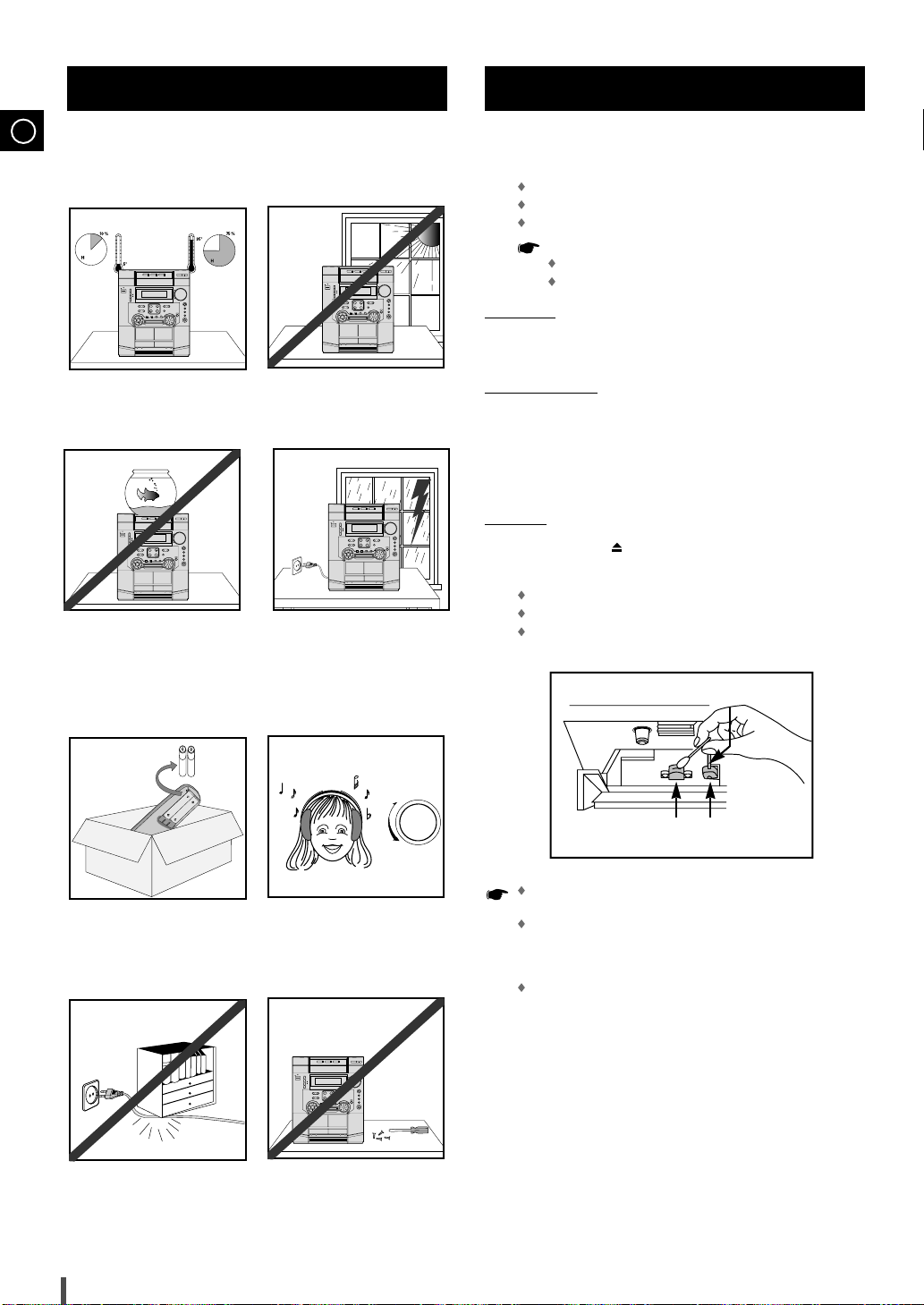

Where to Install Your

-- Disc Selection / Direct Play --
Volume
+
_
On/Standby
M
u
l
t
i
F
u
n
c
t
i
o
n
M
u
l
t
i
J
o
g
Disc 1 Disc 2 Disc 3
Disc Change
Demo
Timer /Clock
Mono/ST
REC/Pause
Down
Normal
Dubbing
HI - Speed
CD
Synchro
Program
Shuffle
Enter
Power Surround
S.BASS
E Q
D.S.P
Phones
CD
Repeat
Preset/ Memory
Deck 1/2 REV.Mode
CD
AUX
TAPE
TUNER Band
D / P / S
DIRECT PLAY & SELECTION
CD–R/RW PLAYBACK
Up
Tuning Mode
PTY RDS
Display
R
AUX
IN
R
Mini-Compact System
To take full advantage of your new mini-compact system, follow these installation instructions before connecting the unit.
Install the system on a flat, stable surface. Never place this unit on carpeting. Never place this unit in an outdoor area. Maintain an open space of approximately 6 inches (15 cm) on the
sides and rear of the system, for ventilation purposes. Make sure that you have enough room to open the compact disc
compartment easily. Place the loudspeakers at a reasonable distance on either side of
the system to ensure good stereo sound. Direct the loudspeakers towards the listening area. For optimum performance, make sure that both speakers are placed
at an equal distance above the floor.

Inserting Remote Control Batteries

Insert or replace remote control batteries when you:
Purchase the mini-compact system Find that the remote control is no longer operating correctly
When replacing the batteries, use a new set of batteries and never mix alkaline and manganese batteries.
Place your thumb on the position marked on the battery
1
compartment cover (rear of the remote control) and push the cover in the direction of the arrow.
Insert two AAA, LR03 or equivalent batteries, taking care to respect
2
the polarities:
+ on the battery against + in the battery compartment – on the battery against – in the battery compartment
Replace the cover by sliding it back until it clicks into position.
3
If you will not be using the remote control for a long time, remove the batteries to prevent corrosion.

Connecting your System to the Power Supply

The main lead must be plugged into an appropriate socket.
Before plugging your system into a main socket, you must check the voltage.
Plug the main lead (marked AC Cord on the rear of the system) into
1
an appropriate socket. Press the On/Standby button to switch your mini-compact system on.
2
7
Page 8

Connecting to an External Source

RL
AUX
IN
R
L
RL
AUX IN
R
L
SPEAKER
(6Ω)
(–) (+) (+) (–)
R
L
SPEAKER
(6Ω)
DIGITAL OUT (OPTICAL)
FM (75Ω)
AM ANT.
The auxiliary input can be used to take advantage of the sound quality of your mini-compact system when listening to other sources.
Examples
: A television
A video disc player A Hi-Fi stereo video cassette recorder
To connect the external source, the source must have an audio output. In addition, you need an RCA connection cable.

Connecting the Loudspeakers

The loudspeaker connector terminals are located on the rear of the system.
There are four terminals on the system:
Two for the left speaker (marked L) Two for the right speaker (marked R)
To achieve the correct sound quality, connect the:
Red wire to the + terminals Black wire to the – terminals
Set the system to standby mode and disconnect it and the external
1
source from the main. Connect the audio cable to the rear of the mini-compact system.
2
Connect the... To the connector marked...
Red jack R (right) White jack L (left)
For optimum sound quality, do not invert the right and left channels.
Plug the system back into the main socket and press On/Standby to
3
switch it on. Select the AUX source by pressing AUX.
4 5
6
: AUX is displayed.
Result Switch the external source on. Adjust the volume and balance as required:
Volume Equalizer
Example: You can watch a film and take advantage of stereo sound
provided that the original sound track is in stereo (as if you were in a cinema).
To connect a wire to a terminal, push the tab as far as it will go:
1
To the right on the system
Insert the wire, up to the plastic sheathing, in the hole.
2
Push the tab back:
3
To the left on the system, until it clicks into place To the top on the loudspeaker
The wire is pinched and held firmly in place.
Result: Repeat the operation for each wire.
4
(Right Speaker) (Left Speaker)

CD Digital Out Jack

This unit can output CD digital sound signals through this jack. Use an optical cable to connect digital audio equipment. (DAT deck, MD recorder, etc.). Remove the dust cap (1) from the CD DIGITAL OUT jack. Then, connect an optical cable plug to the CD DIGITAL OUT jack.
When the CD DIGITAL OUT jack is not being used
Attach the supplied dust cap.
8
(1)
Directions in Installing Speaker
Installation in a place near heating apparatus, under direct lay of light or with high humidity may cause performance degradation of the speaker.
Do not install on the wall or on a high place of pole or other unstable place to prevent any safety accident caused by falling of the speaker.
Do not take the speaker apart from TV or computer monitor. The speaker near the TV or computer monitor may influence the quality of the screen display.
Page 9

Connecting the AM (MW)/LW Aerial

The AM aerial (for long and medium waves) can be:
Placed on a stable surface
Fixed to the wall (you must first remove the base) The AM aerial connector terminals are located on the rear of the system and are marked AM .
To avoid noise interference, check that the loudspeaker wires do not run close to the aerial wires. Always keep them at least 2 inches (5 cm) away.
AM ANT.
DIGITAL OUT (OPTICAL)
FM (75Ω)
AM ANT.
SPEAKER
(6Ω)
L
R
RL
AUX IN

Connecting the FM Aerial

How to connect a COAXIAL TYPE aerial.
Connect a 75Ω antenna to the FM antenna terminal.
Plug the connector on the FM aerial supplied into the coaxial socket (75Ω) marked FM on the rear of the system.
Follow the instructions given on Page 15 to tune into a radio station, and determine the best position for the aerial.
If reception is poor, you may need to install an outdoor aerial.
To do so, connect an outdoor FM aerial to the FM socket on the rear of the system using a 75Ω coaxial cable (not supplied).
DIGITAL OUT (OPTICAL)
FM (75Ω)
AM ANT.
SPEAKER
(6Ω)
L
R
RL
AUX IN
DIGITAL OUT (OPTICAL)
FM (75Ω)
AM ANT.
SPEAKER
(6Ω)
L
R
RL
AUX IN
9
Page 10
Volume
+
_
On/Standby
M
u
l
t
i
F
u
n
c
t
i
o
n
M
u
l
t
i
J
o
g
Demo
Timer
/Clock
Mono/ST
REC/Pause
Down
Normal
Dubbing
HI - Speed
CD
Synchro
Program
Shuffle
Enter
CD
Repeat
Preset/
Memory
Deck 1/2 REV.Mode
CD
AUX
TAPE
TUNER
Band
D / P / S
DIRECT PLAY & SELECTION
CD–R/RW PLAYBACK
Up
Tuning Mode
PTY RDS
Display

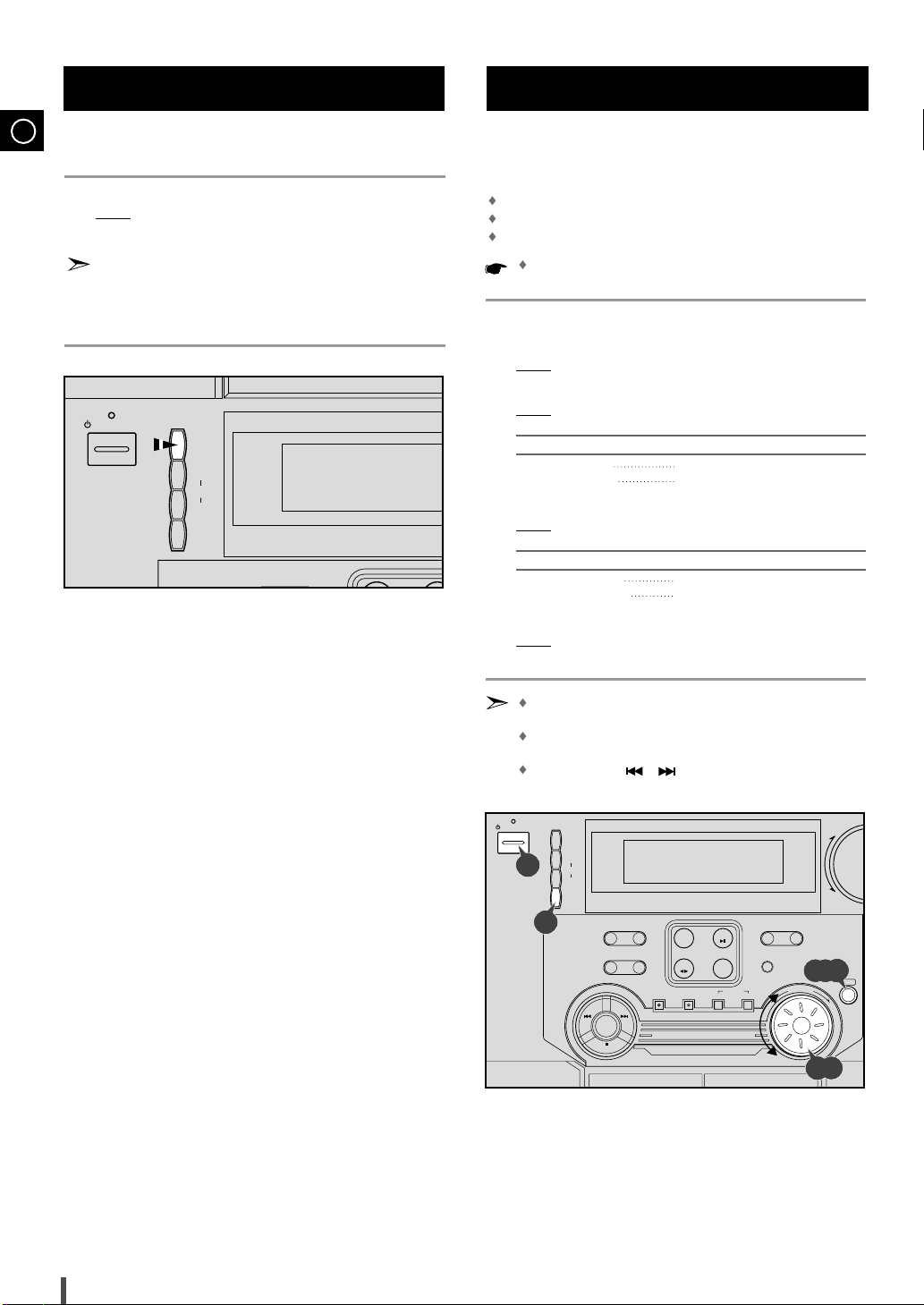

Viewing the Various Functions on

Your System
You can view the various functions available on your system.
Press the Demo button.
1
Result: The various functions available are listed in turn on the
display.
All these functions are described in detail in this booklet. For instructions on how to use them, refer to the appropriate sections.
To cancel this function, press Demo again.
2
On/Standby
Demo
PTY RDS
Display
Timer /Clock
Preset/
Mono/ST
Memory

Setting the Clock

Your system is equipped with a clock which allows you to turn your system on and off automatically. You should set the clock:
When you first purchase the mini-compact system After a power failure After unplugging the unit
For each step, you have a few seconds to set the required options. If you exceed this time, you must start again.
Switch the system on by pressing On/Standby.
1 2
Press Timer/Clock twice.
CLOCK is displayed.
Result: Press Enter.
3 4
5 6
7
The hour flashes.
Result:
To... Turn the Multi Jog knob to the...
Increase the hours Right Decrease the hours Left
When the correct hour is displayed, press Enter. Result: The minutes flash.
To... Turn the Multi Jog knob to the...
Increase the minutes Right Decrease the minutes Left
When the correct time is displayed, press Enter.
The clock starts and is displayed, even when the system is in
Result:
standby mode.
10
You can display the time, even when you are using another function, by pressing Timer/Clock once.
You can also use Program/Set button on the remote control to instead Enter button in step 3, 5, 7.
You can also use / buttons to instead Multi Jog knob in step 4, 6.
1
2
3,5,7
4,6
Page 11

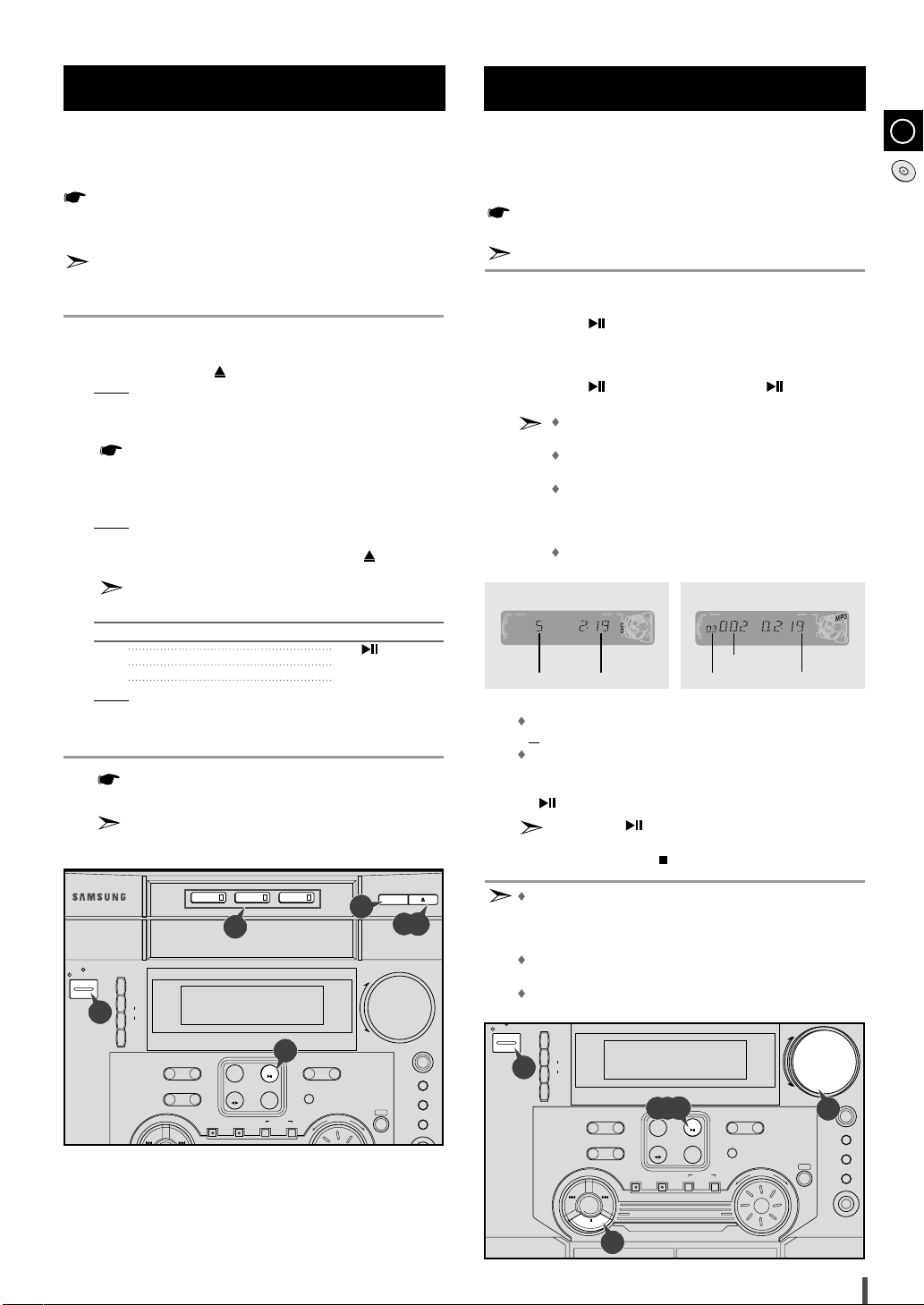

Loading and Changing Compact

-- Disc Selection / Direct Play --
Volume
+
_
On/Standby
M
u
l
t
i
F
u
n
c
t
i
o
n
M
u
l
t
i
J
o
g
Disc 1 Disc 2 Disc 3
Disc Change
Demo
Timer /Clock
Mono/ST
REC/Pause
Normal
Dubbing
HI - Speed
CD
Synchro
Program
Shuffle
Enter
Power
Surround
S.BASS
E Q
D.S.P
Phones
CD
Repeat
Preset/ Memory
Deck 1/2 REV.Mode
CD
AUX
TAPE
TUNER
Band
D / P / S
DIRECT PLAY & SELECTION
PTY RDS
Display
Volume
+
_
On/Standby
M
u
l
t
i
F
u
n
c
t
i
o
n
M
u
l
t
i
J
o
g
Demo
Timer /Clock
Mono/ST
REC/Pause
Down
Normal
Dubbing
HI - Speed
CD
Synchro
Program
Shuffle
Enter
Power
Surround
S.BASS
E Q
D.S.P
Phones
CD
Repeat
Preset/
Memory
Deck 1/2 REV.Mode
CD
AUX
TAPE
TUNER
Band
D / P / S
DIRECT PLAY & SELECTION
CD–R/RW PLAYBACK
Up
Tuning Mode
PTY RDS
Display
+
_
Tuning Mode
Discs
The CD disc changer can contain up to three 12 cm or 8 cm compact discs without using an adapter.
Never force the compact disc carrousel when opening and closing the compartment.
Never press down or place objects on the carrousel. Always treat your compact discs with care; refer, if necessary, to
the section entitled “Precautions When Using Compact Discs” on page 25.
Switch the system on by pressing On/Standby.
1
Press the Open/Close( ) button on the front panel.
2
Result:
The compartment opens.
Place one or two discs in the front slots of the carrousel, with the
3
label on the discs facing upwards.
Check that the compact disc has been correctly inserted in the holder before closing the compartment.
If you wish to load a third compact disc, press the Disc Change
4
button on the front panel (or Disc Skip on the remote control). Result: The carrousel rotates by 120°.
Close the compartment by pressing the Open/Close( ) button
5
again.
If you wish to start playing a disc directly, you can also proceed as follows.
To play... Press...
Disc 1 CD ( ) or DISC 1 Disc 2 DISC 2 Disc 3 DISC 3 Result: The compartment closes automatically and the disc selected
starts playing.
To change or unload the compact disc changer, repeat Steps 2 to 5.
6
Keep the compartment closed whenever you are not using it, to prevent dust from entering.
You can load or unload compact discs when the radio, tape or auxiliary source function is selected.
Disc 1 Disc 2 Disc 3
5
1
Disc Change
4
2,5

To replay the CD/MP3-CD

This is a player that enables the playback of audio CD, CD-R, CD-RW and MP3-CD and does not possess the function that saves MP3 files.
Do not use CDs of irregular shapes like heart or octagon shapes. The performance of the player may be degraded.
At least more than one CD should be inserted for playbacks.
Press the On/Standby button to switch on the power.
1
Press the CD( ) of the main unit to select the CD function.
2
Insert more than one CD or a MP3-CD.
3
Press the CD( ) button of the main unit or the button of the
4
remote control.
If there is more than one CD or an MP3-CD inserted, replays are then processed in order.
Your CD Player will take a few moments to scan through all the tracks recorded on a particular MP3-CD.
The English name of the song may be indicated on the display only if directly downloaded from the PC or if the purchased MP3-CD is sorted according to titles(directory). (Other languages besides English may not be indicated.)
The English name of the track may not be indicated depending on the characteristics of the MP3-CD.
<CD Playback> <
Track Indicator Playtime Indicator Playtime Indicator
Adjust the volume according to needs with the following procedures.
5
Turn the Volume control of the main unit. or
Press the VOL. + or –button of the remote control.
If it is desired to stop while the playback is processing, press the
6
CD() button.
Press the CD( ) button once again to playback again.
To stop playback, press the button.
7
A new disc may be inserted in the remaining two compart­ments excluding the CD which is being played back. Press the Disc Changer button to open the CD tray. The revolving part does not turn during playbacks.
If there is not even one CD inserted in the CD tray, it is indicat­ed as “NO DISC”.
If the CD Repeat function is not selected, 3 CDs are played back which automatically stops.
During the MP3-CD playback
>
Track Indicator
Title(Directory) Indicator
5
CD
1
2,4,6
CD
5
7
11
Page 12

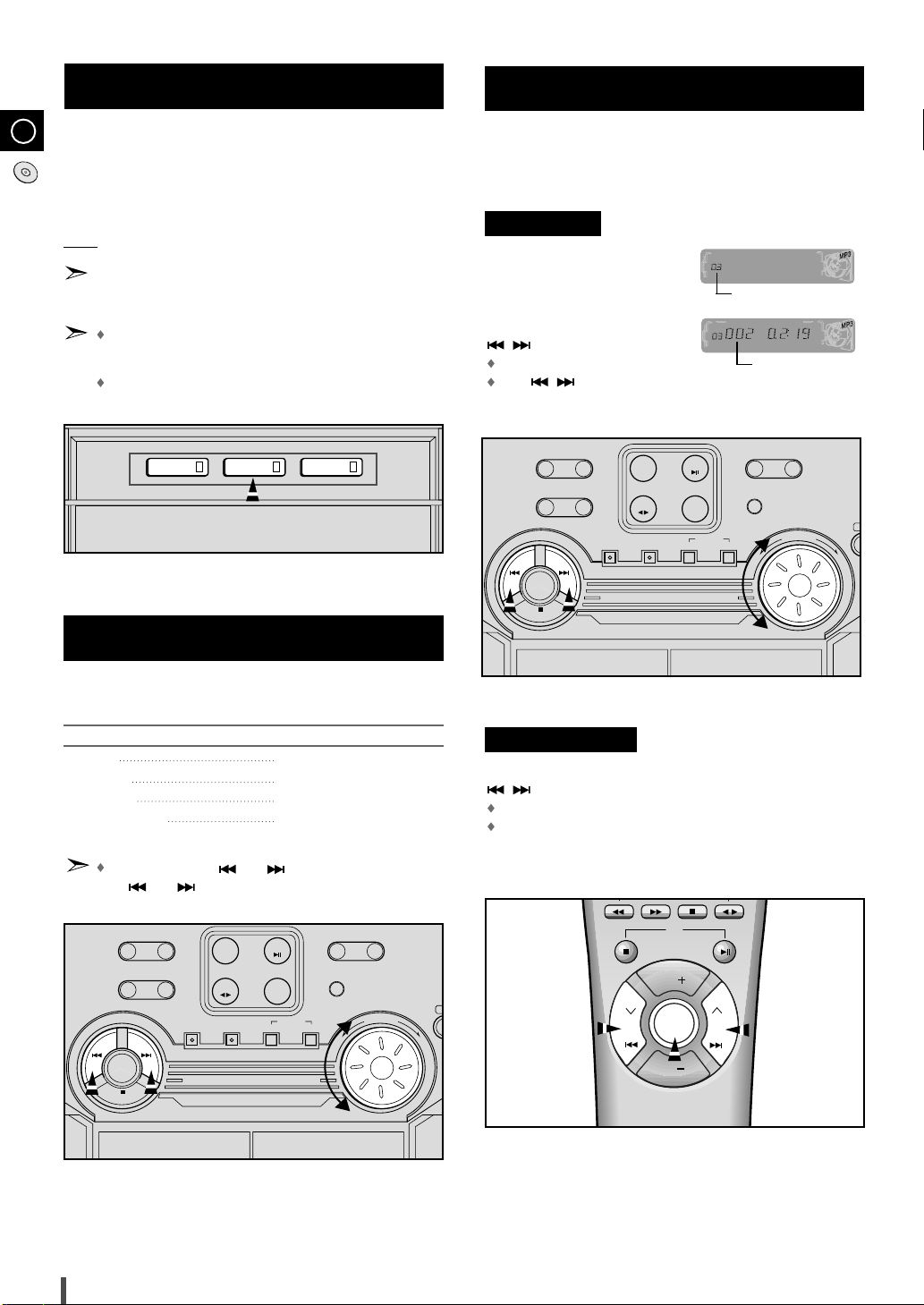

Selecting a CD in the Disc changer

-- Disc Selection / Direct Play --
Disc 1 Disc 2 Disc 3
Down
Up
VOL.
CD
Tune/CD
Mode
VOL.
CD
CD
CD
VOL.
Tune/CD
Mode
VOL.
CD
Down
Up
The CD function is automatically selected when Disc Skip is pushed.
To select a specific disc, press the corresponding Disc (1, 2, 3) button on the front panel or Disc Skip on the remote control, until the required disc indicator flashes. Result: All the discs will be played in turn, starting with the one selected.
If you wish to play the current disc only, press CD Repeat on the front panel one or more times, until 1 CD is displayed.

To select the MP3-CD title and track

The title and track of the MP3-CD desired to listen may be selected on stopping or during playbacks.
Main Unit
To move the title(directory), turn the Muiti-Jog to the left and right.
Title Movement
If you use the Disc (1, 2, 3) function when listening to the radio or to a tape, the system switches automatically to the CD mode.
If the disc selected is not loaded, the next disc is played automatically.
Disc 1 Disc 2 Disc 3

Selecting a Track

You can select the track you wish to listen to, either when the compact disc player is stopped or when a disc is playing.
To start playback at the beginning of the... Turn the Multi Jog knob...
Next track One notch to the right Current track One notch to the left Previous track Two notches to the left Track of your choice The appropriate number of
notches to the right or to the left
To move the track, press the
, button.
Moves the track within the title.
Track Movement
If the , button is pressed more than the number of tracks within the title, it moves to the next title.
Down
t
l
u
M
Tuning Mode
Preset/
Mono/ST
Memory
Deck 1/2 REV.Mode
u
F
n
c
i
t
i
o
n
Up
REC/Pause
TUNER
Band
D / P / S
DIRECT PLAY & SELECTION
TAPE
CD
Synchro
CD–R/RW PLAYBACK
Normal
CD
AUX
Dubbing
HI - Speed
Program
Shuffle
CD
Repeat
M
i
t
l
u
En
J
o
g
Remote Control
Press the Tune/CD Mode button, then select ‘Title’ or ‘Track’ and press the
, button.
If ‘Title’ is selected in the display, the title moves. If ‘Track’ is selected in the display, the track moves.
You can also use the and buttons on the front panel, or the and buttons on the remote control to select a track.
Preset/
Mono/ST
Memory
Deck 1/2 REV.Mode
u
F
n
c
i
t
t
l
i
o
u
n
M
Down
Tuning Mode
REC/Pause
Up
TUNER
Band
D / P / S
DIRECT PLAY & SELECTION
TAPE
CD
Synchro
CD–R/RW PLAYBACK
CD
AUX
Normal
Dubbing
Program
Shuffle
HI - Speed
12
CD
Repeat
M
i
t
J
l
u
En
o
g
Page 13

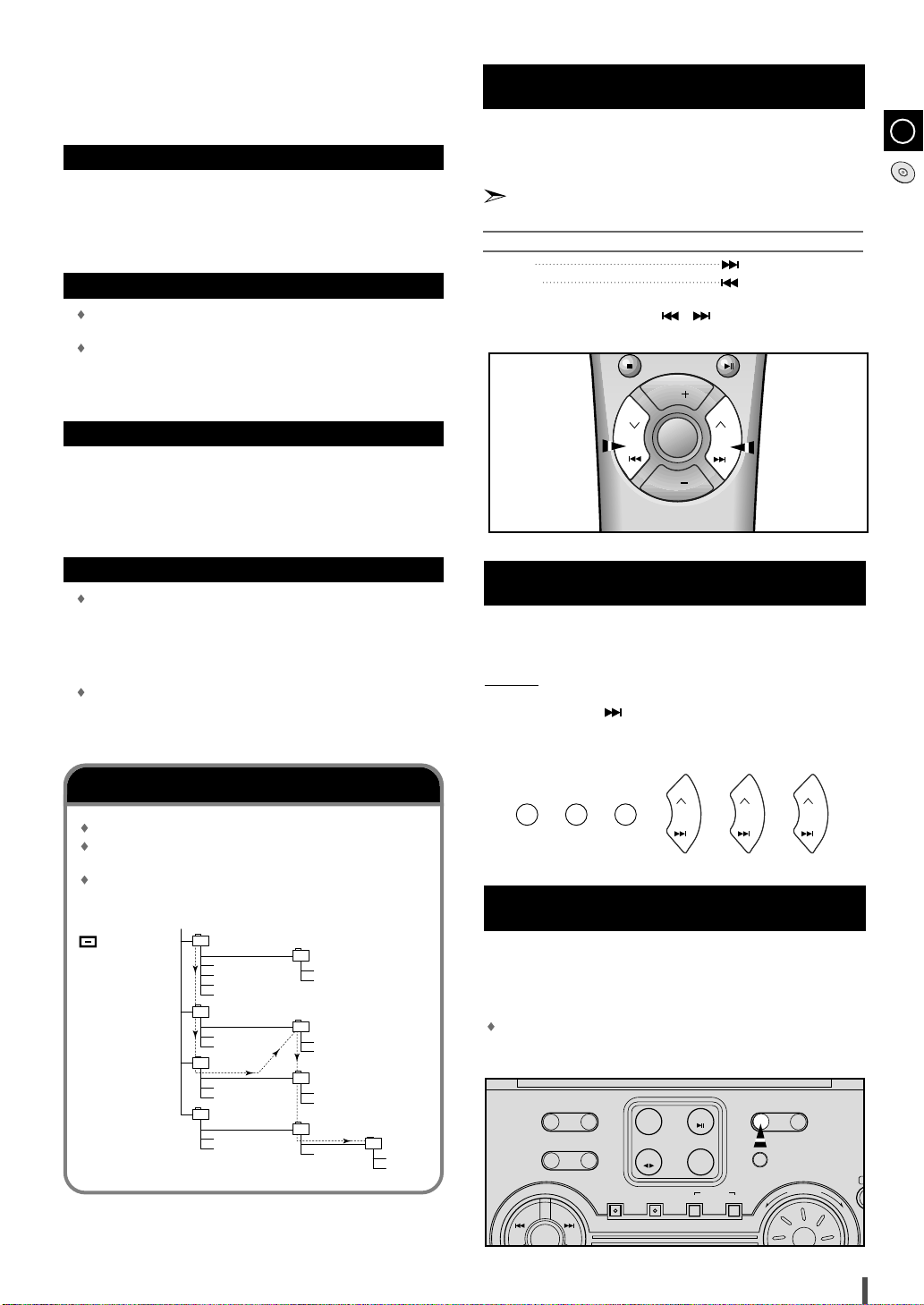

What is MP3?
Kevin01.mp3
TITLE 01
(E) CD-ROM drive
Kevin02.mp3 Kevin03.mp3 Kevin04.mp3
Kevin.jpg Life.doc
Skipped
TITLE 02
Summer05.mp3 Summer06.mp3
Garden.mp3 Garden.mp3
TITLE 04
TITLE 03
Michael07.mp3 Michael08.mp3
Water.mp3 Water.mp3
TITLE 05
Skipped
Kenny01.wav Kenny02.wav
Butterfly.mp3
TITLE 06
Piano14.mp3 John15.mp3
TITLE 07
M
u
l
t
i
F
u
n
c
t
i
o
n
M
u
l
t
i
J
o
g
Mono/ST
REC/Pause
Down
Normal
Dubbing
HI - Speed
CD
Synchro
Program
Shuffle
E
CD
Repeat
Preset/ Memory
Deck 1/2 REV.Mode
CD
AUX
TAPE
TUNER
Band
D / P / S
DIRECT PLAY & SELECTION
Up
CD
CD
MP3 means MPEG1 Layer 3, the global standard for audio signal compression technology. It uses digital compression technology to compress original sound data by up to 12 times without sound quality degradation.
File Compatibility
The unit will playback files created in MP3 format (Mpeg1.Layer3) with *.mp3 as their extension.
Files created in MP2 format (Mpeg1.Layer2) with
.mp2 as their extension can also be played back.
*

Searching for a Specific Music Passage on a CD

When listening to a compact disc, you can quickly search for a specific music passage on a track.
It is recommended that you turn the volume down before using this function.
To search through the tracks... Press and hold down...
Forwards for at least one second Backwards for at least one second
You can aslo press and hold down / on the front panel to auto search through the tracks.
VOL.
How many MP3 files can a CD-R or CD-RW disc record?
The maximum capacity of one CD-R or CD-RW disc is 680MB. Normally, one MP3 file has a capacity of 4MB, therefore approximately 170 files can be recorded on a single disc.
Regarding the playback of CD-R/RW
In the case of an original CD-R(Recordable) recorded in
Function to skip through 10 tracks at a time
audio CD format, CD-RW(Rewitable) and editing by the user, playback is processed on the respective completed status. (The player may not be played back according to the characteristics of the CD or recorded status.)
The CD-RW is comparably less reflexive than CD which causes more time delay to read.
Press the +10 button briefly while playing back a CD. The track 10 tracks after the current one will then be played back.
Example:
If you want to select track 43 during playback of track 15, press the +10Key button three times, and then
press the
15 ➝20 ➝30 ➝40 ➝41 ➝42 ➝43
Playback sequence of titles and tracks
+10 Key +10 Key +10 Key
In case of Window Explorer display. The arrows indicates playback sequence of titles and
tracks. Tracks with jpg, wav or doc only are not audio files and
therefore will be skipped.

Last Memory Function

*This function is only available during playback of an MP3-CD.
When CD playback is selected again after your CD player has been stopped or turned off, this function allows playback from the start of the track that you last listened to.
Press the Program button while your MP-3 CD is being played back. The Last ON and OFF may be repeatedly selected.
Tune/CD
Mode
CD
CD
VOL.
button three times.
CD CD CD
13
Page 14
M
u
l
t
i
F
u
n
c
t
i
o
n
M
u
l
t
i
J
o
g
Mono/ST
REC/Pause
Normal
Dubbing
HI - Speed
CD
Synchro
Program
Shuffle
CD
Repeat
Preset/
Memory
Deck 1/2 REV.Mode
CD
AUX
TAPE
TUNER
D / P / S
DIRECT PLAY & SELECTION
Disc 1 Disc 2 Disc 3
Tuning Mode

Shuffle Play Function

M
u
l
t
i
F
u
n
c
t
i
o
n
M
u
l
t
i
J
o
g
REC/Pause
Down
Normal
Dubbing
HI - Speed
CD
Synchro
Shuffle
Enter
Deck 1/2 REV.Mode
AUX
TAPE
DIRECT PLAY & SELECTION
CD–R/RW PLAYBACK
Up
Tuning Mode
Down
Up
Tuning Mode
You can listen to the tracks on a compact disc in a different order each time, as the various tracks will be selected automatically in a random sequence.
Press the Shuffle button.
1
Result: The Shuffle indication appears and all the tracks are played in a andom
order. Both the track number and the playing time are displayed.
If this button is pressed when the CD is being played back or stopped, any track recorded in the CD may be selected to playback again.
The CD plays back without repetitions and in the case of the MP3-CD, a track once played back may also be played back again repeatedly.
When playing tracks in a random order, you can:
2
Move on to the next track (selected at random) by pressing
/ or turning Multi Jog one notch to the right
Search quickly for a specific point in the current track by pressing
/ or turning Multi Jog one notch to the left
When you have finished the random playback, press or press the
3
Shuffle button again.
The Repeat and CD Synchro function is not supported from the Shuffle playback mode.
2
2
1

Programming the Order of Playback

(This function is not only available during playback of an MP3-CD.)
You can decide:
The order of the track desired to listen The track not desired to listen
A maximum of up to 24 order of tracks desired to listen may be programmed.
Before selecting the track, the CD player should be stopped. This function may be used simultaneously with the CD Repeat
function. In the case of the MP3-CD, the Program button may be used as
the Last Memory ON, OFF function.
If the CD function is selected, stop the player by pressing .
1
Load the selected CDs.
2
Press Program.
3
4 5
2
6
The following indications are displayed:
Result:
(01 = Program no., DI = Disc no., – – = Track no. on the disc) If necessary, select the disc containing the required track by pressing
the corresponding Disc (1, 2, 3) button. Select the required track by turning the Multi Jog knob:
To the left to move back through the tracks To the right to move forward through the tracks
Press Program to confirm your selection.
The selection is stored and is displayed.
Result:
3
Repeating One or All Tracks on the Compact Discs
You can repeat indefinitely:
A specific track on a compact disc.
All tracks on the compact disc selected.
All discs loaded in the carrousel
To repeat... Press CD Repeat on the Front
1
The current track indefinitely REPEAT 1 is displayed The selected disc REPEAT 1 CD is displayed All discs loaded REPEAT ALL CD is displayed
When you wish to stop the Repeat function, press CD Repeat until ALL
2
CD or 1 CD is displayed, or press .
14
Panel one or more times until...
To select other tracks, repeat Steps 4 to 6.
7
Press CD ( ) to listen to the track selection in the order programmed.
8
To... Turn the Multi Jog knob...
9
Listen to the current track again One notch to the left Listen to the previous track Two notches to the left Listen to the next track One notch to the right Skip forwards or backwards one The appropriate number of or more tracks notches to the right or to the left
To cancel the selection, press .
10
Once if the compact disc player is stopped
PRGM is no longer displayed.
Result:
If you open the compartment, the selection is cancelled. If you select the number of a disc which is not loaded or a track which
does not exist on the CD, the selection skips to the next programmed track. You can also use the / buttons to select the required
tracks in step 5, 9.
-- Disc Selection / Direct Play --
Disc 1 Disc 2 Disc 3
4
Preset/
Mono/ST
Memory
Deck 1/2 REV.Mode
u
F
n
c
i
t
t
l
i
o
u
n
Down
1,10
M
Up
Tuning Mode
REC/Pause
TUNER
Band
TAPE
D / P / S
DIRECT PLAY & SELECTION
8
CD
Synchro
Normal
CD–R/RW PLAYBACK
CD
CD
AUX
Dubbing
HI - Speed
Program
Shuffle
3,6
5,9
CD
Repeat
M
i
t
l
u
E
J
o
g
Page 15

Checking or Changing Programmed

EQ
Deck 1/2 AI Off
VOL.
CD
Tune/CD
Mode
VOL.
CD
+10 Key Tuner
BandSleep
Program
/Set
AUX
Disc Skip
TAPE
CD
CD
CD
VOL.
CD
Tune/CD
Mode
VOL.
CD
CD
CD
CD
-- Disc Selection / Direct Play --
Volume
+
_
On/Standby
M
u
l
t
i
F
u
n
c
t
i
o
n
M
u
l
t
i
J
o
g
Disc 1 Disc 2 Disc 3
Disc Change
Demo
Timer /Clock
Mono/ST
REC/Pause
Down
Normal
Dubbing
HI - Speed
CD
Synchro
Program
Shuffle
Enter
Pow
Surro
S.BA
E
D.S
Pho
CD
Repeat
Preset/ Memory
Deck 1/2 REV.Mode
CD
AUX
TAPE

TUNER

Band
D / P / S
DIRECT PLAY & SELECTION
CD–R/RW PLAYBACK
Up
Tuning Mode
PTY RDS
Display
Tune/CD
Mode
Volume
+
_
On/Standby
M
u
l
t
i
F
u
n
c
t
i
o
n
M
u
l
t
i
J
o
g
Demo
Timer /Clock
Mono/ST
REC/Pause
Down
Normal
Dubbing
HI - Speed
CD
Synchro
Program
Shuffle
Enter
Power
Surround
S.BASS
E Q
D.S.P
Phones
CD
Repeat
Preset/
Memory
Deck 1/2 REV.Mode
CD
AUX
TAPE
TUNER Band
D / P / S
DIRECT PLAY & SELECTION
CD–R/RW PLAYBACK
Up
Tuning Mode
PTY RDS Display
+
_
Tracks
You can check or change your selection of tracks at any time.
Press once if you have started listening to the selection.
1
Press Program.
2
Result:
The following indications are displayed:
(CH = Check, 01=Program No, DI = Disc No, – – = Track No on the disc)
If you have already programmed 24 tracks, CH is displayed instead of PR when you press Program.
Press Program again.
3
Result: The first track selected is displayed, together with the letter CH (Change). Press Program one or more times until the track to be changed is displayed.
4
If necessary, press the corresponding Disc (1, 2, 3) button to change discs.
5
Press and or turn Multi Jog to select a different track.
6
Press Program to confirm your change.
7
Press CD ( ) to start listening to the selection.
8
Result:
The first track selected is played.
Disc 1 Disc 2 Disc 3
5
8
CD
2,3,4,7
Searching for and Storing the Radio Stations
You can store up to:
15 FM stations
8 MW stations 7 LW stations
Switch the system on by pressing On/Standby.
1
Select the TUNER function by pressing TUNER.
2
Select the required frequency band by pressing TUNER (Band)
3
again on the front panel or Tuner (Band) on the remote control. Result
: The appropriate indication is displayed:
FM Frequency Modulation AM(MW) Medium Wave LW Long Wave
To search for a Press Tuning Mode
4
station...
Manually One or more times until MANUAL is Automatically One or more times until AUTO is
Select the station to be stored by:
5
Turning the Multi Jog knob to the right or to the left to increase or decrease the frequency respectively or
Pressing Tuning or on the remote control
To scroll through the frequencies faster when searching manually, hold down the Tuning Down or Up buttons.
The automatic search procedure may stop on a frequency that does not correspond to a radio station. If this happens, use the manual search mode.
Adjust the volume by:
6
Turning the Volume knob on the front panel or
Pressing the VOL. + or – buttons on the remote control
Select the stereo or mono mode by pressing Mono/ST.
7
displayed. displayed.
6
Down
6
Tuning Mode
1
Up
1
6
6
2,3,4,7
6
1
2,3
TUNER
Band
7
5
4
8
6
5
Down
Up
Tuning Mode
4
5
55
15
Page 16
M
u
l
t
i
F
u
n
c
t
i
o
n
M
u
l
t
i
J
Mono/ST
REC/Pause
Down
Normal
Dubbing
HI - Speed
CD
Synchro
Program
Shuffle
CD
Repeat
Preset/
Memory
Deck 1/2 REV.Mode
CD
AUX
TAPE
TUNER
Band
D / P / S
DIRECT PLAY & SELECTION
CD–R/RW PLAYBACK
Up
Tuning Mode
VOL.
CD
Tune/CD
Mode
VOL.
CD
Down
Up
M
u
l
t
i
F
u
n
c
t
i
o
n
M
u
l
t
i
J
o
g
Mono/ST
REC/Pause
Down
Normal
Dubbing
HI - Speed
CD
Synchro
Program
Shuffle
CD
Repeat
Preset/
Memory
Deck 1/2 REV.Mode
CD
AUX
TAPE
TUNER
Band
D / P / S
DIRECT PLAY & SELECTION
CD–R/RW PLAYBACK
Up
Tuning Mode

Searching for and Storing the Radio

Stations (continued)
If you do not want to store the radio station found, revert to Step 4
8
and search for another station. Otherwise:
a Press Preset/Memory.
b Press Tuning Down and Up to assign a program number
c Press Preset/Memory to store the radio station.
To store any other radio frequencies required, repeat Steps 3 to 8.
9
The PRGM is displayed for a few seconds.
Result:
between 1 and 15.
Result:
PRGM is no longer flashed and the station is stored.
The PROGRAM function can be used to assign a new station to an existing program number.

Selecting a Stored Station

You can listen to a stored radio station as follows:
Switch the system on by pressing On/Standby.
1
Select the TUNER function by pressing Tuner on remote control.
2
Select the required frequency band by pressing Tuner (Band) on the
3
remote control or TUNER (Band) again on the front panel. Press the Tuning Mode button on the front panel of the unit, or the
4
Tune/CD Mode button on the remote control until “PRESET” is displayed.
Turning Multi jog on the front panel left or right until the desired
5
station is found or press / to select the desired station. or Select the desired station by pressing the station number stored,
using the Tuning or button on the remote control.
The desired station is now received.
Result:
8
1
On/Standby
8
8
EQ
Deck 1/2 AI OffCD+10 Key Tuner
Disc Skip
TAPE
Timer On/Off
Program
/Set
Mute
AUX
BandSleep
2,3
VOL.
5
4
Tune/CD
CD
VOL.
TAPE
CD
Mode
BandSleep
5
CD

Improving Radio Reception

You can improve the quality of radio reception by:
Rotating the FM or AM(MW) aerial Testing the positions of the FM and AM(MW) aerials before fixing them
permanently
If reception from a specific FM radio station is poor, press Mono/ST. to switch from stereo mode to mono. The quality of the sound will be improved.
16
Page 17

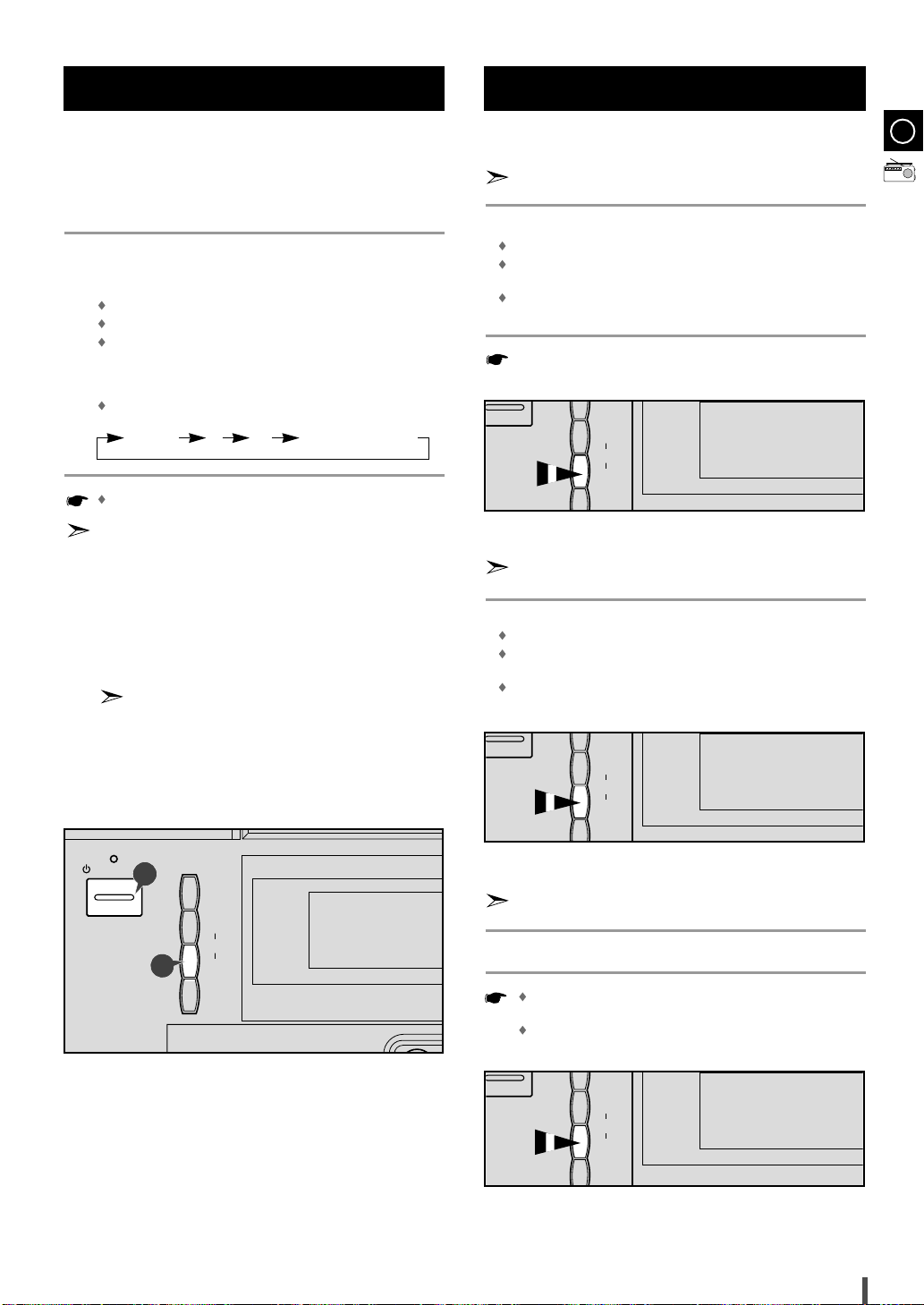

About RDS DISPLAY function About RDS broadcasting

On/Standby
Demo
Timer /Clock
Mono/ST
Preset/
Memory
PTY RDS
Display
This unit has the RDS (Radio Data System) function, which enables for the various information such as broadcasting station, radio text, time and 30 types of programs (News, Rock, Classic, etc.) to be received from the FM RDS station together with normal radio signal.
Press the On/Standby button.
1
Receive the FM radio.
2
See the radio receiving method on the page 15. FM and frequency are shown on the display If the received station transfers the RDS information, 'RDS'
appears automatically on the display.
Press the RDS Display button to select the desired RDS mode.
3
Whenever the button is pressed, RDS mode changes as follows.
PS NAME RT CT Current FM frequency
The RDS function is available only in FM broadcasting.
Description on RDS function
1. PTY (Program Type) : Displays the type of programme
currently being broadcast
2. PS NAME (Program Service Name) : Indicates the name of broadcasting station and is composed of 8 characters.
3. RT (Radio Text) : Decodes the text broadcast by a station (if any) and is composed of maximum 64 characters.
4. CT (Clock Time) :
Decodes the real time clock from the FMfrequency.
Some stations may not transmit PTY, RT or CT information therefore this may not be displayed in all cases.
5. TA (Traffic Announcement) : When this symbol flashes it shows that the traffic announcement is in progress.
6. EON (Enhanced Other Networks Information) : Offers the RDS information on other networks.
About "PS NAME" MODE
Displays the name of broadcasting station.
Press the RDS Display button to select the PS NAME.
"PS NAME" appears on the display. If the PS information is being received, the PS name (BBC, AFO,
NDR, etc.) is shown on the display. If the PS information isn't received, the original FM frequency is
shown.
Even though no RDS Display button is pressed, the reception of PS information ensues the PS name is displayed.
Demo
PTY RDS
Display
Timer
About 'RT' MODE
Displays the character transmitted from the broadcasting station.
Press the RDS Display button to select the RT MODE.
"RT" appears on the display. If the RT information is being received, the received information is
shown on the display. If the RT information isn't received, the "NO RT" is shown.
On the display.
Demo
PTY RDS
Display
Timer
1
About CT(Clock Time)
Sets the time of RDS clock.
To select the CT time, set the RDS Display button to CT MODE.
3
The CT information will take up to 2 minutes to be decoded there­fore the clock isn’t displayed immediately.
If there is no received CT information, "NO CT" is displayed.
Demo
PTY RDS
Display
Timer /Clock
17
Page 18
M
u
l
t
i
F
u
n
c
t
i
o
n
M
u
l
t
i
J
o
g
Demo
Timer /Clock
Mono/ST
REC/Pause
Down
Normal
Dubbing
HI - Speed
CD
Synchro
Program
Shuffle
CD
Repeat
Preset/
Memory
Deck 1/2 REV.Mode
CD
AUX
TAPE
TUNER
Band
D / P / S
DIRECT PLAY & SELECTION
CD–R/RW PLAYBACK
Up
Tuning Mode
PTY RDS
Display
Down
Up

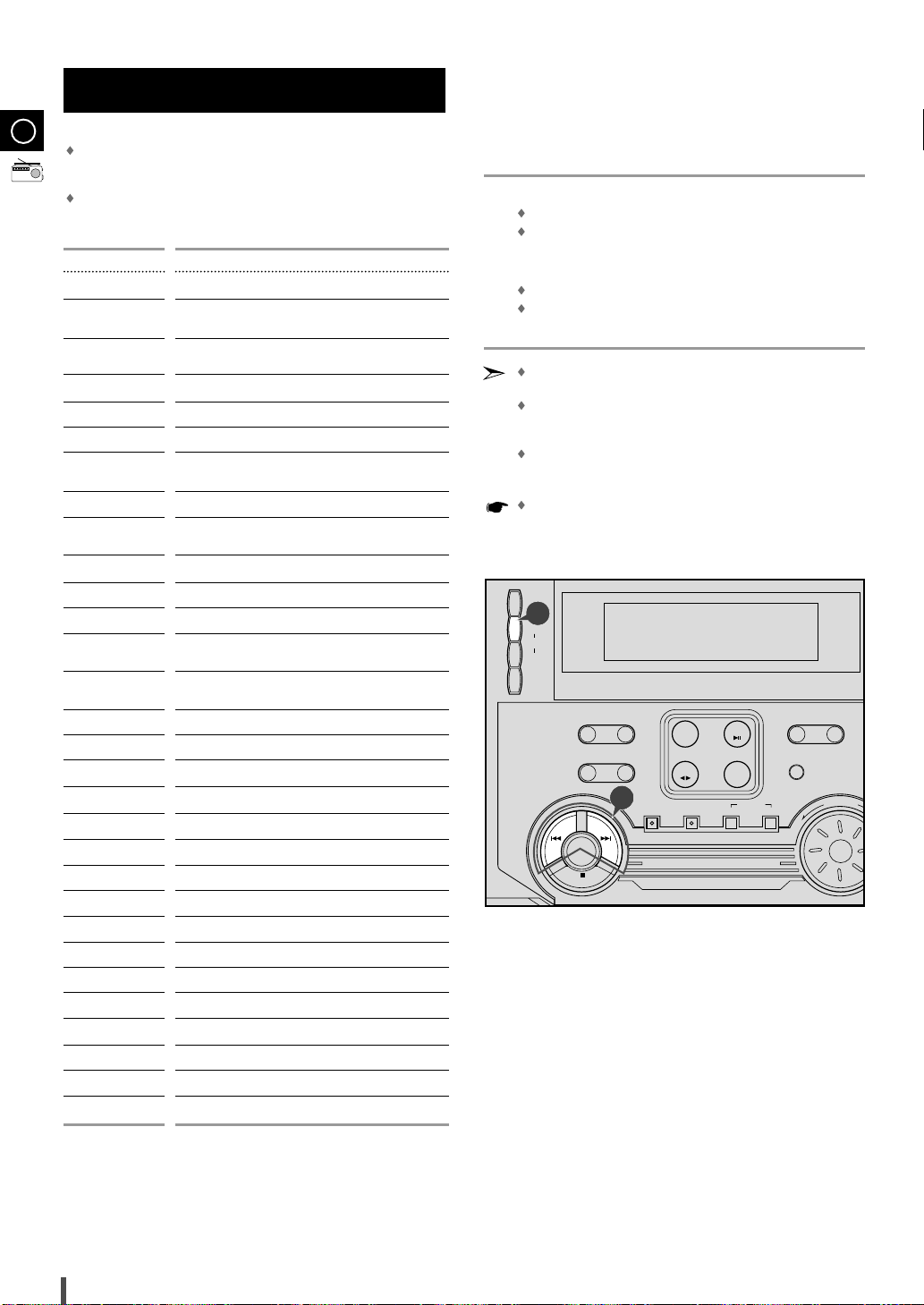

PTY (Program Type) indication and PTY-SEARCH function

The PTY information is composed of an identification symbol, which helps the FM radio to recognize the program type of each FM station. The 30 PTY modes are shown in the display by pressing the PTY button.
Program Type
Display
NEWS
AFFAIRS
INFO
SPORT
EDUCATE
DRAMA
CULTURE
SCIENCE
VARIED
POP M ROCK M
M.O.R.M
LIGHT M
CLASSIC
OTHER M
WEATHER
FINANCE
CHILDREN
SOCIAL A
RELIGION
PHONE IN
TRAVEL
LEISURE
JAZZ COUNTRY
NATIONALM
OLDIES
FOLK M
DOCUMENT
TEST
• News including an announced opinion and report
• Several matters including a current incident, documentary, discussion and analysis.
• Information including weights and measures, returns and fore-
cast, matters interesting the customer, medical information, etc.
• Sports
• Education
• Drama-Radio serial, etc.
• Culture-National or local culture including the religious problem, social science, language, theater,etc.
• Natural science and technology
• Others-Speech, amusing program (quiz, game), interview, comedy and satirical play, etc.
• Pop music
• Rock music
• M.O.R- Comfortable music, occasionally vocal or piece
• Light classical music- Classical music and instrumental and chorus music
• Heavy classical music-Orchestra music, symphony, chamber music and opera
• Other music - Jazz, R&B country music
• Weather
• Finance
• Children’s programmes
• Social affairs
• Religion
• Phone in
• Travel
• Leisure
• Jazz Music
• Country Music
• National Music
• Oldies Music
• Folk Music
• Documentary
• Alarm Test
About PTY-SEARCH
Tuned to an FM station broadcasting a PTY MODE.
1
See the FM receiving method on the page 15. If the received station is transmitting the RDS information, "RDS"
lights up.
Press the PTY button.
2
The PTY MODE(NEWS, AFFAIRS, etc) appears on the display. Press the Tuning Down or Up button to select the desired PTY
MODE.
If the station is transmitting no PTY information, 'NO PTY' shows on the display.
When the PTY MODE is selected(The PTY MODE is shown in the display), press the PTY KEY once again to convert into PTY-SEARCH MODE and auto-search the station sequentially.
If a station is found broadcasting required PTY MODE then the search station and the stop is selected.
If the PTY MODE isn’t found it is retuned to the original station frequency at beginning the PTY SEARCH and auto-search and PTY SEARCH are suspended.
2
2
18
Page 19
On/Standby
M
u
l
t
i
F
u
n
c
t
i
o
n
Demo
Timer /Clock
Mono/ST
REC/Pause
Down
Normal
Dubbing
HI - Speed
CD
Synchro
Prog
Shuff
Preset/ Memory
Deck 1/2 REV.Mode
CD
AUX
TAPE
TUNER
Band
D / P / S
DIRECT PLAY & SELECTION
CD–R/RW PLAYBACK
Up
Tuning Mode
PTY RDS
Display
Volume
+
_
On/Standby
M
u
l
t
i
F
u
n
c
t
i
o
n
M
u
l
t
i
J
o
g
Demo
Timer /Clock
Mono/ST
REC/Pause
Down
Normal
Dubbing
HI - Speed
CD
Synchro
Program
Shuffle
Enter
Power
Surround
S.BASS
E Q
D.S.P
Phones
CD
Repeat
Preset/ Memory
Deck 1/2 REV.Mode
CD
AUX
TAPE
TUNER
Band
D / P / S
DIRECT PLAY & SELECTION
CD–R/RW PLAYBACK
Up
Tuning Mode
PTY RDS
Display
Tuning Mode
Tuning Mode
CD

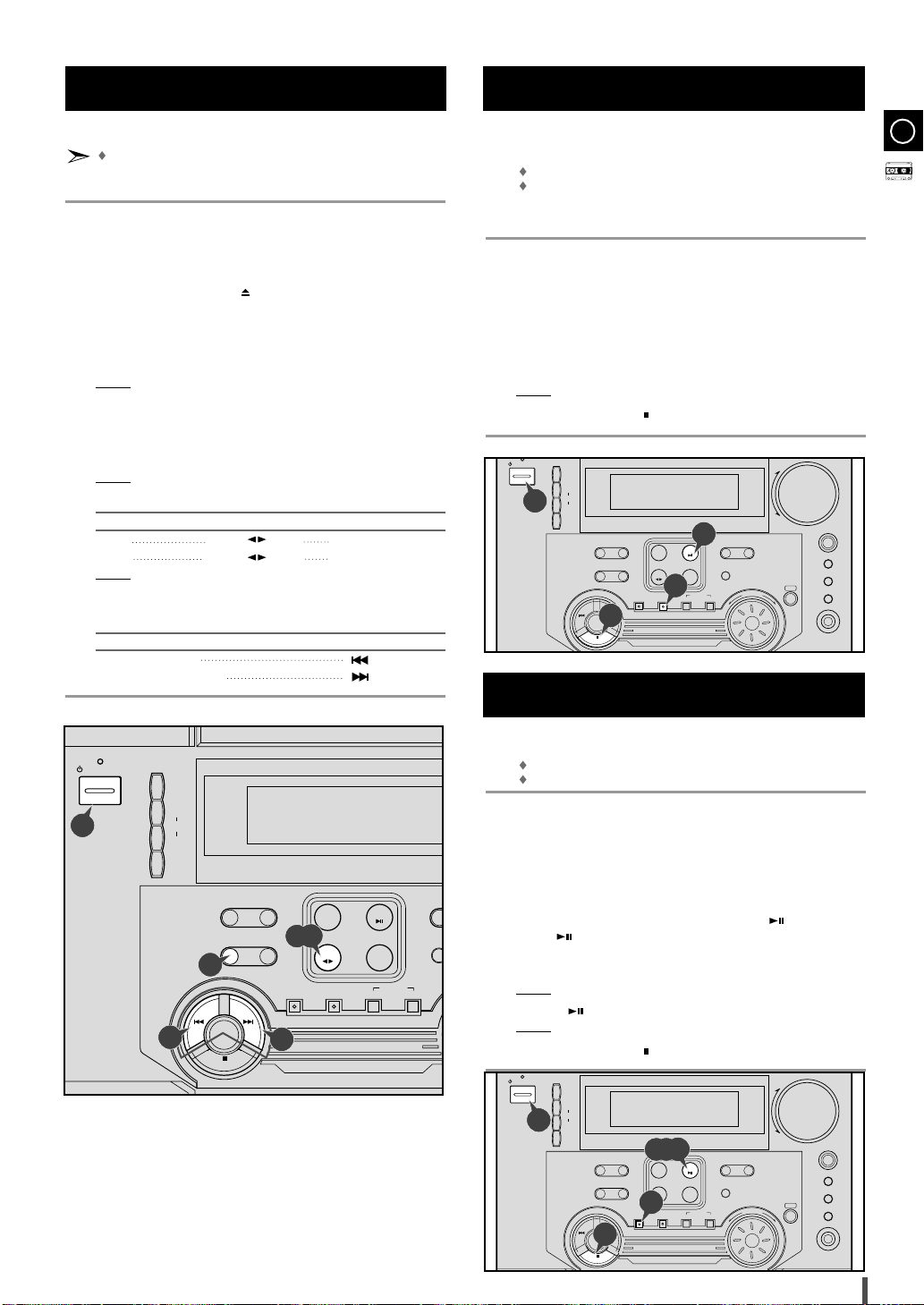

Listening to a Cassette

Always treat your cassettes with care; refer, if necessary, to the section entitled “Precautions When Using Audio Cassettes” on page 25.
Switch the system on by pressing the On/Standby button.
1
Select the TAPE function by pressing TAPE on the front panel.
2
Open either cassette deck 1 or 2 by pushing and releasing the deck
3
cover where PUSH EJECT ( ) is written. Insert the pre-recorded cassette with the open edge of the tape
4
facing downward. Close the deck by pushing on it until it clicks into place.
5
Result: Depending on the deck selected, the 1 or 2 indication is
displayed in front of the counter number.
If you have inserted two cassettes, press Deck 1/2 on the front panel
6
or directly the Deck 1/2 button on the remote control to select the cassette to be played.
Depending on the deck selected, the TAPE 1 or TAPE 2
Result:
indication is displayed.
To listen to... Press ...
7
Side A TAPE ( ) once DECK 1 and DECK 2 Side B TAPE ( ) twice DECK 2 only
Result:
The cassette starts playing.
When the cassette is stopped, select one of the following functions
8
as required.
To... Press ...
Rewind the cassette Fast-forward the cassette
1
6
8
Down
Up
8
2,7

CD Synchro Record Feature

(This function is not only available during playback of an MP3-CD.)
You can record a compact disc on a cassette in two different ways:
Synchronised recording Direct recording
This feature enables you to synchronize the start of the recording with the start of the disc or track of your choice.
Switch the system on by pressing On/Standby.
1
Insert a blank cassette in Deck 2.
2
Select the CD function by pressing CD on the front panel.
3
Load a compact disc.
4
Select the required disc.
5
Select the required track and press CD Synchro or press CD
6
Synchro directly to start recording at the beginning of the disc. Result:
REC is displayed and recording starts.
To stop recording, press .
7
1
3
CD
6
7

Recording a Compact Disc

The direct recording mode enables you to start recording with any track on the compact disc.
You can only record on cassettes in Deck 2. You do not need to adjust the volume, as it has no effect on the recording.
Switch your system on by pressing On/Standby.
1
Insert a blank cassette in Deck 2.
2
Select the CD function by pressing CD on the front panel.
3
Load the compact disc.
4
Select the required disc.
5
Select the required track on the compact disc and press on the front
6
panel or on the remote control to set the compact disc player to Pause
TAPE
mode.
7
Press the REC/Pause.
REC is displayed.
Result:
8
Press the to start playing the track.
The track is recorded on the cassette.
Result:
9
To stop recording, press .
On/Standby
Demo
PTY RDS
Display
1
Timer /Clock
Mono/ST
Deck 1/2 REV.Mode
u
F
i
t
l
u
M
Down
Tuning Mode
3,6,8
Preset/
Memory
TUNER
Band
TAPE
7
n
c
t
i
o
n
REC/Pause
Up
9
D / P / S
DIRECT PLAY & SELECTION
CD
Synchro
CD–R/RW PLAYBACK
Volume
+
_
Power
CD
Program
CD
AUX
Normal
Repeat
Shuffle
i
t
J
l
o
u
g
M
Dubbing
HI - Speed
Surround
S.BASS
E Q
Enter
D.S.P
Phones
19
Page 20

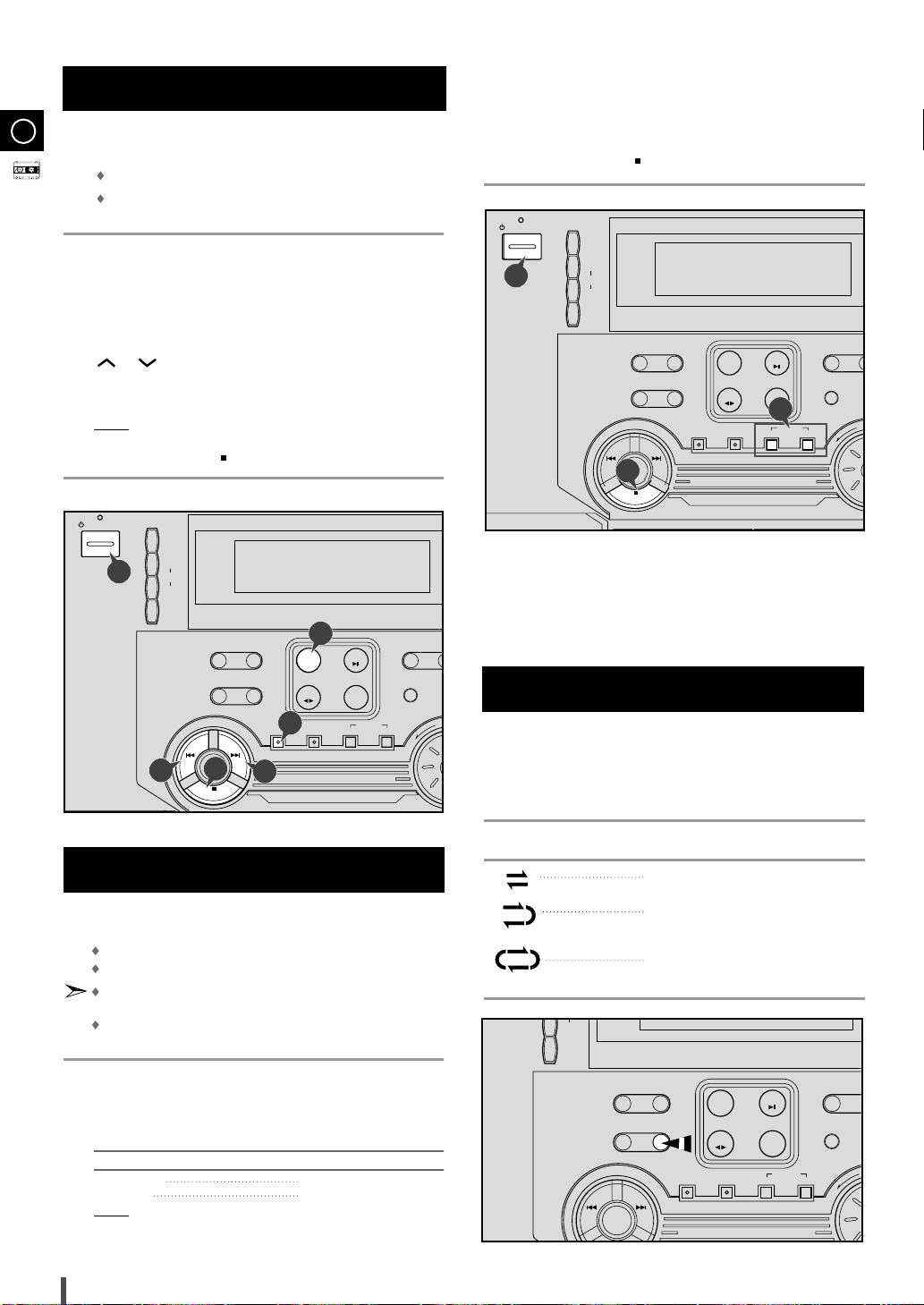

Recording a Radio Program

On/Standby
M
u
l
t
i
F
u
n
c
t
i
o
n
M
Demo
Timer /Clock
Mono/ST
REC/Pause
Down
Normal
Dubbing
HI - Speed
CD
Synchro
Program
Shuffle
C
Re
Preset/
Memory
Deck 1/2 REV.Mode
CD
AUX
TAPE
TUNER
Band
D / P / S
DIRECT PLAY & SELECTION
CD–R/RW PLAYBACK
Up
Tuning Mode
PTY RDS
Display
On/Standby
M
u
l
t
i
F
u
n
c
t
i
o
n
M
Demo
Timer /Clock
Mono/ST
REC/Pause
Down
Normal
Dubbing
HI - Speed
CD
Synchro
Program
Shuffle
C
Re
Preset/
Memory
Deck 1/2 REV.Mode
CD
AUX
TAPE
TUNER
Band
D / P / S
DIRECT PLAY & SELECTION
CD–R/RW PLAYBACK
Up
Tuning Mode
PTY RDS
Display
M
u
l
t
i
F
u
n
c
t
i
o
n
Timer /Clock
Mono/ST
REC/Pause
Down
Normal
Dubbing
HI - Speed
CD
Synchro
Program
Shuffle
R
Preset/
Memory
Deck 1/2 REV.Mode
CD
AUX
TAPE
TUNER
Band
D / P / S
DIRECT PLAY & SELECTION
CD–R/RW PLAYBACK
Up
Display
Tuning Mode
You can record a radio program of your choice.
You can only record on cassettes in Deck 2. You do not need to adjust the volume, as it has no effect on
the recording.
Switch the system on by pressing On/Standby.
1
Insert a blank cassette in Deck 2.
2
Select the TUNER function by pressing TUNER.
3
Select the radio station that you wish to record by pressing Tuning
4
or on the remote control or by press the Tuning Down or
Up on the front panel. Press REC/Pause.
5 6
REC is displayed in red and recording starts.
Result:
To stop recording, press .
1
To stop dubbing, press .
5
1
4
5
3
TUNER
Band
5
Down
Up
6
4
Tuning Mode
4

Copying a Cassette (Dubbing)

You can copy a cassette from Deck 1 to Deck 2. Two options are available:
Normal speed dubbing High-speed dubbing
You do not need to adjust the volume, as it has no effect on the recording.
Take care not to insert the tape to be copied in Deck 2, as it will be erased when you start recording.
Switch your system on by pressing On/Standby.
1
Insert a blank cassette in Deck 2.
2
Insert the tape to be copied in Deck 1.
3 4
To copy a cassette at... Press...
Normal speed Normal Dubbing High speed Hi-Speed Dubbing Result:
20
The appropriate indications are displayed and the cassette in Deck 1 is copied to the cassette in Deck 2.
Selecting the Cassette Playback Mode (Deck 2 Only)
Your mini-compact system has three cassette playback modes which enable you to listen to both sides of a cassette automatically. Press REV.Mode until the appropriate symbol is displayed.
When the display indicates... The mini-compact system plays back...
One side of the selected cassette and then stops.
One side of the cassette. The other side of the cassette and then stops.
Both sides of the cassette indefinitely until you press stop.
Page 21

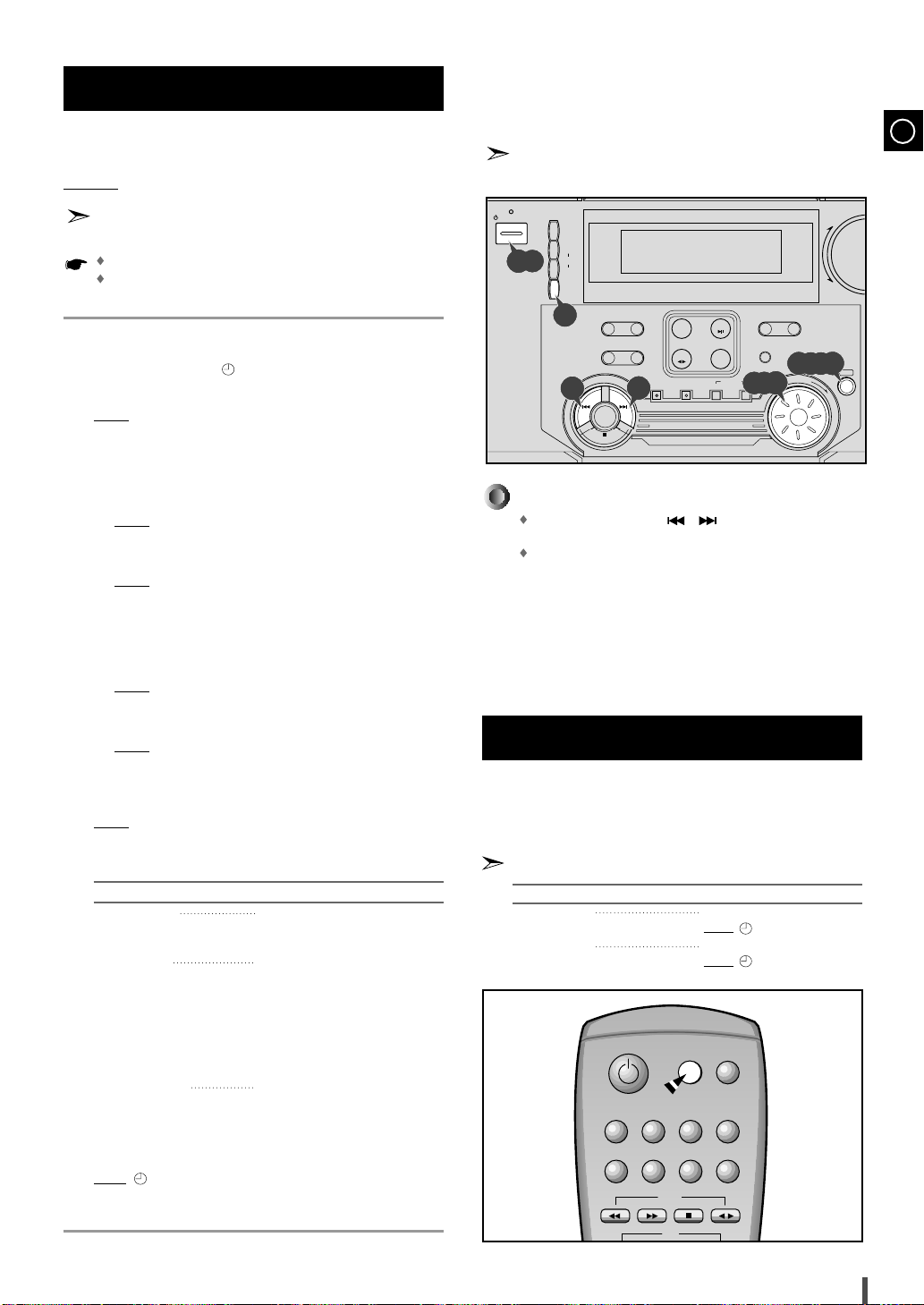

Timer Function

Volume
+
_
On/Standby
M
u
l
t
i
F
u
n
c
t
i
o
n
M
u
l
t
i
J
o
g
Demo
Timer /Clock
Mono/ST
REC/Pause
Down
Normal
Dubbing
HI - Speed
CD
Synchro
Program
Shuffle
Enter
CD
Repeat
Preset/
Memory
Deck 1/2 REV.Mode
CD
AUX
TAPE
TUNER
Band
D / P / S
DIRECT PLAY & SELECTION
CD–R/RW PLAYBACK
Up
Tuning Mode
PTY RDS
Display
On/Standby
EQ
Deck 1/2 AI OffCD+10 Key Tuner
BandSleep
Program
/Set
AUX
Disc Skip
Timer
On/Off
Mute
TAPE
The timer enables you to switch the system on or off at specific times. Example:
You wish to wake up to music every morning.
If you no longer want the system to be switched on or off automatically, you must cancel the timer.
If the timer switch on and off times are identical, the word ERROR is displayed.
Before setting the timer, check that the current time is correct. For each step, you have a few seconds to set the required
options. If you exceed this time, you must start again.
Switch the system on by pressing On/Standby.
1
Press Timer/Clock until TIMER is displayed.
2
Press Enter.
3
ON TIME is displayed (instead of the equalizer symbols) for
Result:
a few seconds, followed by any switch-on time already set; you can set the timer switch-on time.
Set the timer switch-on time.
4
a Set the hour by tuning the Multi Jog knob to the right or to the left. b Press Enter.
The minutes flash.
Result:
c Set the minutes by tuning the Multi Jog knob to the right or to
the left.
d Press Enter.
OFF TIME is displayed (instead of the equalizer symbols)
Result:
for a few seconds, followed by any switch-off time already set; you can now set the timer switch-off time.
Set the timer switch-off time.
5
a Set the hour by tuning the Multi Jog knob to the right or to the left. b Press Enter.
Result:
The minutes flash.
c Set the minutes by tuning the Multi Jog knob to the right or to
the left.
d Press Enter.
VOL XX is displayed, where XX corresponds to the
Result:
volume already set.
Press Tuning Down and Up to adjust the volume level and press
6
Enter.
The source to be selected is displayed.
Result: Turn the Multi Jog knob to select the source to be played when the
7
system switches on.
If you select... You must also...
TAPE (cassette) Insert a recorded cassette in one of
the decks before setting the system to standby.
TUNER (radio) a Press Enter.
b Select the FM or AM frequency
band by tuning the Multi Jog knob to the right or to the left.
c Press Enter. d Select a preset station by tuning
the Multi Jog knob to the right or
CD (compact disc) a Load one or more compact discs.
Press Enter to confirm the timer.
8
Press On/Standby to set the system to standby mode.
9
: is displayed to the bottom left of the time, indicating that
Result
the timer has been set. The system will switch on and off automatically at the required times.
to the left.
b Select the required disc.
1,9
2
3,4,5,6,7,8
6
Down
6
Up
4,5,7
To set the timer function
You may use Multi Jog or / buttons to adjust in step 4, 5, 6, 7.
You can also use Program/Set button on the remote control to instead Enter button in step 3, 4, 5, 6, 7, 8.

Cancelling the Timer

After having set the timer, it will start automatically as shown by the TIMER indication on the display. If you no longer wish to use the timer, you must cancel it.
You can stop the timer at any time (system on or in standby mode).
To... Press Timer On/Off...
Cancel the timer Once.
Restart the timer Twice.
Result
: is no longer displayed.
: is displayed again.
Result
21
Page 22

Mute Function Power Sound/Surround Function

_
M
u
l
t
i
J
o
g
REC/Pause
Normal
Dubbing
HI - Speed
CD
Synchro
Program
Shuffle
Enter
Power
Surround
S.BASS
E Q
D.S.P
Phones
CD
Repeat
eset/ mory
Mode
CD
AUX
TAPE
TUNER
Band
D / P / S
DIRECT PLAY & SELECTION
On/Standby
EQ
Deck 1/2 AI Off
VOL.
CD
+10 Key Tuner
BandSleep
Program
/Set
AUX
Disc Skip
Timer
On/Off
Mute
TAPE
_
M
u
l
t
i
J
o
g
REC/Pause
Normal
Dubbing
HI - Speed
CD
Synchro
Program
Shuffle
Enter
Power
Surround
S.BASS
E Q
D.S.P
Phones
CD
Repeat
reset/
mory
.Mode
CD
AUX
TAPE
TUNER
Band
D / P / S
DIRECT PLAY & SELECTION
CD–R/RW PLAYBACK
You can turn the sound off temporarily on your system.
: You wish to answer a telephone call.
Example
Press Mute.
1
To switch the sound back on (at the same volume as before), press
2
Mute again or the Volume buttons.
Your mini-compact system is equipped with the function of Power Sound and Power Surround. The function of Power Sound amplifies bass and improves high key or bass twice as much for you to appreciate powerful real sound. The Power Surround replaces conventional stereo sound with a wider and more ture-to-life sound. It creates the feeling of being right at the centre of the music and being surrounded by total music sound.
Press Power Surround button on the front panel until the required option is selected. Each time the Power Surround button is pressed, “P,SOUND, P,SURR, OFF” are selected in this order.

Selecting an Equalizer Preset

Your mini-compact system is equipped with a preset equalizer that allows you to choose the most appropriate balance between treble and bass frequencies, according to the type of music you are listening to.
Press EQ on the front panel or on the remote control until the required option is selected.
To obtain a... Select...
Normal balance (linear) PASS Balance suitable for pop music POP Balance suitable for rock music ROCK Balance suitable for classic music CLASSIC
_
CD
AUX
Dubbing
Normal
Program
Shuffle
HI - Speed
CD
Repeat
i
t
l
u
M
Enter
J
o
g
eset/ mory
.Mode
REC/Pause
22
TUNER
Band
DIRECT PLAY & SELECTION
TAPE
CD
Synchro
CD–R/RW PLAYBACK
D / P / S
Power
Surround
S.BASS
E Q
D.S.P
Phones

D.S.P Function

This model provides D.S.P modes so that you can enjoy virtually original sound.
Press D.S.P on the front panel until the required option is selected. Each time the D.S.P button is pressed, “CINEMA (Cinema mood), LIVE(Live house sound), HALL(Concert hall mood), PASS” are selected in this order.
Page 23

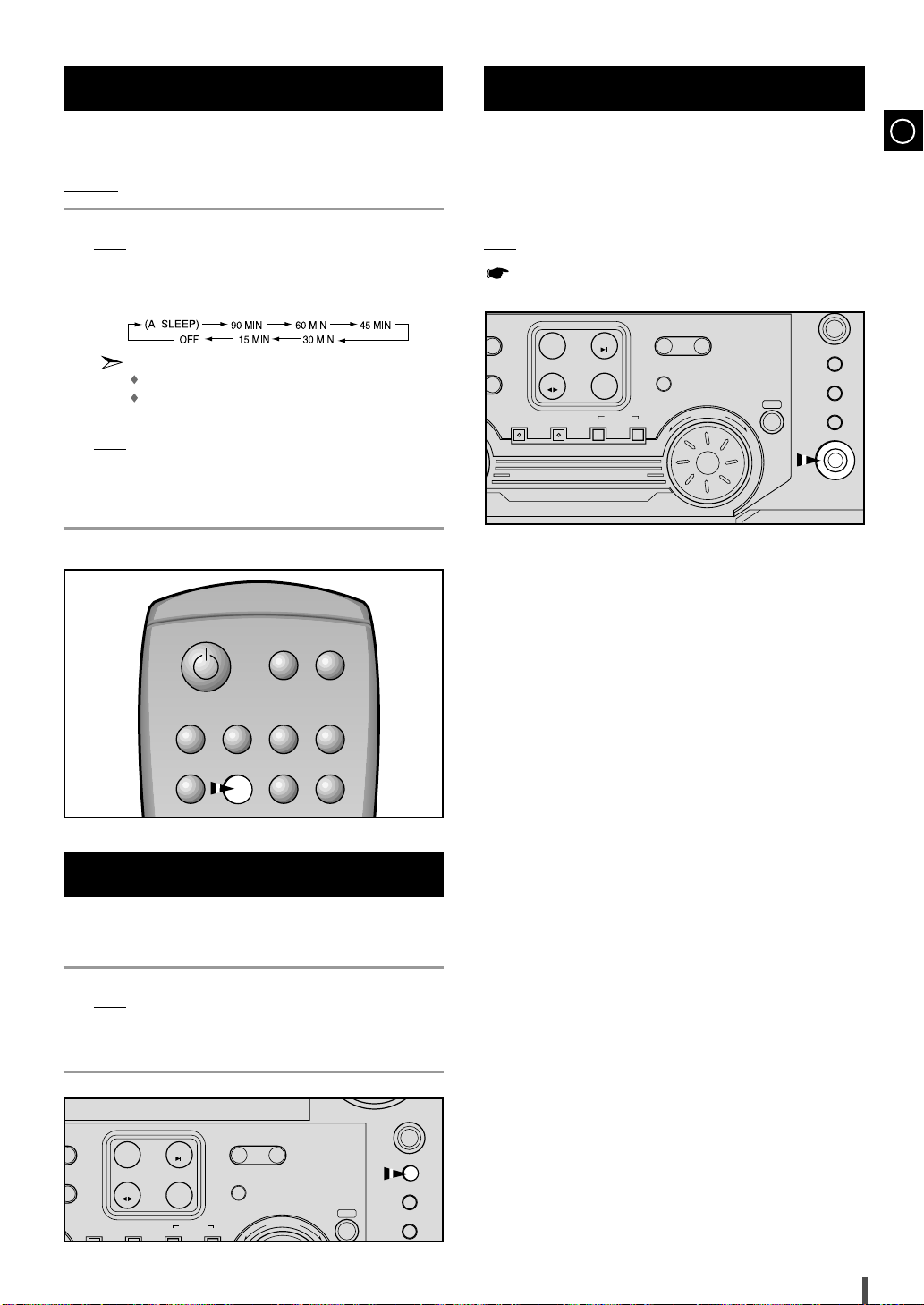

Setting the System to Switch off

On/Standby
EQ
Deck 1/2 AI Off +10 Key Tuner
BandSleep
Program
/Set
AUX
Disc Skip
Timer
On/Off
Mute
M
u
l
t
i
J
o
g
REC/Pause
Normal
Dubbing
HI - Speed
CD
Synchro
Program
Shuffle
Enter
Power
Surround
S.BASS
E Q
D.S.P
CD
Repeat
eset/ mory
.Mode
CD
AUX
TAPE
TUNER
Band
D / P / S
DIRECT PLAY & SELECTION
Automatically
While listening to a compact disc or a cassette, you can set the system to switch off automatically Example: You wish to go to sleep to music.
Press AI Off/Sleep.
1
Result: playback starts and the following indications are displayed:
90 MIN
Press AI Off/Sleep one or more times to indicate how long the
2
system should continue playing before it switches off:
At any time, you can:
Check the remaining time by pressing AI Off/Sleep Change the remaining time by repeating Steps 1 and 2
Press AI Off/Sleep one or more times until AI SLEEP is displayed.
3
4
: The system will automatically switch off at the end of the disc
Result
or cassette.
To cancel SLEEP or AI OFF function, press AI Off/Sleep one or more times until OFF is display.

Connecting Headphones

You can connect a set of headphones to your mini-compact system so that you can listen to music or radio programmers without disturbing other people in the room. The earphones must have a 3.5 mm jack or an appropriate adapter.
Connect the headphones to the Phones jack on the front panel. Result
: The loudspeakers are no longer used to output the sound.
Prolonged use of headphones at a high volume may damage your hearing.
reset/ emory
V.Mode
REC/Pause
TUNER
Band
D / P / S
DIRECT PLAY & SELECTION
TAPE
CD
Synchro
CD–R/RW PLAYBACK
Normal
AUX
CD
Dubbing
HI - Speed
Program
Shuffle
CD
Repeat
M
S.BASS
E Q
i
t
l
u
Enter
J
o
g
D.S.P
Phones

Super Bass Sound

Your mini-compact system has a bass amplification function
called S.Bass (Super Bass Sound). This function makes the sound more powerful and real.
Press the S. BASS button on the front panel.
1
2
: S. BASS is displayed and “SBS ON” is displayed for a few
Result
seconds.
To cancel this function, press S. BASS again.
23
Page 24

Safety Precautions

-- Disc Selection / Direct Play --
Volume
+
_
On/Standby
M
u
l
t
i
F
u
n
c
t
i
o
n
M
u
l
t
i
J
o
g
Disc 1 Disc 2 Disc 3
Disc Change
Demo
PTY RDS
Display
Timer /Clock
Mono/ST
REC/Pause
Down
Normal
Dubbing
HI - Speed
CD Synchro
Program
Shuffle
Enter
Power Surround
S.BASS
E Q
D.S.P
Phones
CD
Repeat
Preset/ Memory
Deck 1/2 REV.Mode
CD
AUX
TAPE
TUNER Band
D / P / S
DIRECT PLAY & SELECTION
CD–R/RW PLAYBACK
Up
Tuning Mode
-- Disc Selection / Direct Play --
Volume
+
_
On/Standby
M
u
l
t
i
F
u
n
c
t
i
o
n
M
u
l
t
i
J
o
g
Disc 1 Disc 2 Disc 3
Disc Change
Demo
PTY RDS
Display
Timer /Clock
Mono/ST
REC/Pause
Down
Normal
Dubbing
HI - Speed
CD Synchro
Program
Shuffle
Enter
Power Surround
S.BASS
E Q
D.S.P
Phones
CD
Repeat
Preset/ Memory
Deck 1/2 REV.Mode
CD
AUX
TAPE
TUNER Band
D / P / S
DIRECT PLAY & SELECTION
CD–R/RW PLAYBACK
Up
Tuning Mode
-- Disc Selection / Direct Play --
Volume
+
_
On/Standby
M
u
l
t
i
F
u
n
c
t
i
o
n
M
u
l
t
i
J
o
g
Disc 1 Disc 2 Disc 3
Disc Change
Demo
PTY RDS Display
Timer /Clock
Mono/ST
REC/Pause
Down
Normal
Dubbing
HI - Speed
CD Synchro
Program
Shuffle
Enter
Power Surround
S.BASS
E Q
D.S.P
Phones
CD
Repeat
Preset/ Memory
Deck 1/2 REV.Mode
CD
AUX
TAPE
TUNER Band
D / P / S
DIRECT PLAY & SELECTION
CD–R/RW PLAYBACK
Up
Tuning Mode
-- Disc Selection / Direct Play --
Volume
+
_
On/Standby
M
u
l
t
i
F
u
n
c
t
i
o
n
M
u
l
t
i
J
o
g
Disc 1 Disc 2 Disc 3
Disc Change
Demo
PTY RDS
Display
Timer /Clock
Mono/ST
REC/Pause
Down
Normal
Dubbing
HI - Speed
CD Synchro
Program
Shuffle
Enter
Power Surround
S.BASS
E Q
D.S.P
Phones
CD
Repeat
Preset/ Memory
Deck 1/2 REV.Mode
CD
AUX
TAPE
TUNER Band
D / P / S
DIRECT PLAY & SELECTION
CD–R/RW PLAYBACK
Up
Tuning Mode
The following diagrams illustrate the precautions to be taken when using or moving your mini-compact system.
Ambient operating conditions: Ambient temperature 5°C-35°C Humidity 10-75%
-- Disc Selection / Direct Play --
Disc 1 Disc 2 Disc 3
Disc Change
Volume
On/Standby
+
Demo
PTY RDS
Display
_
Timer /Clock
Power Surround
Preset/
CD
Mono/ST
Program
Memory
Repeat
CD TUNER Band
S.BASS
D / P / S
DIRECT PLAY & SELECTION
Deck 1/2 REV.Mode
Shuffle
E Q
TAPE
AUX
Enter
D.S.P
i
t
u
J
l
F
n
o
u
c
i
g
t
t
l
M
i
o
u
Dubbing
CD
n
M
Synchro
REC/Pause
Normal
HI - Speed
Phones
Down
Up
CD–R/RW PLAYBACK
Tuning Mode
Do not place potted plants or vases on top of the unit. Moisture entering the unit could lead to dangerous electric shock and can cause equipment damage. In such events immediately disconnect the main plug from the socket.
Do not expose the unit to direct sun radiation or other heat sources. This could lead to overheating and malfunction of the unit.
During thunderstorms, disconnect the main plug from the socket. Main voltage peaks due to light­ning could damage the unit.

Cleaning Your Mini-Compact System

To obtain the best possible results from your mini-compact system, you must clean the following elements regularly:
The outer casing The compact disc player The cassette players (heads, rollers and drive capstans)
Always unplug the system from the wall outlet:
Before cleaning it If you are not going to be using it for a long time
Outer Casing
Clean the outer casing regularly using a soft cloth and a light detergent. Do not use abrasive powders, liquids or aerosol cleaners. Never let any liquids get into the system.
Compact Disc Player
Before playing a compact disc, clean it with a special CD cleaning
1
agent. Do not use the same cleaning agents as for vinyl LP records. Carefully wipe the disc from the centre outward.
Regularly clean the player with a special cleaning disc (available from
2
your local dealer).
T
ape Decks
Press Push Eject( ) to open the cassette deck.
1
Use a cotton bud and a special cassette cleaning agent to clean the:
2
Head (1) Rollers (2) Drive capstans (3)
3
Remove the batteries from the remote control, if not used for any extended period. Leaking batteries can cause serious damage to the remote control.
Do not place heavy items on the main lead. Main cable damage can lead to damage of the equipment (fire hazard) and can cause electric shock.
24
VOLUME
UP
DOWN
When using headphones, take care not to listen at excessive volumes. Extended use of headphones at high volumes will lead to hearing damage.
Do not remove any equipment panels. The inside of the unit contains live components, which cause electric shock.
21
If you will not be using the remote control for a long time, remove the batteries to prevent corrosion.
Although your system is very hard-wearing, it should not be used in an excessively dusty environment or subjected to shocks or extreme heat (close to heating appliances or in direct sunlight, etc.).
If the unit emits an unpleasant odor when in use, unplug it from the main supply and contact the after-sales service.
Page 25
Precautions When Using Compact Discs
Handle your compact discs with care. Always hold them by the edges to avoid leaving fingerprints on the shiny surface.
When you have finished playing a compact disc, always put it back in its case.
Do not fix paper or adhesive tape to the discs and do not write on the label.
Clean them with a special-purpose cloth. Store your compact discs in a clean place, out of direct sunlight,
where they will not be exposed to high temperatures. Always use compact discs marked .
DIGITAL AUDIO
COMPACT
Precautions When Using Audio Cassettes
Check that the tape in the cassette is sufficiently taught. To prevent erasing a cassette that you wish to keep, remove the
safety tab on the upper edge of the cassette. To record a cassette, where the tab has been broken, simply cover the opening with adhesive tape.
When you have finished playing a cassette, always put it back in its case.
Store your cassettes in a clean place, out of direct sunlight, where they will not be exposed to high temperatures.
Avoid using 120-minute cassettes as they place unnecessary strain on the tape mechanism.
Before Contacting the After-Sales Service
It always takes a little time to become familiar with a new appliance. If you have any of the problems listed below, try the solutions given. They may save you the time and inconvenience of an unnecessary service call.
Problem
The system does not work
G E N E R
There is no sound
A L
The Timer does not work
In case it does not work, even the action is taken as above.
C D
The compact disc player does not
/
start playing
M P
3
C D
The mp-3 CD player cannot be played.
C A
The tape does not start playing
S S E T
The volume falls off
T E
The cassette is not erased correctly
S
There is excessive wow and flutter
R A
Reception is poor or no radio
D
stations are received at all
I
O
• The main lead is not correctly plugged into
• The remote control batteries need replacing
• The On/Standby button has not been
• The volume has been completely turned
• The correct function (TUNER, CD, TAPE,
• You have connected a set of earphones.
• The loudspeaker wires have been
• The Mute button has been pressed.
• The timer has been stopped by pressing
• Press the S.BASS button for 5 seconds in
• The CD function has not been selected.
• The disc has been inserted face down or is
• The laser sensor is dirty or dusty.
• The system has not been installed on a flat,
• Condensation has formed in the player;
• Use the PC to confirm if the extension is
• The TAPE function has not been selected.
•
• The cassette player has not been closed.
• The tape is either slack or broken.
• The audio heads are dirty.
• The rollers or drive capstans are dirty.
• The tape is worn.
• The TUNER function has not been selected.
• The radio frequency has not been correctly
• The aerial has been disconnected or is not
• You are in a building that blocks radio
Checks/Explanation
a wall socket or the wall socket is not switched on.
or the polarity has not been respected. pressed.
down. AUX) has not been selected.
disconnected.
Timer On/Off.
power ‘OFF’(standby), then it is returned the original position (RESET)
either dirty or scratched.
horizontal surface. leave the system in a warm, airy room for at
least one hour.
*.mp3.
The cassette has not been inserted correctly.
selected. facing the right way. Turn it until you find the
best orientation. waves; you must use an outside aerial.
If the above guidelines do not allow you to solve the problem, take a note of:
The model and serial numbers, normally printed on the rear of the system
Your warranty details A clear description of the problem
Then contact your local dealer or SAMSUNG after-sales service.
25
Page 26

Technical Specifications

SAMSUNG strives to improve its products at all times. Both the design specifications and these user instructions are thus subject to change without notice.
RADIO
LW
Usable sensitivity 60 dB
AM (MW)
Signal/noise ratio 40 dB Usable sensitivity 54 dB Total harmonic distortion 2 %
FM
Signal/noise ratio 62 dB Usable sensitivity 10 dB Total harmonic distortion 0.3 %
COMPACT DISC PLAYER
Capacity 3 discs Frequency range 20 Hz - 20 KHz (± 1 dB) Signal/noise ratio 90 dB (at 1 KHz) with filter Distortion 0.05 % (at 1 KHz) Channel separation 74 dB Disc sizes Diameter: 120 or 80 mm. Thickness: 1.2 mm
TAPE DECK
Frequency range 125 Hz ~ 12 KHz Signal/noise ratio 40 dB Channel separation 35 dB Erasing effect 60 dB
AMPLIFIER
Output power (6 Ω) 2 x 60 Watts RMS (total harmonic distortion: 10 %) Channel separation 50 dB Signal/noise ratio 75 dB
GENERAL
Dimensions 270 (W) x 332 (H) x 410 (D) mm
26
Page 27
ELECTRONICS
THIS APPLIANCE IS MANUFACTURED BY:
AH68-00768B
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
