Samsung Electronics 2-1
2.Exploded Views and Parts List
2-1 Cassette Deck :ADR248FTW(OPTION)
No. Code No. Description Specification Remarks
2
1
7
7
3
5
6
4
6
AH59-00104A CA-DECK ASS’Y ADR248FTW
1 AH81-00368A ASS.Y RP HEAD ADR2400-RP(SANKYO) MT91-11010T
2 AH81-00369A ASS.Y PB HEAD PB MK10P-AA2N3 MT59-00044A
3 AH81-00422A ASS,Y MOTOR CCM090L2 MT91-15013Y
4 AH81-00364A BELT MAIN1 ADR2400-MAIN 0.5 6602-001056
5 AH81-00370A BELT MAIN2 ADR2400-MAIN 1.3 6602-001010
6 AH81-00101A BELT SUB ADR2400-FR 6602-001055
7 AH81-00102A SOLENOID ADR2400-1 MT75-00049A
Page 2
Samsung Electronics
2-2
2-2 Total Exploded View and Parts List
2-2-1 Total Exploded
Page 3
Samsung Electronics 2-3
2-2-2 Parts List of Total Exploded view
No. Code No. Description ; Specification REMARK
No. Code No. Description ; Specification REMARK
1 AH64-70003K BADGE-BRAND ABS BLK (35mm)
2 AH63-00259A SHEET-CD PC 0.4T
3 AH64-01201A WINDOW-CD ACRYL CLR
4 AH64-01200B DOOR-CD ABS L/GRAY BASIC
AH64-01200D DOOR-C ABS L/GRAY ONLY ZL82
5 AH63-00260A SHEET-DOOR,CD PC 0.4T
6 AH64-01202B WINDOW-DOOR,CD ACRYL CLR MAX-WL85
AH64-01202C WINDOW-DOOR,CD ACRYL CLR MAX-L82
AH64-01202D WINDOW-DOOR,CD ACRYL CLR MAX-ZL82
AH64-01202G WINDOW-DOOR,CD ACRYL CLR MQ-WL85
AH64-01202H WINDOW-DOOR,CD ACRYL CLR MQ-L82
AH64-01202J WINDOW-DOOR,CD ACRYL CLR MQ-ZL82
7 AH63-00261A SHEET-VFD PC 0.4T
8 AH64-01203B WINDOW-VFD ACRYL CLR BASIC
AH64-01203D WINDOW-VFD ACRYL CLR RDS
AH64-01203E WINDOW-VFD ACRYL CLR ONLY ZL82 BASIC
AH64-01203F WINDOW-VFD ACRYL CLR ONLY ZL82 RDS
9 AH64-01198B DOOR-CASS.A ABS L/GRAY
10 AH64-01199B DOOR-CASS.B ABS L/GRAY
11 AH63-00263A SHEET-DOOR,A PC 0.4T
12 AH63-00264A SHEET-DOOR,B PC 0.4T
13 AH64-01205B WINDOW-DOOR,A ACRYL CLR
14 AH64-01206B WINDOW-DOOR,B ACRYL CLR
15 AH64-01211B KNOB-VOLUME ABS L/GRAY
16 AH61-00676B CAP-VOLUME ABS L/GRAY
17 AH64-01196B CABINET-FRONT ABS L/GRAY WL85 / MIC
AH64-01196C CABINET-FRONT ABS L/GRAY WL85 / MIC,ECHO
AH64-01196D CABINET-FRONT ABS L/GRAY WL85 / RDS(MIC)
AH64-01196E CABINET-FRONT ABS L/GRAY L82/ZL82 / MIC
AH64-01196F CABINET-FRONT ABS L/GRAY L82/ZL82 / MIC,ECHO
AH64-01200G CABINET-FRONT ABS L/GRAY L82/ZL82 / RDS(MIC)
18 AH61-00552A SPRING-EJECT,A STS ¥Õ1.1
19 AH61-00553A SPRING-EJECT,B STS ¥Õ1.1
20 AH61-80030A DAMPER-ASSY POM BLK
21 AH95-500011A ASS’Y LATCH POM BLK
22 AH64-01208B KNOB-DISC ABS L/GRAY
23 AH64-01209B KNOB-POWER ABS L/GRAY
24 AH67-00114A LENS-STANDBY PMMA MILKY
25 AH67-00110A LENS-REMOCON ACRYL(850-41802)
26 AH67-00113B LENS-FUNCTION ACRYL CLR
27 AH63-00265A FILTER-FUNCTION KIMO 100
28 AH61-00673A HOLDER-FUNCTION ABS WHT
29 AH64-01207B KNOB-OPEN ABS L/GRAY
30 AH67-00111B LENS-SOUND PMMA BLUE
31 AH67-00112A LENS-BASS PMMA BLUE
32 AH64-01210B KNOB-SOUND ABS L/GRAY
33 AH64-01213B KNOB-ECHO ABS L/GRAY OPTION
34 AH64-01212B KNOB-JOG ABS NATURAL
35 AH61-00678B CAP-MOV,TOP ABS GRAY
36 AH64-01215B KNOB-ENTER ABS GRAY
37 AH61-00675A HOLDER-MOVING PC+ABS GRAY
38 AH61-00679A CAP-MOV,BOTTOM PC+ABS GRAY
39 AH64-01204B WINDOW-MOVING PMMA CLEAR
40 AH63-00262A SHEET-MOVING PC 0.4T
41 AH61-00680B CAP-TOP ABS GRAY
42 AH67-00062A LENS-RECORD PMMA MILKY
43 AH64-01216B KNOB-MOVING ABS GRAY
44 AH67-00116A LENS-MOVING PMMA CLEAR
45 AH61-00674A HOLDER-LEN,MOV ABS WHT
46 AH61-00681A CAP-BOTTOM ABS BLK
47 AH61-00399B SHAFT-GUIDE SUS 303
48 AH66-00114A PULLY-MOTOR POM BLK
49 AH61-00499A SHAFT-ROLLER SUS 303
50 AH66-00120A ROLLER-MOVING POM
51 AH61-00496A HOLDER-ROLLER PC+ABS BLK
52 AH61-00500A SPRING-ROLLER SUS 304
53 AH66-00108A BELT-MOVING CR BLK
54 AH66-00119A GEAR-PULLEY POM
55 AH66-00116A GEAR-A TPE
56 AH66-00117A GEAR-B POM
57 AH66-00118A GEAR-C POM
58 6602-001070 BELT-TIMING RUBBER
59 AH64-30416C CABINET-BOTTOM SECC 1.0T
60 AH61-40014A SUPPORT-RIVET ABS BLK
61 AH61-00021A SUPPORT-PCB ABS BLK
62 AH63-00278A COVER-PCB PVC 0.5T
63 AH61-00685A BRKT-PCB SECC 1.0T
64 AH62-00044A HEAT-SINK,IC AL 3T
65 AH61-00683A BRKT-H/SINK,L SECC 1.0T
66 AH61-00684A BRKT-H/SINK,R SECC 1.0T
67 AH62-00045A HEAT-SINK,M AL
68 AH64-01197B CABINET-REAR SECC 0.8T BASIC(1 VOL)
AH64-01197C CABINET-REAR SECC 0.8T BASIC(2 VOL)
AH64-01197D CABINET-REAR SECC 0.8T BASIC+WOOFER (1 VOL)
AH64-01197E CABINET-REAR SECC 0.8T BASIC+WOOFER (2 VOL)
AH64-01197F CABINET-REAR SECC 0.8T BASIC+WOOFER+DIGITAL OUT(1VOL)
AH64-01197J CABINET-REAR SECC 0.8T BASIC(1VOL)+DIGIT OUT
69 AH61-00682A CAP-REAR ABS L/GRAY
70 AH64-00616A CABINET-TOP PGM 0.625T SILVER
71 AH64-01214B KNOB-MIC ABS L/GRAY OPTION
Page 4
Samsung Electronics
2-4

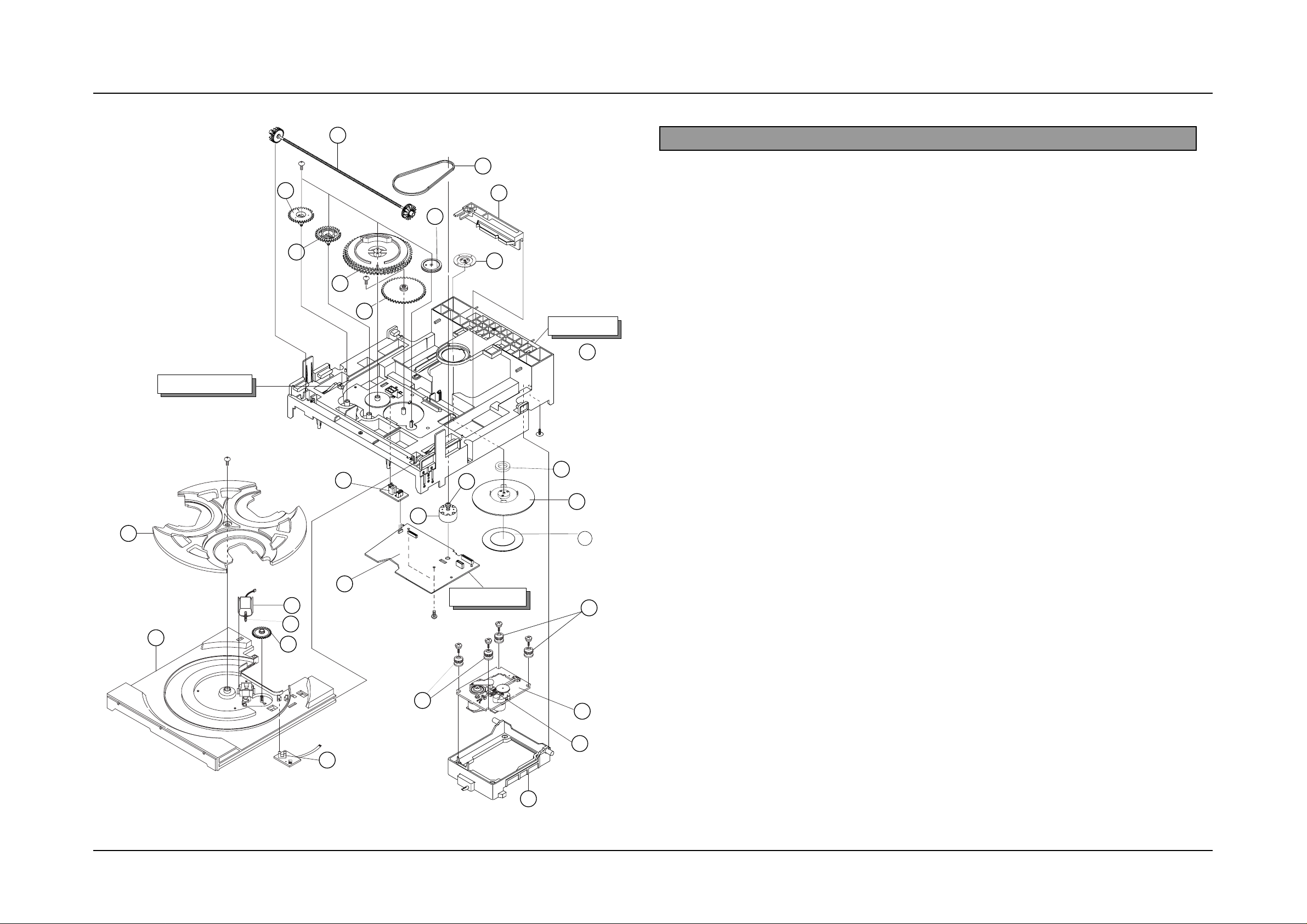

2-3 CD Deck Exploded View and Parts list
12
8
2
28
15
27
19
7
6
5
4
3
1
10
20
17
22
26
21
11
9
14
16
13
CD SUB PCB
TRAY STOPPER
24
23
25
BASE MAIN
18
No. Code No. Description Specification Remarks
CMS300-V ASS’Y-DECK CMS-300
1 AH66-80022A SLIDER-CAM ABS HF-380 NTR
2 AH66-60034A BELT-LOAD CR
3 AH66-20186A GEAR-PULLEY POM (M90-44) WHT
4 AH66-20187A GEAR-LOAD POM (M90-44) BLK
5 AH66-20188B GEAR-CAM POM (M90-44) WHT
6 AH66-20189B GEAR-TRAY POM (M90-44) BLK
7 AH66-20190B GEAR-CONVERT POM (M90-44) WHT
8 AH66-20191A GEAR-SYNCRO ABS HF-380 NTR
9 AH66-20192A GEAR-WORM POM(M90-44),M0.5,PCD4.5
10 AH31-12001A MOTOR-LOADING FF-030PN-09120
11 AH66-20193A GEAR-ROULLETE POM(M90-44) BLK
12 AH63-00324A TRAY-ROULLETE ABS XR-401 BLK
13 AH63-00325A TRAY-DISC ABS BLK
14 AH32-10001F SENSOR KPI-L06
15 AH61-00837A BASE-MAIN ABS,NATURAL,CMS-300
16 3302-000159 MAGNET AC,3500-3800G,2.6-3.2MGOe,30
17 AH63-90053A TABLE-CHUCK ,ABS,+GF20%,BLK,
18 AH63-00068B SHEET-CHUCK SHEET,HYMERON,BLK,0.4T
19 3405-000101 SWITCH -MICRO MLS-24
20 AH31-10021A MOTOR-DC RF-500TB,9VDC/130MA
21 AH66-10008A PULLEY-MOTOR POM,BLK,CMS-CR3
22 AH73-10031A RUBBER-CD(R) SI,CMS-300,40,RED
23 AH91-60150C CDP DECK ASSY CMS-D73SG6U
24 AH66-30098A LEVER-LIFTER ABS BLK CMS-300
25 AH30-00007A PICK-UP SOH-AD3
26 AH73-10034A RUBBER-CD(G) SI,CMS-300,40,GREEN
27 AH92-00922A ASS’Y PCB CD MAIN
28 AH61-00225A BRKT-CHUCK SECL 0.8t
2-3-1. Application Model :MAXL82/WL85
Page 5
Samsung Electronics 2-5
2-3-2. Application Model :MAXZL82
12
8
2
28
15
27
19
7
6
5
4
3
1
10
20
17
22
26
21
11
9
14
16
13
CD SUB PCB
TRAY STOPPER
24
23
25
BASE MAIN
18
No. Code No. Description Specification Remarks
CMS300-X ASS’Y-DECK CMS-300
1 AH66-80022A SLIDER-CAM ABS HF-380 NTR
2 AH66-60034A BELT-LOAD CR
3 AH66-20186A GEAR-PULLEY POM (M90-44) WHT
4 AH66-20187A GEAR-LOAD POM (M90-44) BLK
5 AH66-20188B GEAR-CAM POM (M90-44) WHT
6 AH66-20189B GEAR-TRAY POM (M90-44) BLK
7 AH66-20190B GEAR-CONVERT POM (M90-44) WHT
8 AH66-20191A GEAR-SYNCRO ABS HF-380 NTR
9 AH66-20192A GEAR-WORM POM(M90-44),M0.5,PCD4.5
10 AH31-12001A MOTOR-LOADING FF-030PN-09120
11 AH66-20193A GEAR-ROULLETE POM(M90-44) BLK
12 AH63-00324A TRAY-ROULLETE ABS XR-401 BLK
13 AH63-00325A TRAY-DISC ABS BLK
14 AH32-10001F SENSOR KPI-L06
15 AH61-00837A BASE-MAIN ABS,NATURAL,CMS-300
16 3302-000159 MAGNET AC,3500-3800G,2.6-3.2MGOe,30
17 AH63-90053A TABLE-CHUCK ,ABS,+GF20%,BLK,
18 AH63-00068B SHEET-CHUCK SHEET,HYMERON,BLK,0.4T
19 3405-000101 SWITCH -MICRO MLS-24
20 AH31-10021A MOTOR-DC RF-500TB,9VDC/130MA
21 AH66-10008A PULLEY-MOTOR POM,BLK,CMS-CR3
22 AH73-10031A RUBBER-CD(R) SI,CMS-300,40,RED
23 AH91-60150C CDP DECK ASSY CMS-D73SG6U
24 AH66-30098A LEVER-LIFTER ABS BLK CMS-300
25 AH30-00007A PICK-UP SOH-AD3
26 AH73-10034A RUBBER-CD(G) SI,CMS-300,40,GREEN
27 AH92-00922B ASS’Y PCB CD MAIN MP3
28 AH61-00225A BRKT-CHUCK SECL 0.8t
Page 6
Samsung Electronics
2-6
2-4 SPEAKER Exploded View and Parts list
*PS WL85E : AH81-00378A
* CAUSION : It is used the bonding, connet NET FRAME(or FRONT PANEL ASS’Y) to CABINET ASS’Y.
So when the disassembly, take extreme care not to demage the SPEAKER.
2-4-1. MAXWL85
Page 7
Samsung Electronics 2-7
* PSL82/ZL82 : ASS’Y SPK(AH81-00253B)
Description
253C
253D
2-4-2. MAXL82/ZL82
* CAUSION : It is used the bonding, connet NET FRAME(or FRONT PANEL ASS’Y) to CABINET ASS’Y.
So when the disassembly, take extreme care not to demage the SPEAKER.
Page 8
Samsung Electronics
2-8

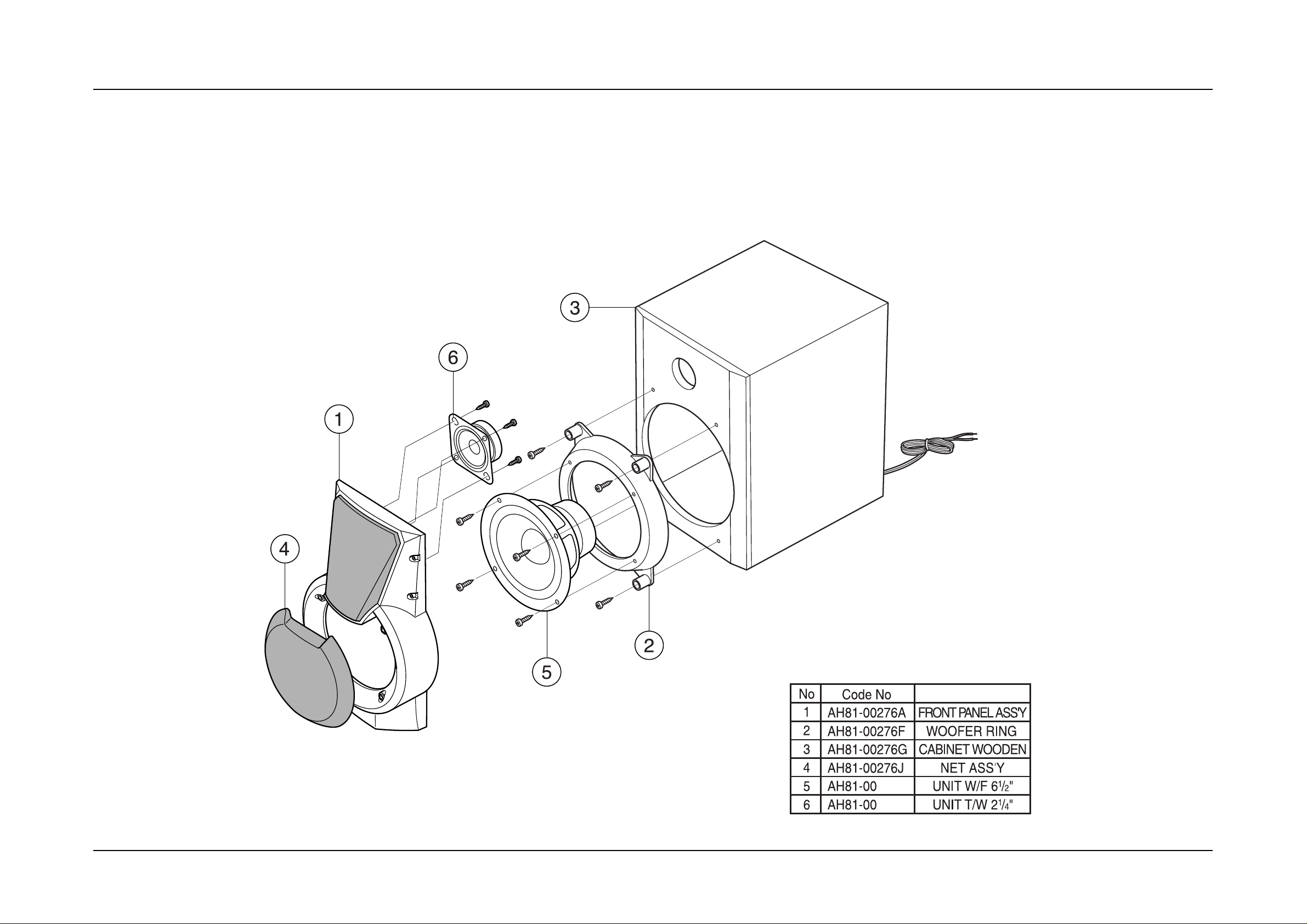

2-4-3. MAXWL87
* CAUSION : It is used the bonding, connet NET FRAME(or FRONT PANEL ASS’Y) to CABINET ASS’Y.
So when the disassembly, take extreme care not to demage the SPEAKER.
No ITEM
*PS WL87E ASS’YSPK: AH81-00379V
CODE No
1
FRONT PANEL AH81-00379C
TOP PANEL AH81-00379D
WOOFER RING AH81-00379H
REFLECTOR AH81-00379J
CABINET AH81-00379K
UNIT SUB WOOFER AH81-00379L
UNIT WOOFER AH81-00379M
UNIT TWEETER
PS WL69, 1PC
AH81-00351J
AH81-00379U
2
3
4
5
6
7
8
9
2
4
7
5
3
6
8
1
