Samsung MAX-WB630, MAX-WB650, MAX-ZB630 Service Manual

Download

Page 1

3 CD CHANGER MINI MINI COMPONENT

MAX-WB630 MAX-WB650 MAX-ZB630

SERVICE

Manual

MIMI MIMI COMPONENT SYSTEM CONTENTS

1. Alignment and Adjustments

2. Exploded Views and Parts List

3. Electrical Parts List

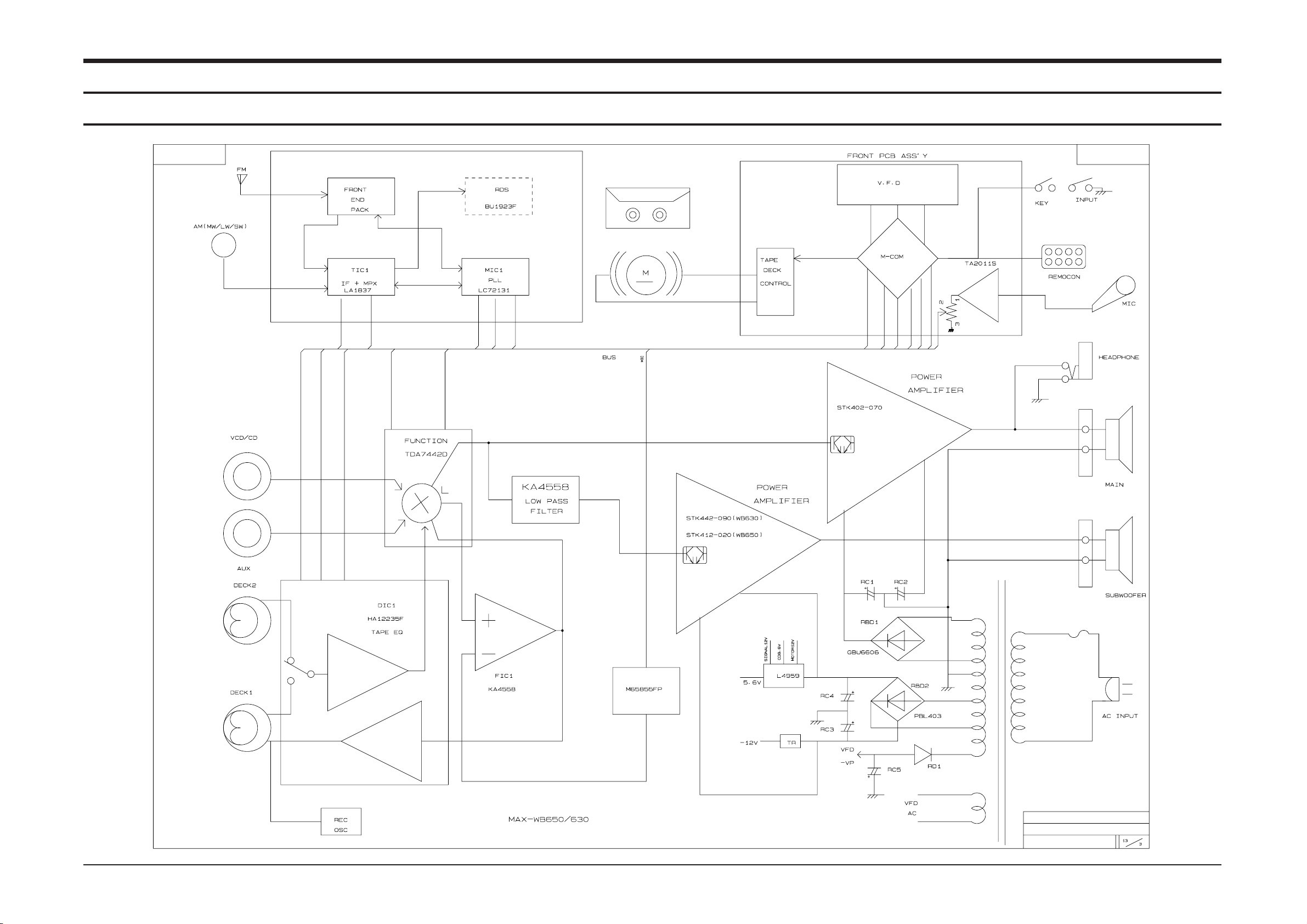

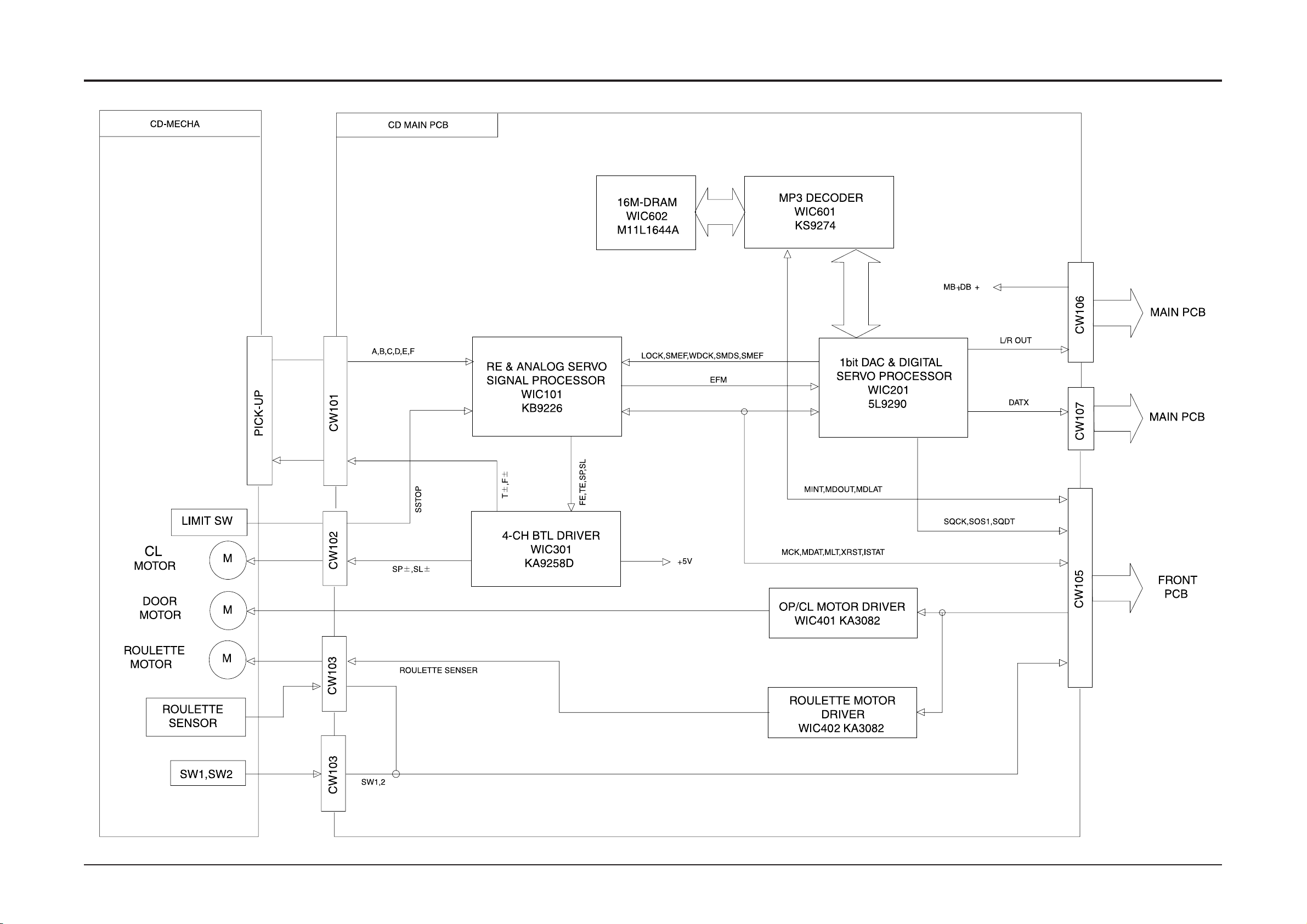

4. Block Diagrams

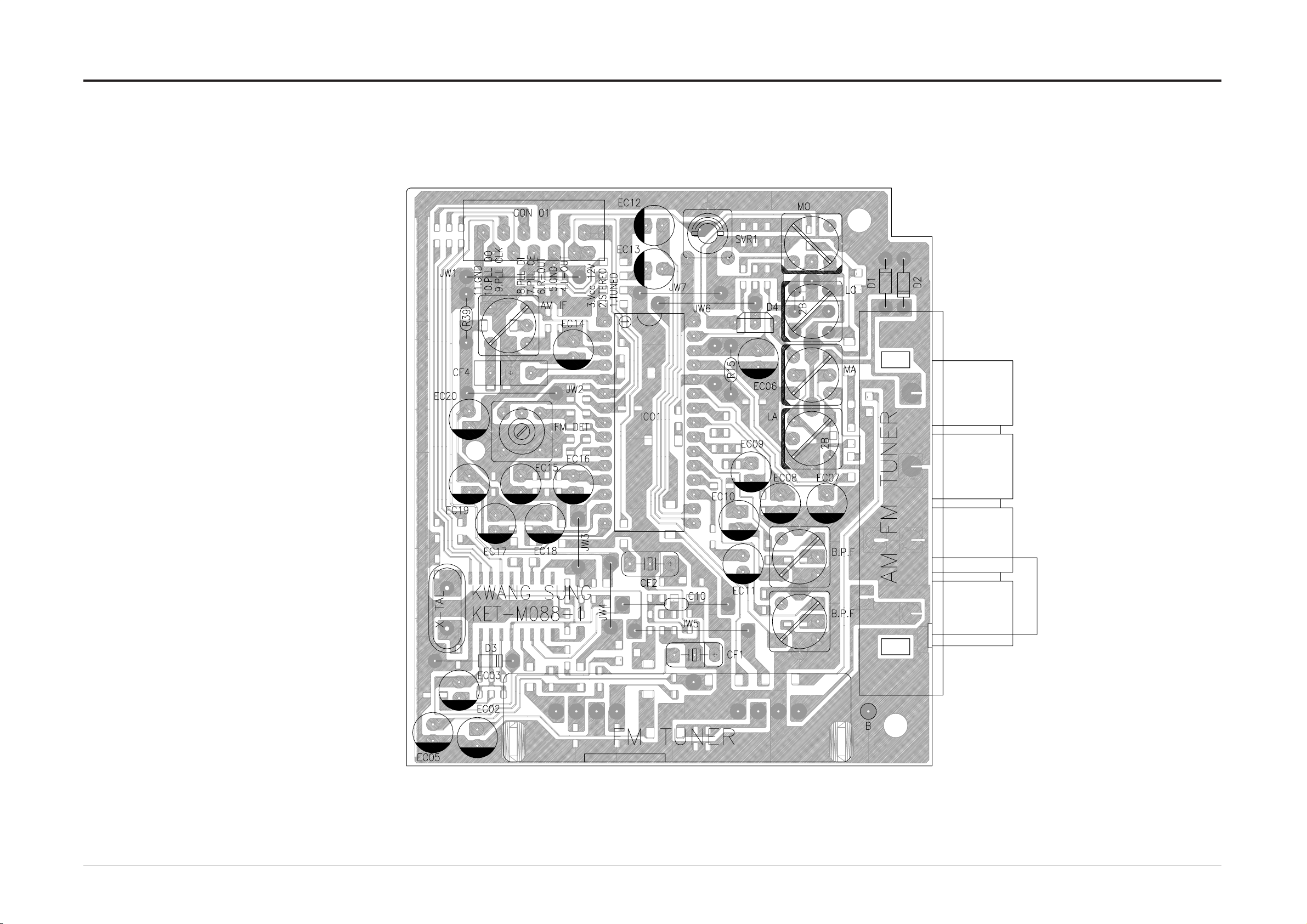

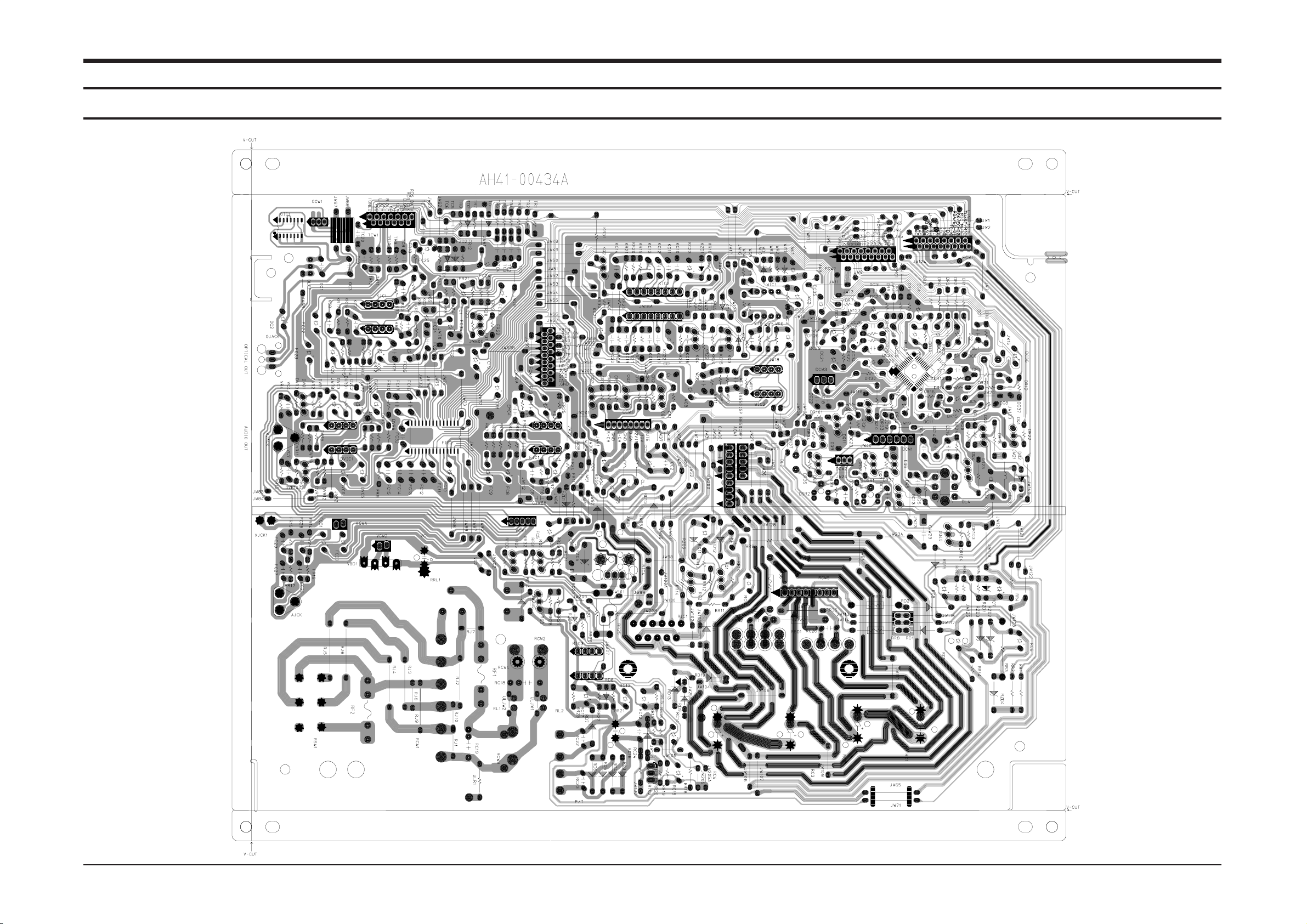

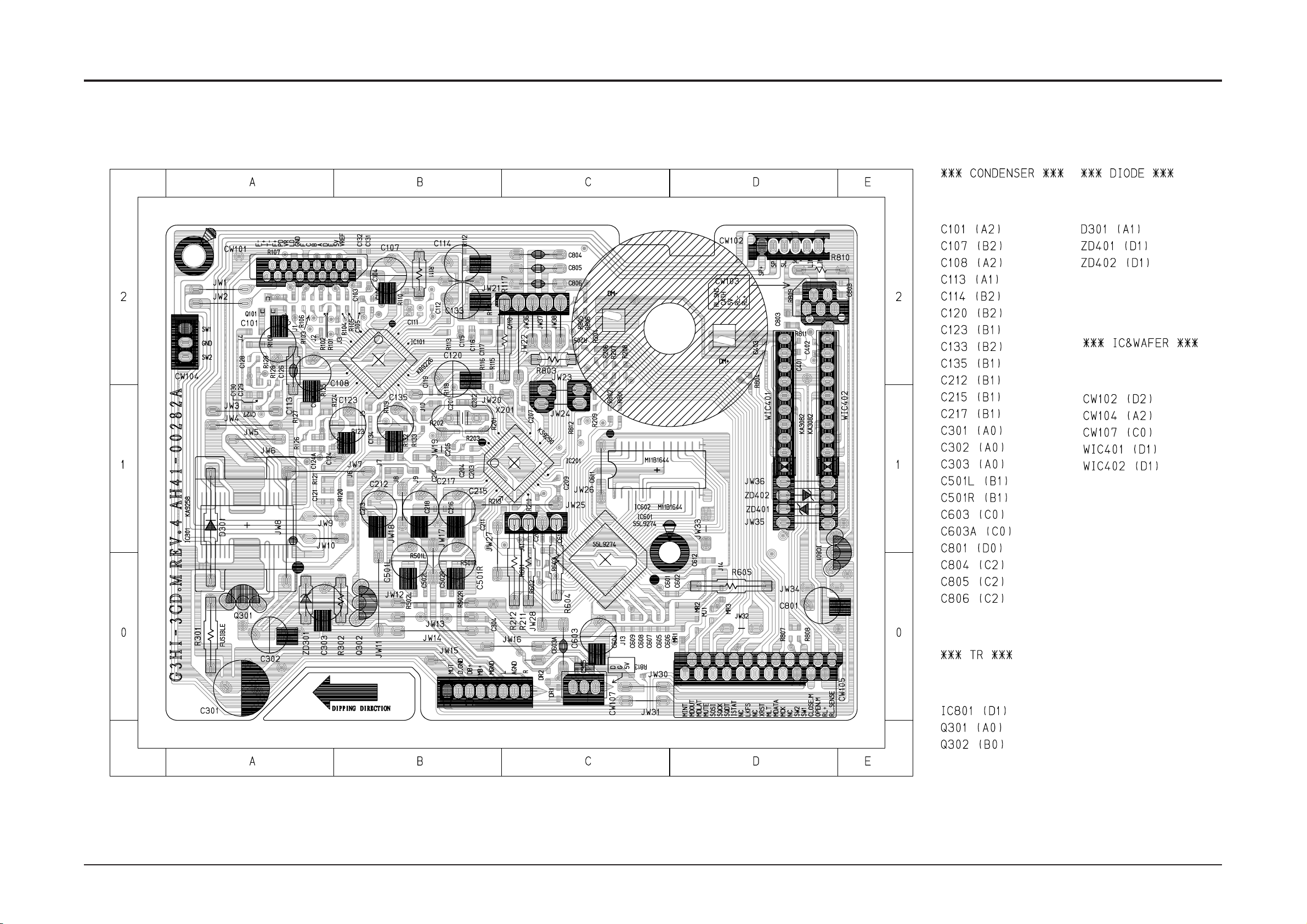

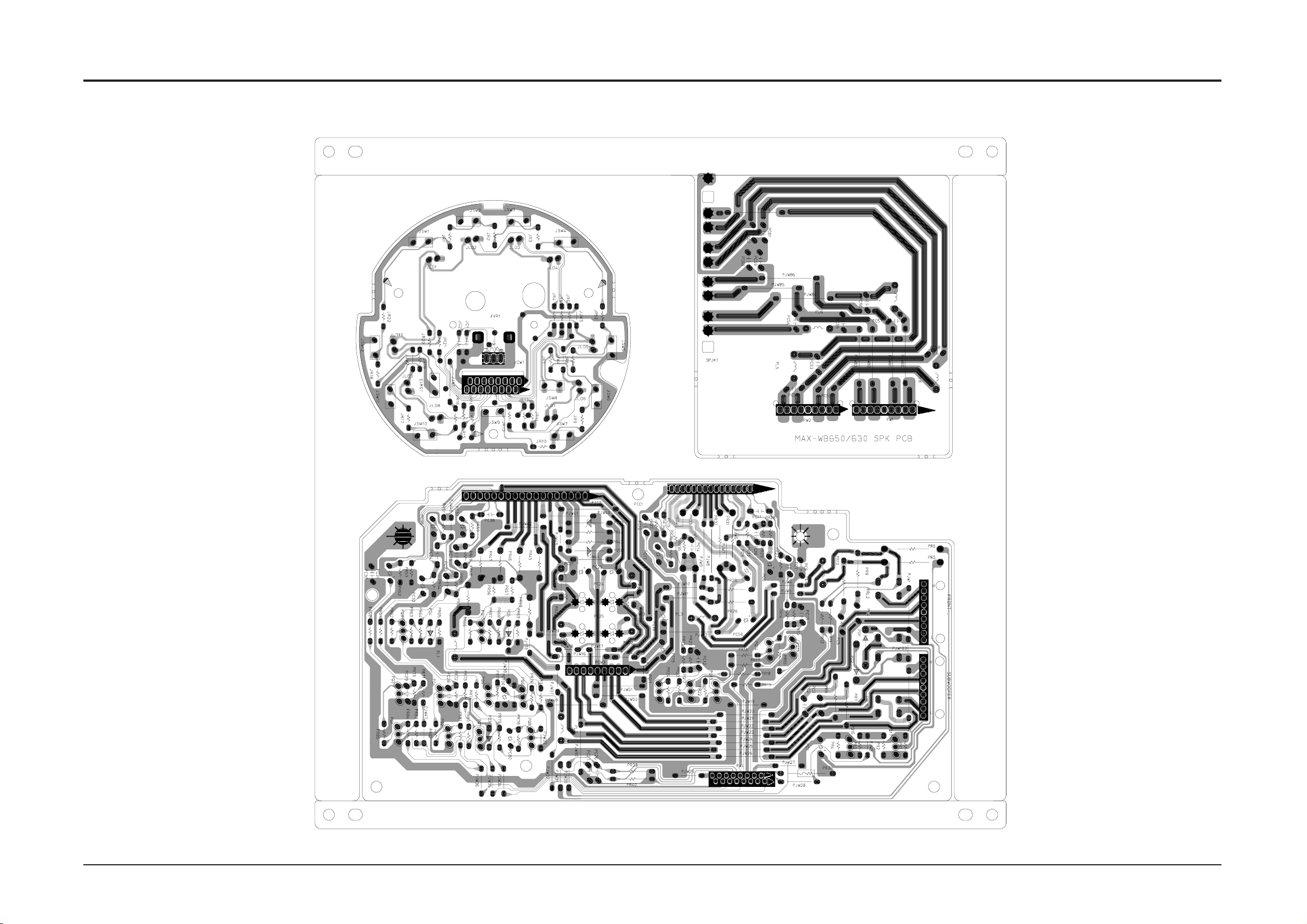

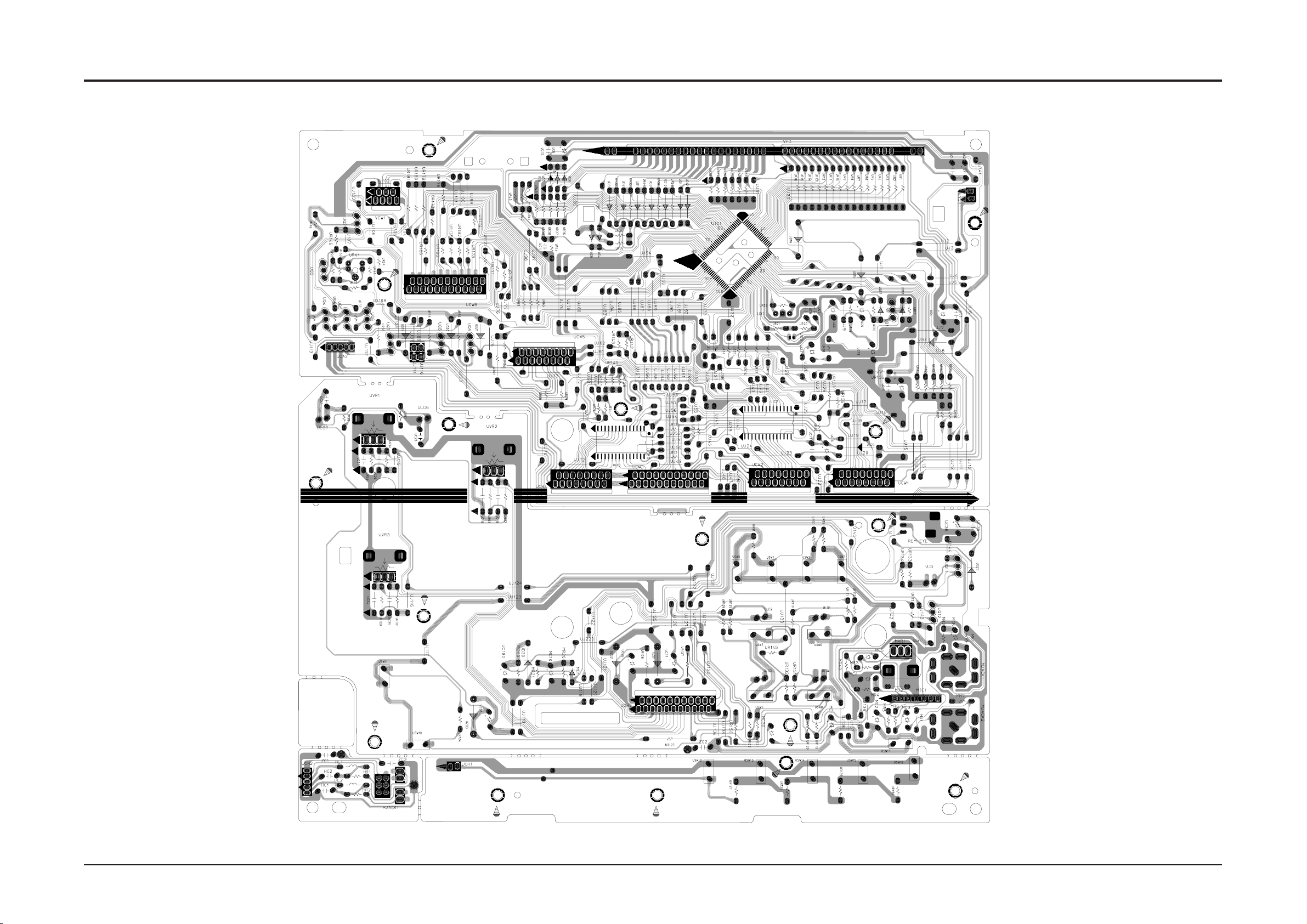

5. PCB Diagrams

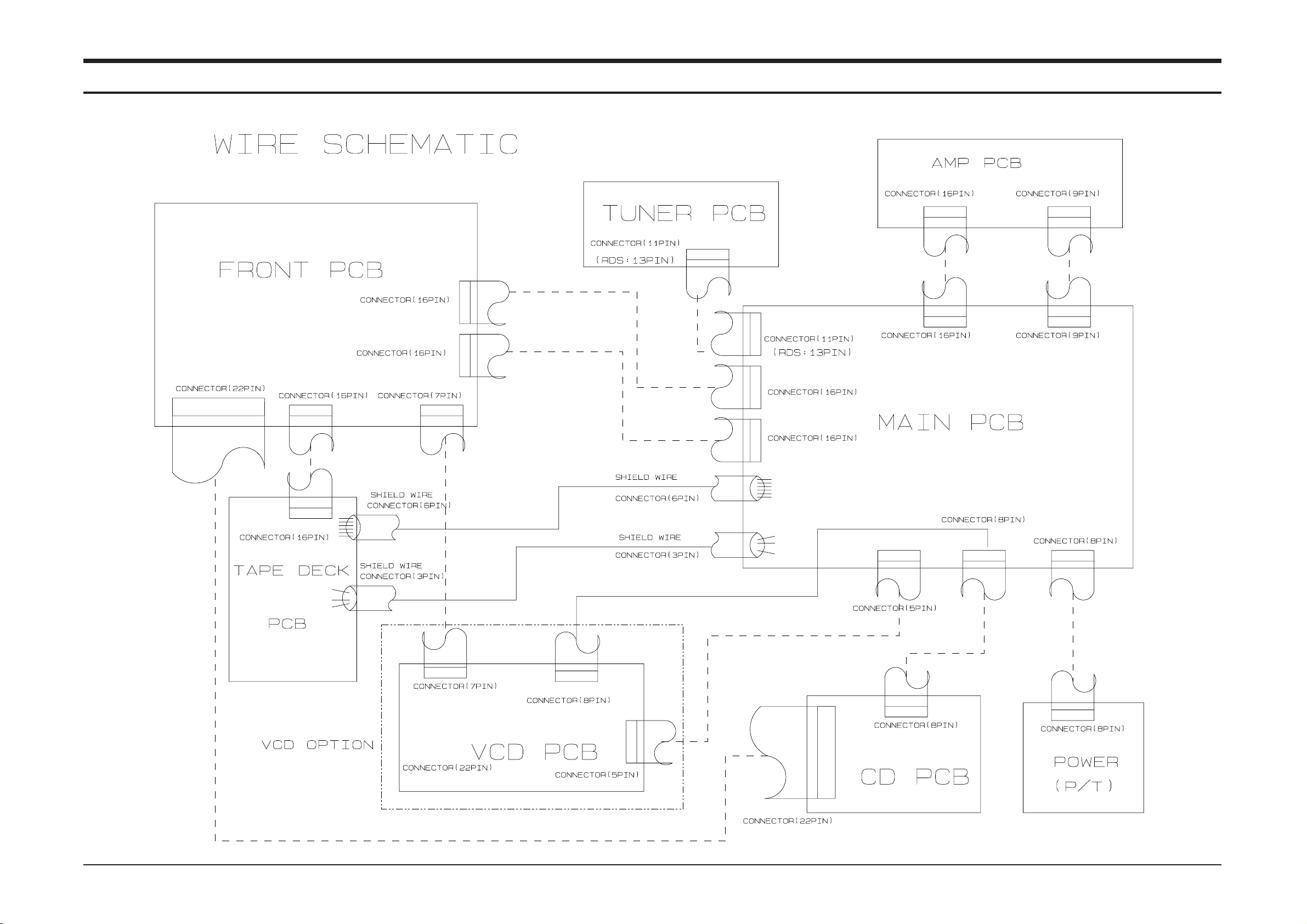

6. Wiring Diagram

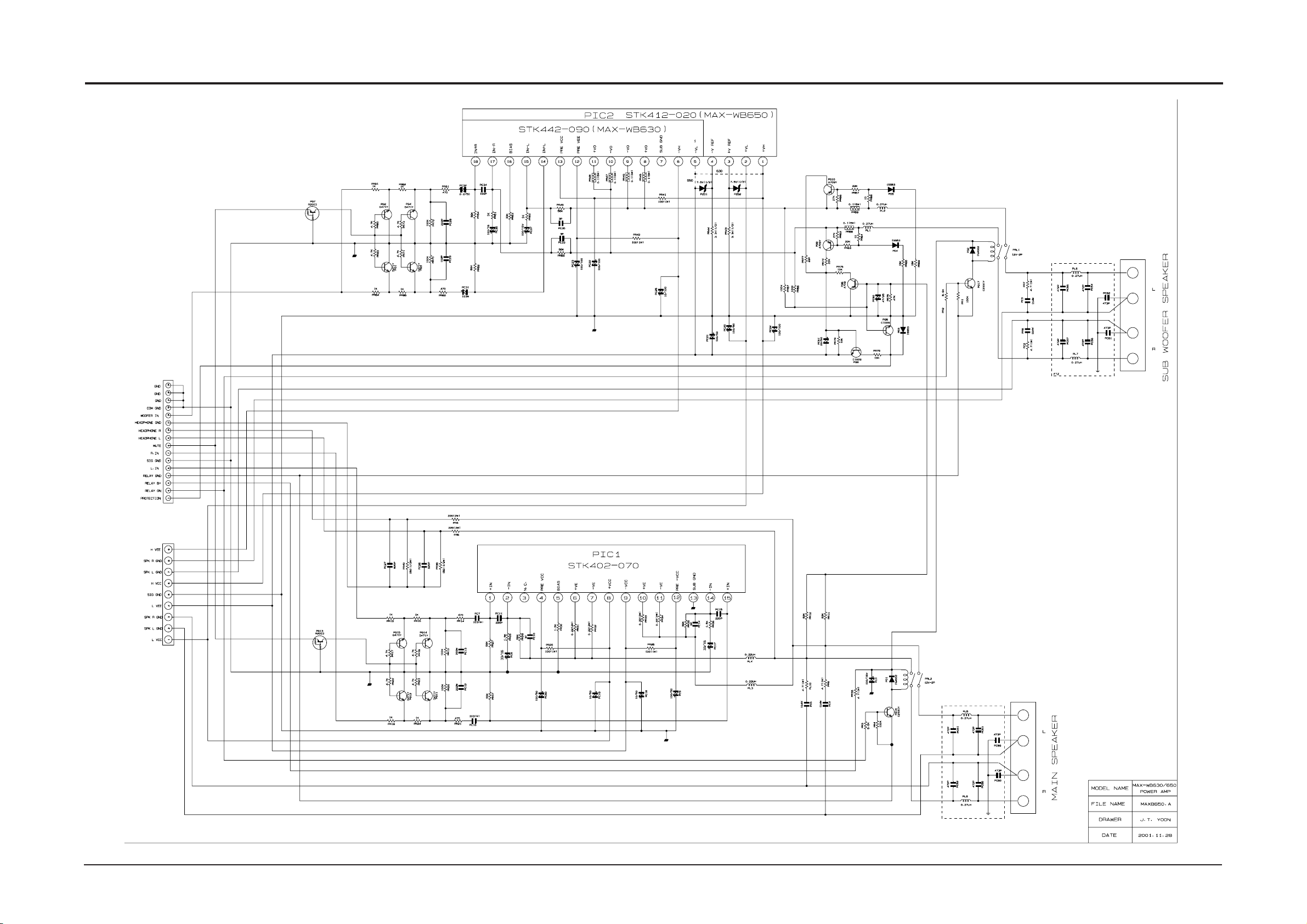

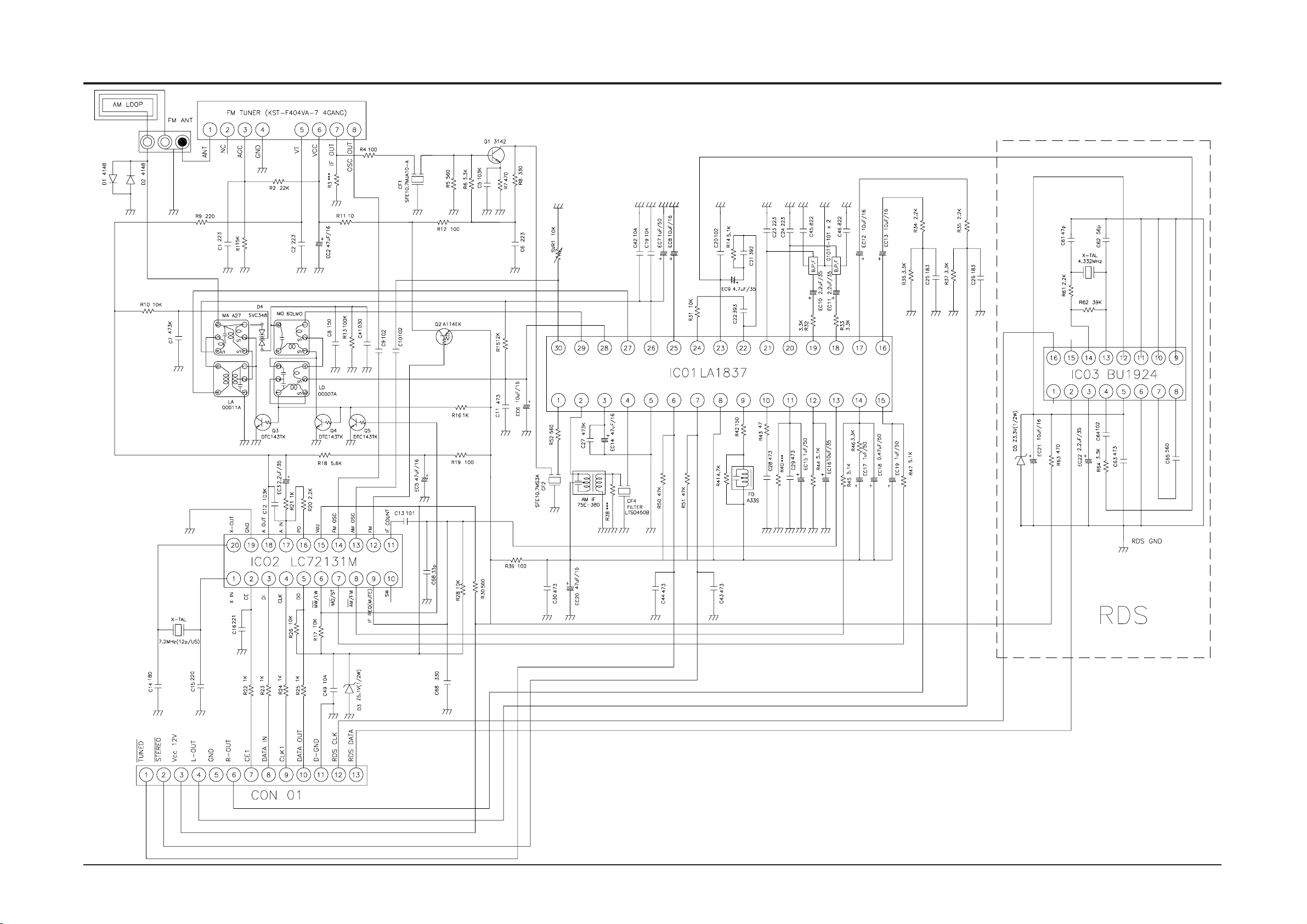

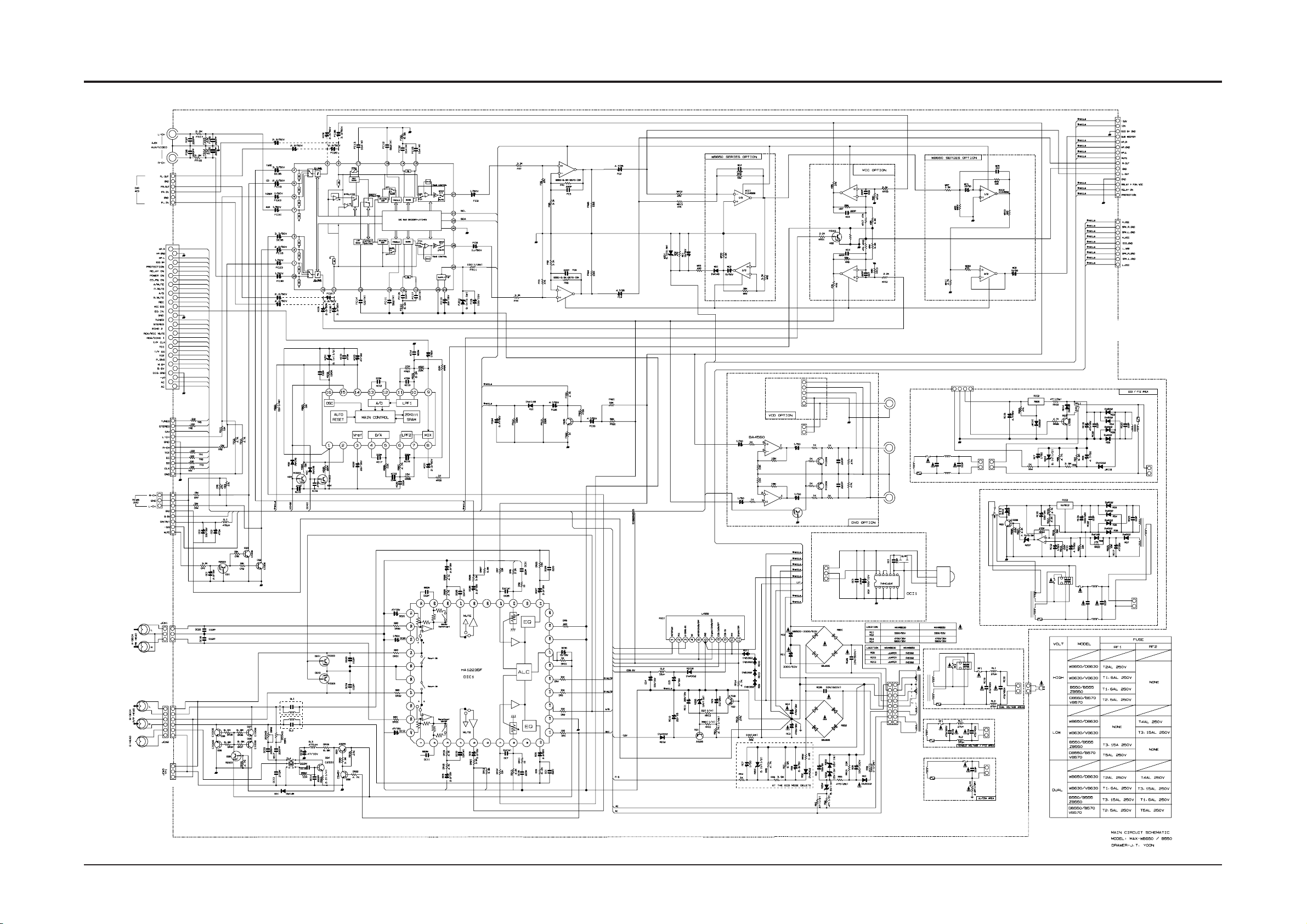

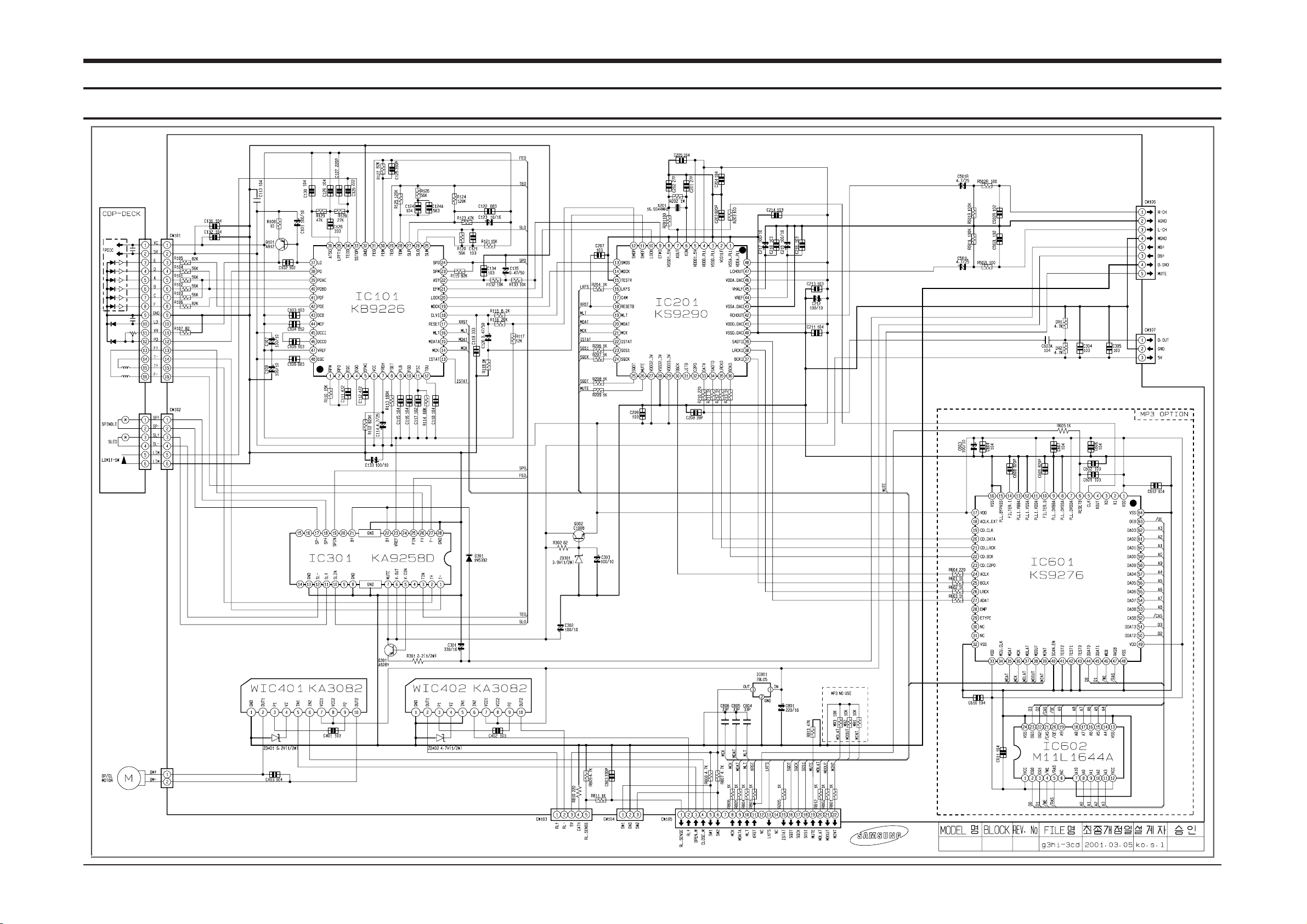

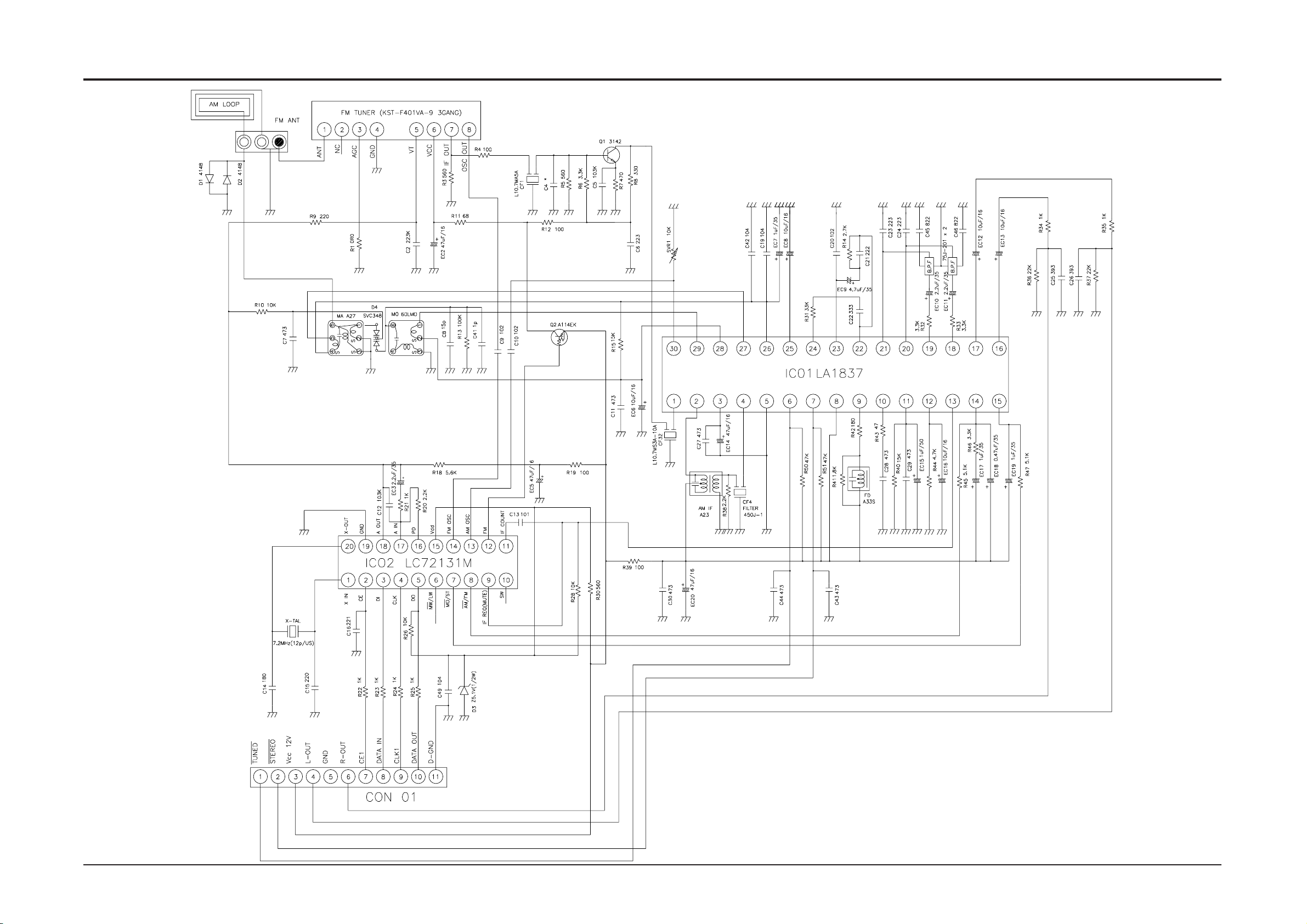

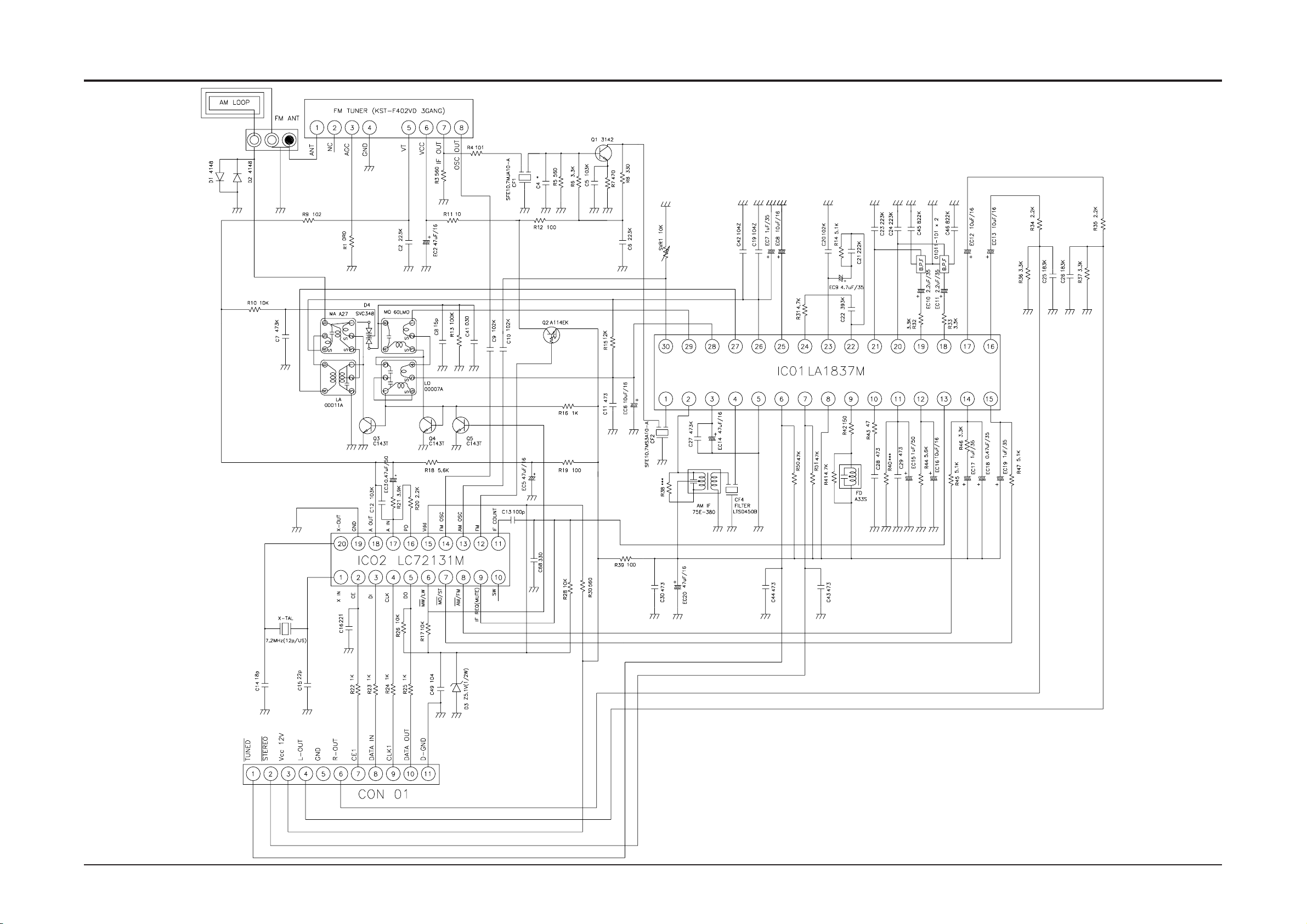

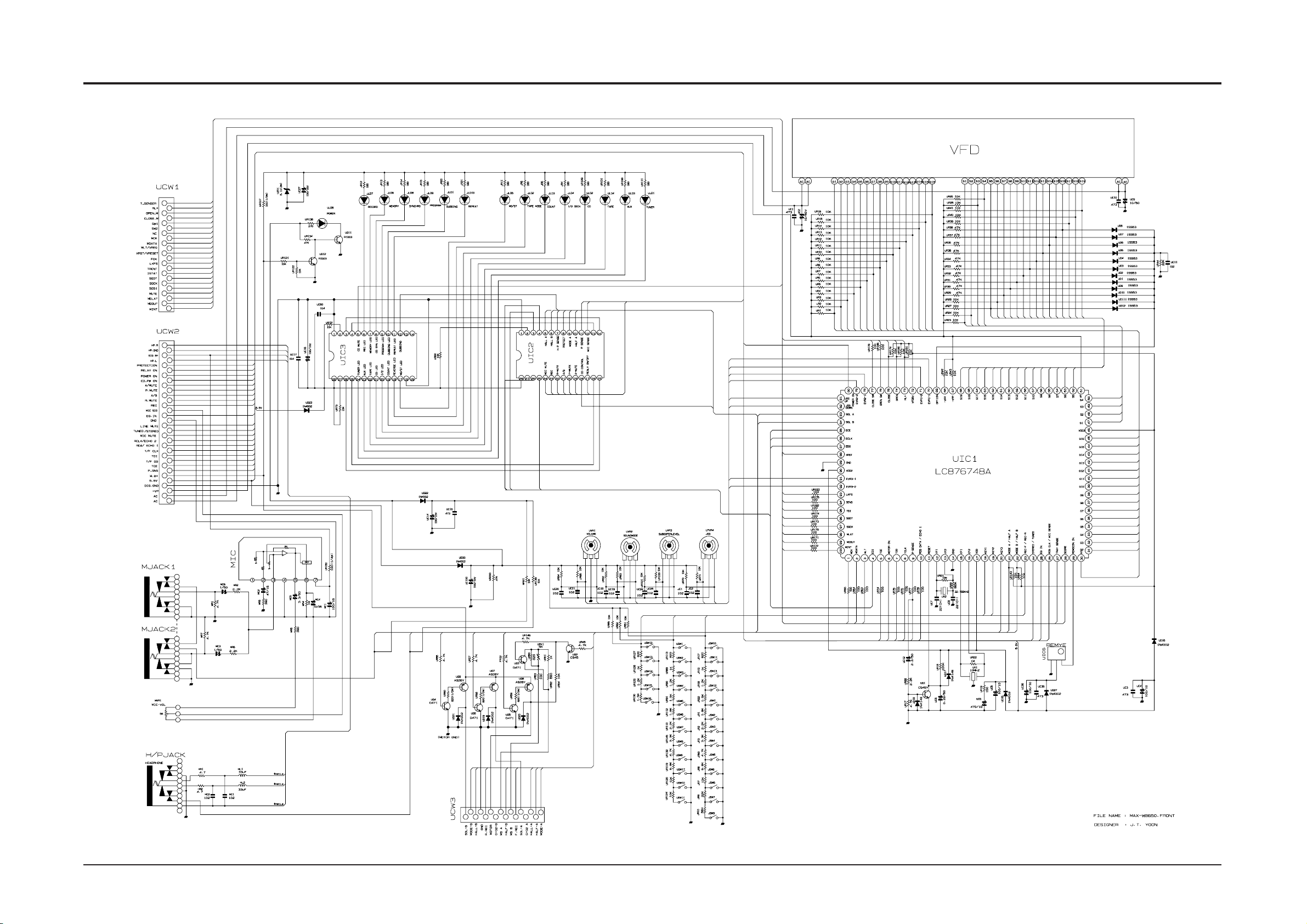

7. Schematic Diagrams

Page 2

Printed in Korea Code no. AH68-01107M

Page 3

1-1Samsung Electronics

1. Alignment and Adjustments

1-1. Tuner

FM THD Adjustment

Output

28 dB(±2dB)

60 dB

Minumum Distortion (0.4% below) (Figure 1-1)

SSG FREQ. Adjustment

point (FM DET)

98 MHz

FM DETECTOR COIL

FM Search Level Adjustment

Adjust SVR1 so that “TUNED” of FLT is lighted (Figure 1-2)

Figure1-2 FM Auto Search Level Adjustment

*Adjust FM S.S.G level to 28dB

Figure1-1 IF CENTER and THD Adjustment

SSG FREQ. Adjustment

point

(SVR1)

98 MHz

BEACON SENSITIVITY SEMI-VR(10K½)

FM S.S.G

GND

28 dB

FM S.S.G

Output GND

Speaker Terminal

FM Antenna Terminal

Distortion Meter

Input

SET

Input

output

Oscilloscope

FM IN

FM Antenna

SET

20 k½

OUTPUT

AM SSG 450KHZ

INPUT

AM ANT IN

Speaker Terminal

60cm

AM IF

VTVM Oscilloscope

AM(MW) I.F Adjustment

Maximum output (Figure 1-3)

SSG FREQ. Frequency Adjustment

point

450 kHz 522 kHz

AM IF

Figure1-3 AM I.F Adjustment

OUTPUT

* Adjustment Location of Tuner PCB

TESTER

MAIN PCB

VT GND

Fig 1-4 OSC Voltage

AM(MW) OSC

Output

1~7.0±0.5V

Received FREQ.

Adjustment point

522~1611 KHz

AM(MW) RF

ITEAM

594 KHz

Maximum Output (Fig1-4)

LW OSC

146~290 KHz

2~7.0±0.5V

AM(MW) RF

150 KHz

Maximum Output (Fig1-4)

SW1 OSC

2.3~7.3 MHz

1~8V±1V

SW1 RF

3.5MHz MA

Maximum Output (Fig1-4)

SW2 OSC

9.5~26.1MHz

SW2 RF

10MHz

Maximum Output (Fig1-4)

1~8V±1V

Page 4

Alignment and Adjustments

1-2 Samsung Electronics

1-1-2 AM(MW),LW,SW1,SW2 Adjustment

Circuit Measuring Instrument & Step S.S.G Radio dial Adjusting Adjust for to be Arrangement Frequency Setting Point Adjusted

1 522KHz 522KHz MO Adjust for 1.0V±0.1V at the low.

OSC Connect AM signal (IR117)

generator to loop antenna,VTVM AND oscilloscope 2 1611KHz 161 1KHz MO Check for 7.0V±1.0V at the high. (Fig 1-3) (IR117)

(MW)

RF “ 1 594KHz 594KHz MA Maximum out

INTER FREQ “ 1 455KHz 522KHz AM IF Maximum out

OSC Fig 1-3 1 146KHz LO Adjust for 2.0V±0.1V at the low.

LW 2 290KHz LO Check for 7.0V±1.0V at the high.

RF 1 150KHz 150KHz LA Maximum out OSC Fig 1-3 1 2.3MHz SO1 Adjust for 1.0V±0.1V at the low.

SW1 2 7.3MHz - Check for 8.5V±1.0V at the high.

RF 1 3.5MHz 3.5MHz SA1 Maximum out OSC Fig 1-3 1 9.5MHz SO2 Adjust for 1.5V±0.1V at the low.

SW2 2 26.1MHz - Check for 8.0V±1.0V at the high.

RF 1 10MHz 10MHz SA2 Maximum out

Page 5

Alignment and Adjustments

1-3Samsung Electronics

(GND)

VTVM

1-2-1 To Adjust Tape Speed

1) Measuring tape: i) MTT-111 (or equivalent) (Tapes recorded with 3kHz)

ii) MTT-5512 (or equivalent)

2) Connect the cassette deck to the frequency counter

as in figure 1-4.

1) Before the actual adjustment, clean the play/recording

head.

2) Measuring tape :

i) MTT-114(or equivalent 10kHz AZIMUTH control)

ii) MTT-112(or equivalent) :

3) The cassette deck is connections as shown in figure 1-6.

Notes

NOR SPEED Control

OUT

(connected

to the frequency

counter)

Turn URV1 to left and right

3KHz

Remark

Standard

To Adjust

Pre-Setup

Item

Step

Pre-Setup Condition

1) Deck 1:MTT-111

2) Press PLAY

SW button

3) Deck 2:MTT-5512

AZIMUTH

SPK OUT

(VTVM is

connected to

the scope)

1) Turn the control screw to as shown in Figure 1-5.

Max output and same phase (both channels)

After adjustment secure it with REGION LOCK.

Remark

Standard

To Adjust

Pre-Setup

Item

Step

Pre-Setup Condition

After putting MTT-

114 into Deck 1

1)Press PLAY button.

AZIMUTH

SPK OUT

(VTVM is

connected to

the scope)

1) Turn the control screw to as shown in Figure 1-5.

Max output and same phase (both channels)

After adjustment secure it with REGION LOCK.

Remark

Standard

To Adjust

Pre-Setup

Item

Step

Pre-Setup Condition

After putting MTT-

114 into Deck 2

1)Press PLAY button.

1-2-2 To Adjust PlayBack Level

@ Adjust Deck 2 Play Level

! Adjust Deck 1 Play Level

Cassette Deck

output

SPK OUT

Frequency Counter

Figure 1-4

Figure 1-5

SPK OUT

Recording /Play head

AZIMUTH control screw

Figure 1-6

In Out

SET

Oscilloscope

1-2 Cassette Deck

REC Bias Voltage

Connect to

DCW2 as in

Fig.1-7 and read

the VTVM.

L-CH;DSR2 and R-CH;DSR1 to the right and left.

Remark

Standard

To Adjust

Pre-Setup

Item

Step

Pre-Setup Condition

Input MTT-5512

into Deck2,then

press REC button.

See diagram for adjustment location

Adjust REC Bias Voltage

Figure 1-7

SET

Oscilloscope

VTVM

UCW2

FRONT PCB

Page 6

2.Exploded Views and Parts List

2-1 Cassette Deck :ADR246AMW(OPTION)

No. Code No. Description Specification Remarks

AH59-00075A DECK-CASSETTE ADR246AMW 1 AH81-00368A ASS.Y RP HEAD ADR2400-RP(SANKYO) MT91-11010T 2 AH81-00141A HEAD PB TC881CB MT59-00044A 3 AH81-00363A ASS,Y MOTOR ADR2400-SHU2L MT91-15012J 4 AH81-00364A BELT MAIN1 ADR2400-MAIN 0.5 6602-001056 5 AH81-00365A BELT MAIN2 ADR2400-MAIN 1.3 6602-001057 6 AH81-00101A BELT SUB ADR2400-FR 6602-001055 7 AH81-00102A SOLENOID ADR2400-1 MT75-00049A

Samsung Electronics 1

Page 7

Samsung Electronics

2-2 Total Exploded View and Parts List

Page 8

Samsung Electronics

* Parts List of Total Exploded view

No. Code No. Description Specification Q’ty REMARK

1 AH64-01704B DOOR-CD ABS L/GRAY 1 2 AH64-01704B WINDOW-DOORCD PMMA BROWN 1 WB650

AH64-01704C WINDOW-DOORCD PMMA BROWN 1 ZB630 AH64-01704D WINDOW-DOORCD PMMA BROWN 1 WB630

3 AH64-01705B WINDOW-VFD PMMA BROWN 1 BASIC

AH64-01705C WINDOW-VFD PMMABROWN 1 ZB630 4 AH63-00395A SHEET-VFD PC 0.4T 1 5 AH64- 01715B KNOB-MIC ABS L/GRAY 1 OPTION 6 AH64-00964B CAP-MIC.D ABS L/GRAY 1 MIC, NO RDS

AH64-00963B CAPMIC.E ABS L/GRAY 1 NO MIC,NO RDS

AH64-00963C CAPMIC.E ABS L/GRAY 1 NO MIC, RDS 7 AH64-01713B KNOB-CONTRL ABS CLEAR 1 8 AH61-00965A COVER-CONTROL ABS BLK 1 9 AH64-01718B KNOB-STOP ABS BLUE 1 BASIC

AH64-01718C KNOB-STOP ABS BLUE 1 ZB630 10 AH61-00980B CAP-CONTROL AL 0.8T 1 BASIC

AH61-00980C CAP-CONTROL AL 0.8T 1 ZB630 11 AH64-01710B KNOB-JOG ABS L/GRAY 1 12 AH64-01706A WINDOW-DOOR.A PMMA BROWN 1 13 AH64-01707A WINDOW-DOOR.B PMMA BROWN 1 14 AH64-01701B DOOR-CASS.A ABS L/GRAY 1 FULL LOGIC

AH64-01701C DOOR-CASS.A ABS L/GRAY 1 AUTO REVERSE : OPTION 15 AH64-01702B DOOR-CASS.B ABS L/GRAY 1 AUTO REVERSE 16 AH61-01011A HOLDER-DOOR.A ABS L/GRAY 1 17 AH61-01012A HOLDER-DOOR.A ABS L/GRAY 1 18 AH64-01716B KNOB-SOUND ABS L/GRAY 1 19 AH64-01711B KNOB-VOLUME ABS L/GRAY 1 20 AH64-01717B KNOB-SUBWOOFER ABS L/GRAY 1 21 AH64-00157A LENS-SOUND PMMA BLUE 1 22 AH67-00156A LENS-VOLUME PMMA BLUE 1 23 AH67-00160A LENS-SUBWOOFER PMMA BLUE 1 24 AH64-70003K BADGE-BRAND ABS BLK 1 SILVER 25 AH64-01700B CABINET-FRONT ABS L/GRAY 1 NO RDS

AH64-01700C CABINET-FRONT ABS L/GRAY 1 RDS

AH64-01700D CABINET-FRONT ABS L/GRAY 1 LATIN AMERICA 26 AH64-01709B KNOB-OPEN ABS L/GRAY 1 27 AH64-01714B KNOB-DEMO ABS L/GRAY 1 28 AH67-00159A LENS-STANDBY PMMA MILKY 1 29 AH64-01708B KNOB-POWER ABS L/GRAY 1 30 AH64-01719B KNOB-ECHO ABS L/GRAY 1 OPTION 31 AH67-00154B LENS-FUNCTION PMMA BLUE 1 BASIC 32 AH61-00967A HOLDER-FUNCTION ABS WHITE 1 33 AH67-00155A LENS-P.SOUND PMMA CLEAR 1 34 AH61-00970A HOLDER-P.SOUND ABS BLK 1 35 AH64-01712B KNOB-ENTER ABS L/GRAY 1 36 AH95-50001A LATCH ASSY POM 2 37 AH61-80030A DAMPER POM 2 38 AH61-00522A SPRING-EJECT,A STS 1 39 AH61-00523A SPRING-EJECT,B STS 1 40 AH62-00044A HEAT-SINK IC AL 1

Samsung Electronics

2-4

41 AH61-00414A SUPPORT-RIVET POM 3 42 AH61-00021A SUPPORT-PCB ABS BLK 1 43 AH63-00278A COVER-PCB EVA 1 44 AH61-00685A BRACKET-PCB SECC0.8T 1 45 AH61-00973A BRKT-H/SINK.L SECC1.0T 1 46 AH61-00977A BRKT-H/SINK.R SECC1.0T 1 47 AH62-00063A HEAT-SINK.M AL 1 WB650

AH62-00063D HEAT-SINK.M AL 1 WB/ZB630 48 AH64-03416E CABINET-BOTTOM SECC 1.0T 1 49 AH64-01703B CABINET-REAR SECC 0.8T 1 1 VOL

AH64-01703C CABINET-REAR SECC 0.8T 1 2 VOL

AH64-01703D CABINET-REAR SECC 0.8T 1 1VOL+DIGITAL OUT

AH64-01703E CABINET-REAR SECC 0.8T 1 1VOL+SW

AH64-01703F CABINET-REAR SECC 0.8T 1 2VOL+SW 50 AH61-01036A COVER-REAR ABS L/GRAY 1 51 AH64-00616A CABINET-TOP SECC 0.8T 1

No. Code No. Description Specification Q’ty REMARK

Page 9

Samsung Electronics

2-3 CD Deck Exploded View and Parts list

CD SUB PCB

TRAY STOPPER

BASE MAIN

No. Code No. Description Specification Remarks

AH97-00857A ASS’Y-DECK

G3HI-3CD/VCD 1 AH66-80022A SLIDER-CAM ABS HF-380 NTR 2 AH66-60034A BELT-LOAD CR 3 AH66-20186A GEAR-PULLEY POM (M90-44) WHT 4 AH66-20187A GEAR-LOAD POM (M90-44) BLK 5 AH66-20188B GEAR-CAM POM (M90-44) WHT 6 AH66-20189B GEAR-TRAY POM (M90-44) BLK 7 AH66-20190B GEAR-CONVERT POM (M90-44) WHT 8 AH66-20191A GEAR-SYNCRO ABS HF-380 NTR 9 AH66-20192A GEAR-WORM POM(M90-44),M0.5,PCD4.5 10 AH31-12001A MOTOR-LOADING FF-030PN-09120 11 AH66-20193A GEAR-ROULLETE POM(M90-44) BLK 12 AH63-00324A TRAY-ROULLETE ABS XR-401 BLK 13 AH63-00325A TRAY-DISC ABS BLK 14 AH32-10001F SENSOR KPI-L06 15 AH61-00837A BASE-MAIN ABS,NATURAL,CMS-300 16 3302-000159 MAGNET AC,3500-3800G,2.6-3.2MGOe,30 17 AH63-90053A TABLE-CHUCK ,ABS,+GF20%,BLK, 18 AH63-00068B SHEET-CHUCK SHEET,HYMERON,BLK,0.4T 19 3405-000101 SWITCH -MICRO MLS-24 20 AH31-10021A MOTOR-DC RF-500TB,9VDC/130MA 21 AH66-10008A PULLEY-MOTOR POM,BLK,CMS-CR3 22 AH73-10031A RUBBER-CD(R) SI,CMS-300,40,RED 23 AH91-60150C CDP DECK ASSY CMS-D73SG6U 24 AH66-30098A LEVER-LIFTER ABS BLK CMS-300 25 AH30-00007A PICK-UP SOH-AD3 26 AH73-10034A RUBBER-CD(G) SI,CMS-300,40,GREEN 27 AH92-00922A ASS’Y PCB CD MAIN 28 AH61-00225A BRKT-CHUCK SECL 0.8t

Page 10

Samsung Electronics 5

2-4 SPEAKER Exploded View and Parts list

PS WB630E/H : AH81-00642A

No. Description Code No. Q'TY

PANEL ASS'Y AH81-00642T

UNIT TWEETER AH81-00642N

Specification

PANEL+P/GRILLE

UNIT WOOFER AH81-00642M

WOOFER RING

AH81-00642G

HIPS BLK

CABINET ASS'Y

AH81-00642J

PB 9t / 12t

UNIT SUBWOOFER

AH81-00642L

SIDE-PANEL

AH81-00642E

HIPS WHITE

* CAUSION : It is used the bonding, connet NET FRAME(or FRONT PANELASS’Y) to CABINETASS’Y.

So when the disassembly, take extreme care not to demage the SPEAKER.

2-4-1 : MAXWB630/MAXZB630

Page 11

Samsung Electronics

PS WB650E/H : AH81-00643A

No. Description Code No. Q'TY

PANEL ASS'Y AH81-00643P

UNIT TWEETER AH81-00643L

Specification

PANEL+PIEZO

TOP P ANEL ASSY AH81-00643Q

T/PANEL + REFLECTOR

UNIT WOOFER

AH81-00643K

CABINET ASS'Y

AH81-00643R

PB 9t / 12t

UNIT SUBWOOFER

AH81-00643J

SIDE PANEL

AH81-00643H

HIPS WHITE

* CAUSION : It is used the bonding, connet NET FRAME(or FRONT PANELASS’Y) to CABINETASS’Y.

So when the disassembly, take extreme care not to demage the SPEAKER.

2-4-2 : MAXWB650

Page 12

Samsung Electronics 3-1

***** MAX-WB630/WB650 PARTS LIST *****

AH26-00175A TRANS POWER;-,MAX-WB630,-,-,115/230V,50HZ MAX-WB630 AH26-00176A TRANS POWER;-,MAX-WB630,-,-,127V,60HZ MAX-WB630 AH26-00177A TRANS POWER;-,MAX-WB630,-,-,120/240V,50/60HZ MAX-WB630 AH26-00178A TRANS POWER;-,MAX-WB630,-,-,230/254V,50HZ MAX-WB630 AH26-00179A TRANS POWER;-,MAX-WB630,-,-,220V,60HZ MAX-WB630 AH26-00170A TRANS POWER;-,MAX-WB650,-,-,115/230V,50HZ MAX-WB650 AH26-00171A TRANS POWER;-,MAX-WB650,-,-,127V,60HZ MAX-WB650 AH26-00172A TRANS POWER;-,MAX-WB650,-,-,120/240V,50/60HZ MAX-WB650 AH26-00173A TRANS POWER;-,MAX-WB650,-,-,230/254V,50HZ MAX-WB650 AH26-00174A TRANS POWER;-,MAX-WB650,-,-,220V,60HZ MAX-WB650

AH39-00257A POWER CORD;CP2,250V,2.5A,1830MM CP2(VDE) AH39-00258Q POWER CORD;BS,250V,2.5A,1830MM BS(U.K) AH39-00257D POWER CORD;KS,250V,2.5A,1830MM KS(KOREA) AH39-00258H POWER CORD;UL/CSA,125V,10A,1830MM EP2(UL/CSA) AH39-00258H POWER CORD;IRAM,AP2,125V,10A,1830MM AP2(ARGENTINA) AH39-00258B POWER CORD;SAA,AP2,125V,17.5A,1830MM AP2(AUSTRALIA)

AH40-00008A TUNER-PACK ASSY;RDS,FM/MW/LW RDS(EU) AH40-00009A TUNER-PACK ASSY;OIRT,FM/MW/LW OIRT(RUSSIA) AH40-00010A TUNER-PACK ASSY;FM/AM T -BAND AH40-00012A TUNER-PACK ASSY;FM/MW/LW L-BAND AH40-00013A TUNER-PACK ASSY;FM/MW/SW1/SW2 SW-BAND

AH42-20001P ANT LOOP;-,KS971120-01,18.5UH##10%,- COMMON AH59-00134M REMOCON-ASSY;MAX-WB630,WB650,27KEY LATIN AMERICA AH59-00134L REMOCON-ASSY;MAX-WB630,WB650,27KEY EXCEPT LATIN AMERICA

AH59-00162A CD-MECHA/DECK ASSY;CMS300-V MAX-WB630/WB650

AH97-00900M ASSY-CA’DECK;-,RCD495/695/ST-68,ASSY CA’

3809-001188 CABLE-FLAT;30V,80C,240mm,16P,1.25mm,UL28 6002-000396 SCREW-TAPPING;BH,+,2,M2,L5,ZPC(WHT),SWCH AH39-00021A LEAD CONNECTOR ASSY;UL1533#28,300MM,-,-, AH39-20002D LEAD CONNECTOR ASSY;5264,-,3P,300MM,2970 AH59-00075A DECK;ADR246AMW,1A/RVS,-,-,DC12V,-,-

AH92-00922A ASSY PCB-CD;G3HI-3CD,3.5S

WIC402 1003-001162 IC-MOTOR DRIVER;KA3082,SIP,10PIN,25MIL,D WIC401 1003-001162 IC-MOTOR DRIVER;KA3082,SIP,10PIN,25MIL,D X201 2802-000211 RESONATOR-CERAMIC;16.93MHz,0.5%,TP,10.0x CW103 3708-001131 CONNECTOR-FPC/FFC/PIC;5P,1.25mm,STRAIGHT CW101 3708-001252 CONNECTOR-FPC/FFC/PIC;16P,1mm,STRAIGHT-F CW105 3708-001438 CONNECTOR-FPC/FFC/PIC;22P,1.25mm,ANGLE,S CW107 3711-000906 CONNECTOR-HEADER;BOX,3P,1R,2mm,ANGLE,SN CW104 3711-003379 CONNECTOR-HEADER;NOWALL,3P,1R,2.5mm,STRA CW106 AH39-00060A LEAD CONNECTOR ASSY;-,51015-08,51004-08, CW102 AH39-20561P LEAD CONNECTOR ASSY;-,5295,PHR,6P,150mm, D301 0402-000151 DIODE-RECTIFIER;1N5392,100V,1.5A,DO-15,T ZD301 0403-000344 DIODE-ZENER;UZ3.9B,3.9V,3.7-4.1V,500mW,D ZD402 0403-000352 DIODE-ZENER;UZ4.7BM,4.7V,4.4-5.0V,500mW, ZD401 0403-000361 DIODE-ZENER;UZ6.2BSB,6.2V,5.99-6.24V,500 Q302 0501-000010 TR-SMALL SIGNAL;KSC1008,NPN,800mW,TO-92, Q101 0501-000314 TR-SMALL SIGNAL;KSA812,PNP,150mW,SOT-23, Q301 0501-000610 TR-SMALL SIGNAL;KSA928A-Y,PNP,1W,TO-92L, IC201 0904-001524 IC-DSP;5L9290,-,QFP,48P,472MIL,16.934 IC301 1003-000179 IC-MOTOR DRIVER;KA9258D,SOP,28P,-,SINGLE IC101 1204-001799 IC-ASP;KB9226,LQFP,48P,393MIL,PLASTIC R117 2001-000331 R-CARBON;12Kohm,5%,1/8W,AA,TP,1.8x3.2mm R810 2001-000362 R-CARBON;150ohm,5%,1/8W,AA,TP,1.8x3.2mm R803 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm R302 2001-001006 R-CARBON;82ohm,5%,1/8W,AA,TP,1.8x3.2mm R114 2007-000001 R-CHIP;68KOHM,5%,1/10W,DA,TP,2012 J2 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012 J13 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012 J10 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012 J1 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012 J8 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012 J9 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012 MJ1 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012 J7 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012 J5 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012 J4 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012 J3 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012 R501R 2007-000282 R-CHIP;100KOHM,5%,1/10W,DA,TP,2012 R501L 2007-000282 R-CHIP;100KOHM,5%,1/10W,DA,TP,2012 R502R 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012 R502L 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012 R201 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012 R809 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012 R133 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012 R132 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012 MR3 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012

MR2 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012 R108 2007-000308 R-CHIP;10OHM,5%,1/10W,DA,TP,2012 R124 2007-000338 R-CHIP;120KOHM,5%,1/10W,DA,TP,2012 R125 2007-000338 R-CHIP;120KOHM,5%,1/10W,DA,TP,2012 R110 2007-000409 R-CHIP;15KOHM,5%,1/10W,DA,TP,2012 R121 2007-000409 R-CHIP;15KOHM,5%,1/10W,DA,TP,2012 R113 2007-000444 R-CHIP;180KOHM,5%,1/10W,DA,TP,2012 R209 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012 R804 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012 R805 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012 R806 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012 R811 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012 R204 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012 R205 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012 R206 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012 R207 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012 R208 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012 R204 2007-000477 R-CHIP;1MOHM,5%,1/10W,DA,TP,2012 R118 2007-000477 R-CHIP;1MOHM,5%,1/10W,DA,TP,2012 R116 2007-000546 R-CHIP;20KOHM,5%,1/10W,DA,TP,2012 R210 2007-000572 R-CHIP;220OHM,5%,1/10W,DA,TP,2012 R128 2007-000653 R-CHIP;27KOHM,5%,1/10W,DA,TP,2012 R808 2007-000872 R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012 R807 2007-000872 R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012 DR2 2007-000872 R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012 DR1 2007-000872 R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012 R813 2007-000941 R-CHIP;47KOHM,5%,1/10W,DA,TP,2012 R129 2007-000941 R-CHIP;47KOHM,5%,1/10W,DA,TP,2012 R123 2007-000941 R-CHIP;47KOHM,5%,1/10W,DA,TP,2012 R126 2007-001039 R-CHIP;56KOHM,5%,1/10W,DA,TP,2012 R120 2007-001039 R-CHIP;56KOHM,5%,1/10W,DA,TP,2012 R104 2007-001039 R-CHIP;56KOHM,5%,1/10W,DA,TP,2012 R103 2007-001039 R-CHIP;56KOHM,5%,1/10W,DA,TP,2012 R102 2007-001039 R-CHIP;56KOHM,5%,1/10W,DA,TP,2012 R101 2007-001039 R-CHIP;56KOHM,5%,1/10W,DA,TP,2012 R115 2007-001177 R-CHIP;8.2KOHM,5%,1/10W,DA,TP,2012 R112 2007-001195 R-CHIP;820KOHM,5%,1/10W,DA,TP,2012 R127 2007-001208 R-CHIP;82KOHM,5%,1/10W,DA,TP,2012 R119 2007-001208 R-CHIP;82KOHM,5%,1/10W,DA,TP,2012 R106 2007-001208 R-CHIP;82KOHM,5%,1/10W,DA,TP,2012 R105 2007-001208 R-CHIP;82KOHM,5%,1/10W,DA,TP,2012 R107 2007-001216 R-CHIP;82OHM,5%,1/10W,DA,TP,2012 R301 2008-000140 R-FUSIBLE;2.2ohm,5%,1/2W,AA,TP,3.5x9.4mm C806 2202-000243 C-CERAMIC,MLC-AXIAL;33pF,5%,50V,SL,TP,3. C805 2202-000243 C-CERAMIC,MLC-AXIAL;33pF,5%,50V,SL,TP,3. C804 2202-000243 C-CERAMIC,MLC-AXIAL;33pF,5%,50V,SL,TP,3. C603A 2202-000780 C-CERAMIC,MLC-AXIAL;100nF,+80-20%,50V,Y5 C113 2202-000780 C-CERAMIC,MLC-AXIAL;100nF,+80-20%,50V,Y5 C131 2203-000203 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,2012 C132 2203-000203 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,2012 C204 2203-000203 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,2012 C205 2203-000203 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,2012 C211 2203-000203 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,2012 C130 2203-000203 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,2012 C115 2203-000203 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,2012 C116 2203-000203 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,2012 C118 2203-000203 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,2012 C124 2203-000203 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,2012 C129 2203-000203 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,2012 C218 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012 C216 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012 C214 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012 C402 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012 C401 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012 C305 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012 C304 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012 C134 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012 C121 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012 C105 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012 C103 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012 C213 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012 C209 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012 C207 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012 C126 2203-000495 C-CERAMIC,CHIP;2.2nF,10%,50V,X7R,TP,2012 C127 2203-000595 C-CERAMIC,CHIP;0.22nF,5%,50V,NP0,TP,2012 C803 2203-000787 C-CERAMIC,CHIP;0.33nF,5%,50V,NP0,TP,2012 C119 2203-000802 C-CERAMIC,CHIP;33nF,10%,50V,X7R,TP,2012 C128 2203-000802 C-CERAMIC,CHIP;33nF,10%,50V,X7R,TP,2012 C125 2203-000840 C-CERAMIC,CHIP;0.39nF,5%,50V,NP0,TP,2012 C208 2203-000858 C-CERAMIC,CHIP;0.039nF,5%,50V,NP0,TP,201 C111 2203-000892 C-CERAMIC,CHIP;4.7NF,10%,50V,X7R,TP,2012 C112 2203-000892 C-CERAMIC,CHIP;4.7NF,10%,50V,X7R,TP,2012 C124A 2203-001064 C-CERAMIC,CHIP;56NF,10%,50V,NPO,TP,2012 C106 2203-001137 C-CERAMIC,CHIP;68nF,+80-20%,50V,Y5V,TP,2 C122 2203-001137 C-CERAMIC,CHIP;68nF,+80-20%,50V,Y5V,TP,2 C203 2203-001223 C-CERAMIC,CHIP;0.82nF,10%,50V,X7R,TP,201 C502R 2203-001537 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012 C502L 2203-001537 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012 C117 2203-001537 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012

Location no Code no. Description Specifiation Remarks

3. Electrical Parts List

*S.N.A. : Service Not Available

Page 13

Location no Code no. Description Specifiation Remarks Location no Code no. Description Specifiation Remarks

3-2 Samsung Electronics

C102 2203-001537 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012 C104 2203-001551 C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012 C202 2203-001619 C-CERAMIC,CHIP;0.027nF,5%,50V,NP0,TP,201 C201 2203-001619 C-CERAMIC,CHIP;0.027nF,5%,50V,NP0,TP,201 C215 2401-000240 C-AL;100uF,20%,10V,GP,TP,5x11,5 C217 2401-000240 C-AL;100uF,20%,10V,GP,TP,5x11,5 C302 2401-000240 C-AL;100uF,20%,10V,GP,TP,5x11,5 C303 2401-000240 C-AL;100uF,20%,10V,GP,TP,5x11,5 C212 2401-000240 C-AL;100uF,20%,10V,GP,TP,5x11,5 C101 2401-000240 C-AL;100uF,20%,10V,GP,TP,5x11,5 C107 2401-000240 C-AL;100uF,20%,10V,GP,TP,5x11,5 C108 2401-000240 C-AL;100uF,20%,10V,GP,TP,5x11,5 C133 2401-000240 C-AL;100uF,20%,10V,GP,TP,5x11,5 C123 2401-000419 C-AL;10UF,20%,16V,GP,5*11,5MM,TP C301 2401-001102 C-AL;330uF,20%,16V,GP,TP,8x11.5mm,5 C114 2401-001625 C-AL;6.8uF,20%,50V,GP,TP,5x11,5 C501R 2401-001954 C-AL;4.7uF,20%,50V,GP,TP,5x11mm,5mm C501L 2401-001954 C-AL;4.7uF,20%,50V,GP,TP,5x11mm,5mm C120 2401-001968 C-AL;470nF,20%,50V,GP,TP,5x11mm,5mm C135 2401-001968 C-AL;470nF,20%,50V,GP,TP,5x11mm,5mm C801 2401-002183 C-AL;220uF,20%,16V,GP,TP,8x9,5mm WIC801 AC14-12001G IC;KA78L05,T,-

AH41-00282B PCB—CD MAIN;G3HI-3CD;G3HI-3CD;CD MAIN,P

AJ59-20150FDECK-LDP;CVM55R2/EXP,-,-,-,- COMMON

3405-000101 SWITCH-MICRO;1.6V,1A,70gf,SPST 3710-000544 CONNECTOR-SOCKET;42140-2203 3P ,1R,2.5MM 3711-000826 CONNECTOR-HEADER;BOX,2P,1R,2mm,ANGLE,SN AH31-10021A MOTOR-DC;RF-500TB,9VDC/130mA, AH31-12001A MOTOR-LOADING;FF-030PN-09210

AH91-60150C ASSY CDP DECK;CMS-D73SG6(U)/JVC,CMS-300D COMMON

3409-001078 SWITCH-LEAF;16Vdc,500mA,10gf,SPST AH30-00007A PICK UP;SOH-AD3,-,-,-,100*80*45,D73SG6 AH81-00614A A/S-SHAFT-PU;-,METAL,-,-,-,-,AH81-00614B A/S-SCREW;-,METAL,AJ60-00601D,-,-,-,AH81-00614C A/S-SCREW;-,METAL,6003-000294,-,-,-,AH81-00614D A/S-WASHER;-,PBT,AJ60-00608A,-,-,-,AH81-00614E A/S-GEAR(C);-,PBT,AJ66-00006A,-,-,-,AH81-00614F A/S-GEAR(B);-,PBT,AJ66-00005A,-,-,-,AH81-00614G A/S-GEAR(A);-,PBT,AJ66-00004A,-,-,-,AH81-00614H A/S-MOTOR-FEED;-,-,AJ31-00601E,-,-,-,AH81-00614J A/S-MOTOR-PCB ASSY;-,-,AJ41-00601S,-,-,AH81-00614K A/S-CONNECTOR;-,-,AJ37-00601A,-,-,-,-

AH92-01375A ASSY PCB-FRONT;MAX-WB630/650 COMMON

UIC2 0904-001621 IC-I/O CONTROLLER;PT8300,16BIT,SOP,28P,3 UIC3 0904-001621 IC-I/O CONTROLLER;PT8300,16BIT,SOP,28P,3 UX2 2801-001394 CRYSTAL-UNIT;32.768KHz,20ppm,28-AAY,12.5 UX1 2802-001174 RESONATOR-CERAMIC;10MHZ,0.5%,BK,8X3.5X3M UVR1 3406-001050 SWITCH-ROTARY;5V DC,0.5mA,click,12mm UVR2 3406-001050 SWITCH-ROTARY;5V DC,0.5mA,click,12mm UVR3 3406-001050 SWITCH-ROTARY;5V DC,0.5mA,click,12mm UCW5 3708-000451 CONNECTOR-FPC/FFC/PIC;16P,1.25mm,STRAIGH UCW4 3708-000451 CONNECTOR-FPC/FFC/PIC;16P,1.25mm,STRAIGH UCW2 3708-000451 CONNECTOR-FPC/FFC/PIC;16P,1.25mm,STRAIGH UCW1 3708-000451 CONNECTOR-FPC/FFC/PIC;16P,1.25mm,STRAIGH UCW3 3708-000454 CONNECTOR-FPC/FFC/PIC;22P,1.25mm,STRAIGH UCW6 3708-000454 CONNECTOR-FPC/FFC/PIC;22P,1.25mm,STRAIGH UCW7 3708-000454 CONNECTOR-FPC/FFC/PIC;22P,1.25mm,STRAIGH UCH1 3711-000827 CONNECTOR-HEADER;BOX,2P,1R,2mm,STRAIGHT, UCH2 3711-001018 CONNECTOR-HEADER;BOX,5P,1R,2mm,STRAIGHT, HJACK1 3722-000351 JACK-PHONE;11P,3.5PI,AG,BLK,RE-EYE AC59-60060A MODULE REMOCON;GP1U281R,SHARP,38KHZ,-,-, UVFD1 AH07-00066A VF DISPLAY;HNA-16LM24T,MAX-B550/570/VB55 UIC1 AH11-00074A MASK ROM;LC876756A-5Z98,MAX-WB630/WB650 UCA2 AH39-00101A LEAD CONNECTOR ASSY;-,5295,51004,5P,150M UCA1 AH39-00109A LEAD CONNECTOR ASSY;-,5295,51004,2P,140M

AH39-50001L WIRE HARNESS;RING,1007#24,200MM,BLK

AH61-00521A HOLDER-VFD;MAXL65,ABS,-,-,-,BLK,MJACK1 3722-001190 JACK-PHONE;9P/2C,6.43PI,AU,BLK OPTION MJACK2 3722-001190 JACK-PHONE;9P/2C,6.43PI,AU,BLK OPTION UD5 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, UD18 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, UD17 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, UD1 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, MD1 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, UD22 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP UD23 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP UD27 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP UD30 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP UD21 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP UD20 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP UD19 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP UD16 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP UD15 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP UZD1 0403-000393 DIODE-ZENER;UZP5.1B,5.1V,4.8-5.4V,1W,DOUZD2 0403-000393 DIODE-ZENER;UZP5.1B,5.1V,4.8-5.4V,1W,DOUQ2 0501-000398 TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T UQ1 0501-000398 TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T UQ6 0501-000407 TR-SMALL SIGNAL;KSD471A-Y,NPN,800mW,TO-9 UQ5 0501-000407 TR-SMALL SIGNAL;KSD471A-Y,NPN,800mW,TO-9 UQ4 0501-000407 TR-SMALL SIGNAL;KSD471A-Y,NPN,800mW,TO-9

UQ3 0501-000407 TR-SMALL SIGNAL;KSD471A-Y,NPN,800mW,TO-9 UQ9 0501-000610 TR-SMALL SIGNAL;KSA928A-Y,PNP,1W,TO-92L, UQ8 0501-000610 TR-SMALL SIGNAL;KSA928A-Y,PNP,1W,TO-92L, UQ7 0501-000610 TR-SMALL SIGNAL;KSA928A-Y,PNP,1W,TO-92L, UQ12 0504-000118 TR-DIGITAL;KSR1003,NPN,300MW,22K/22K,TOUQ11 0504-000118 TR-DIGITAL;KSR1003,NPN,300MW,22K/22K,TOULD4 0601-001238 LED;ROUND,RED,3.1mm,697nm ULD3 0601-001238 LED;ROUND,RED,3.1mm,697nm ULD2 0601-001238 LED;ROUND,RED,3.1mm,697nm ULD1 0601-001238 LED;ROUND,RED,3.1mm,697nm UR62 2001-000008 R-CARBON;15Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR69 2001-000008 R-CARBON;15Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR106 2001-000037 R-CARBON(S);330OHM,5%,1/2W,AA,TP,2.4X6.4 UR107 2001-000037 R-CARBON(S);330OHM,5%,1/2W,AA,TP,2.4X6.4 UR90 2001-000221 R-CARBON;1.2Kohm,5%,1/8W,AA,TP,1.8x3.2m UR129 2001-000221 R-CARBON;1.2Kohm,5%,1/8W,AA,TP,1.8x3.2m UR130 2001-000241 R-CARBON;1.5Kohm,5%,1/8W,AA,TP,1.8x3.2m UR91 2001-000241 R-CARBON;1.5Kohm,5%,1/8W,AA,TP,1.8x3.2m UR112 2001-000258 R-CARBON;1.8Kohm,5%,1/8W,AA,TP,1.8x3.2m UR63 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm UR186 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm UR183 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm UR182 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm UR178 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm UR175 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm UR174 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm UR173 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm UR172 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm UR170 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm UR171 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm UR78 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm UR77 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm UR76 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm UR64 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm UR65 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm UR74 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm UR75 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm UR8 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR80 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR81 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR82 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR73 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR72 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR71 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR70 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR84 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR95 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR94 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR93 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR92 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR9 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR87 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR86 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR85 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR137 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR136 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR2 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR181 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR180 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR179 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR138 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR13 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR122 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR121 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR140 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR14 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR139 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR176 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR10 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR100 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR101 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR11 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR12 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR120 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR1 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR16 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR15 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR143 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR142 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR141 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm MR21 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR135 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR40 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR4 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR39 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR3 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR28 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR27 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR41 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR7 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR6 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR54 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR5 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR43 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm

Page 14

UR42 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR26 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR25 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR24 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR23 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR21 2001-000295 R-CARBON;10MOHM,5%,1/8W,AA,TP,1.8X3.2MM UR19 2001-000362 R-CARBON;150ohm,5%,1/8W,AA,TP,1.8x3.2mm UR133 2001-000405 R-CARBON;180OHM,5%,1/8W,AA,TP,1.8X3.2MM UR131 2001-000405 R-CARBON;180OHM,5%,1/8W,AA,TP,1.8X3.2MM UR111 2001-000405 R-CARBON;180OHM,5%,1/8W,AA,TP,1.8X3.2MM UR109 2001-000405 R-CARBON;180OHM,5%,1/8W,AA,TP,1.8X3.2MM UR108 2001-000405 R-CARBON;180OHM,5%,1/8W,AA,TP,1.8X3.2MM UR89 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR128 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR22 2001-000435 R-CARBON;1Mohm,5%,1/8W,AA,TP,1.8x3.2mm UR17 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m UR88 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m UR110 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m UR18 2001-000508 R-CARBON;220Kohm,5%,1/8W,AA,TP,1.8x3.2m UR124 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR44 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR145 2001-000591 R-CARBON;3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m UR52 2001-000613 R-CARBON;3.9Kohm,5%,1/8W,AA,TP,1.8x3.2m UR61 2001-000660 R-CARBON;33Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR68 2001-000660 R-CARBON;33Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR53 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m UR51 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m UR46 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m UR146 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m UR132 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m UR57 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m UR56 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m UR55 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m HR1 2001-000745 R-CARBON;4.7ohm,5%,1/8W,AA,TP,1.8x3.2mm HR2 2001-000745 R-CARBON;4.7ohm,5%,1/8W,AA,TP,1.8x3.2mm UR33 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR34 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR35 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR36 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR37 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR38 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR32 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm MR20 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR134 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR200 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR29 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR30 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR31 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR20 2001-000850 R-CARBON;560Kohm,5%,1/8W,AA,TP,1.8x3.2m UR119 2001-000890 R-CARBON;6.8Kohm,5%,1/8W,AA,TP,1.8x3.2m UR113 2001-000995 R-CARBON;820ohm,5%,1/8W,AA,TP,1.8x3.2mm UR127 2001-000995 R-CARBON;820ohm,5%,1/8W,AA,TP,1.8x3.2mm UR58 2001-001192 R-CARBON(S);820ohm,5%,1/2W,AA,TP,2.4x6.4 UR59 2001-001192 R-CARBON(S);820ohm,5%,1/2W,AA,TP,2.4x6.4 UR60 2001-001192 R-CARBON(S);820ohm,5%,1/2W,AA,TP,2.4x6.4 URV1 2103-000341 VR-SEMI;2Kohm,30%,1/10W,TOP UC11 2201-000300 C-CERAMIC,DISC;1nF,20%,50V,Y5T,TP,5x3,5 HC2 2201-000300 C-CERAMIC,DISC;1nF,20%,50V,Y5T,TP,5x3,5 HC1 2201-000300 C-CERAMIC,DISC;1nF,20%,50V,Y5T,TP,5x3,5 UC8 2201-000389 C-CERAMIC,DISC;0.022nF,5%,50V,NP0,TP,5x3 UC7 2201-000389 C-CERAMIC,DISC;0.022nF,5%,50V,NP0,TP,5x3 ZC1 2201-000565 C-CERAMIC,DISC;47nF,+80-20%,-,,-,12.5x4m UC35 2201-000565 C-CERAMIC,DISC;47nF,+80-20%,-,,-,12.5x4m UC3 2201-000565 C-CERAMIC,DISC;47nF,+80-20%,-,,-,12.5x4m UC15 2201-000565 C-CERAMIC,DISC;47nF,+80-20%,-,,-,12.5x4m ZC2 2201-000565 C-CERAMIC,DISC;47nF,+80-20%,-,,-,12.5x4m ZC3 2201-000565 C-CERAMIC,DISC;47nF,+80-20%,-,,-,12.5x4m UC10 2201-000565 C-CERAMIC,DISC;47nF,+80-20%,-,,-,12.5x4m UC1 2201-000565 C-CERAMIC,DISC;47nF,+80-20%,-,,-,12.5x4m UC17 2201-000783 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, UC18 2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3 UC19 2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3 UC20 2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3 UC21 2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3 UC24 2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3 UC25 2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3 MC10 2401-000244 C-AL;100uF,20%,10V,GP,TP,6.3x7,5 UC100 2401-000244 C-AL;100uF,20%,10V,GP,TP,6.3x7,5 UC14 2401-000244 C-AL;100uF,20%,10V,GP,TP,6.3x7,5 UC16 2401-000244 C-AL;100uF,20%,10V,GP,TP,6.3x7,5 UC36 2401-000244 C-AL;100uF,20%,10V,GP,TP,6.3x7,5 UC4 2401-000244 C-AL;100uF,20%,10V,GP,TP,6.3x7,5 UC5 2401-000244 C-AL;100uF,20%,10V,GP,TP,6.3x7,5 UC2 2401-000475 C-AL;10uF,20%,50V,GP,TP,5x11mm,5mm UC9 2401-000475 C-AL;10uF,20%,50V,GP,TP,5x11mm,5mm UC13 2401-001355 C-AL;470uF,20%,10V,GP,TP,8x11.5mm,5 UC27 2401-001893 C-AL;100uF,20%,16V,GP,TP,6.3x7,5 UC26 2401-001893 C-AL;100uF,20%,16V,GP,TP,6.3x7,5 UC12 2401-001919 C-AL;2.2uF,20%,50V,-,TP,4x7mm,5 UC6 2401-001931 C-AL;220nF,20%,50V,-,TP,4x7mm,5 HL2 2701-000177 INDUCTOR-AXIAL;33uH,10%,2.5x3.4mm HL1 2701-000177 INDUCTOR-AXIAL;33uH,10%,2.5x3.4mm USW12 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST

USW13 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST USW14 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST USW11 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST USW10 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST USW1 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST USW4 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST USW3 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST USW2 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST USW16 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST USW15 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST USW9 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST USW8 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST USW7 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST USW6 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST USW5 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST PCB1 AH41-00448A PCB-PCB FRONT;MAX-WB650/VB630/675,-,-,-,

AH92-01385A ASSY PCB-MAIN;MAX-WB630, MAX-WB630

RBD1 0402-001258 DIODE-BRIDGE;GBU606,600V,6A,SIP-4,BK RBD2 0402-001258 DIODE-BRIDGE;GBU606,600V,6A,SIP-4,BK OJACK 0603-001051 OPTIC TRANSMITTER;5V,6Mb/s,5m,-15dBm,660 WIC1 1201-000191 IC-OP AMP;4558,DIP,8P,300MIL,DUAL,20V/mV WIC2 1201-000191 IC-OP AMP;4558,DIP,8P,300MIL,DUAL,20V/mV DIC1 1201-001819 IC-PREAMP;-,-,44P,-,-,-,PLASTIC,18V,625M RIC1 1203-001653 IC-VOLTAGE REGULATOR;4959,MULTIWATT,15P, FIC2 1204-001776 IC-SOUND PROCESSOR;TDA7442D,SOP,28P,295M RR9 2003-000455 R-METAL OXIDE(S);100ohm,5%,2W,AA,TP,4x12 RR3 2003-000701 R-METAL OXIDE(S);470ohm,5%,2W,AA,TP,4x12 RC18 2201-000546 C-CERAMIC,DISC;4.7nF,20%,400V,Y5U,BK,16x RC19 2201-000546 C-CERAMIC,DISC;4.7nF,20%,400V,Y5U,BK,16x RC14 2401-000230 C-AL;100uF,20%,100V,GP,TP,12.5x20mm RC5 2401-000230 C-AL;100uF,20%,100V,GP,TP,12.5x20mm RC2 2401-003381 C-AL;3300uF,20%,63V,GP,BK,22x40,10 RC1 2401-003381 C-AL;3300uF,20%,63V,GP,BK,22x40,10 RC4 2401-003755 C-AL;6800UF,20%,35V,BP,TP,22X40MM,1 RC3 2401-003755 C-AL;6800UF,20%,35V,BP,TP,22X40MM,1 OLPF 2901-001139 FILTER-EMI ON BOARD;50V,.5A,-,390PF,7X2. RF2 3601-000170 FUSE-CARTRIDGE;250V,1.6A,TIME-LAG,GLASS, RF1 3601-000263 FUSE-CARTRIDGE;250V,3.15A,TIME-LAG,GLASS OPTION RSW1 3408-000177 SWITCH-SLIDE;250V,5A,DPDT,<ON>-OFF- OPTION FCW4 3708-000181 CONNECTOR-FPC/FFC/PIC;16P,1.25mm,STRAIGH FCW2 3708-000181 CONNECTOR-FPC/FFC/PIC;16P,1.25mm,STRAIGH FCW1 3708-000181 CONNECTOR-FPC/FFC/PIC;16P,1.25mm,STRAIGH TCW1 3708-001051 CONNECTOR-FPC/FFC/PIC;13P,1.25mm,ANGLE,S RCW2 3711-000190 CONNECTOR-HEADER;1WALL,2P,1R,7.92mm,STRA DCW2 3711-000907 CONNECTOR-HEADER;BOX,3P,1R,2mm,STRAIGHT, CCW1 3711-001137 CONNECTOR-HEADER;BOX,8P,1R,2mm,STRAIGHT, RCW1 3711-001485 CONNECTOR-HEADER;NOWALL,3P,1R,8MM,STRAIG DCW3 3711-003107 CONNECTOR-HEADER;BOX,3P,1R,2.5mm,STRAIGH DCW1 3711-003111 CONNECTOR-HEADER;BOX,6P,1R,2.5mm,STRAIGH RCW5 3711-003112 CONNECTOR-HEADER;BOX,8P,1R,2.5mm,STRAIGH ACW1 3711-003113 CONNECTOR-HEADER;BOX,9P,1R,2.5mm,STRAIGH AJCK 3722-000377 JACK-PIN;4P/2C,3.5mm,SN,BLK,#16~22

6003-000276 SCREW-TAPTITE;BH,+,B,M3,L10,ZPC(YEL),SWC

6003-000276 SCREW-TAPTITE;BH,+,B,M3,L10,ZPC(YEL),SWC OIC1 AH14-10004R IC;M74HCU04,SOP,TAPE 14P DL1 AH26-10002W TRANS TRAP-COIL;BIAS-TRAP105K,BIAS-TRAP, DL2 AH26-10002W TRANS TRAP-COIL;BIAS-TRAP105K,BIAS-TRAP, DL4 AH26-10003C TRANS TRAP-COIL;PCHNS-5371EQJ,BIAS-TRAP, RL2 AH27-10001F COIL-CHOKE;27uH,K,Q30,-,-,DR(6.5*7.5),-, RL1 AH27-10001F COIL-CHOKE;27uH,K,Q30,-,-,DR(6.5*7.5),-, RCW3 AH39-00045C LEAD CONNECTOR ASSY;MAX-VL42,-,UL/CSA,HO

AH39-00052T LEAD CONNECTOR ASSY;RXD-DV9,#2547,28,AWG

AH39-00085A LEAD CONNECTOR ASSY;-,51004,5295,3P,150M OCW1 AH39-00096B LEAD CONNECTOR ASSY;RXD-DV9,#1007,28,AWG

AH61-40014A SUPPORT-RIVET;-,-,-,-,-,-,-

AH62-00044A HEATSINK-,IC;MAX-L85,AL 3.0T,-,-,-,-,-,

AH63-00278A COVER-PCB;MAX-WL85,PVC 0.5T,-,-,-,-,CLR, WD1 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, TD2 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, TD1 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, FD1 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, RD2 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP RD12 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP RD1 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP RD11 0402-000151 DIODE-RECTIFIER;1N5392,100V,1.5A,DO-15,T RZD1 0403-000354 DIODE-ZENER;UZ5.1B,5.1V,4.8-5.4V,500mW,D WZD1 0403-000354 DIODE-ZENER;UZ5.1B,5.1V,4.8-5.4V,500mW,D FZD1 0403-000372 DIODE-ZENER;UZ9.1BM,9.1V,8.7-9.4V,500mW, RZD5 0403-000379 DIODE-ZENER;UZP12B,12V,11.4-12.6V,1W,DORZD3 0403-000570 DIODE-ZENER;UZP18B,18V,16.9-19.1V,1W,DORZD2 0403-000570 DIODE-ZENER;UZP18B,18V,16.9-19.1V,1W,DORZD4 0403-001010 DIODE-ZENER;UZ5.6BCC,5.6V,5.64-5.88V,500 DQ9 0501-000010 TR-SMALL SIGNAL;KSC1008,NPN,800mW,TO-92, DQ8 0501-000010 TR-SMALL SIGNAL;KSC1008,NPN,800mW,TO-92, DQ7 0501-000010 TR-SMALL SIGNAL;KSC1008,NPN,800mW,TO-92, DQ6 0501-000010 TR-SMALL SIGNAL;KSC1008,NPN,800mW,TO-92, RQ2 0501-000294 TR-SMALL SIGNAL;KSA708-Y,PNP,800mW,TO-92 CQ2 0501-000331 TR-SMALL SIGNAL;KSC1009-Y,NPN,800mW,TO-9 CQ3 0501-000331 TR-SMALL SIGNAL;KSC1009-Y,NPN,800mW,TO-9 DQ4 0501-000369 TR-SMALL SIGNAL;KSC2331-Y,NPN,1000mW,TOFQ1 0501-000398 TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T DQ2 0501-000398 TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T

Location no Code no. Description Specifiation Remarks Location no Code no. Description Specifiation Remarks

Samsung Electronics 3-3

Page 15

DQ10 0501-000398 TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T DQ1 0501-000398 TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T DQ5 0501-000407 TR-SMALL SIGNAL;KSD471A-Y,NPN,800mW,TO-9 RQ1 0501-000610 TR-SMALL SIGNAL;KSA928A-Y,PNP,1W,TO-92L, DQ3 0501-000610 TR-SMALL SIGNAL;KSA928A-Y,PNP,1W,TO-92L, CQ1 0504-001003 TR-DIGITAL;KSR2003,PNP,300MW,22K/22K,TODR8 2001-000008 R-CARBON;15Kohm,5%,1/8W,AA,TP,1.8x3.2mm FR1 2001-000008 R-CARBON;15Kohm,5%,1/8W,AA,TP,1.8x3.2mm FR8 2001-000008 R-CARBON;15Kohm,5%,1/8W,AA,TP,1.8x3.2mm CR4 2001-000008 R-CARBON;15Kohm,5%,1/8W,AA,TP,1.8x3.2mm CR7 2001-000008 R-CARBON;15Kohm,5%,1/8W,AA,TP,1.8x3.2mm DR26 2001-000008 R-CARBON;15Kohm,5%,1/8W,AA,TP,1.8x3.2mm WR6 2001-000012 R-CARBON;680Kohm,5%,1/8W,AA,TP,1.8x3.2m RR8 2001-000016 R-CARBON(S);1OHM,5%,1/2W,AA,TP,2.4X6.4MM RR14 2001-000017 R-CARBON;4.7ohm,5%,1/4W,AA,TP,2.4x6.4mm FR11 2001-000027 R-CARBON;100ohm,5%,1/4W,AA,TP,2.4x6.4mm RR10 2001-000038 R-CARBON;390ohm,5%,1/4W,AA,TP,2.4x6.4mm WR50 2001-000109 R-CARBON(S);470ohm,5%,1/2W,AA,TP,2.4x6.4 RR13 2001-000111 R-CARBON;150ohm,5%,1/4W,AA,TP,2.4x6.4mm WR7 2001-000241 R-CARBON;1.5Kohm,5%,1/8W,AA,TP,1.8x3.2m TR3 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm TR4 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm TR5 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm TR6 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm WR1 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm TR2 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm DR1 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm DR17 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm DR2 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm DR4 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm TR1 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm WR9 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm DR3 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm DR24 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm TR12 2001-000331 R-CARBON;12Kohm,5%,1/8W,AA,TP,1.8x3.2mm TR9 2001-000331 R-CARBON;12Kohm,5%,1/8W,AA,TP,1.8x3.2mm DR18 2001-000362 R-CARBON;150ohm,5%,1/8W,AA,TP,1.8x3.2mm RR4 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm DR10 2001-000435 R-CARBON;1Mohm,5%,1/8W,AA,TP,1.8x3.2mm KR15 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m KR12 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m FR17 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m FR16 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m DR6 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m DR13 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m DR23 2001-000456 R-CARBON;2.2ohm,5%,1/4W,AA,TP,2.4x6.4mm RR11 2001-000472 R-CARBON;2.7Kohm,5%,1/8W,AA,TP,1.8x3.2m WR3 2001-000515 R-CARBON;220ohm,5%,1/8W,AA,TP,1.8x3.2mm WR10 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm DR9 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm DR5 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm DR12 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm DR25 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm DR27 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm TR8 2001-000563 R-CARBON;27Kohm,5%,1/8W,AA,TP,1.8x3.2mm RR12 2001-000563 R-CARBON;27Kohm,5%,1/8W,AA,TP,1.8x3.2mm DR7 2001-000563 R-CARBON;27Kohm,5%,1/8W,AA,TP,1.8x3.2mm DR14 2001-000563 R-CARBON;27Kohm,5%,1/8W,AA,TP,1.8x3.2mm DR21 2001-000591 R-CARBON;3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m DR20 2001-000591 R-CARBON;3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m CR1 2001-000591 R-CARBON;3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m WR5 2001-000591 R-CARBON;3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m FR7 2001-000591 R-CARBON;3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m FR5 2001-000591 R-CARBON;3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m DR28 2001-000591 R-CARBON;3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m FR2 2001-000591 R-CARBON;3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m FR4 2001-000591 R-CARBON;3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m RR6 2001-000613 R-CARBON;3.9Kohm,5%,1/8W,AA,TP,1.8x3.2m DR16 2001-000613 R-CARBON;3.9Kohm,5%,1/8W,AA,TP,1.8x3.2m CR5 2001-000613 R-CARBON;3.9Kohm,5%,1/8W,AA,TP,1.8x3.2m CR2 2001-000613 R-CARBON;3.9Kohm,5%,1/8W,AA,TP,1.8x3.2m FR13 2001-000645 R-CARBON;330Kohm,5%,1/8W,AA,TP,1.8x3.2m WR8 2001-000660 R-CARBON;33Kohm,5%,1/8W,AA,TP,1.8x3.2mm WR4 2001-000702 R-CARBON;39Kohm,5%,1/8W,AA,TP,1.8x3.2mm FR12 2001-000702 R-CARBON;39Kohm,5%,1/8W,AA,TP,1.8x3.2mm DR29 2001-000702 R-CARBON;39Kohm,5%,1/8W,AA,TP,1.8x3.2mm TR10 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m TR11 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m TR7 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m WR11 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m DR11 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m KR6 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m KR9 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m RR5 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m FR23 2001-000773 R-CARBON;470Kohm,5%,1/8W,AA,TP,1.8x3.2m FR3 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm FR6 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm RR20 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm WR12 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm WR13 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm WR2 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm CR3 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm CR6 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm

DR17 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm DR19 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm FR14 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm FR15 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm WR30 2001-000802 R-CARBON;5.6Kohm,5%,1/8W,AA,TP,1.8x3.2m FR9 2001-000802 R-CARBON;5.6Kohm,5%,1/8W,AA,TP,1.8x3.2m FR10 2001-000802 R-CARBON;5.6Kohm,5%,1/8W,AA,TP,1.8x3.2m FR21 2001-000869 R-CARBON;56ohm,5%,1/8W,AA,TP,1.8x3.2mm FR20 2001-000869 R-CARBON;56ohm,5%,1/8W,AA,TP,1.8x3.2mm RR7 2001-000890 R-CARBON;6.8Kohm,5%,1/8W,AA,TP,1.8x3.2m DR37 2001-000890 R-CARBON;6.8Kohm,5%,1/8W,AA,TP,1.8x3.2m DR36 2001-000890 R-CARBON;6.8Kohm,5%,1/8W,AA,TP,1.8x3.2m DR35 2001-000890 R-CARBON;6.8Kohm,5%,1/8W,AA,TP,1.8x3.2m DR15 2001-000890 R-CARBON;6.8Kohm,5%,1/8W,AA,TP,1.8x3.2m DR22 2001-000890 R-CARBON;6.8Kohm,5%,1/8W,AA,TP,1.8x3.2m DR34 2001-000890 R-CARBON;6.8Kohm,5%,1/8W,AA,TP,1.8x3.2m DR33 2001-000924 R-CARBON;680ohm,5%,1/8W,AA,TP,1.8x3.2mm DR32 2001-000924 R-CARBON;680ohm,5%,1/8W,AA,TP,1.8x3.2mm DR31 2001-000924 R-CARBON;680ohm,5%,1/8W,AA,TP,1.8x3.2mm DR30 2001-000924 R-CARBON;680ohm,5%,1/8W,AA,TP,1.8x3.2mm RR2 2001-001153 R-CARBON(S);47ohm,5%,1/2W,AA,TP,2.4x6.4m RR18 2001-001153 R-CARBON(S);47ohm,5%,1/2W,AA,TP,2.4x6.4m RR1 2001-001153 R-CARBON(S);47ohm,5%,1/2W,AA,TP,2.4x6.4m DSR1 2103-000248 VR-SEMI;200Kohm,30%,1/10W,TOP DSR2 2103-000248 VR-SEMI;200Kohm,30%,1/10W,TOP RC26 2201-000161 C-CERAMIC,DISC;10nF,+80-20%,500V,Y5V,TP, RC25 2201-000161 C-CERAMIC,DISC;10nF,+80-20%,500V,Y5V,TP, FC28 2201-000368 C-CERAMIC,DISC;220pF,10%,50V,SL,TP,6.5x3 FC29 2201-000368 C-CERAMIC,DISC;220pF,10%,50V,SL,TP,6.5x3 FC3 2201-000368 C-CERAMIC,DISC;220pF,10%,50V,SL,TP,6.5x3 FC6 2201-000368 C-CERAMIC,DISC;220pF,10%,50V,SL,TP,6.5x3 FC27 2201-000368 C-CERAMIC,DISC;220pF,10%,50V,SL,TP,6.5x3 FC26 2201-000368 C-CERAMIC,DISC;220pF,10%,50V,SL,TP,6.5x3 DC33 2201-000368 C-CERAMIC,DISC;220pF,10%,50V,SL,TP,6.5x3 DC17 2201-000368 C-CERAMIC,DISC;220pF,10%,50V,SL,TP,6.5x3 OC3 2201-000381 C-CERAMIC,DISC;22nF,+80%,50V,-,,8x4mm,OC1 2201-000487 C-CERAMIC,DISC;33pF,5%,50V,SL,TP,5x3,5m WC4 2201-000557 C-CERAMIC,DISC;0.47nF,10%,50V,SL,TP,8x3. DC29 2201-000674 C-CERAMIC,DISC;0.82nF,10%,50V,Y5P,BK,5x3 DC1 2201-000674 C-CERAMIC,DISC;0.82nF,10%,50V,Y5P,BK,5x3 TC5 2202-000781 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP TC4 2202-000781 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP TC3 2202-000781 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP TC2 2202-000781 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP TC1 2202-000781 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP DC3 2202-000781 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP TC6 2202-000781 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP TC7 2202-000781 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP FC14 2301-000361 C-FILM,PEF;1.2nF,10%,50V,TP,-,5mm DC23 2301-000361 C-FILM,PEF;1.2nF,10%,50V,TP,-,5mm DC22 2301-000361 C-FILM,PEF;1.2nF,10%,50V,TP,-,5mm DC19 2301-000361 C-FILM,PEF;1.2nF,10%,50V,TP,-,5mm DC18 2301-000361 C-FILM,PEF;1.2nF,10%,50V,TP,-,5mm FC17 2301-000375 C-FILM,PEF;100nF,5%,50V,TP,11x12.5x6.5,7 FC16 2301-000375 C-FILM,PEF;100nF,5%,50V,TP,11x12.5x6.5,7 FC15 2301-000375 C-FILM,PEF;100nF,5%,50V,TP,11x12.5x6.5,7 FC32 2301-000375 C-FILM,PEF;100nF,5%,50V,TP,11x12.5x6.5,7 FC7 2301-000375 C-FILM,PEF;100nF,5%,50V,TP,11x12.5x6.5,7 WC5 2301-000375 C-FILM,PEF;100nF,5%,50V,TP,11x12.5x6.5,7 DC10 2301-000375 C-FILM,PEF;100nF,5%,50V,TP,11x12.5x6.5,7 DC25 2301-000375 C-FILM,PEF;100nF,5%,50V,TP,11x12.5x6.5,7 DC26 2301-000375 C-FILM,PEF;100nF,5%,50V,TP,11x12.5x6.5,7 FC13 2301-000375 C-FILM,PEF;100nF,5%,50V,TP,11x12.5x6.5,7 FC1 2301-000375 C-FILM,PEF;100nF,5%,50V,TP,11x12.5x6.5,7 DC7 2301-000375 C-FILM,PEF;100nF,5%,50V,TP,11x12.5x6.5,7 DC11 2301-000379 C-FILM,PEF;10nF,10%,50V,TP,6x12x3.5mm,DC24 2301-000379 C-FILM,PEF;10nF,10%,50V,TP,6x12x3.5mm,WC7 2301-000387 C-FILM,PEF;150nF,10%,50V,TP,12.5x15x7.5, DC14 2301-000404 C-FILM,PEF;2.2nF,10%,50V,TP,5.5x12x3mm,DC15 2301-000404 C-FILM,PEF;2.2nF,10%,50V,TP,5.5x12x3mm,DC16 2301-000404 C-FILM,PEF;2.2nF,10%,50V,TP,5.5x12x3mm,DC13 2301-000407 C-FILM,PEF;2.7nF,10%,50V,TP,5.5x12x3mm,WC9 2301-000412 C-FILM,PEF;22nF,10%,50V,TP,8x12x4mm,CC2 2301-000449 C-FILM,PEF;47nF,10%,50V,TP,9.5x12.5x5mm, FC11 2301-000454 C-FILM,PEF;5.6nF,10%,50V,TP,6x12x3,3.5mm FC12 2301-000454 C-FILM,PEF;5.6nF,10%,50V,TP,6x12x3,3.5mm CC3 2401-000129 C-AL;1000uF,20%,16V,GP,-,10x16mm,5 OC2 2401-000240 C-AL;100uF,20%,10V,GP,TP,5x11,5 RC6 2401-000357 C-AL;100uF,20%,50V,GP,-,8x11.5,3.5m CC5 2401-000419 C-AL;10UF,20%,16V,GP,5*11,5MM,TP DC30 2401-000419 C-AL;10UF,20%,16V,GP,5*11,5MM,TP RC9 2401-000438 C-AL;10uF,20%,25V,GP,-,5x11,2mm WC8 2401-000475 C-AL;10uF,20%,50V,GP,TP,5x11mm,5mm WC3 2401-000475 C-AL;10uF,20%,50V,GP,TP,5x11mm,5mm WC2 2401-000475 C-AL;10uF,20%,50V,GP,TP,5x11mm,5mm WC1 2401-000475 C-AL;10uF,20%,50V,GP,TP,5x11mm,5mm FC20 2401-000649 C-AL;2.2uF,20%,50V,BP,TP,5x11,5 FC21 2401-000649 C-AL;2.2uF,20%,50V,BP,TP,5x11,5 DC2 2401-000778 C-AL;220uF,20%,10V,GP,-,6.3x11,2.5m RC11 2401-000795 C-AL;220uF,20%,16V,GP,TP,8x12mm,5mm RC10 2401-000907 C-AL;22uF,20%,16V,GP,TP,5x11mm,5mm DC5 2401-001080 C-AL;330nF,20%,50V,GP,-,5x11,2mm DC4 2401-001102 C-AL;330uF,20%,16V,GP,TP,8x11.5mm,5

Location no Code no. Description Specifiation Remarks Location no Code no. Description Specifiation Remarks

3-4 Samsung Electronics

Page 16

RC8 2401-001625 C-AL;6.8uF,20%,50V,GP,TP,5x11,5 FC5 2401-001895 C-AL;100uF,20%,16V,GP,TP,6.3x11,2.5 CC4 2401-001895 C-AL;100uF,20%,16V,GP,TP,6.3x11,2.5 FC31 2401-001912 C-AL;1uF,20%,50V,GP,5*11,5mm,TP FC8 2401-001912 C-AL;1uF,20%,50V,GP,5*11,5mm,TP FC9 2401-001912 C-AL;1uF,20%,50V,GP,5*11,5mm,TP RC7 2401-001912 C-AL;1uF,20%,50V,GP,5*11,5mm,TP DC20 2401-001912 C-AL;1uF,20%,50V,GP,5*11,5mm,TP FC22 2401-001912 C-AL;1uF,20%,50V,GP,5*11,5mm,TP FC23 2401-001912 C-AL;1uF,20%,50V,GP,5*11,5mm,TP FC30 2401-001912 C-AL;1uF,20%,50V,GP,5*11,5mm,TP FC4 2401-001954 C-AL;4.7uF,20%,50V,GP,TP,5x11mm,5mm FC33 2401-001954 C-AL;4.7uF,20%,50V,GP,TP,5x11mm,5mm FC25 2401-001954 C-AL;4.7uF,20%,50V,GP,TP,5x11mm,5mm FC2 2401-001954 C-AL;4.7uF,20%,50V,GP,TP,5x11mm,5mm CC1 2401-001954 C-AL;4.7uF,20%,50V,GP,TP,5x11mm,5mm FC24 2401-001965 C-AL;470nF,20%,50V,BP,TP,4x7mm,5mm DC32 2401-001975 C-AL;47uF,20%,16V,GP,TP,5x11mm,5mm DC31 2401-001975 C-AL;47uF,20%,16V,GP,TP,5x11mm,5mm DC21 2401-001975 C-AL;47uF,20%,16V,GP,TP,5x11mm,5mm DC12 2401-001975 C-AL;47uF,20%,16V,GP,TP,5x11mm,5mm DC9 2401-002180 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm FC10 2401-002180 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm FC18 2401-002180 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm FC19 2401-002180 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm DC27 2401-002180 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm DC28 2401-002180 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm DC6 2401-002180 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm DC8 2401-002180 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm CL1 2701-000114 INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm CL1 2701-000116 INDUCTOR-AXIAL;10uH,10%,4.2x9.8mm CL2 2701-000179 INDUCTOR-AXIAL;33uH,10%,4.2x9.8mm DL3 2701-000298 INDUCTOR-AXIAL;470uH,10%,4.2x9.8mm RF2 3602-000147 FUSE-CLIP;250V,7.5A,30mohm PCB AH41-00434A PCB;MAX-B550/570/VB555/D,-,-,-,-,3

AH92-01387A ASSY PCB-AMP;MAX-WB630 MAX-WB630

PIC1 1201-001582 IC-POWER AMP;402-070,SIP,15P,-,DUAL,30dB PIC2 1201-001856 IC-POWER AMP;STK442-090,SIP,14P,233MIL,S PR42 2003-000008 R-METAL OXIDE(S);100ohm,5%,1W,AA,TP ,3.3x PR41 2003-000008 R-METAL OXIDE(S);100ohm,5%,1W,AA,TP ,3.3x PR34 2003-000390 R-METAL OXIDE(S);0.27OHM,5%,2W,AA,TP , PR33 2003-000390 R-METAL OXIDE(S);0.27OHM,5%,2W,AA,TP , PR32 2003-000390 R-METAL OXIDE(S);0.27OHM,5%,2W,AA,TP , PR31 2003-000390 R-METAL OXIDE(S);0.27OHM,5%,2W,AA,TP , PR6 2003-000578 R-METALOXIDE(S);220ohm,5%,2W,AA,TP,4x12 PR5 2003-000578 R-METALOXIDE(S);220ohm,5%,2W,AA,TP,4x12 PR45 2009-001 117 R-METALPLATE;0.1OHM,5%,5W,CL,BK,5X13X18 PR46 2009-001 117 R-METALPLATE;0.1OHM,5%,5W,CL,BK,5X13X18 PR47 2009-001 117 R-METALPLATE;0.1OHM,5%,5W,CL,BK,5X13X18 PR59 2009-001 117 R-METALPLATE;0.1OHM,5%,5W,CL,BK,5X13X18 PR58 2009-001 117 R-METALPLATE;0.1OHM,5%,5W,CL,BK,5X13X18 PR48 2009-001 117 R-METALPLATE;0.1OHM,5%,5W,CL,BK,5X13X18 PC25 2401-000230 C-AL;100uF,20%,100V ,GP,TP,12.5x20mm PC24 2401-000230 C-AL;100uF,20%,100V ,GP,TP,12.5x20mm PC23 2401-000230 C-AL;100uF,20%,100V ,GP,TP,12.5x20mm PC22 2401-000230 C-AL;100uF,20%,100V ,GP,TP,12.5x20mm JVR1 3406-001054 SWITCH-ROTARY;5V DC,0.5mA,-,7.5mm PREL2 3501-001197 RELAY-MINIATURE;12VDC,0.54W,44.4mA,1Form PREL1 3501-001197 RELAY-MINIATURE;12VDC,0.54W,44.4mA,1Form PW4 3708-000181 CONNECTOR-FPC/FFC/PIC;16P,1.25mm,STRAIGH JCW1 3708-000451 CONNECTOR-FPC/FFC/PIC;16P,1.25mm,STRAIGH PW1 3710-001793 CONNECTOR-SOCKET;9P,1R,2.5MM,STRAIGHT,SN PW2 3710-001793 CONNECTOR-SOCKET;9P,1R,2.5MM,STRAIGHT,SN PCW1 3711-004989 CONNECTOR-HEADER;2WALL,9P,1R,2.5MM,ANGLE PCW2 3711-004989 CONNECTOR-HEADER;2WALL,9P,1R,2.5MM,ANGLE SPJACK 3716-001164 TERMINAL-BLOCK;SOLDER,8P,-,60V,7A

6003-001230 SCREW-TAPTITE;BH,+,B,M3,L16,ZPC(YEL),SWR PL5 AH27-90001A COIL-SPRING;-,2.2UH,-,-,-,SPRING,-,-,-,PL6 AH27-90001A COIL-SPRING;-,2.2UH,-,-,-,SPRING,-,-,-,PL7 AH27-90001A COIL-SPRING;-,2.2UH,-,-,-,SPRING,-,-,-,PL8 AH27-90001A COIL-SPRING;-,2.2UH,-,-,-,SPRING,-,-,-,PL4 AH27-90001A COIL-SPRING;-,2.2UH,-,-,-,SPRING,-,-,-,PL3 AH27-90001A COIL-SPRING;-,2.2UH,-,-,-,SPRING,-,-,-,PL2 AH27-90001A COIL-SPRING;-,2.2UH,-,-,-,SPRING,-,-,-,PL1 AH27-90001A COIL-SPRING;-,2.2UH,-,-,-,SPRING,-,-,-,PCW3 AH39-00295A W/HARNESS UNIT;MAX-L85,-,-,9P,-,-,-,SCN-

AH60-10051A SCREW-TAPTITE;-,-,FE,-,B,M3,L8,-,-,-

AH61-00973A BRACKET-H/SINK,L;MAX-WB650,SECC T1.0,-,-

AH61-00977A BRACKET-H/SINK,R;NAX-WB650,SECC T1.0,-,-

AH62-00063D HEAT SINK-,M;MAX-B570,AL EXTR,-,-,-,-,-, PD4 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, PD5 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, PD3 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, PD2 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP PD1 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP PZD1 0403-000382 DIODE-ZENER;UZP15B,15V,13.9-15.6V,1W,DOPZD2 0403-000382 DIODE-ZENER;UZP15B,15V,13.9-15.6V,1W,DOPQ9 0501-000296 TR-SMALL SIGNAL;KSA709-Y,PNP,800mW,TO-92 PQ6 0501-000296 TR-SMALL SIGNAL;KSA709-Y,PNP,800mW,TO-92 PQ10 0501-000296 TR-SMALL SIGNAL;KSA709-Y,PNP,800mW,TO-92 PQ8 0501-000331 TR-SMALL SIGNAL;KSC1009-Y,NPN,800mW,TO-9 PQ5 0501-000331 TR-SMALL SIGNAL;KSC1009-Y,NPN,800mW,TO-9

PQ16 0501-000369 TR-SMALL SIGNAL;KSC2331-Y,NPN,1000mW,TOPQ17 0501-000369 TR-SMALL SIGNAL;KSC2331-Y,NPN,1000mW,TOPQ4 0501-000407 TR-SMALL SIGNAL;KSD471A-Y,NPN,800mW,TO-9 PQ3 0501-000407 TR-SMALL SIGNAL;KSD471A-Y,NPN,800mW,TO-9 PQ2 0501-000407 TR-SMALL SIGNAL;KSD471A-Y,NPN,800mW,TO-9 PQ15 0501-000407 TR-SMALL SIGNAL;KSD471A-Y,NPN,800mW,TO-9 PQ1 0501-000407 TR-SMALL SIGNAL;KSD471A-Y,NPN,800mW,TO-9 PQ11 0501-000407 TR-SMALL SIGNAL;KSD471A-Y,NPN,800mW,TO-9 PQ12 0501-000407 TR-SMALL SIGNAL;KSD471A-Y,NPN,800mW,TO-9 PQ14 0501-000407 TR-SMALL SIGNAL;KSD471A-Y,NPN,800mW,TO-9 PQ7 0504-001003 TR-DIGITAL;KSR2003,PNP,300MW,22K/22K,TOPQ13 0504-001003 TR-DIGITAL;KSR2003,PNP,300MW,22K/22K,TOJLD5 0601-001238 LED;ROUND,RED,3.1mm,697nm JLD6 0601-001238 LED;ROUND,RED,3.1mm,697nm JLD7 0601-001238 LED;ROUND,RED,3.1mm,697nm JLD8 0601-001238 LED;ROUND,RED,3.1mm,697nm JLD9 0601-001238 LED;ROUND,RED,3.1mm,697nm JLD1 0601-001238 LED;ROUND,RED,3.1mm,697nm JLD10 0601-001238 LED;ROUND,RED,3.1mm,697nm JLD2 0601-001238 LED;ROUND,RED,3.1mm,697nm JLD3 0601-001238 LED;ROUND,RED,3.1mm,697nm JLD4 0601-001238 LED;ROUND,RED,3.1mm,697nm PR69 2001-000008 R-CARBON;15Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR65 2001-000008 R-CARBON;15Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR68 2001-000019 R-CARBON(S);10ohm,5%,1/2W,AA,TP,2.4x6.4m PR64 2001-000019 R-CARBON(S);10ohm,5%,1/2W,AA,TP,2.4x6.4m JR17 2001-000221 R-CARBON;1.2Kohm,5%,1/8W,AA,TP,1.8x3.2m PR36 2001-000241 R-CARBON;1.5Kohm,5%,1/8W,AA,TP,1.8x3.2m PR30 2001-000241 R-CARBON;1.5Kohm,5%,1/8W,AA,TP,1.8x3.2m PR28 2001-000241 R-CARBON;1.5Kohm,5%,1/8W,AA,TP,1.8x3.2m JR1 2001-000258 R-CARBON;1.8Kohm,5%,1/8W,AA,TP,1.8x3.2m PR70 2001-000273 R-CARBON;100Kohm,5%,1/8W,AA,TP,1.8x3.2m PR72 2001-000273 R-CARBON;100Kohm,5%,1/8W,AA,TP,1.8x3.2m PR87 2001-000273 R-CARBON;100Kohm,5%,1/8W,AA,TP,1.8x3.2m PR57 2001-000273 R-CARBON;100Kohm,5%,1/8W,AA,TP,1.8x3.2m PR13 2001-000273 R-CARBON;100Kohm,5%,1/8W,AA,TP,1.8x3.2m PR20 2001-000273 R-CARBON;100Kohm,5%,1/8W,AA,TP,1.8x3.2m PR56 2001-000273 R-CARBON;100Kohm,5%,1/8W,AA,TP,1.8x3.2m PR79 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR78 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR76 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm JR7 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm JR15 2001-000405 R-CARBON;180OHM,5%,1/8W,AA,TP,1.8X3.2MM JR20 2001-000405 R-CARBON;180OHM,5%,1/8W,AA,TP,1.8X3.2MM JR21 2001-000405 R-CARBON;180OHM,5%,1/8W,AA,TP,1.8X3.2MM JR4 2001-000405 R-CARBON;180OHM,5%,1/8W,AA,TP,1.8X3.2MM JR6 2001-000405 R-CARBON;180OHM,5%,1/8W,AA,TP,1.8X3.2MM 1R5 2001-000405 R-CARBON;180OHM,5%,1/8W,AA,TP,1.8X3.2MM JR11 2001-000405 R-CARBON;180OHM,5%,1/8W,AA,TP,1.8X3.2MM JR12 2001-000405 R-CARBON;180OHM,5%,1/8W,AA,TP,1.8X3.2MM JR13 2001-000405 R-CARBON;180OHM,5%,1/8W,AA,TP,1.8X3.2MM JR14 2001-000405 R-CARBON;180OHM,5%,1/8W,AA,TP,1.8X3.2MM PR51 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR81 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR82 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR84 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR85 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR50 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm JR18 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR15 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR18 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR19 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR24 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm JR2 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m PR77 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR74 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR67 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR63 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR4 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm JR9 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR66 2001-000563 R-CARBON;27Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR62 2001-000563 R-CARBON;27Kohm,5%,1/8W,AA,TP,1.8x3.2mm JR3 2001-000591 R-CARBON;3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m PR23 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m PR71 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m PR73 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m PR80 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m PR83 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m JR22 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m JR50 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m PR16 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m PR17 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m PR22 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m PR61 2001-000780 R-CARBON;470ohm,5%,1/8W,AA,TP,1.8x3.2mm PR60 2001-000780 R-CARBON;470ohm,5%,1/8W,AA,TP,1.8x3.2mm PR21 2001-000780 R-CARBON;470ohm,5%,1/8W,AA,TP,1.8x3.2mm PR14 2001-000780 R-CARBON;470ohm,5%,1/8W,AA,TP,1.8x3.2mm PR75 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR86 2001-000802 R-CARBON;5.6Kohm,5%,1/8W,AA,TP,1.8x3.2m PR3 2001-000802 R-CARBON;5.6Kohm,5%,1/8W,AA,TP,1.8x3.2m PR49 2001-000864 R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR52 2001-000864 R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR54 2001-000864 R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm

Location no Code no. Description Specifiation Remarks Location no Code no. Description Specifiation Remarks

Samsung Electronics 3-5

Page 17

PR55 2001-000864 R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm JR10 2001-000864 R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR27 2001-000864 R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR29 2001-000864 R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR35 2001-000864 R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR40 2001-000869 R-CARBON;56ohm,5%,1/8W,AA,TP,1.8x3.2mm JR8 2001-000890 R-CARBON;6.8Kohm,5%,1/8W,AA,TP,1.8x3.2m JR16 2001-000995 R-CARBON;820ohm,5%,1/8W,AA,TP,1.8x3.2mm PR12 2001-001000 R-CARBON;82Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR11 2001-001000 R-CARBON;82Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR25 2003-000008 R-METAL OXIDE(S);100ohm,5%,1W,AA,TP,3.3x PR26 2003-000008 R-METAL OXIDE(S);100ohm,5%,1W,AA,TP,3.3x PR44 2003-000428 R-METAL OXIDE(S);1.5Kohm,5%,1W,AA,TP,3.3 PR43 2003-000428 R-METAL OXIDE(S);1.5Kohm,5%,1W,AA,TP,3.3 PR9 2003-000689 R-METALOXIDE(S);4.7ohm,5%,1W,AA,TP,3.3x PR8 2003-000689 R-METALOXIDE(S);4.7ohm,5%,1W,AA,TP,3.3x PR7 2003-000689 R-METALOXIDE(S);4.7ohm,5%,1W,AA,TP,3.3x PR38 2003-000689 R-METAL OXIDE(S);4.7ohm,5%,1W,AA,TP,3.3x PR10 2003-000689 R-METAL OXIDE(S);4.7ohm,5%,1W,AA,TP,3.3x PC13 2201-000300 C-CERAMIC,DISC;1nF,20%,50V,Y5T,TP,5x3,5 PC12 2201-000300 C-CERAMIC,DISC;1nF,20%,50V,Y5T,TP,5x3,5 PC28 2201-000338 C-CERAMIC,DISC;2.2nF,20%,50V,Y5T,TP,5.0x PC29 2201-000338 C-CERAMIC,DISC;2.2nF,20%,50V,Y5T,TP,5.0x PC15 2201-000368 C-CERAMIC,DISC;220pF,10%,50V,SL,TP,6.5x3 PC11 2201-000368 C-CERAMIC,DISC;220pF,10%,50V,SL,TP,6.5x3 PC55 2201-000547 C-CERAMIC,DISC;4.7nF,20%,500V,Y5T,TP,14x PC56 2201-000547 C-CERAMIC,DISC;4.7nF,20%,500V,Y5T,TP,14x PC57 2201-000547 C-CERAMIC,DISC;4.7nF,20%,500V,Y5T,TP,14x PC58 2201-000547 C-CERAMIC,DISC;4.7nF,20%,500V,Y5T,TP,14x PC54 2201-000547 C-CERAMIC,DISC;4.7nF,20%,500V,Y5T,TP,14x PC53 2201-000547 C-CERAMIC,DISC;4.7nF,20%,500V,Y5T,TP,14x PC52 2201-000547 C-CERAMIC,DISC;4.7nF,20%,500V,Y5T,TP,14x PC51 2201-000547 C-CERAMIC,DISC;4.7nF,20%,500V,Y5T,TP,14x PC62 2201-000565 C-CERAMIC,DISC;47nF,+80-20%,-,,-,12.5x4m PC61 2201-000565 C-CERAMIC,DISC;47nF,+80-20%,-,,-,12.5x4m PC60 2201-000565 C-CERAMIC,DISC;47nF,+80-20%,-,,-,12.5x4m PC59 2201-000565 C-CERAMIC,DISC;47nF,+80-20%,-,,-,12.5x4m PC27 2201-000674 C-CERAMIC,DISC;0.82nF,10%,50V,Y5P,BK,5x3 PC26 2201-000674 C-CERAMIC,DISC;0.82nF,10%,50V,Y5P,BK,5x3 PC3 2201-000783 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, PC8 2201-000783 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, PC5 2201-000783 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, PC4 2201-000783 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, PC35 2201-000838 C-CERAMIC,DISC;3pF,0.3pF,50V,CH,TP,5x3.5 PC33 2201-000838 C-CERAMIC,DISC;3pF,0.3pF,50V,CH,TP,5x3.5 PC14 2201-000838 C-CERAMIC,DISC;3pF,0.3pF,50V,CH,TP,5x3.5 PC10 2201-000838 C-CERAMIC,DISC;3pF,0.3pF,50V,CH,TP,5x3.5 PC38 2202-000781 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP PC34 2202-000781 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP JC2 2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3 JC1 2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3 PC7 2301-000379 C-FILM,PEF;10nF,10%,50V,TP,6x12x3.5mm,PC16 2301-000379 C-FILM,PEF;10nF,10%,50V,TP,6x12x3.5mm,PC9 2401-000357 C-AL;100uF,20%,50V,GP,-,8x11.5,3.5m PC50 2401-000357 C-AL;100uF,20%,50V,GP,-,8x11.5,3.5m PC21 2401-000357 C-AL;100uF,20%,50V,GP,-,8x11.5,3.5m PC20 2401-000357 C-AL;100uF,20%,50V,GP,-,8x11.5,3.5m PC18 2401-000475 C-AL;10uF,20%,50V,GP,TP,5x11mm,5mm PC19 2401-000475 C-AL;10uF,20%,50V,GP,TP,5x11mm,5mm PC61 2401-000970 C-AL;22uF,20%,50V,WT,TP,5x11,5 PC60 2401-001538 C-AL;47uF,20%,25V,GP,TP,5x11mm,5mm PC37 2401-001895 C-AL;100uF,20%,16V,GP,TP,6.3x11,2.5 PC36 2401-001895 C-AL;100uF,20%,16V,GP,TP,6.3x11,2.5 PC1 2401-001895 C-AL;100uF,20%,16V,GP,TP,6.3x11,2.5 PC8 2401-001975 C-AL;47uF,20%,16V,GP,TP,5x11mm,5mm PC17 2401-001975 C-AL;47uF,20%,16V,GP,TP,5x11mm,5mm PC32 2401-002180 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm PC31 2401-002180 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm JSW4 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST JSW5 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST JSW6 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST JSW7 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST JSW8 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST JSW9 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST JSW3 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST JSW1 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST JSW10 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST JSW11 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST JSW2 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST JSW13 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST JSW12 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST PCB AH41-00449A PCB-PCB AMP;MAX-WB650/VB630/675,-,-,-,1.

AH92-01373A ASSY PCB-MAIN;MAX-WB650, MAX-WB650

RR3 2003-000701 R-METAL OXIDE(S);470ohm,5%,2W,AA,TP,4x12 RC18 2201-000546 C-CERAMIC,DISC;4.7nF,20%,400V,Y5U,BK,16x RC19 2201-000546 C-CERAMIC,DISC;4.7nF,20%,400V,Y5U,BK,16x RC5 2401-000230 C-AL;100uF,20%,100V,GP,TP,12.5x20mm RC2 2401-003381 C-AL;3300uF,20%,63V,GP,BK,22x40,10 RC1 2401-003381 C-AL;3300uF,20%,63V,GP,BK,22x40,10 RC4 2401-003755 C-AL;6800UF,20%,35V,BP,TP,22X40MM,1 RC3 2401-003755 C-AL;6800UF,20%,35V,BP,TP,22X40MM,1 OLPF 2901-001139 FILTER-EMI ON BOARD;50V,.5A,-,390PF,7X2. RF1 3601-000248 FUSE-CARTRIDGE;250V,2A,TIME-LAG,GLASS,5x FCW4 3708-000181 CONNECTOR-FPC/FFC/PIC;16P,1.25mm,STRAIGH FCW2 3708-000181 CONNECTOR-FPC/FFC/PIC;16P,1.25mm,STRAIGH FCW1 3708-000181 CONNECTOR-FPC/FFC/PIC;16P,1.25mm,STRAIGH TCW1 3708-001051 CONNECTOR-FPC/FFC/PIC;13P,1.25mm,ANGLE,S RCW2 3711-000190 CONNECTOR-HEADER;1WALL,2P,1R,7.92mm,STRA DCW2 3711-000907 CONNECTOR-HEADER;BOX,3P,1R,2mm,STRAIGHT, CCW1 3711-001137 CONNECTOR-HEADER;BOX,8P,1R,2mm,STRAIGHT, RCW1 3711-001485 CONNECTOR-HEADER;NOWALL,3P,1R,8MM,STRAIG DCW3 3711-003107 CONNECTOR-HEADER;BOX,3P,1R,2.5mm,STRAIGH DCW1 3711-003111 CONNECTOR-HEADER;BOX,6P,1R,2.5mm,STRAIGH RCW5 3711-003112 CONNECTOR-HEADER;BOX,8P,1R,2.5mm,STRAIGH ACW1 3711-003113 CONNECTOR-HEADER;BOX,9P,1R,2.5mm,STRAIGH AJCK 3722-000377 JACK-PIN;4P/2C,3.5mm,SN,BLK,#16~22

6003-000276 SCREW-TAPTITE;BH,+,B,M3,L10,ZPC(YEL),SWC

6003-000276 SCREW-TAPTITE;BH,+,B,M3,L10,ZPC(YEL),SWC OIC1 AH14-10004R IC;M74HCU04,SOP,TAPE 14P DL1 AH26-10002W TRANS TRAP-COIL;BIAS-TRAP105K,BIAS-TRAP, DL2 AH26-10002W TRANS TRAP-COIL;BIAS-TRAP105K,BIAS-TRAP, DL4 AH26-10003C TRANS TRAP-COIL;PCHNS-5371EQJ,BIAS-TRAP, RL1 AH27-10001F COIL-CHOKE;27uH,K,Q30,-,-,DR(6.5*7.5),-, RL3 AH27-90001A COIL-SPRING;-,2.2UH,-,-,-,SPRING,-,-,-,RL2 AH27-90001A COIL-SPRING;-,2.2UH,-,-,-,SPRING,-,-,-,OCW1 AH39-00096B LEAD CONNECTOR ASSY;RXD-DV9,#1007,28,AWG

AH61-40014A SUPPORT-RIVET;-,-,-,-,-,-,-

AH62-00044A HEAT SINK-,IC;MAX-L85,AL 3.0T,-,-,-,-,-,

AH63-00278A COVER-PCB;MAX-WL85,PVC 0.5T,-,-,-,-,CLR, FD1 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, TD1 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, TD2 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, WD1 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, RD1 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP RD12 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP RD2 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP RD13 0402-000151 DIODE-RECTIFIER;1N5392,100V,1.5A,DO-15,T RD9 0402-000151 DIODE-RECTIFIER;1N5392,100V,1.5A,DO-15,T RD10 0402-000151 DIODE-RECTIFIER;1N5392,100V,1.5A,DO-15,T RD11 0402-000151 DIODE-RECTIFIER;1N5392,100V,1.5A,DO-15,T RZD1 0403-000354 DIODE-ZENER;UZ5.1B,5.1V,4.8-5.4V,500mW,D WZD1 0403-000354 DIODE-ZENER;UZ5.1B,5.1V,4.8-5.4V,500mW,D FZD1 0403-000372 DIODE-ZENER;UZ9.1BM,9.1V,8.7-9.4V,500mW, RZD5 0403-000379 DIODE-ZENER;UZP12B,12V,11.4-12.6V,1W,DORZD3 0403-000570 DIODE-ZENER;UZP18B,18V,16.9-19.1V,1W,DORZD2 0403-000570 DIODE-ZENER;UZP18B,18V,16.9-19.1V,1W,DORZD4 0403-001010 DIODE-ZENER;UZ5.6BCC,5.6V,5.64-5.88V,500 DQ8 0501-000010 TR-SMALL SIGNAL;KSC1008,NPN,800mW,TO-92, DQ7 0501-000010 TR-SMALL SIGNAL;KSC1008,NPN,800mW,TO-92, DQ6 0501-000010 TR-SMALL SIGNAL;KSC1008,NPN,800mW,TO-92, DQ9 0501-000010 TR-SMALL SIGNAL;KSC1008,NPN,800mW,TO-92, RQ2 0501-000294 TR-SMALL SIGNAL;KSA708-Y,PNP,800mW,TO-92 CQ2 0501-000331 TR-SMALL SIGNAL;KSC1009-Y,NPN,800mW,TO-9 CQ3 0501-000331 TR-SMALL SIGNAL;KSC1009-Y,NPN,800mW,TO-9 DQ4 0501-000369 TR-SMALL SIGNAL;KSC2331-Y,NPN,1000mW,TODQ1 0501-000398 TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T FQ1 0501-000398 TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T DQ10 0501-000407 TR-SMALL SIGNAL;KSD471A-Y,NPN,800mW,TO-9 DQ10 0501-000407 TR-SMALL SIGNAL;KSD471A-Y,NPN,800mW,TO-9 DQ11 0501-000407 TR-SMALL SIGNAL;KSD471A-Y,NPN,800mW,TO-9 DQ5 0501-000407 TR-SMALL SIGNAL;KSD471A-Y,NPN,800mW,TO-9 RQ1 0501-000610 TR-SMALL SIGNAL;KSA928A-Y,PNP,1W,TO-92L, DQ3 0501-000610 TR-SMALL SIGNAL;KSA928A-Y,PNP,1W,TO-92L, DQ40 0504-001003 TR-DIGITAL;KSR2003,PNP,300MW,22K/22K,TOCQ1 0504-001003 TR-DIGITAL;KSR2003,PNP,300MW,22K/22K,TOFR1 2001-000008 R-CARBON;15Kohm,5%,1/8W,AA,TP,1.8x3.2mm CR7 2001-000008 R-CARBON;15Kohm,5%,1/8W,AA,TP,1.8x3.2mm CR5 2001-000008 R-CARBON;15Kohm,5%,1/8W,AA,TP,1.8x3.2mm CR4 2001-000008 R-CARBON;15Kohm,5%,1/8W,AA,TP,1.8x3.2mm CR2 2001-000008 R-CARBON;15Kohm,5%,1/8W,AA,TP,1.8x3.2mm FR8 2001-000008 R-CARBON;15Kohm,5%,1/8W,AA,TP,1.8x3.2mm WR6 2001-000012 R-CARBON;680Kohm,5%,1/8W,AA,TP,1.8x3.2m RR8 2001-000016 R-CARBON(S);1OHM,5%,1/2W,AA,TP,2.4X6.4MM RR14 2001-000017 R-CARBON;4.7ohm,5%,1/4W,AA,TP,2.4x6.4mm FR11 2001-000027 R-CARBON;100ohm,5%,1/4W,AA,TP,2.4x6.4mm RR10 2001-000038 R-CARBON;390ohm,5%,1/4W,AA,TP,2.4x6.4mm DR18 2001-000111 R-CARBON;150ohm,5%,1/4W,AA,TP,2.4x6.4mm WR7 2001-000241 R-CARBON;1.5Kohm,5%,1/8W,AA,TP,1.8x3.2m DR4 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm DR2 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm DR17 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm DR1 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm WR1 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm TR6 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm TR5 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm TR4 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm

Location no Code no. Description Specifiation Remarks Location no Code no. Description Specifiation Remarks

3-6 Samsung Electronics

Page 18

TR3 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm TR2 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm TR1 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm DR24 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm DR3 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm WR9 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm DR9 2001-000302 R-CARBON;10ohm,5%,1/8W,AA,TP,1.8x3.2mm DR11 2001-000302 R-CARBON;10ohm,5%,1/8W,AA,TP,1.8x3.2mm TR12 2001-000331 R-CARBON;12Kohm,5%,1/8W,AA,TP,1.8x3.2mm TR9 2001-000331 R-CARBON;12Kohm,5%,1/8W,AA,TP,1.8x3.2mm RR4 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm KR30 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm DR10 2001-000435 R-CARBON;1Mohm,5%,1/8W,AA,TP,1.8x3.2mm FR17 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m KR12 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m KR15 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m FR16 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m DR6 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m DR13 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m RR11 2001-000472 R-CARBON;2.7Kohm,5%,1/8W,AA,TP,1.8x3.2m WR3 2001-000515 R-CARBON;220ohm,5%,1/8W,AA,TP,1.8x3.2mm WR10 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm DR5 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm TR8 2001-000563 R-CARBON;27Kohm,5%,1/8W,AA,TP,1.8x3.2mm RR12 2001-000563 R-CARBON;27Kohm,5%,1/8W,AA,TP,1.8x3.2mm DR7 2001-000563 R-CARBON;27Kohm,5%,1/8W,AA,TP,1.8x3.2mm DR14 2001-000563 R-CARBON;27Kohm,5%,1/8W,AA,TP,1.8x3.2mm FR4 2001-000591 R-CARBON;3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m FR5 2001-000591 R-CARBON;3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m FR7 2001-000591 R-CARBON;3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m WR5 2001-000591 R-CARBON;3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m FR2 2001-000591 R-CARBON;3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m DR28 2001-000591 R-CARBON;3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m DR21 2001-000591 R-CARBON;3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m DR20 2001-000591 R-CARBON;3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m CR1 2001-000591 R-CARBON;3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m RR6 2001-000613 R-CARBON;3.9Kohm,5%,1/8W,AA,TP,1.8x3.2m FR13 2001-000645 R-CARBON;330Kohm,5%,1/8W,AA,TP,1.8x3.2m WR8 2001-000660 R-CARBON;33Kohm,5%,1/8W,AA,TP,1.8x3.2mm DR29 2001-000702 R-CARBON;39Kohm,5%,1/8W,AA,TP,1.8x3.2mm FR12 2001-000702 R-CARBON;39Kohm,5%,1/8W,AA,TP,1.8x3.2mm WR4 2001-000702 R-CARBON;39Kohm,5%,1/8W,AA,TP,1.8x3.2mm RR5 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m KR9 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m KR6 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m DR25 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m DR22 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m DR16 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m DR15 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m TR10 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m TR11 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m TR7 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m WR11 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m FR23 2001-000773 R-CARBON;470Kohm,5%,1/8W,AA,TP,1.8x3.2m WR50 2001-000780 R-CARBON;470ohm,5%,1/8W,AA,TP,1.8x3.2mm FR3 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm FR6 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm RR20 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm WR12 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm FR15 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm FR14 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm DR19 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm DR17 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm CR3 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm CR6 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm WR2 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm WR13 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm FR10 2001-000802 R-CARBON;5.6Kohm,5%,1/8W,AA,TP,1.8x3.2m FR9 2001-000802 R-CARBON;5.6Kohm,5%,1/8W,AA,TP,1.8x3.2m WR20 2001-000802 R-CARBON;5.6Kohm,5%,1/8W,AA,TP,1.8x3.2m FR20 2001-000864 R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm FR21 2001-000864 R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm DR27 2001-000890 R-CARBON;6.8Kohm,5%,1/8W,AA,TP,1.8x3.2m RR7 2001-000890 R-CARBON;6.8Kohm,5%,1/8W,AA,TP,1.8x3.2m DR37 2001-000890 R-CARBON;6.8Kohm,5%,1/8W,AA,TP,1.8x3.2m DR36 2001-000890 R-CARBON;6.8Kohm,5%,1/8W,AA,TP,1.8x3.2m DR35 2001-000890 R-CARBON;6.8Kohm,5%,1/8W,AA,TP,1.8x3.2m DR34 2001-000890 R-CARBON;6.8Kohm,5%,1/8W,AA,TP,1.8x3.2m DR12 2001-000890 R-CARBON;6.8Kohm,5%,1/8W,AA,TP,1.8x3.2m DR33 2001-000924 R-CARBON;680ohm,5%,1/8W,AA,TP,1.8x3.2mm DR32 2001-000924 R-CARBON;680ohm,5%,1/8W,AA,TP,1.8x3.2mm DR31 2001-000924 R-CARBON;680ohm,5%,1/8W,AA,TP,1.8x3.2mm DR30 2001-000924 R-CARBON;680ohm,5%,1/8W,AA,TP,1.8x3.2mm DR8 2001-000977 R-CARBON;8.2KOHM,5%,1/8W,AA,TP,1.8x3.2m DR26 2001-000977 R-CARBON;8.2KOHM,5%,1/8W,AA,TP,1.8x3.2m RR13 2001-001004 R-CARBON;82ohm,5%,1/4W,AA,TP,2.4x6.4mm DR23 2001-001093 R-CARBON(S);2.2Kohm,5%,1/2W,AA,TP,2.4x6. RR1 2001-001153 R-CARBON(S);47ohm,5%,1/2W,AA,TP,2.4x6.4m RR2 2001-001153 R-CARBON(S);47ohm,5%,1/2W,AA,TP,2.4x6.4m DSR1 2103-000248 VR-SEMI;200Kohm,30%,1/10W,TOP DSR2 2103-000248 VR-SEMI;200Kohm,30%,1/10W,TOP RC26 2201-000161 C-CERAMIC,DISC;10nF,+80-20%,500V,Y5V,TP, RC25 2201-000161 C-CERAMIC,DISC;10nF,+80-20%,500V,Y5V,TP,

DC23 2201-000163 C-CERAMIC,DISC;10nF,+80-20%,50V,Y5V,TP,7 DC22 2201-000163 C-CERAMIC,DISC;10nF,+80-20%,50V,Y5V,TP,7 DC19 2201-000163 C-CERAMIC,DISC;10nF,+80-20%,50V,Y5V,TP,7 DC18 2201-000163 C-CERAMIC,DISC;10nF,+80-20%,50V,Y5V,TP,7 FC29 2201-000368 C-CERAMIC,DISC;220pF,10%,50V,SL,TP,6.5x3 FC3 2201-000368 C-CERAMIC,DISC;220pF,10%,50V,SL,TP,6.5x3 FC6 2201-000368 C-CERAMIC,DISC;220pF,10%,50V,SL,TP,6.5x3 FC28 2201-000368 C-CERAMIC,DISC;220pF,10%,50V,SL,TP,6.5x3 FC27 2201-000368 C-CERAMIC,DISC;220pF,10%,50V,SL,TP,6.5x3 FC26 2201-000368 C-CERAMIC,DISC;220pF,10%,50V,SL,TP,6.5x3 DC17 2201-000368 C-CERAMIC,DISC;220pF,10%,50V,SL,TP,6.5x3 OC3 2201-000381 C-CERAMIC,DISC;22nF,+80%,50V,-,,8x4mm,OC1 2201-000487 C-CERAMIC,DISC;33pF,5%,50V,SL,TP,5x3,5m WC4 2201-000557 C-CERAMIC,DISC;0.47nF,10%,50V,SL,TP,8x3. DC1 2201-000674 C-CERAMIC,DISC;0.82nF,10%,50V,Y5P,BK,5x3 DC29 2201-000674 C-CERAMIC,DISC;0.82nF,10%,50V,Y5P,BK,5x3 TC7 2202-000781 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP TC6 2202-000781 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP TC5 2202-000781 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP FC14 2301-000361 C-FILM,PEF;1.2nF,10%,50V,TP,-,5mm FC15 2301-000375 C-FILM,PEF;100nF,5%,50V,TP,11x12.5x6.5,7 FC16 2301-000375 C-FILM,PEF;100nF,5%,50V,TP,11x12.5x6.5,7 FC17 2301-000375 C-FILM,PEF;100nF,5%,50V,TP,11x12.5x6.5,7 FC32 2301-000375 C-FILM,PEF;100nF,5%,50V,TP,11x12.5x6.5,7 WC5 2301-000375 C-FILM,PEF;100nF,5%,50V,TP,11x12.5x6.5,7 DC10 2301-000375 C-FILM,PEF;100nF,5%,50V,TP,11x12.5x6.5,7 DC25 2301-000375 C-FILM,PEF;100nF,5%,50V,TP,11x12.5x6.5,7 DC26 2301-000375 C-FILM,PEF;100nF,5%,50V,TP,11x12.5x6.5,7 DC7 2301-000375 C-FILM,PEF;100nF,5%,50V,TP,11x12.5x6.5,7 FC13 2301-000375 C-FILM,PEF;100nF,5%,50V,TP,11x12.5x6.5,7 DC24 2301-000379 C-FILM,PEF;10nF,10%,50V,TP,6x12x3.5mm,DC11 2301-000379 C-FILM,PEF;10nF,10%,50V,TP,6x12x3.5mm,DC16 2301-000404 C-FILM,PEF;2.2nF,10%,50V,TP,5.5x12x3mm,DC15 2301-000404 C-FILM,PEF;2.2nF,10%,50V,TP,5.5x12x3mm,DC14 2301-000404 C-FILM,PEF;2.2nF,10%,50V,TP,5.5x12x3mm,DC13 2301-000407 C-FILM,PEF;2.7nF,10%,50V,TP,5.5x12x3mm,WC9 2301-000412 C-FILM,PEF;22nF,10%,50V,TP,8x12x4mm,DC31 2301-000412 C-FILM,PEF;22nF,10%,50V,TP,8x12x4mm,CC2 2301-000449 C-FILM,PEF;47nF,10%,50V,TP,9.5x12.5x5mm, FC12 2301-000454 C-FILM,PEF;5.6nF,10%,50V,TP,6x12x3,3.5mm FC11 2301-000454 C-FILM,PEF;5.6nF,10%,50V,TP,6x12x3,3.5mm CC3 2401-000129 C-AL;1000uF,20%,16V,GP,-,10x16mm,5 OC2 2401-000240 C-AL;100uF,20%,10V,GP,TP,5x11,5 RC6 2401-000357 C-AL;100uF,20%,50V,GP,-,8x11.5,3.5m CC5 2401-000419 C-AL;10UF,20%,16V,GP,5*11,5MM,TP DC30 2401-000419 C-AL;10UF,20%,16V,GP,5*11,5MM,TP RC9 2401-000438 C-AL;10uF,20%,25V,GP,-,5x11,2mm WC1 2401-000475 C-AL;10uF,20%,50V,GP,TP,5x11mm,5mm WC2 2401-000475 C-AL;10uF,20%,50V,GP,TP,5x11mm,5mm WC3 2401-000475 C-AL;10uF,20%,50V,GP,TP,5x11mm,5mm WC8 2401-000475 C-AL;10uF,20%,50V,GP,TP,5x11mm,5mm FC20 2401-000649 C-AL;2.2uF,20%,50V,BP,TP,5x11,5 FC21 2401-000649 C-AL;2.2uF,20%,50V,BP,TP,5x11,5 DC2 2401-000778 C-AL;220uF,20%,10V,GP,-,6.3x11,2.5m RC11 2401-000795 C-AL;220uF,20%,16V,GP,TP,8x12mm,5mm CC1 2401-000907 C-AL;22uF,20%,16V,GP,TP,5x11mm,5mm FC10 2401-000907 C-AL;22uF,20%,16V,GP,TP,5x11mm,5mm RC10 2401-000907 C-AL;22uF,20%,16V,GP,TP,5x11mm,5mm FC1 2401-001022 C-AL;3.3UF,20%,50V,GP,TP,5X11,5 DC5 2401-001080 C-AL;330nF,20%,50V,GP,-,5x11,2mm DC4 2401-001102 C-AL;330uF,20%,16V,GP,TP,8x11.5mm,5 RC8 2401-001625 C-AL;6.8uF,20%,50V,GP,TP,5x11,5 CC4 2401-001895 C-AL;100uF,20%,16V,GP,TP,6.3x11,2.5 RC7 2401-001912 C-AL;1uF,20%,50V,GP,5*11,5mm,TP FC9 2401-001912 C-AL;1uF,20%,50V,GP,5*11,5mm,TP FC8 2401-001912 C-AL;1uF,20%,50V,GP,5*11,5mm,TP FC23 2401-001912 C-AL;1uF,20%,50V,GP,5*11,5mm,TP FC22 2401-001912 C-AL;1uF,20%,50V,GP,5*11,5mm,TP DC20 2401-001912 C-AL;1uF,20%,50V,GP,5*11,5mm,TP FC25 2401-001954 C-AL;4.7uF,20%,50V,GP,TP,5x11mm,5mm FC2 2401-001954 C-AL;4.7uF,20%,50V,GP,TP,5x11mm,5mm FC33 2401-001954 C-AL;4.7uF,20%,50V,GP,TP,5x11mm,5mm FC4 2401-001954 C-AL;4.7uF,20%,50V,GP,TP,5x11mm,5mm FC24 2401-001965 C-AL;470nF,20%,50V,BP,TP,4x7mm,5mm DC32 2401-001975 C-AL;47uF,20%,16V,GP,TP,5x11mm,5mm DC21 2401-001975 C-AL;47uF,20%,16V,GP,TP,5x11mm,5mm DC12 2401-001975 C-AL;47uF,20%,16V,GP,TP,5x11mm,5mm FC19 2401-002180 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm FC18 2401-002180 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm DC9 2401-002180 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm DC8 2401-002180 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm DC6 2401-002180 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm DC28 2401-002180 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm DC27 2401-002180 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm CL1 2701-000114 INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm CL1 2701-000116 INDUCTOR-AXIAL;10uH,10%,4.2x9.8mm CL2 2701-000179 INDUCTOR-AXIAL;33uH,10%,4.2x9.8mm DL3 2701-000298 INDUCTOR-AXIAL;470uH,10%,4.2x9.8mm RF2 3602-000147 FUSE-CLIP;250V,7.5A,30mohm PCB AH41-00434A PCB;MAX-B550/570/VB555/D,-,-,-,-,3

AH92-01374A ASSY PCB-AMP;MAX-WB650, MAX-WB650

PIC1 1201-001582 IC-POWER AMP;402-070,SIP,15P,-,DUAL,30dB

Location no Code no. Description Specifiation Remarks Location no Code no. Description Specifiation Remarks

Samsung Electronics 3-7

Page 19

PIC2 1201-001844 IC-POWER AMP;STK412-020,SIP,18P,2520MIL, PR41 2003-000008 R-METAL OXIDE(S);100ohm,5%,1W,AA,TP ,3.3x PR42 2003-000008 R-METAL OXIDE(S);100ohm,5%,1W,AA,TP ,3.3x PR31 2003-000390 R-METAL OXIDE(S);0.27OHM,5%,2W,AA,TP , PR34 2003-000390 R-METAL OXIDE(S);0.27OHM,5%,2W,AA,TP , PR33 2003-000390 R-METAL OXIDE(S);0.27OHM,5%,2W,AA,TP , PR32 2003-000390 R-METAL OXIDE(S);0.27OHM,5%,2W,AA,TP , PR5 2003-000578 R-METALOXIDE(S);220ohm,5%,2W,AA,TP,4x12 PR6 2003-000578 R-METALOXIDE(S);220ohm,5%,2W,AA,TP,4x12 PR45 2009-001117 R-METALPLA TE;0.1OHM,5%,5W,CL,BK,5X13X18 PR46 2009-001117 R-METALPLA TE;0.1OHM,5%,5W,CL,BK,5X13X18 PR47 2009-001117 R-METALPLA TE;0.1OHM,5%,5W,CL,BK,5X13X18 PR48 2009-001117 R-METALPLA TE;0.1OHM,5%,5W,CL,BK,5X13X18 PR58 2009-001117 R-METALPLA TE;0.1OHM,5%,5W,CL,BK,5X13X18 PR59 2009-001117 R-METALPLA TE;0.1OHM,5%,5W,CL,BK,5X13X18 PC22 2401-000230 C-AL;100uF,20%,100V ,GP,TP,12.5x20mm PC23 2401-000230 C-AL;100uF,20%,100V ,GP,TP,12.5x20mm PC24 2401-000230 C-AL;100uF,20%,100V ,GP,TP,12.5x20mm PC25 2401-000230 C-AL;100uF,20%,100V ,GP,TP,12.5x20mm JVR1 3406-001054 SWITCH-ROTARY;5V DC,0.5mA,-,7.5mm PREL1 3501-001197 RELAY-MINIATURE;12VDC,0.54W,44.4mA,1Form PREL2 3501-001197 RELAY-MINIATURE;12VDC,0.54W,44.4mA,1Form PW4 3708-000181 CONNECTOR-FPC/FFC/PIC;16P,1.25mm,STRAIGH JCW1 3708-000451 CONNECTOR-FPC/FFC/PIC;16P,1.25mm,STRAIGH PW2 3710-001793 CONNECTOR-SOCKET;9P,1R,2.5MM,STRAIGHT,SN PW1 3710-001793 CONNECTOR-SOCKET;9P,1R,2.5MM,STRAIGHT,SN PCW1 3711-004989 CONNECTOR-HEADER;2WALL,9P,1R,2.5MM,ANGLE PCW2 3711-004989 CONNECTOR-HEADER;2WALL,9P,1R,2.5MM,ANGLE SPJACK 3716-001164 TERMINAL-BLOCK;SOLDER,8P,-,60V,7A

6003-001230 SCREW-TAPTITE;BH,+,B,M3,L16,ZPC(YEL),SWR PL7 AH27-90001A COIL-SPRING;-,2.2UH,-,-,-,SPRING,-,-,-,PL6 AH27-90001A COIL-SPRING;-,2.2UH,-,-,-,SPRING,-,-,-,PL5 AH27-90001A COIL-SPRING;-,2.2UH,-,-,-,SPRING,-,-,-,PL4 AH27-90001A COIL-SPRING;-,2.2UH,-,-,-,SPRING,-,-,-,PL3 AH27-90001A COIL-SPRING;-,2.2UH,-,-,-,SPRING,-,-,-,PL2 AH27-90001A COIL-SPRING;-,2.2UH,-,-,-,SPRING,-,-,-,PL1 AH27-90001A COIL-SPRING;-,2.2UH,-,-,-,SPRING,-,-,-,PL8 AH27-90001A COIL-SPRING;-,2.2UH,-,-,-,SPRING,-,-,-,PCW3 AH39-00295A W/HARNESS UNIT;MAX-L85,-,-,9P,-,-,-,SCN-

AH60-10051A SCREW-TAPTITE;-,-,FE,-,B,M3,L8,-,-,-

AH61-00973A BRACKET-H/SINK,L;MAX-WB650,SECC T1.0,-,-

AH61-00977A BRACKET-H/SINK,R;NAX-WB650,SECC T1.0,-,-

AH62-00063A HEAT SINK-,M;MAX-WB650,AL EXTR,-,-,-,-,PD5 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, PD4 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, PD3 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, PD2 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP PD1 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP PZD1 0403-000382 DIODE-ZENER;UZP15B,15V,13.9-15.6V,1W,DOPZD2 0403-000382 DIODE-ZENER;UZP15B,15V,13.9-15.6V,1W,DOPQ9 0501-000296 TR-SMALL SIGNAL;KSA709-Y,PNP,800mW,TO-92 PQ6 0501-000296 TR-SMALL SIGNAL;KSA709-Y,PNP,800mW,TO-92 PQ10 0501-000296 TR-SMALL SIGNAL;KSA709-Y,PNP,800mW,TO-92 PQ8 0501-000331 TR-SMALL SIGNAL;KSC1009-Y,NPN,800mW,TO-9 PQ5 0501-000331 TR-SMALL SIGNAL;KSC1009-Y,NPN,800mW,TO-9 PQ16 0501-000369 TR-SMALL SIGNAL;KSC2331-Y,NPN,1000mW,TOPQ17 0501-000369 TR-SMALL SIGNAL;KSC2331-Y,NPN,1000mW,TOPQ4 0501-000407 TR-SMALL SIGNAL;KSD471A-Y,NPN,800mW,TO-9 PQ3 0501-000407 TR-SMALL SIGNAL;KSD471A-Y,NPN,800mW,TO-9 PQ2 0501-000407 TR-SMALL SIGNAL;KSD471A-Y,NPN,800mW,TO-9 PQ15 0501-000407 TR-SMALL SIGNAL;KSD471A-Y,NPN,800mW,TO-9 PQ1 0501-000407 TR-SMALL SIGNAL;KSD471A-Y,NPN,800mW,TO-9 PQ11 0501-000407 TR-SMALL SIGNAL;KSD471A-Y,NPN,800mW,TO-9 PQ12 0501-000407 TR-SMALL SIGNAL;KSD471A-Y,NPN,800mW,TO-9 PQ14 0501-000407 TR-SMALL SIGNAL;KSD471A-Y,NPN,800mW,TO-9 PQ7 0504-001003 TR-DIGITAL;KSR2003,PNP,300MW,22K/22K,TOPQ13 0504-001003 TR-DIGITAL;KSR2003,PNP,300MW,22K/22K,TOJLD5 0601-001238 LED;ROUND,RED,3.1mm,697nm JLD1 0601-001238 LED;ROUND,RED,3.1mm,697nm JLD10 0601-001238 LED;ROUND,RED,3.1mm,697nm JLD2 0601-001238 LED;ROUND,RED,3.1mm,697nm JLD3 0601-001238 LED;ROUND,RED,3.1mm,697nm JLD4 0601-001238 LED;ROUND,RED,3.1mm,697nm JLD6 0601-001238 LED;ROUND,RED,3.1mm,697nm JLD7 0601-001238 LED;ROUND,RED,3.1mm,697nm JLD8 0601-001238 LED;ROUND,RED,3.1mm,697nm JLD9 0601-001238 LED;ROUND,RED,3.1mm,697nm PR65 2001-000008 R-CARBON;15Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR69 2001-000008 R-CARBON;15Kohm,5%,1/8W,AA,TP,1.8x3.2mm JR18 2001-000221 R-CARBON;1.2Kohm,5%,1/8W,AA,TP,1.8x3.2m JR21 2001-000241 R-CARBON;1.5Kohm,5%,1/8W,AA,TP,1.8x3.2m PR28 2001-000241 R-CARBON;1.5Kohm,5%,1/8W,AA,TP,1.8x3.2m PR36 2001-000241 R-CARBON;1.5Kohm,5%,1/8W,AA,TP,1.8x3.2m JR1 2001-000258 R-CARBON;1.8Kohm,5%,1/8W,AA,TP,1.8x3.2m PR72 2001-000273 R-CARBON;100Kohm,5%,1/8W,AA,TP,1.8x3.2m PR70 2001-000273 R-CARBON;100Kohm,5%,1/8W,AA,TP,1.8x3.2m PR57 2001-000273 R-CARBON;100Kohm,5%,1/8W,AA,TP,1.8x3.2m PR56 2001-000273 R-CARBON;100Kohm,5%,1/8W,AA,TP,1.8x3.2m PR1 2001-000273 R-CARBON;100Kohm,5%,1/8W,AA,TP,1.8x3.2m PR13 2001-000273 R-CARBON;100Kohm,5%,1/8W,AA,TP,1.8x3.2m PR20 2001-000273 R-CARBON;100Kohm,5%,1/8W,AA,TP,1.8x3.2m PR4 2001-000273 R-CARBON;100Kohm,5%,1/8W,AA,TP,1.8x3.2m PR79 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm

PR78 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR76 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR30 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm JR7 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR68 2001-000302 R-CARBON;10ohm,5%,1/8W,AA,TP,1.8x3.2mm PR64 2001-000302 R-CARBON;10ohm,5%,1/8W,AA,TP,1.8x3.2mm JR20 2001-000405 R-CARBON;180OHM,5%,1/8W,AA,TP,1.8X3.2MM JR21 2001-000405 R-CARBON;180OHM,5%,1/8W,AA,TP,1.8X3.2MM JR4 2001-000405 R-CARBON;180OHM,5%,1/8W,AA,TP,1.8X3.2MM JR5 2001-000405 R-CARBON;180OHM,5%,1/8W,AA,TP,1.8X3.2MM JR6 2001-000405 R-CARBON;180OHM,5%,1/8W,AA,TP,1.8X3.2MM JR11 2001-000405 R-CARBON;180OHM,5%,1/8W,AA,TP,1.8X3.2MM JR12 2001-000405 R-CARBON;180OHM,5%,1/8W,AA,TP,1.8X3.2MM JR13 2001-000405 R-CARBON;180OHM,5%,1/8W,AA,TP,1.8X3.2MM JR14 2001-000405 R-CARBON;180OHM,5%,1/8W,AA,TP,1.8X3.2MM JR15 2001-000405 R-CARBON;180OHM,5%,1/8W,AA,TP,1.8X3.2MM PR51 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR81 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR82 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR84 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR85 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR50 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm JR19 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR15 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR18 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR19 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR24 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm JR2 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m PR77 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR74 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR67 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR63 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm JR9 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR62 2001-000563 R-CARBON;27Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR66 2001-000563 R-CARBON;27Kohm,5%,1/8W,AA,TP,1.8x3.2mm JR3 2001-000591 R-CARBON;3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m PR53 2001-000660 R-CARBON;33Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR23 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m PR71 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m PR73 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m PR80 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m PR83 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m JR22 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m JR50 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m PR16 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m PR17 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m PR22 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m PR61 2001-000780 R-CARBON;470ohm,5%,1/8W,AA,TP,1.8x3.2mm PR60 2001-000780 R-CARBON;470ohm,5%,1/8W,AA,TP,1.8x3.2mm PR21 2001-000780 R-CARBON;470ohm,5%,1/8W,AA,TP,1.8x3.2mm PR14 2001-000780 R-CARBON;470ohm,5%,1/8W,AA,TP,1.8x3.2mm PR75 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR3 2001-000802 R-CARBON;5.6Kohm,5%,1/8W,AA,TP,1.8x3.2m PR2 2001-000802 R-CARBON;5.6Kohm,5%,1/8W,AA,TP,1.8x3.2m PR49 2001-000864 R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR52 2001-000864 R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR54 2001-000864 R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR55 2001-000864 R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm JR10 2001-000864 R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR27 2001-000864 R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR29 2001-000864 R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR35 2001-000864 R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR37 2001-000864 R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm JR8 2001-000890 R-CARBON;6.8Kohm,5%,1/8W,AA,TP,1.8x3.2m JR17 2001-000995 R-CARBON;820ohm,5%,1/8W,AA,TP,1.8x3.2mm PR11 2001-001000 R-CARBON;82Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR12 2001-001000 R-CARBON;82Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR40 2001-001077 R-CARBON(S);150ohm,5%,1/2W,AA,TP,2.4x6.4 PR39 2001-001077 R-CARBON(S);150ohm,5%,1/2W,AA,TP,2.4x6.4 PR25 2003-000008 R-METAL OXIDE(S);100ohm,5%,1W,AA,TP,3.3x PR26 2003-000008 R-METAL OXIDE(S);100ohm,5%,1W,AA,TP,3.3x PR44 2003-000428 R-METAL OXIDE(S);1.5Kohm,5%,1W,AA,TP,3.3 PR43 2003-000428 R-METAL OXIDE(S);1.5Kohm,5%,1W,AA,TP,3.3 PR9 2003-000689 R-METALOXIDE(S);4.7ohm,5%,1W,AA,TP,3.3x PR8 2003-000689 R-METALOXIDE(S);4.7ohm,5%,1W,AA,TP,3.3x PR7 2003-000689 R-METALOXIDE(S);4.7ohm,5%,1W,AA,TP,3.3x PR38 2003-000689 R-METAL OXIDE(S);4.7ohm,5%,1W,AA,TP,3.3x PR10 2003-000689 R-METAL OXIDE(S);4.7ohm,5%,1W,AA,TP,3.3x PC13 2201-000300 C-CERAMIC,DISC;1nF,20%,50V,Y5T,TP,5x3,5 PC12 2201-000300 C-CERAMIC,DISC;1nF,20%,50V,Y5T,TP,5x3,5 PC29 2201-000338 C-CERAMIC,DISC;2.2nF,20%,50V,Y5T,TP,5.0x PC28 2201-000338 C-CERAMIC,DISC;2.2nF,20%,50V,Y5T,TP,5.0x PC51 2201-000547 C-CERAMIC,DISC;4.7nF,20%,500V,Y5T,TP,14x PC52 2201-000547 C-CERAMIC,DISC;4.7nF,20%,500V,Y5T,TP,14x PC53 2201-000547 C-CERAMIC,DISC;4.7nF,20%,500V,Y5T,TP,14x PC58 2201-000547 C-CERAMIC,DISC;4.7nF,20%,500V,Y5T,TP,14x PC57 2201-000547 C-CERAMIC,DISC;4.7nF,20%,500V,Y5T,TP,14x PC56 2201-000547 C-CERAMIC,DISC;4.7nF,20%,500V,Y5T,TP,14x PC55 2201-000547 C-CERAMIC,DISC;4.7nF,20%,500V,Y5T,TP,14x PC54 2201-000547 C-CERAMIC,DISC;4.7nF,20%,500V,Y5T,TP,14x PC62 2201-000565 C-CERAMIC,DISC;47nF,+80-20%,-,,-,12.5x4m PC61 2201-000565 C-CERAMIC,DISC;47nF,+80-20%,-,,-,12.5x4m PC60 2201-000565 C-CERAMIC,DISC;47nF,+80-20%,-,,-,12.5x4m

Location no Code no. Description Specifiation Remarks Location no Code no. Description Specifiation Remarks

3-8 Samsung Electronics

Page 20

PC59 2201-000565 C-CERAMIC,DISC;47nF,+80-20%,-,,-,12.5x4m PC26 2201-000674 C-CERAMIC,DISC;0.82nF,10%,50V,Y5P,BK,5x3 PC27 2201-000674 C-CERAMIC,DISC;0.82nF,10%,50V,Y5P,BK,5x3 PC3 2201-000783 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, PC35 2201-000838 C-CERAMIC,DISC;3pF,0.3pF,50V,CH,TP,5x3.5 PC33 2201-000838 C-CERAMIC,DISC;3pF,0.3pF,50V,CH,TP,5x3.5 PC14 2201-000838 C-CERAMIC,DISC;3pF,0.3pF,50V,CH,TP,5x3.5 PC10 2201-000838 C-CERAMIC,DISC;3pF,0.3pF,50V,CH,TP,5x3.5 JC2 2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3 JC1 2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3 PC38 2202-000806 C-CERAMIC,MLC-AXIAL;220pF,10%,50V,Y5P,TP PC34 2202-000806 C-CERAMIC,MLC-AXIAL;220pF,10%,50V,Y5P,TP PC15 2202-000806 C-CERAMIC,MLC-AXIAL;220pF,10%,50V,Y5P,TP PC11 2202-000806 C-CERAMIC,MLC-AXIAL;220pF,10%,50V,Y5P,TP PC5 2301-000375 C-FILM,PEF;100nF,5%,50V,TP,11x12.5x6.5,7 PC4 2301-000375 C-FILM,PEF;100nF,5%,50V,TP,11x12.5x6.5,7 PC2 2301-000375 C-FILM,PEF;100nF,5%,50V,TP,11x12.5x6.5,7 PC7 2301-000379 C-FILM,PEF;10nF,10%,50V,TP,6x12x3.5mm,PC16 2301-000379 C-FILM,PEF;10nF,10%,50V,TP,6x12x3.5mm,PC9 2401-000357 C-AL;100uF,20%,50V,GP,-,8x11.5,3.5m PC50 2401-000357 C-AL;100uF,20%,50V,GP,-,8x11.5,3.5m PC21 2401-000357 C-AL;100uF,20%,50V,GP,-,8x11.5,3.5m PC20 2401-000357 C-AL;100uF,20%,50V,GP,-,8x11.5,3.5m PC19 2401-000475 C-AL;10uF,20%,50V,GP,TP,5x11mm,5mm PC18 2401-000475 C-AL;10uF,20%,50V,GP,TP,5x11mm,5mm PC63 2401-000970 C-AL;22uF,20%,50V,WT,TP,5x11,5 PC8 2401-001164 C-AL;33uF,20%,16V,GP,TP,5x11mm,5mm PC17 2401-001164 C-AL;33uF,20%,16V,GP,TP,5x11mm,5mm PC64 2401-001538 C-AL;47uF,20%,25V,GP,TP,5x11mm,5mm PC37 2401-001895 C-AL;100uF,20%,16V,GP,TP,6.3x11,2.5 PC36 2401-001895 C-AL;100uF,20%,16V,GP,TP,6.3x11,2.5 PC1 2401-001895 C-AL;100uF,20%,16V,GP,TP,6.3x11,2.5 PC32 2401-002180 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm PC31 2401-002180 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm JSW4 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST JSW5 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST JSW6 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST JSW7 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST JSW8 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST JSW9 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST JSW3 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST JSW1 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST JSW10 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST JSW11 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST JSW2 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST JSW13 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST JSW12 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST PCB AH41-00449A PCB-PCB AMP;MAX-WB650/VB630/675,-,-,-,1.

***** MAXZB630 PARTS LIST *****

3721-000117 PLUG-CONVERSION;2P,4.0PI,#16-22,SN 3809-000171 CABLE-FLAT;30V,80C,200mm,16P,1.25mm,UL28 3809-001034 CABLE-FLAT;30V,80C,170mm,22P,1.25mm,UL28 3809-001185 CABLE-FLAT;30V,80C,120MM,16P,1.25MM,UL28 3809-001222 CABLE-FLAT;30V,80C,50mm,11P,1.25mm,UL289 3809-001332 CABLE-FLAT;30V,80C,140MM,16P,1.25MM,UL28 AH26-00177A TRANS POWER;-,MAX-B630,-,-,120/240V,-,-, AH38-10001A WIRE-LEAD;1007#22,1500MM AH39-00257A POWER CORD;Z-88,-,CP2,250V,2.5A,1830MM/1 AH39-50001X WIRE HARNESS;RING,1007#24,200MM,BLK AH40-00010A TUNER-PACK ASSY;-,FM/MW,-,-,-,-,-,-,75 O AH42-20001P ANT LOOP;-,KS971120-01,18.5UH##10%,AH59-00134N REMOCON-ASSY;MAX-WB650,SAMSUNG,-,-,27KEY

AH59-00164B DECK-ASS’Y;-,MAX-ZL45,-,-,-,-,-,-

AH92-00922C ASSY PCB-CD,MP3;G3HI-3CD,MP3,3.5S

R810 2001-000362 R-CARBON;150ohm,5%,1/8W,AA,TP,1.8x3.2mm R803 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm R605 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm R212 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm R211 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm R604 2001-000515 R-CARBON;220ohm,5%,1/8W,AA,TP,1.8x3.2mm R302 2001-001006 R-CARBON;82ohm,5%,1/8W,AA,TP,1.8x3.2mm R114 2007-000001 R-CHIP;68KOHM,5%,1/10W,DA,TP,2012 J3 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012 J4 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012 J5 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012 J7 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012 J8 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012 J9 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012 J1 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012 J10 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012 J11 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012 J13 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012 J14 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012 J2 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012 R501R 2007-000282 R-CHIP;100KOHM,5%,1/10W,DA,TP,2012 R501L 2007-000282 R-CHIP;100KOHM,5%,1/10W,DA,TP,2012 R502R 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012 R502L 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012 R203 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012 R201 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012 R809 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012 R133 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012 R132 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012 R108 2007-000308 R-CHIP;10OHM,5%,1/10W,DA,TP,2012 R125 2007-000338 R-CHIP;120KOHM,5%,1/10W,DA,TP,2012 R124 2007-000338 R-CHIP;120KOHM,5%,1/10W,DA,TP,2012 R110 2007-000409 R-CHIP;15KOHM,5%,1/10W,DA,TP,2012 R105 2007-000409 R-CHIP;15KOHM,5%,1/10W,DA,TP,2012 R121 2007-000409 R-CHIP;15KOHM,5%,1/10W,DA,TP,2012 R113 2007-000444 R-CHIP;180KOHM,5%,1/10W,DA,TP,2012 R603 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012 R801 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012 R802 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012 R804 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012 R805 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012 R806 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012 R811 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012 R812 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012 R602 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012 R204 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012 R205 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012 R206 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012 R207 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012 R601 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012 R213 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012 R209 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012 R208 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012 R202 2007-000477 R-CHIP;1MOHM,5%,1/10W,DA,TP,2012 R118 2007-000477 R-CHIP;1MOHM,5%,1/10W,DA,TP,2012 R116 2007-000546 R-CHIP;20KOHM,5%,1/10W,DA,TP,2012 R210 2007-000572 R-CHIP;220OHM,5%,1/10W,DA,TP,2012 R128 2007-000653 R-CHIP;27KOHM,5%,1/10W,DA,TP,2012 R809 2007-000872 R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012 R808 2007-000872 R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012 R807 2007-000872 R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012 DR2 2007-000872 R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012 DR1 2007-000872 R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012 R813 2007-000941 R-CHIP;47KOHM,5%,1/10W,DA,TP,2012 R129 2007-000941 R-CHIP;47KOHM,5%,1/10W,DA,TP,2012 R123 2007-000941 R-CHIP;47KOHM,5%,1/10W,DA,TP,2012 R126 2007-001039 R-CHIP;56KOHM,5%,1/10W,DA,TP,2012 R120 2007-001039 R-CHIP;56KOHM,5%,1/10W,DA,TP,2012 R104 2007-001039 R-CHIP;56KOHM,5%,1/10W,DA,TP,2012 R103 2007-001039 R-CHIP;56KOHM,5%,1/10W,DA,TP,2012 R102 2007-001039 R-CHIP;56KOHM,5%,1/10W,DA,TP,2012 R101 2007-001039 R-CHIP;56KOHM,5%,1/10W,DA,TP,2012 R115 2007-001177 R-CHIP;8.2KOHM,5%,1/10W,DA,TP,2012 R112 2007-001195 R-CHIP;820KOHM,5%,1/10W,DA,TP,2012 R127 2007-001208 R-CHIP;82KOHM,5%,1/10W,DA,TP,2012 R119 2007-001208 R-CHIP;82KOHM,5%,1/10W,DA,TP,2012 R106 2007-001208 R-CHIP;82KOHM,5%,1/10W,DA,TP,2012 R105 2007-001208 R-CHIP;82KOHM,5%,1/10W,DA,TP,2012 R107 2007-001216 R-CHIP;82OHM,5%,1/10W,DA,TP,2012 R301 2008-000140 R-FUSIBLE;2.2ohm,5%,1/2W,AA,TP,3.5x9.4mm C804 2202-000243 C-CERAMIC,MLC-AXIAL;33pF,5%,50V,SL,TP,3. C805 2202-000243 C-CERAMIC,MLC-AXIAL;33pF,5%,50V,SL,TP,3. C806 2202-000243 C-CERAMIC,MLC-AXIAL;33pF,5%,50V,SL,TP,3. C603A 2202-000780 C-CERAMIC,MLC-AXIAL;100nF,+80-20%,50V,Y5 C113 2202-000780 C-CERAMIC,MLC-AXIAL;100nF,+80-20%,50V,Y5 C604 2203-000203 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,2012 C403 2203-000203 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,2012 C211 2203-000203 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,2012 C205 2203-000203 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,2012 C606 2203-000203 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,2012 C607 2203-000203 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,2012 C610 2203-000203 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,2012 C611 2203-000203 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,2012

Location no Code no. Description Specifiation Remarks Location no Code no. Description Specifiation Remarks

Samsung Electronics 3-9

Page 21

C612 2203-000203 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,2012 C115 2203-000203 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,2012 C116 2203-000203 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,2012 C118 2203-000203 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,2012 C124 2203-000203 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,2012 C129 2203-000203 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,2012 C204 2203-000203 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,2012 C132 2203-000203 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,2012 C131 2203-000203 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,2012 C130 2203-000203 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,2012 C305 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012 C304 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012 C218 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012 C401 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012 C402 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012 C601 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012 C602 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012 C121 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012 C134 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012 C207 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012 C209 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012 C213 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012 C214 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012 C216 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012 C126 2203-000495 C-CERAMIC,CHIP;2.2nF,10%,50V,X7R,TP,2012 C127 2203-000595 C-CERAMIC,CHIP;0.22nF,5%,50V,NP0,TP,2012 C803 2203-000787 C-CERAMIC,CHIP;0.33nF,5%,50V,NP0,TP,2012 C128 2203-000802 C-CERAMIC,CHIP;33nF,10%,50V,X7R,TP,2012 C119 2203-000802 C-CERAMIC,CHIP;33nF,10%,50V,X7R,TP,2012 C105 2203-000802 C-CERAMIC,CHIP;33nF,10%,50V,X7R,TP,2012 C125 2203-000840 C-CERAMIC,CHIP;0.39nF,5%,50V,NP0,TP,2012 C208 2203-000858 C-CERAMIC,CHIP;0.039nF,5%,50V,NP0,TP,201 C112 2203-000892 C-CERAMIC,CHIP;4.7NF,10%,50V,X7R,TP,2012 C111 2203-000892 C-CERAMIC,CHIP;4.7NF,10%,50V,X7R,TP,2012 C124A 2203-001064 C-CERAMIC,CHIP;56NF,10%,50V,NPO,TP,2012 C122 2203-001137 C-CERAMIC,CHIP;68nF,+80-20%,50V,Y5V,TP,2 C106 2203-001137 C-CERAMIC,CHIP;68nF,+80-20%,50V,Y5V,TP,2 C608 2203-001223 C-CERAMIC,CHIP;0.82nF,10%,50V,X7R,TP,201 C605 2203-001223 C-CERAMIC,CHIP;0.82nF,10%,50V,X7R,TP,201 C203 2203-001223 C-CERAMIC,CHIP;0.82nF,10%,50V,X7R,TP,201 C502R 2203-001537 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012 C502L 2203-001537 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012 C117 2203-001537 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012 C102 2203-001537 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012 C104 2203-001551 C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012 C103 2203-001551 C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012 C202 2203-001619 C-CERAMIC,CHIP;0.027nF,5%,50V,NP0,TP,201 C201 2203-001619 C-CERAMIC,CHIP;0.027nF,5%,50V,NP0,TP,201 C215 2401-000240 C-AL;100uF,20%,10V,GP,TP,5x11,5 C217 2401-000240 C-AL;100uF,20%,10V,GP,TP,5x11,5 C302 2401-000240 C-AL;100uF,20%,10V,GP,TP,5x11,5 C303 2401-000240 C-AL;100uF,20%,10V,GP,TP,5x11,5 C603 2401-000240 C-AL;100uF,20%,10V,GP,TP,5x11,5 C101 2401-000240 C-AL;100uF,20%,10V,GP,TP,5x11,5 C107 2401-000240 C-AL;100uF,20%,10V,GP,TP,5x11,5 C108 2401-000240 C-AL;100uF,20%,10V,GP,TP,5x11,5 C133 2401-000240 C-AL;100uF,20%,10V,GP,TP,5x11,5 C212 2401-000240 C-AL;100uF,20%,10V,GP,TP,5x11,5 C123 2401-000419 C-AL;10UF,20%,16V,GP,-,5X11,5 C801 2401-000795 C-AL;220uF,20%,16V,GP,TP,8x12mm,5mm C301 2401-001102 C-AL;330uF,20%,16V,GP,TP,8x11.5mm,5 c114 2401-001625 C-AL;6.8uF,20%,50V,GP,TP,5x11,5 C501L 2401-001954 C-AL;4.7uF,20%,50V,GP,TP,5x11mm,5mm C501R 2401-001954 C-AL;4.7uF,20%,50V,GP,TP,5x11mm,5mm C135 2401-001968 C-AL;470nF,20%,50V,GP,TP,5x11mm,5mm C120 2401-001968 C-AL;470nF,20%,50V,GP,TP,5x11mm,5mm WIC801 AC14-12001G IC;KA78L05,T,-

AH92-01253A ASSY PCB;G3HI-3CD/MP3

AJ59-20150F DECK-LDP;CVM55R2/EXP,-,-,-,-

3710-000544 CONNECTOR-SOCKET;42140-2203 3P ,1R,2.5MM

3711-000826 CONNECTOR-HEADER;BOX,2P,1R,2mm,ANGLE,SN

AH91-60150C ASSY CDP DECK;CMS-D73SG6(U)/JVC,CMS-300D

3409-001078 SWITCH-LEAF;16Vdc,500mA,10gf,SPST

AH30-00007A PICK UP;SOH-AD3,-,-,-,100*80*45,D73SG6

AH59-01075B SPEAKER SYSTEM;PSWB630E,-,-,-,-,-,-,XAP,

AH68-01034J MANUAL USERS;MAX-WB650,ELS,POR,-,80G PAP

AH68-01034K MANUAL USERS;MAX-WB650,MAC,ENG,-,80G PAP

AH68-01094J MANUAL-BOOK;MAX-ZB630,MAC(NO RDS),ENG,-,

AH68-01094K MANUAL-BOOK;MAX-ZB630,SMT,GSP(NO RDS),SP

AH92-01375G ASSY PCB-FRONT;MAX-WB650LH,NO MIC,NO CE,

UIC2 0904-001621 IC-I/O CONTROLLER;PT8300,16BIT,SOP,28P,3 UIC3 0904-001621 IC-I/O CONTROLLER;PT8300,16BIT,SOP,28P,3 MIC1 1201-001572 IC-PREAMP;2011,SIP,7P,17MIL,SINGLE,47,PL MVR1 2101-001052 VR-ROTARY;10KOHM,10%,0.05W,TOP UX2 2801-001394 CRYSTAL-UNIT;32.768KHz,20ppm,28-AAY,12.5 UX1 2802-001174 RESONATOR-CERAMIC;10MHZ,0.5%,BK,8X3.5X3M UVR1 3406-001047 SWITCH-ROTARY;5V DC,0.5mA,-,12mm UVR3 3406-001047 SWITCH-ROTARY;5V DC,0.5mA,-,12mm UVR2 3406-001050 SWITCH-ROTARY;5V DC,0.5mA,click,12mm UCW5 3708-000451 CONNECTOR-FPC/FFC/PIC;16P,1.25mm,STRAIGH UCW4 3708-000451 CONNECTOR-FPC/FFC/PIC;16P,1.25mm,STRAIGH

UCW2 3708-000451 CONNECTOR-FPC/FFC/PIC;16P,1.25mm,STRAIGH UCW1 3708-000451 CONNECTOR-FPC/FFC/PIC;16P,1.25mm,STRAIGH UCW7 3708-000454 CONNECTOR-FPC/FFC/PIC;22P,1.25mm,STRAIGH UCW6 3708-000454 CONNECTOR-FPC/FFC/PIC;22P,1.25mm,STRAIGH UCW3 3708-000454 CONNECTOR-FPC/FFC/PIC;22P,1.25mm,STRAIGH UCH1 3711-000827 CONNECTOR-HEADER;BOX,2P,1R,2mm,STRAIGHT, UCH2 3711-001018 CONNECTOR-HEADER;BOX,5P,1R,2mm,STRAIGHT, HJACK1 3722-000351 JACK-PHONE;11P,3.5PI,AG,BLK,MJACK2 3722-001190 JACK-PHONE;9P/2C,6.43PI,AU,BLK,RC6701(EI MJACK1 3722-001190 JACK-PHONE;9P/2C,6.43PI,AU,BLK,RC6701(EI RE-EYE AC59-60060A MODULE REMOCON;GP1U281R,SHARP,38KHZ,-,-, UVFD1 AH07-00066A VF DISPLAY;HNA-16LM24T,MAX-B550/570/VB55 UIC1 AH11-00074D MASK ROM;LC876756A-50E1,MAX-WB630/WB650 UCA2 AH39-00101A LEAD CONNECTOR ASSY;-,5295,51004,5P,150M UCA1 AH39-00109A LEAD CONNECTOR ASSY;-,5295,51004,2P,140M

AH39-50001L WIRE HARNESS;RING,1007#24,200MM,BLK

AH39-50001N WIRE HARNESS;RING,1007#24,250MM,BLK UD3 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, UD22 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, UD2 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, MD1 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, UD17 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, UD18 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, UD21 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP UD23 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP UD27 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP UD30 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP UD15 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP UD16 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP UD19 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP UD20 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP UZD2 0403-000393 DIODE-ZENER;UZP5.1B,5.1V,4.8-5.4V,1W,DOUZD1 0403-000393 DIODE-ZENER;UZP5.1B,5.1V,4.8-5.4V,1W,DOUQ2 0501-000398 TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T UQ1 0501-000398 TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T UQ6 0501-000407 TR-SMALL SIGNAL;KSD471A-Y,NPN,800mW,TO-9 UQ5 0501-000407 TR-SMALL SIGNAL;KSD471A-Y,NPN,800mW,TO-9 UQ4 0501-000407 TR-SMALL SIGNAL;KSD471A-Y,NPN,800mW,TO-9 UQ3 0501-000407 TR-SMALL SIGNAL;KSD471A-Y,NPN,800mW,TO-9 UQ9 0501-000610 TR-SMALL SIGNAL;KSA928A-Y,PNP,1W,TO-92L, UQ8 0501-000610 TR-SMALL SIGNAL;KSA928A-Y,PNP,1W,TO-92L, UQ7 0501-000610 TR-SMALL SIGNAL;KSA928A-Y,PNP,1W,TO-92L, UQ12 0504-000118 TR-DIGITAL;KSR1003,NPN,300MW,22K/22K,TOUQ11 0504-000118 TR-DIGITAL;KSR1003,NPN,300MW,22K/22K,TOULD4 0601-001238 LED;ROUND,RED,3.1mm,697nm ULD3 0601-001238 LED;ROUND,RED,3.1mm,697nm ULD2 0601-001238 LED;ROUND,RED,3.1mm,697nm ULD1 0601-001238 LED;ROUND,RED,3.1mm,697nm MR5 2001-000005 R-CARBON;390ohm,5%,1/8W,AA,TP,1.8x3.2mm UR91 2001-000008 R-CARBON;15Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR69 2001-000008 R-CARBON;15Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR62 2001-000008 R-CARBON;15Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR130 2001-000008 R-CARBON;15Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR150 2001-000027 R-CARBON;100ohm,5%,1/4W,AA,TP,2.4x6.4mm UR106 2001-000037 R-CARBON(S);330OHM,5%,1/2W,AA,TP,2.4X6.4 UR107 2001-000037 R-CARBON(S);330OHM,5%,1/2W,AA,TP,2.4X6.4 UR90 2001-000221 R-CARBON;1.2Kohm,5%,1/8W,AA,TP,1.8x3.2m UR129 2001-000221 R-CARBON;1.2Kohm,5%,1/8W,AA,TP,1.8x3.2m UR118 2001-000221 R-CARBON;1.2Kohm,5%,1/8W,AA,TP,1.8x3.2m UR112 2001-000258 R-CARBON;1.8Kohm,5%,1/8W,AA,TP,1.8x3.2m MR40 2001-000273 R-CARBON;100Kohm,5%,1/8W,AA,TP,1.8x3.2m MR3 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm UR186 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm UR63 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm UR64 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm UR65 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm UR74 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm UR75 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm UR76 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm UR77 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm UR78 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm UR170 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm UR171 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm UR172 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm UR173 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm UR174 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm UR183 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm UR182 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm UR178 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm UR175 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm UR54 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR5 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR43 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR6 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR7 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR70 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR71 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR42 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR27 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR28 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR3 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR39 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR4 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm

Location no Code no. Description Specifiation Remarks Location no Code no. Description Specifiation Remarks

3-10 Samsung Electronics

Page 22

UR40 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR41 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR86 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR87 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR9 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR92 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR93 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR94 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR95 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR85 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR72 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR73 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR8 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR80 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR81 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR82 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR84 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR26 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR121 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR122 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR13 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR135 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR137 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR138 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR139 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR120 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm MR21 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR1 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR10 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR100 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR101 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR11 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR12 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR179 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR180 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR181 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR2 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR23 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR24 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR25 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR176 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR14 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR140 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR141 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR142 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR143 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR15 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR16 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR21 2001-000295 R-CARBON;10MOHM,5%,1/8W,AA,TP,1.8X3.2MM UR19 2001-000362 R-CARBON;150ohm,5%,1/8W,AA,TP,1.8x3.2mm UR133 2001-000405 R-CARBON;180OHM,5%,1/8W,AA,TP,1.8X3.2MM UR131 2001-000405 R-CARBON;180OHM,5%,1/8W,AA,TP,1.8X3.2MM UR111 2001-000405 R-CARBON;180OHM,5%,1/8W,AA,TP,1.8X3.2MM UR109 2001-000405 R-CARBON;180OHM,5%,1/8W,AA,TP,1.8X3.2MM UR108 2001-000405 R-CARBON;180OHM,5%,1/8W,AA,TP,1.8X3.2MM UR89 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR128 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR22 2001-000435 R-CARBON;1Mohm,5%,1/8W,AA,TP,1.8x3.2mm MR4 2001-000435 R-CARBON;1Mohm,5%,1/8W,AA,TP,1.8x3.2mm UR88 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m UR17 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m UR110 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m MR6 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m MR2 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m UR18 2001-000508 R-CARBON;220Kohm,5%,1/8W,AA,TP,1.8x3.2m UR44 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR124 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR145 2001-000591 R-CARBON;3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m UR52 2001-000613 R-CARBON;3.9Kohm,5%,1/8W,AA,TP,1.8x3.2m UR68 2001-000660 R-CARBON;33Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR61 2001-000660 R-CARBON;33Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR46 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m UR51 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m UR53 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m UR55 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m UR56 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m UR57 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m HR1 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m HR2 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m MR1 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m UR146 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m UR132 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m MR7 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m UR33 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR34 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR35 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR36 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR37 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR38 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR32 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm MR20 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR134 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR200 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm

UR31 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR30 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR29 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm UR20 2001-000850 R-CARBON;560Kohm,5%,1/8W,AA,TP,1.8x3.2m UR119 2001-000890 R-CARBON;6.8Kohm,5%,1/8W,AA,TP,1.8x3.2m UR127 2001-000995 R-CARBON;820ohm,5%,1/8W,AA,TP,1.8x3.2mm UR113 2001-000995 R-CARBON;820ohm,5%,1/8W,AA,TP,1.8x3.2mm UR58 2001-001192 R-CARBON(S);820ohm,5%,1/2W,AA,TP,2.4x6.4 UR59 2001-001192 R-CARBON(S);820ohm,5%,1/2W,AA,TP,2.4x6.4 UR60 2001-001192 R-CARBON(S);820ohm,5%,1/2W,AA,TP,2.4x6.4 URV1 2103-000492 VR-SEMI;5Kohm,30%,1/10W,TOP HC1 2201-000300 C-CERAMIC,DISC;1nF,20%,50V,Y5T,TP,5x3,5 HC2 2201-000300 C-CERAMIC,DISC;1nF,20%,50V,Y5T,TP,5x3,5 UC11 2201-000300 C-CERAMIC,DISC;1nF,20%,50V,Y5T,TP,5x3,5 UC8 2201-000389 C-CERAMIC,DISC;0.022nF,5%,50V,NP0,TP,5x3 UC7 2201-000389 C-CERAMIC,DISC;0.022nF,5%,50V,NP0,TP,5x3 ZC2 2201-000565 C-CERAMIC,DISC;47nF,+80% -20% 50V Y5V 12 ZC1 2201-000565 C-CERAMIC,DISC;47nF,+80% -20% 50V Y5V 12 UC35 2201-000565 C-CERAMIC,DISC;47nF,+80% -20% 50V Y5V 12 UC3 2201-000565 C-CERAMIC,DISC;47nF,+80% -20% 50V Y5V 12 UC15 2201-000565 C-CERAMIC,DISC;47nF,+80% -20% 50V Y5V 12 UC10 2201-000565 C-CERAMIC,DISC;47nF,+80% -20% 50V Y5V 12 UC1 2201-000565 C-CERAMIC,DISC;47nF,+80% -20% 50V Y5V 12 UC17 2201-000783 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, UC60 2202-000780 C-CERAMIC,MLC-AXIAL;100nF,+80-20%,50V,Y5 UC25 2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3 UC24 2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3 UC21 2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3 UC20 2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3 UC19 2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3 UC18 2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3 ZC3 2202-000854 C-CERAMIC,MLC-AXIAL;47nF,30%,50V,Y5R,TP, UC5 2401-000244 C-AL;100uF,20%,10V,GP,TP,6.3x7,5 UC4 2401-000244 C-AL;100uF,20%,10V,GP,TP,6.3x7,5 UC36 2401-000244 C-AL;100uF,20%,10V,GP,TP,6.3x7,5 UC16 2401-000244 C-AL;100uF,20%,10V,GP,TP,6.3x7,5 UC14 2401-000244 C-AL;100uF,20%,10V,GP,TP,6.3x7,5 UC100 2401-000244 C-AL;100uF,20%,10V,GP,TP,6.3x7,5 MC10 2401-000244 C-AL;100uF,20%,10V,GP,TP,6.3x7,5 UC9 2401-000475 C-AL;10uF,20%,50V,GP,TP,5x11mm,5mm UC2 2401-000475 C-AL;10uF,20%,50V,GP,TP,5x11mm,5mm MC4 2401-000475 C-AL;10uF,20%,50V,GP,TP,5x11mm,5mm MC5 2401-001022 C-AL;3.3UF,20%,50V,GP,TP,5X11,5 UC13 2401-001355 C-AL;470uF,20%,10V,GP,TP,8x11.5mm,5 UC27 2401-001895 C-AL;100uF,20%,16V,GP,6.3*11,5MM,TP UC26 2401-001895 C-AL;100uF,20%,16V,GP,6.3*11,5MM,TP MC1 2401-001895 C-AL;100uF,20%,16V,GP,6.3*11,5MM,TP MC6 2401-001912 C-AL;1uF,20%,50V,GP,5*11,5mm,TP MC3 2401-001912 C-AL;1uF,20%,50V,GP,5*11,5mm,TP UC12 2401-001919 C-AL;2.2uF,20%,50V,GP,4*7,5MM,TP UC6 2401-001931 C-AL;220nF,20%,50V,-,TP,4x7mm,5 MC2 2401-001975 C-AL;47uF,20%,16V,GP,TP,5x11mm,5mm MC30 2401-002180 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm HL1 2701-000111 INDUCTOR-AXIAL;100uH,10%,2.5x3.4mm HL2 2701-000111 INDUCTOR-AXIAL;100uH,10%,2.5x3.4mm HR2 2701-000177 INDUCTOR-AXIAL;33uH,10%,2.5x3.4mm HR1 2701-000177 INDUCTOR-AXIAL;33uH,10%,2.5x3.4mm USW5 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST USW4 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST USW3 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST USW2 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST USW6 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST USW7 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST USW8 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST USW9 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST USW17 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST USW1 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST USW10 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST USW11 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST USW12 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST USW16 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST USW15 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST USW14 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST USW13 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST

AH92-01385C ASSY PCB-MAIN;MAX-WB630,MAIN ASSY,NO CE,

RBD1 0402-001258 DIODE-BRIDGE;GBU606,600V,6A,SIP-4,BK RBD2 0402-001258 DIODE-BRIDGE;GBU606,600V,6A,SIP-4,BK WIC2 1201-000191 IC-OP AMP;4558,DIP,8P,300MIL,DUAL,20V/mV WIC1 1201-000191 IC-OP AMP;4558,DIP,8P,300MIL,DUAL,20V/mV KIC1 1201-000191 IC-OP AMP;4558,DIP,8P,300MIL,DUAL,20V/mV FIC1 1201-000191 IC-OP AMP;4558,DIP,8P,300MIL,DUAL,20V/mV DIC1 1201-001819 IC-PREAMP;-,-,44P,-,-,-,PLASTIC,18V,625M RIC1 1203-001653 IC-VOLTAGE REGULATOR;4959,MULTIWATT,15P, KIC2 1204-001730 IC-ECHO;M65855P,DIP,16P,300MIL,PLASTIC FIC2 1204-001776 IC-SOUND PROCESSOR;TDA7442D,SOP,28P,295M RR34 2003-000005 R-METAL OXIDE(S);1ohm,5%,2W,AA,TP,4x12mm RR9 2003-000455 R-METAL OXIDE(S);100ohm,5%,2W,AA,TP,4x12 RR3 2003-000701 R-METAL OXIDE(S);470ohm,5%,2W,AA,TP,4x12 RC19 2201-000546 C-CERAMIC,DISC;4.7nF,20%,400V,Y5U,BK,16x RC18 2201-000546 C-CERAMIC,DISC;4.7nF,20%,400V,Y5U,BK,16x CC3 2401-000129 C-AL;1000uF,20%,16V,GP,-,10x16mm,5 RC5 2401-000230 C-AL;100uF,20%,100V,GP,TP,12.5x20mm

Location no Code no. Description Specifiation Remarks Location no Code no. Description Specifiation Remarks

Samsung Electronics 3-11

Page 23

RC14 2401-000230 C-AL;100uF,20%,100V,GP,TP,12.5x20mm RC2 2401-003381 C-AL;3300uF,20%,63V,GP,BK,22x40,10 RC1 2401-003381 C-AL;3300uF,20%,63V,GP,BK,22x40,10 RC3 2401-003755 C-AL;6800UF,20%,35V,BP,TP,22X40MM,1 RC4 2401-003755 C-AL;6800UF,20%,35V,BP,TP,22X40MM,1 RSW1 3408-000177 SWITCH-SLIDE;250V,5A,DPDT,<ON>-OFFRF2 3601-000170 FUSE-CARTRIDGE;250V,1.6A,TIME-LAG,GLASS, RF1 3601-000263 FUSE-CARTRIDGE;250V,3.15A,TIME-LAG,GLASS FCW4 3708-000181 CONNECTOR-FPC/FFC/PIC;16P,1.25mm,STRAIGH FCW2 3708-000181 CONNECTOR-FPC/FFC/PIC;16P,1.25mm,STRAIGH FCW1 3708-000181 CONNECTOR-FPC/FFC/PIC;16P,1.25mm,STRAIGH RCW2 3711-000190 CONNECTOR-HEADER;1WALL,2P,1R,7.92mm,STRA DCW2 3711-000907 CONNECTOR-HEADER;BOX,3P,1R,2mm,STRAIGHT, CCW1 3711-001137 CONNECTOR-HEADER;BOX,8P,1R,2mm,STRAIGHT, RCW1 3711-003075 CONNECTOR-HEADER;NOWALL,6P,1R,8mm,STRAIG DCW3 3711-003107 CONNECTOR-HEADER;BOX,3P,1R,2.5mm,STRAIGH DCW1 3711-003111 CONNECTOR-HEADER;BOX,6P,1R,2.5mm,STRAIGH RCW5 3711-003112 CONNECTOR-HEADER;BOX,8P,1R,2.5mm,STRAIGH ACW1 3711-003113 CONNECTOR-HEADER;BOX,9P,1R,2.5mm,STRAIGH AJCK 3722-000377 JACK-PIN;4P/2C,3.5mm,SN,BLK,#16~22 DL1 AH26-10002W TRANS TRAP-COIL;BIAS-TRAP105K,BIAS-TRAP, DL2 AH26-10002W TRANS TRAP-COIL;BIAS-TRAP105K,BIAS-TRAP, DL4 AH26-10003C TRANS TRAP-COIL;PCHNS-5371EQJ,BIAS-TRAP, WD1 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, TD2 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, TD1 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, KD2 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, DD1 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, FD1 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, KD1 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, RD2 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP RD13-1 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP RD12 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP RD1 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP RD11 0402-000151 DIODE-RECTIFIER;1N5392,100V,1.5A,DO-15,T WZD1 0403-000354 DIODE-ZENER;UZ5.1B,5.1V,4.8-5.4V,500mW,D RZD1 0403-000354 DIODE-ZENER;UZ5.1B,5.1V,4.8-5.4V,500mW,D KZD1 0403-000354 DIODE-ZENER;UZ5.1B,5.1V,4.8-5.4V,500mW,D FZD2 0403-000354 DIODE-ZENER;UZ5.1B,5.1V,4.8-5.4V,500mW,D FZD1 0403-000372 DIODE-ZENER;UZ9.1BM,9.1V,8.7-9.4V,500mW, RZD5 0403-000380 DIODE-ZENER;UZP13B,13V,12.4-14.1V,1W,DORZD3 0403-000564 DIODE-ZENER;TZP16A,16V,15.3-17.1V,1W,DORZD2 0403-000570 DIODE-ZENER;UZP18B,18V,16.9-19.1V,1W,DORZD4 0403-001010 DIODE-ZENER;UZP5.6B,5.6V,5.2-6.0V,1W,DO DQ9 0501-000010 TR-SMALL SIGNAL;KSC1008,NPN,800mW,TO-92, DQ8 0501-000010 TR-SMALL SIGNAL;KSC1008,NPN,800mW,TO-92, DQ7 0501-000010 TR-SMALL SIGNAL;KSC1008,NPN,800mW,TO-92, DQ6 0501-000010 TR-SMALL SIGNAL;KSC1008,NPN,800mW,TO-92, RQ2 0501-000294 TR-SMALL SIGNAL;KSA708-Y,PNP,800mW,TO-92 CQ2 0501-000331 TR-SMALL SIGNAL;KSC1009-Y,NPN,800mW,TO-9 CQ3 0501-000331 TR-SMALL SIGNAL;KSC1009-Y,NPN,800mW,TO-9 DQ4 0501-000369 TR-SMALL SIGNAL;KSC2331-Y,NPN,1000mW,TODQ1 0501-000398 TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T FQ1 0501-000398 TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T DQ5 0501-000407 TR-SMALL SIGNAL;KSD471A-Y,NPN,800mW,TO-9 DQ11 0501-000407 TR-SMALL SIGNAL;KSD471A-Y,NPN,800mW,TO-9 DQ10 0501-000407 TR-SMALL SIGNAL;KSD471A-Y,NPN,800mW,TO-9 DQ3 0501-000610 TR-SMALL SIGNAL;KSA928A-Y,PNP,1W,TO-92L, RQ1 0501-000610 TR-SMALL SIGNAL;KSA928A-Y,PNP,1W,TO-92L, KQ4 0504-000118 TR-DIGITAL;KSR1003,NPN,300MW,22K/22K,TOKQ3 0504-000118 TR-DIGITAL;KSR1003,NPN,300MW,22K/22K,TOKQ2 0504-000118 TR-DIGITAL;KSR1003,NPN,300MW,22K/22K,TODQ5 0504-001003 TR-DIGITAL;KSR2003,PNP,300MW,22K/22K,TODQ40 0504-001003 TR-DIGITAL;KSR2003,PNP,300MW,22K/22K,TOCQ1 0504-001003 TR-DIGITAL;KSR2003,PNP,300MW,22K/22K,TOKR28 2001-000008 R-CARBON;15Kohm,5%,1/8W,AA,TP,1.8x3.2mm KR24 2001-000008 R-CARBON;15Kohm,5%,1/8W,AA,TP,1.8x3.2mm FR8 2001-000008 R-CARBON;15Kohm,5%,1/8W,AA,TP,1.8x3.2mm FR1 2001-000008 R-CARBON;15Kohm,5%,1/8W,AA,TP,1.8x3.2mm CR7 2001-000008 R-CARBON;15Kohm,5%,1/8W,AA,TP,1.8x3.2mm CR4 2001-000008 R-CARBON;15Kohm,5%,1/8W,AA,TP,1.8x3.2mm WR6 2001-000012 R-CARBON;680Kohm,5%,1/8W,AA,TP,1.8x3.2m RR8 2001-000016 R-CARBON(S);1OHM,5%,1/2W,AA,TP,2.4X6.4MM FR11 2001-000027 R-CARBON;100ohm,5%,1/4W,AA,TP,2.4x6.4mm RR10 2001-000038 R-CARBON;390ohm,5%,1/4W,AA,TP,2.4x6.4mm WR50 2001-000109 R-CARBON(S);470ohm,5%,1/2W,AA,TP,2.4x6.4 WR7 2001-000241 R-CARBON;1.5Kohm,5%,1/8W,AA,TP,1.8x3.2m FR25 2001-000273 R-CARBON;100Kohm,5%,1/8W,AA,TP,1.8x3.2m FR24 2001-000273 R-CARBON;100Kohm,5%,1/8W,AA,TP,1.8x3.2m TR2 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm TR3 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm TR4 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm TR5 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm TR6 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm WR1 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm TR1 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm DR1 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm DR17 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm DR2 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm DR9 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm DR4 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm DR3 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm WR9 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm

KR26 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm KR23 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm KR20 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm DR3 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm DR24 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm KR25 2001-000319 R-CARBON;120Kohm,5%,1/8W,AA,TP,1.8x3.2m KR18 2001-000319 R-CARBON;120Kohm,5%,1/8W,AA,TP,1.8x3.2m TR9 2001-000331 R-CARBON;12Kohm,5%,1/8W,AA,TP,1.8x3.2mm TR12 2001-000331 R-CARBON;12Kohm,5%,1/8W,AA,TP,1.8x3.2mm DR18 2001-000362 R-CARBON;150ohm,5%,1/8W,AA,TP,1.8x3.2mm RR4 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm KR30 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm KR14 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm KR13 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm DR10 2001-000435 R-CARBON;1Mohm,5%,1/8W,AA,TP,1.8x3.2mm KR31 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m KR15 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m KR12 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m FR17 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m DR13 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m DR6 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m FR16 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m DR23 2001-000456 R-CARBON;2.2ohm,5%,1/4W,AA,TP,2.4x6.4mm RR11 2001-000472 R-CARBON;2.7Kohm,5%,1/8W,AA,TP,1.8x3.2m WR3 2001-000515 R-CARBON;220ohm,5%,1/8W,AA,TP,1.8x3.2mm KR21 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm KR29 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm KR7 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm KR8 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm WR10 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm DR12 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm DR25 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm DR27 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm DR5 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm DR9 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm TR8 2001-000563 R-CARBON;27Kohm,5%,1/8W,AA,TP,1.8x3.2mm RR12 2001-000563 R-CARBON;27Kohm,5%,1/8W,AA,TP,1.8x3.2mm DR7 2001-000563 R-CARBON;27Kohm,5%,1/8W,AA,TP,1.8x3.2mm DR14 2001-000563 R-CARBON;27Kohm,5%,1/8W,AA,TP,1.8x3.2mm FR4 2001-000591 R-CARBON;3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m FR5 2001-000591 R-CARBON;3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m FR7 2001-000591 R-CARBON;3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m WR5 2001-000591 R-CARBON;3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m FR2 2001-000591 R-CARBON;3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m CR1 2001-000591 R-CARBON;3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m DR20 2001-000591 R-CARBON;3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m DR21 2001-000591 R-CARBON;3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m DR28 2001-000591 R-CARBON;3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m RR6 2001-000613 R-CARBON;3.9Kohm,5%,1/8W,AA,TP,1.8x3.2m DR16 2001-000613 R-CARBON;3.9Kohm,5%,1/8W,AA,TP,1.8x3.2m CR5 2001-000613 R-CARBON;3.9Kohm,5%,1/8W,AA,TP,1.8x3.2m CR2 2001-000613 R-CARBON;3.9Kohm,5%,1/8W,AA,TP,1.8x3.2m FR13 2001-000645 R-CARBON;330Kohm,5%,1/8W,AA,TP,1.8x3.2m MR8 2001-000660 R-CARBON;33Kohm,5%,1/8W,AA,TP,1.8x3.2mm WR4 2001-000702 R-CARBON;39Kohm,5%,1/8W,AA,TP,1.8x3.2mm FR12 2001-000702 R-CARBON;39Kohm,5%,1/8W,AA,TP,1.8x3.2mm DR29 2001-000702 R-CARBON;39Kohm,5%,1/8W,AA,TP,1.8x3.2mm RR14 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m RR5 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m TR10 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m TR11 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m TR7 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m WR11 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m DR11 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m KR27 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m KR4 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m KR5 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m KR6 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m KR9 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m FR23 2001-000773 R-CARBON;470Kohm,5%,1/8W,AA,TP,1.8x3.2m KR16 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm KR17 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm RR20 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm WR12 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm WR13 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm WR2 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm FR6 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm CR3 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm CR6 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm DR19 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm FR14 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm FR15 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm FR3 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm WR30 2001-000802 R-CARBON;5.6Kohm,5%,1/8W,AA,TP,1.8x3.2m FR9 2001-000802 R-CARBON;5.6Kohm,5%,1/8W,AA,TP,1.8x3.2m FR10 2001-000802 R-CARBON;5.6Kohm,5%,1/8W,AA,TP,1.8x3.2m FR21 2001-000864 R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm FR20 2001-000864 R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm DR37 2001-000890 R-CARBON;6.8Kohm,5%,1/8W,AA,TP,1.8x3.2m KR4 2001-000890 R-CARBON;6.8Kohm,5%,1/8W,AA,TP,1.8x3.2m KR5 2001-000890 R-CARBON;6.8Kohm,5%,1/8W,AA,TP,1.8x3.2m RR7 2001-000890 R-CARBON;6.8Kohm,5%,1/8W,AA,TP,1.8x3.2m DR36 2001-000890 R-CARBON;6.8Kohm,5%,1/8W,AA,TP,1.8x3.2m

Location no Code no. Description Specifiation Remarks Location no Code no. Description Specifiation Remarks

3-12 Samsung Electronics

Page 24

DR12 2001-000890 R-CARBON;6.8Kohm,5%,1/8W,AA,TP,1.8x3.2m DR27 2001-000890 R-CARBON;6.8Kohm,5%,1/8W,AA,TP,1.8x3.2m DR34 2001-000890 R-CARBON;6.8Kohm,5%,1/8W,AA,TP,1.8x3.2m DR35 2001-000890 R-CARBON;6.8Kohm,5%,1/8W,AA,TP,1.8x3.2m DR33 2001-000924 R-CARBON;680ohm,5%,1/8W,AA,TP,1.8x3.2mm DR32 2001-000924 R-CARBON;680ohm,5%,1/8W,AA,TP,1.8x3.2mm DR31 2001-000924 R-CARBON;680ohm,5%,1/8W,AA,TP,1.8x3.2mm DR30 2001-000924 R-CARBON;680ohm,5%,1/8W,AA,TP,1.8x3.2mm KR19 2001-000977 R-CARBON;8.2KOHM,5%,1/8W,AA,TP,1.8x3.2m DR8 2001-000977 R-CARBON;8.2KOHM,5%,1/8W,AA,TP,1.8x3.2m DR26 2001-000977 R-CARBON;8.2KOHM,5%,1/8W,AA,TP,1.8x3.2m RR13 2001-001004 R-CARBON;82ohm,5%,1/4W,AA,TP,2.4x6.4mm KR22 2001-001004 R-CARBON;82ohm,5%,1/4W,AA,TP,2.4x6.4mm RR1 2001-001153 R-CARBON(S);47ohm,5%,1/2W,AA,TP,2.4x6.4m RR2 2001-001153 R-CARBON(S);47ohm,5%,1/2W,AA,TP,2.4x6.4m DSR2 2103-000248 VR-SEMI;200Kohm,30%,1/10W,TOP DSR1 2103-000248 VR-SEMI;200Kohm,30%,1/10W,TOP RC26 2201-000161 C-CERAMIC,DISC;10nF,+80-20%,500V,Y5V,TP, RC25 2201-000161 C-CERAMIC,DISC;10nF,+80-20%,500V,Y5V,TP, DC23 2201-000300 C-CERAMIC,DISC;1nF,20%,50V,Y5T,TP,5x3,5 DC22 2201-000300 C-CERAMIC,DISC;1nF,20%,50V,Y5T,TP,5x3,5 DC19 2201-000300 C-CERAMIC,DISC;1nF,20%,50V,Y5T,TP,5x3,5 DC18 2201-000300 C-CERAMIC,DISC;1nF,20%,50V,Y5T,TP,5x3,5 FC29 2201-000368 C-CERAMIC,DISC;220pF,10%,50V,SL,TP,6.5x3 FC3 2201-000368 C-CERAMIC,DISC;220pF,10%,50V,SL,TP,6.5x3 FC6 2201-000368 C-CERAMIC,DISC;220pF,10%,50V,SL,TP,6.5x3 KC3 2201-000368 C-CERAMIC,DISC;220pF,10%,50V,SL,TP,6.5x3 KC4 2201-000368 C-CERAMIC,DISC;220pF,10%,50V,SL,TP,6.5x3 DC17 2201-000368 C-CERAMIC,DISC;220pF,10%,50V,SL,TP,6.5x3 DC33 2201-000368 C-CERAMIC,DISC;220pF,10%,50V,SL,TP,6.5x3 FC26 2201-000368 C-CERAMIC,DISC;220pF,10%,50V,SL,TP,6.5x3 FC27 2201-000368 C-CERAMIC,DISC;220pF,10%,50V,SL,TP,6.5x3 FC28 2201-000368 C-CERAMIC,DISC;220pF,10%,50V,SL,TP,6.5x3 WC4 2201-000557 C-CERAMIC,DISC;0.47nF,10%,50V,SL,TP,8x3. DC29 2201-000674 C-CERAMIC,DISC;0.82nF,10%,50V,Y5P,BK,5x3 DC1 2201-000674 C-CERAMIC,DISC;0.82nF,10%,50V,Y5P,BK,5x3 KC18 2202-000780 C-CERAMIC,MLC-AXIAL;100nF,+80-20%,50V,Y5 EMC1 2202-000780 C-CERAMIC,MLC-AXIAL;100nF,+80-20%,50V,Y5 TC4 2202-000781 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP TC5 2202-000781 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP TC6 2202-000781 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP TC7 2202-000781 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP TC8 2202-000781 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP TC9 2202-000781 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP DC2 2202-000781 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP DC4 2202-000781 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP DC5 2202-000781 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP TC1 2202-000781 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP TC2 2202-000781 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP TC3 2202-000781 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP TC20 2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3 EMC2 2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3 KC17 2202-000797 C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP, KC20 2202-000797 C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP, EMC4 2202-000806 C-CERAMIC,MLC-AXIAL;220pF,10%,50V,Y5P,TP EMC3 2202-000806 C-CERAMIC,MLC-AXIAL;220pF,10%,50V,Y5P,TP KC19 2202-000809 C-CERAMIC,MLC-AXIAL;3.3nF,20%,16V,Y5R,-, KC10 2202-000829 C-CERAMIC,MLC-AXIAL;820pF,10%,50V,Y5P,3. KC16 2202-000854 C-CERAMIC,MLC-AXIAL;47nF,30%,50V,Y5R,TP, KC15 2202-000854 C-CERAMIC,MLC-AXIAL;47nF,30%,50V,Y5R,TP, FC16 2301-000375 C-FILM,PEF;100nF,5%,50V,TP,11x12.5x6.5,7 FC17 2301-000375 C-FILM,PEF;100nF,5%,50V,TP,11x12.5x6.5,7 FC32 2301-000375 C-FILM,PEF;100nF,5%,50V,TP,11x12.5x6.5,7 KC2 2301-000375 C-FILM,PEF;100nF,5%,50V,TP,11x12.5x6.5,7 KC5 2301-000375 C-FILM,PEF;100nF,5%,50V,TP,11x12.5x6.5,7 WC5 2301-000375 C-FILM,PEF;100nF,5%,50V,TP,11x12.5x6.5,7 DC10 2301-000375 C-FILM,PEF;100nF,5%,50V,TP,11x12.5x6.5,7 DC25 2301-000375 C-FILM,PEF;100nF,5%,50V,TP,11x12.5x6.5,7 DC26 2301-000375 C-FILM,PEF;100nF,5%,50V,TP,11x12.5x6.5,7 FC15 2301-000375 C-FILM,PEF;100nF,5%,50V,TP,11x12.5x6.5,7 FC13 2301-000375 C-FILM,PEF;100nF,5%,50V,TP,11x12.5x6.5,7 DC7 2301-000375 C-FILM,PEF;100nF,5%,50V,TP,11x12.5x6.5,7 KC12 2301-000379 C-FILM,PEF;10nF,10%,50V,TP,6x12x3.5mm,KC11 2301-000379 C-FILM,PEF;10nF,10%,50V,TP,6x12x3.5mm,DC24 2301-000379 C-FILM,PEF;10nF,10%,50V,TP,6x12x3.5mm,DC11 2301-000379 C-FILM,PEF;10nF,10%,50V,TP,6x12x3.5mm,DC16 2301-000404 C-FILM,PEF;2.2nF,10%,50V,TP,5.5x12x3mm,DC15 2301-000404 C-FILM,PEF;2.2nF,10%,50V,TP,5.5x12x3mm,DC14 2301-000404 C-FILM,PEF;2.2nF,10%,50V,TP,5.5x12x3mm,DC13 2301-000407 C-FILM,PEF;2.7nF,10%,50V,TP,5.5x12x3mm,WC9 2301-000412 C-FILM,PEF;22nF,10%,50V,TP,8x12x4mm,DC8 2301-000412 C-FILM,PEF;22nF,10%,50V,TP,8x12x4mm,DC31 2301-000412 C-FILM,PEF;22nF,10%,50V,TP,8x12x4mm,KC19 2301-000422 C-FILM,PEF;3.3nF,10%,50V,TP,5.5x7x3mm,KC13 2301-000442 C-FILM,PEF;4.7nF,10%,50V,TP,5.5x7x3mm,5m CC2 2301-000449 C-FILM,PEF;47nF,10%,50V,TP,9.5x12.5x5mm, FC11 2301-000454 C-FILM,PEF;5.6nF,10%,50V,TP,6x12x3,3.5mm FC12 2301-000454 C-FILM,PEF;5.6nF,10%,50V,TP,6x12x3,3.5mm KC14 2301-000474 C-FILM,PEF;8.2nF,10%,50V,TP,6.5x12x3.5,3 RC6 2401-000357 C-AL;100UF,0.2,50V,GP,8*12,5MM,SSL CC5 2401-000419 C-AL;10UF,20%,16V,GP,-,5X11,5 DC30 2401-000419 C-AL;10UF,20%,16V,GP,-,5X11,5 RC9 2401-000438 C-AL;10uF,20%,25V,GP,-,5x11,5mm

WC8 2401-000475 C-AL;10uF,20%,50V,GP,TP,5x11mm,5mm WC3 2401-000475 C-AL;10uF,20%,50V,GP,TP,5x11mm,5mm WC2 2401-000475 C-AL;10uF,20%,50V,GP,TP,5x11mm,5mm WC1 2401-000475 C-AL;10uF,20%,50V,GP,TP,5x11mm,5mm DC2 2401-000778 C-AL;220uF,20%,10V,GP,6.3x11,5MM,TP RC11 2401-000795 C-AL;220uF,20%,16V,GP,TP,8x12mm,5mm RC10 2401-000907 C-AL;22uF,20%,16V,GP,TP,5x11mm,5mm KC22 2401-000907 C-AL;22uF,20%,16V,GP,TP,5x11mm,5mm FC10 2401-000907 C-AL;22uF,20%,16V,GP,TP,5x11mm,5mm CC1 2401-000907 C-AL;22uF,20%,16V,GP,TP,5x11mm,5mm FC36 2401-001022 C-AL;3.3UF,20%,50V,GP,TP,5X11,5 FC1 2401-001022 C-AL;3.3UF,20%,50V,GP,TP,5X11,5 DC36 2401-001022 C-AL;3.3UF,20%,50V,GP,TP,5X11,5 DC35 2401-001022 C-AL;3.3UF,20%,50V,GP,TP,5X11,5 DC5 2401-001080 C-AL;330nF,20%,50V,GP,-,5x11,2mm FC25 2401-001238 C-AL;4.7uF,20%,25V,GP,3*5,2.5MM,TP FC24 2401-001324 C-AL;470nF,20%,50V,GP,BK,3x5,1mm RC8 2401-001625 C-AL;6.8uF,20%,50V,GP,TP,5x11,5 KC23 2401-001895 C-AL;100uF,20%,16V,GP,6.3*11,5MM,TP FC5 2401-001895 C-AL;100uF,20%,16V,GP,6.3*11,5MM,TP CC4 2401-001895 C-AL;100uF,20%,16V,GP,6.3*11,5MM,TP FC31 2401-001912 C-AL;1uF,20%,50V,GP,5*11,5mm,TP FC8 2401-001912 C-AL;1uF,20%,50V,GP,5*11,5mm,TP FC9 2401-001912 C-AL;1uF,20%,50V,GP,5*11,5mm,TP RC7 2401-001912 C-AL;1uF,20%,50V,GP,5*11,5mm,TP DC20 2401-001912 C-AL;1uF,20%,50V,GP,5*11,5mm,TP FC22 2401-001912 C-AL;1uF,20%,50V,GP,5*11,5mm,TP FC23 2401-001912 C-AL;1uF,20%,50V,GP,5*11,5mm,TP FC30 2401-001912 C-AL;1uF,20%,50V,GP,5*11,5mm,TP FC4 2401-001954 C-AL;4.7uF,20%,50V,GP,TP,5x11mm,5mm FC33 2401-001954 C-AL;4.7uF,20%,50V,GP,TP,5x11mm,5mm FC2 2401-001954 C-AL;4.7uF,20%,50V,GP,TP,5x11mm,5mm DC32 2401-001975 C-AL;47uF,20%,16V,GP,TP,5x11mm,5mm DC21 2401-001975 C-AL;47uF,20%,16V,GP,TP,5x11mm,5mm DC12 2401-001975 C-AL;47uF,20%,16V,GP,TP,5x11mm,5mm FC18 2401-002180 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm FC19 2401-002180 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm KC21 2401-002180 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm KC6 2401-002180 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm KC9 2401-002180 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm DC9 2401-002180 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm DC27 2401-002180 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm DC28 2401-002180 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm DC34 2401-002180 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm DC6 2401-002180 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm DC8 2401-002180 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm CL1 2701-000116 INDUCTOR-AXIAL;10uH,10%,4.2x9.8mm CL2 2701-000178 INDUCTOR-AXIAL;33uH,10%,3x7mm DL3 2701-000298 INDUCTOR-AXIAL;470uH,10%,4.2x9.8mm RF2 3602-000147 FUSE-CLIP;250V,7.5A,30mohm RF1 3602-000147 FUSE-CLIP;250V,7.5A,30mohm

AH92-01387B ASSY PCB-AMP;MAX-WB630,AMP ASSY,NO CE,23

PIC1 1201-001582 IC-POWER AMP;402-070,SIP,15P,-,DUAL,30dB PIC2 1201-001856 IC-POWER AMP;STK442-090,SIP,14P,233MIL,S PR42 2003-000008 R-METAL OXIDE(S);100ohm,5%,1W,AA,TP ,3.3x PR41 2003-000008 R-METAL OXIDE(S);100ohm,5%,1W,AA,TP ,3.3x PR34 2003-000390 R-METAL OXIDE(S);0.27OHM,5%,2W,AA,TP , PR33 2003-000390 R-METAL OXIDE(S);0.27OHM,5%,2W,AA,TP , PR32 2003-000390 R-METAL OXIDE(S);0.27OHM,5%,2W,AA,TP , PR31 2003-000390 R-METAL OXIDE(S);0.27OHM,5%,2W,AA,TP , PR6 2003-000578 R-METALOXIDE(S);220ohm,5%,2W,AA,TP,4x12 PR5 2003-000578 R-METALOXIDE(S);220ohm,5%,2W,AA,TP,4x12 PR59 2009-001117 R-METALPLA TE;0.1OHM,5%,5W,CL,BK,5X13X18 PR58 2009-001117 R-METALPLA TE;0.1OHM,5%,5W,CL,BK,5X13X18 PR48 2009-001117 R-METALPLA TE;0.1OHM,5%,5W,CL,BK,5X13X18 PR45 2009-001117 R-METALPLA TE;0.1OHM,5%,5W,CL,BK,5X13X18 PR46 2009-001117 R-METALPLA TE;0.1OHM,5%,5W,CL,BK,5X13X18 PR47 2009-001117 R-METALPLA TE;0.1OHM,5%,5W,CL,BK,5X13X18 PC25 2401-000230 C-AL;100uF,20%,100V ,GP,TP,12.5x20mm PC24 2401-000230 C-AL;100uF,20%,100V ,GP,TP,12.5x20mm PC23 2401-000230 C-AL;100uF,20%,100V ,GP,TP,12.5x20mm PC22 2401-000230 C-AL;100uF,20%,100V ,GP,TP,12.5x20mm JVR1 3406-001054 SWITCH-ROTARY;5V DC,0.5mA,-,7.5mm PREL2 3501-001197 RELAY-MINIATURE;12VDC,0.54W,44.4mA,1Form PREL1 3501-001197 RELAY-MINIATURE;12VDC,0.54W,44.4mA,1Form PW4 3708-000181 CONNECTOR-FPC/FFC/PIC;16P,1.25mm,STRAIGH JCW1 3708-000451 CONNECTOR-FPC/FFC/PIC;16P,1.25mm,STRAIGH PW2 3710-001793 CONNECTOR-SOCKET;9P,1R,2.5MM,STRAIGHT,SN PW1 3710-001793 CONNECTOR-SOCKET;9P,1R,2.5MM,STRAIGHT,SN PCW1 3711-004989 CONNECTOR-HEADER;2WALL,9P,1R,2.5MM,ANGLE PCW2 3711-004989 CONNECTOR-HEADER;2WALL,9P,1R,2.5MM,ANGLE SPJACK 3716-001164 TERMINAL-BLOCK;SOLDER,8P,-,60V,7A PL8 AH27-90001A COIL-SPRING;-,2.2UH,-,-,-,SPRING,-,-,-,PL7 AH27-90001A COIL-SPRING;-,2.2UH,-,-,-,SPRING,-,-,-,PL6 AH27-90001A COIL-SPRING;-,2.2UH,-,-,-,SPRING,-,-,-,PL5 AH27-90001A COIL-SPRING;-,2.2UH,-,-,-,SPRING,-,-,-,PL1 AH27-90001A COIL-SPRING;-,2.2UH,-,-,-,SPRING,-,-,-,PL2 AH27-90001A COIL-SPRING;-,2.2UH,-,-,-,SPRING,-,-,-,PL3 AH27-90001A COIL-SPRING;-,2.2UH,-,-,-,SPRING,-,-,-,PL4 AH27-90001A COIL-SPRING;-,2.2UH,-,-,-,SPRING,-,-,-,PCW3 AH39-00295A W/HARNESS UNIT;MAX-L85,-,-,9P,-,-,-,SCNPD5 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

Location no Code no. Description Specifiation Remarks Location no Code no. Description Specifiation Remarks

Samsung Electronics 3-13

Page 25

PD4 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, PD3 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, PD2 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP PD1 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP PZD1 0403-000382 DIODE-ZENER;UZP15B,15V,13.9-15.6V,1W,DOPZD2 0403-000382 DIODE-ZENER;UZP15B,15V,13.9-15.6V,1W,DOPQ9 0501-000296 TR-SMALL SIGNAL;KSA709-Y,PNP,800mW,TO-92 PQ6 0501-000296 TR-SMALL SIGNAL;KSA709-Y,PNP,800mW,TO-92 PQ10 0501-000296 TR-SMALL SIGNAL;KSA709-Y,PNP,800mW,TO-92 PQ5 0501-000331 TR-SMALL SIGNAL;KSC1009-Y,NPN,800mW,TO-9 PQ8 0501-000331 TR-SMALL SIGNAL;KSC1009-Y,NPN,800mW,TO-9 PQ17 0501-000369 TR-SMALL SIGNAL;KSC2331-Y,NPN,1000mW,TOPQ16 0501-000369 TR-SMALL SIGNAL;KSC2331-Y,NPN,1000mW,TOPQ15 0501-000407 TR-SMALL SIGNAL;KSD471A-Y,NPN,800mW,TO-9 PQ2 0501-000407 TR-SMALL SIGNAL;KSD471A-Y,NPN,800mW,TO-9 PQ3 0501-000407 TR-SMALL SIGNAL;KSD471A-Y,NPN,800mW,TO-9 PQ4 0501-000407 TR-SMALL SIGNAL;KSD471A-Y,NPN,800mW,TO-9 PQ1 0501-000407 TR-SMALL SIGNAL;KSD471A-Y,NPN,800mW,TO-9 PQ11 0501-000407 TR-SMALL SIGNAL;KSD471A-Y,NPN,800mW,TO-9 PQ12 0501-000407 TR-SMALL SIGNAL;KSD471A-Y,NPN,800mW,TO-9 PQ14 0501-000407 TR-SMALL SIGNAL;KSD471A-Y,NPN,800mW,TO-9 PQ7 0504-001003 TR-DIGITAL;KSR2003,PNP,300MW,22K/22K,TOPQ13 0504-001003 TR-DIGITAL;KSR2003,PNP,300MW,22K/22K,TOJLD5 0601-001238 LED;ROUND,RED,3.1mm,697nm JLD6 0601-001238 LED;ROUND,RED,3.1mm,697nm JLD7 0601-001238 LED;ROUND,RED,3.1mm,697nm JLD8 0601-001238 LED;ROUND,RED,3.1mm,697nm JLD9 0601-001238 LED;ROUND,RED,3.1mm,697nm JLD1 0601-001238 LED;ROUND,RED,3.1mm,697nm JLD10 0601-001238 LED;ROUND,RED,3.1mm,697nm JLD2 0601-001238 LED;ROUND,RED,3.1mm,697nm JLD3 0601-001238 LED;ROUND,RED,3.1mm,697nm JLD4 0601-001238 LED;ROUND,RED,3.1mm,697nm PR69 2001-000008 R-CARBON;15Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR65 2001-000008 R-CARBON;15Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR62 2001-000010 R-CARBON;68Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR66 2001-000010 R-CARBON;68Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR68 2001-000019 R-CARBON(S);10ohm,5%,1/2W,AA,TP,2.4x6.4m PR64 2001-000019 R-CARBON(S);10ohm,5%,1/2W,AA,TP,2.4x6.4m JR17 2001-000221 R-CARBON;1.2Kohm,5%,1/8W,AA,TP,1.8x3.2m PR36 2001-000241 R-CARBON;1.5Kohm,5%,1/8W,AA,TP,1.8x3.2m PR30 2001-000241 R-CARBON;1.5Kohm,5%,1/8W,AA,TP,1.8x3.2m PR28 2001-000241 R-CARBON;1.5Kohm,5%,1/8W,AA,TP,1.8x3.2m JR1 2001-000258 R-CARBON;1.8Kohm,5%,1/8W,AA,TP,1.8x3.2m PR70 2001-000273 R-CARBON;100Kohm,5%,1/8W,AA,TP,1.8x3.2m PR72 2001-000273 R-CARBON;100Kohm,5%,1/8W,AA,TP,1.8x3.2m PR87 2001-000273 R-CARBON;100Kohm,5%,1/8W,AA,TP,1.8x3.2m PR57 2001-000273 R-CARBON;100Kohm,5%,1/8W,AA,TP,1.8x3.2m PR13 2001-000273 R-CARBON;100Kohm,5%,1/8W,AA,TP,1.8x3.2m PR20 2001-000273 R-CARBON;100Kohm,5%,1/8W,AA,TP,1.8x3.2m PR56 2001-000273 R-CARBON;100Kohm,5%,1/8W,AA,TP,1.8x3.2m PR79 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR78 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR76 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm JR7 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm JR20 2001-000405 R-CARBON;180OHM,5%,1/8W,AA,TP,1.8X3.2MM JR21 2001-000405 R-CARBON;180OHM,5%,1/8W,AA,TP,1.8X3.2MM JR4 2001-000405 R-CARBON;180OHM,5%,1/8W,AA,TP,1.8X3.2MM JR5 2001-000405 R-CARBON;180OHM,5%,1/8W,AA,TP,1.8X3.2MM JR6 2001-000405 R-CARBON;180OHM,5%,1/8W,AA,TP,1.8X3.2MM JR11 2001-000405 R-CARBON;180OHM,5%,1/8W,AA,TP,1.8X3.2MM JR12 2001-000405 R-CARBON;180OHM,5%,1/8W,AA,TP,1.8X3.2MM JR13 2001-000405 R-CARBON;180OHM,5%,1/8W,AA,TP,1.8X3.2MM JR14 2001-000405 R-CARBON;180OHM,5%,1/8W,AA,TP,1.8X3.2MM JR15 2001-000405 R-CARBON;180OHM,5%,1/8W,AA,TP,1.8X3.2MM PR51 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR81 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR82 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR84 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR85 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR50 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm JR18 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR15 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR18 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR19 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR24 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm JR2 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m PR77 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR74 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR67 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR63 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR4 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm JR9 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm JR3 2001-000591 R-CARBON;3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m PR83 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m PR80 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m PR73 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m PR71 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m PR23 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m JR22 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m PR16 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m PR17 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m PR22 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m

PR61 2001-000780 R-CARBON;470ohm,5%,1/8W,AA,TP,1.8x3.2mm PR60 2001-000780 R-CARBON;470ohm,5%,1/8W,AA,TP,1.8x3.2mm PR21 2001-000780 R-CARBON;470ohm,5%,1/8W,AA,TP,1.8x3.2mm PR14 2001-000780 R-CARBON;470ohm,5%,1/8W,AA,TP,1.8x3.2mm PR75 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR86 2001-000802 R-CARBON;5.6Kohm,5%,1/8W,AA,TP,1.8x3.2m PR3 2001-000802 R-CARBON;5.6Kohm,5%,1/8W,AA,TP,1.8x3.2m PR49 2001-000864 R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR52 2001-000864 R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR54 2001-000864 R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR55 2001-000864 R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm JR10 2001-000864 R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR27 2001-000864 R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR29 2001-000864 R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR35 2001-000864 R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR40 2001-000869 R-CARBON;56ohm,5%,1/8W,AA,TP,1.8x3.2mm JR8 2001-000890 R-CARBON;6.8Kohm,5%,1/8W,AA,TP,1.8x3.2m JR16 2001-000995 R-CARBON;820ohm,5%,1/8W,AA,TP,1.8x3.2mm PR12 2001-001000 R-CARBON;82Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR11 2001-001000 R-CARBON;82Kohm,5%,1/8W,AA,TP,1.8x3.2mm PR25 2003-000008 R-METAL OXIDE(S);100ohm,5%,1W,AA,TP,3.3x PR26 2003-000008 R-METAL OXIDE(S);100ohm,5%,1W,AA,TP,3.3x PR44 2003-000428 R-METAL OXIDE(S);1.5Kohm,5%,1W,AA,TP,3.3 PR43 2003-000428 R-METAL OXIDE(S);1.5Kohm,5%,1W,AA,TP,3.3 PR9 2003-000689 R-METALOXIDE(S);4.7ohm,5%,1W,AA,TP,3.3x PR8 2003-000689 R-METALOXIDE(S);4.7ohm,5%,1W,AA,TP,3.3x PR7 2003-000689 R-METALOXIDE(S);4.7ohm,5%,1W,AA,TP,3.3x PR38 2003-000689 R-METAL OXIDE(S);4.7ohm,5%,1W,AA,TP,3.3x PR10 2003-000689 R-METAL OXIDE(S);4.7ohm,5%,1W,AA,TP,3.3x PC13 2201-000300 C-CERAMIC,DISC;1nF,20%,50V,Y5T,TP,5x3,5 PC12 2201-000300 C-CERAMIC,DISC;1nF,20%,50V,Y5T,TP,5x3,5 PC28 2201-000338 C-CERAMIC,DISC;2.2nF,20%,50V,Y5T,TP,5.0x PC29 2201-000338 C-CERAMIC,DISC;2.2nF,20%,50V,Y5T,TP,5.0x PC15 2201-000368 C-CERAMIC,DISC;220pF,10%,50V,SL,TP,6.5x3 PC11 2201-000368 C-CERAMIC,DISC;220pF,10%,50V,SL,TP,6.5x3 PC57 2201-000547 C-CERAMIC,DISC;4.7nF,20%,500V,Y5T,TP,14x PC55 2201-000547 C-CERAMIC,DISC;4.7nF,20%,500V,Y5T,TP,14x PC52 2201-000547 C-CERAMIC,DISC;4.7nF,20%,500V,Y5T,TP,14x PC51 2201-000547 C-CERAMIC,DISC;4.7nF,20%,500V,Y5T,TP,14x PC62 2201-000565 C-CERAMIC,DISC;47nF,+80% -20% 50V Y5V 12 PC61 2201-000565 C-CERAMIC,DISC;47nF,+80% -20% 50V Y5V 12 PC60 2201-000565 C-CERAMIC,DISC;47nF,+80% -20% 50V Y5V 12 PC59 2201-000565 C-CERAMIC,DISC;47nF,+80% -20% 50V Y5V 12 PC27 2201-000674 C-CERAMIC,DISC;0.82nF,10%,50V,Y5P,BK,5x3 PC26 2201-000674 C-CERAMIC,DISC;0.82nF,10%,50V,Y5P,BK,5x3 PC3 2201-000783 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, PC8 2201-000783 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, PC5 2201-000783 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, PC4 2201-000783 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP, PC35 2201-000838 C-CERAMIC,DISC;3pF,0.3pF,50V,CH,TP,5x3.5 PC33 2201-000838 C-CERAMIC,DISC;3pF,0.3pF,50V,CH,TP,5x3.5 PC14 2201-000838 C-CERAMIC,DISC;3pF,0.3pF,50V,CH,TP,5x3.5 PC10 2201-000838 C-CERAMIC,DISC;3pF,0.3pF,50V,CH,TP,5x3.5 PC38 2202-000781 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP PC34 2202-000781 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP JC1 2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3 JC2 2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3 PC7 2301-000379 C-FILM,PEF;10nF,10%,50V,TP,6x12x3.5mm,PC16 2301-000379 C-FILM,PEF;10nF,10%,50V,TP,6x12x3.5mm,PC9 2401-000357 C-AL;100UF,0.2,50V,GP,8*12,5MM,SSL PC50 2401-000357 C-AL;100UF,0.2,50V,GP,8*12,5MM,SSL PC21 2401-000357 C-AL;100UF,0.2,50V,GP,8*12,5MM,SSL PC20 2401-000357 C-AL;100UF,0.2,50V,GP,8*12,5MM,SSL PC19 2401-000475 C-AL;10uF,20%,50V,GP,TP,5x11mm,5mm PC18 2401-000475 C-AL;10uF,20%,50V,GP,TP,5x11mm,5mm PC61 2401-000970 C-AL;22uF,20%,50V,WT,TP,5x11,5 PC60 2401-001538 C-AL;47uF,20%,25V,GP,TP,5x11mm,5mm PC37 2401-001895 C-AL;100uF,20%,16V,GP,6.3*11,5MM,TP PC36 2401-001895 C-AL;100uF,20%,16V,GP,6.3*11,5MM,TP PC1 2401-001895 C-AL;100uF,20%,16V,GP,6.3*11,5MM,TP PC8 2401-001975 C-AL;47uF,20%,16V,GP,TP,5x11mm,5mm PC17 2401-001975 C-AL;47uF,20%,16V,GP,TP,5x11mm,5mm PC32 2401-002180 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm PC31 2401-002180 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm JSW4 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST JSW5 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST JSW6 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST JSW7 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST JSW8 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST JSW9 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST JSW3 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST JSW1 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST JSW10 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST JSW11 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST JSW2 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST JSW13 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST JSW12 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST

AH97-00900M ASSY-CA’DECK;-,RCD495/695/ST-68,ASSY CA’

3809-001188 CABLE-FLAT;30V,80C,240mm,16P,1.25mm,UL28

AH39-00021A LEAD CONNECTOR ASSY;UL1533#28,300MM,-,-,

AH39-20002D LEAD CONNECTOR ASSY;5264,-,3P,300MM,2970

AH59-00075A DECK;ADR246AMW,1A/RVS,-,-,DC12V,-,-

Location no Code no. Description Specifiation Remarks Location no Code no. Description Specifiation Remarks

3-14 Samsung Electronics

Page 26
