MAX-VS730
Table of contents
Loading...
Instruction Manual
THREE-CD CHANGER
VIDEO-CD
MINI-COMPACT SYSTEM
MP3-CD/CD-R/RW PLAYBACK
MAX-VS730
MAX-VS750
GB
2
Safety Warnings
CLASS 1 LASER PRODUCT
This Compact Disc player is classified as a CLASS 1
LASER product.
Use of controls, adjustments or performance of
procedures other than those specified herein may result
in hazardous radiation exposure.
CAUTION-INVISIBLE LASER RADIATION WHEN OPEN
AND INTERLOCKS DEFEATED, AVOID
EXPOSURE TO BEAM.
This symbol indicates that dangerous voltage which can cause electric shock is present inside
this unit.
This symbol alerts you to important operating and maintenance instructions accompanying
the unit.
WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY
INSERT.
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
PRODUCTO LASER CLASE 1
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE REAR COVER.
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
CAUTION
GB
3
Contents
Thank you for buying this
SAMSUNG mini-compact system.
Please take time to read these instructions.
They will allow you to operate your
system with ease and take full advantage
of its features.
Press Push Important Note
S
AFETYWARNINGS
.................................................................................................................................................................................................. 2
I
NSTALLINGYOURMINI-COMPACTSYSTEM
Front Panel View...................................................................................................................................................................................................... 4
Remote Control ........................................................................................................................................................................................................ 5
Rear Panel View ...................................................................................................................................................................................................... 6
Where to Install Your Mini-Compact System............................................................................................................................................................ 6
Connecting your System to the Power Supply ........................................................................................................................................................ 6
Inserting Remote Control Batteries.......................................................................................................................................................................... 7
Connecting the Loudspeakers.................................................................................................................................................................................. 7
Connecting to an External Source............................................................................................................................................................................ 8
Connecting to the Equipment .................................................................................................................................................................................. 8
Connecting the AM (MW/LW) Aerial .......................................................................................................................................................................... 9
Connecting the FM Aerial .......................................................................................................................................................................................... 9
Connecting the SW Aerial (OPTION)........................................................................................................................................................................ 9

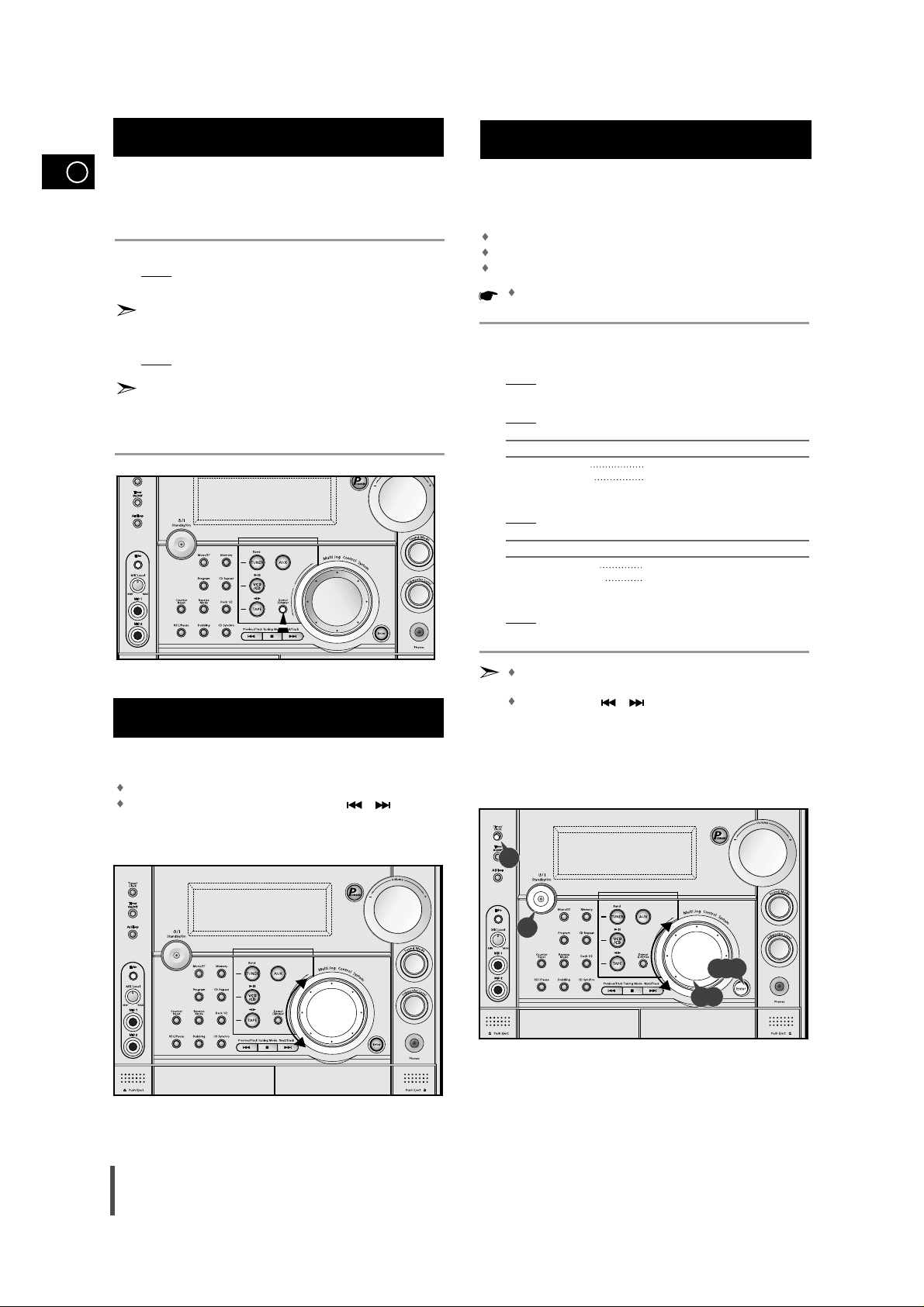

Demo/Dimmer function ............................................................................................................................................................................................ 10
Multi Jog Function.................................................................................................................................................................................................... 10
Setting the Clock...................................................................................................................................................................................................... 10
VCD/MP3-CD/CD-P
LAYER
Loading and Changing Compact Discs.................................................................................................................................................................... 11
To replay the CD/MP3-CD........................................................................................................................................................................................ 11
Selecting a CD in the Disc changer ........................................................................................................................................................................ 12
MP3-CD PLAYBACK .............................................................................................................................................................................................. 12
Selecting a Track...................................................................................................................................................................................................... 12
Searching for a Specific Music Passage on a CD .................................................................................................................................................. 13
Function to skip through 10 tracks at a time............................................................................................................................................................ 13
Shuffle Play Function .............................................................................................................................................................................................. 13
Repeating One or All Tracks on the Compact Discs................................................................................................................................................ 13
Programming the Order of Playback........................................................................................................................................................................ 14
Checking or Changing Programmed Tracks............................................................................................................................................................ 14

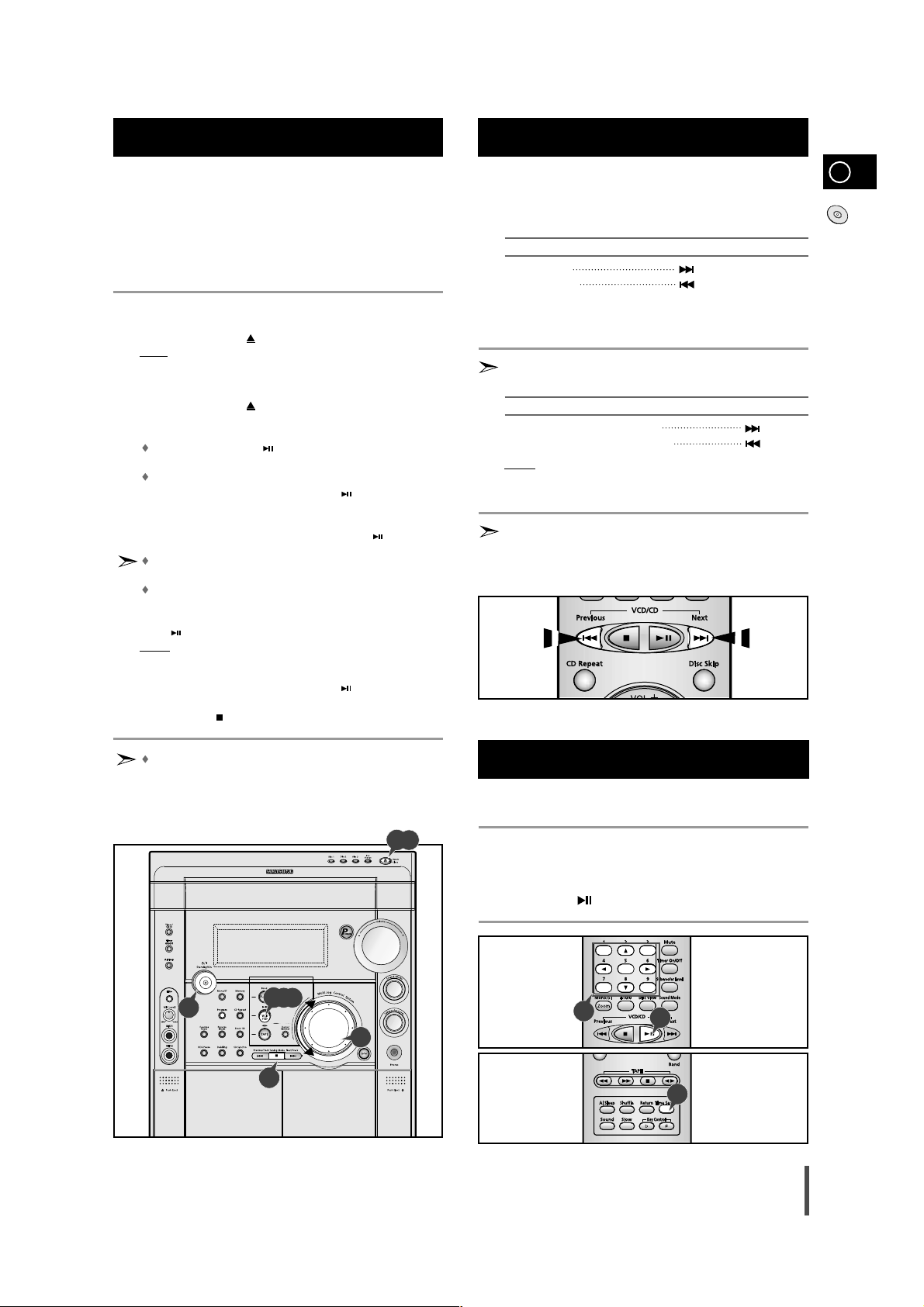

Video CD Player Playback ...................................................................................................................................................................................... 15
Search Functions .................................................................................................................................................................................................... 15
Time Searchy Function ............................................................................................................................................................................................ 15

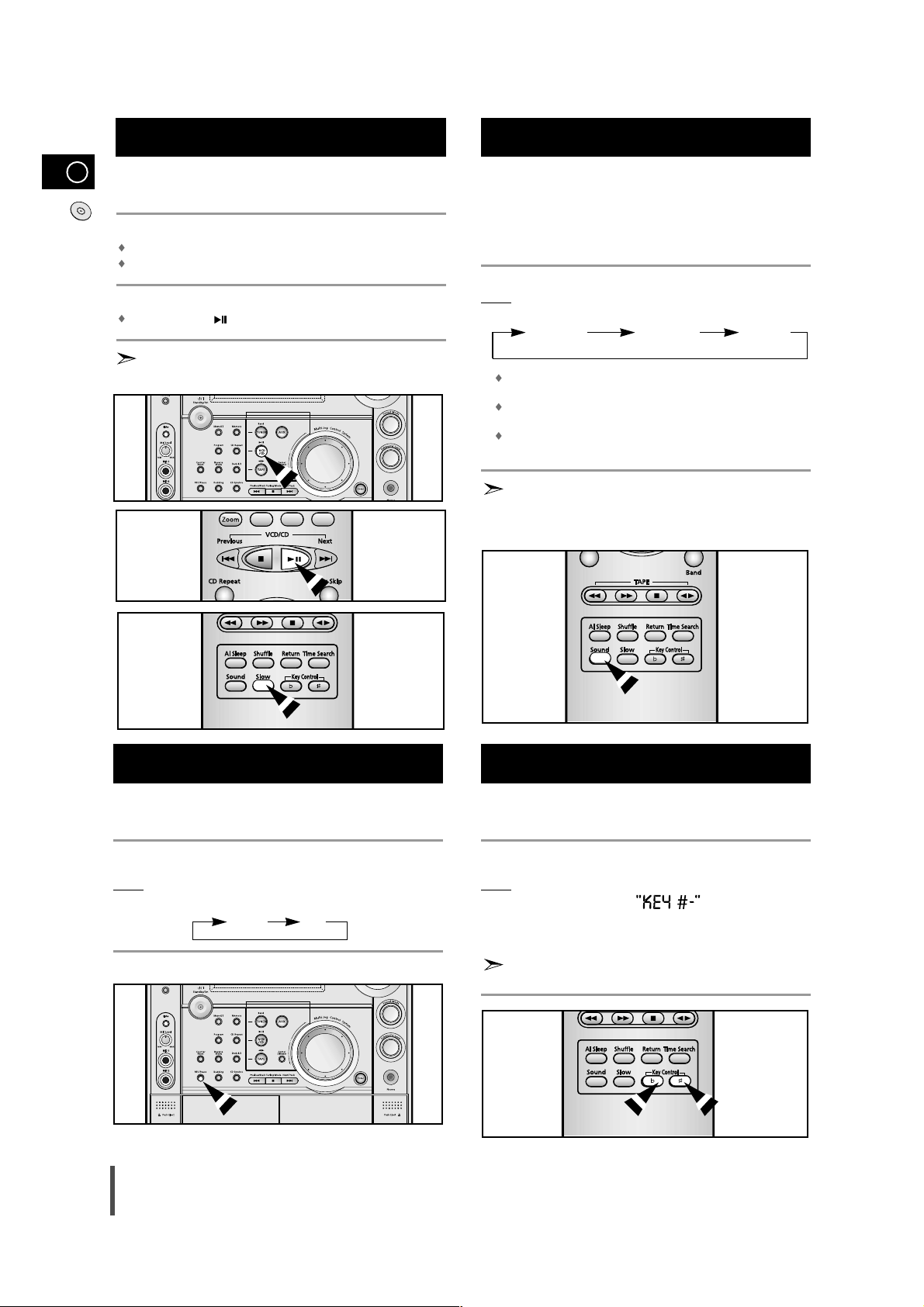

When adjusting play speed...................................................................................................................................................................................... 16
NTSC/PALSelection Method .................................................................................................................................................................................. 16
Sound Selection Function ........................................................................................................................................................................................ 16
KEY CONTROL Function ........................................................................................................................................................................................ 16
VCD VIEW function.................................................................................................................................................................................................. 17
ZOOM Function ........................................................................................................................................................................................................ 17
Last Memory Function.............................................................................................................................................................................................. 17
T
UNER

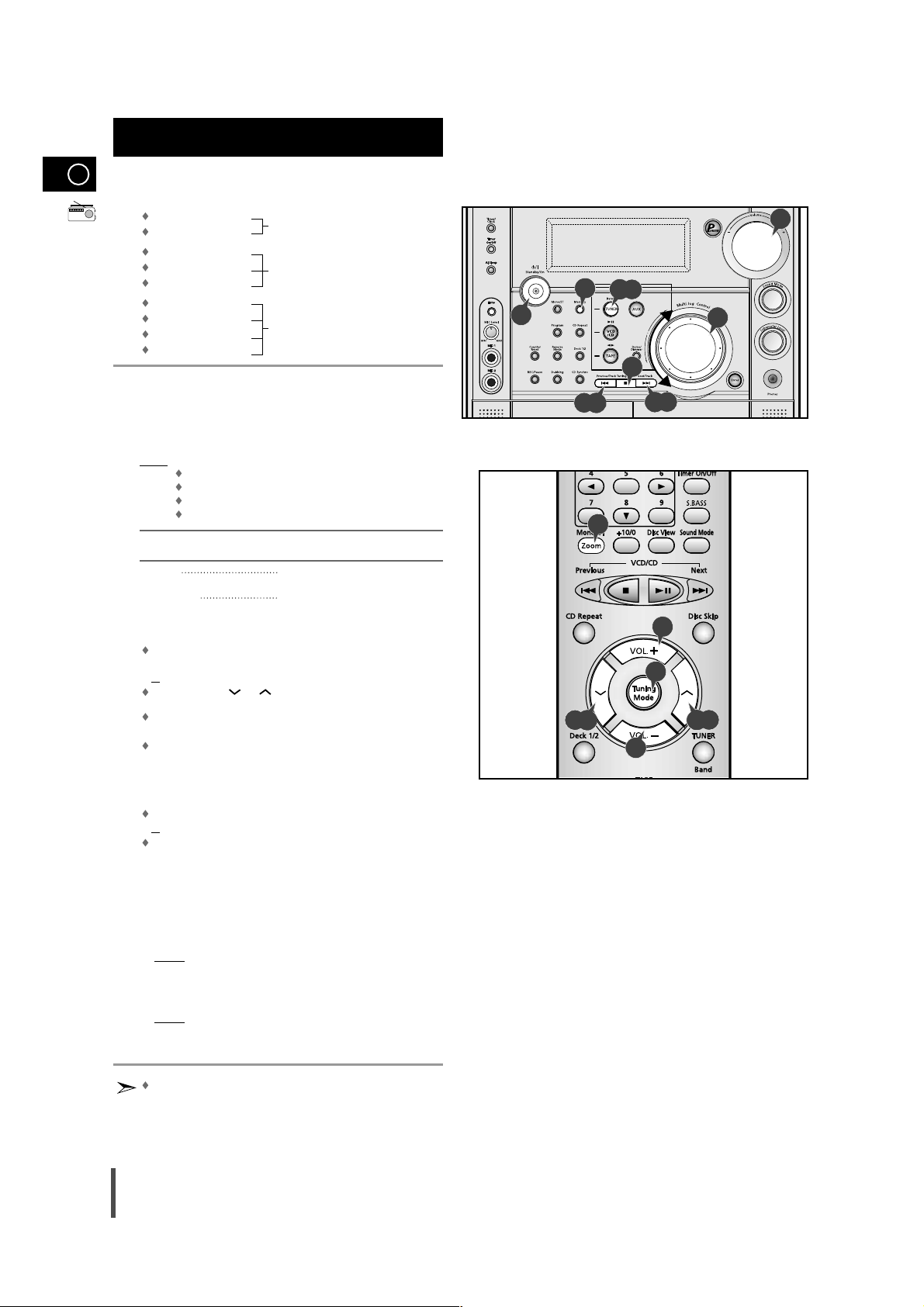

Searching for and Storing the Radio Stations ........................................................................................................................................................ 18
Selecting a Stored Station........................................................................................................................................................................................ 19
Improving Radio Reception...................................................................................................................................................................................... 19
T
APEDECK
Listening to a Cassette ............................................................................................................................................................................................ 20
CD Synchro Record Feature .................................................................................................................................................................................... 20
Recording a Compact Disc ...................................................................................................................................................................................... 20

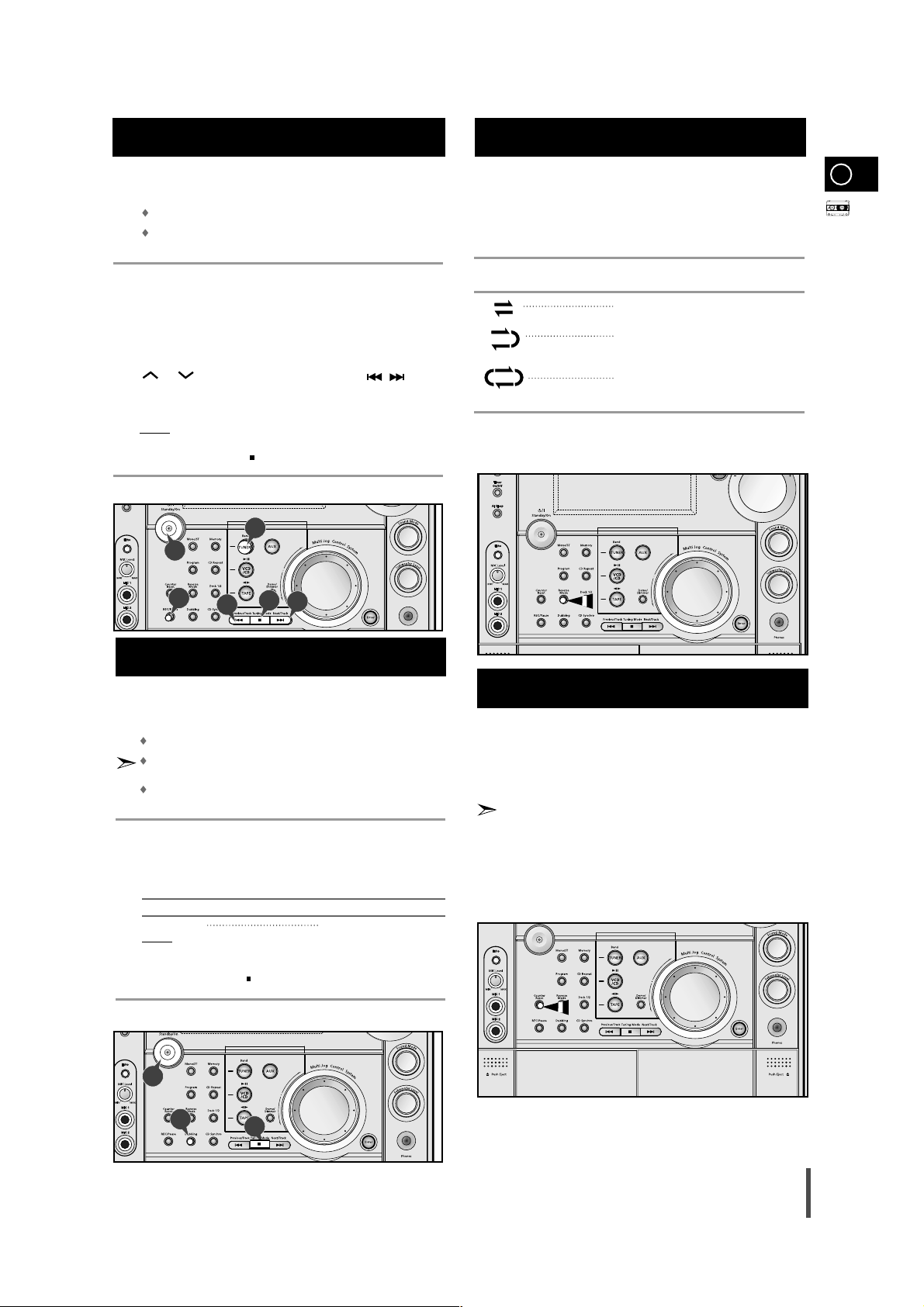

Recording a Radio Program .................................................................................................................................................................................... 21
Copying a Cassette (Dubbing) ................................................................................................................................................................................ 21
Selecting the Cassette Playback Mode(DECK 2 only) ............................................................................. ............................................................. 21
Tape Counter ............................................................................................................................................................................................................ 21
O
THERFUNCTIONS

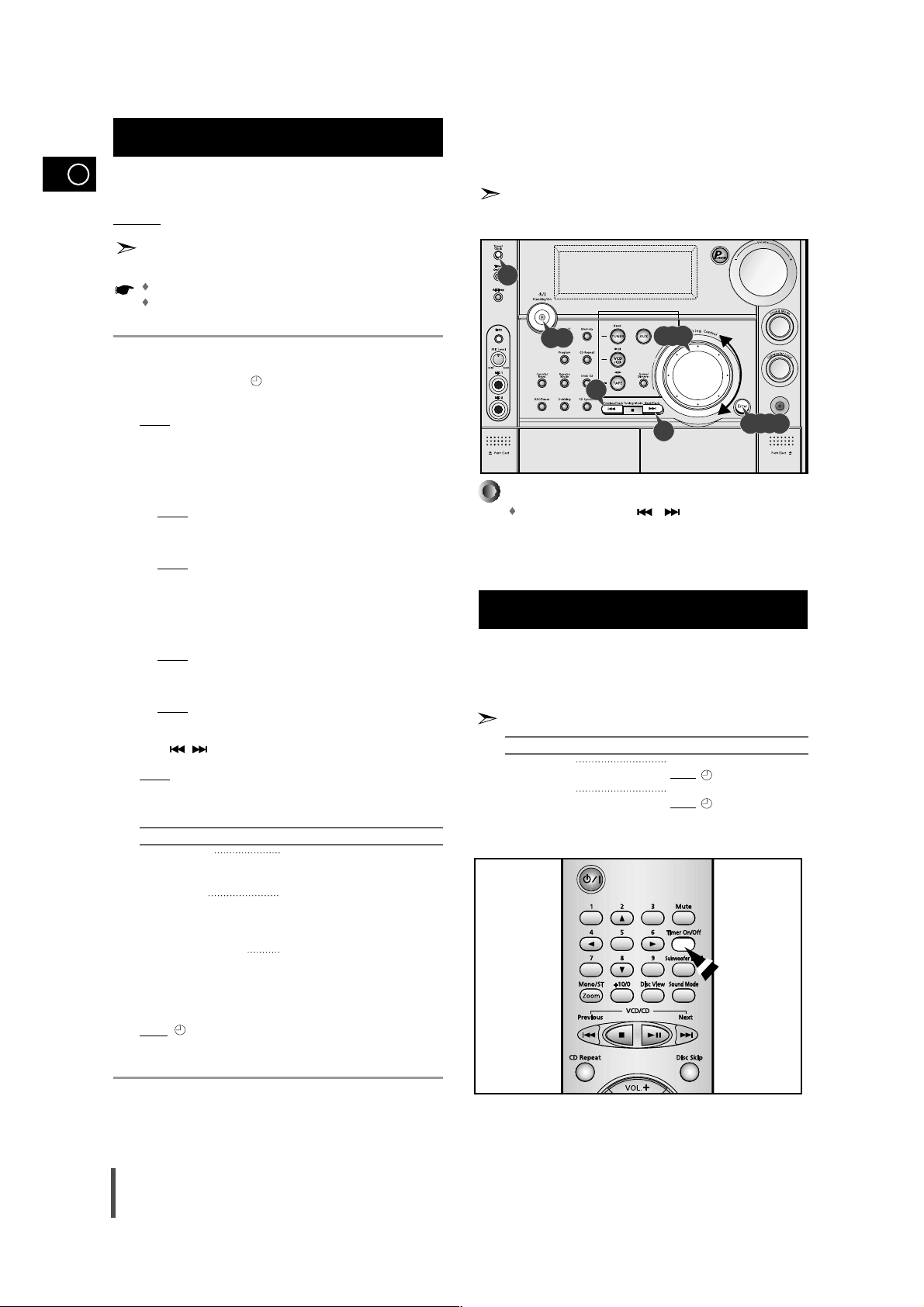

Timer Function.......................................................................................................................................................................................................... 22
Cancelling the Timer ................................................................................................................................................................................................ 22
Mute Function .......................................................................................................................................................................................................... 23
Selecting an Equalizer Preset.................................................................................................................................................................................. 23
How to user adjust USER EQ?(option) .................................................................................................................................................................... 23
Power Surround Function ........................................................................................................................................................................................ 23

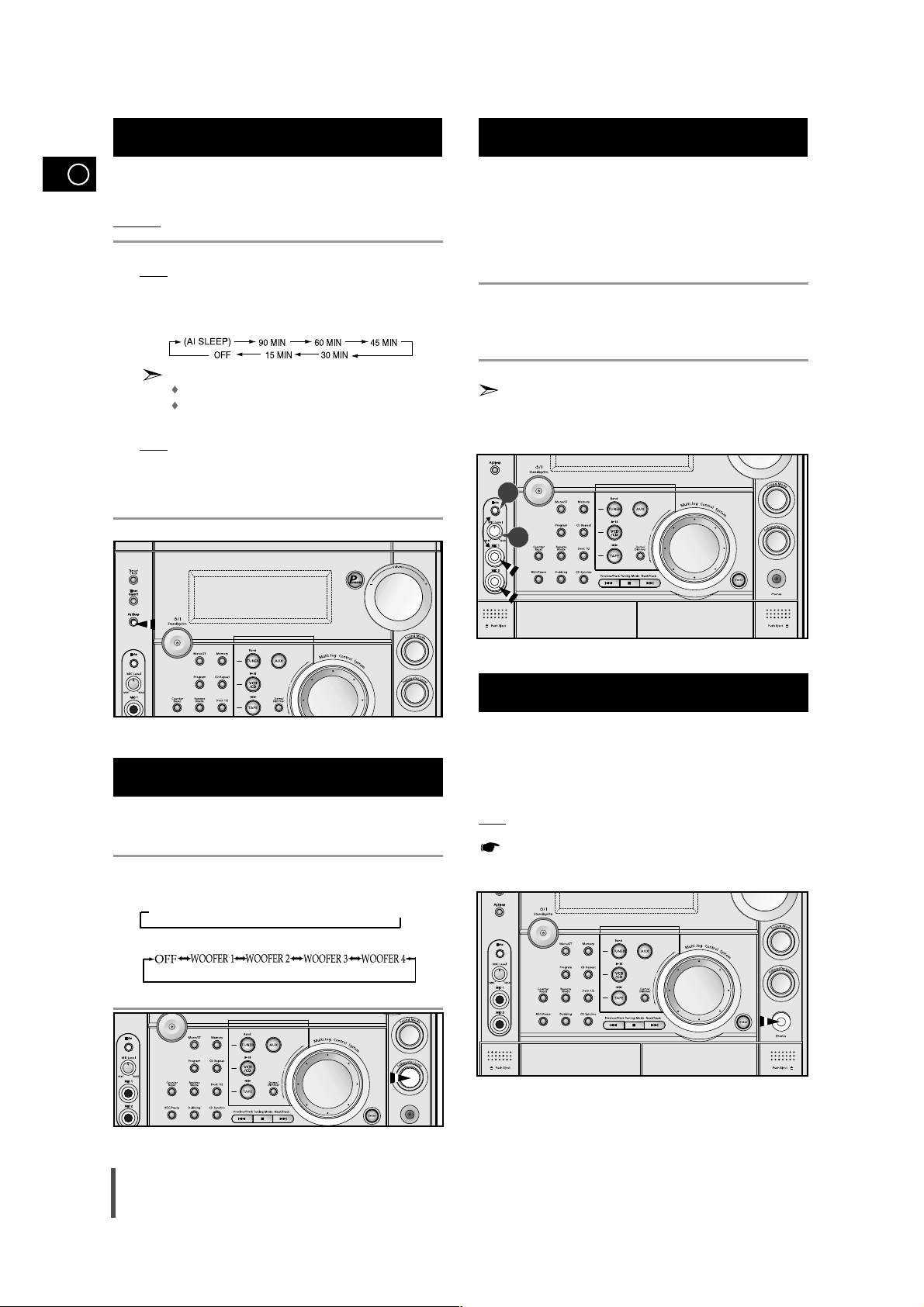

Setting the System to Switch off Automatically........................................................................................................................................................ 24
Subwoofer Level Function........................................................................................................................................................................................ 24
Microphone Function ................................................................................................................................................................................................ 24
Connecting Headphones .......................................................................................................................................................................................... 24
R
ECOMMENDATIONS FORUSE

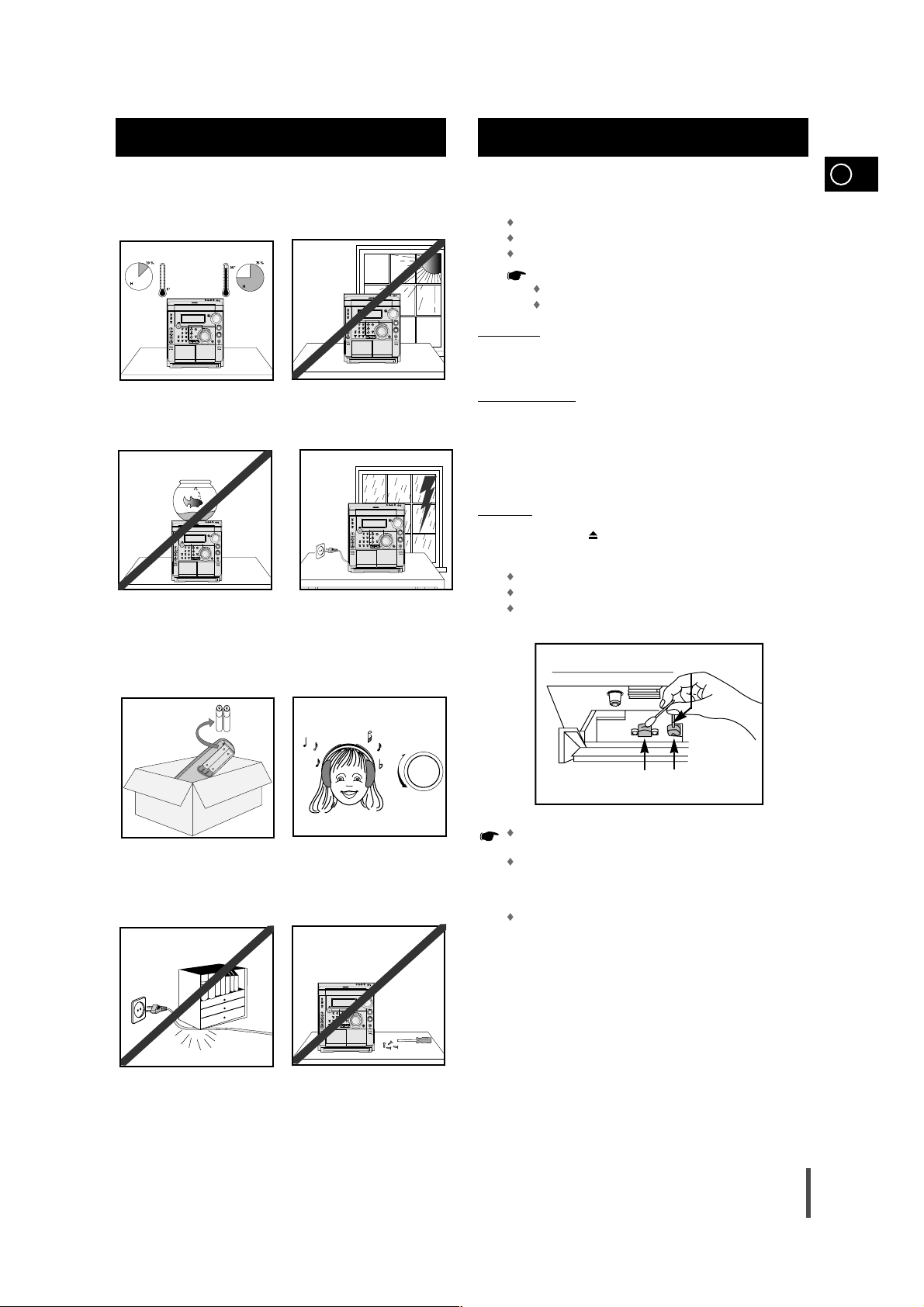

Safety Precautions .................................................................................................................................................................................................. 25
Cleaning Your Mini-Compact System ...................................................................................................................................................................... 25

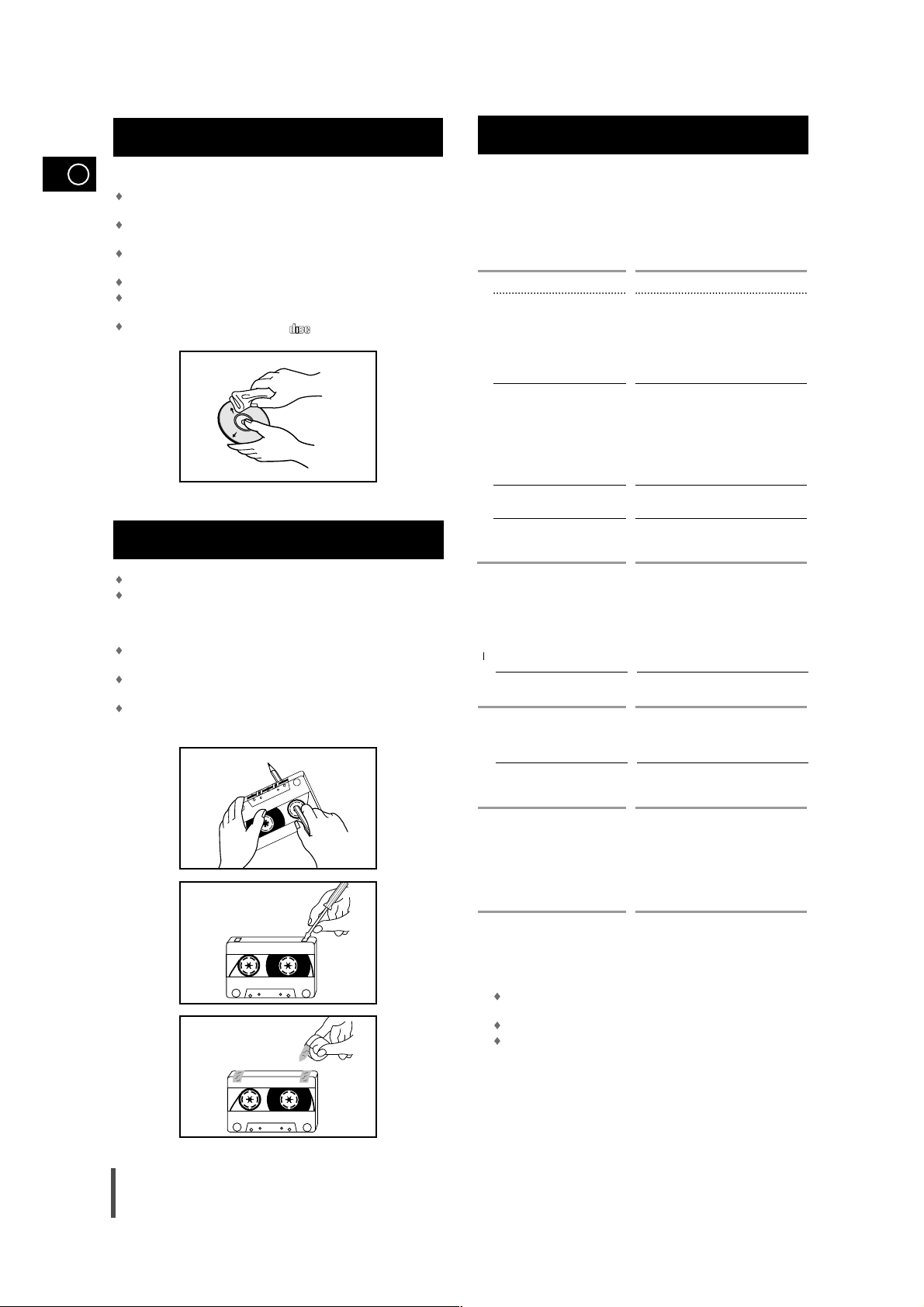

Precautions When Using Compact Discs ................................................................................................................................................................ 26
Precautions When Using Audio Cassettes .............................................................................................................................................................. 26
Before Contacting the After-Sales Service .............................................................................................................................................................. 26
Technical Specifications .......................................................................................................................................................................................... 27
Symbols
GB
4
Front Panel View
1. Program
2. FM Mono/Stereo
3. Timer/Clock
4. Timer On/Off
5. AI Sleep
6. Standby/On
7. Echo
8. MIC Level
9. MIC1,MIC2
10. Counter Reset
11. Reverse Mode
12. Cassette Deck 1
13. Record/Pause
14. TAPE Normal Speed Dubbing
15. Deck 1/2
16. CD Synchro Recording
17. Search Function buttons
Tuning Mode or Stop button
18. Demo/Dimmer
19. Cassette Deck 2
20. Multi Jog
21. Enter
22. Headphone Jack Connector
23. Subwoofer Level
24. Sound Mode
25. Volume
26. Power SURROUND
27. Compact Disc Compartment
28. Open/Close
29. Disc Change
30. Disc Selection buttons
31. Window Display
32. Function Selection buttons
33. CD Repeat
34. Memory
33
34
2
1
3
4
5
6
7
8
14
13
16
15
17
19
21
20
22
23
24
26
25
27
28293032 31
18
9
10
11
12
GB
5
Remote Control
1. Standby/On
2. Digit Buttons/Direction Buttons
3. FM Mono/Stereo
/
VCD Zoom
4. +10/0
5. Track Previous
6. CD Stop
7. CD Repeat
8. Radio Station Search
9. Volume Decrease
10. Deck 1/2
11. TAPE Rewind
12. TAPE Fast-Forward
13. AI Sleep
14. VCD/CD Shuffle Play/MP3-CD Random
Play
15. VCD Sound
16. VCD Slow Play
17. Key Control
18. Key Control
19. Return
20. Time Search (Last Memory)
21. TAPE Stop
22. TAPE Play
23. Tuner/Band
24. Tuning Mode
25. Volume Increase
26. Disc Number Skip
27. Disc Play/Pause
28. Track Next
29. Disc View
30. Sound Mode
31. Subwoofer Level
32. Timer On/Off
33. Mute
18
17
19
20
21
22
24
23
25
26
27
28
29
30
31
32
33
2
1
4
5
6
7
8
10
9
11
12
13
14
15
16
3
GB
6
The main lead must be plugged into an appropriate socket.
Before plugging your system into a main socket, you must check
the voltage setting (OPTIONAL). If the voltage of the socket does
not correspond to the setting on the rear of the unit, you may
seriously damage your system.
Check the position of the Voltage selector on the rear of the system
(OPTIONAL).
Plug the main lead (marked AC Cord on the rear of the system) into
an appropriate socket.
Press the Standby/On button to switch your mini-compact system on.
To take full advantage of your new mini-compact system,
ollow these installation instructions before connecting the
unit.
Install the system on a flat, stable surface.
Never place this unit on carpeting.
Never place this unit in an outdoor area.
Maintain an open space of approximately 6 inches (15 cm) on the
sides and rear of the system, for ventilation purposes.
Make sure that you have enough room to open the compact disc
compartment easily.
Place the loudspeakers at a reasonable distance on either side of
the system to ensure good stereo sound.
Direct the loudspeakers towards the listening area.
For optimum performance, make sure that both speakers are placed
at an equal distance above the floor.
Where to Install Your Mini-Compact System
Connecting your System to the Power Supply
1
2
3
Rear Panel View
1
2
3
4
5
6
7
8
9
1. FM Aerial Connector Terminal
2. SW Aerial Connector Terminal (OPTION)
3. AM Aerial Connector Terminals
4. Main Speaker Connector Terminals
5. SUBWOOFER Speaker Connector Terminals
6. AUDIO(DISC) Output Connectors
7. VIDEO(DISC) Output Connectors
8. AUX-Input
9. Voltage Selector (OPTION)
GB
7
The loudspeaker and subwoofer connector terminals are
located on the rear of the system.
The subwoofer generates low-pitched tones.
(Ex. Explosion, the sound of spacecraft flying, the sound of pondering,
etc.)
Press and hold the clamp of the speaker terminal on the rear of the
unit.
Insert the end of the speaker cord into the terminal.
Match the polarity (colors): Red (+) to red (+) and black (–) to
black (–).
Match the polarity (colors): Blue (+) to blue (+) and black (–) to
black (–); Red (+) to red (+) and black (–) to black (–).
Release the finger from the clamp.
Use only speakers with the same speaker impedance as
indicated by the speaker terminals on the rear of the unit.
Connecting the Loudspeakers
1
2
3
Directions in Installing Speaker
Installation in a place near heating apparatus, under direct lay of
light or with high humidity may cause performance degradation
of the speaker.
Do not install on the wall or on a high place of pole or other
unstable place to prevent any safety accident caused by falling
of the speaker.
Do not take the speaker apart from TV or computer monitor.
The speaker near the TV or computer monitor may influence the
quality of the screen display.
Insert or replace remote control batteries when you:
Purchase the mini-compact system
Find that the remote control is no longer operating correctly
When replacing the batteries, use a new set of batteries and
never mix alkaline and manganese batteries.
Place your thumb on the position marked on the battery
compartment cover (rear of the remote control) and push the cover
in the direction of the arrow.
Insert two AA, LR6 or equivalent batteries, taking care to respect the
polarities:
+ on the battery against + in the battery compartment
– on the battery against – in the battery compartment
Replace the cover by sliding it back until it clicks into position.
If you will not be using the remote control for a long time,
remove the batteries to prevent corrosion.
Inserting Remote Control Batteries
1
2
3
Match the polarity (colors): Blue (+) to blue (+) and black (–) to
black (–); Red (+) to red (+) and black (–) to black (–).
Speaker Cord
(Red/Black)
Speaker Cord
(Blue/Black)
GB
8
The auxiliary input can be used to take advantage of the
sound quality of your mini-compact system when listening
to other sources.
Examples
: A television
A video disc player
A Hi-Fi stereo video cassette recorder
To connect the external source, the source must have an audio
output. In addition, you need an RCA connection cable.
Set the system to standby mode and disconnect it and the external
source from the main.
Connect the audio cable to the rear of the mini-compact system.
Connect the... To the connector marked...
Red jack R (right)
White jack L (left)
For optimum sound quality, do not invert the right and left
channels.
Plug the system back into the main socket and press Standby/On to
switch it on.
Select the AUX source by pressing AUX.
Result
: AUX is displayed.
Switch the external source on.
Adjust the volume and balance as required:
Volume Equalizer
Example: You can watch a film and take advantage of stereo sound
provided that the original sound track is in stereo (as if you
were in a cinema).
Connecting to an External Source
1
2
3
4
5
6
Using the Audio Cord, Connect the Audio Output Terminals (Left,
Right) of the System with the Audio Input Terminals (Left, Right) of
the Video Input Cassette Recorder, so as to Record VCD.
Using the Video Cord, Connect the Video Output Terminal of the
system with the Video Input Terminal of TV.
Turn on the TV and Select the Video mode by pressing the
TV/VIDEO SELECT button to the VIDEO Position.
Please Pay Attention not to Connect the Audio Output Terminals
(left, right) of the System with the Audio Input Terminal of TV.
Connecting to the Equipment
AMPLIFIER
AUDIO INPUT VIDEO INPUT
RL
TV
3
4
GB
9
The AM aerial (for long and medium waves) can be:
Placed on a stable surface
Fixed to the wall (you must first remove the base)
The AM aerial connector terminals are located on the rear of
the system and are marked AM .
To avoid noise interference, check that the loudspeaker
wires do not run close to the aerial wires.
Always keep them at least 2 inches (5 cm) away.
Connecting the AM (MW/LW) Aerial
How to connect a COAXIAL TYPE aerial.
Connect a 75Ω antenna to the FM antenna terminal.
Plug the connector on the FM aerial supplied into the coaxial socket (75Ω) marked FM on the rear of the system.
Follow the instructions given on Page 18 to tune into a radio station, and determine the best position for the aerial.
If reception is poor, you may need to install an outdoor aerial.
To do so, connect an outdoor FM aerial to the FM socket on the rear of the system using a 75Ω coaxial cable (not supplied).
Connecting the FM Aerial
How to connect a WIRE TYPE aerial.
Spread the SW aerial out and attach the ends to a wall, in the
position providing the best reception.
If reception is poor (e.g. distance from transmitter too great,
walls blocking the radio waves, etc.), install an outdoor aerial.
Connecting the SW Aerial (OPTION)
AUDIO OUT
RL
VIDEO
OUT
AM
AUDIO OUT
RL
VIDEO
OUT
AUDIO OUT
RL
VIDEO
OUT
Loading...
