THREE-CD CHANGER
VIDEO-CD
MINI-COMPACT SYSTEM
MP3-CD/CD-R/RW PLAYBACK
MAX-VS720
Instruction Manual
Page 2
GB
Safety Warnings
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
PRODUCTO LASER CLASE 1
CLASS 1 LASER PRODUCT
This Compact Disc player is classified as a CLASS 1
LASER product.
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE REAR COVER.
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
This symbol indicates that dangerous voltage which can cause electric shock is present inside
this unit.
This symbol alerts you to important operating and maintenance instructions accompanying
the unit.
Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
CAUTION-INVISIBLE LASER RADIATION WHEN OPEN
AND INTERLOCKS DEFEATED, AVOID EXPOSURE TO BEAM.
WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY
INSERT.
2
Page 3
Thank you for buying this
Contents
S
AFETYWARNINGS
NSTALLINGYOURMINI-COMPACTSYSTEM
I
Front Panel View ...................................................................................................................................................................................... 4
Remote Control........................................................................................................................................................................................ 5
Rear Panel View ...................................................................................................................................................................................... 6
Where to Install Your Mini-Compact System ............................................................................................................................................ 6
Connecting your System to the Power Supply ........................................................................................................................................ 6
Inserting Remote Control Batteries.......................................................................................................................................................... 7
Connecting the Loudspeakers ................................................................................................................................................................ 7
Connecting to an External Source .......................................................................................................................................................... 8
Connecting to the Equipment.................................................................................................................................................................... 8
Connecting the AM (MW/LW) Aerial.......................................................................................................................................................... 9
Connecting the FM Aerial.......................................................................................................................................................................... 9
Connecting the SW Aerial (OPTION)........................................................................................................................................................ 9
Demo/Dimmer function ............................................................................................................................................................................ 10
Multi Jog function .................................................................................................................................................................................... 10
Setting the Clock...................................................................................................................................................................................... 10
VCD/MP3-CD/CD-P
Loading and Changing Compact Discs.................................................................................................................................................... 11
To replay the CD/MP3-CD ........................................................................................................................................................................ 11
Selecting a CD in the Disc changer ........................................................................................................................................................ 12
MP3-CD Playback.................................................................................................................................................................................... 12
Selecting a Track...................................................................................................................................................................................... 12
Searching for a Specific Music Passage on a CD .................................................................................................................................. 13
Function to skip through 10 tracks at a time................................................................................... ......................................................... 13
Shuffle Play Function .............................................................................................................................................................................. 13
Repeating One or All Tracks on the Compact Discs ............................................................................... ................................................. 13
Programming the Order of Playback........................................................................................................................................................ 14
Checking or Changing Programmed Tracks ............................................................................................................................................ 14
Video CD Player Playback ...................................................................................................................................................................... 15
Search Functions .................................................................................................................................................................................... 15
Time Searchy Function............................................................................................................................................................................ 15
When adjusting play speed ...................................................................................................... ................................................................ 16
NTSC/PALSelection Method .................................................................................................................................................................. 16
Sound Select Function ............................................................................................................................................................................ 16
KEY CONTROL Function ........................................................................................................................................................................ 16
VCD VIEW function .................................................................................................................................................................................. 17
ZOOM Function........................................................................................................................................................................................ 17
Last Memory Function.............................................................................................................................................................................. 17
UNER
T
Searching for and Storing the Radio Stations ........................................................................................................................................ 18
Selecting a Stored Station........................................................................................................................................................................ 19
Improving Radio Reception ...................................................................................................................................................................... 19
T
APEDECK
Listening to a Cassette ............................................................................................................................................................................ 20
CD Synchro Record Feature.................................................................................................................................................................... 20
Recording a Compact Disc ...................................................................................................................................................................... 20
Recording a Radio Program .................................................................................................................................................................... 21
Copying a Cassette (Dubbing) ................................................................................................................................................................ 21
Selecting the Cassette Playback Mode (Deck 2 Only)............................................................................................................................ 21
Tape Counter............................................................................................................................................................................................ 21
THERFUNCTIONS
O
Timer Function ........................................................................................................................................................................................ 22
Cancelling the Timer................................................................................................................................................................................ 22
Mute Function .......................................................................................................................................................................................... 23
Selecting an Equalizer Preset .................................................................................................. ................................................................ 23
Power Surround Function ........................................................................................................................................................................ 23
Setting the System to Switch off Automatically........................................................................................................................................ 24
Super Bass Sound .................................................................................................................................................................................. 24
Microphone Function................................................................................................................................................................................ 24
Connecting Headphones.......................................................................................................................................................................... 24
ECOMMENDATIONS FORUSE
R
Safety Precautions .................................................................................................................................................................................. 25
Cleaning Your Mini-Compact System ...................................................................................................................................................... 25
Precautions When Using Compact Discs................................................................................................................................................ 26
Precautions When Using Audio Cassettes.............................................................................................................................................. 26
Before Contacting the After-Sales Service .............................................................................................................................................. 26
Technical Specifications .......................................................................................................................................................................... 27
.................................................................................................................................................................................. 2
LAYER
SAMSUNG mini-compact system.
Please take time to read these instructions.
They will allow you to operate your
system with ease and take full advantage
of its features.
Symbols
GB
Press Push Important Note
3
Page 4
GB
Front Panel View
10
11
12
34
33
28293032 31
1
27
2
26
3
4
25
5
6
24
7
8
9
23
22
21
20
19
13
14
1. Program
2. FM Mono/Stereo
3. Timer/Clock
4. Timer On/Off
5. AI Sleep
6. Standby/On
7. Echo
8. MIC Level
9. MIC1,MIC2
10. Counter Reset
11. Reverse Mode
12. Cassette Deck 1
13. Record/Pause
14. TAPE Normal Speed Dubbing
15. Deck 1/2
16. CD Synchro Recording
17. Search Function buttons
Tuning Mode or Stop button
4
15
16
17
18
18. Demo/Dimmer
19. Cassette Deck 2
20. Multi Jog
21. Enter
22. Headphone Jack Connector
23. Super Bass Level
24. Sound Mode
25. Volume
26. Power SURROUND
27. Compact Disc Compartment
28. Open/Close
29. Disc Change
30. Disc Selection buttons
31. Window Display
32. Function Selection buttons
33. CD Repeat
34. Memory
Page 5
Remote Control
GB
1
33
10
11
12
13
14
15
16
2
32
31
3
4
5
6
7
30
29
28
27
26
25
8
24
9
23
22
21
20
19
18
17
1. Standby/On
2. Digit Buttons/Direction Buttons
3. FM Mono/Stereo
4. +10/0
5. Track Previous
6. CD Stop
7. CD Repeat
8. Radio Station Search
9. Volume Decrease
10. Deck 1/2
11. TAPE Rewind
12. TAPE Fast-Forward
13. AI Sleep
14. CD Shuffle Play/MP3-CD Random Play
15. VCD Sound
16. VCD Slow Play
17. Key Control
VCD Zoom
/
18. Key Control
19. Return
20. Time Search (Last Memory)
21. TAPE Stop
22. TAPE Play
23. Tuner/Band
24. Tuning Mode
25. Volume Increase
26. Disc Number Skip
27. Disc Play/Pause
28. Track Next
29. Disc View
30. Sound Mode
31. Super BASS Level
32. Timer On/Off
33. Mute
5
Page 6
GB
Rear Panel View
8
Where to Install Your Mini-Compact System
To take full advantage of your new mini-compact system, follow these installation instructions before connecting the unit.
Install the system on a flat, stable surface.
Never place this unit on carpeting.
Never place this unit in an outdoor area.
1
2
3
4
5
6
7
Maintain an open space of approximately 6 inches (15 cm) on the
sides and rear of the system, for ventilation purposes.
Make sure that you have enough room to open the compact disc
compartment easily.
Place the loudspeakers at a reasonable distance on either side of
the system to ensure good stereo sound.
Direct the loudspeakers towards the listening area.
For optimum performance, make sure that both speakers are placed
at an equal distance above the floor.
1. SW Aerial Connector Terminal (OPTION)
2. FM Aerial Connector Terminal
3. AM Aerial Connector Terminal
4. VIDEO(Disc) Output Connector
5. AUDIO(Disc) Output Connectors
6. Loudspeaker Connector Terminals
7. AUX-Input
8. Voltage Selector (OPTION)
Connecting your System to the Power Supply
The main lead must be plugged into an appropriate socket.
Before plugging your system into a main socket, you must check
the voltage setting (OPTIONAL). If the voltage of the socket does
not correspond to the setting on the rear of the unit, you may
seriously damage your system.
Check the position of the Voltage selector on the rear of the system
1
(OPTIONAL).
2
Plug the main lead (marked AC Cord on the rear of the system) into
an appropriate socket.
Press the Standby/On button to switch your mini-compact system on.
3
6
Page 7
Inserting Remote Control Batteries
Insert or replace remote control batteries when you:
Purchase the mini-compact system
Find that the remote control is no longer operating correctly
When replacing the batteries, use a new set of batteries and
never mix alkaline and manganese batteries.
Place your thumb on the position marked on the battery
1
compartment cover (rear of the remote control) and push the cover in
the direction of the arrow.
Insert two AA, LR6 or equivalent batteries, taking care to respect the
2
polarities:
+ on the battery against + in the battery compartment
– on the battery against – in the battery compartment
Replace the cover by sliding it back until it clicks into position.
3
If you will not be using the remote control for a long time,
remove the batteries to prevent corrosion.
Connecting the Loudspeakers
The loudspeaker connector terminals are located on the rear
of the system.
There are four terminals on the system:
Two for the left speaker (marked L)
Two for the right speaker (marked R)
To achieve the correct sound quality, connect the:
Red wire to the + terminals
Black wire to the – terminals
Press and hold the terminal tab.
1
Insert the speaker cord.
2
Release the finger.
3
L
R
GB
Directions in Installing Speaker
Installation in a place near heating apparatus, under direct lay of
light or with high humidity may cause performance degradation
of the speaker.
Do not install on the wall or on a high place of pole or other
unstable place to prevent any safety accident caused by falling
of the speaker.
Do not take the speaker apart from TV or computer monitor.
The speaker near the TV or computer monitor may influence the
quality of the screen display.
7
Page 8
Connecting to an External Source
GB
The auxiliary input can be used to take advantage of the
sound quality of your mini-compact system when listening to
other sources.
Examples
: A television
A video disc player
A Hi-Fi stereo video cassette recorder
To connect the external source, the source must have an audio
output. In addition, you need an RCA connection cable.
Set the system to standby mode and disconnect it and the external
1
source from the main.
Connect the audio cable to the rear of the mini-compact system.
2
Connect the... To the connector marked...
Red jack R (right)
White jack L (left)
For optimum sound quality, do not invert the right and left
channels.
Plug the system back into the main socket and press Standby/On to
3
switch it on.
Select the AUX source by pressing AUX.
4
5
6
: AUX is displayed.
Result
Switch the external source on.
Adjust the volume and balance as required:
Volume Equalizer
Connecting to the Equipment
Using the Audio Cord, Connect the Audio Output Terminals (Left,
Right) of the System with the Audio Input Terminals (Left, Right) of
the Video Input Cassette Recorder, so as to Record VCD.
Using the Video Cord, Connect the Video Output Terminal of the
system with the Video Input Terminal of TV.
Turn on the TV and Select the Video mode by pressing the
TV/VIDEO SELECT button to the VIDEO Position.
Please Pay Attention not to Connect the Audio Output Terminals
(left, right) of the System with the Audio Input Terminal of TV.
Example: You can watch a film and take advantage of stereo sound
provided that the original sound track is in stereo (as if you
were in a cinema).
3
4
AMPLIFIER
AUDIO INPUT VIDEO INPUT
RL
TV
8
Page 9
Connecting the AM (MW/LW) Aerial
AM ANT.
The AM aerial (for long and medium waves) can be:
Placed on a stable surface
Fixed to the wall (you must first remove the base)
The AM aerial connector terminals are located on the rear of
the system and are marked AM .
To avoid noise interference, check that the loudspeaker
wires do not run close to the aerial wires.
Always keep them at least 2 inches (5 cm) away.
Connecting the FM Aerial
How to connect a COAXIAL TYPE aerial.
Connect a 75Ω antenna to the FM antenna terminal.
Plug the connector on the FM aerial supplied into the coaxial socket (75Ω) marked FM on the rear of the system.
Follow the instructions given on Page 18 to tune into a radio station, and determine the best position for the aerial.
If reception is poor, you may need to install an outdoor aerial.
To do so, connect an outdoor FM aerial to the FM socket on the rear of the system using a 75Ω coaxial cable (not supplied).
GB
Connecting the SW Aerial (OPTION)
How to connect a WIRE TYPE aerial.
Spread the SW aerial out and attach the ends to a wall, in the
position providing the best reception.
If reception is poor (e.g. distance from transmitter too great,
walls blocking the radio waves, etc.), install an outdoor aerial.
9
Page 10

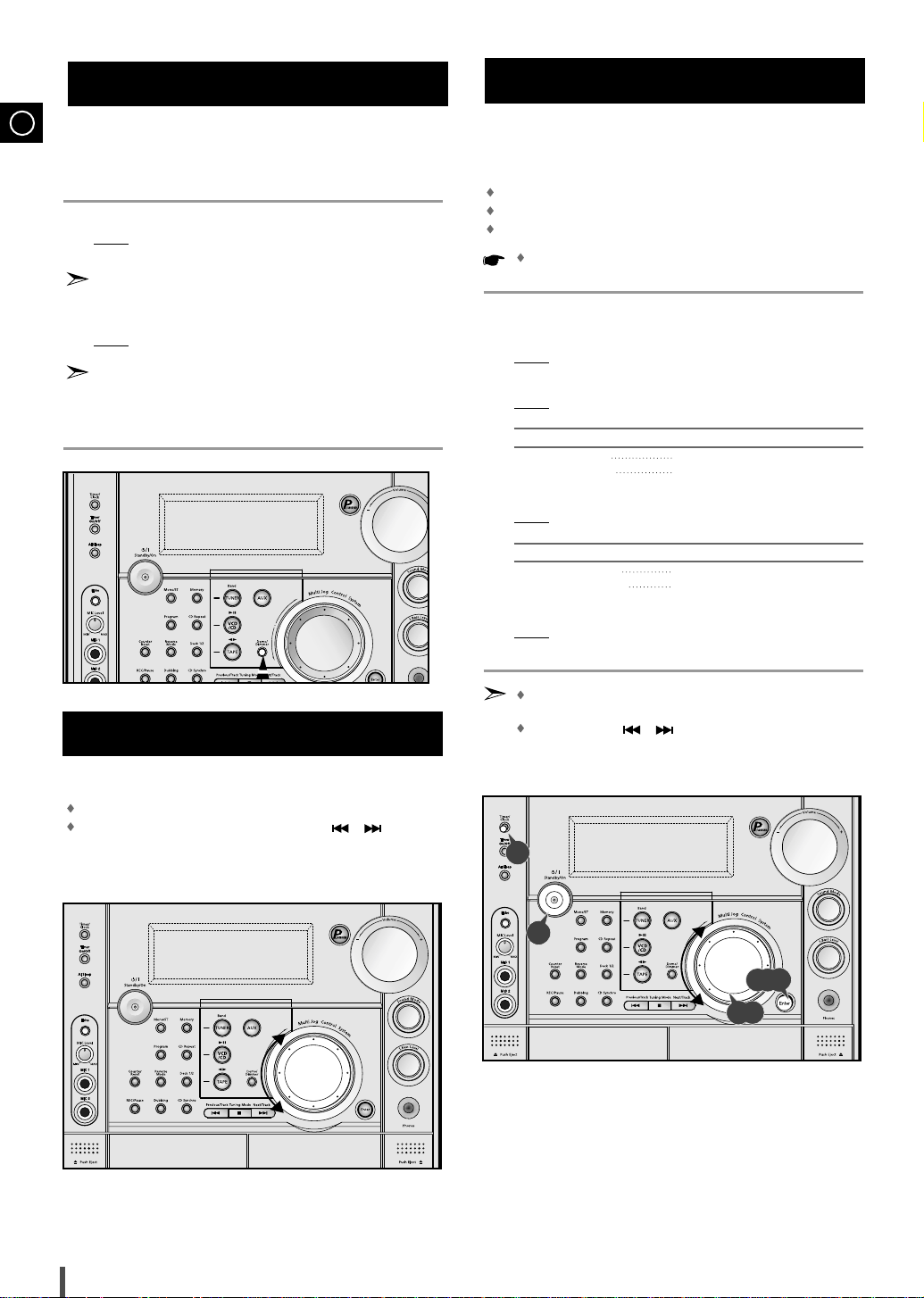

Demo/Dimmer function
GB
All functions available on the system can be viewed on the
display and the display's brightness can be switched between
"on" and "off".
Press the Demo/Dimmer button.
1
Result: All functions available on the system appear on the front
panel display.
Each of these are explained in detail in this guide. Please refer to
the relevant section.
Press the Demo/Dimmer button again.
2
Result: The Dimmer function is selected and the display darkens.
Press the Demo/Dimmer button once again to brighten the front
panel display.
A display brightness control can only be performed while the
3
system power is on.
Setting the Clock
Your system is equipped with a clock which allows you to
turn your system on and off automatically. You should set the
clock:
When you first purchase the mini-compact system
After a power failure
After unplugging the unit
For each step, you have a few seconds to set the required
options. If you exceed this time, you must start again.
Switch the system on by pressing Standby/On.
1
2
Press Timer/Clock twice.
CLOCK is displayed.
Result:
Press Enter.
3
4
5
6
7
The hour flashes.
Result:
To... Turn the Multi Jog knob to the...
Increase the hours Right
Decrease the hours Left
When the correct hour is displayed, press Enter.
Result:
The minutes flash.
To... Turn the Multi Jog knob to the...
Increase the minutes Right
Decrease the minutes Left
When the correct time is displayed, press Enter.
Result:
The clock starts and is displayed, even when the system is in
standby mode.
Multi Jog Function
Your mini-compact system has a Multi Jog Function.
You can turn Multi Jog to instead of pressing / in CD or
Tuner function or setting the clock function etc.
You can display the time, even when you are using another
function, by pressing Timer/Clock once.
You can also use / buttons to instead Multi Jog
knob in step 4, 6.
2
1
3,5,7
4,6
10
Page 11

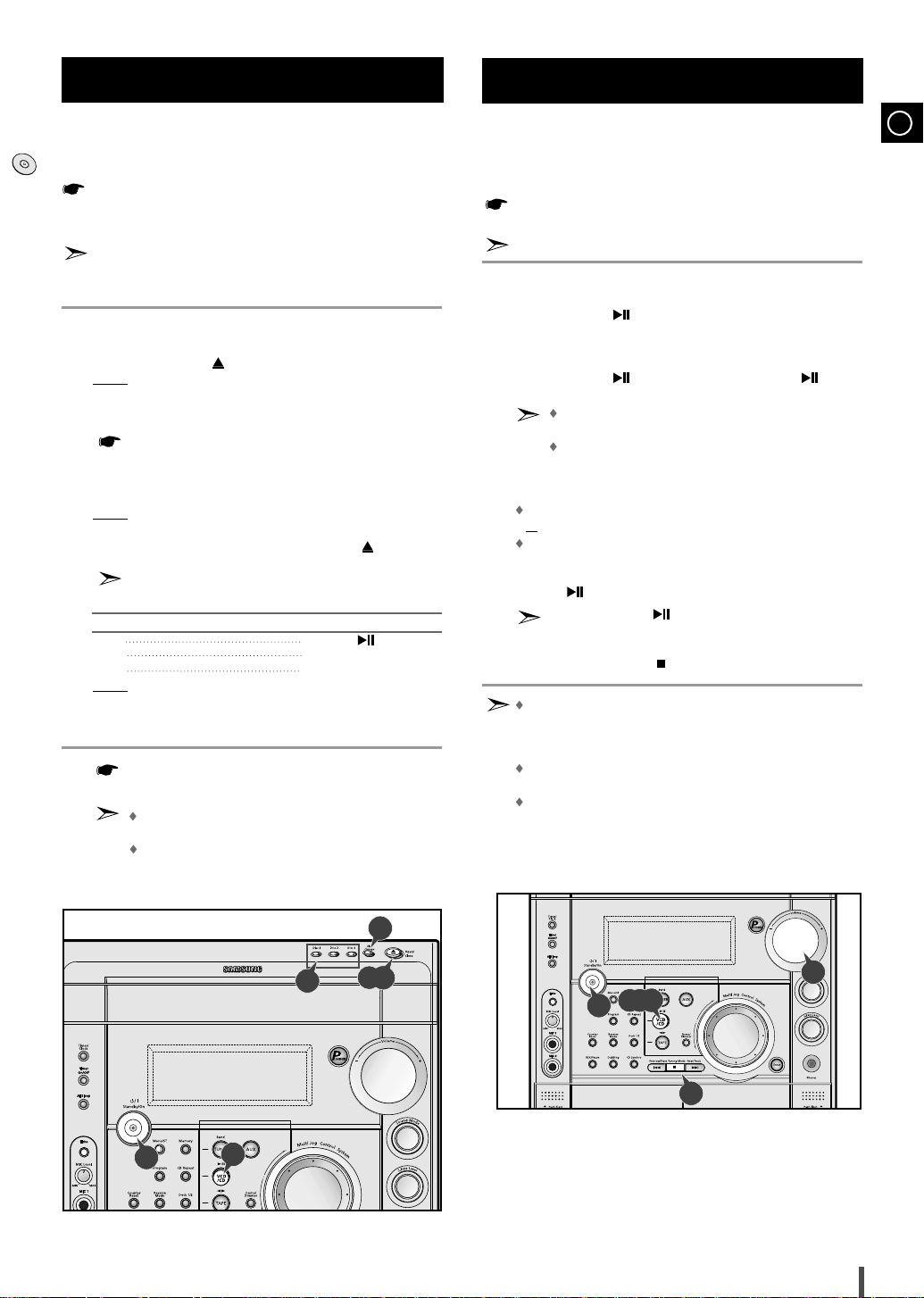

Loading and Changing Compact
Discs
The CD disc changer can contain up to three 12 cm or 8 cm
compact discs without using an adapter.
Never force the compact disc carrousel when opening and
closing the compartment.
Never press down or place objects on the carrousel.
Always treat your compact discs with care; refer, if necessary, to
the section entitled “Precautions When Using Compact Discs” on
page 26.
Switch the system on by pressing Standby/On.
1
Press the Open/Close( ) button on the front panel.
2
Result:
The compartment opens.
Place one or two discs in the front slots of the carrousel, with the
3
label on the discs facing upwards.
Check that the compact disc has been correctly inserted in
the holder before closing the compartment.
If you wish to load a third compact disc, press the Disc Change
4
button on the front panel (or Disc Skip on the remote control).
Result: The carrousel rotates by 120°.
Close the compartment by pressing the Open/Close( ) button
5
again.
If you wish to start playing a disc directly, you can also
proceed as follows.
To play... Press...
Disc 1 VCD/CD ( ) or Disc 1
Disc 2 Disc 2
Disc 3 Disc 3
Result: The compartment closes automatically and the disc selected
starts playing.
To change or unload the compact disc changer, repeat Steps 2 to 5.
6
Keep the compartment closed whenever you are not using
it, to prevent dust from entering.
You can load or unload compact discs when the radio,
tape or auxiliary source function is selected.
The function will be automatically entered VCD/CD
from the other source when you press CD Open/Close
button.
To replay the CD/MP3-CD
This is a player that enables the playback of audio CD, CD-R,
CD-RW and MP3-CD and does not possess the function that
saves MP3 files.
Do not use CDs of irregular shapes like heart or octagon shapes.
The performance of the player may be degraded.
At least more than one CD should be inserted for playbacks.
Press the Standby/On button to switch on the power.
1
Press the VCD/CD( ) of the main unit to select the CD function.
2
Insert more than one CD or a MP3-CD.
3
Press the VCD/CD( ) button on the front panel or the button
4
of the remote control.
If there is more than one CD or an MP3-CD inserted,
replays are then processed in order.
Your CD Player will take a few moments to scan through
all the tracks recorded on a particular MP3-CD.
Adjust the volume according to needs with the following procedures.
5
Turn the Volume control on the front panel
or
Press the VOL. + or – button on the remote control.
If it is desired to stop while the playback is processing, press the
6
VCD/CD() button.
Press the VCD/CD( ) button once again to playback
again.
To stop playback, press the button.
7
A new disc may be inserted in the remaining two compartments excluding the CD which is being played back. Press the
Disc Changer button to open the CD tray. The revolving part
does not turn during playbacks.
If there is not even one CD inserted in the CD tray, it is indicated as “NO DISC”.
If the CD Repeat function is not selected, 3 CDs are played
back which automatically stops.
GB
4
5
2,5
2,4,6
1
5
7
1
5
11
Page 12

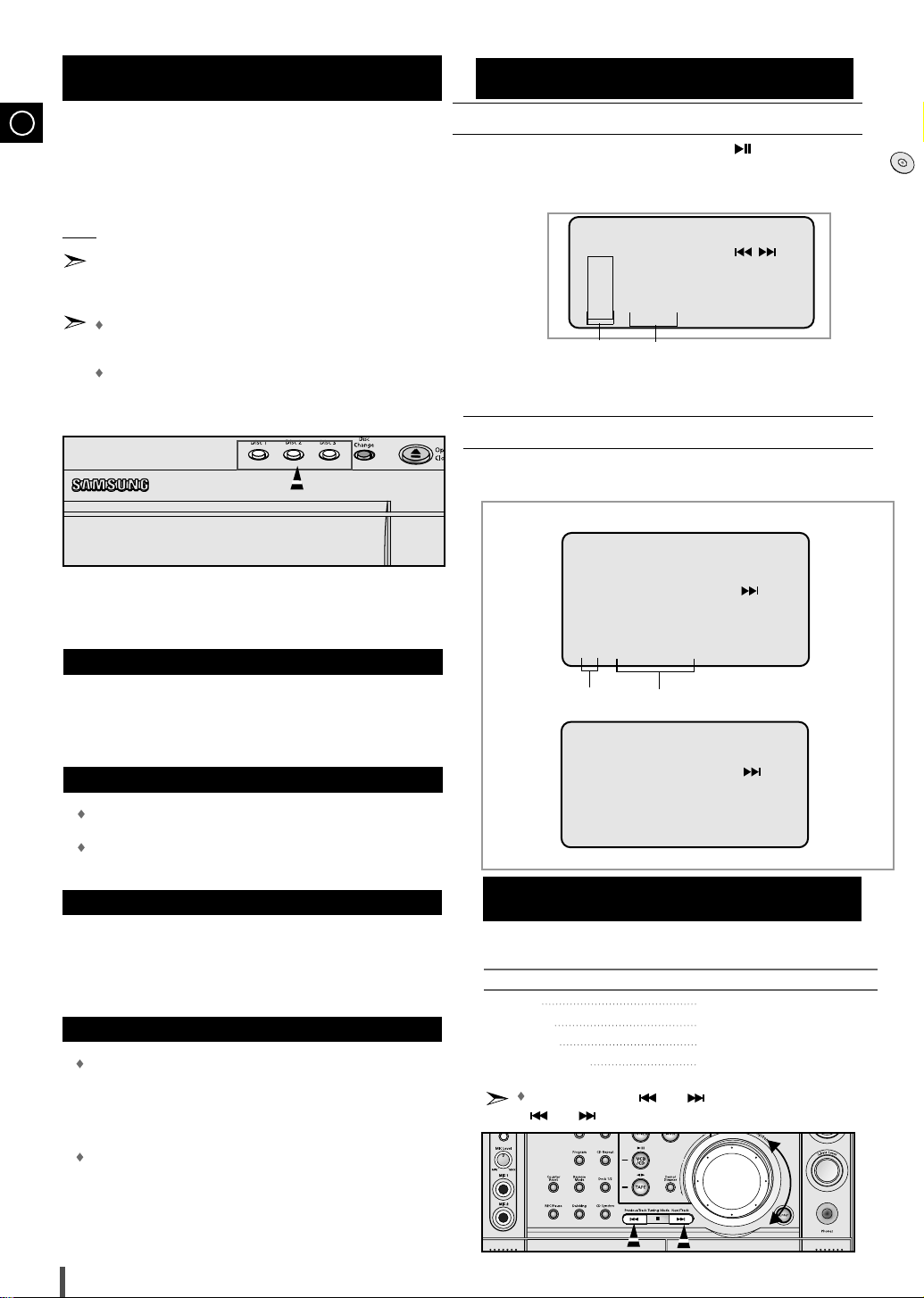

Selecting a CD in the Disc changer
MP3-CD P
layback
GB
The CD function is automatically selected when Disc Skip is
pushed.
To select a specific disc, press the corresponding Disc (1, 2, 3) button
on the front panel or Disc Skip on the remote control, until the
required disc indicator flashes.
All the discs will be played in turn, starting with the one selected.
Result:
If you wish to play the current disc only, press CD Repeat on
the front panel one or more times, until 1 CD is displayed.
If you use the Disc (1, 2, 3) function when listening to the
radio or to a tape, the system switches automatically to the CD
mode.
If the disc selected is not loaded, the next disc is played
automatically.
What is MP3?
MP3 means MPEG1 Layer 3, the global standard for audio
signal compression technology. It uses digital compression
technology to compress original sound data by up to 12 times
without sound quality degradation.
File Compatibility
The unit will playback files created in MP3 format
(Mpeg1.Layer3) with *.mp3 as their extension.
Playback will be impossible for the file of MP2 or
22KHz.
HOW TO PLAYBACK MP3-CD directly
After inserting MP3-CD in the Set, Press button or
1
Number button after Reading.
You can see the information of Disc on the TV.
2
I
: MP3 File display
7 tracks on the PAL TV screen every time;5 tracks on the NTSC TV screen every time.
Select the No of song on the remote control Digits button and you can enjoy the Music.
HOW TO PLAYBACK MP3-CD on MENU MODE
After inserting MP3-CD in the Set, Press the “DISC VIEW”
1
button.
You can see the following information of Disc on the TV.
MP3 TOTAL: 150
TR : 017 0 : 02 : 39
016 PBAY I
017 DON’T FOR I
:
Track No
Song name
PAGE 003/030
2
MP3 TOTAL: 150
TR : 000 0 : 00 : 00
1 DIRECTORY NAME
2 ABC
3 KBG
4 CDEG123
Directory No
Select the Number of Directory.You can see the following Display.
Select the No of song on the remote control Digits button and you can enjoy the Music.
Directory name
MP3 TOTAL: 150
TR : 000 0 : 00 : 00
DIRECTORY NAME
1 DIRECTORY NAME I
2 ABC I
3 KBG I
4 CDEG123 I
PAGE 001/003
PAGE 001 / 004
How many MP3 files can a CD-R or CD-RW disc record?
The maximum capacity of one CD-R or CD-RW disc is
680MB.
Normally, one MP3 file has a capacity of 4MB, therefore
approximately 170 files can be recorded on a single disc.
Regarding the playback of CD-R/RW
In the case of an original CD-R(Recordable) recorded in
audio CD format, CD-RW(Rewitable) and editing by the
user, playback is processed on the respective
completed status. (The player may not be played back
according to the characteristics of the CD or recorded
status.)
The CD-RW is comparably less reflexive than CD which
causes more time delay to read.
Selecting a Track
You can select the track you wish to listen to, either when the
compact disc player is stopped or when a disc is playing.
To start playback at the beginning of the... Turn the Multi Jog knob...
Next track One notch to the right
Current track One notch to the left
Previous track Two notches to the left
Track of your choice The appropriate number of notches
You can also use the and buttons on the front panel, or the
and buttons on the remote control to select a track.
12
to the right or to theleft
12
Page 13
Searching for a Specific Music Passage on a CD
When listening to a compact disc, you can quickly search for
a specific music passage on a track.
It is recommended that you turn the volume down before using
this function.
To search through the tracks... Press and hold down...
Forwards for at least one second
Backwards for at least one second
You can aslo press and hold down / on the front panel to auto
search through the tracks.

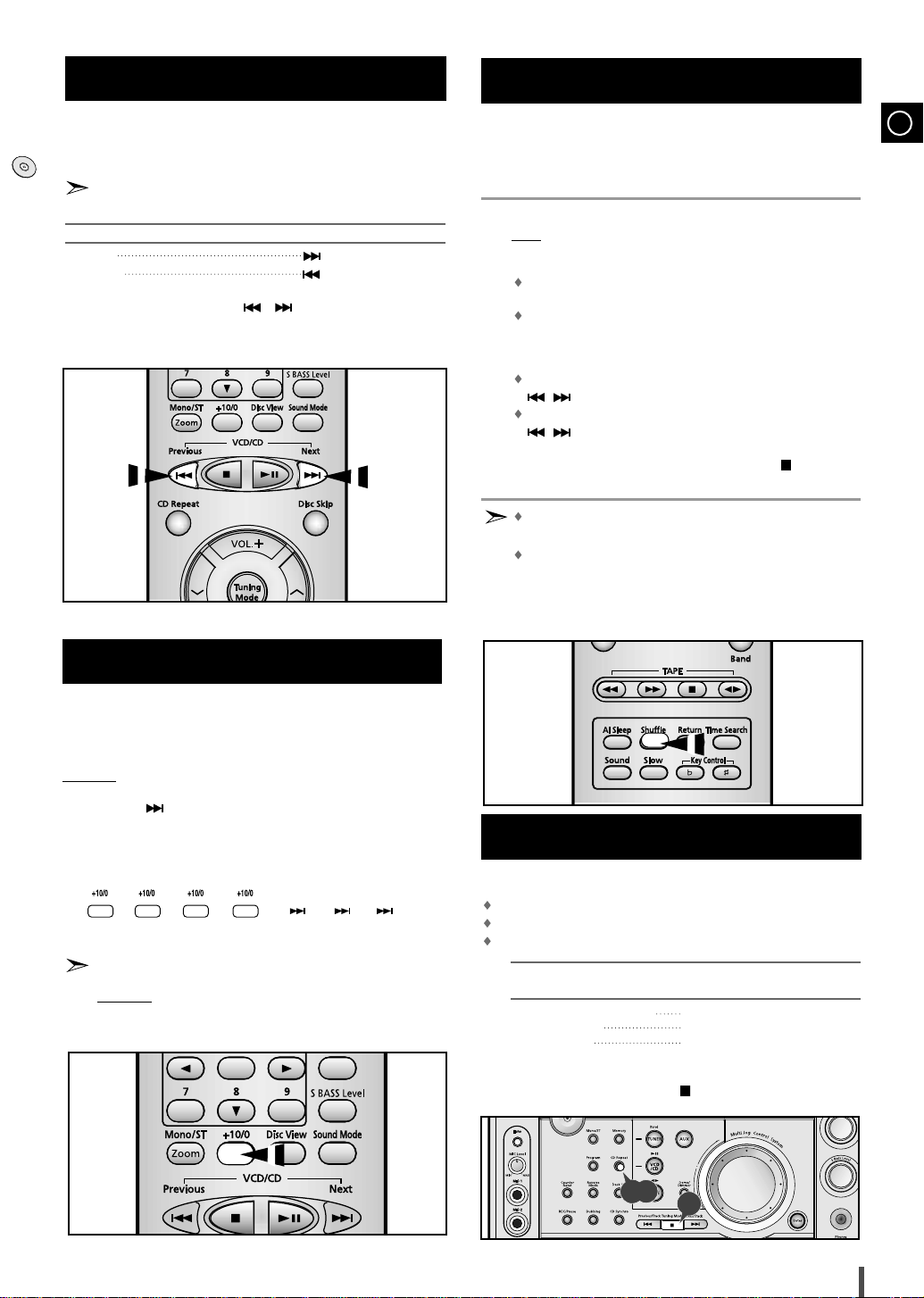

Shuffle Play Function
You can listen to the tracks on a compact disc in a different
order each time, as the various tracks will be selected
automatically in a random sequence.
Press the Shuffle button.
1
Result: The SHUFFLE(CD/VCD)or RANDOM(MP3-CD) indication appears and all
the tracks are played in a andom order. Both the track number and the
playing time are displayed.
If this button is pressed when the CD is being played back or stopped,
any track recorded in the CD may be selected to playback again.
The CD plays back without repetitions and in the case of the MP3-CD,
a track once played back may also be played back again repeatedly.
When playing tracks in a random order, you can:
2
Move on to the next track (selected at random) by pressing
/ or turning Multi Jog one notch to the right .
Search quickly for a specific point in the current track by pressing
/ and hold down more than one second.
When you have finished the random playback, press or press the
3
Shuffle button again.
The Repeat and CD Synchro function is not supported from the
Shuffle playback mode.
Playback of video CD Version 2.0
– When pressing the Shuffle button during the playback,
the operation will stop.
When pressing the Shuffle button during the stop, the playback will
–
operate with reading the video CD Version 2.0 as a Version 1.1.
GB

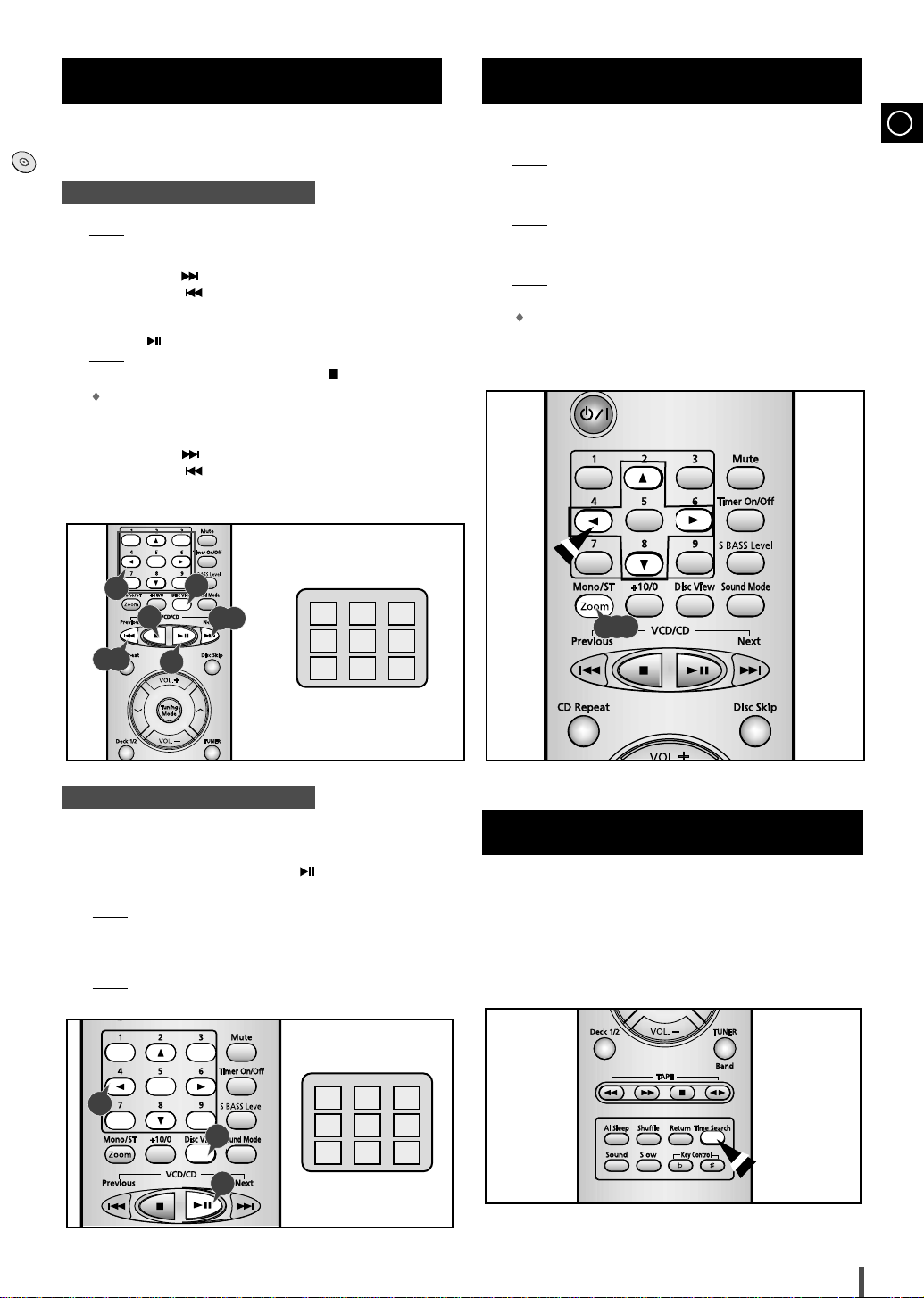

Function to skip through 10 tracks at a time
Press the +10/0 button briefly while playing back a
CD and VCD. The track 10 tracks after the current one
will then be played back.
Example:
15 ➝10➝20 ➝30 ➝40 ➝41 ➝42 ➝43
If you want to select track 43 during playback of track
15, press the +10/0 button four times, and then press
the
button three times or Digit 3 button once.
In selecting a track on MP3-CD, digit “0” will be entered if the
button of +10/0 is pressed.
Example:
If you want to select a track 40 during the
playback of a certain track, press both buttons of
4 and +10/0.

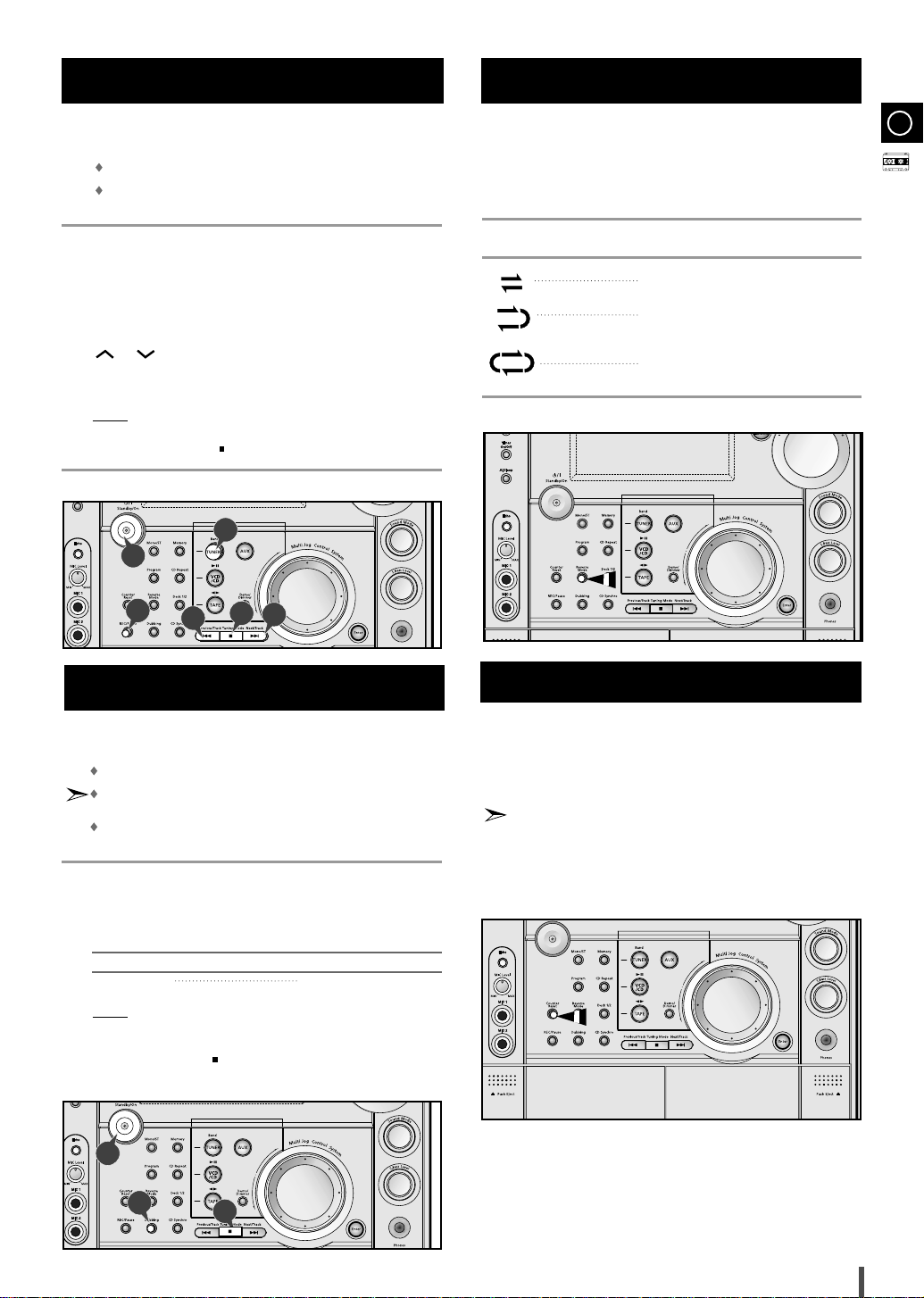

Repeating One or All Tracks on the Compact Discs
You can repeat indefinitely:
A specific track on a compact disc.
All tracks on the compact disc selected.
All discs loaded in the carrousel
To repeat... Press CD Repeat on the Front
1
The current track indefinitely REPEAT 1 is displayed
The selected disc REPEAT 1 CD is displayed
All discs loaded REPEAT ALL CD is displayed
When you wish to stop the Repeat function, press CD Repeat until ALL
2
CD or 1 CD is displayed, or press .
Panel one or more times until...
1,2
2
13
Page 14
GB

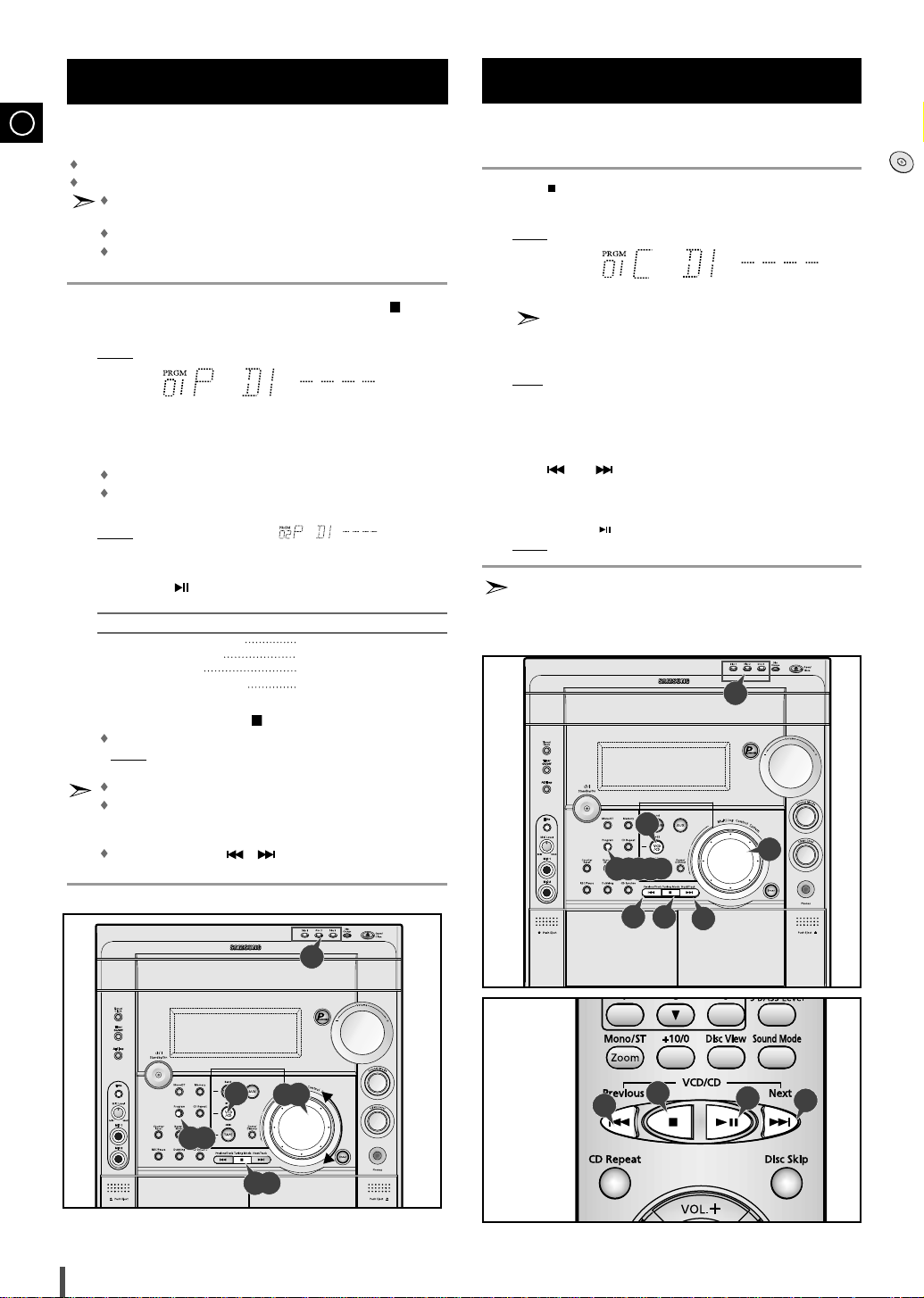

Programming the Order of Playback
You can decide:
The order of the track desired to listen
The track not desired to listen
A maximum of up to 30 order of tracks desired to listen may
be programmed.
Before selecting the track, the CD player should be stopped.
This function may be used simultaneously with the CD Repeat
function.
1
If the CD function is selected, stop the player by pressing .
Load the selected CDs.
2
Press Program.
3
Result: The following indications are displayed:
(01 = Program no., DI = Disc no., – – – = Track no. on the disc)
If necessary, select the disc containing the required track by pressing
4
the corresponding Disc (1, 2, 3) button.
Select the required track by turning the Multi Jog knob:
5
To the left to move back through the tracks
To the right to move forward through the tracks
Press Program to confirm your selection.
6
The selection is stored and is dis-
Result:
played.
To select other tracks, repeat Steps 4 to 6.
7
Press VCD/CD ( ) to listen to the track selection in the order programmed.
8
9
To... Turn the Multi Jog knob...
Listen to the current track again One notch to the left
Listen to the previous track Two notches to the left
Listen to the next track One notch to the right
Skip forwards or backwards one The appropriate number of
or more tracks notches to the right or to the left
To cancel the selection, press .
10
Once if the compact disc player is stopped
PRGM is no longer displayed.
Result:
Checking or Changing Programmed
Tracks
You can check or change your selection of tracks at any time.
Press once if you have started listening to the selection.
1
Press Program.
2
3
4
5
6
7
8
The following indications are displayed:
Result:
(C = Check, 01=Program No, DI = Disc No, – – – = Track No on the disc)
If you have already programmed 30 tracks, C is displayed
instead of P when you press Program.
Press Program again.
Result: The first track selected is displayed, together with the letter C (Change).
Press Program one or more times until the track to be changed is displayed.
If necessary, press the corresponding Disc (1, 2, 3) button to change discs.
Press and or turn Multi Jog to select a different track.
Press Program to confirm your change.
Press VCD/CD ( ) to start listening to the selection.
Result: The first track selected is played.
When selecting the tracks of numbers larger than 3 digit figures (figures
from the number 100), please use the Digit buttons.
5
If you open the compartment, the selection is cancelled.
If you select the number of a disc which is not loaded or a
track which does not exist on the CD, the selection skips to the
next programmed track.
You can also use the / buttons to select the required
tracks in step 5, 9.
4
8
5,9
3,6
1,10
14
2,3,4,7
6
6
8
6
1
6
1
8
6
Page 15

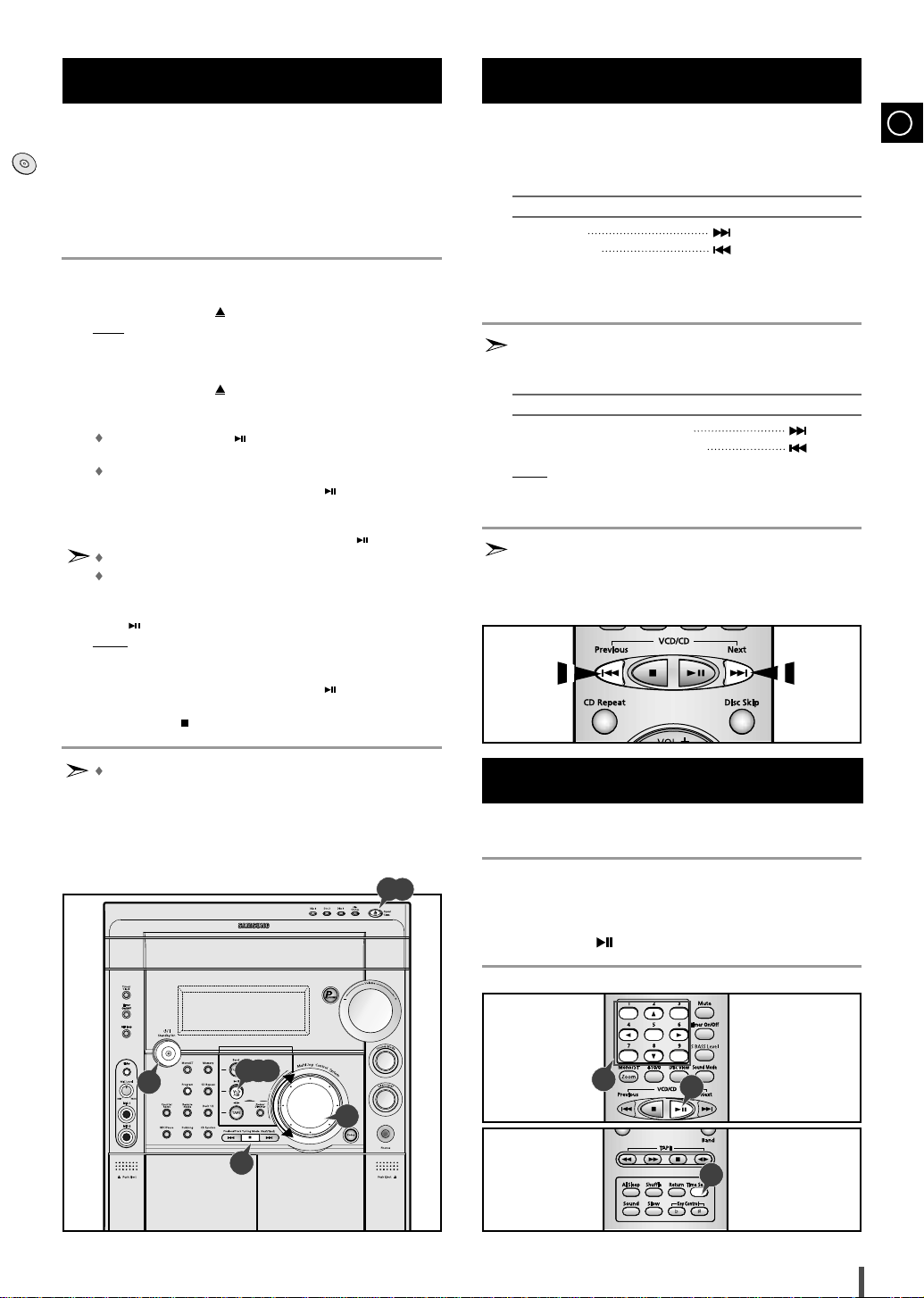

Video CD Player Playback
In order to playback video VIDEO-CD(‘S), make sure that your
unit is connected to your TV set.
This unit is designed for playback of video CD(‘S), version 1.1 and 2.0.
Only with version 2.0, is it possible to call up the on screen menu
function. This unit will not play back any other video VIDEO-CD(‘S)
other than 1.1 and 2.0 versions.
Turn on the Standby/On switch and set the VCD mode.
1
Press the Open/Close ( ) button on the unit, to open the CD tray.
2
3
4
5
: “OPEN” is displayed and CD tray slides open.
Result
Load a video-CD(’S) with the label facing upwards in the tray.
Press the Open/Close ( ) button again to close the CD tray.
To playback:
In version 1.1, press the button for direct access to the film,
as there is no menu-on-screen.
In version 2.0, load a video CD, “Video CD2.0”, and “MENU ON”
are displayed on the TV screen. Press the button and the
menu is displayed on the TV screen.
Select a number from the menu using Digits button on the remote
control or Multi Jog knob and press the VCD/CD( ) button.
To return to the previous menu, press the Return button .
When playing a video-CD(‘S) version 2.0, reading time on the
display may take longer, depending on the disc’s contents.
Search Functions
You can find a certain passage faster during playback.
This function is possible in CD or VCD Ver 1.1 or Ver 2.0
menu off mode.
To... Press and hold down...
1
Scan forwards
Scan backwards
Release the Skip/Search buttons when the desired passage has
2
been found.
In the video CD version 1.1, where the disc’s contents are over 15
minutes long, you can scan up or down by intervals of five minutes.
To... Press...
3
Scan forwards by 5 minute intervals
Scan backwards by 5 minute intervals
Result:
The picture is still, and the disc’s contents are forwarded or
reversed by 5 minute intervals. Playback then resumes from
this new position.
In the SKIP/SEARCH or SCAN mode, the sound can only be partially
heard and the picture scenes will change sporadically, until the required
passage has been found.
GB
Press button on the remote control to receive a still picture.
6
7
8
Pause is displayed, a still picture appears and the sound is
Result:
muted.
To return to normal playback, press VCD/CD( ) button.
Press the Stop ( ) button to stop playback.
Please make sure that the VIDEO-CD(‘S) to be played is not
flawed optically, as this may cause a distorted sound or the unit to
malfunction.
1
5,6,7
5
2,4
Time Search Function
(This function is available only during the playback of a CD/VCD)
Please use this function for reproducing a desired track in a
certain time of playback.
Press the Time Search button.
1
Set a desired time by pressing the Digit buttons.
2
Press the Play ( ) button.
3
2
3
8
1
15
Page 16

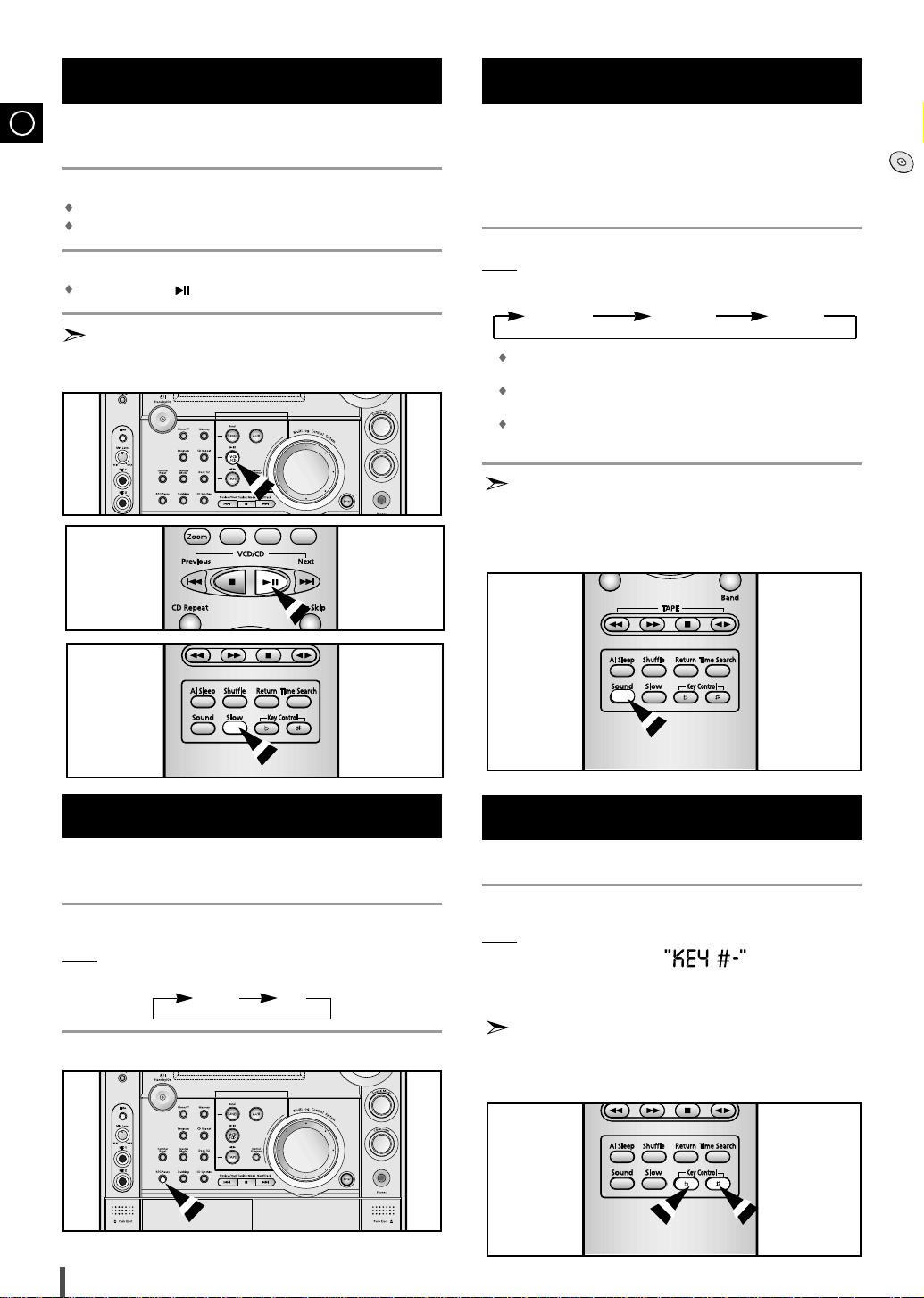

When adjusting play speed
GB
Turn on the TV and set video mode.
Press the Slow button on the remote controller when the play function is on.
Voices do not come out when the Slow button is pressed.
Slow playing is 1/2, 1/4, 1/8 the normal playing speed.
To return to normal operation.
Press the
VCD/CD ()
When the slow mode or frame mode is selected a disc will only forward
operation.
button.
Sound Select Function
With this function, you can playback video CD’s that provide
2-channel tone(bilingual) in the original language. Similarly,
with karaoke video CD’s, you can select between the channel
for music without vocals for sing-along purpose, or the channel complete with music and vocals.
During playback, press the Sound button on the remote control.
Result: Each time the Sound button is pressed, the following appears in
the display and on the TV screen:
Lch MONO Rch MONO STEREO
( L-CH ) ( R-CH )
Lch MONO : Only the left channel (instrumental parts) is played back
through both the right and left speakers.
Rch MONO : Only the right channel (vocal parts) is played back
through both the right and left speakers.
STEREO : Cancels the Multiplex Sound (normal stereo playback
resumes).
You can select between listening to the tone from the left channel,
the right channel or both channels.
NTSC/PAL Selection Method
According to a DISC or TV, Press the REC/Pause button on the
front panel.
Set the system to stadnby(power off) mode, press the REC/Pause button
on the front panel.
Result: Each time the REC/Pause button is pressed, the following appears
in the display:
NTSC PAL
16
KEY CONTROL Function
This function can work only at VCD mode when microphone is connected.
Press the Key Control button to adjust the key to your voice. (the 15 step
key control you can select )
Result: Each time the Key Control #, b button is pressed, the following
appears on the TV screen:
b : Low-Pitched Key
# : High-Pitched Key
Key control function and VCD slow playing do not work at the same
time .
Page 17
VCD VIEW function
1
TRACK VIEW
23
456
789
This function can be used conveniently to search a desired track in a VCD.
This function is possible in CD or VCD Ver 1.1 or Ver 2.0menu
off mode.
When you want to select a track
Press the Disc View button in the stop state.
1
2
3
4
"TRACK VIEW" menu is displayed on the screen.
Result:
The screen is split into 9 with each screen picture being
reproduced for 4 seconds.
– Press NEXT( ) button to see the rest tracks.
– Press PREV.( ) button to see the previous tracks.
Select a track by pressing the Digits buttons.
Press the
Result: The picture that you selected is displayed in full screen.
When you wish to stop the DISC VIEW function, press button.
When using more than 10 tracks :
Press the Digits and +10/0 button, select the desired track number
(Reference page 14).
– Press NEXT( ) button to see the next track.
– Press PREV.( ) button to see the previous track.
button.
()
ZOOM Function
Press Zoom button during playback.
1
Result: The picture being reproduced will be enlarged twice as large
Press Zoom button once more in the state of double sized zoom.
2
Result: The picture being reproduced is enlarged four times as large
Press Zoom button in the state of four times sized zoom.
3
Result:
During operating the zoom function, if you want to move the
picture upward/downward/leftward/rightward, please press the
respective Digits button (2,4,6,8).
GB
as the previous one.
as the initial one.
The picture will return to the initial size.
2
1,4
4
4
1,4
3
When you want to select an INDEX
This function is convenient to search a desired scene as it
displays a track reproduced by time.
Reproduce the pictures by pressing the
1
Press the Disc View button.
2
Result: "INDEX VIEW" menu is displayed on the screen.
Reproduce the pictures by pressing a desired Digits button.
3
Result:
3
The screen is split into 9 with each screen picture being
reproduced for 4 seconds.
The one of nine picture is displayed in full screen.
2
1
()
button.
INDEX VIEW
1
456
789
1,2,3
Last Memory Function
When CD playback is selected again after your CD player
has been stopped or turned off, this function allows playback from the start of the track that you last listened to.
23
17
Page 18
Searching for and Storing the Radio Stations
GB
You can store up to:
1
2
3
4
5
6
7
8
9
15 FM stations
15 AM stations
15 FM stations
8 AM(MW) stations
7 LW stations
15 FM stations
5 MW stations
5 SW1 stations
5 SW2 stations

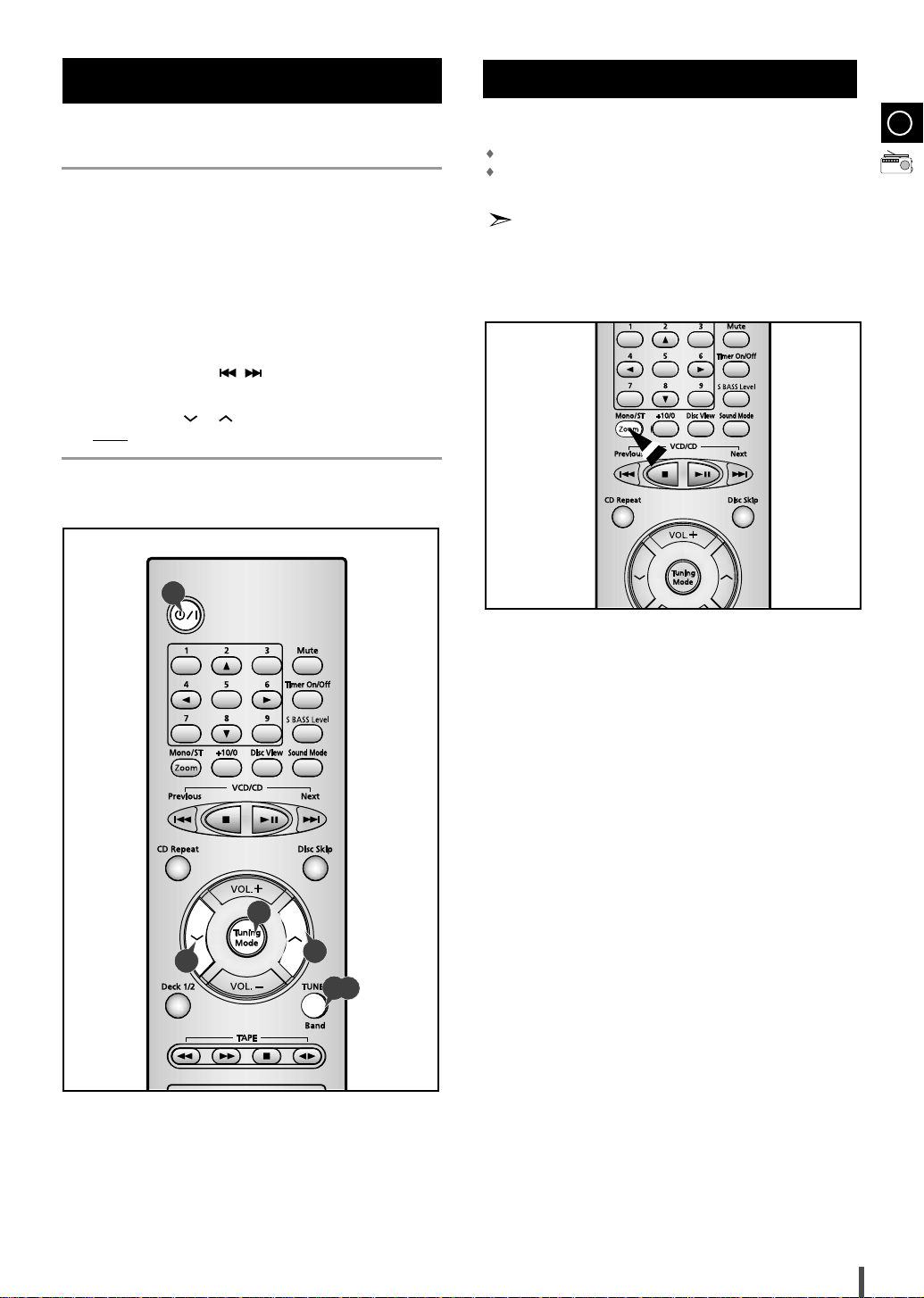

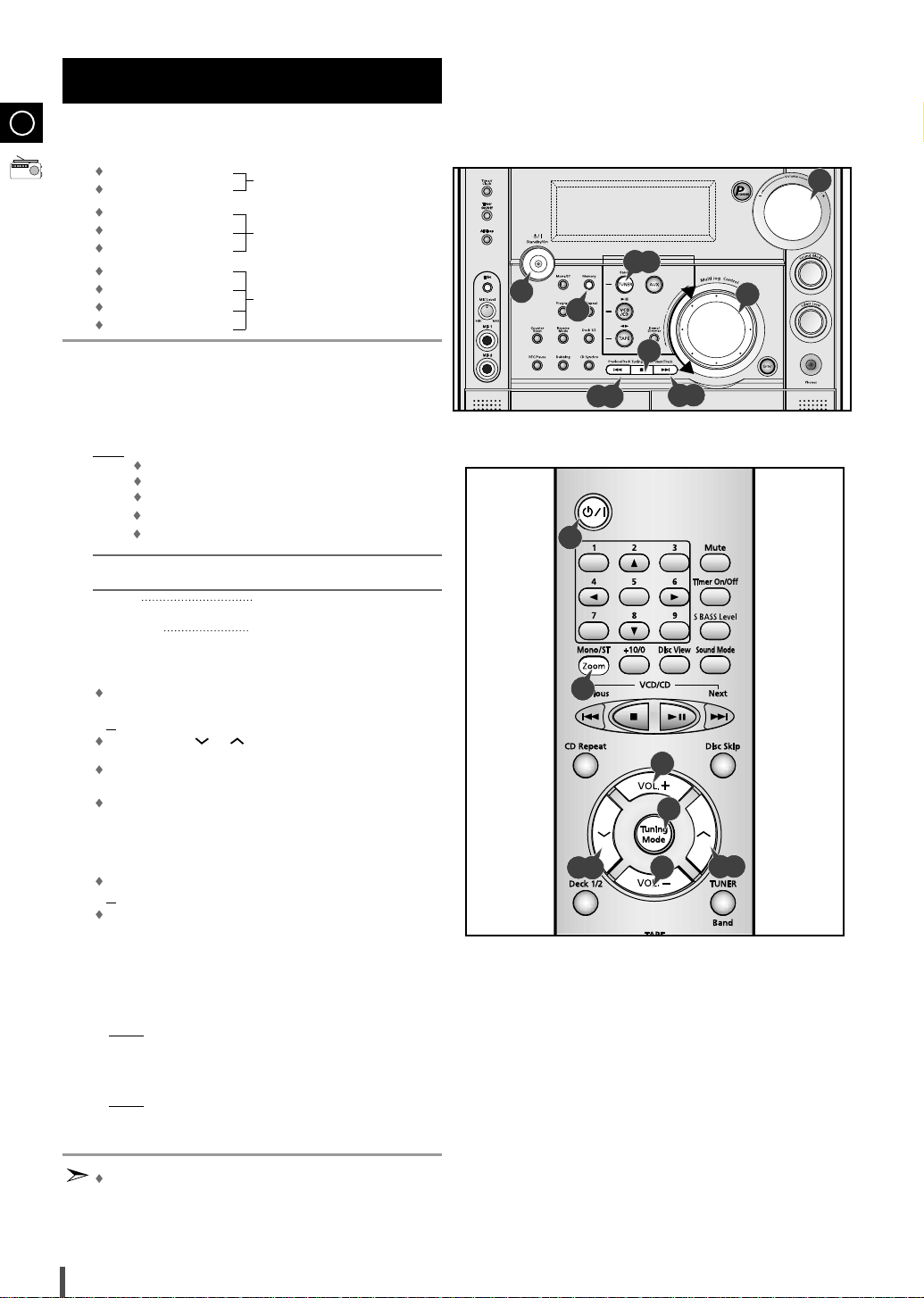

Switch the system on by pressing Standby/On.
Select the TUNER function by pressing TUNER.
Select the required frequency band by pressing TUNER (Band)
again on the front panel or TUNER (Band) on the remote control.
Result
: The appropriate indication is displayed:
FM Frequency Modulation
AM(MW) Medium Wave
SW1(Option) Short Wave
SW2(Option) Short Wave
LW(Option) Long Wave
To search for a Press Tuning Mode
station...
Manually One or more times until MANUAL is
Automatically One or more times until AUTO is
Select the station to be stored by:
Turning the Multi Jog knob to the right or to the left to increase or
decrease the frequency respectively
or
Pressing Tuning or on the remote control
To scroll through the frequencies faster when searching
manually, hold down the Tuning Down or Up buttons.
The automatic search procedure may stop on a frequency that
does not correspond to a radio station. If this happens, use the
manual search mode.
Adjust the volume by:
Turning the Volume knob on the front panel
or
Pressing the VOL. + or – buttons on the remote control
Select the FM stereo or mono mode by pressing Mono/ST.
If you do not want to store the radio station found, revert to Step 4
and search for another station.
Otherwise:
a Press Memory.
b Press Tuning Down and Up to assign a program number
c Press Memory to store the radio station.
To store any other radio frequencies required, repeat Steps 3 to 8.
The PRGM is displayed for a few seconds.
Result:
between 1 and 15.
PRGM is no longer flashed and the station is stored.
Result:
OPTION
OPTION
OPTION
displayed.
displayed.
6
2,3
1
5
8
4
5,8
5,8
1
7
6
4
5,8
6
5,8
The PROGRAM function can be used to assign a new station
to an existing program number.
18
Page 19
Selecting a Stored Station
Improving Radio Reception
You can listen to a stored radio station as follows:
Switch the system on by pressing Standby/On.
1
Select the TUNER function by pressing TUNER on remote control.
2
Select the required frequency band by pressing Band on the remote
3
control or TUNER (Band) again on the front panel.
Press the Tuning Mode button on the front panel of the unit, or the
4
Tuning Mode button on the remote control until “PRESET” is
displayed.
Turning Multi jog on the front panel left or right until the desired
5
station is found or press / to select the desired station.
or
Select the desired station by pressing the station number stored,
using the Tuning or button on the remote control.
The desired station is now received.
Result:
1
You can improve the quality of radio reception by:
Rotating the FM or AM(MW) aerial
Testing the positions of the FM and AM(MW) aerials before fixing them
permanently
If reception from a specific FM radio station is poor, press Mono/ST.
to switch from stereo mode to mono. The quality of the sound will be
improved.
GB
4
5
5
2,3
19
Page 20
GB

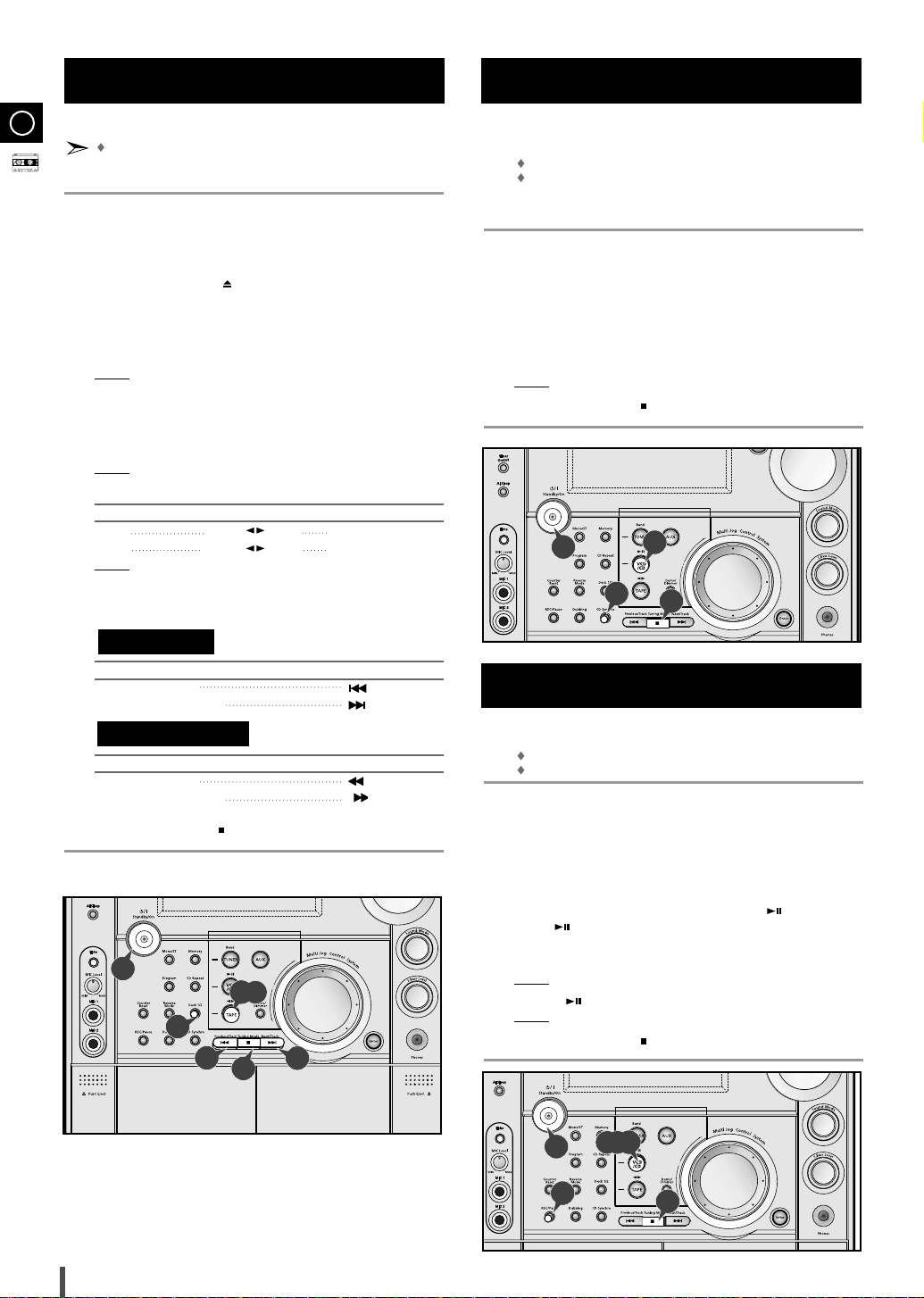

Listening to a Cassette
Always treat your cassettes with care; refer, if necessary, to
the section entitled “Precautions When Using Audio Cassettes”
on page 26.
Switch the system on by pressing the Standby/On button.
1
Select the TAPE function by pressing TAPE on the front panel.
2
Open either cassette deck 1 or 2 by pushing and releasing the deck
3
cover where Push Eject( ) is written.
Insert the pre-recorded cassette with the open edge of the tape
4
facing downward.
Close the deck by pushing on it until it clicks into place.
5
Result: Depending on the deck selected, the 1 or 2 indication is
displayed in front of the counter number.
If you have inserted two cassettes, press Deck 1/2 on the front panel
6
or directly the Deck 1/2 button on the remote control to select the
cassette to be played.
Depending on the deck selected, the TAPE 1 or TAPE 2
Result:
indication is displayed.
To listen to... Press ...
7
Side A TAPE ( ) once DECK 1 and DECK 2
Side B TAPE ( ) twice DECK 2 only
Result:
The cassette starts playing.
When the cassette is stopped, select one of the following functions
8
as required.
CD Synchro Record Feature
You can record a compact disc on a cassette in two different ways:
Synchronised recording
Direct recording
This feature enables you to synchronize the start of the
recording with the start of the disc or track of your choice.
Switch the system on by pressing Standby/On.
1
Insert a blank cassette in Deck 2.
2
Select the VCD/CD function by pressing VCD/CD on the front panel.
3
Load a compact disc.
4
Select the required disc.
5
Select the required track and press CD Synchro or press
6
CD Synchro directly to start recording at the beginning of the disc.
Result:
REC is displayed and recording starts.
To stop recording, press .
7
1
3
6
7
Main Unit
To... Press...
Rewind the cassette
Fast-forward the cassette
Remote Control
To... Press ...
Rewind the cassette
Fast-forward the cassette
To stop playback, press button.
9
1
2,7
6
8
9
8
Recording a Compact Disc
The direct recording mode enables you to start recording with
any track on the compact disc.
You can only record on cassettes in Deck 2.
You do not need to adjust the volume, as it has no effect on the recording.
Switch your system on by pressing Standby/On.
1
Insert a blank cassette in Deck 2.
2
Select the VCD/CD function by pressing VCD/CD on the front panel.
3
Load the compact disc.
4
Select the required disc.
5
Select the required track on the compact disc and press on the front
6
panel or on the remote control to set the compact disc player to Pause
mode.
Press the REC/Pause.
7
8
9
REC is displayed.
Result:
Press the to start playing the track.
The track is recorded on the cassette.
Result:
To stop recording, press .
3,6,8
1
20
7
9
Page 21
Recording a Radio Program
You can record a radio program of your choice.
You can only record on cassettes in Deck 2.
You do not need to adjust the volume, as it has no effect on
the recording.
Switch the system on by pressing Standby/On.
1
Insert a blank cassette in Deck 2.
2
Select the TUNER function by pressing TUNER.
3
Select the radio station that you wish to record by pressing Tuning
4
or on the remote control or by press the Tuning Down or
Up on the front panel.
Press REC/Pause.
5
6
REC is displayed in red and recording starts.
Result:
To stop recording, press .
3
1
Selecting the Cassette Playback Mode (Deck 2 Only)
GB
Your mini-compact system has three cassette playback modes
which enable you to listen to both sides of a cassette
automatically.
Press REV.Mode until the appropriate symbol is displayed.
When the display indicates... The mini-compact system plays back...
One side of the selected cassette and
then stops.
One side of the cassette.
The other side of the cassette and then
stops.
Both sides of the cassette indefinitely until
you press stop.
5
6
4
4
Copying a Cassette (Dubbing)
You can copy a cassette from Deck 1 to Deck 2. Two options
are available:
Normal speed dubbing
You do not need to adjust the volume, as it has no effect on the
recording.
Take care not to insert the tape to be copied in Deck 2, as it will
be erased when you start recording.
1
Switch your system on by pressing Standby/On.
2
Insert a blank cassette in Deck 2.
Insert the tape to be copied in Deck 1.
3
4
To copy a cassette at... Press...
Normal speed Dubbing
The appropriate indications are displayed and the cassette in
Result:
Deck 1 is copied to the cassette in Deck 2.
5
To stop dubbing, press .
Tape Counter
When playing a cassette, a counter is displayed to enable you to
take note of the counter value at the start of each track and thus
start playback at the beginning of the track to which you wish to
listen.
The counter is only displayed when a cassette is being played.
Before starting to record a cassette for which you wish to take note
of the counter values at the beginning of each track, reset the
counter by pressing Counter Reset.
1
4
5
21
Page 22

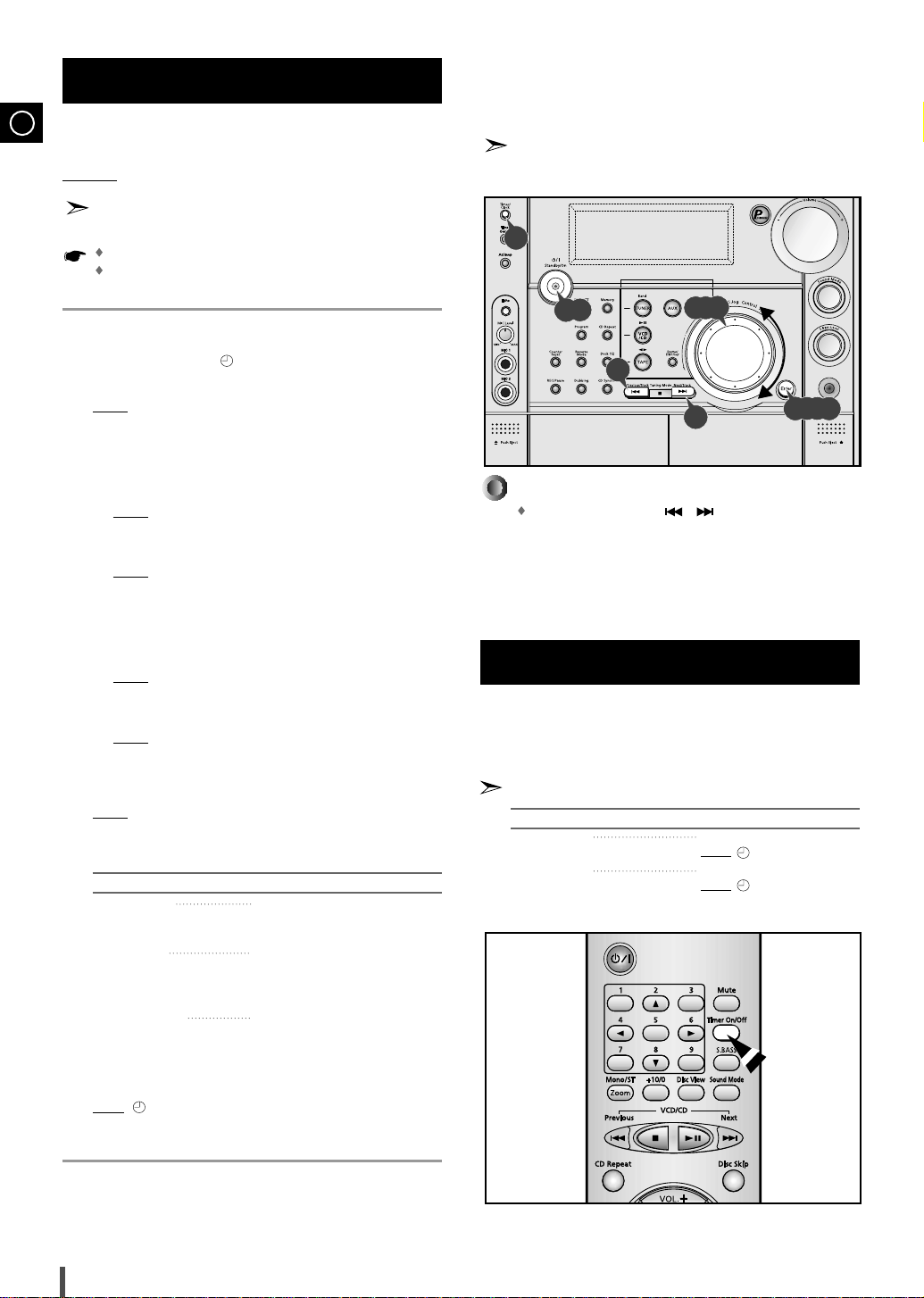

Timer Function
GB
The timer enables you to switch the system on or off at
specific times.
Example:
1
2
3
4
5
6
7
8
9
You wish to wake up to music every morning.
If you no longer want the system to be switched on or off
automatically, you must cancel the timer.
Before setting the timer, check that the current time is correct.
For each step, you have a few seconds to set the required
options. If you exceed this time, you must start again.
Switch the system on by pressing Standby/On.
Press Timer/Clock until TIMER is displayed.
Press Enter.
ON TIME is displayed (instead of the equalizer symbols) for
Result:
a few seconds, followed by any switch-on time already set;
you can set the timer switch-on time.
Set the timer switch-on time.
a Set the hour by tuning the Multi Jog knob to the right or to the left.
b Press Enter.
c Set the minutes by tuning the Multi Jog knob to the right or to
d Press Enter.
Set the timer switch-off time.
a Set the hour by tuning the Multi Jog knob to the right or to the left.
b Press Enter.
c Set the minutes by tuning the Multi Jog knob to the right or to
d Press Enter.
Press Tuning Down and Up to adjust the volume level and press
Enter.
Result:
Turn the Multi Jog knob to select the source to be played when the
system switches on.
If you select... You must also...
TAPE (cassette) Insert a recorded cassette in one of
TUNER (radio) a Press Enter.
CD (compact disc) a Load one or more compact discs.
Press Enter to confirm the timer.
Press Standby/On to set the system to standby mode.
Result
The minutes flash.
Result:
the left.
OFF TIME is displayed (instead of the equalizer symbols)
Result:
for a few seconds, followed by any switch-off time already
set; you can now set the timer switch-off time.
Result:
The minutes flash.
the left.
VOL XX is displayed, where XX corresponds to the
Result:
volume already set.
The source to be selected is displayed.
the decks before setting the
system to standby.
b Select a preset station by tuning
the Multi Jog knob to the right or
to the left.
b Select the required disc.
: is displayed to the bottom left of the time, indicating that
the timer has been set. The system will switch on and off
automatically at the required times.
If the timer switch on and off times are identical, the word ERROR is
displayed.
2
1,9
4,5,7
6
6
3,4,5,6,7,8
To set the timer function
You may use Multi Jog or / buttons to adjust in step 4,
5, 6, 7.
Cancelling the Timer
After having set the timer, it will start automatically as shown
by the TIMER indication on the display. If you no longer wish
to use the timer, you must cancel it.
You can stop the timer at any time (system on or in standby mode).
To... Press Timer On/Off...
Cancel the timer Once.
Restart the timer Twice.
Result: is no longer displayed.
: is displayed again.
Result
22
Page 23

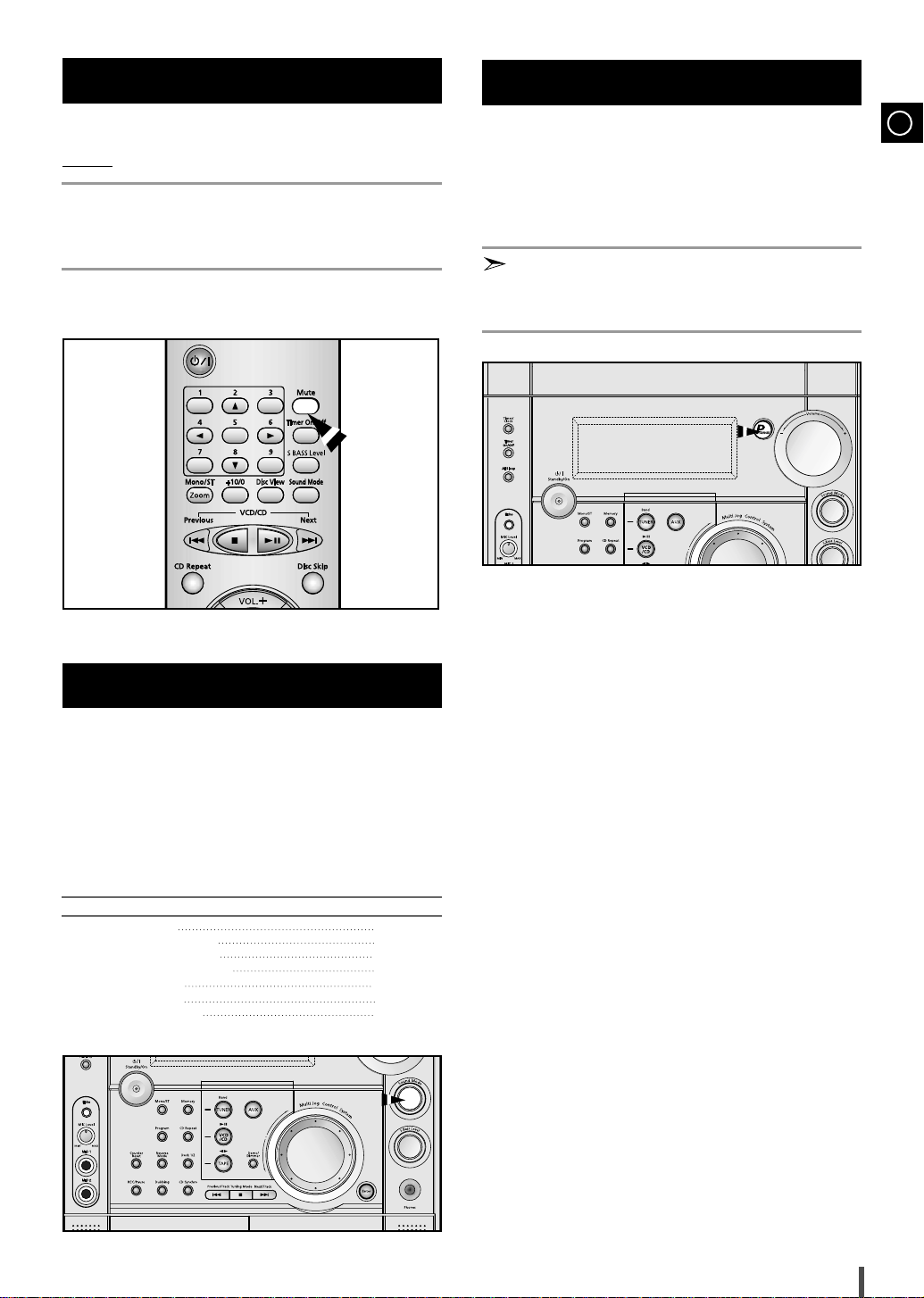

Mute Function
You can turn the sound off temporarily on your system.
: You wish to answer a telephone call.
Example
Press Mute.
1
To switch the sound back on (at the same volume as before), press
2
Mute again or the Volume buttons.
Power Surround Function
GB
Your mini-compact system is equipped with the function
of Power Surround.
The Power Surround replaces conventional stereo sound
with a wider and more true-to-life sound. It creates the
feeling of being right at the centre of the music and being
surrounded by total music sound.
Press P. SURROUND button on the front panel until the
required option is selected. Each time the P. SURROUND
button is pressed, “P,SURR, ” is selected or cancelled in this
order.
Selecting an Equalizer Preset
Your mini-compact system is equipped with a preset equalizer
that allows you to choose the most appropriate balance
between treble and bass frequencies, according to the type of
music you are listening to.
This model provides D.S.P modes so that you can enjoy
virtually original sound.
Turn Sound Mode on the front panel or Press Sound Mode on the remote
control until the required option is selected.
To obtain a... Select...
Normal balance (linear) PASS
Balance suitable for pop music POP
Balance suitable for rock music ROCK
Balance suitable for classic music CLASSIC
Balance suitable for hall HALL
Balance suitable for live LIVE
Balance suitable for cinema CINEMA
23
Page 24

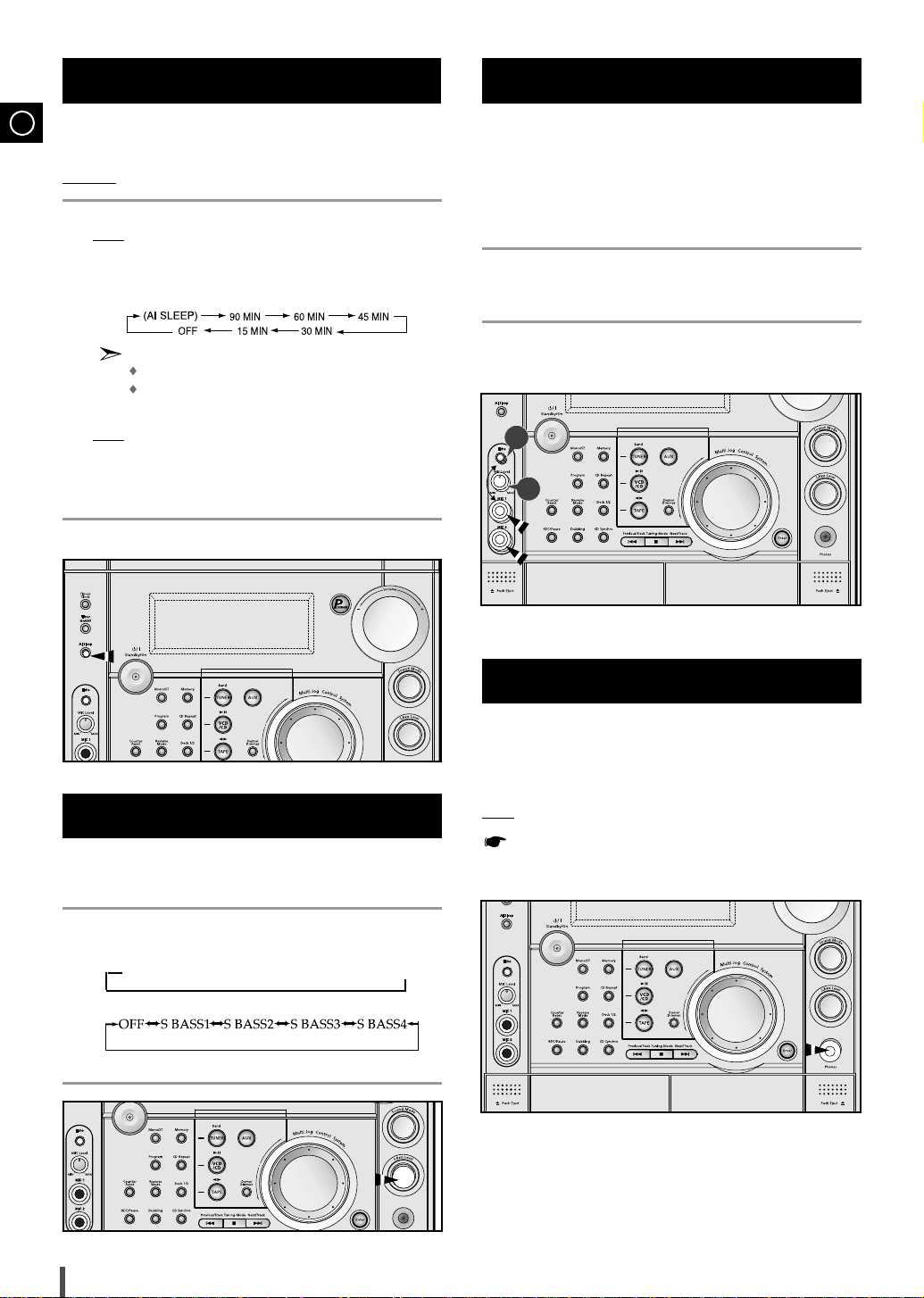

Setting the System to Switch off
--- -
Automatically
GB
While listening to a compact disc or a cassette, you can
set the system to switch off automatically
Example: You wish to go to sleep to music.
Press AI Sleep.
1
Result: playback starts and the following indications are displayed:
90 MIN
Press AI Sleep one or more times to indicate how long the
2
system should continue playing before it switches off:
At any time, you can:
Check the remaining time by pressing AI Sleep
Change the remaining time by repeating Steps 1 and 2
Press AI Sleep one or more times until AI SLEEP is displayed.
3
4
: The system will automatically switch off at the end of the disc
Result
or cassette.
To cancel SLEEP function, press AI Sleep one or more times until
OFF is display.
Microphone Function
The microphone enables the user to mix in his or her
vocals to sing-along with the music.
Preparation
Plug the microphone with a 6.3ø mic jack into
microphone terminal.
Turn the Mic Volume switch to adjust the MIC1, MIC2 volume.
1
Press Echo button to select ECHO1,ECHO2,ECHO OFF.
2
2
1
Super Bass Sound
our mini-compact system has a bass amplification function
Y
called S.Bass (Super Bass Sound). This function makes the
sound more powerful and real.
Turn S.Bass Level knob on the front panel or press the S.BASS
1
Level button on the remote control.
Press the button on the remote control repeatedly to select
➞
“OFF ➞ S-BASS1 ➞ S-BASS 2 ➞ S-BASS3 ➞ S-BASS4”.
or turn the knob on the front panel repeatedly to select
You can select the level of low tones you desired.
2
Connecting Headphones
You can connect a set of headphones to your mini-compact
system so that you can listen to music or radio programmers
without disturbing other people in the room. The earphones
must have a 3.5
Connect the headphones to the Phones jack on the front panel.
Result
: The loudspeakers are no longer used to output the sound.
Prolonged use of headphones at a high volume may damage
your hearing.
ø jack or an appropriate adapter.
24
Page 25

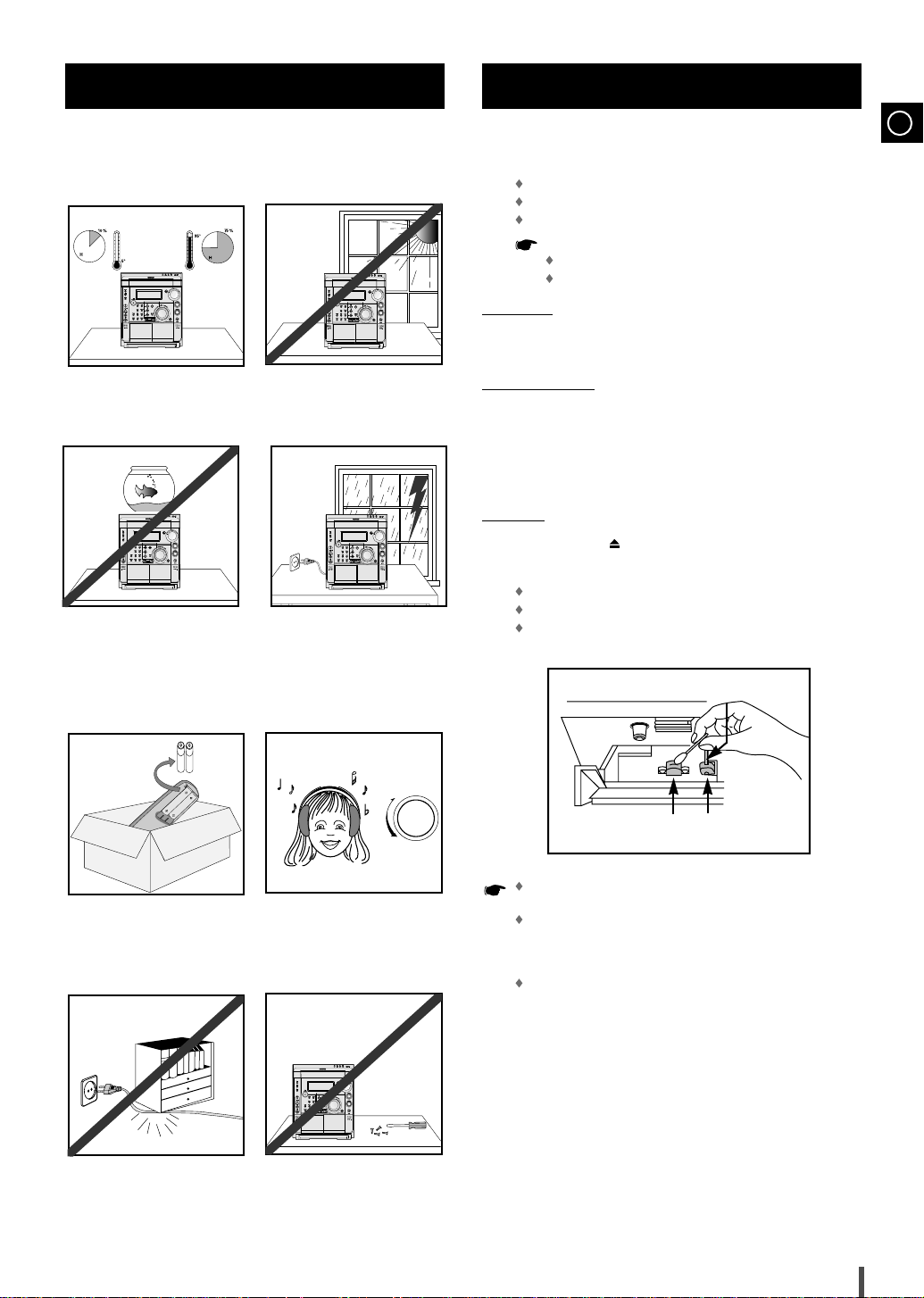

Safety Precautions
The following diagrams illustrate the precautions to be taken
when using or moving your mini-compact system.
Ambient operating conditions:
Ambient temperature 5°C-35°C
Humidity 10-75%
Do not place potted plants or vases
on top of the unit. Moisture entering
the unit could lead to dangerous
electric shock and can cause
equipment damage. In such events
immediately disconnect the main
plug from the socket.
Do not expose the unit to direct sun
radiation or other heat sources.
This could lead to overheating and
malfunction of the unit.
During thunderstorms, disconnect
the main plug from the socket.
Main voltage peaks due to lightning could damage the unit.
Cleaning Your Mini-Compact System
To obtain the best possible results from your mini-compact
system, you must clean the following elements regularly:
The outer casing
The compact disc player
The cassette players (heads, rollers and drive capstans)
Always unplug the system from the wall outlet:
Before cleaning it
If you are not going to be using it for a long time
Outer Casing
Clean the outer casing regularly using a soft cloth and a light detergent. Do
not use abrasive powders, liquids or aerosol cleaners. Never let any liquids
get into the system.
Compact Disc Player
Before playing a compact disc, clean it with a special CD cleaning
1
agent. Do not use the same cleaning agents as for vinyl LP records.
Carefully wipe the disc from the centre outward.
Regularly clean the player with a special cleaning disc (available from
2
your local dealer).
T
ape Decks
Press Push Eject( ) to open the cassette deck.
1
Use a cotton bud and a special cassette cleaning agent to clean the:
2
Head (1)
Rollers (2)
Drive capstans (3)
3
GB
Remove the batteries from the
remote control, if not used for any
extended period.
Leaking batteries can cause serious
damage to the remote control.
Do not place heavy items on the
main lead. Main cable damage can
lead to damage of the equipment (fire
hazard) and can cause electric
shock.
VOLUME
UP
DOWN
When using headphones, take care
not to listen at excessive volumes.
Extended use of headphones at
high volumes will lead to hearing
damage.
Do not remove any equipment panels.
The inside of the unit
contains live components, which
cause electric shock.
21
If you will not be using the remote control for a long time,
remove the batteries to prevent corrosion.
Although your system is very hard-wearing, it should not be
used in an excessively dusty environment or subjected to
shocks or extreme heat (close to heating appliances or in
direct sunlight, etc.).
If the unit emits an unpleasant odor when in use, unplug it
from the main supply and contact the after-sales service.
25
Page 26
GB

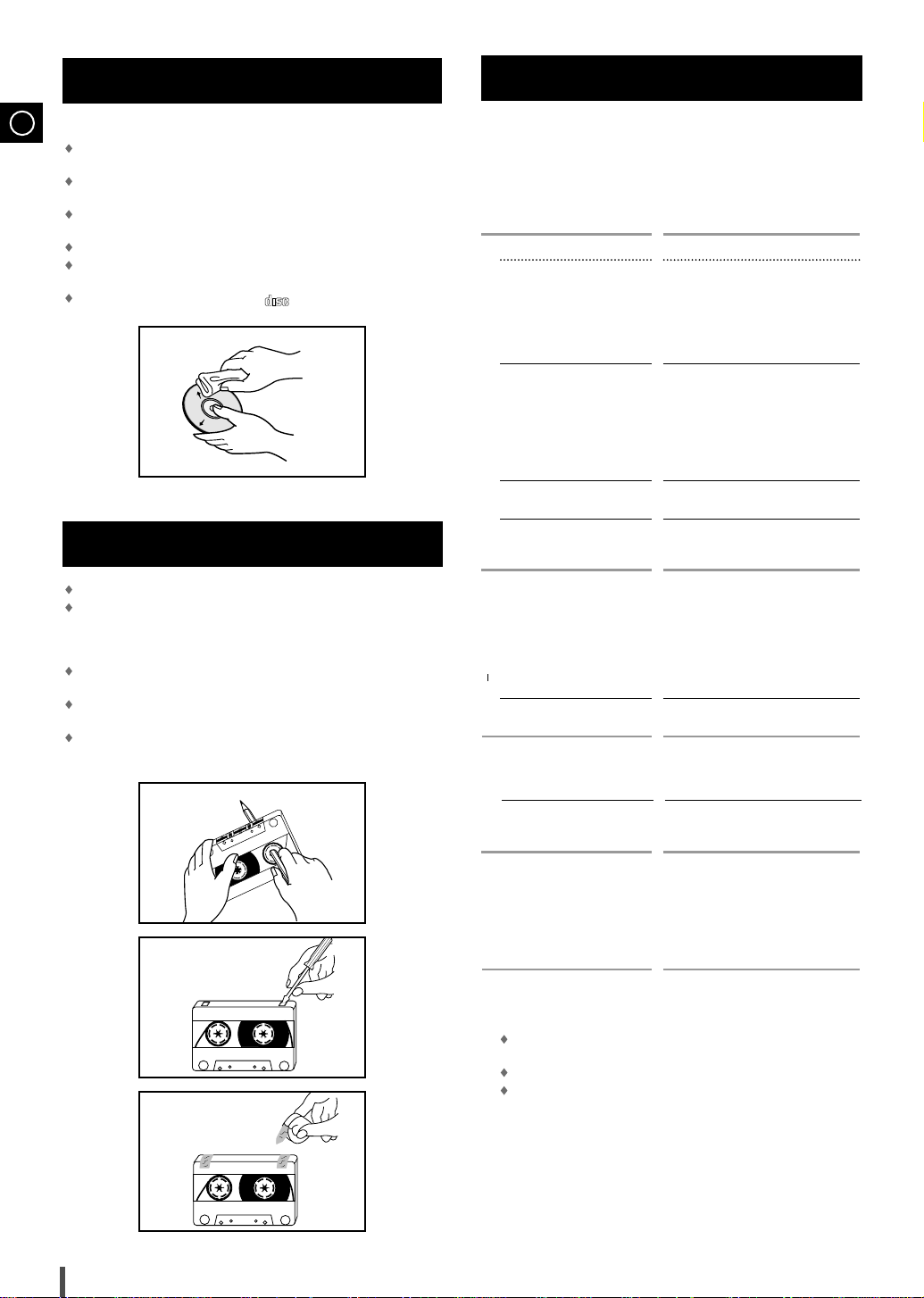

Precautions When Using Compact Discs
Handle your compact discs with care. Always hold them by the
edges to avoid leaving fingerprints on the shiny surface.
When you have finished playing a compact disc, always put it back
in its case.
Do not fix paper or adhesive tape to the discs and do not write on
the label.
Clean them with a special-purpose cloth.
Store your compact discs in a clean place, out of direct sunlight,
where they will not be exposed to high temperatures.
Always use compact discs marked .
DIGITAL AUDIO
COMPACT
Precautions When Using Audio Cassettes
Check that the tape in the cassette is sufficiently taught.
To prevent erasing a cassette that you wish to keep, remove the
safety tab on the upper edge of the cassette. To record a cassette,
where the tab has been broken, simply cover the opening with
adhesive tape.
When you have finished playing a cassette, always put it back in its
case.
Store your cassettes in a clean place, out of direct sunlight, where
they will not be exposed to high temperatures.
Avoid using 120-minute cassettes as they place unnecessary strain
on the tape mechanism.
Before Contacting the After-Sales Service
It always takes a little time to become familiar with a new appliance.
If you have any of the problems listed below, try the solutions given.
They may save you the time and inconvenience of an unnecessary
service call.
Problem
The system does not work
G
E
N
E
R
There is no sound
A
L
The Timer does not work
In case it does not work, even the
action is taken as above.
C
D
The compact disc player does not
/
start playing
M
P
3
C
D
The MP-3 CD player cannot be
played.
C
A
The tape does not start playing
S
S
E
T
The volume falls off
T
E
The cassette is not erased correctly
S
There is excessive wow and flutter
R
A
Reception is poor or no radio
D
stations are received at all
I
O
Checks/Explanation
• The main lead is not correctly plugged into
a wall socket or the wall socket is not
switched on.
• The remote control batteries need replacing
or the polarity has not been respected.
• The Standby/On button has not been
pressed.
• The volume has been completely turned
down.
• The correct function (TUNER, CD, TAPE,
AUX) has not been selected.
• You have connected a set of earphones.
• The loudspeaker wires have been
disconnected.
• The Mute button has been pressed.
• The timer has been stopped by pressing
Timer On/Off.
• Press the P.SURROUND button for 5 sec-
onds in power ‘OFF’(standby), then it is
returned the original position (RESET)
• The CD function has not been selected.
• The disc has been inserted face down or is
either dirty or scratched.
• The laser sensor is dirty or dusty.
• The system has not been installed on a flat,
horizontal surface.
• Condensation has formed in the player;
leave the system in a warm, airy room for at
least one hour.
• Use the PC to confirm if the extension is
*.mp3.
• The TAPE function has not been selected.
•
The cassette has not been inserted correctly.
• The cassette player has not been closed.
• The tape is either slack or broken.
• The audio heads are dirty.
• The rollers or drive capstans are dirty.
• The tape is worn.
• The TUNER function has not been selected.
• The radio frequency has not been correctly
selected.
• The aerial has been disconnected or is not
facing the right way. Turn it until you find the
best orientation.
• You are in a building that blocks radio
waves; you must use an outside aerial.
26
If the above guidelines do not allow you to solve the problem, take a
note of:
The model and serial numbers, normally printed on the rear of
the system
Your warranty details
A clear description of the problem
Then contact your local dealer or SAMSUNG after-sales service.
Page 27
Technical Specifications
GB
SAMSUNG strives to improve its products at all times. Both the design specifications and these user
instructions are thus subject to change without notice.
RADIO
LW(option)
Usable sensitivity 60 dB
SW(option)
Usable sensitivity 40 dB
AM (MW)
Signal/noise ratio 40 dB
Usable sensitivity 54 dB
Total harmonic distortion 2 %
FM
Signal/noise ratio 62 dB
Usable sensitivity 10 dB
Total harmonic distortion 0.3 %
COMPACT DISC PLAYER
Capacity 3 discs
Frequency range 20 Hz - 20 KHz (± 1 dB)
Signal/noise ratio 90 dB (at 1 KHz) with filter
Distortion 0.05 % (at 1 KHz)
Channel separation 74 dB
Disc sizes Diameter: 120 or 80 mm. Thickness: 1.2 mm
TAPE DECK
Frequency range 125 Hz ~ 10 KHz
Signal/noise ratio 40 dB
Channel separation 35 dB
Erasing effect 60 dB
AMPLIFIER
Output power (6 Ω) 70 Watts / Ch RMS, (total harmonic distortion: 10 %)
Channel separation 50 dB
Signal/noise ratio 75 dB
GENERAL
Dimensions 270 (W) x 332 (H) x 390 (D) mm
27
Page 28
ELECTRONICS
THIS APPLIANCE IS MANUFACTURED BY:
AH68-01239A
Loading...
