Samsung MAX-VL85 User Manual

THREE-CD CHANGER
VIDEO-CD
MINI-COMPACT SYSTEM

MP3-CD/CD-R/RW PLAYBACK

MAX-VL85

Instruction Manual

GB

Safety Warnings

CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
PRODUCTO LASER CLASE 1

CLASS 1 LASER PRODUCT

This Compact Disc player is classified as a CLASS 1
LASER product.

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE REAR COVER.
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.

This symbol indicates that dangerous voltage which can cause electric shock is present inside
this unit.

This symbol alerts you to important operating and maintenance instructions accompanying
the unit.

Use of controls, adjustments or performance of
procedures other than those specified herein may result
in hazardous radiation exposure.

CAUTION-INVISIBLE LASER RADIATION WHEN OPEN

AND INTERLOCKS DEFEATED, AVOID
EXPOSURE TO BEAM.

WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY

INSERT.

2

Thank you for buying this
SAMSUNG mini-compact system.

Contents

Please take time to read these instructions.
They will allow you to operate your
system with ease and take full advantage
of its features.

S

AFETYWARNINGS

NSTALLINGYOURMINI-COMPACTSYSTEM

I

Front Panel View...................................................................................................................................................................................................... 4

Remote Control ........................................................................................................................................................................................................ 5

Rear Panel View ...................................................................................................................................................................................................... 6

Where to Install Your Mini-Compact System............................................................................................................................................................ 7

Connecting your System to the Power Supply ........................................................................................................................................................ 7

Inserting Remote Control Batteries.......................................................................................................................................................................... 8

Connecting the Loudspeakers.................................................................................................................................................................................. 8

Connecting to an External Source............................................................................................................................................................................ 9

Connecting to the Equipment .................................................................................................................................................................................. 9

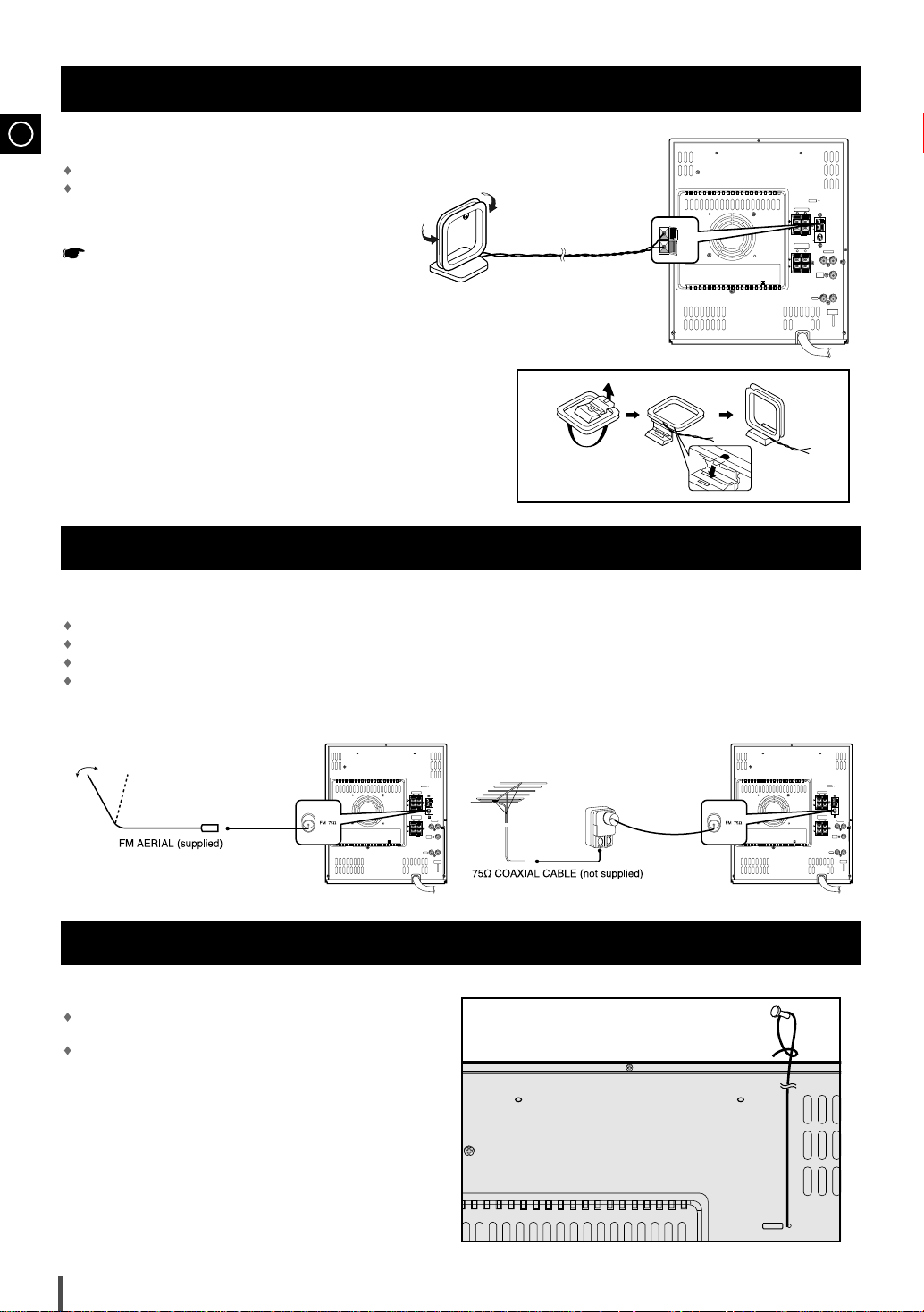

Connecting the AM (MW)/LW Aerial ........................................................................................................................................................................ 10

Connecting the FM Aerial ........................................................................................................................................................................................ 10

Connecting the SW Aerial (OPTION) ...................................................................................................................................................................... 10

Viewing the Various Functions on Your System ...................................................................................................................................................... 11

Moving Jog Function................................................................................................................................................................................................ 11

Setting the Clock...................................................................................................................................................................................................... 11

VCD/MP3-CD/CD-P

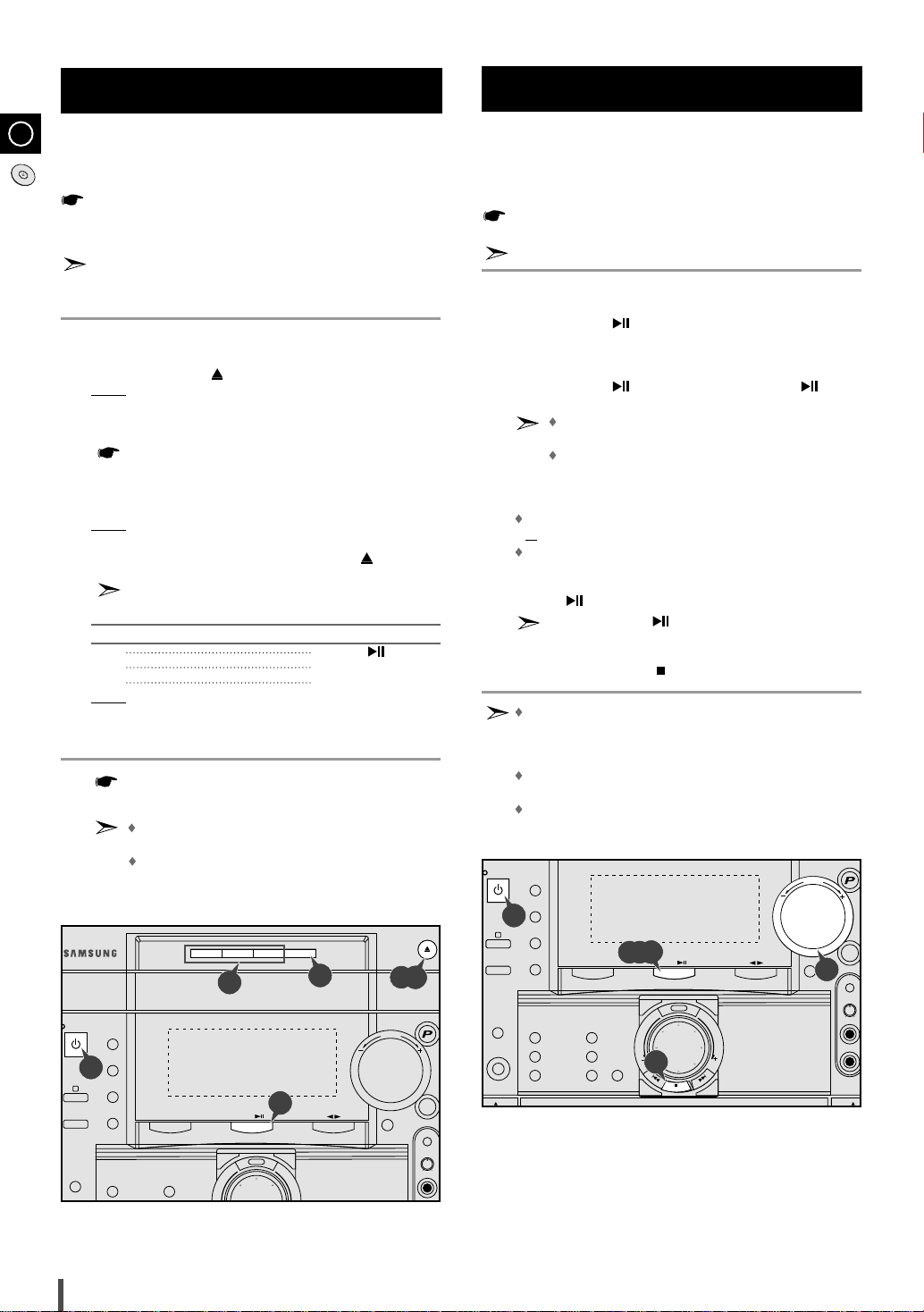

Loading and Changing Compact Discs.................................................................................................................................................................... 12

To replay the CD/MP3-CD........................................................................................................................................................................................ 12

Selecting a CD in the Disc changer ........................................................................................................................................................................ 13

MP3-CD PLAYBACK .............................................................................................................................................................................................. 13

Selecting a Track...................................................................................................................................................................................................... 13

Searching for a Specific Music Passage on a CD .................................................................................................................................................. 14

Function to skip through 10 tracks at a time............................................................................................................................................................ 14

Shuffle Play Function .............................................................................................................................................................................................. 14

Repeating One or All Tracks on the Compact Discs................................................................................................................................................ 14

Programming the Order of Playback........................................................................................................................................................................ 15

Checking or Changing Programmed Tracks............................................................................................................................................................ 15

Video CD Player Playback ...................................................................................................................................................................................... 16

Search Functions .................................................................................................................................................................................................... 16

Time Searchy Function ............................................................................................................................................................................................ 16

When adjusting play speed...................................................................................................................................................................................... 17

NTSC/PALSelection Method .................................................................................................................................................................................. 17

Sound Select Function ............................................................................................................................................................................................ 17

KEY CONTROL Function ........................................................................................................................................................................................ 17

VCD VIEW function.................................................................................................................................................................................................. 18

ZOOM Function ........................................................................................................................................................................................................ 18

Last Memory Function.............................................................................................................................................................................................. 18

UNER

T

Searching for and Storing the Radio Stations ........................................................................................................................................................ 19

Selecting a Stored Station........................................................................................................................................................................................ 20

Improving Radio Reception...................................................................................................................................................................................... 20

APEDECK

T

Listening to a Cassette ............................................................................................................................................................................................ 21

CD Synchro Record Feature .................................................................................................................................................................................... 21

Recording a Compact Disc ...................................................................................................................................................................................... 21

Recording a Radio Program .................................................................................................................................................................................... 22

Copying a Cassette (Dubbing) ................................................................................................................................................................................ 22

Selecting the Cassette Playback Mode .................................................................................................................................................................. 23

Tape Counter............................................................................................................................................................................................................ 23

THERFUNCTIONS

O

Timer Function.......................................................................................................................................................................................................... 24

Cancelling the Timer ................................................................................................................................................................................................ 25

Mute Function .......................................................................................................................................................................................................... 25

Selecting an Equalizer Preset.................................................................................................................................................................................. 25

Power Sound/Surround Function ............................................................................................................................................................................ 25

Setting the System to Switch off Automatically........................................................................................................................................................ 26

Subwoofer Level Function........................................................................................................................................................................................ 26

Microphone Function ................................................................................................................................................................................................ 26

Connecting Headphones .......................................................................................................................................................................................... 26

ECOMMENDATIONS FORUSE

R

Safety Precautions .................................................................................................................................................................................................. 27

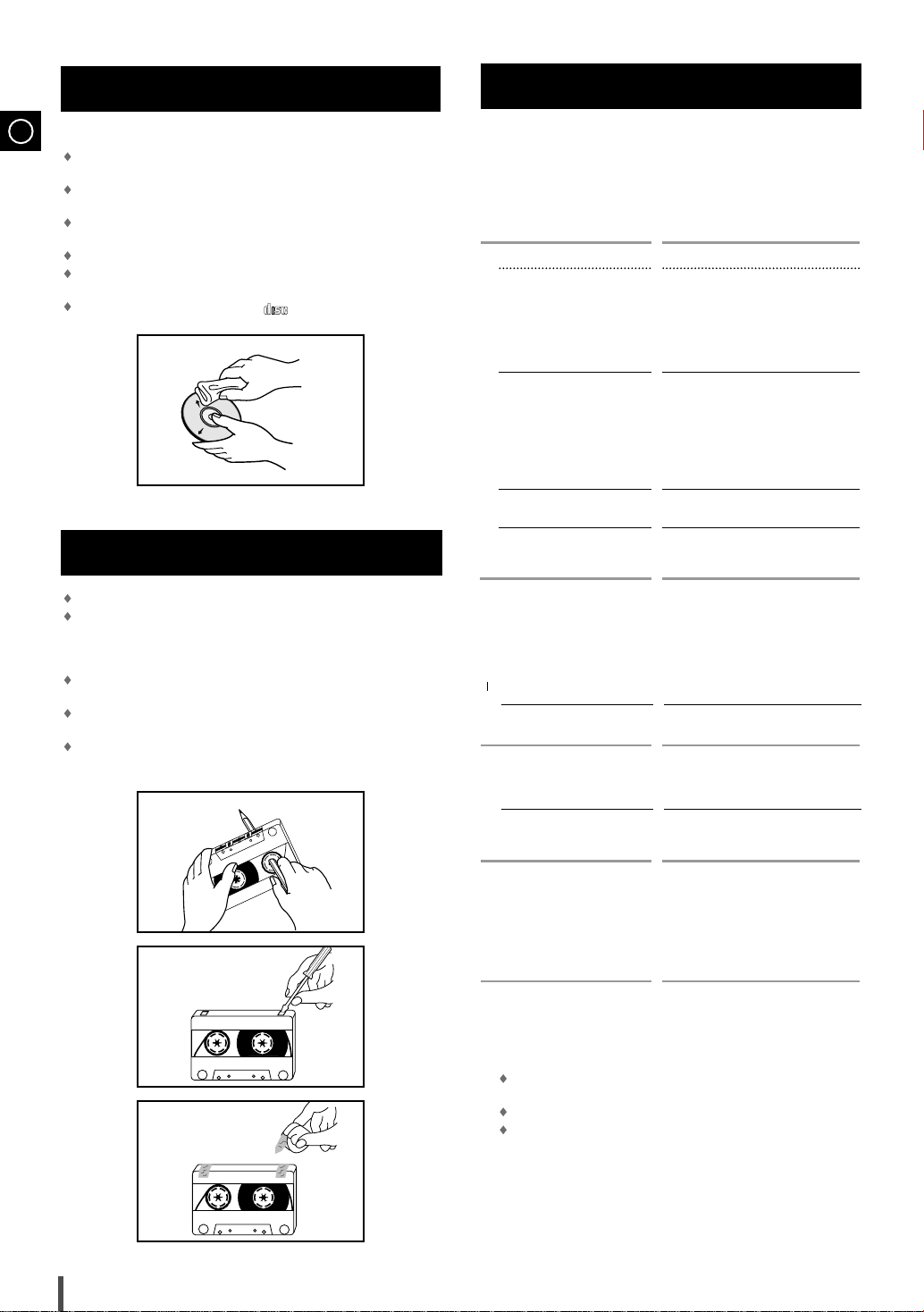

Cleaning Your Mini-Compact System ...................................................................................................................................................................... 27

Precautions When Using Compact Discs ................................................................................................................................................................ 28

Precautions When Using Audio Cassettes .............................................................................................................................................................. 28

Before Contacting the After-Sales Service .............................................................................................................................................................. 28

Technical Specifications .......................................................................................................................................................................................... 29

.................................................................................................................................................................................................. 2

LAYER

Symbols

GB

Press Push Important Note

3

GB

Enter

Up

Down

Preset/Manual

Next

Previous

Menu Menu

Disc 1

On/

Standby

Timer/
Clock

Timer/
On/Off

AUX

Demo

Mute

Phones

Push Eject

Mono/ST

Band

Select/

TUNER VCD/CD TAPE

Power Surround

Program

CD Repeat

Shuffle

CD

Synchro

Reverse

Mode

Deck 1/2

Counter

Reset

Dubbing

Normal High

Preset

Memory

REC/Pause

AI Sleep

Disc 2 Disc 3 Disc Change

Open/Close

R

Volume

Sound
Mode

Subwoofer Level

Push Eject

Echo

Mic Mixing

Min Max

MIC 1

MIC 2

Front Panel View

10
11

12
13
14

15
16

2

137

36

3

35

4
5
6

7
8

9

34
33

32
31
30

29
28

27
26

25
24

17
18

19

1. Disc Selection buttons

2. Compact Disc Compartment

3. Timer On/Off

4. Timer/Clock

5. On/Standby

6. AI Sleep

7. Demo

8. AUX

9. Program

10. Mono/ST

11. Mute

12. Headphone Jack Connector

13. REC/Pause (PAL/NTSC)

14. Preset/Memory

15. Cassette Deck 1

16. Shuffle

17. CD Repeat

18. CD Synchro Recording

19. Reverse Mode

20

20. Deck 1/2

21. TAPE Normal / Hi-Speed Dubbing

22. Counter Reset

23. Preset/Manual or Stop button

24. Cassette Deck 2

25. Search Function buttons

26. Moving Jog

27. Enter

28. MIC 1, 2

29. Mic Mixing

30. Echo

31. Sound Mode

32. Subwoofer Level

33. Volume

34. Power Surround

35. Function Selection buttons

36. Open/Close

37. Disc Change

23
22

21

4

Remote Control

On/Standby

123

456

789

Band

TAPE

Timer

On/Off

AI Sleep

Deck 1/2

Counter

Reset

ReturnCD Repeat

Disc
View

Time

Search

SlowSound

Key Control

Zoom

+10/0

Mono/ST.

Mute Disc Skip

Volume

Tuning

Mode

Volume

PREV NEXT

VCD / CD

#

b

1

2

3
4

5
6

7
8

9

10

GB

28
27

26
25

24
23

22
21

20
19

18
17

16
15

14
13

12

11

1. On/Standby

2. Digit Buttons

3. Band

4. +10/0

5. Timer On/Off

6. AI Sleep

7. TAPE Rewind

8. TAPE Fast-Forward

9. CD Stop

10. CD Track or Radio Station Search

11. Volume Decrease

12. Tuning Mode

13. Volume Increase

14. CD Play/Pause

15. TAPE Stop

16. TAPE Play

17. Counter Reset

18. Deck 1/2

19. FM Mono/ST.

VCD Zoom

/

20. Key Control

21. Sound

22. Slow

23. Time Search (Last Memory)

24. Disc View

25. CD Repeat

26. Return

27. Disc Number Skip

28. Mute

GB

FM 75Ω

AM ANT.

SUBWOOFER(4Ω)

RL

R

L

SW ANT.

MAIN

SPEAKER(8Ω)

AUX IN

R

L

AUDIO OUT

RL

VIDEO

OUT

VOLTAGE

SELECTOR

Rear Panel View

1

2

3

4
5

1. SUBWOOFER Speaker Connector Terminals

2. SW Aerial Connector Terminal (OPTION)

3. AM Aerial Connector Terminal

4. FM Aerial Connector Terminal

5. AUDIO Output Connectors

6. VIDEO Output Connectors

7. Loudspeaker Connector Terminals

6
7

8

9

8. AUX-Input

9. Voltage Selector (OPTION)

6

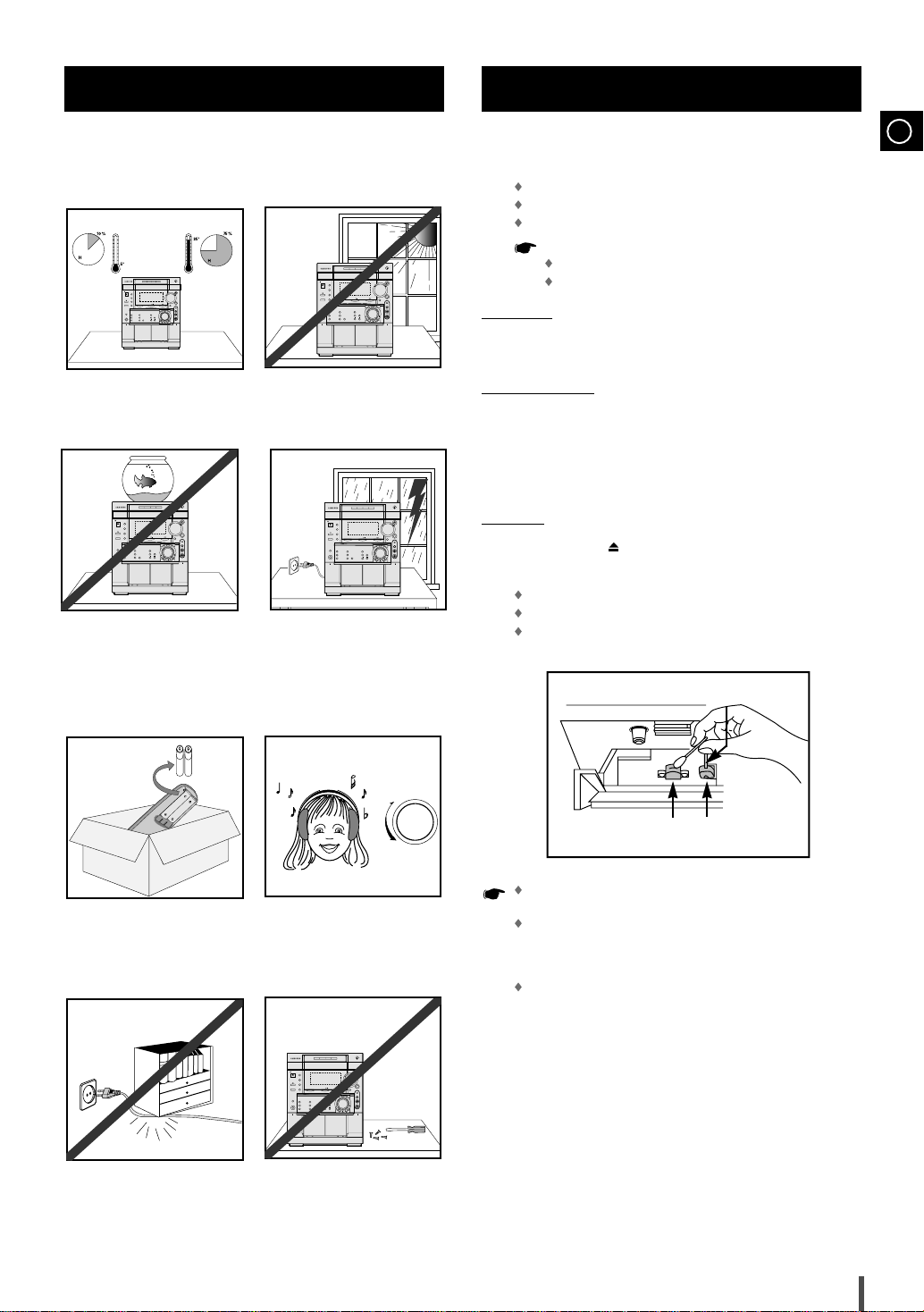

Where to Install Your

Enter

Up

Next

Down

Previous

Preset/Manual

Menu Menu

Disc 1

On/

Standby

Timer/
Clock

Timer/
On/Off

AUX

Demo

Mute

Phones

Push Eject

Mono/ST

Band

Select/

TUNER VCD/CD TAPE

Power Surround

Program

CD Repeat

Shuffle

CD

Synchro

Reverse

Mode

Deck 1/2

Counter
Reset

Dubbing

Normal High

Preset
Memory

REC/Pause

AI Sleep

Disc 2 Disc 3 Disc Change

Open/Close

R

Volume

Sound
Mode

Subwoofer Level

Push Eject

Echo

Mic Mixing

Min Max

MIC 1

MIC 2

RL

AUX IN

VIDEO

OUT

VOLTAGE

SELECTOR

Mini-Compact System

Connecting your System to the Power Supply

To take full advantage of your new mini-compact system,
ollow these installation instructions before connecting the
unit.

Install the system on a flat, stable surface.
Never place this unit on carpeting.
Never place this unit in an outdoor area.
Maintain an open space of approximately 6 inches (15 cm) on the
sides and rear of the system, for ventilation purposes.
Make sure that you have enough room to open the compact disc
compartment easily.
Place the loudspeakers at a reasonable distance on either side of
the system to ensure good stereo sound.
Direct the loudspeakers towards the listening area.
For optimum performance, make sure that both speakers are placed
at an equal distance above the floor.

The main lead must be plugged into an appropriate socket.

Before plugging your system into a main socket, you must check
the voltage setting (OPTIONAL). If the voltage of the socket does
not correspond to the setting on the rear of the unit, you may
seriously damage your system.

Check the position of the Voltage selector on the rear of the system

1

(OPTIONAL).
Plug the main lead (marked AC Cord on the rear of the system) into

2

an appropriate socket.
Press the On/Standby button to switch your mini-compact system on.

3

GB

7

MAIN

SPEAKER(8Ω)
R

L

SUBWOOFER(4Ω)

R

L

Inserting Remote Control Batteries

GB

Insert or replace remote control batteries when you:

Purchase the mini-compact system
Find that the remote control is no longer operating correctly

When replacing the batteries, use a new set of batteries and
never mix alkaline and manganese batteries.

Place your thumb on the position marked on the battery

1

compartment cover (rear of the remote control) and push the cover
in the direction of the arrow.

Insert two AAA, LR03 or equivalent batteries, taking care to respect

2

the polarities:

+ on the battery against + in the battery compartment
– on the battery against – in the battery compartment

Replace the cover by sliding it back until it clicks into position.

3

If you will not be using the remote control for a long time,
remove the batteries to prevent corrosion.

Connecting the Loudspeakers

The loudspeaker and subwoofer connector terminals are
located on the rear of the system.

The subwoofer generates low-pitched tones.

(Ex. Explosion, the sound of spacecraft flying, the sound of pondering,

etc.)

Press and hold the clamp of the speaker terminal on the rear of the

1

unit.
Insert the end of the speaker cord into the terminal.

2

Match the polarity (colors): Red (+) to red (+) and black (–) to
black (–).

Match the polarity (colors): Blue (+) to blue (+) and black (–) to
black (–); Red (+) to red (+) and black (–) to black (–).

Release the finger from the clamp.

3

Use only speakers with the same speaker impedance as
indicated by the speaker terminals on the rear of the unit.

Speaker Cord

(Red/Black)

Speaker Cord

(Blue/Black)

Directions in Installing Speaker

Installation in a place near heating apparatus, under direct lay of
light or with high humidity may cause performance degradation
of the speaker.

Do not install on the wall or on a high place of pole or other
unstable place to prevent any safety accident caused by falling
of the speaker.

Do not take the speaker apart from TV or computer monitor.
The speaker near the TV or computer monitor may influence the
quality of the screen display.

8

Connecting to an External Source

RL

AUX IN

R

L

AUDIO OUT

RL

VIDEO

OUT

VOLTAGE

SELECTOR

The auxiliary input can be used to take advantage of the
sound quality of your mini-compact system when listening
to other sources.

Examples

: A television

A video disc player
A Hi-Fi stereo video cassette recorder

To connect the external source, the source must have an audio
output. In addition, you need an RCA connection cable.

Set the system to standby mode and disconnect it and the external

1

source from the main.
Connect the audio cable to the rear of the mini-compact system.

2

Connect the... To the connector marked...

Red jack R (right)
White jack L (left)

For optimum sound quality, do not invert the right and left
channels.

Plug the system back into the main socket and press On/Standby to

3

switch it on.
Select the AUX source by pressing AUX.

4

5

6

: AUX is displayed.

Result
Switch the external source on.
Adjust the volume and balance as required:

Volume Equalizer

Connecting to the Equipment

Using the Audio Cord, Connect the Audio Output Terminals (Left,
Right) of the System with the Audio Input Terminals (Left, Right) of
the Video Input Cassette Recorder, so as to Record VCD.

Using the Video Cord, Connect the Video Output Terminal of the
system with the Video Input Terminal of TV.

Turn on the TV and Select the Video mode by pressing the
TV/VIDEO SELECT button to the VIDEO Position.

Please Pay Attention not to Connect the Audio Output Terminals
(left, right) of the System with the Audio Input Terminal of TV.

MAIN

SPEAKER(8Ω)

L

R

AUDIO OUT

RL

VIDEO

OUT

GB

Example: You can watch a film and take advantage of stereo sound

provided that the original sound track is in stereo (as if you
were in a cinema).

AMPLIFIER

AUDIO INPUT VIDEO INPUT

RL

TV

9

Connecting the AM (MW)/LW Aerial

SW ANT.

GB

The AM aerial (for long and medium waves) can be:

Placed on a stable surface

Fixed to the wall (you must first remove the base)
The AM aerial connector terminals are located on the rear of
the system and are marked AM .

To avoid noise interference, check that the loudspeaker
wires do not run close to the aerial wires.
Always keep them at least 2 inches (5 cm) away.

Connecting the FM Aerial

How to connect a COAXIAL TYPE aerial.

Connect a 75Ω antenna to the FM antenna terminal.

Plug the connector on the FM aerial supplied into the coaxial socket (75Ω) marked FM on the rear of the system.

Follow the instructions given on Page 19 to tune into a radio station, and determine the best position for the aerial.

If reception is poor, you may need to install an outdoor aerial.

To do so, connect an outdoor FM aerial to the FM socket on the rear of the system using a 75Ω coaxial cable (not supplied).

AM ANT.

SW ANT.

SUBWOOFER(4Ω)

L

R

AM ANT.

FM 75Ω

MAIN

SPEAKER(8Ω)

L

R

AUDIO OUT
RL

VIDEO
OUT

RL

AUX IN

VOLTAGE
SELECTOR

SW ANT.

SUBWOOFER(4Ω)

L

R

AM ANT.

FM 75Ω

MAIN

SPEAKER(8Ω)

L

R

AUDIO OUT
RL

VIDEO
OUT

RL

AUX IN

VOLTAGE
SELECTOR

Connecting the SW Aerial (OPTION)

How to connect a WIRE TYPE aerial.

Spread the SW aerial out and attach the ends to a wall, in the

position providing the best reception.

If reception is poor (e.g. distance from transmitter too great,

walls blocking the radio waves, etc.), install an outdoor aerial.

10

SW ANT.

SUBWOOFER(4Ω)

L

R

AM ANT.

FM 75Ω

MAIN

SPEAKER(8Ω)

L

R

AUDIO OUT
RL

VIDEO
OUT

RL

AUX IN

VOLTAGE
SELECTOR

Enter

Up

Next

Down

Previous

Preset/Manual

Menu Menu

On/

Standby

Timer/
Clock

Timer/
On/Off

AUX

Demo

Mute

Phones

Mono/ST

Band

Select/

TUNER VCD/CD TAPE

Program

CD Repeat

Shuffle

CD

Synchro

Reverse

Mode

Deck 1/2

Counter

Reset

Dubbing

Normal High

Preset

Memory

REC/Pause

AI Sleep

R

Volum

Sound
Mode

Enter

t

Pre

nu Men

Pre

uMe

Viewing the Various Functions on

Your System

You can view the various functions available on your system.

Press the Demo button.

1

Result: The various functions available are listed in turn on the

display.

All these functions are described in detail in this booklet.
For instructions on how to use them, refer to the appropriate
sections.

To cancel this function, press Demo again.

2

Timer/
On/Off

R

AUX

AI Sleep

Demo

Band

TUNER V

Se

Setting the Clock

Your system is equipped with a clock which allows you to
turn your system on and off automatically.
You should set the clock:

When you first purchase the mini-compact system
After a power failure
After unplugging the unit

For each step, you have a few seconds to set the required
options. If you exceed this time, you must start again.

Switch the system on by pressing On/Standby.

1

Press Timer/Clock twice.

2
3

4

5

CLOCK is displayed.

Result:
Press Enter.

The hour flashes.

Result:

To... Turn the

Moving Jog

Increase the hours Right
Decrease the hours Left

When the correct hour is displayed, press Enter.
Result:

The minutes flash.

knob to the...

GB

Moving Jog Function

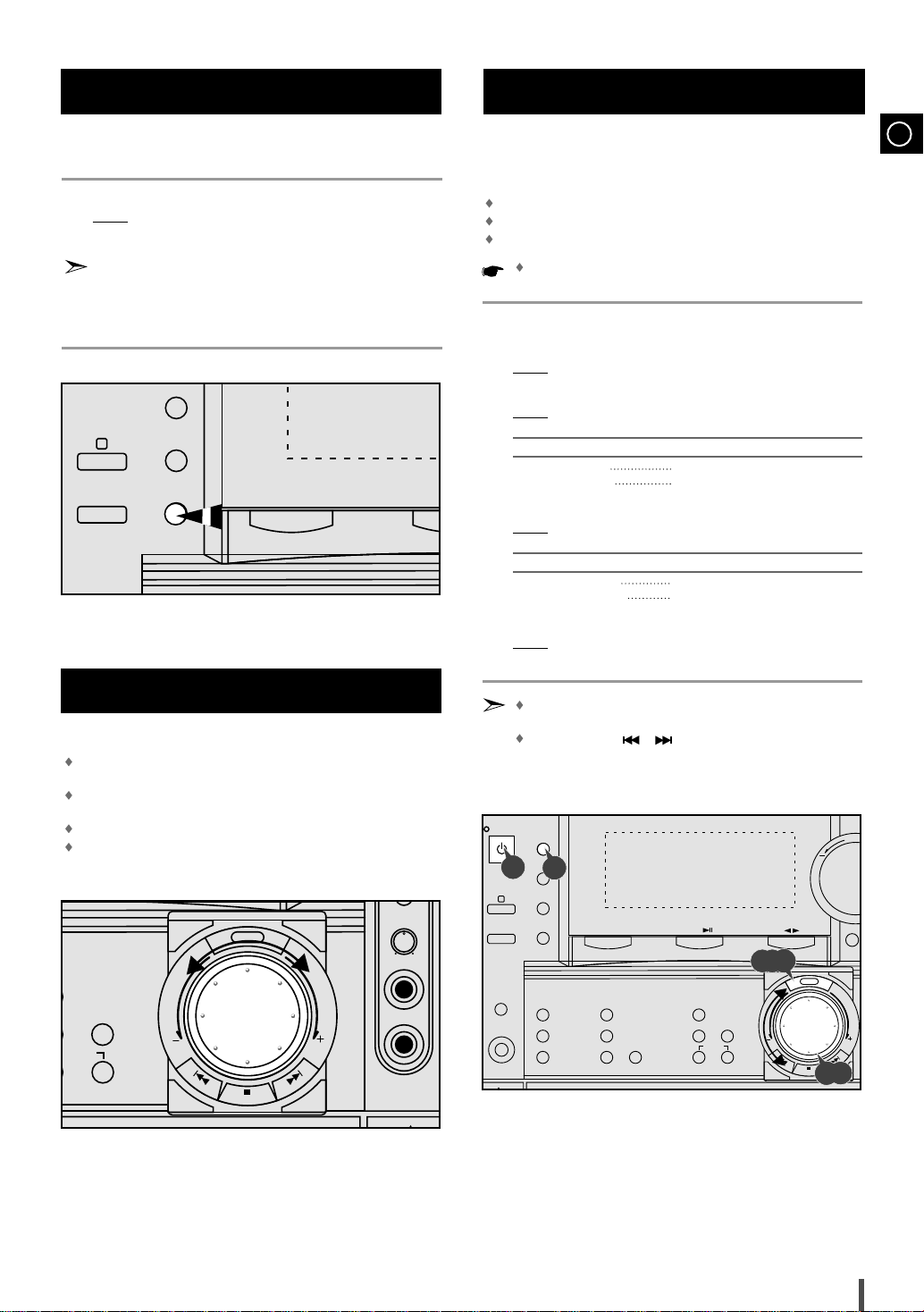

Your mini-compact system has an improved Moving Jog Function,

including visual effect on standard jog function.

Each time you press Tuner, CD or Tape buttons, Moving Jog will

move automatically to a selected function.

Moving Jog will always return to CD position at standby.

Be cautious not to move Moving Jog excessively or give extreme

force. It will likely be the major cause of malfunction.

Enter

Counter

2

Reset

ubbing

l High

Menu Menu

Previous

Down

Preset/Manual

To... Turn the

6

Moving Jog

knob to the...

Increase the minutes Right
Decrease the minutes Left

When the correct time is displayed, press Enter.

7

Result:

The clock starts and is displayed, even when the system is in
standby mode.

You can display the time, even when you are using another
function, by pressing Timer/Clock once.

You can also use / buttons to instead Moving Jog
knob in step 4, 6.

1

2

Mic Mixing

Min Max

MIC 1

MIC 2

Next

Up

3,5,7

4,6

11

Loading and Changing Compact

Disc 1

On/

Standby

Timer/
Clock

Timer/
On/Off

AUX

Demo

Mute

Mono/ST

Band

Select/

TUNER VCD/CD TAPE

Power Surroun

Program

Reverse

Mode

Counter

AI Sleep

Disc 2 Disc 3 Disc Change

Open/Close

R

Volume

Sound
Mode

Subwoofer Lev

Echo

Mic Mixing

Min Max

MIC 1

Enter

On/

Standby

Timer/
Clock

Timer/
On/Off

AUX

Demo

Mute

Phones

Mono/ST

Band

Select/

TUNER VCD/CD TAPE

Power Surroun

Program

CD Repeat

Shuffle

CD

Synchro

Reverse

Mode

Deck 1/2

Counter

Reset

Dubbing

Normal High

Preset

Memory

REC/Pause

AI Sleep

R

Volume

Sound

Mode

Subwoofer Le

Echo

Mic Mixing

Min Max

MIC 1

MIC 2

Enter

Up

Next

Down

Previous

Preset/Manual

Menu Menu

Volume

Preset/Manual

Discs

GB

The CD disc changer can contain up to three 12 cm or 8 cm
compact discs without using an adapter.

Never force the compact disc carrousel when opening and
closing the compartment.

Never press down or place objects on the carrousel.
Always treat your compact discs with care; refer, if necessary, to

the section entitled “Precautions When Using Compact Discs” on
page 28.

Switch the system on by pressing On/Standby.

1

Press the Open/Close( ) button on the front panel.

2

Result:

The compartment opens.

Place one or two discs in the front slots of the carrousel, with the

3

label on the discs facing upwards.

Check that the compact disc has been correctly inserted in

the holder before closing the compartment.

If you wish to load a third compact disc, press the Disc Change

4

button on the front panel (or Disc Skip on the remote control).

The carrousel rotates by 120°.

Result:

Close the compartment by pressing the Open/Close( ) button

5

again.

If you wish to start playing a disc directly, you can also
proceed as follows.

To play... Press...

Disc 1 VCD/CD ( ) or Disc 1
Disc 2 Disc 2
Disc 3 Disc 3
Result:

The compartment closes automatically and the disc selected
starts playing.

To change or unload the compact disc changer, repeat Steps 2 to 5.

6

Keep the compartment closed whenever you are not using
it, to prevent dust from entering.

You can load or unload compact discs when the radio,
tape or auxiliary source function is selected.

The function will be automatically entered VCD/CD
from the other source when you press CD Open/Close
button.

To replay the CD/MP3

This is a player that enables the playback of audio CD, CD-R,
CD-RW and MP3-CD and does not possess the function that
saves MP3 files.

Do not use CDs of irregular shapes like heart or octagon shapes.
The performance of the player may be degraded.

At least more than one CD should be inserted for playbacks.

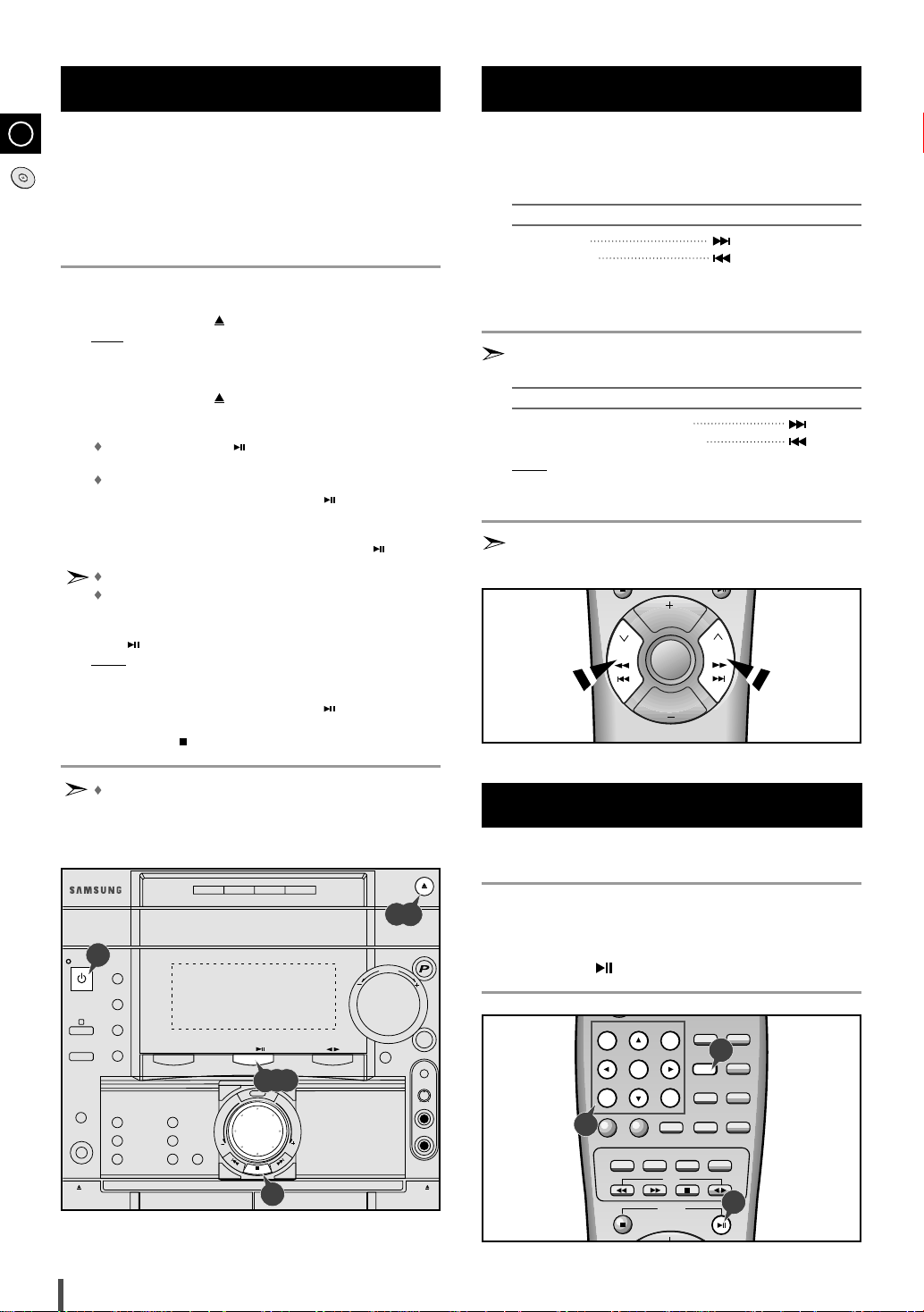

Press the On/Standby button to switch on the power.

1

Press the VCD/CD( ) of the main unit to select the CD function.

2

Insert more than one CD or a MP3-CD.

3

Press the VCD/CD( ) button on the front panel or the button

4

of the remote control.

If there is more than one CD or an MP3-CD inserted,
replays are then processed in order.

Your CD Player will take a few moments to scan through
all the tracks recorded on a particular MP3-CD.

Adjust the volume according to needs with the following procedures.

5

Turn the Volume control on the front panel
or

Press the VOL. + or – button on the remote control.

If it is desired to stop while the playback is processing, press the

6

VCD/CD() button.

Press the VCD/CD( ) button once again to playback
again.

To stop playback, press the button.

7

A new disc may be inserted in the remaining two compart­ments excluding the CD which is being played back.
Press the Disc Changer button to open the CD tray.
The revolving part does not turn during playbacks.

If there is not even one CD inserted in the CD tray, it is indicat­ed as “NO DISC”.

If the CD Repeat function is not selected, 3 CDs are played
back which automatically stops.

1

1

12

Disc 1 Disc 2 Disc 3 Disc Change

5

VCD/CD

2,4,6

4

2,5

VCD/CD

7

5

5

Selecting a CD in the Disc changer

Program

CD Repeat

Shuffle

CD

Synchro

Reverse

Mode

Deck 1/2

Counter

Reset

Dubbing

Normal High

Enter

Up

Next

Down

Previous

Preset/Manual

Menu Menu

t

Prev

uMe

P

Previous

Next

MP3-CD PLAYBACK

The CD function is automatically selected when Disc Skip is
pushed.

To select a specific disc, press the corresponding Disc (1, 2, 3) button
on the front panel or Disc Skip on the remote control, until the
required disc indicator flashes.
Result: All the discs will be played in turn, starting with the one selected.

If you wish to play the current disc only, press CD Repeat on
the front panel one or more times, until 1 CD is displayed.

If you use the Disc (1, 2, 3) function when listening to the radio
or to a tape, the system switches automatically to the CD mode.

If the disc selected is not loaded, the next disc is played
automatically.

Disc 1 Disc 2 Disc 3 Disc Change

Disc 1 Disc 2 Disc 3

What is MP3?

MP3 means MPEG1 Layer 3, the global standard for audio
signal compression technology. It uses digital compression
technology to compress original sound data by up to 12 times
without sound quality degradation.

File Compatibility

The unit will playback files created in MP3 format
(Mpeg1.Layer3) with *.mp3 as their extension.

Playback will be impossible for the file of MP2 or
22KHz.

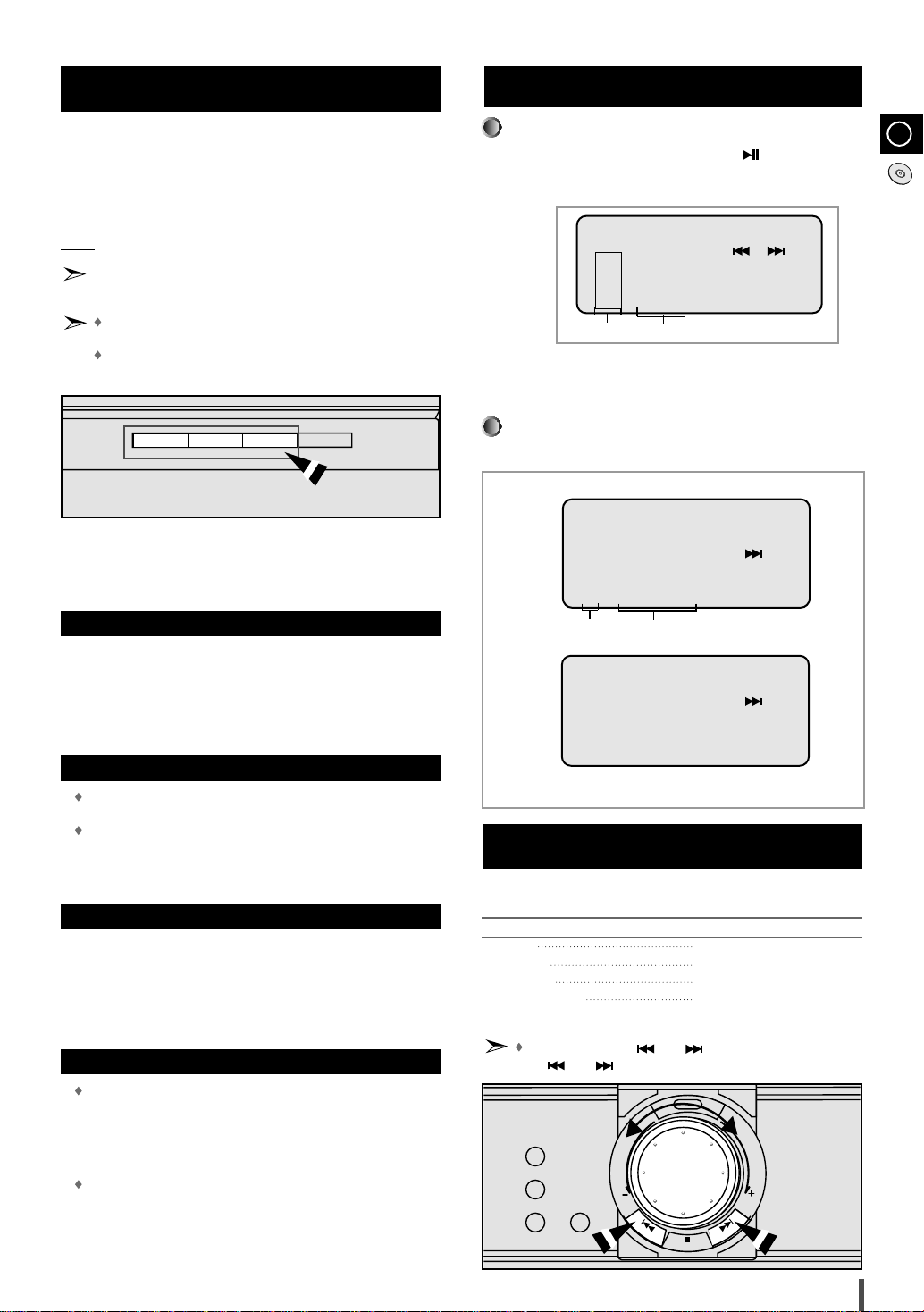

HOW TO PLAYBACK MP3-CD directly

GB

After inserting MP3-CD in the Set, Press button or

1

Number button after Reading.

You can see the information of Disc on the TV.

2

 I

: MP3 File display

MP3 TOTAL: 150

TR : 017 0 : 02 : 39
016 PBAY  I
017 DON’T FOR  I

:

Track No

Song name

PAGE 003/030

7 tracks on the PAL TV screen every time;5 tracks on the NTSC TV screen every
time. Select the No of song on the remote control Digits button and you can
enjoy the Music.

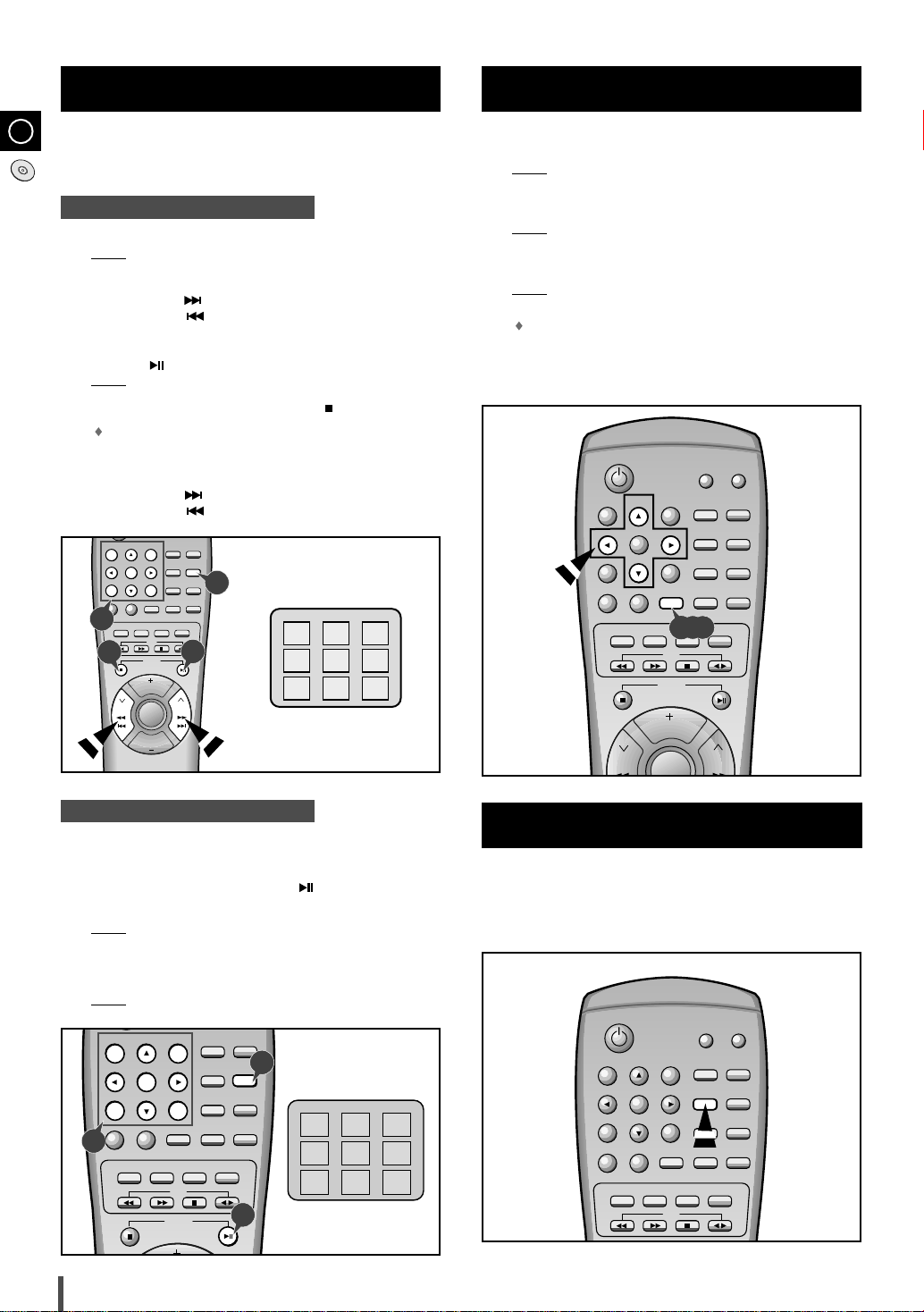

HOW TO PLAYBACK MP3-CD on MENU MODE

After inserting MP3-CD in the Set, Press the “DISC VIEW” button.

1

You can see the following information of Disc on the TV.

2

MP3 TOTAL: 150

TR : 000 0 : 00 : 00

1 DIRECTORY NAME
2 ABC
3 KBG
4 CDEG123

Directory No

Directory name

PAGE 001/003

Select the Number of Directory.You can see the following Display.

MP3 TOTAL: 150

TR : 000 0 : 00 : 00
DIRECTORYNAME

1 DIRECTORY NAME  I
2 ABC  I
3 KBG  I
4 CDEG123  I

PAGE 001 / 004

Select the No of song on the remote control Digits button and you can
enjoy the Music.

Selecting a Track

How many MP3 files can a CD-R or CD-RW disc record?

The maximum capacity of one CD-R or CD-RW disc is
680MB.
Normally, one MP3 file has a capacity of 4MB, therefore
approximately 170 files can be recorded on a single disc.

Regarding the playback of CD-R/RW

In the case of an original CD-R(Recordable) recorded in
audio CD format, CD-RW(Rewitable) and editing by the
user, playback is processed on the respective
completed status. (The player may not be played back
according to the characteristics of the CD or recorded
status.)

The CD-RW is comparably less reflexive than CD which
causes more time delay to read.

You can select the track you wish to listen to, either when the
compact disc player is stopped or when a disc is playing.

To start playback at the beginning of the... Turn the Moving Jog knob...

Next track One notch to the right
Current track One notch to the left
Previous track Two notches to the left
Track of your choice The appropriate number of

notches to the right or to the left

You can also use the and buttons on the front panel, or
the and buttons on the remote control to select a track.

13

Searching for a Specific Music

+10/0 +10/0 +10/0

NEXT NEXT NEXT

TAPE

Timer

On/Off

AI Sleep Deck 1/2

Counter

Reset

Volume

Tuning

Mode

Volume

PREV NEXT

VCD / CD

PREV

NEXT

Mute

Phones

Push Eject

Mono/ST Program

CD Repeat

Shuffle

CD

Synchro

Reverse

Mode

Deck 1/2

Counter

Reset

Dubbing

Normal High

Preset

Memory

REC/Pause

Enter

Up

Next

Down

Previous

Preset/Manual

Menu Menu

Preset/Manual

Next

Previous

Menu Menu

Mono/ST Program

CD Repeat

Shuffle

CD

Synchro

Reverse

Mode

Deck 1/2

Counter

Reset

Dubbing

Preset

Memory

REC/Pause

ext

Previ

Menu Me

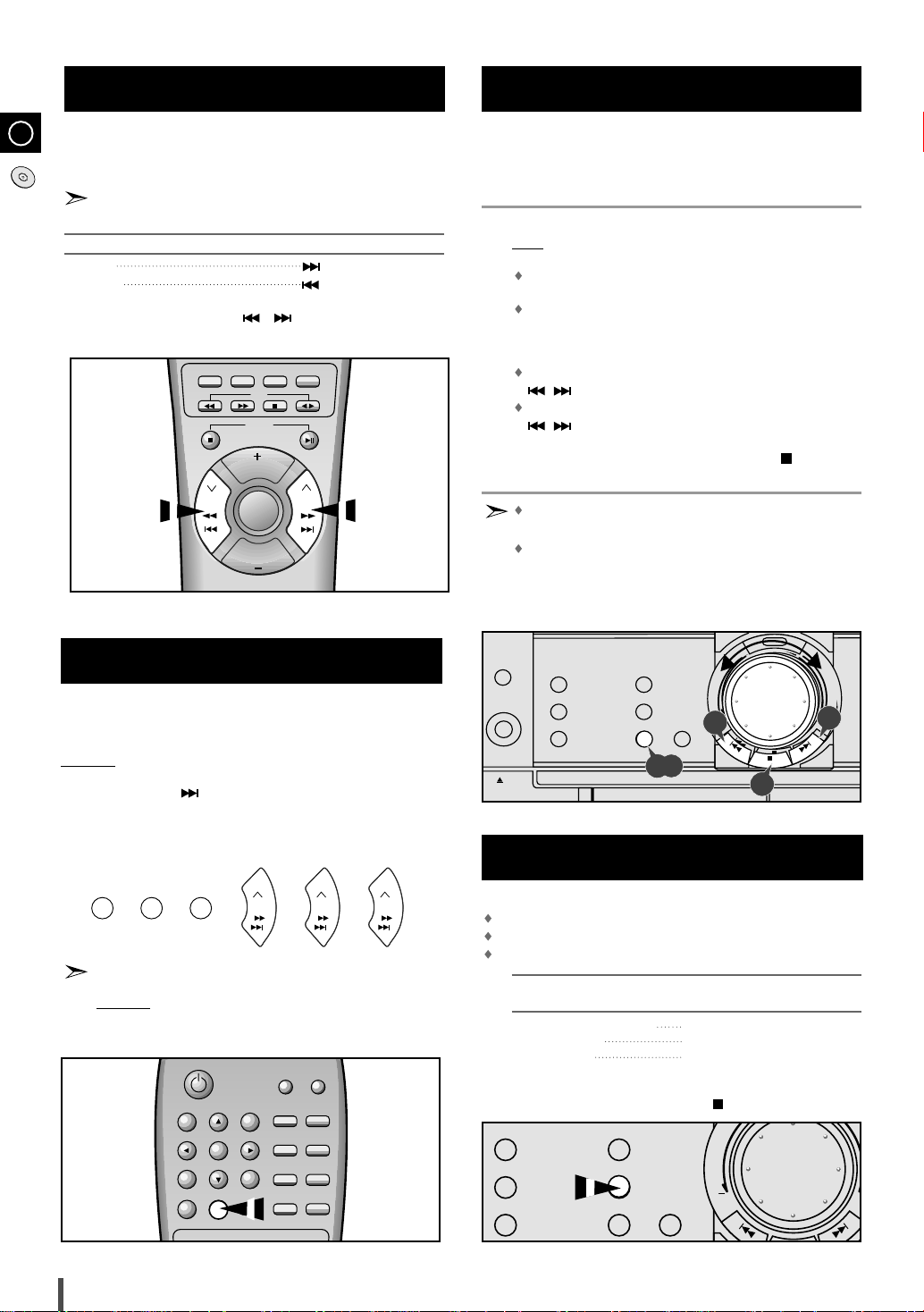

Passage on a CD

GB

When listening to a compact disc, you can quickly search for
a specific music passage on a track.

It is recommended that you turn the volume down before using
this function.

To search through the tracks... Press and hold down...

Forwards for at least one second
Backwards for at least one second

You can aslo press and hold down / on the front panel to auto
search through the tracks.

Shuffle Play Function

You can listen to the tracks on a compact disc in a different
order each time, as the various tracks will be selected
automatically in a random sequence.

Press the Shuffle button.

1

Result: The Shuffle indication appears and all the tracks are played in a ran-

dom order. Both the track number and the playing time are displayed.

If this button is pressed when the CD is being played back or stopped,
any track recorded in the CD may be selected to playback again.

The CD plays back without repetitions and in the case of the MP3-CD,
a track once played back may also be played back again repeatedly.

When playing tracks in a random order, you can:

2

Move on to the next track (selected at random) by pressing

/ or turning Moving Jog one notch to the right

Search quickly for a specific point in the current track by pressing

/ or turning Moving Jog one notch to the left

When you have finished the random playback, press or press the

3

Shuffle button again.

The Repeat and CD Synchro function is not supported from the
Shuffle playback mode.

Playback of video CD Version 2.0

– When pressing the Shuffle button during the playback,

the operation will stop.
When pressing the Shuffle button during the stop, the playback will

–

operate with reading the video CD Version 2.0 as a Version 1.1.

Function to skip through 10

tracks at a time

Press the +10/0 button briefly while playing back a
CD and VCD. The track 10 tracks after the current one
will then be played back.

Example:

15 ➝20 ➝30 ➝40 ➝41 ➝42 ➝43

If you want to select track 43 during playback of track
15, press the +10/0 button three times, and then

press the button three times or Digit 3 button
once.

In selecting a track on MP3-CD, digit “0” will be entered if the
button of +10/0 is pressed.

Example:

14

If you want to select a track 40 during the
playback of a certain track, press both buttons of
4 and +10/0.

On/Standby

Band

123

456

789

+10/0

Timer

AI Sleep Deck 1/2

Mute Disc Skip

ReturnCD Repeat

Disc

Time

View

Search

SlowSound

Key Control

Mono/ST.

Zoom

Counter

b

#

2

1.3
3

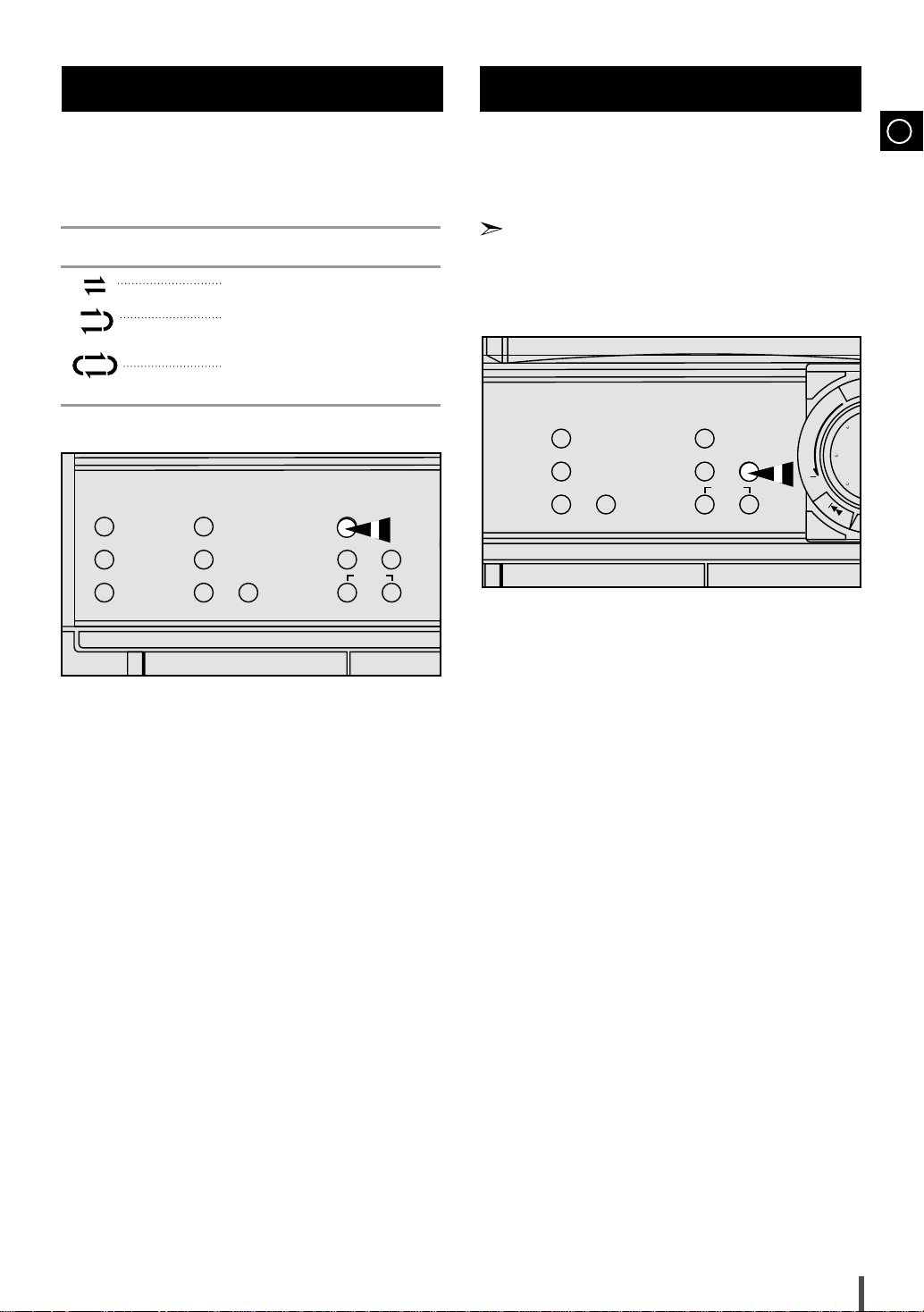

Repeating One or All Tracks on the Compact Discs

You can repeat indefinitely:

A specific track on a compact disc.
All tracks on the compact disc selected.
All discs loaded in the carrousel

To repeat... Press CD Repeat on the Front

1

The current track indefinitely REPEAT 1 is displayed
The selected disc REPEAT 1 CD is displayed
All discs loaded REPEAT ALL CD is displayed

When you wish to stop the Repeat function, press CD Repeat until

2

ALL CD or 1 CD is displayed, or press .

Panel one or more times until...

2

123

456

789

TAPE

Timer

On/Off

AI Sleep Deck 1/2

Counter

Reset

ReturnCD Repeat

Disc
View

Time

Search

SlowSound

Key Control

Band

Zoom

+10/0

Mono/ST.

Mute Disc Skip

Volume

Tuning

Mode

Volume

PREV NEXT

VCD / CD

#

b

PREV

NEXT

Preset/Manual

Next

Previous

Menu Menu

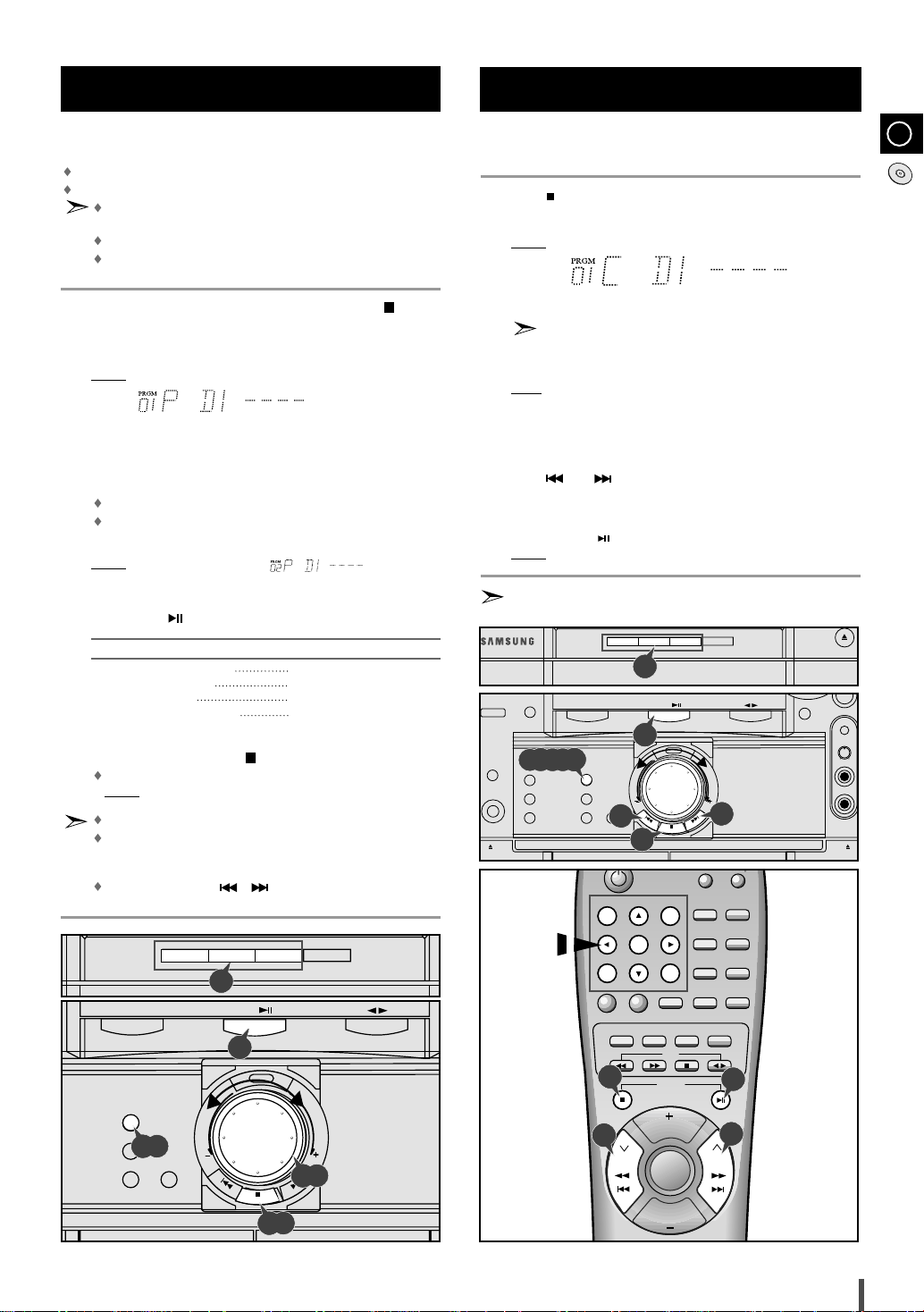

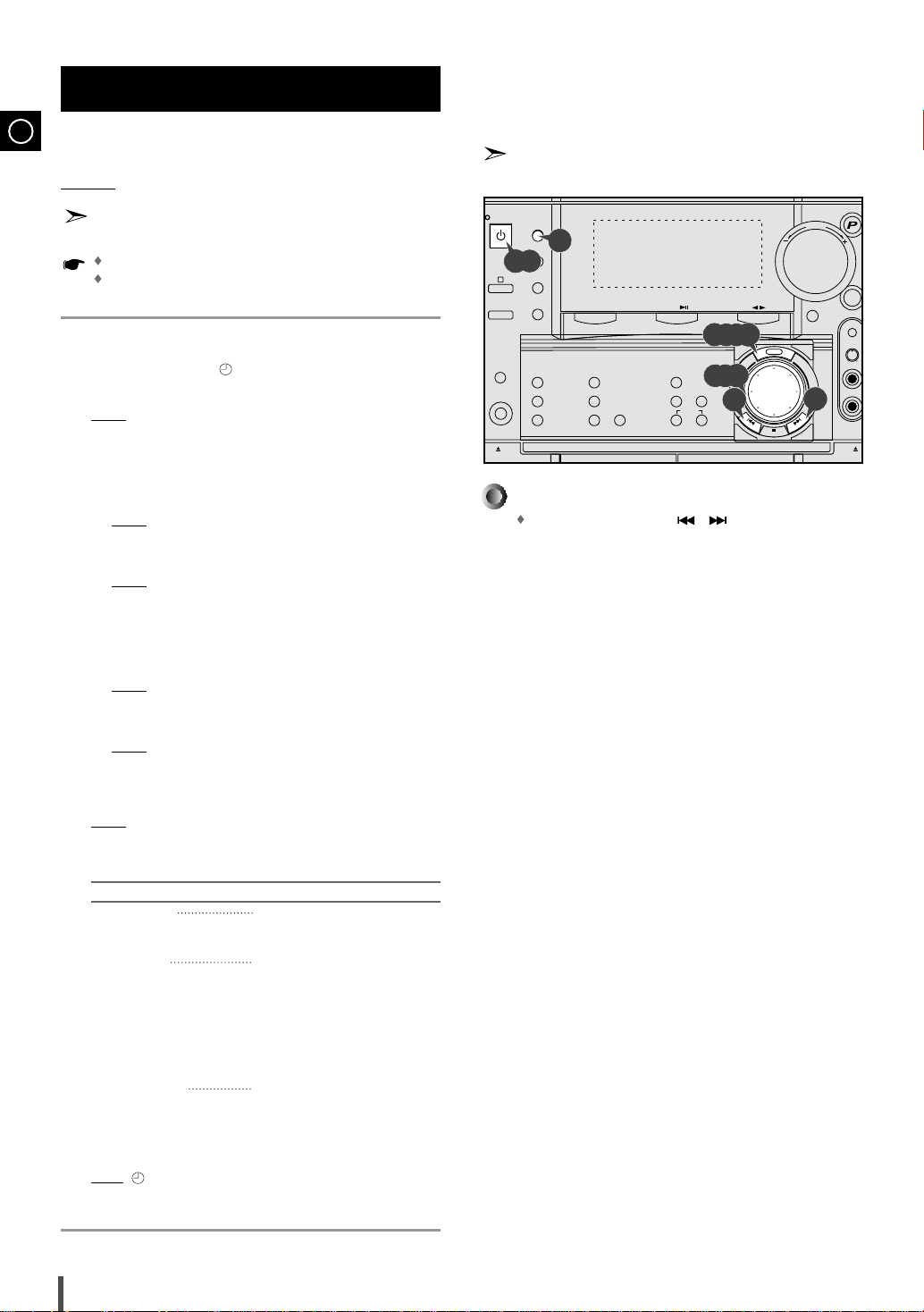

Programming the Order of Playback

Band

Select/

TUNER VCD/CD TAPE

Program

CD Repeat

Shuffle

CD

Synchro

Reverse

Mode

Deck 1/2

Counter

Reset

Dubbing

Normal High

Enter

Up

Next

Down

Previous

Preset/Manual

Menu Menu

t

Pre

uMe

Preset/Manual

You can decide:

The order of the track desired to listen
The track not desired to listen

A maximum of up to 30 order of tracks desired to listen may
be programmed.

Before selecting the track, the CD player should be stopped.
This function may be used simultaneously with the CD Repeat

function.

If the CD function is selected, stop the player by pressing .

1

Load the selected CDs.

2

Press Program.

3

Result:

The following indications are displayed:

(01 = Program no., DI = Disc no., – – – – = Track no. on the disc)
If necessary, select the disc containing the required track by pressing

4

the corresponding Disc (1, 2, 3) button.
Select the required track by turning the Moving Jog knob:

5

To the left to move back through the tracks
To the right to move forward through the tracks

Press Program to confirm your selection.

6

Result:

The selection is stored and is displayed.

To select other tracks, repeat Steps 4 to 6.

7

Press VCD/CD ( ) to listen to the track selection in the order programmed.

8

To... Turn the Moving Jog knob...

9

Listen to the current track again One notch to the left
Listen to the previous track Two notches to the left
Listen to the next track One notch to the right
Skip forwards or backwards one The appropriate number of
or more tracks notches to the right or to the left

To cancel the selection, press .

10

Once if the compact disc player is stopped

PRGM is no longer displayed.

Result:

If you open the compartment, the selection is cancelled.
If you select the number of a disc which is not loaded or a

track which does not exist on the CD, the selection skips to the
next programmed track.

You can also use the / buttons to select the required
tracks in step 5, 9.

Checking or Changing Programmed Tracks

You can check or change your selection of tracks at any time.

Press once if you have started listening to the selection.

1

Press Program.

2

Result: The following indications are displayed:

(C = Check, 01=Program No, DI = Disc No, – – – – = Track No on the disc)

If you have already programmed 30 tracks, C is displayed

instead of P when you press Program.

Press Program again.

3

Result: The first track selected is displayed, together with the letter C (Change).
Press Program one or more times until the track to be changed is displayed.

4

If necessary, press the corresponding Disc (1, 2, 3) button to change discs.

5

Press and or turn Moving Jog to select a different track.

6

Press Program to confirm your change.

7

Press VCD/CD ( ) to start listening to the selection.

8

Result: The first track selected is played.

When selecting the tracks of numbers larger than 3 digit figures (figures
from the number 100), please use the Digit buttons.

Open/Close

Subwoofer Leve

Echo

Sound
Mode

Mic Mixing

Min Max

MIC 1

MIC 2

Push Eject

AUX

Mute

Phones

ush Eject

Demo

2,3,4,7

Mono/ST

Preset

Memory

REC/Pause

Disc 1 Disc 2 Disc 3 Disc Change

Disc 1 Disc 2 Disc 3

5

8

Menu Menu

CD

Previous

6

Down

1

Select/

VCD/CD

Enter

Reverse

Mode

Deck 1/2

Dubbing

Normal High
Preset/Manual

Counter

Reset

6

Next

Up

Band

TUNER VCD/CD TAPE

Program

CD Repeat

Shuffle

Synchro

GB

Disc 1 Disc 2 Disc 3 Disc Change

Disc 1 Disc 2 Disc 3

3,6

4

VCD/CD

8

1,10

5,9

1

6

8

6

15

Disc 1

On/

Standby

Timer/

Clock

Timer/
On/Off

AUX

Demo

Mute

Phones

Push Eject

Mono/ST

Band

Select/

TUNER VCD/CD TAPE

Power Surround

Program

CD Repeat

Shuffle

CD

Synchro

Reverse

Mode

Deck 1/2

Counter

Reset

Dubbing

Normal High

Preset

Memory

REC/Pause

AI Sleep

Disc 2 Disc 3 Disc Change

Open/Close

R

Volume

Sound
Mode

Subwoofer Level

Push Eject

Echo

Mic Mixing

Min Max

MIC 1

MIC 2

Enter

Up

Next

Down

Previous

Preset/Manual

Menu Menu

Preset/Manual

r

M

Video CD Player Playback

Volume

Tuning

Mode

Volume

PREV NEXT

PREV

NEXT

123

456

789

TAPE

Timer

On/Off

AI Sleep Deck 1/2

Counter

Reset

ReturnCD Repeat

Disc
View

Time

Search

SlowSound

Key Control

Band

Zoom

+10/0

Mono/ST.

VCD / CD

#

b

GB

In order to playback video VIDEO-CD(‘S), make sure that your
unit is connected to your TV set.

This unit is designed for playback of video CD(‘S), version 1.1 and 2.0.
Only with version 2.0, is it possible to call up the on screen menu
function. This unit will not play back any other video VIDEO-CD(‘S)
other than 1.1 and 2.0 versions.

Turn on the On/Standby switch and set the VCD mode.

1

Press the Open/Close ( ) button on the unit, to open the CD tray.

2
3

4
5

: “OPEN” is displayed and CD tray slides open.

Result
Load a video-CD(’S) with the label facing upwards in the tray.

Press the Open/Close ( ) button again to close the CD tray.
To playback:

In version 1.1, press the button for direct access to the film,
as there is no menu-on-screen.

In version 2.0, load a video CD, “Video CD2.0”, and “MENU ON”
are displayed on the TV screen. Press the button and the

menu is displayed on the TV screen.
Select a number from the menu using Digits button on the remote

control or Moving Jog knob and press the VCD/CD( ) button.
To return to the previous menu, press the Return button .

When playing a video-CD(‘S) version 2.0, reading time on the
display may take longer, depending on the disc’s contents.

Search Functions

You can find a certain passage faster during playback.
This function is possible in CD or VCD Ver 1.1 or Ver 2.0
menu off mode.

To... Press and hold down...

1

Scan forwards
Scan backwards

Release the Skip/Search buttons when the desired passage has

2

been found.

In the video CD version 1.1, where the disc’s contents are over 15
minutes long, you can scan up or down by intervals of five minutes.

To... Press...

1

Scan forwards by 5 minute intervals
Scan backwards by 5 minute intervals

Result:

The picture is still, and the disc’s contents are forwarded or

reversed by 5 minute intervals. Playback then resumes from
this new position.

In the SKIP/SEARCH or SCAN mode, the sound can only be partially
heard and the picture scenes will change sporadically, until the required
passage has been found.

Press button on the remote control to receive a still picture.

6

Pause is displayed, a still picture appears and the sound is

Result:

muted.

To return to normal playback, press VCD/CD( ) button.

7

Press the Stop ( ) button to stop playback.

8

Please make sure that the VIDEO-CD(‘S) to be played is not
flawed optically, as this may cause a distorted sound or the unit to
malfunction.

1

16

VCD/CD

5,6,7

8

2,4

Time Search Function

(This function is available only during the playback of a CD/VCD)

Please use this function for reproducing a desired track in a
certain time of playback.

Press the Time Search button.

1

Set a desired time by pressing the Digit buttons.

2

Press the Play ( ) button.

3

1

2

3

When adjusting play speed

On/Standby

123

456

789

TAPE

Timer

On/Off

AI Sleep Deck 1/2

Counter

Reset

ReturnCD Repeat

Disc
View

Time

Search

SlowSound

Key Control

Band

Zoom

+10/0

Mono/ST.

Mute Disc Skip

#

b

Mute

Phones

Push Eject

Mono/ST

Band

TUNER VCD/CD TAPE

Program

CD Repeat

Shuffle

CD

Synchro

Reverse

Mode

Deck 1/2

Counter

Reset

Dubbing

Normal High

Preset

Memory

REC/Pause

Enter

Up

Next

Down

Previous

Preset/Manual

Menu Menu

Turn on the TV and set video mode.

Press the Slow button on the remote controller when the play function is on.

Voices do not come out when the Slow button is pressed.
Slow playing is 1/2, 1/4, 1/8 the normal playing speed.

To return to normal operation.

Press the

VCD/CD ()

When the slow mode or frame mode is selected a disc will only forward
operation.

Demo

Mono/ST

Preset

Memory

Band

TUNER VCD/CD TAPE

Program

CD Repeat

button.

Select/

VCD/CD

Reverse

Mode

Deck 1/2

Menu Menu

CD

789

Band

+10/0

Mono/ST.

Zoom

Timer

AI Sleep Deck 1/2

On/Off

TAPE

VCD / CD

Enter

Dubbing

Counter

Reset

Counter

Reset

Key Control

b

Sound

Mode

SlowSound

#

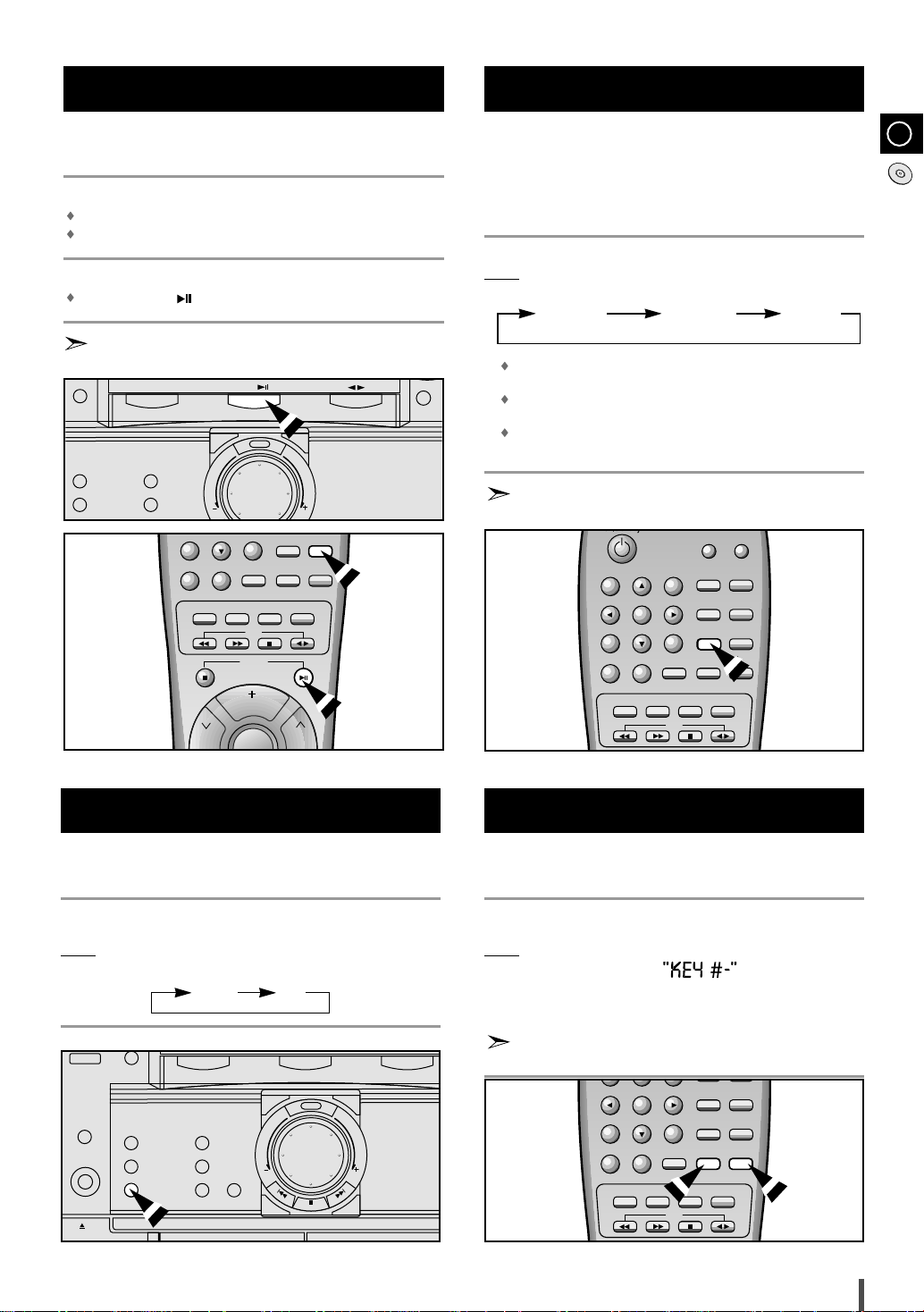

Sound Select Function

GB

With this function, you can playback video CD’s that provide
2-channel tone(bilingual) in the original language. Similarly,
with karaoke video CD’s, you can select between the channel
for music without vocals for sing-along purpose, or the chan­nel complete with music and vocals.

During playback, press the Sound button on the remote control.
Result: Each time the Sound button is pressed, the following appears in

the display and on the TV screen:

Lch MONO Rch MONO STEREO

( L-CH ) ( R-CH )

Lch MONO : Only the left channel (instrumental parts) is played back

through both the right and left speakers.

Rch MONO : Only the right channel (vocal parts) is played back

through both the right and left speakers.

STEREO : Cancels the Multiplex Sound (normal stereo playback

resumes).

You can select between listening to the tone from the left channel,
the right channel or both channels.

Volume

PREV NEXT

Tuning

NTSC/PAL Selection Method

According to a DISC or TV, Press the REC/Pause button on the
front panel.

Set the system to stadnby(power off) mode, press the REC/Pause button
on the front panel.
Result: Each time the REC/Pause button is pressed, the following appears

in the display:

NTSC PAL

KEY CONTROL Function

This function can work only at VCD mode when microphone
is connected.

Press the Key Control button to adjust the key to your voice. (the 15 step
key control you can select )
Result: Each time the Key Control #, b button is pressed, the following

appears on the TV screen:

b : Low-Pitched Key
# : High-Pitched Key

Key control function and VCD slow playing do not work at the same time
.

Disc

Mono/ST.

Zoom

Counter

TAPE

Reset

Time

Search

Key Control

b

View

SlowSound

#b#

17

456

789

Band

+10/0

Timer

AI Sleep Deck 1/2

On/Off

On/Standby

123

456

789

TAPE

Timer

On/Off

AI Sleep Deck 1/2

Counter

Reset

ReturnCD Repeat

Disc
View

Time

Search

SlowSound

Key Control

Band

Zoom

+10/0

Mono/ST.

Mute Disc Skip

#

b

VCD VIEW function

123

456

789

TAPE

Timer

On/Off

AI Sleep Deck 1/2

Counter

Reset

ReturnCD Repeat

Disc
View

Time

Search

SlowSound

Key Control

Band

Zoom

+10/0

Mono/ST.

Volume

Tuning

Mode

Volume

PREV NEXT

VCD / CD

#

b

123

456

789

TAPE

Timer

On/Off

AI Sleep Deck 1/2

Counter

Reset

ReturnCD Repeat

Disc
View

Time

Search

SlowSound

Key Control

Band

Zoom

+10/0

Mono/ST.

VCD / CD

#

b

On/Standby

123

456

789

TAPE

Timer

On/Off

AI Sleep Deck 1/2

Counter

Reset

ReturnCD Repeat

Disc
View

Time

Search

SlowSound

Key Control

Band

Zoom

+10/0

Mono/ST.

Mute Disc Skip

Volume

Tuning

PREV NEXT

VCD / CD

#

b

NEXT

PREV

02
05

08

03
06

09

04

07

01

INDEX VIEW

GB

This function can be used conveniently to search a desired
track in a VCD. This function is possible in CD or VCD Ver 1.1
or Ver 2.0menu off mode.

When you want to select a track

Press the Disc View button in the pause state.

1

2
3

4

"TRACK VIEW" menu is displayed on the screen.

Result:

The screen is split into 9 with each screen picture being

reproduced for 4 seconds.

– Press NEXT( ) button to see the rest tracks.
– Press PREV.( ) button to see the previous tracks.

Select a track by pressing the Digits buttons.
Press the

()

Result:

button.

The picture that you selected is displayed in full screen.

When you wish to stop the DISC VIEW function, press button.

When using more than 10 tracks :

Press the Digits and +10/0 button, select the desired track num­ber
(Reference page 14).

– Press NEXT( ) button to see the next track.
– Press PREV.( ) button to see the previous track.

1

ZOOM Function

Press Zoom button during playback.

1

Result: The picture being reproduced will be enlarged twice as large

as the previous one.

Press Zoom button once more in the state of double sized zoom.

2

Result: The picture being reproduced is enlarged four times as large

as the initial one.

Press Zoom button in the state of four times sized zoom.

3

The picture will return to the initial size.

Result:

During operating the zoom function, if you want to move the
picture upward/downward/leftward/rightward, please press the
respective Digits button (2,4,6,8).

2

4

3

TRACK VIEW

01

04 05 06

02 03

07 08 09

When you want to select an INDEX

This function is convenient to search a desired scene as it
displays a track reproduced by time.

Reproduce the pictures by pressing the

1

Press the Disc View button.

2

Result:

"INDEX VIEW" menu is displayed on the screen.

The screen is split into 9 with each screen picture being
reproduced for 4 seconds.

Reproduce the pictures by pressing a desired Digits button.

3

Result:

The one of nine picture is displayed in full screen.

3

18

1

2

()

button.

1,2,3

Last Memory Function

When CD playback is selected again after your CD player
has been stopped or turned off, this function allows play­back from the start of the track that you last listened to.

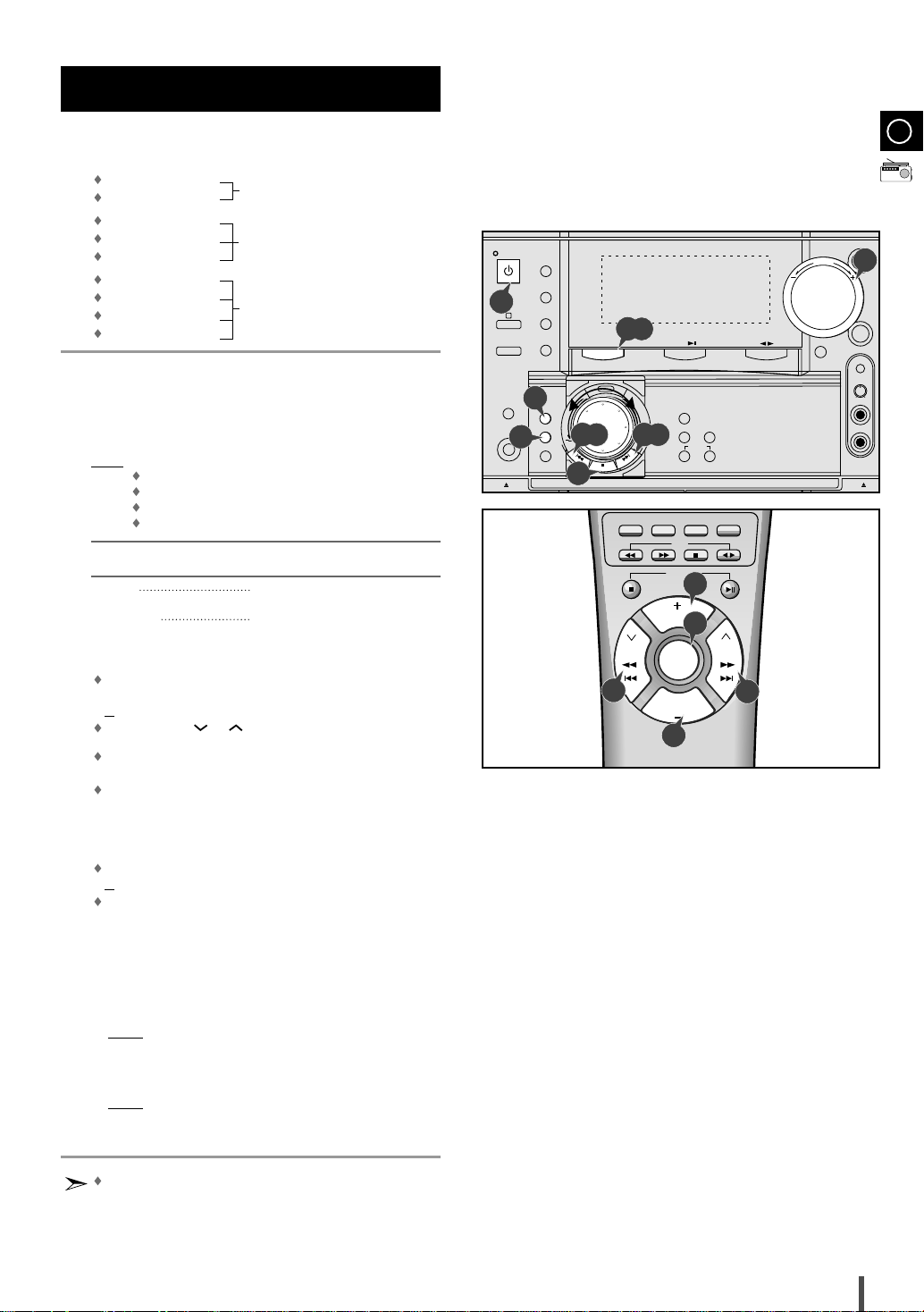

Searching for and Storing the

TAPE

Timer

On/Off

AI Sleep Deck 1/2

Counter

Reset

Volume

Tuning

Mode

Volume

PREV NEXT

VCD / CD

Volume

Tuning

Mode

Volume

PREV NEXT

On/

Standby

Timer/
Clock

Timer/
On/Off

AUX

Demo

Mute

Phones

Push Eject

Mono/ST

Band

Select/

TUNER VCD/CD TAPE

Power Surround

Program

CD Repeat

Shuffle

CD

Synchro

Reverse

Mode

Deck 1/2

Counter

Reset

Dubbing

Normal High

Preset

Memory

REC/Pause

AI Sleep

R

Volume

Sound
Mode

Subwoofer Level

Push Eject

Echo

Mic Mixing

Min Max

MIC 1

MIC 2

Enter

Up

Next

Down

Previous

Preset/Manual

Menu Menu

Preset/Manual

Next

Previous

Menu Menu

Volume

Radio Stations

You can store up to:

Switch the system on by pressing On/Standby.

1

Select the TUNER function by pressing TUNER.

2

Select the required frequency band by pressing TUNER (Band)

3

again on the front panel or Band on the remote control.
Result

To search for a Press Preset/Manual on the front panel

4

station... or Tuning Mode on the remote control

Manually One or more times until MANUAL is
Automatically One or more times until AUTO is

Select the station to be stored by:

5

Adjust the volume by:

6

Select the stereo or mono mode by pressing Mono/ST.

7

If you do not want to store the radio station found, revert to Step 4

8

and search for another station.
Otherwise:

a Press Preset/Memory.

b Press Preset/Manual Down and Up to assign a program number

c Press Preset/Memory to store the radio station.

To store any other radio frequencies required, repeat Steps 3 to 8.

9

15 FM stations
15 AM stations

OPTION

15 FM stations

8 AM(MW) stations

OPTION

7 LW stations

15 FM stations

5 MW stations
5 SW1 stations

OPTION

5 SW2 stations

: The appropriate indication is displayed:

FM Frequency Modulation
AM(MW) Medium Wave
LW(OPTION) Long Wave
SW1, SW2(OPTION) Short Wave

displayed.
displayed.

Turning the Moving Jog knob to the right or to the left to increase
or decrease the frequency respectively
or

Pressing Tuning or on the remote control

o scroll through the frequencies faster when searching

T
manually, hold down the Preset/Manual Down or Up buttons.

The automatic search procedure may stop on a frequency that
does not correspond to a radio station. If this happens, use the
manual search mode.

Turning the Volume knob on the front panel
or

Pressing the VOL. + or – buttons on the remote control

The PRGM is displayed for a few seconds.

Result:

between 1 and 15.

PRGM is no longer flashed and the station is stored.

Result:

The PROGRAM function can be used to assign a new station
to an existing program number.

GB

6

1

2,3

TUNER

7

8

5,85,8

4

6
4

5

5

6

19

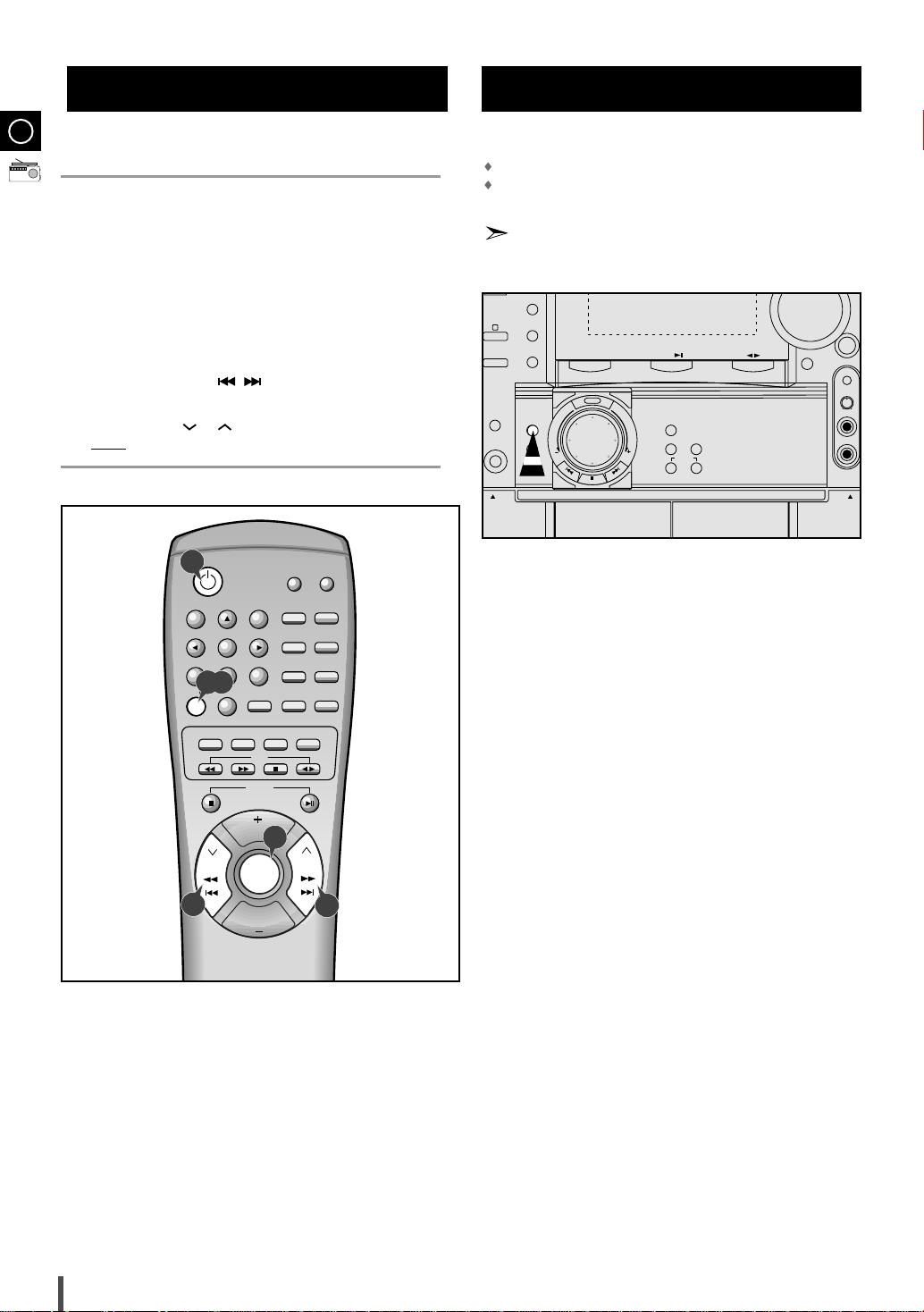

Selecting a Stored Station

Timer/
On/Off

AUX

Demo

Mute

Phones

ush Eject

Mono/ST

Band

Select/

TUNER VCD/CD TAPE

Program

CD Repeat

Shuffle

CD

Synchro

Reverse

Mode

Deck 1/2

Counter

Reset

Dubbing

Normal High

Preset

Memory

REC/Pause

AI Sleep

R

Sound
Mode

Subwoofer Leve

Push Eject

Echo

Mic Mixing

Min Max

MIC 1

MIC 2

Enter

Up

Next

Down

Previous

Preset/Manual

Menu Menu

PREV

NEXT

Tuning

Mode

Improving Radio Reception

GB

You can listen to a stored radio station as follows:

Switch the system on by pressing On/Standby.

1

Select the TUNER function by pressing Band on remote control.

2

Select the required frequency band by pressing Band on the remote

3

control or TUNER (Band) again on the front panel.
Press the Preset/Manual button on the front panel of the unit, or the

4

Tuning Mode button on the remote control until “PRESET” is
displayed.

Turning Moving Jog on the front panel left or right until the desired

5

station is found or press / to select the desired station.
or
Select the desired station by pressing the station number stored,

using the Tuning or button on the remote control.

The desired station is now received.

Result:

On/Standby

1

123

456

789

2,3

Band

+10/0

Timer

On/Off

Search

Mono/ST.

Zoom

Counter

AI Sleep Deck 1/2

Reset

TAPE

VCD / CD

Mute Disc Skip

ReturnCD Repeat

Disc

Time

View

SlowSound

Key Control

b

#

You can improve the quality of radio reception by:

Rotating the FM or AM(MW) aerial
Testing the positions of the FM and AM(MW) aerials before fixing them

permanently

If reception from a specific FM radio station is poor, press Mono/ST.
to switch from stereo mode to mono. The quality of the sound will be
improved.

PREV NEXT

5

20

Volume

Tuning

Mode

Volume

4

5

1

Enter

Up

Next

Down

Previous

Preset/Manual

Menu Menu

On/

Standby

Timer/
Clock

Timer/

On/Off

AUX

Demo

Mute

Phones

Push Eject

Mono/ST

Band

Select/

TUNER VCD/CD TAPE

Program

CD Repeat

Shuffle

CD

Synchro

Reverse

Mode

Deck 1/2

Counter

Reset

Dubbing

Normal High

Preset

Memory

REC/Pause

AI Sleep

R

Volume

Sound

Mode

On/

Standby

Timer/
Clock

Timer/
On/Off

AUX

Demo

Mute

Phones

Push Eject

Mono/ST

Band

Select/

TUNER VCD/CD TAPE

Program

CD Repeat

Shuffle

CD

Synchro

Reverse

Mode

Deck 1/2

Counter

Reset

Dubbing

Normal High

Preset

Memory

REC/Pause

AI Sleep

R

Volume

Sound

Mode

Subwoofer Level

Push Eject

Echo

Mic Mixing

Min Max

MIC 1

MIC 2

Enter

Up

Next

Down

Previous

Preset/Manual

Menu Menu

Preset/Manual

Next

Previous

Menu Menu

Preset/Manual

On/

Standby

Timer/
Clock

Timer/
On/Off

AUX

Demo

Mute

Phones

Push Eject

Mono/ST

Band

Select/

TUNER VCD/CD TAPE

Program

CD Repeat

Shuffle

CD

Synchro

Reverse

Mode

Deck 1/2

Counter

Reset

Dubbing

Normal High

Preset

Memory

REC/Pause

AI Sleep

R

Volume

Sound

Mode

Subwoofer Level

Push Eject

Echo

Mic Mixing

Min Max

MIC 1

MIC 2

Enter

Up

Next

Down

Previous

Preset/Manual

Menu Menu

Preset/Manual

2
3

4
5

6

7

8

9

1

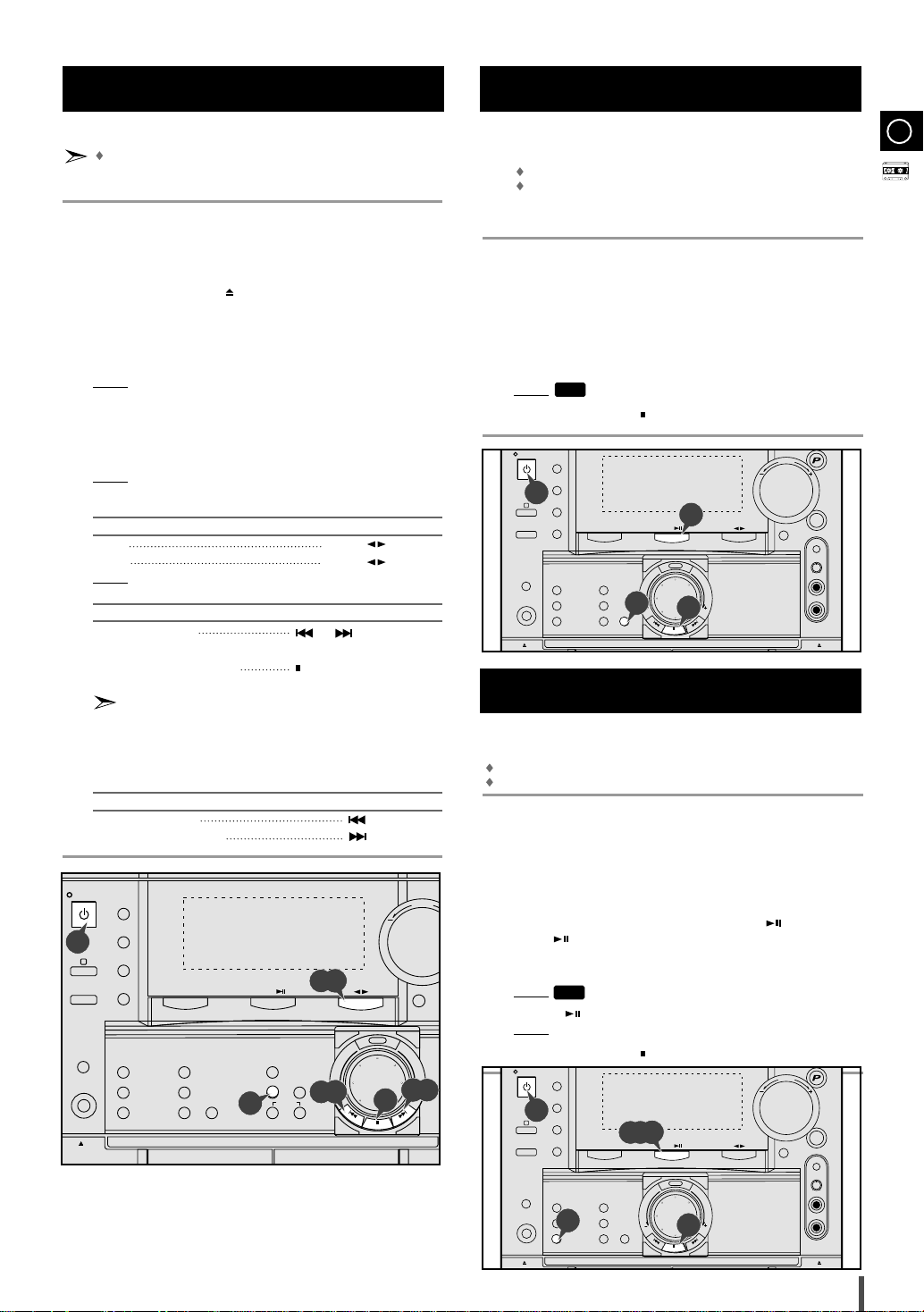

Listening to a Cassette

Always treat your cassettes with care; refer, if necessary, to
the section entitled “Precautions When Using Audio Cassettes”
on page 28.

Switch the system on by pressing the On/Standby button.
Select the TAPE function by pressing TAPE on the front panel.
Open either cassette deck 1 or 2 by pushing and releasing the deck

cover where Push Eject ( ) is written.
Insert the pre-recorded cassette with the open edge of the tape

facing downward.
Close the deck by pushing on it until it clicks into place.

Result: Depending on the deck selected, the 1 or 2 indication is

displayed in front of the counter number.

If you have inserted two cassettes, press Deck 1/2 on the front panel
or directly the Deck 1/2 button on the remote control to select the
cassette to be played.

Depending on the deck selected, the TAPE 1 or TAPE 2

Result:

indication is displayed.

To listen to... Press ...

Side A TAPE ( ) once
Side B TAPE ( ) twice

Result: The cassette starts playing.

To... Press...

Listen to the track of or the appropriate
your choice number of times

Stop the playback or search

If there are very quiet passages on a track, the automatic
search function may stop before the end of the track. Also, a
very short space between two tracks may not be detected.

When the cassette is stopped, select one of the following functions
as required.

To... Press ...

Rewind the cassette
Fast-forward the cassette

2,7

TAPE

6

8,9

8,9

8

CD Synchro Record Feature

GB

You can record a compact disc on a cassette in two different ways:

Synchronised recording
Direct recording

This feature enables you to synchronize the start of the
recording with the start of the disc or track of your choice.

Switch the system on by pressing On/Standby.

1

Insert a blank cassette in Deck 2.

2

Select the VCD/CD function by pressing VCD/CD on the front panel.

3

Load a compact disc.

4

Select the required disc.

5

Select the required track and press CD Synchro or press CD

6

Synchro directly to start recording at the beginning of the disc.

REC

Result:
To stop recording, press .

7

is displayed in red and recording starts.

1

3

VCD/CD

6

7

Recording a Compact Disc

The direct recording mode enables you to start recording with
any track on the compact disc.

You can only record on cassettes in Deck 2.
You do not need to adjust the volume, as it has no effect on the recording.

Switch your system on by pressing On/Standby.

1

Insert a blank cassette in Deck 2.

2

Select the VCD/CD function by pressing VCD/CD on the front panel.

3

Load the compact disc.

4

Select the required disc.

5

Select the required track on the compact disc and press on the front

6

panel or on the remote control to set the compact disc player to Pause
mode.

Press the REC/Pause.

7

Result:
Press the to start playing the track.

8

Result:
To stop recording, press .

9

1

is displayed in red and recording starts.

REC

The track is recorded on the cassette.

3,6,8

VCD/CD

7

9

21

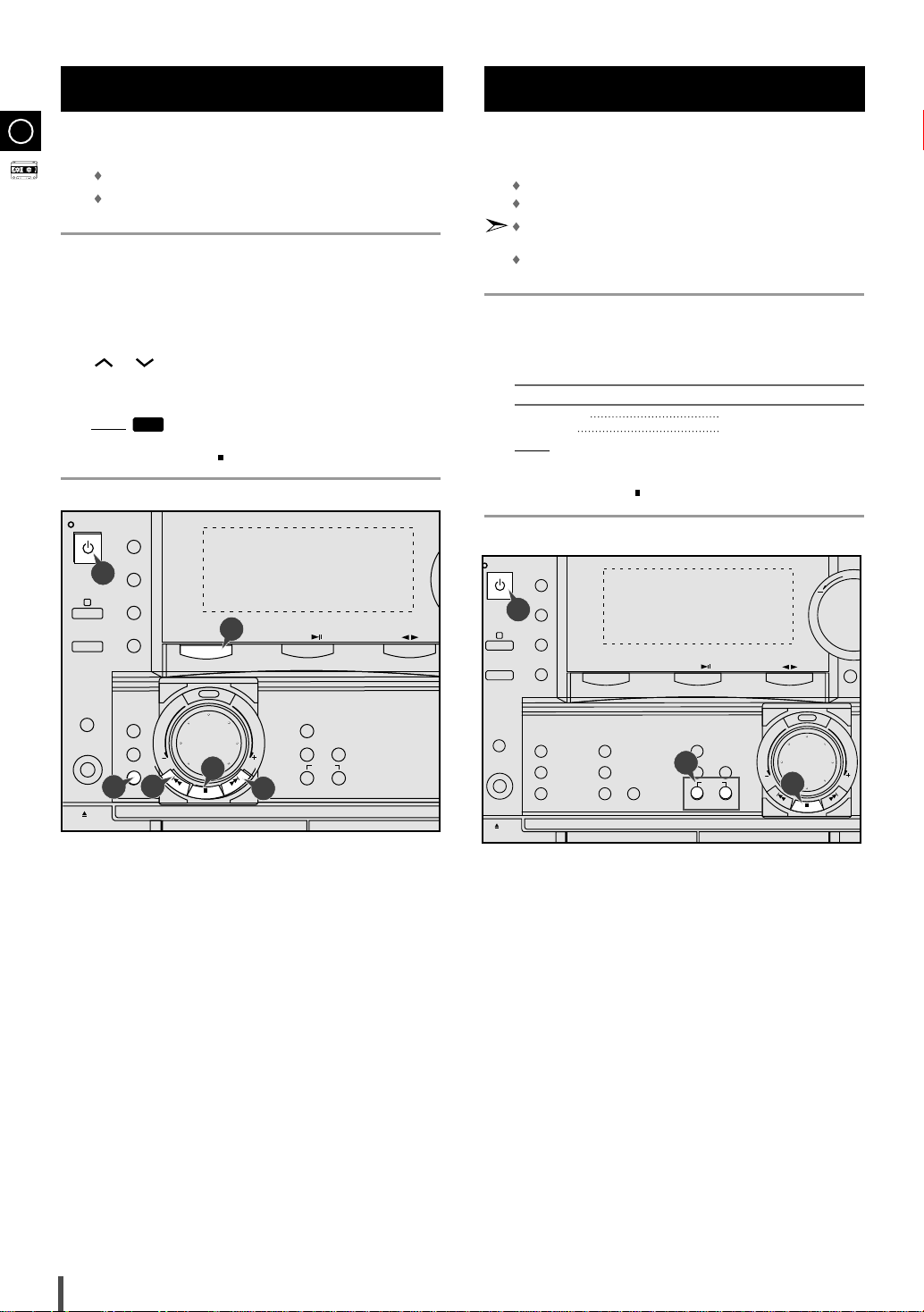

Recording a Radio Program

On/

Standby

Timer/

Clock

Timer/
On/Off

AUX

Demo

Mute

Phones

Push Eject

Mono/ST

Band

Select/

TUNER VCD/CD TAPE

Program

CD Repeat

Shuffle

CD

Synchro

Reverse

Mode

Deck 1/2

Counter

Reset

Dubbing

Normal High

Preset

Memory

REC/Pause

AI Sleep

R

Enter

Up

Next

Down

Previous

Preset/Manual

Menu Menu

Preset/Manual

Next

Previous

Menu Menu

Enter

Up

Next

Down

Previous

Preset/Manual

Menu Menu

On/

Standby

Timer/
Clock

Timer/
On/Off

AUX

Demo

Mute

Phones

Push Eject

Mono/ST

Band

Select/

TUNER VCD/CD TAPE

Program

CD Repeat

Shuffle

CD

Synchro

Reverse

Mode

Deck 1/2

Counter

Reset

Dubbing

Normal High

Preset

Memory

REC/Pause

AI Sleep

R

Volume

Sound

Mode

Preset/Manual

GB

You can record a radio program of your choice.

You can only record on cassettes in Deck 2.
You do not need to adjust the volume, as it has no effect on

the recording.

Switch the system on by pressing On/Standby.

1

Insert a blank cassette in Deck 2.

2

Select the TUNER function by pressing TUNER.

3

Select the radio station that you wish to record by pressing Tuning

4

or on the remote control or by press the Preset/Manual

Down or Up on the front panel.
Press REC/Pause.

5

Result:

To stop recording, press .

6

1

is displayed in red and recording starts.

REC

Copying a Cassette (Dubbing)

You can copy a cassette from Deck 1 to Deck 2.
Two options are available:

Normal speed dubbing
High-speed dubbing

You do not need to adjust the volume, as it has no effect on the
recording.

Take care not to insert the tape to be copied in Deck 2, as it will
be erased when you start recording.

Switch your system on by pressing On/Standby.

1

Insert a blank cassette in Deck 2.

2

Insert the tape to be copied in Deck 1.

3

To copy a cassette at... Press...

4

Normal speed Normal Dubbing
High speed High Dubbing

The appropriate indications are displayed and the cassette in

Result:

Deck 1 is copied to the cassette in Deck 2.

To stop dubbing, press .

5

22

3

TUNER

6

4

5

4

1

4

5

Selecting the Cassette Playback

Mono/ST Program

CD Repeat

Shuffle

CD

Synchro

Reverse

Mode

Deck 1/2

Counter

Reset

Dubbing

Normal High

Preset

Memory

REC/Pause

Down

Previous

Pr

Menu

Program

CD Repeat

Shuffle

CD

Synchro

Reverse

Mode

Deck 1/2

Counter

Reset

Dubbing

Normal High

Mode

Your mini-compact system has three cassette playback modes
which enable you to listen to both sides of a cassette
automatically.
Press Reverse Mode until the appropriate symbol is displayed.

Tape Counter

GB

When playing a cassette, a counter is displayed to enable you
to take note of the counter value at the start of each track
and thus start playback at the beginning of the track to which
you wish to listen.

When the display indicates... The mini-compact system plays back...

One side of the selected cassette and
then stops.

One side of the cassette.
The other side of the cassette and then
stops.

Both sides of the cassette indefinitely until
you press stop.

The counter is only displayed when a cassette is being played.

Before starting to record a cassette for which you wish to take note of
the counter values at the beginning of each track, reset the counter
by pressing Counter Reset.

23

Timer Function

Enter

Up

Next

Down

Previous

Preset/Manual

Menu Menu

On/

Standby

Timer/

Clock

Timer/
On/Off

AUX

Demo

Mute

Phones

Push Eject

Mono/ST

Band

Select/

TUNER VCD/CD TAPE

Power Surrou

Program

CD Repeat

Shuffle

CD

Synchro

Reverse

Mode

Deck 1/2

Counter

Reset

Dubbing

Normal High

Preset

Memory

REC/Pause

AI Sleep

R

Volume

Sound
Mode

Subwoofer Le

Push Eje

Echo

Mic Mixing

Min Max

MIC 1

MIC 2

Enter

t

Prev

Menu Menu

P

Previous

Next

GB

The timer enables you to switch the system on or off at
specific times.
Example:

You wish to wake up to music every morning.

If you no longer want the system to be switched on or off
automatically, you must cancel the timer.

Before setting the timer, check that the current time is correct.
For each step, you have a few seconds to set the required

options. If you exceed this time, you must start again.

If the timer switch on and off times are identical, the word ERROR is
displayed.

2

1,9

7

8
9

Switch the system on by pressing On/Standby.

1

Press Timer/Clock until TIMER is displayed.

2

Press Enter.

3

ON TIME is displayed (instead of the equalizer symbols) for

Result:

a few seconds, followed by any switch-on time already set;
you can set the timer switch-on time.

Set the timer switch-on time.

4

Set the hour by tuning the Moving Jog knob to the right or to the left.

a
b Press Enter.

Result: The minutes flash.

c Set the minutes by tuning the Moving Jog knob to the right or to

the left.

d Press Enter.

OFF TIME is displayed (instead of the equalizer symbols)

Result:

for a few seconds, followed by any switch-off time already
set; you can now set the timer switch-off time.

Set the timer switch-off time.

5

a

Set the hour by tuning the Moving Jog knob to the right or to the left.

b Press Enter.

Result: The minutes flash.

c Set the minutes by tuning the Moving Jog knob to the right or to

the left.

d Press Enter.

VOL XX is displayed, where XX corresponds to the

Result:

volume already set.

Press Preset/Manual Down and Up to adjust the volume level and

6

press Enter.

The source to be selected is displayed.

Result:
Turn the Moving Jog knob to select the source to be played when

the system switches on.

If you select... You must also...

TAPE (cassette) Insert a recorded cassette in one of

the decks before setting the
system to standby.

TUNER (radio) a Press Enter.

b Select the FM or AM frequency

band by tuning the Moving Jog
knob to the right or to the left.

c Press Enter.
d Select a preset station by tuning

the Moving Jog knob to the right
or to the left.

CD (compact disc) a Load one or more compact discs.

b Select the required disc.
Press Enter to confirm the timer.
Press On/Standby to set the system to standby mode.

: is displayed to the bottom left of the time, indicating that

Result

24

the timer has been set. The system will switch on and off
automatically at the required times.

3,4,5,6,7,8

4,5,7

6

6

To set the timer function

You may use Moving Jog or / buttons to adjust in step
4, 5, 6, 7.

Power Surround

Volume

On/Standby

123

456

789

TAPE

Timer

On/Off

AI Sleep Deck 1/2

Counter

Reset

ReturnCD Repeat

Disc

View

Time
Search

SlowSound

Key Control

Band

Zoom

+10/0

Mono/ST.

Mute Disc Skip

VCD / CD

#

b

Enter

Select/

VCD/CD TAPE

Sound
Mode

Subwoofer Level

Echo

Mic Mixing

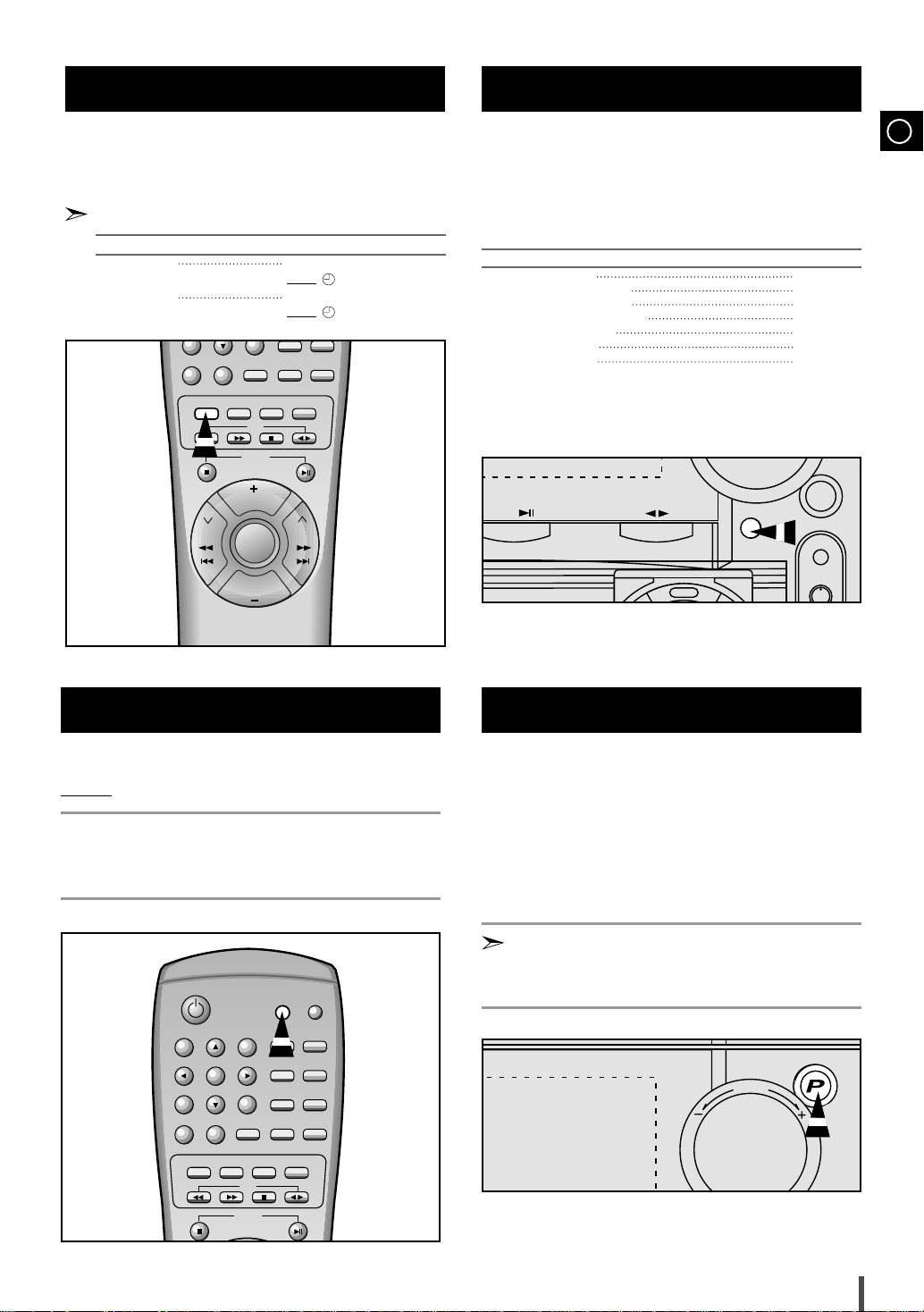

Cancelling the Timer

TAPE

Timer

On/Off

AI Sleep Deck 1/2

Counter

Reset

Key Control

Band

Zoom

+10/0

Mono/ST.

Volume

Tuning

Mode

Volume

PREV NEXT

VCD / CD

#

b

After having set the timer, it will start automatically as shown
by the TIMER indication on the display. If you no longer wish
to use the timer, you must cancel it.

You can stop the timer at any time (system on or in standby mode).

To... Press Timer On/Off...

Cancel the timer Once.

Restart the timer Twice.

Result: is no longer displayed.

Result

: is displayed again.

Selecting an Equalizer Preset

Your mini-compact system is equipped with a preset equalizer
that allows you to choose the most appropriate balance
between treble and bass frequencies, according to the type of
music you are listening to.

Press Sound Mode on the front panel until the required option is selected.

To obtain a... Select...

Normal balance (linear) PASS
Balance suitable for pop music POP
Balance suitable for rock music ROCK
Balance suitable for classic music CLASSIC
Balance suitable for cinema CINEMA
Balance suitable for hall HALL
Balance suitable for live LIVE

GB

Mute Function Power Sound/Surround Function

You can turn the sound off temporarily on your system.

: You wish to answer a telephone call.

Example

Press Mute.

1

To switch the sound back on (at the same volume as before), press

2

Mute again or the Volume buttons.

Your mini-compact system is equipped with the function
of Power Sound and Power Surround.
The function of Power Sound amplifies bass and improves
high key or bass twice as much for you to appreciate
powerful real sound.
The Power Surround replaces conventional stereo sound
with a wider and more ture-to-life sound. It creates the
feeling of being right at the centre of the music and being
surrounded by total music sound.

Press Power Surround button on the front panel until the
required option is selected. Each time the Power Surround
button is pressed, “P,SURR, P,SOUND,OFF” are selected in
this order.

25

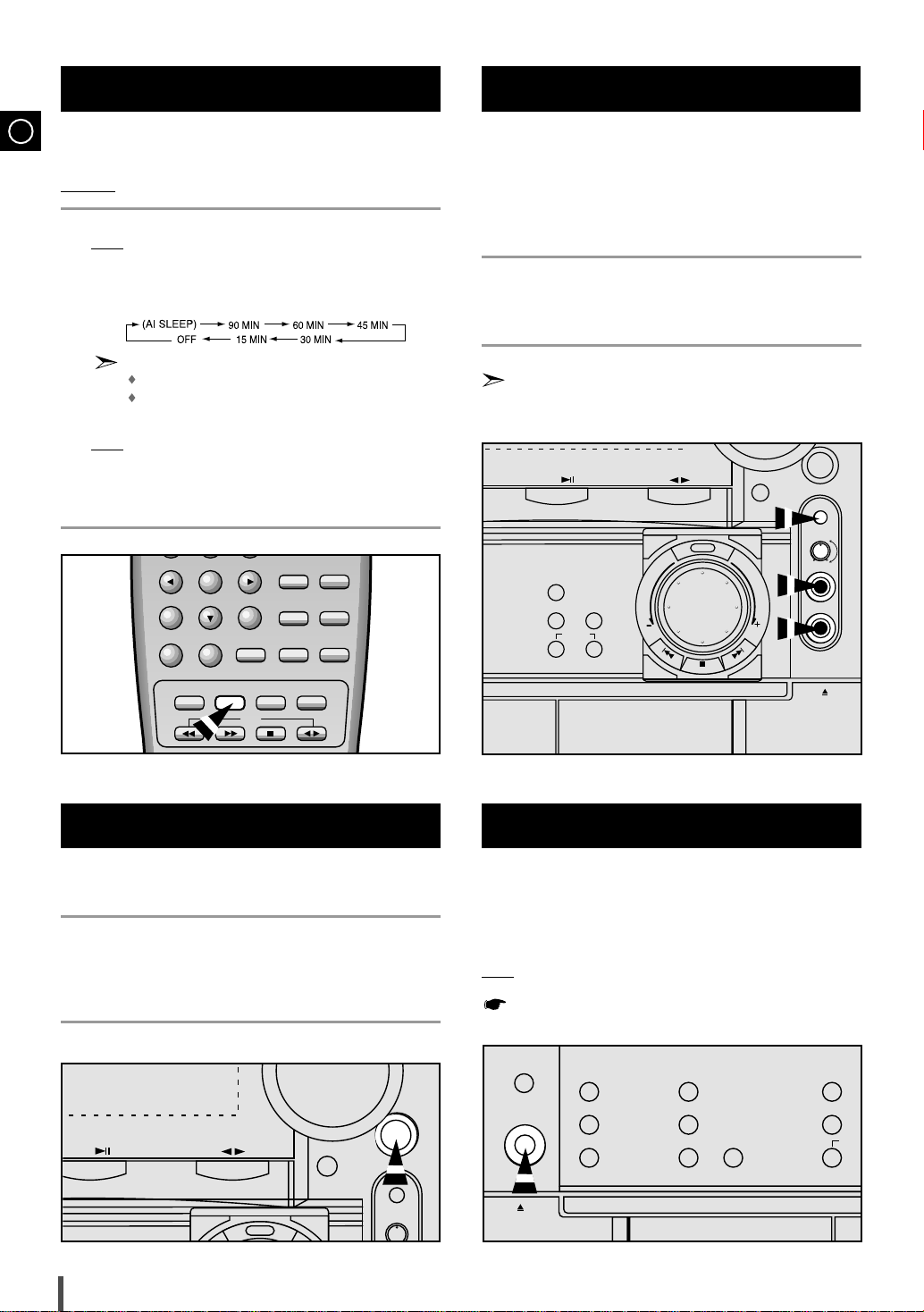

Setting the System to Switch off

456

789

TAPE

Timer

On/Off

AI Sleep Deck 1/2

Counter

Reset

Disc
View

Time

Search

SlowSound

Key Control

Band

Zoom

+10/0

Mono/ST.

#

b

Enter

Select/

VCD/CD TAPE

Sound

Mode

Subwoofer Level

Echo

Mic Mixing

Enter

Up

Next

Down

Previous

Preset/Manual

Menu Menu

Select/

VCD/CD TAPE

Reverse

Mode

Deck 1/2

Counter

Reset

Dubbing

Normal High

Sound

Mode

Subwoofer Level

Push Eject

Echo

Mic Mixing

Min Max

MIC 1

MIC 2

Automatically

GB

While listening to a compact disc or a cassette, you can
set the system to switch off automatically
Example: You wish to go to sleep to music.

Press AI Sleep.

1

Result: playback starts and the following indications are displayed:

90 MIN

Press AI Sleep one or more times to indicate how long the

2

system should continue playing before it switches off:

At any time, you can:

Check the remaining time by pressing AI Sleep
Change the remaining time by repeating Steps 1 and 2

Press AI Sleep one or more times until AI SLEEP is displayed.

3

4

: The system will automatically switch off at the end of the disc

Result

or cassette.

To cancel SLEEP function, press AI Sleep one or more times until

OFF is display.

Microphone Function

The microphone enables the user to mix in his or her
vocals to sing-along with the music.

Preparation
Plug the microphone with a 6.3ø mic jack into
microphone terminal.

Turn the Mic Mixing knob to adjust the MIC1, MIC2 volume.

1
2

Press Echo button.

The Power Surround function and Sound Mode function are not
available if pluging the Microphone into Mic jacks.

Subwoofer Level Function

Subwoofer function stresses low tones providing thudding
sound effects.

Press the Subwoofer Level button.

1

Press the button repeatedly to select “S, W 1
PASS”.

You can select the level of low tones you desire.

2

26

➞

S, W 2 ➞ S, W

Connecting Headphones

You can connect a set of headphones to your mini-compact
system so that you can listen to music or radio programmers
without disturbing other people in the room. The earphones
must have a 3.5

Connect the headphones to the Phones jack on the front panel.
Result

: The loudspeakers are no longer used to output the sound.

Prolonged use of headphones at a high volume may damage
your hearing.

Mute

Phones

Push Eject

ø jack or an appropriate adapter.

Mono/ST Program

Preset

Memory

REC/Pause

CD Repeat

Shuffle

CD

Synchro

Reverse

Mode

Deck 1/2

Normal

Dubbin

Safety Precautions

Enter

U

p

Ne

x

t

Do
wn

P
r
e

v
i
o
us

Preset/Manual

Menu Menu

Disc 1

On/
Standby

Timer/
Clock

Timer/
On/Off

AUX

Demo

Mute

Phones

Push Eject

Mono/ST

Band

Select/

TUNER VCD/CD TAPE

Power Surround

Program

CD Repeat

Shuffle

CD

Synchro

Reverse
Mode

Deck 1/2

Counter
Reset

Dubbing

Normal High

Preset
Memory

REC/Pause

AI Sleep

Disc 2 Disc 3 Disc Change

Open/Close

R

Volume

Sound
Mode

Subwoofer Level

Push Eject

Echo

Mic Mixing

Min Max

MIC 1

MIC 2

Enter

Up

N

ext

Do

w
n

Pr
e
viou

s

Preset/Manual

Menu Menu

Disc 1

On/
Standby

Timer/
Clock

Timer/
On/Off

AUX

Demo

Mute

Phones

Push Eject

Mono/ST

Band

Select/

TUNER VCD/CD TAPE

Power Surround

Program

CD Repeat

Shuffle

CD
Synchro

Reverse

Mode

Deck 1/2

Counter

Reset

Dubbing

Normal High

Preset
Memory

REC/Pause

AI Sleep

Disc 2 Disc 3 Disc Change

Open/Close

R

Volume

Sound
Mode

Subwoofer Level

Push Eject

Echo

Mic Mixing

Min Max

MIC 1

MIC 2

Enter

Up

Next

Down

P
revious

Preset/Manual

Menu Menu

Disc 1

On/
Standby

Timer/
Clock

Timer/
On/Off

AUX

Demo

Mute

Phones

Push Eject

Mono/ST

Band

Select/

TUNER VCD/CD TAPE

Power Surround

Program

CD Repeat

Shuffle

CD
Synchro

Reverse

Mode

Deck 1/2

Counter

Reset

Dubbing

Normal High

Preset
Memory

REC/Pause

AI Sleep

Disc 2 Disc 3 Disc Change

Open/Close

R

Volume

Sound
Mode

Subwoofer Level

Push Eject

Echo

Mic Mixing

Min Max

MIC 1

MIC 2

Enter

Up

Next

Down

Previous

Preset/Manual

Menu Menu

Disc 1

On/
Standby

Timer/
Clock

Timer/
On/Off

AUX

Demo

Mute

Phones

Push Eject

Mono/ST

Band

Select/

TUNER VCD/CD TAPE

Power Surround

Program

CD Repeat

Shuffle

CD
Synchro

Reverse

Mode

Deck 1/2

Counter

Reset

Dubbing

Normal High

Preset
Memory

REC/Pause

AI Sleep

Disc 2 Disc 3 Disc Change

Open/Close

R

Volume

Sound
Mode

Subwoofer Level

Push Eject

Echo

Mic Mixing

Min Max

MIC 1

MIC 2

The following diagrams illustrate the precautions to be taken
when using or moving your mini-compact system.

Ambient operating conditions:
Ambient temperature 5°C-35°C
Humidity 10-75%

Open/Close

Disc 1

Disc 2 Disc 3 Disc Change

Select/

Band

TUNER VCD/CD TAPE

Reverse

Program

Mode

Deck 1/2

CD Repeat

CD

Dubbing

Shuffle

Synchro

Normal High

Power Surround

Volume

Subwoofer Level

Echo

Sound
Mode

Mic Mixing

Enter

Min Max

MIC 1

Counter

Reset

MIC 2

Menu Menu

P
r
e
vi
ou

Next

s

Down

Preset/Manual

Up

Push Eject

On/

Standby

Timer/

Clock

Timer/
On/Off

AI Sleep

R

Demo

AUX

Mute

Mono/ST

Preset
Memory

Phones

REC/Pause

Push Eject

Do not place potted plants or vases
on top of the unit. Moisture entering
the unit could lead to dangerous
electric shock and can cause
equipment damage. In such events
immediately disconnect the main
plug from the socket.

Do not expose the unit to direct sun
radiation or other heat sources.
This could lead to overheating and
malfunction of the unit.

During thunderstorms, disconnect
the main plug from the socket.
Main voltage peaks due to light­ning could damage the unit.

Cleaning Your Mini-Compact System

To obtain the best possible results from your mini-compact
system, you must clean the following elements regularly:

The outer casing
The compact disc player
The cassette players (heads, rollers and drive capstans)

Always unplug the system from the wall outlet:

Before cleaning it
If you are not going to be using it for a long time

Outer Casing

Clean the outer casing regularly using a soft cloth and a light detergent. Do
not use abrasive powders, liquids or aerosol cleaners. Never let any liquids
get into the system.

Compact Disc Player

Before playing a compact disc, clean it with a special CD cleaning

1

agent. Do not use the same cleaning agents as for vinyl LP records.
Carefully wipe the disc from the centre outward.

Regularly clean the player with a special cleaning disc (available from

2

your local dealer).

T

ape Decks

Press Push Eject( ) to open the cassette deck.

1

Use a cotton bud and a special cassette cleaning agent to clean the:

2

Head (1)
Rollers (2)
Drive capstans (3)

3

GB

Remove the batteries from the
remote control, if not used for any
extended period.
Leaking batteries can cause serious
damage to the remote control.

Do not place heavy items on the
main lead. Main cable damage can
lead to damage of the equipment (fire
hazard) and can cause electric
shock.

VOLUME

UP

DOWN

When using headphones, take care
not to listen at excessive volumes.
Extended use of headphones at
high volumes will lead to hearing
damage.

Do not remove any equipment panels.
The inside of the unit
contains live components, which
cause electric shock.

21

If you will not be using the remote control for a long time,
remove the batteries to prevent corrosion.

Although your system is very hard-wearing, it should not be
used in an excessively dusty environment or subjected to
shocks or extreme heat (close to heating appliances or in
direct sunlight, etc.).

If the unit emits an unpleasant odor when in use, unplug it
from the main supply and contact the after-sales service.

27

GB

Precautions When Using Compact Discs

Handle your compact discs with care. Always hold them by the
edges to avoid leaving fingerprints on the shiny surface.

When you have finished playing a compact disc, always put it back
in its case.

Do not fix paper or adhesive tape to the discs and do not write on
the label.

Clean them with a special-purpose cloth.
Store your compact discs in a clean place, out of direct sunlight,

where they will not be exposed to high temperatures.
Always use compact discs marked .

DIGITAL AUDIO

COMPACT

Precautions When Using Audio Cassettes

Check that the tape in the cassette is sufficiently taught.
To prevent erasing a cassette that you wish to keep, remove the

safety tab on the upper edge of the cassette. To record a cassette,
where the tab has been broken, simply cover the opening with
adhesive tape.

When you have finished playing a cassette, always put it back in its
case.

Store your cassettes in a clean place, out of direct sunlight, where
they will not be exposed to high temperatures.

Avoid using 120-minute cassettes as they place unnecessary strain
on the tape mechanism.

Before Contacting the After-Sales Service

It always takes a little time to become familiar with a new appliance.
If you have any of the problems listed below, try the solutions given.
They may save you the time and inconvenience of an unnecessary
service call.

Problem

The system does not work

G

There is no sound

E
N
E
R
A
L

The Timer does not work

In case it does not work, even the
action is taken as above.

C
D

The compact disc player does not

/

start playing

M
P

3

C
D

The MP-3 CD player cannot be
played.

C
A

The tape does not start playing

S
S
E
T

The volume falls off

T
E

The cassette is not erased correctly

S

There is excessive wow and flutter

R
A

Reception is poor or no radio

D

stations are received at all

I

O

• The main lead is not correctly plugged into

• The remote control batteries need replacing

• The On/Standby button has not been

• The volume has been completely turned

• The correct function (TUNER, CD, TAPE,

• You have connected a set of earphones.

• The loudspeaker wires have been

• The Mute button has been pressed.

• The timer has been stopped by pressing

• Press the S.BASS button for 5 seconds in

• The CD function has not been selected.

• The disc has been inserted face down or is

• The laser sensor is dirty or dusty.

• The system has not been installed on a flat,

• Condensation has formed in the player;

• Use the PC to confirm if the extension is

• The TAPE function has not been selected.

•

• The cassette player has not been closed.

• The tape is either slack or broken.

• The audio heads are dirty.

• The rollers or drive capstans are dirty.

• The tape is worn.

• The TUNER function has not been selected.

• The radio frequency has not been correctly

• The aerial has been disconnected or is not

• You are in a building that blocks radio

Checks/Explanation

a wall socket or the wall socket is not
switched on.

or the polarity has not been respected.
pressed.

down.
AUX) has not been selected.

disconnected.

Timer On/Off.

power ‘OFF’(standby), then it is returned the
original position (RESET)

either dirty or scratched.

horizontal surface.
leave the system in a warm, airy room for at

least one hour.

*.mp3.

The cassette has not been inserted correctly.

selected.
facing the right way. Turn it until you find the

best orientation.
waves; you must use an outside aerial.

28

If the above guidelines do not allow you to solve the problem, take a
note of:

The model and serial numbers, normally printed on the rear of
the system

Your warranty details
A clear description of the problem

Then contact your local dealer or SAMSUNG after-sales service.

Technical Specifications

GB

SAMSUNG strives to improve its products at all times. Both the design specifications and these user
instructions are thus subject to change without notice.

RADIO

LW (OPTION)

Usable sensitivity 60 dB

SW (OPTION)

Usable sensitivity 40 dB

AM (MW)

Signal/noise ratio 40 dB
Usable sensitivity 54 dB
Total harmonic distortion 2 %

FM

Signal/noise ratio 62 dB
Usable sensitivity 10 dB
Total harmonic distortion 0.3 %

COMPACT DISC PLAYER

Capacity 3 discs
Frequency range 20 Hz - 20 KHz (± 1 dB)
Signal/noise ratio 90 dB (at 1 KHz) with filter
Distortion 0.05 % (at 1 KHz)
Channel separation 74 dB
Disc sizes Diameter: 120 or 80 mm. Thickness: 1.2 mm

TAPE DECK

Frequency range 125 Hz ~ 10 KHz
Signal/noise ratio 40 dB
Channel separation 35 dB
Erasing effect 60 dB

AMPLIFIER

Output power

FRONT (8 Ω) 2 x 80 Watts RMS (total harmonic distortion: 10 %)
SUBWOOFER (4 Ω) 2 x 120 Watts RMS (total harmonic distortion: 10 %)

Channel separation 50 dB
Signal/noise ratio 75 dB

GENERAL

Dimensions 270 (W) x 332 (H) x 434 (D) mm

29

ELECTRONICS

THIS APPLIANCE IS MANUFACTURED BY:

AH68-00940L
