Samsung M7500 Part List

Exploded View and Parts List

5-2.

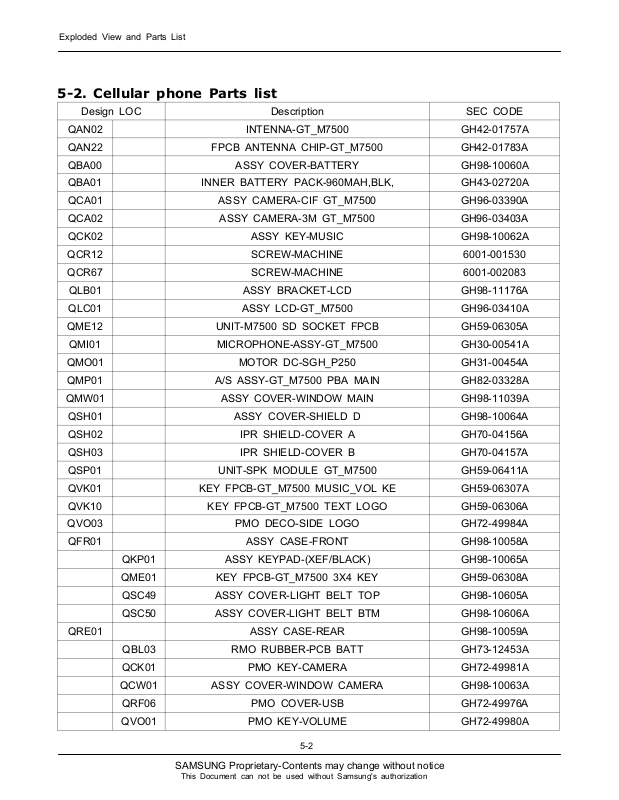

Cellular phone Parts list

Design LOC Description SEC CODE

QAN02 INTENNA-GT_M7500 GH42-01757A

QAN22 FPCB ANTENNA CHIP-GT_M7500 GH42-01783A

QBA00 ASSY COVER-BATTERY GH98-10060A

QBA01 INNER BATTERY PACK-960MAH,BLK, GH43-02720A

QCA01 ASSY CAMERA-CIF GT_M7500 GH96-03390A

QCA02 ASSY CAMERA-3M GT_M7500 GH96-03403A

QCK02 ASSY KEY-MUSIC GH98-10062A

QCR12 SCREW-MACHINE

QCR67 SCREW-MACHINE

6001-001530

6001-002083

QLB01 ASSY BRACKET-LCD GH98-11176A

QLC01 ASSY LCD-GT_M7500 GH96-03410A

QME12 UNIT-M7500 SD SOCKET FPCB GH59-06305A

QMI01 MICROPHONE-ASSY-GT_M7500 GH30-00541A

QMO01 MOTOR DC-SGH_P250 GH31-00454A

QMP01 A/S ASSY-GT_M7500 PBA MAIN GH82-03328A

QMW01 ASSY COVER-WINDOW MAIN GH98-11039A

QSH01 ASSY COVER-SHIELD

QSH02 IPR SHIELD-COVER

QSH03 IPR SHIELD-COVER

D

A

B

GH98-10064A

GH70-04156A

GH70-04157A

QSP01 UNIT-SPK MODULE GT_M7500 GH59-06411A

QVK01 KEY FPCB-GT_M7500 MUSIC_VOL KE GH59-06307A

QVK10 KEY FPCB-GT_M7500 TEXT LOGO GH59-06306A

QVO03 PMO DECO-SIDE LOGO GH72-49984A

QFR01 ASSY CASE-FRONT GH98-10058A

QKP01 ASSY KEYPAD-(XEF/BLACK) GH98-10065A

QME01 KEY FPCB-GT_M75003X4 KEY GH59-06308A

QSC49 ASSY COVER-LIGHT BELT TOP GH98-10605A

QSC50 ASSY COVER-LIGHT BELT BTM GH98-10606A

QRE01 ASSY CASE-REAR GH98-10059A

QBL03 RMO RUBBER-PCB BATT GH73-12453A

QCK01 PMO KEY-CAMERA GH72-49981A

QCW01 ASSY COVER-WINDOW CAMERA GH98-10063A

QRF06 PMO COVER-USB GH72-49976A

QVO01 PMO KEY-VOLUME GH72-49980A

5-2
