Samsung LT27A750ND-ZA User Manual

E-MANUAL

imagine the possibilities

Thank you for purchasing this Samsung product.
To receive more complete service, please register
your product at

www.samsung.com/register

Model _____________ Serial No. _____________

Contents

Channel Menu

• Using the Channel Menu 1

• Using the Favorite Channels 19

• Memorizing Channels 22

• Other Features 26

Basic Features

• Changing the Preset Picture Mode 28

• Adjusting Picture Settings 29

• Changing the Picture Size 31

• Changing the Picture Options 37

• Using the TV with Your PC 49

• Changing the Preset Sound Modes 51

• Adjusting Sound Settings 52

Preference Features

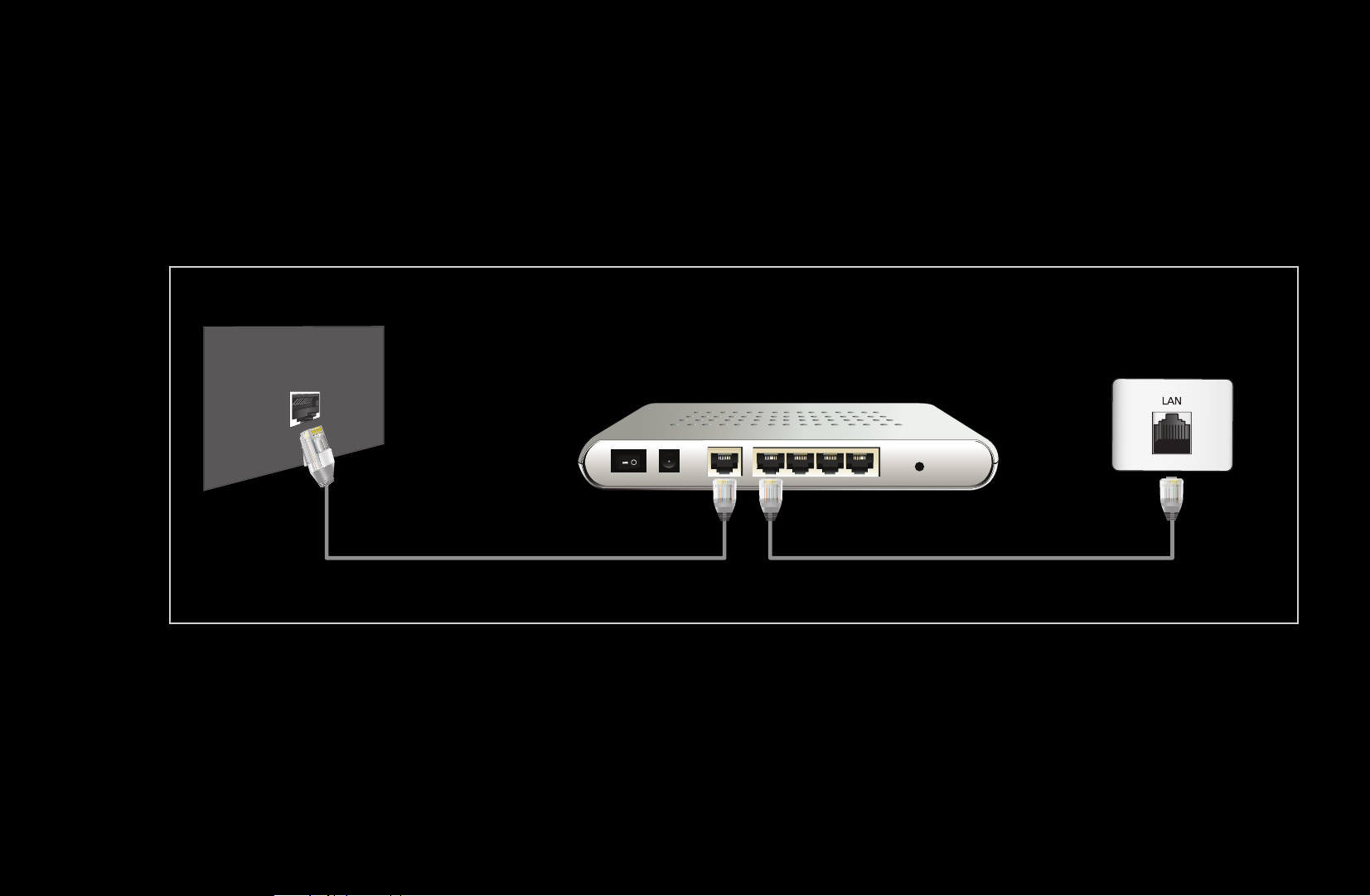

• Connecting to a Wired Network 61

• Connecting to a Wireless Network 72

• Setting the Time 98

• Blocking Programs 106

• Economical Solutions 119

• Picture In Picture (PIP) 121

• Other Features 125

• Support Menu 136

Advanced Features

• Using the 3D function 149

• Smart Hub 163

• Setting up Smart Hub 177

• Using Smart Hub 199

• Connecting a USB Device 200

• Connecting to a PC through a network 205

• Screen Display 208

• Videos 209

• Music 217

• Photos 221

• Smart Hub - Additional Functions 223

• Using Samsung Apps 229

• About AllShare™ 242

• Setting Up AllShare™ 244

• What is Anynet+?

• Setting Up Anynet+ 255

• Switching between Anynet+ Devices 257

• Listening through a Receiver 259

• Troubleshooting for Anynet+ 261

Other Information

• TroubleShooting 264

• Anti-theft Kensington Lock 277

• License 279

251

Channel Menu

❑Using the Channel Menu

To access the Channel menu, press the

SMART HUB button on your remote. After

Smart Hub appears, use the arrow buttons on

your remote to select Channel, and then press
the ENTER

button.

E

■Schedule Manager

O

SMART HUB

Schedule Manager

→

→

● The displayed image may differ depending on the

ENTER

Favorites

Source AllShare

model.

Channel

E

Search

Recommended

Videos Photos Music

Login b Sort by { Edit Mode } Settings

a

Schedule Ma...

▶

Press the SMART HUB button on your remote, and then select Schedule Manager
to access the Timer Viewing function. Timer Viewing lets you display the channel
you want at the time of your choice.

English

Using the Timer Viewing

You can set the TV to display a desired channel automatically on a day and at a time
of your choice.

N

You must set the current time first using the Time

Clock function in the System

→

menu to use this function.

To use Timer Viewing, follow these steps:

1. Press the ENTER

button to select Schedule Manager.

E

◀ ▶ ◀

2. Press the ENTER

3. Press the l / r /

Time.

u

button to add a scheduled viewing.

E

/

buttons to set Antenna, Channel, Repeat, and Start

d

English

●

Antenna: Select Air or Cable.

●

Channel: Select the desired channel.

N

You can only select memorized channels.

●

Repeat: Select Once, Manual, Sat~Sun, Mon~Fri or Everyday. If you select
Manual, you can set the day you want.

N

The

mark indicates a day you selected.

c

Date: You can set a desired date.

N

Date is available only when you select Once in Repeat.

English

●

Start Time: You can set the start time you want.

N

On the Information screen, you can change or cancel a scheduled viewing.

●

Cancel Schedules: Cancel a scheduled viewing.

●

Edit: Change a scheduled viewing.

●

Return: Return to the previous screen.

◀ ▶ ◀

English

■Channel List

6-1 TV #6

7 Air

8 Air

9 Air

No Information

9-2 TV #10

9-3 TV #11

9 Air

10-1 TV #12

10-2 TV #13

10 Air

11 Air

6 Air

The Channel List contains the channels your
TV displays (Added Channels) when you press
the CH LIST button on your remote. On the

Channel List, you can view Added Channels,

channel information, Favorites, and manage
channels

N

When you press the CH LIST button on the
remote control, the Channel List screen is
displayed immediately.

Channel List

Added Channels

Air

Antenna { Program View L Ch.Mode E Watch k Page

a

● The displayed image may differ depending on the
model.

English

●

Added Channels: Shows all added channels.

●

Favorites 1-5: Shows all favorite channels, in up to five groups.

N

If you want to view the list of favorite channels, press the CH LIST button,
and then press the r (CH Mode) button to display Favorites 1-5. Press the

button to return to the Added Channels.

l

N

The TV displays Favorites only if you have added favorites using Edit

Favorites.

◀ ▶ ◀

English

Using the colored and function buttons with the Channel List.

●

●

Red (Antenna): Switches the mode and display between Air or Cable.

a

Yellow (Program View / Channel View): For digital channels, switches the

{

display between Program View and Channel View. When you select a digital
channel in Channel View, press once to display a list of programs on that
channel. Press again to redisplay the Channel List.

●

(CH Mode / Channel): Toggles between the Favorites list (if you have

lr

added favorites using Edit Favorites) and the Added Channels.

●

(Watch): Press to watch the channel you selected.

E

●

(Page): Scrolls the Channel List to the to next or previous page.

k

English

Channel Status Display Icons

Icon Operations

a

)

\

An analog channel

A reserved program

Locked channel

◀ ▶ ◀

English

How to use Timer Viewing in Channel List (digital channels only)

You can use Timer Viewing in the Channel List to schedule a digital channel
program for viewing. The TV will turn on and display the digital channel program
when the program begins.

To schedule a digital program, follow these steps:

1. Press the CH LIST button, then select a desired digital channel.

2. Press the

(Program View) button.

{

English

3. Press the

u

or

buttons to select the desired program, and then press the

d

INFO button.

4. Press the l or r buttons to select Timer Viewing, and then press the
ENTER

button.

E

5. Press RETURN to exit.

N

If you want to cancel Timer Viewing, follow Steps 1 through 3, and then
select Cancel Schedules.

◀ ▶ ◀

English

■Channel

6 Air

6-1 TV #6

7 Air

8 Air

9 Air

9-1 TV #9

9-2 TV #10

9-3 TV #11

9-4 TV #12

10 Air

11 Air

12 Air

13 Air

14 Air

15 Air

13-1 TV #15

10-1 TV #13

10-2 TV #14

O

SMART HUB

Channel

→

ENTER

→

E

Using the Channel function, you can add
channels, delete Added channels, set Favorite
channels, use the program guide for digital
broadcasts and change between the All

Channels and Added Ch. screen. You can

also change the antenna or channel settings by
selecting the icons in the top right corner of the
screen.

Channel

All Channels

Added Ch.

● The displayed image may differ depending on the
model.

English

●

Antenna: Toggle between Air or Cable. To access the Antenna function,

use the arrow buttons to move the cursor to the Antenna icon on the top right
corner of the screen.

●

Edit Mode: Delete channels from the Favorites list and delete channels

from the Channel List.

N

To select all the channels in the current page, select Select All at the top of
the page, and then press ENTER

N

To change between All Channels and Added Ch., select All Channels or

◀ ▶ ◀

Added Ch. on the screen, and then press the ENTER

E

.

button.

E

English

●

Edit Mode: Setting channels you watch frequently as favorites.

1. Select the
then press the ENTER

Edit Mode icon on the upper right of your screen, and

button.

E

2. Press the arrow buttons to select a channel as a favorite, and then press
ENTER

N

You can select more than one channel.

N

Pressing ENTER

. A check appears to the left of the channel.

E

again deselects the channel.

E

3. Select Edit Favorites at the bottom of your screen, and then press
ENTER

4. Highlight a group on the Favorites list, and then press ENTER

button. The Edit Favorites pop-up appears.

E

E

.

N

The Edit Favorites screen has five groups (Favorites 1, Favorites 2,
etc.). You can add a favorite channel to any one of the groups. Select a
group using the up and down arrows on your remote.

5. Select OK, press ENTER

, and then press ENTER

E

English

E

again.

●

Using Edit Mode to Delete a Channel from the Channel List

1. Select the
then press the ENTER

2. Press the l / r /
ENTER

N

You can select more than one channel.

N

Pressing ENTER

◀ ▶ ◀

3. Select Delete at the bottom of your screen, and then press ENTER

E

Edit Mode icon on the upper right of your screen, and

button.

E

u

/

buttons to select a channel, and then press

d

. A check appears to the left of the channel.

again deselects the channel.

E

E

.

A pop-up appears asking if you want to delete the item.

English

4. Select OK, press ENTER

, and then press ENTER

E

again. The

E

channel is deleted from the Channel List.

N

Using the TOOLS button with Channel

To use the TOOLS button functions, highlight a channel in the Added Ch. or

All Channels list, and then press the TOOLS button.

●

Add / Delete: Add a channel or delete an added channel from the Channel

lists. When you use the Channel button on your remote to change channels,

your TV only displays the channels on the Added Ch. List.

English

N

NOTE

●

Your TV lists all available channels, both added and deleted, on the

All Channels menu.

●

A gray-colored channel indicates the channel has been deleted.

●

Add only appears if you have selected a deleted channel on the All
Channels list.

●

Delete only appears if you have selected an Added Channels on the

Added Ch. or All Channels list.

◀ ▶ ◀

English

●

Edit Favorites: Setting channels you watch frequently as favorites.

To set channels as favorites, follow these steps:

1. Highlight a channel in the Added Channels list or All Channels list, and
then press the TOOLS button.

2. Select Edit Favorites in the TOOLS menu, and then press the
ENTER

N

Pressing ENTER

button.

E

again deselects the channel.

E

3. Highlight a group on the Edit Favorites screen (Favorite 1, Favorite 2,
etc.), and then press the ENTER

N

The Edit Favorites screen has five groups. You can add a favorite

button.

E

channel to any one of the groups. Select a group using the up and
down arrows on your remote.

4. Select OK, and then press the ENTER

button. The channel is made

E

a favorite and is assigned to the favorite group you selected.

English

N

The TV diplays the “

●

Channel Name Edit (Appears only if you have selected an analog channel.):

” symbol next to the channel, indicating it is a favorite.

F

Assign a name of up to five characters to a channel. For example, History,

Food, Golf, etc. This makes it easier to find and select the channel.

●

Upcoming Program (Appears only if you have selected a digital channel.):

View details on the program being aired on the selected digital channel.

Channel Status Display Icons

◀ ▶ ◀

Icon Operations

a

c

F

An analog channel.

A selected selected.

A favorite channel

English

❑Using the Favorite Channels

6 Air 10 Air

■Favorites

O

SMART HUB

Favorites

→

ENTER

→

E

View all of your favorite channels.
Your favorite channels are organized in up
to five groups (Favorites 1-5). If you want to
move from one favorite group to another, follow
these steps:

1. Move the cursor to the group name

displayed on the top of the screen, and then
press the ENTER

2. Use the up or down arrow key to select a group, and then press the ENTER

button. The group you select appears on the screen.

button. A list of groups appears.

E

Favorites

Favorites 1

Favorites 2

E

English

Functions on the Favorites Screen

To access the functions listed below, use the arrow buttons to move the cursor
to the icon of your choice on the top right corner of the screen, and then press

ENTER

●

View Mode: Toggles between the Text view and Thumbnail view of your

E

.

favorite channels. Thumbnail view displays a picture of the program currently
on.

●

Antenna: Toggles between Air and Cable.

◀ ▶ ◀

●

●

the next page.

To use View Mode, Antenna, or Sort, select the appropriate icon as described

Sort: Toggles between sorting favorites by Category and sorting by Title.

Edit Mode: Delete channels from the Favorites list. For instructions, see

above, and then press ENTER
and then press ENTER

E

.

. Use the l or r button to make your selection,

E

English

Using Edit Mode to Delete a Favorite

1. Select the
press the ENTER

2. Press the l / r /
ENTER

N

You can select more than one channel.

N

Press ENTER

E

Edit Mode icon on the upper right of your screen, and then

button.

E

u

/

buttons to select a channel, and then press

d

. A check appears to the left of the channel.

again to deselect the channel.

E

3. Select Delete at the bottom of your screen, and then press ENTER
up appears asking if you want to delete the item.

4. Select OK, press ENTER

, and then press ENTER

E

again. The channel is

E

. A pop-

E

deleted from Favorites.

N

The Deselect function that appears with the Delete function lets you
deselect all selected channels.

N

If you have assigned a channel to more than one favorite group (say

Favorite 1 and Favorite 2), you must repeat this process in both groups to

remove a channel entirely from your Favorites.

English

❑Memorizing Channels

O

MENU

m

Channel

→

→

ENTER

E

■Antenna (Air / Cable)

t

Your TV memorizes channels and adds the memorized channels to the Added

Channels list. Before your TV can memorize channels, you must specify the signal

source, either Air or Cable. If you select cable, when your start Auto Program,
you must also specify the cable system type, STD, HRC, or IRC. If you don’t know
your cable system type, contact your local cable company for the information.

◀ ▶ ◀

Most cable companies use STD.

English

To select Air or Cable, follow these steps:

1. Push MENU

2. Select Antenna, and then press ENTER

m

Channel

→

ENTER

→

on your remote.

E

.

E

3. Select the source of your TV signal, Air or Cable, and then press the RETURN
button.

English

■Auto Program

Scans for channels automatically and stores them in the TV’s memory.

To start Auto Program, follow these steps:

1. Push MENU

2. Select Auto Program, and then press ENTER

3. Select Air or Cable or both by highlighting and then pressing ENTER

N

If you selected Air or Cable or both on the Antenna screen, your choice will

◀ ▶ ◀

already be selected.

4. Select Next, and then press ENTER

m

Channel

→

ENTER

→

E

on your remote.

E

.

E

.

E

.

English

5. If you selected Cable, the Cable System screen appears. Select Digital Cable

System, and then press ENTER

N

If you selected Antenna only, Auto Program starts.

E

.

6. Select STD, HRC, or IRC, and then press ENTER

7. Repeat for Analog Cable System.

8. Select NEXT, and then press ENTER

N

After all the available channels are stored, Auto Program removes

. Auto Program starts.

E

scrambled channels. When done, the Auto Program menu then reappears.
This process can take up to 30 minutes.

E

.

English

❑Other Features

O

MENU

■Clear Scrambled Channel

This function filters out scrambled channels after Auto Program is completed. This
process may take up to 30 minutes.

How to Stop the Clear Scrambled Channels function

m

Channel

→

ENTER

→

E

◀ ▶ ◀

1. Press the ENTER

2. Press the

button to select Yes.

u

3. Press the ENTER

N

This function is only available in Cable mode.

button to select Stop.

E

button.

E

English

■Fine Tune

(analog channels only)

If the reception is clear, you do not have to fine tune the channel, as this is done
automatically during the search and store operation. If the signal is weak or
distorted, fine tune the channel manually. Scroll to the left or right until the image is
clear.

N

Settings are applied to the channel you’re currently watching.

N

Fine tuned channels that have been saved are marked with an asterisk “*” on
the right-hand side of the channel number in the channel banner.

N

To reset fine-tuning, select Reset.

English

Picture Menu

Basic Features

❑Changing the Preset Picture Mode

O

MENU

m


→

Picture Mode

→

ENTER

→

E

■Picture Mode

t

Picture modes apply preset adjustments to the picture. Select a mode using the
up and down arrow keys, and then press the ENTER

N

In HDMI1/DVI mode(when a PC is connected), you can only select Entertain

button.

E

and Standard.

◀ ▶ ◀

●

Dynamic: Suitable for a bright room.

●

Standard: Suitable for a normal environment.

●

Natural: Suitable for reducing eye strain.

●

Movie: Suitable for watching movies in a dark room.

●

Entertain: Suitable for watching movies and games.

N

It is available in HDMI1/DVI mode(when a PC is connected).

English

❑Adjusting Picture Settings

O

MENU

■Samsung MagicAngle

MagicAngle lets you view optimal screen quality from almost any viewing position.
By setting an appropriate value for each position, you can view a high quality
picture, whether you are viewing the screen from an angle below, above, or on the
side of the monitor.

●

Samsung MagicAngle (Off / Lean Back Mode / Standing Mode): Select

Lean Back if viewing below the screen and Standing if viewing above.

m


→

ENTER

→

E

●

Mode (1-10): Determines the amount of adjustment. Numbers closer to 10 are

best for lower viewing positions.

English

■Backlight / Contrast / Brightness / Sharpness / Color / Tint (G/R)

Your television has several options for adjusting picture quality. Select an option
using the up and down arrow keys, and then press ENTER

. Use the arrow

E

keys to adjust the option value or select an option setting. When done, press

ENTER

N

When you make changes to Backlight, Contrast, Brightness, Sharpness,

E

.

Color or Tint (G/R), the screen will be adjusted accordingly.

N

In HDMI1/DVI mode(when a PC is connected), you can only make changes to

◀ ▶ ◀

Backlight, Contrast, Brightness, and Sharpness.

N

You can adjust and store Settings for each external device connected to the TV.

N

Lowering picture brightness reduces power consumption.

English

❑Changing the Picture Size

O

MENU

■Screen Adjustment

Screen Adjustment provides various picture size and aspect ratio options. Select

m


→

Screen Adjustment

→

ENTER

→

E

an option using the up and down arrow keys, and then press ENTER
arrow keys to select an option in the sub-menu, and then press ENTER

●

Picture Size: If you have a cable box or satellite receiver, it may have its own

. Use the

E

E

set of screen sizes as well. However, we highly recommend you use your TV’s
16:9 mode most of the time.

16:9: Sets the picture to 16:9 wide mode.

.

English

Zoom1: Use for moderate magnification. Cuts off the top and sides.

Zoom2: Use for a stronger magnification.

Wide Fit: Enlarges the aspect ratio of the picture so it fits the entire screen.

N

Available with HD 1080i / 720p signals in 16:9 mode.

4:3: Sets the picture to basic (4:3) mode.

N

Do not set your TV to 4:3 format for a long time. The borders displayed
on the left and right, or top and bottom of the screen may cause image

◀ ▶ ◀

retention (screen burn) which are not covered by the warranty.

English

Screen Fit: When your TV inputs HDMI (720p / 1080i / 1080p) or Component

(1080i / 1080p) signals, displays the full image without any cut-off.

Smart View 1: Reduces the 16:9 picture by 50%.

Smart View 2: Reduces the 16:9 picture by 25%.

N

Smart View 1 is enabled only in HDMI mode.

N

Smart View 2 is enabled only in HDMI or DTV mode.

N

The picture size can vary depending on the input resolution when you play
content from Videos in Smart Hub.

English

●

Position: Adjusts the picture position. Position is only available if Picture size

is set to Zoom1, Zoom2, Wide Fit, or Screen fit.

N

To use the Position function after selecting Zoom1, Zoom2, or Wide Fit,
follow these steps:

●

When you have set Double (

à, Œ

) mode in PIP (Picture-in-Picture),

you cannot set the Picture Size.

1. Press the

2. Press the ENTER

button to select Position.

d

button.

E

◀ ▶ ◀

3. Press the

4. Press the ENTER

5. Select Close by pressing the

picture position, press Reset.

u

or

button to move the picture up or down.

d

button.

E

and r buttons sequentially. To reset the

d

English

N

To use the Position function after selecting Screen Fit in HDMI (1080i/1080p)
or Component (1080i/1080p) follow these steps:

1. Press the

2. Press the ENTER

3. Press the

4. Press the ENTER

5. Select Close by pressing the

N

If you want to reset the pictures to its original position, select Reset in the

button to select Position.

d

button.

E

u, d, l

or r button to move the picture.

button.

E

and r buttons sequentially.

d

Position screen. The picture will be set to its default position.

English

●

HD (High Definition): 16:9 - 1080i/1080p (1920x1080), 720p (1280x720)

●

You can adjust and store settings for each external device you have connected
to an input on the TV.

●

Picture Sizes available by Input Source:

Input Source Picture Size

ATV, AV, Component (480i, 480p) 16:9, Zoom1, Zoom2, 4:3

HDMI (720p, 1080i, 1080p) Smart View 1

DTV(1080i), HDMI (720p, 1080i, 1080p) Smart View 2

◀ ▶ ◀

DTV(1080i), Component (1080i, 1080p),

16:9, 4:3, Wide Fit, Screen Fit

HDMI (720p, 1080i, 1080p)

HDMI1/DVI(when a PC is connected) 16:9, 4:3

English

❑Changing the Picture Options

■Advanced Settings

O

MENU

m


→

Advanced Settings

→

ENTER

→

E

(Advanced Settings are available in Standard /

Movie mode)

Compared to previous models, new Samsung TVs
have a more precise picture.

N

In HDMI1/DVI mode(when a PC is connected),
you can only make changes to Gamma and

Wihte Balance.

Advanced Settings

Black Tone Off

Dynamic Contrast Medium

Shadow Detail -2

Gamma 0

Expert Pattern Off

RGB Only Mode Off

Color Space Native

● The displayed image may differ
depending on the model.

English

●

Black Tone (Off / Dark / Darker / Darkest): Select the black level to adjust the

screen depth.

●

Dynamic Contrast (Off / Low / Medium / High): Adjusts the screen contrast.

●

Shadow Detail (-2~+2): Increases the brightness of dark images.

●

Gamma: Adjusts the primary color intensity.

●

Expert Pattern (Off / Pattern1 / Pattern2): Use the Expert Pattern function

to calibrate the picture. If the OSD menu disappears or a menu other than the
Picture menu is opened, the TV saves the calibration and the Expert Pattern

◀ ▶ ◀

window disappears.

English

Off: Turns the Expert Pattern function off.

Pattern1: This test screen demonstrates the effect of the display settings on

shades of grey and black.

Pattern2: This test screen demonstrates the effect of the display settings on

colors.

N

After selecting Pattern1 or Pattern2, you can adjust any of the advanced
settings for the desired effect.

N

While the Expert Pattern is running, the TV does not output sound.

N

Only enabled in DTV, Component, and HDMI modes.

●

RGB Only Mode (Off / Red / Green / Blue): Displays the Red, Green and
Blue colors so you can make fine adjustments to hue and saturation.

English

●

Color Space (Auto / Native / Custom): Adjusts the range and variety of colors

(the color space) available to create images.

N

To adjust Color, Red, Green, Blue or Reset set Color Space to Custom.

●

White Balance: Adjusts the red, green, and blue brightness so that the

brightest point of a picture becomes white.

R-Offset / G-Offset / B-Offset: Adjusts each color’s (red, green, blue)

darkness.

R-Gain / G-Gain / B-Gain: Adjusts each color’s (red, green, blue) brightness.

◀ ▶ ◀

Reset: Resets the White Balance to its default settings.

English

●

10p White Balance (Off / On): Controls the white balance in 10 point intervals

by adjusting the red, green, and blue brightness.

N

Available for all inputs when you set the Picture Mode to Movie.

N

Some external devices may not support this function.

Interval: Select interval to adjust.

Red: Adjust the red level.

Green: Adjust the green level.

Blue: Adjust the blue level.

Reset: Resets the 10p White Balance to its default settings.

English

●

Flesh Tone: Emphasizes pink “Flesh Tone.”

●

Edge Enhancement (Off / On): Emphasizes object boundaries.

●

Motion Lighting (Off / On): Reduces power consumption by reducing screen

brightness when the picture on the screen is in motion.

N

3D is not supported.

N

When you change the Backlight, Contrast, and Brightness, the TV sets

Motion Lightning to Off.

◀ ▶ ◀

English

■Picture Options

O

MENU

m

→


Picture Options

→

ENTER

→

E

Select an option using the up and down arrow keys, and the press ENTER
Use the arrow keys to change the setting, and then press ENTER

N

In HDMI1/DVI mode(when a PC is connected),
you can only make changes to Color Tone.

●

Color Tone (Cool / Standard / Warm1 / Warm2)

N

Warm1 or Warm2 will be deactivated when

the Picture Mode is set to Dynamic.

N

You can adjust and store settings for each

Picture Options

Color Tone Standard

Digital Noise Filter Auto

MPEG Noise Filter Auto

HDMI Black Level Normal

Film Mode Off

Auto Motion Plus Standard

E

.

external device connected to an input on the
TV.

● The displayed image may differ
depending on the model.

E

.

English

●

Digital Noise Filter (Off / Low / Medium / High / Auto / Auto Visualization):

If the broadcast signal received by your TV is weak, you can activate the Digital

Noise Filter feature to reduce any static and ghosting that may appear on the

screen.

N

When the signal is weak, try all the Digital Noise Filter options until the TV
displays the best picture.

Auto Visualization: Displays the signal strength of analog channels.

N

Only available for analog channels.

◀ ▶ ◀

N

When the bar is green, you are receiving the best possible signal.

●

MPEG Noise Filter (Off / Low / Medium / High / Auto): Reduces MPEG noise

to provide improved picture quality.

English

●

HDMI Black Level (Normal / Low): Lets you adjust the screen depth by

selecting a black level.

N

Available only in HDMI mode.

●

Film Mode (Off / Auto1 / Auto2): Sets the TV so that it senses and then

processes film signals from all sources automatically and adjusts the picture for
optimum quality.

N

Available in TV, AV, COMPONENT (480i / 1080i) and HDMI (480i / 1080i).

●

Auto Motion Plus (Off / Clear / Standard / Smooth / Custom / Demo):

Removes blur and judder from scenes with large amounts of rapid movement
to provide a clearer picture.

English

N

The info screen on your TV displays the resolution and frequency of the
incoming video signal (60 Hz). This displayed frequency is not the frequency
of the picture the TV is displaying when you have Auto Motion Plus on.

N

If noise occurs on the screen, please set Auto Motion Plus to Off. If you
set Auto Motion Plus to Custom, you can control Blur Reduction and

Judder Reduction manually and use Reset to reset both to their default

settings.

N

If you set Auto Motion Plus to Demo, you can compare the difference

◀ ▶ ◀

between a picture with Auto Motion Plus on and Auto Motion Plus off.

English

Blur Reduction: Adjusts the blur reduction level for signals input from all video

sources.

Judder Reduction: Adjusts the judder reduction level for signals input from a

video source through which you are playing a movie.

Reset: Reset Blur and Judder Reduction to their default settings.

English

■Reset Picture (Yes / No)

Resets your current picture mode to its default settings.

◀ ▶ ◀

English

❑Using the TV with Your PC

Using Your TV as a Computer (PC) Display

Entering the Video Settings (Based on Windows XP):

For your TV to work properly as a computer display, you must enter the correct video
settings.

N

Depending on your version of Windows and your video card, the procedure on
your PC will probably differ slightly from the procedure presented here. However,
the same basic information will apply in most cases. (If not, contact your computer
manufacturer or Samsung Dealer.)

English

1. Click “Control Panel” on the Windows start menu.

2. Click “Appearance and Themes” in the “Control Panel” window. A display dialog-

box will appear.

3. Click “Display”. Another display dialog box will appear.

4. Click the the “Settings” tab on the display dialog-box.

●

On the Settings tab, set the correct resolution (screen size). The optimal
resolution for this TV is 1920 x 1080.

●

If a vertical-frequency option exists on your display settings dialog box, select

◀ ▶ ◀

“60” or “60 Hz”. Otherwise, just click “OK” and exit the dialog box.

English

Sound Menu

❑Changing the Preset Sound Modes

O

MENU

m

Sound

→

Sound Mode

→

ENTER

→

E

■Sound Mode

t

Use the up and down arrow keys to select an option, and then press ENTER

●

Standard: Selects the normal sound mode.

●

Music: Emphasizes music over voices.

●

Movie: Provides the best sound for movies.

●

Clear Voice: Emphasizes voices over other sounds.

●

Amplify: Incerases the intensity of high-frequency sound to allow a better

listening experience for the hearing impaired.

N

If Speaker Select is set to External Speaker, Sound Mode is disabled.

E

.

English

❑Adjusting Sound Settings

O

MENU

m

Sound

→

ENTER

→

E

■Sound Effect

N

If Speaker Select is set to External Speaker, Sound Effect is disabled.

N

Available only when Sound Mode is set to Standard.

●

SRS TruSurround HD (Off / On)

(standard sound mode only)

◀ ▶ ◀

This function provides a virtual 5.1 channel surround sound experience through

a pair of speakers using HRTF (Head Related Transfer Function) technology.

English

●

SRS TruDialog (Off / On)

(standard sound mode only)

This function allows you to increase the intensity of a voice over background

music or sound effects so that dialog can be heard more clearly.

●

SRS CS Headphone (Off / On) : You can hear virtual 5.1ch surround sound

over the headphones.

●

Equalizer

Adjusts the sound output.

●

Balance L/R: Adjusts the balance between the right and left speaker.

●

100Hz / 300Hz / 1kHz / 3kHz / 10kHz (Bandwidth Adjustment): Adjusts

the volume level of specific bandwidth frequencies.

●

Reset: Resets the equalizer to its default settings.

English

■3D Audio (Off / Low / Medium / High)

3D audio technology provides the immersive sound corresponding to the pop-up
effect of 3D video by applying audio depth control in perspective.

N

Available only when you are watching a 3D image.

◀ ▶ ◀

English

■Broadcast Audio Options

●

Preferred Language

(digital channels only)

Use the up and down arrow keys to select a language, and then press

ENTER

E

.

Digital-TV broadcasts can simultaneously transmit many audio tracks (for

example, simultaneous translations of the program into foreign languages).

N

You can only select a language from among the ones being broadcasted.

English

●

Multi-Track Sound (MTS)

(analog channels only)

t

Select an option using the up and down arrow keys, and the press ENTER

E

.

Mono: Choose for channels that are broadcasting in mono or if you are having

difficulty receiving a stereo signal.

Stereo: Choose for channels that are broadcasting in stereo.

SAP: Choose to listen to the Separate Audio Program, which is usually a

◀ ▶ ◀

foreign-language translation.

N

Depending on the program being broadcast, you can listen to Mono,

Stereo, or SAP.

English

■SPDIF Output

SPDIF (Sony Philips Digital Interface) provides digital audio output to speakers and
various digital devices such as A/V Receivers and Home Theaters which reduces
interference and distortion.

●

Audio Format (PCM / Dolby Digital): You can select the Digital Audio output

(SPDIF) format. The available Digital Audio output (SPDIF) format may differ
depending on the input source.

●

Audio Delay: Lets you correct timing mismatches between the audio track and

the video when you are watching the TV and listening to digital audio output
from the TV through an external device such as an AV receiver. When you
select Audio Delay, a slider appears. Use the left and right arrow buttons to
adjust the slider. Press ENTER

when done (0ms ~ 250ms).

E

English

■Speaker Settings

●

Speaker Select (External Speaker / TV Speaker)

A sound echo may occur due to a difference in decoding speed between
the main speaker and the audio receiver. In this case, set the TV to External

Speaker.

N

When Speaker Select is set to External Speaker, the volume and MUTE
buttons will not operate and the sound settings will be limited.

N

When Speaker Select is set to External Speaker.

◀ ▶ ◀

●

TV Speaker: Off, External Speaker: On

N

When Speaker Select is set to TV Speaker.

●

TV Speaker: On, External Speaker: On

N

If there is no video signal, both speakers will be mute.

English

●

Auto Volume (Off / Normal / Night)

Normal equalizes the volume level on each channel, so that when you change

channels, the volume level is the same.

Night equalizes and decrease the volume level on each channel, so each

channel is quieter. Night is useful at night, when you may want to keep the

volume low.

English

■Reset Sound (OK / Cancel)

Reset all sound settings to the factory defaults. Select Reset, press ENTER
select OK in the pop-up, and then press ENTER

E

again.

E

,

◀ ▶

English

Preference Features

❑Connecting to a Wired Network

There are three ways to attach your TV to your LAN using cable:

●

You can attach your TV to your LAN by connecting the LAN port on the back of
your TV to an external modem using a LAN cable. See the diagram below.

The Modem Port on the Wall

External Modem

(ADSL / VDSL / Cable TV)

TV Rear Panel

◀ ▶

LAN CableModem Cable

English

●

You can attach your TV to your LAN by connecting the LAN port on the back of
your TV to an IP Sharer (router) which is connected to an external modem. Use
LAN cable for the connection. See the diagram below.

The Modem

Port on the Wall

External Modem

(ADSL / VDSL / Cable TV)

IP Sharer

(having DHCP server)

TV Rear Panel

◀ ▶ ◀

LAN Cable LAN CableModem Cable

English

●

Depending on how your network is configured, you may be able to attach your
TV to your LAN by connecting the LAN port on the back of your TV directly to
a network wall outlet using a LAN cable. See the diagram below. Note that the
wall outlet is attached to a modem or router elsewhere in your house.

The LAN Port on the Wall

TV Rear Panel

LAN Cable

English

●

If you have a Dynamic Network, you should use an ADSL modem or router
that supports the Dynamic Host Configuration Protocol (DHCP). Modems and
routers that support DHCP automatically provide the IP address, subnet mask,
gateway, and DNS values your TV needs to access the Internet so you do not
have to enter them manually. Most home networks are Dynamic Networks.

Some networks require a Static IP address. If your network requires a Static

IP address, you must enter the IP address, subnet mask, gateway, and DNS

values manually on your TV’s Cable Setup Screen when you set up the network

◀ ▶ ◀

connection. To get the IP address, subnet mask, gateway, and DNS values,

contact your Internet Service Provider (ISP). If you have a Windows computer,

you can also get these values through your computer.

N

You can use ADSL modems that support DHCP if your network requires a
Static IP address. ADSL modems that support DHCP also let you use Static
IP addresses.

English

■Network Settings

O

MENU

m

Network

→

Network Settings

→

ENTER

→

E

Set up a network connection so you can use various Internet services such as

Smart Hub, AllShare™ and perform software upgrades.

■Network Status

O

MENU

m

Network

→

Network Status

→

ENTER

→

E

You can check the current network and Internet status.

■AllShare Settings

O

MENU

m

Network

→

AllShare Settings

→

ENTER

→

E

Lets you select whether to use the call arrivals text message contents and
schedules set on the network. For details on set up options, refer to the “AllShare™”
instructions.

English

■Automatic Network Setup

Use the Automatic Network Settings when connecting your TV to a network
that supports DHCP. To set up your TV’s cable network connection automatically,
follow these steps:

How to set up automatically

1. Go to the Network Settings screen.
(MENU

Settings

m

Network

→

ENTER

→

E

Network

→

)

◀ ▶ ◀

2. Select Wired, press ENTER
press ENTER

E

again.

3. The network test screen appears and
verifies the network connection. When the

, and then

E

Network Settings

Select a network connection type.

Wired

Wireless (General)

WPS(PBC)

One Foot Connection

● The displayed image may differ depending on the
model.

Connect to the network using

LAN cable. Please make sure

that the LAN cable is connected.

Previous

Next

Cancel

connection has been verified, the “Internet
connection successful.” message appears.

English

N

If the connection process fails, check the
LAN port connection.

N

If the automatic process cannot find the
network connection values or if you want to
set the connection manually, go to the next
secton, Manual Network Setup.

Network Setting

Wired network and Internet connection completed.

MAC Address 00:12:fb:2b:56:4d

IP Address 192.168.11.4

Subnet Mask 255.255.255.0

SEC_LinkShare

Internet is connected successfully.

If you have a problem with using Internet Service, contact your Internet service

provider.

Gateway 192.168.11.1

DNS Server 192.168.11.1

IP Setting

OK

● The displayed image may differ depending on the
model.

6/6

English

■Manual Network Setup

Use the Manual Network Setup when connecting your TV to a network that
requires a Static IP address.

Getting the Network Connection Values

To view the Network connection values on most Windows computers, follow these
steps:

1. Right click the Network icon on the bottom right of the screen.

◀ ▶ ◀

2. In the pop-up menu that appears, click Status.

3. On the dialog that appears, click the Support tab.

4. On the Support Tab, click the Details button. The Network connection values

are displayed.

English

How to set up manually

To set up your TV’s cable network connection manually, follow these steps:

1. Go to the Network Settings screen.
(MENU

ENTER

→

m

Network

→

)

E

Network Settings

→

2. Select Wired, and then press ENTER

E

IP Mode Manual

IP Address 0 . 0 . 0 . 0

Subnet Mask 0 . 0 . 0 . 0

.

Gateway 0 . 0 . 0 . 0

IP Settings

The network test screen appears and the
verification process starts.

DNS Mode Manual

DNS Server 0 . 0 . 0 . 0

◀ ▶

3. Press ENTER
stops. Select IP Setting on the network
connection screen. The IP Settings screen
appears.

. The verification process

E

OK

● The displayed image may differ depending on
the model.

English

4. Select the field at the top, press ENTER

, and then set IP Mode to Manual.

E

5. Press the
then press ENTER

button on your remote to go to the IP Address entry field, and

d

.

E

6. Enter the first portion of the IP Address (for example, 105) into the first entry
field using the number keys on your remote. Press the right arrow button to go
to the next field.

7. Enter the next portion of the IP Address. Press the right arrow button to go to
the next field.

◀ ▶ ◀

8. Repeat the entry process for each field in the IP Address.

N

If you make a mistake when entering a number, re-enter the number to
correct it. You can also press the up or down arrow button to change the
number one unit at a time.

English

9. When done entering IP Addres, press ENTER

E

.

10. Press the down arrow key to go to the Subnet Mask fields, and then press
ENTER

E

.

11. Repeat the same entry process for Subnet Mask, Gateway, and DNS Server.

12. When done, select OK at the bottom of the page, and then press ENTER

E

.
The network test screen appears and the verification process starts. When the
connection has been verified, the “Internet connection successful.” message
appears.

English

❑Connecting to a Wireless Network

To connect your TV to your wireless network, you need a wireless router or
modem and a Samsung Wireless LAN adapter (WIS09ABGN, WIS09ABGN2 or
WIS10ABGN - sold separately), which you connect to your TV’s back or side panel
USB port. See the illustration below.

The LAN Port on the Wall

(router having DHCP server)

Wireless IP sharer

TV Rear Panel

◀ ▶ ◀

Samsung

Wireles LAN

adapter

LAN Cable

English

Samsung’s Wireless LAN adapter is sold separately and is offered by selected
retailers, Ecommerce sites, and Samsungparts.com. Samsung’s Wireless LAN
adapter supports the IEEE 802.11a/b/g and n communication protocols. Samsung
recommends using IEEE 802.11n. When you play video over a IEEE 802.11b/g
connection, the video may not play smoothly.

N

NOTE

●

You must use the “Samsung Wireless LAN adapter” (WIS09ABGN,
WIS09ABGN2 or WIS10ABGN) to use a wireless network.

●

The Samsung Wireless LAN Adapter and the USB extension Cable are
sold separately and are offered by select retailers, Ecommerce sites, and
Samsungparts.com.

English

●

To use a wireless network, your TV must be connected to a wireless IP sharer
(either a router or a modem). If the wireless IP sharer supports DHCP, your TV
can use a DHCP or static IP address to connect to the wireless network.

●

Select a channel for the wireless IP sharer that is not currently being used. If the
channel set for the wireless IP sharer is currently being used by another device
nearby, this will result in interference and communication failure.

●

Your TV supports only the following wireless network security protocols:

–

Authentication Mode : WEP, WPAPSK, WPA2PSK

◀ ▶ ◀

–

Encryption Type : WEP, TKIP, AES.

English

●

If you select the Pure High-throughput (Greenfield) 802.11n mode and the
Encryption type is set to WEP, TKIP or TKIP AES (WPS2Mixed) on your AP or
wireless router, Samsung TVs will not support a connection in compliance with
new Wi-Fi certification specifications.

●

If your wireless router supports WPS (Wi-Fi Protected Setup), you can
connect to the network via PBC (Push Button Configuration) or PIN (Personal
Identification Number). WPS will automatically configure the SSID and WPA key
in either mode.

●

If your router, modem, or device is not certified, it may not connect to the TV
via the “Samsung Wireless LAN adapter.”

English

●

Ensure the TV is turned on before you connect the Samsung Wireless LAN
adapter.

●

Connection Methods: You can setup the wireless network connection in five
ways:

–

Auto Setup (Using the Auto Network Search function)

–

Manual Setup

–

WPS (PBC)

–

One Foot Connection

◀ ▶ ◀

–

Plug & Access

●

The TV may not recognize the Samsung Wireless LAN adapter if you connect it
to the TV with a USB hub or USB extension cable other than the cable supplied
with the TV.

English

■Automatic Network Setup

Most wireless networks have an optional security system that requires devices that
access the network to transmit an encrypted security code called an Access or
Security Key. The Security Key is based on a Pass Phrase, typically a word or a
series of letters and numbers of a specified length you were asked to enter when
you set up security for your wireless network. If you use this method of setting up
the network connection, and have a Security Key for your wireless network, you
will have to enter the Pass Phrase during the automatic or manual setup process.

English

How to set up automatically

1. Go to the Network Settings screen.
(MENU

Settings

m

Network

→

ENTER

→

E

Network

→

.

2. Select Wireless (General), press
ENTER

, and then press ENTER

E

E

Network Settings

Select a network connection type.

Wired

Wireless(General)

WPS(PBC)

One Foot Connection

Set up wireless network by

selecting your Access Point. You

may need to enter security key

depending on the setting of the

Access Point.

2/6

Previous

Next

Cancel

again.

● The displayed image may differ depending on the

3. The Network function searches for available

◀ ▶ ◀

wireless networks. When done, it displays a

model.

list of the available networks.

4. In the list of networks, press the

u

or

button to select a network, and then

d

press the ENTER

N

If the wireless router is set to Hidden (Invisible), you have to select Add

button twice.

E

Network and enter the correct Network Name (SSID) and Security key to

establish the connection.

English

5. If the Enter Security Key screen appears,

Network Setting

4/6

go to step 6. If you select a wireless router
that does not have security, go to step 8.

6. If the wireless router has security, enter the

Security key (Security key or PIN).

N

When you enter the Security key
(Security key or PIN), use the

u

/

d

/

l

buttons on your

/

r

remote to select number/characters. Press the ENTER
the characters.

N

You can also enter numbers by pressing the number buttons on your

Enter security key

a b c d e f 1 2 3

g h i j k l 4 5 6

m n o p q r 7 8 9

s t u v w x y z 0

a/A Delete Space

● The displayed image may differ depending on the
model.

button to enter

E

0 entered

Previous

Next

Cancel

remote.

7. When done, use the right arrow button to move the cursor to Next, and then
press ENTER

E

.

English

8. The network connection screen appears and the verification process starts.
When the connection has been verified, the “Internet connection successful.”
message appears.

N

If the network does not accept the Security key (Security key or PIN),
select Retry or select IP Settings to enter the settings manually.

N

If you want to set up the connection manually, select IP Settings. Then, go
to the next section, “How to set up manually”.

◀ ▶ ◀

English

■Manual Network Setup

Use the Manual Network Setup when connecting your TV to a network that
requires a Static IP address or if the automatic connection process has failed.

Getting the Network Connection Values

To view the Network connection values on most Windows computers, follow these
steps:

1. Right click the Network icon on the bottom right of the screen.

2. In the pop-up menu that appears, click Status.

3. On the dialog that appears, click the Support tab.

4. On the Support Tab, click the Details button. The Network connection values

are displayed.

English

How to set up manually

To set up your TV’s cable network connection manually, follow these steps:

1. Go to the Network Settings screen.
(MENU

ENTER

→

m

Network

→

)

E

Network Settings

→

2. Select Wireless (General), press the
ENTER

button, and then press ENTER

E

again.

E

IP Mode Manual

IP Address 0 . 0 . 0 . 0

Subnet Mask 0 . 0 . 0 . 0

Gateway 0 . 0 . 0 . 0

DNS Mode Manual

DNS Server 0 . 0 . 0 . 0

IP Settings

◀ ▶

3. The Network function searches for available
wireless networks. When done, it displays a
list of the available networks.

● The displayed image may differ depending on
the model.

OK

English

4. In the list of networks, press the

u

or

button to select a network, and then

d

press the ENTER

N

If the Access Point (AP) is set to Hidden (Invisible), you have to select Add

button twice.

E

Network and enter the correct network Name (SSID) and Security key to

establish the connection.

5. If the Enter Security key screen appears, go to step 6. If you selected an AP

that does not have security, go to step 8.

English

6. Enter the Security key (Security key or PIN).

N

When you enter the Security key (Security key or PIN), use the

u / d / l

/ r buttons on your remote to select numbers/characters. Press ENTER

E

to enter the characters.

N

You can also enter numbers by pressing the number buttons on your
remote.

N

You should be able to find the Pass Phrase on one of the set up screens
you used to set up your router or modem.

◀ ▶ ◀

7. When done, use the r button to move the cursor to Next, and then press the
ENTER

E

button.

English

8. The network connection screen appears and the verification process starts.
Press ENTER

to cancel. Select IP Setting on network connection screen.

E

The IP Settings screen appears.

9. Select the field on the top, press ENTER

10. Press the

then press ENTER

button on your remote to go to the IP Address entry field, and

d

.

E

, and then set IP Mode to Manual.

E

11. Enter the first portion of the IP Address (for example, 105) into the first entry

field using the number keys on your remote. Press the r button to go to the
next field.

12. Enter the next portion of the IP Address. Press the r button to go to the next

field.

English

13. Repeat the entry process for each field in the IP Address.

N

If you make a mistake when entering a number, re-enter the number to
correct it. You can also press the

u

or

button to change the number one

d

unit at a time.

14. When done entering the IP Address, press ENTER

15. Press the
ENTER

E

button to go to the Subnet Mask fields, and then press

d

.

E

.

16. Repeat the same entry process for Subnet Mask, Gateway, and DNS Server.

◀ ▶ ◀

17. When done, select OK at the bottom of the page, and then press ENTER
The network connection screen appears and the verification process starts.
When the connection has been verified, the “Internet connection successful.”
message appears.

E

.

English

■WPS(PBC) Network Setup

How to set up using WPS(PBC)

If your router has a WPS (PBC) button, follow these steps:

1. Go to Network Setting screen.
(MENU

Settings

m

Network

→

ENTER

→

E

Network

→

).

2. Select WPS(PBC), press ENTER
and then press ENTER

E

again.

3. Press the WPS(PBC) button on

E

,

Network Settings

Select a network connection type.

Wired

Wireless (General)

WPS(PBC)

One Foot Connection

● The displayed image may differ depending on the
model.

Connect to the Access Point

easily by pressing the WPS(PBC)

button. Choose this if your Access

Point supports Push Button

Configuration(PBC)

your router within 2 minutes. Your TV
automatically acquires all the network
setting values it needs and connects to your network.

4. The network connection screen appears, and network set up is done.

2/6

Previous

Next

Cancel

English

■One Foot Connection Network Setup

The One Foot Connection function lets you connect your Samsung TV
automatically to a Samsung wireless router. If your Wireless Router does not support

One Foot Connection, you must connect using one of the other methods.

N

You can check for equipment that supports One Foot Connection on www.
samsung.com.

◀ ▶ ◀

English

How to set up using One Foot Connection

1. Turn on the Samsung wireless router and the TV.

2. Go to the Network Settings screen.

(MENU

ENTER

→

m

Network

→

).

E

Network Settings

→

3. Select One Foot Connection, and press
ENTER

, then press ENTER

E

E

again.

Network Settings

Select a network connection type.

Wired

Wireless(General)

WPS(PBC)

One Foot Connection

● The displayed image may differ depending on the
model.

Connect to the wireless network

automatically if your access point

supports One Foot Connection.

Select this connection type after

placing the Access Point within 10

inches (25cm) of your TV.

2/6

Previous

Next

Cancel

English

4. Place the wireless router in parallel with the Samsung Wireless LAN adapter or

your TV set (if you do not need to use the Adaptor), and no farther away than
25cm (about 9 3/4 inches).

N

If One Foot Connection does not connect your TV to your Router, a pop-up
window appears on the screen notifying you of the failure. If you want to try
using One Foot Connection again, reset the wireless router, disconnect the
Samsung Wireless LAN adapter and then try again from Step 1. You can also
choose one of the other connection setup methods.

◀ ▶ ◀

5. The network connection screen appears, and network set up is done.

6. Place the wireless router in a desired location.

N

If the wireless router’s settings change or you install a new wireless router, you
must perform the One Foot Connection procedure again, beginning from
Step 1.

English

■Plug & Access Network Setup

The Plug & Access function lets you easily connect your Samsung TV to your
Samsung wireless router by using a USB memory stick to transfer the setup
information from the router to the TV. If your non-Samsung AP does not support

Plug & Access, you must connect using one of the other methods.

N

You can check for equipment that supports Plug & Access on www.samsung.
com.

English

How to set up using the Plug & Access function

1. Turn on the Samsung wireless router and your TV.

2. Insert a USB memory stick into the USB port in your Samsung wireless router.

Check the router’s LED’s to make sure it is on (Blinking

→

on).

3. Wait a minute, take the USB memory stick out of the router, and then insert

it into a USB port on your Samsung TV. The memory stick downloads the
connection information.

4. Wait until the connection is automatically established.

◀ ▶ ◀

N

If Plug & Access does not connect your TV to your AP, a pop-up window
appears on the screen notifying you of the failure. If you want to try using

Plug & Access again, reset the AP, disconnect the Samsung Wireless LAN

adapter and then try again from Step 1. You can also choose one of the
other connection setup methods.

English

5. The network connection screen appears, and the network set up is done.

6. Place the wireless router in a desired location.

N

If the wireless router’s settings change or you install a new wireless router,
you must perform the Plug & Access procedure again, beginning from
Step 1.

English

Priority QOS

Samsung wireless routers are optimized to stream HD AV to Samsung DTVs.

This Priority QOS function is unique to Samsung wireless routers. You can connect
a Samsung wireless router to many devices, such as laptops, mobile phones, BD
players etc. But, when you connect a Samsung TV to a Samsung wireless router,
the Samsung wireless router gives the Samsung TV a priority connection. This
ensures you get the highest quality streaming contents and the fastest throughput
speed.

◀ ▶ ◀

●

Priority QOS makes your TV faster by giving it priority bandwidth. (Priority QOS
is optional. You can turn it on and off.)

●

Because your Samsung TV has a priority connection, you can enjoy HD
content without buffering.

N

The connection speed may vary based on the network environment.

English

■Ad-Hoc Network Setup

You can connect to a mobile device supporting Ad-hoc connections without a
wireless router or wireless router through the “Samsung Wireless LAN adapter”.
When connected to a mobile device, you can use files on the device or connect to
the Internet using the AllShare or Multimedia function.

How to set up using WPS(PBC)

1. Go to Network Settings screen. (MENU
ENTER

→

E

).

2. Select Wireless (General), and press ENTER

m

Network

→

, then press ENTER

E

Network Settings

→

again.

E

3. Select Ad hoc. The message “Ad hoc service supports a direct connection

with Wi-Fi compatible devices like a cell phone or PC. The existing
network system may have limited functionality. Do you want to change
the network connection?” is displayed.

English

4. Select OK, and press ENTER

. The TV searches for the mobile device.

E

5. When the TV finishes searching for mobile devices, input the generated

Network Name (SSID) and Security Key into the device you want to connect.

N

If network does not operate normally, check the Network Name (SSID) and
Security key again. An incorrect Security key may cause a malfunction.

N

If a device is connected once, it is displayed in the Network Setting list.
When you connect to it again, you can find it in the List.

◀ ▶ ◀

English

If Your TV Fails to Connect to the Internet

Your TV may not be able to connect to the Internet because your ISP has permanently reg­istered the MAC address (a unique identifying number) of your PC or modem, which it then
authenticates each time you connect to the Internet as a way of preventing unauthorized
access. As your TV has a different MAC address, your ISP can not authenticate its MAC ad­dress, and your TV can not connect.

To resolve this problem, ask your ISP about the procedures required to connect devices
other than a PC (such as your TV) to the Internet.

If your Internet service provider requires an ID or password to connect to the Internet, your
TV may not be able to connect to the Internet. If this is the case, you must enter your ID or
password when connecting to the Internet.

The internet connection may fail because of a firewall problem. If this is the case, contact
your Internet service provider.

If you cannot connect to the Internet even after you have followed the procedures of your
Internet service provider, please contact Samsung Electronics at 1-800-SAMSUNG.

English

❑Setting the Time

O

MENU

m

→

System

→

Time

ENTER

→

E

■Time

N

The current time will appear every time you press the INFO button.

●

Clock: Set the clock to use the various timer features of the TV.

N

If you disconnect the power cord, you have to set the clock again.

–

Clock Mode: Set the current time manually or automatically.

◀ ▶ ◀

Auto: Have the TV set the current time automatically using the time from a

digital channel.

N

You must have the cable or an antenna connected to the TV to set the

time automatically.

English
