SAMSUNG LSJ550HW01-V Specification

Samsung Secret

Product Information

DATE :17. Oct. 2011

SAMSUNG TFT-LCD

MODEL : LSJ550HW01-V

The Information Described in this Specification is Preliminary and can be changed
without prior notice

LCD Business

Samsung Electronics Co . , LTD.

MODEL LSJ550HW01 Doc. No 07-000-G-111017 Page

1/23

Contents

Samsung Secret

Revision History -------------------------------------------------------------------------------------------- (3)
General Description --------------------------------------------------------------------------------------- (4)
General Information --------------------------------------------------------------------------------------- (4)

1. Absolute Maximum Ratings -------------------------------------------------------------------------- (5)

2. Optical Characteristics --------------------------------------------------------------------------------- (6)

3. Electrical Characteristics ------------------------------------------------------------------------------- (9)

3.1 TFT LCD Module

4. Input Terminal Pin Assignment --------------------------------------------------------------------- (11)

4.1. Input Signal & Power

5. Input Terminal Pin Assignment --------------------------------------------------------------------- (12)

5.1 LVDS Interface

5.2 Input Signals, Basic Display Colors and Gray Scale of Each Color

6. Interface Timing ---------------------------------------------------------------------------------------- (14)

6.1 Timing Parameters

6.2 Timing Diagrams of interface Signal

6.3 Power ON/OFF Sequence

7. Outline Dimension -------------------------------------------------------------------------------------- (17)

8. Packing --------------------------------------------------------------------------------------------------- (18)

9. Marking & Others --------------------------------------------------------------------------------------- (19)

10. General Precaution ----------------------------------------------------------------------------------- (20)

10.1 Handling

10.2 Storage

10.3 Operation

10.4 Operation Condition Guide

MODEL LSJ550HW01 Doc. No 07-000-G-111017 Page

2/23

Revision History

Date Rev. No Page Summary

Samsung Secret

17.Oct.2011

000 all First issued

MODEL LSJ550HW01 Doc. No 07-000-G-111017 Page

3/23

General Description

Samsung Secret

Description

LSJ550HW01 is a color active matrix liquid crystal display (LCD) that uses amorphous

silicon TFT( Thin Film Transistor) as switching components. This model is composed of a

TFT LCD panel, a driver circuit. The resolution of a 60“ is 1920 x 1080 and this model can

display up to 1.07 billion colors with wide viewing angle of 89° or higher in all directions.

This panel is intended to support applications to provide a excellent performance for Flat

Panel Display such as Home-alone Multimedia TFT-LCD TV and High Definition TV.

Features

 High contrast & aperture ratio with wide color gamut
 SVA (Super Vertical Align) mode
 Wide viewing angle (±178°)
 High speed response
 FHD resolution (16:9)
 LVDS (Low Voltage Differential Signaling) interface (2pixel/clock)
 2D / 3D function compatible

General Information

Items Specification Unit Note

1227.6(H) x 700.5(V)

Panel Size

1.76(D)

Weight 3.4 kg

Pixel Pitch 0.210(H) X 0.630(V) mm

Active Display Area 1209.6(H) X 680.4(V) mm

Surface Treatment Haze 0%, Hard-coating (2H)

Display Colors 1.07B (10Bits Dithering) colors

Number of Pixels 1920 x 1080 pixel

Pixel Arrangement RGB vertical stripe

Display Mode Normally Black

±1.0mm

mm

Max

MODEL LSJ550HW01 Doc. No 07-000-G-111017 Page

4/23

Samsung Secret

1. Absolute Maximum Ratings

If the condition exceeds maximum ratings, it can cause malfunction or unrecoverable
damage to the device.

(VSS = 0 V)

Item Symbol Min. Max. Unit Note

Power Supply Voltage V

Storage temperature T

DD

STG

10.8 13.2 V (1)

-20 65

Glass surface

temperature

Center T

OPR

0 50

(Operation)

Note (1) Ta= 25 ± 2 °C

(2) Temperature and relative humidity range are shown in the figure below.

a. 90 % RH Max. (Ta ≤ 39 °C)
b. Relative Humidity is 90% or less. (Ta > 39 °C)
c. No condensation

℃

℃

(2)

(2)

MODEL LSJ550HW01 Doc. No 07-000-G-111017 Page

5/23

2. Optical Characteristics

The optical characteristics should be measured in a dark room or equivalent.
Measuring equipment : TOPCON RD-80S, TOPCON SR-3 ,ELDIM EZ-Contrast

(Ta = 25 ± 2°C, VDD=12V, fv= 60Hz, )

Item Symbol Condition Min. Typ. Max. Unit Note

Samsung Secret

Contrast Ratio

(Center of screen)

Response

Time

Luminance of White

(Center of screen)

Color

Chromaticity

(CIE 1931)

Color Gamut - - 72 - %

Color Temperature - - 10000 - K

Viewing

G-to-G Tg - 8 15 msec

Red

Green

Blue

White

Hor.

Angle

Ver.

Brightness Uniformity

(9 Points)

C/R

Y

L

Rx
Ry 0.330
Gx 0.300
Gy 0.600
Bx 0.150

By 0.060
Wx 0.280
Wy 0.290

q

L

q

R

q

U

q

D

B

uni

Normal

qL,R=0

qU,D=0

Viewing

Angle

C/R≥10

4,000 5,000 -

400 450 - cd/m

0.640

TYP.

-0.03

75 89 ­75 89 ­75 89 ­75 89 -

- -

TYP.

+0.03

25

Degree

%

2

(1)

SR-3

(3)

RD-80S

(4)

SR-3

(5),(6)

SR-3

(5)

SR-3

(6)

EZ-

Contrast

(2)

SR-3

- Optical characteristics are based on VD standard module

- The measurement shall be executed 60 minutes after lighting at rating.

- Test Equipment Setup
The measurement should be executed in a stable, windless and dark room between

40min and 60min after lighting the back light at 25 ± 2°C for stabilization

of the back light. This should be measured in the center of screen.
Environment condition : Ta = 25 ± 2 °C

MODEL LSJ550HW01 Doc. No 07-000-G-111017 Page

6/23

Samsung Secret

C R

G

G

/

max

min



Photo detector Field

SR3

RD-80S

TFT - LCD Module

- Definition of test point
320 960 1600

1°

2°

Photo detector

Field

BM-5A : 50㎝
RD-80S : 50㎝
EZ-Contrast:0㎝

LCD Panel

The center of the screen

180

540

900

Note (1) Definition of Contrast Ratio (C/R)

: Ratio of gray max (Gmax) & gray min (Gmin) at the center point ⑤ of the panel

⑨

⑥

Gmax : Luminance with all pixels white

Gmin : Luminance with all pixels black

⑧

⑤ ④

②③

⑦

①

Active Area

Test Point

MODEL LSJ550HW01 Doc. No 07-000-G-111017 Page

7/23

Samsung Secret

Buni

B B

B

 



100

( max min)

max

Note (2) Definition of 9 points brightness uniformity (Test pattern : Full White)

Bmax : Maximum brightness
Bmin : Minimum brightness

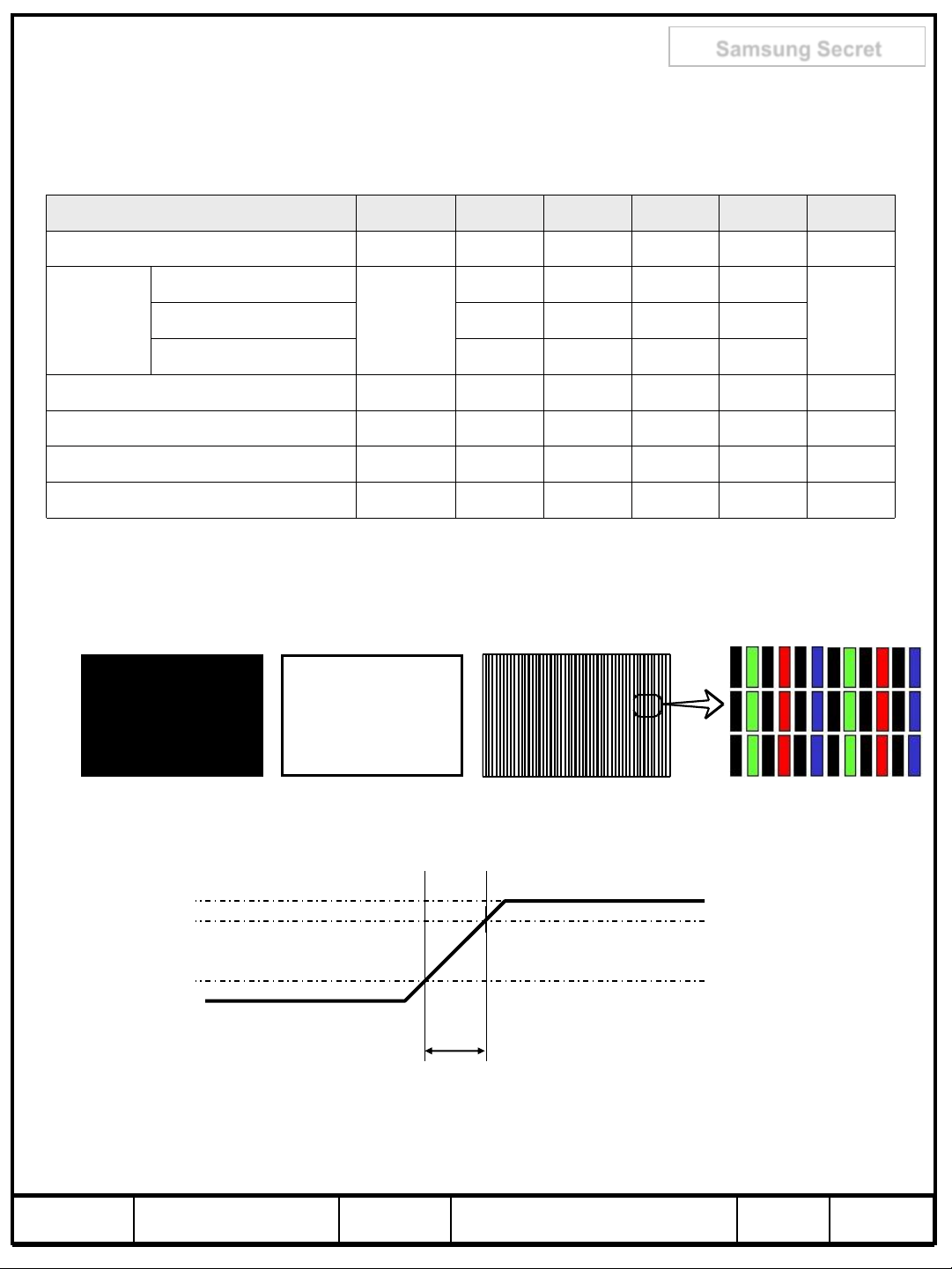

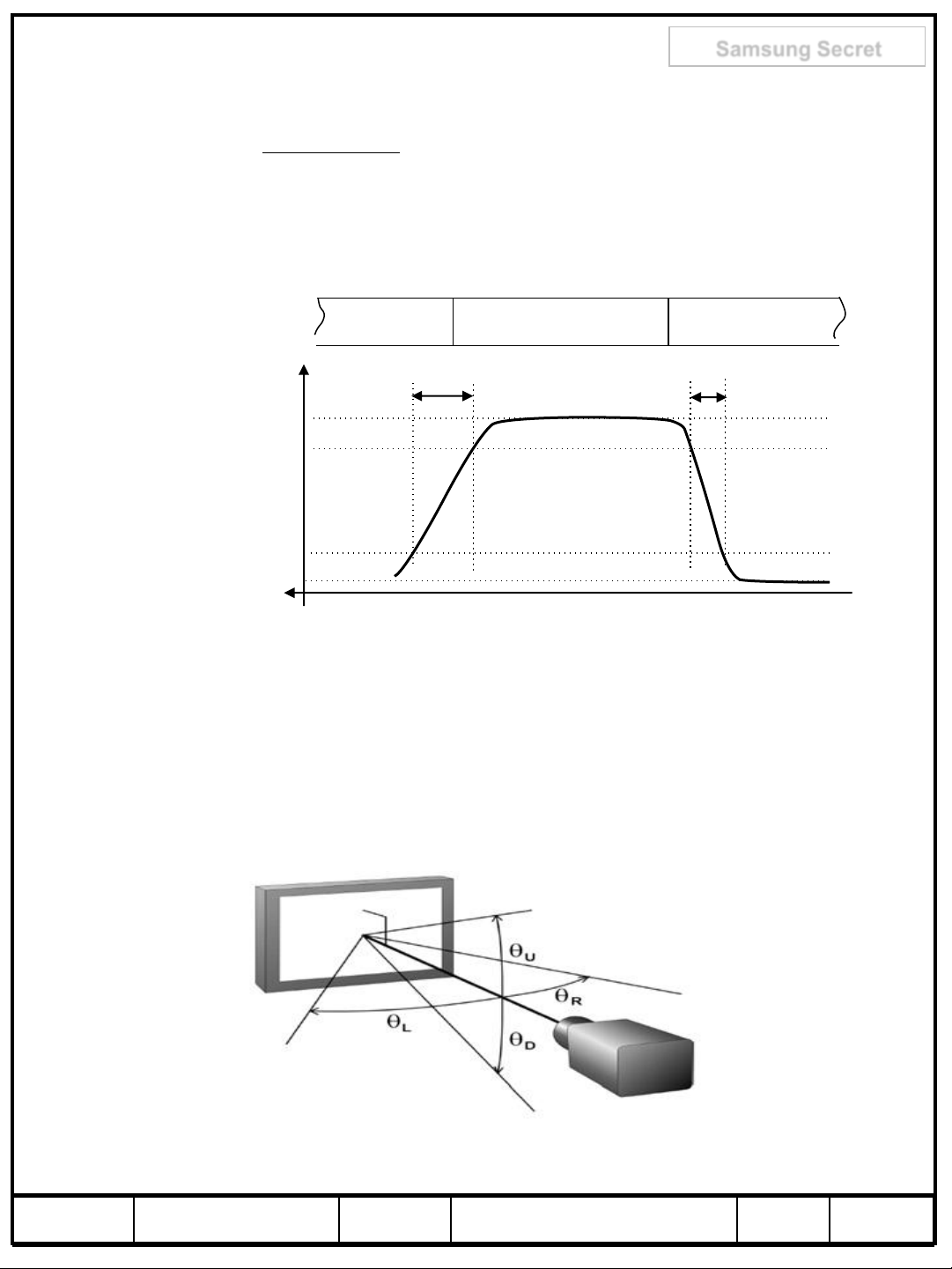

Note (3) Definition of Response time : Sum of Tr, Tf

Display data

Optical Instruments

Response

100%

Black (data off)

White (data on)

T

R

Black (data off)

T

F

90%

10%

0%

※ G-to-G : Average response time between Gray to Gray (Scale)

Note (4) Definition of Luminance of White : Luminance of white at center point ⑤
Note (5) Definition of Color Chromaticity (CIE 1931)

Color coordinate of Red, Green, Blue & White at center point ⑤

Note (6) Definition of Viewing Angle

: Viewing angle range (C/R ≥10)

TIME

MODEL LSJ550HW01 Doc. No 07-000-G-111017 Page

8/23

Samsung Secret

3. Electrical Characteristics

3.1 TFT LCD Module

The connector for display data & timing signal should be connected.

Ta = 25°C ± 2 °C

Item Symbol Min. Typ. Max. Unit Note
Voltage of Power Supply VDD 10.8 12.0 13.2 V (1)

Current
of Power

Supply

(a) Black

IDD

(c) N-pattern - 1,400 1,600 mA

- 650 830 mA
(2),(3)(b) White - 650 830 mA

Vsync Frequency fV - 120 - Hz
Hsync Frequency fH - 135 - kHz
Main Frequency Fdclk - 297 - MHz
Rush Current IRUSH - 4 6 A (4)

Note (1) The ripple voltage should be controlled under 10% of VDD.

(2) fV= 120 Hz, fDCLK = 297MHz, VDD= 12.0V, DC Current.
(3) Power dissipation check pattern (LCD Module only)

a) Black Pattern b) White Pattern c) N-pattern

(4) Measurement Conditions

V

100%

DD

90%

10%
GND

T

=470㎲

RUSH

Rush Current I

can be measured when T

RUSH

. is 470㎲.

RUSH

MODEL LSJ550HW01 Doc. No 07-000-G-111017 Page

9/23

4. Input Terminal Pin Assignment

Samsung Secret

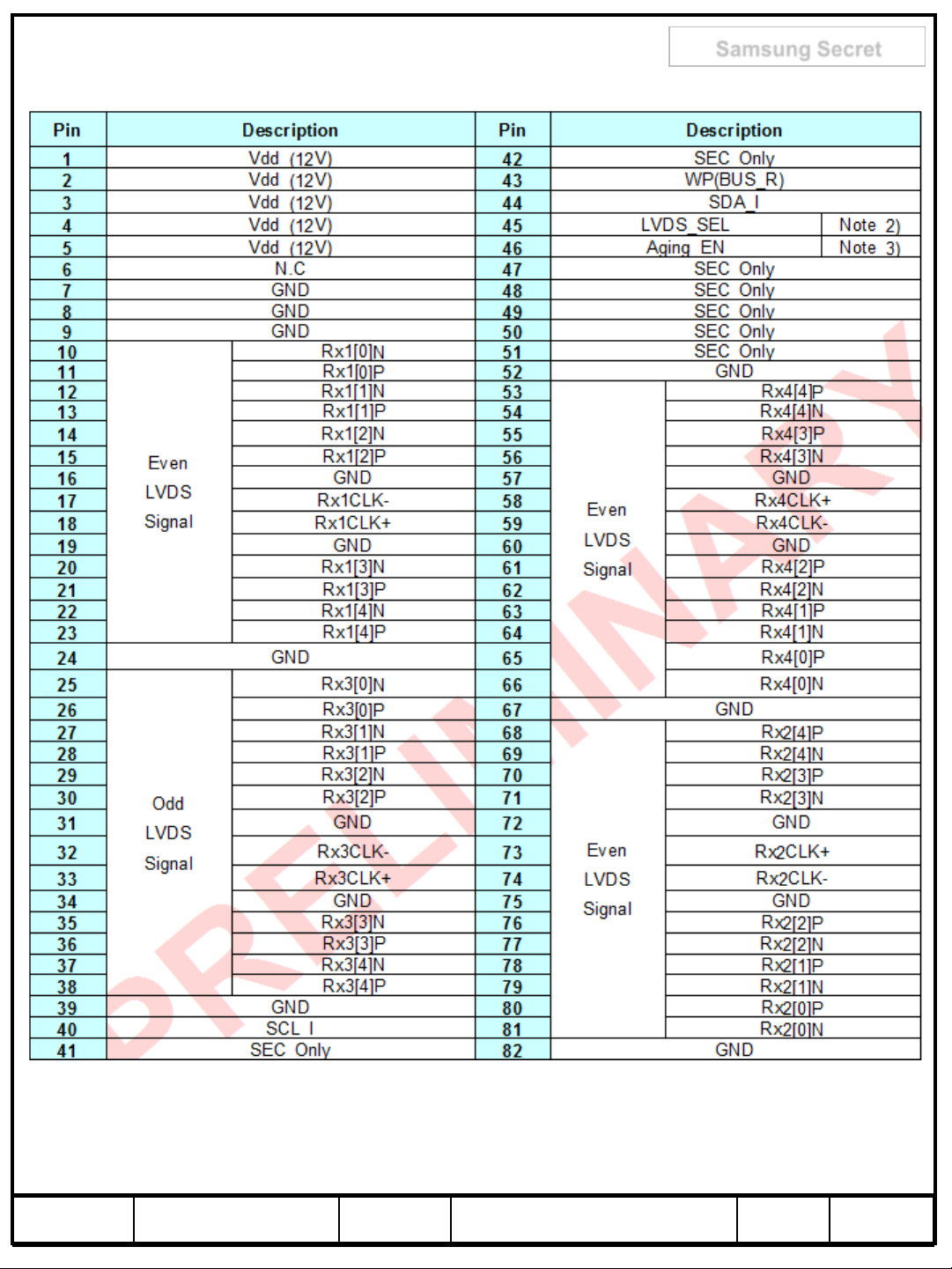

4.1. Input Signal & Power Connector : FP7S082HA1(JAE)

(NOTE1) SEC Only : THIS PINS ARE ONLY USED FOR SEC INTERNAL OPERATIONS.
(NOTE2) LVDS SELECTION OPTION : HIGH(3.3V) → Normal , LOW(GND) & Default → Jeida
(NOTE3) AGING EN : HIGH(3.3V) → AGING Pattern Enable , LOW(GND) & Default → AGING Pattern Disable

MODEL LSJ550HW01 Doc. No 07-000-G-111017 Page

10/23

Note(1) Pin number starts from Bottom side

Samsung Secret

a. Power GND pins should be connected to the LCD’s metal chassis.

b. All power input pins should be connected together.

c. All NC pin should be separated from other signal or power.

MODEL LSJ550HW01 Doc. No 07-000-G-111017 Page

11/23

5. Input Terminal Pin Assignment

5.1 LVDS Interface

- LVDS Receiver : Tcon (merged) - Data Format (JEIDA)

LVDS pin JEIDA
TxIN/RxOUT0 R4
TxIN/RxOUT1 R5
TxIN/RxOUT2 R6

TxOUT/RxIN0

TxOUT/RxIN1

TxOUT/RxIN2

TxOUT/RxIN3

TxIN/RxOUT3 R7
TxIN/RxOUT4 R8
TxIN/RxOUT6 R9
TxIN/RxOUT7 G4
TxIN/RxOUT8 G5
TxIN/RxOUT9 G6

TxIN/RxOUT12 G7
TxIN/RxOUT13 G8
TxIN/RxOUT14 G9
TxIN/RxOUT15 B4
TxIN/RxOUT18 B5
TxIN/RxOUT19 B6
TxIN/RxOUT20 B7
TxIN/RxOUT21 B8
TxIN/RxOUT22 B9
TxIN/RxOUT24 HSYNC
TxIN/RxOUT25 VSYNC
TxIN/RxOUT26 DEN
TxIN/RxOUT27 R2

TxIN/RxOUT5 R3

TxIN/RxOUT10 G2
TxIN/RxOUT11 G3
TxIN/RxOUT16 B2
TxIN/RxOUT17 B3
TxIN/RxOUT23 RESERVED
TxIN/RxOUT28 R0
TxIN/RxOUT29 R1

Samsung Secret

TxIN/RxOUT30 G0

TxOUT/RxIN4

TxIN/RxOUT31 G1
TxIN/RxOUT32 B0
TxIN/RxOUT33 B1
TxIN/RxOUT34 RESERVED

MODEL LSJ550HW01 Doc. No 07-000-G-111017 Page

12/23

Samsung Secret

5.2 Input Signals, Basic Display Colors and Gray Scale of Each Color

COLOR

BASIC

COLOR

GRAY

SCALE

OF

RED

DATA SIGNAL

DISPLAY

(8bit)

R0 R1 R2 R3 R4 R5 R6 R7 R8 R9 G0 G1 G2 G3 G4 G5 G6 G7 G8 G9 B0 B1 B2 B3 B4 B5 B6 B7 B8 B9

BLACK 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 -

BLUE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 -

GREEN 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 -

CYAN 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 -

RED 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 -

MAGENTA 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 -

YELLOW 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 -

WHITE 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 -

BLACK 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R0

1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R1

DARK

LIGHT

RED 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R1023

0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R2

↑

: : : : : : : : : : : : : : : : : : : : : : : : : : : : : :
: : : : : : : : : : : : : : : : : : : : : : : : : : : : : :

↓

1 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R1021
0 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R1022

RED GREEN BLUE

GRAY
SCALE
LEVEL

R1020

R3~

BLACK 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 G0

0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 G1

GRAY

DARK

SCALE

OF

GREEN

LIGHT

GREEN 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 G1023
BLACK 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 B0

DARK

GRAY

SCALE

OF

BLUE

LIGHT

BLUE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 B1023

0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 G2

↑

: : : : : : : : : : : : : : : : : : : : : : : : : : : : : :
: : : : : : : : : : : : : : : : : : : : : : : : : : : : : :

↓

0 0 0 0 0 0 0 0 0 0 1 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 G1021
0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 G1022

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 B1
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 B2

↑

: : : : : : : : : : : : : : : : : : : : : : : : : : : : : :
: : : : : : : : : : : : : : : : : : : : : : : : : : : : : :

↓

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 1 1 1 1 1 1 1 1 B1021
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 B1022

Note) Definition of Gray :

Rn : Red Gray, Gn : Green Gray, Bn : Blue Gray (n = Gray level)

Input Signal : 0 = Low level voltage, 1 = High level voltage

G3~

G1020

B3~

B1020

MODEL LSJ550HW01 Doc. No 07-000-G-111017 Page

13/23

6. Interface Timing

Samsung Secret

6.1 Timing Parameters

SIGNAL ITEM SYMBOL MIN. TYP. MAX. Unit NOTE

Clock

Frequency

Vsync F

1/T

C

V

260 297 305 MHz -

95 120 125 Hz -

Active

Vertical

Display

Period

T

VD

- 1080 - Lines -

Display Term

Vertical

Total

T

V

1092 1125 1350 Lines -

Active

Horizontal

Display

Period

T

HD

- 1920 - Clocks -

Display Term

Horizontal

Total

T

H

2092 2120 2348 clocks -

Note) This product is DE only mode. The input of Hsync & Vsync signal does

not have an effect on normal operation.
(1) Test Point : TTL control signal and CLK at LVDS Tx input terminal in system
(2) Internal VDD = 3.3V
(3) Spread spectrum

MODEL LSJ550HW01 Doc. No 07-000-G-111017 Page

14/23

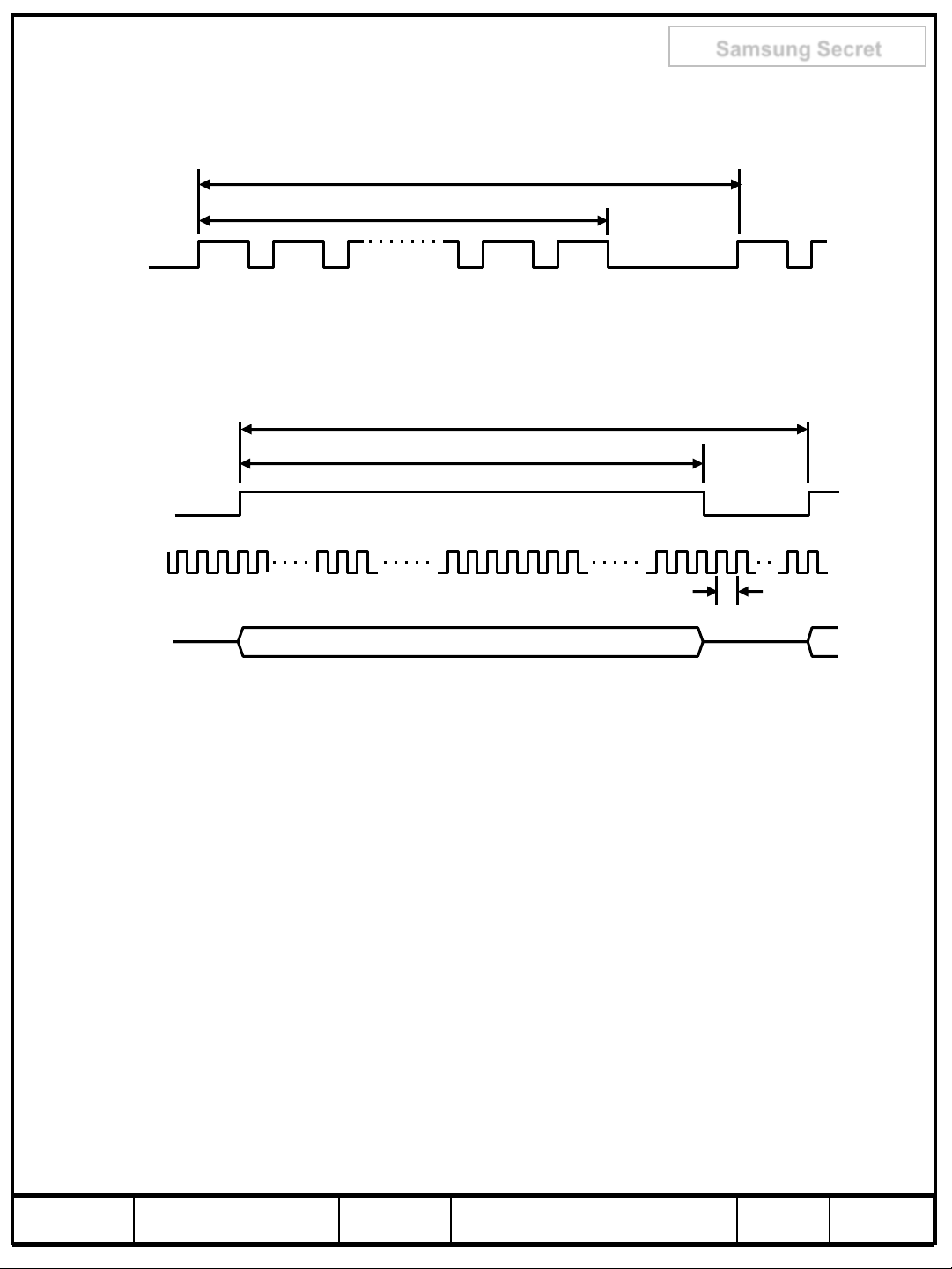

6.2 Timing diagrams of interface signal ( DE only mode )

TV

DE

Samsung Secret

DE

DCLK

DATA

SIGNALS

TVD

TH

THD

TC

MODEL LSJ550HW01 Doc. No 07-000-G-111017 Page

15/23

Samsung Secret

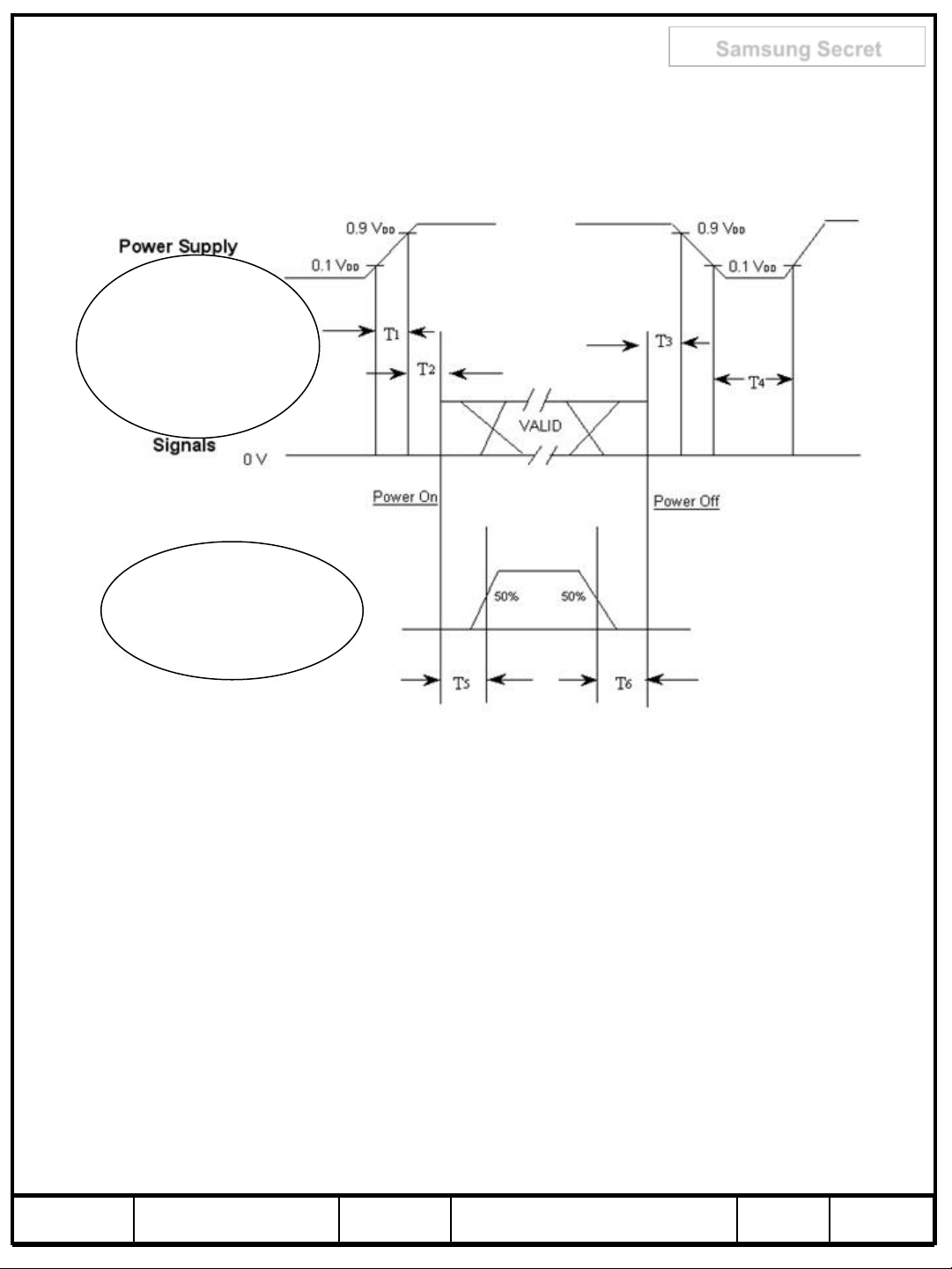

6.3 Power ON/OFF Sequence

To prevent a latch-up or DC operation of the LCD Module, the power on/off

sequence should be as the diagram below.

0.5<T1≤10ms

1<T2≤50ms

0<T3≤50ms

1000ms≤T4

1000ms≤T5

100ms≤T6

T1 : VDDrising time from 10% to 90%
T2 : The time from VDDto valid data at power ON.
T3 : The time from valid data off to VDDoff at power Off.
T4 : VDDoff time for Windows restart
T5 : The time from valid data to B/L enable at power ON.
T6 : The time from valid data off to B/L disable at power Off.

 The supply voltage of the external system for the Module input should be the same

as the definition of VDD.

 Apply the lamp voltage within the LCD operation range. When the back light turns on

before the LCD operation or the LCD turns off before the back light turns off,
the display may momentarily show abnormal screen.

 In case of VDD= off level,

please keep the level of input signals low or keep a high impedance.

 T4 should be measured after the Module has been fully discharged between power off

and on period.

 Interface signal should not be kept at high impedance when the power is on.

MODEL LSJ550HW01 Doc. No 07-000-G-111017 Page

16/23

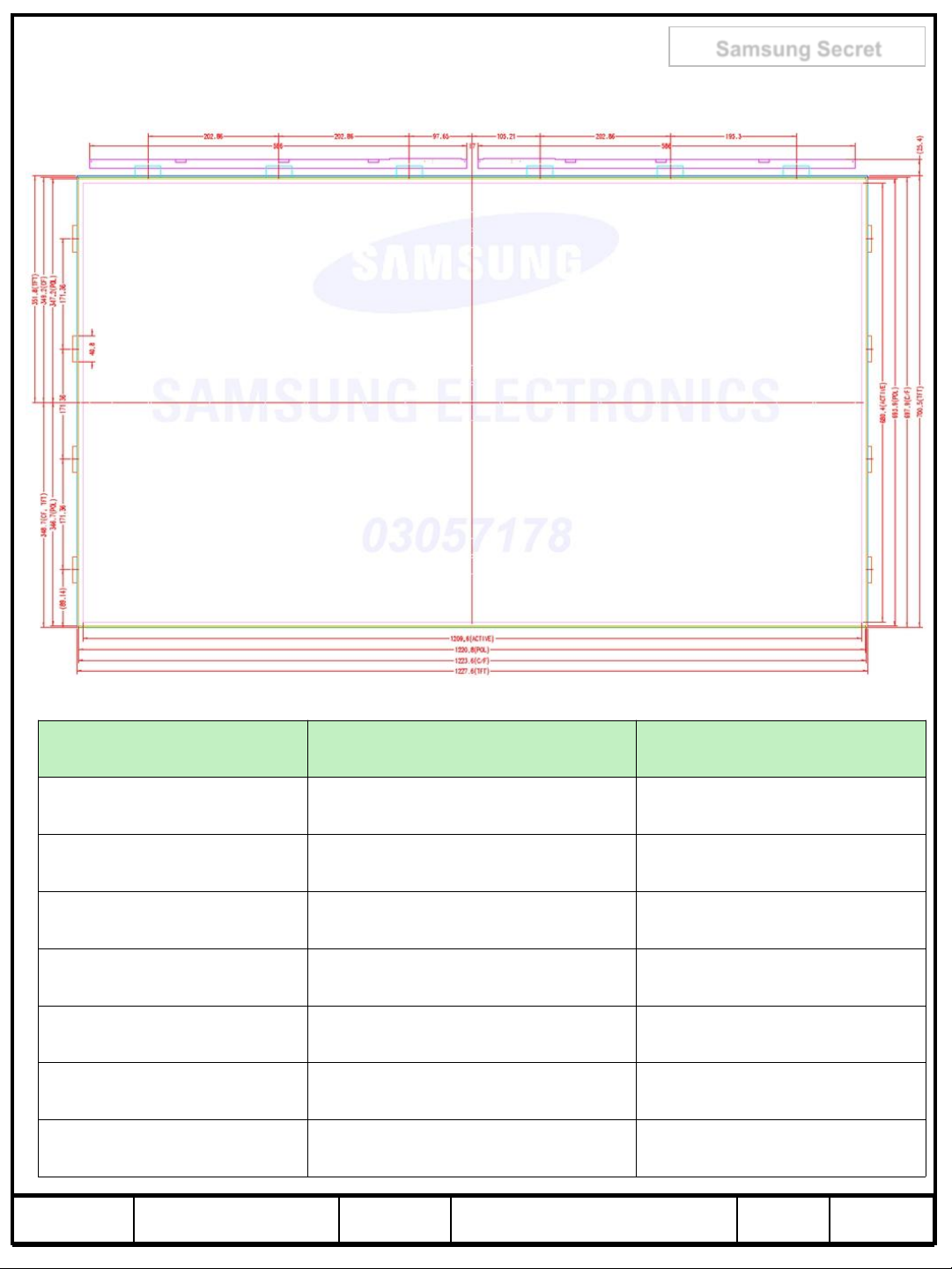

7. Outline Dimension

구 분

Size

공차

TFT Glass Size (H X V)

1227.6 X 700.5 mm

H : ± 0.2mm, V : ± 0.2mm

C/F Glass Size (H X V)

1227.6 X 697.6 mm

H : ± 0.2mm, V : ± 0.2mm

Active Size

1209.6 X 680.4 mm

C/F Pol (H X V)

1220.8 X 693.9 mm

H : ± 0.6mm, V : ± 0.5mm

TFT Pol (H X V)

1220.8 X 693.9 mm

H : ± 0.6mm, V : ± 0.5mm

Panel Depth

1.76 mm

± 0.15mm

Panel Weight

3.4 Kg

± 0.1 Kg

Samsung Secret

MODEL LSJ550HW01 Doc. No 07-000-G-111017 Page

17/23

Samsung Secret

8. PACKING

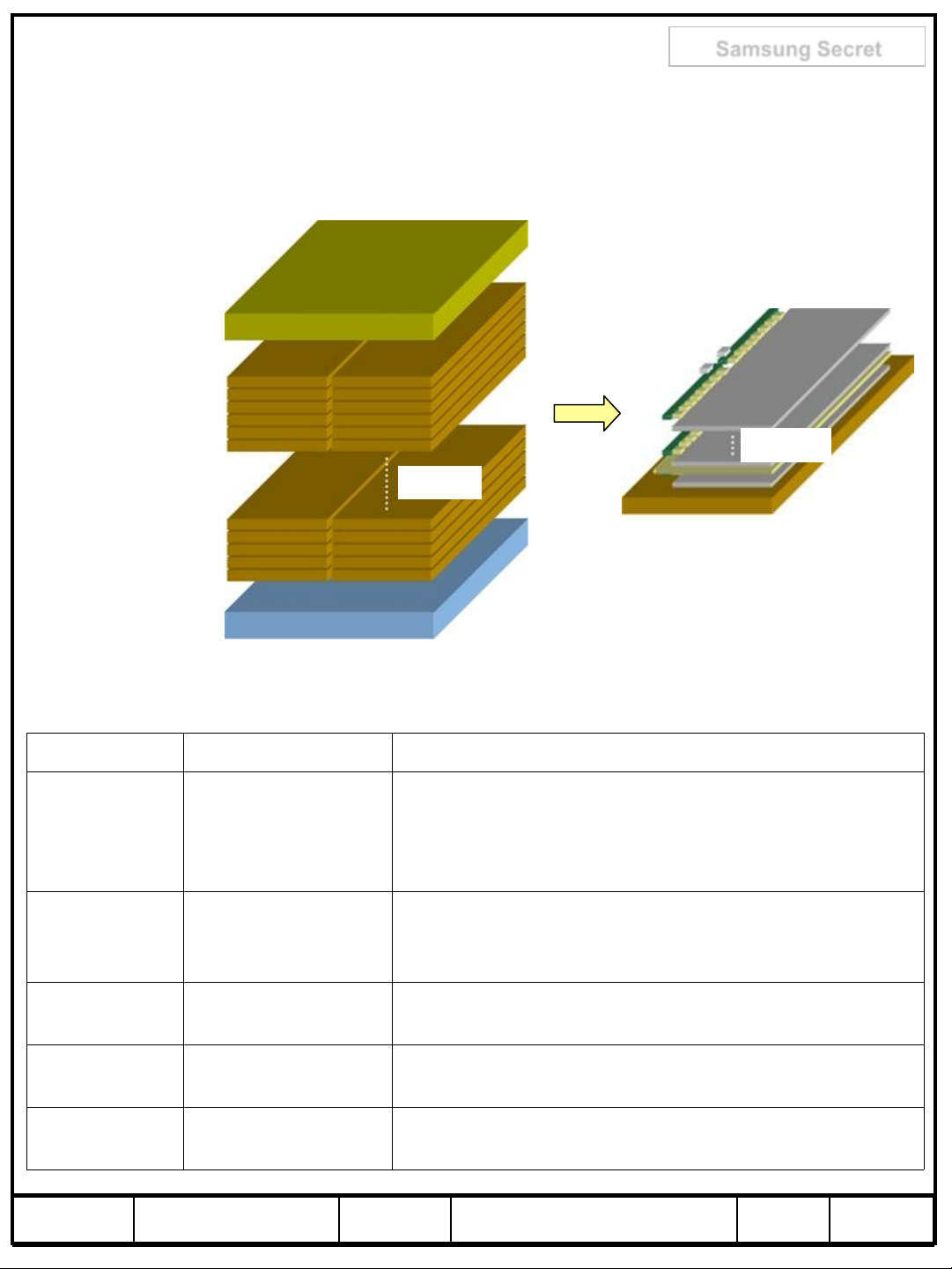

9.1 CARTON (Internal Package)

(1) Packing Form Corrugated fiberboard box and corrugated cardboard as shock absorber
(2) Packing Method

Packing- Upper Box

Pallet Tray

10EA

Pallet-Plastic

8.2 Packing Specification

ITEM Specification Remark

1. 3.43 Kg / LCD (15[ea]/Tray, 150[ea]/Pallet)

LCD Packing 150ea / Box

Pallet-Plastic

1Box / Pallet

(W1475,L1150,H125)

2. 9.54 Kg / Middle sheet (18[ea]/Tray, 180[ea]/Pallet)

3. 548.7 Kg / Panel tray (10ea/Pallet)

4. 1.8 Kg / Packing Box (1ea)

1. Pallet weight = 21 kg

2. 21 Kg / Pallet

15EA

Packing

Direction

Pallet size H x V x height 1,360mm(H) x 940mm(V) x 1250mm(height)

Pallet weight 598.11 kg

Vertical

Pallet(21kg) + Panel tray(51.27kg) + Panel(514.5kg)
+ Middle sheet(9.54Kg) + Packing Box (1.8kg)

MODEL LSJ550HW01 Doc. No 07-000-G-111017 Page

18/23

Samsung Secret

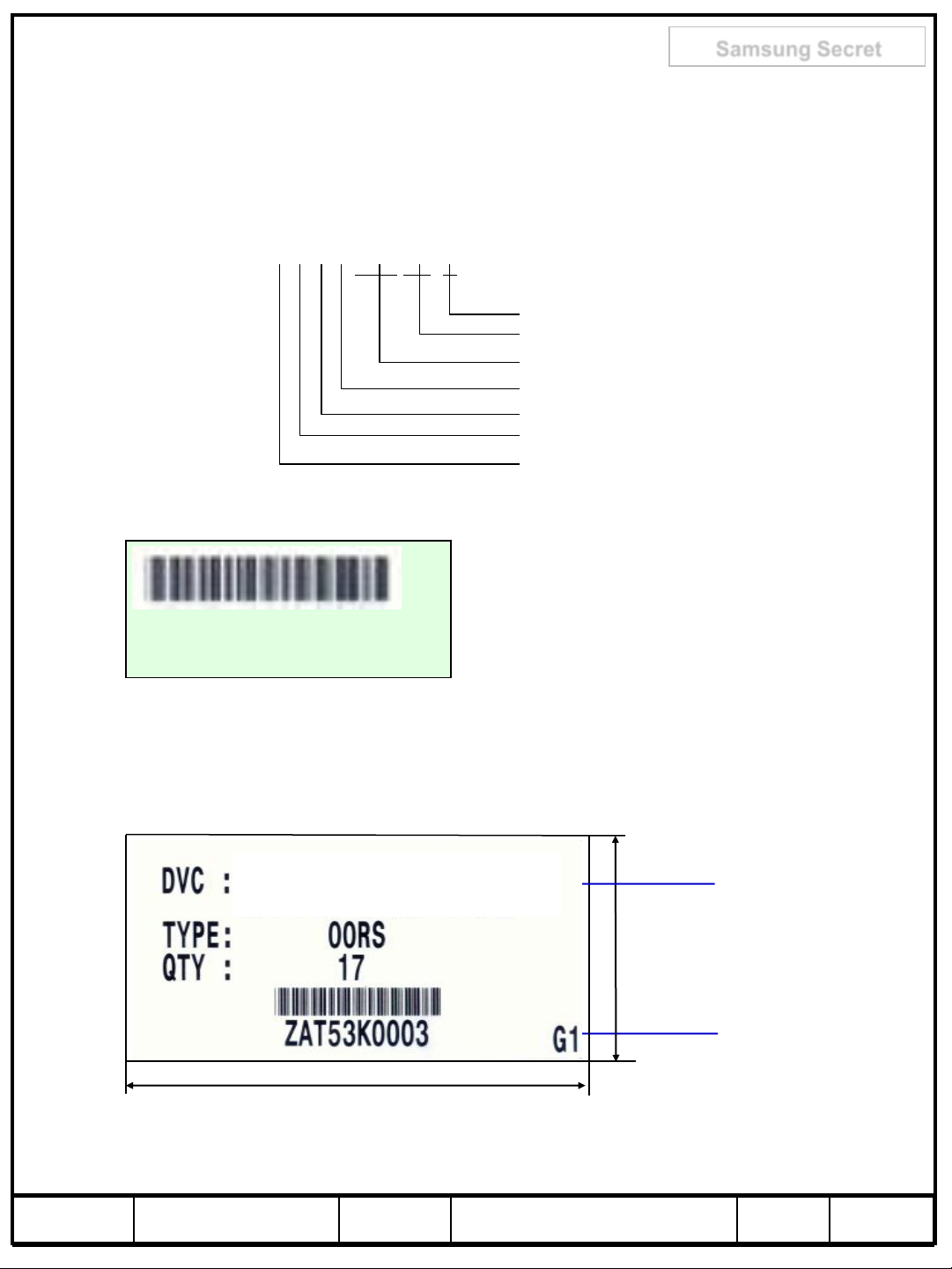

9. MARKING & OTHERS

A nameplate bearing followed by is affixed to a shipped product at the specified
location on each product.

(1) Part number : LSJ550HW01-V0X
(2) Revision: One letter
(3) Control: One letter
(4) Lot number : X X X X XXX XX X

Cell Position No. (In the Glass)
Glass No. (In the one Lot)
Lot No. (Glass)
Month
Year (Note1)
Product code
Line

(4) Control PBA

X X X X X X X X X X X X
X X X X X X

(5) Packing box attach

100mm

LSJ550HW01

165mm

(6) Others

1. After service part
Lamps cannot be replaced because of the narrow bezel structure.

Part number

Box serial number

MODEL LSJ550HW01 Doc. No 07-000-G-111017 Page

19/23

10. General Precautions

Samsung Secret

10.1 Handling

(a) When the Module is assembled, it should be attached to the system firmly

using all mounting holes. Be careful not to twist and bend the Module.

(b) Because the inverter use high voltage, it should be disconnected from power

before it is assembled or disassembled.

(c) Refrain from strong mechanical shock and / or any force to the Module.

In addition to damage, this may cause improper operation or damage to the Module

and CCFL back light.

(d) Note that polarizers are very fragile and could be damage easily.

Do not press or scratch the surface harder than a HB pencil lead.

(e) Wipe off water droplets or oil immediately. If you leave the droplets for a long

time, staining or discoloration may occur.
(f) If the surface of the polarizer is dirty, clean it using absorbent cotton or soft cloth.
(g) Desirable cleaners are water, IPA(Isopropyl Alcohol) or Hexane.

Do not use Ketone type materials(ex. Acetone), Ethyl alcohol, Toluene, Ethyl acid

or Methyl chloride. It might permanent damage to the polarizer due to chemical

reaction.
(h) If the liquid crystal material leaks from the panel, it should be kept away

from the eyes or mouth . In case of contact with hands, legs or clothes, it must

be washed away with soap thoroughly.
(i) Protect the module from Electrostatic discharge. Otherwise the ASIC IC or

Semiconductor would be damaged.

(j) Use finger-stalls with soft gloves in order to keep display clean during the

incoming inspection and assembly process.

(k) Do not disassemble the Module.
(l) Do not disassemble shield case of inverter & LVDS board.
(m) Do not connect N.C pins. (Samsung internal use only)
(n) Protection film for polarizer on the Module should be slowly peeled off just before use

so that the electrostatic charge can be minimized. Must put on antistatic glove while

handle a module
(o) Pins of I/F connector should not be touched directly with bare hands.

MODEL LSJ550HW01 Doc. No 07-000-G-111017 Page

20/23

* Process Control Standard

Item Management standard value and performance standard

1 Anti-static mat (shelf) 1 to 50 [Mohm]

Samsung Secret

2

3 Ionizer

4 Anti-static wrist band 0.8 to 10 [Mohm]

5

6 Temperature
7 Humidity 60 to 70 [%RH]

Anti-static mat (floor,

desk)

Anti-static wrist band entry

and ground resistance

1 to 100 [Mohm]

Attenuate from ± 1,000V to ± 100V within 2 sec

Below 1,000 [ohm]

0 ∼ 35℃

MODEL LSJ550HW01 Doc. No 07-000-G-111017 Page

21/23

10.2 Storage

We highly recommend to comply with the criteria in the table below.

Item Unit Min. Max.

Samsung Secret

Storage

Temperature

(℃)

10 40

Storage Humidity (%rH) 35 75

Storage Life 12 Months

- The storage room should provide good ventilation and temperature

control.

- Products should not be placed on the floor, but on the Pallet away

from

a wall.

- Prevent products from direct sunlight, moisture nor water; Be

cautious of

Storage

Condition

a build up of condensation.

- Avoid other hazardous environment while storing goods.

- If products delivered or kept in conditions of over the storage period

of 3

months, the recommended temperature or humidity range,
we recommend you leave them at a temperature of 20℃ and a

humidity

of 50% for 24 hours.

10.3 Operation

(a) Do not connect or disconnect the Module in the "Power On" condition.

(b) Power supply should always be turned on/off by the "Power on/off sequence"

(c) Module has high frequency circuits. Sufficient suppression to the electromagnetic

interference should be done by system manufacturers. Grounding and shielding methods
may be important to minimize the interference.

(d) The cable between the back light connector and its converter power supply should

be connected directly with a minimized length. A longer cable between the back light
and the converter may cause lower luminance of LED and may require higher startup
voltage(Vs).

MODEL LSJ550HW01 Doc. No 07-000-G-111017 Page

22/23

10.4 Operation Condition Guide

Samsung Secret

(a) The LCD product should be operated under normal conditions.

Normal condition is defined as below;

- Temperature : 20±15℃

- Humidity : 55±20%

- Display pattern : continually changing pattern (Not stationary)

(b) If the product will be used in extreme conditions such as high temperature,

humidity, display patterns or operation time etc.., It is strongly recommended
to contact SEC for Application engineering advice. Otherwise, its reliability and
function may not be guaranteed. Extreme conditions are commonly found at

Airports, Transit Stations, Banks, Stock market, and Controlling systems.

10.5 Others

(a) Ultra-violet ray filter is necessary for outdoor operation.

(b) Avoid condensation of water. It may result in improper operation or disconnection

of electrode.

(c) Do not exceed the absolute maximum rating value. ( supply voltage variation,

input voltage variation, variation in part contents and environmental temperature,
and so on)
Otherwise the Module may be damaged.

(d) If the Module keeps displaying the same pattern for a long period of time,

the image may be "sticked" to the screen.

To avoid image sticking, it is recommended to use a screen saver.

(e) This Module has its circuitry PCB's on the rear side and should be handled

carefully in order not to be stressed.

(f) Please contact SEC in advance when you display the same pattern for a long time.

MODEL LSJ550HW01 Doc. No 07-000-G-111017 Page

23/23
