SAMSUNG LSJ460HW05 Specification
SAMSUNG TFT-LCD
MODEL :
Samsung Secret
Product Information
DATE : 15. Feb. 2012
The Information Described in this Specification is Preliminary and can be changed without
prior notice
LCD Business
Samsung Electronics Co . , LTD.
MODEL LSJ460HW05 Doc. No 07-000- G-20120215 Page
1/24
Contents
Samsung Secret
Revision History -------------------------------------------------------------------------------------------- (3)
General Description --------------------------------------------------------------------------------------- (4)
General Information --------------------------------------------------------------------------------------- (4)
1. Absolute Maximum Ratings -------------------------------------------------------------------------- (5)
2. Optical Characteristics --------------------------------------------------------------------------------- (6)
3. Electrical Characteristics ------------------------------------------------------------------------------ (9)
3.1 TFT LCD Module

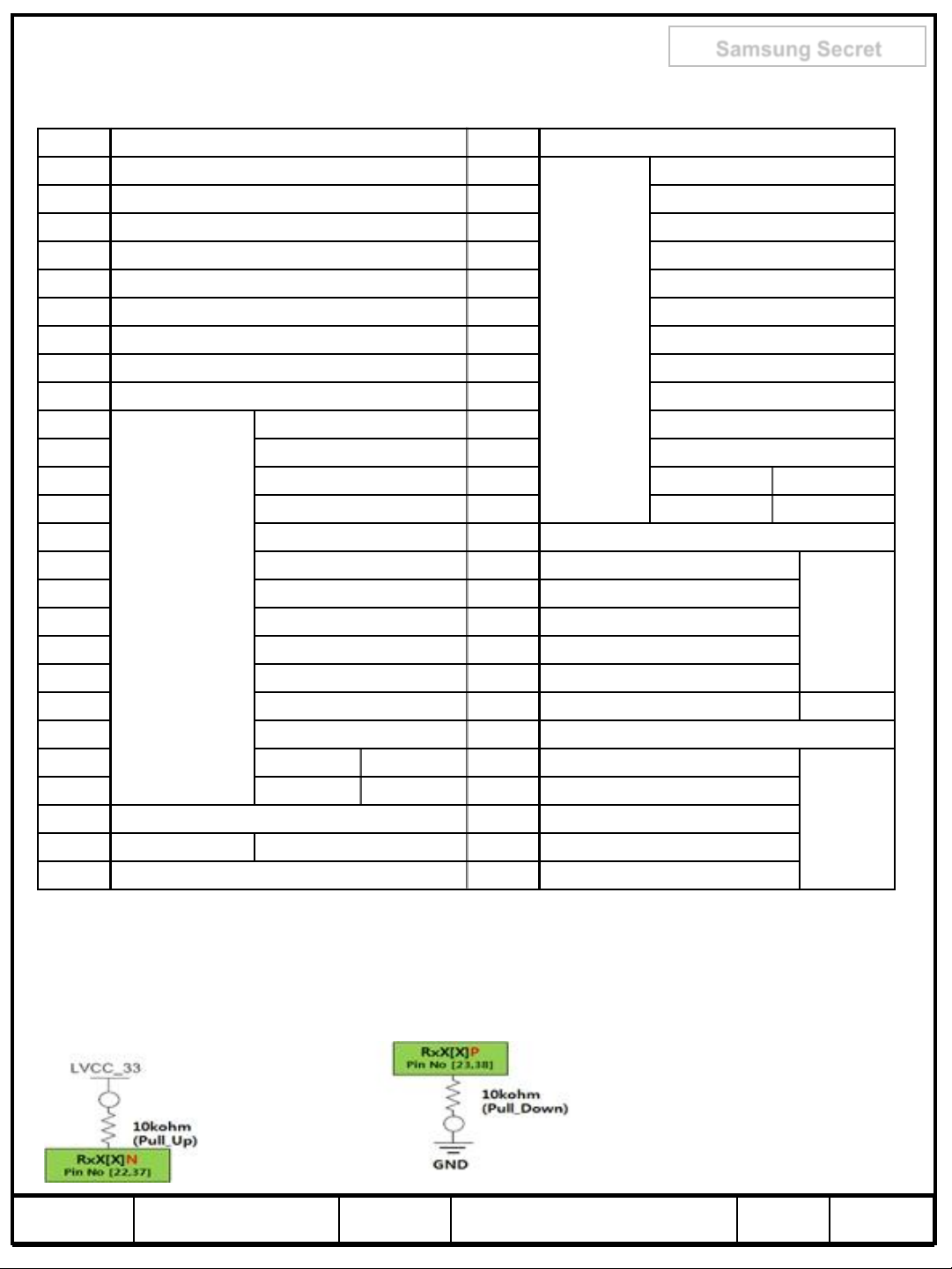

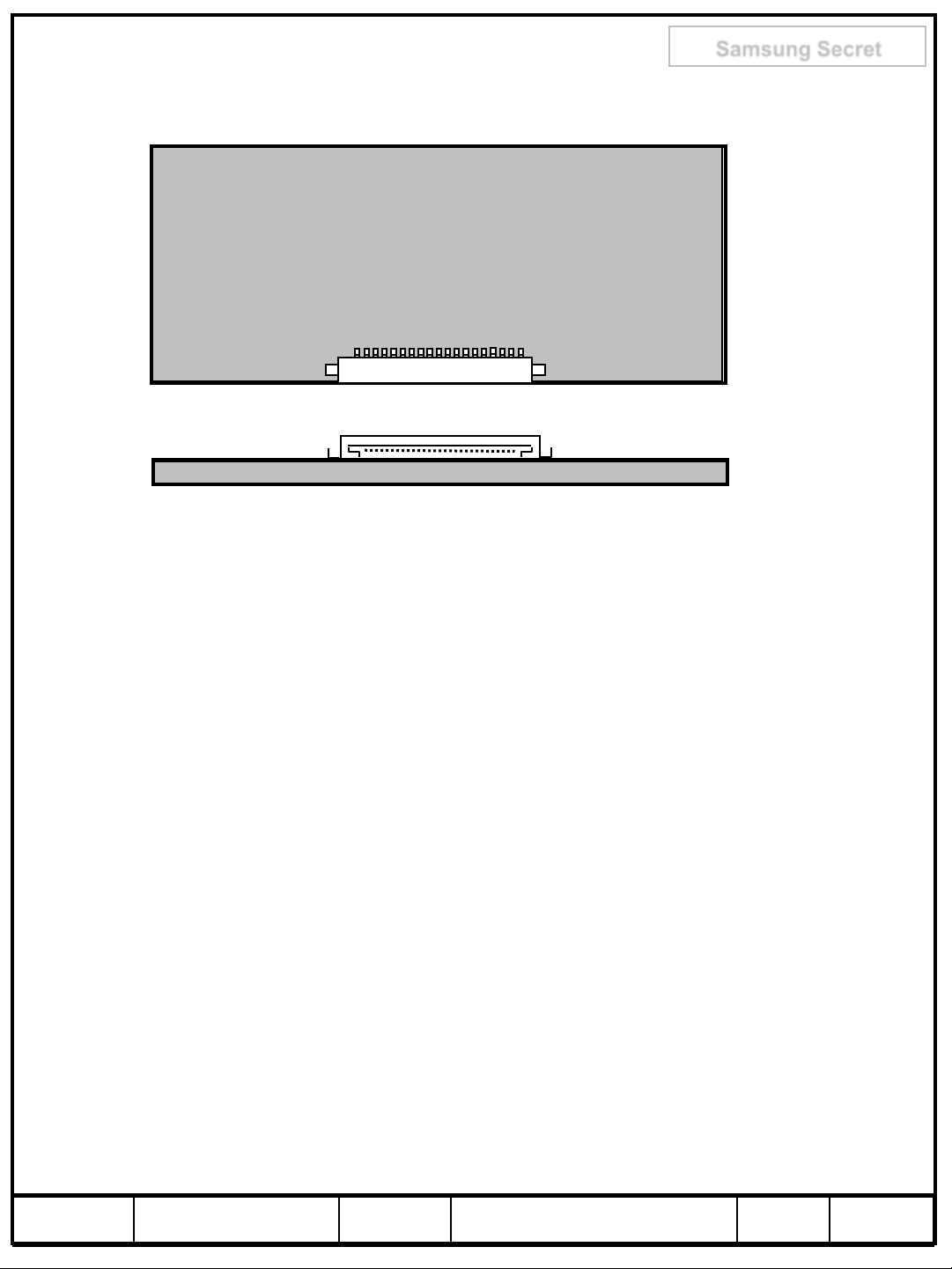

4. Input Terminal Pin Assignment --------------------------------------------------------------------- (11)
4.1. Input Signal & Power
4.2 LVDS Interface
4.3 Input Signals, Basic Display Colors and Gray Scale of Each Color
5. Interface Timing ---------------------------------------------------------------------------------------- (14)
5.1 Timing Parameters

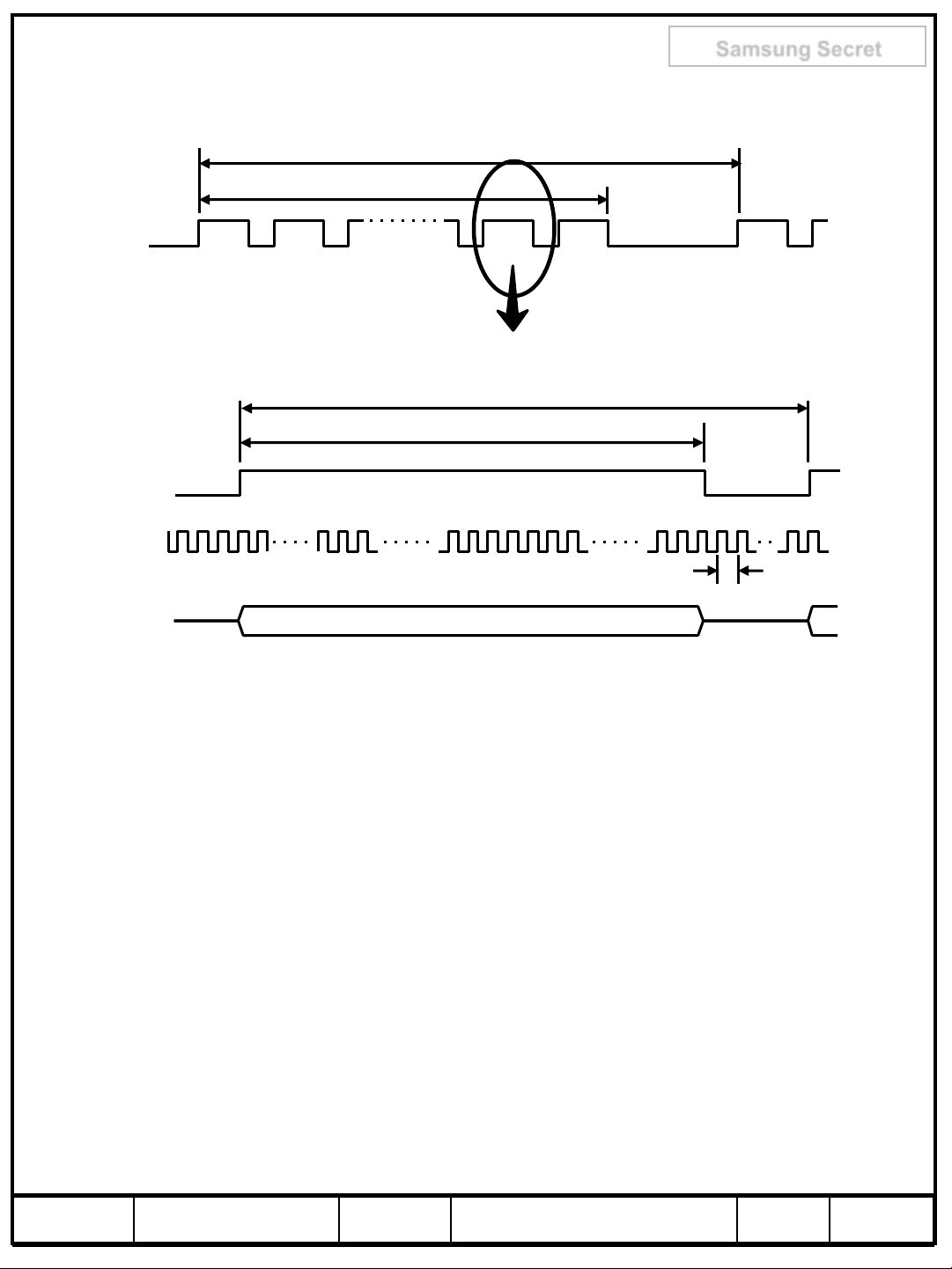

5.2 Timing Diagrams of interface Signal

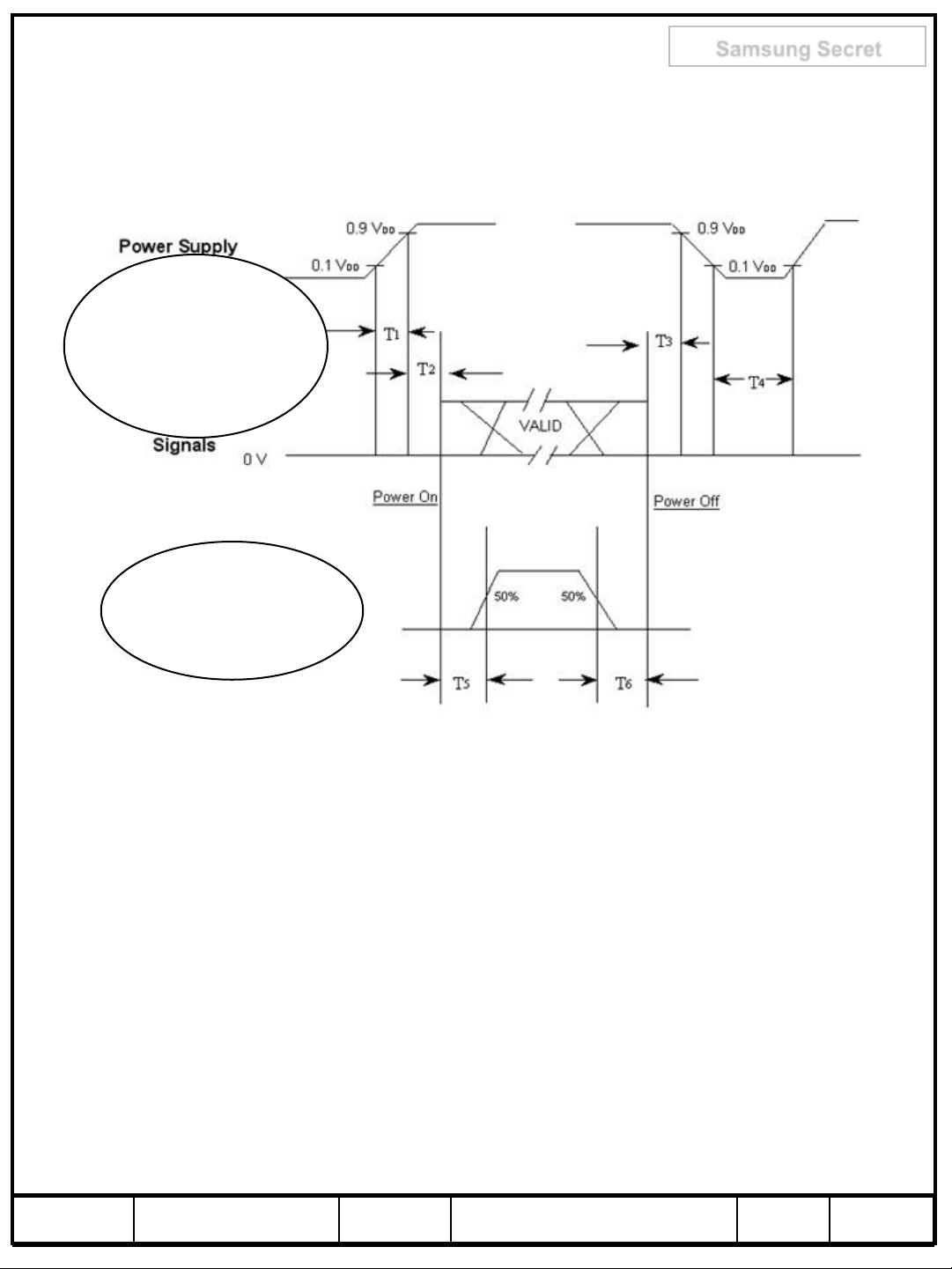

5.3 Power ON/OFF Sequence
6. Outline Dimension -------------------------------------------------------------------------------------- (17)

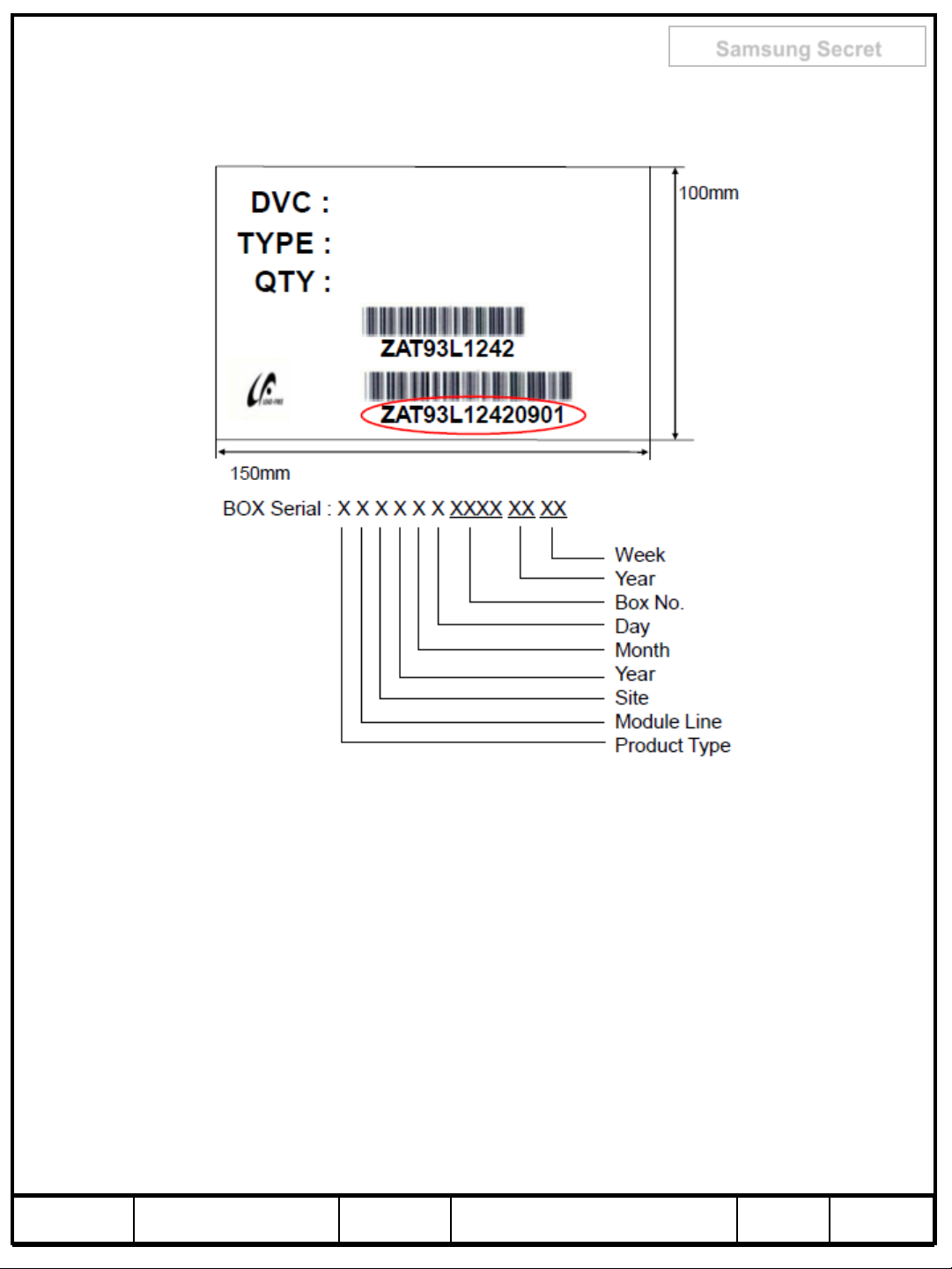

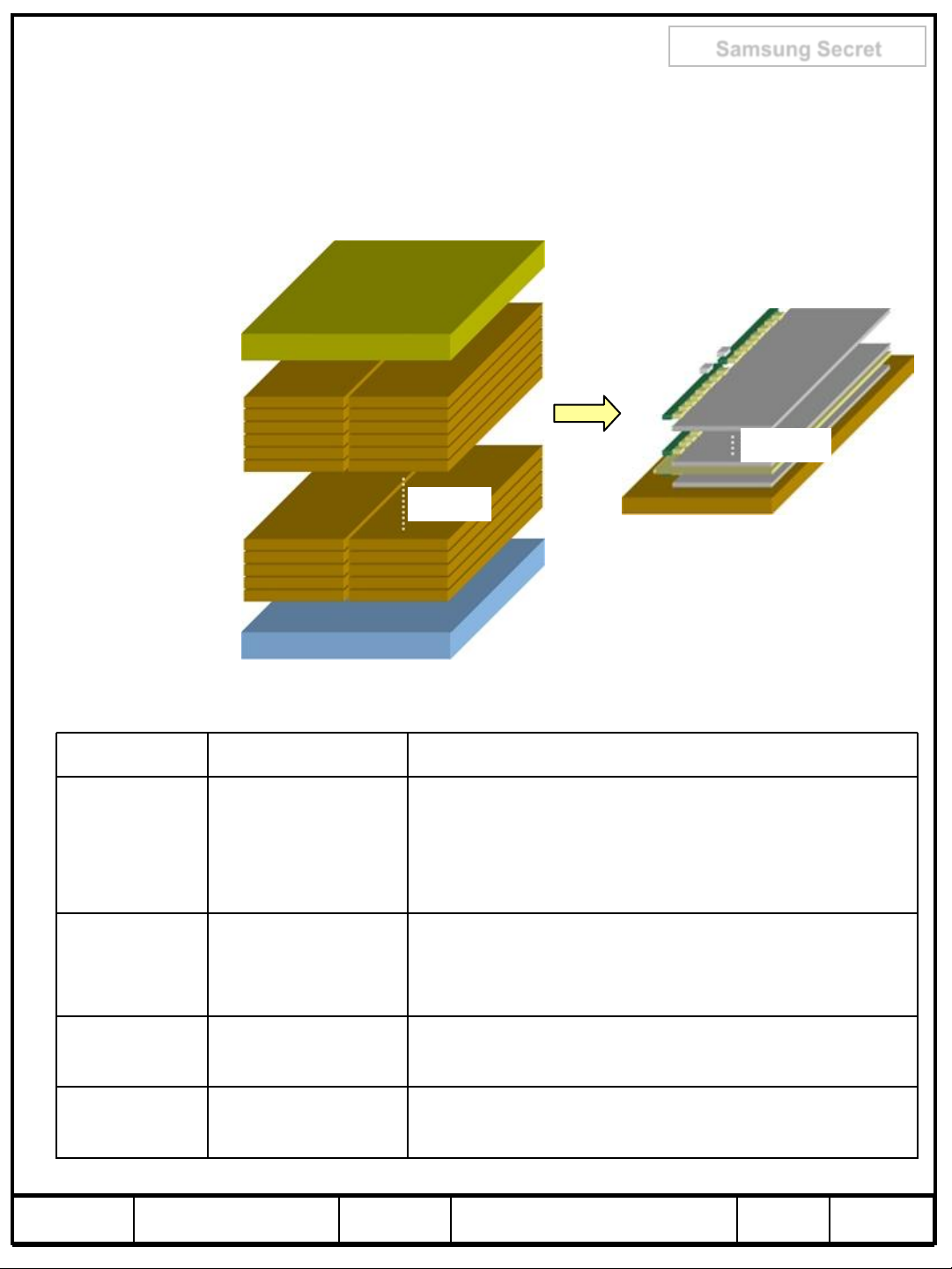

7. Packing --------------------------------------------------------------------------------------------------- (18)
7.1 CARTON(Internal Package)
7.2 Packing Specification

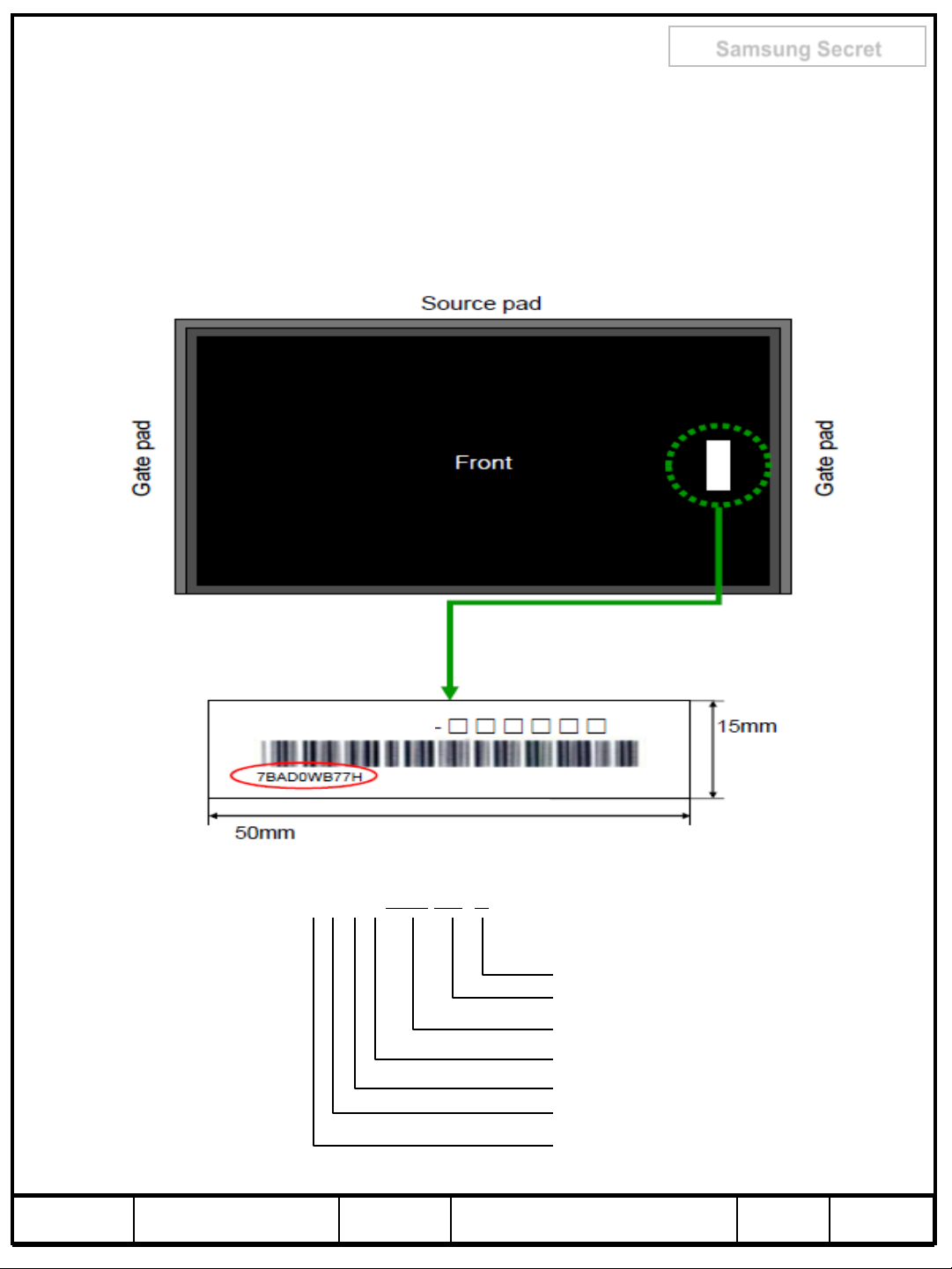

8. Marking & Others ------------------------------------------------------------------------------------- (20)
9. General Precaution ----------------------------------------------------------------------------------- (21)
9.1 Handling
9.2 Storage
9.3 Operation
9.4 Operation Condition Guide
9.5 Others
MODEL LSJ460HW05 Doc. No 07-000- G-20120215 Page
2/24
Revision History
Date Rev. No Page Summary
Samsung Secret
15.Feb.2012
000 all First issued
MODEL LSJ460HW05 Doc. No 07-000- G-20120215 Page
3/24
General Description
Samsung Secret
Description
LSJ460HW05 is a color active matrix liquid crystal display (LCD) that uses amorphous
silicon TFT( Thin Film Transistor) as switching components. This model is composed of a
TFT LCD panel, a driver circuit. The resolution of a 46“ is 1920 x 1080 and this model can
display up to 16.7 million colors with wide viewing angle of 89° or higher in all directions.
This panel is intended to support applications to provide a excellent performance for Flat
Panel Display such as Home-alone Multimedia TFT-LCD TV and High Definition TV.
Features
High contrast & aperture ratio with wide color gamut
SVA (Super Vertical Align) mode
Wide viewing angle (±178°)
High speed response
FHD resolution (16:9)
4Ch LVDS (Low Voltage Differential Signaling) interface
2D / 3D function compatible
General Information
Items Specification Unit Note
1036.08(H) x 591.41(V)
Panel Size
1.76(D)
Weight 2(Typ) kg
Pixel Pitch 0.17675(H) X 0.53025(V) mm
Active Display Area 1018.08(H) X 572.67(V) mm
Surface Treatment Haze 2%, Hard-coating (2H)
Display Colors 16.7M (8Bits Dithering) colors
Number of Pixels 1920 x 1080 pixel
Pixel Arrangement RGB vertical stripe
Display Mode Normally Black
±1.0mm
mm
Max
MODEL LSJ460HW05 Doc. No 07-000- G-20120215 Page
4/24
Samsung Secret
1. Absolute Maximum Ratings
If the condition exceeds maximum ratings, it can cause malfunction or unrecoverable
damage to the device.
(VSS = 0 V)
Item Symbol Min. Max. Unit Note
Power Supply Voltage V
Storage temperature T
DD
STG
10.8 13.2 V (1)
0 40
Glass surface
temperature
Center T
OPR
0 50
(Operation)
Note (1) Ta= 25 ± 2 °C
(2) Temperature and relative humidity range are shown in the figure below.
a. 90 % RH Max. (Ta ≤ 39 °C)
b. Relative Humidity is 90% or less. (Ta > 39 °C)
c. No condensation
℃
℃
(2)
(2)
MODEL LSJ460HW05 Doc. No 07-000- G-20120215 Page
5/24
2. Optical Characteristics
The optical characteristics should be measured in a dark room or equivalent.
Measuring equipment : D65,RD-80S,EZ-Contrast
(Ta = 25 ± 2°C, VDD=12V)
Item Symbol Condition Min. Typ. Max. Unit Note
Samsung Secret
Contrast Ratio
(Center of screen)
Response
Time
Color
Chromaticity
(CIE 1931)
sRGB Concordance - - 98.5 - %
Color Temperature - - 10,000 - K
Viewing
Angle
G-to-G Tg - 8 15 msec
Red
Green
Blue
White
Hor.
Ver.
C/R
Rx
Ry 0.330
Gx 0.300
Gy 0.600
Bx 0.150
By 0.060
Wx 0.280
Wy 0.290
q
L
q
R
q
U
q
D
Normal
qL,R=0
qU,D=0
Viewing
Angle
C/R≥10
3,000 5,000 -
0.640
TYP.
-0.03
75 89 75 89 75 89 75 89 -
TYP.
+0.03
Degree
(1)
D65
(3)
RD-80S
(5),(6)
D65
(5)
D65
(6)
EZ-
Contrast
Notice
(a) Test Equipment Setup
The measurement should be executed in a stable, windless and dark room between
40min and 60min after operating the Panel at the given temperature for stabilization
of the standard light(SEC use standard illuminant D65 Media).
This should be measured in the center of screen. Environment condition : Ta = 25 ± 2 °C
(b) D65 Media means general available light source.
Color Temperature is 6504K , a color coordinate is Wx0.2948, Wy0.322,
Luminance is 3389cd/㎡
MODEL LSJ460HW05 Doc. No 07-000- G-20120215 Page
6/24
Samsung Secret
C R
G
G
/
max
min
Photo detector Field
SR3
RD-80S
TFT - LCD Module
- Definition of test point
320 960 1600
1°
2°
Photo detector
Field
BM-5A : 50㎝
RD-80S : 50㎝
EZ-Contrast:0㎝
LCD Panel
The center of the screen
180
540
900
Note (1) Definition of Contrast Ratio (C/R)
: Ratio of gray max (Gmax) & gray min (Gmin) at the center point ⑤ of the panel
: The measurement goes in D65 Standard Light Source
⑨
⑥
Gmax : Luminance with all pixels white
Gmin : Luminance with all pixels black
⑧
⑤ ④
②③
⑦
①
Active Area
Test Point
MODEL LSJ460HW05 Doc. No 07-000- G-20120215 Page
7/24
Samsung Secret
Tuni
T T
T
( max min)
max
100
Note (2) Definition of 9 points Transmittance uniformity (Test pattern : Full White)
The measurement goes in D65 Standard Light Source
Tmax : Maximum Transmittance
Tmin : Minimum Transmittance

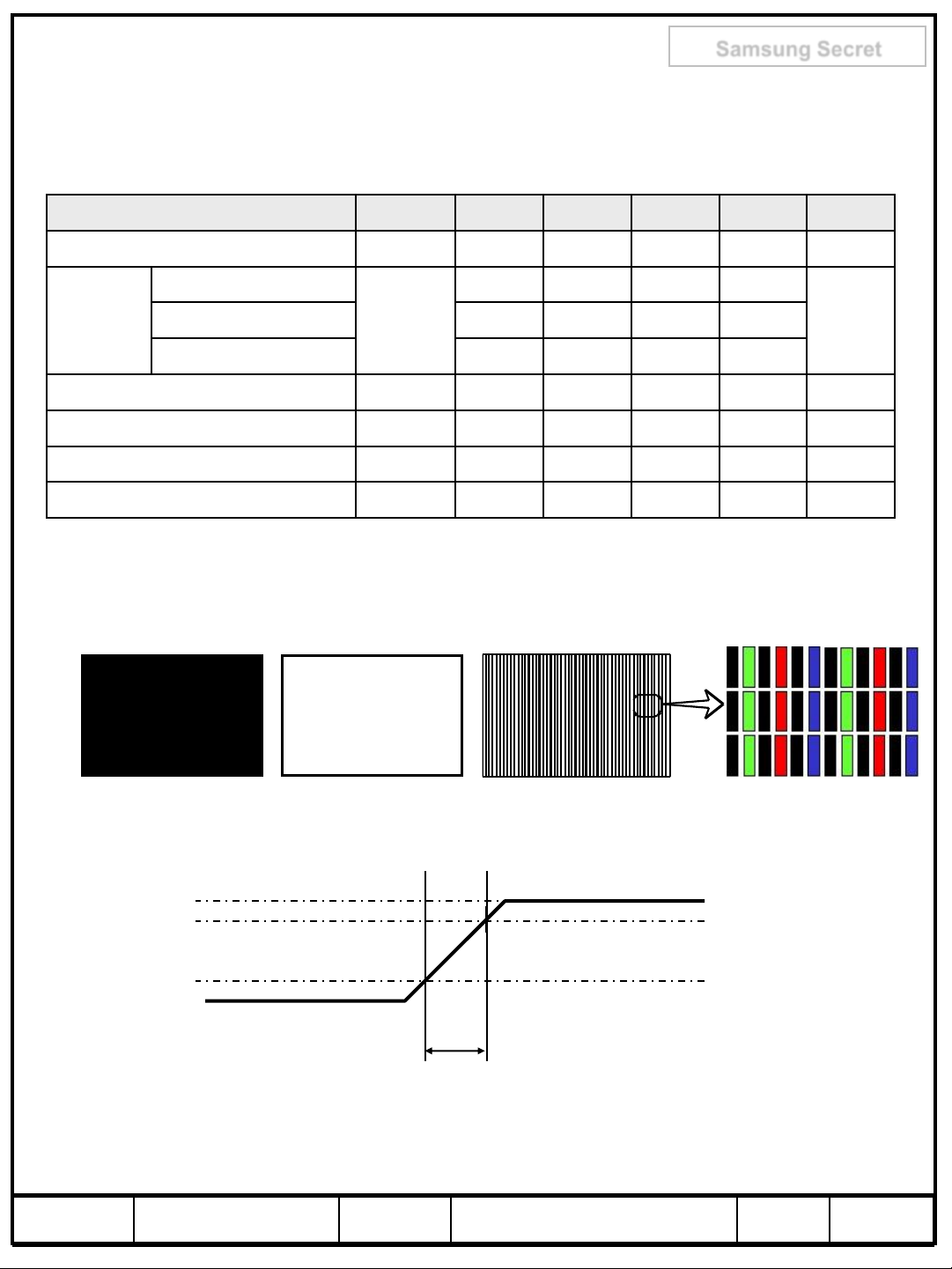

Note (3) Definition of Response time : Sum of Tr, Tf
Display data
Optical Instruments
Response
100%
Black (data off)
T
R
White (data on)
90%
10%
0%
※ G-to-G : Average response time between Gray to Gray (Scale)
Note (4) Definition of Transmittance : Transmittance at center point ⑤
The measurement goes in D65 Standard Light Source
Note (5) Definition of Color Chromaticity (CIE 1931)
Color coordinate of Red, Green, Blue & White at center point ⑤
The measurement goes in D65 Standard Light Source
Black (data off)
T
F
TIME
Note (6) Definition of Viewing Angle
: Viewing angle range (C/R ≥10)
The measurement goes in D65 Standard Light Source
MODEL LSJ460HW05 Doc. No 07-000- G-20120215 Page
8/24
