Page 1
SAMSUNG Confidential
MODEL
LSF400HM02-A
Doc. No
Page
1 / 25
SAMSUNG TFT-LCD
MODEL: LSF400HM02-A
(LCD Panel + Driver Ass’y Kit)
The Information described in this specification is for the first draft and can be changed without prior notice
Samsung Display Co., LTD
Page 2
SAMSUNG Confidential
MODEL
LSF400HM02-A
Doc. No
Page
2 / 25
General Description
Description
This model uses a liquid crystal display (LCD) of amorphous silicon TFT as switching components. This
model is composed of a TFT LCD panel, a driver circuit, and an ass’y KIT of source PBA. This 40.0”
model has a resolution of a 1920 x1080 and can display up to 16.7 million colors with the wide viewing
angle of 89° or a higher degree in all directions. This panel is designed to support applications by
providing a excellent performance function of the flat panel display such as home-alone multimedia TFTLCD TV and a high definition TV.
General Information
Features
RoHS compliance (Pb-free)
High contrast ratio & aperture ratio with the wide color gamut
SPVA(Super patterned vertical align) mode
Wide viewing angle (±178°)
High speed response
FHD resolution (16:9)
Low power consumption
DE (Data enable) mode
The interface (2pixel/clock) of 1ch LVDS (Low voltage differential signaling)
Items
Specification
Unit
Note
Active Display Area
885.6(H) x 498.15(V)
㎜
Switching Components
a-Si TFT Active matrix
Glass Size
TFT : 902.6 (H) x 517.1 (V)
CF : 902.6 (H) x 514.4 (V)
mm
±0.4mm
Panel Size
902.6 (H) x 517.1 (V)
mm
±0.4mm
1.80(D)
mm
±0.1mm
Weight
1900 (max 2090)
g
± 10%
Display Colors
16.7M (True Display)
1.07B (Dithered 10bit)
color
Number of Pixels
1,920 × 1,080
pixel
16 : 9
Pixel Arrangement
RGB Vertical Stripe
Display Mode
Normally Black
Surface Treatment
AG-POL(Anti-Glare),
Haze
Haze 2.3%
± 2.1%
Hardness
Hard coating 2H
Page 3
SAMSUNG Confidential
MODEL
LSF400HM02-A
Doc. No
Page
3 / 25
1. Absolute Maximum Ratings
If the figures on measuring instruments exceed maximum ratings, it can cause the malfunction or the
unrecoverable damage on the device.
Item
Symbol
Min.
Max.
Unit
Note
Power supply voltage
V
DD
10.8
13.2
V
(1)
Temperature for storage
T
STG
-20
65
℃
(2),(4)
Temperature of glass surface
T
OPR2
0
65
℃
(2)
Operating temperature
T
OPR
0
50
℃
(2),(5)
Humidity for storage
H
STG
5
95
%RH
(2),(4)
Operating humidity
H
OPR
20
95
%RG
(2),(5)
Endurance on static electricity
150
V
(3)
Note (1) The power supply voltage at Ta= 25 ± 2 °C
(2) Temperature and the range of relative humidity are shown in the figure below.
a. 95 % RH Max. (Ta ≤ 39 °C)
b. The relative humidity is 95% or less. (Ta ＞39 °C)
c. No condensation
d. Operating condition with SET
(3) Keep the static electricity under 150V in Polarizer attaching process.
(4) Operating condition with source PCB
(5) Storage temperature condition including glass
(6) Condition without packing. (Unpacking condition)
95
Fig. Range for temperature and relative humidity
Page 4
SAMSUNG Confidential
MODEL
LSF400HM02-A
Doc. No
Page
4 / 25
2. Optical characteristics
The optical characteristics should be measured in the dark room or the space surrounded by the similar setting.
Measuring equipment : TOPCON RD-80S, TOPCON SR-3 ,ELDIM EZ-Contrast
(Ta = 25 ± 2°C, VDD=12.0V, fv=60Hz, f
DCLK
=148.5MHz, Light source: D65 Standard light)
Item
Symbol
Condition
Min.
Typ.
Max.
Unit
Light Source
Note
Contrast ratio
(At the center of screen)
C/R -
5000
- Standard
(1)
SR-3
Response
time
G-to-G
Tg
T
PAN,SUR
=29.9℃
- 8 16
msec
Standard
or
VD BLU
(3)
RD-80S
Luminance of white
(At the center of screen)
YL
Normal
qL,R=0
qU,D=0
Viewing
Angle
250
300
-
cd/m2
VD BLU
(4)
SR-3
Chromaticity
(CIE 1931)
Red
Rx
TYP.
-0.03
0.640
TYP.
+0.03
VD BLU
(5),(6)
SR-3
Ry
0.330
Green
Gx
0.300
Gy
0.600
Blue
Bx
0.150
By
0.060
White
Wx
0.280
Wy
0.290
sRGB Concordance
-
99 %
(5)
SR-3
Color gamut
- - 72 - %
VD BLU
Color
- -
10,000 - K
Viewing
Angle
Hor.
qL
C/R≥10
75
89
-
Degree
Standard
or
VD BLU
(6)
SR-3
EZ-Contrast
qR
75
89
-
Ver.
qU
75
89
-
qD
75
89
-
Brightness uniformity
(9 Points)
B
uni
-
-
25
%
Standard
(2)
SR-3
Transmissivity
T 4.65
5.0 - %
Standard
(7)
D65/SR3
Transmissivity Uniformity
T
uni
- - 10 % Standard
(8)
D65/SR3
Gamma Value
GMA
(@20G~200G)
2.0
2.2
2.4
Standard
or
VD BLU
(9)
SR-3
Gamma variation
Gdiff
(@20G~128G)
-0.14 - 0.14
(11)
SR-3
ACC Linearity
ACC_lin
- - |0.015|
Standard
or
VD BLU
(12)
SR-3
5nit Uniformity
Buni_5nit
- - |30|
%
Standard
(38G/255G)
(10)
SR-3
White Color Coordinate
Uniformity
Wx uni
- - 0.005
Standard
(13)
SR-3
Wy uni
-
0.005
0.008
Page 5
SAMSUNG Confidential
MODEL
LSF400HM02-A
Doc. No
Page
5 / 25
Notice
(a) Setup for test equipment
The measurement should be executed in a stable, windless, and dark room for 40min and 60min after
operating the panel at the given temperature for stabilization of the standard light. (SDC uses the standard
luminance of the D65 media).
This measurement should be measured at the center of screen.
The environment condition: Ta = 25 ± 2 °C
(b) D65 media has the general light source.
The temperature of color is 6847K. The coordinate of color is Wx 0.313, Wy 0.329
The luminance of this product is 7217cd/㎡.
Photo detector
Field
SR-3
2°/1°
RD-80S
1°
(c) The CIE positions D65 as the standard daylight illuminant:
[D65] is intended to represent average daylight and has a correlated color temperature of
approximately 6500 K. CIE standard illuminant D65 should be used in all colorimetric calculations
requiring representative daylight, unless there are specific reasons for using a different illuminant.
- Definition of the test point
Note (1) Definition of contrast ratio (C/R)
: The ratio of gray max (Gmax) & gray min (Gmin) at the center point ⑤ of the panel
The measurement goes in D65 Standard light source
Gmax : The luminance with all white pixels
C R
G
G
/
max
min
Page 6
SAMSUNG Confidential
MODEL
LSF400HM02-A
Doc. No
Page
6 / 25
Gmin : The luminance with all black pixels
Note (2) Definition of the brightness uniformity of 9 points (Test pattern : The full white)
The measurement shall be executed with the standard light source of D65 .
Bmax : The maximum brightness
Bmin : The minimum brightness
Note (3) Definition of the response time : Sum of Tr, Tf
※ G-to-G : Average response time between whole gray scale to whole gray scale.
The response time is the value that was measured after it was operated in Samsung's standard BLU for
one hour.( at room temperature)
Note (4) The definition of luminance of white: The luminance of white at the center point ⑤
The measurement shall be executed with the standard light source of D65.
Note (5) The definition of chromaticity (CIE 1931)
The color coordinate of red, green, blue and white at the center point ⑤
The measurement shall be executed with the standard light source of D65.
Note (6) Definition of viewing angle
: The range of viewing angle (C/R ≥10)
The measurement shall be executed with the standard light source of D65.
The response
Of optical instruments
Buni
B B
B
100
( max min)
max
Display data
Page 7
SAMSUNG Confidential
MODEL
LSF400HM02-A
Doc. No
Page
7 / 25
Tuni
= 100*
Gamma Value
- 20 ~ 200Gray: 2.2 ±0.2
Buni_5nit
= 100*
Bmax_5nit : The maximum brightness at 5nit Gray
Bmin_5nit : The minimum brightness at 5nit Gray
Vertical 1/6 Point
[Panel Measure Point]
Vertical 1/6 Point
Note (7) Definition of transmissivity
The measurement shall be executed with the standard light source of D65.
Note (8) Definition of the Transmissivity uniformity of 9 points (Test pattern: The full white)
The measurement shall be executed with the standard light source of D65.
Tmax : The maximum Transmissivity
Tmin : The minimum Transmissivity
Note (9) Management Criteria of Gamma Value
Note (10) 5nit Low Gray Uniformity
Page 8
SAMSUNG Confidential
MODEL
LSF400HM02-A
Doc. No
Page
8 / 25
255Gray Wx/Wy value basis (a module unit basis)
a. Color coordinate differences are less than 15/1,000 at
Any Point above 30Gray and 255Gray
b. When Wx/Wy coordinates reverse at 0Gray, it permits
an once intersection under, 30Gray
Wx, uni
= Wx max-Wx min
Wx max : The maximum Wx
Wx min : The minimum Wx
Wy, uni
= Wy max-Wy min
Wy max: The maximum Wy
Wy min: The minimum Wy
Note (11) Gamma Variation between Center and Left (or Right)
Gamma measured at 10cm point from the left & right side is more less than 0.1 than Gamma
measured at Center
(Gamma measured at 10cm of the P-4 & P-6 is more less than 0.1 than Gamma measured at P-5)
Note (12) Management Criteria of ACC Linearity
Note (13) White Color Coordinate Uniformity of 9 points (Test pattern: The full white)
Page 9
SAMSUNG Confidential
MODEL
LSF400HM02-A
Doc. No
Page
9 / 25

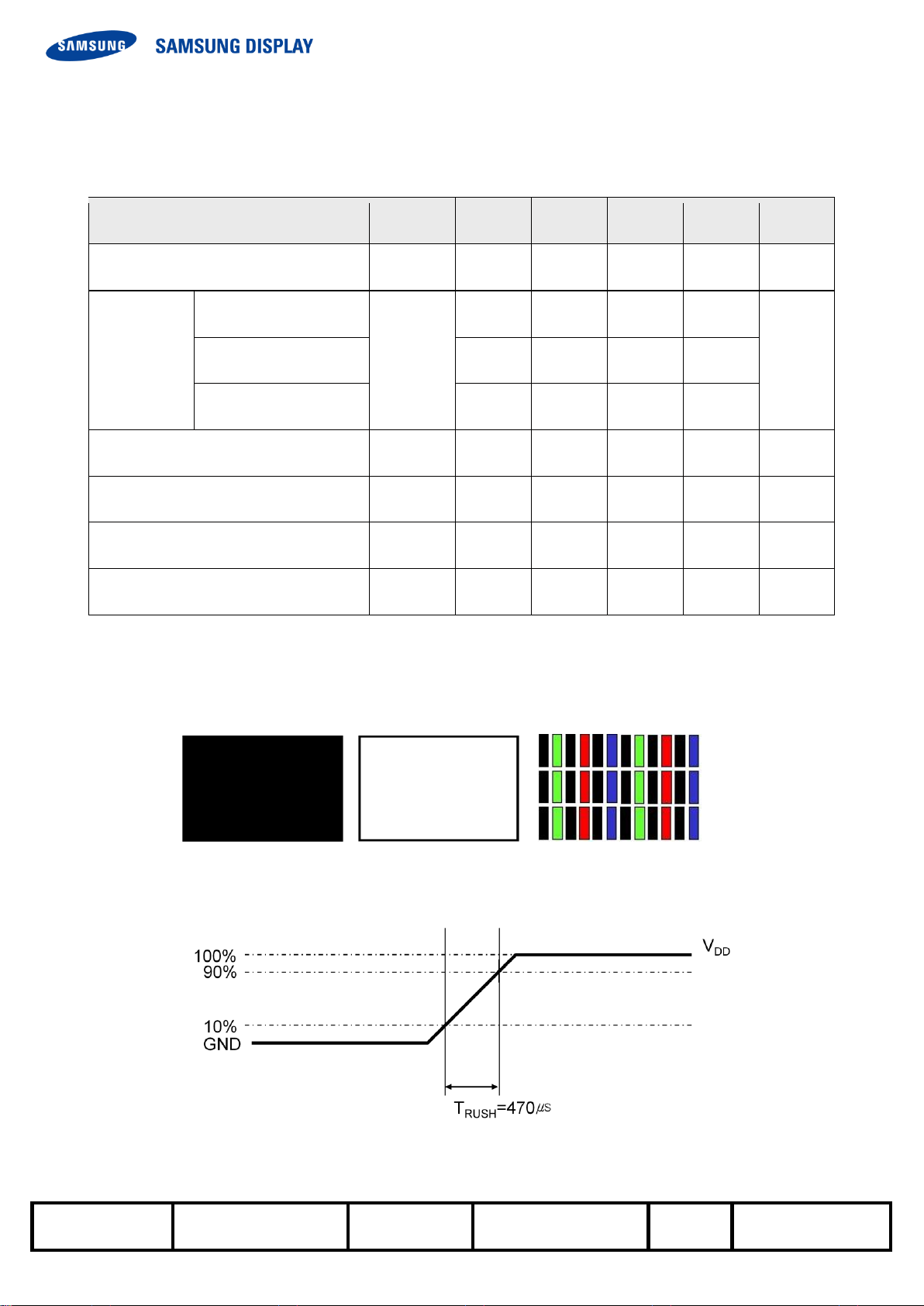

3. Electrical characteristics
3.1 TFT LCD Module
The connector for the display data & timing signal should be connected.
Ta = 25°C ± 2 °C
Item
Symbol
Min.
Typ.
Max.
Unit
Note
Voltage of power supply
V
DD
10.8
12.0
13.2
V
(1)
Current
of power
supply
(a) Black
I
DD
-
438
534
mA
(2),(3)
(b) White
-
949
1164
mA
(c) Sub V-Stripe
-
985
1184
mA
Vsync frequency
f
V
48
60
66
Hz Hsync frequency
f
H
61
67.5
74
kHz
Main frequency
Fdclk
119
148.5
163
MHz
Rush current
I
RUSH
- - 4
A
(4)
Note (1) The ripple voltage should be controlled fewer than 10% of V
DD
(Typ.) voltage.
(2) fV=60Hz, fDCLK =148.5MHz, VDD = 12.0V, DC Current.
(3) Power dissipation check pattern (LCD Module only)
(4) Conditions for measurement
a) Black pattern b) White pattern c) Sub V-stripe
The rush current, I
RUSH
can be measured during T
RUSH
is 470us
Page 10
MODEL
LSF400HM02-A
Doc. No
Page
10 / 25

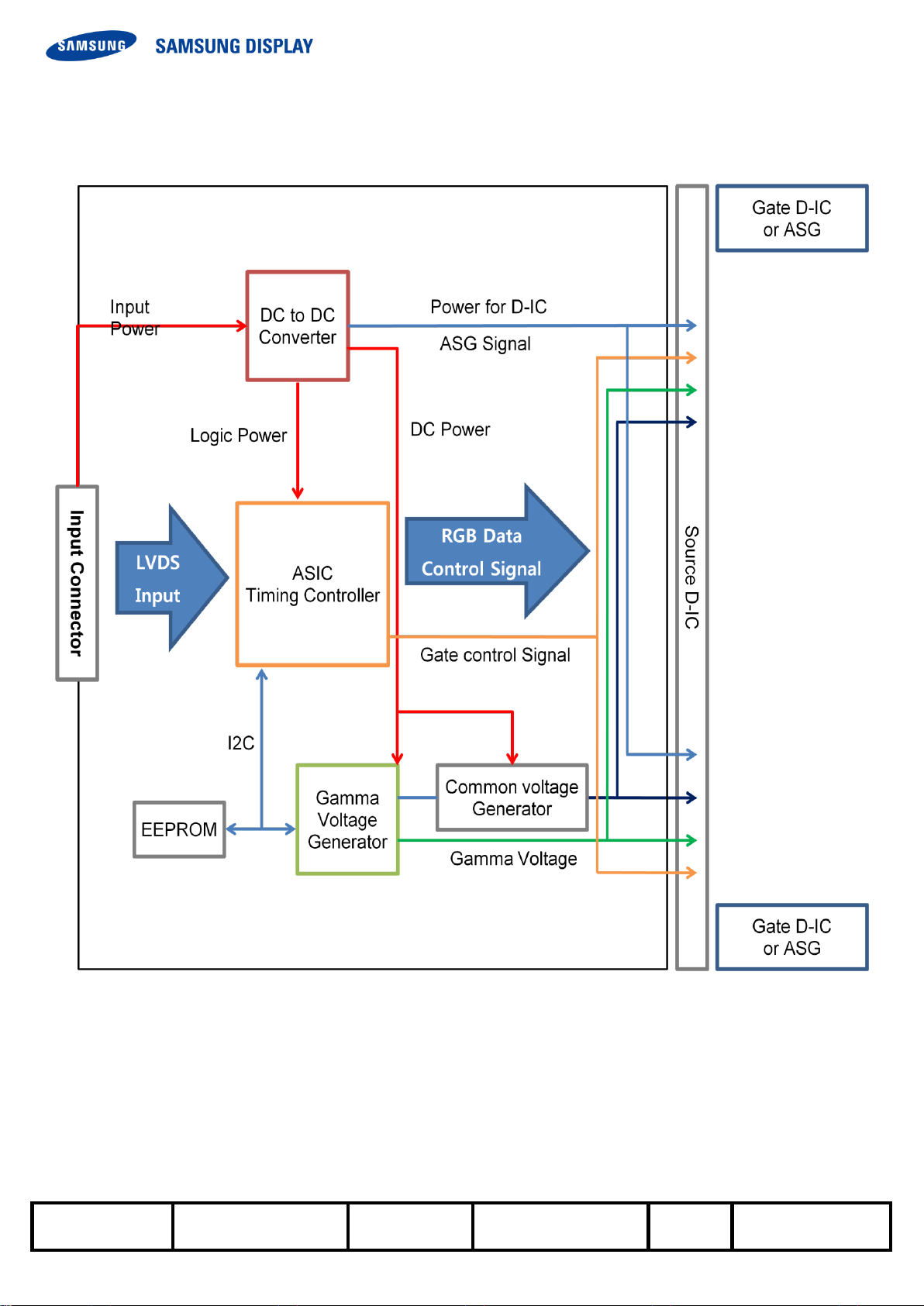

4. Block diagram
SAMSUNG Confidential
Page 11
SAMSUNG Confidential
MODEL
LSF400HM02-A
Doc. No
Page
11 / 25
5.2 LVDS Interface
- LVDS receiver : T-con (merged) ( 8Bit)
- Data format
LVDS pin
JEIDA -DATA
Normal-DATA
TxOUT/RxIN0
TxIN/RxOUT0
R2
R0
TxIN/RxOUT1
R3
R1
TxIN/RxOUT2
R4
R2
TxIN/RxOUT3
R5
R3
TxIN/RxOUT4
R6
R4
TxIN/RxOUT6
R7
R5
TxIN/RxOUT7
G2
G0
TxOUT/RxIN1
TxIN/RxOUT8
G3
G1
TxIN/RxOUT9
G4
G2
TxIN/RxOUT12
G5
G3
TxIN/RxOUT13
G6
G4
TxIN/RxOUT14
G7
G5
TxIN/RxOUT15
B2
B0
TxIN/RxOUT18
B3
B1
TxOUT/RxIN2
TxIN/RxOUT19
B4
B2
TxIN/RxOUT20
B5
B3
TxIN/RxOUT21
B6
B4
TxIN/RxOUT22
B7
B5
TxIN/RxOUT24
HSYNC
HSYNC
TxIN/RxOUT25
VSYNC
VSYNC
TxIN/RxOUT26
DEN
DE
TxOUT/RxIN3
TxIN/RxOUT27
R0
R6
TxIN/RxOUT5
R1
R7
TxIN/RxOUT10
G0
G6
TxIN/RxOUT11
G1
G7
TxIN/RxOUT16
B0
B6
TxIN/RxOUT17
B1
B7
TxIN/RxOUT23
RESERVED
RESERVED
Page 12
SAMSUNG Confidential
MODEL
LSF400HM02-A
Doc. No
Page
12 / 25
5.3 Input signals, basic display colors and the gray scale of each color. (8bit))
COLOR
DISPLAY
(8bit)
DATA SIGNAL
GRAY
SCALE
LEVEL
RED
GREEN
BLUE
R0
R1
R2
R3
R4
R5
R6
R7
G0
G1
G2
G3
G4
G5
G6
G7
B0
B1
B2
B3
B4
B5
B6
B7
BASIC
COLOR
BLACK
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
-
BLUE
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
-
GREEN
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
-
CYAN
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
-
RED
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
-
MAGENTA
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
-
YELLOW
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
-
WHITE
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
-
GRAY
SCALE
OF
RED
BLACK
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
R0
DARK
↑
↓
LIGHT
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
R1
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
R2
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
R3~
R252
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
1
0
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
R253
0
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
R254
RED
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
R255
GRAY
SCALE
OF
GREEN
BLACK
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
G0
DARK
↑
↓
LIGHT
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
G1
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
G2
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
G3~
G252
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
0
0
0
0
0
0
0
0
1
0
1
1
1
1
1
1
0
0
0
0
0
0
0
0
G253
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
G254
GREEN
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
G255
GRAY
SCALE
OF
BLUE
BLACK
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
B0
DARK
↑
↓
LIGHT
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
B1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
B2
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
B3~
B252
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
1
1
1
1
1
1
B253
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
B254
BLUE
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
B255
Note) The definition of gray :
Rn : Red gray, Gn : Green gray, Bn : Blue gray (n = Gray level)
Input signal : 0 = Low level voltage, 1 = High level voltage
Page 13
SAMSUNG Confidential
MODEL
LSF400HM02-A
Doc. No
Page
13 / 25
5.4 LVDS receiver : T-con (merged) ( 8Bit)
- Data format
LVDS pin
JEIDA -DATA
Normal -DATA
TxOUT/RxIN0
TxIN/RxOUT0
R2
R0
TxIN/RxOUT1
R3
R1
TxIN/RxOUT2
R4
R2
TxIN/RxOUT3
R5
R3
TxIN/RxOUT4
R6
R4
TxIN/RxOUT6
R7
R5
TxIN/RxOUT7
G2
G0
TxOUT/RxIN1
TxIN/RxOUT8
G3
G1
TxIN/RxOUT9
G4
G2
TxIN/RxOUT12
G5
G3
TxIN/RxOUT13
G6
G4
TxIN/RxOUT14
G7
G5
TxIN/RxOUT15
B2
B0
TxIN/RxOUT18
B3
B1
TxOUT/RxIN2
TxIN/RxOUT19
B4
B2
TxIN/RxOUT20
B5
B3
TxIN/RxOUT21
B6
B4
TxIN/RxOUT22
B7
B5
TxIN/RxOUT24
HSYNC
HSYNC
TxIN/RxOUT25
VSYNC
VSYNC
TxIN/RxOUT26
DEN
DE
TxOUT/RxIN3
TxIN/RxOUT27
R0
R6
TxIN/RxOUT5
R1
R7
TxIN/RxOUT10
G0
G6
TxIN/RxOUT11
G1
G7
TxIN/RxOUT16
B0
B6
TxIN/RxOUT17
B1
B7
TxIN/RxOUT23
RESERVED
RESERVED
TxOUT/RxIN4(dithered10b
it)
TxIN/RxOUT28
R0
R8
TxIN/RxOUT29
R1
R9
TxIN/RxOUT30
G0
G8
TxIN/RxOUT31
G1
G9
TxIN/RxOUT32
B0
B8
TxIN/RxOUT33
B1
B9
TxIN/RxOUT34
RESERVED
RESERVED
Page 14
SAMSUNG Confidential
MODEL
LSF400HM02-A
Doc. No
Page
14 / 25
5.5 Input signals, basic display colors and the gray scale of each color. (10bit)
COLOR
DISPLAY
DATA SIGNAL
GRAY
SCALE
LEVEL
RED
GREEN
BLUE
R0
R1
R2
R3
R4
R5
R6
R7
R8
R9
G0
G1
G2
G3
G4
G5
G6
G7
G8
G9
B0
B1
B2
B3
B4
B5
B6
B7
B8
B9
BASIC
COLOR
BLACK
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 -
BLUE
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 -
GREEN
0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 -
CYAN
0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 -
RED
1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 -
MAGENTA
1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 -
YELLOW
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 -
WHITE
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 -
GRAY
SCALE
OF RED
BLACK
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R0
DARK
↑
↓
LIGHT
1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R1
0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R2
: : : : : : : : : : : : : : : : : : : : : : : : : : : : :
:
R3~
R1020
: : : : : : : : : : : : : : : : : : : : : : : : : : : : :
:
1 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R1021
0 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R1022
RED
1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R1023
GRAY
SCALE
OF
GREEN
BLACK
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 G0
DARK
↑
↓
LIGHT
0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 G1
0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 G2
: : : : : : : : : : : : : : : : : : : : : : : : : : : : :
:
G3~
G1020
: : : : : : : : : : : : : : : : : : : : : : : : : : : : :
:
0 0 0 0 0 0 0 0 0 0 1 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 G1021
0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 G1022
GREEN
0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 G1023
GRAY
SCALE
OF
BLUE
BLACK
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 B0
DARK
↑
↓
LIGHT
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 B1
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 B2
: : : : : : : : : : : : : : : : : : : : : : : : : : : : :
:
B3~
B1020
: : : : : : : : : : : : : : : : : : : : : : : : : : : : :
:
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 1 1 1 1 1 1 1 1 B1021
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 B1022
BLUE
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 B1023
Note) The definition of gray :
Rn : Red gray, Gn : Green gray, Bn : Blue gray (n = Gray level)
Input signal : 0 = Low level voltage, 1 = High level voltage
Page 15
SAMSUNG Confidential
MODEL
LSF400HM02-A
Doc. No
Page
15 / 25
6. Interface timing
6.1 The parameters of timing ( Only DE mode )
SIGNAL
ITEM
SMBOL
MIN.
TYP.
MAX.
Unit
NOTE
Clock
Frequency
1/T
C
119
148.5
163
MHz
-
Hsync
F
H
61
67.5
74
KHz
-
Vsync
F
V
48
60
66
Hz
-
Term for the
vertical
display
Active
display
period
T
VD
-
1080
-
Lines
-
Total vertical
T
V
1092
1125
1380
Lines
-
Term for the
horizontal
display
Active
display
period
T
HD
-
1920
-
Clocks
-
Total
Horizontal
T
H
2090
2200
2350
clocks
-
Note) These products don’t have to receive the signal of Hsync & Vsync from the input device.
(1) Key points when testing: TTL controls the signal and the CLK at the input terminal of LVDS Tx of the
system.
(2) Internal VDD = 3.3V
(3) Spread spectrum
- The limit of spread spectrum's range of SET in which the LCD module is assembled should be within ± 3 %.
TxOUT/RxIN4(dithered10bit)
TxIN/RxOUT28
R0
R8
TxIN/RxOUT29
R1
R9
TxIN/RxOUT30
G0
G8
TxIN/RxOUT31
G1
G9
TxIN/RxOUT32
B0
B8
TxIN/RxOUT33
B1
B9
TxIN/RxOUT34
RESERVED
RESERVED
Page 16
SAMSUNG Confidential
MODEL
LSF400HM02-A
Doc. No
Page
16 / 25

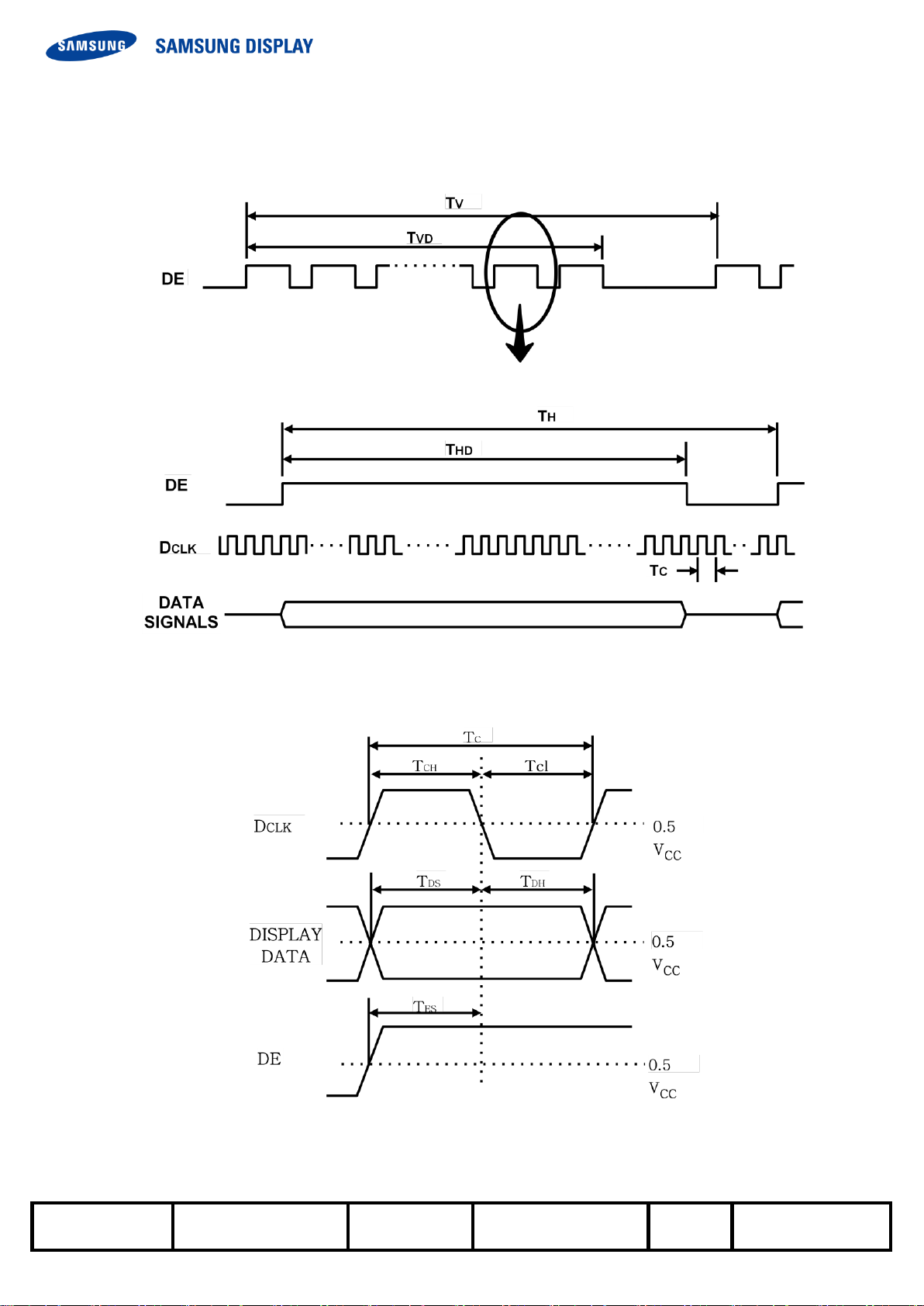

6.2 Timing diagrams of interface signal (Only DE mode )
Page 17
SAMSUNG Confidential
MODEL
LSF400HM02-A
Doc. No
Page
17 / 25

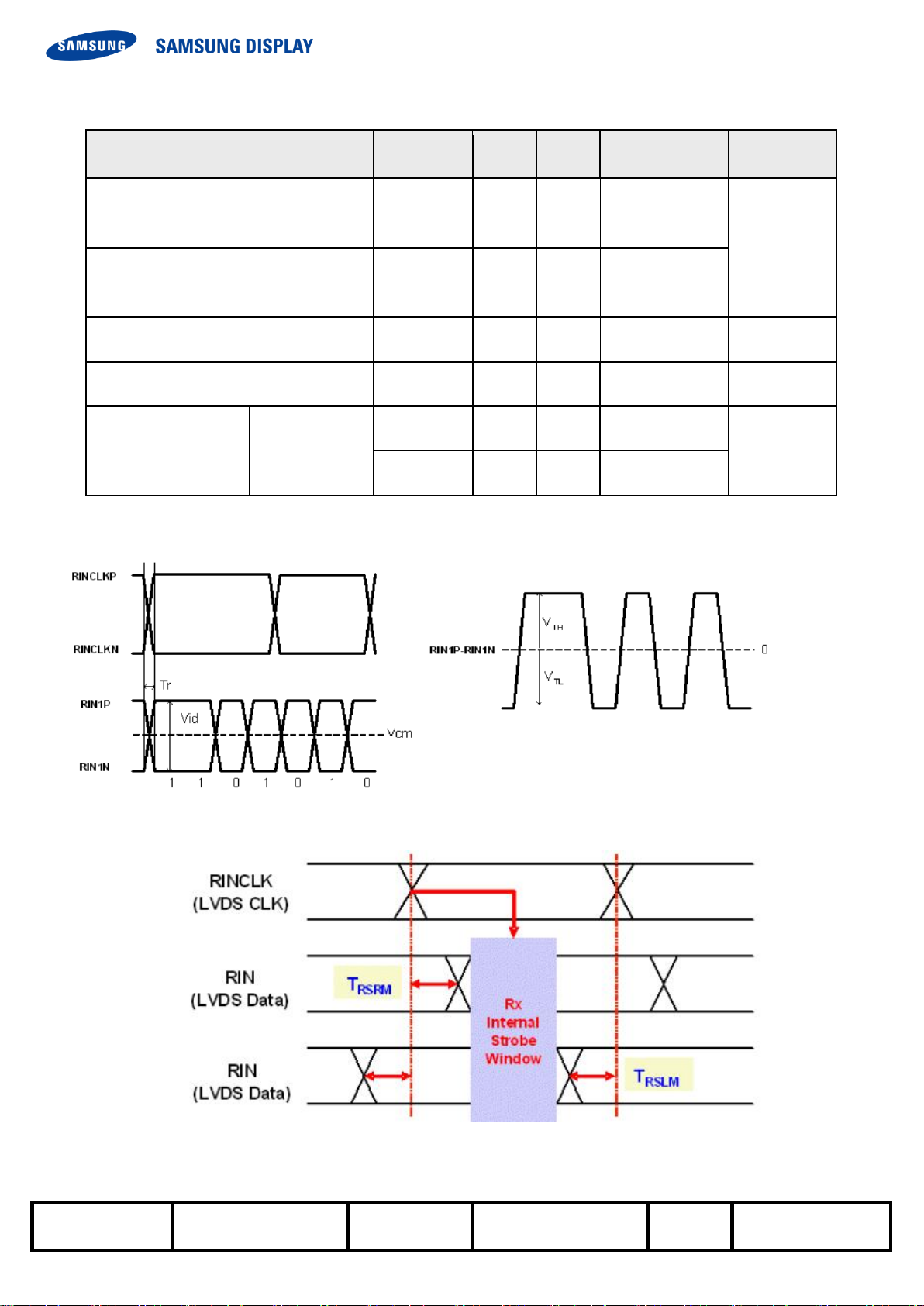

6.3 Characteristics of Input data of LVDS
ITEM
SYMBOL
Min.
Typ.
Max.
UNIT
NOTE
Differential input high
threshold voltage
VTH
- - +100
mV
V
CM
= 1.2V
Differential input low
threshold voltage
VTL
-100 - -
mV
Input common mode voltage
V
CM
0.2
1.2
2.0 V -
Differential Input Voltage
|V
ID
|
100
-
600
mV
|V
ID
|=100mV
Input data position
F
IN
=80MHz
t
RSRM
- - 450
ps
t
RSLM
-450
-
ps
Notice The spread spectrum should be 0% when the skew is measured.
Position of a measurement is T-CON LVDS input pin
Page 18
SAMSUNG Confidential
MODEL
LSF400HM02-A
Doc. No
Page
18 / 25

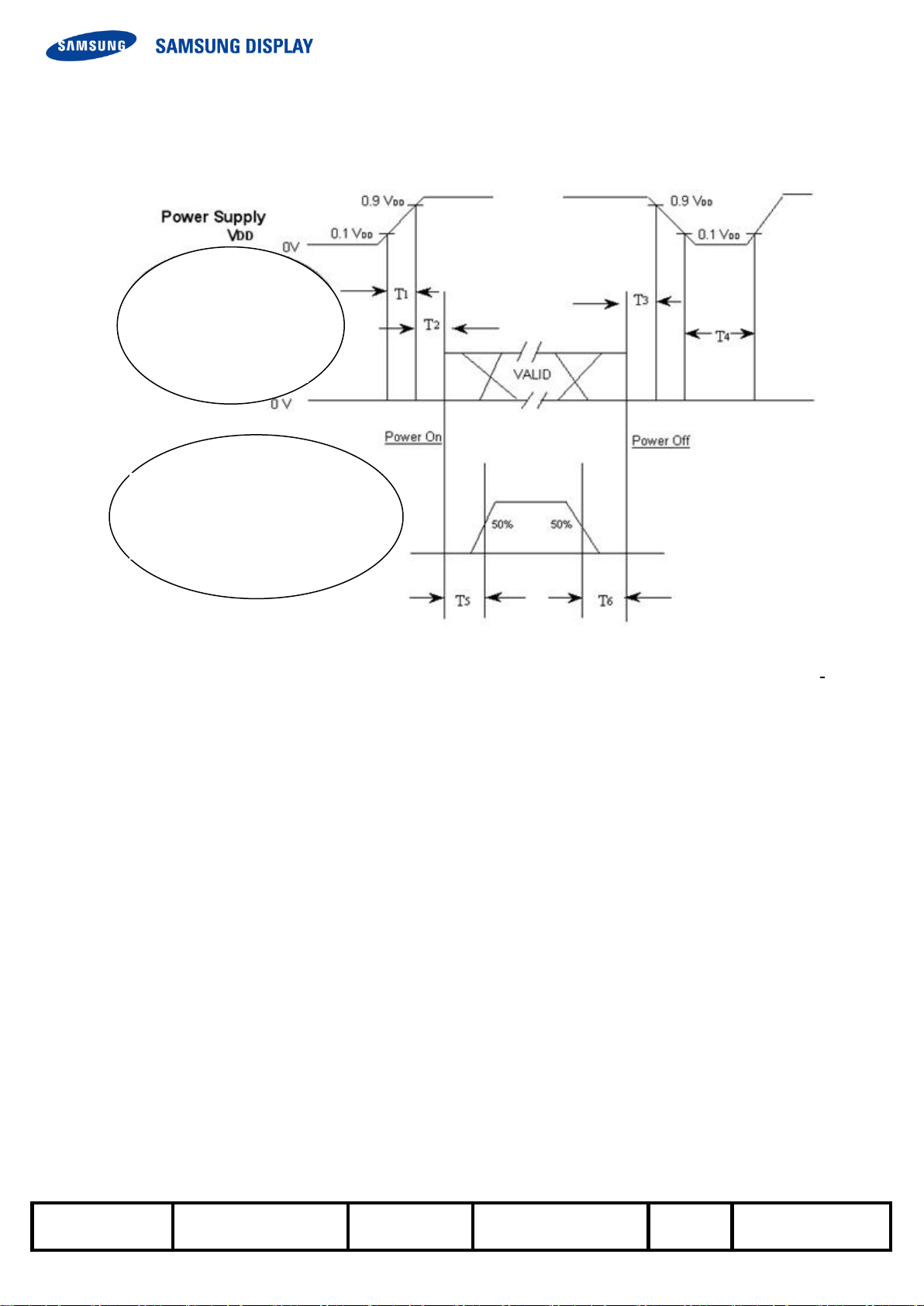

6.4 The sequence of power on and off – Sony Model attached Reference file
To prevent a latch-up phenomena or the DC operation of the LCD Module, the power on/off sequence should
be accorded with the settings described in the diagram below.
T1 : The VDD rising time from 10% to 90%
T2 : The time from the point which V
DD
reach to 90% of voltage to the point which the valid data is out when
the power is on.
T3: The time from the point which the valid data is out to the point which VDD reach to the 90% of voltage
when the power is off.
T4: the time from the point which the Vdd decrease to the point which the Vdd increase again for windows to
restart.
※ The recommended operating condition of the back light system
T5: The time which takes for B/L to be turned on after the signal is entered when the time is on.
T6 : The time which takes until the signal is out after BL is turned off
The condition of supply voltage to enter in the module from the external system should have
the same condition as the definition of VDD.
Apply the voltage for the lamp within the range which the LCD operates. when the back light is turned on
before the LCD is operated or when the LCD is turned off before the back light is turned off, the display may
show the abnormal screen momentarily.
While the V
DD
is off level, please keep the level of input signals low or keep a high impedance condition.
The figure of T4 should be measured after the module has been fully discharged between the periods
when the power is on and off.
The interface signal must not keep the high impedance condition when the power is on.
0.5 < T1 < 10msec
10 ≤ T2 ≤ 50msec
0 < T3 ≤ 50msec
1000msec ≤ T4
Backlight (Recommended)
1000msec < T5
100msec ≤ T6 (Recommend Value)
Page 19
SAMSUNG Confidential
MODEL
LSF400HM02-A
Doc. No
Page
19 / 25

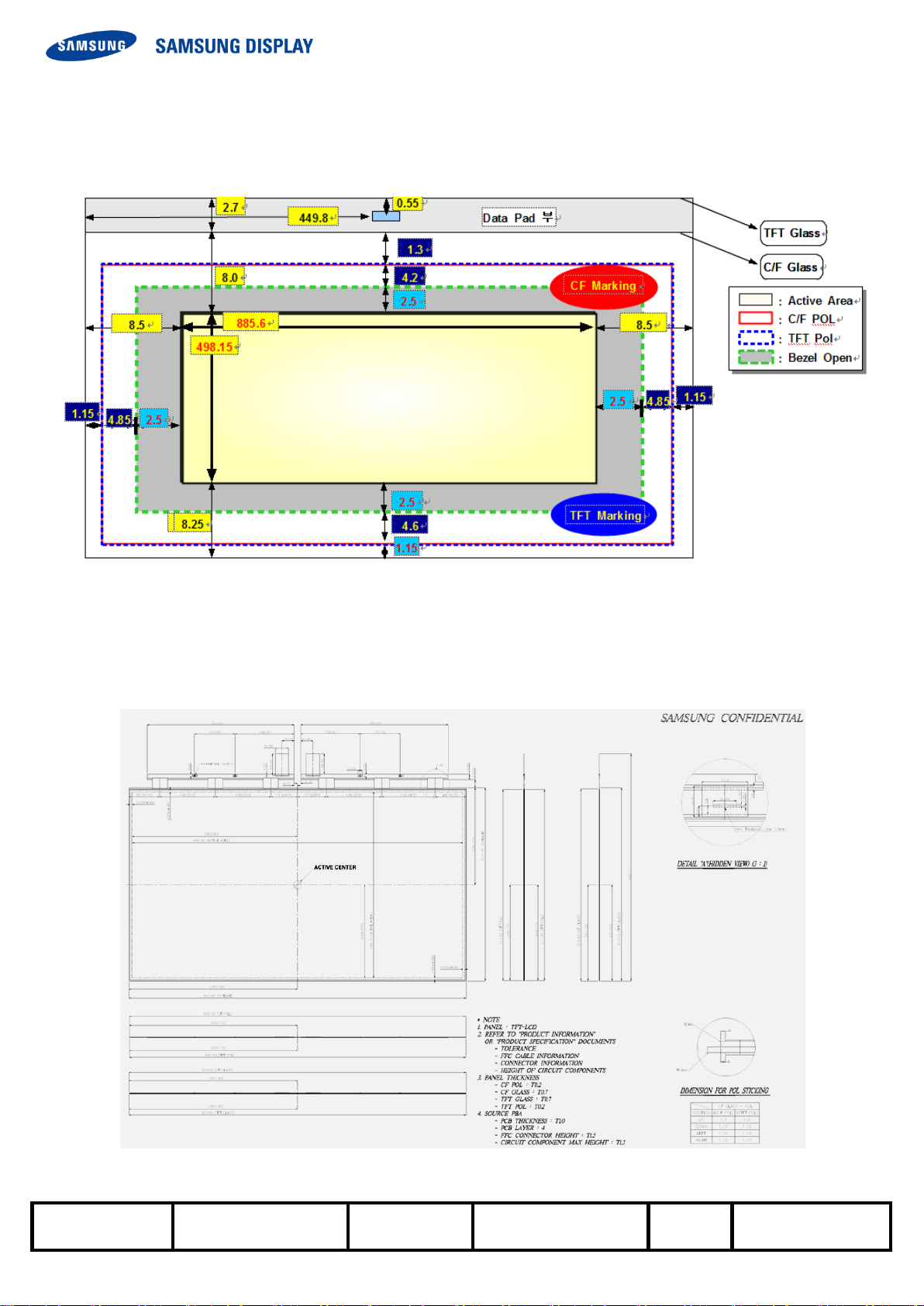

7. Outline dimension
7.1 The adhesive size of POL
The next figure shows the size of POL on the drawing sheet attached to the panel for BLU design.
<Figure.>
The POL size of CF : 900.3 X 511.95 ± 0.5mm
The POL size of TFT: 900.3 X 511.95 ± 0.5mm
The total adhesion allowance of POL is ± 1.15㎜
7.2 The drawing sheet for the size of the OLB bonding
Page 20
MODEL
LSF400HM02-A
Doc. No
Page
20 / 25
8. Reliability test
8.1 Panel
Item
Test Condition
Quantity
Note
HTOL
60 ℃ (Panel change 500hr / circuit change 250hr)
8
LTOL
-5 ℃ (Panel change 500hr / circuit change 250hr)
4
THB
50 ℃ / 90 %RH(Panel change 500hr / circuit change 250hr)
10
ASG
Low
temperature
Max. frequency 25℃~-40℃
Each
Cell
ASG Product Only
ASG
High
Temperature
Min. frequency 60℃operation 96hr
Each
Cell
ASG Product Only
Image sticking
25 ℃ / Mosaic pattern(9*10) 12hrs
8
Rolling pattern 12hrs / 3cycles
Decompressio
n
-40~50℃, 0m(0ft) ~ 13,700m(45,000ft), 72.5Hr
4
HTS
70 ℃, Storage (Panel change 500hr / circuit change 250hr)
4
LTS
-25 ℃, Storage(Panel change 500hr / circuit change 250hr)
4
Transportation
condition
drop(20cm) → temperature/humidity(-30~60℃ / 40℃ 90%RH)
→ pressure → vibration(5~200Hz 1.05Grms, 2hr) → drop(20cm)
1pallet
WHTS
60 ℃ / 75 %RH , Storage
4
Noise
Electromagnetic noise: Overall 23dB 이하
2
Complex
stress
-20℃~60℃, 0~90%RH, 2cycle
4
ESD
S-IC Input ±7KV, Output ±4KV
Output 은 data TP 에 직접 인가 후 진행
Input 은 CKV,VCOM 등에 FFC CNT 를 통하여 TEST 를 진행
3
EOS (optional)
Item
Test condition
Vin Input
step
Surge combination (High impedance)
Pass Condition: 5kV under
Signal Input
step
Surge combination (High impedance)
Pass Condition: 120V under
2
[ Criteria on evaluation]
There should be no change of the product, which may affect to the practical display functions, when the
display quality test is executed under the normal operation setting.
* HTOL/ LTOL : The operating cycle on the high and low temperature
* THB : Temperature humidity slant
* HTS/LTS : The storage at the high and low temperature
* WHTS : The storage in the high temperature with the high humidity
SAMSUNG Confidential
Page 21
SAMSUNG Confidential
MODEL
LSF400HM02-A
Doc. No
Page
21 / 25
9. General precautions
9.1 Handling
(a) When the panel kit and BLU kit are assembled, the panel kit and BLU kit should be attached to the
set system firmly by combining each mounted holes. Be careful not to give the mechanical stress.
(b) Be careful not to give any extra mechanical stress to the panel when designing the set, and BLU kit.
(c) Be cautious not to give any strong mechanical shock and / or any forces to the panel kit.
Applying the any forces to the panel may cause the abnormal operation or the damage to the panel
kit and the back light unit kit.
(d) Refrain from applying any forces to the source PBA and the drive IC in the process of the handling
or installing to the set. If any forces are applied to the products, it may cause damage or a
malfunction in the panel kit.
(e) Refrain from applying any forces which cause a constant shock to the back side of panel kit, the set
design and BLU kit. If any forces are applied to the products, it may cause an abnormal display, a
functional failure and etc.
(f) Note that polarizer could be damaged easily.
Do not press or scratch the bare surface with the material which is harder than a HB pencil lead.
(g) Wipe off water droplets or oil immediately. If you leave the droplets for a long time on the product, a
staining or the discoloration may occur.
(h) If the surface of the polarizer is dirty, clean it using the absorbent cotton or the soft cloth.
(i) Desirable cleaners are water or IPA (Isopropyl Alcohol).
Do not use Kenton type materials (ex. Acetone), Ethyl alcohol, Toluene, Ethyl acid or Methyl chloride.
These might cause the permanent damage to the polarizer due to chemical reaction.
(j) If the liquid crystal material leaks from the panel, this should be kept away from the eyes or mouth.
If this contacts to hands, legs, or clothes, you must washed it away with soap thoroughly and see a
doctor for the medical examination.
(k) Protect the panel kit and BLU Kit out of the static electricity. Otherwise the circuit IC could be
damaged.
- Reference : Process control standard of SDC
No.
Item
Control standard
1
Ionizer
All Equipment should be controlled under 150V.(Typ. 100V)
2
Carrying Roller
Carrying Roller should be controlled under 200V.
3
Equipment Ground
Resistance
All Equipment Ground Should be less than 1ohm.
Page 22
SAMSUNG Confidential
MODEL
LSF400HM02-A
Doc. No
Page
22 / 25
(l) Remove the stains with finger-stalls wearing soft gloves in order to keep the display clean in the
process of the incoming inspection and the assembly process.
(m) Do not pull or fold the source drive IC which connects to the source PBA and the panel or the gate
drive IC.
(n) Do not pull, fold or bend the source drive IC and the gate drive IC in any processes.
If not, the source drive IC could be bent one time in the process of assembling the panel Kit and the
BLU Kit.
(o) Do not adjust the variable resistor located on the panel kit and BLU kit except when adjusting the
flicker.
(p) Do not touch the pins of the interface connector directly with bare hands.
(q) Be cautious not to be peeled off the protection film.
(r) The protection film for the polarizer on the panel kit should be slowly peeled off just before using so
that the electrostatic charge can be minimized.
(s) The panel kit and BLU kit have high frequency circuits. The sufficient suppression to the EMI should
be done by the set manufacturers.
(t) The set of which the panel is assembled shall not be twisted. If the product is twisted, it may cause
the damage on the product.
(u) Surface Temp. of IC should be controlled less than 100℃, operating over the Temp. can cause the
damage or decrease of lifetime.

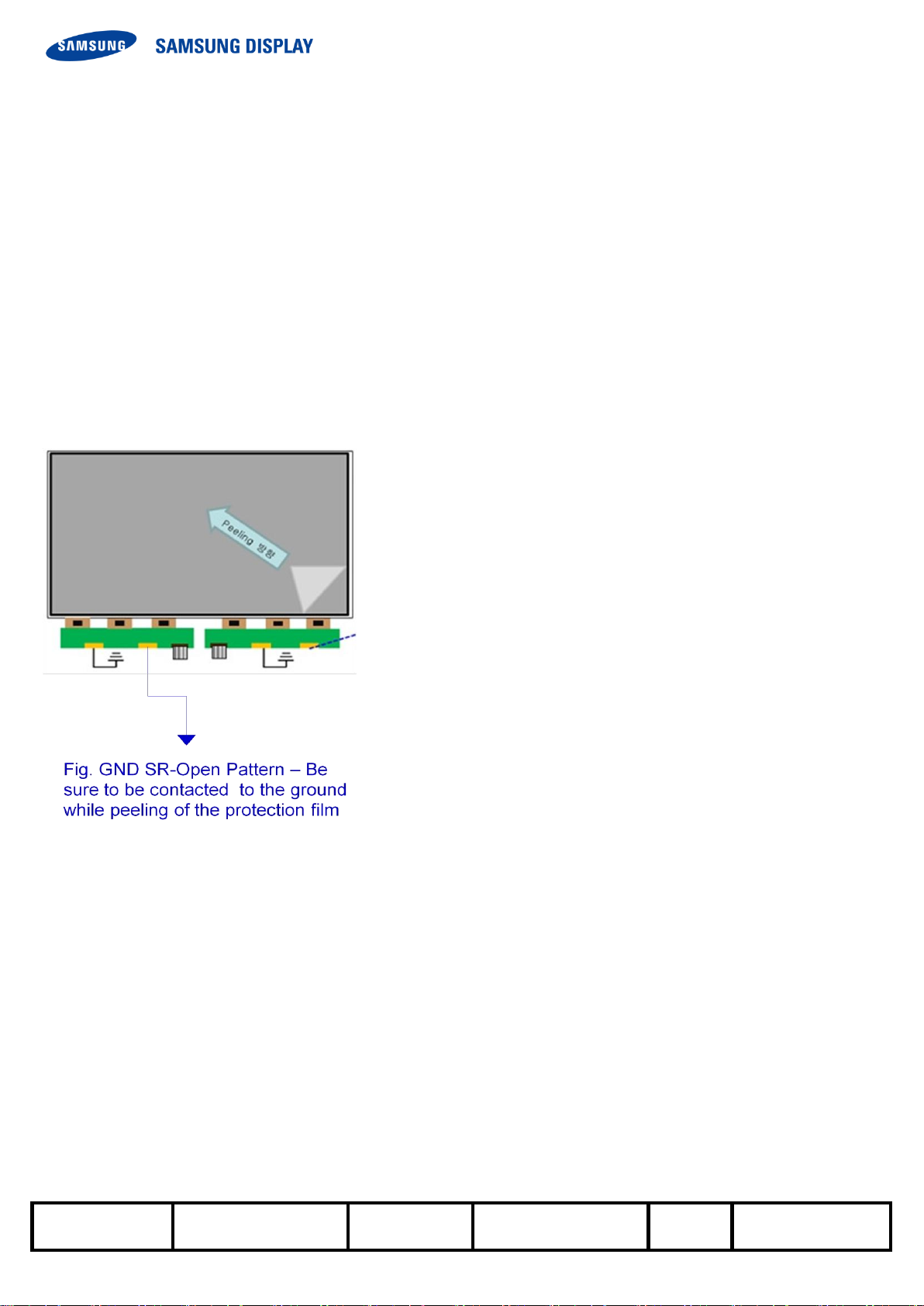

- Make sure to peel off slowly
(It is recommended to peel it off at the speed of more than 8sec.
constantly.)
- The peeling direction is shown at the Fig
- Instruct the ground worker to work with the adequate methods
such as the antistatic wrist band.
- Maker sure to be grounded the source PBA while peeling of the
protection film.
- Ionized air should be blown over during the peeling
- The protection film should not t be contacted to the source drive
IC.
- If the adhesive stains remain on the polarizer after the
protection film is peeled off, please move stains with isopropylalcohol liquid.
Page 23
MODEL
LSF400HM02-A
Doc. No
Page
23 / 25
9.2 Storage
The storage condition for packing
ITEM
Unit
Min.
Max.
Storage
Temperature
(℃)
5
40
Storage
Humidity
(%RH)
35
75
Storage life
12 months
Based on shipping date at SDC site
Storage
Condition
(1) Design the warehouse to be ventilated efficiently with equipping the roof, the
ventilation system, and the temp. controller.
(2) Don't load the product on the floor and store the product with loaded on the pallet
placed far away from the wall.
(3) Avoid exposing the product to the direct light, moisture, and water and prevent the
product from being condensed.
(4) Don't store the product at the container located outside where it rains and the
direct light shines.
(5) Prevent the product from being exposed to the noxious gas such as the acid gas or
alkali gas which may damage the electric device.
(6) Don't store the product at the location surrounded by dangerous factors, which can
deteriorate the quality of product.
9.3 Operation
(a) Do not connect or disconnect the FFC cable during the "Power On" condition.
(b) Power supply should be always turned on and off by the "Power on/off sequence"
(c) The module has high frequency circuits. The sufficient suppression to the electromagnetic interference
should be done by the system manufacturers. The grounding and shielding methods is important to
minimize the interference.
(d) The cables between TV SET connector and Control PBA interface cable should be connected directly
to have a minimized length. A longer cable between TV SET connector and Control PBA interface
cable maybe operate abnormal display
(e) Recommend to age for over 1 hour at least in the state, which the product is driving initially to stabilize
the characteristic of the initial TFT.
(f) Response time depends on the temperature.( In Lower temperature, it becomes longer)
SAMSUNG Confidential
Page 24
SAMSUNG Confidential
MODEL
LSF400HM02-A
Doc. No
Page
24 / 25
9.4 Operation condition guide
(a) The LCD product shall be operated under normal conditions.
The normal condition is defined as below;
- Temperature : 20±15℃
- Humidity : 55±20%
- Display pattern : continually changing pattern (Not stationary)
(b) If the product will be used under extreme conditions such as under the high temperature, humidity,
display patterns or the operation time etc.., it is strongly recommended to contact SDC for the
advice about the application of engineering . Otherwise, its reliability and the function may not be
guaranteed. Extreme conditions are commonly found at airports, transit stations, banks, stock
markets, and controlling systems.
9.5 Others
(a) The ultra-violet ray filter is necessary for the outdoor operation.
(b) Avoid the condensation of water which may result in the improper operation of product or the
disconnection of electrode.
(c) Do not exceed the limit on the absolute maximum rating. (For example, the supply voltage
variation, the input voltage variation, the variation in content of parts and environmental
temperature, and so on) If not, panel may be damaged.
(d) If the module keeps displaying the same pattern for a long period of time, the image may be
remained to the screen. To avoid the image sticking, it is recommended to use a screen saver.
(e) This Panel has its circuitry of PCB's on the rear side, so it should be handled carefully in order for a
force not to be applied.
(f) Please contact the SDC in advance when the same pattern is displayed for a long time
Page 25
MODEL
LSF400HM02-A
Doc. No
Page
25 / 25
SAMSUNG Confidential
Loading...
