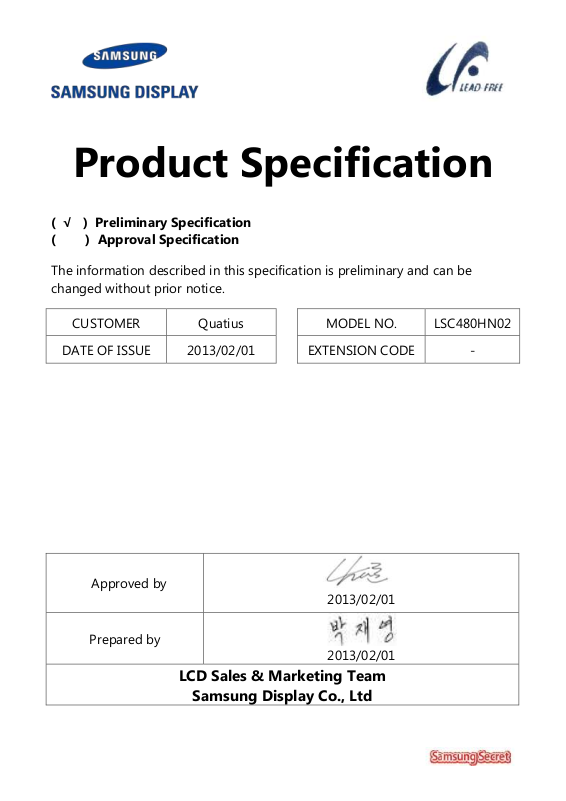

SAMSUNG LSC480HN02 Specification

CUSTOMER

Quatius

MODEL NO.

LSC480HN02

DATE OF ISSUE

2013/02/01

EXTENSION CODE

Approved by

2013/02/01

Prepared by

2013/02/01

LCD Sales & Marketing Team

Samsung Display Co., Ltd

Product Specification

( √ ) Preliminary Specification ( ) Approval Specification

The information described in this specification is preliminary and can be changed without prior notice.

————————————————————————————————————————————————–

For eyes of Quatius only

Table of Contents

REVISION HISTORY .......................................................................................................................................................... 3

1. GENERAL DESCRIPTION ............................................................................................................................................. 4

2. ABSOLUTE MAXIMUM RATINGS ............................................................................................................................ 5

3. OPTICAL CHARACTERISTICS ..................................................................................................................................... 6

4. ELECTRICAL CHARACTERISTICS ............................................................................................................................... 9

4.1 TFT LCD MODULE ..................................................................................................................................................... 9

5. INPUT TERMINAL PIN ASSIGNMENT .................................................................................................................... 10

5.1 INPUT SIGNAL & POWER ....................................................................................................................................... 10

5.2 LVDS INTERFACE ..................................................................................................................................................... 12

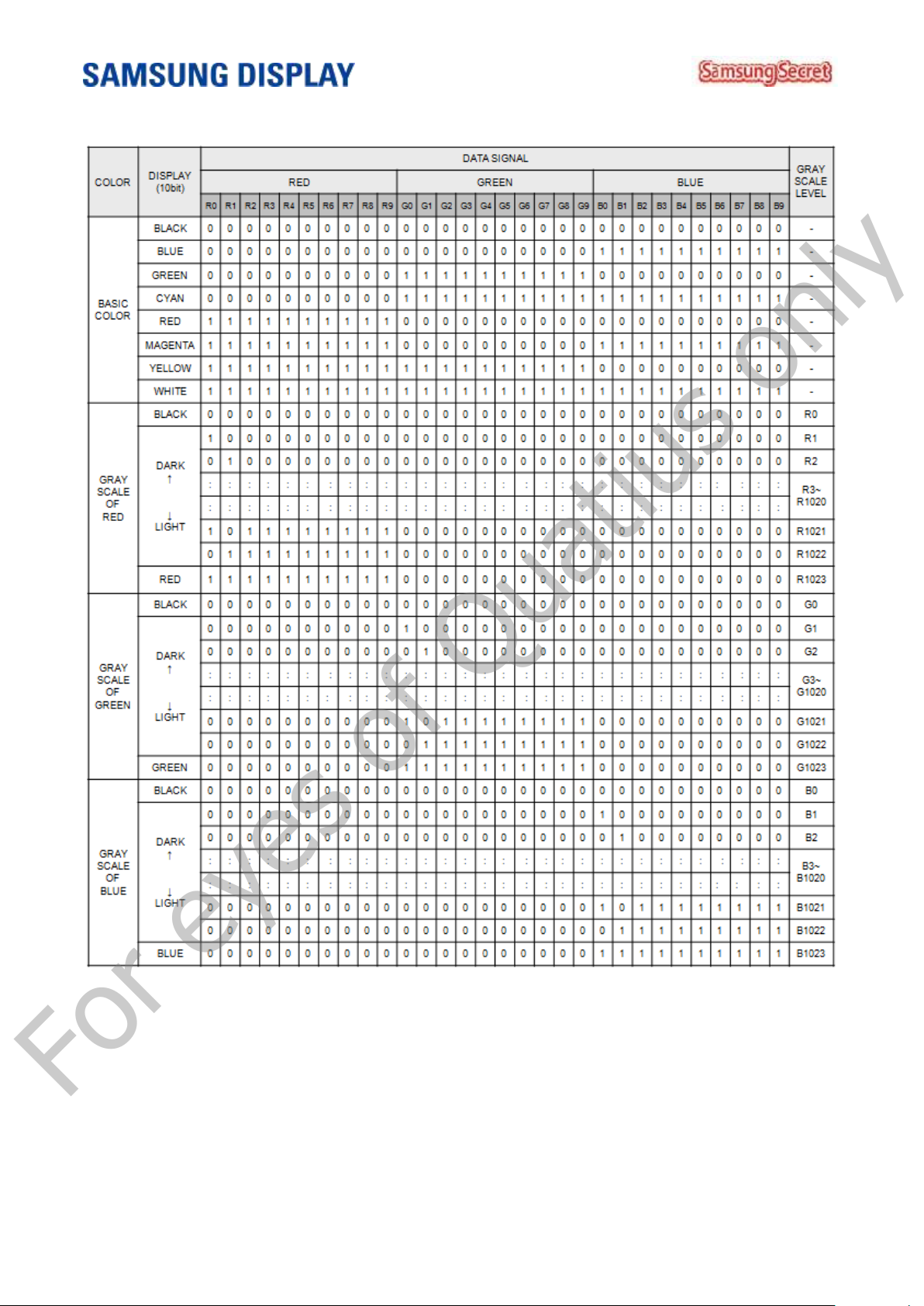

5.3 INPUT COLOR DATA MAPPING............................................................................................................................. 13

6. INTERFACE TIMING ................................................................................................................................................... 14

6.1 TIMING PARAMETERS OF TIMING (ONLY DE MODE) ............................................................................................ 14

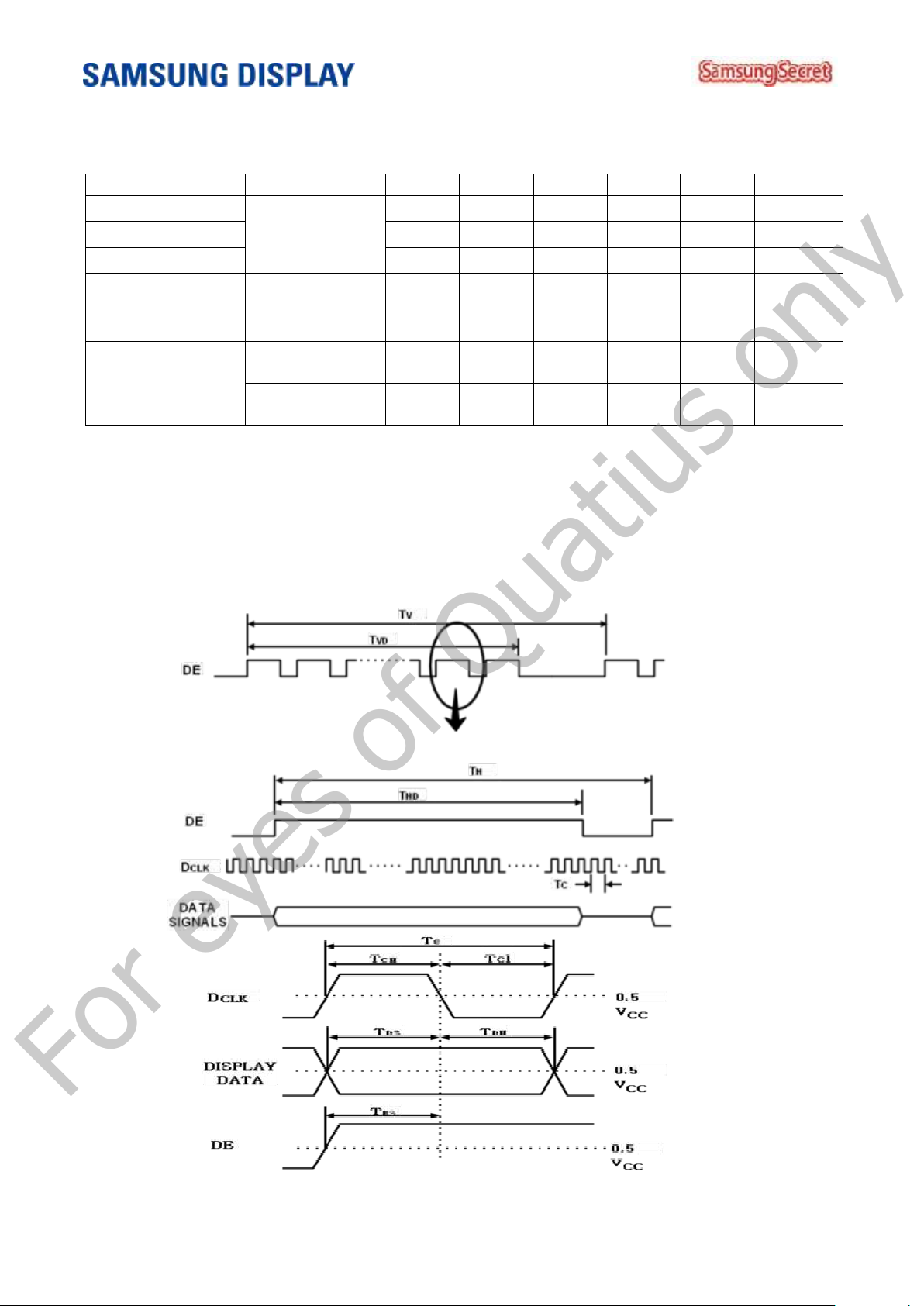

6.2 TIMING DIAGRAMS OF INTERFACE SIGNAL ........................................................................................................ 14

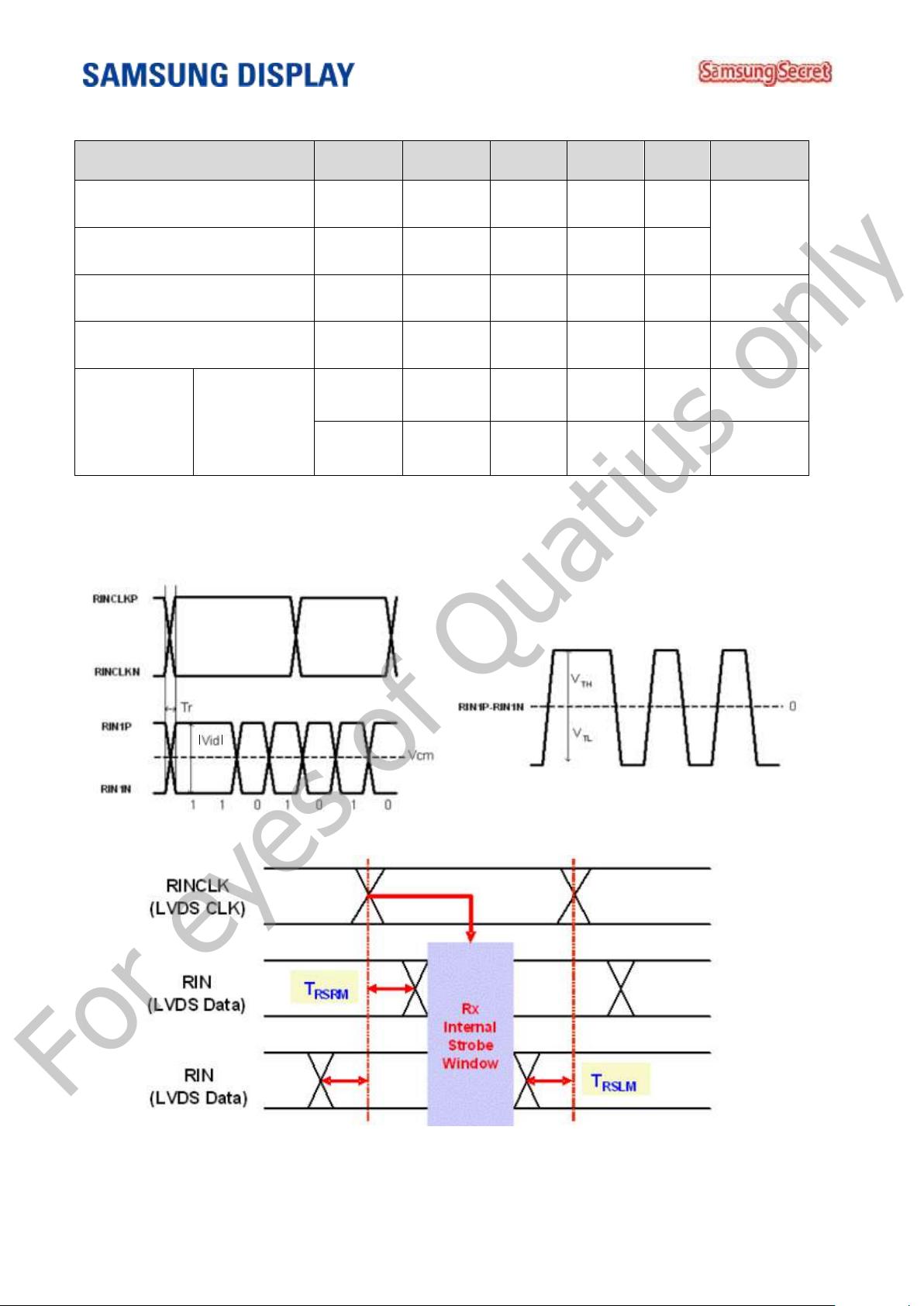

6.3 CHARACTREISTICS OF INPUT DATA OF LVDS ..................................................................................................... 15

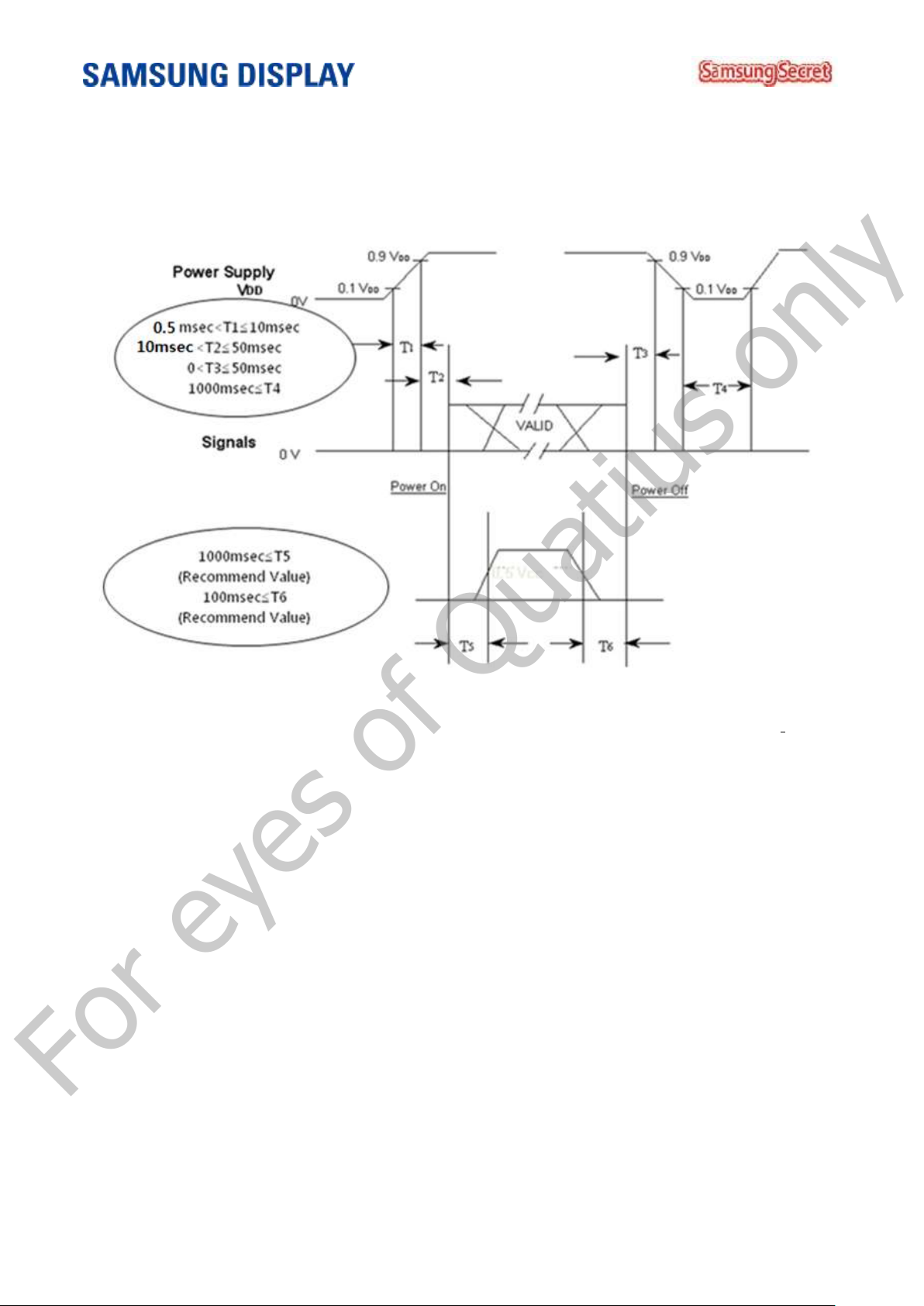

6.4 POWER ON/OFF SEQUENCE ................................................................................................................................. 16

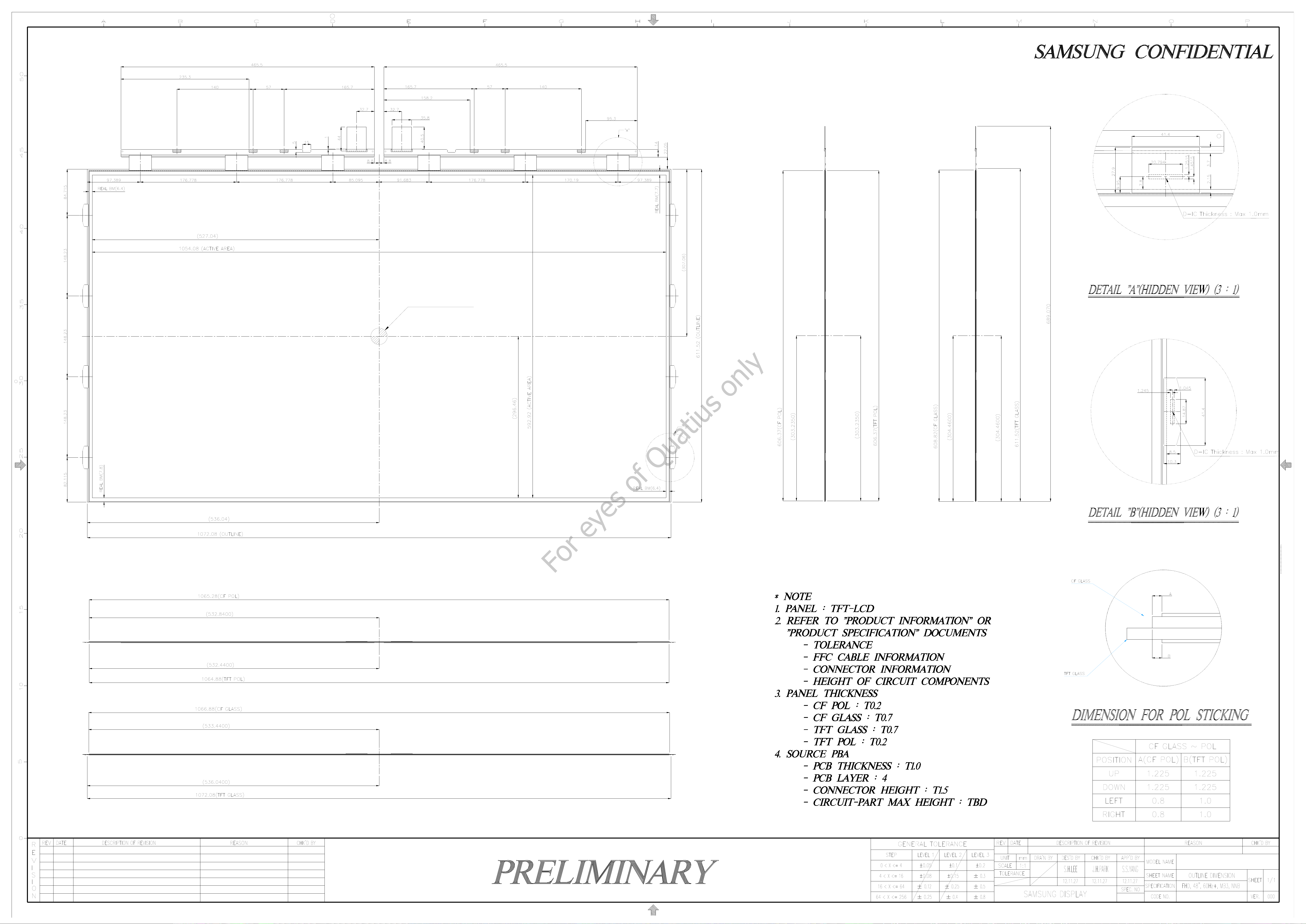

7. OUTLINE DIMENSION ............................................................................................................................................... 17

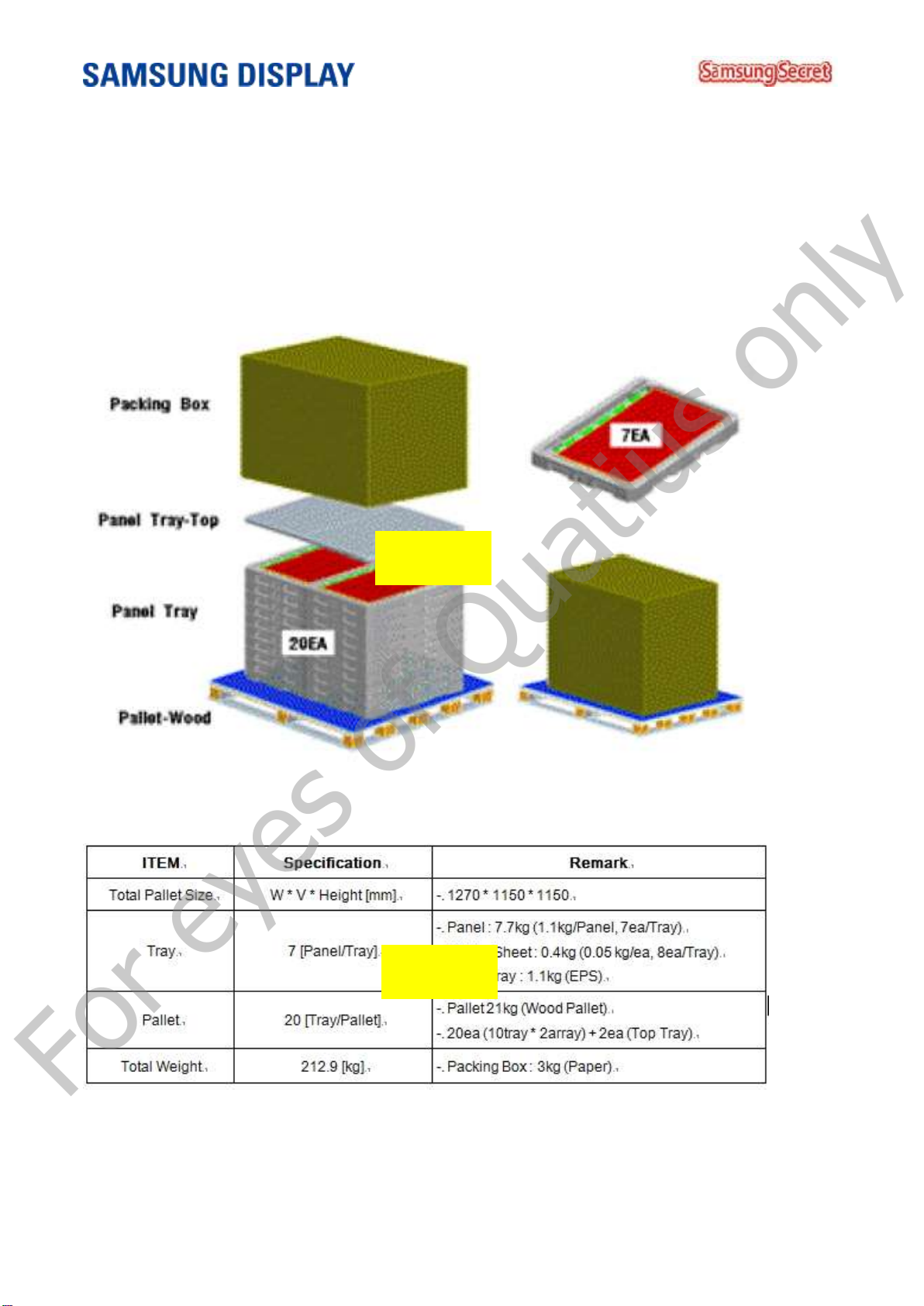

8. PACKING ...................................................................................................................................................................... 18

8.1 CARTON................................................................................................................................................................... 18

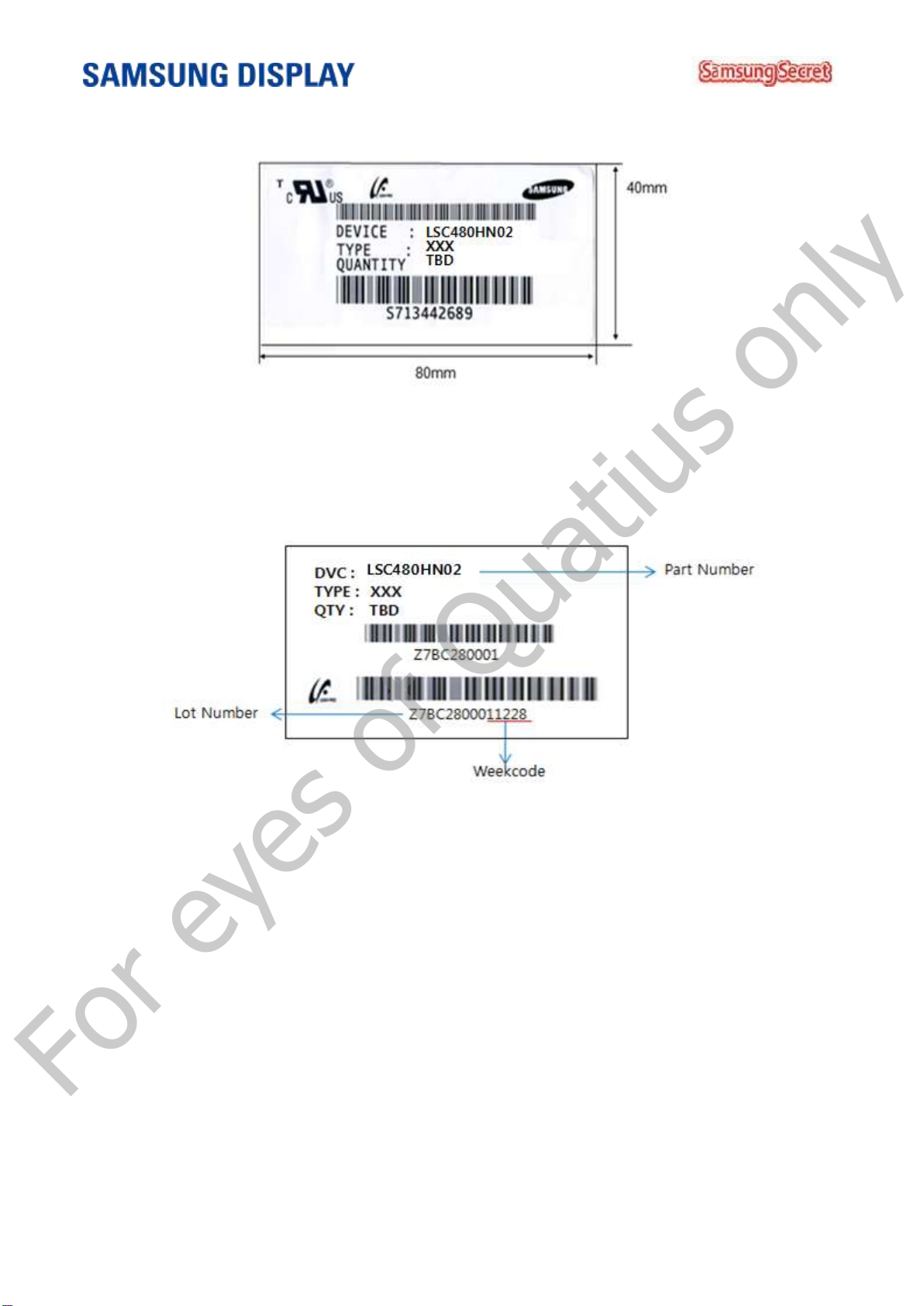

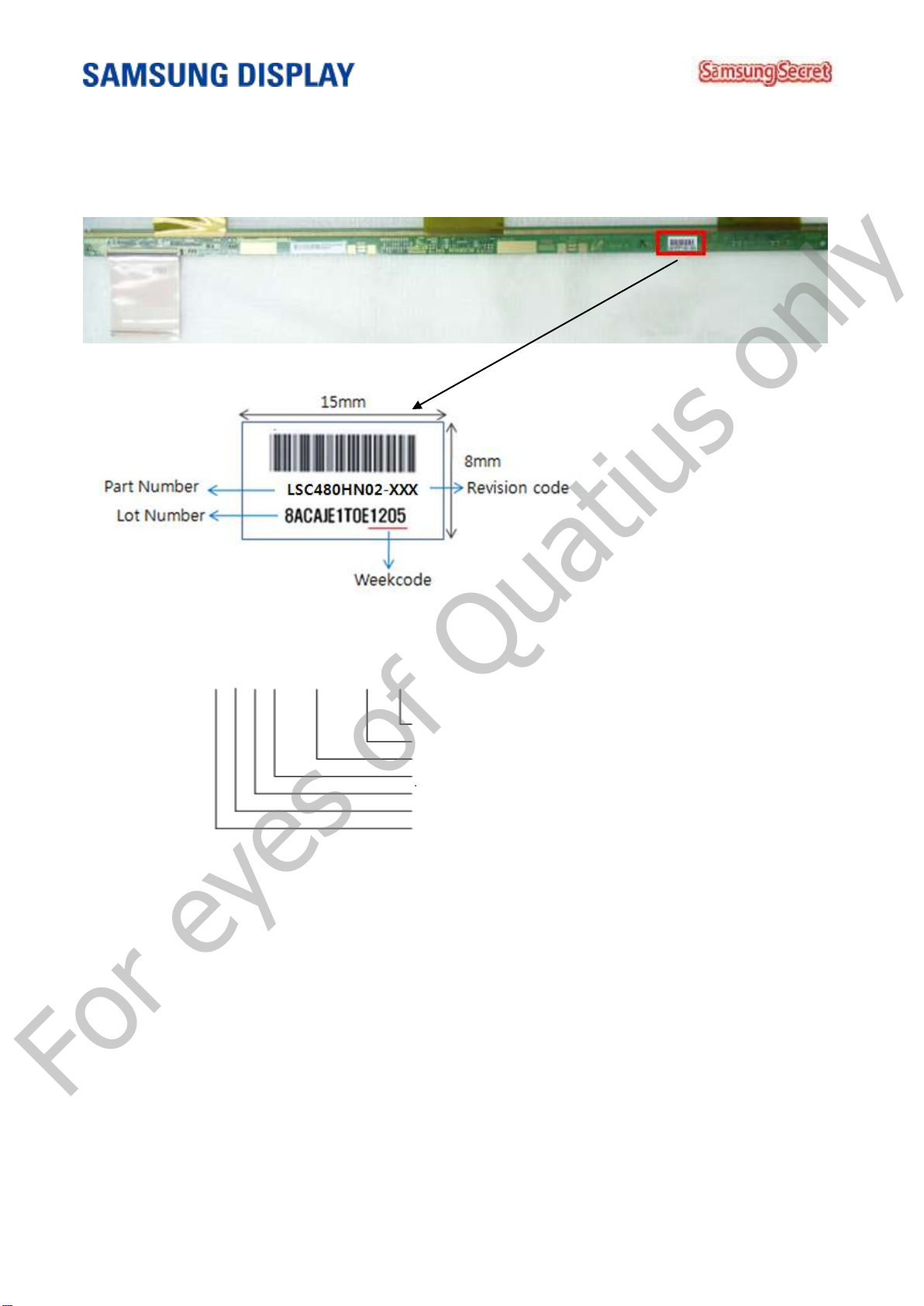

8.2 MARKING ................................................................................................................................................................ 19

9. GENERAL PRECAUTIONS .......................................................................................................................................... 21

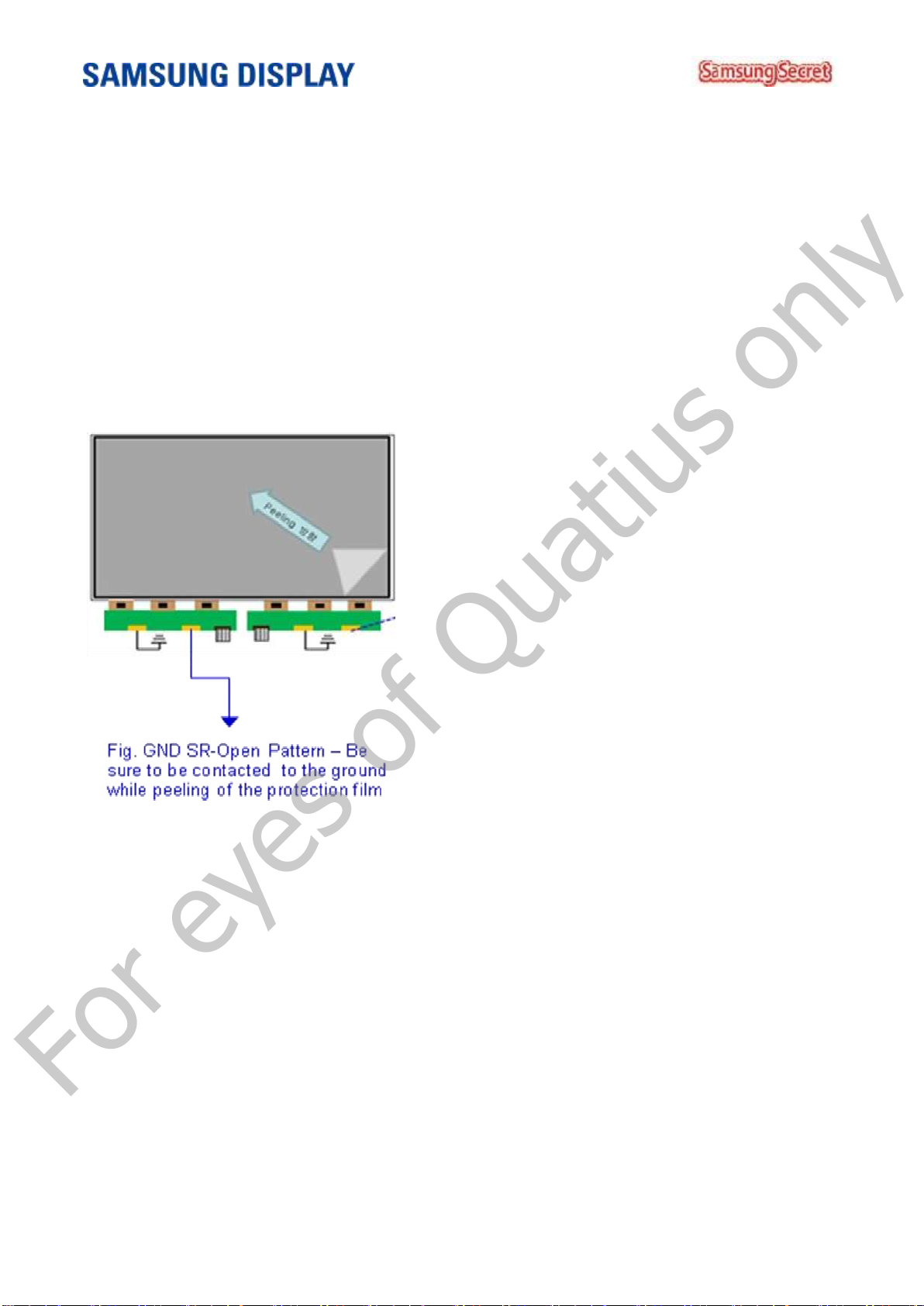

9.1 HANDLING .............................................................................................................................................................. 21

9.2 STORAGE ................................................................................................................................................................. 23

9.3 OPERATION ............................................................................................................................................................. 23

9.4 OPERATION CONDITION GUIDE................................................................ ................................ ........................... 24

9.5 PROCESS EXECUTING GUIDE................................................................................................................................. 24

9.6 OTHERS .................................................................................................................................................................... 25

10. SPECIAL PRECAUSTIONS........................................................................................................................................ 26

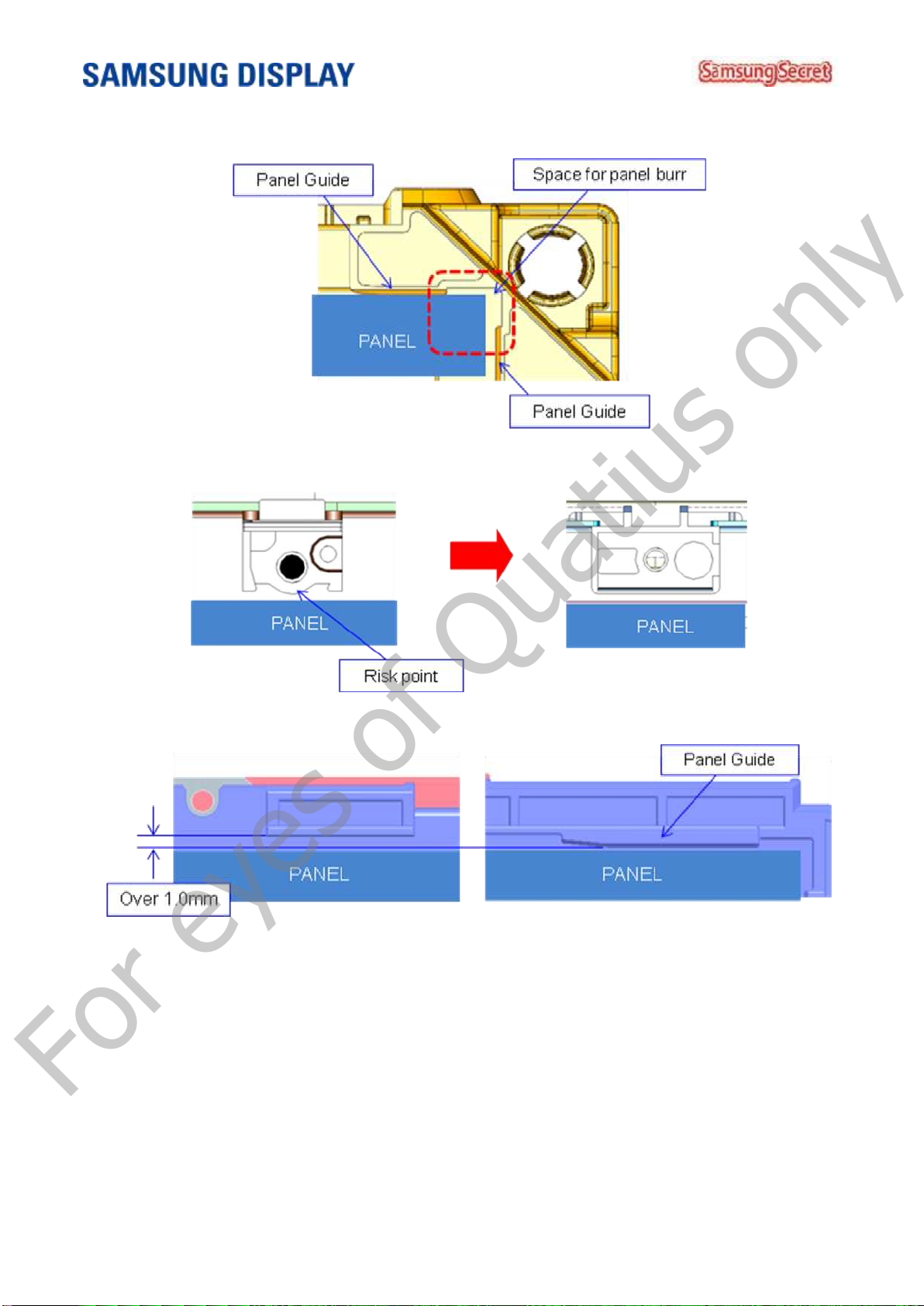

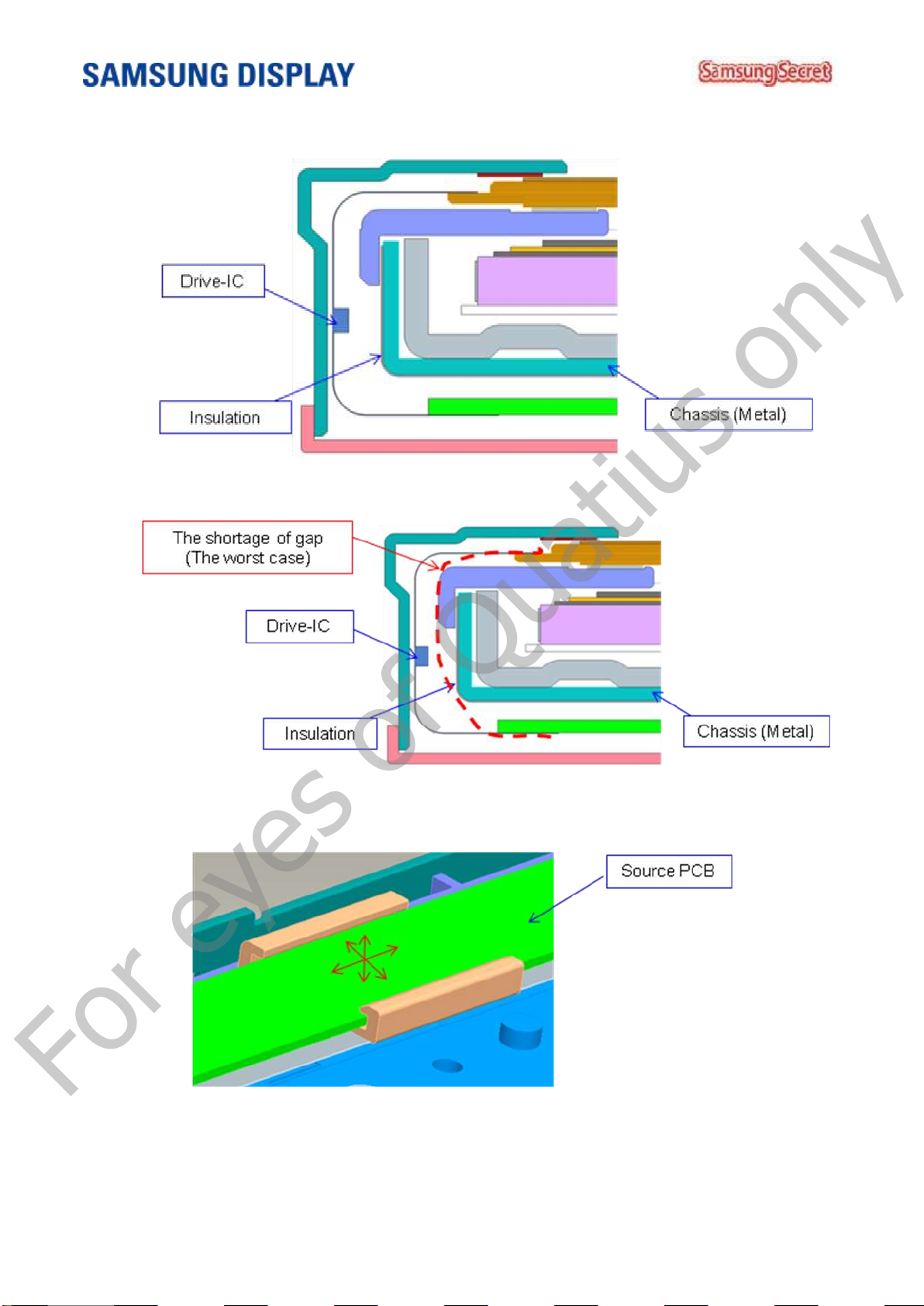

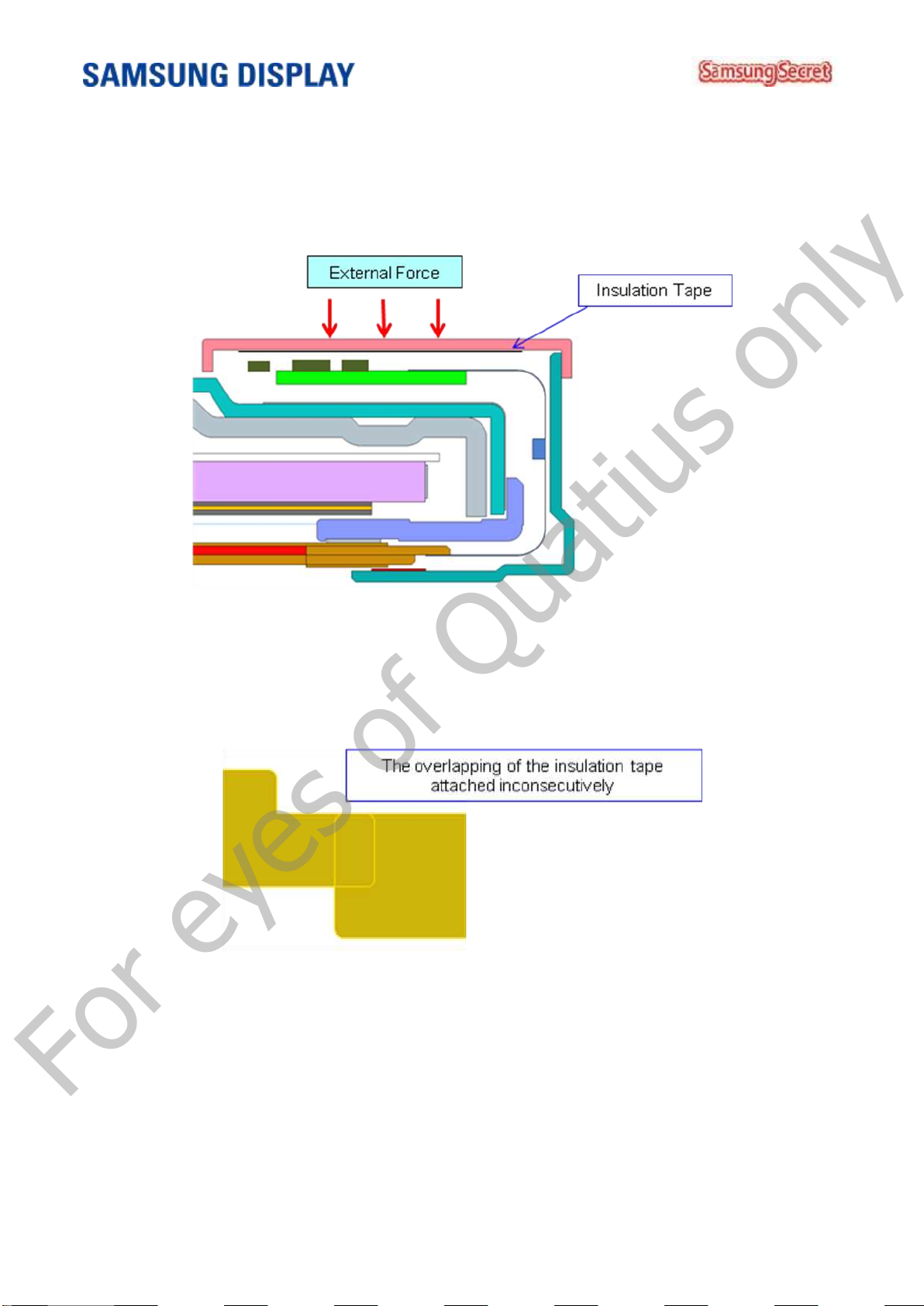

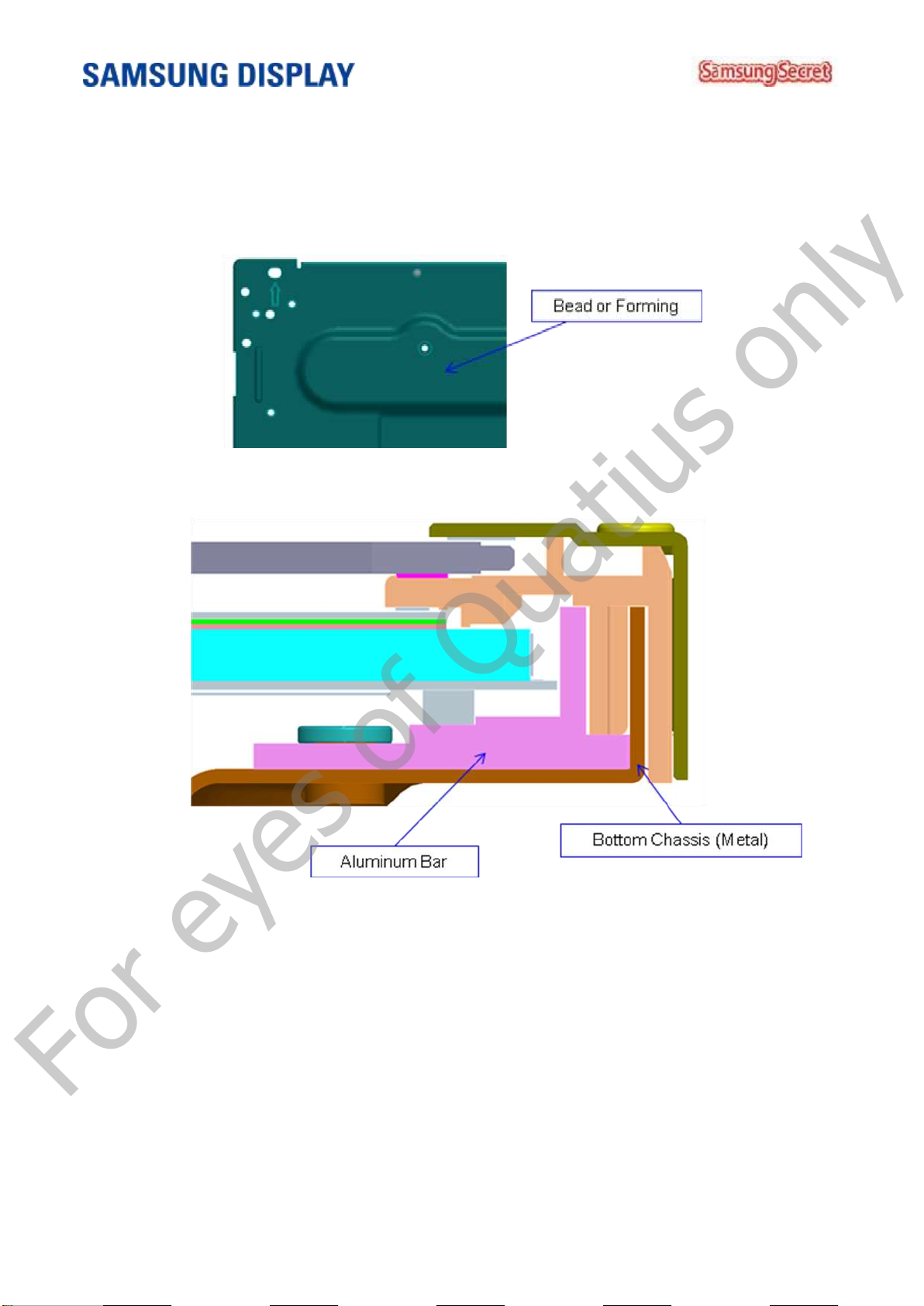

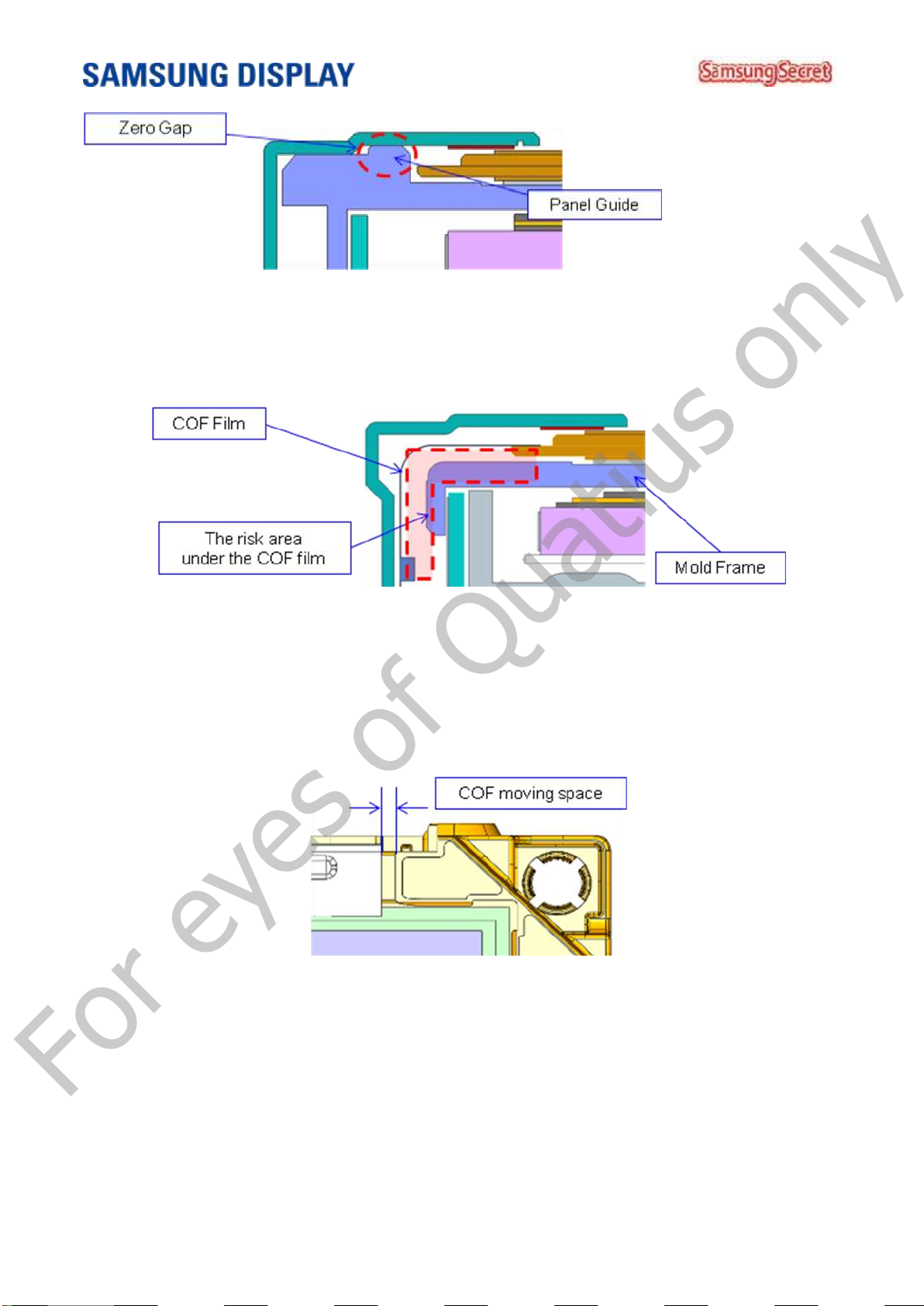

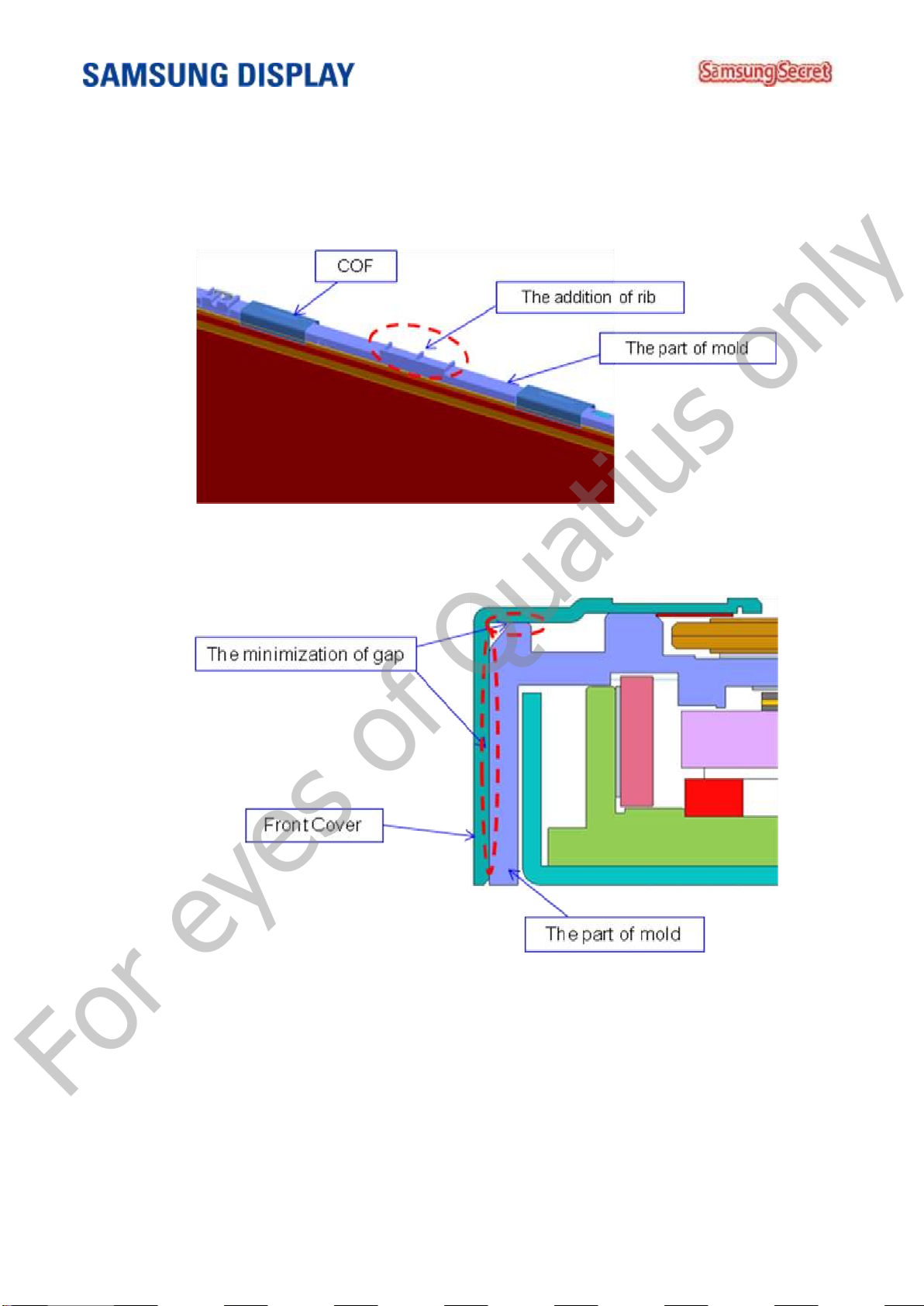

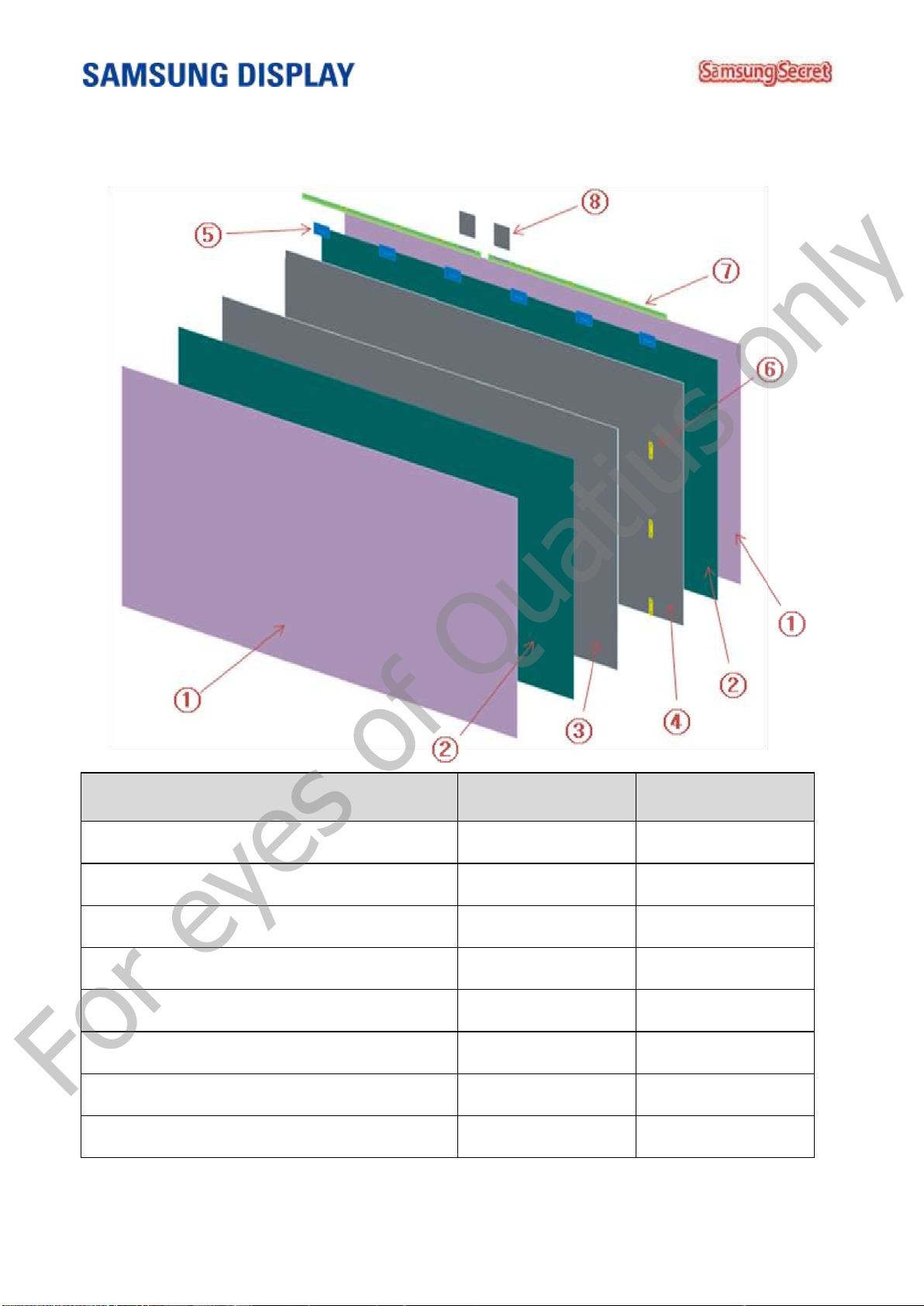

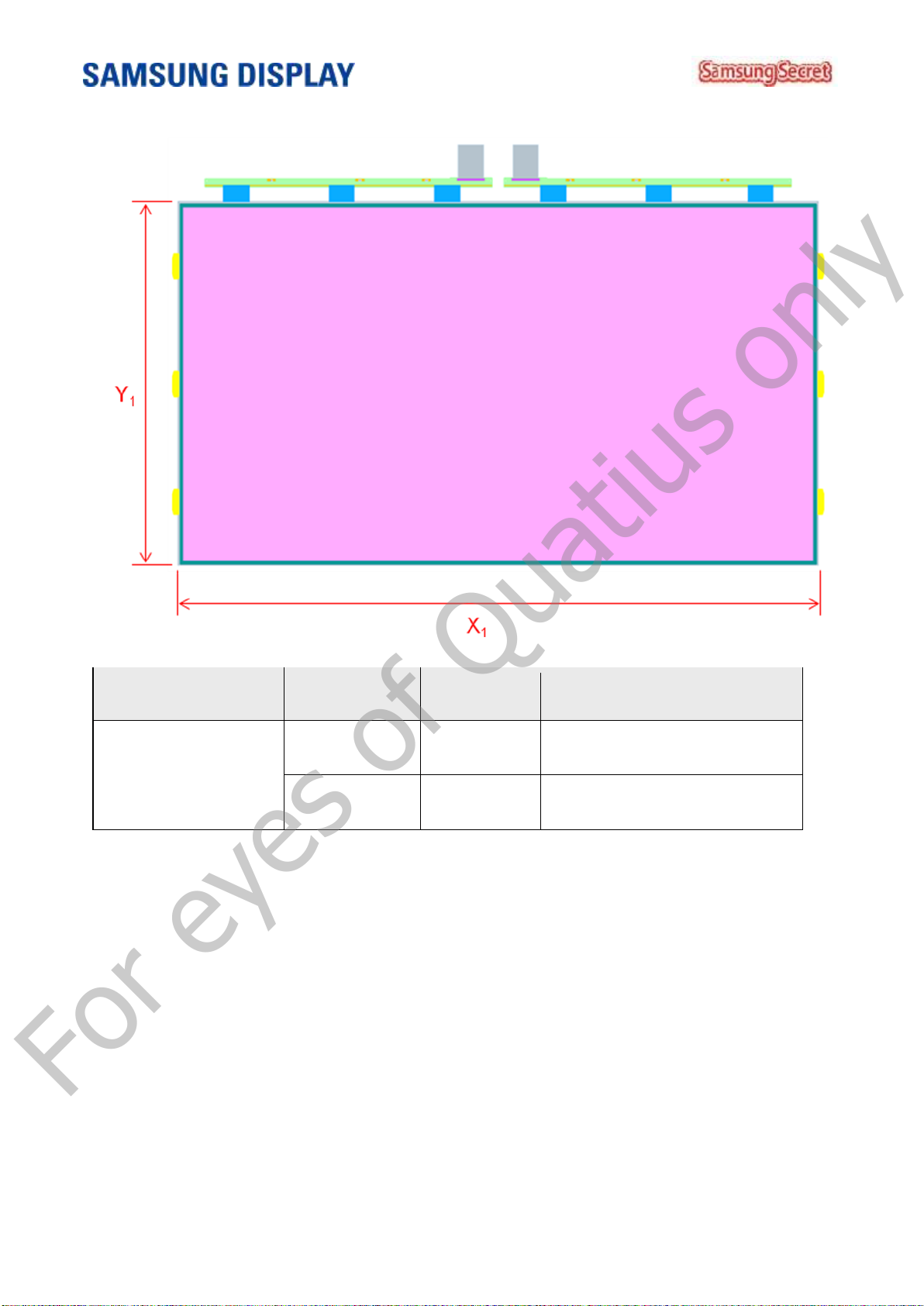

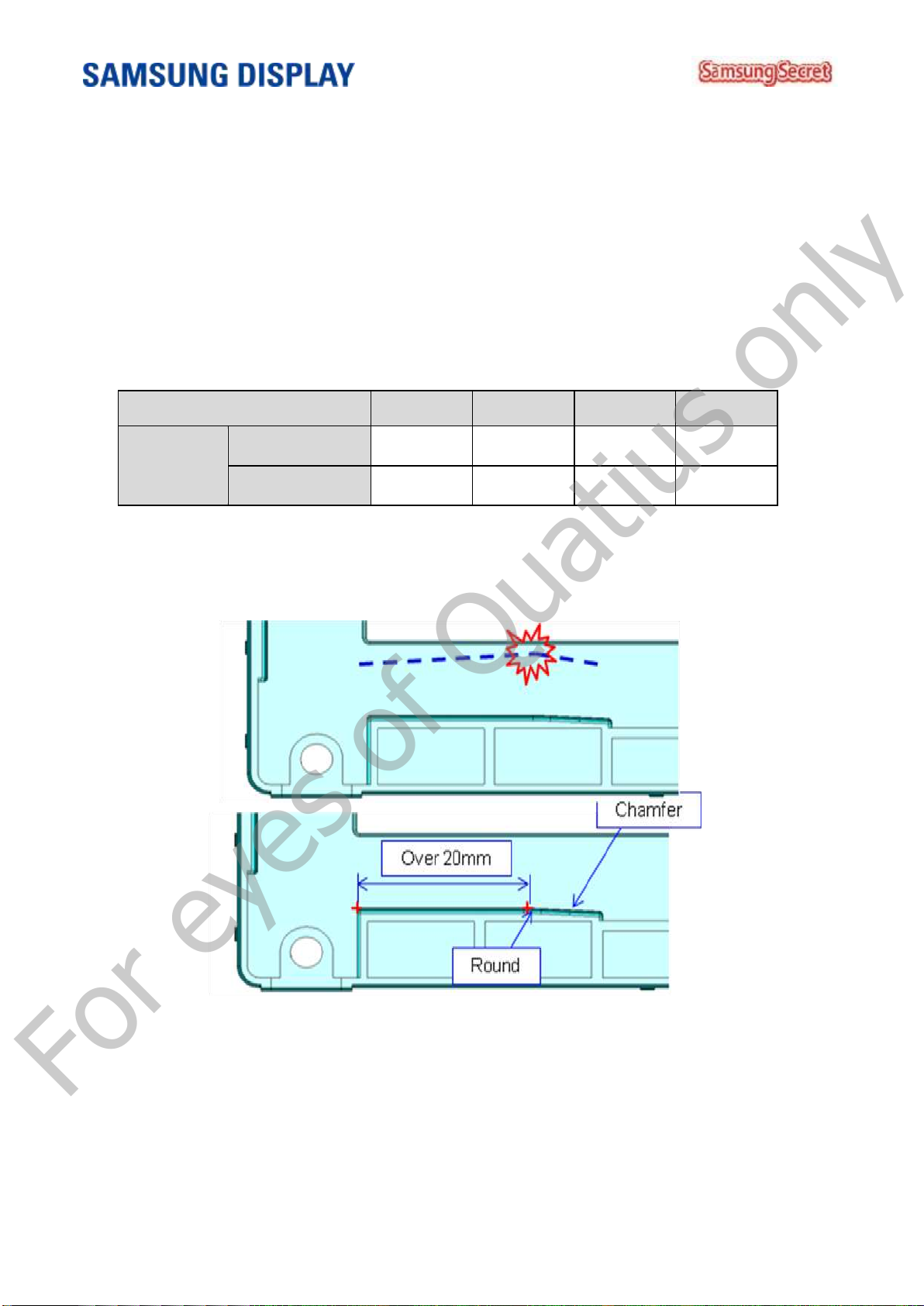

APPENDIX – RECOMMENDATION FOR THE BLU DESIGN .................................................................................... 27

——————————————————————————————————————————————––—

Doc.No. LSC480HN02 Page 2 of 36 Rev.No. 06-000-G-20130201

————————————————————————————————————————————————–

Date.

Rev.No.

Page

Revision Description

2013/02/01

000

Initial Release

For eyes of Quatius only

REVISION HISTORY

——————————————————————————————————————————————––—

Doc.No. LSC480HN02 Page 3 of 36 Rev.No. 06-000-G-20130201

————————————————————————————————————————————————–

Item

Specification

Unit

Note

Active Display Area

1054.08 (H) x 592.92 (V)

Switching Components

a-Si TFT Active matrix

Glass size

TFT : 1072.08(H) x 611.52(V)

CF : 1066.88(H) x 608.82(V)

±0.5mm

Panel Size

1072.08(H) x 611.52(V)

±0.5mm

1.80(D)

±0.1mm

Weight

2970(Max)

g Display Colors

1.07B (Dithered 10bit)

Number of Pixels

1,920 x 1,080

16:9

Pixel Arrangement

RGB Vertical Stripe

Display Mode

Normally Black

Surface Treatment

Anti Glare

For eyes of Quatius only

1. GENERAL DESCRIPTION

DESCRIPTION

This model uses a liquid crystal display (LCD) of amorphous silicon TFT as switching components. This model is composed of a TFT LCD panel, a driver circuit, and an ass‟y KIT of source PBA. This 48.0” model has a resolution of a 1920 x 1080 and can display up to 1.07billion colors with the wide viewing angle of 89° or a higher degree in all directions. This panel is designed to support applications by providing a excellent performance function of the flat panel display such as home-alone multimedia TFT-LCD TV and a high definition TV.

FEATURES

RoHS compliance (Pb-free) High contrast ratio & aperture ratio with the wide color gamut SVA(Super Vertical align) mode Wide viewing angle (± 178°) High speed response FHD resolution (16:9) DE (Data enable) mode The interface (2Pixel/clock) of LVDS (Low voltage differential signaling)

GENERAL INFORMATION

——————————————————————————————————————————————––—

Doc.No. LSC480HN02 Page 4 of 36 Rev.No. 06-000-G-20130201

————————————————————————————————————————————————–

Item

Symbol

Min.

Max.

Unit

Note

Power supply voltage

VDD

10.8

13.2 V (1)

Temperature for storage (Temperature of glass surface)

STG

-20

C

(2), (4)

Humidity for storage

STG

5 90

%RH

(2), (4)

Operating temperature

OPR

0 50

C

(2), (5)

Operating humidity

STG

%RH

Endurance on static electricity

150 V (3)

Fig. Range for temperature and relative humidity (unpacking condition)

For eyes of Quatius only

2. ABSOLUTE MAXIMUM RATINGS

If the figures on measuring instruments exceed maximum ratings, it can cause the malfunction or the unrecoverable damage on the device.

Note (1) The power supply voltage at Ta= 25 ± 2 °C

(2) Temperature and the range of relative humidity are shown in the figure below. a. 90 % RH Max. (Ta ≤ 39 °C)

b. The relative humidity is 90% or less. (Ta ＞39 °C) c. No condensation

(3) Keep the static electricity under 150V in Polarizer attaching process. (4) Operating condition with source PCB (5) Storage temperature condition including glass (6) Condition without packing. (Unpacking condition)

——————————————————————————————————————————————––—

Doc.No. LSC480HN02 Page 5 of 36 Rev.No. 06-000-G-20130201

————————————————————————————————————————————————–

Item

Symbol

Condition

Min.

Typ.

Max.

Unit

Note

Contrast Ratio

`Normal

qL,R=0

qU,D=0

Viewing

Angle

TBD

TBD - -

(1)

SR-3

Response time

G-to-G

TBD

msec

(2)

RD-80S

Luminance of white

(At the center of screen))

TBD

cd/m2

(3)

SR-3

Color

Chromaticity

(CIE)

Red

TYP

-0.03

TBD

TYP

+0.03

(4),(5)

SR-3

TBD

Green

TBD

Blue

TBD

White

TBD

Viewing

Angle

Hor.

CR  10

At center

Degrees

(5)

SR-3

EZ-Contrast

Ver.

Color Gamut

TBD

Color

TBD - K

For eyes of Quatius only

3. OPTICAL CHARACTERISTICS

The optical characteristics should be measured in the dark room or the space surrounded by the similar setting. Measuring equipment : TOPCON RD-80S, TOPCON SR-3 ,ELDIM EZ-Contrast

Ta = 25 ± 2°C, VDD=12.0V, fv=60Hz, fDCLK=148.5MHz, Light source: D65 Standard Light

Notice (a) Setup for test equipment The measurement should be executed in a stable, windless, and dark room for 40min and 60min after operating the panel at the given temperature for stabilization of the standard light. (SDC uses the standard luminance of the D65media). This measurement should be measured at the center of screen. The environment condition: Ta = 25 ± 2 °C

(b) D65media has the general light source. The temperature of color is 6487K. The coordinate of color is Wx 0.313, Wy 0.329

The luminance of this product is 7217cd/㎡.

——————————————————————————————————————————————––—

Doc.No. LSC480HN02 Page 6 of 36 Rev.No. 06-000-G-20130201

————————————————————————————————————————————————–

Photo detector

Field

SR-3

2°

RD-80S

1°

C R

max min



For eyes of Quatius only

(c) The CIE positions D65 as the standard daylight illuminant: [D65] is intended to represent average daylight and has a correlated color temperature of approximately 6500 K. CIE standard illuminant D65 should be used in all colorimetric calculations requiring representative daylight, unless there are specific reasons for using a different illuminant.

- Definition of the test point

Note (1) Definition of contrast ratio (C/R) : The ratio of gray max (Gmax) & gray min (Gmin) at the center point ⑤ of the panel

The measurement goes in ELABO-LS Standard light source

Gmax : The luminance with all white pixels Gmin : The luminance with all black pixels

——————————————————————————————————————————————––—

Doc.No. LSC480HN02 Page 7 of 36 Rev.No. 06-000-G-20130201

————————————————————————————————————————————————–

Display data

The response of

optical instruments

0 31 63 95 127 159 191 223 255

Tr(0-31) Tr(0-63) Tr(0-95) Tr(0-127) Tr(0-159) Tr(0-191) Tr(0-223) Tr(0-255)

Tf(31-0) Tr(31-63) Tr(31-95) Tr(31-127) Tr(31-159) Tr(31-191) Tr(31-223) Tr(31-255)

Tf(63-0) Tf(63-31) Tr(63-95) Tr(63-127) Tr(63-159) Tr(63-191) Tr(63-223) Tr(63-255)

Tf(95-0) Tf(95-31) Tf(95-63) Tr(95-127) Tr(95-159) Tr(95-191) Tr(95-223) Tr(95-255)

127

Tf(127-0) Tf(127-31) Tf(127-63) Tf(127-95) Tr(127-159) Tr(127-191) Tr(127-223) Tr(127-255)

159

Tf(159-0) Tf(159-31) Tf(159-63) Tf(159-95) Tf(159-127) Tr(159-191) Tr(159-223) Tr(159-255)

191

Tf(191-0) Tf(191-31) Tf(191-63) Tf(191-95) Tf(191-127) Tf(191-159) Tr(191-223) Tr(191-255)

223

Tf(223-0) Tf(223-31) Tf(223-63) Tf(223-95) Tf(223-127) Tf(223-159) Tf(223-191) Tr(223-255)

255

Tf(255-0) Tf(255-31) Tf(255-63) Tf(255-95) Tf(255-127) Tf(255-159) Tf(255-191) Tf(255-223)

Toff

End

Start

Gray to Gray Response Time

Ton

Gray

For eyes of Quatius only

Note (2) Definition of response time

※ G-to-G : Average response time between the whole gray scale to the whole gray scale.

The response time is the value that was measured after it was operated in Samsung's standard BLU for one hour.( at room temperature)

Note (3) The definition of luminance of white: The luminance of white at the center point ⑤ The measurement shall be executed with the standard light source of D65

Note (4) The definition of chromaticity (CIE 1931) The color coordinate of red, green, blue and white at the center point ⑤ The measurement shall be executed with the standard light source of D65

Note (5) Definition of viewing angle : The range of viewing angle (C/R ≥10) The measurement shall be executed with the standard light source of D65

——————————————————————————————————————————————––—

Doc.No. LSC480HN02 Page 8 of 36 Rev.No. 06-000-G-20130201

T*(X-Y) : Response time from level of gray at X to level of gray at Y The definition of response time = Σ [T*(X-Y)] / 72

————————————————————————————————————————————————–

Item

Symbol

Min.

Typ.

Max.

Unit

Note

Voltage of power supply

VDD

10.8

12.0

13.2 V (1)

Currnet of

power

supply

(a) Black

IDD

TBD

(2),(3)

(b) White

TBD

(d)V-Stripe

TBD

Vsync frequency

TBD

Hz Hsync frequency

TBD

67.5

TBD

kHz Main frequency

Fdclk

TBD

148.5

TBD

MHz

Rush current

IRUSH

TBD A (4)

a) Black pattern b) White pattern c) V-stripe

For eyes of Quatius only

4. ELECTRICAL CHARACTERISTICS

4.1 TFT LCD MODULE

* Ta = 25 ± 2 °C

Note (1) The ripple voltage should be controlled fewer than 10% of V

(2) fV=60Hz, fDCLK = 148.5MHz, VDD = 12.0V, DC Current. (3) Power dissipation check pattern (LCD Module only)

(Typ.) voltage.

(4) Conditions for measurement

——————————————————————————————————————————————––—

Doc.No. LSC480HN02 Page 9 of 36 Rev.No. 06-000-G-20130201

————————————————————————————————————————————————–

Symbol

Description

Symbol

Description

NOTE1

Rx2[A]N

Even LVDS Signal -

NOTE1

Rx2[A]P

Even LVDS Signal +

NOTE1

Rx2[B]N

Even LVDS Signal -

NOTE1

Rx2[B]P

Even LVDS Signal +

NOTE1

Rx2[C]N

Even LVDS Signal -

NOTE1

Rx2[C]P

Even LVDS Signal +

NOTE1

GND

Ground

NOTE1

Rx2CLK-

LVDS Clock -

GND

Ground

Rx2CLK+

LVDS Clock +

Rx1[A]N

Odd LVDS Signal -

GND

Ground

Rx1[A]P

Odd LVDS Signal +

Rx2[D]N

Even LVDS Signal -

Rx1[B]N

Odd LVDS Signal -

Rx2[D]P

Even LVDS Signal +

Rx1[B]P

Odd LVDS Signal +

Rx2[E]N (Note 2)

Even LVDS Signal -

Rx1[C]N

Odd LVDS Signal -

Rx2[E]P (Note 2)

Even LVDS Signal +

Rx1[C]P

Odd LVDS Signal +

NOTE1

GND

Ground

NOTE1

Rx1CLK-

LVDS Clock -

GND

Ground

Rx1CLK+

LVDS Clock +

GND

Ground

GND

Ground

GND

Ground

Rx1[D]N

Odd LVDS Signal -

NOTE1

Rx1[D]P

Odd LVDS Signal +

12V

DC power supply

Rx1[E]N (Note 2)

Odd LVDS Signal -

12V

DC power supply

Rx1[E]P (Note 2)

Odd LVDS Signal +

12V

DC power supply

12V

DC power supply

For eyes of Quatius only

5. INPUT TERMINAL PIN ASSIGNMENT

5.1 INPUT SIGNAL & POWER

Connector : FI-RE51S-HF (JAE/UJU)

——————————————————————————————————————————————––—

Doc.No. LSC480HN02 Page 10 of 36 Rev.No. 06-000-G-20130201

————————————————————————————————————————————————–

Fig . The diagram of connector

For eyes of Quatius only

Note (1) No connection: These PINS are used only for the product of SAMSUNG. (DO NOT CONNECT the input device to these pins.)

Note (2) If set input is 8bit LVDS signal, Keep Echannel level „0‟

Pin No.24 / Pin No.40 : Pull up(3.3V) Pin No.25 / Pin No.41 : Pull down(GND)

Note (3) Pin number which starts from the left side.

a. Power GND pins should be connected to the LCD‟s metal chassis. b. All power input pins should be connected together. c. All NC pins should be separated from other signal or power.

——————————————————————————————————————————————––—

Doc.No. LSC480HN02 Page 11 of 36 Rev.No. 06-000-G-20130201
