Samsung LE32M5, LE40M5, LE46M5 User Manual

LCD TV

LE26M5

AFTER SALES SERVICE

Do not hesitate to contact your retailer or service agent if a change in the performance of your product indicates that a faulty condition may be present.

LE32M5 LE40M5 LE46M5

Owner’s Instructions

Before operating the unit,

please read this manual thoroughly,

and retain it for future reference.

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature,

indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

BN68-00926F-00

ON-SCREEN MENUS

PC DISPLAY

PICTURE IN PICTURE (PIP)

TELETEXT

This device is a Class B digital apparatus.

www.samsung.com/global/register

Precautions When Displaying a Still Image

A still image may cause permanent damage to the TV screen.

•

Digital Ready TV: When you select the regular screen (4:3) mode to watch an SD-grade digital broadcast (and the Box

output is 480p).

•

Digital Ready TV: When you select the wide screen (16:9) mode to watch an SD-grade digital broadcast (and the

Box

output is 1080i).

Set-Top

Although digital broadcasting must be in the wide screen (16:9) HD format, broadcasters sometimes show programs made originally in the regular screen format (4:3) by converting the signals into digital form, in which case the left and right side edges of the screen are cropped.

Note : If the borders at the left, right and the

center of the screen remain fixed for an extended period of time, the amount of light transmission will also remain varied and as a result the borders may leave traces.

Do not leave the screen in pause mode for extended periods of time as you may experience temporary or permanent image burn.

•

Digital Ready TV: When the TV receives HD-grade signals (and the

Set-Top Box

output is 1080i).

When you watch a digital HD-grade broadcast on a regular (4:3) TV with the screen size "16:9" or "Panorama" selected, you will be able to watch the program but the top and bottom edges of the screen will be cropped.

Note : If the borders at the top, bottom and

the center of the screen remain fixed for an extended period of time, the amount of light transmission will also remain varied and as a result the borders may leave traces.

Do not leave the screen in pause mode for extended periods of time as you may experience temporary or permanent image burn.

• Integrated

(Wide-screen): When the TV receives SD-grade (regular) broadcasting signals (receives 480p regular signals).

•

Digital Ready TV

digital TV: When the TV receives SD-grade (regular) broadcasting signals (with a Set-Top Box).

Digital TV

(wide-screen):

• When you watch an analog

(regular) broadcast on a wide-screen TV (with the 4:3 screen mode selected).

Note : If the borders at the left, right and the

center of the screen remain fixed for an extended period of time, the amount of light transmission will also remain varied and as a result the borders may leave traces.

Do not leave the screen in pause mode for extended periods of time as you may experience temporary or permanent image burn.

•

When you watch a DVD, CD or a

video in wide-screen (21:9) format on a wide-screen (16:9) TV.

• When you connect a computer or a game console to the TV and select the 4:3 screen mode.

If you connect a DVD player, computer or a game console to the wide-screen TV and watch a movie or play a game in regular (4:3) or wide (21:9) screen mode, the left and right side edges, or the top and bottom edges of the screen will be cropped.

Note : If the borders at the left, right and the

center of the screen remain fixed for an extended period of time, the amount of light transmission will also remain varied and as a result the borders may leave traces.

Do not leave the screen in pause mode for extended periods of time as you may experience temporary or permanent image burn.

CONNECTING AND PREPARING YOUR TV

Viewing the Control Panel ......................................................................................... 4

Viewing the Connection Panel................................................................................... 5

- Connecting an Aerial or Cable Television Network ............................................... 7

- Connecting Component Devices (DTV/DVD) ....................................................... 7

- Connecting External A/V Devices .......................................................................... 7

- SERVICE ................................................................................................................ 7

- Connecting Set-Top Box, VCR or DVD ................................................................. 7

- Connecting HDMI/DVI ............................................................................................ 8

- Connecting Computer ............................................................................................ 8

- Connecting AUDIO ................................................................................................. 8

- Kensington Lock ..................................................................................................... 8

Viewing the Remote Control (All Functions Except Teletext)................................... 9

Viewing the Remote Control (Teletext Functions)..................................................... 10

Installing Batteries in the Remote Control................................................................. 11

Switching On and Off................................................................................................. 12

Placing Your Television in Standby Mode ................................................................. 13

Becoming Familiar with the Remote Control ............................................................ 14

Plug and Play ............................................................................................................. 15

Choosing Your Language .......................................................................................... 16

SETTING THE CHANNELS

Storing Channels Automatically................................................................................. 17

Storing Channels Manually ........................................................................................ 18

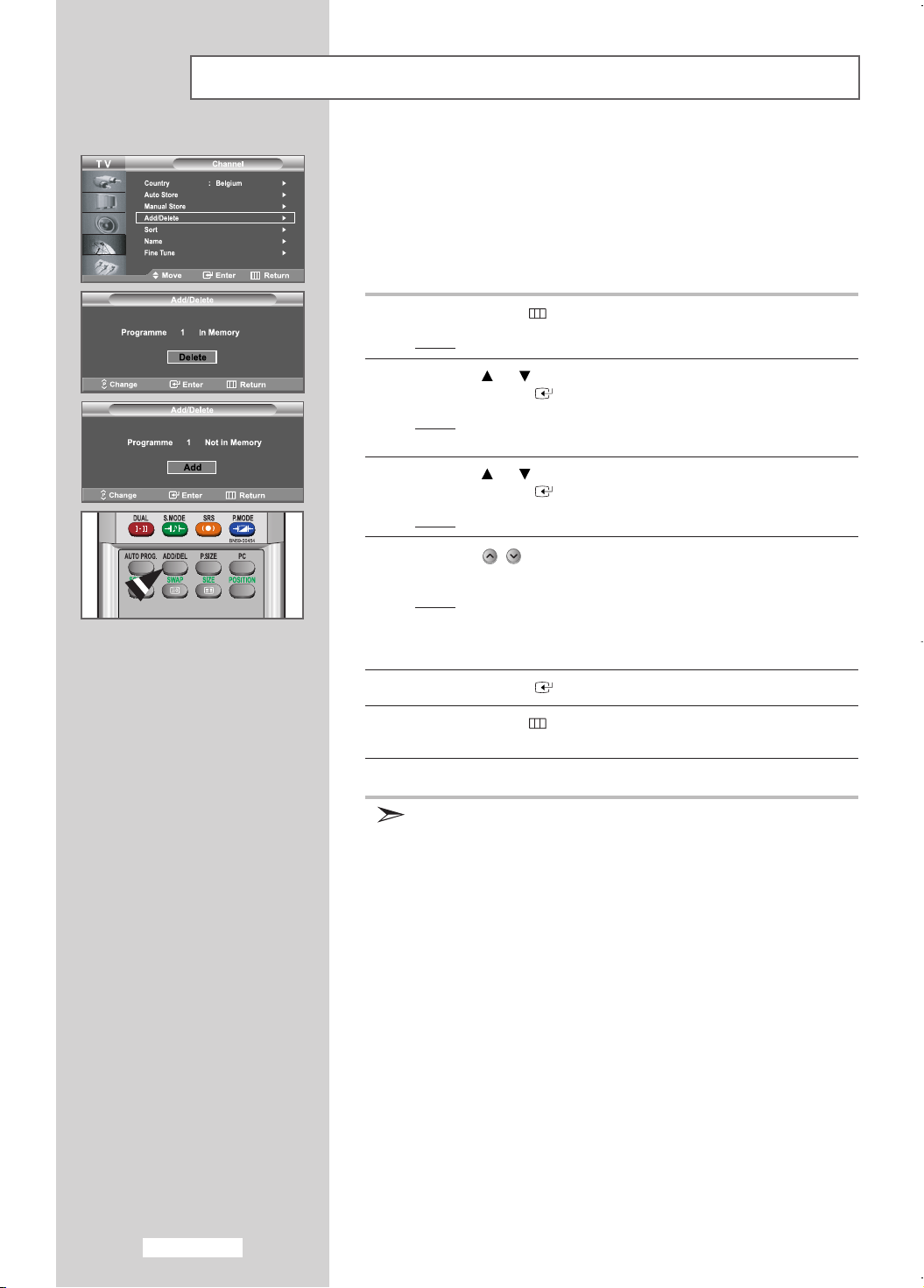

Editing the Channels .................................................................................................. 20

Sorting the Stored Channels ..................................................................................... 21

Assigning Channels Names ...................................................................................... 22

Fine Tuning Channel Reception ................................................................................ 23

SETTING THE PICTURE

Changing the Picture Standard ................................................................................. 24

Adjusting the Custom Picture .................................................................................... 25

Changing the Colour Tone......................................................................................... 26

Resetting the Picture Settings to the Factory Defaults ............................................. 26

Changing the Picture Size ......................................................................................... 27

Freezing the Current Picture...................................................................................... 27

Using the Digital NR (Digital Noise Reduction) Feature........................................... 28

DNIe (Digital Natural Image engine) ......................................................................... 29

My Colour Control ...................................................................................................... 30

Dynamic Contrast....................................................................................................... 31

Brightness Sensor ...................................................................................................... 32

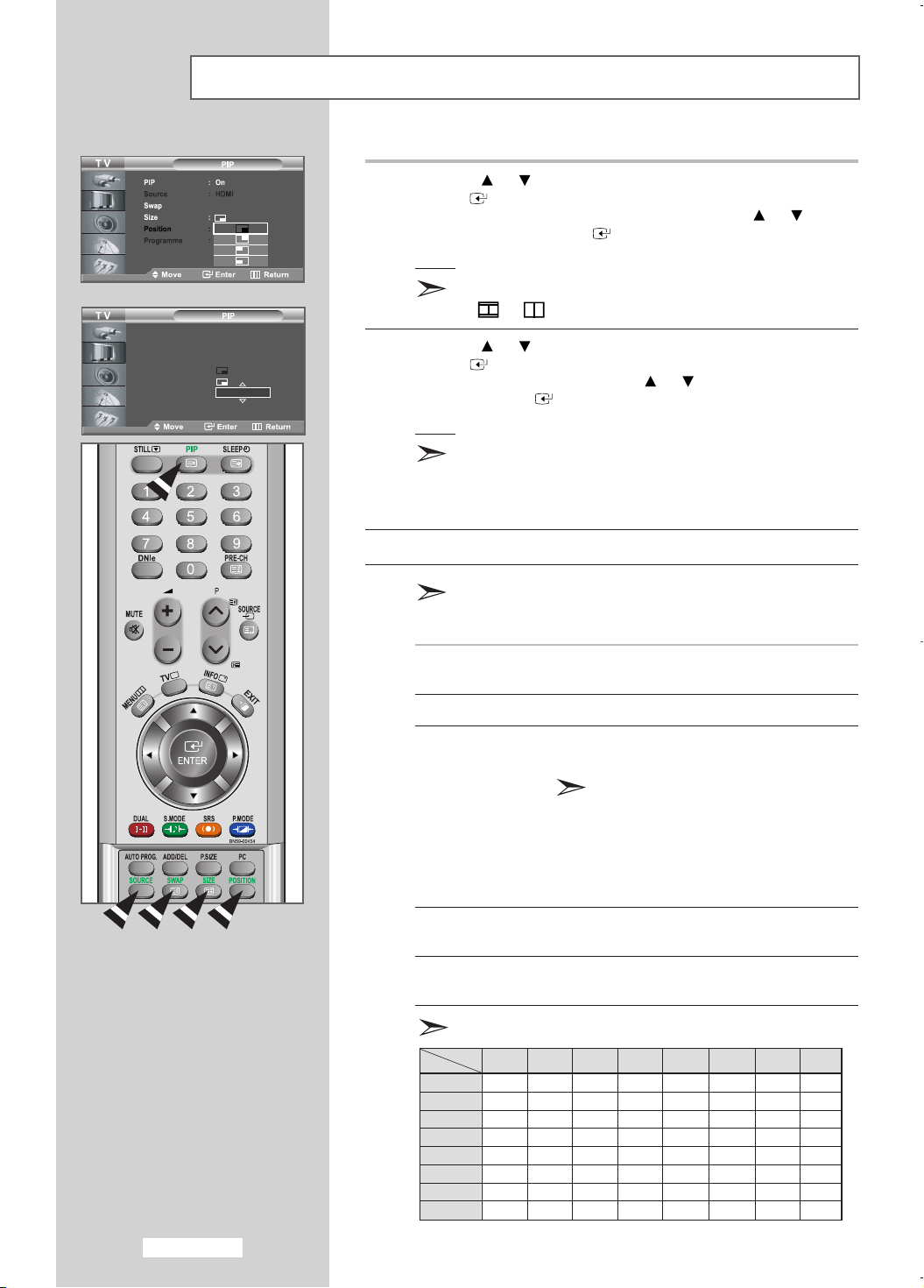

Viewing the Picture In Picture (PIP) .......................................................................... 33

SETTING THE SOUND

Adjusting the Volume ................................................................................................. 35

Switching the Sound Off Temporarily ........................................................................ 36

Selecting the Sound Mode ........................................................................................ 36

Changing the Sound Standard .................................................................................. 37

Adjusting the Sound Settings .................................................................................... 37

English-2

Contents

SETTING THE SOUND

Setting the TruSurround XT (SRS TSXT) .......................................................... 38

Adjusting the Volume Automatically.................................................................... 39

Connecting Headphones .................................................................................... 40

Selecting the Internal Mute ................................................................................ 40

Listening to the Sound of the Sub Picture.......................................................... 41

SETTING THE TIME

Setting and Displaying the Current Time............................................................ 42

Setting the Sleep Timer ...................................................................................... 43

Switching the Television On and Off Automatically............................................ 44

Activating the Child Lock .................................................................................... 45

SETTING THE OTHERS

Setting the Blue Screen Mode ............................................................................ 46

Selecting the Melody .......................................................................................... 46

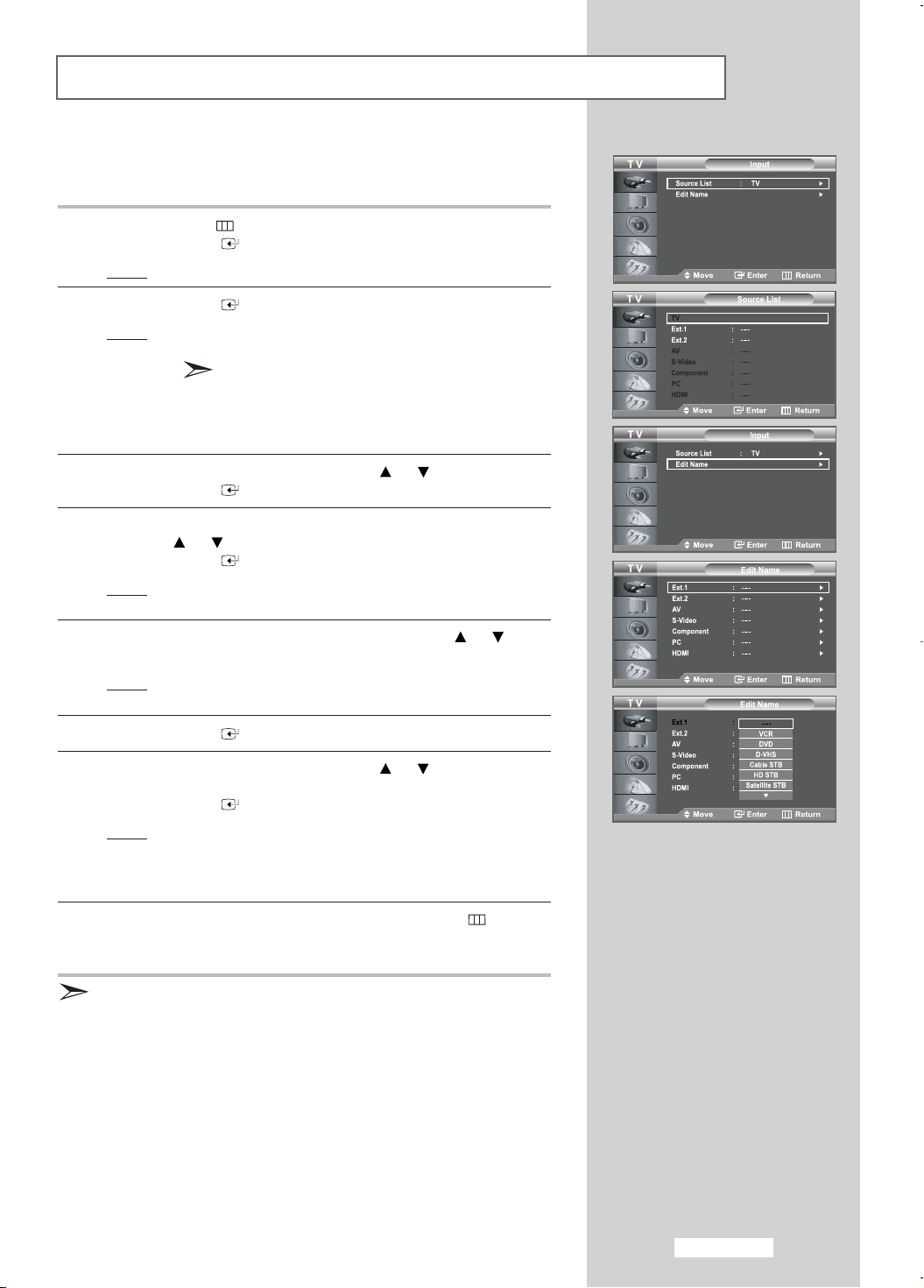

Selecting a Device from External Sources ........................................................ 47

Viewing Pictures from External Sources ............................................................ 48

SETTING THE PC

Setting up Your PC Software (Based on Windows XP) .................................... 49

Adjusting the PC Screen Automatically .............................................................. 50

Coarse and Fine Tuning of the Image ................................................................ 51

Changing the Image Position.............................................................................. 52

Initializing the Image Settings ............................................................................ 53

USING THE TELETEXT FEATURE

Teletext Decoder.................................................................................................. 54

Displaying the Teletext Information .................................................................... 54

Selecting a Specific Teletext Page...................................................................... 55

Using Fastext to Select a Teletext Page ............................................................ 56

RECOMMENDATIONS FOR USE

Troubleshooting: Before Contacting Service Personnel .................................... 57

Installing the Wall Mount Kit (LE26M5) .............................................................. 58

Installing the Wall Mount Kit (LE32M5, LE40M5, LE46M5) .............................. 60

Installing the Stand (LE26M5, LE32M5) ............................................................ 62

Using the Anti-Theft Kensington Lock ................................................................ 63

Technical and Environmental Specifications .................................................... 64

Display Mode (PC) .............................................................................................. 65

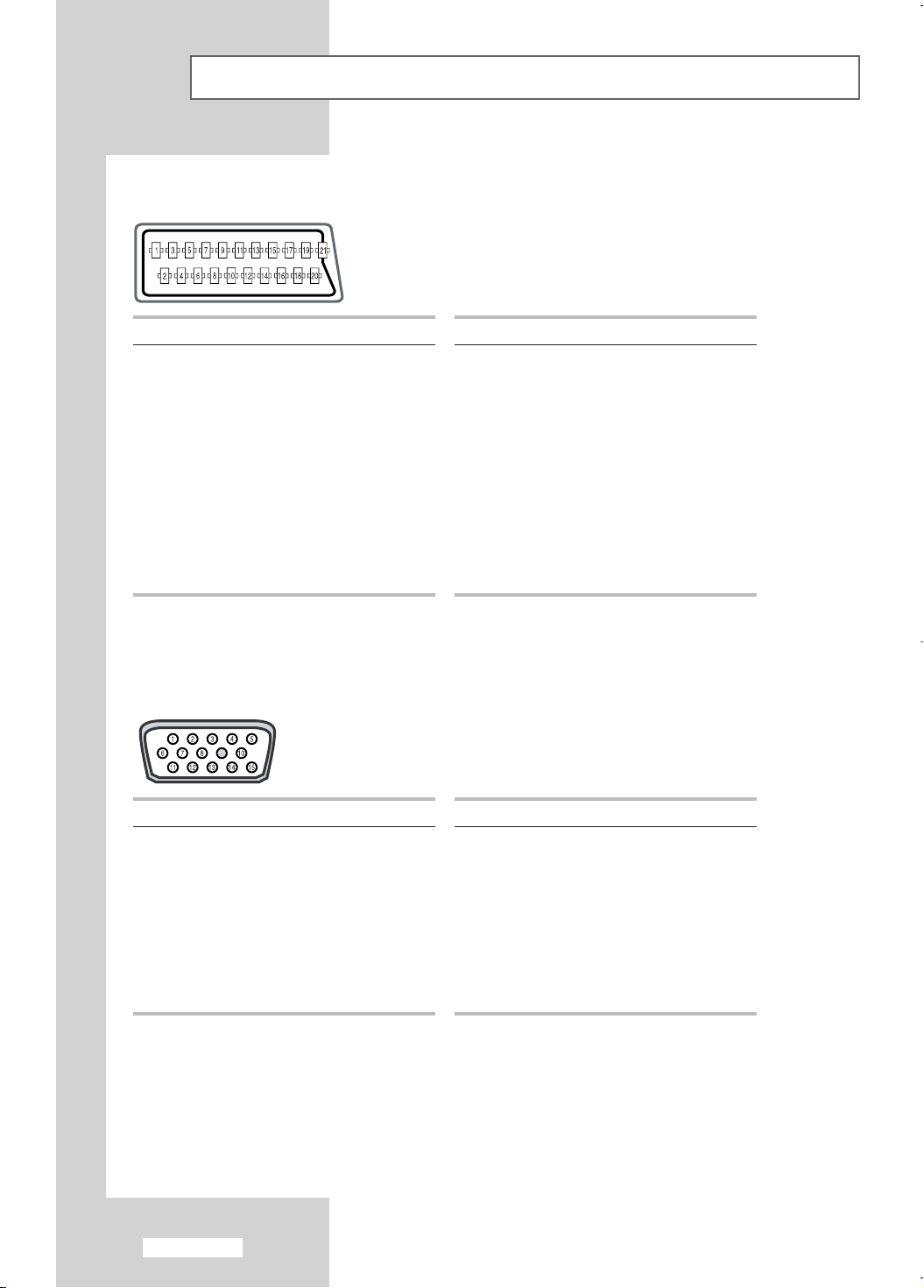

Pin Configurations .............................................................................................. 66

Symbols

Press Important Note

English-3

Viewing the Control Panel

SOURCE

Displays a menu of all of the available input sources ( TV, Ext. 1, Ext. 2, AV, S-Video, Component, PC, HDMI). Also used to confirm your choice on the on-screen menu.

Press to see an on-screen menu of your TV’s features.

Press to decrease or increase the volume. Also used to select items on the on-screen menu.

Press to change channels. Also press to highlight various items on the on-screen menu. (Without the Remote Control, You can turn on TV by using the Channel buttons.)

English-4

(Power)

Press to turn the TV on and off.

Power Indicator

Blinks and turns off when the power is on and lights up in stand-by mode.

Remote Control Sensor

Aim the remote control towards this spot on the TV.

Light Detecting Sensor

Adjusts brightness of screen automatically by detecting brightness of surrounding environment. This sensor works when Brightness Sensor is on.

Speakers

Viewing the Connection Panel

* LE26M5

[Rear Panel Jacks]

Power Input

Whenever you connect an audio or video system to your set, ensure that all elements are switched of When connecting an external device, match the colour of the connection terminal to the cable.

English-5

Viewing the Connection Panel

* LE32M5 / LE40M5 / LE46M5

[Rear Panel Jacks]

Power Input

[Side Panel Jacks]

Whenever you connect an audio or video system to your set, ensure that all elements are switched of When connecting an external device, match the colour of the connection terminal to the cable.

English-6

Viewing the Connection Panel

Connecting an Aerial or Cable Television Network

To view television channels correctly, a signal must be received by the set from one of the following sources:

- An outdoor aerial

- A cable television network

- A satellite network

Connecting Component Devices (DTV/DVD)

- Connect component video cables to component connector (“PR”, “PB”, “Y”) on the rear of your set and the other ends to corresponding component video out connectors on the DTV or DVD.

- If you wish to connect both the Set-Top Box and DTV (or DVD), you should connect the Set-Top Box to the DTV (or DVD) and connect the DTV (or DVD) to component connector (

- The Y, P

B and PR connectors on your component devices (DTV or DVD) are sometimes labeled Y, B-Y

and R-Y or Y, Cb and Cr.

- Connect RCA audio cables to “

R - AUDIO - L” on the rear of your set and the other ends to

corresponding audio out connectors on the DTV or DVD.

Connecting External A/V Devices

- Connect RCA or S-VIDEO cable to an appropriate external A/V device such as VCR, DVD or Camcorder.

- Connect RCA audio cables to “

R - AUDIO - L” on the rear of your set and the other ends to

corresponding audio out connectors on the A/V device.

- Headphone may be connected to the headphone output ( ) on the rear of your set. While the headphone is connected, the sound from the built-in speakers will be disabled.

“PR”, “PB”, “Y”) on your set.

SERVICE

- Connector for engineer.

Connecting Set-Top Box, VCR or DVD

- Connect the VCR or DVD SCART cable to the SCART connector of the VCR or DVD.

- If you wish to connect both the Set-Top Box and VCR (or DVD), you should connect the Set-Top Box to the VCR (or DVD) and connect the VCR (or DVD) to your set.

Input/Output Specification

Connector

SCART 1 (EXT 1)

SCART 2 (EXT 2)

Video Audio (R/L) S-Video RGB Video+Audio (R/L)

Input Output

Only TV Out

Monitor Out

(TV/Ext. 1/Ext. 2/AV/S-VHS)

English-7

Viewing the Connection Panel

Connecting HDMI/DVI

- Supports connections between HDMI-connection-enabled AV devices (Set-Top Boxes, DVD players, AV receivers and digital TVs).

- No sound connection is needed for an HDMI to HDMI connection.

What is HDMI?

- HDMI, or high-definition multimedia interface, is a next-generation interface that enables the transmission of digital audio and video signals using a single cable without compression.

- “Multimedia interface” is a more accurate name for it especially because it allows multiple channels of digital audio (5.1 channels).The difference between HDMI and DVI is that the HDMI device is smaller in size, has the HDCP (High Bandwidth Digital Copy Protection) coding feature installed, and supports multi - channel digital audio.

- Use the HDMI/DVI terminal for DVI connection to an extended device.

You should use the DVI-to-HDMI cable or DVI-HDMI Adapter for the connection, and the “

R - AUDIO - L” terminal on DVI for sound output.

Connecting Computer

- Connect the D- Sub cable to “PC (PC IN)” on the rear of your set and the other end to the Video Card of your computer.

- Connect the stereo audio cable to “

“Audio Out” of the sound card on your computer.

AUDIO (PC IN)” on the rear of your set and the other end to

Connecting AUDIO

- Connect RCA audio cables to “R - AUDIO - L” on the rear of your set and the other ends to corresponding audio in connectors on the Amplifier or DVD Home Theater.

Speaker SCART2 Out & Audio Out

Internal Mute Off

Internal Mute On

Video No Signal

RF Scart, AV, S-Video

Speaker Output Speaker Output Speaker Output Sound Output Sound Output Sound Output

Mute Mute Mute Sound Output Sound Output Sound Output

Mute Mute Mute Mute Sound Output Sound Output

Component, PC, HDMI

Scart, AV, S-Video

Component, PC, HDMI

Kensington Lock

- Refer to “Using the Anti-Theft Kensington Lock” on page 63.

- The place of the Kensington Lock may be different depending on its model.

English-8

Viewing the Remote Control (All Functions Except Teletext)

Television Standby button

(Refer to page 13)

Picture freeze

(Refer to page 27)

Number buttons for

direct channel access

Picture-In-Picture On / Off (Refer to pages 33-34)

Automatic Power-off (Refer to page 43)

DNIe Demo On/Off

(Refer to page 29)

Temporary sound switch-off

Selects the TV mode directly

Displays the main on-screen menu.

Use to store and delete channels

to/from memory.

Press to automatically store

selected TV/cable channels.

PIP FUNCTIONS

(Refer to pages 33~34) SOURCE SWAP : Interchange the main

SIZE : PIP size selection POSITION

(Refer to page 36)

-Volume increase

-Volume decrease (Refer to page 35)

(Refer to page 48)

(Refer to page 14)

Sound effect selection

(Refer to page 37)

Sound mode selection

(Refer to page 36)

(Refer to page 20)

(Refer to page 17)

: Input source selection

and sub picture

: PIP position selection

Previous channel

Available source selection (Refer to page 48)

-Next channel

-Previous channel (Refer to page 14)

Use to see information on the current broadcast. (Refer to page 42)

Exit the on-screen menu (Refer to page 14)

Control the cursor in the menu (Refer to page 14)

SRS TSXT selection (Refer to page 38)

Picture effect selection (Refer to page 24)

Picture size selection (Refer to page 27)

Selects the PC mode directly (Refer to pages 50~53)

When your remote does not work, change the batteries and press the “RESET” button for 2-3 seconds before use.

The performance of the remote control may be affected by bright light.

English-9

Viewing the Remote Control (Teletext Functions)

Teletext display/mix both teletext information and the normal broadcast

Teletext sub page

Teletext cancel

Teletext hold

P : Teletext next page P : Teletext previous page

Teletext mode selection (LIST/FLOF)

Exit from the teletext display

Teletext index

Teletext store

Teletext reveal

Teletext size selection

Teletext Function : Refer to pages 54-56 for details

English-10

Installing Batteries in the Remote Control

1 Slide the cover out completely.

2 Install two AAA size batteries.

Make

sure to match the “+” and “–” ends of the batteries with

the diagram inside the compartment.

3 Replace the cover.

Remove the batteries and store them in a cool, dry place if you won’t be using the remote control for a long time. The remote control can be used up to about 23 feet from the TV. (Assuming typical TV usage, the batteries last for about one year.)

If the remote control doesn’t work!

Check the following:

1. Is the TV power on?

2. Are the plus and minus ends of the batteries reversed?

3. Are the batteries drained?

4. Is there a power cut, or is the power cord unplugged?

5. Is there a special fluorescent light or a neon sign nearby?

English-11

Switching On and Off

The mains lead is attached to the rear of your set.

1 Plug the mains lead into an appropriate socket.

Result

The main voltage is indicated on the rear of your set and the frequency is 50 or 60Hz.

The standby indicator lights up on the front panel.

2 Press the

Result

POWER

The programme that you were watching last is reselected automatically.

button on the front of the panel.

3 Press the numeric button (0~9) or channel up/down ( / ) button

on the remote control or button on the lower-right of the panel.

When you switch the set on for the very first time, you will be asked to choose language in which the menus are to be displayed (see page 16).

4 To switch your set off, press the

POWER

button again.

English-12

Placing Your Television in Standby Mode

Your set can be placed in standby mode in order to reduce the power consumption. The standby mode can be useful when you wish to interrupt viewing temporarily (during a meal, for example).

1 Press the

Result

POWER

The screen is turned off and a red standby indicator appears on the front of your set.

button on the remote control.

2 To switch your set back on, simply press the

buttons (

0~9) or channel up/down ( / ) button again.

Do not leave your set in standby mode for long periods of time (when you are away on holiday, for example). It is best to unplug the set from the mains and aerial.

POWER

, numeric

English-13

Becoming Familiar with the Remote Control

The remote control is used mainly to:

Change channels and adjust the volume.

Set up your set using the on-screen menu system.

The following table presents the most frequently used buttons and their functions.

Button Viewing Function Menu Function

Used to display the next stored channel.

Used to display the previous stored channel.

to Used to display the corresponding channels.

For double digit channels, the second digit

must be pushed immediately after the first. Failure to do this will result in a single digit channel being displayed.

Used to increase the volume.

Used to decrease the volume.

MUTE

EXIT

Used to switch the sound off temporarily.

To turn the sound back on, press this button again, or press the / button.

Used to display the Used to return to the on-screen menu system. previous menu or

normal viewing.

Used to exit the on-screen menu system.

English-14

ENTER

Used to move among the menu items.

Used to select a menu item or increase the value of the selected item.

Used to return to the previous menu item or decrease the value of the selected item.

Used to confirm your choice.

Plug and Play

When the set is initially powered ON, several basic customer settings proceed automatically and subsequently. The following settings are available.

1 If the set is in standby mode, press the

remote control.

Result

: The message

appears for a little while, and then the is automatically displayed.

2 Select the appropriate

The available languages are listed You can choose one of 21 languages.

3 Press the

Result: The message

4 Press the

Result

ENTER

the

ENTER

: The following areas are available:

Belgium - France - Germany - Italy Netherlands - Spain - Sweden - Switzerland United Kingdom - Eastern Europe- Others

Start Plug & Play.

language

button to confirm your choice.

Check antenna input.

selected.

button.

POWER

is displayed. It

Language

by pressing the or button.

5 Select your Country by pressing the or button.

Press the

Result:

6 Press the

Result

ENTER

The

Start selected.

ENTER

The channel search will start and end automatically.

button.

Auto Store

button.

menu is displayed with the

button on the

is displayed with

7 Press the

Select the Set the

hour

(Refer to “

8 Press the

Result

ENTER

hour

Setting and Displaying the Current Time” on page 42)

ENTER

The then the channel which has been stored will be activated.

button.

minute

by pressing the or button.

minute

by pressing the or button.

button to confirm your setting.

message

Enjoy your watching.

is displayed, and

English-15

Plug and Play

If you want to reset this feature...

1 Press the

Result

The main menu is displayed.

2 Press the or button to select

Press the

Result:

The

4 Press the

Result:

ENTER

The options available in the

Plug & Play

ENTER

The message

5 For further details on how to set, refer to the previous page.

This function doesn't work when source is in PC mode.

Choosing Your Language

When you start using your set for the first time, you must select the language which will be used for displaying menus and indications.

button.

button

is selected.

button

Start Plug & Play.

Setup

group are displayed.

is displayed.

English-16

1 Press the

Result

2 Press the or button to select

Result

3 Press the

4 Press the or button

Press the

Result:

The main menu is displayed.

The options available in the

ENTER

The available

button.

button

languages

select

Setup

Language

are listed.

group are displayed.

5 Select a particular language by pressing the or button

repeatedly. Press the

6 When you are satisfied with your choice, press the

return to normal viewing.

ENTER

You can choose one of 21 languages.

button

EXIT

button to

Storing Channels Automatically

You can scan for the frequency ranges available to you (and availability depends on your country). Automatically allocated programme numbers may not correspond to actual or desired programme numbers. However, you can sort numbers manually and clear any channels you do not wish to watch.

1 Press the

Result

2 Press the or button to select

Result

3 Press the

Result:The

4 Press the

by pressing the

Result:The following countries are available:

5 Press the

6 Press the or button to select

Press the

Result: The Auto Store menu is displayed with the Start selected.

7 Press the

is changed from

Result

The main menu is displayed.

The options available in the

ENTER

Belgium - France - Germany - Italy Netherlands - Spain - Sweden - Switzerland United Kingdom - Eastern Europe- Others

ENTER

: The search will end automatically. Channels are sorted

and stored in an order which reflects their position in the frequency range (with lowest first and highest last).

The programme originally selected is then displayed. To return to the previous menu, press the MENU button.

button.

Channel

button

Country

StarttoStop

is selected.

button again

button repeatedly.

button

button to search the channels. The sub menu

. Select your

Auto Store

with channel search started.

Channel

group are displayed.

Country

To stop the search before it has finished, press the

ENTER

button with

Stop

selected.

8 When the channels have been stored, you can:

Sort them in the order required (refer to page 21) Assign names to the stored channels (refer to page 22) Add or delete the channels (refer to page 20) Fine tune channel reception if necessary (refer to page 23)

Channels can be stored automatically by simply pressing the AUTO PROG. button under the remote’s cover.

1 Press the AUTO PROG. button while viewing a TV programme.

Result

: The Auto Store menu is displayed with the Start selected.

2 Press the

ENTER

button.

English-17

Storing Channels Manually

You can store up to 100 channels, including those received via cable networks. When storing channels manually, you can choose:

Whether or not to store each of the channels found.

The programme number of each stored channel which you wish to identify.

1 Press the

Result

2 Press the or button to select

Result:

3 Press the

4 Press the or button

Press the

Result

5 Press the

To assign a programme number to a channel, find the correct number by pressing the or button and then press the

ENTER

6 Press the or button to select

the Select the repeatedly and then press the

Result

The main menu is displayed.

The options available in the displayed.

ENTER

: The options available in the

displayed with

ENTER

button

You can also set a programme number by pressing number buttons on the remote control.

ENTER

colour

: The colour standards are displayed in the following order:

AUTO - PAL - SECAM - NTSC 4.43

button.

Channel

button

select

Manual Store

button.

Programme

button again.

Colour System

button.

standard required by pressing the or button

ENTER

Channel

Manual Store

selected.

button.

group are

menu are

and then press

English-18

7 Press the or button to select

the

ENTER

Select the sound standard required by pressing the or button repeatedly and then press the

Result

: The sound standards are displayed in the following order:

button.

BG - DK - I - L

Sound System

ENTER

button.

and then press

Programme : P 1

Colour System : AUTO

Sound System : BG

Channel : C 2

Search : 48 MHz

Store :?

Storing Channels Manually

8 If you know the number of the channel to be stored,

Press the or button to select

ENTER

Select

button.

C (Air channel) or S (Cable channel) by pressing the

or button.

Press the button to select channel.

Select the required number by pressing the or button and then press the

ENTER

If there is an abnormal sound or no sound, re-select the sound system required.

You can also set a

channel

remote control.

9 If you do not know the channel numbers, press the or button

to select

Search ENTER

Result

by pressing

and then press the

the

or button and then press the

button.

: The tuner scans the frequency range until the first

channel or the channel that you selected is received on your screen.

Channel

and then press the

button.

by pressing number buttons on the

ENTER

button.

10 Press the or button to select

Select

by pressing the

ENTER

Store

button.

Result: The channel and associated programme number are

stored.

11 Repeat steps 8 to 10 for each channel to be stored.

Channel mode

P (Programme mode): When tuning is completed, the

broadcasting stations in your area will have been assigned to position numbers from P00 to P99. You can select a channel by entering the position number in this mode.

C (Real channel mode): You can select a channel by

entering the assigned number to each broadcast station in this mode.

S (Cable channel mode): You can select a channel by

entering the assigned number to each cable channel in this mode.

English-19

+ 49 hidden pages
