Samsung LE40M91B Schematic

TFT-LCD TV

Chassis GMD40SEU

Model

LE40M91B

Manual

SERVICE

TFT-LCD TV Fashion Feature

- Luxurious Slim Design

- Supreme Picture Quality

- Supreme Sound Quality

- Supreme Convenience Quality

- Convenience for Users

ii

Copyright

©2006 by Samsung Electronics Co., Ltd.
All rights reserved.
This manual may not, in whole or in part, be copied,

photocopied, reproduced, translated, or converted to
any electronic or machine readable form without prior
written permission of Samsung Electronics Co., Ltd.

LE40M91BX Service Manual
First edition June 2006.

Printed in Korea.

Trademarks

Samsung is the registered trademark of Samsung
Electronics Co., Ltd.

LE40M91BX

and MacMaster Cable Adapter are

trademarks of Samsung Electronics Co., Ltd.
Macintosh, Power Macintosh are trademarks of Apple

Computer, Inc.
All other trademarks are the property of their respective

owners.

Contents

Contents

Samsung Electronics Co.,Ltd.

416, Maetan-3Dong, Yeongtong-Gu, Suwon City,
Gyeonggi-Do, Korea, 443-742
Printed in Korea
P/N : BN82-00145G-00
URL : http://itself.sec.samsung.co.kr/

- This Service Manual is a property of
Samsung Electronics Co., Ltd.
Any unauthorized use of Manual can be
punished under applicable International
and/or domestic law.

2 Product Specifications

2-1

2 Product specifications

2-1 Fashion Feature

Wise link

- Accept 10 types of Memory Cards including USB (10 in 3 )
Excellent Compatibility. SD/MMC/CF/MD/MS/MSPRO/XD/SM

Smooth Motion Driver

- No ghosting, No Smearing Edge in image powered by Smooth Motion Driver Engine
of Samsung LCD TV

Wide Color Gamut

- More natural and vivid picture quality by WCG (127%)

High Dynamic Contrast

- 10000:1 Highest dynamic Contrast Ratio

Best Off-Angle Viewing

- Widened Viewing Angle , 178 / 178 (Left/Right)

Real 10 Bit

- Panel 10 Bit + Signal Processing 10 Bit

Game Mode

- Present the most suitable picture for gaming

Swivel Stand

- 20

/ 20 (left/right)

2 Product Specifications

2-2

2-2 LE40M91BX Specifications

LCD Panel

TFT-LCD panel, RGB vertical stripe, normaly white, 40-Inch viewable, 0.648(H) x 0.216(V) mm pixel pitch

Scanning Frequency Horizontal : 30 kHz ~ 61 kHz (Automatic) / Vertical : 100 Hz ~ 120 Hz (Automatic)
Display Colors 16,777,216 colours
Maximum Resolution Horizontal : 1366 Pixels

Vertical : 768 Pixels

Input Video Signal Analog 0.7 Vp-p ± 5% positive at 75

, internally terminated

Input Sync Signal Type : Seperate H/V

Level : TTL level

Maximum Pixel Clock rate

80 MHz

Active Display
Horizontal/Vertical 556.4 mm / 339.8 mm

AC power voltage & Frequency AC 220 ~ 240V, 50 ~ 60 Hz

Power Consumption 210W < 2W
Dimensions(W x D x H)

Set

994 x 326 x 696 mm(39.13 x 12.83 x 27.40 inches) After installation Stand
994 x 92 x 647 mm(39.13 x 3.62 x 25.47 inches) Without stand

Weight
Set

(After installation Stand) 24.5Kg (54.01 lbs)

TV System Tunning Frequency Synthesize

System PAL, SECAM
Sound MONO, STEREO, NICAM

Environmental Considerations Operating Temperature : 50°F ~ 104°F (10°C ~ 40°C)

Operating Humidity : 10 % ~ 80 %
Storage Temperature : -4°F ~ 113°F (-20°C ~ 45°C)
Storage Humidity : 5 % ~ 95 %

Antena Input 75

-MAX Internal speaker Out : Right : 5W / Left : 5W

-BASS Control Range : -8 dB ~ + 8dB

Sound Characteristic -TREBLE Control Range : -8 dB ~ +8 dB

-Headphone Out : 10 mW MAX

-Output Frequency : RF : 80 Hz ~ 15 kHz
A/V : 80 Hz ~ 20 kHz

Item

Description

2 Product Specifications

2-3

LE40M91BXModel

Design

Frequency

Horizontal
Vertical
Display Color

30 ~ 61 kHz

100 ~ 120 Hz

16,777,216 colors

30 ~ 61 kHz

60 ~ 75 Hz

16,777,216 colors

PC Resolution

Maximum mode

Input Signal

Sync Signal
Video Signal

Power
Consumption

Normal
Power Saving

210W

< 2W

100W / 125W / 205W

< 1W

H/V Separate, TTL, P. or N.

0.7 Vp-p @ 75ohm

H/V Separate, TTL, P. or N.

0.7 Vp-p @ 75ohm

WXGA, 1360 x 768 @ 60 Hz WXGA, 1360 x 768 @ 60 Hz

LE26R71B / LE32R71B / LE40R71B

2-3 Spec Comparison

2 Product Specifications

2-4

2-4 Option Specification

Item Item Name

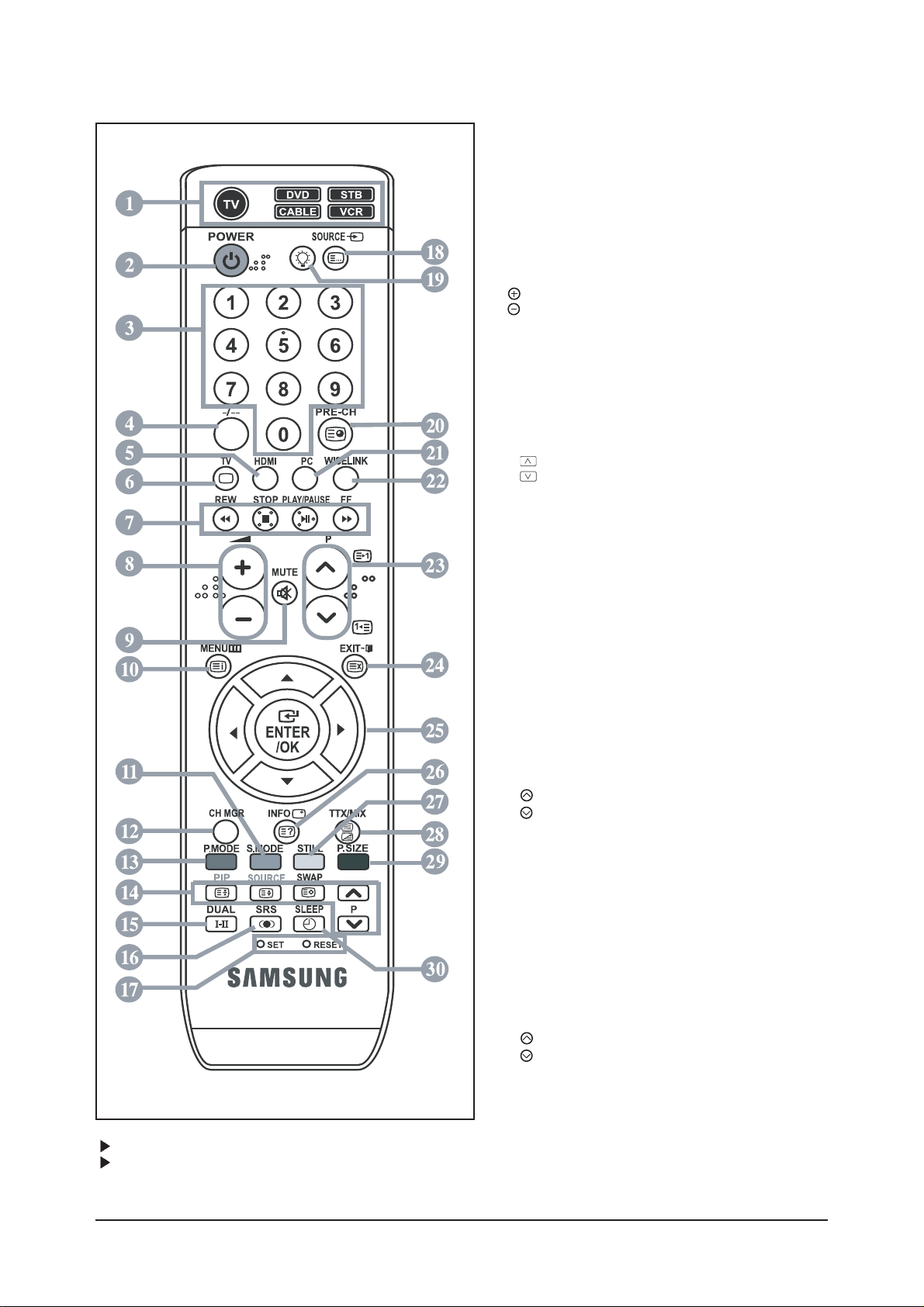

Remote Control

&

Batteries (AAA x 2)

Power Cord

Cover-Bottom

Stand

Cleaning Cloth

BN59-00570A

3903-000042

BN63-02957A

BN90-01048A

BN63-01798A

Code.No Remark

1 Precautions

1-1

1-1-1 Warnings

1. For continued safety, do not attempt to modify the
circuit board.

2. Disconnect the AC power and DC Power Jack before
servicing.

1-1-2 Ser vicing the LCD Monitor

1. When servicing the LCD Monitor Disconnect the AC
line cord from the AC outlet.

2. It is essential that service technicians have an accurate
voltage meter available at all times. Check the
calibration of this meter periodically.

1-1-3 Fire and Shock Hazard

Before returning the monitor to the user, perform the
following safety checks:

1. Inspect each lead dress to make certain that the leads
are not pinched or that hardware is not lodged between
the chassis and other metal parts in the monitor.

2. Inspect all protective devices such as nonmetallic
control knobs, insulating materials, cabinet backs,
adjustment and compartment covers or shields,
isolation resistor-capacitor networks, mechanical
insulators, etc.

3. Leakage Current Hot Check (Figure 1-1):

WARNING: Do not use an isolation

transformer during
this test.

Use a leakage current tester or a metering system that
complies with American National Standards Institute
(ANSI C101.1, Leakage Current for Appliances), and
Underwriters Laboratories (UL Publication UL1410,

59.7).

Figure 1-1. Leakage Current Test Circuit

1-1-4 Product Safety Notices

Some electrical and mechanical parts have special
safety-related characteristics which are often not evident
from visual inspection. The protection they give may not
be obtained by replacing them with components rated for
higher voltage, wattage, etc. Parts that have special safety
characteristics are identified by on schematics and parts
lists. A substitute replacement that does not have the same
safety characteristics as the recommended replacement part
might create shock, fire and/or other hazards. Product
safety is under review continuously and new instructions
are issued whenever appropriate.

1 Precautions

Follow these safety, servicing and ESD precautions to prevent damage and to protect against potential hazards such as electrical shock.

1-1 Safety Precautions

1 Precautions

1-2

1-2-1 General Ser vicing

Precautions

1. Always unplug the units AC power cord from the AC
power source and disconnect the DC Power Jack
before attempting to:
(a) remove or reinstall any component or assembly, (b)
disconnect PCB plugs or connectors, (c) connect a test
component in parallel with an electrolytic capacitor.

2. Some components are raised above the printed circuit
board for safety. An insulation tube or tape is
sometimes used. The internal wiring is sometimes
clamped to prevent contact with thermally hot
components. Reinstall all such elements to their
original position.

3. After servicing, always check that the screws,
components and wiring have been correctly
reinstalled. Make sure that the area around the
serviced part has not been damaged.

1. Immediately before handling any semiconductor
components or assemblies, drain the electrostatic
charge from your body by touching a known earth
ground. Alternatively, wear a discharging wrist-strap
device. To avoid a shock hazard, be sure to remove the
wrist strap before applying power to the monitor.

2. After removing an ESD-equipped assembly, place it
on a conductive surface such as aluminum foil to
prevent accumulation of an electrostatic charge.

3. Do not use freon-propelled chemicals. These can
generate electrical charges sufficient to damage ESDs.

4. Use only a grounded-tip soldering iron to solder or
desolder ESDs.

5. Use only an anti-static solder removal device. Some
solder removal devices not classified as anti-static
can generate electrical charges sufficient to damage
ESDs.

4. Check the insulation between the blades of the AC
plug and accessible conductive parts (examples: metal
panels, input terminals and earphone jacks).

5. Insulation Checking Procedure: Disconnect the power
cord from the AC source and turn the power switch
ON. Connect an insulation resistance meter (500 V) to
the blades of the AC plug.

The insulation resistance between each blade of the
AC plug and accessible conductive parts (see above)
should be greater than 1 megohm.

6. Always connect a test instruments ground lead to the
instrument chassis ground before connecting the
positive lead; always remove the instruments ground
lead last.

6. Do not remove a replacement ESD from its protective
package until you are ready to install it. Most
replacement ESDs are packaged with leads that are
electrically shorted together by conductive foam,
aluminum foil or other conductive materials.

7. Immediately before removing the protective material
from the leads of a replacement ESD, touch the
protective material to the chassis or circuit assembly
into which the device will be installed.

Caution: Be sure no power is applied to

the chassis or circuit and
observe all other safety
precautions.

8. Minimize body motions when handling unpackaged
replacement ESDs. Motions such as brushing clothes
together, or lifting your foot from a carpeted floor can
generate enough static electricity to damage an ESD.

1-3 Static Electricity Precautions

Some semiconductor (solid state) devices can be easily damaged by static electricity. Such components are commonly called
Electrostatically Sensitive Devices (ESD). Examples of typical ESD are integrated circuits and some field-effect transistors.
The following techniques will reduce the incidence of component damage caused by static electricity.

1-2 Ser vicing Precautions

WARNING: An electrolytic capacitor installed with the wrong polarity might explode.
Caution: Before servicing units covered by this service manual, read and follow the Safety

Precautions section of this manual.

Note: If unforeseen circumstances create conflict between the following servicing precautions and any of the safety

precautions, always follow the safety precautions.

1. For safety reasons, more than two people are
required for carrying the product.

2. Keep the power cord away from any heat emitting
devices, as a melted covering may cause fire or
electric shock.

3. Do not place the product in areas with poor
ventilation such as a bookshelf or closet. The
increased internal temperature may cause fire.

4. Bend the external antenna cable when connecting
it to the product. This is a measure to protect it
from being exposed to moisture. Otherwise, it
may cause a fire or electric shock.

5. Make sure to turn the power off and unplug the
power cord from the outlet before repositioning
the product. Also check the antenna cable or the
external connectors if they are fully unplugged.
Damage to the cord may cause fire or electric
shock.

6. Keep the antenna far away from any high-voltage
cables and install it firmly. Contact with the high­voltage cable or the antenna falling over may
cause fire or electric shock.

7. When installing the product, leave enough space
(10cm) between the product and the wall for
ventilation purposes.
A rise in temperature within the product may
cause fire.

1 Precautions

1-3

1-4 Installation Precautions

Memo

1 Precautions

1-4

6 Electrical Parts List

6-1

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

0 LE40M91BX/XEE LE40M91B,Q56A/40M90-GMD,40,LCD-TV,SWEDEN 0

0.1 M0001 BN90-00935H ASSY COVER FRONT;40M91,EO,ABS+PMMA,HB,BK 1 S.N.A
..2 T0175 BN96-03271A ASSY SPEAKER P;8ohm,Mosel 32,Left,10W,BA 1 S.A
..2 T0175 BN96-03272A ASSY SPEAKER P;8ohm,Mosel 32,Right,10W,B 1 S.A
..2 T0003 BN96-03412L ASSY COVER P-FRONT;40M9,EO(NEW),ABS+PMMA 1 S.A
...3 M0081 6003-001003 SCREW-TAPTITE;BH,+,B,M4,L12,ZPC(BLK),SWR 4 S.N.A
...3 M0081 6003-001003 SCREW-TAPTITE;BH,+,B,M4,L12,ZPC(BLK),SWR 2 S.N.A
...3 M0081 6003-001003 SCREW-TAPTITE;BH,+,B,M4,L12,ZPC(BLK),SWR 2 S.N.A
...3 M2893 BN39-00609A LEAD CONNECTOR;VE20EO,UL1015#22 BLACK,1P 1 S.A
...3 T0060 BN61-01655A SPRING ETC;STS-304 SUS,D8,L12,T0.5 1 S.N.A
...3 BN61-02667A HOLDER-BOSS;MOSEL 40,ABS,VO,TOP 2 S.N.A
...3 BN61-02670A HOLDER-BOSS;MOSEL 40,ABS,VO,BOTTOM,LEFT 1 S.N.A
...3 BN61-02671A HOLDER-BOSS;MOSEL 40,ABS,VO,BOTTOM,RIGHT 1 S.N.A
...3 BN61-02771A BOSS-BOND;MOSEL,ABS+PMMA,NATURAL,BOND 14 S.N.A
...3 CCM1 BN63-02183G COVER-SHEET;Rhcm,PE Vinyl,T0.05,1100mm,2 1.983 S.N.A
...3 M0112 BN63-02488L COVER-FRONT;40M91,EO,ABS+PMMA,HB,BK23,S/ 1 S.N.A
...3 T0056 BN63-02831A COVER-DECORATION;40" MOSEL,AL,Extruding 1 S.N.A
...3 T0023 BN64-00342A KNOB POWER;ROME,40,PC,VIOLET 1 S.N.A
...3 T0059 BN64-00366A INDICATOR LED;ROME-I,PC,CLEAR,ALL MODEL 1 S.N.A
...3 T0054 BN64-00443A KNOB-DECORATION;32R71,ABS,HB,GR503,VACUU 1 S.N.A
...3 T0061 BN64-00453A WINDOW-REMOCON;32R71,PC,V0,VIOLET,DIFFUS 1 S.N.A
...3 T0022 BN64-00467A KNOB CONTROL;SONOMA26,32,40,ABS,-,-,-,V0 1 S.N.A
...3 M0145 BN96-03466B ASSY BOARD P-FUNCTION;LE40M71BX,CT5000-4 1 S.A

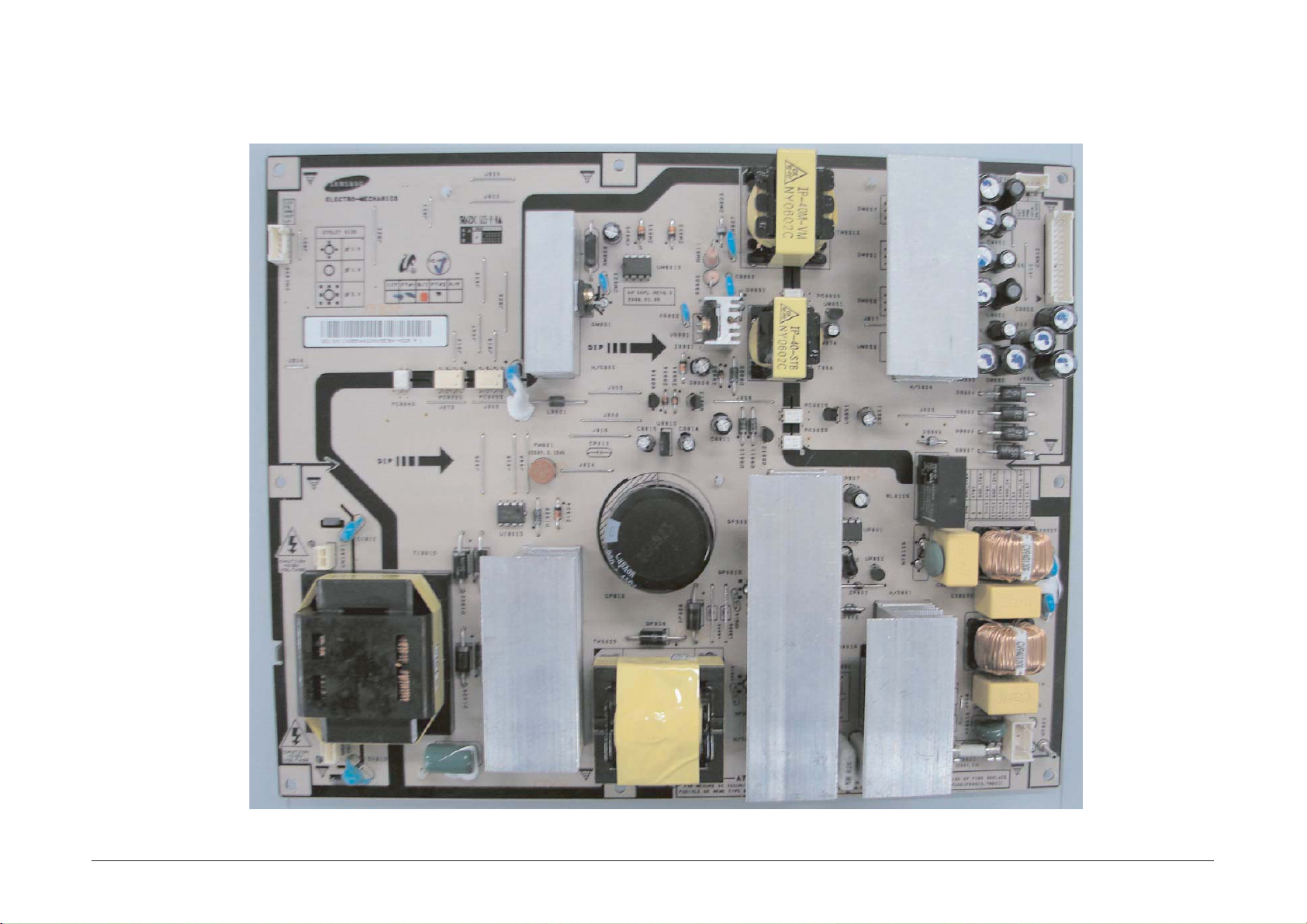

...3 M0020 BN96-04015C ASSY BOARD P;LE40M91BX,CT5000-4330C,POWE 1 S.A

0.1 M0002 BN90-01047A ASSY COVER REAR;40M91,EO,HIPS,HB,BK500 1 S.N.A
..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 2 S.A
..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 1 S.A
..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 14 S.A
..2 M0001 BN96-04216A ASSY COVER P;40M9,EO,HIPS,HB,BK500 1 S.A
...3 M0081 6003-001003 SCREW-TAPTITE;BH,+,B,M4,L12,ZPC(BLK),SWR 2 S.N.A
...3 T0069 AA63-60122K SPACER-FELT;SPD-42P3S,FELT,L60,D20,T0.35 7 S.N.A
...3 M0006 BN63-02830A COVER-REAR;40" LED MOSEL,HIPS,HB,BK500 1 S.N.A
...3 T0071 BN64-00481A INLAY-TERMINAL;MOSEL,40,EO,PS SHEET,T0.5 1 S.N.A
...3 T0064 BN65-00002A CLAMPER CORE;BORDEAUX,PP,V0,BLK 1 S.N.A
...3 BN61-02776A HOLDER-WALL;32R7,ABS,HB,BLK 1 S.N.A

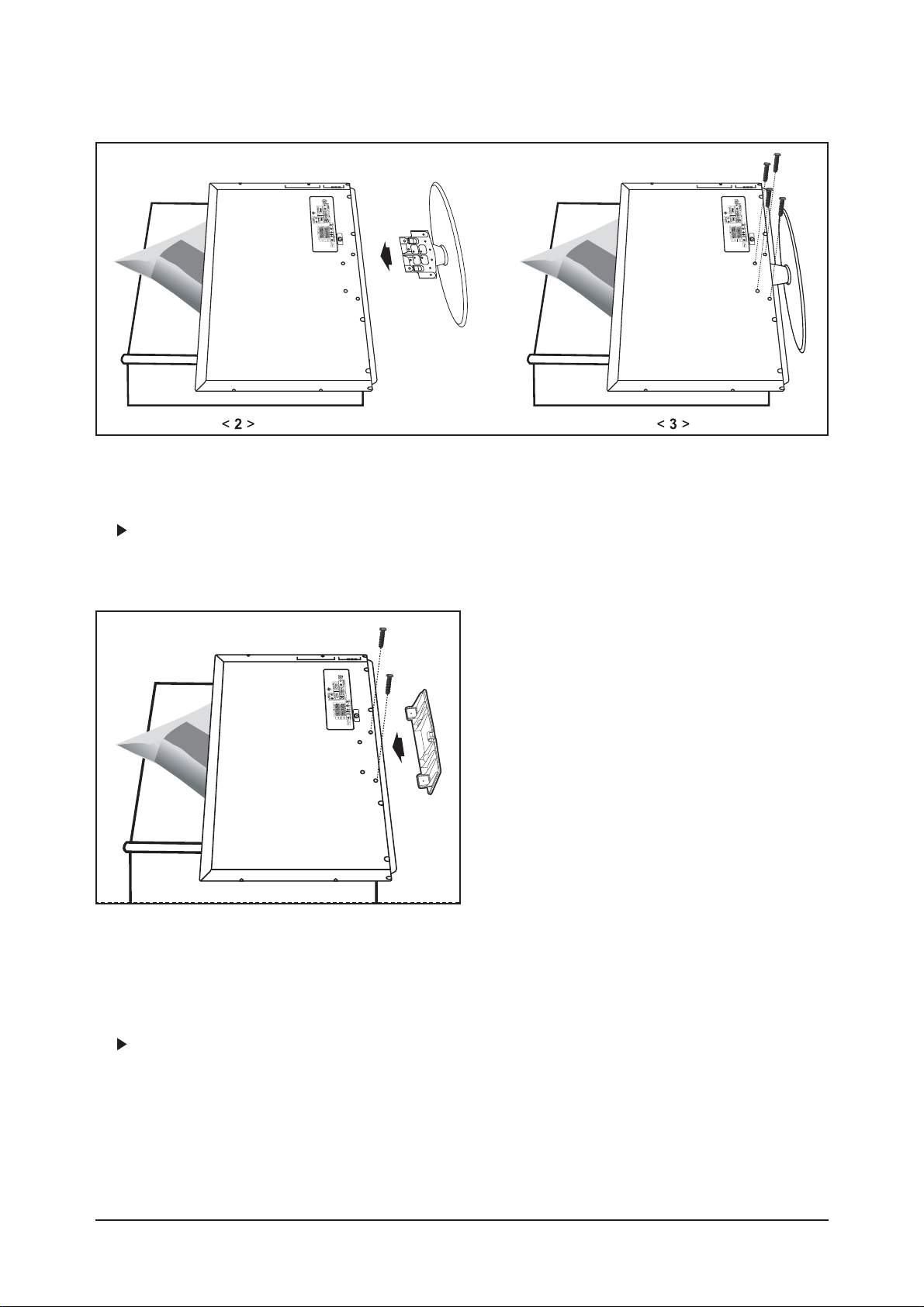

0.1 M0216 BN90-01048A ASSY STAND;40M91,EO,ABS+PMMA,HB,BK23,H/G 1 S.N.A
..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 4 S.A
..2 M0013 BN96-04217A ASSY STAND P-BASE;LED MOSEL,40,ABS+PMMA, 1 S.A
...3 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 4 S.A
...3 M0081 6003-001239 SCREW-TAPTITE;FH,+,B,M4,L10,ZPC(YEL),SWR 4 S.A
...3 BN61-02247A HOLDER-SWIVEL RING;40R71,ACETAL,BLK 1 S.N.A
...3 BN61-02248A HOLDER-SWIVEL RING;40R71,ACETAL NATUAL,T 1 S.N.A
...3 BN61-02249A HOLDER-SWIVEL RING;40R71,ACETAL NATUAL,B 1 S.N.A
...3 BN61-02259A BRACKET-STAND BOTTOM;BORDEAUX 40,SGHC,T3 1 S.N.A
...3 BN61-02260A BRACKET-HINGE SWIVEL;BORDEAUX 40,SGHC,T3 1 S.N.A
...3 T0920 BN61-02750A GUIDE-STAND;LED MOSEL 40,ABS V0,-,-,-,BK 1 S.N.A

....4 T0514 BN61-02367A BRACKET-SUPPORT;BORDEAUX 32,SECC,T2.0 1 S.N.A

...3 T0004 BN63-02364A COVER-STAND BASE;40R71,ABS+PMMA,HB,BK23, 1 S.N.A
...3 BN63-02495A COVER-STAND SUB;40M70,ABS+PMMA,HB,BK23,H 1 S.N.A
...3 T0132 BN73-00052A RUBBER FOOT;ARES 17,SILICON,DIA 17 * T1. 4 S.N.A
...3 CCM1 BN63-02183E COVER-SHEET;Rhcm,PE Vinyl,T0.05,750mm,20 0.5 S.N.A

0.1 M0017 BN91-01168A ASSY CHASSIS;LE40M91BX/XEC 1 S.N.A

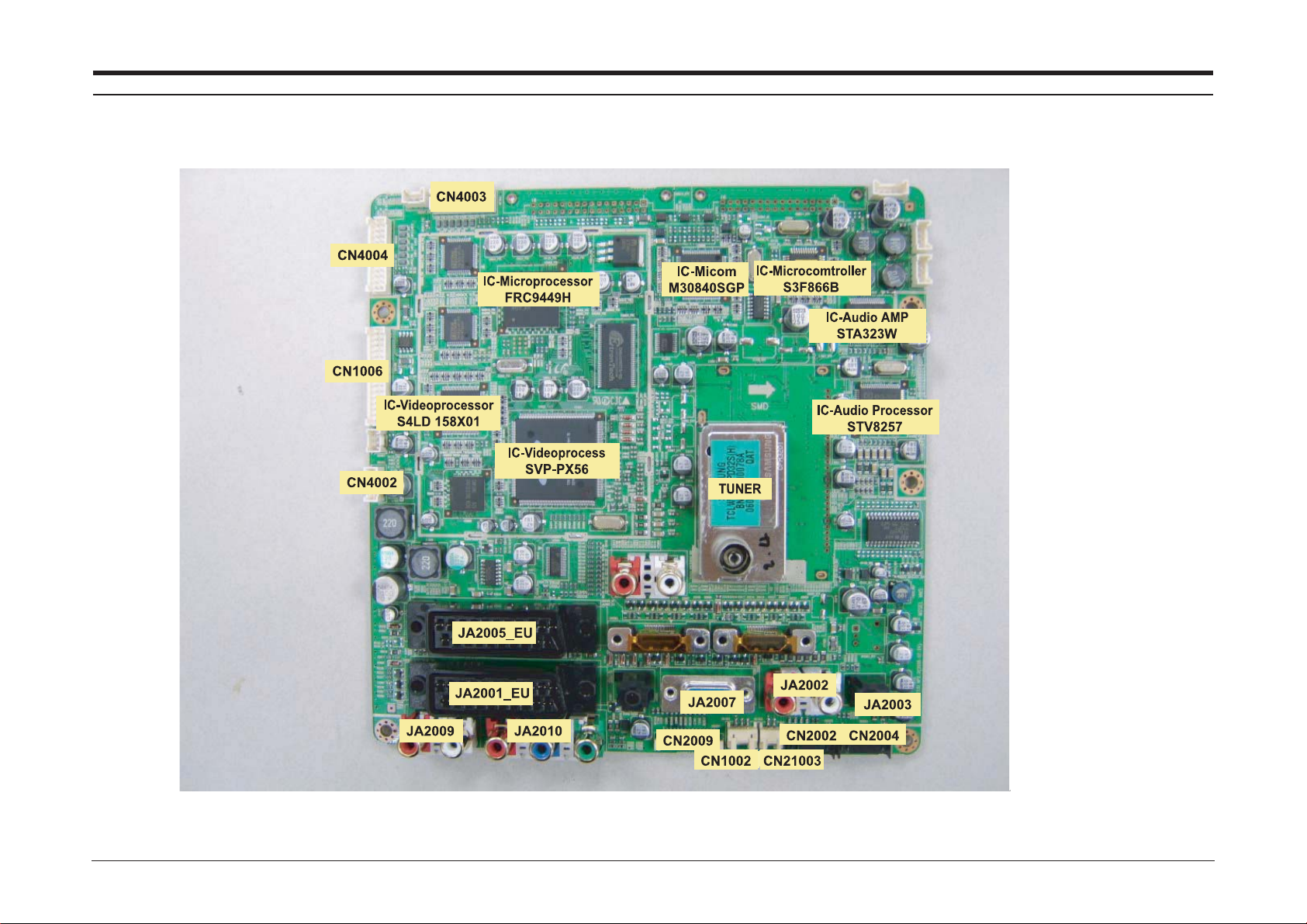

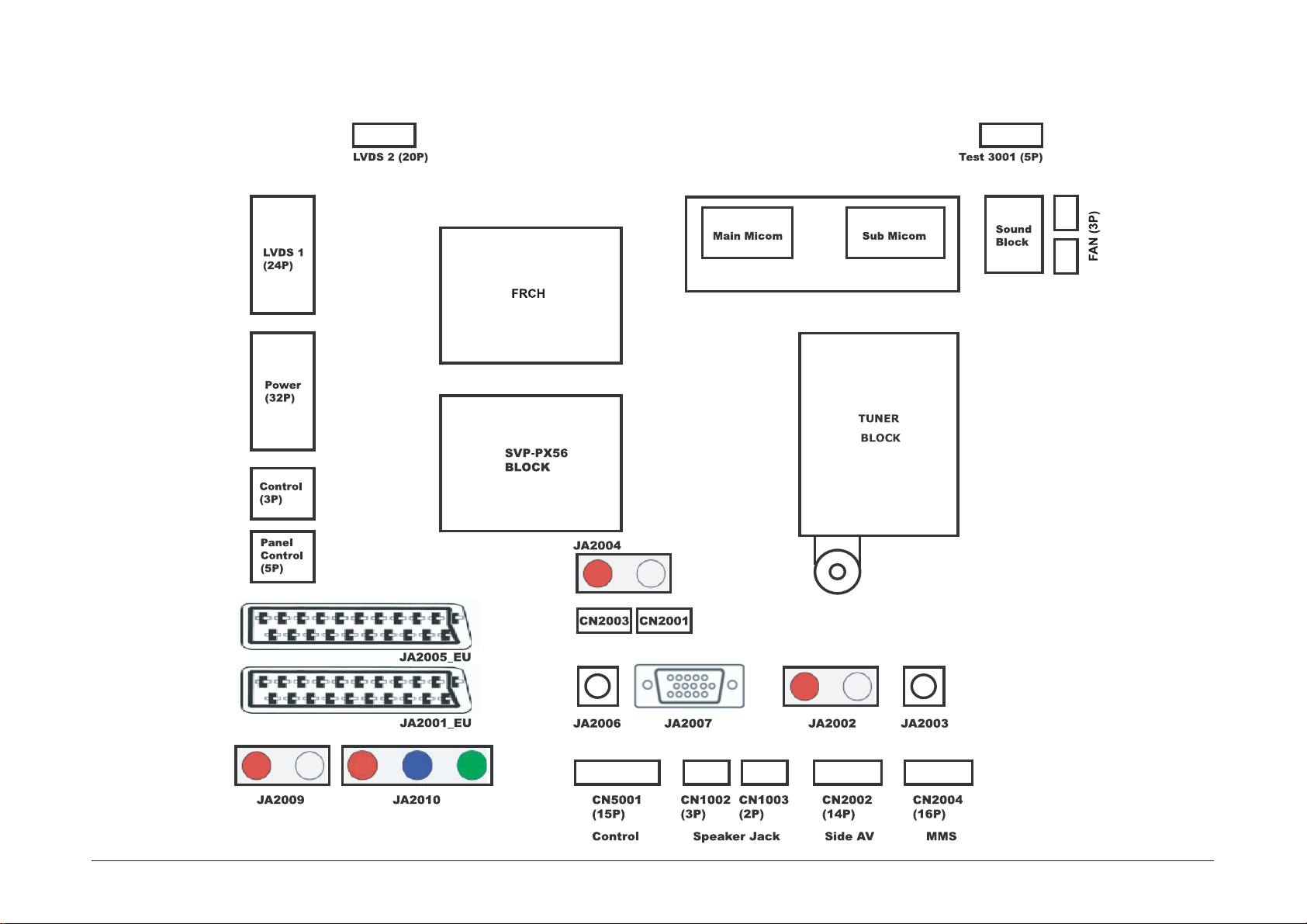

..2 M0014 BN94-01065A ASSY PCB MAIN;LE40M91BX/XEC 1 S.A
...3 T0245 0202-001492 SOLDER-WIRE FLUX;HSE-02 LFM48 SR-34 S,-, 0.25 S.N.A
...3 JA2007 3701-001294 CONNECTOR-DSUB;15P,3R,FEMALE,STRAIGHT,AU 1 S.A
...3 CN330 3711-002347 HEADER-BOARD TO CABLE;BOX,16P,2R,2MM,ANG 1 S.A
...3 CN330 3711-004484 HEADER-BOARD TO CABLE;BOX,5P,1R,2mm,STRA 1 S.A
...3 CN330 3711-004484 HEADER-BOARD TO CABLE;BOX,5P,1R,2mm,STRA 1 S.A
...3 CN330 3711-004909 HEADER-BOARD TO CABLE;BOX,14P,2R,2MM,ANG 1 S.A

6 Electrical Parts List

You can search for updated part codes through ITSELF web site.

URL : http://itself.sec.samsung.co.kr/

6-1 LE40M91BX Parts List

6 Electrical Parts List

6-2

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

...3 CN330 3711-005607 HEADER-BOARD TO CABLE;BOX,32P,2R,2mm,STR 1 S.A
...3 CN330 3711-005841 HEADER-BOARD TO CABLE;BOX,20P,2R,2.0mm,S 1 S.A
...3 CN330 3711-005842 HEADER-BOARD TO CABLE;BOX,24P,2R,2.0mm,S 1 S.A
...3 JA2001_EU 3722-000498 JACK-SCART;21P,-,SN,BLK,NO 1 S.A
...3 JA2005_EU 3722-000498 JACK-SCART;21P,-,SN,BLK,NO 1 S.A
...3 JA330 3722-001061 JACK-PHONE;1P,3.6PI,AG,BLK,N 1 S.A
...3 JA330 3722-001061 JACK-PHONE;1P,3.6PI,AG,BLK,N 1 S.A
...3 JA333 3722-002360 JACK-PIN;3P,AU,GRN/BLU/RED,STRAIGHT 1 S.A
...3 JA333 3722-002362 JACK-PIN;2P,Sn,WHT/RED,STRAIGHT 1 S.A
...3 JA333 3722-002362 JACK-PIN;2P,Sn,WHT/RED,STRAIGHT 1 S.A
...3 JA333 3722-002362 JACK-PIN;2P,Sn,WHT/RED,STRAIGHT 1 S.A
...3 CIS3 BN40-00078A TUNER;TCLW3001PD32S(H),TCLW3001PD32S(H), 1 S.A
...3 T0174 BN97-01138A ASSY SMD;LE40M91BX/XEC 1 S.N.A

....4 SUB05 0202-001477 SOLDER-CREAM;LST309-M,-,D20~45§-,96.5Sn/ 4.307 S.N.A

....4 D2003 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D2013_EU 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D2016 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D2017 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D2018 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D2019 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D2020 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D2021 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D2022 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D2023 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D2032 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D2033 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D2034 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D2057 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D2062 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D2063 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D2064 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D2065 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D2066 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D2067 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D2068 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D2069 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D2072 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D2085 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D2086 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D2087 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D2088 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D5020_RDY 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D1001 0402-000553 DIODE-SCHOTTKY;SS24/B240,40V,2000mA,DO-2 1 S.A

....4 D1012 0402-000553 DIODE-SCHOTTKY;SS24/B240,40V,2000mA,DO-2 1 S.A

....4 D1008 0403-000258 DIODE-ZENER;BZX84C5V6,5.2-6V,225mW,SOT-2 1 S.A

....4 D3003 0403-000258 DIODE-ZENER;BZX84C5V6,5.2-6V,225mW,SOT-2 1 S.A

....4 D2001 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D2002 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D2040 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D2043 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D2061 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D2070 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D2073 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D2074 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D2084 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D3006 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D3008 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D4001 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D4002 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D4003 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D4004 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D4005 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D4006 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D4007 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D4008 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D4009 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D4010 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D4011 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D4012 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D4013 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

6 Electrical Parts List

6-3

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 D4014 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D5010 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D5011 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D5012 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D2004 0403-001016 DIODE-ZENER;RLZ6.2B,5.96-6.27V,500mW,LL- 1 S.A

....4 D2071 0403-001016 DIODE-ZENER;RLZ6.2B,5.96-6.27V,500mW,LL- 1 S.A

....4 D3009 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200mW,SOT-2 1 S.A

....4 D2009 0403-001169 DIODE-ZENER;RLZ16C,15.96-16.51V,500MW,LL 1 S.A

....4 D2039 0403-001169 DIODE-ZENER;RLZ16C,15.96-16.51V,500MW,LL 1 S.A

....4 D5021_RDY 0403-001425 DIODE-ZENER;BZX84C33,31-35V,350mW,SOT-23 1 S.A

....4 D2005_EU 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D2006 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D2007_EU 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D2008 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D2014 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D2015 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D2024 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D2025_EU 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D2026 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D2027 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D2028 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D2029 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D2030 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D2031 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D2035 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D2036 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D2037 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D2038 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D2051 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D2052 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D2054 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D2055 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D2056 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D2078 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D2081 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D2082 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D2083 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D1002 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A

....4 D1011 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A

....4 D1020 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A

....4 D3001 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A

....4 D3002 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A

....4 D3007_DE 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A

....4 Q1007 0501-000280 TR-SMALL SIGNAL;KSA1182,PNP,150MW,SOT-23 1 S.A

....4 Q1020 0501-000280 TR-SMALL SIGNAL;KSA1182,PNP,150MW,SOT-23 1 S.A

....4 Q1021 0501-000280 TR-SMALL SIGNAL;KSA1182,PNP,150MW,SOT-23 1 S.A

....4 Q1006 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q1008 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q1009 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q1010 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q1013 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q1022 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q2001 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q2002 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q3001 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q3003 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q3008 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q3010 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q3113 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q4001 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q5013 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q1003 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A

....4 Q1017 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A

....4 Q2003 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A

....4 Q2007_FRC 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A

....4 Q2008 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A

....4 Q2010_LED 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A

....4 Q2011_LED 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A

....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A

....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A

6 Electrical Parts List

6-4

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A

....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A

....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A

....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A

....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A

....4 Q409 0505-001170 FET-SILICON;SI9933ADY-T1,P,-20V,3.4A,0.0 1 S.A

....4 IC104 0801-002095 IC-CMOS LOGIC;74LCX245,TRANSCEIVER,TSSOP 1 S.A

....4 IC104 0801-002716 IC-CMOS LOGIC;74LCX157,MULTIPLEXER,SOIC, 1 S.A

....4 IC3002 0903-001432 IC-MICROCOMPUTER;M30840SGP,16Bit,LQFP,10 1 S.N.A

....4 IC106 1001-001082 IC-VIDEO SWITCH;BA7657F,-,SOP,24P,300MIL 1 S.A

....4 IC2005 1001-001109 IC-ANALOG SWITCH;FST3125M,BUS SWITCH & C 1 S.A

....4 IC3006 1001-001109 IC-ANALOG SWITCH;FST3125M,BUS SWITCH & C 1 S.A

....4 IC1016 1001-001178 IC-AUDIO SWITCH;TEA6422D,AUDIO SWITCH ,S 1 S.A

....4 IC106 1001-001363 IC-VIDEO SWITCH;PI3HDMI412FT,HDMI TMDS S 1 S.A

....4 IC107 1002-001399 IC-D/A CONVERTER;PCM1754,24BIT,SSOP,16P, 1 S.A

....4 IC110 1006-001076 IC-DRIVER/RECEIVER;MAX232ECWE+T,SOP,16P, 1 S.A

....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x 1 S.A

....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x 1 S.A

....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x 1 S.A

....4 IC112 1103-001279 IC-EEPROM;24C32,32Kbit,4Kx8Bit,SOP,8P,5x 1 S.A

....4 IC5002 1105-001538 IC-VIDEO RAM;K4D263238,-,128M,4x1Mx32Bit 1 S.A

....4 IC113 1105-001760 IC-DRAM;EM6A9160,DDR,128Mbit,8Mx16,TSOP( 1 S.A

....4 DU410 1201-000166 IC-OP AMP;LM358,SOP,ST,8P,150MIL,DUAL,10 1 S.A

....4 T0085 1201-002136 IC-AUDIO AMP;LM4810,MSOP,8P,3x3mm,DUAL,- 1 S.A

....4 T0085 1201-002246 IC-AUDIO AMP;STA323W,SO,36P,15.9x11mm,-, 1 S.A

....4 IC3009 1203-001559 IC-RESET;DS1834A,SOIC,8P,150MIL,PLASTIC, 1 S.A

....4 T0087 1203-001815 IC-POSI.FIXED REG.;78M09,TO-252,3P,-,PLA 1 S.A

....4 T0087 1203-001816 IC-POSI.FIXED REG.;78M08,TO-252,3P,-,PLA 1 S.A

....4 T0087 1203-002591 IC-POSI.FIXED REG.;MIC39300-2.5BU,TO-263 1 S.A

....4 T0087 1203-002842 IC-POSI.FIXED REG.;AP1117D-33A,TO-252,3P 1 S.A

....4 T0087 1203-002855 IC-POSI.FIXED REG.;MC33269DTRK-5.0,DPRK, 1 S.A

....4 T0087 1203-002974 IC-POSI.FIXED REG.;AP1117D-25A,TO-252,3P 1 S.A

....4 IC012 1203-003000 IC-POSI.ADJUST REG.;MIC49150WR,S-PAK,5P, 1 S.A

....4 IC012 1203-003038 IC-POSI.ADJUST REG.;LP2995,SO,8P,4.9x3.9 1 S.A

....4 T0170 1203-003059 IC-SWITCH VOL. REG.;MP1583,SOIC,8P,4.9x3 1 S.A

....4 T0170 1203-003059 IC-SWITCH VOL. REG.;MP1583,SOIC,8P,4.9x3 1 S.A

....4 T0087 1203-003561 IC-POSI.FIXED REG.;NCP551SN15T1G,TSOP-5, 1 S.A

....4 IC1009 1204-002464 IC-AUDIO PROCESSOR;STV8257DSX,TQFP,80P,1 1 S.A

....4 IC118 1204-002496 IC-VIDEO PROCESS;S4LD158X01,QFP,128P,14x 1 S.N.A

....4 IC118 1204-002503 IC-VIDEO PROCESS;SVP-PX56-7256,PQFP,256P 1 S.N.A

....4 IC120 1205-002382 IC-TRANSMITTER;THC63LVD103,TQFP,64P,10x1 1 S.A

....4 IC120 1205-002382 IC-TRANSMITTER;THC63LVD103,TQFP,64P,10x1 1 S.A

....4 IC4007_FRC 1209-001685 IC-PLL/SYNTHESIZER;MK2302S-01LF,SOIC,8P, 1 S.A

....4 IC2011 1405-001185 VARISTOR;24Vdc,1.6x0.8x0.36mm,TP 1 S.A

....4 IC2012 1405-001185 VARISTOR;24Vdc,1.6x0.8x0.36mm,TP 1 S.A

....4 IC2013 1405-001185 VARISTOR;24Vdc,1.6x0.8x0.36mm,TP 1 S.A

....4 IC2014 1405-001185 VARISTOR;24Vdc,1.6x0.8x0.36mm,TP 1 S.A

....4 IC2015 1405-001185 VARISTOR;24Vdc,1.6x0.8x0.36mm,TP 1 S.A

....4 IC2016 1405-001185 VARISTOR;24Vdc,1.6x0.8x0.36mm,TP 1 S.A

....4 IC2017 1405-001185 VARISTOR;24Vdc,1.6x0.8x0.36mm,TP 1 S.A

....4 IC2018 1405-001185 VARISTOR;24Vdc,1.6x0.8x0.36mm,TP 1 S.A

....4 IC2019 1405-001185 VARISTOR;24Vdc,1.6x0.8x0.36mm,TP 1 S.A

....4 IC2020 1405-001185 VARISTOR;24Vdc,1.6x0.8x0.36mm,TP 1 S.A

....4 IC2021 1405-001185 VARISTOR;24Vdc,1.6x0.8x0.36mm,TP 1 S.A

....4 IC2022 1405-001185 VARISTOR;24Vdc,1.6x0.8x0.36mm,TP 1 S.A

....4 IC2023 1405-001185 VARISTOR;24Vdc,1.6x0.8x0.36mm,TP 1 S.A

....4 IC2024 1405-001185 VARISTOR;24Vdc,1.6x0.8x0.36mm,TP 1 S.A

....4 IC2025 1405-001185 VARISTOR;24Vdc,1.6x0.8x0.36mm,TP 1 S.A

....4 IC2026 1405-001185 VARISTOR;24Vdc,1.6x0.8x0.36mm,TP 1 S.A

....4 R2179 2007-000040 R-CHIP;150ohm,1%,1/10W,TP,1608 1 S.A

....4 R6194_FRC 2007-000040 R-CHIP;150ohm,1%,1/10W,TP,1608 1 S.A

....4 R1052 2007-000043 R-CHIP;1Kohm,1%,1/10W,TP,1608 1 S.A

....4 R5026 2007-000043 R-CHIP;1Kohm,1%,1/10W,TP,1608 1 S.A

....4 R5029 2007-000043 R-CHIP;1Kohm,1%,1/10W,TP,1608 1 S.A

....4 R1057 2007-000050 R-CHIP;7.15Kohm,1%,1/10W,TP,1608 1 S.A

....4 R3088 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R3100 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R3101 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R3102 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R3104 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

6 Electrical Parts List

6-5

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 R3105 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R3106 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R3107 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R3120 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R3130 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R3476 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R4052 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R5117 2007-000060 R-CHIP;100Kohm,1%,1/10W,TP,1608 1 S.A

....4 R1128 2007-000066 R-CHIP;20Kohm,1%,1/10W,TP,1608 1 S.A

....4 R1066 2007-000067 R-CHIP;15Kohm,1%,1/10W,TP,1608 1 S.A

....4 R1130 2007-000067 R-CHIP;15Kohm,1%,1/10W,TP,1608 1 S.A

....4 R1059 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1085 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1086 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1087 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1123_EU 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2055 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2064 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2080 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2098 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2099 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2100 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2101 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2102 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2103 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2104 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2105 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2106 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2107 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2108 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2109 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2110 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2111 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2112 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2113 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2114 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2115 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2233 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3003 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3024 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3025 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3026 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3027 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3028 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3029 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3031 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3032 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3033 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3035 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3037 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3039 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3040 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

1 S.A

....4 R3041 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3043 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3047 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3089 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3090 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3117 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3118 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3132 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3472_RDY 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3473_RDY 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3474_RDY 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R4004 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R4005 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R4006 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R4007 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R4008 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R4009 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R4010 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

6 Electrical Parts List

6-6

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 R4011 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R4012 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R4016 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R4017 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R4018 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R4019 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R4032 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R4033 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R4035 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R4051_DE 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R4057 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R4058 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R4062 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R4064 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R4130_FRC 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R4131_FRC 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R4140 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R4147 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R4148 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R4149 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R4155_FRC 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5076 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5122 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R6004 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2050 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R2063 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R2228 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R2231 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R2234 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R2236 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R2237 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R2240 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R2242 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R2243 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R2246 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R2247 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R2251 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R2252 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R2253 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R2254 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R4015 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R4020 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R4125 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R4126 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R4127 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R4144 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R4158_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R5030 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R5031 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R5032 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R5033 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608

1 S.A

....4 R6008_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6009_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6010_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6011_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6012_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6013_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6014_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6016_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6044_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6045_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6046_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6047_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6048_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6049_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6050_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6051_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6052_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6053_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6054_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

6 Electrical Parts List

6-7

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 R6055_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6056_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6057_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6058_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6059_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6060_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6061_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6062_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6063_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6064_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6065_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6066_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6067_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6077_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R1061 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R1063 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R1131 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R1132 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R1133 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R1134 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R2007 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R2008 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R2049 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R2051 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R2118 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R2119 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R5113_RDY 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R5114_RDY 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R6022_FRC 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R6023_FRC 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R1009 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1010 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1011 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1012 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1013 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1014 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1017 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1018 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1032 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1033 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1037 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1040 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1048 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1049 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1050 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1055 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1056 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1091 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1092 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1093 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1115 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

1 S.A

....4 R1116 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1121 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1122 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R2023 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R2029 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R2060 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R2081 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R2219_FRC 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R2230 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R2260 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R3008 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R3009 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R3010 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R3011 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R3034 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R3036 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R3038 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R3046 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R3055 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

6 Electrical Parts List

6-8

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 R3057 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R3058 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R3059 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R3062 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R3063 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R3073 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R3074 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R3077 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R3078 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R3125 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R3135 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R4028 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R4038 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R4049 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R4050 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R4055 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R4056 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R4072 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R4078 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R4083 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R4088 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R4092 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R4120 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R4129 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R4138 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R4139 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R5116_RDY 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R5120_RDY 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R4154 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 1 S.A

....4 R5150_RDY 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 S.A

....4 R1042 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R1047 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R1053 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R1054 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R1098 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R2004 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R2006 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R2033 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R2034 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R2037 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R2039 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R2042 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R2043 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R2074 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R2075 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R2077 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R2079 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R2244 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R2245 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R3128 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R3133 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608

1 S.A

....4 R4030 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R4031 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R4143 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R6398_FRC 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R6399_FRC 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R1062 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1068 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1075 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1079 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2009 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2016 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2120 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2124 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2160 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3001 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3019 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3030 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3121 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3143 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

6 Electrical Parts List

6-9

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 R3144 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3475 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4025 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4026 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4027 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4034 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4053 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4141 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4142 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R6145 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1142 2007-000079 R-CHIP;1.8Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2157 2007-000079 R-CHIP;1.8Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3016 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3017 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3071 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3072 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4145 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4146 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1035 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1058 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2180_FRC 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2272_LED 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2273_LED 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3002 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3015 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3018 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3020 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3021 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3022 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3070 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3079 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3080 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3081 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3082 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3086 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3087 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3108 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3109 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3110 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3111 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3112 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3113 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3114 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3116 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3134 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3136 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3140 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4036 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4037 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4136 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4137 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4151 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4153 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R6001 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R6002 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R6028_FRC 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R6029_FRC 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R6078_FRC 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R6079_FRC 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R6081_FRC 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1127 2007-000086 R-CHIP;5.6Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2028 2007-000087 R-CHIP;6.8Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2061_EU 2007-000087 R-CHIP;6.8Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1051 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1067 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1126 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1136 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1141 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2002 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2003 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

6 Electrical Parts List

6-10

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 R2013 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2044 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2045 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2057 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2065 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2116 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2117 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2121 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2218_FRC 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2270_LED 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2271_LED 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3005 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3075 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3076 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3083 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3084 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3085 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3131 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3142 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4118 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4119 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R5123_RDY 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R6003_FRC 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R6007_FRC 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R6015_FRC 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R6017_FRC 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R6024_FRC 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R6025_FRC 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R6069_FRC 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1065 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1129 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1070 2007-000093 R-CHIP;20Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1071 2007-000093 R-CHIP;20Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2161 2007-000093 R-CHIP;20Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3004 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 S.A

....4 R5154_RDY 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2010 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2011_EU 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2012_EU 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2162 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3099 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1064 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1069 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1072 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1135 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1138_FRC 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R5152_RDY 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R5119_RDY 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608 1 S.A

....4 R5121_RDY 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608 1 S.A

....4 R5130_RDY 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1073 2007-000107 R-CHIP;470Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2125 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R2126 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R2127 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R2128 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R2129 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R2130 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R2131 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R2132 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R2133 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R2134 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608

1 S.A

....4 R2135 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R2136 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R2137 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R2138 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R2139 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R2140 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R4021 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R4022 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R4023 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

6 Electrical Parts List

6-11

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 R4024 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R2159 2007-000116 R-CHIP;120ohm,5%,1/10W,TP,1608 1 S.A

....4 R1036 2007-000119 R-CHIP;560ohm,5%,1/10W,TP,1608 1 S.A

....4 R1031 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2158 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2220 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2221 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2222 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3129 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1096 2007-000125 R-CHIP;3.9Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2024_EU 2007-000287 R-CHIP;100OHM,1%,1/10W,TP,1608 1 S.A

....4 R2001_EU 2007-000293 R-CHIP;100ohm,5%,1/4W,TP,3216 1 S.A

....4 R2005_EU 2007-000293 R-CHIP;100ohm,5%,1/4W,TP,3216 1 S.A

....4 R2018 2007-000293 R-CHIP;100ohm,5%,1/4W,TP,3216 1 S.A

....4 R2022_EU 2007-000293 R-CHIP;100ohm,5%,1/4W,TP,3216 1 S.A

....4 R2031 2007-000293 R-CHIP;100ohm,5%,1/4W,TP,3216 1 S.A

....4 R2035 2007-000293 R-CHIP;100ohm,5%,1/4W,TP,3216 1 S.A

....4 R2040 2007-000293 R-CHIP;100ohm,5%,1/4W,TP,3216 1 S.A

....4 R2053 2007-000293 R-CHIP;100ohm,5%,1/4W,TP,3216 1 S.A

....4 R2058 2007-000293 R-CHIP;100ohm,5%,1/4W,TP,3216 1 S.A

....4 R2068 2007-000293 R-CHIP;100ohm,5%,1/4W,TP,3216 1 S.A

....4 R2084 2007-000293 R-CHIP;100ohm,5%,1/4W,TP,3216 1 S.A

....4 R2093 2007-000293 R-CHIP;100ohm,5%,1/4W,TP,3216 1 S.A

....4 R2171 2007-000293 R-CHIP;100ohm,5%,1/4W,TP,3216 1 S.A

....4 R3044 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R3048 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R3049_1M 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R3050_1M 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R3056 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R3060 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R3061 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R3064 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R3066 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R3067 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R3068 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R3069 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R3091 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R3092 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R3093 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R3094 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R3095 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R3096 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R3097 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R3098 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R2017 2007-000458 R-CHIP;18Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2052 2007-000458 R-CHIP;18Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2141 2007-000539 R-CHIP;200ohm,5%,1/10W,TP,1608 1 S.A

....4 R2142 2007-000539 R-CHIP;200ohm,5%,1/10W,TP,1608 1 S.A

....4 R2143 2007-000539 R-CHIP;200ohm,5%,1/10W,TP,1608 1 S.A

....4 R2144 2007-000539 R-CHIP;200ohm,5%,1/10W,TP,1608 1 S.A

....4 R2145 2007-000539 R-CHIP;200ohm,5%,1/10W,TP,1608 1 S.A

....4 R2146 2007-000539 R-CHIP;200ohm,5%,1/10W,TP,1608 1 S.A

....4 R2147 2007-000539 R-CHIP;200ohm,5%,1/10W,TP,1608 1 S.A

....4 R2148 2007-000539 R-CHIP;200ohm,5%,1/10W,TP,1608 1 S.A

....4 R2149 2007-000539 R-CHIP;200ohm,5%,1/10W,TP,1608 1 S.A

....4 R2150 2007-000539 R-CHIP;200ohm,5%,1/10W,TP,1608 1 S.A

....4 R2151 2007-000539 R-CHIP;200ohm,5%,1/10W,TP,1608 1 S.A

....4 R2152 2007-000539 R-CHIP;200ohm,5%,1/10W,TP,1608 1 S.A

....4 R2153 2007-000539 R-CHIP;200ohm,5%,1/10W,TP,1608

1 S.A

....4 R2154 2007-000539 R-CHIP;200ohm,5%,1/10W,TP,1608 1 S.A

....4 R2155 2007-000539 R-CHIP;200ohm,5%,1/10W,TP,1608 1 S.A

....4 R2156 2007-000539 R-CHIP;200ohm,5%,1/10W,TP,1608 1 S.A

....4 R3012 2007-000704 R-CHIP;3.6Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3013 2007-000704 R-CHIP;3.6Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4156 2007-000903 R-CHIP;430ohm,1%,1/10W,TP,1608 1 S.A

....4 R2019 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R2020 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R2021 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R2066 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R2067 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

6 Electrical Parts List

6-12

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 R2076 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R2078 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R2082 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R2083 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R2094 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R2095 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R5035 2007-001014 R-CHIP;51OHM,5%,1/10W,TP,1608 1 S.A

....4 R5039 2007-001014 R-CHIP;51OHM,5%,1/10W,TP,1608 1 S.A

....4 R2030_EU 2007-001131 R-CHIP;68ohm,1%,1/10W,TP,1608 1 S.A

....4 R2056_EU 2007-001131 R-CHIP;68ohm,1%,1/10W,TP,1608 1 S.A

....4 R6195_FRC 2007-001153 R-CHIP;750ohm,1%,1/10W,TP,1608 1 S.A

....4 R2014 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R2015 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R2025 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R2026 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R2027 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R2032 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R2062 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R2085 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R2086 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R2087 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R2122 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R2123 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R2172 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R5118_RDY 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R2036 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R2038 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R2041 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R2046 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R2047 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R2048 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R2054 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R2059 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R2256 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R2257 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R2258 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R2175_EU 2007-007733 R-CHIP;51ohm,1%,1/10W,TP,1608 1 S.A

....4 R1083 2007-008720 R-CHIP;4.7ohm,1%,1/4W,TP,3216 1 S.A

....4 R1088 2007-008720 R-CHIP;4.7ohm,1%,1/4W,TP,3216 1 S.A

....4 R1094 2007-008720 R-CHIP;4.7ohm,1%,1/4W,TP,3216 1 S.A

....4 R1097 2007-008720 R-CHIP;4.7ohm,1%,1/4W,TP,3216 1 S.A

....4 RA4005_FRC 2011-000002 R-NET;22ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA4006_FRC 2011-000002 R-NET;22ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA4007_FRC 2011-000002 R-NET;22ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA4008_FRC 2011-000002 R-NET;22ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA4009_FRC 2011-000002 R-NET;22ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA4010_FRC 2011-000002 R-NET;22ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA4011_FRC 2011-000002 R-NET;22ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA4012_FRC 2011-000002 R-NET;22ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA4013_FRC 2011-000002 R-NET;22ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA6000_FRC 2011-000002 R-NET;22ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA6001_FRC 2011-000002 R-NET;22ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA6002_FRC 2011-000002 R-NET;22ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA6003_FRC 2011-000002 R-NET;22ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA6004_FRC 2011-000002 R-NET;22ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA6005_FRC 2011-000002 R-NET;22ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA6006_FRC 2011-000002 R-NET;22ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA6007_FRC 2011-000002 R-NET;22ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA6008_FRC 2011-000002 R-NET;22ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA6009_FRC 2011-000002 R-NET;22ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA6010_FRC 2011-000002 R-NET;22ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA6011_FRC 2011-000002 R-NET;22ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA6012_FRC 2011-000002 R-NET;22ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA6013_FRC 2011-000002 R-NET;22ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA6014_FRC 2011-000002 R-NET;22ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA6015_FRC 2011-000002 R-NET;22ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA6056_FRC 2011-000002 R-NET;22ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA6057_FRC 2011-000002 R-NET;22ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA6058_FRC 2011-000002 R-NET;22ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA6059_FRC 2011-000002 R-NET;22ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

6 Electrical Parts List

6-13

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 RA5001 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA5002 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA5003 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA5004 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA5005 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA5006 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA5007 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA5010 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA6018_FRC 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA6019_FRC 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA6020_FRC 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA6021_FRC 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA6022_FRC 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA6023_FRC 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA6024_FRC 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA6025_FRC 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA6026_FRC 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA6027_FRC 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA3004 2011-000651 R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA3005 2011-000651 R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA3007 2011-000651 R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA3008 2011-000651 R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA3009 2011-000651 R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA3011 2011-000651 R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA4003 2011-001001 R-NET;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1.6 1 S.A

....4 RA4004 2011-001001 R-NET;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1.6 1 S.A

....4 RA4016 2011-001001 R-NET;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1.6 1 S.A

....4 RA4017 2011-001001 R-NET;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1.6 1 S.A

....4 RA4018 2011-001001 R-NET;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1.6 1 S.A

....4 RA3001 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA3002 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA3003 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA3006 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA3010 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA3012 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA3013 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA3014 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA3015 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA3016 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA3017 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA3018 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA3019 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA3020 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA4001 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA4002 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 C1158 2203-000125 C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1608,- 1 S.A

....4 C1037 2203-000140 C-CER,CHIP;1.5nF,10%,50V,X7R,1608 1 S.A

....4 C1062 2203-000140 C-CER,CHIP;1.5nF,10%,50V,X7R,1608 1 S.A

....4 C1004 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1006 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1008 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1016 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1021 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1025 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1027 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1043 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1046 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1052 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1053 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1054 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1055 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1075 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1084 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1086 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1087 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1097 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1098 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1103 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1105 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1108 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

6 Electrical Parts List

6-14

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 C1109 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1132 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1133 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1141 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1159 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1168 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1197 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1199 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1201 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1203 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C2002 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C2018 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C2040 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C2059 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C3001 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C3005 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C3034 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C4016 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C4017 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C4018 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C4019 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C4020 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C4021 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C4022 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C4025 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C4026 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C4027 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C4028 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C4029 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C4031 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C4032 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C4034 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C4035 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C4036 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C4038 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C4039 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C4040 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C4041 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C4042 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C4043 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C4045 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C4046 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C4048 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C4049 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C4052 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C4053 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C4054 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C4055 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C4059 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C4060 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C4061 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C4062 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C4063 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C4067 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C4068 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C4069 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C4070 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C4071 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C4073 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C4076 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C4077 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C4080 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C4081 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C4083 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C4084 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C4085 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C4086 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C4095 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C4128 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5092 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

6 Electrical Parts List

6-15

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 C6039_FRC 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1050_EU 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C1134 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C1135 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C1161 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C1162 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C1163 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C2004 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C2006 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C2007_EU 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C2012 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C2014 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C2019 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C2020_EU 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C2022 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C2023 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C2024 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C2027 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C2028 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C2044 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C2064 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C3024 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C3025 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C5089_RDY 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C5090_RDY 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C1002 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C1005 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C1013 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C1022 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C1026 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C1034 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C1049 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C1094 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C1198 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C2056 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C2065 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C2066 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C2068 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C3035 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C4005 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C4006 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C4007 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C4008 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C4009 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C4098 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C4104 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C4108 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C4111 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C4116 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C4134 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C4136_FRC 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C5006 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C5007 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C5008 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C5009 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C5010 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C5017 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C5036 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C5101_RDY 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C5108_RDY 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C5109_RDY 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C6036_FRC 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C2003_EU 2203-000315 C-CER,CHIP;0.12nF,5%,50V,C0G,1608 1 S.A

....4 C2005_EU 2203-000315 C-CER,CHIP;0.12nF,5%,50V,C0G,1608 1 S.A

....4 C2011 2203-000315 C-CER,CHIP;0.12nF,5%,50V,C0G,1608 1 S.A

....4 C2013 2203-000315 C-CER,CHIP;0.12nF,5%,50V,C0G,1608 1 S.A

....4 C1110 2203-000405 C-CER,CHIP;0.18nF,5%,50V,C0G,1608 1 S.A

....4 C1200 2203-000405 C-CER,CHIP;0.18nF,5%,50V,C0G,1608 1 S.A

....4 C3002 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C3003 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

6 Electrical Parts List

6-16

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 C3007 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C3020 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C3021 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C3029 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C4099 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C4105 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C4109 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C4110 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C4119 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C5106_RDY 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,1608 1 S.A

....4 C4058 2203-000531 C-CER,CHIP;2.7nF,10%,50V,X7R,1608 1 S.A

....4 C4066 2203-000531 C-CER,CHIP;2.7nF,10%,50V,X7R,1608 1 S.A

....4 C4001 2203-000552 C-CER,CHIP;0.02nF,5%,50V,C0G,1608 1 S.A

....4 C4011 2203-000552 C-CER,CHIP;0.02nF,5%,50V,C0G,1608 1 S.A

....4 C1070 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 S.A

....4 C1082 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 S.A

....4 C3012 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 S.A

....4 C3013 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 S.A

....4 C3030 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 S.A

....4 C3031 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 S.A

....4 C1111 2203-000715 C-CER,CHIP;3.3nF,10%,50V,X7R,1608 1 S.A

....4 C1202 2203-000715 C-CER,CHIP;3.3nF,10%,50V,X7R,1608 1 S.A

....4 C1142 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C1152 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C2009 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C2010 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C2015 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C2016 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C2069 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C2070 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C1100 2203-000798 C-CER,CHIP;33nF,10%,16V,X7R,TP,1608,- 1 S.A

....4 C1101 2203-000798 C-CER,CHIP;33nF,10%,16V,X7R,TP,1608,- 1 S.A

....4 C2029 2203-000815 C-CER,CHIP;0.033nF,5%,50V,C0G,1608 1 S.A

....4 C2030 2203-000815 C-CER,CHIP;0.033nF,5%,50V,C0G,1608 1 S.A

....4 C2031 2203-000815 C-CER,CHIP;0.033nF,5%,50V,C0G,1608 1 S.A

....4 C1119 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C1120 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C4003 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C4004 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C5003 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C5004 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C5107_RDY 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C1063 2203-000972 C-CER,CHIP;47nF,10%,16V,X7R,1608 1 S.A

....4 C4056 2203-000972 C-CER,CHIP;47nF,10%,16V,X7R,1608 1 S.A

....4 C5103_RDY 2203-000972 C-CER,CHIP;47nF,10%,16V,X7R,1608 1 S.A

....4 C2008 2203-000998 C-CER,CHIP;0.047nF,5%,50V,C0G,1608 1 S.A

....4 C2052 2203-000998 C-CER,CHIP;0.047nF,5%,50V,C0G,1608 1 S.A

....4 C2067 2203-000998 C-CER,CHIP;0.047nF,5%,50V,C0G,1608 1 S.A

....4 C6017_FRC 2203-001083 C-CER,CHIP;0.0050nF,0.1pF,50V,NP0,1608 1 S.A

....4 C6018_FRC 2203-001083 C-CER,CHIP;0.0050nF,0.1pF,50V,NP0,1608 1 S.A

....4 C1056 2203-001402 C-CER,CHIP;220nF,+80-20%,16V,Y5V,TP,1608 1 S.A

....4 C1164 2203-001607 C-CER,CHIP;0.22nF,5%,50V,NP0,1608 1 S.A

....4 C5104_RDY 2203-001607 C-CER,CHIP;0.22nF,5%,50V,NP0,1608 1 S.A

....4 C1114 2203-001652 C-CER,CHIP;470nF,+80-20%,16V,Y5V,1608 1 S.A

....4 C1116 2203-001652 C-CER,CHIP;470nF,+80-20%,16V,Y5V,1608 1 S.A

....4 C1038 2203-001656 C-CER,CHIP;0.47nF,5%,50V,NP0,1608 1 S.A

....4 C1061 2203-001656 C-CER,CHIP;0.47nF,5%,50V,NP0,1608 1 S.A

....4 C3039 2203-001656 C-CER,CHIP;0.47nF,5%,50V,NP0,1608 1 S.A

....4 C1117 2203-001724 C-CER,CHIP;4700nF,+80-20%,16V,Y5V,3216 1 S.A

....4 C4030 2203-001724 C-CER,CHIP;4700nF,+80-20%,16V,Y5V,3216 1 S.A

....4 C4047 2203-001724 C-CER,CHIP;4700nF,+80-20%,16V,Y5V,3216 1 S.A

....4 C4051 2203-001724 C-CER,CHIP;4700nF,+80-20%,16V,Y5V,3216 1 S.A

....4 C1003 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1011 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1039 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1066 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1068 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1071 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1072 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1073 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

6 Electrical Parts List

6-17

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 C1074 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1078 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1079 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1093 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1104 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1148 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1169 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1181 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1194 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1207 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C2042 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C2045 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C2047 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C2049 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C2055 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C2060 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3009 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3010 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3014 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3015 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3016 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3018 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3019 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3022 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3026 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3027 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3032 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3037 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3040 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3042 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3044 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3046 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3047 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3049 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C4002 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C4097 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C4101 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C4103 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C4107 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C4112 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C4115 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C4131 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C4133 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C4135 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C5001 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C5002 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C5011 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C5012 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C5084_LNA 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C5085_RDY 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C5115_RDY 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C6000_FRC 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C6001_FRC 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C6002_FRC 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C6003_FRC 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C6004_FRC 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C6005_FRC 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C6006_FRC 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C6007_FRC 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C6008_FRC 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C6011_FRC 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C6012_FRC 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C6013_FRC 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C6014_FRC 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C6015_FRC 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C6016_FRC 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C6023_FRC 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C6024_FRC 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C6025_FRC 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C6026_FRC 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

6 Electrical Parts List

6-18

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 C6029 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C6030 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C6031 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C6032 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C6033 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C6034 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C6035 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C6042_FRC 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C6043_FRC 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C6047_FRC 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C6056_FRC 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C6057_FRC 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C6058_FRC 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C6059_FRC 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C6060_FRC 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C6061_FRC 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C6062_FRC 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C6065_FRC 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C6066_FRC 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C6067_FRC 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C6127_FRC 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1143 2203-005030 C-CER,CHIP;470nF,+80-20%,50V,Y5V,TP,3216 1 S.A

....4 C1153 2203-005030 C-CER,CHIP;470nF,+80-20%,50V,Y5V,TP,3216 1 S.A

....4 C1031 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C1155 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C1206 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C2038 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C2041 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C3023 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C3033 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C4096 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C4100 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C4102 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C4106 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C4113 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C4114 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C4117 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C4118 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C6055_FRC 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C6064_FRC 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C6107_FRC 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C6108_FRC 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C6109_FRC 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C1131 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C1137 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C1138 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C1140 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C1144 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C1145 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C1146 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C1147 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C1149 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C1150 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C1154 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C1156 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C1157 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C1160 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C1166 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C2072 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C4014 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C4015 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C4024 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C4033 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C4037 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C4044 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C4050 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C4065 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C4074 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C4075 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C4078 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

6 Electrical Parts List

6-19

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 C4079 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C4087 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C4088 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C4089 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C4090 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C4091 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C4092 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C4093 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C4094 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C3017 2203-005834 C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216 1 S.A

....4 C1001 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1012 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1014 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1017 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1018 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1019 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1020 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1023 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1024 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1035 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1041 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1045 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1047 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1048 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1051 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1058 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1060 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1065 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1069 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1076 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1077 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1080 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1081 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1083 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1085 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1088 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1089 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1090 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1091 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1092 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1136 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1139 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1185 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1186 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1187 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1188 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1205 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C2001 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C2017 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C2039 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C2043 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C2046 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C2048 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C2050 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C2057 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C3006 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C3008 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C3011 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C3028 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C3041 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C3043 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C3045 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C3048 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C3050 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C3051 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C4057 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C4064 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C4072 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C4082 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C4129 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

6 Electrical Parts List

6-20

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 C4130 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C5093 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C5110_LNA 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C5111_LNA 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C5112_RDY 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C5113_RDY 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C5114_RDY 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C6009_FRC 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C6010_FRC 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C6019_FRC 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C6020_FRC 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C6021_FRC 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C6022_FRC 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C6027 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C6028 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C6049_FRC 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C6050_FRC 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C6121_FRC 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C6122_FRC 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1182 2402-000135 C-AL,SMD;22uF,20%,16V,GP,TP,5.3x5.3x5.4 1 S.A

....4 C6052_FRC 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.7m 1 S.A

....4 C4012 2402-001059 C-AL,SMD;220UF,20%,6.3V,-,TP,6X6.6X6.6 1 S.A

....4 C4013 2402-001059 C-AL,SMD;220UF,20%,6.3V,-,TP,6X6.6X6.6 1 S.A

....4 C6037_FRC 2402-001059 C-AL,SMD;220UF,20%,6.3V,-,TP,6X6.6X6.6 1 S.A

....4 C6038_FRC 2402-001059 C-AL,SMD;220UF,20%,6.3V,-,TP,6X6.6X6.6 1 S.A

....4 C6044_FRC 2402-001059 C-AL,SMD;220UF,20%,6.3V,-,TP,6X6.6X6.6 1 S.A

....4 C6051_FRC 2402-001059 C-AL,SMD;220UF,20%,6.3V,-,TP,6X6.6X6.6 1 S.A

....4 C6125_FRC 2402-001059 C-AL,SMD;220UF,20%,6.3V,-,TP,6X6.6X6.6 1 S.A

....4 C6126_FRC 2402-001059 C-AL,SMD;220UF,20%,6.3V,-,TP,6X6.6X6.6 1 S.A

....4 C1009 2402-001081 C-AL,SMD;100uF,20%,25V,WT,TP,8.3x8.3x10 1 S.A

....4 C1029 2402-001081 C-AL,SMD;100uF,20%,25V,WT,TP,8.3x8.3x10 1 S.A

....4 C1204 2402-001081 C-AL,SMD;100uF,20%,25V,WT,TP,8.3x8.3x10 1 S.A

....4 C5032 2402-001097 C-AL,SMD;0.1UF,20%,50V,WT,TP,4.3X4.3X5.2 1 S.A

....4 C5033 2402-001097 C-AL,SMD;0.1UF,20%,50V,WT,TP,4.3X4.3X5.2 1 S.A

....4 C1010 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C1015 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C1036 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C1042 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C1059 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C1112 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C1113 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C1115 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C1230 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C6054_FRC 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C6063_FRC 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C1007 2402-001129 C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM 1 S.A

....4 C1028 2402-001129 C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM 1 S.A

....4 C1064 2402-001129 C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM 1 S.A

....4 C1107 2402-001129 C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM 1 S.A

....4 C2058 2402-001129 C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM 1 S.A

....4 C3036 2402-001129 C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM 1 S.A

....4 C3038 2402-001129 C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM 1 S.A

....4 C4010 2402-001129 C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM 1 S.A

....4 C1106 2402-001160 C-AL,SMD;330UF,20%,16V,WT,TP,1008 1 S.A

....4 C3004 2402-001178 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A

....4 C1057 2402-001183 C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM 1 S.A

....4 C1167 2402-001183 C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM 1 S.A

....4 C1193 2402-001183 C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM 1 S.A

....4 C4132 2402-001183 C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM 1 S.A

....4 C5005 2402-001183 C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM 1 S.A

....4 C5016 2402-001183 C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM 1 S.A

....4 C5102_RDY 2402-001183 C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM 1 S.A

....4 C1180 2402-001218 C-AL,SMD;22UF,20%,35V,WT,TP,6.6X6.6X5.8M 1 S.A

....4 C1127 2402-001221 C-AL,SMD;470UF,20%,16V,-,TP,A8.3XB8.3XL1 1 S.A

....4 C1165 2402-001221 C-AL,SMD;470UF,20%,16V,-,TP,A8.3XB8.3XL1 1 S.A

....4 C5105_RDY 2402-001238 C-AL,SMD;1uF,20%,50V,HR,TP,4.3x4.3x5.2mm 1 S.A

....4 C5078 2402-001257 C-AL,SMD;470uF,20%,16V,-,TP,8.3*10 1 S.A

....4 C1102 2402-001263 C-AL,SMD;1000uF,20%,10V,WT,SMD,10x10 1 S.A

....4 C1095 2409-001029 C-ORGANIC;120uF,20%,6.3V,WT,TP,10.3x10.3 1 S.A

....4 C1196 2409-001029 C-ORGANIC;120uF,20%,6.3V,WT,TP,10.3x10.3 1 S.A

6 Electrical Parts List

6-21

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 T0052 2703-000274 INDUCTOR-SMD;2.2uH,10%,2012 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000417 INDUCTOR-SMD;220uH,5%,3225 1 S.A

....4 T0052 2703-001229 INDUCTOR-SMD;2.2uH,10%,1608 1 S.A

....4 T0052 2703-001229 INDUCTOR-SMD;2.2uH,10%,1608 1 S.A

....4 T0052 2703-001229 INDUCTOR-SMD;2.2uH,10%,1608 1 S.A

....4 T0052 2703-001229 INDUCTOR-SMD;2.2uH,10%,1608 1 S.A

....4 T0052 2703-001229 INDUCTOR-SMD;2.2uH,10%,1608 1 S.A

....4 T0052 2703-001229 INDUCTOR-SMD;2.2uH,10%,1608 1 S.A

....4 T0052 2703-001426 INDUCTOR-SMD;680uH,20%,7070 1 S.A

....4 T0052 2703-001778 INDUCTOR-SMD;3.3uH,20%,3225 1 S.A

....4 T0052 2703-002327 INDUCTOR-SMD;3.9uH,5%,3225 1 S.A

....4 T0052 2703-002722 INDUCTOR-SMD;22uH,20%,12x12mm 1 S.A

....4 T0052 2703-002722 INDUCTOR-SMD;22uH,20%,12x12mm 1 S.A

....4 T0052 2703-002915 INDUCTOR-SMD;22uH,20%,8080 1 S.A

....4 T0052 2703-002915 INDUCTOR-SMD;22uH,20%,8080 1 S.A

....4 T0052 2703-002915 INDUCTOR-SMD;22uH,20%,8080 1 S.A

....4 T0052 2703-002915 INDUCTOR-SMD;22uH,20%,8080 1 S.A

....4 X3002 2801-003326 CRYSTAL-SMD;24MHZ,30PPM,28-ABX,20PF,50OH 1 S.A

....4 X3001 2801-003923 CRYSTAL-SMD;10MHz,30ppm,28-AAN,20pF,60oh 1 S.A

....4 X1001 2801-003954 CRYSTAL-SMD;27MHz,30ppm,28-AAN,16pF,50oh 1 S.A

....4 X6000_FRC 2801-004004 CRYSTAL-SMD;20.25MHz,20ppm,28-AAN,13pF,2 1 S.A

....4 X4001 2801-004483 CRYSTAL-SMD;28.322MHz,30ppm,HC-49,20pF,5 1 S.A

....4 F103 2901-001114 FILTER-EMI SMD;25VDC,2.0ADC,-,100nF,3.2x 1 S.A

....4 T0568 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm,-,-,- 1 S.N.A

....4 T0568 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm,-,-,- 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001176 BEAD-SMD;80ohm,2012,TP,-,- 1 S.N.A

....4 T0568 3301-001176 BEAD-SMD;80ohm,2012,TP,-,- 1 S.N.A

....4 T0568 3301-001176 BEAD-SMD;80ohm,2012,TP,-,- 1 S.N.A

....4 T0568 3301-001176 BEAD-SMD;80ohm,2012,TP,-,- 1 S.N.A

....4 T0568 3301-001236 BEAD-SMD;60ohm,1608,-,-,- 1 S.N.A

....4 T0568 3301-001236 BEAD-SMD;60ohm,1608,-,-,- 1 S.N.A

....4 T0568 3301-001236 BEAD-SMD;60ohm,1608,-,-,- 1 S.N.A

....4 T0568 3301-001236 BEAD-SMD;60ohm,1608,-,-,- 1 S.N.A

....4 T0568 3301-001236 BEAD-SMD;60ohm,1608,-,-,- 1 S.N.A

....4 T0568 3301-001236 BEAD-SMD;60ohm,1608,-,-,- 1 S.N.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

6 Electrical Parts List

6-22

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,-,- 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,-,- 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,-,- 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,-,- 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,-,- 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,-,- 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,-,- 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,-,- 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,-,- 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,-,- 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,-,- 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,-,- 1 S.A

....4 T0568 3301-001569 BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90 1 S.N.A

....4 T0568 3301-001593 BEAD-SMD;200ohm,2.0x1.2x1.3mm,150mA,TP,, 1 S.N.A

....4 T0568 3301-001593 BEAD-SMD;200ohm,2.0x1.2x1.3mm,150mA,TP,, 1 S.N.A

....4 T0568 3301-001593 BEAD-SMD;200ohm,2.0x1.2x1.3mm,150mA,TP,, 1 S.N.A

....4 T0568 3301-001593 BEAD-SMD;200ohm,2.0x1.2x1.3mm,150mA,TP,, 1 S.N.A

....4 T0568 3301-001593 BEAD-SMD;200ohm,2.0x1.2x1.3mm,150mA,TP,, 1 S.N.A

....4 T0568 3301-001593 BEAD-SMD;200ohm,2.0x1.2x1.3mm,150mA,TP,, 1 S.N.A

....4 T0568 3301-001593 BEAD-SMD;200ohm,2.0x1.2x1.3mm,150mA,TP,, 1 S.N.A

....4 T0568 3301-001593 BEAD-SMD;200ohm,2.0x1.2x1.3mm,150mA,TP,, 1 S.N.A

....4 T0568 3301-001593 BEAD-SMD;200ohm,2.0x1.2x1.3mm,150mA,TP,, 1 S.N.A

....4 T0568 3301-001593 BEAD-SMD;200ohm,2.0x1.2x1.3mm,150mA,TP,, 1 S.N.A

....4 T0568 3301-001593 BEAD-SMD;200ohm,2.0x1.2x1.3mm,150mA,TP,, 1 S.N.A

....4 T0568 3301-001593 BEAD-SMD;200ohm,2.0x1.2x1.3mm,150mA,TP,, 1 S.N.A

....4 CN2001 3701-001311 CONNECTOR-HDMI;21P,2R,FEMALE,SMD-S,AU30U 1 S.A

....4 CN2003 3701-001311 CONNECTOR-HDMI;21P,2R,FEMALE,SMD-S,AU30U 1 S.A

....4 CN330 3711-005291 HEADER-BOARD TO CABLE;BOX,2P,1R,2MM,SMD- 1 S.A

....4 CN330 3711-005292 HEADER-BOARD TO CABLE;BOX,3P,1R,2MM,SMD- 1 S.A

....4 CN330 3711-005497 HEADER-BOARD TO CABLE;BOX,15P,1R,1.25MM, 1 S.A

....4 M0018 BN97-00969B ASSY MICOM;T-MSLMPEUS-1000,Q56A,LE40M71, 1 S.N.A

.....5 IC520 0903-001389 IC-MICROCONTROLLER;S3F866B,8Bit,QFP,44P, 1 S.N.A

....4 D1021 0403-001284 DIODE-ZENER;RLZ3.3A,3.16-3.38V,500mW,LL- 1 S.A

....4 T0077 BN41-00733D PCB MAIN;MOSEL,FR-4,4,MMS2.2,1.6T,192*19 1 S.N.A

....4 IC3008_DE 1203-001824 IC-VOL. DETECTOR;7042,SOT-89,3P,-,PLASTI 1 S.A

....4 R1140 2007-001240 R-CHIP;910ohm,5%,1/10W,TP,1608 1 S.A

....4 IC118 1204-002695 IC-VIDEO PROCESS;FRC9449H A3,LBGA,260P,1 1 S.N.A

....4 M0018 BN97-00969A ASSY MICOM;T-MSLMPEU-1012,Q56A,LE40M71,0 1 S.A

.....5 IC115 1107-001555 IC-FLASH MEMORY;49BV802A,8MBIT,1MX8/512K 1 S.N.A

...3 CN330 3711-004379 HEADER-BOARD TO CABLE;BOX,4P,1R,2mm,STRA 1 S.A
...3 CN330 3711-004379 HEADER-BOARD TO CABLE;BOX,4P,1R,2mm,STRA 1 S.A
...3 T0562 6046-001013 STAND OFF;M3,L5,Ni PLT,SUM24L,#4-40 2 S.N.A
...3 SUB10 BN73-00024C SILICON/RUBBER-BERGQUIST;VENUS 32,40",SI 1 S.N.A
...3 SUB09 BN73-00137A RUBBER;GP1500,SILICON,19*19mm,4.0mm,BLAC 1 S.N.A
...3 T0175 BN96-04500A ASSY SHIELD P-PCB MAIN;NEO MOSEL,EO,SECC 1 S.N.A

....4 CIS1 0205-001154 OIL-SILICON;G746,-,- 0.5 S.N.A

....4 T0603 BN63-02494A SHIELD-PCB MAIN;MOSEL 40",SPTE,T0.3,EURO 1 S.N.A

....4 T0066 BP62-00030B HEAT SINK-ES;LCD-TV,A6063,T2.5,18*18,WHI 1 S.N.A

....4 M0081 6003-000115 SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC 1 S.A

..2 T0862 BN94-00868G ASSY PCB MISC-MMS;MOSEL,NEO MOSEL ALL 1 S.N.A
...3 T0245 0202-001492 SOLDER-WIRE FLUX;HSE-02 LFM48 SR-34 S,-, 0.003 S.N.A
...3 CN330 3711-003340 HEADER-BOARD TO CABLE;BOX,16P,2R,2mm,STR 1 S.A
...3 CN5 3722-001051 JACK-USB;4P/1C,AU,BLK,ANGLE,A TYPE 1 S.A
...3 SUB06 BN63-02530A SHIELD-MMS;MOSEL,SPTE T0.2,-,-,-,-,- 1 S.N.A
...3 T0174 BN97-00842J ASSY SMD;LE26R73BDX/XET 1 S.N.A

....4 SUB05 0202-001477 SOLDER-CREAM;LST309-M,-,D20~45§-,96.5Sn/ 5.347 S.N.A

....4 D1 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D10 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

6 Electrical Parts List

6-23

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 D11 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D12 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D13 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D14 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D15 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D16 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D17 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D18 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D19 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D2 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D20 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D21 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D4 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D5 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D6 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D7 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D8 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D9 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 Q1 0505-001217 FET-GAAS;FDN338P,-20V,+-8V,-1.6A,500mW,S 1 S.A

....4 Q2 0505-001217 FET-GAAS;FDN338P,-20V,+-8V,-1.6A,500mW,S 1 S.A

....4 Q3 0505-001217 FET-GAAS;FDN338P,-20V,+-8V,-1.6A,500mW,S 1 S.A

....4 Q4 0505-001217 FET-GAAS;FDN338P,-20V,+-8V,-1.6A,500mW,S 1 S.A

....4 Q5 0505-001217 FET-GAAS;FDN338P,-20V,+-8V,-1.6A,500mW,S 1 S.A

....4 Q6 0505-001217 FET-GAAS;FDN338P,-20V,+-8V,-1.6A,500mW,S 1 S.A

....4 L0405 0601-001313 LED;SMD,GRN,2X1.8MM,565NM,3.16X1.6X1.1MM 1 S.A

....4 IC6 1203-001211 IC-VOL. DETECTOR;7027,SOT-89,3P,-,PLASTI 1 S.A

....4 T0087 1203-002842 IC-POSI.FIXED REG.;AP1117D-33A,TO-252,3P 1 S.A

....4 T0087 1203-002842 IC-POSI.FIXED REG.;AP1117D-33A,TO-252,3P 1 S.A

....4 T0087 1203-002842 IC-POSI.FIXED REG.;AP1117D-33A,TO-252,3P 1 S.A

....4 T0087 1203-002974 IC-POSI.FIXED REG.;AP1117D-25A,TO-252,3P 1 S.A

....4 IC1 1204-002585 IC-DECODER;MP612,LFBGA,256P,17x17mm,PLAS 1 S.A

....4 IC2 1205-002713 IC-CODEC;ALC202A,LQFP,48P,7X7MM,PLASTIC, 1 S.A

....4 R11 2007-000043 R-CHIP;1Kohm,1%,1/10W,TP,1608 1 S.A

....4 R12 2007-000043 R-CHIP;1Kohm,1%,1/10W,TP,1608 1 S.A

....4 R120 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R138 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R148 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R149 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R150 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R163 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R164 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R165 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R166 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R167 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R168 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R19 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R32 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R33 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R35 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R36 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R10 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R9 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R107 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R108 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R109 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R110 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R111 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R112 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 S.A

....4 R113 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 S.A

....4 R1 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R117 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R140 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R146 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R158 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R159 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R5 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R116 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

6 Electrical Parts List

6-24

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 R139 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R142 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R143 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R144 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R145 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R37 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R38 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R7 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R8 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R100 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R101 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R129 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R130 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R160 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R161 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R64 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R65 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R66 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R67 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R68 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R69 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R70 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R71 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R72 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R73 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R74 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R75 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R76 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R77 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R78 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R79 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R80 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R81 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R82 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R83 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R84 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R85 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R86 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R87 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R88 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R89 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R90 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R91 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R92 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R93 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R94 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R95 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R96 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R97 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R98 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R99 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R102 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608 1 S.A

....4 R103 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608 1 S.A

....4 R115 2007-000093 R-CHIP;20Kohm,5%,1/10W,TP,1608 1 S.A

....4 R49 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R50 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R51 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R52 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R53 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R54 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R55 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R56 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R57 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R58 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R59 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R60 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R61 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R62 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R63 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R106 2007-000109 R-CHIP;1Mohm,5%,1/10W,TP,1608 1 S.A

6 Electrical Parts List

6-25

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 R114 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R48 2007-000475 R-CHIP;1Mohm,1%,1/10W,TP,1608 1 S.A

....4 R151 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R152 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R153 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R13 2007-007526 R-CHIP;23.7Kohm,1%,1/10W,TP,1608 1 S.A

....4 R39 2007-007947 R-CHIP;36ohm,1%,1/10W,TP,1608 1 S.A

....4 R40 2007-007947 R-CHIP;36ohm,1%,1/10W,TP,1608 1 S.A

....4 R105 2007-008595 R-CHIP;1.02Kohm,1%,1/10W,TP,1608 1 S.A

....4 C106 2203-000041 C-CER,CHIP;0.01nF,0.25pF,50V,C0G,1608 1 S.A

....4 C114 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C115 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C100 2203-000332 C-CER,CHIP;0.012nF,5%,50V,C0G,1608 1 S.A

....4 C101 2203-000332 C-CER,CHIP;0.012nF,5%,50V,C0G,1608 1 S.A

....4 C116 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C117 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C118 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C155 2203-000552 C-CER,CHIP;0.02nF,5%,50V,C0G,1608 1 S.A

....4 C156 2203-000552 C-CER,CHIP;0.02nF,5%,50V,C0G,1608 1 S.A

....4 C157 2203-000552 C-CER,CHIP;0.02nF,5%,50V,C0G,1608 1 S.A

....4 C104 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 S.A

....4 C105 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 S.A

....4 C107 2203-000815 C-CER,CHIP;0.033nF,5%,50V,C0G,1608 1 S.A

....4 C108 2203-000815 C-CER,CHIP;0.033nF,5%,50V,C0G,1608 1 S.A

....4 C103 2203-001242 C-CER,CHIP;0.082nF,5%,50V,NP0,1608 1 S.A

....4 C129 2203-001724 C-CER,CHIP;4700nF,+80-20%,16V,Y5V,3216 1 S.A

....4 C123 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C124 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C125 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C126 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C127 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C128 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C135 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C136 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C137 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C138 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C139 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C140 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C141 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C142 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C143 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C144 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C145 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C146 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C160 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C164 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C165 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C167 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C168 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C169 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C170 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C171 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C176 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C44 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C45 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C46 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C47 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C48 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C49 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C50 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C51 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C52 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C53 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C54 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C55 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C56 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C57 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C58 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C59 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C60 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

6 Electrical Parts List

6-26

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 C61 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C62 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C63 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C64 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C65 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C66 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C67 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C68 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C69 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C71 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C72 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C73 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C74 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C76 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C77 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C78 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C79 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C81 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C82 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C83 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C84 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C86 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C87 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C88 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C89 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C91 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C92 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C93 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C94 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C95 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C96 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C97 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C98 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C99 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C109 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C110 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C111 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C112 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C113 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C10 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C11 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C119 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C120 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C147 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C148 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C149 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C150 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C151 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C152 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C153 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C154 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C161 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C172 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C173 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C174 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C175 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C21 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C22 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C23 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C24 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C25 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C26 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C27 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C28 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C29 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C3 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C30 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C31 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C32 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C33 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

6 Electrical Parts List

6-27

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 C34 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C35 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C36 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C37 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C38 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C39 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C4 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C40 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C41 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C42 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C43 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C5 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C8 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C9 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C122 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.7m 1 S.A

....4 C16 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.7m 1 S.A

....4 C162 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.7m 1 S.A

....4 C17 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.7m 1 S.A

....4 C19 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.7m 1 S.A

....4 C20 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.7m 1 S.A

....4 C163 2402-000209 C-AL,SMD;22uF,20%,16V,WT,TP,5.3x5.3mm 1 S.A

....4 C7 2402-000209 C-AL,SMD;22uF,20%,16V,WT,TP,5.3x5.3mm 1 S.A

....4 C133 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4 1 S.A

....4 C134 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4 1 S.A

....4 C1 2402-001059 C-AL,SMD;220UF,20%,6.3V,-,TP,6X6.6X6.6 1 S.A

....4 C158 2402-001059 C-AL,SMD;220UF,20%,6.3V,-,TP,6X6.6X6.6 1 S.A

....4 C159 2402-001059 C-AL,SMD;220UF,20%,6.3V,-,TP,6X6.6X6.6 1 S.A

....4 C2 2402-001059 C-AL,SMD;220UF,20%,6.3V,-,TP,6X6.6X6.6 1 S.A

....4 C6 2402-001059 C-AL,SMD;220UF,20%,6.3V,-,TP,6X6.6X6.6 1 S.A

....4 C166 2402-001222 C-AL,SMD;3.3UF,20%,50V,HR,TP,4.3X4.3X5.8 1 S.A

....4 X3 2801-003804 CRYSTAL-SMD;24.576MHz,30ppm,28-AAN,20pF, 1 S.A

....4 X1 2801-003948 CRYSTAL-SMD;12MHz,30ppm,28-AAN,12pF,60oh 1 S.A

....4 X2 2801-004355 CRYSTAL-SMD;13.5MHz,30ppm,28-AAN,20,40oh 1 S.A

....4 CN3 3709-001290 CONNECTOR-CARD SLOT;50P,1.27MM,SMD-A,AU1 1 S.A

....4 CN8 3709-001424 CONNECTOR-CARD SLOT;70pin,0.6,-,gold,car 1 S.A

....4 CN4 3722-002236 JACK-MINI USB;5P,AU30U,BLK,SMD-A,MINI US 1 S.A

....4 T0077 BN41-00746B PCB MAIN;MOSEL,FR-4,6,1.0,1.6T,179*184,3 1 S.N.A

....4 M0018 BN97-01024A ASSY MICOM;29LV320,T-MSLMPEUW-1008,2006/ 1 S.A

.....5 IC115 1107-001475 IC-FLASH MEMORY;29LV320,32MBIT,4MX8/2MX1 1 S.N.A

....4 T0087 1203-002844 IC-POSI.FIXED REG.;AP1117D-18A,TO-252-3L 1 S.A

....4 D3 0403-001180 DIODE-ZENER;BZX84C6V2,5.8-6.6V,350mW,SOT 1 S.A

....4 IC113 1105-001571 IC-DRAM;K4D551638,GDDR,256Mbit,4x4Mx16,T 1 S.A

...3 T0069 AA63-60002W SPACER-FELT;-,FELT,-,-,-,BLK,T0.5,-,30X1 1 S.N.A
...3 SUB09 AA63-01387A GASKET-EMI,SPONGE;SP-P300M,Conductive Fa 1 S.N.A

0.1 T0852 BN91-01180A ASSY LCD-SPN;LE40M91BX/* 1 S.N.A
..2 M0215 BN07-00343A LCD-PANEL;LTA400WH-LL1,10bit,40inch,1.07 1 S.A

0.1 M0112 BN91-01184A ASSY SHIELD;LE40M91BX/XEC 1 S.N.A
..2 M0081 6003-000115 SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC 5 S.A
..2 M0081 6003-000115 SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC 4 S.A
..2 M0081 6003-000115 SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC 8 S.A
..2 M0081 6003-000133 SCREW-TAPTITE;BH,+,-,S,M4,L8,ZPC(BLK),SW 5 S.A
..2 M0081 6003-000133 SCREW-TAPTITE;BH,+,-,S,M4,L8,ZPC(BLK),SW 4 S.A
..2 M2893 BN39-00603G LEAD CONNECTOR;RE26**AU,UL1007#26,14PIN, 1 S.A
..2 M2893 BN39-00674A LEAD CONNECTOR;LNR469DX/XAA,UL1007#26,5P 1 S.A
..2 M2893 BN39-00727A LEAD CONNECTOR-LVDS;Mosel,UL1571#30,UL/C 1 S.A
..2 M0146 BN61-02256A BRACKET-PANEL SIDE;BORDEAUX 40,SECC,T1.2 1 S.N.A
..2 M0146 BN61-02257A BRACKET-PANEL SIDE;BORDEAUX 40,SECC,T1.2 1 S.N.A
..2 M0114 BN61-02500A HOLDER-WIRE;NYLON6.6,NATURAL 2 S.N.A
..2 M0115 BN61-02751A BRACKET-STAND LINK;40" LED MOSEL,SECC,T1 1 S.N.A
..2 M0059 BN96-03431A ASSY BOARD P-HOLDER AV;40M71,EO,MOSEL,CT 1 S.N.A
...3 M0081 6003-000115 SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC 2 S.A
...3 T0578 BN64-00454A INLAY AV;BORDEAUX,PS SHEET,T0.3,-,-,BLAC 1 S.N.A
...3 BN64-00484A INLAY-MMS;MOSEL,40,PS SHEET,T0.3,-,-,-,- 1 S.N.A
...3 M0020 BN96-02439B ASSY BOARD P-SIDE AV;LE40M71BX,CT5000-36 1 S.N.A
...3 BN61-02411A HOLDER-SIDE AV;MOSEL,40,HIPS,V0,-,-,-,BK 1 S.N.A
..2 T0159 BN96-04214A ASSY PCB P-SMPS;MOSEL40 LED,MOSEL40,AC10 1 S.A
..2 T0447 BN96-04218A ASSY BRACKET P-PANEL;40M9,EO,LED MOSEL 1 S.N.A
...3 M0081 6003-000115 SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC 3 S.A

6 Electrical Parts List

6-28

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

...3 M0081 6003-000115 SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC 3 S.A
...3 M0081 6003-000115 SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC 2 S.A
...3 BN61-02253A BRACKET-GUIDE MAIN;Bordeaux 40,SECC,T1.2 1 S.N.A
...3 BN61-02254A BRACKET-GUIDE POWER;Bordeaux 40,SECC,T1. 1 S.N.A
...3 BN61-02255A BRACKET-GUIDE POWER;Bordeaux 40,SECC,T1. 1 S.N.A
...3 T0101 BN61-02438A BRACKET-WALL;MOSEL 40,SECC T1.6 1 S.N.A
...3 M0146 BN61-02748A BRACKET-PANEL TOP;40" LED MOSEL,SECC,T1. 1 S.N.A
...3 BN61-02749A BRACKET-PANEL BOTTOM;40" LED MOSEL,SECC, 1 S.N.A
...3 T0069 AA60-00091J SPACER-FELT;-,FELT,330X10,-,-,BLK,T0.5,- 1 S.N.A
...3 M0131 BN63-02945A GASKET;LE40M91BX,Conductive Fabric,16mm, 1 S.N.A
...3 M0131 BN63-02993A GASKET;LE40M91BX,Conductive Fabric,30mm, 2 S.N.A
..2 M0081 6003-001188 SCREW-TAPTITE;BH,+,B,M4,L10,YEL,SWRCH18A 2 S.N.A
..2 M0081 6003-001188 SCREW-TAPTITE;BH,+,B,M4,L10,YEL,SWRCH18A 9 S.N.A
..2 M0081 6003-001188 SCREW-TAPTITE;BH,+,B,M4,L10,YEL,SWRCH18A 1 S.N.A
..2 M0081 6003-001188 SCREW-TAPTITE;BH,+,B,M4,L10,YEL,SWRCH18A 2 S.N.A
..2 M0081 6003-001188 SCREW-TAPTITE;BH,+,B,M4,L10,YEL,SWRCH18A 2 S.N.A
..2 M0081 6003-001439 SCREW-TAPTITE;BH,+,S,M4,L8,ZPC(YEL) 1 S.N.A
..2 M2893 BN39-00725E LEAD CONNECTOR;LE40F71BX,UL2835#28,UL/CS 1 S.A
..2 M2893 BN39-00741E LEAD CONNECTOR;LE40M91BX,UL1007#26,UL/CS 1 S.A
..2 M2893 BN39-00780A LEAD CONNECTOR;LE40M91BX/XEC,1617#22,UL/ 1 S.A
..2 CIS BN63-02992A GASKET-TAPE;MOSELLED,Conductive Fabric,0 1 S.N.A
..2 CIS BN63-02996A GASKET-TAPE;MOSELLED,Conductive Fabric,0 1 S.N.A
..2 T0890 BN96-04468A ASSY FAN P;2 BALL BEARINGS,61.6X60X15,0. 1 S.N.A

0.1 M0019 BN92-01981W ASSY LABEL;LE40M91BX/* 1 S.N.A

0.1 M0003 BN92-01986U ASSY BOX;40M91,XEE 1 S.N.A
..2 BN69-01498A BOX INNER;LED40(MOSEL),DY-04,AB,YEL,C-01 1.02 S.N.A
..2 M0006 BN69-01499A BOX-00,SET,OUT;40M9,CB,DY-06,AB,YEL,C3,H 1.02 S.N.A

0.1 M0113 BN92-02011A ASSY P/MATERIAL;LE40M91BX/XEC 1 S.N.A
..2 T0376 6902-000061 BAG AIR;LDPE,T0.2,L1000,W500,TRP,,, 0.09 S.N.A
..2 T0376 6902-000379 BAG AIR;LDPE,T0.2,W1000,L1800,TRP,-,-- 0.02 S.N.A
..2 T0524 6902-000411 BAG PE;HDPE/NITRON,T0.015/T0.5,W1300,L13 1 S.N.A
..2 T0214 AA60-40006A PIN-STAPLE;AUTO,33X17.8X2.4,H18,33X17.8X 2 S.N.A
..2 T0214 AA61-20285A HOLDER-BOX;CTV,PP,NTR,HB 2 S.N.A
..2 T0172 AA69-02609A BAND-PP;W18,CLEA,1G 5.08 S.N.A

0.1 M0045 BN92-02124A ASSY ACCESSORY;LE40M91BX/XEE 1 S.N.A
..2 M0045 BN96-04388A ASSY ACCESSORY;LE40M91BX/XEE 1 S.A
...3 T0268 3903-000042 CBF-POWER CORD;DT,EU,FP3/YES,IEC320 C13/ 1 S.A
...3 T0524 6902-000110 BAG PE;LDPE,T0.05,W250,L400,TRP,28,2 2 S.N.A
...3 T0210 AA68-03242E MANUAL FLYER-01,SAFETY GUIDE;All Model,S 1 S.N.A
...3 ACCESSORY AA68-03575A MANUAL FLYER-02,REGISTRATION C;XEU,ENG,U 1 S.N.A
...3 T0074 BN59-00570A REMOCON;MOSEL,TM87A,SAMSUNG,55key,38mArm 1 S.A
...3 ACCESSORY BN63-01798A CLOTH-CLEAN;RE40**,CLOTH,310,320,RHCM 1 S.N.A
...3 T0238 BN68-00514C MANUAL FLYER-WARRANTY CARD;comm,Samsung, 1 S.N.A
...3 T0511 BN68-01090C MANUAL USERS;COMM,SAMSUNG,6Langs,N.Europ 1 S.N.A
...3 M0126 BN69-00350A BOX ACCESSORY-00;AL29NO/AO,CB SW-1,YEL,K 1 S.N.A
...3 T0531 BN63-02957A COVER-BOTTOM;MOSEL 42,HIPS HB,BK500 1 S.N.A

11 Disassembly and Reassembly

11-1

11 Disassembly and Reassembly

This section of the service manual describes the disassembly and reassembly procedures for the TFT-LCD
TV.

WARNING : This monitor contains electrostatically sensitive devices. Use caution when

handling these components.

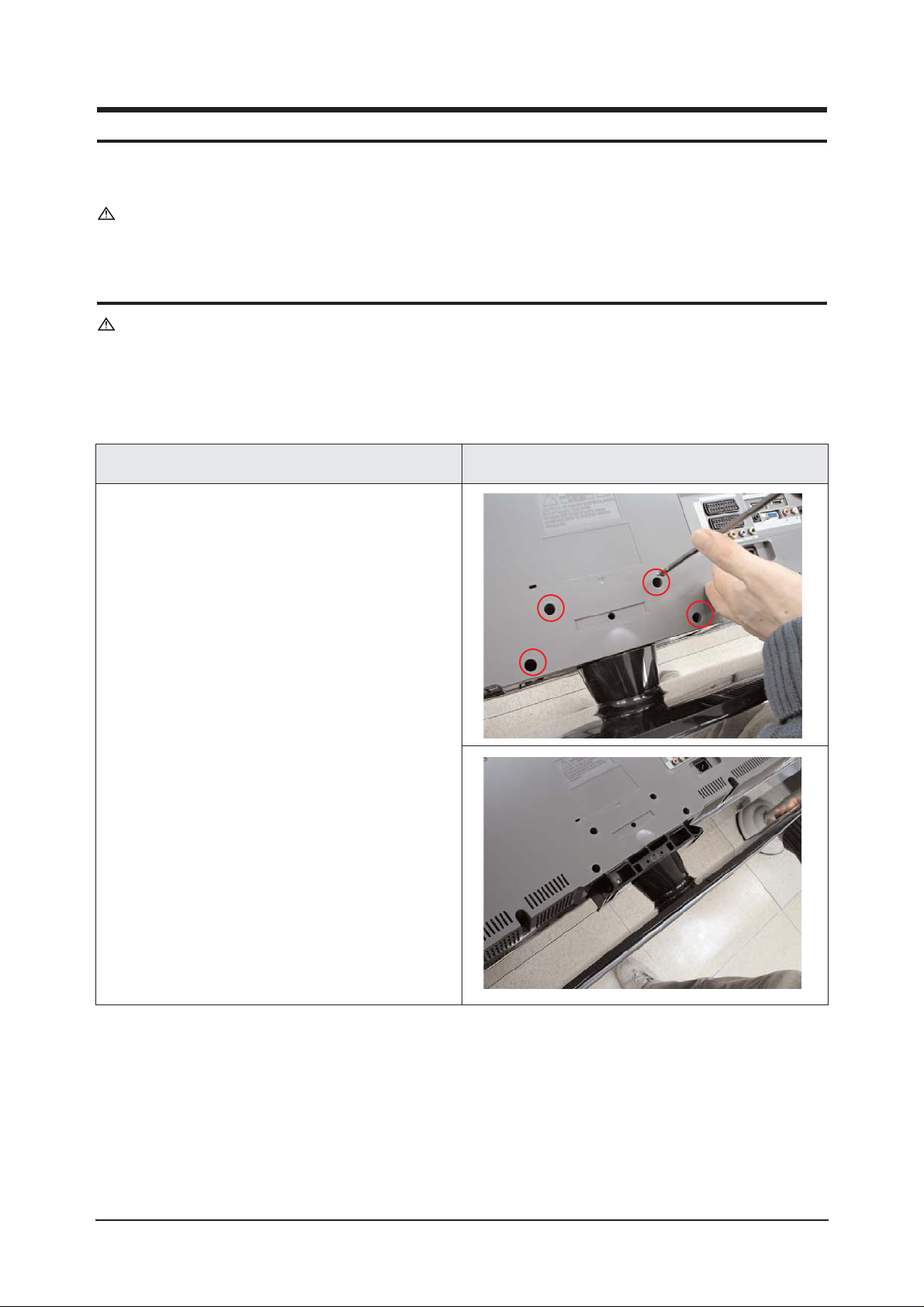

11-1 Disassembly

Cautions : 1. Disconnect the monitor from the power source before disassembly.

2. Follow these directions carefully; never use metal instruments to pry apart the
cabinet.

Description Picture Description

1. Place monitor face down on cushioned table.
Remove screws from the Stand.
Remove stand.

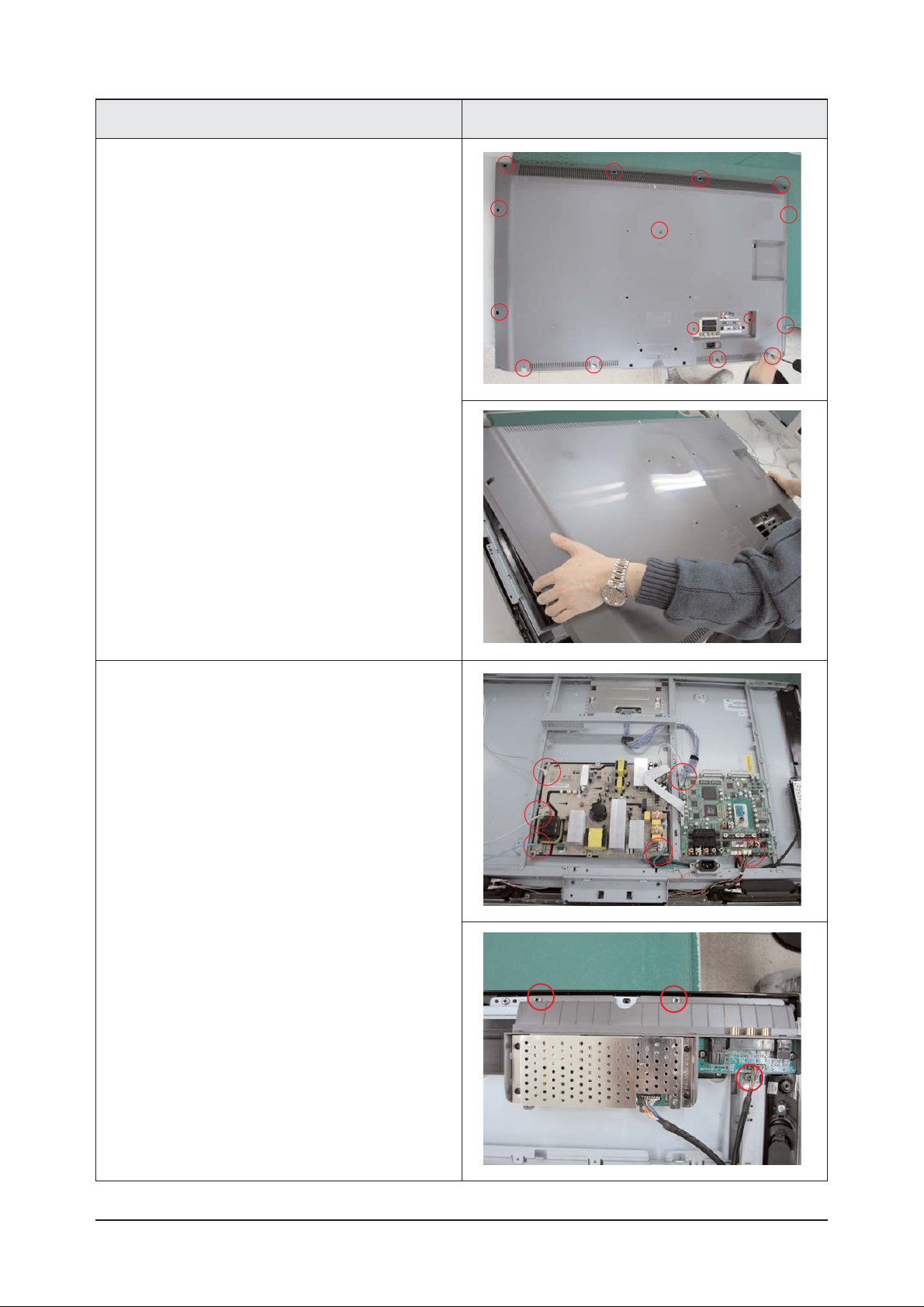

11 Disassembly and Reassembly

11-2

3. Disconnet cables from the main and power

boards
Remove screws from the side AV jack.

Description Picture Description

2. Remove screws from the rear-cover and lift up

the rear-cover.

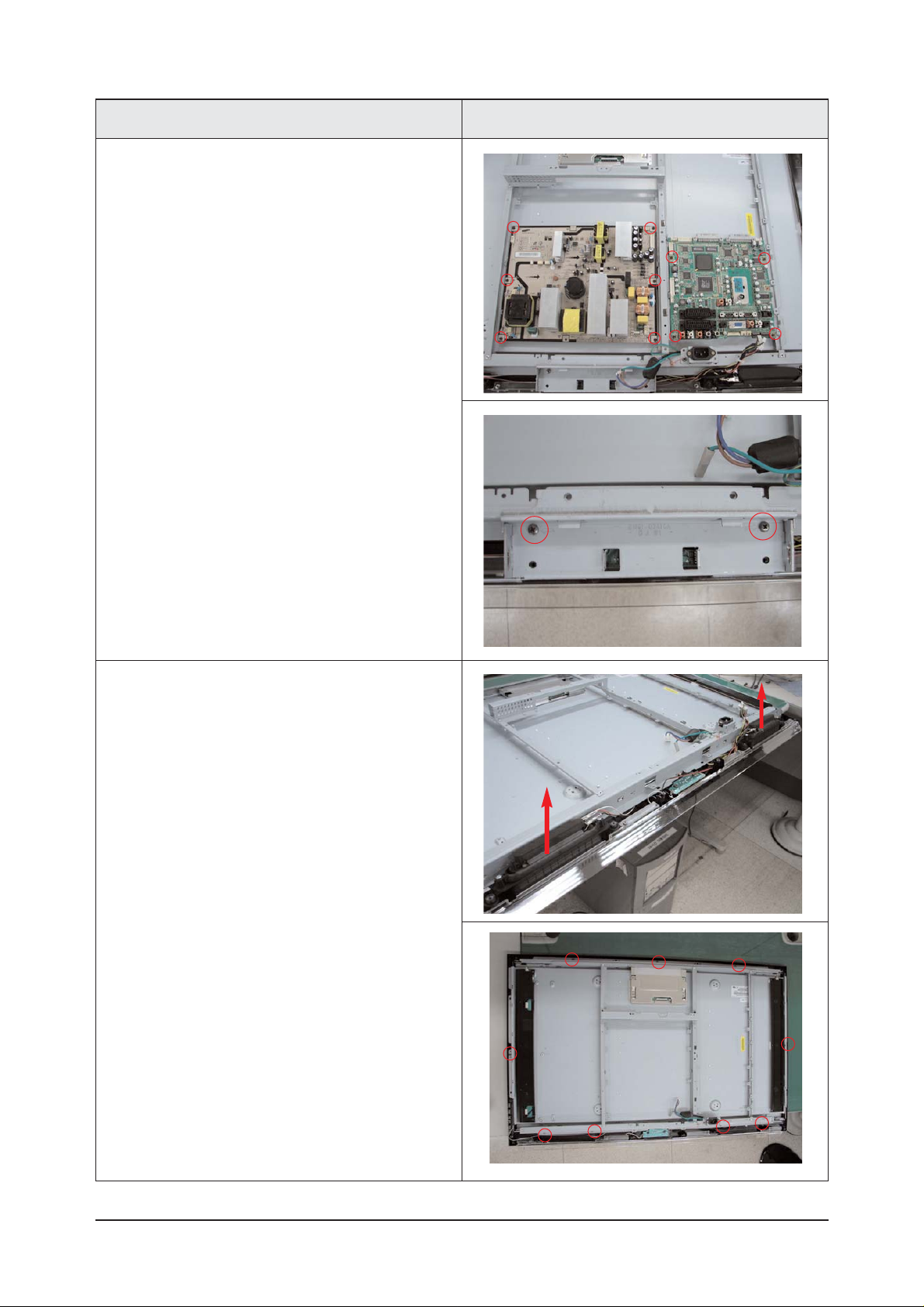

11 Disassembly and Reassembly

11-3

5. Lift up the speakers.

Remove screws from the BRKT.

Description Picture Description

4. Remove screws from the boards and stand

BRKT.

11 Disassembly and Reassembly

11-4

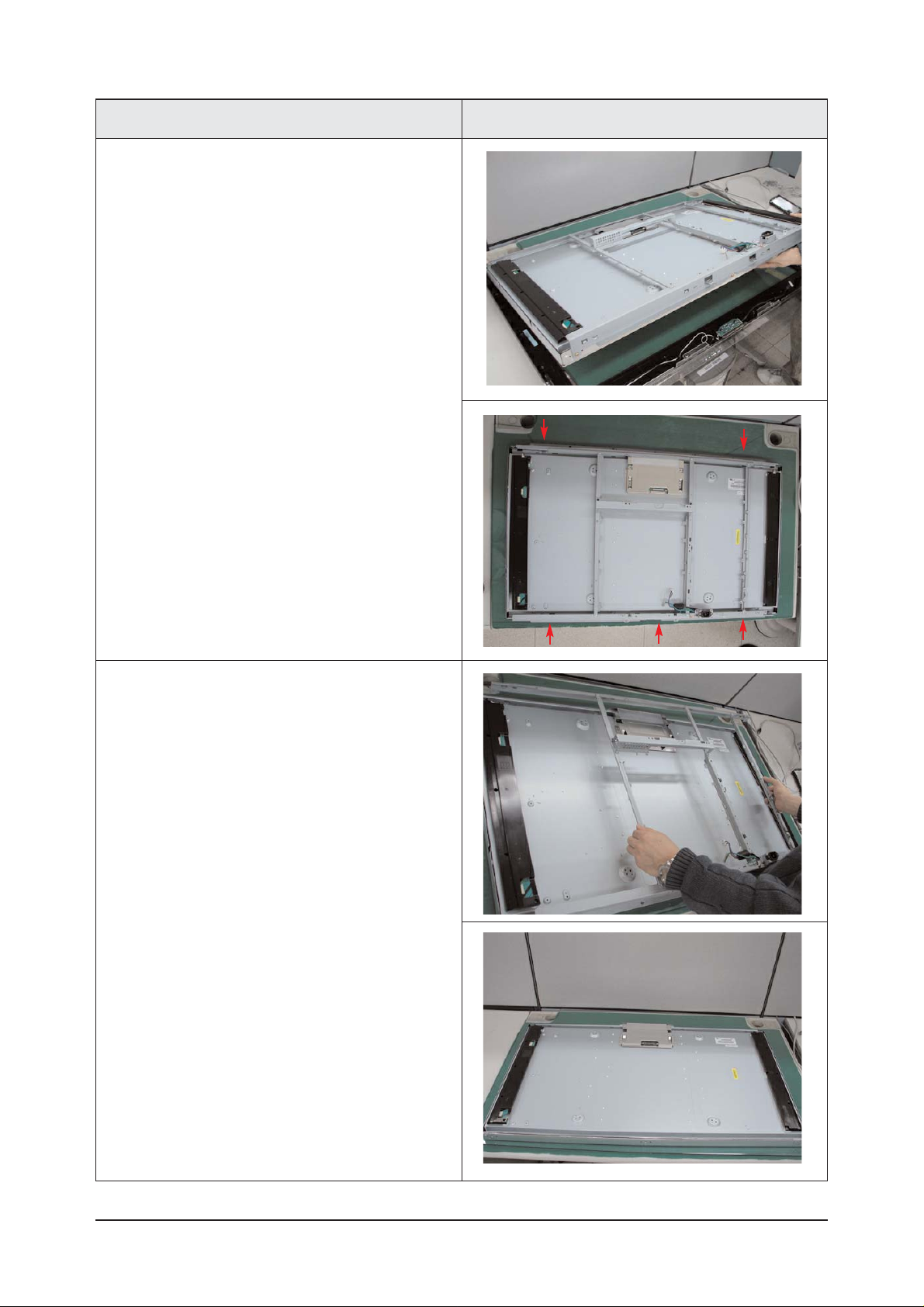

7. Lift up the panel BRKT.

Description Picture Description

6. Lift up the Panel and remove screws.

11 Disassembly and Reassembly

11-5

11-2 Reassembly

Reassembly procedures are in the reverse order of disassembly procedures.

11 Disassembly and Reassembly

11-6

Memo

12 PCB Diagram

12-1

12 PCB Diagram

12-1 Main PCB Layout

12 PCB Diagram

12-2

12-2 SMPS PCB Layout

8-1

8 Wiring Diagrams

8 Wiring Diag ram

8-1 LE40M91BX Wiring Diagr am

8 Wiring Diagrams

8-2

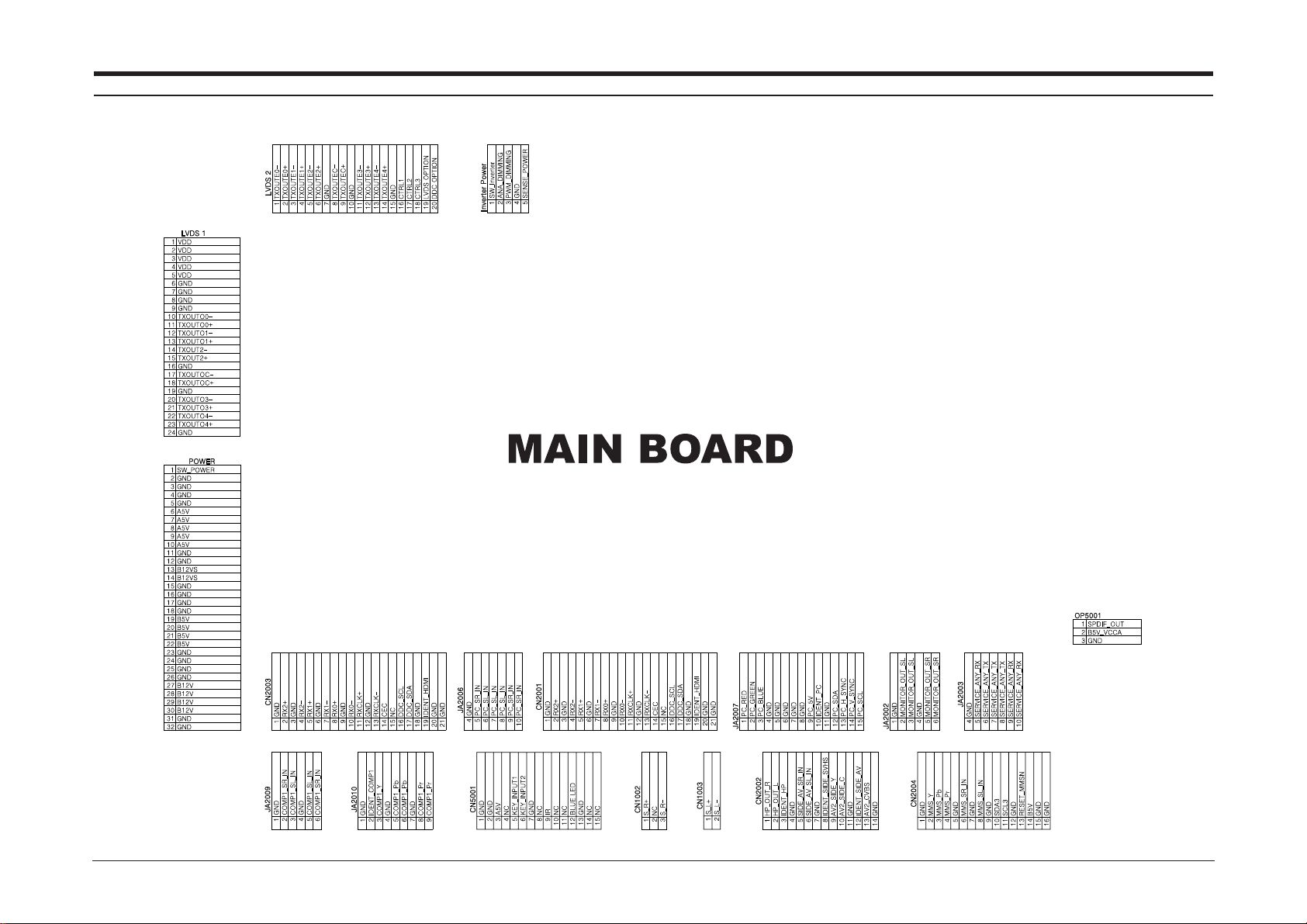

8-2 Main Board Layout

8-3

8 Wiring Diagrams

8-3 PIN characteristic

CN800 - Main Board power supply

PIN 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

NAME SW GND GND GND GND A5V A5V A5V A5V A5V GND GND B12VSB12VS GND GND

POWER

PIN 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

NAME GND GND B5V B5V B5V B5V GND GND GND GND B12V B12V B12V B12V GND GND

Function Define

- B12V B12V_CHN, B9V, B8V, B5V_VCCT

- B5V B33V, B5V_VCCA, B3.3VD, B2.5V_VDD, B1.8VD, PX_VD1.8, PX_VA1.8, PX_VL1.8, B1.2VD

- B12VS B12VS

- A5V A5V_1, A3.3V

CN600 / CN601 - SPEAKER CONNECTOR

PIN 1 2 3

NAME R+ NC R-

PIN 1 2

NAME L+ L-

8 Wiring Diagrams

8-4

CN221 - Front control

PIN 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

NAME SDA-T SCL-T GND KEY LED GND A5V GND IR KEY KEY GND IDENT HP-L HP-R

INPUT1 INPUT1 INPUT2 HP

Function Define

- A5V Front control board poewr supply

- KEY INPUT1,2 Key control, from the memu, change up/down Etc.

- IR Remote control signal

- LED Control the timing and stand by LED color

CN501 - Panel control

PIN 1 2 3 4 5

NAME SW_inverter Ana_dimming PWM_dimming GND Sensor_Power

Function Define

- SW_inverter panel inverter control, about 3.3V

- Ana_dimming panel dimming control

- PWM_dimming panel PWM control, duty 40% ~ 90%

8-5

8 Wiring Diagrams

panel inverter control, about 3.3V

PIN NAME PIN NAME

1 VDD 23 TXOUTO4+
2 VDD 24 GND
3 VDD 25 TXOUTE0­4 VDD 26 TXOUTE0+
5 VDD 27 TXOUTO1­6 GND 28 TXOUTO1+
7 GND 29 TXOUTO2­8 GND 30 TXOUTO2+

9 GND 31 GND
10 TXOUTO0- 32 TXOUTOC­11 TXOUTO0+ 33 TXOUTOC+
12 TXOUTO1- 34 GND
13 TXOUTO1+ 35 TXOUTO3­14 TXOUTO2- 36 TXOUTO3+
15 TXOUTO2+ 37 TXOUTO4­16 GND 38 TXOUTO4+
17 TXOUTOC- 39 GND
18 TXOUTOC+ 40 CTRL1
19 GND 41 CTRL2
20 TXOUTO3- 42 CTRL3
21 TXOUTO3+ 43 LVDS OPTION
22 TXOUTO4- 44 DOC OPTION

8 Wiring Diagrams

8-6

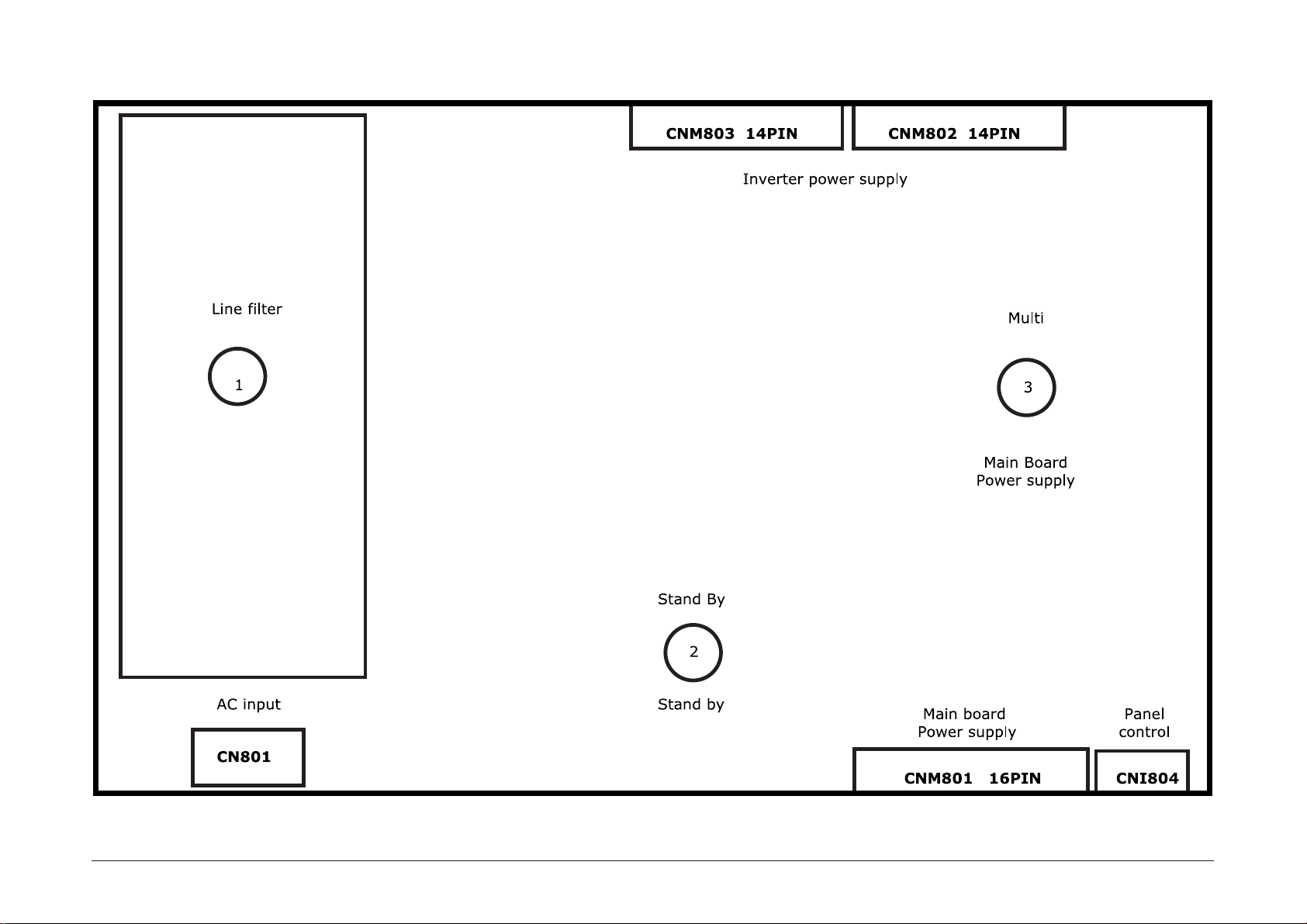

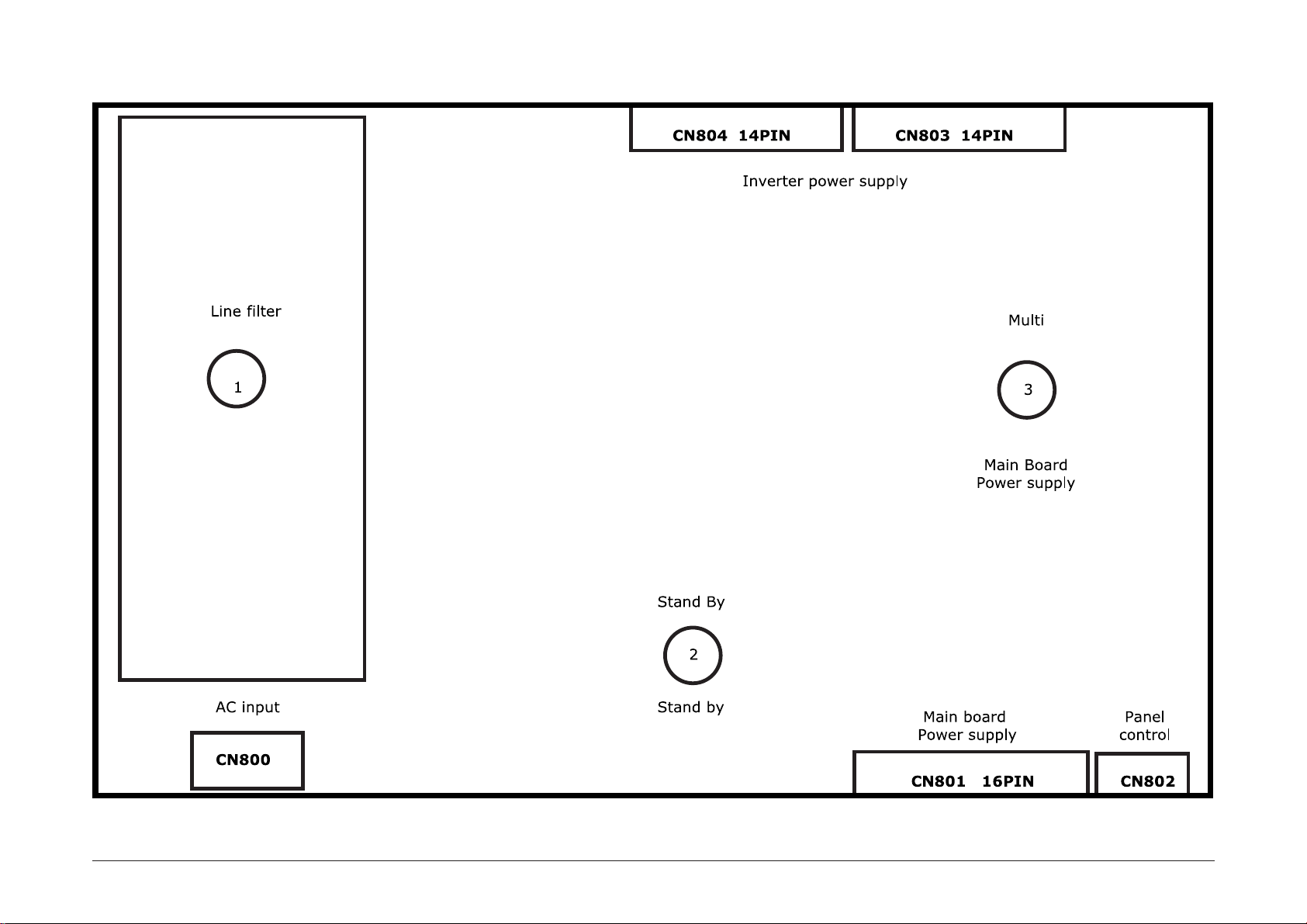

8-4 Power Board Layout

8-7

8 Wiring Diagrams

CN801 - AC Input

PIN I 2

NAME Live Netural

VOLTAGE AC AC

Functing Define

- Refer to : AC Input

CN801 - Main Board power supply

PIN 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

NAME 13V GND 5.4V 5.4V 5.4V GND GND GND 12V 12V 12V GND GND GND ST7V PWR

Functing Define

- ST7V Stand-By Output

- PWR Power On/Off Control

- Refer to : CN801 function define

CNM804 - Panel control

PIN 1 2 3 4 5

NAME SW_inverter Ana_dimming PWM_dimming GND SENSOR POWER

Functing Define

- Refer to : CN815 function define

8 Wiring Diagrams

8-8

CN802 - Inverter power supply

PIN 1 2 3 4 5 6 7 8 9 10 11 12 13 14

NAME 24V 24V 24V 24V 24V GND GND GND GND GND GND B/L A_D P_D

Functing Define

- AMLCD Panel Inverter Power

- 24V LAMP INVERTER Voltage

- B/L Brightness sensor power

- A_D ANA_DIMMING

- P_D PWM_DIMMING

CN803 - Inverter power supply

PIN 1 2 3 4 5 6 7 8 9 10 11 12 13 14

NAME 24V 24V 24V 24V 24V GND GND GND GND GND A_D B/L P_D GND

Functing Define

- AUO Panel Inverter Power

- 24V LAMP INVERTER Voltage

- B/L Brightness sensor power

- A_D ANA_DIMMING

- P_D PWM_DIMMING

8-9

8 Wiring Diagrams

8 Wiring Diagrams

8-10

CN801 - AC Input

PIN I 2

NAME Live Netural

VOLTAGE AC AC

Functing Define

- Refer to : AC Input

CN801 - Main Board power supply

PIN 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

NAME 13V GND 5.4V 5.4V 5.4V GND GND GND 12V 12V 12V GND GND GND ST7V PWR

Functing Define

- ST7V Stand-By Output

- PWR Power On/Off Control

- Refer to : CN801 function define

CNM804 - Panel control

PIN 1 2 3 4 5

NAME SW_inverter Ana_dimming PWM_dimming GND SENSOR POWER

Functing Define

- Refer to : CN815 function define

8-11

8 Wiring Diagrams

CN803 - Inverter power supply

PIN 1 2 3 4 5 6 7 8 9 10 11 12 13 14

NAME 24V 24V 24V 24V 24V GND GND GND GND GND GND B/L A_D P_D

Functing Define

- AMLCD Panel Inverter Power

- 24V LAMP INVERTER Voltage

- B/L Brightness sensor power

- A_D ANA_DIMMING

- P_D PWM_DIMMING

CN804 - Inverter power supply

PIN 1 2 3 4 5 6 7 8 9 10 11 12 13 14

NAME 24V 24V 24V 24V 24V GND GND GND GND GND B/D P_L GND B/L

Functing Define

- CMO Panel Inverter Power

- 24V LAMP INVERTER Voltage

- B/L Brightness sensor power

- P_D PWM_DIMMING

8 Wiring Diagrams

8-12

Memo

5 Exploded View & Parts List

5-1

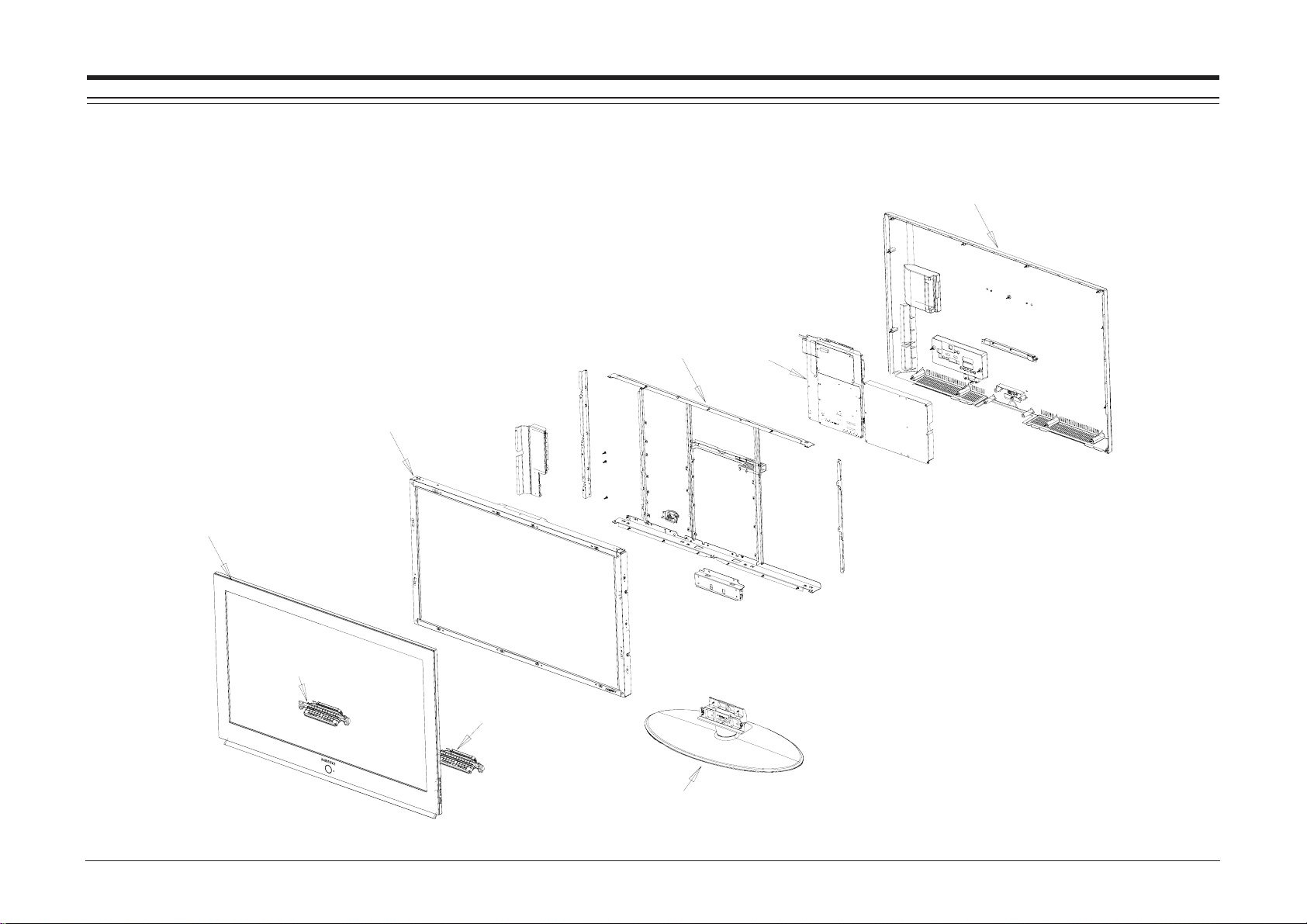

5 Exploded View and Parts List

- You can search for updated part codes through ITSELF web site.

URL : http://itself.sec.samsung.co.kr/

M0013

T0003

T0175

M0215

T0175

T0447

M0013

M0014

5 Exploded View & Parts List

5-2

5-2 LE40M91BX Parts list

Location Code.No Item & Specification Q'ty SA/SNA Remark

T0003 BN96-03412L ASSY COVER P-FRONT;40M9,EO(NEW),ABS+PMMA 1 S.A

T0175 BN96-03271A ASSY SPEAKER P;8ohm,Mosel 32,Left,10W,BA 1 S.A

T0175 BN96-03272A ASSY SPEAKER P;8ohm,Mosel 32,Right,10W,B 1 S.A

M0215 BN07-00343A LCD-PANEL;LTA400WH-LL1,10bit,40inch,1.07 1 S.A

T0447 BN96-04218A ASSY BRACKET P-PANEL;40M9,EO,LED MOSEL 1 S.N.A

M0014 BN94-01065A ASSY PCB MAIN;LE40M91BX/XEC 1 S.A

M0013 BN96-04217A ASSY STAND P-BASE;LED MOSEL,40,ABS+PMMA, 1 S.A

10 Operating Instructions and Installation

10-1

10 Operating Instructions and Installation

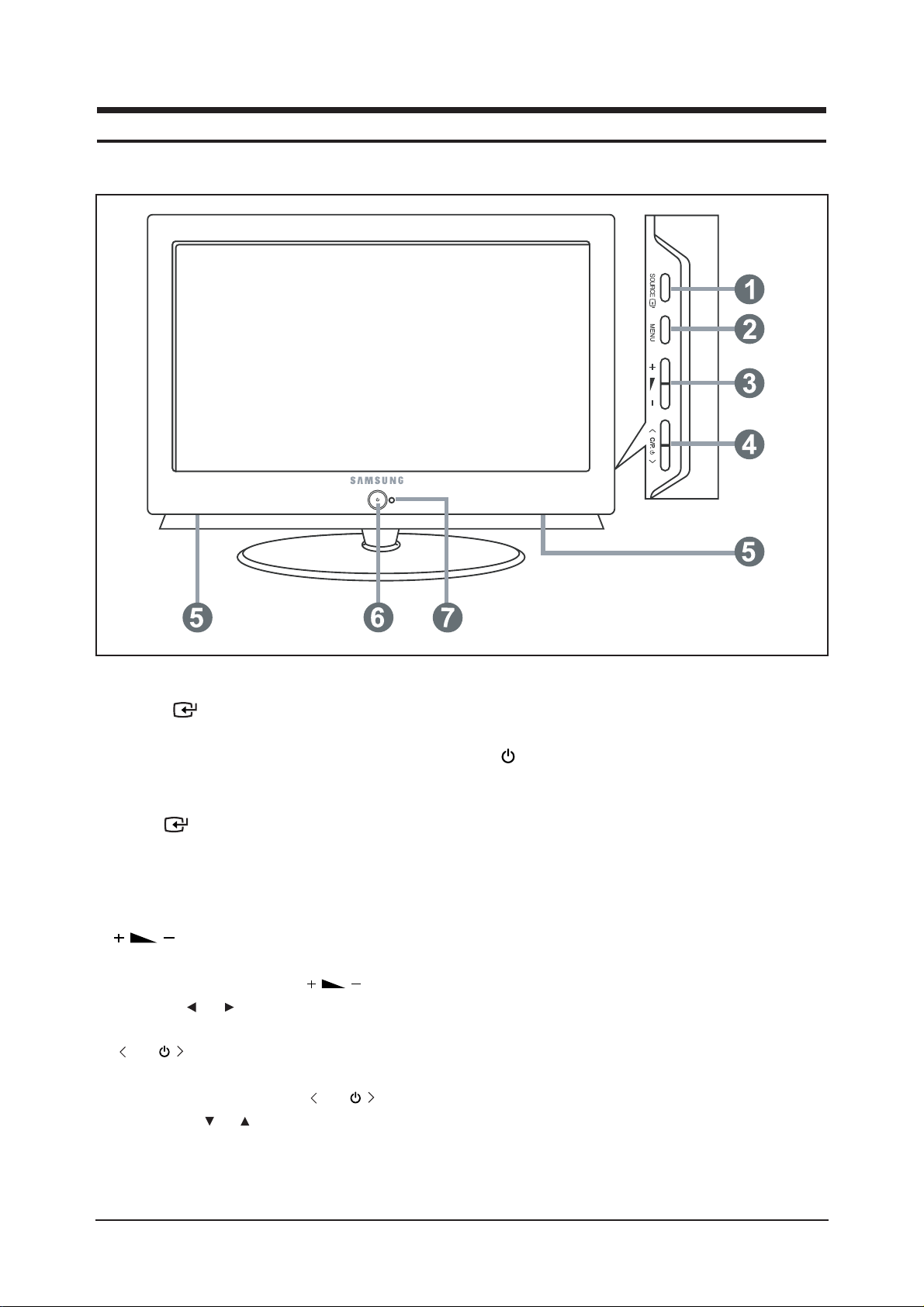

10-1 Front

1. SOURCE

Toggles between all the available input sources

(TV, Ext.1 , Ext.2, AV, S-Video, Component, PC,

HDMI1, HDMI2).

In the on-screen menu, use this button as you use the

ENTER button on the remote control.

2. MENU

Press to see an on-screen menu of your TV's features.

3.

Press to decrease or increase the volume.

In the on-screen menu, use the buttons as

you use the and buttons on the remote control.

4. C/P.

Press to change channels.

In the on-screen menu, use the C/P. buttons

as you use the and buttons on the remote control.

(Without the Remote Control, you can turn on the TV

by using the Channel buttons.)

5. Speakers

6. (POWER)

Press to turn the TV on and off.

Power Indicator

Blinks and turns off when the power is on and lights
up in stand-by mode.

7. Rremote Control Sensor

Aim the remote control towards this spot on the TV.

- The product colour and shape may vary depending on the model.

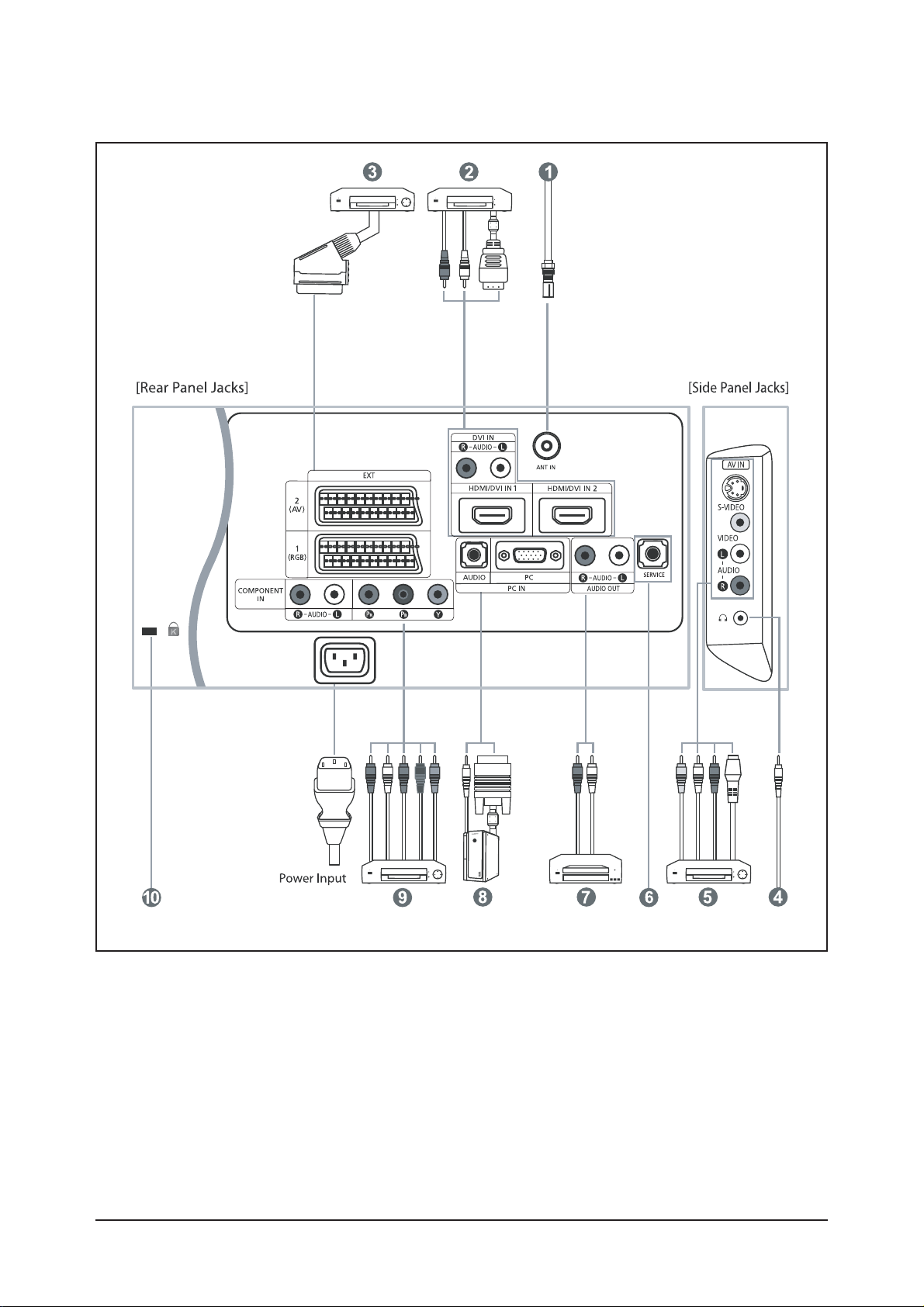

10-2 Connection Panel

10 Operating Instructions and Installation

10-2

- Whenever you connect an external device to your TV, make sure that power on the unit is turned off.

- When connecting an external device, match the colour of the connection terminal to the cable.

10 Operating Instructions and Installation

10-3

1. Connecting an Aerial or Cable Television Network

To view television channels correctly, a signal must be received by the set from one of the following sources:

- An outdoor aerial / A cable television network / A satellite network

2. Connecting HDMI/DVI

- Supports connections between HDMI-connection-enabled AV devices (Set-Top Boxes, DVD players, AV receivers
and digital TVs).

- No additional Audio connection is needed for an HDMI to HDMI connection.

What is HDMI?

- "High Definition Multimedia interface" allows the transmission of high definition digital video data and multiple
channels of digital audio ( 5.1 channels).

- The HDMI/DVI terminal supports DVI connection to an extended device with the appropriate cable (not

supplied). The difference between HDMI and DVI is that the HDMI device is smaller in size, has the HDCP
(High Bandwidth Digital Copy Protection) coding feature installed, and supports multi - channel digital audio.

You should use the DVI-to-HDMI cable or DVI-HDMI Adapter for the connection, and the "R - AUDIO - L"

terminal on DVI for sound output.

- When connecting this product via HDMI or DVI to a Set Top Box, DVD Player or Games Console etc, make

sure that it has been set to a compatible video output mode as shown in the table below.
Failure to observe this may result in picture distortion, image breakup or no picture.

Supported modes for DVI or HDMI

- Do not attempt to connect the HDMI/DVI connector to a PC or Laptop Graphics Card.

(This will result in a blank screen being displayed)

3. Connecting Set-Top Box, VCR or DVD

- Connect the VCR or DVD SCART cable to the SCART connector of the VCR or DVD.

- If you wish to connect both the Set-Top Box and VCR (or DVD), you should connect the Set-Top Box to the VCR
(or DVD) and connect the VCR (or DVD) to your set.

5. Connecting External A/V Devices

- Connect RCA or S-VIDEO cable to an appropriate external A/V device such as VCR, DVD or Camcorder.

- Connect RCA audio cables to "R - AUDIO - L" on the rear of your set and the other ends to corresponding audio
out connectors on the A/V device.

- Headphone may be connected to the headphone output ( 4 ) on the rear of your set. While the headphone is
connected, the sound from the built-in speakers will be disabled.

6. SERVICE

- Service connection for qualified service engineer.

7. Connecting AUDIO

- Connect RCA audio cables to "R - AUDIO - L" on the rear of your set and the other ends to corresponding audio
in connectors on the Amplifier or DVD Home Theater.

8. Connecting Computer

- Connect the D- Sub cable (optional) to "PC (PC IN)" on the rear of your set and the other end to the Video Card of
your computer.

- Connect the stereo audio cable (optional) to "AUDIO (PC IN)" on the rear of your set and the other end to "Audio
Out" of the sound card on your computer.

9. Connecting Component Devices (DTV/DVD)

- Connect component video cables (optional) to component connector ("PR", "PB", "Y") on the rear of your set and
the other ends to corresponding component video out connectors on the DTV or DVD.

- If you wish to connect both the Set-Top Box and DTV (or DVD), you should connect the Set-Top Box to the DTV
(or DVD) and connect the DTV (or DVD) to component connector ("PR", "PB", "Y") on your set.

- The PR, PB and Y connectors on your component devices (DTV or DVD) are sometimes labeled Y, B-Y and R-Y
or Y, Cb and Cr.

- Connect RCA audio cables (optional) to "R - AUDIO - L" on the rear of your set and the other ends to
corresponding audio out connectors on the DTV or DVD.

- This LCD TV displays its optimum picture resolution in 720p mode.

- This LCD TV displays its maximum picture resolution in 1 080i mode.

10. Kensington Lock

- The Kensington lock (optional) is a device used to physically fix the system when used in a public place.

- If you want to use a locking device, contact the dealer where you purchased the TV.

- The place of the Kensington Lock may be different depending on its model.

480i 480p 576i 576p 720p 1080i
50Hz X X X O O O
60Hz X O X X O O

Component O O O O O O

The performance of the remote control may be affected by bright light.
This is a special remote contro for the visually impaired, and has Braille points on the Power, Channel
and Volume buttons.

10 Operating Instructions and Installation

10-4

10-3 Remote Control

1. Selects a target device to be controlled by the
Samsung remote control (TV, DVD, STB,
CABLE, VCR)

2. Television Standby button

3. Number buttons for direct channel access

4. One/Two-digit channel selection

5. It display "Channel Manager" on the screen.

6. Selects the TV mode directly

7. VCR/DVD Functions
Rewind, Stop, Play/Pause,
Fast/Forward

8. Volume increase

Volume decrease

9. Temporary sound switch-off

10. Menu display and change confirmation

11. Sound mode selection

12. It displays "Channel Manager" on the screen

13. Picture effect selection

14. PIP FUNCTIONS
PIP: Picture-In-Picture On / Off
SOURCE: Input source selection
SWAP: Interchange the main and sub picture
P : Next channel
P : Previous channel

15. Sound effect selection

16. SRS TSXT selection

17. SET : Adjusts 5 separate devices - TV,
DVD, STB, CABLE, or VCR.
RESET : When your remote does not work,
change the batteries and press the "RESET"
button for 2-3 seconds before use.

18. Available source selection

19. When pressing this button, a number of
buttons on the remote control (e.g. Selects a
target device, volume, channel and MUTE
buttons) light up for a few seconds and then
turn off to save power. This function is to
conveniently use the remote control at night or
when dark.

20. Previous channel

21. Selects the PC mode directly

22. This function enables you to load saved photo
(JPEG) and audio files (MP3) and to view or
play them on the TV.

23. P : Next channel
P : Previous channel

24. Exit the OSD

25. Control the cursor in the menu

26. Use to see information on the current broadcast

27. Picture freeze

29. Picture size selection

30. Automatic Power-off

Teletext Functions

6. Exit from the teletext display

10. Teletext index

14. PIP: Teletext hold
SOURCE: Teletext size selection
SWAP: Teletext store

18. Teletext mode selection (LIST/FLOF)

20. Teletext sub page

23. P : Teletext next page
P : Teletext previous page

24. Teletext cancel

26. Teletext reveal

28. Alternately select Teletext, Double, or Mix.

11. 13. 27. 29. Fastext topic selection

10 Operating Instructions and Installation

10-5

10-4 Installing the Stand

1. Place the TV faced down on a soft cloth or cushion on a table.

2. Put the stand into the hole at the bottom of the TV.

3. Insert screw into the hole indicated and tighten.
The stand is installed for models with the screen size of 40 inch and above.

10-5 Installing the Wall Mount Kit

Wall mount items (sold separately) allow you to mount the TV on the wall.
For detailed information on installing the wall mount, see the instructions provided with the Wall Mount
items. Contact a technician for assistance when installing the wall mounted bracket.
Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you
elect to install the TV on your own.

Remove the stand and cover the bottom hole with a cap and fasten with two screws.

Memo

10 Operating Instructions and Installation

10-6

14 Reference Infomation

14-1

14 Reference Infomation

14-1 Technical Terms

- TFT-LCD

(Thin film Transistor Liquid Crystal Display)

ADC(Analog to Digital Converter)
This is a circuit that converts from analog signal to
digital signals.

- PLL(Phase Locked Loop)

During progressing ADC, Device makes clock syn­chronizing HSYNC with Video clock

- Inverter

Device that supply Power to LCD panel lamp. this
device gernerate about 1,500~2,000V.

- AC Adapter

Device that converts AC(90V~240V) to DC(+12V or
14V)

- SMPS(Switching Mode Power Supply)

Switching Mode Power supply. This design technol­ogy is used to step up/down the input power by
switching on/off

- FRC(Frame Rate Controller)

Technology that change image frame quantity dis­played on screen for one second.

Actually TFT-LCD panel require 60 pcs of frame for
one second.
so,this technology is needed to convert input image
to 60 pcs regardless input frame quantity.

- Image Scaler

Technology that convert various input resolution to
other resolution.(ex. 640* 480 to 1024*768)

- Auto Configuration(Auto adjustment)

This is an algorithm to adjust monitor to optimum
condition by pushing one key.

- OSD(On Screen Display)

On screen display. customer can control the screen
easily with this.

- Image Lock

This means "Fineness adjustment" in LCD Monitor,
the features are "Fine" and "Coarse"

- FINE

"Fine" adjustment is used to adjust visibility by con­trol phase difference.

- COARSE

This is a adjustment by tuning with Video colck and
PLL clock.

- DVI (Digital Visual Interface)

This provides a high speed digital connection for
visual data types that is display technology
independent. this interface is primarily forcused at
providing a connection between a computer and
its display device.

- L.V.D.S.(Low Voltage Differential Signaling)

a kind of transmission method for Digital.It can be
used from Main PBA to Panel.

- DVI (Digital Visual Interface)

This provides a high speed digital connection for
visual data types that is display technology inde­pendent. this interface is primarily forcused at pro­viding a connection between a computer and its dis­play device.

14 Reference Infomation

14-2

- T.M.D.S
(Transition minimized Differential Signaling)

a kind of transmission method for Digital.
It can be used from Video card to Main PBA.

- DDC(Display data channel)

It is a communication method between Host
Computer and related equipment.
It can make it Plug and Play between PC and
Monitor.

- EDID

Extended Display Identification Data PC can rec­ognize the monitor information as Product data,
Product name,Display mode,Serial number and
Signal source,etc through DDC Line communicat­ing with PC and Monitor.

- Dot Pitch

The image on a monitor is composed of red, green
and blue dots. The closer the dots, the higher the
resolution. The distance between two dots of the
same color is called the 'Dot Pitch'. Unit: mm

- Vertical Frequency

The screen must be redrawn several times per
second in order to create and display an image for
the user. The frequency of this repetition per sec­ond is called Vertical Frequency or Refresh Rate.
Unit: Hz
Example: If the same light repeats itself 60 times
per second, this is regarded as 60 Hz.

- Horizontal Frequency

The time to scan one line connecting the right
edge to the left edge of the screen horizontally is
called Horizontal Cycle. The inverse number of the
Horizontal Cycle is called Horizontal Frequency.
Unit: kHz

- Interlace and Non-Interlace Methods

Showing the horizontal lines of the screen from the
top to the bottom in order is called the Non­Interlace method while showing odd lines and then
even lines in turn is called the Interlace method.
The Non-Interlace method is used for the majority
of monitors to ensure a clear image. The Interlace
method is the same as that used in TVs.

- Plug & Play
This is a function that provides the best quality
screen for the user by allowing the computer and
the monitor to exchange information automatically.
This monitor follows the international standard
VESA DDC for the Plug & Play function.

- Resolution

The number of horizontal and vertical dots used to
compose the screen image is called 'resolution'.
This number shows the accuracy of the display.
High resolution is good for performing multiple
tasks as more image information can be shown on
the screen.
Example: If the resolution is 1280 x 1024 , this
means the screen is composed of 1280 horizontal
dots (horizontal resolution) and 1024 vertical lines
(vertical resolution).

- BTSC

Broadcast Television System Committee
The stereo broadcasting system that is used in
most of the countries that have adopted the NTSC
system, including the United States, Canada,
Chile, Venezuela and Taiwan. It also refers to the
organization that has been organized to promote
its development and management.

- EIAJ

Electronic Industries Association of Japan.

- RF Cable

A round signal cable generally used for TV antennas.

- Satellite Broadcasting

Broadcasting service provided via satellite.
Enables high picture quality and clear sound
throughout the country regardless of the location of
the viewer.

- Sound Balance

Balances the levels of the sound coming from
each speaker in televisions with two speakers.

- Cable TV

Whereas the terrestrial broadcasting is delivered
via frequency signals through the air, cable broad­casting is transmitted via a cable network. In order
to view cable TV, one must purchase a cable
receiver and hook it up to the cable network.

- CATV

"CATV" refers to the broadcasting service offered
at hotels, schools and other buildings through their
own broadcasting system, apart from VHF or UHF
broadcasting by terrestrial broadcasters. The
CATV programs may include movies, entertain­ment and educational programs. (Different from
cable TV.)

CATV can be viewed only within the area in which
the CATV service is offered.

- S-Video

Short for "Super Video." S-Video allows up to 800
lines of horizontal resolution, enabling high-quality
video.

- VHF/UHF

VHF indicates TV channels 2 to 13, and UHF indi­cates channels 14 through 69.

- Channel Fine Tuning

This feature allows the viewer to fine-tune the TV
channel to obtain the best viewing conditions. The
Samsung LCD TV has both automatic and manual

channel fine-tuning features to enable the viewer
to adjust their desired settings.

- External Device Input

External device input refers to video input from
such external video devices as VCRs, camcorders
and DVD players, separate from a TV broadcast.

14 Reference Infomation

14-3

14 Reference Infomation

14-4

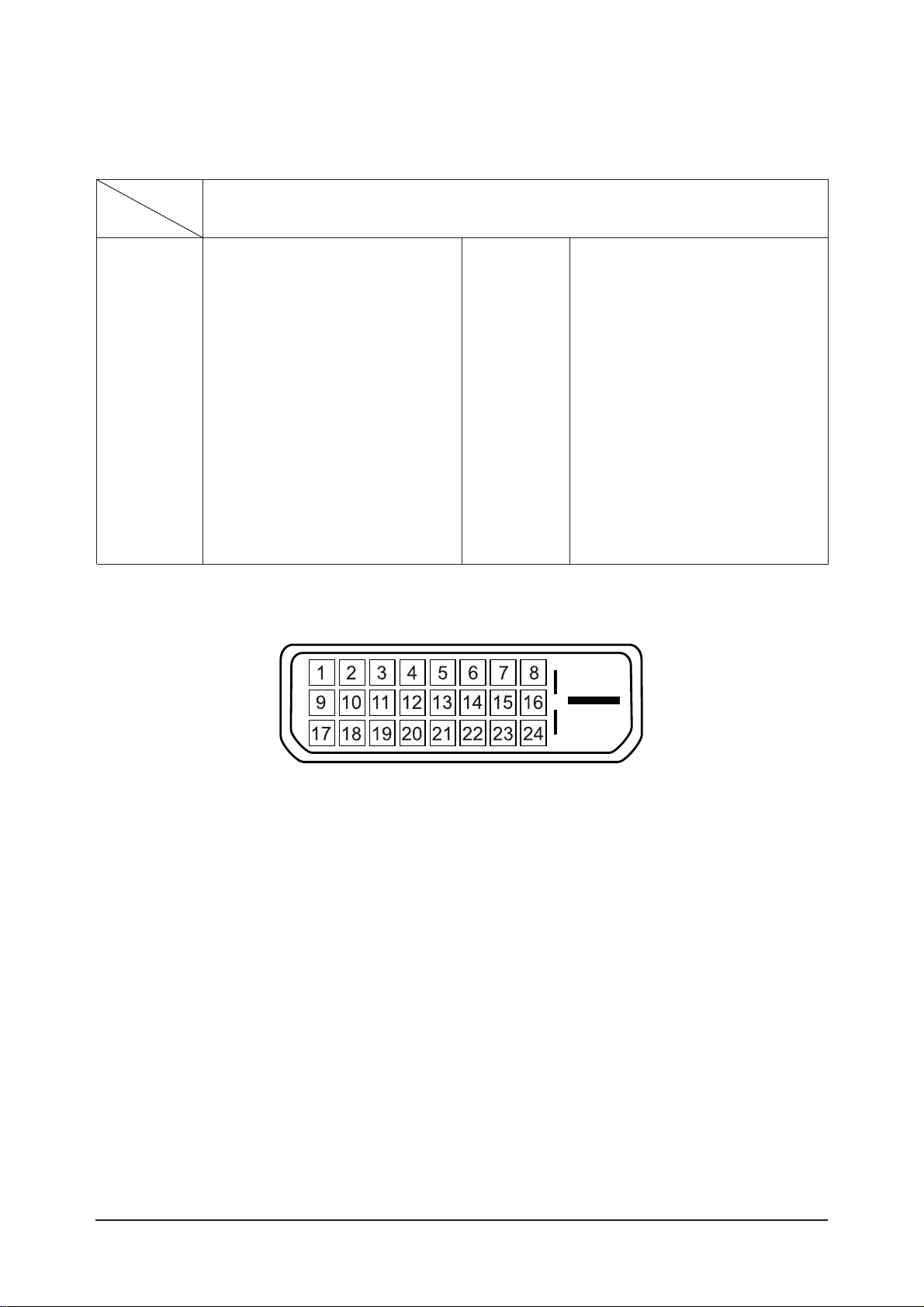

14-2-1 DVI-D

14-2 Pin Assignments

NC

DDC Input power (+5V)

IDENT-DVI

Output Signal (HDCP Control)

Rx0-

Rx0+

GND

NC
NC

GND

RxC+

RxC-

13
14
15
16
17
18
19
20
21
22
23
24

1
2
3
4
5
6
7
8

9
10
11
12

Rx2-

Rx2+

GND

NC
NC

DDC - SCL

DDC - SDA

NC

Rx1-

Rx1+

GND

NC

Sync
Type

Pin No.

24P DVI-D

Figure 1.

14 Reference Infomation

14-5

Both screen position and size will vary depending on the type of PC monitor and its resolution.
The resolutions in the table are recommended. (All resolutions between the supported limits are supported)

- The interlace mode is not supported.

- The set might operate abnormally if a non-standard video format is selected.

- DVI dose not support PC function.

Pin

Separate

1
2
3
4
5

GND

Y

C
GND
GND

RCA Green

RCA Blue

RCA Red

RCA White

RCA Red

Y

GND

Pb (Cb)

GND

Pr (Cr)

GND

Audio L

GND

Audio R

GND

14-2-3 S-Video

Pin

Separate

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15

Red

Green

Blue
GND
GND

GND Red

GND Green

GND Blue

DDC Input power(+5V)

IDENT PC

GND

DDC Data(SDA)

H SYNC
V SYNC

DDC Clock(SCL)

14-2-5 D-SUB

14-2-2 Component

RCA White

RCA Red

CVBS

Audio L

GND

Audio R

GND

14-2-4 A/V

RCA Yellow

14-2-6 PC Display mode

Mode Resolution

Horizontal

Frequency(kHz)

640 x 480

720 x 400

640 x 480
640 x 480

800 x 600
800 x 600

800 x 600
1024 x 768
1024 x 768
1024 x 768
1360 x 768

31.469

31.469

37.864

37.500

37.879

48.077

46.875

48.364

56.476

60.023

47.712

59.940

70.087

72.809

75.000

60.317

72.188

75.000

60.000

70.069

75.029

60.015

31.500

31.500

40.000

50.000

49.500

65.000

75.000

78.750

85.800

- / -

- / ­+ / +
+ / +
+ / +

- / -

- / ­+ / +
+ / +

25.175

28.322

- / -

- / +

Vertical

Frequency(Hz)

Pixel Clock

Frequency(MHz)

Sync Polarity

(H/V)

IBM

VESA

14 Reference Infomation

14-6

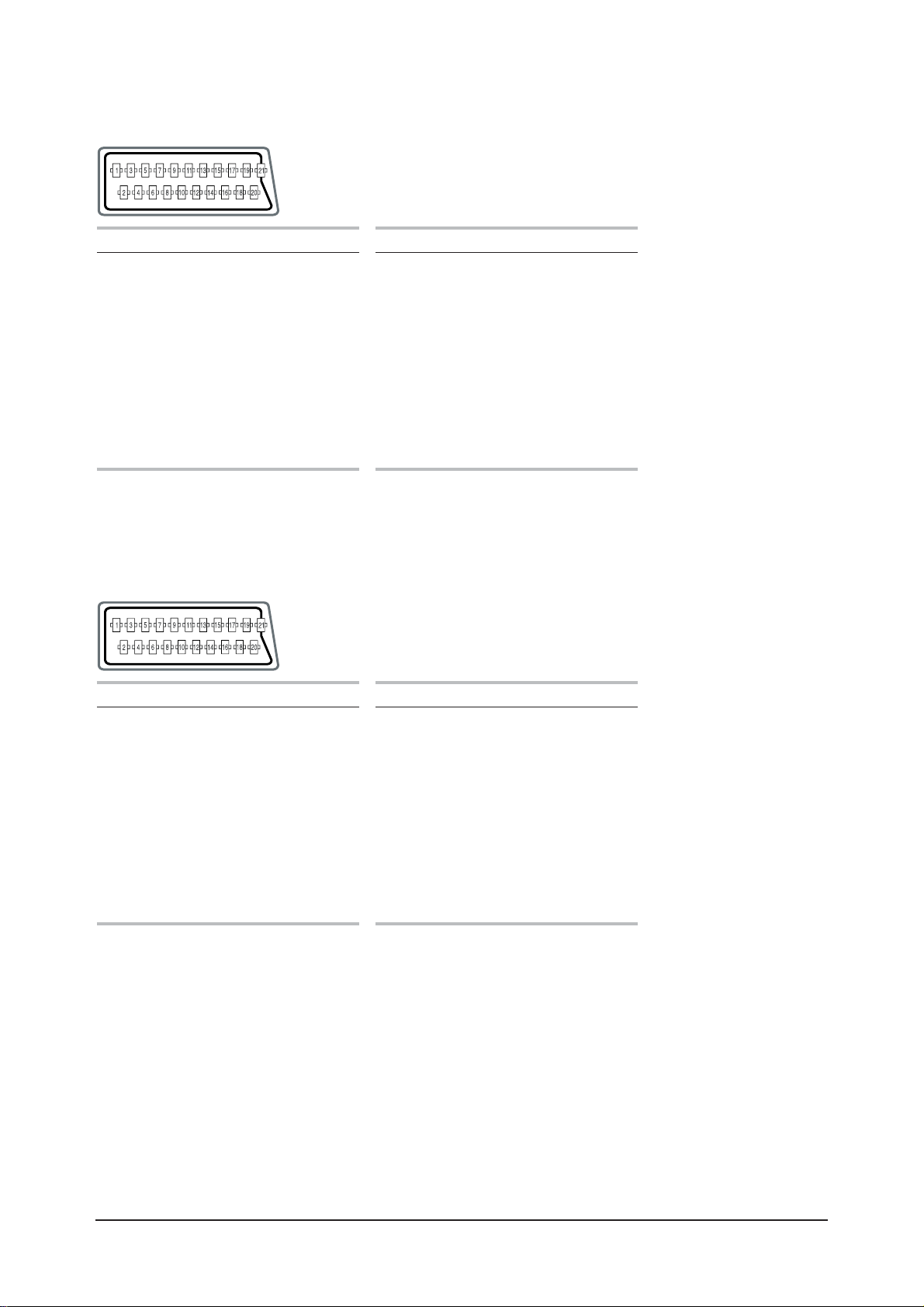

14-2-7 Scart 1

14-2-8 Scart 2

Pin Signal

1 Audio output R
2 Audio input R
3 Audio output L
4 Audio common GND
5 Video GND (RGB blue)
6 Audio input L
7 RGB blue input
8 Switching voltage

9 Video GND (RGB green)
10 NC
11 RGB green input

Pin Signal

12 NC
13 Video GND (RGB red)
14 GND
15 RGB red input
16 Fast Blanking signal

(RGB switching)
17 Video output GND
18 Video input GND
19 Video output (CVBS out)
20 Video input (CVBS in)
21 Common GND

Pin Signal

1 Audio output R
2 Audio input R
3 Audio output L
4 Audio common GND
5 Video GND (RGB blue)
6 Audio input L
7 RGB blue input
8 Switching voltage

9 Video GND (RGB green)
10 NC
11 RGB green input

Pin Signal

12 NC
13 Video GND (RGB red)
14 GND
15 RGB red input
16 NC
17 Video output GND
18 Video input GND
19 Video output (CVBS out)
20 Video input (CVBS in)
21 Common GND

14 Reference Infomation

14-7

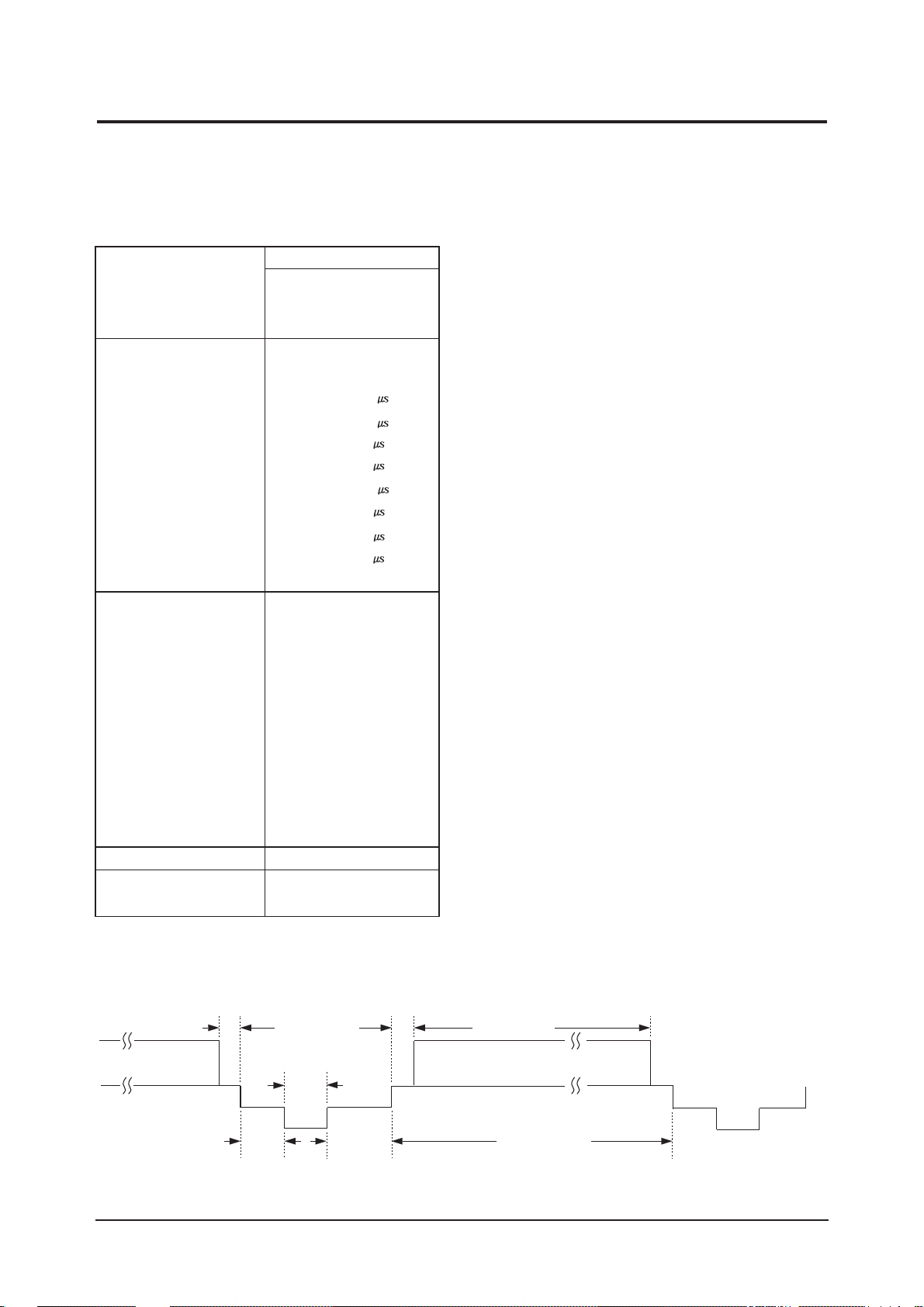

14-3 Timing Chart

This section of the service manual describes the timing that the computer industry recognizes as standard for computer­generated video signals.

14-3-1 LCD Panel Mode1 mode

Timing No.
Originator
Mode Name
Resolution (H x V)

HORIZONTAL
Frequency
Total time
Active time
Blank time
Border (L / R)
Data time
Front porch
Sync.width
Back porch
Sync. polarity

VERTICAL
Frequency
Total time
Active time
Blank time
Border (L / R)
Data time
Front porch
Sync.width
Back porch
Sync. polarity

Dot Clock

Border
R or B

Pulse

Width

Front

Porch

Back

Porch

Border

L or T

Blank

Time

Data Time

Active Time

85.500MHz
Sync. Type
Scan Type

Separate

N / I

47.712kHz

20.959

15.906

5.053

0.000

15.906

0.749

1.702

2.994

Positive

VESA
1366/60Hz
1366 x 768

LTA400W2

60.015kHz

16.662ms

16.097ms

0.566ms

0.000ms

16.097ms

0.063ms

0.105ms

0.377ms
Positive

14 Reference Infomation

14-8

14-3-2 Supported Modes (1)

Timing No.
Originator
Mode Name
Resolution (H x V)

HORIZONTAL
Frequency
Total time
Active time
Blank time
Border (L / R)
Data time
Front porch
Sync.width
Back porch
Sync. polarity

VERTICAL
Frequency
Total time
Active time
Blank time
Border (L / R)
Data time
Front porch
Sync.width
Back porch
Sync. polarity

Dot Clock

28.322MHz
Sync. Type
Scan Type

Separate

N / I

31.169kHz

31.777

26.058

5.720

0.318

25.422

0.318

3.813

1.589

Negative

IBM

VGA2

720 x 400

2

70.087kHz

14.268ms

13.155ms

1.113ms

0.222ms

12.711ms

0.191ms

0.064ms

0.858ms
Positive

25.175MHz
Separate

N / I

31.469kHz

31.778

26.058

5.720

0.318

25.422

0.318

3.813

1.589

Negative

IBM

VGA3

640 x 480

3

59.940kHz

16.683ms

15.761ms

0.922ms

0.254ms

15.253ms

0.064ms

0.064ms

0.794ms
Negative

31.500MHz
Separate

N / I

37.861kHz

26.413

20.825

5.588

0.254

20.317

0.508

1.270

3.810

Negative

VESA

640/72Hz

720 x 400

11

72.809kHz

13.735ms

13.100ms

0.635ms

0.211ms

12.678ms

0.026ms

0.079ms

0.528ms

Negative

31.500MHz
Separate

N / I

37.500kHz

26.667

20.317

6.350

0.000

20.317

0.508

2.032

3.810

Negative

VESA

640/75Hz

720 x 400

17

75.000kHz

13.333ms

12.800ms

0.533ms

0.000ms

12.800ms

0.027ms

0.080ms

0.427ms

Negative

30.240MHz
Separate

N / I

37.000kHz

28.571

21.164

7.407

0.000

21.164

2.116

2.116

3.175

Negative

MAC
640/67Hz
640 x 480

32

66.667kHz

15.000ms

13.714ms

1.286ms

0.000ms

13.714ms

0.086ms

0.086ms

1.114ms
Negative

14 Reference Infomation

14-9

14-3-3 Supported Modes (2)

Timing No.
Originator
Mode Name
Resolution (H x V)

HORIZONTAL
Frequency
Total time
Active time
Blank time
Border (L / R)
Data time
Front porch
Sync.width
Back porch
Sync. polarity

VERTICAL
Frequency
Total time
Active time
Blank time
Border (L / R)
Data time
Front porch
Sync.width
Back porch
Sync. polarity

Dot Clock

40.000MHz
Sync. Type
Scan Type

Separate

N / I

37.879kHz

26.400

20.000

6.400

0.000

20.000

1.000

3.200

3.200

Positive

VESA
800/60Hz
800 x 600

13

60.317kHz

16.579ms

15.840ms

0.739ms

0.000ms

15.840ms

0.026ms

0.106ms

0.607ms
Positive

50.000MHz
Separate

N / I

48.077kHz

20.800

16.000

4.800

0.000

16.000

1.120

2.400

1.280

Positive

VESA
800/72Hz
800 x 600

14

72.188kHz

13.853ms

12.480ms

1.373ms

0.000ms

12.480ms

0.770ms

0.125ms

0.478ms
Positive

49.500MHz
Separate

N / I

46.875kHz

21.333

16.162

5.171

0.000

16.162

0.323

1.616

3.232

Positive

VESA

800/75Hz

800 x 600

18

75.000kHz

13.333ms

12.800ms

0.533ms

0.000ms

12.800ms

0.021ms

0.064ms

0.448ms
Positive

14 Reference Infomation

14-10

14-3-4 Supported Modes (3)

Timing No.
Originator
Mode Name
Resolution (H x V)

HORIZONTAL
Frequency
Total time
Active time
Blank time
Border (L / R)
Data time
Front porch
Sync.width
Back porch
Sync. polarity

VERTICAL
Frequency
Total time
Active time
Blank time
Border (L / R)
Data time
Front porch
Sync.width
Back porch
Sync. polarity

Dot Clock

65.000MHz
Sync. Type
Scan Type

Separate

N / I

48.363kHz

20.677

15.754

4.923

0.000

15.754

0.369

2.092

2.462

Negative

VESA

1024/60Hz

1024 x 768

15

60.004kHz

16.666ms

15.880ms

0.786ms

0.000ms

15.880ms

0.062ms

0.124ms

0.600ms
Negative

75.000MHz
Separate

N / I

56.476kHz

17.707

13.653

4.053

0.000

13.653

0.320

1.813

1.920

Negative

VESA

1024/70Hz

1024 x 768

16

70.069kHz

14.272ms

13.599ms

0.672ms

0.000ms

13.599ms

0.053ms

0.106ms

0.513ms
Negative

78.750MHz
Separate

N / I

60.023kHz

16.660

13.003

3.777

0.000

13.003

0.323

1.219

2.235

Positive

VESA
1024/75Hz
1024 x 768

19

75.029kHz

13.328ms

12.795ms

0.533ms

0.000ms

12.795ms

0.017ms

0.050ms

0.466ms
Positive

85.500MHz
Separate

N / I

47.712kHz

20.959

15.906

5.053

0.000

15.906

0.749

1.702

2.994

Positive

VESA
1360/60Hz
1360 x 768

60.015kHz

16.662ms

16.097ms

0.566ms

0.000ms

16.097ms

0.063ms

0.105ms

0.377ms
Positive

14 Reference Infomation

14-11

14-4 Panel Description

SEC LT140X1-002 BN07-00004A SA BN68-00239H ­SEC LT150XS-L01 BN07-00009A SB ­SEC LT150XS-L01-B BN07-00022A SC ­SEC LTM150XS-L02 BN07-00005A SD ­SEC LT181E2-132 BN07-00001A SE ­SEC LT150XS-T01 BN07-00010A SF ­SEC LTM181E3-132 BN07-00019A SG ­SEC LT170E2-131 BN07-10001D SH ­SEC LT181E2-131 BN07-10001E SJ ­SEC LTM170E4-L01 BN07-00018A SK ­SEC LTM240W1-L01 BN07-00015A SL ­SEC LTM213U3-L01 BN07-00016A SM ­SEC LTM150XH-L01 BN07-00026A SN ­SEC LTM150XH-L03 BN07-00027A SP ­SEC LTM150XS-L01 BN07-00032A SQ DELL(ZPD)
SEC LTM181E4-L01 BN07-00034A SR PVA
SEC LTM170EH-L01 BN07-00036A SS TN
SEC LTM170E5-L01 BN07-00037A SU PVA
SEC LTM150XH-L11 BN07-00041A SV ­SEC LTM213U4-L01 BN07-00039A SW PVA
SEC LTM150XH-L01(ZPD) BN07-00045A SX ZPD
SEC LTM150XH-L04 BN07-00046A SY "New panel with high brightness"
SEC LTM170W1-L01 BN07-00047A SZ Panel for TV
SEC LTM150XH-L06 BN07-00053A EA

Panel for TV/ High luminance for 450cd _ SONY&EOS Team Panel for TV
SEC LTM153W1-L01 BN07-00054A EB Use NIKE MODEL
SEC LTM170EH-L05 BN07-00055A EC

Panel EOS proj. for high brightness of 17" EH-L05

SEC LTM170E5-L03 BN07-00056A ED

Dell 1702FP pro. E4. EH mechanicalCompatible
SEC LTM190E1-L01 BN07-00057A EE DELL 1900 FP
SEC LTM181E5-L01 BN07-00061A EF 18" narrow bezel GH18PS
SEC LTM150XP-L01 BN07-00065A EG AMLCD PVA PANEL
SEC LTM240W1-L02 BN07-00062A EH Panel for 15" Wide TV
SEC LTM170EU-L01 BN07-00071A EJ Slim design, TN
SEC LTM170E5-L04 BN07-00072A EK E5-L04 6 bits FRC... for IBM
SEC LTA220W1-L01 BN07-00074A EL Panel for 22" TV
SEC LTM170E6-L02 BN07-00075A EM AMLCD Narrow & slim design 17" PVAmode
SEC LTM170W1-L01 BN07-00082A EN LTM170W1-L01 ZPD panel
SEC LTM170EH-L01 BN07-00080A EP LTM170EH-L01 ZPD panel
SEC LTM170E5-L01 BN07-00081A EQ LTM170E5-L01 ZPD panel
SEC LTM170EH-L05 BN07-00083A ER LTM170EH-L05 ZPD panel
SEC LTM170E5-L03 BN07-00084A ES LTM170E5-L03 ZPD panel
SEC LTM170EU-L01 BN07-00085A ET LTM170EU-L01 ZPD panel
SEC LTM170E5-L04 BN07-00086A EU LTM170E5-L04 ZPD panel
SEC LTM170E6-L02 BN07-00087A EV LTM170E6-L02 ZPD panel
SEC LTM150XH-L06 BN07-00091A EW "Color coordinates change for LCD TV"
SEC LTM153W1-L01 BN07-00092A EX AMLCD WIDE 15",9/10
SEC LTM170W1-L01 BN07-00100A EY

"Color Coordinates change code management"

SEC LTM170EH-L05 BN07-00097A EZ

"LTM170E5-L05 Color Coordinates Change Panel Code"
SEC LTA400W1-L01 BN07-00109A S1 "PANEL of AMLCD 40"" TV"
SEC LTM153W1-L01 BN07-00110A S2

"Color coordinates change 0.280/0.290, 10000k & ZPD Panel"

SEC LTM150XH-L06 BN07-00111A S3

"Color coordinates change 0.280/0.290, 10000k & ZPD Panel"

SEC LTM170W1-L01 BN07-00112A S4

"Color coordinates change 0.280/0.290, 10000k & ZPD Panel"

SEC LTM170EH-L05 BN07-00113A S5

"Color coordinates change 0.280/0.290, 10000k & ZPD Panel"

Maker VENDOR P/N PANEL_CODE PANEL_ABB STICKER_CODE Remarks

14 Reference Infomation

14-12

SEC LTM220W1-L01 BN07-00114A S6 "ZPD Panel for AMLCD 22"" TV"
SEC LTM150XH-L06 BN07-00117A S7 "ZPD Panel code"
SEC LTM153W1-L01 BN07-00118A S8 "ZPD Panel code"
SEC LTM170WP-L01 BN07-00119A S9 "PVA Panel for NIKE"
SEC LTM213U4-L01 BN07-00039A E1 21.3" NARROW
SEC LTA260W1-L01 BN07-00121A E2 VENUS
SEC LTA220W1-L01 BN07-00074B E3

"Panel B-level panel code for 22"" TV Panel "
SEC LTA320W1-L01 BN07-00108A E4 "Panel for AMLCD 32"" TV"
SEC LTM213U4-L01 BN07-00124A E5 NARROW BEZEL 21 " PANEL
SEC LTM170E6-L04 BN07-00129A E6

"HIGHLAND 17"" LOW PANEL (Panel only for TCO03)"
SEC LTM190E1-L01 BN07-00088A E7 LTM190E1-L01 ZPD panel
SEC M150X4-L06 BN07-00137A E8 15" Narrow & Slim panel
SEC LTA170V1 BN07-00139A E9 "17"" Panel for Muse 4:3 VGA TV"
SEC LTM190E1-L02 BN07-00128A E10

"New Panel from AMLCDl, Specification : 6bit Driver IC"
SEC LTM170EX-L01 BN07-00143A E11 "Development new Panel from AMLCD"
SEC LTM170E8-L01 BN07-00144A E12 "Development new Panel from AMLCD"
SEC LTM170E6-L04 BN07-00129B E13

"ZPD panel for AMLCD (Panel only for TCO03)"

SEC LTA320W1-L02 BN07-00108B E14

"Creat B-level Panel code for AMLCD 32"" TV"

SEC LTM190E1-L03 BN07-00151A E15

"Development new 19"" Panel form AMLCD (Panel only for TCO03)"
SEC LTM240W1-L03 BN07-00134A E16 "AMLCD 24"" panel development"
SEC LTM190E1-L02 BN07-00128B E17

"New Panel from AMLCD, Specification : 6bit Driver IC(ZPD)"
SEC LTM190E4-L01 BN07-00145A E18 "AMLCD 24"" new panel development"
SEC LTM170E8-L01 BN07-00158A E19 "ZPD code derivation"
SEC LTM170EX-L01 BN07-00159A E20 "ZPD code derivation"
SEC LTM190E1-L03 BN07-00151B E21

"Creat new panel code for AMLCD 19"" (Panel only for TCO03)"
SEC LTA460H1-L01 BN07-00157A E22 "creat panel code for AMLCD 46"" TV "
SEC LTM170EU-L11 BN07-00160A E23

"creat new panel code for AMLCD 17"" (Panel only for TCO03)"
SEC LTM240W1-L03 BN07-00134B E24 "24"" panel ZPD code derivation"
SEC LTM190E4-L01 BN07-00145B E25 "AMLCD 19"" ZPD Panel code derivation"
SEC LTM240W1-L03 BN07-00134B E26 24" panel ZPD code derivation
SEC LTM150XO-L01 BN07-00164A E27 AMLCD 15" XO-L01 new panel development
SEC LTM150XO-L01 BN07-00164B E28 AMLCD 15" XO-L01 ZPD code derivation
SEC LTM170EU-L11 BN07-00160B E29 AMLCD 17" NEW panel code derivation
SEC LTA320W2-L01 BN07-00172A SPZ AMLCD 32" NEW panel
SEC LTM213U4-L01 BN07-00124B SPZ 21.3" Narrow PANEL ZPD Panel derivation
SEC LTM170EU-L11 BN07-00189A STH

AMLCD EU-L11 Pb free panel code derivtion

SEC LTM170EU-L11 BN07-00189B STZ

AMLCD EU-L11 Pb free panel ZPD code derivation
SEC LTM240W1-L04 BN07-00188A SPH 24" A-DCC new panel development
SEC LTM190EX-L01 BN07-00191A STH AMLCD 19" TN new Panel
SEC LTM190EX-L02 BN07-00191B STZ AMLCD 19" TN new Panel ZPD derivation
SEC LTA230W1-L02 BN07-00184A SPZ AMLCD 23" 16:9 new Panel
SEC LTA260W2-L01 BN07-00185A SPZ AMLCD 26" 16:9 new Panel
SEC LTM240M1-L01 BN07-00195A SPH 24" panel with high brightness deveiopment
SEC LTA400W2-L01 BN07-00186A SPZ AMLCD 40" 16:9 new Panel
SEC LTM150XO-L01 BN07-00197A STH AMLCD 15" XO-L01 Pb free panel code
SEC LTM150XO-L01 BN07-00197B STZ

AMLCD 15" XO-L01 Pb free panel ZPD code
SEC LTM170EU-L21 BN07-00202A STZ AMLCD EU-L21 ZPD new code derivation
SEC LTA460W2-L03 BN07-00187A SPZ BEETOVEN 46"ZPD new Panel

CPT CLAA150XG09 BN07-00141A PA CPT 15" Monitor new panel development
CPT CLAA170EA02 BN07-00148A PB 17" CPT NEW development panel
CPT CLAA170EA02 BN07-00148B PC 17" CPT ZPD panel code derivation
CPT CLAA150XG09 BN07-00141B PTZ

"CPT 15"" panel ZPD code derivation (GOYA-PJT)"

CPT CLAA150XP01 BN07-00173A PTH CPT 15" PSWG code derivation

Maker VENDOR P/N PANEL_CODE PANEL_ABB STICKER_CODE Remarks

14 Reference Infomation

14-13

CPT CLAA150XP01 BN07-00173B PTZ CPT 15" PSWG panel ZPD code
CPT CLAA170EA07 BN07-00174A PTH "CPT 17"" PSWG panel code derivation?
CPT CLAA170EA07 BN07-00174B PTZ CPT 17"""" PSWG type new Panel code"""
CPT CLAA170EA07 BN07-00174B PTZ CPT 17" PSWG type new Panel code

TOSHIBA LTM15C419(A) BN07-00002A TA ­TOSHIBA LTM15C423(B) BN07-00006A TB ­TOSHIBA LTM18C161 BN07-00008A TC ­TOSHIBA LTM15C443 BN07-00031A TD ­TOSHIBA LTM15C458 BN07-00043A TE ­TOSHIBA LTM15C458S BN07-00077A TF "TSB 15"" high brightness Panel"
TOSHIBA LTM15C458 BN07-00078A TG Toshiba ZPD panel
TOSHIBA LTM15C458S BN07-00099A TH TSB LTM15C458S ( ZPD )

HANNSTAR HSD150MX41A(A) BN07-00020A NA "TTL type"
HANNSTAR HSD150MX12 BN07-00030A NB "TTL type"
HANNSTAR HSD170ME13 BN07-00180A NTH Hannstar 17" TN new panel development
HANNSTAR HSD170ME13 BN07-00180B NTZ

Hannstar 17" TN new panel development ZPD code derivation

TORISAN TM150XG-22L03(A) BN07-00021A RA ­TORISAN TM150XG-26L06 BN07-00042A RB ­TORISAN TM181SX-76N01 BN07-00048A RC ­TORISAN TM150XG-26L06 BN07-00059A RD 15" XGA TN MODE(ZPD)
TORISAN TM290WX-71N31 BN07-00063A RE "RS24NS (TORISAN 29"" NEW PANEL)"
TORISAN TM396WX-71N31 BN07-00064A RF "RS24NS (TORISAN 40"" NEW PANEL)"
TORISAN TM150XG-26L09 BN07-00073A RG "Panel for 15"" TV"
TORISAN TM150XG-26L10 BN07-00089A RH "L10(change except D/IC) ZPD"
TORISAN TM150XG-26L10 BN07-00090A RJ L10 NORMAL
TORISAN TM190SX-70N01 BN07-00098A RK Torisan 19" Panel
TORISAN TM181SX-76N01 BN07-00106A RL ZPD Panel code
TORISAN TM190SX-70N01 BN07-00107A RM ZPD Panel code
TORISAN TM290WX-71N31 BN07-00115A RN

"Color Coordinates change panel for TORISAN 29"" TV"

TORISAN TM396WX-71N31 BN07-00116A RP,Q

"Color Coordinates change panel for TORISAN 40"" TV"

TORISAN TM22OWX-71N31 BN07-00125A RR

"Development TORISAN 22"" TV PANEL (ZPD)"

TORISAN TM22OWX-71N31 BN07-00127A RS

"Development TORISAN 22"" TV PANEL (HPD)"
TORISAN TM396WX-71N32A BN07-00150A RT 120V inverter Exclusive panel
TORISAN TM190SX-70N02 BN07-00154A RMH Torisan 6bit panel code Derivation
TORISAN TM190SX-70N02 BN07-00154B RMZ Torisan 6bit panel code Derivation

SHARP LQ181E1DG11(A) BN07-10001C PA ­SHARP LQ150X1LW71 BN07-00067A PB SHARP 15" PVA PANEL

HITACHI TX38D12VC0CAA(A) BN07-00003A HA ­HITACHI TX43DVCOCAB BN07-00060A HB 17" SXGA PVA MODE
HITACHI TX43D15VC0CAB BN07-00101A HC ZPD Panel
HITACHI TX51D11VC0CAB BN07-00122A HD 20.1" NARROW
HITACHI TX54D11VC0CAB BN07-00123A HE 21.3" NARROW
HITACHI TX80D12VC0CAB BN07-00169A HIZ

"Development new panel for Hitachi 32"" TV (ZPD)"

HITACHI TX54D11VC0CAB BN07-00123B HIZ Hitachi 21.3"ZPD panel

IBM ITSX94S BN07-00017A IA -

UNIPAC UM170E0 BN07-00028A UA Loaded by cisdba

Maker VENDOR P/N PANEL_CODE PANEL_ABB STICKER_CODE Remarks

14 Reference Infomation

14-14

HYUNDAI HT15X13 BN07-00035A DA ­HYUNDAI HT17E11-200 BN07-00049A DB TN MODE
HYUNDAI HT17E11-300 BN07-00093A DC HT17E11-300 ZPD panel
HYUNDAI HT17E11-400 BN07-00094A DD HT17E11-400 normal panel
HYUNDAI HT17E11-400 BN07-00095A DE HT17E11-400 ZPD panel code
HYUNDAI HT17E12 BN07-00096A DF HT17E12 ( Narow & slim Design )
HYUNDAI HT17E12 BN07-00105A DG ZPD Panel code
HYUNDAI HT15X15-D00 BN07-00146A DH "Development for Ares 15"" Hydis TV"
HYUNDAI HT15X15-D01 BN07-00146B DJ

"Derivation panel HPD for Ares 15"" Hydis TV "

HYUNDAI HT17E13-100 BN07-00167A DTH

"PINEHURST-2(IBM) PJT 17"" HYDIS PANEL Derivation"

HYUNDAI HT17E13-100 BN07-00167B DTZ

"PINEHURST-2(IBM) Hydis 17"" ZPD code Derivation"

ACER L170E3 BN07-00044A AA TN(ADT)
ACER M170EN05 BN07-00076A AB AU 17" Panel (Narrow & slim design)
ACER M170EN05 BN07-00102A AC ZPD Panel code
ACER M190EN02 BN07-00170A AMH

"AU Monitor 19"" new panel development (P19-1S)"
ACER M190EN02 BN07-00170B AMZ "AU 19"" ZPD code derivation (ZPD)"
ACER M170EN06 BN07-00171A ATH "AU Monitor 17"" New panel development"
ACER T260XW01 BN07-00163A AMZ "AU 26"" new panel developm
(NF26EO)"
ACER A201SN01 BN07-00177A ATZ

"AU TV panel 20.1"" TN SVGA new panel development"
ACER M170EN06 BN07-00171B ATZ "AU Monitor 17"" ZPD code Derivation
ACER T315XW01 BN07-00194A AMZ AU 32" new
ACER M170EG01 BN07-00192A ATH AU TN PSWG type new Panel code
ACER M170EG01 BN07-00192B ATZ

AU TN PSWG type NEW panel code derivation

CHIMEI M170E3-LO1 BN07-00050A CA TN PANEL
CHIMEI M150X3-L01 BN07-00051A CB COMPATIBLE
CHIMEI M170E4-L01 BN07-00052A CC MVA PANEL
CHIMEI M150X2-L01 BN07-00066A CD CHIME 15"I PVA PANEL
CHIMEI M150X3-L01 BN07-00079A CE Chimei ZPD panel
CHIMEI M170E3-L01 BN07-00103A CF ZPD Panel code
CHIMEI M170E4-L01 BN07-00104A CG ZPD Panel code
CHIMEI V296W1-L01 BN07-00120A CH MVA
CHIMEI M170E6-L02 BN07-00126A CJ HIGHLAND 17" LOW PANEL
CHIMEI M190E2-L01 BN07-00131A CK GH19AS,BS CHIMEI PANEL
CHIMEI M150X4-L06 BN07-00137A CL 15" Narrow & Slim panel
CHIMEI M170E6-L01 BN07-00133A CM "2003-03-11 vendor change"
CHIMEI M170E6-L01 BN07-00133B CN "ZPD derivation panel"
CHIMEI V201V1-T01 BN07-00135A CP "CHIMEI 20.1"" panel development"
CHIMEI M170E6-L02 BN07-00126B CQ

"HIGHLAND 17"" LOW PANEL ZPD derivation panel"
CHIMEI M170E6-L05 BN07-00152A CR "CMO 17"" new panel development code"
CHIMEI M170E6-L05 BN07-00152B CS "CMO 17"" ZPD panel code derivation"
CHIMEI M150X4-L06 BN07-00137B CT

Chimei 15" Narrow & Slim panel ZPD derivation

CHIMEI M170E5-L05 BN07-00165A CTH

CMO 17" new panel development code (GOYA2-PJT)
CHIMEI M170E5-L05 BN07-00165B CTZ CMO 17" ZPD panel(GOYA2-PJT)

Maker VENDOR P/N PANEL_CODE PANEL_ABB STICKER_CODE Remarks

7 Block Diagrams

7-1

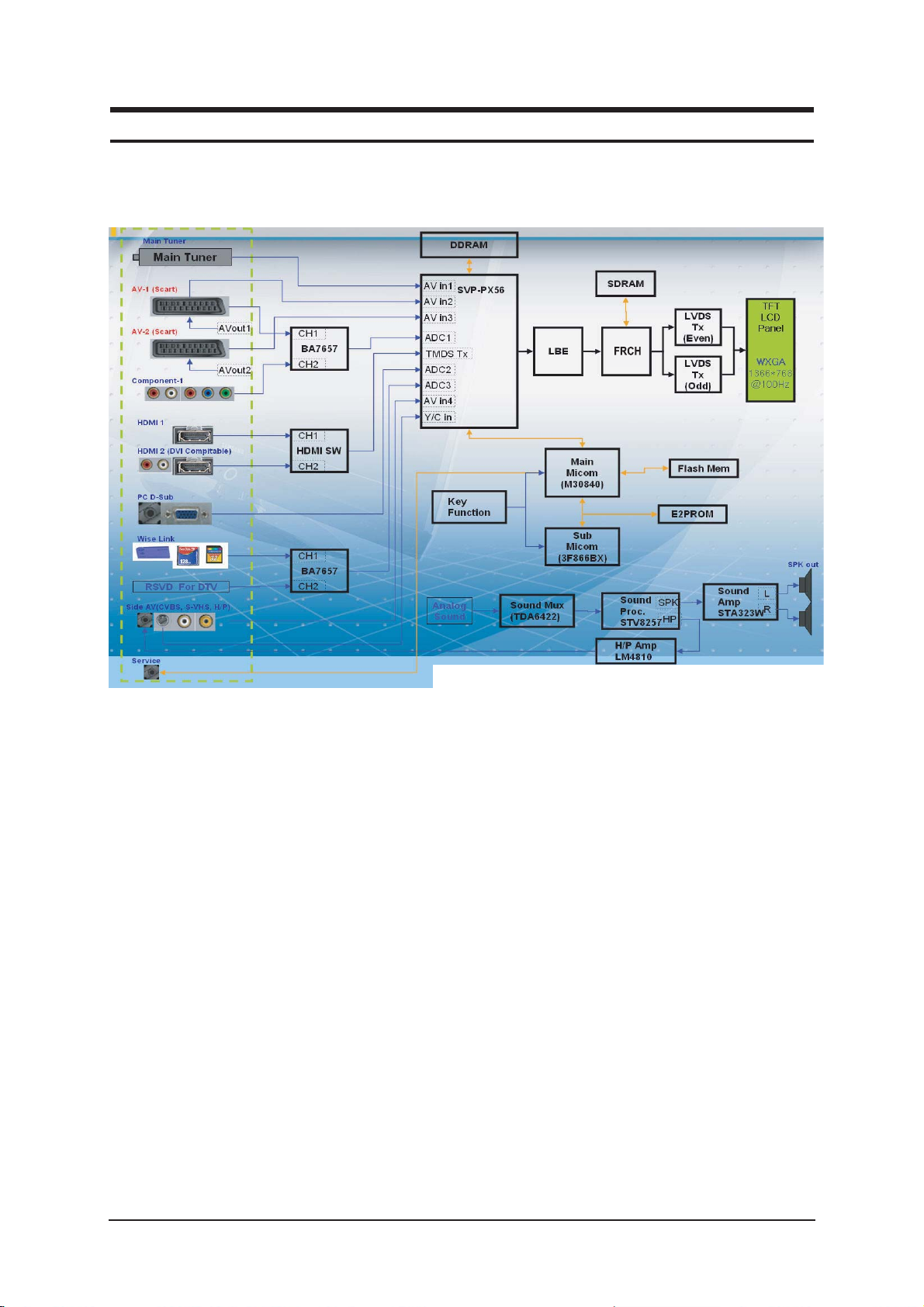

7 Block Diagram

- This Document can not be used without Samsung’s authorization.

7 Block Diagrams

7-2

Meno

4 Troubleshooting

4-1

4 Troubleshooting

4-1 First Checklist for Troubleshooting

1. Check the various cable connections first.

- Check to see if there is a burnt or damaged cable.

- Check to see if there is a disconnected cable connection or a connection is too loose.

- Check to see if the cables are connected according to the connection diagram.

2. Check the power input to the Main Board.

3. Check the voltage in and out between the SMPS Main Board, between the SMPS
INVERTER Board, and between the Main LVDS Boards.

4 Troubleshooting

4-2

4-2-1 No Power

4-2 Checkpoints by Error Mode

Does proper DC 12V

appear at CM801?

Change a Assy PCB Power.

Yes

Yes

No

Check a connection a power cable.

No

Does proper DC A3.3V,

A5V appear at

C1059, C1167?

Check a IC1008, IC1004.

Change a main PCB ass'y.

Yes

No

Does proper DC 5V, 3.3V,

1.9V appear at C1015, C1194,
C6026?

Check a IC1015, IC812, IC1002, IC606,

IC818. Change a main PCB ass'y

Yes

A power is supplied to set?

Check a other function.

(No picture part)

Replace a lcd panel.

No

No

LAMP off, power indicator

LED blue color?

4 Troubleshooting

4-3

4-2-2 No Video (Analog PC)

Check a PC source and check

the connection of DSUB cable?

Input a analog PC signal and

connected cable(DPMS).

Yes

Does the signal appear at

#30, 22, 38(R, G, B) of

IC4001?

PC cable. Change a PC

cable. Change a main PCB ass'y.

Yes

Power Indicator is off.

Lamp on, no video.

No

No

1

Does the digital data appear

at the input of

LBE (RA6053~5)?

Check IC4001

Change a main PCB ass'y.

Yes

Yes

No

Yes

Check a LVDS cable?

Replace a lcd panel?

Please, Call to Samsung Co. LTD.

No

Does the digital data appear

at the output of IC4003

(RA6019_FRC~6021_FRC)?

Check IC4003

Change a main PCB ass'y.

No

Does the digital data appear

at the input of IC6003, 6004
(

RA6001_FRC~RA6003_FRC,

RA6005_FRC, RA6009_FRC,

RA6016_FRC, RA6018_FRC

)?

Check IC6005

Change a main PCB ass'y.

Yes

Does the digital data appear

at the out of L6001~12?

Check IC6003,4

Change a main PCB ass'y.

Yes

No

No

4 Troubleshooting

4-4

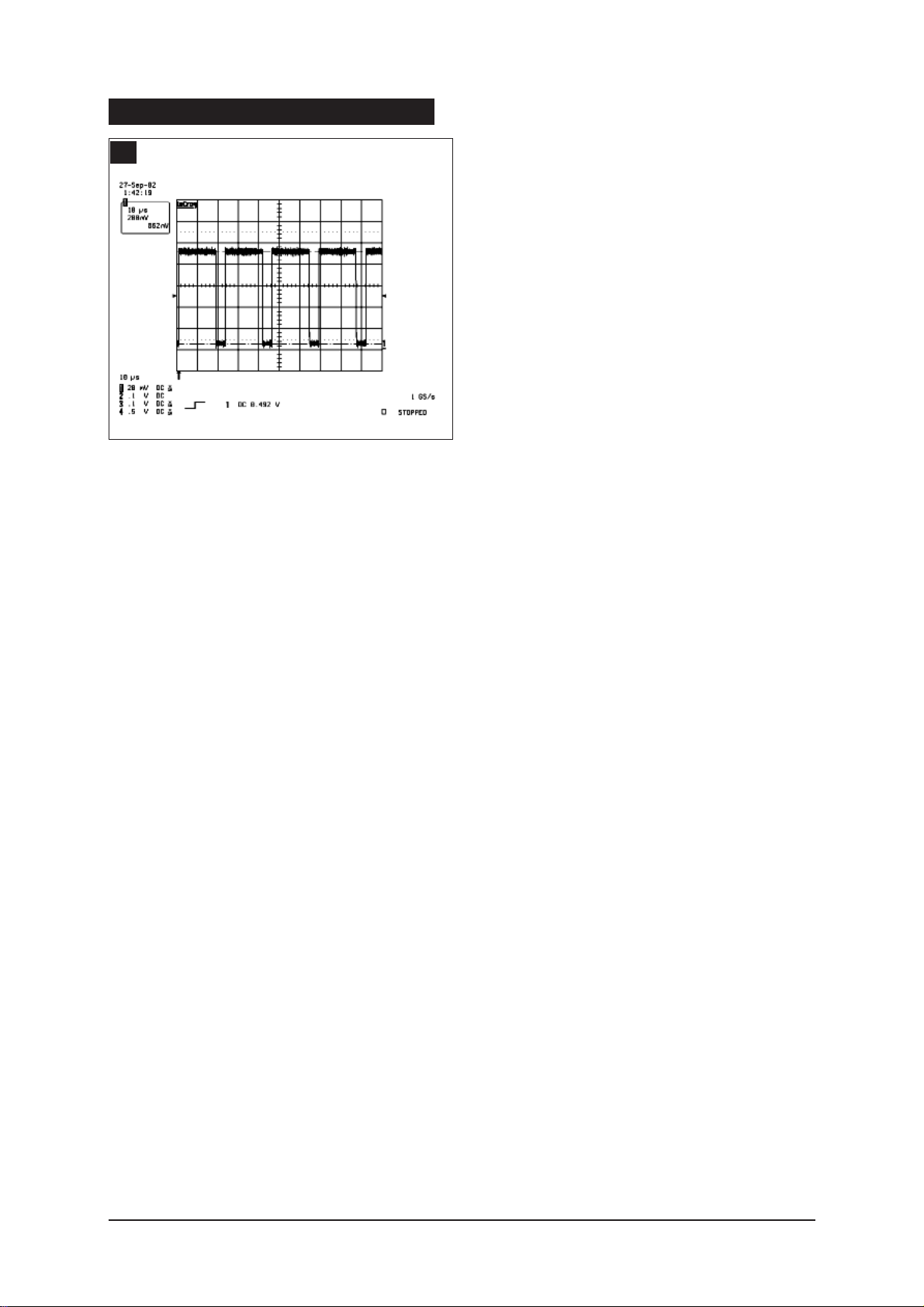

WAVEFORMS

1

R,G,B Output Signal of IC500

4 Troubleshooting

4-5

4-2-3 No Video (Digital-HDMI)

Check the connection

of HDMI cable?

Input a HDMI cable.

Yes

Does the digital data appear at

R4004~R4011?

Check a a IC 4001

Change a main PCB ass'y.

Yes

Yes

Does the digital data

appear at output of IC4001

LVDS(RA6053~5)?

Check a IC4001

Change a main PCB ass'y.

Yes

Power Indicator is off.

Lamp on, no video.

No

No

No

3

2

Yes

Check a LVDS cable?

Replace a lcd panel?

Please, Call to Samsung Co. LTD.

No

Does the digital data appear

at the output of IC4003

(RA6019_FRC~6021_FRC)?

Check IC4003

Change a main PCB ass'y.

No

Does the digital data appear

at the input of IC6003, 6004
(

RA6001_FRC~RA6003_FRC,

RA6005_FRC, RA6009_FRC,

RA6016_FRC, RA6018_FRC

)?

Check IC6005

Change a main PCB ass'y.

Yes

Does the digital data appear

at the out of L6001~12?

Check IC6003,4

Change a main PCB ass'y.

Yes

No

No

4 Troubleshooting

4-6

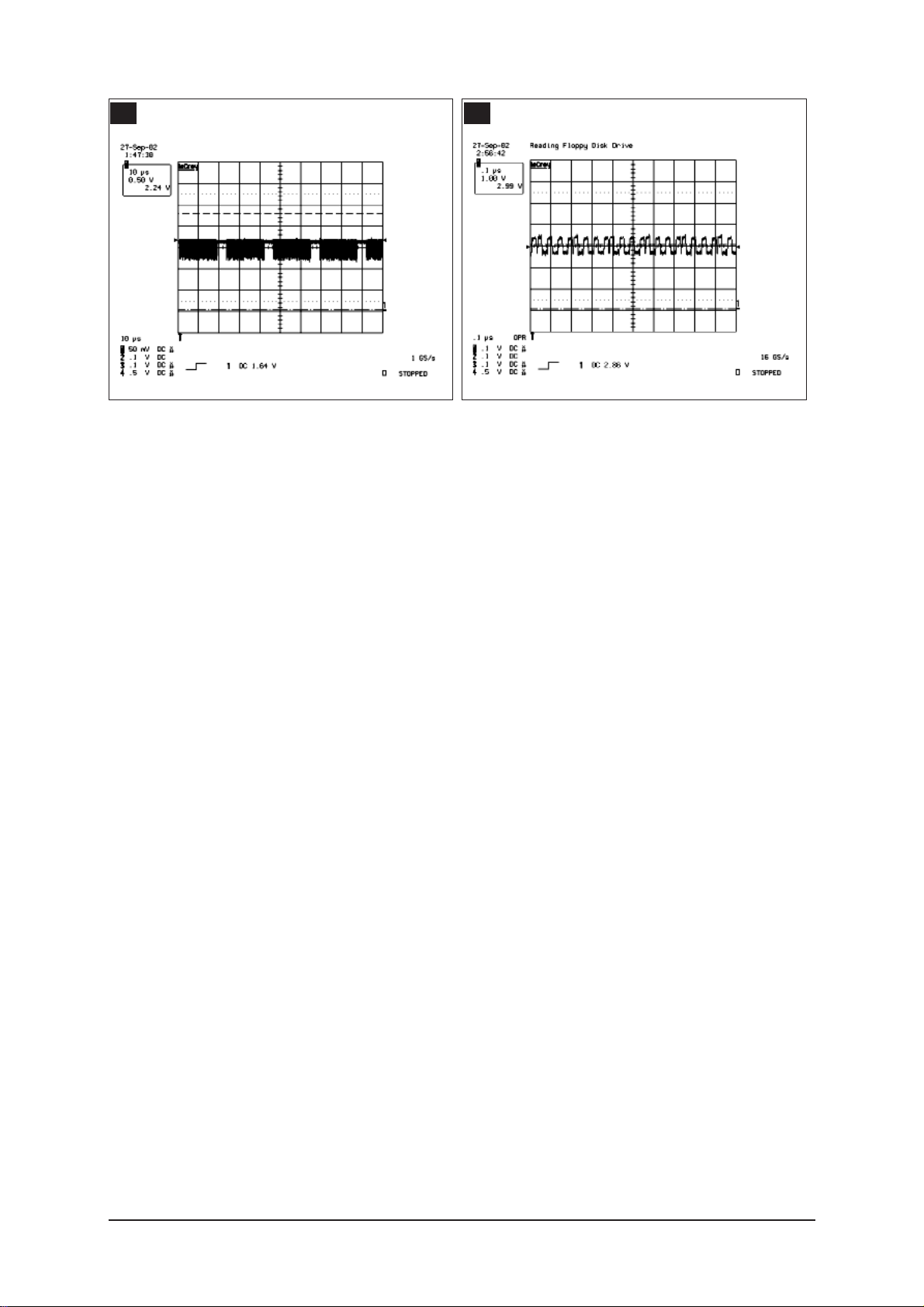

2

Digital Output Data of IC500

3

Signal of HDMI(Data)

4 Troubleshooting

4-7

4-2-4 No Picture (Tuner_CVBS)

Dose the signal appear

at R5118?

Check a B+ voltage (#7 of Tuner) 5V,

change a main PCB ass'y

Yes

Does the signal appear at

#8 of IC4001?

Change a main PCB ass'y.

Yes

Does the digital data appear at

output of RA6053~5?

Check a IC4001.

Change a main PCB ass'y.

Yes

Power Indicator is off.

Lamp on, no picure.

No

Connect the RF cable and

check RF signal.

No

No

No

Yes

4

4

3

Yes

Check a LVDS cable?

Replace a lcd panel?

Please, Call to Samsung Co. LTD.

No

Does the digital data appear

at the output of IC4003

(RA6019_FRC~6021_FRC)?

Check IC4003

Change a main PCB ass'y.

No

Does the digital data appear

at the input of IC6003, 6004
(

RA6001_FRC~RA6003_FRC,

RA6005_FRC, RA6009_FRC,

RA6016_FRC, RA6018_FRC

)?

Check IC6005

Change a main PCB ass'y.

Yes

Does the digital data appear

at the out of L6001~12?

Check IC6003,4

Change a main PCB ass'y.

Yes

No

No

4 Troubleshooting

4-8

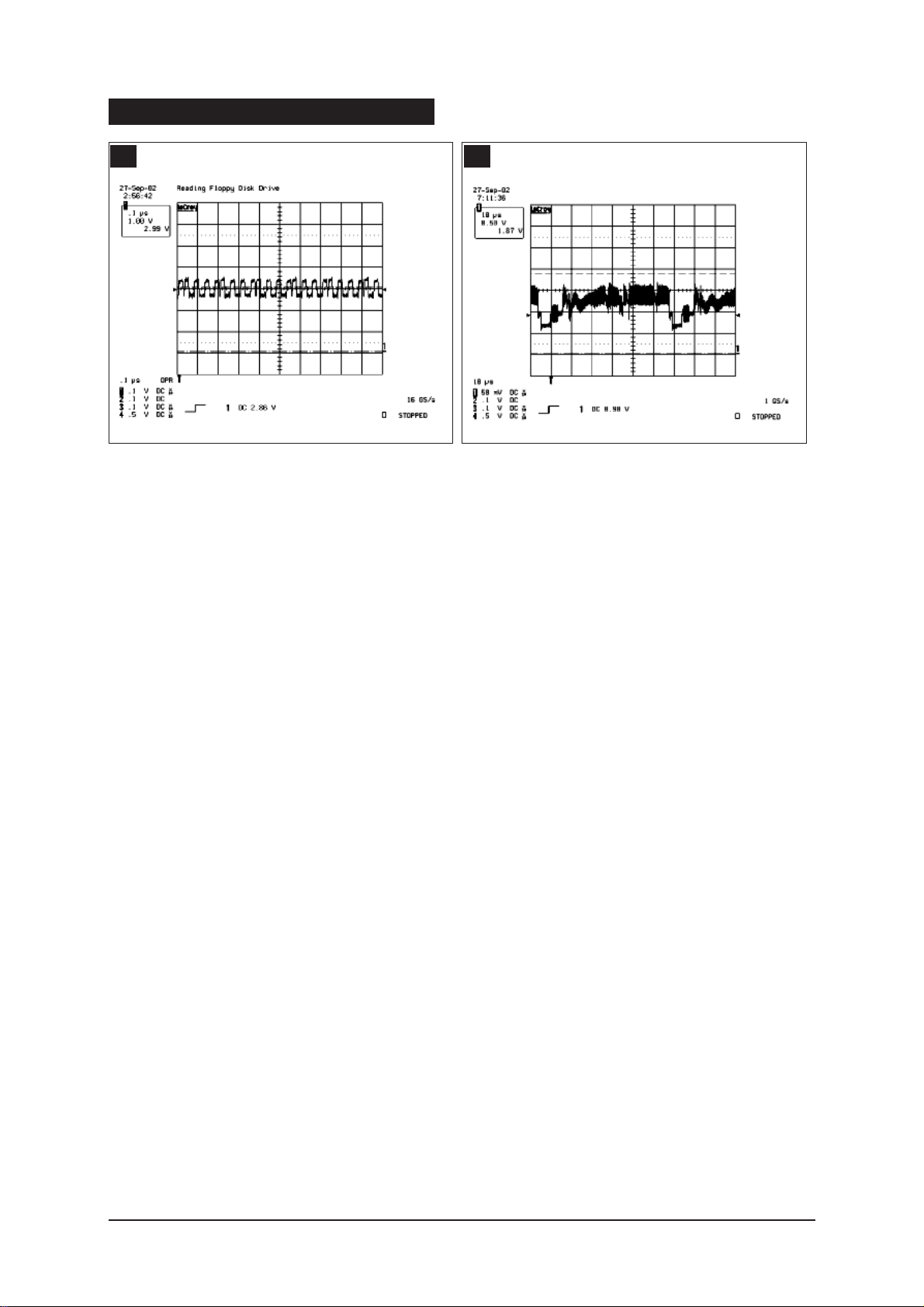

WAVEFORMS

4

Tuner_CVBS Output Signal

3

CVBS Output Signal

4 Troubleshooting

4-9

4-2-5 No Picture (Video_CVBS)

Dose the signal appear at

#10 of IC4001?

Check a connection harness.

Yes

Does the signal appear at

Out of IC4001, RA6053~5?

Check a IC515.

Change a main PCB ass'y

Yes

Power Indicator is off.

Lamp on, no picture.

No

Check a A/V cable and video signal.

No

No

Yes

4

Yes

Check a LVDS cable?

Replace a lcd panel?

Please, Call to Samsung Co. LTD.

No

Does the digital data appear

at the output of IC4003

(RA6019_FRC~6021_FRC)?

Check IC4003

Change a main PCB ass'y.

No

Does the digital data appear

at the input of IC6003, 6004
(

RA6001_FRC~RA6003_FRC,

RA6005_FRC, RA6009_FRC,

RA6016_FRC, RA6018_FRC

)?

Check IC6005

Change a main PCB ass'y.

Yes

Does the digital data appear

at the out of L6001~12?

Check IC6003,4

Change a main PCB ass'y.

Yes

No

No

4 Troubleshooting

4-10

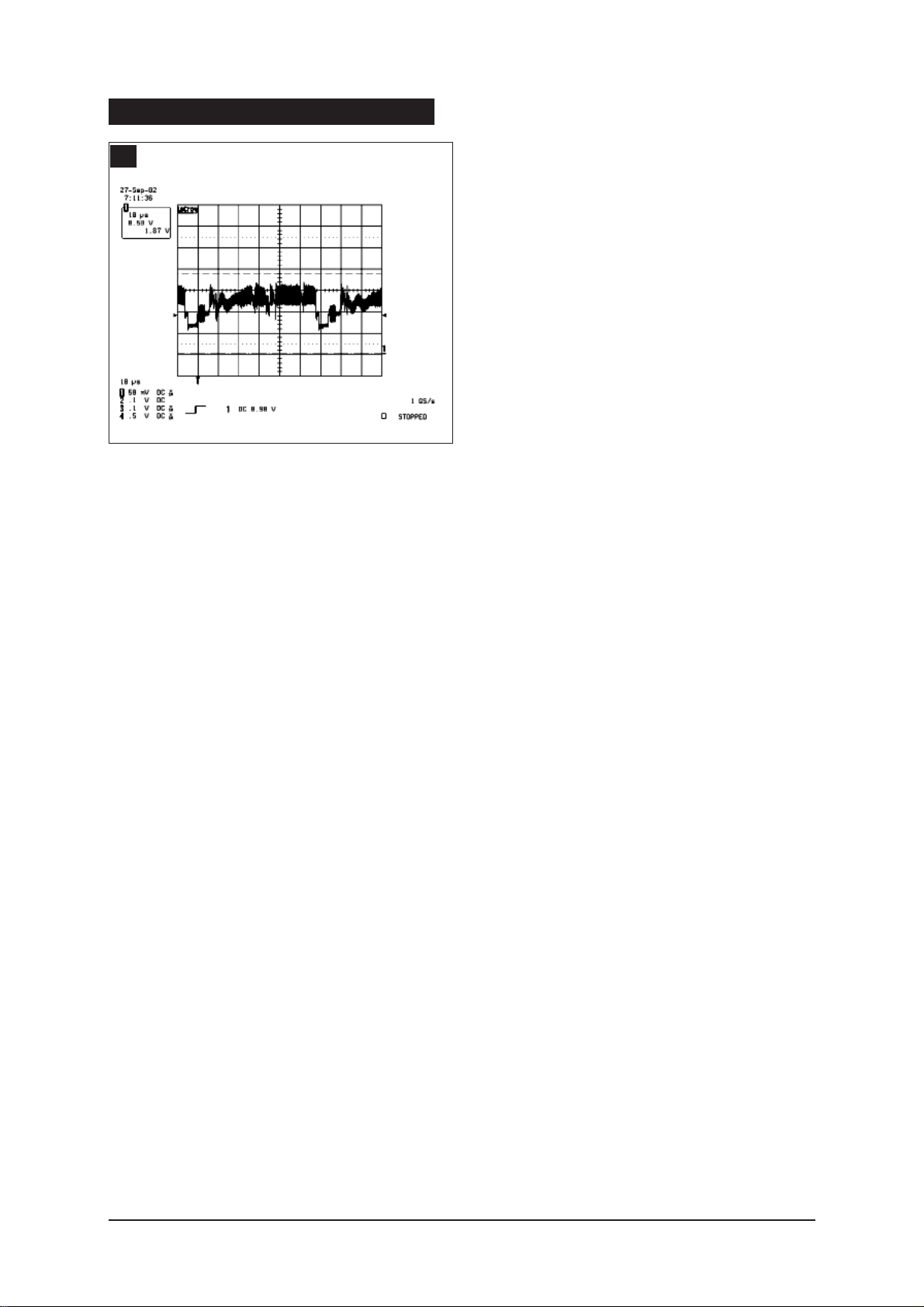

WAVEFORMS

4

CVBS Output Signal

4 Troubleshooting

4-11

4-2-6 No Picture (S-VIDEO_Y,C)

Dose the Y/C signal appear at

#21, #31 of IC4001?

Check a connection harness.

Yes

Yes

Power Indicator is off.

Lamp on, no picure.

No

Connect the s-video cable.

Operating a video player.

No

Does the digital data appear

at Output of IC4001,

RA6053~5?

Check a IC4001.

Change a main PCB ass'y.

No

Yes

5

2

Yes

Check a LVDS cable?

Replace a lcd panel?

Please, Call to Samsung Co. LTD.

No

Does the digital data appear

at the output of IC4003

(RA6019_FRC~6021_FRC)?

Check IC4003

Change a main PCB ass'y.

No

Does the digital data appear

at the input of IC6003, 6004
(

RA6001_FRC~RA6003_FRC,

RA6005_FRC, RA6009_FRC,

RA6016_FRC, RA6018_FRC

)?

Check IC6005

Change a main PCB ass'y.

Yes

Does the digital data appear

at the out of L6001~12?

Check IC6003,4

Change a main PCB ass'y.

Yes

No

No

4 Troubleshooting

4-12

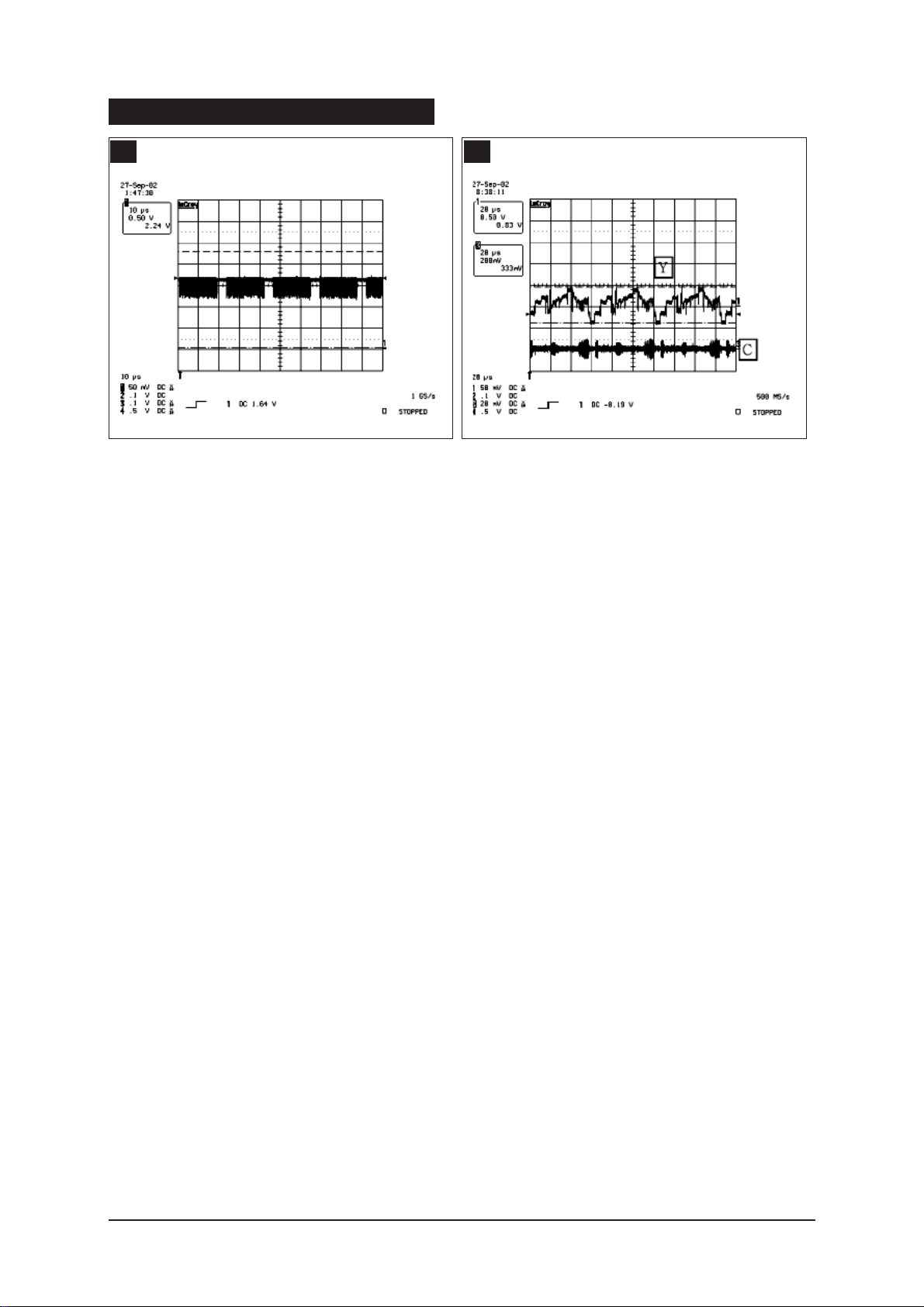

2

Digital Output Data of IC500

5

Analog Signal(Y,C) to IC500

WAVEFORMS

4 Troubleshooting

4-13

Does the signal appear at

Pin #10, #16(CH1_L, R Sound)

and Pin #3, #9

(CH2_L, R Sound)

of IC1015?

Check a connection harness and

headphone jack / Side AV.

Yes

Yes

No

Check the DC 12V

of IC1015?

Check a IC1015.

Change a main PCB ass'y.

Yes

No

Does the signal appear at

L1014, L1015, L1018, L1019?

Change a main PCB ass'y.

Yes

Replace the speaker ass'y?

No

4-2-7 No Sound

6

7

Connect a sound cable.

control a volume.

Picture is display, no sound.

No

4 Troubleshooting

4-14

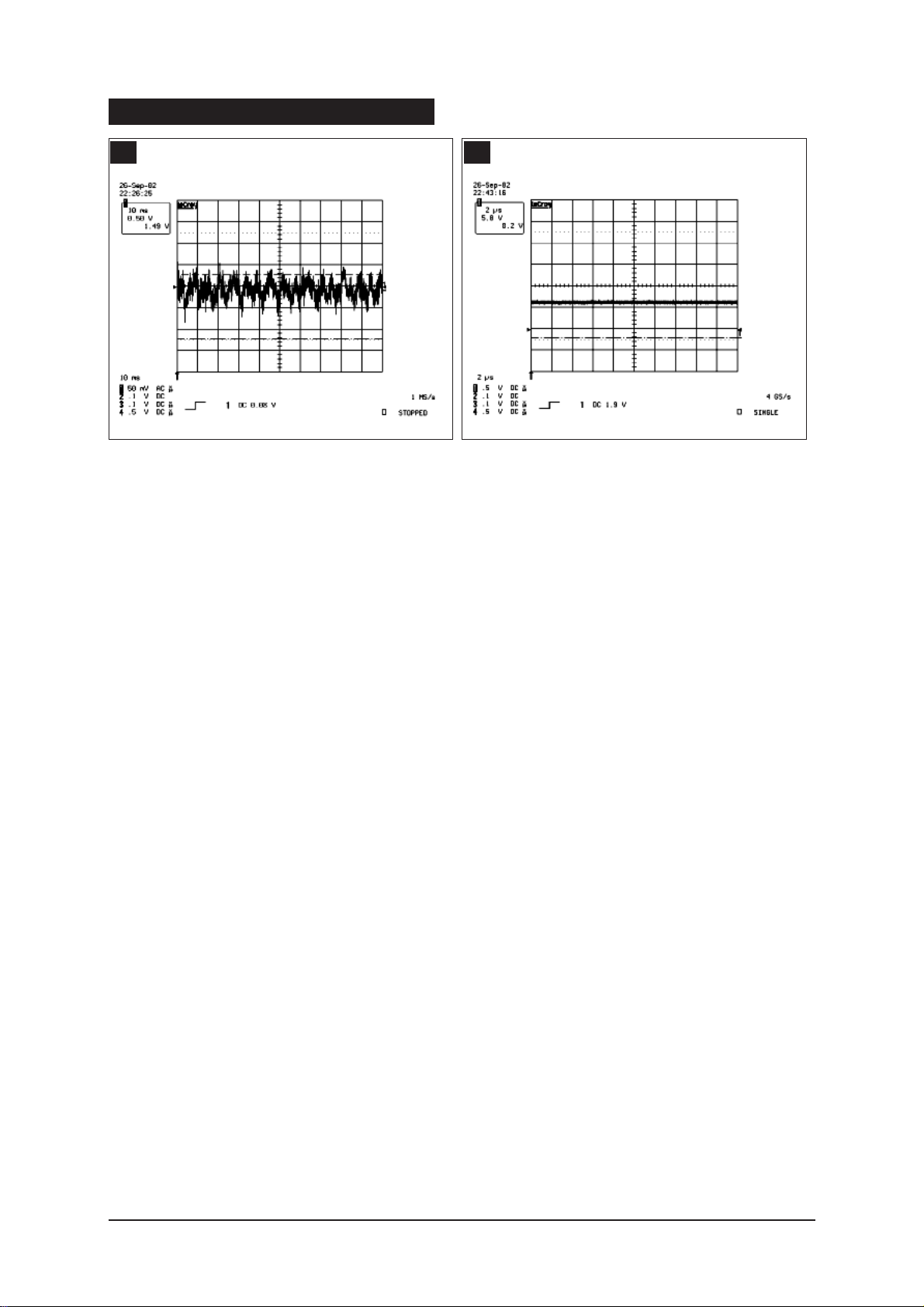

WAVEFORMS

6

The Signal are Inputed to IC1015

7

DC +12V

13 Circuit Descriptions

13-1

13 Circuit Descriptions

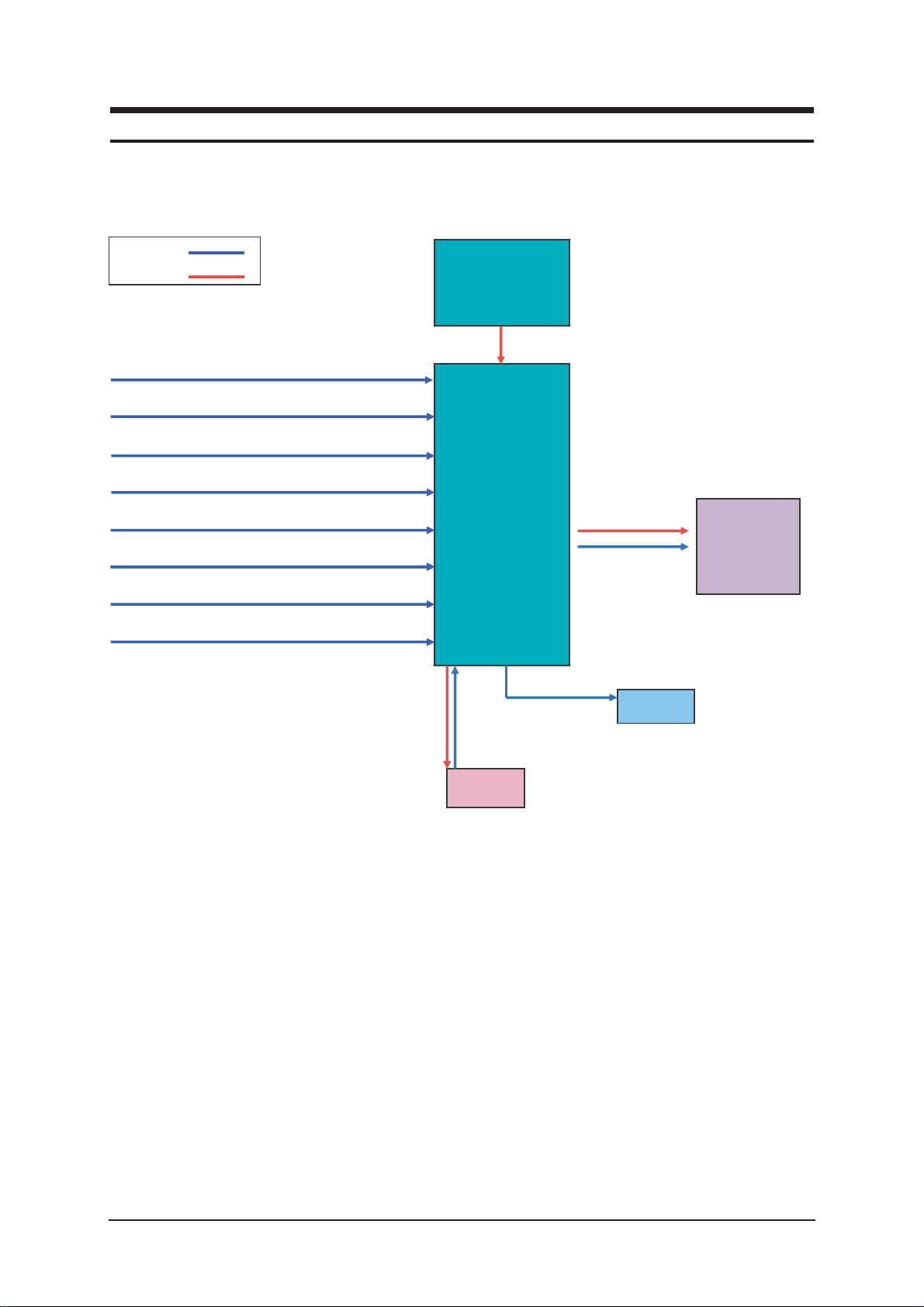

13-1 Block description

Mosel consists of three main blocks

1. Main board : Video signal processing

2. IP board : Power supply & Inverter

3. T-con board : LCD Panel control

MMS

RF In (Air, Cable)
Scart 1,2

A/V
S-Video

Component

PC

HDMI1/2

Main

Board

Panel
T-con

Board

Speaker

IR/LED

Signal
Power

SMPS
