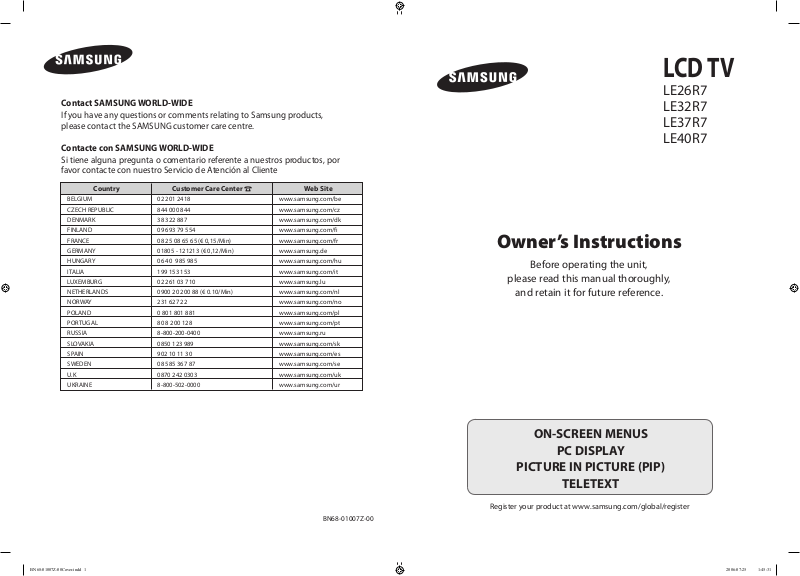

Samsung LE37R74BD User Manual [en, es]

Contact SAMSUNG WORLD-WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.

Contacte con SAMSUNG WORLD-WIDE

Si tiene alguna pregunta o comentario referente a nuestros productos, por favor contacte con nuestro Servicio de Atención al Cliente

LCD TV

LE26R7 LE32R7 LE37R7 LE40R7

Country

BELGIUM

CZECH REPUBLIC

DENMARK

FINLAND

FRANCE

GERMANY

HUNGARY

ITALIA

LUXEMBURG

NETHERLANDS

NORWAY

POLAND

PORTUGAL

RUSSIA

SLOVAKIA

SPAIN

SWEDEN

U.K

UKRAINE

Customer Care Center

02 201 2418

844 000 844

38 322 887

09 693 79 554

08 25 08 65 65 (€ 0,15/Min)

01805 - 121213 (€ 0,12/Min)

06 40 985 985

199 153 153

02 261 03 710

0900 20 200 88 (€ 0.10/Min)

231 627 22

0 801 801 881

80 8 200 128

8-800-200-0400

0850 123 989

902 10 11 30

08 585 367 87

0870 242 0303

8-800-502-0000

Web Site

www.samsung.com/be

www.samsung.com/cz

www.samsung.com/dk

www.samsung.com/fi

www.samsung.com/fr

www.samsung.de

www.samsung.com/hu

www.samsung.com/it

www.samsung.lu

www.samsung.com/nl

www.samsung.com/no

www.samsung.com/pl

www.samsung.com/pt

www.samsung.ru

www.samsung.com/sk

www.samsung.com/es

www.samsung.com/se

www.samsung.com/uk

www.samsung.com/ur

Owner’s Instructions

Before operating the unit,

please read this manual thoroughly,

and retain it for future reference.

BN68-01007Z-00

ON-SCREEN MENUS

PC DISPLAY

PICTURE IN PICTURE (PIP)

TELETEXT

Precautions When Displaying a Still Image

A still image may cause permanent damage to the TV screen.

• Do not display a still image on the LCD panel for more than 2 hours as it can cause screen image retention. This image retention is also known as "screen burn". To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image.

• Watching the LCD TV in 4:3 format for a long period of time may leave traces of borders displayed on the left,

• Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images. To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images.

right and center of the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause a similar effect to the screen. Damages caused by the above effect are not covered by the Warranty.

Precauciones al mostrar en la pantalla una imagen fija

La imagen fija puede causar daños permanentes en la pantalla del televisor.

• No deje una imagen fija en la pantalla LCD durante más de dos horas ya que se podría producir una retención de la imagen en la pantalla. Este fenómeno de retención de imágenes también se denomina “quemadura de pantalla”. Para evitar que se produzca esa persistencia de la imagen, reduzca el nivel de luminosidad y de contraste de la pantalla cuando muestre imágenes fijas.

• El uso del televisor LCD en formato 4:3 durante un tiempo prolongado puede dejar rastros de bordes en las partes izquierda,

• Ver imágenes fijas de videojuegos y PC durante más tiempo del indicado puede producir imágenes fantasma parciales. Para evitar este efecto, reduzca el ‘brillo’ y el ‘contraste’ cuando vea imágenes fijas.

derecha y central de la pantalla debido a las diferencias en la emisión lumínica de la pantalla. Reproducir un DVD o una videoconsola puede causar un efecto similar en la pantalla. La garantía no cubre estos daños.

English

CONNECTING AND PREPARING YOUR TV

List of Parts ......................................................................................................... 2

Installing the Stand ......................................................................................... 2

Installing the Wall Mount Kit ................................................................. 2

Viewing the Control Panel ............................................................................ 3

Viewing the Connection Panel ................................................................... 4

Viewing the Remote Control ....................................................................... 6

Installing Batteries in the Remote Control ............................................. 6

Switching On and Off ..................................................................................... 7

Placing Your Television in Standby Mode ............................................... 7

Plug & Play .......................................................................................................... 7

SETTING THE CHANNELS

Storing Channels Automatically ................................................................. 8

Storing Channels Manually .......................................................................... 8

Setting the Channel Manager ..................................................................... 9

Activating the Child Lock ....................................................................... 9

Sorting the Stored Channels ....................................................................... 10

Assigning Channels Names .......................................................................... 10

Fine Tuning Channel Reception ................................................................. 10

LNA (Low Noise Amplifier) ........................................................................... 11

SETTING THE PICTURE

Changing the Picture Standard .................................................................. 11

Adjusting the Custom Picture ..................................................................... 11

Changing the Colour Tone ........................................................................... 11

Resetting the Picture Settings to the

Factory Defaults ............................................................................................... 12

Changing the Picture Size ............................................................................ 12

Freezing the Current Picture ........................................................................ 12

Digital Noise Reduction ................................................................................. 12

DNIe Demo (Digital Natural Image engine) ........................................... 13

Viewing the Picture In Picture (PIP)........................................................... 13

PIP Settings ........................................................................................................ 14

SETTING THE SOUND

Changing the Sound Standard ............................................................. 14

Adjusting the Sound Settings ............................................................... 14

Connecting Hheadphones ..................................................................... 14

Setting the TruSurround XT (SRS TSXT)............................................. 15

Adjusting the Volume Automatically ................................................. 15

Selecting the Internal Mute ................................................................... 15

Listening to the Sound of the Sub Picture ....................................... 15

Resetting the Sound Settings to the Factory Defaults ................ 16

USING THE DTV FEATURE

Previewing the DTV Menu System ............................................................ 19

Basic Functions ................................................................................................. 20

1. Display Screen .............................................................................................. 20

2. Volume Control ............................................................................................ 20

3. Select Soundtrack ....................................................................................... 20

4. Select Videotrack ......................................................................................... 20

5. Service List ................................................................................................... 21

6. Program Information ................................................................................ 21

Operating the DTV Menu.............................................................................. 22

Main Menu ......................................................................................................... 22

1. Installation ..................................................................................................... 22

1.1 Select Country ........................................................................................... 22

1.2 Auto Scanning ........................................................................................... 22

1.3 Manual Scanning ...................................................................................... 23

1.4 Reset to Factory Defaults ....................................................................... 23

2. Channel Organising.................................................................................... 23

2.1 Delete Frequency...................................................................................... 24

2.2 Delete Channel .......................................................................................... 24

2.3 Delete All Channels .................................................................................. 24

2.4 Move & Edit Channel ............................................................................... 24

3. Parental Lock ................................................................................................. 25

3.1 Set Channel Lock ...................................................................................... 25

3.2 Change PIN Code ...................................................................................... 25

4. System Setup ................................................................................................ 26

4.1 Language Selection ................................................................................. 26

4.2 OSD Setting ................................................................................................ 26

4.3 Time Setting ................................................................................................ 26

4.4 System Information.................................................................................. 27

4.5 Software Upgrade .................................................................................... 27

Installing the CI card ....................................................................................... 27

USING THE TELETEXT FEATURE

Teletext Decoder ........................................................................................ 28

Displaying the Teletext Information ................................................... 28

Selecting a Specific Teletext Page ....................................................... 29

Using Fastext to Select a Teletext Page ............................................. 29

Setting Up Your Remote Control ......................................................... 30

Remote Control Codes ............................................................................ 32

SETTING THE PC

Setting up Your PC Software

(Based on Windows XP) ........................................................................... 35

Display Modes ............................................................................................ 35

Setting the PC ............................................................................................. 36

SETTING THE TIME

Setting and Displaying the Current Time ......................................... 16

Setting the Sleep Timer ........................................................................... 16

Switching the Television

On and Off Automatically ....................................................................... 16

SETTING THE OTHERS

Choosing Your Language ....................................................................... 17

Using Game Mode .................................................................................... 17

Setting the Blue Screen Mode /

Selecting the Melody .............................................................................. 17

Using the Energy Saving Feature ........................................................ 18

Selecting the Source ................................................................................ 18

Editing the Input Source Names .......................................................... 18

RECOMMENDATIONS FOR USE

Using the Anti-Theft Kensington Lock ............................................... 37

Troubleshooting:

Before Contacting Service Personnel ................................................. 37

Technical and Environmental Specifications .................................. 38

Symbol Press Important Note One-Touch

English-1

Button

List of Parts

Please make sure the following items are included with your LCD TV. If any items are missing, contact your dealer.

Remote Control &

Batteries (AAA x 2)

Owner’s Instructions



Warranty card / Safety Guide / Registration Cards (Not available in all locations) The stand and stand screw may not be included depending on the model.

Power Cord Cover-Bottom Stand Screw X 4 Stand Cleaning Cloth

 Warranty card  Safety Guide  Registration Cards

Installing the Stand

M4 X L16

< 2 >

1. Place the TV faced down on a soft cloth or cushion on a table.

2. Put the stand into the hole at the bottom of the TV.

3. Insert screw into the hole indicated and tighten.

The stand is installed for models with the screen size of 40 inch and above.

Installing the Wall Mount Kit

Wall mount items (sold separately) allow you to mount the T V on the wall. For detailed information on installing the wall mount, see the instructions provided with the Wall Mount items. Contact a technician for assistance when installing the wall mounted bracket. Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the TV on your own.

English-2

< 3 >

Remove the stand and cover the bottom hole with a cap and

fasten with two screws.

Viewing the Control Panel

The product colour and shape may vary depending on the model.

SOURCE

Toggles between all the available input sources

(TV, Ext.1, Ext.2, AV, S-Video, Component, PC, HDMI, DTV). In the on-screen menu, use this button as you use the button on the remote control.

Press to see an on-screen menu of your TV’s features.

In case of DTV mode, the DTV menu appears.

Press to decrease or increase the volume.

In the on-screen menu, use the buttons as you use the



and  buttons on the remote control.

ENTER/OK

Press to change channels.

In the on-screen menu, use the the  and  buttons on the remote control. (Without the Remote Control, you can turn on the TV by using the Channel buttons.)

Speakers

Power Indicator Blinks and turns off when the power is on and lights up in

stand-by mode.

(

Power)

Press to turn the TV on and off.

Remote Control Sensor

Aim the remote control towards this spot on the TV.

buttons as you use

English-3

Viewing the Connection Panel

[Rear Panel Jacks] (32 inch, 37 inch, 40 inch)

Power Input

[Rear Panel Jacks] (26 inch)

[Side Panel Jacks]

(26 inch model does not have the side panel jacks.)

Whenever you connect an external device to your TV, make sure that power on the unit is turned off. When connecting an external device, match the colour of the connection terminal to the cable.

Connecting an Aerial or Cable Television Network

To view television channels correctly, a signal must be received by the set from one of the following sources:

- An outdoor aerial / A cable television network / A satellite network

English-4

Connecting HDMI/DVI

Supports connections between HDMI-connection-enabled AV devices (Set-Top Boxes, DVD players, AV receivers and digital TVs).

- No additional Audio connection is needed for an HDMI to HDMI connection. What is HDMI?

- The HDMI/DVI terminal supports DVI connection to an extended device with the appropriate cable (not supplied).

The difference between HDMI and DVI is that the HDMI device is smaller in size, has the HDCP (High Bandwidth Digital Copy Protection) coding feature installed, and supports multi - channel digital audio.

video output mode as shown in the table below. Failure to observe this may result in picture distortion, image breakup or no picture.

“High Definition Multimedia interface” allows the transmission of high definition digital video data and multiple channels of digital audio (5. 1 channels).

You should use the DVI-to-HDMI cable or DVI-HDMI Adapter for the connection, and the "R - AUDIO - L" terminal on DVI for sound output.

When connecting this product via HDMI or DVI to a Set Top Box, DVD Player or Games Console etc, make sure that it has been set to a compatible

Supported modes for DVI or HDMI

50 Hz 60 Hz Component

Do not attempt to connect the HDMI/DVI connector to a PC or Laptop Graphics Card. (This will result in a blank screen being displayed)

480i

X X O

480p

O O O

576i

X X O

576p

O X O

720p

O O O

Connecting Set-Top Box, VCR or DVD

Connector

EXT 1 EXT 2

Connecting External A/V Devices

- Connect RCA or S-VIDEO cable to an appropriate external A/V device such as VCR, DVD or Camcorder.

Connect RCA audio cables to "R - AUDIO - L" on the rear of your set and the other ends to corresponding audio out connectors on the A/V device.

- Headphone may be connected to the headphone output ( ) on the rear of your set. While the headphone is connected, the sound from

the built-in speakers will be disabled.

SERVICE

- Service connection for qualified service engineer.

Connecting AUDIO

- Connect RCA audio cables to "R - AUDIO - L" on the rear of your set and the other ends to corresponding audio in connectors on the

Amplifier or DVD Home Theater.

Connecting Computer

- Connect the D- Sub cable (optional) to "PC (PC IN)" on the rear of your set and the other end to the Video Card of your computer.

Connect the stereo audio cable (optional) to "AUDIO (PC IN)" on the rear of your set and the other end to "Audio Out" of the sound card on your computer.

Connecting Component Devices (DTV/DVD)

- Connect component video cables (optional) to component connector ("PR", " PB", "Y") on the rear of your set and the other ends to

corresponding component video out connectors on the DTV or DVD.

- If you wish to connect both the Set-Top Box and DTV (or DVD), you should connect the Set-Top Box to the DT V (or DVD) and connect the

DTV (or DVD) to component connector ("P

- The P

- This LCD TV displays its optimum picture resolution in 720p mode.

- This LCD TV displays its maximum picture resolution in 1080i mode.

- If you want to use a locking device, contact the dealer where you purchased the TV.

R, PB and Y connectors on your component devices (DTV or DVD) are sometimes labeled Y, B-Y and R-Y or Y, Cb and Cr.

Connect RCA audio cables (optional) to "R - AUDIO - L" on the rear of your set and the other ends to corresponding audio out connectors on the DTV or DVD.

Kensington Lock

- The Kensington lock (optional) is a device used to physically fix the system when used in a public place.

The place of the Kensington Lock may be different depending on its model.

DIGITAL AUDIO OUT (OPTICAL)

- Connect to a Digital Audio Component.

Connecting CI (Common Interface) CARD

Service Port

- Service connection for qualified service engineer.

Modem connection port(Not available)

Video Audio (L/R) RGB

TV Rear Panel

Input

R", "P B", "Y") on your set.

CI CARD

Output

Video + Audio (L/R)

Only TV or DTV output is available.

Output you can choose.

Please insert the card as shown

English-5

Inputs or outputs for external devices, such as VCR, DVD,

video game device or video disc players.

- When not inserting "CI CARD" in some channels, "Scrambled Signal" is displayed on the screen.

- The pairing information containing a telephone number, CI CARD ID, Host ID, and other information will be displayed in about 2~3 minutes. If an error message is displayed, please contact your service provider.

- When the channel information configuration has finished, the message "Updating Completed" is displayed, indicating that the channel list is now updated.

You must obtain a CI CARD from a local cable service provider. Remove the CI CARD by carefully pulling it out with your

hands since dropping the CI CARD may cause damage to it

1080i

O O O

Viewing the Remote Control

Selects a target device to be controlled by the Samsung remote control (TV, DVD, STB, CABLE, VCR)

(Refer to page 30~34)

Television Standby button

Number buttons for direct channel access

One/Two-digit channel selection

It display "Channel Manager" on the screen.

Selects the TV and DTV mode directly

VCR/DVD Functions Rewind, Stop, Play/Pause, Fast/Forward

Volume increase Volume decrease

Temporary sound switch-off

Menu display and change confirmation

Electronic Program Guide (EPG) display

Picture-In-Picture On / Off

Not available

Sound effect selection

This key is also used to back to the previous page in D.MENU.

SET: Adjusts 5 separate devices - TV, DVD, STB, CABLE, or VCR.

RESET: When your remote does not work,

change the batteries and press the “RESET” button for 2-3 seconds before use.

Available source selection

Previous channel

DTV menu display

Toggle between the TV and Radio channel

: Next channel

P P

: Previous channel

Exit the OSD

Control the cursor in the menu

Use to see information on the current broadcast

Not available

Picture freeze

Select the soundtrack/videotrack list for the current service

Teletext Functions

Exit from the Teletext display

Teletext index

Teletext hold

Teletext size selection

Teletext mode selection (LIST/FLOF)

Teletext sub page

P : Teletext next page

: Teletext previous page

Teletext cancel

Teletext reveal

Alternately select Teletext, Double, or Mix.

Fastext topic selection

Teletext store

The performance of the remote control may be affected by bright light.

This is a special remote control for the visually impaired, and has Braille points on the Power, Channel and Volume buttons.

Installing Batteries in the Remote Control

1. Lift the cover at the back of the remote control upward as shown in the figure.

2. Install two AAA size batteries.

Make sure to match the "+" and "–" ends of the batteries with the diagram inside the compartment.

3. Replace the cover.

Remove the batteries and store them in a cool, dry place if you won’t be using the remote control for a long time. The remote control can be used up to about 23 feet from the TV. (Assuming typical TV usage, the batteries last for about one year.)

If the remote control doesn’t work, check the following:

1. Is the TV power on?

2. Are the plus and minus ends of the batteries reversed?

3. Are the batteries drained?

4. Is there a power outage, or is the power cord unplugged?

5. Is there a special fluorescent light or neon sign nearby?

English-6

Switching On and Off

The mains lead is attached to the rear of your set.

1. Plug the mains lead into an appropriate socket.

The standby indicator lights up on the front of the set.

2. Press the button on the front of the set. You also can press the POWER button or the

The programme that you were watching last is reselected automatically.

Press the numeric button (0~9) or channel up/down ( / ) button on the remote control or button on the right side of the set.

When you switch the set on for the very first time, you will be asked to choose language in which the menus are to be displayed.

TV/DTV

button on the remote control to turn the TV on.

4. To switch your set off, press the POWER button again.

Placing Your Television in Standby Mode

Your set can be placed in standby mode in order to reduce the power consumption. The standby mode can be useful when you wish to interrupt viewing temporarily (during a meal, for example).

1. Press the POWER

The screen is turned off and a red standby indicator appears on the front of your set.

To switch your set back on, simply press the POWER , numeric buttons (0~9), TV/DTV button or channel up/down ( / ) button again.

Do not leave your set in standby mode for long periods of time (when you are away on holiday, for example). It is best to unplug the set from the mains and aerial.

button on the remote control.

Plug & Play

When the TV is initially powered on, several basic settings proceed automatically and subsequently. The following settings are available.

1. Press the POWER The message "Start Plug & Play." is displayed with "OK" selected.

2. Select the appropriate language by pressing the  or  button. Press the ENTER/OK button to confirm your choice.

3. The message "Check antenna input." is displayed with "OK" selected. Press the ENTER/OK button.

Please check that the antenna cable is connected correctly.

4. Select the appropriate country by pressing the  or  button. Press the ENTER/OK button to confirm your choice.

The "Auto Store" menu is displayed with the "Start" selected. Press the ENTER/OK button.

The channel search will start and end automatically. After all the available channels are stored, the "Clock Set" menu appears. Press the ENTER/OK button at any time to interrupt the memorization process.

6. Press the ENTER/OK button. Select the "Hour" or "Minute" by pressing the

Set the "Hour" or "Minute" by pressing the

You can also set the hour and minute by pressing the number buttons on the remote control.

7. Press the ENTER/OK button to confirm your setting. The DTV channel scan menu appears and the DTV channel is automatically updated.

If the DTV channel is updated, the Source in the source list of the Input menu is

automatically changed to DTV.

For detailed descriptions about DTV channel update, refer to page 27 of this manual.

 Language: Select your language.  Country: Select your country.  Auto Store: Automatically scans for and stores channels available in the local area.  Clock Set: Sets the current time for the TV clock.

If you want to reset this feature...

1. Press the MENU button to display the menu. Press the  or 

2. Press the

ENTER/OK

3. The message

button on the remote control.

 or 

button

to select "Setup", then press the ENTER/OK button.

button again, to select "Plug & Play".

"Start Plug & Play"

is displayed.

 or 

button.

English-7

- Storing Channels Automatically

- Storing Channels Manually

Storing Channels Automatically

You can scan for the frequency ranges available to you (and availability depends on your country). Automatically allocated programme numbers may not correspond to actual or desired programme numbers. However, you can sort numbers manually and clear any channels you do not wish to watch.

1. Press the MENU button to display the menu. Press the  or  button to select "Channel", then press the ENTER/OK button.

2. Press the ENTER/OK button to select "Country".

3. Select the appropriate country by pressing the  or  button. Press the ENTER/OK button to confirm your choice.

4. Press the  or  button to select "Auto Store", then press the ENTER/OK button.

5. Press the ENTER/OK button.

The TV will begin memorizing all of the available channels.

Press the ENTER/OK button at any time to interrupt the memorization process and return to the "Channel" menu.

6. After all the available channels are stored, the "Sort" menu appears.

Storing Channels Manually

You can store up to 100 channels, including those received via cable networks. When storing channels manually, you can choose:

Whether or not to store each of the channels found. The programme number of each stored channel which you wish to identify.

1. Press the MENU button to display the menu. Press the  or  button to select "Channel", then press the ENTER/OK button.

2. Press the  or  button to select "Manual Store", then press the ENTER/OK button.

3. Press the ENTER/OK button to select "Programme".

4. To assign a programme number to a channel, find the correct number by pressing the  or  button

and then press the ENTER/OK button.

You can also set a programme number by pressing the number buttons on the remote control.

5. Press the  or  button to select "Colour System", then press the ENTER/OK button.

6. Select the colour standard required by pressing the  or  button then, press the ENTER/OK button.

7. Press the  or  button to select "Sound System", then press the ENTER/OK button.

8. Select the sound standard required by pressing the  or  button, then press the ENTER/OK button.

If there is an abnormal sound or no sound, re-select the sound system required.

9. If you know the number of the channel to be stored, press the  or  button to select "Channel". Press the ENTER/OK button. Select C (Air channel) or S (Cable channel) by pressing the  or  button. Press the  button to select channel. Select the required number by pressing the  or  button and then press the ENTER/OK button.

Channel mode: P (Programme mode), C (Air channel mode), S (Cable channel mode) You can also set a channel number by pressing number buttons on the remote control.

10. If you do not know the channel numbers, press the  or  button to select "Search".

Press the ENTER/OK button. Search by pressing the  or  button and then press the ENTER/OK button.

11. Press the  or  button to select "Store". Press the ENTER/OK button to select "OK".

12. Repeat steps 3 to 11 for each channel to be stored.

 Programme: Selects a program number for the channel.  Colour System: Sets the colour supporting system.  Sound System: Sets the sound supporting system.

 Channel: Selects a channel.  Search: Scans for the frequency value for the channel.  Store: Saves your settings.

English-8

Setting the Channel Manager

Set the channels according to your preference. You can easily delete, add, or lock the channel you want.

1. Press the MENU button to display the menu. Press the  or  button to select "Channel", then press the ENTER/OK button.

2. Press the  or  button to select "Channel Manager", then press the ENTER/OK button.

3. Press the ENTER/OK button again, to select "Channel Manager".

4. Press the  button to select "

5. Press the  or  button to select the undesired channel,

then press the ENTER/OK button to cancel.

6. Repeat steps 5 for each channel to be selected or canceled

7. Press the EXIT button to exit.

You can select these options by simply

pressing the CH MGR button on the remote control.

is active when "Child Lock" is selected to "On".

Activating the Child Lock

This feature allows you to prevent unauthorized users, such as children, from watching unsuitable programmes by muting out video and audio. Child Lock cannot be released using the buttons on the side. Only the remote control can release the Child Lock setting, so keep the remote control away from children.

1. Press the MENU button to display the menu. Press the  or  button to select "Channel", then press the ENTER/OK button.

2. Press the  or  button to select "Channel Manager", then press the ENTER/OK button.

3. Press the  or  button to select "Child Lock", then press the ENTER/OK button.

4. Press the  or  button to select "On" or "Off". Press the ENTER/OK button.

5. Press the  or  button to select "Channel Manager",

then press the ENTER/OK button.

6. Press the  button to select "

" line.

7. Press the  or  button to select the channels you want to lock, then press the ENTER/OK button.

8. Repeat steps 7 for each channel to be locked or unlocked.

9. Press the EXIT button to exit.

Select "On" or "Off " in "Child Lock" to easily turn the channels which selected on

to be active or inactive.

English-9

Sorting the Stored Channels

You can exchange the numbers of two channels, in order to:

1. Press the MENU button to display the menu. Press the  or  button to select "Channel", then press the ENTER/OK button.

2. Press the  or  button to select "Sort", then press the ENTER/OK button.

3. Select channel number that you wish to change by pressing the

 or  button repeatedly. Press the ENTER/OK button.

4. Press the  or  button to move to the position in which you would like to change and then

5. Repeat steps 3 to 4 for another channel to be sorted.

6. Press the EXIT button to exit.

Assigning Channels Names

Channel names will be assigned automatically when channel information is broadcast. These names can be changed, allowing you to assign new names.

1. Press the MENU button to display the menu. Press the  or  button to select "Channel", then press the ENTER/OK button.

2. Press the  or  button to select "Name", then press the ENTER/OK button.

3. If necessary, select the channel to be assigned to a new name by

pressing the  or  button. Press the ENTER/OK button.

Repeat steps 3 to 4 for each channel to be assigned to a new name.

6. Press the EXIT button to exit.

Modify the numeric order in which the channels have been automatically stored. Give easily remembered numbers to the channels that you watch most often.

The selected channel number and name are moved to right side.

press the ENTER/OK button.

The selected channel is exchanged with the one previously stored to the chosen number.

The selection bar is displayed around the name box.

To...

Select a letter, number or symbol

Move on the next letter

Move back the previous letter

Confirm the name

The characters available are : Letters of the alphabet (A~Z) / Numbers (0~9) / Special characters ( -, space)

Then...

 or 



button

Press the

Press the  button

Press the ENTER/OK

button

Fine Tuning Channel Reception

Use fine tuning to manually adjust a particular channel for optimal reception.

1. Use the number buttons to directly select the channel that you want to fine tune.

2. Press the MENU button to display the menu.

Press the  or  button to select "Channel", then press the ENTER/OK button.

3. Press the  or  button to select "Fine Tune", then press the ENTER/OK button.

4. Press the  or  button to adjust the fine tuning.

Press the ENTER/OK button.

5. Press the EXIT button to exit.

Fine tuned channels that have been saved are marked with an asterisk "*" on the right-hand side of the channel number in the channel banner. And the channel number turns red. To reset the fine-tuning, select "Reset" by pressing the  or  button and then press the ENTER/OK button.

English-10

LNA (Low Noise Amplifier)

If the TV is operating in a weak-signal area, the LNA function can improve the reception (a low-noise preamplifier boosts the incoming signal).

1. Press the MENU button to display the menu. Press the  or  button to select "Channel", then press the ENTER/OK button.

2. Press the  or  button to select "LNA", then press the ENTER/OK button.

3. Press the  or  button to select "On" or "Off". Press the ENTER/OK button.

4. Press the EXIT button to exit.

Changing the Picture Standard

You can select the type of picture which best corresponds to your viewing requirements.

1. Press the MENU button to display the menu. Press the  or  button to select "Picture", then press the ENTER/OK button.

2. Press the ENTER/OK button again, to select "Mode". Press the ENTER/OK button again.

Press the  or  button to select the desired picture effect. Press the ENTER/OK button.

4. Press the EXIT button to exit.

 Dynamic: Selects the picture for high-definition in a bright room.  Standard: Selects the picture for optimum display in a normal environment.  Movie: Selects the picture for comfortable display in a dark room.  Custom:

The Picture mode must be adjusted separately for each input source. You can return to the factory defaults picture settings by selecting the "Reset".

(Refer to "Resetting the Picture Settings to the Factory Defaults" on page 12)

Select to view your favorite display settings.

(Refer to "Adjusting the Custom Picture")

Adjusting the Custom Picture

Your set has several settings which allow you to control picture quality.

1. To select the desired picture effect, follow the "Changing the Picture Standard" instructions number 1 to 3.

2. Press the  or  button to select a particular item. Press the ENTER/OK button.

3. Press the  or  button to decrease or increase the value of a particular item.

Press the ENTER/OK button.

4. Press the EXIT button to exit.

 Contrast: Adjusts the lightness and darkness between objects and the background.  Brightness: Adjusts the brightness of the whole screen.  Sharpness: Adjusts the outline of objects to either sharpen them or make them more dull.  Colour: Adjusts the colours, making them lighter or darker.  Tint (NTSC only):

The adjusted values are stored according to the selected Picture mode. In PC Mode, Only “Contrast”, “Brightness” and “Colour” can be adjusted

Changing the Colour Tone

You can select the most comfortable colour tone to your eyes.

1. To select the desired picture effect, follow the "Changing the Picture Standard" instructions number 1 to 3.

2. Press the  or  button to select "Colour Tone", then press the ENTER/OK button.

3. Press the  or  button to select the desired colour tone setting.

Press the ENTER/OK button.

4. Press the EXIT button to exit.

 Cool2: Makes the colour temperature bluer than "Cool1" menu.  Cool1: Makes whites bluish.  Normal: Keeps whites white.

The adjusted values are stored according to the selected Picture mode.

Adjusts the colour of objects, making them more red or green for a more natural look.

 Warm1: Makes whites reddish.  Warm2: Makes the colour temperature redder than

"Warm1" menu.

English-11

Resetting the Picture Settings to the Factory Defaults

You can return to the factory defaults picture settings.

1. To select the desired picture effect, follow the "Changing the Picture Standard" instructions number 1 to 3 on page 11.

2. Press the  or  button to select "Reset", then press the ENTER/OK button.

3. Press the EXIT button to exit.

The "Reset" will be set for each picture mode.

Changing the Picture Size

You can select the picture size which best corresponds to your viewing requirements.

1. Press the MENU button to display the menu. Press the  or  button to select "Picture", then press the ENTER/OK button.

2. Press the  or  button to select "Size", then press the ENTER/OK button.

3. Select the required option by pressing the  or  button.

Press the ENTER/OK button.

4. Press the EXIT button to exit.

 Auto Wide: Automatically adjusts the picture size to the "16:9" aspect ratio.  16:9: Adjusts the picture size to 16:9 appropriate for DVDs or wide broadcasting.  Zoom: Magnifies the 16:9 wide picture (in the vertical direction) to fit the screen size.  4:3: This is the default setting for a video movie or normal broadcasting.

“Auto Wide” function is available only in “ TV”, “Ext.1”, “Ext.2”, “AV”, and “S-Video” mode. In PC Mode, only "16:9" and "4:3" mode can be adjusted. Select by pressing the  or  buttons. Use the  or  button to move the picture up and down. After selecting , use the  or  button to magnify or reduce the picture size in the vertical direction.

The Zoom mode cannot be selected in the DTV mode.

Freezing the Current Picture

Press the STILL button to freeze a moving picture into a still one. Press again to cancel.

Digital Noise Reduction

If the broadcast signal received by your TV is weak, you can activate the Digital Noise Reduction feature to help reduce any static and ghosting that may appear on the screen.

1. Press the MENU button to display the menu. Press the  or  button to select "Picture", then press the ENTER/OK button.

2. Press the  or  button to select "Digital NR", then press the ENTER/OK button.

3. Press the  or  button to select "On" or "Off". Press the ENTER/OK button.

4. Press the EXIT button to exit.

English-12

DNIe Demo (Digital Natural Image engine)

Samsung’s new technology brings you more detailed images with contrast and white enhancement. A new image compensation algorithm gives viewers brighter and clearer images. DNIe technology will match every signal to your eyes. You can see how DNIe improves the picture by setting DNIe Demo mode to On.

1. Press the MENU button to display the menu. Press the  or  button to select "Picture", then press the ENTER/OK button.

2. Press the  or  button to select "DNIe Demo", then press the ENTER/OK button.

3. Press the  or  button to select "On" or "Off". Press the ENTER/OK button.

4. Press the EXIT button to exit.

These functions don’t work in PC mode. The DNle Demo is designed to show the difference between the regular and DNIe pictures. By default, the product displays the picture with DNle applied.

Viewing the Picture In Picture (PIP)

You can display a sub picture within the main picture of set programme or video input. In this way, you can watch the picture of set programme or video input from any connected equipment while watching the main picture.

1. Press the MENU button to display the menu. Press the  or  button to select "Picture", then press the ENTER/OK button.

2. Press the  or  button to select "PIP", then press the ENTER/OK button.

3. Press the ENTER/OK button again.

Press the  or  button to select "On", then press ENTER/OK button.

Press the PIP button on the remote

control repeatedly to activate or deactivate the "PIP".

4. Press the  or  button to select "Source",then press ENTER/OK button.

5. Press the  or  button to select "Swap".

6. Press the  or  button to select "Size" of the sub picture and then press the

ENTER/OK button. Select a size of the sub picture by pressing the  or  button and then press the ENTER/OK button.

7. Press the  or  button to select "Position", then press the ENTER/OK button. Select the position of the sub picture by pressing the  or  button and then press the ENTER/OK button.

8. Press the  or  button to select "Programme" and then press the

9. Press the EXIT button to exit.

to view a game or karaoke.

If the PIP is activated, the size of the main picture turns to “16:9”.

Select a source of the sub picture by pressing the  or  button and press the ENTER/OK button.

The sub picture can serve different source selections based on what the main picture is set to.

To interchange the main picture and the sub picture, select "Swap" option and press the ENTER/OK button.

The main picture and the sub picture are interchanged. I

f main picture is in "PC" mode, "Swap" is not available.

If main picture is in "PC" mode, "Size" is not available.

ENTER/OK button. You can select the channel that you want to view through sub picture by pressing the  or  button. Press the ENTER/OK button.

The "Programme" can be active when the sub picture is set to TV.

You may notice that the picture in the PIP window becomes slightly unnatural when you use the main screen

 Source: Used to select a source of the sub picture.  Swap: Used to interchange the main picture and the sub picture.  Size: Used to select a size of the sub picture.  Position: Used to move the sub picture.  Programme: Used to Change the sub picture.

English-13

PIP Settings

Sub

Main

TV Ext.1 Ext.2

S-Video

Component

HDMI

DTV

O O

Ext.1 X X X X X X

X X X X X X O O X

Ext.2

X X X X X X O O X

Changing the Sound Standard

You can select the type of the special sound effect to be used when watching a given broadcast.

1. Press the MENU button to display the menu. Press the  or  button to select "Sound", then press the ENTER/OK button.

2. Press the ENTER/OK button again, to select "Mode".

3. Select the required sound effect by pressing the  or  button repeatedly and then press

the ENTER/OK button.

4. Press the EXIT button to exit.

 Standard: Selects the normal sound mode.  Music: Emphasizes music over voices.  Movie: Provides live and full sound for movies.  Speech: Emphasizes voices over other sounds.  Custom: Selects your custom sound settings.

X X X X X X O O X

(Refer to "Adjusting the Sound Settings")

S-Video

X X X X X X X O X

Component

O: PIP operates, X: PIP doesn’t operate

PC X X X X X X X O X

X X X X X X X X X

HDMI

O O O O O O X X X

DTV

X X X X X X X X X

Adjusting the Sound Settings

The sound settings can be adjusted to suit your personal preferences.

1. Press the MENU button to display the menu. Press the  or  button to select "Sound", then press the ENTER/OK button.

2. Press the  or  button to select "Equalizer", then press the ENTER/OK button.

3. Press the  or  button to select a particular item.

Press the ENTER/OK button.

4. Press the  or  button to reach the required setting. Press the ENTER/OK button.

5. Press the EXIT button to exit.

If you make any changes to these settings, the Sound Mode is automatically switched to "Custom".

Connecting Hheadphones

You can connect a set of headphones to your set if you wish to watch a TV programme without disturbing the other people in the room.

When you insert the head set jack into the corresponding port, you can operate only

“Internal Mute” and “Sound Select” (in PIP mode) in Sound menu.

Prolonged use of headphones at a high volume may damage your hearing. You will not receive sound from the speakers when you connect headphones to the system.

English-14

Setting the TruSurround XT (SRS TSXT)

TruSurround XT is a patented SRS technology that solves the problem of playing 5.1 multichannel content over two speakers. TruSurround delivers a compelling,virtual surround sound experience through any two-speaker playback system, including internal television speakers. It is fully compatible with all multichannel formats.

1. Press the MENU button to display the menu. Press the  or  button to select “Sound”, then press the

2. Press the  or  button to select “SRS TSXT”, then press the

Press the  or  button to select “On” or “Off”. Press the ENTER/OK button.

4. Press the EXIT button to exit.

ENTER/OK

TruSurround XT, SRS and symbol are trademarks of SRS Labs, Inc. TruSurround XT technology is incorporated under license from SRS Labs, Inc.

Adjusting the Volume Automatically

Each broadcasting station has its own signal conditions, and so it is not easy for you to adjust the volume every time the channel is changed. This feature allows you to automatically adjust the volume of the desired channel by lowering the sound output when the modulation signal is high or by raising the sound output when the modulation signal is low.

1. Press the MENU button to display the menu. Press the  or  button to select "Sound", then press the ENTER/OK button.

2. Press the  or  button to select "Auto Volume", then press the ENTER/OK button.

3. Press the  or  button to select "On" or "Off". Press the ENTER/OK button.

4. Press the EXIT button to exit.

ENTER/OK button.

button.

Selecting the Internal Mute

If you want to hear the sound through separate speakers, cancel the internal amplifier.

1. Press the MENU button to display the menu. Press the  or  button to select "Sound", then press the ENTER/OK button.

Press the  or  button to select "Internal Mute", then press the ENTER/OK button.

3. Press the  or  button to select "On" or "Off". Press the ENTER/OK button.

4. Press the EXIT button to exit.

When "Internal Mute" is set to "On’, the Sound menus except for "Sound Select"

(in PIP mode) cannot be adjusted.

Listening to the Sound of the Sub Picture

During the PIP features activation, you can listen to the sound of the sub picture.

1. Press the MENU button to display the menu. Press the  or  button to select "Sound", then press the ENTER/OK button.

Press the  or  button to select "Sound Select", then press the ENTER/OK button.

3. Press the  or  button to select "Sub". Press the ENTER/OK button.

4. Press the EXIT button to exit.

 Main: Used to listen to the sound of the main picture. 

Sub: Used to listen to the sound of the sub picture.

You can select this option when the "PIP" is set to "On". (refer to page 13)

English-15

Resetting the Sound Settings to the Factory Defaults

If Game Mode is On, the Reset Sound function is activated. Selecting the Reset function after setting the equalizer resets the equalizer setting to the factory defaults.

1. Press the MENU button to display the menu. Press the  or  button to select "Sound", then press the ENTER/OK button.

2. Press the  or  button to select "Reset", then press the ENTER/OK button.

3. Press the EXIT button to exit.

You can select this option when the "Game Mode” is set to "On".

Setting and Displaying the Current Time

You can set the TV’s clock so that the current time is displayed when you press the INFO button. You must also set the time if you wish to use the automatic On/Off timers.

1. Press the MENU button to display the menu. Press the  or  button to select "Setup", then press the ENTER/OK button.

2. Press the  or  button to select "Time", then press the ENTER/OK button.

3. Press the ENTER/OK button to select "Clock Set".

To...

Move to "Hour" or "Minute"

Set the "Hour" or "Minute"

ENTER/OK

Press the

5. Press the EXIT button to exit.

If you disconnect the power cord, you have to set the clock again.

You can also set hour and minute by pressing the number buttons on the remote control.

button.

Press the...

 or  button.

 or  button.

Setting the Sleep Timer

You can select a time period of between 30 and 180 minutes after which the television automatically switches to standby mode.

1. Press the MENU button to display the menu. Press the  or  button to select "Setup", then press the ENTER/OK button.

2. Press the  or  button to select "Time", then press the ENTER/OK button.

Press the  or  button to select "Sleep Timer", then press the ENTER/OK button.

4. Press the  or  button repeatedly until the desired time appears (Off, 30, 60, 90, 120, 150, 180). Press the ENTER/OK button.

5. Press the EXIT button to exit.

The TV automatically switches to standby mode when the timer reaches 0.

Switching the Television On and Off Automatically

You can set the On/Off timers so that the set will:

Switch on automatically and tune to the channel of your choice at the time you select.

Switch off automatically at the time you select.

The first step is to set the television’s clock.

1. Press the MENU button to display the menu. Press the  or  button to select "Setup", then press the ENTER/OK button.

2. Press the  or  button to select "Time", then press the ENTER/OK button.

3. Press the  or  button to select "On Timer", then press the ENTER/OK button.

English-16

Choosing Your Language

Using Game Mode

4. Press the  or  button to adjust "Hour", then press the  button to move to the next step. Set other items using the same method as above. When finished, press the ENTER/OK button to return.

5. Press the  or  button to select "Off Timer", then press the ENTER/OK button.

6. Press the  or  button to adjust "Hour", then press the  button to

move to the next step. Set other items using the same method as above. When finished, press the ENTER/OK button to return.

7. Press the EXIT button to exit.

You can also set hour and minute by pressing the number buttons on the remote control. The "Activation" setting must be set to "Yes" in order for the timers to work.

When you start using your set for the first time, you must select the language which will be used for displaying menus and indications.

1. Press the MENU button to display the on-screen menu. Press the  or  button to select "Setup", then press the ENTER/OK button.

2. Press the  or  button to select "Language", then press the ENTER/OK button.

3. Select a particular language by pressing the  or  button repeatedly.

Press the ENTER/OK button.

You can choose one of 5 languages.

4. Press the EXIT button to exit.

When connecting to a game console such as PlayStationTM or XboxTM, you can enjoy a more realistic gaming experience by selecting game menu.

1. Press the MENU button to display the menu. Press the  or  button to select “Setup”, then press the ENTER/OK button.

2. Press the  or  button to select “Game Mode”, then press the ENTER/OK button.

3. Press the  or  button to select “On” or “Off”. Press the ENTER/OK button.

4. Press the EXIT button to exit.

To disconnect the game console and connect another external device, cancel game mode

in the picture menu.

If you display the TV menu in Game mode, the screen shakes slightly. Game Mode is not available in TV mode. If Game Mode is On:

•

Picture Mode and Sound Mode are automatically changed to Custom and users cannot change the mode.

• Sound Mode in the Sound menu is deactivated. Adjust the sound using the equalizer.

• The Reset Sound function is activated. Selecting the Reset function after setting the equalizer resets the equalizer setting to the factory defaults.

Setting the Blue Screen Mode / Selecting the Melody

Blue Screen: If no signal is being received or the signal is very weak, a blue screen automatically replaces the noisy picture background. If you wish to continue viewing the poor picture, you must set the "Blue Screen" mode to "Off".

Melody: You can hear melody sound when the television is powered on or off.

1. Press the MENU button to display the menu. Press the  or  button to select "Setup", then press the ENTER/OK button.

2. Press the  or  button to select "Blue Screen" or "Melody". Press the ENTER/OK button.

3. Press the  or  button to select "On" or "Off". Press the ENTER/OK button.

4. Press the EXIT button to exit.

English-17

Using the Energy Saving Feature

This function adjusts the brightness of the TV so as to reduce power consumption. When you watching TV at night, set the "Energy Saving " mode option to "High" so as to reduce the dazzling of your eyes as well as the power consumption.

1. Press the MENU button to display the on-screen menu. Press the  or  button to select "Setup", then press the ENTER/OK button.

Press the  or  button to select "Energy Saving", then press the ENTER/OK button.

3. Select the required option (Off, Low, Medium, High) by pressing the  or  button. Press the ENTER/OK button.

4. Press the EXIT button to exit.

Selecting the Source

You can select among external sources connected to your TV’s input jacks.

1. Press the MENU button to display the menu.

Press the ENTER/OK button, to select "Input".

2. Press the ENTER/OK button again, to select "Source List".

3. Select the required device by pressing the  or  button.

Press the ENTER/OK button.

Press the

When no external device is connected to your set, only "T V", "Ext.1", "Ext.2", "DTV" are activated in the "Source List". "AV", "S-Video", "Component", "PC", "HDMI" are activated only when they are connected to your set.

TV mode can be selected by pressing the TV/DTV button, number buttons(0~9), and the

button on the remote control. But it cannot be selected using the

button on the remote control to toggel between all the available source.

SOURCE

button.

Editing the Input Source Names

Name the device connected to the input jacks to make your input source selection easier.

1. Press the MENU button to display the menu.

Press the ENTER/OK button, to select "Input".

2. Press the  or  button to select "Edit Name", then press the ENTER/OK button.

3. Press the  or  button to select the device that you wish to edit.

Press the ENTER/OK button.

4. Press the  or  button to select the required device.

Press the ENTER/OK button.

5. Press the EXIT button to exit.

English-18

Previewing the DTV Menu System

To help you navigate around the on-screen menu system and adjust the various settings available, refer to the following illustration.

Available in the Digital TV mode.

Press the D.MENU button.

Installation

Select Country Auto Scanning Manual Scanning Reset to Factory Defaults

Channel Organising

Delete Frequency Delete Channel Delete All Channels Move & Edit Channel

Parental Lock

Set Channel Lock Change PIN Code

System Setup

Language Selection OSD Setting Time Setting System Information Software Upgrade

You can select these options by simply

pressing the D.MENU button on the remote control.

The sub-items of the CI Menu may vary depending on the CAM model.

In the Digital TV mode, do not turn the power off before the screen is completely loaded.

English-19

Basic Functions

1. Display Screen

Before you can view the television program, you must perform the installation.

Therefore you will see only menu images at first. After the television channels have been programmed, you will see the following picture (banner) each time you switch channels:

Channel Number

Signal Status Program Information

Detailed program information

First you will see the banner described above.

After pressing the INFO button for the second time you will receive detailed program information for current program can be displayed on another banner, if there is more information. When this information is more than one page, P and down.

This service depends on service provider.

2. Volume Control

To control the volume level :

• Press the

• Press the MUTE button to turn to silence mode.

• Press the MUTE button again or mute function.

3. Select Soundtrack

• Press the ALT button to see the soundtrack list.

• Press the  or  and ENTER/OK buttons to select one.

buttons to adjust the volume level.

buttons in order to cancel the

The number of soundtrack in current channel

/ can be used for page up

4. Select Videotrack

• Press the ALT button twice to see the videotrack list.

• Press the  or  and ENTER/OK buttons to select one.

English-20

5. Service List

• Press the CH MGR button while you are viewing a program.

• Select list by pressing the TV/RADIO button.

The icon behind the channel name symbolizes scrambled channel,

and the icon behind the channel name symbolizes parental locked channel.

• Select the channel by pressing the / and press the P

/ for moving up or

down pages on the lists.

• Press the ENTER/OK button to watch that channel.

6. Program Information

EPG-Electronic Program Guide The electronic program guide gives you a programme list for the channels.

1. This service depends on service provider.

2. After receiver recognized the GMT -time from the signal which takes few seconds, it can display correct EPG information.

• Press the GUIDE button while you are viewing a program.

This function is displayed on the screen by using only time.

• RED button : Red button is for moving back to the previous date.

• GREEN button : Green button is for moving to the next coming date.

• INFO button : This button is used to watch the program information,

if there is more information than one page. Usethe / buttons to move up and down pages.

• / button : Use to display the program list by 30 minutes per block.

Time interval can be adjusted by pressing buttons as followings on EPG screen: 1 button: 1 hour and 30 minutes 2 button: 30 minutes 3 button: 15 minutes

• Select the channel by pressing the / buttons and

press the ENTER/OK button to watch this channel.

English-21

Operating the DTV Menu

Main Menu

After installing your antenna system and TV with appropriate connectors.

• Plug in the AC main power and switch on the TV.

• Press the D.MENU button to bring up the main menu.

The following on-screen display will appear:

The sub menu topics will be displayed. For the sub-menus "Installation", "Channel Organization" and "Parental Lock", you need the PIN Code.

1. Installation

This menu consists of 4 sub-menus:

Select Country, Auto Scanning, Manual Scanning and Reset to Factory Defaults.

• Select "Installation" by pressing the ENTER/OK button in the main menu mode to

select the sub menu.

• Enter the PIN Code.

which was set at the factory.

If you have not entered your own PIN Code then the PIN Code 0000 applies,

Once you have entered PIN Code, you do not have to input the code again unless

you turn the TV power off.

1.1 Select Country

To tune-in new channels, the TV has been provided with the option

“Select Country”. Select the country where broadcasting services are provided. After selecting the “Select Country” from the Installation Menu, the following screen will be displayed:

• Select the country which you are in.

You can select the value of "ITALY", "SPAIN", "SWEDEN", "UK", "USER", "BELGIUM", "GERMANY", "FINLAND", or "FRANCE" by using / button.

• After selecting option, press the ENTER/OK button to choose the nation of

broadcasting area to be served. If you don’t want to save the changes, press EXIT button without ENTER/OK button pressed.

If national code is changed, all of saved programs will be deleted.

USER: An user may set Channel Number and Frequency in Auto/Manual scanning.

1.2 Auto Scanning

The sub menu “Auto Scanning” will enable download of the channels automatically from

the preprogrammed load.

To download channels automatically:

• You can select the specified frequency between "Start Frequency" and

"End Frequency".

• Press the ENTER/OK button.

Auto Scanning menu will be displayed. All the channels in the list will be automatically downloaded.

English-22

1.3 Manual Scanning

To tune-in new channels and weak signals, the TV has been provided with the option

“Manual Scanning” where the channel data can be entered by the user. After selecting the “Manual Scanning” from the Installation Menu, the following screen will be displayed:

• Select the Channel Number.

You can select the specified channel you want to find.

The followings are defined as a default, but optionally you can choose it. Signal Status bar shows you if it is valid.

• Input the frequency of the channel you want to find.

• Select the bandwidth. You can select the value of "6", "7" or "8" MHz.

• Select the Guard Interval Mode.

You can select the value of "AUTO", "1/32", "1/16", "1/8", or "1/4".

• Select the FFT (Fast Fourier Transform) Mode.

One of the values-"AUOT", "2 K", and "8 K"- will be selected automatically. You may change the set value as your preference.

• After selecting option, press the ENTER/OK button to start the scanning process.

1.4 Reset to Factory Defaults

This is to restore the factory set values in case the user has encountered some problems

after changing any values of channel data and others which may be in error. At the request window, if you press the ENTER/OK button, the TV will be reset to factory default settings automatically.

This causes your previous settings to be deleted!

2. Channel Organising

The “Channel Organising” menu has four functions:

The “Channel Organising” menu is used to delete the Frequencies and Channels or Move&Edit Channel as you want.

• Enter the PIN Code.

If you have not entered your own PIN Code 0000 applies, which was set at the factory.

Once you have entered PIN Code, you do not have to input the code again

unless you turn the TV power off.

English-23

+ 56 hidden pages

Samsung LE37R74BD User Manual [en, es]

Contents

List of Parts

Installing the Stand

Installing the Wall Mount Kit

Viewing the Control Panel

Viewing the Connection Panel

Viewing the Remote Control

Installing Batteries in the Remote Control

Switching On and Off

Placing Your Television in Standby Mode

Plug & Play

Storing Channels Automatically

Storing Channels Manually

Setting the Channel Manager

Activating the Child Lock

Sorting the Stored Channels

Assigning Channels Names

Fine Tuning Channel Reception

LNA (Low Noise Amplifier)

Changing the Picture Standard

Adjusting the Custom Picture

Changing the Colour Tone

Resetting the Picture Settings to the Factory Defaults

Changing the Picture Size

Freezing the Current Picture

Digital Noise Reduction

DNIe Demo (Digital Natural Image engine)

Viewing the Picture In Picture (PIP)

PIP Settings

Changing the Sound Standard

Adjusting the Sound Settings

Connecting Hheadphones

Setting the TruSurround XT (SRS TSXT)

Adjusting the Volume Automatically

Selecting the Internal Mute

Listening to the Sound of the Sub Picture

Resetting the Sound Settings to the Factory Defaults

Setting and Displaying the Current Time

Setting the Sleep Timer

Switching the Television On and Off Automatically

Choosing Your Language

Using Game Mode

Setting the Blue Screen Mode / Selecting the Melody

Using the Energy Saving Feature

Selecting the Source

Editing the Input Source Names

Previewing the DTV Menu System

Basic Functions

Operating the DTV Menu
