Samsung LCOTR16, LCOTR16N Users Manual
Counter Saver Plus Microwave Oven
Owner’s Manual
2
30
Helpful Information
Microwave Terms 30
Care and Cleaning 31
36
If Something Goes Wrong
Before You Call For Service 36
Hotpoint Service Numbers 38
Warranty Back Cover
11
Important Safety Information
Precautions to Avoid Possible Exposure
to Excessive Microwave Energy 2
Special Notes About Microwaving 6
Operating Instructions
Features of Your Microwave 11
The Controls on Your Microwave 12
Time Features 15
Convenience Features 21
Other Features 25
Hotpoint.com
RVM1435, 950 Watts
RVM1635, 1000 Watts
39-40427
06-04 JR
39-40427v06 6/1/04 4:15 PM Page 1
2
IMPORTANT SAFETY INFORMATION
READ ALL SAFETY
INFORMATION BEFORE USING
FOR YOUR
SAFETY
PRECAUTIONS
TO AVOID
POSSIBLE
EXPOSURE
TO EXCESSIVE
MICROWAVE
ENERGY
For your safety, the information in this manual
must be followed to minimize the risk of fire
or explosion or to prevent property damage,
personal injury or loss of life.
Do Not Attempt
to operate this oven
with the door open
since open-door
operation can result
in harmful exposure
to microwave energy.
It is important not to
defeat or tamper with
the safety interlocks.
Do Not Place any object
between the oven front
face and the door or
allow soil or cleaner
residue to accumulate
on sealing surfaces.
Do Not Operate the oven
if it is damaged. It is
particularly important
that the oven door
close properly and
that there is no
damage to the:
1 door (bent),
2 hinges and latches
(broken or loosened),
3 door seals and sealing
surfaces.
The Oven Should Not
be adjusted or repaired
by anyone except
properly qualified
service personnel.
39-40427v06 6/1/04 4:15 PM Page 2
3
Welcome to the GE family.
We’re proud of our quality
products and we believe
in dependable service.
You’ll see it in this
easy-to-use manual and
you’ll hear it in the friendly
voices of our consumer
service department.
Best of all, you’ll experience
these values each time you
use your microwave. That’s
important, because your new
microwave will be part of
your family for a long time.
Welcome
Write down the model
and serial numbers here.
They are on a label inside
the oven.
Model number
Serial number
Date of purchase
Staple your receipt to the
inside back cover of this
manual. You will need it
to obtain service under
warranty.
Before you call for service,
there are a few things you
can do to help us serve you
better.
Read this manual.
It contains instructions to
help you use and maintain
your microwave properly.
If you received a damaged
oven…immediately contact
the dealer (or builder)
that sold you the oven.
Save time and money.
Check the section titled
“If Something Goes
Wrong” before calling.
This section helps you
solve common problems
that might occur.
If you do need service,
you can relax knowing
help is only a phone call
away. A list of toll-free
customer service numbers
is included in the back of
this manual.
Need Help?
Start Here!…Before using your Microwave
39-40427v06 6/1/04 4:15 PM Page 3
When using electrical appliances, basic safety precautions should be followed, including
the following:
WARNING
• Read and follow the
specific “Precautions to
Avoid Possible Exposure
to Excessive Microwave
Energy” on page 2.
• This appliance must be
grounded. Connect only
to properly grounded
outlet. See Grounding
Instructions section on
page 10.
• Do not mount this
appliance over a sink.
• Install or locate this
appliance only in
accordance with the
provided Installation
Instructions.
• This over-the-range oven
was designed for use over
ranges no wider than 36.″
It may be installed over
both gas and electric
cooking equipment.
• Do not operate this
appliance if it has a
damaged power cord or
plug, if it is not working
properly or if it has been
damaged or dropped.
If the power cord is
damaged, it must be
replaced by General
Electric Service or an
authorized service agent
using a power cord from
General Electric.
• Do not cover or block
any openings on the
appliance.
• Use this appliance only
for its intended use as
described in this manual.
Do not use corrosive
chemicals or vapors in
this appliance. This
microwave oven is
specifically designed to
heat, dry or cook food,
and is not intended
for laboratory or
industrial use.
This microwave oven is
UL listed for installation
over electric and gas
ranges.
This microwave oven is
not approved or tested
for marine use.
SAFETY
PRECAUTIONS
4
IMPORTANT SAFETY INFORMATION
READ ALL SAFETY
INFORMATION BEFORE USING
39-40427v06 6/1/04 4:15 PM Page 4
• Do not store this appliance
outdoors.
• Do not use this product
near water—for example,
in a wet basement,
near a swimming pool,
near a sink or in similar
locations.
• Keep power cord away
from heated surfaces.
• Do not immerse power
cord or plug in water.
• To reduce the risk of fire
in the oven cavity:
— Do not overcook food.
Carefully attend appliance
when paper, plastic or
other combustible
materials are placed
inside the oven while
cooking.
— Remove wire twist-ties
and metal handles
from paper or plastic
containers before placing
them in the oven.
— Do not use the oven
for storage purposes.
Do not leave paper
products, cooking
utensils or food in the
oven when not in use.
— If materials inside oven
ignite, keep the oven
door closed, turn the
oven off and disconnect
the power cord, or shut
off power at the fuse or
circuit breaker panel.
If the door is opened,
the fire may spread.
• See door surface cleaning
instructions in the Care
and Cleaning section(s)
of this manual.
• This appliance must only
be serviced by qualified
service personnel. Contact
nearest authorized service
facility for examination,
repair or adjustment.
• As with any appliance,
close supervision is
necessary when used
by children.
• Do not store anything
directly on top of the
microwave oven surface
when the microwave oven
is in operation.
SAVE THESE INSTRUCTIONS
5
39-40427v06 6/1/04 4:15 PM Page 5
IMPORTANT SAFETY INFORMATION
SPECIAL NOTES ABOUT MICROWAVING
Arcing is the microwave
term for sparks in the
oven. Arcing is caused by:
• Metal or foil touching
the side of the oven.
• Foil not molded to food
(upturned edges act like
antennas).
• Metal, such as twist-ties,
poultry pins or goldrimmed dishes, in the
microwave.
• Recycled paper towels
containing small metal
pieces being used in
the microwave.
If you see arcing, press
the CLEAR/OFF pad and
correct the problem.
ARCING
• Do not pop popcorn in
your microwave oven
unless in a special
microwave popcorn
accessory or unless you
use popcorn labeled for
use in microwave ovens.
• Some products such as
whole eggs and sealed
containers—for example,
closed jars—are able to
explode and should not
be heated in this
microwave oven. Such use
of the microwave oven
could result in injury.
• Do not boil eggs in a
microwave oven. Pressure
will build up inside egg
yolk and will cause it to
burst, possibly resulting
in injury.
• Operating the microwave
with no food inside for
more than a minute or
two may cause damage
to the oven and could
start a fire. It increases
the heat around the
magnetron and can
shorten the life of
the oven.
• Foods with unbroken
outer “skin” such as
potatoes, hot dogs,
sausages, tomatoes,
apples, chicken livers
and other giblets, and
egg yolks should be
pierced to allow steam
to escape during
cooking.
FOODS
6
39-40427v06 6/1/04 4:15 PM Page 6
7
SAFETY FACT
SUPERHEATED WATER
Liquids, such as water,
coffee or tea, are able to
be overheated beyond
the boiling point without
appearing to be boiling.
Visible bubbling or boiling
when the container is
removed from the microwave
oven is not always present.
THIS COULD RESULT
IN VERY HOT LIQUIDS
SUDDENLY BOILING OVER
WHEN THE CONTAINER IS
DISTURBED OR A SPOON
OR OTHER UTENSIL IS
INSERTED INTO THE LIQUID.
To reduce the risk of injury
to persons:
— Do not overheat the
liquid.
— Stir the liquid both
before and halfway
through heating it.
— Do not use straight-sided
containers with narrow
necks.
— After heating, allow
the container to stand
in the microwave oven
for a short time before
removing the container.
— Use extreme care when
inserting a spoon or
other utensil into the
container.
• Avoid heating baby food
in glass jars, even with the
lid off. Make sure all
infant food is thoroughly
cooked. Stir food to
distribute the heat evenly.
Be careful to prevent
scalding when warming
formula or breast milk.
The container may feel
cooler than the milk really
is. Always test the milk
before feeding the baby.
• Don’t defrost frozen
beverages in narrownecked bottles (especially
carbonated beverages).
Even if the container is
opened, pressure can
build up. This can cause
the container to burst,
possibly resulting in
injury.
• Hot foods and steam
can cause burns. Be
careful when opening
any containers of hot
food, including popcorn
bags, cooking pouches
and boxes. To prevent
possible injury, direct
steam away from hands
and face.
• Do not overcook
potatoes. They could
dehydrate and catch
fire, causing damage
to your oven.
• Cook meat and poultry
thoroughly—meat to
at least an INTERNAL
temperature of 160°F
and poultry to at least an
INTERNAL temperature
of 180°F. Cooking to
these temperatures
usually protects against
foodborne illness.
39-40427v06 6/1/04 4:15 PM Page 7
IMPORTANT SAFETY INFORMATION
SPECIAL NOTES ABOUT MICROWAVING
Make sure all cookware
used in your microwave
oven is suitable for
microwaving. Most glass
casseroles, cooking dishes,
measuring cups, custard
cups, pottery or china
dinnerware which does not
have metallic trim or glaze
with a metallic sheen can
be used. Some cookware
is labeled “suitable for
microwaving.”
• If you are not sure if
a dish is microwave-safe,
use this test: Place in the
oven both the dish you
are testing and a glass
measuring cup filled with
1 cup of water—set the
measuring cup either
in or next to the dish.
Microwave 30–45 seconds
at high. If the dish heats,
it should not be used for
microwaving.
If the dish remains cool
and only the water in the
cup heats, then the dish
is microwave-safe.
• If you use a meat ther-
mometer while cooking,
make sure it is safe for
use in microwave ovens.
• Do not use recycled
paper products. Recycled
paper towels, napkins
and waxed paper can
contain metal flecks
which may cause arcing
or ignite. Paper products
containing nylon or
nylon filaments should
be avoided, as they may
also ignite.
• Some styrofoam trays
(like those that meat is
packaged on) have a thin
strip of metal embedded
in the bottom. When
microwaved, the metal can
burn the floor of the oven
or ignite a paper towel.
• Do not use the microwave
to dry newspapers.
• Not all plastic wrap is
suitable for use in
microwave ovens.
Check the package
for proper use.
• Paper towels, waxed
paper and plastic wrap
can be used to cover
dishes in order to retain
moisture and prevent
spattering. Be sure to
vent plastic wrap so steam
can escape.
• Cookware may become
hot because of heat
transferred from the
heated food. Pot holders
may be needed to handle
the cookware.
• “Boilable” cooking
pouches and tightly
closed plastic bags should
be slit, pierced or vented
as directed by package.
If they are not, plastic
could burst during or
immediately after
cooking, possibly resulting
in injury. Also, plastic
storage containers should
be at least partially
uncovered because they
form a tight seal. When
cooking with containers
tightly covered with
plastic wrap, remove
covering carefully and
direct steam away from
hands and face.
MICROWAVESAFE
COOKWARE
8
How to test for a microwavesafe dish.
39-40427v06 6/1/04 4:15 PM Page 8
9
• Use foil only as directed in
this manual. TV dinners
may be microwaved in foil
trays less than 3/4″ high;
remove the top foil cover
and return the tray to the
box. When using foil in
the microwave oven, keep
the foil at least 1″ away
from the sides of the oven.
• Plastic cookware—Plastic
cookware designed for
microwave cooking is very
useful, but should be used
carefully. Even microwavesafe plastic may not be as
tolerant of overcooking
conditions as are glass or
ceramic materials and
may soften or char if
subjected to short periods
of overcooking. In longer
exposures to overcooking,
the food and cookware
could ignite.
Follow these guidelines:
1 Use microwave-safe
plastics only and use
them in strict compliance
with the cookware
manufacturer’s
recommendations.
2 Do not microwave empty
containers.
3 Do not permit children
to use plastic cookware
without complete
supervision.
The fan will operate
automatically under
certain conditions (see
Automatic Fan feature).
Take care to prevent the
starting and spreading of
accidental cooking fires
while the vent fan is in use.
• Clean the underside of
the microwave often.
Do not allow grease
to build up on the
microwave or the
fan filters.
• In the event of a grease
fire on the surface units
below the microwave
oven, smother a flaming
pan on the surface unit
by covering the pan
completely with a lid, a
cookie sheet or a flat tray.
• Use care when cleaning
the vent fan filters.
Corrosive cleaning
agents, such as lye-based
oven cleaners, may
damage the filters.
• When preparing
flaming foods under the
microwave, turn the vent
fan on.
• Never leave surface units
beneath your microwave
oven unattended at high
heat settings. Boilovers
cause smoking and
greasy spillovers that may
ignite and spread if the
microwave vent fan is
operating. To minimize
automatic fan operation,
use adequate sized
cookware and use high
heat on surface units
only when necessary.
THE VENT
FAN
39-40427v06 6/1/04 4:15 PM Page 9
IMPORTANT SAFETY INFORMATION
GROUNDING INSTRUCTIONS/OPTIONAL KITS
WARNING
Improper use of the
grounding plug can result
in a risk of electric shock.
This appliance must be
grounded. In the event of
an electrical short circuit,
grounding reduces the
risk of electric shock by
providing an escape wire
for the electric current.
This appliance is equipped
with a power cord having
a grounding wire with a
grounding plug. The plug
must be plugged into an
outlet that is properly
installed and grounded.
Consult a qualified
electrician or service
technician if the grounding
instructions are not
completely understood,
or if doubt exists as to
whether the appliance is
properly grounded.
If the outlet is a standard
2-prong wall outlet, it is
your personal responsibility
and obligation to have it
replaced with a properly
grounded 3-prong wall
outlet.
Do not, under any
circumstances, cut or
remove the third (ground)
prong from the power cord.
Do not use an adapter plug
with this appliance.
Do not use an extension
cord with this appliance.
If the power cord is too
short, have a qualified
electrician or service
technician install an outlet
near the appliance.
For best operation, plug
this appliance into its own
electrical outlet to prevent
flickering of lights, blowing
of fuse or tripping of circuit
breaker.
GROUNDING
INSTRUCTIONS
Filler Panel Kits
JX40WH or JX46WH—White
JX41 or JX46BL—Black
JX40AL or JX46AL—Almond
When replacing a 36″
range hood, filler panel
kits fill in the additional
width to provide a custom
built-in appearance.
For installation between
cabinets only; not for
end-of-cabinet installation.
Each kit contains two
3″-wide filler panels.
Filter Kits
JX81A—Recirculating
Charcoal Filter Kit
Filter kits are used when
the microwave oven cannot
be vented to the outside.
Available at extra cost from
your Hotpoint supplier.
Optional Kits
Ensure proper ground
exists before use.
10
39-40427v06 6/1/04 4:15 PM Page 10
Operating Instructions
Features of Your Microwave
(Throughout this manual, features and appearance
may vary from your model.)
1 Door Latches.
2 Window with Metal
Shield. Screen allows
cooking to be viewed
while keeping
microwaves confined
in the oven.
3 Touch Control Panel.
4 Push to Open. Push to
open the door. The
door must be securely
latched for the
microwave to operate.
5 Cooktop Light.
6 Grease Filter.
7 Removable Turntable.
Turntable and support
must be in place
when using the oven.
The turntable may be
removed for cleaning.
8 Convenience Guide.
NOTE: The rating plate
and oven vent are located
on the inside walls of the
microwave oven.
The interior light is
located on the top of
the cavity.
Features
21
5
8
7
11
6
3
4
39-40427v06 6/1/04 4:15 PM Page 11
Time Features

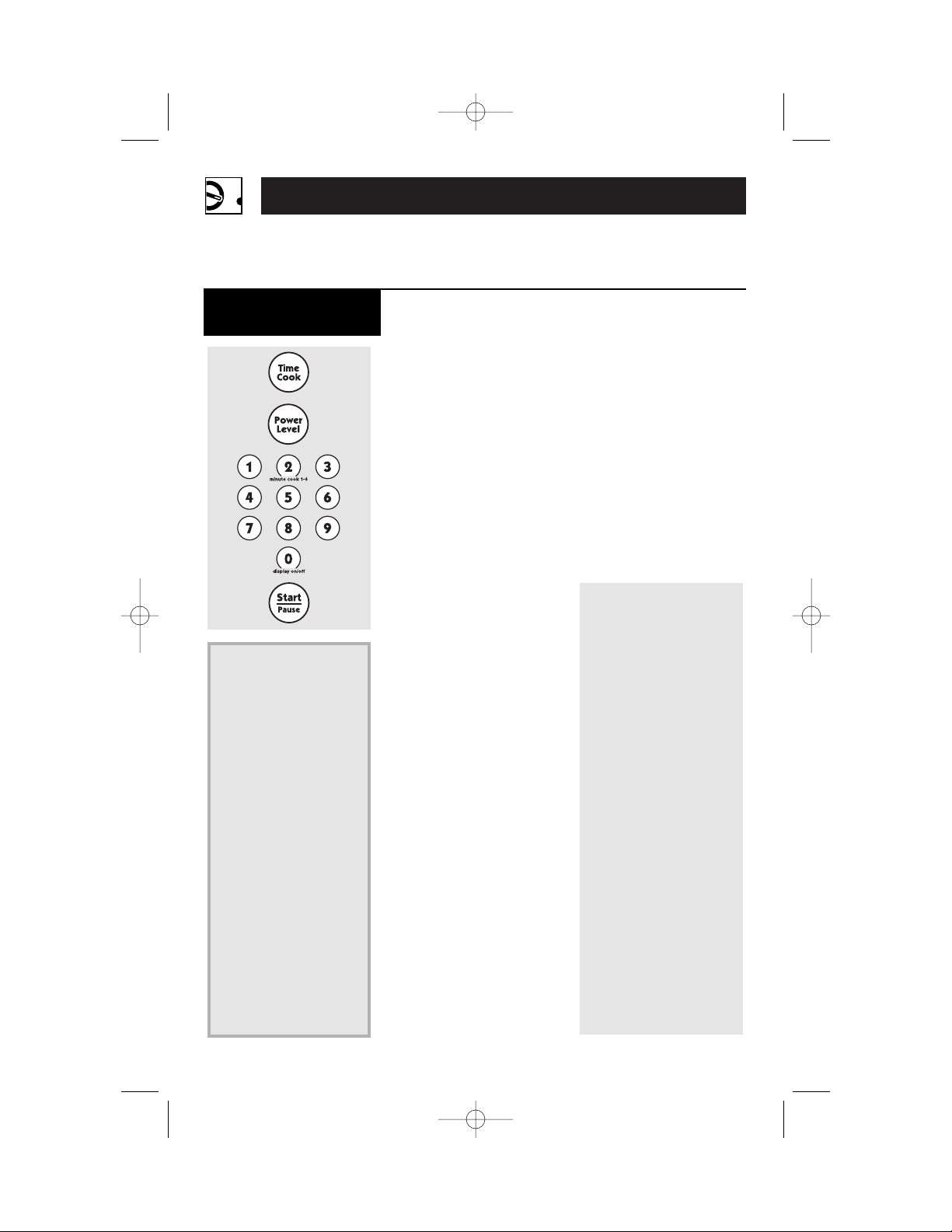

Time Cooking
Press Enter
TIME COOK I & II (Press once or twice) Amount of cooking time.
TIME DEFROST Amount of defrosting time.
MINUTE COOK (Press 1–6) Starts immediately!
POWER LEVEL Power level 1–10.
ADD 30 SEC. Starts immediately!
12
Quick Start
The Controls on Your Microwave Oven
(Throughout this manual, features and appearance may vary from your model.)
1
You can microwave
by time, temperature,
or with the
convenience
features.
39-40427v06 6/1/04 4:15 PM Page 12
Loading...
