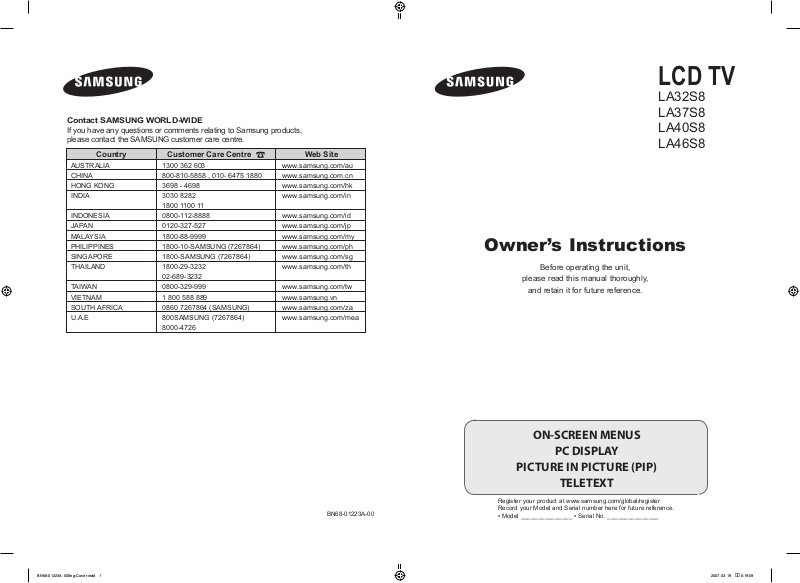

Samsung LA46S8, LA37S8, LA32S8, LA40S8 User Manual

LCD TV

LA32S8

Contact SAMSUNG WORLD-WIDE

If you have any questions or comments relating to Samsung products,
please contact the SAMSUNG customer care centre.

Country

AUSTRALIA
CHINA
HONG KONG
INDIA

INDONESIA
JAPAN
MALAYSIA
PHILIPPINES
SINGAPORE
THAILAND

TAIWAN
VIETNAM
SOUTH AFRICA
U.A.E

Customer Care Centre

1300 362 603
800-810-5858 , 010- 6475 1880
3698 - 4698
3030 8282
1800 1100 11
0800-112-8888
0120-327-527
1800-88-9999
1800-10-SAMSUNG (7267864)
1800-SAMSUNG (7267864)
1800-29-3232
02-689-3232
0800-329-999
1 800 588 889
0860 7267864 (SAMSUNG)
800SAMSUNG (7267864)
8000-4726

www.samsung.com/au
www.samsung.com.cn
www.samsung.com/hk
www.samsung.com/in

www.samsung.com/id
www.samsung.com/jp
www.samsung.com/my
www.samsung.com/ph
www.samsung.com/sg
www.samsung.com/th

www.samsung.com/tw
www.samsung.vn
www.samsung.com/za
www.samsung.com/mea

LA37S8
LA40S8
LA46S8

Web Site

Owner’s Instructions

Before operating the unit,

please read this manual thoroughly,

and retain it for future reference.

BN68-01223A-00

ON-SCREEN MENUS

PC DISPLAY

PICTURE IN PICTURE (PIP)

TELETEXT

Register your product at www.samsung.com/global/register
Record your Model and Serial number here for future reference.

▪ Model _______________ ▪ Serial No. _______________

Precautions When Displaying a Still Image

A still image may cause permanent damage to the TV screen.

• Do not display a still image on the LCD panel for more than 2 hours as it can cause screen image retention.
This image retention is also known as "screen burn".
To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image.

• Watching the LCD TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and center

• Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images.
To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images.

of the screen caused by the difference of light emission on the screen.
Playing a DVD or a game console may cause a similar effect to the screen.
Damages caused by the above effect are not covered by the Warranty.

© 2007 Samsung Electronics Co., Ltd. All rights reserved.

Contents

CONNECTING AND PREPARING YOUR TV

List of Parts .......................................................2

Installing the Stand ...........................................2

Installing the Wall Mount Kit ..............................2

Viewing the Control Panel .................................3

Viewing the Connection Panel ..........................4

Viewing the Remote Control .............................7

Installing Batteries in the Remote Control .........8

Switching On and Off ........................................8

Placing Your Television in Standby Mode .........8

Plug & Play .......................................................9

SETTING THE CHANNELS

Storing Channels Automatically ......................10

Storing Channels Manually .............................11

Setting the Channel Lists ................................12

Activating the Child Lock .................................12

Sorting the Stored Channels ...........................13

Assigning Channels Names ............................13

Fine Tuning Channel Reception ......................14

Changing the Picture Standard .......................14

SETTING THE PICTURE

Adjusting the Custom Picture ..........................15

Changing the Colour Tone ..............................15

Conguring Detailed Settings on the Picture ..16

 Activating Backlight. .......................................17

Changing the Picture Size ..............................17

Freezing the Current Picture ...........................18

Digital NR / Active Colour / DNIe ....................18

Resetting the Picture Settings to the Factory

Defaults ...........................................................19

Viewing the Picture In Picture (PIP) ................19

SETTING THE SOUND

Changing the Sound Standard ........................21

Adjusting the Sound Settings ..........................21

Setting the TruSurround XT (SRS TS XT) ......22

Adjusting the Volume Automatically ................22

Selecting the Internal Mute .............................23

Listening to the Sound of the Sub Picture .......23

Resetting the Sound Settings to the Factory

Defaults ...........................................................24

Connecting Headphones ................................24

Selecting the Sound Mode ..............................24

SETTING THE TIME

Setting and Displaying the Current Time ........25

Selecting the Sleep Timer ...............................25

Switching the Television On and Off

Automatically ...................................................26

FUNCTION DESCRIPTION

Choosing Your Language ................................27

Using Game Mode ..........................................27

Setting the Blue Screen Mode /

Selecting the Melody ......................................28

Setting the Home Theater PC .........................28

Using the Energy Saving Feature ...................29

HDMI Black Level ...........................................29

Selecting the Source .......................................30

Editing the Input Source Names .....................30

USING THE TELETEXT FEATURE

Teletext Decoder .............................................31

Displaying the Teletext Information .................31

Selecting a Specic Teletext Page ..................32

Using Fastext to Select a Teletext Page .........32

Setting up Your PC Software

(Based on Windows XP) .................................

33

Display Modes ................................................33

Setting the PC .................................................34

RECOMMENDATIONS FOR USE

Wall-Mount Adjustment (LA40S8, LA46S8)

(Sold Separately) ............................................35

Using the Anti-Theft Kensington Lock .............36

Troubleshooting:

Before Contacting Service Personnel .............36

Technical and Environmental Specications ..37

Symbol Press Important Note One-Touch

Button

English - 2

English - 1

List of Parts

Please make sure the following items are included with your LCD TV.
If any items are missing, contact your dealer.

M4 X L16

Remote Control

& Batteries

(AAA x 2)

Owner’s Instructions Warranty card Safety Guide Registration Card

Warranty card / Safety Guide / Registration Cards (Not available in all locations)

The stand and stand screw may not be included depending on the model.

Power Cord Cover-Bottom

Stand Screw

X 4

Stand Cleaning Cloth

Installing the Stand

< 2 >

1. Place the TV faced down on a soft cloth or cushion on a table.

Put the stand into the hole at the bottom of the TV.

2.

3. Insert screw into the hole indicated and tighten.

The stand is installed for models with the screen size of 37 inch and above.

Installing the Wall Mount Kit

Wall mount items (sold separately) allow you to mount
the TV on the wall.
For detailed information on installing the wall mount,
see the instructions provided with the Wall Mount items.
Contact a technician for assistance when installing the
wall mounted bracket.
Samsung Electronics is not responsible for any damage
to the product or injury to yourself or others
if you elect to install the TV on your own.

Remove the stand and cover the bottom hole with a
cap and fasten with two screws.

English - 2

< 3 >

Viewing the Control Panel

The product colour and shape may vary depending on the model.

1

SOURCE

Toggles between all the available input
sources (TV, AV.1, AV.2, S-Video, Component1,
Component2, PC, HDMI1, HDMI2).
In the on-screen menu, use this button as you
use the ENTER button on the remote
control.

2

MENU

Press to see an on-screen menu of your TV’s
features.

3

+ VOL -

Press to increase or decrease the volume.
In the on-screen menu, use the + VOL -
buttons as you use the ◄ and ► buttons on
the remote control.

4 CH

Press to change channels.
In the on-screen menu, use the
buttons as you use the ▲ and ▼ buttons on
the remote control.
(Without the Remote Control, you can turn on
the TV by using the Channel buttons.)

5

Speakers

6

(POWER)
Press to turn the TV on and off.
Power Indicator
Blinks and turns off when the power is on and
lights up in stand-by mode.

Remote Control Sensor

Aim the remote control towards this spot on
the TV.

English - 3

CH

Viewing the Connection Panel

2

4

7

6

0

1 2 3

9

Power Input

8

Whenever you connect an external device to your TV, make sure that power on the unit is turned off.
When connecting an external device, match the colour of the connection terminal to the cable.

1 Connecting External A/V Devices (AV IN 1)

- Connect RCA cable to an appropriate external A/V device such as VCR, DVD or Camcorder.

- Connect RCA audio cables to “R - AUDIO - L” on the rear of your set and the other ends to
corresponding audio out connectors on the A/V device.

2 Connecting AUDIO

- Connect RCA audio cables to “R - AUDIO - L” on the rear of your set and the other ends to
corresponding audio in connectors on the Amplifier or DVD Home Theater.

5

English - 4

3

HDMI IN 1, HDMI IN 2

- Supports connections between HDMI-connection-enabled AV devices (Set-Top Boxes, DVD players)

- No additional Audio connection is needed for an HDMI to HDMI connection.
What is HDMI?

- "High Definition Multimedia interface" allows the transmission of high definition digital video
data and multiple channels of digital audio (5.1 channels).

- The HDMI/DVI terminal supports DVI connection to an extended device with the appropriate cable
(not supplied). The difference between HDMI and DVI is that the HDMI device is smaller in size,
has the HDCP (High Bandwidth Digital Copy Protection) coding feature installed, and supports
multi - channel digital audio.

DVI IN(HDMI 2)(AUDIO R/L)

- When connecting this product via HDMI or DVI to a Set Top Box, DVD Player or Games Console
etc, make sure that it has been set to a compatible video output mode as shown in the table
below. Failure to observe this may result in picture distortion, image breakup or no picture.

- When using an HDMI/DVI cable connection, it is only possible from the HDMI IN 2 terminal.
You should use the DVI-to-HDMI cable or DVI-HDMI Adapter for the connection, and the
“R - AUDIO - L” terminal on DVI for sound output.

Supported modes for HDMI/DVI and Component

480i 480p 576i 576p 720p 1080i

HDMI/DVI 50Hz X X X O O O

HDMI/DVI 60Hz

Component

X O X X O O

O O O O O O

4 Connecting an Aerial or Cable Television Network
To view television channels correctly, a signal must be received by the set from one of the following
sources:

- An outdoor aerial / A cable television network / A satellite network
6 Connecting External A/V Devices

- Connect RCA or S-VIDEO cable to an appropriate external A/V device such as VCR, DVD or
Camcorder.

- Connect RCA audio cables to "R - AUDIO - L" on the rear of your set and the other ends to corre
sponding audio out connectors on the A/V device.

- Headphone may be connected to the headphone output (5) on the side of your set. While the
head phone is connected, the sound from the built-in speakers will be disabled.

7 Connecting Computer

- Connect the D- Sub cable (optional) to "PC (PC IN)" on the rear of your set and the other end to
the Video Card of your computer.

- Connect the stereo audio cable (optional) to "AUDIO (PC IN)" on the rear of your set and the other
end to "Audio Out" of the sound card on your computer.

8 SERVICE

- Service connection for qualified service engineer.

- Auto Wall-Mount (Refer to page 35)

English - 5

9 Connecting Component Devices (DVD)

- Connect component video cables (optional) to component connector ("PR", "PB", "Y") on the rear of
your set and the other ends to corresponding component video out connectors on the DVD.

- If you wish to connect both the Set-Top Box and (or DVD), you should connect the Set-Top Box to
the (or DVD) and connect the (or DVD) to component connector ("PR", "PB", "Y") on your set.

- The PR, PB and Y connectors on your component devices (DVD) are sometimes labeled Y, B-Y and
R-Y or Y, Cb and Cr.

- Connect RCA audio cables (optional) to "R - AUDIO - L" on the rear of your set and the other ends to
corresponding audio out connectors on the DVD.

- This LCD TV displays its optimum picture resolution in 720p mode.

- This LCD TV displays its maximum picture resolution in 1080i mode.

0 Kensington Lock

- The Kensington lock (optional) is a device used to physically fix the system when used in a public
place.

- If you want to use a locking device, contact the dealer where you purchased the TV.

- The place of the Kensington Lock may be different depending on its model.

English - 6

Viewing the Remote Control

1 Television Standby button
2 Number buttons for direct

channel access

3 One/Two-digit channel

selection

4 Selects the TV mode

directly

5 Used to display Channel

Lists on the screen.

6 Volume increase

Volume decrease
7 Temporary sound switch-off

8

Menu display and

change confirmation

9 Sound mode selection

0 Returns to the previous

menu.

! Picture effect selection
@ Adjusts screen brightness

to save energy.

#

Sound effect selection

$ SRS TS XT selection
% Available source selection
^ Previous channel
&

Selects the HDMI mode
directly.

Automatic Power-off

*

P : Next channel

(

P : Previous channel
) Exit the OSD

Control the cursor in the

a

menu

b Use to see information on

the current broadcast

c Picture freeze
e Picture size selection
f

PIP: Picture-In-Picture

On/Off

SOURCE: Input source

POSITION: PIP position

P
P : Previous channel

Teletext Functions

4 Exit from the teletext

display

8 Teletext index

% Teletext mode selection

(LIST/FLOF)

^ Teletext sub page

P : Teletext next page

(

P : Teletext previous page

Teletext cancel

)

b Teletext reveal
d

Alternately select Teletext,
Double, or Mix.

9!ce

Fastext topic selection

f

PIP:

f

SOURCE:

f

POSITION:

selection

selection

: Next channel

Teletext Hold

Teletext Store

Teletext size
selection

The performance of the remote control may be affected by bright light.

This is a special remote control for the visually impaired,
and has Braille points on the Power, Channel and Volume buttons.

English - 7

Installing Batteries in the Remote Control

1. Lift the cover at the back of the remote control upward as shown in the

figure.

2. Install two AAA size batteries.
Make sure to match the "+" and "–" ends of the batteries with the
diagram inside the compartment.

3. Replace the cover.
Remove the batteries and store them in a cool, dry place if you won’t
be using the remote control for a long time. The remote control can
be used up to about 23 feet from the TV.
(Assuming typical TV usage, the batteries last for about one year.)

If the remote control doesn’t work, check the following:

1. Is the TV power on?

2. Are the plus and minus ends of the batteries reversed?

3. Are the batteries drained?

4. Is there a power outage, or is the power cord unplugged?

5. Is there a special fluorescent light or neon sign nearby?

Switching On and Off

The mains lead is attached to the rear of your set.

1. Plug the mains lead into an appropriate socket.

The standby indicator lights up on the front of the set.

2. Press the

You also can press the POWER button or the TV button on the remote control to turn
the TV on.
The programme that you were watching last is reselected automatically.

3. Press the numeric button (0~9) or channel up/down ( / ) button on the remote control or

CH

When you switch the set on for the very first time, you will be asked to choose language in
which the menus are to be displayed.

4. To switch your set off, press the POWER

button on the front of the set.

button on the right side of the set.

button again.

Placing Your Television in Standby Mode

Your set can be placed in standby mode in order to reduce the power consumption. The standby
mode can be useful when you wish to interrupt viewing temporarily (during a meal, for example).

1. Press the POWER button on the remote control.

The screen is turned off and a red standby indicator appears on the front of your set.

2. To switch your set back on, simply press the POWER
channel up/down ( / ) button again.

Do not leave your set in standby mode for long periods of time (when you are away on holiday,

for example). It is best to unplug the set from the mains and aerial.

English - 8

, numeric buttons (0~9), TV button or

Plug & Play

When the TV is initially powered on, several basic settings
proceed automatically and subsequently. The following
settings are available.

1. Press the POWER button on the remote control.

The message "Start Plug & Play" is displayed with "OK" selected.

2. Selecttheappropriatelanguagebypressingthe▲or▼button.

Plug & Play

Start Plug & Play.

OK

Enter Exit

Press the ENTER button to confirm your choice.

3. Press the

◄

or ► buttons to select “Shop” or “Home”, then the ENTER button.
We recommend setting the TV to Home mode for the best picture in your home envronment.
Shop mode is only intended for use in retail environments.
If the unit is accidentally set to Shop mode and you want to return to Dynamic (Home) mode,

press the Volume button and then hold down the MENU button for five seconds on the side

panel of the TV.

4. The message "Check antenna input." is displayed with "OK" selected.
Press the ENTER button.
Please check that the antenna cable is connected correctly.

5. SelecttheappropriateAreabypressingthe▲or▼button.
Press the ENTER button to confirm your choice.

6.

The "Auto Store" menu is displayed with the "Start" selected. Press the

ENTER

button.
The channel search will start and end automatically.
After all the available channels are stored, the "Clock Set" menu appears.
Press the ENTER button at any time to interrupt the memorization process.

7. Press the ENTER button.
Select the "Month" , "Day" , "Year", "Hour", "Minute" and "am/pm" by pressing the ◄ or ► button..
Set the "Month" , "Day" , "Year", "Hour", "Minute" and "am/pm" by pressing the ▲ or ▼ button.
You can also set the hour and minute by pressing the number buttons on the remote control.
When you have finished, press the ENTER button
The message “Enjoy your viewing” is displayed.

8. Press the ENTER button to confirm your setting.

 Language

: Select your language.

 Area : Select your country.
 Auto Store
 Clock Set

: Automatically scans for and stores channels available in the local area.

: Sets the current time for the TV clock.

English - 9

If you want to reset this feature...

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Setup", then press the
ENTER button.

2. Press the ENTER

button again, to select "Plug & Play".

3. The message to "Start Plug & Play" is displayed.
(On page 9)

TV

Plug & Play 
Language : English
Time

Game Mode : Off

Blue Screen : Off
Melody : Off

PC

sMore

Move Enter Return

Plug & Play

Start Plug & Play.

OK

Enter Return

Setup











- Storing Channels Automatically

- Storing Channels Manually

TV

Area :
Auto Store
Manual Store
Channel Manager
Sort
Name
Fine Tune

Channel

Asia/W.Europe

Move Enter Return

Storing Channels Automatically

You can scan for the frequency ranges available to you (and availability depends on your country).
Automatically allocated programme numbers may not correspond to actual or desired programme
numbers. However, you can sort numbers manually and clear any channels you do not wish to watch.

1. Press the MENU button to display the menu.
Press the ▲ or ▼ button to select "Channel", then press the ENTER button.

2. Press the ENTER

3. Select the appropriate area by pressing the ▲ or ▼ button.
Press the ENTER button to confirm your choice.

4. Press the

5. Press the ENTER

The TV will begin memorizing all of the available channels.
Press the ENTER button at any time to interrupt the memorization process and return to the
"Channel" menu.

6. After all the available channels are stored, the "Sort" menu appears.

button to select “Area”.

▲

or ▼ button to select “Auto Store" then press the ENTER button.

button.









English - 10

Storing Channels Manually

You can store up to 100 channels, including those received via cable networks.
When storing channels manually, you can choose:
Whether or not to store each of the channels found.
The programme number of each stored channel which you wish to identify.

1. Press the MENU button to display the menu.
Press the ▲ or ▼ button to select "Channel", then press the ENTER button.

2. Press the

3. Press the ENTER button to select "Programme".

4. To assign a programme number to a channel, find the correct number by pressing the

button and then press the ENTER button.
You can also set a programme number by pressing number buttons on the remote control.

5. Press the

6. Select the colour standard required by pressing the
button.

7. Press the

8. Select the sound standard required by pressing the

button.
If there is an abnormal sound or no sound, re-select the sound system required.

9. If you know the number of the channel to be stored, press the ▲ or ▼ button to select "Channel".
Press the ENTER button. Select C (Air channel) or S (Cable channel) by pressing the ▲ or ▼
button. Press the ► button to select channel.
Select the required number by pressing the ▲ or ▼ button and then press the ENTER button.
Channel mode: P (Programme mode), C (Air channel mode), S (Cable channel mode)
You can also set a channel number by pressing number buttons on the remote control.

10. If you do not know the channel numbers, press the ▲ or ▼ button to select "Search".
Press the ENTER button. Search by pressing the ▲ or ▼ button and then press the
ENTER button.

11. Press the ▲ or ▼ button to select "Store". Press the ENTER button to select "OK".

12. Repeat steps

▲

or ▼ button to select "Manual Store", then press the ENTER button.

▲

or ▼ button to select "Colour System", then press the ENTER button.

▲

or ▼ button then, press the ENTER

▲

or ▼ button to select "Sound System", then press the ENTER button.

▲

or ▼ button, then press the ENTER

3 to 11 for each channel to be stored.

▲

or ▼

 Programme: Selects a program number for the channel.
 Colour System: Sets the colour supporting system.
 Sound System: Sets the sound supporting system.
 Channel: Selects a channel.
 Search: Scans for the frequency value for the channel.
 Store: Saves your settings.

English - 11

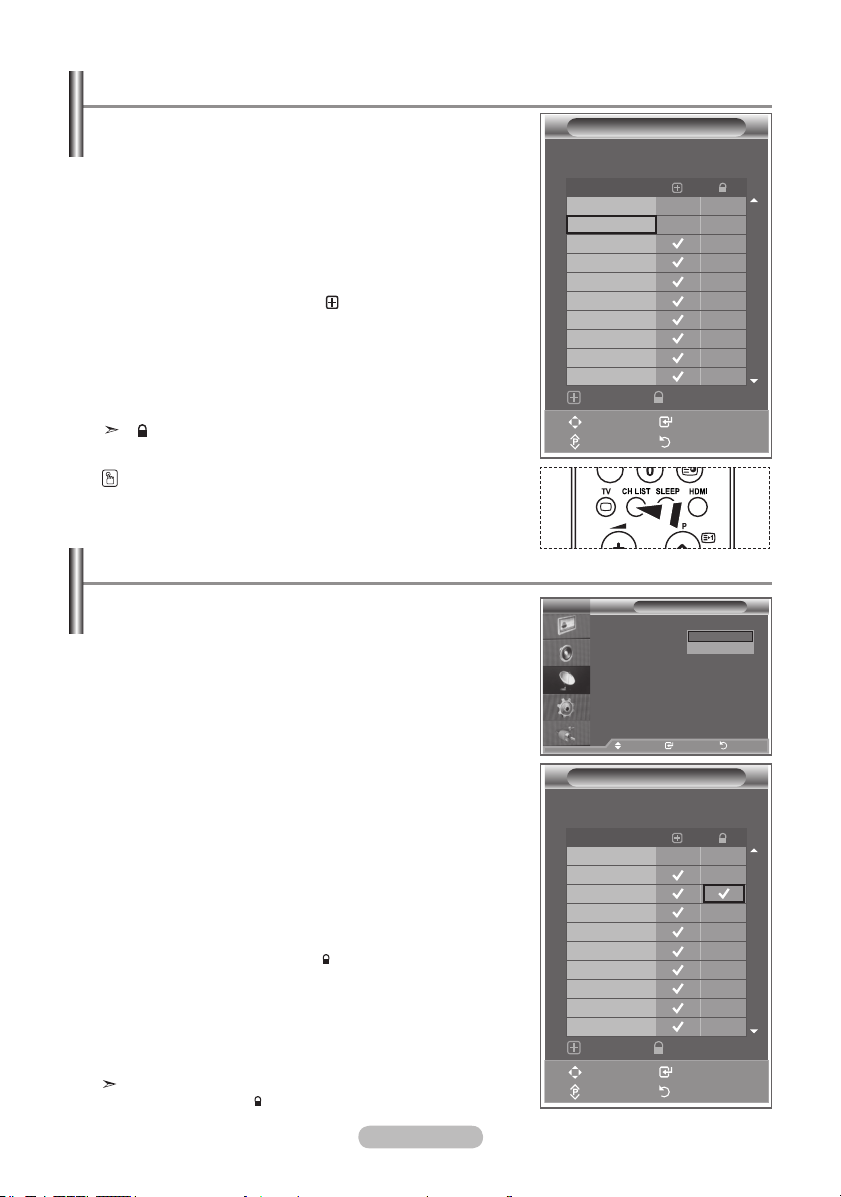

Setting the Channel Lists

Set the channels according to your preference.
You can easily delete, add, or lock the channel you want.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Channel", then press the
ENTER button.

2. Press the ▲ or ▼ button to select "Channel Manager",
then press the ENTER button.

3. Press the ENTER button again, to select "Channel List".

4. Press the ► button to select " " line.

5. Press the ▲ or ▼ button to select the undesired channel,
then press the ENTER button to cancel.

6. Repeat steps 5 for each channel to be selected or canceled

7. Press the EXIT button to exit.

" " is active when "Child Lock" is selected to "On".

You can select these options by simply pressing the CH LIST
button on the remote control.

Activating the Child Lock

This feature allows you to prevent unauthorized users, such
as children, from watching unsuitable programmes by muting
out video and audio.
Child Lock cannot be released using the buttons on the side.
Only the remote control can release the Child Lock setting,
so keep the remote control away from children.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Channel", then press the
ENTER button.

2. Press the ▲ or ▼ button to select "Channel Manager",
then press the ENTER button.

3. Press the ▲ or ▼ button to select "Child Lock", then press
the ENTER button.

4. Press the ▲ or ▼ button to select "On" or "Off". Press the
ENTER button.

5. Press the ▲ or ▼ button to select "Channel List",
then press the ENTER button.

6. Press the ► button to select " " line.

7. Press the ▲ or ▼ button to select the channels you want to
lock, then press the ENTER button.

8. Repeat steps 7 for each channel to be locked or unlocked.

9. Press the

Select "On" or "Off" in "Child Lock" to easily turn the channels
which selected on " " to be active or inactive.

EXIT button to exit.

Channel List

P 1 C3

Prog.

0 C--

1 C3

2 BBC 1

3 C74

4 C75

5 C76

6 S3

7 S4

8 S6

9 S7

Add Lock

Move Enter

Page Return

TV

Channel List

Child Lock :

Move Enter Return

Channel List

P 2 C4 BBC1

Prog.

0 C--

1 C3

2 BBC 1

3 C74

4 C75

5 C76

6 S3

7 S4

8 S6

9 S7

Add Lock

Move Enter

Page Return

1 / 10

Channel Manager

Off

On

1 / 10

English - 12

Sorting the Stored Channels

You can exchange the numbers of two channels, in order to:

Modify the numeric order in which the channels have
been automatically stored.
Give easily remembered numbers to the channels
that you watch most often.

1.

Press the MENU button to display the menu. Press the ▲ or ▼

button to select "Channel", then press the ENTER button.

2. Press the ▲ or ▼ button to select "Sort", then press the
ENTER button.

3. Select the channel number that you wish to change by press
ing the ▲ or ▼ button repeatedly. Press the ENTER
button.

The selected channel number and name are moved to
right side.

4. Press the

▲

or ▼ button to move to the position in which you
would like to change and then press the ENTER button.
The selected channel is exchanged with the one
previously stored to the chosen number.

5. Repeat steps 3 to 4 for another channel to be sorted.

6. Press the EXIT

button to exit.

Assigning Channels Names

Channel names will be assigned automatically when channel
information is broadcast. These names can be changed,
allowing you to assign new names.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Channel", then press the
ENTER button.

2. Press the
ENTER button.

3. If necessary, select the channel to be assigned to a new
name by pressing the ▲ or ▼ button. Press the ENTER
button.
The selection bar is displayed around the name box.

4.

5. Repeat steps

name.

6. Press the EXIT

▲

or ▼ button to select "Name", then press the

To...

Select a letter, number or symbol

Move on the next letter

Move back the previous letter

Confirm the name

The characters available are : Letters of the alphabet
(A~Z) / Numbers (0~9) / Special characters (+, –, *, / ,

Then...

Press the ▲ or ▼ button

Press the ► button

Press the ◄ button

Press the ENTER button

Blank)

3 to 4 for each channel to be assigned to a new

button to exit.

TV

Area :
Auto Store
Manual Store
Channel Manager
Sort
Name
Fine Tune

Move Enter Return

TV

Prog. Ch. Name

r

0

C--

1 C23

2 C16
3 C3
4 S1

r

Move Enter Return

TV

Area :
Auto Store
Manual Store
Channel Manager
Sort
Name
Fine Tune

Move Enter Return

TV

Prog. Ch. Name

r

0 C-- -----

1 C23 -----

2 C16 ----­3 C3 ----­4 S1 -----

r

Move Enter Return

Channel

Asia/W.Europe

Sort

Channel

Asia/W.Europe

Name





















English - 13

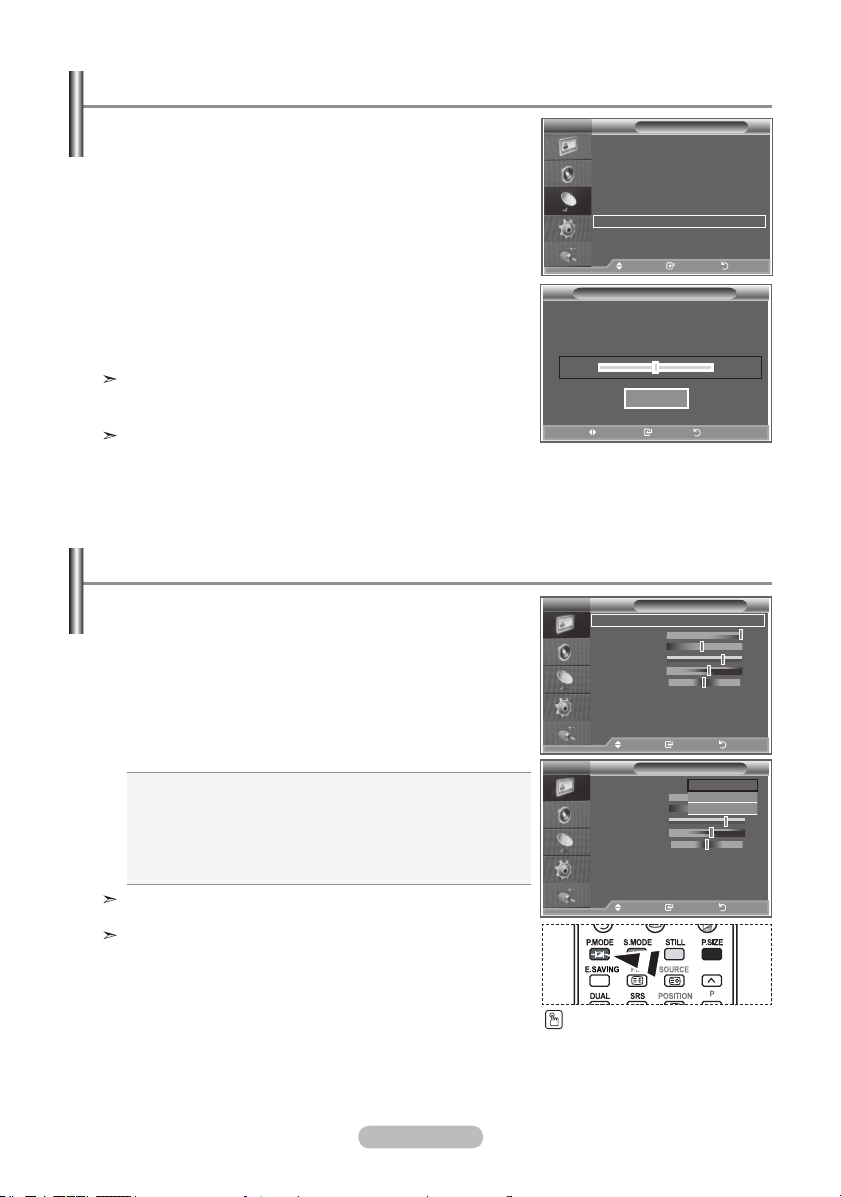

Fine Tuning Channel Reception

Use fine tuning to manually adjust a particular channel for
optimal reception.

1. Use the number buttons to directly select the channel that

you want to fine tune.

2. Press the MENU

button to display the menu.

Press the ▲ or ▼ button to select "Channel", then press the
ENTER button.

3. Press the ▲ or ▼ button to select "Fine Tune", then press
the ENTER button.

◄

4. Press the
Press the ENTER button.

5. Press the EXIT

or ► button to adjust the fine tuning.

button to exit.

Fine tuned channels that have been saved are marked with
an asterisk "*" on the right-hand side of the channel number

in the channel banner. And the channel number turns red.

To reset the fine-tuning, select "Reset" by pressing the
▲ or ▼ button and then press the ENTER button.

Changing the Picture Standard

You can select the type of picture which best corresponds to
your viewing requirements.

1. Press the MENU button to display the menu.
Press the ENTER button to select "Picture".

2. Press the ENTER

3. Press the ▲ or ▼ button to select the desired picture effect.
Press the ENTER button.

4. Press the EXIT

 Dynamic: Selects the picture for high-definition in a bright
room.

 Standard: Selects the picture for optimum display in a
normal environment.

 Movie: Selects the picture for comfortable display in a
dark room.

The Picture mode must be adjusted separately for each input
source.
You can return to the factory defaults picture settings by

selecting the "Reset".
(Refer to "Resetting the Picture Settings to the Factory
Defaults" on page 19)

button again, to select "Mode".

button to exit.

TV

Area :
Auto Store
Manual Store
Channel Manager
Sort
Name
Fine Tune

P 1

Adjust Save Return

TV

Mode : Dynamic 
Contrast 100
Brightness 45
Sharpness 75
Colour 55
Tint G50 R50
Colour Tone : Cool1 
Backlight : 10 
sMore

TV

Mode : Dynamic

Contrast 100
Brightness 50
Sharpness 75
Colour 55
Tint G50 R50
Colour Tone : Cool1

Backlight : 10

sMore

Channel

Asia/W.Europe

Move Enter Return

Fine Tune

0

Reset


Move Enter Return


Dynamic

Standard

Movie

Move Enter Return

You can also press the

P.MODE button on the remote
control to select one of the
picture settings.










English - 14

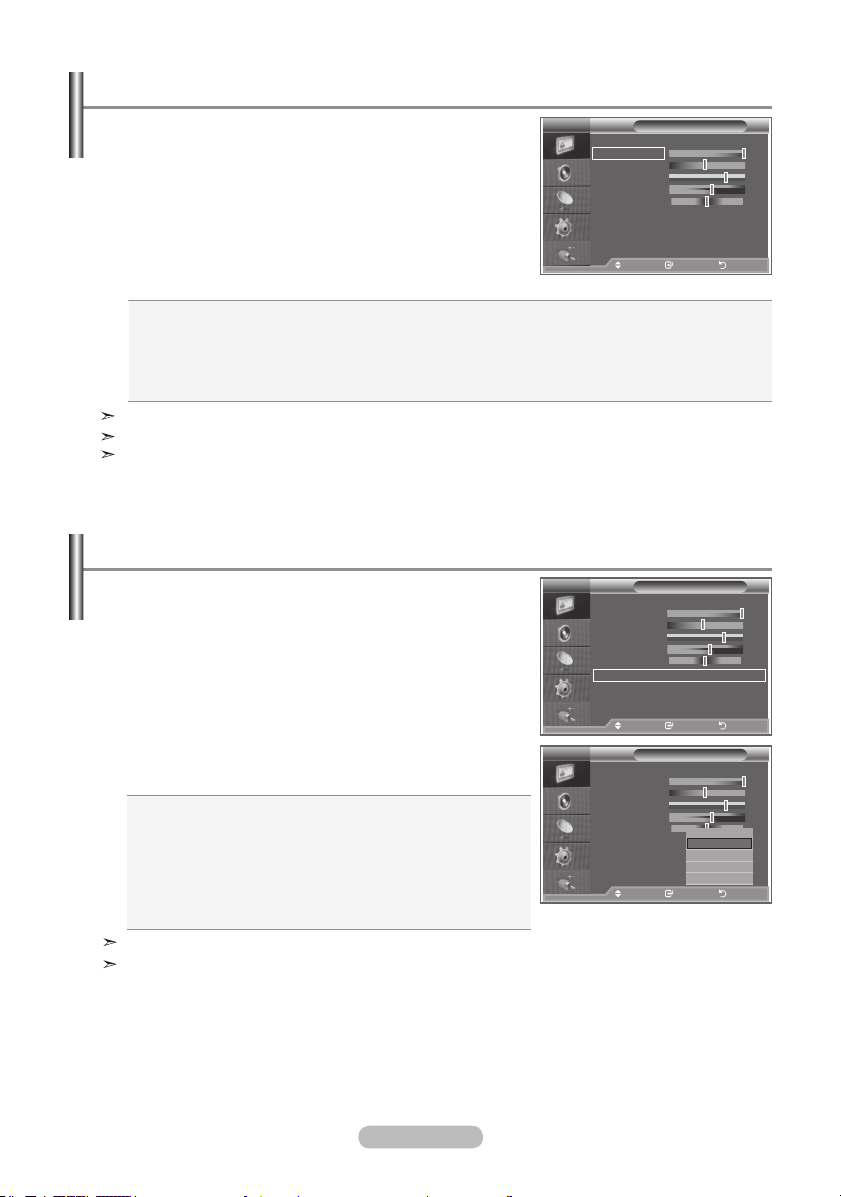

Adjusting the Custom Picture

Your set has several settings which allow you to control
picture quality.

1. To select the desired picture effect, follow the

"Changing the Picture Standard" instructions number 1 to 3.

2. Press the ▲ or ▼ button to select a particular item. Press the
ENTER button.

3. Press the ◄ or ► button to decrease or increase the value of
a particular item. Press the ENTER button.

4. Press the EXIT button to exit.

 Contrast: Adjusts the lightness and darkness between objects and the background.
 Brightness: Adjusts the brightness of the whole screen.
 Sharpness: Adjusts the outline of objects to either sharpen them or make them more dull.
 Colour: Adjusts the colours, making them lighter or darker.
 Tint:

Adjusts the colour of objects, making them more red or green for a more natural look.

The adjusted values are stored according to the selected Picture mode.
In PC Mode, Only "Contrast", "Brightness" can be adjusted.
In TV, AV, S-Video modes of the PAL system, you cannot use the Tint function.

TV

Mode : Dynamic 
Contrast 100
Brightness 45
Sharpness 75
Colour 55
Tint G50 R50
Colour Tone : Cool1 
Backlight : 10 
sMore

Move Enter Return

Changing the Colour Tone

You can select the most comfortable colour tone to your
eyes.

1. To select the desired picture effect, follow the

"Changing the Picture Standard" instructions number 1 to 3.
(on page 14)

2. Press the ▲ or ▼ button to select "Colour Tone", then press
the ENTER button.

3. Press the ▲ or ▼ button to select the desired colour tone
setting. Press the ENTER button.

4. Press the EXIT button to exit

 Cool2: Makes the colour temperature bluer than "Cool1"
menu.

 Cool1: Makes whites bluish.
 Normal: Keeps whites white.
 Warm1: Makes whites reddish.
 Warm2: Makes the colour temperature redder than

"Warm1" menu.

The adjusted values are stored according to the selected Picture mode.
When the picture mode is set to Dynamic or Standard, Warm1 and Warm2 cannot be selected.

TV

Mode : Dynamic 
Contrast 100
Brightness 45
Sharpness 75
Colour 55
Tint G50 R50
Colour Tone : Cool1 
Backlight : 10 
sMore

Move Enter Return

TV

Mode : Dynamic
Contrast 100
Brightness 45
Sharpness 75
Colour 55
Tint G50 R50

Colour Tone : Cool1

Backlight : 10
sMore

Move Enter Return




Cool 2

Cool 1

Normal

Warm 1
Warm 2

English - 15

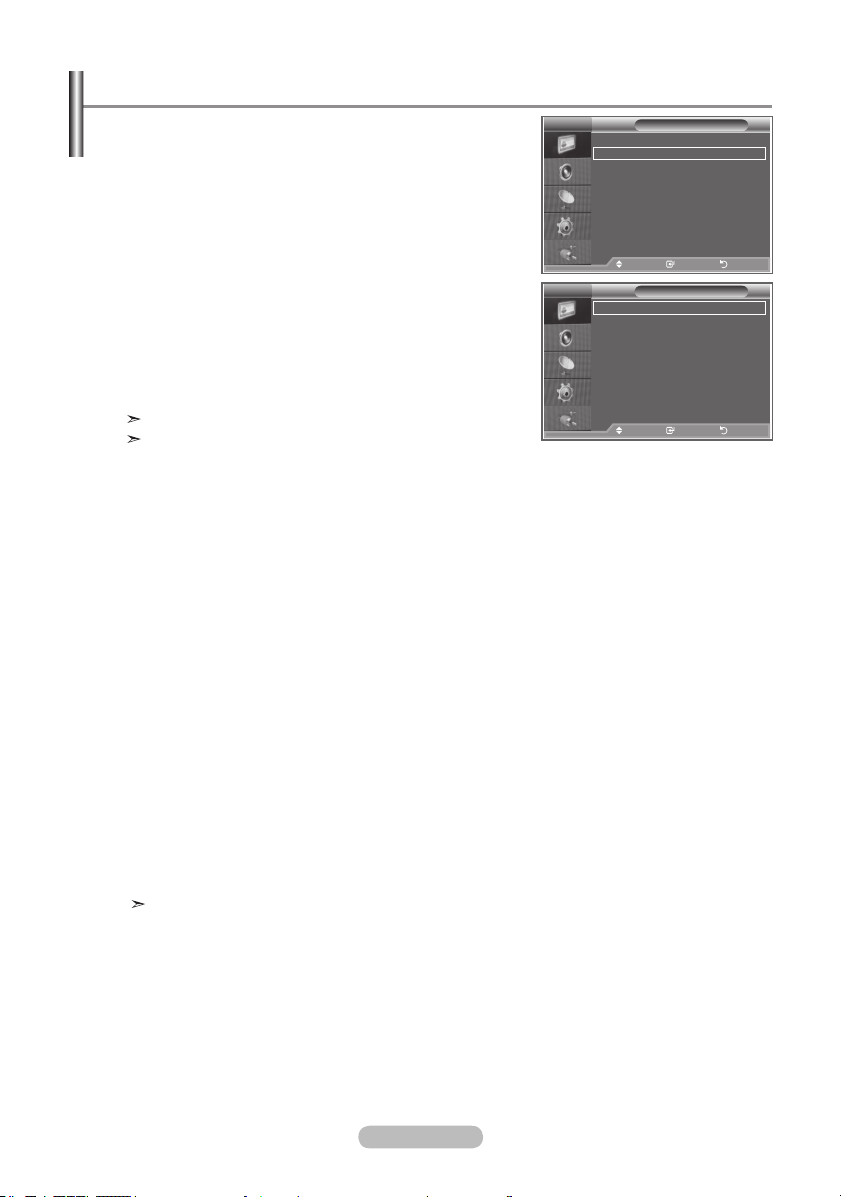

Conguring Detailed Settings on the Picture

You can set detailed picture settings.

Press the MENU button to display the menu.

1.

2.

Press the ENTER button, to select "Picture".

3.

Press the ▲ or ▼ button to select "Detailed Settings", then

press the ENTER button.

TV

rMore

Detailed Settings 
Size : 16 : 9 
Digital NR : Auto

Active Colour : Off
DNle : Off

Reset : OK

4. Select the required option by pressing the ▲ or ▼ button,

then press the ENTER
Available options: Black Adjust, Dynamic Contrast, Gamma,
Colour Space, White Balance, My Colour Control, Edge
Enhancement.

When you are satisfied with your setting, press the

5.

ENTER button.

Press the EXIT button to exit.

6.

button.

TV

Black Adjust : Off
Dynamic Contrast
Gamma : 0
Colour Space
White Balance
My Colour Control
Edge Enhancement : Off

Detailed Setting is available in Standard or Movie mode.
If DNIe is Off, the Detailed Settings cannot be selected

when the Picture mode is in Standard mode.

 Black Adjust: Off/Low/Medium/High
You can directly select the black level on the screen to adjust the screen depth.

 Dynamic Contrast: Off/Low/Medium/High
You can adjust the screen contrast so that the optimal contrast is provided.

Gamma: -3 ~ +3

You can adjust the middle brightness of pictures.

Press the ◄ or ► button until you reach the optimal setting.

 Colour Space: Auto/Wide
You can set the color reproduction space for the input signal to Auto or Wide.

White Balance: R Offset/G Offset/B Offset/R Gain/G Gain/B Gain/Reset

You can adjust the color temperature for more natural picture colors.
R Offset/G Offset/B Offset/R Gain/G Gain/B Gain: Changing the adjustment value will refresh the
adjusted screen.

Select the required option by pressing the ▲ or ▼ button, then press the ENTER button.
Press the ◄ or ► button until you reach the optimal setting.

Reset: The previously adjusted white balance will be reset to the factory defaults.

 My Colour Control: Pink/Green/Blue/White/Reset
This setting can be adjusted to suit your personal preferences.
Pink/Green/Blue/White: Changing the adjustment value will refresh the adjusted screen.

Select the required option by pressing the ▲ or ▼ button, then press the ENTER button.
Press the ◄ or ► button until you reach the optimal setting.

Reset: The previously adjusted white balance will be reset to the factory defaults.

 Edge Enhancement: Off/On
You can emphasize object boundaries.




Move Enter Return

Detailed Settings

: Off 

: Auto 

Move Enter Return














English - 16

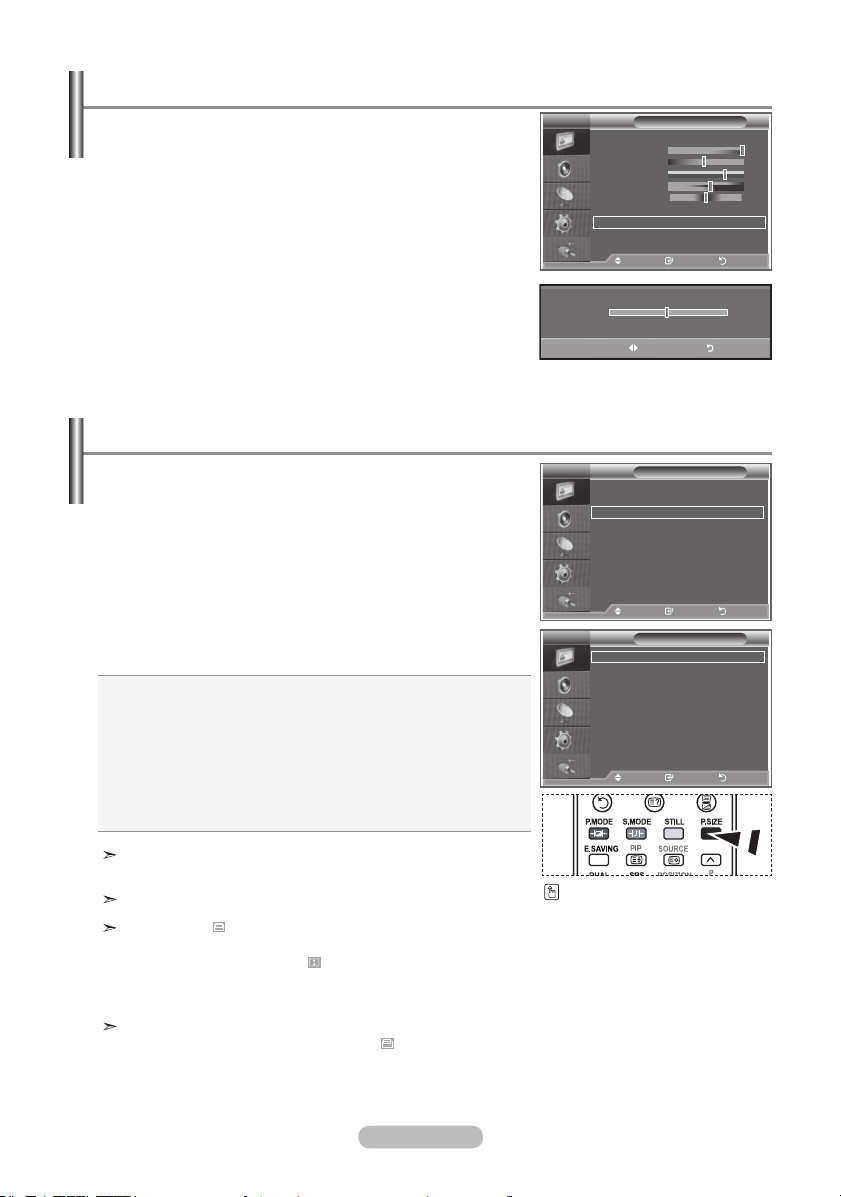

Activating Backlight

You can adjust the screen brightness by adjusting the LCD
backlight brightness. (0~10)

1.

To select the desired picture effect, follow the
"Changing the Picture Standard" instructions number 1 to 3.
(On page 14)

Press the ▲ or ▼ button to select “Backlight”, then press the

2.
ENTER button.

Press the ◄ or ► button to decrease or increase the value of

3.

a particular item.
Press the ENTER button.

4. Press the EXIT button to exit.

Changing the Picture Size

You can select the picture size which best corresponds to
your viewing requirements.

1. Press the MENU button to display the menu.
Press the ENTER button, to select "Picture".

2. Press the
ENTER button.

3. Select the required option by pressing the ▲ or ▼ button.
Press the ENTER button.

4. Press the EXIT

 16:9:

wide broadcasting.

 Wide Zoom:
 Zoom:

to fit the screen size.

 4:3: This is the default setting for a video movie or normal broadcasting.
 Just Scan (HDMI only): Displays the input scenes as they are without

▲

or ▼ button to select "Size", then press the

button to exit.

Adjusts the picture size to 16:9 appropriate for DVDs or

Magnify the size of the picture more than 4:3.

Magnifies the 16:9 wide picture (in the vertical direction)

any cutoff when 720p,1080i signals are input.

TV

Mode : Dynamic 
Contrast 100
Brightness 45
Sharpness 75
Colour 55
Tint G50 R50
Colour Tone : Cool1 
Backlight : 10 
sMore

Move Enter Return

Backlight

TV

TV

Adjust Return

rMore

Detailed Settings 

Size : 16 : 9 
Digital NR : Auto
Active Colour : On
DNle : On
Reset : OK

Move Enter Return

16 : 9
Wide Zoom
Zoom
4 : 3

Just Scan

Move Enter Return



Size

5







"Wide Zoom" function is available only in "TV", "AV1", "AV2",
and "S-Video" mode.

In PC Mode, only "16:9" and "4:3" mode can be adjusted.

Zoom: Select by pressing the ◄ or ► buttons.

Use the ▲ or ▼ button to move the picture up and
down.After selecting , use the ▲ or ▼ button to
magnify or reduce the picture size in the vertical
direction.

Wide Zoom : Move the screen up/down using the▲ or ▼

buttons after selecting the by pressing

the ► or ENTER button.

English - 17

You can select these options
by simply pressing the P.SIZE
button on the remote control.

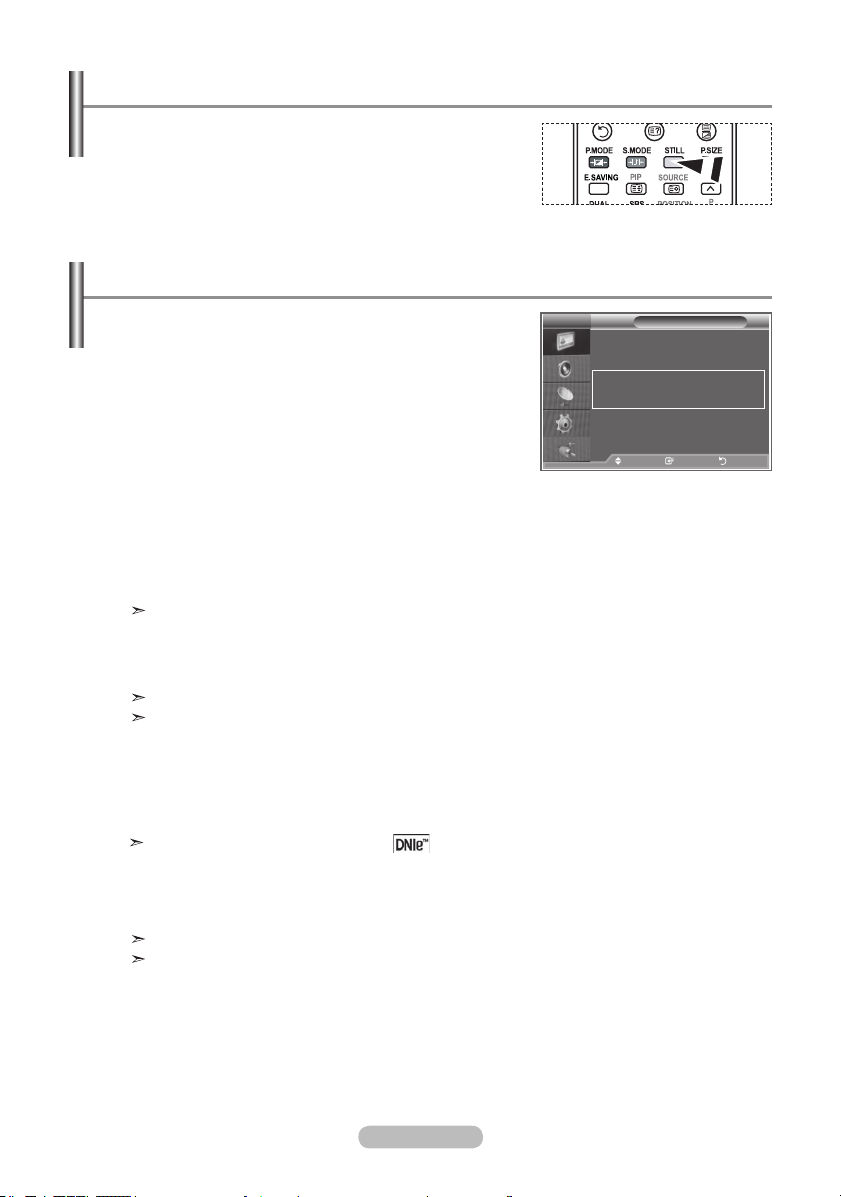

Freezing the Current Picture

Press the STILL button to freeze a moving picture into a
still one. Press again to cancel.

Digital NR / Active Colour / DNIe

If the broadcast signal received by your TV is weak, you can
activate the Digital Noise Reduction feature to help reduce
any static and ghosting that may appear on the screen.

1. Press the MENU button to display the menu.
Press the ENTER button, to select "Picture".

2. Select the required option by pressing the ▲ or ▼ button,

then press the ENTER

button.

Available options: Digital NR, Active Colour, DNIe.

3. When you are satisfied with your setting, press the
ENTER button.

4. Press the EXIT

button to exit.

 Digital NR: Off/Low/Medium/High/Auto
If the signal received by the television is weak, you can activate this feature to reduce any static and
ghosting that may appear on the screen.
This function is not available in PC mode.

 Active Colour: Off/On
If you turn on this option, the colours of the sky and grass will be stronger and clearer for a more
vivid on-screen picture.

This function is not available in PC mode.
This function is not available in Movie mode

 DNIe : Off/Demo/On
This TV includes the DNIe function so as to provide a high visual quality. If you set DNIe to on, you
can view the screen with the DNIe feature activated. If you set the DNIe to Demo, you can view the
applied DNIe and normal pictures on the screen, for demonstration purposes. Using this function,
you can view the difference in the visual quality.

DNIeTM (Digital Natural Image engine)
This feature brings you more detailed image with 3D noise reduction, detail enhancement,
contrast enhancement and white enhancement. New image compensation Algorithm gives
brighter, clearer, more detailed image to you. DNIe™ technology will fit every signal into your
eyes.

This function is not available in PC mode.
This function is not available in Movie mode

TV

rMore

Detailed Settings 

Size : 16 : 9 
Digital NR : Auto
Active Colour : On
DNle : On
Reset : OK

Move Enter Return








English - 18

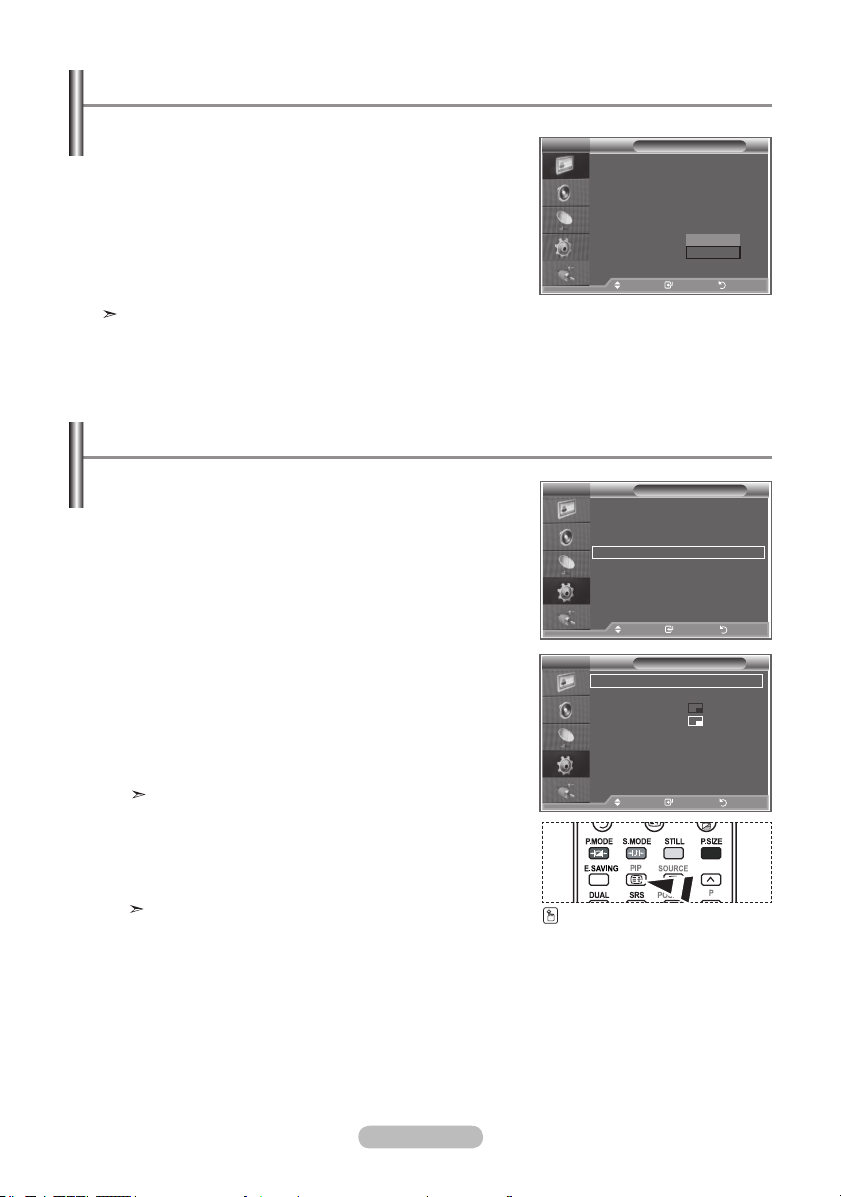

Resetting the Picture Settings to the Factory Defaults

You can return to the factory defaults picture settings.

1. To select the desired picture effect, follow the

"Changing the Picture Standard" instructions number 1 to 3
(on page 14.)

▲

2. Press the
ENTER button.

3.

Press the ▲ or ▼ button to select “OK”, “Cancel”, then press

or ▼ button to select "Reset", then press the

the ENTER button.

4. Press the EXIT

button to exit.

The "Reset" will be set for each picture mode.

Viewing the Picture In Picture (PIP)

You can display a sub picture within the main picture of set
programme or video input. In this way, you can watch the
picture of set programme or video input from any connected
equipment while watching the main picture.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Setup", then press the
ENTER button.

2. Press the
ENTER button.

3. Press the ENTER button again.

Press the ▲ or ▼ button to select "On", then press ENTER

button.

4. Press the ▲ or ▼ button to select "Source", then press
ENTER button. Select a source of the sub picture by
pressing the ▲ or ▼ button and press the ENTER
button.
The sub picture can serve different source selections
based on what the main picture is set to.

5. Press the
and then press the ENTER button. Select a size of the sub
picture by pressing the ▲ or ▼ button and then press the
ENTER button.

▲

or ▼ button to select "PIP", then press the

▲

or ▼ button to select "Size" of the sub picture

If main picture is in "Component" and "PC" mode,
"Size" is not available.

TV

rMore

Detailed Settings

Size : 16 : 9
Digital NR : Auto
Active Colour : On
DNle : On

Reset : OK

TV

rMore

Home Theater PC

Energy Saving : Off

HDMI Black level : Low



PIP

TV

PIP : On
Source : TV

Size :

Position :
Programme : P 1

Press the PIP button on the

remote control repeatedly to acti­vate or deactivate the "PIP".


OK

Cancel

Move Enter Return

Setup

: Off 

Move Enter Return

PIP

Move Enter Return













English - 19

6. Press the ▲ or ▼ button to select "Position", then press the ENTER button.

Select the position of the sub picture by pressing the ▲ or ▼ button and then press the ENTER
button.

7. Press the

▲

or ▼ button to select "Programme" and then press the ENTER button.
You can select the channel that you want to view through sub picture by pressing the ▲ or ▼
button. Press the ENTER button.
The "Programme" can be active when the sub picture is set to TV.

8. Press the EXIT

button to exit.

You may notice that the picture in the PIP window becomes slightly unnatural when you use the
main screen to view a game or karaoke.

 Source: Used to select a source of the sub picture.
 Size: Used to select a size of the sub picture.
 Position: Used to move the sub picture.
 Programme: Used to Change the sub picture.

PIP Settings

Main

Sub

Component

HDMI

PC

O: PIP operates, X: PIP doesn’t operate

TV AV1 AV2

S-Video Component1,2 PC HDMI1,2

O O O X X X X

O O O X X X X

O O O X X X X

English - 20

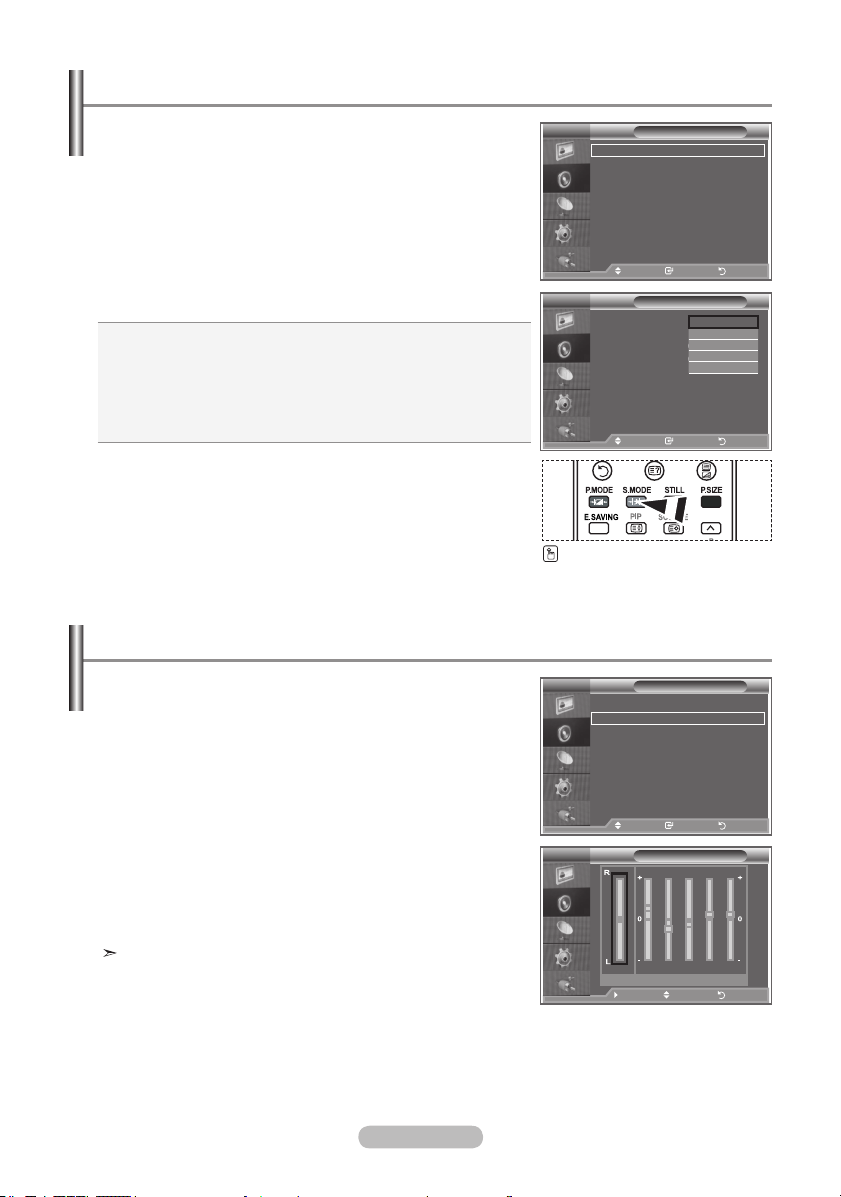

Changing the Sound Standard

You can select the type of the special sound effect to be used
when watching a given broadcast.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Sound", then press the
ENTER button.

2. Press the ENTER

button again, to select "Mode".

3. Select the required sound effect by pressing the ▲ or ▼
button repeatedly and then press the ENTER button.

4. Press the EXIT

button to exit.

 Standard: Selects the normal sound mode.
 Music: Emphasizes music over voices.
 Movie: Provides live and full sound for movies.
 Speech: Emphasizes voices over other sounds.
 Custom: Selects your custom sound settings.

(Refer to "Adjusting the Sound Settings")

Adjusting the Sound Settings

TV

Mode : Standard
Equalizer
SRS TS XT : Off
Auto Volume : Off
Internal Mute : Off

Sound Select : Main
Reset

TV

Mode : Custom

Equalizer
SRS TS XT : Off
Auto Volume : Off
Internal Mute : Off

Sound Select : Main
Reset

Sound

Move Enter Return

Sound

Move Enter Return

Standard

Music

Movie
Speech
Custom









You can also select these options

by simply pressing the S.MODE
button on the remote control.

TV

The sound settings can be adjusted to suit your personal
preferences.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Sound", then press the

ENTER button.

2. Press the ▲ or ▼ button to select "Equalizer", then press the
ENTER button.

3. Press the ◄ or ► button to select a particular item.
Press the ENTER button.

4. Press the ▲ or ▼ button to reach the required setting.
Press the ENTER button.

5. Press the EXIT

button to exit.

If you make any changes to these settings, the Sound Mode
is automatically switched to "Custom".

English - 21

Mode : Standard
Equalizer
SRS TS XT : Off
Auto Volume : Off
Internal Mute : Off

Sound Select : Main
Reset

Move Enter Return

TV

Balance 100Hz 300Hz 1kHz 3kHz 10kHz

Balance 100Hz 300Hz 1kHz 3kHz 10kHz

Move Adjust Return

Move Adjust Return

Sound

Equalizer

Equalizer









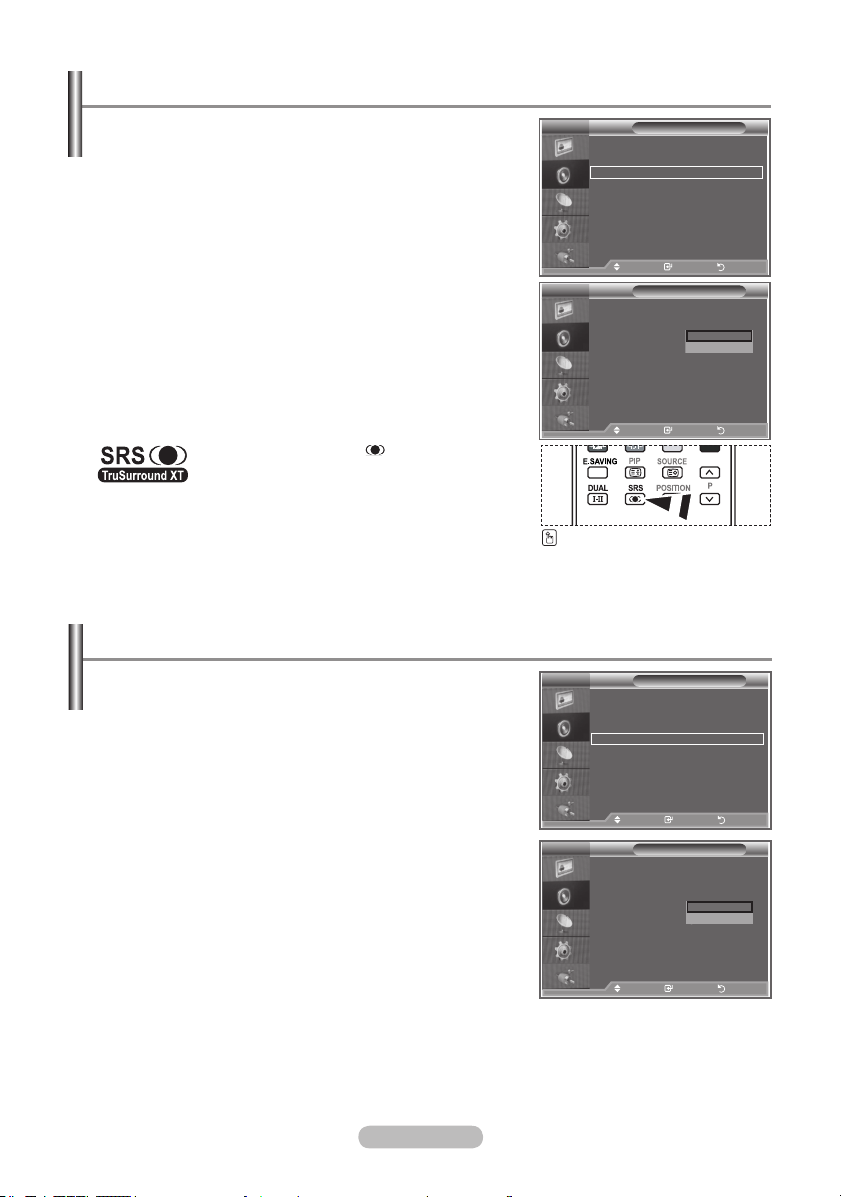

Setting the TruSurround XT (SRS TS XT)

TruSurround XT is a patented SRS technology that solves
the problem of playing 5.1 multichannel content over two
speakers. TruSurround delivers a compelling,virtual surround
sound experience through any two-speaker playback system,
including internal television speakers. It is fully compatible
with all multichannel formats.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Sound", then press the
ENTER button.

2. Press the ▲ or ▼ button to select "SRS TS XT", then press

the ENTER

button.

3. Press the ▲ or ▼ button to select "On" or "Off". Press the
ENTER button.

4. Press the EXIT

button to exit.

TruSurround XT, SRS and symbol are
trademarks of SRS Labs, Inc. TruSurround XT
technology is incorporated under license from SRS
Labs, Inc.

Adjusting the Volume Automatically

Each broadcasting station has its own signal conditions, and
so it is not easy for you to adjust the volume every time the
channel is changed. This feature allows you to automatically
adjust the volume of the desired channel by lowering the
sound output when the modulation signal is high or by
raising the sound output when the modulation signal is low.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Sound", then press the

ENTER button.

2. Press the ▲ or ▼ button to select "Auto Volume", then press
the ENTER

3. Press the ▲ or ▼ button to select "On" or "Off". Press the
ENTER button.

4. Press the EXIT

button.

button to exit.

TV

Mode : Standard
Equalizer
SRS TS XT : Off
Auto Volume : Off
Internal Mute : Off

Sound Select : Main
Reset

TV

Mode : Standard
Equalizer

SRS TS XT : Off

Auto Volume : Off
Internal Mute : Off

Sound Select : Main
Reset

Sound

Move Enter Return

Sound

Move Enter Return

Off

On









You can also set these options
simply by pressing the SRS
button on remote control.

TV

Mode : Standard
Equalizer
SRS TS XT : Off
Auto Volume : Off
Internal Mute : Off

Sound Select : Main
Reset

TV

Mode : Standard
Equalizer
SRS TS XT : Off

Auto Volume : Off

Internal Mute : Off

Sound Select : Main
Reset

Sound

Move Enter Return

Sound









Off

On

English - 22

Move Enter Return

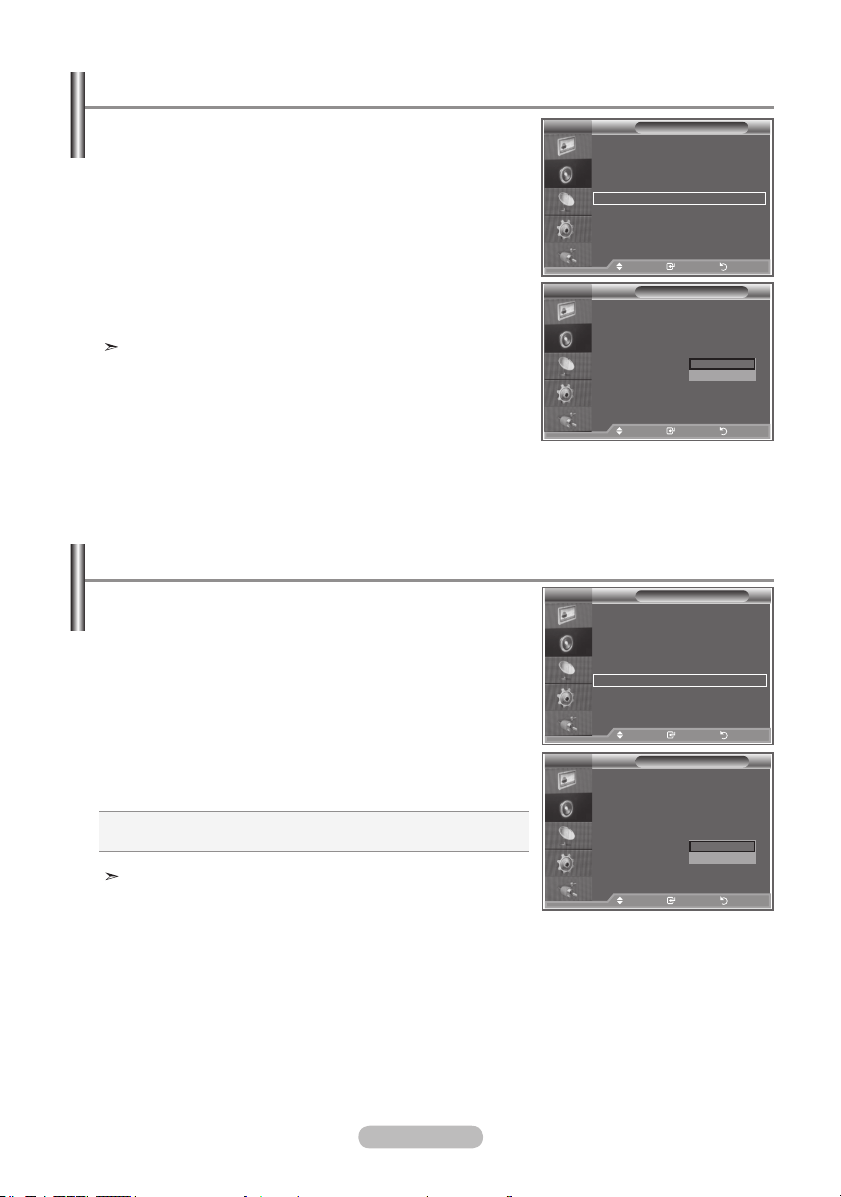

Selecting the Internal Mute

If you want to hear the sound through separate speakers,
cancel the internal amplifier.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Sound", then press the

ENTER button.

2. Press the ▲ or ▼ button to select "Internal Mute", then press

the ENTER

button.

3. Press the ▲ or ▼ button to select "On" or "Off". Press the
ENTER button.

4. Press the EXIT

button to exit.

When "Internal Mute" is set to "On", the Sound menus except
for "Sound Select" (in PIP mode) cannot be adjusted.

Listening to the Sound of the Sub Picture

During the PIP features activation, you can listen to the
sound of the sub picture.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Sound", then press the

ENTER button.

2. Press the ▲ or ▼ button to select "Sound Select", then press
the ENTER

3. Press the ▲ or ▼ button to select "Main".
Press the ENTER button.

4. Press the EXIT

 Main : Used to listen to the sound of the main picture.
 Sub : Used to listen to the sound of the sub picture.

You can select this option when the “PIP” is set to “On”.

button.

button to exit.

TV

Mode : Standard
Equalizer
SRS TS XT : Off
Auto Volume : Off
Internal Mute : Off

Sound Select : Main
Reset

Move Enter Return

TV

Mode : Standard
Equalizer
SRS TS XT : Off
Auto Volume : Off

Internal Mute : Off

Sound Select : Main
Reset

Move Enter Return

TV

Mode : Custom 
Equalizer
SRS TS XT : Off
Auto Volume : Off
Internal Mute : Off
Sound Select : Main

Reset

Move Enter Return

TV

Mode : Custom
Equalizer
SRS TS XT : Off
Auto Volume : Off
Internal Mute : Off

Sound Select : Main

Reset

Move Enter Return

Sound

Sound

Sound

Sound

Off

On

Main

Sub

















English - 23

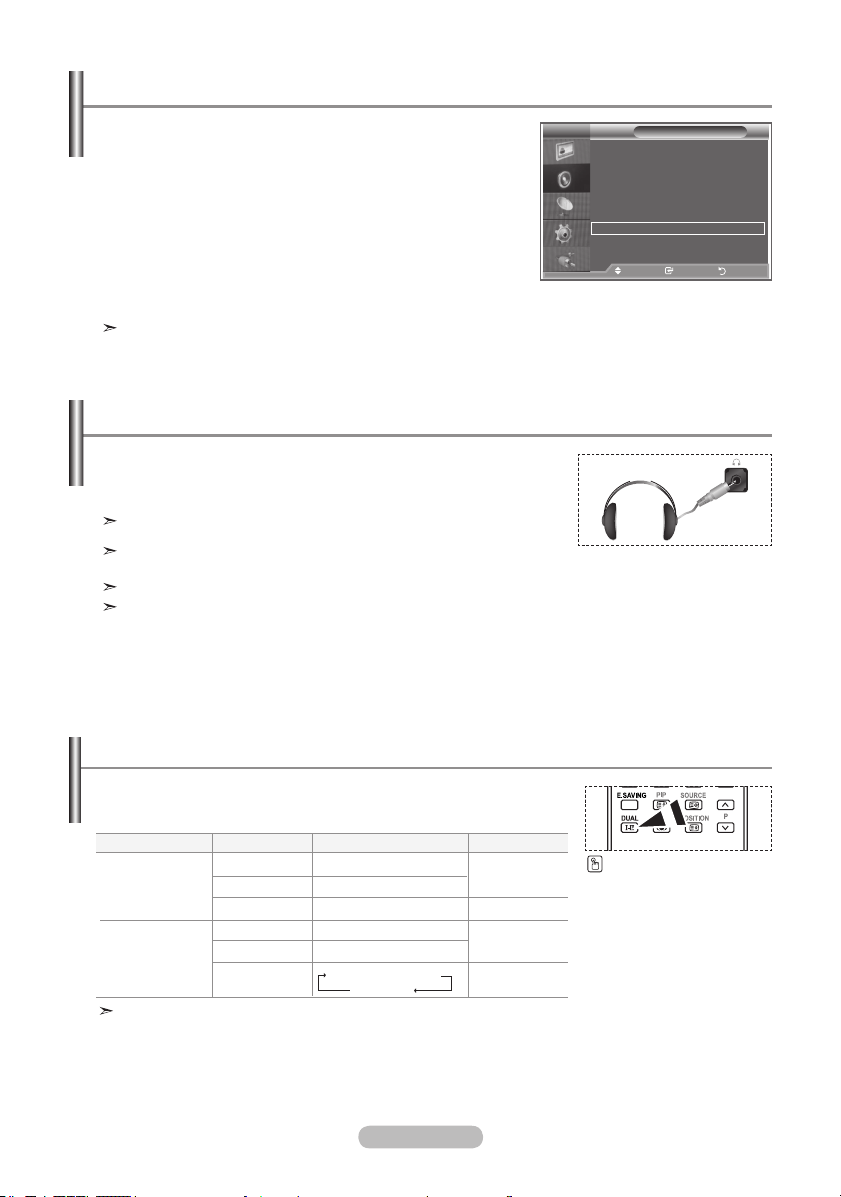

Resetting the Sound Settings to the Factory Defaults

If Game Mode is On, the Reset Sound function is activated.
Selecting the Reset function after setting the equalizer resets
the equalizer setting to the factory defaults.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Sound", then press the
ENTER button.

2. Press the ▲ or ▼ button to select "Reset", then press the
ENTER button.

TV

Mode : Custom 
Equalizer
SRS TS XT : Off
Auto Volume : Off
Internal Mute : Off
Sound Select : Main
Reset

Move Enter Return

3. Press the EXIT button to exit.

You can select this option when the "Game Mode" is set to "On".

Connecting Headphones

You can connect a set of headphones to your set if you wish to
watch a TV programme without disturbing the other people in the
room.

When you insert the head set jack into the corresponding port, you
can operate only "SRS TS XT" and "Auto Volume" in Sound menu.
Prolonged use of headphones at a high volume may damage your

hearing.

You will not receive sound from the speakers when you connect headphones to the system.
The headphone volume and TV volume are adjusted differently.

Sound







Selecting the Sound Mode

You can set the sound mode by pressing the “DUAL” button.
When you press it, the current sound mode is displayed on the
screen.

Audio Type

FM

Stereo

NICAM

Stereo

If the stereo signal is weak and an automatic switching occurs, then switch to the Mono.

Mono

Stereo

Dual

Mono

Stereo

Dual

DUAL 1/2

MONO

STEREO ↔ MONO

DUAL 1 ↔ DUAL 2

MONO

MONO ↔ STEREO

MONO ↔ DUAL 1

DUAL 2

English - 24

Default
Automatic

change

DUAL 1

Automatic

change

DUAL 1

You can also set these
options simply by
pressing the

DUAL

button on remote control.

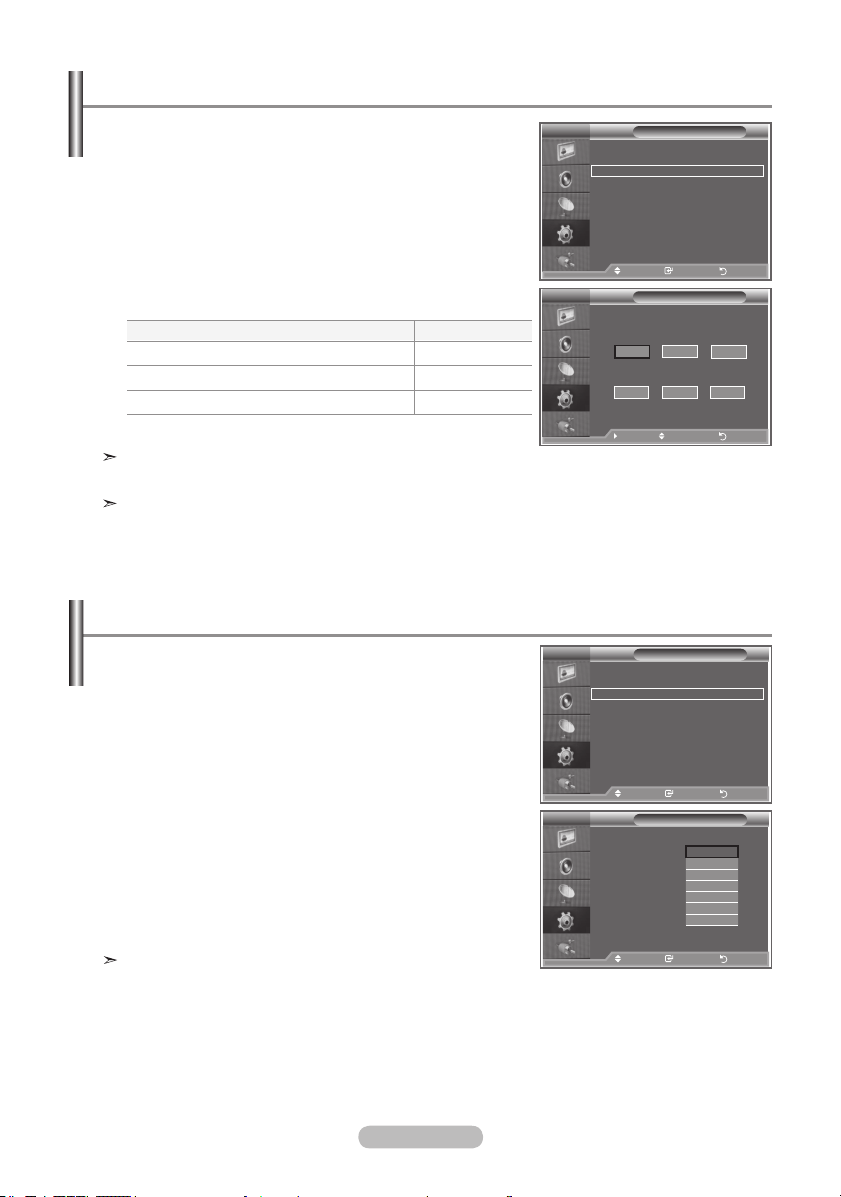

Setting and Displaying the Current Time

You can set the TV’s clock so that the current time is
displayed when you press the INFO button. You must also
set the time if you wish to use the automatic On/Off timers.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Setup", then press the

ENTER button.

2. Press the ▲ or ▼ button to select "Time", then press the
ENTER button.

3. Press the ENTER button to select "Clock Set".

4.

To...

Move to Month, Day, Year, Hour, Minute or am/pm

Set the Month, Day, Year, Hour

Minute or am/pm

Press the ENTER button.

5. Press the EXIT

If you disconnect the power cord, you have to set the clock
again.

button to exit.

Press the...



or  button.



or  button.

TV

Plug & Play 
Language : English
Time

Game Mode : Off

Blue Screen : Off
Melody : Off

PC

sMore

Move Enter Return

TV

Month

p

01

q

Hour

12

Move Adjust Return

You can also set Year, Month, Day, Hour and Minute by pressing the number buttons on the
remote control.

Setting the Sleep Timer

You can select a time period of between 30 and 180 minutes
after which the television automatically switches to standby
mode.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Setup", then press the

ENTER button.

2. Press the ▲ or ▼ button to select "Time", then press the
ENTER button.

3. Press the ▲ or ▼ button to select "Sleep Timer", then press
the ENTER button.

4. Press the ▲ or ▼ button dly until the desired time

appears (Off, 30, 60, 90, 120, 150, 180).
Press the ENTER button.

5. Press the EXIT

button to exit.

The TV automatically switches to standby mode when the
timer reaches 0.

TV

Plug & Play 
Language : English
Time

Game Mode : Off

Blue Screen : Off
Melody : Off

PC

sMore

Move Enter Return

TV

Clock Set :

Sleep Timer :

Timer1 :
Timer2 :
Timer3 :

Move Enter Return

Setup

Clock Set

Day

01

Minute

00

Setup

Time

12 : 00 am

Year

2007

am/pm

Off

30
60

90
120
150
180

am





















English - 25

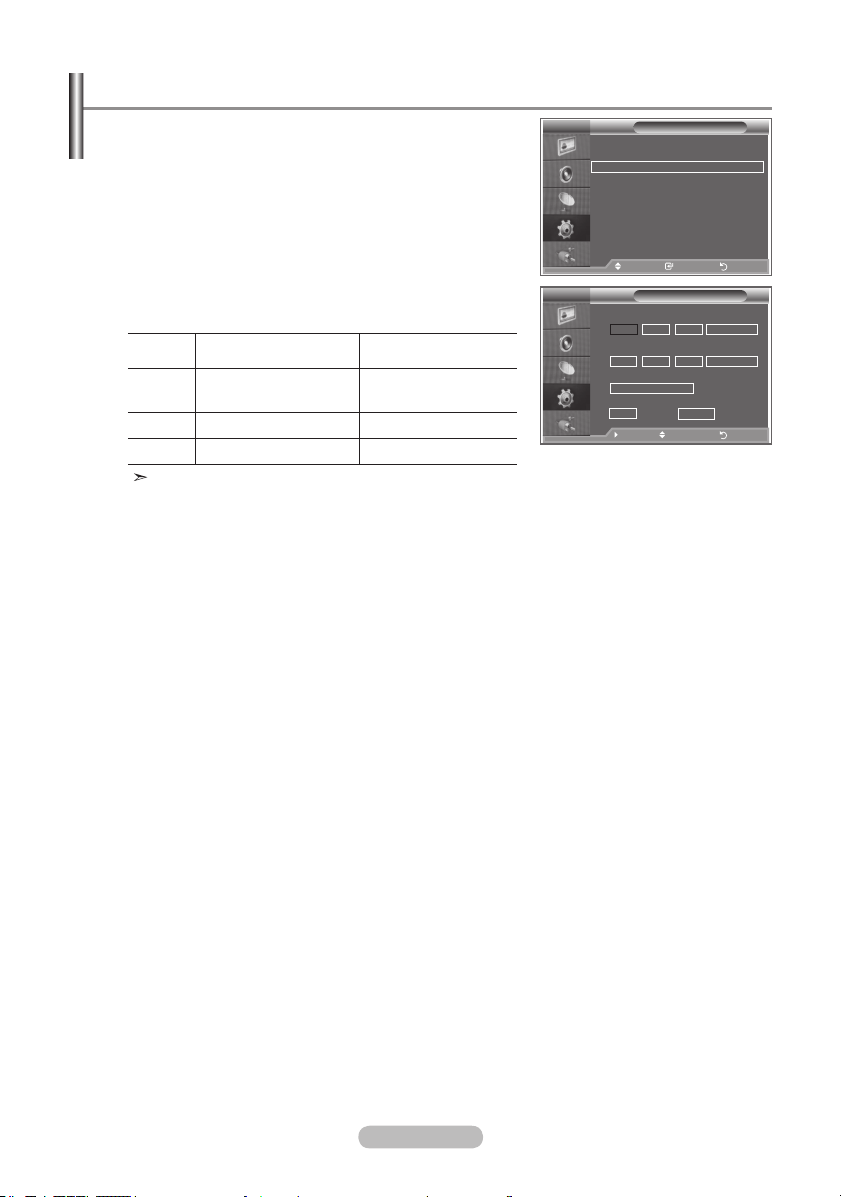

Switching the Television On and Off Automatically

►

TV

Plug & Play 
Language : English
Time

Game Mode : Off

Blue Screen : Off
Melody : Off

PC

sMore

Move Enter Return

TV

On Time

▲

12

▼

Off Time

12 00 am:Inactivate

Repeat

Once

Volume

10

Move Adjust Return

1. Press the MENU button to display the menu.

Press the ▲ or ▼ buttons to select "Setup", then press the
ENTER button.
Press the ▲ or ▼ buttons to select "Time", then press the
ENTER button.

Press the ▲ or ▼ buttons to select "Timer 1,Timer 2,Timer 3",

2.
then press the ENTER button.

Press the ▲ or ▼ buttons to adjust “Hour”, then press the

3.

button to move to the next step.

Set other items using the same method as above.

Yes/No Press the ▲or▼ button

Repeat

Select a Once, Everyday,

Press the ▲or▼ button

Mon-Fri, Mon-Sat, Sat-Sun

Volume Adjust a 0~100 Press the ▲or▼ button

Programme

Adjust a Programme Press the ▲or▼ button

When finished, press the RETURN button to return.

• The current time will appear every time you press the
INFO button.

• You can set the hour, minute directly by
pressing the number buttons on the remote control.

Press the EXIT

button to exit.

Setup

Timer1

00 am:Inactivate

Programme

1











English - 26

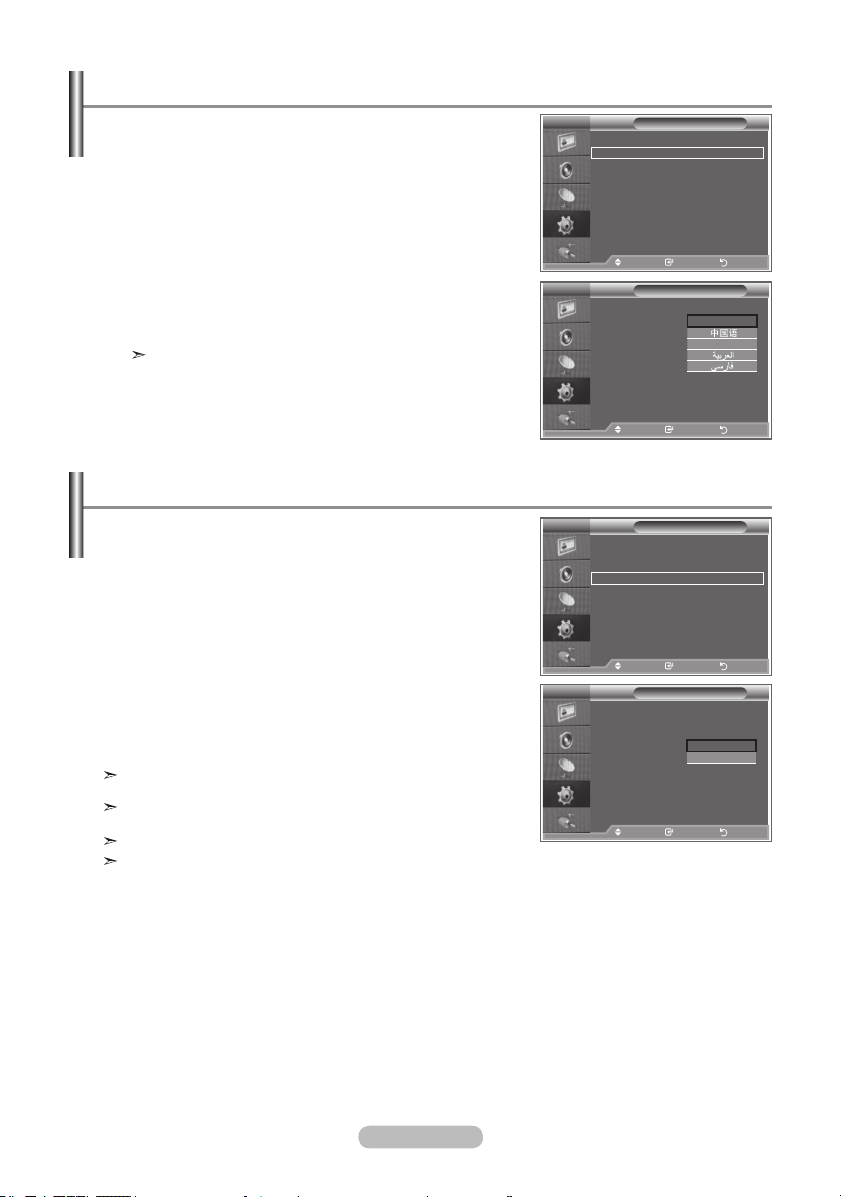

Choosing Your Language

When you start using your set for the first time, you must
select the language which will be used for displaying menus
and indications.

1. Press the MENU button to display the on-screen menu.

Press the ▲ or ▼ button to select "Setup", then press the

ENTER button.

2. Press the ▲ or ▼ button to select "Language", then press

the ENTER

button.

3. Select a particular language by pressing the ▲ or ▼ button

repeatedly.
Press the ENTER button.
You can choose one of 5 languages.

4. Press the EXIT

button to exit.

TV

Plug & Play 
Language : English
Time

Game Mode : Off

Blue Screen : Off
Melody : Off

PC

sMore

TV

Plug & Play

Language : English

Time

Game Mode : Off

Blue Screen : Off
Melody : Off

PC

sMore

Setup

Move Enter Return

Setup

English

Français

Move Enter Return

Using Game Mode

When connecting to a game console such as PlayStationTM or
XboxTM, you can enjoy a more realistic gaming experience by
selecting game menu.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Setup", then press the

ENTER button.

TV

Plug & Play 

Language : English
Time
Game Mode : Off
Blue Screen : Off
Melody : Off

PC

sMore

2. Press the ▲ or ▼ button to select "Game Mode", then press
the ENTER

3. Press the ▲ or ▼ button to select "On" or "Off". Press the
ENTER button.

4. Press the EXIT

To disconnect the game console and connect another
external device, cancel game mode in the setup menu.

button.

button to exit.

TV

Plug & Play

Language : English
Time

Game Mode : Off

Blue Screen : Off
Melody : Off

PC

sMore

If you display the TV menu in Game mode, the screen
shakes slightly.
Game Mode is not available in TV mode.
If Game Mode is On:

• Picture Mode changes to Standard and Sound Mode changes to Custom automatically.

The user cannot change these to other modes.

• Sound Mode in the Sound menu is deactivated. Adjust the sound using the equalizer.

• The Reset Sound function is activated. Selecting the Reset function after setting the equalizer
resets the equalizer setting to the factory defaults.

Setup

Move Enter Return

Setup

Off

On

Move Enter Return



















English - 27

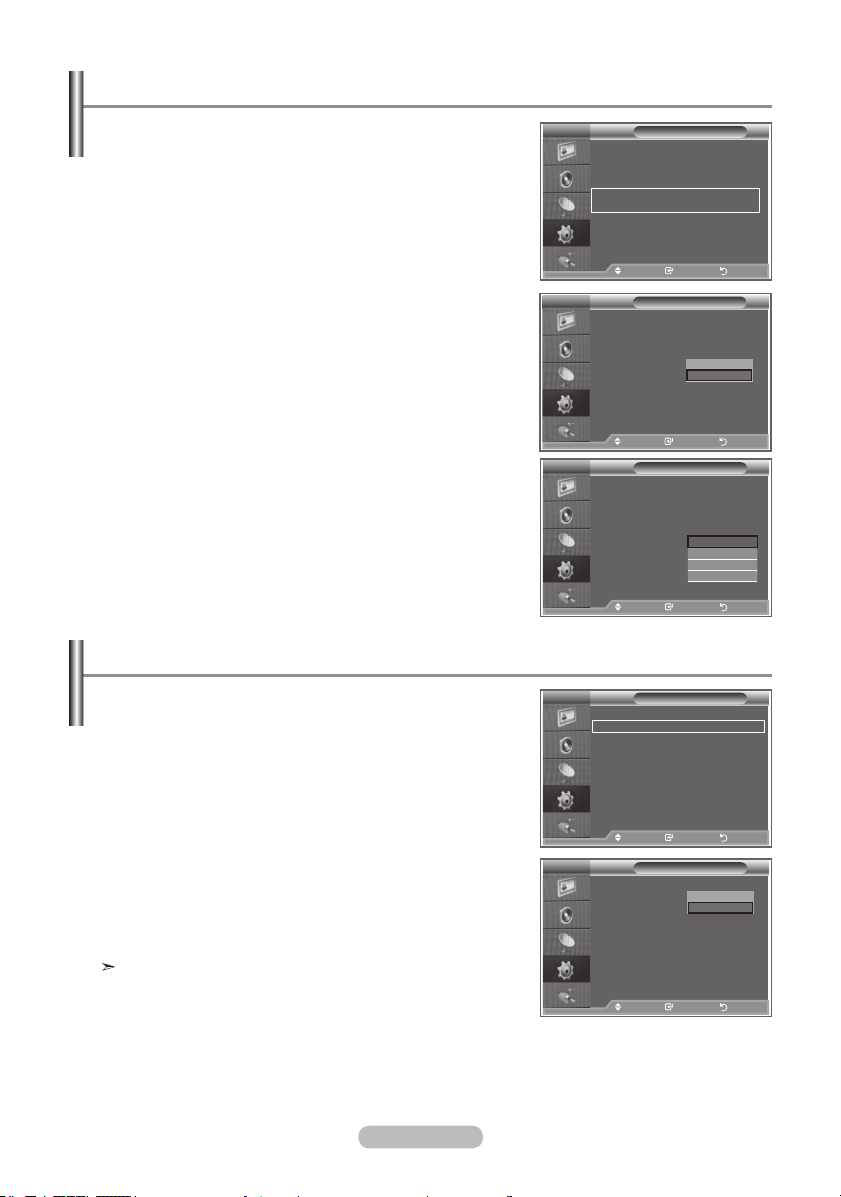

Setting the Blue Screen Mode / Selecting the Melody

Blue Screen:
If no signal is being received or the signal is very weak, a
blue screen automatically replaces the noisy picture
background. If you wish to continue viewing the poor picture,
you must set the "Blue Screen" mode to "Off".

Melody:
You can hear melody sound when the television is powered
on or off.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Setup", then press the

ENTER button.

2. Press the ▲ or ▼ button to select "Blue Screen" or "Melody".
Press the ENTER button.

3. When you are satisfied with your setting, press the ENTER

button.

 Blue Screen: Off/On
 Melody: Off/Low/Medium/High

4. Press the EXIT

button to exit.

Setting the Home Theater PC

You can view higher quality pictures by configuring the
screen settings in PC Mode.
If you set the Home Theater PC function to On, you can
configure the Detailed Settings (
Standard or Movie) as in PC Mode.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Setup", then press the

ENTER button.

2. Press the ▲ or ▼ button to select "Home Theater PC".
Press the ENTER button.

3. Press the ▲ or ▼ button to select "Off" or "On".
Press the ENTER button.

4. Press the EXIT

button to exit.

This function is available only in PC mode.

when Picture Mode is set to

TV

Plug & Play 
Language : English
Time
Game Mode : Off
Blue Screen : Off
Melody : Off

PC

sMore

TV

Plug & Play
Language : English
Time

Game Mode : Off

Blue Screen : Off

Melody : Off

PC

sMore

TV

Plug & Play
Language : English
Time

Game Mode : Off

Blue Screen : Off

Melody : Off

PC

sMore

TV

rMore

Home Theater PC

Energy Saving : Off

HDMI Black level : Low



PIP

TV

TV

rMore

Home Theater PC

Energy Saving : Off

HDMI Black level : Low

PIP

Setup

Move Enter Return

Setup

Off

On

Move Enter Return

Setup

Off

Low

Medium

High

Move Enter Return

Setup

: Off 

Move Enter Return

Setup

: Off

Off

On













English - 28

Move Enter Return

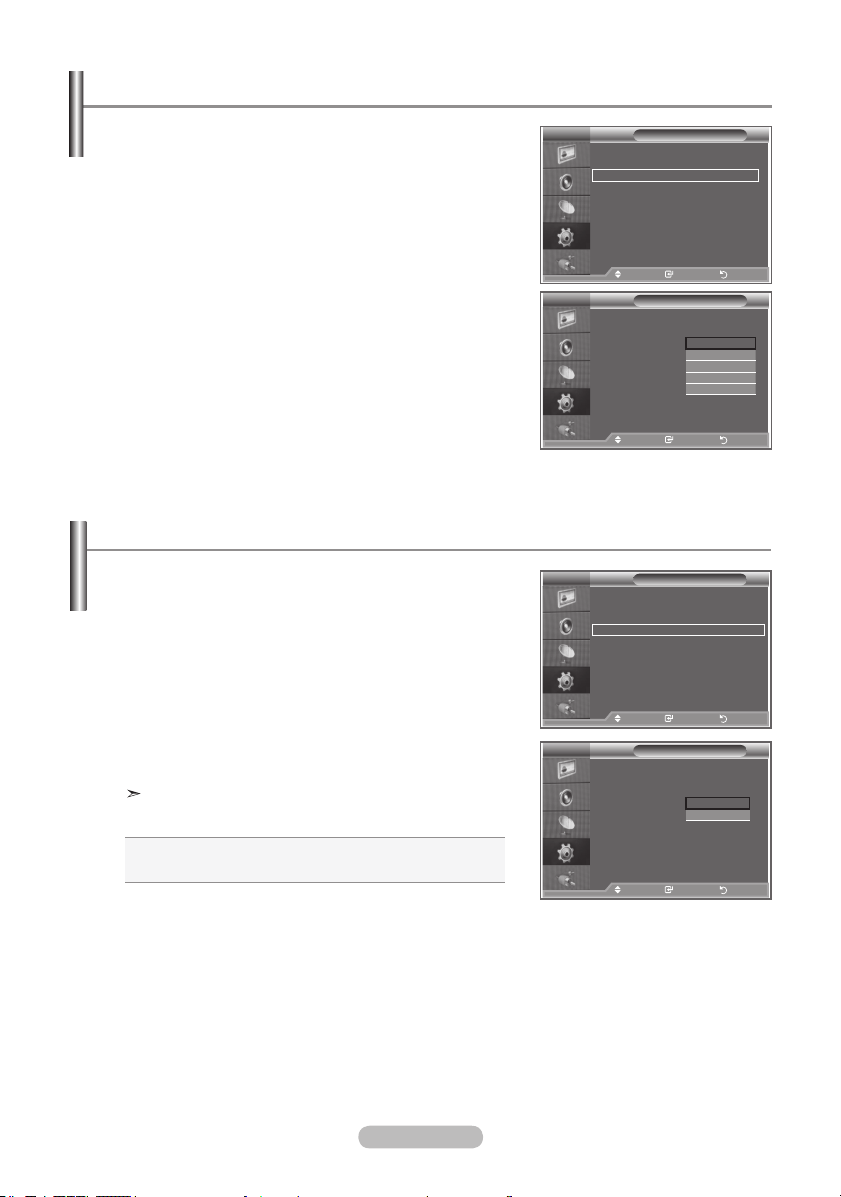

Using the Energy Saving Feature

This function adjusts the brightness of the TV so as to reduce
power consumption. When you watching TV at night, set the
"Energy Saving" mode option to "High" so as to reduce the
dazzling of your eyes as well as the power consumption.

1. Press the MENU button to display the on-screen menu.

Press the ▲ or ▼ button to select "Setup", then press the

ENTER button.

2. Press the ▲ or ▼ button to select "Energy Saving", then

press the ENTER

button.

3. Select the required option (Off, Low, Medium, High, Auto) by

pressing the ▲ or ▼ button. Press the ENTER button.

4. Press the EXIT

button to exit.

HDMI Black Level

You can directly select the black level on the screen to adjust
the screen depth.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ buttons to select “Setup”, then press the
ENTER button.

2.

Press the ▲ or ▼ buttons to select "HDMI Black Level", then

press the ENTER button.

3. Press the ▲ or ▼ buttons to select “Normal” or “Low”, then

press the ENTER

Press the EXIT button to exit.

4.

This function is active only when the externel input

connects to HDMI(RGB signals).

button.

TV

rMore

Home Theater PC

Energy Saving : Off

HDMI Black level : Low
PIP

TV

rMore

Home Theater PC

Energy Saving : Off

HDMI Black level : Low
PIP

TV

rMore

Home Theater PC

Energy Saving : Off
HDMI Black level : Normal
PIP

TV

rMore

Home Theater PC

Energy Saving : Off
HDMI Black level : Low
PIP

: Off 

Move Enter Return

: Off

Move Enter Return

: Off 



Move Enter Return

: Off

Setup

Setup

Setup

Setup

Medium

Normal

Normal

Low

Off

Low

High
Auto

Low









• Normal: The screen gets brighter.

• Low: The screen gets darker.

Move Enter Return

English - 29

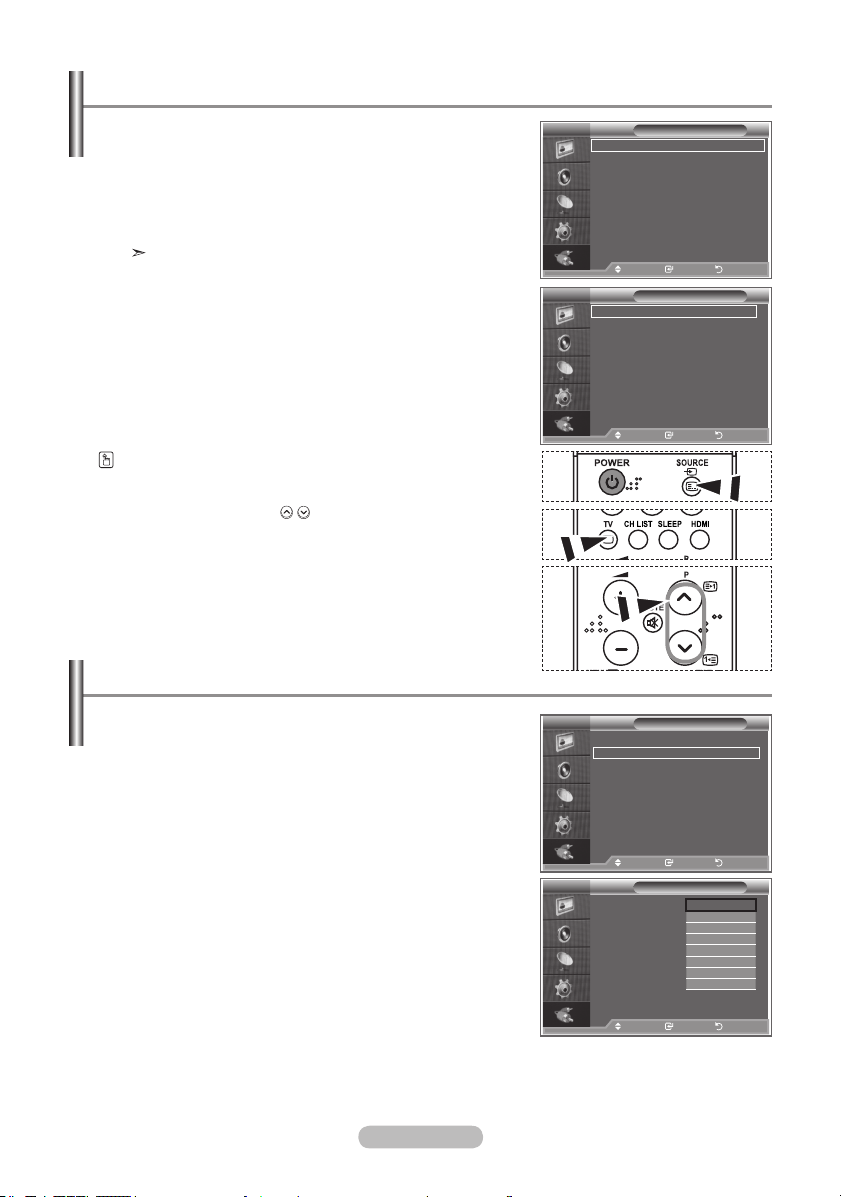

Selecting the Source

You can select among external sources connected to your
TV’s input jacks.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select “Input”, then press the
ENTER button.

2. Press the ENTER

button again, to select "Source List".

When no external device is connected to your set, only

"TV" are activated in the "Source List".
"AV1", "AV2", "S-Video", "Component1", "Component2",
"PC", "HDMI1", "HDMI2" are activated only when they
are connected to your set.

3. Select the required device by pressing the ▲ or ▼ button.
Press the ENTER button.

Press the SOURCE button on the remote control to toggel
between all the available source.
TV mode can be selected by pressing the TV button, number
buttons(0~9), and the P / button on the remote control.
But it cannot be selected using the SOURCE button.

Editing the Input Source Names

Mode : Custom 

TV

Equalizer
Source List : TV

SRS TSXT : Off
Edit Name 
Auto Volume : Off

Internal Mute : Off
Reset

Move Enter Return

Move Enter Return

Mode : Custom 

TV

Equalizer

TV

SRS TSXT : Off

AV1

Auto Volume : Off

AV2

Internal Mute : Off

S-Video : ---­Component1 : ----

Reset

Component2 : ---­PC : ---­HDMI1 : ---­HDMI2 : ----

Source List

: ----
: ----

Move Enter Return

Move Enter Return

Input













Name the device connected to the input jacks to make your
input source selection easier.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select “Input”, then press the
ENTER button.

2. Press the

▲ or ▼ button to select "Edit Name", then press

the ENTER button.

3. Press the ▲ or ▼ button to select the device that you wish
to edit.
Press the ENTER button.

4. Press the

▲ or ▼ button to select the required device.

Press the ENTER button.

5. Press the EXIT

button to exit.

English - 30

Mode : Custom 

TV

Equalizer
Source List : TV

SRS TSXT : Off
Edit Name

Auto Volume : Off
Internal Mute : Off
Reset

Move Enter Return

Move Enter Return

Mode : Custom

TV

Equalizer

AV1 : ----

SRS TSXT : Off
AV2 : ----

Auto Volume : Off
S-Video : ----

Internal Mute : Off
Component1 : ----

Reset
Component2 : -

PC : ----
HDMI1 : ----
HDMI2 :

Edit Name

Move Enter Return

Move Enter Return

Input

Satellite STB

----

----

VCR
DVD

D-VHS

Cable STB

HD STB

q
















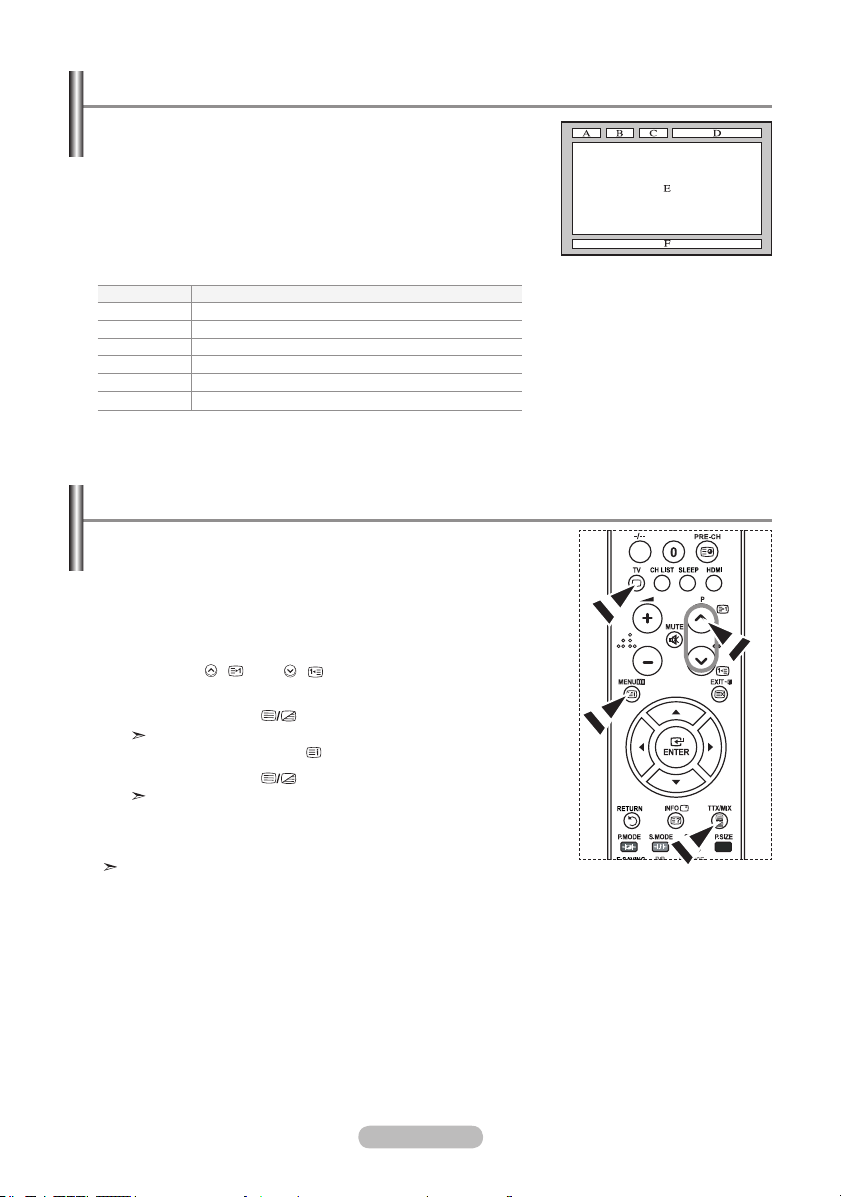

Teletext Decoder

Most set channels carry "teletext", pages of written
information that provide information such as:

Television programme times.
News bulletins and Weather forecasts.
Sports results.
Subtitles for the hard of hearing.

The teletext pages are organized according to six categories:

Part
A
B
C
D
E
F

Contents

Selected page number.
Broadcasting station identity.
Current page number or search status.
Date and time.
Text.
Status information.

Displaying the Teletext Information

You can display teletext information at any time, but signal reception
must be good. Otherwise:

Information may be missing.

Some pages may not be displayed.

To activate the teletext mode and display the contents page:

1. Using the P ( ) or P ( ) button, select the channel providing

the teletext service.

2. Press the TTX/MIX
The contents page is displayed. It can be redisplayed at any time
by pressing the MENU ( ) button.

3. Press the TTX/MIX ( ) button again.
The actual broadcast will be displayed with "Teletext", "Double",
and "Mix" in order on the screen.

4. Press the TV

If any broken character appears while Text is being viewed, make

sure that the Text language is identical with the language in the
"Setup" menu mode. If both languages are different, select the same language with the Text
language on the "Setup" menu.

( ) button to activate the teletext mode.

button to exit from the Text display.

English - 31

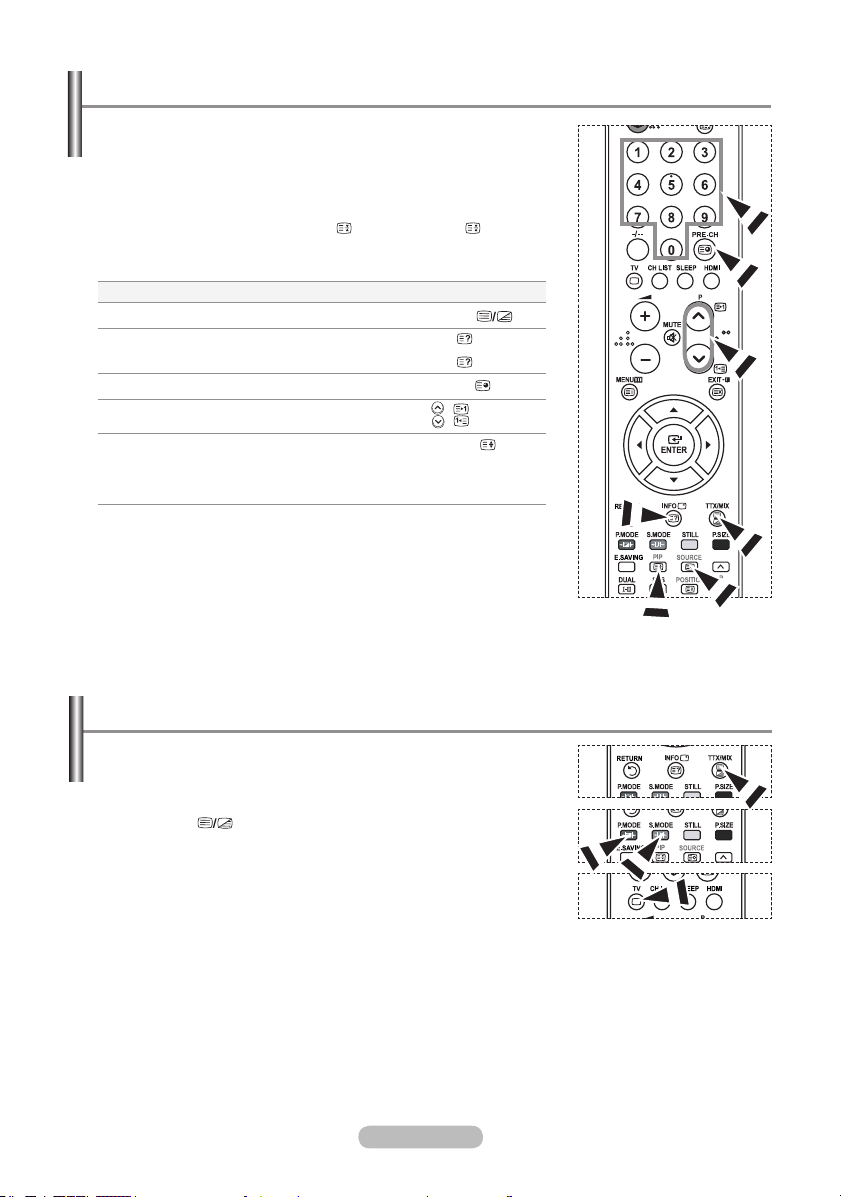

Selecting a Specic Teletext Page

Press the number buttons on the remote control to enter the page
number directly:

1. Enter the three-digit page number listed in the contents by

pressing the corresponding numeric buttons.

2. If the selected page is linked with several secondary pages, the
secondary pages are displayed in sequence. To freeze the display
on a given page, press the PIP ( ). Press the PIP ( ) button
again to resume.

3. Using the various display options:

To display...

Both teletext information and the normal broadcast

Hidden text (answers to quiz games, for example)

The normal screen

A secondary page, by entering its 4-digit number

The next page
The previous page

Double-size letters in the:

 Upper half of the screen
 Lower half of the screen

Normal screen

Press the...

TTX/MIX (

)

INFO (

)

INFO (

PRE-CH (

P ( )
P

( )

SOURCE

( )

 Once
 Twice

 Three times

)

)

Using Fastext to Select a Teletext Page

The various topics included in the teletext pages are
colour-coded, and can be selected by pressing the coloured
buttons on the remote control.

1. Display the teletext contents page by pressing the
TTX/MIX ( ) button.

2. Press the coloured button corresponding to the topic that you

wish to select (The available topics are listed on the status
information line).

3. Press the Red button to display the previous page.
Press the Green button to display the next page.

4. Press the TV

button to exit from the Text display.

English - 32

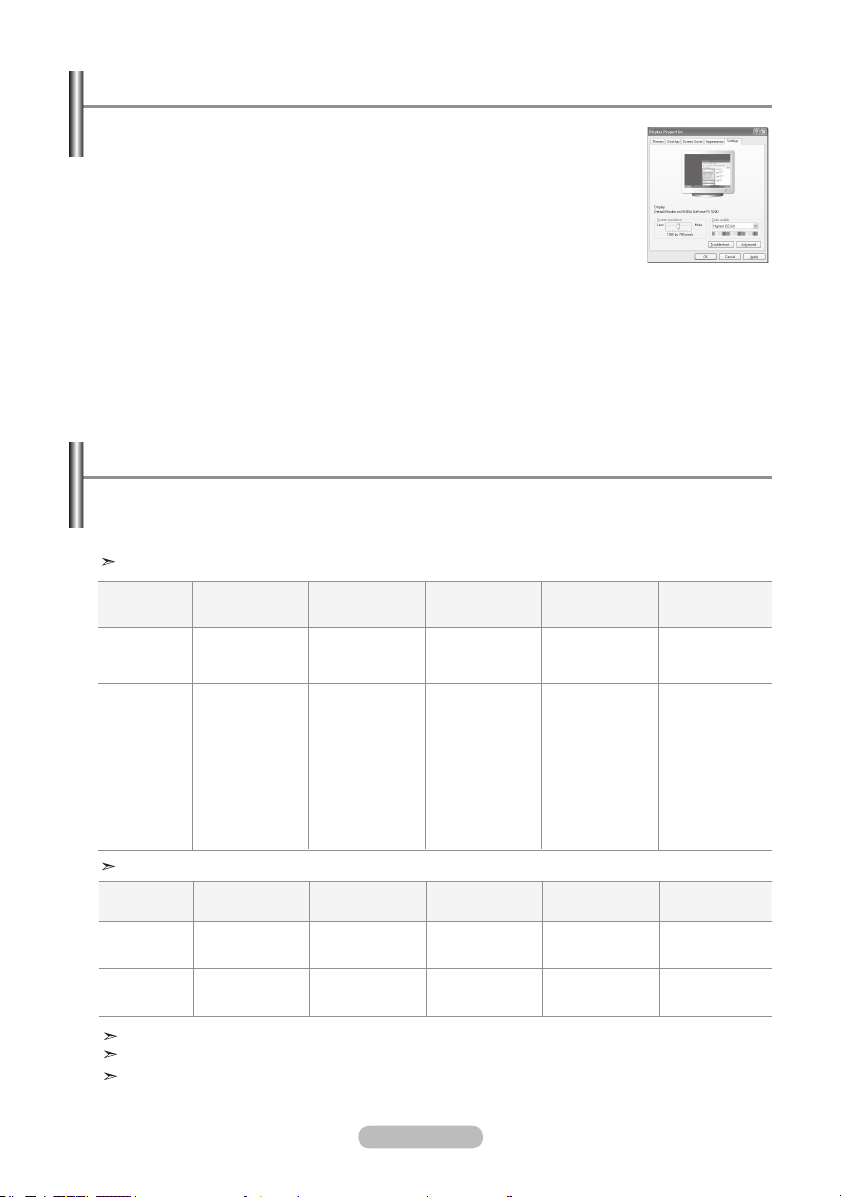

Setting up Your PC Software (Based on Windows XP)

The Windows display-settings for a typical computer are shown below. The
actual screens on your PC may be different depending upon your particular
version of Windows and your particular video card. Even if your actual
screens look different, the same, basic set-up information will apply in
almost all cases. (If not, contact your computer manufacturer or Samsung
Dealer.)

1. First, click on "Control Panel" on the Windows start menu.

2. When the control panel window appears, click on "Appearance and Themes"

and a display dialog-box will appear.

3. When the control panel window appears, click on "Display" and a display dialog-box will appear.

4. Navigate to the "Settings" tab on the display dialog-box.

The correct size setting (resolution): Optimum- 1360 X 768
If a vertical-frequency option exists on your display settings dialog box, the correct value is
"60" or "60 Hz". Otherwise, just click "OK" and exit the dialog box.

Display Modes

Both screen position and size will vary depending on the type of PC monitor and its resolution.
The resolutions in the table are recommended. (All resolutions between the supported limits are
supported)

D-Sub Input

Mode

IBM

VESA

Resolution

640 × 350
640 x 480
720 x 400

640 x 480
640 x 480
800 x 600
800 x 600

800 x 600
1024 x 768
1024 x 768
1024 x 768
1360 x 768

HDMI/DVI Input

Mode

IBM

VESA

Resolution

1024×768 48.364 60.000 65.000 -/-

1360×768 47.712 60.015 85.800 +/+

The interlace mode is not supported.
The set might operate abnormally if a non-standard video format is selected.
Separate and Composite modes are supported. SOG is not supported.

Horizontal

Frequency (kHz)

31.469

31.469

31.469

37.861

37.500

37.879

48.077

46.875

48.364

56.476

60.023

47.712

Horizontal

640×350 31.469 70.086 25.175 +/­720×400 31.469 70.087 28.322 -/+
640×480 31.469 59.940 25.175 -/­800×600 37.879 60.317 40.000 +/+

Frequency (kHz)

Frequency (Hz

Frequency (Hz)

Vertical

70.086

59.940

70.087

72.809

75.000

60.317

72.188

75.000

60.000

70.069

75.029

60.015

Vertical

Pixel Clock

)

Frequency (MHz)

25.175

25.175

28.322

31.500

31.500

40.000

50.000

49.500

65.000

75.000

78.750

85.800

Pixel Clock

Frequency (MHz)

Sync Polarity

(H/V)

+ / -

- / -

- / +

- / -

- / ­+ /+
+ /+
+ /+

- / -

- / ­+ /+
+ /+

Sync Polarity

(H/V)

English - 33

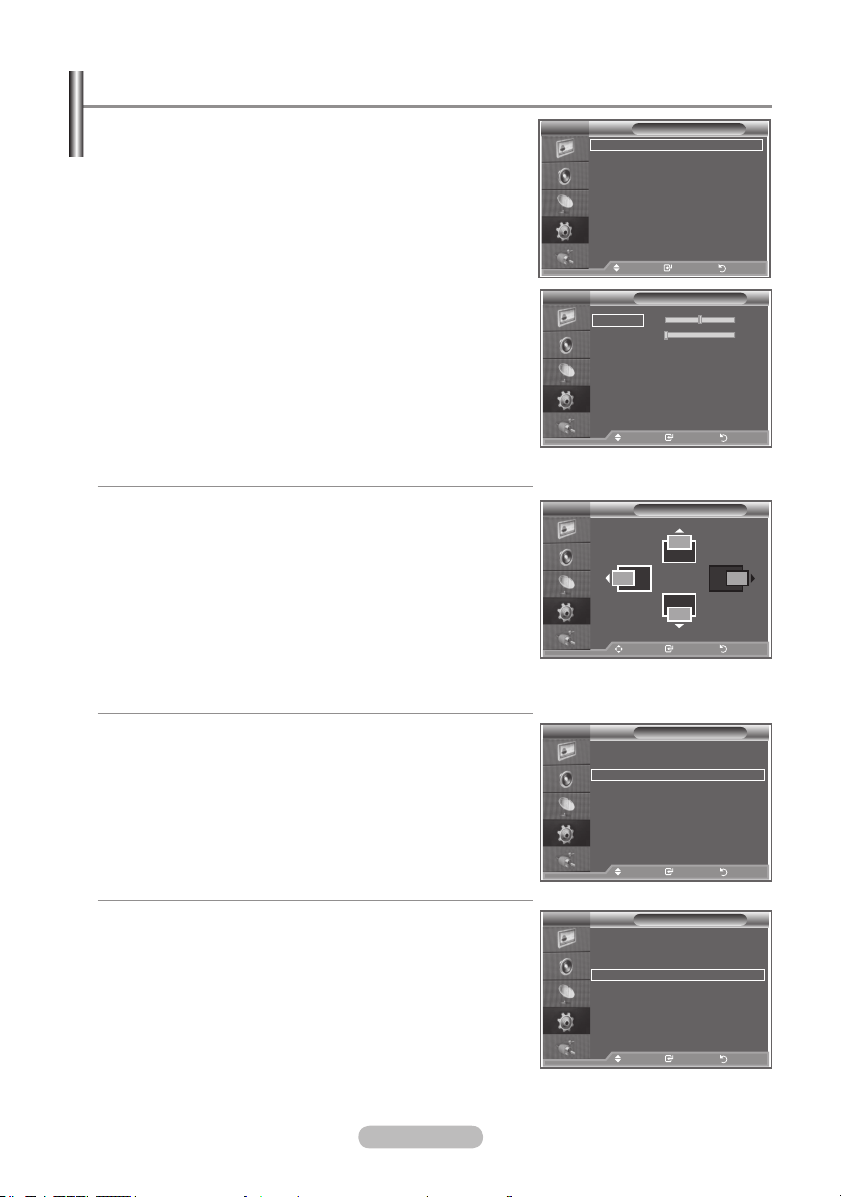

Setting the PC

Coarse and Fine Tuning of the Image (Image Lock):
The purpose of picture quality adjustment is to remove or
reduce picture noise.
If the noise is not removed by Fine-tuning alone, then adjust
the frequency as best as possible (coarse) and Fine-tune
again. After the noise has been reduced, re-adjust the picture
so that it is aligned on the center of screen.

1. Preset: Press the SOURCE button to select PC mode.

2. Press the MENU

Press the ▲ or ▼ button to select "Setup", then press the

button to display the menu.

ENTER button.

3. Press the ▲ or ▼ button to select "PC", then press the
ENTER button.

4. Press the ENTER

5. Press the
press the ENTER button.

6. Press the
Press the ENTER button.

7. Press the EXIT

button to select "Image Lock".

▲ or ▼ button to select "Coarse" or "Fine", then

◄

or ► button to adjust the screen quality.

button to exit.

Changing the Image Position:
Adjust the PC’s screen positioning if it does not fit the
TV screen.

1. Follow the "Coarse and Fine Tuning of the Image

(Image Lock)" instructions number 1 to 3.

2. Press the ▲ or ▼ button to select "Position", then press the
ENTER button.

3. Press the ▲ or ▼ button to adjusting the Vertical-Position.

Press the ◄ or ► button to adjust the Horizontal-Position.
Press the ENTER button.

4. Press the EXIT

button to exit.

Adjusting the PC Screen Automatically (Auto Adjustment):
Auto adjustment allows the PC screen of set to self-adjust to
the incoming PC video signal. The values of fine, coarse and
position are adjusted automatically.

1. Follow the "Coarse and Fine Tuning of the Image

(Image Lock)" instructions number 1 to 3.

2. Press the ▲ or ▼ button to select "Auto Adjustment", then

press the ENTER

button.

3. Press the EXIT button to exit.

Initializing the Image Settings (Image Reset):
You can replace all image settings with the factory default
values.

1. Follow the "Coarse and Fine Tuning of the Image

(Image Lock)" instructions number 1 to 3.

2. Press the ▲ or ▼ button to select "Image Reset", then press

the ENTER

button.

3. Press the EXIT button to exit.

TV

Image Lock
Position
Auto Adjustment
Image Reset

Move Enter Return

Mode : Custom

TV

Equalizer
SRS TSXT : Off

Coarse 50
Auto Volume : Off

Fine 0
Internal Mute : Off
Reset

TV

TV

Image Lock
Position
Auto Adjustment
Image Reset

TV

Image Lock
Position
Auto Adjustment
Image Reset

Image Lock

Move Enter Return

Move Enter Return

Move Enter Return

Move Enter Return

Move Enter Return

PC

Position

PC

PC






















English - 34

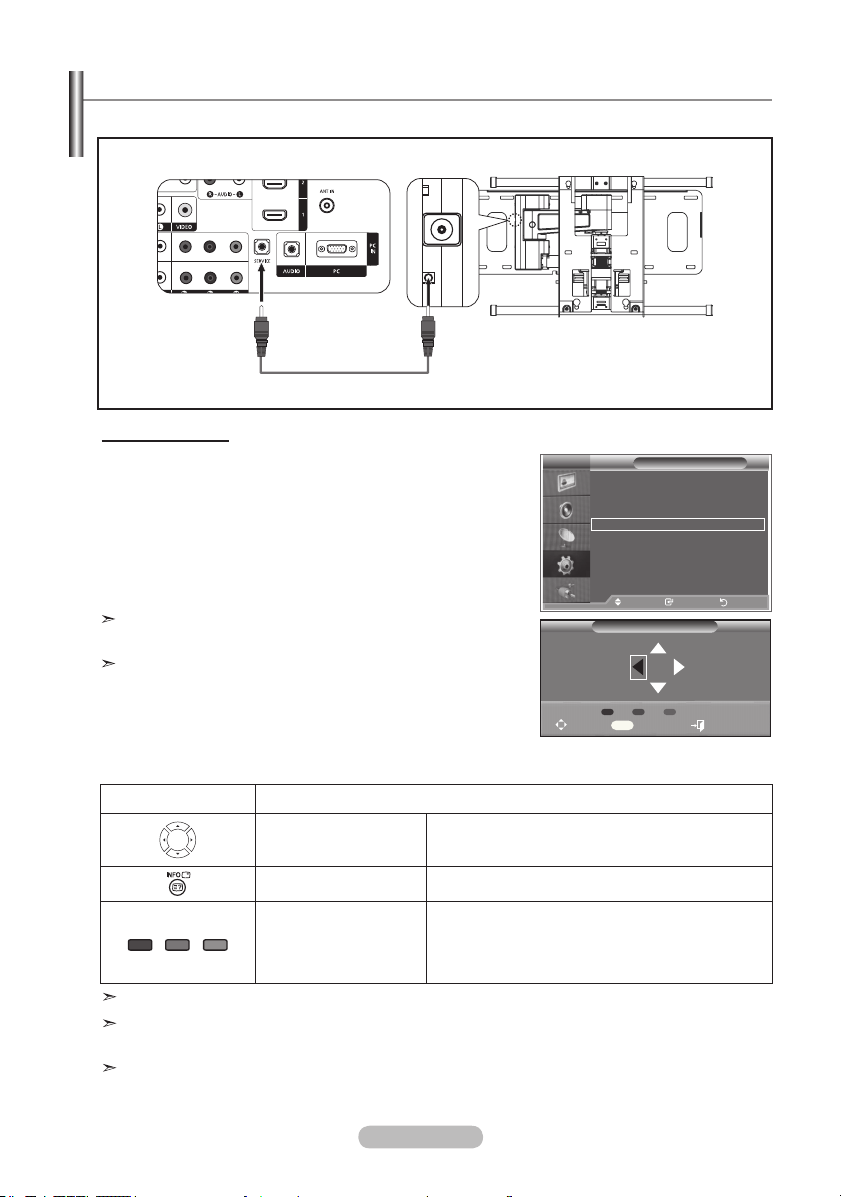

Wall-Mount Adjustment

(LA40S8, LA46S8)

(Sold separately)

Once the wall mount is installed, the position of your TV can be easily adjustable.

TV Rear Panel Auto Wall-Mount

Serial Cable (1P to 1P) (Not supplied)

Entering the menu

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select “Setup”, then press the

ENTER button.

2.

Press the ▲ or ▼ buttons to select “Wall-Mount Adjustment”,

then press the ENTER button.

Mode : Custom 

TV

Equalizer
rMore

SRS TSXT : Off

Home Theater PC

Auto Volume : Off
Energy Saving : Off

Internal Mute : Off

HDMI Black Level

Reset

Wall-Mount Adjustment

PIP

3. Adjust to the desired position using the ▲,▼,◄,► buttons.

Press the EXIT button to exit.

4.

If you press an arrow button when no OSD is displayed on the
TV screen, the Adjustment screen appears.

Position1

Move Enter Return

Wall Mount Adjusment

When you turn the power off, your TV moves to the initial

installation position.
When you turn the power on, your TV moves to the last
remembered position you adjusted.

Position 1 2 3

Adjust Center Exit

INFO

Setup

: Off 

: Off 












Using the Remote Control Buttons

Button Operations

Wall-mount angle
adjustment

Reset Moves to the initial installation position

Remembering the
position and moving
to the remembered
position

For installation, refer to the Installation Manual provided.

For product installation and the installation and moving of the wall mount, make sure to consult a

specialized installation company.

This installation manual is to be used when attaching the wall mount to a wall.
When attaching to other building materials, please contact your nearest dealer

Tilt Up, Tilt Down, Move right, Move left

Remembers 3 positions with the Red, Green and
Yellow buttons.
Moves to the remembered position using these 3
color buttons.

English - 35

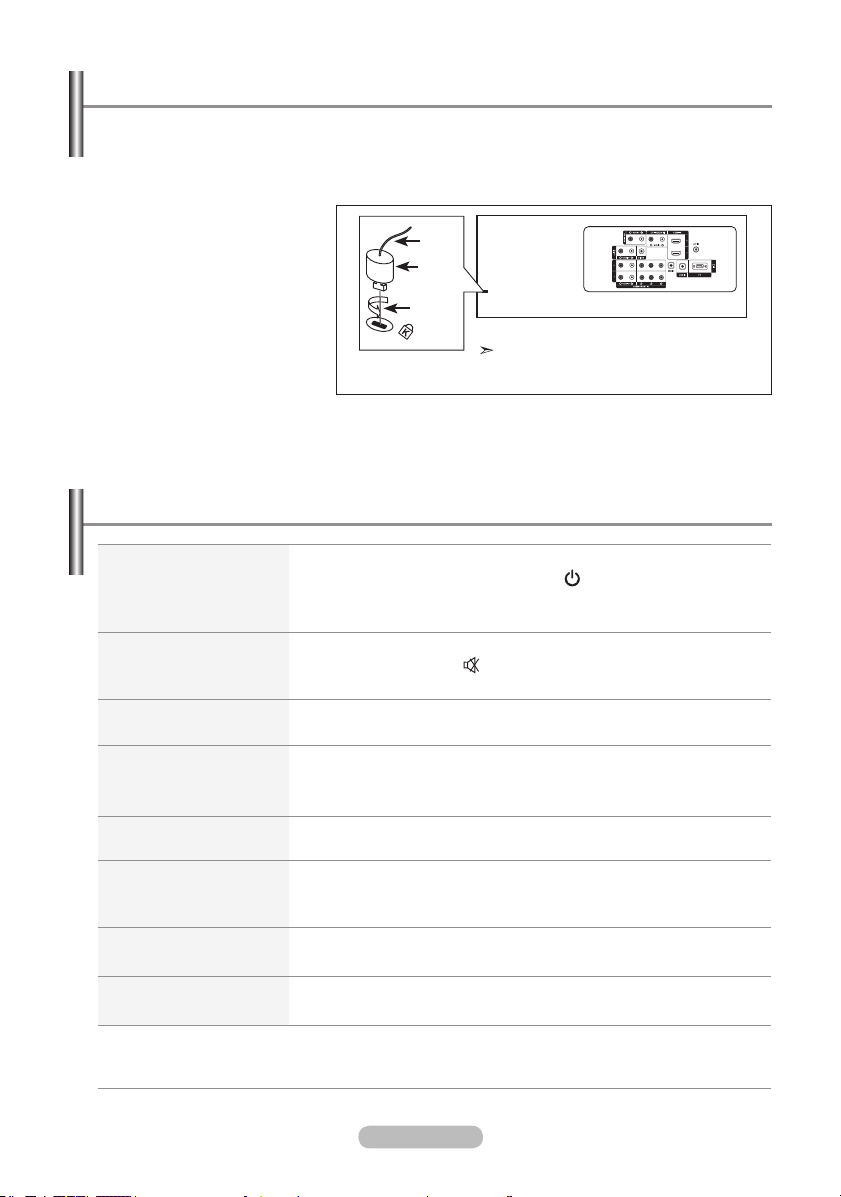

Using the Anti-Theft Kensington Lock

The Kensington lock is a device used to physically fix the system when using it in a public place.
The locking device has to be purchased separately. The appearance and locking method may dif­fer from the illustration depending on the manufacturer. Please refer to the manual provided with
the Kensington lock for proper use.

1. Insert the locking device into

the Kensington slot on the
LCD TV (Figure 1), and turn it
in the locking direction
(Figure 2).

2. Connect the Kensington lock
cable.

3. Fix the Kensington lock to a
desk or a heavy stationary
object.

Cable

Figure 2

Figure 1

<Optional>

The place of the Kensington Lock may be
different depending on its model.

Troubleshooting: Before Contacting Service Personnel

No sound or picture

Normal picture but no
sound

No picture or black and
white picture

Sound and picture
interference

Blurred or snowy picture,
distorted sound

Remote control malfunctions

"Check signal cable."
message is displayed.

On PC mode, "Not Supported
Mode." message is displayed.

The TFT LCD panel uses a panel consisting of sub pixels (3,133,440) which require sophisticated tech­nology to produce. However, there may be few bright or dark pixels on the screen. These pixels will have
no impact on the performance of the product.



Check that the mains lead has been connected to a wall socket.

 Check that you have pressed the POWER buttons on the front of the set.


Check the picture contrast and brightness settings.



Check the volume.



Check the volume.

 Check whether the MUTE button has been pressed on the remote control.


Check if "Internal Mute" is off



Adjust the colour settings.



Check that the broadcast system selected is correct.



Try to identify the electrical appliance that is affecting the set and move it

further away.



Plug your set into a different mains socket.



Check the direction, location and connections of your aerial.

This interference is often due to the use of an indoor aerial.



Replace the remote control batteries.



Clean the upper edge of the remote control (transmission window).



Check the battery terminals.



Check that the signal cable is firmly connected to the PC or video sources.



Check that the PC or video sources are turned on.



Check the maximum resolution and the frequency of the video adaptor.



Compare these values with the data in the Display Modes.

English - 36

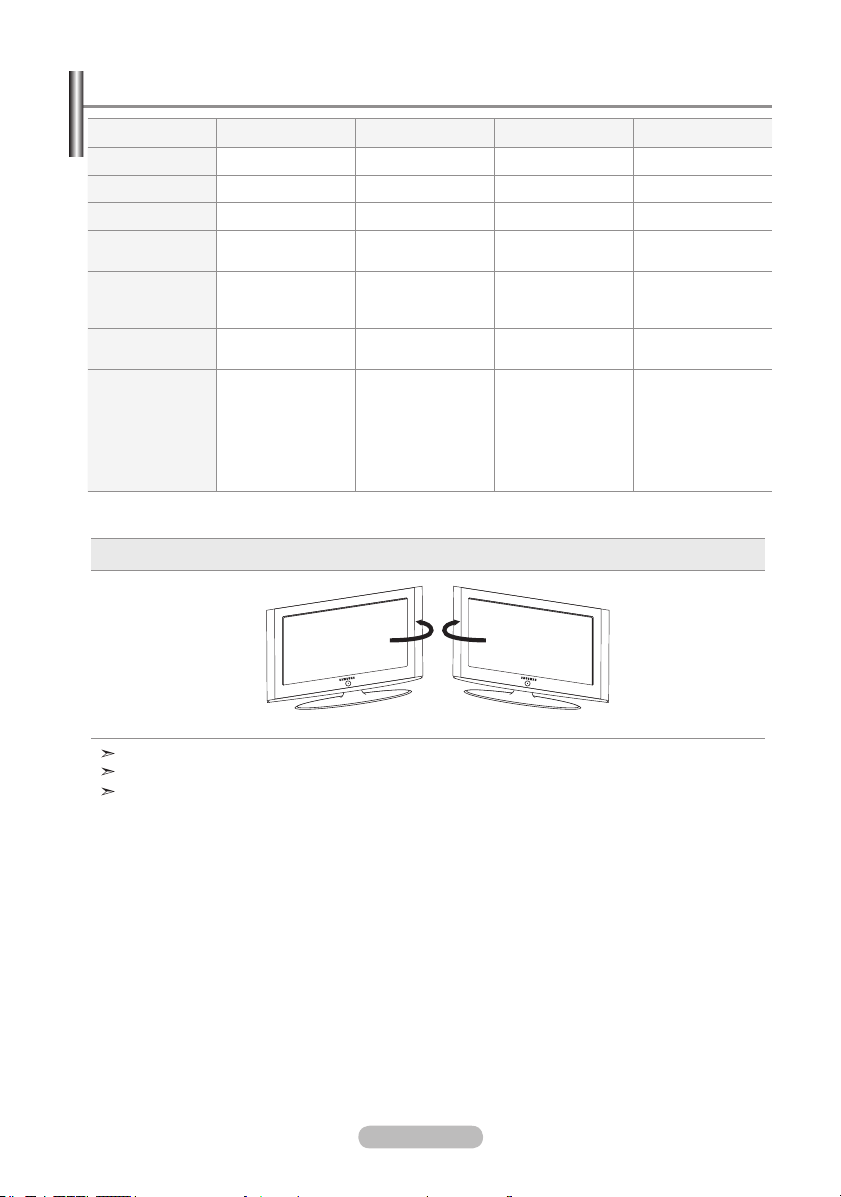

Technical and Environmental Specications

Model Name

LA32S8 LA37S8 LA40S8 LA46S8

Screen Size (Diagonal) 32 inch 37 inch 40 inch 46 inch

Power Consumption

PC Resolution

Sound

Output

Dimension (WxDxH)
Body
With stand

Weight
With stand

Environmental
Considerations

Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity

150 W 170 W 210W 260 W

1360 x 768 @ 60 Hz 1360 x 768 @ 60 Hz 1360 x 768 @ 60 Hz 1360 x 768 @ 60 Hz

10W x 2

874.3 X 80.8 X 530.7 mm

874.3 X 291.3 X 577.2 mm

15kg

10 °C to 40 °C (50 °F to 104 °F)

10 % to 80 %, non-condensing

-20 °C to 45 °C (-4 °F to 113 °F)

5 % to 95 %, non-condensing

10W x 2

1012.8 X 92.9 X 602.3 mm

1012.8 X 300.0 X 651.7 mm

20.5 kg

10 °C to 40 °C (50 °F to 104 °F)

10 % to 80 %, non-condensing

-20 °C to 45 °C (-4 °F to 113 °F)
5 % to 95 %, non-condensing

10W x 2

1083.8 x 94.9 x 638.5 mm

1083.8 x 300.0 x 690.0 mm

21.5 kg

10 °C to 40 °C (50 °F to 104 °F)

10 % to 80 %, non-condensing

-20 °C to 45 °C (-4 °F to 113 °F)
5 % to 95 %, non-condensing

10W x 2

1220.2 X 110.9 X 709.0 mm

1220.2 X 326.0 X 776.0 mm

29.8 kg

10 °C to 40 °C (50 °F to 104 °F)

10 % to 80 %, non-condensing

-20 °C to 45 °C (-4 °F to 113 °F)
5 % to 95 %, non-condensing

Stand Swivel (Left / Right)

-20˚ ~ 20˚

Design and specifications are subject to change without prior notice.
This device is a Class B digital apparatus.

For the power supply, refer to the label attached to the product.

English - 37

This page is intentionally

left blank.
