Samsung IWBD1 User Manual

Communication dongle

IWB-D1

Company

Device Name

Manufacture Date

Manufacturer/Country

1. Certification Mark

2. Product Specification

Frequency range
Temperature
Data rate
Power Supply

3. Appearance

Samsung Electronics

Wireless Device for Data Communication (IWB-D1)

2011

Alpha Networks / (confirmation needed)

2405 MHz ~ 2480 MHz

0℃~ 40℃

500 kbps

DC 5V

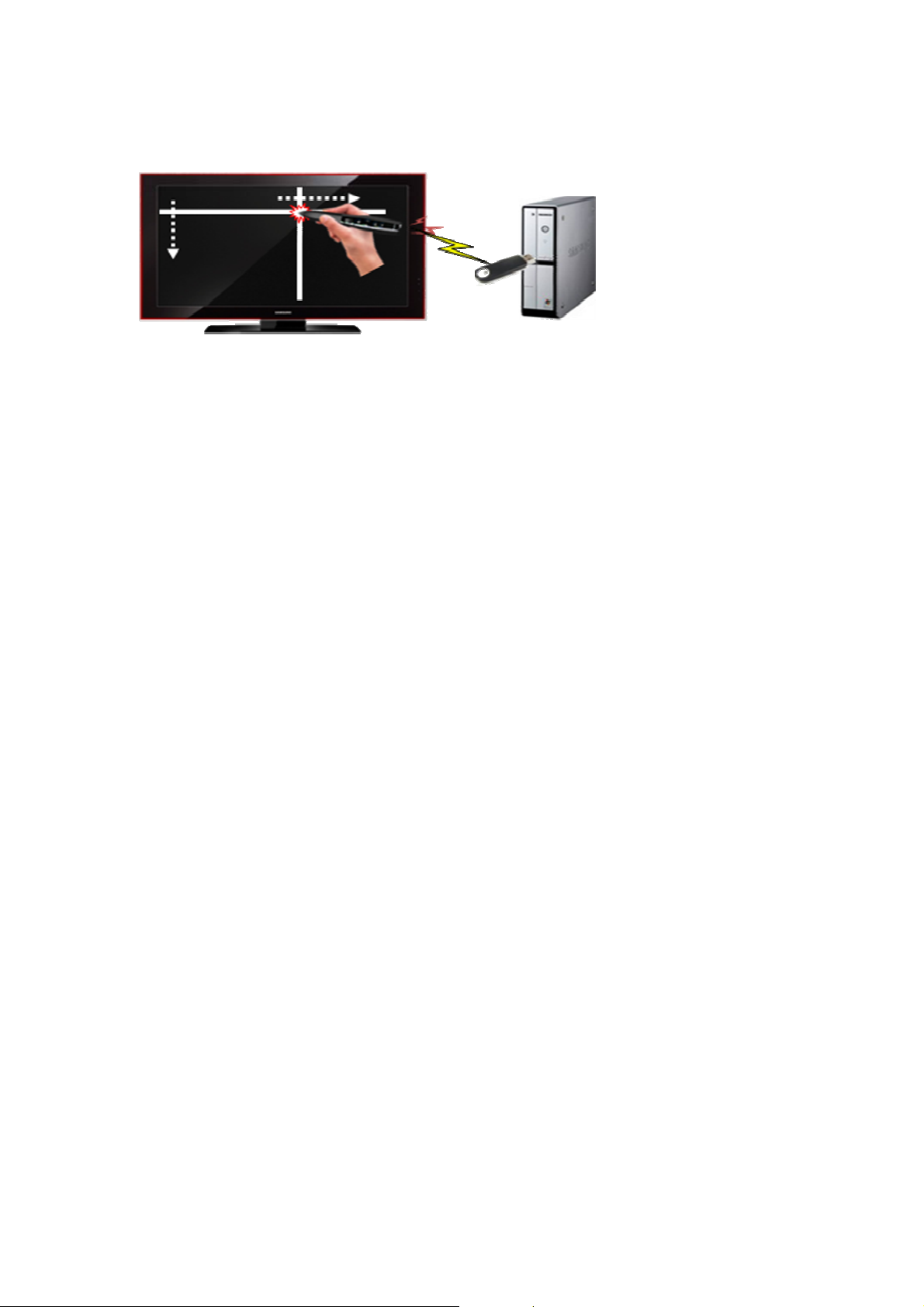

4. How it works

- Cursor coordinates recognition
: IR sensor of the pen receives IR signal from the PDP panel, then process the coordinate

recognition from the signal.

- Data Transmission through USB Dongle

: Pen receives the coordinate data and other input commands from the PDP panel, and then
transmit to USB dongle. Through computer, the data is processed and generating the output
result on the panel.
