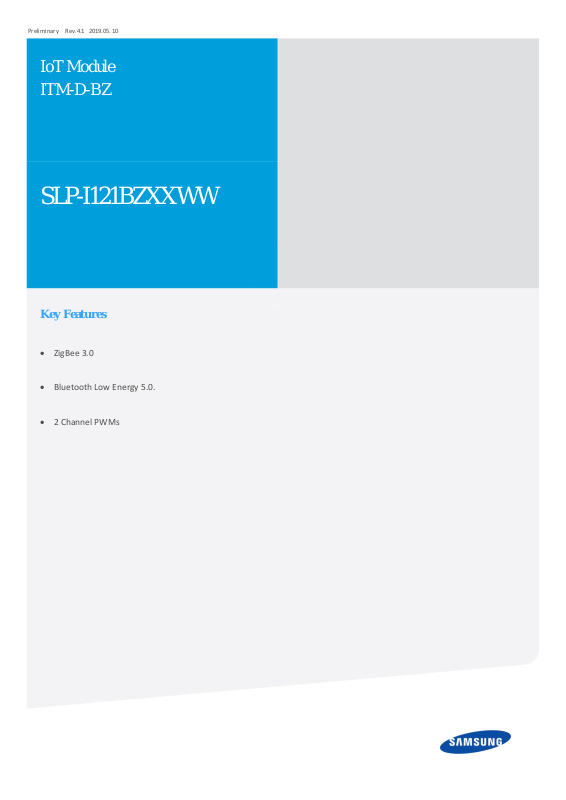

Page 1
Preliminary Rev. 4.1 2019. 05. 10
IoT Module
ITM-D-BZ
SLP-I121BZXXWW
1
Key Features
• ZigBee 3.0
• Bluetooth Low Energy 5.0.
• 2 Channel PWMs
Page 2
Table of Contents
1. Specification ----------------------- 3
2. Pin Assignment ----------------------- 4
3. Dimension ----------------------- 5
4. Application Guide ----------------------- 6
5. Precautions ----------------------- 7
6. FCC Information ----------------------- 8
2
Page 3
1. Specification
Specification
Article Symbol
Min. Typ. Max.
ELECTRICAL SPECIFICATION
Supply Voltage Vin 3.3 V
Supply Current Iin 30 mA
PWM SPECIFICATIONS
Output Voltage (High) Vpwm_H Vin-0.3 Vin V
Output Voltage (Low) Vpwm_L GND 0.3 V
Frequency Fpwm 3.0 KHz
RF SPECIFICATIONS (ZigBee)
3
Unit Note
TX Power 8 dBm
RX Sensitivity -90 dBm
RF SPECIFICATION (BLE)
TX Power 8 dBm
RX Sensitivity -70 dBm
ENVIRONMENTAL SPECIFICATIONS
Storage Temperature -40 85
Ambient Temperature Ta -20 70
ESD 2 KV HBM (Reference : JESD22-A114)
MECHANICAL SPECIFICATIONS
Dimension 18.5 x 10.5 x 2.2 mm L x W x H
ºC
ºC
Page 4
2. Pin Assignment
4
Pin No. Name Function
1 / 2 / 10 / 14 / 15 / 17 / 18 / 26 GND Ground
3 PWM0 Cool White
4 PWM1 -
5 PWM2 -
6 PWM3 -
7 PWM4 -
8 UART TX Setting
9 UART RX Setting
11 nReset Software Reset
12 SWCLK -
13 SWDIO -
16 Vdd Input Voltage
19 PWM5 Warm White
20 I2C_SCL -
21 I2C_SDA -
22 PIO31 -
23 PIO30 -
24 PIO29 -
25 PIO28 -
Page 5
3. Dimension
5
Page 6
4. Application Guide
• Solder PAD
6
• Clearance Area for Antenna
Page 7
5. Precaution
• To prevent the IoT Module from any defects, please handle and store it with care
o Do not drop or give shock
o Do not store in very humid location or at extreme temperature
o Do not open or disassemble the product
• Static electricity or surge voltage may damage the components inside the IoT Module, as such please observe proper antielectrostatic working process
o People handing the IoT Module should be well grounded (e.g. using ESD wrist band) and wear anti-static
working clothes and gloves
o All related devices and instruments in the production line should be well grounded (e.g. working table,
measuring equipment, assembly jigs)
• Avoid input voltage exceeds the maximum rating, which will cause damage to the circuit and result in malfunction
7
Specifications are subject to change without notice
•
Page 8
6. FCC Information
This device complies with part 15 of the FCC Results. Operation is subject to the following two conditions :
(1) This Device may not cause harmful interface, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for CLASS B digital device, pursuant to Part 15 of FCC
Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated
in a commercial environment This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try correct the
interference by one or more of the following measures:
1.1. Reorient or relocate the receiving antenna.
1.2. Increase the separation between the equipment and receiver.
1.3. Connect the equipment into an outlet on a circuit different from that to which receiver is connected.
1.4. Consult the dealer or experienced radio/TV technician for help.
8
FCC RF Radiation Exposure Statement
(1) This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
(2) This equipment complies with RF radiation exposure of 20cm between the radiator and your body.
WARNING
Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment.
“CAUTION : Exposure to Radio Frequency Radiation.
Antenna shall be mounted in such a manner to minimize the potential for human contact during normal operation. The antenna
should not be contacted during operation to avoid the possibility of exceeding the FCC radio frequency exposure limit.
