Samsung HW-R60M User Manual

FULL MANUAL

HW-R60M

Imagine the possibilities

Thank you fo r purchasing this Samsung product.

To receive more complete service, please register

your product at www.samsung.com/register

SAFETY INFORMATION

• The following also applies to the Wireless
Subwoofer (PS-WR53D).

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE THE COVER (OR BACK).
NO USER-SERVICEABLE PARTS ARE INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
Refer to the table below for an explanation of
symbols which may be on your Samsung product.

CAUTION

RISK OF E LECTRIC S HOCK.

DO NOT OP EN.

This symbol indicates that high voltage
is present inside. It is dangerous to
make any kind of contact with any
internal part of this product.

This symbol indicates that this product
comes with important literature
concerning operation and maintenance.

Class II product : This symbol indicates
that a safety connection to electrical
earth (ground) is not required.
If this symbol is not present on a
product with a power cord, the product
MUST have a reliable connection to
protective ear th (ground).

AC voltage : Rated voltage marked
with this symbol is AC voltage.

DC voltage : Rated voltage marked
with this symbol is DC voltage.

Caution. Consult Instructions for use :
This symbol instructs the user to
consult the user manual for further
safety related information.

WARNING

• To reduce the risk of re or electric shock, do
not expose this appliance to rain or moisture.

• To prevent injury, this apparatus must be

securely attached to the oor/wall in

accordance with the installation instructions.

• This product contains chemicals known to the
State of California to cause cancer and birth
defects or other reproductive harm.

CAUTION

• Do not expose this apparatus to dripping or
splashing. Do not put objects lled with

liquids, such as vases, on the apparatus.

• To turn this apparatus of f completely, you
must pull the power plug out of the wall
socket. Consequently, the power plug must
be easily and readily accessible at all times.

FCC NOTE (for U.S.A):

FCC Supplier’s Declaration of Conformity

The party responsible for product compliance :

Samsung Electronics America, Inc.
QA Lab America
19 Chapin Rd. Building D Pine Brook NJ 07058
Tel : [phone]

FCC Compliance Statement :

This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two
conditions:
(1) This device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation.

ENG - ii

FCC Caution :

• Any changes or modications not expressly
approved by the party responsible for
compliance could void the user’s authority to
operate this equipment.

• This product satises FCC regulations when
shielded cables and connectors are used to
connect the unit to other equipment.
To prevent electromagnetic interference with
electric appliances, such as radios and
televisions, use shielded cables and
connectors for connections.

Class B FCC Statement

This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Par t 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates, uses and
can radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference to
radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning
the equipment off and on, the user is encouraged
to try to correct the interference by one of the
following measures:

• Reorienting or relocating the receiving
antenna.

• Increasing the separation between the
equipment and receiver.

• Connecting the equipment to an outlet that is
on a different circuit than the radio or TV.

• Consulting the dealer or an experienced
radio/TV technician for help.

FCC Radiation Exposure Statement :

This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
environment. This equipment should be installed
and operated so there is at least 8 inches (20 cm)
between the radiator and your body. This device
and its antenna(s) must not be co-located or
operated in conjunction with any other antenna or
transmitter.

Important Safety Instructions

Read these operating instructions carefully
before using the unit. Follow all the safety
instructions listed below. Keep these operating
instructions handy for future reference.

1. Read these instructions.

2. Keep these Instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings.

Install in accordance with the manufacturer’s
instructions.

8. Do not install near any heat sources such as

radiators, heat registers, stoves, or other

apparatus (including ampliers) that produce

heat.

9. Do not defeat the safety purpose of the

polarized or grounding-type plug.
A polarized plug has two blades with one
wider than the other. A grounding type plug
has two blades and a third grounding prong.
The wide blade or the third prong are
provided for your safety. If the provided plug

does not t into your outlet, consult an

electrician for replacement of the obsolete
outlet.

ENG - iii

10. Protect the power cord from being walked

on or pinched particularly at plugs,
convenience receptacles, and the point
where they exit from the apparatus.

11. Only use attachments/accessories specied

by the manufacturer.

12. Use only with the cart, stand,

tripod, bracket, or table

specied by the manufacturer,

or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination to
avoid injury from tip-over.

13. Unplug this apparatus during lightning

storms or when unused for long periods of
time.

14. Refer all servicing to qualied service

personnel. Servicing is required when the
apparatus has been damaged in any way,
such as power-supply cord or plug is
damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does
not operate normally, or has been dropped.

PRECAUTIONS

1. Ensure that the AC power supply in your

house complies with the power

requirements listed on the identication

sticker located on the bottom of your
product. Install your product horizontally, on
a suitable base (furniture), with enough
space around it for ventilation (3~4 inches).
Make sure the ventilation slots are not

covered. Do not place the unit on ampliers

or other equipment which may become hot.
This unit is designed for continuous use.

To fully turn off the unit, disconnect the AC
plug from the wall outlet. Unplug the unit if
you intend to leave it unused for a long
period of time.

2. During thunderstorms, disconnect the AC

plug from the wall outlet. Voltage peaks due
to lightning could damage the unit.

3. Do not expose the unit to direct sunlight or

other heat sources. This could lead to
overheating and cause the unit to
malfunction.

4. Protect the product from moisture (i.e.

vases), and excess heat (e.g. a replace) or

equipment creating strong magnetic or

electric elds. Unplug the power cable from

the AC wall socket if the unit malfunctions.
Your product is not intended for industrial
use. It is for personal use only. Condensation
may occur if your product has been stored in
cold temperatures. If transporting the unit
during the winter, wait approximately
2 hours until the unit has reached room
temperature before using.

5. The battery used with this product contains

chemicals that are harmful to the
environment. Do not dispose of the battery
in the general household trash. Do not
expose the battery to excess heat, direct

sunlight, or re. Do not short circuit,

disassemble, or overheat the battery.
Danger of explosion if the battery is replaced
incorrectly. Replace only with the same or
equivalent type.

ENG - iv

ABOUT THIS MANUAL

The user manual has two parts: this simple paper USER MANUAL and a detailed FULL MANUAL you can
download.

USER MANUAL

See this manual for safety instructions, product installation,

components, connections, and product specications.

FULL MANUAL

You can access the FULL MANUAL on Samsung’s on-line
customer support center by scanning the QR code on the left.
To see the manual on your PC or mobile device, download the
manual in document format from Samsung’s website.
(http://www.samsung.com/support)

Design and specications are subject to change without prior notice.

ENG - v

CONTENTS

01 Checking the Components 2

Inserting Batteries before using the Remote Control (AA batteries X 2) ------------------------- 2

02 Product Overview 3

Front Panel / Right Side Panel of the Soundbar ------------------------- 3

Bottom Panel of the Soundbar ------------------------- 4

03 Connecting the Soundbar 5

Connecting Electrical Power

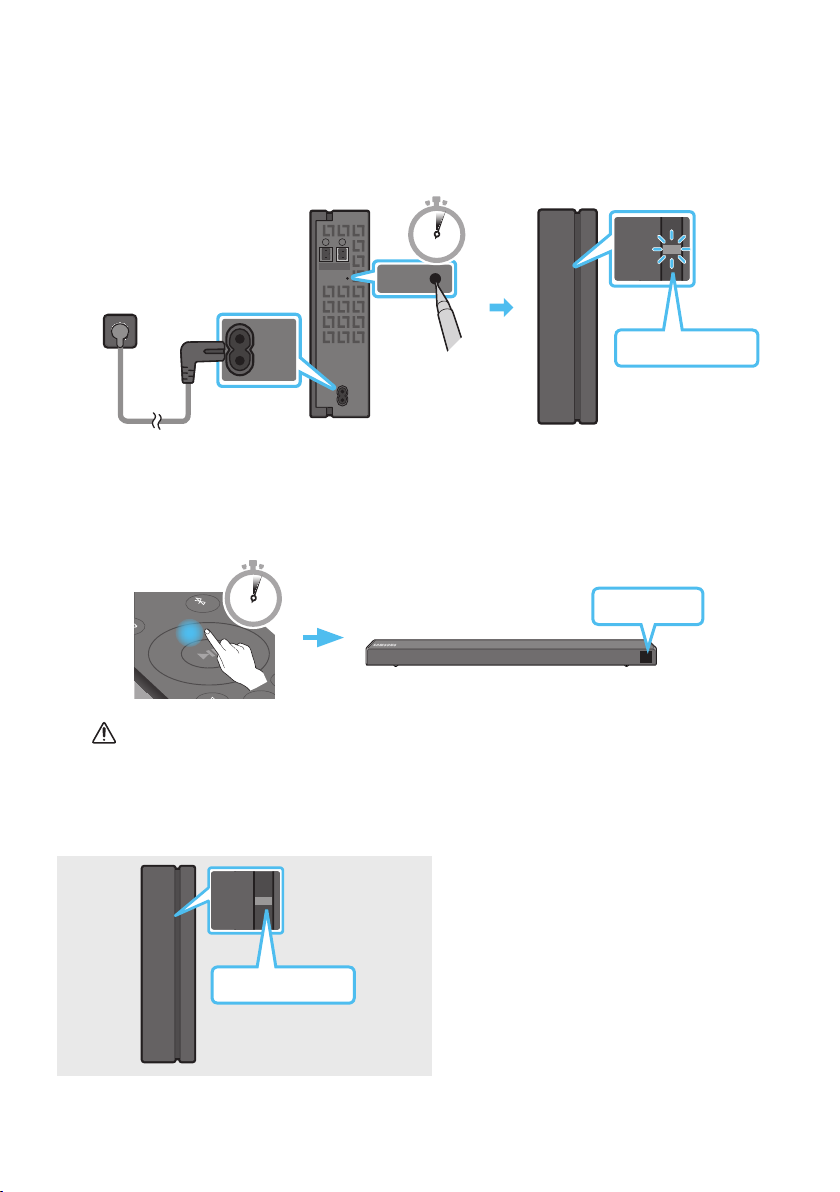

Connecting the Soundbar to the Subwoofer

– Automatic connection between the Subwoofer and the Soundbar
– Manually connecting the Subwoofer if automatic connection fails

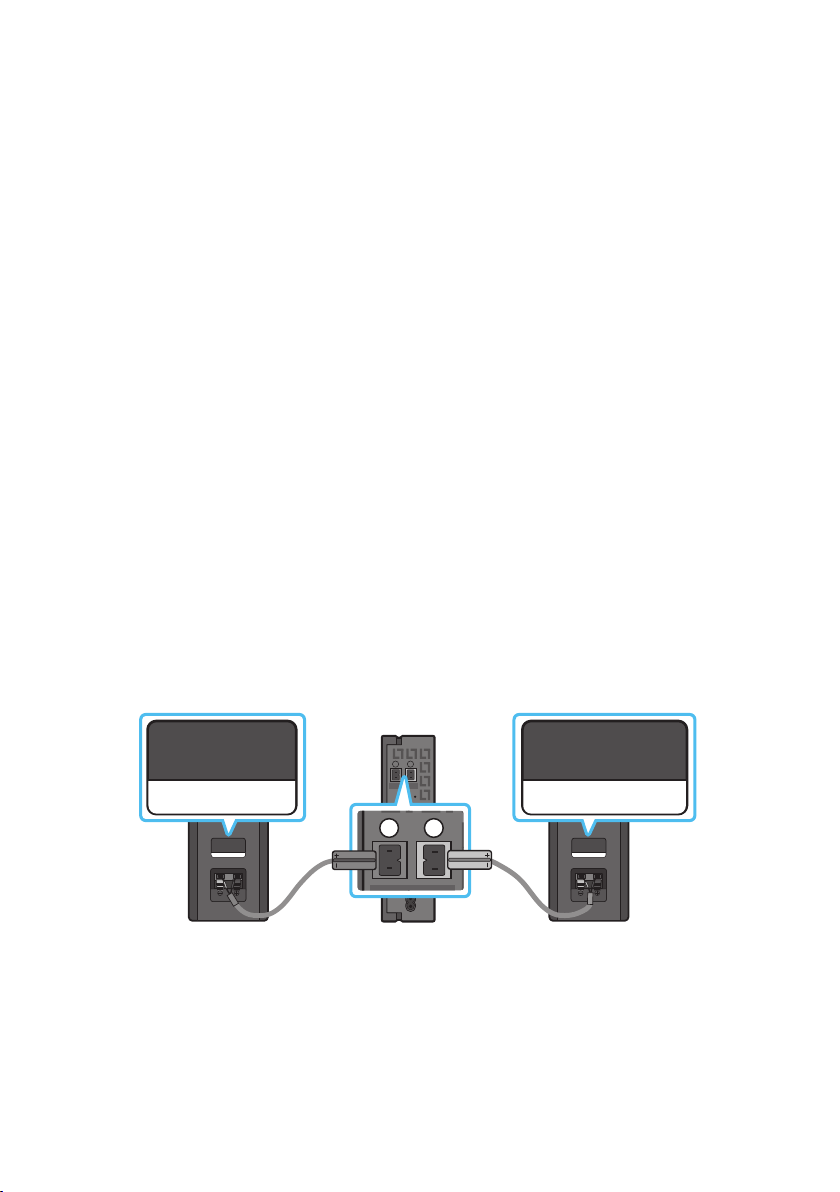

Connecting an SWA-8500S (Sold Separately) to your Soundbar

-------------------------

-------------------------

-------------------------

-------------------------

-------------------------

04 Connecting to your TV 10

Method 1. Connecting with a Cable

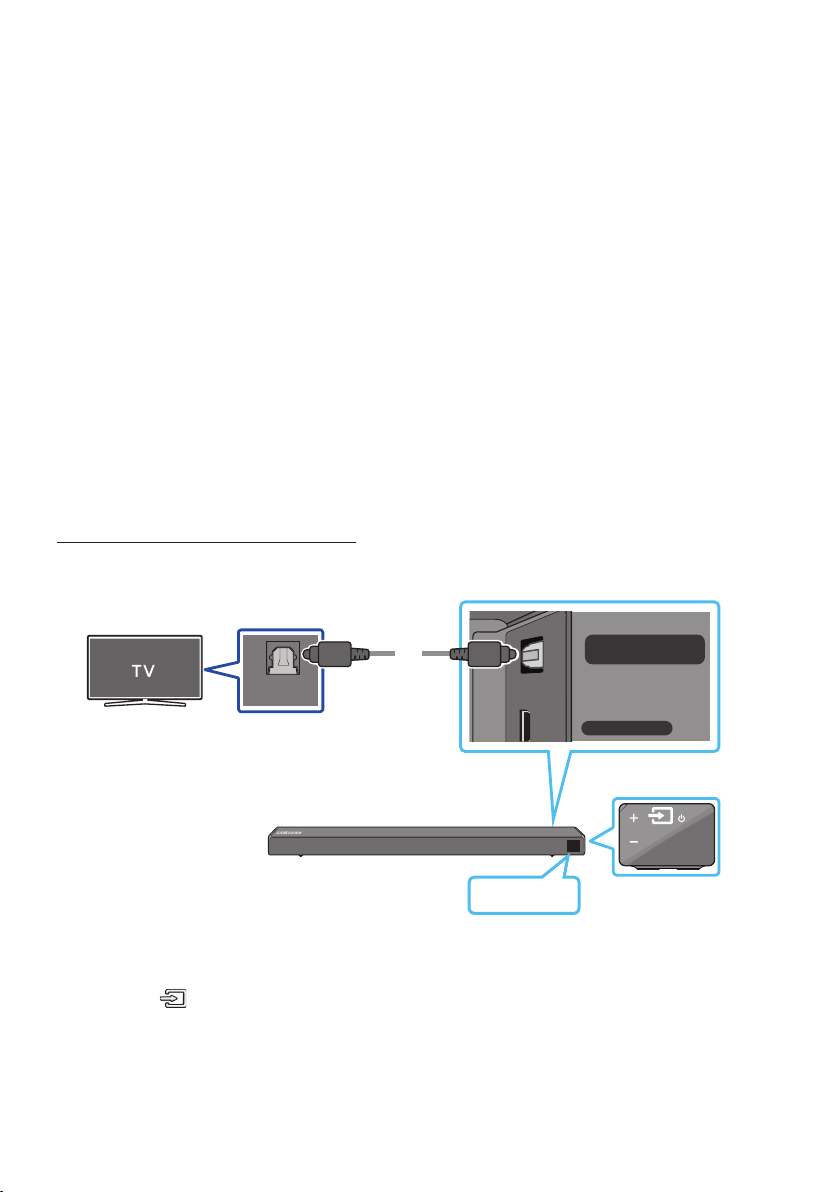

– Connecting using an Optical Cable

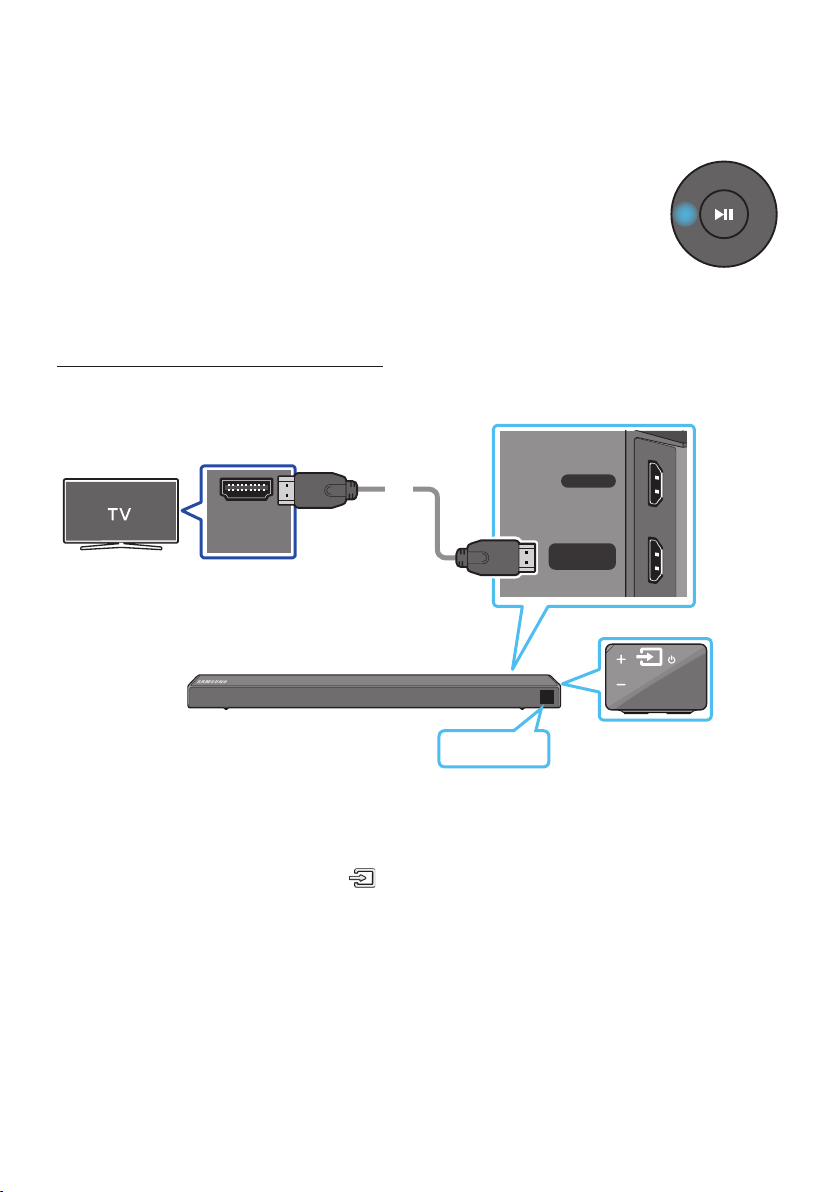

– Connecting a TV using an HDMI Cable

Method 2. Connecting Wirelessly

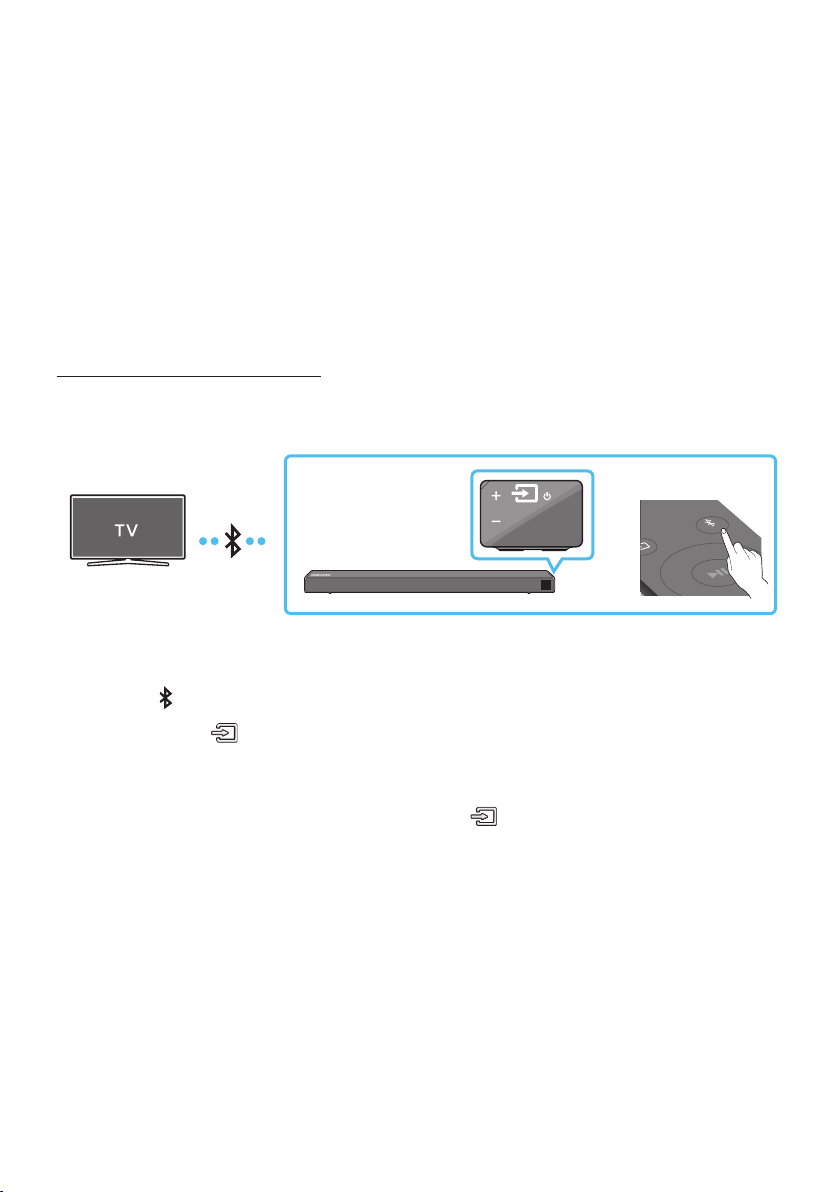

– Connecting a TV via Bluetooth

-------------------------

-------------------------

-------------------------

-------------------------

-------------------------

05 Connecting an External Device 14

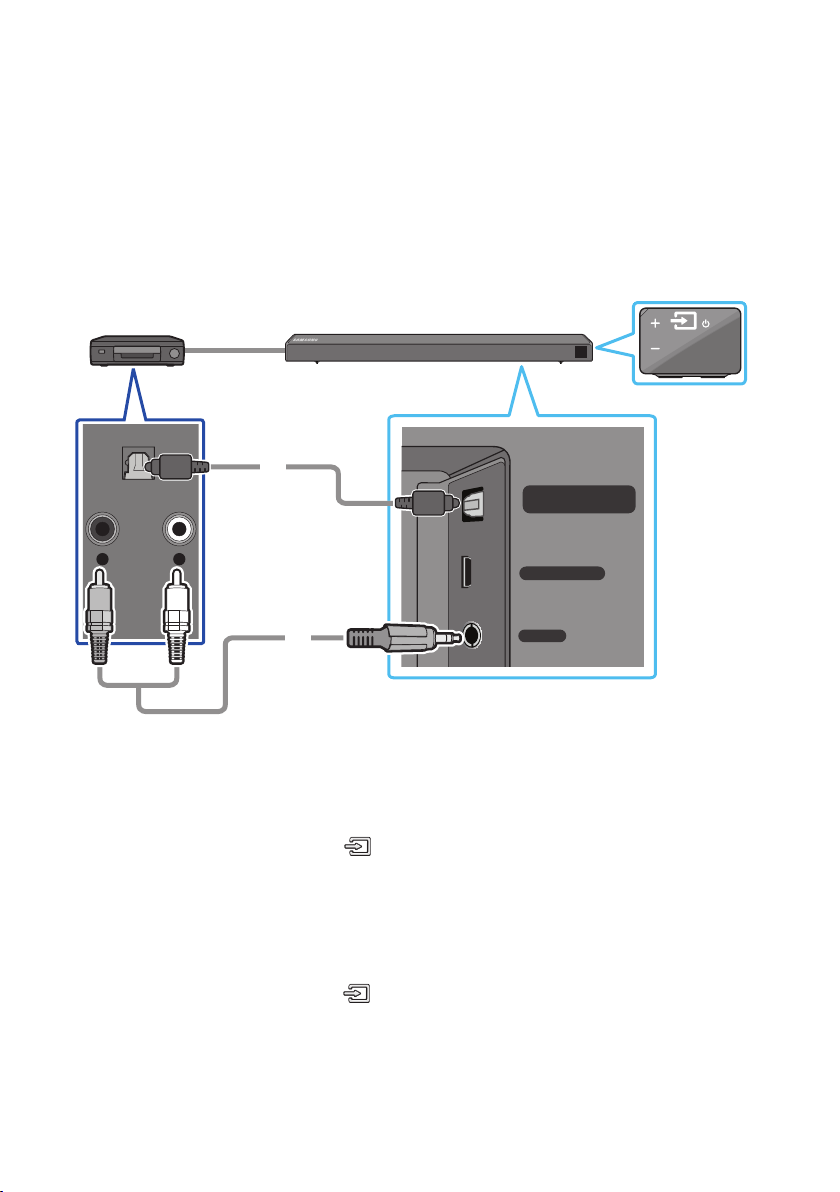

Connecting using an Optical or Analog Audio (AUX) Cable

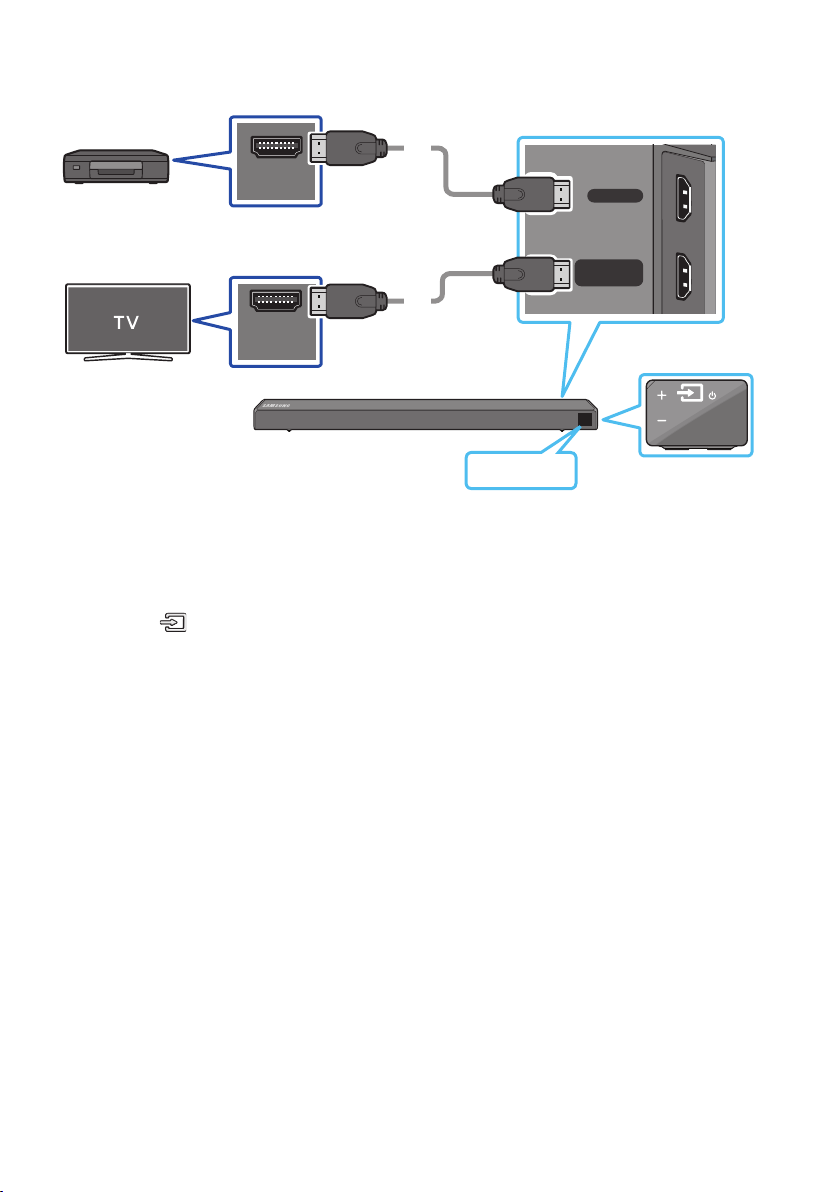

Connecting using an HDMI Cable

-------------------------

-------------------------

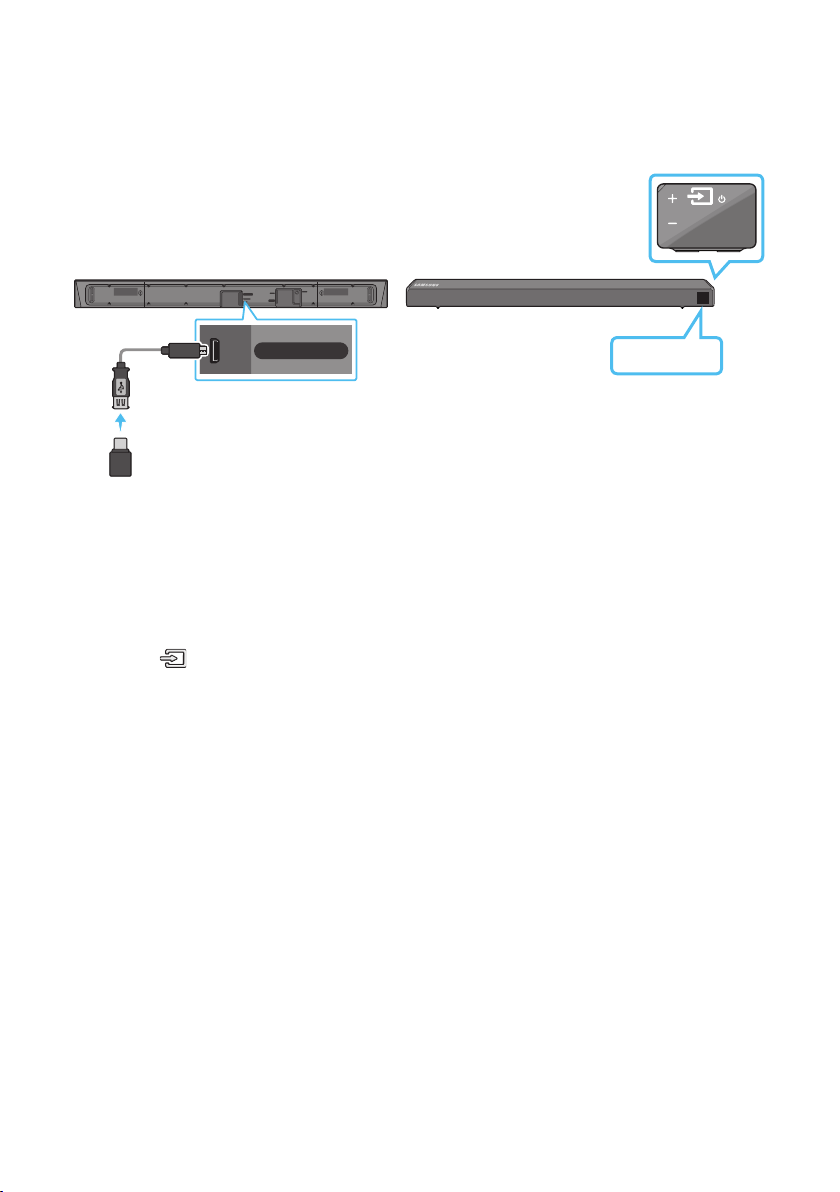

06 Connecting a USB Storage Device 16

5

6

6
7

8

10

10

11

12

12

14

15

ENG - vi

07 Connecting a Mobile Device 18

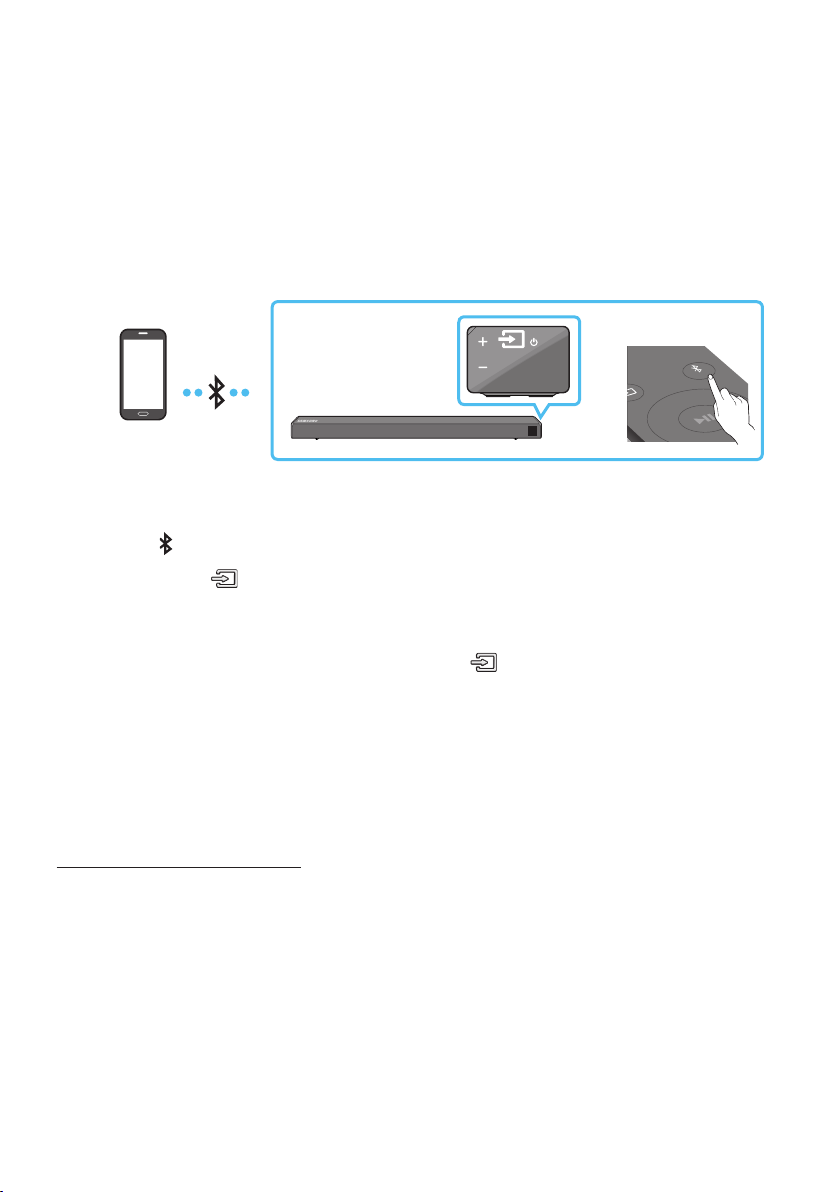

Connecting via Bluetooth

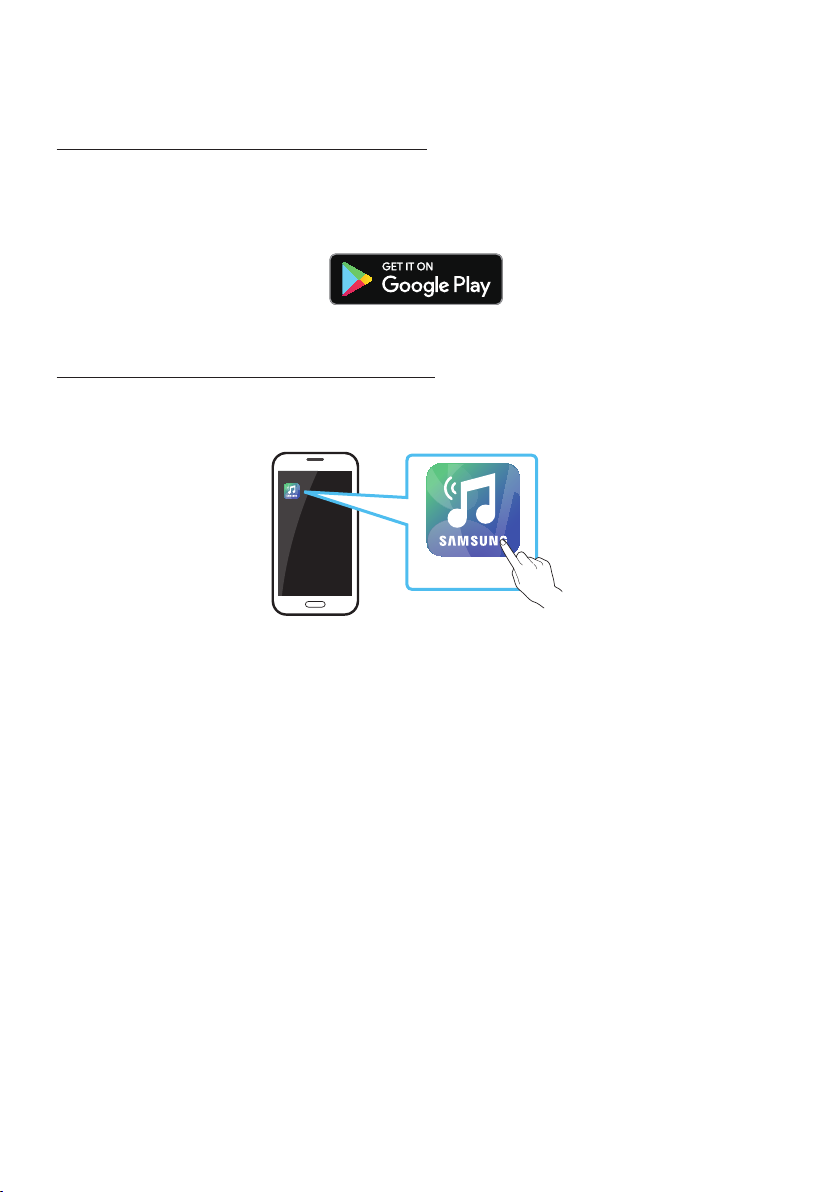

Using the Samsung Audio Remote App

– Installing the Samsung Audio Remote App
– Launching the Samsung Audio Remote App

-------------------------

-------------------------

-------------------------

-------------------------

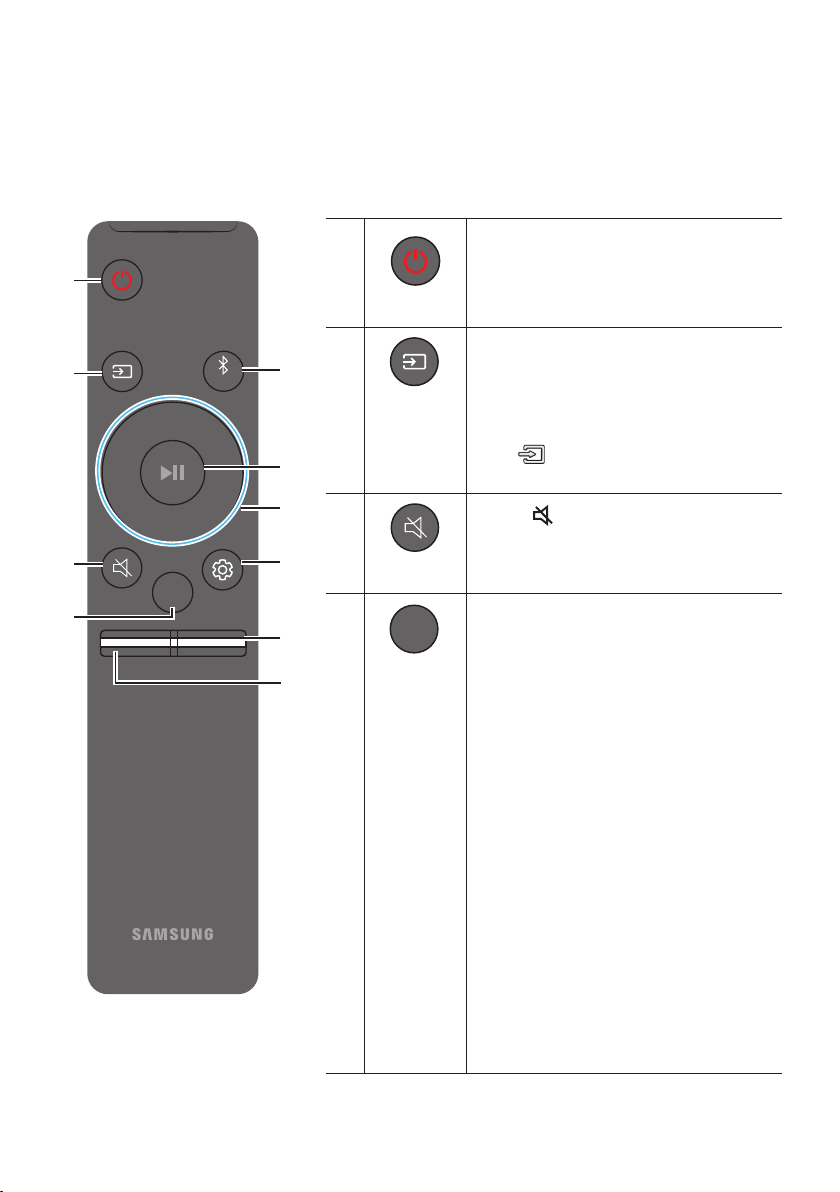

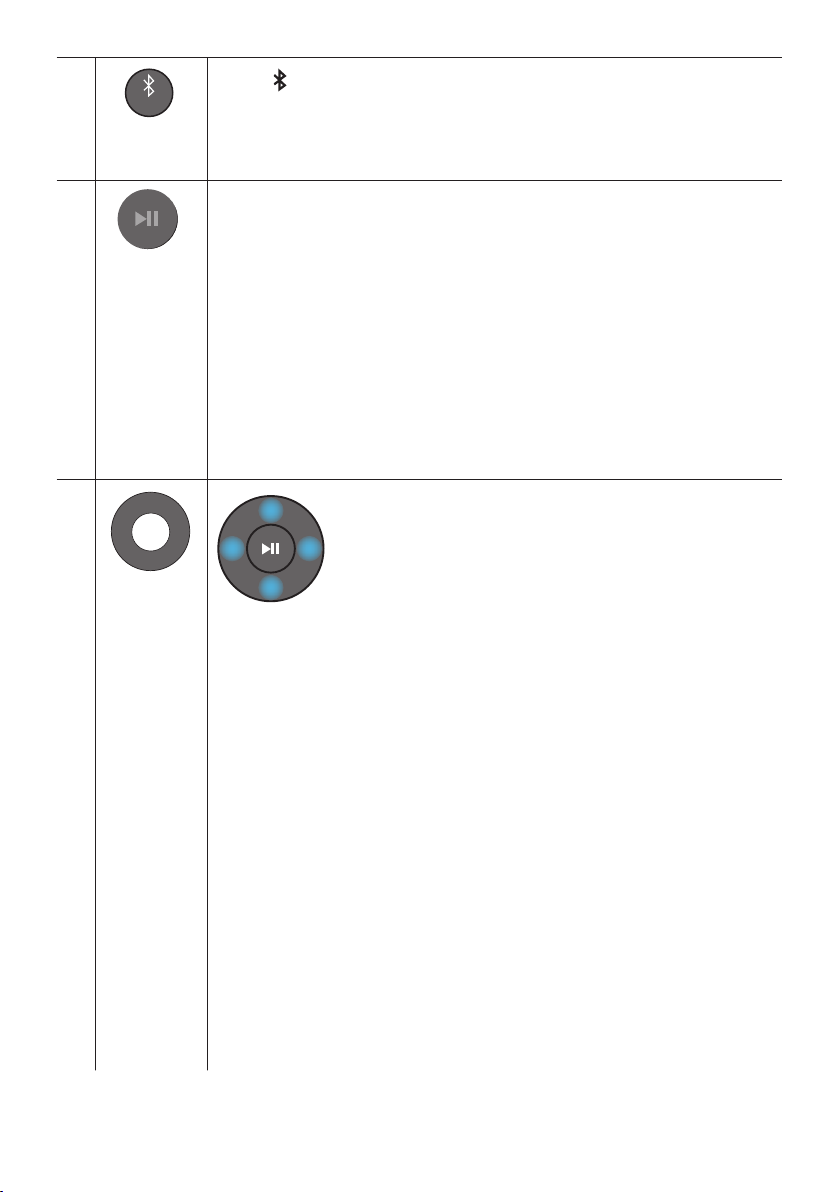

08 Using the Remote Control 22

How to Use the Remote Control

Adjusting the Soundbar volume with a TV remote control

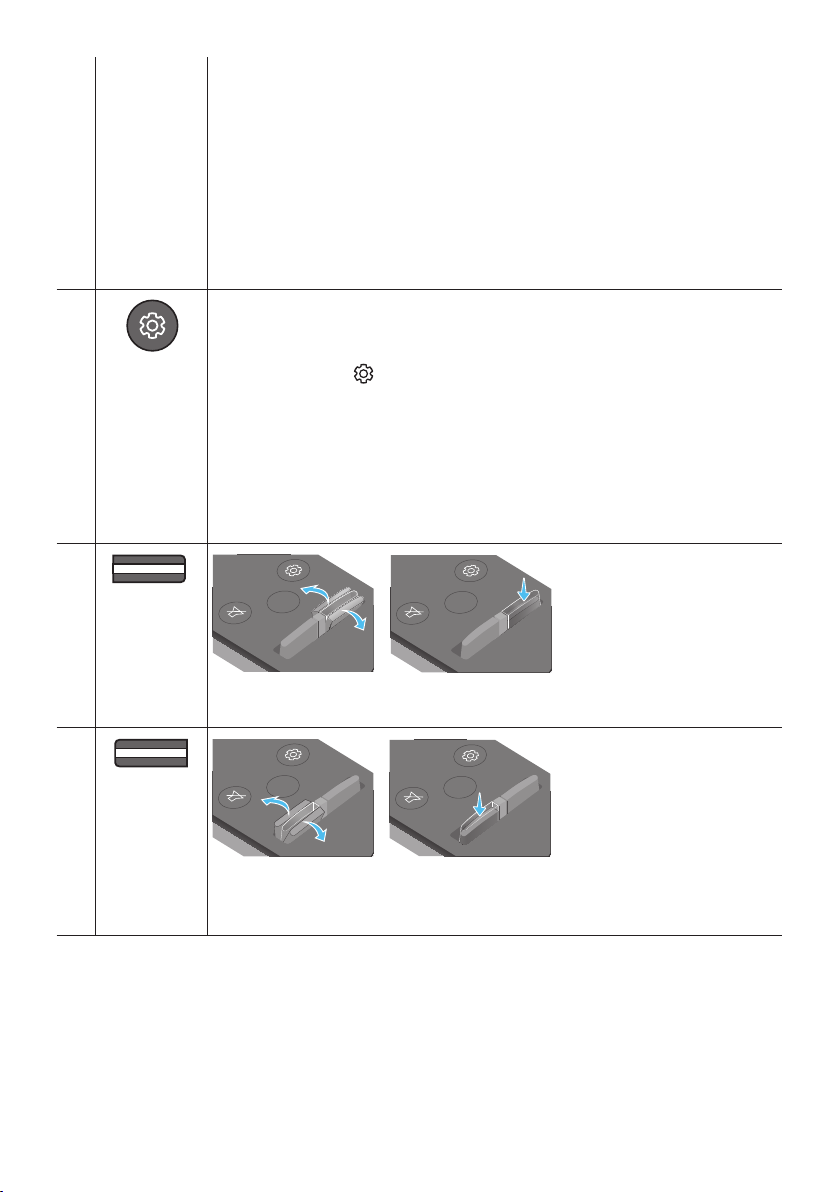

Using the Hidden Buttons (Buttons with more than one function)

Output specications for the different sound effect modes

-------------------------

-------------------------

-------------------------

-------------------------

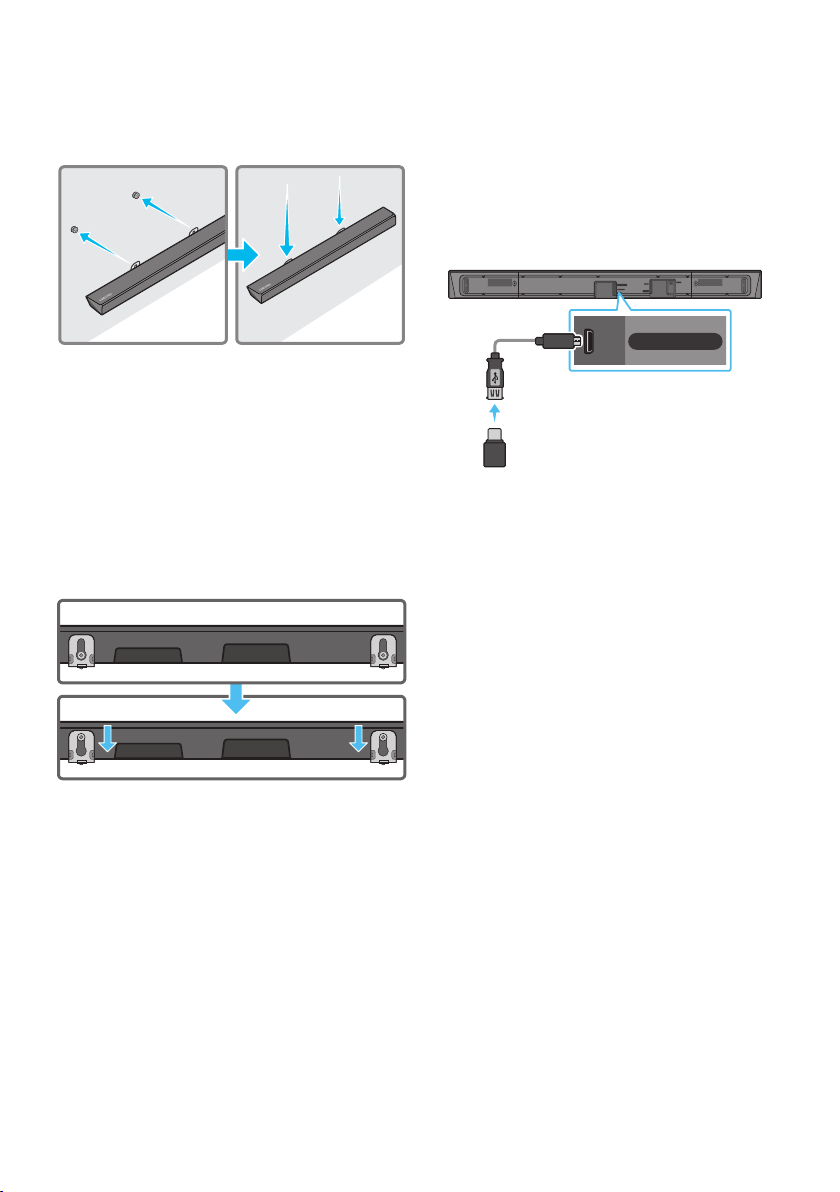

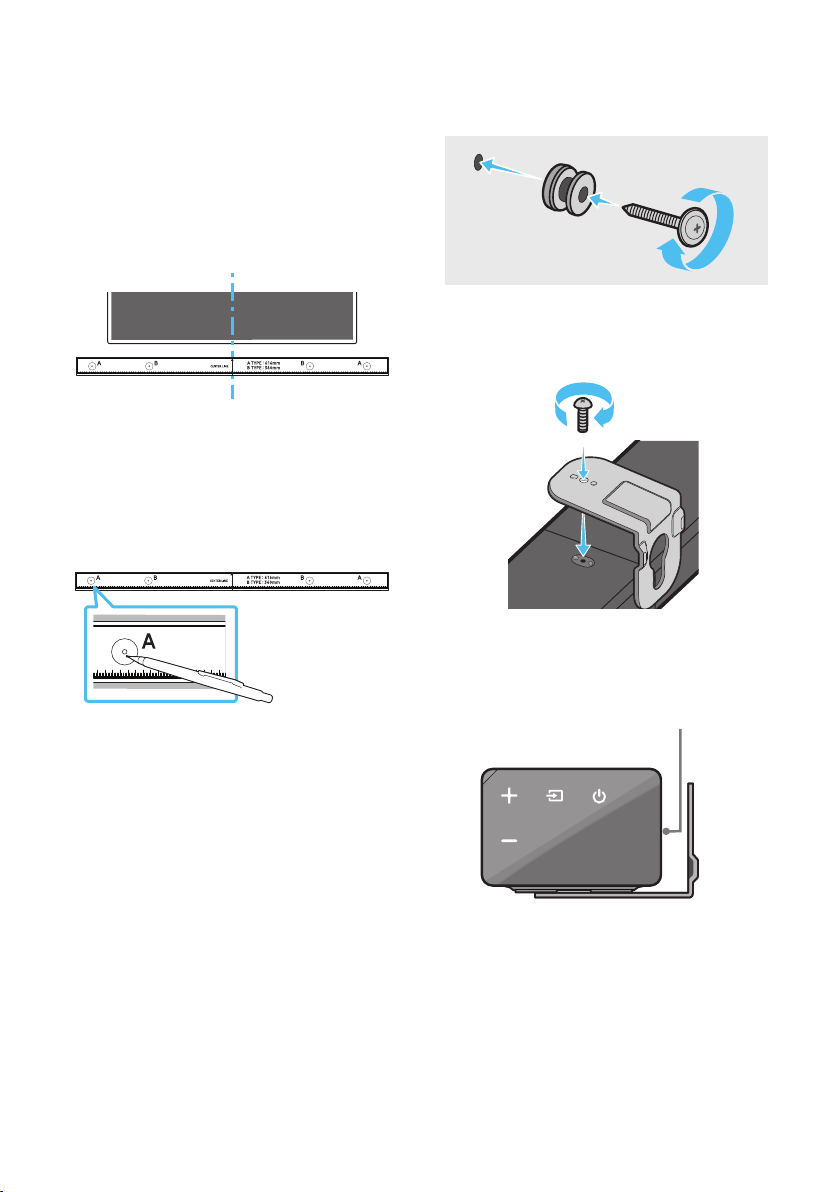

09 Installing the Wall Mount 27

Installation Precautions

Wallmount Components

-------------------------

-------------------------

10 Software Update 29

Updating Procedure

If UPDATE is not displayed

-------------------------

-------------------------

30

30

11 Troubleshooting 31

18

21

21
21

22

25

26

26

27

27

12 License 32

13 Open Source License Notice 32

14 Important Notes About Service 32

15 SpecicationsandGuide 33

Specications

-------------------------

ENG - vii

33

01 CHECKING THE COMPONENTS

Soundbar Main Unit Subwoofer Remote Control / Bat teries

1 2 3

PAIR

SOUND
MODE

VOL WOOFER

SOUNDBAR

(AH81-09748A)

Power Cord

(Subwoofer)

(AH81-09821A)

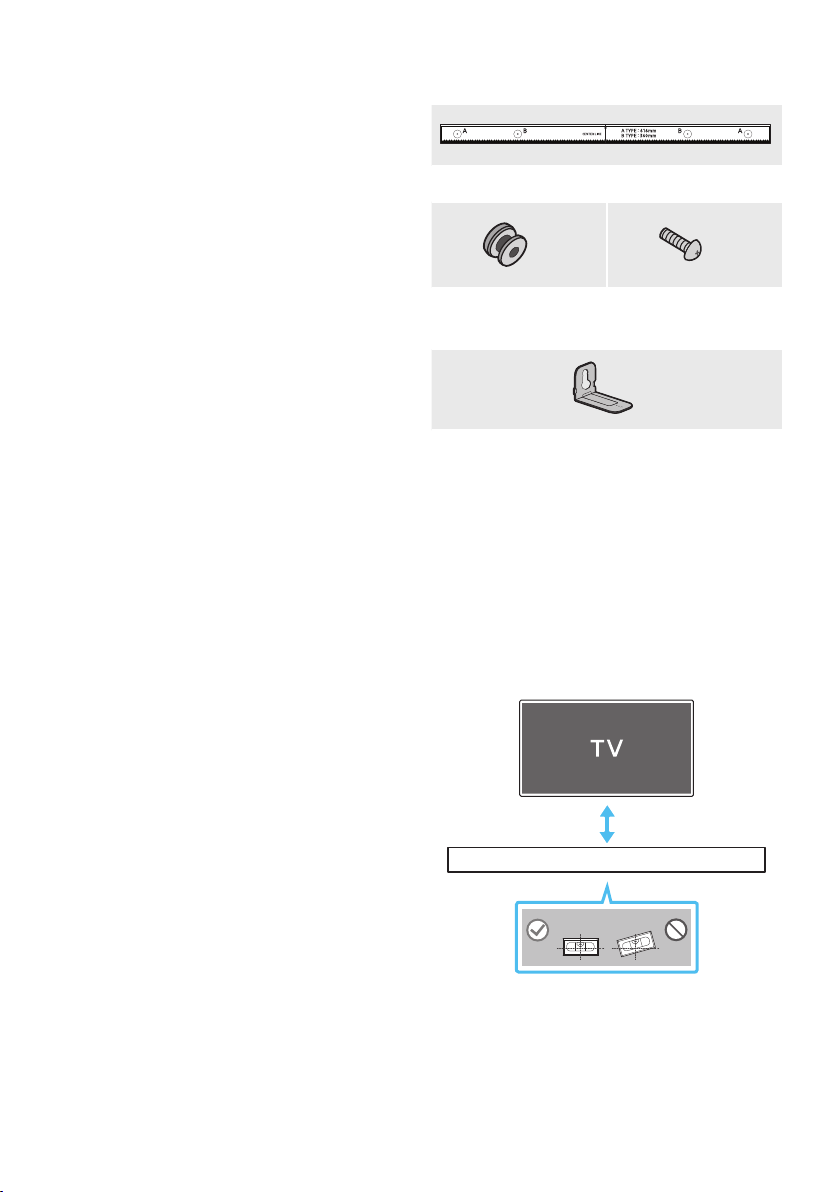

Wall Mount Guide Holder-Screw Screw Bracket-Wall

AC/DC Adapter

(Main Unit)

(A H81- 09747A)

Power Cord

(AC/DC Adapter)

(AH81-09821A)

x 2

x 2

Optic al Cable

(AH81-09754A)

Mount L

Bracket-Wall

Mount R

(AH81-09749A )

• For more information about the power supply and power consumption, refer to the label attached
to the product. (Label: Bottom of the Soundbar Main Unit)

• The power components are labelled (1, 2, 3). For more information about power connections,
see page 5.

• To purchase additional components or optional cables, contact a Samsung Service Center or
Samsung Customer Care.

• Depending on the region, the appearance of the AC plug may differ from the plug displayed above,
or it may be supplied integrated with the AC/DC adapter.

• The appearance of the accessories may differ slightly from the illustrations above.

Inserting Batteries before using the Remote Control (AA batteries X 2)

Slide the battery cover in the direction of the arrow

until it is completely removed. Insert 2 AA batteries

(1.5V) oriented so that their polarity is correct. Slide

the battery cover back into position.

ENG - 2

02 PRODUCT OVERVIEW

Front Panel / Right Side Panel of the Soundbar

Position the product so that the
SAMSUNG logo is located on the top.

Display

󱂓

Displays the product’s status and current mode.

+/- (Volume) But ton

Adjusts the volume.

󱂔

• When adjusted, the volume level appears on the Soundbar’s front display.

(Source) But ton

Selects the source input mode.

Input mode Display

Optical Digital input D.IN

ARC (HDMI OUT) input D.IN  TV ARC (Auto conversion)

󱂕

• To turn on “BT PAIRING” mode, change the source to “BT” mode, and then press and hold the

AUX input AUX

HDMI input HDMI

BLUETOOTH mode BT

USB mode USB

(Source) button for more than 5 seconds.

󱂔 󱂕 󱂖

Right Sid e of the Soundbar

󱂓

󱂖

(Power) Button

Turns the power on and off.

• When you plug in the AC cord, the power button will begin working in 4 to 6 seconds.

• When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.

• If you want to enjoy sound only from the Soundbar, you must turn off the TV’s speakers in the Audio
Setup menu of your TV. Refer to the owner’s manual supplied with your TV.

ENG - 3

Bottom Panel of the Soundbar

HDMI OUT

(TV-ARC)

HDMI IN

DIGITAL AUDIO IN

󱂓

󱂔

󱂕

DIGITAL AUD IO IN (OPTIC AL)

󱂓

Connect to the digital (optical) output of an external device.

USB (5V 0. 5A)

󱂔

Connect a USB device here to play music les on the USB device through the Soundbar.

AUX IN

󱂕

Connect to the Analog output of an external device.

HDMI IN

Inputs digital video and audio signals simultaneously using an HDMI cable.

󱂖

Connect to the HDMI output of an external device.

(OPTICAL)

USB (5V 0.5A)

AUX IN

HDMI OUT

DIGITAL AUDIO IN
(OPTICAL)

USB (5V 0.5A)

AUX IN

HDMI IN

(TV-ARC)

HDMI IN

HDMI OUT
(TV-ARC)

DC 24V

󱂖

󱂗

󱂘

DC 24V

HDMI OUT (TV-ARC)

󱂗

Connect to the HDMI (ARC) jack on a TV.

DC 24V (P ower Supply In)

󱂘

Connect the AC/DC power adapter.

• When disconnecting the power cable of the AC/DC power adaptor from a wall outlet, pull the plug.
Do not pull the cable.

• Do not connect this unit or other components to an AC outlet until all connections between
components are complete.

ENG - 4

03 CONNECTING THE SOUNDBAR

Connecting Electrical Power

Use the power components (1, 2
the following order:

, 3

) to connect the Subwoofer and Soundbar to an electrical outlet in

1 Connect the power cord to the Subwoofer.

2 Connect the power output cable to the power adapter, and then to the Soundbar.

3

Connect the power cord to a wall socket.

See the illustrations below.

• For more information about the required electrical power and power consumption, refer to the
label attached to the product. (Label: Bottom of the Soundbar Main Unit)

POWER

Rear of Subwoofer

1 Power Cord

Connecting

Electric al Power

DC 24V

HDMI IN

HDMI OUT

(TV-ARC)

Bott om of the

Soundbar Main Unit

DC 24V

3 Power Cord

Connecting

Electric al Power

2 AC/DC Adapter

• Make sure to rest the AC/DC Adapter at on a table or the oor. If you place the AC/DC Adapter so
that it is hanging with the AC cord input facing upwards, water or other foreign substances could
enter the Adapter and cause the Adapter to malfunction.

ENG - 5

Connecting the Soundbar to the Subwoofer

When the subwoofer is connected, you can enjoy rich bass sound.

Automatic connection between the Subwoofer and the Soundbar

When you turn the power on after connecting the power cables to the Soundbar and subwoofer, the
subwoofer is automatically connected to the Soundbar.

• When auto pairing is complete, the blue indicators at the rear of the subwoofer turn on.

LED Indicator Lights on the Rear of Subwoofer

LED Status Description Resolution

Successfully connected
(normal operation)

Standby (with the Soundbar
main unit turned off)

Connection failed

-

Check if the power cable attached to the
main Soundbar unit is connected properly
or wait about 5 minutes. If blinking persists,
try manually connecting the subwoofer.
See page 7.

Check if the power cable attached to the
main Soundbar unit is connected properly.

Connect again. See the instructions for
manual connection on page 7.

See the contact information for the
Samsung Service Center in this manual.

Blue

Red On

Red and

blue

On

Blinking Recovering the connection

Blinking Malfunction

ENG - 6

Manually connecting the Subwoofer if automatic connection fails

Before per forming the manual connection procedure below:

• Check whether the power cables for the Soundbar and subwoofer are connected properly.

• Make sure that the Soundbar is turned on.

1. Press and hold ID SET on the rear of the subwoofer for at least 5 seconds.

• The red indicator on the rear of the subwoofer turns off and the blue indicator blinks.

5 Sec

Rear of Subwoofer

2. Press and hold the Up button on the remote control for at least 5 seconds.

• The ID SET message appears on the display of the Soundbar for a moment, and then it

disappears.

• The Soundbar will automatically power on when ID SET is complete.

PAIR

5 Sec

3. Check if the LINK LED is solid blue (connection complete).

The LINK LED indicator stops blinking and
glows a solid blue when a connection is
established between the Soundbar and the
Wireless Subwoofer.

Blue is On

ENG - 7

ID SET

NOTES

L

R

• Do not connect the power cord of this product or your TV to a wall outlet until all connections
between components are complete.

• Before moving or installing this product, be sure to turn off the power and disconnect the power cord.

• If the main unit is powered off, the wireless subwoofer will go into stand-by mode and the
STANDBY LED on the rear of the sub-woofer will turn red after blinking in blue several times.

• If you use a device that uses the same frequency (5.8GHz) as the Soundbar near the Soundbar,
interference may cause some sound interruption.

• The maximum transmission distance of the main unit ’s wireless signal is about 32.8 ft, but may vary
depending on your operating environment. If a steel-concrete or metallic wall is between the main
unit and the wireless subwoofer, the system may not operate at all because the wireless signal
cannot penetrate metal.

PRECAUTIONS

• Wireless receiving antennas are built into the wireless subwoofer. Keep the unit away from water
and moisture.

• For optimal listening performance, make sure that the area around the wireless subwoofer and the
Wireless Receiver Module (sold separately) is clear of any obstructions.

Connecting an SWA-8500S (Sold Separately) to your Soundbar

Expand to true wireless surround sound by connecting the Samsung Wireless Rear Speaker Kit
(SWA-8500S, sold separately) to your Soundbar.

1. Connect the Wireless Receiver Module to 2 Surround Speakers.

– The speaker cables are color coded.

L

R

SURROUND SPEAKERS OUT
SPEAKER IMPEDANCE : 3Ω

SURROUND-LEFT SURROUND-RIGHT

SURROUND-LEFT

ID SET

POWER

ENG - 8

SURROUND-RIGHT

2. Check the standby status of the Wireless Receiver Module after plugging it into an electrical outlet.

POWER

ID SET

LINK

LINK

• The LINK LED indicator (blue LED) on the Wireless Receiver Module blinks. If the LED does not

blink, press the ID SET button on the back of the Wireless Receiver Module with a pen tip for
5~6 seconds until the LINK LED indicator blinks (in Blue). For more about the LED, please refer
to the SWA-8500S user manual.

L

SURROUND SPEAKERS OUT
SPEAKER IMPEDANCE : 3Ω

R

ID SET

5 Sec

STANDBY

LINK

Blue blinking

POWER

3. Press and hold the Up button on the remote control for at least 5 seconds.

• The ID SET message appears on the display of the Soundbar for a moment, and then it

disappears.

• The Soundbar will automatically power on when ID SET is complete.

PAIR

5 Sec

ID SET

CAUTION

• If your Soundbar was playing music when it connects to the SWA-8500S, you may hear some

stuttering from the woofer as the connection nalizes.

4. Check if the LINK LED is solid blue (connection complete).

The LINK LED indicator stops blinking and

STANDBY

LINK

glows a solid blue when a connection is
established between the Soundbar and the
Wireless Receiver Module.

Blue is On

5. If the SWA-8500S is not connected, repeat the procedure from Step 2.

ENG - 9

04 CONNECTING TO YOUR TV

Hear TV sound from your Soundbar through wired or wireless connections.

• When the Soundbar is connected to selected Samsung TVs, the Soundbar can be controlled using
the TV’s remote control.

– This feature is supported by 2017 and later Samsung Smart TVs that support Bluetooth when

you connect the Soundbar to the TV using an optical cable.

– This function also allows you to use the TV menu to adjust the sound eld and various settings

as well as the volume and mute.

Method 1. Connecting with a Cable

When the audio in a broadcast is encoded in Dolby Digital and the “Digital Output Audio Format” on
your TV is set to PCM, we recommend that you change the setting to Dolby Digital. When the setting on
the TV is changed, you will experience better sound quality. (The TV menu may use different words for
Dolby Digital and PCM depending on the TV manufacturer.)

Connecting using an Optical Cable

Bott om of the Soundba r

DIGITAL AUDIO IN
(OPTICAL)

USB (5V 0.5A)

OPTICAL OUT

󱂓

Optic al Cable

󱂔

D.IN

1. Connect the DIGITAL AUDIO IN (OPTICAL) jack on the Soundbar to the OPTICAL OUT jack of the TV

with a digital optical cable.

2. Press the (Source) button on the right side panel or remote control, and then select the “D.IN”

mode.

ENG - 10

Right Sid e of the Soundbar

Auto Power Link

Auto Power Link automatically turns on the Soundbar when the TV is turned on.

1. Connect the Soundbar and a TV with a digital optical cable as described in Step 1 on the previous

page.

2. Press the Left button on the remote control (the blue spot in the illustration to

the right) for 5 seconds to turn Auto Power Link on or of f.

• Auto Power Link is set to ON by default.

(To turn off this function, hold the Left button on the remote for 5 seconds.)

• Depending on the connected device, Auto Power Link may not function.

• This function is only available in the “D.IN” mode.

Connecting a TV using an HDMI Cable

Connec t to the HDMI IN

(ARC) p ort of your T V.

HDMI IN

(ARC)

Connec t to the HDMI OUT ( TV-ARC)

port o f the Soundbar mai n unit.

󱂓

HDMI Cable

(not supplied)

󱂔

TV ARC

Bott om of the Soundba r

HDMI IN

HDMI OUT

(TV-ARC)

Right Sid e of the Soundbar

1. With the Soundbar and TV turned on, connect the HDMI cable (not supplied) as shown in the gure.

2. “TV ARC” appears in the display window of the Soundbar main unit and the Soundbar plays TV

sound.

• If TV sound is inaudible, press the (Source) button on the remote control or on the right side
of the Soundbar to switch to “D.IN” mode. The screen displays “D.IN” and “T V ARC” in sequence,
and TV sound is played.

• If “T V ARC” does not appear in the display window of the Soundbar main unit, conrm that the
HDMI cable (not supplied) is connected to the correct port.

• Use the volume buttons on the TV’s remote control to change the volume on the Soundbar.

ENG - 11

NOTES

• HDMI is an interface that enables the digital transmission of video and audio data with just a single
connector.

• If the TV provides an ARC port, connect the HDMI cable to the HDMI IN (ARC) port.

• We recommend you use a coreless HDMI cable if possible. If you use a cored HDMI cable, use one
whose diameter is less than 0.55 inches.

• Anynet+ must be turned on.

• This function is not available if the HDMI cable does not support ARC.

Method 2. Connecting Wirelessly

Connecting a TV via Bluetooth

When a TV is connected using Bluetooth, you can hear stereo sound without the hassle of cabling.

• Only one TV can be connected at a time.

PAIR

OR

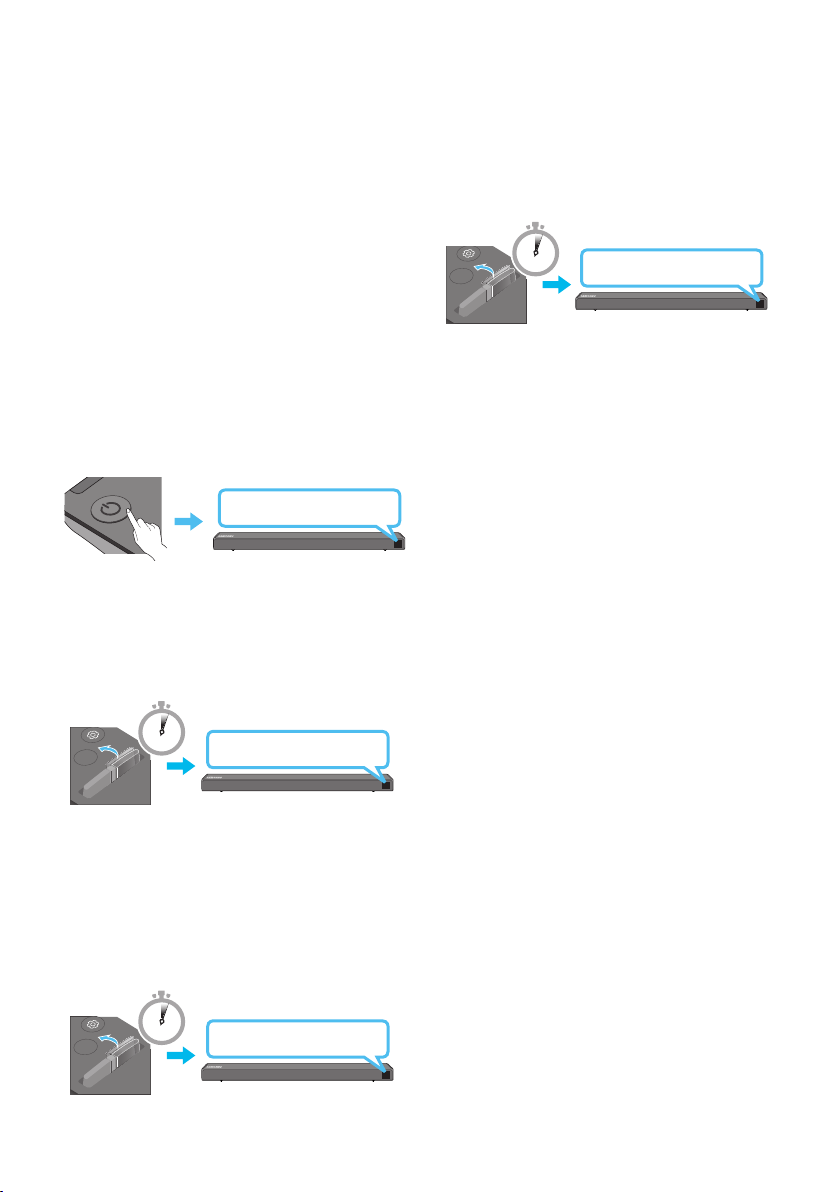

The initial connection

1. Press the PAIR button on the remote control to enter the “BT PAIRING” mode.

(OR)

a. Press the (Source) button on the right side panel and then select “BT”.

“BT” changes to “BT READY” in a few seconds automatically if there is no Bluetooth device
connected to the Soundbar.

b. When “BT READY” appears, press and hold the (Source) button on the right side panel

of the Soundbar for more than 5 seconds to display “BT PAIRING”.

2. Select Bluetooth mode on the TV. (For more information, see the TV’s manual.)

3. Select “[AV] Samsung Soundbar R6-Series” from the list on TV’s screen.

An available Soundbar is indicated with “Need Pairing” or “Paired” on the TV’s Bluetooth device
list. To connect the TV to the Soundbar, select the message, and then establish a connection.

• When the TV is connected, [T V Name] → “BT” appears on the Soundbar’s front display.

4. You can now hear TV sound from the Soundbar.

ENG - 12

If the device fails to connect

• If a previously connected Soundbar listing (e.g. “[AV] Samsung Soundbar R6-Series”) appears in the
list, delete it.

• Then repeat steps 1 through 3.

NOTE

• After you have connected the Soundbar to your TV the rst time, use the “BT READY” mode to
reconnect.

Disconnecting the Soundbar from the TV

Press the (Source) button on the right side panel or on the remote control and switch to any mode
but “BT”.

• Disconnecting takes time because the TV must receive a response from the Soundbar.
(The time required may differ, depending on the TV model.)

• To cancel the automatic Bluetooth connection between the Soundbar and TV, press the
p (Play/Pause) button on the remote control for 5 seconds with the Soundbar in “BT READY” status.

(Toggle On → Off)

What is the difference between BT READY and BT PAIRING?

• BT READY : In this mode, you can search for previously connected TVs or connect a previously
connected mobile device to the Soundbar.

• BT PAIRING : In this mode, you can connect a new device to the Soundbar. (Press the PAIR button
on the remote control or press and hold the (Source) button on the right side of the Soundbar
for more than 5 seconds while the Soundbar is in “BT” mode.)

NOTES

• If asked for a PIN code when connecting a Bluetooth device, enter <0000>.

• In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the
Soundbar and the Bluetooth device exceeds 32.8 ft.

• The Soundbar automatically turns off after 20 minutes in the Ready state.

• The Soundbar may not perform Bluetooth search or connection correctly under the following
circumstances:

– If there is a strong electrical eld around the Soundbar.
– If several Bluetooth devices are simultaneously paired with the Soundbar.
– If the Bluetooth device is turned off, not in place, or malfunctions.

• Electronic devices may cause radio interference. Devices that generate electromagnetic waves
must be kept away from the Soundbar main unit - e.g., microwaves, wireless LAN devices, etc.

ENG - 13

05 CONNECTING AN EXTERNAL DEVICE

HDMI OUT

(TV-ARC)

HDMI IN

Connect to an external device via a wired or wireless network to play the external device’s sound
through the Soundbar.

Connecting using an Optical or Analog Audio (AUX) Cable

BD / DVD play er / Set-top box /

Game cons ole

Right Sid e of the Soundbar

󱂓

OPTICAL OUT

R L

- AUDIO -

Optic al Cable

󱂔

Audio (AUX)

Cable (not supplied)

1 Optical Cable

X Connect DIGITAL AUDIO IN (OP TICAL) on the main unit to the OPTICAL OUT jack of the Source

Device using a digital optical cable.

Y Select “D.IN” mode by pressing the (Source) button on the right side panel or on the remote

control.

Bott om of the Soundba r

DIGITAL AUDIO IN
(OPTICAL)

USB (5V 0.5A)

AUX IN

2 Audio (AUX) Cable

X Connect AUX IN (Audio) on the main unit to the AUDIO OUT jack of the Source Device using an

audio cable.

Y Select “AUX” mode by pressing the (Source) button on the right side panel or on the remote

control.

ENG - 14

Connecting using an HDMI Cable

HDMI OUT

External Dev ice

HDMI IN

(ARC)

HDMI Cable

(not supplied)

HDMI Cable

(not supplied)

󱂓

󱂔

Bott om of the Soundba r

HDMI IN

HDMI OUT

(TV-ARC)

󱂕

󱂖

HDMI

1. Connect an HDMI cable (not supplied) from the HDMI IN jack on the back of the product to the

HDMI OUT jack on your digital device.

2. Connect an HDMI cable (not supplied) from the HDMI OUT (T V-ARC) jack on the back of the

product to the HDMI IN jack on your TV.

3. Press the (Source) button on the right side panel or on the remote control, and then select
“HDMI”.

4. “HDMI” mode is displayed on the Soundbar display panel and sound plays.

Right Sid e of the Soundbar

ENG - 15

06 CONNECTING A USB STORAGE DEVICE

You can play music les located on USB storage devices through the Soundbar.

USB por t

HDMI IN
DIGITAL AUDIO IN
(OPTICAL)

USB (5V 0.5A)

HDMI OUT
(TV-ARC)

AUX IN

USB (5V 0.5A)

DC 24V

Display

USB

Micro USB t o

USB adap ter Cable

(not supplied)

1. Connect a Micro USB to USB adapter cable with a male USB 2.0 Micro USB plug (Type B) on one

end and a standard female 2.0 USB jack (Type A) on the other end to the micro USB jack on your
Soundbar.

• The Micro USB to USB adapter cable is sold separately. To purchase, contact a Samsung Service
Center or Samsung Customer Care.

2. Connect your USB device to the female end of the adapter cable.

3. Press the (Source) button on the right side panel or on the remote control, and then select
“USB”.

4. “USB” appears in the display screen.

5. Play music les from the USB storage device through the Soundbar.

• The Soundbar automatically turns off (Auto Power Down) if no USB device has been connected
for more than 20 minutes.

ENG - 16

File Format Type Compatibility list

Extension Codec Sampling Rate Bitrate

*.m p3 MPEG 1 Layer2 16kHz ~ 48kHz 80kbps~320kbps

MPEG 1 Layer3 16kHz ~ 48kHz 80kbps~320kbps

MPEG 2 Layer3 16kHz ~ 48kHz 80kbps~320kbps

MPEG 2.5 Layer3 16kHz ~ 48kHz 80kbps~320kbps

*.wma Wave_Format_MSAudio1 16kHz ~ 48kHz 56kbps~128kbps

Wave_Format_MSAudio2 16kHz ~ 48kHz 56kbps~128kbps

*.a ac AAC 16kHz ~ 96kHz 48kbps~320kbps

A A C- LC 16kHz ~ 96kHz

HE-AAC 24kHz ~ 96kHz

*.wav - 16kHz ~ 48kHz up to 3000kbps

*.o gg OGG 1.1.0 16kHz ~ 48kHz 50kbps~500kbps

128kbps~192kbps

5.1ch 3 20kb ps

48kbps~64kbps

5.1ch 160 kbps

• If there are too many folders and les stored on the USB device, it may take the Soundbar some

time to access and play les.

ENG - 17

07 CONNECTING A MOBILE DEVICE

Connecting via Bluetooth

When a mobile device is connected using Bluetooth, you can hear stereo sound without the hassle of
cabling.

• You cannot connect more than one Bluetooth device at a time.

PAIR

Bluetooth device

OR

The initial connection

1. Press the PAIR button on the remote control to enter the “BT PAIRING” mode.

(OR)

a. Press the (Source) button on the right side panel and then select “BT”.

“BT” changes to “BT READY” in a few seconds automatically if there is no Bluetooth device
connected to the Soundbar.

b. When “BT READY” appears, press and hold the (Source) button on the right side panel

of the Soundbar for more than 5 seconds to display “BT PAIRING”.

2. On your device, select “[ AV] Samsung Soundbar R6-Series” from the list that appears.

• When the Soundbar is connected to the Bluetooth device, [Bluetooth Device Name] → “BT”
appears in the front display.

3. Play music les from the device connected via Bluetooth through the Soundbar.

If the device fails to connect

• If a previously connected Soundbar listing (e.g. “[AV] Samsung Soundbar R6-Series”) appears in the

list, delete it.

• Then repeat steps 1 and 2.

NOTE

• After you have connected the Soundbar to your mobile device the rst time, use the “BT READY”

mode to reconnect.

ENG - 18

What is the difference between BT READY and BT PAIRING?

• BT READY : In this mode, you can search for previously connected TVs or connect a previously

connected mobile device to the Soundbar.

• BT PAIRING : In this mode, you can connect a new device to the Soundbar. (Press the PAIR button
on the remote control or press and hold the (Source) button on the right side of the Soundbar
for more than 5 seconds while the Soundbar is in “BT” mode.)

NOTES

• If asked for a PIN code when connecting a Bluetooth device, enter <0000>.

• In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the
Soundbar and the Bluetooth device exceeds 32.8 ft.

• The Soundbar automatically turns off after 20 minutes in the Ready state.

• The Soundbar may not perform Bluetooth search or connection correctly under the following
circumstances:

– If there is a strong electrical eld around the Soundbar.
– If several Bluetooth devices are simultaneously paired with the Soundbar.
– If the Bluetooth device is turned off, not in place, or malfunctions.

• Electronic devices may cause radio interference. Devices that generate electromagnetic waves
must be kept away from the Soundbar main unit - e.g., microwaves, wireless LAN devices, etc.

• The Soundbar supports SBC data (44.1kHz, 48kHz).

• Connect only to a Bluetooth device that supports the A2DP (AV) function.

• You cannot connect the Soundbar to a Bluetooth device that supports only the HF (Hands Free)
function.

• Once you have paired the Soundbar to a Bluetooth device, selecting “[AV] Samsung Soundbar
R6-Series” from the device’s scanned devices list will automatically change the Soundbar to “BT”
mode.

– Available only if the Soundbar is listed among the Bluetooth device’s paired devices.

(The Bluetooth device and the Soundbar must have been previously paired at least once.)

• The Soundbar will appear in the Bluetooth device’s searched devices list only when the Soundbar is
displaying “BT READY”.

• The Soundbar cannot be paired to another Bluetooth device if already in Bluetooth mode and
paired to a Bluetooth device.

Bluetooth Power On (SOUND MODE)

If a previously paired Bluetooth device tries to pair with the Soundbar when the Bluetooth Power On
function is on and the Soundbar is turned off, the Soundbar turns on automatically.

1. Press and hold the SOUND MODE button for more than 5 seconds on the remote while the

Soundbar is turned on.

2. “ON-BLUETOOTH P OWER” appears on the Soundbar’s display.

ENG - 19

Disconnecting the Bluetooth device from a Soundbar

You can disconnect a Bluetooth device from the Soundbar. For instructions, see the Bluetooth device’s
user manual.

• The Soundbar will be disconnected.

• When the Soundbar is disconnected from the Bluetooth device, the Soundbar will display
“BT DISCONNECTED” on the front display.

Disconnecting the Soundbar from the Bluetooth device

Press the (Source) button on the right side panel or on the remote control, and then change to any
mode except “BT”.

• Disconnecting takes time because the Bluetooth device must receive a response from the
Soundbar. (Disconnection time may differ, depending on the Bluetooth device)

• When the Soundbar is disconnected from the Bluetooth device, the Soundbar will display
“BT DISCONNECTED” on the front display.

NOTES

• In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the
Soundbar and the Bluetooth device exceeds 32.8 ft.

• The Soundbar automatically turns off after 20 minutes in the Ready state.

More About Bluetooth

Bluetooth is a technology that enables Bluetooth-compliant devices to interconnect easily with each
other using a short wireless connection.

• A Bluetooth device may cause noise or malfunction, depending on usage, if:

– A part of your body is in contact with the receiving/transmitting system of the Bluetooth

device or the Soundbar.
– It is subject to electrical variation from obstructions caused by a wall, corner, or ofce partition.
– It is exposed to electrical interference from same frequency-band devices including medical

equipment, microwave ovens, and wireless LANs.

• Pair the Soundbar with the Bluetooth device while they are close together.

• The further the distance between the Soundbar and Bluetooth device, the worse the quality is.
If the distance exceeds the Bluetooth operational range, the connection is lost.

• In poor reception areas, the Bluetooth connection may not work properly.

• The Bluetooth connection only works when it is close to the unit. The connection will be
automatically cut off if the Bluetooth device is out of range. Even within range, the sound quality
may be degraded by obstacles such as walls or doors.

• This wireless device may cause electric interference during its operation.

ENG - 20

Using the Samsung Audio Remote App

Installing the Samsung Audio Remote App

To control the Soundbar with your smart device and the Samsung Audio Remote app, download the
Samsung Audio Remote app from the Google Play store.

Market se arch : Samsung Au dio Remote

Launching the Samsung Audio Remote App

To launch and use the Samsung Audio Remote app, touch the Audio Remote icon on your smart device,
and then follow the directions on the screen.

Samsung

Multiroom

Audio Remote

Audio Remote

• The Samsung Audio Remote app is only compatible with Android mobile phones and mobile devices
running Android OS 3.0 or later.

ENG - 21

08 USING THE REMOTE CONTROL

PAIR

PAIR

How to Use the Remote Control

󱂓

󱂔

󱂕

󱂖

PAIR

SOUND

MODE

VOL WOOFER

SOUNDBAR

󱂗

󱂘

󱂙

󱂚

󱂛

󱂜

󱂓

󱂔

󱂕

󱂖

SOUND MODE

Power

Source

Mute

SOUND

MODE

Turns the Soundbar on and off.

Press to select a source connected to the
Soundbar.

• BT PAIRING mode
To turn on “BT PAIRING” mode, change the
source to “BT” mode, and then press and hold
the (Source) button for more than
5 seconds.

Press the (Mute) button to mute the sound.
Press it again to unmute the sound.

You can selec t the desired sound effec t by
choosing STANDARD, or SURROUND SOUND.
Select the “STANDARD” mode if you want to
enjoy the original sound.

• DRC (Dynamic Rang e Control)
Lets you apply dynamic range control to
Dolby Digital tracks. Press and hold the
SOUND MODE button while the Soundbar is
powered off to turn DRC (Dynamic Range
Control) on or off. With the DRC turned on,
loud sound is reduced. (The sound may be
distorted.)

• Bluetooth Power
This feature automatically turns the
Soundbar on when it receives a connection
request from a previously connected T V or
Bluetooth device. The setting is On by

default.

– Press and hold the SOUND MODE

button for more than 5 seconds to turn
off the Bluetooth Power function.

ENG - 22

󱂗

PAIR

Bluetooth

PAIR

Press the PAIR button. “BT PAIRING” appears in the Soundbar’s display.
You can connec t the Soundbar to a new Bluetooth device in this mode by selecting the
Soundbar from the Bluetooth device's search list.

󱂘

󱂙

Play / Pau se

Up/Down/

Left/Right

Press the p button to pause a music le temporarily.
When you press the but ton again, the music le plays.

• Auto Power Down Function

The unit turns off automatically in the following situations:

– In D.IN / HDMI / BT / USB Mode : If there is no audio signal for 20 minutes.
– In AUX Mode :

– If the Audio (AUX) Cable is disconnected for 20 minutes.
– If there is no KEY input for 8 hours when the Audio (AUX) Cable is connected.

(The Auto Power Down function can be turned off only when the unit is in
“AUX” mode.)

– To turn off Auto Power Down function while the unit is in “AUX” mode, press

and hold the p button for 5 seconds. “ON-AU TO POWER DOWN ” / “OFF-

AUTO POW ER DOWN” appears on the display.

Press the indicated areas to select Up/Down/Left/Right.

Press Up/Down/Left/Right on the button to select or set functions.

• Repeat

To use the Repeat function in “USB” mode, press the Up button.

• Music Skip
Press the Right button to select the next music le. Press the Left button to select the

previous music le.

• Anynet+ / Auto P ower Link
You can turn Anynet+ and Auto Power Link on or off.
Anynet+ and Auto Power Link are turned on and turned off by the Right and Left
buttons respectively.

– Anynet+ : If the Soundbar is connected to a Samsung TV through an HDMI cable,

you can control your Soundbar with a Samsung T V remote control.
Press and hold the Right button for 5 seconds to toggle Anynet+ ON and OFF.

– Auto Power Link : If the Soundbar is connected to your T V through a digital optical

cable, the Soundbar can automatically turn on when you turn on your TV. Press
and hold the Left button for 5 seconds to toggle Auto Power Link ON and OFF.

– Anynet+ / Auto Power Link are set to ON by default.

• ID SET
Press and hold the Up button for 5 seconds to complete ID SET (when connecting to an
accessary item).

ENG - 23

• Volume Restriction function

PAIR

SOUNDBAR

SOUNDBAR

SOUND

MODE

PAIR

SOUND

MODE

VOL

WOOFER

SOUNDBAR

SOUND

MODE

VOL

WOOFER

SOUNDBAR

SOUNDBAR

SOUNDBAR

To protect your hearing, the Volume Restriction function restricts the volume to 20 if
you turn on the Soundbar when the volume is set higher than 20.

– The default value for the Volume Restriction function is Off. You must turn it on to

activate it.

– When turned on, the Volume Restriction function stays on even when the power is

turned off.

– To turn Volume Restriction on or off, press and hold the Down button on the

remote control for 5 seconds. With Volume Restriction off, “V FRE E” appears on
the front display. With the function on, “V LOCK ” appears.

󱂚

󱂛

󱂜

Sound Control

WOOFER

VOL

You can selec t

TREBLE, BASS, or AUDIO SYNC

• To control the volume of the treble or bass sound, select TREBLE or BASS in Sound
Settings, and then adjust the volume between - 6~+6 by using the Up/Down but tons.

• Press and hold the (Sound Control) but ton for about 5 seconds to adjust the sound
for each frequency band. 150Hz, 300Hz, 600Hz, 1.2kHz, 2.5kHz, 5kHz, and 10kHz are
selectable using the Left/Right but tons and each can be adjusted to a setting between

-6 to +6 using the Up/Down buttons.

• If the video on the T V and audio from the Soundbar are not synchronized, select AUDIO
SYNC in Sound Settings, and then

set the audio delay bet ween 0~300 milliseconds

using the Up/Down buttons. (Not available in “USB” mode.)

• AUDIO SYNC is only suppor ted for some functions.

SOUND

MODE

WOOFER

VOL

SOUND

MODE

WOOFER

VOL

Push the WOOFER button up or down to adjust the volume of the subwoofer to -12 or
between -6 to +6. To set the subwoofer volume level to 0, press the button.

SOUND

MODE

WOOFER

VOL

SOUND

MODE

WOOFER

VOL

Push the VOL button up or down to adjust the volume.

• Mute
Press the VOL button to mute the sound. Press it again to unmute the sound.

by

ENG - 24

Adjusting the Soundbar volume

SOUNDBAR

SOUNDBAR

SOUNDBAR

with a TV remote control

If you have a Samsung TV, you can adjust
the Soundbar’s volume using the IR remote
control that came with your Samsung TV.

First use the TV menu to set the TV audio on your
Samsung TV to external speakers, then use your
Samsung remote to control the Soundbar’s
volume. For more information, see the TV’s user
manual. The default mode for this function is
control by a Samsung TV remote. If your TV is not
a Samsung TV, follow the directions below to
change the settings of this function.

1. Turn Off the Soundbar.

BYE

2. If you do not want to use this function, push

up and hold the WOOFER button for
5 seconds repeatedly until “OFF-TV

REMOTE” appears in the display.

4. If you want to return the Soundbar to the

default mode (control by a Samsung TV
remote), push up and hold the WOOFER
button for 5 seconds repeatedly until
“SAMSUNG-TV REMOTE” appears in the
display.

(Default mode)

SOUND

MODE

5 Sec

WOOFER

VOL

SAMSUNG-TV REMOTE

– Each time you push the WOOFER button

up and hold it for 5 seconds, the mode
switches in the following order:
“SAMSUNG-TV REMOTE” (Default mode)
→ “OFF‑TV REMOTE” → “ALL‑TV REMOTE”.

– This function may not be available,

depending on the remote control.

– Manufacturers supporting this function:

VIZIO, LG, Sony, Sharp, PHILIPS,
PANASONIC, TOSHIBA, GRUNDIG,
Hisense, RCA

SOUND

MODE

5 Sec

WOOFER

VOL

OFF-TV REMOTE

3. If you want to control the Soundbar with

your TV’s remote, push up and hold the

WOOFER button for 5 seconds repeatedly

until “ALL-TV REMOTE” appears in the
display. Then, use your TV’s menu to select
external speakers.

SOUND

MODE

5 Sec

WOOFER

VOL

ALL-TV REMOTE

ENG - 25

Using the Hidden Buttons (Buttons with more than one function)

Bluetooth

POWER

Hidden Button

Remote Control Button Function

WOOFER TV remote control On/Off (Standby) page 25

(Source)

p (Play / Pause)

Left Auto Power Link ON/OFF page 23

Right Anynet+ ON/OFF page 23

Up ID SET page 23

Down Volume Restriction On/Off page 24

(Sound Control)

SOUND MODE

BT Pairing page 22

Auto Power Down On/Off

(AUX mode)

Initialize (Standby) page 30

BT Ready page 13

7 Band EQ page 24

DRC ON/OFF (Standby) page 22

Bluetooth Power page 22

Reference page

page 23

Outputspecicationsforthedifferentsoundeffectmodes

Output

SOUND

MODE

SOUND MODE

Effect Input

STANDARD

SURROUND

SOUND

2.0 ch

5.1 ch 3.1 ch 5.1 ch

2.0 ch

5.1 ch 3.1 ch 5.1 ch

Without Wireless Rear

Spea ker Kit

2.1 ch 4.1 c h

3.1 ch 5.1 c h

With Wireless Rear

Spea ker Kit

• The Samsung Wireless Rear Speaker Kit can be purchased separately. To purchase a Kit, contact the
vendor you purchased the Soundbar from.

ENG - 26

09 INSTALLING THE

WALL MOUNT

Wallmount Components

Wall Mount Guide (AH81-09831A)

Installation Precautions

• Install on a vertical wall only.

• Do not install in a place with high
temperature or humidity.

• Verify whether the wall is strong enough to
support the product’s weight. If not, reinforce
the wall or choose another installation point.

• Purchase and use the xing screws or
anchors appropriate for the kind of wall you
have (plaster board, iron board, wood, etc.). If

possible, x the support screws into wall

studs.

• Purchase wall mounting screws according to
the type and thickness of the wall you want to
mount the Soundbar on.

– Diameter: M5
– Length: 1 3/8 inches or longer

recommended.

• Connect cables from the unit to external
devices before you install the Soundbar on
the wall.

• Make sure the unit is turned off and
unplugged before you install it. Otherwise, it
may cause an electric shock.

x 2

Holder-Screw

(AH81-09833A)

Bracket-Wall Mount

(AH81-09832A)

1. Place the Wall Mount Guide against the wall

surface.

• The Wall Mount Guide must be level.

• If your TV is mounted on the wall, install
the Soundbar at least 2 inches (5 cm)
below the TV.

(AH81-09834A)

x 2

2 inches or more

x 2

Screw

ENG - 27

2. Align the Wall Mount Guide’s Center Line

with the center of your TV (if you are
mounting the Soundbar below your TV), and
then x the Wall Mount Guide to the wall
using tape.

• If you are not mounting below a TV, place

the Center Line in the center of the
installation area.

Center Line

3. Push a pen tip or sharpened pencil tip

through the center of the A-TYPE images on
each end of the Guide to mark the holes for
the supporting screws, and then remove the

Wall Mount Guide.

4. Using an appropriately sized drill bit, drill a

hole in the wall at each marking.

• If the markings do not correspond to the
positions of studs, make sure you insert
appropriate anchors or mollies into the
holes before you insert the support
screws. If you use anchors or mollies,
make sure the holes you drill are large
enough for the anchors or mollies you use.

5. Push a screw (not supplied) through each
Holder-Screw, and then screw each screw

rmly into a support screw hole.

6. Install the 2 Bracket-Wall Mounts in the
correct orientation on the bottom of the
Soundbar using 2 Screws.

• When assembling, make sure the hanger

part of the Bracket-Wall Mounts are
located behind the rear of the Soundbar.

Rear of S oundbar

Right end o f Soundbar

ENG - 28

7. Install the Soundbar with the attached
Bracket-Wall Mounts by hanging the
Bracket-Wall Mounts on the Holder-Screws

on the wall.

8. Slide the Soundbar down as shown below so
that the Bracket-Wall Mounts rest securely
on the Holder-Screws.

• Insert the Holder-Screws into the wide
(bottom) part of the Bracket-Wall

Mounts, and then slide the Bracket-Wall
Mounts down so that the Bracket-Wall
Mounts rest securely on the
Holder-Screws.

10 SOFTWARE

UPDATE

Samsung may offer updates for the Soundbar ’s

systemrmwareinthefuture.

USB por t

DC 24V

HDMI IN
DIGITAL AUDIO IN
(OPTICAL)

USB (5V 0.5A)

HDMI OUT

(TV-ARC)
AUX IN

USB (5V 0.5A)

Micro USB t o

USB adap ter Cable

(not supplied)

If an update is offered, you can update the

rmware by connecting a USB device with the
rmware update stored on it to the USB port on

your Soundbar. For more information about how

to download update les, go to the Samsung

Electronics website at
www.samsung.comSupport.
Then, enter or select the model number of your
Soundbar, select the Software & Apps option, and
then Downloads. Note that the option names can
vary. For updating instructions, see the next page.

ENG - 29

Updating Procedure

If UPDATE is not displayed

Important: The updating function erases all user

settings. We recommend you write down your
settings so that you can easily reset them after

the update. Note that updating the rmware

resets the subwoofer connection too.

1. Connect a Micro USB to USB adapter cable

with a male USB 2.0 Micro USB plug (Type B)
on one end and a standard female 2.0 USB
jack (Type A) on the other end to the micro
USB jack on your Soundbar.

• The Micro USB to USB adapter cable is
sold separately. To purchase, contact a
Samsung Service Center or Samsung
Customer Care.

2. Follow the steps below to download the

product software:
Go to the Samsung website at
(samsung.com)  search for the model name

- select the customer support option (the
option name is subject to change)

3. Save the downloaded software to a USB

stick and select “Extract Here” to unzip the
folder.

4. Turn off the Soundbar and connect the USB

stick containing the software update to the
female port on a Micro USB adapter cable.
Connect the cable to the USB port on the
Soundbar.

5. Turn on the Soundbar. Within 3 minutes,
“UPDATE” is displayed and updating begins.

6. When the update nishes, the Soundbar

turns off. Press the p button on the remote
control for 5 seconds. “INIT” appears on the
display and then the Soundbar turns off.
The update is complete.

• This product has a DUAL BOOT function.

If the rmware fails to update, you can
update the rmware again.

7. Reset your settings.

1. Turn off the Soundbar, disconnect and then

reconnect the USB storage device that

contains the update les to the Soundbar’s

USB port.

2. Disconnect the Soundbar’s power cord,

reconnect it, and then turn on the Soundbar.

NOTES

• The rmware update may not work properly
if audio les supported by the Soundbar are

stored in the USB storage device.

• Do not disconnect the power or remove the
USB device while updates are being applied.
The main unit will turn off automatically after

completing the rmware update.

• After the update is completed, the user setup
in the Soundbar is initialized so you can reset
your settings. We recommend you write
down your settings so that you can easily
reset them after the update. Note that

updating rmware resets the subwoofer

connection too.
If the connection to the subwoofer is not
re-established automatically after the
update, refer to page 6.
If the software update fails, check if the USB
stick is defective.

• Mac OS users should use MS-DOS (FAT) as the
USB format.

• Updating via USB may not be available,
depending on the USB storage device
manufacturer.

ENG - 30

11 TROUBLESHOOTING

Refer to the table below if this product does not function properly. If the problem you are experiencing
is not listed below or if the instructions below do not help, turn off the product, disconnect the power
cord, and contact Samsung Electronics at 1-800-SAMSUNG (1-800-726-7864).

The unit will not turn on.

Is the power cord plugged into the outlet?

; Connect the power plug to the outlet.

A function does not work when the button is pressed.

Is there static electricity in the air?

; Disconnect the power plug and connect it again.

Sound dropouts occur in BT mode.

; See the Bluetooth connection sections on pages 12 and 18.

Sound is not produced.

Is the Mute function on?

; Press the VOL button to cancel the function.

Is the volume set to minimum?

; Adjust the Volume.

The remote control does not work.

Are the batteries drained?

; Replace with new batteries.

Is the distance between the remote control and Soundbar main unit too far?

; Move the remote control closer to the Soundbar main unit.

The red LED on the subwoofer blinks and the subwoofer is not producing sound.

This issue can occur if the subwoofer is not connected to the Soundbar main unit.

; Try to connect your subwoofer again. (See page 6.)

The subwoofer drones and vibrates noticeably.

Try to adjust the vibration of your subwoofer.

; Push the WOOFER button on your remote control up or down to adjust the subwoofer volume.

(to -12, or between -6 ~ +6).

ENG - 31

12 LICENSE

13 OPEN SOURCE

LICENSE NOTICE

Manufactured under license from Dolby
Laboratories. Dolby, Dolby Audio, Pro Logic, and
the double-D symbol are trademarks of Dolby
Laboratories.

For DTS patents, see http://patents.dts.com.
Manufactured under license from DTS
Licensing Limited. DTS, the Symbol, DTS in
combination with the Symbol, and DTS Digital
Surround are registered trademarks or
trademarks of DTS, Inc. in the United States
and/or other countries. © DTS, Inc. All Rights
Reserved.

The terms HDMI and HDMI High-Denition

Multimedia Interface, and the HDMI Logo are
trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other
countries.

To send inquiries and requests regarding open
sources, contact Samsung via Email
([e-mail]).

14 IMPORTANT

NOTES ABOUT
SERVICE

• Figures and illustrations in this User Manual
are provided for reference only and may differ
from actual product appearance.

• An administration fee may be charged if
ei ther:
a. An engineer is called out to your home at
your request and there is no defect in the
product.
b. You bring the unit to a repair center and
there is no defect in the product.

• You will be advised of the amount of the
administration fee before any work is done or
a home visit is made.

• If you have a problem with this product, we
strongly recommend you read the
appropriate section of this manual, visit the
Support page for your product at
www.samsung.com, or call Samsung Product

Support (1-800-726-7864) to nd an answer

before you contact a service center for a
repair.

ENG - 32

15 SPECIFICATIONS AND GUIDE

Specications

Model Name HW-R60M

USB 5V/ 0.5A

Weight 6.4 lbs (2.9 kg)

Dimensions (W x H x D)

Operating Temperature Range +41°F to +95°F (+5°C to +35°C)

Operating Humidity Range 10 % ~ 75 %

AMPLIFIER
Rated Output power 30W x 6

Supported play formats

Subwoofer Name PS-WR53D

Weight 11.0 lbs (5.0 kg)

Dimensions (W x H x D)

AMPLIFIER
Rated Output power 130W

41.7 x 2.3 x 3.4 inches

(1060.0 x 59.0 x 87.5 mm)

LPCM 2ch, Dolby Audio™

(supporting Dolby® Digital), DTS

7.9 x 13.9 x 11.4 inches

(200.6 x 353.0 x 290.0 mm)

NOTES

• Samsung Electronics Co., Ltd reserves the right to change the specications without notice.

• Weight and dimensions are approximate.

• Dispose unwanted electronics through an approved recycler.

To nd the nearest recycling location, go to our website: www.samsung.com/recyclingdirect or call

1-800-SAMSUNG.

ENG - 33

LIMITED WARRANTY TO ORIGINAL PURCHASER

This SAMSUNG brand product, as supplied and distributed by SAMSUNG and delivered new, in the original carton to the original
consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials and workmanship for a limited
warranty period of:

One (1) Year Par ts and Labor *

(*90 Days P arts and Lab or for Commercial U se)

This limited warrant y begins on the original date of purchase, and is valid only on products purchased and used in the
United States. To receive warranty service, the purchaser must contact SAMSUNG for problem determination and
service procedures. Warranty ser vice can only be performed by a SAMSUNG authorized service center. The original
dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG’s authorized service
center. Transportation of the produc t to and from the service center is the responsibility of the purchaser.
SAMSUNG will repair or replace this product, at our option and at no charge as stipulated herein, with new or
reconditioned par ts or produc ts if found to be defective during the limited warranty period specied above.
All replaced parts and products become the proper ty of SAMSUNG and must be returned to SAMSUNG.
Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is longer.
SAMSUNG’s obligations with respect to software products distributed by SAMSUNG under the SAMSUNG brand
name are set forth in the applicable end user license agreement. Non-SAMSUNG hardware and sof tware products,
if provided, are on an “AS IS” basis.
Non-SAMSUNG manufacturers, suppliers, publishers, and service providers may provide their own warranties.
This limited warrant y covers manufacturing defects in material s and workmanship encountered in normal, and
except to the extent otherwise expressly provided for in this statement, noncommercial use of this produc t, and
shall not apply to the following, including, but not limited to: damage which occurs in shipment; deliver y and
installation; applications and uses for which this product was not intended; altered product or serial numbers;

cosmetic damage or exterior nish; accidents, abuse, neglec t, re, water, lightning or other acts of nature; use of

products, equipment, systems, utilities, services, parts, supplies, accessories, applications, installations, repairs,
external wiring or connectors not supplied and authorized by SAMSUNG, or which damage this product or result in

service problems; incorrect electrical line voltage, uctuations and surges; customer adjustments and failure to

follow operating instructions, cleaning, maintenance and environmental instructions that are covered and
prescribed in the instruction book; product removal or reinstallation; reception problems and distor tion related to
noise, echo, interference or other signal transmission and delivery problems. SAMSUNG does not warrant
uninterrupted or error-free operation of the product.
THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED AND DESCRIBED ABOVE, AND NO
WARRANTIES WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY AFTER THE EXPRESS WARRANTY
