SAMSUNG HW-Q900T User Manual [fr]

FULL MANUAL

HW-Q900T

Imagine the possibilities

Thank you fo r purchasing this Samsung product.

To receive more complete s ervice, please register

your product at www.samsung.com/register

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Refer to the table below for an explanation of symbols which may be on your Samsung product.

CAUTION

RISK OF E LECTRIC S HOCK.

DO NOT OP EN.

This symbol indicates that high voltage is present inside. It is dangerous to make any kind of contact with any internal part of this product.

This symbol indicates that this product has included important literature concerning operation and maintenance.

Class II product : This symbol indicates

that it does not require a safety

connection to electrical ear th (ground). If this symbol is not present on a product with a power cord, the produc t MUST have a reliable connection to protective ear th (ground).

WARNING

• To reduce the risk of re or electric shock, do not expose this appliance to rain or moisture.

CAUTION

• TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

• This apparatus shall always be connected to a AC outlet with a protective grounding connection.

• To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.

• Do not expose this apparatus to dripping or

splashing. Do not put objects lled with

liquids, such as vases on the apparatus.

• To turn this apparatus of f completely, you must pull the power plug out of the wall socket. Consequently, the power plug must

be easily and readily accessible at all times.

AC voltage : This symbol indicates that

the rated voltage marked with the

symbol is AC voltage.

DC voltage : This symbol indicates that

the rated voltage marked with the

symbol is DC voltage.

Caution, Consult instructions for use :

This symbol instructs the user to

consult the user manual for further

safety related information.

ENG - 2

PRECAUTIONS

1. Ensure that the AC power supply in your

house complies with the power

requirements listed on the identication

sticker located on the bottom of your product. Install your product horizontally, on a suitable base (furniture), with enough space around it for ventilation (7~10 cm). Make sure the ventilation slots are not

covered. Do not place the unit on ampliers

or other equipment which may become hot. This unit is designed for continuous use. To fully turn off the unit, disconnect the AC plug from the wall outlet. Unplug the unit if you intend to leave it unused for a long period of time.

2. During thunderstorms, disconnect the AC

plug from the wall outlet. Voltage peaks due to lightning could damage the unit.

3. Do not expose the unit to direct sunlight or

other heat sources. This could lead to overheating and cause the unit to malfunction.

4. Protect the product from moisture (i.e.

vases), and excess heat (e.g. a replace) or

equipment creating strong magnetic or

electric elds. Unplug the power cable from

the AC wall socket if the unit malfunctions. Your product is not intended for industrial use. It is for personal use only. Condensation may occur if your product has been stored in cold temperatures. If transporting the unit during the winter, wait approximately 2 hours until the unit has reached room temperature before using.

5. The battery used with this product contains

chemicals that are harmful to the environment. Do not dispose of the battery in the general household trash. Do not expose the battery to excess heat, direct

sunlight, or re. Do not short circuit,

disassemble, or overheat the battery. Danger of explosion if the battery is replaced incorrectly. Replace only with the same or equivalent type.

Fabric cleaning

Remove any dirt or stain on the product surface immediately.

Removing and cleaning can be less effective for some substances or if left for a prolonged time.

CAUTION

• Use a vacuum cleaner or an adhesive lint roller to remove dust, handprints, and the likes.

– Some cleaning brushes may damage the

product, depending on the materials they contain.

– Towels and cleaning clothes may leave

lint or dirt on the product.

• Do not use a nail or other tools to scratch the dirt off. It may damage the fabric.

• To remove oil or liquid stains, use a clean white cloth moist with water. If the stain persists, wipe it with a mixture of water and neutral detergent (such as dishwashing soaps) and a cloth.

– A non-neutral detergent or cleaner may

cause discolouration or fabric damage.

– After cleaning, use a dry cloth or

hairdryer to dry the area.

– Do not use excessive force to avoid

discolouration or fabric damage.

ENG - 3

CONTENTS

01 Checking the Components 6

02 Product Overview 7

Top Panel of the Soundbar ------------------------- 7

Bottom Panel of the Soundbar ------------------------- 8

03 Using the Soundbar Remote Control 9

Inserting Batteries before using the Remote Control (AA batteries X 2) ------------------------- 9

How to Use the Remote Control

Using the Hidden Buttons (Buttons with more than one function)

Output specications for the different sound effect modes

Adjusting the Soundbar volume with a TV remote control ------------------------- 13

04 Connecting the Soundbar 14

-------------------------

Connecting the power and units

– Manually connecting the Subwoofer – LED Indicator Lights on the Rear of Subwoofer

Connecting an SWA-9000S (Sold Separately) to your Soundbar

-------------------------

05 Using a wired connection to the TV 20

Method 1. Connecting with HDMI

– Connecting the TV that supports HDMI ARC (Audio Return Channel)

Method 2. Connecting using an Optical Cable

-------------------------

06 Using a wireless connection to the TV 23

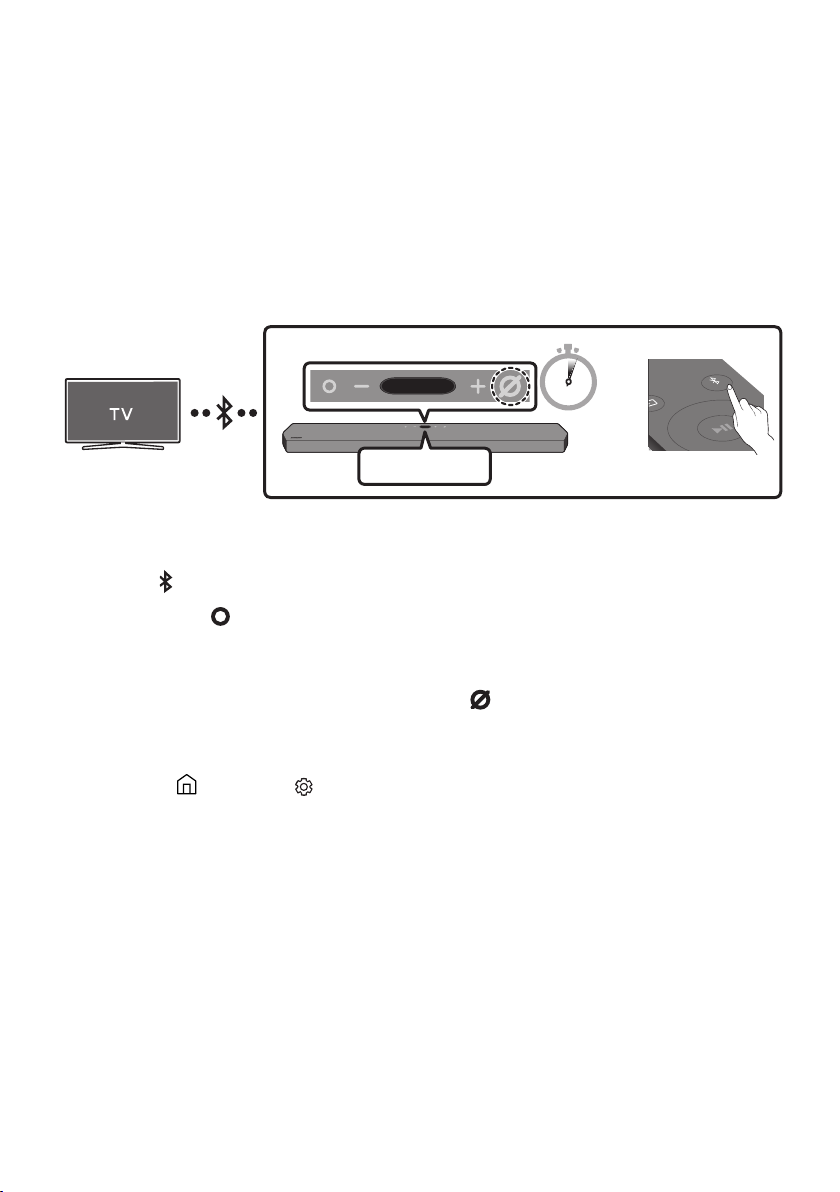

Connecting via Bluetooth

-------------------------

07 Connecting an External Device 25

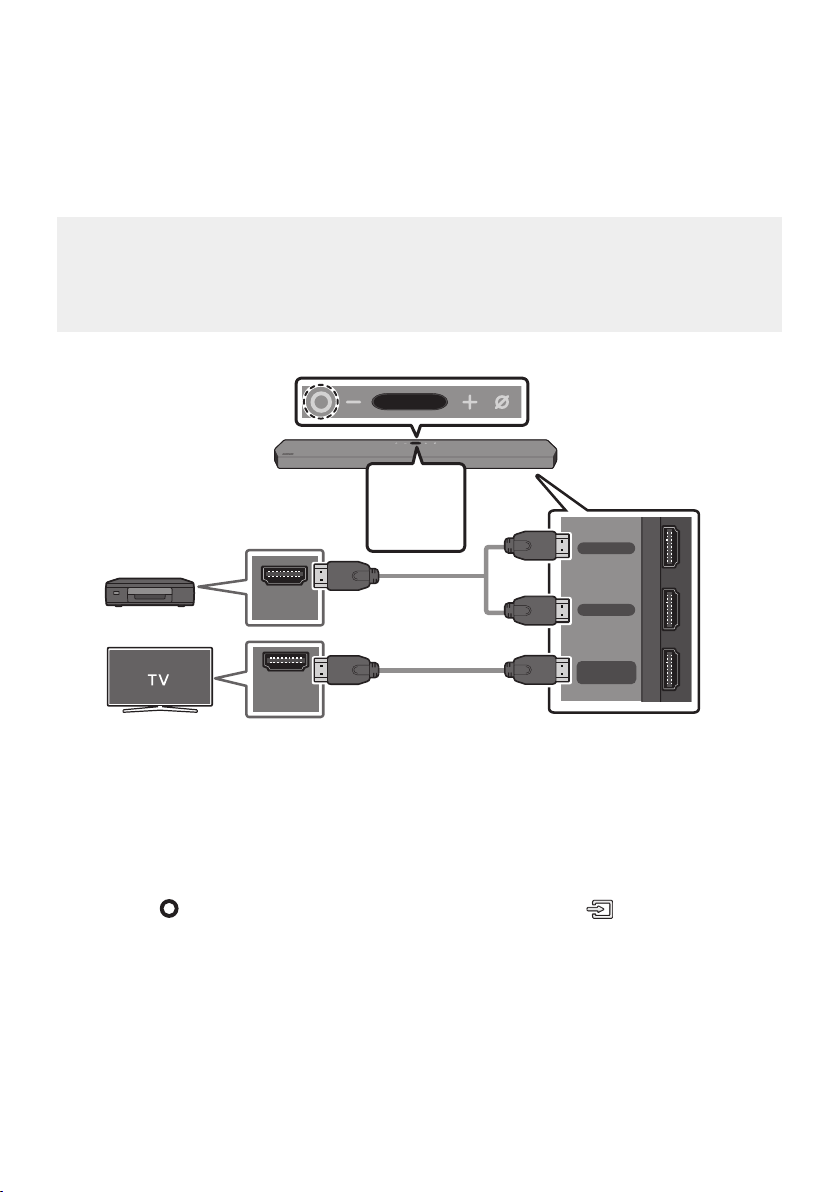

Method 1. Connecting using an HDMI Cable (Capable of Dolby Atmos decoding and playback)

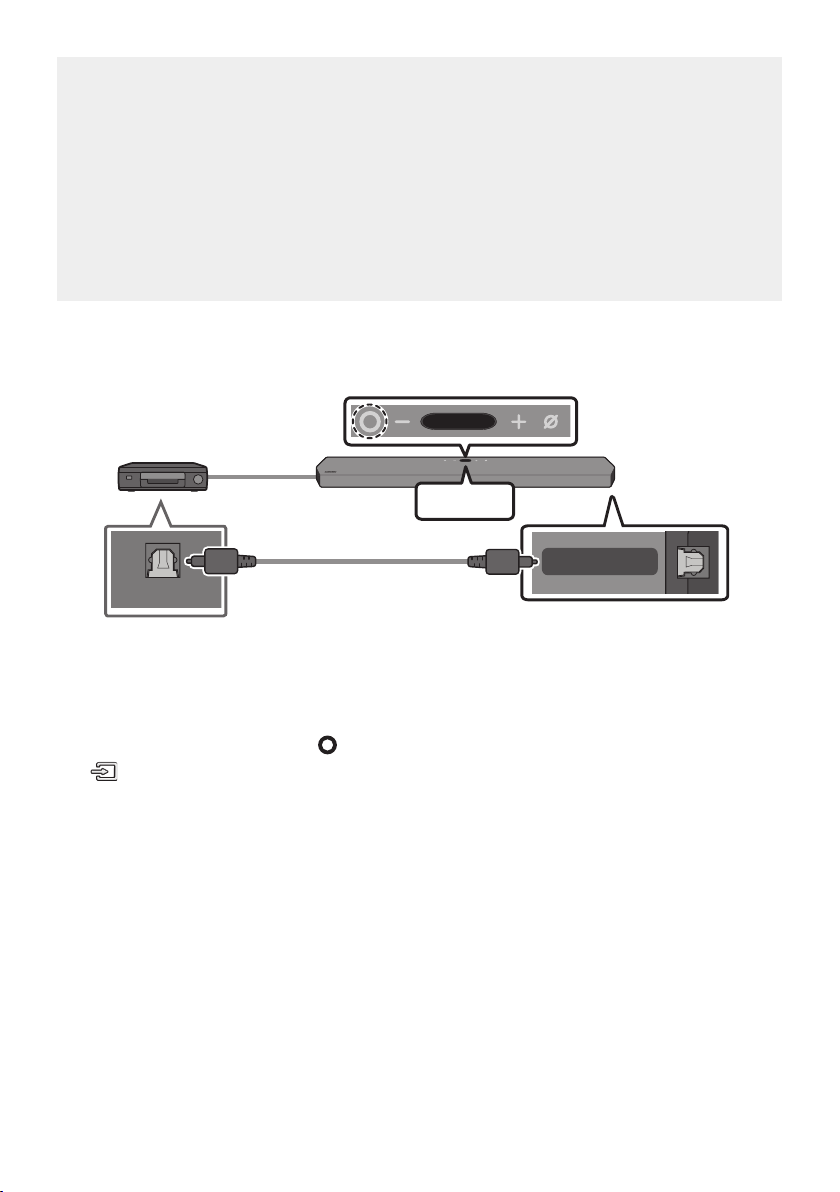

Method 2. Connecting using an Optical Cable

-------------------------

ENG - 4

-------------------------

15 16

08 Connecting a Mobile Device 27

Method 1. Connecting via Bluetooth

Method 2. Connecting via Wi-Fi (Wireless Network)

Conguring Amazon Alexa

Using the Tap Sound

-------------------------

09 Installing the Wall Mount 34

Installation Precautions

Wallmount Components

-------------------------

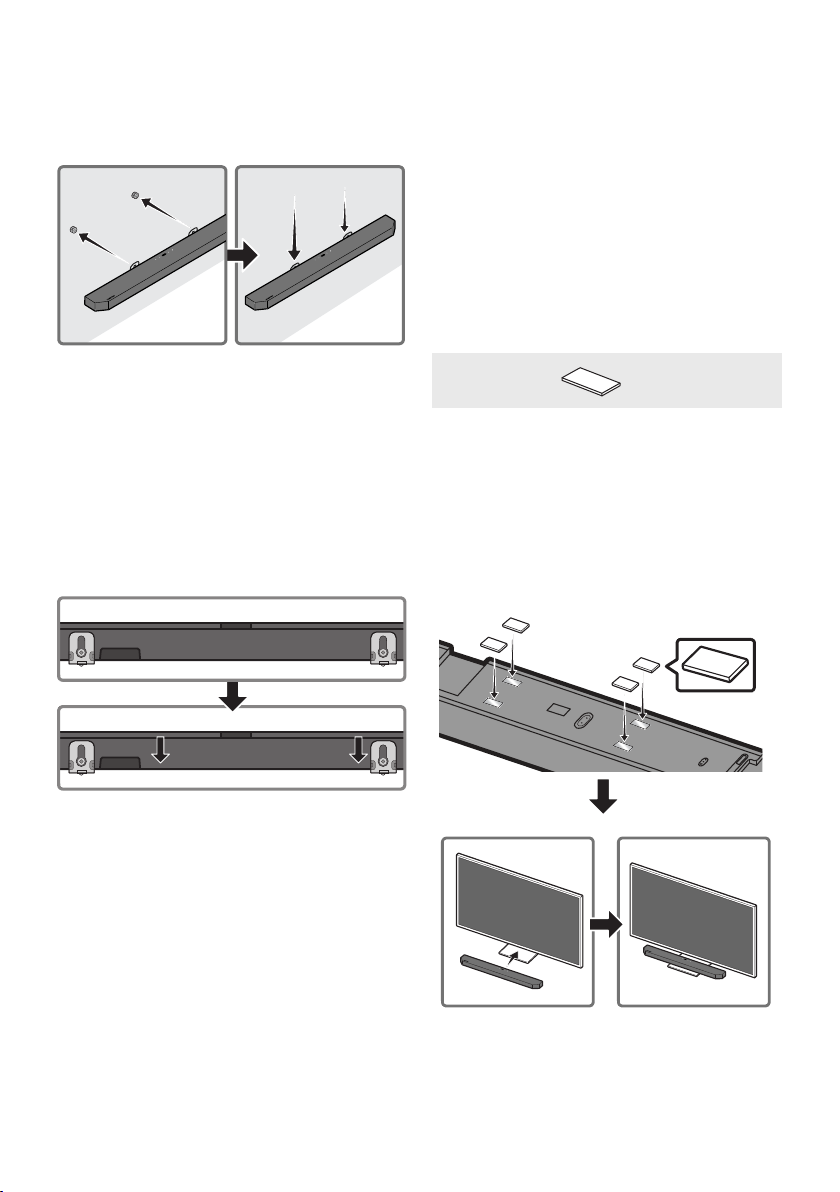

10 Installing the Soundbar above a TV Stand 36

Component

-------------------------

11 Software Update 37

Auto Update

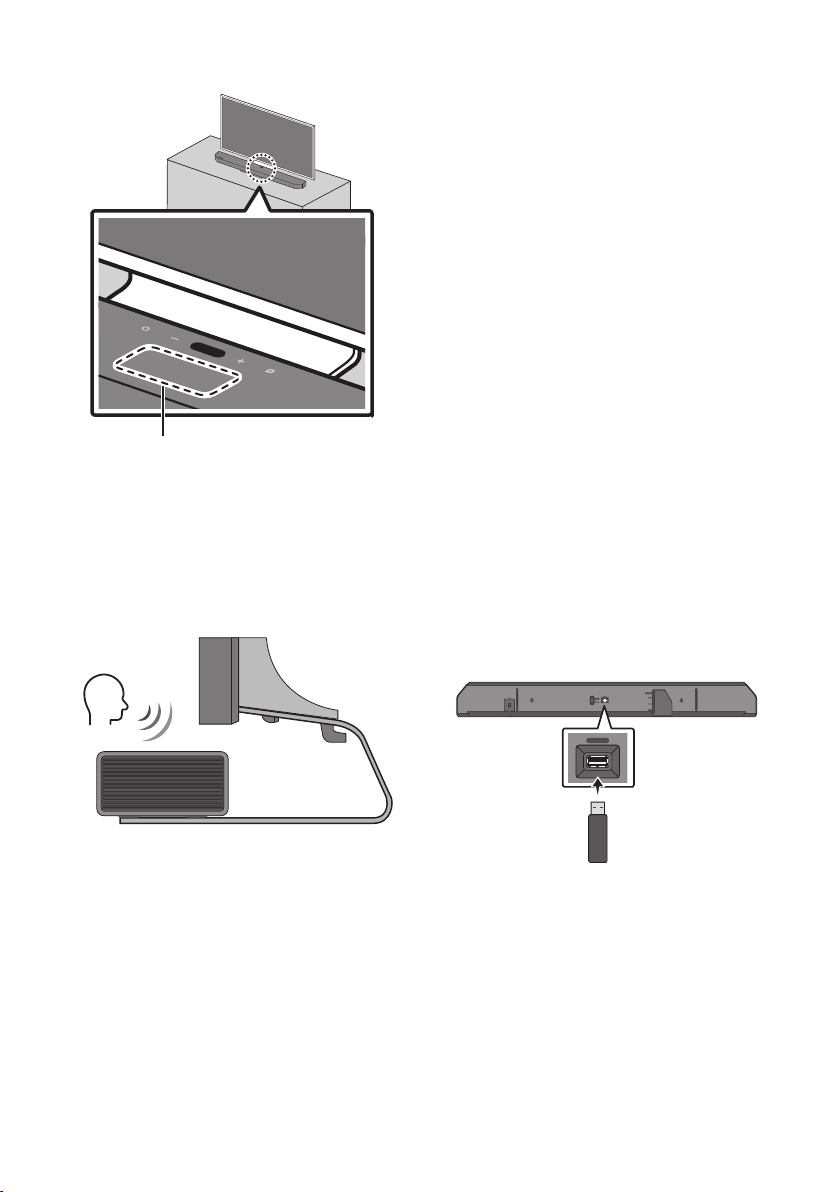

USB Update

Initialisation

-------------------------

12 Troubleshooting 39

13 Licence 41

14 Open Source Licence Notice 42

15 Important Notes About Service 42

16 SpecicationsandGuide 43

Specications

-------------------------

ENG - 5

01 CHECKING THE COMPONENTS

PAIR

SOUND MODE

VOL WOOFER

SOUNDBAR

Soundbar Main Unit Soundbar Remote Control /

Subwoofer

Batteries

x 2

Power Cord (Subwoofer, Soundbar) HDMI Cable

x 2

(M4 x L10)

Wall Mount Guide Holder-Screw Screw

x 2

x 4

Bracket-Wall Mount Rubber-Foot

• For more information about the power supply and power consumption, refer to the label attached to the product. (Label: Bottom of the Soundbar Main Unit)

• To purchase additional components or optional cables, contact a Samsung Service Centre or Samsung Customer Care.

• For more information about the wallmount or rubber-foot, see pages 34~36.

• Design, specications, and App screen are subject to change without prior notice.

• The appearance of the accessories may differ slightly from the illustrations above.

ENG - 6

02 PRODUCT OVERVIEW

Top Panel of the Soundbar

Position the product so that the SAMSUNG logo is located on the top.

(Multi Function) But ton

• In standby mode, press the (Multi Function) button to turn on the Soundbar.

• Press the (Multi Function) button to change the input source.

󱂓

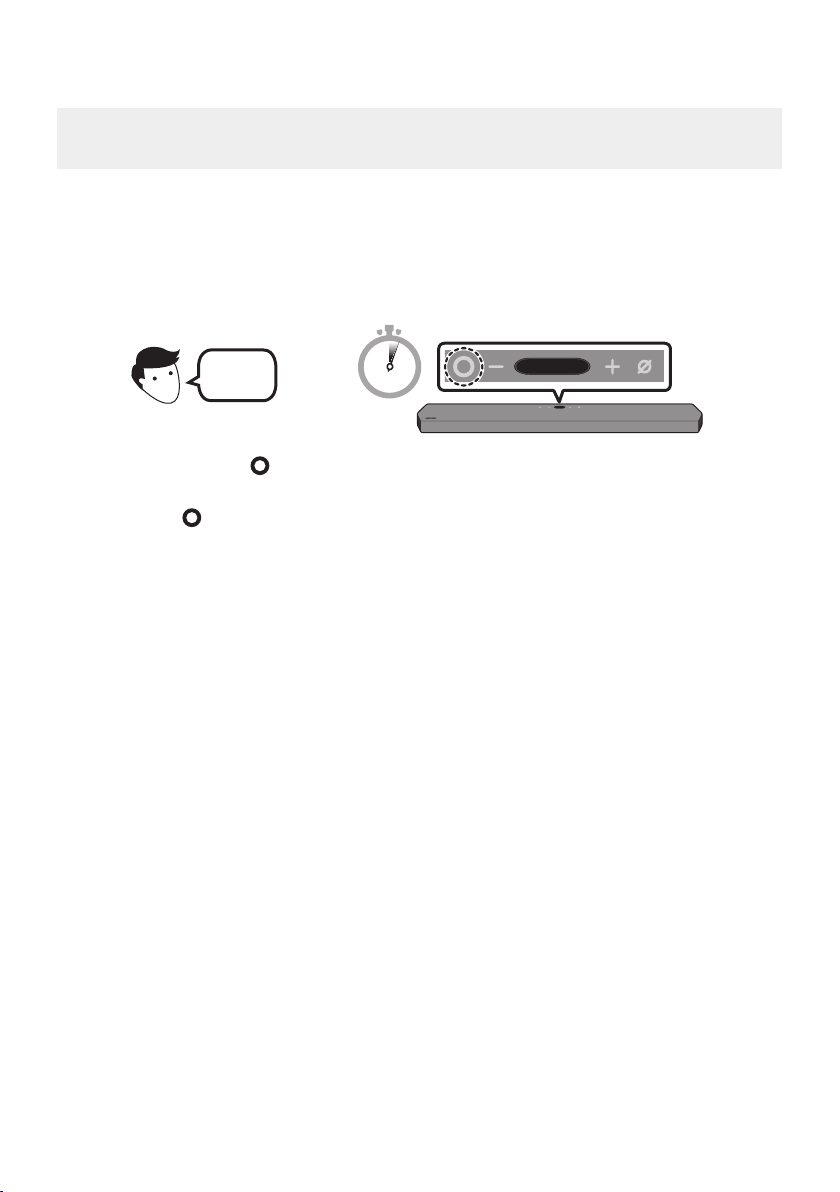

• Press the (Multi Function) button for 3 seconds to call Alexa. Say with the button pressed to

enable voice recognition.

Display

Displays the product’s status and current mode.

󱂔

D.IN  HDMI 1  HDMI 2  Wi-Fi  BT

( Mic On/Off ) Button

󱂕

Press the button to turn the microphone on or off.

󱂖

• When you plug in the AC cord, the power button will begin working in 4 to 6 seconds.

• When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.

• If you hear sounds from both the TV and Soundbar, go to the Settings menu for the TV audio and change the TV speaker to External Speaker.

(Vol ume) But ton

Adjusts the volume.

󱂓

󱂔

󱂖

󱂕

ENG - 7

Bottom Panel of the Soundbar

ID SET

HDMI IN 1

HDMI IN 2

NETWORK

SERVICE

DIGITAL AUDIO IN

(OPTICAL)

HDMI TO TV (eARC/ARC)

HDMI 2

HDMI 1

ID SET (WOOFER/REAR)

ID SET

DIGITAL AUDIO IN

(OPTICAL)

HDMI TO TV

HDMI 2

HDMI 1

ID SET

HDMI IN 1

HDMI IN 2

POWER

NETWORK

SERVICE

DIGITAL AUDIO IN

(OPTICAL)

HDMI TO TV (eARC/ARC)

HDMI 2

HDMI 1

ID SET (WOOFER/REAR)

ID SET

NETWORK

SERVICE

ID SET (WOOFER/REAR)

DIGITAL AUDIO IN

(OPTICAL)

HDMI TO TV (eARC/ARC)

HDMI 2

HDMI 1

DIGITAL AUDIO IN

(OPTICAL)

POWER

󱂔

󱂓

POWER

󱂓

Connect the Soundbar's AC power cable. (See page 14)

󱂕

POWER

ID SET (WOOFER/REAR)

NETWORK

SERVICE

󱂖

DIGITAL AUDIO IN

ID SET

SERVICE

ID SET (WOOFER/REAR)

NETWORK

(OPTICAL)

HDMI IN 1

HDMI 2

HDMI IN 2

HDMI 1

HDMI TO TV (eARC/ARC)

ID SET (WOOFER/REAR)

Press to connect the Soundbar to surround speakers and a subwoofer wirelessly. (The surround speaker is

󱂔

sold separately.)

NETWORK

󱂕

Press to connect to a wireless network (Wi-Fi) via the SmartThings app.

SERVICE

󱂖

Connect a USB storage device to upgrade the product's sof tware.

DIGITAL AUD IO IN (OPTIC AL)

󱂗

Connect to the digital (optical) output of an ex ternal device. (See page 26)

HDMI 2

HDMI 1

HDMI TO TV (eARC/ARC)

󱂗

󱂘

󱂙

HDMI 1 / HDM I 2

Inputs digital video and audio signals simultaneously using an HDMI cable.

󱂘

Connect to the HDMI output of an external device. (See page 25)

HDMI TO T V (eARC/ARC)

󱂙

Connect to the HDMI jack on a T V. (See page 20)

• When disconnecting the power cord from a wall outlet, pull the plug. Do not pull the cable.

• Do not connect this unit or other components to an AC outlet until all connections between components are complete.

ENG - 8

03 USING THE SOUNDBAR REMOTE

PAIR

CONTROL

Inserting Batteries before using the Remote Control (AA batteries X 2)

Slide the back cover in the direction of the arrow until it is completely removed. Insert 2 AA batteries (1.5V) oriented so that their polarity is correct. Slide the back cover back into position.

How to Use the Remote Control

󱂓

󱂔

󱂕

󱂖

PAIR

SOUND

MODE

VOL WOOFER

SOUNDBAR

󱂗

󱂘

󱂙

󱂚

󱂛

󱂜

󱂓

󱂔

󱂕

Power

Source

Mute

Turns the Soundbar on and off.

• Auto Power Down Function

The unit turns off automatically in the following situations:

– In D.IN / HDMI 1 / HDMI 2 / Wi-Fi / BT

mode if there is no audio signal for 18

minutes.

Press to select a source connected to the Soundbar.

Press the (Mute) button to mute the sound. Press it again to unmute the sound.

ENG - 9

󱂖

PAIR

SOUND

MODE

SOUND MODE

You can selec t the desired sound mode by choosing STANDARD, SURROUND, GAME PRO, or ADAPTIVE SOUND.

• STANDARD

Outputs the original sound.

• SURROUND SOUND

Provides a wider sound eld than standard.

• GAME PRO

Provides stereoscopic sound to immerse you in the action while gaming.

• ADAPTIVE SOUND

Analyzes the content in real time and automatically provides the optimal sound eld

based on the characteristic s of the content.

󱂗

󱂘

󱂙

PAIR

Bluetooth

PAIR

Play / Pau se

Up/Down/

Left/Right

Switch the Soundbar to Bluetooth pairing mode. Press the button and wait for the “BT PAIRING” screen to connect to a new Bluetooth device.

You can also play or pause music by pressing the button.

Press the indicated areas to select Up/Down/Left/Right.

Press Up/Down/Left /Right on the button to select or set functions.

• Music Skip Press the Right button to select the next music le. Press the Left button to select

the previous music le.

• ID SET Use this option when the Subwoofer or Surround Speakers are not connected or need reconnection. While powered off, press and hold the Up button for 5 seconds to perform ID SET. (See page 15.)

ENG - 10

󱂚

PAIR

SOUNDBAR

SOUND

MODE

PAIR

SOUND

MODE

VOL

WOOFER

SOUNDBAR

SOUND

MODE

VOL

WOOFER

SOUNDBAR

󱂛

Sound Control

When pressed, the setting items such as TREBLE, BASS, SYNC, CENTER LEVEL , SIDE LEVEL, FRONT TOP LEVEL, REAR LEVEL, REAR TOP L EVEL, and VIRTUAL ON/OFF are

displayed in sequence. The desired item can be adjusted using the Up/Down buttons.

– To control the volume of the treble or bass sound, select TREBLE or BASS in Sound

Settings, and then adjus t the volume between -6~+6 by using the Up/Down buttons.

– Press and hold the (Sound Control ) button for about 5 seconds to adjust the

sound for each frequency band. 150Hz, 300Hz, 600Hz, 1.2kHz, 2.5kHz, 5kHz, and 10kHz are selectable using the Left/Right but tons and each can be adjusted to a setting between -6 to +6 using the Up/Down buttons.

(Make sure the Sound mode is set to “STANDARD”.)

– To control the volume of the each speaker select CENTER LEVEL , SIDE LEVEL, or

FRONT TOP LEVEL in Sound Settings, and then adjust the volume between -6~+6 by using the Up/Down buttons.

– If the video on the TV and audio from the Soundbar are not synchronised, select

SYNC in Sound Control, and then set the audio delay between 0~300 milliseconds by

using the Up/Down buttons. – SYNC is only supported for some functions. – If Surround Speakers are connected, select REAR LEVEL or RE AR TOP LEVE L and

then use the Up/Down but tons to adjust the volume within a - 6 to +6 range. – The VIRTUAL Speaker function can be turned ON/OFF by using the Up/Down

buttons.

󱂜

WOOFER

(BASS) LEVEL

VOLUME

SOUND

MODE

WOOFER

VOL

SOUND

MODE

WOOFER

VOL

Push the button up or down to adjust the level of the woofer (bass) to -12 or between -6 to +6. To set the woofer (bass) volume level to 0 (Default), press the but ton.

SOUND

MODE

WOOFER

VOL

SOUND

MODE

WOOFER

VOL

Push the button up or down to adjust the volume.

• Mute

Press the VOL but ton to mute the sound. Press it again to unmute the sound.

ENG - 11

Using the Hidden Buttons (Buttons with more than one function)

Hidden Button

Remote Control Button Function

WOOFER (Up) TV remote control On/Off (Standby) page 13

Up ID SET page 15

(Sound Control)

7 Band EQ page 11

Reference page

Outputspecicationsforthedifferentsoundeffectmodes

Output

Effect Input

STANDARD

SURROUND

GAME PRO

ADAPTIVE SOUND

With Subwoofer Only

2.0 ch 2.1 ch 2.1 ch

5.1 ch 5.1 ch / 7.1 ch(DTS) 5.1 ch / 7.1 ch(DTS)

7.1 c h 7.1 c h 7.1 c h

7.1. 4 ch 7.1.2 c h 9.1.2 ch

2.0 ch 7.1.2 c h 9.1.2 ch

5.1 ch 7.1. 2 ch 9.1. 2 ch

7.1 c h 7.1. 2 ch 9.1. 2 ch

7.1. 4 ch 7.1.2 c h 9.1.2 ch

2.0 ch 7.1.2 c h 9.1.2 ch

5.1 ch 7.1. 2 ch 9.1. 2 ch

7.1 c h 7.1. 2 ch 9.1. 2 ch

7.1. 4 ch 7.1.2 c h 9.1.2 ch

2.0 ch 7.1.2 c h 9.1.2 ch

5.1 ch 7.1. 2 ch 9.1. 2 ch

7.1 c h 7.1. 2 ch 9.1. 2 ch

7.1. 4 ch 7.1.2 c h 9.1.2 ch

With Subw oofer & Wireles s

Rear Spe aker Kit

• For input sources Dolby Atmos and DTS:X, the effect modes that can be selected using the

SOUND MODE button will not be available. (See above for the effect modes.)

• When the input source is Dolby Atmos®, the Subwoofer-only setup provides 7.1.2 channel audio, while the Subwoofer & Wireless Rear Speaker Kit setup provides 9.1.2 channel audio.

• The Samsung Wireless Rear Speaker Kit can be purchased separately. To purchase a Kit or the Subwoofer, contact the vendor you purchased the Soundbar from.

• The Surround Speakers will not produce sounds for 2 channel output while STANDARD mode is in use. To enable sound for the Surround Speakers, change the effect mode to SURROUND.

ENG - 12

Adjusting the Soundbar volume with a TV remote control

WOOFER

VOL

WOOFER

VOL

WOOFER

Adjust the Soundbar volume using the TV’s remote control.

• This function can be used with IR remote controls only. Bluetooth remote controls (remote controls that require pairing) are not supported.

• Set the TV speaker to External Speaker to use this function.

• Manufacturers supporting this function: VIZIO, LG, Sony, Sharp, PHILIPS, PANASONIC, TOSHIBA, Hisense, RCA

1. Turn Off the Soundbar.

2. Push up and hold the WOOFER button for 5 seconds.

Each time you push the WOOFER button up and hold it for 5 seconds, the mode switches in the following order: “SAMSUNG-TV REMOTE” (Default mode), “OFF-TV REMOTE”, “ALL-TV REMOTE”.

Remote Control Button Display Status

(Default mode)

SOUND

MODE

5 Sec

VOL

SAMSUNG-TV REMOTE

Enable a Samsung TV’s IR remote

control.

SOUND

MODE

SOUND

MODE

5 Sec

OFF-TV REMOTE

ALL-TV REMOTE

Disable the TV remote control.

Enable a third-party TV’s IR remote

control.

ENG - 13

04 CONNECTING THE SOUNDBAR

HDMI IN 1

HDMI IN 2

ID SET (WOOFER, REAR)

NETWORK

SERVICE

DIGITAL AUDIO IN

(OPTICAL)

HDMI TO TV (eARC/ARC)

HDMI 1

HDMI 2

ID SET

Connecting the power and units

Use the Power cord to connect the Subwoofer and Soundbar to an electrical outlet in the following order:

• For more information about the required electrical power and power consumption, refer to the label attached to the product. (Label: Bottom of the Soundbar Main Unit)

1. Connect the Power cord to the Subwoofer.

POWER

Rear of Subwoofer

Power Cord

2. Connect the Power cord to the Soundbar.

POWER

Bott om of the Soundba r

Main Unit

Power Cord

3. Connect power to the Soundbar and Subwoofer. The Subwoofer is automatically connected when

the Soundbar is turned on.

Blue is On

ENG - 14

+ 30 hidden pages
