Samsung HW-K335 User guide [ml]

HW-K335

User manual

Imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service, please register your product at

www.samsung.com/register

©2016 Samsung Electronics Co.,Ltd. All rights reserved

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

GETTING STARTED

GETTING STARTED

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK).

NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates that high voltage is present inside. It is dangerous to make any kind of contact with any internal part of this product.

This symbol indicates that important literature concerning operation and maintenance has been included with this product.

Class II product : This symbol indicates that it does not require a safety connection to electrical earth (ground).

AC voltage : This symbol indicates that the rated voltage marked with the symbol is AC voltage.

DC voltage : This symbol indicates that the rated voltage marked with the symbol is DC voltage.

Caution, Consult instructions for use : This symbol instructs the user to consult the user manual for further safety related information.

WARNING : To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

•This apparatus shall always be connected to a AC outlet with a protective grounding connection.

•To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.

CAUTION

•Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases on the apparatus.

•To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power plug must be easily and readily accessible at all times.

2

GETTING STARTED

PRECAUTIONS

	68.6mm	<![if ! IE]> <![endif]>ENG
99.1mm
99.1mm	99.1mm

Ensure that the AC power supply in your house complies with the power requirements listed on the identification sticker located on the back of your product. Install your product horizontally, on a suitable base (furniture), with enough space around it for ventilation (7~10 cm). Make sure the ventilation slots are not covered. Do not place the unit on amplifiers or other equipment which may become hot. This unit is designed for continuous use. To fully turn off the unit, disconnect the AC plug from the wall outlet. Unplug the unit if you intend to leave it unused for a long period of time.

During thunderstorms, disconnect the AC plug from the wall outlet. Voltage peaks due to lightning could damage the unit.

Protect the product from moisture (i.e. vases), and excess heat (e.g. a fireplace) or equipment creating strong magnetic or electric fields. Disconnect the power cable from the AC supply if the unit malfunctions. Your product is not intended for industrial use. It is for personal use only. Condensation may occur if your product has been stored in cold temperatures. If transporting the unit during the winter, wait approximately 2 hours until the unit has reached room temperature before using.

Do not expose the unit to direct sunlight or other heat sources. This could lead to overheating and cause the unit to malfunction.

The batteries used with this product contain chemicals that are harmful to the environment. Do not dispose of batteries in the general household trash. Do not dispose of batteries in a fire. Do not short circuit, disassemble, or overheat the batteries. There is a danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type.

WARNING: DO NOT INGEST BATTERY. CHEMICAL BURN HAZARD. The remote control supplied withthis product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it

away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

3

GETTING STARTED

CONTENTS

2 GETTING STARTED

2 Safety Information

5What’s Included

6DESCRIPTIONS

6Front / Right Side Panel

7Bottom Panel

8Remote Control

11 INSTALLATION

11 Installing the Soundbar

11 Installing the Wall Mount

15Detaching the Soundbar from the Wall

16CONNECTIONS

16 Connecting to a TV

16Connecting to a TV Using a Digital Optical Cable

17TV SoundConnect

18Connecting to External Devices

18Optical or Analogue Audio Cable

19USB

21 FUNCTIONS

21Input Mode

22Bluetooth

26 Software Update

28 TROUBLESHOOTING

28Troubleshooting

29APPENDIX

29 Specifications

●● Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.

●● An administration fee may be charged if either

(a)an engineer is called out at your request and there is no defect with the product (i.e. where the user manual has not been read).

(b)you bring the unit to a repair centre and there is no defect with the product (i.e. where the user manual has not been read).

●● You will be informed of the administration fee amount before a technician visits.

4

GETTING STARTED

WHAT’S INCLUDED

BEFORE READING THE USER’S MANUAL

Note the following terms before reading the user manual.

++Icons used in this manual

Icon	Term	Definition
	Caution	Indicates a situation where a function does not operate or settings may be cancelled.

Note Indicates tips or instructions on the page that help you operate a function. Check for the supplied accessories shown below.

<![if ! IE]>

<![endif]>ENG

Remote Control / Lithium Battery

Power Cord

AC/DC Adapter

(3V : CR2032)

A

B

CENTER LINE

A-TYPE : 616mm

B

A

B-TYPE : 360mm

Wall Mount Guide

Holder-Screw : 2 EA

Screw : 2 EA Bracket-Wall Mount L Bracket-Wall Mount R

●● The appearance of the accessories may differ slightly from the illustrations above.

●● Micro USB to USB adapter cable is sold separately. To purchase, contact a Samsung Service Centre or Samsung Customer Care.

5

DESCRIPTIONS

DESCRIPTIONS

FRONT / RIGHT SIDE PANEL

1 / (Volume) Button

Controls the volume level.

The numeric value of the volume level appears in the front panel display.

2	(Source) Button
Selects the D.IN, AUX, BT, TV, or USB input.				button
●●	While the unit is powered on, pressing the
	for more than 3 seconds sets the button to act as the
	(Mute) button. To cancel the		(Mute) button
	setup, press the	button for more than 3 seconds
	again.

3 (Power) Button

Turns the power on and off.

Right Side of the Soundbar

2 1 3

Display						Remote Control Sensor

Displays the current mode.

●● When you plug in the AC cord, the power button will begin working in 4 to 6 seconds. ●● When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.

●● If you want to enjoy sound only from the Soundbar, you must turn off the TV's speakers in the Audio Setup menu of your TV. Refer to the owner's manual supplied with your TV.

6

BOTTOM PANEL

(Micro USB Port)

You can play the music from USB memory device if connecting Micro USB memory device or Micro USB to USB adapter cable (not supplied). Refer to Micro USB to USB adapter cable specification on page 19.

AUX IN

Connect to the Analogue output of an external device.

DESCRIPTIONS

DIGITAL AUDIO IN (OPTICAL)

Connect to the digital (optical) output of an external device.

DIGITAL AUDIO IN (OPTICAL)

USB (5V 0.5A)

AUX IN

DC 24V

SUBWOOFER

USB (5V 0.5A)

AUX IN

LABEL

SUBWOOFER

DC 24V

SUBWOOFER

Connect the speaker cable on the subwoofer.

DC 24V (Power Supply In)

Connect the DC power adaptor to the power supply jack, and then connect the AC power adaptor plug to a wall outlet.

●● When disconnecting the power cable of the AC power adaptor from a wall outlet, pull the plug. Do not pull the cable.

●● Do not connect this unit or other components to an AC outlet until all connections between components are complete.

●● Make sure to rest the AC/DC Adapter flat on a table or the floor. If you place the AC/DC Adapter so that it is hanging with the AC cord input facing upwards, water or other foreign substances could enter the Adapter and cause the Adapter to malfunction.

<![if ! IE]>

<![endif]>ENG

7

DESCRIPTIONS

REMOTE CONTROL

SOURCE

Press to select a source connected to the Soundbar.

Mute

You can turn the volume down to 0 with the push of a button.

Press again to restore the sound to the previous volume level.

Repeat

Press to set the Repeat function during music playback from a storage device.

OFF - REPEAT : Cancells Repeat Playback.

TRACK - REPEAT : Plays a track repeatedly.

ALL - REPEAT : Plays all tracks repeatedly.

RANDOM - REPEAT : Plays tracks in random order.

(A track that has already been played may be played again.)

Skip Forward

If there is more than one file on the device you are playing, and you press the ] button, the next file is selected.

Bluetooth POWER

Press the Bluetooth POWER button on the remote to turn the Bluetooth

POWER On function on and off. See pages 18 and 23 for details.

SOUND

Surround Sound adds depth and spaciousness to the sound. Pressing the

SOUND button repeatedly cycles through the Surround Sound settings :

ON - SURROUND SOUND, OFF - SURROUND SOUND

Press and hold the  button for about 5 seconds to turn the Auto Power Link function on or off.

OFF - POWER LINK, ON - POWER LINK

*Auto Power Link

Synchronizes the Soundbar to a connected Optical source via the Optical jack so it turns on automatically when you turn on your TV. (See page 16)

Auto Power Link function is only available in the D.IN mode.

SOUND EFFECT

You can select from 6 sound modes - STANDARD (Original Sound), MUSIC, CLEAR VOICE, SPORTS, MOVIE, and NIGHT - depending on the content you want to listen to.

Select the STANDARD mode if you want to enjoy the original sound.

*DRC (Dynamic Range Control)

Lets you apply dynamic range control to Dolby Digital.

Press and hold the SOUND EFFECT button for about 5 seconds in STANDBY mode to turn the DRC (Dynamic Range Control) function on or off.

8

DESCRIPTIONS

Power

Turns the Soundbar on and off.

Volume

Adjusts the volume level of the unit.

Play / Pause

Press the p button to pause a file temporarily. Press the p button again to play the selected file.

Skip Back

If there is more than one file on the device you are playing, and you press the [ button, the previous file is selected.

SOUND CONTROL Press to select TREBLE, BASS, SUBWOOFER LEVEL, or AUDIO SYNC. Then, use the ,  buttons to adjust the TREBLE or BASS volume from

-6 ~ +6, SUBWOOFER LEVEL volume from -12, -6 ~ +6. Press and hold the SOUND CONTROL button for about 5 seconds to adjust the sound for each frequency band. 150Hz, 300Hz, 600Hz, 1.2KHz, 2.5KHz, 5KHz and 10KHz are selectable and each can be adjusted to a setting between -6 ~ +6.

If the Soundbar is connected to a digital TV and the video appears out of sync with the audio, press the SOUND CONTROL button to sync the audio with the video. Use the ,  buttons to set the audio delay between 0 ms ~ 300 ms. In USB mode, TV mode, and BT mode, the Audio Sync function may not available.

●● Operate the TV using the TV's remote control.

<![if ! IE]>

<![endif]>ENG

9

DESCRIPTIONS

++Controlling the Soundbar using Your TV Remote Control

1.Press and hold the SOUND button for more than 5 seconds while the Soundbar is turned on.

2."ON - TV REMOTE" appears on the Soundbar's display.

3.In the TV's menu, set the TV speaker to external speaker.

●● All buttons are not available except the VOL +/- and the (Mute) buttons in this function.

●● TV menus differ by manufacturer and model. Refer to the TV's user manual for further information. ●● This function is not available when the Soundbar is in the TV SoundConnect mode.

●● Manufacturers supporting this function:

- VIZIO, LG, Sony, Sharp, PHILIPS, PANASONIC, TOSHIBA, GRUNDIG, Hisense, RCA

- This function may not be compatible with your TV's remote depending on the remote control's manufacturer.
●● To turn off this function, press the	SOUND button for 5 seconds.

"OFF - TV REMOTE" appears on the Soundbar's display.

INSTALLING THE BATTERY IN THE REMOTE CONTROL

1.Use a suitable coin to turn the remote control's battery cover counterclockwise to remove it as shown in the figure above.

2.Insert a 3V lithium battery. Keep the positive (+) pole facing up when inserting the battery. Put the battery cover on and align the '●' marks side by side as shown in the figure above.

3.Use a suitable coin to turn the remote control battery cover clockwise as far as it will go to fix it in place.

10

INSTALLATION

INSTALLATION

INSTALLING THE SOUNDBAR

INSTALLING THE WALL MOUNT

++Installation Precautions

●● Install on a vertical wall only.

●● For the installation, avoid a location with high temperature or humidity, or a wall that cannot sustain the weight of the set.

●● Check the strength of the wall. If the wall is not strong enough to support the unit, reinforce the wall or install the unit on a different wall that can support the unit's weight.

●● Purchase and use the fixing screws or anchors appropriate for the kind of wall you have (plaster board, iron board, wood, etc.). If possible, fix the support screws into wall studs.

●● Purchase wall mounting screws according to the type and thickness of the wall you will mount the Soundbar on.

-- Diameter: M5

-- Length: 35 mm or longer recommended.

●● Connect cables from the unit to external devices before you install it on the wall.

●● Make sure the unit is turned off and unplugged before you install it. Otherwise, it may cause an electric shock.

<![if ! IE]>

<![endif]>ENG

5 cm or more

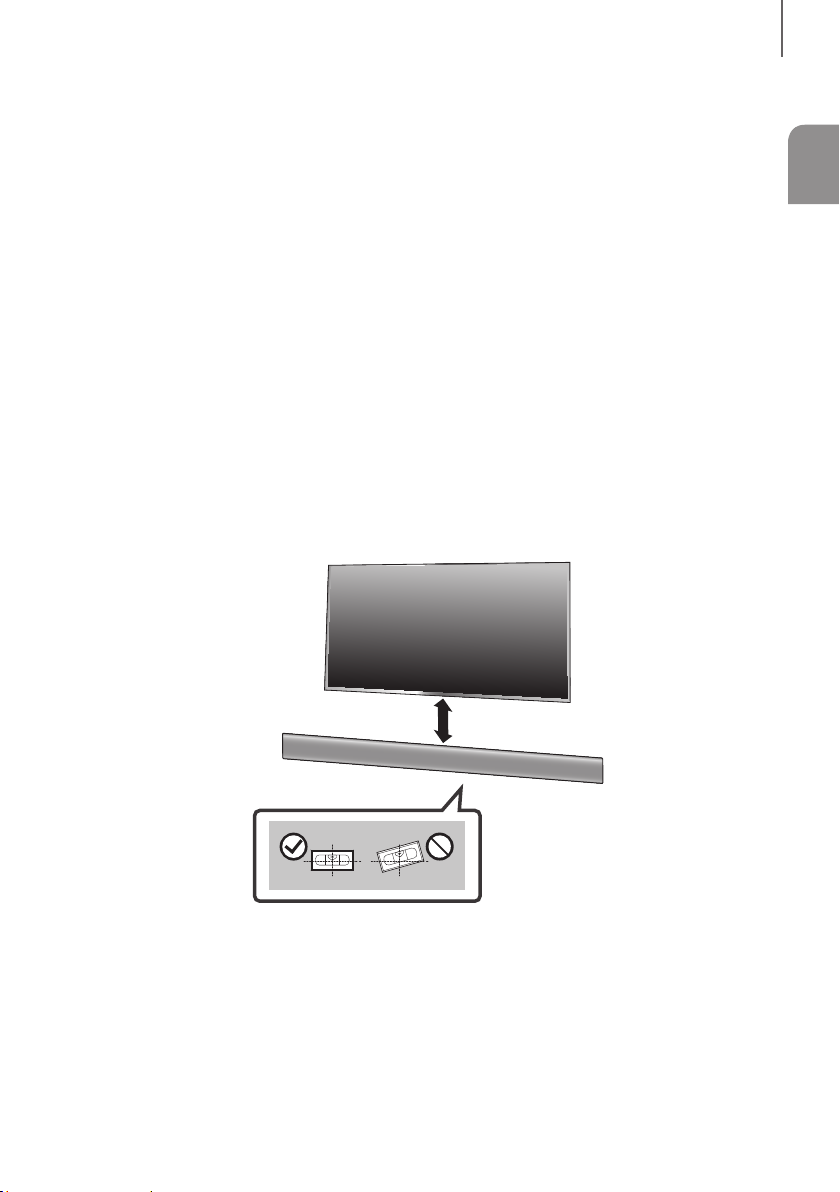

1.Place the Wall Mount Guide against the wall surface.

•The Wall Mount Guide must be level.

•If the TV is mounted on the wall, install the Soundbar at least 5 cm below the TV.

11

INSTALLATION

A B

CENTER LINE	A-TYPE : 616mm	B	A
	B-TYPE : 360mm

Centre Line

2.Align the Paper Template's Centre Line with the centre of your TV (if you are mounting the Soundbar below your TV), and then fix the Wall Mount Guide to the wall using tape.

●● If you are not mounting below a TV, place the Centre Line in the centre of the installation area.

A	B	CENTER LINE	A-TYPE : 616mm	B	A
			B-TYPE : 360mm

B

3.Push a pen tip or sharpened pencil tip through the centre of the B-TYPE images on each end of the Guide to mark the holes for the supporting screws, and then remove the Wall Mount Guide.

4.Using an appropriately sized drill bit, drill a hole in the wall at each marking.

●● If the markings do not correspond to the positions of studs, make sure you insert appropriate anchors or mollies into the holes before you insert the support screws. If you use anchors or mollies, make sure the holes you drill are large enough for the anchors or mollies you use.

12

INSTALLATION

<![if ! IE]>

<![endif]>ENG

5.Push a screw (not supplied) through each Holder-Screw, and then screw each screw firmly into a support screw hole.

6.Use the two Screws (M4 x L12) to attach both Bracket-Wall Mount L and R to the Soundbar's bottom. For a proper fit, make sure to align the bumps on the Soundbar to the holes on the brackets.

Rear side of Soundbar

Right end of Soundbar

●● When assembling, make sure the hanger part of Bracket-Wall Mounts faces backwards.

Wall Mount R

Wall Mount L

●● The left and right mounts are different shapes. Make sure to position them correctly.

13

INSTALLATION

7.Install the Soundbar with the attached Bracket-Wall Mounts by hanging the Bracket-Wall Mounts on the

Holder-Screws on the wall.

●● Slightly tilt the Soundbar to insert both Holder-Screw heads into Bracket-Wall Mount holes. Push the Soundbar in the direction of the arrow to make sure both sides are firmly fixed.

14

INSTALLATION

DETACHING THE SOUNDBAR FROM THE WALL

1. To separate the Soundbar from the wall mount, push it in the direction of the arrow, and then pull it away from the	<![if ! IE]> <![endif]>ENG
wall as shown.

●● Do not hang onto the installed unit and avoid striking or dropping the unit.

●● Secure the unit firmly to the wall so that it does not fall off. If the unit falls off, it may cause an injury or damage the product.

●● When the unit is installed on a wall, please make sure that children do not pull any of the connecting cables, as this may cause it to fall.

●● For the optimal performance of a wall mount installation, install the speaker system at least 5 cm below the TV, if the TV is mounted on the wall.

●● For your safety, if you do not mount the unit on the wall, install it on a secure, flat surface where it is unlikely to fall.

15

CONNECTIONS

●● Do not connect the power cord of this product or your TV to a wall outlet until all connections between components are complete.

●● Before moving or installing this product, be sure to turn off the power and disconnect the power cord.

CONNECTING TO A TV

●● Important: Before you begin, put the battery into the remote. See page 10 for instructions.

CONNECTING TO A TV USING A DIGITAL OPTICAL CABLE

Optical Cable (not supplied)

OPTICAL OUT

DIGITALAUDIO IN

(OPTICAL)

DIGITAL AUDIO IN (OPTICAL)

1.Connect the DIGITAL AUDIO IN (OPTICAL) jack on the Soundbar to the OPTICAL OUT jack of the TV with a digital optical cable (not supplied).

2. Press the	button on the right side of the Soundbar or the SOURCE button on the remote control to select
the D.IN mode.

++Auto Power Link

If you have connected the main unit to a TV with a digital optical cable (not supplied), you can set the Auto Power function ON to have the Soundbar turn on automatically when you turn the TV on.

1.	Connect the Soundbar and a TV with a digital optical cable (not supplied).
2.	Press the	button on the main unit’s right side or the SOURCE button on the remote control to select the
3.	D.IN mode.
	Press the  button on the remote control for 5 seconds to turn Auto Power Link on or off.

●● Auto Power Link is set to ON by default.

●● Depending on the connected device, Auto Power Link may not function.

16

CONNECTIONS

TV SOUNDCONNECT

You can enjoy TV sound through your Soundbar when it is connected to a Samsung TV that supports the TV SoundConnect function.

		Connect
1.	Turn on the TV and Soundbar.
2.	Press the	button on the main unit’s right side or the SOURCE button on the remote control to select the TV
	mode.

3.On the TV, a message asking whether to enable the TV SoundConnect function appears.

4.Select <Yes> using the TV's remote control to finish connecting the TV and Soundbar.

●● If the TV SoundConnect linking process fails, navigate to SoundConnect in the TV's Sound menu, select

Add New Device, and set Add New Device to ON. Then, try again.

●● Switching the Soundbar’s mode from TV to another mode automatically terminates TV SoundConnect. ●● To connect the Soundbar to another TV, the existing connection must be terminated.

●● To terminate the existing connection, press and hold the p button on the remote for 5 seconds or switch to another mode. To connect to the other TV, follow Steps 1 through 4 above.

●● The TV SoundConnect (SoundShare) function is supported by some Samsung TVs released from 2012 on. Check whether your TV supports the TV SoundConnect (SoundShare) function before you begin.

(For further information, refer to the TV’s user manual.).

●● If your Samsung TV was released before 2014, check the SoundShare setting menu.

●● If the distance between the TV and Soundbar exceeds 10 meters the connection may not be stable or the audio may stutter. If this occurs, relocate the TV or Soundbar so that they are within operational range, and then re-establish the TV SoundConnect connection.

●● TV SoundConnect Operational Ranges:

-- Recommended pairing range: within 2 meters.

-- Recommended operational range: within 10 meters.

●● The Play/Pause, Next, and Prev buttons on the Soundbar or Soundbar's remote do not control the TV.

<![if ! IE]>

<![endif]>ENG

17

CONNECTIONS

++Using the Bluetooth POWER On function

The Bluetooth POWER On function is available after you have successfully connected the Soundbar to a Bluetooth compatible TV using TV SoundConnect. When the Bluetooth POWER On function is ON, turning the connected TV on or off will turn the Soundbar's power on and off as well.

1.Connect the TV to your Soundbar using the TV SoundConnect function.

2.Press the Bluetooth POWER button on the Soundbar remote. ON - BLUETOOTH POWER appears on the Soundbar's display.

•ON - BLUETOOTH POWER : The Soundbar turns on and off when you turn the TV on or off.

•OFF - BLUETOOTH POWER : The Soundbar only turns off when you turn the TV off.

●● This function is supported by some Samsung TVs released from 2013 on.

CONNECTING TO EXTERNAL DEVICES

OPTICAL OR ANALOGUE AUDIO CABLE

This unit comes equipped with one digital optical in jack and one analogue audio (AUX) in jack, giving you two ways to connect it to external devices.

Audio Cable (not supplied)

BD / DVD player / Set-top box / Game console

++AUX Cable

AUX OUT

OPTICAL OUT

Optical Cable	AUX IN
(not supplied)
	DIGITALAUDIO IN
	(OPTICAL)
	DIGITAL AUDIO IN
	(OPTICAL)
	AUX IN

1.	Connect AUX IN (Audio) on the main unit to the AUDIO OUT jack of the Source Device using an audio cable.
2.	Press the	button on the right side of the Soundbar or the SOURCE button on the remote control to select
	the AUX mode.

++Optical Cable

1.Connect DIGITAL AUDIO IN (OPTICAL) on the main unit to the OPTICAL OUT jack of the Source Device using a digital optical cable (not supplied).

2. Press the	button on the right side of the Soundbar or the SOURCE button on the remote control to select
the D.IN mode.

18

CONNECTIONS

USB

You can play music files located on storage devices through the Soundbar.	Display
USB port
USB (5V 0.5A)
Micro USB to
USB adapter Cable
(not supplied)
Storage Device

1.Connect a Micro USB to USB adapter cable with a male USB 2.0 Micro USB plug (Type B) on one end and a standard female 2.0 USB jack (Type A) on the other end to the micro USB jack on your Soundbar.

	●● The Micro USB to USB adapter cable is sold separately. To purchase, contact a Samsung Service Centre
	or Samsung Customer Care.
2.	Connect your storage device to the female end of the adapter cable.
3.	Press the	button on the main unit’s right side or the SOURCE button on the remote control to select the
	USB mode.

4.USB appears on the display screen.

•The Soundbar connection to the storage device is complete.

•The Soundbar automatically turns off (Auto Power Off) if no storage device has been connected for more than 5 minutes.

++Before you connect a storage device

Be aware of the following:

●● If the file name of a file on a storage device exceeds 10 characters, it is not displayed on the Soundbar's display. ●● This product may not be compatible with certain types of storage media.

●● The Soundbar supports the FAT16 and FAT32 file systems. -- The NTFS file system is not supported.

●● Connect storage devices to the USB port of the product using a USB 2.0 Micro USB plug to standard female 2.0 USB jack adapter cable. Otherwise, you may encounter a USB compatibility problem.

●● Do not connect multiple storage devices to the product via a multi-card reader. It may not operate properly. ●● Digital camera PTP protocols are not supported.

●● Do not remove the storage device while it is transferring files.

●● DRM-protected music files (MP3, WMA) from commercial web sites cannot be played. ●● External HDDs are not supported.

●● Mobile phone devices are not supported.

<![if ! IE]>

<![endif]>ENG

19

CONNECTIONS

	●● File Format Type Compatibility list:
	Extension	Codec	Sampling Rate	Bit Rate
		MPEG 1 Layer2	16KHz ~ 48KHz	80kbps~320kbps
	*.mp3	MPEG 1 Layer3	16KHz ~ 48KHz	80kbps~320kbps
		MPEG 2 Layer3	16KHz ~ 48KHz	80kbps~320kbps
		MPEG 2.5 Layer3	16KHz ~ 48KHz	80kbps~320kbps
	*.wma	Wave_Format_MSAudio1	16KHz ~ 48KHz	56kbps~128kbps
		Wave_Format_MSAudio2	16KHz ~ 48KHz	56kbps~128kbps
		AAC	16KHz ~ 96KHz	48kbps~320kbps
	*.aac	AAC-LC	16KHz ~ 96KHz	128kbps~192kbps
				5.1ch 320kbps
		HE-AAC	24KHz ~ 96KHz	48kbps~64kbps
				5.1ch 160kbps
	*.wav	-	16KHz ~ 48KHz	up to 3000kbps
	*.ogg	OGG 1.1.0	16KHz ~ 48KHz	50kbps~500kbps
	*.flac	FLAC 1.1.0, FLAC 1.2.1	16KHz ~ 96KHz	up to 3000kbps

●● If there are too many folders and files stored on the storage device, it may take the Soundbar some time to access and play files.

20

FUNCTIONS

FUNCTIONS

INPUT MODE

Press the	button on the main unit’s right side or the SOURCE button on the remote control to select the mode
you want.

Right Side of the Soundbar

Input mode	Display
Optical Digital input	D.IN
AUX input	AUX
BLUETOOTH mode	BT
TV SoundConnect	TV
USB mode	USB

AUTO POWER DOWN FUNCTION

The unit turns off automatically in the following situations. ●● D.IN / BT / TV / USB Mode

-- If there is no audio signal for 5 minutes. ●● AUX Mode

-- If the AUX cable is disconnected for 5 minutes.

-- If there is no KEY input for 8 hours when the AUX cable is connected. (Auto Power Down function can be turned off only in that case.)

To turn off Auto Power Down function, while in AUX mode, press and hold the p button for 5 seconds.

ON - AUTO POWER DOWN / OFF - AUTO POWER DOWN appears on the display.

<![if ! IE]>

<![endif]>ENG

21

FUNCTIONS

BLUETOOTH

You can connect a Bluetooth device to the Soundbar and enjoy music with stereo sound, all without wires!

TO CONNECT THE SOUNDBAR TO A BLUETOOTH DEVICE

Check if the Bluetooth device supports the Bluetooth compliant stereo headset function.

Connect

	Bluetooth device
1. Press the	button on the main unit’s right side or the SOURCE button on the remote control to select the BT
mode.

•You will see BT READY on the front display of the Soundbar.

2.Select the Bluetooth menu on the Bluetooth device you want to connect. (Refer to the Bluetooth device's user manual.)

3.Select "[AV] Samsung Soundbar Kxxx K-Series" from the list.

•When the Soundbar is connected to the Bluetooth device, it will display [Bluetooth device name]  BT on the front display.

•The device name can only be displayed in English. An underline " _ " will be displayed if the name is not in English.

•If the Bluetooth device has failed to pair with the Soundbar, delete the previous "[AV] Samsung Soundbar Kxxx K-Series" found by the Bluetooth device and have it search for the Soundbar again.

4.Play music on the connected device.

•You can listen to the music playing on the connected Bluetooth device over the Soundbar.

•In BT mode, the Play / Pause / Next / Prev functions are not available. However, these functions are available on Bluetooth devices supporting AVRCP.

22

FUNCTIONS

●● If asked for a PIN code when connecting a Bluetooth device, enter <0000>. ●● Only one Bluetooth device can be paired at a time.

●● The Bluetooth connection will be terminated when you turn the Soundbar off.

●● The Soundbar may not perform Bluetooth search or connection correctly under the following circumstances:

-- If there is a strong electrical field around the Soundbar.

-- If several Bluetooth devices are simultaneously paired with the Soundbar. -- If the Bluetooth device is turned off, not in place, or malfunctions.

●● Note that such devices as microwave ovens, wireless LAN adaptors, fluorescent lights, and gas stoves use the same frequency range as the Bluetooth device, which can cause electric interference.

●● The Soundbar supports SBC data (44.1kHz, 48kHz).

●● Connect only to a Bluetooth device that supports the A2DP (AV) function.

●● You cannot connect the Soundbar to a Bluetooth device that supports only the HF (Hands Free) function. ●● Once you have paired the Soundbar to a Bluetooth device, selecting "[AV] Samsung Soundbar Kxxx K-Series" from the device's scanned devices list will automatically change the Soundbar to BT mode.

-- Available only if the Soundbar is listed among the Bluetooth device’s paired devices. (The Bluetooth device and the Soundbar must have been previously paired at least once.)

●● Soundbar will appear in the Bluetooth device’s searched devices list only when the Soundbar is displaying

BT READY.

●● In the TV SoundConnect mode, the Soundbar cannot be paired to another Bluetooth device.

BLUETOOTH POWER ON (BLUETOOTH POWER)

If a previously paired Bluetooth device tries to pair with the Soundbar when the Bluetooth POWER On function is on and the Soundbar is turned off, the Soundbar turns on automatically.

1.Press the Bluetooth POWER button on the remote while the Soundbar is turned on.

2.ON - BLUETOOTH POWER appears on the Soundbar's display.

TO DISCONNECT THE BLUETOOTH DEVICE FROM A SOUNDBAR

You can disconnect a Bluetooth device from the Soundbar. For instructions, see the Bluetooth device's user manual. ●● The Soundbar will be disconnected.

●● When the Soundbar is disconnected from the Bluetooth device, the Soundbar will display BT DISCONNECTED on the front display.

TO DISCONNECT THE SOUNDBAR FROM A BLUETOOTH DEVICE

Press the SOURCE button on the remote control or the	button on the product's right side to switch from BT to
another mode or turn off the Soundbar.

●● The connected Bluetooth device will wait a certain amount of time for a response from the Soundbar before terminating the connection. (Disconnection time may differ, depending on the Bluetooth device)

<![if ! IE]>

<![endif]>ENG

23

FUNCTIONS

●● In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Soundbar and the Bluetooth device exceeds 10 meters.

●● The Soundbar automatically turns off after 5 minutes in the Ready state.

++More About Bluetooth

Bluetooth is a technology that enables Bluetooth-compliant devices to interconnect easily with each other using a short wireless connection.

●● A Bluetooth device may cause noise or malfunction, depending on usage, if:

-- A part of your body is in contact with the receiving/transmitting system of the Bluetooth device or the Soundbar.

-- It is subject to electrical variation from obstructions caused by a wall, corner, or office partition.

-- It is exposed to electrical interference from same frequency-band devices including medical equipment, microwave ovens, and wireless LANs.

●● Pair the Soundbar with the Bluetooth device while they are close together.

●● The further the distance between the Soundbar and Bluetooth device, the worse the quality is. If the distance exceeds the Bluetooth operational range, the connection is lost.

●● In poor reception areas, the Bluetooth connection may not work properly.

●● The Bluetooth connection only works when it is close to the unit. The connection will be automatically cut off if the Bluetooth device is out of range. Even within range, the sound quality may be degraded by obstacles such as walls or doors.

●● This wireless device may cause electric interference during its operation.

24

FUNCTIONS

USING THE SAMSUNG AUDIO REMOTE APP

++Installing the Samsung Audio Remote App

To control the Soundbar with your smart device and the Samsung Audio Remote app, download the Samsung Audio Remote app from the Google Play store.

Market search : Samsung Audio Remote

++Launching the Samsung Audio Remote App

To launch and use the Samsung Audio Remote app, touch the Audio Remote icon on your smart device, and then follow the directions on the screen.

●● The Samsung Audio Remote app is only compatible with Android mobile phones and mobile devices running Android OS 3.0 or later.

<![if ! IE]>

<![endif]>ENG

25

FUNCTIONS

SOFTWARE UPDATE

USB (5V 0.5A)

Micro USB to

USB adapter Cable (not supplied)

Storage Device

Samsung may offer updates for the Soundbar's system firmware in the future.

If an update is offered, you can update the firmware by connecting a storage device with the firmware update stored on it to the USB port on your Soundbar.

Note that if there are multiple update files, you must load them onto the storage device singly and use them to update the firmware one file at a time.

Please visit samsung.com or contact the Samsung call centre to receive more information about downloading update files.

UPDATING PROCEDURE

1.Connect a Micro USB to USB adapter cable with a male USB 2.0 Micro USB plug (Type B) on one end and a standard female 2.0 USB jack (Type A) on the other end to the micro USB jack on your Soundbar.

●● The Micro USB to USB adapter cable is sold separately. To purchase, contact a Samsung Service Centre or Samsung Customer Care.

2.Follow the steps below to download the product software:

Go to the Samsung website at (samsung.com/sec)  search for the model name - select the customer support option (the option name is subject to change)

3.Save the downloaded software to a storage device and select "Extract Here" to unzip the folder.

4.Turn off the Soundbar and connect the storage device containing the software update to the female port on a Micro USB adapter cable.

5.Turn on the Soundbar. Within 3 minutes, UPDATE is displayed and updating begins.

6.After completion, the power of Soundbar turns off. In this state, press the p button on the remote control for 5 seconds.

●● This product has a DUAL BOOT function. If the firmware fails to update, you can update the firmware again.

26

FUNCTIONS

IF UPDATE IS NOT DISPLAYED

1.Turn off the Soundbar, connect the storage device that contains update files to the Soundbar’s USB port.

2.Disconnect the power cord, reconnect it, and then turn on the Soundbar.

●● Insert a storage device containing the firmware update into the USB port on the main unit.

●● Updating firmware may not work properly if audio files supported by the Soundbar are stored in the storage device.

●● Do not disconnect the power or remove the storage device while updates are being applied. The main unit will turn off automatically after completing the firmware update.

●● After update is completed, the user setup in Soundbar is initialised. We recommend you write down your settings so that you can easily reset them after the update.

If the software update fails, check that the storage device is not defective. ●● Mac OS users should use MS-DOS (FAT) as the USB format.

●● Depending on the manufacturer, some storage devices may not be supported.

<![if ! IE]>

<![endif]>ENG

27

TROUBLESHOOTING

TROUBLESHOOTING

Before requesting service, please check the following.

The unit will not turn on.

• Is the power cord plugged into the outlet?	¼¼Connect the power plug to the outlet.

A function does not work when the button is pressed.

• Is there static electricity in the air?	¼¼Disconnect the power plug and connect it again.
Sound is not produced.
• Is the Mute function on?	¼	(Mute) button to cancel the Mute
	¼Press the
	function.
• Is the volume set to minimum?	¼¼Adjust the volume.
The remote control does not work.
• Is the battery drained?	¼¼Replace with new battery.
• Is the distance between the remote control and main	¼¼Move closer to the unit.
unit too far?

The TV SoundConnect (TV pairing) failed.

•Does your TV support TV SoundConnect?

•Is your TV firmware the latest version?

•Does an error occur when connecting?

¼¼TV SoundConnect is supported by some Samsung TVs released from 2012 on. Check your TV to see if it supports TV SoundConnect.

¼¼Update your TV with the latest firmware. ¼¼Contact the Samsung Call Centre.

¼¼Reset TV SoundConnect and connect again.

To reset the TV SoundConnect connection, press and hold the p button for 5 seconds.

28

APPENDIX

APPENDIX

SPECIFICATIONS

		USB		5V / 0.5A
		Weight	Main Unit	1.5 kg
			Subwoofer (PS-WM10)	2.8 kg
	GENERAL	Dimensions	Main Unit	907.5 x 53.5 x 70.5 mm
		(W x H x D)	Subwoofer (PS-WM10)	155.0 x 300.0 x 285.0 mm
		Operating Temperature Range		+5°C to +35°C
		Operating Humidity Range		10 % to 75 %
	AMPLIFIER	Rated Output Power	Main Unit	35W x 2, 6 ohm
			Subwoofer (PS-WM10)	60W, 3 ohm
	WIRELESS DEVICE OUTPUT POWER		BT max transmitter power	100mW at 2.4GHz – 2.4835GHz

*Design and specifications are subject to change without prior notice.

*Nominal specification

-- Samsung Electronics Co., Ltd reserves the right to change the specifications without notice. -- Weight and dimensions are approximate.

-- For more information about the power supply and power consumption, refer to the label attached to the product. (Label : Bottom of the Soundbar Main Unit)

	Overall Standby Power Consumption (W)		2.9W
	Bluetooth	Port deactivation method	Press the “Bluetooth POWER” button on the remote control
			when “BT” mode.

aa Open Source Licence Notice

-- To send inquiries and requests regarding open sources, contact Samsung via Email ([e-mail]).

<![if ! IE]>

<![endif]>ENG

29

APPENDIX

LICENCES

Manufactured under licence from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories.

For DTS patents, see http://patents.dts.com. Manufactured under licence from DTS Licencing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS 2.0 Channel are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

Hereby, Samsung Electronics, declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.samsung.com go to Support > Search Product Support and enter the model name. This equipment may be operated in all EU countries.

30
