Samsung HW-J430 User Manual

HW-J430

User manual

Wireless Audio - Soundbar

Imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service, please register your product at

www.samsung.com/register

FEATURES

TV SoundConnect

TV SoundConnect lets you listen to audio from your TV on your Soundbar via a Bluetooth connection and lets you control the sound.

SURROUND SOUND

The SURROUND SOUND feature adds depth and spaciousness to your listening experience.

Wireless Subwoofer

Samsung’s wireless module does away with cables running between the main unit and the subwoofer. Instead, the subwoofer connects to a compact wireless module that communicates with the main unit.

Special Sound Effects

You can select different Sound Effects - STANDARD (Original Sound)/MUSIC / VOICE / SPORTS / CINEMA / NIGHT MODE - depending on the type of content you want to enjoy.

Multi-function Remote Control

You can use the supplied remote control to control various operations with the simple press of a button.

USB Host Support

You can connect and play music files from external USB storage devices such as MP3 players, USB flash memory, etc. using the Soundbar's USB HOST function.

Bluetooth Function

You can connect a Bluetooth device to the Soundbar and enjoy music with high quality stereo sound, all without wires!

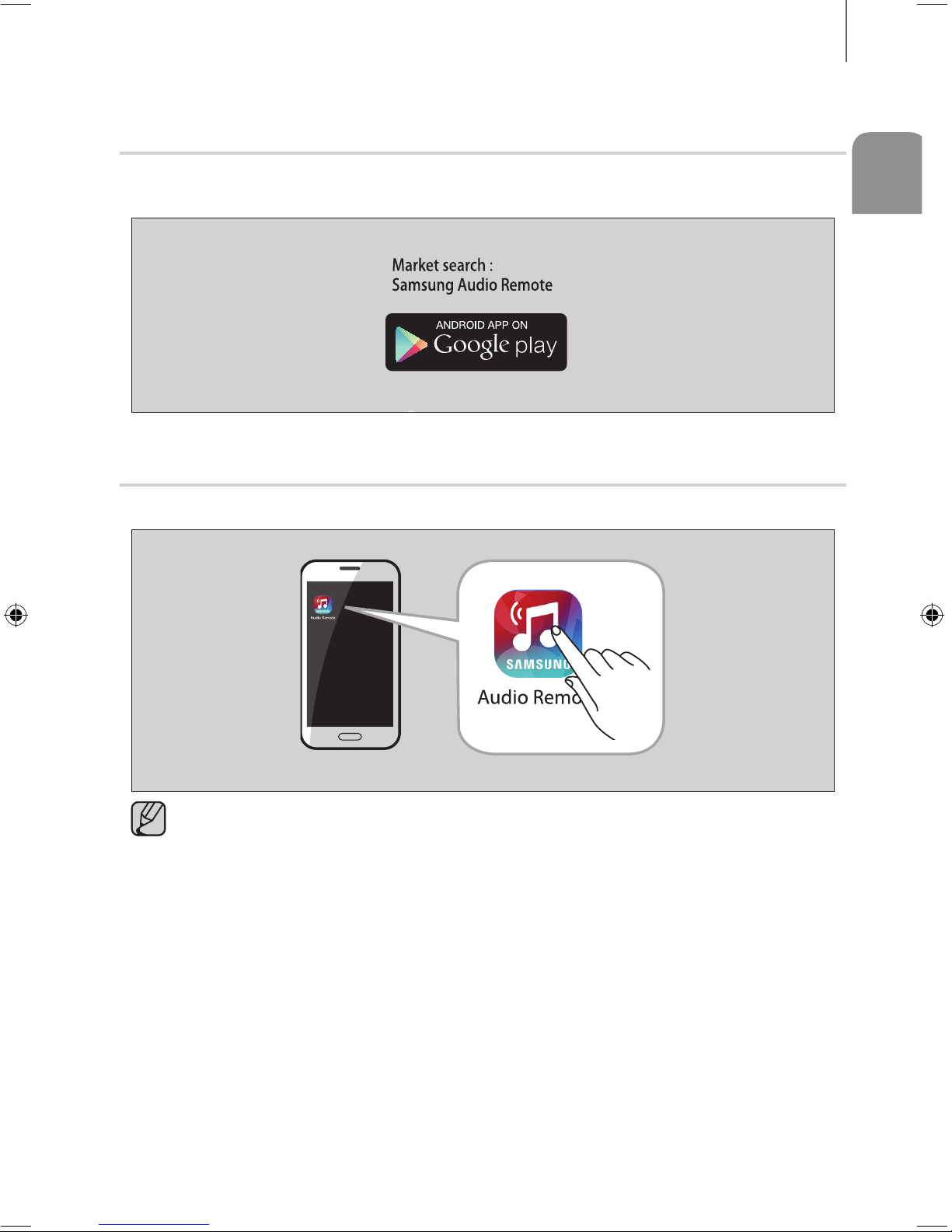

Using Samsung Audio Remote App

To control the product with your Smart Device via the Samsung Audio Remote app, download the Samsung Audio Remote App by accessing the app through Google Play store.

LICENSES

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS 2.0 Channel is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.

ENG

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates “dangerous voltage” inside

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

WARNING : To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

• This apparatus shall always be connected to a AC outlet with a protective grounding connection.

• To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug

shall be readily operable.

CAUTION

• Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases on the apparatus.

• To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power plug

must be easily and readily accessible at all times.

the product that presents a risk of electric shock or personal injury.

This symbol indicates important instructions accompanying the product.

Important Safety Instructions

Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below. Keep these operating instructions handy for future reference.

1) Read these instructions.

2) Keep these Instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachment/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

SAFETY INFORMATION

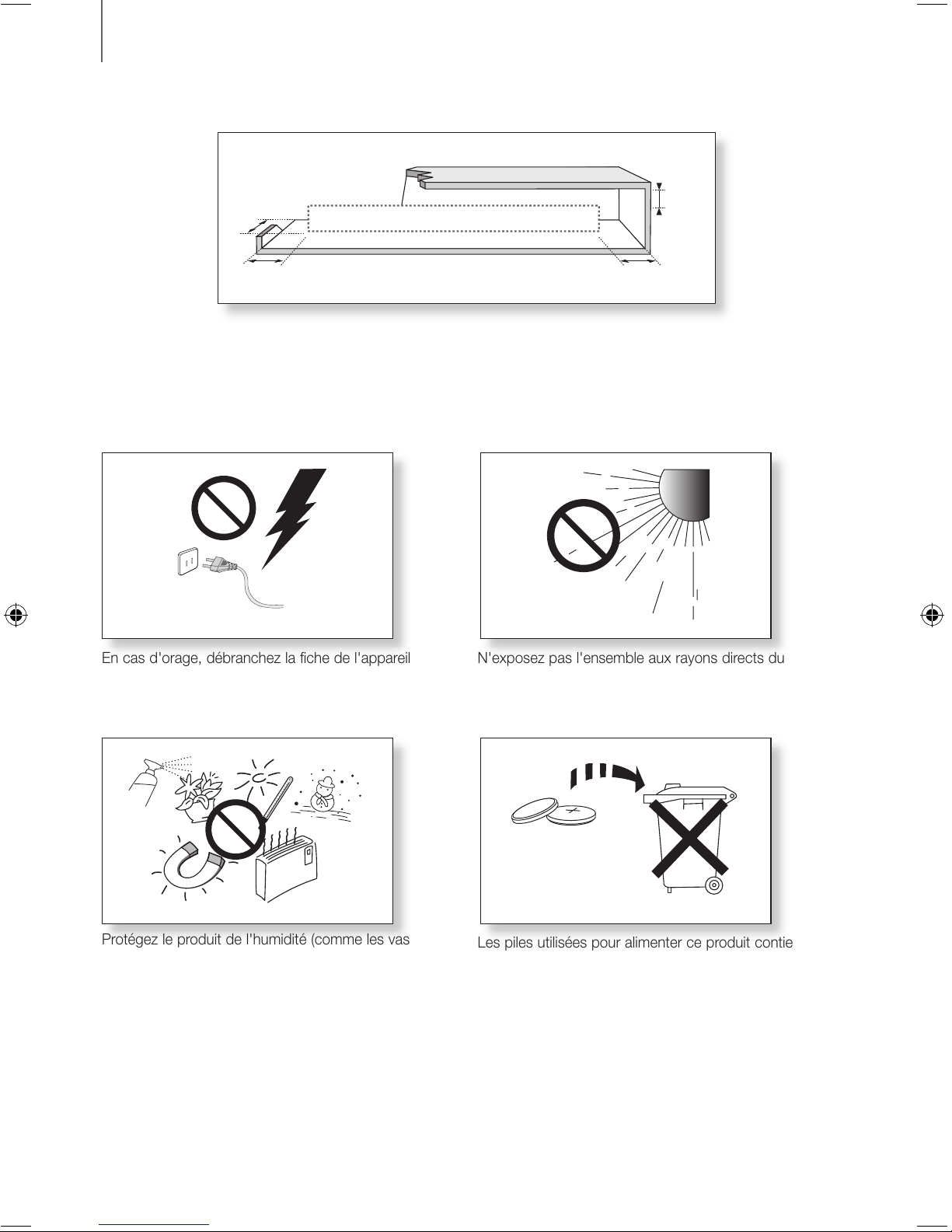

3.9 inch 3.9 inch

2.7 inch

3.9 inch

PRECAUTIONS

Ensure that the AC power supply in your house complies with the power requirements listed on the identification sticker located on the back of your product. Install your product horizontally, on a suitable base (furniture), with enough space around it for ventilation 3~4 inches (7~10 cm). Make sure the ventilation slots are not covered. Do not place the unit on amplifiers or other equipment which may become hot. This unit is designed for continuous use. To fully turn off the unit, disconnect the AC plug from the wall outlet. Unplug the unit if you intend to leave it unused for a long period of time.

During thunderstorms, disconnect the AC plug from the wall outlet. Voltage peaks due to lightning could damage the unit.

Protect the product from moisture (i.e. vases), and excess heat (e.g. a fireplace) or equipment creating strong magnetic or electric fields. Disconnect the power cable from the AC supply if the unit malfunctions. Your product is not intended for industrial use. It is for personal use only.

Condensation may occur if your product has been stored in cold temperatures. If transporting the unit during the winter, wait approximately 2 hours until the unit has reached room temperature before using.

Do not expose the unit to direct sunlight or other heat sources.

This could lead to overheating and cause the unit to malfunction.

The batteries used with this product contain chemicals that are harmful to the environment . Do not dispose of batteries in the general household trash. A warning that batteries(battery pack or batteries installed)shall not be exposed to excessive heat such as sunshine, fire or the like. Do not short circuit, disassemble, or overheat the batteries. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

ENG

CONTENTS

2 FEATURES

2 Licenses

3 SAFETY INFORMATION

3 Safety Warnings 4 Precautions

6 GETTING STARTED

6 Before reading the User’s Manual 6 What’s Included

7 DESCRIPTIONS

7 Front/Rear Panel

8 REMOTE CONTROL

8 Remote Control Buttons and Functions

14 FUNCTIONS

14 Input mode 15 Bluetooth 17 Using Samsung Audio Remote App 18 TV SoundConnect 19 USB 20 Software Update

21 TROUBLESHOOTING

22 APPENDIX

22 Specifications

10 CONNECTIONS

10 Installing the Wall Mount 11 Connecting the Wireless Subwoofer 13 Connecting an External Device using Audio

(analog) cable or Optical (digital) cable

13 Auto Power Link

● Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.

● An administration fee may be charged if either (a) an engineer is called out at your request and

there is no defect with the product (i.e. where the user manual has not been read).

(b) you bring the unit to a repair centre and there is

no defect with the product (i.e. where the user manual has not been read).

● You will be informed of the administration fee amount before a technician visits.

GETTING STARTED

BEFORE READING THE USER’S MANUAL

Note the following terms before reading the user manual.

+ Icons used in this manual

Icon Term Definition

Caution

Note

Indicates a situation where a function does not operate or settings may be canceled.

Indicates tips or instructions on the page that help you operate a function.

+ Safety Instructions and Troubleshooting

1) Be sure to familiarize yourself with the Safety Instructions before using this product. (See page 3)

2) If a problem occurs, check Troubleshooting. (See page 21)

+ Copyright

Samsung Electronics Co.,Ltd.

WHAT’S INCLUDED

Check for the supplied accessories shown below.

Remote Control / Lithium Battery

(3V : CR2032)

Optical cable Power Cord

● The appearance of the accessories may differ slightly from the illustrations above.

● Use the dedicated USB cable to connect external USB devices to the unit.

User Manual /

Quick Guide

Bracket-Wall Mount

ENG

DESCRIPTIONS

FRONT/REAR PANEL

1 2

DESCRIPTIONS

OPTICAL IN

5v 500mA

AUX IN

REMOTE CONTROL SENSOR

DISPLAY

POWER BUTTON

FUNCTION BUTTON

VOLUME ( +/- )

The remote control can operate Soundbars made by SAMSUNG only.

Displays the current mode.

Turns the Soundbar on and off.

Selects the D.IN, AUX, BT, TV, USB input.

While the unit is powered, pressing the button for more than 3 seconds sets the button to act as MUTE button. To cancel MUTE button setup, press button for more than 3 seconds again.

Controls the volume level.

USB PORT

OPTICAL IN

AUX IN

POWER SUPPLY CABLE

Connect USB devices such as MP3 players.

Connect to the digital (optical) output of an external device.

Connect to the Analog output of an external device.

Plug the power supply cable into the AC wall outlet.

▪ When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.

▪ When disconnecting the power cable from the wall outlet, pull the plug. Do not pull the cable. ▪ Do not connect this unit or other components to an AC outlet until all connections between components are

complete.

REMOTE CONTROL

REMOTE CONTROL BUTTONS AND FUNCTIONS

SOURCE

Press to select a source connected to the Soundbar.

MUTE

You can turn the volume down to 0 with the push of a button. Press again to restore the sound to the previous volume level.

REPEAT

Press to set the REPEAT function during music playback from a USB device.

OFF-REPEAT : Cancels Repeat Playback. TRACK-REPEAT : Repeatedly play a track. ALL-REPEAT : Repeatedly play all tracks. RANDOM-REPEAT : Plays tracks in random order.

(A track that has already been played may be played again.)

Skip Forward

If there is more than one file on the device you are playing, and you press the ] button, the next file is selected.

SOUND CONTROL (*Use the [,] buttons to adjust level.) Press to select TREBLE, BASS, or AUDIO SYNC. Then, use the [, buttons to adjust the Treble, Bass volume from -6 to +6. If the Soundbar is connected to a digital TV and the video appears out of

sync with the audio, press the SOUND CONTROL button to sync the audio with the video. 0 ms and 300 ms. function may not work.

Press and hold the SOUND CONTROL button for about 5 seconds to adjust the sound for each frequency band. 150Hz, 300Hz, 600Hz,

1.2KHz,2.5KHz, 5KHz and 10KHz are selectable and each can be adjusted to a setting between -6 and +6.

AUTO POWER

Press the AUTO POWER button.Each time the button is pressed.the selection changes as follows: OFF-POWER LINKON-POWER LINK.

Auto Power Link: Synchronizes the Soundbar to a connected Digital Optical source via the Digital Optical jack so it turns on automatically when you turn on your TV.(See page 13)

Use the [,] buttons to set the audio delay between

In USB mode, TV mode, and BT mode, the Audio Sync

]

● Soundbar is a Samsung proprietary name.

● Operate the TV using the TV's remote control.

WOOFER (*Use the [,] button to adjust volume ) You can control the woofer volume.

[,]

Press the You can select SW (-12, -6,-5,-4,-3,-2,-1,0,+1,+2,+3,+4,+5,+6).

button to increase or decrease the subwoofer volume.

ENG

POWER

Turns the Soundbar on and off.

VOLUME

Adjusts the volume level of the unit.

Play/Pause

Press the

If there is more than one file on the device you are playing, and you press

You can select different sound modes - STANDARD,MUSIC, VOICE,

SPORTS, CINEMA, and NIGHT MODE - depending on the type of

Press the SOUND EFFECT button on the remote control.

Select the STANDARD mode if you want to enjoy the original sound.

This will regulate and stabilize the volume level against a drastic volume

change caused by a channel change or scene transition.

button to pause playing the file temporarily.

button again to play the selected file.

Skip Back

[

button, the previous file is selected.

the

SOUND EFFECT

sources you want to enjoy.

* Night Mode

REMOTE CONTROL

Bluetooth POWER

Press the Bluetooth POWER button on the remote to turn the Bluetooth

POWER on function on and off.

See pages 16 and 18 for details.

SOUND

Press the SOUND button on the remote to add depth and spaciousness to

the sound.

Press the SOUND on the remote control.

Each time the button is pressed, the selection changes as follows :

OFF-SURROUND SOUND  ON-SURROUND SOUND

X Installing the Battery in the Remote Control

1. Use a suitable coin to turn the remote control's battery cover counterclockwise to remove it as shown in the figure above.

2. Insert a 3V lithium battery. Keep the positive (+) pole facing up when inserting the battery. Put the battery cover on and align the '●' marks side by side as shown in the figure above.

3. Use a suitable coin to turn the remote control battery cover clockwise as far as it will go to fix it in place.

CONNECTIONS

INSTALLING THE WALL MOUNT

You can use the wall mount bracket to mount this unit on a wall.

Installation Precautions

• Install on a vertical wall only.

• For the installation, avoid a location with high temperature or humidity, or a wall that cannot sustain the

weight of the set.

• Check the strength of the wall. If the wall is not strong enough to support the unit, reinforce the wall or install the unit on different wall that can support the unit's weight.

• Purchase and use the fixing screws or mollys appropriate for the kind of wall you have (plaster board, iron board, wood, etc.). If possible, fix the support screws into wall studs.

• Connect cables from the unit to external devices before you install it on the wall.

• Make sure the unit is turned off and unplugged before you install it. Otherwise, it may cause an electric shock.

1. Place the wall mount bracket on a wall surface

two screws (not supplied). If you are hanging the unit below a TV, be bracket so that the arrow ( ) is placed in the center of the TV. Also make sure the unit is at least 2 inches (5 cm) below the TV.

2. Fit the unit into the corresponding slots of the wall mount bracket.

For secure installation, make sure the mounting studs slide firmly down into the bottom of the slots.

3. The installation is complete.

sure to install the wall mount

and then secure it with

▪ Do not hang onto the installed unit and avoid any impact to the unit. ▪ Secure the unit firmly to the wall so that it does not fall off. If the unit falls off, it may cause an

injury or damage the product.

▪ When the unit is installed on a wall, please make sure that children do not pull any of the

connecting cables, as it may cause it to fall.

▪ For the optimal performance of a wall mount installation, install the speaker system at least 2

inches (5 cm) below the TV.

2 inches (5 cm) or more

ENG

CONNECTING THE WIRELESS SUBWOOFER

CONNECTIONS

The Subwoofer's linking ID is preset at the factory and the main unit and subwoofer should link (connect wirelessly) automatically when the main unit and subwoofer are turned on. If the Link indicator ( ) does not light when the main unit and subwoofer are turned on, please set the ID by following the procedure below.

1. Plug the power cords of the main unit and subwoofer into an AC wall outlet.

2. Press the ID SET button on the back of the subwoofer with a small, pointed object for 5 seconds.

•The STANDBY indicator is turned off and the LINK indicator (Blue LED) blinks quickly.

3. While the main unit is powered off (in STANDBY mode), press and hold the MUTE ( ) on the remote control for

5 seconds.

4. The ID SET message appears on the Soundbar's display.

5. To finalize the link, turn the main unit’s power on while the subwoofer’s Blue LED blinks.

•The main unit and the subwoofer should now be linked (connected).

•The Link indicator (Blue LED) on the subwoofer should be on.

•If the Link indicator is not solid blue, the linking process has failed. Turn off the main unit and start again from

Step 2.

•You can enjoy better sound from the wireless subwoofer by selecting a Sound Effect. (See page 9)

CONNECTIONS

● Before moving or installing the product, be sure to turn off the power and disconnect the power cord.

● If the main unit is powered off, the wireless subwoofer will be in standby mode and the STANDBY LED on

the upper side will come on after the Link indicator (Blue LED) blinks for 30 seconds.

● If you use a device that uses the same frequency (2.4GHz) as the Soundbar near the Soundbar, interference may cause some sound interruption.

● The transmission distance of the wireless signal between the main unit and subwoofer is about 33 ft., but may vary depending on your operating environment. If a steel-concrete or metallic wall is between the main unit and the wireless subwoofer, the system may not operate at all, because the wireless signal cannot penetrate metal.

● If the main unit doesn't make a wireless connection, follow steps 1-5 to re-set the connection between the main unit and wireless subwoofer.

● The wireless receiving antenna is built into the wireless subwoofer. Keep the unit away from water and moisture.

● For optimal listening performance, make sure that the area around the wireless subwoofer location is clear of any obstructions.

ENG

CONNECTIONS

AUX IN

AUDIO

OUT

OPTICAL IN

OPTICAL

OUT

CONNECTING AN EXTERNAL DEVICE USING AUDIO (ANALOG) CABLE OR OPTICAL (DIGITAL) CABLE

This unit comes equipped with one optical in digital jack and one audio analog in jack, giving you two ways to connect it to a TV.

OPTICAL IN

AUX IN

Optical Cable

Audio Cable (not supplied)

BD/DVD player/

Set-top box/

Game console

OPTICAL IN

Connect the Digital Input on the main unit to the OPTICAL OUT of

the TV or Source Device

or, AUX IN

Connect AUX IN (Audio) on the main unit to the AUDIO OUT of

the TV or Source Device.

Be sure to match connector colors.

▪ Do not connect the power cord of this product or your TV to the wall outlet until all

connections between components are

▪

Before moving or installing this product, be sure to turn off the power and disconnect the power cord.

complete.

+ Auto Power Link

If you have connected the main unit to a TV with a digital optical cable, you can set the Auto Power function ON to have the Soundbar turn on automatically when you turn the TV on.

AUTO POWER LINK Display

OFF

1. Connect the Soundbar and

2. Press the ( ) button on the main unit’s side panel or the SOURCE button on the remote control to select the

D.IN

mode.

ON - POWER LINK

OFF - POWER LINK

a TV

with a digital optical cable.

Press the AUTO POWER button on the remote control to toggle the Auto Power Link function on and off.

● Depending on the connected device, Auto Power Link may not function.

FUNNCTION

INPUT MODE

You can select D.IN, AUX, BT, TV input or USB input.

Input mode Display

Optical Digital input

AUX input

BLUETOOTH mode

TV SoundConnect

USB mode

The unit turns off automatically in the following situations:

• BT/TV/USB/D.IN mode

- If there is no audio signal for 25 minutes.

• AUX Mode

- If there is no KEY input for 8 hours when the AUX cable is connected. To turn this function ON or OFF, press and hold p button for 5 seconds in AUX mode.

- If the AUX cable is disconnected for 25 minutes.

OFF/ON-AUTO POWER DOWN

D.IN AUX

BT TV

USB

appears on the display.

ENG

BLUETOOTH

FUNNCTION

You can connect a Bluetooth device to the Soundbar and enjoy music with high quality stereo sound, all without wires!

+ To connect the Soundbar to a Bluetooth device

Check if the Bluetooth device supports the Bluetooth compliant stereo headset function.

Connect

Bluetooth device

1. Press the ( ) button on the main unit’s side panel or the

(SOURCE) button on the remote control

to select the BT mode.

• You will see BT READY on the front display of

the Soundbar.

2. Select the Bluetooth menu on the Bluetooth device you want to connect. (Refer to the Bluetooth device's user manual.)

3. Select the Stereo headset menu on the Bluetooth device.

• You will see a list of scanned devices.

4. Select "[Samsung] Soundbar J-Series" from the list.

• When the Soundbar is connected to the

Bluetooth device, it will display [Bluetooth device name]  BT on the front display.

• The device name can only be displayed in English.An underline " _ " will be displayed if the name is not in English.

• If the Bluetooth device has failed to pair with the Soundbar, delete the previous "[Samsung] Soundbar J-Series" found by the Bluetooth device and have it search for the Soundbar again.

5. Play music on the connected device.

• You can listen to the music playing on the connected Bluetooth device over the Soundbar.In BT mode, the Play/Pause/Next/Prev functions are not available. However, these functions are available in Bluetooth devices supporting AVRCP.

● If asked for PIN code when connecting a Bluetooth device, enter <0000>.

● Only one Bluetooth device can be paired at a time.

● The Bluetooth connection will be terminated when you turn the Soundbar off.

● The Soundbar may not perform Bluetooth search or connection correctly under the following circumstances:

- If there is a strong electrical field around the Soundbar.

- If several Bluetooth devices are simultaneously paired with the Soundbar.

- If the Bluetooth device is turned off, not in place, or malfunctions.

- Note that such devices as microwave ovens, wireless LAN adaptors, fluorescent lights, and gas stoves use the same frequency range as the Bluetooth device, which can cause electric interference.

● The Soundbar supports SBC data (44.1kHz, 48kHz).

● Connect only to a Bluetooth device that supports the A2DP (AV) function.

● You cannot connect the Soundbar to a Bluetooth device that supports only the HF (Hands Free) function.

● Once paired the device,on D.IN/AUX/USB mode, select "[Samsung] Soundbar J-Series" from the list will automatically change to BT mode.

+ 33 hidden pages

Samsung HW-J430 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
