Page 1

HT-X715 HT-TX715

Digital Home

Cinema System

user manual

imagine the possibilities

Thank you for purchasing this Samsung product.

To receive a more complete service, please register your product at

www.samsung.com/global/register

Page 2

features

Playback of many different disc types

This Home Cinema System allows you to play back various discs, including DVD-AUDIO, DVD-VIDEO, CD, MP3-CD, WMA-CD, DivX, CD-R/RW, and DVD±R/RW.

DVD-Audio compatible

Experience the super high-quality audio performance of DVD-Audio. The on-board 24-bit/192kHz DAC enables this player to deliver exceptional sound quality in terms of dynamic range, low-level resolution and high-frequency detail.

USB Host support

You can connect and play ﬁles from external USB storage devices such as MP3 players, USB ﬂash memory, etc. using the Home Cinema's USB HOST function.

Dolby Pro Logic II

Dolby Pro Logic II is a form of multi-channel audio signal decoding technology that improves upon existing Dolby Pro Logic.

DTS (Digital Theater Systems)

DTS is an audio compression format developed by Digital sound.

TV Screen Saver Function

If the unit remains in Stop mode for 3 minutes, the Samsung logo appears on the TV screen. The

HT-X715/HT-TX715

Saver mode.

Power Saving Function

The

HT-X715/HT-TX715 automatically shuts itself off after 20 minutes in Stop mode.

Customized TV Screen Display

The

HT-X715/HT-TX715

background wallpaper.

HDMI

HDMI transmits DVD video and audio signals simultaneously, and provides a clearer picture.

AV SYNC Function

Video may lag behind the audio if the unit is connected to a digital TV. To compensate for this, you can adjust the audio delay time to sync up with the video.

Anynet+(HDMI-CEC) Function

Anynet+ is a function that can be used to operate the main unit using a Samsung TV remote control, by connecting the Home Cinema to a SAMSUNG TV using an HDMI Cable. (This is only available with SAMSUNG TVs that support Anynet+.)

Bluetooth Function

You can use a Bluetooth device to enjoy music with high quality stereo sound, all without wires!

automatically switches itself into the power saving mode after 20 minutes in the Screen

allows you to select your favorite image during JPEG, DVD playback and set it as your

Cinema

Systems Inc. It delivers full-frequency 5.1 channel

WHAT’S INCLUDED

Check for the supplied accessories below.

Video Cable FM Antenna HDMI Cable

User's Manual

Remote Control

/ Batteries (AAA size)

ASC microphone

Page 3

ENG

safety information

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK).

NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates “dangerous voltage”

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

inside the product that presents a risk of electric shock or personal injury.

This symbol indicates important instructions accompanying the product.

LASER product.

CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT PRODUCTO LASER CLASE 1

CAUTION :

WARNING : To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

This apparatus shall always be connected to a AC outlet with a protective grounding connection.

• To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.

•

CAUTION

Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

• The Mains plug is used as a disconnect device and shall stay readily operable at any time.

•

CLASS 1 LASER PRODUCT

This Compact Disc player is classified as a CLASS 1

Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED, AVOID EXPOSURE TO BEAM.

Wiring the Main Power Supply Plug (UK Only)

IMPORTANT NOTICE

The mains lead on this equipment is supplied with a moulded plug incorporating a fuse. The value of the fuse is indicated on the pin face of the plug and if it requires replacing, a fuse approved to BS1362 of the same rating must be used. Never use the plug with the fuse cover removed. If the cover is detachable and a replacement is required, it must be of the same colour as the fuse fitted in the plug. Replacement covers are available from your dealer. If the fitted plug is not suitable for the power points in your house or the cable is not long enough to reach a power point, you should obtain a suitable safety approved extension lead or consult your dealer for assistance. However, if there is no alternative to cutting off the plug, remove the fuse and then safely dispose of the plug. Do not connect the plug to a mains socket as there is a risk of shock hazard from the bared flexible cord.

Never attempt to insert bare wires directly into a mains socket. A plug and fuse must be used at all times.

IMPORTANT

The wires in the mains lead are coloured in accordance with the following code:– BLUE = NEUTRAL BROWN = LIVE As these colours may not correspond to the coloured markings identifying the terminals in your plug, proceed as follows:– The wire coloured BLUE must be connected to the terminal marked with the letter N or coloured BLUE or BLACK. The wire coloured BROWN must be connected to the terminal marked with the letter L or coloured BROWN or RED.

WARNING : DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH THE

LETTER E OR BY THE EARTH SYMBOL , OR COLOURED GREEN OR GREEN AND YELLOW.

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Page 4

safety information

PRECAUTIONS

Ensure that the AC power supply in your house complies with the identiﬁ cation sticker located on the back of your player. Install your player horizontally, on a suitable base (furniture), with enough space around it for ventilation (7.5~10 cm). Make sure the ventilation slots are not covered. Do not stack anything on top of the player. Do not place the player on ampliﬁ ers or other equipment which may become hot. Before moving the player, ensure the disc tray is empty. This player is designed for continuous use. Switching off the DVD player to the stand-by mode does not disconnect the electrical supply. In order to disconnect the player completely from the power supply, remove the mains plug from the wall outlet, especially when left unused for a long period of time.

During thunderstorms, disconnect the AC mains plug from the wall outlet. Voltage peaks due to lightning could damage the unit.

Protect the player from moisture (i.e. vases) , and excess heat (e.g.ﬁ replace) or equipment creating strong magnetic or electric ﬁ elds (i.e.speakers...). Disconnect the power cable from the AC supply if the player malfunctions. Your player is not intended for industrial use. Use of this product is for personal use only.

Condensation may occur if your player or disc has been stored in cold temperatures. If transporting the player during the winter, wait approxi before using.

mately 2 hours until the unit has reached room temperature

Do not expose the unit to direct sunlight or other heat sources. This could lead to overheating and malfunction of the unit.

The batteries used with this product contain chemicals that are harmful to the environment. Do not dispose of batteries in the general household trash.

Page 5

ENG

FEATURES

SAFETY INFORMATION

GETTING STARTED

DESCRIPTION

REMOTE CONTROL

2 What’s included

3 Safety Warnings 4 Precautions

7 Before Reading the User’s Manual 8 Playable Discs 8 Do not use the following types of disc! 8 Copy Protection 9 Disc Type and Characteristics

10 Front Panel 11 Rear Panel

12 Tour of the Remote Control 14 Setting the Remote Control

CONNECTIONS

BEFORE USING YOUR HOME CINEMA

PLAYBACK

16 Connecting the Speakers 20 Connecting the Optional Wireless Receiving

Ampliﬁer 22 Connecting the Video Out to your TV 24 HDMI Function 25 Connecting Audio from External Components 27 Connecting the FM Antenna

28 Before Using Your Home Cinema

29 Disc Playback 30 MP3/WMA-CD Playback 31 JPEG File Playback 32 DivX Playback 34 Using the Playback Function 42 Using BLUETOOTH 44 Playing Media Files using the USB Host

Feature

Page 6

contents

SYSTEM SETUP

RADIO

CONVENIENT FUNCTION

46 Setting the Language 47 Setting TV Screen Type 48 Setting Parental Controls (Rating Level) 48 Setting the Password 49 Setting the Wallpaper 49 To Select One of the 3 Wallpaper Settings

You've Made 50 DVD Playback Mode 50 Setting the SPEAKER MODE 51 Setting the Delay Time 52 Setting the Test Tone 52 Setting the Audio 53 Setting the DRC (Dynamic Range

Compression) 54 Setting the AV SYNC 54 Setting the HDMI Audio 55 Sound Field (DSP)/EQ Function 56 Dolby Pro Logic II Mode 56 Dolby Pro Logic II Effect 57 ASC (Auto Sound Calibration) SETUP

59 Listening to Radio 59 Presetting Stations

60 Sleep Timer Function 60 Adjusting Display Brightness 60 Mute Function 60 S.VOL (Smart Volume) 61 P.BASS 61 Audio Upscaling 61 Virtual Headphone Function

TROUBLESHOOTING

LANGUAGE CODE LIST

USB HOST FEATURE SUPPORTED

PRODUCTS

APPENDIX

62 Troubleshooting

64 Language Code List

65 Digital Camera 65 USB Flash Disc 65 MP3 Player

66 Cautions on Handling and Storing Discs 67 Speciﬁcations

Page 7

ENG

getting started

BEFORE READING THE USER’S MANUAL

Make sure to check the following terms before reading the user manual.

Icons that will be used in manual

Icon Term Deﬁnition

This involves a function available with DVD or DVD-R/DVD-RW discs that have been recorded and ﬁnalized in Video Mode.

This involves a function available with MPEG4 discs. (DVD±R/RW, CD-R or CD-RW)

This involves a case where a function does not operate or settings may be cancelled.

This involves tips or instructions on the page that help each function operate.

B A G

DVD

CD This involves a function available with a data CD (CD-R or CD-RW).

MP3 This involves a function available with CD-R/-RW discs, including USB.

JPEG This involves a function available with CD-R/-RW discs, including USB.

DivX

Caution

Note

In this manual, the instructions marked with "DVD ( )" are applicable to DVD-VIDEO, DVD-AUDIO and

DVD-R/-RW discs that have been recorded in Video Mode and then ﬁnalized. Where a particular DVD type is mentioned, it is indicated separately.

If a DVD-R/-RW disc has not been recorded properly in DVD Video format, it will not be playable.

● GETTING STARTED

About the use of this user’s manual

Be sure to be familiar with Safety Instructions before using this product. (See pages 3~4)

If a problem occurs, check the Troubleshooting. (See pages 62~63)

Page 8

getting started

COMPACT

DIGITAL AUDIO

1 6

DVD (Digital Versatile Disc) offers fantastic audio and video, thanks to Dolby Digital surround sound and MPEG-2 video compression technology. Now you can enjoy these realistic effects in the home, as if you were in a movie cinema or concert hall.

DVD players and the discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play. The Region Number for this player is given on the rear panel of the player. (Your DVD player will only play DVDs that are labeled with identical region codes.)

PLAYABLE DISCS

Disc Type Mark (Logo) Recorded Signals Disc Size Max. Playing Time

Approx. 240 min. (single-sided)

Approx. 480 min. (double-sided)

Approx. 80 min. (single-sided)

Approx. 160 min. (double-sided)

—

DVD-AUDIO

DVD-VIDEO

AUDIO-CD

DivX AUDIO + VIDEO

AUDIO + VIDEO

AUDIO

12 cm

8 cm

12 cm 74 min.

8 cm 20 min.

12 cm

8 cm

DO NOT USE THE FOLOWING TYPES OF DISCS !

LD, CD-G, CD-I, CD-ROM, DVD-RAM and DVD-ROM discs cannot be played on this player.

If such discs are played, a <WRONG DISC FORMAT> message appears on the TV screen. DVD discs purchased abroad may not play on this player.

If such discs are played, a <CAN'T PLAY THIS DISC PLEASE, CHECK REGION CODE> message appears on the TV screen.

COPY PROTECTION

Many DVD discs are encoded with copy protection. Because of this, you should only connect your DVD player

directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected DVD discs.

This product incorporates copyright protection technology that is protected by methods claims of certain U.S.

patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Page 9

ENG

● GETTING STARTED

DISC TYPE AND CHARACTERISTICS

This product does not support Secure (DRM) Media ﬁles.

CD-R Discs

❖

Some CD-R discs may not be playable depending on the disc recording device (CD-Recorder or PC) and the

condition of the disc. Use a 650MB/74 minute CD-R disc.

Do not use CD-R discs over 700MB/80 minute as they may not be played back. Some CD-RW (Rewritable) media, may not be playable.

Only CD-Rs that are properly "closed" can be fully played. If the session is closed but the disc is left open, you

may not be able to fully play the disc.

CD-R MP3 Discs

❖

Only CD-R discs with MP3 ﬁles in ISO 9660 or Joliet format can be played.

MP3 ﬁle names should be 8 characters or less in length and contain no blank spaces or special characters

(. / = +). Use discs recorded with a compression/decompression data rate greater than 128Kbps.

Only ﬁles with the ".mp3" and ".MP3" extensions can be played.

Only a consecutively written multisession disc can be played. If there is a blank segment in the Multisession

disc, the disc can be played only up to the blank segment. If the disc is not closed, it will take longer to begin playback and not all of the recorded ﬁles may be played.

For ﬁles encoded in Variable Bit Rate (VBR) format, i.e. ﬁles encoded in both low bit rate and high bit rate

(e.g., 32Kbps ~ 320Kbps), the sound may skip during playback. A maximum of 500 tracks can be played per CD.

A maximum of 300 folders can be played per CD.

CD-R JPEG Discs

❖

Only ﬁles with the "jpg" extensions can be played.

If the disc is not closed, it will take longer to start playing and not all of the recorded ﬁles may be played.

Only CD-R discs with JPEG ﬁles in ISO 9660 or Joliet format can be played.

JPEG ﬁle names should be 8 characters or less in length and contain no blank spaces or special characters

(. / = +). Only a consecutively written multisession disc can be played. If there is a blank segment in the multisession

disc, the disc can be played only up to the blank segment. A maximum of 9,999 images can be stored on a single CD.

When playing a Kodak/Fuji Picture CD, only the JPEG ﬁles in the picture folder can be played.

Picture discs other than Kodak/Fuji Picture CDs may take longer to start playing or may not play at all.

DVD±R/RW, CD-R/RW DivX Discs

❖

Since this product only provides encoding formats authorized by DivX Networks, Inc., a DivX ﬁle created by

the user might not play. Software updates for incompatible formats are not supported.

(Example : QPEL, GMC, resolution higher than 800 x 600 pixels, etc.) Sections with a high frame rate might not be played while playing a DivX ﬁle.

For more information about the formats authorized by DivX Networks, Inc., please visit "www.divxnetworks.

net".

Page 10

description

FRONT PANEL

POWER( ) BUTTON

FUNCTION BUTTON

TUNING DOWN & SKIP ( ) BUTTON

STOP (T) BUTTON

PLAY/PAUSE ( ) BUTTON AUX IN 1 JACK

TUNING UP & SKIP ( ) BUTTON

VOLUME CONTROL

DISC TRAY

HEADPHONE JACK

USB PORT

Page 11

ENG

REAR PANEL

2 3 4 5 687

● DESCRIPTION

5.1 CHANNEL SPEAKER OUTPUT CONNECTORS

COMPONENT VIDEO OUTPUT JACKS

AUX IN 2 JACKS

VIDEO OUTPUT JACK

EXTERNAL DIGITAL OPTICAL INPUT JACK

TX CARD CONNECTION (WIRELESS)

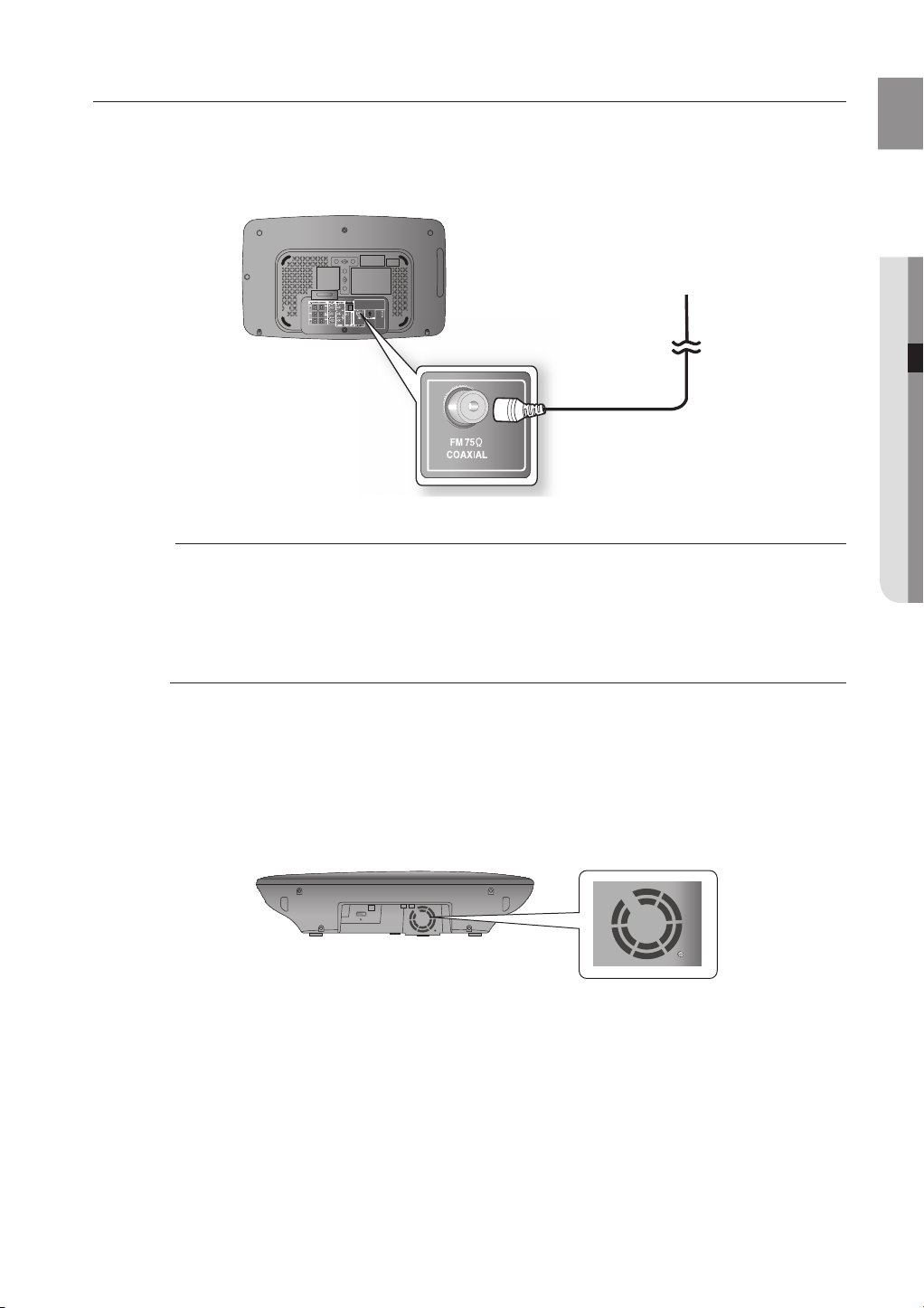

FM 75Ω COAXIAL JACK

COOLING FAN

HDMI OUT JACK

Connect the front, center, rear, subwoofer speakers.

Connect a TV with Component video inputs to these jacks.

Connect to the 2CH analog output of an external device (such as a VCR)

Connect the TV's Video Input jack (VIDEO IN) to the VIDEO OUT jack.

Use this to connect external equipment capable of digital output.

The TX card enables communication between the main unit and the optional wireless receiver ampliﬁ er.

Connect the FM antenna.

The fan always revolves when the power is on. Ensure a minimum of 10 cm of clear space on all sides of the fan when installing the product.

Use the HDMI cable, connect this HDMI output terminal to the HDMI input terminal on your TV for the best quality picture.

Page 12

remote control

TOUR OF THE REMOTE CONTROL

1 2

5 6 7

23 24

12 13 14

15 16

17 18

27 28

33 34

35 36 37 38 39

Page 13

ENG

● REMOTE CONTROL

DVD RECEIVER button

DVD

PORT button

TV button

POWER button

NUMBER (0~9) buttons

REMAIN button

STEP button

TUNING PRESET/CD SKIP buttons

VOLUME button

MENU button

AUDIO button

PL II MODE button

TUNER MEMORY, SD(Standard Definition)/HD(High Definition) button

ZOOM button

P.BASS button

SLEEP button

ASC button

SLOW, MO/ST button

PL II EFFECT button

DVD button

TUNER button

AUX button

TV/VIDEO button

EJECT button

CANCEL button

PAUSE button

PLAY button

STOP button

TUNING/CH button

MUTE button

RETURN button

CURSOR/ENTER button

SUBTITLE button

EXIT button

INFO button

SOUND EDIT button

REPEAT button

AUDIO UPSCALE

DSP/EQ button

LOGO button

DIMMER button

S.VOL button

SEARCH buttons

button

Insert Remote Batteries

1. Remove the battery cover in the direction of the arrow.

Follow these precautions to avoid leaking or cracking cells:

Place batteries in the remote control so they match the polarity : (+) to (+) and (–) to (–).

Use the correct type of batteries. Batteries that look similar may differ in voltage.

Always replace both batteries at the same time.

Do not expose the batteries to heat or a ﬂame.

2. Insert two 1.5V AAA batteries, paying attention to the correct polarities (+ and –).

3. Replace the battery cover.

Page 14

remote control

SETTING THE REMOTE CONTROL

You can control certain functions of your TV with this remote control.

When operating a TV with the remote control

Press the TV button to set the remote to TV mode.

Press the POWER button to turn on the TV.

While holding down the POWER button, enter the code

corresponding to your brand of TV.

If there is more than one code listed for your TV in the

table, enter one at a time to determine which code works.

Example : For a Samsung TV

While holding down the POWER button, use the number buttons to enter 00, 15, 16, 17 and 40.

If the TV turns off, the setting is complete.

You can use the TV POWER, VOLUME, CHANNEL, and

Numeric buttons (0~9).

The remote control may not work on some brands of TVs. Also, some operations may not be possible

depending on your brand of TV.

If you do not set the remote control with the code for your brand of TV, the remote control will work on a

Samsung TV by default.

Operation Range of the Remote Control

The remote control can be used up to approximately 7 meters in a straight line. It can also be operated at a horizontal angle of up to 30° from the remote control sensor.

Page 15

ENG

● REMOTE CONTROL

TV Brand Code List

No.

37 38

Brand

Admiral (M.Wards)

A Mark

Anam

AOC

Bell & Howell (M.Wards)

Brocsonic

Candle

Cetronic

Citizen

Theater

Classic

Concerto

Contec

Coronado

Craig

Croslex

Crown

Curtis Mates

CXC

Daewoo

Daytron

Dynasty

Emerson

Fisher

Funai

Futuretech

General Electric (GE)

Hall Mark

Hitachi

Inkel

JC Penny

JVC

KTV

KEC

KMC

LG (Goldstar)

Luxman

LXI (Sears)

Magnavox

Marantz

Matsui

MGA

Mitsubishi/MGA

Code

56, 57, 58

01, 15

01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 11,

12, 13, 14

01, 18, 40, 48

57, 58, 81

59, 60

03, 18, 25

03, 05, 61, 82, 83, 84

59, 61, 63

02, 03, 04, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24,

25, 26, 27, 28, 29, 30, 32, 34, 35, 36, 48, 59, 90

03, 15, 40, 46, 59, 61, 64, 82, 83, 84, 85

19, 65

06, 40, 56, 59, 66, 67, 68

15, 18, 50, 59, 69

56, 59, 67, 86

59, 61, 87, 88

03, 15, 40

01, 15, 16, 17, 37, 38, 39, 40, 41, 42, 43, 44

19, 54, 56, 59, 60, 62, 63, 65, 71

15, 17, 18, 48, 54, 59, 60, 62, 72, 89

40, 54

18, 40

18, 40, 59, 60, 75

Brand

MTC

NEC

Nikei

Onking

Onwa

Panasonic

Penney

Philco

Philips

Pioneer

Portland

Proton

Quasar

Radio Shack

RCA/Proscan

Realistic

Sampo

Samsung

Sanyo

Scott

Sears

Sharp

Signature 2000 (M.Wards)

Sony

Soundesign

Spectricon

SSS

Sylvania

Symphonic

Tatung

Techwood

Teknika

TMK

Toshiba

Vidtech

Videch

Wards

Yamaha

York

Yupiteru

Zenith

Zonda

Dongyang

Code

18, 19, 20, 40, 59, 60

06, 07, 08, 09, 54, 66, 67, 73, 74

03, 15, 17, 18, 48, 54, 59, 62, 69, 90

15, 17, 18, 40, 48, 54, 62, 72

63, 66, 80, 91

15, 18, 59

06, 66, 67

17, 48, 56, 60, 61, 75

18, 59, 67, 76, 77, 78, 92, 93, 94

03, 19

00, 15, 16, 17, 40, 43, 46, 47, 48, 49,

59, 60, 98

19, 61, 65

03, 40, 60, 61

15, 18, 19

15, 57, 64

57, 58

50, 51, 52, 53, 55

03, 40

18, 40, 48, 54, 59, 60, 62

61, 95, 96

03, 15, 18, 25

18, 40

19, 57, 63, 71

59, 60, 69

15, 17, 18, 40, 48, 54, 60, 64

58, 79

03, 54

Page 16

connections

This section involves various methods of connecting the Digital Home Cinema to other external components.

Before moving or installing the product, be sure to turn off the power and disconnect the power cord.

CONNECTING THE SPEAKERS

Position of Digital Home Cinema

Place it on a stand or cabinet shelf, or under the TV stand.

Selecting the Listening Position

The listening position should be located about 2.5 to 3 times the distance of the TV's screen size away from the TV. Example : For 32" TVs 2~2.4m For 55" TVs 3.5~4m

Front Speakers ei

Place these speakers in front of your listening position, facing inwards (about 45°) toward you. Place the speakers so that their tweeters will be at the same height as your ear. Align the front face of the front speakers with the front face of the center speaker or place them slightly in front of the center speakers.

Subwoofer g

The position of the subwoofer is not so critical. Place it anywhere you like.

Center Speaker f

It is best to install it at the same height as the front speakers. You can also install it directly over or under the TV.

Rear Speakers

Place these speakers behind your listening position. If there isn't enough room, place these speakers such that they face each other. Place them about 60 to 90cm from your ear, facing slightly downward.

* Unlike the front and center speakers, the rear speakers are used to handle mainly sound effects and

sound will not come from them all the time.

Page 17

ENG

● CONNECTIONS

Front/Rear Tallboy Stand (HT-TX715 only)

Speaker Components

SCREW (Large) :

4EA

SPEAKER STAND BASESTAND SCREW (Small) :

How to Install the Speaker on the Stand

Turn the STAND upside-down and connect it to the STAND BASE.

Turning the SCREW (Small) clockwise, connect it to four holes marked with the

arrow using a screwdriver as shown in the illustration.

Connect the assembled stand to the SPEAKER.

16EA

STAND BASE

STAND

SPEAKER

STAND

Turning the SCREW (Large) clockwise, connect to a hole on the

screwdriver as shown in the illustration.

This is the successfully assembled speaker.

Make sure that the TALLBOY type speaker should be installed on the ﬂ at and stable area. Otherwise it may

fall down due to external shock.

Page 18

connections

Connecting The Speakers

Press down the terminal tab on the back of the speaker.

Insert the black wire into the black terminal (–) and the red wire into

the red (+) terminal, and then release the tab.

Connect the connecting plugs to the back of the Home Cinema.

Make sure the colors of the speaker terminals match the colors of

the connecting plugs.

HT-X715

Black

Red

Center Speaker

Rear Speaker (R)

Front Speaker (R)

Front Speaker (L)

Subwoofer

Rear Speaker (L)

Page 19

ENG

HT-TX715

Front Speaker (R)

Center Speaker

Rear Speaker (R)

Front Speaker (L)

● CONNECTIONS

Subwoofer

Rear Speaker (L)

Do not let children play with or near the speakers. They could get hurt if a speaker falls.

When connecting the speaker wires to the speakers, make sure that the polarity (+/ –) is correct.

Keep the subwoofer speaker out of reach of children so as to prevent children from inserting their hands or

other objects into the duct (hole) of the subwoofer speaker.

Do not hang the subwoofer on the wall through the duct (hole).

If you place a speaker near your TV set, screen color may be distorted because of the magnetic ﬁ eld generated

by the speaker. If this occurs, place the speaker away from your TV set.

Page 20

connections

CONNECTING THE OPTIONAL WIRELESS RECEIVING AMPLIFIER

To connect the rear speakers by wireless, you have to purchase the wireless receiving module and TX card from your Samsung retailer.

When you have Purchased the Wireless Receiving Module (SWA-4000)

HT-X715

Front Speaker (R)

Front Speaker (L)

Rear Speaker (L)

WIRELESS RECEIVER MODULE

HT-TX715

Rear Speaker (L)

WIRELESS RECEIVER MODULE

Rear Speaker (R)

Center Speaker

Front Speaker (R)

Center Speaker

Subwoofer

Front Speaker (L)

Subwoofer

Connect the front, center and Subwoofer speakers to the

DVD Player. Please refer to Pages 18~19.

With the DVD Player turned off, insert the TX card into the TX

Card Connection(WIRELESS) on the back of the main unit.

Hold the TX card so that the slanted side faces downward

and insert the card into the port. The TX card enables communication between the main

unit and the wireless receiver.

Connect the left and right rear speakers to the wireless

receiving module.

Plug the power cord of the wireless receiving module into

the wall outlet and turn the module ON.

TX card

Slanted side faces down

Page 21

ENG

● CONNECTIONS

RESET

Place the wireless receiver module at the rear of the listening

position. If the wireless receiver module is too close to the main unit, some sound interruption may be heard due to interference.

If you use a device such as a microwave oven, wireless LAN Card,

Bluetooth equipment, or any other device that uses the same frequency (5.8GHz) near the system, some sound interruption may be heard due to interference.

The transmission distance of a radio wave is about 10m, but may

vary depending on your operating environment. If a steel-concrete wall or metallic wall is between the main unit and the wireless receiver module, the system may not operate at all, because the radio wave cannot penetrate metal.

This product (HT-X715/HT-TX715) is compatible with the wireless receiver module SWA-3000.

Do not insert any other card except the TX card dedicated to the product. The product might be damaged or

the card may not be removed easily. Do not insert the TX card upside down or in the reverse direction.

Insert the TX card when the DVD Player is turned off. Inserting the card when it is turned on may cause a

problem. If the TX Card is inserted, sound is not output from the Rear Speaker connectors on the main unit.

The wireless receiving antenna is built into the wireless receiver module. Keep the unit away from water and

moisture. For optimal listening performance, make sure that the area around the wireless receiver module location is

clear of any obstructions. If no sound is heard from the wireless rear speakers, switch the mode to DVD 5.1 channel or Dolby ProLogic II.

In 2-CH mode, no sound will be heard from the wireless rear speakers.

Page 22

connections

CONNECTING THE VIDEO OUT TO YOUR TV

Choose one of the three methods for connecting to a TV.

METHOD2 METHOD1

METHOD3 (supplied)

(supplied) s

METHOD 1 : HDMI

Connect a HDMI cable (not supplied) from the HDMI OUT jack on the back of the DVD Player to the HDMI IN jack on your TV.

METHOD 2 : Component Video

If your television is equipped with Component Video inputs, connect a Component video cable(not supplied) from the Component Video Output (PR, PB and Y) jacks on the back of the DVD Player to the Component Video Input jacks on your TV.

METHOD 3 : Composite Video

Connect the supplied Video cable from the VIDEO OUT jack on the back of the DVD Player to the VIDEO IN jack on your TV.

The resolution from the Component Output is 576i(480i).

If you use an HDMI cable to connect a Samsung TV to the DVD Player, you can operate the Home Cinema

using the TV's remote control. This is only available with SAMSUNG TVs that support Anynet+(HDMI-CEC). Please check the ' logo (If your TV has an ' logo, then it supports the Anynet+ function.)

Page 23

ENG

● CONNECTIONS

HDMI Auto Detection Function

The player's video output will automatically change to HDMI mode when connecting an HDMI cable while power is on.

HDMI (High Deﬁnition Multimedia Interface)

HDMI is an interface that enables the digital transmission of video and audio data with just a single connector. Using HDMI, the DVD Home Cinema transmits a digital video and audio signals and displays a vivid picture.

HDMI connection description

HDMI connector - Supports video and digital audio data.

- HDMI outputs only a pure digital signal to the TV.

- If your TV does not support HDCP (High-bandwidth Digital Content Protection), random noise appears on the screen.

Why does Samsung use HDMI?

Analog TVs require an analog video/audio signal. However, when playing a DVD, the data transmitted to a TV is digital. Therefore either a digital-to-analog converter (in the DVD Home Cinema) or an analog-to-digital converter (in the TV) is required. During this conversion, the picture quality is degraded due to noise and signal loss. HDMI technology is superior because it requires no D/A conversion and is a pure digital signal from the player to your TV.

What is the HDCP?

HDCP (High-band width Digital Content Protection) is a system for protecting DVD content outputted via HDMI from being copied. It provides a secure digital link between a video source (PC, DVD. etc) and a display device (TV, projector. etc). Content is encrypted at the source device to prevent unauthorized copies from being made.

What is Anynet+?

Anynet+ is a convenient function that offers linked operation of this unit through Samsung TVs with the Anynet+ feature.

- If your Samsung TV has an ' logo, then it supports the Anynet+ function.

- If you turn on the player and insert a disc, the player will start playing the disc, and the TV will turn on automatically and switch to HDMI mode.

- If you turn on the player and press the Play button with a disc already inserted, the TV will immediately turn on and switch to HDMI mode.

Page 24

connections

View TV

THEATER

THEATER Menu

Move

Enter

Exit

Setup

Connected to Player

Off

View TV

THEATER

THEATER Menu

HDMI FUNCTION

Resolution Selection

This function allows the user to select the screen resolution for HDMI output.

In Stop mode, press and hold the SD/HD (Standard Deﬁ nition/High Deﬁ nition) button on the remote control for longer than 5 seconds.

Resolutions available for the HDMI output are 576p(480p),

720p, 1080i/1080p. SD(Standard Deﬁ nition) resolution is 576P(480p) and HD

(High Deﬁ nition) resolution is 720p, 1080i/1080p.

The default value of HDMI output is 576P(480P).

If the TV does not support the conﬁ gured resolution, you will

Using Anynet+(HDMI-CEC)

not be able to see the picture. When an HDMI cable is connected, composite and component

video signals are not output. See your TV owner's manual for more information on how to select the TV's Video Input source.

Why use HDMI (High Deﬁ nition Multimedia Interface)?

This device transmits a DVD video signal digitally without the process of converting to analog. You will get sharper digital pictures when using an HDMI connection.

Anynet+ is a function that enables you to control other Samsung Devices with your Samsung TV's remote control. Anynet + can be used by connecting this Home Cinema to a SAMSUNG TV using an HDMI Cable. This is only available with SAMSUNG TVs that support Anynet+.

Connect the main unit of the Home Cinema to a Samsung

With Anynet+

You can operate this unit, power on your TV, or watch a movie by pressing the Play button on your Samsung TV's remote control.

TV with an HDMI cable. (See page 22)

Set the Anynet+ function on your TV.

(See the TV instructions manual for more information.)

You can operate the Home Cinema by using the TV remote

control. (Available TV buttons : , , , , $, % and _, + buttons, ~ button)

MOVE

ENTER

EXIT

If you select the TV Set the Anynet+(HDMI-CEC) to On by pressing the Anynet+ button on your TV.

Receiver : On : You can listen to audio through the Home Cinema.

Receiver : Off : You can listen to audio through the TV.

If you select the Theater Select THEATER to connect and set the option of each item below.

View TV :

If Anynet+(HDMI-CEC) is set to on and you select View TV, the

Home Cinema will automatically switch to DIGITAL IN mode. THEATER Menu : You can access and control the Home Cinema menu.

THEATER Operation : The Home Cinema disc playback information will be displayed.

MOVE

ENTER

EXIT

You can control the Disc operation of the Home Cinema such as title, chapter and subtitle change.

Receiver : On : You can listen to audio through the Home Cinema.

Receiver : Off : You can listen to audio through the TV.

The Cinema function is available only when you listen to the audio through the Home Cinema with the digital

optical cable connected.

Page 25

ENG

● CONNECTIONS

CONNECTING AUDIO FROM EXTERNAL COMPONENTS

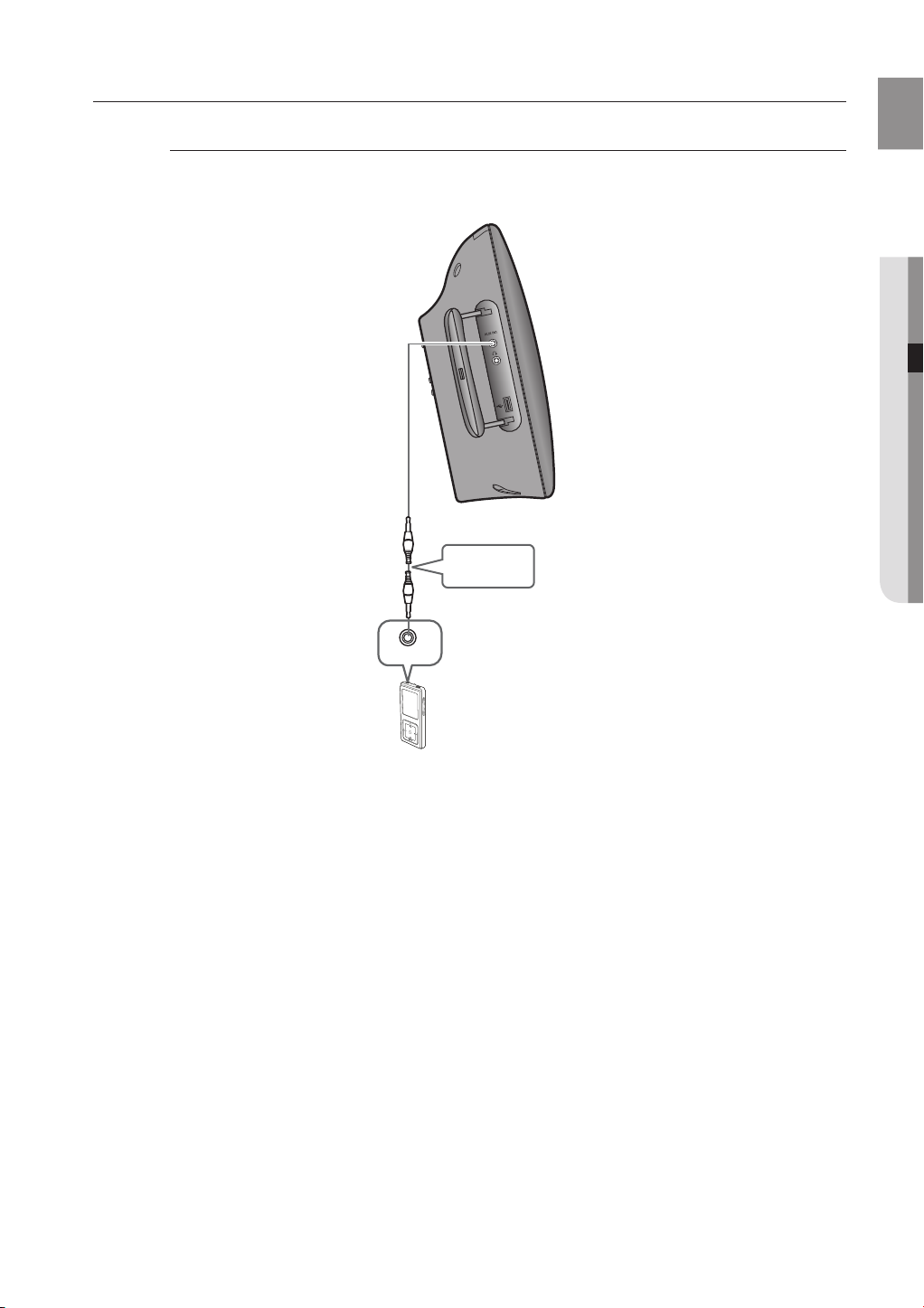

AUX1 : Connecting an External Component/MP3 player

Components such as an MP3 Player

Audio Cable (not supplied)

Audio OUT

Connect AUX IN 1 (Audio) on the Home Cinema to the Audio Out of the external component/MP3

player.

Press the AUX button on the remote control to select AUX1 input.

You can also use the FUNCTION button on the main unit.

The mode switches as follows : DVD/CD  DIGITAL IN  AUX 1  AUX 2  USB  BT AUDIO  TUNER.

Page 26

connections

AUX2 : Rear Panel OPTICAL : Rear Panel

Audio Cable (not supplied)

If the external analog component has only one Audio Out, connect either left or right.

External Analog

Component

External Digital

Component

AUX2 : Connecting an External Analog Component

Analog signal components such as a VCR.

Connect AUX IN 2 (Audio) on the Home Cinema to the Audio Out of the external analog component.

Be sure to match connector colors.

Press the AUX button on the remote control to select AUX 2 input.

You can also use the FUNCTION button on the main unit.

The mode switches as follows : DVD/CD  DIGITAL IN  AUX 1  AUX 2  USB  BT AUDIO  TUNER.

You can connect the Video Output jack of your VCR to the TV, and connect the Audio Output jacks of the VCR

to this product.

Optical Cable (not supplied)

OPTICAL : Connecting an External Digital Component

Digital signal components such as a Cable Box/Satellite receiver (Set-Top Box).

Connect the Digital Input (OPTICAL) on the Home Cinema to the Digital Output of the external digital

component.

Press the AUX button on the remote control to select DIGITAL IN.

You can also use the FUNCTION button on the main unit.

The mode switches as follows : DVD/CD  DIGITAL IN  AUX 1  AUX 2  USB  BT AUDIO  TUNER.

Page 27

ENG

● CONNECTIONS

CONNECTING THE FM ANTENNA

Connect the FM antenna supplied to the FM 75Ω COAXIAL Jack.

Slowly move the antenna wire around until you ﬁ nd a location where reception is good, then fasten it

to a wall or other rigid surface.

FM Antenna (supplied)

This unit does not receive AM broadcasts.

Cooling Fan

The cooling fan supplies cool air to the unit to prevent overheating. Please observe the following cautions for your safety.

Make sure the unit is well-ventilated. If the unit has poor ventilation, the temperature inside the unit

may rise and may damage it. Do not obstruct the cooling fan or ventilation holes. (If the cooling fan or ventilation holes are covered

with a newspaper or cloth, heat may build up inside the unit and ﬁ re may result.)

Page 28

before using your home cinema

The DVD Home Cinema's remote can be used to control Samsung TVs.

Plug the main unit's power cord into the AC power supply.

Press the DVD RECEIVER button to switch to DVD

RECEIVER mode to operate the DVD Home Cinema.

Press the FUNCTION button on the main unit or DVD

button on the remote to enable DVD/CD playback.

Press the TV button to set the remote to TV mode.

Press the POWER button to turn on your Samsung TV with

this remote.

Press the TV/VIDEO button to select VIDEO mode on your

TV.

VIDEO

Selecting the Video Format

Press and hold the Number 7 button on the remote controller for over 5 seconds while the power is turned off.

By default, the video format is set to "PAL".

"NTSC" or "PAL" will appear in the display. At this time, press the

Number 7 button shortly to select between "NTSC" and "PAL". Each country has a different video format standard.

For normal playback, the video format of the disc must be the same

as the video format of your TV.

Page 29

ENG

playback

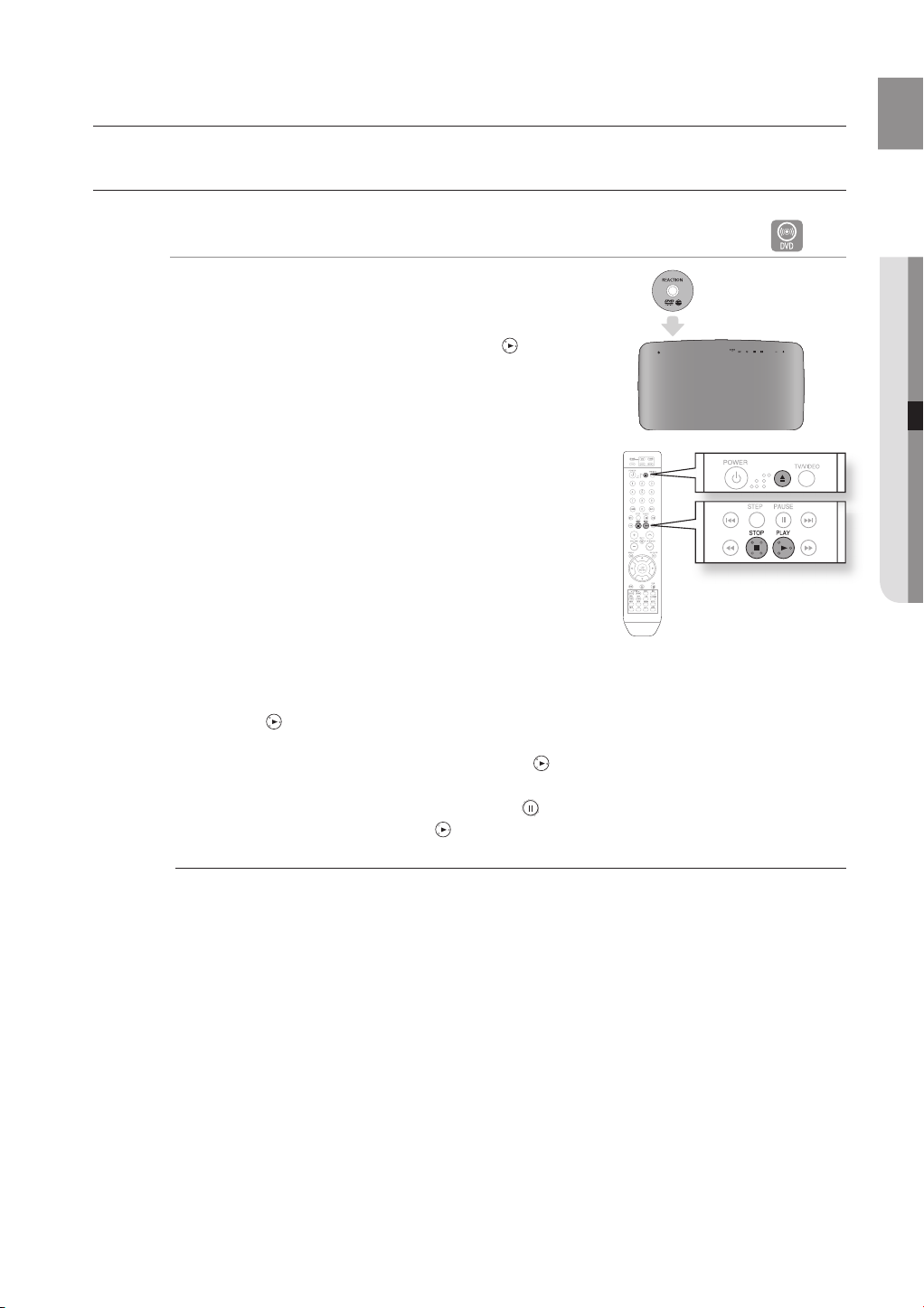

DISC PLAYBACK

Load a disc vertically into the Disc Insert Hole.

Place a disc gently into the tray with the disc’s label facing

up.

Close the compartment by pressing the PLAY ( ) button.

Playback starts automatically.

● PLAYBACK

To stop playback, press the STOP (@) button during playback.

If pressed once, PRESS PLAY is displayed and the stop position will be stored in memory.

If the PLAY ( ) button or ENTER button is pressed, playback resumes from the stop position. (This function works only with DVDs.)

If pressed twice, STOP is displayed, and if the PLAY ( ) button is pressed, playback starts from the

beginning.

To temporarily pause playback, press the PAUSE ( ) button during playback.

To resume playback, press the PLAY ( ) button again.

You can use the product in either vertical or horizontal position. If you select to use it either vertically or

horizontally, The operation (Previous / Next) of the [ or ] button will be automatically adjusted to the applicable position.

Depending on the content of the disc, the initial screen may appear different.

Pirated discs will not run in this player because it violates the CSS (Content Scrambling System :

a copy protection system) recommendations.

Page 30

playback

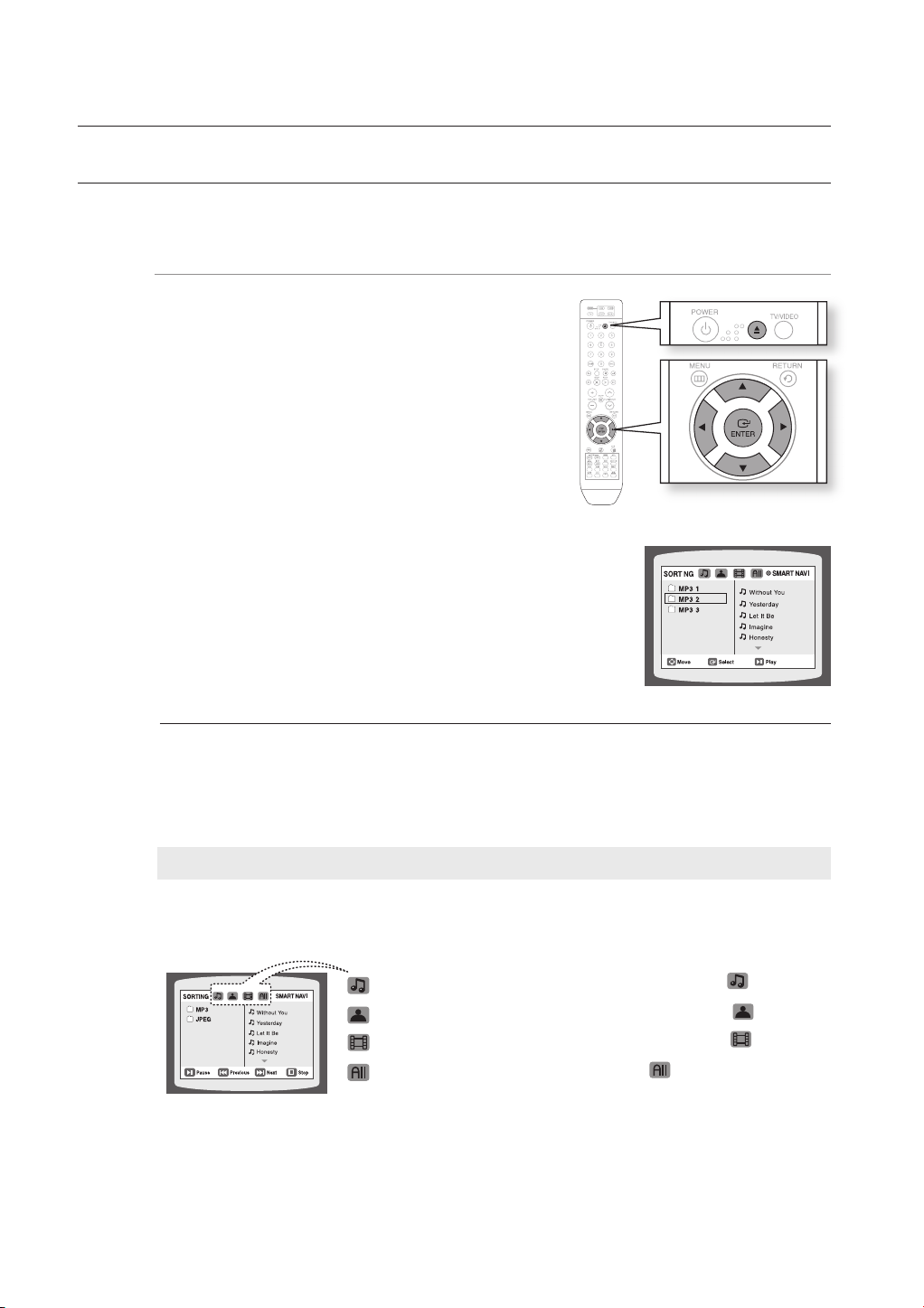

MP3/WMA-CD PLAYBACK

Data CDs (CD-R, CD-RW) encoded in MP3/WMA format can be played.

Load the MP3/WMA disc.

The MP3/WMA menu screen will appear and

playback will start. The appearance of the menu depends on the

MP3/WMA disc. WMA-DRM ﬁ les cannot be played.

In Stop mode, use the Cursor $, %, _, + button

to select the album, and then press the ENTER button.

Use the Cursor $, % button to select the track.

To change the album, use the Cursor $, %, _, + button to

select another album in Stop mode, and then press the ENTER button.

Press the STOP (@) button to stop playback.

Depending on the recording mode, some MP3/WMA-CDs may not play.

Table of contents of a MP3-CD varies depending on the MP3/WMA track format recorded on the disc.

To play a ﬁ le icon in the screen,

Press the Cursor $, %, _, + button when it is in Stop mode and select a desired icon from the

top part of the menu.

Music File Icon : To play music ﬁ les only, select the Icon.

Image File Icon : To view image ﬁ les only, select the Icon.

Movie File Icon : To view movie ﬁ les only, select the Icon.

All File Icon : To view all ﬁ les, select the Icon.

Page 31

ENG

● PLAYBACK

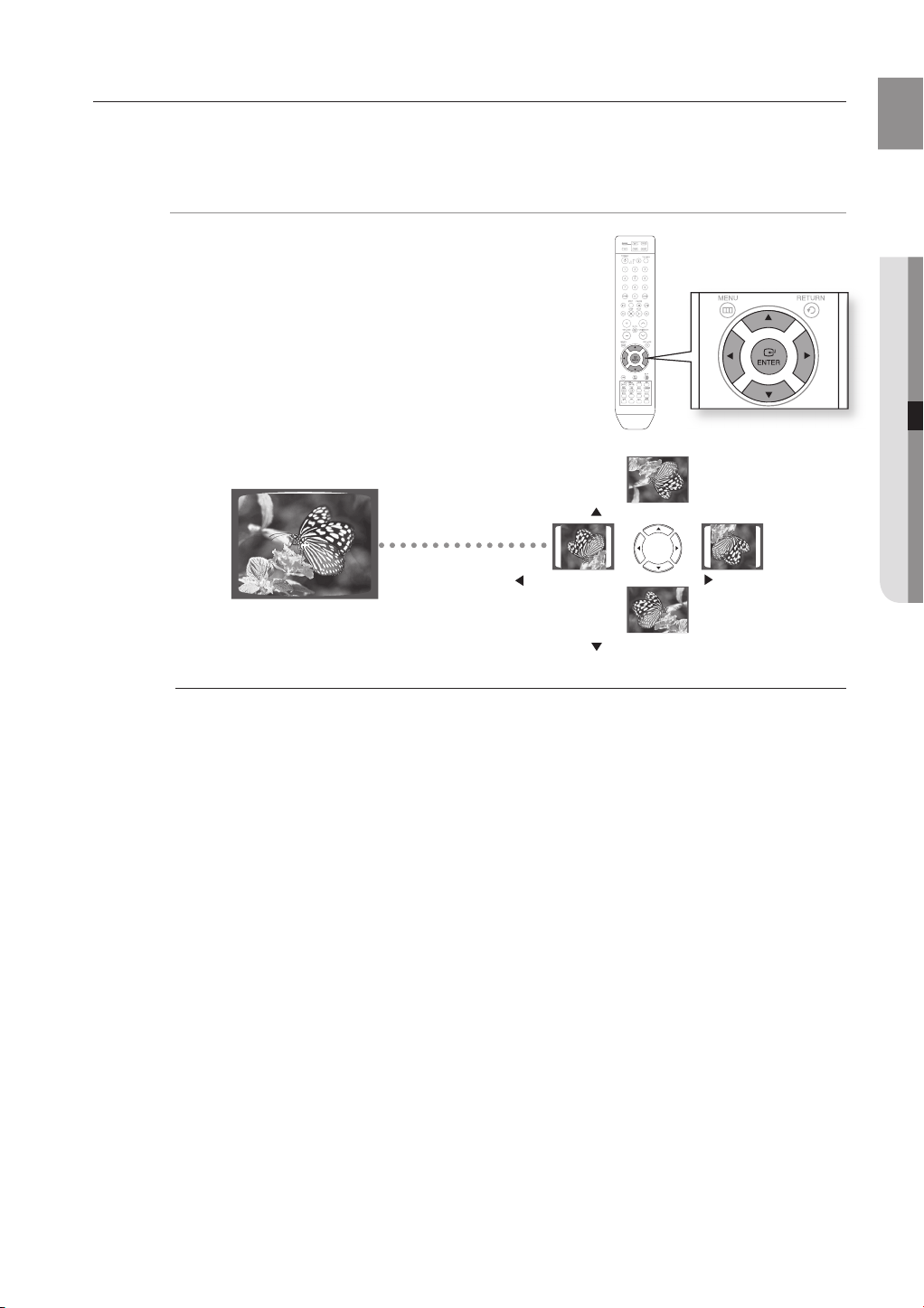

JPEG FILE PLAYBACK

Images captured with a digital camera or camcorder, or JPEG ﬁ les on a PC can be stored on a CD and then played back with this Home Cinema.

Rotate/Flip Function

Press the Cursor $, %, _, + button during playback.

Original Image

The maximum resolutions supported by this product are 5120 x 3480 (or 19.0 MPixel) for standard JPEG ﬁ les

and 2048 x 1536 (or 3.0 MPixel) for progressive image ﬁ les.

If a JPEG ﬁ le is played when the HDMI output resolution is 720p/1080i/1080p, the mode is automatically

switched to 576P(480p).

button: Flip Vertically

button: Rotate 90° Counterclockwise

button: Flip Horizontally

button: Rotate 90° Clockwise

Page 32

playback

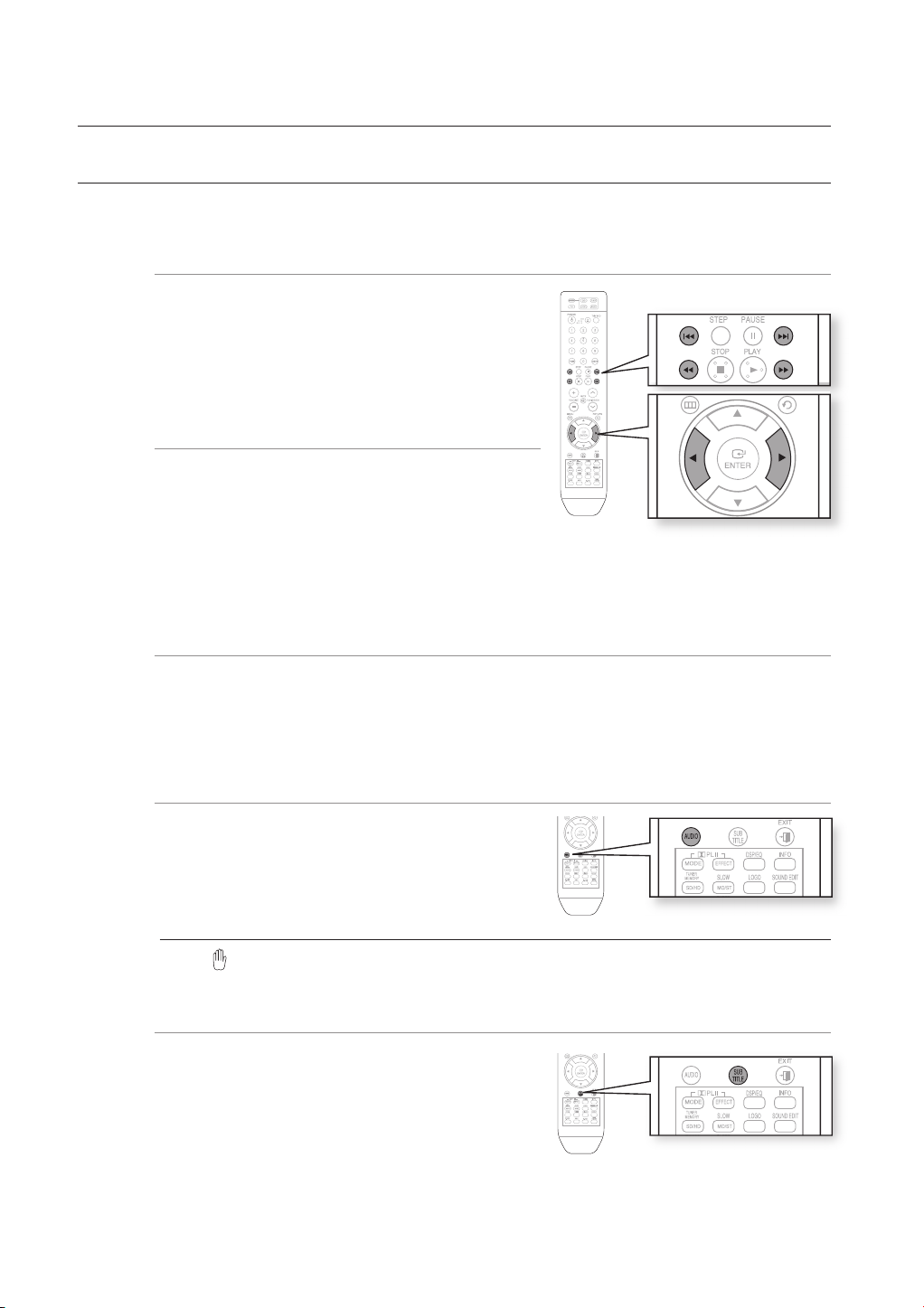

DIVX PLAYBACK

The functions discussed on this page apply to DivX disc playback only.

Skip Forward/Back

During playback, press the [, ] button.

Goes to the next ﬁ le whenever you press the ] button,

if there are over 2 ﬁ les on the disc. Goes to the previous ﬁ le whenever you press the

[

button, if there are over 2 ﬁ les on the disc.

Fast Playback

During playback, press the (, ) button. To play back the disc at a faster speed, press the ( or ) button during playback.

Each time you press either button, the playback speed

will change as follows:

2x  4x  8x  32x  Normal.

5 Minutes Skip function

During playback, press the Cursor _, + button.

Playback skips 5 minutes forward whenever you press the Cursor + button.

Playback skips 5 minutes back whenever you press the Cursor _ button.

Audio Display

Press the AUDIO button.

If there are multiple audio languages on a disc, you can

toggle between them. Each time you press the button, your selection will toggle

between AUDIO (1/N, 2/N ...).

is displayed when there is one supported language on the disc.

Subtitle Display

Press the SUBTITLE button.

Each time you press the button, your selection will toggle

between SUBTITLE (1/N, 2/N ...) and SUBTITLE OFF. If the disc has only one subtitle ﬁ le, it will be played

automatically. See number 2 (Caption Function) below for more details

concerning Subtitle usage with DivX discs.

Page 33

ENG

● PLAYBACK

If the Disc has more than One Subtitle File

If the disc has more than one subtitle ﬁ le, the default subtitle may not match the movie and you will have to select your subtitle language as follows:

In Stop mode, press the Cursor $, % button, select the

desired subtitle ( ) from the TV screen, and then press the ENTER button.

When you select the desired DivX ﬁ le from the TV

screen, the movie will be played normally.

DivX(Digital internet video express)

DivX is a video ﬁ le format developed by Microsoft and is based on MPEG4 compression technology to provide audio and video data over the Internet in real-time.

MPEG4 is used for video encoding and MP3 for audio encoding so that the users can watch a movie at near DVD-quality video and audio.

Supported Formats

This product only supports the following media formats.If both video and audio formats are not supported, the user may experience problems such as broken images or no sound.

Supported Video Formats

Format AVI WMV

Supported Versions DivX3.11~DivX5.1, XviD V1/V2/V3/V7

Supported Audio Formats

Format MP3 WMA AC3

Bit Rate 80~384kbps 56~128kbps 128~384kbps

Sampling Frequency 44.1khz 44.1/48khz

Aspect Ratio : Although the default DivX resolution is 640x480 pixels (4:3), this product supports

up to 800x600 pixels (16:9). TV screen resolutions higher than 800 will not be supported. When you play a disc whose sampling frequency is higher than 48khz or 320kbps, you may

experience shaking on the screen during playback.

Caption Function

You must have some experience with video extraction and editing in order to use this feature

properly. To use the caption function, save the caption ﬁ le (*.smi) in the same ﬁ le name as that of the DivX

media ﬁ le (*.avi) within the same folder. Example. Root Samsung_007CD1.avi

Samsung_007CD1.smi

Up to 60 alphanumeric characters or 30 East Asian characters (2 byte characters such as Korean

and Chinese) for the ﬁ le name. Ofﬁ cial DivX® Certiﬁ ed product

Plays all versions of DivX® video (including DivX® 6) with standard playback of DivX® media ﬁ les

Page 34

playback

USING THE PLAYBACK FUNCTION

Displaying Disc Information

You can view disc playback information on the TV screen.

Press the INFO button.

Depending on the disc, the disc information display may

appear different.

Depending on the disc, you can also select

DTS, DOLBY DIGITAL, or PRO LOGIC.

appears on the TV screen!

If this symbol appears on the TV screen when pressing a button, that operation is not possible with the disc currently being played.

Checking the Remaining Time

Press the REMAIN button.

For checking the total and remaining time of a title or

chapter being played.

BAGD

Each time the Remain button is pressed

TITLE ELAPSED ➞ TITLE REMAIN ➞ CHAPTER ELAPSED ➞ CHAPTER REMAIN

DVD-VIDEO

GROUP ELAPSED ➞ GROUP REMAIN ➞ TRACK ELAPSED ➞ TRACK REMAIN

DVD-AUDIO

TRACK ELAPSED ➞ TRACK REMAIN ➞ TOTAL ELAPSED ➞ TOTAL REMAIN

TRACK REMAIN ➞ TRACK ELAPSED

Page 35

ENG

● PLAYBACK

Fast Playback

Press the (, ) button.

Each time the button is pressed during playback, the

playback speed changes as follows:

( 2X ➞ ( 4X ➞ ( 8X ➞ ( 32X ➞  PLAY

BAD

) 2X ➞ ) 4X ➞ ) 8X ➞ ) 32X ➞  PLAY

During fast playback of a CD or MP3-CD, sound is heard only at 2x speed, and not at 4x, 8x, and 32x speeds.

Slow Playback

Press the SLOW button.

Each time the button is pressed during playback, the playback speed changes as follows:

*1/2 ➞ *1/4 ➞ *1/8 ➞ &1/2 ➞ &1/4 ➞

&1/8 ➞  PLAY

*1/2 ➞ *1/4 ➞ *1/8 ➞  PLAY

No sound is heard during slow playback.

Reverse slow playback does not work with DivX.

Skipping Scenes/Songs

Press the [, ] button.

Each time the button is pressed during playback, the previous

or next chapter, track or directory (ﬁ le) will be played. You cannot skip chapters consecutively.

Page 36

playback

Repeat Playback

Repeat playback allows you to repeatedly play a chapter, title, track (song), or directory (MP3 ﬁ le).

Press the REPEAT button.

Each time the button is pressed during playback, the repeat

playback mode changes as follows:

DVD-VIDEO

DVD-AUDIO

B BGD

CHAPTER : Repeatedly plays the selected chapter.

TITLE : Repeatedly plays the selected title.

GROUP : Repeatedly plays the selected group.

RANDOM : Plays tracks in random order. (A track that has already been played may be played again.)

TRACK : Repeatedly plays the selected track.

DIR : Repeatedly plays all tracks in the selected folder.

DISC : Repeatedly plays the entire disc.

OFF : Cancels Repeat Playback.

REPEAT : CHAPTER ➞ REPEAT : TITLE ➞ REPEAT : OFF

REPEAT : TRACK ➞ REPEAT : GROUP ➞ REPEAT : OFF

REPEAT : TRACK ➞ REPEAT : DISC ➞ REPEAT : OFF

REPEAT : RANDOM ➞ REPEAT : TRACK ➞ REPEAT : DIR

➞ REPEAT : DISC ➞ REPEAT : OFF

BAGD

To Select a Repeat Playback Mode on the disc Information Screen

Press the INFO button twice.

Press the Cursor + button to move to REPEAT

PLAYBACK ( ) display. Press the Cursor % button to select the desired Repeat

Playback mode.

To select another album and track, repeat Steps 2 and

3 above.

Press the ENTER button.

OFF ➞ A- ➞ CHAP ➞ TITLE ➞ OFF

OFF ➞ A- ➞ TRACK ➞ DISC ➞ OFF

For DivX, MP3 and JPEG discs, you cannot select Repeat Play from the information display screen.

Page 37

ENG

● PLAYBACK

A-B Repeat Playback

A -

A -?

A - B

REPEAT : AÐ

You can repeatedly play back a designated section of a DVD.

Press the INFO button twice.

Press the Cursor + button to move to REPEAT PLAYBACK

( ) display. Press the Cursor $, % button to select A- and then press

the ENTER button.

When the ENTER button is pressed, the selected position

will be stored in memory.

Press the ENTER button at the end of the desired segment.

The speciﬁ ed segment will be played repeatedly.

d To return to normal playback, press the Cursor $, % button to select OFF.

The A-B Repeat function does not operate with DivX, MP3 or JPEG discs.

Step Function

Press the STEP button.

The picture moves forward one frame each time the button is

pressed during playback.

No sound is heard during step motion playback.

Page 38

playback

Angle Function

This function allows you to view the same scene in different angles.

Press the INFO button.

Press the Cursor + button to move to ANGLE ( )

display. Press the Cursor $, % button or numeric buttons to select

the desired angle.

Each time the button is pressed, the angle changes as

follows:

1/3  2/3  3/3  1/3

The Angle function works only with discs on which multiple angles have been recorded.

Zoom (Screen Enlarge) Function

This function allows you to enlarge a particular area of the displayed image.

Press the ZOOM button.

Press the Cursor $, %, _, + button to move to the area

you want to enlarge.

Press the ENTER button.

Each time the button is pressed, the zoom level changes

as follows:

ZOOM X 1.5  ZOOM X 2  ZOOM X 3  ZOOM OFF

SELECT ZOOM POSITION

Page 39

ENG

● PLAYBACK

Bonus Group

Some DVD-Audio discs have an extra ‘bonus’ group that requires a 4-digit key number to access. See the disc packaging for details and the key number.

When you play a DVD-Audio disc that has a bonus group, the key number input screen appears automatically.

If you eject the disc, switch the power off, or unplug the player, you will need to re-enter the key number.

DVD-AUDIO

Navigating Pages

During playback, press the ., , button on the remote control.

You can select the desired image from a DVD-Audio disc

containing still images. With some discs, you may not be able to select images.

DVD-AUDIO

Audio Language Selection Function

Press the INFO button twice.

Press the Cursor $, % button or numeric buttons to select

the desired audio language.

Depending on the number of languages on a DVD disc,

a different audio language (ENGLISH, SPANISH, FRENCH, etc.) is selected each time the button is pressed.

EN 1/3  SP 2/3  FR 3/3  EN 1/3

To operate this function, you can also press the AUDIO buttons on the remote control.

Depending on the disc, the Audio Language functions may not be available.

Page 40

playback

Subtitle Language Selection Function

Press the INFO button twice.

Press the Cursor + button to move to SUBTITLE ( )

display. Press the Cursor % button or numeric buttons to select the

desired subtitle.

EN 01/03  SP 02/03  FR 03/03  OFF/03  EN 01/03

To operate this function, you can also press the SUBTITLE buttons on the remote control.

Depending on the disc, the Subtitle Language functions may not be available.

Moving Directly to a Scene/Song

Press the INFO button.

Press the Cursor $, % button or numeric buttons to select

the desired title/track ( ) and then press the ENTER button.

Press the Cursor _, + button to move to the Chapter ( )

display. Press the Cursor $, % button or numeric buttons to select

the desired chapter and then press the ENTER button. Press the Cursor _, + button to move to time ( ) display.

Press the numeric buttons to select the desired time and

then press the ENTER button.

Press the numeric buttons.

The selected ﬁ le will be played.

When playing an MP3 or JPEG disc, you cannot use the Cursor $, %

button to move to a folder. To move a folder, press the STOP (@) and then press the Cursor

$, % button.

BAG

You can press the [, ] button on the remote control to move directly to the desired title, chapter, or track.

Depending on the disc, you may not be able to move to the selected title or time.

Page 41

ENG

● PLAYBACK

Using the Disc Menu

You can use the menus for the audio language, subtitle language, proﬁ le, etc.

DVD menu contents differ from disc to disc.

In Stop mode, press the MENU button.

Press the Cursor $, % button or numeric buttons to move

to Disc Menu and then press the ENTER button.

When you select Disc Menu and it is not supported by

the disc, the "This menu is not supported" message appears on the screen.

Press the Cursor $, %, _, + button to select the desired

item.

Press the ENTER button.

d Press the EXIT button to exit the setup screen.

The disc menu display may be different depending on the disc.

ENTERMOVE

EXIT

Using the Title Menu

For DVDs containing multiple titles, you can view the title of each movie. Depending on the disc, the availability of this feature may vary.

In Stop mode, press the MENU button.

Press the Cursor $, % button to move to Title Menu.

Press the ENTER button.

The title menu appears.

d Press the EXIT button to exit the setup screen.

The Title menu display may be different depending on the disc.

ENTERMOVE

EXIT

Page 42

playback

USING BLUETOOTH

You can use a Bluetooth device to enjoy music with high quality stereo sound, all without wires!

What is Bluetooth?

Bluetooth is a new technology that enables Bluetooth-compliant devices to easily interconnect with each other using a short wireless connection.

A Bluetooth device may cause a noise or malfunction, depending on usage.

When a part of the body is in contact with the receiving/transmitting system of the Bluetooth device

or the Home Cinema System. Electrical variation from obstructions caused by a wall, corner or ofﬁce partitioning.

Electrical interference from same frequency-band devices including medical equipment, microwave

oven and wireless LAN.

Pair the Home Cinema System with the Bluetooth device while maintaining a close distance.

The further the distance is between Home Cinema System and Bluetooth device, the worse the

quality is. If the distance exceeds the Bluetooth operational range, the connection is lost. The Home Cinema System only supports Middle Quality SBC data(up to 237kbps@48kHz), and does

not support High Quality SBC data([email protected]). In poor reception-sensitivity areas, the Bluetooth connection may not work properly.

The Home Cinema System has an effective reception range of up to 10 meters in all directions if there

are no obstacles. The connection will be automatically cut off if the distance is out of this range. Even within this range, the sound quality may be deteriorated by obstacles such as walls or doors.

To connect the Home Cinema System to a Bluetooth device

Check if the Bluetooth device supports the Bluetoothcompliant stereo headset function.

Press the FUNCTION button on the front panel of the

home cinema system repeatedly until "BT AUDIO" appears.

The mode switches as follows :

DVD/CD  DIGITAL IN  AUX 1  AUX 2  USB  BT AUDIO  TUNER.

You will see “WAIT” for 2 seconds and then

“READY” on the front display of the Home Cinema System.

Select the Bluetooth menu on Bluetooth device you want

to connect. (refer to Bluetooth device's user manual) Select the Stereo headset menu on the Bluetooth device.

You will see a list of scanned devices.

Select "Samsung Home Theater" from the searched

list.

When the Home Cinema System is connected to the Bluetooth device, the Home Cinema System

will display "Connect" on the front display, followed by the device name of the connected Bluetooth device.

The Home Cinema System connection is complete.

Play music on the connected device.

You can listen to the music playing on the connected Bluetooth device over the home cinema system.

Connect

Bluetooth devide

You may be required to enter a PIN code(password) when connecting the Bluetooth device to the home cinema

system. If the PIN code input window appears, enter <0000>. The Home Cinema System may control play related function only when connected device supports the

function. The Home Cinema System only supports Middle Quality SBC data(up to 237kbps@48kHz), and does not

support High Quality SBC data([email protected]).

Page 43

ENG

● PLAYBACK

To disconnect the Bluetooth device from the Home Cinema System

You can disconnect the Home Cinema System from the Bluetooth device. (refer to Bluetooth deivice's user's manual)

The Home Cinema System will be disconnected.

When the Home Cinema System is disconnected from the

Bluetooth device, the Home Cinema System will display "Disconnect" on the front display.

To disconnect the Home Cinema System from the Bluetooth device

Press the FUNCTION button on the front panel of the home cinema system to switch from “BT AUDIO” to another mode.

The connected Bluetooth device will wait a certain time for response from the home cinema system

before terminating the connection. (Disconnection time may differ, depending on the Bluetooth device) The currently connected device will be disconnected.

In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Home Cinema

System and the Bluetooth device exceeds ( restart the Bluetooth device, the Bluetooth connection can be restored.

With some Bluetooth devices, some functions may not work properly.

10 meters

). If the distance is returned to the effective range or you

Page 44

playback

PLAYING MEDIA FILES USING THE USB HOST FEATURE

You can enjoy media ﬁ les such as pictures, movies and music saved on an MP3 player, USB memory stick or digital camera in high quality video with 5.1 channel Home Cinema sound by connecting the storage device to the USB port of the Home Cinema.

Connect the USB device to the USB port on the side of

the unit.

Press the FUNCTION button on the DVD Player or the

PORT button on the remote control to select the USB mode.

USB appears on the display screen and then

disappears. The USB MENU screen appears on the TV screen

and the saved ﬁ le is played.

To stop playback, press the STOP (@) button.

Safe USB Removal

To prevent damage to the data stored in the USB device, perform safe removal before disconnecting the USB cable.

Press the STOP (@) button twice in a row.

The display will show REMOVE USB. Remove the USB cable.

To listen to your music ﬁ les with 5.1 channel home cinema sound, you must set the Dolby Pro Logic II mode

to Matrix. (See page 56)

Skip Forward/Back

During playback, press the [, ] button.

When there is more than one ﬁ le and you press the ]

button, the next ﬁ le is selected. When there is more than one ﬁ le and you press the [

button, the previous ﬁ le is selected.

Page 45

ENG

● PLAYBACK

Fast playback

During playback, press the (, ) button.

Each time you press either button, the playback speed will

change as follows:

2x  4x  8x  32x  Normal.

Compatible Devices

USB devices that support USB Mass Storage v1.0. (USB devices that operate as a removable disc

in Windows (2000 or later) without additional driver installation.)

MP3 Player: HDD and ﬂ ash type MP3 players.

Digital camera: Cameras that support USB Mass Storage v1.0.

Cameras that operate as a removable disc in Windows (2000 or later) without additional driver

installation.

USB HDD and USB Flash Drive: Devices that support USB2.0 or USB1.1.

You may experience a difference in playback quality when you connect a USB1.1 device.

For a USB HDD, make sure to connect an auxiliary power cord to the USB HDD for proper

operation.

USB card Reader: One slot USB card reader and Multi slot USB card reader.

Depending on the manufacturer. the USB card reader may not be supported.

If you install multiple memory devices into a multi card reader, you may experience problems.

If you use a USB extension cable, the USB device might not be recognized.

Supported Formats

Format File name

Still Picture

Music

Movie

CBI (Control/Bulk/Interrupt) is not supported.

Digital Cameras that use PTP protocol or require additional program installation when connected to a

PC are not supported. A device using NTFS ﬁ le system is not supported. (Only FAT 16/32 (File Allocation Table 16/32) ﬁ le

system is supported.) Some MP3 players, when connected to this product, may not operate depending on the sector size

of their ﬁ le systems. The USB host function is not supported if a product that transfers media ﬁ les by its manufacturer-

speciﬁ c program is connected. Does not operate with Janus enabled MTP (Media Transfer Protocol) devices.

The USB host function of this product does not support all USB devices. For information on the

supported devices, see page 65.

JPG JPG .JPEG – – 640x480 –

MP3 .MP3 80~384kbps – – 44.1kHz

WMA .WMA 56~128kbps V8 – 44.1kHz

WMV .WMV 4Mbps V1,V2,V3,V7 720x480 44.1KHz~48KHz

DivX .AVI,.ASF 4Mbps

File

extension

Bit rate Version Pixel

DivX3.11~

DivX5.1, XviD

720x480 44.1KHz~48KHz

Sampling

Frequency

Page 46

system setup

For your convenience, you can set this Home Cinema System's features for the best use in your home environment.

SETTING THE LANGUAGE

OSD(On-Screen Display) language is set to English by default.

In Stop mode, press the MENU button.

Press the Cursor % button to move to Setup and then press the

ENTER or + button.

Select Language and then press the ENTER or + button.

Press the Cursor $,% button to select OSD Language and then

press the ENTER or + button.

Press the Cursor $,% button to select the desired language

and then press the ENTER button.

Once the setup is complete, the OSD will be English if

English has been selected as the language.

MOVE ENTER

EXITRETURN

d Press the RETURN button to return to the previous level.

d Press the EXIT button to exit the setup screen.

OSD LANGUAGE : Selecting the OSD Language

AUDIO : Selecting the Audio Language (recorded on the disc)

SUBTITLE : Selecting the Subtitle Language (recorded on the disc)

DISC MENU :

 If the language you selected is not recorded on the disc, menu

language will not change even if you set it to your desired language.

OTHERS : To select another language, select OTHERS and

enter the language code of your country (see page 64). AUDIO, SUBTITLE and DISC MENU languages can be selected.

Selecting the Disc Menu Language (recorded on the disc)

MOVE ENTER EXITRETURN

MOVE SELECT EXIT

RETURN

Page 47

ENG

● SYSTEM SETUP

SETTING TV SCREEN TYPE

Depending on your TV type (Wide Screen or conventional 4:3), you can select the TV's aspect ratio.

In Stop mode, press the MENU button.

Press the Cursor % button to move to Setup and then press the

ENTER or + button.

Press the Cursor % button to move to TV DISPLAY and then

press the ENTER or + button.

Press the Cursor $,% button to select the desired item and then

press the ENTER button.

Once the setup is complete, you will be taken to the previous

screen.

d Press the RETURN button to return to the previous level. d Press the EXIT button to exit the setup screen.

MOVE ENTER EXITRETURN

MOVE SELECT EXIT

RETURN

Adjusting the TV Aspect Ratio (Screen Size)

The horizontal to vertical screen size ratio of conventional TVs is 4:3, while that of widescreen and high deﬁnition TVs is 16:9. This ratio is called the aspect ratio. When playing DVDs recorded in different screen sizes, you should adjust the aspect ratio to ﬁt your TV or monitor.

For a standard TV, select either 4:3PS or 4:3LB option according to personal preference. Select WIDE/HDTV if you have a widescreen TV.

4:3PS (4:3 Pan&Scan) Select this to play a 16:9 picture in the pan & scan mode on a conventional TV.

You can see the central portion of the screen only (with the sides of

the 16:9 picture cut off).

4:3LB (4:3 Letterbox) Select this to play a 16:9 picture in the letter box mode on a conventional TV.

Black bars will appear at the top and bottom of the screen.

WIDE/HDTV Select this to view a 16:9 picture in the full-screen mode on your widescreen TV.

You can enjoy the widescreen aspect.

If a DVD is in the 4:3 ratio, you cannot view it in widescreen.

Since DVD discs are recorded in various image formats, they will look different depending on the software, the

type of TV, and the TV aspect ratio setting.

When using HDMI, the screen is automatically converted to Wide mode.

Page 48

system setup

SETTING PARENTAL CONTROLS (RATING LEVEL)

Use this to restrict playback of adult or violent DVDs you do not want children to view.

In Stop mode, press the MENU button.

Press the Cursor % button to move to Setup and then press the

ENTER

or + button.

Press the Cursor % button to move to PARENTAL and then press the ENTER

or + button. Press the Cursor $,% button to select the desired rating level and then press

the ENTER button.

If you have selected Level 6, you cannot view DVDs with Level 7 or higher.

The higher the level, the closer the content is to violent or adult material.

Enter the password and then press the ENTER button.

The password is set to "7890" by default.

Once the setup is complete, you will be taken to the previous screen.

d Press the RETURN button to return to the previous level. d

Press the EXIT button to exit the setup screen.

This function works only if a DVD disc contains rating level information.

MOVE ENTER EXITRETURN

MOVE SELECT EXITRETURN

SETTING THE PASSWORD

You can set the password for the Parental (rating level) setting.

In Stop mode, press the MENU button.

Press the Cursor % button to move to Setup and then press the

ENTER

or + button.

Press the Cursor % button to move to PASSWORD and then

press the ENTER or + button. Press the ENTER button.

Enter the password and then press the ENTER button.

Enter the old password, a new password, and conﬁrm new

password. The setting is complete.

The password is set to "7890" by default.

If you have forgotten the rating level password, do the following

While the player is in No DIsc mode, hold the DVD Players STOP (@) button for longer than

5 seconds. INITIAL appears on the display and all settings will return to the default values. Press the POWER button.

Using the RESET function will erase all stored settings. Do not use this unless necessary.

MOVE ENTER EXIT

MOVE SELECT EXITRETURN

RETURN

Page 49

ENG

● SYSTEM SETUP

SETTING THE WALLPAPER

While watching a DVD or JPEG CD, you can set the image you like as background wallpaper.

During playback, press the PAUSE ( ) button when an

image you like appears.

Press the LOGO button.

COPY LOGO DATA will be displayed on the TV screen.

The power will turn off and then back on.

The selected wallpaper will be displayed.

You can select up to 3 wallpaper settings.

LOGO IS COPIED

# PAUSE

COPY LOGO DATA # PAUSE

This function will not work when the HDMI output is 720p, 1080i or 1080p.

TO SELECT ONE OF THE 3 WALLPAPER SETTINGS YOU'VE MADE

In Stop mode, press the MENU button.

Press the Cursor % button to move to Setup and then press the

ENTER or + button.

Press the Cursor % button to move to LOGO and then press the

ENTER or + button.

Press the Cursor $,% button select the desired USER, and then

press the ENTER button.

This selects one of the 3 wallpaper screens.

Press the EXIT button to exit the setup screen.

ORIGINAL : Select this to set the Samsung Logo image as your

wallpaper. USER : Select this to set the desired image as your wallpaper.

d Press the RETURN button to return to the previous level. d Press the EXIT button to exit the setup screen.

MOVE ENTER EXITRETURN

MOVE SELECT EXIT

RETURN

Page 50

system setup

DVD PLAYBACK MODE

Some DVD-Audio discs contain DVD-Video as well as DVD-Audio.

To play back the DVD-Video portion of the DVD-Audio disc, set the unit to DVD-Video mode.

Press the MENU button while the disc tray is open.

Press the Cursor % button to move to Setup and then press the

ENTER or + button.

Press the Cursor % button to move to DVD TYPE and then press

the ENTER or + button.

Press the Cursor $,% button to move to DVD VIDEO and then press

the ENTER button.

Set steps 1 ~ 4 again if you want to switch to DVD AUDIO Play

mode.

DVD VIDEO : Set to play the DVD video contents contained on a

DVD audio disc. DVD AUDIO : Set to play the default DVD audio.

DVD Play mode is set to DVD Audio as factory default setting.

Powering off the main unit will automatically switch to the DVD Audio mode.

MOVE ENTER EXITRETURN

MOVE ENTER EXIT

RETURN

DviX (R) Registration

Please use the Registration code to register this player with the DivX (R) video on demand format. To learn more, go to www.divx.com/vod.

SETTING THE SPEAKER MODE

Signal outputs and frequency responses from the speakers will automatically be adjusted according to your speaker conﬁguration and whether certain speakers are used or not.

In Stop mode, press the MENU button.

Press the Cursor % button to move to Audio and then press the

ENTER or + button.

In the SPEAKER SETUP, press the ENTER or + button again.

Press the Cursor $, %, _, + button to move to the desired

speaker and then press the ENTER button.

For C, SL, and SR, each time the button is pressed, the mode

switches alternately as follows : SMALL  NONE. For L and R, the mode is set to SMALL.

SMALL : Select this when using the speakers.

NONE : Select this when no speaker is connected.

d Press the RETURN button to return to the previous level. d Press the EXIT button to exit the setup screen.

MOVE ENTER EXITRETURN

MOVE CHANGE EXIT

RETURN

Depending on PRO LOGIC and STEREO settings, the speaker mode may vary (see page 56).

Page 51

ENG

● SYSTEM SETUP

SETTING THE DELAY TIME

If the speakers cannot be placed at equal distances from the listening position, you can adjust the delay time of the audio signals from the center and rear speakers.

In Stop mode, press the MENU button.

Press the Cursor % button to move to Audio and then press the

or + button.

ENTER

Press the Cursor % button to move to DELAY TIME and then press

the ENTER or + button.

Press the ENTER button.

Press the Cursor _, + button to set the Delay time.

You can set the delay time for C between 00 and 05mSEC and for

SL and SR between 00 and 15mSEC.

d Press the RETURN button to return to the previous level.

d Press the EXIT button to exit the setup screen.

Setting up the Speaker Delay Time

When 5.1CH Surround Sound is played, you can enjoy the best sound if the distance between you and each speaker is the same. Since the sounds arrive at the listening position at different times depending on the placement of speakers, you can adjust this difference by adding a delay effect to the sound of the Center and Surround Speakers.

Setting CENTER SPEAKER

If the distance of Dc is equal to or longer than the distance of Df in the ﬁgure, set the mode as 0ms. Otherwise, change the setting according to the table.

Distance between

Df and Dc

Delay Time

0.00 m 0.34 m 0.68 m 1.06 m 1.40 m 1.76 m

0 ms 1 ms 2 ms 3 ms 4 ms 5 ms

Setting REAR SPEAKERS

If the distance of Dc is equal to or longer than the distance of Dr in the ﬁgure, set the mode as 0ms. Otherwise, change the setting according to the table.

Distance between

Df and Dc

Delay Time

` `

0.00 m 1.06 m 2.11 m 3.16 m 3.62 m 5.29 m

0 ms 3 ms 6 ms 9 ms 12 ms 15 ms

With PL II (Dolby Pro Logic II), the delay time may be different for each mode. With AC-3 and DTS, the delay time can be set between 00 and 15mSEC. The Center channel is only adjustable on 5.1 channel discs.

Ideal center speaker placement

Ideal surround speaker placement

It is desirable to place all speakers within this circle.

Df: The distance from front speaker Dc: The distance from center speaker Ds: The distance from surround speaker

Page 52

system setup

SETTING THE TEST TONE

Use the Test Tone feature to check the speaker connections.

In Stop mode, press the MENU button.

Press the Cursor % button to move to Audio and then press the

ENTER or + button.

Press the Cursor % button to move to TEST TONE and then press

the ENTER or + button.

The test tone will be sent to L  C  R  SR  SL  SW in

order. If the ENTER button is pressed again at this time, the test tone

will stop.

d Press the RETURN button to return to the previous level. d Press the EXIT button to exit the setup screen.

MOVE ENTER EXITRETURN

SETTING THE AUDIO

You can adjust the balance and level for each speaker.

In Stop mode, press the MENU button.

Press the Cursor % button to move to Audio and then press the

ENTER or + button.

Press the Cursor % button to move to SOUND EDIT and then

press the ENTER or + button. Press the Cursor $, % button to select and adjust the desired

item. Press the Cursor _, + button to adjust the settings.

d Press the RETURN button to return to the previous level. d Press the EXIT button to exit the setup screen.

STOP

MOVE ENTER EXITRETURN

MOVE CHANGE EXIT

RETURN

EXIT

Page 53

ENG

● SYSTEM SETUP

Manually Adjusting the Speaker Volume and Balance with the SOUND EDIT Button.

Press the SOUND EDIT button and then press the Cursor

_, +

button.

Each time you press the SOUND EDIT button, you can see

the balance and level for each speaker.

Adjusting Front/Rear Speaker Balance

You can select between 0 dB, -6 dB, and OFF.

The volume decreases as you move closer to – 6 dB.

Adjusting Center/Rear/Subwoofer Speaker Level

The volume level can be adjusted in steps from +6dB to –6dB.

The sound gets louder as you move closer to +6dB and quieter as you get closer to -6dB.

SETTING THE DRC (DYNAMIC RANGE COMPRESSION)

This feature balances the range between the loudest and quietest sounds. You can use this function to enjoy Dolby Digital sound when watching movies at low volume at night.

In Stop mode, press the MENU button.

Press the Cursor % button to move to Audio and then press the

ENTER or + button.

Press the Cursor % button to move to DRC and then press the

ENTER or + button. Press the Cursor $, % to adjust the DRC.

When the Cursor $ button is pressed, the effect is greater, and

when the Cursor % button is pressed, the effect is smaller.

d Press the RETURN button to return to the previous level. d Press the EXIT button to exit the setup screen.

CHANGE EXIT

RETURNMOVE ENTER EXIT

RETURN

Page 54

system setup

SETTING THE AV SYNC

Video may look slower than the audio if it is connected to a digital TV. If this occurs, adjust the audio delay time to to match the video.

In Stop mode, press the MENU button.

Press the Cursor % button to move to Audio and then press the

ENTER or + button.

Press the Cursor % button to move to AV-SYNC and then press

the ENTER or + button. Press the Cursor $, % button to select the AV-SYNC Delay Time

and then press the ENTER button.

You can set the audio delay time between 0 ms and 300 ms. Set

it to the optimal status.

d Press the RETURN button to return to the previous level. d Press the EXIT button to exit the setup screen.

SETTING THE HDMI AUDIO

The audio signals transmitted over the HDMI Cable can be toggled ON/OFF.

MOVE ENTER EXITRETURN

MOVE SELECT EXIT

RETURN

In Stop mode, press the MENU button.

Press the Cursor % button to move to Audio and then press the

ON : Both video and audio signals are transmitted over the HDMI

connection cable, and audio is output through your TV speakers only.

OFF : Video is transmitted over the HDMI connection cable only, and

audio is output through the home cinema speakers only.

d d

or + button.

ENTER

Press the Cursor % button to move to HDMI AUDIO and then press the ENTER or + button.

Press the Cursor $, % button to select ON or OFF and then press the ENTER button.

Press the RETURN button to return to the previous level.

Press the EXIT button to exit the setup screen.

The default setting of this function is HDMI AUDIO OFF.

HDMI AUDIO is automatically down-mixed to 2ch for TV speakers.

MOVE ENTER EXITRETURN

MOVE SELECT EXIT

RETURN

Page 55

ENG

● SYSTEM SETUP

SOUND FIELD (DSP)/EQ FUNCTION

DSP(Digital Signal Processor) : DSP modes have been designed to simulate different acoustic environments.

EQ : You can select ROCK, POP, or CLASSIC to optimize the sound for the genre of music you are playing

Press the DSP/EQ button.

DSP appears on the display panel.

Each time the button is pressed, the selection changes as follows:

POPS ➞ JAZZ ➞ ROCK ➞ STUDIO ➞ CLUB ➞ HALL ➞ MOVIE ➞ CHURCH ➞ PASS

POPS, JAZZ, ROCK : Depending on the genre of music,

you can select POPS, JAZZ, and ROCK. STUDIO : Provides a sense of presence as if in a studio.

CLUB : Simulates the sound of a dance club with a

throbbing bass beat. HALL : Provides a clear vocal as if listening in a concert hall.

MOVIE : Provides the feeling of a movie cinema.

CHURCH : Gives the feel of being in a grand church.

PASS : Select this for normal listening.

The DSP/EQ function is only available in STEREO mode.

Press the PL II mode button to show STEREO on the display.

This feature works with CDs, MP3-CDs, 2 channel DVD-Audio, DivX, tuner and Dolby Digital discs.

When playing a DVD disc encoded with two or more channels, multi-channel mode will be selected

automatically and DSP/EQ function does not work.

Page 56

system setup

DOLBY PRO LOGIC II MODE

You can select the desired Dolby Pro Logic II AUDIO mode.

Press the PL II MODE button.

Each time the button is pressed, the mode changes as follows.

MUSIC ➞ CINEMA ➞ PRO LOGIC ➞ MATRIX ➞

STEREO ➞ MUSIC

PRO LOGIC II

MUSIC : When listening to music, you can experience sound

effects as if you are listening to the actual performance.

CINEMA : Adds realism to the movie soundtrack.

PRO LOGIC : You will experience a realistic multi-channel effect, as if you're using ﬁ ve speakers,

though using just the front left and right speakers.

MATRIX : You will hear 5.1 channel surround sound.

STEREO : Select this to listen to sound from the front left and right speakers and the subwoofer only.

When selecting Pro Logic II mode, connect your external device to the AUDIO INPUT jacks

(L and R) on the player. If you connect to only one of the inputs (L or R), you cannot listen to surround sound.

DOLBY PRO LOGIC II EFFECT

This function works only in Dolby Pro Logic II MUSIC mode.

Press the PL II MODE button to select MUSIC mode.

Press the PL II EFFECT button.

Press the _, + buttons to select the desired effect setting.

PANORAMA : This mode extends the front stereo image

to include the surround speakers for an exciting "wraparound" effect with side wall imaging. You can select either 0 or 1.

C- WIDTH : Sound is output to the center speaker only.

The front left and right speakers produce phantom sound. You can select between 0 and 7.

DIMENS : Incrementally adjusts the sound ﬁ eld (DSP) from the front or rear.

You can select between 0 and 6.

Page 57

ENG

● SYSTEM SETUP

ASC (Auto Sound Calibration) SETUP

By setting the ASC function just once when you relocate or install the unit, you can have the unit automatically recognize the distance between speakers, levels between channels, and frequency characteristics to create a 5.1-channel sound ﬁ eld optimized for your environment.

ASC

Microphone

L: FRONT SPEAKER (L) R: FRONT SPEAKER (R) C: CENTER SPEAKER SW: SUBWOOFER

ASC SETUP can be made when there is no disc in the unit, or it is in Stop mode with a DVD/CD inserted.

Because the volume level of the tone is ﬁ xed during the ASC setup, you cannot adjust the volume using the

volume control buttons. If the auto sound microphone is disconnected during the ASC setup, the setup will be cancelled.

When ASC function is activated, the DSP/EQ, DOLBY PRO LOGIC ll, and P. BASS sound effects will not work.

SL: REAR SPEAKER (L) SR: REAR SPEAKER (R)

To Verify the ASC

Brieﬂ y press ASC button.

Distance and level values speciﬁ ed for each channel will appear in the display.

Page 58

system setup

ASC (Auto Sound Calibration) SETUP

Plug the ASC microphone into the ASC input jack.

Place the ASC microphone at the listening position.

Press ASC button.

To create the optimal 5.1 channel sound ﬁ eld, the

selections are in the following sequence:

L ➞ C ➞ R ➞ SR ➞ SL ➞ SW

When the message "REMOVE MIC" appears in the display,

unplug the ASC microphone.

Setting the ASC function takes about 3 minutes.

To cancel the ASC (Auto Sound Calibration) setup, press ASC button.

The tone output stops, "CANCEL ASC" appears in the display followed by "REMOVE MIC", and the setup is cancelled.

To listen in the ASC (Auto Sound Calibration) mode, brieﬂ y press ASC button.

The selection alternates between ASC ON and ASC OFF in the display.

If you select "ASC ON", you will hear sound in the ASC mode. If you select "ASC OFF", you will hear sound in the mode set in the audio setting of the setup screen.

Page 59

ENG

radio

LISTENING TO RADIO

Remote Control

Press the TUNER button to select the FM band.

Tune in to the desired station.

Automatic Tuning 1 : When the [, ] button is

pressed, a preset broadcast station is selected. Automatic Tuning 2 : Press and hold the ,, .

button to automatically search for active broadcasting stations.

Manual Tuning : Brieﬂ y press the ,, . button to

increase or decrease the frequency incrementally.

Main Unit

Press the FUNCTION button to select the FM band.

Select a broadcast station.

Automatic Tuning 1 : Press the STOP (@) button to

select PRESET and then press the [, ] button to select the preset station.

Automatic Tuning 2 : Press the STOP (@) button to

select MANUAL and then press and hold the [, ] button to automatically search the band.

Manual Tuning : Press the STOP (@) button to select

MANUAL and then brieﬂ y press the [, ] button to tune in to a lower or higher frequency.

Press the MO/ST button to listen in Mono/Stereo.

Each time the button is pressed, the sound switches between STEREO and MONO.

In a poor reception area, select MONO for a clear, interference-free broadcast.

● RADIO

PRESETTING STATIONS

Example : Presetting FM 89.10 in the memory

Press the TUNER button to select the FM band.

Press the ,, . button to select 89.10.

Press the TUNER MEMORY button.

01 ﬂ ashes in the display.

Press the [, ] button to select preset number.

You can select between 1 and 15 presets.

Press the TUNER MEMORY button again.

Press the TUNER MEMORY button before

Number disappears from the display. Number disappears from the display and the

station is stored in memory.

To preset another station, repeat steps 2 to 5.

To tune in to a preset station, press the [, ]

button on the remote control to select a channel.

This unit does not receive AM broadcasts.

Page 60

convenient function

SLEEP TIMER FUNCTION

You can set the time that the Home Cinema will shut itself off.

Press the SLEEP button.

SLEEP will be displayed. Each time the button is pressed,

the preset time changes as follows :

➞ 10 ➞ 20 ➞ 30 ➞ 60 ➞ 90 ➞ 120 ➞ 150 ➞ OFF

To conﬁ rm the sleep timer setting, press the SLEEP button.

The remaining time before the Home Cinema will shut itself

off is displayed. Pressing the button again changes the sleep time from what

you have set earlier.

To cancel the sleep timer, press the SLEEP button until OFF appears on the display.

ADJUSTING DISPLAY BRIGHTNESS

You can adjust the brightness of the display on the main unit so it won't interfere with your movie viewing.

Press the DIMMER button.

Each time the button is pressed, the front display brightness

will be adjusted.

MUTE FUNCTION

This is useful when answering a doorbell or telephone call.

Press the MUTE button.

MUTE appears in the display.

To restore the sound, press the MUTE button again.

S.VOL (SMART VOLUME)

This will regulate and stabilize the volume level against a drastic volume change in case of a channel change or scene transition.

Press the S.VOL button.

Each time the button is pressed, the selection changes as

follows :

S.VOL ON



S.VOL OFF

Page 61

ENG

P.BASS

P.BASS function stresses low tones providing thudding sound effects.

Press the P.BASS button to select P.BASS mode.

P BAS ON

The P.BASS function is only available with 2 channel LPCM sources such as mp3,Divx,cd and wma. Press

P.BASS button and "POWER BASS ON" will be displayed on the screen.

The P.BASS does not work with DSP/EQ or DOLBY PRO LOGIC ll modes. If you press P.BASS in the DSP/EQ

mode, the DSP/EQ mode is automatically shut off and the P. BASS function comes on.



P BAS OFF

AUDIO UPSCALING

This also helps enhance your sound experience (ex. mp3 music). Use this if you want to hear a better sound from a low-quality mp3 source.

Press the AUDIO UPSCALING button.

Each time the button is pressed, the selection changes as

follows :

UPSC ON



UPSC OFF

● CONVENIENT FUNCTION

VIRTUAL HEADPHONE FUNCTION

Use headphones (3.5Ø) (not supplied) for private listening pleasure. You can enjoy dynamic sound effects similar to that of 5.1 channel surround sound using conventional stereo headphones.

Plug the headphones into the headphone jack.

You can

purchase headphones from most

Electronics stores.

Do not listen at extremely high volume levels when using headphones.

Extended, high-volume listening can lead to permanent hearing loss.

Page 62

troubleshooting

Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed below or if the instruction below does not help, turn off the unit, disconnect the power cord, and contact the nearest authorized dealer or Samsung Electronics Service Center.

SYMPTOM Check/Remedy

I cannot eject the disc.

Playback does not start.

Playback does not start immediately when the Play/Pause button is pressed.

Sound is not produced.

Sound can be heard only from a few speakers and not all six.

• Is the power cord plugged securely into the outlet?

• Turn off the power and then turn it back on.

• Check the region number of the DVD. DVD discs purchased from abroad may not be playable.

• CD-ROMs and DVD-ROMs cannot be played on this DVD player.

• Make sure that the rating level is correct.

• Are you using a deformed disc or a disc with scratches on the surface?

• Wipe the disc clean.

• No sound is heard during fast playback, slow playback, and step motion playback.

• Are the speakers connected properly? Is the speaker setup correctly customized?

• Is the disc severely damaged?

• When listening to a CD or radio, sound is output to the front speakers (L/R) only. Select "PRO LOGIC II" by pressing

PL II (Dolby Pro Logic II) on the remote control to use all six

speakers.

• Make sure that the DVD disc is 5.1-CH compatible.

• If you set C, SL, and SR to NONE in the speaker mode in the audio setup of the setup screen, no sound is heard from the center speaker and the front left and right speakers. Set C, SL, and SR to SMALL.

Dolby Digital 5.1 CH Surround Sound is not produced.

The remote control does not work.

• Is there "Dolby Digital 5.1 CH" mark on the disc? Dolby Digital 5.1 CH Surround Sound is produced only if the disc is recorded with 5.1 channel sound.

• Is the audio language correctly set to DOLBY DIGITAL 5.1-CH in the information display?

• Is the remote control being operated within its operation range of angle and distance?

• Are the batteries exhausted?

• Have you selected the mode(TV/DVD) functions of the remote control (TV or DVD) correctly?

Page 63

ENG

● TROUBLESHOOTING

SYMPTOM Check/Remedy

• Disc is rotating but no picture is produced.

• Picture quality is poor and picture is shaking.

Audio language and subtitles do not work.

Menu screen does not appear even when the menu function is selected.

Aspect ratio cannot be changed.

• The main unit is not working. (Example: The power goes out or strange noise is heard.)

• The DVD player is not working normally.

The password for rating level has been forgotten.

• Is the TV power on?

• Are the video cables connected properly?

• Is the disc dirty or damaged?

• A poorly manufactured disc may not be playable.

• Audio language and subtitles will not work if the disc does not contain them.

• Are you using a disc that does not contain menus?

• You can play 16:9 DVDs in 16:9 WIDE mode, 4:3 LETTER BOX mode, or 4:3 PAN SCAN mode, but 4:3 DVDs can be seen in 4:3 ratio only. Refer to the DVD disc jacket and then select the appropriate function.

• Turn off the power and hold the control for longer than 5 seconds.

Using the RESET function will erase all stored settings. Do not use this unless it is necessary.

• While “NO DISC” message appears on the display of main unit, hold the main unit's STOP (@) button for longer than 5 seconds. “INITIAL” appears on the display and all settings will return to the default values.

• Press the POWER button.

STOP (@) button on the remote

Can't receive radio broadcast.

Using the RESET function will erase all stored settings. Do not use this unless it is necessary.

• Is the antenna connected properly?

• If the antenna's input signal is weak, install an external FM antenna in an area with good reception.

Page 64

language code list

Enter the appropriate code number for the initial settings “Disc Audio”, “Disc Subtitle” and/or “Disc Menu” (See page 46).

Code Language Code Language Code Language Code Language

1027 Afar 1181 Frisian 1334 Latvian, Lettish 1506 Slovenian

1028 Abkhazian 1183 Irish 1345 Malagasy 1507 Samoan

1032 Afrikaans 1186 Scots Gaelic 1347 Maori 1508 Shona

1039 Amharic 1194 Galician 1349 Macedonian 1509 Somali

1044 Arabic 1196 Guarani 1350 Malayalam 1511 Albanian

1045 Assamese 1203 Gujarati 1352 Mongolian 1512 Serbian

1051 Aymara 1209 Hausa 1353 Moldavian 1513 Siswati

1052 Azerbaijani 1217 Hindi 1356 Marathi 1514 Sesotho

1053 Bashkir 1226 Croatian 1357 Malay 1515 Sundanese

1057 Byelorussian 1229 Hungarian 1358 Maltese 1516 Swedish

1059 Bulgarian 1233 Armenian 1363 Burmese 1517 Swahili

1060 Bihari 1235 Interlingua 1365 Nauru 1521 Tamil

1069 Bislama 1239 Interlingue 1369 Nepali 1525 Tegulu

1066 Bengali; Bangla 1245 Inupiak 1376 Dutch 1527 Tajik

1067 Tibetan 1248 Indonesian 1379 Norwegian 1528 Thai

1070 Breton 1253 Icelandic 1393 Occitan 1529 Tigrinya

1079 Catalan 1254 Italian 1403 (Afan) Oromo 1531 Turkmen

1093 Corsican 1257 Hebrew 1408 Oriya 1532 Tagalog

1097 Czech 1261 Japanese 1417 Punjabi 1534 Setswana

1103 Welsh 1269 Yiddish 1428 Polish 1535 Tonga

1105 Danish 1283 Javanese 1435 Pashto, Pushto 1538 Turkish

1109 German 1287 Georgian 1436 Portuguese 1539 Tsonga

1130 Bhutani 1297 Kazakh 1463 Quechua 1540 Tatar

1142 Greek 1298 Greenlandic 1481 Rhaeto-Romance 1543 Twi

1144 English 1299 Cambodian 1482 Kirundi 1557 Ukrainian

1145 Esperanto 1300 Kannada 1483 Romanian 1564 Urdu

1149 Spanish 1301 Korean 1489 Russian 1572 Uzbek

1150 Estonian 1305 Kashmiri 1491 Kinyarwanda 1581 Vietnamese

1151 Basque 1307 Kurdish 1495 Sanskrit 1587 Volapuk

1157 Persian 1311 Kirghiz 1498 Sindhi 1613 Wolof

1165 Finnish 1313 Latin 1501 Sangro 1632 Xhosa

1166 Fiji 1326 Lingala 1502 Serbo-Croatian 1665 Yoruba

1171 Faeroese 1327 Laothian 1503 Singhalese 1684 Chinese

1174 French 1332 Lithuanian 1505 Slovak 1697 Zulu

Page 65

ENG

USB host feature supported products

DIGITAL CAMERA

Product Company Type Product Company Type

Finepix-A340 Fuji Digital Camera U300 Olympus Digital Camera Finepix-F810 Fuji Digital Camera X-350 Olympus Digital Camera Finepix-F610 Fuji Digital Camera C-760 Olympus Digital Camera

Finepix-f450 Fuji Digital Camera C-5060 Olympus Digital Camera

Finepix S7000 Fuji Digital Camera X1 Olympus Digital Camera

Finepix A310 Fuji Digital Camera U-mini Olympus Digital Camera

KD-310Z Konica Digital Camera Lumix-FZ20 Panasonic Digital Camera Finecam SL300R Kyocera Digital Camera DMC-FX7GD Panasonic Digital Camera Finecam SL400R Kyocera Digital Camera Lumix LC33 Panasonic Digital Camera

Finecam S5R Kyocera Digital Camera LUMIX DMC-F1 Panasonic Digital Camera

Finecam Xt Kyocera Digital Camera Optio-S40 Pentax Digital Camera

Dimage-Z1 Minolta Digital Camera Optio-S50 Pentax Digital Camera

Dimage Z1 Minolta Digital Camera Optio 33LF Pentax Digital Camera

Dimage X21 Minolta Digital Camera Optio MX Pentax Digital Camera Coolpix4200 Nikon Digital Camera Digimax-420 Samsung Digital Camera Coolpix4300 Nikon Digital Camera Digimax-400 Samsung Digital Camera

Coolpix 2200 Nikon Digital Camera Sora PDR-T30 Toshiba Digital Camera Coolpix 3500 Nikon Digital Camera Coolpix 5900 Nikon Digital Camera Coolpix 3700 Nikon Digital Camera Coolpix S1 Nikon Digital Camera Coolpix 4100 Nikon Digital Camera Coolpix 7600 Nikon Digital Camera Coolpix 5200 Nikon Digital Camera DMC-FX7 Panasonic Digital Camera

Stylus 410 digital Olympus Digital Camera Dimage Xt Minolta Digital Camera

300-digital Olympus Digital Camera AZ-1 Olympus Digital Camera 300-digital Olympus Digital Camera Digital Camera

● USB HOST FEATURE SUPPORTED PRODUCTS

USB FLASH DISC

Product Company Type Product Company Type

Cruzer Micro Sandisk

Cruzer Mini Sandisk USB 2.0 128M Micro Mini Iomega USB 2.0 128M Cruzer Mini Sandisk USB 2.0 256M iFlash Imation USB 2.0 64M

SONY Micro Vault Sony USB 2.0 64MB LG XTICK(M) USB 2.0 64M

FLEX DRIVE Serotech USB 2.0 32MB RiDATA EZDrive USB 2.0 64M

AnyDrive A.L tech USB 2.0 128MB

USB 2.0 USB Flash Drive 128M

XTICK LG USB 2.0 128M

MP3 PLAYER

Product Company Type Product Company Type

Creative MuVo NX128M

Iriver H320 Iriver 20G HDD MP3 Player YP-35 Samsung MP3 Player

YH-920 Samsung 20G HDD MP3 Player YP-55 Samsung MP3 Player

YP-T7 Samsung MP3 Player iAUDIO U2 Cowon MP3 Player

YP-MT6 Samsung MP3 Player iAUDIO G3 Cowon MP3 Player

YP-T6 Samsung MP3 Player iAudio M3 Cowon HDD MP3 Player YP-53 Samsung MP3 Player SI-M500L Sharp 256MB MP3 Player

YP-ST5 Samsung MP3 Player H10 Iriver MP3 Player

YP-T5 Samsung MP3 Player YP-T5 VB Samsung MP3 Player YP-60 Samsung MP3 Player YP-53 Samsung 256MB MP3 Player

Creative 128 MB MP3 Player YP-780 Samsung MP3 Player

Page 66

appendix

CAUTIONS ON HANDLING AND STORING DISCS

Small scratches on the disc may reduce sound and picture quality or cause skipping. Be especially careful not to scratch discs when handling them.

Handling discs

Do not touch the playback side of the disc. Hold the disc by the edges so that ﬁngerprints will not get on the surface.

Do not stick paper or tape on the disc.

Disc Storage

Do not keep in direct sunlight Keep in a cool ventilated area

Do not allow the discs to become contaminated with dirt.

Do not load cracked or scratched discs.

Keep in a clean Protection jacket.

Store vertically.

Handling and Storing Discs

When you get ﬁngerprints or dirt on the disc, clean it with a mild detergent diluted in water and wipe with a soft cloth.

When cleaning, wipe gently from the inside to the outside of the disc

Condensation may form if warm air comes into contact with cold parts inside the player. When condensation

forms inside the player, the player may not operate correctly. If this occurs, remove the disc and let the player stand for 1 or 2 hours with the power on.

Page 67

ENG

SPECIFICATIONS

General

Disc

Video Output

Power Consumption

Weight

Dimensions

Operating Temperature Range

Operating Humidity Range 10 % to 75 %

DVD (Digital Versatile Disc)

CD : 12 cm (COMPACT DISC)

CD : 8cm (COMPACT DISC)

Composite Video 1.0 Vp-p (75 Ω load)

Component Video

HDMI Impedance: 85~115Ω

Front speaker output 133W x 2(3Ω)

Center speaker output 133W(3Ω)

90 W

4.2 kg

449.6 (W) x 251.5 (H) x 99.1 (D) mm

+5°C~+35°C

Reading Speed : 3.49 ~ 4.06 m/sec.

Approx. Play Time (Single Sided, Single Layer Disc) : 135 min.

Reading Speed : 4.8 ~ 5.6 m/sec.

Maximum Play Time : 74 min.

Reading Speed : 4.8 ~ 5.6 m/sec.

Maximum Play Time : 20 min.

Y : 1.0 Vp-p (75 Ω load)

PR : 0.70 Vp-p (75 Ω load)

PB : 0.70 Vp-p (75 Ω load)

● APPENDIX

Ampliﬁer

Rear speaker output 133W x 2(3Ω)

Subwoofer speaker output 135W(3Ω)

Frequency range 20Hz~20KHz

S/N Ratio 70dB

Channel separation 60dB

Input sensitivity (AUX)400mV

Page 68

appendix

SpecificationS

Ht-X715

Speaker

Ht-tX715

Speaker

Speaker system

Impedance 3 Ω 3 Ω

Frequency range 140Hz~20KHz 35Hz~160Hz

Output sound pressure level 86dB 86dB

Rated input 133W 135W

Maximum input 266W 270W

Dimensions (W x H x D)

Weights

Speaker system

Impedance 3 Ω 3 Ω

Frequency range 140Hz~20KHz 35Hz~160Hz

Output sound pressure level 86dB 86dB

Rated input 133W 135W

Maximum input 266W 270W

Dimensions (W x H x D)

Weights

Front/Center/Rear Subwoofer

Front : 96.5 x 535.9 x 101.6 mm

Rear : 109.2 x 246.4 x 218.4 mm

Center : 376 x 83.5 x 142 mm

Subwoofer : 217 x 362 x 412 mm

Front : 2.2 kg, Rear : 0.9

Center : 1.2 kg, Subwoofer : 6.7

Front/Center/Rear Subwoofer

Front/Rear : 188 x 1340 x 96 mm

Center : 376x 83.5 x 142 mm

Subwoofer : 217 x 362 x 412 mm

Front/Rear : 6.5

Center : 1.2 kg, Subwoofer : 6.7

5.1ch speaker system

(stand base : ø190.5)

5.1ch speaker system

(stand base : ø306)

*: Nominal speciﬁcation

- Samsung Electronics Co., Ltd reserves the right to change the speciﬁcations without notice.

- Weight and dimensions are approximate.

Page 69

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.

Region Country Customer Care Center  Web Site

North America

Latin America

Europe

CIS

Asia Paciﬁc

Middle East &

Africa

CANADA 1-800-SAMSUNG(726-7864) www.samsung.com/ca MEXICO 01-800-SAMSUNG(726-7864) www.samsung.com U.S.A 1-800-SAMSUNG(726-7864) www.samsung.com ARGENTINE 0800-333-3733 www.samsung.com/ar BRAZIL 0800-124-421 , 4004-0000 www.samsung.com CHILE 800-SAMSUNG(726-7864) www.samsung.com/cl NICARAGUA 00-1800-5077267 HONDURAS 800-7919267 COSTA RICA 0-800-507-7267 www.samsung.com/latin ECUADOR 1-800-10-7267 www.samsung.com/latin EL SALVADOR 800-6225 www.samsung.com/latin GUATEMALA 1-800-299-0013 www.samsung.com/latin JAMAICA 1-800-234-7267 www.samsung.com/latin PANAMA 800-7267 www.samsung.com/latin PUERTO RICO 1-800-682-3180 www.samsung.com/latin REP. DOMINICA 1-800-751-2676 www.samsung.com/latin TRINIDAD & TOBAGO 1-800-SAMSUNG(726-7864) www.samsung.com/latin VENEZUELA 0-800-100-5303 www.samsung.com/latin COLOMBIA 01-8000112112 www.samsung.com.co BELGIUM 0032 (0)2 201 24 18 www.samsung.com/be

CZECH REPUBLIC

DENMARK 70 70 19 70 www.samsung.com/dk FINLAND 030-6227 515 www.samsung.com/ﬁ

FRANCE

GERMANY HUNGARY 06-80-SAMSUNG(726-7864) www.samsung.com ITALIA 800-SAMSUNG(726-7864) www.samsung.com LUXEMBURG 0035 (0)2 261 03 710 www.samsung.com/be NETHERLANDS NORWAY 815-56 480 www.samsung.com/no POLAND 0 801 801 881 , 022-607-93-33 www.samsung.com/pl PORTUGAL 80820-SAMSUNG(726-7864) www.samsung.com/pt SLOVAKIA 0800-SAMSUNG(726-7864) www.samsung.com/sk SPAIN 902 10 11 30 www.samsung.com SWEDEN 0771-400 200 www.samsung.com/se U.K 0845 SAMSUNG (7267864) www.samsung.com EIRE 0818 717 100 www.samsung.com/ie AUSTRIA 0800-SAMSUNG(726-7864) www.samsung.com/at SWITZERLAND 0800-SAMSUNG(726-7864) www.samsung.com/ch RUSSIA 8-800-555-55-55 www.samsung.com KAZAHSTAN 8-10-800-500-55-500 www.samsung.kz UZBEKISTAN 8-10-800-500-55-500 www.samsung.uz KYRGYZSTAN 00-800-500-55-500 TADJIKISTAN 8-10-800-500-55-500 UKRAINE 8-800-502-0000 www.samsung.com LITHUANIA 8-800-77777 www.samsung.lt LATVIA 800-7267 www.samsung.com/lv ESTONIA 800-7267 www.samsung.ee AUSTRALIA 1300 362 603 www.samsung.com NEW ZEALAND 0800SAMSUNG(726-7864) www.samsung.com/nz CHINA 800-810-5858 , 010-6475 1880 www.samsung.com HONG KONG 3698-4698 www.samsung.com/hk INDIA 3030 8282 , 1800 110011 www.samsung.com INDONESIA 0800-112-8888 www.samsung.com JAPAN 0120-327-527 www.samsung.com/jp MALAYSIA 1800-88-9999 www.samsung.com/my PHILIPPINES 1800-10-SAMSUNG(726-7864) www.samsung.com/ph SINGAPORE 1800-SAMSUNG(726-7864) www.samsung.com THAILAND 1800-29-3232 , 02-689-3232 www.samsung.com TAIWAN 0800-329-999 www.samsung.com/tw VIETNAM 1 800 588 889 www.samsung.com TURKEY 444 77 11 www.samsung.com SOUTH AFRICA 0860-SAMSUNG(726-7864 ) www.samsung.com U.A.E 800-SAMSUNG (726-7864), 8000-4726

844 000 844

Distributor pro Českou republiku: Samsung Zrt., česka organizační složka Vyskočilova 4, 14000 Praha 4

3260 SAMSUNG (€ 0,15/Min), 08 25 08 65 65 (€ 0,15/Min)

01805 - SAMSUNG(726-7864) (€ 0,14/Min)

0900-SAMSUNG(726-7864) (€ 0,10/Min) www.samsung.com/nl

www.samsung.com/cz

www.samsung.com

Page 70

AH68-02090B
