Samsung HT-TWZ415 User Manual

Digital Home

Theater System

user manual

HT-TWZ415

imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service, please register your product at

www.samsung.com/global/register

features

Playback of many disc types

This Home Theater System allows you to play back various discs, including DVD-AUDIO, DVD-VIDEO, CD, MP3-CD, WMA-CD, DivX, CD-R/RW, and DVD±R/RW.

DVD-Audio compatible

Experience the super high-quality audio performance of DVD-Audio. The on-board 24-bit/192kHz DAC enables this player to deliver exceptional sound quality in terms of dynamic range, low-level resolution and high-frequency detail.

USB Host support

You can enjoy media ﬁles such as pictures, movies and music saved on an MP3 player, digital camera or USB memory stick by connecting the storage device to the USB port of the Home Theater.

Dolby Pro Logic II

Dolby Pro Logic II is a form of multi-channel audio signal decoding technology that improves upon existing Dolby Pro Logic.

DTS (Digital Theater Systems)

DTS is an audio compression format developed by Digital Theater Systems Inc. It delivers full-frequency 5.1 channel sound.

TV Screen Saver Function

If the main unit remains in Stop mode for 3 minutes, the Samsung logo appears on the TV screen. The HT-TWZ415 will automatically switch to the Power Saving mode after 20 minutes in the Screen Saver mode.

Power Saving Function

The HT-TWZ415 will automatically shut off after 20 minutes in Stop mode.

Customized TV Screen Display

The HT-TWZ415 allows you to select your favorite image during JPEG or DVD playback and set it as your background wallpaper.

Anynet+ (HDMI-CEC) Function

Anynet+ is a function that can be used to operate the main unit using a Samsung TV remote control, by connecting the Home Theater to a SAMSUNG TV using an HDMI Cable. (This is only available with SAMSUNG TV's that support Anynet+.)

iPod support

You can enjoy music ﬁles by your connecting iPod to the home theater with the supplied iPod dock.

Wireless receiver amplifier

Samsung ’s rear- channel wireless module does away with cables running between your DVD receiver and rear- channel speakers. Instead, the rear speakers connect to a compact wireless module that communicates with your DVD receiver.

AV SYNC Function

Video may lag behind the audio if the unit is connected to a digital TV. To compensate for this, you can adjust the audio delay time to sync up with the video.

ENG

WHAT’S INCLUDED

Check for the supplied accessories below.

Video Cable FM Antenna iPod Dock Package

User's Manual

Remote Control

/ Batteries (AAA size)

SWA-4000

Wireless Receiver Module TX Card Speaker Cable (2EA)

ASC microphone

safety information

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE REAR COVER (or BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates “dangerous voltage”

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT PRODUCTO LASER CLASE 1

CAUTION : INVISIBLE LASER RADIATION WHEN

Note to CATV system installer

This reminder is provided to call the CATV system installer’s attention to Section 820~40 of the NEC which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

CLASS 1 LASER PRODUCT

This Compact Disc player is classified as a CLASS

1LASER product. Use of controls, adjustments or performance of

procedures other than those specified herein may result in hazardous radiation exposure.

inside the product that presents a risk of electric shock or personal injury.

This symbol indicates important instructions accompanying the product.

OPEN AND INTERLOCKS DEFEATED, AVOID EXPOSURE TO BEAM.

WARNING

To reduce the risk of ﬁre or electric shock, do not expose this appliance to rain or moisture.

CAUTION

Apparatus shall not be exposed to dripping or splashing and no objects ﬁlled with liquids, such as vases, shall be placed on the apparatus.

PRECAUTIONS

unit to direct sunlight or other heat sources.

During thunderstorms, disconnect th

e AC main plug from the

Protect the player from moisture (i.e.

vases) , and excess heat

Phones

Ensure that the AC power supply in your house complies with the identification sticker located on the back of your player. Install your player horizontally, on a suitable base (furniture), with enough space around it for ventilation (3~4 inches). Make sure the ventilation slots are not covered. Do not stack anything on top of the player. Do not place the player on amplifiers or other equipment which may become hot. Before moving the player, ensure the disc tray is empty. This player is designed for continuous use. Switching off the DVD player to the stand-by mode does not disconnect the electrical supply. In order to disconnect the player completely from the power supply, remove the main plug from the wall outlet, especially when left unused for a long period of time.

ENG

During thunderstorms, disconnect the AC main plug from the wall outlet. Voltage peaks due to lightning could damage the unit.

Protect the player from moisture (i.e. vases) , and excess heat (e.g.fireplace) or equipment creating strong magnetic or electric fields (i.e.speakers...). Disconnect the power cable from the AC supply if the player malfunctions. Your player is not intended for industrial use. Use of this product is for personal use only.

Condensation may occur if your player or disc has been stored in cold temperatures. If transporting the player during the winter, wait approxi before using.

mately 2 hours until the unit has reached room temperature

Do not expose the unit to direct sunlight or other heat sources. This could lead to overheating and malfunction of the unit.

The batteries used with this product contain chemicals that are harmful to the environment. Do not dispose of batteries in the general household trash.

FEATURES

SAFETY INFORMATION

GETTING STARTED

DESCRIPTION

REMOTE CONTROL

CONNECTIONS

3 What’s included

4 Safety Warnings 5 Precautions

8 Before Reading the User’s Manual 9 Playable Discs 9 Do not use the following types of disc! 9 Copy Protection 10 Disc Type and Characteristics

11 Front Panel

12 Display 13 Rear Panel

14 Tour of the Remote Control 16 Setting the Remote Control

18 Connecting the Speakers 23 Conecting the Rear Speakers to the Wireles

Receiving Ampliﬁer

25 Connecting the Video Out to your TV 27 HDMI Function 28 Connecting an iPod

30 Connecting Audio from External

Components

32 Connecting the FM Antenna

BEFORE USING YOUR HOME

THEATER

33 Before using your home theater

PLAYBACK

34 Disc Playback 35 MP3/WMA-CD playback 36 JPEG File Playback 37 DivX Playback 39 Using The Playback Function 48 Using the iPod 49 Playing Media Files Using The USB Host

Feature

ENG

SYSTEM SETUP

RADIO

51 Setting the Language 52 Setting TV Screen Type 53 Setting Parental Controls (Rating Level) 53 Setting the Password 54 Setting The Wallpaper 54 To Select one of the 3 Wallpaper Settings

You've Made 55 DVD Playback Mode 55 Setting the Speaker Mode 56 Setting the Delay Time 57 Setting the Test Tone 57 Setting the Audio 58 Setting the DRC (Dynamic Range

Compression) 59 Setting the AV SYNC 59 Setting the HDMI Audio 60 Sound ﬁeld (DSP)/EQ Function 60 Dolby Pro Logic II Mode 61 Dolby Pro Logic II Effect 61 P.BASS 62 ASC (Auto Sound Calibration) Setup

64 Listening To Radio 64 Presetting Stations

CONVENIENT FUNCTION

TROUBLESHOOTING

LANGUAGE CODE LIST

USB HOST FEATURE SUPPORTED

PRODUCTS

APPENDIX

65 Sleep Timer Function 65 Adjusting Display Brightness 65 Mute Function

66 Troubleshooting

68 Language Code list

69 Digital Camera 69 USB Flash Disc 69 MP3 Player

70 Cautions on Handling and Storing Discs 71 Speciﬁcations

getting started

BEFORE READING THE USER’S MANUAL

Make sure to check the following terms before reading the user manual.

Icons that will be used in manual

Icon Term Deﬁnition

This involves a function available with DVD or DVD-R/DVD-RW discs that have been recorded and ﬁnalized in Video Mode.

DVD

B A G

CD This involves a function available with a data CD (CD-R or CD-RW).

MP3 This involves a function available with CD-R/-RW discs.

JPEG This involves a function available with CD-R/-RW discs.

DivX

Caution

Note

In this manual, the instructions marked with "DVD (

VIDEO, DVD-AUDIO and DVD-R/-RW discs that have been recorded in Video Mode and then ﬁnalized. Where a particular DVD type is mentioned, it is indicated separately.

If a DVD-R/-RW disc has not been recorded properly in DVD Video format, it will not be

playable.

This involves a function available with MPEG4 discs. (DVD±R/RW, CD-R or CD-RW)

This involves a case where a function does not operate or settings may be cancelled.

This involves tips or instructions on the page that help each function operate.

)" are applicable to DVD-

DVD

About the use of this user’s manual

Be sure to be familiar with Safety Instructions before using this product. (See pages 4~6)

If a problem occurs, check the Troubleshooting. (See pages 66~67)

ENG

COMPACT

DIGITAL AUDIO

DVD (Digital Versatile Disc) offers fantastic audio and video, thanks to Dolby Digital

1 6

surround sound and MPEG-2 video compression technology. Now you can enjoy these realistic effects in the home, as if you were in a movie theater or concert hall.

DVD players and the discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play. The Region Number for this player is given on the rear panel of the player. (Your DVD player will only play DVDs that are labeled with identical region codes.)

PLAYABLE DISCS

Disc Type Mark (Logo) Recorded Signals Disc Size Max. Playing Time

● GETTING STARTED

Approx. 240 min. (single-sided)

Approx. 480 min. (double-sided)

Approx. 80 min. (single-sided)

Approx. 160 min. (double-sided)

—

DVD-AUDIO

DVD-VIDEO

AUDIO-CD

DivX AUDIO + VIDEO

AUDIO + VIDEO

AUDIO

5 inches

3 1/2 inches

5 inches 74 min.

3 1/2 inches 20 min.

5 inches

3 1/2 inches

DO NOT USE THE FOLLOWING TYPES OF DISC!

LD, CD-G, CD-I, CD-ROM, DVD-ROM and DVD-RAM discs cannot be played on this player.

If such discs are played, a <WRONG DISC FORMAT> message appears on the TV screen. DVD discs purchased abroad may not play on this player.

If such discs are played, a <CAN'T PLAY THIS DISC PLEASE, CHECK REGION CODE> message appears on the TV screen.

COPY PROTECTION

Many DVD discs are encoded with copy protection. Because of this, you should only connect your DVD player

directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected DVD discs.

This product incorporates copyright protection technology that is protected by methods claims of certain U.S.

patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing usses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

getting started

DISC TYPE AND CHARACTERISTICS

This product does not support Secure (DRM) Media ﬁles.

CD-R Discs

❖

Some CD-R discs may not be playable depending on the disc recording device (CD-Recorder or PC) and the

condition of the disc.

Use a 650MB/74 minute CD-R disc.

Do not use CD-R discs over 700MB/80 minutes as they may not be played back.

Some CD-RW (Rewritable) media, may not be playable.

Only CD-Rs that are properly "closed" can be fully played. If the session is closed but the disc is left open, you

may not be able to fully play the disc.

CD-R MP3 Discs

❖

Only CD-R discs with MP3 ﬁles in ISO 9660 or Joliet format can be played.

MP3 ﬁle names should be 8 characters or less in length and contain no blank spaces or special characters

(. / = +).

Use discs recorded with a compression/decompression data rate greater than 128Kbps.

Only ﬁles with the ".mp3" and ".MP3" extensions can be played.

Only a consecutively written multisession disc can be played. If there is a blank segment in the Multisession

disc, the disc can be played only up to the blank segment.

If the disc is not closed, it will take longer to begin playback and not all of the recorded ﬁles may be played.

For ﬁles encoded in Variable Bit Rate (VBR) format, i.e. ﬁles encoded in both low bit rate and high bit rate

(e.g., 32Kbps ~ 320Kbps), the sound may skip during playback.

A maximum of 500 tracks can be played per CD.

A maximum of 300 folders can be played per CD.

CD-R JPEG Discs

❖

Only ﬁles with the "jpg" extensions can be played.

~ ~

If the disc is not closed, it will take longer to start playing and not all of the recorded ﬁles may be played.

Only CD-R discs with JPEG ﬁles in ISO 9660 or Joliet format can be played.

JPEG ﬁle names should be 8 characters or less in length and contain no blank spaces or special characters

(. / = +).

Only a consecutively written multisession disc can be played. If there is a blank segment in the multisession

disc, the disc can be played only up to the blank segment.

A maximum of 9,999 images can be stored on a single CD.

~ ~

When playing a Kodak/Fuji Picture CD, only the JPEG ﬁles in the picture folder can be played. Picture discs other than Kodak/Fuji Picture CDs may take longer to start playing or may not play at all.

DVD±R/RW, CD-R/RW DivX Discs

❖

Since this product only provides encoding formats authorized by DivX Networks, Inc., a DivX ﬁle created by the

user might not play.

Software updates for incompatible formats are not supported.

(Example : QPEL, GMC, resolution higher than 800 x 600 pixels, etc.)

Sections with a high frame rate might not be played while playing a DivX ﬁle. For more information about the formats authorized by DivX Networks, Inc., please visit "www.divxnetworks.

net".

ENG

FUNCTION

VOLUME

DISC

CHANGE

AUX IN 1 ASC IN

PHONES

FUNCTION

VOLUME

CHANGE

description

FRONT PANEL

12 13 14

● DESCRIPTION

DISC TRAY

FUNCTION BUTTON

TUNING DOWN & SKIP ( ) BUTTON

STOP (T) BUTTON

PLAY/PAUSE ( ) BUTTON

TUNING UP & SKIP ( ) BUTTON

OPEN/CLOSE BUTTON

VOLUME CONTROL

DIRECT PLAY 1~5 BUTTONS

DISC CHANGE BUTTON

POWER( ) BUTTON

PHONES JACK

AUX IN 1/ASC (Auto Sound Calibration) IN JACK

USB PORT

description

DISPLAY

10 11 13 14

FUNCTION DISPLAY USB INDICATOR

REPEAT INDICATOR

HDMI INDICATOR

DISC INDICATOR

DVD INDICATOR

CD INDICATOR

DTS DISC INDICATOR

REPEAT INDICATOR

DSP INDICATOR

ASC (Auto Sound Calibration) INDICATOR

SYSTEM STATUS DISPLAY

RADIO FREQUENCY INDICATOR

DOLBY DIGITAL INDICATOR

PRO LOGIC INDICATOR

LPCM INDICATOR

15 16

ENG

● DESCRIPTION

REAR PANEL

1 82 3 5 6 74

TX CARD CONNECTION (WIRELESS)

iPod JACK

AUX IN 2 JACKS

VIDEO OUTPUT JACK

COMPONENT VIDEO OUTPUT JACKS

External Digital Optical Input Jack

FM 75Ω COAXIAL JACK

HDMI OUT JACK

COOLING FAN

The TX card enables communication between the main unit and the wireless receiver ampliﬁ er.

Connect the iPod dock connector here.

Connect to the 2CH analog output of an external device (such as a VCR)

Connect the TV's Video Input jack (VIDEO IN) to the VIDEO OUT jack.

Connect a TV with Component video inputs to these jacks.

Use this to connect external equipment capable of digital output.

Connect the FM antenna.

Use the HDMI cable, connect this HDMI output terminal to the HDMI input terminal on your TV for the best quality picture.

The fan always revolves when the power is on. Ensure a minimum of 4 inches of clear space on all sides of the fan when installing the product.

SPEAKER OUTPUT CONNECTORS

Connect the front, center, rear speakers and subwoofer.

remote control

DVD RECEIVER

DVD

REMAIN

STEP PAUSE

PORT

AUDIO

P.BASS

SUB

TITLE

TOUR OF THE REMOTE CONTROL

1 2

5 6

23 24

12 13 14

15 16

17 18

27 28

33 34

ENG

● REMOTE CONTROL

DVD RECEIVER button

DVD

PORT button

TV button

POWER button

Number (0~9) buttons

REMAIN button

STEP button

Tuning Preset/CD Skip buttons

VOLUME button

MENU button

AUDIO button

PL II MODE button

TUNER MEMORY, SD(Standard Definition)/HD(High Definition) button

ZOOM button

P.BASS button

SLEEP button

ASC button

SLOW, MO/ST button

PL II EFFECT button

DVD button

TUNER button

AUX button

DISC SKIP, TV/VIDEO button

OPEN/CLOSE button

CANCEL button

PAUSE button

PLAY button STOP button

SEARCH buttons

TUNING/CH button

MUTE button

RETURN button

Cursor/ENTER button

SUBTITLE button

button

EXIT

button

INFO

SOUND EDIT button

REPEAT button

DSP/EQ button

LOGO button

DIMMER button

Insert Remote Batteries

1. Remove the battery cover in the direction of the arrow.

Follow these precautions to avoid leaking or cracking cells:

Place batteries in the remote control so they match the polarity : (+) to (+) and (–) to (–).

Use the correct type of batteries. Batteries that look similar may differ in voltage.

Always replace both batteries at the same time.

Do not expose the batteries to heat or a ﬂame.

2. Insert two 1.5V AAA batteries, paying attention to the correct polarities (+ and –).

3. Replace the battery cover.

FUNCTION

VOLUME

DISC CHANGE

remote control

SETTING THE REMOTE CONTROL

You can control certain functions of your TV with this remote control.

When operating a TV with the remote control

1. Press the TV button to set the remote to TV mode.

2. Press the POWER button to turn on the TV.

3. While holding down the POWER button, enter the code

corresponding to your brand of TV.

If there is more than one code listed for your TV in the

table, enter one at a time to determine which code works.

Example : For a Samsung TV

While holding down the POWER button, use the number buttons to enter 00, 15, 16, 17 or 40.

4. If the TV turns off, the setting is complete.

You can use the TV POWER, VOLUME, CHANNEL, and

Numeric buttons (0~9).

The remote control may not work on some brands of TVs. Also, some operations may not

be possible depending on your brand of TV.

If you do not set the remote control with the code for your brand of TV, the remote control

will work on a Samsung TV by default.

Operation Range of the Remote Control

The remote control can be used up to approximately 23 feet (7 meters) in a straight line. It can also be operated at a horizontal angle of up to 30° from the remote control sensor.

ENG

● REMOTE CONTROL

TV Brand Code List

No.

37 38

Brand

Admiral (M.Wards)

A Mark

Anam

AOC

Bell & Howell (M.Wards)

Brocsonic

Candle

Cetronic

Citizen

Cinema

Classic

Concerto

Contec

Coronado

Craig

Croslex

Crown

Curtis Mates

CXC

Daewoo

Daytron

Dynasty

Emerson

Fisher

Funai

Futuretech

General Electric (GE)

Hall Mark

Hitachi

Inkel

JC Penny

JVC

KTV

KEC

KMC

LG (Goldstar)

Luxman

LXI (Sears)

Magnavox

Marantz

Matsui

MGA

Mitsubishi/MGA

Code

56, 57, 58

01, 15

01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 11,

12, 13, 14

01, 18, 40, 48

57, 58, 81

59, 60

03, 18, 25

03, 05, 61, 82, 83, 84

59, 61, 63

02, 03, 04, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24,

25, 26, 27, 28, 29, 30, 32, 34, 35, 36, 48, 59, 90

03, 15, 40, 46, 59, 61, 64, 82, 83, 84, 85

19, 65

06, 40, 56, 59, 66, 67, 68

15, 18, 50, 59, 69

56, 59, 67, 86

59, 61, 87, 88

03, 15, 40

01, 15, 16, 17, 37, 38, 39, 40, 41, 42, 43, 44

19, 54, 56, 59, 60, 62, 63, 65, 71

15, 17, 18, 48, 54, 59, 60, 62, 72, 89

40, 54

18, 40

18, 40, 59, 60, 75

Brand

MTC

NEC

Nikei

Onking

Onwa

Panasonic

Penney

Philco

Philips

Pioneer

Portland

Proton

Quasar

Radio Shack

RCA/Proscan

Realistic

Sampo

Samsung

Sanyo

Scott

Sears

Sharp

Signature 2000 (M.Wards)

Sony

Soundesign

Spectricon

SSS

Sylvania

Symphonic

Tatung

Techwood

Teknika

TMK

Toshiba

Vidtech

Videch

Wards

Yamaha

York

Yupiteru

Zenith

Zonda

Dongyang

Code

18, 19, 20, 40, 59, 60

06, 07, 08, 09, 54, 66, 67, 73, 74

03, 15, 17, 18, 48, 54, 59, 62, 69, 90

15, 17, 18, 40, 48, 54, 62, 72

63, 66, 80, 91

15, 18, 59

06, 66, 67

17, 48, 56, 60, 61, 75

18, 59, 67, 76, 77, 78, 92, 93, 94

03, 19

00, 15, 16, 17, 40, 43, 46, 47, 48, 49,

59, 60, 98

19, 61, 65

03, 40, 60, 61

15, 18, 19

15, 57, 64

57, 58

50, 51, 52, 53, 55

03, 40

18, 40, 48, 54, 59, 60, 62

61, 95, 96

03, 15, 18, 25

18, 40

19, 57, 63, 71

59, 60, 69

15, 17, 18, 40, 48, 54, 60, 64

58, 79

03, 54

connections

This section involves various methods of connecting the Digital Home Theater to other external components.

Before moving or installing the product, be sure to turn off the power and disconnect the power cord.

CONNECTING THE SPEAKERS

Position of the DVD Player

Place it on a stand or cabinet shelf, or under the TV stand.

Selecting the Listening Position

The listening position should be located about 2.5 to 3 times the distance of the TV's screen size away from the TV. Example : For 32" TVs 2~2.4m (6~8feet)

For 55" TVs 3.5~4m (11~13feet)

Front Speakers

Place these speakers in front of your listening position, facing inwards (about 45°) toward you.

Place the speakers so that their tweeters will be at the same height as your ear.

Align the front face of the front speakers with the front face of the center speaker or place them slightly in front of the center speakers.

Center Speaker

It is best to install it at the same height as the front speakers. You can also install it directly over or under the TV.

Rear Speakers

Place these speakers behind your listening position. If there isn't enough room, place these speakers so they face each other. Place them about 60 to 90cm (2 to 3feet) above your ear, facing slightly downward.

Unlike the front and center speakers, the rear speakers are used to handle mainly sound effects and sound will

not come from them all the time.

Subwoofer

The position of the subwoofer is not so critical. Place it anywhere you like.

ENG

● CONNECTIONS

Speaker Components

CENTERCENTER

HoLe CoVer

Front

CRADLE STAND/

WALL MOUNT

StanD

SubWooFer

Center

Installing the Cradle Stand

1. Insert the stand so that it ﬁ ts into the hole as described in the ﬁ gure.

2. Turn the stand clockwise to lock it.

(Turning it counter-clockwise will loosen from the hole.)

SCREW (Large): 8EASCREW (Small): 12EA

StanD baSe

3. This is the completion of the stand installation.

connections

Installing the Wall Mount

1. Insert the wall mount so that it ﬁ ts into the rear hole of the speaker as

in the ﬁ gure.

2. Turn the wall mount counter clockwise to ﬁ x it. (This is the reverse

direction to the cradle stand.)

3. Put the hole cover on the hole of the speaker.

4. Use a coin turn the hole cover clock wise to ﬁ x it. (Turning it counter-

clock wise will loosen from the hole.)

5. Use the wall mount hole (bracket) to install the speaker on the wall.

M `

To avoid accident fall and consequent damage to the customer and speaker, make sure the speaker is hung safely.

ENG

● CONNECTIONS

How to Install the Speaker on the Stand

Turn the STAND upside-down and connect

it to the STAND BASE.

Insert three small SCREWS into three holes

marked with arrows using a screwdriver as shown in the illustration.

Insert a large SCREW into the hole on the

rear of the Speaker STAND.

Connect the assembled stand to the

SPEAKER.

Insert another large SCREW into the hole

on the rear of the speaker using a screwdriver as shown in the illustration.

This is the successfully assembled speaker.

Make sure that the speaker is installed on a ﬂ at and stable area. Otherwise it may be easily knocked over.

1 2

STAND BASE

STAND

3 4

5 6

SPEAKER

STAND

How to Install the Speaker on the Stand Base

Connect the SPEAKER with the

STAND BASE.

Insert the SCREW into the hole on the rear

of the speaker using a screwdriver as shown in the illustration.

This is the SPEAKER successfully

assembled with the Stand Base.

1 2

SPEAKER

STAND BASE

connections

Connecting the Front, Rear, Center and Subwoofer Speakers

Press down the terminal tab on the back of the speaker.

Insert the black wire into the black terminal (–) and the red wire into the red (+) terminal, and then release the tab.

Connect the connecting plugs to the back of the Home Theater.

Make sure the colors of the speaker terminals match the colors of the connecting plugs.

Black

Red

Rear

Speaker (R)

Front

Speaker (R)

Do not let children play with or near the speakers. They could get hurt if a speaker falls.

When connecting the speaker wires to the speakers, make sure that the polarity (+/ –) is correct.

Keep the subwoofer speaker out of reach of children so as to prevent children from

inserting their hands or alien substances into the duct (hole) of the subwoofer speaker. Do not hang the subwoofer on a wall through the duct (hole).

Center Speaker

Subwoofer

Rear Speaker (L)

Speaker

Stand

Front Speaker (L)

If you place a speaker near your TV set, screen color may be distorted because of the magnetic

M `

ﬁ eld generated by the speaker. If this occurs, place the speaker away from your TV set.

ENG

● CONNECTIONS

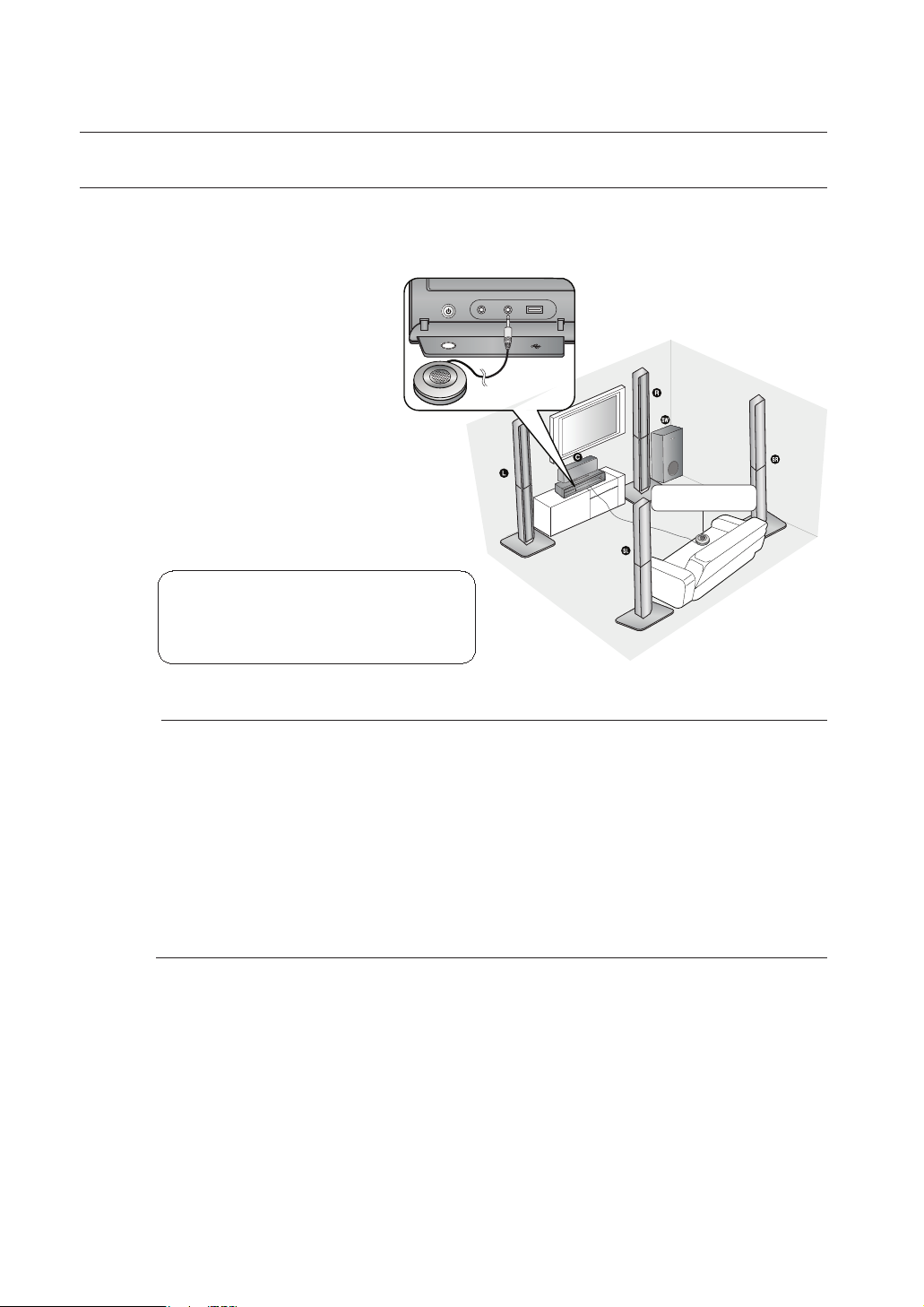

CONECTING THE REAR SPEAKERS TO THE WIRELES RECEIVING AMPLIFIER

RESET

Wireless Receiving Module (SWA-4000)

Rear Speaker (L)

Front Speaker (R)

Rear Speaker (R)

WIRELESS RECEIVER MODULE

Connect the front, center and Subwoofer speakers to the

DVD Player, referring to page 22.

With the DVD Player turned off, insert the TX card into the

TX Card Connection(WIRELESS) on the back of the main unit.

Hold the TX card so that the slanted side faces to the left

and insert the card into the port.

The TX card enables communication between the main

unit and the wireless receiver.

Connect the left and right rear speakers to the wireless

receiving module.

Slanted side face left

Center Speaker

Front Speaker (L)

Subwoofer

TX card

Plug the power cord of the wireless receiving module

in the wall outlet and switch the power switch ON.

+ 52 hidden pages

Samsung HT-TWZ415 User Manual

WHAT’S INCLUDED

safety information

contents

getting started

DISC TYPE AND CHARACTERISTICS

DISPLAY

SETTING THE REMOTE CONTROL

connections

Connecting the Front, Rear, Center and Subwoofer Speakers
