DIGITAL HOME CINEMA SYSTEM

HT-UP30 HT-TP33

Instruction Manual

COMPACT

DIGITAL AUDIO

COMPACT

DIGITAL VIDEO

1p~38p(UP30/TP33)-GB 3/14/05 10:39 AM Page 3

Safety Warnings

Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

CAUTION-INVISIBLE LASER RADIATION WHEN OPEN

AND INTERLOCKS DEFEATED, AVOID EXPOSURE TO BEAM.

This symbol indicates that dangerous voltage which can cause electric shock is present inside this unit.

This symbol alerts you to important operating and maintenance instructions accompanying the unit.

WARNING: To reduce the risk of fire or electric shock, do not

expose this appliance to rain or moisture.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH

WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

Wiring the Main Power Supply Plug(UK Only)

IMPORTANT NOTICE

The main lead on this equipment is supplied with a moulded plug incorporating a fuse. The value of the fuse is indicated on the pin face of the plug and if it requires replacing, a fuse approved to BS1362 of the same rating must be used.

Never use the plug with the fuse cover removed. If the cover is detachable and a replacement is required, it must be of the same colour as the fuse fitted in the plug. Replacement covers are available from your dealer.

If the fitted plug is not suitable for the power points in your house or the cable is not long enough to reach a power point, you should obtain a suitable safety approved extension lead or consult your dealer for assistance.

However, if there is no alternative to cutting off the plug, remove the fuse and then safely dispose of the plug. Do not connect the plug to a main socket as there is a risk of shock hazard from the bared flexible cord.

Never attempt to insert bare wires directly into a main socket. Aplug and fuse must be used at all times.

IMPORTANT

The wires in the main lead are coloured in accordance with the following code:–

BLUE = NEUTRAL BROWN = LIVE

As these colours may not correspond to the coloured markings identifying the terminals in your plug, proceed as follows:– The wire coloured BLUE must be connected to the terminal marked with the letter N or coloured BLUE or BLACK. The wire coloured BROWN must be connected to the terminal marked with the letter L or coloured BROWN or RED.

WARNING: DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH

THE LETTER E OR BY THE EARTH SYMBOL , OR COLOURED GREEN OR GREEN AND YELLOW.

CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT PRODUCTO LASER CLASE 1

RISK OF ELECTRIC SHOCK.

DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE REAR COVER. NO USER SERVICEABLE

PAR TS INSIDE. REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

CLASS 1 LASER PRODUCT

This Compact Disc player is classified as a CLASS 1 LASER product.

CAUTION

1p~38p(UP30/TP33)-GB 3/14/05 10:39 AM Page 4

Precautions

Ensure that the AC power supply in your house complies with the identification sticker located on the back of your player. Install your player horizontally, on a suitable base (furniture), with enough space around it for ventilation (3~4inches). Make sure the ventilation slots are not covered. Do not stack anything on top of the player. Do not place the player on amplifiers or other equipment which may become hot. Before moving the player, ensure the disc tray is empty. This player is designed for continuous use. Switching off the DVD player to the stand-by mode does not disconnect the electrical supply. In order to disconnect the player completely from the power supply, remove the main plug from the wall outlet, especially when left unused for a long period of time.

Protect the player from moisture(i.e. vases) , and excess heat (e.g.fireplace) or equipment creating strong magnetic or electric fields (i.e.speakers...). Disconnect the power cable from the AC supply if the player malfunctions. Your player is not intended for industrial use.

Use of this product is for personal use only. Condensation may occur if your player or disc has been stored in cold

temperatures. If transporting the player during the winter, wait approximately 2 hours

until the unit has reached room temperature before using.

During thunderstorms, disconnect AC main plug from the wall outlet. Voltage peaks due to lightning could damage the unit.

Do not expose the unit to direct sunlight or other heat sources.

This could lead to overheating and malfunction of the unit.

The batteries used with this product contain chemicals that are harmful to the environment. Do not dispose of batteries in the general household trash.

PREPARATION

1p~38p(UP30/TP33)-GB 3/14/05 10:39 AM Page 5

Phones

Multi-Disc Playback & FM Tuner

The HT-UP30/HT-TP33 combines the convenience of multi-disc playback capability, including DVD-AUDIO, DVD-VIDEO, VCD, CD, MP3-CD, DivX, CD-R/RW, and DVD-R/RW, with a sophisticated AM/FM tuner, all in a single player.

Dolby Pro Logic II

Dolby Pro Logic II is a new form of multi-channel audio signal decoding technology that improves upon existing Dolby Pro Logic.

DTS (Digital Theater Systems)

DTS is an audio compression format developed by Digital Theater Systems Inc. It delivers full-frequency 5.1 channel sound.

Power Saving Function

The HT-UP30/HT-TP33 automatically shuts itself off after 20 minutes in the stop mode.

TV Screen Saver Function

The HT-UP30/HT-TP33 automatically brightens and darkens your TV screen after 3 minutes in the stop mode. The HT-UP30/HT-TP33 automatically switches itself into the power saving mode after 20 minutes in the screen saver mode.

Customized TV Screen Display

The HT-UP30/HT-TP33 allows you to select your favorite image during JPEG, DVD or VCD playback and set it as your background wallpaper.

DVD-Audio compatible

Experience the super high-quality audio performance of DVD-Audio. The on-board 24-bit/192kHz DAC enables this player to deliver exceptional sound quality in terms of dynamic range, low-level resolution and high-frequency detail.

Features

USB HOST Function support

You can connect and play files from external USB storage devices such as MP3 players, USB flash memory, etc. using the Home Theater's USB HOST function.

1p~38p(UP30/TP33)-GB 3/14/05 10:39 AM Page 6

PREPARATION

Safety Warnings..................................................................................................................................................................1

Precautions.........................................................................................................................................................................2

Features..............................................................................................................................................................................3

Notes on Discs....................................................................................................................................................................5

Description..........................................................................................................................................................................7

CONNECTIONS

Connecting the Speakers ...................................................................................................................................................11

Connecting the Video Out to TV.........................................................................................................................................14

P.SCAN(Progressive Scan) Function .................................................................................................................................15

Connecting the FM and AM Antennas................................................................................................................................16

Connecting External Components......................................................................................................................................17

OPERATION

Before Using Your Home Theater .......................................................................................................................................19

Disc Playback .....................................................................................................................................................................21

MP3-CD Playback ..............................................................................................................................................................22

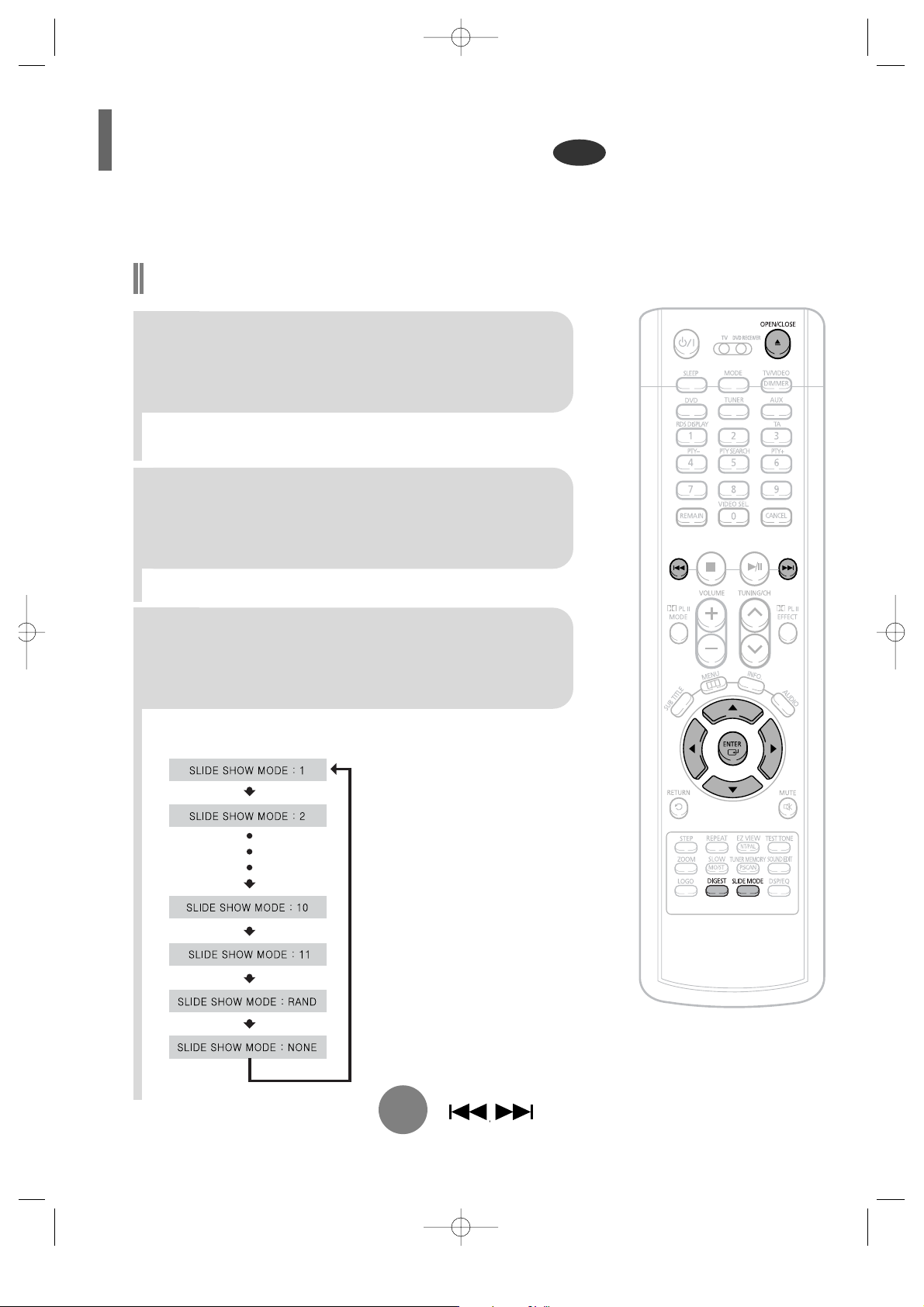

JPEG File Playback............................................................................................................................................................23

DivX Playback.....................................................................................................................................................................25

Playing Media Files using the USB HOST feature.............................................................................................................27

Displaying Disc Information................................................................................................................................................29

Checking the Remaining Time............................................................................................................................................29

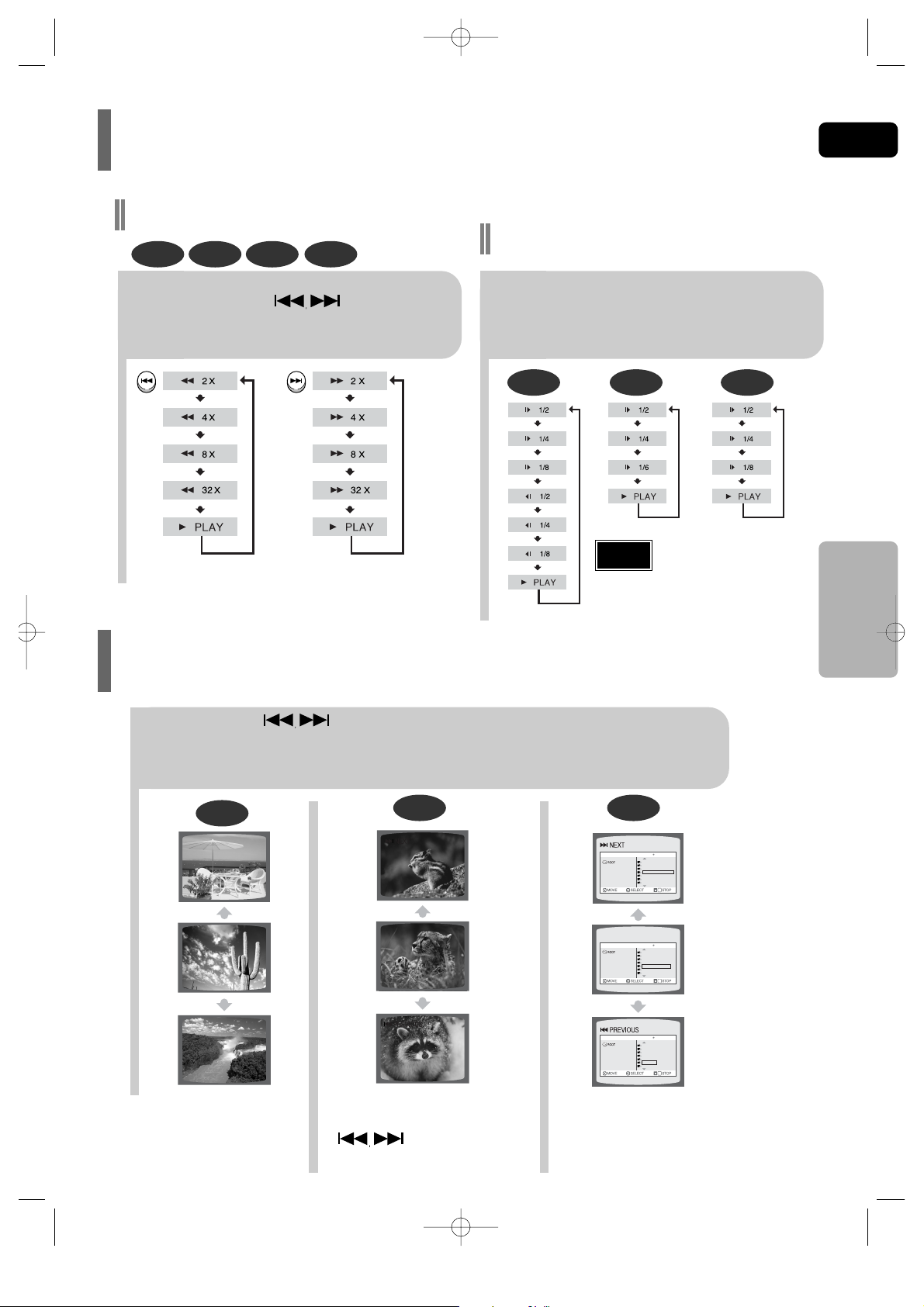

Fast/Slow Playback ............................................................................................................................................................30

Skipping Scenes/Songs ......................................................................................................................................................30

Repeat Playback.................................................................................................................................................................31

A-B Repeat Playback..........................................................................................................................................................32

Step Function......................................................................................................................................................................33

Angle Function ....................................................................................................................................................................33

Zoom (Screen Enlarge) Function .......................................................................................................................................34

EZ VIEW Function..............................................................................................................................................................34

Bonus Group / Navigating Pages.......................................................................................................................................35

Selecting Audio/Subtitle Language.....................................................................................................................................36

Moving Directly to a Scene/Song .......................................................................................................................................37

Using Disc Menu.................................................................................................................................................................38

Using the Title Menu...........................................................................................................................................................38

SETUP

Setting the Language..........................................................................................................................................................39

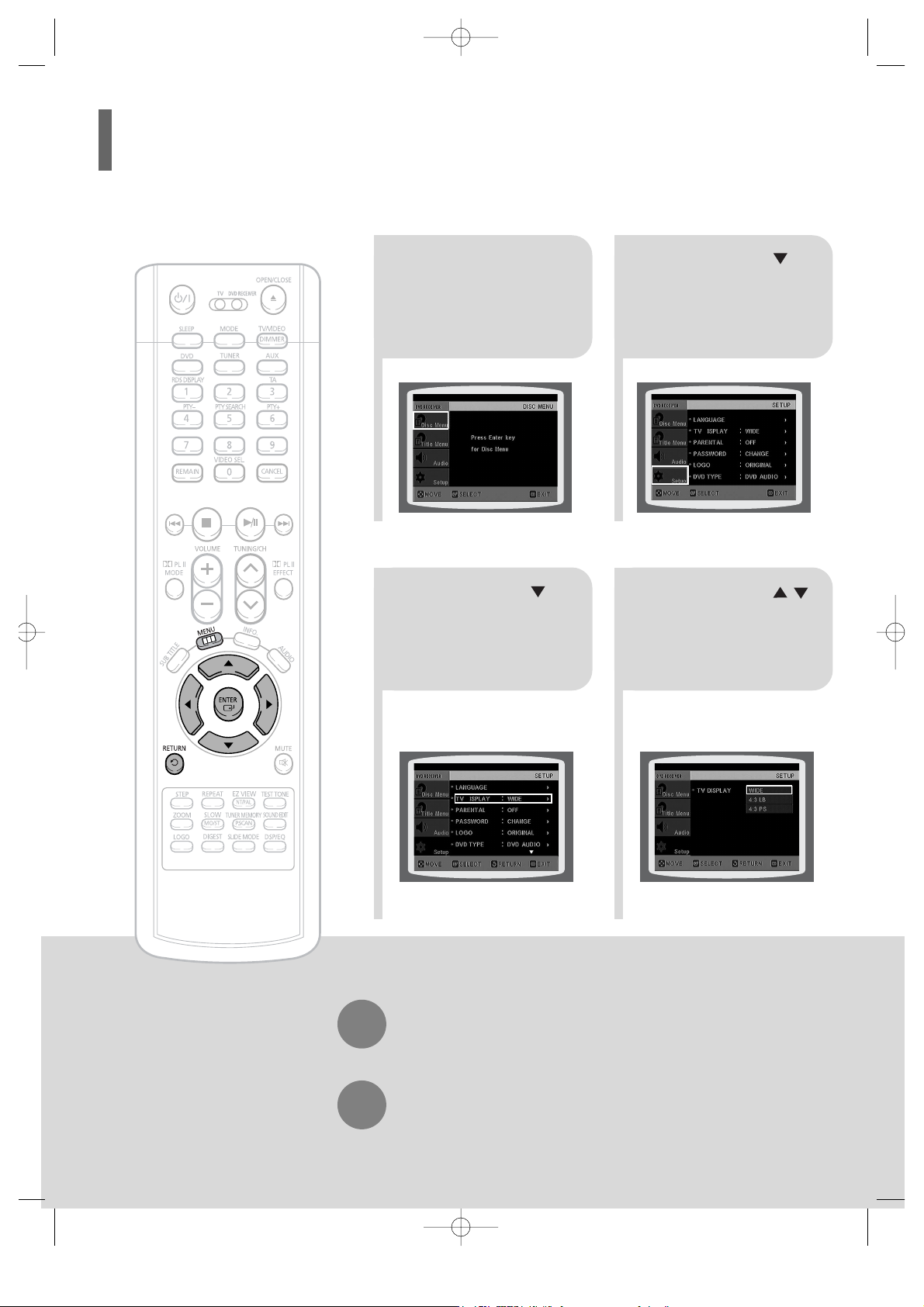

Setting TV Screen type.......................................................................................................................................................41

Setting Parental Controls (Rating Level)............................................................................................................................43

Setting the Password..........................................................................................................................................................44

Setting the Wallpaper .........................................................................................................................................................45

DVD Audio Disc Playback Mode........................................................................................................................................47

Setting the Speaker Mode..................................................................................................................................................48

Setting the Delay Time .......................................................................................................................................................49

Setting the Test Tone..........................................................................................................................................................51

Setting the DRC (Dynamic Range Compression) ..............................................................................................................52

Setting the Audio Quality....................................................................................................................................................53

AV SYNC Setup..................................................................................................................................................................55

Sound Field (DSP)/EQ Function.........................................................................................................................................56

Dolby Pro Logic II Mode.....................................................................................................................................................57

Dolby Pro Logic II Effect.....................................................................................................................................................58

RADIO OPERATION

Listening to Radio...............................................................................................................................................................59

Presetting Stations..............................................................................................................................................................60

About RDS broadcasting....................................................................................................................................................61

MISCELLANEOUS

Convenient Functions.........................................................................................................................................................63

Operating a TV with the Remote Control ...........................................................................................................................65

Before Calling for Service ...................................................................................................................................................67

Cautions on Handling and Storing Discs ............................................................................................................................69

Language Code List............................................................................................................................................................70

Specifications......................................................................................................................................................................71

1p~38p(UP30/TP33)-GB 3/14/05 10:39 AM Page 7

DVD (Digital Versatile Disc) offers fantastic audio and video, thanks to Dolby Digital

surround sound and MPEG-2 video compression technology. Now you can enjoy these realistic effects in the home, as if you were in a movie theater or concert hall.

DVD players and the discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play. The Region Number for this player is given on the rear panel of the player.

(Your DVD player will only play DVDs that are labeled with identical region codes.)

1 6

•

LD, CD-G, CD-I, CD-ROM and DVD-ROM discs cannot be played on this player. If such discs are played, a "WRONG DISC FORMAT" message appears on the TV screen.

•

DVD discs purchased abroad may not play on this player. If such discs are played, a "WRONG REGION CODE" message appears on the TV screen.

Do not use the following types of disc!

•

Many DVD discs are encoded with copy protection. Because of this, you should only connect your DVD player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected DVD discs.

•

This product incorporates copyright protection technology that is protected by methods claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Copy Protection

Notes on Discs

Mark (Logo)

Audio + Video

DVD-AUDIO DVD-VIDEO

VIDEO-CD

AUDIO-CD

12cm

Approx. 240 min. (single-sided)

Approx. 480 min. (double-sided)

Approx. 80 min. (single-sided)

Approx. 160 min. (double-sided)

74 min. 20 min. 74 min. 20 min.

8cm

12cm

8cm

12cm

8cm

Audio + Video

Audio

Recorded Signals

Disc Type Disc Size Max. Playing Time

Playable Discs

1p~38p(UP30/TP33)-GB 3/14/05 10:39 AM Page 8

COMPACT

DIGITAL VIDEO

COMPACT

DIGITAL AUDIO

CD-R Discs

•

Some CD-R discs may not be playable depending on the disc recording device (CD-Recorder or PC) and the condition of the disc.

•

Use a 650MB/74 minute CD-R disc. Do not use CD-R disk over 700MB/80 minute as much as possible since it may not be played back.

•

Some CD-RW (Rewritable) media, may not be playable.

•

Only CD-Rs that are properly "closed" can be fully played. If the session is closed but the disc is left open, you may not be able to fully play the disc.

CD-R JPEG Discs

•

Only files with the ".jpeg" and ".JPEG" extensions can be played.

•

If the disc is not closed, it will take longer to start playing and not all of the recorded files may be played.

•

Only CD-R discs with JPEG files in ISO 9660 or Joliet format can be played.

•

JPEG file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +).

•

Only a consecutively written multisession disc can be played. If there is a blank segment in the multisession disc, the disc can be played only up to the blank segment.

•

A maximum of 9,999 images can be stored on a single CD.

•

When playing a Kodak/Fuji Picture CD, only the JPEG files in the picture folder can be played.

•

Picture discs other than Kodak/Fuji Picture CDs may take longer to start playing or may not play at all.

Disc Recording Format

CD-R MP3 Discs

•

Only CD-R discs with MP3 files in ISO 9660 or Joliet format can be played.

•

MP3 file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +).

•

Use discs recorded with a compression/decompression data rate greater than 128Kbps.

•

Only files with the ".mp3" and ".MP3" extensions can be played.

•

Only a consecutively written Multisession disc can be played. If there is a blank segment in the Multisession disc, the disc can be played only up to the blank segment.

•

If the disc is not closed, it will take longer to begin playback and not all of the recorded files may be played.

•

For files encoded in Variable Bit Rate (VBR) format, i.e. files encoded in both low bit rate and high bit rate (e.g., 32Kbps ~ 320Kbps), the sound may skip during playback.

•

A maximum of 500 tracks can be played per CD.

•

A maximum of 300 folders can be played per CD.

PREPARATION

1p~38p(UP30/TP33)-GB 3/14/05 10:39 AM Page 9

Description

USB

—Front Panel—

DOLBY DIGITAL indicator

PRO LOGIC indicator

TITLE indicator

GROUP indicator

PROGRAM indicator

STEREO indicator

CHAPTER indicator

TRACK indicator

TUNER indicator

DSP indicator

RDS indicator

RTA indicator

P.SCAN indicator

Power ( ) button

Standby indicator

Disc Tray

Volume buttons

Headphone Jack

RADIO FREQUENCY

indicator

System Status Display

SPEAKER indicator

DVD AUDIO indicator

DTS Disc indicator

LINEAR PCM indicator

MPEG indicator

PBC indicator

REPEAT indicator

Tuning Down & Skip ( ) buttons

Tuning Up & Skip ( ) buttons

Stop ( ) button

Play/Pause ( ) button

Open/Close button

Function button

USB Connector

1p~38p(UP30/TP33)-GB 3/14/05 10:39 AM Page 10

PREPARATION

—Rear Panel—

AM Antenna Connector

FM Antenna Connector

5.1 Channel Speaker Output Terminals

Video Output Connector

Connect the TV's video input jacks (VIDEO IN)

to the VIDEO OUT connector.

SCART JACK

Connect to a TV with scart input jack.

Cooling Fan

COMPONENT VIDEO OUTPUT jacks

Connect a TV with component video inputs to these jacks.

External Audio Component

Input Connector

External Digital Optical Input Connector

Use this to connect external equipment capable of digital output.

Video Cable AM AntennaRemote Control

User's Manual

FM Antenna

Accessories

1p~38p(UP30/TP33)-GB 3/14/05 10:39 AM Page 11

Description

PL II MODE button

VOLUME button

MENU button

TV, DVD POWER button

TV indicator

SLEEP button

CANCEL button

RETURN button

RDS Selection button

Number(0~9) buttons

MODE button

TV/VIDEO, DIMMER button

OPEN/CLOSE button

DVD RECEIVER indicator

Cursor/Enter button

DSP/EQ button

EZ VIEW, NT/PAL button

SLIDE MODE button

TUNER MEMORY, P.SCAN button

SOUND EDIT button

TEST TONE button

AUDIO button

MUTE button

INFO. button

TUNING/CH button

STEP button

ZOOM button

LOGO COPY button

REPEAT button

MO/ST, SLOW button

DIGEST button

REMAIN button

VIDEO SEL. button

SUB TITLE button

PL II EFFECT button

—Remote Control—

DVD button

Play/Pause button

Tuning Preset/CD Skip button

Stop button

AUX button

TUNER button

1p~38p(UP30/TP33)-GB 3/14/05 10:39 AM Page 12

Insert Remote Batteries

The remote control can be used up to approximately 23 feet/7 meters in a straight line. It can also be operated at a horizontal angle of up to 30° from the remote control sensor.

Range of Operation of the Remote Control

Caution

PREPARATION

Remove the battery cover on the back of the remote by pressing down and sliding the cover in the direction of the arrow.

Insert two 1.5V AAA batteries, paying attention to the correct polarities (+ and –).

Replace the battery cover.

Follow these precautions to avoid leaking or cracking cells:

•

Place batteries in the remote control so they match the polarity:(+) to (+)and (–)to (–).

•

Use the correct type of batteries.Batteries that look similar may differ in voltage.

•

Always replace both batteries at the same time.

•

Do not expose batteries to heat or flame.

1p~38p(UP30/TP33)-GB 3/14/05 10:39 AM Page 13

USB

SRSL

Rear Speakers

•

Place these speakers behind your listening position.

•

If there isn't enough room, place these speakers so they face each other.

•

Place them about 60 to 90cm (2 to 3feet) above your ear, facing slightly downward.

Unlike the front and center speakers, the rear speakers are used to handle mainly sound effects and sound will not come from them all the time.

Subwoofer

•

The position of the subwoofer is not so critical. Place it anywhere you like.

Front Speakers

•

Place these speakers in front of your listening position, facing inwards (about 45°) toward you.

•

Place the speakers so that their tweeters will be at the same height as your ear.

•

Align the front face of the front speakers with the front face of the center speaker or place them slightly in front of the center speakers.

Center Speaker

•

It is best to install it at the same height as the front speakers.

•

You can also install it directly over or under the TV.

Position of the DVD Player

•

Place it on a stand or cabinet shelf, or under the TV stand.

Selecting the Listening Position

The listening position should be located about 2.5 to 3 times the distance of the TV's screen size away from the TV. Example: For 32" TVs 2~2.4m (6~8feet)

For 55" TVs 3.5~4m (11~13feet)

Before moving or installing the product, be sure to turn off the power and disconnect the power cord.

Connecting the Speakers

1p~38p(UP30/TP33)-GB 3/14/05 10:39 AM Page 14

CONNECTIONS

•

Make sure the colors of the speaker terminals match the colors of the connecting plugs.

Black

Press down the terminal tab on the back of the speaker.

Insert the black wire into the black terminal (–) and the gray wire into the gray (+) terminal, and then release the tab.

Connect the connecting plugs to the back of the DVD player.

Gray

Back of the Speakers Back of the Main Unit

Rear Speaker (R)

Front Speaker (R)

Subwoofer

Center Speaker

Rear Speaker (L)

Front Speaker (L)

Blue

Gray

Purple

White

Red

Green

HT-UP30

1p~38p(UP30/TP33)-GB 3/14/05 10:39 AM Page 15

•

Make sure the colors of the speaker terminals match the colors of the connecting plugs.

Black

Press down the terminal tab on the back of the speaker.

Insert the black wire into the black terminal (–) and the gray wire into the gray (+) terminal, and then release the tab.

Connect the connecting plugs to the back of the DVD player.

Gray

Back of the Speakers Back of the Main Unit

Rear Speaker (R)

Front Speaker (R)

Subwoofer

Center Speaker

Rear Speaker (L)

Front Speaker (L)

Blue

Gray

Purple

White

Red

Green

HT-TP33

1p~38p(UP30/TP33)-GB 3/14/05 10:39 AM Page 16

METHOD 2 Scart

...............

Better Quality

If you television is equipped with an SCART input, connect an Scart Jack (not supplied) from the AV OUT jack on the back panel of the system to the SCART IN jack on your television.

METHOD 1 Composite Video

...............

Good Quality

Connect the supplied video cable from the VIDEO OUT jack on the back panel of the system to the VIDEO IN jack on your television.

METHOD 3 Component (Progressive Scan) Video

...............

Best Quality

If your television is equipped with Component Video inputs, connect a component video cable (not supplied) from the Pr, Pb and Y jacks on the back panel of the system to the corresponding jacks on your television.

•

When the Progressive scan mode is selected, the VIDEO and SCART outputs do not feed any signal.

Note

CONNECTIONS

Choose one of the three methods for connecting to a TV.

Connecting the Video Out to TV

VIDEO SELECT Function Press and hold VIDEO SEL. button on the remote control for over 5 seconds.

•

"COMPOSITE" or "RGB" will appear in the display. At this time, press the VIDEO SEL. button shortly to select between "COMPOSITE" and "RGB".

•

If Scart (RGB Input) is equipped for your TV, press VIDEO SEL. button to select RGB mode. You can get a better picture quality by using Scart setting.

•

If Scart (RGB Input) is not equipped for your TV, press VIDEO SEL. button to select COMPOSITE mode.

METHOD 1

METHOD 3

METHOD 2

1p~38p(UP30/TP33)-GB 3/14/05 10:39 AM Page 17

Press STOP button.

•

When disc is played back, press the STOP button twice so that “STOP”, appears on the display.

Press and hold P.SCAN button on the remote control for over 5 seconds.

•

Pressing and holding the button for over 5 seconds will select "Progressive Scan" and "Interlace Scan" alternately.

•

When you select P.SCAN, "P.SCAN" will appear on the display.

•

To set P.Scan mode for DivX discs, press the P. SCAN button on the remote control for more than 5 seconds with no disc in the unit (“'NO DISC" on the display), then load the DivX disc and play.

In interlaced-scan video, a frame consists of two interlaced fields (odd and even), where each field contains every other horizontal line in the frame. The odd field of alternating lines is displayed first, and then the even field is displayed to fill in the alternating gaps left by the odd field to form a single frame. One frame, displayed every 1/30th of a second, contains two interfaced fields, thus a total of 60 fields are displayed every 1/60th of a second. The interlaced scanning method is intended for capturing a still object.

Interlaced Scan (1 FRAME = 2 FIELDS)

The progressive scanning method scans one full frame of video consecutively down the screen, line by line. An entire image is drawn at one time, as opposed to the interlaced scanning process by which a video image is drawn in a series of passes. The progressive scanning method is desirable for dealing with moving objects.

Progressive Scan (FULL FRAME)

What is Progressive (or Non-Interlaced) Scanning?

•

This function works only on TVs equipped with component video inputs (Y, Pr, Pb) that support Progressive Video. (It does not work on TVs with conventional component inputs, i.e., non-progressive scan TVs.)

•

Depending on the brand and model of your TV, this function may not work.

Note

Unlike regular Interlace Scan, in which two fields of picture information alternate to create the entire picture (odd scan lines, then even scan lines), Progressive Scan uses one field of information (all lines displayed in one pass) to create a clear and detailed picture without visible scan lines.

P.SCAN(Progressive Scan) Function

1p~38p(UP30/TP33)-GB 3/14/05 10:39 AM Page 18

CONNECTIONS

Connecting the FM and AM Antennas

The cooling fan supplies cool air to the unit to prevent overheating.

Please observe the following cautions for your safety.

•

Make sure the unit is well-ventilated. If the unit has poor ventilation, the temperature inside the unit could rise and may damage it.

•

Do not obstruct the cooling fan or ventilation holes. (If the cooling fan or ventilation holes are covered with a newspaper or cloth, heat may build up inside the unit and fire may result.)

Cooling Fan

FM antenna connection AM antenna connection

1. Connect the FM antenna supplied to the FM 75Ω COAXIAL terminal.

2. Slowly move the antenna wire around until you find a location where reception is good, then fasten it to a wall or other rigid surface.

1. Connect the AM loop antenna supplied to the AM and terminals.

•

Insert the black wire into the black terminal and the white wire into the white terminal.

2. If reception is poor, connect an outdoor single vinyl-covered wire to the AM terminal. (Keep the AM loop antenna connected).

Snap the tabs on the loop into the slots of the base to assemble the AM loop antenna.

FM Antenna (supplied)

AM Loop Antenna (supplied)

If AM reception is poor, connect an

outdoor AM antenna(not supplied).

1p~38p(UP30/TP33)-GB 3/14/05 10:39 AM Page 19

Press AUX on the remote control to select ‘DIGITAL IN’.

•

Each time the button is pressed, the selection changes as follows: DIGITAL IN ➝ AUX 1 ➝ AUX 2.

•

You can also use the FUNCTION button on the main unit. The mode switches as follows: DVD/CD ➝ DIGITAL IN ➝ AUX 1 ➝ AUX 2 ➝ FM ➝ AM.

Connect Video Out on the Home Theater to Video In on the TV.

Connect the Digital Input (OPTICAL) to the Digital Output on the external digital component.

Example: Digital signal components such as a Set-Top Box or CD Recorder.

Connecting an External Digital Component

Connecting External Components

Optical Cable

(not included)

1p~38p(UP30/TP33)-GB 3/14/05 10:39 AM Page 20

CONNECTIONS

Press AUX on the remote control to select AUX 1 or AUX 2 input.

•

Each time the button is pressed, the selection changes as follows: DIGITAL IN ➝ AUX 1 ➝ AUX 2.

•

You can also use the FUNCTION button on the main unit. The mode switches as follows: DVD/CD ➝ DIGITAL IN ➝ AUX 1 ➝ AUX 2 ➝ FM ➝ AM.

• If you have connected an external digital

component and also an Analog component to Video In (1, 2) at the same time, there will be video from AUX 1 even when you select DIGITAL IN.

• If you have connected Audio In (L, R) to

1, connect Video In to 1 as well, and if you have connected Audio In (L, R) to 2, connect Video In to 2 also.

• When you select Aux 1 or 2, you are

selecting Video 1 or 2 inputs respectively.

Connect Audio In on the Home Theater to Audio Out on the external analog component.

• Be sure to match connector colors.

Connect Video Out on the Home Theater to Video In on the TV.

Connect Video In on the Home Theater player to Video Out on the external analog component.

Analog signal components such as a VCR or TV.

Connecting an External Analog Component

Audio Cable

(not supplied)

If the external analog component has only one Audio Out, connect

either left or right.

Note

1p~38p(UP30/TP33)-GB 3/14/05 10:39 AM Page 21

•

You can operate the TV after TV indicator (red) blinks 1 time, and operate DVD receiver after DVD indicator (green) blinks 1 time.

•

Buttons Enabled for TV Operation: POWER, CHANNEL, VOLUME, TV/VIDEO, and Numeric (0-9) buttons.

•

By default, the remote control is set to work with Samsung TVs. See page 66 for more information on the operation of the remote control.

Press MODE button.

To Operate the TV and DVD Player with a Single Remote Control

Press MODE button until the DVD indicator lights.

DVD RECEIVER

Press POWER button to turn on the main unit and then press DVD button to select “DVD/CD” function of the remote control.

Press POWER button to turn on the Home Theater and then press TV/VIDEO button on your TV remote to select “External Input” mode.

Press FUNCTION button on the main unit or DVD on the remote to select DVD/CD mode.

Plug the main unit's power cord into the AC power supply.

Press the MODE button until the TV indicator llights.

Your Home Theater is capable of playing DVD, CD, MP3, DivX and JPEG discs. Depending on the disc you are using, these instructions may vary slightly. Read the instructions carefully before using.

Before Using Your Home Theater

1p~38p(UP30/TP33)-GB 3/14/05 10:39 AM Page 22

•

In this manual, the instructions marked with "DVD ( )" are applicable to DVD-VIDEO, DVD-AUDIO, and DVD-R/RW discs.

Where a particular DVD type is mentioned, it is indicated separately.

•

Depending on the content of the disc, the initial screen may appear different.

DVD

Note

Groups and tracks (DVD-AUDIO)

•

DVD-audio is divided into several large sections called "groups" and smaller sections called "tracks". Numbers are allotted to these sections.

These numbers are called "group numbers" and "track numbers".

GROUP 1 GROUP 2

TRACK 1 TRACK 2 TRACK 1 TRACK 2TRACK 3

Titles and chapters (DVD-VIDEO)

•

DVD-video is divided into several large sections called "titles" and smaller sections called "chapters". Numbers are allotted to these sections.

These numbers are called "title numbers" and "chapter numbers".

TITLE 1 TITLE 2

CHAPTER 1 CHAPTER 2 CHAPTER 1 CHAPTER 2CHAPTER 3

Tracks (Video and music CDs)

•

Video and music CDs are divided into sections called "tracks". Numbers are allotted to these sections. These numbers are called

"track numbers".

TRACK 1 TRACK 2 TRACK 4 TRACK 5TRACK 3

Files (DivX)

•

DivX is divided into sections called "files". Numbers are allotted to these sections. These numbers are called

"file numbers".

FILE 1 FILE 2

Disc terminology

OPERATION

1p~38p(UP30/TP33)-GB 3/14/05 10:39 AM Page 23

Load a disc.

•

Depending on the content of the disc, the initial screen may appear different.

Press OPEN/ CLOSE button to

open the disc

Press OPEN/ CLOSE button to

close the disc tray.

•

Place a disc gently into the tray with the disc’s label facing up.

Note

To stop playback, press STOP during playback.

• If pressed once, “PRESS PLAY” is displayed and the stop position will be stored in memory.

If PLAY/PAUSE ( ) button or ENTER button is pressed, playback resumes from the stop position. (This function works only with DVDs.)

• If pressed twice, “STOP” is displayed, and if PLAY/PAUSE ( ) button is pressed, playback starts from the

beginning.

To temporarily pause playback, press PLAY/PAUSE during playback.

•

To resume playback, press PLAY/PAUSE ( ) button again.

DVD VCD CD

•

Playback starts automatically.

Disc Playback

Selecting the Video Format

Press and hold NT/PAL button on the remote controller for over 5 seconds while the power is turned off.

•

By default, the video format is set to "PAL".

•

"NTSC" or "PAL" will appear in the display. At this time, press the NT/PAL button shortly to select between "NTSC" and "PAL".

•

Each country has a different video format standard.

•

For normal playback, the video format of the disc must be the same as the video format of your TV.

1p~38p(UP30/TP33)-GB 3/14/05 10:39 AM Page 24

OPERATION

MP3

•

Depending on the recording mode, some MP3-CDs may not play.

•

Table of contents of a MP3-CD varies depending on the MP3 track format recorded on the disc.

•

MP3 file support: MPEG1 LAYER3 (BITRATE : 128KBPS~320KBPS , SAMPLING FREQ.: 32K/44.1K/48KHz)

Note

In Stop mode, use

to select the album, and then press the ENTER button.

•

The MP3 menu screen will appear and playback will start.

•

The appearance of the menu depends on the MP3 disc.

Press the OPEN/CLOSE button to open the disc tray, and then load the MP3 disc.

Press the STOP button to stop playback.

•

To select another album and track, repeat Steps 2 and 3 above.

To change the album, use to select another album and then press the ENTER button.

Data CDs (CD-ROM, CD-R, CD-RW) encoded in MP3 format can be played.

MP3-CD Playback

1p~38p(UP30/TP33)-GB 3/14/05 10:39 AM Page 25

Slide Mode

Place the JPEG disc on the disc tray.

•

Each time the button is pressed, the slide moves backward or forward.

Press to skip to the next slide.

Press the OPEN/CLOSE button.

•

Playback starts automatically.

•

Each time the button is pressed, the image makes the transition as follows:

Press SLIDE MODE button.

From top to bottom

From bottom to top

Rectangular shape in the center

Vertical blinds effect

Each time a new image is displayed, slide modes (1~11) will be applied randomly and automatically.

Cancels the slide mode.

Images captured with a digital camera or camcorder, or JPEG files on a PC can be stored on a CD and then played back with this DVD player.

JPEG File Playback

JPEG

1p~38p(UP30/TP33)-GB 3/14/05 10:39 AM Page 26

To view the previous or next image with 9 windows, press .

OPERATION

Digest Function

Press Cursor , , , buttons to select the desired image and then press ENTER button.

Press DIGEST button during playback.

•

JPEG files will be shown in 9 windows.

You can view 9 JPEG images on the TV screen.

•

The selected image is played for 5 seconds before moving to the next image.

Rotate/Flip Function

button: Flip Vertically

button: Flip Horizontally

button: Rotate 90° Counterclockwise

button: Rotate 90° Clockwise

Press Cursor , , , buttons during playback.

Original Image

1p~38p(UP30/TP33)-GB 3/14/05 10:39 AM Page 27

DivX Playback

Fast playback

Skip Forward/Back

During playback, press the button.

•

Go to the next file whenever you press button, if there are over 2 files in the disk.

•

Go to the previous file whenever you press button, if there are over 2 files in the disk.

To play back the disc at a faster speed, press and hold or during playback.

•

Each time you press and hold either button, the playback speed will change as follows: 2x ➞ 4x ➞ 8x ➞ 32x ➞ Normal.

•

DIVX file can be zoomed only in ZOOM X2 mode.

Note

Zoom Function

Press Cursor , ,

, buttons to move to the area you want to enlarge.

Press ZOOM button.

•

Each time you press the button, your selection will toggle between “ZOOM X2” and “ZOOM OFF”.

5 Minute Skip function

During playback, press the , button.

•

Playback skips 5 minutes forward whenever you press button.

•

Playback skips 5 minutes back whenever you press button.

1p~38p(UP30/TP33)-GB 3/14/05 10:39 AM Page 28

OPERATION

•

" " is displayed when there is one supported language in the disc.

Note

Format AVI WMA

Supported Versions DivX3.11 ~ 5.1 V1/V2/V3/V7

Press the SUBTITLE button.

•

Each time you press the button, your selection will toggle between “SUBTITLE ON” (1/1, 1/2 ...) and

“SUBTITLE OFF”.

•

If the disc has only one subtitle file, it will be played automatically.

Subtitle Display

Press the AUDIO button.

•

Each time you press the button, your selection will toggle between “AUDIO ON” (1/1, 1/2 ...) and

“”.

Audio Display

DivX(Digital internet video eXpress)

DivX is a video file format developed by Microsoft and is based on MPEG4 compression technology to provide audio and video data over the Internet in real-time. MPEG4 is used for video encoding and MP3 for audio encoding so that the users can watch a movie at near DVD-quality video and audio.

1. Supported Formats

•

This product only provides the following media formats. If both video and audio formats are not supported, the user may experience problems such as broken images or no sound.

2. Caption Function

•

You must have some experience with video extraction and editing in order to use this feature properly.

•

To use the caption function, save the caption file (*.smi) in the same file name as that of the DivX media file (*.avi) within the same folder. Example. Root Samsung_Bluetek_007CD1.avi

Samsung_Bluetek_007CD1.smi

•

Up to 60 alphanumeric characters or 30 East Asian characters (2 byte characters such as Korean and Chinese) for the file name.

●

Supported Video Formats

Format MP3 WMA AC3 DTS

Bit Rate 80~384kbps 56~128kbps 128~384kbps N/A

Sampling Frequency

44.1khz 44.1/48khz N/A

•

Aspect Ratio: Although default DivX resolution is 640*480 pixels (4:3), this product supports up to 720*480 pixels (16:9). TV screen resolutions higher than 800 will not be supported.

•

When you play a disc whose sampling frequency is higher than 48khz or 320kbps, you may experience shaking on the screen during playback.

●

Supported Audio Formats

1p~38p(UP30/TP33)-GB 3/14/05 10:39 AM Page 29

•

Video files (DivX, ASF, WMV, MPEG, etc.) are not supported.

•

To prevent the loss of data saved in the USB device, please turn the unit off or switch it to another mode before disconnecting the USB cable.

•

Music File Icon

•

Image File Icon

•

All File Icon

Note

Press the FUNCTION button on the main unit or the AUX button on the remote control to select the USB mode.

•

“USB” appears on the display screen

and then disappear.

•

USB SORTING screen appears on the TV screen and the saved file is played.

Open the USB cap and connect the USB cable.

Press the button when it is in stop status and select a desired icon from the top part of the menu.

•

To play music files only, select the Icon.

•

To view image files only, select the Icon.

•

To select all files select the Icon.

You can connect and play files from external USB storage devices such as MP3 players, USB flash memory, etc. using the Home Theater's USB HOST function.

Playing Media Files using the USB HOST feature

To stop playback, press the STOP ( ) button.

To play a file in the USB menu screen,

1p~38p(UP30/TP33)-GB 3/14/05 10:39 AM Page 30

Fast playback

Skip Forward/Back

During playback, press the button.

•

When there is more than a file, when you press the button, the next file is selected.

•

When there is more than a file, when you press the button, the previous file is selected.

To play back the disc at a faster speed, press and hold or during playback.

•

Each time you press and hold either button, the playback speed will change as follows: 2x ➞ 4x ➞ 8x ➞ 32x ➞ Normal.

Compatible Devices

1. USB devices that support USB Mass Storage v1.0. (USB devices that operate as a removable disk in Windows (2000 or later) without additional driver installation.)

2. MP3 Player: HDD and flash type MP3 player.

3. Digital camera: PTP protocol is not supported.

•

Devices which require additional program installation when you have connected it to a computer, are not supported.

4. USB HDD and USB Flash Drive: Devices that support USB2.0 or USB1.1.

•

You may experience a difference in playback quality when you connect a USB1.1 device.

•

For a USB HDD, make sure to connect an auxiliary power cord to the USB HDD for proper operation.

5. USB card Reader: One slot USB card reader and Multi slot USB card reader

•

Depending on the manufacturer. the USB card reader may not be supported.

•

If you install multiple memory devices into a multi card reader, you may experience problems.

File name

File

Bit rate Version Pixel

Sampling

extension Frequency

Still Picture JPG .JPG .JPEG – – 640*480 –

Music

MP3 .MP3 80~384kbps – – 44.1kHz

WMA .WMA 56~128kbps V8 – 44.1kHz

●

Supported Formats

OPERATION

•

A device using NTFS file system is not supported. (Only FAT file system is supported.)

1p~38p(UP30/TP33)-GB 3/14/05 10:39 AM Page 31

Press INFO button.

•

Each time the button is pressed, the display changes as follows:

Press the REMAIN button.

•

For checking the total and remaining time of a title or chapter being played.

DVD

The information display

disappears from the screen

The information display

disappears from the screen

The information display

disappears from the screen

VCD CD

•

appears on the TV screen!

If this symbol appears on the TV screen while buttons are being operated, that

•

Depending on the disc, the disc information display may appear different.

•

Depending on the disc, you can also select DTS, DOLBY DIGITAL, or PRO LOGIC.

Note

Each time the REMAIN button is pressed

MP3 DivX JPEG

You can view disc playback information on the TV screen.

Displaying Disc Information

Checking the Remaining Time

Screen Display

CD display

VCD display

DVD display

TITLE display

MP3 CD display

DivX display

ELAPSED TIME display

TRACK (FILE) display

CHAPTER display

SUBTITLE display

AUDIO LANGUAGE display

REPEAT PLAYBACK display

ANGLE display

DOLBY DIGITAL display

STEREO (L/R) display

DVD-AUDIO display

DVD

AUDIO

GROUP display

CHAPTER REMAIN

TITLE REMAIN

CHAPTER ELAPSED

TITLE ELAPSED

DVD-

VIDEO

TRACK REMAIN

GROUP REMAIN

TRACK ELAPSED

GROUP ELAPSED

DVD-

AUDIO

CDVCD

TRACK REMAIN

TOTAL ELAPSED

TOTAL REMAIN

TRACK ELAPSED

MP3

TRACK ELAPSED

TRACK REMAIN

1p~38p(UP30/TP33)-GB 3/14/05 10:40 AM Page 32

OPERATION

Fast Playback

DVD VCD MP3CD

Press and hold .

•

Each time the button is held down during playback, the playback speed changes as follows:

Press SLOW button.

•

Each time the button is pressed during playback, the playback speed changes as follows:

Slow Playback

DVD VCD DivX

•

Reverse slow playback does not work with VCD and DivX.

Note

Fast/Slow Playback

Skipping Scenes/Songs

DVD

Briefly press .

•

Each time the button is pressed briefly during playback, the previous or next chapter, track, or directory (file) will be played.

•

You cannot skip chapters consecutively.

TITLE 01/05 CHAPTER 002/040

TITLE 01/05 CHAPTER 004/040

VCD MP3

•

When watching a VCD with a track longer than 15 minutes, each time

is pressed, playback

will skip back or forward 5 minutes.

Something like you Back for good Love of my life More than words I need you My love Uptown girl

DVD RECEIVER SMART NAVI

Something like you Back for good Love of my life More than words I need you My love Uptown girl

DVD RECEIVER SMART NAVI

Something like you Back for good Love of my life More than words I need you My love Uptown girl

DVD RECEIVER SMART NAVI

1p~38p(UP30/TP33)-GB 3/14/05 10:40 AM Page 33

Press REPEAT button.

•

Each time the button is pressed during playback, the repeat playback mode changes as follows:

CHAPTER

Repeatedly plays the selected chapter.

TITLE

Repeatedly plays the selected title.

GROUP

Repeatedly plays the selected group.

RANDOM

Plays tracks in random order. (Atrack that has already been played may be played again.)

TRACK

Repeatedly plays the selected track.

DIR

Repeatedly plays all tracks in the selected folder.

DISC

Repeatedly plays the entire disc.

OFF

Cancels Repeat Playback.

Repeat Playback Options

DVD VCD CD MP3 JPEG

•

Repeat playback operation is not possible with version 2.0 VCD discs if PBC is turned on. To use Repeat Playback on a VCD with PBC, you should set the PBC to OFF in the disc menu. (See page

38.)

To Select a Repeat Playback Mode in the Disc Information Screen

Press INFO button twice.

Press Cursor button to move to REPEAT PLAYBACK ( ) display.

Press Cursor button to select the desired Repeat Playback mode.

DVD

VCD CD

For MP3 and JPEG discs, you cannot select Repeat Play from the information display screen.

Press ENTER button.

Note

Repeat playback allows you to repeatedly play a chapter, title, track (song), or directory (MP3 file).

Repeat Playback

CDVCDMP3 JPEG

DVD-

VIDEO

DVD-

AUDIO

1p~38p(UP30/TP33)-GB 3/14/05 10:40 AM Page 34

OPERATION

•

The A-B Repeat function will not work on an MP3 or JPEG disc.

Press Cursor button to move to REPEAT PLAYBACK ( ) display.

•

For a VCD or CD, press INFO button once.

Press INFO button twice.

A -

A -?

REPEAT : A—

A - B

REPEAT : A—B

•

The specified segment will be played repeatedly.

Press ENTER button at the end of the desired segment.

•

When ENTER button is pressed, the selected position will be stored in memory.

Press Cursor , buttons to select ‘A-’ and then press ENTER button at the beginning of the desired segment.

To return to normal playback, press Cursor , buttons to select OFF.

DVD VCD CD

Note

You can repetitively play back a designated section of a DVD.

A-B Repeat Playback

1p~38p(UP30/TP33)-GB 3/14/05 10:40 AM Page 35

DVD

Press Cursor button to move to ANGLE ( ) display.

Press INFO button.

1/3

•

Each time the button is pressed, the angle changes as follows:

Press Cursor , or numeric buttons to select the desired angle.

2/3

3/3

1/3

•

The Angle function works only with discs on which multiple angles have been recorded.

Note

Step Function

DVD VCD

•

During fast playback of a CD or MP3-CD, sound is heard only at 2x speed, and not at 4x, 8x, and 32x speeds.

•

No sound is heard during slow playback and step motion playback.

Note

Press STEP button.

•

The picture moves forward one frame each time the button is pressed during playback.

This function allows you to view the same scene in different angles.

Angle Function

1p~38p(UP30/TP33)-GB 3/14/05 10:40 AM Page 36

OPERATION

DVD VCD

DVD

Press EZ VIEW button.

•

Each time the button is pressed, the zoom function will switch between On and Off.

•

When a movie is played in Widescreen format, black bars at the top and bottom of the TV screen can be removed by pressing the EZ VIEW button.

•

This function will not work if the DVD is recorded with multi-camera angle format.

•

Black bars may not disappear because some DVD discs have a built-in horizontal to vertical ratio.

Note

This function allows you to enlarge a particular area of the displayed image.

Zoom (Screen Enlarge) Function

EZ VIEW Function

Press Cursor , ,

, buttons to move to the area you want to enlarge.

Press ZOOM button.

•

Each time the button is pressed, the zoom level changes as follows:

Press ENTER button.

SELECT ZOOM POSITION

EZ VIEW OFFEZ VIEW

1p~38p(UP30/TP33)-GB 3/14/05 10:40 AM Page 37

Some DVD-Audio discs have an extra ‘bonus’ group that requires a 4-digit key number to access. See the disc packaging for details and the-key number.

Bonus Group

When you play a DVD-Audio disc that has a bonus group, the key number input screen appears automatically.

•

You can select the desired image from a DVD-Audio disc containing still images.

•

With some discs, you may not be able to select images depending on how the disc was manufactured.

•

If you eject the disc, switch the power off, or unplug the player, you will need to re-enter the key number.

Note

DVD-

AUDIO

BONUS GROUP

KEY NUMBER :

Navigating Pages

During playback, press the TUNING/CH button on the remote control.

DVD-

AUDIO

Bonus Group / Navigating Pages

1p~38p(UP30/TP33)-GB 3/14/05 10:40 AM Page 38

OPERATION

•

Depending on the number of languages on a DVD disc, a different audio language (ENGLISH, SPANISH, FRENCH, etc.) is selected each time the button is pressed.

Press Cursor , buttons or numeric buttons to select the desired audio language.

Press INFO button twice.

SP 2/3

FR 3/3

EN 1/3 EN 01/ 03

OFF

SP 02/ 03

FR 03/ 03 OFF / 03

•

You can use the SUBTITLE button on the remote control to select a subtitle language.

•

Depending on the disc, the Subtitle and Audio Language functions may not work.

Audio Language Selection Function

DVD

Subtitle Language Selection Function

DVD

Press Cursor button to move to SUBTITLE ( ) display.

Press INFO button twice.

Press Cursor button or numeric buttons to select the desired subtitle.

Note

•

You can use the AUDIO button on the remote control to select a audio language.

Note

Selecting Audio/Subtitle Language

1p~38p(UP30/TP33)-GB 3/14/05 10:40 AM Page 39

•

The selected file will be played.

•

An MP3 or JPEG disc cannot be moved in the disc information screen.

•

When playing an MP3 or JPEG disc, you cannot use , to move to a folder. To move a folder, press (Stop) and then press , .

DVD VCD CD

MP3 JPEG

Press Cursor , buttons or numeric buttons to select the desired title/track and then press ENTER button.

Press INFO button.

01/05

001/040 0:00:37 1/1

03/05

001/002 0:00:01 1/1

01/05

001/040 0:00:01 1/1

Moving to a Title/Track

Press Cursor , buttons or numeric buttons to select the desired chapter and then press ENTER button.

01/05

025/040 0:00:01 1/1

Moving to a Chapter

Press the numeric buttons to select the desired time and then press ENTER button.

01/05

028/040 1:30:00 1/1

Moving to a Specific Time

Press Cursor , buttons to move to Chapter ( ) display.

Moving to a Chapter

01/05

025/040 1:17:30 1/1

Press Cursor , buttons to move to time display.

Moving to a Specific Time

Press the numeric buttons.

•

You can press on the remote control to move directly to the desired title, chapter, or track.

•

Depending on the disc, you may not be able to move to the selected title or time.

Note

Moving Directly to a Scene/Song

1p~38p(UP30/TP33)-GB 3/14/05 10:40 AM Page 40

OPERATION

Press Cursor , button to move to ‘Title Menu’.

DVD

In Stop mode, press MENU button.

Press ENTER button.

•

The title menu appears.

Press MENU button to exit the setup screen.

DVD

•

When you select the disc menu that is not supported by the disc, the "This menu is not supported" message appears on the screen.

•

When playing a VCD (version

2.), this toggles between PBC ON and OFF.

In Stop mode, press MENU button.

Press Cursor , buttons to move to ‘DISC MENU’ and then press ENTER button.

•

Press ENTER button.

Press Cursor ,

, buttons to select the desired item.

PBC (Playback Control) Function

When playing a VCD (version 2.0), you can select and view various scenes according to the menu screen. PBC ON: This VCD disc is version 2.0. The disc is played back according to the menu screen. Some functions

may be disabled. When some functions are disabled, select "PBC OFF" to enable them.

PBC OFF: This VCD disc is version 1.1. The disc is played back in the same way as with a music CD.

•

Disc menu display may be different depending on the disc.

Note

You can use the menus for the audio language, subtitle language, profile, etc. DVD menu contents differ from disc to disc.

Using Disc Menu

For DVDs containing multiple titles, you can view the title of each movie. Depending on the disc, the availability of this feature may vary.

Using the Title Menu

•

Title menu display may be different depending on the disc.

Note

1p~38p(UP30/TP33)-GB 3/14/05 10:40 AM Page 41

OSD (On-Screen Display) language is set to English by default.

Setting the Language

In Stop mode,

press MENU

button.

Press Cursor button to move to ‘Setup’ and then

press ENTER button.

• To select another language, select OTHER and enter the language code of your country. (See page 70 for language codes) AUDIO, SUB TITLE and DISC MENU language can be selected.

Note

39P~72P(UP30/TP33)-GB 3/14/05 10:41 AM Page 38

•

Once the setup is complete, if the language was set to English, OSD will be displayed in English.

Select ‘Language’ and then press

ENTER button

Press Cursor , button to select ‘OSD Language’ and then

press ENTER button.

Press Cursor , button to select the desired language and then

press ENTER button.

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

If the language you selected is not recorded on the disc, menu language will not change even if you set it to your desired language.

Selecting the

OSD Language

Selecting the

Audio Language

(recorded on the disc)

Selecting the

Subtitle Language

(recorded on the disc)

Selecting the Disc Menu

Language (recorded on the disc)

SETUP

39P~72P(UP30/TP33)-GB 3/14/05 10:41 AM Page 39

In Stop mode,

press MENU

button.

Press Cursor button to move to ‘Setup’ and then

press ENTER button.

•

Once the setup is complete, you will be taken to the previous screen.

Press Cursor button to move to ‘TV DISPLAY’ and then

press ENTER button.

Press Cursor , button to select the desired item and then

press ENTER button.

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

Depending on your TV type (Wide Screen or conventional 4:3), you can select the TV's aspect ratio.

Setting TV Screen type

39P~72P(UP30/TP33)-GB 3/14/05 10:41 AM Page 40

SETUP

The horizontal to vertical screen size ratio of conventional TVs is 4:3, while that of widescreen and high definition TVs is 16:9. This ratio is called the aspect ratio. When playing DVDs recorded in different screen size, you should adjust the aspect ratio to fit your TV or monitor.

: Select this to view a 16:9 picture in the full-screen

mode on your widescreen TV.

• You can enjoy the widescreen aspect.

: Select this to play a 16:9 picture in the letter box

mode on a conventional TV.

• Black bars will appear at the top and bottom of the screen.

: Select this to play a 16:9 picture in the pan & scan

mode on a conventional TV.

• You can see the central portion of the screen only (with the sides of the 16:9 picture cut off).

4:3LB

(4:3 Letterbox)

WIDE

4:3PS

(4:3 Pan&Scan)

• If a DVD is in the 4:3 ratio, you cannot view it in widescreen.

• Since DVD discs are recorded in various image formats, they will look different depending on the software, the type of TV, and the TV aspect ratio setting.

Note

Adjusting the TV Aspect Ratio (Screen Size)

• For a standard TV, select either "4:3LB" or "4:3PS" option according to personal preference. Select "16:9" if you have a widescreen TV.

39P~72P(UP30/TP33)-GB 3/14/05 10:41 AM Page 41

•

This function works only if a DVD disc contains the rating level information.

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

•

The password is set to "7890" by default.

•

Once the setup is complete, you will be taken to the previous screen.

•

If you have selected Level 6, you cannot view DVDs with Level 7 or higher.

•

The higher the level, the closer the content is to violent or adult material.

3 5

Press Cursor button to move to ‘PARENTAL’ and then

press ENTER button.

Press Cursor , button to select the desired rating level and then press

ENTER button.

Enter the password and then press

ENTER button.

Note

In Stop mode,

press MENU

button.

Press Cursor button to move to ‘Setup’ and then

press ENTER button.

Use this to restrict playback of adult or violent DVDs you do not want children to view.

Setting Parental Controls (Rating Level)

39P~72P(UP30/TP33)-GB 3/14/05 10:41 AM Page 42

SETUP

•

Enter the old password, a new password, and confirm new password.

•

The setting is complete.

3 5

Press Cursor button to move to ‘PASSWORD’

and then press ENTER

button.

Press ENTER

button.

Enter the password and then press

ENTER button.

Press MENU button.

Press Cursor button to move to ‘Setup’ and then

press ENTER button.

•

The password is set to "7890" by default.

Note

If you have forgotten the rating level password, do the following:

•

While the player is in the no disc mode, hold the main unit's button for longer than 5 seconds. “INITIALIZE” appears on the display and all settings will return to the default values.

•

Press the POWER button.

Using the RESET function will erase all stored settings. Do not use this unless necessary.

You can set the password for the Parental (rating level) setting.

Setting the Password

39P~72P(UP30/TP33)-GB 3/14/05 10:41 AM Page 43

DVD VCDJPEG

•

“COPY LOGO DATA” will be

displayed on the TV screen.

•

The selected wallpaper will be displayed.

•

You can select up to 3 wallpaper settings.

During playback, press

PLAY/PAUSE button

when an image you like appears.

Press LOGO

button.

The power will turn off and then back on.

Setting the Wallpaper

While watching a DVD, VCD or JPEG CD, you can set the image you like as background wallpaper.

Setting the Wallpaper

PAUSE

COPY LOGO DATA

Select this to set the Samsung Logo image as your wallpaper.

Select this to set the desired image as your wallpaper.

39P~72P(UP30/TP33)-GB 3/14/05 10:41 AM Page 44

SETUP

21 3

In Stop mode,

press MENU

button.

Press Cursor button to move to ‘Setup’ and then

press ENTER button.

Press Cursor button to move to ‘LOGO’ and then

press ENTER button.

To select one of the 3 wallpaper settings you've made

Press MENU

button to exit the setup screen.

Press to select the desired ‘USER’, and then press

ENTER.

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

39P~72P(UP30/TP33)-GB 3/14/05 10:41 AM Page 45

Press the MENU

button while the disc tray is open.

Press Cursor button to move to ‘Setup’ and then

press ENTER button.

Press Cursor button to move to ‘DVD TYPE’ and then

press ENTER button.

Press Cursor , button to move to ‘DVD VIDEO’ and then

press ENTER button.

•

DVD Play mode is set to DVD Audio as factory default setting.

Note

•

Set steps 1 ~ 4 again if you want to switch to DVD AUDIO Play mode.

When Selecting DVD Play Mode:

•

DVD VIDEO : set to play the DVD video

contents contained on a DVD audio disc.

•

DVD AUDIO : set to play the default

DVD audio.

Some DVD-Audio discs contain DVD-Video as well as DVD-Audio. To play back the DVD-Video portion of the DVD-Audio disc, set the unit to DVD-Video mode.

DVD Audio Disc Playback Mode

•

Please use the Registration code to register this player with the DivX (R) video on demand format. To learn more, go to www.divx.com/vod.

DivX (R) registration

39P~72P(UP30/TP33)-GB 3/14/05 10:41 AM Page 46

SETUP

SMALL

: Select this when using the speakers.

NONE : Select this when no speakers are connected.

•

• Depending on PRO LOGIC and STEREO settings, the speaker mode may vary (see page 57).

Note

Signal outputs and frequency responses from the speakers will automatically be adjusted according to your speaker configuration and whether certain speakers are used or not.

Setting the Speaker Mode

In Stop mode,

press MENU

button.

Press Cursor button to move to ‘Audio’ and then

press ENTER button.

In the Speaker Setup, press the

ENTER button again.

Press Cursor , ,

, buttons to move to the desired speaker and then

press ENTER button.

•

For C, LS, and RS, each time the button is pressed, the mode switches alternately as follows: SMALL

➝ NONE.

•

For L and R, the mode is set to SMALL.

39P~72P(UP30/TP33)-GB 3/14/05 10:41 AM Page 47

Setting up the Speaker Delay Time

When 5.1CH Surround Sound is played, you can enjoy the best sound if the distance between you and each speaker is the same. Since the sounds arrive at the listening position at different times depending on the placement of speakers, you can adjust this difference by adding a delay effect to the sound of the Center Speaker and Surround Speakers.

In Stop mode,

press MENU

button.

Press Cursor button to move to ‘Audio’ and

then press ENTER

button.

•

With (Dolby Pro Logic II), the delay time may be different for each mode.

•

With AC-3 and DTS, the delay time can be set between 00 and 15mSEC.

•

The Center channel is only adjustable on 5.1 channel discs.

Note

If the speakers cannot be placed at equal distances from the listening position, you can adjust the delay time of the audio signals from the center and rear speakers.

Setting the Delay Time

39P~72P(UP30/TP33)-GB 3/14/05 10:41 AM Page 48

Df: The distance from FRONT SPEAKER Dc: The distance from CENTER SPEAKER Ds: The distance from SURROUND SPEAKER

Ideal CENTER SPEAKER placement

It is desirable to place all speakers within this circle.

Ideal SURROUND SPEAKER placement

SETUP

•

You can set the delay time for C between 00 and 05mSEC and for LS and RS between 00 and 15mSEC.

43 5

Press Cursor button to move to ‘DELAY TIME’ and then press

ENTER button.

Press Cursor , ,

, buttons to move to the desired speaker and then

press ENTER button.

Press Cursor , to set the Delay time.

0 ms 3 ms 6 ms

9 ms 12 ms 15 ms

•

Setting REAR (SURROUND) SPEAKERS

If the distance of Df is equal to the distance of Ds in the figure, set the mode as 0ms. Otherwise, change the setting according to the table.

•

Setting CENTER SPEAKER

If the distance of Dc is equal to or longer than the distance of Df in the figure, set the mode as 0ms. Otherwise, change the setting according to the table.

Distance between Df and Dc Delay Time

Delay Time

0 ms 1 ms 2 ms 3 ms 4 ms 5 ms

Distance between Df and Ds

0.00 m

0.34 m

0.68 m

1.02 m

1.36 m

1.70 m

0.00 m

1.02 m

2.04 m

3.06 m

4.08 m

5.10 m

39P~72P(UP30/TP33)-GB 3/14/05 10:41 AM Page 49

L: Front Speaker (L) C: Center Speaker SW: Subwoofer R: Front Speaker (R) SL: Rear Speaker (L) SR: Rear Speaker (R)

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

In Stop or no disc mode, press

MENU button.

Press Cursor button to move to ‘Audio’ and then

press ENTER button.

Press Cursor button to move to ‘TEST TONE’ and then press

ENTER button.

•

The test tone will be sent to L ➝ C ➝ R ➝ RS ➝ LS ➝ SW in order.

If the ENTER button is pressed again at this time, the test tone will stop.

To end the test tone,

press TEST TONE button again.

Press TEST TONE button.

•

Test tone will be produced as follows: When playing a DVD or CD, this will work only in Stop mode.

•

Use this function to check that each speaker is correctly connected and that there is no problem.

Alternate method: press the TEST TONE button on the remote.

Multi-Channel Pro Logic Mode

Start

Use the Test Tone feature to check the speaker connections.

Setting the Test Tone

39P~72P(UP30/TP33)-GB 3/14/05 10:41 AM Page 50

SETUP

In Stop mode,

press MENU

button.

Press Cursor button to move to ‘Audio’ and then

press ENTER

button.

•

When the Cursor button is pressed, the effect is greater, and when the Cursor button is pressed, the effect is smaller.

Press Cursor button to move to ‘DRC’ and then

press ENTER

button.

Press Cursor , to adjust the ‘DRC’.

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

You can use this function to enjoy Dolby Digital sound when watching movies at low volume at night.

Setting the DRC (Dynamic Range Compression)

39P~72P(UP30/TP33)-GB 3/14/05 10:41 AM Page 51

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

In Stop mode,

press MENU

button.

Press Cursor button to move to ‘Audio’ and then press

ENTER button.

Press Cursor button to move to ‘SOUND EDIT’ and then press

ENTER button.

Method 1

When adjusting the audio quality using the setup screen

Press Cursor , buttons to select and adjust the desired item. Press the , buttons to adjust the settings.

You can adjust the balance and level for each speaker.

Setting the Audio Quality

39P~72P(UP30/TP33)-GB 3/14/05 10:41 AM Page 52

•

The adjustments will appear on the main unit's display, not on your TV screen.

Adjusting Front/Rear Speaker Balance

•

You can select between 00 and –06 and OFF.

•

The volume decreases as you move closer to –6.

Adjusting Center/Rear/Subwoofer Speaker Level

•

The volume level can be adjusted in steps from +6dB to –6dB.

•

The sound gets louder as you move closer to +6dB and quieter as you get closer to -6dB.

Method 2

When manually adjusting with the SOUND EDIT button

Adjusting Front Speaker Balance Adjusting Rear Speaker Balance

Press SOUND EDIT button and

then press Cursor

, .

Adjusting Center Speaker Level

4 5

Adjusting Rear Speaker Level

Adjusting Subwoofer Speaker Level

Press SOUND EDIT button and

then press Cursor

, .

Press SOUND EDIT button and

then press Cursor

, .

Press SOUND EDIT button and

then press Cursor

, .

Press SOUND EDIT button and

then press Cursor

, .

Note

SETUP

TITLE

CHAP

PRGM RDS RT

TUNED

kHz MHz

TITLE

CHAP

PRGM RDS RT

TUNED

kHz

MHz

TITLE

CHAP

PRGM RDS RT

TUNED

kHz

MHz

TITLE

CHAP

PRGM RDS RT

TUNED

kHz

MHz

TITLE

CHAP

PRGM RDS RT

TUNED

kHz

MHz

39P~72P(UP30/TP33)-GB 3/14/05 10:41 AM Page 53

Video may look slower than the audio if it is connected to a digital TV. If this occurs, adjust the audio delay time to to match the video.

AV SYNC Setup

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

•

'Audio' menu appears.

•

Setup menu appears.

•

AV-SYNC screen appears.

Press Cursor , buttons to move to ‘Audio’ and then

press ENTER button.

Press Cursor , buttons to move to ‘AV-SYNC’ and

then press ENTER button.

Press the MENU button.

•

You can set the audio delay time between 0 ms and 300 ms. Set it to the optimal status.

Press Cursor , buttons to select the AV-SYNC Delay Time and then press the

ENTER button.

39P~72P(UP30/TP33)-GB 3/14/05 10:41 AM Page 54

SETUP

•

"DSP" appears on the display panel.

•

Each time the button is pressed, the selection changes as follows:

POP, JAZZ, ROCK: Depending on the genre of music, you can select POP, JAZZ, and ROCK. STUDIO : Provides a sense of presence as if in a studio. CLUB : Simulates the sound of a dance club with a throbbing bass beat. HALL : Provides a clear vocal as if listening in a concert hall. MOVIE: Provides the feeling of a movie theater. CHURCH: Gives the feel of being in a grand church. PASS: Select this for normal listening.

Press DSP/EQ button.

Note

•

DSP/EQ function is only available in STEREO mode. Press the PL II mode button to show STEREO on the display.

•

This feature works with CDs, MP3-CDs, 2 channel DVD-Audio, DivX and Dolby Digital discs.

•

When playing a DVD disc encoded with two or more channels, multi-channel mode will be selected automatically and DSP/EQ function does not work.

Note

DSP(Digital Signal Processor) DSP modes have been designed to simulate different acoustic environments. EQ: You can select ROCK, POP, or CLASSIC to optimize the sound for the genre of music you are playing

Sound Field (DSP)/EQ Function

39P~72P(UP30/TP33)-GB 3/14/05 10:41 AM Page 55

Press PL II MODE button.

PRO LOGIC II

•

MUSIC: When listening to music, you can experience sound effects as if you are listening to the actual performance.

•

CINEMA: Adds realism to the movie soundtrack.

•

PRO LOGIC: You will experience a realistic multi-channel effect, as if using five speakers, while using just the front left

and right speakers.

•

MATRIX: You will hear 5.1 channel surround sound.

STEREO: Select this to listen to sound from the front left and right speakers and the subwoofer only.

•

Each time the button is pressed, the mode changes as follows.

•

When selecting Pro Logic II mode, connect your external device to the AUDIO INPUT jacks (L and R) on the player. If you connect to only one of the inputs (L or R), you cannot listen to surround sound.

Note

You can select the desired Dolby Pro Logic II audio mode.

Dolby Pro Logic II Mode

39P~72P(UP30/TP33)-GB 3/14/05 10:41 AM Page 56

SETUP

This function works only in Dolby Pro Logic MUSIC mode.

Dolby Pro Logic II Effect

•

You can select between 0 and 7.

•

This sets the width of the center image. The higher the setting, the less sound comes from the center speaker.

•

You can select between 0 and 6.

•

Incrementally adjusts the sound field (DSP)from the front or rear.

•

When playing a DVD disc encoded with two or more channels, multi-channel mode will be selected automatically and (Dolby Pro Logic II) button does not work.

•

You can select either 0 or 1.

•

This mode extends the front stereo image to include the surround speakers for an exciting "wraparound" effect with side wall imaging.

Press PL II MODE

button to select ‘MUSIC’ mode.

Press PL II EFFECT button

to select Panorama, then press Cursor , buttons to select the desired effect setting.

Press PL II EFFECT button

to select C-Width, then press Cursor , buttons to select the desired effect setting.

Press PL II EFFECT button

to select Dimension, then press the Cursor , buttons to select the desired setting.

Note

39P~72P(UP30/TP33)-GB 3/14/05 10:41 AM Page 57

•

The selection toggles back and forth between "FM➝ AM" each

time the TUNER button is

pressed.

Tune in to the desired station.

Press TUNER

button.

Automatic Tuning 2

Manual Tuning

Select a broadcast station.

Press the STOP ( )

button to select PRESET and then press button to select the preset station.

Automatic Tuning 1

Press the Function

button to select the desired band (FM, AM).

Press the STOP

( )

button

to select "MANUAL" and then press and hold button to automatically search the band.

Automatic Tuning 2

Press STOP

( )

to select

MANUAL and then briefly press to tune in to a lower or higher frequency.

Manual Tuning

•

Each time the button is pressed, the sound switches between "STEREO" and "MONO".

•

In a poor reception area, select MONO for a clear, interference-free broadcast.

Press MO/ST button to listen in Mono/Stereo.

(This applies only when listening to an FM station.)

When is pressed, a preset broadcast station is selected.

Press and hold TUNING/CH to automatically search for active broadcasting stations.

Briefly press TUNING/CH to increase or decrease the frequency incrementally.

Automatic Tuning 1

Remote Control Unit

Main Unit

You can listen to the chosen band (FM, AM broadcast stations) by using either the automatic or manual tuning operation.

Listening to Radio

39P~72P(UP30/TP33)-GB 3/14/05 10:41 AM Page 58

RADIO OPERATION

To tune in to a preset station, press on the remote control to select a channel.

•

Refer to Step 2 on page 59 to automatically or manually tune in to a station.

•

Each time the button is pressed, the band switches between "FM

➝

AM".

•

“PRGM” flashes in the display.

Example: Presetting FM 89.1 in the memory

Press TUNING/CH

to select "89.10".

Press the TUNER

button and select the FM band.

•

Press the TUNER MEMORY button before ‘PRGM’ disappears from the display.

•

‘PRGM’ disappears from the display and the station is stored in memory.

•

You can select between 1 and

15.

Press the TUNER MEMORY button.

Press the TUNER MEMORY button

again.

To preset another station, repeat steps 2 to 5.

Press to select preset number.

TITLE

CHAP

PRGM RDS RT

TUNED

kHz

MHz

TITLE

RDS RT

TUNED

kHz

MHz

TITLE

RDS RT

TUNED

kHz

MHz

TITLE

RDS RT

TUNED

kHz

MHz

TITLE

CHAP

RDS RT

TUNED

kHz

MHz

Presetting Stations

You can store up to:

15 FM stations 15 AM stations

• FM Frequency Modulation

• AM Medium Wave

•

Up to 15 stations (30 total ; 15FM, 15AM) can be saved in memory. If you save more than 15 stations, the oldest station previously saved is removed and a new station is stored in its place.

Note

39P~72P(UP30/TP33)-GB 3/14/05 10:41 AM Page 59

•

RDS may not operate correctly if the station tuned is not transmitting RDS signal properly or if the signal strength is weak.

•

If searching finishes at once,“PS”,and “RT” will not appear on the display.

Using the RDS (Radio Data System) to receive FM stations

What information can RDS signals provide?

RDS allows FM stations to send an additional signal along with their regular program signals. For example,the stations send their station names,as well as information about what type of program they broadcast, such as sports or music,etc.

When tuned to an FM station which provides the RDS service,the RDS indicator lights up on the display.

•

Description on RDS function

1. PTY (Program Type) : Displays the type of programme currently being broadcast

2. PS NAME (Program Service Name) :

Indicates the name of broadcasting station

and is composed of 8 characters.

3. RT (Radio Text) :

Decodes the text broadcast by a station (if any) and is composed

of maximum 64 characters.

4. CT (Clock Time) :

Decodes the real time clock from the FM frequency.

• Some stations may not transmit PTY, RT or CT information therefore this may not be displayed in all cases.

5. TA (Traffic Announcement) :

When this symbol flashes it shows that the traffic

announcement is in progress.

Note

You can see the RDS signals the station sends on the display.

TO show the RDS signals

Press RDS DISPLAY while listening to an FM station.

Each time you press the button, the display change to show you the following information:

PS (Program Service) :While searching,"PS"appears and then the station names will be displayed."NO PS" appears if no signal is sent. RT(RadioText) : while searching,"RT"appears and then text messages the station sends will be displayed. "NO RT"appears if no signal is sent.

Frequency : station frequency (non-RDS service)

About characters shown in the display

When the display shows PS,or RT signals,the following characters are used.

•

The display window cannot differentiate upper case and lower case lrtters and always uses upper case letters.

•

The display window cannot show accented letters, “A,” for instance, may stans for accented “A’s” like “À, Â, Ä, Á, Åand Ã.”

About RDS broadcasting

39P~72P(UP30/TP33)-GB 3/14/05 10:41 AM Page 60

PTY (Program Type) indication and PTY-SEARCH function

To search for a program using the PTY codes

Before you start, remember...

•

The PTY Search is only applicable to preset stations.

•

To stop searching any time during the process, press PTY SEARCH while searching.

•

There is a time limit in doing the following steps. If the setting is cancelled before you finish, start from step 1 again.

•

When pressing the buttons on the primary remote control, make sure that you have selected the FM station using the primary remote control.

One of the advantages of the RDS service is that you can locate a particular kind of program from the preset channels by specifying the PTY codes.

Press PTY SEARCH while listenning to an FM station.

Press the PTY-or PTY+until the PTY code you want appears on the display.

•

The display gives you the PTY codes described to the right.

Press PTY SEARCH again, while the PTY code selected in the previous step is still on the display.

•

The center unit searches 15 preset FM stations,stops when it finds the one you

have selected, and tunes in that station.

Display

NEWS

AFFAIRS

INFO

SPORT

EDUCATE

DRAMA

CULTURE

SCIENCE

VARIED

POP M

ROCK M

M.O.R.M

LIGHT M

CLASSICS

OTHER M

WEATHER

FINANCE

CHILDREN

SOCIAL A RELIGION

PHONE IN

TRAVEL

LEISURE

JAZZ COUNTRY NATION M

OLDIES

FOLK M

DOCUMENT

Program Type

• News including an announced opinion and report

• Several matters including a current incident, documentary, discussion and analysis.

• Information including weights and measures,

returns and forecast, matters interesting the customer, medical information, etc.

• Sports

• Education

• Drama-Radio serial, etc.

• Culture-National or local culture including the religious problem, social science, language, theater,etc.

• Natural science and technology

• Others-Speech, amusing program (quiz, game), interview, comedy and satirical play, etc.

• Pop music

• Rock music

• Current contemporary music considered to be “easylistening.”

• Light classical music- Classical music and instrumental and chorus music

• Heavy classical music-Orchestra music, symphony, chamber music and opera

• Other music - Jazz, R&B country music

• Weather

• Finance

• Children’s programmes

• Social affairs

• Religion

• Phone in

• Travel

• Leisure

• Jazz Music

• Country Music

• National Music

• Oldies Music

• Folk Music

• Documentary

RADIO OPERATION

39P~72P(UP30/TP33)-GB 3/14/05 10:41 AM Page 61

•

Each time the button is press, the brightness changes as follows:

DARK ➞ BRIGHT.

Adjusting Display Brightness

You can adjust the brightness of the display on the main unit so it won't interfere with your movie viewing.

Press DIMMER button.

•

"SLEEP" will be displayed. Each time the button is pressed the preset

time changes as follows: 10 ➝ 20 ➝30 ➝ 60 ➝ 90 ➝ 120 ➝ 150 ➝ OFF.

Press SLEEP button.

Sleep Timer Function

You can set the time that the DVD player will shut itself off.

Convenient Functions

•

The remaining time before the DVD player will shut itself off is displayed.

•

Pressing the button again changes the sleep time from what you have set earlier.

To confirm the sleep timer setting,

press SLEEP button.

To cancel the sleep timer, press SLEEP button until

OFF appears on the display.

39P~72P(UP30/TP33)-GB 3/14/05 10:41 AM Page 62

TITLE

CHAP

PRGM RDS RT

TUNED

kHz MHz

TITLE

CHAP

PRGM RDS RT

TUNED

kHz

MHz

MISCELLANEOUS

•

‘

MUTE’ flash in the display.

•

To switch the sound back on (at the same volume as before), press MUTE again or the VOLUME buttons.

Mute Function

This is useful when answering a doorbell or telephone call.

Press MUTE button.

Using Headphones

Use headphones (not supplied) for private listening pleasure.

Connect the headphones to the PHONES jack for private listening.

•

To prevent hearing damage, do not increase the volume excessively when using headphones.

Caution

39P~72P(UP30/TP33)-GB 3/14/05 10:41 AM Page 63

Operating a TV with the Remote Control

•

The remote control may not work on some brands of TVs. Also some operations may not be possible depending on your brand of TV.

•

If you do not set the remote control with the code for your brand of TV, the remote control will work on a Samsung TV by default.

When operating a TV with the remote control

Press the MODE button to make the TV

indicator on the remote control flash.

Press POWER button to turn on the TV.

Point the remote control toward the TV.

While holding down POWER, enter the code

corresponding to your brand of TV.

•

If the code matches the TV's code, the TV will be turned off.

•

If there is more than one code listed for your TV in the table, enter one at a time to determine which code works.

Example: For a Samsung TV

While holding down POWER, use the number buttons to enter 00, 01, 02, 03, 04, and 05.

•

You can use the TV POWER, VOLUME, CHANNEL, and Numeric buttons (0~9).

Point the remote control toward the TV and

press POWER. If the TV turns off or on, the

setting is complete.

DVD RECEIVER

Note

39P~72P(UP30/TP33)-GB 3/14/05 10:41 AM Page 64

SAMSUNG

ANAM

DAEWOO

HITACHI

JVC

SHARP

SONY

TOSHIBA

SANYO

MITSUBISHI

MATSUSHITA

TELEFUNKEN

RCA

PANASONIC

SABA

PHILIPS

GRUNDIG

ZENITH

MIVAL

NOBLEX

EMERSON

MAGNAVOX

LOEWE

THOMSON

NORDMENDE

LOEWE OPTA

BLAUPUNKT

SIEMENS

TV Brand Code List

No.

Brand

Code

00(Initial Value), 01, 02, 03, 04, 05, 73

06~11, 59

12~18, 20, 21

05, 20, 21, 22, 53

23, 40, 41, 49

24, 55

27, 33, 34, 35, 54

27, 36

27, 37, 42, 43, 44, 46

27, 30, 31, 32

05, 27, 28

09, 26

41, 49, 51, 57

29, 61

07, 09, 26, 48, 49, 50

40, 41, 47, 48, 49

05, 45, 47, 64, 65, 66, 67, 68, 69

39, 42, 46, 70, 71, 72

05, 60

40, 41, 49, 62, 63

40, 41, 49

36, 47, 05

BRANDT

FERGUSON

PIONEER

TELEAVA

FINLUX

FISHER

AKAI

YOKO

PHONOLA

RADIOLA

SCHNEIDER

NEWSAN

CONTINENTAL EDISON

SALORA

SELECO

NOKIA

REX

MIVAR

IMPERIAL

CGE

BANG & OLUFSEN

BRIONVEGA

FORMENTI

METZ

WEGA

RADIOMARELLI

SINGER

SINUDYNE

No.

Brand

Code

41, 48, 74

05, 42, 47

05, 45, 47

05, 45

MISCELLANEOUS

39P~72P(UP30/TP33)-GB 3/14/05 10:41 AM Page 65

•

Is the power cord plugged securely into the outlet?

•

Turn off the power and then turn it back on.

•

Check the region number of the DVD. DVD discs purchased from abroad may not be playable.

•

CD-ROMs and DVD-ROMs cannot be played on this DVD player.

•

Make sure that the rating level is correct.

•

Are you using a deformed disc or a disc with scratches on the surface?

•

Wipe the disc clean.

Disc tray does not open.

Playback does not start.

Playback does not start immediately when the Play/Pause button is pressed.

•

No sound is heard during fast playback, slow playback, and step motion playback.

•

Are the speakers connected properly? Is the speaker setup correctly customized?

•

Is the disc severely damaged?

Sound is not produced.

Sound can be heard only from a few speakers and not all six.

•

Was the DVD player suddenly moved from a cold place to a warm one? When condensation forms inside the player, remove the disc and let the player stand for 1 or 2 hours with the power on. (You can use the player again after condensation disappears.)

•

When listening to a CD or radio, sound is output to the front speakers (L/R) only. Select "PRO LOGIC II" by pressing (Dolby Pro Logic II) on the remote control to use all six speakers.

•

Make sure that the DVD disc is 5.1-CH compatible.

•

If you set C, SL, and SR to NONE in the speaker mode in the audio setup of the setup screen, no sound is heard from the center speaker and the front left and right speakers. Set C, SL, and SR to SMALL.

Picture does not appear, sound is not produced, or the disc tray opens 2 to 5 seconds later.

•

Is there "Dolby Digital 5.1 CH" mark on the disc? Dolby Digital 5.1 CH Surround Sound is produced only if the disc is recorded with

5.1 channel sound.

•

Is the audio language correctly set to DOLBY DIGITAL 5.1-CH in the information display?

Dolby Digital 5.1 CH Surround Sound is not produced.

Symptom Check/Remedy

Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed below or if the instruction below does not help, turn off the unit, disconnect the power cord, and contact the nearest authorized dealer or Samsung Electronics Service Center.

Before Calling for Service

39P~72P(UP30/TP33)-GB 3/14/05 10:41 AM Page 66

•

Is the TV power on?

•

Are the video cables connected properly?

•

Is the disc dirty or damaged?

•

A poorly manufactured disc may not be playable.

• Disc is rotating but no picture is produced.

• Picture quality is poor and picture is shaking.

•

Is the remote control being operated within its operation range of angle and distance?

•

Are the batteries exhausted?

The remote control does not work.

•

Audio language and subtitles will not work for DVDs not containing them. And depending on the disc, they may work differently.

Audio language and subtitles do not work.

•

Are you using a disc that does not contain menus?

Menu screen does not appear even when the menu function is selected.

•

While “NO DISC” message appears on the display of main unit, hold the main unit's button for longer than 5 seconds. “INITIALIZE” appears on the display and all settings will return to the default values.

•

Press the POWER button.

Using the RESET function will erase all stored settings. Do not use this unless necessary.

•

Turn off the power and hold the button on the main unit for longer than 5 seconds.

Using the RESET function will erase all stored settings. Do not use this unless necessary.

The password for rating level has been forgotten.

•

The main unit is not working.

(Example: The power goes out or strange noise is heard.)

• The DVD player is not working normally.

•

Is the antenna connected properly?

•

If the antenna's input signal is weak, install an external FM antenna in an area with good reception.

Can't receive radio broadcast.

Symptom Check/Remedy

•

You can play 16:9 DVDs in 16:9 WIDE mode, 4:3 LETTER BOX mode, or 4:3 PAN SCAN mode, but 4:3 DVDs can be seen in 4:3 ratio only. Refer to the DVD disc jacket and then select the appropriate function.

Aspect ratio cannot be changed.

MISCELLANEOUS

39P~72P(UP30/TP33)-GB 3/14/05 10:41 AM Page 67

Do not touch the playback side of the disc. Hold the disc by the edges so that fingerprints will not get on the surface. Do not stick paper or tape on the disc.

Do not keep in direct sunlight

Keep in a cool ventilated area

Keep in a clean Protection jacket. Store vertically.

When you get fingerprints or dirt on the disc, clean it with a mild detergent diluted in water and wipe with a soft cloth.

•

When cleaning, wipe gently from the inside to the outside of the disc.

Handling discs

Disc Storage

Handling and Storing Discs

•

Do not allow the discs to become contaminated with dirt.

•

Do not load cracked or scratched discs.

Caution

•

Condensation may form if warm air comes into contact with cold parts inside the player. When condensation forms inside the player, the player may not operate correctly. If this occurs, remove the disc and let the player stand for 1 or 2 hours with the power on.

Note

Small scratches on the disc may reduce sound and picture quality or cause skipping. Be especially careful not to scratch discs when handling them.

Cautions on Handling and Storing Discs

39P~72P(UP30/TP33)-GB 3/14/05 10:41 AM Page 68

MISCELLANEOUS

Code Language Code Language Code Language Code Language

1027 Afar 1181 Frisian 1334 Latvian, Lettish 1506 Slovenian

1028 Abkhazian 1183 Irish 1345 Malagasy 1507 Samoan

1032 Afrikaans 1186 Scots Gaelic 1347 Maori 1508 Shona

1039 Amharic 1194 Galician 1349 Macedonian 1509 Somali

1044 Arabic 1196 Guarani 1350 Malayalam 1511 Albanian

1045 Assamese 1203 Gujarati 1352 Mongolian 1512 Serbian

1051 Aymara 1209 Hausa 1353 Moldavian 1513 Siswati

1052 Azerbaijani 1217 Hindi 1356 Marathi 1514 Sesotho

1053 Bashkir 1226 Croatian 1357 Malay 1515 Sundanese

1057 Byelorussian 1229 Hungarian 1358 Maltese 1516 Swedish

1059 Bulgarian 1233 Armenian 1363 Burmese 1517 Swahili

1060 Bihari 1235 Interlingua 1365 Nauru 1521 Tamil

1069 Bislama 1239 Interlingue 1369 Nepali 1525 Tegulu

1066 Bengali; Bangla 1245 Inupiak 1376 Dutch 1527 Tajik

1067 Tibetan 1248 Indonesian 1379 Norwegian 1528 Thai

1070 Breton 1253 Icelandic 1393 Occitan 1529 Tigrinya

1079 Catalan 1254 Italian 1403 (Afan) Oromo 1531 Turkmen

1093 Corsican 1257 Hebrew 1408 Oriya 1532 Tagalog

1097 Czech 1261 Japanese 1417 Punjabi 1534 Setswana

1103 Welsh 1269 Yiddish 1428 Polish 1535 Tonga

1105 Danish 1283 Javanese 1435 Pashto, Pushto 1538 Turkish

1109 German 1287 Georgian 1436 Portuguese 1539 Tsonga

1130 Bhutani 1297 Kazakh 1463 Quechua 1540 Tatar

1142 Greek 1298 Greenlandic 1481 Rhaeto-Romance 1543 Twi

1144 English 1299 Cambodian 1482 Kirundi 1557 Ukrainian

1145 Esperanto 1300 Kannada 1483 Romanian 1564 Urdu

1149 Spanish 1301 Korean 1489 Russian 1572 Uzbek

1150 Estonian 1305 Kashmiri 1491 Kinyarwanda 1581 Vietnamese

1151 Basque 1307 Kurdish 1495 Sanskrit 1587 Volapuk

1157 Persian 1311 Kirghiz 1498 Sindhi 1613 Wolof

1165 Finnish 1313 Latin 1501 Sangro 1632 Xhosa

1166 Fiji 1326 Lingala 1502 Serbo-Croatian 1665 Yoruba

1171 Faeroese 1327 Laothian 1503 Singhalese 1684 Chinese

1174 French 1332 Lithuanian 1505 Slovak 1697 Zulu

Enter the appropriate code number for the initial settings “Disc Audio”, “Disc Subtitle” and/or “Disc Menu” (See page 39).

Language Code List

39P~72P(UP30/TP33)-GB 3/14/05 10:41 AM Page 69

Power Consumption

Weight

Dimensions (W x H x D)

Operating Temperature Range

Operating Humidity Range

Usable Sensitivity

S/N Ratio

Distortion

Usable Sensitivity

S/N Ratio

Distortion

Composite Video

Scart Jack

Component Video

Front speaker output

Center speaker output

Rear speaker output

Subwoofer speaker output

Frequency range

S/N Ratio

Channel separation

Input sensitivity

E R A

T U N

E R

T U N

E R

I D E O

O U

T P

P L

I E R

Specifications

80W

3.5Kg

430 x 60 x 340 mm

+5°C~+35°C

10%~75%

10dB

60dB

0.5%

55dB

40dB

1.0Vp-p(75Ω load)

Compositive Video : 1.0Vp-p(75Ω load)

RGB Signal : 0.714Vp-p(75Ω load)

Y:1.0Vp-p(75Ω load)

Pr:0.70Vp-p(75Ω load)

Pb:0.70Vp-p(75Ω load)

75W(4Ω)/CH

80W(4Ω)

75W(4Ω)/CH

120W(3Ω)

20Hz~20kHz

75dB

70dB

(AUX)500mV

39P~72P(UP30/TP33)-GB 3/14/05 10:41 AM Page 70

MISCELLANEOUS

Impedance

Frequency range

Output sound pressure level

Rated input

Maximum input

Dimensions

(W x H x D)

Weights

S P E A K E R

5.1ch speaker system

Front/Rear speaker

4Ω x 4

150Hz~20kHz

85dB/W/M

75W

150W

85.5 x 156 x 98 mm

0.5 Kg / 0.35 Kg

Center speaker

4Ω

150Hz~20kHz

85dB/W/M

80W

160W

300 x 85.5 x 98 mm

0.65 Kg

Subwoofer speaker

3Ω

30Hz~150Hz

86dB/W/M

120W

240W

160 x 320 x 400 mm

5.2 Kg

Speaker system (PS-UP30)

HT-UP30

HT-TP33

Impedance

Frequency range

Output sound pressure level

Rated input

Maximum input

Dimensions

(W x H x D)

Weights

S P E A K E R

5.1ch speaker system

Front/Rear speaker

4Ω x 4

145Hz~20kHz

85dB/W/M

75W

150W

85 x 1050 x 90 mm

3.1 Kg / 2.95 Kg

Center speaker

4Ω

145Hz~20kHz

85dB/W/M

80W

160W

295 x 90 x 94 mm

0.7 Kg

Subwoofer speaker

3Ω

35Hz~140Hz

86dB/W/M

120W

240W

180 x 320 x 400 mm

5.2 Kg

Speaker system (PS-TP33)

39P~72P(UP30/TP33)-GB 3/14/05 10:41 AM Page 71

AH68-01700B

THIS APPLIANCE IS MANUFACTURED BY:

1p~38p(UP30/TP33)-GB 3/14/05 10:39 AM Page 2

Samsung HT-TP33R User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Safety Warnings

Precautions

Features

Contents

Notes on Discs

Description

Connecting the Speakers

Connecting the Video Out to TV

P.SCAN(Progressive Scan) Function

Connecting the FM and AM Antennas

Connecting External Components

Before Using Your Home Theater

Disc Playback

MP3-CD Playback

JPEG File Playback

DivX Playback

Playing Media Files using the USB HOST feature

Displaying Disc Information

Checking the Remaining Time

Fast/Slow Playback

Skipping Scenes/Songs

Repeat Playback

A-B Repeat Playback

Step Function

Angle Function

Zoom (Screen Enlarge) Function

EZ VIEW Function

Bonus Group / Navigating Pages

Selecting Audio/Subtitle Language

Moving Directly to a Scene/Song

Using Disc Menu

Using the Title Menu

Setting the Language

Setting TV Screen type

Setting Parental Controls (Rating Level)

Setting the Password

Setting the Wallpaper

DVD Audio Disc Playback Mode

Setting the Speaker Mode

Setting the Delay Time

Setting the Test Tone

Setting the DRC (Dynamic Range Compression)

Setting the Audio Quality

AV SYNC Setup

Sound Field (DSP)/EQ Function

Dolby Pro Logic II Mode

Dolby Pro Logic II Effect

Listening to Radio

Presetting Stations

About RDS broadcasting

Convenient Functions

Operating a TV with the Remote Control

Before Calling for Service

Cautions on Handling and Storing Discs

Language Code List

Specifications
