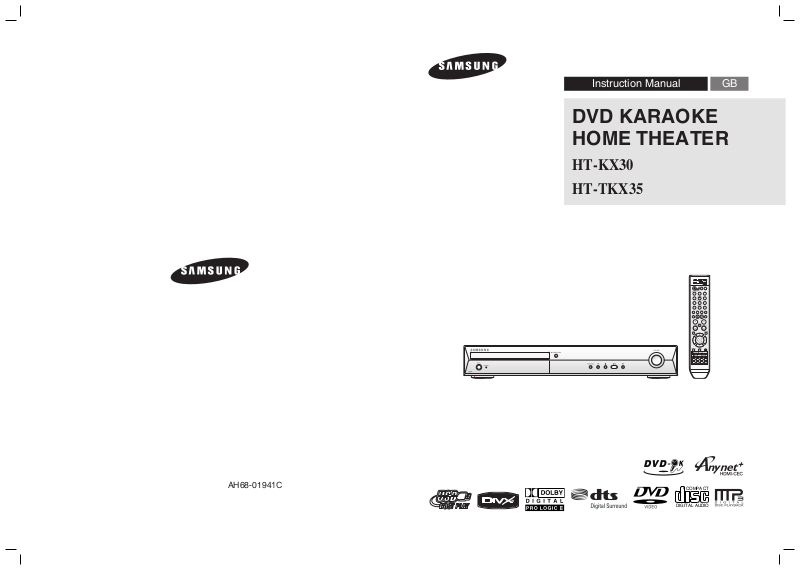

Page 1
GBInstruction Manual
AH68-01941C
DVD KARAOKE
HOME THEATER
HT-KX30
HT-TKX35
THIS APPLIANCE IS MANUFACTURED BY:
COMPACT
DIGITAL AUDIO
AH68-01660E
REV: 01
Page 2
PREPARATION
Safety Warnings
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE REAR COVER.
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
PRODUCTO LASER CLASE 1
WARNING : To reduce the risk of fi re or electric shock, do not expose this appliance to rain or moisture.
CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
This apparatus shall always be connected to a AC outlet with a protective grounding connection.
•
To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains
•
plug shall be readily operable.
CLASS 1 LASER PRODUCT
This Compact Disc player is classifi ed as a CLASS 1
LASER product.
Use of controls, adjustments or performance of procedures other than
those specifi ed herein may result in hazardous radiation exposure.
CAUTION- INVISIBLE LASER RADIATION WHEN OPEN AND
This symbol indicates that dangerous voltage which
can cause electric shock is present inside this unit.
This symbol alerts you to important operating and
maintenance instructions accompanying the unit.
INTERLOCKS DEFEATED, AVOID EXPOSURE TO
BEAM.
Precautions
Ensure that the AC power supply in your house complies with the identifi cation sticker located on the back of your
player. Install your player horizontally, on a suitable base (furniture), with enough space around it for ventilation
(7.5~10cm). Make sure the ventilation slots are not covered. Do not stack anything on top of the player.
Do not place the player on amplifi ers or other equipment which may become hot. Before moving the player, ensure
the disc tray is empty. This player is designed for continuous use. Switching off the DVD player to the stand-by mode
does not disconnect the electrical supply. In order to disconnect the player completely from the power supply,
remove the main plug from the wall outlet, especially when left unused for a long period of time.
GB
PREPARATION
CAUTION
•
Apparatus shall not be exposed to dripping or splashing and no objects fi lled with liquids, such as vases, shall be
placed on the apparatus.
•
The Mains plug is used as a disconnect device and shall stay readily operable at any time.
This marking shown on the product or its literature, indicates that it should not be
disposed with other household wastes at the end of its working life.
To prevent possible harm to the environment or human health from uncontrolled waste
disposal, please separate this from other types of wastes and recycle it responsibly to
promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this
product, or their local government offi ce, for details of where and how they
can take this item for environmentally safe recycling.
Business users should contact their supplier and check the terms and
conditions of the purchase contract.
This product should not be mixed with other commercial wastes for disposal.
During thunderstorms, disconnect AC main plug from
the wall outlet. Voltage peaks due to lightning could
damage the unit.
Phones
Protect the player from moisture (i.e. vases),
and excess heat (e.g.fi replace) or equipment
creating strong magnetic or electric fi elds
(i.e.speakers...). Disconnect the power cable
from the AC supply if the player malfunctions.
Your player is not intended for industrial use.
Use of this product is for personal use only.
Condensation may occur if your player or disc
has been stored in cold temperatures.
If transporting the player during the winter,
wait approximately 2 hours until the unit has
reached room temperature before using.
Do not expose the unit to direct sunlight or
other heat sources.
This could lead to overheating and malfunction
of the unit.
The batteries used with this product contain
chemicals that are harmful to the environment.
Do not dispose of batteries in the general
household trash.
2
3
Page 3
Features
Contents
GB
Multi-Disc Playback & FM Tuner
The HT-KX30/HT-TKX35 combines the convenience of multi-disc playback capability, including DVD-VIDEO CD,
MP3-CD, WMA-CD, DivX, CD-R/RW, and DVD
R/RW, with a sophisticated FM tuner, all in a single player.
USB HOST Function support
You can connect and play fi les from external USB storage devices such as MP3 players, USB fl ash memory, etc.
using the Home Theater's USB HOST function.
Dolby Pro Logic II
Dolby Pro Logic II is a form of multi-channel audio signal decoding technology that improves upon existing
Dolby Pro Logic.
DTS (Digital Theater Systems)
DTS is an audio compression format developed by Digital Theater Systems Inc. It delivers full-frequency
5.1 channel sound.
TV Screen Saver Function
If the main unit remains in stop mode for 3 minutes, Samsung logo appears on TV screen.
The
HT-KX30/HT-TKX35
Saver mode.
automatically switches itself into the power saving mode after 20 minutes in the Screen
Power Saving Function
The
HT-KX30/HT-TKX35
automatically shuts itself off after 20 minutes in Stop mode.
Customized TV Screen Display
The
HT-KX30/HT-TKX35
ground wallpaper.
allows you to select your favorite image during JPEG of DVD playback and set it as your back-
HDMI
HDMI transmits DVD video and audio signals simultaneously, and provides a clearer picture.
Anynet+ (HDMI-CEC) Function
Anynet+ is a function that can be used to operate the main unit using a Samsung TV remote control, by connecting the
Home Theater to a SAMSUNG TV using an HDMI Cable. (This is only available with SAMSUNG TVs that support
Anynet+.)
PREPARATION
Safety Warnings ..................................................2
Precautions..........................................................3
Features ..............................................................4
Notes on Discs ....................................................6
Description...........................................................8
CONNECTIONS
Connecting the Speakers ..................................12
Speaker Installation ...........................................14
Connecting the Optional Wireless Receiving Amplifi er
Connecting the Video Out to your TV ................18
HDMI Function...................................................19
Connecting Audio from External Components
Connecting the FM Antenna ..............................22
....15
......20
OPERATION
Before Reading the User's Manual ....................23
Before Using Your Home Theater .....................24
Disc Playback ....................................................25
MP3/WMA-CD Playback ...................................26
JPEG File Playback ...........................................27
DivX Playback ...................................................28
Using the Playback Function .............................30
Displaying Disc Information ...........................30
Fast Playback ................................................31
Slow Playback ................................................31
Skipping Scenes/Songs .................................32
Repeat Playback ............................................33
To Select a Repeat Playback Mode in the
Disc Information Screen .................................34
A-B Repeat Playback .....................................35
Step Function .................................................35
Angle Function ...............................................36
Zoom (Screen Enlarge) Function ...................36
Audio Language Selection Function ..............37
Subtitle Language Selection Function ...........37
Moving Directly to a Scene/Song ...................38
Using the Disc Menu ......................................39
Using the Title Menu ......................................39
Playing Media Files using the USB Host Feature
...... 40
SETUP
Settings..............................................................42
Setting the Language ..................................... 42
Setting TV Screen type ..................................43
Setting Parental Controls (Rating Level) ........44
Setting the Password .....................................44
Setting the Wallpaper ....................................45
To Select One of the 3 Wallpaper Settings
you've made ...................................................45
DivX (R) registration .......................................46
Setting the Speaker Mode ..............................46
Setting the Delay Time ...................................47
Setting the Test Tone .....................................48
Setting the Audio ............................................49
Setting the DRC (Dynamic Range Compression)
Setting the AV SYNC .....................................50
Setting the HDMI Audio .................................. 51
Sound Field (DSP)/EQ Function........................52
Dolby Pro Logic II Mode ....................................53
Dolby Pro Logic II Effect ....................................54
... 50
Karaoke
Karaoke ............................................................. 55
Playing DVD-OK Discs ................................... 55
Connecting Microphone .................................55
Reserving Accompaniment Music ..................56
Priority Playing Accompaniment Music .......... 56
DVD-OK Repeat Play ..................................... 57
Favorite Song Function .................................. 57
Search Song Function ....................................59
Key Control .....................................................61
Tempo Control ................................................61
Male-Female Key Control ...............................62
Setting the Chorus ..........................................62
Setting the Fanfare .........................................63
Setting the Average Score .............................63
Setting the Shadow ........................................ 63
MISCELLANEOUS
Listening to Radio ..............................................64
About RDS broadcasting ...................................66
Convenient Functions ........................................68
Operating a TV with the Remote Control...........69
Troubleshooting ................................................. 71
Cautions on Handling and Storing Discs ........... 73
Language Code List ..........................................74
USB Host Feature Supported Products.............75
Specifi cations ....................................................76
PREPARATION
4
5
Page 4
Notes on Discs
GB
DVD (Digital Versatile Disc) offers fantastic audio and video, thanks to Dolby
Digital surround sound and MPEG-2 video compression technology.
Now you can enjoy these realistic effects in the home, as if you were in a movie
theater or concert hall.
~
1 6
DVD players and the discs are coded by region. These regional codes must match
in order for the disc to play. If the codes do not match, the disc will not play.
The Region Number for this player is given on the rear panel of the player.
(Your DVD player will only play DVDs that are labeled with identical region codes.)
Playable Discs
Disc Type
DVD-VIDEO
AUDIO-CD
Divx
Mark (Logo)
DIGITAL AUDIO
COMPACT
Recorded Signals
Audio + Video
Audio
Audio + Video
Disc Size Max. Playing Time
12cm
8cm
12cm
8cm
12cm
8cm
Approx. 240 min. (single-sided)
Approx. 480 min. (double-sided)
Approx. 80 min. (single-sided)
Approx. 160 min. (double-sided)
74 min.
20 min.
74 min.
20 min.
Disc Recording Format
This product does not support Secure (DRM) Media fi les.
CD-R Discs
Some CD-R discs may not be playable depending on the disc recording device (CD-Recorder or PC) and the condition
•
of the disc.
Use a 650MB/74 minute CD-R disc.
•
Do not use CD-R discs over 700MB/80 minute as they may not be played back.
Some CD-RW (Rewritable) media, may not be playable.
•
Only CD-Rs that are properly <closed> can be fully played. If the session is closed but the disc is left open, you may not
•
be able to fully play the disc.
CD-R MP3 Discs
Only CD-R discs with MP3 fi les in ISO 9660 or Joliet format can be played.
•
MP3 fi le names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +).
•
Use discs recorded with a compression/decompression data rate greater than 128Kbps.
•
Only fi les with the <mp3> and extensions can be played.
•
Only a consecutively written multisession disc can be played. If there is a blank segment in the Multisession disc,
•
the disc can be played only up to the blank segment.
If the disc is not closed, it will take longer to begin playback and not all of the recorded fi les may be played.
•
For fi les encoded in Variable Bit Rate (VBR) format, i.e. fi les encoded in both low bit rate and high bit rate
•
(e.g., 32Kbps ~ 320Kbps), the sound may skip during playback.
A maximum of 500 tracks can be played per CD.
•
A maximum of 300 folders can be played per CD.
•
PREPARATION
CD-R JPEG Discs
•
Do not use the following types of disc!
LD, CD-G, CD-I, CD-ROM and DVD-ROM discs cannot be played on this player.
•
If such discs are played, a <WRONG DISC FORMAT> message appears on the TV screen.
DVD discs purchased abroad may not play on this player.
•
If such discs are played, a <CAN'T PLAY THIS DISC PLEASE,CHECK REGION CODE> message
appears on the TV screen.
Copy Protection
Many DVD discs are encoded with copy protection. Because of this, you should only connect your
•
DVD player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted
picture from copy-protected DVD discs.
This product incorporates copyright protection technology that is protected by methods claims of certain U.S.
•
patents and other intellectual property rights owned by Macrovision Corporation and other rights owners.
Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended
for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation.
Reverse engineering or disassembly is prohibited.
6
Only fi les with the <jpg> extensions can be played.
•
If the disc is not closed, it will take longer to start playing and not all of the recorded fi les may be played.
•
Only CD-R discs with JPEG fi les in ISO 9660 or Joliet format can be played.
•
JPEG fi le names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +).
•
Only a consecutively written multisession disc can be played. If there is a blank segment in the multisession disc,
the disc can be played only up to the blank segment.
•
A maximum of 9,999 images can be stored on a single CD.
•
When playing a Kodak/Fuji Picture CD, only the JPEG fi les in the picture folder can be played.
•
Picture discs other than Kodak/Fuji Picture CDs may take longer to start playing or may not play at all.
DVD R/RW, CD-R/RW DivX Discs
•
Since this product only provides encoding formats authorized by DivX Networks, Inc., a DivX fi le created by the user
might not play.
•
Software updates for incompatible formats are not supported.
(Example: QPEL, GMC, resolution higher than 800 x 600 pixels, etc.)
•
Sections with a high frame rate might not be played while playing a DivX fi le.
•
For more information about the formats authorized by DivX Networks, Inc., please visit <www.divxnetworks.net>.
7
Page 5
Description
GB
Front Panel
8
7
1. Disc Tray
2. Open/Close button
3. Function button
4. Stop () button
5. Play/Pause (
) button
Display
1
9
10 13
11 12
2
6. Volume Control
7. Power (
) button
8. Standby indicator
9. AUX IN 1 Connector
10. USB Connector
3 4
5
11 MIC1 Jack
12 MIC2 Jack
13.
6
Tuning Up & Skip ( ) button
Tuning Down & Skip (
) button
Rear Panel
5
1. Video Output Connector
Connect the TV's video input jacks (VIDEO IN)
to the VIDEO OUT connector.
2. External Digital Optical lnput Connector
Use this to connect external equipment capable of digital
output.
3. Component Video Output Connectors
Connect a TV with component video inputs to these jacks.
4. FM 75Ω COAXIAL Jack
6
1
12
7 8
9 10
5. 5.1 Channel Speaker Output Connector
6. Cooling Fan
7. TX Card Connection(WIRELESS)
8. AUX IN 2 Connectors
9. HDMI Output Jack
10. SCART Jack
Connect to a TV with scart input jack.
PREPARATION
43
Accessories
Remote Control
DVD KARAOKE
DISC
Video Cable
SONG LIST BOOK
HDMI Cable
MIC
FM Antenna
User's Manual
9
1. DOLBY DIGITAL indicator
2. DTS Disc indicator
3. LINEAR PCM indicator
4. TITLE indicator
5. CHAPTER indicator
6. TRACK indicator
7. PROGRAM indicator
5 63 42
7
8. REPEAT indicator
9. TUNER indicator
10. STEREO indicator
11. RTA indicator
12. RDS indicator
13. PRO LOGIC indicator
14. MPEG indicator
8
16 17 1813 14 15
9 101
15. DSP indicator
16. System Status Display
17. RADIO FREQUENCY indicator
18. SPEAKER indicator
11 12
8
Page 6
Description (Con’t)
GB
Remote Control
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Insert Remote Batteries
1. DVD RECEIVER button
2. TV button
3. TV/VIDEO button
4. POWER button
18
19
20
5. COMPONENT SEL. button
6. Number (0~9) buttons
7. RESERVE button
8. STEP button
9. Tuning Preset/CD Skip buttons
21
10. VOLUME button
11. MENU button
22
12. FAVORITE SONG, AUDIO button
1 Remove the battery cover in the direction of the arrow.
2 Insert two 1.5V AAA batteries, paying attention to the correct polarities
(+ and –).
3 Replace the battery cover.
Follow these precautions to avoid leaking or cracking cells:
Place batteries in the remote control so they match the polarity :
•
(+) to (+) and (–) to (–).
Use the correct type of batteries.Batteries that look similar may differ in
•
voltage.
Always replace both batteries at the same time.
•
Do not expose the batteries to heat or a fl ame.
•
13. KEY CONTROL buttons
14. TEMPO buttons
23
24
15. MIC VOL buttons
16. ECHO button
17. MALE/ FEMALE, ZOOM button
25
18.
26
19. OPEN/CLOSE button
20. SLEEP button
27
28
21. RDS Selection buttons
22. VIDEO SEL. button
23. CANCEL button
24. REPEAT button
29
25.
30
31
32
33
34
35
36
37
38
39
26. TUNING/CH button
27. MUTE button
28. RETURN button
29. Cursor/ENTER button
30. SEARCH SONG, SUBTITLE button
31. EXIT button
32. DIMMER, LOGO button
33. INFO button
34.
35. SOUND EDIT button
DVD button
TUNER button
USB, AUX button
PLAY/PAUSE button
STOP button
SEARCH buttons
PL II EFFECT button
Operation Range of the Remote Control
The remote control can be used up to approximately 23 feet/7 meters in a straight line. It can also be operated at
a horizontal angle of up to 30° from the remote control sensor.
OPEN
36. SLOW, MO/ST button
PL II MODE button
37.
38. DSP/EQ button
39. TUNER MEMORY button
PREPARATION
10
11
Page 7
CONNECTIONS
Connecting the Speakers
Before moving or installing the product, be sure to turn off the power and disconnect the power cord.
HT-KX30
Front Speaker (R)
Rear Speaker (R)
Center Speaker
Front Speaker (L)
Rear Speaker (L)
HT-TKX35
Front Speaker (R)
Center Speaker
Front Speaker (L)
GB
CONNECTIONS
Position of the DVD Player
Place it on a stand or cabinet shelf, or under the TV stand.
•
Front Speakers ei
Place these speakers in front of your listening position,
•
facing inwards (about 45°) toward you.
Place the speakers so that their tweeters will be at the
•
same height as your ear.
Align the front face of the front speakers with the front
•
face of the center speaker or place them slightly in front
of the center speakers.
Center Speaker f
It is best to install it at the same height as the front
•
speakers.
You can also install it directly over or under the TV.
•
Subwoofer
Selecting the Listening Position
The listening position should be located about 2.5 to 3
times the distance of the TV's screen size away from
the TV.
Example : For 32" TVs 2~2.4m (6~8feet)
For 55" TVs 3.5~4m (11~13feet)
Rear Speakers hj
Place these speakers behind your listening position.
•
If there isn't enough room, place these speakers so they
•
face each other.
Place them about 60 to 90cm (2 to 3feet) above your
•
ear, facing slightly downward.
Unlike the front and center speakers, the rear
*
speakers are used to handle mainly sound effects
and sound will not come from them all the time.
Subwoofer g
The position of the subwoofer is not so critical.
•
Place it anywhere you like.
Rear Speaker (R)
Subwoofer
Rear Speaker (L)
Connecting the Speakers
1 2
Black Red
Do not let children play with or near the speakers. They could get hurt if a speaker falls.
•
When connecting the speaker wires to the speakers, make sure that the polarity (+/ –) is correct.
•
Keep the subwoofer speaker out of reach of children so as to prevent children from inserting their hands or alien
•
substances into the duct (hole) of the subwoofer speaker.
Do not hang the subwoofer on the wall through the duct (hole).
•
•
If you place a speaker near your TV set, screen color may be distorted because of the magnetic fi eld generated
by the speaker. If this occurs, place the speaker away from your TV set.
1 Press down the terminal tab on the back of the speaker.
2 Insert the black wire into the black terminal (–) and the red
wire into the red (+) terminal, and then release the tab.
3
Connect the connecting plugs to the back of the Home
Theater.
Make sure the colors of the speaker terminals match the
colors of the connecting plugs.
12
13
Page 8
Speaker Installation
Connecting the Optional Wireless Receiving Amplifi er
GB
You have the option of installing the speakers on Stands, or directly to the Stand Base.
Speaker Components (HT-TKX35 only)
How to Install the Speaker on the Stand
1
2
1 Turn the STAND upside-down and connect it to the
STAND BASE.
2 Insert two screws (A) into the two holes marked with
arrows using a screwdriver as shown in the illustration.
3
Insert a screw (B), into the hole on the rear of the Speaker
3
4
STAND.
4
Connect the assembled stand to the SPEAKER.
5 Insert another screw (B) into the hole on the rear of the
speaker using a screwdriver as shown in the illustration.
6 This is the SPEAKER successfully assembled with the
65
Stand.
To connect the rear speakers wirelessly, you have to purchase the wireless receiving module and
TX card from your Samsung retailer.
When you have Purchased the Wireless Receiving Module (SWA-3000)
HT-KX30
Center Speaker
Front Speaker (R)
Screw (B)Screw (A)STAND BASESTANDSPEAKER
Rear Speaker (L)
WIRELESS RECEIVER MODULE
Rear Speaker (R)
Front Speaker (L)
CONNECTIONS
Subwoofer
HT-TKX35
Front Speaker (R)
Front Speaker (L)
14
Make sure that the speaker is installed on a fl at and stable
•
area. Otherwise it may be easily knocked over.
How to Install the Speaker on the Stand Base
1 2
3
1 Connect the SPEAKER with the STAND BASE.
2
Insert the screw (B) into the hole on the rear of the speaker
using a screwdriver as shown in the illustration.
3
This is the SPEAKER successfully assembled with the
Stand Base.
Rear Speaker (L)
Center Speaker
Subwoofer
Rear Speaker (R)
WIRELESS RECEIVER MODULE
15
Page 9
Connecting the Optional Wireless Receiving Amplifi er (Con’t)
TX CARD
Slanted side faces down
1 Connect the front, center and Subwoofer speakers to the main unit,
referring to pages 12~14.
2 With the main unit turned off, insert the TX card into the TX Card
Connection(WIRELESS) on the back of the main unit.
Hold the TX card so that the slanted side faces downward and insert the
•
card into the port.
The TX card enables communication between the main unit and
•
the wireless receiver.
GB
Resetting the Wireless Receiving Module
Reset the system if a communication failure occurs, or if the Link indicator (blue LED) on the wireless receiver does not
light up and the <REAR CHECK> message blinks on the main unit's display.
Reset the system while the main unit and the wireless receiver module (SWA-3000) are in Power Standby mode.
1
With the main unit turned off, press and hold the remote
control's RESERVE button for 5 seconds.
The STANDBY LED on the front panel of the wireless
receivermodule blinks.
2
With the wireless receiver module turned on, use a ball point
pen or a pair of toothpick to press the RESET button on the
back of the unit.
The STANDBY LED on the front panel of the wireless receiver
module blinks 2 Times.
3
Turn on the main unit.
The LINK LED of the wireless receiver module is lit and the
Reset is completed.
If Power Standby mode continues, repeat Steps 1 to 3 above.
CONNECTIONS
3 Connect the left and right rear speakers to the wireless receiving
module.
4 Plug the power cord of the wireless receiving module in the wall
outlet and switch the power switch <ON>.
Do not insert a card other than the TX card dedicated for the product.
•
The product might be damaged or the card may not be removed easily.
Do not insert the TX card upside down or in the reverse direction.
•
Insert the TX card when the main unit is turned off.Inserting the card
•
when it is turned on may cause a problem.
If the TX Card is inserted, sound is not output from the Rear Speaker
•
connectors on the main unit.
When the wireless receiving module setting is complete, no audio signal is output from the Rear Speaker Output
•
Connector on the back of the subwoofer.
The wireless receiving antenna is built into the wireless receiver module. Keep the unit away from water and
•
moisture.
For optimal listening performance, make sure that the area around the wireless receiver module location is clear
•
of any obstructions.
•
Sound will be heard from the wireless rear speakers in DVD 5.1-CH or Dolby Pro Logic II mode only.
•
In 2-CH mode, no sound will be heard from the wireless rear speakers.
•
Place the wireless receiver module at the rear of the listening position. If the wireless receiver module is too
close to the main unit, some sound interruption may be heard due to interference.
•
If you use a device such as a microwave oven, wireless LAN Card, Bluetooth equipment, or any other device
that uses the same frequency (2.4GHz) near the system, some sound interruption may be heard due to
interference.
•
The transmission distance of radio wave is about 10m, but may vary depending on your operating environment.
If a steel-concrete wall or metallic wall is between the main unit and the wireless receiver module, the system
may not operate at all, because the radio wave cannot penetrate metal.
16
17
Page 10
Connecting the Video Out to your TV
Choose one of the four methods for connecting to a TV.
METHOD4
(supplied)
METHOD1
(supplied)
METHOD3 METHOD2
HDMI Function
Using Anynet+(HDMI-CEC)
Anynet+ is a function that enables you to control other Samsung Devices with your Samsung TV's remote control, Anynet + can be used
by connecting this Home Theater to a SAMSUNG TV using an HDMI Cable. This is only available with SAMSUNG TVs that support Anynet+.
1
Connect the main unit of the Home Theater to a Samsung TV with an HDMI cable.
(See page 18)
2 Set the Anynet+ function on your TV.
(See the TV instruction manual for more information.)
You can operate the Home Theater by using the TV remote control.
(Available TV buttons : , , , , ▲, ▼ and ►,◄ buttons, ~ button)
If you select the TV
GB
CONNECTIONS
METHOD 1 : HDMI ....... (Best Quality)
Connect the HDMI cable from the HDMI OUT jack on the back of the main unit to the HDMI IN jack
on your TV.
METHOD 2 : Component Video .... (Better Quality)
If your television is equipped with Component Video inputs, connect a component video cable
(not supplied) from the Pr, Pb and Y jacks on the back panel of the main unit to the corresponding
jacks on your television.
COMPONENT SELECT Function
1. With the main unit turned off, press and hold the COMPONENT SEL. button on the remote
control for over 5 seconds.
• <Y Pb Pr> and <RGB> will appear in the display.
2. Press the COMPONENT SEL. button shortly to select <Y Pb Pr> to set the main unit to
COMPONENT mode.
METHOD 3 : Scart ....... (Better Quality)
If your television is equipped with an SCART input, connect an Scart Jack (not supplied) from the
AV OUT jack on the back panel of the main unit to the SCART IN jack on your television.
1. With the main unit turned off, press and hold the COMPONENT SEL. button on the remote
control for over 5 seconds.
• <Y Pb Pr> and <RGB> will appear in the display.
2. Press the COMPONENT SEL. button shortly to select <RGB> to set SCART mode.
VIDEO SELECT Function
Press the and hold VIDEO SEL. button on the remote control for over 5 seconds.
<COMPOSITE> or <RGB> will appear in the display. At this time, press the VIDEO SEL. button
•
shortly to select between <COMPOSITE> and <RGB>.
If Scart (RGB Input) is equipped for your TV, press the VIDEO SEL. button to select RGB mode.
•
You can get a better picture quality by using Scart setting.
If Scart (RGB Input) is not equipped for your TV, press the VIDEO SEL. button to select
•
COMPOSITE mode.
METHOD 4 : Composite Video ....... (Good Quality)
Connect the supplied video cable from the VIDEO OUT jack on the back of the main unit to the
VIDEO IN jack on your TV.
MOVE
MOVE
ENTER
ENTER
Set the Anynet+(HDMI-CEC) to <On> on your TV.
<Receiver : On> : You can listen to audio through the Home Theater.
<Receiver : Off> : You can listen to audio through the TV.
EXIT
If you select the THEATER
Select <THEATER to connector> and set the option of each items below.
EXIT
<View TV> : If Anynet+(HDMI-CEC) set to on and you select View TV,
the Home Theater will automatically switched to DIGITAL IN.
<THEATER Menu> : You can access the Home Theater menu.
<THEATER Operation> : The Home Theater disc playback information will be displayed.
<Receiver : On> : You can listen to audio through the Home Theater.
<Receiver : Off> : You can listen to audio through the TV.
•
When watching TV, if you want to listen to TV sound via home theater, the
optical cable should be connected.
If Anynet+ (HDMI-CEC) is on and you turn off the main unit, your TV will also
•
turn off.
Anynet+ (HDMI-CEC) will only work while in the DVD mode.
•
With Anynet+
You can operate this unit, power on your TV, or watch a movie by pressing the
Play button on your Samsung TV's remote control.
What is HDMI (High Defi nition Multimedia Interface)?
This device transmits a DVD video signal digitally without the process of
converting to analog. You will get sharper digital pictures when using an HDMI
connection.
18
This product operates in Interlace scan mode (576i, 480i) for component output.
•
If you use an HDMI cable to connect a Samsung TV to the main unit, you can operate the Home Theater using
•
the TV's remote control. This is only available with SAMSUNG TVs that support Anynet+(HDMI-CEC).
Please check the
•
logo. If your TV has an
logo, then it supports the Anynet+ function.
19
Page 11
Connecting Audio from External Components
GB
AUX1 : Front Panel
Audio Cable
(not supplied)
AUX2 : Rear Panel
Audio Cable
(not supplied)
If the external analog
component has only one
Audio Out, connect either
left or right.
AUX1 : Connecting an External Component/MP3 player
OPTICAL : Rear Panel
CONNECTIONS
Optical Cable
(not supplied)
Components such as an MP3 Player
1
Connect AUX IN 1 (Audio) on the Home Theater to the Audio Out of the external component/MP3 player.
2
Press the AUX button on the remote control to select <AUX1> input.
You can also use the FUNCTION button on the main unit.
•
The mode switches as follows : DVD/CD
DIGITAL IN
AUX1 AUX2 USB FM
AUX2 : Connecting an External Analog Component
Analog signal components such as a VCR.
1
Connect AUX IN 2 (Audio) on the Home Theater to Audio Out on the external analog component.
•
Be sure to match connector colors.
2
Press the AUX button on the remote control to select <AUX2> input.
•
You can also use the FUNCTION button on the main unit.
The mode switches as follows : DVD/CD
•
You can connect the Video Output jack on your VCR to the TV, and connect the Audio Output jacks on the VCR
DIGITAL IN
AUX1 AUX2 USB FM
OPTICAL : Connecting an External Digital Component
Digital signal components such as a Set-Top Box.
1
Connect the Digital Input (OPTICAL) to the Digital Output on the external digital component.
2
Press the AUX button on the remote control to select <DIGITAL IN>.
You can also use the FUNCTION button on the main unit.
•
The mode switches as follows
: DVD/CD DIGITAL IN AUX 1 AUX 2 USB FM
20
21
Page 12
Connecting the FM Antenna
Before Reading the User's Manual
GB
Make sure to check the following terms before reading the user manual.
Icons that will be used in manual
Icon Term Defi nition
FM Antenna (supplied)
1 Connect the FM antenna supplied to the FM 75Ω COAXIAL Jack.
2 Slowly move the antenna wire around until you fi nd a location where reception is good, then fasten it
to a wall or other rigid surface.
This unit does not receive AM broadcasts.
•
DVD
CD
MP3
JPEG
DivX
In this manual, the instructions marked with <DVD (
•
DVD-R/-RW discs that have been recorded in Video Mode and then fi nalized.
Where a particular DVD type is mentioned, it is indicated separately.
If a DVD-R/-RW discs has not been recorded properly in DVD Video format, it will not be playable.
•
DVD
CD This involves a function available on a data CD (CD-R or CD-RW).
MP3 This involves a function available on CD-R/-RW discs.
JPEG This involves a function available on CD-R/-RW discs.
DivX
Caution
Note This involves tips or instructions on the page that help each function operate.
This involves a function available on DVD or DVD-R/DVD-RW discs that have
been recorded and fi nslized in Video Mode.
This involves a function available on MPEG4 discs. (DVD R/RW, CD-R or CD-RW)
This involves a case where a function does not operate or settings may be
cancelled.
)> are applicable to DVD-VIDEO and
DVD
OPERATION
Cooling Fan
The cooling fan supplies cool air to the unit to prevent overheating.
Please observe the following cautions for your safety.
Make sure the unit is well-ventilated. If the unit has poor ventilation, the
temperature inside the unit may rise and may damage it.
Do not obstruct the cooling fan or ventilation holes. (If the cooling fan or ventilation holes
are covered with a newspaper or cloth, heat may build up inside the unit and fi re may
result.)
22 23
23
Page 13
OPERATION
Before Using Your Home Theater
To Operate your Samsung TV and the Home Theater with the HT-KX30/HT-TKX35's Remote Control
Disc Playback
DVD CD
GB
The DVD Home Theater's remote can be used to control Samsung TVs.
1 Plug the main unit's power cord into the AC power supply.
Before plugging your system into a main socket, you must checkthe voltage
•
setting (OPTIONAL). If the voltage of the socket doesnot correspond to the
setting on the rear of the unit, you mayseriously damage your system.
2 Press the TV button to set the remote to TV mode.
3
Press the POWER button to turn on your Samsung TV with this remote.
4
Press the TV/VIDEO button to select VIDEO mode on your TV.
VIDEO
5
Press the DVD RECEIVER button to switch to DVD RECEIVER mode to
operate the DVD Home Theater
6
Press the FUNCTION button on the main unit or DVD button on the remote
to enable DVD/CD playback.
1 Press the OPEN/CLOSE button to open the disc tray.
2 Load a disc.
Place a disc gently into the tray with the disc’s label facing up.
3 Close the compartment by pressing the OPEN/CLOSE button again.
Playback starts automatically.
d To stop playback, press the STOP button during playback.
If pressed once, <PRESS PLAY> is displayed and the stop position will be stored in memory.
If the PLAY/PAUSE (
(This function works only with DVDs.)
If pressed twice, <STOP> is displayed, and if the PLAY/PAUSE ( ) button is pressed, playback starts
from the beginning.
) button or ENTER button is pressed, playback resumes from the stop position.
OPERATION
24
d To temporarily pause playback, press the PLAY/PAUSE ( ) button during playback.
To resume playback, press the PLAY/PAUSE ( ) button again.
•
Depending on the content of the disc, the initial screen may appear different.
•
Any piracy could not be runnable in the player. Otherwise, it violates the CSS (Content Scrambling System :
a copy protection system) recommendations.
25
Page 14
MP3/WMA-CD Playback
Data CDs (CD-R, CD-RW) encoded in MP3/WMA format can be played.
MP3
JPEG File Playback
Images captured with a digital camera or camcorder, or JPEG fi les on a PC can be stored on a CD and then played
back with this Home Theater.
JPEG
GB
1 Place the MP3/WMA disc on the disc tray.
The MP3/WMA menu screen will appear and playback will start.
The appearance of the menu depends on the MP3/WMA disc.
WMA-DRM fi les cannot be played.
2 In Stop mode, use the Cursor
press the ENTER button.
Use ▲,▼ to select the track.
3 To change the album, use the Cursor
album in Stop mode, and then press the ENTER button.
To select another album and track, repeat Steps 2 and 3 above.
4 Press the STOP
Depending on the recording mode, some MP3/WMA-CDs may not play.
•
Table of contents of a MP3-CD varies depending on the MP3/WMA track format
•
recorded on the disc.
Rissian fi lenames are not supported.
•
()
button to stop playback.
▲,▼,◄,►
▲,▼,◄,►
button to select the album, and then
button to select another
Load the JPEG disc.
d Press the #‚$ button to skip to the next slide.
Rotate/Flip Function
Press the Cursor ▲,▼,◄,► button during playback.
Playback starts automatically. Each image is displayed for 5 seconds and then the next
image is displayed.
Each time the button is pressed, the slide moves backward or forward.
▲ button: Flip Vertically
OPERATION
d To play a fi le icon in the screen,
Press the Cursor ▲,▼,◄,► button when it is in Stop mode and select a desired icon from the top part of the
menu.
Music File Icon :
Image File Icon :
Movie File Icon :
All File Icon :
To play music fi les only, select the Icon.
To view image fi les only, select the
To view movie fi les only, select the Icon.
To select all fi les select the Icon.
26
Icon.
◄ button: Rotate 90°
Original Image
The maximum resolutions supported by this product are 5120 x 3480 (or
•
19.0 MPixel) for standard JPEG fi les and 2048 x 1536 (or 3.0 MPixel) for
progressive image fi les.
Rissian fi lenames are not supported.
•
In some cases, depending on JPEG fi les record conditions, those fi les
•
may be displayed not the full screen size or low quality.
Counterclockwise
▼ button: Flip Horizontally
► button:
Rotate 90°
Clockwise
27
Page 15
DivX Playback
The functions on this page apply to DivX disc playback.
DivX
GB
Skip Forward/Back
During playback, press the
Goes to the next fi le whenever you press the $ button, if there are over 2 fi les in the disk.
Goes to the previous fi le whenever you press the # button, if there are over 2 fi les in
the disk.
#,$
button.
Fast Playback
To play back the disc at a faster speed, press the or button during
playback.
Each time you press the either button, the playback speed will change as follows:
2x ➞ 4x ➞ 8x ➞ 32x ➞ Normal.
5 Minute Skip function
During playback, press the Cursor ◄ ,► button.
Playback skips 5 minutes forward whenever you press the Cursor ► button.
Playback skips 5 minutes back whenever you press the Cursor ◄ button.
Zoom Function
Subtitle Display
Press the SUBTITLE button.
Each time you press the button, your selection will toggle between
<SUBTITLE (1/N, 2/N ...)> and <SUBTITLE OFF>.
If the disc has only one subtitle fi le, it will be played automatically.
See number 2 (Caption Function) below for more details concerning Subtitle
usage with DivX discs.
If the disc has more than one subtitle file
If the disc has more than one subtitle fi le, the default subtitle may not match the
movie and you will have to select your subtitle language as follows:
1 In Stop mode, press the Cursor
from the TV screen, and then press the ENTER button.
2 When you select the desired DivX fi le from the TV screen, the movie will be
played normally.
DivX(Digital internet video eXpress)
DivX is a video fi le format developed by Microsoft and is based on MPEG4 compression technology to provide audio
and video data over the Internet in real-time.
MPEG4 is used for video encoding and MP3 for audio encoding so that the users can watch a movie at near
DVD-quality video and audio.
▲,▼
button, select the desired subtitle ( )
OPERATION
1 Press the ZOOM button.
Each time you press the button, your selection will toggle between
<ZOOM X2> and <ZOOM OFF>.
2 Press the Cursor
•
A DivX fi le can be zoomed only in ZOOM X2 mode.
•
DivX fi les have .Avi fi le extensions, however, not all .Avi fi les are DivX and
may not be playable in this unit.
▲,▼,◄,►
button to move to the area you want to enlarge.
Audio Display
Press the AUDIO button.
If there are multiple audio tracks on a disc, you can toggle between them.
Each time you press the button, your selection will toggle between
<AUDIO (1/N, 2/N ...)> and
•
is displayed when there is one supported language in the disc.
.
1. Supported Formats
This product only supports the following media formats. If both video and audio formats are not supported, the user may
experience problems such as broken images or no sound.
Supported Video Formats
Format AVI WMV
Supported Versions
Supported Audio Formats
Format MP3 WMA AC3 DTS
Bit Rate 80~384kbps 56~128kbps 128~384kbps 1.5Mbps
Sampling Frequency
DivX fi les, including audio and video fi les, created in the DTS format can only support up to 6Mbps.
•
Aspect Ratio: Although default DivX resolution is 640x480 pixels (4:3), this product supports up to 800x600 pixels
•
(16:9). TV screen resolutions higher than 800 will not be supported.
•
When you play a disc whose sampling frequency is higher than 48khz or 320kbps, you may experience shaking on
the screen during playback.
2. Caption Function
You must have some experience with video extraction and editing in order to use this feature properly.
•
To use the caption function, save the caption fi le (*.smi) in the same fi le name as that of the DivX media fi le (*.avi)
•
within the same folder.
Example. Root Samsung_007CD1.avi
Up to 60 alphanumeric characters or 30 East Asian characters (2 byte characters such as Korean and Chinese) for the fi le name.
•
44.1khz 44.1/48khz 44.1khz
DivX3.11~DivX5.1, XviD
Samsung_007CD1.smi
V1/V2/V3/V7
28
29
Page 16
Using the Playback Function
GB
Displaying Disc Information
You can view disc playback information on the TV screen.
DVD MP3 JPEG DivXCD
Press the INFO button.
Each time the button is pressed, the display changes as follows:
DVD
CD
MP3 JPEG DivX
The information
Display disappears
from the screen
The information
Display disappears
from the screen
The information
Display disappears
from the screen
Fast Playback
Slow Playback
DVD MP3 DivXCD
Press the , button.
Each time the button is pressed during playback, the playback speed changes
as follows:
2X ➞ 4X ➞ 8X ➞ 32X ➞ ► PLAY
2X ➞ 4X ➞ 8X ➞ 32X ➞ ► PLAY
During fast playback of a CD or MP3-CD, sound is heard only at 2x speed, and
•
not at 4x, 8x, and 32x speeds.
DVD DivX
Press the SLOW button.
Each time the button is pressed during playback, the playback speed changes as follows:
1/2 ➞ 1/4 ➞ 1/8 ➞ 1/2 ➞ 1/4 ➞ 1/8 ➞ ► PLAY
DVD
1/2 ➞ 1/4 ➞ 1/8 ➞ ► PLAY
DivX
OPERATION
30
appears on the TV screen!
If this symbol appears on the TV screen when pressing a button, that operation is not
possible with the disc currently being played.
Screen Display
DVD display
CD display CHAPTER display
SUBTITLE
display
TITLE display
TRACK (FILE) display
Depending on the disc, the disc information display may appear different.
•
•
Depending on the disc, you can also select DTS, DOLBY DIGITAL, or PRO LOGIC.
ELAPSED TIME display
REPEAT PLAYBACK display
AUDIO LANGUAGE display
STEREO (L/R) display
DOLBY DIGITAL display
ANGLE display
No sound is heard during slow playback.
•
Reverse slow playback does not work with DivX.
•
31
Page 17
Using the Playback Function (Con’t)
GB
Skipping Scenes/Songs
Press the
Each time the button is pressed during playback, the previous or next chapter,
track or directory (fi le) will be played.
You cannot skip chapters consecutively.
DVD
TITLE 01/05 CHAPTER 002/045 TITLE 01/05 CHAPTER 004/045
MP3
#,$
DVD MP3
button.
Repeat Playback
Repeat playback allows you to repeatedly play a chapter, title, track (song), or directory (MP3 fi le).
DVD MP3 JPEG DivXCD
Press the REPEAT button.
Each time the button is pressed during playback, the repeat playback mode
changes as follows:
DVD
CD
MP3 JPEG DivX
REPEAT : CHAPTER ➞ REPEAT : TLTLE ➞ REPEAT : OFF
REPEAT : TRACK ➞ REPEAT : DISC ➞ REPEAT : OFF
REPEAT:RANDOM ➞ REPEAT:TRACK ➞ REPEAT:DIR ➞
REPEAT:DISC ➞ REPEAT:OFF
OPERATION
Repeat Playback Options
CHAPTER : Repeatedly plays the selected chapter.
TITLE : Repeatedly plays the selected title.
RANDOM : Plays tracks in random order.
(A track that has already been played may
be played again.)
TRACK : Repeatedly plays the selected track.
Repeatedly plays all tracks in the selected folder.
DIR :
DISC : Repeatedly plays the entire disc.
OFF : Cancels Repeat Playback.
32
33
Page 18
Using the Playback Function (Con’t)
GB
To Select a Repeat Playback Mode in the Disc Information Screen
DVD CD
1 Press the INFO button twice.
2
Press the Cursor ► button to move to REPEAT PLAYBACK ( ) display.
3
Press the Cursor ▼ button to select the desired Repeat Playback mode.
To select another album and track, repeat Steps 2 and 3 above.
4 Press the ENTER button.
DVD
CD
A-B Repeat Playback
You can repeatedly play back a designated section of a DVD.
DVD
1 Press the INFO button twice.
2 Press the Cursor
3 Press the Cursor
at the beginning of the desired segment.
When the ENTER button is pressed, the selected position will be stored in
memory.
►
button to move to REPEAT PLAYBACK ( ) display.
▲,▼
button to select <A-> and then press ENTER button
4 Press the ENTER button at the end of the desired segment.
The specifi ed segment will be played repeatedly.
d
To return to normal playback, press the Cursor ▲,▼ button to select OFF.
The A-B Repeat function does not operate with DivX, MP3 or JPEG discs.
•
A - B
OPERATION
34
Step Function
For DivX, MP3 and JPEG discs, you cannot select Repeat Play from the information display screen.
•
DVD DivX
Press the STEP button.
The picture moves forward one frame each time the button is pressed during playback.
No sound is heard during step motion playback.
•
35
Page 19
Using the Playback Function (Con’t)
GB

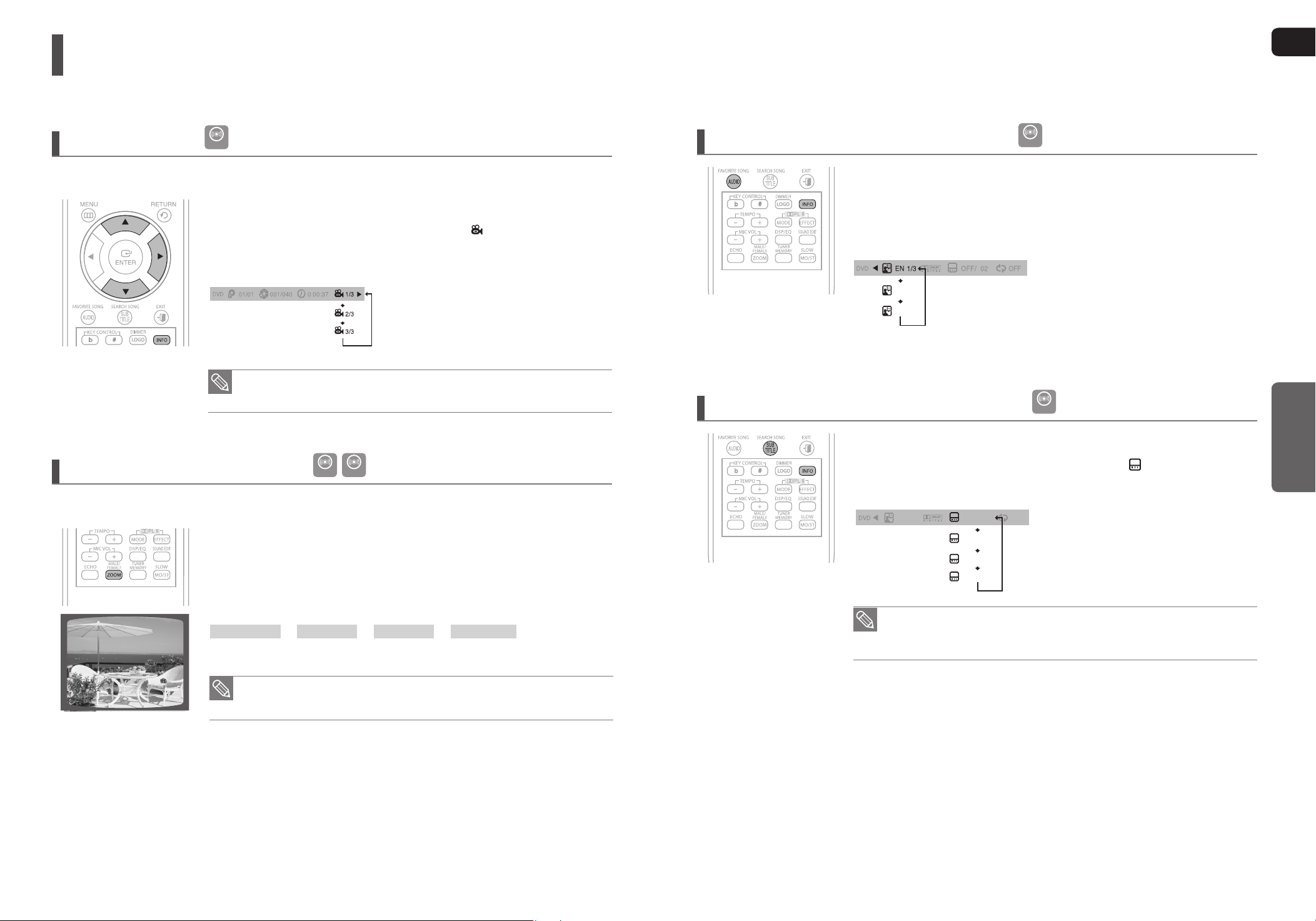

Angle Function
This function allows you to view the same scene in different angles.
DVD
1 Press the INFO button.
2 Press the Cursor
3
Press the Cursor ▲,▼ button or numeric buttons to select the desired angle.
Each time the button is pressed, the angle changes as follows:
The Angle function works only with discs on which multiple angles have been
•
recorded.
Zoom (Screen Enlarge) Function
This function allows you to enlarge a particular area of the displayed image.
►
button to move to ANGLE ( ) display.
DVD DivX
1 Press the ZOOM button.
2 Press the Cursor
▲,▼,◄,►
button to move to the area you want to enlarge.
3 Press the ENTER button.
Each time the button is pressed, the zoom level changes as follows:
Audio Language Selection Function
DVD
1 Press the INFO button twice.
2
Press the Cursor ▲,▼ button or numeric buttons to select the desired audio language.
Depending on the number of languages on a DVD disc, a different audio
language (ENGLISH, SPANISH, FRENCH, etc.) is selected each time the
button is pressed.
SP 2/3
FR 3/3
Subtitle Language Selection Function
1 Press the INFO button twice.
2 Press the Cursor
3
Press the Cursor ◄ button or numeric buttons to select the desired subtitle.
EN 1/3 EN 01/ 03
►
button to move to SUBTITLE ( ) display.
OFF
SP 02/ 03
FR 03/ 03
OFF / 03
OPERATION
DVD
36
SELECT ZOOM POSITION
ZOOM X 1.5 ➞ ZOOM X 2 ➞ ZOOM X 3 ➞ ZOOM OFF
When a DivX disc is being played, the screen is enlarged up to twice the
•
normal size.
To operate this function, you can also press the AUDIO or SUBTITLE buttons on the
•
remote control.
Depending on the disc, the Subtitle and Audio Language functions may not be available.
•
37
Page 20
Using the Playback Function (Con’t)
GB
Moving Directly to a Scene/Song
DVD CD
1 Press the INFO button.
2 Press the Cursor
title/track ( ) and then press the ENTER button.
3 Press the Cursor
4 Press the Cursor
chapter and then press the ENTER button.
5 Press the Cursor
▲,▼
button or numeric buttons to select the desired
◄,►
button to move to Chapter ( ) display.
▲,▼
button or numeric buttons to select the desired
◄,►
button to move to time ( ) display.
6 Press the numeric buttons to select the desired time and then press
the ENTER button.
MP3 JPEG
Press the numeric button.
The selected fi le will be played.
When playing an MP3 or JPEG disc, you canno
move to a folder.
To move a folder, press the STOP ( ) button and then press the Cursor ▲,▼
button.
DVD MP3 JPEGCD
t use the Cursor ▲,▼
button
to
Using the Disc Menu
You can use the menus for the audio language, subtitle language, profi le, etc.
DVD menu contents differ from disc to disc.
DVD
1 In Stop mode, press the MENU button.
2 Press the Cursor
ENTER button.
When you select Disc Menu and it is not supported by the disc,
the <This menu is not supported> message appears on the screen.
3 Press the Cursor
▲,▼
button to move to <Disc Menu> and then press the
▲,▼,◄,►
button to select the desired item.
4 Press the ENTER button.
d Press the EXIT button to exit the setup screen.
OPERATION
The Disc menu display may be different depending on the disc.
•
ENTERMOVE EXIT
Using the Title Menu
For DVDs containing multiple titles, you can view the title of each movie. Depending on the disc, the availability
of this feature may vary.
DVD
38
You can press the
•
desired title, chapter, or track.
Depending on the disc, you may not be able to move to the selected title or time.
•
#,$
button on the remote control to move directly to the
ENTERMOVE EXIT
1 In Stop mode, press the MENU button.
2 Press the Cursor
▲,▼
button to move to <Title Menu>.
3 Press the ENTER button.
The title menu appears.
d Press the EXIT button to exit the setup screen.
•
The Title menu display may be different depending on the disc.
39
Page 21

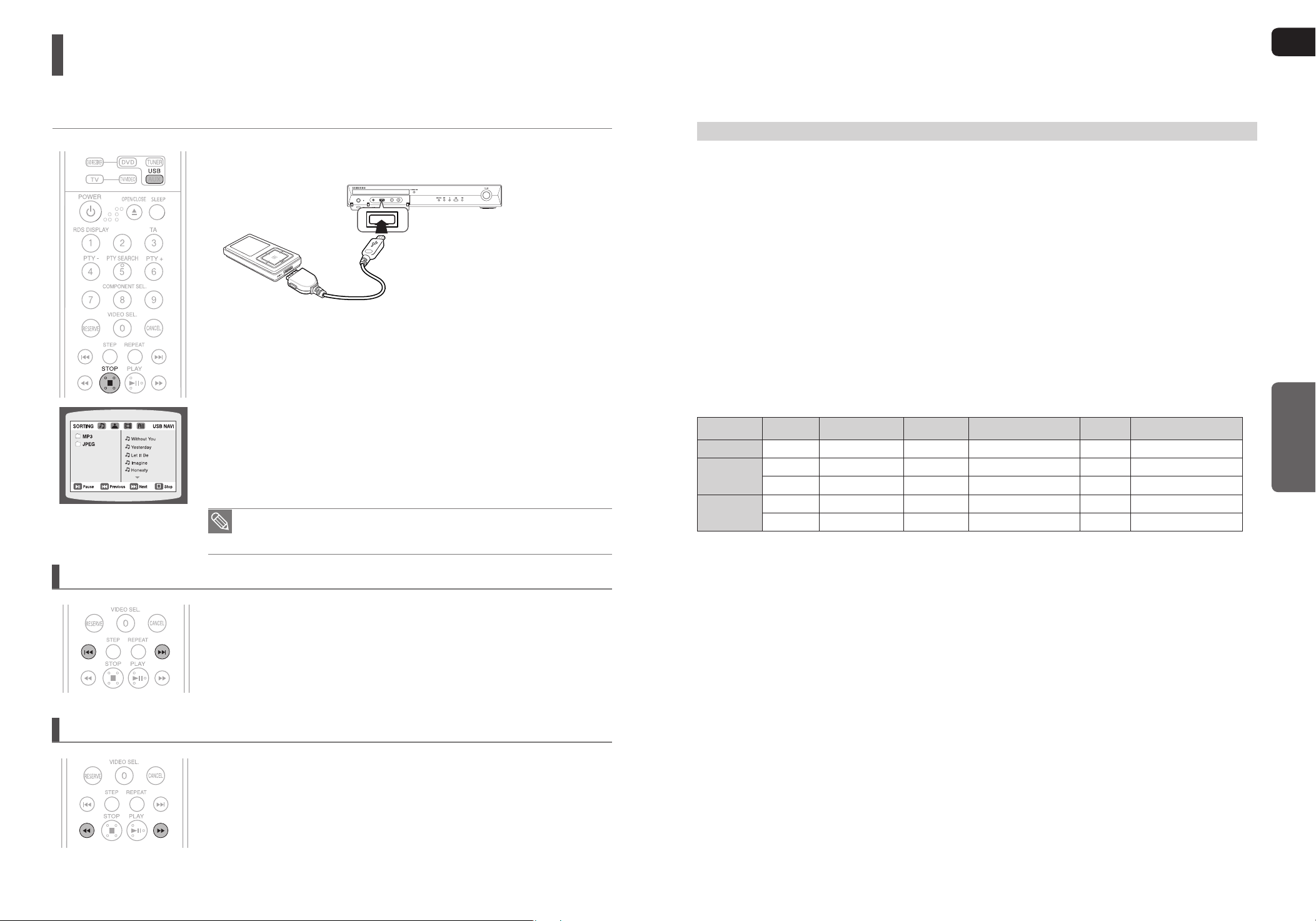

Playing Media Files using the USB HOST Feature
You can enjoy media fi les such as pictures, movies and music saved in an MP3 player, USB memory or digital camera in high
quality video with 5.1 channel home theater sound by connecting the storage device to the USB port of the home theater.
GB
Compatible Devices
1 Connect the USB device to the USB port on the front of the unit.
2 Press the FUNCTION button on the main unit or the USB button on the
3 To stop playback, press the STOP (
d Safe USB Removal
Skip Forward/Back
During playback, press the # $ button.
remote control to select the USB mode.
The
<USB> appears on the display screen and then disappears.
USB MENU screen appears on the TV screen and the saved fi le is played.
) button.
To prevent damage to the memory stored in the USB device,
perform safe removal before disconnecting the USB cable.
1)
Press the STOP () button twice in a row.
The display will show REMOVE USB.
2)
Remove the USB cable.
To listen to your music fi les with 5.1 channel home theater sound, you must set
•
the Dolby Pro Logic II mode to Matrix. (See page 53)
When there is more than one fi le and you press the $ button, the next fi le is
selected.
When there is more than one fi le and you press the # button, the previous
fi le is selected.
1. USB devices that support USB Mass Storage v1.0. (USB devices that operate as a removable disc in
Windows (2000 or later) without additional driver installation.)
2. MP3 Player : HDD and fl ash type MP3 players.
3. Digital camera : Cameras that support USB Mass Storage v1.0.
Cameras that operate as a removable disc in Windows (2000 or later) without additional driver installation.
•
4. USB HDD and USB Flash Drive: Devices that support USB2.0 or USB1.1.
You may experience a difference in playback quality when you connect a USB1.1 device.
•
For a USB HDD, make sure to connect an auxiliary power cord to the USB HDD for proper operation.
•
5. USB card Reader : One slot USB card reader and Multi slot USB card reader.
•
Depending on the manufacturer. the USB card reader may not be supported.
•
If you install multiple memory devices into a multi card reader, you may experience problems.
6. If you use a USB extension cable, the USB device might not be recognized.
Supported Formats
File name File extension Bit rate Version Pixel Sampling Frequency
Still Picture
Music
Movie
•
CBI (Control/Bulk/Interrupt) is not supported.
•
Digital Cameras that use PTP protocol or require additional program installation when connected to a PC are not
supported.
•
A device using NTFS fi le system is not supported.
(Only FAT 16/32 (File Allocation Table 16/32) fi le system is supported.)
Some MP3 players, when connected to this product,may not operate depending on the sector size of their fi le system.
•
The USB HOST function is not supported if a product that transfers media fi les by its manufacturer-specifi c program is
•
connected.
Does not operate with Janus enabled MTP (Media Transfer Protocol) devices.
•
The USB host function of this product does not support all USB devices. For information on the supported
•
devices, see page 75.
JPG JPG .JPEG – –
MP3 .MP3
WMA .WMA
WMV .WMV 4Mbps V1,V2,V3,V7
DivX .AVI,.ASF 4Mbps
80~384kbps
56~128kbps
– – 44.1kHz
V8 – 44.1kHz
DivX3.11~DivX5.1,XviD 800X600
640X480
720X480
–
44.1KHz~48KHz
44.1KHz~48KHz
OPERATION
40
Fast Playback
To play back the disc at a faster speed, press the button during
playback.
Each time you press either button, the playback speed will change as follows:
➞
4x ➞ 8x ➞ 32x ➞ Normal.
2x
41
Page 22
SETUP
Settings

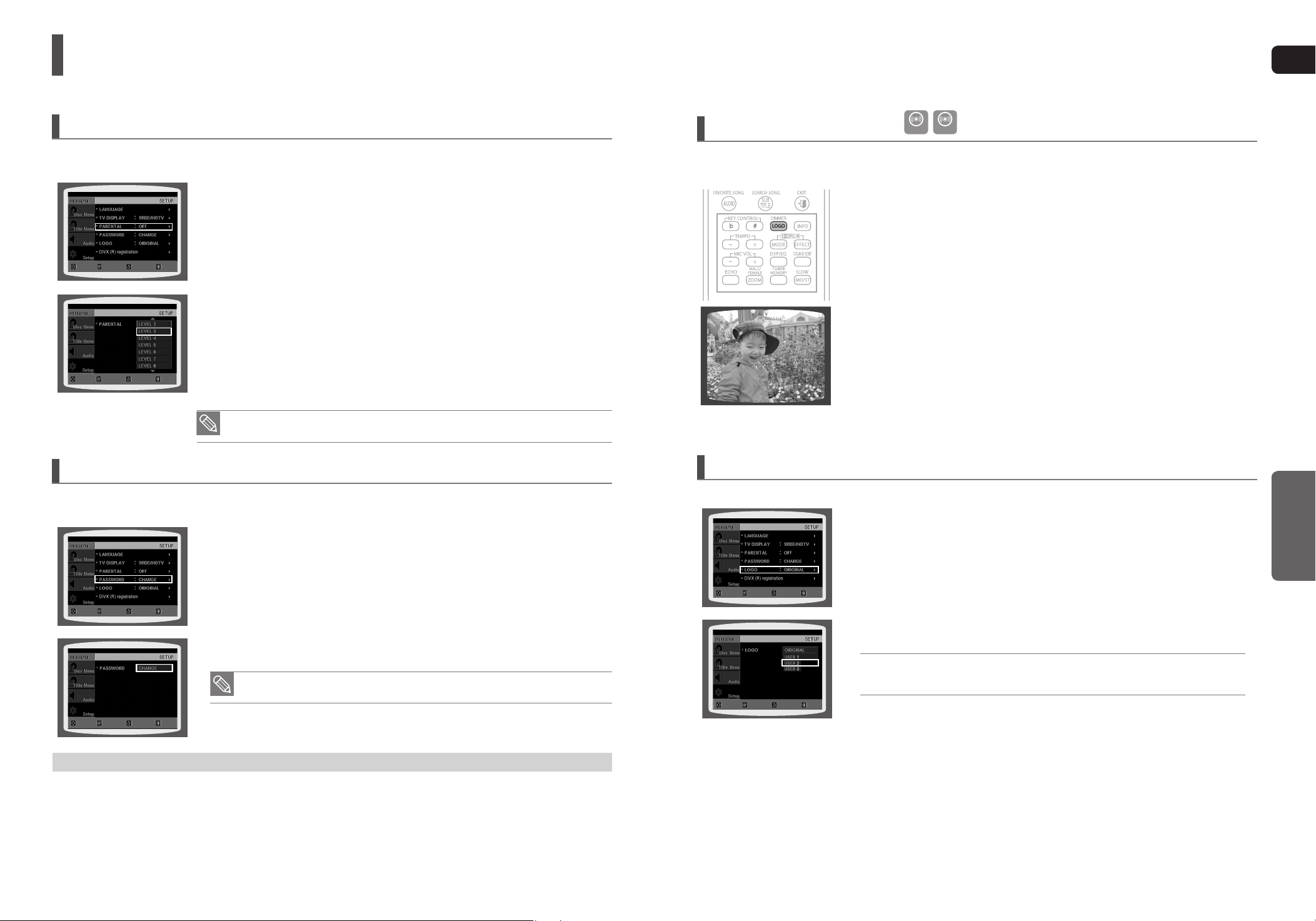

Setting the Language
OSD(On-Screen Display) language is set to English by default.
1 In Stop mode, press the MENU button.
2
Press the Cursor ▼ button to move to <Setup> and then press the ENTER button.
3
Select <LANGUAGE> and then press the ENTER button.
4
Press the Cursor ▲,▼ button to select <OSD LANGUAGE> and then press the
MOVE ENTER
MOVE ENTER EXITRETURN
EXITRETURN
ENTER button.
5
Press the Cursor ▲,▼ button to select the desired language and then press the
ENTER button.
Once the setup is complete, the OSD will be English if English has been
selected as language.
d Press the RETURN button to return to the previous level.
d Press the EXIT button to exit the setup screen.
Setting TV Screen type
Depending on your TV type (Wide Screen or conventional 4:3), you can select the TV's aspect ratio.
1 In Stop mode, press the MENU button.
2
Press the Cursor ▼ button to move to <Setup> and then press the ENTER button.
3
Press the Cursor ▼ button to move to <TV DISPLAY> and then press the
ENTER button.
MOVE ENTER EXITRETURN
MOVE SELECT EXITRETURN
4
Press the Cursor ▲,▼ button to select the desired item and then press the
ENTER button.
Once the setup is complete, you will be taken to the previous screen.
d Press the RETURN button to return to the previous level.
d Press the EXIT button to exit the setup screen.
GB
MOVE ENTER EXITRETURN
MOVE SELECT EXITRETURN
OSD LANGUAGE : Selecting the OSD Language
•
AUDIO : Selecting the Subtitle Language (recorded on the disc)
•
SUBTITLE : Selecting the Audio Language (recorded on the disc)
•
DISC MENU : Selecting the Disc Menu Language (recorded on the disc)
•
a IIf the language you selected is not recorded on the disc, menu language will not
change even if you set it to your desired language.
OTHERS : To select another language, select OTHERS and enter the language code
•
of your country. (See page 74 for language codes) AUDIO, SUBTITLE and
DISC MENU language can be selected.
Adjusting the TV Aspect Ratio (Screen Size)
The horizontal to vertical screen size ratio of conventional TVs is 4:3, while that of widescreen and high defi nition TVs
is 16:9. This ratio is called the aspect ratio. When playing DVDs recorded in different screen sizes, you should adjust
the aspect ratio to fi t your TV or monitor.
For a standard TV, select either <4:3PS> or <4:3LB> option according to personal preference.
Select <WIDE/HDTV> if you have a widescreen TV.
4:3PS (4:3 Pan&Scan)
Select this to play a 16:9 picture in the pan & scan mode on a conventional TV.
You can see the central portion of the screen only (with the sides of the 16:9
picture cut off).
4:3LB (4:3 Letterbox)
Select this to play a 16:9 picture in the letter box mode on a conventional TV.
Black bars will appear at the top and bottom of the screen.
WIDE/HDTV
Select this to view a 16:9 picture in the full-screen mode on your widescreen TV.
You can enjoy the widescreen aspect.
SETUP
42
If a DVD is in the 4:3 ratio, you cannot view it in widescreen.
•
Since DVD discs are recorded in various image formats, they will look different depending on the software,
•
the type of TV, and the TV aspect ratio setting.
43
Page 23
Settings (Con’t)
GB
Setting Parental Controls (Rating Level)
Use this to restrict playback of adult or violent DVDs you do not want children to view.
1 In Stop mode, press button MENU button.
MOVE ENTER EXITRETURN
2 Press button Cursor ▼
ENTER button.
3
Press the Cursor ▼ button to move to <PARENTAL> and then press the ENTER button
4
Press the Cursor ▲,▼ button to select the desired rating level and then press the ENTER button.
If you have selected Level 6, you cannot view DVDs with Level 7 or higher.
The higher the level, the closer the content is to violent or adult material.
button to move to <Setup> and then press button
5 Enter the password and then press the ENTER button.
The password is set to <7890> by default.
Once the setup is complete, you will be taken to the previous screen.
MOVE SELECT EXITRETURN
Setting the Password
d Press the RETURN button to return to the previous level.
d Press the EXIT button to exit the setup screen.
This function works only if a DVD disc contains the rating level information.
•
Setting the Wallpaper
While watching a DVD or JPEG CD, you can set the image you like as background wallpaper.
1
During playback, press the PLAY/PAUSE button when an image you like appears.
DVD JPEG
2 Press the LOGO button.
<COPY LOGO DATA> will be displayed on the TV screen.
.
COPY LOGO DATA
To Select One of the 3 Wallpaper Settings you've made
3
The power will turn off and then back on.
The selected wallpaper will be displayed.
You can select up to 3 wallpaper settings.
You can set the password for the Parental (rating level) setting.
1 In Stop mode, press the MENU button.
2
Press the Cursor ▼ button to move to <Setup> and then press the ENTER button.
3
Press the Cursor ▼ button to move to <PASSWORD> and then press the ENTER button.
4
Press the ENTER button.
MOVE ENTER EXITRETURN
MOVE SELECT EXITRETURN
If you have forgotten the rating level password, do the following
While the player is in the No Disc mode, hold the main unit's STOP () button for longer than 5 seconds. <INITIAL>
•
appears on the display and all settings will return to the default values.
Press the POWER button.
•
Using the RESET function will erase all stored settings. Do not use this unless necessary.
5
Enter the password and then press the ENTER button.
Enter the old password, a new password, and confi rm new password.
The setting is complete.
The password is set to <7890> by default.
•
MOVE ENTER EXITRETURN
MOVE SELECT EXITRETURN
1 In Stop mode, press the MENU button.
2
Press the Cursor ▼ button to move to <Setup> and then press the ENTER button.
3
Press the Cursor ▼ button to move to <LOGO> and then press the ENTER button.
4
Press the Cursor ▲,▼
ENTER button.
This selects one of the 3 wallpaper screens
button to select the desired <USER>, and then press the
5 Press the EXIT button to exit the setup screen.
ORIGINAL : Select this to set the Samsung Logo image as your wallpaper.
•
USER : Select this to set the desired image as your wallpaper.
•
d Press the RETURN button to return to the previous level.
d Press the EXIT button to exit the setup screen.
SETUP
44
45
Page 24
Settings (Con’t)
GB
DivX (R) registration
Please use the Registration code to register this player with the DivX (R) video on demand format.
To learn more, go to www.divx.com/vod.
Setting the Speaker Mode
Signal outputs and frequency responses from the speakers will automatically be adjusted according to your speaker
confi guration and whether certain speakers are used or not.
1 In Stop mode, press the MENU button.
2
Press the Cursor ▼ button to move to <Audio> and then press the ENTER button.
3
In the <SPEAKER SETUP>, press the ENTER button again.
4
Press the Cursor ▲,▼,◄,► button to move to the desired speaker and then
MOVE ENTER EXITRETURN
MOVE SELECT EXITRETURN
press the ENTER button.
For C, SL, and SR, each time the button is pressed, the mode switches alternately
as follows : SMALL
For L and R, the mode is set to SMALL.
SMALL : Select this when using the speakers.
•
NONE : Select this when no speakers are connected.
•
Depending on PRO LOGIC and STEREO settings, the speaker mode may
•
vary (see page 53).
NONE.
d Press the RETURN button to return to the previous level.
d Press the EXIT button to exit the setup screen.
Setting the Delay Time
If the speakers cannot be placed at equal distances from the listening position, you can adjust the delay time of the audio
signals from the center and rear speakers.
1 In Stop mode, press the MENU button.
2
Press the Cursor ▼ button to move to <Audio> and then press the ENTER button.
3
Press the Cursor ▼ button to move to <DELAY TIME> and then press the ENTER button.
4
Press the Cursor ▲,▼,◄,► button to move to the desired speaker and then
MOVE ENTER EXITRETURN
MOVE CHANGE EXITRETURN
Setting up the Speaker Delay Time
When 5.1CH Surround Sound is played, you can enjoy the best sound if the distance between you and each speaker
is the same.
Since the sounds arrive at the listening position at different times depending on the placement of speakers, you can
adjust this difference by adding a delay effect to the sound of the Center and Surround Speakers.
Ideal CENTER SPEAKER
placement
press the ENTER button.
5
Press the Cursor ◄,► button to set the Delay time.
You can set the delay time for C between 00 and 05mSEC and for SL and SR
between 00 and 15mSEC.
d Press RETURN button to return to the previous level.
d Press EXIT button to exit the setup screen.
Setting CENTER SPEAKER
If the distance of Dc is equal to or longer than the distance of Df in the
fi gure, set the mode as 0ms. Otherwise, change the setting according
to the table.
Distance between Df
and Dc
Delay Time
0.00 m 0.34 m 0.68 m 1.02 m 1.36 m 1.70 m
0 ms 1 ms 2 ms 3 ms 4 ms 5 ms
SETUP
46
Ideal
SURROUND
SPEAKER
placement
It is desirable to place all speakers within this circle.
Df: The distance from FRONT SPEAKER
Dc: The distance from CENTER SPEAKER
Ds: The distance from SURROUND SPEAKER
With (Dolby Pro Logic II), the delay time may be different for each mode.
•
With AC-3 and DTS, the delay time can be set between 00 and 15mSEC.
•
The Center channel is only adjustable on 5.1 channel discs.
•
Setting REAR (SURROUND) SPEAKERS
If the distance of Df is equal to the distance of Ds in the fi gure,
set the mode as 0ms. Otherwise, change the setting according
to the table.
Distance between Df
and Dc
Delay Time
0.00 m
1.02 m 2.04 m 3.06 m 4.08 m 5.10 m
0 ms 3 ms 6 ms 9 ms
12 ms
15 ms
47
Page 25
Settings (Con’t)
GB
Setting the Test Tone
Use the Test Tone feature to check the speaker connections.
1 In Stop mode, press the MENU button.
2
Press the Cursor ▼ button to move to <Audio> and then press the ENTER button.
3
Press the Cursor ▼ button to move to <TEST TONE> and then press the
ENTER button.
MOVE ENTER EXITRETURN
STOP EXIT
Alternative method : press the TEST TONE button on the remote.
Multi-Channel Pro Logic Mode
Start
The test tone will be sent to L C R SR SL SW in order.
If the ENTER button is pressed again at this time, the test tone will stop.
d Press the RETURN button to return to the previous level.
d Press the EXIT button to exit the setup screen.
Press the TEST TONE button.
Test tone will be produced as follows:
When playing a DVD or CD, this will work only in Stop mode.
Use this function to check that each speaker is correctly connected
and that there is no problem.
When HDMI AUDIO is on (audio is produced through TV
speakers), the TEST TONE function is not available.
Setting the Audio
You can adjust the balance and level for each speaker.
1 In Stop mode, press the MENU button.
2
Press the Cursor ▼ button to move to <Audio> and then press the ENTER button.
3
Press the Cursor ▼ button to move to <SOUND EDIT> and then press the
ENTER button.
MOVE ENTER EXITRETURN
MOVE CHANGE EXITRETURN
When manually adjusting with the SOUND EDIT button.
4
Press the Cursor ▲,▼ button to select and adjust the desired item.
Press the Cursor ◄,► button to adjust the settings.
d Press the RETURN button to return to the previous level.
d Press the EXIT button to exit the setup screen.
Press the SOUND EDIT button and then press the Cursor ◄,► button.
SETUP
L: Front Speaker (L) C: Center Speaker SW: Subwoofer
R: Front Speaker (R) SL: Rear Speaker (L) SR: Rear Speaker (R)
48
d To end the test tone, press the TEST TONE button again.
Adjusting Front/Rear Speaker Balance
•
You can select between 00 and –06 and OFF.
•
The volume decreases as you move closer to –6.
Adjusting Center/Rear/Subwoofer Speaker Level
•
The volume level can be adjusted in steps from +6dB to –6dB.
•
The sound gets louder as you move closer to +6dB and quieter as you get closer
to -6dB.
49
Page 26
Settings (Con’t)
GB
Setting the DRC (Dynamic Range Compression)
This feature balances the range between the loudest and quietest sounds. You can use this function to enjoy Dolby
Digital sound when watching movies at low volume at night.
1 In Stop mode, press the MENU button.
2
Press the Cursor ▼ button to move to <Audio> and then press the ENTER button.
3
Press the Cursor ▼ button to move to <DRC> and then press the ENTER button.
4
Press the Cursor ▲,▼
MOVE ENTER EXIT
CHANGE EXITRETURN
Setting the AV SYNC
Video may look slower than the audio if it is connected to a digital TV. If this occurs, adjust the audio delay time to to match
the video.
RETURN
When the Cursor ▲ button is pressed, the effect is greater, and when the
▼
Cursor
d Press the RETURN button to return to the previous level.
d Press the EXIT button to exit the setup screen.
button is pressed, the effect is smaller.
button
to adjust the DRC.
Setting the HDMI Audio
The audio signals transmitted over the HDMI Cable can be toggled ON/OFF.
1 In Stop mode, press the MENU button.
2
Press the Cursor ▼ button to move to <Audio> and then press the ENTER button.
3
Press the Cursor ▼ button to move to <HDMI AUDIO> and then press the
MOVE ENTER EXITRETURN
MOVE SELECT EXITRETURN
ENTER button.
4
Press the Cursor ▲,▼ button to select <ON> or <OFF> and then press the
ENTER button.
ON : Both video and audio signals are transmitted over the HDMI connection cable,
•
and audio is output through your TV speakers only.
OFF : Video is transmitted over the HDMI connection cable only, and audio is output
•
through the home theater speakers only.
The default setting of this function is HDMI AUDIO OFF.
•
HDMI AUDIO is automatically down-mixed to 2ch for TV speakers.
•
During DVD-OK disc playback , this function is not available.
•
This function is available only when set the HDMI AUDIO on before
DVD-OK playback.
SETUP
50
MOVE ENTER EXITRETURN
MOVE SELECT EXITRETURN
1 In Stop mode, press the MENU button.
2
Press the Cursor ▼ button to move to <Audio> and then press the ENTER button.
3
Press the Cursor ▼ button to move to <AV-SYNC> and then press the ENTER button.
4
Press the Cursor ▲,▼ button to select the AV-SYNC Delay Time and then
press the ENTER button.
You can set the audio delay time between 0 ms and 300 ms.
Set it to the optimal status.
d Press the RETURN button to return to the previous level.
d Press the EXIT button to exit the setup screen.
d Press the RETURN button to return to the previous level.
d Press the EXIT button to exit the setup screen.
51
Page 27
Settings (Con’t)
GB

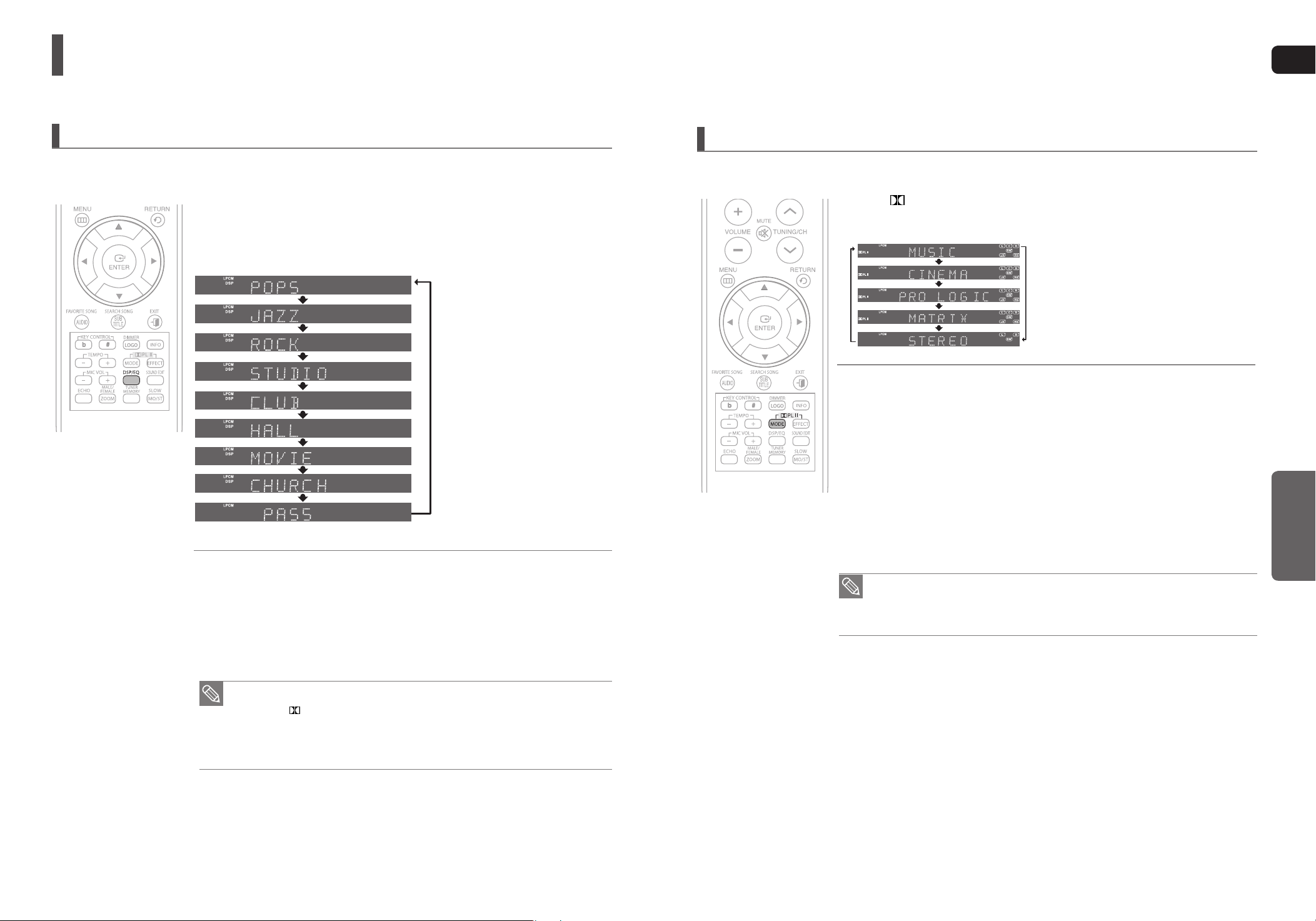

Sound Field (DSP)/EQ Function
DSP(Digital Signal Processor) : DSP modes have been designed to simulate different acoustic environments.
EQ : You can select ROCK, POP, or CLASSIC to optimize the sound for the genre of music you are playing.
Press the DSP/EQ button.
<DSP> appears on the display panel.
Each time the button is pressed, the selection changes as follows:
Dolby Pro Logic II Mode
You can select the desired Dolby Pro Logic II audio mode.
Press the PL II MODE button.
Each time the button is pressed, the mode changes as follows.
PRO LOGIC II
MUSIC : When listening to music, you can experience sound effects as if you are
•
listening to the actual performance.
CINEMA : Adds realism to the movie soundtrack.
•
PRO LOGIC : You will experience a realistic multi-channel effect, as if using fi ve
•
speakers, while using just the front left and right speakers.
MATRIX : You will hear 5.1 channel surround sound.
•
SETUP
52
•
POP, JAZZ, ROCK : Depending on the genre of music, you can select POP, JAZZ, and ROCK.
•
STUDIO : Provides a sense of presence as if in a studio.
•
CLUB : Simulates the sound of a dance club with a throbbing bass beat.
•
HALL : Provides a clear vocal as if listening in a concert hall.
•
MOVIE : Provides the feeling of a movie theater.
•
CHURCH : Gives the feel of being in a grand church.
•
PASS : Select this for normal listening.
•
DSP/EQ function is only available in STEREO mode.
Press the
•
This feature works with CDs, MP3-CDs, DivX and Dolby Digital discs.
•
When playing a DVD disc encoded with two or more channels, multi-channel
mode will be selected automatically and DSP/EQ function does not work.
PL II mode button to show STEREO on the display.
STEREO : Select this to listen to sound from the front left and right speakers and the
subwoofer only.
When selecting Pro Logic II mode, connect your external device to the AUDIO
•
INPUT jacks (L and R) on the player. If you connect to only one of the inputs
(L or R), you cannot listen to surround sound.
53
Page 28
MISCELLANEOUS
Karaoke
Settings (Con’t)
Dolby Pro Logic II Effect
This function works only in Dolby Pro Logic MUSIC mode.
1 Press the PL II MODE button to select <MUSIC> mode.
2
Press the PL II EFFECT button to select <PANORAMA>, then press
the Cursor
You can select either 0 or 1.
This mode extends the front stereo image to include the surround
speakers for an exciting <wraparound> effect with side wall imaging.
◄,►
button to select the desired effect setting.
3 Press the PL II EFFECT button to select <C-WIDTH>, then press the
Cursor ◄,►button to select the desired effect setting.
You can select between 0 and 7.
This sets the width of the center image. The higher the setting, the less
sound comes from the center speaker.
Karaoke
GB
Playing DVD-OK Discs
You can enjoy the feeling of a karaoke bar in the comfort of your home. Watch the video and sing along the lyrics
displayed on the TV screen against the accompaniment.
1
Use the Numeric (0~9) buttons to select the song you want to play back.
2
Press the PLAY/PAUSE ( ) button or the ENTER button.
The numeric and title of the song will be displayed and the
accompaniment starts.
d To Clear Incorrectly Entered Song Numeric
Press the CANCEL button.
d To Stop During Accompaniment
Press the STOP () button.
4 Press the PL II EFFECT button to select <DIMENS>, then press the
Cursor ◄,► button to select the desired setting.
You can select between 0 and 6.
Incrementally adjusts the sound fi eld (DSP)from the front or rear.
When playing a DVD disc encoded with two or more channels, multi-channel
•
mode will be selected automatically and
does not work.
(Dolby Pro Logic II) button
Connecting Microphone
You can enjoy the feeling of a karaoke bar in the comfort of your home. Watch the video and sing along the lyrics
displayed on the TV screen against the accompaniment.
1 Connect the microphone to the MIC jack on the front panel.
You can connect up to two microphones.
2
Press the MIC VOL button to adjust the voice volume of the microphone.
3 Press the ECHO button to adjust the echo level of the microphone.
If you hear strange noises (squealing or howling) while using the Karaoke
•
feature, move the microphone away from the speakers. Turning down the
microphone volume or the speaker volume is also effective.
Microphone doesn't work while HDMI mode and HDMI AUDIO ON.
•
Karaoke
54 55
54
Page 29
Karaoke (Con’t)
GB
Reserving Accompaniment Music
While the accompaniment is playing, you can reserve the next song you want to sing.
1
Press the Numeric (0~9) buttons to select the song you want to reserve.
2
Press the RESERVE button.
The next song is reserved
d To Cancel the Reservation
Enter the numeric of the song you have reserved.
1.
Press the Cancel button.
2.
RESERVE function will not operate if REPEAT function is set while
•
DVD-OK is played.
DVD-OK Repeat Play
Press the REPEAT button.
Each time the button is pressed, the selection changes as follows:
REPEAT OFF ➞ REPEAT OFF ➞ REPEAT TRACK ➞ REPEAT DISC
➞ REPEAT RANDOM
•
RESERVE function will not operate if REPEAT function is set while
DVD-OK is played.
Favorite Song Function
You can save 50 songs you like or sing often each in FAVORITE1, 2, 3, a total of 150 songs to easily fi nd and sing a
your favorite song.
Saving FAVORITE SONG
Priority Playing Accompaniment Music
Even if there is a song already reserved, you can have the song you want to sing to be played fi rst.
1 In Stop mode, press the Numeric (0~9) buttons to select the song you
want to play back.
2
Press the PLAY/PAUSE ( ) button.
1 During the stop mode, press the FAVORITE SONG button.
2
Press
◄,►
button to select the location to save among FAVORITE1, 2, 3.
3 Press the number (0~9) button to enter the song you want.
4 Press the RESERVE button to save it.
Karaoke
56 57
56
Page 30
Karaoke (Con’t)
GB

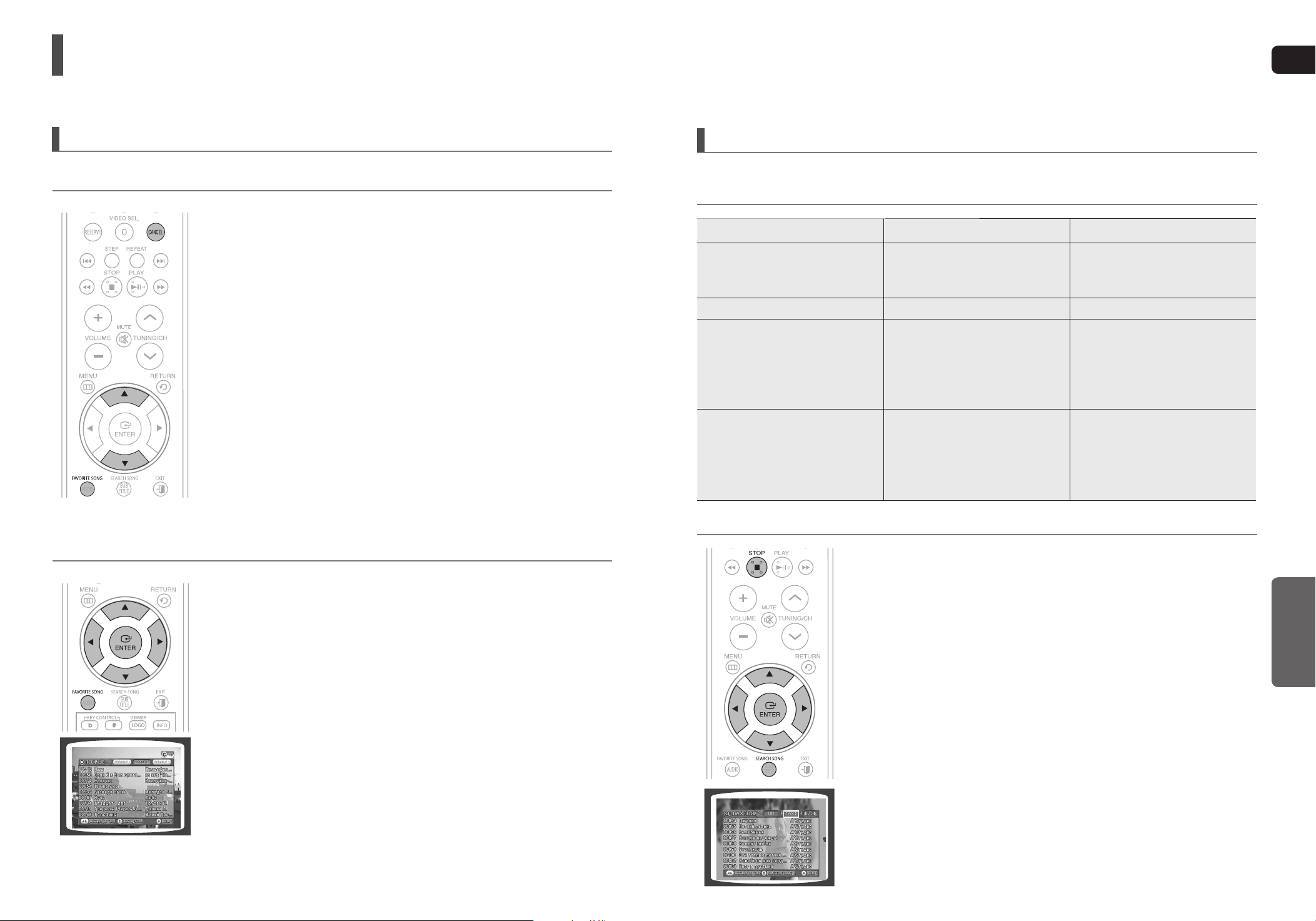

Favorite Song Function (Con’t)
Deleting FAVORITE SONG
1
During the stop mode, press the FAVORITE SONG button.
2
Press
▲,▼
3
Press the CANCEL button.
button to select the location to save among FAVORITE1, 2, 3.
Search Song Function
You can easily do song search on screen without viewing the song list book.
Structure of Song Search
Items Detailed Items Alphabet
RUSSIA
ENGLISH
UKRAINE
DUET SONG -
GENRE
HITS SONGS
NAME/SINGER
NAME/SINGER
NAME/SINGER
ROCK
CHANSON
FOLK
BARD
ROMANCES
MODERN
30-60S
70S/80S
CHILDREN
ARMY
A ~ Z
A ~ Z
A ~ Z
Singing FAVORITE SONG
1 During the stop mode, press the FAVORITE SONG button.
2
Press ◄,► button to select the location of song among FAVORITE 1, 2, 3.
3 Press
▲,▼
button to select the song you want.
4 Press the ENTER button to play back selected song.
d To Exit FAVORITE SONG Screen
Press STOP() button or FAVORITE SONG button.
Search by Language
1
During the stop mode, press the SEARCH SONG button and then press
▲,▼
button to select the language you want.
You can select the language among RUSSIA ➞ ENGLISH ➞ UKLAINE.
At this time, press
2
Press ► button to move to the detailed items and then press
to select the <NAME> or <SINGER>.
Press ◄ button if you want to move to the previous stage.
3
Press ► button to move to alphabet and press
Press ◄ button if you want to move to the previous stage.
4
Press ► button to move to the song list on the bottom and then press
▲,▼
button to select the song you want.
Press ◄ button if you want to move to the previous stage.
5
Press the ENTER button to play back selected song.
d To Exit Search Song Screen
Press STOP() button or SEARCH SONG button.
◄
button to move to the song list on the bottom.
▲,▼
button to select it.
▲,▼
button
Karaoke
58 59
58
Page 31
Karaoke (Con’t)
GB
Search Song Function (Con’t)
Searching DUET SONG
1
During the stop mode, press the SEARCH SONG button and then press
▲,▼
button to select the <DUET SONG>.
2
Press ◄,► button to move to the song list on the bottom.
3
Press
▲,▼ button to select the song you want.
Press ◄ button if you want to move to the previous stage.
4
Press the ENTER button to play back selected song.
d To Exit Search Song Screen
Press STOP() button or SEARCH SONG button.
Searching by Genre
Search Song Function (Con’t)
Searching by HITS SONGS
1
During the stop mode, press the SEARCH SONG button and then press
▲,▼
button to select the <HITS SONGS>.
At this time, press ◄ button to move to the song list on the bottom.
2
Press ► button to move to the detailed items and then press
to select the hits song.
You can select the song among MODERN ➞ 30-60S ➞ 70S/80S ➞
CHILDREN ➞ ARMY.
Press
3
Press ► button to move to the song list on the bottom and then press
▲,▼
button to select the song you want.
Press ◄ button if you want to move to the previous stage.
4
Press the ENTER button to play back selected song.
d To Exit Search Song Screen
Press STOP() button or SEARCH SONG button.
Key Control
◄
button if you want to move to the previous stage.
▲,▼
button
1
During the stop mode, press the SEARCH SONG button and then press
▲,▼
button to select the <GENRE>.
At this time, press ◄ button to move to the song list on the bottom.
2
Press ► button to move to the detailed items and then press
to select the genre you want.
You can select the genre among ROCK ➞ CHANSON ➞ FOLK ➞ BARD
➞ ROMANCES.
Press
◄
3
Press ► button to move to the song list on the bottom and then press
▲,▼
Press ◄ button if you want to move to the previous stage.
4
Press the ENTER button to play back selected song.
d To Exit Search Song Screen
button if you want to move to the previous stage.
button to select the song you want.
Press STOP() button or SEARCH SONG button.
◄,►
button
Tempo Control
During the playback, press the KEY CONTROL buttons.
Each time # button is pressed, the key is increased, and each time b
button is pressed, the key is decreased.
During the playback, press the TEMPO buttons.
Each time + button is pressed, the tempo gets faster, and each time – but-
ton is pressed the tempo gets slower.
Karaoke
60 61
60
Page 32
Karaoke (Con’t)
GB
Male-Female Key Control
During the playback, press the MALE/FEMALE button.
Each time the button is pressed, this selection alternates between Male
and Female.
Select Male when singing in male voice and select Female when singing
in female voice.
Setting the Chorus
You can set the chorus to ON or OFF.
Setting the Fanfare
You can set Fanfare to come out after singing a song.
1 Load a DVD-OK discs.
2
Press MENU button.
3
Press Cursor
4
Press ENTER button to select the desired item.
Each time the button is pressed, the selection changes as follows :
ON ➞ OFF.
▲,▼
button to move to <Fanfare>.
Setting the Average Score
You can set the grade of scores displayed in the screen in advance.
1 Load a DVD-OK discs.
2
Press MENU button.
3
Press Cursor
▲,▼
button to move to <Average Score>.
1 Load a DVD-OK discs.
2
Press MENU button.
3
Press Cursor
4
Press ENTER button to select the desired item.
Each time the button is pressed, the selection changes as follows :
ON ➞ OFF.
If you operate the Tempo function while a song with supporting
•
chorus is played back, the chorus will be released.
Chorus function may not work depending on information recorded in the
•
disc.
▲,▼
button to move to <Chorus>.
4
Press ENTER button to select the desired item.
Each time the button is pressed, the selection changes as follows :
LOW ➞ MIDDLE ➞ HIGH ➞ RANDOM ➞ OFF.
Setting the Shadow
You can set the lyrics to be displayed in the black strips.
1 Load a DVD-OK discs.
2
Press MENU button.
3
Press Cursor
4
Press ENTER button to select the desired item.
Each time the button is pressed, the selection changes as follows :
ON ➞ OFF.
▲,▼
Karaoke
button to move to <Shadow>.
62 63
62
Page 33
MISCELLANEOUS
Listening to Radio
Remote Control
1 Press the TUNER button to select the FM band.
2 Tune in to the desired station.
Automatic Tuning 1 : When the #,$
selected.
Automatic Tuning 2 : Press the and hold .,, button to automatically
search for active broadcasting stations.
Manual Tuning : Briefl y press the .,
frequency incrementally.
Main Unit
1 Press the FUNCTION button to select the FM band.
2 Select a broadcast station.
Automatic Tuning 1 : Press the STOP () button to select PRESET and
then press the
Automatic Tuning 2 : Press the STOP () button to select <MANUAL>
and then press the and hold
Manual Tuning : Press the STOP () button to select <MANUAL> and
then briefl y press the
#,$
button
is pressed, a preset broadcast station is
, button
button to select the preset station.
#,$
button to automatically search the band.
#,$
button to tune in to a lower or higher frequency.
to increase or decrease the
Presetting Stations
Example : Presetting FM 89.10 in the memory
1 Press the TUNER button to select the FM band.
2
Press the .,, button to select <89.10>.
3 Press the TUNER MEMORY button.
4 Press the #,$ button to select preset number.
5 Press the TUNER MEMORY button again.
6 To preset another station, repeat steps 2 to 5.
<PRGM> fl ashes in the display.
You can select between 1 and 15 presets.
Press the TUNER MEMORY button before <PRGM> disappears from the display.
<
PRGM>
disappears from the display and the station is stored in memory.
GB
d Press the MO/ST button to listen in Mono/Stereo.
(This applies only when listening to an FM station.)
Each time the button is pressed, the sound switches between <STEREO> and
<MONO>.
In a poor reception area, select <MONO> for a clear, interference-free broadcast.
d
To tune in to a preset station, press the #,$ button on the remote control
to select a channel.
This unit does not receive AM broadcasts.
•
MISCELLANEOUS
64
65
Page 34
About RDS broadcasting
GB
Using the RDS (Radio Data System) to receive FM stations
RDS allows FM stations to send an additional signal along with their regular program signals. For example, the stations send
their station names, as well as information about what type of program they broadcast, such as sports or music, etc.
When tuned to an FM station which provides the RDS service, the RDS
indicator lights up on the display.
Description on RDS function
PTY (Program Type) : Displays the type of programme currently being broadcast
•
PS NAME (Program Service Name) : Indicates the name of broadcasting station and
•
•
RT (Radio Text) : Decodes the text broadcast by a station (if any) and is composed
•
CT (Clock Time) :
•
TA (Traffi c Announcement) : When this symbol fl ashes it shows that the traffi c
RDS may not operate correctly if the station tuned is not transmitting RDS
•
signal properly or if the signal strength is weak.
of maximum 64 characters.
Decodes the real time clock from the FM frequency.Some stations
may not transmit PTY, RT or CT information therefore this may not be
displayed in all cases.
is composed of 8 characters.
announcement is in progress.
PTY (Program Type) indication and PTY-SEARCH function
One of the advantages of the RDS service is that you can locate a particular kind of program from the preset channels by
specifying the PTY codes.
To search for a program using the PTY codes
Before you start, remember...
The PTY Search is only applicable to preset stations.
•
To stop searching any time during the process, press PTY SEARCH while searching.
•
There is a time limit in doing the following steps. If the setting is cancelled before you fi nish,
•
start from step 1 again.
When pressing the buttons on the primary remote control, make sure that you have selected the FM
•
station using the primary remote control.
1 Press the PTY SEARCH while listening to an FM station.
2
Press the PTY- or PTY+ until the PTY code you want appears on the display.
The display gives you the PTY codes described to the right.
3 Press the PTY SEARCH again, while the PTY code selected in the
previous step is still on the display.
The center unit searches 15 preset FM stations, stops when it fi nds
the one you have selected, and tunes in that station.
TO show the RDS signals
You can see the RDS signals the station sends on the display.
Press the RDS DISPLAY while listening to an FM station.
Each time you press the button, the display change to show you the following
information :
PS NAME RT CT Frequency
PS (Program Service) : While searching, <PS> appears and then the station names
•
will be displayed. <NO PS> appears if no signal is sent.
RT(RadioText) : while searching, <RT> appears and then text messages the station
•
sends will be displayed. <NO RT> appears if no signal is sent.
Frequency : station frequency (non-RDS service)
•
About characters shown in the display
When the display shows PS,or RT signals,the following characters are used.
•
The display window cannot differentiate upper case and lower case letters and always
uses upper case letters.
•
The display window cannot show accented letters, “A,” for instance, may stands for
accented “A’s” like “À, Â, Ä, Á, Å and Ã.”
•
If searching fi nishes at once, “PS”, and “RT” will not appear on the display.
Display Program Type
NEWS
AFFAIRS
INFO
SPORT Sports
EDUCATE Education
DRAMA Drama-Radio serial, etc.
CULTURE
SCIENCE Natural science and technology
VARIED
POP M Pop music
ROCK M Rock music
M.O.R.M
News including an announced opinion and
report
Several matters including a current incident,
documentary, discussion and analysis.
Information including weights and measures,
returns and forecast, matters interesting the
customer, medical information, etc.
Culture-National or local culture including the religious problem, social science,
language, theater, etc.
Others-Speech, amusing program
(quiz, game), interview, comedy and
satirical play, etc.
Current contemporary music considered to be
“easy listening.”
Display Program Type
LIGHT M
CLASSICS
OTHER M Other music - Jazz, R&B country music
WEATHER Weather
FINANCE Finance
CHILDREN Children’s programmes
SOCIAL A Social affairs
RELIGION Religion
PHONE IN Phone in
TRAVEL Travel
LEISURE Leisure
JAZZ Jazz Music
COUNTRY Country Music
NATION M National Music
OLDIES Oldies Music
FOLK M Folk Music
DOCUMENT
Light classical music- Classical music and
instrumental and chorus music
Heavy classical music-Orchestra music,
symphony, chamber music and opera
Documentary
MISCELLANEOUS
66
67
Page 35

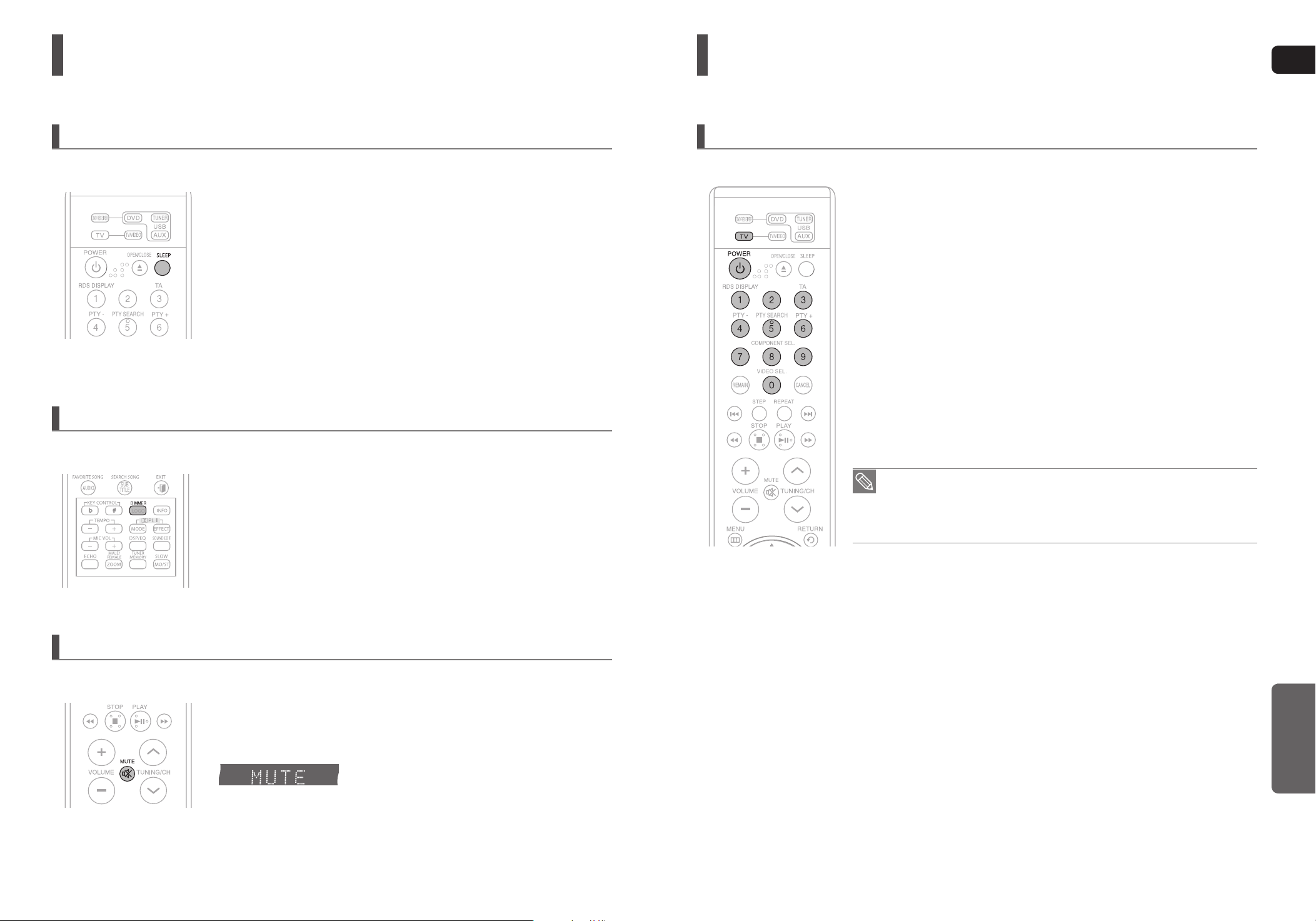

Convenient Functions
Operating a TV with the Remote Control
GB
Sleep Timer Function
You can set the time that the Home Theater will shut itself off.
Adjusting Display Brightness
You can adjust the brightness of the display on the main unit so it won't interfere with your movie viewing.
Press the SLEEP button.
<SLEEP> will be displayed. Each time the button is pressed, the preset time
changes as follows :
10 20 30 60 90 120 150 OFF.
d To confi rm the sleep timer setting, press the SLEEP button.
The remaining time before the Home Theater will shut itself off is displayed.
Pressing the button again changes the sleep time from what you have set earlier.
d
To cancel the sleep timer, press the SLEEP button until <OFF> appears on
the display.
Press the DIMMER button.
Each time the button is pressed, the brightness of front display will be adjusted.
When operating a TV with the remote control
1
Press the TV button to set the remote to TV mode.
2 Press the POWER button to turn on the TV.
3
While holding down the POWER button, enter the code corresponding to
your brand of TV.
If there is more than one code listed for your TV in the table, enter one at a
time to determine which code works.
Example : For a Samsung TV
While holding down the POWER button, use the number buttons to enter
00, 15, 16, 17 and 40.
4 If the TV turns off, the setting is complete.
You can use the TV POWER, VOLUME, CHANNEL, and Numeric buttons
(0~9).
The remote control may not work on some brands of TVs.
•
Also, some operations may not be possible depending on your brand of TV.
If you do not set the remote control with the code for your brand of TV, the
•
remote control will work on a Samsung TV by default.
Mute Function
This is useful when answering a doorbell or telephone call.
Press the MUTE button.
<MUTE> appears in the display.
To restore the sound, press the button again.
68
MISCELLANEOUS
69
Page 36
Operating a TV with the Remote Control (Con’t)
TV Brand Code List
Troubleshooting
GB
Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed below or
if the instruction below does not help, turn off the unit, disconnect the power cord, and contact the nearest authorized dealer
or Samsung Electronics Service Center.
No.
1 Admiral (M.Wards) 56, 57, 58 44 MTC
2 A Mark
3 Anam
4 AOC
5
6 Brocsonic
7 Candle
8 Cetronic
9 Citizen
10 Cinema
11 Classic
12 Concerto
13 Contec
14 Coronado
15 Craig
16 Croslex
17 Crown
18 Curtis Mates
19 CXC
20 Daewoo
21 Daytron
22 Dynasty
23 Emerson
24 Fisher
25 Funai
26 Futuretech
27 General Electric (GE)
28 Hall Mark
29 Hitachi
30 Inkel
31 JC Penny
32 JVC
33 KTV
34 KEC
35 KMC
36 LG (Goldstar)
37 Luxman
38 LXI (Sears)
39 Magnavox
40 Marantz
41 Matsui
42 MGA
43 Mitsubishi/MGA
Brand
Bell & Howell (M.Wards)
Code
01, 15
01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 11,
13, 14
01, 18, 40, 48
57, 58, 81
59, 60
18
03
03, 18, 25
97
03
18
46
15
03, 05, 61, 82, 83, 84
62
03
59, 61, 63
03
02, 03, 04, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24,
25, 26, 27, 28, 29, 30, 32, 34, 35, 36, 48, 59, 90
40
03
03, 15, 40, 46, 59, 61, 64, 82, 83, 84, 85
19, 65
03
03
06, 40, 56, 59, 66, 67, 68
40
15, 18, 50, 59, 69
45
56, 59, 67, 86
70
59, 61, 87, 88
03, 15, 40
15
01, 15, 16, 17, 37, 38, 39, 40, 41, 42, 43, 44
18
19, 54, 56, 59, 60, 62, 63, 65, 71
15, 17, 18, 48, 54, 59, 60, 62, 72, 89
40, 54
54
18, 40
18, 40, 59, 60, 75
No.
45 NEC
46 Nikei
47 Onking
48 Onwa
49 Panasonic
50 Penney
51 Philco
52 Philips
53 Pioneer
54 Portland
55 Proton
56 Quasar
57 Radio Shack
58 RCA/Proscan
59 Realistic
60 Sampo
61 Samsung
62 Sanyo
63 Scott
64 Sears
65 Sharp
66
67 Sony
68 Soundesign
69 Spectricon
70 SSS
71 Sylvania
72 Symphonic
73 Tatung
74 Techwood
75 Teknika
76 TMK
77 Toshiba
78 Vidtech
79 Videch
80 Wards
81 Yamaha
82 York
83 Yupiteru
84 Zenith
85 Zonda
86 Dongyang
Brand
Signature 2000 (M.Wards)
Code
18
18, 19, 20, 40, 59, 60
03
03
03
06, 07, 08, 09, 54, 66, 67, 73, 74
18
03, 15, 17, 18, 48, 54, 59, 62, 69, 90
15, 17, 18, 40, 48, 54, 62, 72
63, 66, 80, 91
15, 18, 59
40
06, 66, 67
17, 48, 56, 60, 61, 75
18, 59, 67, 76, 77, 78, 92, 93, 94
03, 19
40
00, 15, 16, 17, 40, 43, 46, 47, 48, 49, 59,
60, 98
19, 61, 65
03, 40, 60, 61
15, 18, 19
15, 57, 64
57, 58
50, 51, 52, 53, 55
03, 40
01
18
18, 40, 48, 54, 59, 60, 62
61, 95, 96
06
18
03, 15, 18, 25
18, 40
19, 57, 63, 71
18
59, 60, 69
15, 17, 18, 40, 48, 54, 60, 64
18
40
03
58, 79
01
03, 54
Symptom Check/Remedy
Disc tray does not open.
Playback does not start.
Playback does not start
immediately when the
Play/Pause button is pressed.
Sound is not produced.
Sound can be heard only from a few
speakers and not all six.
Dolby Digital 5.1 CH Surround Sound is
not produced.
The remote control does not work.
Is the power cord plugged securely into the outlet?
Turn off the power and then turn it back on.
Check the region number of the DVD.
DVD discs purchased from abroad may not be playable.
CD-ROMs and DVD-ROMs cannot be played on this DVD
player.
Make sure that the rating level is correct.
Are you using a deformed disc or a disc with scratches on the
surface?
Wipe the disc clean.
No sound is heard during fast playback, slow playback, and step
motion playback.
Are the speakers connected properly? Is the speaker setup correctly
customized?
Is the disc severely damaged?
When listening to a CD or radio, sound is output to the front speakers
(L/R) only. Select <PRO LOGIC II> by pressing
PL II (Dolby Pro
Logic II) on the remote control to use all six speakers.
Make sure that the DVD disc is 5.1-CH compatible.
If you set C, SL, and SR to NONE in the speaker mode in the audio
setup of the setup screen, no sound is heard from the center speaker
and the front left and right speakers. Set C, SL, and SR to SMALL.
Is there <Dolby Digital 5.1 CH> mark on the disc? Dolby Digital 5.1
CH Surround Sound is produced only if the disc is recorded with 5.1
channel sound.
Is the audio language correctly set to DOLBY DIGITAL 5.1-CH in the
information display?
Is the remote control being operated within its operation range of
angle and distance?
Are the batteries exhausted?
Have you selected the mode(TV/DVD) functions of the remote control
(TV or DVD) correctly?
MISCELLANEOUS
70
71
Page 37
Troubleshooting (Con’t)
Cautions on Handling and Storing Discs
Small scratches on the disc may reduce sound and picture quality or cause skipping.
Be especially careful not to scratch discs when handling them.
GB
Symptom Check/Remedy
Disc is rotating but no
picture is produced.
Picture quality is poor and
picture is shaking.
Audio language and subtitles do not
work.
Menu screen does not appear even when
the menu function is selected.
Aspect ratio cannot be changed.
The main unit is not working.
(Example: The power goes out or
strange noise is heard.)
The DVD player is not working
normally.
Is the TV power on?
•
Are the video cables connected properly?
•
Is the disc dirty or damaged?
•
A poorly manufactured disc may not be playable.
•
Audio language and subtitles will not work for DVDs not containing
•
them. And depending on the disc, they may work differently.
Are you using a disc that does not contain menus?
•
•
You can play 16:9 DVDs in 16:9 WIDE mode, 4:3 LETTER BOX
mode, or 4:3 PAN SCAN mode, but 4:3 DVDs can be seen in 4:3 ratio
only. Refer to the DVD disc jacket and then select the appropriate
function.
Turn off the power and hold the STOP() button on the main unit for
•
longer than 5 seconds.
Using the RESET function will erase all stored settings.
Do not use this unless necessary.
Handling discs
Disc Storage
Do not keep in
direct sunlight
Do not allow the discs to become contaminated with dirt.
•
Do not load cracked or scratched discs.
•
Do not touch the playback side of the disc.
Hold the disc by the edges so that fi ngerprints will not get
on the surface.
Do not stick paper or tape on the disc.
Keep in a cool
ventilated area
Keep in a clean
Protection jacket.
Store vertically.
72
The password for rating level has been
forgotten.
Can't receive radio broadcast.
While <NO DISC> message appears on the display of main unit, hold
•
the main unit's STOP() button for longer than 5 seconds. <INITIAL>
appears on the display and all settings will return to the default values.
Press the POWER button.
•
Using the RESET function will erase all stored settings.
Do not use this unless necessary.
•
Is the antenna connected properly?
•
If the antenna's input signal is weak, install an external FM antenna in
an area with good reception.
Handling and Storing Discs
When you get fi ngerprints or dirt on the disc, clean it with a mild
detergent diluted in water and wipe with a soft cloth.
When cleaning, wipe gently from the inside to the outside of the disc.
•
•
Condensation may form if warm air comes into contact with cold parts inside
the player. When condensation forms inside the player, the player may not
operate correctly. If this occurs, remove the disc and let the player stand for
1 or 2 hours with the power on.
MISCELLANEOUS
73
Page 38
Language Code List
Enter the appropriate code number for the initial settings <Disc Audio>, <Disc Subtitle> and/or <Disc Menu> (See page 42).
USB Host Feature Supported Products
GB
Code Language Code Language Code Language Code Language
1027 Afar 1181 Frisian 1334 Latvian, Lettish 1506 Slovenian
1028 Abkhazian 1183 Irish 1345 Malagasy 1507 Samoan
1032 Afrikaans 1186 Scots Gaelic 1347 Maori 1508 Shona
1039 Amharic 1194 Galician 1349 Macedonian 1509 Somali
1044 Arabic 1196 Guarani 1350 Malayalam 1511 Albanian
1045 Assamese 1203 Gujarati 1352 Mongolian 1512 Serbian
1051 Aymara 1209 Hausa 1353 Moldavian 1513 Siswati
1052 Azerbaijani 1217 Hindi 1356 Marathi 1514 Sesotho
1053 Bashkir 1226 Croatian 1357 Malay 1515 Sundanese
1057 Byelorussian 1229 Hungarian 1358 Maltese 1516 Swedish
1059 Bulgarian 1233 Armenian 1363 Burmese 1517 Swahili
1060 Bihari 1235 Interlingua 1365 Nauru 1521 Tamil
1069 Bislama 1239 Interlingue 1369 Nepali 1525 Tegulu
1066
Bengali; Bangla
1245 Inupiak 1376 Dutch 1527 Tajik
1067 Tibetan 1248 Indonesian 1379 Norwegian 1528 Thai
1070 Breton 1253 Icelandic 1393 Occitan 1529 Tigrinya
1079 Catalan 1254 Italian 1403 (Afan) Oromo 1531 Turkmen
1093 Corsican 1257 Hebrew 1408 Oriya 1532 Tagalog
1097 Czech 1261 Japanese 1417 Punjabi 1534 Setswana
1103 Welsh 1269 Yiddish 1428 Polish 1535 Tonga
1105 Danish 1283 Javanese 1435 Pashto, Pushto 1538 Turkish
1109 German 1287 Georgian 1436 Portuguese 1539 Tsonga
1130 Bhutani 1297 Kazakh 1463 Quechua 1540 Tatar
1142 Greek 1298 Greenlandic 1481
Rhaeto-Romance
1543 Twi
1144 English 1299 Cambodian 1482 Kirundi 1557 Ukrainian
1145 Esperanto 1300 Kannada 1483 Romanian 1564 Urdu
1149 Spanish 1301 Korean 1489 Russian 1572 Uzbek
1150 Estonian 1305 Kashmiri 1491 Kinyarwanda 1581 Vietnamese
1151 Basque 1307 Kurdish 1495 Sanskrit 1587 Volapuk
1157 Persian 1311 Kirghiz 1498 Sindhi 1613 Wolof
1165 Finnish 1313 Latin 1501 Sangro 1632 Xhosa
1166 Fiji 1326 Lingala 1502 Serbo-Croatian 1665 Yoruba
1171 Faeroese 1327 Laothian 1503 Singhalese 1684 Chinese
1174 French 1332 Lithuanian 1505 Slovak 1697 Zulu
Digital Camera
Product Company Type
Finepix-A340 Fuji Digital Camera
Finepix-F810 Fuji Digital Camera
Finepix-F610 Fuji Digital Camera
Finepix-f450 Fuji Digital Camera
Finepix S7000 Fuji Digital Camera
Finepix A310 Fuji Digital Camera
KD-310Z Konica Digital Camera
Finecam SL300R Kyocera Digital Camera
Finecam SL400R Kyocera Digital Camera
Finecam S5R Kyocera Digital Camera
Finecam Xt Kyocera Digital Camera
Dimage-Z1 Minolta Digital Camera
Dimage Z1 Minolta Digital Camera
Dimage X21 Minolta Digital Camera
Coolpix4200 Nikon Digital Camera
Coolpix4300 Nikon Digital Camera
Coolpix 2200 Nikon Digital Camera
Coolpix 3500 Nikon Digital Camera
Coolpix 3700 Nikon Digital Camera
Coolpix 4100 Nikon Digital Camera
Coolpix 5200 Nikon Digital Camera
Stylus 410 digital Olympus Digital Camera
300-digital Olympus Digital Camera
U300 Olympus Digital Camera
X-350 Olympus Digital Camera
C-760 Olympus Digital Camera
C-5060 Olympus Digital Camera
X1 Olympus Digital Camera
U-mini Olympus Digital Camera
Lumix-FZ20 Panasonic Digital Camera
DMC-FX7GD Panasonic Digital Camera
Lumix LC33 Panasonic Digital Camera
LUMIX DMC-F1 Panasonic Digital Camera
Optio-S40 Pentax Digital Camera
Optio-S50 Pentax Digital Camera
Optio 33LF Pentax Digital Camera
Optio MX Pentax Digital Camera
Digimax-420 Samsung Digital Camera
Digimax-400 Samsung Digital Camera
Sora PDR-T30 Toshiba Digital Camera
Coolpix 5900 Nikon Digital Camera
Coolpix S1 Nikon Digital Camera
Coolpix 7600 Nikon Digital Camera
DMC-FX7 Panasonic Digital Camera
Dimage Xt Minolta Digital Camera
AZ-1 Olympus Digital Camera
USB Flash Disk
Product Company Type
Cruzer Micro Sandisk
Cruzer Mini Sandisk USB 2.0 128M
Cruzer Mini Sandisk USB 2.0 256M
SONY Micro Vault Sony USB 2.0 64MB
FLEX DRIVE Serotech USB 2.0 32MB
AnyDrive A.L tech USB 2.0 128MB
XTICK LG USB 2.0 128M
Micro Mini Iomega USB 2.0 128M
iFlash Imation USB 2.0 64M
LG XTICK(M) USB 2.0 64M
RiDATA EZDrive USB 2.0 64M
USB 2.0 USB Flash Drive 128M
MP3 Player
Product Company Type
Creative MuVo NX128M Creative 128 MB MP3 Player
Iriver H320 Iriver 20G HDD MP3 Player
YH-920 Samsung 20G HDD MP3 Player
YP-T7 Samsung MP3 Player
YP-MT6 Samsung MP3 Player
YP-T6 Samsung MP3 Player
YP-53 Samsung MP3 Player
YP-ST5 Samsung MP3 Player
YP-T5 Samsung MP3 Player
YP-60 Samsung MP3 Player
YP-780 Samsung MP3 Player
YP-35 Samsung MP3 Player
YP-55 Samsung MP3 Player
iAUDIO U2 Cowon MP3 Player
iAUDIO G3 Cowon MP3 Player
iAudio M3 Cowon HDD MP3 Player
SI-M500L Sharp 256MB MP3 Player
H10 Iriver MP3 Player
YP-T5 VB Samsung MP3 Player
YP-53 Samsung 256MB MP3 Player
MISCELLANEOUS
74
75
Page 39
Specifi cations
GB
GENERAL
FM TUNER
VIDEO
OUTPUT
AMPLIFIER
Power Consumption 80W
Weight 4 kg
Dimensions (W x H x D) 430 x 65 x 351.5 mm
Operating Temperature
Range
Operating Humidity Range 10% ~ 75%
Usable Sensitivity 10dB
S/N Ratio 60dB
Distortion 0.5%
Composite Video 1.0Vp-p(75Ω load)
Scart Jack
Component Video
HDMI Impedance : 85~115Ω
Front speaker output 133W x 2(3Ω)
Center speaker output 133W (3Ω)
Rear speaker output 133W x 2(3Ω)
Subwoofer speaker output 135W(3Ω)
Frequency range 20Hz~20KHz
S/N Ratio 75dB
Channel separation 60dB
Input sensitivity (AUX)400mV
+5°C~+35 °C
Compositive Video : 1.0Vp-p(75Ω load)
RGB Signal : 0.714Vp-p(75Ω load)
Y:1.0Vp-p(75Ω load)
Pr:0.70Vp-p(75Ω load)
Pb:0.70Vp-p(75Ω load)
HT-KX30
SPEAKER
HT-TKX35
SPEAKER
Speaker system
Impedance
Frequency range
Output sound pressure level
Rated input
Maximum input
Dimensions (W x H x D)
Weights
Speaker system
Impedance 3Ω 3Ω
Frequency range 140Hz
Output sound pressure level 86dB/W/M 86dB/W/M
Rated input 133W 135W
Maximum input 266W 270W
Dimensions (W x H x D)
Weights
Front/Center/Rear speaker Subwoofer speaker
3Ω
140Hz ~ 20kHz
86dB/W/M
133W
266W
Front/Rear
Center
Front/Rear
Center
Front/Center/Rear speaker Subwoofer speaker
~
20kHz
Front
Center
Front/Rear
Center 0.7 kg
90 x 1045 x 95
90 x 1045 x 95
250 x 90 x 95
3.4 kg/3.2kg
5.1ch speaker system
90 x 168 x 95
mm
250 x 90 x 95 mm
0.6 Kg/0.5 Kg
0.7 Kg
5.1ch speaker system
mm
mm
mm
3Ω
45Hz ~ 160Hz
86dB/W/M
135W
270W
175 x 320 x 390
5.2 kg
45Hz ~ 160Hz
175 x 320 x 390
5.2 kg
mm
mmRear
76
MISCELLANEOUS
77
