SAMSUNG HT DB750 Service Manual Exploded View & Part List

Samsung Electronics 2-1

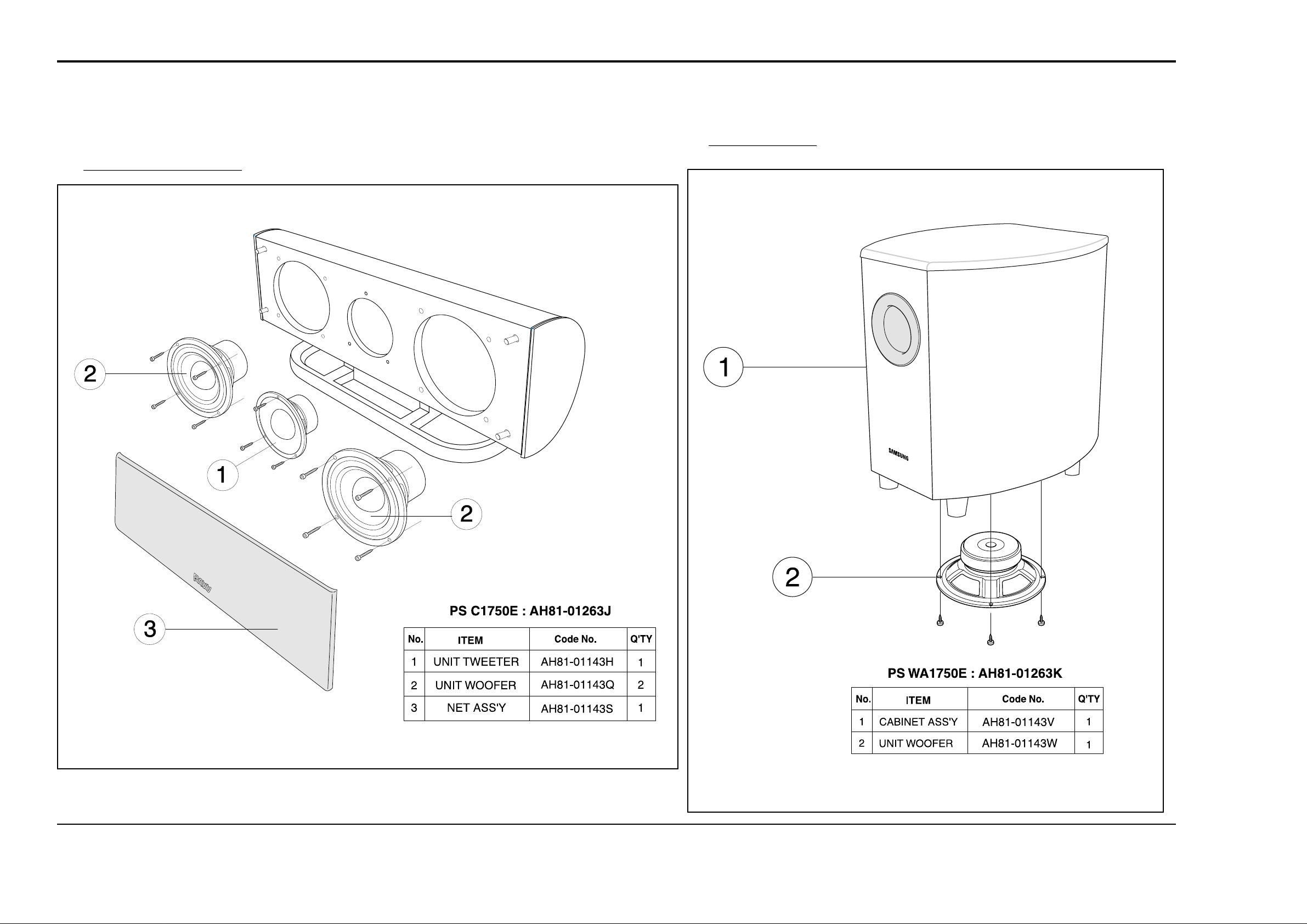

2.Exploded Views and Par ts List

2-1 T otal Exploded View

Samsung Electronics

2-2

* Parts List of T otal Exploded vie w

No. Code No. Description Specification Q’ty Remark

1 AH64-02431A BADGE-BRAND AL, DIA-CUT 1
2 AH64-02362C PANEL-FRONT AL EXTRUSION (P-SCAN) 1 HT-DB750

AH64-02362D AL EXTRUSION (EUROPE) 1 HT-DB750
AH64-02362F AL EXTRUSION (ASIA,NO P-SCAN) 1 HT-DB750
AH64-02362H AL EXTRUSION (EUROPE) 1 HT-DB1750
AH64-02362K AL EXTRUSION (S.AMERICA) 1 HT-DB1750
AH64-02362M AL EXTRUSION (CIS) 1 HT-DB1850

AH64-02362N AL EXTRUSION (CHINA) 1 HT-D750C
3 AH67-00217A LENS-POWER PMMA 1
4 AH64-02429A WINDOW-DVD HALF MIRROR 3T 1
5 AH64-02430A WINDOW-VFD HALF MIRROR 3T 1
6 AH61-01279A BRKT-DOOR SPTE 0.5T 1
7 AH61-01277A HOLDER-DOOR ABS 1
8 AH61-01280A SPRING-DOOR SUS 0.2T 1
9 AH64-02359B CABINET-FRONT HIPS 1
10 AH64-02360A KNOB-FUNCTION ABS 1
11 AH81-01117A A/S-VOLUME ASSY AL, DIA-CUT 1
12 AH67-00210A LENS-VOLUME PMMA 1
13 AH73-00005A CUSHION-FOOT EVA 4
14 AH64-02322A KNOB-DSP ABS 1
15 AH67-00216A LENS-DSP PMMA 3
16 AH64-02356A CABINET-BOTTOM SECC 1.0T 1
17 AH61-01377A BRKT-PCB FUNCTION SECC 2.0T 1
18 AH64-02355C CABINET-REAR SECC 0.8T (EXP, BASIC) 1

AH64-02355D SECC 0.8T (EUROPE,SCART JACK) 1

AH64-02355E SECC 0.8T (ASIA, DUAL VOLTAGE) 1
19 AH31-00030B MOTOR-DC RF 300E 1
20 AH63-00303B COVER-FAN ABS 1
21 AH64-02357B CABINET-TOP SECC 0.6T 1

R AH59-01169G REMOCON ASSY RDS 1

AH59-01169H REMOCON ASSY P-SCAN 1

AH59-01169J REMOCON ASSY NO RDS, NO P-SCAN 1
R1 AH81-01337A DOOR-HIDDEN 1
R2 AH81-01336A COVER-BATTERY 1

M AH59-01183D MICROPHONE ASSY MIC 1

A 6003-001499 SCREW-TAP TITE BWH 3 * 8 SILVER 13
B 6002-000126 SCREW-TAPPING FH 3 * 10 BLK 2
C AH60-10020D SCREW-TAP TITE RH 2.6 * 8 YEL 5
D 6003-000276 SCREW-TAP TITE BH 3 * 10 YEL 12
E AH60-10108A SCREW-TAP TITE BWH 3*10 (W10) YEL 1
F 6002-000398 SCREW-TAP TITE BH 3 * 6 YEL 21
G AH60-00014A SCREW-TAP TITE TH 4* 6 YEL 4
H AH60-00025A SCREW-TAP TITE BH 3 * 10 SILVER 17

No. Code No. Description Specification Q’ty Remark

2-32-3Samsung Electronics 2-3

2-2 DVD MECHA Exploded View and Parts list

No. Code No. Description ; Specification

AH59-01153A DECK-MECHA ASS’Y CMS-SD100

1 AH61-01293A BASE-MAIN ABS BLK
2 AH63-00535A TRAY-DISC ABS D/GRAY
3 AH66-00214A LEVER-LIFT ABS+GF20%
4 AH66-00215A PULLEY-MOT OR POM WHT
5 AH66-00216A GEAR-PULLEY TPE WHT
6 AH66-00217A GEAR-TRA Y POM WHT
7 AH61-01295A CLAMPER-BRKT SECC t0.8
8 AH63-00536A CLAMPER-MOLD POM WHT
9 AH66-00218A SLIDE-CAM PC WHT
10 AH61-01296A HOLDER-BRACKET SECC t0.8
11 AH31-00035B MOTOR-DC RF-300E-1D390
12 AH41-00560A PCB-SWITCH 43.5 * 32.5
13 AH66-00219A BELT-PULLEY CR 1.2
14 3409-001119 SWITCH-DETECTOR JDS2200
15 AH59-01184A DVD-DECK ASSY CMS-S51PG4
16 6001-001257 SCREW-MACHINE 1.7*3(W4.5)
17 AJ60-10001A SCREW-TAP WASHER 6.8
18 6003-000152 SCREW-TAP 2*10.12
19 AH73-00055A RUBBER-CD SILICON 30
20 0205-001106 GREASE GX-99004
21 0205-001109 GREASE DM-523
22 6003-000283 SCREW TAP 3*8
23 AH02-00038A TAPE 10mm*80mm
24 3809-001451 CABLE-FLAT 60mm 24P
25 3302-001505 MAGNET CHUCK 190 gf
26 AH30-00055A PICK-UP 4P.JST
27 AH39-00495A WIRE-HARNESS UL1007,#28,70mm
28 AH39-00496A WIRE-HARNESS UL1007,#28,65mm
