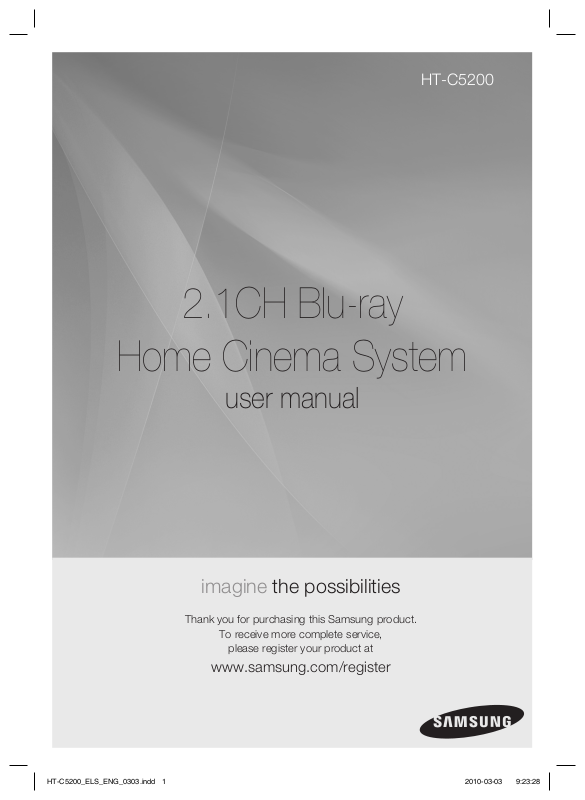

Page 1

HT-C5200

2.1CH Blu-ray

Home Cinema System

user manual

imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service,

please register your product at

www.samsung.com/register

Page 2

Safety Information

Safety Warnings

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

This symbol indicates “dangerous voltage” inside the product that presents a risk of electric shock or personal injury.

CAUTION :

SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

WARNING

To reduce the risk of ﬁ re or electric shock, do

•

not expose this appliance to rain or moisture.

CAUTION

Apparatus shall not be exposed to dripping or splashing

•

and no objects ﬁ lled with liquids, such as vases, shall be placed on the apparatus.

•

The Mains plug is used as a disconnect device and shall stay readily operable at any time.

•

This apparatus shall always be connected to a AC outlet with a protective grounding connection.

•

To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.

TO PREVENT ELECTRIC

CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT PRODUCTO LÁSER CLASE 1

CLASS 1 LASER PRODUCT

This Compact Disc player is classiﬁ ed as a CLASS 1 LASER product. Use of controls, adjustments or performance of procedures other than those speciﬁ ed herein may result in hazardous radiation exposure.

CAUTION

INVISIBLE LASER RADIATION WHEN OPEN AND

•

INTERLOCKS DEFEATED, AVOID EXPOSURE TO BEAM.

This symbol indicates important instructions accompanying the product.

Wiring the Main Power Supply Plug (UK Only)

IMPORTANT NOTICE

The mains lead on this equipment is supplied with a moulded plug incorporating a fuse. The value of the fuse is indicated on the pin face of the plug and if it requires replacing, a fuse approved to BS1362 of the same rating must be used. Never use the plug with the fuse cover removed. If the cover is detachable and a replacement is required, it must be of the same colour as the fuse fitted in the plug. Replacement covers are available from your dealer. If the fitted plug is not suitable for the power points in your house or the cable is not long enough to reach a power point, you should obtain a suitable safety approved extension lead or consult your dealer for assistance. However, if there is no alternative to cutting off the plug, remove the fuse and then safely dispose of the plug. Do not connect the plug to a mains socket as there is a risk of shock hazard from the bared flexible cord. Never attempt to insert bare wires directly into a mains socket. A plug and fuse must be used at all times.

IMPORTANT

The wires in the mains lead are coloured in accordance with the following code:– BLUE = NEUTRAL BROWN = LIVE As these colours may not correspond to the coloured markings identifying the terminals in your plug, proceed as follows:–The wire coloured BLUE must be connected to the terminal marked with the letter N or coloured BLUE or BLACK. The wire coloured BROWN must be connected to the terminal marked with the letter L or coloured BROWN or RED.

WARNING :

DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH LETTER E OR

BY THE EARTH SYMBOL , OR COLOURED GREEN OR GREEN AND YELLOW.

2 English

Page 3

Precautions

Ensure that the AC power supply in your house complies with the identiﬁ cation sticker located on the back of

•

your product. Install your product horizontally, on a suitable base (furniture), with enough space around it for ventilation

•

(7.5~10cm). Do not place the product on ampliﬁ ers or other equipment which may become hot.

•

Make sure the ventilation slots are not covered. Do not stack anything on top of the product.

•

Before moving the product, ensure the Disc Insert Hole is empty.

•

In order to disconnect the product completely from the power supply, remove the main plug from the wall outlet,

•

especially when left unused for a long period of time. During thunderstorms, disconnect the AC main plug from the wall outlet. Voltage peaks due to lightning could

•

damage the product. Do not expose the product to direct sunlight or other heat sources. This could lead to overheating and

•

malfunction of the product. Protect the product from moisture, and excess heat or equipment creating strong magnetic or electric ﬁ elds (i.e.

•

speakers.). Disconnect the power cable from the AC supply if the product malfunctions.

•

Your product is not intended for industrial use. Use of this product is for personal use only.

•

Condensation may occur if your product or disc has been stored in cold temperatures. If transporting the

•

product during the winter, wait approximately 2 hours until the product has reached room temperature before using.

The batteries used with this product contain chemicals that are harmful to the environment.

•

Do not dispose of batteries in the general household trash.

English 3

Page 4

Safety Information

Cautions on Handling and Storing Discs

This product incorporates copyright protection

Small scratches on the disc may reduce sound and picture quality or cause skipping.

Be especially careful not to scratch discs when handling them.

Holding discs

Do not touch the playback side of the disc.

•

Hold the disc by the edges so that ﬁ ngerprints will not

•

get on the surface. Do not stick paper or tape on the

•

disc.

Disc Storage

Do not keep in direct sunlight

•

Keep in a cool ventilated area

•

Keep in a clean Protection jacket.

•

Store vertically.

NOTE

✎

Do not allow the discs to become contaminated with



dirt. Do not load cracked or scratched discs.



Handling and Storing Discs

If you get fingerprints or dirt on the disc, clean it with a mild detergent diluted in water and wipe with a soft cloth.

When cleaning, wipe gently from the inside to

•

the outside of the disc

NOTE

✎

Condensation may form if warm air comes into



contact with cold parts inside the product. When condensation forms inside the product, it may not operate correctly. If this occurs, remove the disc and let the product stand for 1 or 2 hours with the power on.

•

technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Rovi Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Rovi Corporation. Reverse engineering or disassembly is prohibited.

ABOUT DIVX VIDEO: DivX® is a digital

•

video format created by DivX,Inc. This is an ofﬁ cial DivX Certiﬁ ed device that plays DivX video. Visit www. divx.com for more information and software tools to convert your ﬁ les into DivX video. ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certiﬁ ed® device must be registered in order to play DivX Videoon-Demand (VOD) content. To generate the registration code, locate the DivX VOD section in the device setup menu. Go to vod.divx.com with this code to complete the registration process and learn more about DivX VOD. DivX Certiﬁ ed to play DivX video up to HD 1080p, including premium content.

iPod is a trademark of

•

Apple Inc., registered in the U.S. and other countries. iPhone is a trademark of Apple Inc.

•

< Open Source Licence Notice > In the case of using open source software, Open Source Licences are available on the product menu.

Licence

Copyright

4 English

Page 5

SAFETY INFORMATION

GETTING STARTED

CONNECTIONS

SETUP

2 Safety Warnings 3 Precautions 4 Cautions on Handling and Storing Discs 4 Licence 4 Copyright

7 Icons that will be used in manual 8 Disc Types and Characteristics 12 Accessories 13 Description 13 Front Panel 14 Rear Panel 15 Remote control

17 Connecting the Speakers 19 Connecting External Devices/your TV via HDMI 21 Connecting the Video Out to your TV 22

Connecting Audio from External Components 23 Connecting to the Network 24 Connecting the FM Antenna

25 Before Starting (Initial Settings) 26 Setting the Menu 27 Display 27 TV Aspect 27 BD Wise 27 Resolution 29 HDMI Format 29 Movie Frame (24 Fs) 29 Progressive Mode 29 Still Mode 29 HDMI Deep Color 30 Audio 30 Speaker Setting 31 EQ Optimizer 31 HDMI Audio 31 Digital Output 33 Dynamic Range Control 33 AV Sync 33 System 33 Initial Settings 33 Internet@TV Screen Size 33 Anynet+(HDMI-CEC) 33 BD Data Management 34 Clock 34 DivX(R) Registration 34 DivX(R) Deactivation 35 Network Setup 35 Network Settings 38 Network Status 38 BD-LIVE Internet Connection 38 Language 39 Security 39 Parental Rating 39 Change Password

ENGLISH

English 5

Page 6

Contents

SETUP

BASIC FUNCTIONS

NETWORK SERVICES

OTHER INFORMATION

39 General 39 Background 39 Energy Saving 39 Front Display 39 Power On/Off Sound 40 Support 40 Software Upgrade 40 Contact Samsung

41 Playing a Disc 41 Using the Disc menu / Title menu / Popup menu 42 Using the Search and Skip Functions 43 Slow Motion Play/Step Motion Play 43 Repeat Playback 44 Using the TOOLS button 46 Listening to Music 48 Sound Mode 49 Playing back a Picture 50 Playing back a USB Storage 50 Listening to Radio 52 Using an iPod

54 Using Internet@TV 58 BD-LIVE™ 58 Software Upgrade Notiﬁ cation 58 Using the AllShare Function

60 Troubleshooting 63 Speciﬁ cations

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.

•

6 English

Page 7

Getting Started

Icons that will be used in manual

Make sure to check the following terms before reading the user manual.

Term Logo Icon Definition

01 Getting Started

BD-ROM

BD-RE/-R

DVD-VIDEO

DVD-RW(V)

DVD-R

DVD+RW

DVD+R

Audio CD

MP3

WMA

JPEG

DivX MKV MP4

USB storage

device

CAUTION

NOTE

Shortcut Key

DivX

h z Z

o w G

This involves a function available on a BD-ROM.

This involves a function available on a BD-RE/-R disc recorded in the BD-RE format.

This involves a function available on a DVD-VIDEO.

This involves a function available on recorded DVD+RW or DVD-RW(V)/ DVD-R/+R discs that have been recorded and ﬁ nalised.

This involves a function available on an audio CD-RW/-R (CD-DA format).

This involves a function available in a CD-RW/-R, DVD-RW/-R disc or a USB storage media containing MP3 or WMA contents.

This involves a function available in a CD-RW/-R, DVD-RW/-R disc or a USB storage media containing JPEG contents.

This involves a function available in a CD-RW/-R, DVD-RW/-R disc or a USB storage media containing DivX contents.

This involves a function available on a USB storage device.

This involves a situation where a function does not operate or settings may

be cancelled.

This involves tips or instructions on the page that help each function

✎

operate.

This function provides direct and easy access pressing the button on the remote control.

This product is compatible with the PAL colour system only.

•

NTSC discs will not play.

•

English 7

Page 8

Getting Started

Disc Types and Characteristics

Blu-ray Disc Compatibility

Blu-ray is a new and evolving format. Accordingly, disc compatibility issues are possible. Not all discs are compatible and not every disc will play back. For additional information, refer to the Disc Types and Characteristics section of this Manual. If you encounter compatibility problems, please contact the SAMSUNG customer care centre.

NOTE

✎

Playback may not work for some types of discs, or



when speciﬁ c operations, such as angle change and aspect ratio adjustment, are being performed. Information about the discs is written in detail on the box. Please refer to this if necessary. Do not allow the disc to become dirty or scratched.



Fingerprints, dirt, dust, scratches or deposits of cigarette smoke on the recording surface may make it impossible to use the disc for playback. When a BD-Java title is played, loading may take



longer than a normal title, or some functions may perform slowly.

Discs that cannot be played

HD DVD Disc

•

DVD-RAM

•

3.9 GB DVD-R Disc for Authoring.

•

DVD-RW(VR mode)

•

Super Audio CD(except CD layer)

•

DVD-ROM/PD/MV-Disc, etc CVD/CD-ROM/

•

CDV/CD-G/CD-I/LD

•

CDGs play audio only, not graphics.

Logos of Discs that can be played

Blu-ray Disc Dolby Digital Plus

PAL broadcast system in

U.K, France, Germany, etc.

DTS-HD High Resolution

Audio

DTS-HD Master Audio |

Essential

Dolby TrueHD

Java

BD-LIVE

NOTE

✎

Some commercial discs and DVD discs purchased



outside your region may not be playable with this product. When these discs are played, either “" Cannot read this disc. Please check the regional code of the disc."” will be displayed. If a DVD-R/-RW disc has not been recorded properly



in DVD video format, it will not be playable.

8 English

Page 9

01 Getting Started

Region code

Both the product and the discs are coded by region. These regional codes must match in order to play the disc. If the codes do not match, the disc will not play.

Disc Type

Blu-ray

DVD-VIDEO

Region

Code

North America, Central America, South America, Korea, Japan,

Taiwan, Hong Kong and South East Asia.

Europe, Greenland, French territories, Middle East, Africa,

Australia and New Zealand.

India, China, Russia, Central and

South Asia.

The U.S., U.S. territories and

Canada

Europe, Japan, the Middle East,

Egypt, South Africa, Greenland

Taiwan, Korea, the Philippines,

Indonesia, Hong Kong

Mexico, South America, Central America, Australia, New Zealand,

Paciﬁ c Islands, Caribbean

Russia, Eastern Europe, India, most of Africa, North Korea,

Mongolia

China

Area

Disc Types

BD-ROM

Blu-ray Disc Read Only Memory. A BD-ROM disc

contains pre-recorded data. Although a BD-ROM

may contain any form of data, most BD-ROM discs

will contain movies in High Deﬁ nition format, for

playback on the product. This product can play

back pre-recorded commercial BD-ROM discs.

BD-RE/BD-R

Blu-ray Disc Rewritable/Blu-ray Disc Recordable.

BD-RE/BD-R is the ideal format for making

backups, or recording personal video.

DVD-VIDEO

A digital versatile disc (DVD) can contain up to 135-

•

minutes of images, 8 audio languages and 32 subtitle languages. It is equipped with MPEG-2 picture compression and Dolby Digital surround, allowing you to enjoy vivid and clear quality images.

•

When switching from the ﬁ rst layer to the second layer of a dual-layered DVD Video disc, there may be momentary distortion in the image and sound. This is not a malfunction of the product.

•

Once a DVD-RW/-R recorded in Video Mode is ﬁ nalised, it becomes DVD-Video. Pre-recorded (pre-stamped) commercial DVDs with movies are also referred to as DVD-Videos. This product can play back pre-recorded commercial DVD discs (DVD-Video discs) with movies.

DVD-R/-RW

•

Once a DVD-R/-RW recorded in Video Mode is ﬁ nalised, it becomes DVD-Video. Ability to play back may depend on recording conditions.

•

This product can play back DVD-R disc recorded and ﬁ nalised with a Samsung DVD video recorder.

•

Playback can be perfomed with DVD-RW discs in the Video Mode and ﬁ nalised only.

DVD+RW

•

This product can play back a DVD+RW disc recorded with a DVD Video recorder. Ability to play back may depend on recording conditions.

DVD+R

•

This product can play back a DVD+R disc recorded and ﬁ nalised with a DVD Video recorder. Ability to play back may depend on recording conditions.

English 9

Page 10

Getting Started

Audio CD

An audio disc on which 44.1kHz PCM Audio is

•

recorded. This product can play back CD-DA format audio

•

CD-R and CD-RW discs.

•

The product may not be able to play some CD-R or CD-RW discs due to the condition of the recording.

CD-R/-RW

Use a 700MB(80 minutes) CD-R/-RW disc.

•

If possible, do not use a 800MB(90 minutes) or above disc, as the disc may not play back.

If the CD-R/-RW disc was not recorded as a closed

•

session, you may experience delays when playing back the beginning of the disc or all recorded ﬁ les may not play.

•

Some CD-R/-RW discs may not be playable with this product, depending on the device which was used to burn them. For contents recorded on CD-R/-RW media from CDs for your personal use, playability may vary depending on contents and discs.

DivX(Digital Video Express)

DivX is a video ﬁ le format developed by Microsoft and is based on MPEG4 compression technology to provide audio and video data over the Internet in real-time.

MPEG4 is used for video encoding and MP3 for audio encoding so that the users can watch a movie at near DVD-quality video and audio.

Supported Formats(DivX)

This product only supports the following media formats. If both video and audio formats are not supported, the user may experience problems such as broken images or no sound.

Disc Format

Using MP3 disc

•

CD-R/-RW, DVD-RW/-R recorded with UDF, ISO9660 or JOLIET format can be played back.

•

Only MP3 ﬁ les with the “.mp3” or “.MP3” extension can be played.

•

Playable bit rate range is from 56 Kbps to 320 Kbps.

•

Playable sample-rate is 32KHz to 48KHz.

•

The product can handle a maximum of 1500 ﬁ les and folders under a parent folder. For MP3 ﬁ les recorded with a VBR(Variable Bit Rates), the sound may cut in and out.

Using JPEG disc

•

CD-R/-RW, DVD-RW/-R recorded with UDF, ISO9660 or JOLIET format can be played back.

•

Only JPEG ﬁ les with the ".jpg", ".JPG", ".jpeg" or "JPEG" extension can be displayed.

•

Progressive JPEG is supported.

DVD-RW/-R (V)

•

This is a format that is used for recording data on a DVD-RW or DVD-R disc. The disc can be played by this product once it has been ﬁ nalised.

•

If a disc that has been recorded in Video Mode by a different maker’s recorder but has not been ﬁ nalised, it cannot be played by this product.

•

MKV, MP4

•

CD-R/-RW, DVD-R/-RW, USB, PC streaming

•

Video Files with the following extensions can be played. : .avi, .divx, .mkv, .mp4, .AVI, .DIVX, .MKV, .MP4

✎



Supported Video Formats

Format

AVI DivX3.11~DivX5.1, XviD

Supported Audio Formats

Format Bit Rate

MP3

AC3

DTS

DivX ﬁ les, including audio and video ﬁ les, created in the DTS format can only support up to 6Mbps.

Aspect Ratio : Although the default DivX resolution is 640x480 pixels (4:3), this product supports up to 800x600 pixels (16:9). TV screen resolutions higher than 800 will not be supported.

When you play a disc whose sampling frequency is higher than 48khz or 320kbps, you may experience shaking on the screen during playback.

Qpel and gmc is not supported.

NOTE

Some DivX, MKV and MP4 format discs may

not play, depending on the video resolution and

frame rate condition.

Supported Versions

Sampling

Frequency

80~384kbps 44.1khz

128~384kbps 44.1/48khz

1.5Mbps 44.1khz

10 English

Page 11

Supported File Formats

Video File Support

File Extension Container Video Codec Audio Codec Resolution

1920x1080

*.avi

*.mkv

*.wmv

*.mp4

*.mpg

*.mpeg

AVI

MKV

WMV

MP4

Divx 3.11/4.x/5.1/6.0

XviD

MP4v3

H.264 BP/MP/HP

VC-1 AP(wmv1)

DivX 5.1/6.0

XviD

H.264 BP/MP/HP

VC-1 AP

VC-1 SM

MP4 (mp4v)

H.264 BP/MP/HP

MPEG1

MPEG2

H.264 BP/MP/HP

MP3

AC3 DTS

WMA

PCM

MP3

AC3 DTS

WMA

AAC

MP1, 2

AC3 DTS

01 Getting Started

Music File Support

File Extension Container Audio Codec Support Range

*.mp3

*.wma

MP3

WMA

MP3 -

Compliant with WMA version 10

WMA

* Sampling rates (in kHz) - 8, 11, 16, 22, 32,

44.1, 48

* Bit rates - All bit-rates in the range 5kbps to

384kbps

English 11

Page 12

Getting Started

USB Host Speciﬁ cation

•

Supports USB 1.1 or USB 2.0 compliant devices.

• Supports devices connected using the USB A type cable.

• Supports UMS (USB Mass Storage Device) V1.0 compliant devices.

• Supports FAT(FAT, FAT16, FAT32) ﬁ le system formatting.

Non-compliance

•

Does not support a device that requires installing a separate driver on the PC (Windows).

• Does not support connection to a USB hub.

• A USB device that is connected using an USB extension cable may not be recognized.

Operational Limitations

• If the connected device has multiple drives (or partitions) installed, only one drive (or partition) can be connected.

• A device supporting USB 1.1 alone may cause a difference in the picture quality, depending on the device.

Supported ﬁ le Formats

Format Still Picture Music

File name

File extension

Bit rate

Version

Pixel

Sampling Frequency

JPG MP3

JPG .JPEG .MP3

– 80~384kbps

––

640x480 –

– 44.1kHz

CBI (Control/Bulk/Interrupt) is not supported.

•

Digital Cameras that use PTP protocol or

•

require additional program installation when connected to a PC are not supported.

A device using the NTFS ﬁ le system is not

•

supported. (Only the FAT 16/32 (File Allocation Table 16/32) ﬁ le system is supported.)

Does not operate with Janus enabled MTP

•

(Media Transfer Protocol) devices.

USB Devices that can be used with the product

USB Storage Device

MP3 Player

Digital Camera

Removable HDD

Removable HDDs equipped with less than 160

•

Gbytes are supported. Removable HDDs equipped with 160Gbytes or more may not be recognized, depending on the device.

If the connected device does not work due to

•

insufﬁ cient power supply, you can use a separate power cable to supply power so that it can work properly. The USB cable connector may differ, depending on the manufacturer of the USB device.

USB card Reader: One slot USB card reader and Multi-slot USB card reader.

•

The USB card reader may not be supported, depending on the manufacturer.

•

If you install multiple memory devices into a multi-card reader, you may experience problems.

Accessories

Check for the supplied accessories below.

Video Cable FM Antenna iPod Dock User's Manual

12 English

FUNCTION

POWER

TV SOURCE

BD RECEIVER/TV SLEEP

RDS DISPLAY TA

123

PTY- PTY SEARCH PTY+

456

7809

REPEATFULL SCREEN

MUTE

TUNING

VOL

/CH

S/W LEVEL

DISC MENU MENU TITLE MENU

POPUP

TOOLS

INFO

RETURN

EXIT

TUNER

MO/ST

MEMORY

ABCD

DSPV-SO UND

INTERNET

Remote Control/

Batteries

(AAA size)

Page 13

Getting Started

Front Panel

01 Getting Started

Description

POWER BUTTON ( )

DISC TRAY

REMOTE CONTROL SENSOR

DISPLAY

OPEN/CLOSE BUTTON

FUNCTION BUTTON

TUNING DOWN & SKIP BUTTON

STOP BUTTON

PLAY/PAUSE BUTTON

TUNING UP & SKIP BUTTON

VOLUME CONTROL

USB PORT

2 5

Turns the product on and off.

Insert disc here.

Detects signals from the remote control.

Displays the playing status, time, etc.

Opens and closes the disc tray.

The mode switches as follows : BD/DVD  D. IN  AUX  HDMI 1  HDMI 2  FM

Goes back to the previous title/chapter/track. Tunes down the FM frequency band.

Stops disc playback.

Plays a disc or pauses playback.

Goes to the next title/chapter/track. Tunes up the FM frequency band.

Volume adjustment.

A USB storage device can be connected here and used as storage when connected to BDLIVE. It can also be used for software upgrades and MP3/JPEG/DivX/MKV/MP4 playback.

6 7 83 4

129 10

NOTE

✎

Software upgrades using the USB Port must be performed with a USB memory ﬂ ash stick only.



A USB device consuming more than 500mA requires a separate power supply device for normal operation.



A USB HDD device cannot be used for BD Data storage (BD-LIVE).



English 13

Page 14

Getting Started

Rear Panel

1 3 4

SPEAKER IMPEDANCE : 3

2.1 CHANNEL SPEAKER OUTPUT

CONNECTORS

COOLING FAN

iPod JACK

FM 75 COAXIAL JACK

EXTERNAL DIGITAL OPTICAL IN JACKS

(OPTICAL)

HDMI IN JACKS

HDMI OUT JACK

WIRELESS LAN JACK

LAN TERMINAL

AUX IN JACKS

COMPONENT VIDEO OUT JACKS

VIDEO OUT JACK

2 5 7

FM ANT.

iPod

AUDIO IN

OPTICAL

DIGITAL

HDMI IN

Connect the front, subwoofer speakers.

The cooling fan supplies cool air to the product to prevent overheating and always revolves when the power is on.

Connect the iPod dock connector here.

Connect the FM antenna.

Use this to connect external equipment capable of digital output.

Receives digital video and audio signals simultaneously using an HDMI cable.

Use an HDMI cable, connect this HDMI output terminal to the HDMI input terminal on your TV for the best quality picture.

Can be used for network based services (see pages 54~59), BD-LIVE and software upgrade with a wireless LAN adapter.

Can be used for network based services (see pages 54~59), BD-LIVE and software upgrade under the network connection.

Connect to the 2CH analogue output of an external device (such as a VCR)

Connect a TV with Component video inputs to these jacks.

Connect your TV's Video Input jack (VIDEO IN) to the VIDEO OUT Jack on this product.

HDMI OUT

9 1110

LAN

WIRELESS LAN

COMPONENT OUT

AUX

VIDEO OUT

CAUTION

Ensure a minimum of 10 cm of clear space on all sides of the cooling fan when installing the product.



Do not obstruct the cooling fan or ventilation holes.



14 English

Page 15

Tour of the Remote Control

01 Getting Started

Remote control

Turn the product on and off.

Press to select BD RECEIVER/TV

mode.

Press numeric buttons to operate options.

Press this to see the full screen on a TV.

Press to skip backwards or forwards.

Press to stop/play a disc.

Cut off the sound temporarily.

Adjust the volume.

Press this to move to the home

menu.

Press to view the disc menu.

Press this to use the Tools menu.

Select on-screen menu items and

change menu value.

Return to the previous menu.

These buttons are used both for menus

on the product and also several

Blu-ray Disc functions.

Press this to link to various

Internet@TV services.

This gives you the feeling you are

listening to 5.1 channel audio

system.

POWER

BD RECEIVER/TV SLEEP

RDS DISPLAY TA

FUNCTION

TV SOURCE

123

PTY- PTY SEARCH PTY+

456

7809

REPEATFULL SCREEN

MUTE

S/W LEVEL

TUNER

MEMORY

TUNING

/CH

POPUP

INFO

EXIT

MO/ST

DSPV-SOUND

VOL

DISC MENU MENU TITLE MENU

TOOLS

RETURN

ABCD

INTERNET

This is mode selection button. or Press to select TV's video mode.

To open and close the disc tray.

Set a Sleep time to shut off the procuct.

Use the RDS function to receive FM stations.

Allows you to repeat a title, chapter, track or disc.

Press to search backwards or forwards.

Press to pause a disc.

Search for active FM stations and change channels.

You can adjust the subwoofer's level.

Use this to enter the popup menu/title menu.

Use this to display the playback information when playing a Blu-ray/DVD disc.

Press this to exit the menu.

Used to set a preset radio frequency.

Select MONO or STEREO for radio broadcasting.

Regulate and stabilize the volume level. (Digital Signal Processor)

English 15

Page 16

Getting Started

Installing batteries in the Remote Control

* Battery size: AAA

NOTE

✎

Make sure to match the “+” and “–” ends of



the batteries with the diagram inside the compartment.



Assuming typical TV usage, the batteries last for about one year. The remote control can be used up to



approximately 7 meters in a straight line.

Setting the Remote Control

You can control certain functions of your TV with this remote control.

When operating a TV with the remote control

Press the BD RECEIVER/TV button to set the

remote control to TV mode.

Press the POWER button to turn on the TV.

While holding down the POWER button, enter the code corresponding to your brand of TV.

•

If there is more than one code listed for your TV in the table, enter one at a time to determine which code works.

•

Example : For a Samsung TV

While holding down the POWER button, use the number buttons to enter 00, 15, 16, 17 and 40.

If the TV turns off, the setting is complete.

You can use the TV POWER, VOLUME,

•

CHANNEL, and Numeric buttons (0~9).

NOTE

✎

The remote control may not work on some



brands of TV's. Also, some operations may not be possible, depending on your brand of TV.



The remote control will work with Samsung TVs by default.

TV Brand Code List

Brand Code

Admiral

(M.Wards)

A Mark

Anam

AOC

Bell & Howell

(M.Wards)

Brocsonic

Candle

Cetronic

Citizen

Cinema

Classic

Concerto

Contec

Coronado

Craig

Croslex

Crown

Curtis

Mates

CXC

Daewoo

Daytron

Dynasty

Emerson

Fisher

Funai

Futuretech

General

Electric (GE)

Hall Mark

Hitachi

Inkel

JC Penny

JVC

KTV

KEC

KMC

(Goldstar)

Luxman

LXI

(Sears)

Magnavox

Marantz

Matsui

MGA

56, 57, 58

01, 15

01, 02, 03, 04, 05, 06, 07, 08, 09, 10,

11, 12, 13, 14

01, 18, 40, 48

57, 58, 81

59, 60

18 03

03, 18, 25

97 03 18 46 15

03, 05, 61, 82, 83, 84

62 03

59, 61, 63

02, 03, 04, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 32,

34, 35, 36, 48, 59, 90

40 03

03, 15, 40, 46, 59, 61,

64, 82, 83, 84, 85

19, 65

03 03

06, 40, 56, 59,

66, 67, 68

15, 18, 50, 59, 69

56, 59, 67, 86

59, 61, 87, 88

03, 15, 40

01, 15, 16, 17, 37, 38,

39, 40, 41, 42, 43, 44

19, 54, 56, 59,

60, 62, 63, 65, 71

15, 17, 18, 48, 54,

59, 60, 62, 72, 89

40, 54

18, 40

Brand Code

Mitsubishi/

MGA

MTC

NEC

Nikei

Onking

Onwa

Panasonic

Penney

Philco

Philips

Pioneer

Portland

Proton

Quasar

Radio Shack

RCA/

Proscan

Realistic

Sampo

Samsung

Sanyo

Scott

Sears

Sharp

Signature

2000

(M.Wards)

Sony

Soundesign

Spectricon

SSS

Sylvania

Symphonic

Tatung

Techwood

Teknika

TMK

Toshiba

Vidtech

Videch

Wards

Yamaha

York

Yupiteru

Zenith

Zonda

Dongyang

18, 40, 59, 60, 75

18, 19, 20, 40, 59, 60

06, 07, 08, 09, 54,

66, 67, 73, 74

03, 15, 17, 18, 48,

54, 59, 62, 69, 90

15, 17, 18, 40, 48, 54, 62, 72

63, 66, 80, 91

15, 18, 59

06, 66, 67

17, 48, 56, 60,

61, 75

18, 59, 67, 76, 77,

78, 92, 93, 94

03, 19

00, 15, 16, 17, 40, 43, 46, 47, 48, 49,

59, 60, 98

19, 61, 65

03, 40, 60, 61

15, 18, 19 15, 57, 64

57, 58

50, 51, 52, 53, 55

03, 40

18, 40, 48, 54,

59, 60, 62 61, 95, 96

03, 15, 18, 25

18, 40

19, 57, 63, 71

59, 60, 69

15, 17, 18, 40, 48, 54, 60, 64

58, 79

03, 54

03 03 03

01 18

06 18

18 40 03

16 English

Page 17

02 Connections

Connections

This section involves various methods of connecting the product to other external components. Before moving or installing the product, be sure to turn off the power and disconnect the power cord.

Connecting the Speakers

Position of the product

Place it on a stand or cabinet shelf, or under the TV stand.

Selecting the Listening Position

The listening position should be located about 2.5 to 3 times the distance of the TV's screen size away from the TV. Example : For 32" TV's 2~2.4m

For 55" TV's 3.5~4m

Place these speakers in front of your listening position, facing inwards (about 45°)

Front Speakers

Subwoofer

CAUTION

Do not let children play with or near the speakers. They could get hurt if a speaker falls.



When connecting the speaker wires to the speakers, make sure that the polarity (+/ –) is correct.



Keep the subwoofer speaker out of reach of children so as to prevent children from inserting their hands or alien substances



into the duct (hole) of the subwoofer speaker. Do not hang the subwoofer on the wall through the duct (hole).



NOTE

✎

If you place a speaker near your TV set, screen colour may be distorted because of the magnetic ﬁ eld generated by the



speaker. If this occurs, place the speaker away from your TV set.

toward you. Place the speakers so that their tweeters will be at the same height as your ear.

The position of the subwoofer is not so critical. Place it anywhere you like.

English 17

Page 18

Connections

SPEAKER IMPEDANCE : 3

FM ANT.

iPod

SPEAKER IMPEDANCE : 3 FM ANT.

iPod

SPEAKER IMPEDANCE : 3

Speaker Components

(L) (R)

FRONT

SUBWOOFER

Connecting The Speakers

Press down the terminal tab on the back of the speaker.

Insert the black wire into the black terminal (–) and the red wire into the

red terminal (+), and then release the tab.

Connect the connecting plugs to the back of the product by matching the colours of the speaker plugs to the speaker jacks.

Front Speaker (R)

Front Speaker (L)

SPEAKER CABLE

Black

Subwoofer

Red

18 English

Page 19

Connecting External Devices/your TV via HDMI

DIG

iPod

AUX

HDMI is a standard digital interface for connection to such devices as a TV, projector, DVD player, Blu-ray player, set top box and more.

HDMI removes any loss of signal from analogue conversion, enabling you to enjoy video and audio sound quality as it was originally created in the digital source.

DVD or Blu-ray Player SAT(Satellite/Set top box)

HDMI IN

02 Connections

SPEAKER IMPEDANCE : 3

FM ANT.

iPod

DIGITAL

ITA

HDMI IN

AUDIO IN

AUDIO I

OPTICAL

LAN

COMPONENT OUT

WIRELESS LAN

IRELESS LAN

OMPONENT OUT

AUX

VIDEO OUT

VIDEO OU

HDMI OUT

HDMI OUT :

Connecting to a TV with an HDMI Cable (BEST QUALITY)

Connect an HDMI cable (not supplied) from the HDMI OUT jack on the back of the product to the HDMI IN jack on your TV.

NOTE

✎

Certain HDMI output resolutions may not work, depending on your TV.



If an HDMI cable is connected or removed during playback of a CD-DA, MP3 or JPEG ﬁ le, the product will



stop playing. After making the video connection, set the Video input source on your TV to match the corresponding Video



output (HDMI, Component or Composite) on your product. See your TV owner's manual for more information on how to select the TV's Video Input source. If you have set the product's remote control to operate your TV, press the SOURCE button on the remote



control and select HDMI as the external source of the TV.

English 19

Page 20

Connections

HDMI IN :

Connect an HDMI cable

jack on your digital devices. Press the FUNCTION button to select HDMI 1 or HDMI 2 input.

The mode switches as follows :

HDMI Auto Detection Function

The product's video output will automatically change to HDMI mode when connecting an HDMI cable before power is on. For possible HDMI resolutions, see page 28.

This function is not available if the HDMI cable does not support CEC.

•

HDMI connection description

•

- HDMI outputs only a pure digital signal to the TV.

- If your TV does not support HDCP, random noise appears on the screen.

•

What is the HDCP?

HDCP (High-band width Digital Content Protection) is a system for protecting BD/DVD content outputted via HDMI from being copied. It provides a secure digital link between a video source (PC, DVD. etc) and a display device (TV, projector. etc). Content is encrypted at the source device to prevent unauthorized copies from being made.

CAUTION

The Anynet+ function is supported only when an HDMI Cable is connected to the HDMI OUT of the



product.

Connecting to an External Component with an HDMI Cable

(not supplied)

from the HDMI IN jack on the back of the product to the HDMI OUT

BD/DVD  D. IN  AUX  HDMI 1  HDMI 2  FM

20 English

Page 21

LAN

AUX IN

WIRELESS

LAN

COMPONENT OUT

VIDEO OUT

Connecting the Video Out to your TV

Red

Blue Green

METHOD 1

METHOD 2

WIRELES

UX IN

Yellow

METHOD 1 : Component Video (BETTER QUALITY)

If your television is equipped with Component Video inputs, connect a Component video cable (not supplied) from the Component Video Output (Pr, Pb and Y) Jacks on the back of the product to the Component Video Input Jacks on your TV.

NOTE

✎

You can select from a variety of resolution settings such as 1080i, 720p, 576p(480p) and 576i(480i),



depending on the disc type. (See page 28)



The actual resolution may differ from the setting in the Setup menu if both Component and HDMI cables are connected. The resolution may also be different depending on the disc. (See page 28)



After making the video connection, set the Video input source on your TV to match the corresponding Video output (HDMI, Component or Composite) on your product. See your TV owner's manual for more information on how to select the TV's Video Input source. If you have set the product's remote control to operate your TV, press the TV SOURCE button on the remote



control and select COMPONENT as the external source of the TV.



In DVD playback, if both HDMI and Component jacks are connected and you select the Component 1080p, 1080i, 720p or 576p(480p) mode, the Display Setup menu will show the output resolution as 1080p, 1080i, 720p or 576p(480p) in the menu. The resolution is actually 576i(480i).

METHOD 2 : Composite Video

(GOOD QUALITY)

02 Connections

Connect the supplied Video cable from the VIDEO OUT jack on the back of the product to the VIDEO IN jack on your TV.

NOTE

✎

The VIDEO source is always output in 576i(480i) resolution regardless of the resolution set in the Setup



menu. (See page 28)



the remote control and select VIDEO as the external source of the TV.

CAUTION

Do not connect the unit through a VCR. Video signals fed through VCRs may be affected by



TV SOURCE

button on

English 21

Page 22

Connections

HDMI IN

DIGITAL

AUDIO IN

COMPONENT OUT

VIDEO OUT

LAN

AUX

OPTICAL

HDMI OUT

WIRELESS LAN

Connecting Audio from External Components

OMPONENT OU

White

VIDEO OUT

Audio Cable

DMI I

Optical Cable

(not supplied)

LAN

HDMI OU

IRELESS LA

Red

(not supplied) If the external analogue component has only one Audio Out, connect either

Set-Top Box

OPTICAL

VCR

AUX

left or right.

OPTICAL : Connecting an External Digital Component

Digital signal components such as a Cable Box/Satellite receiver (Set-Top Box).

Connect the Digital Input (OPTICAL) on the product to the Digital Output of the external digital

component. Press the FUNCTION button to select D.IN input.

The mode switches as follows : BD/DVD  D. IN  AUX  HDMI 1  HDMI 2  FM

•

NOTE

✎

To see video from your Cable Box/Satellite receiver, you must connect it's video output to a TV.



This system supports Digital sampling frequencies of 32 kHz of higher from external digital components.This system supports Digital sampling frequencies of 32 kHz of higher from external digital components.



This system supports only DTS and Dolby Digital audio, MPEG audio which is bitstream cannot be supported.



AUX : Connecting an External Analogue Component

Analogue signal components such as a VCR.

Connect AUX IN (Audio) on the product to the Audio Out of the external analogue component.

Be sure to match connector colours.

•

Press the FUNCTION button to select AUX input.

The mode switches as follows : BD/DVD  D. IN  AUX  HDMI 1  HDMI 2  FM

•

NOTE

✎

You can connect the Video Output jack of your VCR to the TV, and connect the Audio Output jacks of



the VCR to this product.

22 English

Page 23

02 Connections

AUX

Connecting to the Network

This product enables you to view network based services (See pages 54~59) such as Internet@TV and BD-LIVE, as well as receive software upgrades when a network connection is made. We recommend using an AP (Access Point) or IP router for the connection. For more information on router connection, refer to the user manual of the router or contact the router manufacturer for technical assistance.

Cable Network

Using the Direct LAN Cable (UTP cable), connect the LAN terminal of the product to the LAN

1. terminal of your modem.

Set the network options. (See page 35)

COMPONENT OUT

AUX

VIDEO OUT

IDEO OU

HDMI IN

DMI I

HDMI OUT

DMI OUT

LAN

WIRELESS LAN

Router

Broadband

service

Broadband modem

(with integrated router)

Broadband modem

Broadband

service

Networking with PC for

AllShare function

(See pages 58~59)

NOTE

✎

Internet access to Samsung’s software update server may not be allowed, depending on the router you use or the



ISP’s policy. For more information, contact your ISP (Internet Service Provider). For DSL users, please use a router to make a network connection.



For the AllShare function, a PC must be connected in the network as shown in the ﬁ gure.



English 23

Page 24

Connections

AUX

iPod

Wireless Network

You can connect to the network with a Wireless IP sharer.

A wireless AP/IP router is required to make a wireless network connection. Connect the wireless

LAN adapter to the Wireless LAN Adapter on the rear panel of the product. Set the network options. (See page 35)

Broadband

service

LAN

OUT

WIRELESS LAN

COMPONENT OUT

OMPONENT OU

AUX

VIDEO OUT

IDEO OU

Wireless IP sharer

Wireless LAN Adapter (not included)

Networking with PC for AllShare function

NOTE

✎

This product is compatible with only Samsung's Wireless LAN Adapter. (not supplied) (Model name: WIS09ABGN).



(See pages 58~59)

- The Samsung Wireless LAN Adapter is sold separately. Contact a Samsung Electronics retailer for purchasing. You must use a wireless IP sharer that supports IEEE 802.11 a/b/g/n. (n is recommended for stable operation of the



wireless network.) Wireless LAN, by its nature, may cause interference, depending on the use condition (AP performance, distance, obstacles,



interference by other radio devices, etc). Set the wireless IP sharer to Infrastructure mode. Ad-hoc mode is not supported.



When applying the security key for the AP (wireless IP sharer), only the following is supported.



Authentication Mode : WEP, WPAPSK, WPA2PSK

1) Encryption Type : WEP, AES

For the AllShare function, a PC must be connected in the network as shown in the ﬁ gure.



Connecting the FM Antenna

Connect the FM antenna supplied to the FM

FM Antenna (supplied)

75Ω COAXIAL Jack. Slowly move the antenna wire around until you

FM ANT.

DIGITAL

AUDIO IN

iPod

AUDIO IN

OPTICAL

ﬁ nd a location where reception is good, then fasten it to a wall or other rigid surface.

NOTE

✎

This product does not receive AM broadcasts.



24 English

Page 25

Setup

Before Starting (Initial Settings)

Turn on your TV after connecting the product.

(When the product is connected to TV for the ﬁ rst time, product will turn on automatically and the Initial Settings screen will be displayed.)

Initial Settings I On-Screen Language

Select a language for the on-screen displays.

English

Français

Deutsch

Español

Italiano

Nederlands

> Move s Select

Press the ▲▼ buttons to select the desired

language, then press the ENTER button.

Press the ENTER button to select Start button.

Initial Settings

TV Aspect and Network will be set.

Each setting may be changed later under "Settings"

Start

a Previous

Press the ▲▼ buttons to select desired TV Aspect ratio, then press the ENTER button. (See page 27)

Initial Settings I Network

Network Setting is needed to use various Internet services.

Choose the primary method for connecting to network.

Wired : Set the network by using Ethernet cable.

Please make sure that Ethernet cable is connected.

" Select

Press the ◄► buttons to the select the

desired Network Settings: Wired, Wireless or PBC (WPS), then press the ENTER button. (See pages 35~38) The Network Test will start and Initial Settings will be completed.

Press the OK button.

The home menu will be displayed. (For more information about home menu, please see page 26)

Home Menu

•

You Tube

Please activate Internet@TV service

to enjoy a variety of Internet Services.

No Disc a Change Device

NOTE

✎

When the product is connected to TV for the



internet radio

View Devices

Enter

ﬁ rst time, product will turn on automatically. Do not confuse because this is not malfunction. The home menu will not be displayed if you do



not conﬁ gure the initial settings. If you press the BLUE(D) button during the



Network setup, you can access the home menu even if the network setup is not completed yet. When you return to home menu, the full



screen mode will be cancelled automatically.

03 Setup

Wired

Wireless PBC (WPS)

a Previous d Skip

< Move "

Select

English 25

Page 26

Setup

POPU

If you want to display Initial Settings screen



again in order to make changes, press the STOP () button on the front panel of the product for more than 5 seconds with no disc inserted. Use the HDMI cable to connect the product to



an Anynet+(HDMI-CEC)-compliant Samsung TV. If the TV uses a language supported by the product, that language will be set to a preferred language automatically. However, the Anynet+(HDMI-CEC) feature should be set to On in both TV and the product.



If the product is left in the stop mode for more than 5 minutes without being operated, a screen saver will appear on your TV. If the product is left in the screen saver mode for more than 25 minutes, the power will automatically turn off except during playback of a CD-DA (Automatic Power-Off Function).

Setting the Menu

DISC MENU MENU TITLE MENU

DISC MEN

TOOLS

OOL

RETURN

TITLE MEN

POPUP

NFO

INFO

EXIT

Press the POWER button. The Home Menu will appear.

•

Home Menu

You Tube

Please activate Internet@TV service

to enjoy a variety of Internet Services.

internet radio

No Disc a Change Device

Selects the Internet@TV.

Selects the Videos.

Selects the Music.

Selects the Photos.

Selects the Settings.

Displays buttons available.

Press the ◄► buttons to select Settings,

View Devices

then press the ENTER button. Press the ▲▼ buttons to select the desired

submenu, then press the ENTER button. Press the ▲▼ buttons to select the desired

item, then press the ENTER button. Press the EXIT button to exit the menu.

2 3 4

Enter

26 English

MENU Button : Press this to move to the home menu.

RETURN Button : Return to the previous menu.

ENTER / DIRECTION Button: Press the arrow buttons to move the cursor and select

an item.

Press the ENTER button to launch the selected item or conﬁ rm the setting.

EXIT Button : Press this to exit the menu.

NOTE

✎

When the product is connected to the network,



select Internet@TV from the home menu. Download desired content from Samsung AppS. The access step may differ depending on the



selected menu. The OSD (On Screen Display) may change in



this product after upgrading the software version.

Page 27

03 Setup

Display

You can conﬁ gure various display options such as the TV Aspect, Resolution, etc.

TV Aspect

Depending on the type of television you have, you may want to adjust the screen setting.

16:9 Normal

•

Certain movies(4:3 source) will be displayed in 4:3 Pillarbox (black bars on sides of picture) if 16:9 normal is selected.

16:9 Wide

•

You can view the full 16:9 picture on your widescreen TV.

4:3 Letter Box

•

Select when you want to see the total 16:9 ratio screen Blu-ray Disc/DVD supplies, even though you have a TV with a 4:3 ratio screen. Black bars will appear at the top and bottom of the screen.

4:3 Pan-Scan

•

Select when you want to see the 16:9 video supplied by the Blu-ray Disc/DVD without the black bars on top and bottom, even though you have a TV with a 4:3 ratio screen(extreme left and right portion of the movie picture will be cut off).

NOTE

✎

Depending on the disc type, some aspect ratios



may not be available.



If you select an aspect ratio and option which is different than the aspect ratio of your TV screen, then the picture might appear to be distorted.



If you select the 4:3 Pan-Scan or 4:3 Letter Box, you can't see full screen by pressing the FULL SCREEN button on the remote control.

BD Wise (Samsung Products only)

BD Wise is Samsung's latest inter-connectivity feature. When you connect Samsung products with

BD-Wise to each other via HDMI, the optimum resolution will be set automatically.

•

Off : The output resolution will be ﬁ xed according to the Resolution previously set, regardless of the resolution of the disc.

•

On : The original resolution of the BD/DVD disc will be output to the TV.

NOTE

✎

If you want to change the resolution in BD



Wise, you must set BD Wise to Off in advance. If you set off the BD Wise, the resolution of the



connected TV will be adjusted to its maximum resolution automatically. If the product is connected to a device that



does not support BD Wise, you can not use BD Wise function. For a proper operation of BD Wise, set each BD Wise



menu of the product and the TV to On respectively.

Resolution

Sets the output resolution of the Component and HDMI video signal. The number in 1080p, 1080i, 720p, 576p(480p), 576i(480i) indicates the number of lines of video. The i and p indicate interlace and progressive scan, respectively.

Auto : It automatically checks and sets the optimal

•

resolution. (HDMI only) BD Wise : Automatically sets the optimal

•

resolution when connected via HDMI to a TV with the BD Wise feature. (The BD Wise menu item appears only if BD Wise is set to On.) (HDMI only)

Outputs 1080 lines of progressive video. (HDMI only)

1080p :

•

1080i : Outputs 1080 lines of interlaced video.

•

720p : Outputs 720 lines of progressive video.

•

576p/480p : Outputs 576(480) lines of progressive

•

video. 576i/480i : Outputs 576(480) lines of interlaced

•

video. (Component & VIDEO only)

English 27

Page 28

Setup

Resolution according to the output mode

Blu-ray Disc playback

•

Setup

Auto Optimal Resolution 576i(480i) - -

1080p, Movie Frame(24Fs) off 1080p@60F 576i(480i) - -

1080p/1080i,

Movie Frame(24Fs) on

1080i, Movie Frame(24Fs) off 1080i 576i(480i) 1080i 576i(480i)

720p 720p 576i(480i) 720p 576i(480i)

576p(480p) 576p(480p) 576i(480i) 576p(480p) 576i(480i)

576i(480i) - - 576i(480i) 576i(480i)

DVD playback

•

Setup

Auto Optimal Resolution 576i(480i) - -

1080p 1080p@60F 576i(480i) - -

1080i 1080i 576i(480i) 576p(480p) 576i(480i)

720p 720p 576i(480i) 576p(480p) 576i(480i)

576p(480p) 576p(480p) 576i(480i) 576p(480p) 576i(480i)

576i(480i) - - 576i(480i) 576i(480i)

NOTE

✎

If the connected TV does not support Movie



Frame or the selected resolution, the message “If no pictures are shown after the selection, please wait for 15 seconds. And then, the resolution will be reverted to the previous value automatically. Would you like to make a selection?” will be displayed. If you select Yes and the resolution is not supported, the TV's screen will be blank. Please wait for 15 seconds and the resolution will be reverted to the previous value automatically.

If the screen is blank, press and hold the



STOP () button on the front of the product for more than 5 seconds (no disc inserted). All settings are restored to the factory default. Follow the steps on the previous page to access each mode and select the Display Setup that your TV will support.

Output

HDMI / connected HDMI / not connected

HDMI Mode

1080p@24F 576i(480i) - -

HDMI Mode

Component/VIDEO Mode

HDMI / connected HDMI / not connected

Component/VIDEO Mode

When the factory default settings are restored,



all the user data stored in the BD data will be deleted.

The Blu-ray Disc must have the 24 frame



feature in order to use the Movie Frame (24Fs) mode.

If both HDMI and Component jacks are



connected and you are currently viewing component output, there is a difference between resolution table and actual resolution depending on your TV.

If the HDMI Auto Detection feature does not



work, you can't select the 1080p resolution or Movie Frame (24Fs).

Component Mode VIDEO Mode

28 English

Page 29

03 Setup

HDMI Format

You can optimize the colour setting from the HDMI output. Select a connected device Type.

TV : Select if connected to a TV via HDMI.

•

Monitor : Select if connected to a Monitor via

•

HDMI.

NOTE

✎

A TV or monitor has to be connected to the



product before you select this option.

Movie Frame (24 Fs)

Setting the Movie Frame (24Fs) feature to On allows you to adjust the product's HDMI output to 24 frames per second for improved picture quality. You can enjoy the Movie Frame (24Fs) feature only on a TV supporting this frame rate. This menu can only be selected in 1080i or 1080p HDMI output resolution modes.

Off : Movie Frame (24Fs) functions will not

•

work. On : Movie Frame (24Fs) functions will work.

•

NOTE

✎

Two types of frame rates may be included,



depending on the disc: Movie material (24 frame) and Video material (30 frame). When the setting switches between Movie (24 frame) and Video (30 frame), the screen may blink for a few seconds. If your TV does not support Movie Frame



(24Fs) function, the pop-up message will be displayed.

Progressive Mode

Set to improve picture quality when viewing DVDs.

Auto : Select this to have the product

•

automatically set the best picture for the DVD you're watching.

Video : Select this for the best picture from

•

Concert or TV show DVDs.

Still Mode

Set the type of picture shown when you pause DVD playback.

•

Auto: Automatically set the best still picture depending on the content.

•

Frame : Select when pausing a scene with a little action.

•

Field : Select when pausing a scene with a lot of action.

HDMI Deep Color

Set to output the picture from the HDMI OUT jack with Deep Colour or not. Deep Colour allows more accurate colour reproduction with deeper colour depth.

Auto: The picture will be output with Deep

•

Colour to the connected TV which supports HDMI Deep Colour.

Off : The picture will be output without Deep

•

Colour.

English 29

Page 30

Setup

Audio

Speaker Setting

Settings

Display

Audio

System

Network

Language

Security

General

s Select r Return

Support

Level

You can adjust the balance and level for each speaker.

Adjusting Front/Subwoofer Speaker Level

• The volume level can be adjusted in steps from +6dB to -6dB.

• The sound gets louder as you move closer to +6dB and quieter as you get closer to -6dB.

Settings

Display

Audio

System

Network

Language

Security

General

<Change s Select r Return

Support

Speaker Setting

Level |

Distance

Test Tone : Off

Level

Front L : ◄ 0 dB | Front R : 0 dB Subwoofer : 0 dB Test Tone : Off

Distance

If the speakers cannot be placed at equal distances from the listening position, you can adjust the delay time of the audio signals from the front and subwoofer speakers.

You can set the Speaker Distance between

•

1ft(0.3m) and 30ft(9.0m).

Settings

Display

Audio

System

Network

Language

Security

General

<Change s Select r Return

Support

Distance

Front L : ◄ 10ft (3.0m) | Front R : 10ft (3.0m) Subwoofer : 10ft (3.0m) Test Tone : Off

Test Tone

Use the Test Tone feature to check the speaker connections.

Press the ◄, ► buttons to select All.

•

A test tone will be sent to Front Left  Front Right  Subwoofer in order so you can make

sure the speakers are set up correctly.

To stop the test tone, press the ◄, ► buttons to select Off.

Settings

Display

Audio

System

Network

Language

Security

General

<Change s Select r Return

Support

Speaker Setting

Level

Distance

Test Tone : ◄

All

30 English

NOTE

✎

When HDMI Audio is ON (audio is produced



through TV speakers), the Test Tone function is not available.

Page 31

EQ Optimizer

Set optimal EQ automatically depending on the region.

•

Off : Turn EQ Optimizer off.

•

On : Turn EQ Optimizer on.

HDMI Audio

The audio signals transmitted over the HDMI Cable can be toggled On/Off.

Off : Video is transmitted over the HDMI

•

connection cable only, and audio is output through your product speakers only.

On : Both video and audio signals are

•

transmitted over the HDMI connection cable, and audio is output through your TV speakers only.

NOTE

✎

HDMI Audio is automatically down-mixed to



2ch for TV speakers.

Digital Output

NOTE

✎

Be sure to select the correct Digital Output



or you will hear no sound or a loud noise. If the HDMI device (Receiver, TV) is not compatible



with compressed formats (Dolby digital, DTS), the audio signal outputs as PCM.

Secondary and Effect audio will not be heard with



regular DVDs. Some Blu-ray Discs do not have Secondary and



Effect audio. This Digital Output setup does not effect the



analogue (L/R) audio or HDMI audio output to your TV. It effects the optical and HDMI audio output when connected to a receiver.

If you play MPEG audio soundtracks, audio signal



outputs PCM regardless of Digital Output Selections (PCM or Bitstream).

03 Setup

Set Digital output depending on the connected receiver. (For more details, please refer to the digital output selection.)

PCM

•

Bistream(Re-encode)

•

Bistream(Audiophile)

•

Blu-ray Discs may include three audio streams.

- Primary Audio : The audio soundtrack of the main feature.

Secondary Audio : Additional soundtrack such as director or actor's commentary.

- Interactive Audio : Interactive sounds will be heard when selected. Interactive Audio is different on each Blu-ray Disc.

English 31

Page 32

Setup

Digital Output Selection

Setup PCM

Connection HDMI Receiver Optical HDMI Receiver or Optical HDMI Receiver Optical

PCM Up to 7.1ch PCM 2ch DTS re-encoded PCM PCM 2ch

Dolby Digital Up to 5.1ch PCM 2ch DTS re-encoded Dolby Digital Dolby Digital

Audio Stream

on Blu-ray Disc

Audio Stream

on DVD

Deﬁ nition for

Blu-ray Disc

Dolby Digital

Plus

Dolby TrueHD Up to 7.1ch PCM 2ch DTS re-encoded Dolby TrueHD Dolby Digital

DTS Up to 6.1ch PCM 2ch DTS re-encoded DTS DTS

DTS-HD HRA Up to 7.1ch PCM 2ch DTS re-encoded DTS-HD HRA DTS

DTS-HD MA Up to 7.1ch PCM 2ch DTS re-encoded DTS-HD MA DTS

PCM PCM 2ch PCM 2ch PCM 2ch PCM 2ch PCM 2ch

Dolby Digital Up to 5.1ch PCM 2ch Dolby Digital Dolby Digital Dolby Digital

DTS Up to 6.1ch PCM 2ch DTS DTS DTS

Any

Up to 7.1ch PCM 2ch DTS re-encoded Dolby Digital Plus Dolby Digital

Decodes Primary, Secondary and Effect audio streams together into

PCM audio.

Bitstream

(Re-encode)

Decodes Primary, Secondary and Effect audio streams together into

PCM audio, then re-encodes the

PCM audio into DTS bitstream.

movie) so that your receiver can decode

Bitstream

(Audiophile)

Outputs only the Primary audio

soundtrack (main soundtrack of the

the audio bitstream. You will not hear

Secondary and Effect audio.

32 English

Page 33

03 Setup

Dynamic Range Control

You can listen at low volumes but still hear dialog clearly. This is only active when a Dolby Digital signal is detected.

•

Off : You can enjoy the movie with the standard Dynamic Range.

•

On : When Movie soundtracks are played at low volume or from smaller speakers, the system can apply appropriate compression to make low-level content more intelligible and prevent dramatic passages from getting too loud.

AV Sync

Video may look slower than the audio when the product is connected to a digital TV. If this occurs, adjust the audio delay time to match the video.

You can set the audio delay time between

•

0 msec and 300 msec. Set it to the optimal status.

System

Initial Settings

By using the Initial Settings, you can set language, TV aspect and Network setting, etc. For more information on the settings, refer to the corresponding section in this user manual.

Internet@TV Screen Size

Set the Internet@TV Screen to the optimal size.

Size 1 : Display smaller application icons, you

•

may see some black on sides of screen. Size 2 : Display normal application icons,

•

image may be too large for your TV screen. Size 3 : Display larger application icons, image

•

may be too large for your TV screen.

Anynet+(HDMI-CEC)

Anynet+ is a convenient function that offers linked operations with other Samsung products with the Anynet+ feature. To operate this function, connect this product to a Samsung TV with an HDMI cable. You can operate this product using a Samsung TV remote control and start disc playback simply by pressing the PLAY (►) button on the TV’s remote control. For more information, please see the TV user manual.

•

Off : Anynet+ function will not work.

•

On : Anynet+ functions will work.

NOTE

✎

This function is not available if the HDMI cable



does not support CEC.



If your Samsung TV has an

logo, then

it supports the Anynet+ function.



Depending on your TV, certain HDMI output resolutions may not work. Please refer to the user manual of your TV.



The Anynet+ function is supported only when an HDMI Cable is connected to the HDMI OUT of the product.

BD Data Management

Enables you to manage the downloaded contents from the Blu-ray disc that supports the BD-LIVE service.

You can check the device information including the storage size, and delete the BD data or change the device.

You must have a minimum 1GB USB Memory

device inserted in one of the USB slots (The Wireless LAN Jack also functions as a USB slot.) in order to download content from BD-LIVE.

Settings

Display

Audio

System

Network

Language

Security

General

Support

On-Screen Menu :

BD Data Management

Disc Menu :

Current Device :

Total Size : 955MB

Available Size : 949MB Delete BD Data |

Change Device :

External Flash Memory

Audio :

Subtitle :

External Flash Memory

Select r Return

English 33

Page 34

Setup

Description of Device(Storage) Information on the Product

Total Size : Total size of the Device (Storage).

•

Available Size : Available size of the Device (Storage).

•

NOTE

✎

In the external memory mode, disc playback



will be stopped if you disconnect the USB device in the middle of the playback. Only those USB devices formatted in FAT ﬁ le



system (DOS 8.3 volume label) are supported, and it is recommended to use USB devices that support USB 2.0 protocol, 4 MB/sec or faster read/write speed. A USB HDD device cannot be used for BD



Data storage (BD-LIVE). The Resume Play function may not work after



formatting the storage device. The total size of BD Data Management may



differ, depending on the software version.

Clock

Set time-related functions.

Settings

Display

Audio

System

Network

Language

Security

General

Support

On-Screen Menu :

Clock

Disc Menu :

Clock Mode : Auto |

Audio :

Clock Set

Subtitle :

Time Zone : GMT + 0:00

DST : Off

> Move s Select r Return

DivX(R) Registration

View DivX(R) VOD Registration Code to purchase and play DivX(R) VOD content.

Settings

Display

Audio

System

Network

Language

Security

General

Support

NOTE

✎

This option is not activated if you select OK.



Initial Setting

Disc Menu :

DivX(R) Video On Demand

Audio :

Your registration code is : XXXXXXXXXX

Subtitle :

To learn more visit www.divx.com/vod

To activate this option, please activate the DivX(R) Deactivation.

DivX(R) Deactivation

Select this to get a new registration code.

Settings

Display

Audio

System

Network

Language

Security

General

Support

Initial Setting

Disc Menu :

Audio :

Subtitle :

Do you want to deactivate your device?

Yes

Clock Mode : You can select Auto or Manual.

•

If you select Manual, the Clock Set menu will be activated while DST will be deactivated.

Clock Set : You can specify the current time

•

and date manually. Time Zone : You can specify the time zone

•

that is applicable to your area. DST : You can set DST (Daylight Saving Time)

•

1 hour, 2 hour and off.

34 English

NOTE



This function can be operated when DivX(R) Registration function is deactivated.

Page 35

03 Setup

Network Setup

To begin setting up the network connection for your product, follow these steps:

In the Home menu, press the ◄► buttons to

select the Settings, and then press the ENTER button.

Press the ▲▼ buttons to select Network,

and then press the ENTER button. Press the ▲▼ buttons to select Network

Settings, and then press the ENTER button. Press the ▲▼ buttons to select Network

Type, and then press the ENTER button. Press the ▲▼ buttons to select Wired or

Wireless, and then press the ENTER button. Go to the next section.

Network Settings

Please contact your ISP to ﬁ nd out if your IP address is static or dynamic. If it is dynamic, we recommend using the Auto setting. This is the easiest and will work in the majority of cases. If it is static, you must use the manual set up procedure.

Directions for wired networks are below. Directions for wireless networks are after the directions for wired networks.

Wired Network

In the Network Settings menu, press the ▲▼ buttons to select Network Settings, and then press the ENTER button. The Internet Protocol Setup screen appears.

Press the ► button, then select Auto or Manual, and then press the ENTER button.

Setting Up a Wired Connecton - Auto

If you selected Auto, the Network Function acquires and ﬁ lls in the values for IP Address, Subnet Mask, etc., automatically.

Settings

Display

Audio

System

Network

Language

Security

General

Support

After the Network Function has acquired the

Network Settings

On-Screen Menu :

Internet Protocol Setup : Auto 

Disc Menu :

IP Address : 0 0 0 0

Audio :

Subnet Mask : 0 0 0 0

Subtitle :

Gateway : 0 0 0 0

DNS : Auto

DNS Server : 0 0 0 0

> Move "

Select '

Return

network values, press the RETURN button. Then, run a Network Test to ensure the product has connected to your network (See page 38).

If the Network Function does not acquire the

network values or you selected Manual, go to the directions for Manual Setup.

Setting Up a Wired Connecton - Manual

If the Auto Setting does not work, you’ll need to set the Network Setting values manually.

To get the Network setting values from most Windows computers, follow these steps:

Right click the Network icon on the bottom right of the screen.

In the pop-up menu, click Status.

On the dialog that appears, click the Support tab.

On the Support tab, click the Details button. The Network settings are displayed.

To enter the Network settings into your product, follow these steps:

On the Internet Protocol Setup screen, press the ENTER button.

Press the ▲▼ buttons to select Manual, and then press the ENTER button.

Press the ▼ button to go to the ﬁ rst entry ﬁ eld (IP Address).

NOTE

✎

This process can take up to ﬁ ve minutes.



English 35

Page 36

Setup

Settings

Display

Audio

System

Network

Language

Security

General

Support

Use the number buttons on your remote to

enter numbers. When done with each ﬁ eld, use the ►

button to move successively to the next ﬁ eld. You can also use the other arrow buttons to move up, down, and back.

Enter the IP Address, Subnet Mask, and

Gateway values. Press the ▼ button to go to DNS.

Press the ▼ button to go to the ﬁ rst DNS

entry ﬁ eld. Enter the numbers as above. Press the RETURN button on your remote.

Run a Network Test to ensure the product

10.

has connected to your network (See page

38).

Network Settings

On-Screen Menu :

Internet Protocol Setup : Manual 

Disc Menu :

IP Address :

Subnet Mask :

Gateway : 0 0 0 0

DNS : Manual

DNS Server : 0 0 0 0

> Move "

0 0 0

Audio :

255 255 255 0

Subtitle :

Select '

Return

Press the RED(A) button on the remote

control. Press the PBC (WPS) button on your router

within two minutes. Your product displays the Network Selection Screen, and automatically acquires all the network setting values it needs and connects to your network. When it is done, it displays an OK button. Press the ENTER button on your remote.

After the network connection is set up,

press the RETURN button to exit the Network Setting screen.

Setting Up the Wireless Network Connection - Auto Network Search

Most wireless networks have an optional security system that requires devices that access the network to transmit an encrypted security code called an Access or Security Key. The Security Key is based on a Pass Phrase, typically a word or a series of letters and numbers of a speciﬁ ed length you were asked to enter when you set up security for your wireless network. If you use this method of setting up the network connection, and have a Security Key for your wireless network, you will have to enter the Pass Phrase during the setup process.

Wireless Network

You can setup the wireless network three ways:

•

Using PBC (WPS)

•

Using the Auto Network Search function.

•

Manually.

Each method is described below.

Setting Up the Wireless Network Connection - PBC (WPS)

The easiest way to set up the wireless network connection is using the PBC (WPS) function. If your wireless router has a PBC (WPS) button, follow these steps:

In the Network Settings menu, press the ▲▼ buttons to select Network Settings, and then press the ENTER button. The Internet Protocol Setup screen appears.

36 English

Setting Up the Network Connection



To set up the wireless connection using Auto Network Search, follow these steps:

In the Network Settings menu, press the

▲▼ buttons to select Network Settings, and then press the ENTER button. The Internet Protocol Setup screen appears.

Press the ▲▼ buttons to select the

Internet Protocol Setup, and then press the ENTER button.

Press the ▲▼ buttons to select Auto or

Manual, and then press the ENTER button. If you selected Auto, press the ▲ button to

go to Access Point Selection, and then press the ENTER button. The Network function searches for available wireless networks. When done, it displays a list of the available networks.

Page 37

Settings

Display

Audio

System

Network

Language

Security

General

Support

In the list of networks, press the ▲▼

Network Settings

Network Selection

Connecting to network.

Network Name(SSID) : shj

Stop

" Select '

Return

buttons to select a network, and then press the ENTER button.

If the PIN/Security pop-up appears, go to

Step 7. If the Network Connecting Screen appears, go to Step 11.

Press the ▲▼ buttons to select PIN or

Security. For most home networks, you would select Security (for Security Key).

On the Security screen, enter your network’s

Pass Phrase.

NOTE

✎

You should be able to ﬁ nd the Pass Phrase



on one of the set up screens you used to set up your router or modem.

To enter the Pass Phrase, follow these

general directions:

Press the number keys on your remote to

• enter numbers. Use the arrow keys on your remote to

• move from button to button on the Security Key screen. To enter letters, move to the button

• labelled a/A/1/, and then press the

ENTER button. Each time you press the ENTER button, you change the kind of

characters you can enter (a/A/1/). To enter a letter, press the number button

• that corresponds to the letter. Pressing the button repeatedly changes the letter. To delete the last letter or number you

• entered, move to the Delete button, and then press the ENTER button. To clear all entered letters and numbers,

• move to the Clear key, and then press the ENTER button. You can also just press the RED(A) button on your remote.

10.

When done, press the YELLOW(C) button on your remote, or move to the Done button, and then press the ENTER button. The Network Connecting screen appears.

11.

Wait until the connection conﬁ rmation message is displayed, and then press the ENTER button. The Network Settings screen reappears.

12.

To test the connection, press the ▼ button to select Network Test, and then press the ENTER button.

Setting Up the Wireless Network Connection - Manual

If the Auto Setting does not work, you need to enter the Network settng values manually.

To get the Network setting values from most Windows computers, follow these steps:

Right click the Network icon on the bottom right of the screen.

In the pop-up menu, click Status.

On the dialog that appears, click the Support tab.

On the Support tab, click the Details button. The Network settings are displayed.

To Enter the Network settings into your product, follow these steps:

On the Internet Protocol Setup screen, press the ENTER button.

Press the ▲▼ buttons to select Manual, and then press the ENTER button.

Press the ▼ button to go to the ﬁ rst entry ﬁ eld (IP Address).

Use the number buttons to enter numbers.

Settings

Display

Audio

System

Network

Language

Security

General

Support

Network Settings

On-Screen Menu :

Access Point Selection : Not Selected 

Disc Menu :

Internet Protocol Setup : Manual

Audio :

IP Address :

Subnet Mask :

Gateway : 0 0 0 0

DNS : Manual

DNS Server : 0 0 0 0

a PBC (WPS) > Move "

0 0 0

Subtitle :

255 255 255 0

Select '

Return

English 37

03 Setup

Page 38

Setup

When done with each ﬁ eld, use the ►

button to move successively to the next ﬁ eld. You can also use the other arrow buttons to move up, down, and back.

Enter the IP Address, Subnet Mask, and

Gateway values. Press the ▼ to go to DNS.

Press the ▼ button to go to the ﬁ rst DNS

entry ﬁ eld. Enter the numbers as above. When done, press the ▲ button to return to

Access Point Selection. Select the network, and then press the ENTER button.

Go to Step 6 in the Automatic Wireless

10.

procedure above, and follow the directions from that point on.

Network Test

Use this menu to connect the wired network or check whether your network connection is working or not.

BD-LIVE Internet Connection

Set whether to allow internet connection when BD-LIVE service is used.

Allow (All) : The Internet connection will be

•

allowed for all BD-LIVE contents. Allow (Valid Only) : The Internet connection

•

will be allowed only for BD-LIVE contents containing a valid certiﬁ cate.

Prohibit : No Internet connection will be

•

allowed for any BD-LIVE content.

NOTE

✎

What is a valid certiﬁ cate?



When the product uses BD-LIVE to send the disc data and request to the server to certify the disc, the server uses the transferred data to check if the disc is valid and sends the certiﬁ cate back to the product.



The Internet connection may be restricted while you are using BD-LIVE contents.

Settings

Display

Audio

System

Network

Language

Security

General

Support

On-Screen Menu :

Network Test

Disc Menu :



MAC Address (00:00:00:00:00:00)

Audio :



IP Address,Subnet Mask,Gateway,DNS Server

Subtitle :

Gateway Ping

Internet Service Test

Network testing...

Network Status

Check whether a connection to the network and the Internet have been established.

38 English

Language

You can select the language you prefer for home menu, disc menu, etc.

•

On-Screen Menu : Select the language for the on-screen displays.

•

Disc Menu : Select the language for the disc menu displays.

•

Audio : Select the language for disc audio.

•

Subtitle : Select the language for disc subtitles.

NOTE

✎



The selected language will only appear if it is supported on the disc.

Page 39

03 Setup

Security

When you operate this menu for the ﬁ rst time, password setup screen will be displayed. Enter the desired 4-digit password using the number buttons. (Default password is set to 0000.)

Parental Rating

This function works in conjunction with Blu-ray Disc/DVDs that have been assigned a rating, which helps you control the types of Blu-ray Disc/ DVDs that your family watches. Select the rating level you want to set. A larger number indicates that the program is intended for adult use only. For example, if you select up to Level 6, discs that contain Level 7, 8 will not play.

Settings

Display

Audio

System

Network

Language

Security

General

Support

Parental Rating

Change Password

Off

8(Adults)

▼

Change Password

Change the 4-digit password used to access security functions.

Settings

Display

Audio

System

Network

Language

Security

General

Enter Pin r Return

Support

If you forgot your password

Remove the disc.

Press and hold the STOP () button on the

front panel for 5 seconds or more. All settings will revert to the factory settings.

NOTE

✎

When the factory default settings are restored, all the



user data stored in the BD data will be deleted.

Change Password

Enter the password

General

Background

Change the background theme of the menu screen.

Settings

Display

Audio

System

Network

Language

Security

General

Support

> Move s Select r Return

Background

Parental Rating : Off

Change Password

Skin 1

Skin 2

Skin 3

Skin 4

Skin 5

Energy Saving

You can reduce power consumption by setting the front panel to turn off automatically when there is no operation for 5 seconds.

•

Off : Energy Saving function is not used.

•

On : The front panel will automatically turn off when there is no operation for 5 seconds.

Front Display

Change the brightness of the front panel.

Auto : Dim during playback only.

•

Dim : Dim the display window.

•

Bright : Brighten the display window.

•

Power On/Off Sound

Play a melody when the product is turned on and off.

Off : Turn Power Sound Off.

•

On : Turn Power Sound On.

•

English 39

Page 40

Setup

Support

Software Upgrade

You can update software in any of the two ways as follows: Software update is the same as in the By Internet menu.

•

This menu allows you to upgrade software for performance improvements or additional services. You can check the current software version, upgrade by internet and set the Auto upgrade notiﬁ cation. If the product is properly connected to the network by cable or wirelessly, the product will automatically connect to our website each time it is turned on and download update ﬁ les if any valid

•

upgrade exists.

Settings

Display

Audio

System

Network

Language

Security

General

Support

To select By Internet, press the ENTER

Software Upgrade

Disc Menu :

Audio :

Current Version : XXX-XXXXXXXXX

Subtitle :

By Internet

Auto Upgrade Notiﬁ cation

s Select r Return

: On

✎

button. A popup message will appear if an update is available.

If you select Yes, the product will turn off

automatically before restarting. (Never turn it on manually.)

The update progress popup will appear.

When the update is completed, the product will turn back off automatically.

Press the POWER button to turn on the

product.

Contact Samsung

Provide contact information for assistance with your product.

NOTE

✎

The Update will be completed when the



product turns off after restarting. Press the POWER button to turn on the updated product for your use. Never turn off or on the product manually during the update process. Samsung Electronics shall take no legal



responsibility for product malfunction caused an unstable internet connection or consumer negligence during software upgrade.

USB : Visit www.samsung.com/bluraysupport, then download and store the latest software (RUF ﬁ le) into the USB ﬂ ash drive. Connect the USB ﬂ ash drive to the USB port of the product (disc tray must be empty) to update the software, then follow the on-screen instructions.

CD : Visit www.samsung.com/bluraysupport, download and write the latest software (RUF ﬁ le) onto a disc. Insert and play the disc in the product to start the update, then follow the onscreen instructions.

NOTE

Software upgrades using the USB Host jack



must be performed with no disc inside.



If you want to cancel the upgrade in the process of downloading the upgrade data, press the ENTER button.

When the system upgrade is done, check the



software details in the software Upgrade menu.

Do not turn off the product during the System



Upgrade, as it may cause the product to not work properly.

Do not use USB devices other than USB Flash



Drives to do software upgrades when using the USB Host jack.

40 English

Page 41

Basic Functions

04 Basic Functions

Playing a Disc

Playback

Press the OPEN/CLOSE ( ) button to open

the disc tray. Place a disc gently into the tray with the

disc’s label facing up. Press the PLAY (►) button or OPEN/

CLOSE ( ) button to close the disc tray.

Playback related buttons

PLAY ( ►)

STOP (  )

PAUSE (  )

NOTE

✎

"Not Available" will appear when an invalid



button is pressed.

Starts playback.

Stops playback.

•

If pressing the button once: The stop position will be memorized.

•

If pressing the button twice: The stop position will be not memorized.

(With some Blu-ray discs (BD-J), this function may not work.)

Pauses playback.

Disc Structure

The contents of disc are usually divided as below.

Blu-ray Disc, DVD-VIDEO

•

title 1 title 2

chapter 1 chapter 2 chapter 1 chapter 2 chapter 3

Audio CD (CD-DA)

•

track 1 track 2 track 3 track 4 track 5

MP3, WMA, DivX, MKV and MP4

•

folder (group) 1 folder (group) 2

ﬁ le 1 ﬁ le 2 ﬁ le 1 ﬁ le 2 ﬁ le 3

Using the Disc menu / Title menu / Popup menu

Using the Disc Menu

During playback, press the DISC MENU button on the remote

control.

Press the the desired selection, then press the ENTER button.

NOTE

✎

Depending on the disc, the menu items may



differ and this menu may not be available.

▲▼◄ ►

buttons to make

DISC MENU

English 41

Page 42

Basic Functions

Using the Title Menu

During playback, press the TITLE

MENU button on the remote

control. Press the

make the desired selection, then press the ENTER button.

NOTE

✎

Depending on the disc, the menu items may



differ and this menu may not be available. The Title Menu will only be displayed if there



are at least two titles on the disc.

▲▼◄ ►

Playing the Title List

During playback, press the DISC

MENU or TITLE MENU button. Press the

an entry you want to play from Title List, then press the ENTER button.

▲▼

Using the Popup Menu

During playback, press the POPUP button on the remote control.

Press the ENTER button to select the desired menu.

NOTE

✎

Depending on the disc, the menu items may



differ and this menu may not be available.

▲▼◄ ►

buttons to

buttons to select

buttons or

TITLE MENU

POPUP

DISC MENU

TITLE MENU

POPUP

TITLE MENU

POPUP

Using the Search and Skip Functions

During playback, you can search quickly through a chapter or track, and use the skip function to jump to the next selection.

Searching for a Desired Scene

hzZyx

During playback, press the SEARCH ()

•

button. Each time you press the button, the playback speed will change as follows.

BD-ROM,

BD-RE/-R,

DVD-RW/-R,

DVD+RW/+R,

DVD-VIDEO

DivX, MKV, MP4

•

To return to normal speed playback, press the

PLAY (►) button.

NOTE

✎

No sound is heard during search mode.



) )

( (

) (

SEARCH (

)



2  ) 3 

)



5  ) 6  ) 7

(



2  ( 3 

(



5  ( 6  ( 7

)



2  ) 3

(



2  ( 3

)

Skipping Chapters

hzZyx

During playback, press the SKIP (#$)

•

button. If you press the SKIP ($) button, it moves to the next chapter. If you press the SKIP (#) button, it moves to the beginning of the chapter. One more press makes it move to the beginning of the previous chapter.

42 English

Page 43

04 Basic Functions

Slow Motion Play/Step Motion Play

Slow Motion Play

hzZyx

In pause mode, press the SEARCH ()

•

button. If you press the SEARCH () button, the playback speed is reduced to * 1/8 * 1/4 * 1/2

To return to normal speed playback, press the

•

PLAY (► ) button.

NOTE

✎

No sound is heard during slow mode.



Slow motion operates only in the forward



direction.

Step Motion Play

hzZyx

In pause mode, press the PAUSE (  ) button.

•

Each time the PAUSE (  ) button is pressed, a new frame will be appear.

To return to normal speed playback, press the

•

PLAY ( ► ) button.

NOTE

✎

No sound is heard during step mode.



Step motion operates only in the forward



direction.

Repeat Playback

Repeat the Title or Chapter

hzZy

Repeat the disc title or chapter.

During playback, press the REPEAT

button on the remote control. Press the ▲▼ buttons to select

Chapter or Title, then press the ENTER button.

REPEAT

Repeat Off

To return to normal play, press the REPEAT

button again. Press the ▲▼ buttons to select Off, the

press the ENTER button.

NOTE

✎

Depending on the disc, the Repeat function



may not be available.

Repeat the Section

hzZy

During playback, press the REPEAT

button on the remote control. Press the ▲▼ buttons to select

REPEAT A-B.

Repeat REPEAT A-B : Off

Press the ENTER button at the point where

you want repeat play to start (A). Press the ENTER button at the point where

you want repeat play to stop (B). To return to normal play, press the REPEAT

button again. Press the ENTER button.

NOTE

✎

If you set point (B) before 5 seconds has



lapsed, the prohibition message will appear.

s Mark A

REPEAT

English 43

Page 44

Basic Functions

Using the TOOLS button

During playback, you can operate disc menu by pressing the

TOOLS Menu Screen

•

TOOLS

button.

Title : 1/1 Chapter 4/21 Playing Time : 00:12:06 Repeat Audio : 1/7 ENG Multi CH Subtitle : 1/6 ENG Angle : 1/1 BONUSVIEW Video : Off BONUSVIEW Audio : 0/1 Off

Picture Setting

Tools

< Change "

Select

TOOLS

Information about the primary / secondary



mode will be also displayed if the Blu-ray Disc has a BONUSVIEW section. Use the ◄► button to switch between primary and secondary audio modes. This function depends on what audio



languages are encoded on the disc and may not be available. A Blu-ray Disc can contain up to 32 audio



languages and a DVD up to 8. Some Blu-ray Discs may allow you to select



either the multi-channel LPCM or Dolby digital audio soundtrack in English.

Selecting the Subtitle Language

NOTE

✎

Depending on the disc, the TOOLS menu

▪

may differ.

Moving to a Desired Scene Directly

hzZy

During playback, press the TOOLS button.

Press the ▲▼ buttons to select Title,

Chapter or Playing Time. Enter the desired Title, Chapter or Playing

Time using the number buttons, then press the ENTER button.

Selecting the Audio Language

hzZx

During playback, press the TOOLS button.

Press the ▲▼ buttons to select Audio.

Press the ◄► buttons to select the desired audio language.

NOTE

✎

The ◄► indicator will not be displayed on the



screen if the BONUSVIEW section does not contain any BONUSVIEW audio settings.

hZx

During playback, press the TOOLS button.

Press the ▲▼ buttons to select Subtitle.

Press the ◄► buttons to select the desired

subtitle language.

NOTE

✎

Depending on the Blu-ray Disc / DVD, you may



be able to change the desired subtitle in the Disc Menu. Press the DISC MENU button. This function depends on what subtitles are



encoded on the disc and may not be available on all Blu-ray Discs/DVDs. A Blu-ray Disc can contain up to 255 subtitle



languages and a DVD up to 32. Information about the primary / secondary



mode will also be displayed if the Blu-ray Disc has a BONUSVIEW section. This function changes both the primary and



secondary subtitles at the same time. The total number of subtitles is the sum of the



primary and secondary ones.

44 English

Page 45

Caption Function

User : The user can adjust the sharpness

•

and noise reduction function respectively.

04 Basic Functions

You must have some experience with video

•

extraction and editing in order to use this feature properly.

To use the caption function, save the caption

•

ﬁ le (*.smi) in the same ﬁ le name as that of the DivX media f le (*.avi) within the same folder. Example. Root Samsung_007CD1.avi Samsung_007CD1.smi

Up to 60 alphanumeric characters or 30 East Asian

•

characters (2 byte characters such as Korean and Chinese) for the ﬁ le name.

Changing the Camera Angle

When a Blu-ray Disc/DVD contains multiple angles of a particular scene, you can use the ANGLE function.

During playback, press the TOOLS button.

Press the ▲▼ buttons to select Angle.

Press the ◄► buttons to select the desired

Angle.

Selecting the Picture Setting

hzZy

This function enables you to adjust video quality when you are connected to a TV via HDMI.

During playback, press the TOOLS button.

Press the ▲▼ buttons to select Picture Setting, then press the ENTER button.

Press the ◄► buttons to select the desired Picture Setting, then press the ENTER button.

•

Dynamic : Choose this setting to increase Sharpness.

•

Normal : Choose this setting for most viewing applications.

•

Movie : This is the best setting for watching movies.

Setting the BONUSVIEW

The BONUSVIEW feature allows you to view additional content (such as commentaries) in a small screen window while the movie is playing. This function is only available if the disc has the bonusview feature.

Primary a audio/video

During playback, press the TOOLS button.

Press the ▲▼ buttons to select BONUSVIEW Video or BONUSVIEW Audio.

Press the ◄► buttons to select the desired bonusview.

NOTE

✎

If you switch from BONUSVIEW Video,



BONUSVIEW Audio will change automatically in accordance with BONUSVIEW Video.

Tools

BONUSVIEW Video Off

BONUSVIEW Audio : 0/1 Off

Picture Setting

Change "

Secondary a audio/video

Select

English 45

Page 46

Basic Functions

V-SOUND

RETURN

EXIT

TUNER

MO/ST

RDS DISPLAY TA

Listening to Music

Buttons on the Remote Control used for Music Playback

123

PTY- PTY SEARCH PTY+

456

7809

REPEATFULL SCREEN

TOOLS

OOL

RETURN

ABCD

INTERNET

TUNER

MEMORY

INFO

INF

EXIT

MO/ST

DSPV-SOUND

1 2

ENTER button : Plays and pauses the selected

track.

◄► buttons : Fast Play.

(except for Audio CD (CD-DA))

STOP button :

Stops a

track

SKIP($) button : During playback, moves to the next page in the Music List or moves to the

next track in the Playlist.

SKIP (#)button : During playback, moves to the previous page in the Music List or moves to the previous track in the Playlist. If you press this button after three seconds of

playback in the Playlist, the current track will be replayed from the beginning. But, if you press this button within three seconds after playback starts in the Playlist, the previous track will be played.

NUMBER button : During the Playlist playback, press the desired track number. The selected

track will be played.

46 English

REPEAT buttons : Selects the play mode in the Playlist.

SEARCH buttons : Fast Play. (Audio CD (CD-DA) only)

PAUSE button : Pauses playback.

PLAY button : Plays the currently selected track.

▲▼ buttons : Selects a track in the Music List or Playlist.

YELLOW(C) button : Select or deselect a track in the music list.

Page 47

04 Basic Functions

Playing an Audio CD (CD-DA)/MP3

Insert an Audio CD (CD-DA) or an MP3 Disc

into the disc tray.

For an Audio CD (CD-DA), the ﬁ rst track will

•

be played automatically. For an MP3 disc, press the ◄► buttons to

•

select Music, then press the ENTER button.

Audio CD (CD-DA)/MP3 Screen Elements

31 2

7 6

TRACK 001

+ 00:08 / 05:57

TRACK 001

TRACK 002

TRACK 003

TRACK 004

TRACK 005

TRACK 006

s Pause Tools r Return

Displays the music information.

Displays the playlist.

Shows the current track/total tracks.

Displays buttons available.

Shows the current play time/total play time.

Displays the current playback status.

Playlist

1/12

05:57

04:27

04:07

03:41

03:17

03:35

Repeat an Audio CD (CD-DA)/MP3

During the Playlist playback, press

the REPEAT button. Select the desired play mode by

pressing the REPEAT button repeatedly.

Audio CD

Off

(CD-DA)/MP3

(

Audio CD

) Track

(CD-DA)

) One MP3 Current track is repeated.

Audio CD

) All

(CD-DA)/MP3

Audio CD

) Shufﬂ e

(CD-DA)/MP3

Tracks on a disc are played in the order in which they were recorded on the disc.

Current track is repeated.

All tracks are repeated.

The random option plays a disc's track in random order.

REPEAT

Playlist

Insert an Audio CD (CD-DA) or an MP3 Disc

into the disc tray.

For an Audio CD (CD-DA), the ﬁ rst track will

•

be played automatically. For an MP3 disc, press the ◄► buttons to

•

select Music, then press the ENTER button.

To move to the Music List, press the STOP () or RETURN button. The Music List screen is displayed.

Press the ▲▼◄► buttons to move to the desired track, then press the YELLOW(C) button to check desired tracks. Repeat this procedure to select additional tracks.

Displays the repeated playback status.

Press the ▲▼ buttons to select the track

you want to play, and then press the ENTER button.

Music TRACK 003

CDDA

TRACK 001
