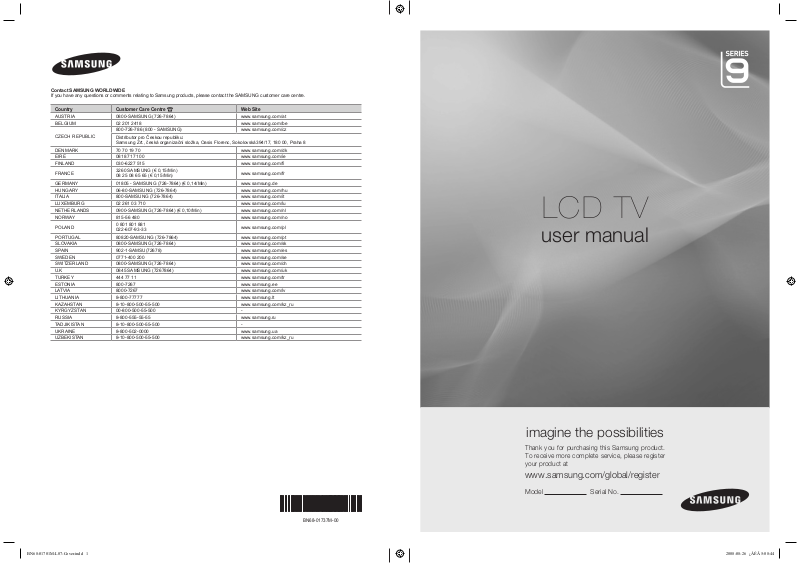

Samsung H8-3257 User Manual

Contact SAMSUNG WORLDWIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.

Country

AUSTRIA 0800-SAMSUNG (726-7864) www.samsung.com/at BELGIUM 02 201 2418 www.samsung.com/be

CZECH REPUBLIC

DENMARK 70 70 19 70 www.samsung.com/dk EIRE 0818 717 100 www.samsung.com/ie

FINLAND 030-6227 515 www.samsung.com/

FRANCE

GERMANY 01805 - SAMSUNG (726-7864) (€ 0,14/Min) www.samsung.de HUNGARY 06-80-SAMSUNG (726-7864) www.samsung.com/hu ITALIA 800-SAMSUNG (726-7864) www.samsung.com/it LUXEMBURG 02 261 03 710 www.samsung.com/lu NETHERLANDS 0900-SAMSUNG (726-7864) (€ 0,10/Min) www.samsung.com/nl

NORWAY 815-56 480 www.samsung.com/no

POLAND

PORTUGAL 80820-SAMSUNG (726-7864) www.samsung.com/pt SLOVAKIA 0800-SAMSUNG (726-7864) www.samsung.com/sk SPAIN 902-1-SAMSU(72678) www.samsung.com/es SWEDEN 0771-400 200 www.samsung.com/se SWITZERLAND 0800-SAMSUNG (726-7864) www.samsung.com/ch

U.K 0845 SAMSUNG (7267864) www.samsung.com/uk TURKEY 444 77 11 www.samsung.com/tr

ESTONIA 800-7267 www.samsung.ee LATVIA 8000-7267 www.samsung.com/lv

LITHUANIA 8-800-77777 www.samsung.lt KAZAHSTAN 8-10-800-500-55-500 www.samsung.com/kz_ru KYRGYZSTAN 00-800-500-55-500 RUSSIA 8-800-555-55-55 www.samsung.ru TADJIKISTAN 8-10-800-500-55-500 UKRAINE 8-800-502-0000 www.samsung.ua UZBEKISTAN 8-10-800-500-55-500 www.samsung.com/kz_ru

Customer Care Centre

800-726-786 (800 - SAMSUNG) www.samsung.com/cz

Distributor pro Českou republiku: Samsung Zrt., česká organizační složka, Oasis Florenc, Sokolovská394/17, 180 00, Praha 8

3260 SAMSUNG (€ 0,15/Min) 08 25 08 65 65 (€ 0,15/Min)

0 801 801 881

022-607-93-33

Web Site

www.samsung.com/fr

www.samsung.com/pl

LCD TV

user manual

imagine the possibilities

Thank you for purchasing this Samsung product. To receive more complete service, please register your product at

www.samsung.com/global/register

Model Serial No.

BN68-01737M-00

BN68-01701M-L07-Cover.indd 1 2008-08-26 ¿ÀÈÄ 5:08:44

Digital TV (DVB-T) Notice

1. FUNCTIONALITIES RELATED TO DIGITAL TV (DVB) ARE ONLY AVAILABLE IN COUNTRIES OR AREAS WHERE DVB-T (MPEG2 AND MPEG4 AVC) DIGITAL TERRESTRIAL SIGNALS ARE BROADCAST. DVB-T is the European consortium

standard for the broadcast transmission of digital terrestrial television. Please check with your local dealer about the availability of DVB-T service in your area.

2. Although this TV set meets the current DVB-T standards as of [August, 2008], compatibility with future DVB-T digital terrestrial broadcast cannot be guaranteed.

3. Some Digital TV functions may not be available or operate correctly in some countries or regions.

4. For more information, please contact your local SAMSUNG customer care centre.

Contact SAMSUNG WORLDWIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre. (See back cover for more information.)

Precautions When Displaying a Still Image

A still image may cause permanent damage to the TV screen Do not display a still image on the LCD panel for more than 2 hours as it can cause screen image retention. This image retention

is also known as “screen burn”. To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image.

Watching the LCD TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and center of the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause a similar effect to the screen. Damages caused by the above effect are not covered by the Warranty.

Displaying still images from Video games and PC for longer than a certain period of time may produce partial afterimages. To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images.

BN68-01737M-ENG.indb 1 2008-08-27 ¿ÀÈÄ 2:52:54

English

N O T

Symbol Press Note One-Touch Button TOOL Button

English - 1

Connecting and Preparing Your TV

List of Parts .........................................................................2

Installing the Wall Mount Kit ................................................2

Viewing the Control Panel ...................................................3

Viewing the Connection Panel.............................................4

Remote Control ...................................................................6

Mini Remote Control ............................................................7

Installing Batteries in the Remote Control ...........................7

Switching On and Off...........................................................8

Placing Your Television in Standby Mode ............................8

Viewing the Menus ..............................................................8

Using the TOOLS Button .....................................................9

Using the Wheel button .......................................................9

Plug & Play Feature ..........................................................10

Channel Control

Storing Channels and channel .........................................10

Managing Channels ..........................................................13

Picture Control

Changing and Resetting the Picture Settings ....................14

Viewing Picture-in-Picture .................................................17

PC Display .........................................................................18

Setting up the TV with your PC .........................................19

Sound Control

Changing the Sound Standard ..........................................19

Selecting the Sound Mode ................................................21

Function Description

Conguring the Setup Menu ..............................................21

Setting the Time ................................................................25

Network Connection ..........................................................26

Network Setup ...................................................................28

Source List / Edit Name .....................................................29

Product Guide ...................................................................30

WISELINK Pro

Connecting a USB Device .................................................30

Using the WISELINK Pro Function ....................................31

Using and Sorting Photo List .............................................33

Viewing a Photo or Slide Show ........................................34

Using and Sorting the Music List .......................................36

Playing a Music ................................................................37

Using and Sorting the Movie List .......................................38

Playing a Movie File .........................................................39

Deleting the Photo/Music/Movie File ................................40

Picture/Music Settings Using WISELINK Pro ....................41

Using the Setup Menu .......................................................41

■

WISELINK Pro-DLNA

Setting the DLNA Network .................................................42

Installing the DLNA Application .........................................42

Using the DLNA Application ..............................................44

Using the DLNA Function ..................................................47

Content Library

Activating the Content Library ...........................................48

Using the Content Library ..................................................49

Using Additional Content Using External USB Memory

Storage ..............................................................................50

About Anynet

Connecting Anynet+ Devices ............................................51

Setting Up Anynet+ ...........................................................52

Scanning and Switching between Anynet+ Devices..........52

Recording ..........................................................................53

Listening through a Receiver (Home theater) ...................54

Troubleshooting for Anynet+ ............................................54

Recommendations for Use

Teletext Feature .................................................................55

Setting Up Your Remote Control .......................................56

Remote Control Codes ......................................................57

Auto Wall-Mount Adjustment (Sold separately)

(depending on the model) .................................................59

Using the Anti-Theft Kensington Lock

(depending on the model) .................................................60

Securing the TV to the Wall ...............................................60

Troubleshooting: Before Contacting Service Personnel ....61

Specications ....................................................................62

■

Contents

BN68-01737M-ENG.indb 1 2008-08-27 ¿ÀÈÄ 2:52:54

English - 2

List of Parts

Please make sure the following items are included with your LCD TV. If any items are missing, contact your dealer.

Remote Control & Batteries

(AAA x 2)

Mini Remote

Control & Lithium

battery (3V)

Power Cord Program CD Cover-Bottom Cleaning Cloth

Owner’s Instructions

•

Warranty card

•

Safety Guide

•

Warranty card / Safety Guide (Not available in all locations)

Installing the Wall Mount Kit

Wall mount items (sold separately) allow you to mount the TV on the wall. For detailed information on installing the wall mount, see the instructions provided with the Wall Mount items. Contact a technician for assistance when installing the wall mounted bracket. Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the TV on your own.

Do not install your Wall Mount Kit while your TV is turned on. It may result in

personal injury due to electric shock.

Remove the stand and cover the bottom hole with a cap and fasten with two screws.

Connecting and Preparing Your TV

BN68-01737M-ENG.indb 2 2008-08-27 ¿ÀÈÄ 2:52:55

English - 3

SOURCE

The Source list appears on the screen. In the on-screen menu, use this button as you would use the ENTERE button on the remote control.

Press to see an on-screen menu of your TV’s features.

– = +

Press to increase or decrease the volume. In the on-screen menu, use the – = + buttons as you

would use the ◄ and ► buttons on the remote control.

> C/P.P

Press to change channels. In the on-screen menu, use the > C/P.P < buttons as you would use the ▼ and ▲ buttons on the remote control.

POWER INDICATOR

Blinks and turns off when the power is on and lights up in stand-by mode.

6 P (POWER)

Press to turn the TV on and off.

REMOTE CONTROL SENSOR

Aim the remote control towards this spot on the TV.

SPEAKERS

Viewing the Control Panel

The product colour and shape may vary depending on the model.

Front Panel buttons

Touch each button to operate.

BN68-01737M-ENG.indb 3 2008-08-27 ¿ÀÈÄ 2:52:55

English - 4

Power Input

Viewing the Connection Panel

[TV Side Panel]

[TV Rear Panel]

The product colour and shape may vary depending on the model. Whenever you connect an external device to your TV, make sure that power on the unit is turned off. When connecting an external device, match the colour of the connection terminal to the cable.

PC IN [PC] / [AUDIO]

Connect to the video and audio output jack on your PC.

COMPONENT IN

Connect component video cables (optional) to component connector (‘PR’, ‘PB’, ‘Y’) on the rear of your set and the other ends to corresponding component video out connectors on the DTV or DVD.

If you wish to connect both the Set-Top Box and DTV (or DVD), you should connect the Set-Top Box to the DTV (or DVD) and connect the DTV (or DVD) to component connector (‘PR’, ‘PB’, ‘Y’) on your set.

The PR, PB and Y connectors on your component devices (DTV or DVD) are sometimes labeled Y, B-Y and R-Y or Y, Cb and Cr.

Connect RCA audio cables (optional) to [R-AUDIO-L] on the rear of your set and the other ends to corresponding audio out connectors on the DTV or DVD.

HDMI IN 1, HDMI IN 2, HDMI IN 3, HDMI IN 4

Supports connections between HDMI-connection-enabled AV devices (Set-Top Boxes, DVD players) No additional Audio connection is needed for an HDMI to HDMI connection. When using an HDMI / DVI cable connection, you must use the HDMI IN 2 jack.

What is HDMI?

‘High Denition Multimedia interface’ allows the transmission of high denition digital video data and multiple channels

of digital audio. The HDMI / DVI terminal supports DVI connection to an extended device with the appropriate cable (not supplied).

The difference between HDMI and DVI is that the HDMI device is smaller in size, has the HDCP (High Bandwidth Digital Copy Protection) coding feature installed, and supports multi - channel digital audio.

The TV may not output sound and pictures may be displayed with abnormal colour when DVD players / Cable Boxes / Satellite receivers supporting HDMI versions older than 1.3 are connected. When connecting an older HDMI cable and there is no sound, connect the HDMI cable to the HDMI IN 2 jack and the audio cables to the DVI IN (HDMI2) [R-AUDIO- L] jacks on the back of the TV. If this happens, contact the company that provided the DVD player / Cable Box / Satellite

receiver to conrm the HDMI version, then request a rmware update. HDMI cables that are not 1.3 may cause annoying icker or no screen display.

DVI IN(HDMI2) [R-AUDIO-L]

DVI audio outputs for external devices.

N N N

1 2 3 4

90!@#

BN68-01737M-ENG.indb 4 2008-08-27 ¿ÀÈÄ 2:52:55

English - 5

Supported modes for HDMI / DVI and Component.

480i 480p 576i 576p 720p 1080i 1080p HDMI / DVI 50Hz X X X O O O O HDMI / DVI 60Hz X O X X O O O

Component O O O O O O O

ANT IN

To view television channels correctly, a signal must be received by the set from one of the following sources: An outdoor aerial / A cable television network / A satellite network

S-VIDEO IN

Connect S-VIDEO cable to an appropriate external A/V device such as VCR, DVD or Camcorder. Connect the audio cables to AV IN [R-AUDIO-L].

COMMON INTERFACE SLOT

When not inserting ‘CI CARD’ in some channels, ‘Scrambled Signal’ is displayed on the screen. The pairing information containing a telephone number, CI CARD ID, Host ID and other information will be displayed in about 2~3 minutes. If an error message is displayed, please contact your service provider.

When the channel information conguration has nished, the message ‘Updating Completed’ is displayed, indicating that the

channel list is now updated.

You must obtain a CI CARD from a local cable service provider. Remove the CI CARD by carefully pulling it out with your hands since dropping the CI CARD may cause damage to it.

Insert the CI-Card in the direction marked on it. The place of the COMMON INTERFACE Slot may be different depending on its model.

WISELINK

Connect a USB mass storage device to view movies and photos and listen to music les.

You can connect to Samsung’s network wirelessly using the ‘Samsung Wireless LAN Adapter’ (Sold separately).

AV IN

Connect RCA audio cables to [R-AUDIO-L] on your set and the other ends to corresponding audio out connectors on the A/V device.

DIGITAL AUDIO OUT (OPTICAL)

Connect to a Digital Audio Component.

When the HDMI IN jacks are connected, the DIGITAL AUDIO OUT (OPTICAL) jack on the TV outputs 2 channel audio only. If you want to hear 5.1 channel audio, connect the Optical jack on the DVD player or Cable / Satellite Box directly to

an Amplier or Home Theater, not the TV.

EXT 1, EXT 2

Connector

Input Output

Video Audio (L / R) RGB Video + Audio (L / R) EXT 1 O O O Only TV or DTV output is available. EXT 2 O O Output you can choose.

Inputs or outputs for external devices, such as VCR, DVD, video game device or video disc players.

LAN

Connect a LAN cable to this port to connect to the Network.

SERVICE

Connector for Service only. Connect this to the jack on the optional wall mount bracket. This will allow you to adjust the TV viewing angle using your remote control.

KENSINGTON LOCK (depending on the model)

The Kensington Lock (optional) is a device used to physically x the system when used in a public place.

If you want to use a locking device, contact the dealer where you purchased the TV. The location of the Kensington Lock may be different depending on its model.

N N

BN68-01737M-ENG.indb 5 2008-08-27 ¿ÀÈÄ 2:52:55

English - 6

Remote Control

You can use the remote control up to a distance of about 23 feet from the TV.

The performance of the remote control may be affected by bright light.

POWER

Television Standby button.

Selects the TV mode directly.

NUMERIC BUTTONS

Number buttons for direct channel access

−

One or more digit channel selection

VOLUME BUTTONS

+ : Volume increase – : Volume decrease

SOURCE

Available source selection

GUIDE

Electronic Programme Guide (EPG) display

TOOLS

Use to quickly select frequently used functions.

INFO

Use to see information on the current broadcast

COLOURS BUTTONS

Use these buttons in the Channel list and WISELINK Pro, etc.

E.MODE

Press to select the optional display and sound modes for sports, cinema and games.

Use these buttons in the DMA,

WISELINK Pro and Anynet+. (∏: This remote can be used to control recording on Samsung recorders with the Anynet+ feature)

$ SET

Sets the remote to control your TV, VCR, DVD, Cable Box or Set-Top Box

% MODE

Press to operate your TV, DVD, STB or VCR (See pages 56)

Pressing the ON/OFF @ light button

toggles between on and off. When the remote control is on, and a key is pressed on the remote control, the remote control buttons will be lit for a moment.

& PRE-CH

Previous channel

* MUTE

Temporary sound switch-off

(

CHANNEL BUTTONS

P < : Next channel P > : Previous channel

) MENU

Displays the main on-screen menu

a W.LINK

This function enables you to view and

play photo and music les from an

external device.

b RETURN

Returns to the previous menu

 UP▲/DOWN▼/LEFT◄/

RIGHT►/ENTER

Press the Up / Down / Left / Right sections of the wheel button and Enter to select on-screen menu items and change menu values. You can navigate up and down the menu, switch channels and adjust the volume by turning the wheel button.

EXIT

Exit the on-screen menu

e DMA

Use this when connecting a SAMSUNG DMA (Digital Media Adapter) device through an HDMI interface and switching to DMA mode. (The DMA button is optional.) For more information on the operating procedures, refer to the user manual of the DMA. This button is available when “Anynet+(HDMI-CEC)” is “On” (see page 52)

INFO.L

Not Available

SUBT.

Digital subtitle display

h CONTENT

This function enables you to view “Content Library”. (see page 48)

RESET

When your remote does not work, change the batteries and press the RESET button for 2-3 seconds before use.

Teletext Functions

:: Exit from the teletext display

0: Teletext mode selection (LIST /

FLOF)

8: Teletext store

4: Teletext size selection

5: Teletext reveal

Fastext topic selection

/: Alternately select Teletext,

Double, or Mix.

1: Teletext sub page

2: Teletext next page

3: Teletext previous page

6: Teletext index

)

9: Teletext hold

7: Teletext cancel

SET RESET

VCR DVD STB

BN68-01737M-ENG.indb 6 2008-08-27 ¿ÀÈÄ 2:52:56

English - 7

Installing Batteries in the Remote Control

Normal Remote Control

1. Lift the cover at the back of the remote control upward as shown in the gure.

2. Install two AAA size batteries.

Make sure to match the ‘+’ and ‘–’ ends of the batteries with the diagram inside the compartment.

3. Replace the cover. Remove the batteries and store them in a cool, dry place if you won’t be

using the remote control for a long time. Using the remote control with the ON / OFF @ light button set to on will

reduce the battery usage time.

Mini Remote Control

1. Turn the battery cover counterclockwise to unlock it and then separate the

battery cover.

2. Insert the corresponding 3V Lithium battery.

3. Place the battery cover into the remote control aligning it with the grooves and

then turn the battery cover clockwise to lock the cover.

If the remote control doesn’t work, check the following:

1. Is the TV power on?

2. Are the plus and minus ends of the batteries reversed?

3. Are the batteries drained?

4. Is there a power outage or is the power cord unplugged?

5. Is there a special uorescent light or neon sign nearby?

Mini Remote Control

The Mini Remote Control is a simplied remote control that consists of the power,

channel and volume buttons only.

Television Standby button

This button only works when you press it for longer than 1.5 seconds.

< : Next channel

> : Previous channel

+ : Volume increase

– : Volume decrease

IrDA transmitter

Use the Mini Remote Control so that this part faces the TV.

BN68-01737M-ENG.indb 7 2008-08-27 ¿ÀÈÄ 2:52:56

English - 8

Switching On and Off

The mains lead is attached to the rear of your set.

1. Plug the mains lead into an appropriate socket. The standby indicator lights up on your set.

2. Press the P button on your set. You also can press the POWERP button or the TV button on the remote control to turn the TV on.

The programme that you were watching last is reselected automatically.

3. Press the numeric button (0~9) or channel up / down (< / >) button on the remote control or >C/P.P< button on your

set.

When you switch the set on for the very rst time, you will be asked to choose language in which the menus are to be

displayed.

4. To switch your set off, press the POWERP button again.

Placing Your Television in Standby Mode

Your set can be placed in standby mode in order to reduce the power consumption. The standby mode can be useful when you wish to interrupt viewing temporarily (during a meal, for example).

1. Press the POWERP button on the remote control. The screen is turned off and a red standby indicator appears on your set.

2. To switch your set back on, simply press the POWERP, numeric buttons (0~9), TV button or channel up / down (< / >)

button again.

Do not leave your set in standby mode for long periods of time (when you are away on holiday, for example). It is best to unplug the set from the mains and aerial.

Viewing the Menus

1. With the power on, press the MENU button. The main menu appears on the

screen. The menu’s left side has icons: Picture, Sound, Channel, Setup, Input, Application.

2. Press the ▲ or ▼ button to select one of the icons. Then press the ENTERE

button to access the icon’s sub-menu.

3. Press the EXIT button to exit. The on-screen menus disappear from the screen after about one minute.

N N

Mode

Standard

Backlight : 7 Contrast : 95 Brightness : 45 Sharpness : 50 Colour : 50

Tint (G / R) : G50 / R50

Detailed Settings


VCR DVD STB

BN68-01737M-ENG.indb 8 2008-08-27 ¿ÀÈÄ 2:52:56

English - 9

Using the Wheel button

To increase the channel number, turn the wheel clockwise when the Channel Display is displayed. To decrease the channel number, turn the wheel counterclockwise.

To turn the volume up, turn the wheel clockwise when the Volume Control window is displayed. To turn the volume down, turn the wheel counterclockwise.

To move to a lower menu, turn the wheel clockwise when the menu Display is displayed. To move to a higher menu, turn the wheel counterclockwise.



Using the TOOLS Button

You can use the TOOLS button to select your frequently used functions quickly and easily. The “Tools” menu changes depending on which external input mode you are viewing.

1. Press the TOOLS button. The “Tools” menu will appear.

2. Press the ▲ or ▼ button to select a menu.

3. Press the ▲ / ▼ / ◄ / ► / ENTERE buttons to display, change, or use the

selected items. For a more detailed description of each function, refer to the corresponding page.

Anynet+ (HDMI-CEC): see page 52 Picture Size: see page 16 Picture Mode: see page 14 Sound Mode: see page 19 Sleep Timer: see page 25 SRS TS XT: see page 19 Energy Saving: see page 23 Dual l ll: see page 21 PIP: see page 17 Auto Adjustment: see page 19

•

VCR DVD STB

Tools

Anynet+ (HDMI-CEC) Picture Size : Auto Wide Picture Mode : Standard Sound Mode : Custom Sleep Timer : Off SRS TS XT : Off Energy Saving : Off Dual l ll : Mono

Move E Enter e Exit

BN68-01737M-ENG.indb 9 2008-08-27 ¿ÀÈÄ 2:52:56

English - 10

Plug & Play Feature

When the TV is initially powered on, basic settings proceed automatically and subsequently.

1. Press the POWER button on the remote control. The message “The Menu

Language, Store Demo, Channels, and Time will be set.” is displayed.

2. Press the ENTER

button, then “Select the OSD Language.” menu is

automatically displayed. Press the ENTER

button.

3. Select the appropriate language by pressing the ▲ or ▼ button. Press the

ENTER

button to conrm your choice.

4. Press the ◄ or ► button to select “Store Demo” or “Home Use”, then the ENTER

button.

We recommend setting the TV to “Home Use” mode for the best picture in your home environment. “Store Demo” mode is only intended for use in retail environments. If the unit is accidentally set to “Store Demo” mode and you want to return to “Home Use” (Standard): Press the Volume

button on the TV. When the volume OSD is displayed, press and hold the MENU button on the TV for 5 seconds.

5. Press the ENTERE button. Select the appropriate country by pressing the ▲ or ▼ button. Press the ENTERE button to

conrm your choice.

6. Press the ▲ or ▼ button to select the channel source to memorize. Press the ENTER

button to select “Start”.

Digital & Analogue: Digital and Analogue channels. Digital: Digital channels. Analogue: Analogue channels. The channel search will start and end automatically. Press the ENTER

button at any time to interrupt the memorization process.

After all the available channels are stored, the message “Set the Clock Mode.” is displayed.

7. Press the ENTERE button. Press the ▲ or ▼ button to select “Auto”, then Press the ENTERE button.

If you select “Manual”, “Set current date and time” is displayed. (See page 25) If you have received a digital signal, the time will be set automatically. If not, see page 25 to set the clock.

8. The message “Enjoy your viewing” is displayed. When you have nished, press the ENTER

button.

If you want to reset this feature...

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select “Setup”, then press the ENTER

button.

2. Press the ENTER

button again to select “Plug & Play”.

3. Enter your 4 digit PIN number. The default PIN number of a new TV set is ‘0-00-0’.

If you want to change PIN number, refer to 21 page. The “Plug & Play” feature is only available in the TV mode.

N N N

N N

Channel Control

Storing Channels and channel

Country

Analogue Channel: You can change the country for analogue channels. Digital Channel: You can change the country for digital channels. The PIN number input screen appears. Enter your 4 digit PIN number.

❑



Setup

Plug & Play  ►

Language : English Time

Network Selection : Cable Wireless Network Setup

Cable Network Setup Child Lock : On Change PIN

Channel

Country

 ►

Auto Store Manual Store Full Guide Mini Guide Default Guide : Mini Guide Channel List Channel Mode : Added Ch.

Plug & Play

The Menu Language, Store Demo, Channels, and Time will be set.

E Enter

BN68-01737M-ENG.indb 10 2008-08-27 ¿ÀÈÄ 2:52:57

English - 11

Auto Store

You can scan for the frequency ranges available to you (and availability depends on your country). Automatically allocated programme numbers may not correspond to actual or desired programme numbers.

Digital & Analogue: Digital and Analogue channels. Digital: Digital channels. Analogue: Analogue channels.

Scans for all channels with active broadcast stations and stores them in the TV’s memory.

If you want to stop Auto Store, press the ENTER

button.

The “Stop Auto Store?” message will be displayed.

Select “Yes” by pressing the ◄ or ► button, then press the ENTER

button. If a channel is locked using the “Child Lock” function, the PIN input window appears.

Manual Store

Scans for a channel manually and stores it in the TV’s memory. If a channel is locked using the “Child Lock” function, the PIN input window appears.

Digital Channel Manual store for digital channels.

Channel: Set the Channel number using the ▲, ▼ or number (0~9) buttons. Frequency: Set the frequency using the number buttons.

Bandwidth: Set the bandwidth using the ▲, ▼ or number (0~9) buttons.

When it has nished, channels are updated in the channel list.

Analogue Channel Manual store for analogue channel.

Programme (Programme number to be assigned to a channel): Sets the programme number using the ▲, ▼ or number

(0~9) buttons. Colour System → Auto / PAL / SECAM / NTSC4.43: Sets the colour system value using the ▲ or ▼ button.

Sound System → BG / DK / I / L: Sets the sound system value using the ▲ or ▼ button. Channel (When you know the number of the channel to be stored): Press the ▲ or ▼ button to select “C” (Air channel) or

“S” (Cable channel). Press the ► button, then press the ▲, ▼ or number (0~9) buttons to select the required number.

You can also select the channel number directly by pressing the number (0~9) buttons. If there is abnormal sound or no sound, reselect the sound standard required.

Search (When you do not know the channel numbers): Press the ▲ or ▼ button to start the search. The tuner scans the frequency range until the rst channel or the channel that you selected is received on the screen.

Store (When you store the channel and associated programme number): Set to “OK” by pressing the ENTER

button.

Channel mode

P (Programme mode): When completing tuning, the broadcasting stations in your area have been assigned to position numbers from P00 to P99. You can select a channel by entering the position number in this mode. C (Air channel mode): You can select a channel by entering the assigned number to each air broadcasting station in this mode. S (Cable channel mode): You can select a channel by entering the assigned number for each cable channel in this mode.

Full Guide / Mini Guide

The EPG (Electronic Programme Guide) information is provided by the broadcasters. Programme entries may appear blank or out of date as a result of the information broadcast on a given channel. The display will dynamically update as soon as new information becomes available.

For the detailed procedures on using “Full Guide” and “Mini Guide”, refer to the descriptions on page 12. You can also display the guide menu simply by pressing the GUIDE button.

(To congure the “Default Guide”, refer to the descriptions.)

Full Guide:

Displays the programme information as time ordered One hour segments. Two hours of programme information

is displayed which may be scrolled forwards or backwards in time. Mini Guide:

The information of each programme is displayed by each line on the current channel Mini Guide screen from the

current programme onwards according to the programme starting time order.

❑

•

N N N

❑

N N



•



•

N N

•

❑

N O



VCR DVD STB

Channel

Fine Tune

Signal Information

LNA : On

►

BN68-01737M-ENG.indb 11 2008-08-27 ¿ÀÈÄ 2:52:57

English - 12

Default Guide

Mini Guide / Full Guide:

You can decide whether to display either the “Mini Guide” or the “Full Guide” when the GUIDE

button on the remote control is pressed.

Channel List

For the detailed procedures on using the “Channel List”, refer to the descriptions on pages 13~14.

Channel Mode

When press the P >/< button, Channels will be switched within the selected channel list. Added Ch: Channels will be switched within the memorized channel list. Favourite Ch.: Channels will be switched within the favourite channel list.

Fine Tune

If the reception is clear, you do not have to ne tune the channel, as this is done automatically during the search and store operation. If the signal is weak or distorted, you may have to ne tune the channel manually.

Fine tuned channels that have been saved are marked with an asterisk “*” on the right-hand side of the channel number in the channel banner.

To reset the ne-tuning, select “Reset” by pressing the ▲ or ▼ button and then press the ENTER

button.

Only Analogue TV channels can be ne tuned.

Signal Information

You can get information about the signal status.

If the signal status is poor, the “Weak or No Signal” message is displayed. While viewing a Digital channel, this function can be selected.

LNA→On/Off

If the TV is operating in a weak-signal area, the LNA (Low Noise Amplier) function can improve the reception (a low-noise preamplier boosts the incoming signal).

While viewing an Analogue channel, this function can be selected.

Using the Full / Mini Guide

To... Then...

Watch a programme in the EPG list Select a programme by pressing the ▲, ▼, ◄, ► button. Exit the guide Press the blue button If the next programme is selected, it is scheduled with the clock icon displayed. If the ENTER

button is pressed again, press the ◄,

► button to select Cancel Schedules, the scheduling is canceled with the clock icon gone.

View programme information Select a programme of your choice by pressing the ▲, ▼, ◄, ► button.

Then press the INFO button when the programme of your choice is highlighted. The programme title is on the upper part of the screen center.

Please click on INFO button for the detailed information. Channel Number, Running Time, Status Bar, Parental Level, Video Quality Information (HD / SD), Sound Modes, Subtitle or Teletext, languages of Subtitle or Teletext and brief summary of the highlighted programme are included on the detailed information. ”...” will be appeared if the summary is long.

Toggle between the “Mini Guide” or “Full Guide” Press the red button repeatedly. In Full Guide

Scrolls backwards quickly (24 hours). Scrolls forwards quickly (24 hours).

Press the green button repeatedly. Press the yellow button repeatedly.

In Mini Guide Display next page quickly. Display previous page quickly.

Press the green button. Press the yellow button.

❑



❑



❑

N N

❑

N N

❑

Full Guide

DTV Cable 900 f tn 2:10 Tue 1 Jun Freshmen On Campus 2:00 - 2:30

No Detailed Information

Today 2:00 - 3:00 3:00 - 4:00

Mint Extra Loaded Fresh 40 with Dynamite MC The Distillery Smash Hits! Sunday

900 f tn 901 ITV Play 902 Kerrang! 903 Kiss 903 oneword 903 Smash Hits!

▼

Street Hypn..

Kisstory No Information

No Information

Freshmen O..

Watch

Information



Mini Guide +24 Hours Exit

Mini Guide DTV Cable 900 f tn

Street Hypnosis Booze Britain

2:00 2:30 5:00

▼

Freshmen On Campus

Watch

Information



Full Guide Next Page Exit

BN68-01737M-ENG.indb 12 2008-08-27 ¿ÀÈÄ 2:52:57

English - 13

Managing Channels

Using this menu, you can Add / Delete or set Favourite channels and use the programme guide for digital broadcasts.

Select a channel in the “All Channels”, “Added Channels” or “Favourite” screen

by pressing the ▲ / ▼ buttons, and pressing the ENTERE button. Then you

can watch the selected channel. All Channels:

Shows all currently available channels.

Added Channels:

Shows all added channels.

Favourites:

Shows all favourite channels.

Programmed:

Shows all current reserved programmes.

Using the Colour buttons with the Channel List

Red (Channel Type): Toggle between your “TV”, “Radio”, “Data / Other” and

“All”.

Green (Zoom): Enlarges or shrinks a channel number. Yellow (Select): Selects multiple channel lists. TOOLS (Option): Displays the “Delete” (or “Add”), “Add to Favourite” (or

“Delete from Favourite”), “Lock” (or “Unlock”), “Timer Viewing”, “Edit Channel Name”, “Sort”, “Edit Channel Number”, “Select All”, “Deselect All” or “Auto Store” menu. (The Options menus may differ depending on the situation.)

Channel Status Display Icons

An analogue channel.

A channel selected by pressing the yellow button.

♥

A channel set as a Favourite.

(

A programme currently being broadcast.

A locked channel.

)

A reserved programme

Channel List Option Menu (in All Channels / Added Channels / Favourites)

Press the TOOLS button to use the option menu. Option menu items may differ depending on the channel status.

Add / Delete You can delete or add a channel to display the channels you want.

All deleted channels will be shown on “All Channels” menu. A gray-coloured channel indicates the channel has been deleted. The “Add” menu only appears for deleted channels. You can also delete a channel to the “Added Channels” or “Favourite” menu

in the same manner.

Add to Favourite / Delete from Favourite You can set channels you watch frequently as favourites.

The “♥” symbol will be displayed and the channel will be set as a favourite.

All favourite channels will be shown on “Favourite” menu.

Lock / Unlock You can lock a channel so that the channel cannot be selected and viewed. This function is available only when the “Child

Lock” is set to “on”. (see page 21)

The PIN number input screen appears. Enter your 4 digit PIN number. The default PIN number of a new TV set is “0-0-0-0”. You can change the PIN, by selecting “Change PIN” from the menu. The “\” symbol will be displayed and the channel will be locked.

Timer Viewing If you reserve a programme you want to watch, the channel is automatically switched to the reserved channel in the Channel

List; even when you are watching another channel. To reserve a programme , set the current time rst. (See page 25.)

Only memorized channels can be reserved. You can set the channel, day, month, year, hour and minute directly by pressing the number buttons on the remote

control. Reserving a programme will be shown on “Programmed” menu.

Digital Programme Guide and Viewing Reservation

When a digital channel is selected, and you press the ► button, the Programme Guide for the channel appears. You can

reserve a programme according to the procedures described above.



N N



N N N N



N N



N N N



N N

Channel

Mini Guide Default Guide : Mini Guide

Channel List

Channel Mode : Added Ch. Fine Tune

Signal Information

LNA : On

824 UKTV Gold 825 UKTV style

A 1 C --

A 2 C

A 3 ♥ C

A 4 C

A 5 C

A 6 C

A 7 C

A 8 C

Added Channels

All



Channel Type Zoom Select

Option

824 UKTV Gold 825 UKTV style

A 1 C --

A 2 C

A 3 C

A 4 C

A 5 C

A 6 C

A 7 C

A 8 C

All Channels

All



Channel Type Zoom Select

Option

Delete Add to Favourite Lock Timer Viewing Edit Channel Name Sort

▼

BN68-01737M-ENG.indb 13 2008-08-27 ¿ÀÈÄ 2:52:57

English - 14

Edit Channel Name (only analogue channel) Channels can labeled so that their call letters appear whenever the channel is selected.

The names of digital broadcasting channels are automatically assigned and cannot be labeled.

Edit Channel Number (only digital channel) You can also edit the channel number by pressing the number buttons on the remote control.

Sort (only analogue channel) This operation allows you to change the programme numbers of the stored channels. This operation may be necessary after

using the auto store.

Select All / Deselect All

Select All: You can select all the channels in the channel list. Deselect All: You can deselect all the selected channels by pressing the yellow button.

You can perform the add / delete, add to Favourites / delete from Favourites, or lock / unlock function for multiple channels at the same time. Select the required channels and press the yellow button to set all the selected channels at the same time.

The c mark appears to the left of the selected channels. You can only select “Deselect All” when there is a selected channel.

Auto Store

For further details on setting up options, refer to page 11. If a channel is locked using the “Child Lock” function, the PIN input window appears.

Channel List Option Menu (in Programmed )

You can view, modify or delete a reservation.

Press the TOOLS button to use the option menu.

Change Info: Select to change a viewing reservation. Cancel Schedules: Select to cancel a viewing reservation. Information: Select to view a viewing reservation. (You can also change the

reservation information.) Select All: Select all reserved programmes.



•

N N



N N



Picture Control

Changing and Resetting the Picture Settings

Mode

You can select the type of picture which best corresponds to your viewing requirements.

Dynamic: Selects the picture for high-definition in a bright room. Standard: Selects the picture for the optimum display in a normal

environment. Movie: Selects the picture for viewing movies in a dark room.

Press the TOOLS button to display “Tools” menu. You can also set the

picture mode by selecting “Tools → Picture Mode”.

Backlight / Contrast / Brightness / Sharpness / Colour / Tint(G/ R)

Your television has several setting options that allow you to control the picture quality.

Backlight: Adjusts the brightness of LCD back light. Contrast: Adjusts the contrast level of the picture. Brightness: Adjusts the brightness level of the picture.

❑



❑



Programmed

1 / 1 / 2008

13:59 5 TV1 Quincy, M.E

18:59 2 TV3 The Equalizer 20:59 2 TV3 McMillan & Wife 21:59 2 TV3 M.Spillane’s mike Hammer

Change Info

Cancel Schedules Information Select All

All



Channel Type Zoom Select

Option Information

Mode : Standard

►

Backlight : 5 Contrast : 95 Brightness : 45 Sharpness : 50 Colour : 50

Tint(G/R) : G50 / R50

Detailed Settings


Colour : 50

Tint (G / R) : G50 / R50

DetailedSettings  ►

Picture Options Picture Reset


BN68-01737M-ENG.indb 14 2008-08-27 ¿ÀÈÄ 2:52:58

English - 15

Sharpness: Adjusts the edge definition of the picture. Colour: Adjusts colour saturation of the picture. Tint(G/R): Adjusts the colour tint of the picture.

Select a picture mode to be adjusted rst. The adjusted values are saved for each picture mode.

When you make changes to “Backlight”, “Contrast”, “Brightness”, “Sharpness”, “Colour” or “Tint(G/R)”, the OSD will be adjusted accordingly.

In Analogue TV, Ext., AV, S-Video modes of the PAL system, you cannot use the “Tint” Function. In PC mode, you can only make changes to “Backlight”, “Contrast” and “Brightness”. Settings can be adjusted and stored for each external device you have connected to an input of the TV.

The energy consumed during use can be signicantly reduced if the level of brightness of the picture is reduced, and then this

will reduce the overall running cost.

Detailed Settings

Samsung’s new TVs allow you to make even more precise picture settings than previous models. See below to adjust detailed picture settings.

“Detailed Settings” is available in “Standard” or “Movie” mode. In PC mode, you can only make changes to “Dynamic Contrast”, “Gamma” and “White Balance” from among the “Detailed

Settings” items.

Black adjust → Off / Low / Medium / High

You can select the black level on the screen to adjust the screen depth.

Dynamic Contrast → Off / Low / Medium / High

You can adjust the screen contrast so that the optimal contrast is provided.

Gamma You can adjust the Primary Colour (Red, Green, Blue) Intensity.

Colour Space Colour Space is a colour matrix composed of red, green and blue colours. Select your favourite Colour Space to experience

the most natural colour.

Auto: Auto Colour Space automatically adjusts to the most natural colour tone based on programme sources. Native: Native Colour Space offers deep and rich colour tone. Custom: Adjusts the colour range to suit your preference.

Customizing the Colour Space

Colour → Red / Green / Blue / Yellow / Cyan / Magenta

Adjusts the Colour range to suit your preference. “Colour” is available when “Colour Space” is set to “Custom”. Red / Green / Blue: In “Colour”, you can adjust the RGB values for the selected colour. Reset: Resets the colour space to the default values.

White Balance You can adjust the colour temperature for more natural picture colours.

R-Offset / G-Offset / B-Offset / R-Gain / G-Gain / B-Gain: Changing the adjustment value will refresh the adjusted screen. Reset: The previously adjusted white balance will be reset to the factory defaults.

Flesh Tone

You can emphasize the pink ‘esh tone’ in the picture.

Changing the adjustment value will refresh the adjusted screen.

Edge Enhancement → Off / On

You can emphasize object boundaries in the picture.

xvYCC → Off / On

Setting the xvYCC mode to on increases detail and colour space when watching movies from an external device (i.e. DVD player).

“xvYCC” is available when the picture mode is set to “Movie”, and the external input is set to “HDMI” or “Component” mode.

If “xvYCC” function is active, PIP cannot be selected.



N N

N N N N

❑

N N



•



•



BN68-01737M-ENG.indb 15 2008-08-27 ¿ÀÈÄ 2:52:58

English - 16

Picture Options

In PC mode, you can only make changes to the “Colour Tone” and “Size” from among the items in “Picture Options”.

Colour Tone → Cool2 / Cool1 / Normal / Warm1 / Warm2 You can select the most comfortable colour tone to your eyes.

The adjusted values are stored according to the selected “Picture” mode. “Warm1” or “Warm2” is only activated when the picture mode is “Movie”.

Size You can select the picture size which best corresponds to your viewing requirements.

Press the TOOLS button to display “Tools” menu. You can also set the size by selecting “Tools → Picture Size”.

Auto Wide: Automatically adjusts the picture size to the “16:9” aspect ratio. 16:9: Adjusts the picture size to 16:9 appropriate for DVDs or wide broadcasting. Wide Zoom: Magnify the size of the picture more than 4:3.

Zoom: Magnies the 16:9 wide picture (in the vertical direction) to t the screen size.

4:3: This is the default setting for a video movie or normal broadcasting. Just Scan: Use the function to see the full image without any cutoff when HDMI (720p / 1080i / 1080p) or Component (1080i

/ 1080p) signals are input.

Depending on the input source, the picture size options may vary. The items available may differ depending on the selected mode. In PC Mode, only “16:9” and “4:3” mode can be adjusted. Settings can be adjusted and stored for each external device you have connected to an input of the TV. Temporary image retention may occur when viewing a static image on the set for more than two hours.

“Wide Zoom”: Press the ► button to Select “Position”, then press the ENTER

button. Press the ▲ or ▼ button to

move the screen up / down. Then press the ENTER

button.

“Zoom”: Press the ► button to Select “Position”, then press the ENTER

button. Press the ▲ or ▼ button to move

the picture up and down. Then press the ENTER

button. Press the ► button to Select “Size”, then press the

ENTER

button. Press the ▲ or ▼ button to magnify or reduce the picture size in the vertical direction. Then press

the ENTER

button.

After selecting “Just Scan” in HDMI (1080i / 1080p) or Component (1080i / 1080p) mode: Select “Position” by pressing

the ◄ or ►button. Use the ▲, ▼, ◄ or ► button to move the picture. Reset: Press the ◄ or ► button to select “Reset”, then press the ENTER

button. You can initialize the setting.

If you use the “Just Scan” function with HDMI 720p input, 1 line will be cut at the top, bottom, left and right as in the overscan function.

When Double ( , ) mode has been set in PIP, the Picture Size cannot be set.

Screen Mode → 16:9 / Wide Zoom / Zoom / 4:3 When setting the picture size to “Auto Wide” in a 16:9 wide TV, you can determine the picture size you want to see the 4:3

WSS (Wide Screen Service) image or nothing. Each individual European country requires different picture size so this function is intended for users to select it.

16:9: Sets the picture to 16:9 wide mode. Wide Zoom: Magnify the size of the picture more than 4:3. Zoom: Magnify the size of the picture vertically on screen. 4:3: Sets the picture to 4:3 normal mode.

This function is available in “Auto Wide” mode. This function is not available in “PC”, “Component” or “HDMI” mode.

Digital NR → Off / Low / Medium / High / Auto If the broadcast signal received by your TV is weak, you can activate the Digital Noise Reduction feature to help reduce any

static and ghosting that may appear on the screen.

When the signal is weak, select one of the other options until the best picture is displayed.

DNIe → Off / Demo / On This TV includes the DNIe function so as to provide a high visual quality. If you set DNIe to on, you can view the screen with

the DNIe feature activated. If you set the DNIe to Demo, you can view the applied DNIe and normal pictures on the screen, for demonstration purposes. Using this function, you can view the difference in the visual quality.

DNIe™ (Digital Natural Image engine)

DNIe™

This feature brings you more detailed image with 3D noise reduction, detail enhancement, contrast enhancement and white enhancement. New image compensation Algorithm gives brighter, clearer, more detailed image to you. DNIe™

technology will t every signal into your eyes.

This function is not available in “Movie” and “Standard” mode.

❑



N N



•

N N N N N N



•

N N



BN68-01737M-ENG.indb 16 2008-08-27 ¿ÀÈÄ 2:52:58

English - 17

HDMI Black Level → Normal / Low You can directly select the black level on the screen to adjust the screen depth.

This function is active only when the external input connects to HDMI (RGB signals).

100Hz Motion Plus → Off / Low / Medium / High / Demo Removes drag from fast scenes with a lot of movement to provide a clearer picture.

This function is not available in PC mode. If you enable “100 Hz Motion Plus”, noise may appear on the screen. If this occurs, set “100Hz Motion Plus” to “off” or

select one of the other options.

Blue Only Mode → Off / On This function is for AV device measurement experts. This function displays the blue signal only by removing the red and

green signals from the video signal so as to provide a Blue Filter effect that is used to adjust the Colour and Tint of video equipment such as DVD players, Home Theaters, etc. Using this function, you can adjust the Colour and Tint to preferred values appropriate to the signal level of each video device using the Red / Green / Blue / Cyan / Magenta / Yellow Colour Bar Patterns, without using an additional Blue Filter.

“Blue Only Mode” is available when the picture mode is set to “Movie” or “Standard”.

Smart LED → Off / On / Demo

Controls LED backlight to maximize picture clarity. If you set the “Smart LED” to “Demo”, you can view the applied “Smart LED” function and normal pictures on the screen.

PictureReset→ResetPictureMode/Cancel

Resets all picture settings to the default values.

Select a picture mode to be reset. The reset is performed for each picture mode.



N N



❑

Viewing Picture-in-Picture

You can display a sub picture within the main picture of set programme or video input. In this way, you can watch the picture of set programme or video input from any connected equipment while watching the main picture.

You may notice that the picture in the PIP window becomes slightly unnatural when you use the main screen to view a game or karaoke.

Press the TOOLS button to display “Tools” menu. You can also congure PIP

related settings by selecting “Tools → PIP”.

PIP→On/Off

You can activate or deactivate the PIP function.

Main picture Sub picture

Component HDMI 1, HDMI / DVI 2, HDMI 3, HDMI 4 PC

TV, Ext.1, Ext.2, AV

Source You can select a source of the sub-picture.

Size → / / You can select a size of the sub-picture.

If main picture is in “HDMI” mode, “Size” is available.

Position → / / / You can select a position of the sub-picture.

In Double ( , ) mode, “Position” cannot be selected.

Channel You can select a channel of the sub-picture only when the “Source” is set to “TV”.

❑



Setup

Entertainment : Off Energy Saving : Off

PIP  ►

Software Upgrade Common Interface

PIP

PIP : On Source : TV Size : Position : Channel : ATV 11

Move E Enter R Return

BN68-01737M-ENG.indb 17 2008-08-27 ¿ÀÈÄ 2:52:58

English - 18

PC Display

Setting Up Your PC Software (Based on Windows XP)

The Windows display-settings for a typical computer are shown below. The actual screens on your PC will probably be different, depending upon your particular version of Windows and your particular video card. However, even if your actual screens look different, the same basic set-up information will apply in almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.)

1. First, click on ‘Control Panel’ on the Windows start menu.

2. When the control panel window appears, click on ‘Appearance and Themes’

and a display dialog-box will appear.

3. When the control panel window appears, click on ‘Display’ and a display dialogbox will appear.

4. Navigate to the ‘Settings’ tab on the display dialog-box. The correct size setting (resolution)

Optimum: 1920 X 1080 pixels If a vertical-frequency option exists on your display settings dialog box, the

correct value is ‘60’ or ‘60 Hz’. Otherwise, just click ‘OK’ and exit the dialog box.

Display Modes

Both screen position and size will vary depending on the type of PC monitor and its resolution. The resolutions in the table are recommended.

D-Sub Input

Mode Resolution

Horizontal

Frequency (kHz)

Vertical Frequency

(Hz)

Pixel Clock

Frequency (MHz)

Sync Polarity

(H / V)

IBM

640 x 350 720 x 400

31.469

70.086

70.087

25.175

28.322

+ / -

- / +

VESA

640 x 480 640 x 480 640 x 480 800 x 600 800 x 600

800 x 600 1024 x 768 1024 x 768 1024 x 768

1280 x 1024 1280 x 1024

1360 x 768

1600 x 1200

31.469

37.861

37.500

37.879

48.077

46.875

48.363

56.476

60.023

63.981

79.976

47.712

75.000

59.940

72.809

75.000

60.317

72.188

75.000

60.004

70.069

75.029

60.020

75.025

60.015

60.000

25.175

31.500

40.000

50.000

49.500

65.000

75.000

78.750

108.000

135.000

85.500

162.000

- / -

- / + / + + / + + / +

- / -

- / + / + + / + + / + + / + + / +

CVT 1920 x 1080RB 66.587 59.934 138.500 + / -

HDMI / DVI Input

Mode Resolution

Horizontal

Frequency (kHz)

Vertical Frequency

(Hz)

Pixel Clock

Frequency (MHz)

Sync Polarity

(H / V)

VESA

640 x 480 800 x 600

1024 x 768

1280 x 1024

1360 x 768

1600 x 1200

31.469

37.879

48.363

63.981

47.712

75.000

59.940

60.317

60.004

60.020

60.015

60.000

25.175

40.000

65.000

108.000

85.500

162.000

- / + / +

- / + / + + / + + / +

CEA 1920 x 1080p 67.500 60.000 148.500 + / +

When using an HDMI / DVI cable connection, you must use the HDMI IN 2 jack. The interlace mode is not supported. The set might operate abnormally if a non-standard video format is selected. Separate and Composite modes are supported. SOG is not supported. Too long or low quality VGA cable can cause picture noise at high resolution modes (1920x1080 or 1600x1200).



N N N N N

BN68-01737M-ENG.indb 18 2008-08-27 ¿ÀÈÄ 2:52:58

+ 44 hidden pages
