Samsung GSM40MLA, GSM32MLA, GSM26MLA, LN40T71B, LN32T71B Service Manual

TFT-LCD-TV

Chassis GSM26MLA

GSM32MLA
GSM40MLA

Model LN26T71B

LN32T71B
LN40T71B

Manual

SERVICE

TFT-LCD TV Feature

- Luxurious Slim Design

- Supreme Picture Quality

- Supreme Sound Quality

- Supreme Convenience Quality

- Convenience for Users

ii

Copyright

2006 by Samsung Electronics Co., Ltd.
All rights reserved.
This manual may not, in whole or in part, be copied,

photocopied, reproduced, translated, or converted to any
electronic or machine readable form without prior
written permission of Samsung Electronics Co., Ltd.

LN26T71B / LN32T71B / LN40T71B Service Manual
First edition June 2006.
Printed in Korea.

Trademarks

Samsung is the registered trademark of Samsung
Electronics Co., Ltd.
LN26T71B / LN32T71B / LN40T71B and Macmaster
Cable Adapter are trademarks of Samsung Electronics
Co., Ltd.

Macintosh and Power Macintosh are trademarks of
Apple Computer, Inc.

All other trademarks are the property of their respective
owners.

Contents

Contents

1 Precautions

1-1

1-1-1 Warnings

1. For continued safety, do not attempt to modify the
circuit board.

2. Disconnect the AC power and DC Power Jack before
servicing.

1-1-2 Ser vicing the LCD Monitor

1. When servicing the LCD Monitor Disconnect the AC
line cord from the AC outlet.

2. It is essential that service technicians have an accurate
voltage meter available at all times. Check the
calibration of this meter periodically.

1-1-3 Fire and Shock Hazard

Before returning the monitor to the user, perform the
following safety checks:

1. Inspect each lead dress to make certain that the leads
are not pinched or that hardware is not lodged between
the chassis and other metal parts in the monitor.

2. Inspect all protective devices such as nonmetallic
control knobs, insulating materials, cabinet backs,
adjustment and compartment covers or shields,
isolation resistor-capacitor networks, mechanical
insulators, etc.

3. Leakage Current Hot Check (Figure 1-1):

WARNING: Do not use an isolation

transformer during
this test.

Use a leakage current tester or a metering system that
complies with American National Standards Institute
(ANSI C101.1, Leakage Current for Appliances), and
Underwriters Laboratories (UL Publication UL1410,

59.7).

Figure 1-1. Leakage Current Test Circuit

1-1-4 Product Safety Notices

Some electrical and mechanical parts have special
safety-related characteristics which are often not evident
from visual inspection. The protection they give may not
be obtained by replacing them with components rated for
higher voltage, wattage, etc. Parts that have special safety
characteristics are identified by on schematics and parts
lists. A substitute replacement that does not have the same
safety characteristics as the recommended replacement part
might create shock, fire and/or other hazards. Product
safety is under review continuously and new instructions
are issued whenever appropriate.

1 Precautions

Follow these safety, servicing and ESD precautions to prevent damage and to protect against potential hazards such as electrical shock.

1-1 Safety Precautions

1 Precautions

1-2

1-2-1 General Ser vicing

Precautions

1. Always unplug the units AC power cord from the AC
power source and disconnect the DC Power Jack
before attempting to:
(a) remove or reinstall any component or assembly, (b)
disconnect PCB plugs or connectors, (c) connect a test
component in parallel with an electrolytic capacitor.

2. Some components are raised above the printed circuit
board for safety. An insulation tube or tape is
sometimes used. The internal wiring is sometimes
clamped to prevent contact with thermally hot
components. Reinstall all such elements to their
original position.

3. After servicing, always check that the screws,
components and wiring have been correctly
reinstalled. Make sure that the area around the
serviced part has not been damaged.

1. Immediately before handling any semiconductor
components or assemblies, drain the electrostatic
charge from your body by touching a known earth
ground. Alternatively, wear a discharging wrist-strap
device. To avoid a shock hazard, be sure to remove the
wrist strap before applying power to the monitor.

2. After removing an ESD-equipped assembly, place it
on a conductive surface such as aluminum foil to
prevent accumulation of an electrostatic charge.

3. Do not use freon-propelled chemicals. These can
generate electrical charges sufficient to damage ESDs.

4. Use only a grounded-tip soldering iron to solder or
desolder ESDs.

5. Use only an anti-static solder removal device. Some
solder removal devices not classified as anti-static
can generate electrical charges sufficient to damage
ESDs.

4. Check the insulation between the blades of the AC
plug and accessible conductive parts (examples: metal
panels, input terminals and earphone jacks).

5. Insulation Checking Procedure: Disconnect the power
cord from the AC source and turn the power switch
ON. Connect an insulation resistance meter (500 V) to
the blades of the AC plug.

The insulation resistance between each blade of the
AC plug and accessible conductive parts (see above)
should be greater than 1 megohm.

6. Always connect a test instruments ground lead to the
instrument chassis ground before connecting the
positive lead; always remove the instruments ground
lead last.

6. Do not remove a replacement ESD from its protective
package until you are ready to install it. Most
replacement ESDs are packaged with leads that are
electrically shorted together by conductive foam,
aluminum foil or other conductive materials.

7. Immediately before removing the protective material
from the leads of a replacement ESD, touch the
protective material to the chassis or circuit assembly
into which the device will be installed.

Caution: Be sure no power is applied to

the chassis or circuit and
observe all other safety
precautions.

8. Minimize body motions when handling unpackaged
replacement ESDs. Motions such as brushing clothes
together, or lifting your foot from a carpeted floor can
generate enough static electricity to damage an ESD.

1-3 Static Electricity Precautions

Some semiconductor (solid state) devices can be easily damaged by static electricity. Such components are commonly called
Electrostatically Sensitive Devices (ESD). Examples of typical ESD are integrated circuits and some field-effect transistors.
The following techniques will reduce the incidence of component damage caused by static electricity.

1-2 Ser vicing Precautions

WARNING: An electrolytic capacitor installed with the wrong polarity might explode.
Caution: Before servicing units covered by this service manual, read and follow the Safety

Precautions section of this manual.

Note: If unforeseen circumstances create conflict between the following servicing precautions and any of the safety

precautions, always follow the safety precautions.

1. For safety reasons, more than two people are
required for carrying the product.

2. Keep the power cord away from any heat emitting
devices, as a melted covering may cause fire or
electric shock.

3. Do not place the product in areas with poor
ventilation such as a bookshelf or closet. The
increased internal temperature may cause fire.

4. Bend the external antenna cable when connecting
it to the product. This is a measure to protect it
from being exposed to moisture. Otherwise, it
may cause a fire or electric shock.

5. Make sure to turn the power off and unplug the
power cord from the outlet before repositioning
the product. Also check the antenna cable or the
external connectors if they are fully unplugged.
Damage to the cord may cause fire or electric
shock.

6. Keep the antenna far away from any high-voltage
cables and install it firmly. Contact with the high­voltage cable or the antenna falling over may
cause fire or electric shock.

7. When installing the product, leave enough space
(10cm) between the product and the wall for
ventilation purposes.
A rise in temperature within the product may
cause fire.

1 Precautions

1-3

1-4 Installation Precautions

Memo

1 Precautions

1-4

2 Product Specifications

2-1

2 Product specifications

2-1 Fashion Feature

Excellent Picture Quality

-DNIe technology provides life-like clear images.

Dynamic Contrast

-Automatically detects the input visual signal and adjusts to create optimum contrast.

Energy saving

-Adjusts the brightness of TV so as to reduce the power consumption.

SRS TruSurround XT

-SRS TruSurround XT provides a virtual Dolby surround system.

Convenience

-The TV utilizes the HDMI system to implement perfect digital sound and picture quality.

2-2 LN26T71B Specifications

±

° ° ° °

° ° ° °

2 Product Specifications

2-2

Item

Description

2 Product Specifications

2-3

2-3 LN32T71B Specifications

LCD Panel

TFT-LCD panel, RGB vertical stripe, normaly white, 32-Inch viewable, 0.511 (H) x 0.511 (V) mm pixel pitchh

Scanning Frequency Horizontal : 30 kHz ~ 61 kHz (Automatic) / Vertical : 60 Hz ~ 75 Hz (Automatic)
Display Colors 16,777,216 colours
Maximum Resolution Horizontal : 1360 Pixels

Vertical : 768 Pixels

Input Video Signal Analog 0.7 Vp-p ± 5% positive at 75

, internally terminated

Input Sync Signal Type : Seperate H/V

Level : TTL level

Maximum Pixel Clock rate

80 MHz

Active Display
Horizontal/Vertical 556.4 mm / 339.8 mm

AC power voltage & Frequency AC 110 ~ 240V, 60 / 50 Hz

Power Consumption 152 W
Dimensions(W x D x H)

Set 800 x 252 x 602.5 mm(31.5 x 9.92 x 23.72 inches)After installation Stand

800 x 79.6 x 564 mm(31.5 x 3.13 x 22.20 inches) Without stand

Weight
Set

(After installation Stand) 14.8 kg (32.62 lbs)

TV System Tunning Frequency Synthesize

System
Sound MONO, STEREO

Environmental Operating Temperature : 50°F ~ 104°F (10°C ~ 40°C)
Considerations Operating Humidity : 10 % ~ 80 %

Storage Temperature : -4°F ~ 113°F (-20°C ~ 45°C)
Storage Humidity : 5 % ~ 95 %

Antena Input 75

-MAX Internal speaker Out : Right : 10W / Left : 10W

-BASS Control Range : -8 dB ~ + 8dB

Sound Characteristic -TREBLE Control Range : -8 dB ~ +8 dB

-Headphone Out : 10 mW MAX

-Output Frequency : RF : 80 Hz ~ 15 kHz
A/V : 80 Hz ~ 20 kHz

Item

Description

2 Product Specifications

2-4

2-4 LN40T71B Specifications

LCD Panel

TFT-LCD panel, RGB vertical stripe, normaly white, 40-Inch viewable, 0.648(H) x 0.216(V) mm pixel pitch

Scanning Frequency Horizontal : 30 kHz ~ 61 kHz (Automatic) / Vertical : 60 Hz ~ 75 Hz (Automatic)
Display Colors 16,777,216 colours
Maximum Resolution Horizontal : 1360 Pixels

Vertical : 768 Pixels

Input Video Signal Analog 0.7 Vp-p ± 5% positive at 75

, internally terminated

Input Sync Signal Type : Seperate H/V

Level : TTL level

Maximum Pixel Clock rate

80 MHz

Active Display
Horizontal/Vertical 556.4 mm / 339.8 mm

AC power voltage & Frequency AC 110 ~ 240V, 60 / 50 Hz

Power Consumption 205 W
Dimensions(W x D x H)

Set

1004 x 330 x 749 mm(39.52 x 12.99 x 29.49 inches) After installation Stand
31004 x 115 x 680 mm(39.52 x 4.52 x 26.77 inches) Without stand

Weight
Set

(After installation Stand) 30.2 kg (66.58 lbs)

TV System Tunning Frequency Synthesize

System
Sound MONO, STEREO

Environmental Considerations Operating Temperature : 50°F ~ 104°F (10°C ~ 40°C)

Operating Humidity : 10 % ~ 80 %
Storage Temperature : -4°F ~ 113°F (-20°C ~ 45°C)
Storage Humidity : 5 % ~ 95 %

Antena Input 75

-MAX Internal speaker Out : Right : 10W / Left : 10W

-BASS Control Range : -8 dB ~ + 8dB

Sound Characteristic -TREBLE Control Range : -8 dB ~ +8 dB

-Headphone Out : 10 mW MAX

-Output Frequency : RF : 80 Hz ~ 15 kHz
A/V : 80 Hz ~ 20 kHz

Item

Description

2-5 Spec Comparison

2 Product Specifications

2-5

Design

Frequency

Horizontal
Vertical
Display Color

PC Resolution

Maximum mode

Input Signal

Sync Signal
Video Signal

Power
Consumption

Normal
Power Saving

LA26R51B / LA32R51B / LA40R51BModel

30 ~ 61 kHz

60 ~ 75 Hz

16,777,216 colors

WXGA, 1360 x 768 @ 60 Hz WXGA, 1360 x 768 @ 60 Hz

H/V Separate, TTL, P. or N.

0.7 Vp-p @ 75ohm

140W / 184W / 285W

< 1W

LN26T71B / LN32T71B / LN40T71B

30 ~ 61 kHz

60 ~ 75 Hz

16,777,216 colors

H/V Separate, TTL, P. or N.

0.7 Vp-p @ 75ohm

100W / 165W / 205W

< 1W

2 Product Specifications

2-6

2-6 Option Specification

Item Item Name

Remote Control &

Batteries (AAA x 2)

Power Cord

Cover-Bottom

Stand

Stand Screw (4 ea)

Owner's Instructions

Warranty Card /

Registration

Card /Safety Guide Manual

(Not available in all locations)

BN59-00556A

3903-000067

26", 32" : BN63-02415B

40" : BN63-02416B

26" : BN90-00877A
32" : BN90-00876A
40" : BN90-00875A

6002-001294

BN68-01001W

-

Code.No Remark

3 Alignments and Adjustments

3-1

3 Alignments and Adjustments

3-1 Ser vice Instr uction

1. Usually, a color TV-VCR needs only slight touch-up adjustment upon installation.
Check the basic characteristics such as height, horizontal and vertical sync.

2. Use the specified test equipment or its equivalent.

3. Correct impedance matching is essential.

4. Avoid overload. Excessive signal from a sweep generator might overload the front-end
of the TV. When inserting signal markers, do not allow the marker generator to distort
test result.

5. Connect the TV only to an AC power source with voltage and frequency as specified on
the backcover nameplate.

6. Do not attempt to connect or disconnect any wire while the TV is turned on. Make sure
that the power cord is disconnected before replacing any parts.

7. To protect aganist shock hazard, use an isolation transform.

3 Alignments and Adjustments

3-2

3-2 How to Access Service Mode

3-2-1 Entering Factory Mode

" "

- If you have Factory remote - control

- The buttons are active in the service mode.

1. Remote - Control Key : Power, Arrow Up, Arrow Down, Arrow Left
Arrow Right, Menu, Enter, Number Key(0~9)

2. Function - Control Key : Power, CH +, CH -, VOL +, VOL -,
Menu, TV/VIDEO(Enter)

3-2-2 Panel Check

Specially for LA26,32R7**, You have to check Panel Maker Because of different adjustments as follows.
First of all, Check the label rating!

1) Label Rating File

If Panel Mark is "A", Set the factory mode
indicating as follows.

Panel BOM(Bill of material) : BN07-00289A
Connector between Panel and Power Unit
: BN39-00603A (250mm)

* Option Byte

1. Gamma "AUO"

2. Panel Option "AUO_AMVA"

If Panel Mark is "S" or not printed.
Set the factory mode indicating as follows.

Panel BOM(Bill of material) : BN07-00247A
Connector between Panel and Power Unit
: BN39-00603M (300mm)

* Option Byte

1. Gamma "OFF"

2. Panel Option "AMLCD_INT"

Others are same shown below.

Panel check

3 Alignments and Adjustments

3-3

3-3 Factory Data

1. Calibration

2. Option Table XXXX XXXX

3. White Balance

4. SVP-PX

5. Option Block

6. STV8258/STA323W

7. YC Delay

8. Adjust

9. I2C Check

10. W/B MOVIE

11. Checksum

12. Reset

13. Spread Spectrum
T-BRDMNUS-1000 (Main Micom Ver)
T-BRDMNUSS-1000 (Sub Micom Ver)

Month / Day / Year / Hour / Min. / Sec.

1. Calibration

1) AV Calibration

2) DTV Calibration

3) PC Calibration

4) HDMI Calibration

2. Option Table XXXX XXXX
inch Option 32 Carrier Mute ON Shop Mode OFF

Gamma AUO Auto FM ON Debug OFF

Panel option AUO_AMVA High Dev. OFF Dynamic Contrast OFF

2HDMI OFF ACR OFF V-Chip OFF

Brt,Sensor OFF Dynamic CE ON

EnergySave ON Dynamic Dimming ON

LBE/FBE OFF Color System Manual
FRC(Micronas) OFF Auto Power ON
FRC(Samsung) OFF Magazine LNA OFF

LNA OFF V-Chip Area US

3 Alignments and Adjustments

3-4

3. White Balance

Sub Brightness 104 104 104
R-Offset 122 122 122
G-Offset 128 128 128
B-Offset 129 129 129
Sub Contrast 165 155 --> 140 155 --> 140
R-Gain 137 137 137
G-Gain 128 128 128
B-Gain 136 136 136

1. Calibration

2. Option Table

AV Calibration EXE
DTV Calibration EXE
PC Calibration EXE
HDMI Calibration EXE

Inch Option 26" 32" 40"
Gamma AUO AUO AMLCD
Panel Option AUO AUO_AMVA AMLCD_INT
2Hdmi OFF OFF OFF
Brt. Sensor OFF OFF OFF
EnergySave ON ON ON
LBE/FBE OFF OFF OFF
FRC(Micronas) OFF OFF OFF
FRC(Samsung) OFF OFF OFF
LNA OFF OFF OFF
Carrier Mute ON ON ON
Auto FM ON ON ON
High Deviation OFF OFF OFF
ACR OFF OFF OFF
Dynamic CE ON ON ON
Dynamic Dimming ON ON ON
Color System Manual Manual Manual
Auto Power ON ON ON
Magazine LNA OFF OFF OFF
V-Chip Area US US US
Shop Mode OFF OFF OFF
Debug OFF OFF OFF
Dynamic Contrast OFF OFF OFF
V-Chip OFF OFF OFF

3 Alignments and Adjustments

3-5

4. SVP-PX

ComB Filter Y-Filter 80H
Sharpness H2Gain 00H

H4Gain 0CH
V2Gain 00H
V4Gain 0CH
Sr2Gain 00H
Sr4Gain 08H
Sl2Gain 00H
Sl4Gian 08H
PeaKTh1 03H
PeaKTh2 33H
PeaKTh3 45H

NR Y_NR_OFF 80H

C_NR_OFF 80H
Y_NR_ON 80H
C_NR_ON 80H

RGB Calibration R-Offset 23H

G-Offset 23H
B-Offset 23H

R-Gain 9BH
G-Gain 9BH
B-Gain 9BH

ADC Calibration TCD3 Contrast 6AH

TCD3 Brightness 26H
TCD3 CR 80H
TCD3 CB 80H
TCD3 Delay 00H
Analog Y Offset 40H
Analog PB Offset 80H
Analog PR Offset 80H
Analog Y Gain D6H
Analog PB Gain FEH
Analog PR Gain FEH
Black Level 00H
Svp Brightness 00H

3 Alignments and Adjustments

3-6

low high delta

Calibration Target AV ADC 17H D5H 04H

COMP ADC 0FH EBH 02H
PC ADC 17H D5H 04H
ALL RGB 00H DDH 08H

Color Management Skin Direction Reddish

Skin Enhane 40H

5. Option block

EXE

6. STV8258/STA323W

Ch1 Volume 40H
Ch2 Volume 40H
Stereo Pilot H 23H
Stereo Pilot L 10H
Sap Pilot H 80H
Sap Pilot L 60H
SQTH 70H
CETH 10H
AV Delay 55H
Comp delay 32H
HDMI Delay 32H
PC Delay 32H
L1 Att/Rel Thres 7F

7. Y/C Delay

RF PAL-M 77H
RF PAL-N 64H
RF NTSC 63H
AV PAL-M 76H
AV PAL-N 76H
AV NTSC 54H
S-VIDEO PAL-M 77H
S-VIDEO PAL-N 77H
S-VIDEO NTSC BBH
Component 88H
PC 88H
HDMI 88H

3 Alignments and Adjustments

3-7

8. Adjust

Video Mute Time 10
Vol Curve Large
Melody Volume 4
Ana_Dimm_Max FEH

LNA PLUS RFDB-1 Level 2

RFDB-2 Level 5
RFDB-3 Level 9
RFDB-4 Level 24

Hotel Option Hotel Mode OFF

Power On Channel 1
Power On Volume 10
Max Volume 100
Local Key Lock OFF
Power On Source RF

9. I2C Check

EXE

10. W/B MOVIE

WB Movie OFF
Color Mode Movie
W1 R Gain 157
W1 B Gain 76
W1 R Offset 119
W1 B Offset 138
W2 R Gain 142
W2 B Gain 48
W2 R Offset 129
W2 B Offset 143
Movie Contrast 80
Movie Brightness 65
Movie Color 35
Movie Sharpness 35
Movie Color Tone Warm2

3 Alignments and Adjustments

3-8

11. Checksum

18EA

12. Reset

EXE

13. Spread Spectrum

Spectrum ON
Delta 3
Positive 8
Negative 2

3 Alignments and Adjustments

3-9

3-4 Ser vice Adjustment

3-4-1 White Balance - Calibration

If picture color is wrong, do calibration first.

Equipment : CA210, Patten : chess pattern
Execute calibration in Factory Mode
Source AV : PAL composite, Component : 1280*720/60Hz

PC : 1024*768/60Hz

3-4-2 White Balance - Adjustment

If picture color is wrong, check White Balance condition.

Equipment : CA210, Patten : Toshiba
Adjust W/B in Factory Mode

Sub brightness and R/G/B Offset controls low light region
Sub contrast and R/G/B Gain controls high light region
Source AV : PAL composite, Component : 1280*720/60Hz

HDMI[DVI] : 1280*720/60Hz

W/B Patten

[ Test Pattern : MSPG-945 Series Pattern #92 ]

*Color temperature
1500K +/-500, -6 ~-20 MPCD

*Color coordinate
H/L : 267/263 +/- 2 35.0 Ft +/- 2.0Ft
L/L : 270/260 +/- 3 1.5 Ft +/- 0.2Ft

( chess patten )

3 Alignments and Adjustments

3-10

3-4-3 Conditions for Measurement

1. On the basis of toshiba ABL pattern : High Light level (57 IRE)

- INPUT SIGNAL GENERATOR : MSPG-925LTH
* Mode NO 1 : 744X484@60 Hz

NO 2 : 744X484@60 Hz
NO 6 : 1280X720@60 Hz
NO 21 : 1024X768@60 Hz

* Pattern NO 36 : 16 Color Pattern

NO 16 : Toshiba ABL Pattern
NO 92 : W/B Pattern

2. Optical measuring device : CA210 (FL)
Please use the MSPG-925 LTH generator for model

LE26M51B/LE32M51B/LE40M51B/LE46M51B

.

3-4-4 Method of Adjustment

1. Adjust the white balance of AV, Component and DVI Modes.

(AV Component)

a) Set the input to the mode in which the adjustment will be made

(RF DTV PC DVI).

* Input signal - VIDEO Mode : Model #2 (744*484 Mode), Pattern #16

- DTV,DVI Mode : Model #6 (1280*720 Mode), Pattern #16

- HDMI Mode: Model #6(1280*720 Mode), Pattern #16

b) Enter factory color control, confirm the data.

c) Adjust the low light. (Refer to table 1, 2 in adjustment position by mode)

- Adjust sub - Brightness to set the 'Y' value.

- Adjust red offset ('x') and blue offset ('y') to the color coordinates.

* Do not adjust green offset data.

d) Adjust the high light. (Refer to table 1, 2 in adjustment position by mode)

- Adjust red gain ('x') and blue gain ('y') to the color coordinates.
* Do not adjust the green gain and sub-contrast (Y) data.

Picture 4-2 W/B Patten

3 Alignments and Adjustments

3-11

Picture 4-3 W/B Patten

3 Alignments and Adjustments

3-12

3-5 Software Upgrade

3-5-1 How to Update Flash ROM

1. Installthe Flash Downloader
ConnectSet(Service Jack)and Jig Cable to execute Program Update.

2. Flash Downloader program update

-Before Turning on the set,Click "connect"which is under of OSD Screen!

-Turn on the Set.

4 Troubleshooting

4-1

4 Troubleshooting

4-1 First Checklist for Troubleshooting

1. Check the various cable connections first.

- Check to see if there is a burnt or damaged cable.

- Check to see if there is a disconnected cable connection or a connection is too loose.

- Check to see if the cables are connected according to the connection diagram.

2. Check the power input to the Main Board.

3. Check the voltage in and out between the SMPS Main Board, between the SMPS

INVERTER Board, and between the Main LVDS Boards.

4 Troubleshooting

4-2

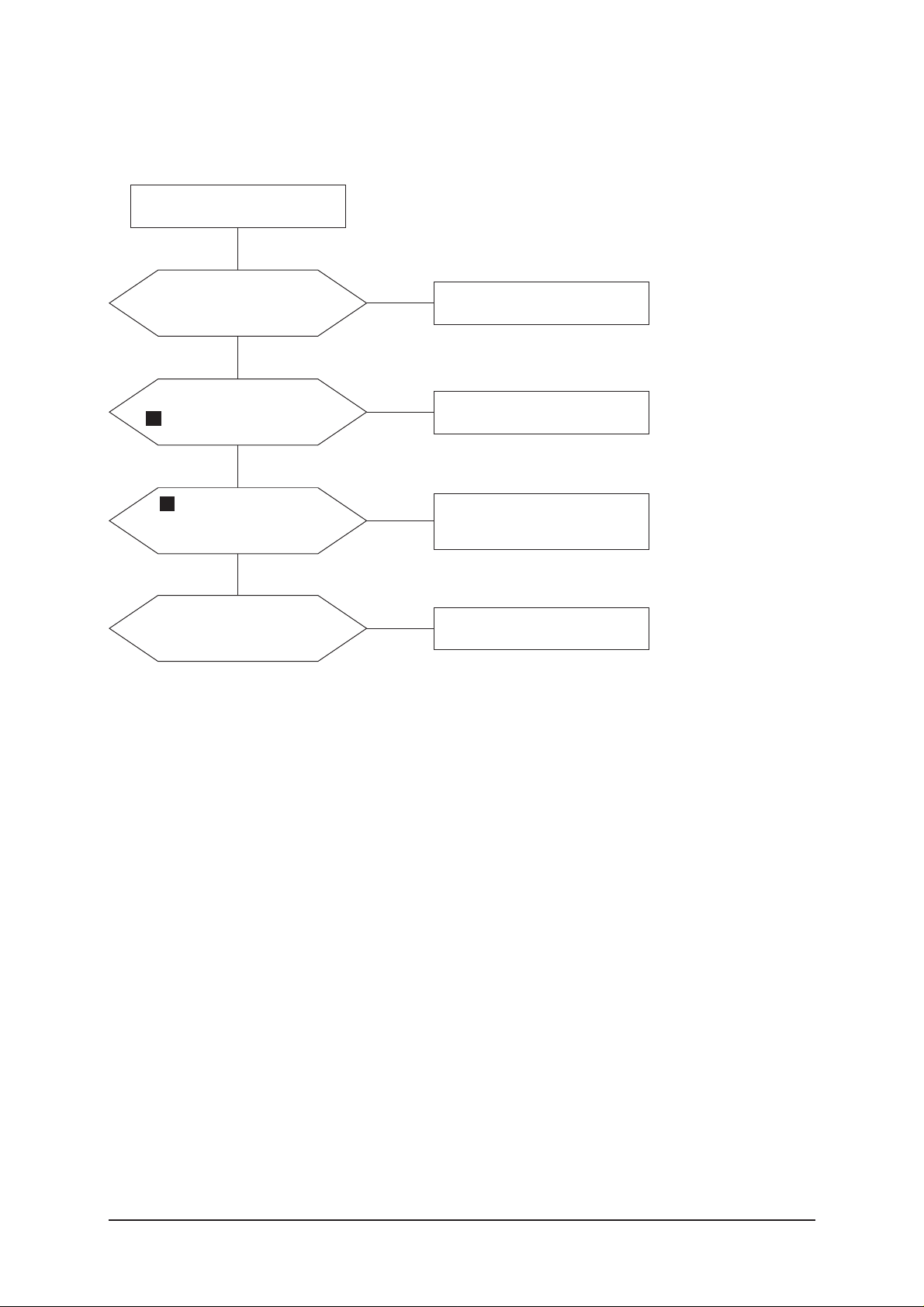

4-2-1 No Power

4-2 Checkpoints by Error Mode

Does proper DC 12V

appear at CN800?

Change a Assy PCB Power.

Yes

Yes

No

Check a connection a power cable.

No

Does proper DC A3.3V,

A5V appear at

C854, C866?

Check a IC809, IC802.

Change a main PCB ass'y.

Yes

No

Does proper DC 5V, 3.3V,

1.8V appear at C811, C853,
C833?

Check a IC803, IC805, IC813, IC307.

Change a main PCB ass'y

Yes

A power is supplied to set?

Check a other function.

(No picture part)

Replace a lcd panel.

No

No

LAMP off, power indicator

LED red color?

4 Troubleshooting

4-3

4-2-2 No Video (Analog PC)

Check a PC source and check

the connection of DSUB cable?

Input a analog PC signal and

connected cable(DPMS).

Yes

Does the signal appear at

#30, 22, 38(R, G, B) of IC500?

PC cable. Change a PC

cable. Change a main PCB ass'y.

Yes

Power Indicator is off.

Lamp on, no video.

No

No

1

Does the digital data appear

at the output of

LVDS (R563_OP~R572_OP)?

Check a IC500

Change a main PCB ass'y.

Yes

Check a LVDS cable?

Replace a lcd panel?

Please, Call to Samsung Co. LTD.

Yes

No

No

4 Troubleshooting

4-4

WAVEFORMS

1

R,G,B Output Signal of IC500

4 Troubleshooting

4-5

4-2-3 No Video (Digital-HDMI)

Check the connection

of HDMI cable?

Input a HDMI cable.

Yes

Does the digital data appear at

R503~R510?

Check a a IC 500

Change a main PCB ass'y.

Yes

Does the digital data

appear at output of IC500

LVDS(R563_OP~R572_OP)?

Check a IC500

Change a main PCB ass'y.

Yes

Check a LVDS cable?

Replace lcd panel?

Please, Call to Samsung Co. LTD.

Yes

Power Indicator is off.

Lamp on, no video.

No

No

No

No

3

2

4 Troubleshooting

4-6

2

Digital Output Data of IC500

3

Signal of HDMI(Data)

4 Troubleshooting

4-7

4-2-4 No Picture (Tuner_CVBS)

Dose the signal appear

at R110?

Check a B+ voltage (#6 of Tuner) 5V,

change a main PCB ass'y

Yes

Does the signal appear at

#8 of IC500?

Change a main PCB ass'y.

Yes

Does the digital data appear

at output of

R563_OP~R572_OP?

Check a IC500.

Change a main PCB ass'y.

Yes

Power Indicator is off.

Lamp on, no picure.

No

Connect the RF cable and

check RF signal.

No

No

No

Yes

Check a LVDS cable?

Replacea lcd panel?

Please, Call to Samsung Co. LTD.

No

4

4

3

4 Troubleshooting

4-8

WAVEFORMS

4

Tuner_CVBS Output Signal

3

CVBS Output Signal

4 Troubleshooting

4-9

4-2-5 No Picture (Video_CVBS)

Dose the signal appear at

#10 of IC500?

Check a connection harness.

Yes

Does the signal appear at

Out of IC500

R563_OP~R572_OP?

Check a IC515.

Change a main PCB ass'y

Yes

Power Indicator is off.

Lamp on, no picture.

No

Check a A/V cable and video signal.

No

No

Yes

Check a LVDS cable?

Replace lcd panel?

Please, Call to Samsung Co. LTD.

No

4

4 Troubleshooting

4-10

WAVEFORMS

4

CVBS Output Signal

4 Troubleshooting

4-11

4-2-6 No Picture (S-VIDEO_Y,C)

Dose the Y/C signal appear at

#21, #31 of IC500?

Check a connection harness.

Yes

Yes

Power Indicator is off.

Lamp on, no picure.

No

Connect the s-video cable.

Operating a video player.

No

Does the digital data appear

at Output of IC500,

R563_OP~R572_OP?

Check a IC500.

Change a main PCB ass'y.

No

Yes

Check a LVDS cable?

Replacea lcd panel?

Please, Call to Samsung Co. LTD.

No

5

2

4 Troubleshooting

4-12

2

Digital Output Data of IC500

5

Analog Signal(Y,C) to IC500

WAVEFORMS

4 Troubleshooting

4-13

Does the signal appear at

Pin #10, #16(CH1_L, R Sound)

and Pin #3, #9

(CH2_L, R Sound)

of IC603?

Check a connection harness and

headphone jack / Side AV.

Yes

Yes

No

Check the DC 12V

of IC603?

Check a IC603.

Change a main PCB ass'y.

Yes

No

Does the signal appear at

L609_OP, L611_OP,

L612_OP, L614_OP?

Change a main PCB ass'y.

Yes

Replace the speaker ass'y?

No

4-2-7 No Sound

6

7

Connect a sound cable.

control a volume.

Picture is display, no sound.

No

4 Troubleshooting

4-14

WAVEFORMS

6

The Signal are Inputed to IC603

7

DC +12V

5 Exploded View & Parts List

5-1

5 Exploded View and Parts List

- You can search for updated part codes through ITSELF web site.

URL : http://itself.sec.samsung.co.kr/

5-1 LN26T71B Exploded View

M0014

T0447

T0003

T0175

M0215

T0076

T0175

M0013

M0013

5 Exploded View & Parts List

5-2

5-2 LN26T71B Parts list

Location Code.No Item & Specification Q'ty SA/SNA Remark

T0003 BN96-03174B ASSY COVER P-FRONT;26T71,UO(XAX),HIPS,HB 1 S.A

T0175 BN96-03279A ASSY SPEAKER P;16ohm,Sonoma 26,Left,5W,N 1 S.A

T0175 BN96-03280A ASSY SPEAKER P;16ohm,Sonoma 26,Right,5W, 1 S.A

M0215 BN07-00254A LCD-PANEL;T260XW02,8bit,626.0*373.0*50.0 1 S.A

T0447 BN96-03008C ASSY BRACKET P-PANEL;BORDEAUX,26,AUO,SMP 1 S.N.A

T0076 BN39-00615D CBF HARNESS;BORDEAUX,1617#22,3P,1P,RING, 1 S.A

M0014 BN94-01012B ASSY PCB MAIN;LN26R71BX/XAZ,A51O,BORDEAU 1 S.A

M0013 BN96-03189B ASSY COVER P-REAR;26T71,UO(XAX),HIPS,HB, 1 S.A

M0013 BN96-03192A ASSY STAND P-BASE;26T70,HIPS,HB,BK500,BK 1 S.A

5 Exploded View & Parts List

5-3

5-3 LN32T71B Exploded View

T0447

T0003

T0175

M0215

T0076

T0175

M0013

M0013

5 Exploded View & Parts List

5-4

5-4 LN32T71B Parts list

Location Code.No Item & Specification Q'ty SA/SNA Remark

T0003 BN96-03175B ASSY COVER P-FRONT;32T71,UO(XAX),-,HIPS, 1 S.A

T0175 BN96-03247B ASSY SPEAKER P;8ohm,Yellow/Black,470mm,1 1 S.A

T0175 BN96-03248B ASSY SPEAKER P;8ohm,Red/Black,950mm,10W, 1 S.A

M0215 BN07-00207A LCD-PANEL;V320B1-L01,Duomo,8bit,760*450* 1 S.A

T0447 BN96-02999A ASSY BRACKET P-PANEL;BORDEAUX,32,AMLCD,S 1 S.N.A

T0076 BN39-00615D CBF HARNESS;BORDEAUX,1617#22,3P,1P,RING, 1 S.A

M0013 BN96-03188F ASSY COVER P-REAR;32T71,UO(XAX),HIPS,HB, 1 S.A

M0013 BN96-03191A ASSY STAND P-BASE;32T70,HIPS,HB,BK500,BK 1 S.A

5 Exploded View & Parts List

5-5

5-5 LN40T71B Exploded View

M0014

T0447

T0003

T0175

M0215

T0076

T0175

M0013

M0013

5 Exploded View & Parts List

5-6

5-6 LN40T71B Parts list

Location Code.No Item & Specification Q'ty SA/SNA Remark

T0003 BN96-03184C ASSY COVER P-FRONT;40T71,UO(XAX),HIPS,HB 1 S.A

T0175 BN96-03247A ASSY SPEAKER P;8ohm,Sonoma 32,Left,10W,N 1 S.A

T0175 BN96-03248A ASSY SPEAKER P;8ohm,Sonoma 32,Right,10W, 1 S.A

M0215 BN07-00264A LCD-PANEL;LTA400WT-L01,8bit,952*551*51.0 1 S.A

T0447 BN96-03528B ASSY BRACKET P-PANEL;SONOMA,40EO,READY,S 1 S.N.A

T0076 BN39-00615D CBF HARNESS;BORDEAUX,1617#22,3P,1P,RING, 1 S.A

M0014 BN94-01012C ASSY PCB MAIN;LN40R71BX/XAZ,A51O,BORDEAU 1 S.A

M0013 BN96-03187F ASSY COVER P-REAR;40T71,UO(XAX),HIPS,HB, 1 S.A

M0013 BN96-03190A ASSY STAND P-BASE;40T70,HIPS,HB,BK500,BK 1 S.A

6 Electrical Parts List

6-1

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

0 LN26T71BX/XAO LN26T71B,A51O/26T70-GSM,26,LCD-TV,COLOMB 0

0.1 M0001 BN90-00859B ASSY COVER FRONT;26T71,UO(XAX),-,HIPS,HB 1 S.N.A
..2 M0081 6006-001096 SCREW-TAPTITE;BH,+,WP,B,M4.0,L12,ZPC(BLK 4 S.N.A
..2 T0003 BN96-03174B ASSY COVER P-FRONT;26T71,UO(XAX),HIPS,HB 1 S.A
...3 M0162 6502-001067 CABLE CLAMP;DAFC-1300,ID2.2,T5.2,NYLIN6/ 2 S.N.A
...3 T0069 AA60-00171F SPACER-FELT;50L2,FELT,350,T0.5,5 2 S.N.A
...3 T0060 BN61-01655A SPRING ETC;STS-304 SUS,D8,L12,T0.5 1 S.N.A
...3 T0056 BN63-02403A COVER-DECORATION;SONOMA 26,HIPS,HB,GR503 1 S.N.A
...3 M0112 BN63-02404B COVER-FRONT;26T71,UO(XAX),HIPS,HB,BK500, 1 S.N.A
...3 T0059 BN64-00379A INDICATOR LED;ROME-II,23,PC,CLEAR 1 S.N.A
...3 T0061 BN64-00453A WINDOW-REMOCON;32R71,PC,V0,VIOLET,DIFFUS 1 S.N.A
...3 T0022 BN64-00467A KNOB CONTROL;SONOMA26,32,40,ABS,-,-,-,V0 1 S.A
...3 T0023 BN64-00476A KNOB POWER;SONOMA,26,32,40,HIPS,HB,GR503 1 S.N.A
...3 T0054 BN64-00477A KNOB-DECORATION;SONOMA26,32,40,ABS,HB,GR 1 S.N.A
...3 M0146 BN96-03437A ASSY BOARD P-POWER;BORDEAUX2,CT5000-4150 1 S.A
...3 M0145 BN96-03466A ASSY BOARD P-FUNCTION;SONOMA,SJ06-01-008 1 S.A
...3 T0382 BP61-00509C HOLDER-CARE;PJT,ACRYL-FOAM,T0.25,W20.0mm 0.28 S.N.A
...3 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 2 S.N.A
...3 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 1 S.N.A
...3 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 2 S.N.A
..2 T0175 BN96-03279A ASSY SPEAKER P;16ohm,Sonoma 26,Left,5W,N 1 S.A
..2 T0175 BN96-03280A ASSY SPEAKER P;16ohm,Sonoma 26,Right,5W, 1 S.A
..2 T0382 BP61-00495C HOLDER-CARE;PJT,ACRYL-FOAM,T0.25,W30.0mm 0.2 S.N.A

0.1 M0216 BN90-00877A ASSY STAND;26T70,SONOMA 1 S.N.A
..2 T0524 6902-000561 BAG PE;HDPE+NITRON(DOUBLE),T0.015+T0.5,W 1 S.N.A
..2 M0013 BN96-03192A ASSY STAND P-BASE;26T70,HIPS,HB,BK500,BK 1 S.A
...3 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 3 S.A
...3 M0081 6003-001239 SCREW-TAPTITE;FH,+,-,B,M4,L10,ZPC(WHT),S 6 S.A
...3 BN61-01830A BRACKET-STAND BOTTOM;26 MILANO,SECC,T2.0 1 S.N.A
...3 T0920 BN61-02369A GUIDE-STAND;SONOMA 26,HIPS V0,-,-,-,BK50 1 S.N.A
...3 M0111 BN63-01946B COVER-STAND;26T70,HIPS,HB,BK500,BKP-1526 1 S.N.A
...3 T0132 BN73-00052A RUBBER FOOT;ARES 17,SILICON,DIA 17 * T1. 6 S.N.A

0.1 M0002 BN90-00880B ASSY COVER REAR;26T71,UO(XAX),HIPS,HB,BK 1 S.N.A
..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 9 S.A
..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 2 S.A
..2 M0013 BN96-03189B ASSY COVER P-REAR;26T71,UO(XAX),HIPS,HB, 1 S.A
...3 T0101 BN61-02058A BRACKET-WALL;23,27,MGM,SECC,T1.6 2 S.N.A
...3 M0006 BN63-02408B COVER-REAR;26T71,UO(XAX),HIPS,HB,BK500,S 1 S.N.A
...3 T0071 BN64-00445A INLAY-TERMINAL;26R71,PS SHEET,T0.5,-,-,B 1 S.N.A
...3 T0064 BN65-00002A CLAMPER CORE;BORDEAUX,PP,V0,BLK 1 S.N.A

0.1 MP1.0 BN91-01017C ASSY LCD-AMZ;LE26R71BX/* 1 S.N.A
..2 M0215 BN07-00254A LCD-PANEL;T260XW02,8bit,626.0*373.0*50.0 1 S.A

0.1 M0017 BN91-01091B ASSY CHASSIS;LN26R71BX/XAZ,A51O,BORDEAUX 1 S.N.A
..2 M0014 BN94-01012B ASSY PCB MAIN;LN26R71BX/XAZ,A51O,BORDEAU 1 S.A
...3 T0245 0202-001492 SOLDER-WIRE FLUX;HSE-02 LFM48 SR-34 S,-, 0.25 S.N.A
...3 JA709 3701-001294 CONNECTOR-DSUB;15P,3R,FEMALE,STRAIGHT,AU 1 S.A
...3 CN330 3711-004068 HEADER-BOARD TO CABLE;BOX,5P,1R,2MM,ANGL 1 S.A
...3 CN330 3711-004484 HEADER-BOARD TO CABLE;BOX,5P,1R,2mm,STRA 1 S.A
...3 CN330 3711-004484 HEADER-BOARD TO CABLE;BOX,5P,1R,2mm,STRA 1 S.A
...3 CN503 3711-005884 HEADER-BOARD TO BOARD;BOX,30P,2R,2mm,ANG 1 S.A
...3 CN330 3711-005942 HEADER-BOARD TO CABLE;BOX,16P,1R,2mm,STR 1 S.A
...3 JA330 3722-001061 JACK-PHONE;1P,3.6PI,AG,BLK,N 1 S.A
...3 JA330 3722-001061 JACK-PHONE;1P,3.6PI,AG,BLK,N 1 S.A
...3 JA330 3722-001061 JACK-PHONE;1P,3.6PI,AG,BLK,N 1 S.A
...3 JA332 3722-001734 JACK-VHS;4P,SN,BLK,STRAIGHT 1 S.A
...3 JA333 3722-002143 JACK-PIN;5P,NI,GRN/BLU/RED/WHT/RED,STRAI 1 S.A
...3 JA333 3722-002360 JACK-PIN;3P,AU,GRN/BLU/RED,STRAIGHT 1 S.A
...3 JA333 3722-002362 JACK-PIN;2P,Sn,WHT/RED,STRAIGHT 1 S.A
...3 JA333 3722-002362 JACK-PIN;2P,Sn,WHT/RED,STRAIGHT 1 S.A

6 Electrical Parts List

You can search for updated part codes through ITSELF web site.

URL : http://itself.sec.samsung.co.kr/

6-1 LN26T71B Parts List

6 Electrical Parts List

6-2

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

...3 JA333 3722-002362 JACK-PIN;2P,Sn,WHT/RED,STRAIGHT 1 S.A
...3 JA333 3722-002363 JACK-PIN;3P,Sn,YEL/WHT/RED,STRAIGHT 1 S.A
...3 M0107 BN63-01847A SHIELD-COVER;ROME,SECC,T0.3,49.5,79.5,HE 1 S.N.A
...3 CIS8 BN73-00024C SILICON/RUBBER-BERGQUIST;VENUS 32,40",SI 1 S.N.A
...3 T0174 BN97-01052B ASSY SMD;LN26R71BX/XAZ,A51O,BORDEAUX 1 S.N.A

....4 SUB05 0202-001477 SOLDER-CREAM;LST309-M,-,D20~45§-,96.5Sn/ 3.033 S.N.A

....4 D100 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D200 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D201 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D202 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D226 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D227 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D228 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D307 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D320 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D321 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D322 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D323 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D324 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D325 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D326 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D327 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D451_NT 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D467 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D485 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D486 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D487 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D494 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D946_OP 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D961_OP 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D979_OP 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D800 0402-000553 DIODE-SCHOTTKY;SS24/B240,40V,2000mA,DO-2 1 S.A

....4 D801 0403-000258 DIODE-ZENER;BZX84C5V6,5.2-6V,225mW,SOT-2 1 S.A

....4 D906 0403-000258 DIODE-ZENER;BZX84C5V6,5.2-6V,225mW,SOT-2 1 S.A

....4 D300 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D304 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D305 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D490 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D491 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D492 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D493 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D499 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D500 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D501 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D502 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D503 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D504 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D505 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D506 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D507 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D508 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D509 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D510 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D511 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D512 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D513 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D909 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D911 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D301 0403-001016 DIODE-ZENER;RLZ6.2B,5.96-6.27V,500mW,LL- 1 S.A

....4 D418 0403-001169 DIODE-ZENER;RLZ16C,15.96-16.51V,500MW,LL 1 S.A

....4 D421 0403-001169 DIODE-ZENER;RLZ16C,15.96-16.51V,500MW,LL 1 S.A

....4 D101 0403-001425 DIODE-ZENER;BZX84C33,31-35V,350mW,SOT-23 1 S.A

....4 D308 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D309 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D401 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D403 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D404 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D405 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D406 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D407 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D408 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D409 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

6 Electrical Parts List

6-3

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 D410_NT 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D411_NT 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D412_NT 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D428 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D461 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D462 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D470 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D471 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D472 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D483 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D484 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D949_OP 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D950_OP 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D962_OP 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D963_OP 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D964_OP 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D975_OP 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D600 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A

....4 D601 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A

....4 D900 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A

....4 D901 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A

....4 Q603 0501-000280 TR-SMALL SIGNAL;KSA1182,PNP,150MW,SOT-23 1 S.A

....4 Q100 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q301 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q501 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q600 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q601 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q602 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q605 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q606 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q609 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q802 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q900 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q904 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q905 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q906 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q972 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q973 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q222 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A

....4 Q800 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A

....4 Q801 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A

....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A

....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A

....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A

....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A

....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A

....4 Q409 0505-001170 FET-SILICON;SI9933ADY-T1,P,-20V,3.4A,0.0 1 S.A

....4 IC104 0801-002095 IC-CMOS LOGIC;74LCX245,TRANSCEIVER,TSSOP 1 S.A

....4 IC900 0903-001432 IC-MICROCOMPUTER;M30840SGP,16Bit,LQFP,10 1 S.N.A

....4 IC605 1001-000164 IC-ANALOG MULTIPLEX;74HC4052,CMOS,SOP,16 1 S.A

....4 IC905 1001-001109 IC-ANALOG SWITCH;FST3125M,BUS SWITCH & C 1 S.A

....4 IC107 1002-001399 IC-D/A CONVERTER;PCM1754,24BIT,SSOP,16P, 1 S.A

....4 IC110 1006-001076 IC-DRIVER/RECEIVER;MAX232ECWE+T,SOP,16P, 1 S.A

....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x 1 S.A

....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x 1 S.A

....4 IC112 1103-001279 IC-EEPROM;24C32,32Kbit,4Kx8Bit,SOP,8P,5x 1 S.A

....4 IC222 1105-001538 IC-VIDEO RAM;K4D263238,-,128M,4x1Mx32Bit 1 S.A

....4 DU410 1201-000166 IC-OP AMP;LM358,SOP,ST,8P,150MIL,DUAL,10 1 S.A

....4 T0085 1201-002136 IC-AUDIO AMP;LM4810,MSOP,8P,3x3mm,DUAL,- 1 S.A

....4 T0085 1201-002246 IC-AUDIO AMP;STA323W,SO,36P,15.9x11mm,-, 1 S.A

....4 IC503_OP 1203-001559 IC-RESET;DS1834A,SOIC,8P,150MIL,PLASTIC, 1 S.A

....4 IC910 1203-001559 IC-RESET;DS1834A,SOIC,8P,150MIL,PLASTIC, 1 S.A

....4 T0087 1203-001815 IC-POSI.FIXED REG.;78M09,TO-252,3P,-,PLA 1 S.A

....4 T0087 1203-001816 IC-POSI.FIXED REG.;78M08,TO-252,3P,-,PLA 1 S.A

....4 T0087 1203-002842 IC-POSI.FIXED REG.;AP1117D-33A,TO-252,3P 1 S.A

....4 T0087 1203-002842 IC-POSI.FIXED REG.;AP1117D-33A,TO-252,3P 1 S.A

....4 T0087 1203-002855 IC-POSI.FIXED REG.;MC33269DTRK-5.0,DPRK, 1 S.A

....4 T0087 1203-002974 IC-POSI.FIXED REG.;AP1117D-25A,TO-252,3P 1 S.A

....4 T0170 1203-003059 IC-SWITCH VOL. REG.;MP1583,SOIC,8P,4.9x3 1 S.A

....4 IC601 1204-002471 IC-AUDIO PROCESSOR;STV8258DSX,TQFP,80P,1 1 S.A

....4 IC118 1204-002503 IC-VIDEO PROCESS;SVP-PX56-7256,PQFP,256P 1 S.N.A

....4 R221 2007-000043 R-CHIP;1Kohm,1%,1/10W,TP,1608 1 S.A

6 Electrical Parts List

6-4

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 R222 2007-000043 R-CHIP;1Kohm,1%,1/10W,TP,1608 1 S.A

....4 R9004 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R9005 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R9006 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R9007 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R9008 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R9009 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R9010 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R9015 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R9028 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R9032 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R976 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R109 2007-000060 R-CHIP;100Kohm,1%,1/10W,TP,1608 1 S.A

....4 R807 2007-000067 R-CHIP;15Kohm,1%,1/10W,TP,1608 1 S.A

....4 26_ 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R321 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R440_NT 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R441_NT 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R442_NT 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R443_NT 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R444 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R446 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R456_NT 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R480 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R491_OP 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R492_OP 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R493_OP 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R500 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R501 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R502 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R511 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R512 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R514_OP 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R516 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R523 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R539 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R540 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R542 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R563_OP 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R564_OP 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R565_OP 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R566_OP 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R567_OP 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R568_OP 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R569_OP 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R570_OP 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R571_OP 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R572_OP 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R574 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R575 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R577 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R592 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R656 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R691 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R692 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R693 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R9000 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R9013 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R9014 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R9030 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R909 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R913 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R931 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R932 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R933 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R934 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R936 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R939 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R940 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R941 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R949 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R950 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

6 Electrical Parts List

6-5

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 R951 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R952 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R953 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R998 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R224 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R225 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R226 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R227 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R458 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R499 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R503 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R504 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R505 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R506 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R507 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R508 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R509 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R510 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R518 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R585 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R586 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R104 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R105 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R306 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R308 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R475 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R495 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R611 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R612 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R658 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R659 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R676 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R682 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R108 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R113 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R116 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R243 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R244 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R406 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R409 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R457_NT 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R498 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R525 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R533 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R538 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R559 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R582 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R584 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R587 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R614 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R615 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R616 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R617 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R618 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R619 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R620 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R621 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R636 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R637 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R639 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R640 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R644 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R645 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R648 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R650 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R651 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R653 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R654 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R678 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R679 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R680 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R802 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

6 Electrical Parts List

6-6

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 R9002 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R901 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R9016 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R9023 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R9025 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R911 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R916 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R917 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R919 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R937 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R947 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R966 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R967 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R971 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R972 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R973 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R977 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R978 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R999 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R562 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 1 S.A

....4 R100 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 S.A

....4 R405 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 S.A

....4 R410 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 S.A

....4 R114 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R307 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R311 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R403 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R407 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R408 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R411 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R429 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R474 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R476 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R487 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R528 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R590 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R591 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R810 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R9026 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R946 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R103 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R106 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R119_OP 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R120_OP 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R312 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R322 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R522 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R535 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R537 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R554 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R576 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9019 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9044 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9045 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R905 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R928 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R935 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R530 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A

....4 R532 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A

....4 R925 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A

....4 R926 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A

....4 R963 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A

....4 R964 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A

....4 R242 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R526 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R541 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R578 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R593 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R643 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R655 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R808 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R809 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

6 Electrical Parts List

6-7

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 R9011_OP 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9033 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9034 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9035 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9036 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9037 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9038 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9051 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9052 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9053 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9054 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9055 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9056 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9057 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R908 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R918 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R923 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R924 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R927 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R929 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R930 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R938 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R943 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R962 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R996 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R426 2007-000087 R-CHIP;6.8Kohm,5%,1/10W,TP,1608 1 S.A

....4 R427 2007-000087 R-CHIP;6.8Kohm,5%,1/10W,TP,1608 1 S.A

....4 R302 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R303 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R316 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R445 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R447 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R459 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R473 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R515 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R519 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R555 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R556 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R610 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R661 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R673 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R801 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R803 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R804 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9029 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9043 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R906 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R907 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R912 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R915 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R920 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R921 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R922 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R954 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R956 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R970 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R994 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R995 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R664 2007-000093 R-CHIP;20Kohm,5%,1/10W,TP,1608 1 S.A

....4 R666 2007-000093 R-CHIP;20Kohm,5%,1/10W,TP,1608 1 S.A

....4 R101 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 S.A

....4 R670 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 S.A

....4 R914 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 S.A

....4 R313 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R527_OP 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R601 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R646 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R652 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R657 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R665 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R993 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R602 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

6 Electrical Parts List

6-8

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 R603 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R604 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R605 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R606 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R607 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R608 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R609 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R626 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R627 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R628 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R629 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R630 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R631 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R632 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R633 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R102 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R660 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R663 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R667 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R800 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R107 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608 1 S.A

....4 R111 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608 1 S.A

....4 R112 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608 1 S.A

....4 R668 2007-000107 R-CHIP;470Kohm,5%,1/10W,TP,1608 1 S.A

....4 R5004 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R550 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R551 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R553 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R638 2007-000119 R-CHIP;560ohm,5%,1/10W,TP,1608 1 S.A

....4 R236 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 S.A

....4 R237 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 S.A

....4 R238 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 S.A

....4 R683 2007-000125 R-CHIP;3.9Kohm,5%,1/10W,TP,1608 1 S.A

....4 R413 2007-000293 R-CHIP;100ohm,5%,1/4W,TP,3216 1 S.A

....4 R417 2007-000293 R-CHIP;100ohm,5%,1/4W,TP,3216 1 S.A

....4 R434 2007-000293 R-CHIP;100ohm,5%,1/4W,TP,3216 1 S.A

....4 R481 2007-000293 R-CHIP;100ohm,5%,1/4W,TP,3216 1 S.A

....4 R9012_OP 2007-000293 R-CHIP;100ohm,5%,1/4W,TP,3216 1 S.A

....4 R323 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R324 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R325 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R326 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R327 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R328 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R329 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R330 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R942 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R955_OP 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R957_OP 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R969 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R974 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R975 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R979 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R980 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R982 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R983 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R984 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R985 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R986 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R987 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R988 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R989 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R990 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R991 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R992 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R997 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R412 2007-000458 R-CHIP;18Kohm,5%,1/10W,TP,1608 1 S.A

....4 R416 2007-000458 R-CHIP;18Kohm,5%,1/10W,TP,1608 1 S.A

....4 R695 2007-000704 R-CHIP;3.6Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9041 2007-000704 R-CHIP;3.6Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9042 2007-000704 R-CHIP;3.6Kohm,5%,1/10W,TP,1608 1 S.A

....4 R557 2007-000903 R-CHIP;430ohm,1%,1/10W,TP,1608 1 S.A

6 Electrical Parts List

6-9

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 R117 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R118 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R414 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R415 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R418 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R477 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R478 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R482 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R902 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R903 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R948 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R223 2007-001014 R-CHIP;51OHM,5%,1/10W,TP,1608 1 S.A

....4 R228 2007-001014 R-CHIP;51OHM,5%,1/10W,TP,1608 1 S.A

....4 R805 2007-001068 R-CHIP;6.8Kohm,1%,1/10W,TP,1608 1 S.A

....4 R115_OP 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R318 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R320 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R423 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R424 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R425 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R435 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R484 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R485 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R486 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R904_OP 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R910_OP 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R468 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R469 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R470 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R471 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R472 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R483 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R496 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R497 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R675 2007-008720 R-CHIP;4.7ohm,1%,1/4W,TP,3216 1 S.A

....4 R677 2007-008720 R-CHIP;4.7ohm,1%,1/4W,TP,3216 1 S.A

....4 R681 2007-008720 R-CHIP;4.7ohm,1%,1/4W,TP,3216 1 S.A

....4 R684 2007-008720 R-CHIP;4.7ohm,1%,1/4W,TP,3216 1 S.A

....4 IC223 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA221 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA222 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA223 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA224 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA225 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA226 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA227 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA903 2011-000651 R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA904 2011-000651 R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA906 2011-000651 R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA907 2011-000651 R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA908 2011-000651 R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA910 2011-000651 R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA500 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA501 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA900 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA901 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA902 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA905 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA909 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA911 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA913 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA916 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA917 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA918 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA919 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA920 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA921 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA922 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 C6003 2203-000125 C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1608,- 1 S.A

....4 C616 2203-000140 C-CER,CHIP;1.5nF,10%,50V,X7R,1608 1 S.A

....4 C632 2203-000140 C-CER,CHIP;1.5nF,10%,50V,X7R,1608 1 S.A

....4 C120 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

6 Electrical Parts List

6-10

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 C250 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C303 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C486 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C511 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C512 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C513 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C514 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C516 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C517 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C518 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C521 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C522 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C523 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C524 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C525 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C526 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C527 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C529 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C530 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C532 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C533 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C534 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C535 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C537 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C538 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C545 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C548 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C549 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C551 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C553 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C554 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C555 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C558 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C560 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C561 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C564 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C565 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C566 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C567 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C568 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C569 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C570 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C571 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C572 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C573 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C577 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C588 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C589 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C590 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C591 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C593 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C595 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C597 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C598 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C6004 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C6016 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C6017 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C620 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C625 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C626 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C627 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C628 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C644 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C649 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C651 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C652 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C660 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C664 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C680 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C682 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C687 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C801 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

6 Electrical Parts List

6-11

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 C803 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C805 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C812 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C813 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C815 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C817 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C834 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C836 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C840 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C849 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C867 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C868 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C900 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C904 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C943 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C117 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C118 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C269 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C270 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C401 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C403 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C404 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C405 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C406 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C407 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C412 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C413 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C423 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C424 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C487 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C488 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C6006 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C6007 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C6008 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C623 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C678 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C679 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C926 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C928 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C101 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C111 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C112 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C228 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C229 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C230 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C231 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C232 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C238 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C241 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C244 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C264 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C265 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C268 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C504 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C505 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C506 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C507 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C508 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C541 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C622 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C800 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C802 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C810 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C814 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C816 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C830 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C843 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C944 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C901 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C903 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C908 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C931 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

6 Electrical Parts List

6-12

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 C933 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C937 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C114 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,1608 1 S.A

....4 C575 2203-000531 C-CER,CHIP;2.7nF,10%,50V,X7R,1608 1 S.A

....4 C592 2203-000531 C-CER,CHIP;2.7nF,10%,50V,X7R,1608 1 S.A

....4 C500 2203-000552 C-CER,CHIP;0.02nF,5%,50V,C0G,1608 1 S.A

....4 C510 2203-000552 C-CER,CHIP;0.02nF,5%,50V,C0G,1608 1 S.A

....4 C639 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 S.A

....4 C647 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 S.A

....4 C911 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 S.A

....4 C912 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 S.A

....4 C938 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 S.A

....4 C939 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 S.A

....4 C304 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C305 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C483 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C484 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C688 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C696 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C940_OP 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C946_OP 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C947_OP 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C948_OP 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C949_OP 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C662 2203-000798 C-CER,CHIP;33nF,10%,16V,X7R,TP,1608,- 1 S.A

....4 C663 2203-000798 C-CER,CHIP;33nF,10%,16V,X7R,TP,1608,- 1 S.A

....4 C115 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C223 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C224 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C502 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C503 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C674 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C675 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C104 2203-000972 C-CER,CHIP;47nF,10%,16V,X7R,1608 1 S.A

....4 C634 2203-000972 C-CER,CHIP;47nF,10%,16V,X7R,1608 1 S.A

....4 C266 2203-000998 C-CER,CHIP;0.047nF,5%,50V,C0G,1608 1 S.A

....4 C411 2203-000998 C-CER,CHIP;0.047nF,5%,50V,C0G,1608 1 S.A

....4 C629 2203-001402 C-CER,CHIP;220nF,+80-20%,16V,Y5V,TP,1608 1 S.A

....4 C106 2203-001607 C-CER,CHIP;0.22nF,5%,50V,NP0,1608 1 S.A

....4 C6009 2203-001607 C-CER,CHIP;0.22nF,5%,50V,NP0,1608 1 S.A

....4 C670 2203-001652 C-CER,CHIP;470nF,+80-20%,16V,Y5V,1608 1 S.A

....4 C672 2203-001652 C-CER,CHIP;470nF,+80-20%,16V,Y5V,1608 1 S.A

....4 C617 2203-001656 C-CER,CHIP;0.47nF,5%,50V,NP0,1608 1 S.A

....4 C631 2203-001656 C-CER,CHIP;0.47nF,5%,50V,NP0,1608 1 S.A

....4 C673 2203-001724 C-CER,CHIP;4700nF,+80-20%,16V,Y5V,3216 1 S.A

....4 C103 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C110 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C221 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C222 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C235 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C236 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C261 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C501 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C519 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C528 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C543 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C601 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C640 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C641 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C642 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C643 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C657 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C665 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C822 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C825 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C827 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C851 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C853 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C856 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C859 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C861 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C914 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

6 Electrical Parts List

6-13

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 C915 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C916 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C918 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C920 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C922 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C923 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C924 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C925 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C935 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C941 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C689 2203-005030 C-CER,CHIP;470nF,+80-20%,50V,Y5V,TP,3216 1 S.A

....4 C697 2203-005030 C-CER,CHIP;470nF,+80-20%,50V,Y5V,TP,3216 1 S.A

....4 C300 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C536 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C699 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C823 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C839 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C870 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C919 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C942 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C6001 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C6002 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C6005 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C6011 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C677 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C681 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C683 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C685 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C690 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C691 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C692 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C693 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C694 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C695 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C698 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C546 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C547 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C550 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C552 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C556 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C557 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C559 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C562 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C563 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C578 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C579 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C580 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C581 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C582 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C583 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C584 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C585 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C586 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C594 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C596 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C824 2203-005834 C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216 1 S.A

....4 C302 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C574 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C576 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C587 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C599 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C600 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C6015 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C603 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C604 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C605 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C606 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C607 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C608 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C609 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C610 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C611 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

6 Electrical Parts List

6-14

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 C613 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C618 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C619 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C621 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C624 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C630 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C636 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C645 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C646 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C648 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C650 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C653 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C654 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C655 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C656 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C658 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C686 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C852 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C855 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C921 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C5001 2402-001059 C-AL,SMD;220¥ìF,20%,6.3V,-,TP,6x6.6x6.6 1 S.A

....4 C5002 2402-001059 C-AL,SMD;220¥ìF,20%,6.3V,-,TP,6x6.6x6.6 1 S.A

....4 C806 2402-001081 C-AL,SMD;100uF,20%,25V,WT,TP,8.3x8.3x10 1 S.A

....4 C819 2402-001081 C-AL,SMD;100uF,20%,25V,WT,TP,8.3x8.3x10 1 S.A

....4 C835 2402-001081 C-AL,SMD;100uF,20%,25V,WT,TP,8.3x8.3x10 1 S.A

....4 C239 2402-001097 C-AL,SMD;0.1UF,20%,50V,WT,TP,4.3X4.3X5.2 1 S.A

....4 C240 2402-001097 C-AL,SMD;0.1UF,20%,50V,WT,TP,4.3X4.3X5.2 1 S.A

....4 C102 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C107 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C108 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C615 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C668 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C669 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C671 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C811 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C848 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C854 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C116 2402-001129 C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM 1 S.A

....4 C249 2402-001129 C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM 1 S.A

....4 C509 2402-001129 C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM 1 S.A

....4 C635 2402-001129 C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM 1 S.A

....4 C667 2402-001129 C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM 1 S.A

....4 C807 2402-001129 C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM 1 S.A

....4 C820 2402-001129 C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM 1 S.A

....4 C666 2402-001160 C-AL,SMD;330UF,20%,16V,WT,TP,1008 1 S.A

....4 C485 2402-001178 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A

....4 C531 2402-001178 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A

....4 C684 2402-001178 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A

....4 C826 2402-001178 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A

....4 C902 2402-001178 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A

....4 C907 2402-001178 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A

....4 C913 2402-001178 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A

....4 C917 2402-001178 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A

....4 C950 2402-001178 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A

....4 C100 2402-001183 C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM 1 S.A

....4 C227 2402-001183 C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM 1 S.A

....4 C237 2402-001183 C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM 1 S.A

....4 C542 2402-001183 C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM 1 S.A

....4 C633 2402-001183 C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM 1 S.A

....4 C850 2402-001183 C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM 1 S.A

....4 C866 2402-001183 C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM 1 S.A

....4 C6010 2402-001221 C-AL,SMD;470UF,20%,16V,-,TP,A8.3XB8.3XL1 1 S.A

....4 C676 2402-001221 C-AL,SMD;470UF,20%,16V,-,TP,A8.3XB8.3XL1 1 S.A

....4 C520 2402-001226 C-AL,SMD;4.7UF,20%,35V,HR,TP,4.3X4.3X5.8 1 S.A

....4 C113 2402-001238 C-AL,SMD;1uF,20%,50V,HR,TP,4.3x4.3x5.2mm 1 S.A

....4 C833 2409-001029 C-ORGANIC;120uF,20%,6.3V,WT,TP,10.3x10.3 1 S.A

....4 T0052 2703-000274 INDUCTOR-SMD;2.2uH,10%,2012 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

6 Electrical Parts List

6-15

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000417 INDUCTOR-SMD;220uH,5%,3225 1 S.A

....4 T0052 2703-001229 INDUCTOR-SMD;2.2uH,10%,1608 1 S.A

....4 T0052 2703-001229 INDUCTOR-SMD;2.2uH,10%,1608 1 S.A

....4 T0052 2703-001229 INDUCTOR-SMD;2.2uH,10%,1608 1 S.A

....4 T0052 2703-001229 INDUCTOR-SMD;2.2uH,10%,1608 1 S.A

....4 T0052 2703-001229 INDUCTOR-SMD;2.2uH,10%,1608 1 S.A

....4 T0052 2703-001229 INDUCTOR-SMD;2.2uH,10%,1608 1 S.A

....4 T0052 2703-001426 INDUCTOR-SMD;680uH,20%,7070 1 S.A

....4 T0052 2703-002327 INDUCTOR-SMD;3.9uH,5%,3225 1 S.A

....4 T0052 2703-002722 INDUCTOR-SMD;22uH,20%,12x12mm 1 S.A

....4 T0052 2703-002915 INDUCTOR-SMD;22uH,20%,8080 1 S.A

....4 T0052 2703-002915 INDUCTOR-SMD;22uH,20%,8080 1 S.A

....4 T0052 2703-002915 INDUCTOR-SMD;22uH,20%,8080 1 S.A

....4 T0052 2703-002915 INDUCTOR-SMD;22uH,20%,8080 1 S.A

....4 X904 2801-003326 CRYSTAL-SMD;24MHZ,30PPM,28-ABX,20PF,50OH 1 S.A

....4 X903 2801-003923 CRYSTAL-SMD;10MHz,30ppm,28-AAN,20pF,60oh 1 S.A

....4 X600 2801-003954 CRYSTAL-SMD;27MHz,30ppm,28-AAN,16pF,50oh 1 S.A

....4 X500 2801-004483 CRYSTAL-SMD;28.322MHz,30ppm,HC-49,20pF,5 1 S.A

....4 T0568 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm,-,-,- 1 S.N.A

....4 T0568 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm,-,-,- 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001236 BEAD-SMD;60ohm,1608,-,-,- 1 S.N.A

....4 T0568 3301-001236 BEAD-SMD;60ohm,1608,-,-,- 1 S.N.A

....4 T0568 3301-001236 BEAD-SMD;60ohm,1608,-,-,- 1 S.N.A

....4 T0568 3301-001236 BEAD-SMD;60ohm,1608,-,-,- 1 S.N.A

....4 T0568 3301-001236 BEAD-SMD;60ohm,1608,-,-,- 1 S.N.A

....4 T0568 3301-001236 BEAD-SMD;60ohm,1608,-,-,- 1 S.N.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001393 BEAD-SMD;60ohm,3216,1500mA,TP,41ohm/40MH 1 S.N.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001569 BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90 1 S.N.A

....4 CN703 3701-001311 CONNECTOR-HDMI;21P,2R,FEMALE,SMD-S,AU30U 1 S.A

....4 CN330 3711-005291 HEADER-BOARD TO CABLE;BOX,2P,1R,2MM,SMD- 1 S.A

....4 CN330 3711-005292 HEADER-BOARD TO CABLE;BOX,3P,1R,2MM,SMD- 1 S.A

....4 CN330 3711-005497 HEADER-BOARD TO CABLE;BOX,15P,1R,1.25MM, 1 S.A

....4 M0018 BN97-01060A ASSY MICOM;A51O 1 S.A

.....5 IC115 1107-001555 IC-FLASH MEMORY;49BV802A,8MBIT,1MX8/512K 1 S.N.A

....4 M0018 BN97-01060B ASSY MICOM;A51O 1 S.N.A

.....5 IC520 0903-001389 IC-MICROCONTROLLER;S3F866B,8Bit,QFP,44P, 1 S.N.A

....4 R806 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608 1 S.A

....4 C841 2203-000405 C-CER,CHIP;0.18nF,5%,50V,C0G,1608 1 S.A

....4 R110 2007-000073 R-CHIP;91ohm,5%,1/10W,TP,1608 1 S.A

....4 R9027 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608 1 S.A

....4 C842 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,1608 1 S.A

....4 T0077 BN41-00680D PCB MAIN;BORDEAUX,FR-4,4,MP1.3,1.6,192*1 1 S.N.A

...3 CIS3 BN40-00091A TUNER;TCPN3081PA32S(H),TCPN3081PA32S(H), 1 S.A
...3 T0562 6046-001013 STAND OFF;M3,L5,Ni PLT,SUM24L,#4-40 2 S.N.A

0.1 M0112 BN91-01176C ASSY SHIELD;LN26T71BX/GSU 1 S.N.A

6 Electrical Parts List

6-16

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

..2 M0081 6003-000115 SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC 4 S.A
..2 M0081 6003-000115 SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC 4 S.A
..2 T0069 AA60-00171F SPACER-FELT;50L2,FELT,350,T0.5,5 2 S.N.A
..2 M2893 BH39-00362B LEAD CONNECTOR;RE32**,UL1007#26,5P,150mm 1 S.A
..2 M2893 BN39-00603E LEAD CONNECTOR;RE26**AU,UL1007#26,14P,15 1 S.A
..2 T0076 BN39-00615D CBF HARNESS;BORDEAUX,1617#22,3P,1P,RING, 1 S.A
..2 M2893 BN39-00691B LEAD CONNECTOR;LE32R71BX,UL1007#26,16P,1 1 S.A
..2 M2893 BN39-00712A LEAD CONNECTOR-LVDS;LE32**,UL1571#30,30P 1 S.A
..2 M0146 BN61-02207A BRACKET-PANEL SIDE;Bordeaux 26,SECC,T1.2 4 S.N.A
..2 M0115 BN61-02364A BRACKET-STAND LINK;SONOMA 32,SECC,T1.6 1 S.N.A
..2 M0114 BN61-02500A HOLDER-WIRE;NYLON6.6,NATURAL 2 S.N.A
..2 T0447 BN96-03008C ASSY BRACKET P-PANEL;BORDEAUX,26,AUO,SMP 1 S.N.A
...3 M0146 BN61-02205B BRACKET-PANEL TOP;Bordeaux 26,SECC,T1.2 1 S.N.A
...3 BN61-02206B BRACKET-PANLE BOTTOM;Bordeaux 26,SECC,T1 1 S.N.A
...3 BN61-02208A BRACKET GUIDE-MAIN;Bordeaux 26,SECC,T1.2 1 S.N.A
...3 BN61-02209A BRACKET-GUIDE POWER;Bordeaux 26,SECC,T1. 1 S.N.A
...3 BN61-02210A BRACKET-GUIDE POWER;Bordeaux 26,SECC,T1. 1 S.N.A
...3 M0131 AA63-01437A GASKET;Bordeaux,Conductive Fabric,20mm,9 2 S.N.A
..2 T0159 BN96-03058A ASSY PCB P-SMPS;Bordeaux 26 PFC,LE26R71B 1 S.A
..2 M0081 6003-000337 SCREW-TAPTITE;BH,+,S,M4,L10,ZPC(BLK),SWR 4 S.A
..2 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 2 S.N.A
..2 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 1 S.N.A
..2 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 4 S.N.A
..2 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 2 S.N.A
..2 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 4 S.N.A
..2 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 2 S.N.A
..2 M0081 6003-001439 SCREW-TAPTITE;BH,+,-,S,M4,L8,ZPC(WHT),SW 1 S.N.A

0.1 M0003 BN92-01701C ASSY BOX;26T71,UO,(GSU),SONOMA 1 S.N.A
..2 T0130 BN69-01324C BOX-00,SET;26T7(OVERSEA),SY-05,A,YEL,A1, 1.01 S.N.A

0.1 M0113 BN92-01704A ASSY P/MATERIAL;26T70,SONOMA 1 S.N.A
..2 T0376 6902-000061 BAG AIR;LDPE,T0.2,L1000,W500,TRP,,, 0.016 S.N.A
..2 T0524 6902-000358 BAG PE;HDPE/NITRON(DOUBLE),T0.02/T0.5,W9 1 S.N.A
..2 T0376 6902-000379 BAG AIR;LDPE,T0.2,W1000,L1800,TRP,-,-- 0.005 S.N.A
..2 T0003 6902-000604 BAG WRAPPING;LDPE,T0.02,W500,L10000,TRP, 3.66 S.N.A

0.1 M0019 BN92-02002L ASSY LABEL;LN26T71BX/XAO 1 S.N.A

0.1 M0045 BN92-02004E ASSY ACCESSORY;LN26T71BX/XAO 1 S.N.A
..2 M0045 BN96-04215D ASSY ACCESSORY;LN26T71BX/XAO,A51O,SONOMA 1 S.N.A
...3 T0268 3903-000144 CBF-POWER CORD;DT,US,BP3/Y,U(IEC C13-RA) 1 S.A
...3 T0524 6902-000110 BAG PE;LDPE,T0.05,W250,L400,TRP,28,2 2 S.N.A
...3 T0210 AA68-03242F MANUAL FLYER-01,SAFETY GUIDE;All Model,S 1 S.N.A
...3 ACCESSORY AA68-03727A MANUAL FLYER-01,WARRANTY CARD;All,SAMSUN 1 S.N.A
...3 T0074 BN59-00556A REMOCON;Bordeaux,TM86,44,PAL-N, M,South 1 S.A
...3 T0531 BN63-02415B COVER-BOTTOM;SONOMA,32,HIPS,HB,BK500 1 S.N.A
...3 M0156 BN68-01001W MANUAL USERS-01;COMM,SAMSUNG,2Langs,S.Am 1 S.N.A
...3 M0126 BN69-01086A BOX ACCESSORY-00;COMM,SW1,YEL,-,W573,D63 1 S.N.A
...3 M0045 BN96-01800A ASSY ACCESSORY;ROME32,SCREW 1 S.A

....4 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 4 S.A

....4 ACCESSORY 6902-000128 BAG ZIPPER;LDPE,T0.05,W200,L150,TRP,8,2- 1 S.N.A

6 Electrical Parts List

6-17

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

0 LN32T71BX/XAO LN32T71B,A51O/32T70-GSM,32,LCD-TV,COLOMB 0

0.1 M0001 BN90-00858J ASSY COVER FRONT;32T71,UO(XAX),HIPS,HB,B 1 S.N.A
..2 M0081 6006-001096 SCREW-TAPTITE;BH,+,WP,B,M4.0,L12,ZPC(BLK 4 S.N.A
..2 T0003 BN96-03175B ASSY COVER P-FRONT;32T71,UO(XAX),-,HIPS, 1 S.A
...3 M0162 6502-001067 CABLE CLAMP;DAFC-1300,ID2.2,T5.2,NYLIN6/ 2 S.N.A
...3 T0069 AA60-00171L SPACER-FELT;46L3,FELT,460,T0.5,10 2 S.N.A
...3 T0060 BN61-01655A SPRING ETC;STS-304 SUS,D8,L12,T0.5 1 S.N.A
...3 T0056 BN63-02413A COVER-DECORATION;SONOMA 32,HIPS,HB,GR503 1 S.N.A
...3 M0112 BN63-02467B COVER-FRONT;32T70,UO(XAX),HIPS,-,-,-,HB, 1 S.N.A
...3 T0059 BN64-00379A INDICATOR LED;ROME-II,23,PC,CLEAR 1 S.N.A
...3 T0061 BN64-00453A WINDOW-REMOCON;32R71,PC,V0,VIOLET,DIFFUS 1 S.N.A
...3 T0022 BN64-00467A KNOB CONTROL;SONOMA26,32,40,ABS,-,-,-,V0 1 S.A
...3 T0023 BN64-00476A KNOB POWER;SONOMA,26,32,40,HIPS,HB,GR503 1 S.N.A
...3 T0054 BN64-00477A KNOB-DECORATION;SONOMA26,32,40,ABS,HB,GR 1 S.N.A
...3 M0146 BN96-03438A ASSY BOARD P-POWER & IR;BORDEAUX2,CT5000 1 S.A
...3 M0145 BN96-03466A ASSY BOARD P-FUNCTION;SONOMA,SJ06-01-008 1 S.A
...3 T0382 BP61-00509C HOLDER-CARE;PJT,ACRYL-FOAM,T0.25,W20.0mm 0.28 S.N.A
...3 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 2 S.N.A
...3 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 1 S.N.A
...3 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 2 S.N.A
..2 T0175 BN96-03247B ASSY SPEAKER P;8ohm,Yellow/Black,470mm,1 1 S.A
..2 T0175 BN96-03248B ASSY SPEAKER P;8ohm,Red/Black,950mm,10W, 1 S.A
..2 T0382 BP61-00495C HOLDER-CARE;PJT,ACRYL-FOAM,T0.25,W30.0mm 0.2 S.N.A

0.1 M0216 BN90-00876A ASSY STAND;32T70,SONOMA 1 S.N.A
..2 T0524 6902-000520 BAG PE;HDPE/NITRON(DOUBLE),T0.015/T0.5(D 1 S.N.A
..2 M0013 BN96-03191A ASSY STAND P-BASE;32T70,HIPS,HB,BK500,BK 1 S.A
...3 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 3 S.A
...3 M0081 6003-001239 SCREW-TAPTITE;FH,+,-,B,M4,L10,ZPC(WHT),S 6 S.A
...3 BN61-01812A BRACKET-STAND BOTTOM;32 MILANO,SECC,T2.0 1 S.N.A
...3 T0920 BN61-02360A GUIDE-STAND;SONOMA 32,HIPS VO,-,-,-,BK50 1 S.N.A
...3 T0132 BN73-00052A RUBBER FOOT;ARES 17,SILICON,DIA 17 * T1. 6 S.N.A
...3 T0004 BN63-01937C COVER-STAND BASE;32T70,HIPS,HB,BK500,BKP 1 S.N.A

0.1 T0852 BN91-00875A ASSY LCD-CMO;A61J-CMO 1 S.N.A
..2 M0215 BN07-00207A LCD-PANEL;V320B1-L01,Duomo,8bit,760*450* 1 S.A

0.1 M0017 BN91-01091A ASSY CHASSIS;LN32R71BX/XAZ 1 S.N.A
..2 M0014 BN94-01012A ASSY PCB MAIN;LN32R71BX/XAZ 1 S.A
...3 T0245 0202-001492 SOLDER-WIRE FLUX;HSE-02 LFM48 SR-34 S,-, 0.25 S.N.A
...3 JA709 3701-001294 CONNECTOR-DSUB;15P,3R,FEMALE,STRAIGHT,AU 1 S.A
...3 CN330 3711-004068 HEADER-BOARD TO CABLE;BOX,5P,1R,2MM,ANGL 1 S.A
...3 CN330 3711-004484 HEADER-BOARD TO CABLE;BOX,5P,1R,2mm,STRA 1 S.A
...3 CN330 3711-004484 HEADER-BOARD TO CABLE;BOX,5P,1R,2mm,STRA 1 S.A
...3 CN330 3711-004909 HEADER-BOARD TO CABLE;BOX,14P,2R,2MM,ANG 1 S.A
...3 CN503 3711-005884 HEADER-BOARD TO BOARD;BOX,30P,2R,2mm,ANG 1 S.A
...3 CN330 3711-005942 HEADER-BOARD TO CABLE;BOX,16P,1R,2mm,STR 1 S.A
...3 JA330 3722-001061 JACK-PHONE;1P,3.6PI,AG,BLK,N 1 S.A
...3 JA330 3722-001061 JACK-PHONE;1P,3.6PI,AG,BLK,N 1 S.A
...3 JA333 3722-002143 JACK-PIN;5P,NI,GRN/BLU/RED/WHT/RED,STRAI 1 S.A
...3 JA333 3722-002360 JACK-PIN;3P,AU,GRN/BLU/RED,STRAIGHT 1 S.A
...3 JA333 3722-002362 JACK-PIN;2P,Sn,WHT/RED,STRAIGHT 1 S.A
...3 JA333 3722-002362 JACK-PIN;2P,Sn,WHT/RED,STRAIGHT 1 S.A
...3 JA333 3722-002362 JACK-PIN;2P,Sn,WHT/RED,STRAIGHT 1 S.A
...3 JA333 3722-002363 JACK-PIN;3P,Sn,YEL/WHT/RED,STRAIGHT 1 S.A
...3 M0107 BN63-01847A SHIELD-COVER;ROME,SECC,T0.3,49.5,79.5,HE 1 S.N.A
...3 CIS8 BN73-00024C SILICON/RUBBER-BERGQUIST;VENUS 32,40",SI 1 S.N.A
...3 T0174 BN97-01052A ASSY SMD;LN32R71BX/XAZ 1 S.N.A

....4 SUB05 0202-001477 SOLDER-CREAM;LST309-M,-,D20~45§-,96.5Sn/ 3.033 S.N.A

....4 D100 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D200 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D201 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D202 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D226 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D227 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D228 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D307 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D320 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D321 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D322 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D323 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

6-2 LN32T71B Parts List

6 Electrical Parts List

6-18

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 D324 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D325 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D326 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D327 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D451_NT 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D467 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D485 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D486 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D487 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D494 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D800 0402-000553 DIODE-SCHOTTKY;SS24/B240,40V,2000mA,DO-2 1 S.A

....4 D801 0403-000258 DIODE-ZENER;BZX84C5V6,5.2-6V,225mW,SOT-2 1 S.A

....4 D906 0403-000258 DIODE-ZENER;BZX84C5V6,5.2-6V,225mW,SOT-2 1 S.A

....4 D300 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D304 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D305 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D490 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D491 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D492 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D493 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D499 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D500 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D501 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D502 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D503 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D504 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D505 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D506 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D507 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D508 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D509 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D510 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D511 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D512 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D513 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D909 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D911 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D301 0403-001016 DIODE-ZENER;RLZ6.2B,5.96-6.27V,500mW,LL- 1 S.A

....4 D418 0403-001169 DIODE-ZENER;RLZ16C,15.96-16.51V,500MW,LL 1 S.A

....4 D421 0403-001169 DIODE-ZENER;RLZ16C,15.96-16.51V,500MW,LL 1 S.A

....4 D101 0403-001425 DIODE-ZENER;BZX84C33,31-35V,350mW,SOT-23 1 S.A

....4 D308 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D309 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D401 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D403 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D404 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D405 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D406 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D407 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D408 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D409 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D410_NT 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D411_NT 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D412_NT 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D428 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D461 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D462 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D470 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D471 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D472 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D483 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D484 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D600 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A

....4 D601 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A

....4 D900 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A

....4 D901 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A

....4 Q603 0501-000280 TR-SMALL SIGNAL;KSA1182,PNP,150MW,SOT-23 1 S.A

....4 Q100 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q301 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q501 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q600 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q601 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

6 Electrical Parts List

6-19

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 Q602 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q605 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q606 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q609 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q802 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q900 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q904 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q905 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q906 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q972 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q973 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q222 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A

....4 Q800 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A

....4 Q801 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A

....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A

....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A

....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A

....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A

....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A

....4 Q409 0505-001170 FET-SILICON;SI9933ADY-T1,P,-20V,3.4A,0.0 1 S.A

....4 IC104 0801-002095 IC-CMOS LOGIC;74LCX245,TRANSCEIVER,TSSOP 1 S.A

....4 IC900 0903-001432 IC-MICROCOMPUTER;M30840SGP,16Bit,LQFP,10 1 S.N.A

....4 IC605 1001-000164 IC-ANALOG MULTIPLEX;74HC4052,CMOS,SOP,16 1 S.A

....4 IC905 1001-001109 IC-ANALOG SWITCH;FST3125M,BUS SWITCH & C 1 S.A

....4 IC107 1002-001399 IC-D/A CONVERTER;PCM1754,24BIT,SSOP,16P, 1 S.A

....4 IC110 1006-001076 IC-DRIVER/RECEIVER;MAX232ECWE+T,SOP,16P, 1 S.A

....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x 1 S.A

....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x 1 S.A

....4 IC112 1103-001279 IC-EEPROM;24C32,32Kbit,4Kx8Bit,SOP,8P,5x 1 S.A

....4 IC222 1105-001538 IC-VIDEO RAM;K4D263238,-,128M,4x1Mx32Bit 1 S.A

....4 DU410 1201-000166 IC-OP AMP;LM358,SOP,ST,8P,150MIL,DUAL,10 1 S.A

....4 T0085 1201-002136 IC-AUDIO AMP;LM4810,MSOP,8P,3x3mm,DUAL,- 1 S.A

....4 T0085 1201-002246 IC-AUDIO AMP;STA323W,SO,36P,15.9x11mm,-, 1 S.A

....4 IC910 1203-001559 IC-RESET;DS1834A,SOIC,8P,150MIL,PLASTIC, 1 S.A

....4 T0087 1203-001815 IC-POSI.FIXED REG.;78M09,TO-252,3P,-,PLA 1 S.A

....4 T0087 1203-001816 IC-POSI.FIXED REG.;78M08,TO-252,3P,-,PLA 1 S.A

....4 T0087 1203-002842 IC-POSI.FIXED REG.;AP1117D-33A,TO-252,3P 1 S.A

....4 T0087 1203-002842 IC-POSI.FIXED REG.;AP1117D-33A,TO-252,3P 1 S.A

....4 T0087 1203-002855 IC-POSI.FIXED REG.;MC33269DTRK-5.0,DPRK, 1 S.A

....4 T0087 1203-002974 IC-POSI.FIXED REG.;AP1117D-25A,TO-252,3P 1 S.A

....4 T0170 1203-003059 IC-SWITCH VOL. REG.;MP1583,SOIC,8P,4.9x3 1 S.A

....4 IC601 1204-002471 IC-AUDIO PROCESSOR;STV8258DSX,TQFP,80P,1 1 S.A

....4 IC118 1204-002503 IC-VIDEO PROCESS;SVP-PX56-7256,PQFP,256P 1 S.N.A

....4 R221 2007-000043 R-CHIP;1Kohm,1%,1/10W,TP,1608 1 S.A

....4 R222 2007-000043 R-CHIP;1Kohm,1%,1/10W,TP,1608 1 S.A

....4 R9004 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R9005 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R9006 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R9007 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R9008 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R9009 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R9010 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R9015 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R9028 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R9032 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R976 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R109 2007-000060 R-CHIP;100Kohm,1%,1/10W,TP,1608 1 S.A

....4 R807 2007-000067 R-CHIP;15Kohm,1%,1/10W,TP,1608 1 S.A

....4 32_ 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R321 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R440_NT 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R441_NT 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R442_NT 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R443_NT 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R444 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R446 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R456_NT 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R480 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R500 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R501 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R502 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R511 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

6 Electrical Parts List

6-20

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 R512 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R514_OP 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R516 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R523 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R539 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R540 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R542 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R563_OP 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R564_OP 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R565_OP 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R566_OP 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R567_OP 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R568_OP 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R569_OP 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R570_OP 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R571_OP 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R572_OP 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R574 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R575 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R577 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R592 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R656 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R691 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R692 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R693 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R9000 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R9013 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R9014 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R9030 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R909 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R913 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R931 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R932 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R933 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R934 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R936 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R939 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R940 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R941 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R949 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R950 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R951 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R952 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R953 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R998 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R224 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R225 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R226 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R227 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R458 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R499 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R503 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R504 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R505 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R506 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R507 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R508 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R509 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R510 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R518 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R585 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R586 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R104 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R105 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R306 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R308 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R475 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R495 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R611 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R612 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R658 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R659 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

6 Electrical Parts List

6-21

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 R676 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R682 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R108 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R113 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R116 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R243 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R244 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R406 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R409 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R457_NT 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R498 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R525 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R533 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R538 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R559 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R582 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R584 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R587 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R614 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R615 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R616 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R617 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R618 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R619 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R620 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R621 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R636 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R637 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R639 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R640 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R644 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R645 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R648 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R650 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R651 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R653 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R654 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R678 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R679 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R680 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R802 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R9002 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R901 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R9016 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R9023 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R9025 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R911 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R916 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R917 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R919 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R937 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R947 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R966 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R967 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R971 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R972 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R973 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R977 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R978 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R999 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R562 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 1 S.A

....4 R100 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 S.A

....4 R405 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 S.A

....4 R410 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 S.A

....4 R114 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R307 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R311 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R403 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R407 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R408 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R411 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R429 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

6 Electrical Parts List

6-22

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 R474 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R476 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R487 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R528 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R590 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R591 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R810 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R9026 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R946 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R103 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R106 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R312 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R322 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R522 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R535 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R537 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R554 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R555 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R556 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R576 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9019 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9044 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9045 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R905 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R928 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R935 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R530 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A

....4 R532 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A

....4 R925 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A

....4 R926 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A

....4 R963 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A

....4 R964 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A

....4 R242 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R526 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R541 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R578 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R593 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R643 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R655 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R808 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R809 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9011_OP 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9033 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9034 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9035 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9036 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9037 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9038 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9051 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9052 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9053 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9054 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9055 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9056 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9057 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R908 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R918 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R923 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R924 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R927 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R929 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R930 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R938 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R943 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R962 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R996 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R426 2007-000087 R-CHIP;6.8Kohm,5%,1/10W,TP,1608 1 S.A

....4 R427 2007-000087 R-CHIP;6.8Kohm,5%,1/10W,TP,1608 1 S.A

....4 R302 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R303 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R316 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R445 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

6 Electrical Parts List

6-23

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 R447 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R459 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R473 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R515 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R519 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R610 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R661 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R673 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R801 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R803 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R804 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9029 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9043 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R906 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R907 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R912 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R915 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R920 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R921 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R922 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R954 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R956 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R970 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R994 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R995 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R664 2007-000093 R-CHIP;20Kohm,5%,1/10W,TP,1608 1 S.A

....4 R666 2007-000093 R-CHIP;20Kohm,5%,1/10W,TP,1608 1 S.A

....4 R101 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 S.A

....4 R670 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 S.A

....4 R914 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 S.A

....4 R313 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R601 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R646 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R652 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R657 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R665 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R993 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R602 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R603 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R604 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R605 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R606 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R607 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R608 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R609 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R626 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R627 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R628 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R629 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R630 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R631 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R632 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R633 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R102 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R660 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R663 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R667 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R800 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R107 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608 1 S.A

....4 R111 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608 1 S.A

....4 R112 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608 1 S.A

....4 R668 2007-000107 R-CHIP;470Kohm,5%,1/10W,TP,1608 1 S.A

....4 R5004 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R550 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R551 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R553 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R638 2007-000119 R-CHIP;560ohm,5%,1/10W,TP,1608 1 S.A

....4 R236 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 S.A

....4 R237 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 S.A

....4 R238 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 S.A

....4 R683 2007-000125 R-CHIP;3.9Kohm,5%,1/10W,TP,1608 1 S.A

....4 R413 2007-000293 R-CHIP;100ohm,5%,1/4W,TP,3216 1 S.A

6 Electrical Parts List

6-24

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 R417 2007-000293 R-CHIP;100ohm,5%,1/4W,TP,3216 1 S.A

....4 R434 2007-000293 R-CHIP;100ohm,5%,1/4W,TP,3216 1 S.A

....4 R481 2007-000293 R-CHIP;100ohm,5%,1/4W,TP,3216 1 S.A

....4 R9012_OP 2007-000293 R-CHIP;100ohm,5%,1/4W,TP,3216 1 S.A

....4 R323 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R324 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R325 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R326 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R327 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R328 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R329 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R330 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R942 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R955_OP 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R957_OP 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R969 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R974 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R975 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R979 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R980 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R982 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R983 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R984 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R985 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R986 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R987 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R988 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R989 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R990 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R991 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R992 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R997 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R412 2007-000458 R-CHIP;18Kohm,5%,1/10W,TP,1608 1 S.A

....4 R416 2007-000458 R-CHIP;18Kohm,5%,1/10W,TP,1608 1 S.A

....4 R695 2007-000704 R-CHIP;3.6Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9041 2007-000704 R-CHIP;3.6Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9042 2007-000704 R-CHIP;3.6Kohm,5%,1/10W,TP,1608 1 S.A

....4 R557 2007-000903 R-CHIP;430ohm,1%,1/10W,TP,1608 1 S.A

....4 R117 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R118 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R414 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R415 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R418 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R477 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R478 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R482 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R902 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R903 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R948 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R223 2007-001014 R-CHIP;51OHM,5%,1/10W,TP,1608 1 S.A

....4 R228 2007-001014 R-CHIP;51OHM,5%,1/10W,TP,1608 1 S.A

....4 R805 2007-001068 R-CHIP;6.8Kohm,1%,1/10W,TP,1608 1 S.A

....4 R318 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R320 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R423 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R424 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R425 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R435 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R484 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R485 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R486 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R468 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R469 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R470 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R471 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R472 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R483 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R496 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R497 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R675 2007-008720 R-CHIP;4.7ohm,1%,1/4W,TP,3216 1 S.A

....4 R677 2007-008720 R-CHIP;4.7ohm,1%,1/4W,TP,3216 1 S.A

....4 R681 2007-008720 R-CHIP;4.7ohm,1%,1/4W,TP,3216 1 S.A

6 Electrical Parts List

6-25

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 R684 2007-008720 R-CHIP;4.7ohm,1%,1/4W,TP,3216 1 S.A

....4 IC223 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA221 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA222 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA223 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA224 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA225 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA226 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA227 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA903 2011-000651 R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA904 2011-000651 R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA906 2011-000651 R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA907 2011-000651 R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA908 2011-000651 R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA910 2011-000651 R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA500 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA501 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA900 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA901 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA902 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA905 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA909 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA911 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA913 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA916 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA917 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA918 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA919 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA920 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA921 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA922 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 C6003 2203-000125 C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1608,- 1 S.A

....4 C616 2203-000140 C-CER,CHIP;1.5nF,10%,50V,X7R,1608 1 S.A

....4 C632 2203-000140 C-CER,CHIP;1.5nF,10%,50V,X7R,1608 1 S.A

....4 C120 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C250 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C303 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C486 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C511 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C512 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C513 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C514 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C516 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C517 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C518 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C521 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C522 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C523 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C524 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C525 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C526 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C527 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C529 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C530 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C532 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C533 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C534 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C535 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C537 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C538 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C545 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C548 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C549 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C551 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C553 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C554 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C555 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C558 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C560 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C561 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C564 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C565 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

6 Electrical Parts List

6-26

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 C566 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C567 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C568 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C569 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C570 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C571 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C572 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C573 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C577 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C588 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C589 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C590 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C591 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C593 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C595 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C597 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C598 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C6004 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C6016 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C6017 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C620 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C625 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C626 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C627 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C628 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C644 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C649 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C651 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C652 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C660 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C664 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C680 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C682 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C687 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C801 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C803 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C805 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C812 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C813 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C815 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C817 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C834 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C836 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C840 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C849 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C867 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C868 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C900 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C904 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C943 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C117 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C118 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C269 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C270 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C401 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C403 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C404 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C405 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C406 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C407 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C412 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C413 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C423 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C424 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C487 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C488 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C6006 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C6007 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C6008 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C623 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C678 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C679 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

6 Electrical Parts List

6-27

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 C926 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C928 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C101 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C111 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C112 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C228 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C229 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C230 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C231 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C232 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C238 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C241 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C244 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C264 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C265 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C268 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C504 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C505 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C506 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C507 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C508 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C541 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C622 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C800 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C802 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C810 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C814 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C816 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C830 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C843 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C944 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C901 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C903 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C908 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C931 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C933 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C937 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C114 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,1608 1 S.A

....4 C575 2203-000531 C-CER,CHIP;2.7nF,10%,50V,X7R,1608 1 S.A

....4 C592 2203-000531 C-CER,CHIP;2.7nF,10%,50V,X7R,1608 1 S.A

....4 C500 2203-000552 C-CER,CHIP;0.02nF,5%,50V,C0G,1608 1 S.A

....4 C510 2203-000552 C-CER,CHIP;0.02nF,5%,50V,C0G,1608 1 S.A

....4 C639 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 S.A

....4 C647 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 S.A

....4 C911 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 S.A

....4 C912 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 S.A

....4 C938 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 S.A

....4 C939 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 S.A

....4 C304 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C305 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C483 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C484 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C688 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C696 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C662 2203-000798 C-CER,CHIP;33nF,10%,16V,X7R,TP,1608,- 1 S.A

....4 C663 2203-000798 C-CER,CHIP;33nF,10%,16V,X7R,TP,1608,- 1 S.A

....4 C115 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C223 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C224 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C502 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C503 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C674 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C675 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C104 2203-000972 C-CER,CHIP;47nF,10%,16V,X7R,1608 1 S.A

....4 C634 2203-000972 C-CER,CHIP;47nF,10%,16V,X7R,1608 1 S.A

....4 C266 2203-000998 C-CER,CHIP;0.047nF,5%,50V,C0G,1608 1 S.A

....4 C411 2203-000998 C-CER,CHIP;0.047nF,5%,50V,C0G,1608 1 S.A

....4 C629 2203-001402 C-CER,CHIP;220nF,+80-20%,16V,Y5V,TP,1608 1 S.A

....4 C106 2203-001607 C-CER,CHIP;0.22nF,5%,50V,NP0,1608 1 S.A

....4 C6009 2203-001607 C-CER,CHIP;0.22nF,5%,50V,NP0,1608 1 S.A

....4 C670 2203-001652 C-CER,CHIP;470nF,+80-20%,16V,Y5V,1608 1 S.A

....4 C672 2203-001652 C-CER,CHIP;470nF,+80-20%,16V,Y5V,1608 1 S.A

6 Electrical Parts List

6-28

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 C617 2203-001656 C-CER,CHIP;0.47nF,5%,50V,NP0,1608 1 S.A

....4 C631 2203-001656 C-CER,CHIP;0.47nF,5%,50V,NP0,1608 1 S.A

....4 C673 2203-001724 C-CER,CHIP;4700nF,+80-20%,16V,Y5V,3216 1 S.A

....4 C103 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C110 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C221 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C222 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C235 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C236 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C261 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C501 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C519 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C528 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C543 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C601 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C640 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C641 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C642 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C643 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C657 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C665 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C822 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C825 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C827 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C851 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C853 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C856 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C859 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C861 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C914 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C915 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C916 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C918 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C920 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C922 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C923 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C924 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C925 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C935 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C941 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C689 2203-005030 C-CER,CHIP;470nF,+80-20%,50V,Y5V,TP,3216 1 S.A

....4 C697 2203-005030 C-CER,CHIP;470nF,+80-20%,50V,Y5V,TP,3216 1 S.A

....4 C300 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C536 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C699 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C823 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C839 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C870 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C919 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C942 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C6001 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C6002 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C6005 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C6011 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C677 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C681 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C683 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C685 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C690 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C691 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C692 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C693 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C694 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C695 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C698 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C546 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C547 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C550 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C552 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C556 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C557 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C559 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

6 Electrical Parts List

6-29

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 C562 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C563 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C578 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C579 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C580 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C581 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C582 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C583 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C584 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C585 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C586 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C594 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C596 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C824 2203-005834 C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216 1 S.A

....4 C302 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C574 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C576 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C587 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C599 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C600 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C6015 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C603 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C604 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C605 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C606 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C607 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C608 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C609 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C610 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C611 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C613 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C618 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C619 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C621 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C624 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C630 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C636 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C645 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C646 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C648 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C650 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C653 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C654 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C655 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C656 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C658 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C686 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C852 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C855 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C921 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C5001 2402-001059 C-AL,SMD;220¥ìF,20%,6.3V,-,TP,6x6.6x6.6 1 S.A

....4 C5002 2402-001059 C-AL,SMD;220¥ìF,20%,6.3V,-,TP,6x6.6x6.6 1 S.A

....4 C806 2402-001081 C-AL,SMD;100uF,20%,25V,WT,TP,8.3x8.3x10 1 S.A

....4 C819 2402-001081 C-AL,SMD;100uF,20%,25V,WT,TP,8.3x8.3x10 1 S.A

....4 C835 2402-001081 C-AL,SMD;100uF,20%,25V,WT,TP,8.3x8.3x10 1 S.A

....4 C239 2402-001097 C-AL,SMD;0.1UF,20%,50V,WT,TP,4.3X4.3X5.2 1 S.A

....4 C240 2402-001097 C-AL,SMD;0.1UF,20%,50V,WT,TP,4.3X4.3X5.2 1 S.A

....4 C102 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C107 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C108 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C615 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C668 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C669 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C671 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C811 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C848 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C854 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C116 2402-001129 C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM 1 S.A

....4 C249 2402-001129 C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM 1 S.A

....4 C509 2402-001129 C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM 1 S.A

....4 C635 2402-001129 C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM 1 S.A

....4 C667 2402-001129 C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM 1 S.A

6 Electrical Parts List

6-30

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 C807 2402-001129 C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM 1 S.A

....4 C820 2402-001129 C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM 1 S.A

....4 C666 2402-001160 C-AL,SMD;330UF,20%,16V,WT,TP,1008 1 S.A

....4 C485 2402-001178 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A

....4 C531 2402-001178 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A

....4 C684 2402-001178 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A

....4 C826 2402-001178 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A

....4 C902 2402-001178 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A

....4 C907 2402-001178 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A

....4 C913 2402-001178 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A

....4 C917 2402-001178 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A

....4 C950 2402-001178 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A

....4 C100 2402-001183 C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM 1 S.A

....4 C227 2402-001183 C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM 1 S.A

....4 C237 2402-001183 C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM 1 S.A

....4 C542 2402-001183 C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM 1 S.A

....4 C633 2402-001183 C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM 1 S.A

....4 C850 2402-001183 C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM 1 S.A

....4 C866 2402-001183 C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM 1 S.A

....4 C6010 2402-001221 C-AL,SMD;470UF,20%,16V,-,TP,A8.3XB8.3XL1 1 S.A

....4 C676 2402-001221 C-AL,SMD;470UF,20%,16V,-,TP,A8.3XB8.3XL1 1 S.A

....4 C520 2402-001226 C-AL,SMD;4.7UF,20%,35V,HR,TP,4.3X4.3X5.8 1 S.A

....4 C113 2402-001238 C-AL,SMD;1uF,20%,50V,HR,TP,4.3x4.3x5.2mm 1 S.A

....4 C833 2409-001029 C-ORGANIC;120uF,20%,6.3V,WT,TP,10.3x10.3 1 S.A

....4 T0052 2703-000274 INDUCTOR-SMD;2.2uH,10%,2012 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000417 INDUCTOR-SMD;220uH,5%,3225 1 S.A

....4 T0052 2703-001229 INDUCTOR-SMD;2.2uH,10%,1608 1 S.A

....4 T0052 2703-001229 INDUCTOR-SMD;2.2uH,10%,1608 1 S.A

....4 T0052 2703-001229 INDUCTOR-SMD;2.2uH,10%,1608 1 S.A

....4 T0052 2703-001229 INDUCTOR-SMD;2.2uH,10%,1608 1 S.A

....4 T0052 2703-001229 INDUCTOR-SMD;2.2uH,10%,1608 1 S.A

....4 T0052 2703-001229 INDUCTOR-SMD;2.2uH,10%,1608 1 S.A

....4 T0052 2703-001426 INDUCTOR-SMD;680uH,20%,7070 1 S.A

....4 T0052 2703-002327 INDUCTOR-SMD;3.9uH,5%,3225 1 S.A

....4 T0052 2703-002722 INDUCTOR-SMD;22uH,20%,12x12mm 1 S.A

....4 T0052 2703-002915 INDUCTOR-SMD;22uH,20%,8080 1 S.A

....4 T0052 2703-002915 INDUCTOR-SMD;22uH,20%,8080 1 S.A

....4 T0052 2703-002915 INDUCTOR-SMD;22uH,20%,8080 1 S.A

....4 T0052 2703-002915 INDUCTOR-SMD;22uH,20%,8080 1 S.A

....4 X904 2801-003326 CRYSTAL-SMD;24MHZ,30PPM,28-ABX,20PF,50OH 1 S.A

....4 X903 2801-003923 CRYSTAL-SMD;10MHz,30ppm,28-AAN,20pF,60oh 1 S.A

....4 X600 2801-003954 CRYSTAL-SMD;27MHz,30ppm,28-AAN,16pF,50oh 1 S.A

....4 X500 2801-004483 CRYSTAL-SMD;28.322MHz,30ppm,HC-49,20pF,5 1 S.A

....4 T0568 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm,-,-,- 1 S.N.A

....4 T0568 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm,-,-,- 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001236 BEAD-SMD;60ohm,1608,-,-,- 1 S.N.A

....4 T0568 3301-001236 BEAD-SMD;60ohm,1608,-,-,- 1 S.N.A

....4 T0568 3301-001236 BEAD-SMD;60ohm,1608,-,-,- 1 S.N.A

....4 T0568 3301-001236 BEAD-SMD;60ohm,1608,-,-,- 1 S.N.A

....4 T0568 3301-001236 BEAD-SMD;60ohm,1608,-,-,- 1 S.N.A

....4 T0568 3301-001236 BEAD-SMD;60ohm,1608,-,-,- 1 S.N.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

6 Electrical Parts List

6-31

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001393 BEAD-SMD;60ohm,3216,1500mA,TP,41ohm/40MH 1 S.N.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001569 BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90 1 S.N.A

....4 CN703 3701-001311 CONNECTOR-HDMI;21P,2R,FEMALE,SMD-S,AU30U 1 S.A

....4 CN330 3711-005291 HEADER-BOARD TO CABLE;BOX,2P,1R,2MM,SMD- 1 S.A

....4 CN330 3711-005292 HEADER-BOARD TO CABLE;BOX,3P,1R,2MM,SMD- 1 S.A

....4 CN330 3711-005497 HEADER-BOARD TO CABLE;BOX,15P,1R,1.25MM, 1 S.A

....4 M0018 BN97-01060A ASSY MICOM;A51O 1 S.A

.....5 IC115 1107-001555 IC-FLASH MEMORY;49BV802A,8MBIT,1MX8/512K 1 S.N.A

....4 M0018 BN97-01060B ASSY MICOM;A51O 1 S.N.A

.....5 IC520 0903-001389 IC-MICROCONTROLLER;S3F866B,8Bit,QFP,44P, 1 S.N.A

....4 R806 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608 1 S.A

....4 C841 2203-000405 C-CER,CHIP;0.18nF,5%,50V,C0G,1608 1 S.A

....4 R110 2007-000073 R-CHIP;91ohm,5%,1/10W,TP,1608 1 S.A

....4 R9027 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608 1 S.A

....4 C842 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,1608 1 S.A

....4 T0077 BN41-00680D PCB MAIN;BORDEAUX,FR-4,4,MP1.3,1.6,192*1 1 S.N.A

...3 CIS3 BN40-00091A TUNER;TCPN3081PA32S(H),TCPN3081PA32S(H), 1 S.A
...3 T0562 6046-001013 STAND OFF;M3,L5,Ni PLT,SUM24L,#4-40 2 S.N.A

0.1 M0112 BN91-01176D ASSY SHIELD;LN32T71BX/GSU 1 S.N.A
..2 M0081 6003-000115 SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC 4 S.A
..2 M0081 6003-000115 SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC 4 S.A
..2 T0069 AA60-00171L SPACER-FELT;46L3,FELT,460,T0.5,10 2 S.N.A
..2 M2893 BH39-00362B LEAD CONNECTOR;RE32**,UL1007#26,5P,150mm 1 S.A
..2 T0076 BN39-00615D CBF HARNESS;BORDEAUX,1617#22,3P,1P,RING, 1 S.A
..2 M2893 BN39-00691A LEAD CONNECTOR;Torino-32,UL1007#26,16P,1 1 S.A
..2 M0114 BN61-01709A HOLDER-WIRE;NYLON 6/6,NATURAL,DAWS-1ND 2 S.N.A
..2 M0146 BN61-02207A BRACKET-PANEL SIDE;Bordeaux 26,SECC,T1.2 4 S.N.A
..2 M0115 BN61-02364A BRACKET-STAND LINK;SONOMA 32,SECC,T1.6 1 S.N.A
..2 T0447 BN96-02999A ASSY BRACKET P-PANEL;BORDEAUX,32,AMLCD,S 1 S.N.A
...3 M0146 BN61-02194A BRACKET-PANEL TOP;Bordeaux 32,SECC,T1.2 1 S.N.A
...3 BN61-02195A BRACKET-PANEL BOTTOM;Bordeaux 32,SECC,T1 1 S.N.A
...3 BN61-02198A BRACKET-GUIDE MAIN;Bordeaux 32,SECC,T1.2 1 S.N.A
...3 BN61-02199A BRACKET-GUIDE POWER;Bordeaux 32,SECC,T1. 1 S.N.A
...3 BN61-02200A BRACKET-GUIDE POWER;Bordeaux 32,SECC,T1. 1 S.N.A
...3 M0131 AA63-01437A GASKET;Bordeaux,Conductive Fabric,20mm,9 1 S.N.A
..2 M0059 BN96-03186G ASSY BOARD P-HOLDER AV;SONOMA,32,SO,CT50 1 S.N.A
...3 M2893 BN39-00672A LEAD CONNECTOR;LNR329DX/XAA,UL2835#28,UL 1 S.A
...3 BN61-02365B HOLDER-SIDE AV;SONOMA,32,HIPS,HB,BK500 1 S.N.A
...3 T0578 BN64-00454B INLAY AV;BORDEAUX,PS SHEET,T0.3,-,-,BLAC 1 S.N.A
...3 M0020 BN96-02439A ASSY BOARD P-SUB AV SIDE;MILANO,CT5000-3 1 S.N.A
..2 T0159 BN96-03775A ASSY PCB P-SMPS;FreeVoltage SMPS,LA32R71 1 S.A
..2 M2893 BN39-00659A LEAD CONNECTOR;RE32*CMO,UL1007#26,14/12P 1 S.A
..2 M2893 BN39-00712E LEAD CONNECTOR-LVDS;Bordeaux,UL1571#30,U 1 S.A
..2 M0081 6003-000337 SCREW-TAPTITE;BH,+,S,M4,L10,ZPC(BLK),SWR 4 S.A
..2 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 6 S.N.A
..2 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 2 S.N.A
..2 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 2 S.N.A
..2 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 4 S.N.A
..2 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 1 S.N.A
..2 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 2 S.N.A
..2 M0081 6003-001439 SCREW-TAPTITE;BH,+,-,S,M4,L8,ZPC(WHT),SW 1 S.N.A

0.1 M0003 BN92-01700Q ASSY BOX;32T71,UO,(GSU),SONOMA 1 S.N.A
..2 T0130 BN69-01312L BOX-00,SET;32T7(OVERSEA),SY-05,A,YEL,A1, 1.01 S.N.A

0.1 M0113 BN92-01703A ASSY P/MATERIAL;32T70,SONOMA 1 S.N.A
..2 T0376 6902-000061 BAG AIR;LDPE,T0.2,L1000,W500,TRP,,, 0.016 S.N.A
..2 T0376 6902-000379 BAG AIR;LDPE,T0.2,W1000,L1800,TRP,-,-- 0.007 S.N.A
..2 T0524 6902-000519 BAG PE;HDPE/NITRON(DOUBLE),T0.015/T0.05( 1 S.N.A
..2 T0003 6902-000604 BAG WRAPPING;LDPE,T0.02,W500,L10000,TRP, 6.35 S.N.A

6 Electrical Parts List

6-32

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

0.1 M0019 BN92-02002R ASSY LABEL;LN32T71BX/XAO 1 S.N.A

0.1 M0045 BN92-02004E ASSY ACCESSORY;LN26T71BX/XAO 1 S.N.A
..2 M0045 BN96-04215D ASSY ACCESSORY;LN26T71BX/XAO,A51O,SONOMA 1 S.N.A
...3 T0268 3903-000144 CBF-POWER CORD;DT,US,BP3/Y,U(IEC C13-RA) 1 S.A
...3 T0524 6902-000110 BAG PE;LDPE,T0.05,W250,L400,TRP,28,2 2 S.N.A
...3 T0210 AA68-03242F MANUAL FLYER-01,SAFETY GUIDE;All Model,S 1 S.N.A
...3 ACCESSORY AA68-03727A MANUAL FLYER-01,WARRANTY CARD;All,SAMSUN 1 S.N.A
...3 T0074 BN59-00556A REMOCON;Bordeaux,TM86,44,PAL-N, M,South 1 S.A
...3 T0531 BN63-02415B COVER-BOTTOM;SONOMA,32,HIPS,HB,BK500 1 S.N.A
...3 M0156 BN68-01001W MANUAL USERS-01;COMM,SAMSUNG,2Langs,S.Am 1 S.N.A
...3 M0126 BN69-01086A BOX ACCESSORY-00;COMM,SW1,YEL,-,W573,D63 1 S.N.A
...3 M0045 BN96-01800A ASSY ACCESSORY;ROME32,SCREW 1 S.A

....4 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 4 S.A

....4 ACCESSORY 6902-000128 BAG ZIPPER;LDPE,T0.05,W200,L150,TRP,8,2- 1 S.N.A

0.1 M0002 BN90-00879H ASSY COVER REAR;32T71,UO(XAX),HIPS,HB,BK 1 S.N.A
..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 2 S.A
..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 9 S.A
..2 M0013 BN96-03188F ASSY COVER P-REAR;32T71,UO(XAX),HIPS,HB, 1 S.A
...3 M0006 BN63-02410C COVER-REAR;32T70,SO,HIPS,HB,BK500,SONOMA 1 S.N.A
...3 T0071 BN64-00445B INLAY-TERMINAL;32,37,40R71,PS SHEET,T0.5 1 S.N.A
...3 T0064 BN65-00002A CLAMPER CORE;BORDEAUX,PP,V0,BLK 1 S.N.A
...3 BN61-02776A HOLDER-WALL;32R7,ABS,HB,BLK 2 S.N.A

6 Electrical Parts List

6-33

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

0 LN40T71BX/XAO LN40T71B,A51O/40T70-GSM,40,LCD-TV,COLOMB 0

0.1 M0001 BN90-00857J ASSY COVER FRONT;40T71,UO(XAX),HIPS,HB,B 1 S.N.A
..2 M0081 6006-001096 SCREW-TAPTITE;BH,+,WP,B,M4.0,L12,ZPC(BLK 4 S.N.A
..2 T0003 BN96-03184C ASSY COVER P-FRONT;40T71,UO(XAX),HIPS,HB 1 S.A
...3 M0162 6502-001067 CABLE CLAMP;DAFC-1300,ID2.2,T5.2,NYLIN6/ 2 S.N.A
...3 T0069 AA60-00171G SPACER-FELT;43L2,FELT,505,T0.5,10 2 S.N.A
...3 T0060 BN61-01655A SPRING ETC;STS-304 SUS,D8,L12,T0.5 1 S.N.A
...3 M0112 BN63-02407C COVER-FRONT;40T71,UO(XAX),HIPS,HB,BK500, 1 S.N.A
...3 T0056 BN63-02414A COVER-DECORATION;SONOMA 40,HIPS,HB,GR503 1 S.N.A
...3 T0059 BN64-00379A INDICATOR LED;ROME-II,23,PC,CLEAR 1 S.N.A
...3 T0061 BN64-00453A WINDOW-REMOCON;32R71,PC,V0,VIOLET,DIFFUS 1 S.N.A
...3 T0022 BN64-00467A KNOB CONTROL;SONOMA26,32,40,ABS,-,-,-,V0 1 S.A
...3 T0023 BN64-00476A KNOB POWER;SONOMA,26,32,40,HIPS,HB,GR503 1 S.N.A
...3 T0054 BN64-00477A KNOB-DECORATION;SONOMA26,32,40,ABS,HB,GR 1 S.N.A
...3 M0146 BN96-03438A ASSY BOARD P-POWER & IR;BORDEAUX2,CT5000 1 S.A
...3 M0145 BN96-03466A ASSY BOARD P-FUNCTION;SONOMA,SJ06-01-008 1 S.A
...3 T0382 BP61-00509C HOLDER-CARE;PJT,ACRYL-FOAM,T0.25,W20.0mm 0.28 S.N.A
...3 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 2 S.N.A
...3 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 1 S.N.A
...3 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 2 S.N.A
..2 T0175 BN96-03247A ASSY SPEAKER P;8ohm,Sonoma 32,Left,10W,N 1 S.A
..2 T0175 BN96-03248A ASSY SPEAKER P;8ohm,Sonoma 32,Right,10W, 1 S.A
..2 T0382 BP61-00495C HOLDER-CARE;PJT,ACRYL-FOAM,T0.25,W30.0mm 0.2 S.N.A

0.1 M0216 BN90-00875A ASSY STAND;40T70,SONOMA 1 S.N.A
..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 4 S.A
..2 M0013 BN96-03190A ASSY STAND P-BASE;40T70,HIPS,HB,BK500,BK 1 S.A
...3 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 7 S.A
...3 M0081 6003-001239 SCREW-TAPTITE;FH,+,-,B,M4,L10,ZPC(WHT),S 11 S.A
...3 BN61-01811A BRACKET-STAND BOTTOM;40 MILANO,SECC,T3.0 1 S.N.A
...3 T0920 BN61-02361A GUIDE-STAND;SONOMA 40,HIPS V0,-,-,-,BK50 1 S.N.A
...3 M0111 BN63-01939C COVER-STAND;40T70,HIPS,HB,BK500,BKP-1526 1 S.N.A
...3 T0132 BN73-00052A RUBBER FOOT;ARES 17,SILICON,DIA 17 * T1. 9 S.N.A

0.1 T0852 BN91-01017B ASSY LCD-SPZ;LE40R71BX/* 1 S.N.A
..2 M0215 BN07-00264A LCD-PANEL;LTA400WT-L01,8bit,952*551*51.0 1 S.A

0.1 M0017 BN91-01091C ASSY CHASSIS;LN40R71BX/XAZ,A51O,BORDEAUX 1 S.N.A
..2 M0014 BN94-01012C ASSY PCB MAIN;LN40R71BX/XAZ,A51O,BORDEAU 1 S.A
...3 T0245 0202-001492 SOLDER-WIRE FLUX;HSE-02 LFM48 SR-34 S,-, 0.25 S.N.A
...3 JA709 3701-001294 CONNECTOR-DSUB;15P,3R,FEMALE,STRAIGHT,AU 1 S.A
...3 CN330 3711-004068 HEADER-BOARD TO CABLE;BOX,5P,1R,2MM,ANGL 1 S.A
...3 CN330 3711-004484 HEADER-BOARD TO CABLE;BOX,5P,1R,2mm,STRA 1 S.A
...3 CN330 3711-004484 HEADER-BOARD TO CABLE;BOX,5P,1R,2mm,STRA 1 S.A
...3 CN330 3711-004909 HEADER-BOARD TO CABLE;BOX,14P,2R,2MM,ANG 1 S.A
...3 CN503 3711-005884 HEADER-BOARD TO BOARD;BOX,30P,2R,2mm,ANG 1 S.A
...3 CN330 3711-005942 HEADER-BOARD TO CABLE;BOX,16P,1R,2mm,STR 1 S.A
...3 JA330 3722-001061 JACK-PHONE;1P,3.6PI,AG,BLK,N 1 S.A
...3 JA330 3722-001061 JACK-PHONE;1P,3.6PI,AG,BLK,N 1 S.A
...3 JA333 3722-002143 JACK-PIN;5P,NI,GRN/BLU/RED/WHT/RED,STRAI 1 S.A
...3 JA333 3722-002360 JACK-PIN;3P,AU,GRN/BLU/RED,STRAIGHT 1 S.A
...3 JA333 3722-002362 JACK-PIN;2P,Sn,WHT/RED,STRAIGHT 1 S.A
...3 JA333 3722-002362 JACK-PIN;2P,Sn,WHT/RED,STRAIGHT 1 S.A
...3 JA333 3722-002362 JACK-PIN;2P,Sn,WHT/RED,STRAIGHT 1 S.A
...3 JA333 3722-002363 JACK-PIN;3P,Sn,YEL/WHT/RED,STRAIGHT 1 S.A
...3 M0107 BN63-01847A SHIELD-COVER;ROME,SECC,T0.3,49.5,79.5,HE 1 S.N.A
...3 CIS8 BN73-00024C SILICON/RUBBER-BERGQUIST;VENUS 32,40",SI 1 S.N.A
...3 T0174 BN97-01052C ASSY SMD;LN40R71BX/XAZ,A51O,BORDEAUX 1 S.N.A

....4 SUB05 0202-001477 SOLDER-CREAM;LST309-M,-,D20~45§-,96.5Sn/ 3.033 S.N.A

....4 D100 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D200 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D201 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D202 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D226 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D227 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D228 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D307 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D320 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D321 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D322 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D323 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

6-3 LN40T71B Parts List

6 Electrical Parts List

6-34

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 D324 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D325 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D326 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D327 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D451_NT 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D467 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D485 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D486 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D487 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D494 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D800 0402-000553 DIODE-SCHOTTKY;SS24/B240,40V,2000mA,DO-2 1 S.A

....4 D801 0403-000258 DIODE-ZENER;BZX84C5V6,5.2-6V,225mW,SOT-2 1 S.A

....4 D906 0403-000258 DIODE-ZENER;BZX84C5V6,5.2-6V,225mW,SOT-2 1 S.A

....4 D300 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D304 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D305 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D490 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D491 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D492 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D493 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D499 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D500 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D501 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D502 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D503 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D504 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D505 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D506 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D507 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D508 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D509 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D510 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D511 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D512 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D513 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D909 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D911 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D301 0403-001016 DIODE-ZENER;RLZ6.2B,5.96-6.27V,500mW,LL- 1 S.A

....4 D418 0403-001169 DIODE-ZENER;RLZ16C,15.96-16.51V,500MW,LL 1 S.A

....4 D421 0403-001169 DIODE-ZENER;RLZ16C,15.96-16.51V,500MW,LL 1 S.A

....4 D101 0403-001425 DIODE-ZENER;BZX84C33,31-35V,350mW,SOT-23 1 S.A

....4 D308 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D309 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D401 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D403 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D404 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D405 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D406 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D407 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D408 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D409 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D410_NT 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D411_NT 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D412_NT 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D428 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D461 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D462 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D470 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D471 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D472 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D483 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D484 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D600 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A

....4 D601 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A

....4 D900 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A

....4 D901 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A

....4 Q603 0501-000280 TR-SMALL SIGNAL;KSA1182,PNP,150MW,SOT-23 1 S.A

....4 Q100 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q301 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q501 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q600 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q601 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

6 Electrical Parts List

6-35

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 Q602 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q605 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q606 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q609 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q802 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q900 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q904 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q905 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q906 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q972 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q973 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q222 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A

....4 Q800 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A

....4 Q801 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A

....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A

....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A

....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A

....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A

....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A

....4 Q409 0505-001170 FET-SILICON;SI9933ADY-T1,P,-20V,3.4A,0.0 1 S.A

....4 IC104 0801-002095 IC-CMOS LOGIC;74LCX245,TRANSCEIVER,TSSOP 1 S.A

....4 IC900 0903-001432 IC-MICROCOMPUTER;M30840SGP,16Bit,LQFP,10 1 S.N.A

....4 IC605 1001-000164 IC-ANALOG MULTIPLEX;74HC4052,CMOS,SOP,16 1 S.A

....4 IC905 1001-001109 IC-ANALOG SWITCH;FST3125M,BUS SWITCH & C 1 S.A

....4 IC107 1002-001399 IC-D/A CONVERTER;PCM1754,24BIT,SSOP,16P, 1 S.A

....4 IC110 1006-001076 IC-DRIVER/RECEIVER;MAX232ECWE+T,SOP,16P, 1 S.A

....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x 1 S.A

....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x 1 S.A

....4 IC112 1103-001279 IC-EEPROM;24C32,32Kbit,4Kx8Bit,SOP,8P,5x 1 S.A

....4 IC222 1105-001538 IC-VIDEO RAM;K4D263238,-,128M,4x1Mx32Bit 1 S.A

....4 DU410 1201-000166 IC-OP AMP;LM358,SOP,ST,8P,150MIL,DUAL,10 1 S.A

....4 T0085 1201-002136 IC-AUDIO AMP;LM4810,MSOP,8P,3x3mm,DUAL,- 1 S.A

....4 T0085 1201-002246 IC-AUDIO AMP;STA323W,SO,36P,15.9x11mm,-, 1 S.A

....4 IC910 1203-001559 IC-RESET;DS1834A,SOIC,8P,150MIL,PLASTIC, 1 S.A

....4 T0087 1203-001815 IC-POSI.FIXED REG.;78M09,TO-252,3P,-,PLA 1 S.A

....4 T0087 1203-001816 IC-POSI.FIXED REG.;78M08,TO-252,3P,-,PLA 1 S.A

....4 T0087 1203-002842 IC-POSI.FIXED REG.;AP1117D-33A,TO-252,3P 1 S.A

....4 T0087 1203-002842 IC-POSI.FIXED REG.;AP1117D-33A,TO-252,3P 1 S.A

....4 T0087 1203-002855 IC-POSI.FIXED REG.;MC33269DTRK-5.0,DPRK, 1 S.A

....4 T0087 1203-002974 IC-POSI.FIXED REG.;AP1117D-25A,TO-252,3P 1 S.A

....4 T0170 1203-003059 IC-SWITCH VOL. REG.;MP1583,SOIC,8P,4.9x3 1 S.A

....4 IC601 1204-002471 IC-AUDIO PROCESSOR;STV8258DSX,TQFP,80P,1 1 S.A

....4 IC118 1204-002503 IC-VIDEO PROCESS;SVP-PX56-7256,PQFP,256P 1 S.N.A

....4 R221 2007-000043 R-CHIP;1Kohm,1%,1/10W,TP,1608 1 S.A

....4 R222 2007-000043 R-CHIP;1Kohm,1%,1/10W,TP,1608 1 S.A

....4 R9004 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R9005 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R9006 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R9007 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R9008 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R9009 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R9010 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R9015 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R9028 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R9032 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R976 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R109 2007-000060 R-CHIP;100Kohm,1%,1/10W,TP,1608 1 S.A

....4 R807 2007-000067 R-CHIP;15Kohm,1%,1/10W,TP,1608 1 S.A

....4 40_ 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R321 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R440_NT 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R441_NT 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R442_NT 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R443_NT 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R444 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R446 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R456_NT 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R480 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R500 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R501 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R502 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R511 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

6 Electrical Parts List

6-36

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 R512 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R514_OP 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R516 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R523 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R539 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R540 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R542 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R563_OP 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R564_OP 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R565_OP 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R566_OP 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R567_OP 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R568_OP 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R569_OP 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R570_OP 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R571_OP 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R572_OP 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R574 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R575 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R577 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R592 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R656 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R691 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R692 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R693 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R9000 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R9013 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R9014 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R9030 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R909 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R913 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R931 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R932 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R933 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R934 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R936 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R939 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R940 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R941 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R949 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R950 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R951 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R952 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R953 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R998 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R224 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R225 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R226 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R227 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R458 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R499 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R503 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R504 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R505 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R506 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R507 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R508 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R509 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R510 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R518 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R585 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R586 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R104 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R105 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R306 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R308 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R475 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R495 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R611 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R612 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R658 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R659 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

6 Electrical Parts List

6-37

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 R676 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R682 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R108 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R113 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R116 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R243 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R244 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R406 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R409 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R457_NT 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R498 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R525 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R533 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R538 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R559 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R582 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R584 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R587 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R614 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R615 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R616 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R617 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R618 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R619 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R620 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R621 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R636 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R637 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R639 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R640 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R644 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R645 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R648 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R650 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R651 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R653 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R654 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R678 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R679 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R680 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R802 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R9002 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R901 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R9016 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R9023 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R9025 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R911 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R916 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R917 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R919 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R937 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R947 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R966 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R967 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R971 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R972 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R973 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R977 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R978 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R999 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R562 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 1 S.A

....4 R100 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 S.A

....4 R405 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 S.A

....4 R410 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 S.A

....4 R114 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R307 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R311 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R403 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R407 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R408 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R411 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R429 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

6 Electrical Parts List

6-38

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 R474 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R476 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R487 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R528 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R590 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R591 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R810 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R9026 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R946 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R103 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R106 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R312 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R322 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R522 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R535 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R537 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R554 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R555 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R556 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R576 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9019 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9044 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9045 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R905 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R928 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R935 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R530 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A

....4 R532 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A

....4 R925 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A

....4 R926 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A

....4 R963 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A

....4 R964 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A

....4 R242 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R526 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R541 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R578 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R593 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R643 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R655 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R808 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R809 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9011_OP 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9033 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9034 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9035 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9036 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9037 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9038 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9051 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9052 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9053 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9054 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9055 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9056 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9057 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R908 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R918 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R923 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R924 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R927 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R929 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R930 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R938 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R943 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R962 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R996 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R426 2007-000087 R-CHIP;6.8Kohm,5%,1/10W,TP,1608 1 S.A

....4 R427 2007-000087 R-CHIP;6.8Kohm,5%,1/10W,TP,1608 1 S.A

....4 R302 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R303 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R316 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R445 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

6 Electrical Parts List

6-39

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 R447 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R459 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R473 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R515 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R519 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R610 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R661 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R673 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R801 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R803 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R804 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9029 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9043 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R906 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R907 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R912 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R915 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R920 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R921 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R922 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R954 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R956 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R970 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R994 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R995 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R664 2007-000093 R-CHIP;20Kohm,5%,1/10W,TP,1608 1 S.A

....4 R666 2007-000093 R-CHIP;20Kohm,5%,1/10W,TP,1608 1 S.A

....4 R101 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 S.A

....4 R670 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 S.A

....4 R914 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 S.A

....4 R313 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R601 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R646 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R652 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R657 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R665 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R993 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R602 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R603 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R604 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R605 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R606 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R607 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R608 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R609 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R626 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R627 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R628 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R629 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R630 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R631 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R632 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R633 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R102 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R660 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R663 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R667 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R800 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R107 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608 1 S.A

....4 R111 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608 1 S.A

....4 R112 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608 1 S.A

....4 R668 2007-000107 R-CHIP;470Kohm,5%,1/10W,TP,1608 1 S.A

....4 R5004 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R550 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R551 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R553 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R638 2007-000119 R-CHIP;560ohm,5%,1/10W,TP,1608 1 S.A

....4 R236 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 S.A

....4 R237 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 S.A

....4 R238 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 S.A

....4 R683 2007-000125 R-CHIP;3.9Kohm,5%,1/10W,TP,1608 1 S.A

....4 R413 2007-000293 R-CHIP;100ohm,5%,1/4W,TP,3216 1 S.A

6 Electrical Parts List

6-40

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 R417 2007-000293 R-CHIP;100ohm,5%,1/4W,TP,3216 1 S.A

....4 R434 2007-000293 R-CHIP;100ohm,5%,1/4W,TP,3216 1 S.A

....4 R481 2007-000293 R-CHIP;100ohm,5%,1/4W,TP,3216 1 S.A

....4 R9012_OP 2007-000293 R-CHIP;100ohm,5%,1/4W,TP,3216 1 S.A

....4 R323 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R324 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R325 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R326 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R327 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R328 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R329 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R330 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R942 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R955_OP 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R957_OP 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R969 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R974 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R975 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R979 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R980 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R982 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R983 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R984 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R985 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R986 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R987 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R988 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R989 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R990 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R991 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R992 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R997 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R412 2007-000458 R-CHIP;18Kohm,5%,1/10W,TP,1608 1 S.A

....4 R416 2007-000458 R-CHIP;18Kohm,5%,1/10W,TP,1608 1 S.A

....4 R695 2007-000704 R-CHIP;3.6Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9041 2007-000704 R-CHIP;3.6Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9042 2007-000704 R-CHIP;3.6Kohm,5%,1/10W,TP,1608 1 S.A

....4 R557 2007-000903 R-CHIP;430ohm,1%,1/10W,TP,1608 1 S.A

....4 R117 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R118 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R414 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R415 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R418 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R477 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R478 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R482 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R902 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R903 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R948 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R223 2007-001014 R-CHIP;51OHM,5%,1/10W,TP,1608 1 S.A

....4 R228 2007-001014 R-CHIP;51OHM,5%,1/10W,TP,1608 1 S.A

....4 R805 2007-001068 R-CHIP;6.8Kohm,1%,1/10W,TP,1608 1 S.A

....4 R318 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R320 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R423 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R424 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R425 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R435 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R484 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R485 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R486 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R468 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R469 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R470 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R471 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R472 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R483 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R496 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R497 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R675 2007-008720 R-CHIP;4.7ohm,1%,1/4W,TP,3216 1 S.A

....4 R677 2007-008720 R-CHIP;4.7ohm,1%,1/4W,TP,3216 1 S.A

....4 R681 2007-008720 R-CHIP;4.7ohm,1%,1/4W,TP,3216 1 S.A

6 Electrical Parts List

6-41

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 R684 2007-008720 R-CHIP;4.7ohm,1%,1/4W,TP,3216 1 S.A

....4 IC223 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA221 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA222 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA223 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA224 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA225 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA226 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA227 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA903 2011-000651 R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA904 2011-000651 R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA906 2011-000651 R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA907 2011-000651 R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA908 2011-000651 R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA910 2011-000651 R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA500 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA501 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA900 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA901 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA902 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA905 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA909 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA911 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA913 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA916 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA917 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA918 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA919 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA920 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA921 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA922 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 C6003 2203-000125 C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1608,- 1 S.A

....4 C616 2203-000140 C-CER,CHIP;1.5nF,10%,50V,X7R,1608 1 S.A

....4 C632 2203-000140 C-CER,CHIP;1.5nF,10%,50V,X7R,1608 1 S.A

....4 C120 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C250 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C303 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C486 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C511 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C512 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C513 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C514 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C516 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C517 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C518 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C521 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C522 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C523 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C524 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C525 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C526 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C527 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C529 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C530 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C532 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C533 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C534 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C535 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C537 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C538 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C545 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C548 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C549 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C551 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C553 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C554 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C555 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C558 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C560 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C561 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C564 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C565 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

6 Electrical Parts List

6-42

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 C566 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C567 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C568 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C569 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C570 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C571 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C572 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C573 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C577 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C588 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C589 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C590 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C591 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C593 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C595 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C597 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C598 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C6004 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C6016 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C6017 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C620 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C625 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C626 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C627 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C628 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C644 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C649 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C651 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C652 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C660 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C664 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C680 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C682 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C687 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C801 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C803 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C805 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C812 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C813 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C815 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C817 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C834 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C836 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C840 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C849 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C867 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C868 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C900 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C904 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C943 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C117 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C118 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C269 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C270 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C401 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C403 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C404 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C405 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C406 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C407 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C412 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C413 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C423 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C424 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C487 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C488 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C6006 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C6007 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C6008 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C623 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C678 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C679 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

6 Electrical Parts List

6-43

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 C926 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C928 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C101 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C111 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C112 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C228 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C229 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C230 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C231 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C232 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C238 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C241 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C244 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C264 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C265 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C268 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C504 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C505 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C506 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C507 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C508 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C541 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C622 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C800 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C802 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C810 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C814 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C816 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C830 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C843 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C944 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C901 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C903 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C908 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C931 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C933 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C937 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C114 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,1608 1 S.A

....4 C575 2203-000531 C-CER,CHIP;2.7nF,10%,50V,X7R,1608 1 S.A

....4 C592 2203-000531 C-CER,CHIP;2.7nF,10%,50V,X7R,1608 1 S.A

....4 C500 2203-000552 C-CER,CHIP;0.02nF,5%,50V,C0G,1608 1 S.A

....4 C510 2203-000552 C-CER,CHIP;0.02nF,5%,50V,C0G,1608 1 S.A

....4 C639 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 S.A

....4 C647 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 S.A

....4 C911 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 S.A

....4 C912 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 S.A

....4 C938 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 S.A

....4 C939 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 S.A

....4 C304 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C305 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C483 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C484 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C688 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C696 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C662 2203-000798 C-CER,CHIP;33nF,10%,16V,X7R,TP,1608,- 1 S.A

....4 C663 2203-000798 C-CER,CHIP;33nF,10%,16V,X7R,TP,1608,- 1 S.A

....4 C115 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C223 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C224 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C502 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C503 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C674 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C675 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C104 2203-000972 C-CER,CHIP;47nF,10%,16V,X7R,1608 1 S.A

....4 C634 2203-000972 C-CER,CHIP;47nF,10%,16V,X7R,1608 1 S.A

....4 C266 2203-000998 C-CER,CHIP;0.047nF,5%,50V,C0G,1608 1 S.A

....4 C411 2203-000998 C-CER,CHIP;0.047nF,5%,50V,C0G,1608 1 S.A

....4 C629 2203-001402 C-CER,CHIP;220nF,+80-20%,16V,Y5V,TP,1608 1 S.A

....4 C106 2203-001607 C-CER,CHIP;0.22nF,5%,50V,NP0,1608 1 S.A

....4 C6009 2203-001607 C-CER,CHIP;0.22nF,5%,50V,NP0,1608 1 S.A

....4 C670 2203-001652 C-CER,CHIP;470nF,+80-20%,16V,Y5V,1608 1 S.A

....4 C672 2203-001652 C-CER,CHIP;470nF,+80-20%,16V,Y5V,1608 1 S.A

6 Electrical Parts List

6-44

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 C617 2203-001656 C-CER,CHIP;0.47nF,5%,50V,NP0,1608 1 S.A

....4 C631 2203-001656 C-CER,CHIP;0.47nF,5%,50V,NP0,1608 1 S.A

....4 C673 2203-001724 C-CER,CHIP;4700nF,+80-20%,16V,Y5V,3216 1 S.A

....4 C103 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C110 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C221 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C222 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C235 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C236 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C261 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C501 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C519 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C528 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C543 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C601 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C640 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C641 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C642 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C643 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C657 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C665 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C822 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C825 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C827 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C851 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C853 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C856 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C859 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C861 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C914 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C915 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C916 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C918 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C920 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C922 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C923 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C924 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C925 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C935 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C941 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C689 2203-005030 C-CER,CHIP;470nF,+80-20%,50V,Y5V,TP,3216 1 S.A

....4 C697 2203-005030 C-CER,CHIP;470nF,+80-20%,50V,Y5V,TP,3216 1 S.A

....4 C300 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C536 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C699 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C823 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C839 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C870 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C919 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C942 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C6001 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C6002 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C6005 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C6011 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C677 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C681 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C683 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C685 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C690 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C691 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C692 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C693 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C694 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C695 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C698 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C546 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C547 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C550 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C552 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C556 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C557 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C559 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

6 Electrical Parts List

6-45

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 C562 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C563 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C578 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C579 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C580 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C581 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C582 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C583 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C584 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C585 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C586 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C594 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C596 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C824 2203-005834 C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216 1 S.A

....4 C302 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C574 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C576 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C587 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C599 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C600 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C6015 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C603 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C604 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C605 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C606 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C607 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C608 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C609 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C610 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C611 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C613 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C618 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C619 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C621 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C624 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C630 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C636 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C645 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C646 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C648 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C650 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C653 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C654 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C655 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C656 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C658 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C686 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C852 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C855 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C921 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C5001 2402-001059 C-AL,SMD;220¥ìF,20%,6.3V,-,TP,6x6.6x6.6 1 S.A

....4 C5002 2402-001059 C-AL,SMD;220¥ìF,20%,6.3V,-,TP,6x6.6x6.6 1 S.A

....4 C806 2402-001081 C-AL,SMD;100uF,20%,25V,WT,TP,8.3x8.3x10 1 S.A

....4 C819 2402-001081 C-AL,SMD;100uF,20%,25V,WT,TP,8.3x8.3x10 1 S.A

....4 C835 2402-001081 C-AL,SMD;100uF,20%,25V,WT,TP,8.3x8.3x10 1 S.A

....4 C239 2402-001097 C-AL,SMD;0.1UF,20%,50V,WT,TP,4.3X4.3X5.2 1 S.A

....4 C240 2402-001097 C-AL,SMD;0.1UF,20%,50V,WT,TP,4.3X4.3X5.2 1 S.A

....4 C102 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C107 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C108 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C615 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C668 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C669 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C671 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C811 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C848 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C854 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C116 2402-001129 C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM 1 S.A

....4 C249 2402-001129 C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM 1 S.A

....4 C509 2402-001129 C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM 1 S.A

....4 C635 2402-001129 C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM 1 S.A

....4 C667 2402-001129 C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM 1 S.A

6 Electrical Parts List

6-46

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 C807 2402-001129 C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM 1 S.A

....4 C820 2402-001129 C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM 1 S.A

....4 C666 2402-001160 C-AL,SMD;330UF,20%,16V,WT,TP,1008 1 S.A

....4 C485 2402-001178 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A

....4 C531 2402-001178 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A

....4 C684 2402-001178 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A

....4 C826 2402-001178 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A

....4 C902 2402-001178 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A

....4 C907 2402-001178 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A

....4 C913 2402-001178 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A

....4 C917 2402-001178 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A

....4 C950 2402-001178 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A

....4 C100 2402-001183 C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM 1 S.A

....4 C227 2402-001183 C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM 1 S.A

....4 C237 2402-001183 C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM 1 S.A

....4 C542 2402-001183 C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM 1 S.A

....4 C633 2402-001183 C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM 1 S.A

....4 C850 2402-001183 C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM 1 S.A

....4 C866 2402-001183 C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM 1 S.A

....4 C6010 2402-001221 C-AL,SMD;470UF,20%,16V,-,TP,A8.3XB8.3XL1 1 S.A

....4 C676 2402-001221 C-AL,SMD;470UF,20%,16V,-,TP,A8.3XB8.3XL1 1 S.A

....4 C520 2402-001226 C-AL,SMD;4.7UF,20%,35V,HR,TP,4.3X4.3X5.8 1 S.A

....4 C113 2402-001238 C-AL,SMD;1uF,20%,50V,HR,TP,4.3x4.3x5.2mm 1 S.A

....4 C833 2409-001029 C-ORGANIC;120uF,20%,6.3V,WT,TP,10.3x10.3 1 S.A

....4 T0052 2703-000274 INDUCTOR-SMD;2.2uH,10%,2012 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000417 INDUCTOR-SMD;220uH,5%,3225 1 S.A

....4 T0052 2703-001229 INDUCTOR-SMD;2.2uH,10%,1608 1 S.A

....4 T0052 2703-001229 INDUCTOR-SMD;2.2uH,10%,1608 1 S.A

....4 T0052 2703-001229 INDUCTOR-SMD;2.2uH,10%,1608 1 S.A

....4 T0052 2703-001229 INDUCTOR-SMD;2.2uH,10%,1608 1 S.A

....4 T0052 2703-001229 INDUCTOR-SMD;2.2uH,10%,1608 1 S.A

....4 T0052 2703-001229 INDUCTOR-SMD;2.2uH,10%,1608 1 S.A

....4 T0052 2703-001426 INDUCTOR-SMD;680uH,20%,7070 1 S.A

....4 T0052 2703-002327 INDUCTOR-SMD;3.9uH,5%,3225 1 S.A

....4 T0052 2703-002722 INDUCTOR-SMD;22uH,20%,12x12mm 1 S.A

....4 T0052 2703-002915 INDUCTOR-SMD;22uH,20%,8080 1 S.A

....4 T0052 2703-002915 INDUCTOR-SMD;22uH,20%,8080 1 S.A

....4 T0052 2703-002915 INDUCTOR-SMD;22uH,20%,8080 1 S.A

....4 T0052 2703-002915 INDUCTOR-SMD;22uH,20%,8080 1 S.A

....4 X904 2801-003326 CRYSTAL-SMD;24MHZ,30PPM,28-ABX,20PF,50OH 1 S.A

....4 X903 2801-003923 CRYSTAL-SMD;10MHz,30ppm,28-AAN,20pF,60oh 1 S.A

....4 X600 2801-003954 CRYSTAL-SMD;27MHz,30ppm,28-AAN,16pF,50oh 1 S.A

....4 X500 2801-004483 CRYSTAL-SMD;28.322MHz,30ppm,HC-49,20pF,5 1 S.A

....4 T0568 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm,-,-,- 1 S.N.A

....4 T0568 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm,-,-,- 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001236 BEAD-SMD;60ohm,1608,-,-,- 1 S.N.A

....4 T0568 3301-001236 BEAD-SMD;60ohm,1608,-,-,- 1 S.N.A

....4 T0568 3301-001236 BEAD-SMD;60ohm,1608,-,-,- 1 S.N.A

....4 T0568 3301-001236 BEAD-SMD;60ohm,1608,-,-,- 1 S.N.A

....4 T0568 3301-001236 BEAD-SMD;60ohm,1608,-,-,- 1 S.N.A

....4 T0568 3301-001236 BEAD-SMD;60ohm,1608,-,-,- 1 S.N.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

6 Electrical Parts List

6-47

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001393 BEAD-SMD;60ohm,3216,1500mA,TP,41ohm/40MH 1 S.N.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001569 BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90 1 S.N.A

....4 CN703 3701-001311 CONNECTOR-HDMI;21P,2R,FEMALE,SMD-S,AU30U 1 S.A

....4 CN330 3711-005291 HEADER-BOARD TO CABLE;BOX,2P,1R,2MM,SMD- 1 S.A

....4 CN330 3711-005292 HEADER-BOARD TO CABLE;BOX,3P,1R,2MM,SMD- 1 S.A

....4 CN330 3711-005497 HEADER-BOARD TO CABLE;BOX,15P,1R,1.25MM, 1 S.A

....4 M0018 BN97-01060A ASSY MICOM;A51O 1 S.A

.....5 IC115 1107-001555 IC-FLASH MEMORY;49BV802A,8MBIT,1MX8/512K 1 S.N.A

....4 M0018 BN97-01060B ASSY MICOM;A51O 1 S.N.A

.....5 IC520 0903-001389 IC-MICROCONTROLLER;S3F866B,8Bit,QFP,44P, 1 S.N.A

....4 R806 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608 1 S.A

....4 C841 2203-000405 C-CER,CHIP;0.18nF,5%,50V,C0G,1608 1 S.A

....4 R110 2007-000073 R-CHIP;91ohm,5%,1/10W,TP,1608 1 S.A

....4 R9027 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608 1 S.A

....4 C842 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,1608 1 S.A

....4 T0077 BN41-00680D PCB MAIN;BORDEAUX,FR-4,4,MP1.3,1.6,192*1 1 S.N.A

...3 CIS3 BN40-00091A TUNER;TCPN3081PA32S(H),TCPN3081PA32S(H), 1 S.A
...3 T0562 6046-001013 STAND OFF;M3,L5,Ni PLT,SUM24L,#4-40 2 S.N.A

0.1 M0112 BN91-01148N ASSY SHIELD;LN40T71BX/*,-,-,- 1 S.N.A
..2 M0081 6003-000115 SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC 1 S.A
..2 M0081 6003-000115 SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC 4 S.A
..2 M0081 6003-000115 SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC 6 S.A
..2 M2893 BH39-00362B LEAD CONNECTOR;RE32**,UL1007#26,5P,150mm 1 S.A
..2 T0076 BN39-00615D CBF HARNESS;BORDEAUX,1617#22,3P,1P,RING, 1 S.A
..2 M2893 BN39-00691B LEAD CONNECTOR;LE32R71BX,UL1007#26,16P,1 1 S.A
..2 M2893 BN39-00712E LEAD CONNECTOR-LVDS;Bordeaux,UL1571#30,U 1 S.A
..2 M2893 BN39-00716B LEAD CONNECTOR;LE40R71BX/XEC,UL3239#24,2 1 S.A
..2 M2893 BN39-00717A LEAD CONNECTOR;LE32R71BX/XEC,UL3443#28,5 1 S.A
..2 M0174 BN44-00134C IP BOARD;PSIV230601A,40"BORDEAUX,2.0~3.0 1 S.A
..2 M0114 BN61-01709A HOLDER-WIRE;NYLON 6/6,NATURAL,DAWS-1ND 2 S.N.A
..2 M0146 BN61-02256B BRACKET-PANEL SIDE;Bordeaux 40,SECC,T1.2 1 S.N.A
..2 M0146 BN61-02257B BRACKET-PANEL SIDE;Bordeaux 40,SECC,T1.2 1 S.N.A
..2 M0115 BN61-02258A BRACKET-STAND LINK;Bordeaux 40,SECC,T1.6 1 S.N.A
..2 M0059 BN96-03186H ASSY BOARD P-HOLDER AV;SONOMA,40,SO,CT50 1 S.N.A
...3 M2893 BN39-00672B LEAD CONNECTOR;LNR469DX/XAA,UL2835#28,14 1 S.A
...3 BN61-02365B HOLDER-SIDE AV;SONOMA,32,HIPS,HB,BK500 1 S.N.A
...3 T0578 BN64-00454B INLAY AV;BORDEAUX,PS SHEET,T0.3,-,-,BLAC 1 S.N.A
...3 M0020 BN96-02439A ASSY BOARD P-SUB AV SIDE;MILANO,CT5000-3 1 S.N.A
..2 T0447 BN96-03528B ASSY BRACKET P-PANEL;SONOMA,40EO,READY,S 1 S.N.A
...3 M0081 6003-000115 SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC 1 S.A
...3 M0081 6003-000115 SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC 2 S.A
...3 T0069 AA60-00091J SPACER-FELT;-,FELT,330X10,-,-,BLK,T0.5,- 2 S.N.A
...3 M0131 AA63-01401A GASKET;LE40R71BX,Conductive Fabric,22mm, 1 S.N.A
...3 M0146 BN61-02251B BRACKET-PANEL TOP;Bordeaux 40,SECC,T1.2 1 S.N.A
...3 BN61-02252B BRACKET-PANEL BOTTOM;Bordeaux 40,SECC,T1 1 S.N.A
...3 BN61-02253A BRACKET-GUIDE MAIN;Bordeaux 40,SECC,T1.2 1 S.N.A
...3 BN61-02254A BRACKET-GUIDE POWER;Bordeaux 40,SECC,T1. 1 S.N.A
...3 BN61-02255A BRACKET-GUIDE POWER;Bordeaux 40,SECC,T1. 1 S.N.A
...3 T0101 BN61-02438A BRACKET-WALL;MOSEL 40,SECC T1.6 1 S.N.A
...3 T0514 BN61-02778A BRACKET-SUPPORT;40M7,SECC T1.2 1 S.N.A
..2 M0081 6003-000337 SCREW-TAPTITE;BH,+,S,M4,L10,ZPC(BLK),SWR 5 S.A
..2 M0081 6003-000337 SCREW-TAPTITE;BH,+,S,M4,L10,ZPC(BLK),SWR 2 S.A
..2 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 2 S.N.A
..2 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 1 S.N.A
..2 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 6 S.N.A
..2 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 2 S.N.A
..2 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 3 S.N.A
..2 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 3 S.N.A
..2 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 3 S.N.A
..2 M0081 6003-001439 SCREW-TAPTITE;BH,+,-,S,M4,L8,ZPC(WHT),SW 1 S.N.A

6 Electrical Parts List

6-48

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

0.1 M0003 BN92-01699R ASSY BOX;40T71,UO,(READY,GSU),-,-,SONOMA 1 S.N.A
..2 T0130 BN69-01310M BOX-00,SET;40T7(OVERSEA),DY-01,AB,YEL,A1 1.01 S.N.A

0.1 M0113 BN92-01702A ASSY P/MATERIAL;40T70,SONOMA 1 S.N.A
..2 T0376 6902-000061 BAG AIR;LDPE,T0.2,L1000,W500,TRP,,, 0.061 S.N.A
..2 T0376 6902-000379 BAG AIR;LDPE,T0.2,W1000,L1800,TRP,-,-- 0.018 S.N.A
..2 T0003 6902-000604 BAG WRAPPING;LDPE,T0.02,W500,L10000,TRP, 14.32 S.N.A
..2 T0524 6902-000411 BAG PE;HDPE/NITRON,T0.015/T0.5,W1300,L13 1 S.N.A

0.1 M0019 BN92-02002W ASSY LABEL;LN40T71BX/XAO 1 S.N.A

0.1 M0045 BN92-02004K ASSY ACCESSORY;LN40T71BX/XAO 1 S.N.A
..2 M0045 BN96-04215K ASSY ACCESSORY;LN40T71BX/XAO,A51O 1 S.A
...3 T0268 3903-000144 CBF-POWER CORD;DT,US,BP3/Y,U(IEC C13-RA) 1 S.A
...3 T0524 6902-000110 BAG PE;LDPE,T0.05,W250,L400,TRP,28,2 2 S.N.A
...3 T0210 AA68-03242F MANUAL FLYER-01,SAFETY GUIDE;All Model,S 1 S.N.A
...3 ACCESSORY AA68-03727A MANUAL FLYER-01,WARRANTY CARD;All,SAMSUN 1 S.N.A
...3 T0074 BN59-00556A REMOCON;Bordeaux,TM86,44,PAL-N, M,South 1 S.A
...3 T0531 BN63-02416B COVER-BOTTOM;SONOMA,40,HIPS,HB,BK500 1 S.N.A
...3 M0156 BN68-01001W MANUAL USERS-01;COMM,SAMSUNG,2Langs,S.Am 1 S.N.A
...3 M0126 BN69-01052A BOX ACCESSORY-00;ALL,CB-SW1,YEL,W603,D67 1 S.N.A

0.1 M0002 BN90-00878H ASSY COVER REAR;40T71,UO(XAX),HIPS,HB,BK 1 S.N.A
..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 12 S.A
..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 3 S.A
..2 M0013 BN96-03187F ASSY COVER P-REAR;40T71,UO(XAX),HIPS,HB, 1 S.A
...3 M0006 BN63-02411C COVER-REAR;40S71,SO,CO,HIPS,-,-,-,HB,-,B 1 S.N.A
...3 T0071 BN64-00445B INLAY-TERMINAL;32,37,40R71,PS SHEET,T0.5 1 S.N.A
...3 T0064 BN65-00002A CLAMPER CORE;BORDEAUX,PP,V0,BLK 1 S.N.A
...3 BN61-02776A HOLDER-WALL;32R7,ABS,HB,BLK 1 S.N.A

8-1

8 Wiring Diagrams

8 Wiring Diag ram

8-1 LN26T71B / LN32T71B / LN40T71B Wiring Diagr am

8 Wiring Diagrams

8-2

8-2 Main Board Layout

8-3

8 Wiring Diagrams

8-3 PIN characteristic

CN800 - Main Board power supply

PIN 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

NAME B12V GND B5V B5V B5V GND GND GND B12VSB12VS B12VS GND GND GND A5V A5V

Function Define

- B12V B8V, B5V-T

- B5V B5V-1, B5V, 5V-P, B1.8V

- B12VS B12VS

- A5V A5V, A3.3V-3, A3.3V, A3.3V-1, B3.3V, A1.8V

CN600 / CN601 - SPEAKER CONNECTOR

PIN 1 2 3

NAME R+ NC R-

PIN 1 2

NAME L+ L-

8 Wiring Diagrams

8-4

CN221 - Front control

PIN 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

NAME SDA-T SCL-T GND KEY LED GND A5V GND IR KEY KEY GND IDENT HP-L HP-R

INPUT1 INPUT1INPUT2

HP

Function Define

- A5V Front control board poewr supply

- KEY INPUT1,2/SDA/SCL Key control, from the memu, change up/down Etc.

- IR Remote control signal

- LED Control the timing and stand by LED color

CN501 - Panel control

PIN 1 2 3 4 5

NAME SW_inverter Ana_dimming PWM_dimming GND GND

Function Define

- SW_inverter panel inverter control, about 3.3V

- Ana_dimming panel dimming control

- PWM_dimming panel PWM control, duty 40% ~ 90%

8-5

8 Wiring Diagrams

8 Wiring Diagrams

8-6

8-4 Power Board Layout
