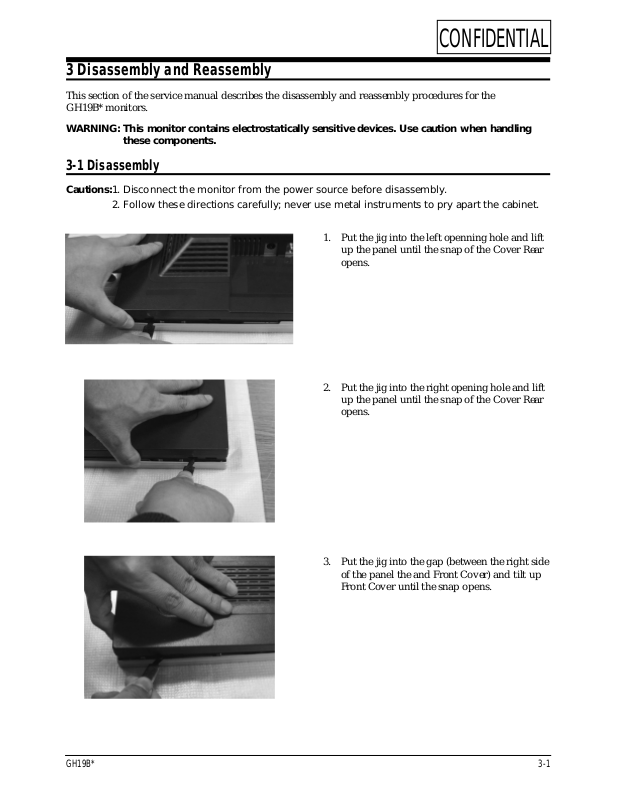

3 Disassembly and Reassembly

This section of the service manual describes the disassembly and reassembly procedures for the
GH19B* monitors.

WARNING: This monitor contains electrostatically sensitive devices. Use caution when handling

these components.

3-1 Disassembly

Cautions:1. Disconnect the monitor from the power source before disassembly.

2. Follow these directions carefully; never use metal instruments to pry apart the cabinet.

1. Put the jig into the left openning hole and lift
up the panel until the snap of the Cover Rear
opens.

2. Put the jig into the right opening hole and lift
up the panel until the snap of the Cover Rear
opens.

3. Put the jig into the gap (between the right side
of the panel the and Front Cover) and tilt up
Front Cover until the snap opens.

3 Disassembly and Reassembly

3-2 GH19B*

CONFIDENTIAL

4. Put the jig into the gap (between the right side
of the panel the and Front Cover) and tilt up
Front Cover until the snap opens.

5. Put the jig into the gap (between the right side
of the panel the and Front Cover) and tilt up
Front Cover until the snap opens.

6. After pushing the right bottom of the panel
with jig.

7. Pull up the Rear Cover until it opens fully.

3-2 Reassembly

Reassembly procedures are in the reverse order of Disassembly procedures.
