User Manual
SM-R380
www.samsung.com
About this manual
You can use this Gear as a companion device to some Samsung Android™ mobile devices.
This user manual is specially designed to explain applications and features that are available
when the Gear is connected to a mobile device.
•
Please read this manual before using the Gear to ensure safe and proper use.
•
Descriptions are based on the Gear’s default settings.
•
Images and screenshots may differ in appearance from the actual product.
•
Content may differ from the final product, or from software provided by service providers
or carriers, and is subject to change without prior notice. For the latest version of the
manual, refer to the Samsung website,
•
Available features and additional services may vary by Gear, software, or service provider.
•
Applications and their functions may vary by country, region, or hardware specifications.
Samsung is not liable for performance issues caused by applications from any provider
other than Samsung.
•
Samsung is not liable for performance issues or incompatibilities caused by edited
registry settings or modified operating system software. Attempting to customise the
operating system may cause the Gear or applications to work improperly.
•
Software, sound sources, wallpapers, images, and other media provided with this Gear
are licensed for limited use. Extracting and using these materials for commercial or other
purposes is an infringement of copyright laws. Users are entirely responsible for illegal
use of media.
•
Default applications that come with the Gear are subject to updates and may no longer
be supported without prior notice. If you have questions about an application provided
with the Gear, contact a Samsung Service Centre. For user-installed applications, contact
www.samsung.com
.
service providers.
•
Modifying the Gear’s operating system or installing softwares from unofficial sources may
result in Gear malfunctions and data corruption or loss. These actions are violations of
your Samsung licence agreement and will void your warranty.
2
About this manual
Instructional icons
Warning: situations that could cause injury to yourself or others
Caution: situations that could cause damage to your device or other equipment
Note: notes, usage tips, or additional information
Copyright
Copyright © 2014 Samsung Electronics
This guide is protected under international copyright laws.
No part of this guide may be reproduced, distributed, translated, or transmitted in any form or
by any means, electronic or mechanical, including photocopying, recording, or storing in any
information storage and retrieval system, without the prior written permission of Samsung
Electronics.
Trademarks
•
SAMSUNG and the SAMSUNG logo are registered trademarks of Samsung Electronics.
•
Bluetooth® is a registered trademark of Bluetooth SIG, Inc. worldwide.
•
All other trademarks and copyrights are the property of their respective owners.
3
Table of Contents
Getting started
6 About Gear 2
6 Package contents
7 Device layout
8 Button
10 Charging the battery
13 Wearing the Gear
14 Replacing the strap
17 Turning the Gear on and off
18 Notices for using Bluetooth
19 Connecting the Gear to a mobile
device
21 Locking and unlocking the Gear
21 Adjusting the brightness of the display
21 Adjusting the volume
33 Using notifications
35 Transferring files
35 Upgrading the Gear
Applications
37 S Voice
38 WatchON Remote
39 Gallery
40 Weather
40 Find My Device
41 Health Management Applications
44 Pedometer
45 Sleep
47 Heart Rate
21 Switching to silent mode
Basics
22 Viewing mobile device connection
status and battery status

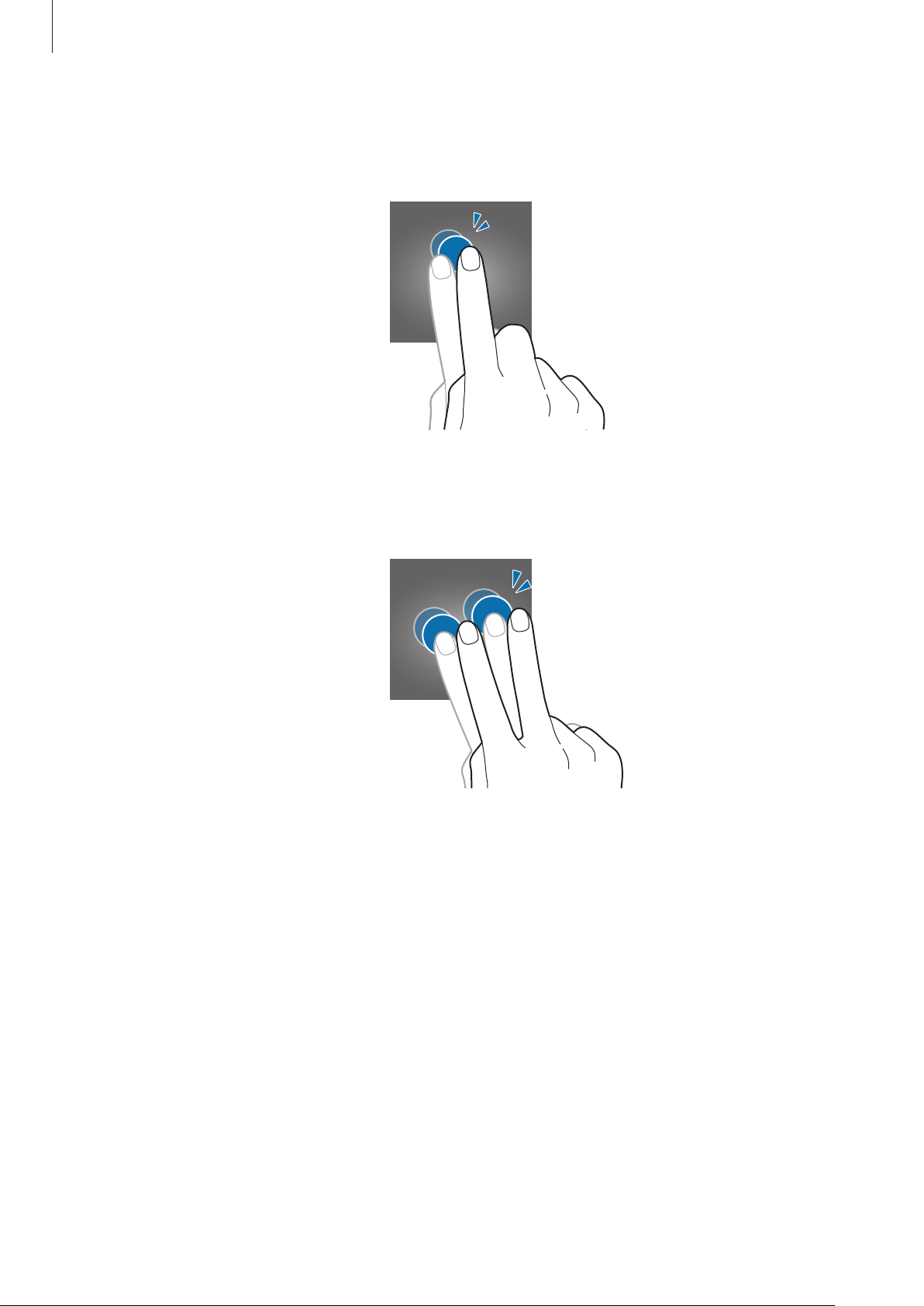

22 Using the touch screen
26 Viewing the Home screen
30 Apps screen
30 Using applications
31 Securing the Gear
31 Using calling features
48 Exercise
52 Messages
53 Music Player
54 Media Controller
55 Stopwatch
55 Contacts
56 Voice Memo
57 Email
58 Schedule
58 Controls
58 Logs
59 Camera
61 Timer
4
Table of Contents
Settings
62 Clock
62 Wallpapers
62 Notifications
63 Sound
63 Display
64 Bluetooth
64 Double press
64 Privacy lock
65 Profile
65 Reset Gear
65 Gear info
Gear Manager
66 Launching Gear Manager
66 Connecting a new Gear
66 Configuring the Gear settings
67 Home screen styler
67 S Health
68 Notifications
68 My apps
69 Samsung Apps
70 Find my Gear
70 Settings
72 Help
Troubleshooting
5
Getting started
About Gear 2
When you connect the Gear 2 (also referred to as Gear) to your mobile device, you can use
the Gear to view call logs or set alarms. You can use mobile devices more conveniently by
connecting to various applications with the Gear. Set your exercise programme and manage
your health by connecting the Gear to a mobile device.
To connect your Gear to a mobile device, install Gear Manager on the mobile device. Search
Gear Manager
for
from
Samsung Apps
or visit
Package contents
Check the product box for the following items:
•
Gear
•
Charging dock
•
Quick start guide
•
The items supplied with the Gear and any available accessories may vary
depending on the region or service provider.
•
The supplied items are designed only for this Gear and may not be compatible
with other devices.
•
Appearances and specifications are subject to change without prior notice.
•
You can purchase additional accessories from your local Samsung retailer. Make
apps.samsung.com/gear2
to download it.
sure they are compatible with the Gear before purchase.
•
Other accessories may not be compatible with your Gear.
•
Use only Samsung-approved accessories. Malfunctions caused by using
unapproved accessories are not covered by the warranty service.
•
Availability of all accessories is subject to change depending entirely on
manufacturing companies. For more information about available accessories, refer
to the Samsung website.
6
Getting started
Device layout
Gear
Speaker
Infrared LED/Camera
Power button
Charging terminals
Heart rate sensor
Microphone
•
Humidity and liquids may damage your Gear. Keep your Gear dry.
•
Ensure that the strap is kept clean. Contact with contaminants, such as dust and
dye, can cause stains on the strap that may not be fully removed.
•
Do not use a screen protector. This causes touch screen sensor malfunctions.
•
Do not allow water to contact the touch screen. The touch screen may malfunction
in humid conditions or when exposed to water.
•
If the speaker is wet, sound may be distorted. Ensure that the speaker is dry.
7
Getting started
Charging dock
Button
Button Function
Charging terminals
Multipurpose jack
Power
•
Press and hold to turn the Gear on or off.
•
Press to move to the Clock screen.
•
Press to lock the Gear on the Clock screen.
•
Press and hold for more than 7 seconds to reset the Gear.
8
Getting started
Maintaining water and dust resistance
The device may be damaged if water or dust enters the device. Follow these tips carefully to
prevent damage to the device and to maintain the water- and dust-resistant performance of
the device.
•
Do not immerse the device in water deeper than 1 m and keep it submerged for more
than 30 minutes.
•
Do not expose the device to water moving with force, such as water running from a tap,
ocean waves, or waterfalls.
•
If the device or your hands are wet, dry them thoroughly before handling the device.
•
If the device is exposed to freshwater, dry it thoroughly with a clean, soft cloth. If the
device is exposed to any liquid other than freshwater, rinse the device with freshwater
immediately and dry it thoroughly with a clean, soft cloth. Failure to rinse the device
in freshwater and dry it as instructed may cause the device to suffer from operability
or cosmetic issues.
•
If the device is dropped or receives an impact, the water and dust resistant features of
the device may be damaged.
•
If the device has been immersed in water or the microphone or the speaker is wet,
sound may not be heard clearly during a call. Ensure that the microphone or the speaker
is clean and dry by wiping it with a dry cloth.
•
The touch screen and other features may not work properly if the device is used in water
or in other liquids.
•
Your device has been tested in a controlled environment and shown to be water and
dust resistant in certain circumstances (meets requirements of classification IP67 as
described by the international standard IEC 60529 - Degrees of Protection provided by
Enclosures [IP Code]; test conditions: 15 - 35 °C, 86 - 106 kPa, 1 meter, for 30 minutes).
Despite this classification, your device is not impervious to water damage in any
situation.
9
Getting started
Charging the battery
Charge the battery before using the Gear for the first time. A computer can be also used to
charge the Gear by connecting them via the USB cable.
Use only Samsung-approved chargers, batteries, and cables. Unapproved chargers or
cables can cause the battery to explode or damage the Gear.
•
When the battery power is low, the battery icon appears empty.
•
If the battery is completely discharged, the Gear cannot be turned on immediately
when the charger is connected. Allow a depleted battery to charge for a few
minutes before turning on the Gear.
•
The charging dock provided with the Gear is used for charging the Gear’s battery.
Take care not to lose the dock.
Confirm the location of the charging terminals on the Gear and the charging dock.
1
Charging terminals
Charging dock
10
Getting started

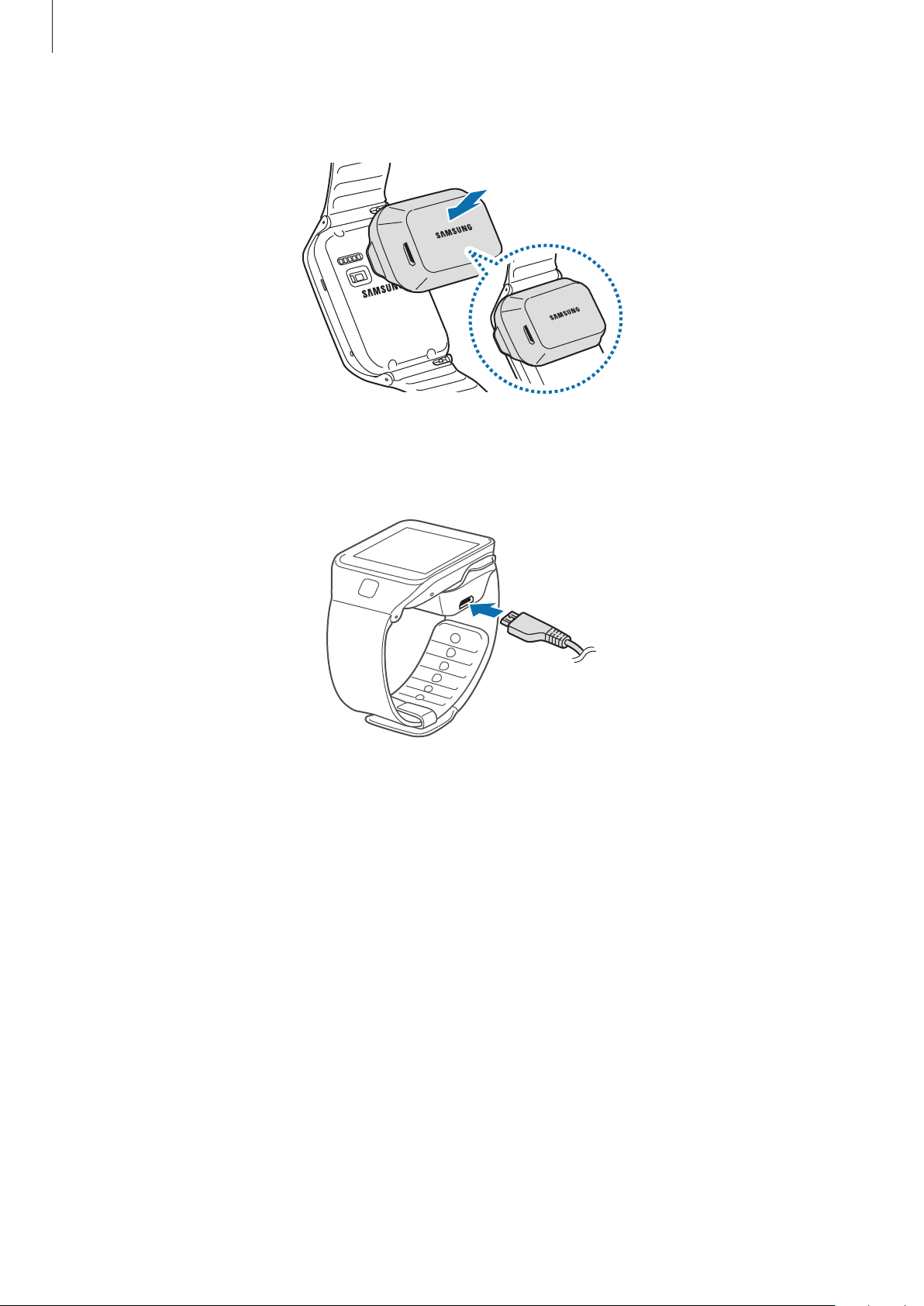

Place the Gear on the charging dock with the charging terminals facing each other.
2
Plug the small end of the charger cable into the multipurpose jack of the charging dock.
3
Then, plug the large end of the charger into an electric socket.
11
Getting started
After fully charging, disconnect the Gear from the charging dock.
Connecting the charger improperly may cause serious damage to the Gear. Any
damage caused by misuse is not covered by the warranty.
•
While charging, some features are not available.
•
If the Gear receives an unstable power supply while charging, the touch screen
may not function. If this happens, unplug the charger from the Gear.
•
While charging, the Gear may heat up. This is normal and should not affect the
Gear’s lifespan or performance. If the battery gets hotter than usual, the charger
may stop charging.
•
If the Gear is not charging properly, take the Gear and the charger to a Samsung
Service Centre.
•
To save energy, unplug the charger when not in use. The charger does not have a
power switch, so you must unplug the charger from the electric socket when not in
use to avoid wasting power. The charger should remain close to the electric socket
and easily accessible while charging.
12
Getting started
About using battery
•
Battery operating time is affected by device usage patterns and the condition of the
battery.
•
The battery is a consumable item. Battery life can be reduced when multiple applications
or features are running simultaneously. Also, even if the device is not being used, battery
life may be reduced.
•
The battery is consumable and the useful charge will get shorter over time.
•
Battery power can also be affected when you play high-definition video. The affects on
battery power may vary depending on the situation.
Wearing the Gear
Release the buckle.
1
•
Be careful not to damage your fingernails when you release the clasp.
•
Do not bend the strap excessively. Doing so may damage the device.
13
Getting started
Open the clasp, fit the strap to your wrist with the pin, and press the buckle to close.
2
2
Pin
1
To measure your heart rate more accurately with the Gear, wear the Gear firmly
around your lower arm just above the wrist. Refer to ‘Wearing the Gear’ for details.
Replacing the strap
Detach the strap from the Gear to replace it with a new one.
Slide the latch on the strap inwards.
1
14
Getting started
Detach the end of the strap from the Gear.
2
On the new strap, insert one side of the pin into the recess at the side of the Gear.
3
15
Getting started
Slide the latch on the strap inwards. Then, insert the pin into the recess at the other side
4
of the Gear.
2
1
If you are fitting a strap that is not manufactured by Samsung refer to the image below.
Insert one end of the pin into a recess and press the other end of the pin inwards. Press
the pin inwards using your finger or a tool, such as a small flat-tip screwdriver. Then, while
pressing the pin inwards move the strap into position between the device’s recesses.
Release you finger or remove the tool when the pin is held in place between the device
and the strap. Adjust the strap until the pin is sitting inside each recess.
1
2
16
Getting started
Turning the Gear on and off
When you turn on the Gear for the first time, follow the on-screen instructions. The
instructions describe how to connect the Gear to a mobile device and to set up the Gear.
Press and hold the Power button for a few seconds to turn on the Gear. A pop-up window
appears providing on-screen instructions that prompt you to download and install Gear
Manager. You can use the Gear only after Gear Manager is installed on the mobile device.
Refer to ‘Connecting the Gear to a mobile device’ for details.
Follow all posted warnings and directions from authorised personnel in areas where
the use of wireless devices is restricted, such as aeroplanes and hospitals.
To turn off the Gear, press and hold the Power button, and then tap
Power off
.
17
Getting started
Notices for using Bluetooth
•
To avoid problems when connecting your Gear to another mobile device, place the
devices close to each other.
•
Ensure that your Gear and the other Bluetooth device are within the Bluetooth
connection range (10 m). The distance may vary depending on the environment the
devices are used in.
•
Ensure that there are no obstacles between your Gear and a connected mobile device,
including human bodies, walls, corners, or fences.
•
Do not touch the Bluetooth antenna of a connected mobile device.
•
Bluetooth uses the same frequency as some industrial, scientific, medical, and low power
products and interference may occur when making connections near these types of
products.
•
Samsung is not responsible for the loss, interception, or misuse of data sent or received
via the Bluetooth feature.
•
Always ensure that you share and receive data with devices that are trusted and properly
secured. If there are obstacles between the devices, the operating distance may be
reduced.
•
Some devices, especially those that are not tested or approved by the Bluetooth SIG, may
be incompatible with your Gear.
•
Do not use the Bluetooth feature for illegal purposes (for example, pirating copies of files
or illegally tapping communications for commercial purposes).
Samsung is not responsible for the repercussion of illegal use of the Bluetooth feature.
18
Getting started
Connecting the Gear to a mobile device
Install Gear Manager on the mobile device and connect the Gear to the device via Bluetooth.
•
You cannot install Gear Manager on mobile devices that do not support Gear
syncing. Ensure that your mobile device is compatible with a Gear.
•
You can connect only one mobile device to one Gear. You cannot use multiple
Gears at the same time.
Gear Turn on the Gear.
1
Gear Read the download information in the pop-up window and tap
2
model details appear.
Mobile device Download
3
You can also visit
Mobile device On the Apps screen, tap
4
Mobile device Select the Gear model name (e.g. Gear 2 (0000)) that appeared in Step 2.
5
apps.samsung.com/gear2
Gear Manager
Gear Manager
from
Samsung Apps
to download
.
Gear Manager
.
Next
. The Gear’s
.
Mobile device When the
6
Bluetooth pairing request
19
window appears, tap OK.
Getting started
Gear When the connection window appears, tap OK.
Mobile device The
7
Mobile device Read and agree to the terms and conditions, and follow the on-screen
8
instructions.
•
When the devices are connected, Gear Manager launches on the mobile device. Then,
the Clock screen appears on the Gear.
Install
window opens.
•
The Gear Manager application guide opens.
•
You can adjust the Gear’s configuration in Gear Manager.
•
Connection methods and screenshots may vary depending on the type of device
and the device’s software version.
•
When connecting the Gear to another mobile device
If you want to connect the Gear to a newly purchased mobile device or to another
mobile device for the first time, reset the Gear. Resetting the Gear will remove the
data from the memory. After the reset, you can connect the Gear to a different
mobile device.
20
Getting started
Locking and unlocking the Gear
When not in use, lock the Gear to prevent unwanted operation. Pressing the Power button
on the Clock screen turns off the screen and puts the Gear into lock mode. The Gear
automatically gets locked if it is not used for a specified period.
To unlock the Gear, press the Power button.
Adjusting the brightness of the display
You can adjust the display’s brightness on the Gear to suit the environment.
On the Home screen, tap
In bright conditions, such as in direct sunlight, you can set the brightness of the
Gear’s display at the maximum to use
5 minutes, outdoor mode is automatically reset to the default settings.
Settings
→
Display
→
Brightness
Outdoor mode
Adjusting the volume
Adjust the volume up or down to adjust the Gear’s volume.
On the Home screen, tap
Do not hold the Gear’s speaker close to your ears. Excessive exposure to loud sounds
can cause hearing damage.
Settings
→
Sound
→
Volume
. Then, select an item and adjust it.
Switching to silent mode
, and then adjust the brightness.
. If the screen remains off for
Use one of the following methods:
•
Press and hold the Power button, and then tap
•
On the Home screen, tap
Settings
→
Sound
21
Sound
→
Sound mode
or
Vibration
→
.
Vibrate
or
Mute
.
Basics
Viewing mobile device connection status and battery status
Scroll left or right on the Home screen and tap
information about the status of the Gear. These icons appear at the top of the screen.
Icon Meaning
Mobile device connected
Mobile device disconnected
Battery power level
Settings
. The following icons provide
Using the touch screen
Use only fingers to use the touch screen.
•
Do not allow the touch screen to come into contact with other electrical devices.
Electrostatic discharges can cause the touch screen to malfunction.
•
To avoid damaging the touch screen, do not tap it with anything sharp or apply
excessive pressure to it with your fingertips.
•
The Gear may not recognise touch inputs close to the edges of the screen, which
are outside of the touch input area.
•
Leaving the touch screen idle for extended periods may result in afterimages
(screen burn-in) or ghosting. Turn off the touch screen when you do not use the
Gear.
22
Basics
Finger gestures
Tapping
To open an application, to select a menu item, or to press an on-screen button, tap it with a
finger.
Tapping and holding
Tap and hold the screen with two fingers to open a list of recently-used applications.
23
Basics
Double-tapping
Double-tap on an image to zoom in a part. Double-tap again to return.
To check the current status of the Gear and view the remaining battery power, double-tap
anywhere on the screen with two fingers. You can also adjust the volume and the brightness
of the display.
24
Basics
Flicking
Flick left or right on the Home screen or the Apps screen to see another panel.
Flick you finger down from the top of the screen while using apps to returns to the previous
page.
Pinching
Spread two fingers apart on an image to zoom in a part. Pinch to zoom out.
25
Basics
1
2 3 4 5
Viewing the Home screen
View the Gear’s Home screen when you connect it to the mobile device. It displays the clock,
shortcuts to applications, and others.
The Home screen can have multiple panels. To view other panels, scroll left or right.
Home screen panels
Available applications and the arrangement of applications may vary depending on
the software version.
Number Application or feature
WatchON Remote
Use the Gear as a remote control for a TV or set-top box.
S Voice
Command the Gear by voice to perform various features.
1
Music Player
Listen to music saved on the Gear.
Voice Memo
Record and manage voice memos saved on the Gear.
26
Basics
Number Application or feature
Pedometer
Count the steps that you take each day and send the total to the
connected device.
Exercise
2
3
4
Set exercise goals and measure the exercise you do and calories you burn.
Heart Rate
Measure and record your heart rate.
Sleep
Monitor your sleep patterns and record how much sleep you get.
Clock
View the current date and time. You can also launch
Settings
or
.
Camera, Pedometer
Notifications
Stay up-to-date with a variety of events, such as missed calls or new
messages, received on the connected mobile device.
Logs
View recent calls and message logs of the connected mobile device.
Dialler
,
Enter a phone number using the keypad to make a call.
Contacts
View the contacts list saved in the connected mobile device and make
calls or send messages to contacts.
27
Basics
Number Application or feature
Apps
Launch applications installed on the Gear.
Camera
Take photos or videos and send them to the connected mobile device.
5
Settings
Configure the Gear by setting items, such as the clock background, display
settings, and Bluetooth feature.
Controls
View the connection status and remaining battery life. Adjust the volume
and display brightness.
Using the Clock screen
While using the Gear, press the Power button to open the Clock screen.
28
Basics
Editing Home screen icons
Rearranging the location of icons
On the Home screen, tap and hold an icon and drag it to the desired location.
Deleting icons
On the Home screen, tap and hold an icon and drag it to the rubbish bin icon.
You cannot delete icons on the Clock panel.
Managing panels
Customise the Home screen by adding, removing, or moving panels.
Adding a new panel
To add a new panel to the Home screen, tap and hold an icon. Then, drag it to . A new
panel is added to the Home screen and the selected icon appears in the new panel.
Moving a panel
On the Home screen, tap and hold a panel and drag it to the desired location.
Removing a panel
On the Home screen, tap and hold a panel and drag it to the rubbish bin icon.
Changing the background image
You can change the background colour or set the background image to the default or a saved
image.
On the Home screen, tap
Settings
→
Wallpapers
.
29
Basics
Apps screen
The Apps screen displays icons for all applications.
On the Home screen, tap
To view other panels, scroll left or right.
Apps
to open the Apps screen.
Rearranging applications
On the Apps screen, tap and hold an application and drag it to the desired location.
Adding shortcuts
On the Apps screen, tap and hold the desired icon. Then, drag it to the Home icon at the top
of the screen. Release your finger when the colour of the Home icon changes to orange.
Using applications
The Gear can run a range of applications. On the Home screen or the Apps screen, tap a
shortcut or an application icon to open it.
On the Apps screen, scroll left or right to view all the applications installed on the Gear.
Opening recently-used applications
Tap and hold the screen with two fingers, and then select a recently-used application to
launch it.
Closing the current application
Tap and hold the screen with two fingers and then tap
application screen left or right to close it.
Close all
. You can also drag the
30
Basics
Securing the Gear
Prevent others from using or accessing personal data and information stored in the Gear
when it is disconnected from the mobile device. You can set a PIN to secure the Gear.
Setting a PIN
On the Home screen, tap
Follow the on-screen instructions to set a PIN with at least four numbers.
If you set an unlock PIN, the Gear will lock automatically when it disconnects from the mobile
device.
Settings
→
Privacy lock
→
Privacy lock
→
PIN
.
Unlocking the Gear
Turn on the screen by pressing the Power button, and enter the unlock PIN. Alternatively,
connect to the mobile device again to unlock the Gear automatically.
Using calling features
Making a call
On the Home screen, tap
Dialler
, enter a number using the keypad, and then tap to make a
call. Alternatively, on the Home screen, tap
Logs
→ a contact → .
Contacts
→ a contact → a phone number, or tap
31
Basics
During a call
You can select from the following actions:
•
: Adjust the volume by tapping or .
•
/ → : Disconnect your Gear and continue the call on the mobile device.
•
→ : Turn off the microphone so that the other party cannot hear you.
•
→ : Open the keypad.
•
→ : Switch to a Bluetooth headset if it is connected to the mobile device.
•
: End the current call.
Answering a call
When a call comes in, drag to the right.
If the call waiting service is active, another call can be made. When a second call comes in,
end or hold the first call.
Rejecting a call
Reject an incoming call and send a rejection message to the caller.
When a call comes in, drag
select a message from the list of rejection messages.
to the left. To send a message when rejecting an incoming call,
32
Basics
Using notifications
Stay up-to-date with a variety of events, such as missed calls or new messages, received on
the connected mobile device.
If a message includes long text or attachments, check the message details on your
connected mobile device.
Checking notifications
Checking notifications immediately
When a notification is received, information about the notification, such as type and the time
it was received, appears on the screen. When a notification appears, tap it to view details. An
example notifications for an email is shown in the image below:
Checking notifications at a later time
Tap
1
Notifications
on the Home screen.
33
Basics
Select a notification type.
2
Select a notification to view the details.
3
Notification details screen
In the notification’s detailed view, tap to use additional features:
4
•
Reply
•
Show on device
•
Delete
: Reply to the message using message templates, S Voice, or emoticons.
: View the message on the connected mobile device.
: Delete the message.
•
You can receive notifications on the Gear for selected items. In Gear Manager, tap
Notifications
NOTIFICATIONS
•
If you set
, and then tick items under
.
Notifications
→
Limit notifications
NOTIFICATIONS FOR GEAR
on Gear Manager, you will not be
or
GENERAL
able to view specific notifications on the Gear. When
can still view notifications for incoming calls and alarms on the Gear.
•
If you set
notifications when the display is turned off.
Notifications
→
Keep screen off
on Gear Manager, the Gear receives
34
Limit notifications
is set, you
Basics
Transferring files
Move audio, video, images, or other types of file from a computer to the Gear, or vice versa.
Connect the Gear to the computer using the USB cable.
1
On the computer, open the Computer folder and double-click
2
Select a file on the computer and copy it to the desired storage location on the Gear.
3
Disconnect the USB cable.
4
•
Do not disconnect the Gear and the USB cable while transferring files. Doing so
may damage the Gear or result in data loss.
•
Do not disconnect the Gear from the computer while a media file stored in the
Gear is playing on the computer. Stop media playback on the computer and
disconnect the Gear and the computer.
•
If you use a USB hub, the connection may not work properly and it may cause a file
transfer malfunction. It is recommended to connect the Gear to the computer’s
USB port directly.
Gear 2 (XXXX)
→
Gear
.
Upgrading the Gear
The Gear can be upgraded to the latest software. Visit the Samsung website to upgrade the
Gear’s software.
Upgrading with Gear Manager
The Gear can be directly upgraded to the latest software by the firmware over-the-air (FOTA)
service.
Tap
1
2
Gear Manager
In the
Paired device
on the Apps screen of the mobile device.
list, tap the Gear name.
35
Basics
Tap
3
4
Software update
Read the information in the pop-up window and tap OK.
The Gear automatically upgrades the software when a new version is available.
→
Update
.
Upgrading with Samsung Kies
Download the latest Samsung Kies from the Samsung website. Launch Samsung Kies and
connect the Gear to the computer. Samsung Kies automatically recognises the Gear and
shows available updates in a dialogue box, if any. Click the Update button in the dialogue box
to start upgrading. Refer to the Samsung website for details on how to upgrade.
Click
1
Update
in the dialogue box to start the upgrade process.
If a dialogue box does not appear automatically, click the Gear name in the
devices
Follow the on-screen instructions to complete the upgrade process.
2
When the upgrade is completed, a completion message appears on the screen and the
Gear resets automatically.
list, and then click
•
Check the Gear’s battery status before upgrading the software. Charge the battery
fully before upgrading the software.
•
Do not turn off the computer or disconnect the USB cable while the Gear is
upgrading.
•
While upgrading the Gear, do not connect other media devices to the computer.
Doing so may interfere with the update process.
•
While upgrading the Gear, do not launch other applications on the computer or
operate the Gear. Doing so may overload the computer.
•
If you lose the connection with the Internet while upgrading the software, check
Firmware upgrade
.
Connected
the LAN cable is connected properly. Then, try again.
•
Firmware upgrades will proceed only when your Gear is connected with the
computer properly. When the Gear is connected properly,
name appear on the left of the Samsung Kies screen.
36
and the Gear’s model
Applications
S Voice
Use this application to command the Gear by voice to perform various features.
Tap
S Voice
You can use the following examples of spoken commands:
•
Open gallery
•
Call Lulu mobile
on the Home screen.
•
This application is not supported in some languages.
•
Before using this application, read and agree to the terms and conditions on the
connected mobile device.
•
Check schedule
Tips for better voice recognition
•
Speak clearly.
•
Speak in quiet places.
•
Do not use offensive or slang words.
•
Avoid speaking in dialectal accents.
The Gear may not recognise your commands or may perform unwanted commands
depending on your surroundings or how you speak.
37
Applications
Power button
Starting S Voice
On the S Voice screen, say a voice command.
When S Voice is launched and no voice commands are spoken within a specified period, the
application enters standby mode. The microphone icon at the bottom of the screen changes
to green. To use voice commands again, tap the microphone icon to exit standby mode.
WatchON Remote
Use this application to operate the Gear as a remote control for other devices with an infrared
receiver. You can use this feature with various devices, such as TVs and set-top boxes.
Tap
WatchON Remote
on the Home screen.
The remote-control screen may vary depending on the device being controlled.
Select a device to be controlled by the Gear remotely, and then follow the on-screen
instructions to complete the setup. Ensure that the Gear’s infrared port is facing the device.
Use additional features.
Adjust the volume.
TV/External input
Scroll left on the remote-control screen to access the numeric keypad.
Change the channels.
Mute/Unmute
38
Applications
Gallery
Use this application to view images and videos.
Tap
Gallery
Viewing images
Scroll left or right to view the next or previous image.
Zooming in and out
Use one of the following methods to zoom in while viewing an image:
•
Double-tap anywhere to zoom in.
•
Spread two fingers apart on any place to zoom in. Pinch your fingers together to zoom
on the Apps screen.
out, or double-tap to return.
Playing videos
Video files show the icon on the preview thumbnail. Select a video to watch it and tap .
Deleting files
When viewing a file, tap →
To delete multiple files at once, tap and hold the file to delete on the file list screen. Then, add
the other files to delete, and tap
Tap
to select all files at once.
Delete
→ OK.
→ OK.
39
Applications
Sharing files
When viewing a file, tap →
service.
To share multiple files at once, tap and hold the file to share on the file list screen. Then, add
other files to share, and tap
Share
.
to send it to others or share it via a social network
Weather
Use this application to view weather information on the Gear for the locations that are set on
the connected mobile device.
Tap
Weather
To view the weather information for the week, tap the screen.
on the Apps screen.
Find My Device
Use this application to find the connected mobile device.
Tap
1
2
Find My Device
Tap
Start
.
The mobile device emits sounds and turns on the screen.
Drag
outside the large circle on the mobile device, or tap
This feature is available only when the Gear and the mobile device are connected.
on the Apps screen.
Stop
on the Gear.
40
Applications
Health Management Applications
Use the pedometer, sleep, exercise, and heart rate applications to monitor and manage your
health and physical condition.
When the Gear is synced with a compatible S Health application, you can use additional
features. The additional features include, checking your physical condition and exercise
records, and more.
Pedometer, Sleep, Exercise, and Heart Rate are intended for leisure, well-being and
fitness purposes only and are not intended for medical use. Before using these
applications, read the instructions carefully. Consult a medical professional if you
experience any health problems or need medical assistance.
Before You Start Exercising
This app can be used to monitor your exercise. While moderate physical activity, such as brisk
walking, is safe for most people, health experts suggest that you talk with your doctor before
you start an exercise program, particularly if you have any of the following conditions:
•
Heart disease
•
Asthma or lung disease
•
Diabetes, or liver or kidney disease
•
Arthritis
You should also check with your doctor if you have symptoms suggestive of heart, lung, or
other serious disease, such as:
•
Pain or discomfort in your chest, neck, jaw, or arms during physical activity
•
Dizziness or loss of consciousness
•
Shortness of breath with mild exertion or at rest, or when lying down or going to bed
•
Ankle swelling, especially at night
•
A heart murmur or a rapid or pronounced heartbeat
•
Muscle pain when walking upstairs or up a hill that goes away when you rest
41
Applications
The American College of Sports Medicine recommends that you see your doctor before
engaging in vigorous exercise if two or more of the following apply:
•
You are a man older than age 45 or a woman older than age 55.
•
You have a family history of heart disease before age 55.
•
You smoke or quit smoking in the past six months.
•
You have not exercise for three months or more.
•
You are overweight or obese.
•
You have high blood pressure or high cholesterol.
•
You have impaired glucose tolerance, also call pre-diabetes.
When in Doubt - Check it Out
If you are unsure of your health status, have several health problems, or are pregnant, you
should speak with your doctor before starting a new exercise program. Working with your
doctor ahead of time is a good way to plan an exercise program that is right and safe for you.
Consider it the first step on your path to physical fitness.
Wearing the Gear
When measuring your heart rate, wear the Gear snugly on your arm above your wrist as
shown in the figure below. Do not fasten the Gear too tightly.
<Rear>
Heart rate sensor
42
Applications
•
Remove the protective plastic from the heart rate measurement sensor before
taking measurements.
•
The heart rate measuring function is intended for human use only. The heart
rate figures may not be accurate depending on measurement conditions and
surroundings.
•
Take heart rate measurements when you are seated and relaxed.
•
If heart rate measurements are taken at low temperatures, the result may be
inaccurate.
•
Do not move your body while taking heart rate measurements. Doing so may
cause your heart rate to be recorded inaccurately.
•
Users with thin wrists may receive inaccurate heart rate measurements. Inaccurate
measurements occur when the device is loose and the light used to provide the
measurement is reflected unevenly.
•
If the measurement is very different from the expected heart rate, rest for
30 minutes and then measure it again.
•
Measurements are calculated using average values and should be repeated at least
five times.
•
During winter or in cold weather, keep yourself warm when measuring your heart
rate.
•
Smoking or consuming alcohol before taking measurements may cause your heart
rate to be different from your normal heart rate.
•
Do not talk, yawn, or breathe deeply while taking heart rate measurements. Doing
so may cause your heart rate to be recorded inaccurately.
•
If your heart rate is extremely high or low, measurements may be inaccurate.
•
Obstructions between the device’s strap and your wrist, such as body hair or other
objects, may prevent the light reflecting evenly.
•
Heart rate measurements taken for infants and toddlers may be inaccurate.
•
Do not look directly at the heart rate sensor’s lights. Doing so may impair your
vision.
•
If heart rate measurement is not working properly, adjust the position of the Gear
on your wrist. For example, move the Gear right, left, up, or down on your wrist to
adjust the position of the heart measurement sensor. Or, wear the Gear with the
heart rate sensor firmly against the inside of your wrist.
•
If the heart rate sensor is dirty, wipe the sensor and try again.
43
Applications
Pedometer
On the step count screen, start the pedometer to count your steps and view the distance
walked and burned calories.
Before using this application:
If you have just purchased or have reset the Gear, read the on-screen information about the
OK
application and tap
Counting steps
Tap
1
2
Pedometer
Tap
Start
to start counting.
.
on the Home screen.
You can view information, such as step count and burnt calories, on the screen.
Tap the screen, and then tap
3
Pause
to stop counting.
Current
steps
Calories
burnt
Exercise
distance
44
Applications
Using additional features
On the pedometer screen, tap to use additional features:
•
To view previous records, tap
•
To set your goal, tap
•
To reset the step count, tap
•
To share your records with others, tap
•
To view help information, tap
•
You may experience a brief delay while the pedometer monitors your steps and
then displays your step count.
•
If you use the pedometer while travelling by car or train, vibration may affect your
step count.
Goal
History
.
Reset steps
Help
.
.
Share via
.
.
•
Only records from the past thirty days are saved. You can view previous data on the
mobile device where the S Health application is installed.
Sleep
Use this application to monitor your sleep patterns and record how much sleep you get by
detecting body movements while you sleep. You can transfer the records to the connected
mobile device.
Before using this application:
•
If you have just purchased or have reset the Gear, read the on-screen information about
OK
the application and tap
•
The Sleep application monitors your sleep duration and body movements while you are
sleeping.
•
To record while you are sleeping, tap the start button when you go to bed and tap the
.
stop button when you wake up.
•
The Sleep application can record multiple sleep cycles within a 24 hour period. All sleep
that the application detects within the designated period is recorded and combined as
the total period of sleep.
45
Applications
Recording sleep duration
Tap
1
2
Sleep
Tap
Start
The sleep duration appears on the screen when sleep recording starts.
on the Home screen.
.
Tap
Stop
3
→ OK to stop recording.
Using additional features
On the Sleep screen, tap to use additional features:
•
To view previous records, tap
•
To block all notifications except for alarm notifications, tap
Enable
•
To view help information, tap
.
Only records from the past thirty days are saved. You can view previous data on the
mobile device where the S Health application is installed.
History
Help
.
.
Blocking mode
, and then tick
46
Applications
Heart Rate
Use this application to measure and record your current heart rate. You can plan and adjust
your exercise based on the recorded heart rate.
•
The device’s heart rate measurement feature cannot be used for clinical or medical
diagnosis.
•
For more accurate heart rate measurement, measure your heart rate when your
body is not moving. To measure your heart rate during exercise, use the exercise
feature.
For best results when measuring your heart rate:
•
If you have just purchased or have reset the Gear, read the on-screen information about
OK
the application and tap
.
•
Before taking a measurement, keep your body warm and rest for 5 minutes.
•
Do not move your body while taking the measurement.
•
Refer to ‘Wearing the Gear’ for details.
Measuring heart rate
Tap
1
2
Heart Rate
Tap
Start
to begin measuring your heart rate.
The
measurement will be taken by the device. Then, after a brief delay your current heart rate
is displayed on the screen.
icon appears and blinks on the screen when heart rate measurement starts. The
on the Home screen.
47
Applications
Using additional features
On the heart rate measurement screen, tap to use additional features:
•
To view your heart rate records, tap
•
To view help information, tap
Only records from the past thirty days are saved. You can view previous data on the
mobile device where the S Health application is installed.
Help
History
.
.
Exercise
Use this application to set diet and calorie goals and plan your exercise programme. View the
exercise you have completed in the day and compare it with your exercise goal. You can also
record your exercise achievements in a log.
The connected mobile device’s GPS feature is used to check information, such as
altitude and speed, when you are cycling or hiking. Ensure that the Gear and the
mobile device are connected at all times while using this feature.
In cold weather conditions:
•
Avoid using the device in cold weather. If possible, use the device indoors.
•
If you use the device outside in cold weather, cover the Gear with your sleeves before
using it.
•
Measure your heart rate before you start to exercise. If you measure your heart rate
during exercise, measurements may be inaccurate.
•
If you have just purchased or have reset the Gear, read the on-screen information about
the application and create your profile. When creating a profile, you can register your
maximum heart rate either automatically or manually.
The maximum heart rate is the fastest heart rate an individual can achieve through
exercise. If you know your maximum heart rate, enter it manually. If the device is set to
register the heart rate automatically, the Gear will calculate it using ‘210 - 0.65 x age’.
48
Applications
Monitoring exercise information
Tap
1
Exercise
on the Home screen.
Select a type of exercise to monitor. You can select from
2
Hiking
Tap
3
You can view information, such as exercise time and distance, on the screen.
Scroll left on the screen to view more information, such as burnt calories and speed.
.
Start
to start monitoring.
Running, Walking, Cycling
Launch Music Player.
Heart rate
Exercise time
Average speed
Exercise distance
, or
Tap the screen, and then tap
4
Your exercise records appear on the screen.
Scroll up or down to view the records.
5
Stop
→ OK to stop monitoring your exercise information.
Using additional features
On the exercise screen, tap to use additional features:
•
To view the exercise records, tap
•
To view help information, tap
History
Help
.
.
49
Applications
While monitoring your exercise information, tap
may not be available depending on the selected exercise type:
•
To view the exercise records, tap
•
To set exercise goals, tap
•
To receive coaching advice while exercising in running mode, tick
•
To use the heart rate feature, tick
Only records from the past thirty days are saved. You can view previous data on the
mobile device where the S Health application is installed.
Goal
History
.
Heart Rate
.
to use additional features. Some features
Coaching
.
.
Using the coaching feature while exercising in running mode
Use the personalised coaching feature to exercise safely and effectively. You will receive realtime coaching advice that leads you through a safe and effective workout that keeps you fit.
About the coaching feature
The coaching feature includes Firstbeat technology to provide personalised exercise
guidance. Firstbeat uses Training Effect (TE) analysis that measures the accumulated physical
load during a workout and assesses the impact on your fitness. TE levels are based on your
physical profile and the heart rate information recorded while you work out. Your TE level
increases when you perform effective exercise and the coaching feature uses the TE to
provide you with feedback.
The feedback is provided by the feature via prompts, such as ‘speed up’, ‘keep up this
pace’, and ‘slow down’. When you first start to use the coaching feature, it will estimate an
appropriate TE level based on your profile. As you exercise, it will analyse your training history
and provide more personalised guidance. A typical workout may start at a lower intensity and
sharply increase in intensity towards the end.
www.firstbeat.fi/te
Visit
The Gear measures your heart rate with the heart rate measurement sensor. This
feature may not work properly if the heart rate sensor is exposed to excessive sweat
or its position is changed during exercise.
for more information.
For the best coaching results, use the coaching feature while you exercise indoors.
50
Applications
On the Home screen, tap
1
Tap and tick
2
Coaching
Tap
The following describes each TE level:
•
Easy
: Maintain general health and improve your endurance.
•
Moderate
endurance.
•
Improving
•
If you exercise for a shorter duration than that designated for the TE, the exercise
intensity will increase to achieve the TE.
•
If you feel pain or discomfort while exercising, stop immediately and consult a
medical professional.
Coaching
to set TE, duration, and maximum heart rate.
: Maintain your basal fitness level and improve your cardiovascular
: Improve your basal fitness level and cardiovascular endurance.
Exercise
.
→
Running
.
Flick your finger down from the top of the screen to return to the running screen.
3
The setup is completed.
Tap
Start
4
The heart rate measurement starts. Start running when the measurement is completed.
You can view information, such as burnt calories and speed, on the screen.
When you finish running, tap the screen, and then tap
5
your exercise information.
.
Stop
→ OK to stop monitoring
51
Applications
Messages
Use this application to view the messages received on the connected mobile device, call or
reply to the sender using the Gear.
Tap
Messages
Making a call
on the Apps screen.
To make a call to the sender, scroll right on the message in the list, or tap →
message navigation screen.
Call
on the
Replying to a message
Tap on the message navigation screen, or tap →
phrases saved in Gear Manager, S Voice and emoticons in your reply. Tap
to select the text input options.
Reply
. You can use user-defined
in the reply menu
Viewing a message on the connected mobile device
To view a message on the connected mobile device, tap on the message navigation
→
screen, or tap
Show on device
.
Deleting messages
On the message navigation screen, tap →
Delete
.
You can also tap
multiple messages at once.
Tap
to select all files at once.
, select multiple messages to delete, and then tap
Delete
to delete
52
Applications
Music Player
Use this application to listen to music saved on the Gear.
Tap
Music Player
Before using this application:
If you have just purchased or have reset the Gear, read the on-screen information about the
application and tap
Pairing with Bluetooth headsets
on the Home screen.
OK
.
On the Home screen, tap
1
Tick
2
3
Bluetooth
Tap
BT headset
to activate the Bluetooth feature.
and select a headset from the detected headsets list.
Listening to music
Tap to play music.
Adjust the volume or listen to
music on a Bluetooth headset.
Restart the currently-playing file
or skip to the previous file. Tap
and hold to move backwards
quickly.
Settings
→
Bluetooth
.
Display the list of files. Set
random play and repeat options.
Skip to the next file. Tap and
hold to move forwards quickly.
53
Pause and resume playback.
Applications
Increase the volume.
Media Controller
Use this application to play and control media files. You can launch the music player on the
connected mobile device and control playback with the Gear. For other media files, start
playback on the mobile device first. You can control playback of the currently-playing file
from the Gear.
Tap
1
2
Media Controller
Tap to play media files on the connected mobile device.
on the Apps screen.
Restart the currently-playing file
or skip to the previous file. Tap
and hold to move backwards
quickly.
Decrease the volume.
Skip to the next file. Tap and
hold to move forwards quickly.
Pause and resume playback.
54
Applications
Stopwatch
Use this application to measure the amount of elapsed time.
Tap
1
2
Stopwatch
Tap
Start
to time an event.
•
To record lap times, tap
•
To end timing, tap
•
To clear lap time records, tap
on the Apps screen.
Lap
.
Stop
.
Reset
.
Contacts
Use this application to view the connected mobile device’s contacts list on the Gear.
Tap
Contacts
You can make a call or send a message to a contact by scrolling left or right on a contact
entry.
on the Home screen.
55
Applications
Voice Memo
Use this application to record voice memos. The voice memos recorded on the Gear are
transferred to the connected mobile device automatically.
Tap
Voice Memo
Recording voice memos
Tap to start recording. Speak into the microphone at the bottom right of the Gear. Tap to
on the Home screen.
pause recording. Tap
Remaining recording time
to finish recording. To cancel the recording tap .
Display the list of voice memos.
Start recording.
Playing voice memos
Tap , and select a voice memo to play. If spoken content is recorded and then converted to
a data file,
text on the screen during playback.
appears next to the filename. When you tap , the Gear shows the content as
•
: Adjust the volume by tapping or . You can also connect to a Bluetooth headset
to listen to the voice memo.
•
: Pause playback.
•
/ : Skip to the previous or next voice memo.
56
Applications
Use this application to check emails received on the connected mobile device.
Tap
Email
To open an email, select an email from the list and tap it. The email navigation screen will
appear.
Checking emails on the connected mobile device
To check emails on the connected mobile device, tap on the email navigation screen, or
tap
Deleting emails
on the Apps screen.
→
Show on device
.
On the Gear’s email navigation screen, tap →
You can also tap
at once.
Tap
to select all emails at once.
, select multiple emails to delete, and then tap
Delete
.
Delete
to delete the emails
57
Applications
Schedule
Use this application to view the events scheduled on the connected device with the Gear.
Tap
Schedule
Select an event from the list to view the details. Scroll left or right on the screen or tap the left
and right arrows to change the date.
on the Apps screen.
Controls
View the connection status and remaining battery life. Adjust the volume and display
brightness.
Tap
Controls
on the Home screen.
Logs
Use this application to view the connected mobile device’s call and message logs on the Gear.
Tap
Logs
on the Home screen.
Select a log and scroll up or down to search for the desired log entry. To make a call, drag a
log entry to the right. To send a message, drag a log entry to the left.
In the detailed view of the log, tap
To select the type of logs to display, open the list of logs and drag your finger downwards
from the centre of the screen. Then, tap
to call the number.
Filter by
to select the logs to display.
58
Applications
Camera
Use this application to take photos or videos. The Gear can save up to 50 photos and 9 videos.
Use
Tap
Gallery
Camera
to view photos and videos taken with the Gear’s camera.
on the Home screen.
•
The camera automatically shuts off when unused.
•
Make sure that the lens is clean. Otherwise, the Gear may not work properly in
some modes that require high resolutions.
•
If your Gear saved 50 photos or 9 videos, you cannot take more photos or videos.
Access Gallery and delete files or transfer files to the connected mobile device.
After you transferred files to the mobile device and take more photos or videos,
your Gear will delete some files that are transferred to free some memory.
•
While charging, you cannot use this application.
Camera etiquette
•
Do not take photos or videos of other people without their permission.
•
Do not take photos or videos where legally prohibited.
•
Do not take photos or videos in places where you may violate other people’s privacy.
Taking photos
Tap the screen to take a photo.
Switch between still and video
mode.
Change the camera settings.
59
Applications
Taking a photo with sound
Use this mode to capture the ambient sound with a photo.
Tap
camera screen and tap the screen to take a photo. The Gear records 9 seconds of audio after
taking the photo. To stop recording sound, tap the screen again.
→
Sound & shot
→ On. Scroll down from the top of the screen to return to the
Viewing images
After taking a photo, scroll left to view the image. Scroll right to return to the camera screen.
Taking videos
Taking a video
Tap , and then tap the screen to take a video. To stop recording, tap the screen again.
The maximum recording time is 15 seconds. After you record three videos, the camera will
shut off to maintain device performance.
Viewing Videos
After recording a video, scroll left to play the video. Scroll right to return to the camera screen.
60
Applications
Configuring settings for Camera
Tap to configure the camera’s settings. Not all of the following options are available with
both the still and video camera modes.
•
Focus mode
close objects.
•
Photo size
Higher resolutions take up more memory.
•
Sound & shot
•
Signature
•
Location tags
•
Avoid using the location tag feature in shaded areas, between tall buildings, or
during bad weather. The GPS signal reception may fail.
: Select a focus mode.
/
Video size
: Use this to take a photo with sound.
: Set the Gear to add a signature to photos.
: Attach a GPS location tag to the photo.
: Select a resolution. Use a higher resolution for better quality.
Auto
is camera-controlled.
Macro
is used for very
•
Location information is displayed when the images are uploaded to the internet.
To prevent the location information from being displayed, turn off the location tag
feature.
•
Voice control
Some settings will not be saved when you turn the camera off.
: Set the Gear to recognise spoken commands.
Timer
Use this application to use the Gear as a countdown timer.
Tap
1
2
Timer
Set the duration, and tap
on the Apps screen.
Start
.
Drag
outside the large circle when the timer goes off.
61
Settings
Clock
Change the clock type that appears on the Clock screen.
On the Home screen, tap
Scroll left or right on the screen to select a clock type.
Settings
→
Clock
.
Wallpapers
Change the colour of the Home screen. Or, set an image or photo stored in the Gear as
wallpaper for the Home screen.
On the Home screen, tap
Settings
→
Wallpapers
.
Notifications
Use the Gear to stay up-to-date with a variety of events, such as missed calls or new
messages, received on the connected mobile device.
On the Home screen, tap
Settings
→
Notifications
.
62
Settings
Sound
Change the settings for various sounds on the Gear.
On the Home screen, tap
•
Volume
notifications, and system sounds.
•
Sound mode
•
Touch sounds
on the touch screen.
•
Ringtones
•
Notifications
and missed calls.
•
Vibration
: Adjust the volume level for various sounds, such as multimedia, ringtone,
: Select Gear’s sound mode from sound, vibration, and mute.
: Set the Gear to make a sound when applications or options are selected
: Select a ringtone to alert you to incoming calls.
: Select a tone that sounds when events occur, such as incoming messages
: Adjust the intensity of the vibration notification.
Settings
Display
Change the settings for the display.
→
Sound
.
On the Home screen, tap
•
Brightness
•
Screen timeout
backlight.
•
Font
: Change the font type and size for display text.
•
Language
When the Gear is connected to a mobile device, the language settings applied on the
mobile device are applied to the Gear. The language settings can only be changed on
the connected mobile device.
•
Wake-up gesture
gesture. Raise the hand that is wearing the Gear and look at the Gear’s screen for a few
seconds. The screen turns on and a preset screen is displayed.
•
Home icon size
•
Edit home screen
: Adjust the brightness for the display.
: Select a display language for all menus and applications.
Settings
: Set the length of time the Gear waits before turning off the display’s
: Set the Gear to turn on and show a specified screen by using a
: You can adjust the size of the icons on the Home screen.
: You can change the location of the icons on the Home screen and
→
Display
.
delete them.
63
Settings
Bluetooth
Configure settings for the Bluetooth feature.
On the Home screen, tap
•
Bluetooth
•
BT headset
•
Make visible
Bluetooth devices.
: Turn the Bluetooth feature on or off.
: Search for Bluetooth headsets and connect them to the Gear.
: Set the Gear to appear on other devices’ lists when they search for
Settings
→
Bluetooth.
Double press
Set an application that instantly launches when you press the Power button twice.
On the Home screen, tap
Settings
→
Double press
, and then select an option.
Privacy lock
On the Home screen, tap
Settings
→
Privacy lock
.
•
Privacy lock
four numbers. You can unlock the Gear’s screen by entering the PIN when the mobile
device and the Gear are disconnected.
•
Help
: Access help information about using the privacy lock feature.
: Activate or deactivate the privacy lock feature by setting a PIN of at least
64
Settings
Profile
Create a profile by entering your physical information, such as sex and body size.
On the Home screen, tap
Settings
→
Profile
, and then select an option.
Reset Gear
Reset settings to the factory default values and delete all data. Default applications are not
deleted.
On the Home screen, tap
When connecting the Gear to another mobile device
If you want to connect the Gear to a newly purchased mobile device or to another
mobile device for the first time, reset the Gear. Resetting the Gear will remove the
data from the memory. After the reset, you can connect the Gear to a different mobile
device.
Settings
→
Reset Gear
.
Gear info
On the Home screen, tap
•
About Gear
•
USB debugg...
when developing apps by connecting the Gear to a computer via a USB cable.
: Access information about the Gear.
: Activate or deactivate the USB debugging mode. You can use this mode
Settings
→
Gear info
.
65
Gear Manager
Launching Gear Manager
This application allows you to connect to a mobile device and customise your Gear’s settings
and applications. Also, you can use it to access the connected mobile device’s features.
On the connected mobile device’s Apps screen, tap
Some features may not be available depending on the type of connected mobile
device.
Gear Manager
Connecting a new Gear
At the top of the Gear Manager screen, tap →
currently-used Gear and connect another Gear.
Search for new devices
Configuring the Gear settings
Access information about the Gear and update Gear software.
Tap the Gear name in the
following features:
Paired device
list on the Gear Manager screen, and then use the
.
. Disconnect the
•
Connect/Disconnect
•
Software update
•
Model number
•
Software version
: Connect or disconnect a Gear.
: Update the Gear to the latest software.
: View the Gear’s model details.
: View the Gear’s version information.
66
Gear Manager
Home screen styler
Change the Gear’s Home screen settings.
Tap
Home screen styler
Wallpapers
Change the colour of the Gear Home screen. Or, set an image or photo stored in the mobile
device as wallpaper for the Gear Home screen.
Tap
Wallpapers
Select a wallpaper for the Home screen. The selected wallpaper is applied to the Gear’s Home
screen.
on the Gear Manager screen.
on the Gear Manager screen.
Clock
You can change the clock types to be displayed on the Clock screen.
Tap
Clock
To configure detailed information on the Clock screen, tap
an item.
on the Gear Manager screen. Select the desired clock type.
next to the clock list and select
S Health
You can transfer S Health records saved on the Gear to the connected mobile device.
To set the time interval for sending files, on the Gear Manager screen, tap
and tap
Tap
S Health
Pedometer transfer interval
on the Gear Manager screen to launch S Health.
. Tap
Transfer now
to send a file immediately.
next to
S Health
67
Gear Manager
Notifications
Stay up-to-date with a variety of events, such as missed calls or new messages, received on
the connected mobile device. You can also configure settings for the notification feature.
On the Gear Manager screen, tap
and then tick items.
•
Limit notifications
Gear.
•
Smart relay
pick it up. At the same time the Gear will be notified of new messages or missed calls.
•
This feature is only available when the Gear’s screen is turned on.
•
Some mobile devices do not support this feature.
•
The mobile device must be unlocked first to view details when the screen is locked.
•
Preview message
•
Keep screen off
•
INSTANT ALERTS FOR GEAR
•
NOTIFICATIONS FOR GEAR
checked on the connected mobile device.
: Set your mobile device to instantly alert you to new notifications when you
: Set notifications, such as calls or messages, not to be alerted via the
: Set pop-up windows to display the application name or the content.
: Set to receive notifications with the display turned off.
Notifications
: Set the items to be received directly on the Gear.
: Set the items to be notified on the Gear if they are not
, drag the
Notifications
switch to the right,
•
GENERAL NOTIFICATIONS
: Set additional items to be notified on the Gear.
My apps
You can manage application settings installed on the Gear. Scroll up or down to view all
applications installed on the Gear.
Tap
My apps
Configuring applications settings
Tap next to an application and configure the settings.
on the Gear Manager screen.
68
Gear Manager
Transferring music files from the mobile device to the Gear
You can transfer music files saved on the mobile device to the Gear.
Tap
to transfer. To transfer the selected files to the Gear, tap
next to
Music Player
, tap
Send tracks to Gear
, tap and hold a file, and then select files
Send
.
Transferring photos, videos, and voice memos from the Gear
You can transfer files, such as photos, videos, and voice memo files, to mobile devices.
•
To transfer voice memos, tap next to
Transfer now
memos are recorded with the Gear, tap
•
To transfer photos and videos, tap next to
→
Transfer now
images are taken with the Gear, tap
. To set the files to be automatically transferred to a mobile device when
. To set the files to be automatically transferred to a mobile device when
Voice Memo
Auto transfer
Camera
Auto transfer
and tap
→
and tap
→
Always
Auto transfer
Always
.
Auto transfer
.
→
→
None
Manual
Samsung Apps
→
You can download applications from
Tap
Samsung Apps
download it.
To install applications that are downloaded from sources other than
on the Gear Manager screen, tap
on the Gear Manager screen. Search for an application and select it to
Samsung Apps
Settings
→
.
Unknown sources
Samsung Apps
→ OK.
,
69
Gear Manager
Find my Gear
If you misplace the Gear, Gear Manager can help you find it.
Tap
Find my Gear
Tap
Start
This feature is available only when the Gear and the mobile device are connected.
, the Gear emits sounds and turns on the screen.
on the Gear Manager screen.
Settings
Use this application to configure the Gear and set various options.
Tap
Settings
on the Gear Manager screen.
Backup and restore
Back up the stored data on the Gear or restore backup data. On the Settings screen, tap
Backup and restore
.
Setting the Power button
Set actions to be performed when you press the Gear’s Power button twice.
On the Settings screen, tap
Double pressing home key
, and then select an option.
Activating the auto lock feature
Set the mobile device to lock automatically when it is disconnected from your Gear.
On the Settings screen, tick
Auto lock
.
Tap
Continue
again to verify it.
When your Gear is not detected, the pattern lock activates automatically on the mobile
device.
When your Gear is detected again, the pattern lock is deactivated.
, draw a pattern by connecting four or more dots, and then draw the pattern
70
Gear Manager
Using a wake-up gesture
Set the Gear to recognise your gesture to wake up the Gear and show the clock or the last
page you accessed when the screen is turned off.
On the Settings screen, tap
the right. To select a preset screen to be shown when the screen turns on, tap
shown
To wake up the Gear, raise the hand that is wearing the Gear and look at the Gear’s screen for
a few seconds. The screen turns on and a preset screen is displayed.
.
Wake-up gesture
, and then drag the
Wake-up gesture
Select screen
switch to
Setting a method to enter text and managing templates
Select a method to enter text and manage messages templates.
•
Default
•
Edit text templates
: Select a method for entering text.
: Manage message templates to use when you reply to a message.
Answering an incoming call using a voice command
When a call comes in, you can accept or reject it by using a voice command.
On the Settings screen, tick
Incoming Calls
.
Setting up emergency messages
Set the device to send a message to recipients in an emergency.
On the Settings screen, tap
switch to the right. Press the Power button three times to send an emergency message that
includes your current location.
Some mobile devices do not support this feature.
Send help message
, and then drag the
Send help message
71
Gear Manager
Setting up emergency contacts
You can preset contacts to send a message to in an emergency.
On the Settings screen, tap
or
new contact
contacts list.
Some mobile devices do not support this feature.
Select from contacts
Manage Primary contacts
. You can create a new contact or select from the
→
Create primary contact
Setting security
Set to allow or block the installation of applications from app markets other than
.
Apps
On the Settings screen, tick
Unknown sources
.
Viewing the open source licence
You can view open source licence information.
On the Settings screen, tap
Open source license
.
→
Create
Samsung
Viewing the Gear Manager version
View the Gear Manager version information in
Gear Manager version
.
Help
You can access information about using the Gear and other useful applications.
Tap
Help
on the Gear Manager screen.
72
Troubleshooting
Before contacting a Samsung Service Centre, please attempt the following solutions. Some
situations may not apply to your Gear.
Your Gear does not turn on
When the battery is completely discharged, your Gear will not turn on. Charge the battery
completely before turning on the Gear.
The touch screen responds slowly or improperly
•
If you attach a protective cover or optional accessories to the touch screen, the touch
screen may not function properly.
•
If you are wearing gloves, if your hands are not clean while touching the touch screen,
or if you tap the screen with sharp objects or your fingertips, the touch screen may
malfunction.
•
The touch screen may malfunction in humid conditions or when exposed to water.
•
Restart your Gear to clear any temporary software bugs.
•
Ensure that your Gear software is upgraded to the latest version.
•
If the touch screen is scratched or damaged, visit a Samsung Service Centre.
Your Gear freezes or has fatal errors
If your Gear freezes or hangs, you may need to close applications and turn on the Gear to
regain functionality. If your Gear is frozen and unresponsive, press and hold the Power button
for more than 7 seconds to reboot.
If this does not solve the problem, perform a factory data reset. On the Home screen, tap
Settings
back-up copies of all important data stored on the Gear.
If the problem is still not resolved, contact a Samsung Service Centre.
→
Reset Gear
→ OK. Before performing the factory data reset, remember to make
73
Troubleshooting
Another Bluetooth device cannot locate your Gear
•
Ensure that the Bluetooth wireless feature is activated on your Gear.
•
Reset your Gear and try again.
•
Ensure that your Gear and the other Bluetooth device are within the Bluetooth
connection range (10 m). The distance may vary depending on the environment the
devices are used in.
If the tips above do not solve the problem, contact a Samsung Service Centre.
A Bluetooth connection is not established or your Gear and the
mobile device are disconnected
•
Ensure that the Bluetooth feature on both devices is activated.
•
Ensure there are no obstacles, such as walls or electrical equipment, between the devices.
•
Ensure that the latest version of the Gear Manager application is installed on the mobile
device.
•
Ensure that your Gear and the other Bluetooth device are within the Bluetooth
connection range (10 m). The distance may vary depending on the environment the
devices are used in.
•
Restart both devices and launch the Gear Manager on the mobile device again.
Calls are not connected
•
Ensure that your Gear is connected to a mobile device.
•
Ensure that the connected mobile device has accessed the right cellular network.
•
Ensure that you have not set call barring for the phone number you are dialling on the
connected mobile device.
•
Ensure that you have not set call barring for the incoming phone number on the
connected mobile device.
74
Troubleshooting
Others cannot hear you speaking on a call
•
Ensure that you are not covering the built-in microphone.
•
Ensure that the microphone is close to your mouth.
Sound echoes during a call
Adjust the volume or move to another area.
Audio quality is poor
You may have connectivity problems due to issues with the mobile device’s network
connections.
The battery icon is empty
Your battery is low. Recharge the battery.
The battery does not charge properly (For Samsung-approved
chargers)
•
Ensure that you place the Gear on the charging dock and connect the dock to the
charger properly.
•
If the charging terminals are dirty, the battery may not charge properly or the Gear may
turn off. Wipe both gold-coloured contacts and try charging the battery again.
•
The batteries in some devices are not user-replaceable. To have the battery replaced, visit
a Samsung Service Centre.
The battery depletes faster than when first purchased
•
When you expose the Gear to very cold or very hot temperatures, the useful charge may
be reduced.
•
Battery consumption increases when you use some applications.
•
The battery is consumable and the useful charge will get shorter over time.
75
Troubleshooting
Your Gear is hot to the touch
When you use applications that require more power or use applications on your Gear for an
extended period of time, your Gear may feel hot to the touch. This is normal and should not
affect your Gear’s lifespan or performance.
Error messages appear when launching the camera
Your Gear must have sufficient available memory and battery power to operate the camera
application. If you receive error messages when launching the camera, try the following:
•
Charge the battery.
•
Free some memory by deleting files from your Gear.
•
Restart the Gear. If you are still having trouble with the camera application after trying
these tips, contact a Samsung Service Centre.
Photo quality is poorer than the preview
•
The quality of your photos may vary, depending on the surroundings and the
photography techniques you use.
•
If you take photos in dark areas, at night, or indoors, image noise may occur or images
may be out of focus.
A connection is not established when you connect the Gear to a
computer
•
Ensure that the USB cable you are using is compatible with your Gear.
•
Ensure that you have the proper driver installed and updated on your computer.
•
If you are a Windows XP user, ensure that you have Windows XP Service Pack 3 or higher
installed on your computer.
•
Ensure that you have Samsung Kies installed on your computer.
76
Troubleshooting
Data stored on the Gear has been lost
Always make backup copies of all important data stored on the Gear. Otherwise, you cannot
restore data if it is corrupted or lost. Samsung is not responsible for the loss of data stored on
the Gear.
A small gap appears around the outside of the Gear case
•
This gap is a necessary manufacturing feature and some minor rocking or vibration of
parts may occur.
•
Over time, friction between parts may cause this gap to expand slightly.
77
Some content may differ from your Gear depending on the region, service provider, or
software version, and is subject to change without prior notice.
www.samsung.com
English (EU). 05/2014. Rev.1.1
Loading...
