Instructions

Use this camera in the following order.

Set up the Software

Take a picture

Insert the USB cable

Check the camera’s power

Check [Removable Disk]

To use this camera with a PC, install the application software ﬁ rst. After this has been done, the stored images in the camera can be moved to the PC and can be edited by an image editing program. (p.93~94)

Take a picture. (p.20)

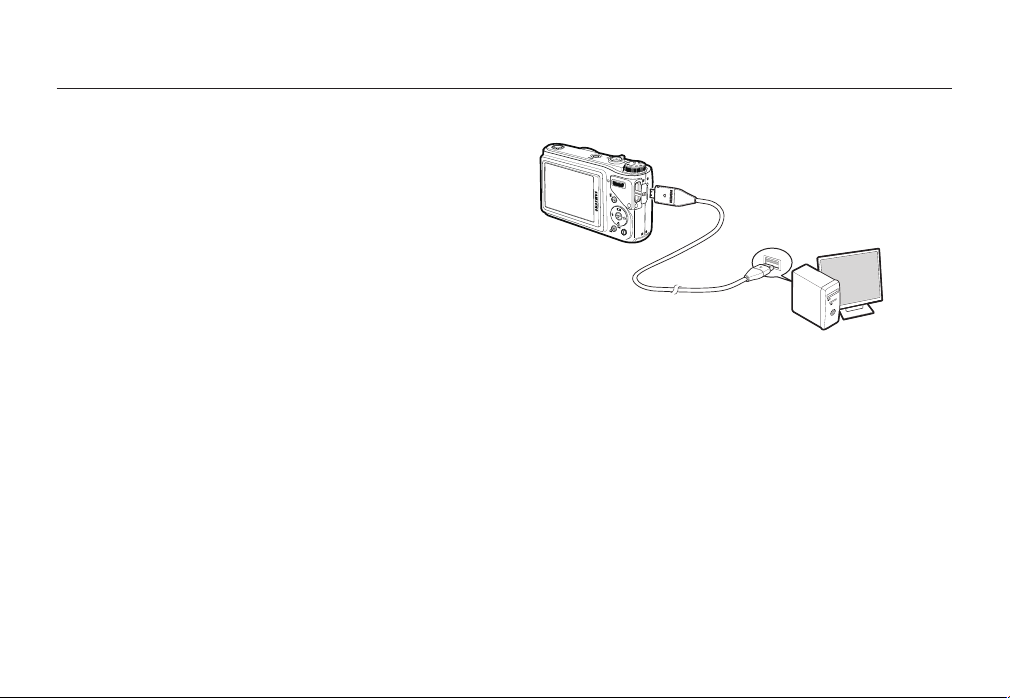

Insert the supplied USB cable into the PC’s USB port and the camera’s USB connection terminal. (p.95)

Check the camera’s power. If the power is turned off, press the power button to turn it on.

Open Windows EXPLORER and search for [Removable Disk]. (p.96)

Getting to know your camera

Thank you for buying a Samsung Digital Camera.



Prior to using this camera, please read the user manual thoroughly.



If you require After Sales service, please bring the camera and the cause of the camera malfunction (such as battery, Memory card etc.) to the A/S centre.



Please check that the camera is operating properly prior to when you intend to use it (e.g. for a trip or an important event) to avoid disappointment. Samsung takes no responsibility for any loss or damage that may result from camera malfunction.



Keep the manual in a safe place.



The contents and illustrations in this manual are subject to change without prior notice for upgrading the camera functions.



If you use a card reader to copy the images on the memory card to your PC, the images could be damaged. When transferring the images taken with the camera to your PC, be sure to use the supplied USB cable to connect the camera to your PC. Please note that the manufacturer accepts no responsibility for loss or damage of images on the memory card due to the use of a card reader.



Microsoft, Windows and Windows logo are registered trademarks of Microsoft Corporation incorporated in the United States and/or other countries.



Apple, Mac and QuickTime logo are registered trademarks of Apple computer.



Adobe and Reader are either trademarks or registered trademarks in the United States and/or other countries.



All brand and product names appearing in this manual are registered trademarks of their respective companies.

001

Page 3

DANGER WARNING

DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.



Do not attempt to modify this camera in any way. This may result in ﬁ re, injury, electric shock or severe damage to you or your camera. Internal inspection, maintenance and repairs should be carried out by your dealer or Samsung Camera Service centre.



Please do not use this product in close proximity to ﬂ ammable or explosive gases, as this could increase the risk of explosion.



Should any form of liquid or a foreign object enter the camera, do not use it. Switch off the camera, and then disconnect the power source. You must contact your dealer or Samsung Camera Service centre. Do not continue to use the camera as this may cause a ﬁ re or electric shock.



Do not insert or drop metallic or inﬂ ammable foreign objects into the camera through access points e.g. the memory card slot and battery chamber. This may cause a ﬁ re or electric shock.



Do not operate this camera with wet hands. This could pose a risk of electric shock.

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.



Do not use the ﬂ ash in close proximity to people or animals. Positioning the ﬂ ash too close to your subject’s eyes may cause eyesight damage.



For safety reasons keep this product and accessories out of reach of children or animals to prevent accidents e.g.:

– Swallowing battery or small camera accessories. If an accident should

occur, please consult a doctor immediately.

– There is the possibility of injury from the camera’s moving parts.



Battery and camera may become hot during prolonged use and it may result in camera malfunction. Should this be the case, allow the camera to sit idle for a few minutes to allow it time to cool.



Do not leave this camera in places subject to extremely high temperatures, such as a sealed vehicle, direct sunlight or other places of extremes in temperature. Exposure to extreme temperatures may adversely affect the camera’s internal components and could cause a ﬁ re.



When in use, do not cover the camera or Charger. This may cause heat to build up and distort the camera body or cause a ﬁ re. Always use the camera and its accessories in a well-ventilated area.

002

Page 4

CAUTION Contents

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in a minor or moderate injury.



Leaking, overheating, or burst battery could result in ﬁ re or injury. – Use battery with the correct speciﬁ cation for the camera. – Do not short circuit, heat or dispose of battery in ﬁ re. – Do not insert the battery with the polarities reversed.



Remove the battery when not planning to use the camera for a long period of time. Battery may leak corrosive electrolyte and permanently damage the camera’s components.



Do not ﬁ re the ﬂ ash while it is in contact with hands or objects. Do not touch the ﬂ ash after using it continuously. It may cause burns.



Do not move the camera while it is switched on when you are using the Charger. After use, always switch off the camera before unplugging the cable from the wall socket. Then make sure that any connector cords or cables to other devices are disconnected before moving the camera. Failure to do so may damage the cords or cables and cause a ﬁ re or electric shock.



Take care not to touch the lens or lens cover to avoid taking an unclear image and possibly causing camera malfunction.



Avoid obstructing the lens or the ﬂ ash when you capture an image.



When using this camera in low temperatures, you may experience the following. These are not camera malfunctions and usually recover at normal temperature. – It takes longer to turn on the LCD monitor and the colour may differ

from the subject.

– When changing the composition, there may be an after image on the

LCD monitor.



Credit cards may be demagnetized if left near case. Avoid leaving magnetic strip cards near the case.



It is highly likely to result in computer malfunctions when the 20 pin connector is connected to the USB port of a PC. Never connect the 20 pin connector to USB port of a PC.

READY

RECORDING

007 Package Contents

007 Included Contents 007 Sold Separately

008 Identiﬁ cation of features

008 Front & Top 009 Back 010 Bottom 010 5 Function button

012 Connecting to a power source 015 Inserting the battery 015 Inserting the memory card 016 Instructions on how to use the memory

card

018 When using the camera for the ﬁ rst

time

019 LCD monitor indicator 020 Starting the Recording mode

020 Selecting modes 020 How to use the Auto mode 021 How to use the Program mode 021 How to use the Manual mode 021 How to use the DUAL IS(Dual Image

Stabilization) mode 022 How to use the Beauty Shot mode 022 How to use the Nightscene modes 022 How to use the Scene modes 024 How to use the Movie clip mode 024

Recording HD (High Deﬁ nition) movie clips 025 Recording the movie clip without sound 025

Pausing while recording a movie clip

(Successive Recording)

003

Page 5

Contents

004

026 Things to watch out for when taking

pictures 027 Focus lock 027 Using the camera buttons to set the

camera 027 POWER button 028 Shutter button 028 Zoom W/T Lever 030 Command Lever

030 How to use the Command Lever

031 Function Description / Info / Up button 032 Macro / Down button 034 Flash / Left button 036 Self-timer / Right button 038 MENU / OK button 039 Fn button

039 How to use the Fn menu

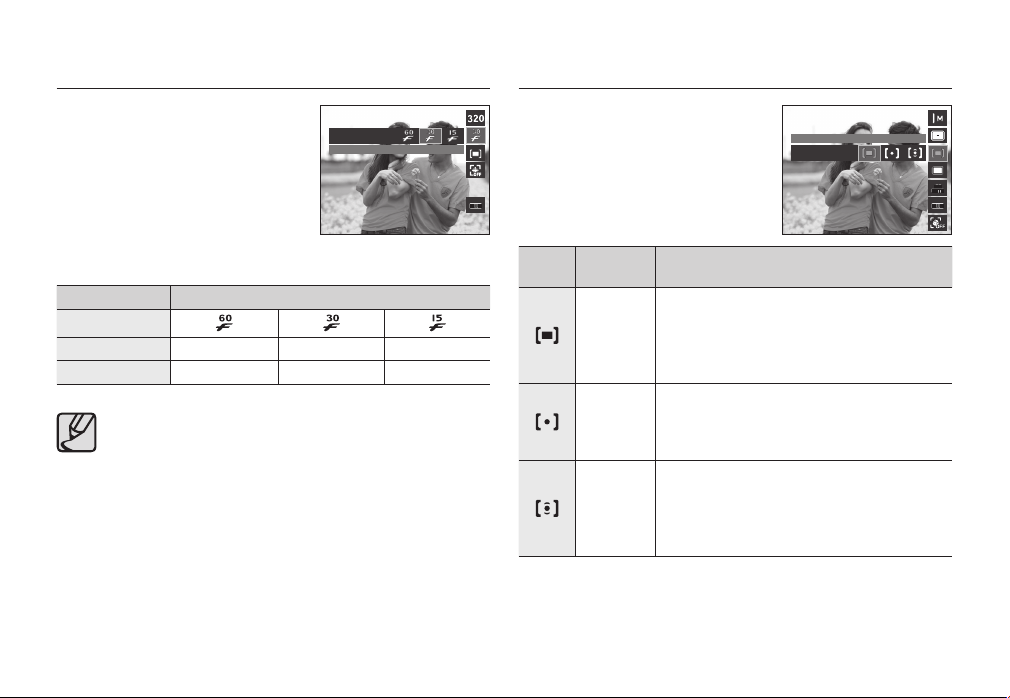

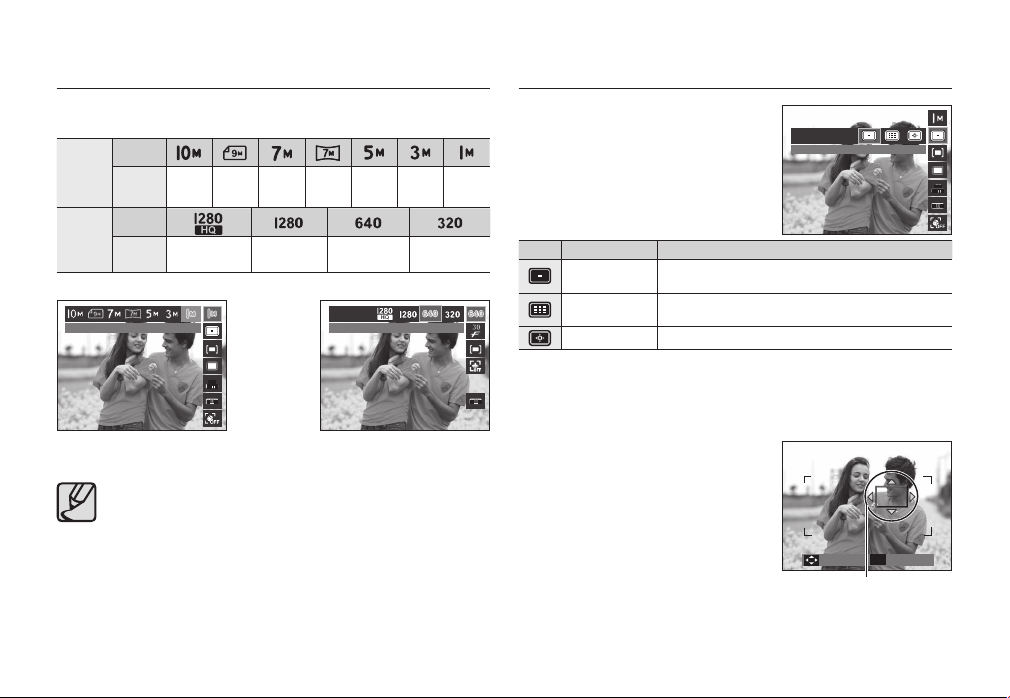

040 Fn button: Size 040 Focus Area 041 Fn button: Frame rate 041 Fn button: Metering 042 Fn button: Drive mode 043 Fn button: ISO 043 Fn button: White balance 044 Fn button: Aperture Value 044 Fn button: Shutter Speed 045 Fn button: Face Detection 047 Fn button: Movie clip frame stabiliser 047 E (Effect) button

PLAY

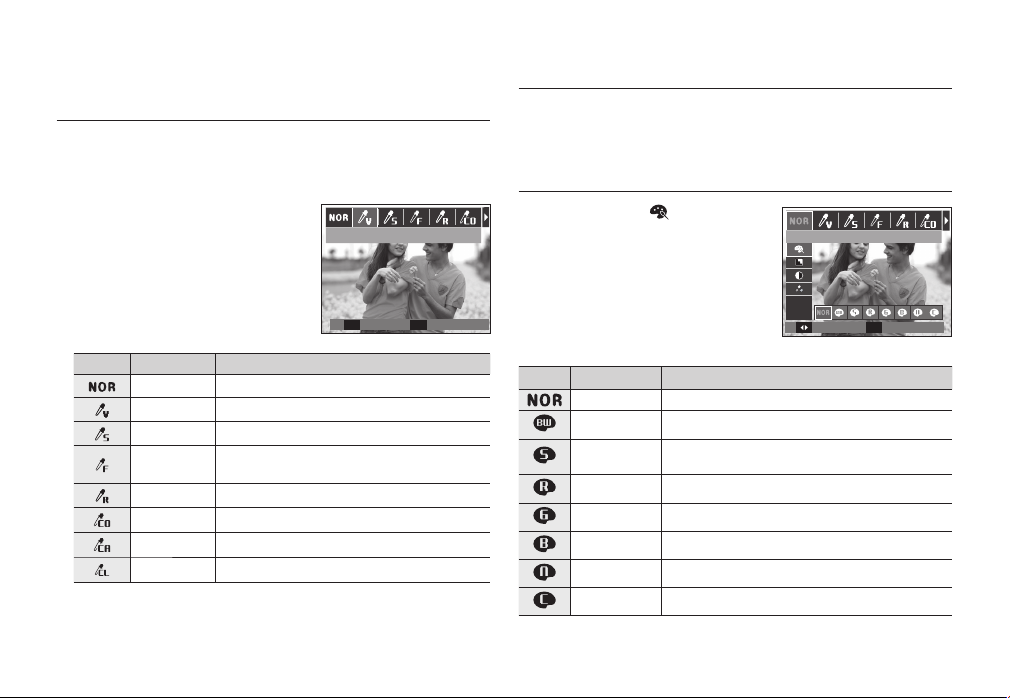

048 E (Effect) button: Photo Style Selector 048 E (Effect) button: Image editing

048 Colour 049 Sharpness 049 Contrast 049 Saturation

050 Using the LCD monitor to adjust the

camera settings 051 Command Lever 051 Flash Intensity 052 Quality 052 ACB 053 OIS (Optical image Stabilization) 053 Voice Memo 054 Voice recording 055 Recording the movie clip without voice 055 Scene mode

055 Starting play mode

055 Playing back a still image 056 Playing back a movie clip 056 Movie clip capture function 057 On camera movie trimming 057 Playing back a recorded voice 058 Playing back a voice memo

058 LCD monitor Indicator 059 Using the camera buttons to set the

camera

059 Play mode button 059 Thumbnail/Digital Zoom Lever

Page 6

Contents

SETUP

061 Info / Up button 061 Play & Pause / Down button 062 Left / Right / Menu / OK button 062 Print button 062 Delete button 063 E (Effect) button: Resize 064 E (Effect) button: Rotating an image 064 E (Effect) button: Colour 065 E (Effect) button: Image editing

065 ACB 065 Red eye removal 066 Face Retouch 066 Brightness control 066 Contrast control 066 Saturation control 067 Noise effect

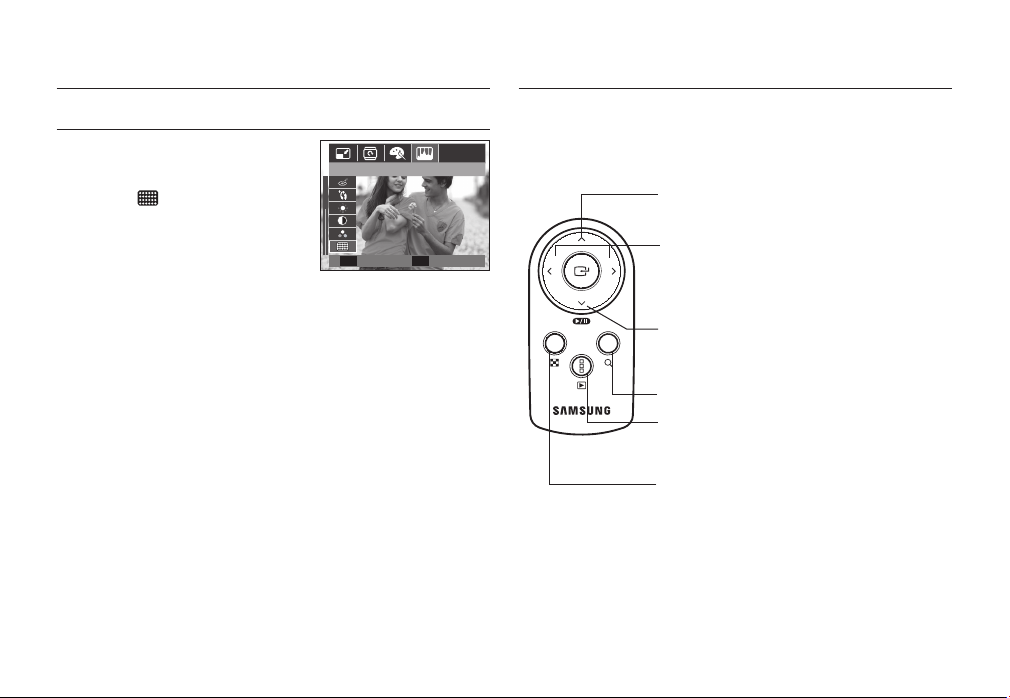

067 Using the remote control in play mode

068 Setting up the play back function using

the LCD monitor

069 Starting the slide show

069 Start the slide show 070 Selecting Images 070 Conﬁ gure slide show effects 071 Setting play interval 071 Setting Background Music

072 Playback

072 Voice memo 072 Smart Album 074 Protecting images

075 Deleting images 075 DPOF 078 Copy To Card

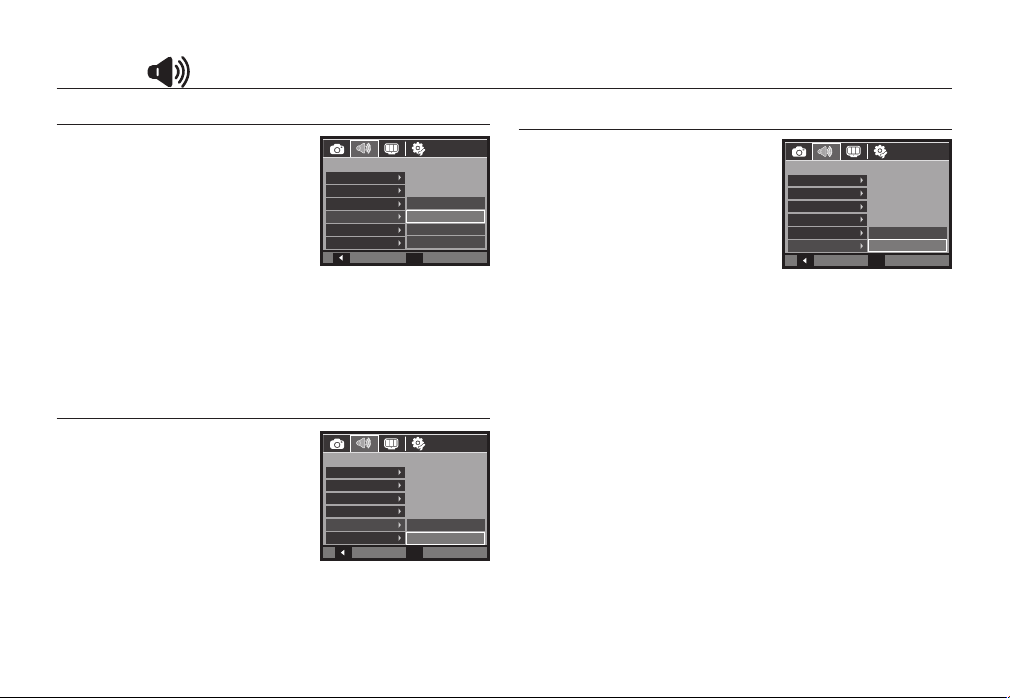

079 Sound menu 079 Sound

079 Volume 079 Start up Sound 079 Shutter Sound 080 Beep Sound 080 AF Sound 080 Self Portrait

081 Setup menu 081 Display

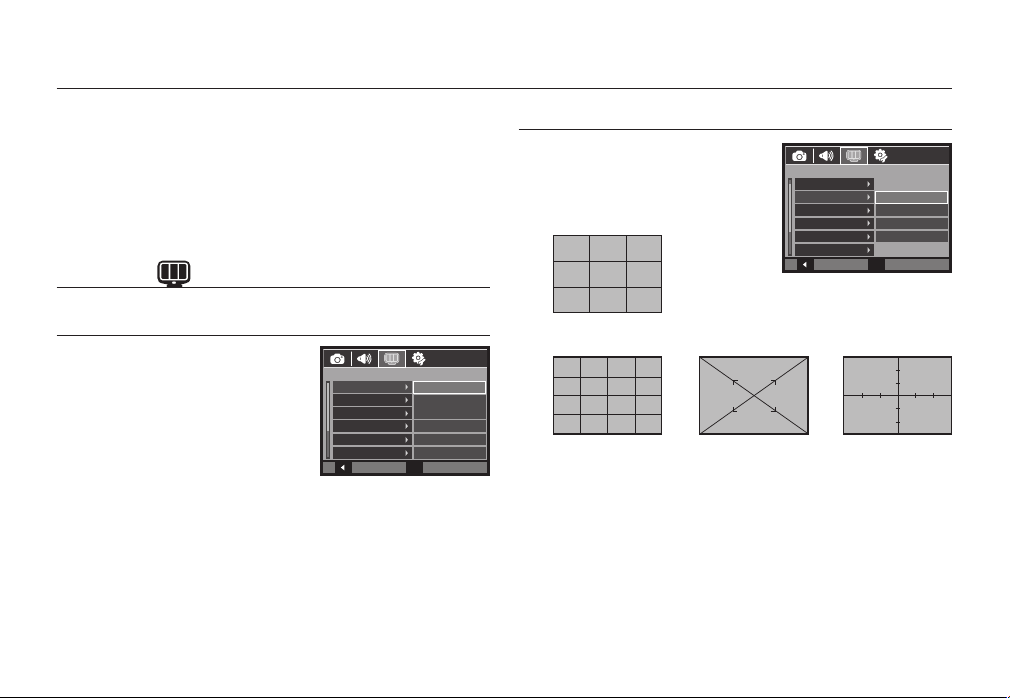

081 Language 081 Setting the Grid Line 082 Setting up the Date / Time / Date type 082 Start up image 082 Display brightness 083 Quick view 083 Display Save

083 Settings

083 Formatting a memory 084 Initialisation 084 Recycle Bin 085 File name 085 Imprinting the recording date 086 Auto power off 086 Selecting video out type 087 Auto focus lamp 087 Setting the USB

005

Page 7

Contents

SOFTWARE

APPENDIX

006

088 PictBridge 089 PictBridge: Picture Selection 089 PictBridge: Print Setting 090 PictBridge: Reset

090 Software notes

091 System requirements 091 QuickTime Player 7.5 : H.264(MPEG4.

AVC) playback Requirements

092 About the software 093 Setting up the application software 095 Starting PC mode 097 Removing the removable disk 098 Samsung Master 101 Setting up the USB Driver for MAC 101 Using the USB Driver for MAC

102 Speciﬁ cations 104 Important notes 106 Warning indicator 107 Before contacting a service centre 109 FAQ

112 Correct Disposal of This Product 112 Correct disposal of batteries in this

product

Page 8

Package Contents

Please check that you have the correct contents before using this product. The contents can vary depending on the sales region. To buy the optional equipment, contact your nearest Samsung dealer or Samsung service centre. Parts and accessories illustrated below may differ from exact appearance.

Included Contents

Camera

AC adapter (AD44-00131A)/

USB cable (AD39-00167A)

Sold Separately

SD/SDHC/MMC

memory card (see p.17)

User manual (AD68-03951A),

Product warranty

Software CD (AD46-00223A)

(see p.91~92)

Remote Control (AD59-00164A)

Camera strap

(Silver: AD63-02602A/

Black: AD63-02603A)

Camera case

(AD69-01922A)

Rechargeable battery

(4302-001221)

AV cable (AD39-00146A)

007

Page 9

Identiﬁ cation of features

Front & Top

Zoom T Lever (Digital zoom)

Mode dial

AF sensor/

Self-timer lamp

Remote control sensor

008

Flash

Zoom W Lever (Thumbnail)

POWER button

Speaker

Microphone

Lens

Page 10

Identiﬁ cation of features

Back

Camera status lamp

LCD monitor

Command Lever

Shutter button

Fn / Delete button

5-function button

Play mode /

Print button

E (Effect) button

USB / AV / DC terminal

Camera strap

009

Page 11

Identiﬁ cation of features

Bottom 5 Function button

Memory card slot

Function Description / Information / Up button

Tripod socket

010

Battery holder

Battery chamber cover Battery chamber

Flash /

Left button

Self-timer / Right button

MENU / OK button

Macro /Play & Pause / Down button

Page 12

Identiﬁ cation of features



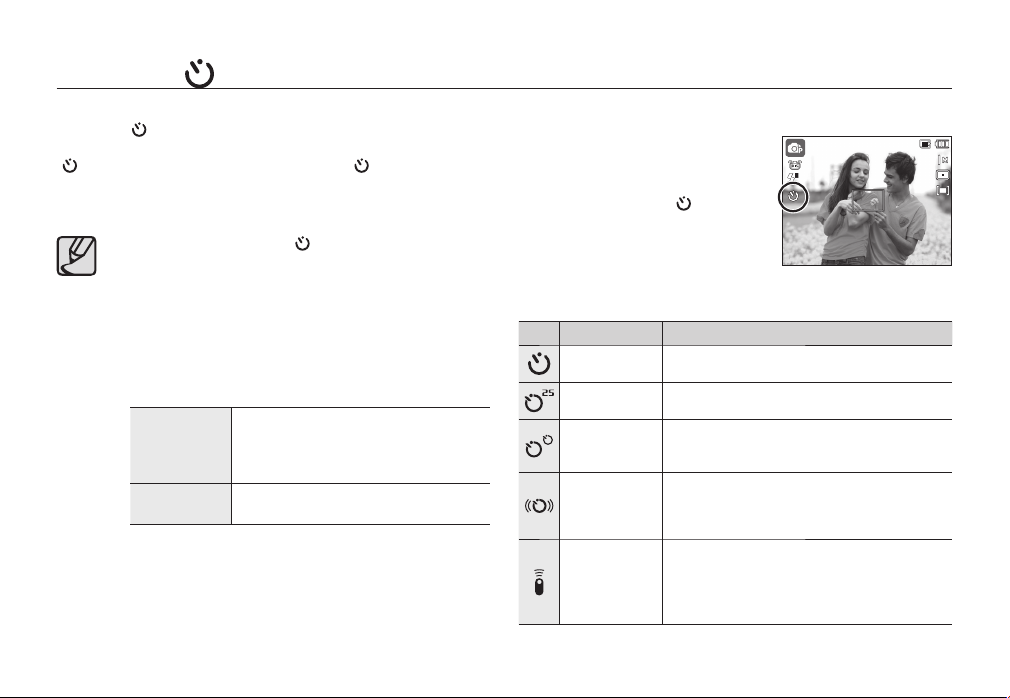

Self-timer lamp

Icon Status Description

– For the ﬁ rst 7 seconds, the lamp blinks at 1

Blinking



Camera Status Lamp

Status Description

Power on

After taking a picture

When the USB cable is

inserted to a PC

Transmitting Data

with a PC

second intervals.

– For the ﬁ nal 3 seconds, the lamp blinks quickly

at 0.25-second intervals.

For the ﬁ nal 2 seconds, the lamp blinks quickly at

0.25-second intervals. A picture will be taken after about 10 seconds and

2 seconds later a second picture will be taken. After pressing the Shutter button, the image is

taken in accordance with the subject’s movement. Pressing the remote control Shutter button will

allow an interval of 2 seconds before the image is taken.

The lamp turns on and off when the camera is ready to take a picture.

The lamp blinks while saving the image data and turns off when the camera is ready to take another picture.

The lamp lights up. (LCD monitor turns off after initializing the device)

The lamp blinks. (LCD monitor turns off)

When the USB cable is

inserted to a printer

When the printer is printing

When the AF activates



Mode icon: Refer to page 20 for more information about the camera

The lamp blinks and turns off when the printer is ready to print a picture.

The lamp is off. The lamp turns on.

(The camera is focused on the subject) The lamp blinks.

(The camera doesn’t focus on the subject)

mode setting.

Firework

MODE

Scene Movie

Beach&Snow Self-Shot

SHOOTING

mode

SCENE

mode

Auto Program Manual

Beauty Shot Nightscene

Frame Guide Portrait Children Landscape

Close up Text Sunset Dawn

Backlight

Food Café

DUAL IS

011

Page 13

Connecting to a power source

You should use the rechargeable battery SLB-10A supplied with the camera. Be sure to charge the battery before using the camera.



SLB-10A rechargeable battery Speciﬁ cation

Model SLB-10A Type Lithium Ion Capacity 1050mAh Voltage 3.7V

Charging time (When the camera is turned off)



Number of images and battery life: Using the SLB-10A

Battery life /Number of

images

Approx. 135

Still image

MIN/

Approx. 270

shots

Approx. 150MIN

Conditions

Using the fully charged battery, Auto mode, 10M image size, Fine image quality, Shot to shot interval: 30sec. Changing the zoom position between the Wide and the Tele after every shot. Using the ﬂ ash on every second shot. Using the camera for 5 minutes and then Powering it off for 1 minute.

Recording

time

Movie



These ﬁ gures are measured under Samsung’s standard conditions and

Approx. 125

MIN

Using the fully charged battery 640x480 image size 30fps frame rate.

Conditions

shooting conditions and may vary depending on the user’s methods.



These ﬁ gures are measured under OIS shooting condition.



Several videos were recorded in succession to determine the total

recording time.

Important information about battery usage.



When the camera is not used, turn off the camera power.



Please remove the battery if the camera will not be used for long periods. Batteries can lose power over time and are prone to leaking if kept inside the camera.



Low temperatures (below 0°C) can affect the performance of the battery and you may experience reduced battery life.



Batteries will usually recover at normal temperatures.



During extended use of the camera, the camera body may become warm. This is perfectly normal.

012

Page 14

Connecting to a power source

Connecting the AC adapter with the USB cable can be used as an AC cable, and you can charge the rechargeable battery with the AC cable.



Using an AC cable: Connect the AC adapter to the USB cable. It can be used as a power cable.



Using a USB cable: Remove the AC adapter. You can download stored images to your PC (p.95) or supply the power to your camera through the USB cable.

Important information about USB cable usage.



Use a USB cable with the correct speciﬁ cation.



If the camera is connected to the PC through a USB hub: connect the camera directly to the PC.



If the camera and other devices are connected to the PC at the same time: remove other device.



Camera can not be detected using the front side USB port of computer. In this case, use the back side USB port of computer.



If the USB port of the PC doesn’t meet the Power output standard (5V, 500mA), the camera may not be charged.

013

Page 15

Connecting to a power source



How to charge the rechargeable battery



Before inserting any cables or AC adapter, check the directions and do not insert using force. It may cause breakage of cable or camera.



If the charging LED of the AC Charger does not turn on or blink after inserting the rechargeable battery, please check whether the battery is inserted correctly.



If you charge the battery with the camera power on, the battery can’t charge fully. Turn the camera off while charging the battery.



Charging LED of the AC Adapter

Charging LED

Being Charged Red LED is on

Charging is complete Green LED is on

Charging error Red LED is off or blinking

Being discharged

(Using the AC adapter)

– If you insert the fully discharged battery to charge it, do not turn on the

camera at the same time. This is because of the low battery capacity. Charge the battery for more than 10 minutes before using the camera.

– Do not use the ﬂ ash frequently or take a movie clip with the fully

discharged battery charged for a short time. Even if the charger is inserted, the camera power may be turned off because the rechargeable battery is discharged again.

Orange coloured LED is on

014

Page 16

Inserting the battery Inserting the memory card

Insert the battery as shown.

– If the camera does not turn on

after you have inserted battery, please check whether the battery is inserted with the correct polarity (+/-).

– When the battery chamber cover

is opened, do not force it. This may cause damage to the battery chamber cover.



There are 4 indicators for battery condition that are displayed on the LCD monitor.

Battery

indicator

Battery

status

The battery is

fully charged

Low battery

capacity (Prepare to recharge or

use spare

battery)

Low battery

capacity (Prepare to recharge or

use spare

battery)

Battery empty.

Recharge or

use spare

battery.

Insert the memory card as shown.

- Turn off the camera’s power before inserting the memory card.

- Have the front label of the memory card facing toward the front of the camera (Lens) and the card pins toward the back of the camera (LCD monitor).

- Do not insert the memory card the wrong way round. Doing so may damage the memory card slot.

015

Page 17

Instructions on how to use the memory card



Be sure to format the memory card (see p.83) if you are using a newly purchased memory card for the ﬁ rst time, if it contains data that the camera cannot recognise, or if it contains images captured with a different camera.



Turn off the camera power whenever the memory card is being inserted or removed.



Repeated use of the memory card will eventually reduce the memory card’s performance. Should this be the case, you will need to purchase a new memory card. Wear and tear on the memory card is not covered by the Samsung warranty.



The memory card is an electronic precision device. Do not bend, drop or subject the memory card to any heavy impact.



Do not store the memory card in an environment with strong electronic or magnetic ﬁ elds, e.g. near loud speakers or TV receivers.



Please do not use or store in an environment where there are extremes in temperature.



Do not allow the memory card to become dirty or to come into contact with any liquid. Should this happen, clean the memory card with a soft cloth.



Please keep the memory card in its case when not in use.



During and after periods of extended use, you may notice that the memory card is warm. This is perfectly normal.



Do not use a memory card that is used in another digital camera. To use the memory card in this camera, format the memory card using this camera.



Do not use a memory card formatted by another digital camera or memory card reader.



If the memory card is subjected to any of the following, the recorded data may become corrupted:

– When the memory card is used incorrectly. – If the power is switched off or the memory card is removed while

recording, deleting (formatting) or reading.



Samsung cannot be held responsible for lost data.



It is advisable to copy important data onto other media as back-up e.g. ﬂ oppy disks, hard disks, CD etc.



If there is insufﬁ cient memory available: A [Memory Full!] message will appear and the camera will not operate. To optimise the amount of memory in the camera, replace the memory card or delete unnecessary images stored on the memory card.



Don’t remove the memory card when the camera status lamp is blinking as this may cause damage to data in the memory card.

016

Page 18

Instructions on how to use the memory card

The camera can use SD/ SDHC Memory Cards and MMC (Multi Media Cards).

Card pins

Write protect

switch

Label

The SD/ SDHC memory card has a write protect switch that prevents image ﬁ les from being deleted or formatted. By sliding the switch to the bottom of the SD memory card, the data will be protected. By sliding the switch to the top of the SD memory card, the data protection will be cancelled. Slide the switch to the top of the SD memory card before taking a picture.

When using a 1GB SD memory, the speciﬁ ed shooting capacity will be as follows. These ﬁ gures are approximate as image capacities can be affected by variables such as subject matter and memory card type.

Recorded

image size

Still


* Movie

clip



The recording times can be changed by the zoom operation. The Zoom W/T lever doesn’t function during the movie recording.



Several videos were recorded in succession to determine the total

recording time.

Super

Fine

183 334 472

200 362 511

252 442 613

252 445 619

334 578 793

495 814 1067

1238 1673 1876

----

---

Fine Normal 60FPS 30FPS 15FPS

---

about

8’28”

16’46”

about

10’30”

21’08”

about

30’24”

about

122’32”

about

60’

about

213’48”

about

65’42”

017

Page 19

When using the camera for the ﬁ rst time



Charge the rechargeable battery fully before using the camera for the ﬁ rst time.



When the camera is turned on for the ﬁ rst time, a menu will be displayed in the LCD monitor to set date, time and language. This menu will not be displayed again after setting up the date, time and language. Set up the date, time and language before using this camera.



Setting up the language

1. Select the [Language] menu by pressing the Up/Down button and press the

Right button.

2. Select the desired language by pressing

the Up/Down button and press the OK button.

DISPLAY Language Date&Time

Back

ENGLISH

한국어

FRANÇAIS DEUTSCH ESPAÑOL ITALIANO

Set



Setting up the date, time and date type

1. Select the [Date&Time] menu by pressing the Up/Down button and press the Right button.

2. Select the desired sub menu by

DISPLAY Language Date&Time

pressing the Up/Down/Left/Right button and press the OK button.

Back

Right button: Selects world time/year/ month/ day/hour/minute/

date type.

Left button: Moves the cursor to the [Date&Time] main menu

if the cursor is at the ﬁ rst item of the date and time setup. In all other instances, the cursor will be shifted to the left of its current position.

Up/Down button: Changes the value of each item.



For more information about the World Time, refer to the page 82.

+ Seoul, Tokyo

2009 / 01 / 01

13 : 00

Off

Set

018

Page 20

LCD monitor indicator

2009/01/01 PM 01:00

X5. 0

1/30 F3.3

The LCD monitor displays information about the shooting functions and selections.

)

( *

^ %

No. Description Icons Page

Optical/Digital Zoom bar/

4 Battery

5 Image Size

6 Auto Focus area/Frame Rate 7 Metering/Stabiliser 8 Drive mode

Digital Zoom rate

Number of available shots

remaining/Remaining time

Memory card icon/

Internal memory icon

X5.0

1/30 F3.3

2009/01/01 PM 01:00

x 5.0

1/00:00:00 p.17

4 5

7 8

p.28~29

p.15

p.40

p.40/p.41 p.41/p.47

p.42

No. Description Icons Page

9 ISO

10 White Balance

Face Detection · Self Portrait

· Blink Detection ·Smile Shot

12 Date/Time 2009/01/01 PM 01:00 p.82

13 Saturation/Colour

14 Contrast/Face Retouch

Sharpness/Photo Style

Selector/Face Tone

16 Macro 17 Self-timer 18 Flash

OIS (Optical Image Stabilization)

20 Recording mode

21 22

24 25

Exposure value

Aperture Value/Shutter Speed

Compensating Flash Output

Voice Memo/Mic. off

Auto Focus Frame p.40

Histogram

Exposure compensation

Camera shake Warning

Manual Focus

► 1/30 ► F3.3 p.44

p.43

p.43~44

p.45~46

p.49/p.48

p.49/p.22

p.49/p.48/

p.22 p.32~33 p.36~38 p.34~35

p.53

p.11

p.30

p.51

p.53/p.25

p.31

p.30/p.26

p.32

019

Page 21

Starting the Recording mode

Selecting modes

You can select the shooting modes by using the mode dial on the upper of your camera.



How to use the mode dial

Select the shooting mode by turning the mode dial to the selection point.

Scene mode

Movie Clip mode

Select point

Auto mode

Program mode

Manual mode

020

Nightscene mode

Beauty Shot mode

DUAL IS(Dual Image Stabilization) mode

How to use the Auto mode

Select this mode for quick and easy picture taking with minimal user interaction.

1. Insert the battery (p.15) taking note of the correct polarity (+/-).

2. Insert the memory card (p.15). As this camera has a 30 MB internal memory, it is not essential to insert the memory card. If the memory card is not inserted, an image will be stored in the internal memory. If the memory card is inserted, an image will be stored on the memory card.

3. Close the battery chamber cover.

4. Press the POWER button to turn on the camera. (If the date/time that

is displayed on the LCD monitor is incorrect, reset the date/time before taking a picture.)

5. Select the Auto mode by using the mode dial.

6. Point the camera towards the subject and compose the image.

7. Press the Shutter button to capture an image.



If the auto focus frame turns to red when you press the Shutter button down half way, it means that the camera cannot focus on the subject. Should this be the case, the camera is less likely to capture an image clearly.



Avoid obstructing the lens or the ﬂ ash when you capture an image.

Page 22

Starting the Recording mode

1/30 F3.3

How to use the Program mode

Selecting the automatic mode will conﬁ gure the camera with optimal settings and you can manually conﬁ gure various functions.

1. Select the Program mode by using the Mode dial. (p.20)

2. Point the camera towards the subject

and compose the image by using the LCD monitor.

3. Press the Shutter button to capture an image.



Refer to page 39-46 for more information about the Program mode menus.

How to use the Manual mode

The user can manually set both the aperture value and the shutter speed.

1. Select the Manual mode by using the Mode dial. (p.20)

2. Point the camera towards the subject

and compose the image by using the LCD monitor.

3. Press the Shutter button to capture an image.



Refer to page 44 for more information about the menus.

1/30 F3.3

How to use the DUAL IS(Dual Image Stabilization) mode

This mode will reduce the effect of camera shake and help you get a well exposed image in dim conditions.

1. Select the DUAL IS mode by using the Mode dial. (p.20)

2. Point the camera towards the subject

and compose the image by using the LCD monitor.

3. Press the Shutter button to capture an image.



Things to watch out for using the DUAL IS mode – The digital zoom will not operate in the DUAL IS mode. – If the lighting conditions are brighter than ﬂ uorescent lighting conditions,

the DUAL IS will not activate.

– If the lighting conditions are darker than in ﬂ uorescent lighting

conditions, camera shake warning indicator ( For best results only take pictures in situations where the camera shake warning indicator (

– If the subject is moving, the captured image may be blurred. – As the DUAL IS uses the camera’s digital signal processor, it may take

a little longer for the camera to process and save the images.

) is not displayed.

) will be displayed.

021

Page 23

Starting the Recording mode

How to use the Beauty Shot mode

Take a photo of portraits by setting options to clear facial imperfections.

1. Select the Beauty Shot mode by using the

Mode dial. (p.20)

2. Point the camera towards the subject

and compose the image by using the LCD monitor.

3. Press the MENU button.

4. Press the Up/Down button to select

[Face Tone] or [Face Retouch].

5. Press the Right button, then press the Up/Down button to select a desired

level of each function. The higher the level is, [Face Tone] becomes brighter and [Face Retouch] features better performance.

6. Press the OK button to ﬁ nish your setting.

7. Capture images in Recording mode by pressing the Shutter button.

022

RECORDING Face Tone Face Retouch Quality OIS Voice Memo Voice Record

Back

Level 1 Level 2 Level 3

Set

How to use the Nightscene modes

Select this mode at night or in low light conditions.

1. Select the Nightscene mode by using the Mode dial. (p.20)

2. Point the camera towards the subject and compose the image by using the LCD monitor.

3. Press the Shutter button to capture an image.

How to use the Scene modes

Use the menu to easily conﬁ gure optimal settings for a variety of shooting situations. (p. 55)

1. Select the Scene mode by using the Mode dial. (p.20)

2. Point the camera towards the subject

and compose the image by using the LCD monitor.

3. Press the Shutter button to capture an image.

Frame: Shutter

Page 24

Starting the Recording mode



The scene modes are listed below. (p.55)

Icons Scene modes Description

Frame Guide

Portrait

Children

Landscape To take pictures of distant scenery.

Close up

Text Use this mode to shoot a document.

Sunset For taking pictures of sunsets.

Dawn Daybreak scenes.

Backlight Portrait without shadows caused by backlight.

Firework

Beach&Snow

Self-Shot

Food For taking delicious looking food. Café For taking pictures in cafes and restaurants.

Use this mode when you want someone else to take a picture for you from the angle you choose.

Selecting the portrait mode will conﬁ gure the camera with optimal settings for portrait photography.

To take a picture of fast moving objects, for example, children.

Close-up shooting for small objects such as plants and insects.

Firework scenes. For ocean, lake, beach and snowscape

scenes. Use when the photographer would also like to

appear in the image.

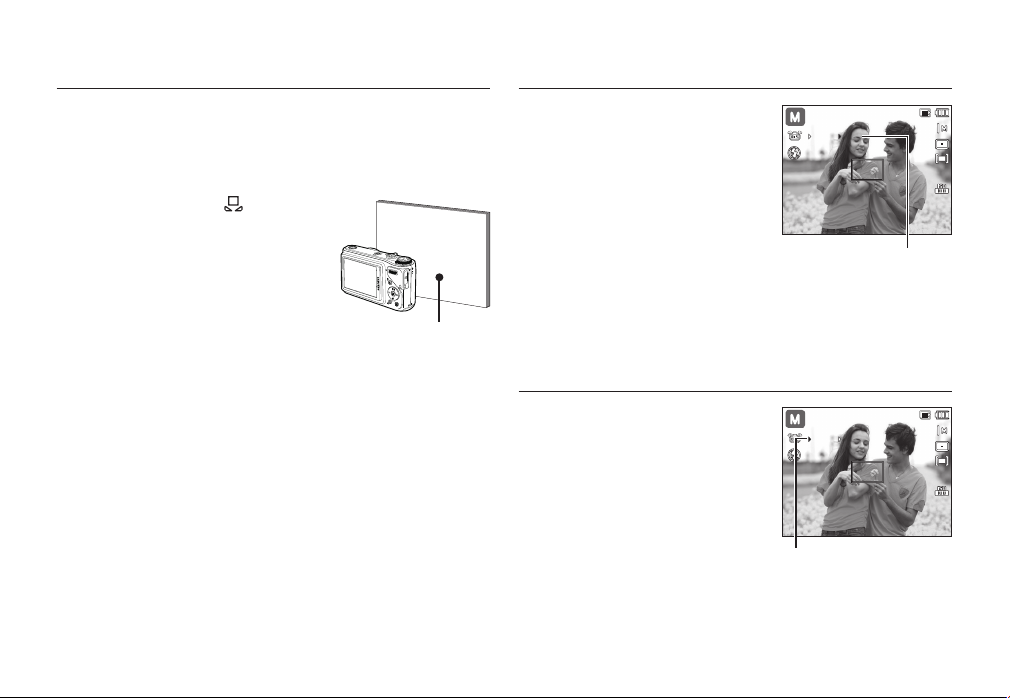

 How to use the [Frame Guide] mode

Set [Frame Guide] mode when you want someone else to take a picture for you from the angle you choose.

1. Take a picture from the angle you

choose.

- A translucent guide appears round

the sides of the picture.

Then another person can take the

Guide

Cancel Frame : OK

picture by aligning the edge of the picture to be taken with the translucent guide framing the sides of the window.

Cancel Frame : OK

023

Page 25

Starting the Recording mode

00:01:01

STANDBY

How to use the Movie clip mode

A movie clip can be recorded for as long as the available recording time(maximum of 29 minutes) of the memory capacity allows.

1. Select the Movie clip mode by using Mode dial. (p.20)

the

2. Point the camera towards the subject

and compose the image by using the LCD monitor.

Press the

Shutter

clips are recorded for up to 29 minutes. Movie clips will still be recorded if the

Shutter If you wish to stop recording, press the Shutter button again.



Image size and type are listed below. – Image size: 1280X720HQ, 1280X720, 640x480, 320x240

– Movie clip ﬁ le type: H.264(MPEG4.AVC) – Frame Rate: 60FPS, 30FPS, 15FPS – The frame rate can be selected when the following image size is

selected. 1280X720HQ, 1280X720, 640x480: 30FPS, 15FPS selectable.

320x240: 60FPS, 30FPS 15FPS selectable.

 If the recording time is takes longer 29 minutes, the recording is

stopped and then saved.

 Select [Zoom Mute] from the recording menu during video

recording to disable the recording of zoom sound.

button once and movie

button is released.

(1280X720HQ and 1280X720 are the settings for recording high-quality videos.)

024

STANDBY

00:01:01

Recording HD (High Deﬁ nition) movie clips

You can record HD (High Deﬁ nition) movie clips. (1280X720, 30 fps) H.264(MPEG4.AVC) is a standard for the digital video codec. It supports a high quality movie clip in a small ﬁ le size.

1. Select the Movie clip mode by using the Mode dial. (p.20)

Press the Fn button to set the resolution to either [1280HQ] or [1280].

Press the Shutter button to record video for the available recording time.



What is H.264(MPEG4 part10/AVC) ? With its high-compression rate and the small file size, it is a standard for the digital video codec. It supports the recording functions in a high resolution.

1280x720HQ

Page 26

Starting the Recording mode

00:01:01

STANDBY

Recording the movie clip without sound

You can record the movie clip without sound.

Steps from 1-3 are the same as those for Movie clip mode.

4. Press the MENU button.

5. Select the [RECORDING] menu by pressing the Left/Right button.

6. Press the Down button to select the

[Voice] menu and press the Right button.

7. Select the [Off] menu by pressing the Up/Down button.

8. Press the OK button. You can record a

movie without sound.

RECORDING Command Lever OIS Voic e

Back

Off On Zoom Mute

STANDBY

Set

00:01:01

Pausing while recording a movie clip (Successive Recording)

This camera allows you to temporarily stop during unwanted scenes, while recording a movie clip. Using this function, you can record your favourite scenes into a movie clip without having to create multiple movie clips.



Using Successive Recording

Steps from 1-2 are the same as those for Movie clip mode.

3. Point the camera towards the subject and compose the image by using the LCD monitor. Press the Shutter button and movie clips are recorded for as long as the available recording time. Movie

clips will still be recorded if the Shutter button is released.

4. Press the Play & Pause (

5. Press the Play & Pause (

) button to pause recording.

) button again to resume the recording.

6. If you wish to stop recording, press the Shutter button again.

00:01:01

Stop

00:00:18

REC

025

Page 27

Things to watch out for when taking pictures



Pressing the Shutter button down half way. Lightly press the Shutter button to conﬁ rm focus and ﬂ ash battery charge. Press the Shutter button all way down to take the picture.



The available memory capacity may vary depending on shooting

<Press the Shutter button down all

the way>

conditions and camera settings.



When the Flash Off or Slow synchro mode is selected in a low lighting condition, the camera shake warning indicator (

) may appear on the LCD monitor. In this case, use a tripod, support the camera on a solid surface or change to ﬂ ash shot mode.



It is best to take pictures with the sun in the background. Taking pictures against the sun may make the picture come out dark. To take a picture against the light, please use the [Backlight] in scene shooting mode (see page 23), ﬁ ll-in ﬂ ash (see page 35), spot metering (see page 41), exposure compensation (see page 30) or ACB (see page 52) function.



Avoid obstructing the lens or the ﬂ ash when you capture an image.



Compose the image by using the LCD monitor.



Under certain conditions the auto focus system may not perform as expected.

– When photographing a subject that has little contrast. – If the subject is highly reﬂ ective or shiny. – If the subject is moving at high speed. – When there is strong reﬂ ected light, or when the background is very

bright.

– When the subject matter has only horizontal lines or the subject is very

narrow (such as a stick or ﬂ agpole).

– When the surroundings are dark.

026

Page 28

Focus lock

1/30 F3.3

To focus on a subject not positioned in the centre of the picture, use the focus lock function.



Using the Focus Lock

1. Ensure the subject is in the centre of the autofocus frame.

2. Press the Shutter button halfway. When the green auto focus frame

lights up, it means the camera is focused on the subject. Be careful not to press the Shutter button all the way down to avoid taking an unwanted picture.

3. With the Shutter button still pressed down only halfway, move the

camera to recompose your picture as desired, and then press the Shutter button completely to take the picture. If you release your ﬁ nger from the Shutter button, the focus lock function will be cancelled.

1/30 F3.3

Using the camera buttons to set the camera

The recording mode function can be set up by using the camera buttons.

POWER button

Used for turning the camera’s power on/off. If there is no operation during the speciﬁ ed time, the camera’s power will be turned off automatically to save battery life. Refer to page 86 for more information about the auto power off function.

1. The image to be captured.

2. Press the

Shutter

button halfway and focus on the subject.

3. Recompose the picture and fully depress the button.

Shutter

027

Page 29

Shutter button

X5.0

Used for taking an image or recording voice in the Recording mode.



In Movie clip mode Pressing the Shutter button down fully starts the process for recording a movie clip. Press the Shutter button once and the movie clip is recorded for as long as the available recording time in the memory allows. If you wish to stop recording, press the Shutter button again.



In Still image mode Pressing the Shutter button down halfway activates the autofocus and checks the condition of the ﬂ ash.

Pressing the Shutter button down fully takes and stores the image. If you select voice memo recording, the recording will start after the camera has ﬁ nished storing the image data.

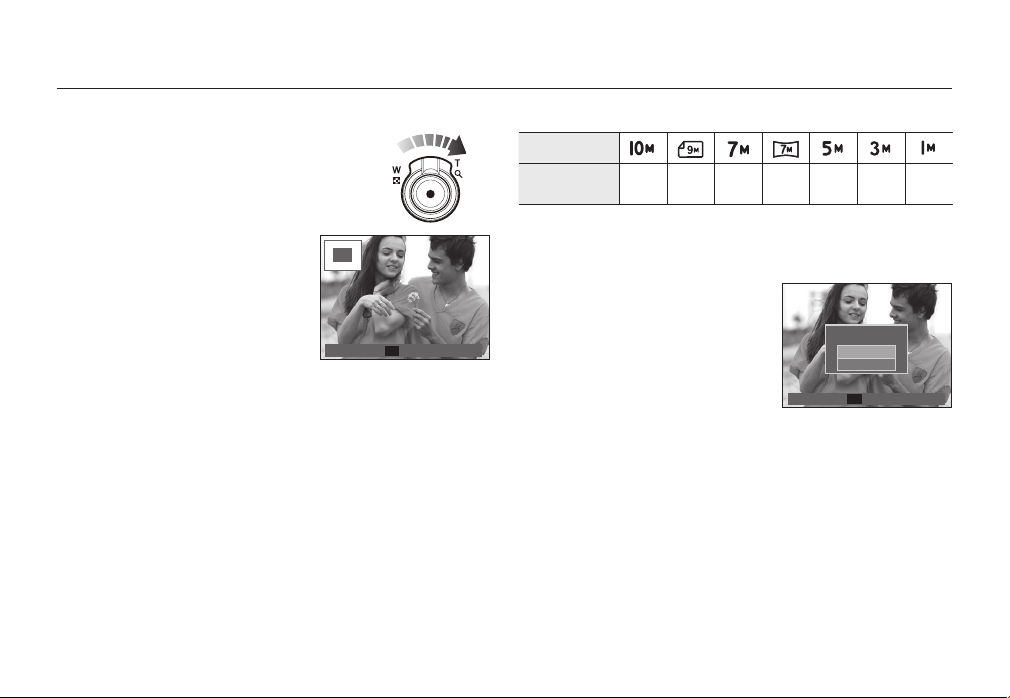

Zoom W/T Lever

When the menu window is not displayed, this lever is used to control the optical or digital zoom. This camera has a 10X optical zoom and a 5X digital zoom function. Using both will offer a total zoom ratio of 50X.



TELE Zoom

Optical zoom TELE: Move the Zoom W/T lever to the right to see the

Digital zoom TELE: Move the Zoom W/T lever to the right once again

subject closer.

in optical 10x zoom mode to enable digital zoom (software tele). Stop moving the Zoom W/T lever to stop the operation of digital zoom (tele). In digital 5x zoom mode, digital zoom is disabled even if you operate the Zoom W/T lever.

X5.0

028

Page 30

Zoom W/T Lever

X5.0



WIDE Zoom

Optical zoom WIDE: Move the Zoom W/T lever to the left in optical zoom

Digital zoom WIDE: Move the Zoom W/T lever to the left in digital

Optical zoom

Digital zoom

mode to see subjects in the distance. Continue to move the Zoom W/T lever to the left to disable optical zoom.

zoom mode to enable digital zoom (software wide). Stop moving the Zoom W/T lever to stop the operation of digital zoom. Continue to move

X 5.0

the Zoom W/T lever to the left when digital zoom is disabled to disable optical zoom (optical tele).



Images taken using the digital zoom may take a little longer for the camera to process. Allow time for this to take place.



You may notice a decrease in image quality when using the digital zoom.



To view a clearer digital zoom image, press the Shutter button halfway at the maximum optical zoom position and press the Zoom T button again.



The digital zoom can’t be activated in the [Face Detection], [DUAL IS], [Movie], [Nightscene] mode and some scene modes ([Frame Guide], [Portrait], [Children], [Text], [Close-up], [Firework], [Self-Shot]).



Take care not to press the lens as this may cause a camera malfunction.



The digital zoom cannot be used in movie clip shots.



Select [Zoom Mute] from the recording menu during video

recording to disable the recording of zoom sound.

X5.0

029

Page 31

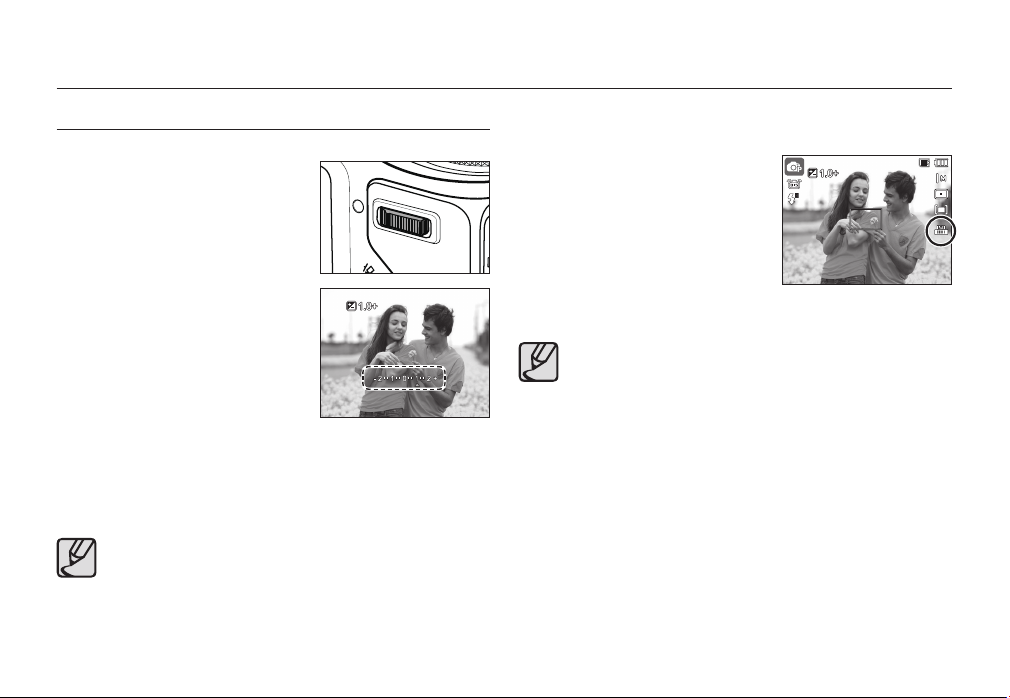

Command Lever

2008/12/01 PM 01:00

How to use the Command lever mode



Exposure compensation

This product automatically controls exposure, adjusting it according to the recording situation. However, use the command lever to change the exposure to a different value.

Select [EV] under [Command Lever] in the menu.

Press the command lever to the left or right from the menu to set the desired exposure value.



For detailed information on setting the command lever, refer to Page 51.

- If you set the exposure to [-], exposure will not be properly performed. If you set the exposure to [+], the LCD monitor may look too white, and it may not be possible to capture a good image. Take care when altering exposure.



In [Manual] mode, you cannot control exposure by using the command lever.

030

■

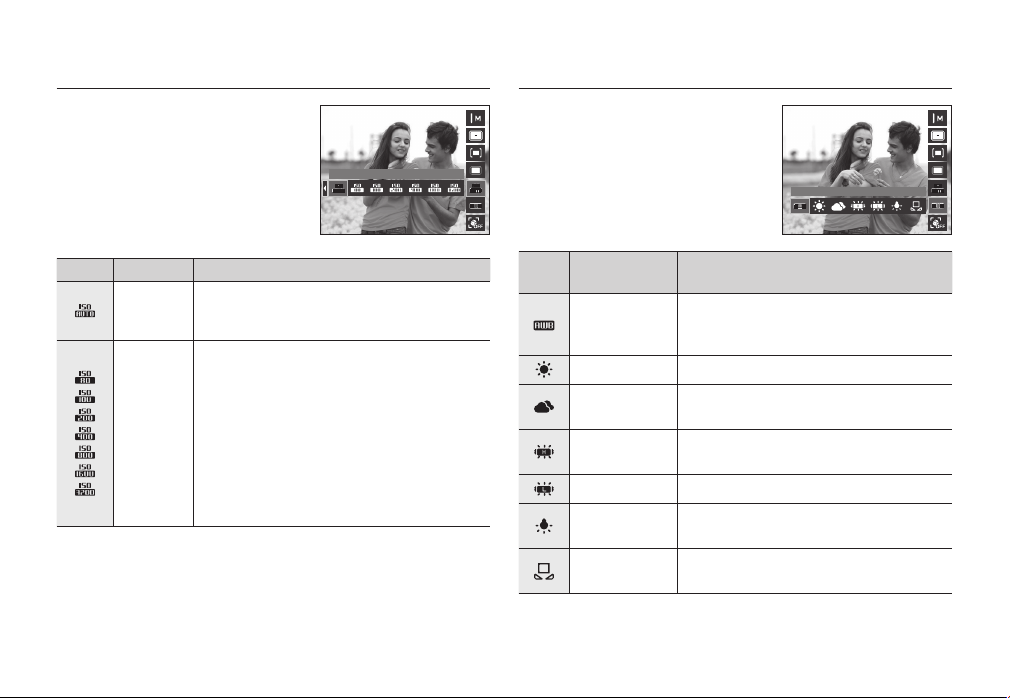

Controlling ISO/White Balance

You can enable the desired features for the command lever.

1. Select [ISO] or [WB] under [Command

Lever] in the menu. (p.51)

Press the command lever to the left or right to select the submenu for each feature from the recording mode window.



For detailed information on setting [ISO] and [WB], refer to Page 43.



[Command Lever] can be set in [Program], [Manual], [DUAL IS], or [Movie] mode and [ISO] can be set in [Program] or [Manual] mode.



If you want to set [EV] after setting [ISO] or [WB], press the Fn button to switch to the exposure control window. Once [EV] are set, the exposure control icon will appear on the window.

■

Controlling the Aperture Value and Shutter Speed in [Manual] Mode

Press the command lever to the left or right from the [Manual] mode to control the aperture value and shutter speed.



For detailed information on the aperture value and shutter speed, refer to

Page 44.

■

Moving to Another Menu

Press the command lever to the left or right from the menu window to move to another main menu.

<Example: [ISO] Control Window>

2008/12/01 PM 01:00

Page 32

Function Description / Info ( ) / Up button

While the menu is showing, the Up button operates as a direction button. If the menu screen does not appear, information or function descriptions of the current ﬁ lming image (ﬁ lming mode) can be accessed through the liquid crystal monitor by pressing the Function description / Information ( ) button.

Display every piece of information about

shooting.

Display the basic information.

Display detailed photo information

including grid line & histograms.

Display description for each feature.



Histogram is not displayed when operating the [Face Detection] function.

■

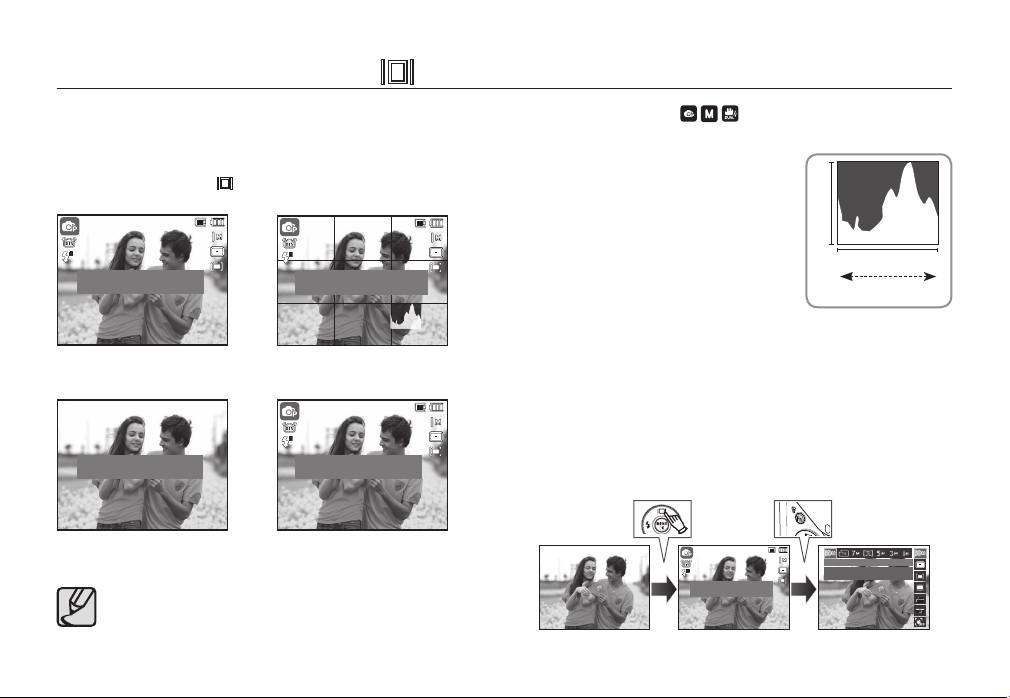

Histogram/Grid Window ( )

Histogram

Histogram shows you the distribution of brightness in recorded images. If the bars in the histogram are higher towards the right, the image may be too bright. If the bars are higher on the left, the image may be too dark. If the lighting conditions are too bright to check the subject by using the LCD, checking the histogram will enable more precise exposure control for the shots.

Grid

If you focus on the subject using a variety of horizontal or vertical grids, you will be able to take pictures at better angles, checking size, horizontality, or proportions. For information on types of grid and how to set them, refer to Page 81.

■

Function description: When pressing the Function description button on

Pressing

the Function

description

button

Pixel

Distribution of brightness

Dark Bright

the information screen mode, detailed descriptions of the functions can be viewed. The function description can be cancelled by pressing the Function description button again.

Pressing

the

Display description for each feature.

Fn button

SIZE

Set the photo size.

031

Page 33

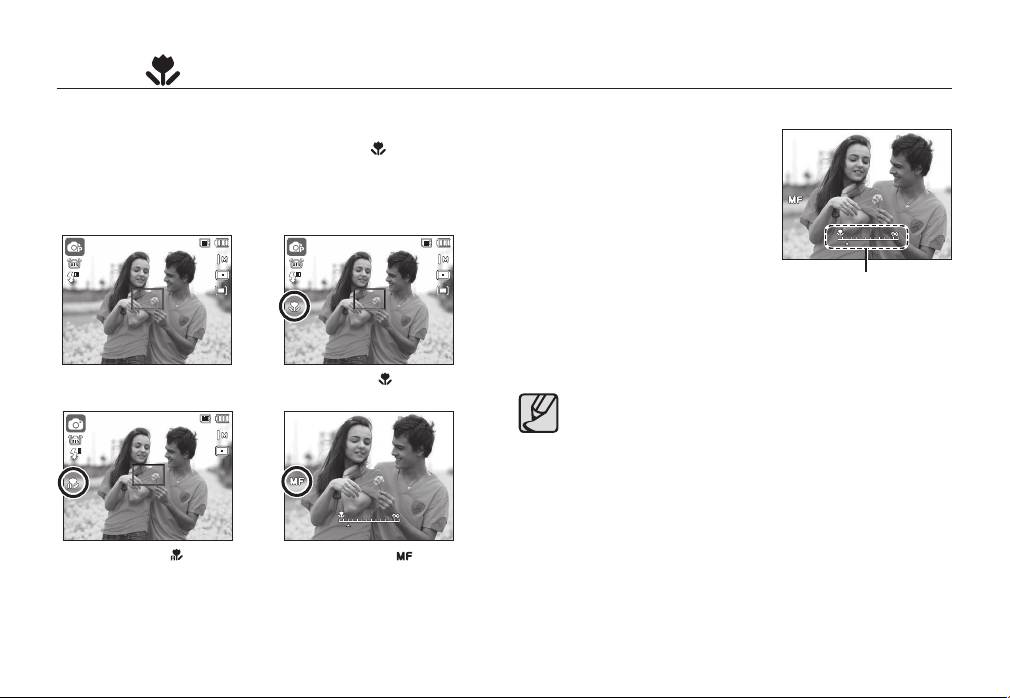

Macro (

) / Down button

While the menu is showing, press the Down button to move from the main menu to a sub menu, or to move down the sub menu. When the menu is not showing, you can use the Macro( )/Down button to take macro pictures. The distance ranges are shown below. Press the Macro button until the desired macro mode indicator appears on the LCD monitor.



How to Set Focus Manually

If it is difﬁ cult to get the automatic focus to work (for example in low light), you can manually control the focus.

1. Press the Macro button to enable manual focus.

- Then the control bar for manual focus

will appear.

2. Press the Left/Right button to control the focus as you want.



Set the manual focus to expand

the center of the window to the entire window. Press the Shutter button halfway to return to the original state.

Control Bar for Manual Focus

032

<Auto Macro

( )

<Macro

( )



Note that the picture may be blurred if manual focusing is not performed properly.

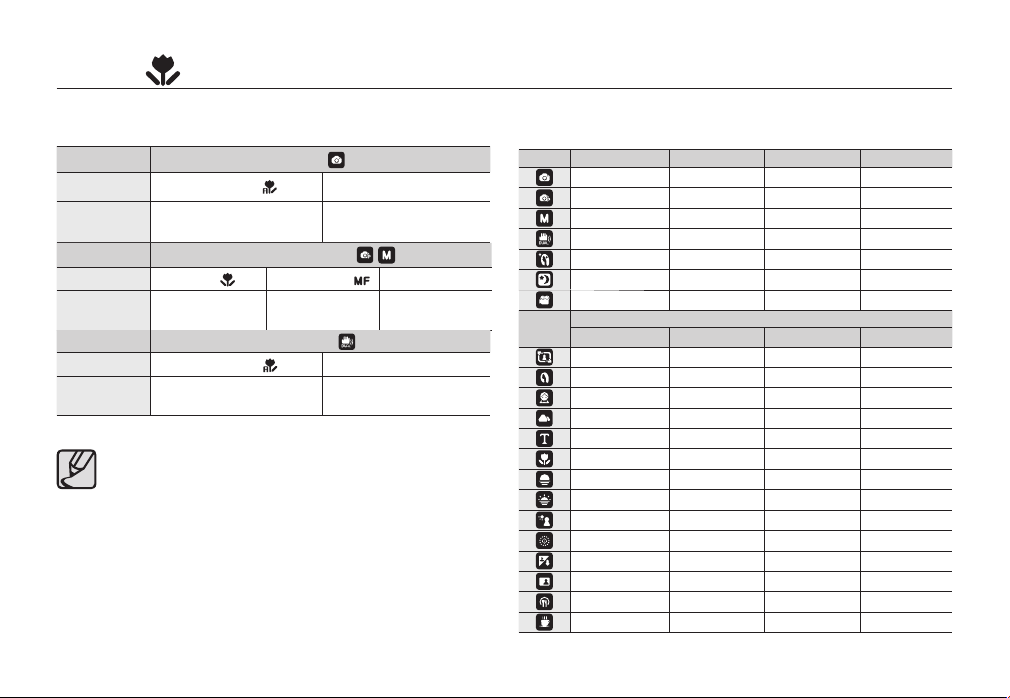

Page 34

Macro (



Types of focus mode and focus range (W: Wide, T: Tele)

) / Down button

(Unit: cm)

Mode

Focus Type

Focus range

Mode

Focus Type

Focus range

Mode

Focus Type

Focus range



When the macro mode is selected, be particularly careful to avoid camera shake.



When you take a picture within 50cm (Wide zoom) or 100cm (Tele zoom) in the Macro mode, select the FLASH OFF mode.



When you take a picture within the 5cm macro range, the autofocus on the camera will take longer to set the correct focus distance.

Auto macro ( )

W: 5 ~ Inﬁ nity

T: 100 ~ Inﬁ nity

Macro (

W: 5 ~ 50

T: 100 ~ 200

Auto macro (

W: 5 ~ Inﬁ nity

T: 100 ~ Inﬁ nity

Program / Manual (

Manual focus (

)

W: 5 ~ Inﬁ nity

T: 100 ~ Inﬁ nity

DUAL IS

)

Auto (

)

W: 50 ~ Inﬁ nity T: 200 ~ Inﬁ nity

(

)

W: 50 ~ Inﬁ nity T: 200 ~ Inﬁ nity

Normal

)

) Normal

W: 50 ~ Inﬁ nity T: 200 ~ Inﬁ nity

Normal



Available focusing method, by Recording mode

(



: Selectable, ∞: Inﬁ nity focus range)

Mode Auto macro Manual focus Macro Normal







Mode

Auto macro



Manual focus

SCENE

Macro Normal



∞



033

Page 35

Flash ( ) / Left button

When the menu is displayed on the LCD monitor, pressing the Left button makes the cursor shift to the left tab.

When the menu is not displayed on the LCD monitor, the

)/Left button operates as the Flash( ) button.

Flash(



Selecting the ﬂ ash mode

1. Select a desired Recording mode, except the [Movie] mode and the [DUAL IS] mode. (p.20)

2. Press the Flash button until the desired ﬂ ash mode indicator is displayed on the LCD monitor.

3. A ﬂ ash mode indicator will be displayed on the LCD monitor. Use the correct ﬂ ash to suit the environment.



Flash range (Unit: m)

WIDE TELE ISO

Normal

Macro

Manual focus

Auto macro

0.5 ~ 4.7 2.0 ~ 2.7

0.3 ~ 0.5 1.0 ~ 2.0

0.3 ~ 4.7 1.0 ~ 2.7

AUTO



If you press the Shutter button after selecting the ﬂ ash, the ﬁ rst ﬂ ash ﬁ res to check the shooting condition (Flash range and Power ratio of ﬂ ash). Do not move the camera until the second ﬂ ash ﬁ res.



Using the ﬂ ash frequently will reduce the life of the battery.



Under normal operating conditions the re-charging time for the ﬂ ash is usually within 5 seconds. If the battery is weak, the charging time will be longer.



In the [DUAL IS] mode, [Landscape], [Text], [Close up], [Sunset], [Dawn], [Firework], [Self-Shot], [Food], [Café] scene modes and the Movie clip mode, the ﬂ ash function will not operate.



Take photographs within the ﬂ ash range.



The image quality is not guaranteed if the subject is too close or highly reﬂ ective.



When taking an image in poorly lit conditions with the ﬂ ash, there may be a white speck in the captured image. The speck is caused by the ﬂ ash light reﬂ ecting off atmospheric dust.

034

Page 36

Flash ( ) / Left button



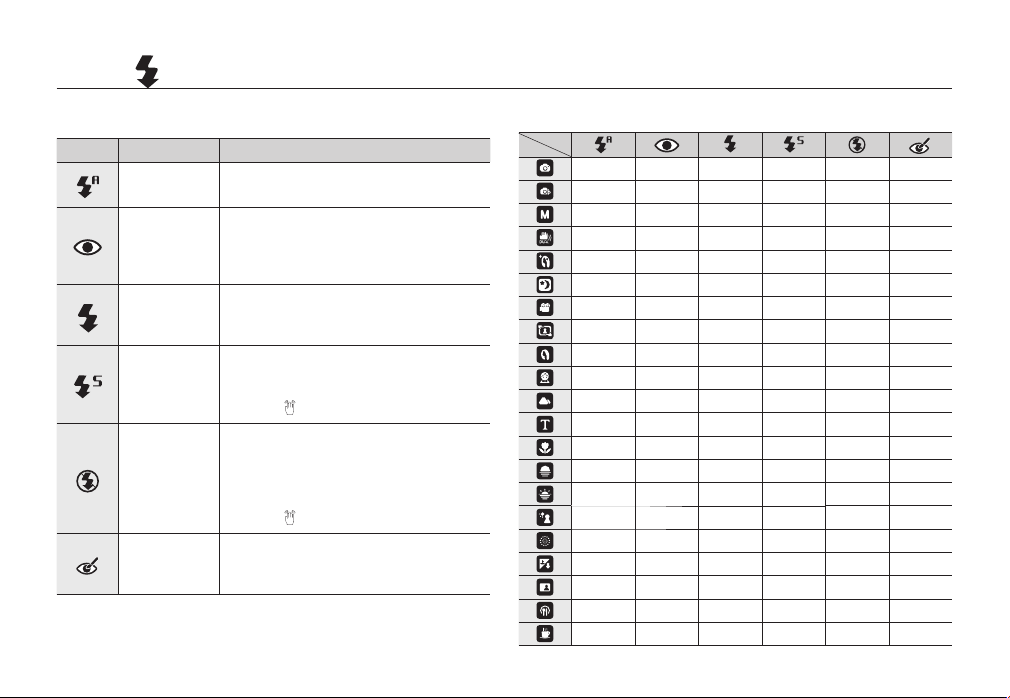

Flash mode indicator



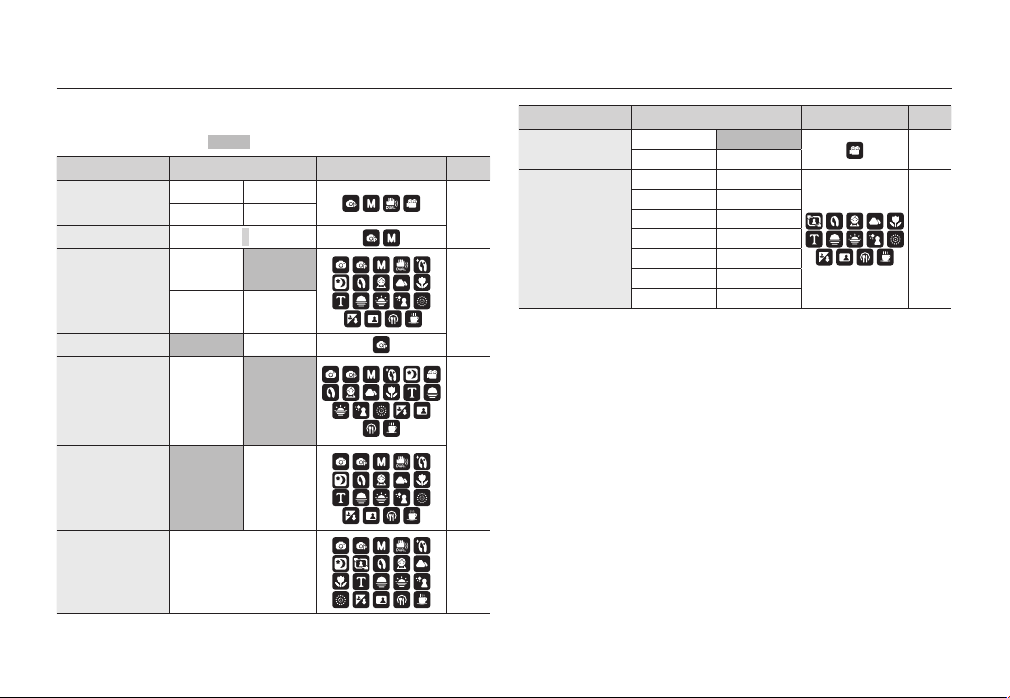

Available ﬂ ash mode, by Recording mode (: Selectable)

Icon Flash mode Description

Auto ﬂ ash

Auto & Red-eye

reduction

If the subject or background is dark, the camera ﬂ ash will operate automatically.

If a subject or background is dark, the camera ﬂ ash will work automatically and will reduce the red-eye effect by using the red-eye reduction function.

The ﬂ ash ﬁ res regardless of the available light.

Fill in ﬂ ash

The intensity of the ﬂ ash will be automatically controlled to suit the prevailing conditions.

The ﬂ ash operates with a slow shutter speed

Slow synchro

to obtain a balanced correct exposure. In poor lighting conditions the camera shake warning indicator (

) will appear on the LCD monitor.

The ﬂ ash does not ﬁ re. Select this mode when capturing images in

Flash off

a place or situation where ﬂ ash photography is prohibited. When you capture an image in poorly lit conditions, the camera shake warning

) will appear on the LCD monitor.

Red-eye

reduction

indicator (

When a shot with “Red-eye” is detected, this mode will reduce the red-eye effect automatically.

 

















035

Page 37

Self-timer ( ) / Right button

When the menu is displayed on the LCD monitor, pressing the Self-timer ( ) / Right button makes the cursor shift to the right tab. When the menu is not displayed on the LCD monitor, the Self-timer ( ) / Right button operates as the Self-timer ( ) button. This function is used when the photographer would also like to be in the image.



If you operate the Self-timer( ) button during the self-timer operation, the self-timer function is cancelled.



Use a tripod to prevent the camera from shaking.



In Movie Clip mode, only the 10SEC self-timer will work.



When you select 2SEC self-timer with ﬂ ash, the delay (2 seconds) can be extended according to the ﬂ ash charging status.



When taking a picture using the self-timer, the self-timer lamp works as follows :

– For the ﬁ rst 7 seconds, the lamp blinks

10SEC self-timer

2SEC self-timer

at 1 second intervals.

– For the ﬁ nal 3 seconds, the lamp blinks

quickly at 0.25-second intervals.

For the ﬁ nal 2 seconds, the lamp blinks quickly at 0.25-second intervals.



Selecting the self-timer

1. Select a Recording mode with the exception of Voice recording mode. (p.20)

2. Press the Self-timer ( the desired mode indicator displays on the LCD monitor.

3. When you press the Shutter button, the picture will be taken after the speciﬁ ed time has elapsed.

Icon Self-timer Mode Description

10SEC self-timer

2SEC self-timer

Double self-timer

Motion Timer

Remote

) button until

Pressing the Shutter button will allow an interval of 10 seconds before the image is taken.

Pressing the Shutter button will allow an interval of 2 seconds before the image is taken.

A picture will be taken after about 10 seconds and 2 seconds later a second picture will be taken.

The camera detects the subject’s movement 6 seconds after pressing the Shutter button, and the picture is taken when the movement is stopped.

You can take a picture by remote control instead of using the shutter button of the camera. Remote control mode is maintained after recording. Press the power button to release the setting.

036

Page 38

Self-timer ( ) / Right button



Motion Timer

Motion Icon & Self-timer lamp

Pressing the Shutter button after setting the Motion Timer

Detecting the subject’s movement

No movement is detected



The Motion Timer ﬂ ows are as follows. (with the exception of [Movie] and [Frame Guide] modes)

Selecting the Motion Timer  Pressing the Shutter button  Conﬁ rming the composition (Within 6 sec.) hands fully) (after 2 sec.)

*1: The camera detects the subject’s movement 6 seconds after pressing

*2: Move your body or hands fully.

 Stopping the detection (Do not move)  Taking an image

the Shutter button, so conﬁ rm the composition within 6 seconds.

Blink (1 second interval)

Blink (0.25 second interval)

Turn on and the image is taken after 2 seconds.

 Starting the detection (Swing your

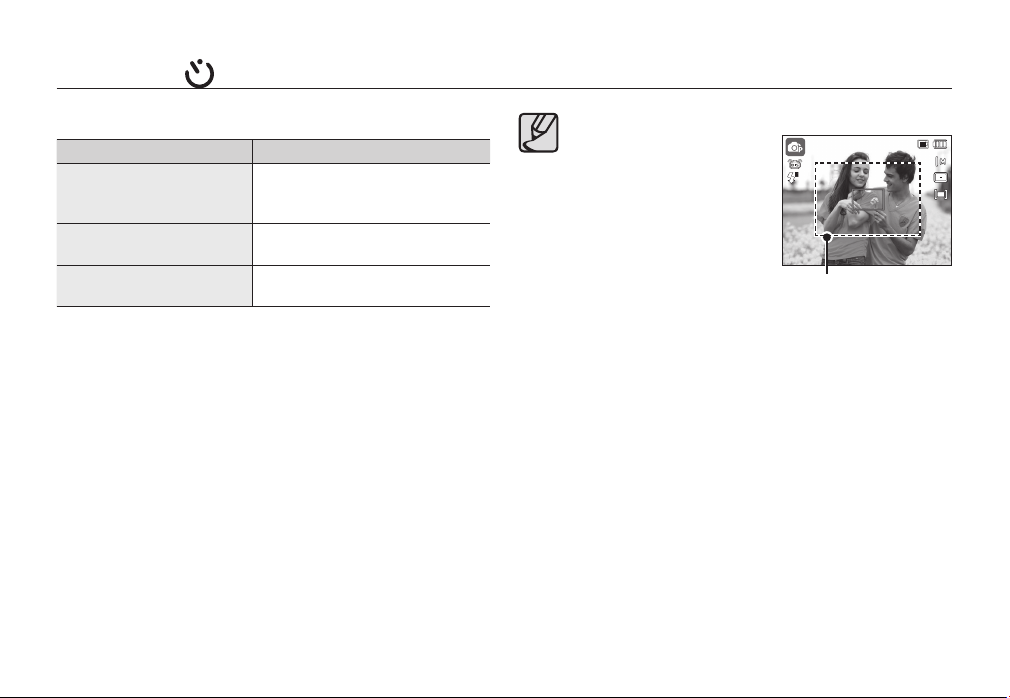

In the following cases, the Motion Timer may not operate.



The focus distance is over 3m.



The exposure is too bright or dark.



In backlight conditions.



The movement is insigniﬁ cant.



The movement is detected beyond the center part (50%) of the sensor where the movement is recognized.



If the camera does not detect

<The detection range of

Motion Timer>

any movement for 25 seconds or the camera does not detect the pause after recognizing the movement.

037

Page 39

Self-timer ( ) / Right button



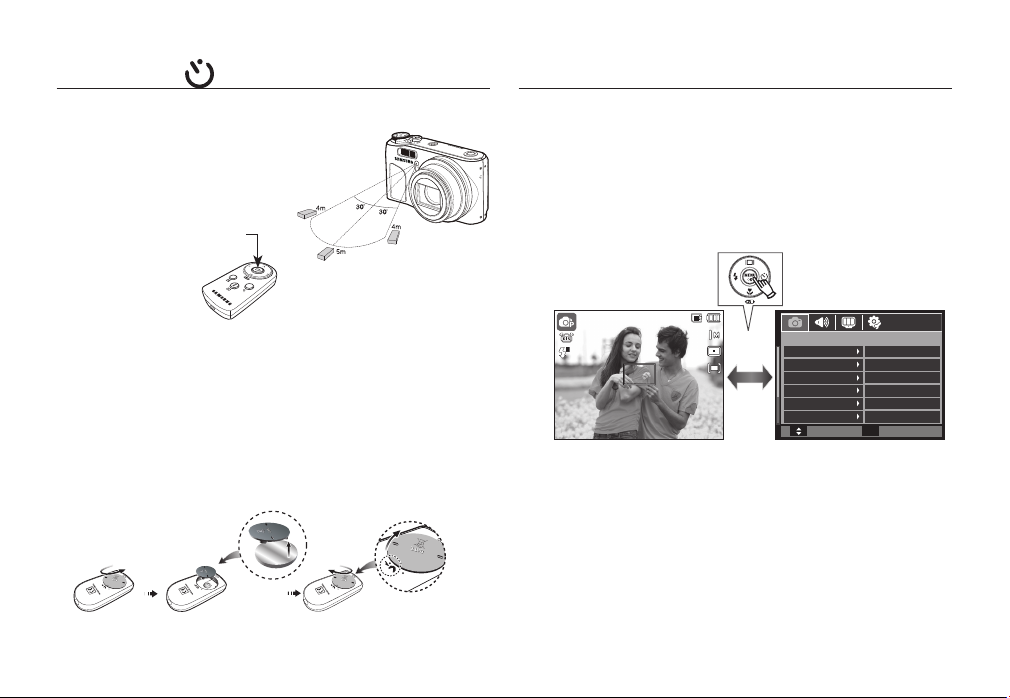

Remote control range

When you take a picture by using the remote control, refer to the illustrations shown alongside about the remote control range.

[Shutter button on the

remote control]



Replacing battery for the remote control

Make sure the + (positive) polarity is toward the top and the - (negative) polarity is toward the bottom while installing battery for the remote control. Replace battery for the remote control in the local service centre. Use the CR 2025 3V battery.

MENU / OK button



MENU button

– When you press the MENU button, a menu related to each camera

mode will be displayed on the LCD monitor. Pressing it again will return the LCD to the initial display.

– A menu window is displayed in each of [Movie], [Auto], [Program],

[Manual], [DUAL IS], [Beauty Shot], [Nightscene], and [Scene] modes.

Pressing the

MENU button.

RECORDING Command Lever Flash EVC Quality ACB OIS Voice Memo



OK button

– When the menu is displayed on the LCD monitor, this button is used for

shifting the cursor to the sub menu or for conﬁ rming data.

Move

EV 0 Fine Off On Off

Exit

038

Page 40

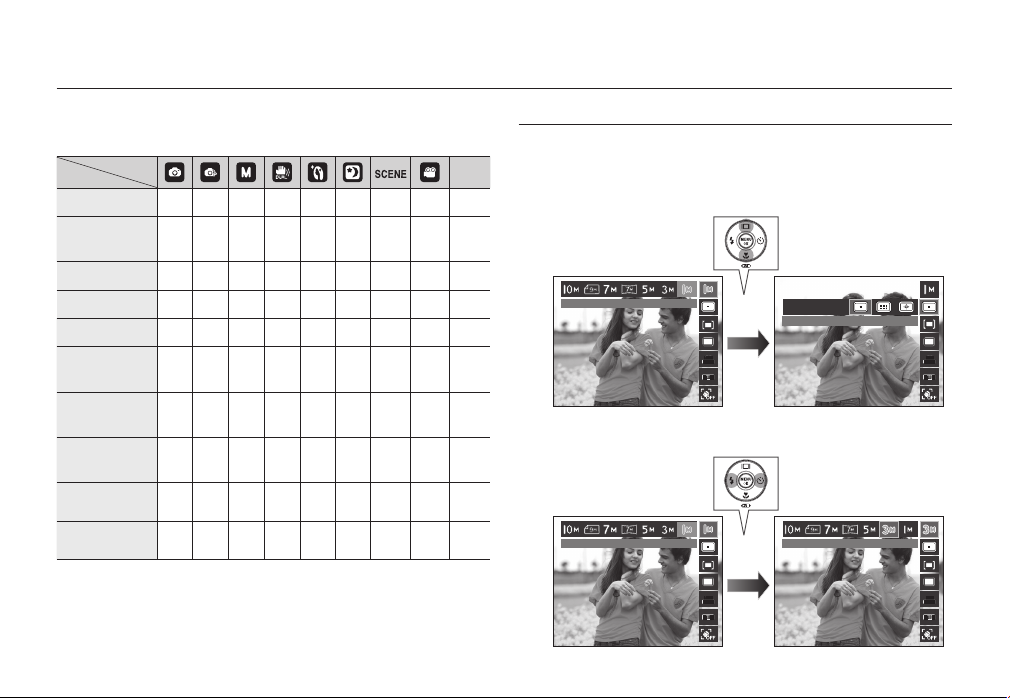

Fn button

You can use the Fn button to set the following menus.

SIZE

FOCUS AREA

FRAME RATE

METERING

DRIVE

  

 

 



(: Selectable)

Page

p.40



p.41

p.42

How to use the Fn menu

1. Press the Fn button in an available mode.

- Press the Fn button twice in some modes.

2. Select a desired menu by pressing the Up/Down button. And then a sub menu will be displayed on the bottom left side of the LCD monitor.

Up/Down

button

SIZE

Center AF

ISO

WHITE BALANCE

Aperture Value/

Shutter Speed

FACE DETECTION

STABILIZER



 







p.43

p.44

p.45~

3. Select a desired menu by pressing the Left/Right button and then press the OK button.

Left/Right

button



p.47

SIZE

2048X1536

039

Page 41

Fn button: Size Focus Area

You can select the image size appropriate for your application.

Icon

Still


Mode

Movie

clip

mode

3648x

3072x

Size

2736

2432

2304

3648x

2056

Icon

1280x720HQ 1280x720 640x480 320x240

Size

1024X768

2592x

1944

640X480

2048x

1536

1024x

< Movie clip mode >< Still image mode >

The higher the resolution, the lower the number of shots available because high resolution images require more memory.

040

768

You can select your preferred Focus Area according to the shooting conditions.

Icon Focus Area Description

Center AF

Multi AF

Selection AF Focus on the desired position of the LCD monitor.



When the camera focuses on the subject, the auto focus frame turns to green. When the camera doesn’t focus on the subject, the auto focus

frame turns to red.



How to Enable Selection AF

Press the Up/Down/Left/Right button to move the focus mark to the desired position. Press the shutter button to enable Selection AF. Once setting is complete, the focus mark will be ﬁ xed at the position set. If you want to change the position of the focus mark, press the Fn button and select [Selection AF]. Then the focus mark setting window will appear.



Even if you turn off the power and turn on it again, the previous setting will be maintained.



[Selection AF] is not available when operating the [Face Detection] function.

Center AF

The rectangular area in the center of the LCD monitor will be focused. This camera selects all available AF points of the LCD monitor.

SetMove

Focus Mark

Page 42

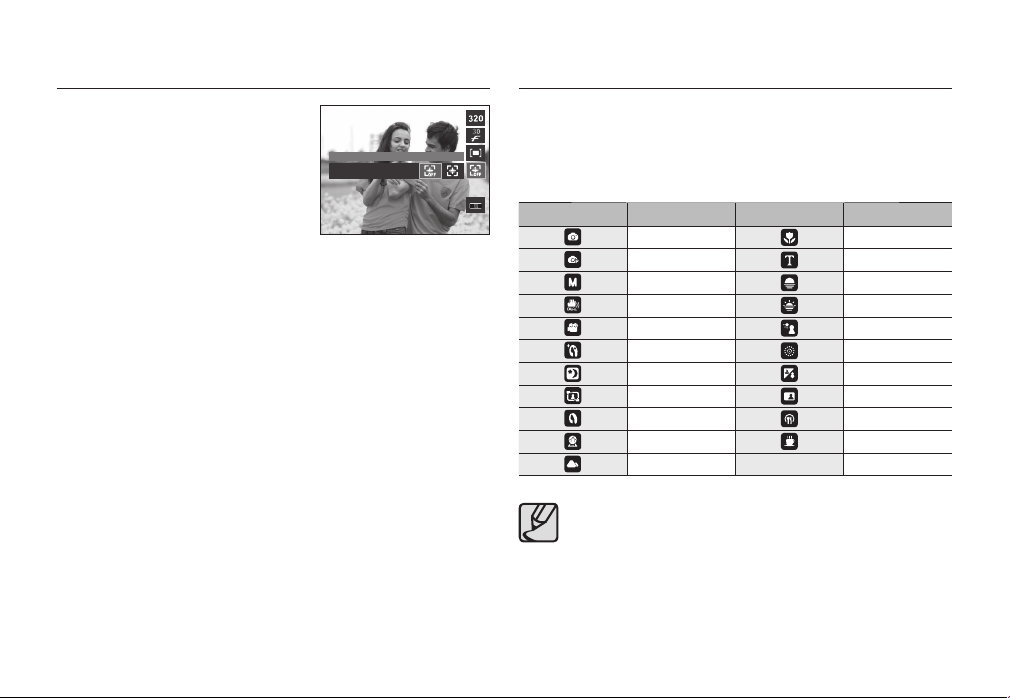

Fn button: Frame rate

This menu allows you to select an appropriate frame rate depending on the intended use for a recorded video. Using a faster shutter speed enables the movie clip to catch a decisive moment, but which will raise the ﬁ le size.

30 FPS

Fn button: Metering

If you cannot obtain suitable exposure conditions, you can change the metering method to take brighter pictures.

Multi

Mode Movie clip mode

Icon

Sub menu 60 FPS 30 FPS 15 FPS

File Format H.264 H.264 H.264



This ﬁ le format complies with the DCF (Design rule for Camera File system).

Metering

Icon



If the subject is not the centre of the focus area, do not use the [Spot] metering as this may result in an exposure error. In this circumstance, it is better to use exposure compensation.

Mode

Multi

Spot

Center

Weighted

Exposure will be calculated based on an average of light in each image area divided into multiple regions. However, the calculation will be biased towards the centre of the image area. This is suitable for general use.

Only the rectangular area in the centre of the LCD monitor will be metered for light. This is suitable when the subject in the centre is exposed correctly, regardless of the back lighting.

Exposure will be calculated based on an average of the available light in the image area. However, the calculation will be biased towards the centre of the image area. This is suitable for taking a picture of small objects like ﬂ owers or insects.

Description

041

Page 43

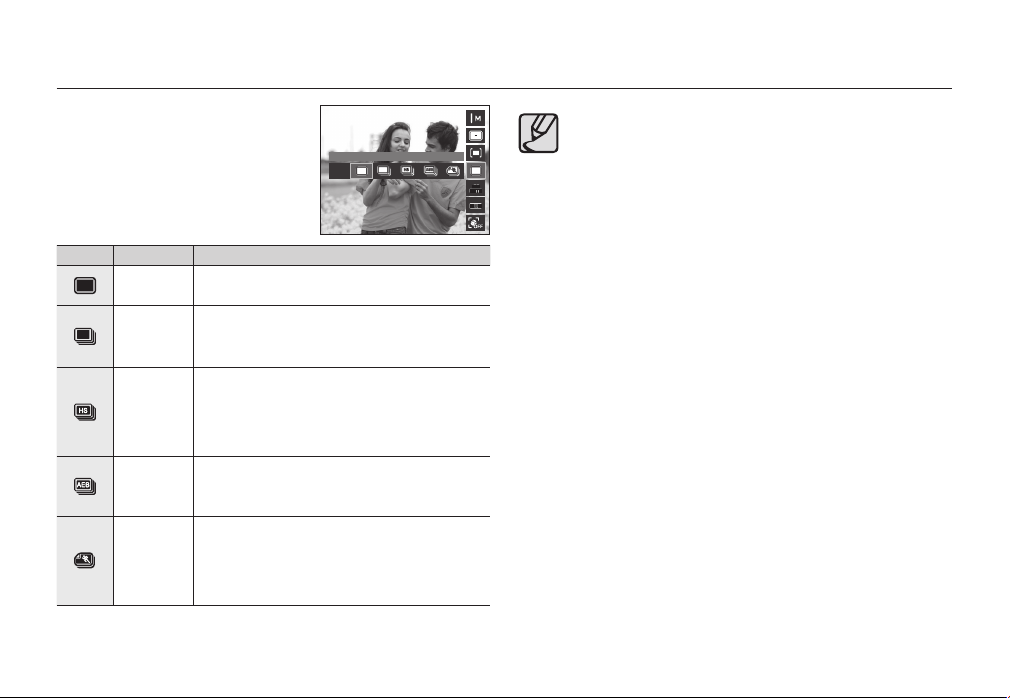

Fn button: Drive mode

You can select continuous shot, and AEB (Auto Exposure Bracketing).

Icon Drive Mode Description

Single Take one picture only.

Continuous

High Speed

AEB

Motion

Capture

Images will be taken continuously until the Shutter button is released. The shooting capacity depends on the memory.

Continuous shooting is available while pressing and holding the Shutter button (About 1.5 frames per second). The shooting speed may get slower depending on the shooting environment or the number of shots.

Take three pictures in a series in different exposures: standard exposure (0.0EV), short exposure (-1/3EV) and over exposure (+1/3EV).

This takes 6 shots per second for up to 5 seconds, when the Shutter is pressed and held down. After completing the continuous shooting, images are saved automatically. The maximum number of shots is 30 and the image size is ﬁ xed as VGA.

Single



High resolution and picture quality increases ﬁ le saving time, which increases stand-by time.



If the [Continuous], [ menu is selected, the ﬂ ash will be off automatically.



If less than 30 pictures are available in the memory, the motion capture is not available.



It is best to use a tripod for the each image ﬁ le is longer and blurring caused by camera shake may occur.



In [Manual] mode, [High Speed], [AEB], and [Motion Capture] are disabled.



[Continuous], [High Speed] and [AEB] menus can be selected only when the shutter speed is faster than 1/4 second. If the shutter speed

is slower than 1/4 second, it will be fixed with 1/4 second.

High Speed

[AEB]

], [AEB] or [Motion Capture] sub

shooting as the time to save

042

Page 44

Fn button: ISO Fn button: White balance

You can select the ISO sensitivity when taking pictures. The speed or speciﬁ c light-sensitivity of a camera is rated by ISO numbers.

Auto

The white balance control allows you to adjust the colours to appear more natural.

Auto WB

Icon ISO Mode Description

Auto

1600 3200



When the ISO 3200 menu is selected, the image size is ﬁ xed to under 3M.



When [Motion Capture] is set, ISO speed will be set to Auto.



[ISO] is enabled only in [Program] or [Manual] mode.

The camera’s sensitivity is automatically changed by variables such as lighting value or subject brightness.

You use a faster (shorter) shutter speed while the same amount of light is present, by increasing the ISO

sensitivity amount of light is present, by increasing the

100

ISO sensitivity. However, the image may be saturated

200

in high luminance. The higher the ISO value, the higher

400

the camera’s sensitivity to light and therefore the

800

greater its capacity to take pictures in dark conditions. However, the noise level in the image will increase as the ISO value increases, making the image appear coarse.

White balance

Icon



Different lighting conditions may cause a colour cast on your images.

Mode

Auto WB

Daylight For taking images outside.

Cloudy

Fluorescent_H

Fluorescent_L For shooting under white ﬂ uorescent lighting.

Tungsten

Custom Set

The camera automatically selects the appropriate white balance settings, depending on the prevailing lighting conditions.

For taking images under a cloudy or overcast sky.

For shooting under daylight ﬂ uorescent types of threeway ﬂ uorescent lighting.

For shooting under tungsten (standard light bulb) lighting.

Allows the user to set the white balance according to the shooting conditions.

Description

043

Page 45

Fn button: White balance

1/30 F3.3



Using the Custom White Balance

White balance settings may vary slightly depending on the shooting environment. You can select the most appropriate white balance setting for a given shooting environment by setting up the custom white balance.

1. Select the Custom Set ( the White Balance and place a sheet of white paper in front of the camera so that the LCD monitor shows only white.

2. MENU/OK button: Selects previous

Shutter button: Saves new custom white balance.

– The custom white balance value will be applied, starting with the

next picture you take.

– The user conﬁ gured white balance will be remain effective until it is

overwritten.

044

) menu of

custom white balance.

White paper

Fn button: Aperture Value

This mode will set the aperture value for automatic exposure in manual mode. Smaller aperture values make the object

1/30 F3.3

sharp but blur the background. Larger aperture values make both the object and background sharp.

Aperture Value



Setting up the Aperture Value

Press the Fn button. Then press the command lever to the left or right to set the aperture value.

Fn button: Shutter Speed

This mode will set the shutter speed for automatic exposure in manual mode. High shutter speeds can capture a moving object in a way that makes it seem as if the object is not moving. Low shutter speeds can capture a moving object, giving it a dynamic feeling of movement.



Setting up the Shutter Speed

Press the Fn button and then Left/Right button. Press the command lever to the left or right to set the shutter speed.

1/30 F3.3

Shutter Speed

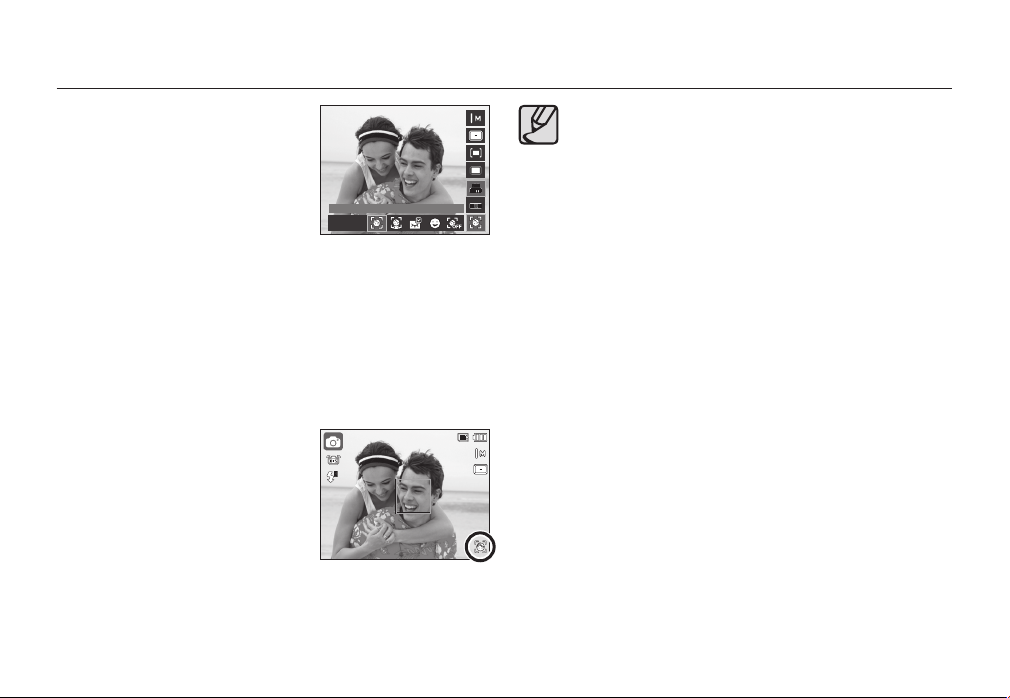

Page 46

Fn button: Face Detection

If you use face detection options, your camera can detect a human face. When focusing on a human face, the brightness of the face is also adjusted. You can also capture natural facial expressions by using self portrait, smile shot or blink detection.



Selectable modes: [Auto], [Program], [Manual], [DUAL IS], [Beauty



Face Detection

This mode detects the face position of the subject automatically and then sets the focus and exposure.

1. The size and position of the auto focus frame is automatically set on the face of the subject.

2. Press the Shutter button halfway.

- When the camera detects a target face,

the white colour focus frame will be displayed over the target face and the grey colour focus frame appears over the remaining faces. Press the shutter button halfway down to focus on the face and the white focus frame turns green.

3. Press the Shutter button fully to take a picture.

Shot], [Scene] ([Portrait], [Children], [Beach&Snow], [Self-Shot], [Café])

FACE DETECTION



This function can detect up to 10 faces.



When the camera recognises many people at the same time, it will focus on the nearest person.



Return to previous AF mode if face detection failed.



In some conditions this function cannot work properly.

- When a person wears dark glasses or some part of the face is hidden.

- When the subject does not look at the camera.

- Camera doesn’t detect a face as the conditions are too dark or too bright.

- The distance between the camera and object is too great.

- If there is reﬂ ection of the light or the back light that are too bright.



The maximum available Face Detection range is 2.5m (Wide).



The nearer the subject, the faster the camera can recognize the subject.



When using the digital zoom, [Face Detection] is not available.



In [Beauty Shot], [Frame Guide], [Portrait], and [Children] mode, the [Face Detection] function setting is set to its default value.

045

Page 47

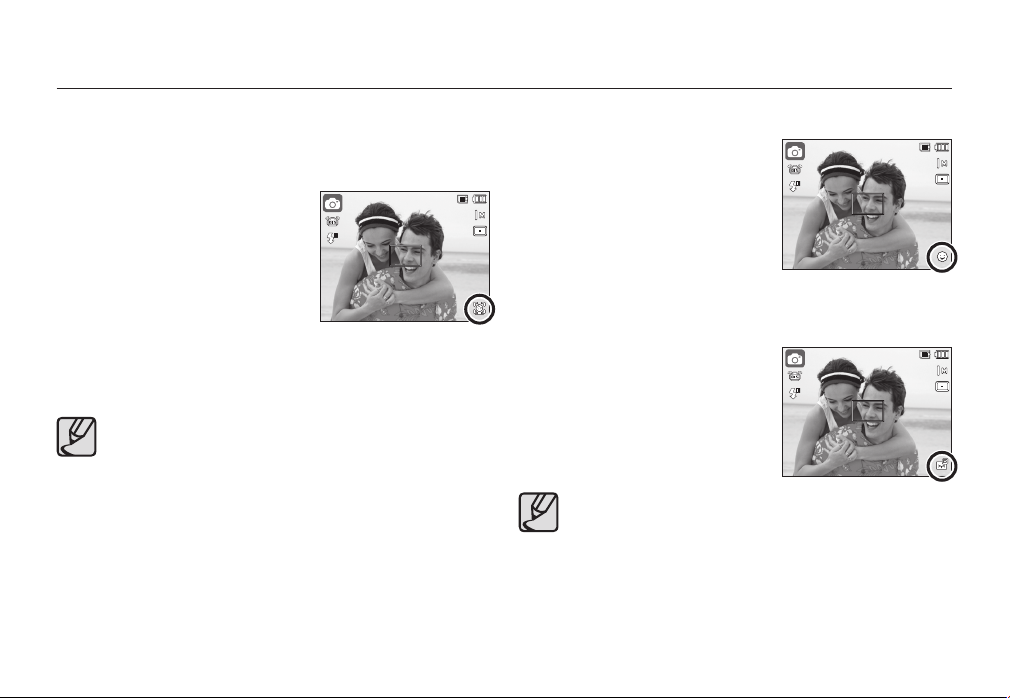

Fn button: Face Detection



Self Portrait

When taking pictures of yourself, the area of your face is automatically detected so that you can take self portraits more easily and quickly.

1. For self-ﬁ lming, set the camera lens towards the face of the object. It automatically detects the face of the object, and emits a guiding sound.

- When locating the face in the center of

the screen, it repeatedly emits a faster sound unlike the sounds that are emitted when the face is not in the center.

2. Start ﬁ lming by pressing the Shutter button.



The guiding sound can be set using the [Self-Portrait] Menu. (p.80)

046



Smile Shot

The camera automatically takes a picture by detecting the face of the subject although you don’t press the shutter button. If you press the Shutter button, the picture is taken in the normal way. When taking a picture of smile shot, showing teethes or keeping the smiley face of your subject helps detecting the smile face of the subject.



Blink Detection

If the eyes of the subject are closed when the shutter button is pressed, the camera takes 3 continuous shots and then the images are saved. The camera takes only one picture if the eyes of the subject are open when the Shutter button is pressed.



Detecting the smiling face or the blinking eyes may not be available if any of the following situations occurs:

- If the subject is wearing sunglasses.

- When the subject is not facing directly to the camera.

- If the environmental light is too bright or too dark to detect the face of the subject.

- When the camera is far from the subject. (Orange colored focusing mark)

- If there is reﬂ ection of the light or the back light that are too bright.

Page 48

Fn button: Movie clip frame stabiliser

This function helps stabilize images captured during movie recording. You can select this menu only in the Movie clip mode. If the memory card is not inserted, this function will not operate.

[Off]: Movie clip frame stabilizer function is

disabled.

[On]: Minimises camera shake during

movie recording.



The recording frame range becomes narrow when you select this menu.

Off

E (Effect) button

It is possible to add special effects to your images by using this button.



Available Effects, by recording mode (: Selectable)

Mode E button Mode E button

 



The E button will not operate in Voice recording mode, [Nightscene] and some [Scene] modes ([Frame Guide], [Text], [Sunset], [Dawn], [Backlight], [Firework], [Beach&Snow], [Self-Shot], [Food], [Café]).



Even if the camera is turned off, the effect setting will be preserved.

047

Page 49

E (Effect) button: Photo Style

Vivid

Color

Selector

You can add various effects to the image without an image editing software. Press the E button in an available mode.

1. Select the desired Photo style selector by pressing the Left/Right button and press the OK button.

2. Press the Shutter button to take an image.

Vivid

Set

Back

E (Effect) button: Image editing

Press the E button in the [Program], [Manual], [Movie] and some scene modes ([Portrait], [Children], [Landscape], [Close up]).

Colour

1. Select the Color( ) menu by pressing the Up/Down button.

2. Select the desired sub menu by pressing the Left/Right button and press the OK button.

3. Press the Shutter button to take an image.

Color

Move

Set

Icon Style mode Description

Normal No style effect is added to the image.

Vivid The image will be applied with vivid colours.

Soft The image will be applied with soft colours.

Forest

Classic The image will be applied with classic colours.

The image will be applied with clear natural colours.

Retro The image will be applied in a sepia tone.

Cool The image will be applied with cool colours.

Calm The image will be applied with calm colours.

048

Icon Color Description

Normal No colour effect is added to the image.

B/W Captured images will be stored in black and white.

Sepia

Green Captured images will be stored in a green tone.

Blue Captured images will be stored in a blue tone.

Negative Saves the image in negative mode.

Custom Color Captured image will be saved in set RGB tone.

Captured images will be stored in a sepia tone (a gradient of yellowish brown colours).

Red Captured images will be stored in a red tone.

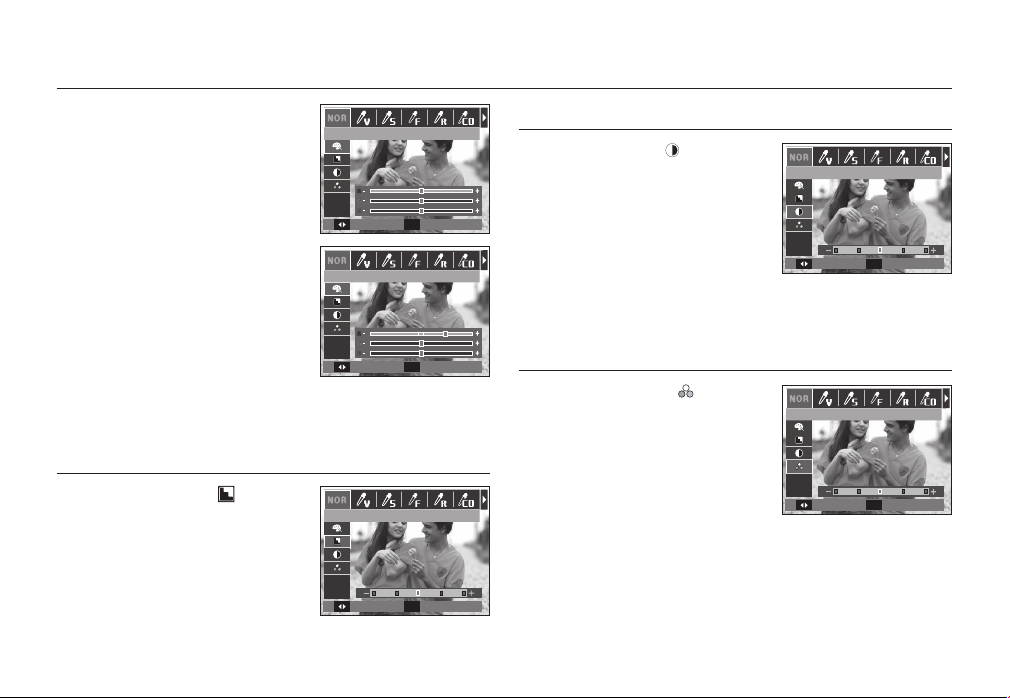

Page 50

E (Effect) button: Image editing

Color

Sharpness

Contrast

Saturation



Custom colour: You can change the R (Red), G (Green) and B (Blue) values of the image.

– Up/Down button: Selects R, G, B – Left/Right button: Changes the values

Color

Move

Contrast

1. Select the Contrast( ) menu by pressing the Up/Down button and a bar for selecting the contrast will be displayed.

Set

2. Change the contrast by pressing the Left/Right button. Press the OK button.

3. Press the Shutter button to take an

image.

Contrast

Move

Set

Move

Press the E button in the [Program], [Manual] mode.

Sharpness

1. Select the Sharpness( ) menu by pressing the Up/Down button and a bar for selecting the sharpness will be displayed.

2. Change the sharpness by pressing the Left/Right button. Press the OK button.

3. Press the Shutter button to take an

image.

Sharpness

Move

Set

Saturation

1. Select the Saturation( ) menu by pressing the Up/Down button and a bar for selecting the saturation will be

Saturation

displayed.

2. Change the saturation by pressing the Left/Right button. Press the OK button.

3. Press the Shutter button to take an

Move

Set

image.

Set

049

Page 51

Using the LCD monitor to adjust the camera settings

You can use the menu on the LCD monitor to set up recording functions.



The items indicated by

Menu Sub menu

Command Lever

Flash EVC

Quality

ACB

OIS

Voice Memo

Voice Record

+1.0, +0.5, 0, -0.5, -1.0

Super Fine Fine

Normal

are default settings.

EV(A, S)

ISO

Off On

Available mode

Page

p.51

p.52

p.53

p.54

Menu Sub menu

Voice

Scene



Menus are subject to change without prior notice.

Zoom Mute

Frame Guide Portrait

Close up Text

Backlight Firework

Beach&Snow Self-Shot

Off On

Children Landscape

Sunset Dawn

Food Café

Available mode

Page

p.55

050

Page 52

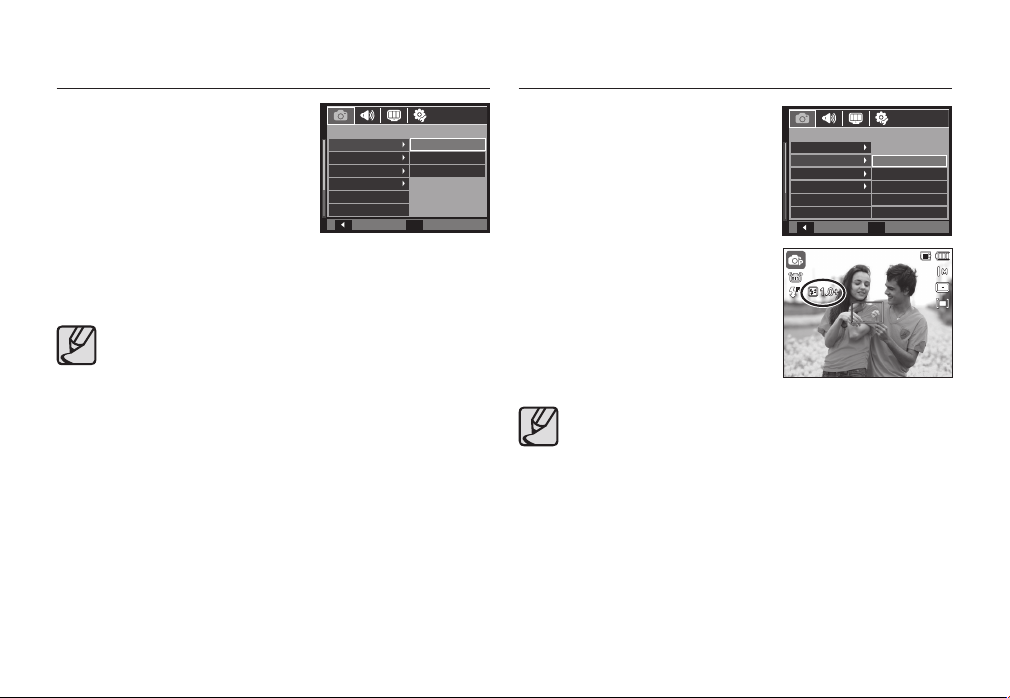

Command Lever

2008/12/01 PM 01:00

You can enable the desired features for the command lever on the back of the camera.

- [Command Lever] Sub menus: [EV], [EV(A, S)], [ISO], [WB].

- Move the command lever to the left or right to select the submenu for each feature.



For detailed information on using the command lever, refer to Page 30.



The [Command Lever] feature is enabled in [Program], [Manual], [DUAL IS], or [Movie] mode.



Selectable sub-menu and default value can vary depending on recording mode.

RECORDING Command Lever Flash EVC Quality ACB OIS Voice Memo

Back

Flash Intensity

You can control ﬂ ash intensity.

EV ISO WB

(You can set ﬂ ash intensity within the range of +/- 1EV in intervals of 0.5EV.)

- [Flash EVC] Sub menus: [+1.0], [+0.5], [0], [-0.5], [-1.0].

Set



In [Auto], [DUAL IS], [Beauty Shot], [Nightscene], [Scene], or [Movie] mode, the [Flash EVC] feature is disabled.



If the subject is too close or the sensitivity is too high, changing the value to a negative value (-) may not have any effect.



If the ﬂ ash intensity is out of the control range because the exposure value is too high or low, the camera may not operate properly.

RECORDING Command Lever Flash EVC Quality ACB OIS Voice Memo

Back

2008/12/01 PM 01:00

+1.0 +0.5 0

-0.5

-1.0

Set

051

Page 53

Quality

You can select the compression ratio appropriate for your application of the captured images. The higher the compression ratio, the lower the picture quality.

- [Quality] Sub menus: [Super Fine], [Fine], [Normal].

Mode Still image Mode

Sub menu Super Fine Fine Normal

File Format JPEG JPEG JPEG



This ﬁ le format complies with the DCF (Design rule for Camera File system).



JPEG (Joint Photographic Experts Group): JPEG is the image compression standard developed by the Joint Photographic Experts Group. This type of compression is most commonly used for compressing photos and graphics because it can compress the ﬁ les efﬁ ciently.

RECORDING Command Lever Flash EVC Quality ACB OIS Voice Memo

Back

Super Fine Fine Normal

Set

ACB

This function is to adjust the contrast automatically when taking photos in an environment with big exposure difference i.e. backlight or contrast. This function adjusts the brightness automatically and allows the subject to be photographed clearly.

- [ACB] Sub menus: [Off], [On]

RECORDING Command Lever Flash EVC Quality ACB OIS Voice Memo



The ACB function is available in [Auto], [Program] or [Portrait] recording mode. ACB function always operates in the [Auto], [Portrait] recording mode.

Back

Off On

Set

052

Page 54

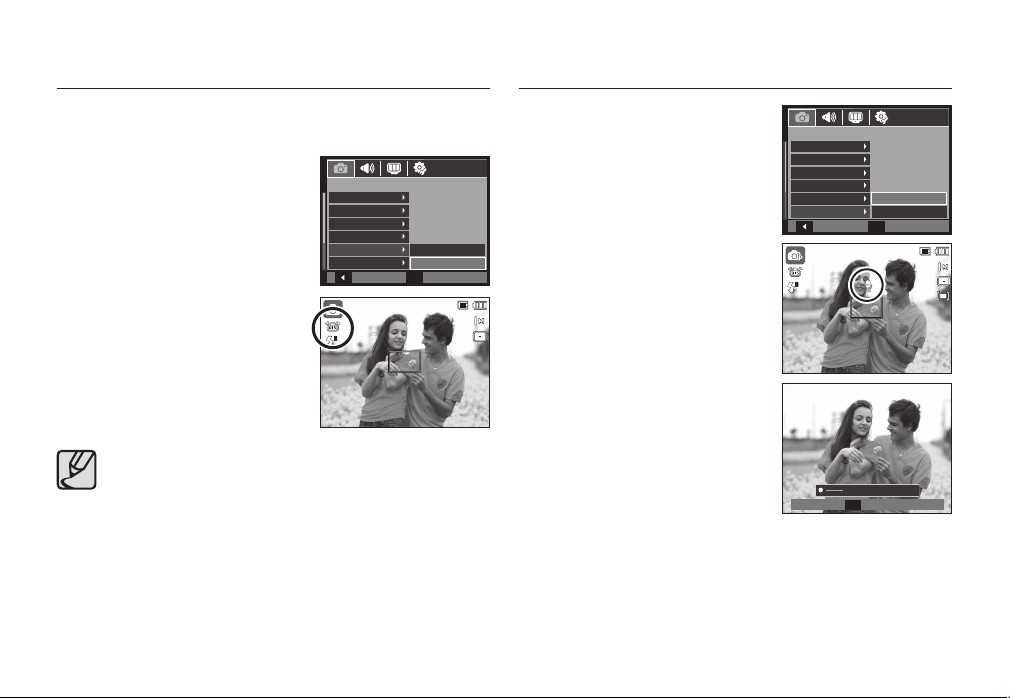

OIS (Optical image Stabilization)

This feature allows you to minimize camera shake while taking a picture.

[OIS] Sub menus: [Off], [On].

RECORDING Command Lever Flash EVC Quality ACB OIS Voice Memo



OIS function may not work sufﬁ ciently in the following cases. –

To take pictures of a moving subject. – To take pictures with higher digital zoom values. – When camera shake is beyond the camera-shake correction

range. – When the shutter speed is slow.

Back

Off On

Set

Voice Memo

You can add your voice-over to a stored still image. (Max. 10 sec.)

– If the voice memo indicator is displayed

on the LCD monitor, the setting is completed.

– Press the Shutter button and take a

picture. The picture is stored on the memory card.

– Voice memo will be recorded for ten

seconds from the moment the picture is stored. In the mddle of the sound recording, pressing the Shutter button will stop the voice memo.

RECORDING Command Lever Flash EVC Quality ACB OIS Voice Memo

Back

Off On

Set

00:00:03

Stop

053

Page 55

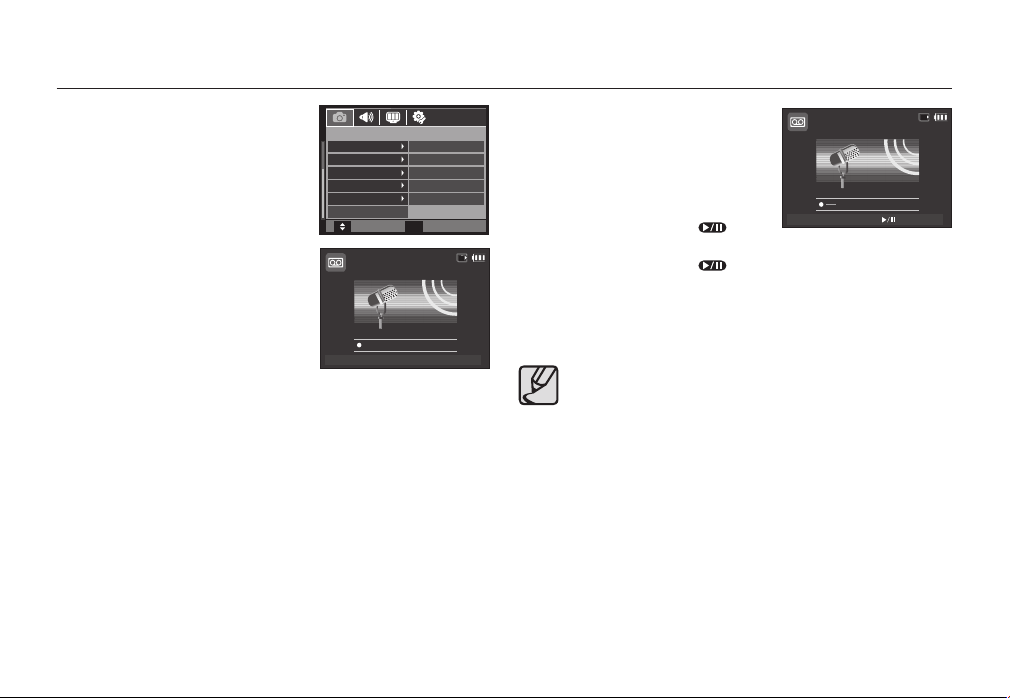

Voice recording

00:01:00

A voice can be recorded for as long as the available recording time (Max. 10 hour) allows.

Press the Shutter button to record a voice. – Press the Shutter button once and

voice is recorded for as long as the available recording time (max:10 hour) allows. The recording time will be displayed on the LCD monitor. Voice will still be recorded if the Shutter button is released.

– If you wish to stop recording, press the

Shutter button again.

– File type: *.wav

RECORDING Flash EVC Quality ACB OIS Voice Memo Voice Record

Move

Record

0 Fine Off On Off

Set

00:01:00

00:00:00

OKSH



Pausing while recording a voice

00:01:00

Using this function, you can record your favourite voice clips into a voice recording ﬁ le without having to create multiple voice recording ﬁ les.

1. Press the Play & Pause ( ) button to pause recording.

2. Press the Play & Pause ( ) button again to resume the recording.

3. If you wish to stop recording, press the Shutter button again.

Exit



A distance of 40cm between you and the camera (microphone) is the best distance to record sound.



If the camera power is turned off while the voice recording is paused, the voice recording is cancelled.

00:00:06

Stop

Pause

054

Page 56

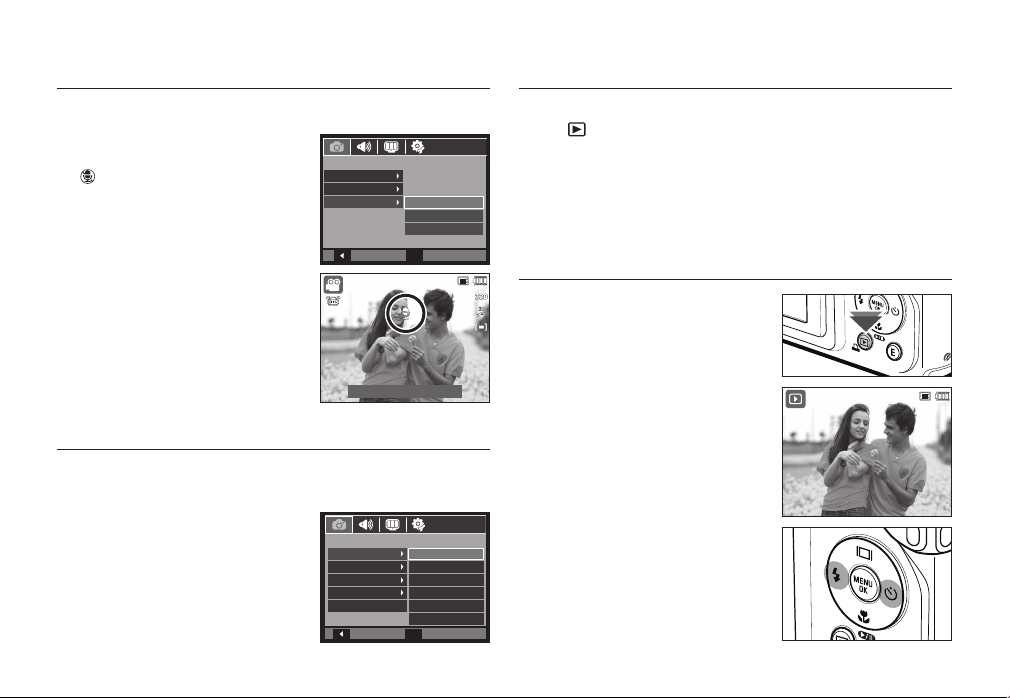

Recording the movie clip without voice

00:01:01

STANDBY

100-0010

You can record the movie without voice.

Select [Voice] menu in the Movie clip mode. (p. 25) (

) icon will appear on the LCD monitor. Press the Shutter button and a movie will record for as long as the memory capacity allows without voice.

RECORDING Command Lever OIS Voic e

Back

Off On Zoom Mute

STANDBY

Set

00:01:01

Scene mode

Use the menu to easily conﬁ gure optimal settings for a variety of shooting situations.

Press the MENU button and select a desired sub menu.



Refer to page 23 for more information.

RECORDING Scene Quality OIS Voice Memo Voice Record

Back

Frame Guide Portrait Children Landscape Close up Text

Set

Starting play mode

Turn the camera on and select Play mode by pressing the Play mode ( ) button. The camera can now play back the images

stored in the memory. If the memory card is inserted in the camera, all the camera functions apply only to the memory card. If the memory card is not inserted in the camera, all the camera functions apply only to the internal memory.

Playing back a still image

1. Select the Play mode by pressing the Play mode button.

2. The last image stored on the memory

is displayed on the LCD monitor.

3. Select an image that you want to view by pressing the Left/Right button.



Press and hold the Left or Right button to play back the images quickly.

100-0010

055

Page 57

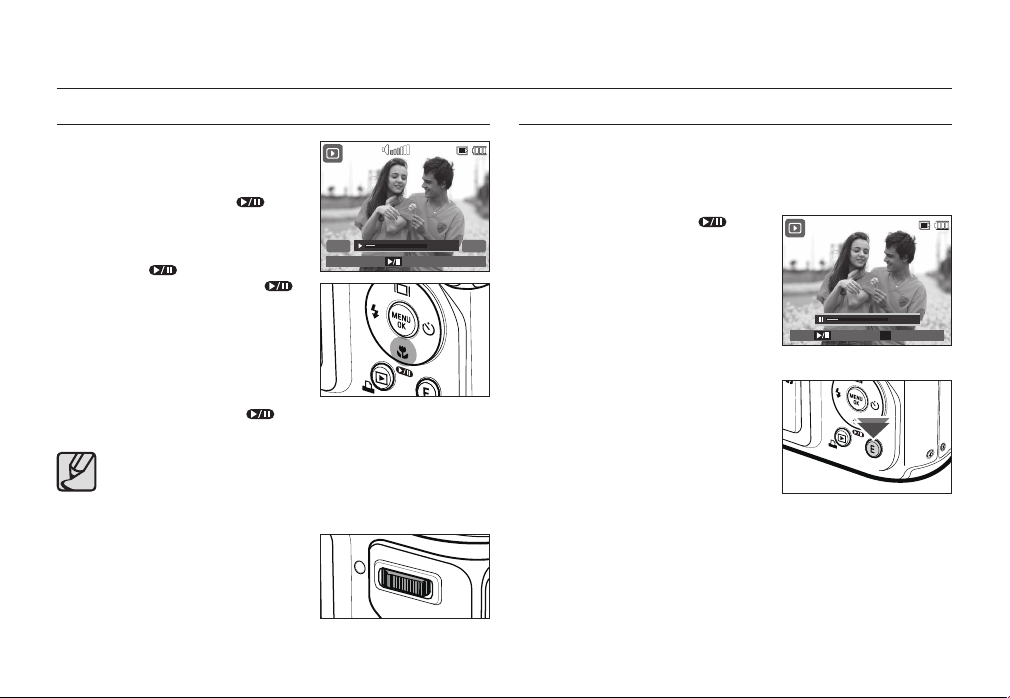

Starting play mode

100-0010

Playing back a movie clip

1. Select the recorded movie clip that you want to play back by using the

Left/Right button.

2. Press the Play & Pause (

to playback a movie clip ﬁ le. – To pause a movie clip ﬁ le while

playing it back, press the Play & Pause (

– Pressing the Play & Pause (

) button again.

button again will cause the movie clip ﬁ le to restart.

– To rewind the movie clip while it is

playing, press the Left button. To fast forward the movie clip, press the Right button.

– To stop playback of the movie clip,

press the Play & Pause ( Right button.



Video ﬁ les (H.264 (MPEG4.AVC)) recorded with another camera cannot be played back.



How to Control Volume While Playing Back Movie clip

Press the command lever on the left while a video is playing to turn down the volume. Press the command lever on the right to turn up the volume.



Even though voice memo, movie clip, voice recording is playing, you can control the volume.

056

) button

◄

REW

)

) button, and then press the Left or

100-0010

00:00:05

Pause

Movie clip capture function

You can capture still images from the movie clip.



How to capture the movie clip

1. Press the Play & Pause ( ) button

FF ►

while playing the movie clip. Then press the E button.

2. The paused movie clip is saved in a new ﬁ le name.



The captured movie clip ﬁ le is the same size as the original movie clip (1280x720, 640x480, 320x240).



When you press the E button at the beginning of the movie clip, the ﬁ rst frame of the movie clip will be saved as a still image.

100-0010

00:00:06

Capture

Play

Page 58

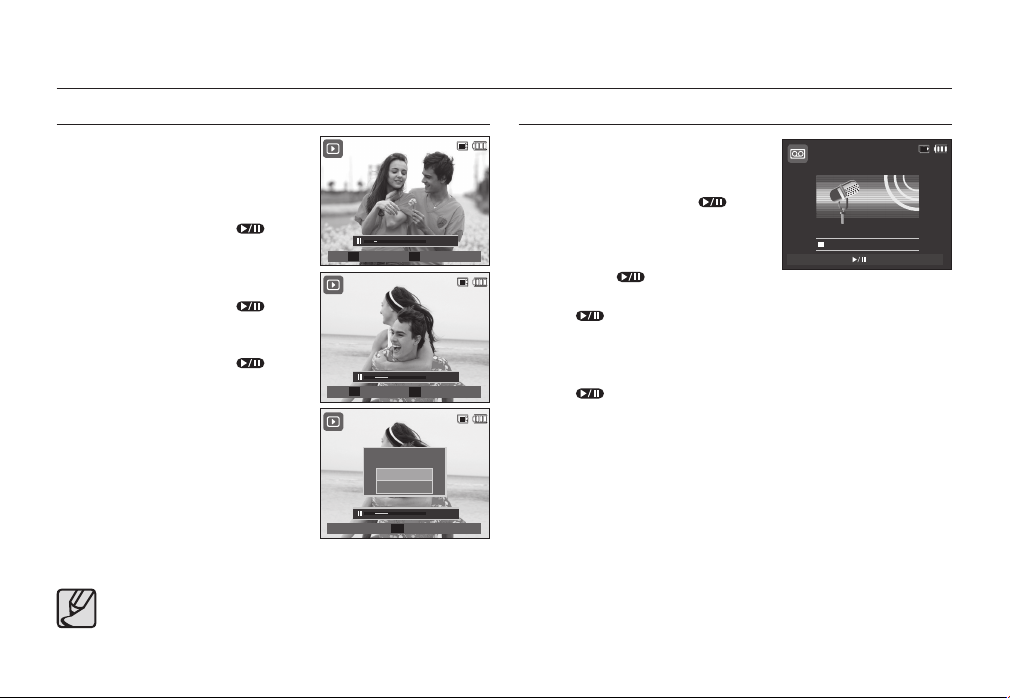

Starting play mode

100-0010

100-0017

On camera movie trimming

You can extract desired frames of movie clip during the movie clip play back. If the running time is under 10 seconds, the movie clip can’t be trimmed.

1. Press the Play & Pause ( ) button at the point of the movie clip where you want to start extracting.

2. Press the Zoom T Lever.

3. Press the Play & Pause (

) button and the extracted range will be displayed on the status bar.

4. Press the Play & Pause (

) button once more at the point where you wish the extracted ﬁ le to stop.

Move the Zoom T lever to display a

window that prompts you to check if the video has been extracted.

6. Select a desired sub menu by pressing the Up/Down button and press the OK button. [No]: The movie trimming will be

cancelled.

[Yes]: The extracted frames are saved as a new ﬁ le name.



If you don’t specify the ending point of the movie clip, the trimming conﬁ rmation window will be displayed at the point of the last frame.

Trim

100-0010

100-0017

Trimming?

No Yes

Conﬁ rm

00:00:08

Capture

00:00:14

Capture

00:00:14

Playing back a recorded voice

1. Select the recorded voice that you want to play back by using the Left/Right button.

2. Press the Play & Pause ( to play back a recorded voice ﬁ le.

– To pause a recorded voice ﬁ le, while

playing it back, press the Play & Pause (

) button again.

– To resume playback of the voice ﬁ le, press the Play & Pause

(

) button

– To rewind the voice ﬁ le while it is playing, press the Left button.

To fast forward the voice ﬁ le, press the Right button.

– To stop playback of the voice memo, press the Play & Pause

(

) button and then press the OK button.

) button

100-0017

00:02:51

Play

057

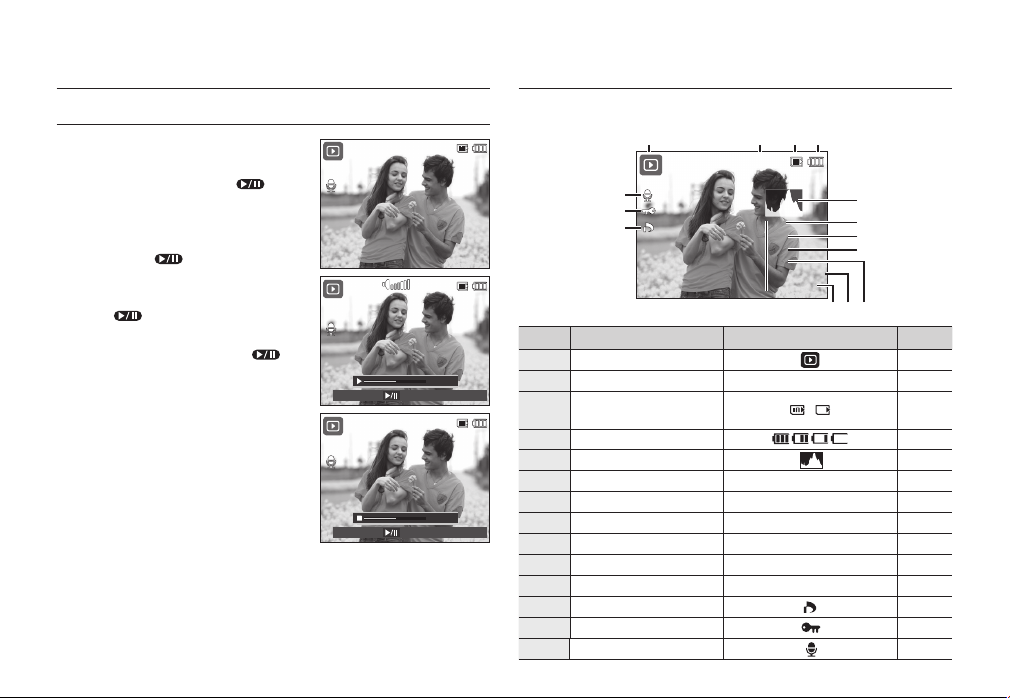

Page 59

Starting play mode

100-0010

3648X2736 2009/01/01

1/45 Off

80 F 3.3

SIZE

DATE

FLASH

ISO

AVAV

100-0010

Playing back a voice memo

1. Select a still image that has the voice memo.

2. Press the Play & Pause ( ) button to play back the voice memo.

– To pause the voice memo, while

playing it back, press the Play & Pause (

– To resume playback of the voice

memo, press the Play & Pause (

– To stop playback of the voice memo,

press the Play & Pause ( ) button and then press the OK button.

058

) button again.

) button.

100-0010

00:00:06

Pause

100-0010

00:00:06

Play

LCD monitor Indicator

The LCD monitor displays shooting information about the displayed image.

No. Description Icon Page

Folder name & File name

Memory card icon indicator

1234

100-0010

$ # @

ISO

FLASH

SIZE

DATE

80 F 3.3 1/45 Off 3648X2736 2009/01/01

Playback mode

100-0010

Internal memory icon/

Battery

Histogram

ISO

Aperture value

Shutter speed

Flash

Image size

Recording date

80 ~ 3200

F 3.3 ~ 13.1

16 ~ 1/1500

On/Off

3648x2736 ~ 320X240

2009/01/01

DPOF

Protect

Voice Memo

5 6

7 8

90!

p.55 p.85

p.15 p.31 p.43 p.44 p.44

p.34~35

p.40 p.82

p.75~77

p.74 p.72

Page 60

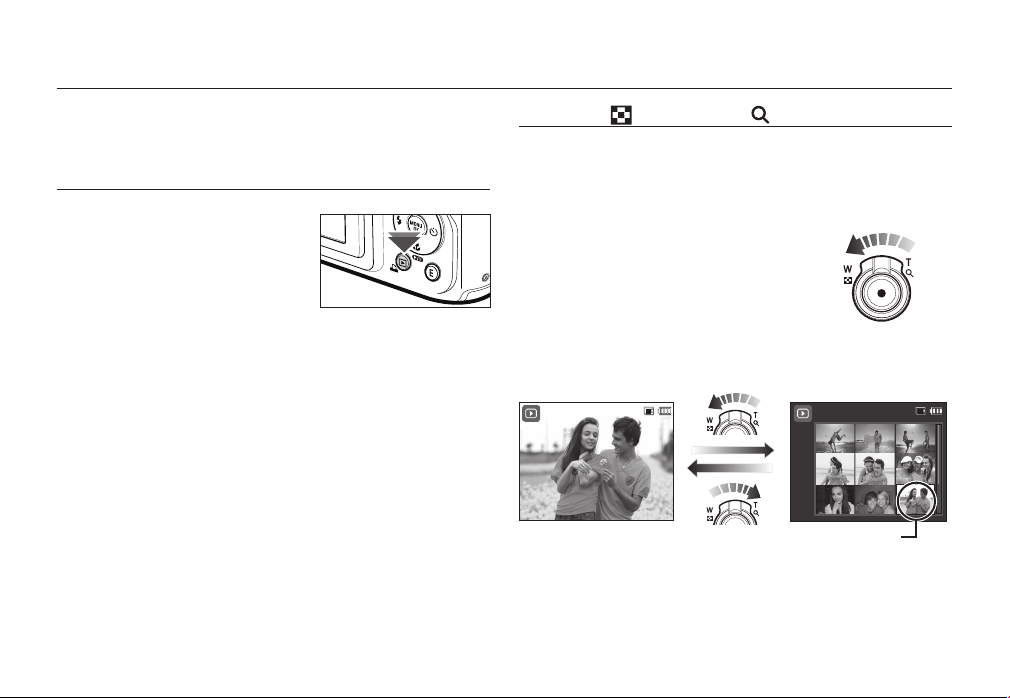

Using the camera buttons to set the camera

100-0010

778

100-0010

11223

44556

In Play mode, you can use the buttons on the camera to conveniently set up the Play mode functions.

Play mode button



If you have turned on the camera by pressing the POWER button, you can press the Play mode button once to switch to Play mode and press it again to switch to Recording mode.



You can turn the power on with the Play mode button. The camera is turned on in play mode. Press the Play mode button again to turn off the camera.



Manner mode: To select the Manner mode, press the Play mode

button for more than 3 seconds. In the Manner mode, Operating sound, Effect sound, Start-up sound and Shutter sound will not be generated. To cancel the Manner mode, turn on the camera by pressing the POWER button.

Thumbnail( )/Digital Zoom( ) Lever

You can view multiple pictures, enlarge a selected picture, and crop and save a selected area of an image.



Thumbnail display

1. Once a picture has been played back, move

2. The thumbnail display will highlight the

3. Press the 5 function button to move to a desired image.

4. Move the Digital Zoom lever to the right to return to the picture

the Thumbnail lever to the left.

image that had been showing at the time the thumbnail mode was selected.

playback state.

100-0010

Highlighted image <Thumbnail display mode>

059

Page 61

Using the camera buttons to set the camera

x 2.1



Image enlargement

1. Select the picture you want to enlarge and move the Digital Zoom lever to the right. Then the selected picture will be digitally enlarged.



The maximum enlargement rate in proportion to the image size

Image size

Maximum

enlargement rate

X11.40 X10.10 X9.60 X9.50 X8.10 X6.40 X3.20

2. Different parts of the image can be viewed by pressing the 5 function button.

x 2.1

3. Move the Thumbnail lever to the left to return the enlarged picture to its original size.

– You can tell whether the image

displayed is an enlarged view by checking the image enlargement indicator shown at the top left of the LCD monitor. (If the image is not an enlarged view, the indicator will not be displayed.) You can also

check the area of enlargement. – Movie clips and WAV ﬁ les can’t be enlarged. – If an image is enlarged, a loss of quality may occur.

060



Trimming: You can extract part of the image that you want and save it separately.

1. Select an image that you want to enlarge and press the enlargement button. Press the OK button and a

Trim

message will be displayed.

2. Select a desired sub menu by pressing the Up/Down button and press the OK button. – [No]: The trimming menu will disappear. – [Yes]: The trimmed image will be saved as a new ﬁ le name, and

appear on the LCD monitor.



If there is not enough memory space to save the trimmed image, the image can’t be trimmed.

Trimming?

Yes

Conﬁ rm

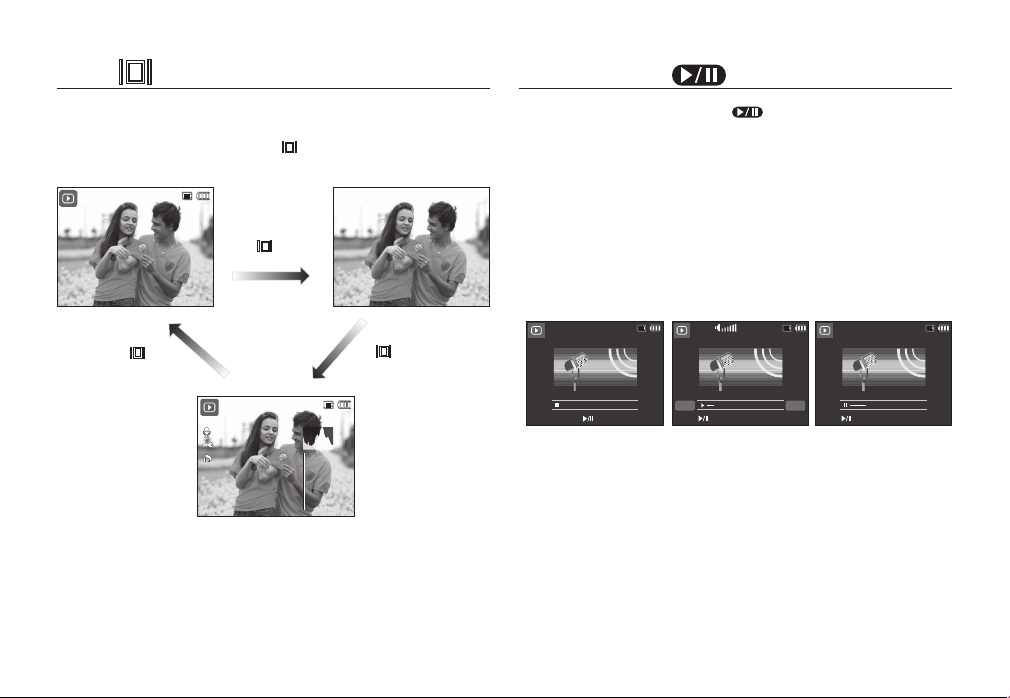

Page 62

Info ( ) / Up button

100-0010

3648X2736 2009/01/01

1/45 Off

80 F 3.3

SIZE

DATE

FLASH

ISO

AVAV

100-0010

100-0017

When the menu is displayed on the LCD monitor, the Up button operates as a direction button. When the menu is not displayed on the LCD monitor, pressing the Info( ) button will display image information on the LCD monitor.

100-0010

Info ( ) button

Play & Pause ( ) / Down button

In Play mode, the Play & Pause ( )/ Down button works as follows:

– If the menu is displayed

Press the Down button to move from the main menu to a sub menu, or to move down the sub menu cursor.

– If a still image with a voice memo, a voice ﬁ le, or a movie clip is playing

· In Stop mode: Plays a still image with a voice memo, a voice ﬁ le,

or a movie clip.

· During playback: Temporarily stops playback.

· In Pause mode: Resumes playback

Info (

) button

100-0010

ISO

F 3.3 1/45

Off

FLASH

3648X2736

SIZE

2009/01/01

DATE

Info (

) button

100-0017

00:02:51

Play

◀

100-0017

00:00:05

REW

Pause

FF ▶

Stop

100-0017

00:00:12

Play

StopOK

061

Page 63

Left / Right / MENU / OK button

100-0010

Left/Right/MENU/OK button activate the following.

– Left button: While the menu is showing, the Left button operates as a

– Right button: While the menu is showing, the Right button operates as

– MENU button: When you press the MENU button, the play mode menu

– OK button: When the menu is displayed on the LCD monitor, the OK

direction button. While the menu is not showing, press the Left button to select the previous image.

a direction button. While the menu is not showing, press the Right button to select the next image.

will be displayed on the LCD monitor. Pressing it again will return the LCD to the initial display.

button is used for conﬁ rming data that is changed by using the 5 function button.

Print ( ) button

When the camera is connected to a PictBridge printer, you can print images by pressing the Print button.

100-0010

Print Menu

062

Delete ( ) button

This deletes images stored on the memory card. By activating the Recycle Bin function (p.84) you can restore deleted photos.

1. Select an image that you want to delete by pressing the Left/Right button and press the Delete button.

100-0010

Delete?

Yes

Conﬁ rm

Select

2. Press the Zoom T lever to add an image to be removed. – Left/Right button: Selects images – Zoom T Lever: Checks for deletion – OK button: Deletes the selection

3. Select the submenu values by pressing the Up/Down button and then press the OK button. – If [No] is selected: Cancels “Delete Image”. – If [Yes] is selected: Deletes the selected images.

Delete?

7 8

Prev ◄► Next

Select

100-0010

Yes

Conﬁ rm

100-0010

Delete

Page 64

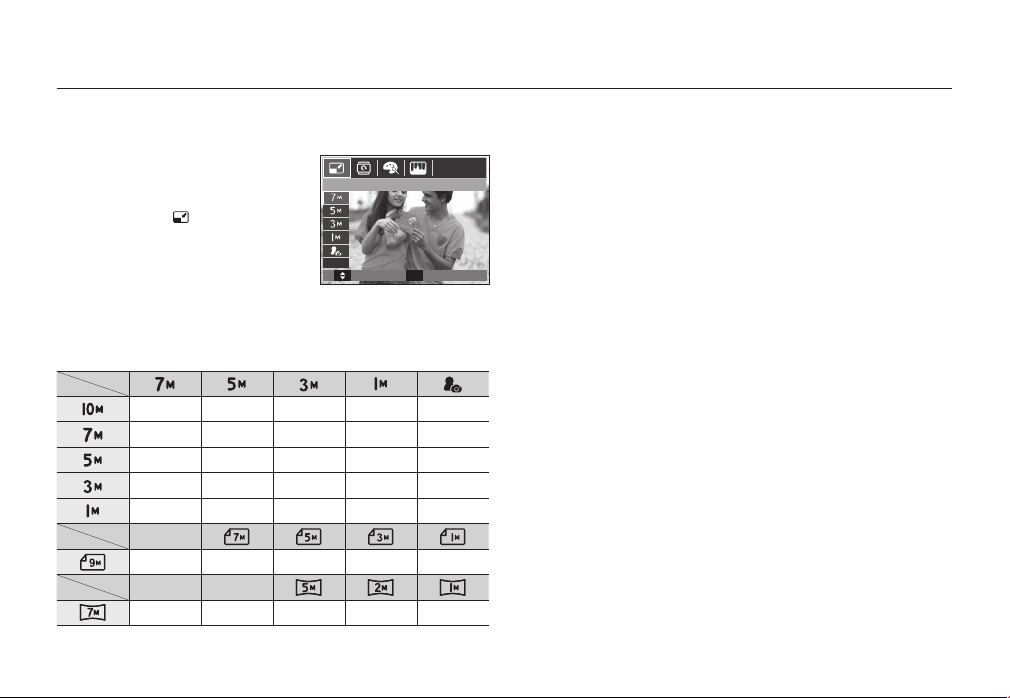

E (Effect) button: Resize

RESIZE

Change the resolution (size) of pictures taken. Select [Start image] to save an image to be the start-up image.

1. Press the Play mode button and press the E button.

2. Press the Left/Right button and select the [RESIZE] (

) menu tab.

3. Select a desired sub menu by pressing the Up/Down button and press the OK button.



Image Resize Types (: Selectable)





RESIZE

Move

Exit









– A large sized image can be resized to a smaller sized image, but not

vice versa.

– Only JPEG images can be resized. Movie clip (H264), Voice recording

(WAV) ﬁ les can’t be resized.

– You can change the resolution of only those ﬁ les compressed in the

JPEG 4:2:2 format.

– The resized image will have a new ﬁ le name. The [Start Image] image

is stored not on the memory card but on the internal memory.

– If a new user image is saved, one of the two user images will be deleted

in order.

– If the memory capacity is insufﬁ cient to store the resized image, a

[Memory Full!] message will appear on the LCD monitor and the resized image can’t be stored.

063

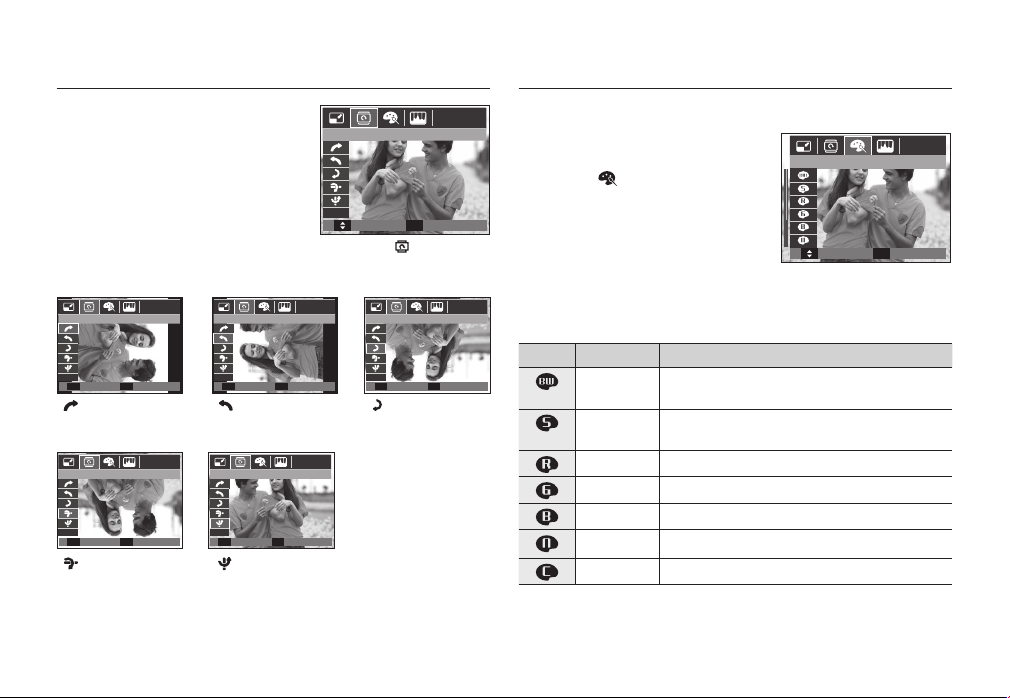

Page 65

E (Effect) button: Rotating an image

ROTATE

Right 90˚

Left 90˚

180˚

Horizontal

Vertical

Color

You can rotate the stored images by various degrees. Once the playback of the rotated picture is ﬁ nished, it will switch back to the original state.

1. Press the Play mode button and press the E button.

2. Press the Left/Right button and select the [ROTATE] (

3. Select a desired sub menu by pressing the Up/ Down button.

Right 90˚

Back

Set

< : Right 90˚>: Rotate picture in a clock-

wise direction

Horizontal

Set

: Horizontal>:

Back

Rotate picture horizontally



If you display the rotated image on the LCD monitor, empty spaces may

Left 90˚

Set

: Left 90˚>:

Rotate picture in a counterclockwise direction

Vertical

Set

: Vertical>:

Rotate picture vertically

appear to the left and right of the image.

064

RO TATE

Move

Exit

) menu tab.

180˚

Back

< : 180˚>: Rotate picture 180

degrees

Back

Set

E (Effect) button: Colour

It is possible to add colour effects to your images by using this button.

1 Press the Play mode button and press

the E button.

2. Select (

) menu tab by pressing the

Left/Right button.

3. Select a desired sub menu by pressing the Up/Down button and press the OK button.

Icon Effect Mode Description

B/W

Sepia

Red

Green

Blue

Negative

Custom Color

Captured images will be stored in black and white.

Captured images will be stored in a sepia tone (a gradient of yellowish brown colours).

Captured images will be stored in a red tone.

Captured images will be stored in a green tone.

Captured images will be stored in a blue tone.

Save the image in negative mode.

Captured images will be stored in set RGB tone.

4. The changed image is saved as a new ﬁ le name.

Color

Move

Exit

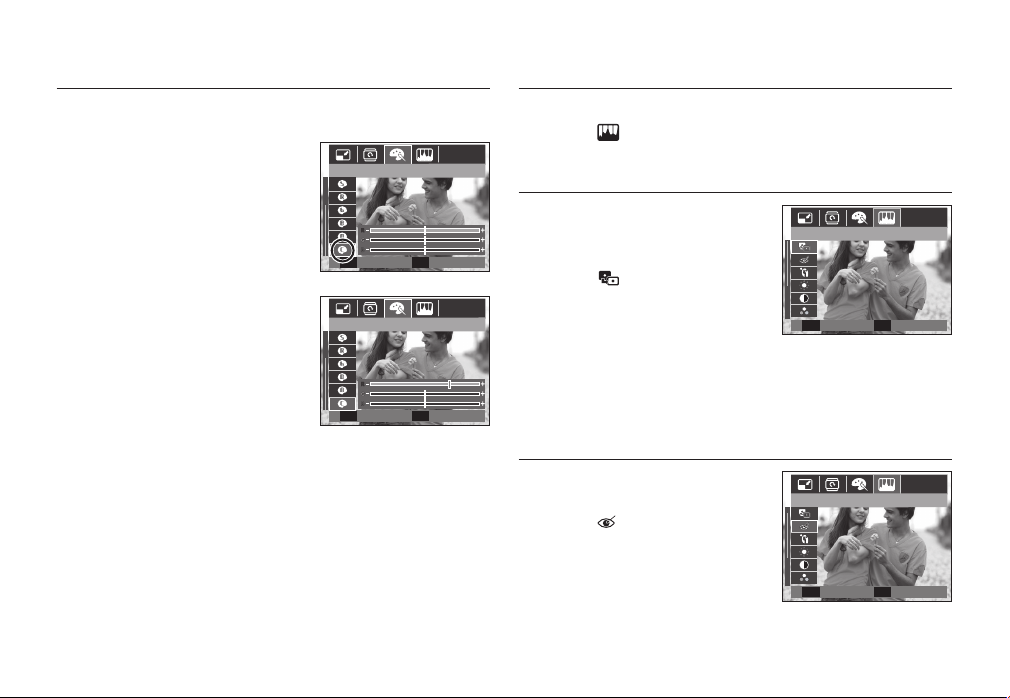

Page 66

E (Effect) button: Colour E (Effect) button: Image editing

Custom Color

ACB

Red Eye Fix



Custom colour

You can change the R(Red), G(Green) and B(Blue) values of the image.

– OK

button

: Selects / sets up the Custom

Colour – Up/Down button: Selects R, G, B – Left/Right button: Changes the values

Custom Color

◄►

Move

Custom Color

Set

1. Press the Play button and press the E button.

2. Select (

) menu tab by pressing the Left/Right button.

ACB

You can automatically adjust the brightness of the dark area, caused by under exposure to the light source.

1. Select ( ) by pressing the Up/Down button and press the OK button.

2 The [Processing!] message is displayed

and the image is saved as a new ﬁ le name

ACB

Set

Back

◄►

Move

Set

Red eye removal

Red eye effect can be removed from the captured image.

1. Select ( ) by pressing the Up/Down button and press the OK button.

2 The [Processing!] message displays

and the image is saved as a new ﬁ le name

Red Eye Fix

Set

Back

065

Page 67

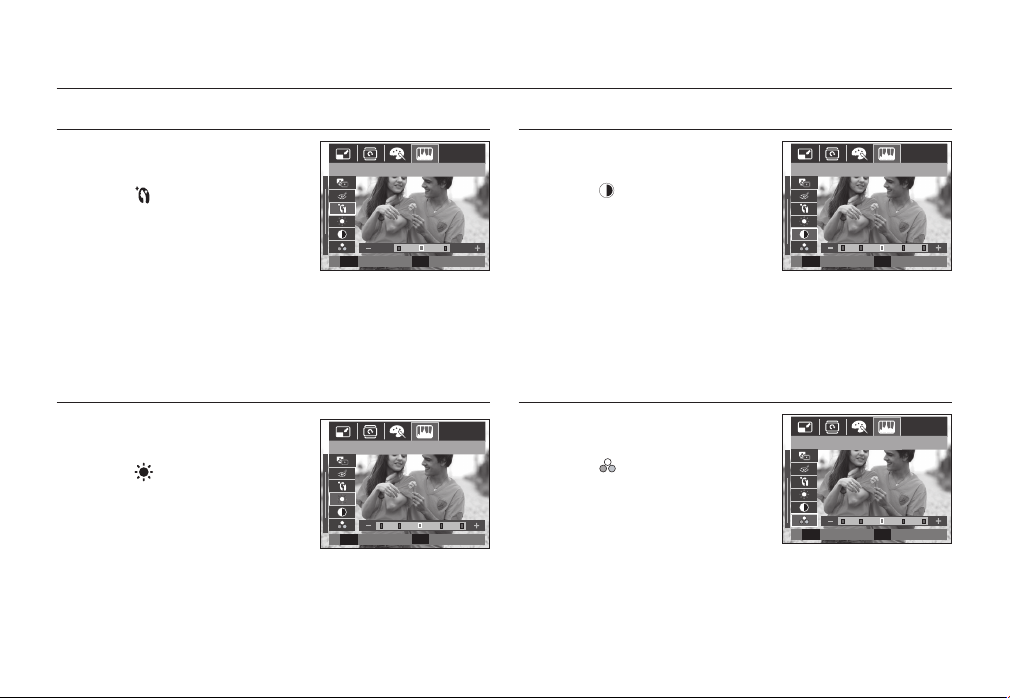

E (Effect) button: Image editing

Brightness

Contrast

Face Retouch

Saturation

Face Retouch

When you recorded a person, you can retouch the subject’s face.

1. Select ( ) by pressing the Up/Down button and a bar for selecting the [Face Retouch] will be displayed.

2. Change the Face Retouch by pressing the Left/Right button.

3. Press the OK button and the image will be saved as a new ﬁ le name.

Brightness control

You can change the brightness of the image.

1. Select ( ) by pressing the Up/Down button and a bar for selecting the brightness will be displayed.

2. Change the brightness by pressing the Left/Right button.

3. Press the OK button and the image

will be saved as a new ﬁ le name.

066

Face Retouch

Set

Brightness

◄►

Move

Contrast control

You can change the contrast of the image.

1. Select ( ) by pressing the Up/Down button and a bar for selecting the contrast will be displayed.

EOK

Back

2. Change the contrast by pressing the Left/Right button.

3. Press the OK button and the image

will be saved as a new ﬁ le name.

Contrast

◄►

Move

Set

Saturation control

You can change the saturation of the image.

1. Select ( ) by pressing the Up/Down button and a bar for selecting the saturation will be displayed.

Set

2. Change the saturation by pressing the Left/Right button.

3. Press the OK button and the image

will be saved as a new ﬁ le name.

Saturation

◄►

Move

Set

Page 68

E (Effect) button: Image editing

Add Noise

Noise effect

You can add noise to an image to add a more classic feel to your photo.

1. Select ( ) by pressing the Up/Down button and press the OK button.

2 The [Processing!] message is displayed

and the image is saved as a new ﬁ le name

Add Noise

Set

Using the remote control in play mode

You can play the movie clip and images by remote control.

Button for moving up : move to the previous thumbnail page.

Back

Button for moving left/right : You can move to the left/right

image in the thumbnail screen.

Play/Pause button : play or pause voice memo,

Button for moving down : move to the next thumbnail page.

Enlargement button : Enlarge the images.

Play mode button : Play the images or movie clip.

Thumbnail button : display images into 9 thumbnail images.

※ See page 38 about using the remote control in recording mode.

voice recording, movie clip or images.

067

Page 69

Setting up the play back function using the LCD monitor

Play mode functions can be changed by using the LCD monitor. In the Play mode, pressing the MENU button displays the menu on the LCD monitor. The menus you can set up in Play mode are as follows. To capture an image after setting up the play menu, press the Play mode button or Shutter button.

Menu Tab Main Menu Sub Menu Sub Menu Page

Show Start Play/Repeat Play - p.69

All -

Smart Album

Off/Calm/Sweet/Rural/

Vivid/Lively/Shine/Relax

Off/Mist/Muse/Fall/Dawn/

Party/Drops/Trip

Off On Off On -

Select

All

Unlock/Lock

p.70

p.71

p.72

p.72~

p.74

MULTI

SLIDE

SHOW

(

PLAY BACK (

Images

Effect

)

Interval 1, 3, 5, 10sec -

Music

Voice Memo

Smart Album

)

Protect

Menu Tab Main Menu Sub Menu Sub Menu Page

Delete

PLAY BACK ( )

DPOF

Copy To Card No Yes - p.78

This menu is available while the camera is connected to a PictBridge supporting printer (direct connection to the camera, sold separately) with a USB cable.

Menu Tab Main Menu Sub Menu Sub Menu Page

Images One Pic All Pics -

Size

Letter A4 -

Layout

Index - -

Select -

All Yes/No

Standard

Index No/Yes

Size

Auto Postcard Card 4X6

L2L -

A3 - -

Auto Full -

12 4 9

Select/All Pics/Cancel

16 -

p.75

p.75~

p.89

068

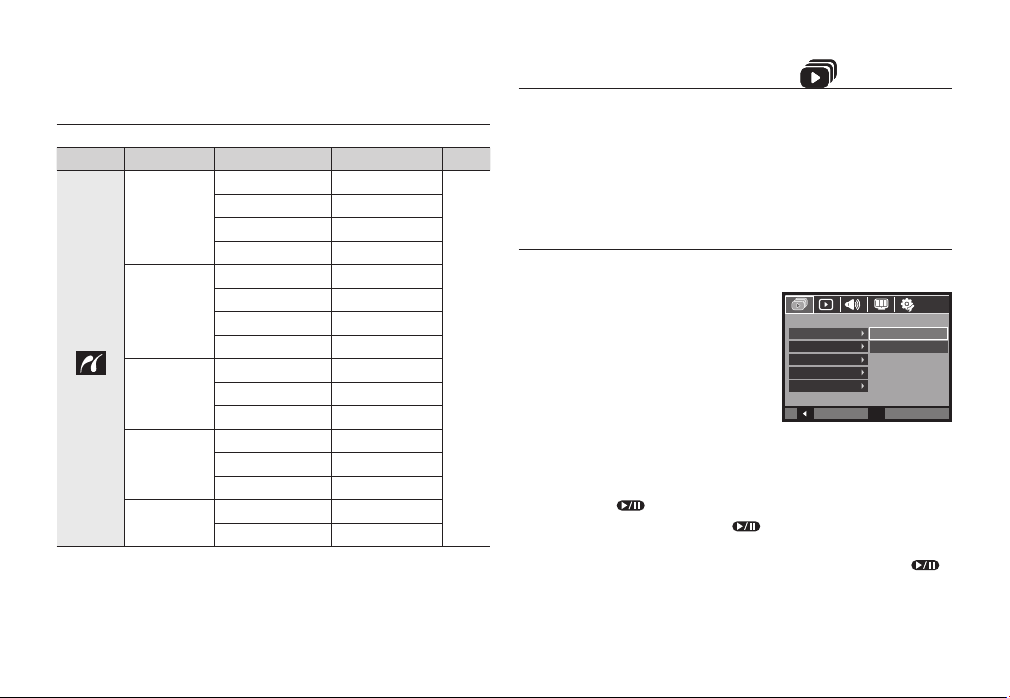

Page 70

Setting up the play back function using the LCD monitor

Menu Tab Main Menu Sub Menu Sub Menu Page

Auto -

Type

Quality

Date Print

File Name

Reset



Menus are subject to change without prior notice.

Plain -

Photo -

FastPhoto

Auto

Draft -

Normal -

Fine Auto -

Off On -

Auto -

Off On -

No -

Yes -

p.89

Starting the slide show ( )

Images can be displayed continuously at pre-set intervals. You can view the slide show by connecting the camera to an external monitor.

1. Press the Play mode button and press the MENU button.

2. Press the Left/Right button and select the [MULTI SLIDE SHOW]

menu tab.

Start the slide show

The slide show can start only in the [Show Start] menu.

1. Use the Up/Down button to select the [Show Start] menu and press the Right button.

2. Select a desired sub menu by pressing the Up/Down button. [Play]: The slide show is closed after

one cycle.

[Repeat Play]: The slide show is

3. Press the OK button and the slideshow will be started. – To pause the slide show while playing it back, press the Play &

Pause (

– Pressing the Play & Pause (

show to restart.

– To stop playback of the slide show, press the Play & Pause ( )

button, and then press the OK button.

repeated until cancelled.

) button again.

MULTI SLIDE SHOW Show Start Images Effect Interval Music

) button again will cause the slide

Back

Play Repeat Play

Set

069

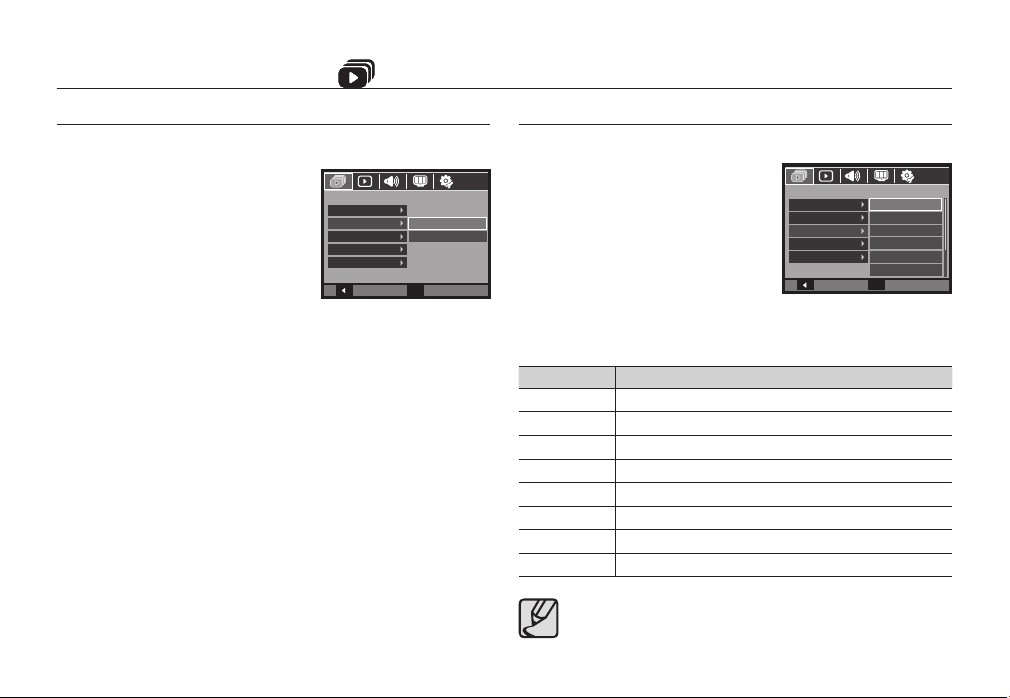

Page 71

Starting the slide show ( )

Selecting Images

You can select image to view.

1 Use the Up/Down button to select the

[Images] menu and press the Right button.

2. Select a desired sub menu by pressing the Up/Down button. [All]: All images saved in the Memory

are played back.

[Smart Album]: Images are played back

depending on the category of [Smart Album].

3. Press the OK button and the settings are saved.

070

MULTI SLIDE SHOW Show Start Images Effect Interval Music

Back

All Smart Album

Set

Conﬁ gure slide show effects

Unique screen effects can be used for the slide show.

1. Select the [Effect] sub menu by pressing the Up/Down button and press the Right button.

2. Use the Up/Down button to select the type of effect.

3. Press the OK button to conﬁ rm the setting.

– When the effect is selected, the background music is changed according

to the default setting of the effect.

Effect Description

Off No background music.

Calm Background music is set to [Mist].

Sweet Background music is set to [Muse].

Rural Background music is set to [Fall]. Vivid Background music is set to [Dawn].

Lively Background music is set to [Party]. Shine Background music is set to [Drops]. Relax Background music is set to [Trip].



You can change the desired music for each effect.

MULTI SLIDE SHOW Show Start Images Effect Interval Music

Back

Off Calm Sweet Rural Vivid Lively

Set

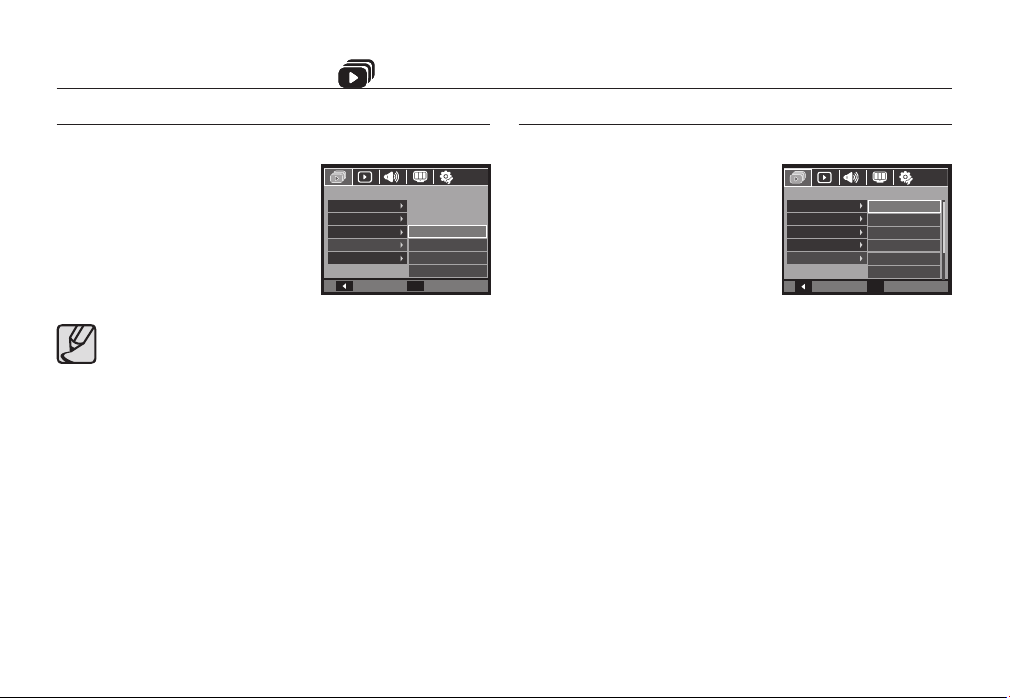

Page 72

Starting the slide show ( )

Setting play interval

Set the slide show play interval.

1. Select the [Interval] sub menu by pressing the Up/Down button and press the Right button.

2. Use the Up/Down button to select the desired interval.

3. Press the OK button to save the conﬁ guration.



The loading time depends on the image size and quality.



While the slide show is playing, only the ﬁ rst frame of a movie ﬁ le is displayed.



While the slide show is playing, the voice recording ﬁ le will not display.



[Interval] is available when the effect is set to [Off], [Calm], [Sweet] in the slide show. It is unavailable when the effect is set to [Rural], [Vivid], [Lively], [Shine], [Relax] in the slide show.

MULTI SLIDE SHOW Show Start Images Effect Interval Music

Back

1sec 3sec 5sec 10sec

Setting Background Music

Set the slide show music.

1. Select the [Music] sub menu by pressing the Up/Down button and press the Right button.

2. Use the Up/Down button to select the desired Music.

Set

3. Press the OK button to save the conﬁ guration.

[Off]: Background music is not played back. [Mist], [Muse], [Fall], [Dawn], [Party], [Drops], [Trip]: Selected music is played back.

MULTI SLIDE SHOW Show Start Images Effect Interval Music

Back

Off Mist Muse Fall Dawn Party

Set

071

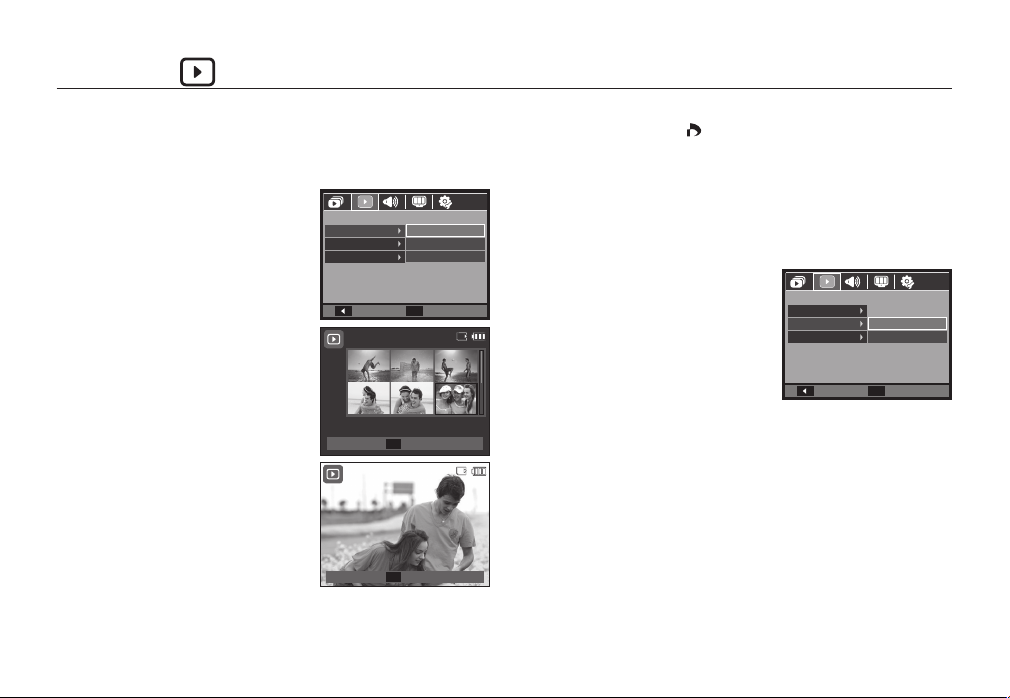

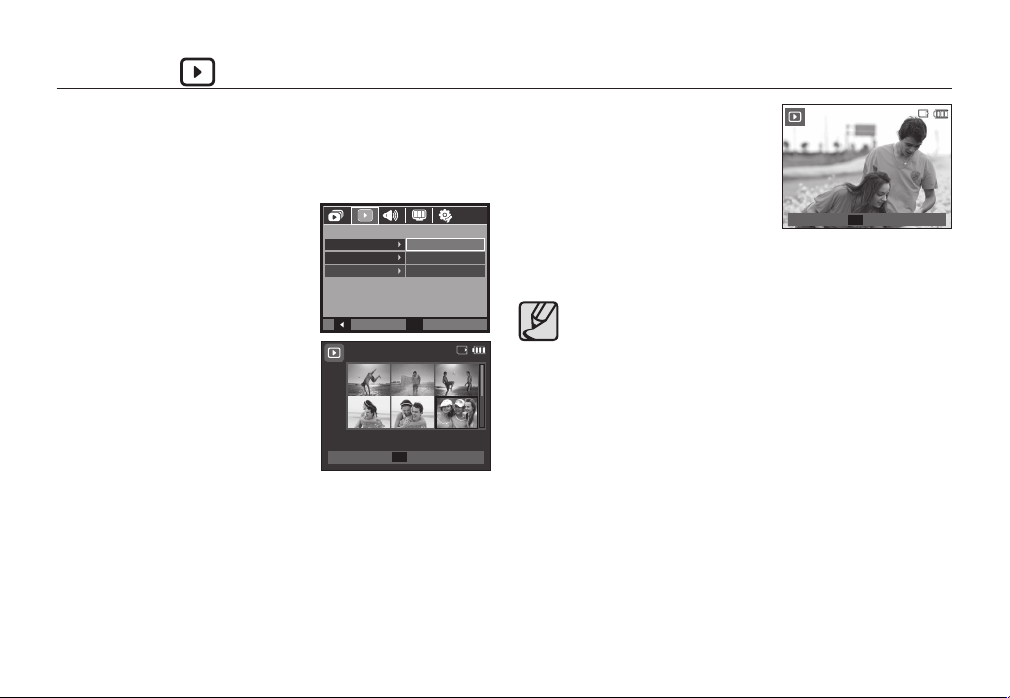

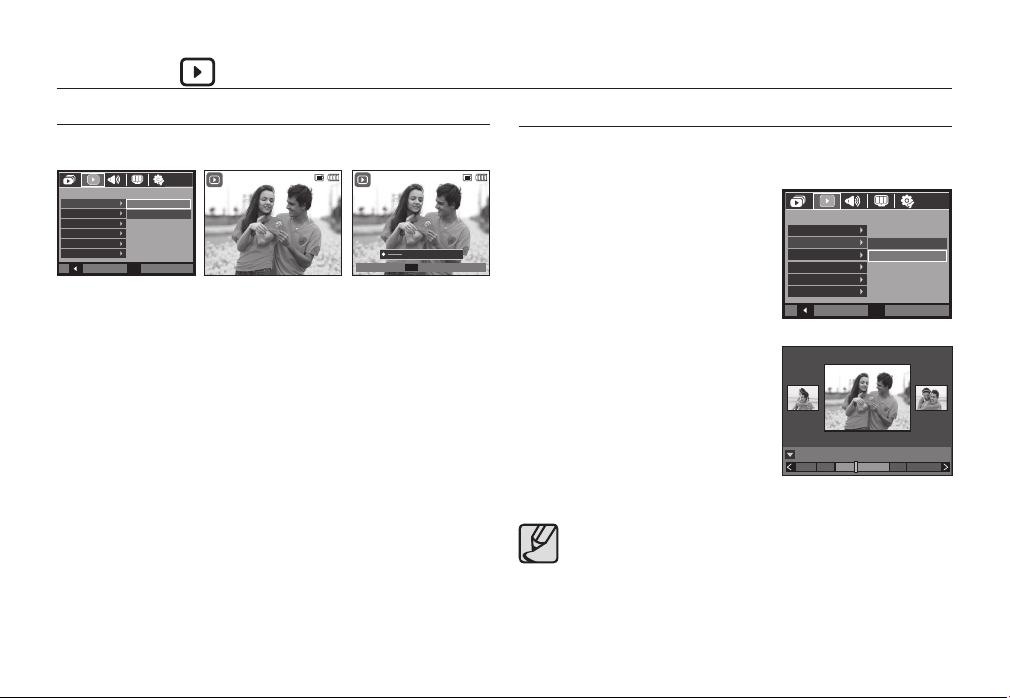

Page 73

Playback ( )

100-0010

Start : Shutter

100-0010

Voice memo

You can add your voice to a stored still image.

100-0010

PLAYBACK Voice Memo Smart Album Protect Delete DPOF Copy To Card

Back

Off On

Set

Start : Shutter

–

Press the Shutter button to take a picture. The images are saved on the memory. After saving the image, the voice is recording for 10 seconds.

– To stop the recording, press the Shutter button.

072

100-0010

Stop

00:00:06

Smart Album

You can easily categorize or search a large amount of content such as pictures and videos.

1. Press the Up/Down button to select the [Smart Album] menu. Press the Right button.

2. Press the Up/Down button to select [On].



In [Smart Album], [On] is the default

value.

3. Press the Play mode button to switch to playback mode.

4. Move the Zoom W/T lever to the left to move to the Smart Album window.

5. Each time you press the Down button, you can move to another category.

6. Press the Left/Right button to move to the previous or next ﬁ le.

- As the display bar moves, the target

image is displayed.



When [Smart Album] mode runs ﬁ rstly, it may take few minutes depends on recorded data numbers. But it is not a malfunction please wait until smart album screen appears.



If the memory card is not inserted, [Smart Album] function will not operate.

PLAYBACK Voice Memo Smart Album Protect Delete DPOF Copy To Card

Back

Date

2009/01/01

1 21511 5

Off On

Set

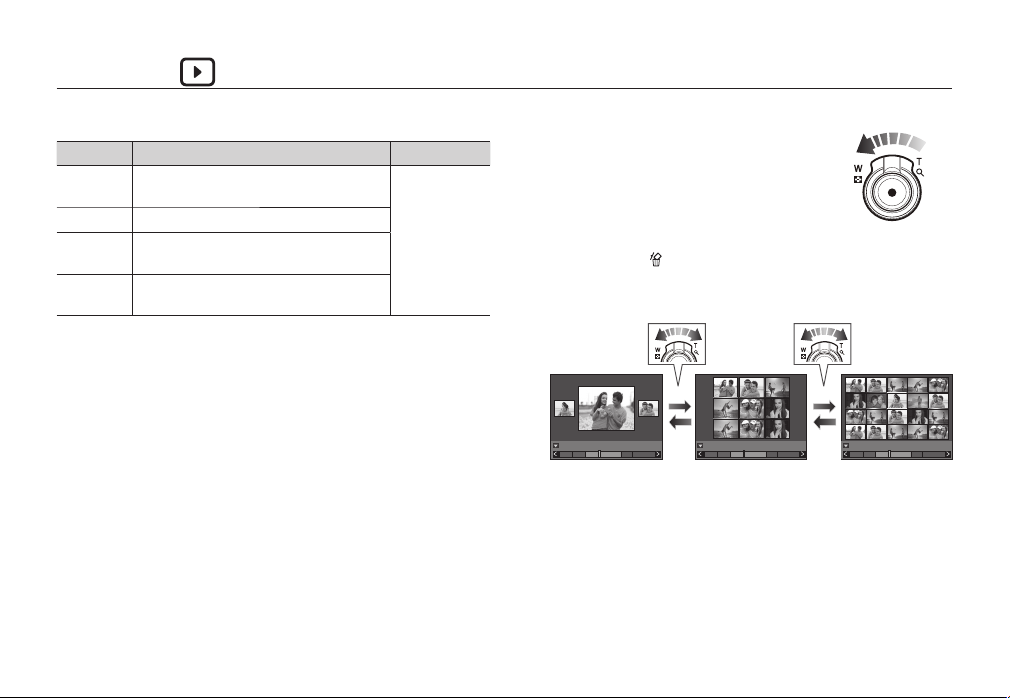

Page 74

Playback ( )



Details of Each Category

Category Description File Format

Categorized depending on the sequence of

Date

recorded dates.

Colour Categorized depending on the main color.

Week

Categorized depending on the sequence of recorded weeks.

Categorized depending on the ﬁ le type

Type

(e.g., picture, video, or voice)

Pictures, Videos, voice



Searching or Deleting Files

1. Move the Thumbnail lever to the left in the Smart Album window.

2. Each time you move the Thumbnail lever to the left, the ﬁ les in a category are displayed in the 9-tumbnail or 20-tumbnail window.

3. Select the ﬁ le by pressing the Up/Down/Left/Right buttons.

4. Press the Delete(

2009/01/01

Date

) button to delete the selected ﬁ le.

1 21511 5

Date

<9-Thumbnail Window>

2009/01/01

1 21511 5

<20-Thumbnail Window>

2009/01/01

Date

1 21511 5

073

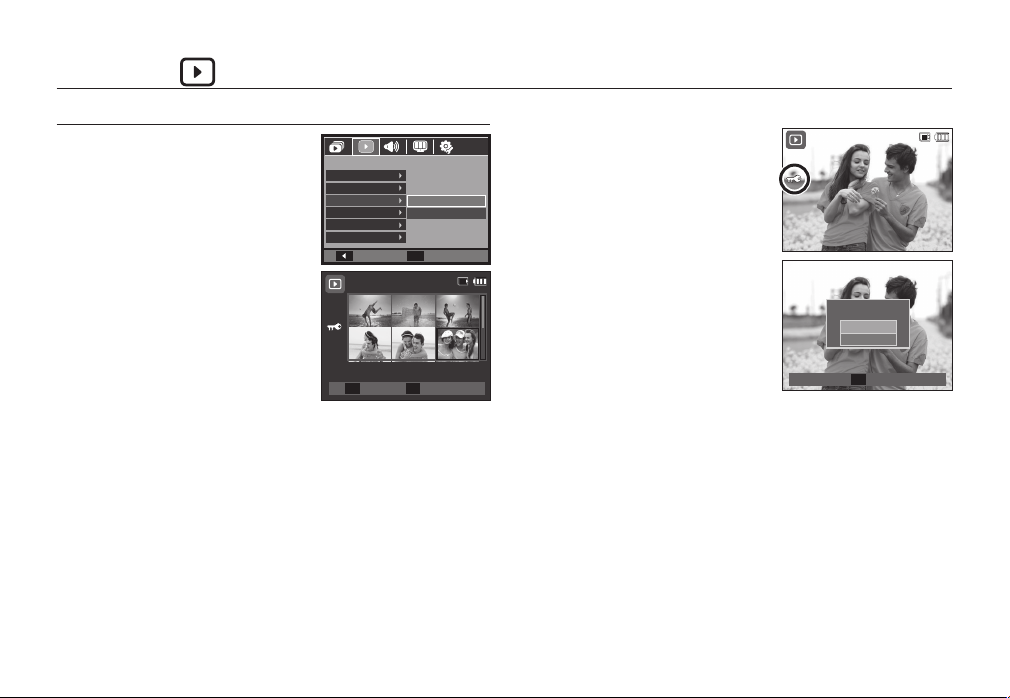

Page 75

Playback ( )

100-0010

11223

44556

Protecting images

This is used to protect speciﬁ c shots from being accidentally erased (Lock). It also unprotects images that have been previously protected (Unlock).

1. Press the Up/Down button and select the [Protect] menu tab. And then press the Right button.

Select a desired sub menu by pressing the Up/Down button and press the OK button.

[Select]:

Selection window for an image to be protected / released is displayed.

– Up/Down/Left/Right button:

Select an image.

–

Zoom T/W Lever: Protect / release the image.

– OK button: Your changes will be saved and the menu will disappear. [All]: Protect / release all saved images.

074

PLAYBACK Voice Memo Smart Album Protect Delete DPOF Copy To Card

Back

Lock

T/W

Select All

Set

100-0010

Set

– If you protect an image, the protect

icon will be displayed on the LCD

100-0010

monitor. (An unprotected image has no indicator)

– An image in Lock mode will be

protected from the delete function or [Delete] functions, but will NOT be protected from the [Format] function.

Protect All?

Unlock

Lock

Conﬁ rmOK

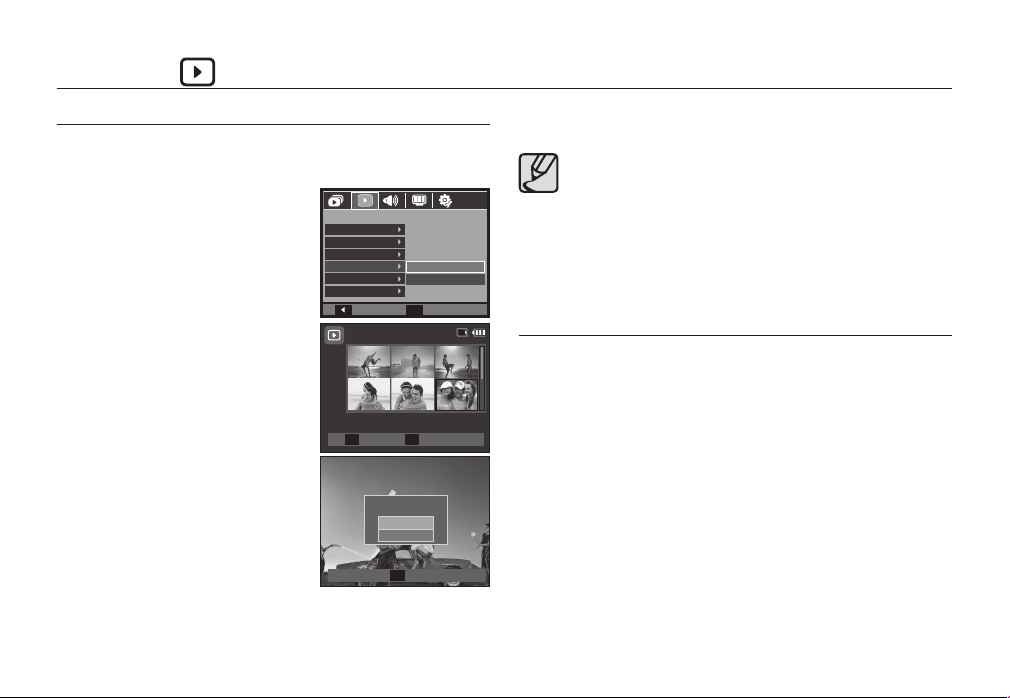

Page 76

Playback ( )

100-0010

112

445

Deleting images

This deletes images stored on the memory card. By activating the Recycle Bin function (p.84) you can restore deleted photos.

1. Press the Up/Down button and select the [Delete] menu tab. And then press the Right button.

2. Select a desired sub menu by pressing the Up/Down button and press the OK button.

[Select]: Selection window for an image

to delete is displayed.

– Up/Down/Left/Right button:

Select an image.

– Zoom T Lever: Select the image for

deletion. (V mark)

– OK button: Press the OK button to

display the conﬁ rmation message. Select the [Yes] menu and press the OK button to delete marked images.

[All]: Displays conﬁ rmation window.

Select the [Yes] menu and press the OK button to delete all unprotected images. If there are no protected images, all the images are deleted and a [No Image!] message will display.

PLAYBACK Voice Memo Smart Album Protect Delete DPOF Copy To Card

Back

Select

Select All

100-0010

Delete All?

Yes

Conﬁ rm

Set

Delete

3. After deletion, the screen will be changed to the play mode screen.



Of all the ﬁ les stored in the memory card, the unprotected ﬁ les in the DCIM subfolder will be deleted. Remember that this will permanently delete unprotected images. Important shots should be stored on a computer before deletion takes place. The startup image is stored in the camera’s internal memory (i.e., not on the memory card) and it will not be deleted even if you delete all ﬁ les on the memory card.

DPOF



DPOF(Digital Print Order Format) allows you to embed printing information on your memory card’s MISC folder. Select the pictures to be printed and how many prints to make.



The DPOF indicator will be displayed on the LCD monitor when an image that has DPOF information plays back. Images can then be printed on DPOF printers, or at an increasing number of photo labs.



This function is not available for movie clips and voice recording ﬁ les.



When the wide angle image is printed as a wide angle print, 8% of the left and right side of the image may not be printed. Check that your printer can support the wide angle image when you print the image. When you print the image at a photo lab, request that the image is printed as a wide angle image. (Some photo labs may not support the wide angle size print.)

075

Page 77

Playback ( )

00 Images

►

◄

100-0010

112

445

00 Images

►

◄



Standard

This function allows you to embed printing quantity information on a stored image.

1. Press the Up/Down button and select the [DPOF] menu tab. And then press the Right button.

2. Press the Right button again and [Standard] sub menu will be displayed.

3. Select a desired sub menu by pressing the Up/Down button and press the OK button. [Select]: Selection window for an image

to print is displayed.

– Up/Down/Left/Right button: Select

an image to print.

– Zoom T/W Lever: Select the number

of prints.

[All Pics]: Conﬁ gure number of prints for

all pictures except movie and voice ﬁ les.

– Zoom T/W Lever: Select a number

of prints.

[Cancel]: Cancel the print setup.

PLAYBACK Standard Index Size

Back

◄

Select All Pics Cancel

100-0010

00 Images

Set

00 Images

Set

►

4. Press the OK button to conﬁ rm the setting. If an image carries DPOF instructions, the DPOF (



Index

) indicator will show.

Images (except for movie clips and voice ﬁ le) are printed as index type.

1. Press the Up/Down button and select the [DPOF] menu tab. And then press the Right button.

2. Press the Right button again and [Index] sub menu will be displayed.

3. Select a desired sub menu by pressing the Up/Down button. If [No] is selected: Cancel the index

print setting.

If [Yes] is selected: The image will be printed in index format.

4. Press the OK button to conﬁ rm the setting.

PLAYBACK Standard Index Size

Back

No Yes

Set

076

Page 78

Playback ( )

100-0010

112

445

Cancel

►

◄

Cancel

►

◄



Print size

You can specify the print size when printing images stored on the memory card. The [Size] menu is available only for DPOF 1.1 compatible printers.

1. Press the Up/Down button and select the [DPOF] menu tab. And then press the Right button.

2. Press the Right button again and select the [Size] sub menu will be displayed.

3. Select a desired sub menu by pressing the Up/Down button and press the OK button. [Select]: Selection window to change

the printed size of the image is displayed.

– Up/Down/Left/Right button:

Select an image.

– Zoom T/W Lever: Change the print

size.

– OK button: Your changes will be saved and the menu will disappear.

PLAYBACK Standard Index Size

Back

◄

Select All Pics Cancel

100-0010

Cancel

Set

►

[All Pics]:

Change print size of all saved

images. – Zoom T/W Lever: Select a print size. – OK button: Conﬁ rm the changed

setting.

[Cancel]: Cancel all of the print size

Cancel

◄

►

Set

settings.



DPOF [Size] secondary menu: Cancel, 3X5, 4X6, 5X7, 8X10



Depending on the manufacturer and print model, cancelling the printing may take a little longer for the printer to process.

077

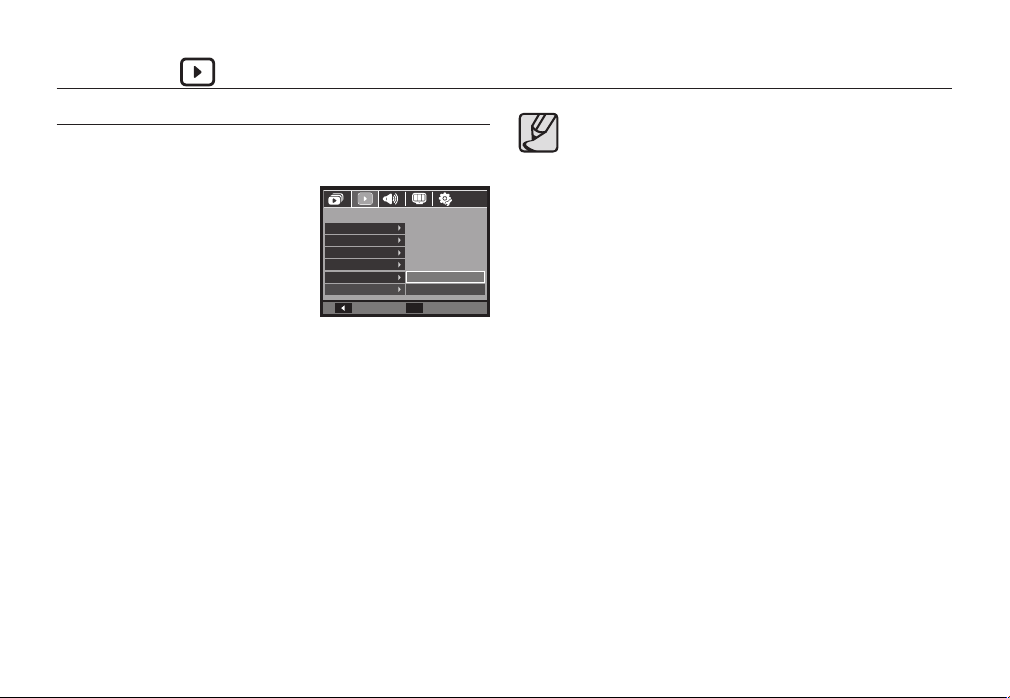

Page 79

Playback ( )

Copy To Card

This enables you to copy image ﬁ les, movie clips and voice recording ﬁ les to the memory card.

1. Select the [Copy To Card] menu tab by pressing the Up/Down button. And then press the Right button.

2. Select a desired sub menu by pressing the Up/Down button and press the OK button. – [No]: Cancels [Copy To Card]. – [Yes]: All images, movie clips and

voice recording ﬁ les saved in the internal memory are copied to the memory card after the [Processing!] message is displayed. After copying has been completed, the screen will return to play mode.

078

PLAYBACK Voice Memo Smart Album Protect Delete DPOF Copy To Card

Back

No Yes

Set



If there is not enough space available in the memory card to copy saved images in the internal memory (30MB), the [Copy To Card] command will copy only some of the images and display [Memory Full!] message. Then the system will return to the Playback mode. Please be sure to delete any unnecessary ﬁ les to free up space before inserting the memory card into the camera.



When you move the images that are stored in the internal memory by doing [Copy To Card] to the card, the next number of ﬁ le names will be created in the card to avoid duplication of the ﬁ le name.

– When the [Reset] of the [File] setup menu is set: The

copied ﬁ le names start from after the last stored ﬁ le name.

– When the [Series] of the [File] setup menu is set: The

copied ﬁ le names start from after the last captured ﬁ le name. After completing [Copy To Card], the last stored image of the last copied folder is displayed on the LCD monitor.

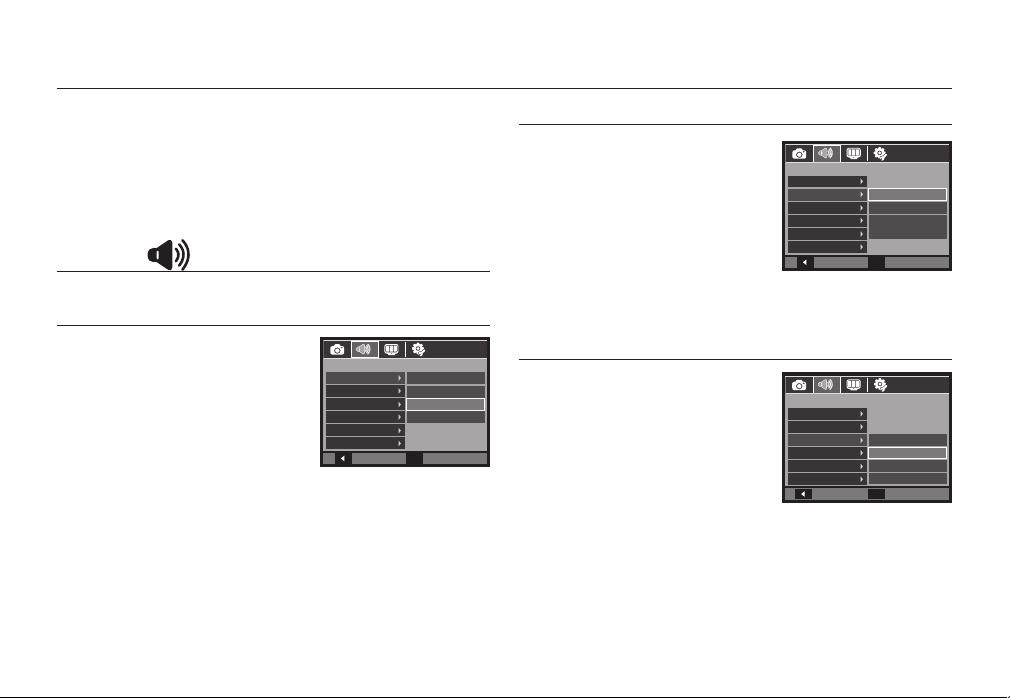

Page 80

Sound menu

In this mode, you can set up sound settings. You can use the setup menu in all camera modes, except Voice recording mode.



The menus marked * are set to the default value.



Menus are subject to change without prior notice.

Sound ( )

Volume

You can set select a volume of shutter sound, beep sound and AF sound.

– [Volume] sub menus: [Off], [Low],

[Medium]*, [High]

SOUND Volume Start Sound Shutter Sound Beep Sound AF Sound Self-Portrait

Back

Off Low Medium High

Set

Start up Sound

You can select the sound that is activated whenever the camera is turned on.

– [Start Sound] sub menus:

[Off]*, [Sound 1], [Sound 2], [Sound 3]

Shutter Sound

You can select the shutter sound.

– [Shutter Sound] sub menus:

[Off], [Sound 1]*, [Sound 2], [Sound 3]

SOUND Volume Start Sound Shutter Sound Beep Sound AF Sound Self-Portrait

Back

SOUND Volume Start Sound Shutter Sound Beep Sound AF Sound Self-Portrait

Back

Off Sound 1 Sound 2 Sound 3

Set

079

Page 81

Sound ( )

Beep Sound

If you set sound to on, various sounds will be activated for camera startup, when OK button is pressed, so that you can be aware of the camera operation status.

– [Beep Sound] sub menus:

[Off], [Sound 1]*, [Sound 2], [Sound 3]

AF Sound

If you set AF sound to on, AF sound will be activated when the Shutter button is pressed down half way so that you can be aware of the camera operation status.

– [AF Sound] sub menus: [Off], [On]*

080

SOUND Volume Start Sound Shutter Sound Beep Sound AF Sound Self-Portrait

Back

SOUND Volume Start Sound Shutter Sound Beep Sound AF Sound Self-Portrait

Back

Off Sound 1 Sound 2 Sound 3

Off On

Self Portrait

This feature automatically detects the location of the face and optimises the camera settings to ensure a great self portrait.

– [Self-Portrait] sub menus: [Off], [On]*

Set

SOUND Volume Start Sound Shutter Sound Beep Sound AF Sound Self-Portrait

Back

Off On

Set

Page 82

Setup menu

In this mode, you can set up basic settings. You can use the setup menu in all camera modes, except Voice recording mode.



The menus marked * are set to the default value.



Menus are subject to change without prior notice.

Display ( )

Setting the Grid Line

You can set the type of grid displayed on the histogram/grid window. (p. 31)

– [Grid Line] sub menus:

[2 X 2]

DISPLAY Language Grid Line Date&Time Start Image Display Bright Quick View

Back

2 X 2 3 X 3

X +

Set

Language

There is a choice of languages that can be displayed on the LCD monitor. Even if the battery is removed and inserted again, the language setting will be preserved.

DISPLAY Language Grid Line Date&Time Start Image Display Bright Quick View

Back

ENGLISH

한국어

FRANÇAIS DEUTSCH ESPAÑOL ITALIANO

Set

[3 X 3]: [X]: [+]:

081

Page 83

Display ( )

London

Setting up the Date / Time / Date type

You can change the date and time that will be displayed on the captured images and set up the date type. If [World Time] is set in foreign countries, the date and time of the destination will be displayed on the LCD monitor.

–

Date type: [yyyy/mm/dd], [Off]*,

[dd/mm/yyyy], [mm/dd/yyyy]

–

World time

Available cities: London, Cape Verde, Mid-Atlantic, Buenos Aires, Newfoundland, Caracas, La Paz, New York, Miami, Chicago, Dallas, Denver, Phoenix, LA, San Francisco, Alaska, Honolulu, Hawaii, Samoa, Midway, Wellington, Auckland, Okhotsk, Guam, Sydney, Darwin, Adelaide, Seoul, Tokyo, Beijing, Hong Kong, Bangkok, Jakarta, Yangon, Almaty, Kathmandu, Mumbai, New Delhi, Tashkent, Kabul, Abu Dhabi, Teheran, Moscow, Athens, Helsinki, Rome, Paris, Berlin

–

[DST] (Daylight Saving Time): Press the Up button to set up [DST].

( name.

082

DISPLAY Language Grid Line Date&Time Start Image Display Bright Quick View

Back

DISPLAY

Seoul, Tokyo

[GMT +09:00] 2009/01/01 13:00PM

Conﬁ rm

2009 / 01 / 01

Set

DST

) icon will appear in front of the city

London

13:00

Off

Start up image

You can select the image that is ﬁ rst displayed on the LCD monitor whenever the camera is turned on.

– [Start Image] sub menu:

[Off]*, [Logo], [User Image]

– Use a saved image for the start-up

image with the [Start Image] in the

[RESIZE] menu in the play mode. – The start-up image will not be deleted by [Delete] or [Format] menu. – The User images will be deleted by [Reset] menu.

DISPLAY Language Grid Line Date&Time Start Image Display Bright Quick View

Back

Off

Set

Display brightness

You can adjust the LCD brightness.

– [Display Bright] sub menu:

[Auto], [Dark], [Normal]*, [Bright]

DISPLAY Language Grid Line Date&Time Start Image Display Bright Quick View

Back

Auto Dark Normal Bright

Set

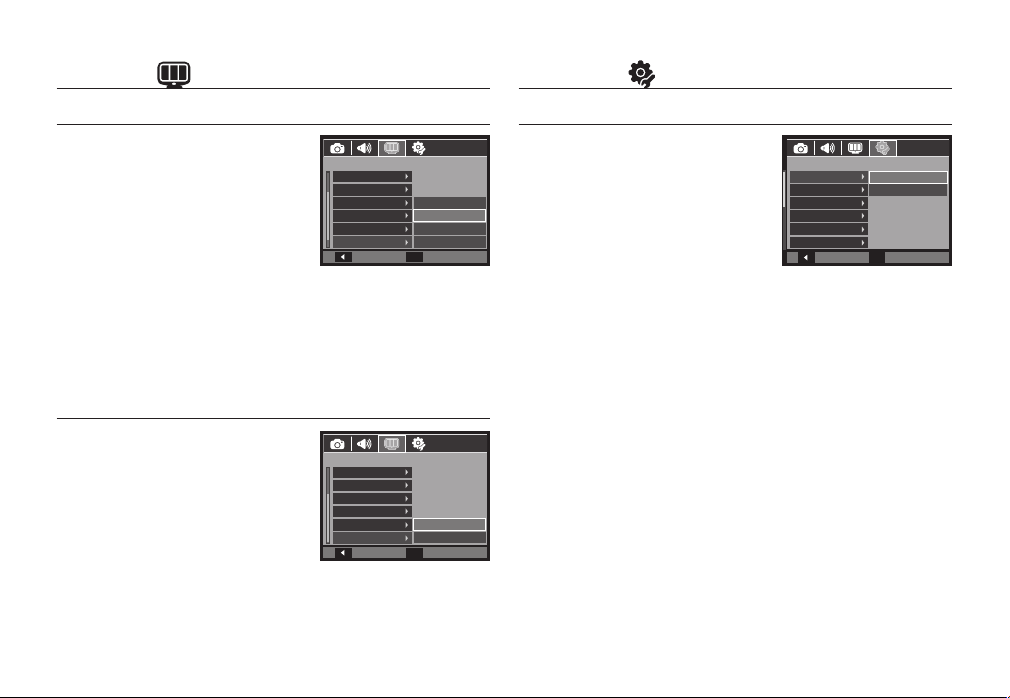

Page 84

Display ( )

Settings ( )

Quick view

If you enable Quick View before capturing an image, you can view the image you just captured on the LCD monitor for the duration set in the [Quick View] setup. Quick view is possible only with still images.

– Sub menus

[Off]: The quick view function can’t be activated. [0.5sec]*, [1sec], [3sec]

: The captured image is brieﬂ y displayed during

the selected time.

Display Save

If you set the [Display Save] to On and the camera isn’t operated during the speciﬁ ed time, the LCD monitor will be turned off automatically.

– Sub menus

[Off]*: The LCD monitor will not be

turned off.

[On]: If the camera isn’t operated

during the speciﬁ ed time (about 30 SEC.), the camera power will be idle (Camera status lamp:Blinking) automatically.

DISPLAY Language Grid Line Date&Time Start Image Display Bright Quick View

Back

DISPLAY Grid Line Date&Time Start Image Display Bright Quick View Display Save

Back

Off

0.5sec 1sec 3sec

Off On

Formatting a memory

If you run [Format] on the memory, all ﬁ les which are image, video clip and even protected images will be deleted. So be sure to download important ﬁ les to your PC before formatting the memory.

Set

– Sub menus

[No]*: The memory will not be formatted.

[Yes]: A window for conﬁ rming the selection displays.

– [Processing!] A message is displayed and the memory card is

formatted. When the memory card is formatted, a message saying that

[No Image!] appears.



Be sure to run [Format] on the following types of memory card.

– A new memory card, or an unformatted memory card – A memory card that has a ﬁ le this camera can’t recognise or one that

has been taken from another camera. – Always format the memory card using this camera. If you insert a

memory card that has been formatted using other cameras, memory

card readers, or PCs, you will get a [Card Error!] message. – [Processing!] A message is displayed and the memory card is

formatted. When the memory card is formatted, a message saying that

[No Image!] appears.

SETTINGS Format Reset Recycle Bin File Imprint Power Off

Back

No Yes

Set

083

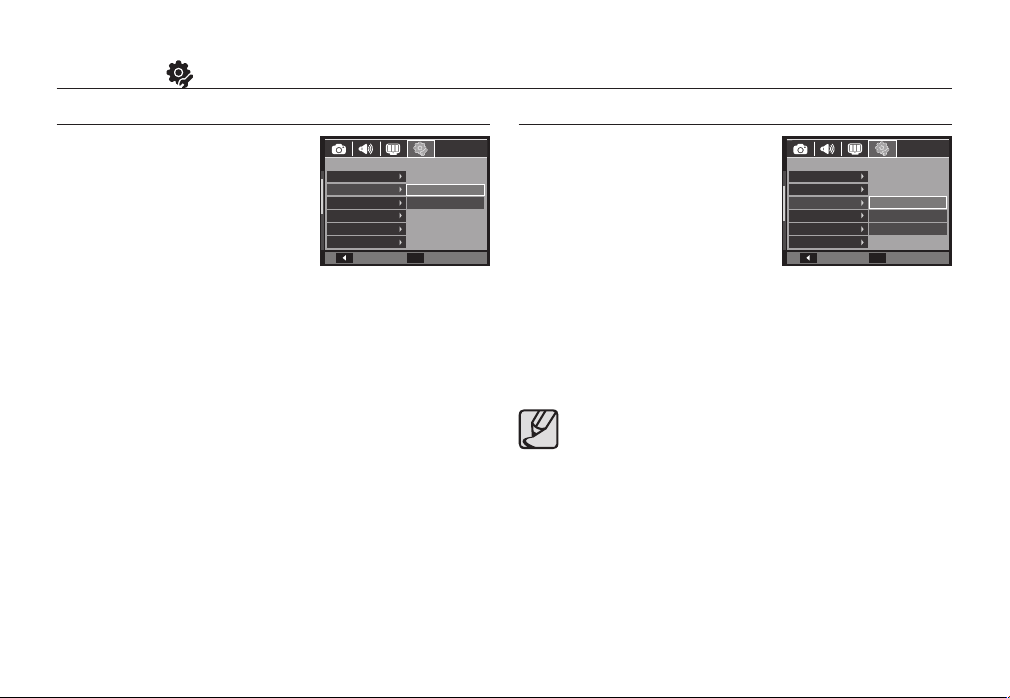

Page 85

Settings ( )

Initialisation

All camera menu and function settings will be restored to their default values. However, values for Date/Time, Language, and Video will not be changed.

– Sub menus

[No]*: Settings will not be restored to

their defaults.

[Yes]: A window to conﬁ rm the selection is displayed. Select the [Yes]

menu and all settings will be restored to their defaults.

084

SETTINGS Format Reset Recycle Bin File Imprint Power Off

Back

No Yes

Recycle Bin

You can activate the [Recycle Bin] function or restore photos saved in the recycle bin. By turning on this function, you can temporarily save photos up to a total 10MB capacity. You can also restore photos from the recycle bin.

Set

– Sub menus

[Off]*: Do not want to use the Recycle Bin function.

[On]: Deleted photos are saved in the Recycle folder.

[Recycle Folder]: You can restore the deleted photos from the Recycle



When you delete all ﬁ les at once, the ﬁ les are not saved in the



Although you turn off the Recycle function, the Recycle bin still



When you format the built-in/external memory, all photos in the

folder.

The Recycle Bin function only works with photos.

Recycle Bin. When the Recycle bin is full of space, it removes photos in sequence from the ﬁ rst deleted photo.

keeps the photos.

Recycle Bin are deleted.

SETTINGS Format Reset Recycle Bin File Imprint Power Off

Back

Off On Recycle Folder

Set

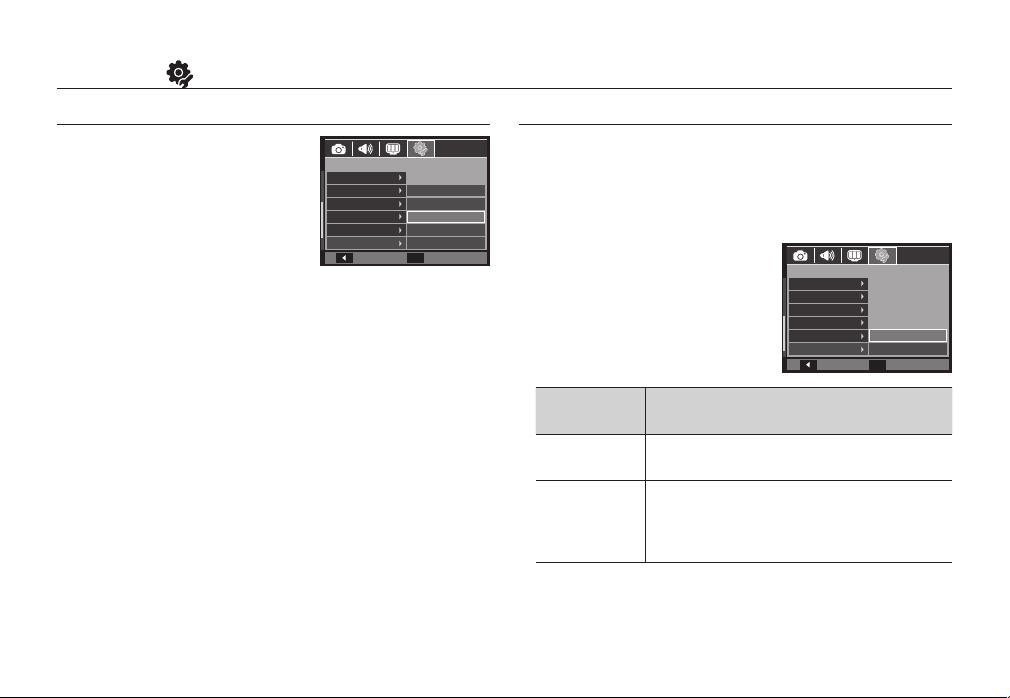

Page 86

Settings ( )

File name

This function allows the user to select the ﬁ le naming format.

File name Description

Reset

Series*

After using the reset function, the next ﬁ le name will be set from 0001 even after formatting, deleting all or inserting a new memory card.

New ﬁ les are named using numbers that follow the previous sequence, even when a new memory card is used, or after formatting, or after deleting all pictures.



The ﬁ rst stored folder name is 100SSCAM, and the ﬁ rst ﬁ le name is SDC10001.



File names are assigned sequentially from SDC10001  SDC10002  ~  SDC19999.



The folder number is assigned sequentially from 100 to 999 as follows: 100SSCAM  101SSCAM  ~  999SSCAM.



Maximum numbers of ﬁ les in a folder are 9999.



The ﬁ les used with the memory card conform to the DCF (Design rule for Camera File systems) format. If you change the image ﬁ le name, the image may not play back.

SETTINGS Format Reset Recycle Bin File Imprint Power Off

Back

Reset Series

Imprinting the recording date

There is an option to include DATE/TIME on still images.

– Sub menus

[Off]*: The DATE & TIME will not be

imprinted on the image ﬁ le.

Set

[Date]: Only the DATE will be imprinted

on the image ﬁ le.

[Date&Time]: The DATE & TIME will be imprinted on the image ﬁ le.



The Date & Time are imprinted at the bottom right side of the still image.



The imprint function is applied only to still images.



Depending on the manufacturer and print mode, the date printed on an

image may not be printed correctly.

SETTINGS Format Reset Recycle Bin File Imprint Power Off

Back

Off Date Date&Time

Set

085

Page 87

Settings ( )

Auto power off

This function switches the camera off after a set amount of time in order to prevent unnecessary battery drainage.

– Sub menus

[Off]:

Do not want to use the Power Off function.

[1min], [3min]*, [5min], [10min]

: The power will turn off automatically if not used for the period of time speciﬁ ed.

– After replacing the battery, the [Power Off] setting will be preserved. – Note that the automatic [Power Off] function will not operate if the

camera is in the PC/Printer mode, slide show, playing back a voice recording and playing back a movie clip.

086

SETTINGS Format Reset Recycle Bin File Imprint Power Off

Back

Off 1min 3min 5min 10min

Set

Selecting video out type

The Movie output signal from the camera can be NTSC or PAL. Your choice of output will be governed by the type of device (monitor or TV, etc.) to which the camera is connected. PAL mode can support only BDGHI.



Connecting to an external monitor

When the camera is connected to an external monitor, the image and menus on the LCD monitor will be visible on the external monitor and the LCD monitor of the camera.

Selecting Video

out type

NTSC

U.S.A, Canada, Japan, South Korea, Taiwan, Mexico.

Australia, Austria, Belgium, China, Denmark,

PAL

Finland, Germany, U.K., Holland, Italy, Kuwait, Malaysia, New Zealand, Singapore, Spain, Sweden, Switzerland, Thailand, Norway.

SETTINGS Reset Recycle Bin File Imprint Power Off Video Out

Back

Description

NTSC PAL

Set

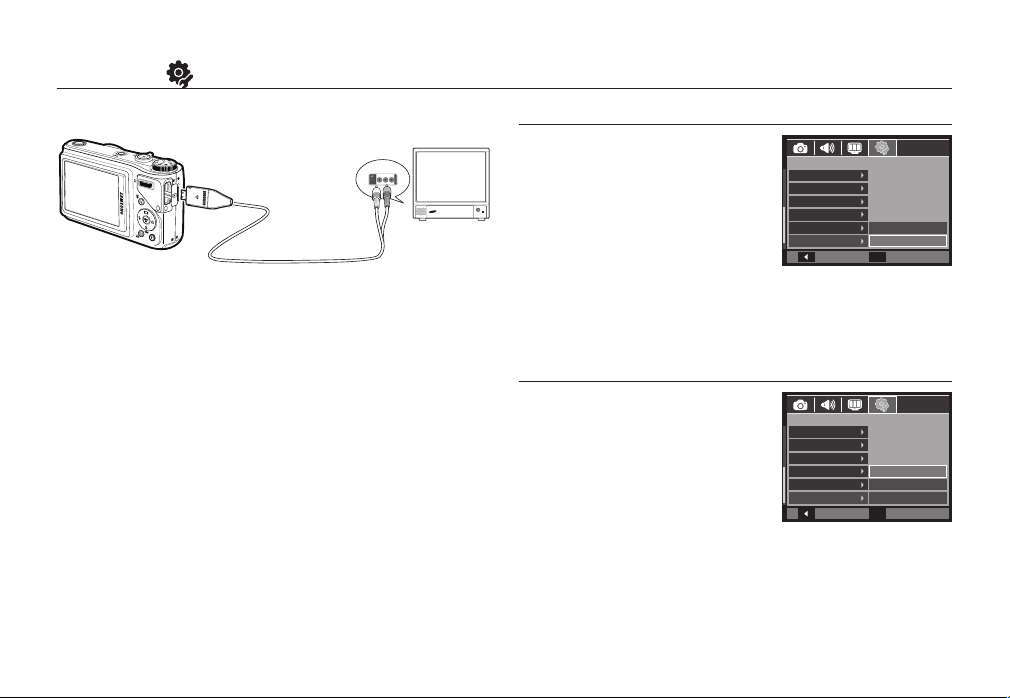

Page 88

Settings ( )

Yellow - Video White - Sound

– When using a TV as an external monitor, you will need to select the

external or AV channel of the TV.

– There will be a digital noise on the external monitor, but it is not a

malfunction.

– If the image is not in the centre of the screen, use the TV controls to

centre it.

– When the camera is connected to an external monitor, some parts of

the image may not be displayed.

– When the camera is connected to an external monitor, the menu will be

visible on the external monitor and the menu functions are the same as those indicated on the LCD monitor.

Auto focus lamp

You can turn on and off the Auto Focus lamp.

– Sub menus

[Off]:

The AF lamp will not light up in low light conditions.

[On]*: The AF lamp will light up in low

light conditions.

Setting the USB

If the camera is set to connect automatically to a PC or a printer using a USB cable, you can manually set [Computer] or [Printer].

- [USB] sub menus [Auto]*:

Automatically enables an external device connected with a USB cable.

[Computer]:

[Printer]:

Sets computer connection mode if the connected external

device cannot be recognized automatically. Sets printer connection mode if the connected external device cannot be recognized automatically.

SETTINGS Recycle Bin File Imprint Power Off Video Out AF Lamp

Back

SETTINGS File Imprint Power Off Video Out AF Lamp USB

Back

Off On

Set

Auto Computer Printer

Set

087

Page 89

PictBridge

100-0010

You can use the USB cable to connect this camera to a printer that supports PictBridge (sold separately) and print the stored images directly. Movie clips and voice ﬁ les cannot be printed.



Setting up the camera for connection to the printer

1. Connect the camera and printer with USB cable.

Once the camera is turned on, the camera automatically recognizes the

printer and is connected to it.



If automatic connection fails, set the [USB] menu to [Printer]. (p.87).



For a printer that can enable removable disks, set the [USB] menu to

[Printer].

■ Connecting the Camera to a Printer



Easy printing

When you connect the camera to printer in the Play back mode, you can print a picture easily.

– Pressing the Left/Right button:

Selects a previous / next image.

– Pressing the Print (

Currently displayed image will be printed with the printer’s default setting.

) button:

100-0010

Print Menu

088

Page 90

PictBridge: Picture Selection

▲

▼

◄ ►

▲

▼

You can select images you want to print.



Setting the Number of Copies to Print

1. Press the MENU button and the PictBridge menu will be displayed.

2. Use the Up/Down button to select the [Images] menu and press the Right button.

3. Use the Up/Down button to select a desired sub menu and press the OK button.

– Select [One Pic] or [All Pics]. A screen where you can set the

number of copies to print will appear as shown below.

▲

▼

◄ ►

ExitSH SetOK

– Press the Up/Down button to select the number of prints. – When [One Pic] is selected: Use the Left/Right button to select

another picture. After selecting another picture, select the number of

prints for another picture. – After setting the number of prints, press the OK button to save. – Press the Shutter button to return to the menu without setting the

number of prints.

4. Press the Print (

) button and images will be printed.

PICTBRIDGE Images Size Layout Type Quality Date Print

Back

ExitSH SetOK

▲

▼

One Pic All Pics

PictBridge: Print Setting

You can select the Paper Size, Print Format, Paper Type, Print Quality, Date Print, and File Name Print menus for printed pictures.

1. Press the MENU button and the PictBridge menu will be displayed.

2. Use the Up/Down button to select the desired menu, and then press the Right button.

3. Use the Up/Down button to select the

Set

desired sub menu value, and then press the OK button.

Menu Function Sub menu

Size

Set the size of the printing paper.

Set the number of pictures

Layout

to be printed on a sheet of paper.

Type

Quality

Date Print

File Name



Some menu options are not supported on all printers. If not supported, the

Set the quality of the printing paper.

Set the quality of the picture to be printed.

Set whether to print the date.

Set whether to print the ﬁ le name.

menus are still displayed in the LCD, but are not selectable.

PICTBRIDGE Images Size Layout Type Quality Date Print

Back

Auto Postcard Card 4x6 L 2L

Set

Auto, PostCard, Card, 4X6, L, 2L, Letter, A4, A3

Auto, Full, 1, 2, 4, 8, 9, 16, Index

Auto, Plain, Photo, FastPhoto

Auto, Draft, Normal, Fine

Auto, Off, On

089

Page 91

PictBridge: Reset

Initialises user-changed conﬁ gurations.

1. Use the Up/Down button to select the [Reset] menu tab. And then press the

Right button.

2. Use the Up/Down button to select the

desired sub menu value, and then press the OK button.

If [No] is selected: Settings will not be reset. If [Yes] is selected: All print and image settings will be reset.



Default print setting varies depending on the printer manufacturer. For your printer’s default setting, refer to the user’s guide that came with your printer.

PICTBRIDGE Layout Type Quality Date Print File Name Reset

Back

Software notes

Please ensure that you read the instruction manual carefully before use.

– Under no circumstances should all or part of either the software or the

user manual be reproduced.

– Copyrights for software are licensed only for use with a camera.

No Yes

Set

– In the unlikely event of a manufacturing fault, we will repair or exchange

your camera. We cannot, however, be held responsible in any way for damage caused by inappropriate use.

– Using a Hand-made PC or a PC and OS that has not been guaranteed

by the manufacturer is not covered by the Samsung warranty.

– Before reading this manual, you should have a basic knowledge of

computers and O/S (Operating Systems).

090

Page 92

Software notes

System requirements

For Windows For Macintosh

PC with processor better than Pentium III 500MHz

USB support environment

Software

support

environment



It is not compatible with Windows XP and Vista 64-bit Edition.



Samsung is not responsible for any defects or damages caused by the use of unauthorized computer including an assembled PC.

(Pentium III 800MHz recommended)

Windows 2000 / XP / Vista Minimum 256MB RAM

(Over 512MB recommended) 250MB of available hard-disk

space (Over 1GB recommended)

1024×768 pixels, 16-bit color display compatible monitor (24-bit color display recommended)

Microsoft DirectX 9.0c or later

Power Mac G3 or later, or Intel Processor

Mac OS 10.3 or later 110MB of available hard-disk

space Minimum 256MB RAM

(Over 512MB recommended)

Not supported

QuickTime Player 7.5 : H.264(MPEG4.AVC) playback Requirements

For Windows For Macintosh

Intel Pentium 4, 3.2GHz or later / AMD Athlon 64FX, 2.6GHz or later

Windows XP service pack2/Vista

Minimum 512MB RAM (1GB recommended)

nVIDIA Geforce 7600GT or later / ATI X1600 series or later

1.8GHz Power Mac G5 or

1.83GHz Intel Core Duo or later Macintosh

Mac OS 10.3.9 or later

Minimum 256MB RAM (1GB recommended)

64MB video card

091

Page 93

About the software

After inserting the CD-ROM provided with this camera into the CDROM drive, the following window should automatically run.



Samsung Master : This is the all-in-one multi media software solution.

You can download, view, edit and save your digital images and movie files with this software. It does not support H.264(MPEG4.AVC) movie clip. This software is only compatible with Windows.



QuickTime Player 7.5 : The movie viewing program

QuickTime Player is a movie viewing program and is provided for the Windows OS only.



You should allow 5 - 10 seconds for running the automatic setup program according to the capability of your computer. If the frame does not show, run the [Windows Explorer] and select [Installer.exe] in the CD-ROM Drive.



PDF documents of user manual are included in the Software CD-ROM supplied with this camera. Search the PDF ﬁ les with Windows explorer. Before opening the PDF ﬁ les, you must install the Acrobat Reader included in the Software CD-ROM. Install Adobe Reader from the CD provided. If the Internet is not enabled, install Adobe Reader by using the executable ﬁ le located in the CD.



To install the Adobe Reader 6.0.1 correctly, Internet Explorer

5.01 or later had to be installed. Visit “www.microsoft.com” and upgrade the Internet Explorer.

092

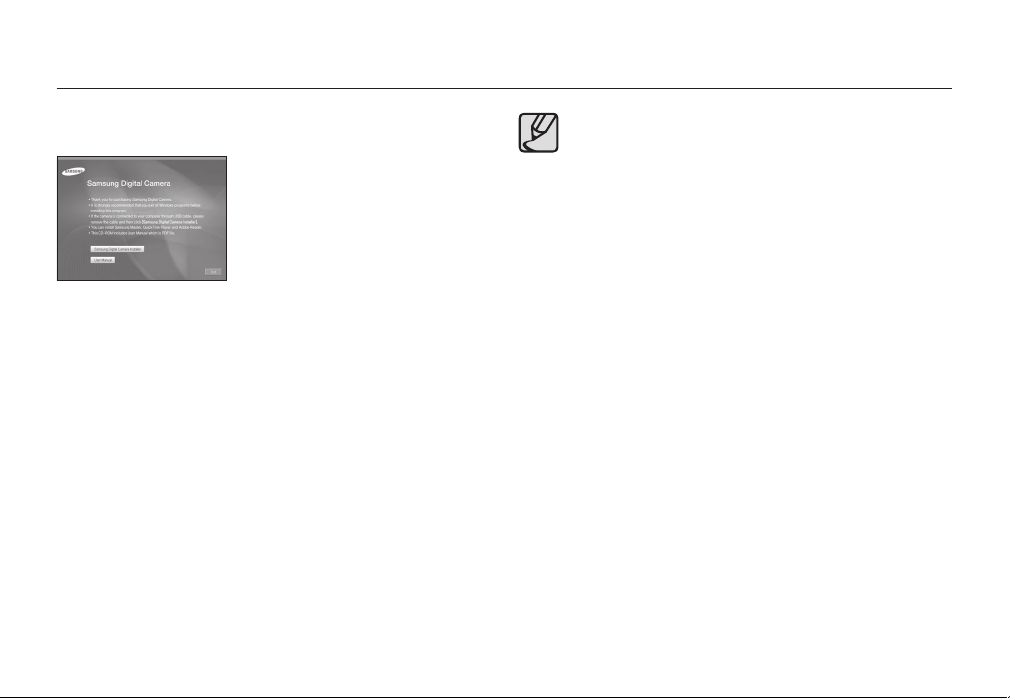

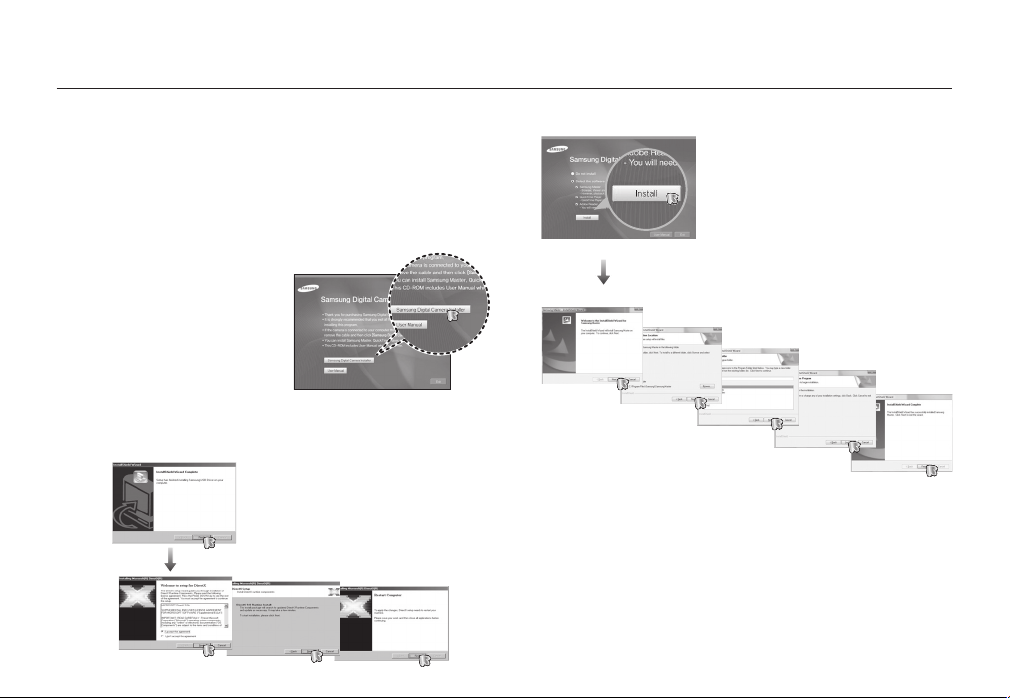

Page 94

Setting up the application software

To use this camera with a PC, install the application software ﬁ rst.

After this has been done, the stored images in the camera can be moved to the PC and can be edited by an image editing program.



You can visit the Samsung web-site through the internet.

http://www.samsung.com: English

1. The auto run frame will display. Click the [Samsung Digital Camera Installer] menu in the Auto run frame.

2. Install the DirectX by selecting a button shown on the monitor. If a latest version of DirectX was installed on your computer, DirectX may not be installed.

3. Install the Samsung Master in the order shown.

093

Page 95

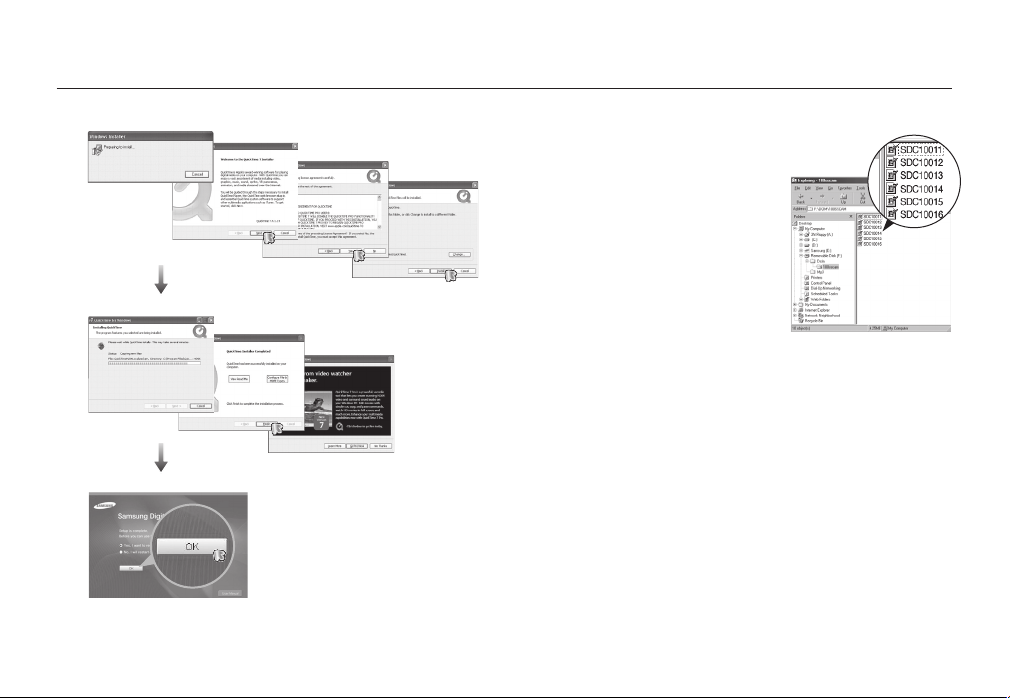

Setting up the application software

4. Install the QuickTime Player 7.5 in the order shown.

 QuickTime Player 7.5 cannot be installed under Window 2000.

5. After restarting the computer, connect the PC to the camera with the USB cable.

6. Turn on the camera power. The [Found

New Hardware Wizard] will open and the computer will recognise the camera.



If your OS is Windows XP / Vista, an

image viewer program will open.

094

Page 96

Starting PC mode

If you connect the USB cable to a USB port on your PC and then turn on the power, the camera will automatically switch to “computer connection mode”. In this mode, you can download stored images to your PC through the USB cable.



Camera settings for connection

1. Turn on the camera

2. Connect the camera and computer with the supplied USB cable.

3. Once the camera is turned on, the camera automatically recognizes the

PC and is connected to it.



If automatic connection fails, set the [USB] menu to [Computer]. (p.87)



Connecting the camera to a PC



Disconnecting the camera and PC

Refer to page 97 (Removing the removable disk).

095

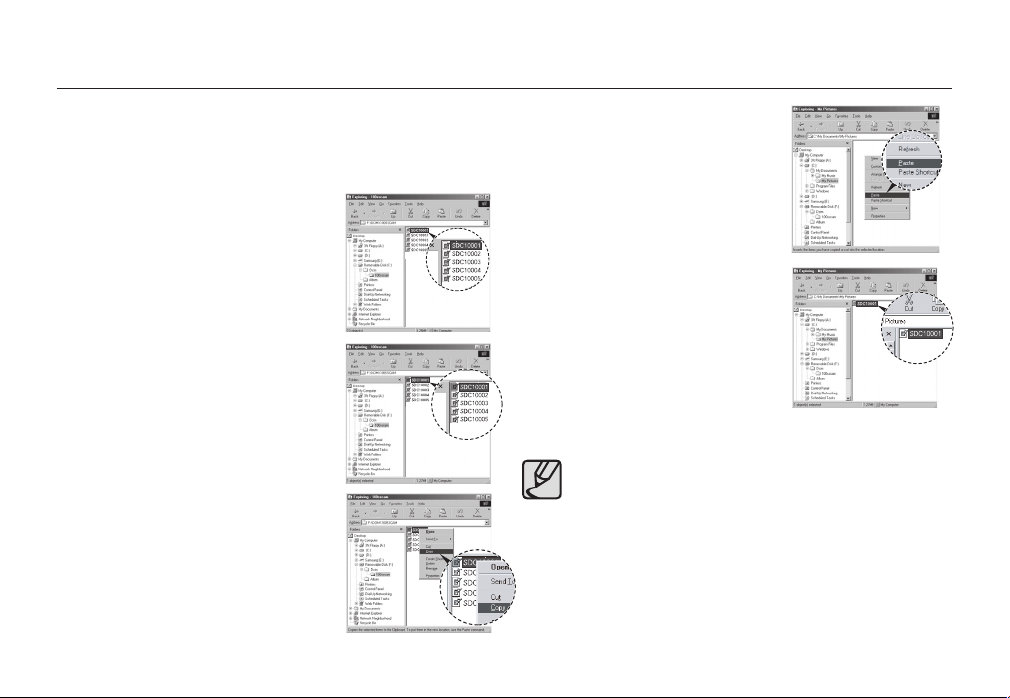

Page 97

Starting PC mode



Downloading stored images

You can download the still images stored on the camera to your PC’s hard disk and print them or use a photo editing software to edit them.

1. Connect the camera to your PC with the USB cable.

2. On your computer’s desktop display, select [My computer] and double click [Removable Disk  DCIM  100SSCAM]. The image ﬁ les will then be displayed.

3. Select an image and press the right mouse button.

4. A pop-up menu will open. Click the [Cut] or [Copy] menu. – [Cut]: cuts a selected ﬁ le. – [Copy]: copies ﬁ les.

5. Click a folder where you want to paste the ﬁ le.

6. Press the right mouse button and a pop-up menu will open. Click [Paste].

7. An image ﬁ le is transferred from the camera to your PC.



We recommend that you should copy the images to the PC to view them. Opening images directly from the removable disk may be subject to unexpected disconnection.



When you upload a ﬁ le that is not taken by this camera to the Removable Disk, the [File Error!] message will be displayed on the LCD monitor in the Play mode, and nothing is displayed in THUMBNAIL mode.

096

Page 98

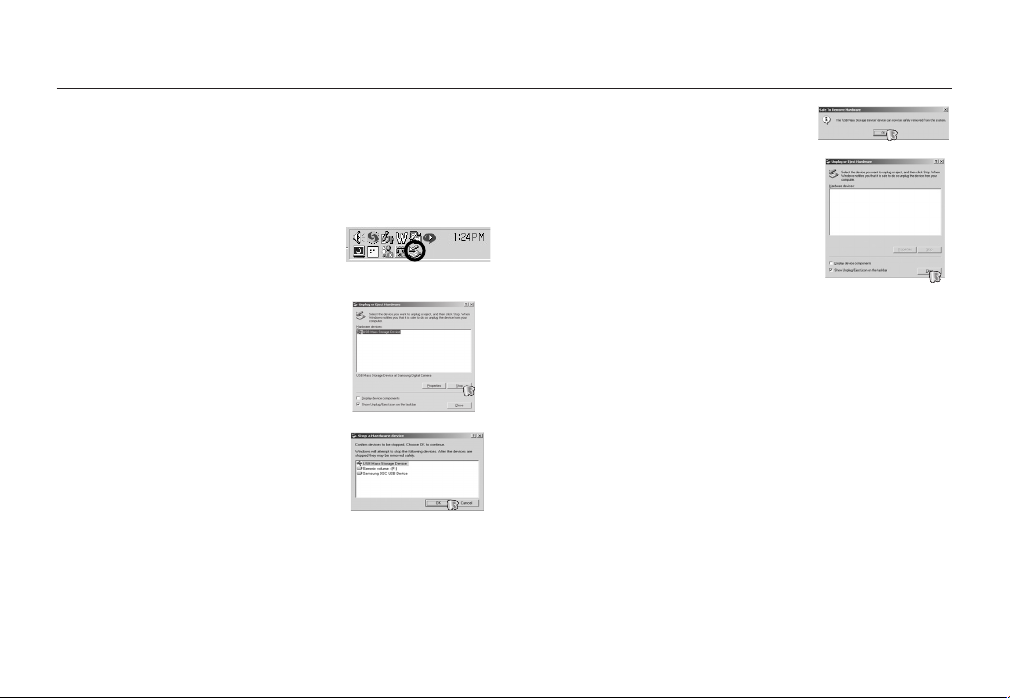

Removing the removable disk



Windows 2000/XP/Vista

(The illustrations may differ from those shown depending on the Windows O/S.)

1. Check whether the camera and PC are transferring a ﬁ le. If the camera status lamp blinks, please wait until the lamp has ﬁ nished blinking and is constantly on.

2. Double-click the [Unplug or Eject Hardware] icon on the task bar.

Double-click!

3. The [Unplug or Eject Hardware] window will open. Select the [USB Mass Storage Device] and click the [Stop] button.

4. The [Stop a Hardware device] window will open. Select the [USB Mass Storage Device] and click the [OK] button.

5. A [Safe to Remove Hardware] window will open. Click the [OK] button.

6. A [Unplug or Eject Hardware] window will open. Click the [Close] button and the removable disk will be removed safely.

7. Unplug the USB cable.

097

Page 99

Samsung Master

You can download, view, edit and save your images and movies with this software. It does not support H.264(MPEG4.AVC) movie clip. This software is only compatible with Windows. To run the Samsung Master, double click the Samsung Master icon on the desktop.



Downloading images

1. Connect the camera to your PC.

2. A window for downloading images will display

after connecting the camera to your PC. – To download the captured images, select

the [Select All] button.

– Select desired folder in the window and

click the [Select All] button. You can save captured images and selected folder.

– If you click the [Cancel] button,

downloading will be cancelled.

3. Click [Next >] button.

4. Select a destination and make a new folder

in which to save downloaded images and folders.

– Folder names can be made in order of

date and images will be downloaded.

– Folder name will be made as you want

and images will be downloaded.

– After selecting a folder that was made

before, images will be downloaded.

5. Click [Next >] button.

6. A window will open as shown alongside.

The destination of the selected folder will be displayed on the upper side of the window. Click the [Start] button to download the images.

7. Downloaded images will be displayed.

098

Page 100

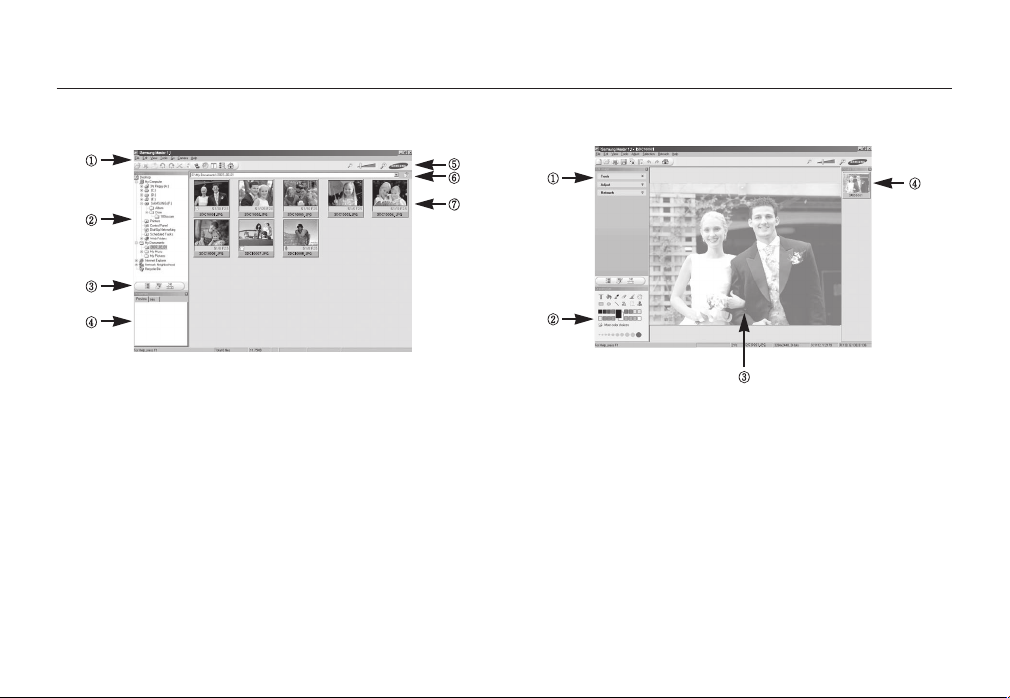

Samsung Master



Image viewer: You can view the stored images.



Image edit: You can edit the still image.

– Image viewer functions are listed below.

Menu bar: You can select menus. File, Edit, View, Tools, Change

Preview window: You can preview an image or a movie clip and check

Zoom bar: You can change preview size.

Folder display window: You can see the folder location of the selected

Image display window: Images of the selected folder are displayed.



Refer to the [Help] menu in Samsung Master for further information.

functions, Auto download, help, etc.

Image selection window

Media type selection menu

: You can select the desired images in this

window. : You can select image viewer, image edit and movie edit functions in this menu.

the multi media information.

image.

– Image edit functions are listed below.

Edit menu: You can select the following menus.

[Tools]: You can resize or crop the selected image. See the [Help]

menu. [Adjust]: You can modify image quality. See the [Help] menu. [Retouch]: You can change image or insert effects on the image. See

Drawing tools: Tools for editing an image.

Image display window: A selected image is displayed in this window.

Preview window: You can preview the changed image.



A still image edited with Samsung Master can’t be played back on the camera.



Refer to the [Help] menu in Samsung Master for further information.

the [Help] menu.

099

Samsung EC-HZ10WBBP-US User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
