SAMSUNG E1 Service Manual Exploded View & Part List

Download
Samsung Electronics 6-1

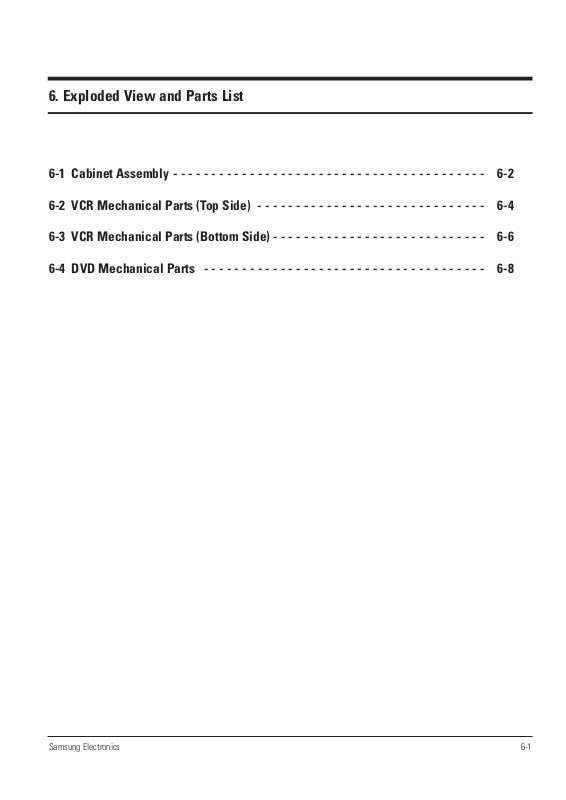

6. Exploded View and Parts List
6-1 Cabinet Assembly - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-2
6-2 VCR Mechanical Parts (Top Side) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-4
6-3 VCR Mechanical Parts (Bottom Side) - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-6
6-4 DVD Mechanical Parts - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-8
Exploded View and Parts List
6-1 Cabinet Assembly
S.N.A. : Service Not Available
702
VCR DECK (S.N.A.)
101
157
BRACKET-FRAME (S.N.A.)
153
UT01
12
12
13
155
200
601 (VCR MAIN PCB)
603 (DVD MAIN PCB)
CN8A
602 (S.M.P.S. PCB)
S601A
LD601A
CN3A1B
S602A
CN602B
155
155
155
157
157
2
21
22
1
701 (FUNCTION-TIMER PCB)
STANDBY/ON OPEN/CLOSE
PROG
VOLUME
MUTE
SPEED
MENU
TITLE
CLEAR
ZOOM
AUDIO
FRAME/STEPREC
MARK REPEAT
INDEX MODE
LAST PR
TRK- ATR TRK+
SHUTTLE
SVHS
3D SOUND A.DUB TV/VCR
DVD TV VIEW VCR
100 (DVD DECK)
153
Exploded View and Parts List
6-3Samsung Electronics
Loc. No Parts No. Description ; Specification Remark
1
Refer to table 6-1 below
ASSY-PANEL FRONT; 2 AC97-01271B ASSY-DOOR TRAY;ABS94HB,SV-DVD2E/XEF,SILV 12 AC64-42114A DECORATION-LEG;SV-4500W,ABS94,HB,-,D/GRY 13 AH61-00303A HOLDER-CORD POWER;-,ABS 94HB,-,BLK,-,DVD 21
Refer to table 6-1 below
DOOR-CASSETTE; 22 AC61-62032A SPRING-MASK;X-9,-,SUS,-,4.4,-,SV-C130 100 AH97-00714D ASSY-DVD DECK;DP-7,2LD,COMBO2(MILLENO) 101 AC64-00429C CABINET TOP;SV-DVD1E,PCM(SECC),T0.6,-,-, 153 AC60-12126A SCREW-BH;-,-,FE,FZY,BH,-,-,4*12,-,­155 6003-000275 SCREW-TAPTITE;BH,+,B,M3,L10,BLK ,SWCH101 157 AC60-10063A SCREW-TAPTITE;-,-,L12,ZPC3,+,-,M3,-,SWRC 200 AC39-10019A POWER CORD;KKP-419C,H03VVH2-F,VDE/KEMA-K 601
Refer to table 6-1 below
ASSY PCB-VCR MAIN; 602 AC92-01069A ASSY OPT PCB-SMPS;SV-DVD2E/XEF,SMPS 603
Refer to table 6-2 below
ASSY PCB-DVD MAIN; 701 AC92-01068A ASSY OPT PCB-TIMER;SV-DVD2E/XEF,TIMER 702 3711-003460 CONNECTOR-HEADER;NOWALL,20P,1R,1.5mm,STR CN3A1B 3809-001206 CABLE-FLAT;30V,-20to+80C,140mm,6P,1.25mm CN602B 3809-001131 CABLE-FLAT;30V,80C,110MM,7P,1.25MM,UL289 CN8A 3809-001264 CABLE-FLAT;30V,80C,260MM,35P,1.25MM,UL28 LD601A AC61-21009A HOLDER-LED;-,POM(M90-44),-,BLK,-,X-9 S601A AC61-00229A HOLDER-SENSOR;SCORPIO2,ABS,-,-,-,BLACK,­S602A AC61-00229A HOLDER-SENSOR;SCORPIO2,ABS,-,-,-,BLACK,­UT01 AC59-00022C REMOCON-ASSY;SV-DVD1E,-,-,-,-,-,-,-,-,MU
<Table 6-1>
COUNTRY 1 21 601
COMMON AC97-01738B AC64-00923B AC92-01089A
FRANCE/SWITZERLAND AC97-01738A AC64-00923A AC92-01067A
RUSSIA AC97-01738A AC64-00923A AC92-01089A
ITALY AC97-01738C AC64-00923C AC92-01089A
<Table 6-2>
REGIONAL NO. 603
2
AH92-01337A
5
AH92-01389A
Exploded View and Parts List
6-2 VCR Mechanical Parts (Top Side)
G001
G555
G510
G480
K546
G680
G681
B410
B575
B440
B448
B452
G546
G060
G520
G527
K188
K182
K110
K240
K248
K350
K330
K140
K340
G070
K470
B474
B473
K250
K530
K490
G530
G420
G450
K502
(OPTIONAL)
(OPTIONAL)
Exploded View and Parts List
6-5Samsung Electronics
Loc. No Parts No. Description ; Specification Remark
B410 AC31-00012A MOTOR-LOADING ASSY;-,TS-10,-,-,-,-,-,-,­B440 AC60-10515A SCREW-MACHINE;-,-,M3,L3,PH,+,-,-,ZPC,­B448 AC66-00008A GEAR-WORM WHEEL;TS-10,POM,0.8,40,-,NAT,3 B452 AC66-00011A GEAR-FL CAM;TS-10,POM,0.8,59,-,BLK,48.48 B473 AC61-00105A SPRING-PINCH DRIVE;TS-10,SUS304-WPB,-,-, B474 AC61-30180A PLATE-JOINT;X-9,SECC20/20,T0.8,-,-,-,­B575 AC47-00002A DAMPER-CAPSTAN;TS-10,POM,-,-,BLACK G001 AC97-01352A ASSY-CYLINDER;SECAM,CTS10,6HD G060 6006-001092 SCREW-ASS’Y MACH;WS,PH,+,M3.0,L6.0,ZPC(Y G070 AC61-00161A PLATE-GROUND DECK;TS-10,SPTE,T0.3,-,-,-, G420 AC66-80142A SLIDER-SUPPLY ASSY;-,X-9(TS),-,-,-,X-9 G450 AC66-80141A SLIDER-TAKE UP ASSY;-,X-9(TS),-,-,-,X-9 G480 AC33-00009A HEAD-ACE ASS’Y;-,PPS,TS-10,-,­G510 6006-001075 SCREW-ASS’Y TAPT;WSP,PH,+,M2.6,L5.0,ZPC( G520 AC66-00033A LEVER-#9 GUIDE ASS’Y;TS-10,-,-,-,-,-,-,­G527 AC61-60553A SPRING-#9 GUIDE;-,ES,SUS304-WPB,OD3.1,0. G530 AC33-00007A HEAD-FE;-,-,HVFHPOO43A,-,­G542 AC66-60051A BELT-PULLEY;X-9,5CM-70,2 * 2,71.3,-,-,-, G546 AC66-00005A LEVER-FL DOOR;TS-10,POM,-,-,-,-,NAT,­G555 AC66-00032A LEVER-UNIT PINCH ASS’Y;TS-10,-,-,-,-,-,­G680 AC66-00046A LEVER-HEAD CLEANER ASS’Y;TS-10,POM+URETH (OPTIONAL) G681 AC61-50686A SLEEVE-HEAD CLEANER;-,POM,-,-,-,-,-,-,TS (OPTIONAL K110 AC66-10267A REEL-DISK S;X-9,POM,-,-,-,-,-,­K140 AC66-10268A REEL-DISK T;X-9,POM,-,-,-,-,-,­K182 AC66-30524A LEVER-IDLER;-,POM,-,-,-,-,-,­K188 AC66-00039A GEAR-IDLE;TS-10,PET K3372,0.5,-,-,NTR,28 K240 AC66-00035A LEVER-TENSION ASS’Y;TS-10,SECC E20/20+SU K248 AC61-00107A SPRING-TENSION LEVER;TS-10,SUS304-WPB,-, K250 AC69-00104A BAND-BRAKE ASS’Y;TS-10,-,-,-,-,-,­K330 AC66-30550A LEVER-S.BRAKE ASSY;-,POM+SUS,-,-,-,X-9 K340 AC66-30549A LEVER-T.BRAKE ASSY;-,POM+SUS,-,-,-,X-9 K350 AC61-00106A SPRING-BRAKE;TS-10,SUS304-WPB,-,-,-,-,-, K470 AC66-00020A SLIDER-FL DRIVE;TS-10,SECC E20/20,1.0,-, K490 AC61-00120A HOLDER-FL CASS. ASS’Y;TS-10,-,-,-,-,­K502 AC61-60561A SPRING-FL.LEVER-LR;-,ES,SUS304 WPB,PI2.7 K530 AC66-00034A LEVER-FL ARM ASS’Y;TS-10,-,-,-,-,-,-,­K546 AC61-50658A GUIDE-CASS. DOOR;X-9,POM,-,-,-,NTR
Exploded View and Parts List
6-3 VCR Mechanical Parts (Bottom Side)
G542
B462
B560
B501
B484
B488
B500
B456
B458
B464
B468
K222
K200
K225
K221
B478
B570
B460
B489
Exploded View and Parts List
6-7Samsung Electronics
Loc. No Parts No. Description ; Specification Remark
B456 AC66-00009A GEAR-JOINT 1;TS-10,POM,1.5,17.5(22),-,NA B458 AC66-00012A GEAR-JOINT 2;TS-10,POM,1.0,23,-,BLK,24.6 B460 AC61-00090A BRACKET-GEAR;TS-10,SECC E20/20,0.8,-,-,­B462 AC60-10517A SCREW-TAP TITE;-,-,M2.6,L5,PH,+,-,-,ZPC, B464 AC66-00019A SLIDER-CAM;TS-10,SECC E20/20,1.2,-,-,-,­B468 AC66-00017A LEVER-PINCH DRIVE;TS-10,SECC E20/20,1.0 B478 AC66-00016A LEVER-TENSION DRIVE;TS-10,SECC E20/20,1 B484 AC66-00030A GEAR-LOADING DR. ASS’Y;TS-10,POM+SWPB,-, B488 AC66-00023A LEVER-S LOADING;TS-10,POM,-,-,-,-,NAT,­B489 AC66-00021A LINK-LOADING S;TS-10,SECC E20/20,0.8,-,­B500 AC66-00024A LEVER-T LOADING;TS-10,POM,-,-,-,-,NAT,­B501 AC66-00022A LINK-LOADING T;TS-10,SECC E20/20,0.8,-,­B560 AC31-00010A MOTOR-CAPSTAN;-,SANKYO,-,­B570 AC60-10514A SCREW-CAPSTAN;-,-,M2.6,L6,PH,+,-,-,-,­K200 AC61-21012A HOLDER-CLUTCH ASSY;-,-,-,-,-,X-9 K221 AC66-20581A GEAR-CENTER ASSY;-,POM,M=O.5,-,HIGHT T., K222 AC60-30306A WASHER-SLIT;-,-,ID2.1,OD5.0,T0.5,-,POLYS K225 AC66-00006A LEVER-UP DOWN;TS-10,POM,-,-,-,-,NAT,-
Exploded View and Parts List

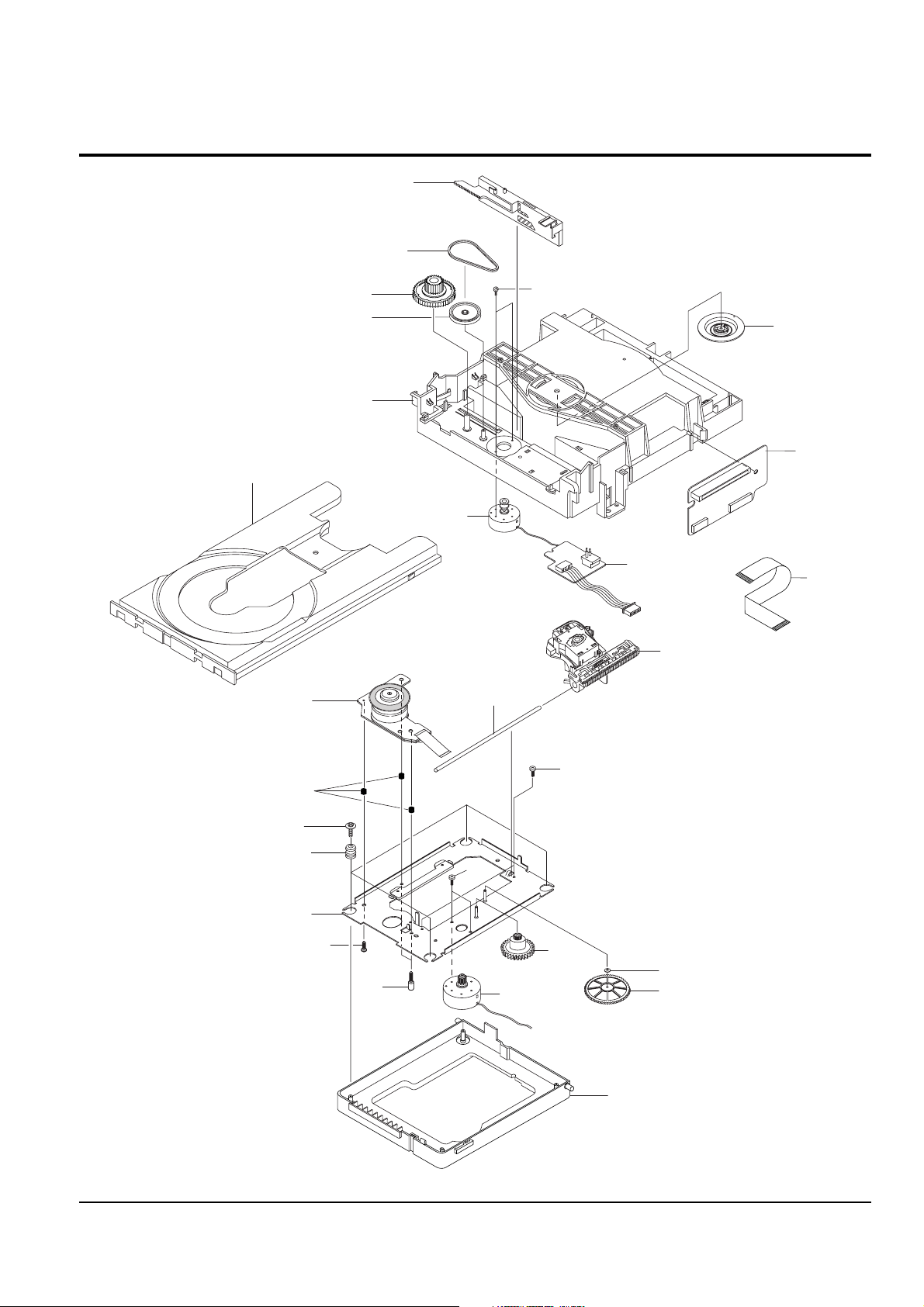

6-4 DVD Mechanical Parts
H108
H106
H101
H105
H107
H102
H240
H211
H203
H241
905
H104
H250
H103
H207
H208
H201
H202
H210
H204
H205
H209
H206
901
900
904
906
903
Exploded View and Parts List
6-9Samsung Electronics
Loc. No Parts No. Description ; Specification Remark
900 6003-001157 SCREW-TAPTITE;PWH,+,B,M2,L6,ZPC(YEL),SWR 901 6001-001522 SCREW-MACHINE;FH,+,M2.6,L7,ZPC(YEL),SWRC 903 6009-001245 SCREW-SPECIAL;SWRCH18A,NYLOCK,SOCKET,HEX 904 6001-001196 SCREW-MACHINE;BH,+-,M2,L4,ZPC(YEL),SWRCH 905 6001-001257 SCREW-MACHINE;PWH,+,M1.7,L3,ZPC(YEL),SWR 906 AH60-00010A SCREW-MACHINE-MOTOR;-,+,SWCH18AK,M1.7,L2 H101 AH61-00512A CHASSIS-HOUSING;DP-7,ABS(SR-0320),-,-,-, H102 AH66-00111B CLAMPER-ASSY;DP-5,POM+MAGNET,-,-,-,-,-,­H103 AH66-00123A PULLEY-GEAR;DP-7,POM M90-44,-,-,-,-,-,­H104 AH31-00024A MOTOR-LOAD ASSY;SM-2412L2,DP-7,-,-,-,-,­H105 6602-001076 BELT-RECTANGULAR;CR,T1.2,4.3%,1.2X25.1,B H106 AH66-00124A GEAR-TRAY;DP-7,POM,M90-44,-,-,-,-,-,-,­H107 AH66-00125A SLIDER-HOUSING;DP-7,POM,-,-,-,-,-,­H108 AH63-00217A TRAY-DISC;-,POM,-,-,-,-,BLK,DP-7 H201 AH97-00561C ASSY-BKRT DECK;SECC+POM,DP-7,TSEC H202 AH73-00023C RUBBER-INSULATOR;DP-7,BUTYL RUBBER,-,10 H203 AH61-50327A SHAFT-P/U;DP-3,SUS420J2,L84.7,OD3,-,-,­H204 AH66-00075A GEAR-FEED A;-,POM M90-44,-,-,-,-,-,-,-,­H205 AH66-00076A GEAR-FEED B;-,POM M90-44,-,-,-,-,-,-,-,­H206 AC60-30306A WASHER-SLIT;-,-,ID2.1,OD5.0,T0.5,-,POLYS H207 AH31-00022A MOTOR-SPINDLE ASSY;RSM-2610D,DP-7,-,-,-, H208 AH61-00403A SPRING-SPINDLE;-,SWPB,-,CS,PI4.9,PI0.7,­H209 AH61-00513A CHASSIS-SUB;DP-7,ABS(SR-0320),-,-,-,-,-, H210 AH31-00016A MOTOR-FEED ASSY;-,DP-5,-,­H211 AH97-00708A ASSY-PICK-UP;-,SOH-DM2,ASSY-PICK-UP H240 AH92-00963A ASSY-MILLENO DECK PCB 2LD;DVD-M101,MILLE H241 3809-001252 CABLE-FLAT;30V,80C,180mm,22P,1mm,UL2896 H250 AH92-00900B ASSY PCB-DECK B;DVD-V1000,MILLENO DECK(B
Exploded View and Parts List
