Samsung DW80R5061US User Manual

Dishwasher

user manual

DW80K7050 Series
DW80K5050 Series

DW80R50 0 Series
DW80R50 Series

6

1

6

imagine the possibilities

Thank you for purchasing this Samsung product.

DW7000KM-02025 01_EN.indd 1DW7000KM-02025D-01_EN.indd 1 2016-0  10:47:10201 -0  10:47:10

9 5-01

contents

SETTING UP YOUR DISHWASHER

6

USING YOUR DISHWASHER

11

CLEANING AND MAINTAINING YOUR

DISHWASHER

22

CYCLES

6 Unpacking your dishwasher
6 Checking parts
7 Control panel

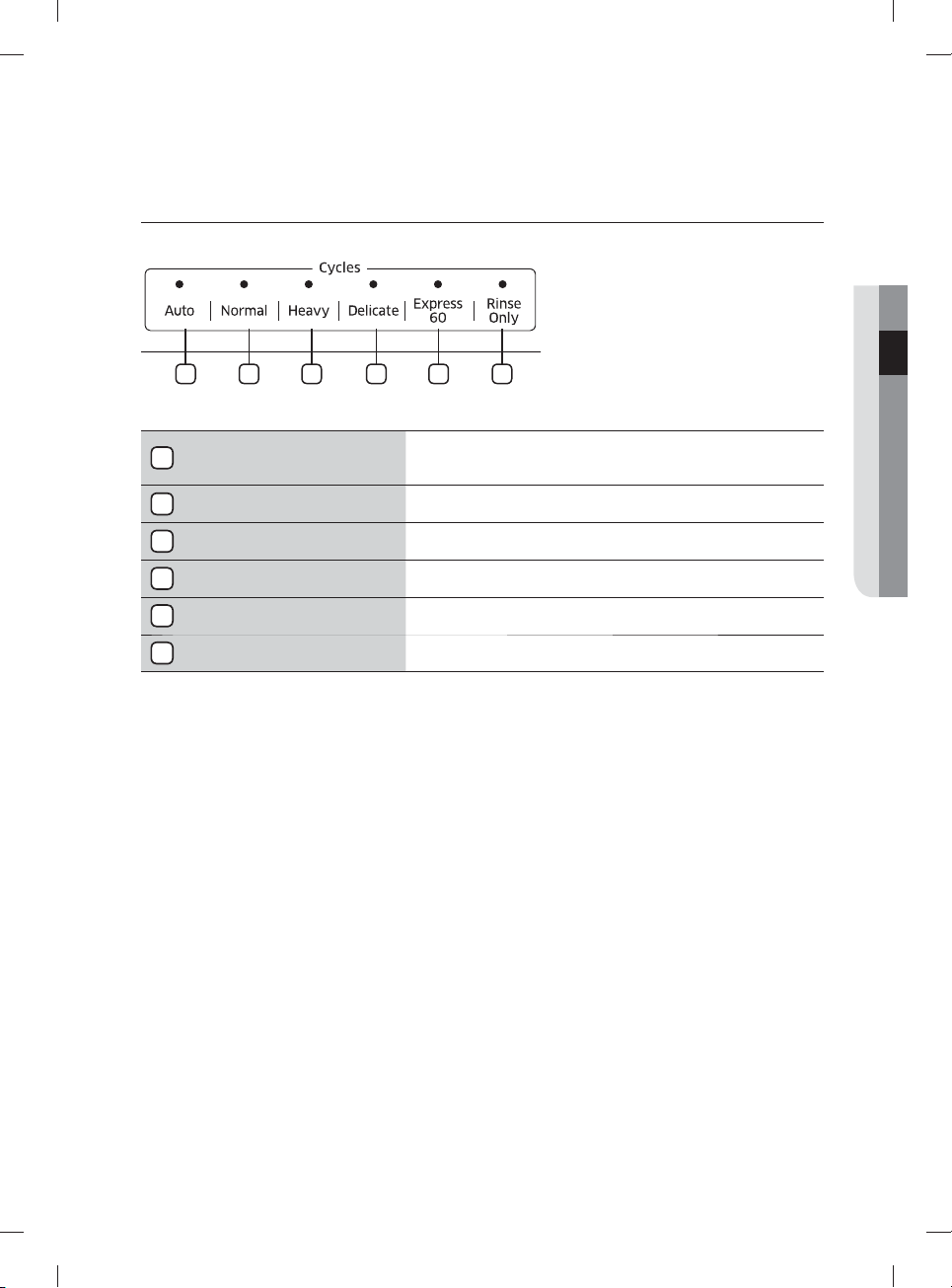

9 Cycle selector
10 Meeting installation requirements

11 Basic guidelines
14 Adjusting the angle of the plate supports
15 Adjusting the height of the upper rack
15 Removing the upper rack
16 Loading the lower rack
17 Loading the upper rack
18 Using the cutlery rack
19 Using the 3

(For applicable models)

20 Using detergent

22 Cleaning the exterior
22 Cleaning the interior
22 Cleaning the fi lters (DW80K7050 series)
23 Cleaning the nozzles
24 Storing your dishwasher

25 Cycle chart

rd

(cutlery) rack

25

TROUBLESHOOTING

27 Check these points if your dishwasher…
30 Information codes

27

APPENDIX

31 Helping the environment
31 Specifi cations

31

English - 2

DW7000KM-02025B-01_EN.indd Sec9:2DW7000KM-02025D-01_EN.indd Sec9:2 2016-05-18  10:47:162019-05-01  10:47:16

safety information

Throughout this manual, you’ll see Warning and Caution notes. These
important safety instructions do not cover all possible situations that might occur.

It is your responsibility to use caution when installing, maintaining, and operating your
dishwasher. Samsung will not be liable for any damage resulting from improper use.

IMPORTANT SAFETY INSTRUCTIONS

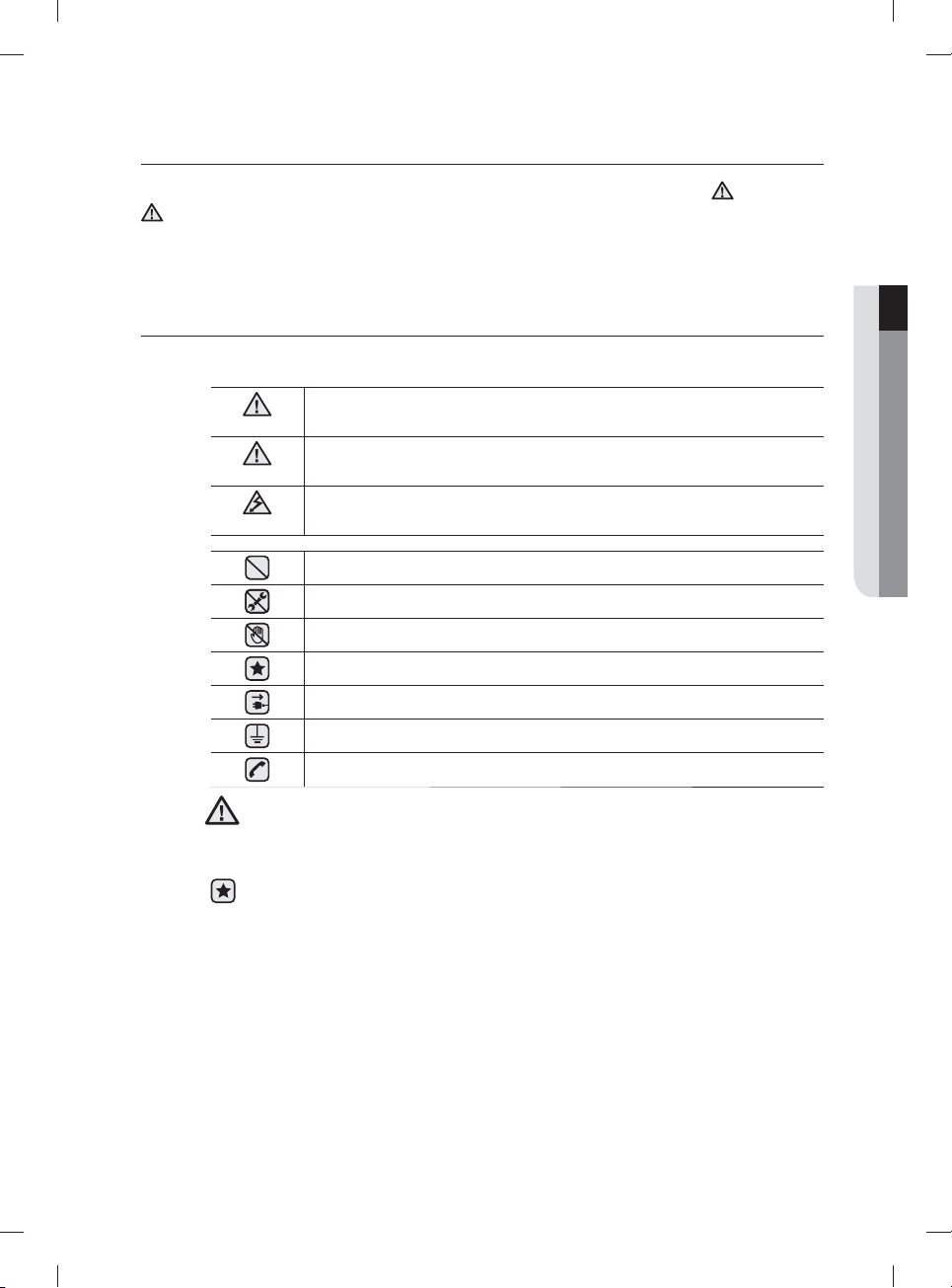

What the icons and signs in this user manual mean :

01 safety information

WARNING

CAUTION

CAUTION

Hazards or unsafe practices that may result in severe personal injury or death.

Hazards or unsafe practices that may result in personal injury or property
damage.

To reduce the risk of fi re, explosion, electric shock, or personal injury when using
your dishwasher, follow these basic safety precautions:

Do NOT attempt.

Do NOT disassemble.

Do NOT touch.

Follow directions explicity.

Unplug the power plug from the wall socket.

Make sure the machine is grounded to prevent electric shock.

Call the service center for help.

WARNING

Cancer and Reproductive Harm-www.P65Warnings.c .gov. a

WARNING - When using the dishwasher, follow basic precautions, including the
following:

Read all instructions before using the dishwasher.
As with any equipment using electricity, water, and moving parts, potential hazards exist.
Use the dishwasher only for its intended function.
Use only detergents or wetting agents recommended for use in a dishwasher, and keep

them out of the reach of children.
When loading items to be washed:

- Locate sharp items so that they are not likely to damage the door seal, and

- Load sharp knives with the handles up to reduce the risk of cut-type injuries.

SAVE THESE INSTRUCTIONS

English - 3

DW7000KM-02025B-01_EN.indd Sec1:3DW7000KM-02025D-01_EN.indd Sec1:3 2016-05-18  10:47:162019-05-01  10:47:16

safety information

Do not wash plastic items unless they are marked “dishwasher safe” or the equivalent.
For plastic items not so marked, check the manufacturer’s recommendations.

Do not touch the HEATING ELEMENT during or immediately after use.

WARNING : When using your dishwasher, follow basic precautions, including the following:

WARNING

1. Read all instructions before using the dishwasher.

2. Use the dishwasher only for its intended function.

3. Use only detergents or wetting agents recommended for use in a dishwasher and keep

them out of the reach of children.

4. When loading items to be washed:

- locate sharp items so that they are not likely to damage the door seal, and

- load sharp knives with the handles up to reduce the risk of cut-type injuries.

5. Do not wash plastic items unless they are marked “dishwasher safe” or the equivalent.

For plastic items not so marked, check the manufacturer’s recommendations.

6. Do not touch the HEATING ELEMENT during or immediately after use.

7. Do not operate your dishwasher unless all ENCLOSURE panels are properly in place.

8. Do not tamper with the controls.

9. Do not abuse, sit on, or stand on the door or on a dish rack of the dishwasher.

10. To reduce the risk of injury, do not allow children to play in or on the dishwasher.

11. Under certain conditions, hydrogen gas may be produced in a hot-water system that

has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot­water system has not been used for such a period, before using the dishwasher, turn
on all hot-water faucets and let the water fl ow from each for several minutes. This will
release any accumulated hydrogen gas. As the gas is fl ammable, do not smoke or use
an open fl ame during this time.

12. Remove the door to the washing compartment when removing an old dishwasher from
service or discarding it.

After unpacking the dishwasher, keep the packaging out of the reach of children.
The dishwasher is extremely heavy. Do not attempt to move or carry the dishwasher by

yourself. Two or more people are needed to move a dishwasher and avoid potential injuries.
Do not install the dishwasher near electrical components. Keep the dishwasher away from

open fl ames.
Install and level your dishwasher on an uncarpeted fl oor that can support its weight.
Your dishwasher must be properly grounded. Never connect it to an ungrounded outlet.

See page 10 for more information on grounding your dishwasher.
Connect the ground wire to the green ground connector in the terminal box.
After the dishwasher is installed, check that the drain hose is properly connected and

that there is no leakage from the hose connectors. If the drain hose is loose, it may cause
property damage.

The water supply line is susceptible to breakage. As time goes by, it becomes less fl exible.
Check the line periodically. If it is swollen, torn, cut, or there is a water leak, replace it
immediately.

SAVE THESE INSTRUCTIONS

English - 4

DW7000KM-02025B-0 EN.indd Sec1:4DW7000KM-02025D-01_EN.indd Sec1:4 2019-05-18  10:47:162019-05-01  10:47:16

To safely operate this appliance, familiarize yourself with its operations and exercise care
when using it.

Do not put gasoline, solvents, or other flammable materials inside the dishwasher. Do not
wash dishes exposed to these materials.

Keep your dishwasher detergent out of the reach of children. Detergent has an adverse
effect on human organs. It contains elements for polishing and is corrosive. Avoid letting the
detergent come into contact with your skin and eyes.

Do not push or place pressure on the door when it is open, as this may damage the
dishwasher or cause harm.

Do not allow children to play in or on the dishwasher. They may harm themselves or
damage the dishwasher.

Disconnect the power cable (or set the circuit breaker to off) before servicing your
dishwasher.

Do not repair, replace, or service any part of your dishwasher yourself. Disassembly, repairs
and modifi cations must be performed by authorized service technicians only. Work done by
an unauthorized person may void your warranty.

Before disposing of your dishwasher, remove the door of the washing compartment or the
door latch so that children or small animals do not get trapped inside.

If the dishwasher is left unused for an extended period of time, turn off the water supply.
This dishwasher is intended for residential use only.

BEFORE USING YOUR DISHWASHER

WARNING

WARNING

Tip-Over Hazard

- Do not use the dishwasher until it is correctly installed.

- Do not push down on an open door.

- Do not place excessive weight on the open door.

01 safety information

Electric Shock Hazard

Failure to follow these instructions can result in death, fi re, or electric shock:

- Electrically ground the dishwasher

- Connect the ground wire to the green ground connector in the junction box.

- Do not use an extension cord.

SAVE THESE INSTRUCTIONS

English - 5

DW7000KM-02025B-01_EN.indd Sec1:5DW7000KM-02025D-01_EN.indd Sec1:5 2016-05-18  10:47:172019-05-01  10:47:17

setting up your dishwasher

Be sure to have your installer follow these instructions closely so that your new
dishwasher works properly and that you’re not at risk of injury when washing
dishes.

UNPACKING YOUR DISHWASHER

• Once your new dishwasher has been delivered to you, carefully unpack it and check for any damage.
If the dishwasher has been damaged, make note of it on the waybill and keep a copy. Do not install the
dishwasher, and contact Samsung Customer Service at the number listed below.

• If there is no damage to the product, you can proceed with the installation. If you are going to install it
yourself, make sure to read through the installation guide and follow the directions inside.

• After unpacking your dishwasher, keep the packaging out of the reach of children to ensure their safety.

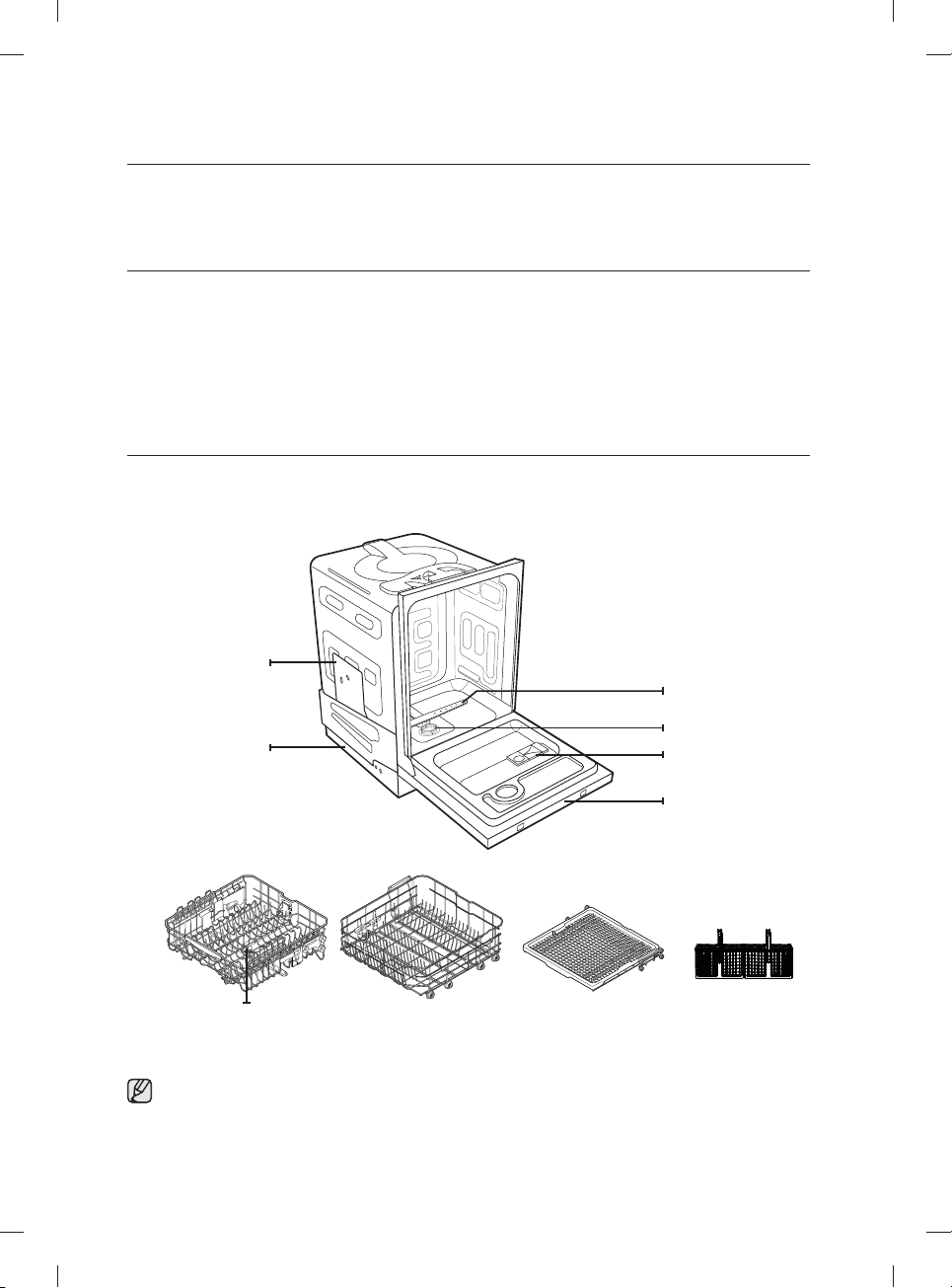

CHECKING PARTS

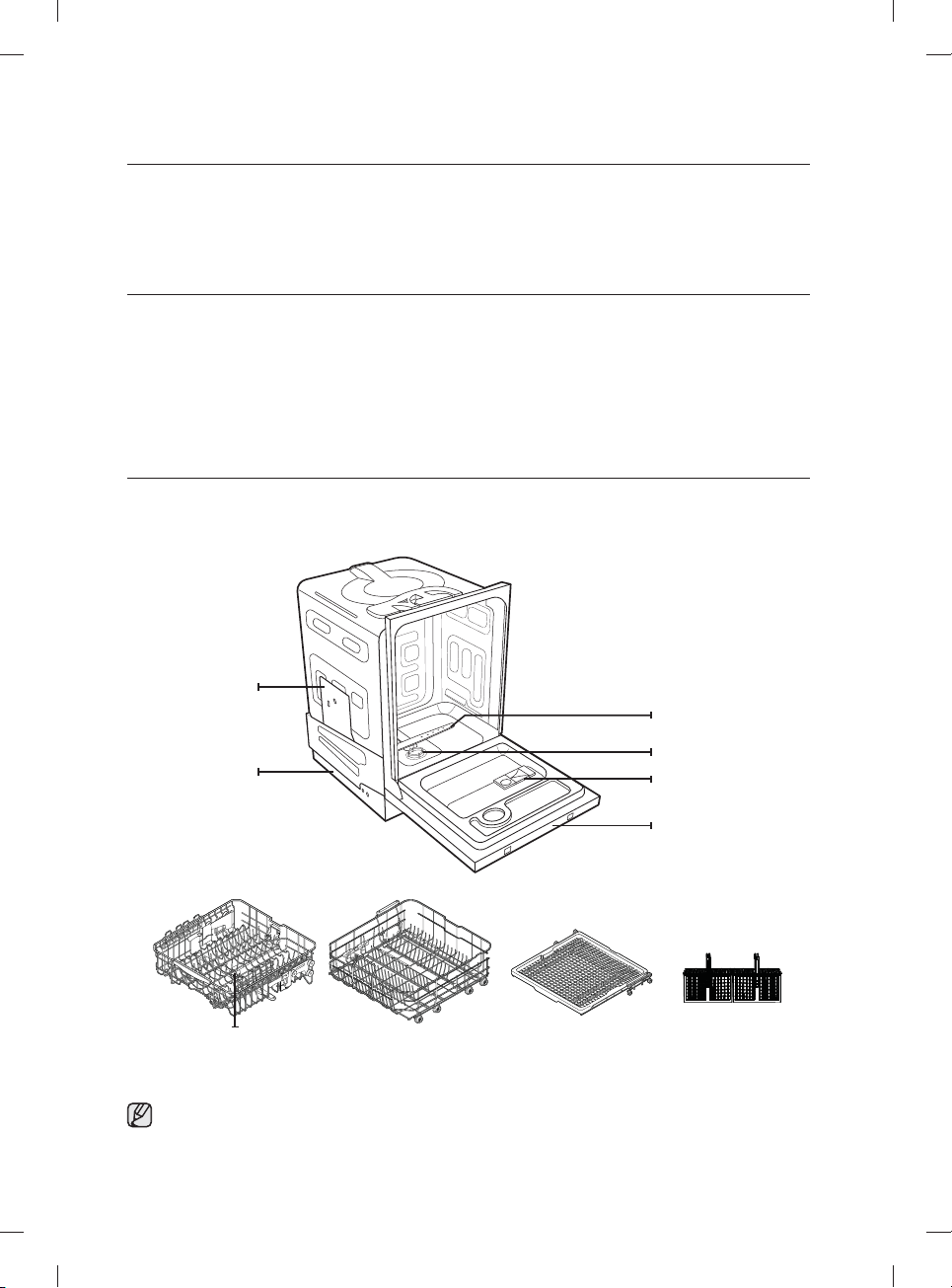

When your dishwasher has been unpacked, make sure you’ve received all the parts shown below.
If your dishwasher was damaged during shipping, or if you do not have all the parts, contact Samsung

Customer Service at 1-800-SAMSUNG (726-7864)

Air brake

Lower nozzle

Filter combination

Base

(For applicable models)
Dispenser

Door

Middle nozzle

Upper rack

Accessory parts - User/Installation manual, Installation Kit.

DW7000KM-02025B-0 EN.indd Sec3:6DW7000KM-02025D-01_EN.indd Sec3:6 2016-05-18  10:47:17201 -0 -  10:47:1709 5 1

Lower rack 3rd Rack

(For applicable models)

English - 6

Cutlery rack

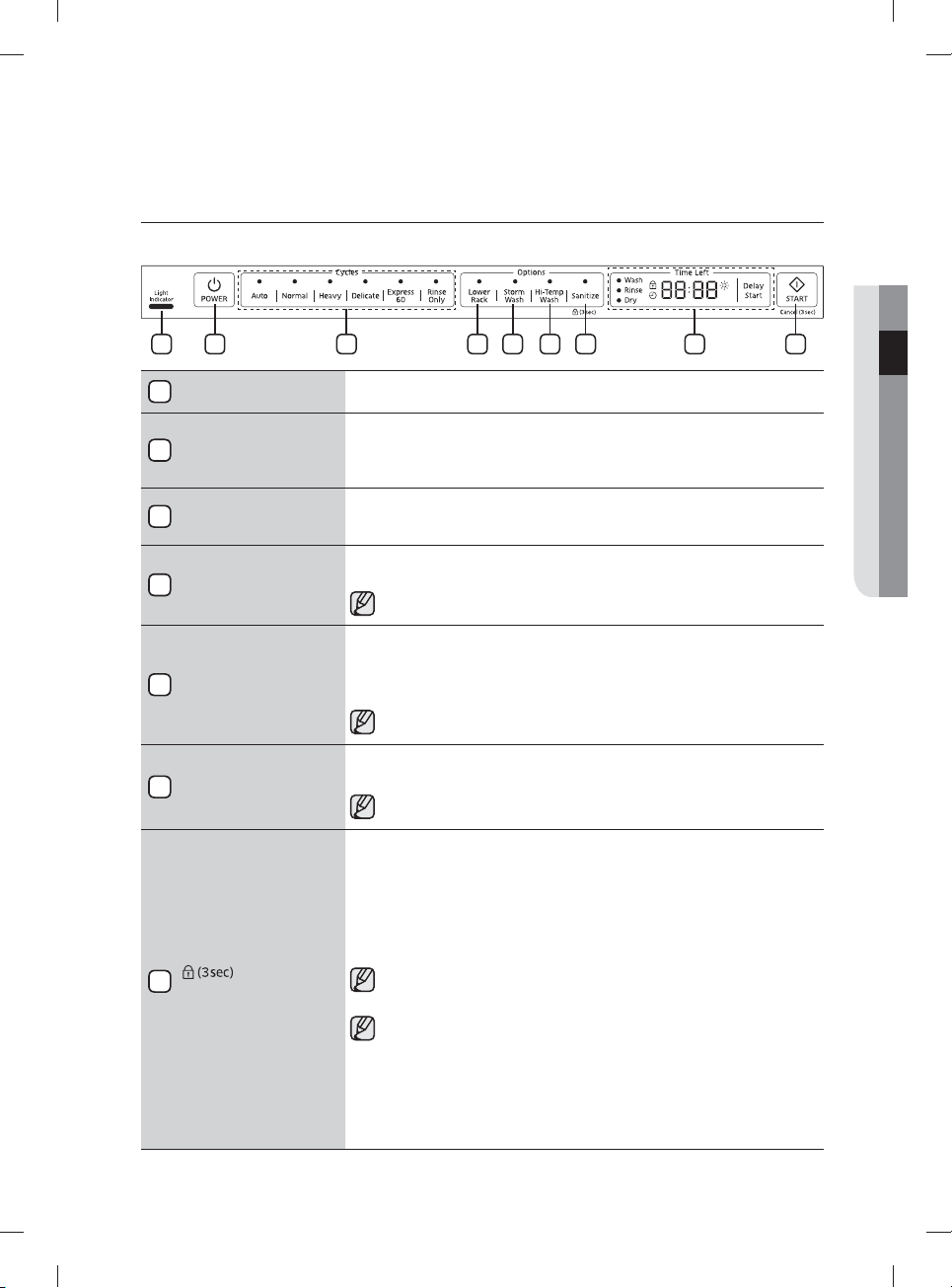

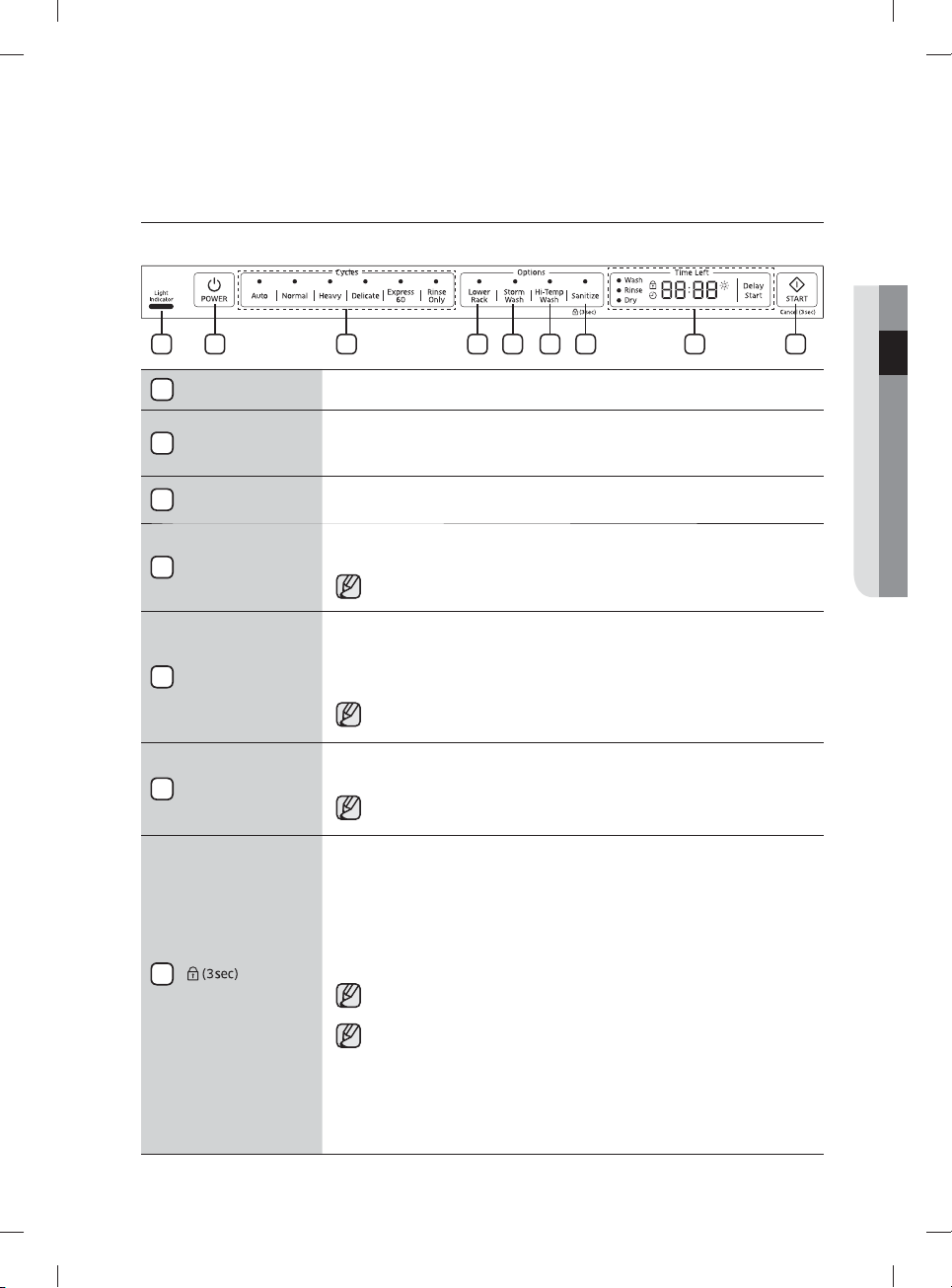

CONTROL PANEL

DW80K7050, DW80K5050 Series

1

Light indicator Indicates that the product is operating.

2

Power

3

Cycle Selector

4

Lower Rack

5

StormWash™

6

Hi-Temp Wash

, DW80R , DW80R5060 5061

When you press the Power button, the entire display turns on and off, and
then the light of the most recently fi nished cycle lights up.

When the selected cycle is complete, the dishwasher powers off
automatically.

Select the appropriate wash cycle depending on the soil level of your
dishes. After you select a cycle, the Cycle On light for that cycle lights up.

Select this option to wash a small load of dishes. We recommend that you
place dishes in the lower rack when you use this feature.

When you select Lower Rack, the dishwasher will not wash dishes
placed in the upper rack.

Use this option when you want to wash pots and pans, durable serving
bowls, and other large, very dirty, hard to clean dishes.

To use StormWash™, place the dishes face down in the marked
StormWash™ area in the lower basket.

StormWash™ is not available with the Delicate and Rinse only cycles.

Raises the main wash temperature to improve cleaning for loads containing
tough, baked-on food.

Hi-Temp Wash is not available for the Delicate and Rinse only cycles.

02 setting up your dishwasher

93 4 821 5 76

The temperature rises to 163 ˚F (73 ˚C) in the fi nal rinse cycle for high
temperature sanitization.

If you select the Sanitize option, the “Sanitize” lamp blinks when the water
temperature reaches the sanitary temperature (over 155 ˚F (68 ˚C)), and
then remains illuminated until the Sanitize option ends. When you press the

Sanitize /

7

Power button, the “Sanitize” lamp turns off.

Sanitize is not available for the Delicate and Rinse only cycles.

(Control Lock)

The Sanitize feature oparates in accordance with NSF/ANSI Standard 184
for Residential Dishwashers. Certified residential dishwashers are not intended
for licensed food establishments. Your dishwasher is NSF Cerfified.

Only the Normal cycle with the Sanitize option has been designed to meet

the requirements for soil removal and sanitization efficacy in NSF 184.

English - 7

DW7000KM-02025 _EN.indd Sec3:7DW7000KM-02025D-01_EN.indd Sec3:7 2016-05-18  10:47:192019-05-01  10:47:19

setting up your dishwasher

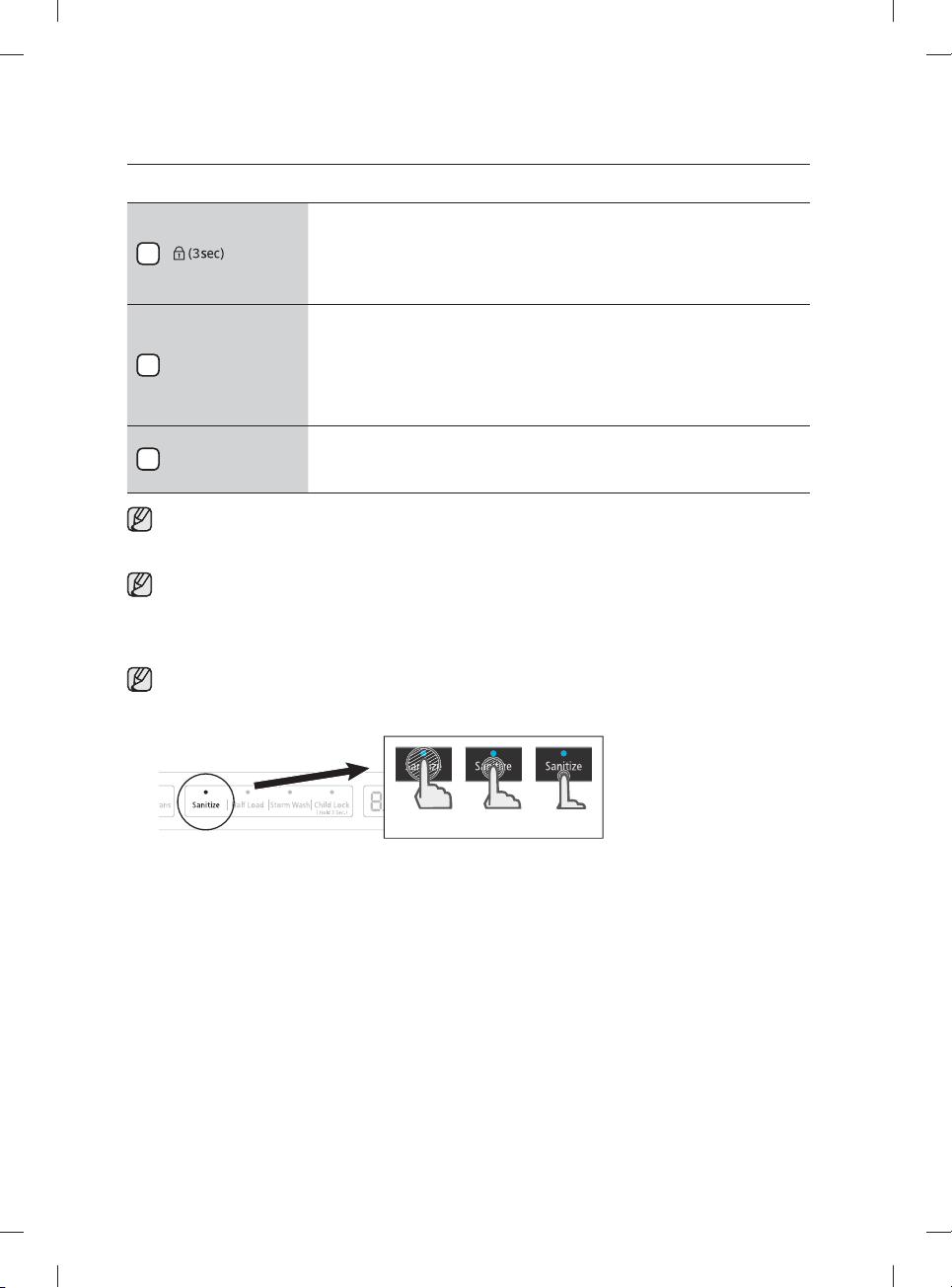

Control Lock allows you to lock the buttons on the control panel so children

Sanitize /

7

(Control Lock)

Delay Start

8

(DISPLAY)

9

Start

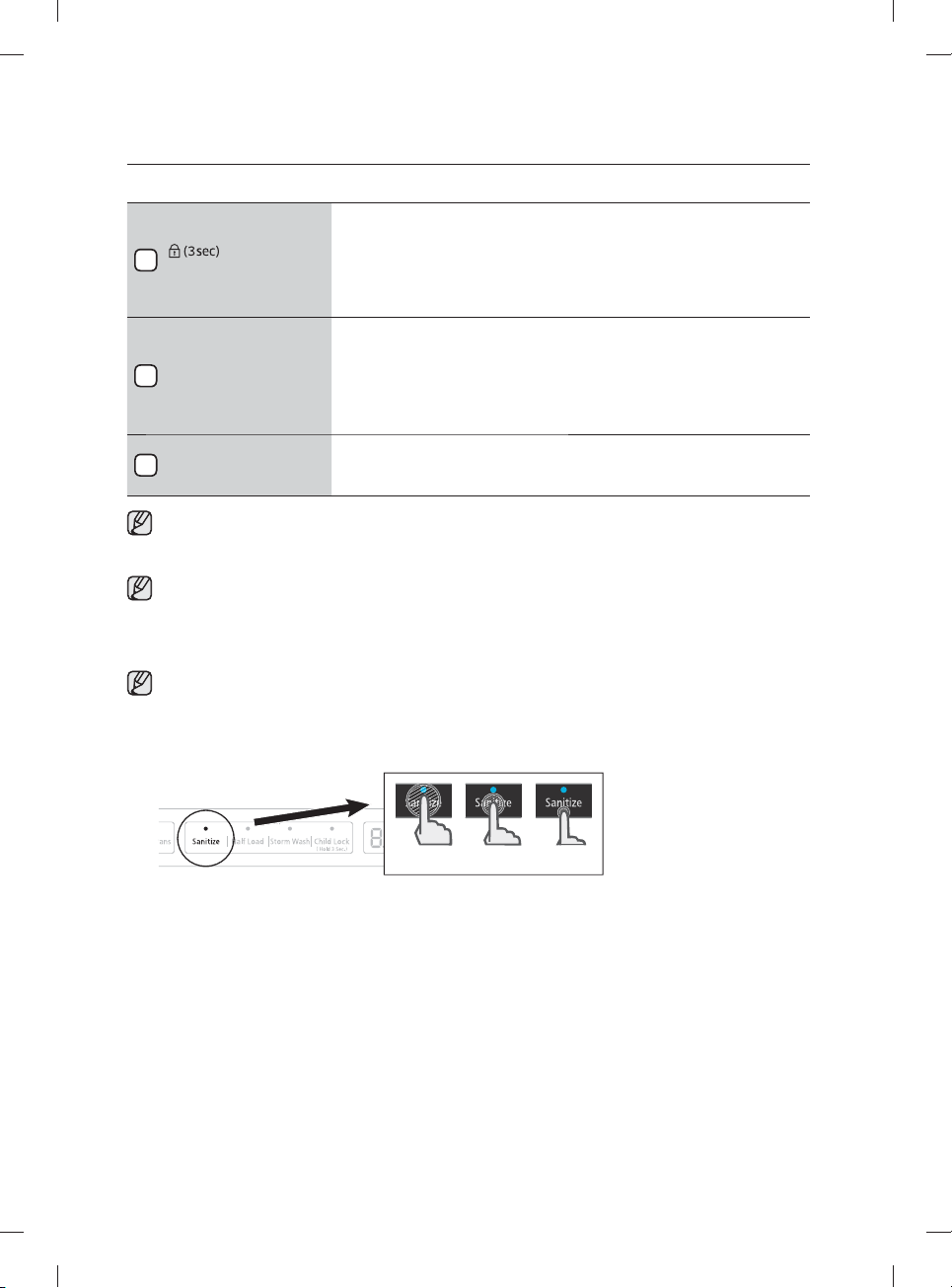

You can select options (Lower Rack, StormWash™, Hi-Temp Wash, Sanitize) before starting a
cycle. If you change the cycle after selecting an option, the original cycle is reset.

To prevent the touchpad from losing response sensitivity, follow these instructions:

- Touch the center of each keypad using one fi nger. Do not push.

- Clean the touch control’s surface regularly with a soft, damp cloth.

- Be careful not to touch more than one touch key pad at a time, except as directed.

When you pause a cycle by opening the door during operation, press the Start button before closing
the door to continue the cycle.
Push door fi rmly closed within 3 seconds of pressing Start button.
If the door is not closed within 3 seconds, the cycle will not start.

cannot accidently start the dishwasher by pressing the buttons on the
panel.

To lock and unlock the buttons on the control panel, hold the Sanitize
button down for three (3) seconds when power is On.

Delay a cycle for up to 24 hours in one-hour increments. The hour displayed
indicates the time at which the wash will be started.

Displays wash information, Delay Start hours, and Error messages.
If an trouble occurs during an operation, an check message is displayed

with a warning sound. Refer to “Information codes” on page 30.

To start a cycle, press the Start button before closing the door.
To cancel the cycle, press and hold the Start button for 3 seconds or press

the Power button to power off.

OO X

English - 8

DW7000KM-02025B-01_EN.indd Sec3:8DW7000KM-02025D-01_EN.indd Sec3:8 2019-05-18  10:47:222019-05-01  10:47:22

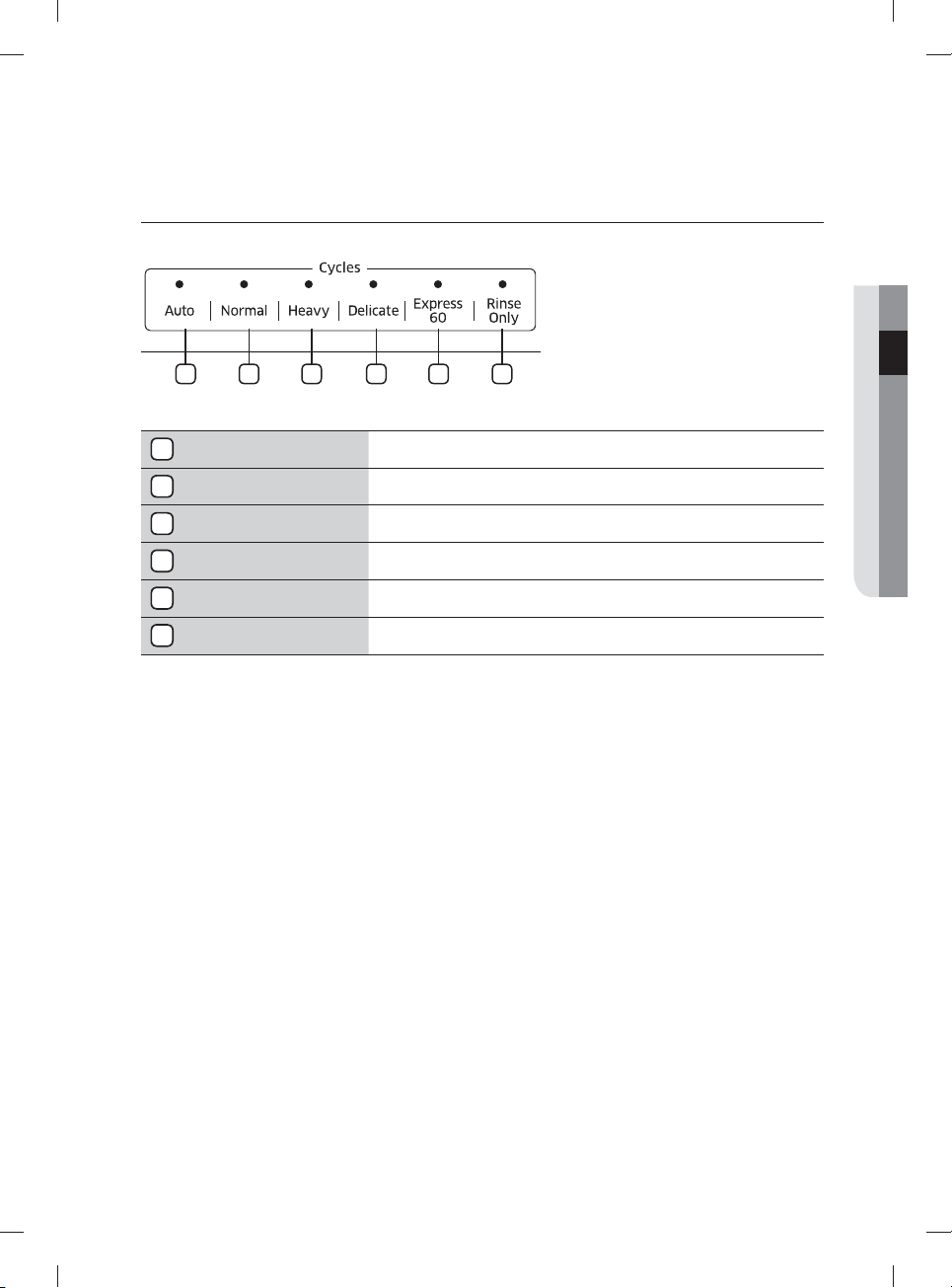

CYCLE SELECTOR

DW80K7050, DW80K5050, DW80R5060, DW80R5061 Series

1 2 3 4 5 6

02 setting up your dishwasher

1

Auto

2

Normal Use this cycle for normally soiled dinner dishes.

3

Heavy Use this cycle for heavily soiled dishes and dishes with heavy soil.

4

Delicate Use this cycle for normally soiled dishes or fragile items such as glasses.

5

Express 60

6

Rinse only

This cycle detects the level of soil and automatically initiates the optimal cycle
after a few minutes of operation.

Use this cycle for lightly soiled dishes.

Use for rinsing dishes, glasses, and silverware that will not be washed right
away. Do not use detergent.

English - 9

DW7000KM-02025B-01_EN.indd Sec3:9DW7000KM-02025D-01_EN.indd Sec3:9 2016-05-18  10:47:232019-05-01  10:47:23

setting up your dishwasher

MEETING INSTALLATION REQUIREMENTS

Electrical supply and grounding

To prevent the risk of fire, electric shock, or personal injury, all wiring and grounding must be
done in accordance with the National Electrical Code ANSI/FNPA, No. 70 Latest Revision and
local codes and ordinances. It is the personal responsibility of the appliance owner to provide
adequate electrical service for this appliance.

Never use an extension cord.

CAUTION

When preparing for installation, ensure that you provide:

• An individual branch circuit with a 120 V, 60Hz, 15 AMP fuse or circuit breaker that serves
only your dishwasher .

Your dishwasher must be grounded. If your dishwasher malfunctions or breaks down, grounding
will reduce the risk of electric shock by providing a path of least resistance for the electric
current.

Never connect the ground wire to plastic plumbing lines, gas lines, or hot water pipes.

WARNING

GROUNDING INSTRUCTIONS

For a permanently connected appliance:

This appliance must be connected to a grounded metal, permanent wiring system, or an
equipment-grounding conductor must be run with the circuit conductors and then connected to
the equipment-grounding terminal or lead on the appliance.

Water supply

The hot water supply line pressure must be between 20-120 psi (140-830 kPa).
Adjust the water heater to deliver water between 120 ˚F (49 ˚C) - 149 ˚F (65 ˚C).

Most plumbing supply stores sell water supply lines of various lengths up to 10 feet
(305cm) long.
You can reduce the risk of leaks and water damage by:

• Making water faucets easily accessible.

• Turning off faucets when the dishwasher is not in use.

• Periodically checking for leaks at water supply line fittings.

Before using your dishwasher for the first time, check all connections at the water supply valve
and faucets for leaks.

WARNING

Flooring

For safety, your dishwasher must be installed on a solidly constructed fl oor.
Never install your dishwasher on a platform or poorly supported structure.

Your dishwasher must be properly installed in accordance with the Installation Guide before you use it. If
you did not receive an Installation Guide with your dishwasher, you can obtain one by visiting our website at
www.samsung.com.

English - 10

DW7000KM-02025B-0 EN.indd Sec3:10DW7000KM-02025D-01_EN.indd Sec3:10 2016-05-18  10:47:232019-05-01  10:47:23

using your dishwasher

BASIC GUIDELINES

1. Open the door and load your dishes (see page 14).

- Place dishes into the upper and lower racks, unless you have selected Lower Rack.

- Remove any food remains from the dishes before placing them in the FlexLoad™ rack(s).

- After placing the dishes into the FlexLoad™ racks, rotate the nozzles by hand to check whether any

of the dishes will interfere with them.

- Make sure the dishes will not prevent the detergent dispenser from opening.

2. Add detergent to the dispenser (see page 20).

- Make sure to use only automatic dishwasher detergent and rinse aid.

- Refer to “Using detergent” on page 20 for instructions explaining how to add detergent and

rinse aid.

3. Press the Power button.

- When you press the Power button, the entire display turns on and off, and then the indicator of the

most recently fi nished cycle lights up.

- If “Low Rinse” (
drying performance.

4.

Select an appropriate cleaning cycle depending on the soil level of the dishes. (See pages 9 and 25.)

- Press the appropriate cycle button.

- When you press a cycle button, the cycle indicator lights up.

5. Press the Start button, and then close the door within 3 seconds.

- The dishwasher will start draining after a few seconds, and then start the selected cycle.

- Make sure to close the door fi rmly. If the door is not closed properly, the selected cycle will not start

automatically.

6. When the wash cycle is completed.

- The light illuminates and the dishwasher sounds a chime.

- The dishwasher powers off automatically.

- The door opens automatically 5 ~ 15 minutes before the cycle ends to improve drying performance.

) is illuminated, you should refi ll the rinse aid dispenser to improve washing and

03 using your dishwasher

- If you want to load more dishes or pause the dishwasher while it is already running, make sure to

CAUTION

open the door slowly and carefully as there is a possibility of injury from the hot steam inside the
dishwasher.

- If the door is opened while the dishwasher is running, a safety mechanism is activated and stops
the cycle.

- To resume operation, press the Start button, and then close the door within 3 seconds.

- Adding dishes several minutes after the dishwasher starts operating may affect its performance.

- If you open the door while the dishwasher is running at high temperature, it will drain the hot water
automatically to protect you from scalding.

You should use rinse aids for better drying performance. You can further improve drying performance
by also selecting the Sanitize option.

After a cycle is complete, the door automatically opens to let steam out. This is normal and not a
product malfunction.

.

English - 11

DW7000KM-02025B-01_EN.indd Sec4:11DW7000KM-02025D-01_EN.indd Sec4:11 2016-05-18  10:47:232019-05-01  10:47:23

using your dishwasher

Touch controls

Touch controls allow you to operate the dishwasher easily.

• They are convenient to operate, requiring only a soft touch.

• Have a simple and stylish design.

• Are easy to clean.

If you have children or you want to clean the Control Interface, we recommend activating
the Control Lock feature to lock the control buttons. See page 8.

- Children will not be able to accidently start the dishwasher by touching the controls with
this option selected.

- If a cycle is running, the buttons will not respond. (except the Power button)

- If dishwasher is off, only the Power button responds.

Auto Release

Auto Re lease i s desig ned to im pro ve the dr ying pe rform anc e , which o pens th e door (5 t o
15 minu tes bef ore a c ycle is c omple te)in b etween 15 se conds a nd 3 minu tes aft er the actua ting
signa l is trig gered, You can cha nge the defa ult set tings a s follo ws:

Auto Release On/Off

Using Setting Mode

To enter Se tting m ode, press t he Dela y Start +Sanitiz e butto n for 3 sec onds wh ile the

•

dishw asher i s on.

•

Press t he Sa nitiz e butto n until "A1" or " A0" is displ ayed, "A0" di sable s Auto
Relea se Dry. "A1" en ables A uto R eleas e Dry. Select " A1" for b etter dryi ng resu lts .

•

Press t he De lay Sta rt butt on impl ement y our choice

TM

TM

TM

TM TM

.

Using Toggle keys

Press t he Lo wer+H i-Temp Wash

•

butto n for 3 sec onds to e nable o r dis able
Auto Re lease Dry.
"A0"d isabl es Auto R eleas e Dry.

•

"A1"a ctiva tes Aut o Relea se Dr y
Once th e door op ens in th e

•

Auto Re lease Dry mo de, the d oor
canno t be clos ed manu ally fo r the n ext 2
minut es.
The Aut o Relea se Dr y mode wi ll be

•

disab led for t he Rins e Only cy vle.

Changing the “AutoRelease™ Dry” setting can infl uence drying results. Select “
for better drying results. (“A1” is the default setting.)

After a cycle is complete, the door automatically opens to let steam out. This is normal and
not a product malfunction.

TM

TM

TM

TM

TM

.

A1” mode

Setting Mode

The Setting Mode lets you change the dishwasher’s Sound,
Dry settings. To enter the Setting mode, press the Delay Start + Sanitize buttons for 3

seconds while the dishwasher is on. Press the Sanitize button to select a sub-setting menu and
then press the Delay Start button to change a setting.

English - 12

DW7000KM-02025 01_EN.indd Sec4:12DW7000KM-02025D-01_EN.indd Sec4:12 2016-05-18  10:47:24201 -0 -0  10:47:24

Light indicator

, and AutoRelease™

9 5 1

- Sound Setting: Press the Sanitize button until “U1” or “U0” is displayed. To change the
setting, press the Delay Start button. “U0” turns the sound off for all cycles. “U1” turns the
sound on.
The dishwasher maintains the Sound Setting you have selected until you change it.

- Light indicator Setting: Press the Sanitize button until “B1“ or “B0” is displayed. To change
the setting, press the Delay Start button. “B0” turns the light off for all cycles. “B1” turns the
light on.

Delay start

When you select the Delay Start option, your dishwasher will:

• Start draining to remove remaining water at once (pre-drain).
Your dishwasher will operate the selected cycle when the delay time expires.

When using the dishwasher, try to arrange the dishes properly as described on page 16to19.

WARNING

• You should remove food remains such as bones, fruit seeds, etc. and any other waste such

as toothpicks, paper, etc. from the dishes as these may cause damage to the dishes, create
noise, or cause the dishwasher to malfunction.

• Select the appropriate cycle depending on the level of soil and the type of dishes.

• Use only the proper amount of detergent and rinsing agent.

Do not wash the following items

WARNING

• Acrylic or Aluminum items: Dishes with printed gold rim decoration may become

discolored.

• Dishes treated with adhesive: Treated plastics, wood, ivory, copper, and tin may come

loose.

• Plastics with a temperature tolerance less than 194 ˚F (90 ˚C): Thin plastics wash and dry

poorly, and may be damaged due to elevated wash temperatures.

• Tin: Tin should be washed by hand and dried immediately as it may rust.

• Wooden utensils: Wooden items may crack.

03 using your dishwasher

English - 13

DW7000KM-02025B-02_EN.indd Sec4:13DW7000KM-02025D-01_EN.indd Sec4:13 2018-05-18  10:47:25201 -0 -0  10:47:25

9 5 1

using your dishwasher

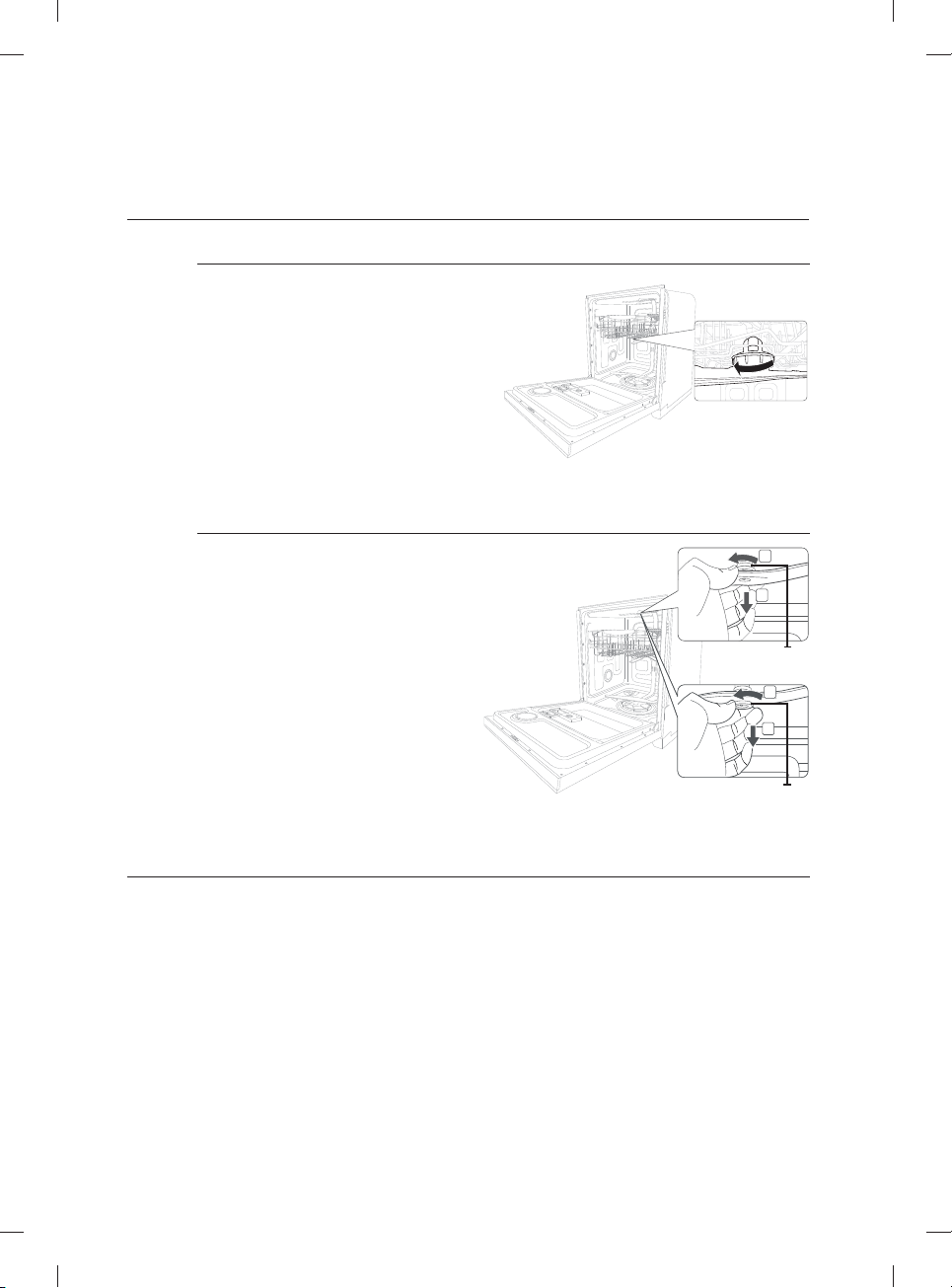

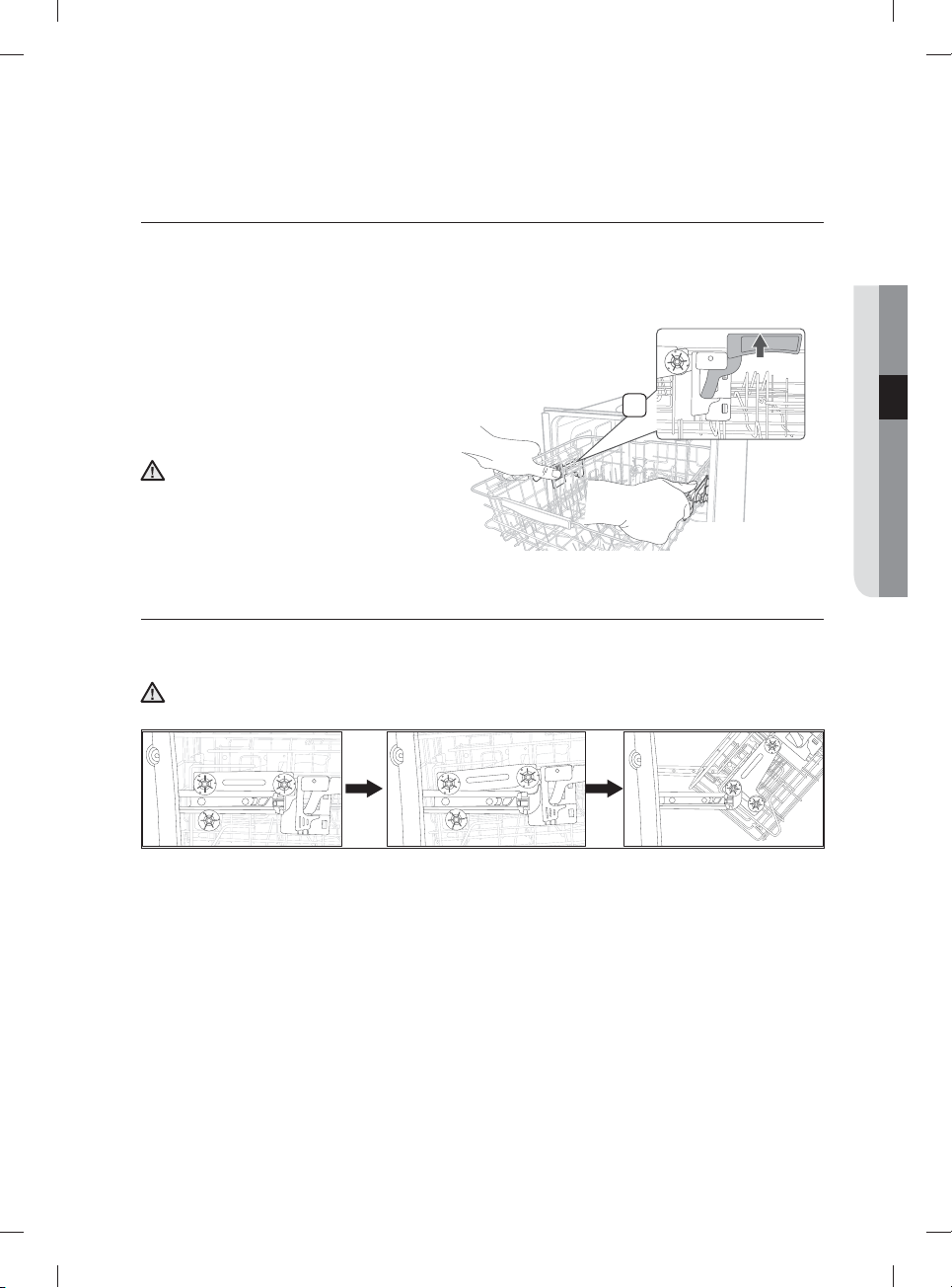

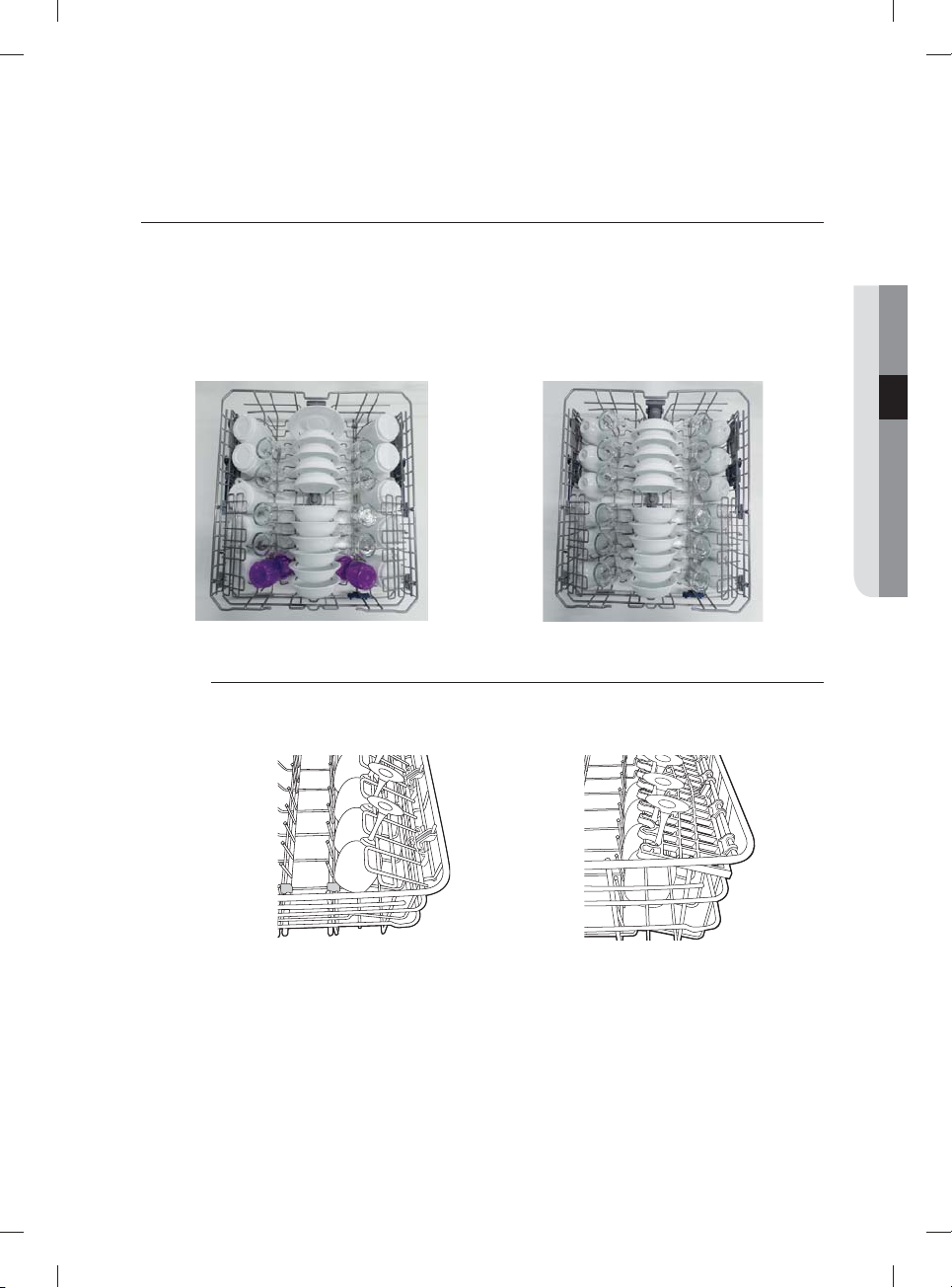

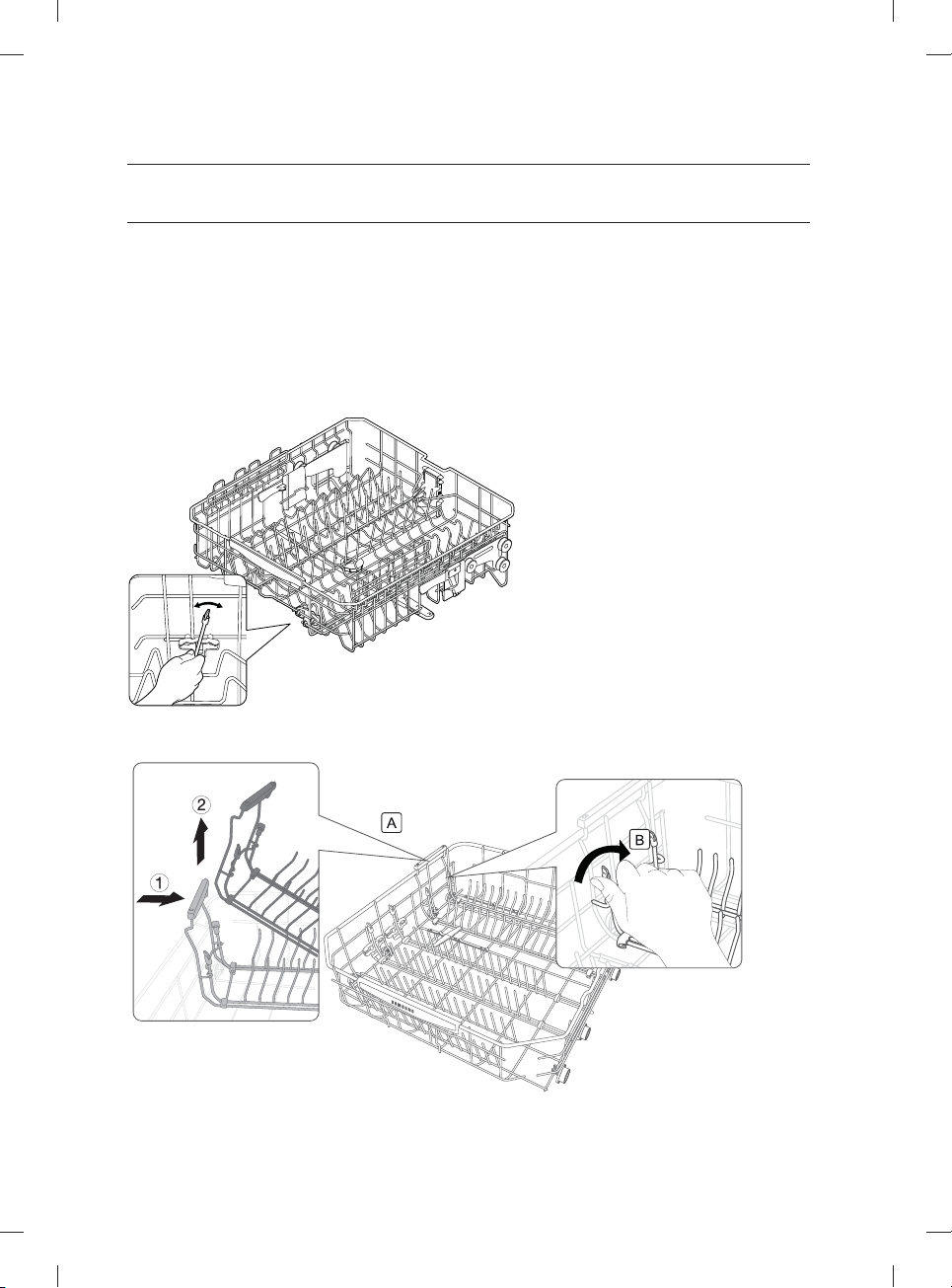

ADJUSTING THE ANGLE OF THE PLATE SUPPORTS

You can adjust the angle of the tines in the upper rack to three different positions to match the size and
shape of your dishes. To adjust the tines, grasp the handle at the back of the rack and push it left or right.
See the illustration below.

In the lower rack, you can easily remove the plate support to make room for large items such as pots and
pans. To remove the plate support, lift up the handles (A). To refi t the plate support, align it so it is in place,
and then push down on the handles (A). To fold down the fold-down tines on the lower rack, remove the
rack from the dishwasher, turn the rack over, grasp the tine (B), and then adjust it backward. See the
illustration below.

Upper rack

Lower rack

English - 14

DW7000KM-02025B-01_EN.indd Sec4:14DW7000KM-02025D-01_EN.indd Sec4:14 2016-05-18  10:47:262019-05-01  10:47:26

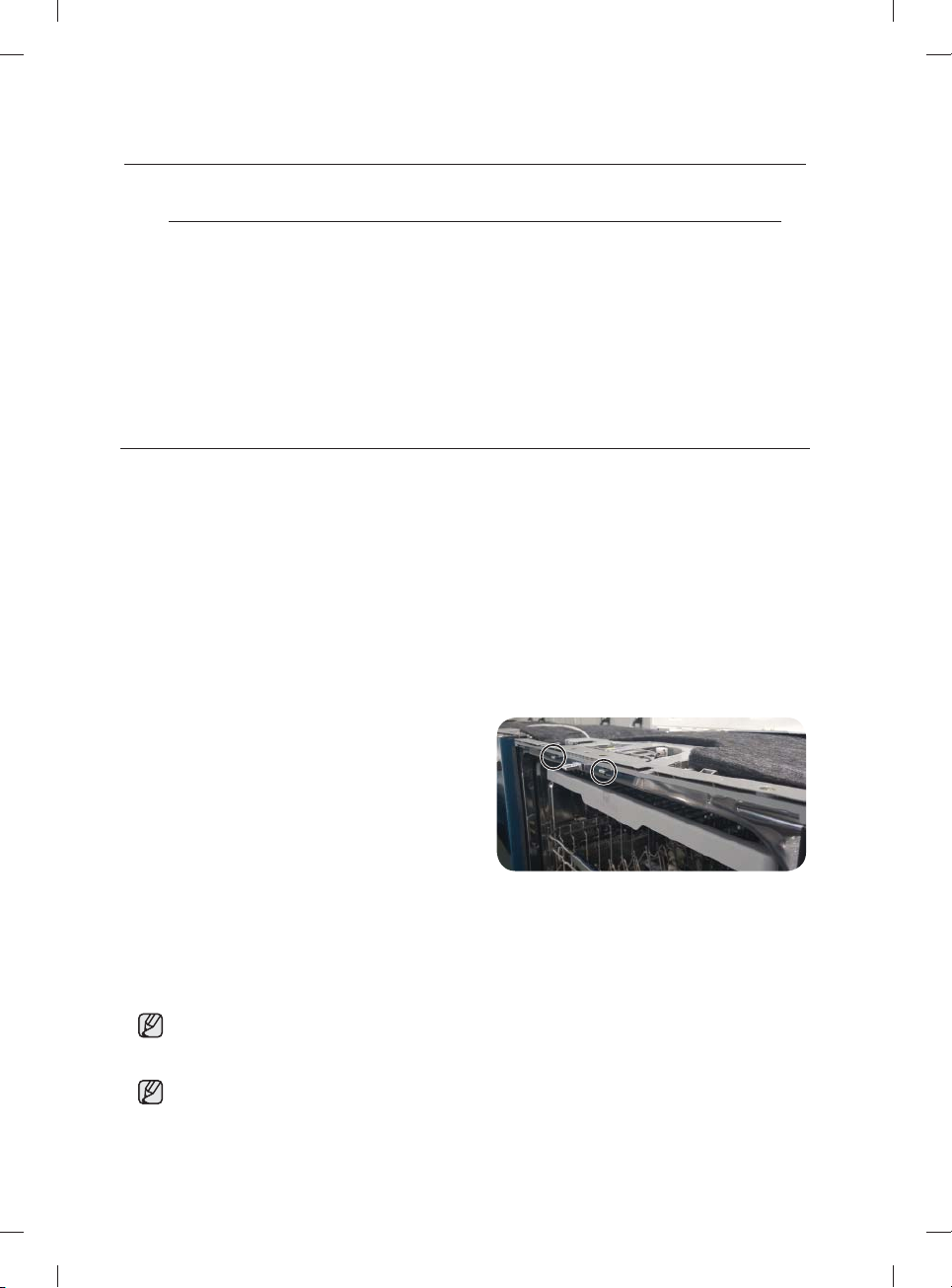

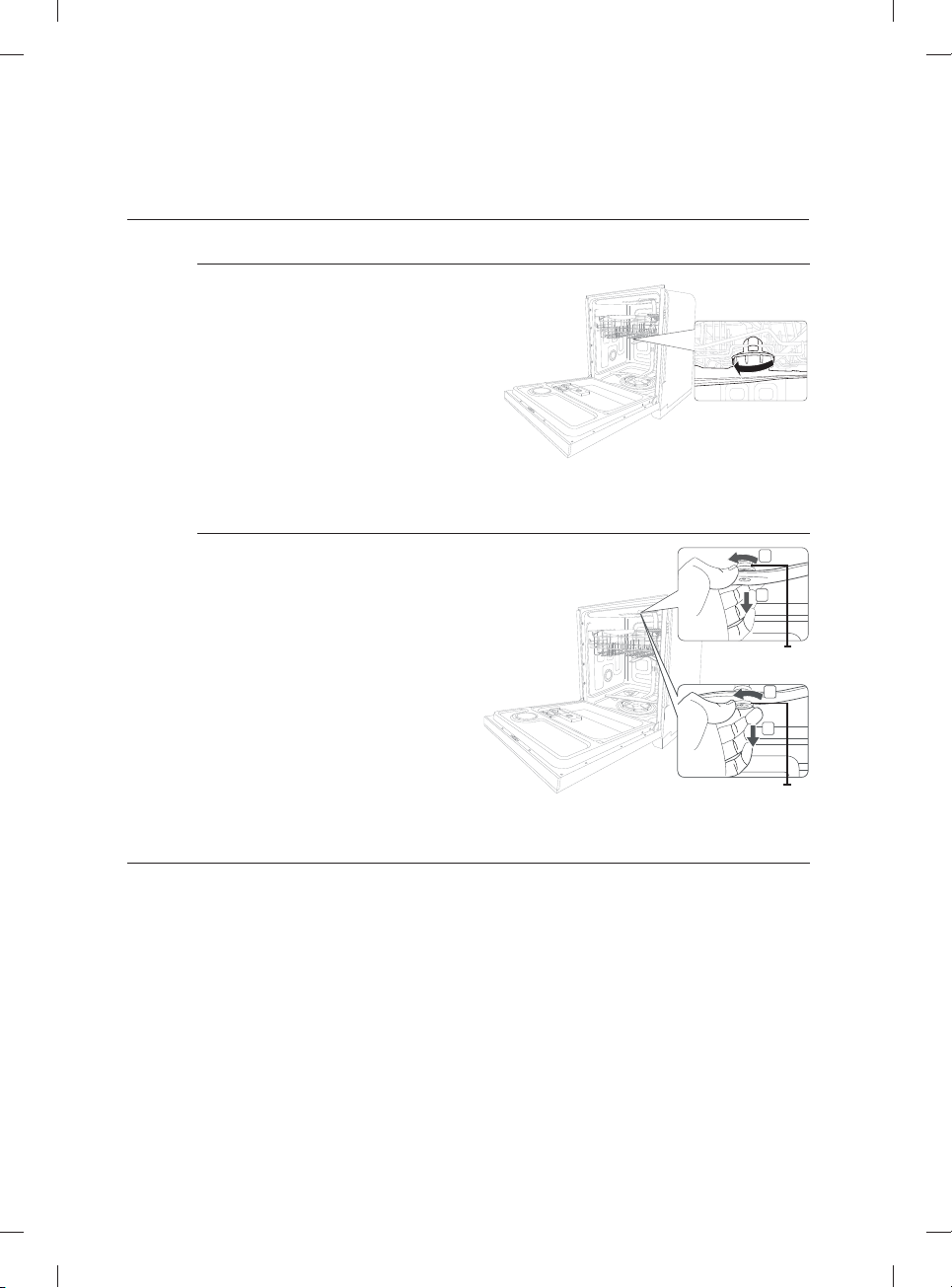

ADJUSTING THE HEIGHT OF THE UPPER RACK

You can adjust the height of the upper rack in your Samsung dishwasher so that the lower rack can
accommodate larger sized dishes. With the upper rack set at the highest position, the lower rack can
accommodate plates up to 12 in. (30 cm) in diameter and the upper rack can accommodated plates up to
8 in. (20 cm) in diameter.

1. To lower the upper rack by 2 in. (5 cm), pull
the adjustment handles located at the left
and right sides of the upper rack and push
the upper rack downwards slightly at the
same time.

2. To raise the upper rack, just pull the upper

A

rack upwards. The adjuster handle will latch
and the upper rack will move to the high
position.

We recommend adjusting the height of the
upper rack before loading dishes into the

CAUTION

rack. If you adjust the the rack after loading
the dishes, you may damage the dishes.

REMOVING THE UPPER RACK

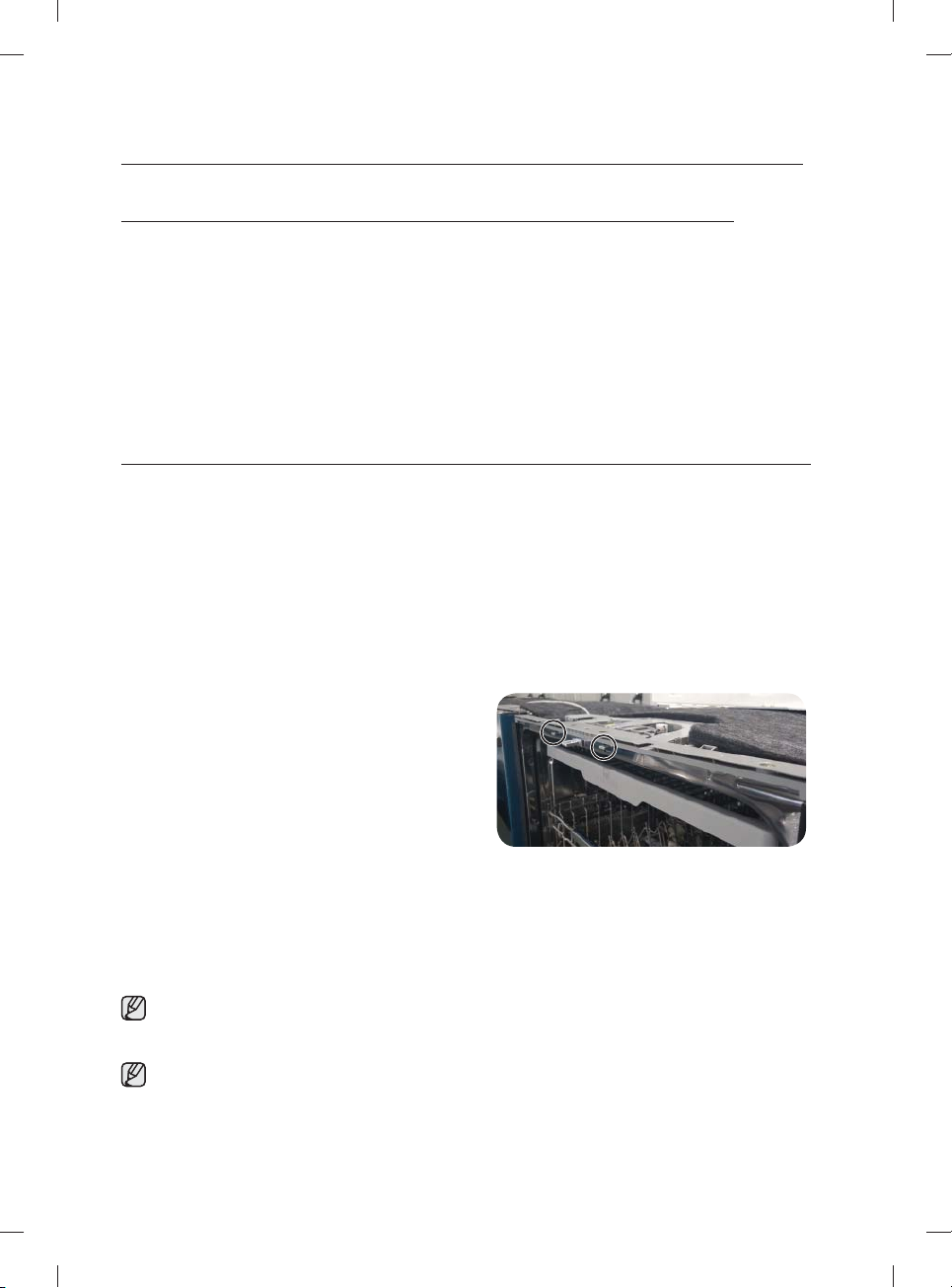

Pull the upper rack towards the front and then remove it by lifting it up slightly and pulling it towards the
front. See the illustrations below.

While the upper rack is removable, it must be installed for the dishwasher to operate properly.
If you attempt to operate the dishwasher without the rack, noise will occur and the dishwasher will

CAUTION

perform poorly.

03 using your dishwasher

Step 1. Step 2. Step 3.

English - 15

DW7000KM-02025B-01_EN.indd Sec4:15DW7000KM-02025D-01_EN.indd Sec4:15 2016-05-18  10:47:272019-05-01  10:47:27

Saucer

using your dishwasher

LOADING THE LOWER RACK

The lower rack has been especially designed for dinner dishes, soup bowls, plates, pots, lids, casserole
dishes, and plates.

Load large items such as pans and pots into the dishwasher so their open sides face downwards. We
recommend loading cups, stemware, and small plates into the upper rack.

See the recommended loading patterns below.

Saucer

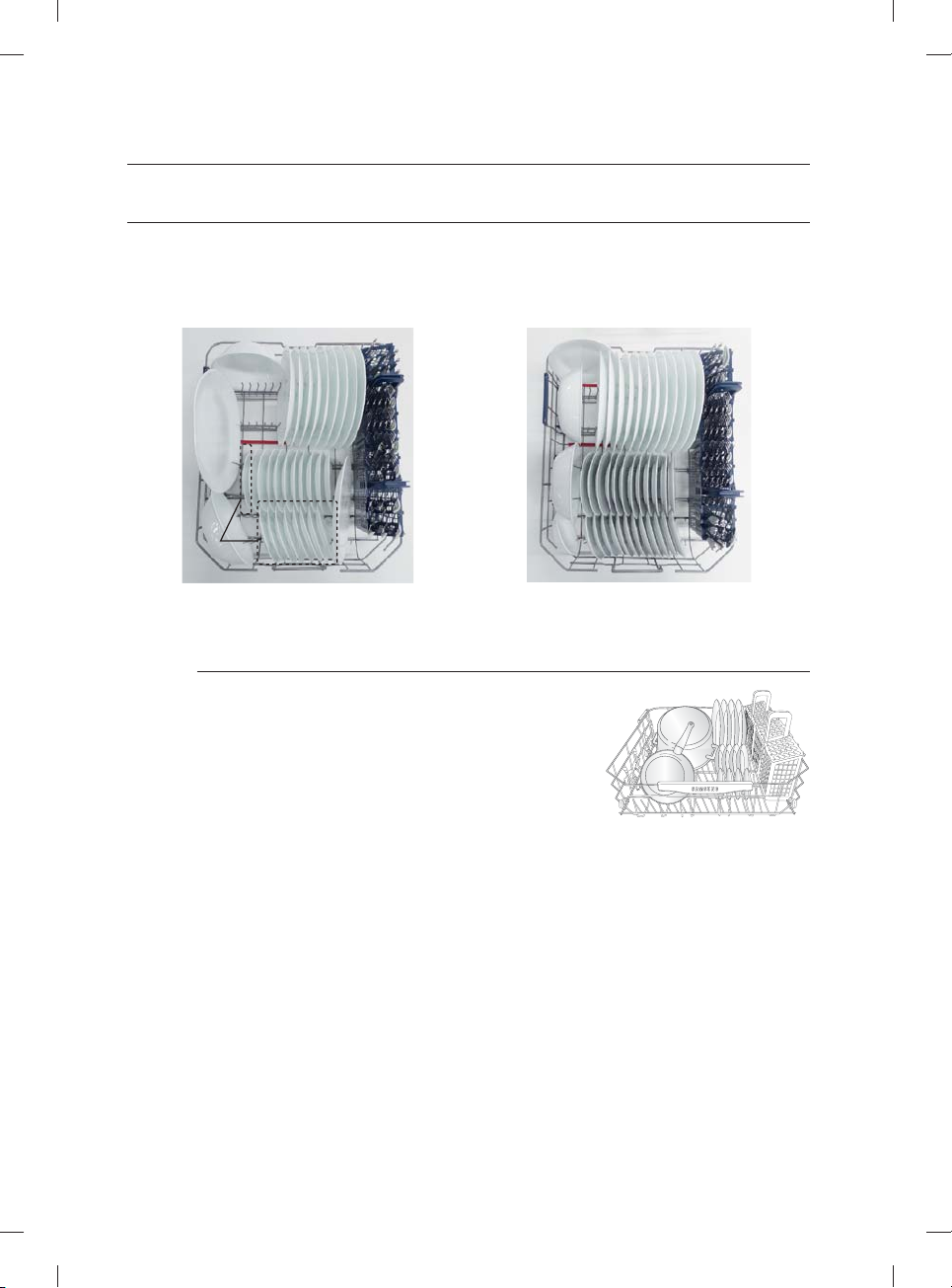

10 place setting 12 place setting

Loading the large items into the StormWash™ zone

You can load large items such as pots and pans into the
StormWash™ Zone - identifi ed by red guide lines - In the
lower rack for more effective cleaning. When you select the
StormWash™ option, an additional, powerful jet is activated
and directed at items in the StormWash™ Zone. Make sure
pot handles and other items do not interfere with the rotation
of the nozzles.

English - 16

DW7000KM-02025B-01_EN.indd Sec4:16DW7000KM-02025D-01_EN.indd Sec4:16 2019-05-18  10:47:282019-05-01  10:47:28

LOADING THE UPPER RACK

The upper rack has been designed for small plates, mugs, glasses, and plastic items marked “dishwasher
safe”. Load your plates into the dishwasher in two half rows, so that the front of each plate faces the back
of the plate in front of it, and the open sides of the plates at the center of the dishwasher face each other.
See the illustrations below.

Make sure the loaded dishes do not interfere with the rotation of the nozzle which is located at the bottom
of the upper rack. (Check this by rotating the nozzle by hand.)

When loading dishes, pull the upper rack out suffi ciently so you can load it without striking the counter
above.

10 place setting 12 place setting

Using the glass support

You can load cups or glasses onto the glass support. This is also very convenient for washing
wine glasses. Hang your wine glasses onto the pegs of the glass support.

You can fold the glass support back when it is not being used.

03 using your dishwasher

DW80K7050 Series DW80K5050 Series
DW80 Series60

R50

DW80 Series61

R50

English - 17

DW7000KM-02025 01_EN.indd Sec4:17DW7000KM-02025D-01_EN.indd Sec4:17 2016-05-18  10:47:29201 -0 -0  10:47:29

9 5 1

using your dishwasher

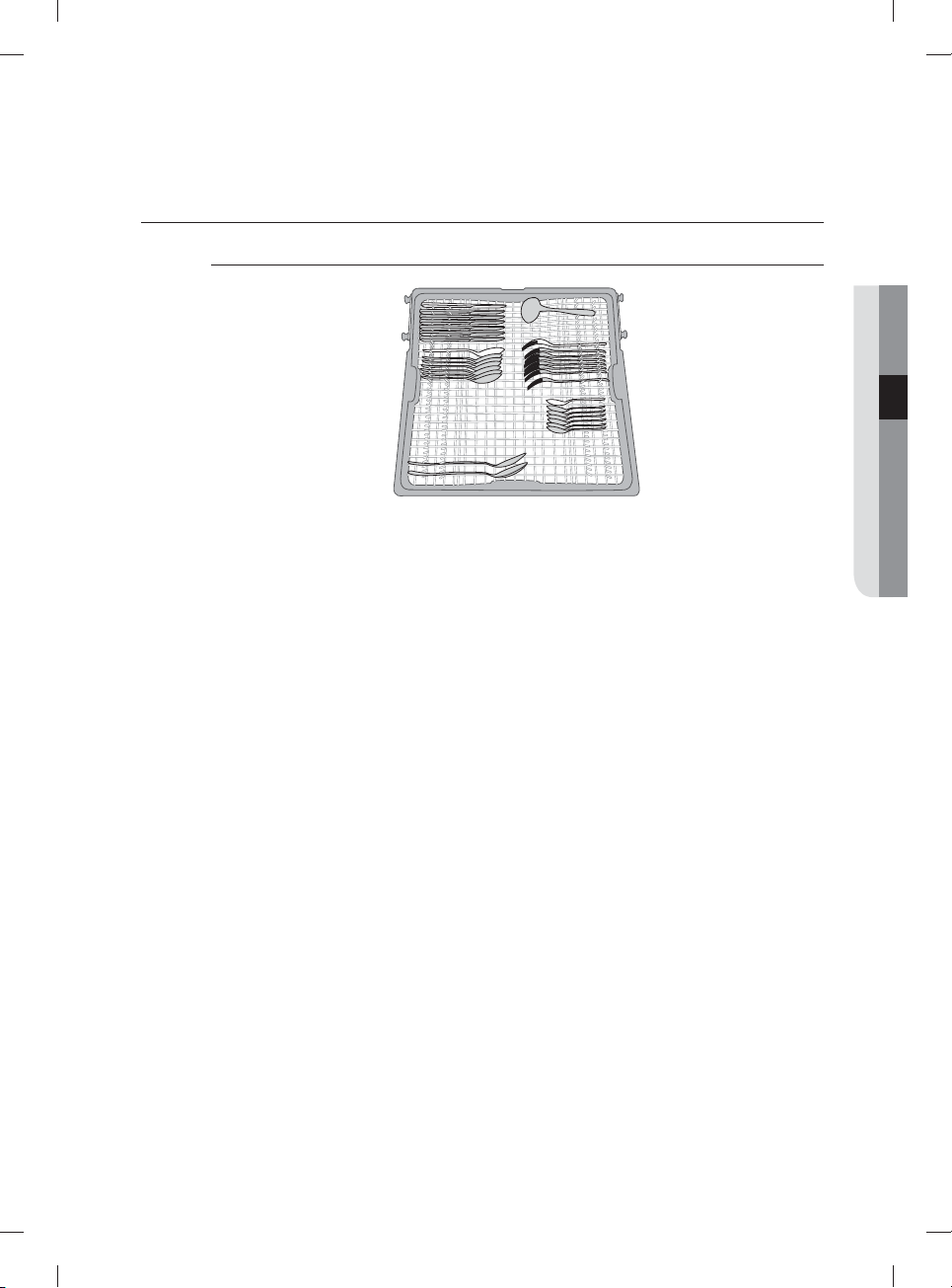

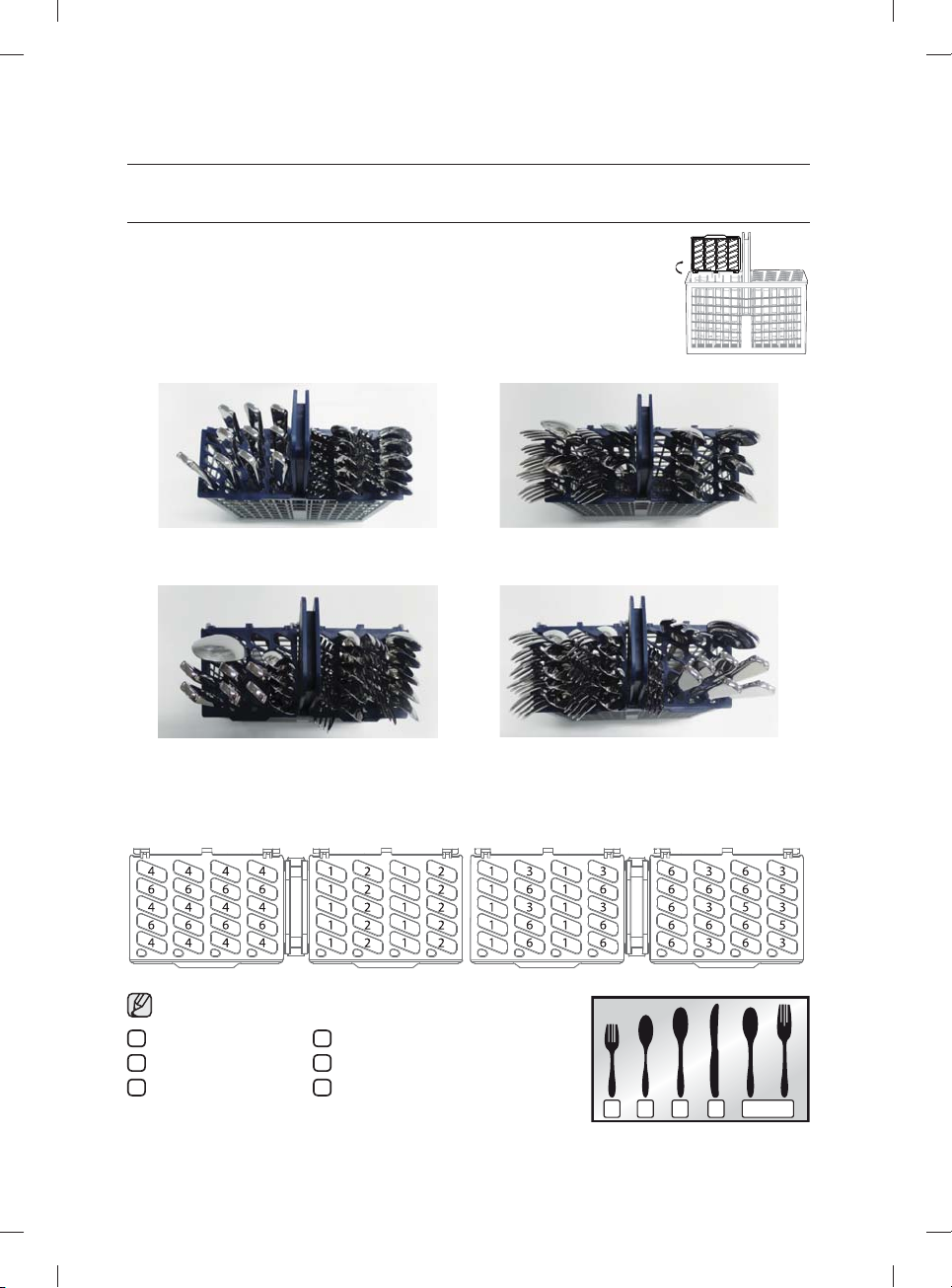

USING THE CUTLERY RACK

The cutlery rack consists of two compartments.
You can place each knife, spoon, or fork separately into the spoon stands in the

basket’s covers to prevent chipping and discoloration.

You can use the cutlery rack with the cover open. Refer to the illustration to the right.

Left Right

10 place setting

Left Right

12 place setting

The spoon stands as seen from above with the suggested placement of cutlery items. Match the numbers
in the diagram to the numbers in the list of cutlery items below.

DO NOT let any item extend through the bottom.

Forks

1

Tea spoons

2

Dinner spoons

3

Knives

4

Serving spoons and Serving forks

5

Remaining items

6

1 3 42 5

English - 18

DW7000KM-02025B-01_EN.indd Sec4:18DW7000KM-02025D-01_EN.indd Sec4:18 2016-05-18  10:47:332019-05-01  10:47:33

USING THE 3RD (CUTLERY) RACK (FOR APPLICABLE MODELS)

Loading the cutlery rack

<Place items randomly or regularly.>

In addition to the standard cutlery basket in the lower rack, some models come with a cutlery
rack.
The cutlery rack is best suited for fl atware and cooking or serving utensils. You can place cutlery
and utensils randomly or regularly on the cutlery rack.
Heavily soiled utensils or items with baked on foods should be placed in the lower cutlery basket
for the most effective cleaning.

Removing the Cutlery Rack

The entire cutlery rack can be removed if more space is needed on the upper rack for larger
items.

* When loading the cutlery and utensils onto the cutlery rack, make sure they do not interfere
with the top nozzle of the rack. If they interfere, remove the cutlery pad and try again.

03 using your dishwasher

DW7000KM-02025B-01_EN.indd Sec4:19DW7000KM-02025D-01_EN.indd Sec4:19

English - 19

2016-05-18  10:47:332019-05-01  10:47:33

using your dishwasher

USING DETERGENT

All dishwasher cycles require detergent in the detergent compartment.
Add the correct amount of detergent for the selected cycle to ensure the best performance.

Use dishwasher detergent only. Regular detergent produces too much foam, which may decrease the
dishwasher’s performance or cause it to malfunction.

CAUTION

Do not swallow dishwasher detergent. Avoid breathing in the fumes. Dishwasher detergent contains
irritants and caustic chemicals that can induce respiratory conditions. If you have swallowed

WARNING

dishwasher detergent or inhaled the fumes, seek medical attention immediately.

Keep dishwasher detergent out of the reach of children.

WARNING

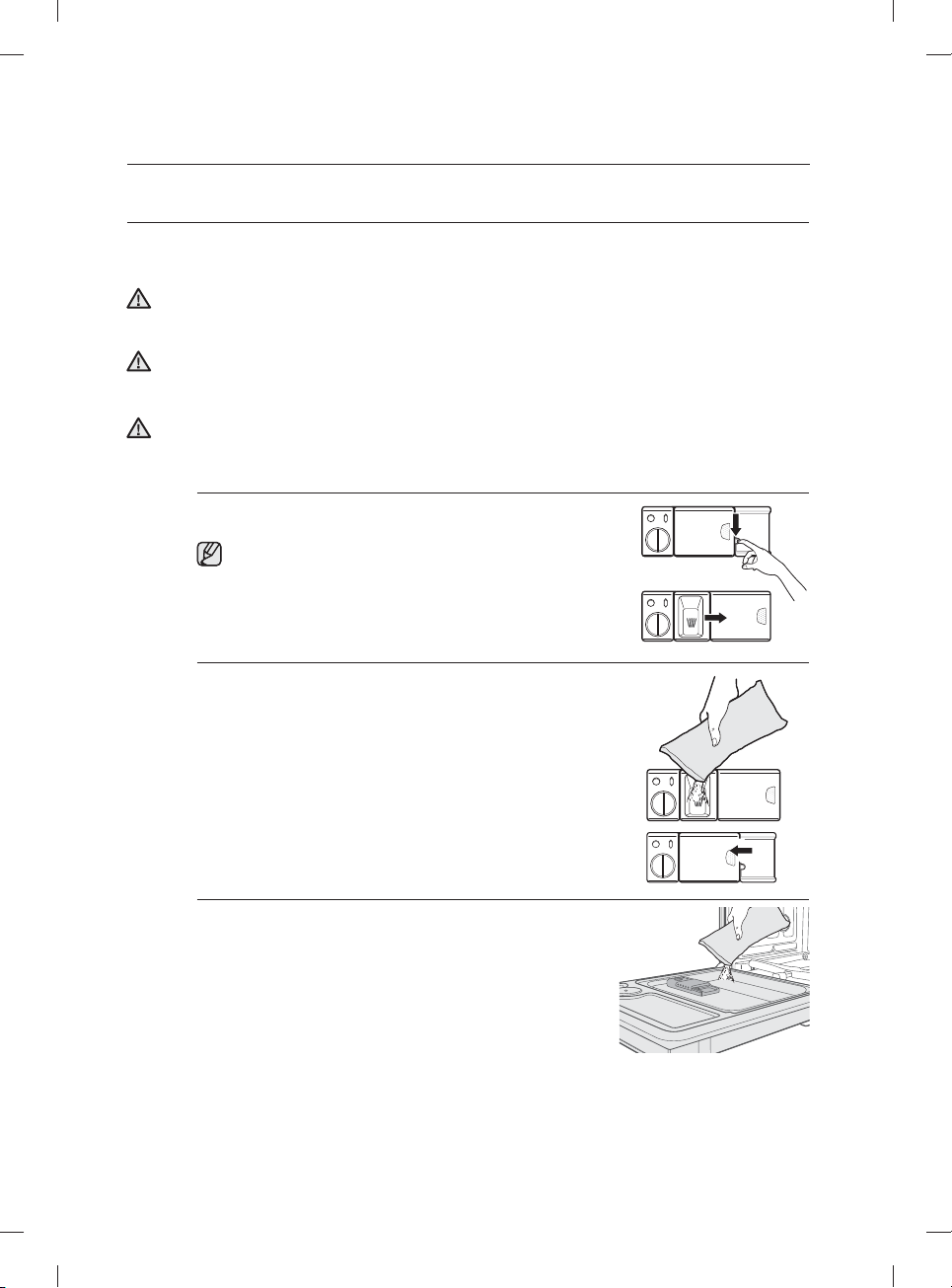

Filling the detergent dispenser

1. Open the detergent dispenser fl ap by pushing the detergent

dispenser release catch.

The fl ap is always open at the end of a dishwashing cycle.

2. Add the recommended amount of detergent to the main

wash detergent compartment.

3. Close the fl ap by sliding it to the left and then pressing it

down.

4. For better cleaning result, especially if you have very dirt

items, pour a small amount (about 1/2 of an ounce or 15g) of
detergent onto the door.
The additional detergent will activate during the pre-wash
phase.

English - 20

DW7000KM-02025B-01_EN.indd Sec4:20DW7000KM-02025D-01_EN.indd Sec4:20 2016-05-18  10:47:362019-05-01  10:47:36

The cover opens automatically to dispense the detergent during the wash.

CYCLE

Auto, Normal 3/4 oz (20 g) 1/3 oz (10 g)

Heavy, Express 60' 1 oz (30 g) 1/2 oz (15 g)

Delicate 3/4 oz (20 g) 1/5 oz (5 g)

Main wash dispenser Onto the door for pre-wash

AMOUNT OF DETERGENT

The numbers inside the dispenser refer to grams.

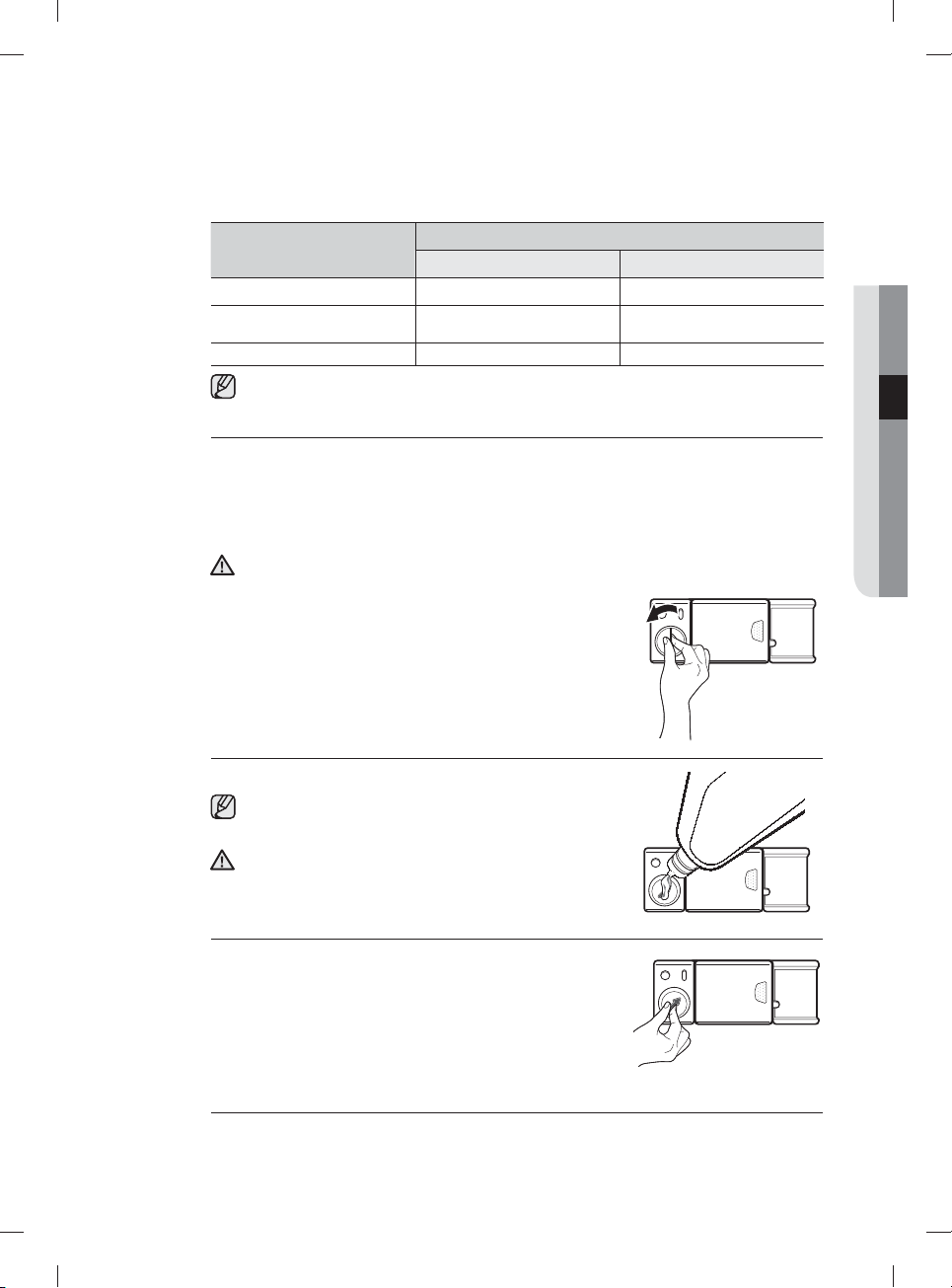

Filling the rinse aid reservoir

When the Rinse Refi ll indicator lights up on the control panel, refi ll the reservoir with rinse aid.
Your dishwasher has been designed to use liquid rinse aid only.
Using a powdered rinse aid will clog the reservoir opening and cause the dishwasher to
malfunction.

Rinse aid improves the drying performance of the dishwasher.

Do not add regular detergent to the rinse aid reservoir.

CAUTION

1. Remove the rinse aid reservoir cap by rotating it

counterclockwise.

2. Fill the rinse aid reservoir with rinse aid.

Use the viewing port when fi lling the rinse aid reservoir.

03 using your dishwasher

Do not fi ll the reservoir above the full level indicator.
Excess rinse aid can overfl ow during the wash cycle.

CAUTION

3. Turn the rinse aid indicator dial to a number between 1 and

6. The higher the number, the more rinse aid the dishwasher
uses. If you are unable to rotate the rinse aid dial easily, try
using a coin.

4. Close the rinse aid reservoir cap by rotating it clockwise.

English - 21

DW7000KM-02025B-01_EN.indd Sec4:21DW7000KM-02025D-01_EN.indd Sec4:21 2016-05-18  10:47:372019-05-01  10:47:37

cleaning and maintaining your
dishwasher

Keeping your dishwasher clean improves its performance, reduces unnecessary
repairs, and lengthens its life.

CLEANING THE EXTERIOR

It’s best to clean spills on the outside of your dishwasher as they occur. Use a soft, damp cloth on the
control panel to gently wipe away spills and dust. Do not use benzene, wax, thinner, chlorine bleach, or
alcohol. These materials may discolor the inner walls and cause stains. Do not clean the dishwasher by
sprinkling water over it and avoid letting water come into contact with any of the electrical parts.

If your dishwasher has a stainless steel door panel, you can clean it with a stainless steel cleaner for
Home Appliances or a similar product using a clean, soft cloth.

CLEANING THE INTERIOR

Clean the interior of your dishwasher periodically to remove any dirt or food particles. Wipe the inside of
the dishwasher and the inner part of the door with a wet dishcloth. We recommend fi lling the detergent
dispenser with dish detergent, and then running the dishwasher empty periodically using either the Normal
or Express 60 cycle with the sanitize option. This will keep your dishwasher clean.

If white spots and odor are still present in your dishwasher, run the Normal cycle with the dishwasher empty
and without detergent until it fl ushes. Then, interrupt the cycle and put an 8 ounce cup of white vinegar into
the lower basket. Close the dishwasher and let the cycle fi nish.

Do not remove the tub front seal (the long rubber seal enclosing the opening of the dishwasher).

CAUTION

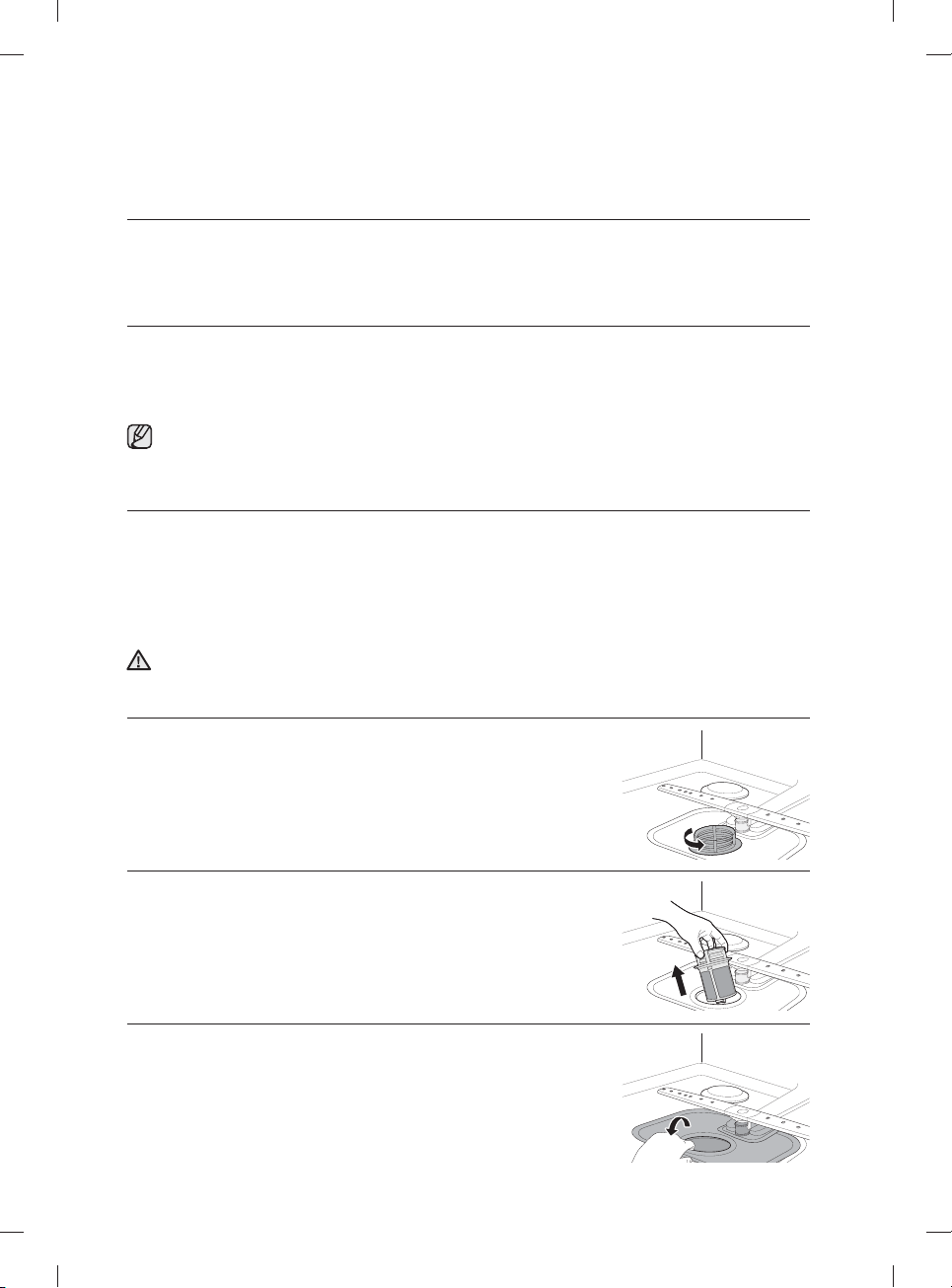

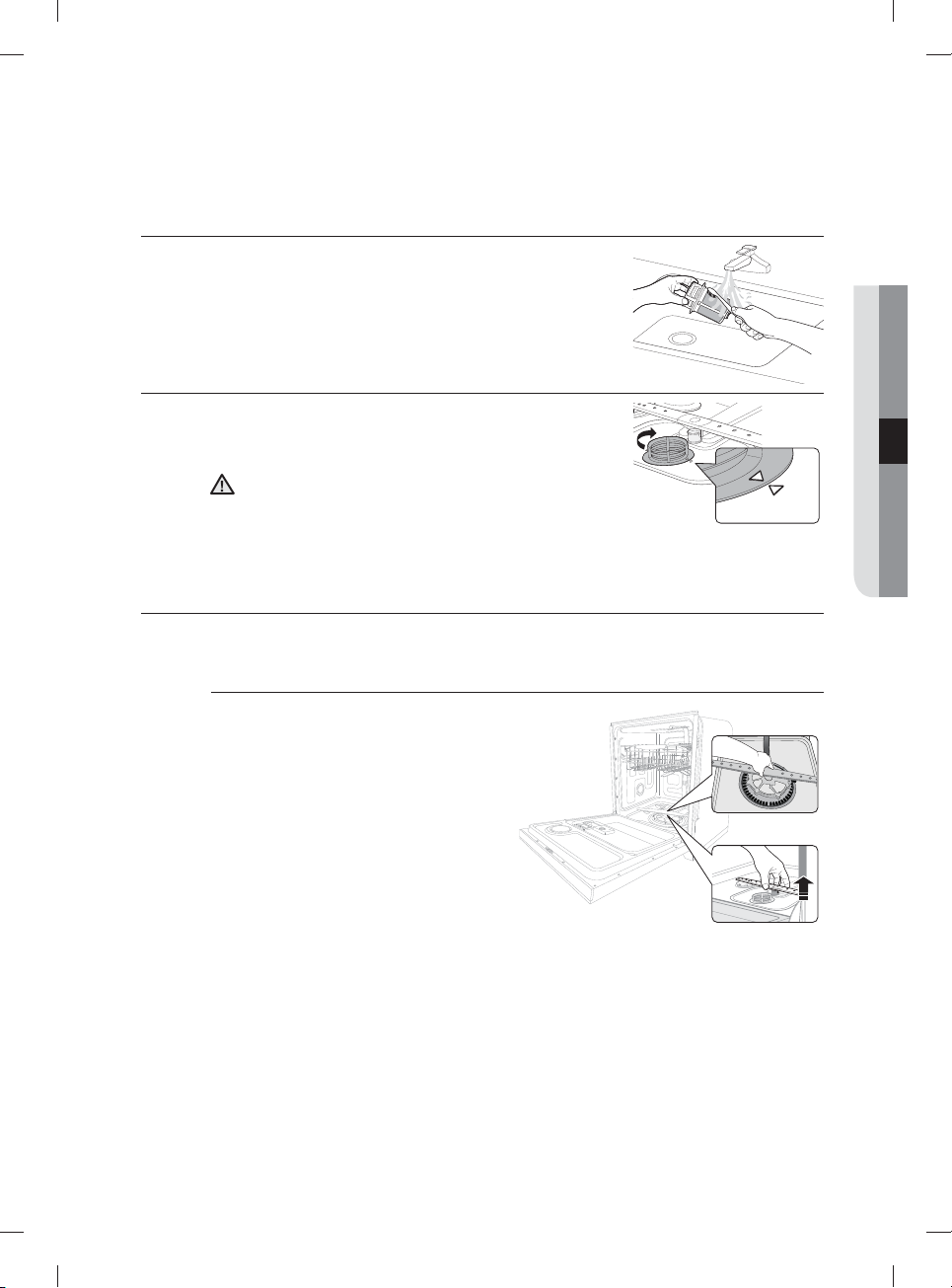

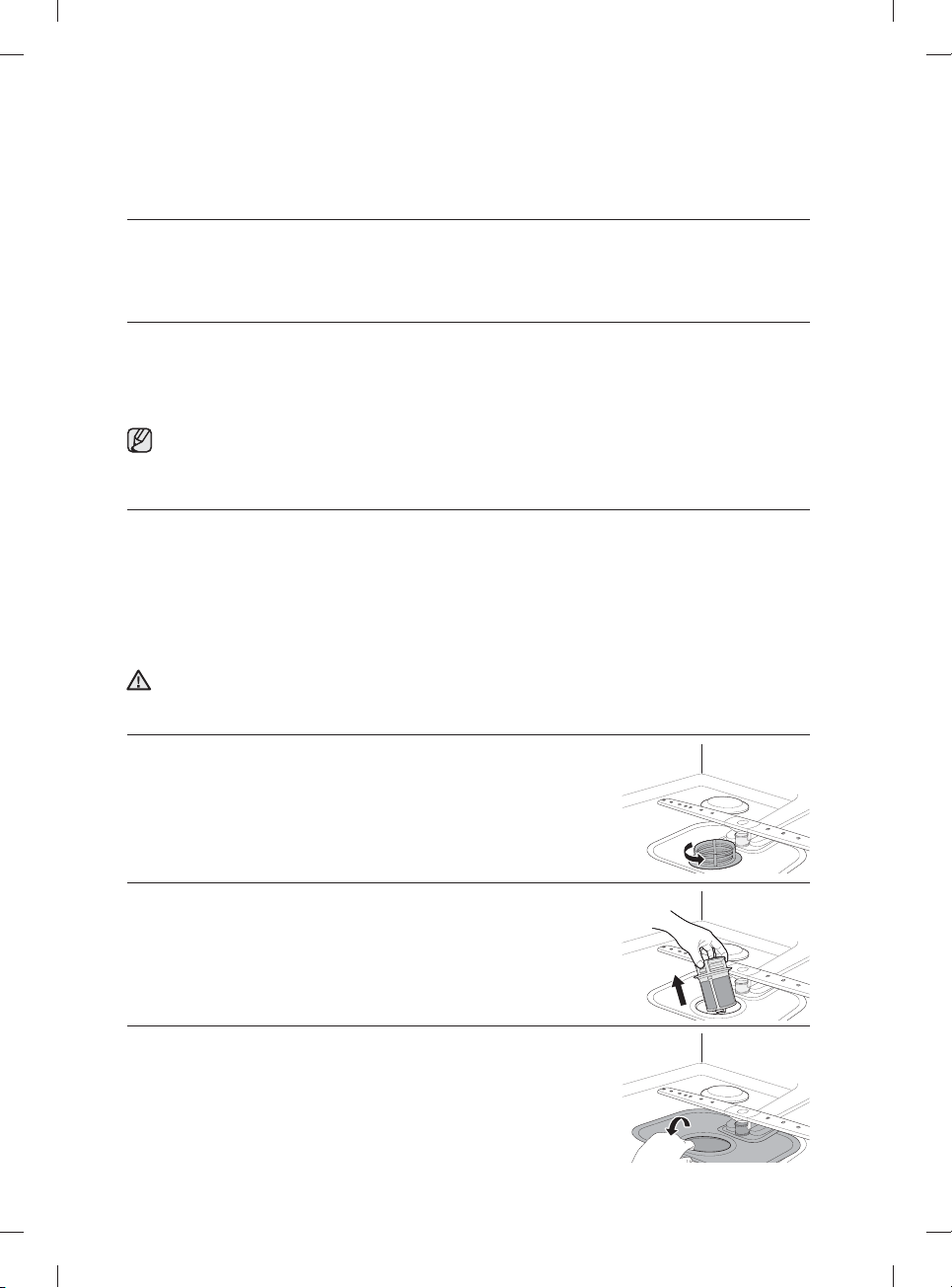

CLEANING THE FILTERS (DW80K7050 SERIES)

1. Turn off the dishwasher.

2. Rotate the fi lter insert counterclockwise to unfasten and then detach

the fi lter insert.

3. Remove the fi ne fi lter (fl at, rectangular).

English - 22

DW7000KM-02025B-01_EN.indd Sec5:22DW7000KM-02025D-01_EN.indd Sec5:22 2019-05-18  10:47:382019-05-01  10:47:38

4. Remove any dirt or other remains from the fi lters, and then rinse them
under running water.

5. Reassemble the fi lters in the reverse order of the dissasembly, replace
the fi lter insert, and rotate clockwise to the close arrow.

If the fi lter insert is not closed properly, its performance will

CAUTION

be decreased.

CLEANING THE NOZZLES

If your dishwasher does not seem to be cleaning adequately or the nozzles seem clogged, you can clean
each of the nozzles. When removing the nozzles, take care as they may break.

Lower nozzle

1. Check whether the nozzle holes are
clogged by food particles.

2. If cleaning is needed, remove the nozzle by
pulling it upwards.

3. Clean the nozzle, and then push it back
into place.

4. Check whether the nozzle is engaged
correctly by rotating it by hand.

DW80K5050, DW80R5060

DW80R 0 1 Series5 6

04 cleaning and maintaining

DW7000KM-02025 01_EN.indd Sec5:23DW7000KM-02025D-01_EN.indd Sec5:23

DW80K7050 Series

English - 23

2019-05-18  10:47:382019-05-01  10:47:38

cleaning and maintaining your

1

2

dishwasher

Middle nozzle

1. Pull the upper rack towards the front and
remove it.

2. Check whether the nozzle holes are
clogged by food particles.

3. If cleaning is needed, remove the nozzle.

4. To remove the nozzle, unfasten and

remove the nut, and then remove the
nozzle.

5. Clean the nozzle, re-insert it, and fasten
the nut.

6. When fastening the nut, turn it fi rmly by
hand.

7. Check whether the nozzle is engaged
correctly by rotating it by hand.

Upper nozzle

1. Check whether the nozzle holes are
clogged by food particles.

2. If cleaning is needed, remove the nozzle.

3. To remove the nozzle, pull out the upper

rack fi rst, unfasten the nozzle cap by
turning it counterclockwise, and then
remove the upper nozzle.

4. Clean the nozzle, re-insert it, and then
fasten the nozzle cap to the nozzle by
turning the cap clockwise.

5. Check whether the nozzle is engaged
correctly by rotating it by hand.

Cap nozzle

DW80K7050 Series

1

2

Cap nozzle
DW80K5050 Series
DW80R5060 Series

STORING YOUR DISHWASHER

If you need to store your dishwasher for an extended period of time, fi rst drain and disconnect it. If you
leave water in the hoses and internal components, you can damage the dishwasher.

After draining and disconnecting the dishwasher, be sure to turn off the water supply valve and circuit
breaker.

DW7000KM-02025B-01_EN.indd Sec5:24DW7000KM-02025D-01_EN.indd Sec5:24 2016-0 -18  10:47:40201 -0  10:47:400

English - 24

DW80R5061 Series

9 5 - 1

cycles

CYCLE CHART

DW80K7050 Series

Pre-

Pre-

Cycle

Auto

Normal

Heavy

Delicate

Express 60

Rinse only

wash1









DW80K5050, DW80R5060, DW80R5061 Series

Cycle

Auto

Normal

Heavy

Delicate

Express 60

Rinse only

Pre-

wash1









wash2

Pre-

wash2

Pre-

Main wash Rinse1 Rinse2 Rinse3

wash3



122-140 ˚F

(50-60 ˚C)



113-144 ˚F

(45-62 ˚C)



149 ˚F (65 ˚C)



122 ˚F (50 ˚C) 149 ˚F (65 ˚C)



122 ˚F (50 ˚C)

Pre-

Main wash Rinse1 Rinse2 Rinse3

wash3



131-145 ˚F

(55-63 ˚C)



113-145 ˚F

(45-63 ˚C)



149 ˚F (65 ˚C)



122 ˚F (50 ˚C) 149 ˚F (65 ˚C)



122 ˚F (50 ˚C)













104 ˚F
(40 ˚C)













104 ˚F
(40 ˚C)

Last Rinse

[Sanitize]

Dry



136-154 ˚F

(58-68 ˚C)

[163 ˚F (73 ˚C)]





136-149 ˚F

(58-65 ˚C)

[163 ˚F (73 ˚C)]





154 ˚F (68 ˚C)

[163 ˚F (73 ˚C)]









140 ˚F (60 ˚C)

[163 ˚F (73 ˚C)]



( : Basic, : Optional step)

Last Rinse

[Sanitize]



136-154 ˚F

(58-68 ˚C)

[163 ˚F (73 ˚C)]



131-149 ˚F

(55-65 ˚C)

[163 ˚F (73 ˚C)]



154 ˚F (68 ˚C)

[163 ˚F (73 ˚C)]





140 ˚F (60 ˚C)

[163 ˚F (73 ˚C)]

Dry











( : Basic, : Optional step)

Water

[gal(ℓ)]

4.5-6.5

(16.9-24.7)

(9.0-25.1)

7.7 (29.0) 163

3.8 (14.3) 101

3.0 (11.4) 60

(18.4-31.9)

(11.7-27.2)

8.7 (33.1) 166

5.0 (19.0) 103

3.8 (14.3) 60

128-144

2.3-6.6
100-167

1.1 (4.2) 14

Water

[gal(ℓ)]

4.9-8.4
110-149

3.1-7.2
103-170

1.3 (4.9) 17

Time
(min)

Time
(min)

05 cycles

English - 25

DW7000KM-02025B-01_EN.indd Sec6:25DW7000KM-02025D-01_EN.indd Sec6:25

2016-0 -18  10:47:40201 -0  10:47:4009 5 - 1

cycles

• The numbers in parentheses in the Last Rinse column represent the temperature when you select
Sanitize.

• When you select the Auto or Normal cycle, you can eliminate optional steps depending on the soil level
of the dishes.

• The water consumption and wash time varies depending on the steps or options you add, and on the
pressure and temperature of the supplied water.

• When you select any options, the cycle time can be changed.

• When the Rinse Aid is empty, wash time and Last Rinse temperature will be increased.

English - 26

DW7000KM-02025B-01_EN.indd Sec6:26DW7000KM-02025D-01_EN.indd Sec6:26 2016-05-18  10:47:41201 -0 -0  10:47:419 5 1

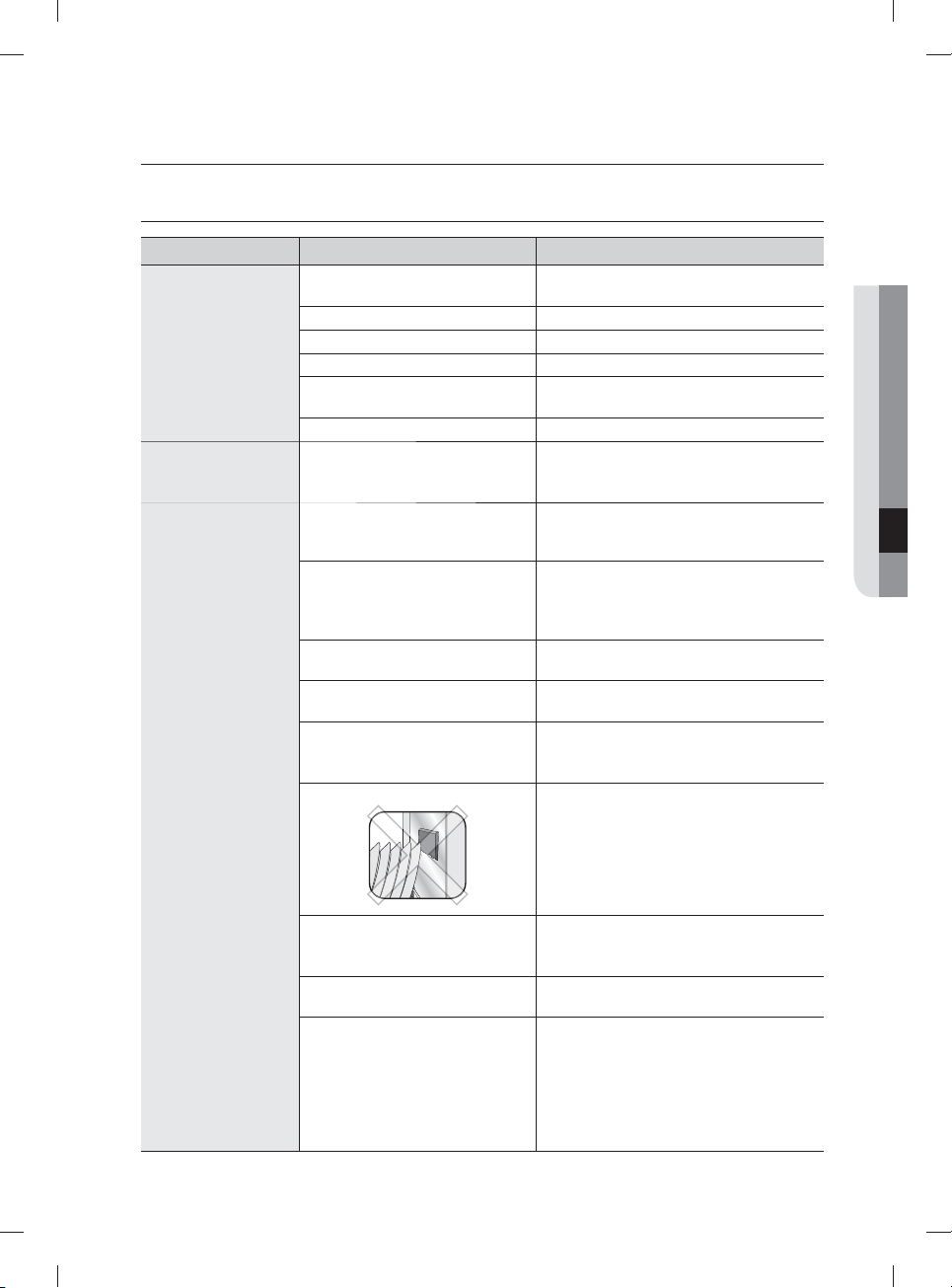

troubleshooting

CHECK THESE POINTS IF YOUR DISHWASHER…

PROBLEM POSSIBLE CAUSE SOLUTION

Will not start.

It’s taking too long
with an operation or
cycle.

There are food
particles remaining
on dishes.

(Not cleaning
properly.)

The door is not closed completely. Check if the door is latched and closed

No cycle is selected. Select a proper cycle.
The power cable is not connected. Connect the power cable properly.
The water supply does not work. Check if the water supply valve is open.
The Control Panel is locked. Unlock the child lock, (See page 8.)
A circuit breaker is open. Reset the circuit breaker.
Cold water is being supplied. Check if the water supply line is connected

You selected an inappropriate
cycle.

The water temperature is low. Connect the water supply line to a hot

Low water pressure. The water pressure should be between 20

The water is too hard. Use high-quality, fresh detergent with rinse

Dishwasher detergent was not
used.

Detergent remains in the
dispenser.

completely.

to a hot water supply.
(Additional time is required to heat cold

water.)
Select a cycle according to the number and

soil level of the dishes, as directed in this
manual.

water supply.
For best performance, the temperature of

the supplied water should be 120 ˚F (49 ˚C).

and 120 psi (140 - 830 kPa).

aid.
Use automatic dishwasher detergent.

We recommend a powder or gel type
dishwasher detergent.

Make sure large items such as cookie
sheets, cutting boards, or contaners, etc.
are not blocking the detergent dispenser
and preventing it from opening properly.

Rearrange the dishes so they do not
interfere with detergent dispenser
operation.

06 troubleshooting

There is no rinse aid. Check the dispenser and add rinse aid.

Use liquid type rinse aid.

A nozzle is clogged. Clean the nozzle. See page 23.

The dishes are improperly loaded.
Too many dishes have been

loaded.

Rearrange the dishes so they do not
interfere with nozzle rotation and detergent
dispenser operation.

Load only an appropriate number of dishes.
Load your dishes as recommended. (See

page 16.)

English - 27

DW7000KM-02025B-01_EN.indd Sec7:27DW7000KM-02025D-01_EN.indd Sec7:27 2019-05-18  10:47:41201 -0 -  10:47:419 5 01

troubleshooting

PROBLEM POSSIBLE CAUSE SOLUTION

Leaves glasses with
a dim polish.

Leaves a yellow
or brown fi lm on
the inside of the
dishwasher.

Does not dry dishes
well.

Has a bad odor.

Is too noisy.

The water supplied is soft and too
much detergent was used.

Aluminum dishes were included in
the wash load.

This is caused by coffee and tea
soils.

There is no rinse aid in the
dispenser.

The temperature of the water
is low when the dishwasher is
running.

Too many dishes have been
loaded.

Glasses and cups with concave
bottoms hold water. This water
may spill onto other items when
unloading.

AutoRelease™ Dry mode is not
in use.

Water was left over from an
incomplete cycle.

The Drain Hose is obstructed. Contact a qualifi ed service technician to

The dishwasher is not used daily
or soiled dishes are left in unit too
long.

Sound is generated when the
dispenser cover is open and the
drain pump is operating in an early
stage.

The dishwasher is not level. Ensure the dishwasher is level.
Foreign material (a screw, a plastic

piece) is in the pump chamber.

There is a ‘chopping’ sound
because a nozzle is bumping
against the dishes.

Underload the dishwasher and use a rinse
aid to minimize this.

Remove the marks on the dishes using a
low sensitivity cleaner.

Remove the soils using a spot cleaner.

Check the dispenser and add rinse aid.
Use a liquid type rinse aid.

Connect the water supply line to a hot
water supply.

Use rinse aid with the Sanitize option.
Proper loading of items can affect drying.

Load your dishes as recommended. (See
page 16.)

After the cycle fi nishes, empty the lower
rack fi rst and then the upper rack. This will
prevent water from dripping from the upper
rack onto the dishes in the lower rack.

Activate the AutoRelease™ Dry mode. (See
page 12.)

Insert detergent without loading dishes,
and run the Normal cycle to clean the
dishwasher.

remove any obstruction from the drain
hose.

With the dishwasher empty and no
detergent, place a glass with 8

ounces of vinegar upright into the lower
rack, and then run a Normal

cycle.
This is normal operation.

Contact a qualifi ed service technician to
remove foreign material from the pump
chamber.

Rearrange the dishes.

English - 28

DW7000KM-02025B-01_EN.indd Sec7:28DW7000KM-02025D-01_EN.indd Sec7:28 2016-05-18  10:47:422019-05-01  10:47:42

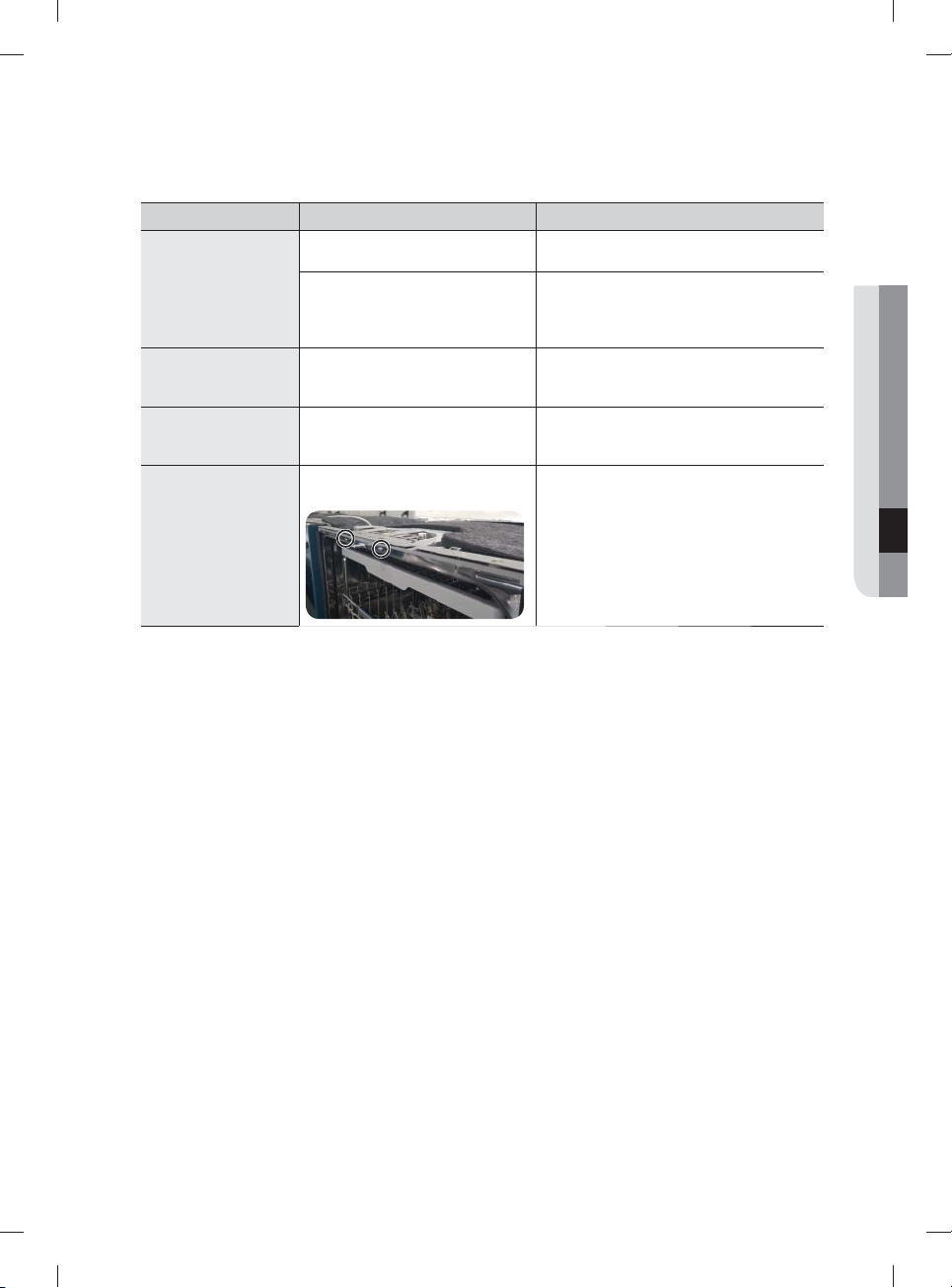

PROBLEM POSSIBLE CAUSE SOLUTION

Does not have a
smoothly rotating
nozzle.

The nozzle hole is clogged with
food particles.

The nozzle is blocked by a dish or
pot and cannot rotate.

Clean the nozzle hole. See page 23.

After placing the dishes into the racks,
rotate the nozzles by hand to check
whether any of the dishes interfere with
them.

Water won’t
pump out of the
dishwasher.

Has a bent upper
rack after loading
dishes.

The drain is clogged. Contact a qualifi ed service technician to

remove any obstruction from the drain hose
and check the drain pump operation.

The dishes are not loaded
properly.

AutoRelease™ Dry mode is in
operation.

Load your dishes as recommended.
(See page 16.)

Once the door opens in the AutoRelease™
Dry mode, the door cannot be closed
manually for the next 2 minutes. You may

Cannot close the

close the door after 2 minutes.

door.

06 troubleshooting

English - 29

DW7000KM-02025D-01_EN.indd Sec7:29DW7000KM-02025D-01_EN.indd Sec7:29 2016-05-18  10:47:42201 -0 -0  10:47:429 5 1

troubleshooting

INFORMATION CODES

The Control Panel displays information codes to help you understand what is occurring with your
dishwasher.

Code Action

Over-level water check

OC

LC

4C

5C

HC

3C

For any codes not listed above, call 1-800-SAMSUNG (726-7864)

• Functional check. Close the water supply valve and go to your house circuit
breaker panel, set the dishwasher’s circuit breaker switch to o , and then
contact an authorized Samsung service center.

Leakage check

• If a water supply valve connection leak occurs, close the water supply valve
and go to your house circuit breaker panel, set the dishwasher’s circuit breaker
switch to o , and then contact the installer to fi x.
If the problem continues, contact an authorized Samsung service center.

Water supply check

• Check if the water supply valve is closed, the water supply is suspended, or the
water inlet valve or line is frozen or clogged by foreign particles.
If the problem continues, close the water supply valve, and then contact an
authorized Samsung service center.

Drain check

• After closing the water supply valve, check whether the drain hose is clogged or
folded. Also, check whether drain hole inside sump is clogged.
If the problem continues, contact an authorized Samsung service center.

High temperature heating check

• The product ensure that the temperature for hot water line is not too high and
adjusts to appropriate temperature (120 ˚F (49 ˚C) - 149 ˚F (65 ˚C)) automatically.
If the problem continues, go to your house circuit breaker panel, set the
dishwasher’s circuit breaker switch to o , and then contact an authorized
Samsung service center.

Pump operation check

• Functional check. Turn o the dishwasher and try to start it again.
If the problem continues, contact an authorized Samsung service center.

English - 30

DW7000KM-02025B-01_EN.indd Sec7:30DW7000KM-02025D-01_EN.indd Sec7:30 2016-05-18  10:47:43201 -0 -0  10:47:439 5 1
