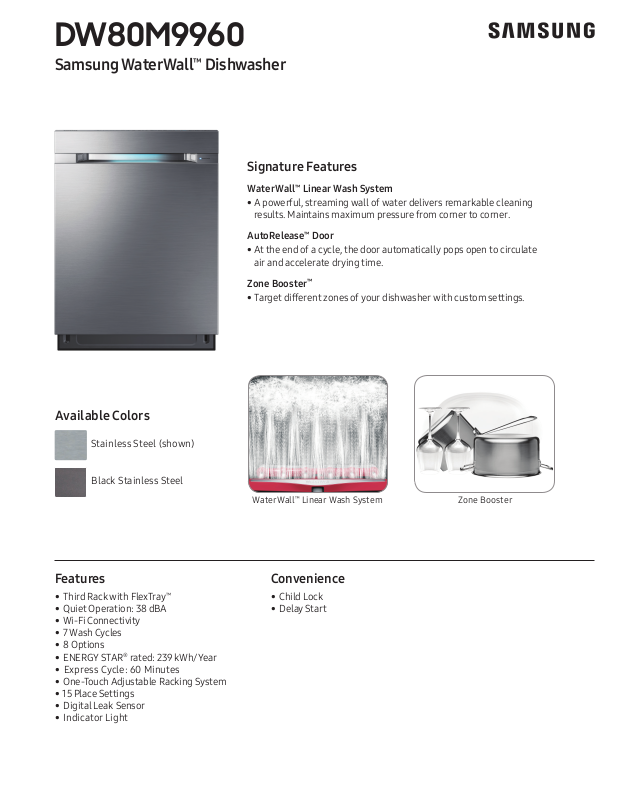

Samsung DW80M9960UG Specification Sheet
DW80M9960
Stainless Steel
Black Stainless Steel
Stainless Steel
Samsung WaterWall™ Dishwasher
Signature Features
WaterWall™ Linear Wash System
• A powerful, streaming wall of water delivers remarkable cleaning
results. Maintains maximum pressure from corner to corner.
AutoRelease™ Door
• At the end of a cycle, the door automatically pops open to circulate
air and accelerate drying time.
Available Colors
Stainless Steel (shown)
Black Stainless Steel
Zone Booster
• Target different zones of your dishwasher with custom settings.
WaterWall™ Linear Wash System
™
Zone Booster
Features
• Third Rack with FlexTray
• Quiet Operation: 38 dBA
• Wi-Fi Connectivity
• 7 Wash Cycles
• 8 Options
• ENERGY STAR® rated: 239 kWh/Year
• Express Cycle: 60 Minutes
• One-Touch Adjustable Racking System
• 15 Place Settings
• Digital Leak Sensor
• Indicator Light
™
Convenience
• Child Lock
• Delay Start
DW80M9960
24"
minimum
"
24"
minimum
24" minimum
minimum
1
/8"
34
Rear View
7
/8"
23
7
/8" - 35"
33
Samsung WaterWall™ Dishwasher
Installation Specifications
24" minimum
1
/8"
34
minimum
Dimensions
Side View
Rear View
24"
minimum
Features
• 7 Wash Cycles: Auto, Normal, Heavy, Delicate,
Express 60, Rinse Only, Self Clean
• 8 Options: Half-Load Wash (Lower Rack),
Zone Booster (Left), Speed Booster, Hi-Temp
Wash, Sanitize (Anti-bacterial – NSF), Delay
Start, Control Lock, Smart Control (Wi-Fi App)
• AutoRelease™ Door
• Hidden Heat Element
• Stainless Steel Interior Tub
Convenience
• Child Lock
• Digital Water Leakage Sensor
• Third Rack with FlexTray
™
• One-Touch Adjustable Racking System
• Silverware Basket
• Upper Rack: 2 Cup Shelves, 2 Adjustable Tines
• Lower Rack: Fold-Down Tines
Warranty
One (1) Year All Parts and Labor
Five (5) Year Limited on Printed Circuit Board
and Interior Nylon Racks
Lifetime Limited Warranty on Stainless Steel
Door Liner and Tub for Leakage
Product Dimensions & Weight (WxHxD)
Dimensions:
237/8" x 337/8" x 25"
Weight: 95 lbs.
Shipping Dimensions & Weight (WxHxD)
Dimensions:
33
7
/8" - 35
26" x 343/4" x 293/4"
Weight: 101 lbs.
Color Model # UPC Code
Stainless Steel DW80M9960US 887276194172
Black Stainless Steel DW80M9960UG 887276197838
1
/2"
20
"
25
Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.
©2017 Samsung Electronics America, Inc. 85 Challenger Road, Ridgeeld Park, NJ 07660. Tel: 800-SAMSUNG. samsung.com. Samsung is a registered trademark of Samsung Electronics Co., Ltd.
