Page 1
DVD- RECORDER
Chassis:
Nexus (4th Generation)
BASIC : DVD-R155
Application Models
: DVD-R155 / DVD-R150 /
DVD-R156
Application Areas
: AUS, EUR, XEB, XEC, XEE, XEF,
XEG, XEH, XEN, XEO, XEU, XET
SERVICE
ΠMulti format recording
DVD-RW/ DVD-R
´ Multi format playback
DVD/ DVD-RAM/ DVD-RW/ DVD-R
CD/ CD-R/ CD-RW/ MP3/ JPEG/ VCD
ˇ Recording mode
XP(1Hour)/ SP(2Hour)/ LP(4Hour)/ EP(6~8Hour)
¨ Progressive scan
ˆ DV Input
Ø 49mm Slim Design
∏ Quick Recording
” HDMI Output
High Definition Multimedia Interface out
(Digital AV output)
Manual
DVD-RECORDER Merit & Character regarding Product
SERVICE MANUAL
DVD-R155 / DVD-R150 / DVD-R156
© Samsung Electronics Co., Ltd. FEB. 2007
Printed in Korea
AK82-01085A
This Service Manual is a property of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
international and/or domestic law.
Area Web Site
North America URL ; http://service.samsungportal.com
Latin America URL ; http://latin.samsungportal.com
CIS URL ; http://cis.samsungportal.com
Europe URL ; http://europe.samsungportal.com
China URL ; http://china.samsungportal.com
Asia URL ; http://asia.samsungportal.com
Mideast & Africa URL ; http://mea.samsungportal.com
◆ If you want to know additional information which is not included on this
Service Manual, Please refer to the SKP(Samsung Knowledge Portal)
web site.
ELECTRONICS
Page 2
CONTENTS
1. Precautions 1-1 ~ 1-6
1-1 Safety Precautions (1-1)
1-2 Servicing Precautions (1-3)
1-3 ESD Precautions (1-4)
1-4 Handling the optical pick-up (1-5)
2. Product Specification 2-1 ~ 2-4
2-1 Product Specification (2-1)
2-2 Chassis Product Specification (2-2)
2-3 Option Product Specification (2-3)
3. Software Update 3-1 ~ 3-2
3-1 Drive Firmware Update (3-1)
4. Disassembly and Reassembly 4-1 ~ 4-6
4-1 Cabinet and PCB (4-1)
4-2 PCB Location (4-6)

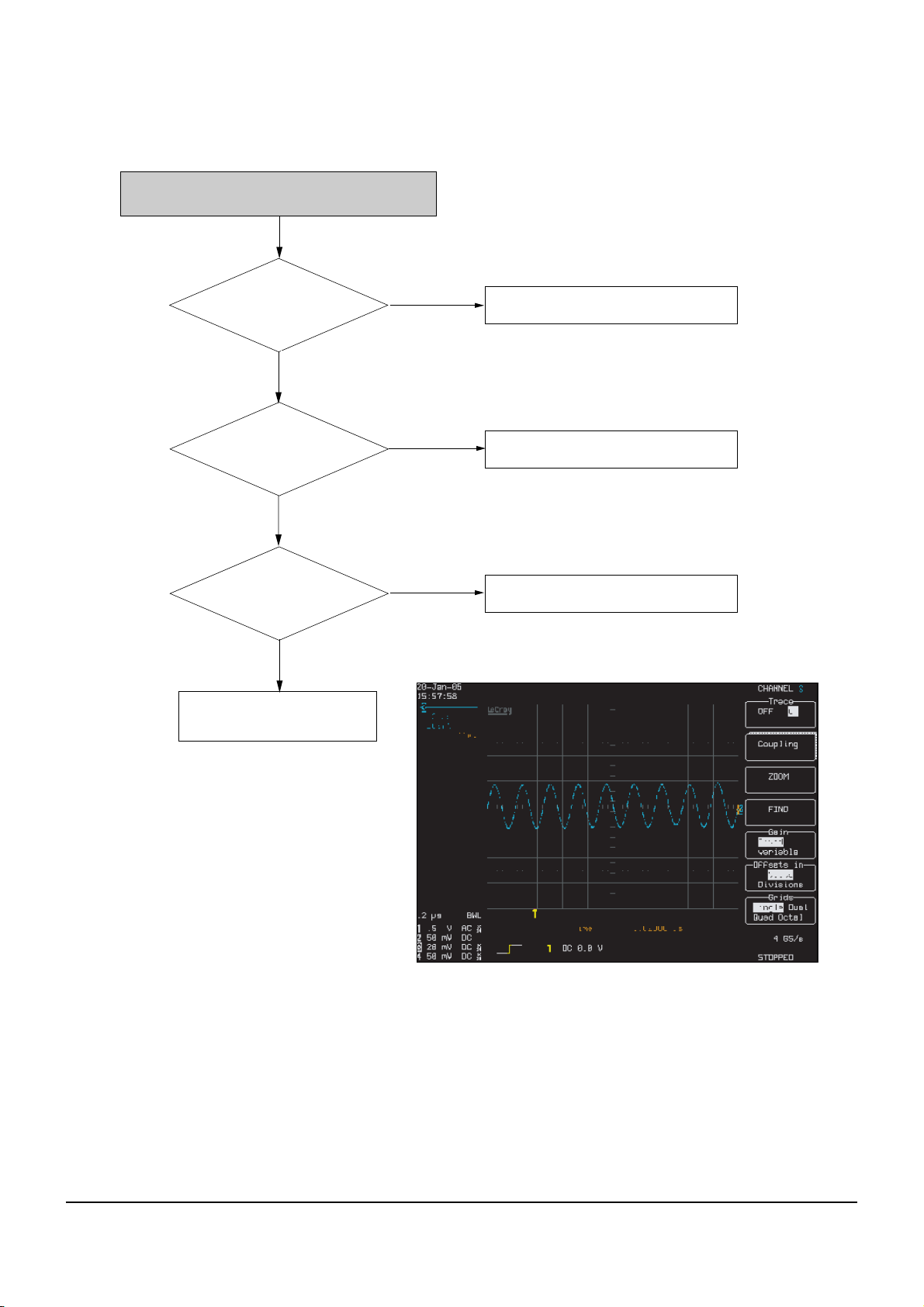

5. Trouble Shooting 5-1 ~ 5-10
6. Exploded View and Parts List 6-1 ~ 6-8

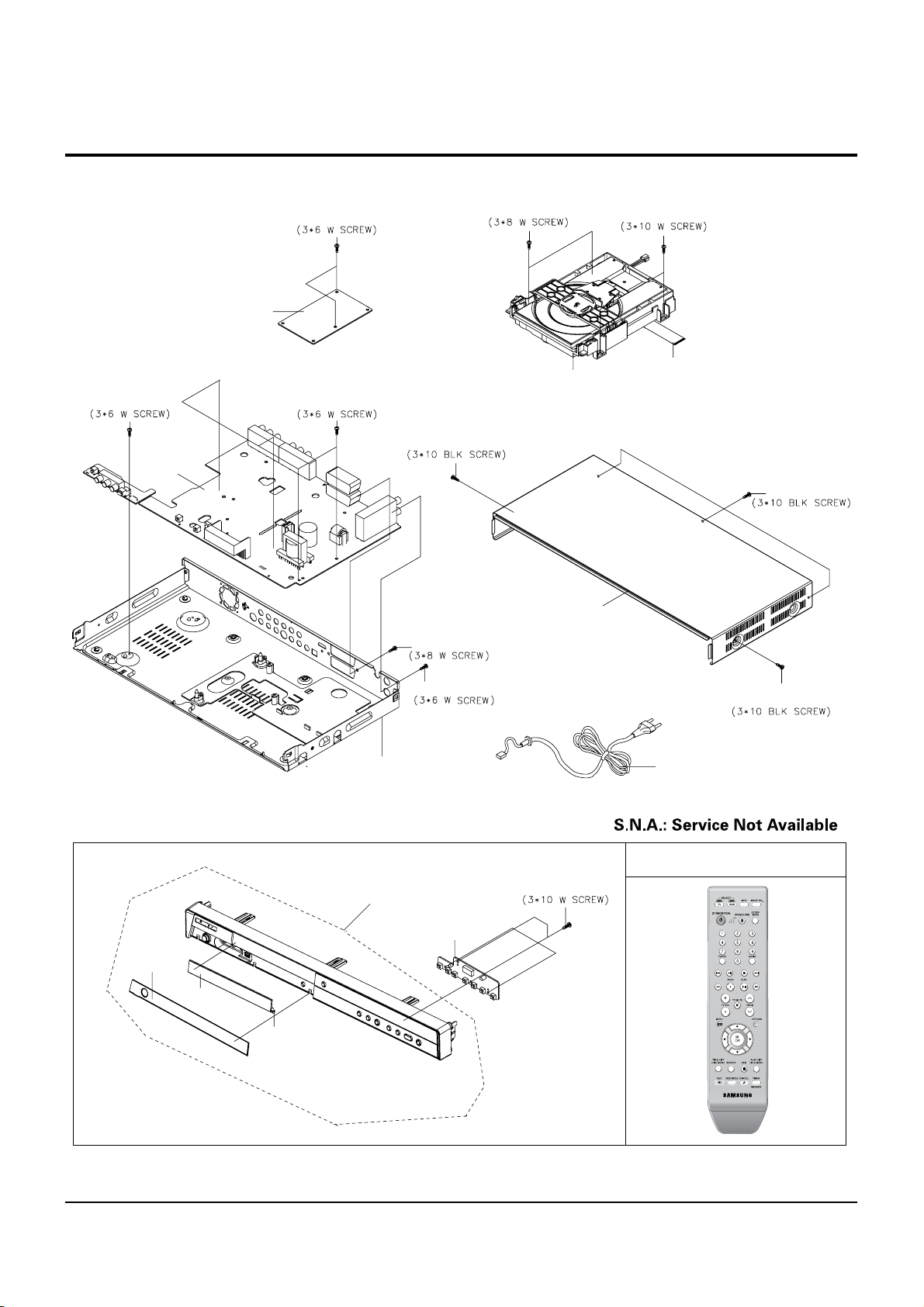

6-1 Cabinet Assembly (DVD-R150) (6-2)

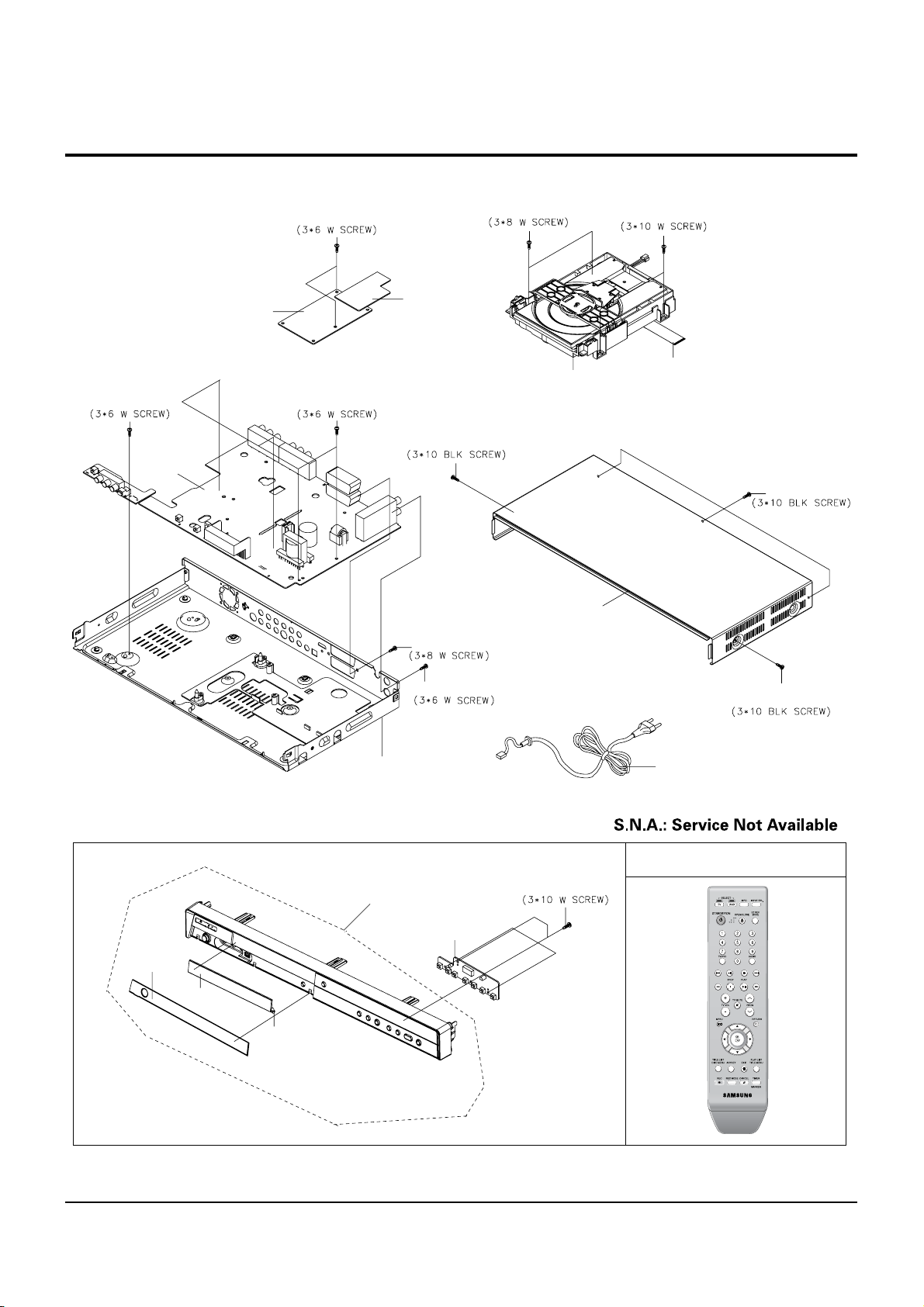

6-2 Cabinet Assembly (DVD-R155) (6-4)
6-3 Cabinet Assembly (DVD-R156) (6-6)
7. Electrical Parts List 7-1 ~ 7-16
8. Block Diagrams 8-1 ~ 8-6

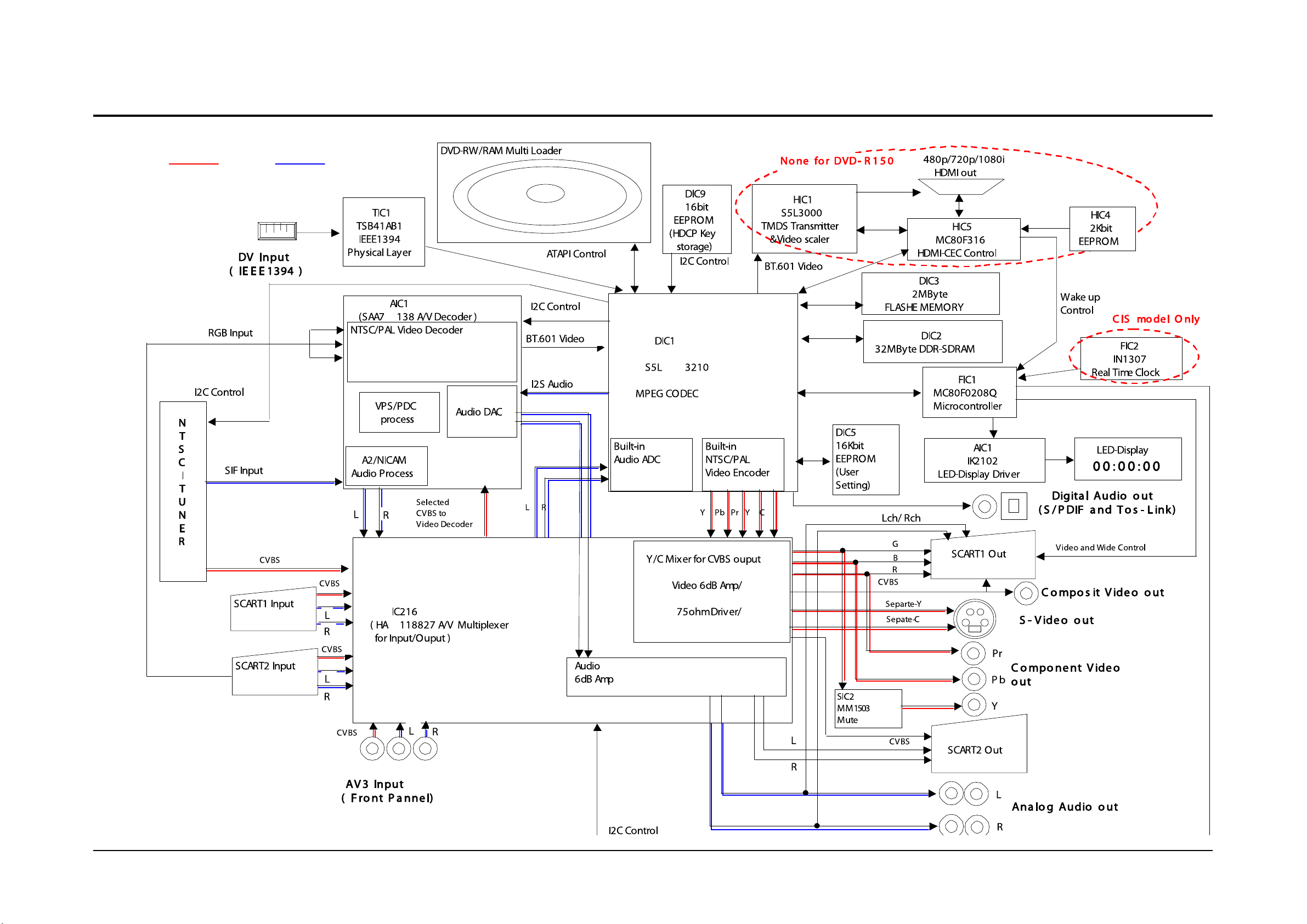

8-1 All Block Diagram (8-2)
8-2 Internal Block Diagram (8-3)

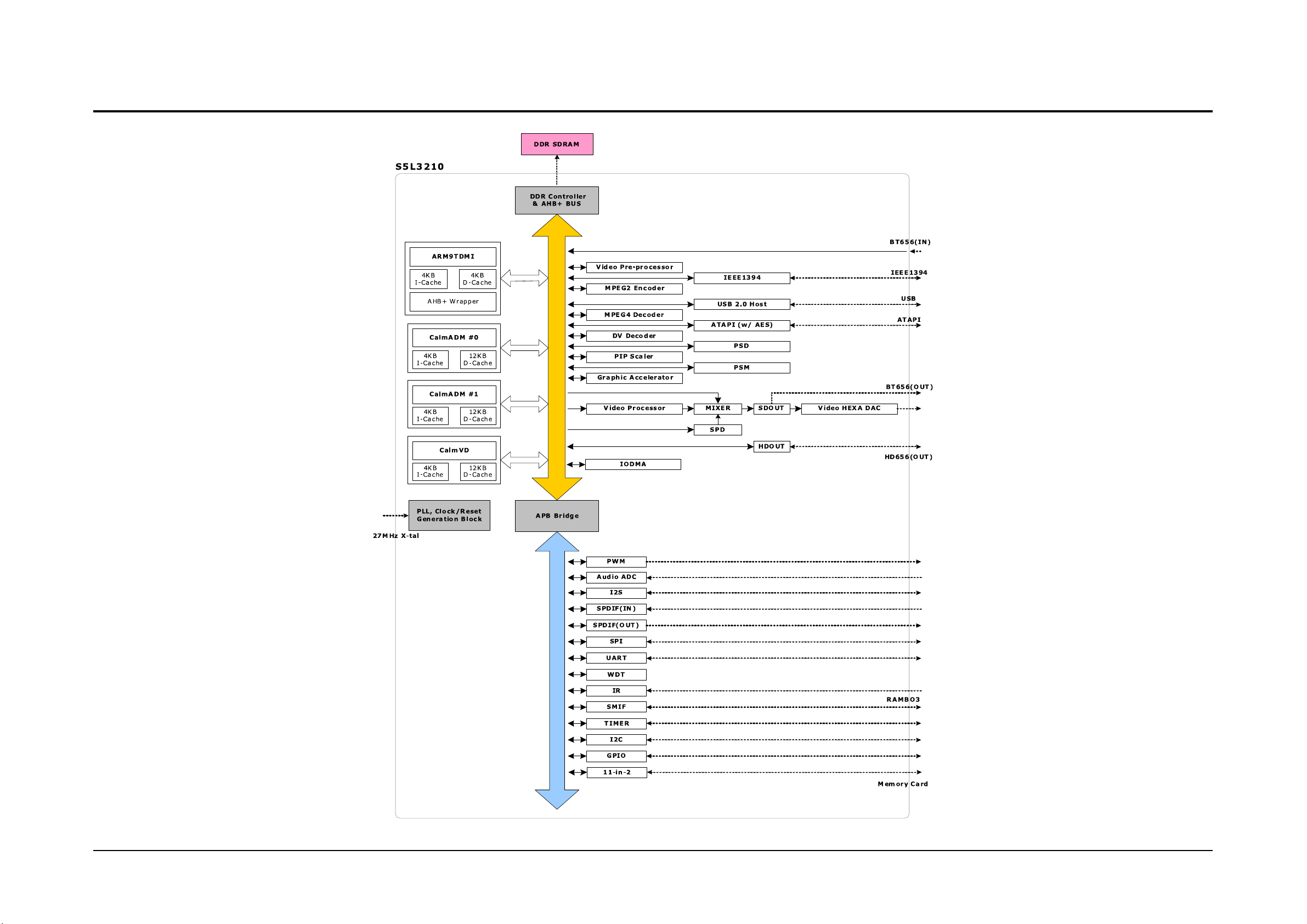

8-3 S5L3210 Block Diagram (8-4)

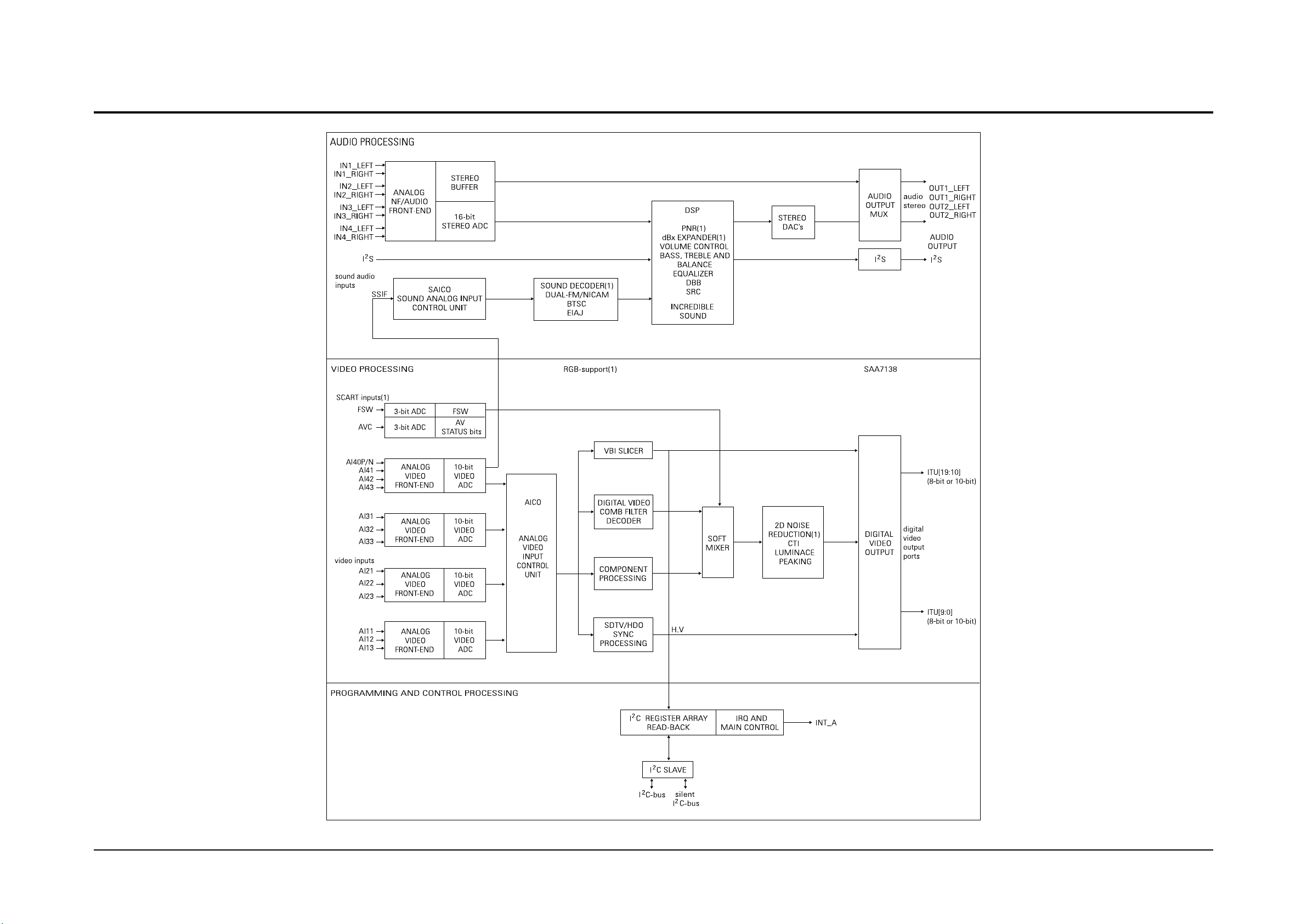

8-4 SAA7138 Block Diagram (8-5)

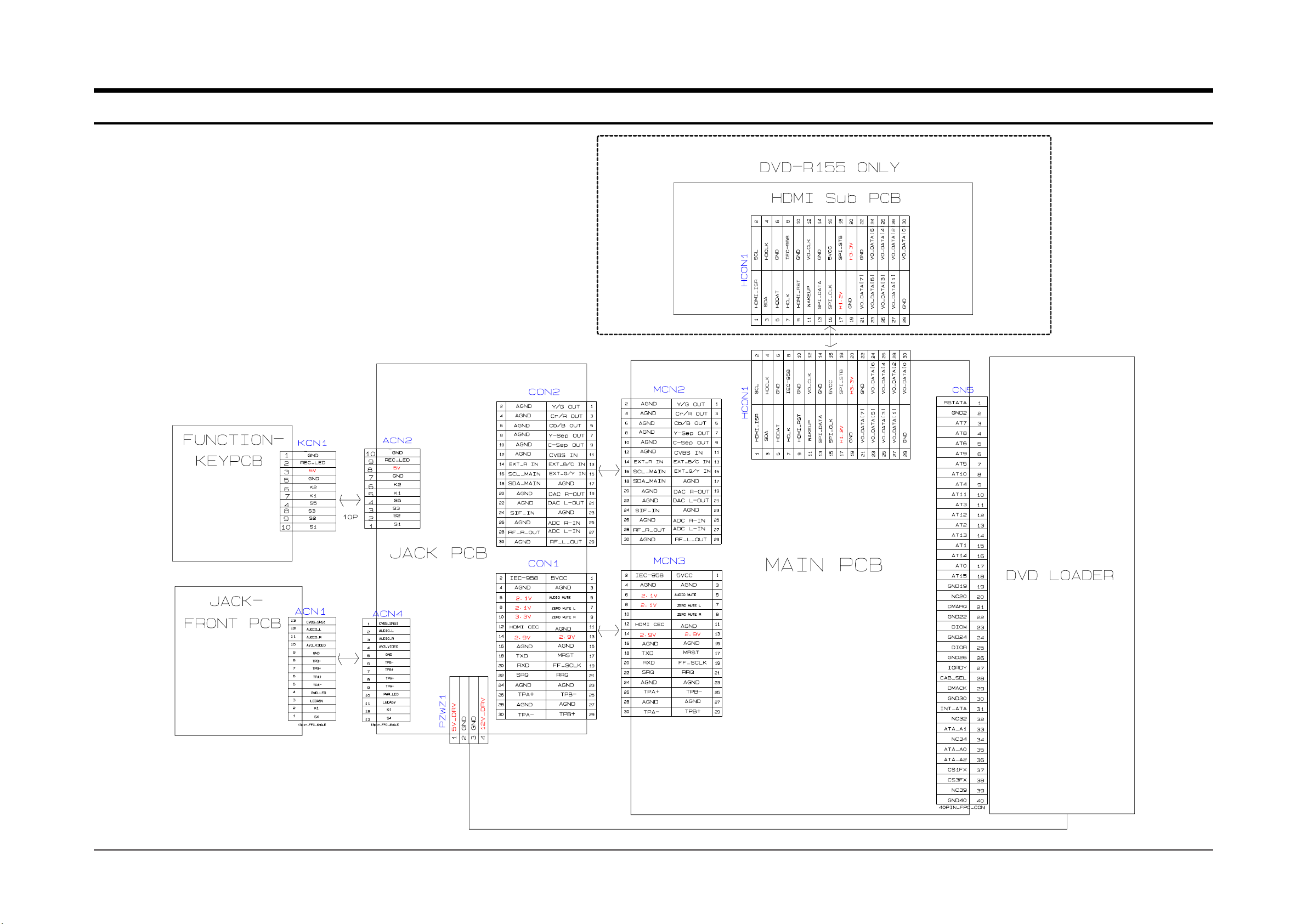

9. Wiring Diagram 9-1 ~ 9-2
Page 3
10. PCB Diagrams 10-1 ~ 10-8

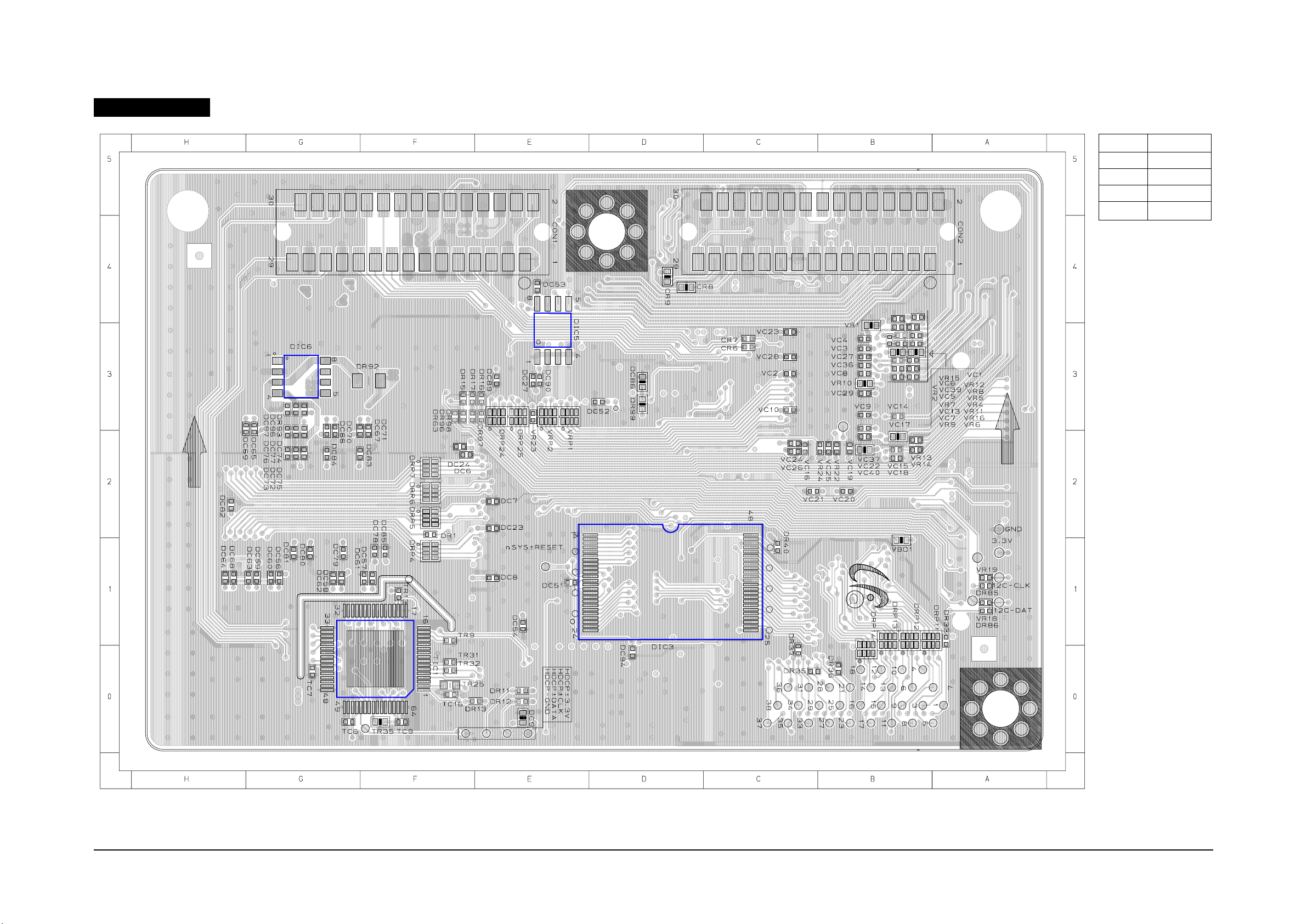

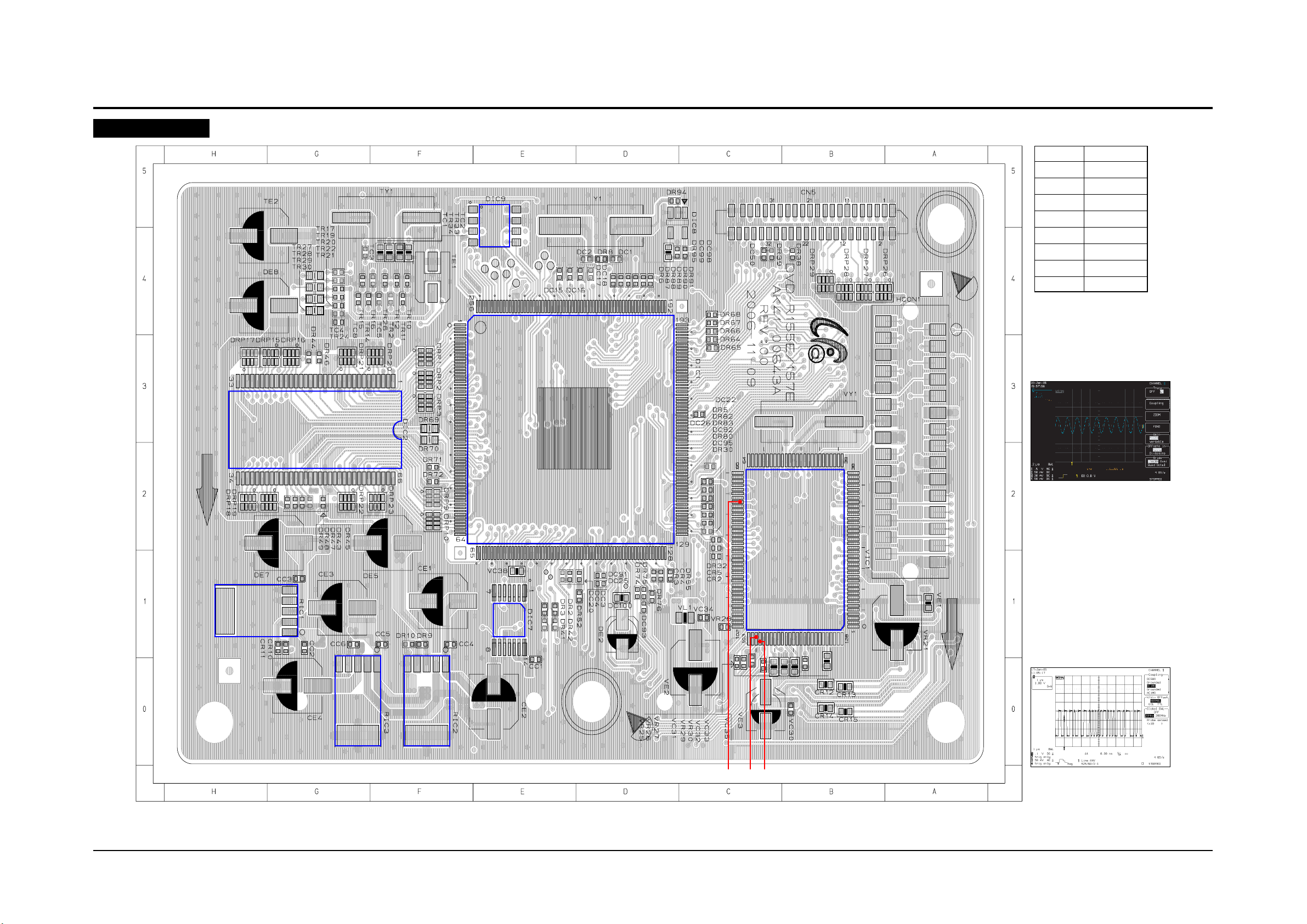

10-1 Main PCB (10-2)

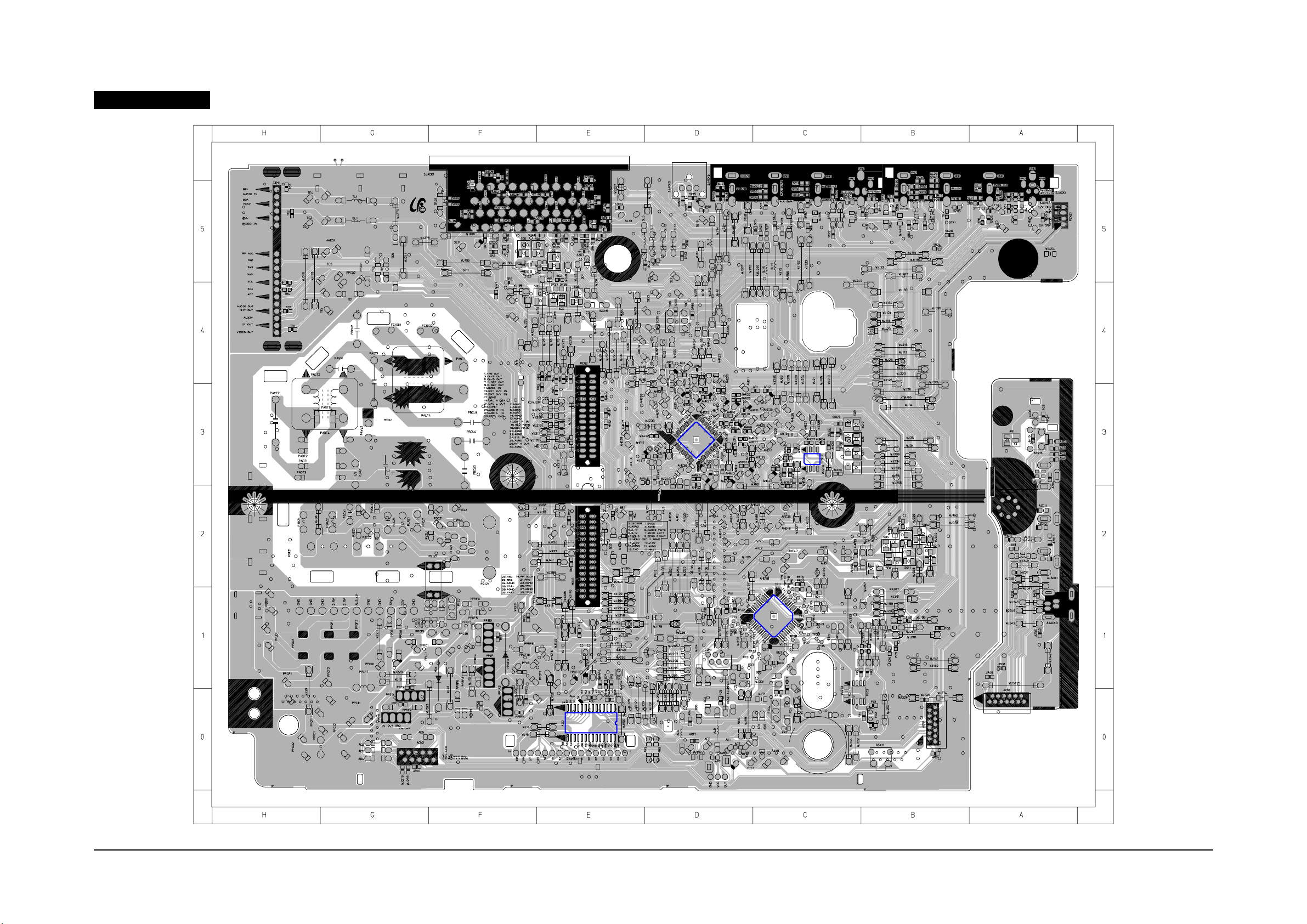

10-2 Jack PCB (10-4)

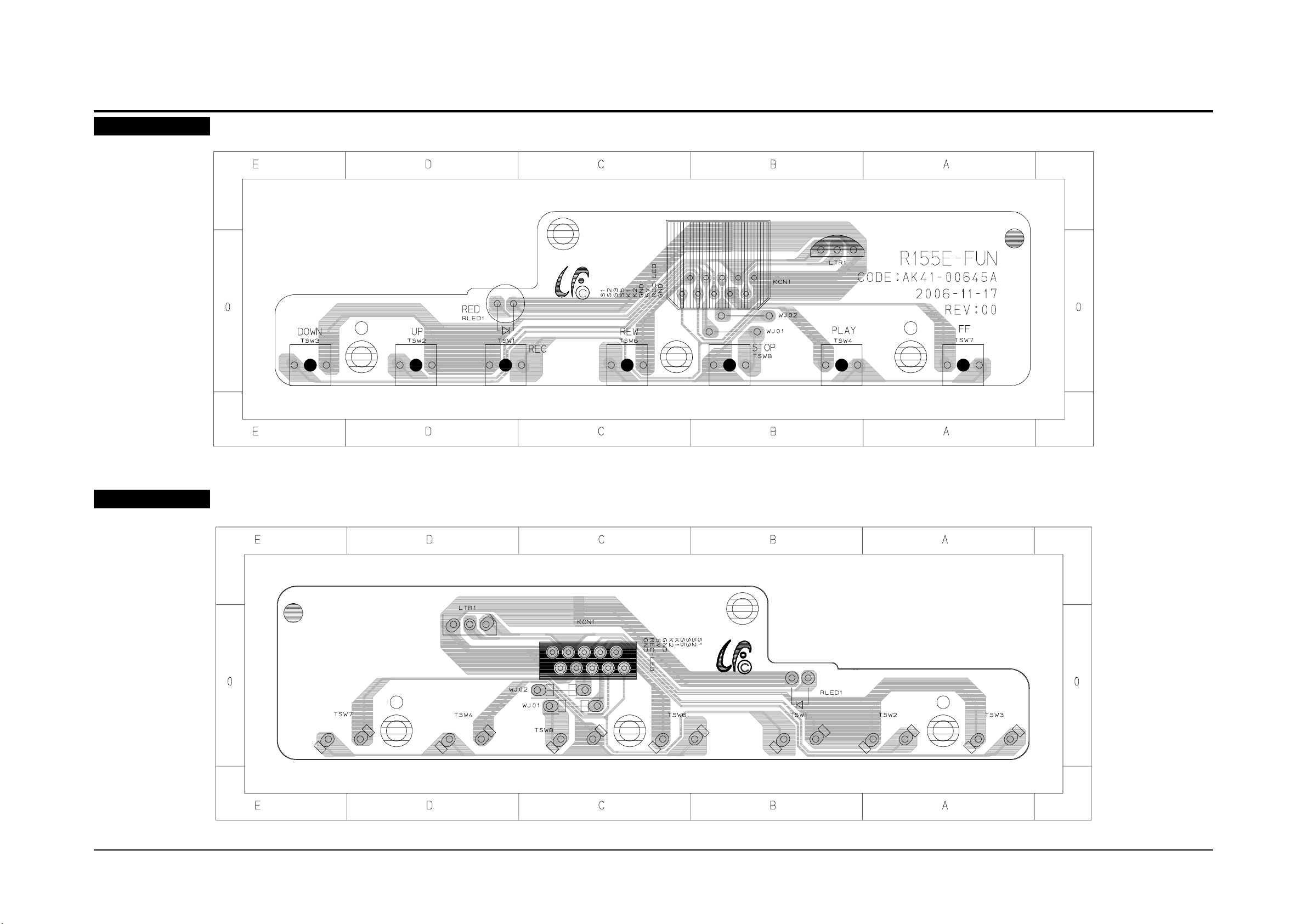

10-3 Key PCB (10-7)

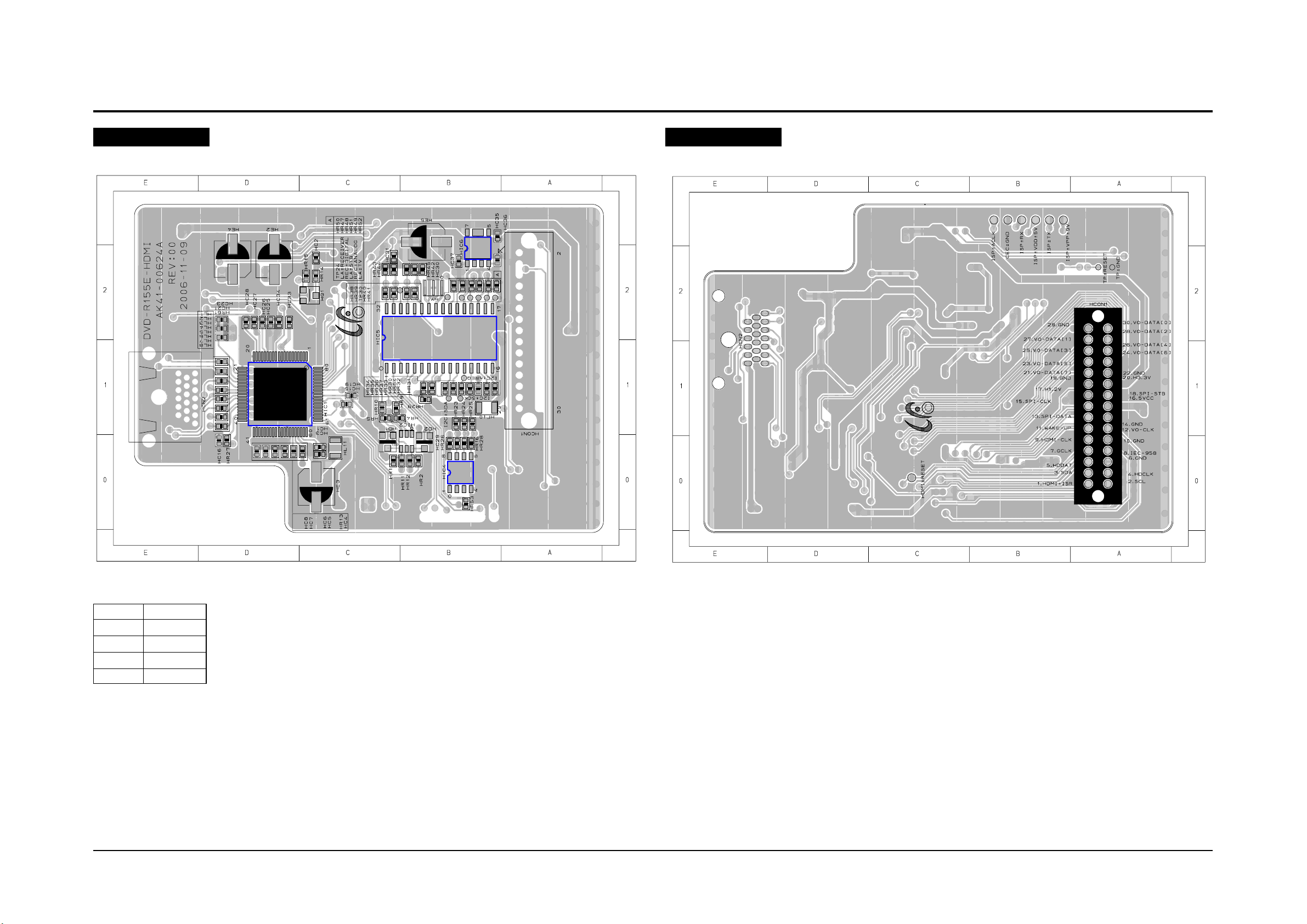

10-4 HDMI PCB (DVD-R155, DVD-R156) (10-8)
11. Schematic Diagrams 11-1 ~ 11-20
◆ Block Identification of Main PCB (11-2)

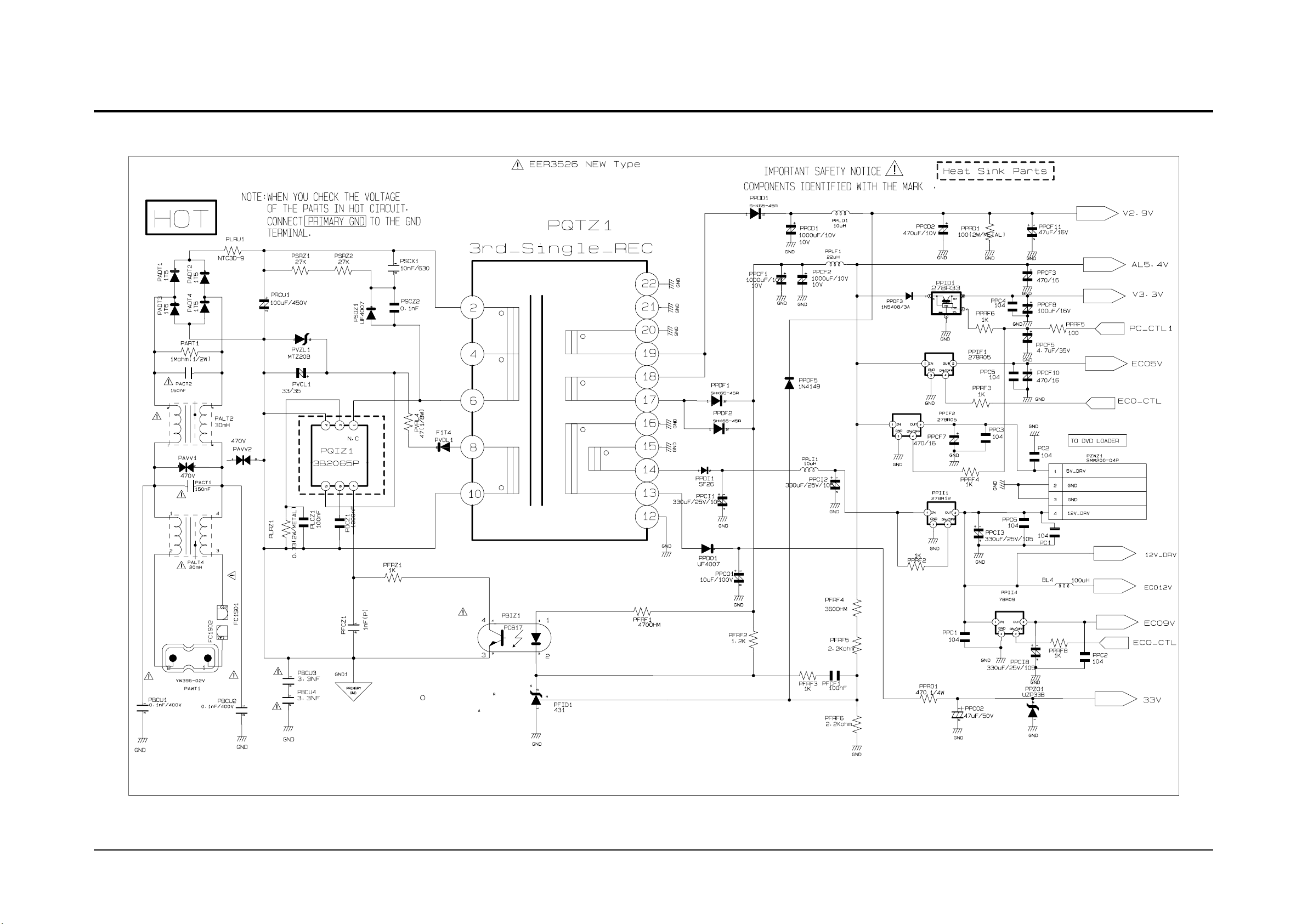

11-1 S.M.P.S (Jack PCB) (11-3)

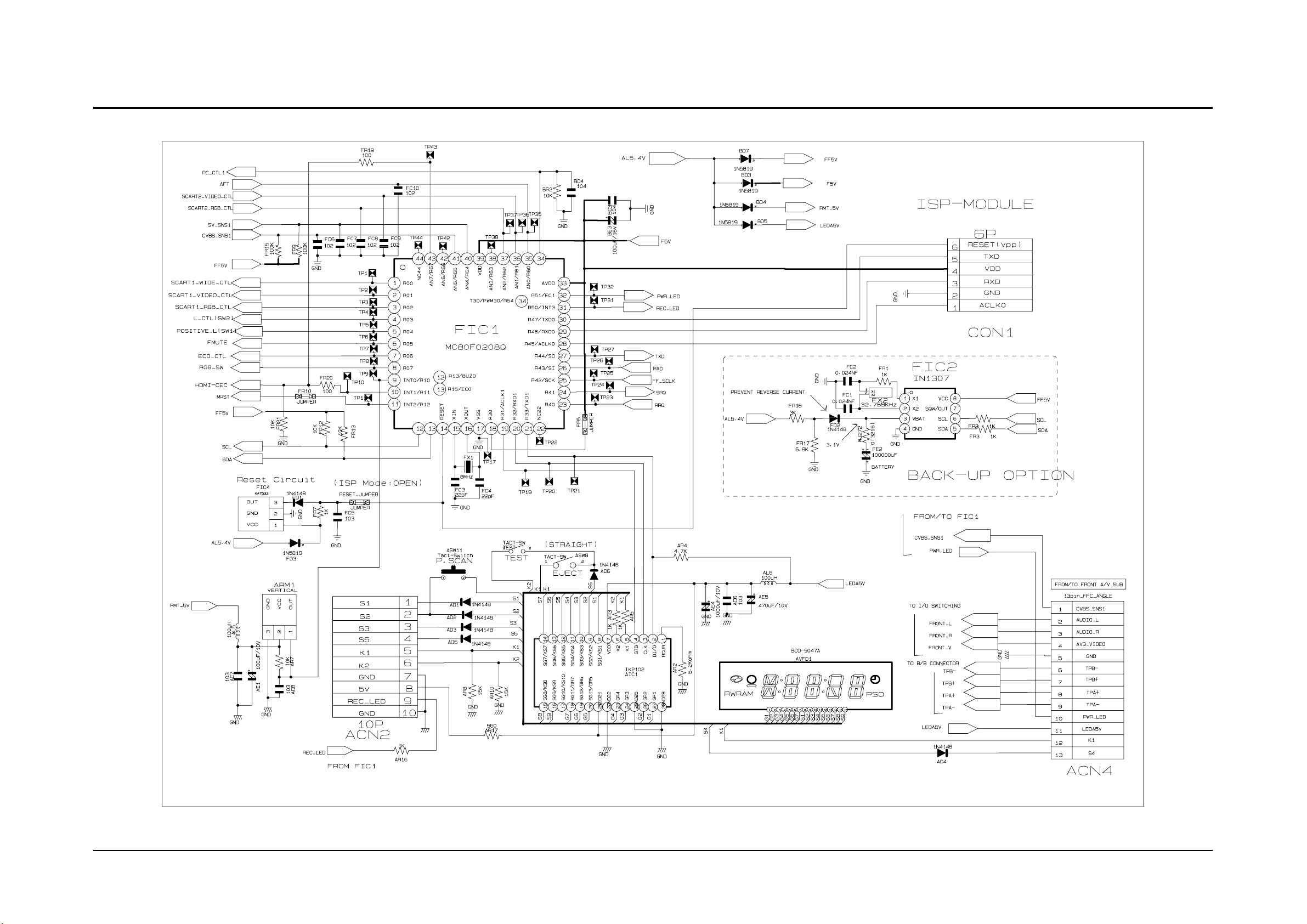

11-2 System Control (Jack PCB) (11-4)

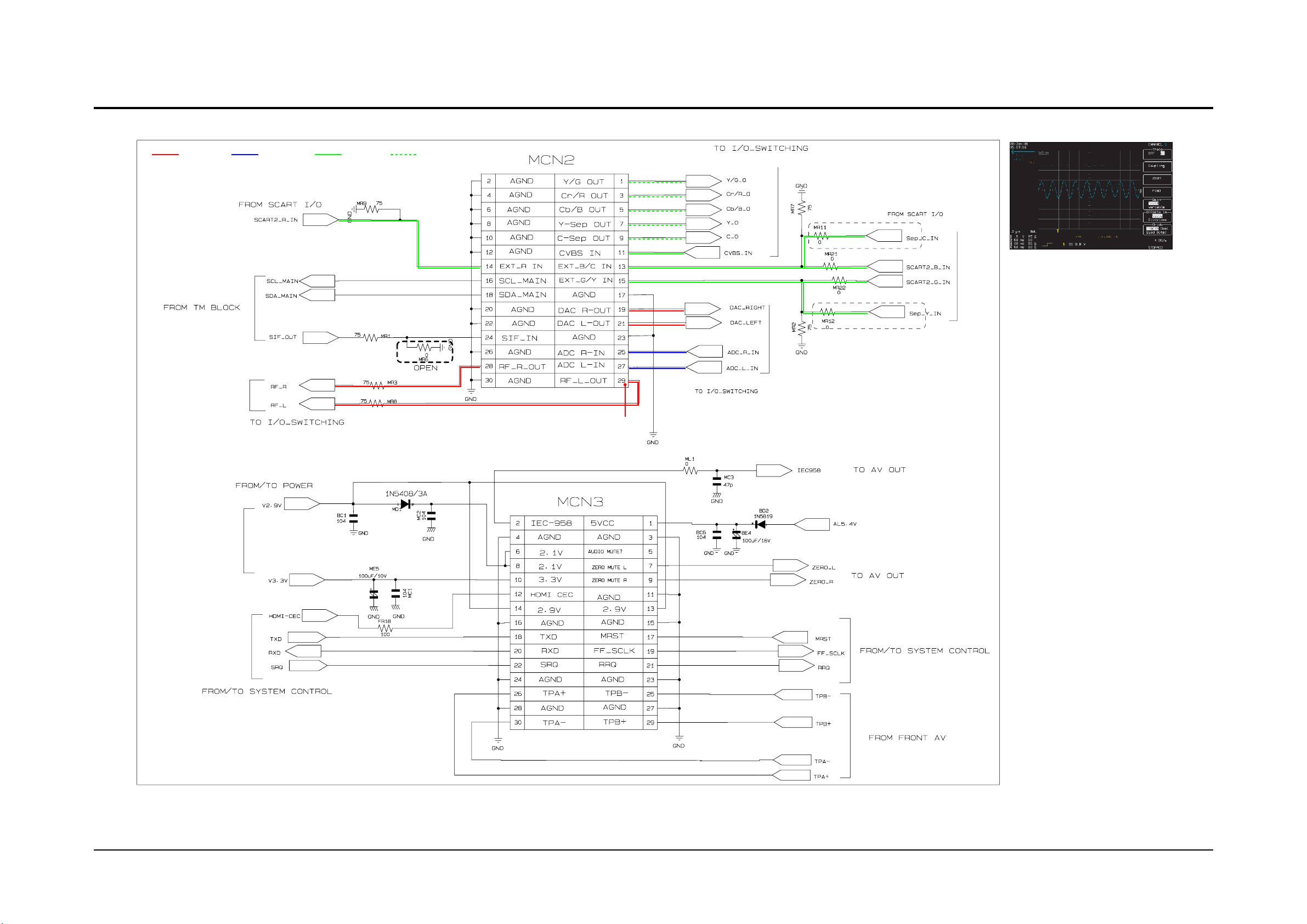

11-3 Connector (Jcak PCB) (11-5)

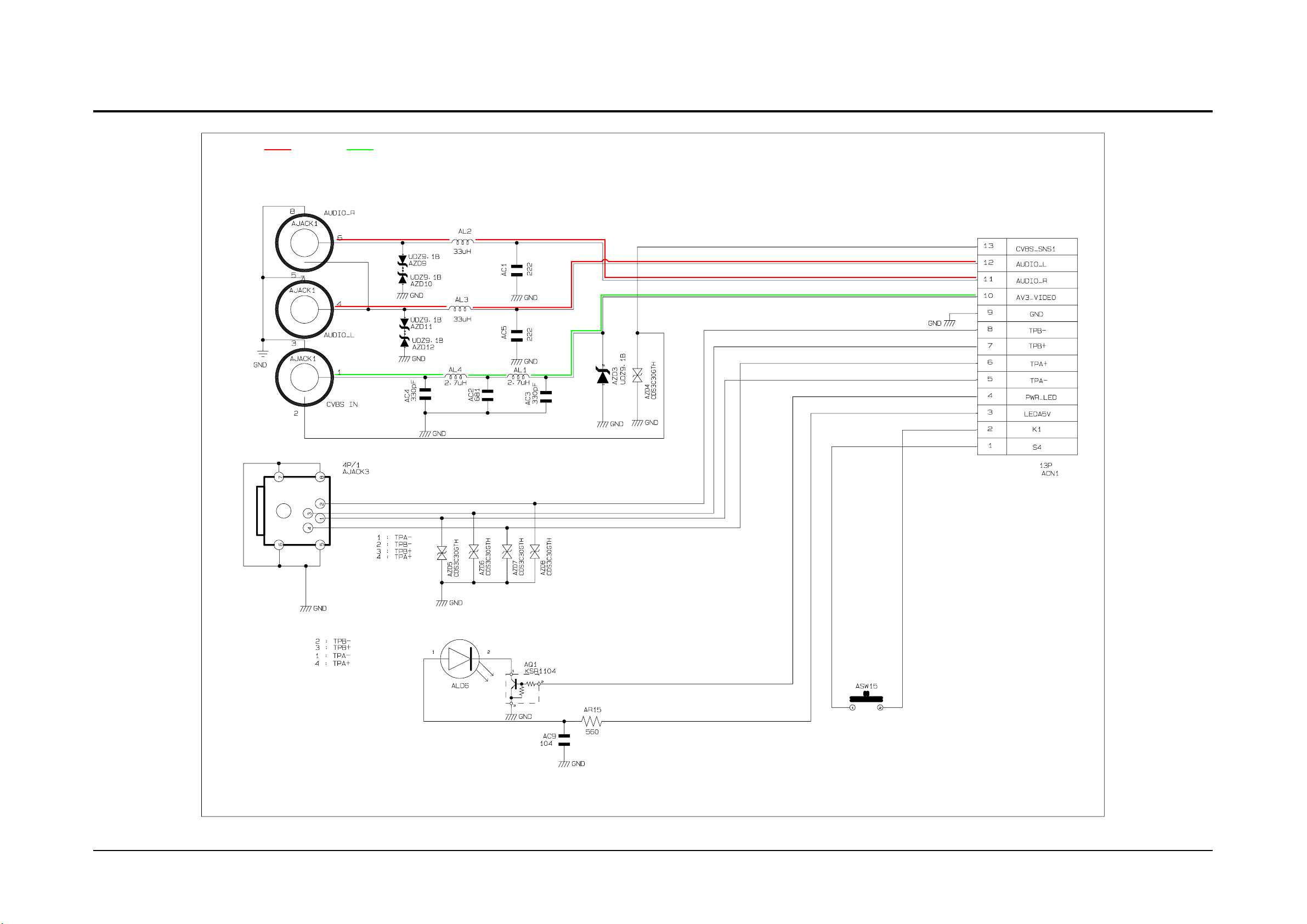

11-4 Front AV (Jack PCB) (11-6)

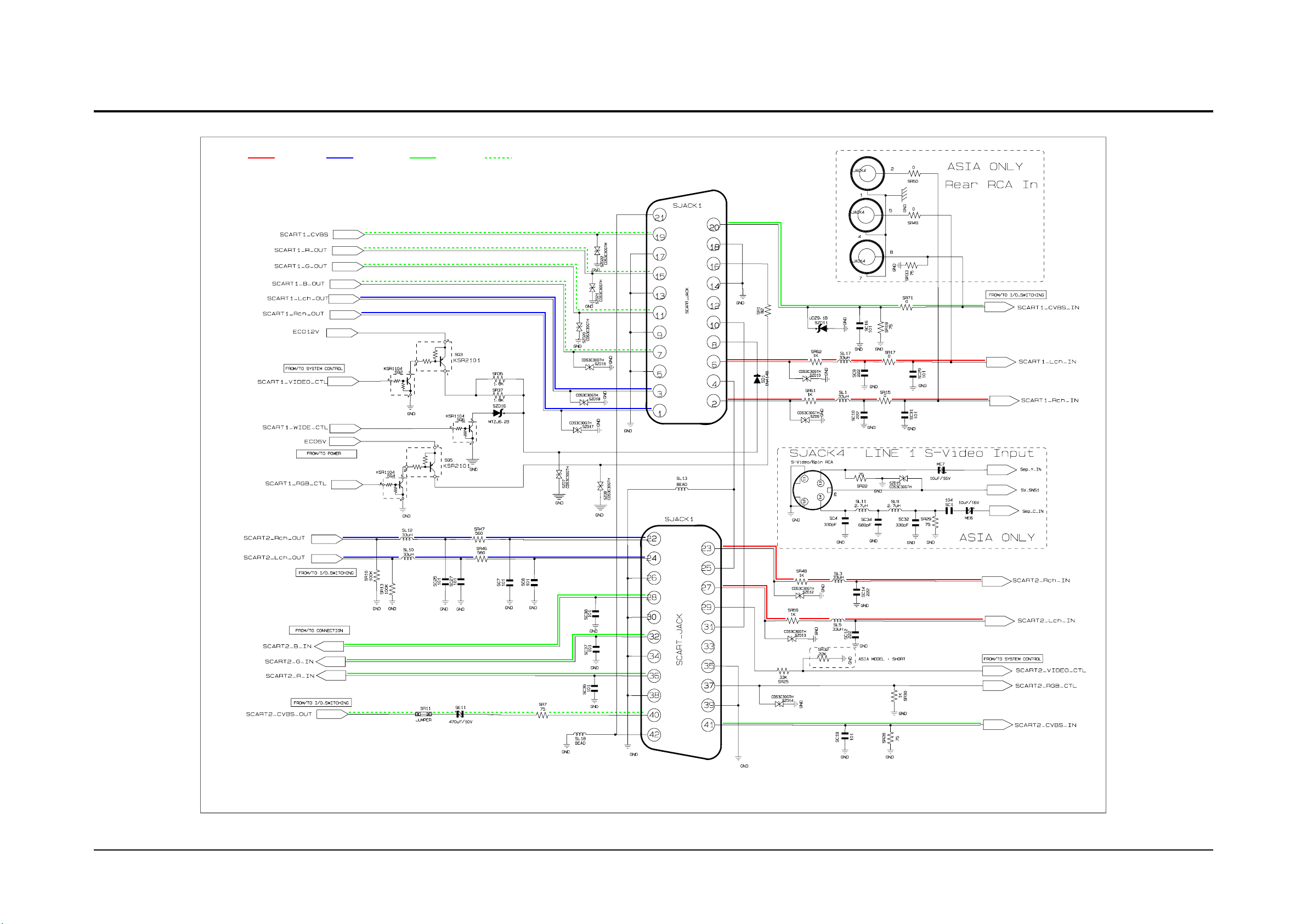

11-5 SCART I/O (Jack PCB) (11-7)
11-6 AV I/O Select (Jack PCB) (11-8)
11-7 NTSC Tuner (Jack PCB) (11-9)

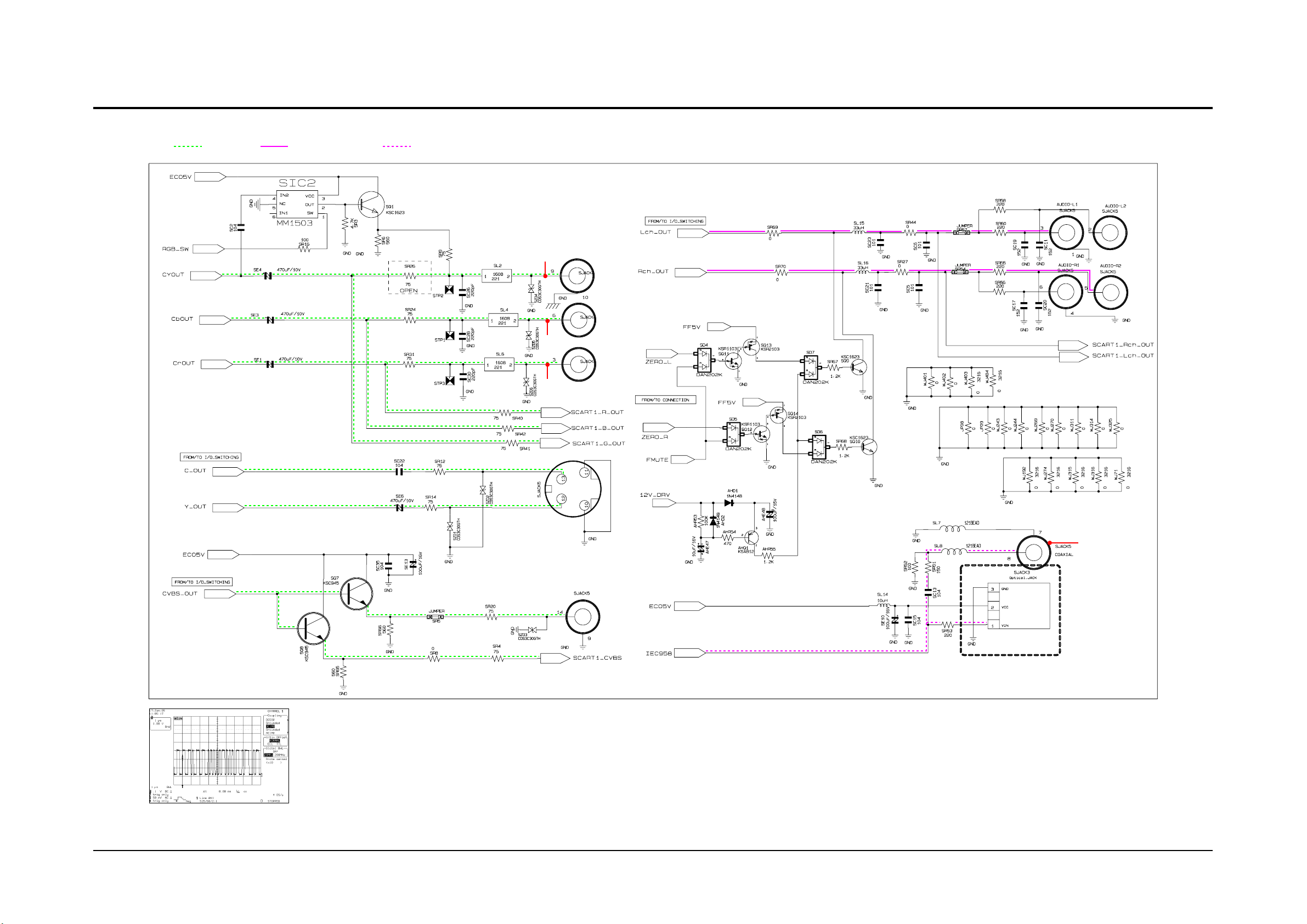

11-8 AV out (Jack PCB) (11-10)

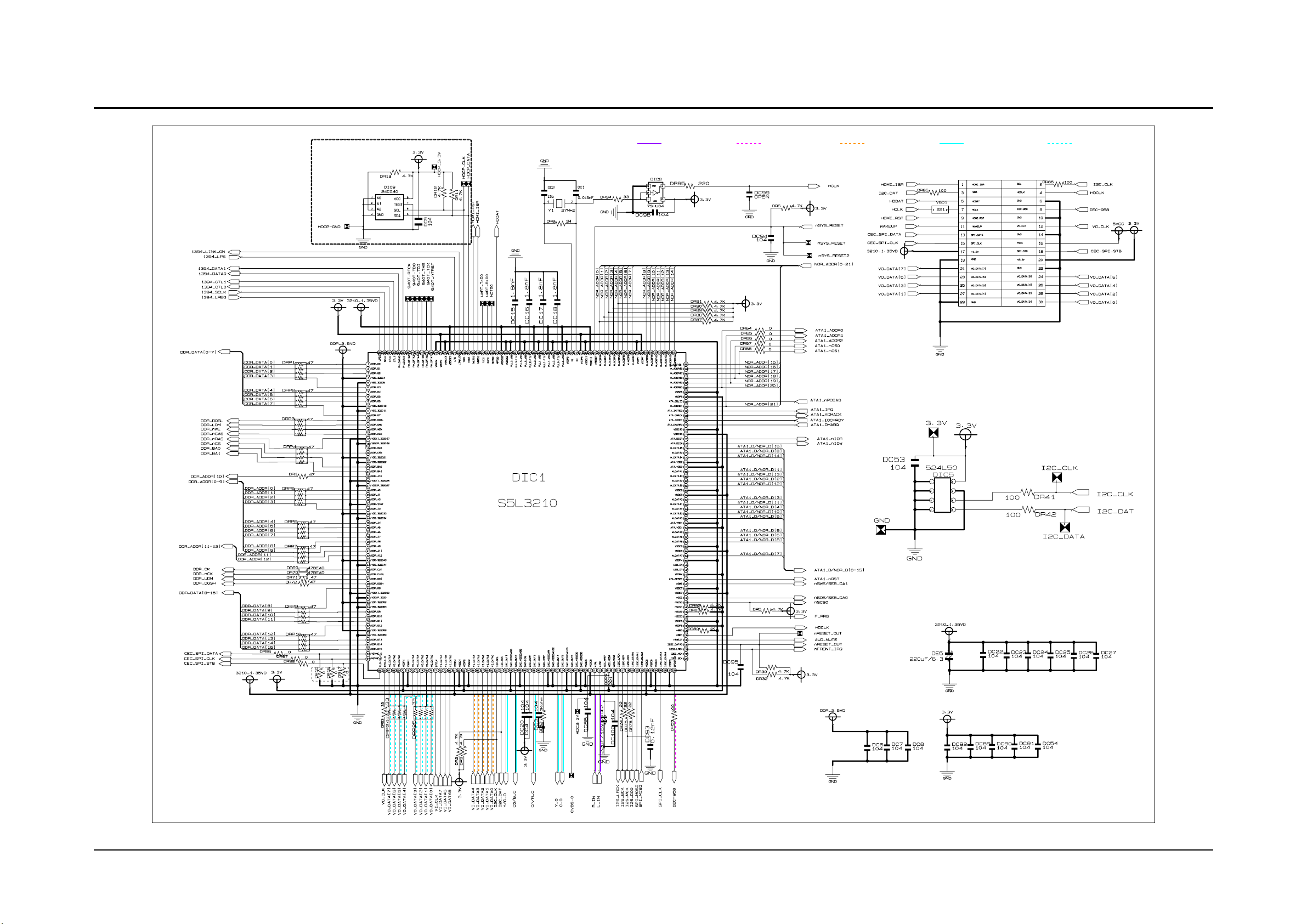

11-9 MPEG CODEC (Main PCB) (11-11)

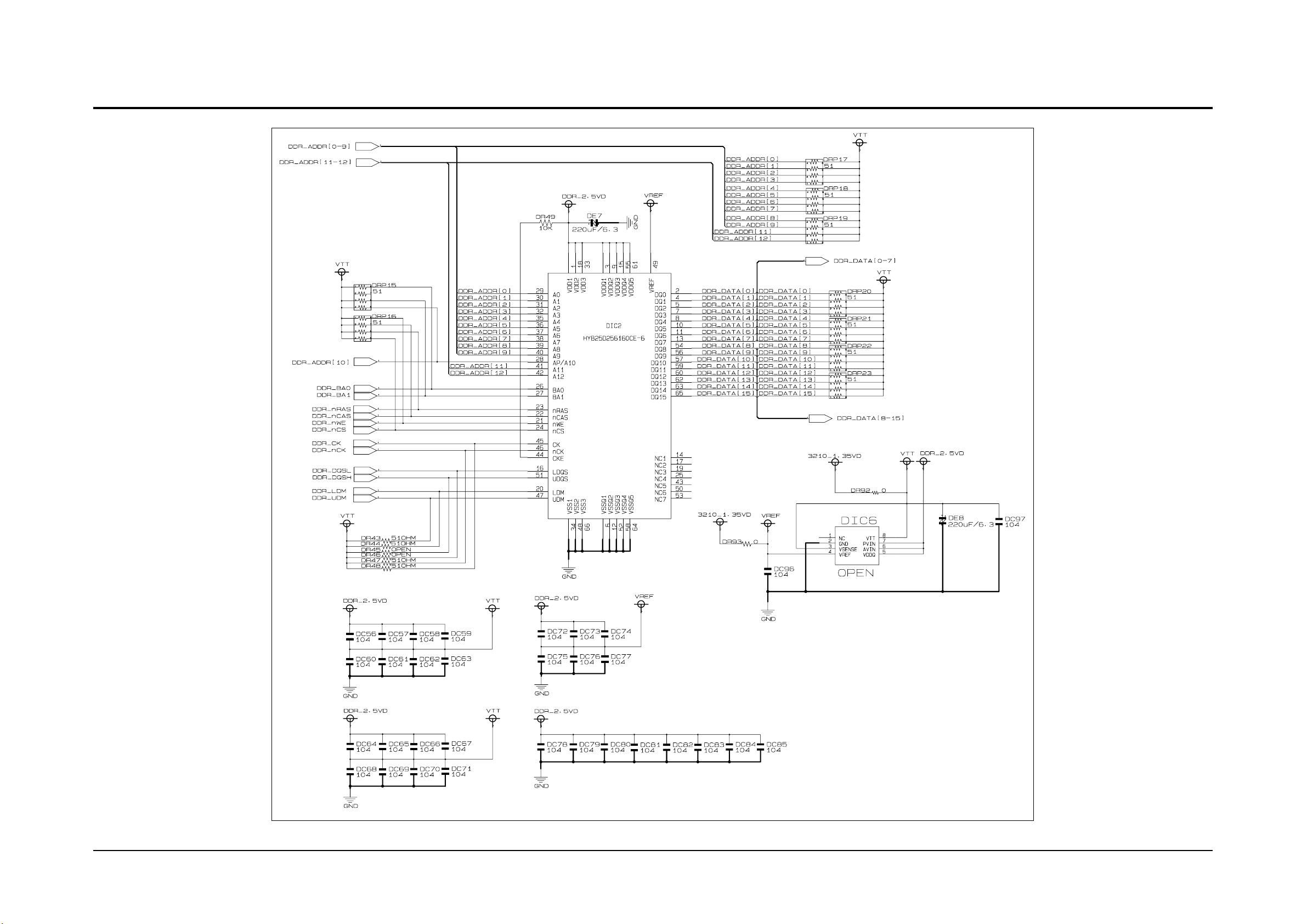

11-10 DDR_SDRAM (Main PCB) (11-12)

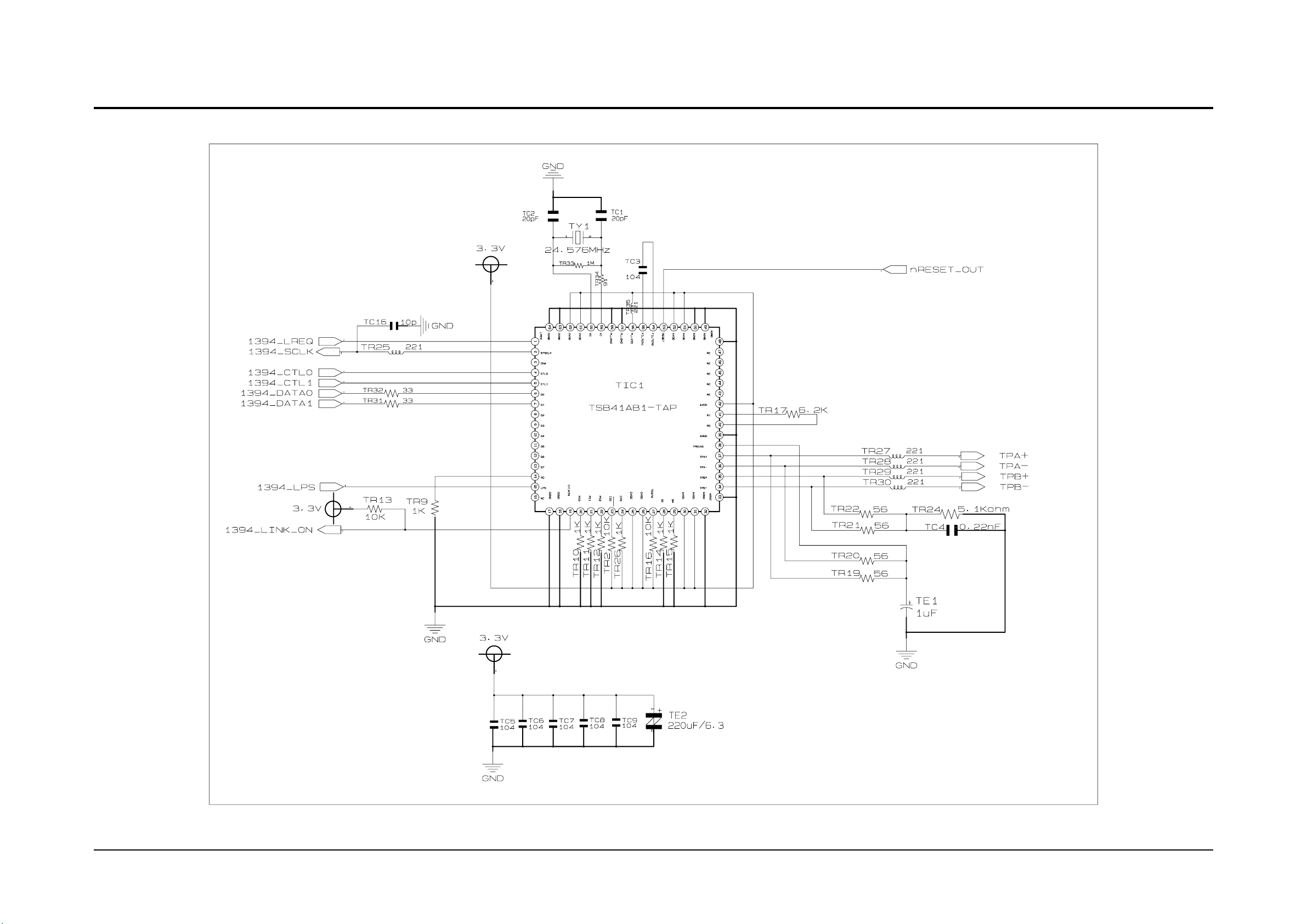

11-11 IEEE1394_PHY (Main PCB) (11-13)

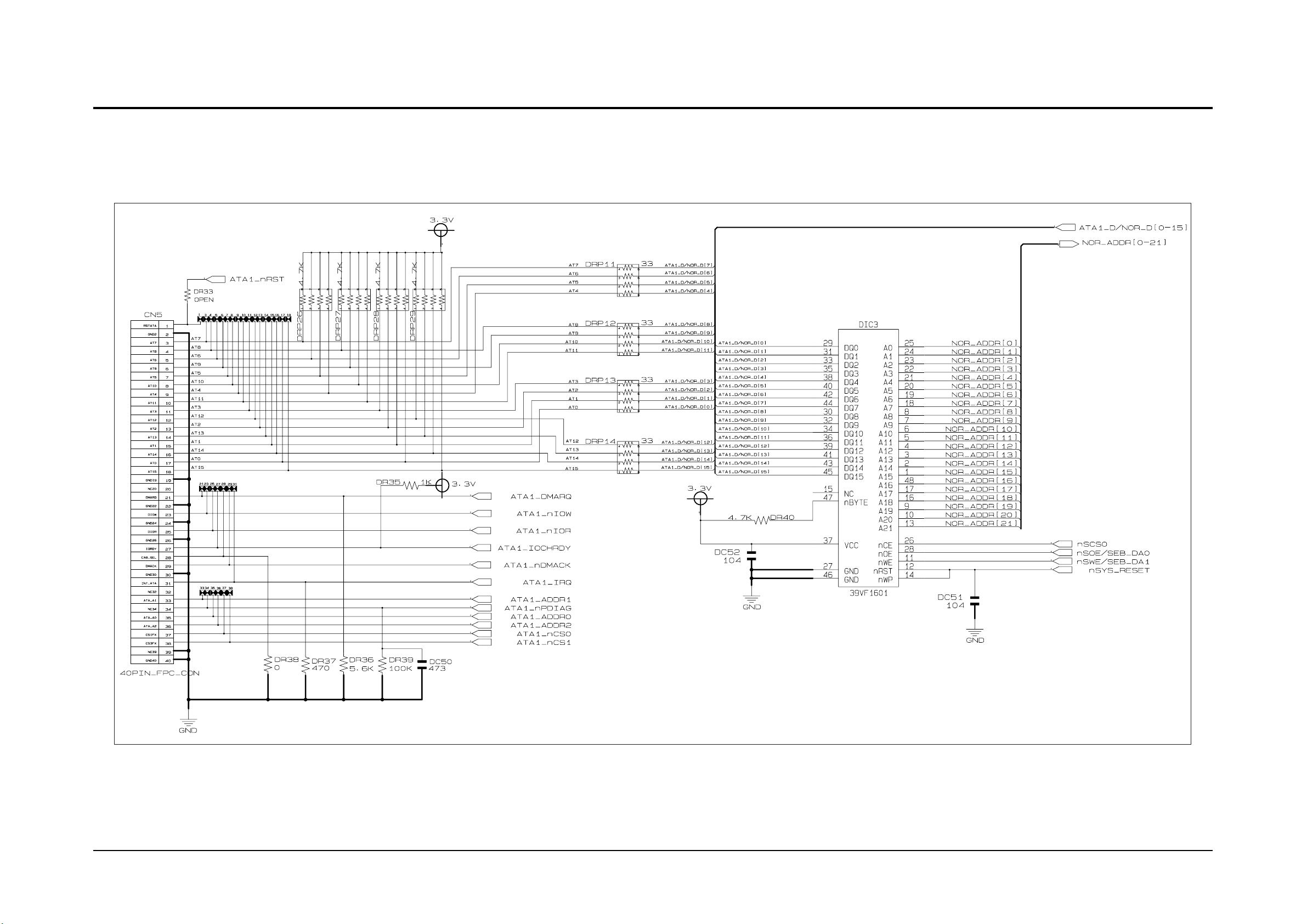

11-12 ARAPI FLASH MEMORY (Main PCB) (11-14)

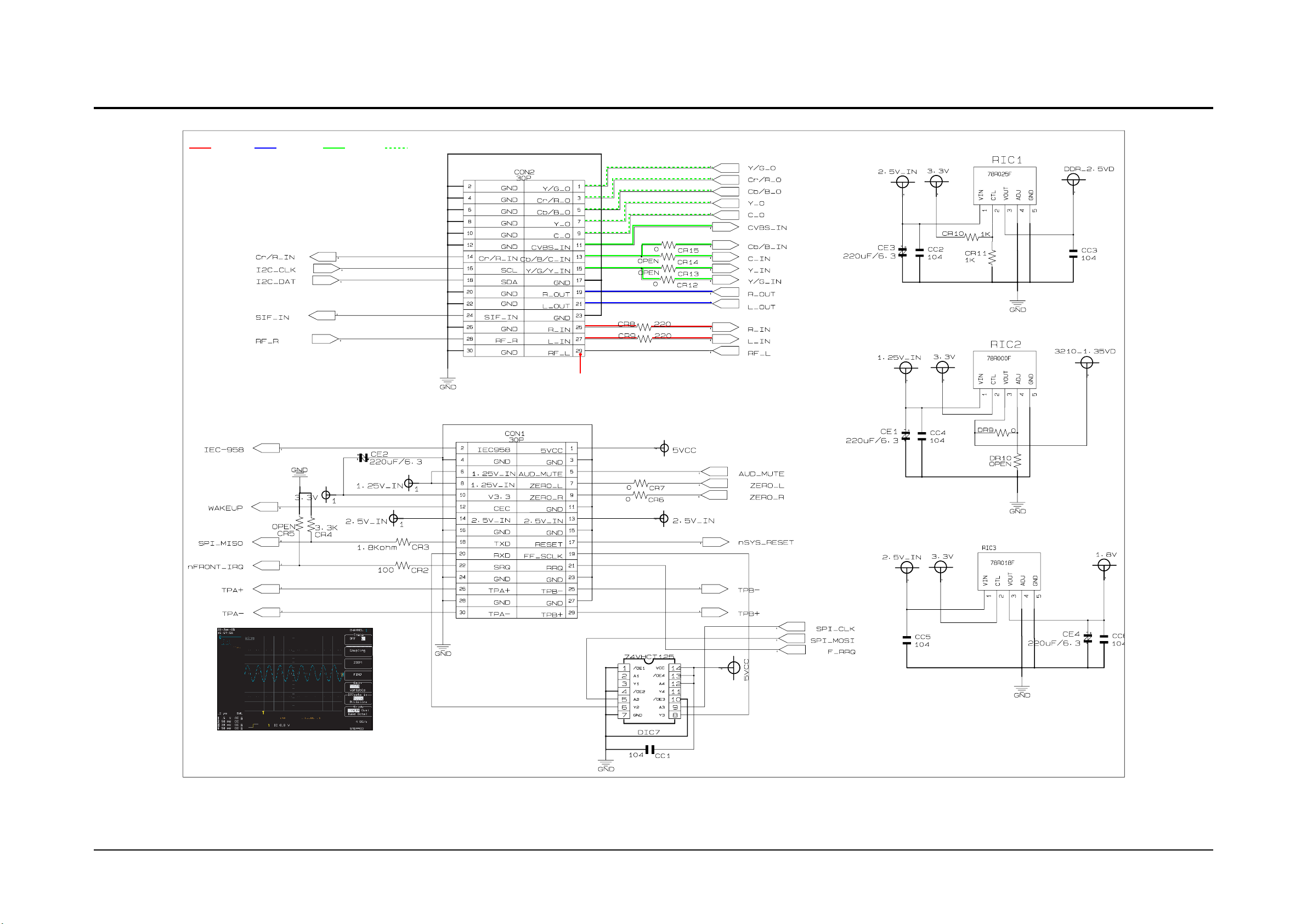

11-13 Connector (Main PCB) (11-15)

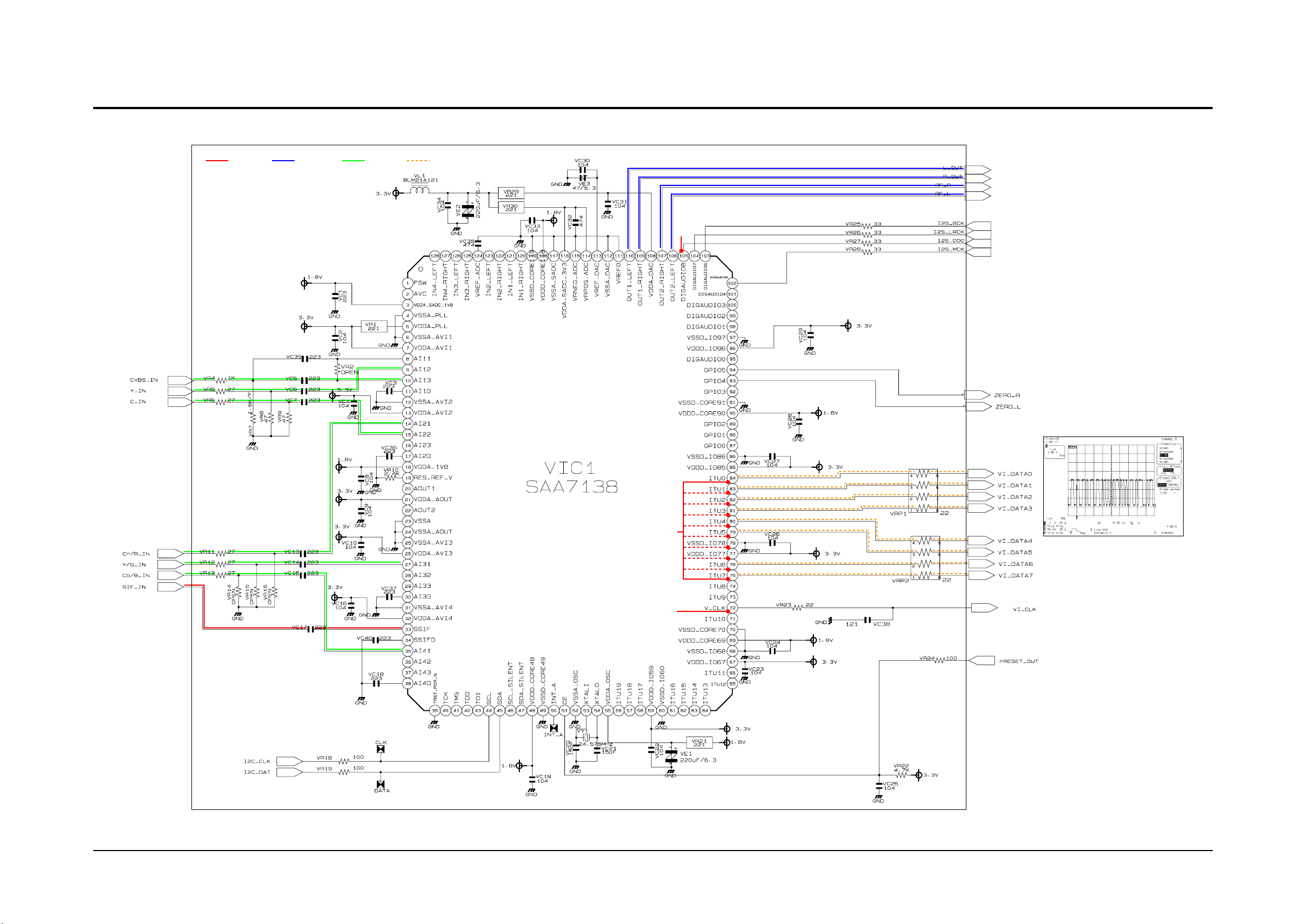

11-14 SAA7138_AV Decoder (Main PCB) (11-16)

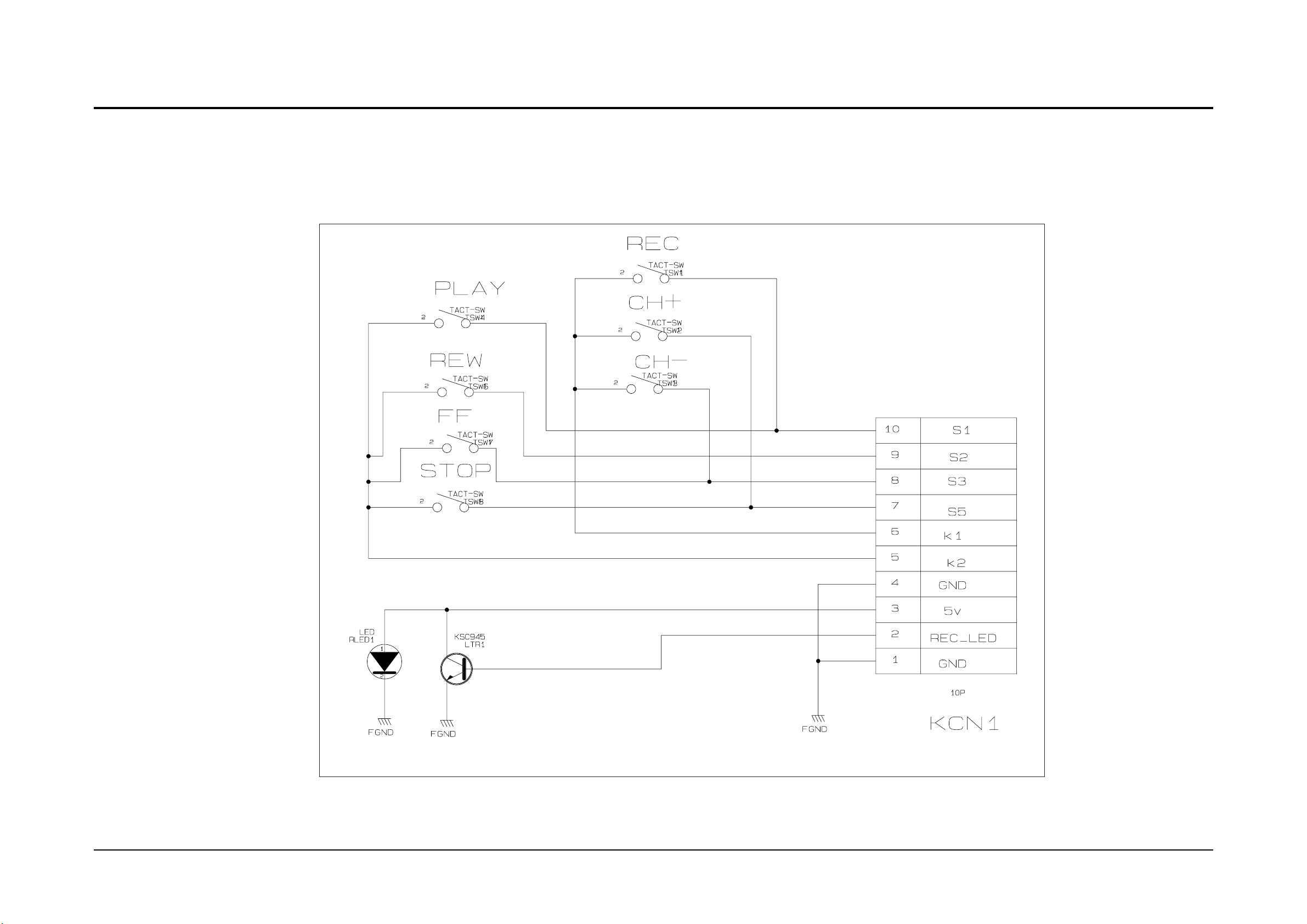

11-15 Function-KEY (Function PCB) (11-17)
11-16 HDMI Trammitter (HDMI PCB (DVD-R155, DVD-R156)) (11-18)
11-17 HDMI CEC (HDMI PCB (DVD-R155, DVD-R156)) (11-19)
12. Operating Instructions 12-1 ~ 12-10
CONTENTS
Page 4
13. Circuit Operating Descriptions 13-1 ~ 13-26

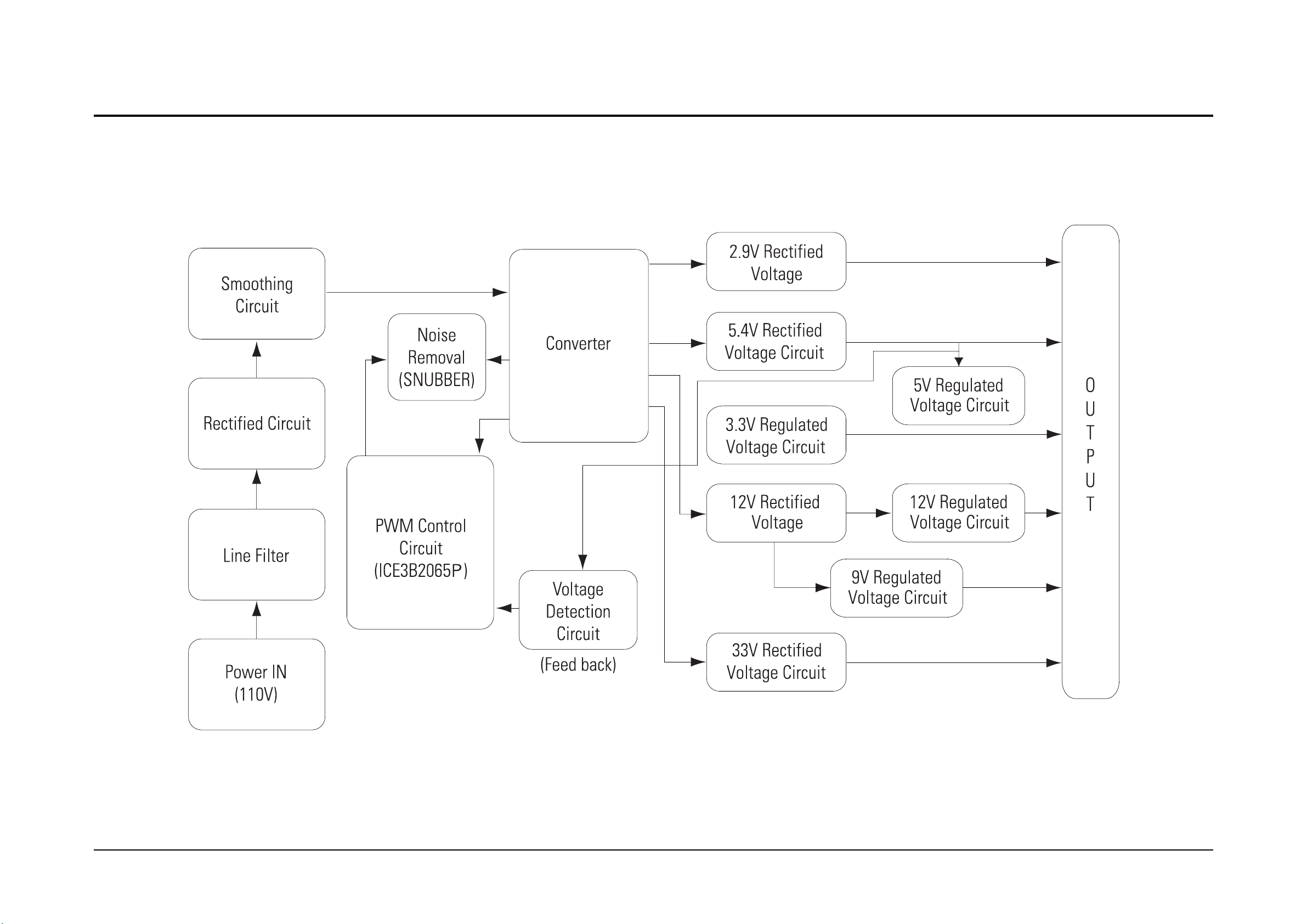

13-1 Power (13-1)
13-2 DVD Processor (13-4)
13-3 SERVO (DVP Multi Drive) (13-20)
13-4 Tuner (13-25)
13-5 IF (13-26)
14. Reference Information 14-1 ~ 14-12
14-1 Introduction to DVD (14-1)
14-2 DVD-Video Format (14-3)
14-3 About IEEE1394 (14-9)
CONTENTS
Page 5
Samsung Electronics 1-1
1. Precautions
1-1 Safety Precautions
1) Before returning an instrument to the customer,
always make a safety check of the entire instrument,
including, but not limited to, the following items:
(1) Be sure that no built-in protective devices are
defective or have been defeated during servicing.
(1)Protective shields are provided to protect both
the technician and the customer. Correctly replace
all missing protective shields, including any
removed for servicing convenience.
(2)When reinstalling the chassis and/or other assembly in the cabinet, be sure to put back in place
all protective devices, including, but not limited to,
nonmetallic control knobs, insulating fish papers,
adjustment and compartment covers/shields, and
isolation resistor/capacitor networks. Do not operate this instrument or permit it to be operated without all protective devices correctly installed and
functioning.
(2) Be sure that there are no cabinet openings through
which adults or children might be able to insert
their fingers and contact a hazardous voltage. Such
openings include, but are not limited to, excessively wide cabinet ventilation slots, and an improperly fitted and/or incorrectly secured cabinet back
cover.
(3) Leakage Current Hot Check-With the instrument
completely reassembled, plug the AC line cord
directly into a 230V(220V ~ 240V) AC outlet. (Do
not use an isolation transformer during this test.)
Use a leakage current tester or a metering system
that complies with American National Standards
institute (ANSI) C101.1 Leakage Current for
Appliances and Underwriters Laboratories (UL)
1270 (40.7). With the instrument’s AC switch first in
the ON position and then in the OFF position, measure from a known earth ground (metal water pipe,
conduit, etc.) to all exposed metal parts of the
instrument (antennas, handle brackets, metal cabinets, screwheads, metallic overlays, control shafts,
etc.), especially any exposed metal parts that offer
an electrical return path to the chassis.
Any current measured must not exceed 0.5mA.
Reverse the instrument power cord plug in the outlet and repeat the test. See Fig. 1-1.
Any measurements not within the limits specified
herein indicate a potential shock hazard that must
be eliminated before returning the instrument to
the customer.
Fig. 1-1 AC Leakage Test
(4) Insulation Resistance Test Cold Check-(1) Unplug
the power supply cord and connect a jumper wire
between the two prongs of the plug. (2) Turn on the
power switch of the instrument. (3) Measure the
resistance with an ohmmeter between the
jumpered AC plug and all exposed metallic cabinet
parts on the instrument, such as screwheads,
antenna, control shafts, handle brackets, etc. When
an exposed metallic part has a return path to the
chassis, the reading should be between 1 and 5.2
megohm. When there is no return path to the chassis, the reading must be infinite. If the reading is
not within the limits specified, there is the possibility of a shock hazard, and the instrument must be
repaired and rechecked before it is returned to the
customer. See Fig. 1-2.
Fig. 1-2 Insulation Resistance Test
(READING SHOULD
NOT BE ABOVE
0.5mA)
EARTH
GROUND
DEVICE
UNDER
TEST
TEST ALL
EXPOSED METER
SURFACES
2-WIRE CORD
ALSO TEST WITH
PLUG REVERSED
(USING AC ADAPTER
PLUG AS REQUIRED)
LEAKAGE
CURRENT
TESTER
Antenna
Terminal
Exposed
Metal Part
ohm
ohmmeter
Page 6
Precautions
1-2 Samsung Electronics
2) Read and comply with all caution and safety related notes on or inside the cabinet, or on the chassis.
3) Design Alteration Warning-Do not alter or add to
the mechanical or electrical design of this instrument. Design alterations and additions, including
but not limited to, circuit modifications and the
addition of items such as auxiliary audio output
connections, might alter the safety characteristics of
this instrument and create a hazard to the user. Any
design alterations or additions will make you, the
servicer, responsible for personal injury or property
damage resulting therefrom.
4) Observe original lead dress. Take extra care to
assure correct lead dress in the following areas:
(1) near sharp edges, (2) near thermally hot parts (be
sure that leads and components do not touch thermally hot parts), (3) the AC supply, (4) high voltage,
and (5) antenna wiring. Always inspect in all areas
for pinched, out-of-place, or frayed wiring, Do not
change spacing between a component and the
printed-circuit board. Check the AC power cord for
damage.
5) Components, parts, and/or wiring that appear to
have overheated or that are otherwise damaged
should be replaced with components, parts and/ or
wiring that meet original specifications.
Additionally, determine the cause of overheating
and/or damage and, if necessary, take corrective
action to remove any potential safety hazard.
6) Product Safety Notice-Some electrical and mechanical parts have special safety-related characteristics
which are often not evident from visual inspection,
nor can the protection they give necessarily be
obtained by replacing them with components rated
for higher voltage, wattage, etc. Parts that have special safety characteristics are identified by shading,
an ( )or a ( )on schematics and parts lists. Use
of a substitute replacement that does not have the
same safety characteristics as the recommended
replacement part might create shock, fire and/or
other hazards. Product safety is under review continuously and new instructions are issued whenever appropriate.
Page 7
Precautions
Samsung Electronics 1-3
1-2 Servicing Precautions
CAUTION : Before servicing units covered by this
service manual and its supplements, read and follow
the Safety Precautions section of this manual.
Note : If unforseen circumstances create conflict
between the following servicing precautions and any
of the safety precautions, always follow the safety precautions. Remember: Safety First.
1-2-1 General Servicing Precautions
(1) a. Always unplug the instrument’s AC power cord
from the AC power source before (1) re-moving
or reinstalling any component, circuit board,
module or any other instrument assembly, (2)
disconnecting any instrument electrical plug or
other electrical connection, (3) connecting a test
substitute in parallel with an electrolytic capacitor in the instrument.
b. Do not defeat any plug/socket B+ voltage inter-
locks with which instruments covered by this
service manual might be equipped.
c. Do not apply AC power to this instrument and
/or any of its electrical assemblies unless all
solid-state device heat sinks are correctly installed.
d. Always connect a test instrument’s ground lead
to the instrument chassis ground before connecting the test instrument positive lead. Always
remove the test instrument ground lead last.
Note : Refer to the Safety Precautions section ground
lead last.
(2) The service precautions are indicated or printed on
the cabinet, chassis or components. When servicing, follow the printed or indicated service precautions and service materials.
(3) The components used in the unit have a specified
flame resistance and dielectric strength.
When replacing components, use components
which have the same ratings. Components identified by shading, by( ) or by ( ) in the circuit diagram are important for safety or for the characteristics of the unit. Always replace them with the exact
replacement components.
(4) An insulation tube or tape is sometimes used and
some components are raised above the printed
wiring board for safety. The internal wiring is
sometimes clamped to prevent contact with heating components. Install such elements as they
were.
(5) After servicing, always check that the removed
screws, components, and wiring have been installed correctly and that the portion around the
serviced part has not been damaged and so on.
Further, check the insulation between the blades of
the attachment plug and accessible conductive
parts.
1-2-2 Insulation Checking Procedure
Disconnect the attachment plug from the AC outlet
and turn the power ON. Connect the insulation resistance meter (500V) to the blades of the attachment
plug. The insulation resistance between each blade of
the attachment plug and accessible conductive
parts(see note) should be more than 1 Megohm.
Note : Accessible conductive parts include metal panels, input terminals, earphone jacks, etc.
Page 8
Precautions
1-4 Samsung Electronics
1-3 ESD Precautions
Electrostatically Sensitive Devices (ESD)
Some semiconductor (solid state) devices can be damaged easily by static electricity.
Such components commonly are called Electrostatically Sensitive Devices(ESD). Examples of typical ESD
devices are integrated circuits and some field-effect
transistors and semiconductor chip components. The
following techniques should be used to help reduce
the incidence of component damage caused by static
electricity.
(1) Immediately before handling any semiconductor
component or semiconductor-equipped assembly,
drain off any electrostatic charge on your body by
touching a known earth ground. Alternatively,
obtain and wear a commercially available discharging wrist strap device, which should be
removed for potential shock reasons prior to applying power to the unit under test.
(2) After removing an electrical assembly equipped
with ESD devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.
(3) Use only a grounded-tip soldering iron to solder or
unsolder ESD devices.
(4) Use only an anti-static solder removal devices.
Some solder removal devices not classified as
“anti-static” can generate electrical charges sufficient to damage ESD devices.
(5) Do not use freon-propelled chemicals. These can
generate electrical charges sufficient to damage
ESD devices.
(6) Do not remove a replacement ESD device from its
protective package until immediately before your
are ready to install it.(Most replacement ESD
devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or
comparable conductive materials).
(7) Immediately before removing the protective ma-
terials from the leads of a replacement ESD device,
touch the protective material to the chassis or circuit assembly into which the device will be
installed.
CAUTION : Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.
(8) Minimize bodily motions when handling unpack-
aged replacement ESD devices. (Otherwise harmless motion such as the brushing together of your
clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity sufficient
to damage an ESD device).
Page 9
Precautions
Samsung Electronics 1-5
1-4 Handling the optical pick-up
The laser diode in the optical pick up may suffer electrostatic breakdown because of potential static electricity from clothing and your body.
The following method is recommended.
(1) Place a conductive sheet on the work bench (The
black sheet used for wrapping repair parts.)
(2) Place the set on the conductive sheet so that the
chassis is grounded to the sheet.
(3) Place your hands on the conductive sheet(This
gives them the same ground as the sheet.)
(4) Remove the optical pick up block
(5) Perform work on top of the conductive sheet. Be
careful not to let your clothes or any other static
sources to touch the unit.
◆ Be sure to put on a wrist strap grounded to the
sheet.
◆ Be sure to lay a conductive sheet made of copper
etc. Which is grounded to the table.
Fig.1-3
(6) Short the short terminal on the PCB, which is in-
side the Pick-Up ASS’Y, before replacing the PickUp. (The short terminal is shorted when the PickUp Ass’y is being lifted or moved.)
(7) After replacing the Pick-up, open the short termi-
nal on the PCB.
WRIST-STRAP
FOR GROUNDING
1M
THE UNIT
1M
CONDUCTIVE SHEET
Page 10
Precautions
1-6 Samsung Electronics
MEMO
Page 11
Samsung Electronics 2-1
Power requirements AC 220-240V, 50Hz
Power consumption 21Watts
General
Weight 2.6 kg
Dimensions 430mm(W) x 240mm(D) x 49mm(H)
Operating temp +5°C to +35°C
Other conditions Keep level when operating. Less than 75% operating humidity
Video Composite Video : 1.0 V p-p at 75ohm load, sync negative
Audio Max. Audio input level : 2Vrms
Input DV Input IEEE 1394(4p) compatible jack
Receivable Channels PAL B/G, D/K, I
Scart Jack AV2 (Scart Ext) Video : Composite, RGB Audio : analogue
Audio
Analogue output jacks X 2
Optical/coaxial digital audio output
Composite Video : Video output jack X 1
Output
Video S-Video output X 1 (Y: 1.0Vp-p, C:0.286Vp-p at 75 ohm load)
Component output X 1 (Y: 1.0Vp-p ,Pb:0.70Vp-p, Pr:0.70Vp-p at 75ohm load)
HDMI/DVI output x 1 (576p, 720p, 1080i)
Scart Jack AV1 (Scart TV) Video : Composite, RGB Audio : analogue
Picture compression format MPEG-II
Audio compression format Dolby digital 2ch/256kbps, MPEG-II
Recording
Recording Quality
XP (about 8 Mbps), SP (about 4 Mbps), LP (about 2 Mbps),
EP (about 1,2 Mbps or about 0,8 Mbps)
Audio frequency characteristics 20 Hz ~ 20 KHz
2. Product Specification
2-1 Product Specification
Page 12
General Model Name DVD-R135 DVD-R155 DVD-R150
INPUT SELECT(DV/AV1/AV2/AV3/PR) DV/AV1/AV2/AV3/PR DV/AV1/AV2/AV3/PR DV/AV1/AV2/AV3/PR
Scart Jack-1 A/V Input/Output Rear AV1 AV1 AV1
Scart Jack-2 A/V with RGB Input Rear AV2 AV2 AV2
CVBS Output - RCA Jack Rear x1 x1 x1
Audio Output -RCA Jack Rear x2 (L,R) x2 (L,R) x2 (L,R)
S-Video Output Rear x1 x1 x1
Component Video out Rear x1(Y,Pb,Pr) x1(Y,Pb,Pr) x1(Y,Pb,Pr)
Digital Audio Out (Optical) Rear x1 x1 x1
Digital Audio Out (Coaxial) Rear x1 x1 x1
Rear - - Front x1(AV3) x1(AV3) x1(AV3)
Rear - - -
Front x1 ( L,R / AV3) x1 ( L,R / AV3) x1 ( L,R / AV3)
S-Video Input Rear - - DV Input Front x1 x1 x1
HDMI Output Rear x1 x1 HDMI-CEC Yes Yes DVD-RAM Yes Yes Yes
DVD-RW Yes Yes Yes
DVD-R Yes Yes Yes
DVD+RW Yes Yes DVD+R Yes Yes DUAL LAYER RECORDING -R -R -R
MODE XP/SP/LP/EP/SEP XP/SP/LP/EP/SEP XP/SP/LP/EP/SEP
Drive Speed x2 x2 x2
MPEG2 (XP/SP/LP/EP) 1/2/4/8 1/2/4/8 1/2/4/8
EZ REC - Yes Yes
Broadcast System PAL,SECAM -B/G,D/K,I PAL,SECAM -B/G,D/K,I PAL,SECAM -B/G,D/K,I
Auto CH Sorting & Mapping Yes Yes Yes
Station Name Display Auto Detect Auto Detect Auto Detect
Back-Up Type & Time EEPROM / Permanent EEPROM EEPROM / Permanent
Auto Clock Setting Yes Yes Yes
Accessory HDMI - HDMI Cable Yes - -
Product Specification
2-2 Samsung Electronics
2-2 Chassis Product Specification
TERMINALS
(Input/Output)
CVBS Input - RCA Jack
Audio Input - RCA Jack
RECORDING
Disc Media
TUNER
CLOCK
RECORDING
TIME/MODE
CHASSIS
Page 13
Product Specification
Samsung Electronics 2-3
2-3 Option Product Specification
Description Fig Description Parts No Remark
Remote
Control
Batteries for
Remote Control
AK59-00061A
4301-001035
Model Standard of
DVD-R155/XEU
Model Standard of
DVD-R155/XEU
S.N.A
Model Standard of
DVD-R155/XEU
Model Standard of
DVD-R155/XEU
S.N.A
Model Standard of
DVD-R155/XEU
Model Standard of
DVD-R155/XEU
AK68-01273A
AK68-01277A
AC39-42001R
AC39-00017A
User’s Manual
Quick Guide
Video/Audio
Cable
RF Cable
Page 14
Product Specification
2-4 Samsung Electronics
MEMO
Page 15
Samsung Electronics
3-1
3. Software Update
3-1 Drive Firmware Update
3-1-1 Introduction
When you can not record and play on specific recording media (especially on newly available DVD-RAM, DVD-RW or DVD-R).
3-1-2 How to make an update disc
• Write the downloaded file onto a blank CD-R or CD-RW disc, using the following settings :
1) Download the software update file from the samsung internet site. (www.samsung.com)
2) Write the file to disc using the CD-RW of your computer.
• Recommended Application Program
- Nero Burning / Easy CD Creator ..etc
• Option
- Extension name : “*.SMD”
- Multisession : No Multisession
- File name lenght : Max. of 11 = 8 + 3
- Format : Mode 1
- Character set : ISO 9660 or Joliet Format
- CD Close & Dise at once
N O T E
It is very important : please read the below notice below before upditang your unit.
The followong events may interrupt the update process and MAY RESULT IN PERMANENT DAMAGE TO THE UNIT WHILE UPDATING
! Unplugging the power cord.
@ Power Outage.
# Dirt or Scratches on the disc.
$ Opening a disc tray during processing.
WARNING
Page 16
3-2
Software Update
Samsung Electronics
Fig. 3-2
* If you don’t see the message above, try another disc. Generally, this is caused by disc quality and by disc creating problem.
4) Press the OK button on the remote control (Fig. 3-1).
Fig.3-3
5) It takes about 1~2 minutes to complete the update.
The message below will be displayed in the screen after update is completed and the tray will open automatically.
Fig. 3-4
6) After removing the update disc, turn off the unit with power button.
And there after turn on the unit with power button and then the will be closed.
The drive firmware is now completed.
Atfer checking old and new version, select “Yes” or “No”
with “ ” or “ ” on the remote control.
* The Version is indicated by “XX.X modelname”
You will see “LOAD” on FLT Display.
Fig. 3-5
1) Press OPEN/CLOSE to open the disc tray.
2) Insert the update CD-R disc with the software update, label
facing up.
3) Press OPEN/CLOSE to close the disc tray.
* It takes about 1~2 minites before the mesage below appears.
Fig. 3-1 Remote Control
Drive Update
Do you want to update drive-firmware?
Version : Xx.X.R155 -> XX.X.R155
Yes
No
Drive Update
Now, processing...
Please, do not turn off the power.
Drive Update
Drive Firmware is successfully
updated.
Page 17
Samsung Electronics
4-1
4. Disassembly and Reassembly
4-1 Cabinet and PCB
4-1-1 Top Cabinet Removal
1) Remove 5 Screws Œ, ´, ˇ.
2) Lift up the Top Cabinet in direction of arrow.
Fig. 4-1 Top Cabinet Removal
Note : Reassembly in reverse order.
Π3 SCREWS
(3 x 10 B)
´ 1 SCREW
(3 x 10 B)
ˇ 1 SCREW
(3 x 10 B)
CABINET
Page 18
4-2
Samsung Electronics
Disassembly and Reaasembly
Fig. 4-2 Ass’y Front-Cabinet Removal
4-1-2 Ass’y Front-Cabinet Removal
1) Release 6 Hooks Œ, ´, ˇ, ¨ and Ass’y Front-Cabinet ˆ.
´ 1 HOOK
Π1 HOOK
¨ 2 HOOKS
¨ 2 HOOKS
ˆ ASS’Y FRONT-CABINET
Page 19
Disassembly and Reaasembly
Samsung Electronics
4-3
4-1-3 Ass’y Deck Removal
1) Remove 4 Screws Œ, ´ from the Ass’y Deck ˇ and lift it up.
Fig. 4-3 Ass’y Deck Removal
ˇ ASS’Y DECK
´ 2 SCREWS
(3 x 10 Y)
Π2 SCREWS
(3 x 8 W)
Page 20
4-4
Samsung Electronics
Disassembly and Reaasembly
Fig. 4-4 HDMI PCB and Main PCB Removal
4-1-4 HDMI PCB and Main PCB Removal
1) Remove 2 Screws Œ, from the HDMI PCB and Main PCB ´,ˇ and lift it up.
ˇ MAIN PCB
Π2 SCREWS
(3 x 10 W)
´ HDMI PCB
Page 21
Disassembly and Reaasembly
Samsung Electronics
4-5
4-1-5 Jack PCB Removal
1) Remove 7 Screws Œ, ´, ˇ ,¨from the Jack PCB ˆ and lift it up.
Fig. 4-5 Jack PCB Removal
ˆ JACK PCB
ˇ 4 SCREWS
(3 x 6 W)
¨ 1 SCREW
(3 x 6 W)
´ 1 SCREW
(3 x 8 W)
Π1 SCREW
(3 x 6 W)
Page 22
4-6
Samsung Electronics
Disassembly and Reaasembly
4-2 PCB Location
Fig. 4-6 PCB Location
HDMI PCB
MAIN PCB
JACK PCB
Page 23
Samsung Electronics 5-1
5. Trouble Shooting
NO Power Detected
(Stand by LED OFF)
PAFT1 is normal?
Is there
voltage at PQIZ1[Pin 5]?
(Over 10V)
PVDL1,PSDZ1,
PVZL1 SHORT and OPEN
Are normal?
Check feed back PQIZ1[PIN 3]
Is 5.8V
Change fuse
Change short circuited or
opened parts
Change PQIZ1 IC
No
No
No
Yes
Yes
Yes
Operation of PQIZ1 is
Normal?
Replace PQIZ1
No
Yes
Page 24
Trouble Shooting
5-2 Samsung Electronics
Yes
There's no Digital Audio Out
Check Current Digital
Audio Setting is PCM.
AUDIO DATA (SJACK5)
Check the Cable
Check the A/V
Receiver can Decode Current
Bit-Steam
Set audio setting to
Bitstream in customer
menu.
No
No
Yes
Replace Main PCB
No
Yes
Replace AVJ5
No
Yes
ChecK Digital
Audio data at pin 2 of CON3
(MAIN PCB)
Check 5V SJACK5
Page 25
Trouble Shooting
Samsung Electronics 5-3
Check Pin 35 in IC216
of input power(5V).
Check the connection between
Pin 8,10,12 in IC216 and Pin-Jack.
Yes
AV1,AV2,AV3 CVBS Video Input Error
Pin 8,10,12 In IC216
Has about p-p 1V level?
No
No
Yes
Pin 35 In IC216
Has about p-p 1V signal?
VIC1 of Main PCB Clock (Pin72)
VIC1 of Main PCB DATA (Pin75~84)
A
Page 26
Trouble Shooting
5-4 Samsung Electronics
Check the RCA Cable
Check the connection between
VIC1(PIN5) and IC601(PIN89).
Check VIC1 peripheral circuit.
# IF Recorder is under PSO (progressive scan output) MODE, it does
not output the CVBS& S-Video signal.
No
Yes
Check the connection between
VIC1 and output jack.
CVBS(Color-bar) (Pin17 of IC216)
Check the connection between
10Pin in CN3 Of JACK PCB and VIC1
Check the connection between
VIC1[pin1] and Power line (VL6, PPIF1).
Check the DIC1 on MAIN PCB
No
Yes
Pin5 in VIC1 is
In high state?
Video signal of
About P-P1V appears at
Output Jack?
Yes
CVBS (Video) output error
Video signal of
about 1Vp-p appears at
pin 17 of IC216.
No
No
Yes
No
Yes
Analog signals
are Inputted normally
VIC1[pin4]
Power is
Normal(5v) at VIC1[pin1]?
A
Page 27
Trouble Shooting
Samsung Electronics 5-5
Check the RCA cable
# Nomal level of IC216
: Pin21 is 1Vpk-pk
pin19 is 0.28V on color burst
# IF Recorder is under PSO (progressive scan output) MODE, it does
not output the CVBS& S-Video signal.
Check the connection between
IC216 and output jack.
Check the connection between
Pin10 and Pin8 in CN3 Of JACK PCB
and VIC1
Check the connection between
IC216 and Power line (VL6, PPIF1).
Check the DIC1 on MAIN PCB
No
Yes
Video signal of
About P-P1V appears at
Output Jack?
Yes
S-Video output error
Pin7 and
Pin9 in MCN2 of Jack PCB or
CN2 of Main PCB has *
normal level?
No
No
Yes
No
Yes
Analog signals
are Inputted normally IC216
(Pin”31”,”33”)?
Power is
Normal(5v) at IC216
(Pin”34”,”30”,”11”)?
Y(Color-bar) (Pin21)
C(Color-bar) (Pin19)
Page 28
Trouble Shooting
5-6 Samsung Electronics
Check the RCA cable
Check the connection between
IC216 and output jack.
# Nomal level
: pin25 is 1Vpk-pk
pin 23,24 is + 0.35V
Check the connection between
Pin2/4/6 in CN3 Of JACK PCB
and IC216(pin27/28/29)
Check the connection between
IC216(pin30) and Power line (VL6, PPIF1).
Check the DIC1 on MAIN PCB
No
Yes
Video signal of
About 1V pk-pk appears at
Output Jack?
Yes
Component output error
Pin2/4/6 in CN3 of
Jack PCB or CN2 of Main PCB
has * normal level?
No
No
Yes
No
Yes
Analog signals
are Inputted normally
IC216(pin27/28/29)
Power is Normal(5v)
at IC216(pin30)?
Y(Color-bar) (IC216 pin25)
Pb(Color-bar) (IC216 pin23)
Pr(Color-bar) (IC216 pin24)
Page 29
Trouble Shooting
Samsung Electronics 5-7
Replace MAIN PCB
No
Yes
Check SMPS
Replace Main PCB
Check the Low state pin6 of the
Front Micom FIC1(Jack PCB)
Check digital clock
and data pin102,103,104,105 of VIC1
(MAIN PCB)
Check the passive parts
arond Jack pin.
Yes
There is no Audio Output
Check audio signal
of 37,38 pin in IC216.
No
No
Yes
No
Yes
Check all the
9V pin36 of IC216
(Jack PCB)
Check the audio
signal pin106 pin110 of VIC1
(MAIN PCB)
AUDIO DATA (VIC1 pin105)
Page 30
Trouble Shooting
5-8 Samsung Electronics
Reinsert FFC cable correctly
Change the Main board
Replace Jack Assy
Change the deck
Yes
Disc Ioading error
PZWZ1 pin1
and pin4 deck power OK?
(5v, 12v)
No
No
Yes
No
Yes
Is the 40pin FFC cable
(between DVD loader & Main Assy)
inserted correctly?
Is the wavefrom
of DIC3 pin26 normal?
(MAIN PCB)
DIC3-Pin26
Page 31
Trouble Shooting
Samsung Electronics 5-9
Check its power line or around elements
Replace Main Assy
Connect tuner line to TV directly.
If VIC1 is normal, refer to
audio line in abnomal
Yes
Tuner Audio Out Abnormal
TTM1 pin15 of is OK?
No
No
Yes
No
Yes
Supplied power
TTM1(Jack PCB) is OK?
(Pin 33 : about 9V)
Is ther signals
in pin16 & pin18 of
MCN2?
Tuner Audio (pin28 & pin29 of MCN2 of Jack Assy)
Page 32
Trouble Shooting
5-10 Samsung Electronics
MEMO
Page 33
Samsung Electronics
6-1
6. Exploded View and Parts List
6-2
6-4
6-6
6-8
6-1 Cabinet Assembly (DVD-R149 / DVD-R150) - - - - - - - - - - - - - - - - - - - - - - - -
6-2 Cabinet Assembly (DVD-R151) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
6-3 Cabinet Assembly (DVD-R155) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
6-4 Cabinet Assembly (DVD-R156) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Page 34
Exploded Views and Parts List
6-2
Samsung Electronics
6-1 Cabinet Assembly (DVD-R149 / DVD-R150)
W001
W001
W001
P025
C015
W200
W268
W004
W275
W009
FL261
H001
P022
P001
C001
P007
C022
C002
C011
A001
W275
W275
W009
ASSY FRAME (S.N.A)
Page 35
A001 AK59-00061A REMOCON-ASSY;DVD-R155/XEU,SEC, 1 SA
C001 AK97-01890A ASSY-PANEL FRONT;HIPS94HB,DVD- 1 SA
C002 AK64-01928B DOOR-TRAY;DVD-R155,ABS 94HB,T2 1 SA
C011 AK61-00519A SPRING ETC-DOOR;DVD-SR420,STS3 1 SA
C015 AK64-01957A CABINET-TOP;DVD-R155/XEF,PCM,T 1 SA
C022 AK64-01939C DOOR-FRONT;DVD-R150/XEU,ABS 94 1 SA
FL656 3809-001804 FFC CABLE-FLAT;30V,80C,55mm,13 1 SA
H001 AK97-01883B ASSY-LOADER;-,DVD-R150,RAM Mul 1 SA
P001 AK92-01244A ASSY PCB-MAIN;DVD-R150,XEU, DV 1 SA DVD-R150/XEN
AK92-01246A ASSY PCB-MAIN;DVD-R150,XEO,XEH 1 SA DVD-R150/XEO
P007 AK92-01239A ASSY PCB-FUNCTION KEY;DVD-R155 1 SA
P022 AK92-01248A ASSY PCB-JACK;DVD-R155,XEU, PA 1 SA
P025 AC39-10019A CBF-POWER CORD;KKP-419C,H03VVH 1 SA
W001 6003-000275 SCREW-TAPTITE;BH,+,-,B,M3,L10, 7 SA
W004 6003-000283 SCREW-TAPTITE;BH,+,-,B,M3,L8,Z 1 SA
W009 6003-000276 SCREW-TAPTITE;BH,+,-,B,M3,L10, 6 SA
W200 6003-001375 SCREW-TAPTITE;BH,+,-,B,M3,L8,Z 2 SA
W275 6003-001561 SCREW-TAPTITE;BH,+,-,B,M3,L6,Z 7 SA
Exploded Views and Parts List
6-3
Samsung Electronics
Loc. No Parts No. Description ; Specification Q’ty S.N.A Remark
Page 36
Exploded Views and Parts List
6-4
Samsung Electronics
6-2 Cabinet Assembly (DVD-R151)
W001
W001
W001
P025
C015
W200
W268
W004
W275
W009
FL261
H001
P022
P001
A001
W275
W275
C001
P007
C022
C002
C011
W009
ASSY FRAME (S.N.A)
Page 37
Exploded Views and Parts List
6-5
Samsung Electronics
A001 AK59-00061A REMOCON-ASSY;DVD-R155/XEU,SEC,197.5 1 SA
C001 AK97-01963C ASSY-PANEL FRONT;HIPS94HB,DVD-R151/ 1 SA
C002 AK64-01928A DOOR-TRAY;DVD-R157,ABS 94HB,T2.5,H1 1 SA
C011 AK61-00519A SPRING ETC-DOOR;DVD-SR420,STS304WPB 1 SA
C015 AK64-01957A CABINET-TOP;DVD-R155/XEF,PCM,T0.5,4 1 SA
C022 AK64-02061A DOOR-FRONT;DVD-R160/XEU,ABS 94HB,T2 1 SA
FL261 3809-001906 FFC CABLE-FLAT;30V,80,65mm,40P,0.5m 1 SA
H001 AK97-01883B ASSY-LOADER;-,DVD-R150,RAM Multi 1 SA
P001 AK92-01244A ASSY PCB-MAIN;DVD-R150,XEU, DV IN, 1 SA
P007 AK92-01239A ASSY PCB-FUNCTION KEY;DVD-R155,FUNC 1 SA
P022 AK92-01248A ASSY PCB-JACK;DVD-R155,XEU, PAL 1 SA
P025 AC39-10019A CBF-POWER CORD;KKP-419C,H03VVH2-F,V 1 SA
W001 6003-000275 SCREW-TAPTITE;BH,+,-,B,M3,L10,ZPC(B 5 SA
W002 6002-000398 SCREW-TAPPING;BH,+,-,2,M3,L6,ZPC(WH 1 SA
W004 6003-000283 SCREW-TAPTITE;BH,+,-,B,M3,L8,ZPC(WH 1 SA
W009 6003-000276 SCREW-TAPTITE;BH,+,-,B,M3,L10,ZPC(W 6 SA
W200 6003-001375 SCREW-TAPTITE;BH,+,-,B,M3,L8,ZPC(WH 2 SA
W275 6003-001561 SCREW-TAPTITE;BH,+,-,B,M3,L6,ZPC(WH 7 SA
Loc. No Parts No. Description ; Specification Q’ty S.N.A Remark
Page 38
Exploded Views and Parts List
6-6
Samsung Electronics
6-3 Cabinet Assembly (DVD-R155)
W001
W001
W001
P025
C015
W200
W002
W004
W275
W009
FL261
H001
P022
P001
P141
C001
P007
C022
C002
C011
A001
W275
W275
W009
ASSY FRAME (S.N.A)
Page 39
Exploded Views and Parts List
6-7
Samsung Electronics
A001 AK59-00061A REMOCON-ASSY;DVD-R155/XEU,SEC,197 1 SA
C001 AK97-01887A ASSY-PANEL FRONT;HIPS94HB,DVD-R15 1 SA
C002 AK64-01928B DOOR-TRAY;DVD-R155,ABS 94HB,T2.5, 1 SA
C011 AK61-00519A SPRING ETC-DOOR;DVD-SR420,STS304W 1 SA
C015 AK64-01957A CABINET-TOP;DVD-R155/XEF,PCM,T0.5 1 SA
C022 AK64-01938B DOOR-FRONT;DVD-R155,ABS 94HB,T2.5 1 SA
FL261 3809-001804 FFC CABLE-FLAT;30V,80C,55mm,13P,1 1 SA
H001 AK97-01883C ASSY-LOADER;-,DVD-R157,Full Multi 1 SA
P001 AK92-01241A ASSY PCB-MAIN;DVD-R155,XEU, DV IN 1 SA
P007 AK92-01239A ASSY PCB-FUNCTION KEY;DVD-R155,FU 1 SA
P022 AK92-01248A ASSY PCB-JACK;DVD-R155,XEU, PAL 1 SA
P025 AC39-10019A CBF-POWER CORD;KKP-419C,H03VVH2-F 1 SA
P141 AK92-01238A ASSY PCB-HDMI;DVD-R155,HDMI-SUB, 1 SA
W001 6003-000275 SCREW-TAPTITE;BH,+,-,B,M3,L10,ZPC 5 SA
W002 6002-000398 SCREW-TAPPING;BH,+,-,2,M3,L6,ZPC( 1 SA
W004 6003-000283 SCREW-TAPTITE;BH,+,-,B,M3,L8,ZPC( 1 SA
W009 6003-000276 SCREW-TAPTITE;BH,+,-,B,M3,L10,ZPC 6 SA
W200 6003-001375 SCREW-TAPTITE;BH,+,-,B,M3,L8,ZPC( 2 SA
W275 6003-001561 SCREW-TAPTITE;BH,+,-,B,M3,L6,ZPC( 7 SA
Loc. No Parts No. Description ; Specification Q’ty S.N.A Remark
Page 40
Exploded Views and Parts List
6-8
Samsung Electronics
6-4 Cabinet Assembly (DVD-R156)
W001
W001
W001
P025
C015
W200
W002
W004
W275
W009
FL261
H001
P022
P001
P141
C001
P007
C022
C002
C011
A001
W275
W275
W009
ASSY FRAME (S.N.A)
Page 41
Exploded Views and Parts List
6-9
Samsung Electronics
A001 AK59-00061A REMOCON-ASSY;DVD-R155/XEU,SEC,197.5 1 SA
C001 AK97-01887A ASSY-PANEL FRONT;HIPS94HB,DVD-R155/ 1 SA
C002 AK64-01928B DOOR-TRAY;DVD-R155,ABS 94HB,T2.5,H1 1 SA
C011 AK61-00519A SPRING ETC-DOOR;DVD-SR420,STS304WPB 1 SA
C015 AK64-01957A CABINET-TOP;DVD-R155/XEF,PCM,T0.5,4 1 SA
C022 AK64-01938B DOOR-FRONT;DVD-R155,ABS 94HB,T2.5,H 1 SA
FL261 3809-001906 FFC CABLE-FLAT;30V,80,65mm,40P,0.5m 1 SA
H001 AK97-01883C ASSY-LOADER;-,DVD-R157,Full Multi 1 SA
P001 AK92-01241A ASSY PCB-MAIN;DVD-R155,XEU, DV IN, 1 SA
P007 AK92-01239A ASSY PCB-FUNCTION KEY;DVD-R155,FUNC 1 SA
P022 AK92-01248A ASSY PCB-JACK;DVD-R155,XEU, PAL 1 SA
P025 AC39-12022K CBF-POWER CORD;AT,,GP2,HOUING(2P),2 1 SA
P141 AK92-01238A ASSY PCB-HDMI;DVD-R155,HDMI-SUB, SI 1 SA
W001 6003-000275 SCREW-TAPTITE;BH,+,-,B,M3,L10,ZPC(B 5 SA
W004 6003-000283 SCREW-TAPTITE;BH,+,-,B,M3,L8,ZPC(WH 1 SA
W009 6003-000276 SCREW-TAPTITE;BH,+,-,B,M3,L10,ZPC(W 6 SA
W200 6003-001375 SCREW-TAPTITE;BH,+,-,B,M3,L8,ZPC(WH 2 SA
W002 6003-000254 SCREW-TAPTITE;BH,+,-,S,M3,L6,ZPC(WH 1 SA
W275 6003-001561 SCREW-TAPTITE;BH,+,-,B,M3,L6,ZPC(WH 7 SA
Loc. No Parts No. Description ; Specification Q’ty S.N.A Remark
Page 42
Exploded Views and Parts List
6-10
Samsung Electronics
MEMO
Page 43
This Document can not be used without Samsung’s authorization
Loc.No Part No Description ; Specification Q’ty S.N.A Remark Loc.No Part No Description ; Specification Q’ty S.N.A Remark
Samsung Electronics
7-1
P001 AK92-01244A ASSY PCB-MAIN;DVD-R150,XEU, DV 1 SA
CC1 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
CC2 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
CC3 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
CC4 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
CC5 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
CC6 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
CE1 2402-001217 C-AL,SMD;220UF,20%,16V,WT,TP,6 1 SA
CE2 2402-001217 C-AL,SMD;220UF,20%,16V,WT,TP,6 1 SA
CE3 2402-001217 C-AL,SMD;220UF,20%,16V,WT,TP,6 1 SA
CE4 2402-001217 C-AL,SMD;220UF,20%,16V,WT,TP,6 1 SA
CN5 3708-001935 CONNECTOR-FPC/FFC/PIC;40P,0.5m 1 SA
CON1 3710-002075 SOCKET-BOARD TO BOARD;30P,2R,2 1 SA
CON2 3710-002075 SOCKET-BOARD TO BOARD;30P,2R,2 1 SA
CR10 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 SA
CR11 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 SA
CR12 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
CR15 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
CR2 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 SA
CR3 2007-001320 R-CHIP;1.8Kohm,5%,1/16W,TP,100 1 SA
CR4 2007-001325 R-CHIP;3.3Kohm,5%,1/16W,TP,100 1 SA
CR6 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 SA
CR7 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 SA
CR8 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 1 SA
CR9 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 1 SA
DC1 2203-000386 C-CER,CHIP;0.015nF,5%,50V,C0G, 1 SA
DC100 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
DC15 2203-005138 C-CER,CHIP;1.8nF,10%,50V,X7R,1 1 SA
DC16 2203-005138 C-CER,CHIP;1.8nF,10%,50V,X7R,1 1 SA
DC17 2203-005138 C-CER,CHIP;1.8nF,10%,50V,X7R,1 1 SA
DC18 2203-005138 C-CER,CHIP;1.8nF,10%,50V,X7R,1 1 SA
DC2 2203-000386 C-CER,CHIP;0.015nF,5%,50V,C0G, 1 SA
DC20 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
DC22 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
DC23 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
DC24 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
DC25 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
DC26 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
DC27 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
DC3 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
DC4 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
DC50 2203-005481 C-CER,CHIP;47nF,10%,10V,X7R,TP 1 SA
DC51 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
DC52 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
DC53 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
DC54 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
DC56 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
DC57 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
DC58 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
DC59 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
DC6 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
DC60 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
DC61 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
DC62 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
DC63 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
DC64 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
DC65 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
DC66 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
DC67 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
DC68 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
DC69 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
DC7 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
DC70 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
DC71 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
DC72 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
DC73 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
DC74 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
DC75 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
DC76 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
DC77 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
DC78 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
DC79 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
DC8 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
DC80 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
DC81 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
DC82 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
DC83 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
DC84 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
DC85 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
DC86 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
DC89 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
DC90 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
DC91 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
DC92 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
DC93 2203-000311 C-CER,CHIP;0.12nF,5%,50V,C0G,1 1 SA
DC94 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
DC95 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
DC96 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
DC97 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
DE2 2402-001283 C-AL,SMD;22uF,20%,6.3V,-,TP,4. 1 SA
DE5 2402-001059 C-AL,SMD;220•ÏF,20%,6.3V,-,TP, 1 SA
DE7 2402-001059 C-AL,SMD;220•ÏF,20%,6.3V,-,TP, 1 SA
DE8 2402-001217 C-AL,SMD;220UF,20%,16V,WT,TP,6 1 SA
DIC1 1205-002844 IC-CODEC;S5L3210,LQFP,256P,28x 1 SA
DIC2 1105-001563 IC-DRAM;HYB25D256160CE-6,16Mx1 1 SA
DIC3 1107-001242 IC-FLASH MEMORY;39VF160,1Mx16, 1 SNA
DIC5 1103-001395 IC-EEPROM;24C16,16Kbit,2Kx8,SO 1 SA
DIC7 0801-002701 IC-CMOS LOGIC;74VHCT125A,BUFFE 1 SA
DR1 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 SA
DR15 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 SA
DR16 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 SA
DR17 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 SA
DR2 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,100 1 SA
DR3 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,100 1 SA
DR30 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,100 1 SA
DR32 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,100 1 SA
DR35 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 SA
7. Electrical Parts List
Page 44
This Document can not be used without Samsung’s authorization
Loc.No Part No Description ; Specification Q’ty S.N.A RemarkLoc.No Part No Description ; Specification Q’ty S.N.A Remark
7-2
Samsung Electronics
Electrical Parts List
DR36 2007-000982 R-CHIP;5.6Kohm,5%,1/16W,TP,100 1 SA
DR37 2007-000932 R-CHIP;470OHM,5%,1/16W,TP,1005 1 SA
DR38 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 SA
DR39 2007-000162 R-CHIP;100Kohm,5%,1/16W,TP,100 1 SA
DR40 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,100 1 SA
DR41 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 SA
DR42 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 SA
DR43 2007-001298 R-CHIP;51ohm,5%,1/16W,TP,1005 1 SA
DR44 2007-001298 R-CHIP;51ohm,5%,1/16W,TP,1005 1 SA
DR47 2007-001298 R-CHIP;51ohm,5%,1/16W,TP,1005 1 SA
DR48 2007-001298 R-CHIP;51ohm,5%,1/16W,TP,1005 1 SA
DR49 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 SA
DR5 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,100 1 SA
DR52 2007-001323 R-CHIP;3KOHM,5%,1/16W,TP,1005 1 SA
DR55 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 SA
DR6 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,100 1 SA
DR64 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 SA
DR65 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 SA
DR66 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 SA
DR67 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 SA
DR68 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 SA
DR69 3301-001309 BEAD-SMD;47ohm,1608,TP,-,- 1 SA
DR70 3301-001309 BEAD-SMD;47ohm,1608,TP,-,- 1 SA
DR71 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 SA
DR72 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 SA
DR74 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 SA
DR75 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 SA
DR76 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 SA
DR8 2007-000170 R-CHIP;1Mohm,5%,1/16W,TP,1005 1 SA
DR80 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 SA
DR82 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,100 1 SA
DR83 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,100 1 SA
DR87 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,100 1 SA
DR88 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,100 1 SA
DR89 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,100 1 SA
DR9 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 SA
DR90 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,100 1 SA
DR91 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,100 1 SA
DR92 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 SA
DR93 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 SA
DR99 3301-001419 BEAD-SMD;220ohm,1608,TP,133ohm 1 SA
DRP1 2011-001474 R-NETWORK;47ohm,5%,1/16W,L,CHI 1 SA
DRP10 2011-001474 R-NETWORK;47ohm,5%,1/16W,L,CHI 1 SA
DRP11 2011-001261 R-NET;33ohm,5%,1/16W,L,CHIP,8P 1 SA
DRP12 2011-001261 R-NET;33ohm,5%,1/16W,L,CHIP,8P 1 SA
DRP13 2011-001261 R-NET;33ohm,5%,1/16W,L,CHIP,8P 1 SA
DRP14 2011-001261 R-NET;33ohm,5%,1/16W,L,CHIP,8P 1 SA
DRP15 2011-001478 R-NETWORK;51ohm,5%,1/16W,L,CHI 1 SA
DRP16 2011-001478 R-NETWORK;51ohm,5%,1/16W,L,CHI 1 SA
DRP17 2011-001478 R-NETWORK;51ohm,5%,1/16W,L,CHI 1 SA
DRP18 2011-001478 R-NETWORK;51ohm,5%,1/16W,L,CHI 1 SA
DRP19 2011-001478 R-NETWORK;51ohm,5%,1/16W,L,CHI 1 SA
DRP2 2011-001474 R-NETWORK;47ohm,5%,1/16W,L,CHI 1 SA
DRP20 2011-001478 R-NETWORK;51ohm,5%,1/16W,L,CHI 1 SA
DRP21 2011-001478 R-NETWORK;51ohm,5%,1/16W,L,CHI 1 SA
DRP22 2011-001478 R-NETWORK;51ohm,5%,1/16W,L,CHI 1 SA
DRP23 2011-001478 R-NETWORK;51ohm,5%,1/16W,L,CHI 1 SA
DRP26 2011-001396 R-NET;4.7KOHM,5%,1/16W,L,CHIP, 1 SA
DRP27 2011-001396 R-NET;4.7KOHM,5%,1/16W,L,CHIP, 1 SA
DRP28 2011-001396 R-NET;4.7KOHM,5%,1/16W,L,CHIP, 1 SA
DRP29 2011-001396 R-NET;4.7KOHM,5%,1/16W,L,CHIP, 1 SA
DRP3 2011-001474 R-NETWORK;47ohm,5%,1/16W,L,CHI 1 SA
DRP4 2011-001474 R-NETWORK;47ohm,5%,1/16W,L,CHI 1 SA
DRP5 2011-001474 R-NETWORK;47ohm,5%,1/16W,L,CHI 1 SA
DRP6 2011-001474 R-NETWORK;47ohm,5%,1/16W,L,CHI 1 SA
DRP7 2011-001474 R-NETWORK;47ohm,5%,1/16W,L,CHI 1 SA
DRP9 2011-001474 R-NETWORK;47ohm,5%,1/16W,L,CHI 1 SA
PCB AK41-00643A PCB-MAIN;DVD-R155E,EPOXY,4,00, 0.5 SNA
RIC1 1203-003996 IC-POSI.FIXED REG.;KIA78R025F, 1 SA
RIC2 1203-003806 IC-POSI.ADJUST REG.;KIA78R000, 1 SA
RIC3 1203-004020 IC-POSI.FIXED REG.;KIA78R018F, 1 SA
TC1 2203-000552 C-CER,CHIP;0.02nF,5%,50V,C0G,1 1 SA
TC16 2203-000278 C-CER,CHIP;0.01nF,0.5pF,50V,C0 1 SA
TC2 2203-000552 C-CER,CHIP;0.02nF,5%,50V,C0G,1 1 SA
TC3 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
TC4 2203-005642 C-CER,CHIP;0.22nF,5%,50V,NP0,1 1 SA
TC5 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
TC6 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
TC7 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
TC8 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
TC9 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
TE1 2402-001238 C-AL,SMD;1uF,20%,50V,HR,TP,4.3 1 SA
TE2 2402-001217 C-AL,SMD;220UF,20%,16V,WT,TP,6 1 SA
TIC1 1205-001988 IC-DATA COMM./GEN.;TSB41AB1-PA 1 SA
TR10 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 SA
TR11 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 SA
TR12 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 SA
TR13 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 SA
TR14 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 SA
TR15 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 SA
TR16 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 SA
TR17 2007-000145 R-CHIP;6.2Kohm,5%,1/16W,TP,100 1 SA
TR19 2007-002970 R-CHIP;56ohm,5%,1/16W,TP,1005 1 SA
TR2 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 SA
TR20 2007-002970 R-CHIP;56ohm,5%,1/16W,TP,1005 1 SA
TR21 2007-002970 R-CHIP;56ohm,5%,1/16W,TP,1005 1 SA
TR22 2007-002970 R-CHIP;56ohm,5%,1/16W,TP,1005 1 SA
TR24 2007-000144 R-CHIP;5.1KOHM,5%,1/16W,TP,100 1 SA
TR25 3301-001419 BEAD-SMD;220ohm,1608,TP,133ohm 1 SA
TR26 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 SA
TR27 3301-001419 BEAD-SMD;220ohm,1608,TP,133ohm 1 SA
TR28 3301-001419 BEAD-SMD;220ohm,1608,TP,133ohm 1 SA
TR29 3301-001419 BEAD-SMD;220ohm,1608,TP,133ohm 1 SA
TR30 3301-001419 BEAD-SMD;220ohm,1608,TP,133ohm 1 SA
TR31 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 SA
TR32 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 SA
TR33 2007-000109 R-CHIP;1Mohm,5%,1/10W,TP,1608 1 SA
TR34 2007-000073 R-CHIP;91ohm,5%,1/10W,TP,1608 1 SA
TR35 3301-001419 BEAD-SMD;220ohm,1608,TP,133ohm 1 SA
TR9 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 SA
TY1 2801-004021 CRYSTAL-SMD;24.576MHz,20ppm,28 1 SA
VBD1 3301-001419 BEAD-SMD;220ohm,1608,TP,133ohm 1 SA
VC1 2203-001405 C-CER,CHIP;22nF,+80-20%,25V,Y5 1 SA
Page 45
This Document can not be used without Samsung’s authorization
Loc.No Part No Description ; Specification Q’ty S.N.A Remark Loc.No Part No Description ; Specification Q’ty S.N.A Remark
Electrical Parts List
Samsung Electronics
7-3
VC10 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
VC13 2203-001405 C-CER,CHIP;22nF,+80-20%,25V,Y5 1 SA
VC14 2203-001405 C-CER,CHIP;22nF,+80-20%,25V,Y5 1 SA
VC15 2203-001405 C-CER,CHIP;22nF,+80-20%,25V,Y5 1 SA
VC16 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
VC17 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,16 1 SA
VC18 2203-001405 C-CER,CHIP;22nF,+80-20%,25V,Y5 1 SA
VC19 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
VC2 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
VC20 2203-000386 C-CER,CHIP;0.015nF,5%,50V,C0G, 1 SA
VC21 2203-000386 C-CER,CHIP;0.015nF,5%,50V,C0G, 1 SA
VC22 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
VC23 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
VC24 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
VC25 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
VC26 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
VC27 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
VC28 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
VC29 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
VC3 2203-001405 C-CER,CHIP;22nF,+80-20%,25V,Y5 1 SA
VC30 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
VC31 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
VC32 2203-001652 C-CER,CHIP;470nF,+80-20%,16V,Y 1 SA
VC33 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
VC34 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
VC35 2203-001652 C-CER,CHIP;470nF,+80-20%,16V,Y 1 SA
VC36 2203-001405 C-CER,CHIP;22nF,+80-20%,25V,Y5 1 SA
VC37 2203-001405 C-CER,CHIP;22nF,+80-20%,25V,Y5 1 SA
VC38 2203-000315 C-CER,CHIP;0.12nF,5%,50V,C0G,1 1 SA
VC39 2203-001405 C-CER,CHIP;22nF,+80-20%,25V,Y5 1 SA
VC4 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
VC40 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,16 1 SA
VC5 2203-001405 C-CER,CHIP;22nF,+80-20%,25V,Y5 1 SA
VC6 2203-001405 C-CER,CHIP;22nF,+80-20%,25V,Y5 1 SA
VC7 2203-001405 C-CER,CHIP;22nF,+80-20%,25V,Y5 1 SA
VC8 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
VC9 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
VE1 2402-001059 C-AL,SMD;220•ÏF,20%,6.3V,-,TP, 1 SA
VE2 2402-001217 C-AL,SMD;220UF,20%,16V,WT,TP,6 1 SA
VE3 2402-000165 C-AL,SMD;47uF,20%,6.3V,GP,TP,5 1 SA
VIC1 1204-002726 IC-VIDEO DECODER;SAA7138GHL,LQ 1 SA
VL1 3301-000353 BEAD-SMD;120ohm,2x1.25x0.9mm,- 1 SA
VR1 3301-001419 BEAD-SMD;220ohm,1608,TP,133ohm 1 SA
VR10 2007-000512 R-CHIP;2.4Kohm,5%,1/10W,TP,160 1 SA
VR11 2007-003112 R-CHIP;27ohm,5%,1/16W,TP,1005 1 SA
VR12 2007-003112 R-CHIP;27ohm,5%,1/16W,TP,1005 1 SA
VR13 2007-003112 R-CHIP;27ohm,5%,1/16W,TP,1005 1 SA
VR18 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 SA
VR19 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 SA
VR21 3301-001419 BEAD-SMD;220ohm,1608,TP,133ohm 1 SA
VR22 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,100 1 SA
VR23 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 SA
VR24 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 SA
VR25 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 SA
VR26 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 SA
VR27 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 SA
VR28 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 SA
VR29 3301-001419 BEAD-SMD;220ohm,1608,TP,133ohm 1 SA
VR30 3301-001419 BEAD-SMD;220ohm,1608,TP,133ohm 1 SA
VR4 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
VR5 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
VR6 2007-003112 R-CHIP;27ohm,5%,1/16W,TP,1005 1 SA
VR7 2007-000256 R-CHIP;1.6Kohm,1%,1/10W,TP,160 1 SA
VR8 2007-000256 R-CHIP;1.6Kohm,1%,1/10W,TP,160 1 SA
VR9 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 SA
VRP1 2011-001262 R-NET;22OHM,5%,1/16W,L,CHIP,8P 1 SA
VRP2 2011-001262 R-NET;22OHM,5%,1/16W,L,CHIP,8P 1 SA
VY1 2801-004021 CRYSTAL-SMD;24.576MHz,20ppm,28 1 SA
Y1 2801-004621 CRYSTAL-SMD;27MHz,15ppm,-,14pF 1 SA
P007 AK92-01239A ASSY PCB-FUNCTION KEY;DVD-R155 1 SA
FL286 3809-001667 FFC CABLE-FLAT;30V,80C,70mm,10 1 SA
KCN1 3708-001803 CONNECTOR-FPC/FFC/PIC;10P,1.25 1 SA
LTR1 0501-000398 TR-SMALL SIGNAL;KSC945-Y,NPN,2 1 SA
RLED1 0601-001587 LED;ROUND,RED,3.1mm,635nm,3.8x 1 SA
TSW1 3404-001182 SWITCH-TACT;DC12V,50MA,100GF,6 1 SA
TSW2 3404-001182 SWITCH-TACT;DC12V,50MA,100GF,6 1 SA
TSW3 3404-001182 SWITCH-TACT;DC12V,50MA,100GF,6 1 SA
TSW4 3404-001182 SWITCH-TACT;DC12V,50MA,100GF,6 1 SA
TSW6 3404-001182 SWITCH-TACT;DC12V,50MA,100GF,6 1 SA
TSW7 3404-001182 SWITCH-TACT;DC12V,50MA,100GF,6 1 SA
TSW8 3404-001182 SWITCH-TACT;DC12V,50MA,100GF,6 1 SA
P022 AK92-01248A ASSY PCB-JACK;DVD-R155,XEU, PA 1 SA
ML1 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012 1 SA
W409 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 SA
W411 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 SA
WJ192 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 SA
WJ274 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 SA
WJ315 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 SA
WJ316 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 SA
WJ403 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 SA
WJ405 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 SA
WJ406 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 SA
WJ407 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 SA
WJ71 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 SA
SR51 2007-000040 R-CHIP;150ohm,1%,1/10W,TP,1608 1 SA
JP08 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
JP09 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
MR21 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
MR22 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
SR15 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
SR17 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
SR27 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
SR44 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
SR69 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
SR70 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
SR71 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
SR8 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
TR1 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
WJ243 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
WJ244 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
Page 46
WJ269 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
WJ270 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
WJ311 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
WJ314 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
WJ325 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
WJ401 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
WJ402 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
WJ408 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
FR18 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
FR20 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
PPRF5 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
SR16 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
SR52 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
TR2 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
TR4 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
SR53 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 1 SA
SR55 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 1 SA
SR56 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 1 SA
SR58 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 1 SA
SR60 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 1 SA
AHR54 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 SA
FR7 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
PPRF4 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
SR30 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
SR48 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
SR59 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
SR61 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
SR62 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
AR4 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,160 1 SA
SR3 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,160 1 SA
AR7 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
BR2 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
FR12 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
FR13 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
FR21 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
AHR28 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608 1 SA
AHR29 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608 1 SA
AHR31 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608 1 SA
AHR32 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608 1 SA
AR1 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608 1 SA
AR10 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608 1 SA
AR11 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608 1 SA
AR8 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608 1 SA
SR32 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 SA
AHR35 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 SA
AHR36 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 SA
AHR53 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,160 1 SA
SR10 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,160 1 SA
SR13 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,160 1 SA
AHR39 2007-000109 R-CHIP;1Mohm,5%,1/10W,TP,1608 1 SA
AHR52 2007-000109 R-CHIP;1Mohm,5%,1/10W,TP,1608 1 SA
SR1 2007-000115 R-CHIP;82ohm,5%,1/10W,TP,1608 1 SA
AR15 2007-000119 R-CHIP;560ohm,5%,1/10W,TP,1608 1 SA
AR17 2007-000119 R-CHIP;560ohm,5%,1/10W,TP,1608 1 SA
SR46 2007-000119 R-CHIP;560ohm,5%,1/10W,TP,1608 1 SA
SR47 2007-000119 R-CHIP;560ohm,5%,1/10W,TP,1608 1 SA
SR6 2007-000119 R-CHIP;560ohm,5%,1/10W,TP,1608 1 SA
SR65 2007-000119 R-CHIP;560ohm,5%,1/10W,TP,1608 1 SA
SR66 2007-000119 R-CHIP;560ohm,5%,1/10W,TP,1608 1 SA
AHR34 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,160 1 SA
AHR37 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,160 1 SA
AHR55 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,160 1 SA
SR67 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,160 1 SA
SR68 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,160 1 SA
AHR10 2007-000125 R-CHIP;3.9Kohm,5%,1/10W,TP,160 1 SA
AHR11 2007-000125 R-CHIP;3.9Kohm,5%,1/10W,TP,160 1 SA
AHR12 2007-000125 R-CHIP;3.9Kohm,5%,1/10W,TP,160 1 SA
AHR13 2007-000125 R-CHIP;3.9Kohm,5%,1/10W,TP,160 1 SA
AHR14 2007-000125 R-CHIP;3.9Kohm,5%,1/10W,TP,160 1 SA
AHR15 2007-000125 R-CHIP;3.9Kohm,5%,1/10W,TP,160 1 SA
AHR16 2007-000125 R-CHIP;3.9Kohm,5%,1/10W,TP,160 1 SA
AHR17 2007-000125 R-CHIP;3.9Kohm,5%,1/10W,TP,160 1 SA
SR25 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608 1 SA
AHR22 2007-000616 R-CHIP;24Kohm,5%,1/10W,TP,1608 1 SA
AHR25 2007-000616 R-CHIP;24Kohm,5%,1/10W,TP,1608 1 SA
AR12 2007-000616 R-CHIP;24Kohm,5%,1/10W,TP,1608 1 SA
AR14 2007-000616 R-CHIP;24Kohm,5%,1/10W,TP,1608 1 SA
AHR43 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 SA
AHR44 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 SA
AHR45 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 SA
AHR46 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 SA
AHR47 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 SA
AR13 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA
MR2 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA
MR3 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA
MR7 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA
MR8 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA
MR9 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA
SR14 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA
SR19 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA
SR20 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA
SR24 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA
SR28 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA
SR4 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA
SR41 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA
SR42 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA
SR7 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA
SR9 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA
AHC15 2203-000125 C-CER,CHIP;1.2nF,10%,50V,X7R,T 1 SA
AHC18 2203-000125 C-CER,CHIP;1.2nF,10%,50V,X7R,T 1 SA
SC11 2203-000140 C-CER,CHIP;1.5nF,10%,50V,X7R,1 1 SA
SC17 2203-000140 C-CER,CHIP;1.5nF,10%,50V,X7R,1 1 SA
SC19 2203-000140 C-CER,CHIP;1.5nF,10%,50V,X7R,1 1 SA
SC20 2203-000140 C-CER,CHIP;1.5nF,10%,50V,X7R,1 1 SA
BC1 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y 1 SA
BC3 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y 1 SA
BC4 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y 1 SA
BC7 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y 1 SA
PPC6 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y 1 SA
SC35 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y 1 SA
TC2 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y 1 SA
TC4 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y 1 SA
SC16 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,16 1 SA
Loc.No Part No Description ; Specification Q’ty S.N.A Remark
7-4
Samsung Electronics
Electrical Parts List
Loc.No Part No Description ; Specification Q’ty S.N.A Remark
This Document can not be used without Samsung’s authorization
Page 47
SC18 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,16 1 SA
SC21 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,16 1 SA
SC23 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,16 1 SA
SC25 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,16 1 SA
SC27 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,16 1 SA
SC29 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,16 1 SA
SC31 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,16 1 SA
SC36 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,16 1 SA
SC37 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,16 1 SA
SC38 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,16 1 SA
SC5 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,16 1 SA
SC6 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,16 1 SA
SC7 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,16 1 SA
SC8 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,16 1 SA
AC6 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,16 1 SA
AC7 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,16 1 SA
AC8 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,16 1 SA
FC5 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,16 1 SA
AHC17 2203-000315 C-CER,CHIP;0.12nF,5%,50V,C0G,1 1 SA
AHC20 2203-000315 C-CER,CHIP;0.12nF,5%,50V,C0G,1 1 SA
FC10 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,160 1 SA
FC6 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,160 1 SA
FC7 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,160 1 SA
FC8 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,160 1 SA
FC9 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,160 1 SA
AC1 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,1 1 SA
AC5 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,1 1 SA
SC10 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,1 1 SA
SC12 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,1 1 SA
SC14 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,1 1 SA
SC9 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,1 1 SA
FC3 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G, 1 SA
FC4 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G, 1 SA
AC3 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1 1 SA
AC4 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1 1 SA
MC3 2203-000998 C-CER,CHIP;0.047nF,5%,50V,C0G, 1 SA
TC5 2203-000998 C-CER,CHIP;0.047nF,5%,50V,C0G, 1 SA
AC2 2203-001126 C-CER,CHIP;0.68nF,10%,50V,X7R, 1 SA
SC26 2203-001607 C-CER,CHIP;0.22nF,5%,50V,NP0,1 1 SA
SC28 2203-001607 C-CER,CHIP;0.22nF,5%,50V,NP0,1 1 SA
SC30 2203-001607 C-CER,CHIP;0.22nF,5%,50V,NP0,1 1 SA
AC9 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
AHC11 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
AHC12 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
AHC16 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
AHC21 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
AHC22 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
AMC01 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
BC6 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
FC11 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
FC12 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
MC1 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
MC2 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
PC1 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
PC2 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
PPC2 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
PPC3 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
PPC4 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
PPC5 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
SC13 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
SC15 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
SC2 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
SC22 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
AHR33 2007-000067 R-CHIP;15Kohm,1%,1/10W,TP,1608 1 SA
AHR38 2007-000067 R-CHIP;15Kohm,1%,1/10W,TP,1608 1 SA
AHR40 2007-001175 R-CHIP;8.2Kohm,1%,1/10W,TP,160 1 SA
AHR41 2007-001175 R-CHIP;8.2Kohm,1%,1/10W,TP,160 1 SA
AR2 2007-001175 R-CHIP;8.2Kohm,1%,1/10W,TP,160 1 SA
FZD1 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
PAVV2 1405-001026 VARISTOR;470V,600A,9x7mm,TP 1 SA
PPRO1 2001-000062 R-CARBON;470OHM,5%,1/4W,AA,TP, 1 SA
PFRF2 2001-000221 R-CARBON;1.2KOHM,5%,1/8W,AA,TP 1 SA
FR15 2001-000273 R-CARBON;100KOHM,5%,1/8W,AA,TP 1 SA
FR9 2001-000273 R-CARBON;100KOHM,5%,1/8W,AA,TP 1 SA
AHR50 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP, 1 SA
AHR51 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP, 1 SA
FR19 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP, 1 SA
TR5 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP, 1 SA
TR6 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP, 1 SA
AR16 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1 1 SA
AR3 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1 1 SA
AR5 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1 1 SA
FR10 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1 1 SA
PFRF3 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1 1 SA
PFRZ1 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1 1 SA
PPRF2 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1 1 SA
PPRF3 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1 1 SA
PPRF6 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1 1 SA
PPRF8 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1 1 SA
AHR23 2001-000539 R-CARBON;24KOHM,5%,1/8W,AA,TP, 1 SA
AHR24 2001-000539 R-CARBON;24KOHM,5%,1/8W,AA,TP, 1 SA
AHR26 2001-000539 R-CARBON;24KOHM,5%,1/8W,AA,TP, 1 SA
AHR42 2001-000539 R-CARBON;24KOHM,5%,1/8W,AA,TP, 1 SA
PFRF4 2001-000674 R-CARBON;360OHM,5%,1/8W,AA,TP, 1 SA
PFRF1 2001-000780 R-CARBON;470OHM,5%,1/8W,AA,TP, 1 SA
PVRL4 2001-000793 R-CARBON;47OHM,5%,1/8W,AA,TP,1 1 SA
MR1 2001-000969 R-CARBON;75OHM,5%,1/8W,AA,TP,1 1 SA
SR12 2001-000969 R-CARBON;75OHM,5%,1/8W,AA,TP,1 1 SA
SR31 2001-000969 R-CARBON;75OHM,5%,1/8W,AA,TP,1 1 SA
SR40 2001-000969 R-CARBON;75OHM,5%,1/8W,AA,TP,1 1 SA
PLRZ1 2003-000105 R-METAL OXIDE;0.33ohm,5%,2W,AD 1 SA
PPRD1 2003-000458 R-METAL OXIDE(S);100ohm,5%,2W, 1 SA
PFRF5 2004-000459 R-METAL;2.2Kohm,1%,1/8W,AA,TP, 1 SA
PFRF6 2004-000459 R-METAL;2.2Kohm,1%,1/8W,AA,TP, 1 SA
PSCZ2 2201-000129 C-CERAMIC,DISC;0.1nF,10%,1000V 1 SA
PSCX1 2305-001029 C-FILM,LEAD-PEF;10nF,10%,630V, 1 SA
AE1 2401-000249 C-AL;100uF,20%,10V,GP,TP,6.3x5 1 SA
ME5 2401-000249 C-AL;100uF,20%,10V,GP,TP,6.3x5 1 SA
AHE10 2401-000408 C-AL;10uF,20%,16V,GP,TP,3.5x5, 1 SA
AHE13 2401-000408 C-AL;10uF,20%,16V,GP,TP,3.5x5, 1 SA
AHE14 2401-000408 C-AL;10uF,20%,16V,GP,TP,3.5x5, 1 SA
AHE15 2401-000408 C-AL;10uF,20%,16V,GP,TP,3.5x5, 1 SA
AHE31 2401-000408 C-AL;10uF,20%,16V,GP,TP,3.5x5, 1 SA
Electrical Parts List
Samsung Electronics
7-5
Loc.No Part No Description ; Specification Q’ty S.N.A Remark Loc.No Part No Description ; Specification Q’ty S.N.A Remark
This Document can not be used without Samsung’s authorization
Page 48
AHE33 2401-000408 C-AL;10uF,20%,16V,GP,TP,3.5x5, 1 SA
AHE44 2401-000408 C-AL;10uF,20%,16V,GP,TP,3.5x5, 1 SA
AHE46 2401-000408 C-AL;10uF,20%,16V,GP,TP,3.5x5, 1 SA
AHE11 2401-000426 C-AL;10uF,20%,16V,GP,TP,3.5x5, 1 SA
AHE32 2401-000426 C-AL;10uF,20%,16V,GP,TP,3.5x5, 1 SA
AHE34 2401-000426 C-AL;10uF,20%,16V,GP,TP,3.5x5, 1 SA
AHE45 2401-000426 C-AL;10uF,20%,16V,GP,TP,3.5x5, 1 SA
AHE47 2401-000426 C-AL;10uF,20%,16V,GP,TP,3.5x5, 1 SA
FE1 2401-000426 C-AL;10uF,20%,16V,GP,TP,3.5x5, 1 SA
AHE36 2401-000588 C-AL;1uF,20%,50V,GP,TP,3x5,2.5 1 SA
AHE37 2401-000588 C-AL;1uF,20%,50V,GP,TP,3x5,2.5 1 SA
AHE38 2401-000588 C-AL;1uF,20%,50V,GP,TP,3x5,2.5 1 SA
AHE39 2401-000588 C-AL;1uF,20%,50V,GP,TP,3x5,2.5 1 SA
AHE35 2401-000918 C-AL;22uF,20%,16V,GP,-,6.3x7,5 1 SA
TE3 2401-001077 C-AL;330nF,20%,50V,GP,TP,4x7mm 1 SA
PPCI1 2401-001126 C-AL;330uF,20%,25V,WT,TP,10x12 1 SA
PPCI2 2401-001126 C-AL;330uF,20%,25V,WT,TP,10x12 1 SA
PPCI3 2401-001126 C-AL;330uF,20%,25V,WT,TP,10x12 1 SA
PPCI8 2401-001126 C-AL;330uF,20%,25V,WT,TP,10x12 1 SA
AE2 2401-001249 C-AL;4.7uF,20%,35V,GP,TP,4x5,2 1 SA
AE24 2401-001249 C-AL;4.7uF,20%,35V,GP,TP,4x5,2 1 SA
AE25 2401-001249 C-AL;4.7uF,20%,35V,GP,TP,4x5,2 1 SA
AE26 2401-001249 C-AL;4.7uF,20%,35V,GP,TP,4x5,2 1 SA
AE3 2401-001249 C-AL;4.7uF,20%,35V,GP,TP,4x5,2 1 SA
AHE20 2401-001249 C-AL;4.7uF,20%,35V,GP,TP,4x5,2 1 SA
AHE22 2401-001249 C-AL;4.7uF,20%,35V,GP,TP,4x5,2 1 SA
AHE30 2401-001249 C-AL;4.7uF,20%,35V,GP,TP,4x5,2 1 SA
AHE21 2401-001250 C-AL;4.7uF,20%,35V,GP,TP,4x5,5 1 SA
AHE23 2401-001250 C-AL;4.7uF,20%,35V,GP,TP,4x5,5 1 SA
AHE27 2401-001250 C-AL;4.7uF,20%,35V,GP,TP,4x5,5 1 SA
AHE28 2401-001250 C-AL;4.7uF,20%,35V,GP,TP,4x5,5 1 SA
AHE29 2401-001250 C-AL;4.7uF,20%,35V,GP,TP,4x5,5 1 SA
AHE40 2401-001250 C-AL;4.7uF,20%,35V,GP,TP,4x5,5 1 SA
AHE41 2401-001250 C-AL;4.7uF,20%,35V,GP,TP,4x5,5 1 SA
AHE42 2401-001250 C-AL;4.7uF,20%,35V,GP,TP,4x5,5 1 SA
AHE43 2401-001250 C-AL;4.7uF,20%,35V,GP,TP,4x5,5 1 SA
PPCF5 2401-001250 C-AL;4.7uF,20%,35V,GP,TP,4x5,5 1 SA
PPCF10 2401-001370 C-AL;470uF,20%,16V,GP,TP,8x11. 1 SA
PPCF3 2401-001370 C-AL;470uF,20%,16V,GP,TP,8x11. 1 SA
PPCF7 2401-001370 C-AL;470uF,20%,16V,GP,TP,8x11. 1 SA
AE5 2401-001479 C-AL;470uF,20%,10V,GP,TP,6.3*1 1 SA
PPCD2 2401-001479 C-AL;470uF,20%,10V,GP,TP,6.3*1 1 SA
SE1 2401-001479 C-AL;470uF,20%,10V,GP,TP,6.3*1 1 SA
SE11 2401-001479 C-AL;470uF,20%,10V,GP,TP,6.3*1 1 SA
SE3 2401-001479 C-AL;470uF,20%,10V,GP,TP,6.3*1 1 SA
SE4 2401-001479 C-AL;470uF,20%,10V,GP,TP,6.3*1 1 SA
SE6 2401-001479 C-AL;470uF,20%,10V,GP,TP,6.3*1 1 SA
TE2 2401-001479 C-AL;470uF,20%,10V,GP,TP,6.3*1 1 SA
TE4 2401-001479 C-AL;470uF,20%,10V,GP,TP,6.3*1 1 SA
AHE17 2401-001502 C-AL;47uF,20%,16V,GP,TP,6.3x5, 1 SA
AME2 2401-001502 C-AL;47uF,20%,16V,GP,TP,6.3x5, 1 SA
AHE48 2401-002165 C-AL;100uF,20%,16V,GP,TP,6.3x7 1 SA
BE3 2401-002165 C-AL;100uF,20%,16V,GP,TP,6.3x7 1 SA
BE4 2401-002165 C-AL;100uF,20%,16V,GP,TP,6.3x7 1 SA
PPCF8 2401-002165 C-AL;100uF,20%,16V,GP,TP,6.3x7 1 SA
SE10 2401-002165 C-AL;100uF,20%,16V,GP,TP,6.3x7 1 SA
SE13 2401-002165 C-AL;100uF,20%,16V,GP,TP,6.3x7 1 SA
PPCO2 2401-002300 C-AL;47•ÏF,20%,50V,GP,TP,6.3x1 1 SA
TE1 2401-002300 C-AL;47•ÏF,20%,50V,GP,TP,6.3x1 1 SA
PVCL1 2401-002608 C-AL;33uF,20%,35V,GP,TP,5x11,5 1 SA
AHE18 2401-003107 C-AL;47uF,20%,16V,GP,TP,5x7,5 1 SA
PPCF11 2401-003107 C-AL;47uF,20%,16V,GP,TP,5x7,5 1 SA
AHL2 2701-000002 INDUCTOR-AXIAL;100UH,10%,4298 1 SA
AHL3 2701-000002 INDUCTOR-AXIAL;100UH,10%,4298 1 SA
AL5 2701-000002 INDUCTOR-AXIAL;100UH,10%,4298 1 SA
AL6 2701-000002 INDUCTOR-AXIAL;100UH,10%,4298 1 SA
BL1 2701-000002 INDUCTOR-AXIAL;100UH,10%,4298 1 SA
BL4 2701-000002 INDUCTOR-AXIAL;100UH,10%,4298 1 SA
TL1 2701-000002 INDUCTOR-AXIAL;100UH,10%,4298 1 SA
AL2 2701-000181 INDUCTOR-AXIAL;33uH,5%,2434 1 SA
AL3 2701-000181 INDUCTOR-AXIAL;33uH,5%,2434 1 SA
SL1 2701-000181 INDUCTOR-AXIAL;33uH,5%,2434 1 SA
SL10 2701-000181 INDUCTOR-AXIAL;33uH,5%,2434 1 SA
SL12 2701-000181 INDUCTOR-AXIAL;33uH,5%,2434 1 SA
SL15 2701-000181 INDUCTOR-AXIAL;33uH,5%,2434 1 SA
SL16 2701-000181 INDUCTOR-AXIAL;33uH,5%,2434 1 SA
SL17 2701-000181 INDUCTOR-AXIAL;33uH,5%,2434 1 SA
SL3 2701-000181 INDUCTOR-AXIAL;33uH,5%,2434 1 SA
SL5 2701-000181 INDUCTOR-AXIAL;33uH,5%,2434 1 SA
PSRZ1 2003-000994 R-METAL OXIDE(S);33Kohm,5%,2W, 1 SA
PSRZ2 2003-000994 R-METAL OXIDE(S);33Kohm,5%,2W, 1 SA
AD1 0401-000005 DIODE-SWITCHING;1N4148,75V,150 1 SA
AD2 0401-000005 DIODE-SWITCHING;1N4148,75V,150 1 SA
AD3 0401-000005 DIODE-SWITCHING;1N4148,75V,150 1 SA
AD4 0401-000005 DIODE-SWITCHING;1N4148,75V,150 1 SA
AD5 0401-000005 DIODE-SWITCHING;1N4148,75V,150 1 SA
AD6 0401-000005 DIODE-SWITCHING;1N4148,75V,150 1 SA
AHD1 0401-000005 DIODE-SWITCHING;1N4148,75V,150 1 SA
AHD2 0401-000005 DIODE-SWITCHING;1N4148,75V,150 1 SA
FD1 0401-000005 DIODE-SWITCHING;1N4148,75V,150 1 SA
PPDF5 0401-000005 DIODE-SWITCHING;1N4148,75V,150 1 SA
SD1 0401-000005 DIODE-SWITCHING;1N4148,75V,150 1 SA
TD1 0401-000005 DIODE-SWITCHING;1N4148,75V,150 1 SA
PPDO1 0402-000012 DIODE-RECTIFIER;UF4007,1KV,1A, 1 SA
PSDZ1 0402-000012 DIODE-RECTIFIER;UF4007,1KV,1A, 1 SA
AHD10 0402-000165 DIODE-RECTIFIER;1N5819,40V,1A, 1 SA
BD2 0402-000165 DIODE-RECTIFIER;1N5819,40V,1A, 1 SA
BD3 0402-000165 DIODE-RECTIFIER;1N5819,40V,1A, 1 SA
BD4 0402-000165 DIODE-RECTIFIER;1N5819,40V,1A, 1 SA
BD5 0402-000165 DIODE-RECTIFIER;1N5819,40V,1A, 1 SA
BD6 0402-000165 DIODE-RECTIFIER;1N5819,40V,1A, 1 SA
BD7 0402-000165 DIODE-RECTIFIER;1N5819,40V,1A, 1 SA
FD3 0402-000165 DIODE-RECTIFIER;1N5819,40V,1A, 1 SA
PVDL1 0402-001195 DIODE-RECTIFIER;F1T4,400V,1A,D 1 SA
PADT1 0402-001196 DIODE-RECTIFIER;1T5,600V,1A,TS 1 SA
PADT2 0402-001196 DIODE-RECTIFIER;1T5,600V,1A,TS 1 SA
PADT3 0402-001196 DIODE-RECTIFIER;1T5,600V,1A,TS 1 SA
PADT4 0402-001196 DIODE-RECTIFIER;1T5,600V,1A,TS 1 SA
PPDI1 0402-001624 DIODE-RECTIFIER;SF26,400V,2A,D 1 SA
SZD16 0403-000361 DIODE-ZENER;UZ6.2BSB,5.96-6.27 1 SA
PPZO1 0403-000390 DIODE-ZENER;UZP33B,31.4-34.6V, 1 SA
PVZL1 0403-000713 DIODE-ZENER;MTZJ20B,18.63-17.7 1 SA
AZD10 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
AZD11 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
Loc.No Part No Description ; Specification Q’ty S.N.A Remark
7-6
Samsung Electronics
Electrical Parts List
Loc.No Part No Description ; Specification Q’ty S.N.A Remark
This Document can not be used without Samsung’s authorization
Page 49
AZD12 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
AZD3 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
AZD9 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
SZD1 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
SZD10 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
SZD11 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
SZD12 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
SZD13 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
SZD17 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
SZD18 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
SZD20 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
SZD21 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
SZD22 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
SZD23 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
SZD24 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
SZD25 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
SZD26 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
SZD27 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
SZD28 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
SZD29 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
SZD3 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
SZD30 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
SZD31 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
SZD32 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
SZD33 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
SZD34 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
SZD35 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
SZD36 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
SZD37 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
SZD38 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
SZD39 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
SZD4 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
SZD40 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
SZD41 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
SZD42 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
SZD43 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
SZD45 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
SZD46 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
SZD5 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
SZD52 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
SZD53 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
SZD54 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
SZD55 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
SZD56 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
SZD6 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
SZD66 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
SZD67 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
SZD68 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
SZD69 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
SZD70 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
SZD71 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
SZD73 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
SZD74 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
SZD76 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
SZD77 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
SZD81 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
SZD82 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
SZD85 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
SZD9 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
AZD4 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SM 1 SA
AZD5 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SM 1 SA
AZD6 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SM 1 SA
AZD7 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SM 1 SA
AZD8 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SM 1 SA
SZD14 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SM 1 SA
SZD19 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SM 1 SA
SZD7 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SM 1 SA
SZD8 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SM 1 SA
SD4 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA, 1 SA
SD5 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA, 1 SA
SD6 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA, 1 SA
SD7 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA, 1 SA
AHQ1 0501-000002 TR-SMALL SIGNAL;KSA812,PNP,150 1 SA
SQ1 0501-000341 TR-SMALL SIGNAL;KSC1623-L,NPN, 1 SA
SQ10 0501-000341 TR-SMALL SIGNAL;KSC1623-L,NPN, 1 SA
SQ9 0501-000341 TR-SMALL SIGNAL;KSC1623-L,NPN, 1 SA
SQ7 0501-000398 TR-SMALL SIGNAL;KSC945-Y,NPN,2 1 SA
SQ8 0501-000398 TR-SMALL SIGNAL;KSC945-Y,NPN,2 1 SA
AQ1 0504-000129 TR-DIGITAL;KSR1104,NPN,200mW,4 1 SA
SQ2 0504-000129 TR-DIGITAL;KSR1104,NPN,200mW,4 1 SA
SQ4 0504-000129 TR-DIGITAL;KSR1104,NPN,200mW,4 1 SA
SQ6 0504-000129 TR-DIGITAL;KSR1104,NPN,200mW,4 1 SA
SQ3 0504-000152 TR-DIGITAL;KSR2101,PNP,200mW,4 1 SA
SQ5 0504-000152 TR-DIGITAL;KSR2101,PNP,200mW,4 1 SA
IC216 1001-001368 IC-AV SWITCH;HA118827,-,QFP,56 1 SA
AIC1 1003-002017 IC-LED DRIVER;IK2102DW,SOP,28P 1 SA
IC217 1201-000163 IC-OP AMP;4560,SOP,8P,173MIL,D 1 SA
SIC2 1204-001748 IC-SELECTOR;MM1503XN,SOP,6P,63 1 SA
PART1 2007-008711 R-CHIP;1MOHM,5%,1/2W,TP,5025 1 SA
PFCF1 2301-000129 C-FILM,LEAD-PEF;100nF,5%,50V,T 1 SA
PLCZ1 2301-000129 C-FILM,LEAD-PEF;100nF,5%,50V,T 1 SA
PFCZ1 2301-000402 C-FILM,LEAD-PEF;1nF,5%,50V,TP, 1 SA
PDCZ1 2301-001654 C-FILM,LEAD-PEF;1000nF,5%,100V 1 SA
SL14 2701-000117 INDUCTOR-AXIAL;10uH,5%,2434 1 SA
AL1 2703-001973 INDUCTOR-SMD;2.7uH,10%,1608 1 SA
AL4 2703-001973 INDUCTOR-SMD;2.7uH,10%,1608 1 SA
FX1 2801-003139 CRYSTAL-UNIT;8MHz,50ppm,28-AAA 1 SA
SL7 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm, 1 SA
SL8 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm, 1 SA
SL2 3301-001419 BEAD-SMD;220ohm,1608,TP,133ohm 1 SA
SL4 3301-001419 BEAD-SMD;220ohm,1608,TP,133ohm 1 SA
SL6 3301-001419 BEAD-SMD;220ohm,1608,TP,133ohm 1 SA
ASW8 3404-001182 SWITCH-TACT;DC12V,50MA,100GF,6 1 SA
ASW11 3404-001261 SWITCH-TACT;15V DC,20mA,100gf, 1 SA
ASW15 3404-001261 SWITCH-TACT;15V DC,20mA,100gf, 1 SA
FIC4 AC14-12006C IC;KA7533,DIP,- 1 SA
PFID1 AC14-12006D IC;KA431Z,TO-92,TAPING 1 SA
PPLD1 AC27-12001N COIL CHOKE;10UH-15%,RA,K-30,Q8 1 SA
PPLI1 AC27-12001N COIL CHOKE;10UH-15%,RA,K-30,Q8 1 SA
SQ11 0504-000128 TR-DIGITAL;-,NPN,200MW,22K/22K 1 SA
SQ12 0504-000128 TR-DIGITAL;-,NPN,200MW,22K/22K 1 SA
SQ13 0504-000156 TR-DIGITAL;KSR2103,PNP,200MW,2 1 SA
SQ14 0504-000156 TR-DIGITAL;KSR2103,PNP,200MW,2 1 SA
Electrical Parts List
Samsung Electronics
7-7
Loc.No Part No Description ; Specification Q’ty S.N.A Remark Loc.No Part No Description ; Specification Q’ty S.N.A Remark
This Document can not be used without Samsung’s authorization
Page 50
MD1 0402-001533 DIODE-RECTIFIER;1N5408,1000V,3 1 SA
PPDF3 0402-001533 DIODE-RECTIFIER;1N5408,1000V,3 1 SA
PPDD1 0404-001235 DIODE-SCHOTTKY;SHK65-45R,60V,3 1 SA
PPDF1 0404-001235 DIODE-SCHOTTKY;SHK65-45R,60V,3 1 SA
PPDF2 0404-001235 DIODE-SCHOTTKY;SHK65-45R,60V,3 1 SA
ALD6 0601-001928 LED;ROUND,BLUE,3mm,465nm,3.6x3 1 SA
PBIZ1 0604-001028 PHOTO-COUPLER;TR,50-600%,250mW 1 SA
ARM1 0609-001225 MODULE REMOCON;VERTICAL,3.6mm, 1 SA
PPID1 1203-001586 IC-POSI.FIXED REG.;278R33,TO-2 1 SA
PPIF1 1203-001589 IC-POSI.FIXED REG.;278R05,TO-2 1 SA
PPIF2 1203-001589 IC-POSI.FIXED REG.;278R05,TO-2 1 SA
PPII1 1203-002183 IC-SWITCH VOL. REG.;278R12,TO- 1 SA
PQIZ1 1203-003883 IC-PWM CONTROLLER;3B2065P-2,TO 1 SA
PLRU1 1404-001361 THERMISTOR-NTC;3ohm,4A,-,35mW/ 1 SA
PAVV1 1405-000186 VARISTOR;470V,2500A,17.5x7.5mm 1 SA
PBCU1 2201-002044 C-CERAMIC,DISC;0.1NF,10%,400V, 1 SA
PBCU2 2201-002044 C-CERAMIC,DISC;0.1NF,10%,400V, 1 SA
PACT1 2301-001792 C-FILM,LEAD;150nF,20%,275V,BK, 1 SA
PACT2 2301-001792 C-FILM,LEAD;150nF,20%,275V,BK, 1 SA
AE4 2401-003480 C-AL;1000UF,20%,10V,LZ,TP,10X1 1 SA
PPCD1 2401-003480 C-AL;1000UF,20%,10V,LZ,TP,10X1 1 SA
PPCF1 2401-003480 C-AL;1000UF,20%,10V,LZ,TP,10X1 1 SA
PPCF2 2401-003480 C-AL;1000UF,20%,10V,LZ,TP,10X1 1 SA
PRCU1 2401-003842 C-AL;100uF,20%,450V,WT,BK,25.4 1 SA
SJACK3 3707-001070 CONNECTOR-OPTICAL;PLUG,GP1FA55 1 SA
CON1 3708-001165 CONNECTOR-FPC/FFC/PIC;6P,1.25M 1 SA
ACN1 3708-001695 CONNECTOR-FPC/FFC/PIC;13P,1MM, 1 SA
ACN4 3708-001717 CONNECTOR-FPC/FFC/PIC;13P,1MM, 1 SA
ACN2 3708-001802 CONNECTOR-FPC/FFC/PIC;10P,1.25 1 SA
PAWT1 3711-000203 HEADER-BOARD TO CABLE;1WALL,2P 1 SA
PZWZ1 3711-004379 HEADER-BOARD TO CABLE;BOX,4P,1 1 SA
MCN2 3711-005563 HEADER-BOARD TO BOARD;BOX,30P, 1 SA
MCN3 3711-005563 HEADER-BOARD TO BOARD;BOX,30P, 1 SA
SJACK5 3722-002111 JACK-PIN;6P+1P,SN/NI,RED/WHT/Y 1 SA
SJACK4 3722-002318 JACK-PIN;3P(7P),SN/NI,RED/BLU/ 1 SA
AJACK3 3722-002383 JACK-IEEE1394;4P/1,AU,BLK,ANGL 1 SA
AJACK1 3722-002384 JACK-PIN;3P,SN/NI,YEL/WHT/RED, 1 SA
SJACK1 3722-002409 JACK-SCART;42P,SN,BLK 1 SA
W004 6003-000283 SCREW-TAPTITE;BH,+,-,B,M3,L8,Z 1 SA
PALT2 AC29-00002A FILTER LINE NOISE;-,30mH,-,-,B 1 SA
PALT4 AC29-00003A FILTER LINE NOISE;-,20mH MIN,- 1 SA
PPLF1 AH27-00039A COIL CHOKE;DR CHOKE(8*6),DVD-R 1 SA
TTM1 AK40-00025A TM BLOCK;TCSK0601PD25A,PAL B/G 1 SA
LD61A AK61-00531A HOLDER-LED;DVD-R145,ABS 94HB,T 1 SA
FL656 3809-001804 FFC CABLE-FLAT;30V,80C,55mm,13 1 SA
FRONT_ AK63-00307A GROUND-FRONT AV;DVD-R130,SUS,T 1 SA
AVFD1 AK07-00063A LED DISPLAY;BCD-9051A,DVD-R155 1 SA
PPII4 1203-002020 IC-POSI.FIXED REG.;78R09,TO-22 1 SA
PQTZ1 AK26-00025A TRANS SWITCHING;EER3530,-,-,FR 1 SA
PAFT1 3601-000237 FUSE-CARTRIDGE;250V,2A,SLOW-BL 1 SA
PBCU3 2201-000446 C-CERAMIC,DISC;3.3NF,20%,400V, 1 SA
PBCU4 2201-000446 C-CERAMIC,DISC;3.3NF,20%,400V, 1 SA
SR35 2007-000267 R-CHIP;1.8Kohm,5%,1/8W,TP,2012 1 SC
SR37 2007-000267 R-CHIP;1.8Kohm,5%,1/8W,TP,2012 1 SC
PPCO1 2401-000385 C-AL;10uF,20%,100V,GP,TP,6.3x1 1 SC
SL13 AC27-92001M COIL-INDUCTOR;RH3.5X6.5RS,BEAD 1 SC
SL18 AC27-92001M COIL-INDUCTOR;RH3.5X6.5RS,BEAD 1 SC
H001 AK97-01883B ASSY-LOADER;-,DVD-R150,RAM Mul 1 SA
C771 AK61-00390A HOLDER-WIRE;SOH-DR2,PPS,T5.2,W 1 SNA
CIC1 1203-003177 IC-VOL. DETECTOR;BD5326G,SSOP, 1 SA
CN1 3708-002193 CONNECTOR-FPC/FFC/PIC;50P,0.5m 1 SA
DECK_C 3708-002176 CONNECTOR-FPC/FFC/PIC;5P,1mm,S 1 SA
H001 AK97-01878A ASSY-RECORDER DECK;DP-R4L,-,- 1 SNA
H103 AK66-00061A GEAR-PULLEY;DP-RW,POM,-,-,-,-, 1 SNA
H105 6602-001076 BELT-RECTANGULAR;CR,T1.2,4.3%, 1 SA
H106 AK66-00062A GEAR-TRAY;DP-RW,POM,-,-,-,WHT, 1 SNA
H108 AK63-00432A TRAY-DISC;DP-R3.5,ABS,-,-,-,-, 1 SNA
H207 AK31-00028A MOTOR SPINDLE;DP-R3L,8500,9.8m 1 SNA
H209 AK64-01462A CHASSIS-SUB;DP-R3H,ABS,T2,W114 1 SNA
H211 AK97-01856A ASSY-PICK UP;-,SOH-DR4,- 1 SNA
H212 AK61-00738A HOLDER-CHUCK;DP-R3.5L,ABS,-,-, 1 SNA
H241 AK41-00609A FFC-PU;DP-R3.5,POLYESTER,PITCH 1 SNA
H265 AK61-00736A BRACKET-SHAFT PU;DP-R3.5,SUS T 2 SNA
H268 AK61-00452A SPRING ETC-HINGE PU;DP-R2,SUS3 1 SNA
H271 AK61-00735A HINGE-PU;DP-R3.5,POM,-,-,-,-,- 1 SNA
H275 AK66-00072A SHAFT-PU;DP-RW2,SUS420J2,91.5, 2 SNA
H401 AK61-00734A FRAME-MAIN;DP-R3.5,ABS,-,-,-,- 1 SNA
JP9 3708-001331 CONNECTOR-FPC/FFC/PIC;40P,0.5m 1 SA
PC1 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
PC10 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6. 1 SA
PC12 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
PC14 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
PC15 2404-001131 C-TA,CHIP;22UF,10%,10V,GP,TP,3 1 SA
PC2 2203-006214 C-CER,CHIP;2200nF,10%,25V,X7R, 1 SA
PC3 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6 1 SA
PC4 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
PC5 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6 1 SA
PC6 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
PC7 2203-005171 C-CER,CHIP;1000nF,10%,16V,X7R, 1 SA
PC8 2203-005171 C-CER,CHIP;1000nF,10%,16V,X7R, 1 SA
PC9 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6. 1 SA
PCB AK41-00623B PCB-FRONT;RAMBO4,CEM-3,2,-,1.6 0.5 SNA
PCN 3711-005477 HEADER-BOARD TO CABLE;BOX,4P,1 1 SA
PIC2 1203-003997 IC-MULTI REG.;BA30E00WHFP,HRP, 1 SA
PIC3 1203-003999 IC-POSI.FIXED REG.;BH25FB1WHFV 1 SA
PL1 2901-001281 FILTER-EMI SMD;16V,2A,-,220000 1 SA
PL3 2901-001281 FILTER-EMI SMD;16V,2A,-,220000 1 SA
PL4 2901-001281 FILTER-EMI SMD;16V,2A,-,220000 1 SA
PL5 2901-001281 FILTER-EMI SMD;16V,2A,-,220000 1 SA
PR1 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 SA
PR2 2007-000616 R-CHIP;24Kohm,5%,1/10W,TP,1608 1 SA
PR3 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP 1 SA
RC10 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
RC11 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
RC12 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
RC13 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
RC14 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
RC15 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
RC16 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
RC17 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
RC21 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
RC22 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3 1 SA
Loc.No Part No Description ; Specification Q’ty S.N.A Remark
7-8
Samsung Electronics
Electrical Parts List
Loc.No Part No Description ; Specification Q’ty S.N.A Remark
This Document can not be used without Samsung’s authorization
Page 51
RC23 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
RC25 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3 1 SA
RC26 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
RC27 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3 1 SA
RC28 2203-000254 C-CER,CHIP;10nF,10%,16V,X7R,10 1 SA
RC29 2203-000254 C-CER,CHIP;10nF,10%,16V,X7R,10 1 SA
RC3 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
RC30 2203-000254 C-CER,CHIP;10nF,10%,16V,X7R,10 1 SA
RC31 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
RC32 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,10 1 SA
RC33 2203-000254 C-CER,CHIP;10nF,10%,16V,X7R,10 1 SA
RC34 2203-000254 C-CER,CHIP;10nF,10%,16V,X7R,10 1 SA
RC35 2203-000254 C-CER,CHIP;10nF,10%,16V,X7R,10 1 SA
RC36 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
RC37 2404-000284 C-TA,CHIP;10uF,20%,16V,-,TP,35 1 SA
RC38 2203-000254 C-CER,CHIP;10nF,10%,16V,X7R,10 1 SA
RC39 2404-000284 C-TA,CHIP;10uF,20%,16V,-,TP,35 1 SA
RC40 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
RC41 2203-000254 C-CER,CHIP;10nF,10%,16V,X7R,10 1 SA
RC42 2203-000254 C-CER,CHIP;10nF,10%,16V,X7R,10 1 SA
RC43 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
RC44 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
RC45 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,100 1 SA
RC46 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,100 1 SA
RC47 2203-000627 C-CER,CHIP;0.022nF,5%,50V,C0G, 1 SA
RC48 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,100 1 SA
RC49 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,100 1 SA
RC50 2203-000254 C-CER,CHIP;10nF,10%,16V,X7R,10 1 SA
RC51 2203-000254 C-CER,CHIP;10nF,10%,16V,X7R,10 1 SA
RC52 2203-000254 C-CER,CHIP;10nF,10%,16V,X7R,10 1 SA
RC53 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,10 1 SA
RC54 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
RC55 2404-000284 C-TA,CHIP;10uF,20%,16V,-,TP,35 1 SA
RC56 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
RC57 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
RC58 2404-000284 C-TA,CHIP;10uF,20%,16V,-,TP,35 1 SA
RC59 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
RC6 2203-005496 C-CER,CHIP;220nF,+80-20%,10V,Y 1 SA
RC60 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
RC61 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
RC62 2203-005642 C-CER,CHIP;0.22nF,5%,50V,NP0,1 1 SA
RC63 2203-005642 C-CER,CHIP;0.22nF,5%,50V,NP0,1 1 SA
RC64 2203-005642 C-CER,CHIP;0.22nF,5%,50V,NP0,1 1 SA
RC65 2203-005642 C-CER,CHIP;0.22nF,5%,50V,NP0,1 1 SA
RC66 2203-000254 C-CER,CHIP;10nF,10%,16V,X7R,10 1 SA
RC67 2203-000254 C-CER,CHIP;10nF,10%,16V,X7R,10 1 SA
RC68 2203-000254 C-CER,CHIP;10nF,10%,16V,X7R,10 1 SA
RC69 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,10 1 SA
RC7 2203-005496 C-CER,CHIP;220nF,+80-20%,10V,Y 1 SA
RC70 2203-001239 C-CER,CHIP;0.082nF,5%,50V,NP0, 1 SA
RC71 2203-001239 C-CER,CHIP;0.082nF,5%,50V,NP0, 1 SA
RC72 2203-000254 C-CER,CHIP;10nF,10%,16V,X7R,10 1 SA
RC73 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
RC74 2203-000489 C-CER,CHIP;2.2nF,10%,50V,X7R,1 1 SA
RIC2 AK13-00028A IC ASIC;S1L1101X01,-,128,5V,-0 1 SNA
RR10 2007-000151 R-CHIP;15Kohm,5%,1/16W,TP,1005 1 SA
RR11 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,100 1 SA
RR13 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 SA
RR16 2007-000159 R-CHIP;56Kohm,5%,1/16W,TP,1005 1 SA
RR17 2007-003009 R-CHIP;16Kohm,5%,1/16W,TP,1005 1 SA
RR18 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 1 SA
RR21 2007-007107 R-CHIP;100Kohm,1%,1/16W,TP,100 1 SA
RR22 2007-007107 R-CHIP;100Kohm,1%,1/16W,TP,100 1 SA
RR24 2007-000145 R-CHIP;6.2Kohm,5%,1/16W,TP,100 1 SA
RR25 2007-000154 R-CHIP;24KOHM,5%,1/16W,TP,1005 1 SA
RR26 2007-001320 R-CHIP;1.8Kohm,5%,1/16W,TP,100 1 SA
RR27 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 SA
RR28 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 SA
RR29 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 SA
RR30 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 1 SA
RR32 2007-000159 R-CHIP;56Kohm,5%,1/16W,TP,1005 1 SA
RR33 2007-000154 R-CHIP;24KOHM,5%,1/16W,TP,1005 1 SA
RR35 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 SA
RR37 2007-000170 R-CHIP;1Mohm,5%,1/16W,TP,1005 1 SA
RR43 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 SA
RR44 2007-000151 R-CHIP;15Kohm,5%,1/16W,TP,1005 1 SA
RR45 2007-000151 R-CHIP;15Kohm,5%,1/16W,TP,1005 1 SA
RR46 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 SA
S.N.A AK61-00740A BRACKET-DECK;DP-R3.5L,SECC T1. 1 SNA
S.N.A AK73-00053A RUBBER-DECK;DP-R3.5,BUTYL,-,-, 4 SNA
S.N.A AK97-01876A ASSY-TRAVERSE;DP-R4,-,- 1 SNA
S.N.A AK31-00024A MOTOR STEP-FEED;-,DP-RW,727 mA 1 SNA
S.N.A AK61-00490A SPRING ETC-SHAFT PU;DP-RW2,PW2 2 SNA
S.N.A AK97-01877A ASSY-HOLDER CHUCK;DP-R4L,-,- 1 SNA
S.N.A AK97-01331B ASSY-CLAMPER;DP-R4L,-,- 1 SNA
S.N.A AK61-00486A BODY CLAMPER-UPPER;DP-RW2,POM, 1 SNA
S.N.A AK61-00739A BRACKET-CLAMPER;DP-R3.5L,SECC 1 SNA
S.N.A BG33-30001D MAGNET-CLAMPER;-,-,-,-,13.5x6x 1 SNA
S.N.A AK97-01879A ASSY-HOUSING;-,DP-R4,- 1 SNA
S.N.A AH31-00025A MOTOR-LOADING;RF-300EA-1D390,D 1 SNA
S.N.A AK66-00038A PULLEY MOTOR;DP-R1,POM,-,BLK,1 1 SNA
S.N.A AK97-01646A ASSY-MOTOR PCB;PHENOL,DP-R3H,S 1 SNA
S.N.A 3403-001026 SWITCH-PUSH;5V,0.7mA,DPST,OFF- 1 SA
S.N.A AK41-00400A FFC-DECK;DP-RW2,PITCH1.0,PET,5 1 SNA
S.N.A AK41-00546A PCB-MOTOR;DP-R3H,PHENOL,1,1,1. 1 SNA
SPIN_C 3708-002067 CONNECTOR-FPC/FFC/PIC;12P,1mm, 1 SA
STEP_C 3708-002018 CONNECTOR-FPC/FFC/PIC;4P,1MM,S 1 SA
SUB-MA AK97-01731D ASSY-SUB MATERIAL;-,DVD-VR330, 1 SNA
T037 AK66-00079A SLIDER-CAM;DP-R3H,POM,T10,W89, 1 SNA
U8 AK13-00025A IC ASIC;S5L1484A01,RAMBO-3,256 1 SNA
U9 1107-001551 IC-FLASH MEMORY;S29AL016M10TAI 1 SNA
UB1 1105-001284 IC-DRAM;636165,-,16Mbit,1Mx16B 1 SA
UC100 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
UC18 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3 1 SA
UC19 2203-000278 C-CER,CHIP;0.01nF,0.5pF,50V,C0 1 SA
UC21 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
UC22 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
UC23 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
UC24 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
UC25 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
UC26 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
UC27 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
UC28 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3 1 SA
Electrical Parts List
Samsung Electronics
7-9
Loc.No Part No Description ; Specification Q’ty S.N.A Remark Loc.No Part No Description ; Specification Q’ty S.N.A Remark
This Document can not be used without Samsung’s authorization
Page 52
UC29 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3 1 SA
UC30 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3 1 SA
UC31 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
UC32 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
UC33 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
UC34 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
UC35 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
UC36 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
UC37 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
UC38 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
UC39 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
UC40 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
UC41 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
UC42 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
UC43 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
UC44 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
UC45 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,100 1 SA
UC46 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
UC47 2203-000254 C-CER,CHIP;10nF,10%,16V,X7R,10 1 SA
UC48 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
UC49 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
UC50 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
UC51 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
UC52 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
UC53 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
UC54 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
UC55 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
UC56 2203-000854 C-CER,CHIP;0.039nF,5%,50V,C0G, 1 SA
UC57 2203-001072 C-CER,CHIP;0.056nF,5%,50V,NP0, 1 SA
UC58 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
UC62 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
UC63 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
UC64 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
UC67 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
UC69 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3 1 SA
UC70 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
UC71 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3 1 SA
UC72 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
UC75 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3 1 SA
UC76 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
UC77 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
UC79 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
UC80 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,100 1 SA
UC81 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
UC82 2203-001072 C-CER,CHIP;0.056nF,5%,50V,NP0, 1 SA
UR1 2011-001432 R-NET;82ohm,5%,1/16W,L,CHIP,8P 1 SA
UR10 2007-001217 R-CHIP;82OHM,5%,1/16W,TP,1005 1 SA
UR100 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 SA
UR11 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 SA
UR12 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 SA
UR13 2007-001217 R-CHIP;82OHM,5%,1/16W,TP,1005 1 SA
UR14 2007-001217 R-CHIP;82OHM,5%,1/16W,TP,1005 1 SA
UR16 2007-000170 R-CHIP;1Mohm,5%,1/16W,TP,1005 1 SA
UR17 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,100 1 SA
UR19 3301-001419 BEAD-SMD;220ohm,1608,TP,133ohm 1 SA
UR2 2011-001261 R-NET;33ohm,5%,1/16W,L,CHIP,8P 1 SA
UR20 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 SA
UR21 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 SA
UR22 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 SA
UR23 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 SA
UR24 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 SA
UR25 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 SA
UR26 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 SA
UR27 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 SA
UR28 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 SA
UR29 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 SA
UR3 2011-001261 R-NET;33ohm,5%,1/16W,L,CHIP,8P 1 SA
UR30 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 SA
UR31 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 SA
UR32 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 SA
UR33 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 SA
UR34 2007-000139 R-CHIP;220ohm,5%,1/16W,TP,1005 1 SA
UR35 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 SA
UR36 2007-000139 R-CHIP;220ohm,5%,1/16W,TP,1005 1 SA
UR37 2007-001325 R-CHIP;3.3Kohm,5%,1/16W,TP,100 1 SA
UR39 2007-000775 R-CHIP;33KOHM,5%,1/16W,TP,1005 1 SA
UR4 2011-001261 R-NET;33ohm,5%,1/16W,L,CHIP,8P 1 SA
UR42 2007-007001 R-CHIP;3.9KOHM,5%,1/16W,TP,100 1 SA
UR43 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 SA
UR44 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 SA
UR47 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 SA
UR48 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 SA
UR5 2011-001261 R-NET;33ohm,5%,1/16W,L,CHIP,8P 1 SA
UR50 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,100 1 SA
UR55 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,100 1 SA
UR58 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,100 1 SA
UR59 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,100 1 SA
UR6 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 SA
UR63 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,160 1 SA
UR64 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,100 1 SA
UR69 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 SA
UR7 2007-001217 R-CHIP;82OHM,5%,1/16W,TP,1005 1 SA
UR73 2007-001305 R-CHIP;120ohm,5%,1/16W,TP,1005 1 SA
UR75 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 SA
UR76 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 SA
UR77 3301-001861 BEAD-SMD;600ohm,1005,TP,500ohm 1 SNA
UR8 2007-001217 R-CHIP;82OHM,5%,1/16W,TP,1005 1 SA
UR80 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 SA
UR81 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 SA
UR82 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
UR83 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
UR87 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 SA
UR88 2007-001305 R-CHIP;120ohm,5%,1/16W,TP,1005 1 SA
UR89 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 SA
UR9 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 SA
UR90 2007-000831 R-CHIP;39Kohm,5%,1/16W,TP,1005 1 SA
UR91 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 SA
UR92 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 SA
UR93 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 SA
UR94 2011-001432 R-NET;82ohm,5%,1/16W,L,CHIP,8P 1 SA
UR95 2011-001432 R-NET;82ohm,5%,1/16W,L,CHIP,8P 1 SA
UR96 2011-001432 R-NET;82ohm,5%,1/16W,L,CHIP,8P 1 SA
UR97 2011-001432 R-NET;82ohm,5%,1/16W,L,CHIP,8P 1 SA
Loc.No Part No Description ; Specification Q’ty S.N.A Remark
7-10
Samsung Electronics
Electrical Parts List
Loc.No Part No Description ; Specification Q’ty S.N.A Remark
This Document can not be used without Samsung’s authorization
Page 53
UR98 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 SA
UR99 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
VC1 2203-006047 C-CER,CHIP;33nF,10%,16V,X7R,10 1 SA
VC10 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,100 1 SA
VC11 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
VC12 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
VC13 2404-000284 C-TA,CHIP;10uF,20%,16V,-,TP,35 1 SA
VC14 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
VC15 2203-000254 C-CER,CHIP;10nF,10%,16V,X7R,10 1 SA
VC16 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
VC17 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
VC18 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
VC19 2203-005061 C-CER,CHIP;100nF,+80-20%,16V,Y 1 SA
VC2 2203-006047 C-CER,CHIP;33nF,10%,16V,X7R,10 1 SA
VC20 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1 1 SA
VC21 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3 1 SA
VC3 2203-006047 C-CER,CHIP;33nF,10%,16V,X7R,10 1 SA
VC4 2203-006047 C-CER,CHIP;33nF,10%,16V,X7R,10 1 SA
VC5 2203-006047 C-CER,CHIP;33nF,10%,16V,X7R,10 1 SA
VC6 2203-006047 C-CER,CHIP;33nF,10%,16V,X7R,10 1 SA
VC7 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,10 1 SA
VC8 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,10 1 SA
VIC1 1003-001881 IC-MOTOR DRIVER;BD7956FS,HSSOP 1 SA
VR1 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 SA
VR10 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 SA
VR11 2007-000034 R-CHIP;1OHM,5%,1/4W,TP,3216 1 SA
VR12 2007-000034 R-CHIP;1OHM,5%,1/4W,TP,3216 1 SA
VR13 2007-000034 R-CHIP;1OHM,5%,1/4W,TP,3216 1 SA
VR14 2007-000034 R-CHIP;1OHM,5%,1/4W,TP,3216 1 SA
VR15 2007-000034 R-CHIP;1OHM,5%,1/4W,TP,3216 1 SA
VR16 2007-000034 R-CHIP;1OHM,5%,1/4W,TP,3216 1 SA
VR18 2007-000034 R-CHIP;1OHM,5%,1/4W,TP,3216 1 SA
VR20 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 SA
VR25 2007-007107 R-CHIP;100Kohm,1%,1/16W,TP,100 1 SA
VR26 2007-000159 R-CHIP;56Kohm,5%,1/16W,TP,1005 1 SA
VR27 2007-000159 R-CHIP;56Kohm,5%,1/16W,TP,1005 1 SA
VR28 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 SA
VR31 3301-001419 BEAD-SMD;220ohm,1608,TP,133ohm 1 SA
VR32 3301-001419 BEAD-SMD;220ohm,1608,TP,133ohm 1 SA
VR33 3301-001419 BEAD-SMD;220ohm,1608,TP,133ohm 1 SA
VR34 3301-001419 BEAD-SMD;220ohm,1608,TP,133ohm 1 SA
VR35 3301-001419 BEAD-SMD;220ohm,1608,TP,133ohm 1 SA
VR36 3301-001419 BEAD-SMD;220ohm,1608,TP,133ohm 1 SA
VR37 3301-001419 BEAD-SMD;220ohm,1608,TP,133ohm 1 SA
VR38 3301-001419 BEAD-SMD;220ohm,1608,TP,133ohm 1 SA
VR39 3301-001419 BEAD-SMD;220ohm,1608,TP,133ohm 1 SA
VR40 3301-001419 BEAD-SMD;220ohm,1608,TP,133ohm 1 SA
VR41 3301-001419 BEAD-SMD;220ohm,1608,TP,133ohm 1 SA
VR42 3301-001419 BEAD-SMD;220ohm,1608,TP,133ohm 1 SA
VR43 3301-001419 BEAD-SMD;220ohm,1608,TP,133ohm 1 SA
VR44 3301-001419 BEAD-SMD;220ohm,1608,TP,133ohm 1 SA
VR45 3301-001419 BEAD-SMD;220ohm,1608,TP,133ohm 1 SA
VR46 3301-001419 BEAD-SMD;220ohm,1608,TP,133ohm 1 SA
VR47 3301-001419 BEAD-SMD;220ohm,1608,TP,133ohm 1 SA
VR48 3301-001419 BEAD-SMD;220ohm,1608,TP,133ohm 1 SA
VR5 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 SA
VR6 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 SA
VR8 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 SA
VR9 2007-000164 R-CHIP;150KOHM,5%,1/16W,TP,100 1 SA
W012 6002-001086 SCREW-TAPPING;PH,+,-,B,M1.7,L5 1 SA
W018 6003-001450 SCREW-TAPTITE;PH,+,-,S,M2.6,L5 2 SA
W274 6001-001730 SCREW-MACHINE;BH,+,-,M1.7,L2.5 2 SA
W350 6001-001003 SCREW-MACHINE;BH,+,M2.6,L6,ZPC 4 SA
W352 6001-000883 SCREW-MACHINE;PH,+,M1.4,L5,ZPC 1 SNA
W353 6003-001199 SCREW-TAPTITE;PWH,+,-,B,M2,L7, 4 SA
W354 6003-001258 SCREW-TAPTITE;PH,+,B,M1.4,L2.0 4 SA
W355 6003-001526 SCREW-TAPTITE;CH,+,S-TITE,M1.4 2 SNA
W377 6001-001291 SCREW-MACHINE;CH(0.5),*,-,M1.7 3 SA
Y1 2802-001163 RESONATOR-CERAMIC;33.86MHz,0.5 1 SA
AK92-01223A ASSY PCB-LOADER;DVD-R135A/XAA, 1 SNA
AC99-40334B ASSY PCB-LOADER,c;DVD-R135A/XA 1 SNA
AC99-80336F ASSY PCB-LOADER,mrp;DVD-R135A/ 1 SNA
AC99-90337M ASSY PCB-LOADER,m;DVD-R135A/XA 1 SNA
0202-001459 SOLDER-CREAM;S3X58-M405,-,D20~ 0.43 SNA
0202-001214 SOLDER-WIRE FLUX;HI-ALMIT HR19 0.952 SNA
AK97-01857A ASSY-SUB PICK UP;-,SOH-DR4,- 1 SNA
0201-000169 ADHESIVE-CYA;ARCN-A501F,NTR 0.01 SNA
0201-000172 ADHESIVE-AA;EP-171,BRN 0.01 SNA
0201-001006 ADHESIVE-AA;#7452,TRP,-,- 1 SNA
0201-001553 ADHESIVE-TP;G-800-A,GRY,220?40 0.013 SNA
0201-001718 ADHESIVE-A.C.F;A-80T,SILVER,11 0.003 SNA
0201-001819 ADHESIVE-UV;8833M,YELLOW,21000 0.05 SNA
0202-001499 SOLDER-WIRE FLUX;SR34 SUPER LF 0.085 SNA
0602-001115 DIODE-LASER;4.5MW,2V,785NM,TR 1 SNA
0602-001127 DIODE-LASER;160mW,2,658nm,CAN 1 SNA
AH61-00812A SPRING ETC-L/G HOLDER;SOH-DH2, 1 SNA
AK61-00720A HOLDER-LD DVD;SOH-DR3.5,Zn,4.8 1 SNA
AK61-00721A HOLDER-LD CD;SOH-DR3.5,Zn,T6.2 1 SNA
AK61-00722A HOLDER-LG;SOH-DR3.5,Zn,T6.43,W 1 SNA
AK61-00747A SPRING ETC-SHAFT GUIDE;SOH-DR4 1 SNA
AK63-00438A COVER BASE;SOH-DR4,Cu,T0.2,W32 1 SNA
AK67-00059A LENS-CD GT;SOH-DR4,GLS,WHT,2.0 1 SNA
AK97-01859A ASSY-ACT;-,SOH-DR4,- 1 SNA
0201-001081 ADHESIVE-AA;1401C,RED,-,BOND-L 0.006 SNA
0201-001230 ADHESIVE-CYA;LOCTITE 480,BLK,3 0.002 SNA
0201-001709 ADHESIVE-UV;8839L,YEL,24500mPa 0.01 SNA
0201-001793 ADHESIVE-UV;8791L3,WHITE,20000 0.01 SNA
0201-001911 ADHESIVE-UV;ZV-102L,WHITE,8200 0.06 SNA
0202-001499 SOLDER-WIRE FLUX;SR34 SUPER LF 0.085 SNA
3302-001651 MAGNET-RARE EARTH;AF,14000Gaus 2 SNA
3812-001263 WIRE-NO SHEATH CU;SCW,-,19MM,- 1 SNA
3812-001419 WIRE-NO SHEATH CU;SCW,0V,18.5m 5 SNA
AK62-00020A YOKE-ACT;SOH-DR3,SPCC,T7.6,W24 1 SNA
AK67-00040A LENS-OL;SOH-DR3,PLS,WHT,3.8,1. 1 SNA
AK97-01858A ASSY-BLADE;-,SOH-DR4,- 1 SNA
0201-001253 ADHESIVE-STR;TB2212B,BLK,25(25 0.008 SNA
0201-001371 ADHESIVE-SIL;KE3494,GRAY,50 PA 0.002 SNA
0202-001215 SOLDER-BAR;HSE-16,S60S-20,D3,S 0.01 SNA
AK61-00480A BLADE-ACT;SOH-DR3,E5006J,L,IVO 1 SNA
AK97-01860A ASSY-FPCB;-,SOH-DR4,DVD-RECORD 1 SNA
AC99-40335M ASSY-FPCB,c;-,SOH-DR4,DVD-RECO 1 SNA
2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 SA
2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 2 SA
Electrical Parts List
Samsung Electronics
7-11
Loc.No Part No Description ; Specification Q’ty S.N.A Remark Loc.No Part No Description ; Specification Q’ty S.N.A Remark
This Document can not be used without Samsung’s authorization
Page 54
2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 SA
2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 SA
2007-000932 R-CHIP;470OHM,5%,1/16W,TP,1005 1 SA
2007-001319 R-CHIP;1.2KOHM,5%,1/16W,TP,100 1 SA
2007-007136 R-CHIP;4.7Kohm,1%,1/16W,TP,100 1 SA
2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y 5 SA
2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G, 1 SA
2203-005664 C-CER,CHIP;4700nF,10%,6.3V,X5R 1 SA
2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1 4 SNA
AC99-80338E ASSY-FPCB,mrp;-,SOH-DR4,DVD-RE 1 SNA
1003-001854 IC-DIODE DRIVER;EL6939CLZ,LPP, 1 SA
2011-001261 R-NET;33ohm,5%,1/16W,L,CHIP,8P 1 SA
2011-001344 R-NET;100ohm,5%,1/16W,L,CHIP,8 1 SA
2104-001087 VR-SMD;2.2Kohm,25%,0.15W,TOP 2 SA
3301-001419 BEAD-SMD;220ohm,1608,TP,133ohm 1 SA
AK41-00626A FPC-MAIN;SOH-DR4,00,POLYAMIDE, 1 SNA
AC99-90339L ASSY-FPCB,m;-,SOH-DR4,DVD-RECO 1 SNA
0202-001221 SOLDER-CREAM;PF305-116HO(A),-, 0.12 SNA
0603-001181 PHOTO DIODE;5.5V,658.79nm,- 1 SA
0603-001187 PHOTO-RECEIVER;6.0V,17.0mA,650 1 SNA
1404-001328 THERMISTOR-NTC;10Kohm,-,3370K, 1 SNA
3708-002193 CONNECTOR-FPC/FFC/PIC;50P,0.5m 1 SA
AK32-00004A SENSOR PHOTO;CNB1001,-25~85,-, 1 SNA
AK61-00723A PLATE-PD;SOH-DR3.5,Zn,1.2,13.4 1 SNA
AK97-01862A ASSY-OPT;-,SOH-DR4,DVD-RECORDE 1 SNA
0201-001525 ADHESIVE-UV;8840L,YEL,TRANS,23 0.03 SNA
0201-001709 ADHESIVE-UV;8839L,YEL,24500mPa 0.02 SNA
0201-001819 ADHESIVE-UV;8833M,YELLOW,21000 0.05 SNA
AK61-00717A BASE-PICK UP;SOH-DR4,ZnDC,T12, 1 SNA
AK61-00724A HOLDER-GT;SOH-DR3.5,Zn,T1.6,W5 1 SNA
AK61-00742A SPRING ETC-DVD GT;SOH-DR4,Cu,- 1 SNA
AK67-00036A LENS-DVD GT;SOH-DR3,GLS,WHT,2. 1 SNA
AK67-00055A LENS-CDL;SOH-DR4,-,CLEAR,R1.9, 1 SNA
AK67-00056A LENS-ASL;SOH-DR4,-,CLEAR,5.9*5 1 SNA
AK67-00058A LENS-QWP;SOH-DR4,GLS,WHT,5.5 * 1 SNA
AK67-00060A LENS-WBS;SOH-DR4,GLS,WHT,5.5 * 1 SNA
AK67-00061A LENS-CL;SOH-DR4,PLS,WHT,6.6,1. 1 SNA
AK67-00062A LENS-MR;SOH-DR4,GLS,WHT,7.0 * 1 SNA
AK67-00063A LENS-PBS;SOH-DR4,GLS,WHT,4.0 * 1 SNA
A001 AK59-00061A REMOCON-ASSY;DVD-R155/XEU,SEC, 1 SA
OP2 0401-001110 DIODE-SWITCHING;-,80V,100MA,SO 1 SA
QT01 0501-000534 TR-SMALL SIGNAL;2SC2412K,NPN,2 1 SA
LDT01 0601-000519 LED-IR;ROUND,5mm,170mW,4V,940n 1 SA
RT02 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA
RT01 2007-000882 R-CHIP;4.7ohm,5%,1/10W,TP,1608 1 SA
CT02 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y 1 SA
CT04 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y 1 SA
CT03 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,160 1 SA
CT01 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5 1 SA
XT01 2802-001094 RESONATOR-CERAMIC;4.0MHz,0.5%, 1 SA
C- A/V AC39-42001R CABLE-A/V;PVC,-,-,3P,-,-,- 1 SA
CABLE AC39-00017A CABLE-ETC-RF(PAL);-,MALE/FEMAL 1 SA
FL655 3809-001906 FFC CABLE-FLAT;30V,80,65mm,40P 1 SA
I/B AK68-01273L MANUAL USERS;DVD-R155/XEN,XEN, 1 SA
I/B AK68-01273N MANUAL USERS;DVD-R155/XEO,XEO, 1 SA DVD-R150/XEO
I/B AK68-01273L MANUAL USERS;DVD-R155/XEN,XEN, 1 SA DVD-R150/XEN
PACK AK69-00501N PACKING CASE;DVD-R150/XEF,PEPE 1 SA
VS202 AK39-00112A LEAD CONNECTOR-ASSY;DVD-R155,L 1 SA
W001 6003-000275 SCREW-TAPTITE;BH,+,-,B,M3,L10, 5 SA
W001 6003-000275 SCREW-TAPTITE;BH,+,-,B,M3,L10, 2 SA
W002 6002-000398 SCREW-TAPPING;BH,+,-,2,M3,L6,Z 1 SA
W004 6003-000283 SCREW-TAPTITE;BH,+,-,B,M3,L8,Z 4 SA
W009 6003-000276 SCREW-TAPTITE;BH,+,-,B,M3,L10, 4 SA
W009 6003-000276 SCREW-TAPTITE;BH,+,-,B,M3,L10, 2 SA
W200 6003-001375 SCREW-TAPTITE;BH,+,-,B,M3,L8,Z 2 SA
W275 6003-001561 SCREW-TAPTITE;BH,+,-,B,M3,L6,Z 5 SA
Loc.No Part No Description ; Specification Q’ty S.N.A Remark
7-12
Samsung Electronics
Electrical Parts List
Loc.No Part No Description ; Specification Q’ty S.N.A Remark
This Document can not be used without Samsung’s authorization
Page 55
This Document can not be used without Samsung’s authorization.Samsung Electronics 8-1
8. Block Diagrams
8-1 All Block Diagram- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
8-2 Internal Block Diagram - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
8-3 S5L3210 Block Diagram - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
8-4 SAA7138 Block Diagram - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
8-2
8-3
8-4
8-5
Page 56
Block Diagrams
8-2 Samsung Electronics
This Document can not be used without Samsung’s authorization.
8-1 All Block Diagram
Video Audio
Page 57
Block Diagrams
Samsung Electronics 8-3This Document can not be used without Samsung’s authorization.
8-2 Internal Block Diagram
Page 58
Block Diagrams
8-4 Samsung Electronics
This Document can not be used without Samsung’s authorization.
8-3 S5L3210 Block Diagram
Page 59
Block Diagrams
Samsung Electronics 8-5This Document can not be used without Samsung’s authorization.
8-4 SAA7138 Block Diagram
Page 60
Block Diagrams
8-6 Samsung Electronics
MEMO
Page 61
Samsung Electronics 9-1
9. Wiring Diagram
Page 62
Wiring Diagram
9-2 Samsung Electronics
MEMO
Page 63
Samsung Electronics 10-1
10. PCB Diagrams
10-1 Main PCB - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
10-2 Jack PCB - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
10-3 Key PCB - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
10-4 HDMI PCB (DVD-R155, DVD-R156) - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
10-2
10-4
10-7
10-8
Page 64
PCB Diagrams
10-2 Samsung Electronics
10-1 Main PCB
COMPONENT SIDE
NO. X-Y
VIC1 B-1
DIC1 D-3
DIC7 E-1
DIC9 E-5
RIC2 F-0
RIC3 G-0
RIC1 H-1
DIC2 G-3
ΠTuner Audio (pin28 & pin29
of MCN2 of Jack Assy)
´ VIC1 of Main PCB Clock
(Pin72)
ˇ AUDIO DATA (VIC1 pin105)
DIC9
RIC1
DIC2
RIC3 RIC2
DIC1
VIC1
DIC7
´ˇŒ
Page 65
PCB Diagrams
Samsung Electronics 10-3
CONDUCTOR SIDE
NO. X-Y
DIC3 D-1
DIC5 E-3
TIC1 F-0
DIC6 G-3
DIC5
DIC6
DIC3
TIC1
Page 66
PCB Diagrams
10-4 Samsung Electronics

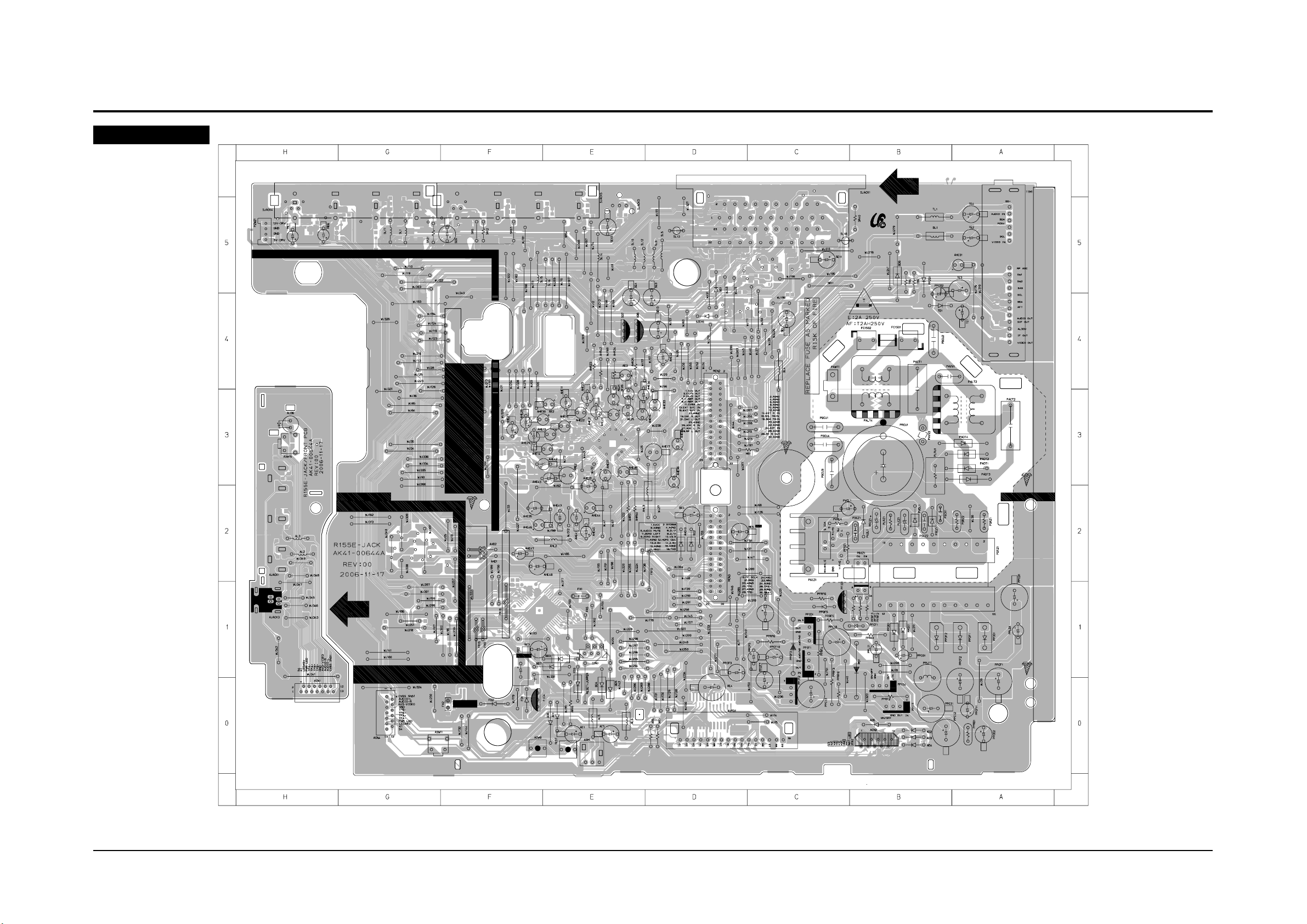

10-2 Jack PCB
COMPONENT SIDE
Page 67
PCB Diagrams
Samsung Electronics 10-5
CONDUCTOR SIDE
AIC1
IC216
IC217
FIC1
Page 68

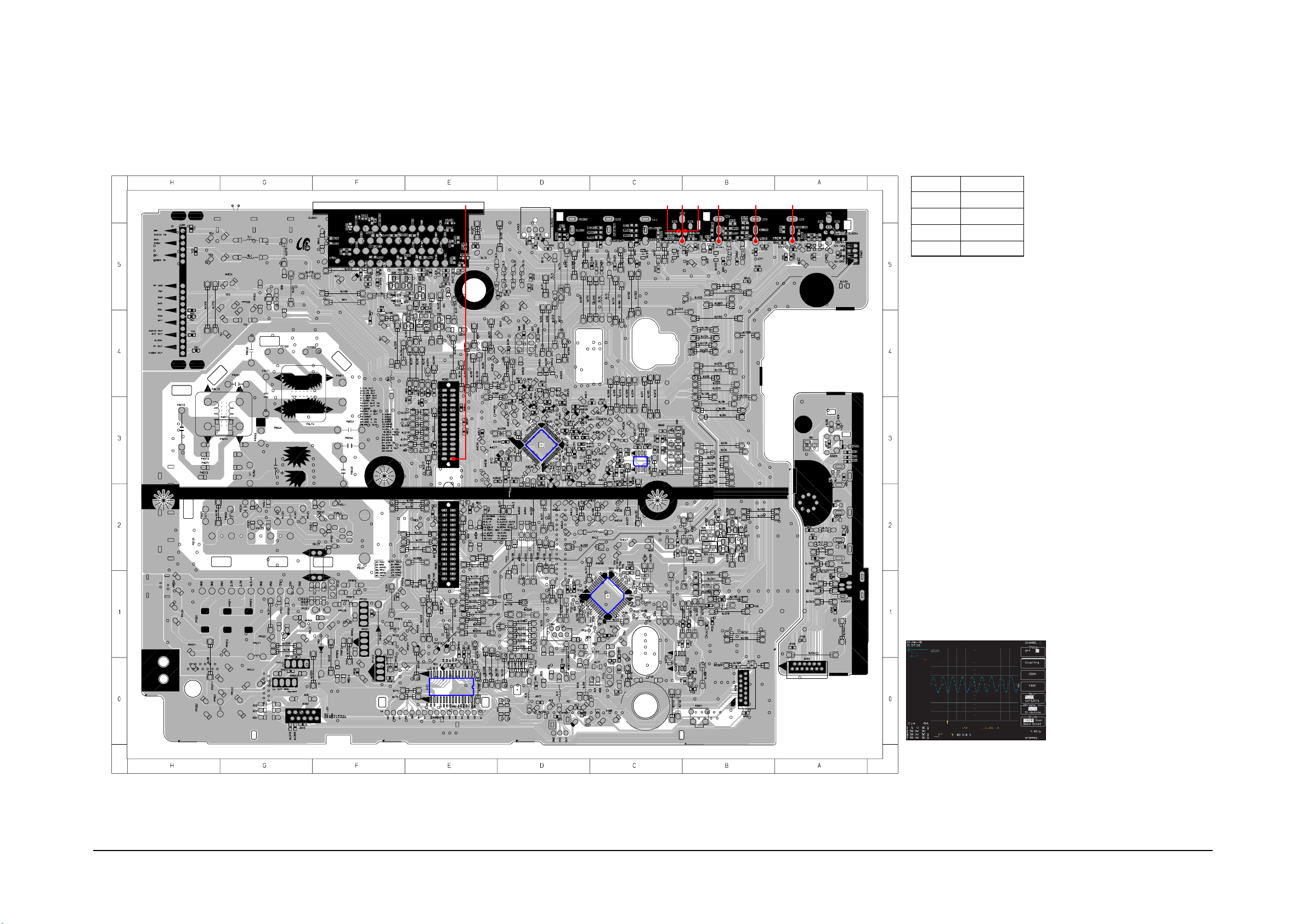

PCB Diagrams
10-6 Samsung Electronics
NO. X-Y
FIC1 C-1
IC217 C-3
IC216 D-3
AIC1 E-0
ΠCVBS(Color-bar) (Pin17 of IC216)
´ Y(Color-bar) (Pin21)
ˇ C(Color-bar) (Pin19) ¨ Y(Color-bar) (IC216 pin25)
ˆ Pb(Color-bar) (IC216 pin23)
Ø Pr(Color-bar) (IC216 pin24)
∏ Tuner Audio (pin28 & pin29
of MCN2 of Jack Assy)
IC216
IC217
¨ˆØˇ´Œ∏
AIC1
FIC1
Page 69
PCB Diagrams
Samsung Electronics 10-7
10-3 Key PCB
COMPONENT SIDE
CONDUCTOR SIDE
Page 70
PCB Diagrams
10-8 Samsung Electronics
10-4 HDMI PCB (DVD-R155, DVD-R156)
COMPONENT SIDE
CONDUCTOR SIDE
NO. X-Y
HIC4 B-0
HIC5 B-1
HIC6 B-2
HIC1 C-1
HIC6
HIC5
HIC1
HIC4
Page 71
This Document can not be used without Samsung’s authorization.
Samsung Electronics 11-1
11. Schematic Diagrams
◆ Block Identification of Main PCB - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
11-1 S.M.P.S (Jack PCB) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
11-2 System Control (Jack PCB) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
11-3 Connector (Jcak PCB) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
11-4 Front AV (Jack PCB)- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
11-5 SCART I/O (Jack PCB) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
11-6 AV I/O Select (Jack PCB) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
11-7 NTSC Tuner (Jack PCB) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
11-8 AV out (Jack PCB) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
11-9 MPEG CODEC (Main PCB)- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
11-10 DDR_SDRAM (Main PCB) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
11-11 IEEE1394_PHY (Main PCB) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
11-12 ARAPI FLASH MEMORY (Main PCB) - - - - - - - - - - - - - - - - - - - - - - - - -
11-13 Connector (Main PCB) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
11-14 SAA7138_AV Decoder (Main PCB) - - - - - - - - - - - - - - - - - - - - - - - - - - -
11-15 Function-KEY (Function PCB)- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
11-16 HDMI Trammitter (HDMI PCB (DVD-R155, DVD-R156)) - - - - - - - - - - - - - -
11-17 HDMI CEC (HDMI PCB (DVD-R155, DVD-R156)) - - - - - - - - - - - - - - - - - - -
11-2
11-3
11-4
11-5
11-6
11-7
11-8
11-9
11-10
11-11
11-12
11-13
11-14
11-15
11-16
11-17
11-18
11-19
For schematic Diagram
- Resistors are in ohms, 1/8W unless otherwise noted.
Note
Special note :
Most semiconductor devices are electrostatically sensitive and therefore require the special handling techniques described under the
“electrostatically sensitive (ES) devices” section of this service manual.
Note :
Do not use the part number shown on this drawing for ordering. The correct part number is shown in the parts list (may be slightly
different or amended since this drawing was prepared).
Important safety notices :
Components identified with the mark have the special characteristics for safety. When replacing any of these components.
Use only the same type.
Page 72
Schematic Diagrams
11-2 Samsung Electronics
This Document can not be used without Samsung’s authorization.
◆ Block Identification of Main PCB
- Main PCB
- Jack PCB
ATAPI /
Interface
AV /
I/O Block
Decoder
TM
Block
AV
Block
MPEG
Codec
Power
System
Block
Control
Memory Interface
Page 73
Schematic Diagrams
Samsung Electronics 11-3
This Document can not be used without Samsung’s authorization.
11-1 S.M.P.S. (Jack PCB)
Page 74
Schematic Diagrams
11-4 Samsung Electronics
This Document can not be used without Samsung’s authorization.
11-2 System Control (Jack PCB)
Page 75
Schematic Diagrams
Samsung Electronics 11-5
This Document can not be used without Samsung’s authorization.
11-3 Connector (Jcak PCB)
◆
These are the waveforms of DVD-R155 / DVD-R150 / DVD-R156.
Caution There can be some differences (Voltage, Frequency, stc.) among cameras.
ΠTuner Audio
(pin28 & pin29 of MCN2 of Jack Assy)
Audio in Audio out
Video in Video out
Œ
Page 76
Schematic Diagrams
11-6 Samsung Electronics
This Document can not be used without Samsung’s authorization.
11-4 Front AV (Jack PCB)
Audio in Video in
Page 77
Schematic Diagrams
Samsung Electronics 11-7
This Document can not be used without Samsung’s authorization.
11-5 SCART I/O (Jack PCB)
Audio in Audio out
Video in Video out
Page 78
Schematic Diagrams
11-8 Samsung Electronics
This Document can not be used without Samsung’s authorization.

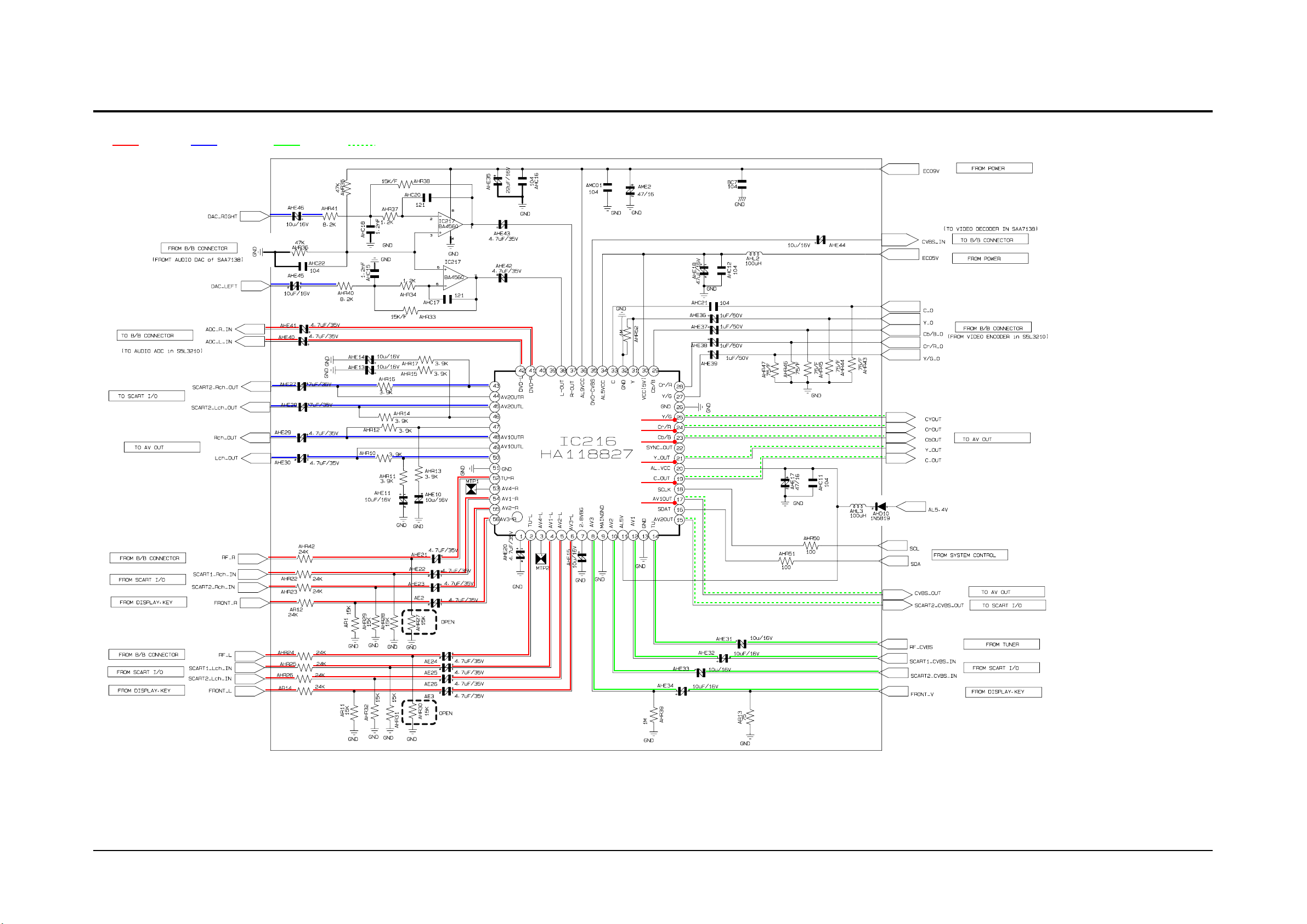

11-6 AV I/O Select (Jack PCB)
◆
These are the waveforms of DVD-R155 / DVD-R150 / DVD-R156.
Caution There can be some differences (Voltage, Frequency, stc.) among cameras.
ΠCVBS(Color-bar) (Pin17 of IC216)
´ Y(Color-bar) (Pin21)
ˇ C(Color-bar) (Pin19)
¨ Y(Color-bar) (IC216 pin25)
ˆ Pb(Color-bar) (IC216 pin23)
Ø Pr(Color-bar) (IC216 pin24)
Audio in Audio out Video in Video out
¨
ˆ
Ø
´
ˇ
Œ
Page 79
Schematic Diagrams
Samsung Electronics 11-9
This Document can not be used without Samsung’s authorization.

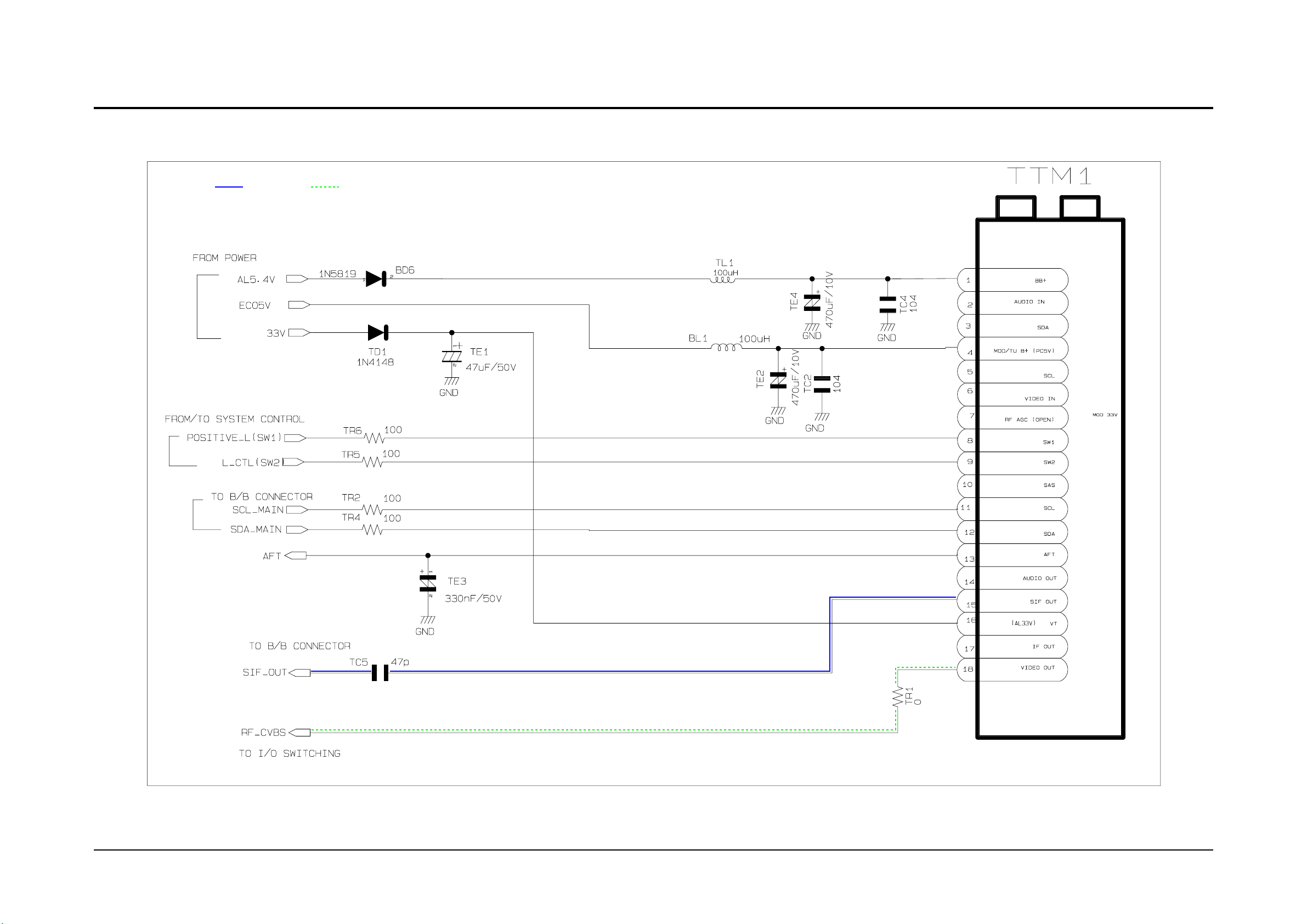

11-7 NTSC Tuner (Jack PCB)
Audio out Video out
Page 80
Schematic Diagrams
11-10 Samsung Electronics
This Document can not be used without Samsung’s authorization.
11-8 AV out (Jack PCB)
◆
These are the waveforms of DVD-R155 / DVD-R150 / DVD-R156.
Caution There can be some differences (Voltage, Frequency, stc.) among cameras.
Œ AUDIO DATA (SJACK5) ´ Y(Color-bar) (IC216 pin25) ˇ Pb(Color-bar) (IC216 pin23) ¨ Pr(Color-bar) (IC216 pin24)
Video out
Analog Audio out
Digital Audio out
´
ˇ
¨
Œ
Page 81
Schematic Diagrams
Samsung Electronics 11-11
This Document can not be used without Samsung’s authorization.
11-9 MPEG CODEC (Main PCB)
Analog Audio in Digital Audio out Digital Video in Analog Video out Digital Video out
Page 82
Schematic Diagrams
11-12 Samsung Electronics
This Document can not be used without Samsung’s authorization.
11-10 DDR_SDRAM (Main PCB)
Page 83
Schematic Diagrams
Samsung Electronics 11-13
This Document can not be used without Samsung’s authorization.
11-11 IEEE1394_PHY (Main PCB)
Page 84
Schematic Diagrams
11-14 Samsung Electronics
This Document can not be used without Samsung’s authorization.
11-12 ARAPI FLASH MEMORY (Main PCB)
Page 85
Schematic Diagrams
Samsung Electronics 11-15
This Document can not be used without Samsung’s authorization.
11-13 Connector (Main PCB)
◆
These are the waveforms of DVD-R155 / DVD-R150 / DVD-R156.
Caution There can be some differences (Voltage, Frequency, stc.) among cameras.
ΠTuner Audio
(pin28 & pin29 of MCN2 of Jack Assy)
Audio outAudio in
Video in Video out
Œ
Page 86
Schematic Diagrams
11-16 Samsung Electronics
This Document can not be used without Samsung’s authorization.
11-14 SAA7138_AV Decoder (Main PCB)
◆
These are the waveforms of DVD-R155 /
DVD-R150 / DVD-R156.
Caution There can be some differences
(Voltage, Frequency, stc.) among cameras.
ΠVIC1 of Main PCB Clock
(Pin72)
´ VIC1 of Main PCB DATA
(Pin75~84)
ˇ AUDIO DATA (VIC1 pin105)
Audio in Audio out Video in Digital video in
ˇ
´
Œ
Page 87
Schematic Diagrams
Samsung Electronics 11-17
This Document can not be used without Samsung’s authorization.
11-15 Function-KEY (Function PCB)
Page 88
Schematic Diagrams
11-18 Samsung Electronics
This Document can not be used without Samsung’s authorization.

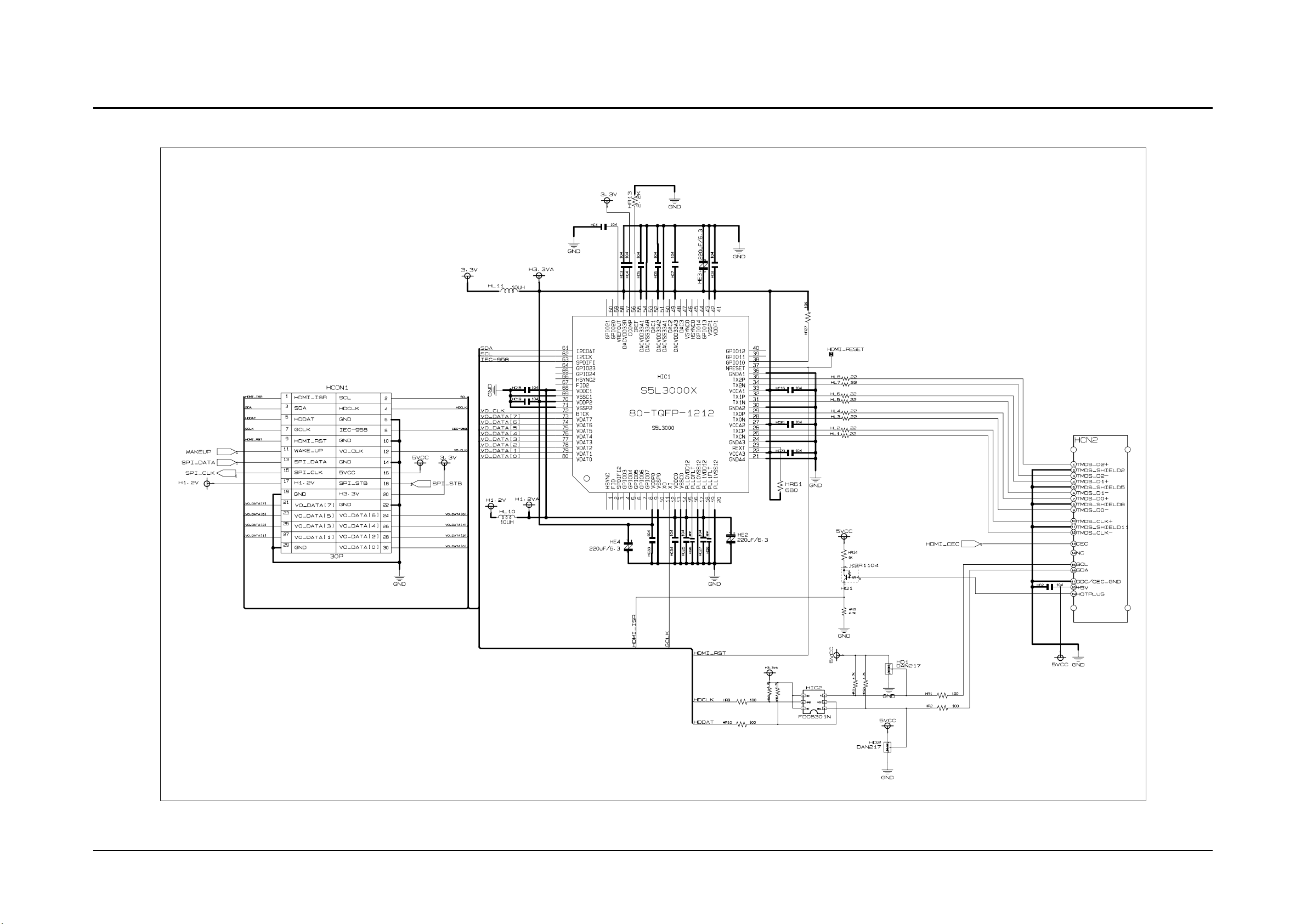

11-16 HDMI Trammitter (HDMI PCB (DVD-R155, DVD-R156))
Page 89
Schematic Diagrams
Samsung Electronics 11-19
This Document can not be used without Samsung’s authorization.

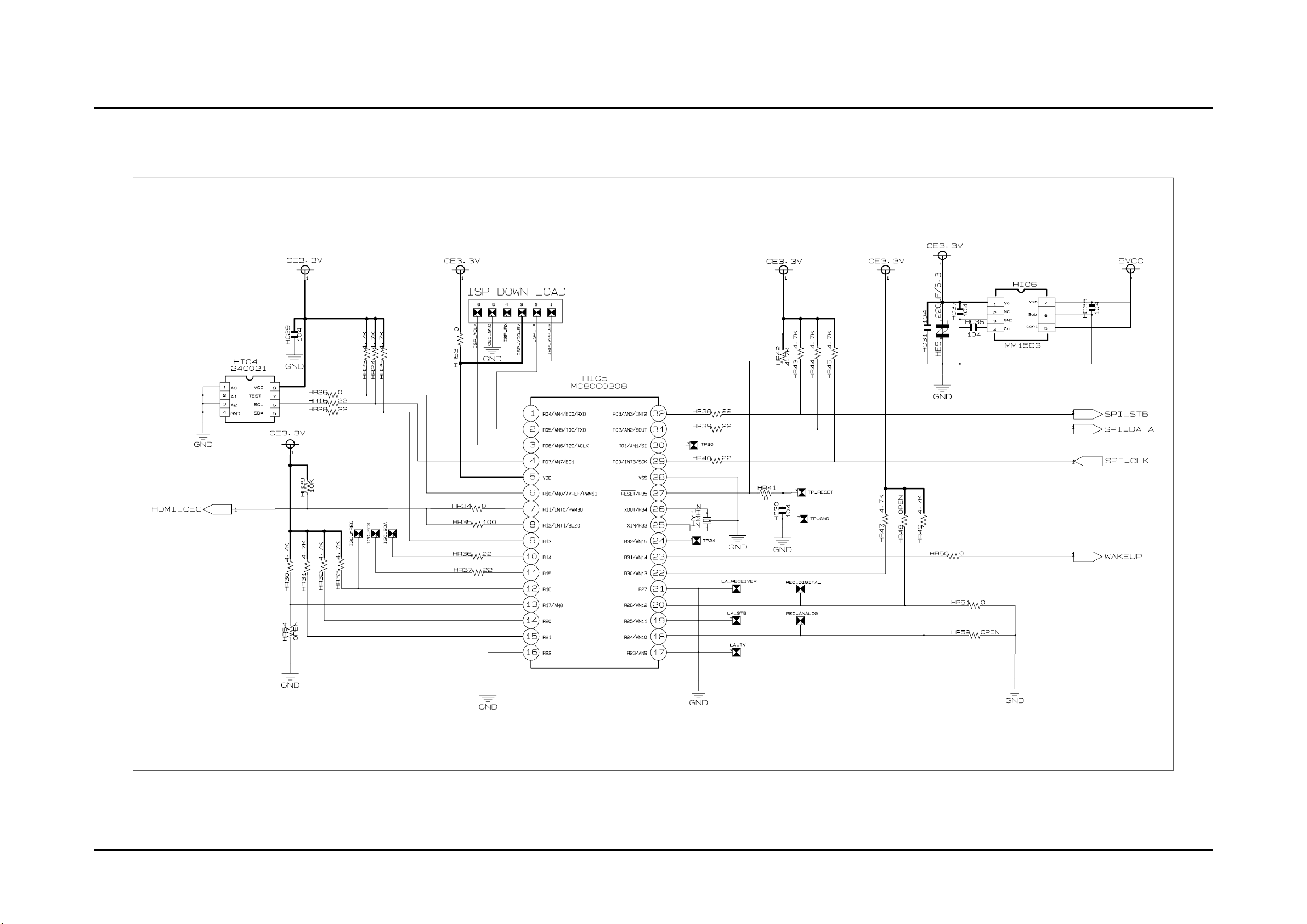

11-17 HDMI CEC (HDMI PCB (DVD-R155, DVD-R156))
Page 90
Schematic Diagrams
11-20 Samsung Electronics
MEMO
Page 91
Samsung Electronics 12-1

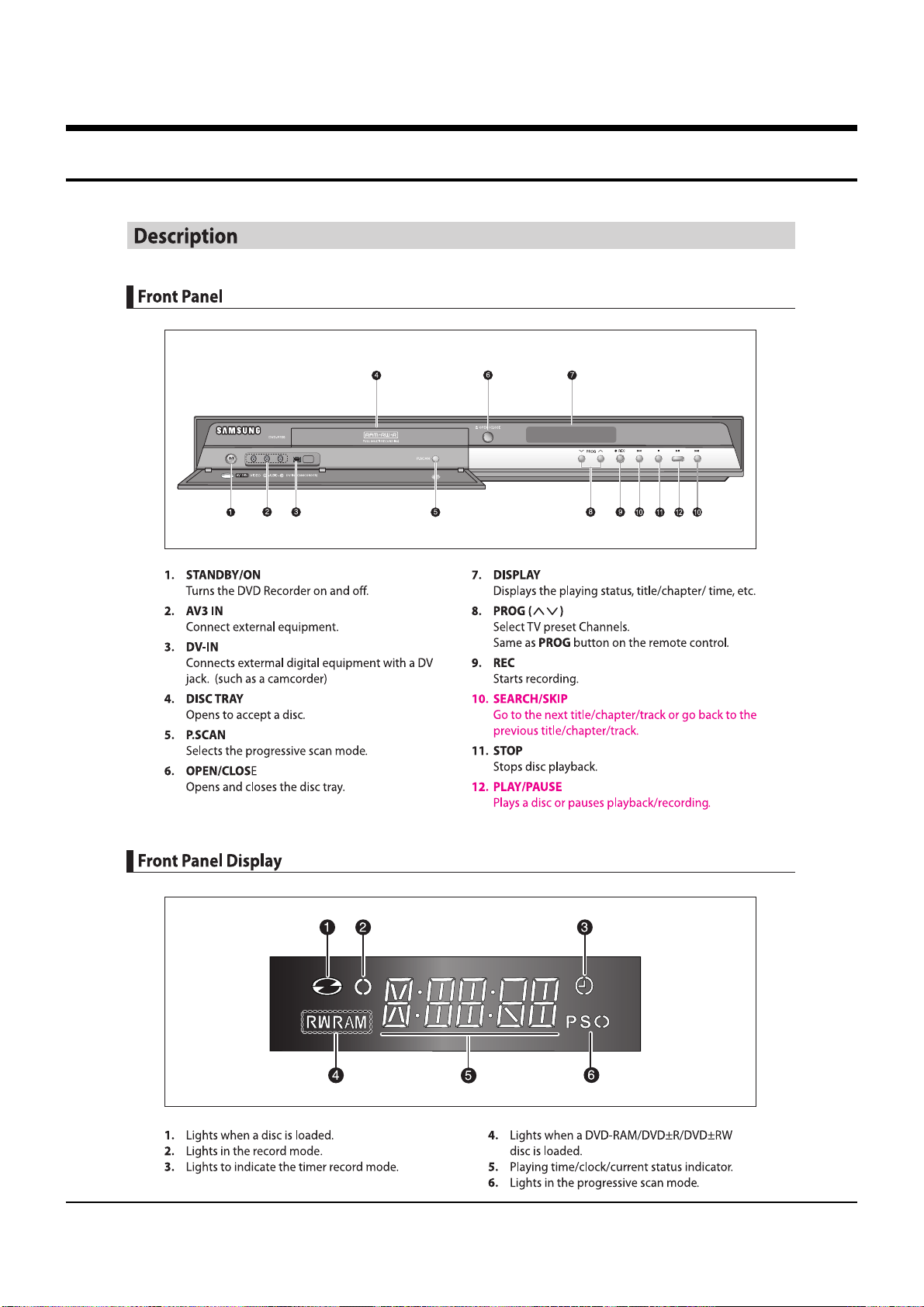

12. Operating Instructions
Page 92

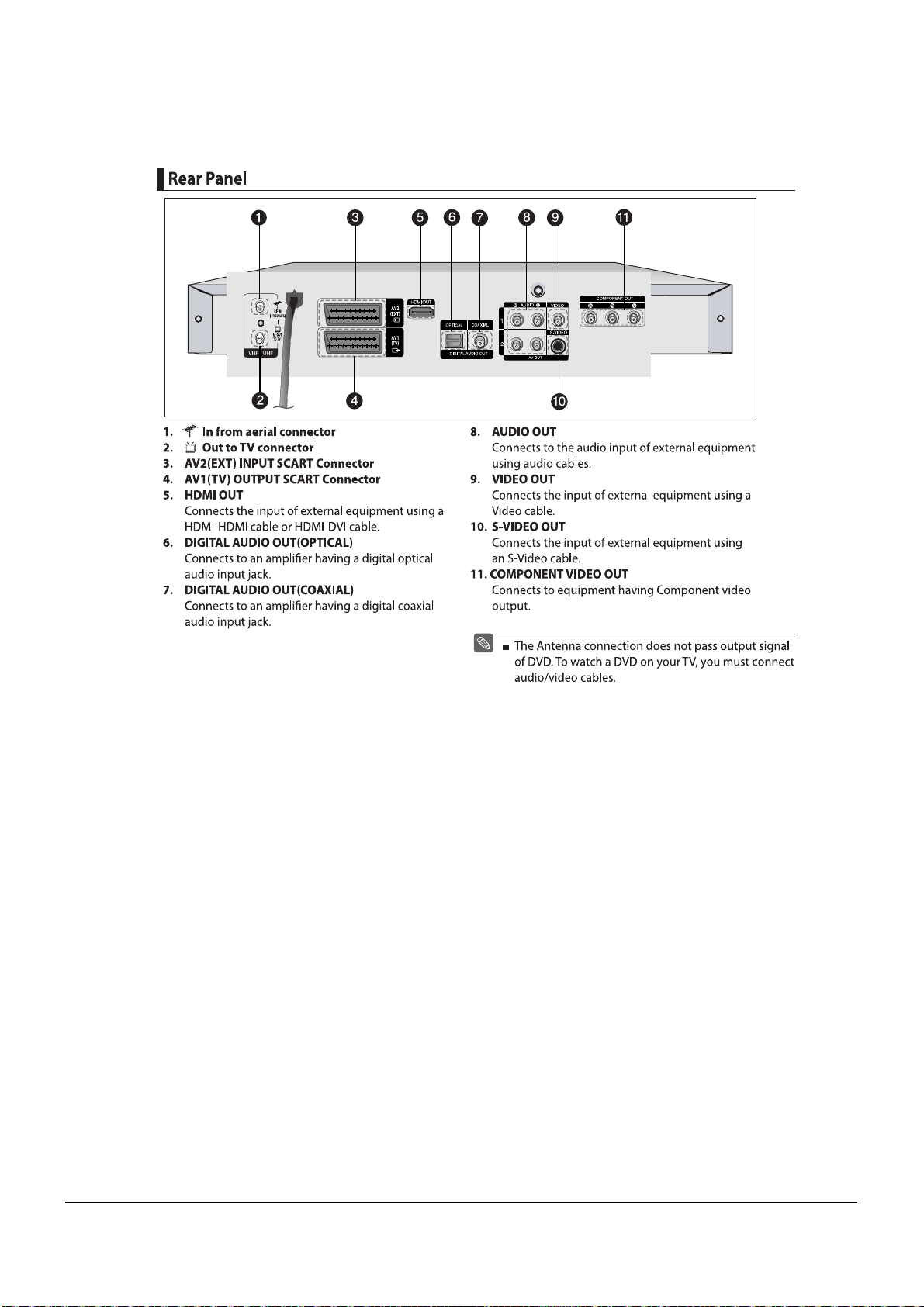

Operating Instructions
12-2 Samsung Electronics
Page 93

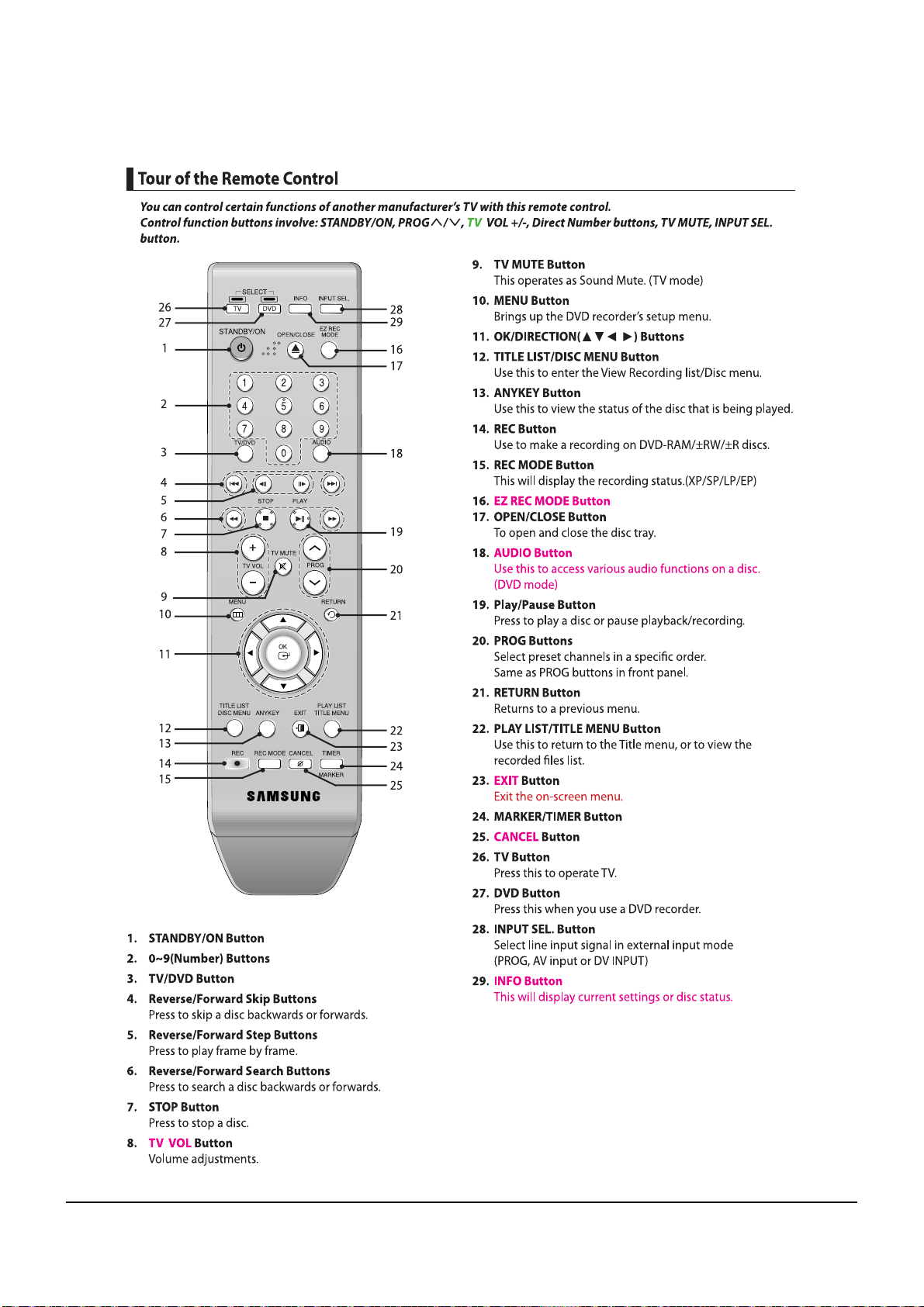

Operating Instructions
Samsung Electronics 12-3
Page 94

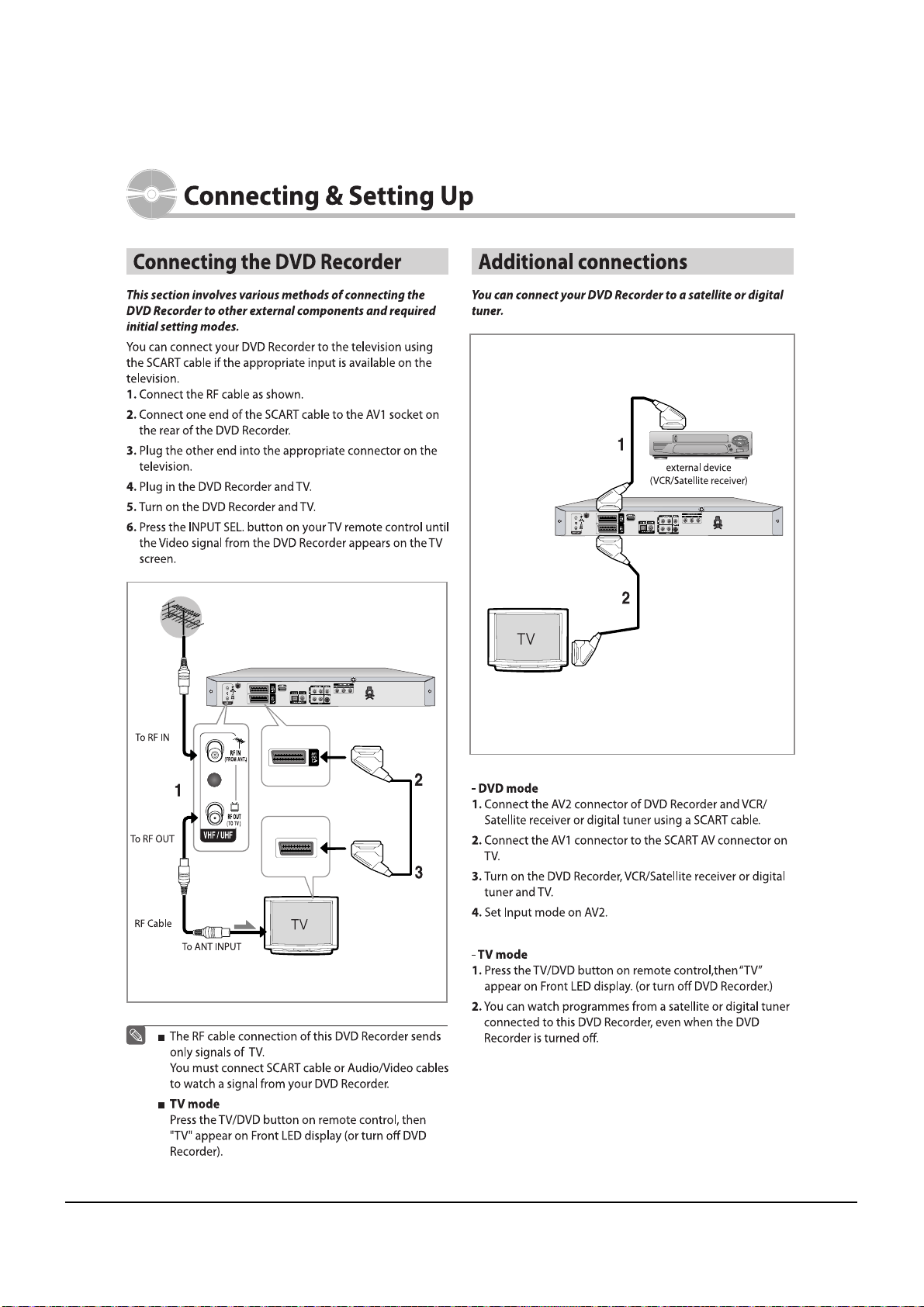

Operating Instructions
12-4 Samsung Electronics
Page 95

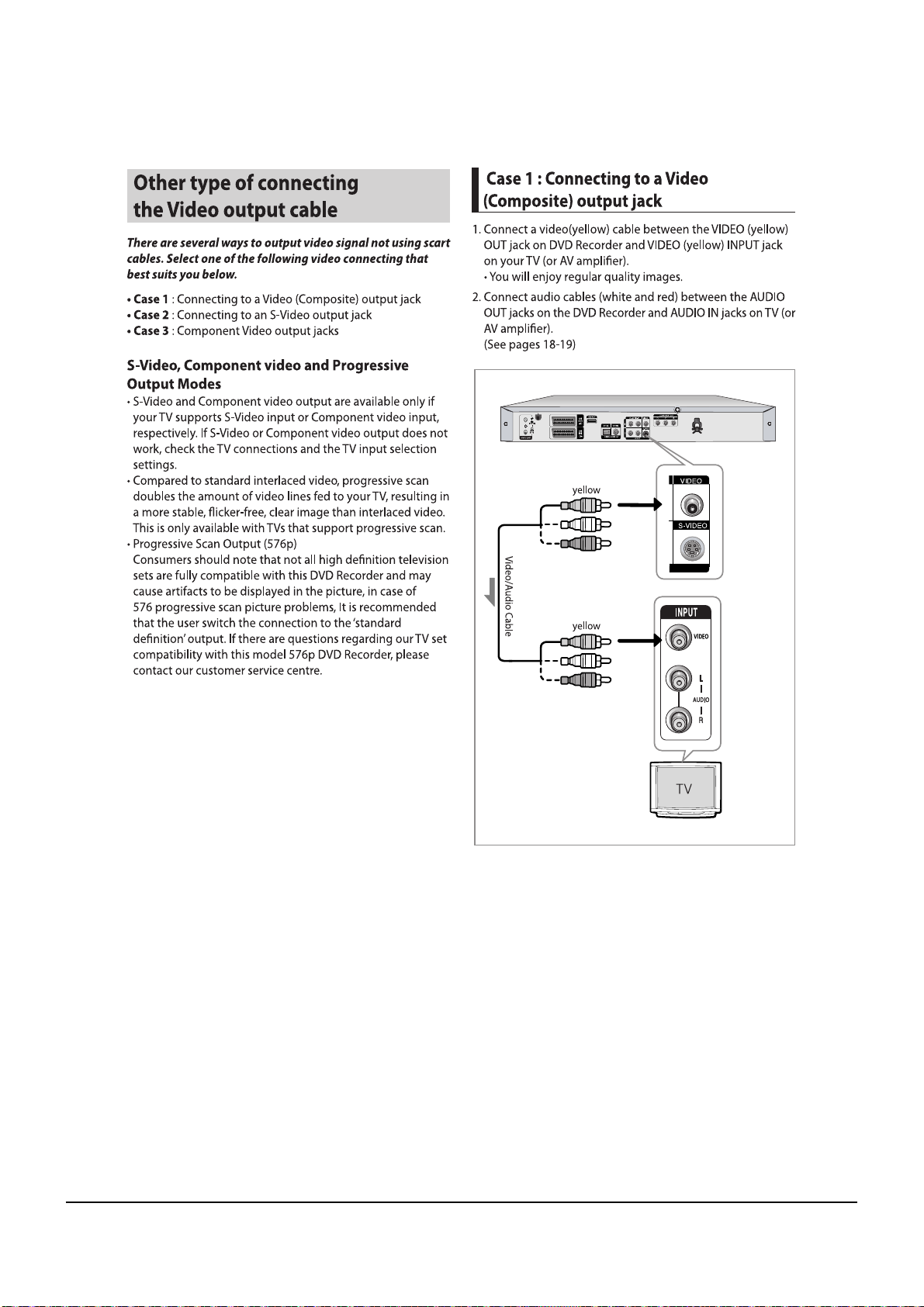

Operating Instructions
Samsung Electronics 12-5
Page 96

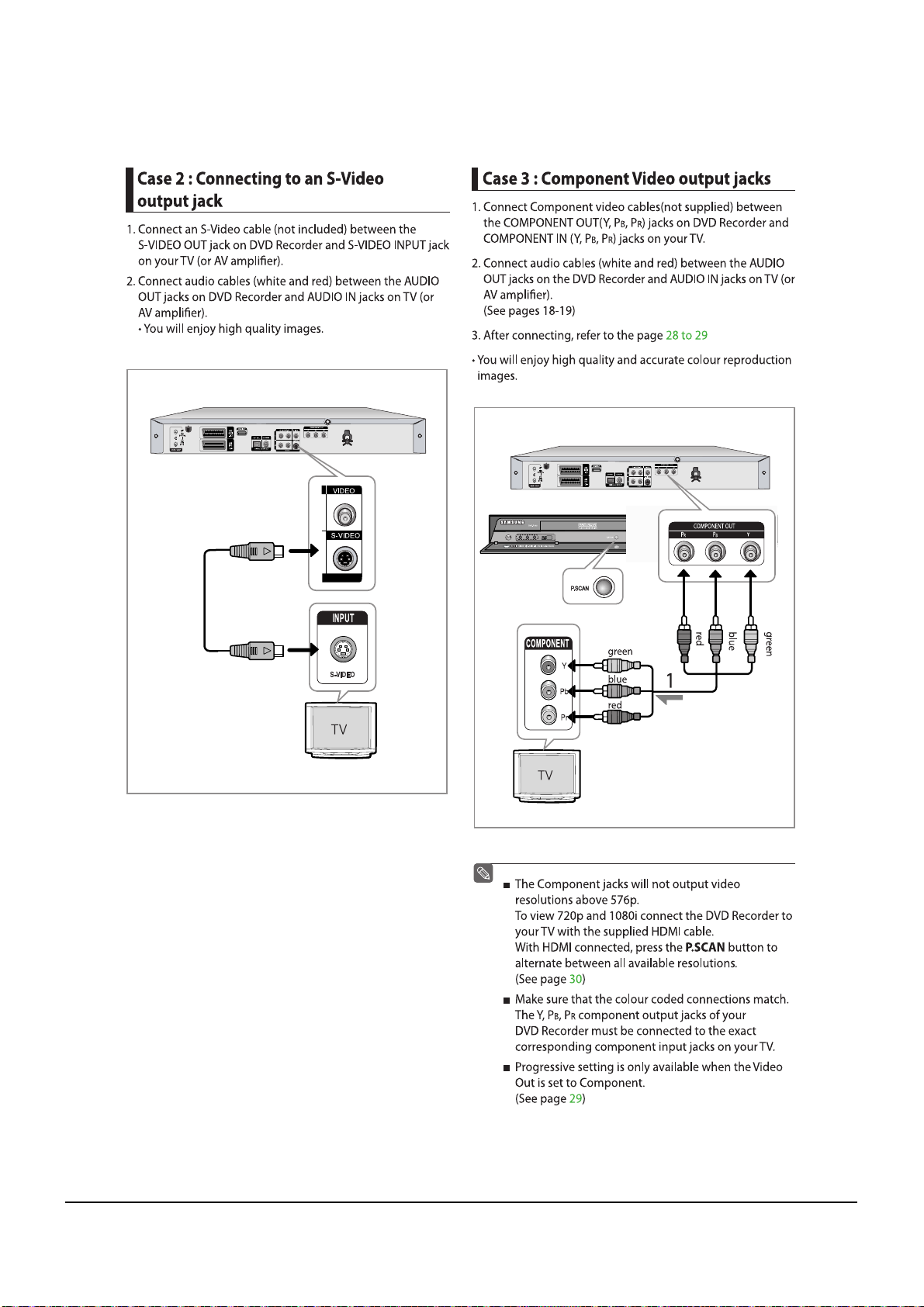

Operating Instructions
12-6 Samsung Electronics
Page 97

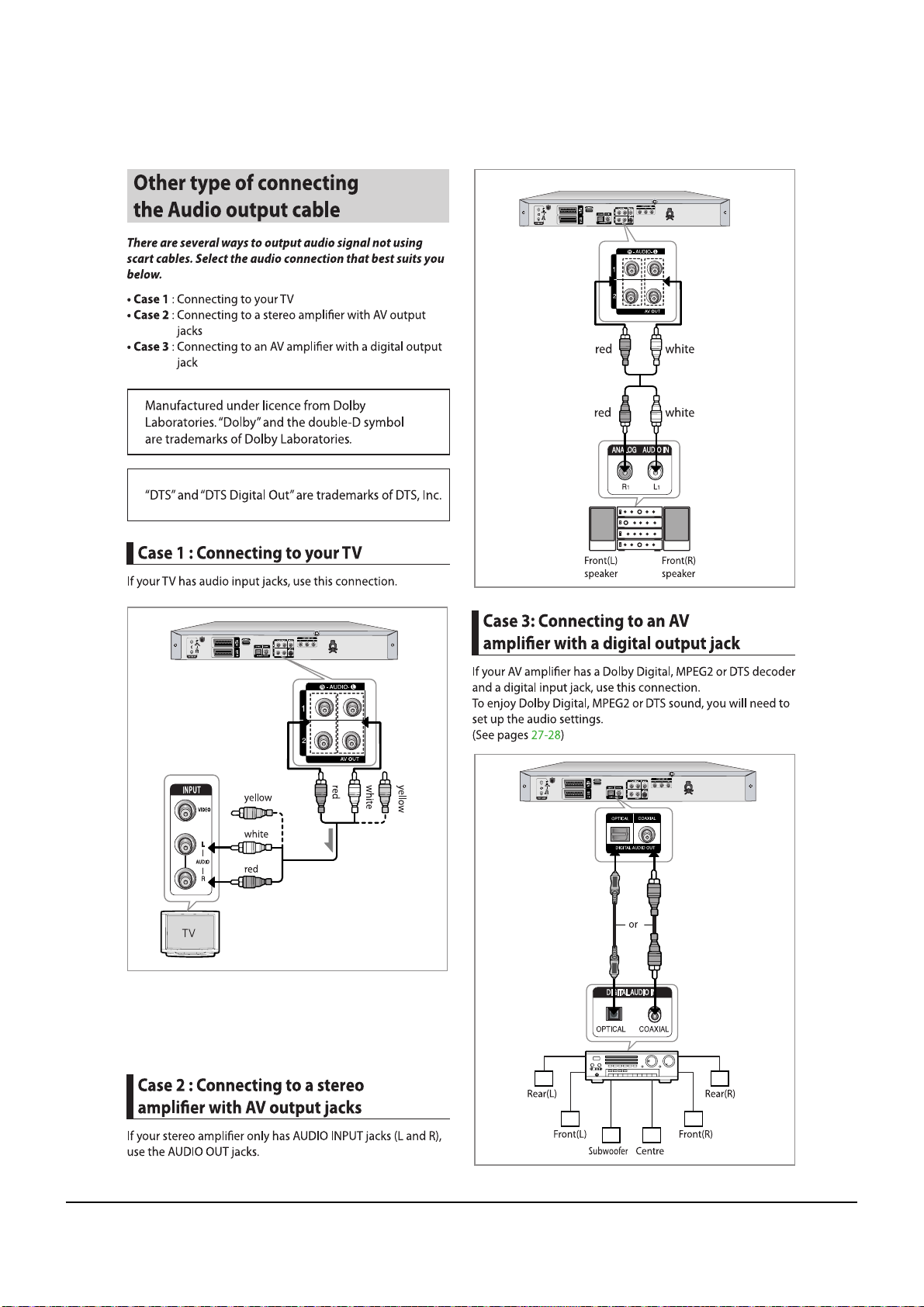

Operating Instructions
Samsung Electronics 12-7
Page 98

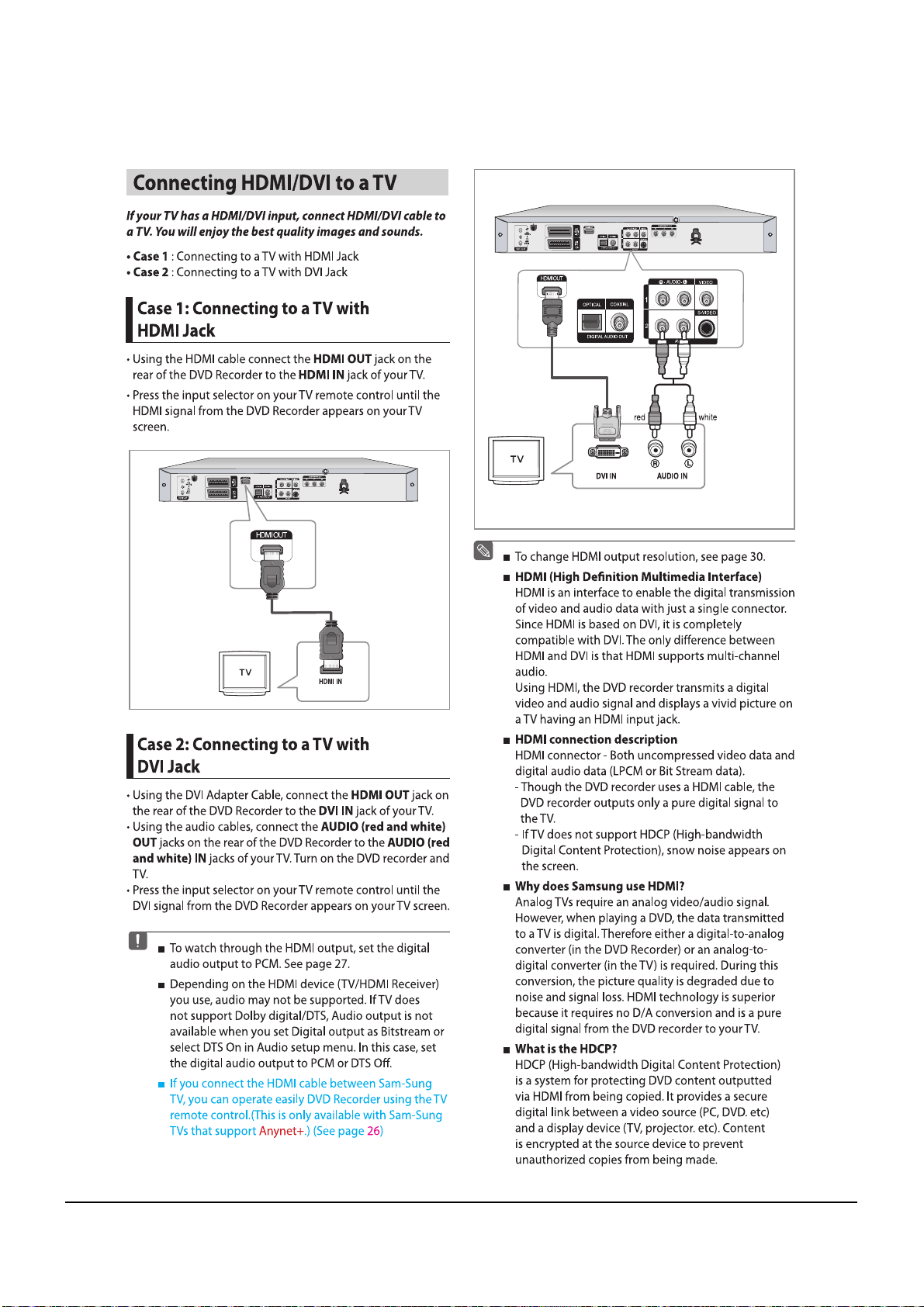

Operating Instructions
12-8 Samsung Electronics
Page 99

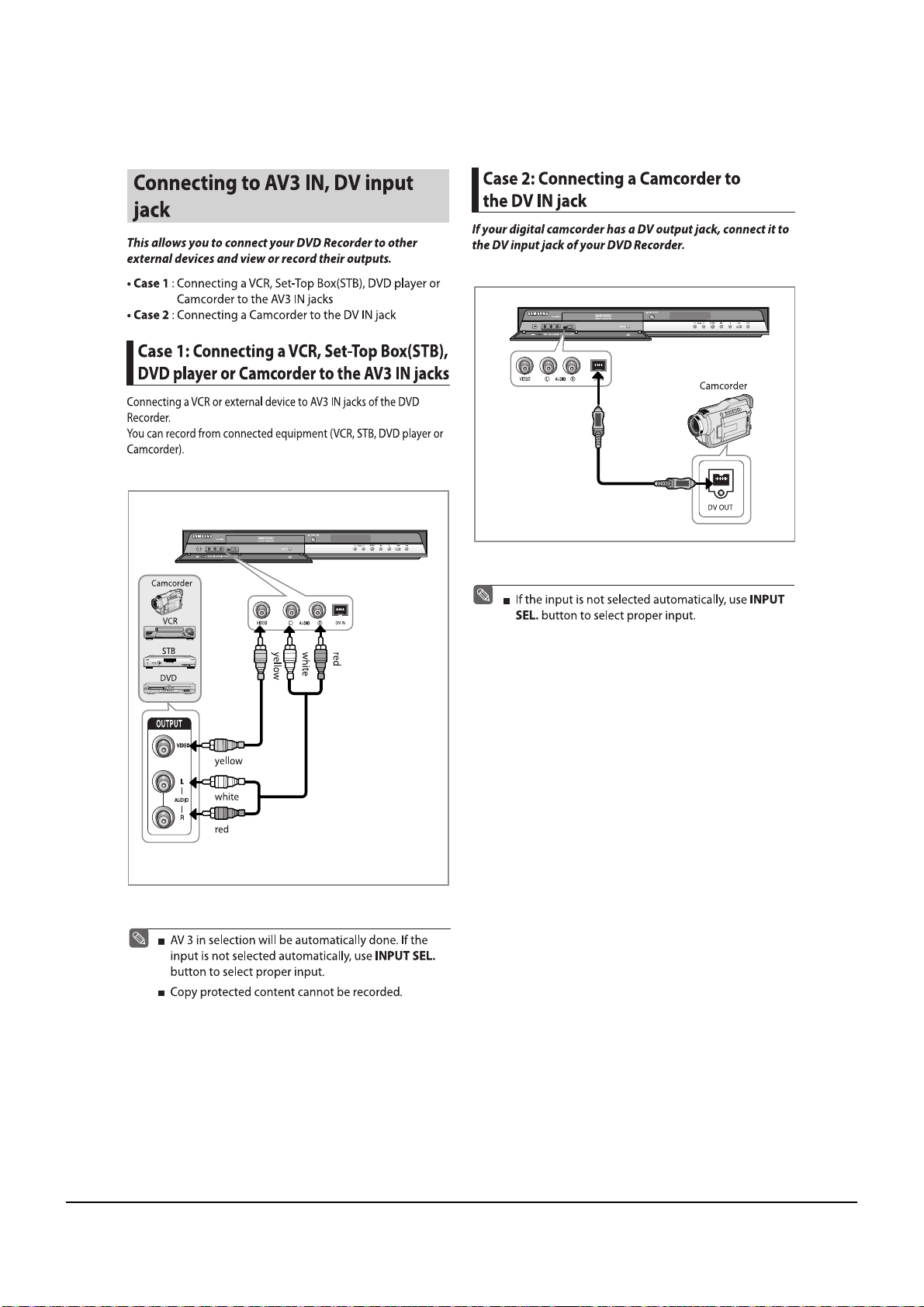

Operating Instructions
Samsung Electronics 12-9
Page 100
Operating Instructions
12-10 Samsung Electronics
MEMO
Loading...
