DVD PLAYER
DVD-E138A
DVD-1010
DVD-E138B
DVD-E238
DVD-E338K
DVD-P538K
AK68-00141K
E138A 00141K(Cover)XTC 4/9/03 10:20 AM Page 2
Page 2
2 3
Precautions
Precautions
1
2
3
4 5
Ensure that the mains supply in your house complies with that indicated on the identification sticker
located at the back of your play. Install your player horizontally, on a suitable base (furniture),
with enough space around it for ventilation (7~10cm). Make sure the ventilation slots are not
covered. Do not stack other, or heavy devices on top of the player. Do not place the player on
amplifiers or other equipment which may become hot. Before moving the player ensure the disc
tray is empty. This player is designed for continuous use.
Switching off the DVD player to the stand-by mode does not disconnect the electricity supply In
order to separate the player completely from the mains,it has to be disconnected by unplugging the
main plug, especially when left unused for a long period of time.
1. Setting up
Protect the player from moisture (dripping or splashing and objects filled with liquids), and excess
heat (e.g.fireplace) or equipment creating strong magnetic or electric fields (i.e.speakers...).
Disconnect the power cable from the mains electricity supply if the player malfunctions.
Your player is not intended for industrial use but for domestic purposes only. Use of this product is
for personal use only. If your player or disc has been stored in a cold atmosphere for example
during transportation in the winter, wait for approximately 2 hours until they have reached room
temperature, before use.
Never open the player or any of its components. It can be dangerous for you or certain fragile
components. You could receive an electric shock or touch the laser beam. Do not place your eyes
close to the opening of the disc tray or any other opening to look inside the player.
Be careful handle your discs with care. Hold a disc with finger on the border or hole. Always place
disc with the label facing upward (in case of a single side disc). Always use a soft cloth to clean
disc if necessary, wipe from the centre to the border. Always put disc back into their cases after
playing and store in vertical position. Always place the disc properly into the tray using the proper
guide area. Never use record cleaning sprays, benzine, static electricity liquids or any other solvent,
if the disc surface is dirty. Wipe gently with a soft damp (water only) cloth, never wipe the disc in a
circular motion, since circular scratches are likely to occur and could cause noise during playback.
Batteries: The battery used in this product contains chemicals that are harmful to the environment.
Do not dispose of batteries in the general domestic waste. It is recommended that the replacement
of the battery should be done by a technician.
Disposal of old equipment and packaging: Old equipment and packaging should not be disposed of
as domestic waste, but in accordance with the appliable regulations.
For safety reasons, be sure to disconnect the AC power cord from the AC outlet.
• Do not use benzene, thinner, or other solvents for cleaning.
• Wipe the cabinet with a soft cloth.
1. Setting up
1. Setting up
3. Caution
1. Setting up
2. For your safety
1. Setting up
4. Disc
1. Setting up
5. Environmental info
6. Maintenance of Cabinet
E138A 00141K-1(GB)XTC 4/9/03 10:21 AM Page 2
Page 3
SETUP
CONNECTIONS
BASIC
FUNCTIONS
ADVANCED
FUNCTIONS
KARAOKE
FUNCTIONS
CHANGING
SETUP MENU
REFERENCE
4 5
Before you start
Table of contents
If remote doesn’t operate
properly:
Open the battery cover on the back of
the remote.
Insert two AAbatteries. Make sure that
the polarities (+ and -) are aligned
correctly.
Replace the battery cover.
• Check the polarity + - of the
batteries (Dry-Cell)
• Check if the batteries are drained.
• Check if remote sensor is blocked
by obstacles.
• Check if there is any fluorescent
lighting nearby.
Install Batteries in the
Remote
1
2
3
Setup
General Features ........................................................................................................6
Disc Type and Characteristics
......................................................................................
7
Description-Front Panel
................................................................................................
8
Display Indicators ....................................................................................................10
Description-Rear Panel
..............................................................................................
11
Tour of the Remote Control
........................................................................................
14
Connections
Choosing a Connection
..............................................................................................
20
Basic Functions
Playing a Disc
............................................................................................................
23
Using the Search & Skip Functions
..........................................................................
25
Using the Display Function
........................................................................................
26
Using the Disc and Title Menu ..................................................................................27
Using the Function Menu ..........................................................................................28
Repeat Play
................................................................................................................
29
Advanced Functions
Adjusting the Aspect Ratio (EZ View)
........................................................................
30
Slow Repeat play
........................................................................................................
32
Selecting the Audio Language
....................................................................................
33
Selecting the Subtitle Language
................................................................................
34
Changing the Camera Angle
......................................................................................
35
Using the Instant Replay/Skip Function
....................................................................
36
Using the Bookmark Function
....................................................................................
37
Using the Zoom & 3D Sound Functions
..........................................................................
38
MP3/WMA Play
..........................................................................................................
39
Program Play & Random Play
....................................................................................
41
Picture CD Playback
..................................................................................................
42
Karaoke Functions
Beginning Karaoke Functions ..................................................................................44
Reserving a Song......................................................................................................45
Vocal Function ..........................................................................................................46
Changing Setup menu
Using the Setup Menu
................................................................................................
47
Setting Up the Language Features
............................................................................
48
Setting Up the Audio Options
....................................................................................
50
Surround Sound Speaker Setup
..............................................................................
51
Setting Up the Display Options
..................................................................................
52
Setting Up the Parental Control
..................................................................................
54
Controlling a TV with the remote
..............................................................................
55
Reference
Troubleshooting
..........................................................................................................
56
Specifications
..............................................................................................................
57
Remote Control
Batteries for
Remote Control (AA Size)
User’s Manual
Video/Audio Cable
Accessories
E138A 00141K-1(GB)XTC 4/9/03 10:21 AM Page 4
Page 4
SETUP
6 7
General Features
Disc Type and Characteristics
Excellent Sound
Dolby Digital, a technology developed by
Dolby Laboratories provides crystal clear
sound reproduction.
Screen
Video with MPEG-2 compression technology.
Both regular and widescreen(16:9) pictures
can be viewed.
Slow Motion
An important scene can be viewed in slow
motion.
Programmed Play
You can program tracks to play in desired
order. (CD, WMA, MP3)
Parental Control
The parental control allows users to set the
level necessary to prohibit children from
viewing harmful movies such as those with
violence, adult subject matter, etc.
Various On-Screen Menu Functions
You can select various languages
(Audio/Subtitle) and screen angles while
enjoying movies.
Easy View
Easy View can convert Letter Box images to
full screen viewing on your conventional TV.
Digital Photo Viewer (JPEG)
You can view the Digital Photos on your TV.
Repeat
You can repeat a song or movie simply by
pressing the REPEAT button.
MP3/WMA
This unit can play discs created from
MP3/WMA files.
Instant Replay
This function is used to replay the previous
10 seconds of the movie from the current
position.
Instant Skip
This function skips playback ahead 10 seconds.
Progressive Scan (DVD-P538K Only)
Progressive scanning creates an improved
picture with double the scan lines of a
conventional interlaced picture.
• Many DVD discs are encoded with copy protection. Because of this, you should only connect your
DVD player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from
copy-protected DVD discs.
• This product incorporates copyright protection technology that is protected by methods claims of certain U.S.
patents and other intellectual property rights owned by Macrovision Corporation and other rights owners.
Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended
for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation.
Reverse engineering or disassembly is prohibited.
* Discs which cannot be played with this player.
• DVD-ROM • DVD-RAM
• CD-ROM • CDV
• CDI
• HD layer of super Audio CD
• CDGs play audio only, not graphics.
*
Ability to play back may depend on recording conditions.
• DVD-R, +R • CD-RW
• DVD+RW, -RW
NOTE
COPY PROTECTION
This DVD player is capable of playing the following types of discs with the
corresponding logos:
Both the DVD player and the discs are coded by region. These regional codes must match in order for the
disc to play. If the codes do not match, the disc will not play.
The Region Number for this player is described on the rear panel of the player.
Disc Markings
Play Region Number
12 Cm
8 Cm
Single-sided
240 min.
Double-sided
480 min.
Single-sided
80 min.
Double-sided
160 min.
Audio
+
Video
Audio
+
Video
Audio
• CD is recorded as a
Digital Signal with better
audio quality, less
distortion and less
deterioration of audio
quality over time.
• Video with CD sound, VHS
quality & MPEG-1
compression technology.
• DVD contains excellent
sound and video due to
Dolby Digital and MPEG-2
system.
• Various screen and audio
functions can be easily
selected through the onscreen menu.
VIDEO-CD
AUDIO-CD
12 Cm
8 Cm
74 min.
20 min.
12 Cm
8 Cm
74 min.
20 min.
Disc Types
(Logos)
Recording
Types
Disc Size
Max.
Playing Time
Characteristics
DVD
~
DIGITAL
SOUND
STEREO
NTSC
• Play
Region
Number
• NTSC broadcast
system in U.S.A,
Canada, Korea,
Japan, etc.
• Dolby
Digital disc
• Stereo disc
• Digital
Audio disc
• DTS disc
• MP3 disc
E138A 00141K-1(GB)XTC 4/9/03 10:21 AM Page 6
Page 5
SETUP
Description-Front Panel
8 9
Description-Front Panel
1
6
789101112
DVD-E138B
DVD-P538K
Front Panel Controls
1. STANDBY/ON
• When the unit is first plugged in, the indicator lights. When STANDBY/ON is pressed on again,
the light goes out and the player is turned on.
2. MIC 1
• Connect microphone 1 for Karaoke functions.
3. MIC 2
• Connect microphone 2 for Karaoke functions.
4. VOLUME
• Use to adjust microphone volume level.
5. DIGITAL ECHO
• Use to adjust echo delay.
6. DISC TRAY
• Load the disc here.
7. DISPLAY
• Operation indicators are displayed here.
8. OPEN/CLOSE
• Press to open and close the disc tray.
9. PLAY/PAUSE ( )
• Begin or pause disc play.
10. STOP ( )
• Stops disc play.
11. SKIP ( / )
• Use to skip a scene or music.
12. EZ VIEW
• Easy View can convert Letter Box images to full screen viewing on your conventional TV.
13. SHUTTLE
• Use during DVD and CD play to fast forward or reverse.
DVD-E138A/DVD-1010
1
6
7
8910 11 12
DVD-E338K
1
6
789101112
1
6
2
3
45
2
3
4
5
1
6
7
8910 11 12
DVD-E238
78910111213
E138A 00141K-1(GB)XTC 4/9/03 10:21 AM Page 8
Page 6
SETUP
Display Indicators
10 11
1. Disc type indicators
2. Play / Pause / Forward play
3. Displays various messages concerning operations such as
PLAY, STOP, LOAD ...
no DISC : No disc loaded.
OPEN : The disc tray is open.
LOAD : Player is loading disc information.
1
2
3
Front Panel Display
Rear Panel
Description-Rear Panel
1. DIGITALAUDIO OUT JACKS
• Use either an optical or coaxial digital cable to connect to a compatible Dolby Digital receiver.
Use to connect to an A/V Amplifier that contains a Dolby Digital or DTS decoder.
2. 5.1CH ANALOG AUDIO OUT JACKS
• Connect to an amplifier with 5.1ch analog input jacks.
3. MIXED AUDIO OUT JACKS
• Connect to the Audio input jacks of your television, audio/video receiver.
4. VIDEO OUT JACK
• Use a video cable to connect to the Video input jack on your television.
• The VIDEO OUT SELECT switch must be set to the 525i(480i) or S-VIDEO position.
5. S-VIDEO OUT JACK
•
Use the S-Video cable to connect this jack to the S-Video jack on your television for a higher quality picture.
• The VIDEO OUT SELECT switch must be set to the S-VIDEO position.
6. COMPONENT VIDEO OUT JACKS
• Use these jacks if you have a TV with Component Video in jacks. These jacks provide Pr, Pb and Y
video. Along with S-Video, Component Video provides the best picture quality.
• If 525P(480P) VIDEO is selected, progressive scan mode will work.
• If 525i(480i) VIDEO is selected, interlaced scan mode will work.
7. VIDEO OUT SELECT SWITCH
• Use this switch to set video out.
• If 525P(480P) VIDEO is selected, VIDEO and S-VIDEO will not work.
12 34567
DVD-P538K
• Consult your TV User’s Manual to find out if your TV supports Progressive Scan.
If Progressive Scan is supported, follow the TV User’s Manual’s instructions regarding
Progressive Scan settings in the TV’s menu system.
• If 525P(480P) VIDEO OUT is selected, VIDEO and S-VIDEO will not work.
• Select the VIDEO OUT SELECT switch in the Stop or Power Off mode.
Important Note
E138A 00141K-1(GB)XTC 4/9/03 10:21 AM Page 10
Page 7
SETUP
1. DIGITALAUDIO OUT JACKS
• Use either an optical or coaxial digital cable to connect to a compatible Dolby Digital receiver.
Use to connect to an A/V Amplifier that contains a Dolby Digital or DTS decoder.
2. ANALOG AUDIO OUT JACKS
• Connect to the Audio input jacks of your television, audio/video receiver.
3. VIDEO OUT JACKS
• Use a video cable to connect to the Video input jack on your television.
4. S-VIDEO OUT JACK
• Use the S-Video cable to connect this jack to the S-Video jack on your television for a higher
quality picture. The S-Video must be selected in the VIDEO OUT SELECT.
5. COMPONENT VIDEO OUT JACKS
• Use these jacks if you have a TV with Component Video in jacks. These jacks provide Pr, Pb and
Y video. Along with S-Video, Component Video provides the best picture quality.
The COMPONENT must be selected in the VIDEO OUT SELECT.
6. VIDEO OUT SELECT SWITCH
• Use the switch to set video out. If COMPONENT is selected, S-Video may not work. If S-Video is
selected, COMPONENT may not work.
* Select the VIDEO OUT SELECT switch in the Stop or Power Off mode.
NOTE
Description-Rear Panel
Description-Rear Panel
Rear Panel
12 13
DVD-E138A/DVD-1010/DVD-E138B/DVD-E238
DVD-E338K
1
23
45
6
12
3
456
E138A 00141K-1(GB)XTC 4/9/03 10:21 AM Page 12
Page 8
SETUP

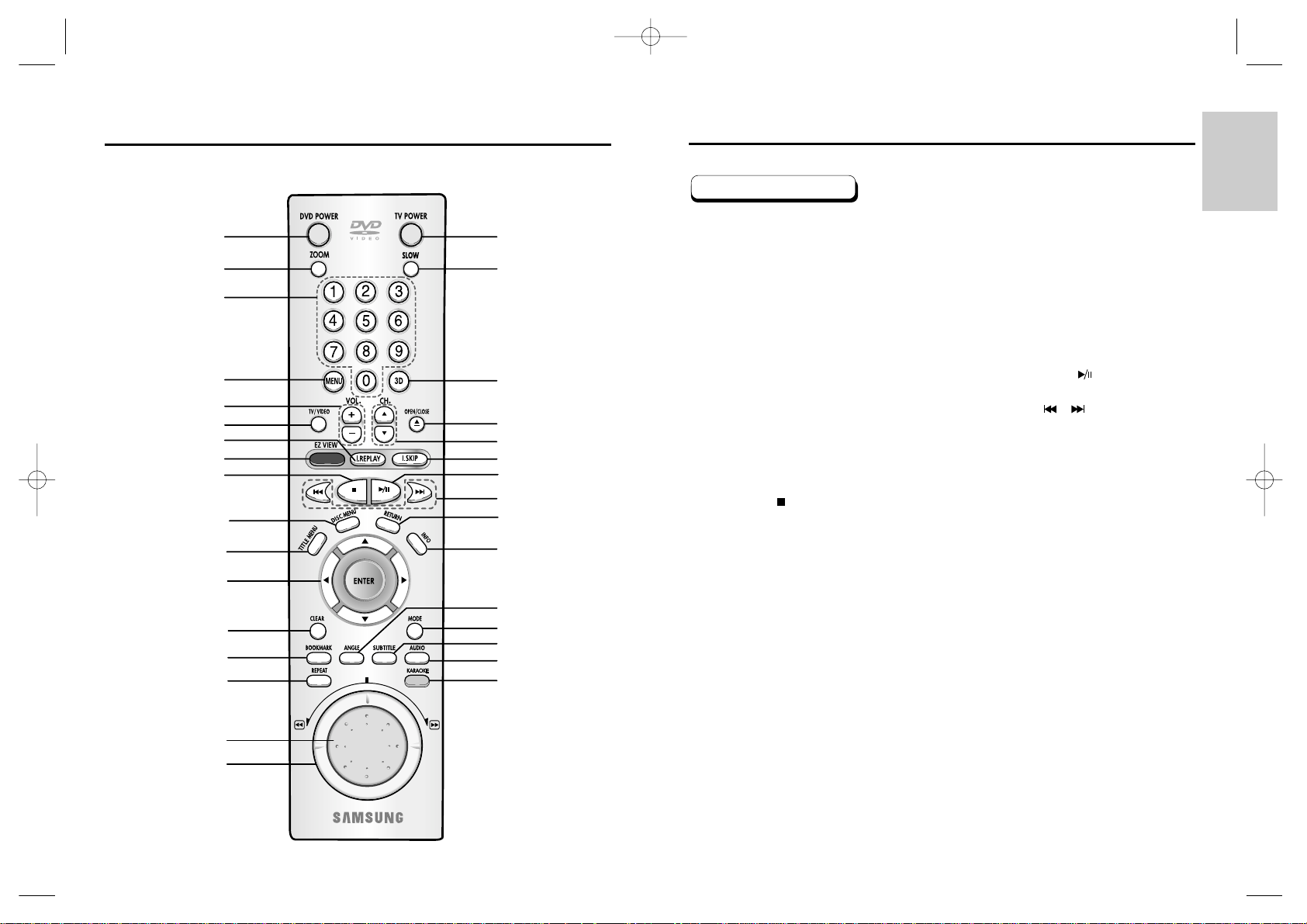

Tour of the Remote Control
1. DVD POWER Button
• Turns the power on or off.
2. NUMBER Buttons
3. STEP Button
• Advances play one frame at a time.
4. I.REPLAYButton
• This function is used to replay the previous 10
seconds of the movie from the current position.
5. EZ VIEW Button
• Easy View can convert Letter Box images to full
screen viewing on your conventional TV.
6. SEARCH Buttons ( / )
• Allows you to search forward/backward through a
disc.
7. STOP Button ( )
8. DISC MENU Button
• Brings up the Disc menu.
9. TITLE MENU Button
• Brings up the Title menu.
10. CLEAR Button
• Use to remove menus or status displays from the
screen.
11. BOOKMARK Button
12. MENU Button
• Brings up the DVD player’s setup menu.
13. OPEN/CLOSE Button
• To open and close the disc tray.
14. 3D Button
15. I.SKIP Button
• This function skips playback ahead 10 seconds.
16. PLAY/PAUSE Button ( )
• Begin/Pause disc play.
17. SKIP Buttons ( / )
• Use to skip the title, chapter, or track.
18. RETURN Button
• Returns to a previous menu.
19. INFO Button
• Displays the current disc mode.
20. ENTER/DIRECTION Button
(UP/DOWN or LEFT/RIGHT Buttons)
• This button functions as a toggle switch.
21. ANGLE Button
• Use to access various camera angles on a DVD.
22. MODE Button
• Allows you to program a specific order.
23. SUBTITLE Button
24. AUDIO Button
• Use this button to access various audio functions on
a disc.
25. REPEAT A-B Button
• Use to mark a segment to repeat between Aand B.
26. REPEAT Button
• Allows you to repeat play a title, chapter, track, or
disc.
27. ZOOM Button
• Enlarges the DVD picture.
DVD Function Buttons
Tour of the Remote Control
14 15
113
14
15
16
17
18
19
20
21
22
23
24
25
26
27
2
3
4
5
6
7
8
9
10
11
12
DVD-E138A/DVD-1010/DVD-E138B/DVD-E238
E138A 00141K-1(GB)XTC 4/9/03 10:21 AM Page 14
Page 9
SETUP
16 17
Tour of the Remote Control Tour of the Remote Control
1. DVD POWER Button
• Turns the power on or off.
2. NUMBER Buttons
3. STEP Button
• Advances play one frame at a time.
4. I.REPLAY Button
• This function is used to replay the previous 10
seconds of the movie from the current position.
5. EZ VIEW Button
• Easy View can convert Letter Box images to full
screen viewing on your conventional TV.
6. SEARCH Buttons ( / )
• Allows you to search forward/backward through a
disc.
7. STOP Button ( )
8. DISC MENU Button
• Brings up the Disc menu.
9. TITLE MENU Button
• Brings up the Title menu.
10. CLEAR Button
• Use to remove menus or status displays from the
screen.
11. BOOKMARK Button
12. MENU Button
• Brings up the DVD player’s setup menu.
13. OPEN/CLOSE Button
• To open and close the disc tray.
14. 3D Button
15. I.SKIP Button
• This function skips playback ahead 10 seconds.
16. PLAY/PAUSE Button ( )
• Begin/Pause disc play.
17. SKIP Buttons ( / )
• Use to skip the title, chapter, or track.
18. RETURN Button
• Returns to a previous menu.
19. INFO Button
• Displays the current disc mode.
20. ENTER/DIRECTION Button
(UP/DOWN or LEFT/RIGHT Buttons)
• This button functions as a toggle switch.
21. ANGLE Button
• Use to access various camera angles on a DVD.
22. MODE Button
• Allows you to program a specific order.
23. SUBTITLE Button
24. AUDIO Button
• Use this button to access various audio functions on
a disc.
25. KARAOKE Button
• Use to begin Karaoke functions.
26. REPEAT Button
• Allows you to repeat play a title, chapter, track, or
disc.
27. ZOOM Button
• Enlarges the DVD picture.
DVD Function Buttons
113
14
15
16
17
18
19
20
21
22
23
24
25
26
27
2
3
4
5
6
7
8
9
10
11
12
DVD-E338K
E138A 00141K-1(GB)XTC 4/9/03 10:21 AM Page 16
Page 10
SETUP
Tour of the Remote Control
1. DVD POWER Button
• Turns the power on or off.
2. ZOOM Button
• Enlarges the DVD picture.
3. NUMBER Buttons
4. MENU Button
• Brings up the DVD player’s setup menu.
5. VOLUME Buttons
6. TV/VIDEO Button
7. I.REPLAYButton
• This function is used to replay the previous 10
seconds of the movie from the current position.
8. EZ VIEW Button
• Easy View can convert Letter Box images to full
screen viewing on your conventional TV.
9. STOP Button ( )
10. DISC MENU Button
• Brings up the Disc menu.
11. TITLE MENU Button
• Brings up the Title menu.
12. ENTER/DIRECTION Button
(UP/DOWN or LEFT/RIGHT buttons)
• This button functions as a toggle switch.
13. CLEAR Button
• Use to remove menus or status displays from the
screen.
14. BOOKMARK Button
15. REPEAT Button
• Allows you to repeat play a title, chapter, track, or
disc.
16. JOG DIAL
• Operates frame by frame play. In CD mode,
performs track search.
17. SHUTTLE DIAL
• Performs fast motion play.
18. TV POWER Button
19. SLOW Button
20. 3D Button
21. OPEN/CLOSE Button
22. CHANNEL Buttons
23. I.SKIP Button
• This function skips playback ahead 10 seconds.
24. PLAY/PAUSE Button ( )
• Begin/Pause disc play.
25. SKIP Buttons ( / )
• Use to skip the title, chapter, or track.
26. RETURN Button
• Returns to a previous menu.
27. INFO Button
• Displays the current disc mode.
28. ANGLE Button
• Use to access various camera angles on a DVD.
29. MODE Button
• Allows you to program a specific order.
30. SUBTITLE Button
31. AUDIO Button
• Use this button to access various audio functions on
a disc.
32. KARAOKE Button
• Use to begin Karaoke functions.
DVD Function Buttons
Tour of the Remote Control
DVD-P538K
1
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18 19
E138A 00141K-1(GB)XTC 4/9/03 10:21 AM Page 18
Page 11

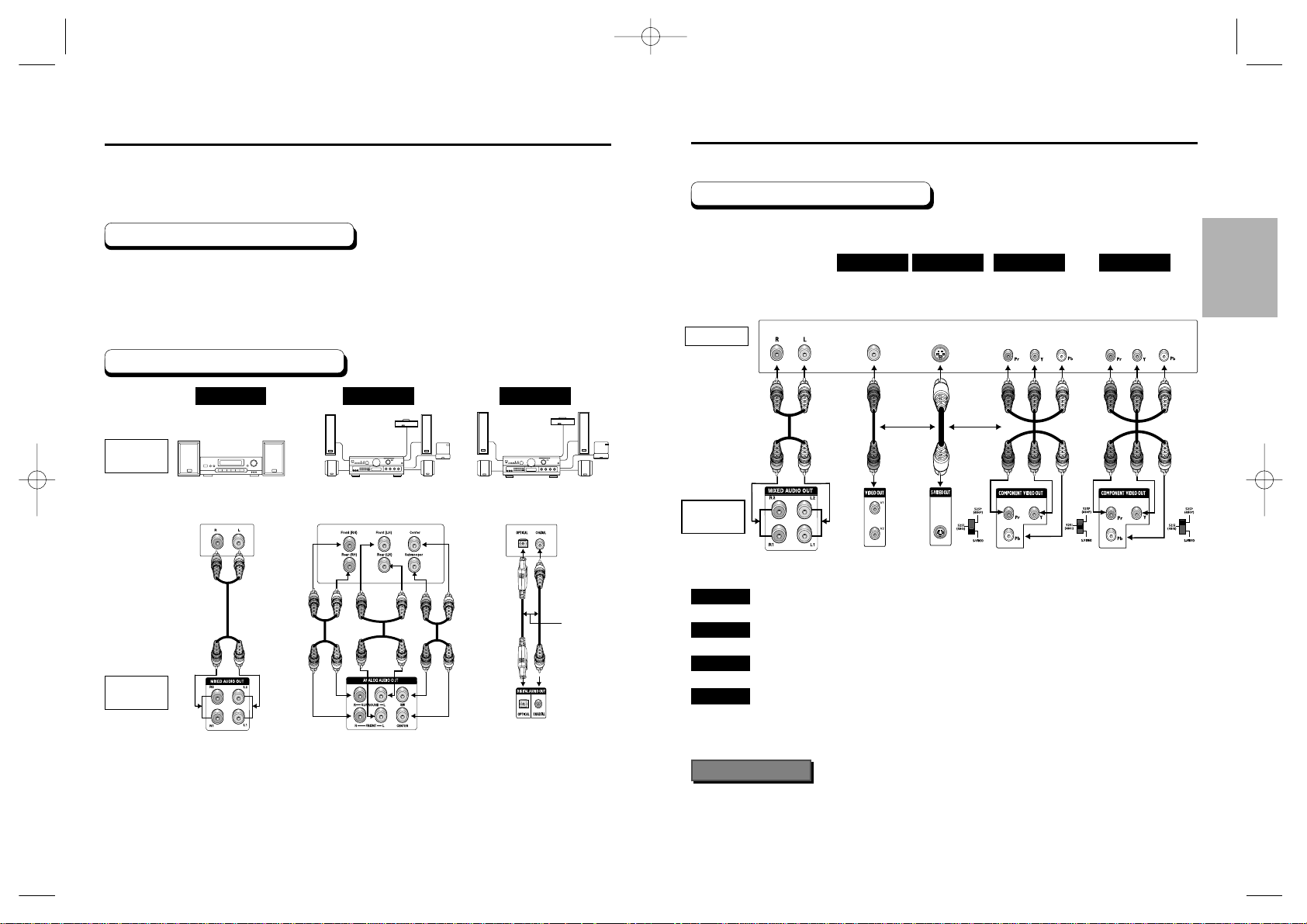

CONNECTIONS
20 21
Choosing a Connection
Before Connecting the DVD Player
Connection to an Audio System
Method 1 Method 2 Method 3
AUDIO
SYSTEM
DVD
PLAYER
e.g) DVD-P538K
The following show examples of connections commonly used to connect the DVD player
with a TV and other components.
• Always turn off the DVD player, TV, and other components before you
connect or disconnect any cables.
• Refer to the owner’s manual of the additional components you are connecting for
more information on those particular components.
Mixed Audio Out
Analog Audio Out Digital Audio Out
2ch Amplifier
Audio Input Jacks
5.1ch Analog Amplifier
Audio Input Jacks
Dolby Digital Decoder
Digital Audio Input Jacks
OR
Choosing a Connection (DVD-P538K only)
TV (Normal, Widescreen, Projection, etc..)
Good
Basic Audio
Better
Best
Method 1
Method 2
Method 3
Optimum
Method 4
Audio Output Jacks
OR
OR
AV Cable
S-Video
Cable
Video Cables
Video Output Jack
S-Video Jack
Component Video Jacks Component Video Jacks
DVD Player + TV with Video Input Jack
(The VIDEO OUT SELECT switch must be set to the S-VIDEO position.)
DVD Player + TV with S-Video Input Jack
(The VIDEO OUT SELECT switch must be set to the S-VIDEO position.)
DVD Player + TV with Component Video Jacks
(The VIDEO OUT SELECT switch must be set to the 525i(480i) position.)
DVD Player + TV with Progressive Scan Jacks.
(The VIDEO OUT SELECT switch must be set to the 525P(480P) position).
• If 525P(480P) VIDEO OUT is selected, VIDEO and S-VIDEO will not work.
• Depending on your TV, your hookup for Method 4 may differ from the illustration.
Consult your TV User’s Manual to find out if your TV supports Progressive Scan. If Progressive
Scan is supported, follow the TV User’s Manual’s instructions regarding Progressive Scan settings
in the TV’s menu system.
Important Note
Connection to a TV (For Video)
TV
DVD
PLAYER
Method 1
Method 2
Method 3
Method 4
E138A 00141K-1(GB)XTC 4/9/03 10:21 AM Page 20
Page 12
BASIC
FUNCTIONS
22 23
Playing a Disc
Before Play
Play
• Turn on your TV and press the TV/VIDEO button to select the video
mode.
• Turn on your Audio System and select AUX, CD or DVD.
After plugging in the player, the first time you press the DVD
POWER button, this screen comes up :
If you want to select the language, press a NUMBER button.
(This screen will only appear the very first time you plug in the player.)
Press the OPEN/CLOSE button.
The STANDBY indicator light goes out and the tray opens.
Place a disc gently into the tray with the disc’s label
facing up.
Press the PLAY/PAUSE ( ) button or OPEN/CLOSE
button to close the disc tray.
Stopping Play
Press the STOP ( ) button during play.
Removing Disc
Press the OPEN/CLOSE button.
Pausing Play
Press the PLAY/PAUSE ( ) or STEP button on the remote during play.
- Screen stops, no sound.
- To resume again, press PLAY/PAUSE ( ) button once again.
1
2
3
4
5
6
Choosing a Connection
(DVD-E138A/DVD-1010/DVD-E138B/DVD-E238/DVD-E338K only)
TV (Normal, Widescreen, Projection, etc..)
Method 1
Method 2
Method 3
Connection to a TV (For Video)
TV
Method 1
Method 2
Method 3
e.g) DVD-E338K
DVD
PLAYER
Good
Better
Best
Basic Audio
DVD Player + TV with Video Input Jack
DVD Player + TV with S-Video Input Jack
(If S-Video is selected in the VIDEO OUT SELECT.)
DVD Player + TV with Component Video Jacks
(If COMPONENT is selected in the VIDEO OUT SELECT.)
R1
R2
L1
L2
1
MIXED AUDIO OUT
Audio Output
Jacks
OR
OR
AV Cable
S-Video
Cable
Video Cables
Video Output
Jack
S-Video Jack
Component Video
Jacks
NOTE
• If COMPONENT is selected, S-Video will not work.
• If S-Video is selected, COMPONENT will not work.
E138A 00141K-1(GB)XTC 4/9/03 10:21 AM Page 22
Page 13
BASIC
FUNCTIONS
24 25
Using the Search & Skip Functions
During play, you can search quickly through a chapter or track or use the skip
function to jump to the next selection.
Searching through a Chapter or Track
Skipping Tracks
DVD-E138A/DVD-1010/DVD-E138B/DVD-E238/DVD-E338K : Press the or button
on the remote and press again to search at a faster speed on the DVD, VCD, CD.
DVD-P538K : Turn the shuttle dial of remote control during disc play.
Turn the shuttle dial on the front can a multiple-speed operation if desiring to use the key
on the front.
During play, press the or button.
• When playing a DVD, if you press the button, it moves to the next chapter.
If you press the button, it moves to the beginning of the chapter.
One more press makes it move to the beginning of the previous chapter.
• When playing a VCD 2.0 in MENU OFF mode, a VCD 1.1 or a CD, if you
press the button, it moves to the next track. If you press the button,
it moves to the beginning of the track.
One more press makes it move to the beginning of the previous track.
• If a track exceeds 15 minutes when playing a VCD and you press the
button, it moves forward 5 minutes. If you press the button, it moves
backward 5 minutes.
1
1
DVD
VCD
CD
2X, 4X, 8X, 16X, 32X, 128X
4X, 8X
2X, 4X, 8X
Playing a Disc
RESUME function
When you stop disc play, the player remembers where you stopped, so when you press PLAY ( ) again,
it will pick up where you left off. (unless the disc is removed, the STOP ( ) button is pressed twice or the
player is unplugged.)
• If the player is left for 5 minutes in pause mode, it will stop.
• If the player is left in the stop mode for more than 30 minutes, the power will automatically shut off.
(Automatic Power-Off Function) (DVD-E138A/DVD-1010/DVD-E138B/DVD-E238 only)
• If the player is left in the stop mode for more than one minute without any user interaction, a screen
saver will be activated, and the TV screen will fade in and out repeatedly. Press the PLAY ( )
button to resume normal play.
• This icon indicates an invalid button press.
NOTE
Step Motion Play (Except CD)
DVD-P538K : If turning Jog Dial, you can view one by one.
DVD-E138A/DVD-1010/DVD-E138B/DVD-E238/DVD-E338K : Press the STEP button on the remote
during play.
- Each time the button is pressed, a new frame will appear.
- No sound is heard during STEP mode.
- Press PLAY/PAUSE ( ) to resume normal play.
(You can only perform step motion play in the forward direction.)
Slow Motion Play (Except CD)
DVD-E138A/DVD-1010/DVD-E138B/DVD-E238/DVD-E338K : Press the button on the remote
during PAUSE or STEP mode. By pressing the button, you can select slow motion play for 1/8, 1/4
or 1/2 of normal speed.
DVD-P538K : Press and hold the button to choose the play speed between 1/8X, 1/4X and 1/2X of
normal during PAUSE or STEP mode, or press the SLOW button you can play slow motion for 1/8 of
normal speed.
- No sound is heard during slow mode.
- Press PLAY/PAUSE ( ) to resume normal play.
- When playing a DVD/VCD, reverse slow motion play will not work.
7
8
E138A 00141K-1(GB)XTC 4/9/03 10:21 AM Page 24
Page 14
BASIC
FUNCTIONS
26
27
Using the Disc and Title Menu
DVD
Setup
Press ENTER key
for Disc Menu
Title Menu
Function
Disc Menu
ENTER RETURN MENU
DVD
Setup
Disc Menu
Title Menu
Function
ENTER RETURN MENU
Press ENTER key
for Title Menu
Using the Title Menu
During the playback of a DVD disc, Press the
MENU button on the remote.
Select Title Menu using the UP/DOWN buttons,
then press the RIGHT or ENTER button.
1
2
Using the Disc Menu
During the playback of a DVD disc, press the
MENU button on the remote.
Select Disc Menu using the UP/DOWN buttons,
then press the RIGHT or ENTER button.
1
2
• Depending on the disc, the Title and Disc Menus may not work.
• Title Menu will only be displayed if there are at least two titles in the disc.
• You can also use the Title Menu and the Disc Menu, using the TITLE MENU and the DISC MENU buttons
on the remote.
• In VCD2.0, the DISC MENU button works as a conversion switch between Menu On and Menu Off mode.
NOTE
Using the Display Function
When Playing a DVD/VCD/CD
During play, press the INFO button on the remote.
Use the UP/DOWN buttons to select the desired
item.
Use the LEFT/RIGHT buttons to make the desired
setup, then press ENTER.
• You may use the number buttons of the remote control to
directly access a title, chapter or to start the playback from
the desired time.
To make the screen disappear, press the INFO
button again.
To access the desired title when there is more than
one in the disc. For example, if there is more than one
movie on a DVD, each movie will be identified.
Most of DVD discs are recorded in chapters so that
you can quickly find a specific passage.
(similar to tracks on an audio CD).
Allows playback of the film from a desired time.
You must enter the starting time as a reference.
Refers to the language of the film soundtrack. In the
example, the soundtrack is played in English 5.1CH.
A DVD disc can have up to eight different
soundtracks.
Refers to the subtitle languages available in the disc.
You will be able to choose the subtitles language or, if
you prefer, turn them off from the screen. A DVD disc
can have up to 32 different subtitles.
A surround sound effect is generated using only two
front speakers.
NOTE
1
2
3
4
DVD
Title
Time
Audio
Chapter
Subtitle
01
02
0:00:13
ENG 5.1CH
Off
Off
ENTER
3D Sound
CD
Track
Time
3D Sound
01
0:00:48
Off
ENTER
DVD
CD
VCD
Track
Time
3D Sound
01
0:00:48
Off
ENTER
VCD
Title
Chapter
Time
Audio
Subtitle
3D Sound
*
When in VCD 2.0 mode (MENU ON mode), this function does not work.
Using DISC MENU button in VCD 2.0, select Menu On/Off.
E138A 00141K-1(GB)XTC 4/9/03 10:21 AM Page 26
Page 15
BASIC
FUNCTIONS
Repeat the current track, chapter, title, a chosen section (A-B), or all of the disc.
When playing a DVD
Press the REPEAT button on the remote.
Repeat screen appears.
Select Chapter, Title or A-B using the
LEFT/RIGHT buttons.
*
REPEATA-B
• Press the REPEATbutton. Select A-B on screen with the
LEFT/RIGHT buttons or press the REPEAT A-B (DVDE138A/DVD-1010/DVD-E138B/DVD-E238 only) button on
the remote.
• Press ENTER at the point where you want the repeat play to
start (A). The B is automatically highlighted.
• Press ENTER at the point where you want the repeat play to
stop (B).
• To terminate the function, press the CLEAR button or the
REPEATA-B (DVD-E138A/DVD-1010/DVD-E138B/DVDE238 only) button again.
• A-B REPEAT does not allow you to set point (B) until at least
5 seconds has elapsed after point (A) has been set.
Press ENTER.
To return to normal play, press REPEAT again,
then press the LEFT/RIGHT buttons to select Off.
Press ENTER, then press the PLAY/PAUSE( )
button.
OfOff
Chapter Title A - B
ENTER
OffOff
Track Disc A - B
ENTER
NOTE
• DVD repeats play by chapter or title, CD and VCD repeat play by disc or track.
• Depending on the disc, the Repeat function may not work.
• When in VCD 2.0 mode (MENU ON mode), this function does not work.
DVD
VCD/CD
1
2
3
4
28 29
Repeat Play
Using the Function Menu
Press the MENU button during playback.
Use the UP/DOWN buttons to highlight Function,
then press the RIGHT or ENTER button.
Function selection screen appears, Info, Zoom,
Bookmark, Repeat and EZ View.
- Info (See Page 26)
- Zoom (See Page 38)
- Bookmark (See Page 37)
- Repeat (See Page 29)
- EZ View (See Page 30~31)
Use the UP/DOWN button to highlight one of the 5
functions. Then press the RIGHT or ENTER button
to access the function.
1
2
3
4
• You can also directly select these functions using thier respective buttons on the remote.
NOTE
Using the Function Menu
DVD
Setup
Title Menu
Disc Menu
Function
Info
Zoom
Bookmark
Repeat
EZ View
ENTER RETURN MENU
E138A 00141K-1(GB)XTC 4/9/03 10:21 AM Page 28
Page 16
BASIC
FUNCTIONS
30
Adjusting the Aspect Ratio (EZ View)
For 16:9 aspect ratio discs
• 4:3 Letter Box
Displays the content of the DVD title in 16:9 aspect ratio.
The black bars will appear at the top and bottom of the screen.
• 4:3 Pan Scan
The left and right of the screen are cut off and displays the central
portion of the 16:9 screen.
• Screen Fit
The top and bottom of the screen are cut off and the full screen
appears. The picture will look vertically stretched.
• Zoom Fit
The top, bottom, left and right of the screen are cut off and the central
portion of the screen is enlarged.
For 4:3 aspect ratio discs
• Normal Screen
Displays the content of the DVD title in 4:3 aspect ratio.
• Screen Fit
The top and bottom of the screen are cut off and the full screen
appears. The picture would look vertically stretched.
• Zoom Fit
The top, bottom, left and right of the screen are cut off and the central
portion of the screen is enlarged.
NOTE
• This function may behave differently depending on the type of disc.
If you are using a 4:3 TV
Adjusting the Aspect Ratio (EZ View)
To play back using aspect ratio (DVD)
If you are using a 16:9 TV
Press the EZ VIEW button.
• The screen size changes when the button is pressed repeatedly.
• The screen zoom mode operates differently depending on the screen
setting in the initial setup menu.
• To ensure correct operation of the EZ VIEW button, you should set the
correct aspect ratio in the initial setup (See page 53).
For 16:9 aspect ratio discs
• Wide Screen
Displays the content of the DVD title in 16:9 aspect ratio.
• Screen Fit
The top and bottom of the screen are cut off. When playing a
2.35:1 aspect ratio disc, the black bars at the top and bottom of the
screen will disappear. The picture will look vertically stretched.
(Depending on the type of disc, the black bars may not disappear
completely.)
• Zoom Fit
The top, bottom, left and right of the screen are cut off and the central
portion of the screen is enlarged.
For 4:3 aspect ratio discs
• Normal Wide
Displays the content of the DVD title in 16:9 aspect ratio. The picture
will look horizontally stretched.
• Screen Fit
The top and bottom of the screen are cut off and the full screen
appears. The picture will look vertically stretched.
• Zoom Fit
The top, bottom, left and right of the screen are cut off and the central
portion of the screen is enlarged.
• Vertical Fit
When a 4:3 DVD is viewed on a 16:9 TV, black bars will appear at
the left and right of the screen in order to prevent the picture from
looking horizontally stretched.
1
31
E138A 00141K-1(GB)XTC 4/9/03 10:21 AM Page 30
Page 17
ADVANCED
FUNCTIONS
Selecting the Audio Language
You can select a desired language quickly and easily with the AUDIO button.
Using the AUDIO button
Press the AUDIO button.
Use the LEFT/RIGHT buttons to select the
desired language on a DVD.
- The audio languages are represented by abbreviations.
Use the LEFT/RIGHT buttons to select Stereo,
LEFT or RIGHT. (On VCD/CD)
NOTE
• This function depends on what languages are encoded on the disc and may not work with all DVDs.
• ADVD disc can contain up to 8 audio languages.
•
How to have the same audio language come up whenever you play a DVD;
Refer to “Setting Up the Language Features” on page 49.
DVD
VCD/CD
1
2
3
32 33
Slow Repeat play
When playing a DVD
During play, press the PLAY/PAUSE ( ) button.
Press and hold the button to choose the play speed between 1/8X, 1/4X and
1/2X of normal. (DVD-P538K only)
Press the button to choose the play speed between 1/8X, 1/4X and 1/2X
of normal. (DVD-E138A/DVD-1010/DVD-E138B/DVD-E238/DVD-E338K only)
Press the REPEAT or REPEATA-B(DVD-E138A/DVD-1010/DVD-E138B/DVD-E238
only) button to select the point where the function starts. (A) (See Page 29)
Press the REPEAT or REPEATA-B(DVD-E138A/DVD-1010/DVD-E138B/DVD-E238
only) button to select the point where the function ends. (B) (See Page 29)
NOTE
• The disc will play from Ato B repeatedly at the speed you chose.
• To terminate the function, press the CLEAR button or the REPEATor REPEAT A-B(DVD-E138A/
DVD-1010/DVD-E138B/DVD-E238) button again.
• A-B REPEAT does not allow you to set point (B) until at least 5 seconds has elapsed after point (A) has been set.
This feature allows you slowly repeat scenes containing sports, dancing,
musical instruments being played etc. so you can study them more closely.
1
2
3
4
E138A 00141K-1(GB)XTC 4/9/03 10:21 AM Page 32
Page 18
ADVANCED
FUNCTIONS
Selecting the Subtitle Language
You can select a desired subtitle quickly and easily with the SUBTITLE button.
Using the SUBTITLE button
Press the SUBTITLE button.
Use the LEFT/RIGHT buttons to select the
desired subtitle language.
Use the UP/DOWN buttons to determine
whether or not the subtitle will be displayed.
- Initially, the subtitling will not appear on screen.
- The subtitle languages are represented by abbreviations.
ENG On
ENG Off
NOTE
• This function depends on what languages are encoded on the disc and may not work with all DVDs.
• ADVD disc can contain up to 32 subtitle languages.
•
How to have the same subtitle language come up whenever you play a DVD;
Refer to “Setting Up the Language Features” on page 49.
1
2
3
34 35
Changing the Camera Angle
Press the ANGLE button to see if an ANGLE
( ) mark is present at the upper left hand
corner of the screen.
When an ANGLE mark is shown, press the
ANGLE button, then an ANGLE select icon
will appear at the upper left hand corner of
the screen.
Use the LEFT/RIGHT buttons to select the
desired screen angle.
To turn off the display, press the ANGLE
button again.
When a DVD contains multiple angles of a particular scene, you can select the Angle
function.
Using the ANGLE button
1
2
3
Changing the Subtitle color (DVD-P538K only)
Press the MODE button to change the subtitle
color only when the player is in progressive
video mode.
1
E138A 00141K-1(GB)XTC 4/9/03 10:21 AM Page 34
Page 19
ADVANCED
FUNCTIONS
36 37
Using the Bookmark Function
1
2
3
4
1
2
1
2
3
3
This feature lets you bookmark sections of a DVD or VCD (MENU OFF mode) so you can
quickly find them at a later time.
Using the Bookmark Function (DVD/VCD)
During play, press the BOOKMARK button on the
remote. The Bookmark icons will be displayed.
Use the LEFT/RIGHT buttons to move to the
desired bookmark icon.
When you reach the scene you want to mark,
press the ENTER button. The icon will change to
a number (1, 2, or 3).
Press the BOOKMARK button to turn off the
display.
Recalling a Marked Scene
During play, press the BOOKMARK button
on the remote.
Use the LEFT/RIGHT buttons to select a
marked scene.
Press the PLAY/PAUSE ( ) buttons to skip
to the marked scene.
Clearing a Bookmark
During play, press the BOOKMARK button
on the remote.
Use the LEFT/RIGHT buttons to select the
bookmark number you want to delete.
Press the CLEAR button to delete a
bookmark number. Press the BOOKMARK
button to turn off the display.
ENTER
1 – –
CLEAR
NOTE
• Up to three scenes may be marked
at a time.
• When in VCD 2.0 mode (MENU ON
mode), this function does not work.
• Depending on the disc, the
Bookmark function may not work.
Using the Instant Replay/Skip Function
If you miss a scene, you can see it again using
this function.
If you press the I.REPLAY button, the current
scene moves backward about 10 seconds,
and plays back.
- Depending on the disc, the Instant Replay
function may not work.
Using the Instant Replay function (DVD)
1
Use this function to skip playback 10 seconds
ahead of the current scene.
Press the I.SKIP button.
- Playback will skip ahead 10 seconds.
- Depending on the disc, this feature may not work.
Using the Instant Skip function (DVD)
1
E138A 00141K-2(GB)XTC 4/9/03 10:21 AM Page 36
Page 20
ADVANCED
FUNCTIONS
38 39
MP3/WMA Play
When the first song file is playing, the music
folder menu will appear on the right side of the
screen.
Up to 8 music folders can be displayed at a
time. If you have more than 8 folders on a
disc, press the LEFT/RIGHT buttons to bring
them up on the screen.
Use the UP/DOWN buttons to select the
desired music folder, then press ENTER.
Use the UP/DOWN buttons again to select a
song file. Press ENTER to begin playback of
the song file.
When an MP3/WMA Disc is inserted into the DVD player, the first song file of the first folder
plays.
ENTER RETURN MENU
ENTER
PROGRAM
RANDOM
NOTE
•
Press the REPEAT button to hear only music continuously and press it once again to release.
• PROGRAM/RANDOM playback cannot be used if the disc contains more than two types of file extensions.
•
If more than two file extensions are present, select the media
of your choice by pressing UP/DOWN, then press the ENTER
button.
•
To change the currently playing media, press the STOP ( )
button twice and then press the DISC MENU button.
•
If no button on the remote controller is pressed for 60 seconds,
the menu will disappear and the selected item will be played.
Press the MODE button to switch between the
PROGRAM and RANDOM modes. See page 41
for more information on these modes.
Program/Random playback
MP3/WMA Play Function
1
2
Using the Zoom & 3D Sound Functions
Using the Zoom Function (DVD)
During play or pause mode, press the ZOOM button
on the remote.
A zoom mark will be displayed on screen.
Use the UP/DOWN or LEFT/RIGHT buttons to select
the part of the screen you want to zoom in on.
Press the ENTER button.
- During DVD play, press ENTER to zoom in 2X/4X/2X/Normal in
order.
- During VCD play, press ENTER to zoom in 2X/Normal in order.
Using the 3D Sound Function
The simulated surround effect depends on the disc
contents. If you connect the unit to your stereo
system, you can enhance sound quality and
produce a greater surround effect.
This feature is useful when you are using the DVD
player with a two channel stereo through the
analog outputs.
(Discs which are recorded with LPCM or DTS will
not work. )
During play, press the 3D button.
The 3D SOUND mark will be displayed on
screen.
Press the UP/DOWN buttons to turn the
3D Sound feature on or off.
Off
NOTE
• 3D Sound is possible only on discs
recorded using DOLBY SURROUND
or DOLBY DIGITAL. However, some
of these discs do not contain rear
channel sound signals.
• Depending on the disc, the Zoom and
3D Sound functions may not work.
1
2
3
1
2
E138A 00141K-2(GB)XTC 4/9/03 10:21 AM Page 38
Page 21
ADVANCED
FUNCTIONS
40 41
Program Play & Random Play
NOTE
• Depending on the disc, the Program and Random Play functions may not work.
• To resume normal play, press the CLEAR button.
• PROGRAM/RANDOM playback cannot be used if the disc contains more than two types of file extensions.
• This unit can support a maximum of 99 programmed order.
Program Play (CD/MP3/WMA)
Random Play (CD/MP3/WMA)
Press the MODE button.
Use the LEFT/RIGHT buttons to select
PROGRAM. Press the ENTER button.
Use the UP/DOWN/LEFT/RIGHT buttons to
select the first track to add to the program.
Press the ENTER button. The selection
numbers appear in the Program Order box.
Press the PLAY/PAUSE ( ) button.
The disc will be played in programmed order.
Press the MODE button.
Use the LEFT/RIGHT buttons to select
RANDOM. Press the ENTER button.
The disc will be played in random order.
PROGRAM
RANDOM
PROGRAM 01
Track
05 06 07 08
09 10 11 12
13 14 15 16
- - - - - - - -
- - - - - - - -
- - - - - - - -
- - - - - - - -
- - - - - - - -
Program Order
01 02 03 04
ENTER RETURN CLEAR
1
1
2
2
3
4
MP3/WMA Play
• Your MP3 or WMA files should be ISO 9660 or JOLIET format.
ISO 9660 format and Joliet MP3 or WMA files are compatible with Microsoft's DOS and Windows,
and with Apple's Mac. These two formats are the most widely used.
• When naming your MP3 or WMA files do not exceed 8 characters, and place ".mp3, .wma" as
the file extension.
General name format of: Title.mp3. or Title.wma. When composing your title, make sure that you use
8 characters or less, have no spaces in the name, and avoid the use of special characters including:
(.,/,\,=,+).
• Use a decompression transfer rate of at least 128 Kbps when recording MP3 files.
Sound quality with MP3 files basically depends on the rate of compression/decompression you
choose. Getting audio CD quality sound requires an analog/digital sampling rate, that is conversion to
MP3 format, of at least 128 Kbps and up to 160 Kbps. However, choosing higher rates, like 192 Kbps
or more, only rarely give better sound quality.
Conversely, files with decompression rates below 128 Kbps will not be played properly.
• Use a decompression transfer rate of at least 64Kbps when recording WMA files.
Sound quality with WMA files basically depends on the rate of compression/decompression you
choose. Getting audio CD quality sound requires an analog/digital sampling rate, that is conversion to
WMA format, of at least 64Kbps and up to 192Kbps.
Conversely, files with decompression rates below 64Kbps or over 192Kbps will not be played
properly.
• Do not try recording copyright protected MP3 files.
Certain "securized" files are encrypted and code protected to prevent illegal copying. These files are
of the following types: Windows MediaTM(registered trade mark of Microsoft Inc) and SDMI
TM
(registered trade mark of The SDMI Foundation). You cannot copy such files.
• Important: The above recommendations cannot be taken as a guarantee that the DVD player will
play MP3 recordings, or as an assurance of sound quality.
You should note that certain technologies and methods for MP3 file recording on CD-Rs prevent
optimal playback of these files on your DVD player (degraded sound quality and in some cases,
inability of the player to read the files).
• This unit can play a maximum of 500 files and 300 folders per disc.
CD-R MP3/WMA discs
When playing CD-R/MP3 or WMA discs, please follow all the recommendations for CD-R
above, plus the comments below:
E138A 00141K-2(GB)XTC 4/9/03 10:21 AM Page 40
PROGRAM
RANDOM
Page 22
ADVANCED
FUNCTIONS
Picture CD Playback
42 43
• Only files with the ".jpg" and ".JPG" extensions can be played.
• If the disc is not closed, it will take longer to start playing and not all of the recorded files may be
played.
• Only CD-R discs with JPEG files in ISO 9660 or Joliet format can be played.
• The name of the JPEG file may not be longer than 8 characters and should contain no blank spaces
or special characters (. / = +).
• Only a consecutively written multisession disc can be played. If there is a blank segment in the
multisession disc, the disc can be played only up to the blank segment.
• Amaximum of 500 images can be stored on a single CD.
• Only Kodak Picture CDs can be played.
• When playing a Kodak Picture CD, only the JPEG files in the pictures folder can be played.
• Picture discs other than Kodak Picture CD may take longer to start playing or may not play at all.
• If a number of files in 1 Disc is over 500, only 500 JPEG file can be played.
• If a number of folders in 1 Disc is over 300, only JPEG files in 300 folders can be played.
CD-R JPEG Discs
Picture CD Playback
ALBUM PHOTO: 1 /215
ENTER
PHOTO: 1 /215
ENTER RETURN
PHOTO: 1 /215
ENTER
TIMER:
RETURN
ENTER
•
To change the currently playing media, press the STOP ( ) button twice and then press the DISC MENU
button.
•
If no button on the remote controller is pressed for 60 seconds, the menu will disappear and the selected
item will be played.
•
Select JPEG in the menu to view a Photo CD.
• Use the UP/DOWN or LEFT/RIGHT buttons on the remote controller
to select the picture you want to view and then press the ENTER
button. (Press the PLAY/PAUSE ( ) button if you want to play it
in the Slide Show mode.)
• To see the next 6 pictures, press the button.
• To see the previous 6 pictures, press the button.
• : Return to the Album Screen.
Press the UP/DOWN or LEFT/RIGHT buttons on the remote
controller to display the menu again.
• : Each time the ENTER button is pressed, the picture rotates
90 degrees clockwise.
• : Each time the ENTER button is pressed, the picture is
enlarged up to 4X. (Normal ➝ 2X ➝ 4X➝ 2X➝ Normal)
• : The unit enters slide show mode.
*Press the RETURN button to return to the album screen.
*Before the Slide Show can begin, the picture interval must be set.
• : When this icon is selected and ENTER is pressed, the
pictures change automatically with about an 6 second
interval.
• : The pictures change automatically with about an 12 second
interval.
• : The pictures change automatically with about an
18 second interval.
*Depending on the file size, each interval between images may take
longer or shorter than the manual suggests.
Open the disc tray.
Load the disc on the tray.
- Load the disc with the labeled side up.
Close the tray.
- The tray closes and you should get a screen that looks like the
one to the right.
1
2
3
NOTE
• Press the TITLE MENU button to return to the album screen.
• Press the RETURN button to return to the slide show.
• If no buttons on the remote controller pressed for 10 seconds, the menu will disappear.
Press the UP/DOWN or LEFT/RIGHT buttons on the remote controller to display the menu again.
E138A 00141K-2(GB)XTC 4/9/03 10:21 AM Page 42
Page 23
KARAOKE
FUNCTIONS
44 45
Connect the Mixed Audio Out terminals with
the TV or AMP.
Connect Mic into Mic 1 or Mic 2 jack.
- When the MIC should be connected, karaoke function
can operate.
Press the KARAOKE button.
Select the "Keycon" using the LEFT/RIGHT
buttons.
By use of the LEFT/RIGHT buttons, change
to the desired tone.
: To let 7 scales down by half scale.
: Original scale.
: To let 7 scales up by half scale.
NOTE
• If you hear strange noises(squealing or howling) while using the karaoke feature, move the microphone
away from the speakers. Turning down the microphone volume or the speaker volume is also effective.
• The next music plays if performing SEARCH with SCORE displayed in the Score On MODE for CD or
VCD.
• When playing MP3 disc, MIC & Karaoke functions are not operate.
• When playing LPCM disc, karaoke functions are not operate.
• When the MIC is connected, Digital Out does not work.
Beginning Karaoke Functions (DVD-E338K/DVD-P538K only)
Reserving a Song (DVD-E338K/DVD-P538K only)
It is the function to reserve the desired song in advance by use of Karaoke function
Playback the Karaoke Disc containing the
wanted songs.
Press the KARAOKE button.
Select the "Request" using the LEFT/RIGHT
buttons.
Input the number (Track No.) of the desired
song into the flickering part(--).
- You can reserve up to 10 songs.
When you want the next reserved song
during playing a song, press the SKIP
button.
Cancel by pressing the CLEAR button of the
remote.
- The last reserved song will be erased first.
Continuous pressing of the CLEAR button
can cancel the next reserved song.
If the reservation is required again, input the
song number in the flickering part.
NOTE
• When using "SKIP" button, it can not work at the last song.
• When using Request function, the "DISPLAY" and “REPEAT” function does not work.
Operation Sequence
Sequence of reservation
Cancellation of reservation
Key Control
1
2
1
2
3
1
2
3
4
5
1
2
3
E138A 00141K-2(GB)XTC 4/9/03 10:21 AM Page 44
Page 24
CHANGING
SETUP MENU
46 47
Using the Setup Menu
The Setup menu lets you customize your DVD player by allowing you to select various
language preferences, set up a parental level, even adjust the player to the type of
television screen you have.
To make the setup screen disappear after setting up, press the
MENU button again.
With the unit in Stop mode, press the MENU button
on the remote. Select Setup using UP/DOWN
buttons, then press the RIGHT or ENTER button.
Language Setup : Setup of the Language.
Audio Setup : Setup of the Audio Options
Display Setup : Setup of the Display Options
Use to select which type of screen you want to
watch and several display options.
Parental Setup : Setup of the Parental Level
Allows users to set the level necessary to
prevent children from viewing unsuitable movies
such as those with violence, adult subject
matter, etc.
Use the UP/DOWN buttons on the remote to access
the different features.
Press the ENTER button to access the sub features.
DVD
Setup
Disc Menu
Title Menu
Function
NOTE
Depending on the disc, some Setup Menu selections may not work.
1
2
3
Vocal Function
(DVD-E338K/DVD-P538K only)
Pressing the KARAOKE button twice displays the
following:
– The function to make the music only sound by cancelling
vocal when playing a Karaoke disc.
– In VCD, CVD or CD, you can select only the On or Off.
VOCAL FADER Remark
↓ V1 CH1. Vocal Cancel
↓ V2 CH2. Vocal Cancel
↓ 1 + 2 CH1, CH2. Vocal Cancel
↓ OFF Vocal Fader Off
– To guide melody through xylophone and piano help you sing
easily.
– This function works only on the DVD Karaoke disc on which
the guide melody is recorded.
Press KARAOKE button twice to turn the Score Mode On.
- Score will pop up whenever a song is completed.
- Make sure to disconnect MIC to play a movie disc or play in a general mode. If you play a movie disc
with the Score On, a score will show up every time when a chapter is over.
CAUTIONS
• DVD Karaoke Disc • CVD, VCD Karaoke Disc
Channel
Karaoke
5CH. DVD 2CH. DVD
-Channel
1 CH L Left stereo music Left stereo music + Vocal
2 CH R Right stereo music Right stereo music + Vocal
3 CH M Guide melody 4 CH V1 Vocal track 5 CH V2 Vocal track -
Channel
Karaoke
CVD VCD, CD
-Channel
1 CH CH1 LEFT Left stereo music + Vocal Left stereo music
1 CH CH1 RIGHT Right stereo music + Vocal Right stereo music
+ Vocal
2 CH CH2 LEFT Left stereo music 2 CH CH2 RIGHT Right stereo music -
Sequence of reservation
Vocal Fader
Guide Melody
Score Function
Types of Karaoke disc
1
E138A 00141K-2(GB)XTC 4/9/03 10:21 AM Page 46
Page 25
CHANGING
SETUP MENU
Setting Up the Language Features
With the unit in Stop mode, press the MENU button.
Select Setup using UP/DOWN buttons, then RIGHT
or ENTER button.
Select Language Setup using UP/DOWN buttons,
then press the RIGHT or ENTER button.
Select Audio using UP/DOWN buttons, then press
the RIGHT or ENTER button.
Press the UP/DOWN buttons to select ‘English’.
- Select “Original” if you want the default soundtrack language to
be the original language the disc is recorded in.
- Select “Others” if the language you want is not listed.
Press the ENTER button.
- English is selected and the screen returns to SETUP menu.
With the unit in Stop mode, press the MENU button.
Select Setup using UP/DOWN buttons, then RIGHT
or ENTER button.
Select Language Setup using UP/DOWN buttons,
then press the RIGHT or ENTER button.
Select Subtitle using UP/DOWN buttons, then press
the RIGHT or ENTER button.
Use the UP/DOWN buttons to select ‘English’.
- Select “Automatic” if you want the subtitle language to be the
same as the language selected as the audio preference.
- Select “Others” if the language you want is not listed.
Some discs may not contain the language you select as
your initial language; in that case the disc will use its
original language setting.
Press the ENTER button.
- English is selected and the screen returns to SETUP menu.
NOTE
• If the selected language is not
recorded on the disc, the original
pre-recorded language is selected.
•
Howto make the SETUP menu
disappear or
return to menu screen
during set up; Press RETURN or
LEFT button.
Using the Audio Language
Using the Subtitle Language
1
2
3
5
4
6
1
2
3
4
5
6
Setting Up the Language Features
Using the Player Menu Language
Using the Disc Menu Language
If you set the player menu, disc menu, audio and subtitle language in advance,
they will come up automatically every time you watch a movie.
With the unit in Stop mode, press the MENU button.
Select Setup using UP/DOWN buttons, then RIGHT
or ENTER button.
Select Language Setup using UP/DOWN buttons,
then press the RIGHT or ENTER button.
Select Player Menu using UP/DOWN buttons, then
press the RIGHT or ENTER button.
Use the UP/DOWN buttons to select ‘English’.
Press the ENTER button.
- English is selected and the screen returns to SETUP menu.
- To make the SETUP menu disappear, press the RETURN or
LEFT button.
e.g) Setting up in English.
e.g) Setting up in English.
LANGUAGE SETUP
DISC MENU LANGUAGE
Disc Menu
This function changes the text language only on the disc
menu screens.
With the unit in Stop mode, press the MENU button.
Select Setup using UP/DOWN buttons, then RIGHT
or ENTER button.
Select Language Setup using UP/DOWN buttons,
then press the RIGHT or ENTER button.
Select Disc Menu using UP/DOWN buttons, then
press the RIGHT or ENTER button.
Use the UP/DOWN buttons to select ‘English’.
- Select “Others” if the language you want is not listed.
Press the ENTER button.
- English is selected and the screen returns to SETUP menu.
1
2
3
4
5
6
1
2
3
4
5
6
48 49
E138A 00141K-2(GB)XTC 4/9/03 10:21 AM Page 48

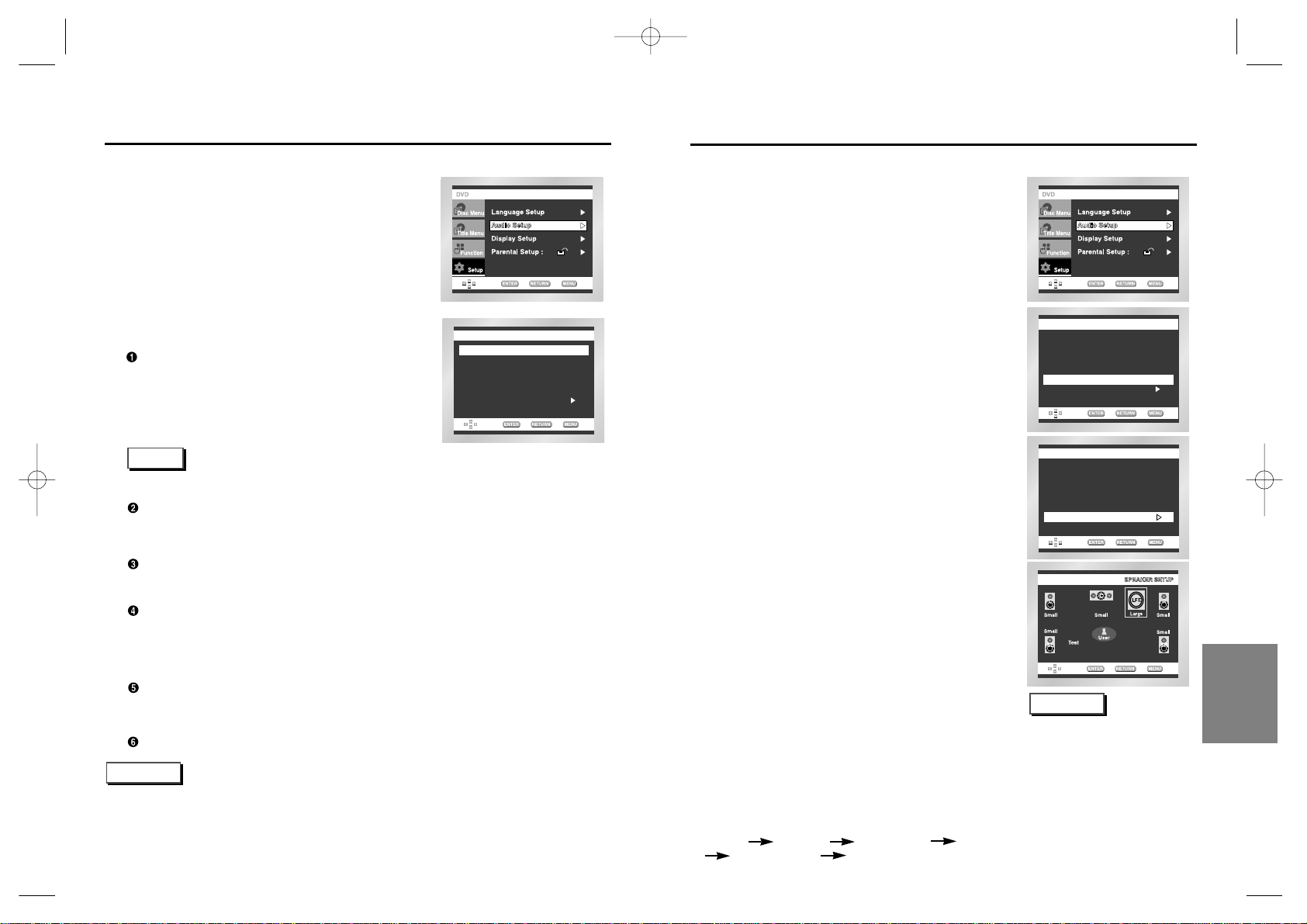

Page 26
CHANGING
SETUP MENU
AUDIO SETUP
DTS : Off
Dynamic Compression : On
PCM Down Sampling : On
Digital Output : PCM
Speaker SetupSpeaker Setup
Multi Channel Output : Analog
AUDIO SETUP
DTS : Off
Dynamic Compression : On
PCM Down Sampling : On
Digital Output : PCM
Speaker Setup
Multi Channel OutputMulti Channel Output : : Analog Analog
Surround Sound Speaker Setup (DVD-P538K only)
With the unit in Stop mode, press the MENU button.
Select Setup using UP/DOWN buttons,
then RIGHT or ENTER button.
Select Audio Setup using UP/DOWN buttons,
then press the RIGHT or ENTER button.
Select Multi Channel Output using UP/DOWN
buttons. Then select Analog pressing the RIGHT
or ENTER button.
Use the UP/DOWN buttons to select Speaker Setup.
Then press the RIGHT or ENTER button.
Use the UP/DOWN or LEFT/RIGHT buttons to select
the desired item. Then press the ENTER button.
1
2
3
4
5
6
The default settings : FRONT
L,R
(Large), CENTER(None),
SURROUND (None)
Select the size of the speakers to be connected.
• Front (FL , FR)
- Large: Normally select this.
- Small: When the sound cracks or the surround sound effects are
difficult to hear, select this. This activates the Dolby Digital bass
redirection circuitry and outputs the bass frequencies of the speaker
from the subwoofer.
• Center
- None: If you do not connect a center speaker, select this.
- Large: Normally select this.
- Small: When the sound cracks, select this. This activates the Dolby
Digital bass redirection circuitry and outputs the bass frequencies of
the center speaker from other speakers.
• Surround (SL, SR)
- None: If you do not connect a center speaker, select this.
- Large (Rear/Side): Normally select either of these according to the
rear speaker’s position.
- Small (Rear/Side): When the sound cracks or the surround sound
effects are difficult to hear, select either of these according to the
rear speaker’s position. This activates the Dolby Digital bass
redirection circuitry and outputs the bass frequencies of the rear
speaker from other speakers.
Setting up TEST
The test output signals come clockwise starting from the Front
Speaker(L). Adjust Channel Balance to match to the volume of test
signals memorized in the system.
50 51
Setting Up the Audio Options
With the unit in Stop mode, press the MENU button.
Select Setup using UP/DOWN buttons, then RIGHT
or ENTER button.
Select Audio Setup using UP/DOWN buttons, then
press the RIGHT or ENTER button.
Use the UP/DOWN buttons to select the desired
item. Then press the RIGHT or ENTER button.
AUDIO SETUP
DTS : Off
Dynamic Compression : On
PCM Down Sampling : On
Multi Channel Output : Digital
Digital OutputDigital Output : PCM: PCM
Speaker Setup
NOTE
•
How to make the SETUP menu disappear or return to menu screen during set up;
Press RETURN or LEFT button.
• Manufactured under license from Dolby Laboratories.
“Dolby” and the double-D symbol are trademarks of Dolby Laboratories.
• “DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc.
1
2
3
4
FRONT(L) CENTER SUBWOOFER FRONT(R)
SURROUND(R) SURROUND(L)
NOTE
•
How to make the SETUP
menu disappear or return to
menu screen during set up.
Press RETURN or LEFT button.
• The subwoofer test output
signal is lower than the other
speakers.
• The MPEG Multichannel logo
is a trademark registered by
PHILIPS Corporation.
Digital Output
1. PCM :
Converts to PCM(2CH) audio.
Select PCM when using the Analog Audio Outputs.
2. Bitstream :
Converts to Dolby Digital Bitstream (5.1CH).
Select Bitstream when using the Digital Audio Output.
• Be sure to select the correct Digital Output
or no audio will be heard.
• When Multi Channel Output select Digital.
Dolby & MPEG-2 Digital Out works.
DTS
1. Off : Doesn’t output digital signal.
2. On : Outputs DTS Bitstream via digital output only.
Select DTS when connecting to a DTS Decoder.
Dynamic Compression
1. On : To select dynamic compression.
2. Off : To select the standard range.
PCM Down Sampling
1. On : Select this when the amplifier connected to the player is not 96KHz compatible.
In this case, the 96KHz signals will be down converted to 48KHZ.
2. Off : Select this when the amplifier connected to the player is 96KHz compatible.
In this case, all signals will be output without any changes.
Multi Channel Output (DVD-P538K only)
1. Digital : Select this when using the multichannel digital audio output.
2. Analog : Select this when using the multichannel analog audio output.
NOTE
Speaker Setup (DVD-P538K only)
E138A 00141K-2(GB)XTC 4/9/03 10:21 AM Page 50
Page 27
CHANGING
SETUP MENU
TV Aspect
Depending on the type of television you have, you may want to adjust the screen
setting (aspect ratio).
1. 4:3 Letter Box :
Select when you want to see the total 16:9 ratio screen DVD supplies, even though
you have a TV with a 4:3 ratio screen.
Black bars will appear at the top and bottom of the screen.
2. 4:3 Pan Scan :
Select this for conventional size TVs when you want to see the central portion of the
16:9 screen. (Extreme left and right side of movie picture will be cut off.)
3. 16:9 Wide :
You can view the full 16:9 picture on your widescreen TV.
Still Mode
These options will help prevent picture shake in still mode and display small text
clearer.
1. Auto : When selecting Auto, Field/Frame mode will be automatically converted.
2. Field : Select this feature when the screen shakes in the Auto mode.
3. Frame : Select this feature when you want to see small letters more clearly in the
Auto mode.
Screen Messages
Use to turn on-screen messages On or Off.
Front Display
Adjust the brightness of the unit’s front panel display.
1. Auto Dim : Makes the Front Panel Display dim automatically when playing a DVD.
2. Bright : Makes the Front Panel Display bright.
3. Dim : Makes the Front Panel Display dim.
Black Level
Adjusts the brightness of the screen.(On/Off)
Setting Up the Display Options
52 53
Setting Up the Display Options
TV Aspect
Still Mode
Screen Messages
Front Display
Black Level
With the unit in Stop mode, press the MENU button.
Select Setup using UP/DOWN buttons, then RIGHT
or ENTER button.
Select Display Setup using UP/DOWN buttons,
then press the RIGHT or ENTER button.
Use the UP/DOWN buttons to select the desired
item. Then press the RIGHT or ENTER button.
DISPLAY SETUP
Still Mode : Auto
Screen Massages : On
Front Display : Auto Dim
Black Level : On
TV TV AspectAspect : W : Wideide
TV ASPECT
4:3 Pan Scan
4:3 Letter Box
16:9 W16:9 Wideide
NOTE
•
How to make the SETUP menu disappear or return to menu screen during set up;
Press the RETURN or LEFT button.
1
2
3
4
E138A 00141K-2(GB)XTC 4/9/03 10:21 AM Page 52

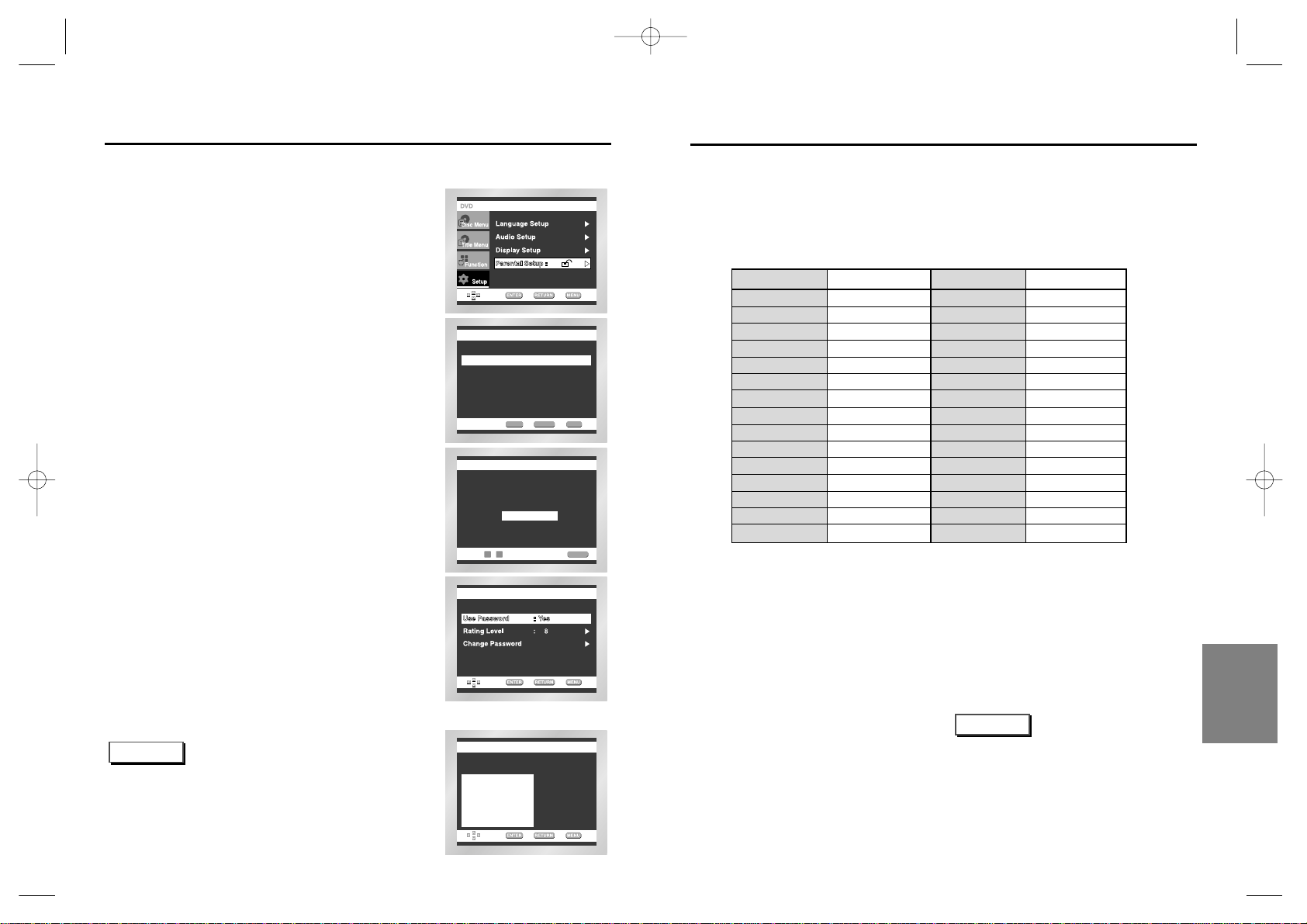

Page 28
CHANGING
SETUP MENU
Controlling a TV with the Remote
(DVD-P538K only)
The remote can also be set up to control most TVs. To program the remote, use the
code that corresponds to your brand.
e.g) For SAMSUNG _1 TVs
While holding down the TV POWER button,
enter 0 and then 1.
The remote may not be able to control every
model TV of the brands listed.
NOTE
Turn on the TV.
Point the DVD’s remote at the TV.
While holding the TV POWER button
down, enter the code for your brand.
1
2
3
If the TV turns off, setup is complete.
Enter other codes of the same brand
if the first code does not work.
To operate the TV, use the “TV Function
Buttons” described on page 19.
4
5
54 55
Setting Up the Parental Control
The Parental Control function works in conjunction with DVDs that have been assigned
a rating - which helps you control the types of DVDs that your family watches.
There are up to 8 rating levels on a disc.
With the unit in Stop mode, press the MENU button.
Select Setup using UP/DOWN buttons, then RIGHT
or ENTER button.
Select Parental Setup using UP/DOWN buttons,
then press the RIGHT or ENTER button.
Use RIGHT or ENTER to select Yes if you want to
use a password. The Enter Password screen
appears.
Enter your password. The Re-enter Password
screen appears to confirm the password.
Enter your password again.
The Parental Control screen appears.
About the Rating Level ;
The Rating Level will work only when Use Password
is set to Yes. To unlock the player, use UP/DOWN to
select No. Use RIGHT or ENTER to select Rating
Level. Press ENTER.
- Use UP/DOWN to select the level(e.g. Level 6) and press
ENTER. Discs that contain Level 7 will now not play.
- To cancel the rating level, use RIGHT or ENTER to select No in
Use Password.
About the Change Password ;
- Use UP/DOWN to select Change Password.
Press ENTER. The Change Password screen appears.
- Enter your new password. Re-enter the new password again.
CREATE PASSWORD
Enter Password
- - - -
0 ~ 9
RETURN
PARENTAL SETUP
PARENTAL SETUP
Use PasswordUse Password : No: No
ENTER RETURN MENU
RATING LEVEL
Level 8 Adult
Level 7
Level 6
Level 5
Level 4
Level 3
Level 2
Level 1 Kids Safe
e.g) Setting up in LEVEL6.
NOTE
•
How to make the SETUP menu disappear or return to
menu screen during set up;
Press RETURN or LEFT button.
• If you have forgotten your password, see Forget Password in
the Troubleshooting Guide.
1
2
3
4
5
Code
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
SAMSUNG_1
SHARP_2
SONY
MAGNAVOX
SANYO_1
LG_2
RCA
LG_1
TOSHIBA
HITACHI
JVC
PANASONIC_1
MITSUBISHI_2
SAMSUNG_2
SAMSUNG_3
SHARP_1
ZENITH
LG_3
DAEWOO_8
SANYO_2
EMERSON
SHARP_3
SAMSUNG_4
PANASONIC_2
NOBLEX
TELEFUNKEN
NEWSAN
LOEWE
RCA2
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Brand Code Brand
TV Codes
E138A 00141K-2(GB)XTC 4/9/03 10:21 AM Page 54
Page 29
REFERENCE
56
57
Specifications
*: Nominal specification
• Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.
• Weight and dimensions are approximate.
Power Requirements
Power Consumption
Weight
Dimensions
Operating Temperature Range
Operating Humidity Range
DVD
(DIGITALVERSATILE DISC)
CD : 12Cm
(COMPACT DISC)
CD : 8Cm
(COMPACT DISC)
VCD : 12Cm
Composite Video
Component Video
S-VIDEO
2 channel
*Frequency Response
*S/N Ratio
*Dynamic Range
*Total Harmonic Distortion
AC 110~240V, 50/60 Hz
12 W
2.4 Kg
430mm (W) X 240mm (D) X 60mm (H)
+5°C to +35°C
10 % to 75 %
Reading Speed : 3.49 m/sec.
Approx. Play Time
(Single Sided, Single Layer Disc) : 135 min.
Reading Speed : 1.2 to 1.4 m/sec.
Maximum Play Time : 74 min.
Reading Speed : 1.2 to 1.4 m/sec.
Maximum Play Time : 20 min.
Reading Speed : 1.2 to 1.4 m/sec.
Maximum Play Time : 74 min. (Video + Audio)
1 channel : 1.0 Vp-p (75 Ω load)
Y : 1.0 Vp-p (75 Ω load)
Pr : 0.70 Vp-p (75 Ω load)
Pb : 0.70 Vp-p (75 Ω load)
Luminance Signal : 1.0 Vp-p (75 Ω load)
Chrominance Signal : 0.286 Vp-p (75 Ω load)
L(1/L), R(2/R)
48 kHz Sampling : 4 Hz to 22 kHz
96 kHz Sampling : 4 Hz to 44 kHz
110 dB (DVD-E138A/DVD-1010/DVD-E138B/DVD-E238)
105 dB (Karaoke off Mode DVD-E338K/DVD-P538K)
100 dB (DVD-E138A/DVD-1010/DVD-E138B/DVD-E238)
96 dB (Karaoke off Mode DVD-E338K/DVD-P538K)
0.004 % (DVD-E138A/DVD-1010/DVD-E138B/DVD-E238)
0.004 % (Karaoke off Mode DVD-E338K/DVD-P538K)
General
Disc
Video
Output
Audio
Output
Troubleshooting
Before requesting service (troubleshooting), please check the following.
No operations can be
performed with remote.
The screen ratio cannot
be changed.
No audio.
Play mode differs from the
Setup Menu selection.
Disc Menu doesn’t appear.
The icon appears on
screen.
Forgot password
If you experience other
problems.
5.1 channel sound is not
being reproduced.
Disc does not play.
• Check the batteries in the remote. May need replacing.
• Operate the remote control at a distance of no more than 20 feet.
• Remove batteries and hold down one or more buttons for several
minutes to drain the microprocessor inside the remote to reset it.
Reinstall batteries and try remote again.
• Ensure that the disc is installed with the label side facing up.
• Check the region number of the DVD.
• 5.1 channel sound is reproduced only when the following conditions
are met. :
1) The DVD player is connected with the proper amplifier
2) The disc is recorded with 5.1 channel sound.
• Check whether the disc being played has the “Dolby 5.1 ch” mark
on the outside.
• Check if your audio system is connected and working properly.
• In a SETUP Menu, is the Audio Output set to Bitstream?
• The features or action cannot be completed at this time because:
1. The DVD’s software restricts it.
2. The DVD’s software doesn’t support the feature (e.g., angles).
3. The feature is not available at the moment.
4. You’ve requested a title or chapter number or search time that is
out of range.
• Check if the disc has a Menu.
• Some of the functions selected in the Setup Menu may not work
properly if the disc is not encoded with the corresponding function.
• The Screen Ratio is fixed on your DVDs.
• Make sure you have selected the correct Digital Output in the Audio
Options Menu.
• Press power on from a cold start with no disc in the unit. Press the
STOP ( ) and PLAY( ) buttons simultaneously on the front panel
for three seconds. The Select Menu Language display will appear.
Select the desired language button. Press the MENU button on the
remote control to select the Parental Mode. The Parental Mode is now
unlocked as indicated on the display. Press the DOWN button to select
Parental. Press ENTER and the Create Password display will appear.
You can now set your rating level and change your password to a new
number.
• Go to the contents and find the section of the instruction book that
contains the explanations regarding the current problem, and follow
the procedure once again.
• If the problem still cannot be solved, please contact your nearest
authorized service center.
Action
Problem Page
P4
P7
P20
P50~51
P24
P47~48
P47~54
P52~53
P50~51
P54
E138A 00141K-2(GB)XTC 4/9/03 10:22 AM Page 56
Loading...
