Thank you for purchasing this Samsung product.
To receive more complete service, please register your product at www.samsung.com/global/register
|
|
|
|
|
AK68-01903A(04) |
|
ENGLISH |
||
precautions
1. Setting up
-Refer to the identification label located on the rear of your player for its proper operating voltage.
-Install your player in a cabinet with adequate ventilation holes. (7~10cm) Do not block ventilation holes on any of the components for air circulation.
-Do not push the disc tray in by hand.
-Do not stack components.
-Be sure to turn all components off before moving the player.
-Before connecting other components to this player, be sure to turn them off.
-Be sure to remove the disc and turn off the player after use, especially if you are not going to use it for a long time.
-The mains plug is used as a disconnect device and shall stay readily operable at any time.
2. For your safety
-This product utilizes a laser. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
-Do not open covers and do not repair yourself. Refer servicing to qualified personal.
3. Caution
-Your player is not intended for industrial use but for domestic purposes. Use of this product is for personal use only.
-Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.
-Exterior influences such as lightning and static electricity can affect normal operation of this player. If this occurs, turn the player off and on again with the POWER button, or disconnect and then reconnect the AC power cord to the AC power outlet. The player will operate normally.
-When condensation forms inside the
player due to sharp changes in temperature, the player may not operate correctly. If this occurs, leave the player at room temperature until the inside of the player becomes dry and operational.
4. Disc
-Do not use record-cleaning sprays, benzene, thinner, or other volatile solvents that may cause damage to the disc surface.
-Do not touch the disc’s signal surface. Hold by the edges or by one edge and the hole in the center.
-Wipe the dirt away gently; never wipe a cloth back and forth over the disc.
5. Environmental info
-The battery used in this product contains chemicals that are harmful to the environment.
-So, dispose of batteries in the proper
man ner, according to federal, state, and local regulations.
The product unit accompanying this user manual is licensed under certain intellectual property rights of certain third parties. This license is limited to private non-commercial use by end-user consumers for licensed contents. No rights are granted for commercial use. The license does not cover any product unit other than this product unit and the license does
not extend to any unlicensed product unit or process conforming to ISO/OUR 11172-3 or ISO/OUR 13818-3 used or sold in combination with this product unit. The license only covers the use of this product unit to encode and/or decode audio files conforming to the ISO/OUR 11172-3 or ISO/OUR 13818-3. No rights are granted under this license for product features or functions that do not conform to the ISO/ OUR 11172-3 or ISO/OUR 13818-3.
CAUTION: USE OF ANY CONTROLS, ADJUSTMENTS, OR PROCEDURES OTHER THAN SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
2 |
Contents
Precautions. . . . . . . . . . . . . . . . 2
Setup
General Features . . . . . . . . . . . . . . 2 Description . . . . . . . . . . . . . . . . 3 Tour of the Remote Control. . . . . . . . . . 4
Connections

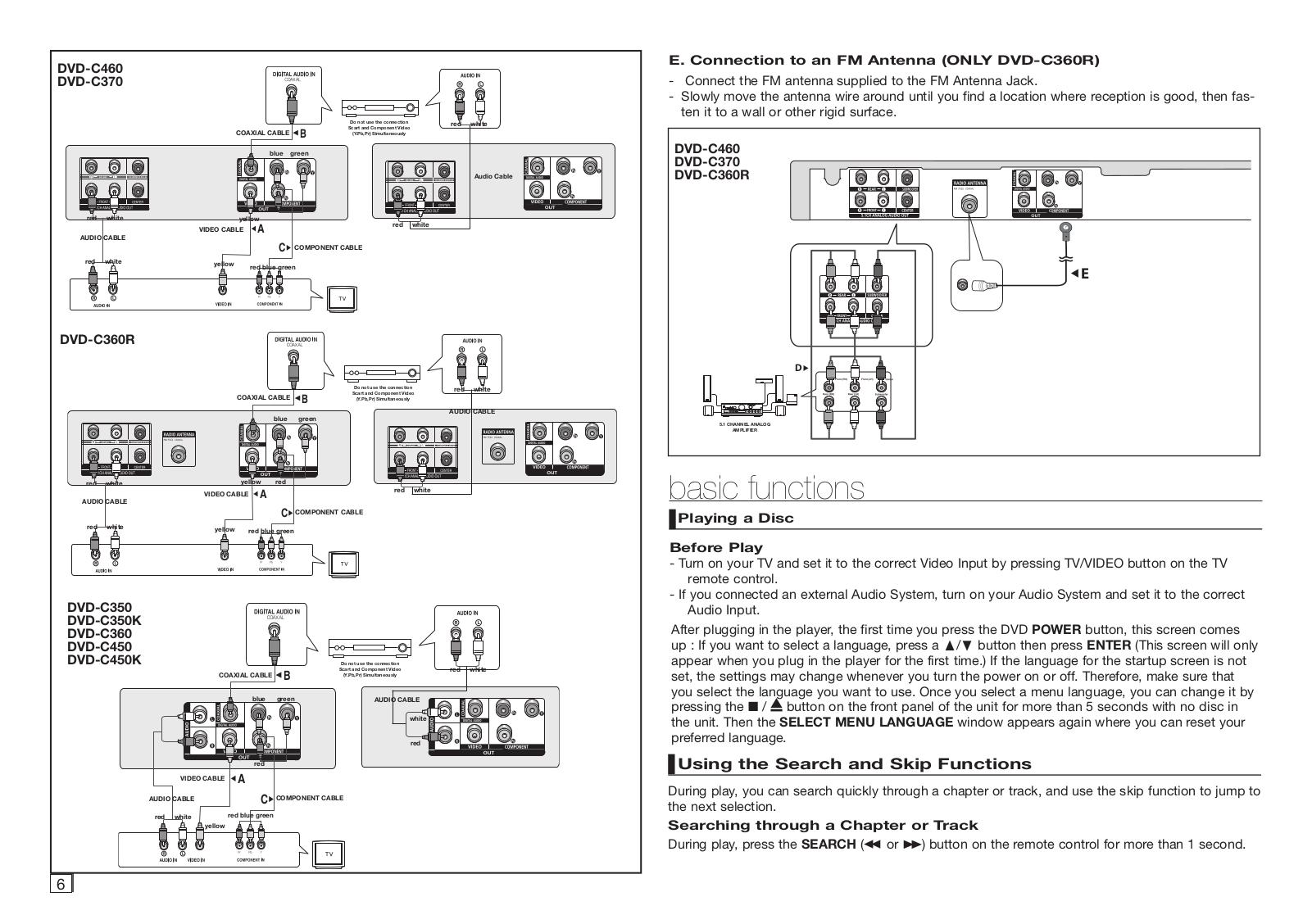

Choosing a Connection . . . . . . . . . . . 5
Basic Functions
Playing a Disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Using the Search and Skip Functions . . . . . . 6 Using the Display Function . . . . . . . . . . 7 Using the Disc and Title Menu . . . . . . . . . 7 Repeat Play . . . . . . . . . . . . . . . . 7 Slow Play . . . . . . . . . . . . . . . . 7
Advanced Functions
Adjusting the Aspect Ratio (EZ View). . . . . . 7 Selecting the Audio Language . . . . . . . . . 8 Selecting the Subtitle Language. . . . . . . . 8 Changing the Camera Angle. . . . . . . . . . 8 Using the Bookmark Function . . . . . . . . . 8 Using the Zoom Function. . . . . . . . . . . 8 Clips Menu for MP3/WMA/JPEG/MPEG4
CD Audio . . . . . . . . . . . . . . . . |
9 |
Folder Selection . . . . . . . . . . . . . . |
9 |

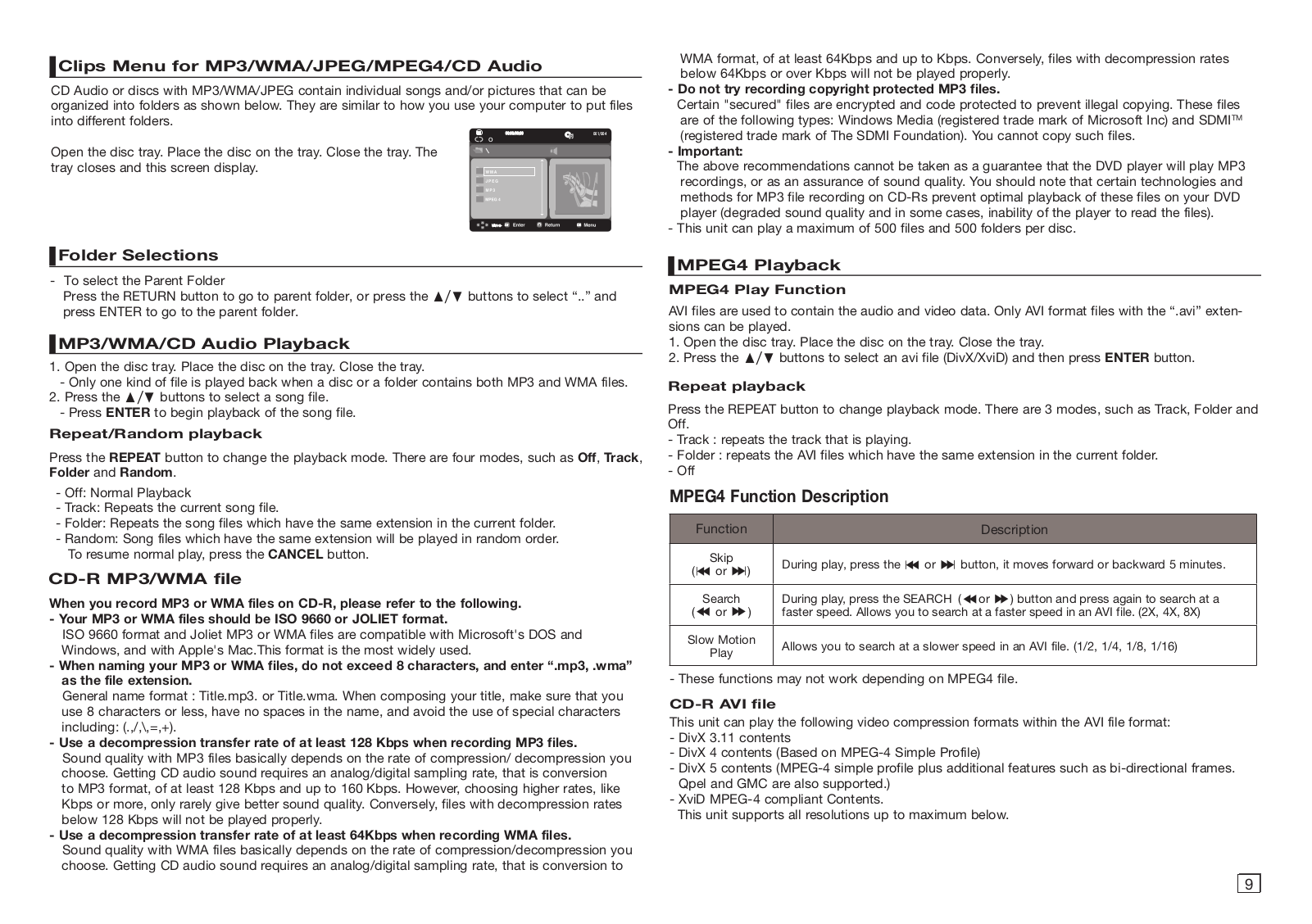

MP3/WMA/CD Audio Playback. . . . . . . . . . . . . . . |
. 9 |
MPEG4 Playback . . . . . . . . . . . . . |
. 9 |

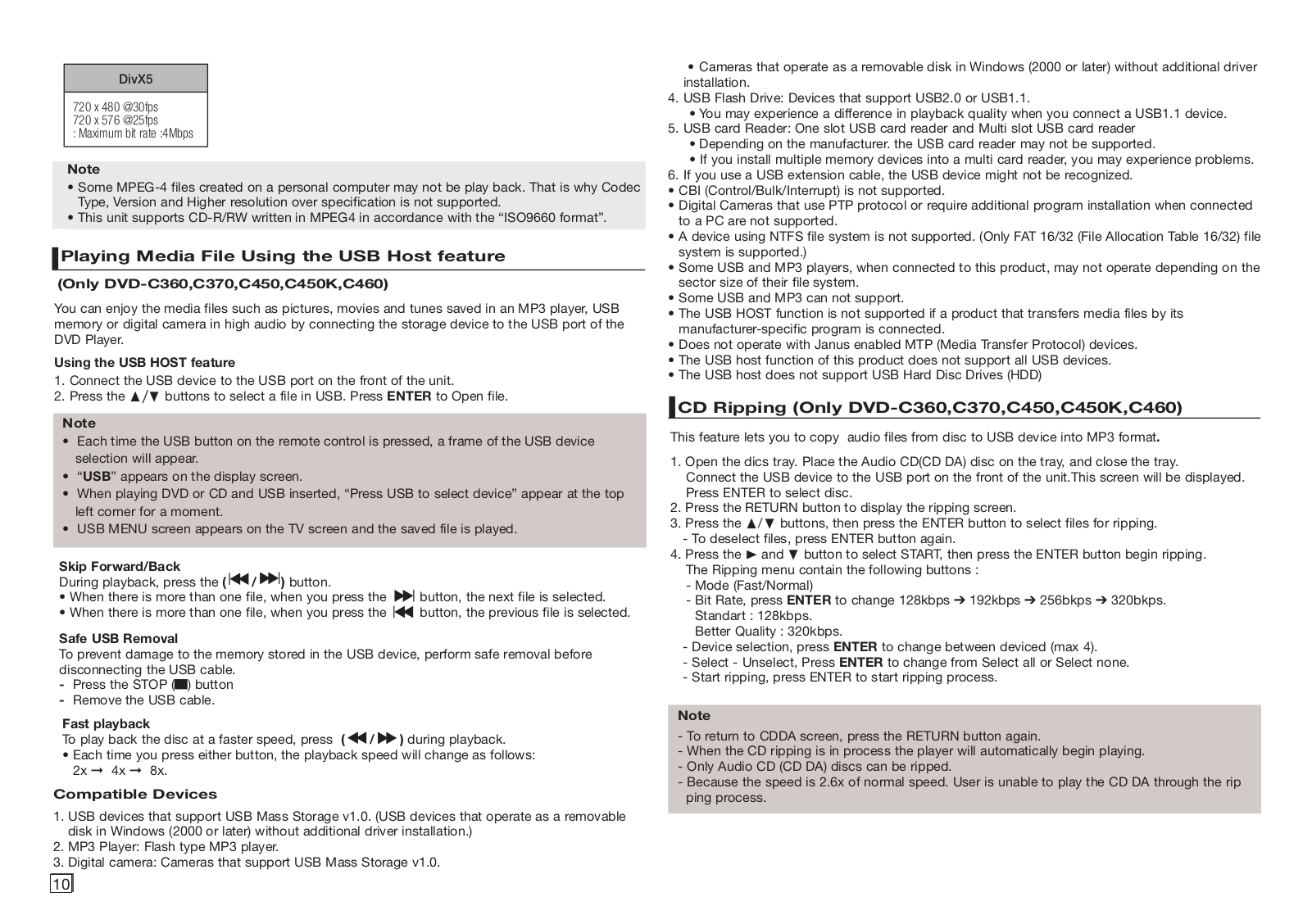

Playing Media File Using the USB Host Feature |
|
(Only DVD-C360,C370,C450,C450K,C460) . . . |
10 |
CD Ripping |
|
(Only DVD-C360,C370,C450,C450K,C460. . . . |
10 |
Picture CD Playback. . . . . . . . . . . . |
11 |
FM Radio (Only DVD-C360R). . . . . . . . . |
11 |
Karaoke Function |
|
Karaoke Function (Only DVD-C450K,C350K). . . |
11 |

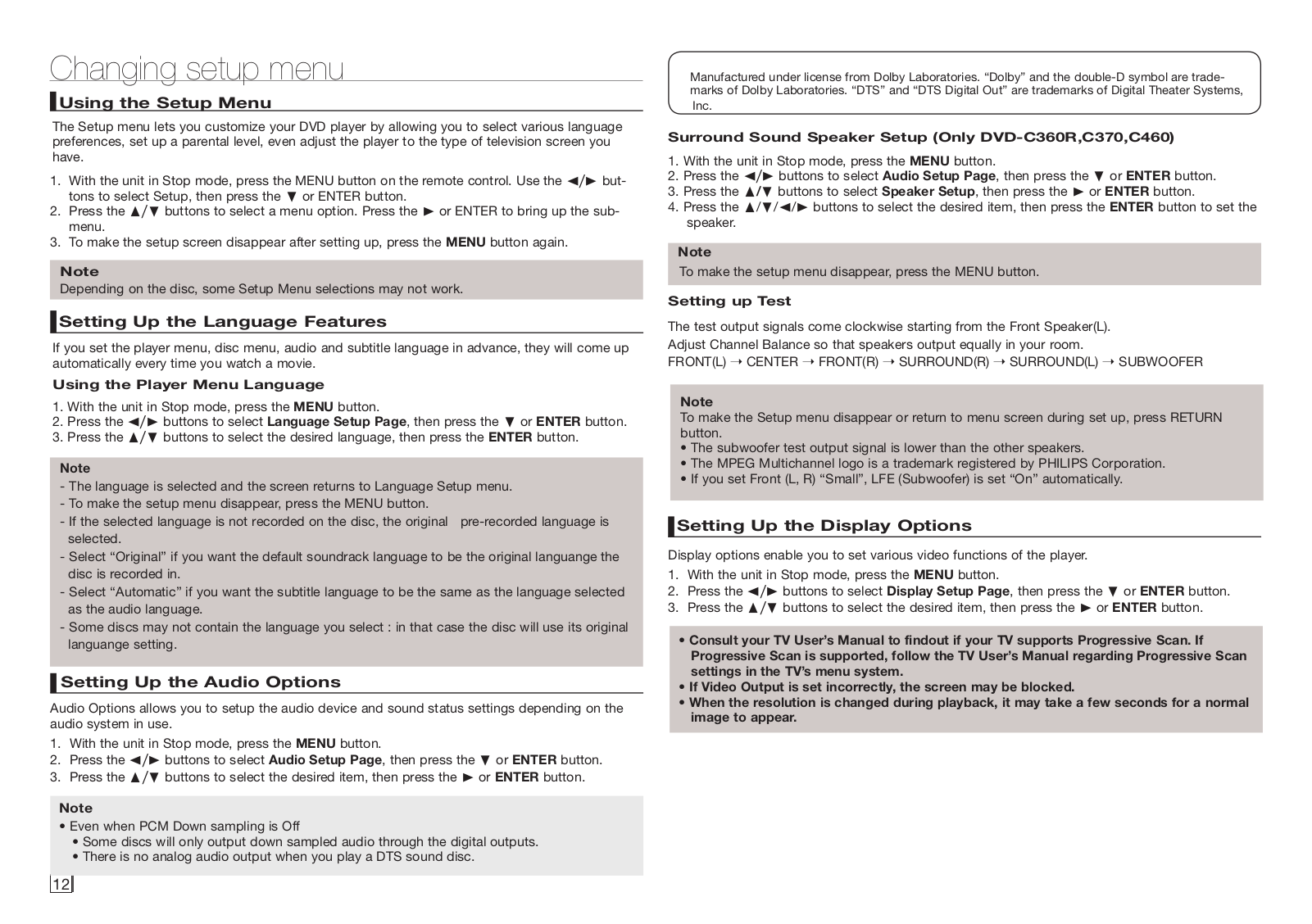

Changing Setup Menu |
|
Using the Setup Menu . . . . . . . . . . . |
12 |
Setting Up the Language Features. . . . . . . |
12 |
Setting Up the Audio Options. . . . . . . . . |
12 |
Setting Up the Display Options. . . . . . . . . . . . . . . |
12 |

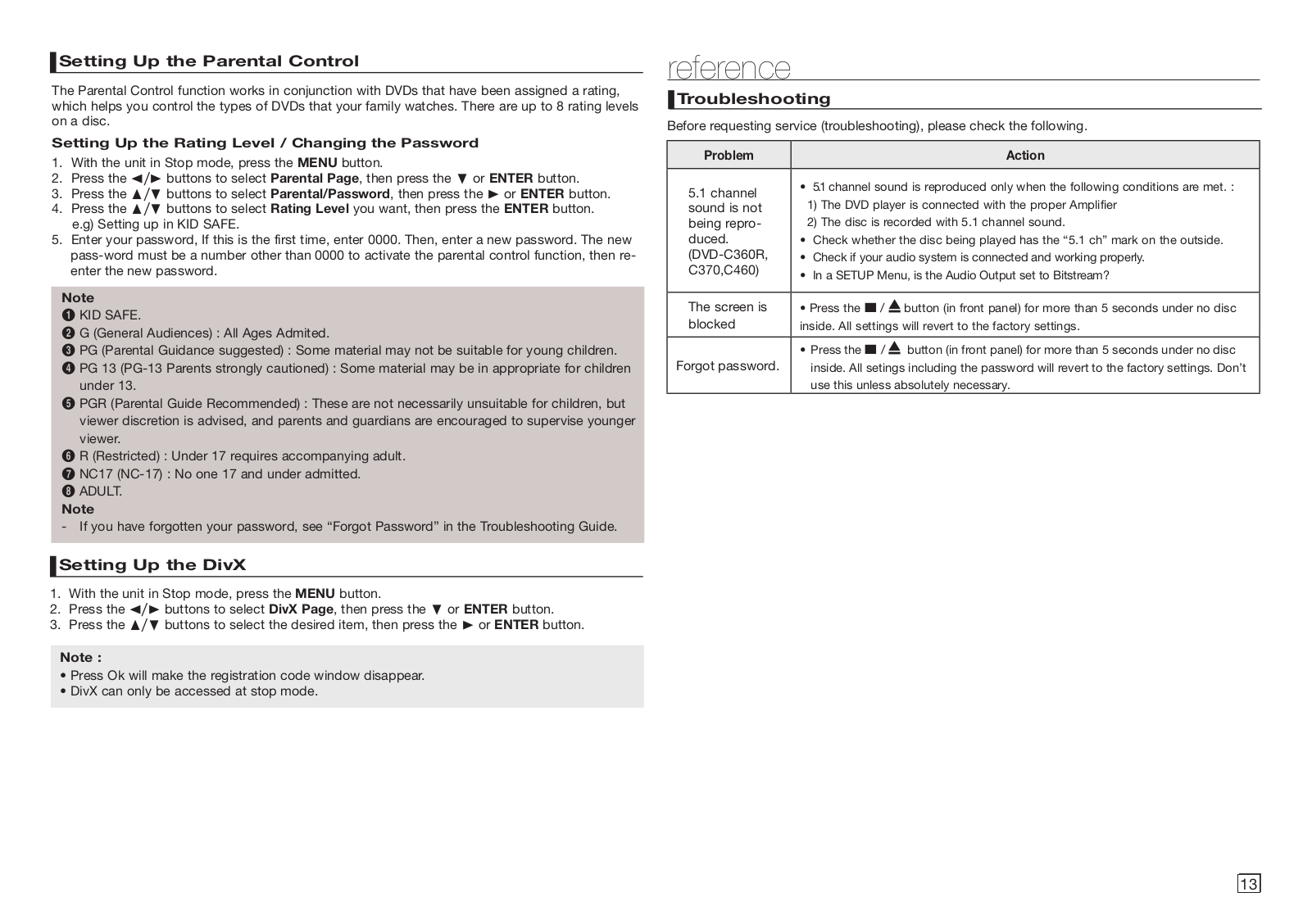

Setting Up the Parental Control . . . . . . . . |
13 |
Setting Up the DivX. . . . . . . . . . . . . |
13 |
Reference |
|
Troubleshooting. . . . . . . . . . . . . . |
13 |

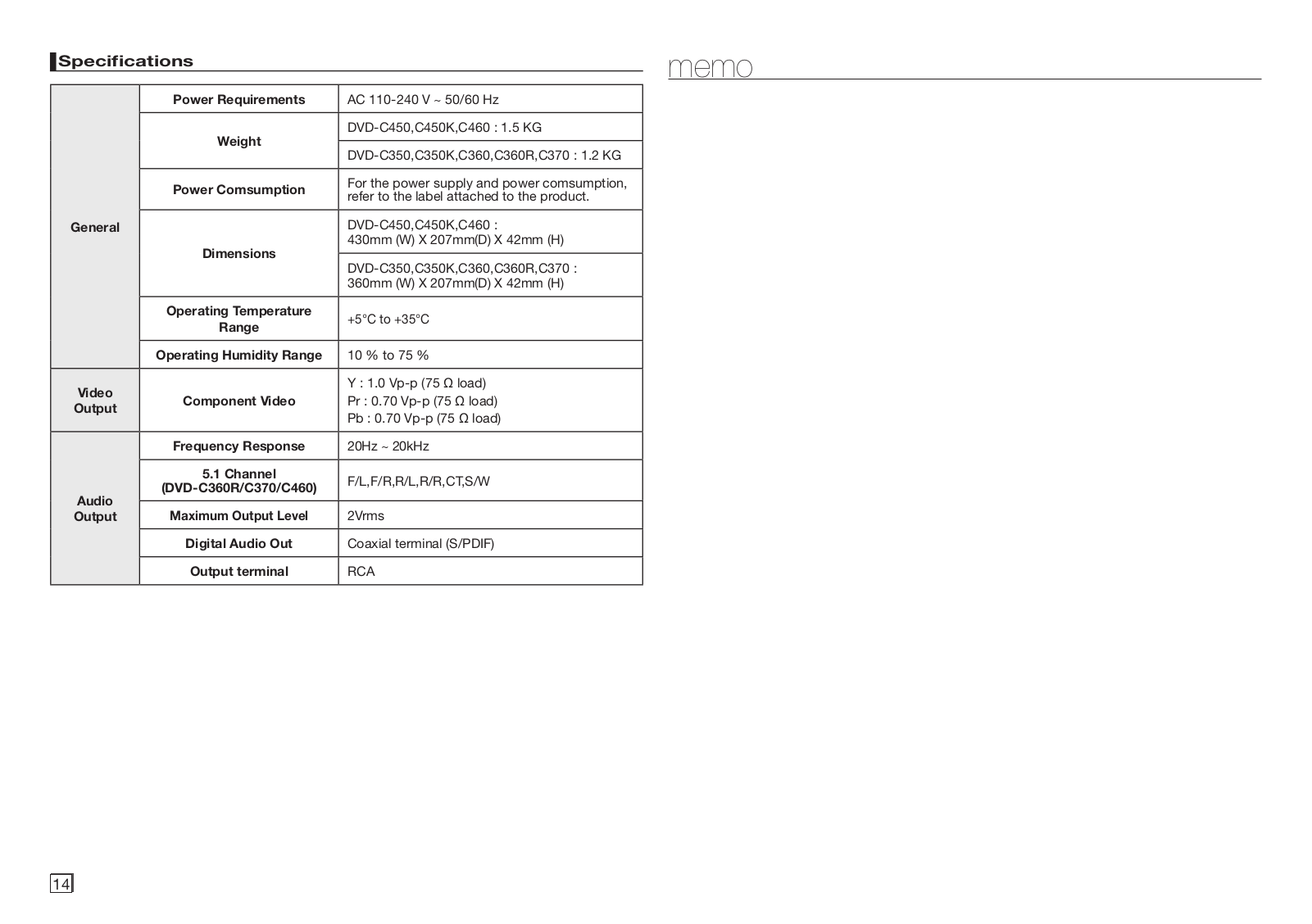

Specifications. . . . . . . . . . . . . . . |
13 |
setup
General Features
Excellent Sound
Dolby Digital, a technology developed by Dolby Laboratories, provides crystal clear sound reproduction.
Screen
Both regular and widescreen (16:9) pictures can be viewed.
Slow Motion
An important scene can be viewed in slow motion.
Parental Control (DVD)
The parental control allows users to set the level necessary to prohibit children from viewing harmful movies such as those with violence, adult subject matter, etc.
Various On-Screen Menu Functions
You can select various languages (Audio/ Subtitle) and screen angles while enjoying movies.
Progressive Scan
Progressive scanning creates an improved picture with double the scan lines of a conventional interlaced picture.
EZ VIEW (DVD)
Easy View enables picture adjustment to match your TV's screen size (16:9 or 4:3).
Digital Photo Viewer (JPEG)
You can view Digital Photos on your TV.
Repeat
You can repeat a song or movie simply by pressing the REPEAT button.
MP3/WMA
This unit can play discs created from MP3/ WMA files.
MPEG4
This unit can play MPEG4 formats within an avi file.
FM Radio (Only DVD-C360R)
You can listen your favourite FM Radio channel on your TV.
CD Ripping
(Only DVD-C450K,C450,C460,C370,C360)
This feature lets you copy audio files from discs to USB device into MP3 format. (only audio CD (CD DA)).
Note
-Discs which cannot be played with this player.
• |
DVD-ROM |
• DVD-RAM |
• |
CD-ROM |
• CDV |
• |
CDI |
• CVD |
•CDGs play audio only, not graphics.
- Ability to play back may depend on recording conditions.
•DVD-R, +R
•CD-RW
•DVD+RW, -RW (V mode)
-The unit may not play certain CD-R, CDRW and DVD-R due to the disc type or recording conditions.
COPY PROTECTION
Many DVD discs are encoded with copy pro-
tection. Because of this, you should only connect your DVD player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected DVD discs. This item incorporates copy protection tech-
Disc Markings
nology that is protected by U.S. patents and other intellectual property rights of ROVI Corporation. Reverse engineering and disassembly are prohibited.
PROGRESSIVE SCAN OUTPUTS (576p)
“CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE, IN CASE OF 576 PROGRESSIVE SCAN PICTURE
PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE ‘STANDARD DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS REGARDING YOUR TV SET COMPATIBILITY WITH THIS MODEL 576p DVD PLAYER, PLEASE CONTACT SAMSUNG'S CUSTOMER SERVICE CENTER.”
~ |
Play Region Number |
|
|
||
PAL |
PAL broadcast system in U.K, |
|
France, Germany, etc. |
||
|
Dolby Digital disc |
|
STEREO |
Stereo disc |
|
DIGITAL |
Digital Audio disc |
|
SOUND |
||
|
||
|
DTS disc |
Region Number
Both the DVD player and the discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play.
The Region Number for this player is described on the rear panel of the player.
DivX Certification
DivX, DivX Certified, and associated logos are trademarks of
DivXNetworks, Inc and are used under license. DivX Certified to play DivX video.
MP3 disc
Descriptions
Front Panel Controls |
|
|
|
|
|
|
|
|
|
|
DVD-C460 |
1 |
|
|
2 |
|
3 |
4 |
5 |
6 |
7 |
DVD-C450 |
|
|
|
|||||||
|
▼ |
|
|
▼ |
|
▼ |
▼ |
▼ |
▼ |
▼ |
|
|
|
|
|
|
|
|
|
||
DVD-C450K |
1 |
|
8 |
9 |
2 |
3 |
4 |
5 |
6 |
7 |
|
|
|||||||||
|
▼ |
|
▼ ▼ |
▼ ▼ |
▼ |
▼ |
▼ |
▼ |
▼ |
▼ |
|
|
|
|
|
|
|
||||
DVD-C370 |
|
1 |
|
2 |
|
|
3 |
5 |
6 |
7 |
DVD-C360 |
|
|
|
|
||||||
|
|
▼ |
|
▼ |
|
|
▼ |
▼ |
▼ |
▼ |
|
|
|
|
|
|
|
|
|
||
DVD-C360R |
|
|
|
|
|
|
|
|
|
|
DVD-C350 |
|
|
|
|
|
|
|
|
|
|
|
1 |
|
|
|
2 |
|
3 |
5 |
6 |
|
|
|
|
|
|
|
|
|
|
||
|
▼ |
|
|
|
▼ |
|
▼ |
▼ |
▼ |
|
|
|
|
|
|
|
|
|
|
||
DVD-C350K |
1 |
|
8 |
|
2 |
3 |
|
5 |
6 |
|
|
|
|
|
|
||||||
|
▼ |
|
▼ |
|
▼ |
▼ |
|
▼ |
▼ |
|
|
|
|
|
|
|
|
|
|||
3 |
1.DISC TRAY
Place the disc here.
2.DISPLAY
Operation indicators are displayed here.
3.OPEN/CLOSE/STOP (
)
Press to open and close the disc tray
4.STOP (■)
(Only DVD-C460,C450K,C450)
Stop disc play.
5.PLAY/PAUSE (
)
Play or pause the disc / Stops Disc Play
6.POWER ON/OFF (
)
Turn On/Off the DVD Player
Tour of the Remote Control
7.USB HOST
(Only DVD C460,C450K,C450,C370,C360)
Connect digital still camera, MP3 player, memory stick, Card reader, or another removable storage devices.
8.MIC 1/2
(Only DVD-C450K,C350K)
Connect Microphone for karaoke functions.
9.MICROPHONE VOLUME (Only DVD-C450K)
Use to adjust microphone volume level. Use the button by pressing it. Turn it to the left or right to control the volume.
DVD-C450K |
|
1. DVD POWER Button |
|
|
|
Turns the power on or off. |
|||
DVD-C460 |
|
|||
DVD-C450 |
|
2. REPEAT Button |
|
|
DVD-C370 |
|
Allows you to repeat play |
||
DVD-C360 |
|
a title, |
|
|
|
|
chapter, track, or disc. |
|
|
|
|
3. DISC MENU Button |
|
|
|
|
Brings up the Disc menu. |
||
1 |
12 |
4. BOOKMARK |
|
|
2 |
13 |
Quickly find bookmark sec- |
||
3 |
14 |
tions of a DVD. |
|
|
4 |
15 |
5. SEARCH Buttons ( |
/ ) |
|
5 |
16 |
Allow you to search forward/ |
||
6 |
||||
7 |
|
back ward through a disc. |
||
8 |
17 |
6. STOP Button ( |
) |
|
18 |
7. SKIP Buttons ( |
/ |
) |
|
9 |
|
|||
|
Use to skip the title, chapter |
|||
10 |
|
|||
19 |
or track |
|
|
|
|
|
|
||
|
20 |
|
|
|
|
8. MENU Button |
|
|
|
11 |
21 |
|
|
|
|
|
Brings up the DVD player’s |
||
|
|
menu. |
|
|
|
|
9. ENTER /π/†,√/® Buttons |
||
|
|
This button functions as a |
||
|
|
toggle switch. |
|
|
|
|
10. AUDIO Button (√) |
|
|
|
|
Use this button to access |
||
|
|
various audio functions on |
||
|
|
a disc. |
|
|
11. INFO Button
Displays the current disc mode.
12.OPEN/CLOSE (
) Button
To open and close the disc tray.
13.REPEAT A-B Button
Allows you to repeat A-B disc.
14.USB Button
15.VIDEO SEL. Button
Selects video output formats.
16.PLAY/PAUSE Button (
)
Begin/Pause disc play.
17.SUBTITLE Button (π)
18.RETURN Button
Returns to a previous menu.
19.TITLE MENU Button (®)
Brings up the Title menu.
20.KARAOKE Button († ) (Only DVD-C450K)
Use to begin Karaoke functions.
21. CANCEL Button
Use to remove menus or status displays from the screen.
4 |
DVD-C360R
1
2
3
4
5
6
7
8
9
10
11
1.DVD Power Button
Turns the power on.
2.REPEAT/AUTO SCAN Button
Allows you to repeat play a title, chapter, track, or disc. Returns to a previous menu/ Use this button to search automatically all the available broadcast channel and store
12it to the available preset (up
13to 0 Ch.) (FMRadio Mode).
153. DISC MENU Button
16Brings up the Disc menu.
174. BOOKMARK Button
18Quickly find bookmark sec-
19tions of a DVD.
205. SEEK(+, -) Buttons14
Allow you to search the near-
21est broadcasting channel
22frequency from the current
23frequency (FMRadio Mode).
6.STOP Button (
)
Use to stop playback.
7.SKIP Buttons (
/
)
Use to skip the title, chapter or track.
8.MENU Button
Brings up the DVD player’s menu.
9.ENTER /π/†,√/® Buttons
This button functions as a toggle switch.
10.AUDIO Button (√)
Use this button to access various audio functions on a disc.
11.INFO Button
Displays the current disc
mode.
12.OPEN/CLOSE (
) Button
To open and close the disc tray
13.REPEAT A-B/FM RADIO Button
Allows you to repeat A-B disc/Use this button to select the FM Radio function menu on or off (FMRadio mode).
14. ZOOM Button
Enlarge DVD Picture
15.VIDEO SEL.Button
Change video output mode
16.SEARCH Buttons (
/
)
Allow you to search forward/ backward through a disc.
17.PLAY/PAUSE Button (
)
Begin/Pause disc play.
18.RADIO (
,
) Buttons
Use this button to search manually the available fre quency broadcasting chan nel (FM Radio Mode)
19.SUBTITLE Button (π)
Use to change subtitle.
20.RETURN Button
Returns to a previous menu.
21.TITLE MENU Button (®)
Brings up the Title menu.
22.CANCEL Button
Use to remove menus or sta tus displays from the screen.
23.PRESET Button (†,π)
This button functions as a toggle switch (DVD Mode) or select preset value (FM Radio mode).
DVD-C350K |
|
1. DVD POWER Button |
|
tray. |
|
|
||
|
Turns the power on or off. |
12. |
REPEAT A-B Button |
|
|
|||
DVD-C350 |
|
2. REPEAT Button |
|
|
|
Allows you to repeat A-B |
|
|
|
|
|
|
|
|
|||
|
|
Allows you to repeat play a |
disc. |
|
|
|||
|
|
title, chapter, track, or disc. |
13. |
ZOOM Button |
|
|
||
|
|
3. DISC MENU Button |
|
|
Enlarges the DVD Picture. |
|
||
1 |
11 |
Brings up the Disc menu. |
14. |
VIDEO SEL. Button |
|
|
||
4. BOOKMARK |
|
|
|
Selects video output for |
|
|||
2 |
12 |
|
|
|
|
|||
3 |
13 |
Quickly find bookmark sections |
|
mats. |
|
|
||
4 |
14 |
of a DVD. |
|
|
15. |
SEARCH Buttons ( |
/ |
) |
|
15 |
5. STOP Button ( |
) |
|
|
Allow you to search forward/ |
||
5 |
16 |
|
|
|||||
6 |
|
6. SKIP Buttons ( |
/ |
) |
|
back ward through a disc. |
|
|
7 |
17 |
Use to skip the title, chapter |
16. |
PLAY/PAUSE Button ( |
) |
|||
18 |
or track |
|
|
|
Begin/Pause disc play. |
|
|
|
|
|
|
|
|
|
|||
8 |
|
7. MENU Button |
|
|
17. |
SUBTITLE Button (π) |
|
|
9 |
19 |
Brings up the DVD player’s |
18. |
RETURN Button |
|
|
||
|
|
|
||||||
10 |
20 |
menu. |
|
|
|
Returns to a previous menu. |
||
|
21 |
8. ENTER/π/†,√/® Buttons |
19. |
TITLE MENU Button (®) |
|
|||
|
|
This button functions as a |
|
Brings up the Title menu. |
|
|||
|
|
toggle switch. |
|
|
20. |
CANCEL Button |
|
|
|
|
9. AUDIO Button (√) |
|
|
Use to remove menus |
|
|
|
|
|
Use this button to access vari- |
|
or status displays from the |
||||
|
|
ous audio functions on a disc. |
|
screen. |
|
|
||
|
|
10. INFO Button |
|
|
21. |
KARAOKE Button (†) |
|
|
|
|
Displays the current disc |
|
(Only DVD-C350K) |
|
|
||
|
|
mode. |
|
|
|
Use to begin Karaoke func |
||
|
|
11. OPEN/CLOSE ( |
) Button |
|
tions. |
|
|
|
|
|
To open and close the disc |
|
|
|
|
||
connections |
|
|
|
|
|
|
|
|
Choosing a Connection
The following shows examples of connections commonly used to connect the DVD player with a TV and other components.
Before Connecting the DVD Player
-Always turn off the DVD player, TV, and other components before you connect or disconnect any cables.
-Refer to the user’s manual of the additional components you are connecting for more information on those particular components.
A.Connecting to a TV (VIDEO CVBS)
-Using video/audio cables, connect the VIDEO (yellow)/AUDIO (red and white) OUT terminals on the rear of the DVD player to the VIDEO (yellow)/AUDIO (red and white) IN terminals of TV.
-Turn on the DVD player and TV.
-Press the input selector on your TV remote control until the Video signal from the DVD player appears on the TV screen.
Note
-Noise may be generated if the audio cable is too close to the power cable.
-If you want to connect to an Amplifier, please refer to the Amplifier connection page.
-The number and position of terminals can vary depending on your TV set. Please refer to the user's manual of the TV.
-If there is one audio input terminal on the TV, connect it to the [AUDIO OUT][left] (white) terminal of the DVD player.
-If you press the VIDEO SEL. button when DVD Player is in stop mode or no disc is inserted, the Video Output mode changes in the following sequence: (I-SCAN P-SCAN ).
B.Connection to an Audio System (2 Channel Amplifier, Dolby Digital,MPEG2 or DTS Amplifier)
-Using the audio cables, connect the AUDIO (red and white) OUT terminals on the rear of the DVD player to the AUDIO (red and white) IN terminals of the Amplifier.
-If Using the video signal cable(s), connect the VIDEO terminals on the rear of the DVD player to the VIDEO terminal of your TV, If using a coaxial cable, connect the DIGITAL AUDIO OUT
(COAXIAL) terminal on the rear of the DVD player to the DIGITAL AUDIO IN (COAXIAL) terminal of the Amplifier.
-Turn on the DVD player, TV, and Amplifier.
-Press the input select button of the Amplifier to select external input in order to hear sound from the DVD player.
Refer to your Amplifier's user manual to set the Amplifier's audio input.
C. Connections to a TV Interlace / Progressive
-Using component video cables, connect the COMPONENT VIDEO OUT terminal on the rear of the DVD player to the COMPONENT IN terminal of TV.
-If using a coaxial cable, connect the DIGITAL AUDIO OUT (COAXIAL) terminal on the rear of the DVD player to the DIGITAL AUDIO IN (COAXIAL) terminal of the Amplifier.
-Using the audio cables, connect the AUDIO (red and white) OUT terminals on the rear of the DVD player to the AUDIO (red and white) IN terminals of TV. Turn on the DVD player and TV.
-Press the input selector on your TV remote control until the Component signal from the DVD player appears on the TV screen.
-Set the Video Output to I-SCAN/P-SCAN in the Display Setup menu. You can use the VIDEO
SEL. button to change the Video Output mode.
Note
-What is "Progressive Scan"? Progressive scan has twice as many scanning lines as the interlace output method has. Progressive scanning method can provide better and clearer picture quality.
D.Connection to a 5.1CH Analog Amplifier (ONLY DVD-C360R,C370,C460)
-If using audio cables for 5.1 CH Analog Amplifier (not included) connect the 5.1CH ANALOG AUDIO OUT terminals on the rear of the DVD player to the 5.1CH ANALOG AUDIO IN terminals of the 5.1CH Analog Amplifier.
-Using the video signal cable(s), connect the VIDEO or COMPONENT terminals on the rear of the DVD player to the VIDEO or COMPONENT terminals of your TV as described on pages.
-Turn on the DVD player, TV, and Amplifier.
-Press the input select button of the Amplifier to select external input in order to hear sound from the DVD player.
5 |
Loading...
