Safety Information

Gefahr eines elektrischen Schlags

Nicht öffnen

VORSICHT

Care & Maintenance

For trouble free operation, follow the instructions shown below.

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates “dangerous voltage” inside the product that presents a risk of electric shock or personal injury.

This symbol indicates important instructions accompanying the product.

CAUTION:DVD PLAYERS USE AN INVISIBLE LASER BEAM WHICH CAN CAUSE

HAZARDOUS RADIATION EXPOSURE IF DIRECTED.

BE SURE TO OPERATE PLAYER CORRECTLY AS INSTRUCTED.

CAUTIONS

Caution:To prevent electric shock, match wide blade of plug to wide slot, fully insert. Attention: Pour éviter les chocs électriques, introduíre la lame la plus large de la fiche

This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment.To prevent electromagnetic interference with electric appliances, such as radios and televisions, use shielded cables and connectors for connections.

dans la borne correspondante de la prise et pousser jusqu au fond.

FCC NOTE (for U.S.A):

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules.These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect this equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help. This class B digital apparatus meets all requirements of the Canadian Interference -Causing Equipment Regulations.

WARNING

To reduce the risk of fire or shock hazard, do not expose this DVD player to rain or moisture.

CAUTION

THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVER AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

Note:

• This unit can be used only where the power supply is AC 120V, 60Hz. It cannot be used elsewhere.

Handling Cautions

• Before connecting other components to this player, be sure to turn them all off.

• Do not move the player while a disc is being played, or the disc may be scratched or broken, and the player’s internal parts may be damaged.

• Do not put a flower vase filled with water or any small metal objects on the player.

• Be careful not to put your hand into the disc tray.

• Do not place anything other than the disc in the disc tray.

• Exterior interference such as lightning and static electricity can affect normal operation of this player. If this occurs, turn the player off and on again with the POWER button, or disconnect and then reconnect the AC power cord to the AC power outlet.The player will operate normally.

• Be sure to remove the disc and turn off the player after use.

• Disconnect the AC power cord from the AC outlet when you don’t intend to use the player for long periods of time.

• Clean the disc by wiping in a straight line from the inside to the outside of the disc.

• Do not pull or push the disc tray forcibly.Doing so may cause malfunction of the player.When you move the player, first remove all discs in the tray.When “NO DISC” is displayed on the front display, turn the power off.

Disc Storage

Be careful not to harm the disc because the data on these discs is highly vulnerable to the environment.

• Do not keep under direct sunlight.

• Keep in a cool ventilated area.

• Store vertically.

• Keep in a clean protection jacket.

Maintenance of Cabinet

For safety reasons, be sure to disconnect the AC power cord from the AC outlet.

• Do not use benzene, thinner, or other solvents for cleaning.

• Wipe the cabinet with a soft cloth.

Accessories

Remote Control

Batteries for Remote Control (AA Size)

Video/Audio Connection Cable

S-Video Cable

User’s Manual

Registration Card

CLASS 1 LASER PRODUCT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT

Formation of Condensation

Due to sharp changes in temperature and humidity, condensation may form if warm air comes in contact with any cold parts inside the player.

• When condensation forms inside the player, the player may not operate correctly. If this occurs, leave the player at room temperature until the

inside of the player becomes dry and operational.

• If condensation forms on a disc, wipe the disc with a soft and dry cloth by moving the cloth from the center hole toward the outer edge.

General Features

Disc Type and Characteristics Description

• Front Panel

• Front Display

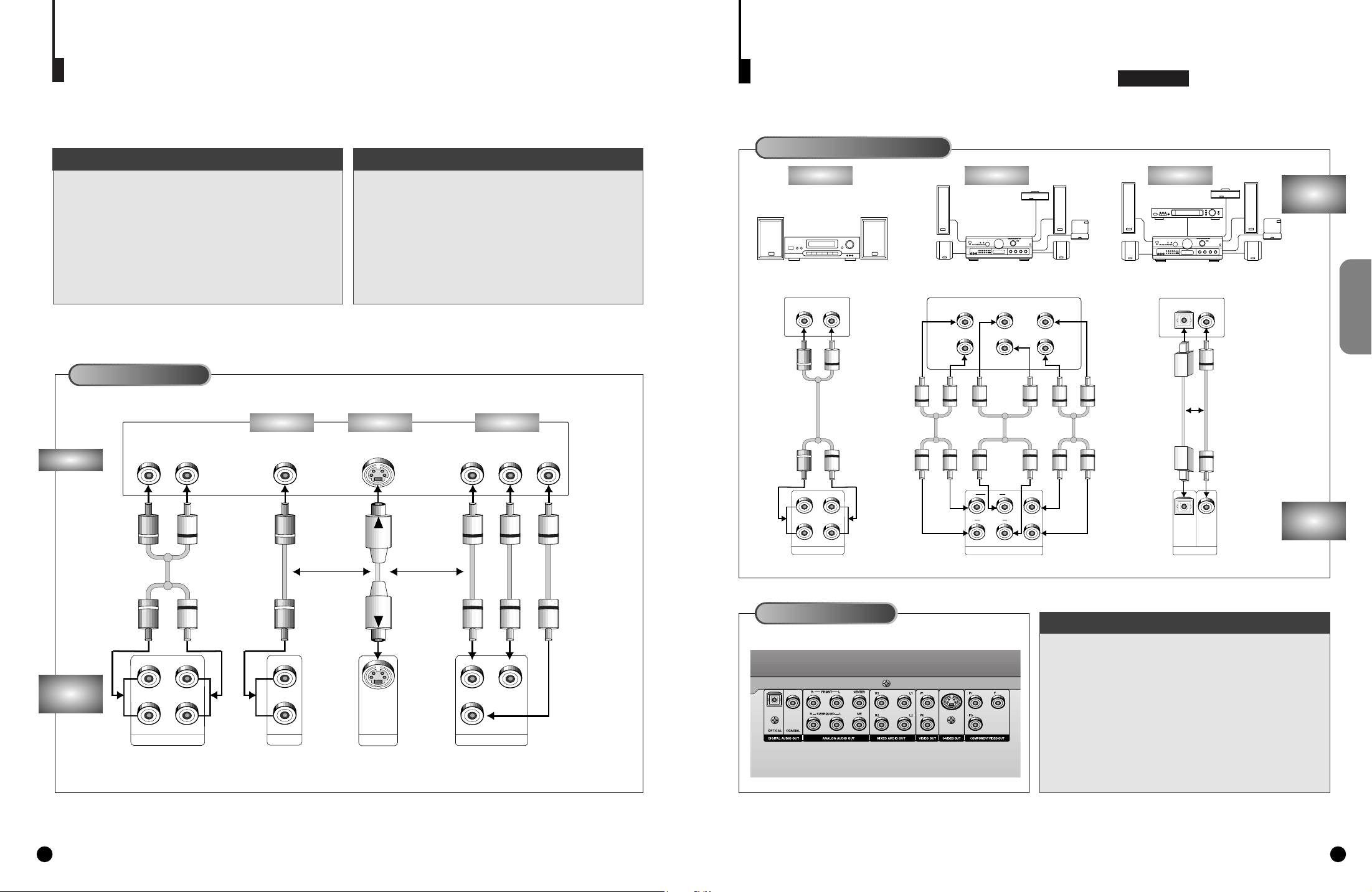

Choosing a Connection

• Connecting to a TV

....................................................

................................

..............................................................

........................................

..................................................

• Rear Panel (C700)

• Rear Panel (C600)

A Tour of the Remote Control

• DVD Function Buttons

• TV Function Buttons

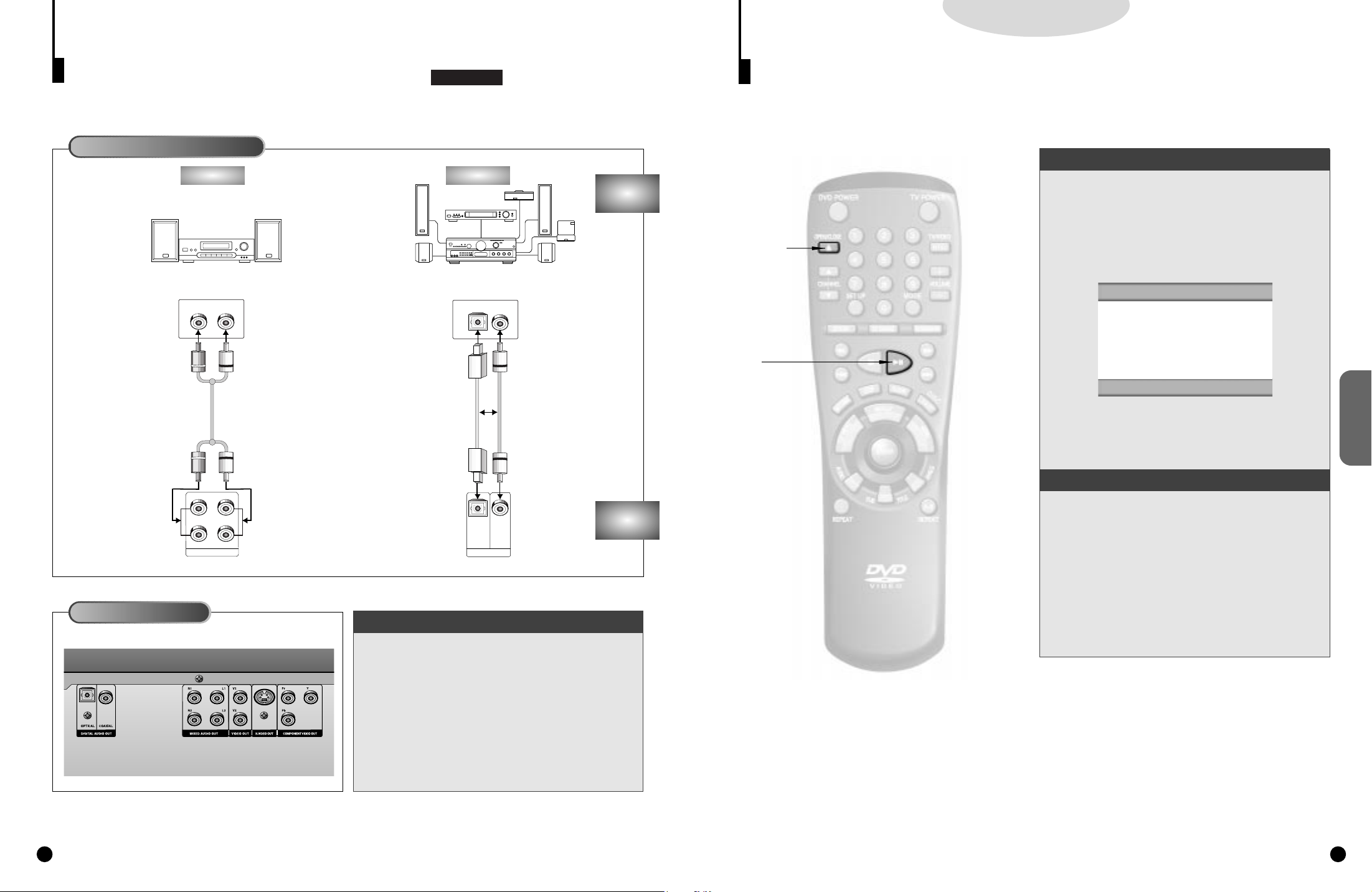

• Connecting to an Audio System(C700)

• Connecting to an Audio System(C600)

....................................................

..............................................

................................................

..............................

..........................

10 11 12 12 13

15 16

SETUP

CONNECTIONS

Playing a Disc Operating the Disc Changer Searching & Skipping through a Chapter or Track Using the Display Function

Using the Disc View Function Selecting Audio Selecting the Subtitle Language

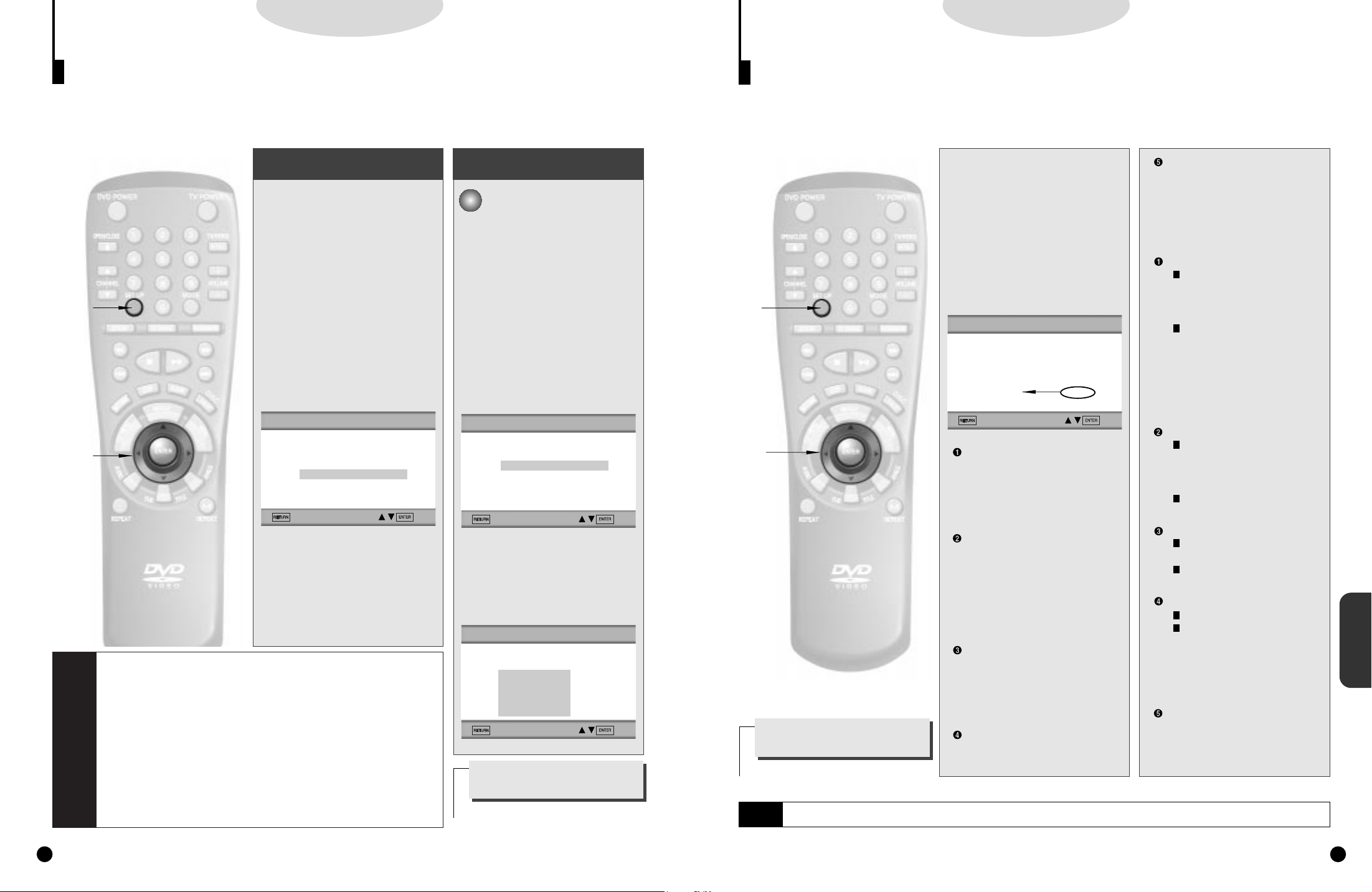

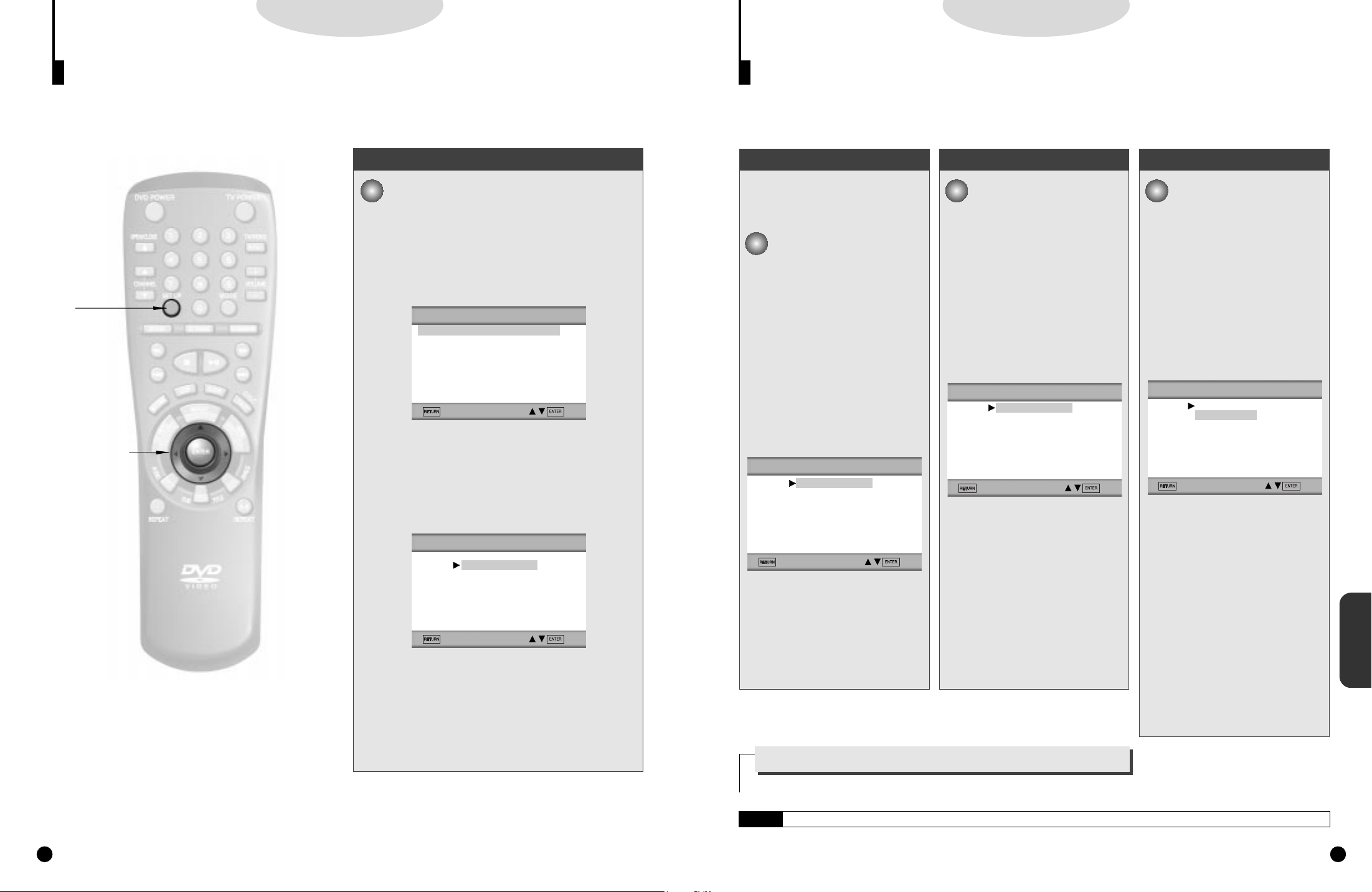

Using the Setup Menu Setting Up the Language Features Setting Up the Parental Control

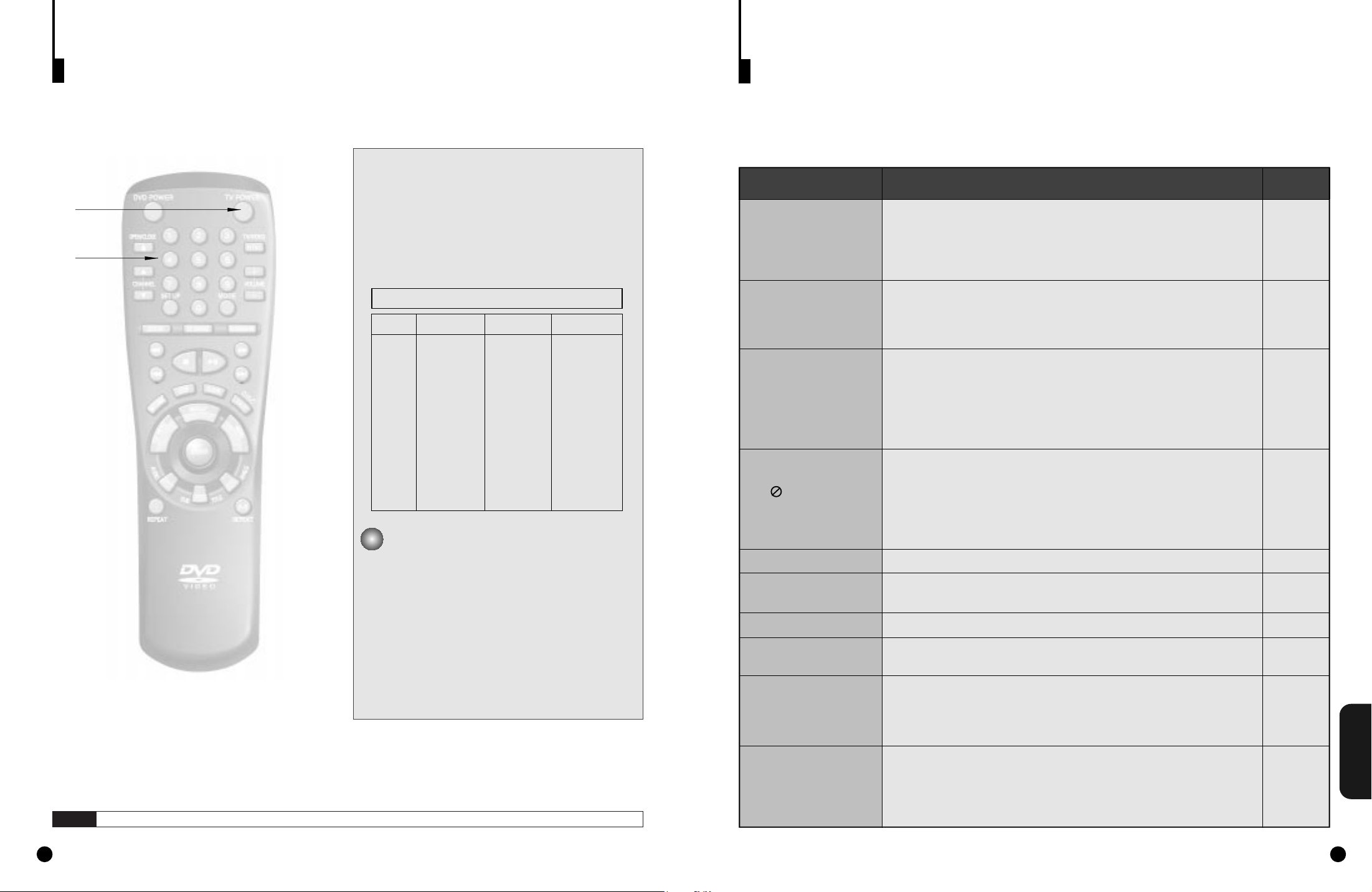

Controlling a TV with the Remote Troubleshooting Guide

......................................................

..................................

..............................

....................................................

..........................

..........................................

......................

............................

........................

..........................................

....

Repeat Play

Using the A-B Repeat Function Program Playback in a Specific Order

20 21

Selecting the Desired Screen Angle

Using the Bookmark Function

Using the Zoom and 3D Sound Functions

Setting Up Audio Options

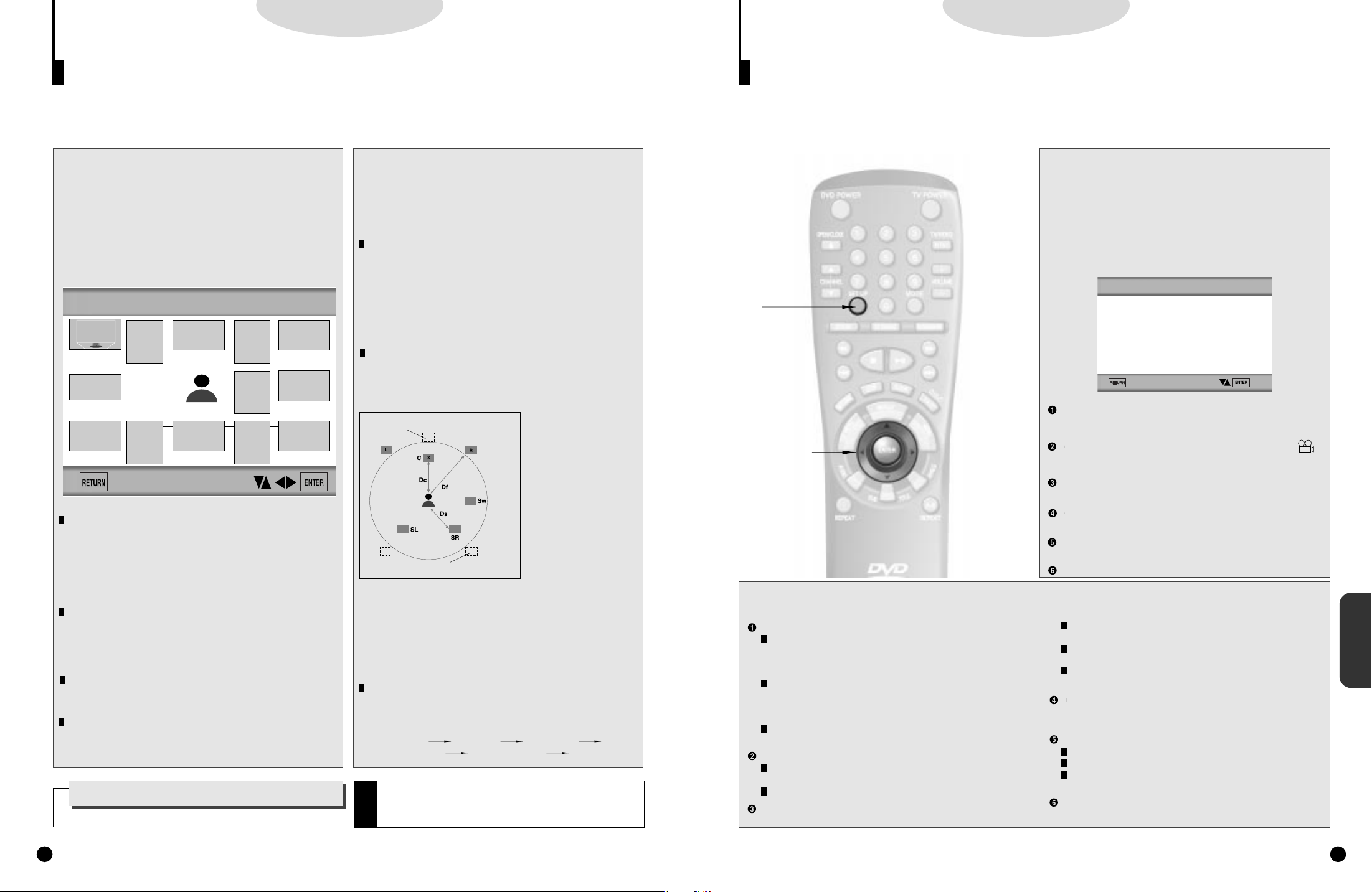

Surround Sound Speaker Setup (C700 only)

Setting Up Display Options

Specifications

Warranty

..........................................................

............................

..............................

....................................

..................................

........................................................

..............................................................

..................

....................

..........

........

22 23 24

28 29 30

35 36 37

40 41

FUNCTIONS

BASIC

FUNCTIONS

ADVANCED

SETUP MENU

CHANGING

REFERENCE

General Features

DIGITAL VIDEO

DVD / VIDEO-CD / CD PLAYER DVD-C700

DOLBY DIGITAL DECODER BUILT-IN

SPATIALIZER

N-2-2

DIGITAL VIDEO

DVD / VIDEO-CD / CD PLAYER DVD-C600

SPATIALIZER

N-2-2

Disc Type and Characteristics

This DVD player is capable of playing the following types of discs with the corresponding logos:

Excellent Sound

The Dolby Digital system developed by Dolby Labs provides crystal clear sound reproduction.

Screen

Video with MPEG2 compression technology. Both regular and widescreen(16:9) pictures can be viewed.

Slow Motion

An important scene can be viewed in slow motion.

DVD Changer

The DVD Changer holds 5 discs and provides full random play with fast disc changes.

Programmed Play

You can program tracks to play in desired order.

Parental Level Control

The parental level control allows users to set the level necessary to prohibit children from viewing harmful movies such as those with violence, adult subject matter, etc.

Various On-Screen Menu Functions

You can select various languages(Audio/Subtitle) and screen angles while enjoying movies.

Repeat

You can repeat a song or movie simply by pressing the REPEAT button.

DVD-C700

Disc Types

DVD

VIDEO-CD

Logos

Recording

Types

Audio

Video

Audio

Video

Disc Size

5 inches

1/2 inches

5 inches

1/2 inches

AUDIO-CD

5 inches

Audio

1/2 inches

*DO NOT play CD-ROM, CD-I, CD-R and DVD-ROM in this player! (CDGs play audio only, not graphics.)

Max.

Playing

Time

Single-sided

240 min.

Double-sided

480 min.

Single-sided

80 min.

Double-sided

160 min.

74 min.

20 min.

74 min.

20 min.

• DVD contains excellent sound and video due to Dolby Digital and MPEG2 system.

• Var ious screen and audio functions can be easily selected through the on-screen menu.

• Video with CD sound, VHS quality & MPEG1 compression technology.

• An LP is recorded as an analog signal with more distortion. CD is recorded as a Digital Signal with better audio quality, less distortion and less deterioration of audio quality over time.

Characteristics

SETUP

Disc Markings

DVD-C600

DIGITAL

• Playback Region Number • NTSC broadcast

COPY PROTECTION

• Many DVD discs are encoded with copy protection. Because of this, you should only connect your DVD player directly to your TV, not to a VCR.Connecting to a VCR results in a distorted picture from copy-protected DVD discs.

• This product incorporates copyright protection technology that is protected by methods claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

6 7

Playback Region Number

Both the DVD player and the discs are coded by region.These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play.

The Region Number for this player is described on the rear panel of the player.

NTSC

system in U.S.A, Canada, Korea, Japan, etc.

• Dolby Digital disc

SOUND

• Digital Audio disc

STEREO

• Stereo disc • DTS disc

Description-Front Panel Description-Front Display

DIGITAL VIDEO

SPATIALIZER

N-2-2

SETUP

Front Panel Controls

STANDBY LAMP

• When the unit is first plugged in, the indicator lights.When power is pressed on, the lamp goes out.

POWER ON/OFF

• Use to turn your player on and off (standby).

DISC SELECT

• Use to select the desired disc loaded in the DVD CHANGER.

HEADPHONES JACK

• You can attach headphones here for private listening.

HEADPHONES VOLUME

• Use to adjust headphones volume level.

FRONT DISPLAY

• Operation indicators are displayed here.

DVD CHANGER

• Press OPEN/CLOSE to open and close the disc changer.

GREEN LAMP PLAY/PAUSE

• Begin or pause disc play.

DISPLAY

• Displays the current disc mode.

REPEAT

• Allows you to repeat play a title, chapter, track, or disc.

REPEAT A-B

• Allows you to repeat sections between point A and point B.

•

NOTE

To Connect Headphones (not included)

Turn the headphone volume down to the minimum setting before connecting.Adjust to your desired volume after connection.

SKIP/SEARCH

• Use to skip or search a scene or music.

STOP

• Stops disc play.

PROGRAM

• Use to play back a disc in programmed order.

CLEAR

• Use to remove menus or status displays from the screen.

RANDOM

• Use to play back a disc in random order.

JOG

• Press this button to activate the frame by frame advance feature. Then turn the SHUTTLE dial to go from one frame to another.

SHUTTLE DIAL

• Performs fast or slow motion playback.

OPEN/CLOSE

• Press to open and close the disc tray.

EXCHANGE

• Press this button when you want to change a disc without stopping playback of the current disc.

DISC SKIP

• Use to skip a disc in order.

Front Display

DISC TYPE INDICA T OR DISC OPERATION ROTARY INDICATOR DVD CHANGER INDICATOR OPERATION INDICATOR DISC INDICATOR TITLE INDICATOR REPEAT INDICATOR CHAPTER INDICATOR ALL REPEAT INDICATOR TRACK INDICATOR A-B REPEAT INDICATOR

PARENTAL LEVEL INDICATOR ANGLE INDICATOR RANDOM INDICATOR 3D SOUND INDICATOR PROGRAM PLAY INDICATOR DTS INDICATOR LINEAR PCM INDICATOR DOLBY DIGITAL INDICATOR MPEG INDICATOR DISC INFORMATION INDICATOR

Description-Rear Panel

DVD-C700

Description-Rear Panel

DVD-C600

SETUP

Rear Panel

DIGITAL AUDIO OUT JACK

• Use either an optical or coaxial digital cable to connect to a compatible Dolby Digital receiver. Use to connect to an A/V Amplifier that contains a Dolby Digital decoder or DTS decoder.

5.1CH ANALOG AUDIO OUT JACKS

• Connect to an amplifier with 5.1ch analog input jacks.

MIXED AUDIO OUT JACKS

• Connect to the Audio input jacks of your television, audio/video receiver, or VCR.

VIDEO OUT JACKS

• Use a video cable to connect one of these jacks to the Video input on your television.

S-VIDEO OUT JACK

• Use the S-Video cable to connect this jack to the S-Video jack on your television for a higher quality picture.

COMPONENT VIDEO OUT JACKS

• Use these jacks if you have a TV with Component Video in jacks.These jacks provide Pr, Pb and Y video. Along with SVideo, Component Video provides the best picture quality.

Rear Panel

DIGITAL AUDIO OUT JACK

• Use either an optical or coaxial digital cable to connect to a compatible Dolby Digital receiver. Use to connect to an A/V Amplifier that contains a Dolby Digital decoder or DTS decoder.

MIXED AUDIO OUT JACKS

• Connect to the Audio input jacks of your television, audio/video receiver, or VCR.

VIDEO OUT JACKS

• Use a video cable to connect one of these jacks to the Video input on your television.

S-VIDEO OUT JACK

• Use the S-Video cable to connect this jack to the S-Video jack on your television for a higher quality picture.

COMPONENT VIDEO OUT JACKS

• Use these jacks if you have a TV with Component Video in jacks.These jacks provide Pr, Pb and Y video. Along with SVideo, Component Video provides the best picture quality.

1110

A Tour of the Remote Control

A Tour of the Remote Control (ContÕd)

DVD Function Buttons

DVD POWER Button NUMBER Buttons OPEN/CLOSE Button SETUP Button

• Brings up the DVD player’s Setup menu.

ZOOM Button SEARCH Buttons

• Allows you to search forward/backward through a disc.

STOP Button STEP Button

• Advances playback one frame at a time.

RETURN Button

• Returns to a previous menu.

TOP MENU Button

• Access a title menu available on a disc.

AUDIO Button

• Use this button to access various audio

functions on a disc.

REPEAT Button

• Allows you to repeat play a title, chapter,

track, or disc.

TV POWER Button

• Use to set the remote to control a compati-

ble TV.

MODE Button

• Allows you to program a specific order.

3D SOUND Button BOOKMARK Button PLAY/PAUSE Button

• Begin/Pause disc play.

SKIP Buttons

• Use to skip the title, chapter, or track.

CLEAR Button

• Use to remove menus or status displays

from the screen.

DISC SKIP Button

• Use to skip a disc in order.

DISPLAY Button

• Displays the current disc mode.

MENU Button

• Brings up the Disc menu.

ENTER/DIRECTION Button (UP/DOWN or LEFT/RIGHT Button)

• This button functions as a toggle switch.

ANGLE Button

• Use to access various camera angles on a

DVD.

SUBTITLE Button A-B REPEAT Button

• Use to mark a segment to repeat between

A and B.

To Connect Headphones (not included)

Turn the headphone volume down to the minimum setting before connecting. Adjust to your desired volume after connection.

NOTE

This icon indicates an invalid button press.

TV Function Buttons

TV POWER Button TV/VIDEO Selection Button CHANNEL UP/DOWN Buttons VOLUME UP/DOWN Buttons

Install Batteries in the Remote

Open the battery cover on

the back of the remote.

Insert two AA batteries.

Make sure that the polarities (+ and -) are aligned correctly.

Replace the battery cover.

If remote doesn’t operate

properly:

• Check the polarity + - of the batteries (Dry-Cell)

• Check if the batteries are drained.

• Check if remote sensor is blocked by obstacles.

• Check if there is any fluorescent lighting nearby.

SETUP

1312

+ 15 hidden pages

Samsung DVD-C600-XAA User Manual

Safety Information

Care & Maintenance

TABLE OF CONTENTS

General Features

Disc Type and Characteristics

SETUP

A Tour of the Remote Control
