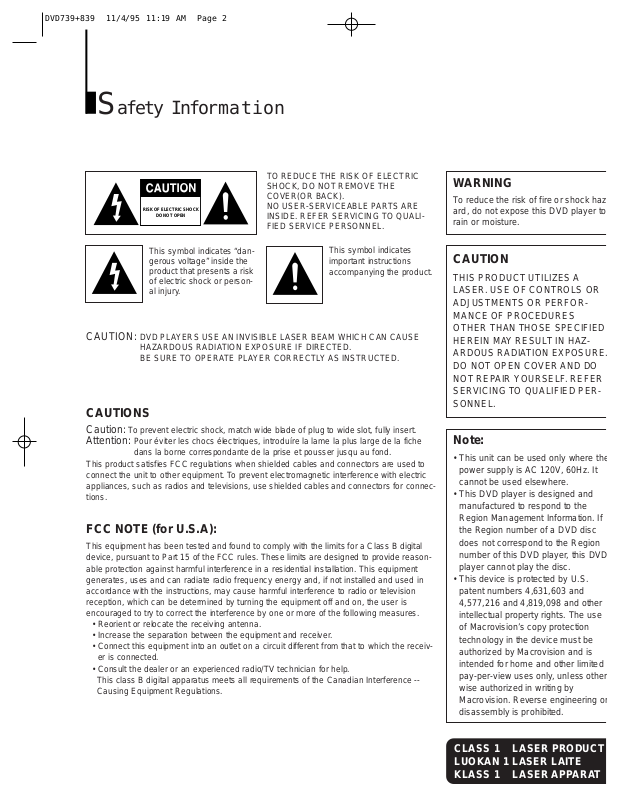

Safety Information
|
TO REDUCE THE RISK OF ELECTRIC |
|
SHOCK, DO NOT REMOVE THE |
|
COVER(OR BACK). |
RISK OF ELECTRIC SHOCK |
NO USER-SERVICEABLE PARTS ARE |
DO NOT OPEN |
INSIDE. REFER SERVICING TO QUALI- |
|
FIED SERVICE PERSONNEL. |
This symbol indicates “dan- |
This symbol indicates |
gerous voltage” inside the |
important instructions |
product that presents a risk |
accompanying the product. |
of electric shock or person- |
|
al injury. |
|
CAUTION: DVD PLAYERS USE AN INVISIBLE LASER BEAM WHICH CAN CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED.
BE SURE TO OPERATE PLAYER CORRECTLY AS INSTRUCTED.
CAUTIONS
Caution: To prevent electric shock, match wide blade of plug to wide slot, fully insert. Attention: Pour éviter les chocs électriques, introduíre la lame la plus large de la fiche
dans la borne correspondante de la prise et pousser jusqu au fond.
This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances, such as radios and televisions, use shielded cables and connectors for connections.
FCC NOTE (for U.S.A):
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures.
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect this equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
This class B digital apparatus meets all requirements of the Canadian Interference -- Causing Equipment Regulations.
WARNING
To reduce the risk of fire or shock haz ard, do not expose this DVD player to rain or moisture.
CAUTION
THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE DO NOT OPEN COVER AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.
Note:
•This unit can be used only where the power supply is AC 120V, 60Hz. It cannot be used elsewhere.
•This DVD player is designed and manufactured to respond to the Region Management Information. If the Region number of a DVD disc does not correspond to the Region number of this DVD player, this DVD player cannot play the disc.
•This device is protected by U.S. patent numbers 4,631,603 and 4,577,216 and 4,819,098 and other intellectual property rights. The use of Macrovision’s copy protection technology in the device must be authorized by Macrovision and is intended for home and other limited pay-per-view uses only, unless other wise authorized in writing by Macrovision. Reverse engineering o disassembly is prohibited.
CLASS 1 LASER PRODUCT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT
DVD739+839 11/4/95 11:19 AM Page 3
C are & Maintenance
For trouble free operation, follow the instructions shown below.
Handling
Cautions
•Before connecting other components to this player, be sure to turn them all off.
•Do not move the player while a disc is being played, or the disc may be scratched or broken, and the player’s internal parts may be damaged.
•Do not put a flower vase filled with water or any small metal objects on the player.
•Be careful not to put your hand into the disc tray.
•Do not place anything other than the disc in the disc tray.
•Exterior interference such as lightning and static electricity can affect normal operation of this player. If this occurs, turn the player off and on again with the POWER button, or disconnect and then reconnect the AC power cord to the AC power outlet. The player will operate normally.
•Be sure to remove the disc and turn off the player after use.
•Disconnect the AC power cord from the AC outlet when you don’t intend to use the player for long periods of time.
•Clean the disc by wiping in a straight line from the inside to the outside of the disc.
Disc
Storage
Be careful not to harm the disc because the data on these discs is highly vulnerable to the environment.
•Do not keep under direct sunlight.
•Keep in a cool ventilated area.
•Store vertically.
•Keep in a clean protection jacket.
Maintenance
of
Cabinet
For safety reasons, be sure to disconnect the AC power cord from the AC outlet.
•Do not use benzene, thinner, or other solvents for cleaning.
•Wipe the cabinet with a soft cloth.
Formation of Condensation
Accessories
Remote Control
Batteries for Remote Control (AA Size)
Video/Audio
Connection Cable
S-Video Cable
User’s Manual
Registration Card
Due to sharp changes in temperature and humidity, condensation may form if warm air comes in contact with any cold parts inside the player
•When condensation forms inside the player, the player may not operate correctly. If this occurs, leave the player at room temperature until t inside of the player becomes dry and operational.
•If condensation forms on a disc, wipe the disc with a soft and dry cloth by moving the cloth from the center hole toward the outer edge.
DVD739+839 11/4/95 11:19 AM Page 4
TABLE OF CONTENTS
DVD739+839 11/4/95 11:19 AM Page 5
Disc Features .......................................................... |
6 |
• Rear Panel (DVD-839) |
.............................................. |
1 |
||||
|
|
|
|
|||||
Disc Type and Characteristics ................................ |
7 |
• Rear Panel (DVD-739) |
................................................ |
|||||
|
|
|
|
1 |
||||
Description .............................................................. |
8 |
A Tour of the Remote Control |
.............................. |
1 |
||||
|
|
|||||||
• Front Panel (DVD-839) ................................................ |
8 |
• DVD Function Buttons |
.............................................. |
1 |
||||
|
|
|
|
|||||
• Front Panel (DVD-739) ................................................ |
9 |
• TV Function Buttons |
|
................................................ |
1 |
|||
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Choosing a Connection (DVD-839) ...................... |
14 |
Choosing a Connection (DVD-739) |
...................... |
1 |
||||
|
||||||||
• Connecting to a TV .................................................. |
14 |
• Connecting to a TV |
.................................................. |
1 |
||||
|
|
|
|
|
||||

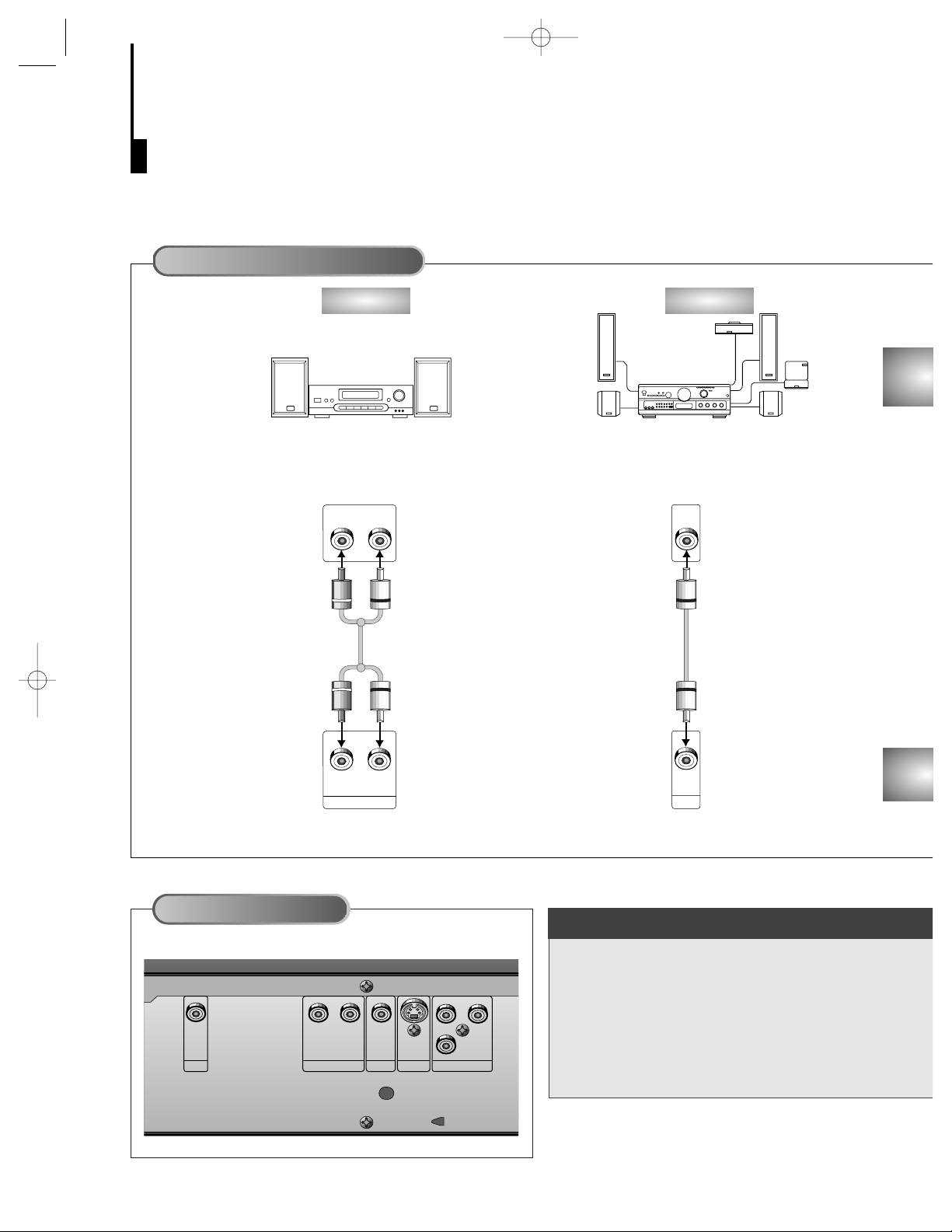

• Connecting to an Audio System .................................. |
15 |
• Connecting to an Audio System |
.................................. |
1 |
||||
|
|
|
Playing a Disc ...................................................... |
|
18 |
Repeat Play |
.......................................................... |
2 |
||
|
|
|
|
||||
Searching & Skipping through a Chapter or Track |
.... |
20 |
Using the A-B Repeat Function |
............................ |
2 |
||
|
|
|
|||||
Using the Display Function .................................. |
|
21 |
Program Playback in a Specific Order |
................ |
2 |
||
|
|
Using the Disc View Function .............................. |
25 |
Selecting the Desired Screen Angle |
.................... |
2 |
||
|
|
|||||
Selecting Audio .................................................... |
26 |
Using the Bookmark Function |
.............................. |
2 |
||
|
|
|
||||
Selecting the Subtitle Language .......................... |
27 |
Using the Zoom and 3D Sound Functions |
.......... |
3 |
||
|

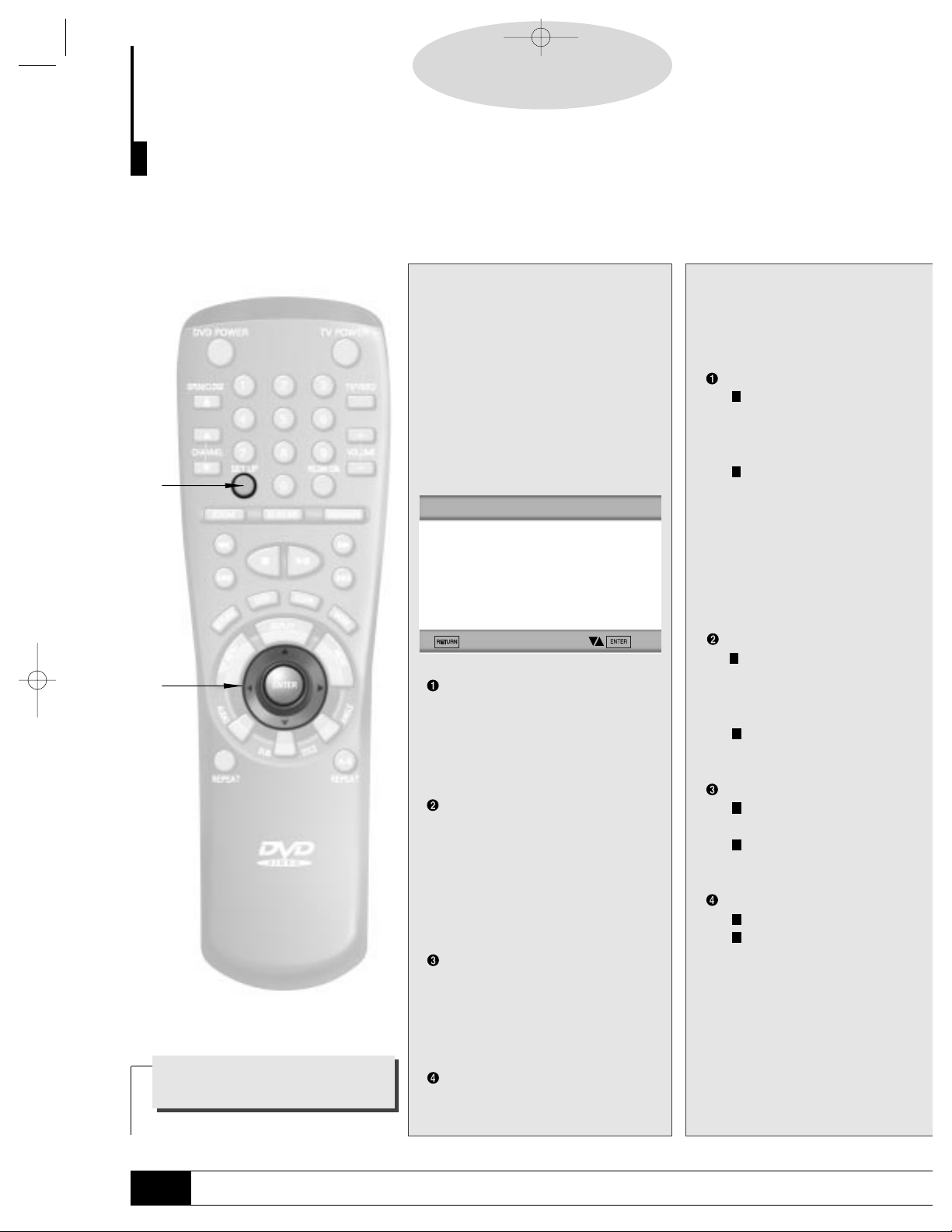

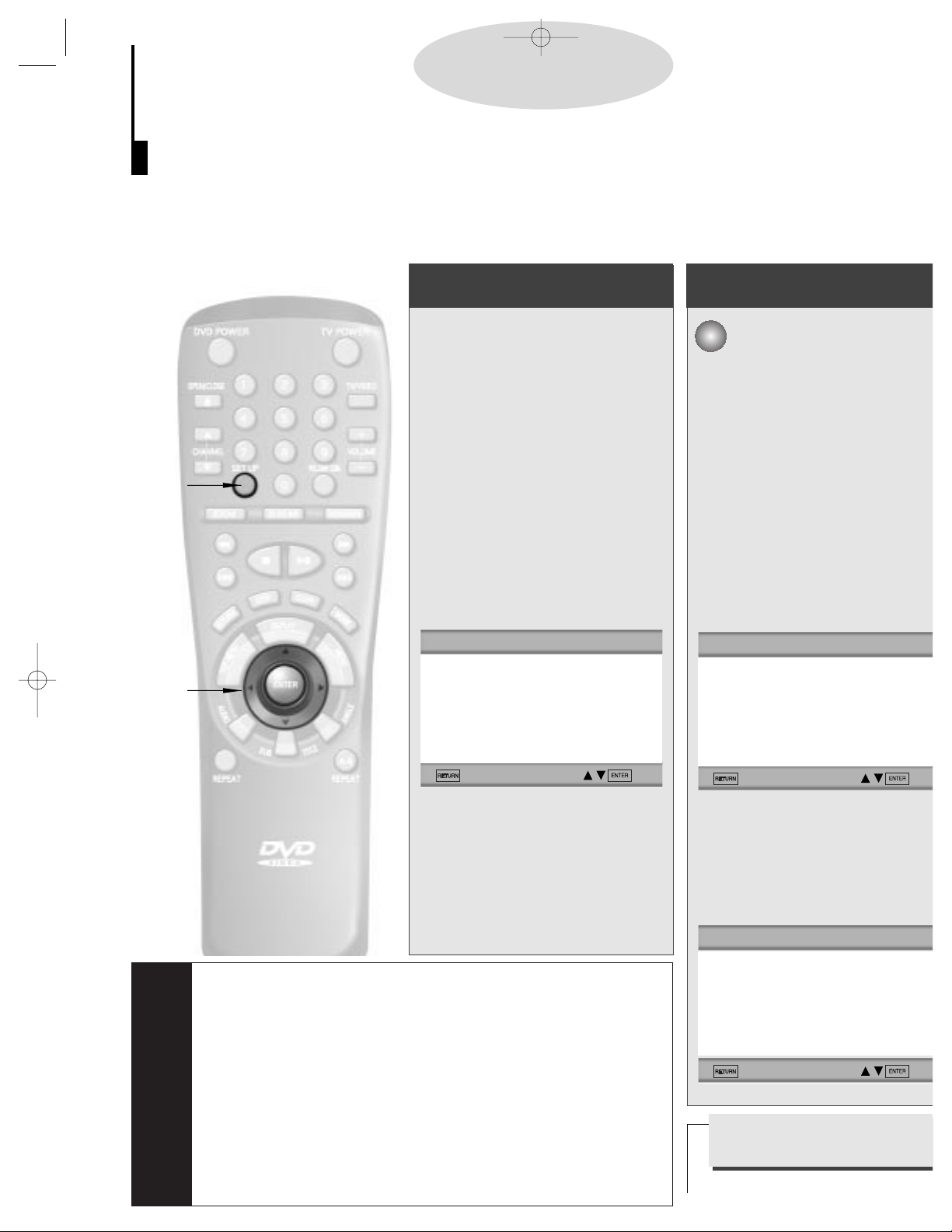

Using the Setup Menu .......................................... |
|
31 |
Setting Up Audio Options |
.................................... |
|
3 |
|||
Setting Up the Language Features ...................... |
32 |
Setting Up Display Options |
.................................. |
|
3 |
||||

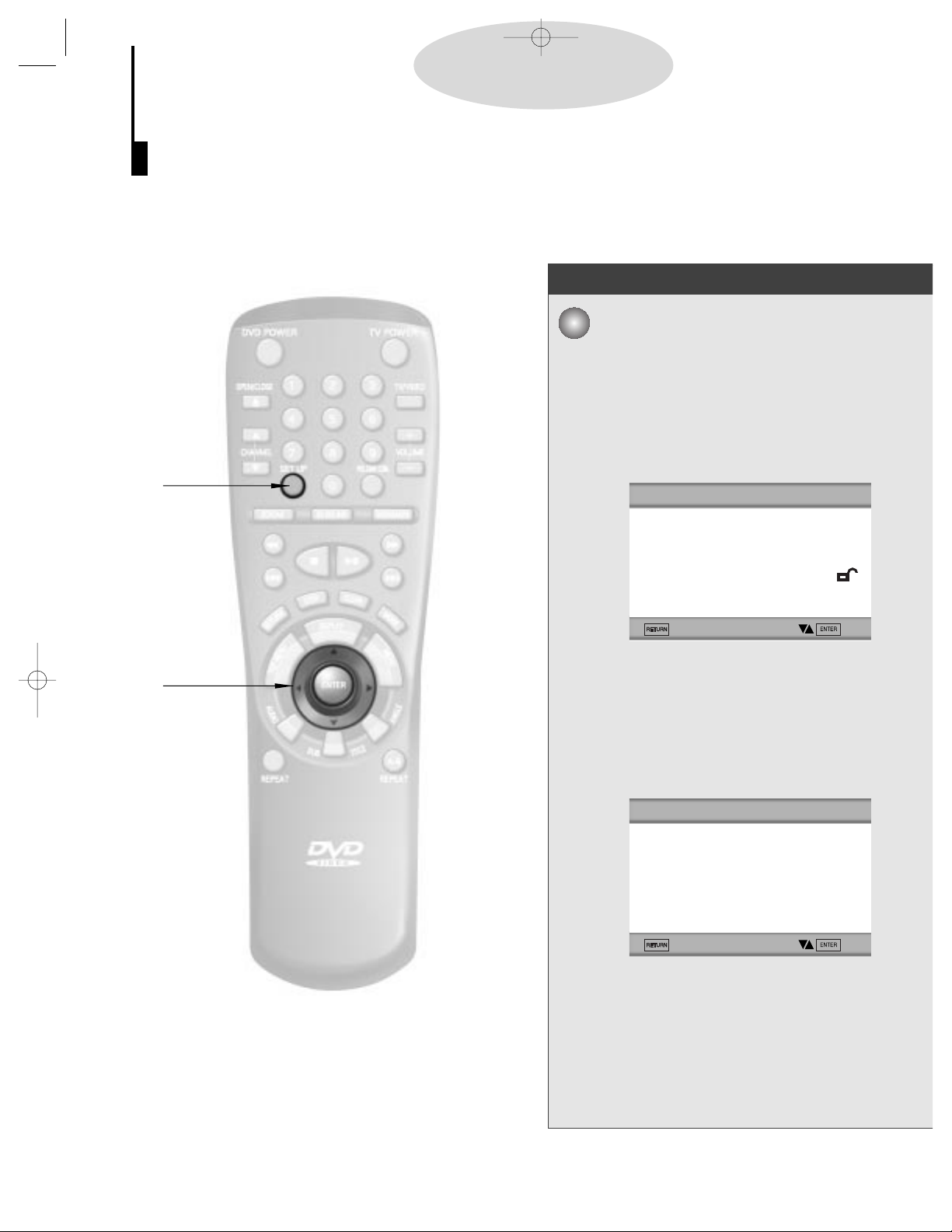

Setting Up the Parental Level |
.............................. |
34 |
|
|
|
|
|

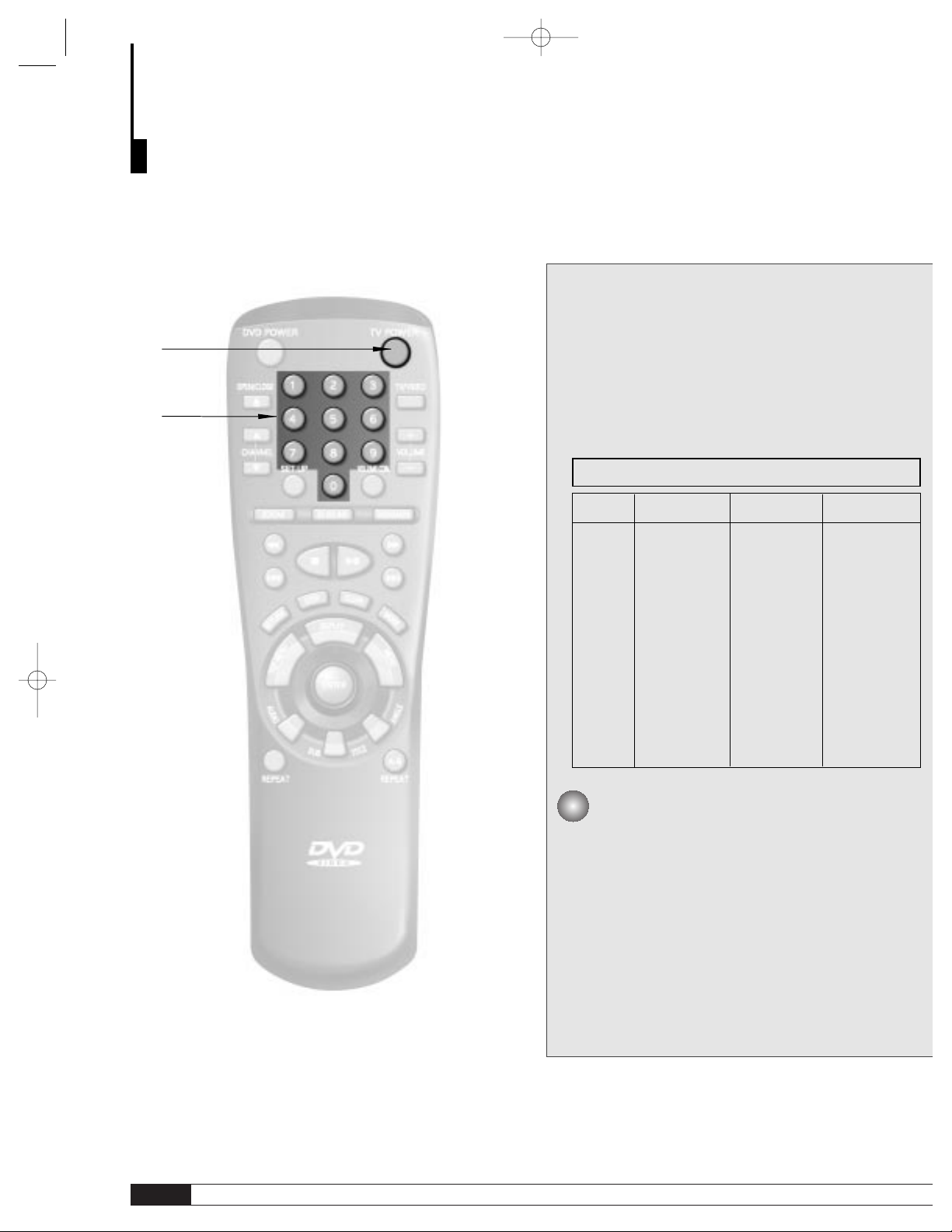

Controlling a TV with the Remote |
........................37 |
Specifications (DVD-739) |
.................................... |
4 |
|
|
|||||
Troubleshooting Guide .......................................... |
38 |
Warranty |
.............................................................. |
4 |
|
|
|
....................................39
DVD739+839 11/4/95 11:19 AM Page 6
D isc Features
Excellent Sound
The Dolby Digital system developed by Dolby Labs provides crystal clear sound reproduction.
Screen
Video with MPEG2 compression technology. Both regular and widescreen(16:9) pictures can be viewed.
Parental Level Control
The parental level control allows users to set the level necessary to prohibit children from viewing harmful movies such as those with violence, adult subject matter, etc.
Various On-Screen Menu Functions
You can select various languages(Audio/Subtitle) and screen angles while enjoying movies.
Slow Motion
An important scene can be viewed in slow motion.
Programmed Play
You
Repeat
You can repeat a song or movie simply by pressin the REPEAT button.
DVD-8
SKIP
STANDBY/ON
/ |
|
|
PHONE |
LEVEL |
OPEN/CLOSE/ |
SPATIALIZER
N-2-2
MIN MAX
DVD-739
|
SKIP |
STANDBY/ON |
DVD/VIDEO-CD/CD PLAYER DVD-739 |
/ |
OPEN// |
CLOSE |
|
24bit 96kHz AUDIO D/A CONVERTER |
SPATIALIZER |
N-2-2 |
COPY PROTECTION
•Many DVD discs are encoded with copy protection. Because of this, you should only connect your DVD player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected DVD discs.
•This product incorporates copyright protection technology that is protected by methods claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
DVD739+839 11/4/95 11:19 AM Page 7
D isc Type and Characteristics
This DVD player is capable of playing the following types of discs with the corresponding logos:
Disc Types |
|
Logos |
Recording |
Disc Size |
Max. |
|
|||
|
Playing |
Characteristics |
|||||||
|
Types |
||||||||
|
|
|
|
|
|
|
Time |
|
|
|
|
|
|
|
|
|
|
|
|
DVD |
|
|
|
|
|
|
|
Single-sided |
• DVD contains excellent sound and |
|
|
|
|
|
|
5 inches |
240 min. |
||
|
|
|
|
|
|
|
Double-sided |
video due to Dolby Digital and |
|
|
|
|
|
|
|
Audio |
|
||
|
|
|
|
|
|
|
480 min. |
MPEG2 system. |
|
|
|
|
|
|
|
+ |
|
|
|
|
|
|
|
|
|
|
Single-sided |
• Various screen and audio function |
|
|
|
|
|
|
|
Video |
|
||
|
|
|
|
|
|
|
80 min. |
can be easily selected through the |
|
|
|
|
|
|
|
|
31/2 inches |
||
|
|
|
|
|
|
|
Double-sided |
on-screen menu. |
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
160 min. |
|
VIDEO-CD |
|
|
|
|
|
|
5 inches |
74 min. |
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
Audio |
|
|
• Video with CD sound, VHS quality |
|
|
|
|
|
|
+ |
|
|
|
|
|
|
|
|
|
|
|
& MPEG1 compression technolog |
|
|
|
|
|
|
|
Video |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
31/2 inches |
20 min. |
|
|
|
|
|
|
|
|
|
|
|
AUDIO-CD |
|
|
|
|
|
|
5 inches |
74 min. |
• An LP is recorded as an analog si |
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
nal with more distortion. CD is |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Audio |
|
|
recorded as a Digital Signal with |
|
|
|
|
|
|
|
|
better audio quality, less distortion |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
31/2 inches |
20 min. |
and less deterioration of audio qu |
|
|
|
|
|
|
|
ity over time. |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
*DO NOT play CD-ROM, CD-I, CD-R and DVD-ROM in this player! (CDGs play audio only, not graphics.)
Disc Markings |
|
|
|
|
|
~ |
NTSC |
|
DIGITAL |
STEREO |
|
|
SOUND |
|
|||
• Playback Region Number |
• NTSC broadcast |
• Dolby Digital |
• Digital Audio |
• Stereo disc |
• DTS disc |
|
system in U.S.A, |
disc |
disc |
|
|
|
Canada, Korea, |
|
|
|
|
|
Japan, etc. |
|
|
|
|
Playback Region Number
Both the DVD player and the discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play.
The Region Number for this player is described on the rear panel of the player.
DVD739+839 11/4/95 11:20 AM Page 8
D escription-Front Panel DVD-839
SKIP
STANDBY/ON
/ |
|
|
PHONE |
LEVEL |
OPEN/CLOSE/ |
SPATIALIZER
N-2-2
MIN MAX
Front
Panel
Controls
STANDBY LAMP
•When the unit is first plugged in, the indi cator lights. When power is pressed on, the lamp goes out.
POWER ON/OFF
• Use to turn your player on and off (standby).
HEADPHONES JACK
•You can attach headphones here for private listening.
HEADPHONES VOLUME
• Use to adjust headphones volume level.
DISPLAY (See below)
• Operation indicators are displayed here.
DISC TRAY
•Press OPEN/CLOSE to open and close the disc tray.
GREEN LAMP
OPEN/CLOSE
• Press to open and close the disc tray.
SKIP/SEARCH
• Use to skip or search a scene or music.
PLAY/PAUSE
• Begin or pause disc play.
STOP
• Stops disc play.
SHUTTLE DIAL
• Performs fast or slow motion playback.
JOG DIAL
•Operates frame by frame playback. In C mode, performs track search.
To Connect Headphones (not included) (DVD-839 only)
Connect headphones with a standard stereo plug to the headphone jack (M6).
• Before connecting, set headphone volume at minimum. Then adjust to a suitable volume.
Front Display
DISC OPERATION ROTARY INDICAT OPERATION INDICATOR
DISC TYPE INDICATOR TRACK INDICATOR
3D SOUND INDICATOR ANGLE INDICATOR CHAPTER INDICATOR REPEAT INDICATOR
CHAPTER, TITLE, TRACK & MESSA INDICATOR
ALL REPEAT INDICATOR
A-B REPEAT INDICATOR PROGRAM PLAY INDICATOR MPEG INDICATOR
DOLBY DIGITAL INDICATOR LINEAR PCM INDICATOR DTS INDICATOR
DVD739+839 11/4/95 11:20 AM Page 9
D escription-Front Panel DVD-739
|
SKIP |
STANDBY/ON |
DVD/VIDEO-CD/CD PLAYER DVD-739 |
/ |
OPEN// |
CLOSE |
|
24bit 96kHz AUDIO D/A CONVERTER |
SPATIALIZER |
N-2-2 |
Front
Panel
Controls
STANDBY LAMP
•When the unit is first plugged in, the indi cator lights. When power is pressed on, the lamp goes out.
POWER ON/OFF
• Use to turn your player on and off (standby).
DISPLAY (See below)
• Operation indicators are displayed here.
DISC TRAY
•Press OPEN/CLOSE to open and close the disc tray.
GREEN LAMP
SKIP/SEARCH
• Use to skip or search a scene or music.
OPEN/CLOSE
• Press to open and close the disc tray.
PLAY/PAUSE
• Begin or pause disc play.
STOP
• Stops disc play.
Front
Display
DISC OPERATION ROTARY INDICAT OPERATION INDICATOR
DISC TYPE INDICATOR TRACK INDICATOR
3D SOUND INDICATOR ANGLE INDICATOR CHAPTER INDICATOR REPEAT INDICATOR
CHAPTER, TITLE, TRACK & MESSA INDICATOR
ALL REPEAT INDICATOR
A-B REPEAT INDICATOR PROGRAM PLAY INDICATOR MPEG INDICATOR
DOLBY DIGITAL INDICATOR LINEAR PCM INDICATOR DTS INDICATOR
DVD739+839 11/4/95 11:20 AM Page 10
D escription-Rear Panel DVD-839
R1 |
L1 |
V1 |
Pr |
Y |
R2 |
L2 |
V2 |
Pb |
OPTICAL COAXIAL
DIGITAL AUDIO OUT |
ANALOG AUDIO OUT |
VIDEO OUT S-VIDEO OUT |
COMPONENT VIDEO OUT |
Rear
Panel
DIGITAL AUDIO OUT JACK
•Use either an optical or coaxial digital cable to connect to an A/V Amplifier that contains a Dolby Digital decoder or DTS decoder.
ANALOG AUDIO OUT JACKS
•Connect to the Audio input jacks of your television, audio/video receiver, or VCR.
S-VIDEO OUT JACK
•Use the S-Video cable to connect this jack to the S-Video jack on your television for a higher quality picture.
COMPONENT VIDEO OUT JACKS
•Use these jacks if you have a TV with Component Video in jacks. These jacks provide Pr, Pb and Y video. Along with S- Video, Component Video provides the best picture quality.
VIDEO OUT JACKS
•Use a video cable to connect one of these jacks to the Video input on your television.
DVD739+839 11/4/95 11:20 AM Page 11
D escription-Rear Panel DVD-739
|
Pr |
Y |
R |
L |
|
|
Pb |
|
DIGITAL |
ANALOG AUDIO OUT |
VIDEO OUT S-VIDEO OUT |
COMPONENT VIDEO OUT |
AUDIOOUT |
Rear
Panel
DIGITAL AUDIO OUT JACK
•Use a coaxial digital cable to connect to an A/V Amplifier that contains a Dolby Digital decoder or DTS decoder.
ANALOG AUDIO OUT JACKS
•Connect to the Audio input jacks of your television, audio/video receiver, or VCR.
VIDEO OUT JACK
S-VIDEO OUT JACK
•Use the S-Video cable to connect this jack to the S-Video jack on your television for a higher quality picture.
COMPONENT VIDEO OUT JACKS
•Use these jacks if you have a TV with Component Video in jacks. These jacks provide Pr, Pb and Y video. Along with S- Video, Component Video provides the best picture quality.
•Use a video cable to connect this jack to the Video input on your television.
DVD739+839 11/4/95 11:20 AM Page 12
A Tour of the Remote Control
DVD
Function
Buttons
DVD POWER Button
NUMBER Buttons
OPEN/CLOSE Button
SETUP Button
• Brings up the DVD player’s Setup menu
ZOOM Button
SEARCH Buttons
• Allows you to search forward/backward through a disc.
STOP Button
STEP Button
• Advances playback one frame at a time.
RETURN Button
• Returns to a previous menu.
TOP MENU Button
• Accesses a music or video display direct
AUDIO Button
• Use this button to access various audio functions on a disc.
REPEAT Button
• Allows you to repeat play a title, chapter,
track, or disc.
TV POWER Button
• Use to set the remote to control a comp ble TV.
VOLUME CON. Button
• To control the master volume of the play
3D SOUND Button
BOOKMARK Button
PLAY/PAUSE Button
• Begin/Pause disc play.
SKIP Buttons
• Use to skip the title, chapter, or track.
CLEAR Button
• Use to remove menus or status displays from the screen.
MODE Button
• Allows you to program a specific order.
DISPLAY Button
• Displays the current disc mode.
MENU Button
• Brings up the Disc menu.
ENTER/DIRECTION Button (UP/DOWN or LEFT/RIGHT Button)
• This button functions as a toggle switch.
ANGLE Button
• Use to access various camera angles on DVD.
SUBTITLE Button
A-B REPEAT Button
•Use to mark a segment to repeat betwee A and B.
DVD739+839 11/4/95 11:20 AM Page 13

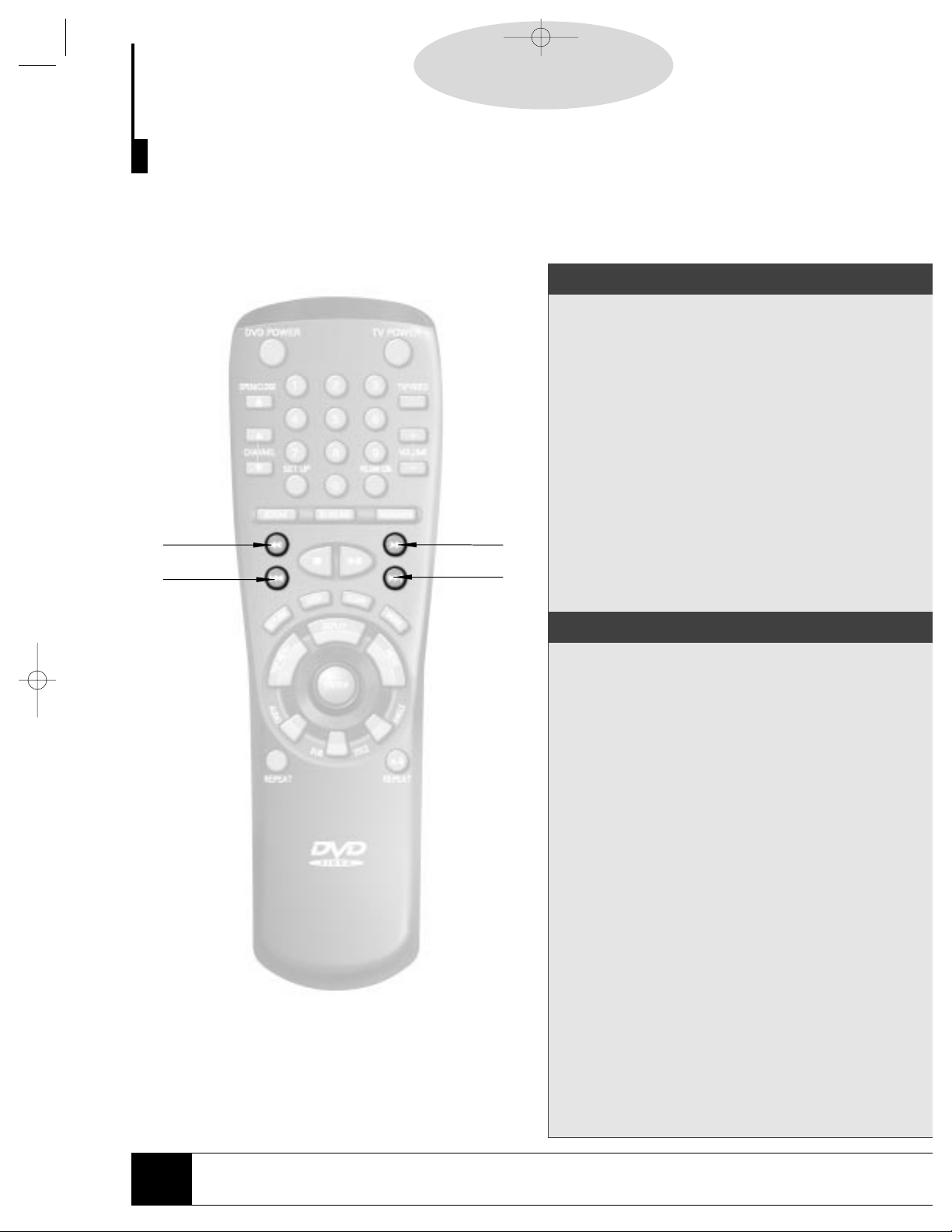

A Tour of the Remote Control (Cont d)
TV
Function
Buttons
TV POWER Button
TV/VIDEO Selection Button
CHANNEL UP/DOWN Buttons
VOLUME UP/DOWN Buttons
Install Batteries in the Remote
1. Open the battery cover on the back of the remote.
2. Insert two AA batteries. Make sure that the polarities (+ and -) are aligned correctly.
3. Replace the battery cover.
If remote doesn’t operate properly:
• Check the polarity + - of the batteries (Dry-Cell)
• Check if the batteries are drained.
• Check if remote sensor is blocked by obstacles.
• Check if there is any fluorescent lighting nearby.
NOTE |
This |
icon indicates an invalid button press. |
DVD739+839 11/4/95 11:20 AM Page 14

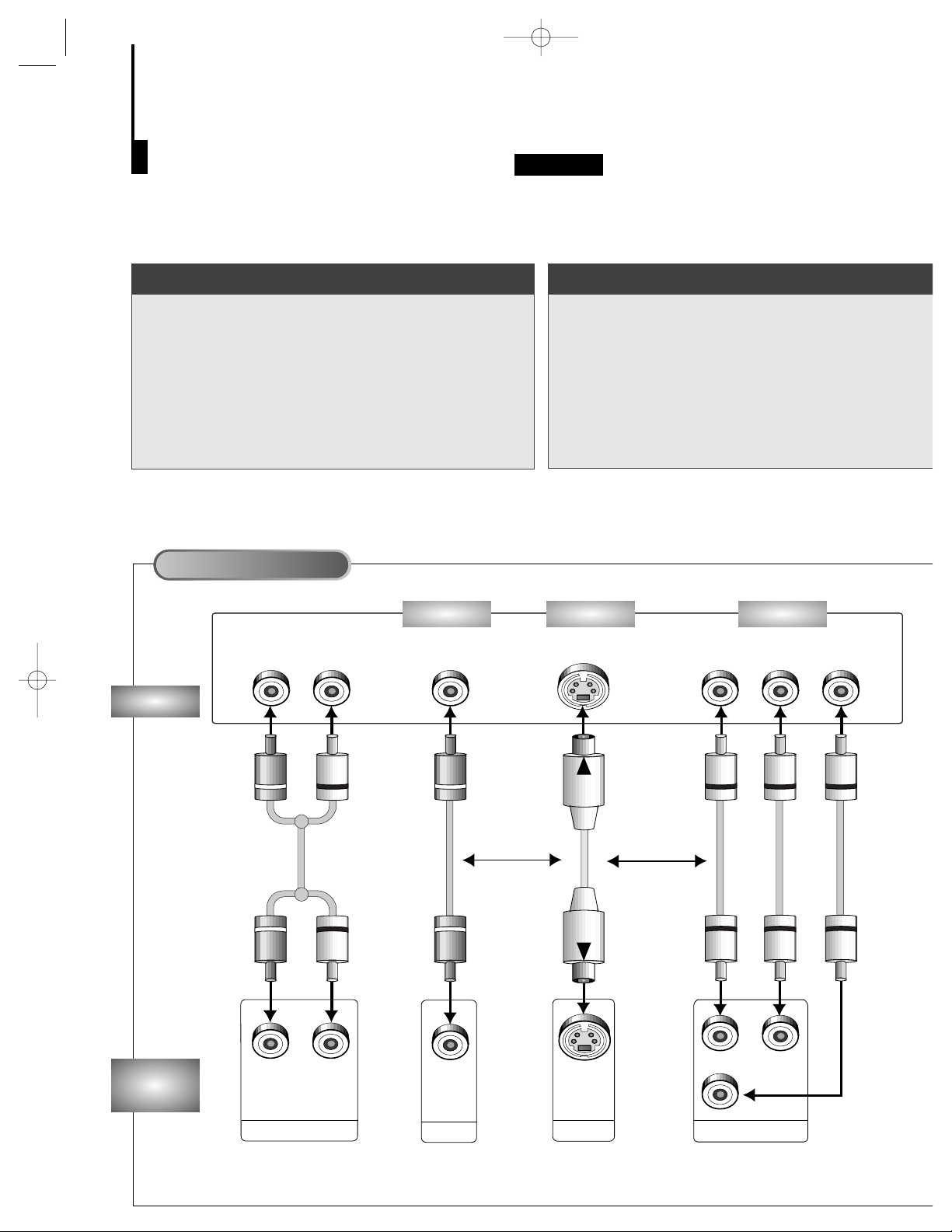

C hoosing a Connection DVD-839
The following show examples of connections commonly used to connect the DVD player with a TV and othe components.
Before Connecting the DVD Player
•Always turn off the DVD player, TV, and other components before you connect or disconnect any cables.
•Refer to owner’s manual of the components you are connecting for more information on those particular components.
Connecting
to
a
TV
Connecting to a TV (For Video)
•Method 1
DVD Player + TV with Video Input Jack
•Method 2
DVD Player + TV with S-Video Input Jack
•Method 3
DVD Player + TV with Component Video Jacks
TV (Normal, Widescreen, Projection, etc..)
|
|
|
Method 1 |
|
Method 2 |
|
Method 3 |
|
|
|
|
|
|
|
|
|
|
Audio Input Jacks |
Video Input Jack |
S-Video Jack |
Component Video Jacks |
|||||
R |
L |
|
|
|
|
Pr |
Y |
Pb |
TV
AV Cable |
S-Video Cable |
Video Cables |
(included) |
(included) |
(not included) |
|
OR |
OR |
DVD
PLAYER
R1 |
L1 |
R2 |
L2 |
ANALOG AUDIO OUT
Basic Audio
V1
V2 |
VIDEO OUT
Good picture
|
Pr |
Y |
|
Pb |
|
S-VIDEO OUT |
COMPONENT VIDEO OUT |
|
Better |
|
|
picture |
Best picture |
