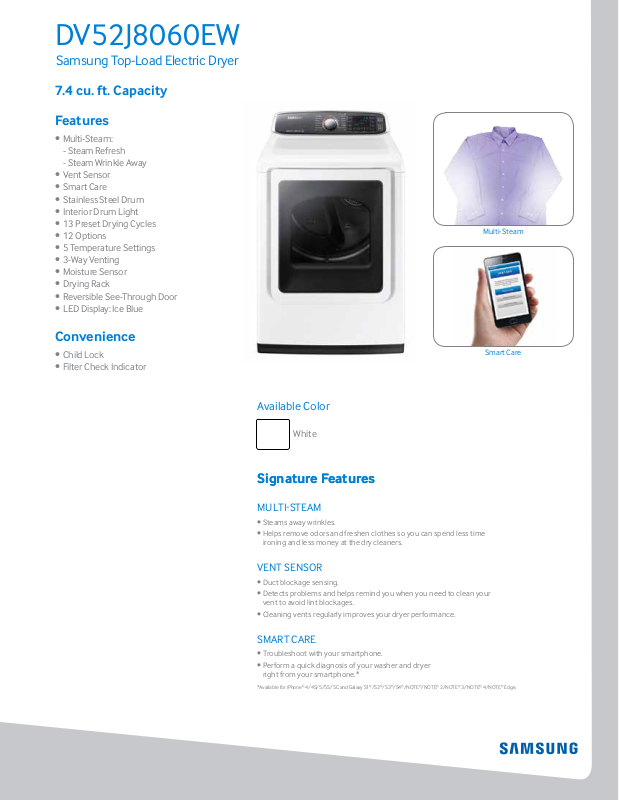

DV52J8060EW
Samsung Top-Load Electric Dryer
7.4 cu. ft. Capacity
Features
• Multi-Steam:
- Steam Refresh
- Steam Wrinkle Away
• Vent Sensor
• Smart Care
• Stainless Steel Drum
• Interior Drum Light
• 13 Preset Drying Cycles
• 12 Options
• 5 Temperature Settings
• 3-Way Venting
• Moisture Sensor
• Drying Rack
• Reversible See-Through Door
• LED Display: Ice Blue
Multi-Steam
Convenience
• Child Lock
• Filter Check Indicator
9.5 cu. ft. Capacity
Smart Care
Available Color
White
Signature Features
Signature Features
MULTI-STEAM
• Steams away wrinkles.
• Helps remove odors and freshen clothes so you can spend less time
ironing and less money at the dry cleaners.
VENT SENSOR
• Duct blockage sensing.
• Detects problems and helps remind you when you need to clean your
vent to avoid lint blockages.
• Cleaning vents regularly improves your dryer performance.
SMART CARE
• Troubleshoot with your smartphone.
• Perform a quick diagnosis of your washer and dryer
right from your smartphone.*
*Available for iPhone® 4/4S/5/5S/5C and Galaxy S1®/S2®/S3®/S4®/NOTE®/NOTE® 2/NOTE® 3/NOTE® 4/NOTE® Edge.
![](/html/aa/aaeb/aaeb5ca17305e9b76e907843fb6958733987b2331714763e0711b896fa7b8ce0/bg2.png)
DV52J8060EW
Samsung Top-Load Electric Dryer
Installing Your Dryer
Alcove or closet installation
Recessed Area Side View Confined
27"1" 1"
Minimum clearances for closets and alcoves:
Sides – 1"
Top – 17"
Rear – 5"
Closet Front – 2"
17"
2" 5"
The closet front must have two unobstructed
air openings for a combined minimum total area
of 72" with 3" minimum clearance on the top
and bottom. A louvered door with equivalent
space clearance is acceptable.
30"
48"*
24"*
Closet or Door
*Required spacing
(External exhaust elbow
requires additional space.)
7.4 cu. ft. Capacity
4-Way Venting
13 Preset Dry Cycles:
Steam Refresh, Multi-Steam™ Technology,
Steam Wrinkle Away, Normal, Eco Normal,
Heavy Duty, Permanent Press, Bedding, Delicates,
3"
Wool, Active Wear, Time Dry, Air Flu, Quick Dry
12 Options:
Mixed Load Bell, Wrinkle Prevent, Rack Dry,
Adjust Time (up), Adjust Time (down), My Cycle,
Child Lock, Sound On/O, Anti-Static, Eco Dry,
Smart Care, Drum Light
3"
5 Temperature Settings:
High, Medium, Medium Low, Low, Extra Low
5 Dry Levels:
Very Dry, More Dry, Normal Dry, Less Dry, Damp Dry
2 Signal Level Settings:
On/O
Warranty
One (1) Year All Parts and Labor
Two (2) Years Control Board
Dimensions
46" 46"
30"27"
Product Dimensions & Weight (WxHxD)
Dimensions: 27" x 46" x 30"
Weight: 125.7 lbs
Shipping Dimensions & Weight (WxHxD)
Dimensions: 291/2" x 483/16" x 313/16"
Weight: 139.0 lbs
Electric Model # UPC Code
White DV52J8060EW 887276075433
Gas
White DV52J8060GW 887276075440
Matching Washer
White WA52J8060AW 887276074399
Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.
The Emerging Technology award recognizes innovative products that have the potential to signicantly reduce greenhouse gas emissions.
©2015 Samsung Electronics America, Inc. 85 Challenger Road, Ridgeeld Park, NJ 07660. Tel: 800-SAMSUNG. samsung.com. Samsung is a registered trademark of Samsung Electronics Co. Ltd.
