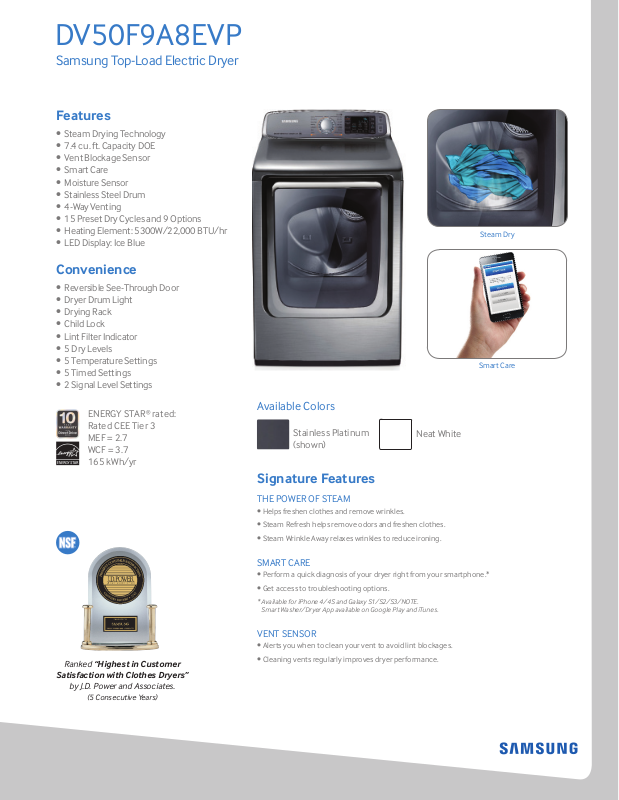

Samsung DV50F9A8EVP-A2 Specification

DV50F9A8EVP

Samsung Top-Load Electric Dryer

Features

• Steam Drying Technology

• 7.4 cu. ft. Capacity DOE

• Vent Blockage Sensor

• Smart Care

• Moisture Sensor

• Stainless Steel Drum

• 4-Way Venting

• 15 Preset Dry Cycles and 9 Options

• Heating Element: 5300W/22,000 BTU/hr

• LED Display: Ice Blue

Convenience

• Reversible See-Through Door

• Dryer Drum Light

• Drying Rack

• Child Lock

• Lint Filter Indicator

• 5 Dry Levels

• 5 Temperature Settings

• 5 Timed Settings

• 2 Signal Level Settings

Steam Dry

Smart Care

ENERGY STAR® rated: Rated CEE Tier 3 MEF = 2.7 WCF = 3.7 165 kWh/yr

Ranked “Highest in Customer

Satisfaction with Clothes Dryers”

by J.D. Power and Associates.

(5 Consecutive Years)

Available Colors

Stainless Platinum (shown)

Neat White

Signature Features

THE POWER OF STEAM

• Helps freshen clothes and remove wrinkles.

• Steam Refresh helps remove odors and freshen clothes.

• Steam Wrinkle Away relaxes wrinkles to reduce ironing.

SMART CARE

• Perform a quick diagnosis of your dryer right from your smartphone.*

• Get access to troubleshooting options.

* Available for iPhone 4/4S and Galaxy S1/S2/S3/NOTE.

Smart Washer/Dryer App available on Google Play and iTunes.

VENT SENSOR

• Alerts you when to clean your vent to avoid lint blockages.

• Cleaning vents regularly improves dryer performance.

DV50F9A8EVP

Samsung Top-Load Electric Dryer

Installing Your Dryer

Alcove or closet installation

Recessed area Side-view conned Closet or door

17"

1" 1"

27"

2" 5"

30"

29-3/8"

Minimum clearances for closets and alcoves:

Sides – 1" Top – 17" Rear – 5" Closet front – 2"

If the washer and dryer are installed together, the closet front must have at least a 72 in (465 cm) unobstructed air opening. Your washer alone does not require a specic air opening.

48"*

24"*

* Required spacing.

(External exhaust elbow requires additional space)

7.4 cu. ft. Capacity DOE

Stainless Steel Drum

4-Way Venting

15 Preset Dry Cycles:

Refresh, Steam Sanitize, Wrinkle Away, Normal, Heavy Duty, Towels, Permanent Press, Bedding, Delicates, Jeans, Sanitize, Time Dry, Air Flu, Quick Dry, Rack Dry

9 Options:

Mixed Load Bell, Wrinkle Prevent, Adjust Time, My Cycle, Child Lock, Signal On/O, Anti Static, Small Load Care, Drum Light, Smart Care

5 Dry Levels:

Very Dry, More Dry, Normal Dry, Less Dry, Damp Dry

5 Temperature Settings:

High, Medium, Medium Low, Low, Extra Low

5 Timed Settings:

60 min., 50 min., 40 min., 30 min., 20 min.

2 Signal Level Ssettings:

On/O

Dimensions

27"

44-3/4"

29-3/8"

30"

44-3/4"

Warranty

One (1) Year All Parts and Labor Two (2) Years Control Board

Product Dimensions & Weight (WxHxD)

Dimensions: 27" x 443/4" x 30" Weight: 128.2 lbs

Shipping Dimensions & Weight (WxHxD)

Dimensions: 291/2" x 47" x 311/8" Weight: 139.6 lbs

Electric Model # UPC Code

Stainless Platinum DV50F9A8EVP 887276018461 Neat White DV50F9A8EVW 887276018003

Gas Model # UPC Code

Stainless Platinum DV50F9A8GVP 887276018713 Neat White DV50F9A8GVW 887276018010

Matching Washer

Stainless Platinum WA50F9A8DSP 887276018140 Neat White WA50F9A8DSW 887276017860

Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.

Samsung received the highest numerical score for clothes washers in the proprietary J.D. Power and Associates 2009-2012 Laundry Appliance Study.SM 2012 study based on 9,339 total responses measuring 12 brands and measures opinions of consumers about their washer obtained new in the past 24 months. Proprietary study results are based on experiences and perceptions of consumers surveyed in January–February 2012. Your experiences may vary. Visit jdpower.com.
